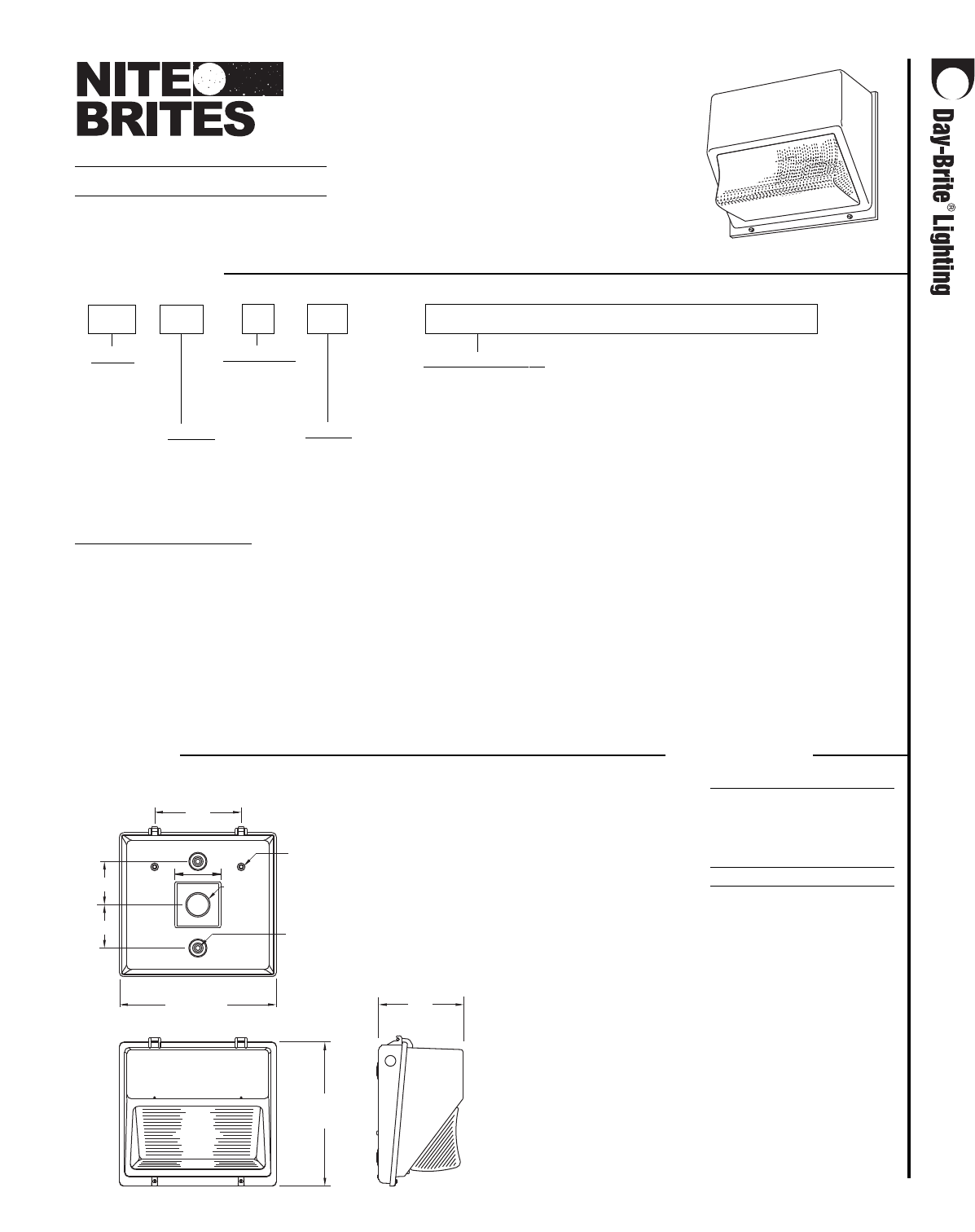

WLM-MEDIUM WALL LIGHT

50-175 watt Metal Halide

50-150 watt High Pressure Sodium

The Medium Wall Light is ideal for general and

security lighting in areas requiring light at

intermediate mounting heights. Use for exterior

applications such as retail buildings, residential

complexes, educational facilities, hotels, tunnels,

underpasses, warehouses and industrial

applications.

ORDERING MATRIX

Footnotes:

1

Metal Halide only.

5

DT only.

13

Order Twist Lock Photo Control separately.

32

Not available in 70 watt Metal Halide.

34

Available in 150W High Pressure Sodium and below.

40

Requires 120 volt secondary power supply.

45

Use with 208, 240 and 480 volt.

46

Use with 120, 277 and 347 volt.

General Notes:

All options are factory installed.

Medium Base lamp: 50-150 watt.

Mogul Base lamp: 175 watt.

All accessories are field installed.

Warning: Refer to and follow the lamp manufacturer’s

warnings and instructions.

WATTAGE

050 - 50 MED5

070 - 70 MED

100 - 100 MED

150 - 150 MED

175 -175 MOG1

FIXTURE

WLM

LAMP SOURCE

M- Metal Halide

S- High Pressure

Sodium

VOLTAGE

12 - 120

20 - 208

24 - 240

27 - 277

34 - 347

48 - 48032

DT -120/277

MT - 120/208

240/277

–

WLM-MEDIUM WALL LIGHT

OPTIONS (add as suffix)

CUL - UL Listing to meet

CSA standards

HR - Hot Restrike34

LP - Lamp with fixture

PCR - Photo Control

Receptacle13

PE - Photo Control (not

available in 480V)

Q- Quartz Standby

QEM -Quartz Emergency40

QTD - Quartz Time Delay

WDF - Wired Double Fuse45

WSF - Wired Single Fuse46

SAMPLE CATALOG NUMBER: WLM175MMT-LP

WL-43020.1

4-1/4"

2" K.O.

8"

4"

4"

FOR POLE MOUNT

.44" DIA. K.O. (2)

.44" DIA. K.O. (2)

FOR WALL MOUNT

8"

(203.2 mm)

13-1/4"

(336.6 mm)

14-1/2"

(368.3 mm)

DIMENSIONS ENERGY DATA

WLM

WEIGHT = 25 lbs. (max.)

JOB NAME

TYPE

ACCESSORIES (order separately)

FDF - Double Fuse Holder only

FSF -Single Fuse Holder only

GSWLM - Glare Shield

VCWLM - Cutoff Visor

VSWLM - Vandal Shield

WGWLM - Wire Guard

PC-MT - Photo Control Twist Lock multi-volt

PC-48 - Photo Control Twist Lock 480 volt

PCR-SC - PCR Shorting Cap

WLS-PEC12 - Photo Control 120 volt

WLS-PEC27 - Photo Control 208-277 volt

WLL-PMK - Pole Mounting Kit

PEC-MT - Photo Control multi-volt

PEC-48 - Photo Control 480 volt

TP - Tamper Proof

HIGH PRESSURE SODIUM

HX BALLAST INPUT WATTS

50 watt–66 watts

70 watt–91 watts

100 watt–130 watts

150 watt–188 watts

METAL HALIDE

HX BALLAST INPUT WATTS

50 watt–72 watts

70 watt–90 watts

100 watt–129 watts

150 watt–189 watts

CWA BALLAST INPUT WATTS

175 watt–210 watts

(For additional descriptions of Wall Light accessories

refer to sheet number OA-50030.)

UL1598 Listed for wet location, 25°C ambient,

and feed-through wiring for all lamp wattages

listed.

1. Heavy duty two piece die cast aluminum

housing is top hinged for ease of

maintenance. Two captive stainless steel

door fasteners.

2. All electrical components in front housing

with quick disconnect for ease of installation

and service. Lightweight back plate is easily

attached to wall, and quick disconnect eases

front housing installation.

3. 3/4" threaded conduit top entry with plug,

and 3/4" knock outs on each side for

surface conduit entry.

4. Computer designed and precision formed

specular aluminum reflector.

5. Gaskets are long lasting silicone rubber.

6. Clear prismatic borosilicate glass refractor is

thermal and shock resistant.

7. Dark bronze polyester powder finish for

excellent impact, corrosion, and UV

resistance.

3321012

1

2

3

4

2fc

1fc

.5 fc

.2 fc

.1fc

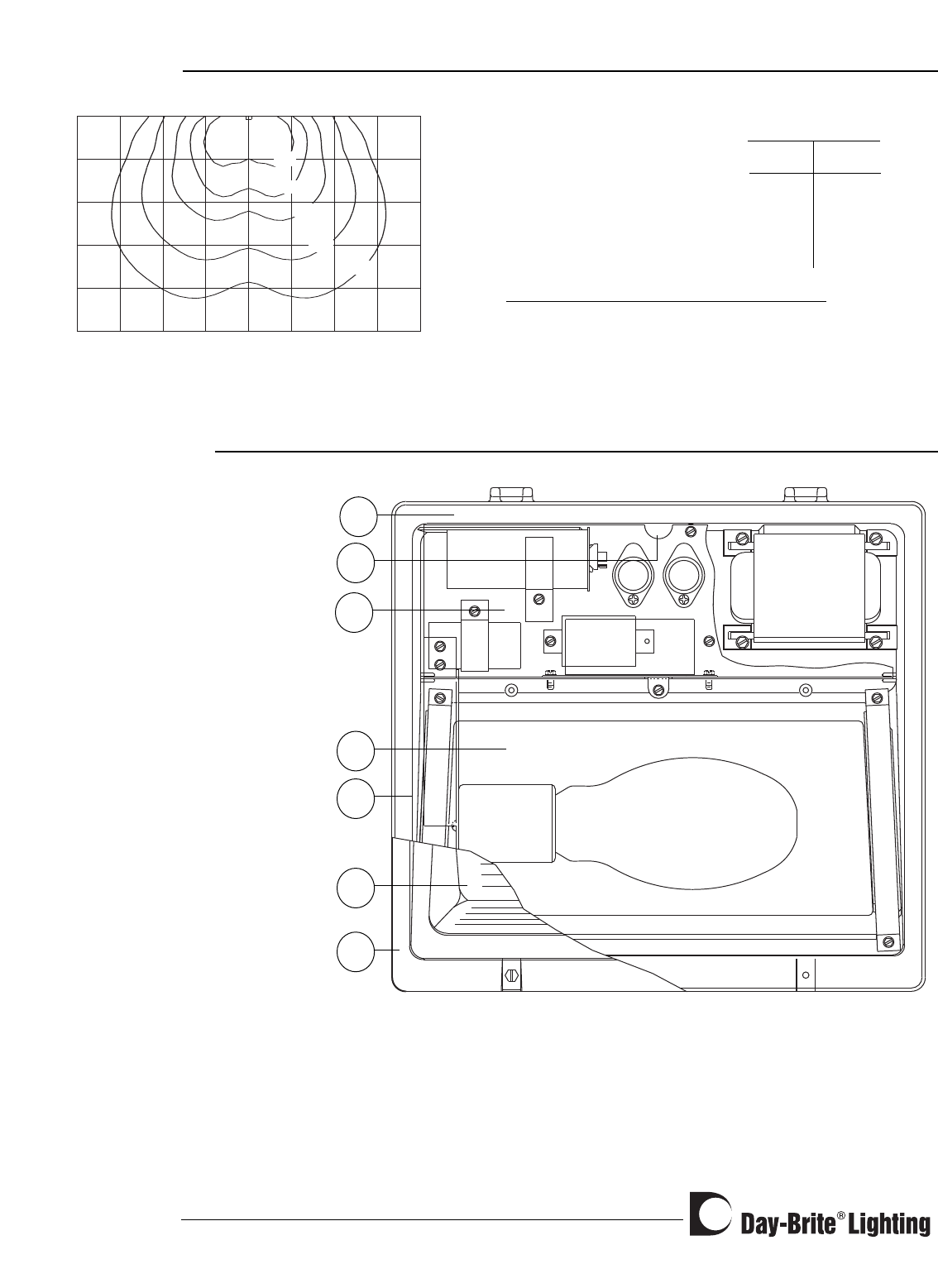

PHOTOMETRICS

WL-43020.1

PRODUCT FEATURES

1

2

3

4

5

6

7

ADDITIONAL TEST NUMBERS

DESCRIPTION/CATALOG NUMBER TEST NUMBER

WLM150M 15132

WLM150S 15129

WLM100S 15130

CATALOG NUMBER: WLM175M

TEST NUMBER: 15124

LAMP: METAL HALIDE

WATTAGE: 175

LUMENS: 14,000

TILT ANGLE: 0°

MOUNTING HEIGHT: 15 FEET

MOUNTING

HEIGHT

25'

20'

15'

12'

10'

8'

MULTIPLIER

0.36

0.56

1.00

1.56

2.25

3.52

LIGHT LEVEL

MULTIPLYING FACTORS

UNITS SHOWN IN TERMS OF MOUNTING HEIGHT

INITIAL FOOTCANDLES SHOWN

Visit our web site at www.daybritelighting.com

776 South Green Street Tupelo, MS 38804 Phone: 662-842-7212 Fax: 662-841-5501

189 Bullock Drive Markham, Ontario Canada L3P 1W4 Phone: 905-294-9570 Fax: 905-294-8911

Day-Brite Lighting reserves the right to make changes without notice.©February 2005. DL.5M0205

Day-Brite Lighting is a Genlyte Thomas Group.
