AMP Standard Terminals and Splices
2
Catalog 82042 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 54-11-4733-2015
Revised 07-08 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
specified. Values in brackets are Specifications subject Mexico: 01-800-733-8926 Japan: 81-44-844-8013
www.tycoelectronics.com equivalent U.S. Customary Units. to change. C. America: 52-55-5-729-0425 UK: 44-8706-080208
Need more information?
Call Technical Support:
1-800-522-6752
The Center is staffed with special-
ists well versed in Tyco Electron-
ics products. They can provide
you with:
Technical Support•
Catalogs•
Technical Documents•
Product Samples•
©1977, 1980, 1982, 1985, 1986, 1988,
1995, 2000 and 2008 by Tyco Electron-
ics Corporation. All Rights Reserved.
AMP, AMP-O-LECTRIC, AMPOMATOR,
TETRA-CRIMP, AMP-TAPETRONIC,
AUTO-PRO, CERTI-SEAL, DYNA-CRIMP,
FASTON, PIDG, PLASTI-GRIP, PRO-
CRIMPER, SHUR-PLUG, TERMINYL,
T-HEAD, TE logo and Tyco Electronics
are trademarks.
Product Facts
Solderless terminals and
splices performs up to
today’s standards for reli-
able termination in
applications ranging from
control circuits to heavy
duty power wiring
This catalog describes
only standard terminals
and splices accommodat-
ing wire sizes from 26
AWG through 4/0 AWG
These terminals are pre-
insulated and color coded
by wire size for easy iden-
tification
Funnel entry on many ter-
minals allows for easy
wire insertion for high
speed production
Nylon or vinyl insulation
provides high dielectric
strength
The serration or dimple
feature inside the terminal
barrel provides excep-
tional barrel contact and
tensile strength
Special plating process
creates a high resistance
to corrosion
Use of AMP application
tooling is designed for
uniform high quality ter-
minations
UL, CSA, Military
Approved
Table of Contents
Introduction .................................................................................2, 3
Performance Specifications ................................................. 4, 5
Terminal Stud Hole Sizes ........................................................... 6
PIDG (Pre-Insulated Diamond Grip) .................................7-32
Terminals ................................................................................. 8-30
Splices .....................................................................................31, 32
PIDG FASTON......................................................................... 33-36
Terminals .............................................................................. 34, 35
Splices ...........................................................................................36
PLASTI-GRIP ............................................................................37-52
Terminals ...............................................................................38-49
Splices ....................................................................................50-52
TERMINYL ................................................................................ 53-56
Terminals .............................................................................. 54, 55
Splices ...........................................................................................56
CERTI-SEAL ............................................................................ 57, 58
Splices and Tooling ..................................................................58
Class 1 and Class 2 Military Approvals .......................59- 65
Tooling ......................................................................................66-70
Part Numerical Index ............................................................71-73
Global Contacts ........................................................................... 74
Numerical values
To convert U.S. customary unit values in this catalog to
their metric equivalents, use the following formulas:
To convert from to Multiply by
inch millimeter (mm) 2.540000 x 10
inch metre (m) 2.540000 x 10-2
inch centimeter (cm) 2.540000
foot metre (m) 3.0480000 x 10-1
pound-force newton (N) 4.448222
bar pascal (Pa) 1.000000 x 105
pound-force/inch2 pascal (Pa) 6.894757 x 103
pound-mass kilogram (kg) 4.535924 x 10-1
ounce-mass kilogram (kg) 2.834952 x 10-2
To convert wire size (AWG) to the equivalent metric value using the
circular mil area of the wire, use the following formula:
circular mil area (CMA)/1550.003 = square millimeter (mm2)
Note: Dimensions in this catalog are for reference purposes only. Customer
drawings are available on request.
Specifications subject to change. Consult Tyco Electronics for latest design
specifications.
Table of Contents
Return to digikey.com
3
AMP Standard Terminals and Splices
Catalog 82042 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 54-11-4733-2015
Revised 07-08 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
specified. Values in brackets are Specifications subject Mexico: 01-800-733-8926 Japan: 81-44-844-8013
www.tycoelectronics.com equivalent U.S. Customary Units. to change. C. America: 52-55-5-729-0425 UK: 44-8706-080208

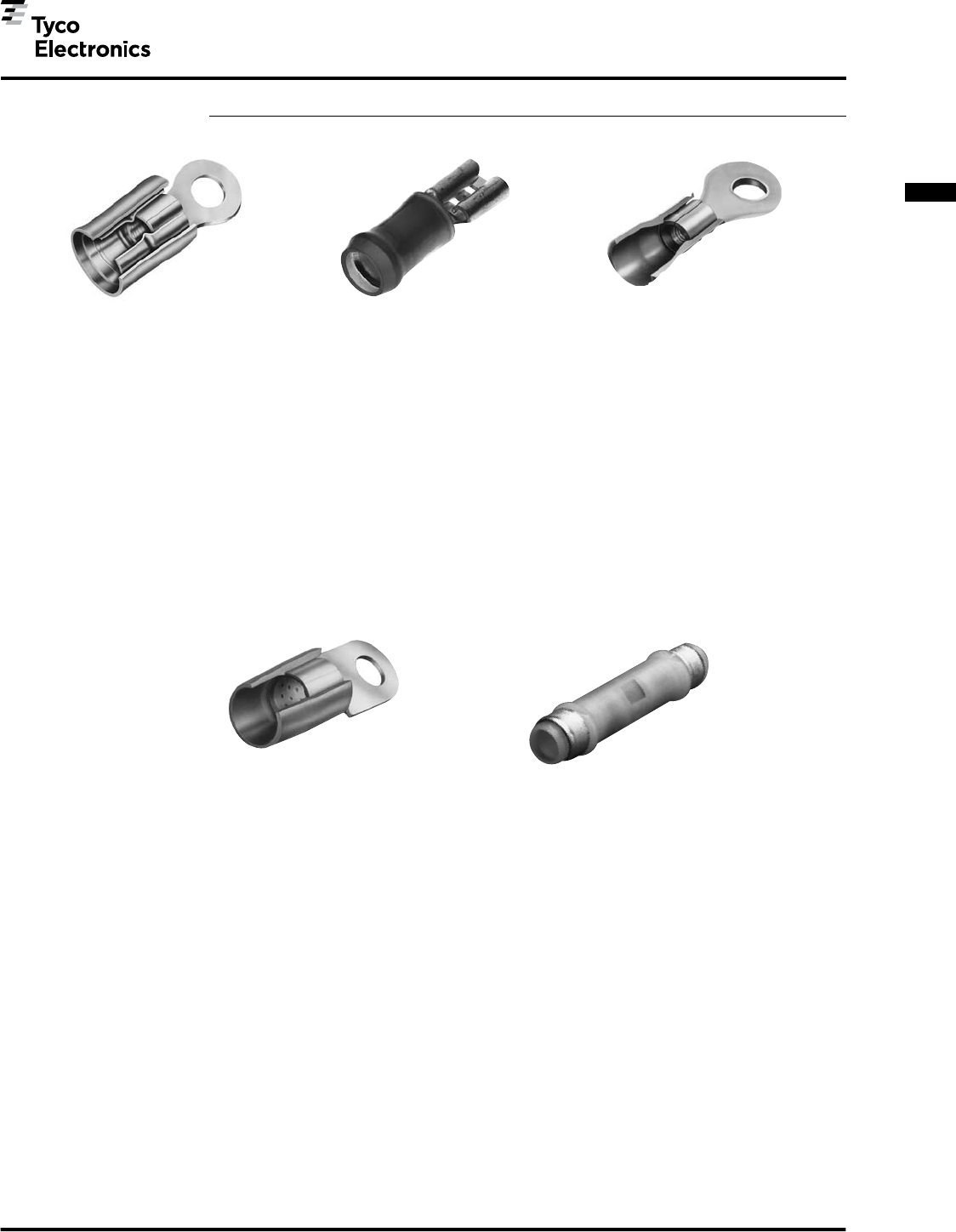

Terminals and Splices
Terminals and Splices
PIDG Terminals and Splices
Page 7
(Insulation Restricting
Terminals also)
PIDG FASTON Terminals and
Splices Page 33
(Insulation Restricting
Terminals also)
PLASTI-GRIP Terminals and
Splices Page 37
TERMINYL Terminals and
Splices
Page 53
CERTI-SEAL Splices
Page 57
Return to digikey.com
AMP Standard Terminals and Splices
4
Catalog 82042 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 54-11-4733-2015
Revised 07-08 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
specified. Values in brackets are Specifications subject Mexico: 01-800-733-8926 Japan: 81-44-844-8013
www.tycoelectronics.com equivalent U.S. Customary Units. to change. C. America: 52-55-5-729-0425 UK: 44-8706-080208
Terminals and Spices (Continued)
Terminals and Splices
Ordering Information
This catalog is designed for
easy selection of terminal
type to meet your needs. All
terminals and splices are
cataloged by tongue type
and wire size.
If the part number is known,
refer to the numerical index
at the back of this catalog for
page location of tabular
information. In many
instances the part is available
in loose piece as well as tape
mounted. FASTON terminals
are available in strip form.
When ordering tape mounted
parts, specify the terminal or
splice part number, the total
quantity of parts required,
the part number of the
tooling to be used and the
type of packaging desired (if
applicable). The table shown
at top right, lists the wire
sizes available and the
quantity per package for
tape mounted and loose
piece.
Insulated terminals and
splices are color coded to
indicate wire range and to
help match the terminal with
the appropriate tool. The
table shown at right identifies
the specific wire range
insulation color.
Standard Packaging Quantities
Wire Size Range Packaging Quantity Tape Mounted
AWG Loose Piece
26-22 1M/Box 2,500/Reel
22-14 1M/Box 5,000/Reel
16-14 H.D. 500/Box 2,500/Reel
12-10 500/Box 2,500/Reel
8 thru 4 100/Box —
2 thru 4/0 50/Box —
Note: Package quantities may vary with specific part numbers.
Insulation Color Code
Insulation Wire Size Range Comments
Color Code AWG
Yellow 26-22 —
Transparent 24-20 —
Red 22-16 —
Blue 16-14 —
Yellow/Black 16-14 Heavy Duty
Yellow 12-10 —
Red 8 —
Blue 6 —
Yellow 4 —
Red 2 —
Blue 1/0 —
Yellow 2/0 —
Red 3/0 —
Blue 4/0 —
Terminals and Splices
Performance
Specifications
For detailed test information and product specifications, request appropriate report or refer
to the applicable specification listed in the following table.
Product Type Test Report Number Application Specification
PIDG Terminals 501-31 MIL-T-7928
Nylon Insulation
PIDG
Insulation Restriction GPR-575-69 MIL-T-7928/1
Terminals 110-236
PIDG FASTON Terminals — UL310
PLASTI-GRIP Terminals 110-11514 UL486
TERMINYL Terminals 110-178 MIL-T-7928
CERTI-SEAL Terminals — —
Return to digikey.com
5
AMP Standard Terminals and Splices
Catalog 82042 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 54-11-4733-2015
Revised 07-08 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
specified. Values in brackets are Specifications subject Mexico: 01-800-733-8926 Japan: 81-44-844-8013
www.tycoelectronics.com equivalent U.S. Customary Units. to change. C. America: 52-55-5-729-0425 UK: 44-8706-080208
Terminal and Splices Performance Specifications (Continued)
Terminals and Splices
The many millions of AMP
terminals and splices that
have given ten, fifteen and
twenty years of service are
ample proof of the testing
and research that went into
their design and
manufacturing. Like all AMP
solderless wiring devices,
they are thoroughly tested to
conform to standards of
performance under heavy
usage. Tests conducted in
Tyco Electronics laboratories
and research facilities, some
of the best-equipped in their
field, indicate that these
terminals and splices meet or
exceed applicable industrial
requirements and military
specifications. The result of
some of the most popular
tests are tabulated here.
Upon request, a formal test
report will be supplied to
support these values and
document additional
performance requirements
not listed.
MIL-T-7928
Group III Group VI
Wire Spec. Tensile Strength After Tensile Strength After
Size Min. lb. Vibration - Lb. Corrosion - Lb.
Terminal Type Terminal Type
PIDG PIDG
26 7 11.7 10.7
24 10 19.8 19.2
22 15 29.0 23.5
20 19 37.7 46.5
18 38 58.9 70.5
16 50 78.5 81.9
14 70 100 105
12 110 209 213
10 150 247 282
TERMINYL TERMINYL
8 225 299 310
6 300 600 609
4 400 784 835
2 550 1,035 1,136
1/0 700 1,781 1,767
2/0 750 1,787 1,721
3/0 825 2,845 2,880
4/0 875 3,048 3,268
MIL-T-7928
Group II Group III Group VI
Wire Specification Millivolt Drop After Millivolt Drop After Millivolt Drop After
Size Maximum Current Cycling2 Vibration2 Corrosion2
Millivolt Drop1 Terminal Type Terminal Type Terminal Type
PIDG PIDG PIDG
26 9.2 3.2 3.1 3.3
24 7.9 2.6 4.9 2.9
22 9.0 4.5 3.8 6.0
20 7.5 3.6 3.8 3.6
18 7.2 3.1 3.6 3.1
16 7.7 3.6 3.7 3.9
14 7.7 3.7 4.0 3.6
12 8.4 4.0 4.6 4.2
10 7.5 3.3 3.6 3.3
TERMINYL TERMINYL TERMINYL
8 5.2 3.7 3.8 4.2
6 5.7 4.3 4.1 4.1
4 5.4 4.1 4.0 4.1
2 5.5 4.2 4.2 4.2
1/0 6.8 4.4 4.3 4.4
2/0 6.7 4.2 4.2 4.2
3/0 6.3 4.2 4.1 4.1
4/0 6.4 4.0 4.1 4.1
1Value is millivolt drop permitted after test plus equal length of wire.
2Value includes equal length of wire.
Return to digikey.com
AMP Standard Terminals and Splices
6
Catalog 82042 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 54-11-4733-2015
Revised 07-08 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
specified. Values in brackets are Specifications subject Mexico: 01-800-733-8926 Japan: 81-44-844-8013
www.tycoelectronics.com equivalent U.S. Customary Units. to change. C. America: 52-55-5-729-0425 UK: 44-8706-080208
Terminal Stud Hole Size
Terminal Stud Hole Sizes
Stud Size Minimum Terminal
U.S. Cust. Metric Stud Dia. Hole Diameter
5/8" M16 .625 .651
3/4" .750 .776
7/8" M22 .875 .901
1" 1.000 1.026
1 1/8" 1.125 1.151
1 1/4" 1.250 1.276
Use to Select Proper
Size Terminal The chart shows sizes and
dimensions of various studs
and the corresponding ter-
minal stud hole sizes used
with AMP devices.
For example, with stud #5
(.125 Diameter), use AMP
device listed for #5 stud
(.129 Hole Diameter).
Terminal stud hole sizes may
easily be checked by fitting
sample terminal to black cir-
cle.
Stud Size Stud Dia. Minimum Terminal
U.S. Cust. Metric Hole Diameter
#0 .060 .064
#1 .073 .077
#2 M2 .086 .090
#3 .099 .103
#4 .112 .116
#5 M3 .125 .129
#6 M3.5 .138 .142
#8 M4 .164 .168
#10 .190 .194
#12 .216 .220
#14 .242 .245
1/4" M6 .250 .260
5/16" M8 .312 .323
3/8" .375 .385
7/16" .437 .448
1/2" M12 .500 .510
Return to digikey.com
7
AMP Standard Terminals and Splices
Catalog 82042 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 54-11-4733-2015
Revised 07-08 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
specified. Values in brackets are Specifications subject Mexico: 01-800-733-8926 Japan: 81-44-844-8013
www.tycoelectronics.com equivalent U.S. Customary Units. to change. C. America: 52-55-5-729-0425 UK: 44-8706-080208
PIDG Terminals and Splices
Product Facts
Pre-insulated terminal
designed for uniform reli-
ability in most difficult cir-
cuit environments
PIDG Terminals consist of
tin plated copper or tin
plated phosphor bronze
body for spring spades
with a copper sleeve and
insulation sleeve fitted
over terminal barrel
Design of the tool dies
and construction of the
terminal allows for uni-
form insulation thickness
under crimping pressure,
transmitting this pressure
evenly to the center of
the crimp area
The AMP Mated
Tool/Terminal Concept
AMP compression crimp-
ing produces crimps for a
given size wire and termi-
nal that are alike in
appearance and perfor-
mance
Terminal and crimping
tool are designed as uni-
form matched devices
Dies are precision-
engineered from the fin-
est hard-metal alloys
Crimping pressure is con-
trolled by a ratchet device
on the hand tool or a cor-
responding pre-calibra-
tion in the crimping jaws
of AMP automated crimp-
ing machines
The Crimp
When done properly,
crimping pressure can
neither overstress nor
under stress the terminal
barrel—machined dies
fully bottom to the pre-
cise crimp height
Resulting termination is
free of contamination
Resistant to shock and
critical environments
Tensile strength
approaches that of the
wire itself
PIDG Terminals meet or
exceed the requirements
of MIL-T-7928, Type II,
Class 1 and 2
Refer to AMP Qualified
Products for Military
Application, Catalog
73-159 for Military Specifi-
cation Number to AMP
Part Number cross refer-
ence

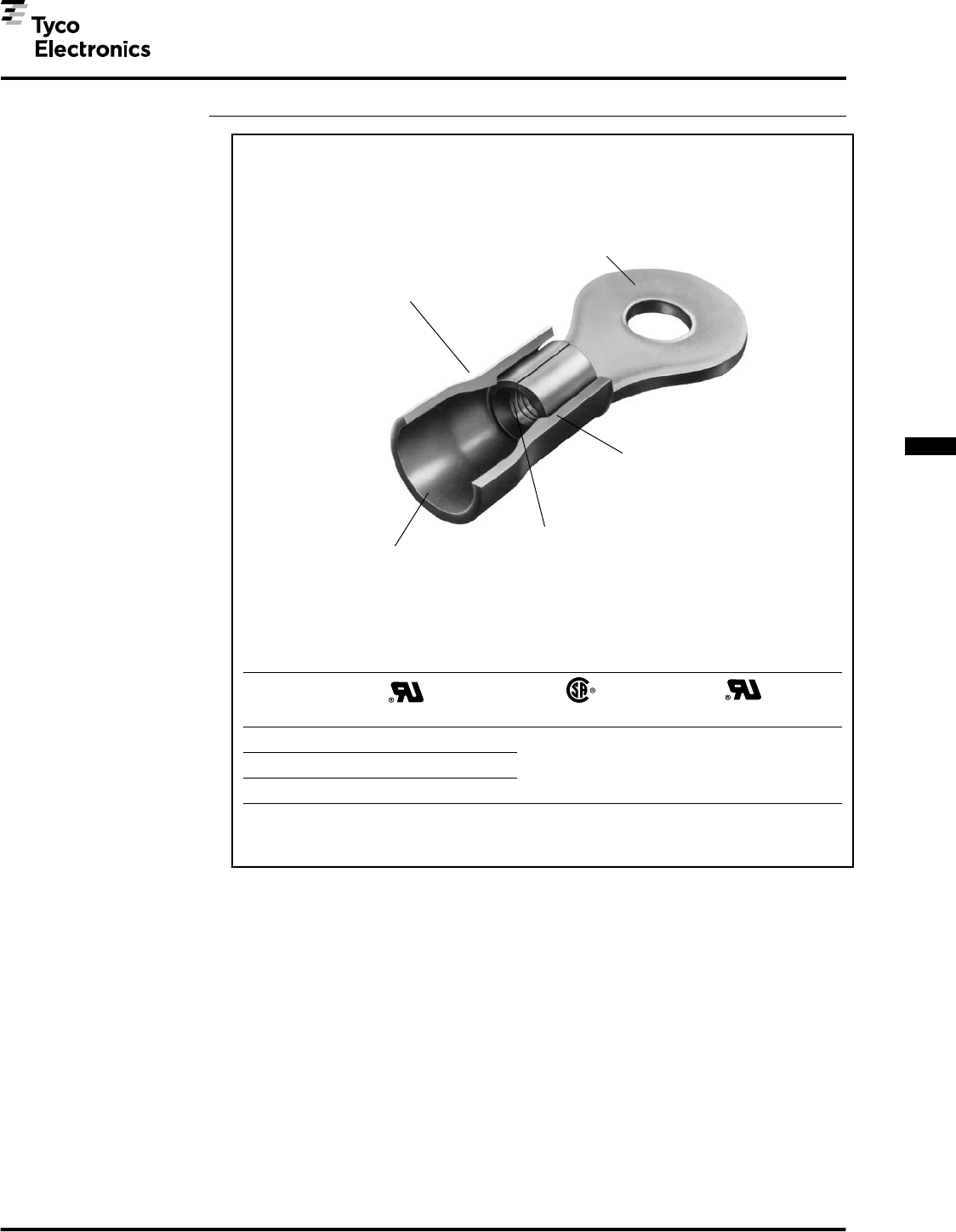

Basic Terminal Material. The basic terminal is
constructed of fine grade high conductivity
copper per ASTM B-152 and tin-plated per
ASTM B-545. Basic material for Spring Spade
Tongue Terminals is phosphor
bronze per ASTM B-139 and tin-plated per
ASTM B-545. Tyco Electronics' special plating
process creates durable corrosion resistance
to salt spray and most chemical fumes.
Color Coding. Terminal insulation
is color-coded by wire range to
prevent errors during installation.
Serrations. Serra-
tions inside barrel
provide maximum
contact and tensile
strength after crimp-
ing.
Funnel Ramp Entry. Prevents a turned
back strand and permits rapid wire inser-
tion during high speed production.
Copper Sleeve. The specially
designed copper sleeve, fitted over
the terminal barrel, provides cir-
cumferential insulation support to
the wire and allows the wire to be
bent in any direction, without fray-
ing the wire’s insulation or break-
ing the conductor.
Temperature Rating: 105°C Max.
AMP PIDG Terminals
(Use PIDG Tooling)
AMP
Wire LR7189
Range Certified
22-16 22-16 Solid or Stranded
16-14 16-14 Solid or Stranded 300 V Max., 105°C. Max.1
12-10 12-10 Solid or Stranded
Note: 22-16 terminals are stamped 22-18 in accordance
with MIL-T-7928.
1UL & CSA—Nylon
Nylon Insulation. Nylon
sleeve has high dielectric
strength.
AMP PIDG Nylon Butt Window Splice
(Use PIDG Tooling)
AMP
Wire LR7189
Range Certified
22-16 22-16 Stranded or Solid
16-14 16-14 Stranded or Solid 300 V Max., 105°C. Max.
12-10 12-10 Stranded or Solid
Note: 22-16 splices are stamped 22-18 in accordance
with MIL-T-7928.
Note: Over size expansions are provided in vinyl insulation only.
PIDG Terminals and Splices
Return to digikey.com
AMP Standard Terminals and Splices
8
Catalog 82042 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 54-11-4733-2015
Revised 07-08 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
specified. Values in brackets are Specifications subject Mexico: 01-800-733-8926 Japan: 81-44-844-8013
www.tycoelectronics.com equivalent U.S. Customary Units. to change. C. America: 52-55-5-729-0425 UK: 44-8706-080208

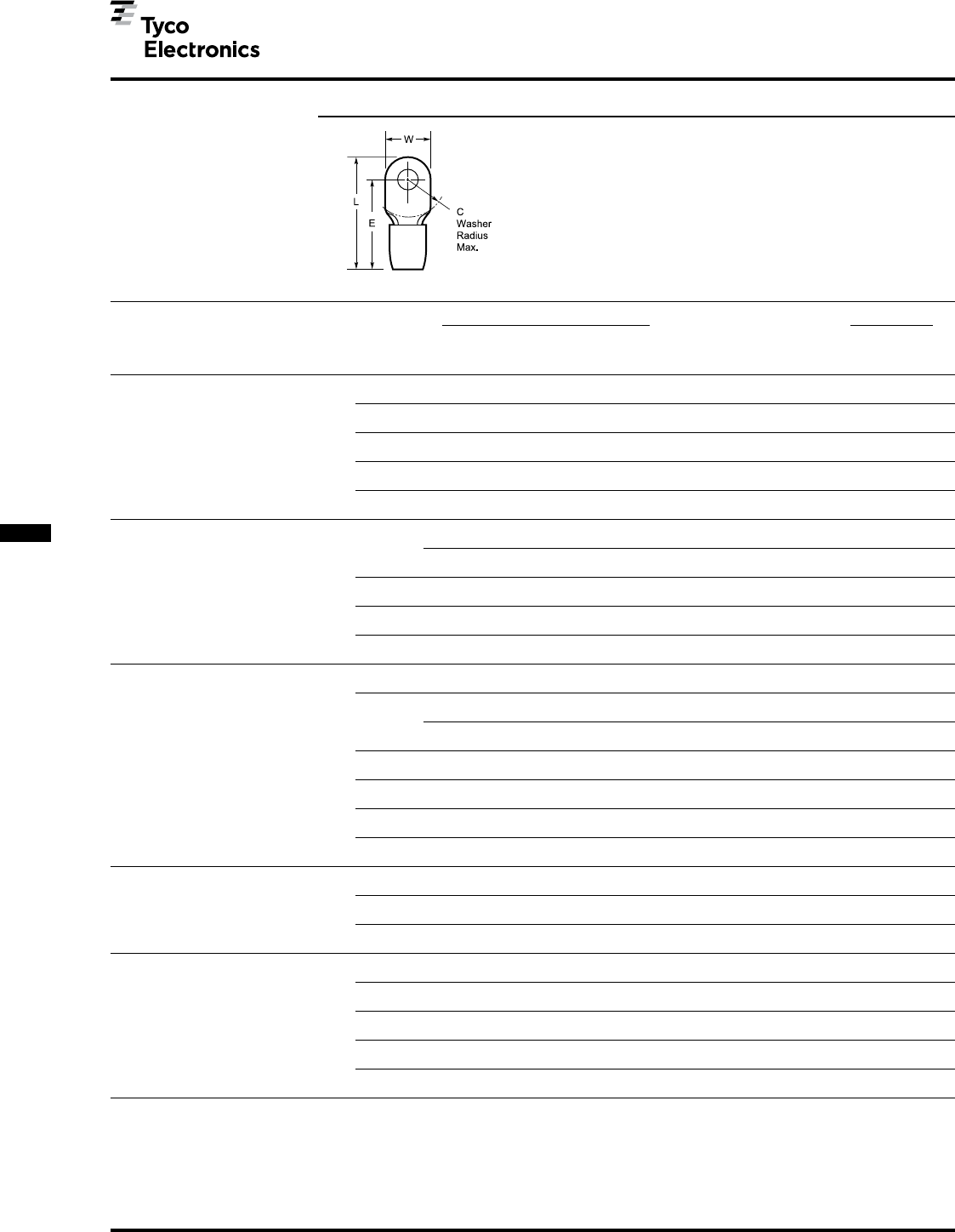

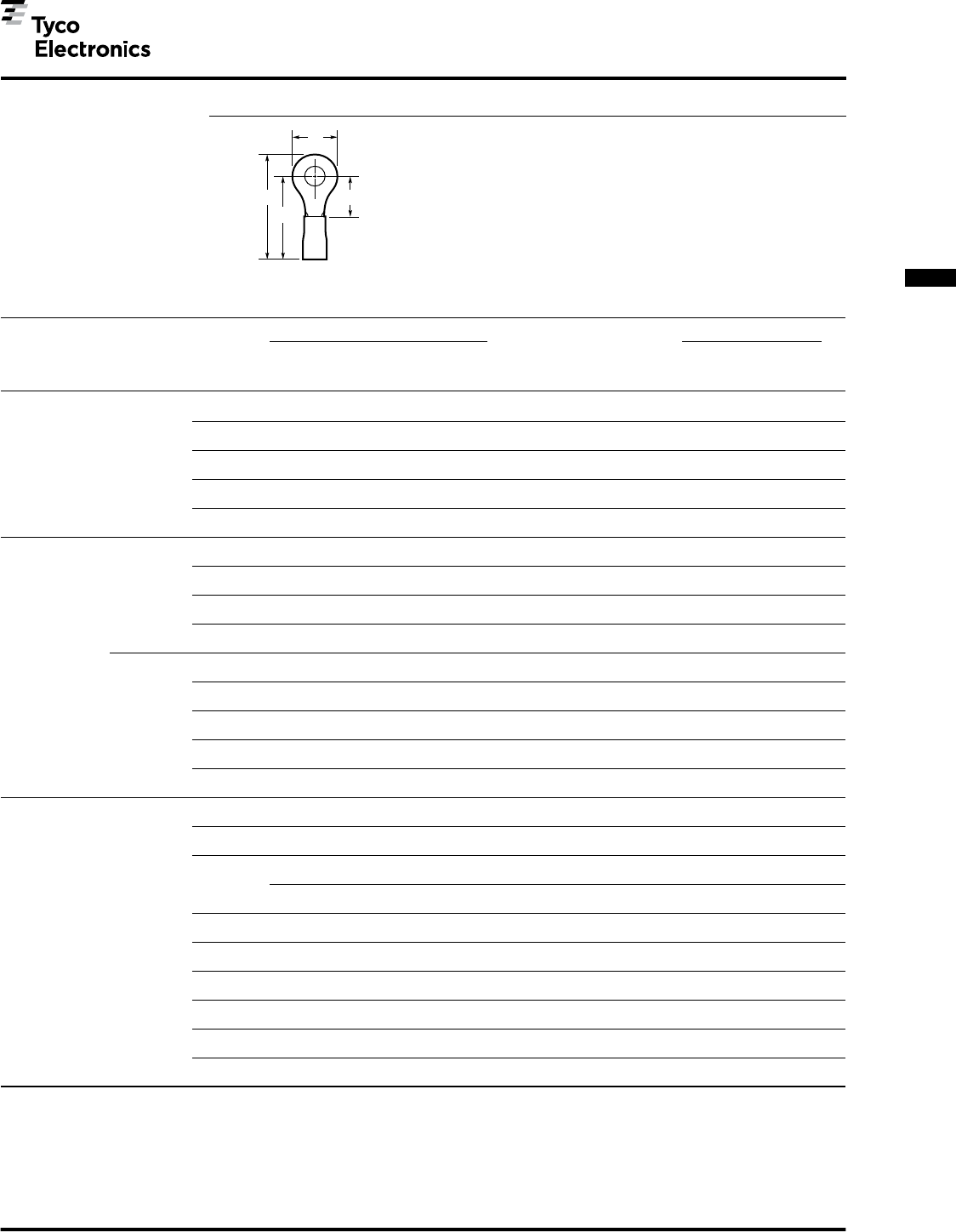

Ring Tongue Terminals Material
Insulation-Nylon, UL 94V-2
Terminal Body and Metallic
Sleeve-Copper per ASTM
B-152
Plating-Tin per ASTM B-545
Related Product Data
Insulation Color Code -pg. 4
Packaging Quantities -pg. 4
Performance Specifications -
pgs. 4 & 5
Application Tooling -pg. 66

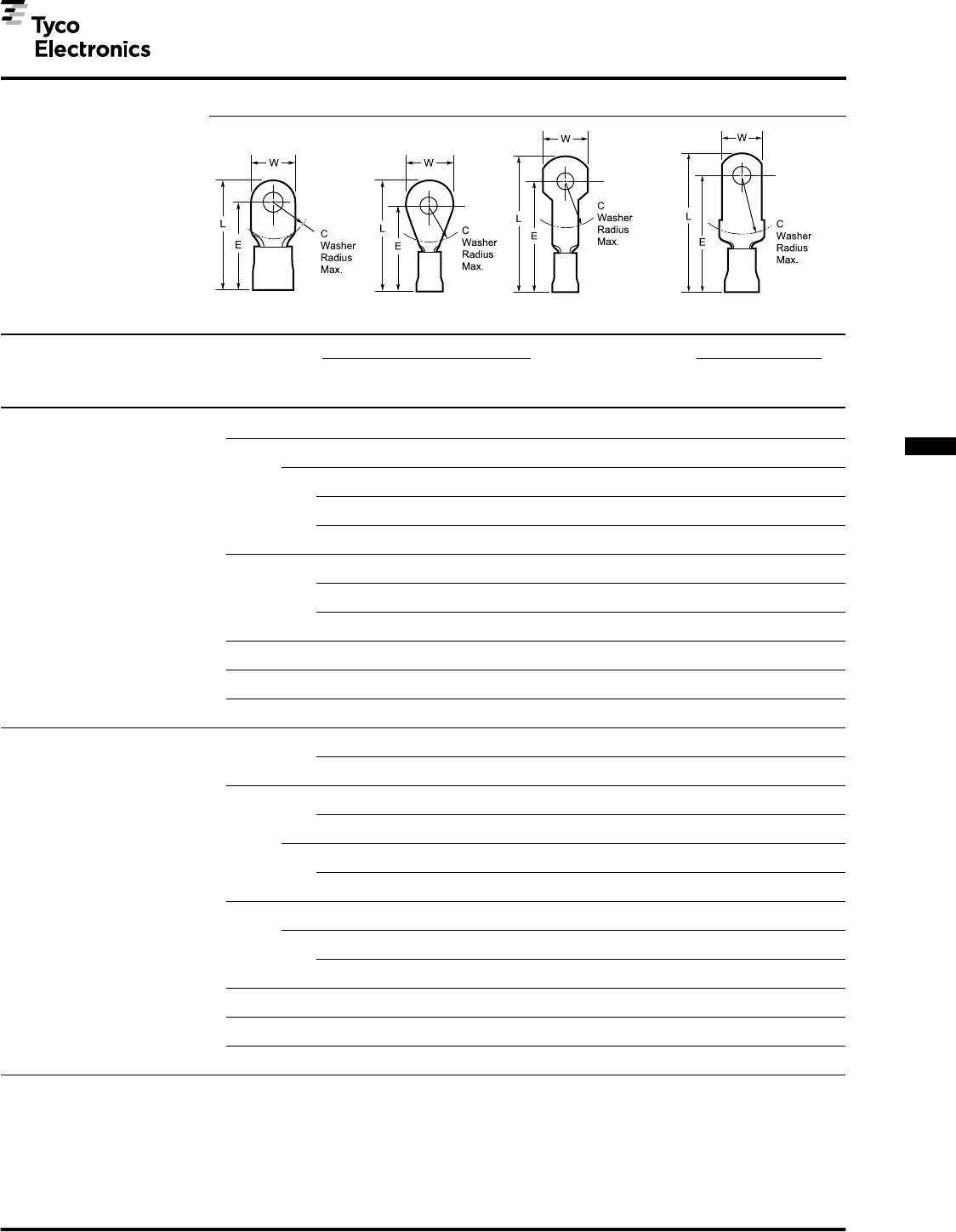

L
E
C
W
Wire Size Tongue Dimensions Wire Part Numbers
Circular Mils Material Stud Terminal Insulation
[mm2] Thickness Size W C E L Insulation Diameter Loose Tape
Max. Min. Max. Max. Color Max. Piece Mounted
2 .203 .211 .632 .739 Yellow .105 54310-1† —
M2 5.16 5.36 16.05 18.77 2.67
4 .203 .211 .632 .736 Yellow .105 52189† —
5.16 5.36 16.05 18.69 2.67
26-24 .029 6 .250 .243 .664 .792 Yellow .105 53073† —
238-475 0.74 M3.5 6.35 6.17 16.87 20.12 2.67
[0.12-0.24] 8 .281 .250 .671 .814 Yellow .105 54311-1† —
M4 7.14 6.35 17.04 20.68 2.67
10 .312 .281 .702 .868 Yellow .105 54312-1† 54312-2†
7.92 7.14 17.83 22.05 2.67
0 .140 .121 .452 .525 Yellow .082 321013 —
3.56 3.07 11.48 13.34 2.08
.140 .121 .452 .525 Yellow .082 323912* 2-323912-1
3.56 3.07 11.48 13.34 2.08
.140 .211 .542 .615 Yellow .082 329951* —
2 3.56 5.36 13.77 15.62 2.08
M2 .165 .211 .542 .617 Yellow/Br. .082 321620* 1-321620-0
4.19 5.36 13.77 15.67 2.08
.203 .211 .542 .646 Yellow .082 323913 2-323913-1
5.16 5.36 13.77 16.41 2.08
4 .203 .211 .542 .646 Yellow .082 323914* 2-323914-1
5.16 5.36 13.77 16.41 2.08
26-22 .020 .198 .308 .643 .745 Yellow .082 321617 —
202-810 0.51 5.03 7.82 16.33 18.92 2.08
[0.10-0.41] 6 .203 .211 .542 .646 Yellow .082 323915* 2-323915-2
M3.5 5.16 5.36 13.77 16.41 2.08
.250 .281 .612 .740 Yellow .082 326875* 2-326875-1
6.35 7.14 15.54 18.80 2.08
.250 .281 .612 .740 Yellow .082 323916* 2-323916-1
8 6.35 7.14 15.54 18.80 2.08
M4 .300 .281 .612 .765 Yellow .082 52124 52124-2
7.62 7.14 15.54 19.43 2.08
.250 .281 .612 .740 Yellow .082 324075* 2-324075-1
10 6.35 7.14 15.54 18.80 2.08
.300 .281 .612 .765 Yellow .082 52124-1 —
7.62 7.14 15.54 19.43 2.08
0 .160 .125 .506 .589 Natural .100 — 2-328489-1
4.06 3.18 12.85 14.96 2.54
2 .160 .125 .506 .589 Natural .100 329636 2-329636-1
M2 4.06 3.18 12.85 14.96 2.54
.203 .250 .631 .735 Natural .100 50534 —
4 5.16 6.35 16.03 18.67 2.54
24-20 .025 .281 .250 .631 .774 Natural .100 323985 —
320-1,290 0.64 7.14 6.35 16.03 19.66 2.54
[0.16-0.65] 6 .281 .250 .631 .774 Natural .100 323986 2-323986-1
M3.5 7.14 6.35 16.03 19.66 2.54
8 .312 .281 .662 .821 Natural .100 323989 1-323989-0
M4 7.92 7.14 16.81 20.85 2.54
10 .312 .281 .662 .821 Natural .100 323990 2-323990-1
7.92 7.14 16.81 20.85 2.54
*Available in small packaging quantities.
Note: “C” dimension applies from edge of metal wire barrel to center of stud hole.
†Must be crimped with 22-18 or 22-16 PIDG (red) Tooling.
PIDG Terminals and Splices (Continued)
PIDG Terminals and Splices
Return to digikey.com
9
AMP Standard Terminals and Splices
Catalog 82042 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 54-11-4733-2015
Revised 07-08 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
specified. Values in brackets are Specifications subject Mexico: 01-800-733-8926 Japan: 81-44-844-8013
www.tycoelectronics.com equivalent U.S. Customary Units. to change. C. America: 52-55-5-729-0425 UK: 44-8706-080208
Wire Size Tongue Dimensions Wire Part Numbers
Circular Mils Material Stud Terminal Insulation
[mm2] Thickness Size W C E L Insulation Diameter Loose Tape
Max. Min. Max. Max. Color Max. Piece Mounted
Ring Tongue Terminals
(Continued)
1 .160 .156 .560 .643 Red .125 327174 2-327174-1
4.06 3.96 14.22 16.33 3.18
.182 .172 .576 .669 Red .125 324158 2-324158-1
4.62 4.37 14.63 16.99 3.18
2 .182 .172 .576 .669 Red .140 320773 —
M2 4.62 4.37 14.63 16.99 3.56
.218 .156 .560 .672 Red .125 328657* 2-328657-1
5.54 3.96 14.22 17.07 3.18
.182 .172 .576 .669 Red/Green .125 327654* —
4.62 4.37 14.63 16.99 3.18
.182 .172 .576 .669 Red .140 320882* 2-320882-1
4.62 4.37 14.63 16.99 3.56
.218 .156 .560 .672 Red .125 320553* 2-320553-2
5.54 3.96 14.22 17.07 3.18
.218 .156 .560 .672 Red .125 362541
4 5.54 3.96 14.22 17.07 3.18
.218 .156 .560 .672 Red .140 31880* 2-31880-1
5.54 3.96 14.22 17.07 3.56
.218 .156 .560 .672 Black .140 35229 —
5.54 3.96 14.22 17.07 3.56
.250 .312 .716 .844 Red .125 323758 2-323758-1
6.35 7.92 18.19 21.44 3.18
.250 .312 .716 .844 Red .140 330648 2-330648-1
6.35 7.92 18.19 21.44 3.56
.218 .156 .560 .672 Red .125 36149* 2-36149-2
5.54 3.96 14.22 17.07 3.18
.218 .156 .560 .672 Red .140 36150* 2-36150-1
5.54 3.96 14.22 17.07 3.56
22-16 .250 .250 .654 .782 Red .125 51863* 51863-1
509-3,260 .033 6.35 6.35 16.61 19.86 3.18
[0.26-1.65] 0.84 6 .281 .250 .654 .797 Red .125 36151* 2-36151-2
M3.5 7.14 6.35 16.61 20.24 3.18
.281 .250 .654 .797 Red .140 36152* 2-36152-1
7.14 6.35 16.61 20.24 3.56
.312 .281 .685 .844 Red .125 323008 2-323008-1
7.92 7.14 17.40 21.44 3.18
.312 .281 .685 .844 Red .140 326878 2-326878-1
7.92 7.14 17.40 21.44 3.56
.281 .250 .654 .797 Red .125 320554* 2-320554-1
7.14 6.35 16.61 20.24 3.18
.281 .250 .654 .797 Red .140 31886* 2-31886-2
7.14 6.35 16.61 20.24 3.56
8 .312 .281 .685 .844 Red .125 320551* 1-320551-1
M4 7.92 7.14 17.40 21.44 3.18
.312 .281 .685 .844 Red .140 31890* 2-31890-1
7.92 7.14 17.40 21.44 3.56
.344 .297 .701 .876 Red .140 32835 2-32835-2
8.74 7.54 17.81 22.25 3.56
.281 .250 .654 .797 Red .125 320552* 2-320552-1
7.14 6.35 16.61 20.24 3.18
.281 .250 .654 .797 Red .140 31887* 2-31887-1
7.14 6.35 16.61 20.24 3.56
.312 .281 .685 .844 Red .125 36153* 2-36153-2
10 7.92 7.14 17.40 21.44 3.18
.312 .281 .685 .844 Red .140 36154* 2-36154-2
7.92 7.14 17.40 21.44 3.56
.344 .297 .701 .876 Red .125 32836* —
8.74 7.54 17.81 22.25 3.18
.344 .297 .701 .876 Red .140 32837* 32837-1
8.74 7.54 17.81 22.25 3.56
*Available in small packaging quantities.
1Slightly larger than standard #4 stud hole. (.128 in./3.25 mm.)
Note: “C” dimension applies from edge of metal wire barrel to center of stud hole.
PIDG Terminals and Splices (Continued)
PIDG Terminals and Splices
Return to digikey.com
AMP Standard Terminals and Splices
10
Catalog 82042 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 54-11-4733-2015
Revised 07-08 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
specified. Values in brackets are Specifications subject Mexico: 01-800-733-8926 Japan: 81-44-844-8013
www.tycoelectronics.com equivalent U.S. Customary Units. to change. C. America: 52-55-5-729-0425 UK: 44-8706-080208
PIDG Terminals and Splices (Continued)
Wire Size Tongue Dimensions Wire Part Numbers
Circular Mils Material Stud Terminal Insulation
[mm2] Thickness Size W C E L Insulation Diameter Loose Tape
Max. Min. Max. Max. Color Max. Piece Mounted
Ring Tongue Terminals
(Continued)
L
E
C
W
.469 .437 .841 1.078 Red .125 320571* 2-320571-2
11.91 11.10 21.36 27.38 3.18
1/4 .469 .437 .841 1.078 Black .125 55936-1 55936-2
M6 11.91 11.10 21.36 27.38 3.18
.469 .437 .841 1.078 Red .140 31894* 2-31894-2
11.91 11.10 21.36 27.38 3.56
.469 .437 .841 1.078 Red .125 320572* 2-320572-1
11.91 11.10 21.36 27.38 3.18
22-16 5/16 .469 .437 .841 1.078 Red .140 31895* 2-31895-1
509-3,260 .033 M8 11.91 11.10 21.36 27.38 3.56
0.84 .531 .546 .950 1.218 Red .125 324123 —
[0.26-1.65] 13.49 13.87 24.13 30.94 3.18
.531 .546 .950 1.218 Red .125 320573* 2-320573-4
13.49 13.87 24.13 30.94 3.18
3/8 .531 .546 .950 1.218 Red .140 31897* 2-31897-2
13.49 13.87 24.13 30.94 3.56
.656 .437 .841 1.171 Red .125 321522 —
16.66 11.10 21.36 29.74 3.18
1/2 .713 .530 .934 1.293 Red .125 328975* —
M12 18.11 13.46 23.72 32.84 3.18
20-16HD1 .042 .469 .312 .718 .955 .150
992-2,800 10 Blue 150247 —
[0.50-1.42] 1.07 11.91 7.92 18.24 24.26 3.81
2 .180 .171 .575 .668 Blue .170 324993 —
M2 4.57 4.34 14.61 16.97 4.32
.250 .171 .575 .703 Blue .150 324159* 2-324159-2
6.35 4.34 14.61 17.86 3.81
4 .250 .171 .575 .703 Blue .170 328996* 2-328996-1
6.35 4.34 14.61 17.86 4.32
.250 .281 .685 .813 Blue .150 323676 —
6.35 7.14 17.40 20.65 3.81
.250 .171 .575 .703 Blue .150 320561* 2-320561-2
6.35 4.34 14.61 17.86 3.81
.250 .171 .575 .703 Blue .170 320619* 2-320619-1
6.35 4.34 14.61 17.86 4.32
.250 .281 .685 .813 Blue .170 50881 50881-2
6.35 7.14 17.40 20.65 4.32
16-14 .033 6 .312 .250 .654 .813 Blue .170 326882* 2-326882-1
2,050-5,180 0.84 M3.5 7.92 6.35 16.61 20.65 4.32
[1.04-2.62] .312 .281 .685 .844 Blue .150 51864* 51864-3
7.92 7.14 17.40 21.44 3.81
.343 .281 .685 .859 Blue .150 36157* 2-36157-2
8.71 7.14 17.40 21.82 3.81
.343 .281 .685 .859 Blue .170 36158* 2-36158-1
8.71 7.14 17.40 21.82 4.32
.312 .250 .654 .813 Blue .170 53941-1* 53941-2
7.92 6.35 16.61 20.65 4.32
.312 .281 .685 .844 Blue .150 51864-1* 51864-5
8 7.92 7.14 17.40 21.44 3.81
M4 .343 .281 .685 .859 Blue .150 320560* 2-320560-1
8.71 7.14 17.40 21.82 3.81
.343 .281 .685 .859 Blue .170 320565* 2-320565-1
8.71 7.14 17.40 21.82 4.32
*Available in small packaging quantities.
1Heavy duty for extra mechanical strength.
Note: “C” dimension applies from edge of metal wire barrel to center of stud hole.
Material
Insulation-Nylon, UL 94V-2
Terminal Body and Metallic
Sleeve-Copper per ASTM
B-152
Plating-Tin per ASTM B-545
Related Product Data
Insulation Color Code -pg. 4
Packaging Quantities -pg. 4
Performance Specifications -
pgs. 4 & 5
Application Tooling-pg. 66
PIDG Terminals and Splices
Return to digikey.com
11
AMP Standard Terminals and Splices
Catalog 82042 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 54-11-4733-2015
Revised 07-08 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
specified. Values in brackets are Specifications subject Mexico: 01-800-733-8926 Japan: 81-44-844-8013
www.tycoelectronics.com equivalent U.S. Customary Units. to change. C. America: 52-55-5-729-0425 UK: 44-8706-080208
PIDG Terminals and Splices (Continued)
Wire Size Tongue Dimensions Wire Part Numbers
Circular Mils Material Stud Terminal Insulation
[mm2] Thickness Size W C E L Insulation Diameter Loose Tape
Max. Min. Max. Max. Color Max. Piece Mounted
Ring Tongue Terminals
(Continued)
.312 .250 .654 .813 Blue .170 53942-1 53942-2
7.92 6.35 16.61 20.65 4.32
.312 .281 .685 .844 Blue .150 51864-2* 51864-4
7.92 7.14 17.40 21.44 3.81
10 .343 .281 .685 .859 Blue .150 320574* 2-320574-2
8.71 7.14 17.40 21.82 3.81
.343 .281 .685 .859 Blue .170 36160* 2-36160-1
8.71 7.14 17.40 21.82 4.32
.469 .437 .841 1.078 Blue .170 324533 2-324533-2
11.91 11.10 21.36 27.38 4.32
12 .469 .437 .841 1.078 Blue .170 324086 2-324086-1
11.91 11.10 21.36 27.38 4.32
14 .468 .312 .716 .953 Blue .170 35274 —
11.89 7.92 18.19 24.21 4.32
16-14 .469 .437 .841 1.078 Blue .150 320563* 2-320563-2
2,050-5,180 .033 11.91 11.10 21.36 27.38 3.81
[1.04-2.62] 0.84 1/4 .469 .437 .841 1.078 Blue .170 321045* 2-321045-1
M6 11.91 11.10 21.36 27.38 4.32
.469 .437 .841 1.078 Black .170 325034 2-325034-1
11.91 11.10 21.36 27.38 4.32
.469 .437 .841 1.078 Blue .150 320575* 2-320575-1
5/16 11.91 11.10 21.36 27.38 3.81
M8 .469 .437 .841 1.078 Blue .170 328998* 2-328998-1
11.91 11.10 21.36 27.38 4.32
.531 .546 .950 1.218 Blue .150 320564* 2-320564-3
3/8 13.49 13.87 24.13 30.94 3.81
.531 .546 .950 1.218 Blue .170 328999* 2-328999-1
13.49 13.87 24.13 30.94 4.32
.713 .530 .934 1.293 Blue .150 328976 —
1/2 18.11 13.46 23.72 32.84 3.81
M12 .713 .530 .934 1.293 Blue .170 328849* —
18.11 13.46 23.72 32.84 4.32
4 .281 .219 .810 .953 Yellow/Blk. .230 33734 —
7.14 5.56 20.57 24.21 5.84
.281 .219 .810 .953 Yellow/Blk. .230 320631* 2-320631-1
7.14 5.56 20.57 24.21 5.84
6 .281 .219 .810 .953 Yellow/Blk. .250 35634* —
M3.5 7.14 5.56 20.57 24.21 6.35
.343 .281 .872 1.046 Yellow/Blk. .230 33724 —
8.71 7.14 22.15 26.57 5.84
.343 .281 .872 1.046 Yellow/Blk. .230 320627* 1-320627-0
8 8.71 7.14 22.15 26.57 5.84
M4 .343 .281 .872 1.046 Yellow/Blk. .250 35106* 2-35106-1
8.71 7.14 22.15 26.57 6.35
.343 .281 .872 1.046 Yellow/Blk. .230 320630* 2-320630-2
8.71 7.14 22.15 26.57 5.84
16-14HD1 .050 10 .343 .281 .872 1.046 Yellow/Blk. .250 34805* 2-34805-1
2,050-5,180 1.27 8.71 7.14 22.15 26.57 6.35
[1.04-2.62] .500 .344 1.179 1.432 Yellow/Blk. .220 329391 —
12.70 8.74 29.95 36.37 5.59
.500 .344 .935 1.188 Yellow/Blk. .230 34974* 2-34974-1
12.70 8.74 23.75 30.18 5.84
.500 .344 .935 1.188 Yellow/Blk. .250 323682 2-323682-1
12.70 8.74 23.75 30.18 6.35
1/4 .531 .437 1.028 1.296 Yellow/Blk. .230 327743 1-327743-1
M6 13.49 11.10 26.11 32.92 5.84
.531 .437 1.028 1.296 Yellow/Blk. .250 34806* 2-34806-3
13.49 11.10 26.11 32.92 6.35
.531 .437 1.028 1.296 Blue .250 — 2-34806-2
13.49 11.10 26.11 32.92 6.35
5/16 .531 .437 1.028 1.296 Yellow/Blk. .250 34810 1-34810-1
M8 13.49 11.10 26.11 32.92 6.35
*Available in small packaging quantities.
1Heavy duty for extra mechanical strength.
Note: “C” dimension applies from edge of metal wire barrel to center of stud hole.
PIDG Terminals and Splices
Return to digikey.com
AMP Standard Terminals and Splices
12
Catalog 82042 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 54-11-4733-2015
Revised 07-08 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
specified. Values in brackets are Specifications subject Mexico: 01-800-733-8926 Japan: 81-44-844-8013
www.tycoelectronics.com equivalent U.S. Customary Units. to change. C. America: 52-55-5-729-0425 UK: 44-8706-080208
PIDG Terminals and Splices (Continued)

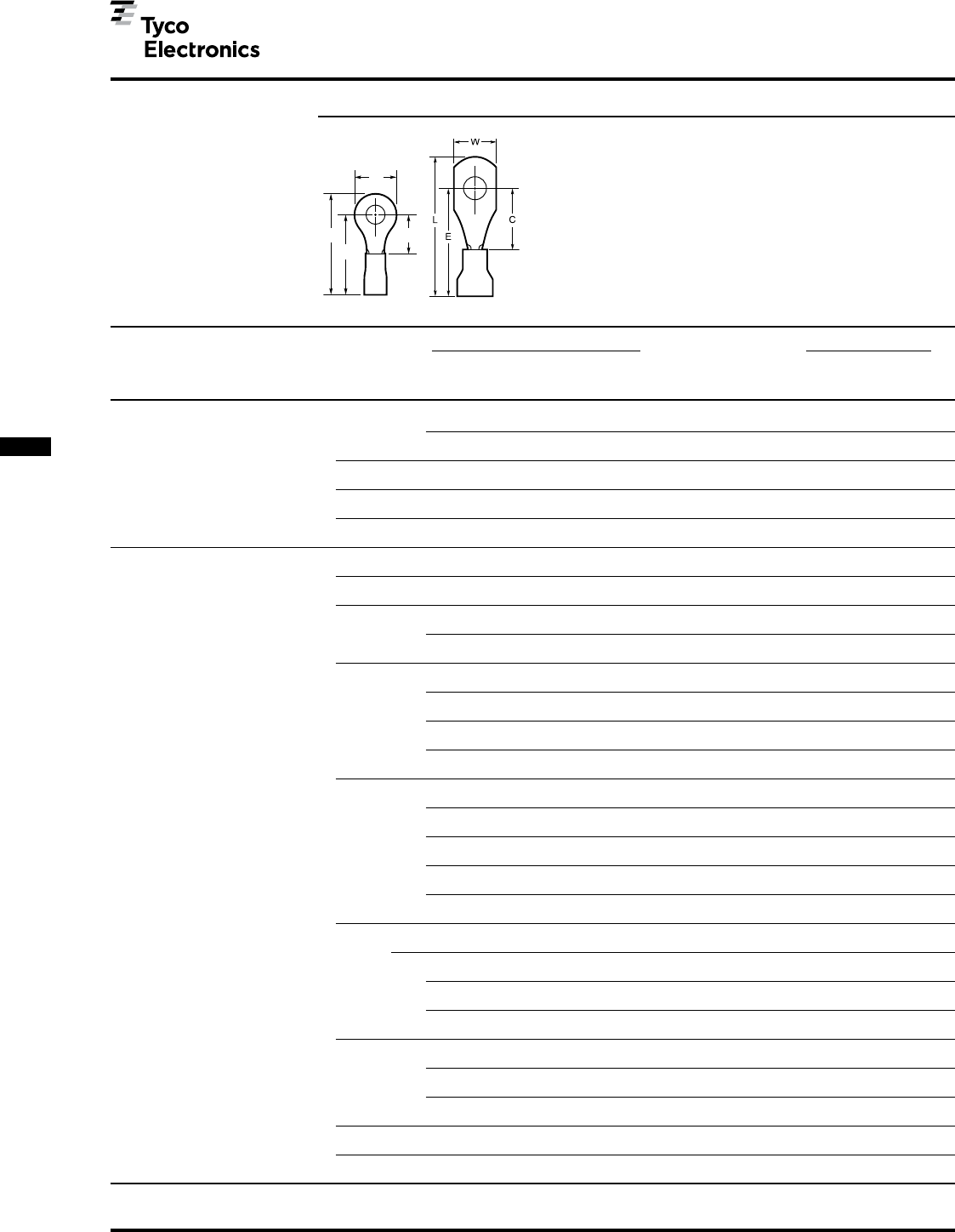

Ring Tongue Terminals
(Continued)
Wire Size Tongue Dimensions Wire Part Numbers
Circular Mils Material Stud Terminal Insulation
[mm2] Thickness Size W C E L Insulation Diameter Loose Tape
Max. Min. Max. Max. Color Max. Piece Mounted
L
E
C
W
3/8 .531 .437 1.028 1.296 Yellow/Blk. .230 330896 —
13.49 11.10 26.11 32.92 5.84
16-14HD1 .750 .625 1.216 1.594 Yellow/Blk. .250 35316* —
2,050-5,180 .050 1/2 19.05 15.88 30.89 40.49 6.35
[1.04-2.62] 1.27 M12 1.250 1.000 1.591 2.219 Yellow/Blk. .250 36203 —
31.75 25.40 40.41 56.36 6.35
3/4 1.250 1.000 1.591 2.219 Yellow/Blk. .250 322724 —
31.75 25.40 40.41 56.36 6.35
4 .281 .219 .810 .953 Yellow .250 35148* 1-35148-1
7.14 5.56 20.57 24.21 6.35
.281 .219 .810 .953 Yellow .230 320634* 2-320634-1
7.14 5.56 20.57 24.21 5.84
.281 .219 .810 .953 Yellow .250 35149* 2-35149-1
7.14 5.56 20.57 24.21 6.35
6 .312 .302 .893 1.052 Yellow .230 326886 326886-1
M3.5 7.92 7.67 22.68 26.72 5.84
.375 .302 .893 1.083 Yellow .230 320567* 2-320567-2
9.53 7.67 22.68 27.51 5.84
.375 .302 .893 1.083 Yellow .250 35107* 2-35107-1
9.53 7.67 22.68 27.51 6.35
.312 .281 .872 1.031 Yellow .230 35787* 1-35787-0
7.92 7.14 22.15 26.19 5.84
.312 .302 .893 1.052 Yellow .230 324915* —
8 7.92 7.67 22.68 26.72 5.84
M4 .375 .302 .893 1.083 Yellow .230 320568* 2-320568-1
9.53 7.67 22.68 27.51 5.84
.375 .302 .893 1.083 Yellow .250 35108* 2-35108-1
12-10 .042 9.53 7.67 22.68 27.51 6.35
5,180-13,100 1.07 .312 .302 .893 1.052 Yellow .230 324918* 1-324918-0
[2.62-6.64] 7.92 7.67 22.68 26.72 5.84
.343 .281 .872 1.046 Yellow .230 32883* 1-32883-0
8.71 7.14 22.15 26.57 5.84
.375 .302 .893 1.083 Yellow .230 36161* 2-36161-2
10 9.53 7.67 22.68 27.51 5.84
.375 .302 .893 1.083 Yellow .250 35109* 2-35109-1
9.53 7.67 22.68 27.51 6.35
.500 .344 .935 1.188 Yellow .230 2-323762-1 2-323762-3
12.70 8.74 23.75 30.18 5.84
.500 .344 1.179 1.432 Yellow .220 329389 —
12.70 8.74 29.95 36.37 5.59
.500 .344 .935 1.188 Yellow .230 35273* 2-35273-2
12.70 8.74 23.75 30.18 5.84
1/4 .531 .468 1.054 1.322 Yellow .230 320569* 2-320569-3
M6 13.49 11.89 26.77 33.58 5.84
.531 .468 1.054 1.322 Yellow .230 — 2-32545-42
13.49 11.89 26.77 33.58 5.84
.531 .468 1.054 1.322 Yellow .250 35110* 2-35110-1
13.49 11.89 26.77 33.58 6.35
*Available in small packaging quantities.
1Heavy duty for extra mechanical strength.
2Terminal body plating—Gold per MIL-G-45204 Type II over Nickel per QQ-N-290.
3Terminal body plating—Nickel per QQ-N-290.
Note: “C” dimension applies from edge of metal wire barrel to center of stud hole.
Material
Insulation-Nylon, UL 94V-2
Terminal Body and Metallic
Sleeve -Copper per ASTM
B-152
Plating-Tin per ASTM B-545
except where noted.
Related Product Data
Insulation Color Code -pg. 4
Packaging Quantities -pg. 4
Performance Specifications -
pgs. 4 & 5
Application Tooling-pg. 66
PIDG Terminals and Splices
Return to digikey.com
13
AMP Standard Terminals and Splices
Catalog 82042 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 54-11-4733-2015
Revised 07-08 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
specified. Values in brackets are Specifications subject Mexico: 01-800-733-8926 Japan: 81-44-844-8013
www.tycoelectronics.com equivalent U.S. Customary Units. to change. C. America: 52-55-5-729-0425 UK: 44-8706-080208
PIDG Terminals and Splices (Continued)
Ring Tongue Terminals
(Continued)
Wire Size Tongue Dimensions Wire Part Numbers
Circular Mils Material Stud Terminal Insulation
[mm2] Thickness Size W C E L Insulation Diameter Loose Tape
Max. Min. Max. Max. Color Max. Piece Mounted
M5 .375 .302 .967 1.160 Yellow .300 — 55157-2†
9.53 7.67 24.56 29.46 7.62
.531 .468 1.054 1.322 Yellow .230 320576* 2-320576-1
5/16 13.49 11.89 26.77 33.58 5.84
M8 .531 .468 1.054 1.322 Yellow .250 35111* 2-35111-1
13.49 11.89 26.77 33.58 6.35
.593 .531 1.115 1.414 Yellow .230 320577* 2-320577-3
15.06 13.49 28.32 35.92 5.84
3/8 .593 .531 1.115 1.414 Yellow .250 35112* —
15.06 13.49 28.32 35.92 6.35
12-10 .042 .750 .625 1.216 1.594 Yellow .250 35150 —
5,180-13,100 1.07 19.05 15.88 30.89 40.49 6.35
[2.62-6.64] .715 .474 1.065 1.414 Yellow .230 52077 —
18.16 12.04 27.05 35.92 5.84
.715 .560 1.151 1.511 Yellow .230 331467 —
1/2 18.16 14.22 29.24 38.38 5.84
M12 .750 .625 1.216 1.594 Yellow .230 323784 —
19.05 15.88 30.89 40.49 5.84
.750 .625 1.216 1.594 Yellow .250 35151* —
19.05 15.88 30.89 40.49 6.35
5/8 1.250 1.000 1.591 2.219 Yellow .230 324615 —
M16 31.75 25.40 40.41 56.36 5.84
*Available in small packaging quantities.
Note: “C” dimension applies from edge of metal wire barrel to center of stud hole.
†Vinyl insulation material
PIDG Terminals and Splices
Return to digikey.com
AMP Standard Terminals and Splices
14
Catalog 82042 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 54-11-4733-2015
Revised 07-08 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
specified. Values in brackets are Specifications subject Mexico: 01-800-733-8926 Japan: 81-44-844-8013
www.tycoelectronics.com equivalent U.S. Customary Units. to change. C. America: 52-55-5-729-0425 UK: 44-8706-080208

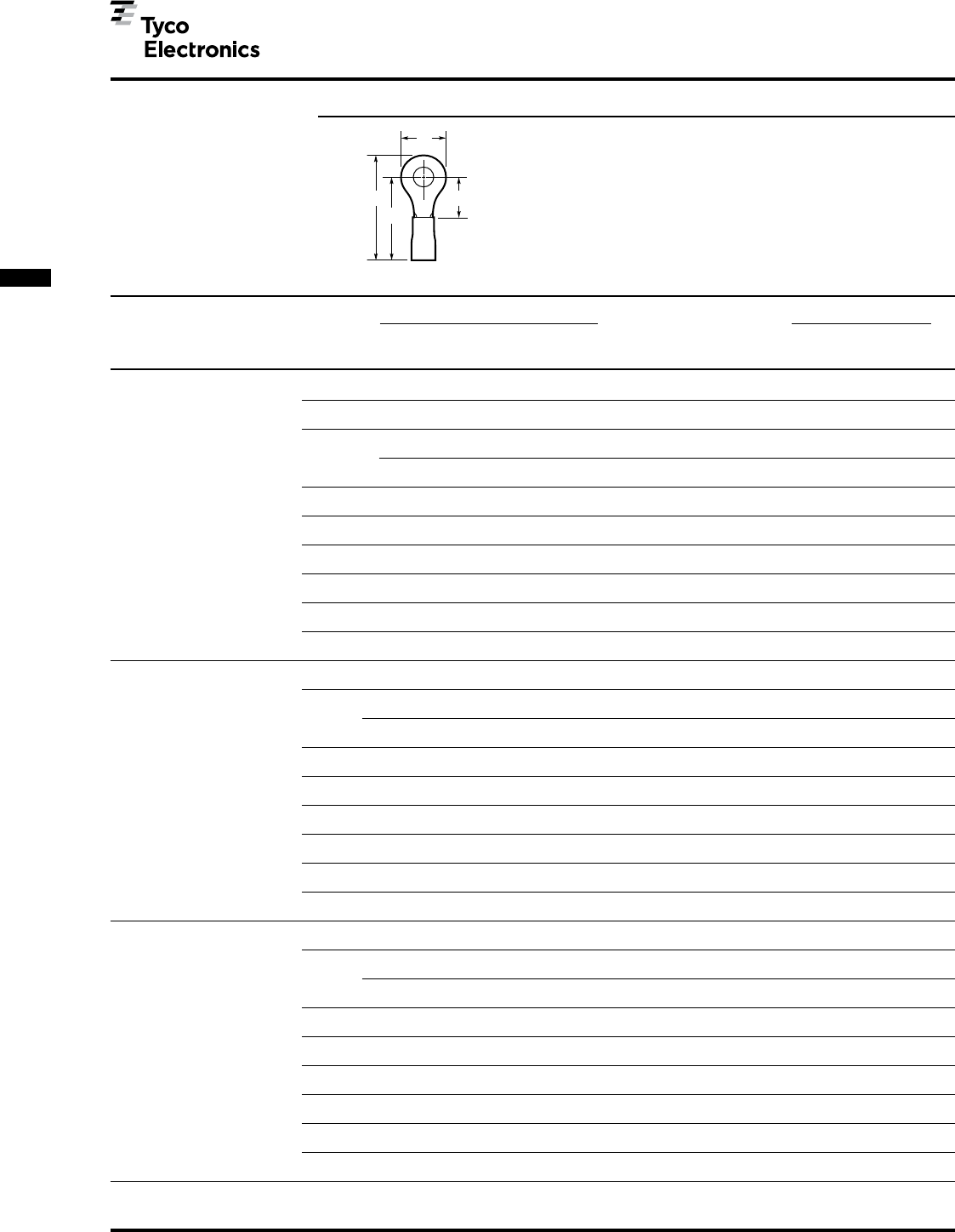

PIDG Terminals and Splices (Continued)

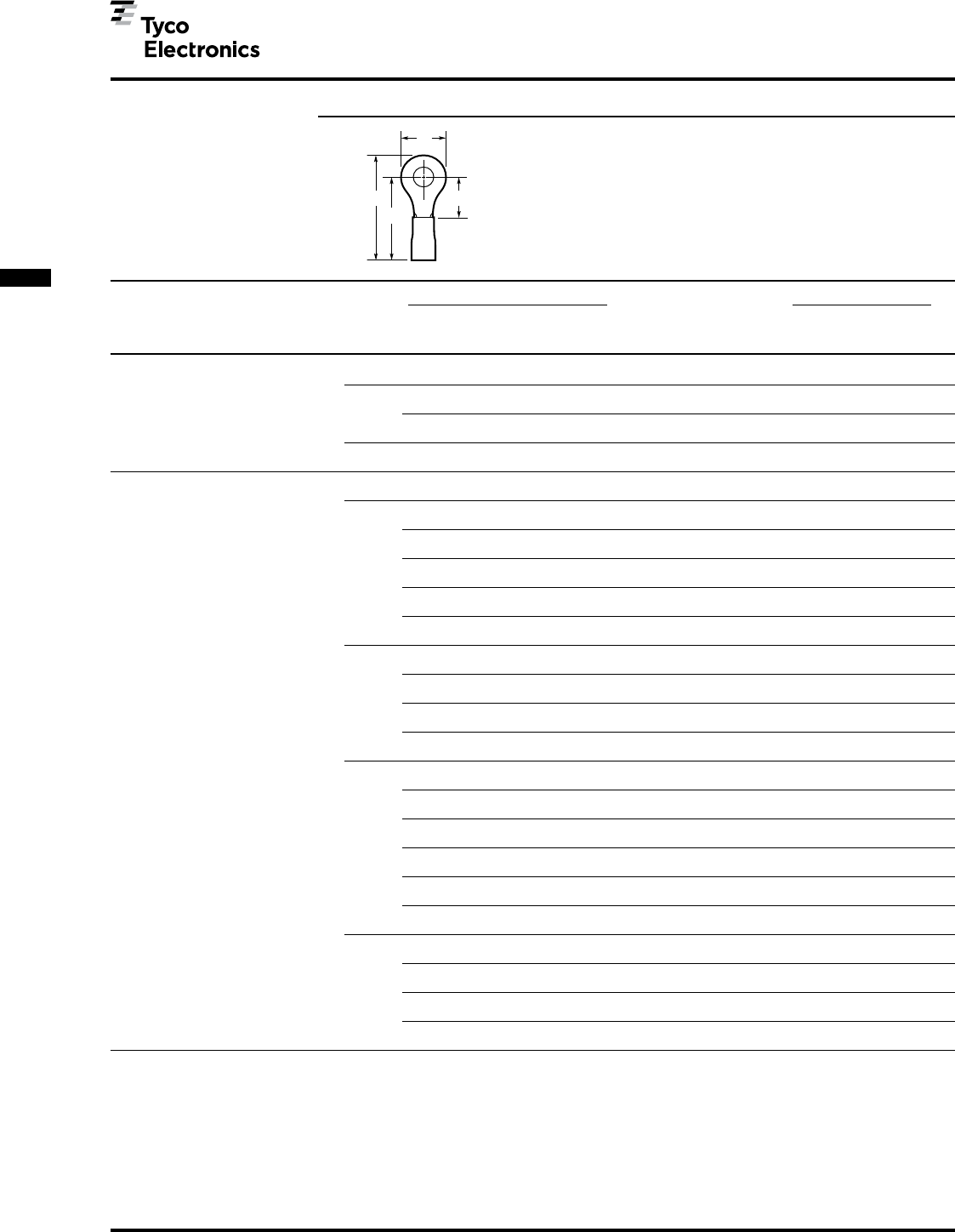

Ring Tongue Terminals
(Vinyl)
Wire Size Tongue Dimensions Wire Part Numbers
Circular Mils Material Stud Terminal Insulation
[mm2] Thickness Size W C E L Insulation Diameter Loose Tape
Max. Min. Max. Max. Color Max. Piece Mounted
6 .281 .250 .654 .797 Red .140 31885 —
M3.5 7.14 6.35 16.61 20.24 3.56
.312 .281 .685 .844 Red .125 31888 —
22-16 8 7.92 7.14 17.40 21.44 3.18
509-3,260 .033 M4 .312 .281 .685 .844 Red .125 2-31888-12 —
[0.26-1.65] 0.84 7.92 7.14 17.40 21.44 3.18
.281 .250 .654 .797 Red .125 31884 —
10 7.14 6.35 16.61 20.24 3.18
.312 .281 .685 .844 Red .140 31891 —
7.92 7.14 17.40 21.44 3.56
.312 .250 .654 .813 Blue .170 — 2-322238-1
16-14 7.92 6.35 16.61 20.65 4.32
2,050-5,180 .033 10 .312 .281 .685 .844 Blue .150 — 51861-4
[1.04-2.62] 0.84 7.92 7.14 17.40 21.44 3.81
.343 .281 .685 .859 Blue .170 31903 —
8.71 7.14 17.40 21.82 4.32
.343 .281 .961 1.135 Yellow/Blk. .300 35363* —
10 8.71 7.14 24.41 28.83 7.62
16-14HD1 1/4 .531 .437 1.117 1.385 Yellow/Blk. .300 35362* —
2,050-5,180 .050 M6 13.49 11.10 28.37 35.18 7.62
[1.04-2.62] 1.27 5/16 .531 .437 1.117 1.385 Yellow/Blk. .300 35538 —
M8 13.49 11.10 28.37 35.18 7.62
1/2 1.250 1.000 1.680 2.308 Yellow/Blk. .300 36485 —
M12 31.75 25.40 42.67 58.62 7.62
6 .375 .302 .982 1.172 Yellow .300 35604 —
M3.5 9.53 7.67 24.94 29.77 7.62
8 .375 .302 .982 1.172 Yellow .300 35605* 2-35605-2
M4 9.53 7.67 24.94 29.77 7.62
10 .375 .302 .982 1.172 Yellow .300 35364* 2-35364-1
9.53 7.67 24.94 29.77 7.62
12-10
5mm3 .375 .302 .967 1.160 Yellow .300 — 55157-2
5,180-13,100 .042 9.53 7.67 24.56 29.46 7.62
[2.62-6.64] 1.07 .500 .344 1.024 1.277 Yellow .300 323763 2-323763-2
1/4 12.70 8.74 26.01 32.44 7.62
M6 .531 .468 1.148 1.416 Yellow .300 35345* 2-35345-1
13.49 11.89 29.16 35.97 7.62
5/16 .531 .468 1.148 1.416 Yellow .300 35346* 2-35346-1
M8 13.49 11.89 29.16 35.97 7.62
3/8 .593 .531 1.211 1.510 Yellow .300 35478 1-35478-0
15.06 13.49 30.76 38.35 7.62
*Available in small packaging quantities.
1Heavy duty for extra mechanical strength.
2Terminal body plating—Gold per MIL-G-45204 Type II over Nickel per QQ-N-290.
3#10 stud may be substituted.
Note: “C” dimension applies from edge of metal wire barrel to center of stud hole.
L
E
C
W
Material
Insulation-Vinyl, UL 94V-0
Terminal Body and Metallic
Sleeve-Copper per ASTM
B-152
Plating-Tin per ASTM B-545
except where noted.
PIDG Terminals and Splices
Return to digikey.com
15
AMP Standard Terminals and Splices
Catalog 82042 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 54-11-4733-2015
Revised 07-08 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
specified. Values in brackets are Specifications subject Mexico: 01-800-733-8926 Japan: 81-44-844-8013
www.tycoelectronics.com equivalent U.S. Customary Units. to change. C. America: 52-55-5-729-0425 UK: 44-8706-080208
PIDG Terminals and Splices (Continued)

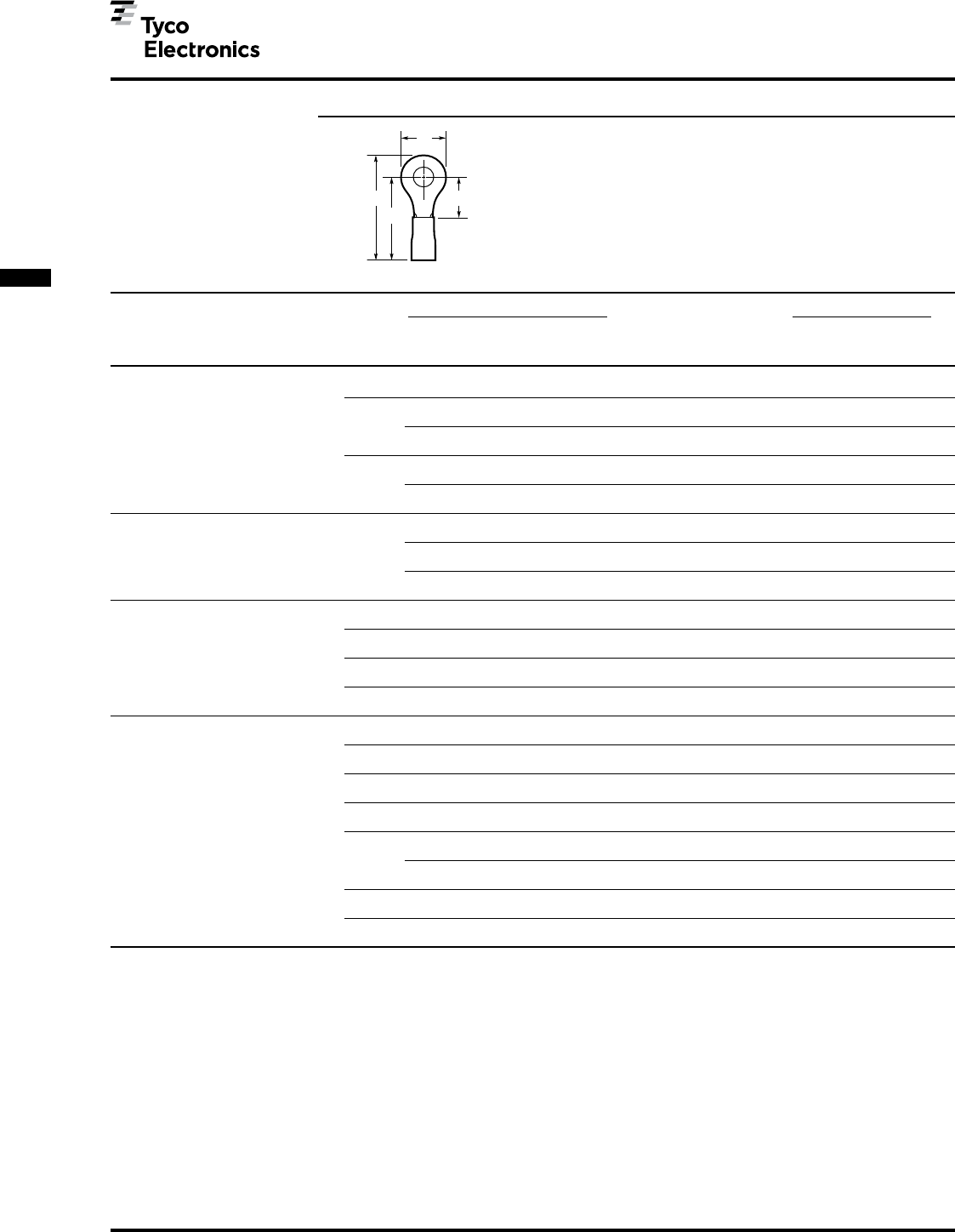

Ring Tongue Terminals
(Insulation Restricting)
Material
Insulation-Nylon, UL 94V-2
Terminal Body-Copper per
ASTM B-152
Plating-Tin per ASTM B-545
Metallic Sleeve-Copper per
ASTM B-152
Plating-Nickel per QQ-N-290
or Tin per ASTM B-545
Related Product Data
Insulation Color Code -pg. 4
Packaging Quantities -pg. 4
Performance Specifications -
pgs. 4 & 5
Application Tooling-pg. 66
L
E
C
W
Wire Size Tongue Dimensions Terminal Wire Part Numbers
Circular Mils Material Stud W C E L Insulation Insulation Loose Tape
[mm2] Thickness Size Min. Max. Max. Color Diameter Piece Mounted
Max. Solid/Stripe Range
2 .203 .211 .632 .739 Yellow/Black .026-.055 53078† —
M2 5.16 5.36 16.05 18.77 0.66-1.40
4 .203 .211 .632 .736 Yellow/Black .026-.055 53049† —
26 5.16 5.36 16.05 18.69 0.66-1.40
304 .029 6 .250 .243 .664 .792 Yellow/Black .026-.055 53050† —
[0.15] 0.74 M3.5 6.35 6.17 16.87 20.12 0.66-1.40
8 .281 .250 .671 .814 Yellow/Black .026-.055 53051† —
M4 7.14 6.35 17.04 20.68 0.66-1.40
10 .312 .281 .702 .863 Yellow/Black .026-.055 53052† —
7.92 7.14 17.83 21.92 0.66-1.40
4 .203 .211 .587 .691 Yellow/Blue .031-.055 2-323914-2 —
5.16 5.36 14.91 17.55 0.79-1.40
6 .250 .281 .657 .785 Yellow/Blue .031-.055 2-326875-4 —
.020 M3.5 6.35 7.14 16.69 19.94 0.79-1.40
0.51 8 .250 .281 .657 .785 Yellow/Blue .031-.055 2-323916-3 —
M4 6.35 7.14 16.69 19.94 0.79-1.40
10 .250 .281 .657 .785 Yellow/Blue .031-.055 2-326875-5 —
24
6.35 7.14 16.69 19.94 0.79-1.40
475 2 .203 .211 .632 .739 Yellow/Blue .031-.055 53053† —
[0.24] M2 5.16 5.36 16.05 18.77 0.79-1.40
4 .203 .211 .632 .736 Yellow/Blue .031-.055 53054† —
5.16 5.36 16.05 18.69 0.79-1.40
.029 6 .250 .243 .664 .792 Yellow/Blue .031-.055 53055† 53055-1†
0.74 M3.5 6.35 6.17 16.87 20.12 0.79-1.40
8 .281 .250 .671 .814 Yellow/Blue .031-.055 53056† —
M4 7.14 6.35 17.04 20.68 0.79-1.40
10 .312 .281 .702 .860 Yellow/Blue .031-.055 53057† 53057-1†
7.92 7.14 17.83 21.84 0.79-1.40
2 .182 .172 .638 .731 Red/Green .038-.110 52307 —
M2 4.62 4.37 16.21 18.57 0.97-2.79
4 .218 .156 .622 .734 Red/Green .038-.110 52273* —
5.54 3.96 15.80 18.64 0.97-2.79
.218 .156 .622 .734 Red/Green .038-.110 2-36149-3* —
6 5.54 3.96 15.80 18.64 0.97-2.79
M3.5 .250 .250 .716 .844 Red/Green .038-.110 51863-2* 51863-5
6.35 6.35 18.19 21.44 0.97-2.79
8 .312 .281 .747 .906 Red/Green .038-.110 1-320551-2* 1-320551-5
22 .033 M4 7.92 7.14 18.97 23.01 0.97-2.79
754 0.84 10 .312 .281 .747 .906 Red/Green .038-.110 2-36153-3* 2-36153-6
[0.38] 7.92 7.14 18.97 23.01 0.97-2.79
1/4 .469 .437 .903 1.140 Red/Green .038-.110 2-320571-3 —
M6 11.91 11.10 22.94 28.96 0.97-2.79
5/16 .469 .437 .903 1.140 Red/Green .038-.110 2-320572-2 —
M8 11.91 11.10 22.94 28.96 0.97-2.79
3/8 .531 .546 1.012 1.280 Red/Green .038-.110 2-320573-1 —
13.49 13.87 25.70 32.51 0.97-2.79
1/2 .713 .530 .996 1.355 Red/Green .038-.110 2-328975-1 —
M12 18.11 13.46 25.30 34.42 0.97-2.79
*Available in small packaging quantities.
Note: “C” dimension applies from edge of metal wire barrel to center of stud hole.
†Must be crimped with 22-18 or 22-16 PIDG (red) Tooling.
PIDG Terminals and Splices
Return to digikey.com
AMP Standard Terminals and Splices
16
Catalog 82042 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 54-11-4733-2015
Revised 07-08 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
specified. Values in brackets are Specifications subject Mexico: 01-800-733-8926 Japan: 81-44-844-8013
www.tycoelectronics.com equivalent U.S. Customary Units. to change. C. America: 52-55-5-729-0425 UK: 44-8706-080208
PIDG Terminals and Splices (Continued)
Ring Tongue Terminals
(Insulation Restricting)
(Continued)
L
E
C
W
Wire Size Tongue Dimensions Terminal Wire Part Numbers
Circular Mils Material Stud W C E L Insulation Insulation Loose Tape
[mm2] Thickness Size Min. Max. Max. Color Diameter Piece Mounted
Max. Solid/Stripe Range
2 .182 .172 .638 .731 Red/Red .046-.110 52307-1 —
M2 4.62 4.37 16.21 18.57 1.17-2.79
4 .218 .156 .622 .734 Red/Red .046-.110 52273-1* —
5.54 3.96 15.80 18.64 1.17-2.79
.218 .156 .622 .734 Red/Red .046-.110 2-36149-4* —
6 5.54 3.96 15.80 18.64 1.17-2.79
M3.5 .250 .250 .716 .844 Red/Red .046-.110 51863-3 51863-6
6.35 6.35 18.19 21.44 1.17-2.79
8 .312 .281 .747 .906 Red/Red .046-.110 1-320551-3* 1-320551-7
20 .033 M4 7.92 7.14 18.97 23.01 1.17-2.79
1,186 0.84 10 .312 .281 .747 .906 Red/Red .046-.110 2-36153-4* —
[0.60] 7.92 7.14 18.97 23.01 1.17-2.79
1/4 .469 .437 .903 1.140 Red/Red .046-.110 2-320571-4 —
M6 11.91 11.10 22.94 28.96 1.17-2.79
5/16 .469 .437 .903 1.140 Red/Red .046-.110 2-320572-3 —
M8 11.91 11.10 22.94 28.96 1.17-2.79
3/8 .531 .546 1.012 1.280 Red/Red .046-.110 2-320573-2 —
13.49 13.87 25.70 32.51 1.17-2.79
1/2 .713 .530 .996 1.355 Red/Red .046-.110 2-328975-2 —
M12 18.11 13.46 25.30 34.42 1.17-2.79
4 .218 .156 .622 .734 Red/White .056-.110 52273-2* —
5.54 3.96 15.80 18.64 1.42-2.79
.218 .156 .622 .734 Red/White .056-.110 2-36149-5* —
6 5.54 3.96 15.80 18.64 1.42-2.79
M3.5 .250 .250 .716 .844 Red/White .056-.110 51863-4* 51863-7
6.35 6.35 18.19 21.44 1.42-2.79
8 .312 .281 .747 .906 Red/White .056-.110 1-320551-4* 1-320551-8
M4 7.92 7.14 18.97 23.01 1.42-2.79
18 .033 10 .312 .281 .747 .906 Red/White .056-.110 2-36153-5* 2-36153-9
1,900 0.84 7.92 7.14 18.97 23.01 1.42-2.79
[0.96] 1/4 .469 .437 .903 1.140 Red/White .056-.110 2-320571-5 —
M6 11.91 11.10 22.94 28.96 1.42-2.79
5/16 .469 .437 .903 1.140 Red/White .056-.110 2-320572-4 2-320574-7
M8 11.91 11.10 22.94 28.96 1.42-2.79
3/8 .531 .546 1.012 1.280 Red/White .056-.110 2-320573-3 —
13.49 13.87 25.70 32.51 1.42-2.79
1/2 .713 .530 .996 1.355 Red/White .056-.110 2-328975-3 —
M12 18.11 13.46 25.30 34.42 1.42-2.79
4 .250 .171 .637 .765 Blue/Blue .063-.130 52274 —
6.35 4.34 16.18 19.43 1.60-3.30
.250 .171 .637 .765 Blue/Blue .063-.130 2-320561-3* 2-320561-5
6 6.35 4.34 16.18 19.43 1.60-3.30
M3.5 .312 .281 .747 .906 Blue/Blue .063-.130 51864-6* 1-51864-2
7.92 7.14 18.97 23.01 1.60-3.30
8 .312 .281 .747 .906 Blue/Blue .063-.130 1-51864-0* 1-51864-6
M4 7.92 7.14 18.97 23.01 1.60-3.30
16 .033 10 .312 .281 .747 .906 Blue/Blue .063-.130 51864-7* —
2,800 0.84 7.92 7.14 18.97 23.01 1.60-3.30
[1.42] 1/4 .469 .437 .903 1.140 Blue/Blue .063-.130 2-320563-3 —
M6 11.91 11.10 22.94 28.96 1.60-3.30
5/16 .469 .437 .903 1.140 Blue/Blue .063-.130 2-320575-2 —
M8 11.91 11.10 22.94 28.96 1.60-3.30
3/8 .531 .546 1.012 1.280 Blue/Blue .063-.130 2-320564-1 —
13.49 13.87 25.70 32.51 1.60-3.30
1/2 .713 .530 .996 1.355 Blue/Blue .063-.130 2-328976-1 —
M12 18.11 13.46 25.30 34.42 1.60-3.30
*Available in small packaging quantities.
Note: “C” dimension applies from edge of metal wire barrel to center of stud hole.
Material
Insulation-Nylon, UL 94V-2
Terminal Body-Copper per
ASTM B-152
Plating-Tin per ASTM B-545
Metallic Sleeve-Copper per
ASTM B-152
Plating-Nickel per QQ-N-290
or Tin per ASTM B-545
Related Product Data
Insulation Color Code -pg. 4
Packaging Quantities -pg. 4
Performance Specifications -
pgs. 4 & 5
Application Tooling-pg. 66
PIDG Terminals and Splices
Return to digikey.com
17
AMP Standard Terminals and Splices
Catalog 82042 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 54-11-4733-2015
Revised 07-08 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
specified. Values in brackets are Specifications subject Mexico: 01-800-733-8926 Japan: 81-44-844-8013
www.tycoelectronics.com equivalent U.S. Customary Units. to change. C. America: 52-55-5-729-0425 UK: 44-8706-080208
PIDG Terminals and Splices (Continued)
Ring Tongue Terminals
(Insulation Restricting)
(Continued)
4 .250 .171 .637 .765 Blue/Green .078-.130 52274-1 —
6.35 4.34 16.18 19.43 1.98-3.30
.250 .171 .637 .765 Blue/Green .078-.130 2-320561-4 —
6 6.35 4.34 16.18 19.43 1.98-3.30
M3.5 .312 .281 .747 .906 Blue/Green .078-.130 51864-8* 1-51864-4
7.92 7.14 18.97 23.01 1.98-3.30
8 .312 .281 .747 .906 Blue/Green .078-.130 1-51864-1* 1-51864-7
M4 7.92 7.14 18.97 23.01 1.98-3.30
14 .033 10 .312 .281 .747 .906 Blue/Green .078-.130 51864-9* 1-51864-5
4,234 0.84 7.92 7.14 18.97 23.01 1.98-3.30
[2.15] 1/4 .469 .437 .903 1.140 Blue/Green .078-.130 2-320563-4 —
M6 11.91 11.10 22.94 28.96 1.98-3.30
5/16 .469 .437 .903 1.140 Blue/Green .078-.130 2-320575-3 —
M8 11.91 11.10 22.94 28.96 1.98-3.30
3/8 .531 .546 1.012 1.280 Blue/Green .078-.130 2-320564-2 —
13.49 13.87 25.70 32.51 1.98-3.30
1/2 .713 .530 .996 1.355 Blue/Green .078-.130 2-328976-2 —
M12 18.11 13.46 25.30 34.42 1.98-3.30
6 .375 .302 .958 1.148 Yellow/Yellow .095-.200 2-36161-5 —
M3.5 9.53 7.67 24.33 29.16 2.41-5.08
8 .375 .302 .958 1.148 Yellow/Yellow .095-.200 2-320568-2* —
M4 9.53 7.67 24.33 29.16 2.41-5.08
10 .375 .302 .958 1.148 Yellow/Yellow .095-.200 2-36161-3* —
9.53 7.67 24.33 29.16 2.41-5.08
12 .042 1/4 .531 .468 1.124 1.392 Yellow/Yellow .095-.200 2-320569-5 —
6,654 1.07 M6 13.49 11.89 28.55 35.36 2.41-5.08
[3.37] 5/16 .531 .468 1.124 1.392 Yellow/Yellow .095-.200 2-320576-2 —
M8 13.49 11.89 28.55 35.36 2.41-5.08
3/8 .593 .531 1.187 1.486 Yellow/Yellow .095-.200 2-320577-1 —
15.06 13.49 30.15 37.74 2.41-5.08
1/2 .715 .474 1.130 1.490 Yellow/Yellow .095-.200 52077-1 —
M12 18.16 12.04 28.70 37.85 2.41-5.08
6 .375 .302 .958 1.148 Yellow/Brown .119-.200 2-36161-6 3-36161-0
M3.5 9.53 7.67 24.33 29.16 3.02-5.08
8 .375 .302 .958 1.148 Yellow/Brown .119-.200 2-320568-3* —
M4 9.53 7.67 24.33 29.16 3.02-5.08
10 .375 .302 .958 1.148 Yellow/Brown .119-.200 2-36161-4 2-36161-8
9.53 7.67 24.33 29.16 3.02-5.08
10 .042 1/4 .531 .468 1.124 1.392 Yellow/Brown .119-.200 2-320569-6 2-320569-8
12,066 1.07 M6 13.49 11.89 28.55 35.36 3.02-5.08
[6.11] 5/16 .531 .468 1.124 1.392 Yellow/Brown .119-.200 2-320576-3 —
M8 13.49 11.89 28.55 35.36 3.02-5.08
3/8 .593 .531 1.187 1.486 Yellow/Brown .119-.200 2-320577-2 —
15.06 13.49 30.15 37.74 3.02-5.08
1/2 .715 .474 1.130 1.490 Yellow/Brown .119-.200 52077-2 —
M12 18.16 12.04 28.70 37.85 3.02-5.08
*Available in small packaging quantities.
Note: “C” dimension applies from edge of metal wire barrel to center of stud hole.
Wire Size Tongue Dimensions Terminal Wire Part Numbers
Circular Mils Material Stud W C E L Insulation Insulation Loose Tape
[mm2] Thickness Size Min. Max. Max. Color Diameter Piece Mounted
Max. Solid/Stripe Range
PIDG Terminals and Splices
Return to digikey.com
AMP Standard Terminals and Splices
18
Catalog 82042 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 54-11-4733-2015
Revised 07-08 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
specified. Values in brackets are Specifications subject Mexico: 01-800-733-8926 Japan: 81-44-844-8013
www.tycoelectronics.com equivalent U.S. Customary Units. to change. C. America: 52-55-5-729-0425 UK: 44-8706-080208

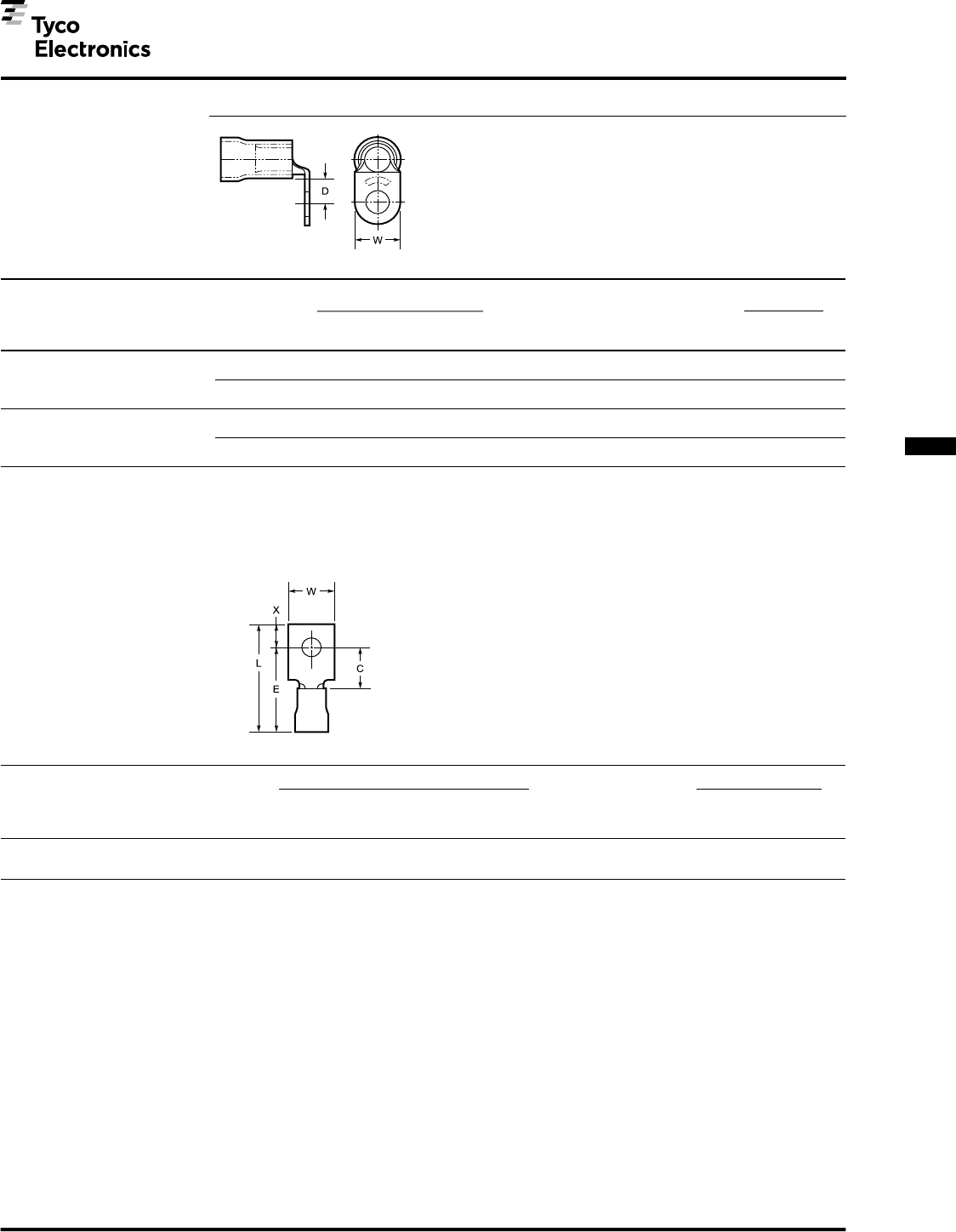

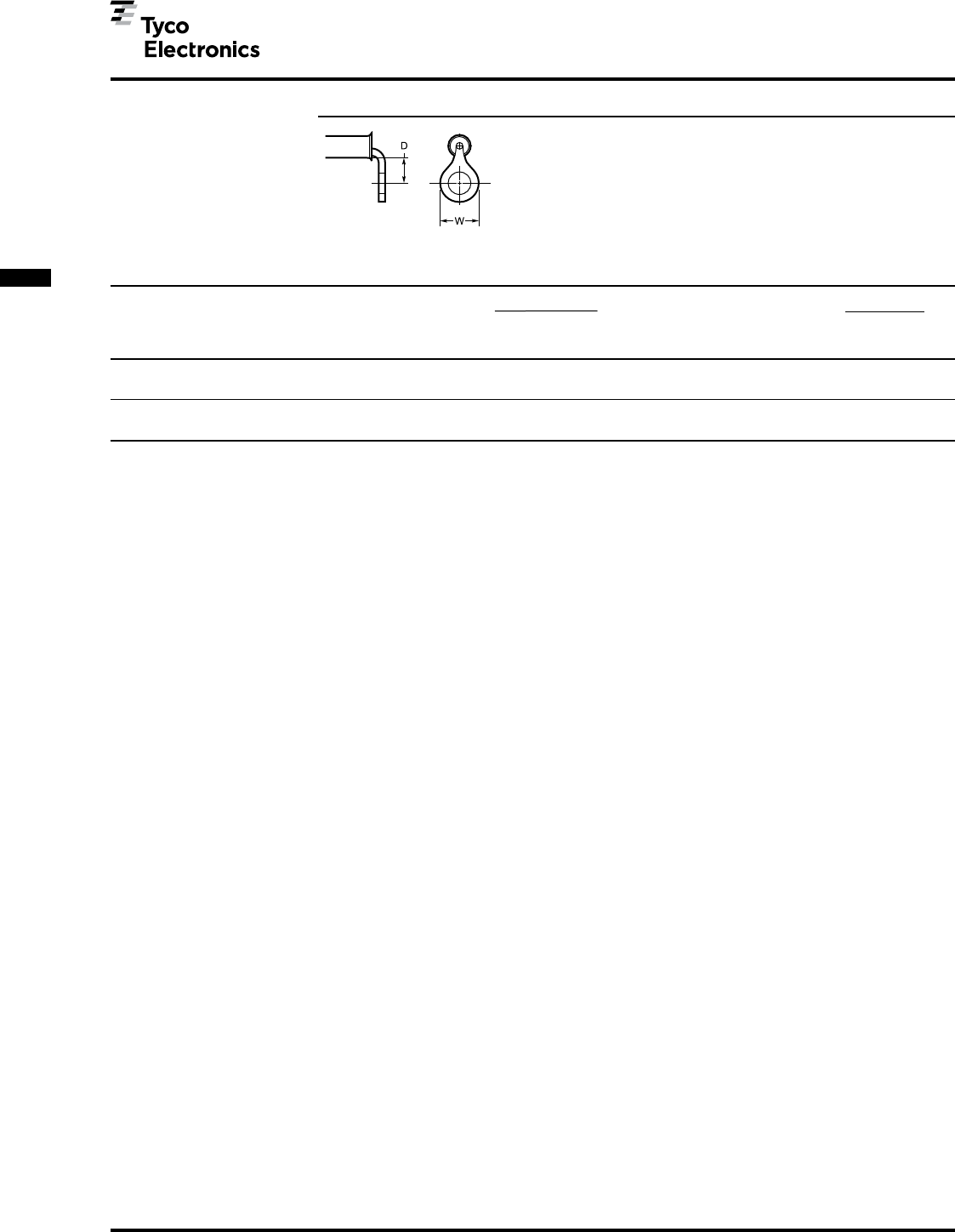

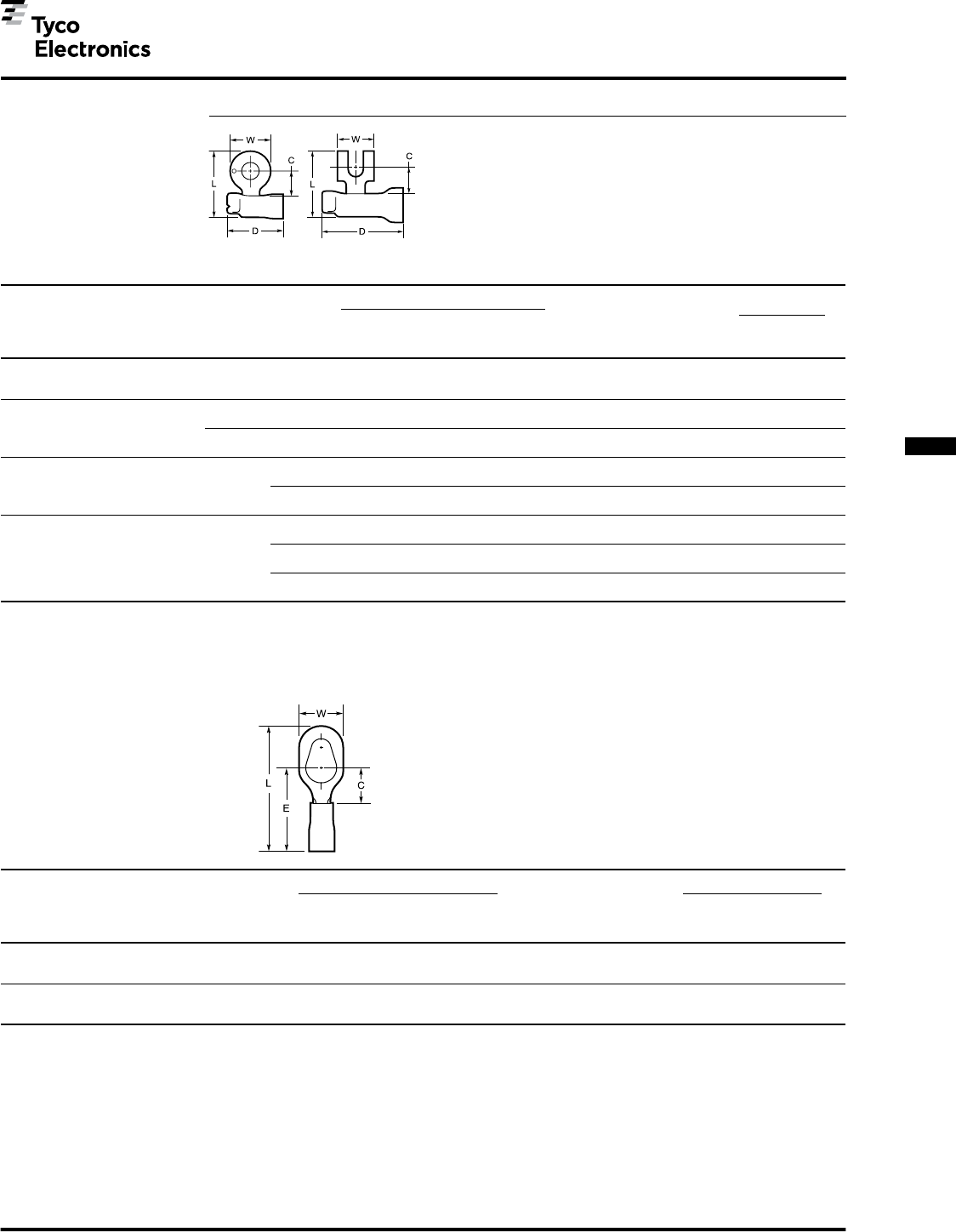

PIDG Terminals and Splices (Continued)
Ring Tongue Terminals
90° Bend
Material
Insulation-Vinyl, UL 94V-0
Terminal Body and Metallic
Sleeve-Copper per ASTM
B-152
Plating-Tin per ASTM B-545
Related Product Data
Insulation Color Code -pg. 4
Packaging Quantities -pg. 4
Performance Specifications -
pgs. 4 & 5
Application Tooling-pg. 66
Tongue Dimensions Wire Part Number
Wire Size Material Stud Terminal Insulation
Cicular Mils Thickness Size W D Insulation Diameter Loose
[mm2] Max. Min. Color Max. Piece
22-16 .033 .312 .157 .140
Vinyl 509-3,260 10 Red 55148-1
[0.26-1.65] 0.84 7.92 3.99 3.56
12-10 .040 .375 .206 .250
Nylon 5,180-13,100 6 Yellow 696020-1
[2.62-6.64] 1.02 9.53 5.23 6.35
PIDG Terminals and Splices
Return to digikey.com
19
AMP Standard Terminals and Splices
Catalog 82042 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 54-11-4733-2015
Revised 07-08 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
specified. Values in brackets are Specifications subject Mexico: 01-800-733-8926 Japan: 81-44-844-8013
www.tycoelectronics.com equivalent U.S. Customary Units. to change. C. America: 52-55-5-729-0425 UK: 44-8706-080208
PIDG Terminals and Splices (Continued)

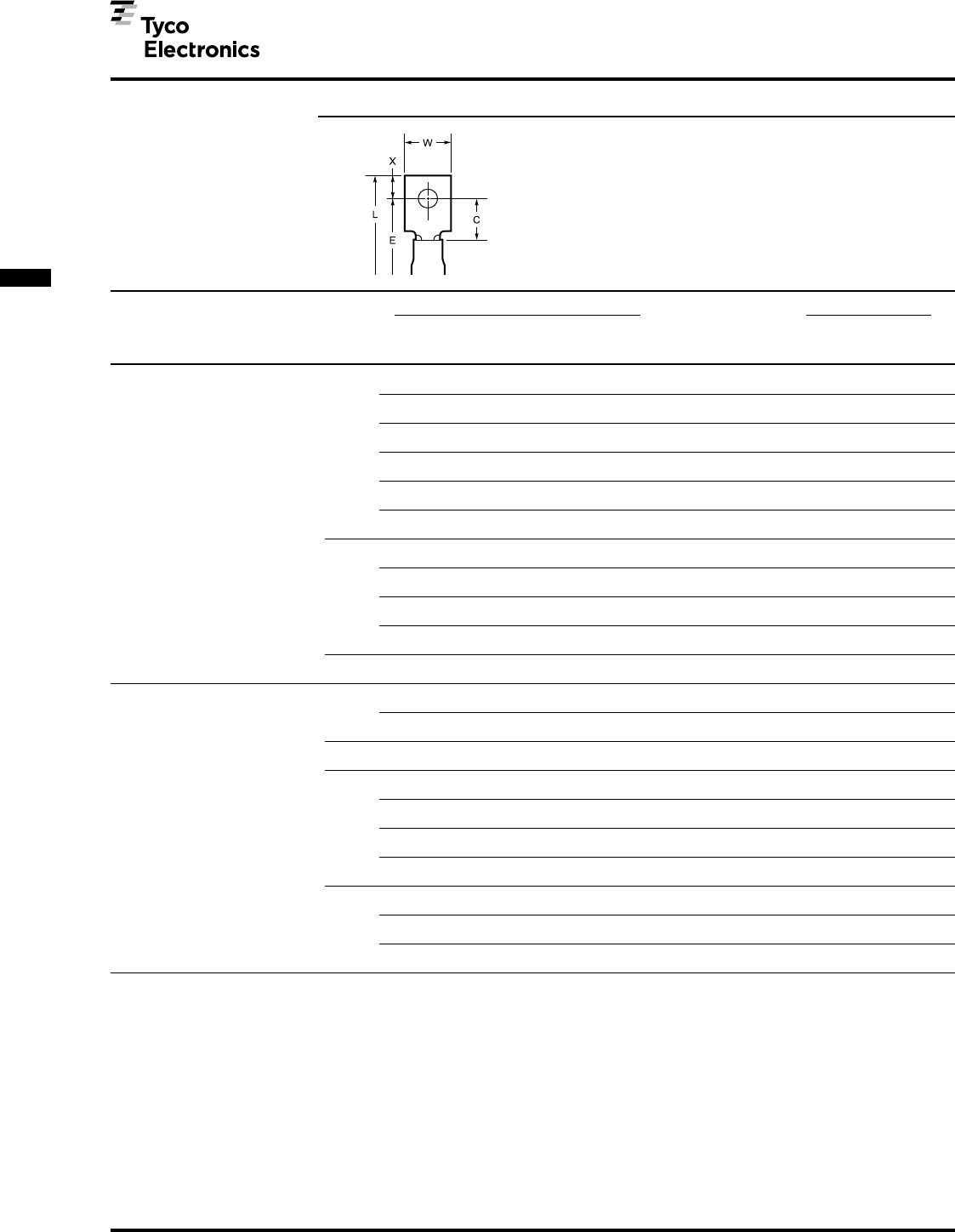

Rectangular Tongue
Terminals
Material
Insulation -Nylon except
where noted.
Terminal Body and Metallic
Sleeve -Copper per ASTM
B-152 except where noted.
Plating -Tin per ASTM B-545
Related Product Data
Insulation Color Code -pg. 4
Packaging Quantities -pg. 4
Performance Specifications -
pgs. 4 & 5
Application Tooling-pg. 66
Wire Size Tongue Dimensions Wire Part Numbers
Circular Mils Material Stud Terminal Insulation
[mm2] Thickness Size W C E L X Insulation Diameter Loose Tape
Max. Min. Max. Max. Color Max. Piece Mounted
26-22 2 .182 .211 .542 .647 .100 Yellow .082 3212062 —
202-810 .020 M2 4.62 5.36 13.77 16.43 2.54 2.08
0.51 6 .277 .308 .643 .783 .130 Yellow .082 330250 —
[0.10-0.41] M3.5 7.04 7.82 16.33 19.89 3.30 2.08
2 .182 .203 .607 .727 .115 Red .125 325148 —
M2 4.62 5.16 15.42 18.47 2.92 3.18
.237 .237 .643 .796 .143 Red .140 2-327968-1 —
4 6.02 6.02 16.33 20.22 3.63 3.56
.237 .404 .810 1.015 .195 Red .140 327962 —
6.02 10.26 20.57 25.78 4.95 3.56
.250 .187 .591 .736 .140 Red .140 55777-1 —
5 6.35 4.75 15.01 18.69 3.56 3.56
M3 .277 .277 .702 .855 .143 Red .140 2-327950-1 —
7.04 7.04 17.83 21.72 3.63 3.56
22-16 .237 .404 .810 1.015 .195 Red .140 2-327956-1 —
509-3,260 .033 6.02 10.26 20.57 25.78 4.95 3.56
0.84 .250 .312 .716 .846 .125 Red .125 320629 2-320629-1
[0.26-1.65] 6 6.35 7.92 18.19 21.49 3.18 3.18
M3.5 .250 .312 .716 .846 .125 Red .140 33476* 2-33476-1
6.35 7.92 18.19 21.49 3.18 3.56
.302 .465 .872 1.109 .227 Red .140 2-327938-1 2-327938-2
7.67 11.81 22.15 28.17 5.77 3.56
.302 .465 .872 1.109 .227 Red .140 327944* 2-327944-2
8 7.67 11.81 22.15 28.17 5.77 3.56
M4 .390 .621 1.039 1.359 .310 Red .140 327932 —
9.91 15.77 26.39 34.52 7.87 3.56
10 .312 .281 .685 .893 .203 Red .140 320209* —
7.92 7.14 17.40 22.68 5.16 3.56
.237 .237 .643 .796 .143 Blue .150 2-327970-4 —
4 6.02 6.02 16.33 20.22 3.63 3.81
16-14 .237 .404 .810 1.015 .195 Blue .150 2-327964-4 —
2,050-5,180 .033 6.02 10.26 20.57 25.78 4.95 3.81
0.84 .244 .312 .716 .856 .125 Blue .150 — 55694-11
[1.04-2.62] 5 6.20 7.92 18.19 21.74 3.18 3.81
M3 .277 .277 .702 .855 .143 Blue .150 2-327952-2 —
7.04 7.04 17.83 21.72 3.63 3.81
*Available in small packaging quantities.
1Insulation - Vinyl
2Terminal Body - Brass per MIL-C-50.
Note: “C” dimension applies from edge of metal wire barrel to center of stud hole.
PIDG Terminals and Splices
Return to digikey.com
AMP Standard Terminals and Splices
20
Catalog 82042 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 54-11-4733-2015
Revised 07-08 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
specified. Values in brackets are Specifications subject Mexico: 01-800-733-8926 Japan: 81-44-844-8013
www.tycoelectronics.com equivalent U.S. Customary Units. to change. C. America: 52-55-5-729-0425 UK: 44-8706-080208
PIDG Terminals and Splices (Continued)
Rectangular Tongue
Terminals
(Continued)
Wire Size Tongue Dimensions Wire Part Numbers
Circular Mils Material Stud Terminal Insulation
[mm2] Thickness Size W C E L X Insulation Diameter Loose Tape
Max. Min. Max. Max. Color Max. Piece Mounted
.237 .404 .810 1.015 .195 Blue .150 2-327958-4 —
6.02 10.26 20.57 25.78 4.95 3.81
.237 .404 .810 1.015 .195 Blue .170 2-327958-1 —
6.02 10.26 20.57 25.78 4.95 4.32
.244 .312 .716 .856 .125 Blue .150 33172 —
6 6.20 7.92 18.19 21.74 3.18 3.81
M3.5 .244 .312 .716 .856 .125 Blue .170 33173* —
6.20 7.92 18.19 21.74 3.18 4.32
.296 .203 .607 .752 .140 Blue .150 33168 —
7.52 5.16 15.42 19.10 3.56 3.81
16-14 .033 .302 .465 .872 1.109 .227 Blue .150 2-327940-4 —
2,050-5,180 0.84 7.67 11.81 22.15 28.17 5.77 3.81
[1.04-2.62] .244 .312 .716 .856 .125 Blue .170 35279 —
6.20 7.92 18.19 21.74 3.18 4.32
.296 .343 .747 .939 .187 Blue .170 321283* —
8 7.52 8.71 18.97 23.85 4.75 4.32
M4 .302 .465 .872 1.109 .227 Blue .150 2-327946-4 —
7.67 11.81 22.15 28.17 5.77 3.81
.390 .621 1.039 1.359 .310 Blue .150 2-327934-2 —
9.91 15.77 26.39 34.52 7.87 3.81
10 .312 .281 .685 .940 .250 Blue .170 324603 —
7.92 7.14 17.40 23.88 6.35 4.32
.237 .237 .831 .984 .143 Yellow .230 327972 —
4 6.02 6.02 21.11 24.99 3.63 5.84
.237 .404 .998 1.203 .195 Yellow .230 327966 —
6.02 10.26 25.35 30.56 4.95 5.84
5 .277 .277 .889 1.042 .143 Yellow .230 327954 2-327954-2
M3 7.04 7.04 22.58 26.47 3.63 5.84
.237 .404 .998 1.203 .195 Yellow .230 2-327960-1 2-327960-2
6.02 10.26 25.35 30.56 4.95 5.84
.250 .302 .893 1.085 .187 Yellow .230 329697 —
12-10 .042 6
6.35 7.67 22.68 27.56 4.75 5.84
5,180-13,100 1.07 M3.5 .290 .218 .809 .954 .140 Yellow .230 34512 —
[2.62-6.64] 7.37 5.54 20.55 24.23 3.56 5.84
.302 .465 1.044 1.281 .227 Yellow .230 327942 —
7.67 11.81 26.52 32.54 5.77 5.84
.302 .465 1.044 1.281 .227 Yellow .230 327948 —
7.67 11.81 26.52 32.54 5.77 5.84
8 .302 .465 1.077 1.247 .160 Yellow .230 331268 2-331268-1
M4 7.67 11.81 27.36 31.67 4.06 5.84
.390 .621 1.211 1.531 .310 Yellow .230 327936 —
9.91 15.77 30.76 38.89 7.87 5.84
*Available in small packaging quantities.
Note: “C” dimension applies from edge of metal wire barrel to center of stud hole.
Material
Insulation -Nylon except
where noted.
Terminal Body and Metallic
Sleeve -Copper per ASTM
B-152
Plating -Tin per ASTM B-545
Related Product Data
Insulation Color Code -pg. 4
Packaging Quantities -pg. 4
Performance Specifications -
pgs. 4 & 5
Application Tooling — pg. 66
PIDG Terminals and Splices
Return to digikey.com
21
AMP Standard Terminals and Splices
Catalog 82042 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 54-11-4733-2015
Revised 07-08 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
specified. Values in brackets are Specifications subject Mexico: 01-800-733-8926 Japan: 81-44-844-8013
www.tycoelectronics.com equivalent U.S. Customary Units. to change. C. America: 52-55-5-729-0425 UK: 44-8706-080208

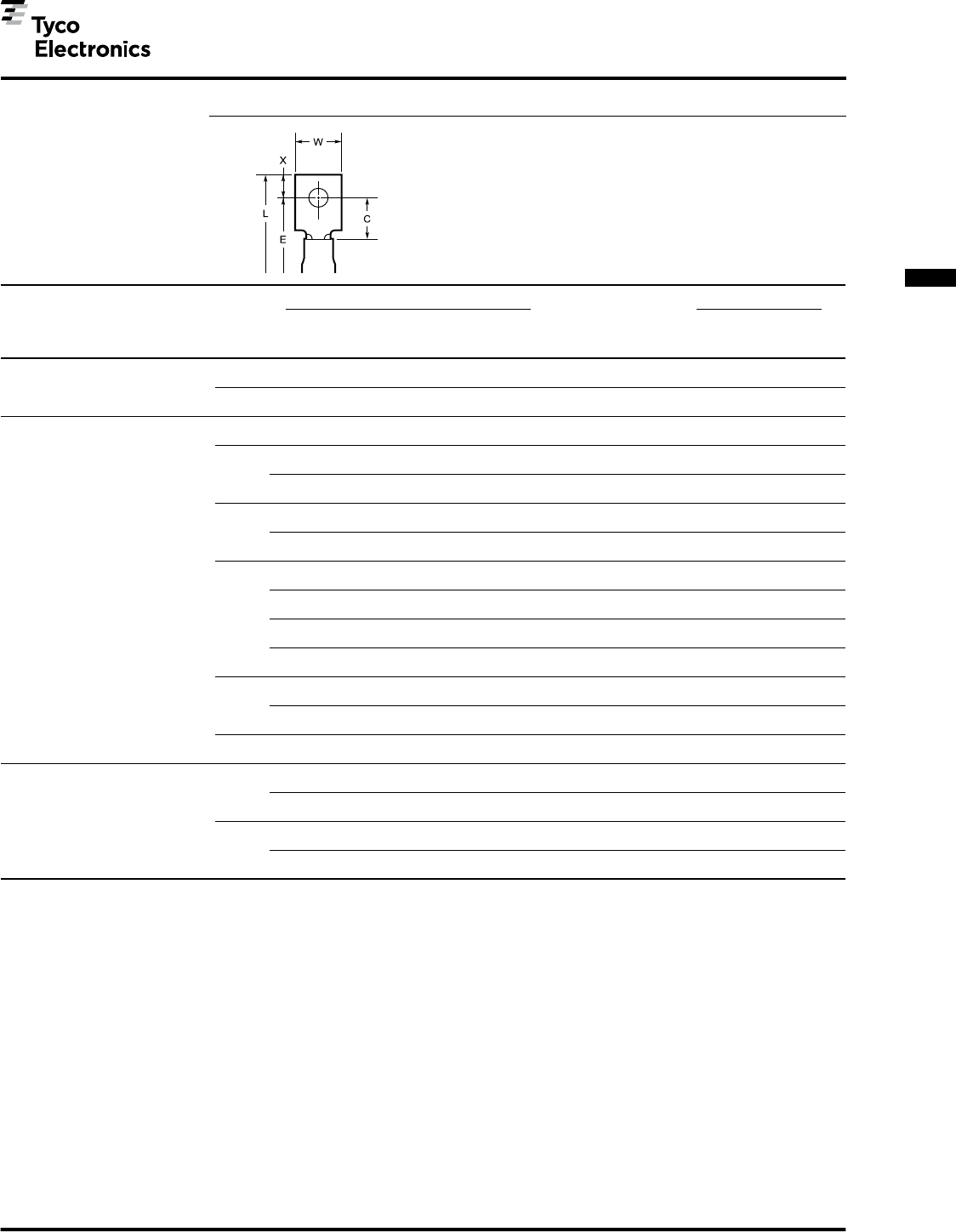

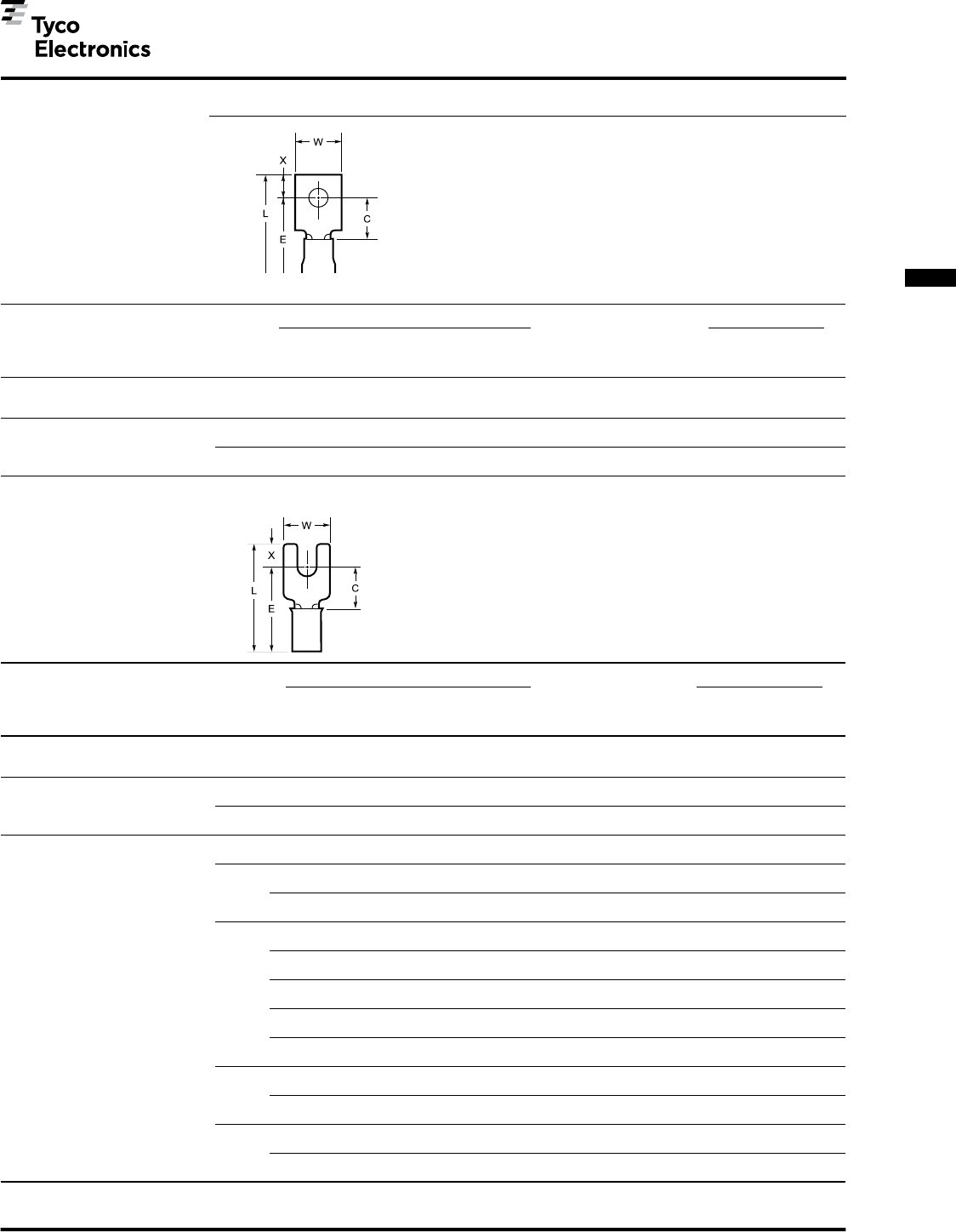

PIDG Terminals and Splices (Continued)
Rectangular Tongue
Terminals
(Continued)
Material
Insulation -Nylon, UL 94V-2
Terminal Body -Copper per
ASTM B-152
Plating -Tin per ASTM B-545
Metallic Sleeve -Copper per
ASTM B-152
Plating — Nickel per
QQ-N-290
Related Product Data
Insulation Color Code -pg. 4
Packaging Quantities -pg. 4
Performance Specifications -
pgs. 4 & 5
Application Tooling-pg. 66
Wire Size Tongue Dimensions Terminal Wire Part Numbers
Circular Mils Material Stud Insulation Insulation
[mm2] Thickness Size W C E L X Color Diameter Loose
Max. Min. Max. Max. Solid/Stripe Range Piece
24 .020 6 .312 .308 .683 .875 .187 .031-.055
475 Yellow/Blue 2-326876-2
[0.24] 0.51 M3.5 7.92 7.82 17.35 22.23 4.75 0.79-1.40
5 .277 .277 .934 1.087 .143 Yellow/Brown .119-.200 53912-2
10 .042 M3 7.04 7.04 23.72 27.61 3.63 3.02-5.08
12,066 1.07 8 .390 .621 1.276 1.596 .310 Yellow/Brown .119-.200 53914-2
[6.11] M4 9.91 15.77 32.41 40.54 7.87 3.02-5.08
Note: “C” dimension applies from edge of metal wire barrel to center of stud hole.
Wire Size Tongue Dimensions Wire Part Numbers
Circular Mils Material Stud Terminal Insulation
[mm2] Thickness Size W C E L X Insulation Diameter Loose Tape
Max. Min. Max. Max. Color Max. Piece Mounted
26-24 .029 6 .250 .211 .632 .709 .072 .095
238-475 Yellow — 53115-2
[0.12-0.24] 0.74 M3.5 6.35 5.36 16.05 18.01 1.83 2.41
0 .125 .078 .409 .476 .062 Yellow .082 322001 —
26-22 .020 3.18 1.98 10.39 12.09 1.57 2.08
202-810 0.51 4 .203 .211 .542 .627 .076 Yellow .082 321035* 2-321035-1
[0.10-0.41] 5.16 5.36 13.77 15.93 1.93 2.08
2 .182 .203 .607 .727 .115 Red .140 328394* 2-328394-1
M2 4.62 5.16 15.42 18.47 2.92 3.56
.218 .156 .560 .674 .109 Red .125 1-327717-0 —
4 5.54 3.96 14.22 17.12 2.77 3.18
.218 .156 .560 .674 .109 Red .140 327717* 1-327717-2
5.54 3.96 14.22 17.12 2.77 3.56
.250 .312 .716 .846 .125 Red .140 34541* 2-34541-1
6.35 7.92 18.19 21.49 3.18 3.56
.297 .203 .607 .753 .141 Red .125 34080* 2-34080-1
7.54 5.16 15.42 19.13 3.58 3.18
6 .297 .203 .607 .753 .141 Red .140 326861* 2-326861-1
22-16 .033 M3.5 7.54 5.16 15.42 19.13 3.58 3.56
509-3,260 0.84 .344 .218 .622 .783 .156 Red .125 32403 —
[0.26-1.65] 8.74 5.54 15.80 19.89 3.96 3.18
.344 .218 .622 .783 .156 Red .140 32404 2-32404-1
8.74 5.54 15.80 19.89 3.96 3.56
.375 .312 .716 .908 .187 Red .125 32050* 2-32050-1
8 9.53 7.92 18.19 23.06 4.75 3.18
M4 .375 .312 .716 .908 .187 Red .140 32053* 2-32053-1
9.53 7.92 18.19 23.06 4.75 3.56
.375 .312 .716 .908 .187 Red .125 32051* 2-32051-1
10 9.53 7.92 18.19 23.06 4.75 3.18
.375 .312 .716 .908 .187 Red .140 32054* 2-32054-1
9.53 7.92 18.19 23.06 4.75 3.56
*Available in small packaging quantities.
Note: “C” dimension applies from edge of metal wire barrel to center of stud hole.
Spade Tongue
Terminals
Material
Insulation -Nylon, UL 94V-2
Terminal Body and Metallic
Sleeve -Copper per ASTM
B-152
Plating -Tin per ASTM B-545
Related Product Data
Insulation Color Code -pg. 4
Packaging Quantities -pg. 4
Performance Specifications -
pgs. 4 & 5
Application Tooling-pg. 66
PIDG Terminals and Splices
Return to digikey.com
AMP Standard Terminals and Splices
22
Catalog 82042 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 54-11-4733-2015
Revised 07-08 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
specified. Values in brackets are Specifications subject Mexico: 01-800-733-8926 Japan: 81-44-844-8013
www.tycoelectronics.com equivalent U.S. Customary Units. to change. C. America: 52-55-5-729-0425 UK: 44-8706-080208
PIDG Terminals and Splices (Continued)
Spade Tongue
Terminals
(Continued)
Wire Size Tongue Dimensions Wire Part Numbers
Circular Mils Material Stud Terminal Insulation
[mm2] Thickness Size W C E L X Insulation Diameter Loose Tape
Max. Min. Max. Max. Color Max. Piece Mounted
.244 .312 .716 .846 .125 Blue .170 328281* 1-328281-1
6.20 7.92 18.19 21.49 3.18 4.32
6 .297 .203 .607 .753 .141 Blue .170 35559* 2-35559-1
M3.5 7.54 5.16 15.42 19.13 3.58 4.32
.385 .312 .716 .908 .187 Blue .170 32058* —
9.78 7.92 18.19 23.06 4.75 4.32
.297 .203 .607 .753 .141 Blue .170 321233* 2-321233-1
7.54 5.16 15.42 19.13 3.58 4.32
16-14 .033 .312 .375 .779 1.034 .250 Blue .170 325199 —
2,050-5,180 0.84 8 7.92 9.53 19.79 26.26 6.35 4.32
[1.04-2.62]
M4 .385 .312 .716 .908 .187 Blue .150 32056* 2-32056-1
9.78 7.92 18.19 23.06 4.75 3.81
.385 .312 .716 .908 .187 Blue .170 32059* 2-32059-1
9.78 7.92 18.19 23.06 4.75 4.32
.385 .312 .716 .908 .187 Blue .150 32057 —
10 9.78 7.92 18.19 23.06 4.75 3.81
.385 .312 .716 .908 .187 Blue .170 32060* 2-32060-1
9.78 7.92 18.19 23.06 4.75 4.32
.290 .218 .809 .954 .140 Yellow .230 322985* 1-322985-0
6 7.37 5.54 20.55 24.23 3.56 5.84
M3.5 .312 .296 .887 1.095 .203 Yellow .230 326859* 2-326859-1
7.92 7.52 22.53 27.81 5.16 5.84
.312 .468 1.059 1.314 .250 Yellow .230 325197 —
12-10 .042 7.92 11.89 26.90 33.38 6.35 5.84
5,180-13,100 1.07 8 .406 .296 .887 1.095 .203 Yellow .230 32588* 2-32588-1
[2.62-6.64] M4 10.31 7.52 22.53 27.81 5.16 5.84
.406 .296 .887 1.095 .203 Yellow .250 35152* 2-35152-1
10.31 7.52 22.53 27.81 5.16 6.35
10 .406 .296 .887 1.095 .203 Yellow .230 32589* 2-32589-1
10.31 7.52 22.53 27.81 5.16 5.84
*Available in small packaging quantities.
Note: “C” dimension applies from edge of metal wire barrel to center of stud hole.
Material
Insulation -Nylon, UL 94V-2
Terminal Body and Metallic
Sleeve -Copper per ASTM
B-152
Plating -Tin per ASTM B-545
Related Product Data
Insulation Color Code -pg. 4
Packaging Quantities -pg. 4
Performance Specifications -
pgs. 4 & 5
Application Tooling-pg. 66
PIDG Terminals and Splices
Return to digikey.com
23
AMP Standard Terminals and Splices
Catalog 82042 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 54-11-4733-2015
Revised 07-08 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
specified. Values in brackets are Specifications subject Mexico: 01-800-733-8926 Japan: 81-44-844-8013
www.tycoelectronics.com equivalent U.S. Customary Units. to change. C. America: 52-55-5-729-0425 UK: 44-8706-080208

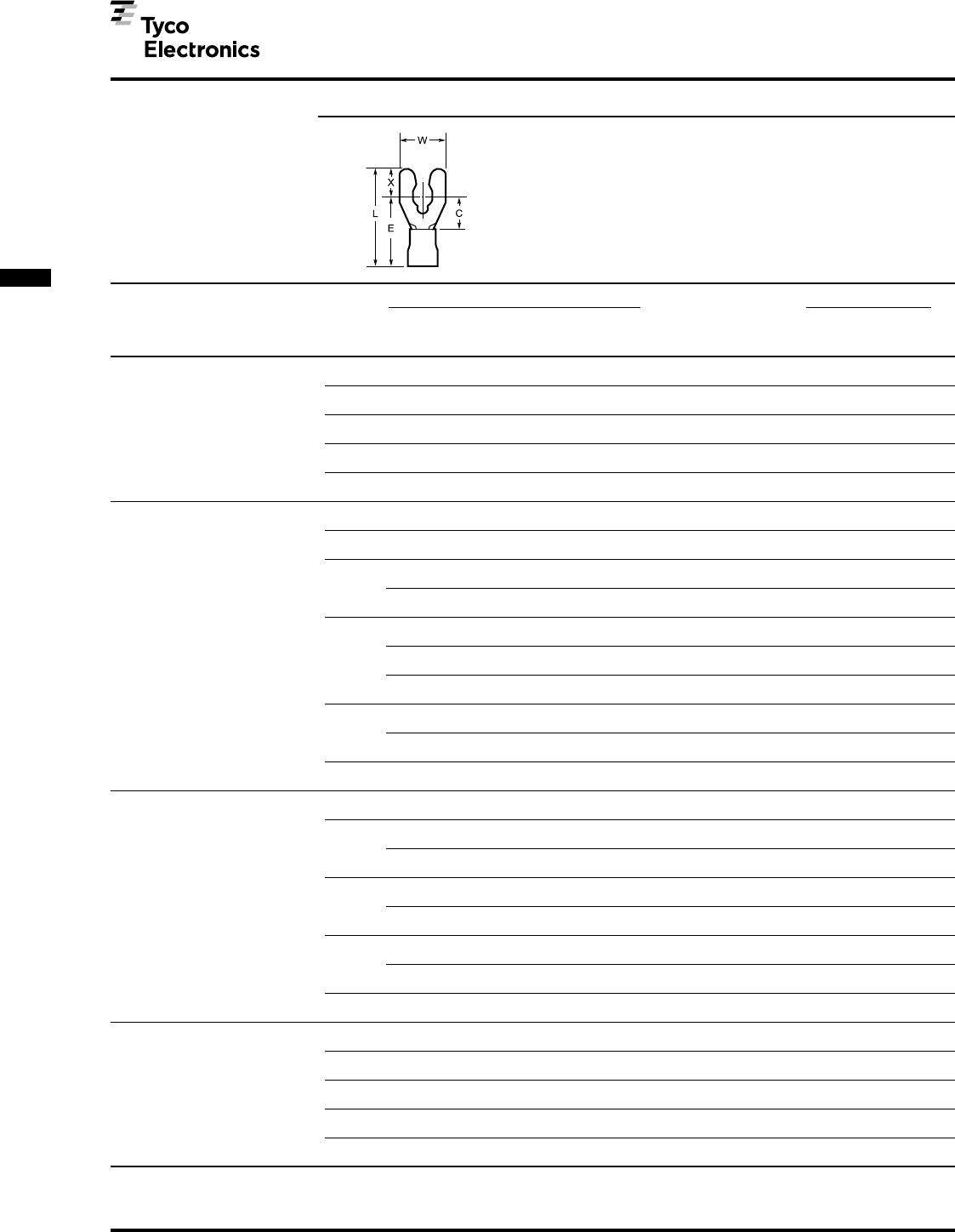

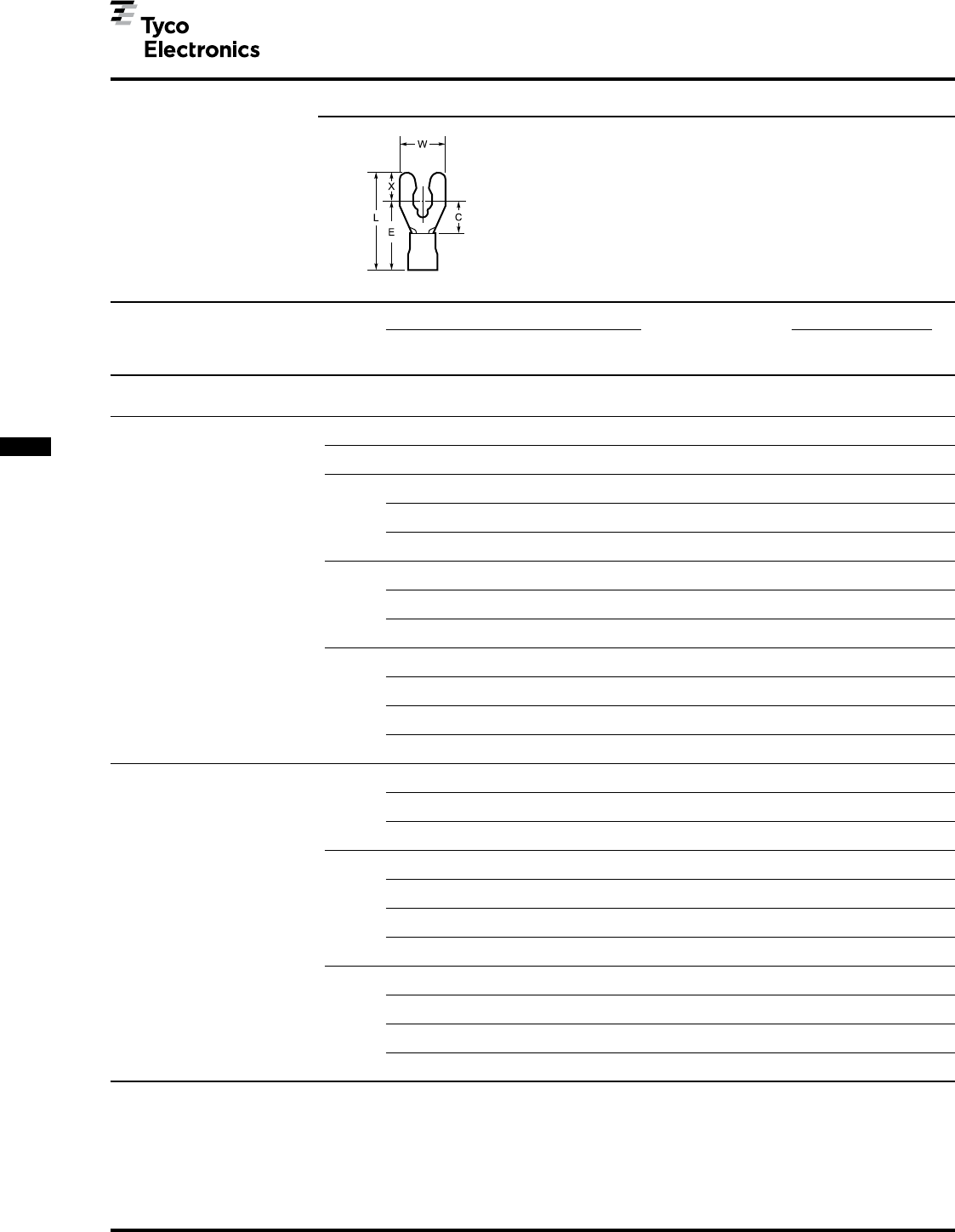

PIDG Terminals and Splices (Continued)

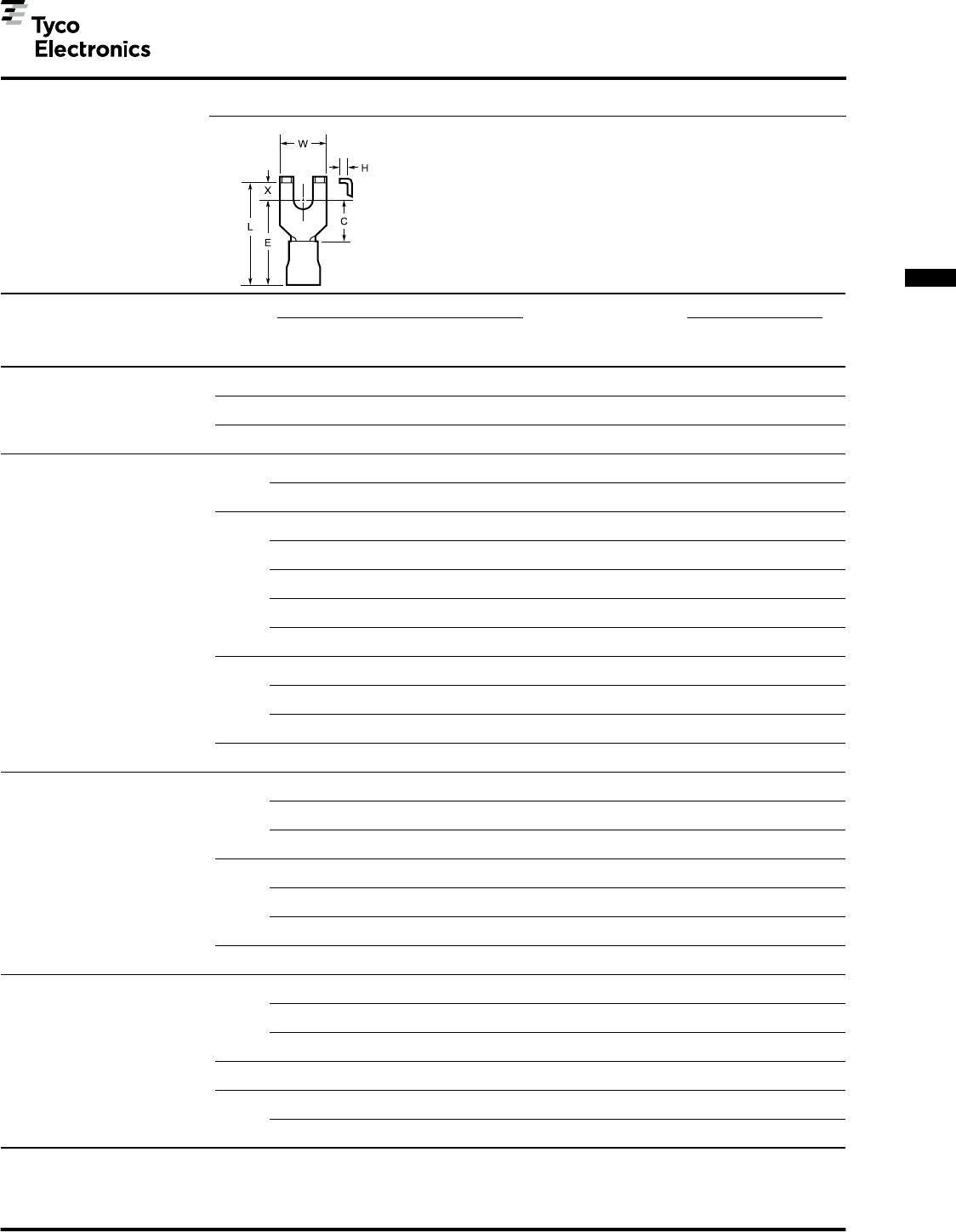

Flanged Spade Tongue
Terminals
Material
Insulation -Nylon, UL 94V-2
Terminal Body and Metallic
Sleeve -Copper per ASTM
B-152
Plating -Tin per ASTM B-545
Related Product Data
Insulation Color Code -pg. 4
Packaging Quantities -pg. 4
Performance Specifications -
pgs. 4 & 5
Application Tooling-pg. 66
Wire Size Tongue Dimensions Wire Part Numbers
Circular Mils Material Stud Terminal Insulation
[mm2] Thickness Size W C E L X H Insulation Diameter Loose Tape
Max. Min. Max. Max. Min. Color Max. Piece Mounted
2 .182 .203 .534 .649 .110 .026 Yellow .082 324597* 2-324597-1
M2 4.62 5.16 13.56 16.48 2.79 0.66 2.08
26-22 .020 4 .193 .203 .534 .649 .110 .026 Yellow .082 52369* 52369-1
202-810 0.51 4.90 5.16 13.56 16.48 2.79 0.66 2.08
[0.10-0.41] 6 .250 .203 .534 .649 .110 .026 Yellow .082 51874* 51874-1
M3.5 6.35 5.16 13.56 16.48 2.79 0.66 2.08
.182 .203 .607 .727 .115 .041 Red .125 2-324608-2 —
2 4.62 5.16 15.42 18.47 2.92 1.04 3.18
M2 .182 .203 .607 .727 .115 .041 Red .140 324608* 2-324608-1
4.62 5.16 15.42 18.47 2.92 1.04 3.56
.250 .203 .607 .737 .125 .046 Red .125 322777* 2-322777-1
6.35 5.16 15.42 18.72 3.18 1.17 3.18
.265 .203 .607 .737 .125 .046 Red .140 322426 —
6.73 5.16 15.42 18.72 3.18 1.17 3.56
6 .296 .203 .607 .737 .125 .046 Red .125 32561* 2-32561-1
22-16 M3.5 7.52 5.16 15.42 18.72 3.18 1.17 3.18
.033 .296 .203 .607 .737 .125 .046 Red .140 32562* 2-32562-1
509-3,260 0.84 7.52 5.16 15.42 18.72 3.18 1.17 3.56
[0.26-1.65] .328 .203 .607 .737 .125 .046 Red .140 324557 2-324557-1
8.33 5.16 15.42 18.72 3.18 1.17 3.56
.296 .203 .607 .737 .125 .046 Red .140 2-32562-2 2-32562-3
7.52 5.16 15.42 18.72 3.18 1.17 3.56
8 .416 .250 .654 .830 .171 .062 Red .125 32497 2-32497-1
M4 10.57 6.35 16.61 21.08 4.34 1.57 3.18
.416 .250 .654 .830 .171 .062 Red .140 32498* 2-32498-1
10.57 6.35 16.61 21.08 4.34 1.57 3.56
10 .296 .203 .607 .737 .125 .046 Red .140 1-331366-0 1-331366-1
7.52 5.16 15.42 18.72 3.18 1.17 3.56
.294 .203 .607 .737 .125 .047 Blue .150 2-320861-2 2-320861-3
7.47 5.16 15.42 18.72 3.18 1.19 3.81
6 .294 .203 .607 .737 .125 .047 Blue .170 320861* 2-320861-1
M3.5 7.47 5.16 15.42 18.72 3.18 1.19 4.32
.328 .203 .607 .737 .125 .047 Blue .170 324567* —
8.33 5.16 15.42 18.72 3.18 1.19 4.32
16-14 .033 .294 .203 .607 .737 .125 .047 Blue .170 320862* 2-320862-1
2,050-5,180 0.84 7.47 5.16 15.42 18.72 3.18 1.19 4.32
[1.04-2.62] 8 .416 .250 .654 .830 .171 .062 Blue .150 33155* —
M4 10.57 6.35 16.61 21.08 4.34 1.57 3.81
.416 .250 .654 .830 .171 .062 Blue .170 33156 2-33156-1
10.57 6.35 16.61 21.08 4.34 1.57 4.32
10 .294 .203 .607 .737 .125 .052 Blue .170 320863* 2-320863-2
7.47 5.16 15.42 18.72 3.18 1.19 4.32
.296 .250 .841 1.017 .171 .052 Yellow .230 324577 1-324577-0
7.52 6.35 21.36 25.83 4.34 1.32 5.84
6 .296 .250 .841 1.017 .171 .052 Yellow .250 325150* —
M3.5 7.52 6.35 21.36 25.83 4.34 1.32 6.35
.328 .250 .841 1.017 .171 .052 Yellow .230 324587 —
12-10 .042 8.33 6.35 21.36 25.83 4.34 1.32 5.84
5,180-13,100 1.07 8 .416 .250 .841 1.017 .171 .052 Yellow .230 32510* 2-32510-1
[2.62-6.64] M4 10.57 6.35 21.36 25.83 4.34 1.32 5.84
.416 .250 .841 1.017 .171 .052 Yellow .230 326865 2-326865-1
10 10.57 6.35 21.36 25.83 4.34 1.32 5.84
.416 .250 .841 1.017 .171 .052 Yellow .250 324015* 2-324015-1
10.57 6.35 21.36 25.83 4.34 1.32 6.35
*Available in small packaging quantities.
Note: “C” dimension applies from edge of metal wire barrel to center of stud hole.
PIDG Terminals and Splices
Return to digikey.com
AMP Standard Terminals and Splices
24
Catalog 82042 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 54-11-4733-2015
Revised 07-08 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
specified. Values in brackets are Specifications subject Mexico: 01-800-733-8926 Japan: 81-44-844-8013
www.tycoelectronics.com equivalent U.S. Customary Units. to change. C. America: 52-55-5-729-0425 UK: 44-8706-080208

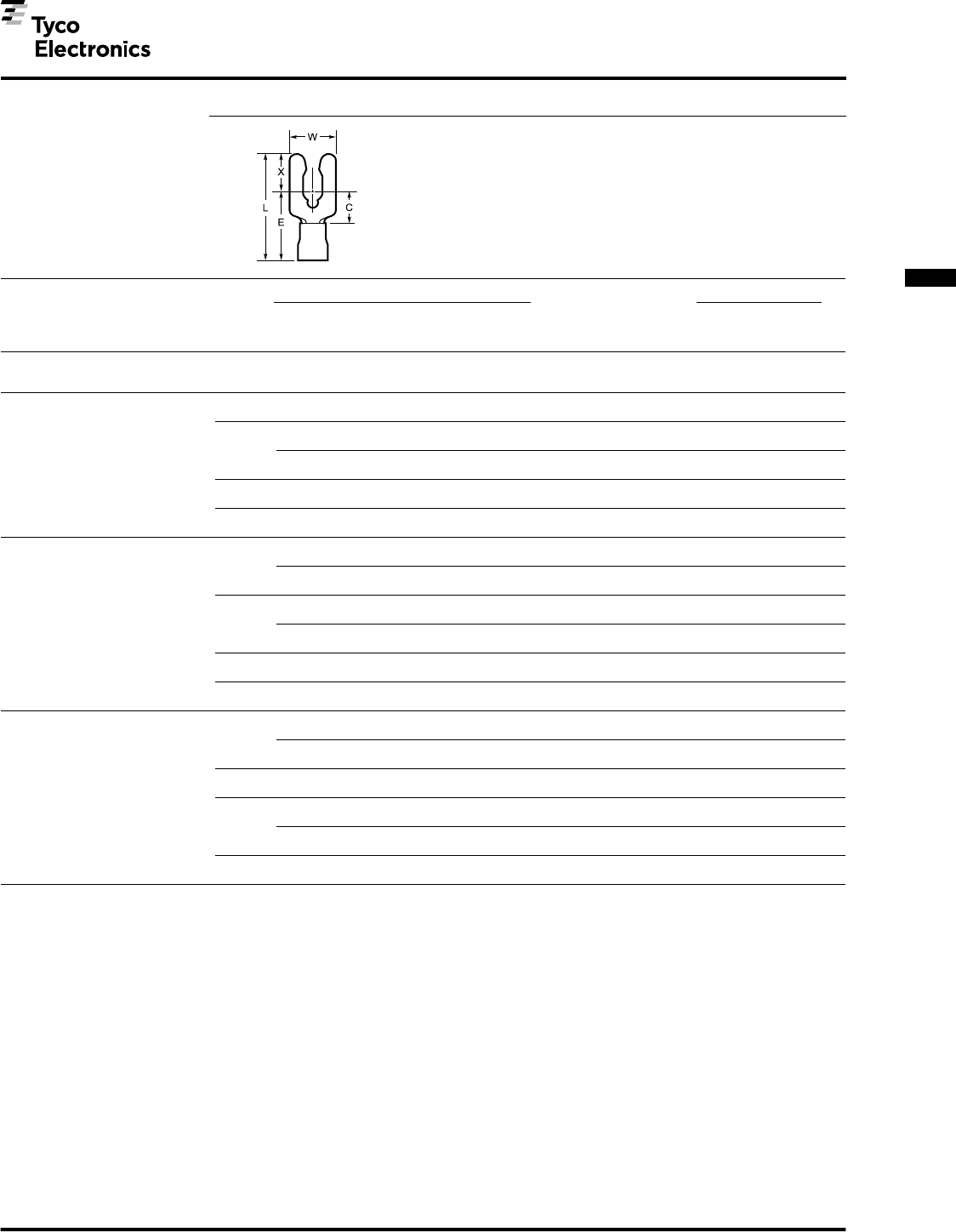

PIDG Terminals and Splices (Continued)
Short Spring Spade
Tongue Terminals
Material
Insulation -Nylon, UL 94V-2
Terminal Body -Phosphor
Bronze per ASTM B-139
Metallic Sleeve -Copper per
ASTM B-152
Plating -Tin per ASTM B-545
Related Product Data
Insulation Color Code -pg. 4
Packaging Quantities -pg. 4
Performance Specifications -
pgs. 4 & 5
Application Tooling-pg. 66
Wire Size Tongue Dimensions Wire Part Numbers
Circular Mils Material Stud Terminal Insulation
[mm2] Thickness Size W C E L X Insulation Diameter Loose Tape
Max. Min. Max. Max. Color Max. Piece Mounted
2 .171 .206 .537 .651 .109 Yellow .082 52921* 52921-1
M2 4.34 5.23 13.64 16.54 2.77 2.08
4 .203 .219 .550 .695 .140 Yellow .082 52922* 52922-1
5.16 5.56 13.97 17.65 3.56 2.08
26-22 .020 5 .250 .203 .534 .679 .140 Yellow .082 52923 52923-1
202-810 0.51 M3 6.35 5.16 13.56 17.25 3.56 2.08
[0.10-0.41]
6 .250 .203 .534 .679 .140 Yellow .082 52924* 52924-1
M3.5 6.35 5.16 13.56 17.25 3.56 2.08
8 .375 .281 .612 .787 .170 Yellow .082 52925 52925-1
M4 9.53 7.14 15.54 19.99 4.32 2.08
4 .203 .250 .654 .799 .140 Red .125 52927* 52927-1
5.16 6.35 16.61 20.29 3.56 3.18
5 .250 .250 .654 .799 .140 Red .125 52928* 52928-1
M3 6.35 6.35 16.61 20.29 3.56 3.18
.250 .250 .654 .799 .140 Red .125 52929* 52929-1
6 6.35 6.35 16.61 20.29 3.56 3.18
M3.5 .250 .250 .654 .799 .140 Red .140 — 52929-3
6.35 6.35 16.61 20.29 3.56 3.56
.244 .281 .725 .895 .170 Red .140 — 55768-1
22-16 .033 6.20 7.14 18.42 22.73 4.32 3.56
509-3,260 0.84 8 .375 .281 .685 .860 .170 Red .125 52930* 52930-1
[0.26-1.65] M4 9.53 7.14 17.40 21.84 4.32 3.18
.375 .281 .685 .860 .170 Red .140 — 52930-3
9.53 7.14 17.40 21.84 4.32 3.56
.406 .281 .685 .908 .218 Red .125 52931* 52931-1
10 10.31 7.14 17.40 23.06 5.54 3.18
.406 .281 .685 .908 .218 Red .140 — 52931-3
10.31 7.14 17.40 23.06 5.54 3.56
1/4 .625 .343 .747 1.033 .281 Red .125 52933* —
M6 15.88 8.71 18.97 26.24 7.14 3.18
5 .250 .250 .654 .799 .140 Blue .170 52934* 52934-1
M3 6.35 6.35 16.61 20.29 3.56 4.32
.250 .250 .654 .799 .140 Blue .170 52935* 52935-1
6 6.35 6.35 16.61 20.29 3.56 4.32
M3.5 .250 .250 .654 .799 .140 Blue .182 52935-2* 52935-3
6.35 6.35 16.61 20.29 3.56 4.62
.375 .281 .685 .860 .170 Blue .170 52936* 52936-1
16-14 .033 8 9.53 7.14 17.40 21.84 4.32 4.32
2,050-5,180 0.84 M4 .375 .281 .685 .860 .170 Blue .182 52936-2 52936-3
[1.04-2.62] 9.53 7.14 17.40 21.84 4.32 4.62
.406 .281 .685 .908 .218 Blue .170 52937* 52937-1
10 10.31 7.14 17.40 23.06 5.54 4.32
.406 .281 .685 .908 .218 Blue .182 52937-2* 52937-3
10.31 7.14 17.40 23.06 5.54 4.62
1/4 .625 .343 .747 1.033 .281 Blue .170 52939 —
M6 15.88 8.71 18.97 26.24 7.14 4.32
5 .250 .169 .770 .959 .184 Yellow .250 52940* 52940-1
M3 6.35 4.29 19.56 24.36 4.67 6.35
6 .250 .174 .775 .959 .179 Yellow .250 52941* 52941-1
M3.5 6.35 4.42 19.69 24.36 4.55 6.35
12-10 .042 8 .375 .276 .877 1.052 .170 Yellow .250 52942* 52942-1
5,180-13,100 1.07 M4 9.53 7.01 22.28 26.72 4.32 6.35
[2.62-6.64]
10 .406 .276 .877 1.100 .218 Yellow .250 52943* 52943-1
10.31 7.01 22.28 27.94 5.54 6.35
1/4 .625 .338 .939 1.225 .281 Yellow .250 52945* —
M6 15.88 8.59 23.85 31.12 7.14 6.35
*Available in small packaging quantities.
Note: “C” dimension applies from edge of metal wire barrel to center of stud hole.
PIDG Terminals and Splices
Return to digikey.com
25
AMP Standard Terminals and Splices
Catalog 82042 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 54-11-4733-2015
Revised 07-08 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
specified. Values in brackets are Specifications subject Mexico: 01-800-733-8926 Japan: 81-44-844-8013
www.tycoelectronics.com equivalent U.S. Customary Units. to change. C. America: 52-55-5-729-0425 UK: 44-8706-080208

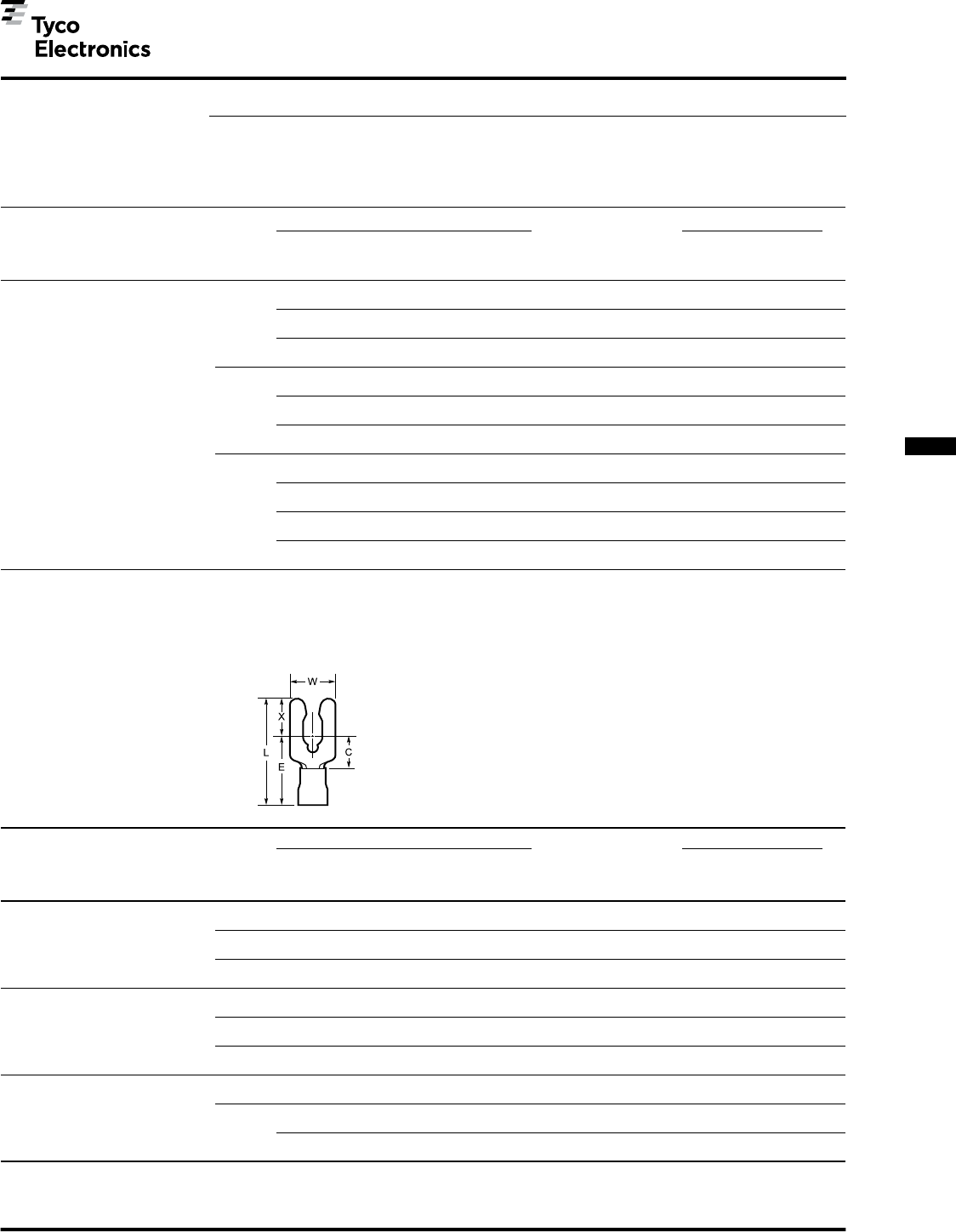

PIDG Terminals and Splices (Continued)

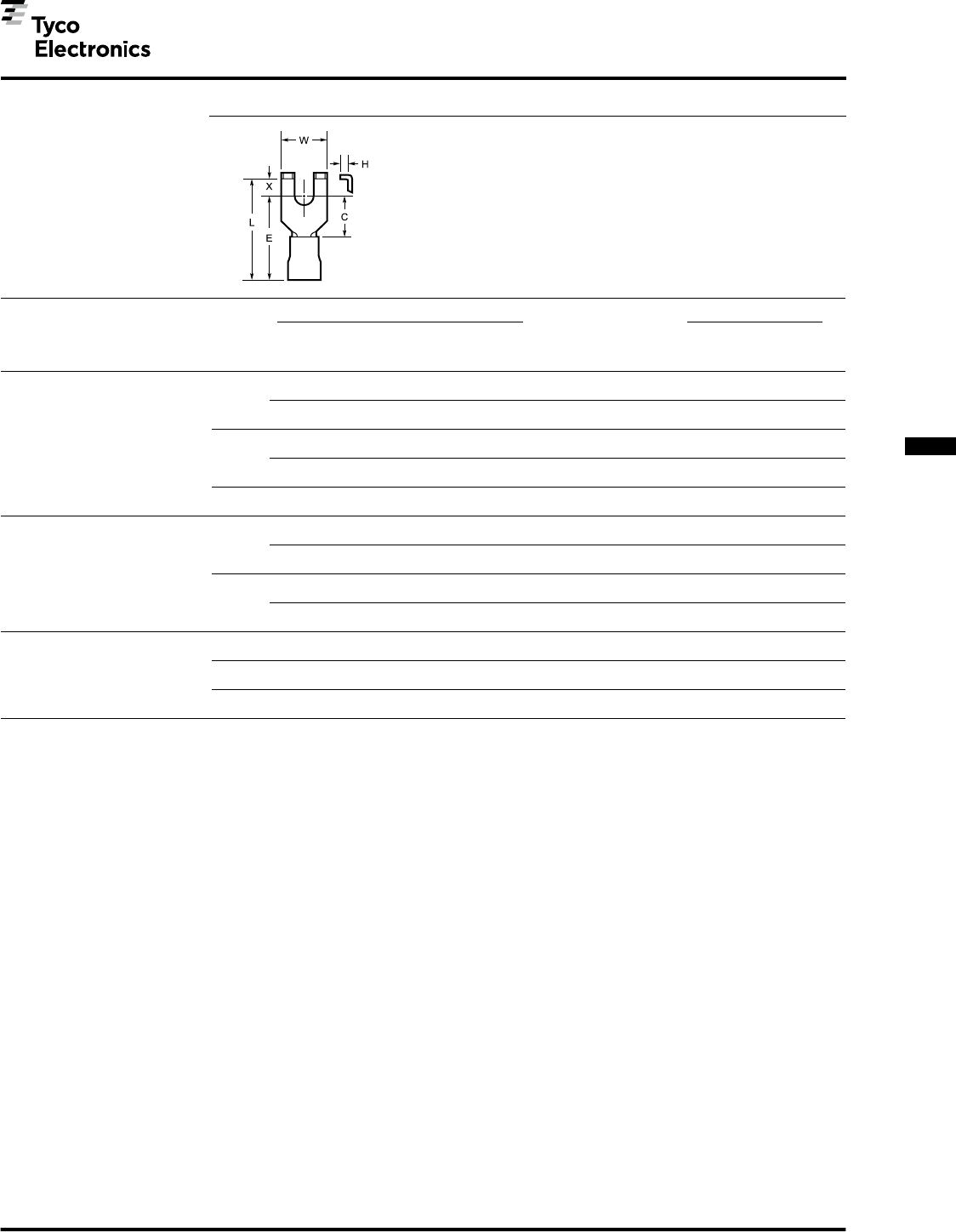

Long Spring Spade
Tongue Terminals
Material
Insulation -Nylon, UL 94V-2
Terminal Body -Phosphor
Bronze per ASTM B-139
Metallic Sleeve -Copper per
ASTM B-152
Plating -Tin per ASTM B-545
Related Product Data
Insulation Color Code -pg. 4
Packaging Quantities -pg. 4
Performance Specifications -
pgs. 4 & 5
Application Tooling-pg. 66
Wire Size Tongue Dimensions Wire Part Numbers
Circular Mils Material Stud Terminal Insulation
[mm2] Thickness Size W C E L X Insulation Diameter Loose Tape
Max. Min. Max. Max. Color Max. Piece Mounted
26-22 .020 6 .250 .235 .566 .847 .276 .082
202-810 Yellow 52403 52403-1
[0.10-0.41] 0.51 M3.5 6.35 5.97 14.38 21.51 7.01 2.08
4 .203 .201 .615 .896 .276 Red .125 52408 —
5.16 5.11 15.62 22.76 7.01 3.18
.250 .238 .652 .933 .276 Red .125 52409* 52409-1
6 6.35 6.05 16.56 23.70 7.01 3.18
22-16 .033 M3.5 .250 .238 .652 .933 .276 Red .140 52409-2 52409-3
509-3,260 0.84 6.35 6.05 16.56 23.70 7.01 3.56
[0.26-1.65]
8 .281 .270 .684 .979 .290 Red .125 52410* 52410-1
M4 7.14 6.86 17.37 24.87 7.37 3.18
10 .343 .283 .697 1.005 .303 Red .125 52411* 52411-1
8.71 7.19 17.70 25.53 7.70 3.18
.250 .238 .652 .933 .276 Blue .150 52420* 52420-2
6 6.35 6.05 16.56 23.70 7.01 3.81
M3.5 .250 .238 .652 .933 .276 Blue .170 52420-1* 52420-3
6.35 6.05 16.56 23.70 7.01 4.32
.281 .270 .684 .979 .290 Blue .150 52421* —
16-14 .033 8 7.14 6.86 17.37 24.87 7.37 3.81
2,050-5,180 0.84 M4 .281 .270 .684 .979 .290 Blue .170 52421-1* 52421-3
[1.04-2.62] 7.14 6.86 17.37 24.87 7.37 4.32
10 .343 .283 .697 1.005 .303 Blue .170 52422-1* 52422-3
8.71 7.19 17.70 25.53 7.70 4.32
1/4 .437 .345 .759 1.102 .338 Blue .150 52423 52423-2
M6 11.10 8.76 19.28 27.99 8.59 3.81
.312 .242 .843 1.131 .283 Yellow .230 52430 52430-2
6 7.92 6.15 21.41 28.73 7.19 5.84
M3.5 .312 .242 .843 1.131 .283 Yellow .250 52430-1 52430-3
7.92 6.15 21.41 28.73 7.19 6.35
8 .375 .273 .874 1.174 .295 Yellow .250 52431-1 52431-3
12-10 .042 M4 9.53 6.93 22.20 29.82 7.49 6.35
5,180-13,100 1.07 .375 .305 .906 1.219 .308 Yellow .230 — 52432-2
[2.62-6.64] 10 9.53 7.75 23.01 30.96 7.82 5.84
.375 .305 .906 1.219 .308 Yellow .250 52432-1 52432-3
9.53 7.75 23.01 30.96 7.82 6.35
1/4 .437 .345 .946 1.289 .338 Yellow .250 52433-1 —
M6 11.10 8.76 24.03 32.74 8.59 6.35
*Available in small packaging quantities.
Note: “C” dimension applies from edge of metal wire barrel to center of stud hole.
PIDG Terminals and Splices
Return to digikey.com
AMP Standard Terminals and Splices
26
Catalog 82042 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 54-11-4733-2015
Revised 07-08 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
specified. Values in brackets are Specifications subject Mexico: 01-800-733-8926 Japan: 81-44-844-8013
www.tycoelectronics.com equivalent U.S. Customary Units. to change. C. America: 52-55-5-729-0425 UK: 44-8706-080208
PIDG Terminals and Splices (Continued)

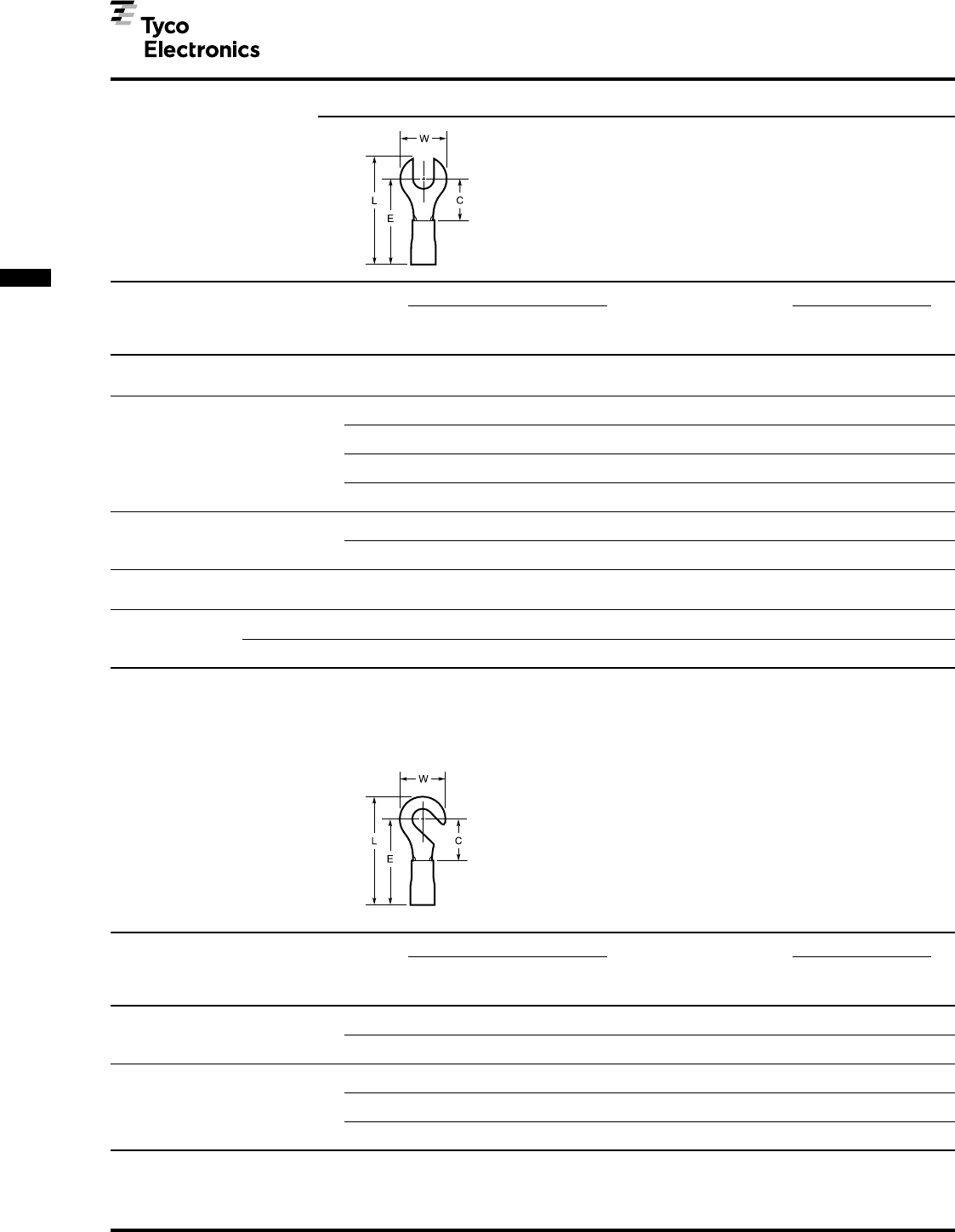

Slotted Ring Tongue
Terminals
Material
Insulation -Nylon except
where noted.
Terminal Body and Metallic
Sleeve -Copper per ASTM
B-152
Plating -Tin per ASTM B-545
Related Product Data
Insulation Color Code -pg. 4
Packaging Quantities -pg. 4
Performance Specifications -
pgs. 4 & 5
Application Tooling-pg. 66
Wire Size Tongue Dimensions Wire Part Numbers
Circular Mils Material Stud Terminal Insulation
[mm2] Thickness Size W C E L Insulation Diameter Loose Tape
Max. Min. Max. Max. Color Max. Piece Mounted
26-22 .020 6 .250 .281 .612 .719 .082
202-810 Yellow 323011 2-323011-2
[0.10-0.41] 0.51 M3.5 6.35 7.14 15.54 18.26 2.08
6 .312 .281 .685 .828 Red .140 35216* 2-35216-1
M3.5 7.92 7.14 17.40 21.03 3.56
8 .281 .250 .654 .770 Red .140 36954* 2-36954-2
22-16 .033 M4 7.14 6.35 16.61 19.56 3.56
509-3,260 0.84 10 .312 .281 .685 .812 Red .125 331453 1-331453-0
[0.26-1.65] 7.92 7.14 17.40 20.62 3.18
1/4 .469 .437 .841 1.039 Red .125 321808 —
M6 11.91 11.10 21.36 26.39 3.18
6 .343 .281 .685 .844 Blue .170 34406 —
16-14 .033 M3.5 8.71 7.14 17.40 21.44 4.32
2,050-5,180 0.84 8 .344 .281 .685 .837 Blue .170 35440 —
[1.04-2.62] M4 8.74 7.14 17.40 21.26 4.32
16-14 HD .048 .750 .625 1.216 1.594 .250
2,050-5,180 1.22 3/8 19.05 15.88 30.89 40.49 Yellow/Black 6.35 696077-2 696077-1
[1.04-2.62]
12-10 .042 1/4 .531 .468 1.156 1.390 Yellow .300 3216111 —
5,180-13,100 1.07 M6 13.49 11.89 29.36 35.31 7.62
[2.62-6.64] .040 3/8 .750 .625 1.216 1.594 Yellow .250 696076-2 696076-1
1.02 19.05 15.88 30.89 40.49 6.35
*Available in small packaging quantities.
1Insulation—Vinyl.
Note: “C” dimension applies from edge of metal wire barrel to center of stud hole.
Hook Tongue
Terminals
Material
Insulation -Nylon except
where noted.
Terminal Body and Metallic
Sleeve -Copper per ASTM
B-152
Plating -Tin per ASTM B-545
Related Product Data
Insulation Color Code -pg. 4
Packaging Quantities -pg. 4
Performance Specifications -
pgs. 4 & 5
Application Tooling-pg. 66
Wire Size Tongue Dimensions Wire Part Numbers
Circular Mils Material Stud Terminal Insulation
[mm2] Thickness Size W C E L Insulation Diameter Loose Tape
Max. Min. Max. Max. Color Max. Piece Mounted
22-16 6 .281 .203 .607 .750 Red .140 34313* —
509-3,260 0.84 M3.5 7.14 5.16 15.42 19.05 3.56
.033 8 .343 .296 .705 .879 Red .140 32456 —
[0.26-1.65] M4 8.71 7.52 17.91 22.33 3.56
6 .343 .281 .685 .859 Blue .150 320381 2-320381-1
M3.5 8.71 7.14 17.40 21.82 3.81
16-14 .033 8 .343 .281 .685 .859 Blue .170 320306* 2-320306-1
2,050-5,180 0.84 M4 8.71 7.14 17.40 21.82 4.32
[1.04-2.62]
10 .343 .281 .685 .859 Blue .170 354811 —
8.71 7.14 17.40 21.82 4.32
*Available in small packaging quantities.
1Insulation—Vinyl.
Note: “C” dimension applies from edge of metal wire barrel to center of stud hole.
PIDG Terminals and Splices
Return to digikey.com
27
AMP Standard Terminals and Splices
Catalog 82042 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 54-11-4733-2015
Revised 07-08 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
specified. Values in brackets are Specifications subject Mexico: 01-800-733-8926 Japan: 81-44-844-8013
www.tycoelectronics.com equivalent U.S. Customary Units. to change. C. America: 52-55-5-729-0425 UK: 44-8706-080208

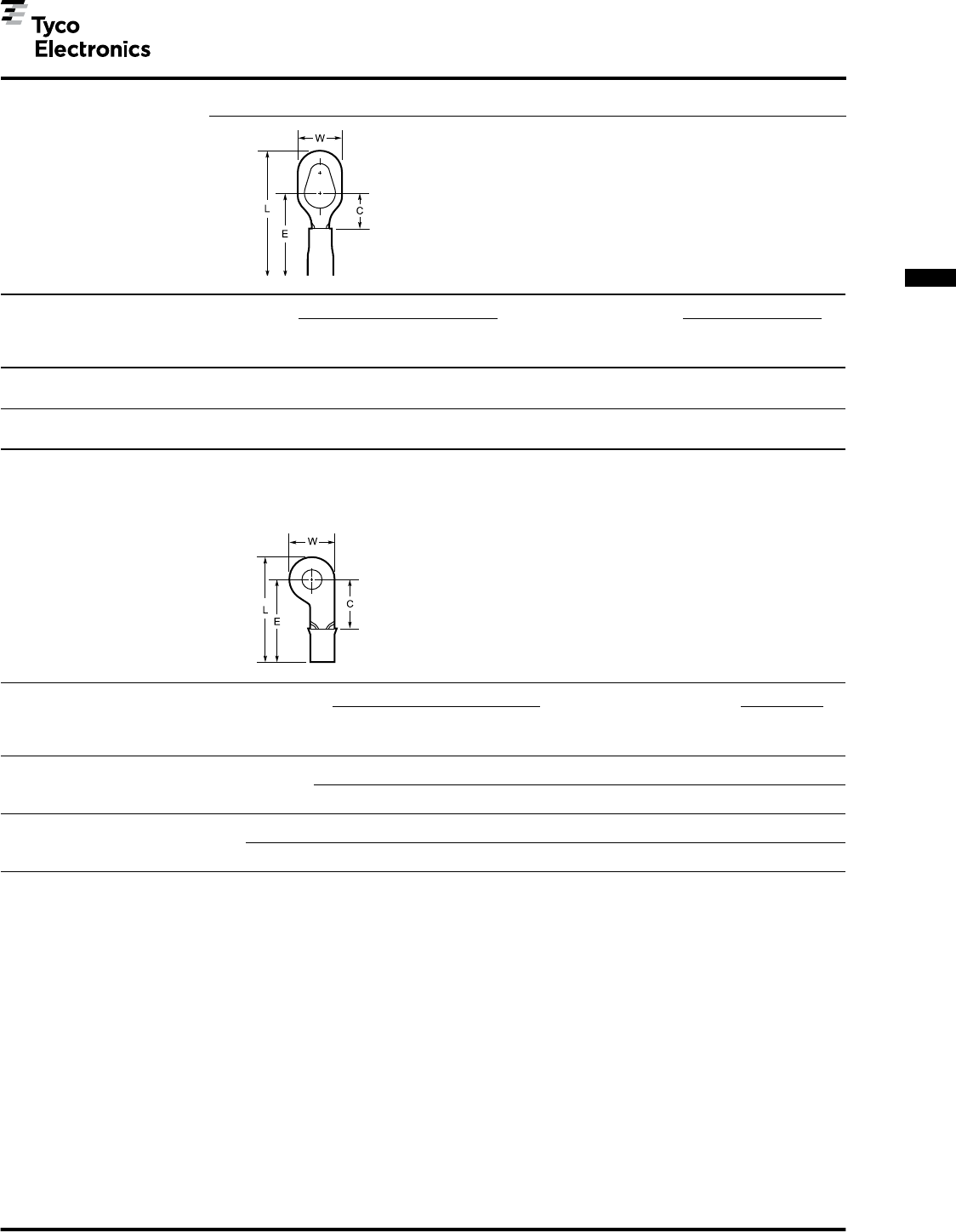

PIDG Terminals and Splices (Continued)
Multiple Stud
Terminals
Material
Insulation -Nylon, UL 94V-2
Terminal Body -Copper per
ASTM B-152
Plating -Tin per ASTM B-545
Metallic Sleeve -Copper per
ASTM B-152
Plating -Nickel per QQ-N-290
Related Product Data
Insulation Color Code -pg. 4
Packaging Quantities -pg. 4
Performance Specifications -
pgs. 4 & 5
Application Tooling-pg. 66
Wire Size Tongue Dimensions Wire Part Numbers
Circular Mils Material Stud Terminal Insulation
[mm2] Thickness Size W C E L Insulation Diameter Loose Tape
Max. Min. Max. Max. Color Max. Piece Mounted
22-16 .033 .325 .281 .685 .957 .125
509-3,260 6-8-10 Red 54771-1* 54771-2
[0.26-1.65] 0.84 8.26 7.14 17.40 24.31 3.18
12-10 .042 .325 .302 .893 1.165 .230
5,180-13,100 6-8-10 Yellow 54773-1* —
[2.62-6.64] 1.07 8.26 7.67 22.68 29.59 5.84
*Available in small packaging quantities.
Note: “C” dimension applies from edge of metal wire barrel to center of stud hole.
Offset Ring Tongue
Terminals
Material
Insulation -Nylon, UL 94V-2
Terminal Body and Metallic
Sleeve -Copper per ASTM
B-152
Plating -Tin per ASTM B-545
Related Product Data
Insulation Color Code -pg. 4
Packaging Quantities -pg. 4
Performance Specifications -
pgs. 4 & 5
Application Tooling-pg. 66
Tongue Dimensions Wire Part Numbers
Wire Size Material Stud Terminal Insulation
Circular Mils Thickness Size W C E L Insulation Diameter Loose
[mm2] Max. Min. Max. Max. Color Max. Piece
.375 .312 .716 .906 Red .125 323039
22-16 .033 6 9.53 7.92 18.19 23.01 3.18
509-3,260 0.84 M3.5 .375 .312 .716 .906 Red .125 324011
[0.26-1.65] 9.53 7.92 18.19 23.01 3.18
6 .375 .312 .716 .906 Blue .150 323817
16-14 .033 M3.5 9.53 7.92 18.19 23.01 3.81
2,050-5,180 0.84 10 .375 .312 .716 .906 Blue .150 323818
[1.04-2.62] 9.53 7.92 18.19 23.01 3.81
Note: “C” dimension applies from edge of metal wire barrel to center of stud hole.
PIDG Terminals and Splices
Return to digikey.com
AMP Standard Terminals and Splices
28
Catalog 82042 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 54-11-4733-2015
Revised 07-08 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
specified. Values in brackets are Specifications subject Mexico: 01-800-733-8926 Japan: 81-44-844-8013
www.tycoelectronics.com equivalent U.S. Customary Units. to change. C. America: 52-55-5-729-0425 UK: 44-8706-080208
PIDG Terminals and Splices (Continued)
Offset Ring Tongue
Terminals
(Insulation Restricting)
Material
Insulation -Nylon, UL 94V-2
Terminal Body and Metallic
Sleeve -Copper per ASTM
B-152
Plating -Tin per ASTM B-545
Related Product Data
Insulation Color Code -pg. 4
Packaging Quantities -pg. 4
Performance Specifications -
pgs. 4 & 5
Application Tooling-pg. 66
Wire Size Tongue Dimensions Terminal Wire Part Numbers
Circular Mils Material Stud Insulation Insulation
[mm2] Thickness Size W C E L Color Diameter Loose
Max. Min. Max. Max. Solid/Stripe Range Piece
22 .033 6 .375 .312 .758 .946 .038-.110
754 Red/Green 52284-4
[0.38] 0.84 M3.5 9.53 7.92 19.25 24.03 0.97-2.79
6 .375 .312 .758 .946 Red/Red .046-.110 52284-2
20 .033 M3.5 9.53 7.92 19.25 24.03 1.17-2.79
1,186 0.84 10 .375 .312 .758 .946 Red/Red .046-.110 52284-3
[0.60] 9.53 7.92 19.25 24.03 1.17-2.79
16 .033 6 .375 .312 .748 .938 .063-.130
2,800 Blue/Blue 52283-2
[1.42] 0.84 M3.5 9.53 7.92 19.00 23.83 1.60-3.30
14 .033 .375 .312 .748 .938 .078-.130
4,234 10 Blue/Green 52283-1
[2.15] 0.84 9.53 7.92 19.00 23.83 1.98-3.30
Note: “C” dimension applies from edge of metal wire barrel to center of stud hole.
PIDG Terminals and Splices
Return to digikey.com
29
AMP Standard Terminals and Splices
Catalog 82042 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 54-11-4733-2015
Revised 07-08 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
specified. Values in brackets are Specifications subject Mexico: 01-800-733-8926 Japan: 81-44-844-8013
www.tycoelectronics.com equivalent U.S. Customary Units. to change. C. America: 52-55-5-729-0425 UK: 44-8706-080208
PIDG Terminals and Splices (Continued)
SHUR-PLUG Terminal Material
Insulation -Nylon, UL 94V-2
Terminal Body and Metallic
Sleeve -Copper per ASTM
B-152
Plating -Tin per ASTM B-545
Related Product Data
Insulation Color Code -pg. 4
Packaging Quantities -pg. 4
Performance Specifications -
pgs. 4 & 5
Application Tooling-pg. 66
Wire Size Dimension Terminal Wire Insulation Part Numbers
Circular Mils L Insulation Diameter Loose Tape
[mm2] Max. Color Max. Piece Mounted
16-14 .790 .170
2,050-5,180 Blue 324225* 2-324225-1
[1.04-2.62] 20.07 4.32
16-14 Receptacle .768 .157
2,050-5,180 19.51 Blue 3.99 165429-1 —
[1.04-2.62]
*Available in small packaging quantities.
3-Way Connector Terminal Material
Insulation -Nylon, UL 94V-2
Terminal Body and Metallic
Sleeve -Copper per ASTM
B-152
Rivet -Brass per QQ-B-626
Plating -Tin per ASTM B-545
Related Product Data
Insulation Color Code -pg. 4
Packaging Quantities -pg. 4
Performance Specifications -
pgs. 4 & 5
Application Tooling-pg. 66
Wire Size Tongue Dimensions Terminal Wire Insulation Part Number
Circular Mils Material W L Insulation Diameter Loose
[mm2] Thickness Max. Max. Max. Color Max. Piece
16-14 .033 .859 1.370 .170
2,050-5,180 Blue 53222-1*
[1.04-2.62] 0.84 21.82 34.80 4.32
*Available in small packaging quantities.
PIDG Terminals and Splices
Return to digikey.com
AMP Standard Terminals and Splices
30
Catalog 82042 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 54-11-4733-2015
Revised 07-08 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
specified. Values in brackets are Specifications subject Mexico: 01-800-733-8926 Japan: 81-44-844-8013
www.tycoelectronics.com equivalent U.S. Customary Units. to change. C. America: 52-55-5-729-0425 UK: 44-8706-080208
PIDG Terminals and Splices (Continued)
Tabs Material
Insulation -Nylon, UL 94V-2
Terminal Body and Metallic
Sleeve -Copper per ASTM
B-152
Plating -Tin per ASTM B-545
Related Product Data
Insulation Color Code -pg. 4
Packaging Quantities -pg. 4
Performance Specifications -
pgs. 4 & 5
Application Tooling-pg. 66
Tongue Dimensions Wire Part Numbers
Wire Size Material Style
Terminal Insulation
Circular Mils Thickness W C L D Insulation Diameter Loose
[mm2] Max. Min. Max. Color Max. Piece
22-16 .033 .140 .480 .904 .140
509-3,260 A — Red 34294*
[0.26-1.65] 0.84 3.56 12.19 22.96 3.56
16-14 .033 .156 .375 .809 .170
2,050-5,180 B — Blue 327748
[1.04-2.62] 0.84 3.96 9.53 20.55 4.32
12-10 .042 .225 .600 1.194 .125 .230
5,180-13,100 C Yellow 324543*
[2.62-6.64] 1.07 5.72 15.24 30.33 3.18 5.84
*Available in small packaging quantities.
Note: “C” dimension applies from edge of metal wire barrel to end of tab.
PIDG Terminals and Splices
Return to digikey.com
31
AMP Standard Terminals and Splices
Catalog 82042 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 54-11-4733-2015
Revised 07-08 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
specified. Values in brackets are Specifications subject Mexico: 01-800-733-8926 Japan: 81-44-844-8013
www.tycoelectronics.com equivalent U.S. Customary Units. to change. C. America: 52-55-5-729-0425 UK: 44-8706-080208
PIDG Terminals and Splices (Continued)

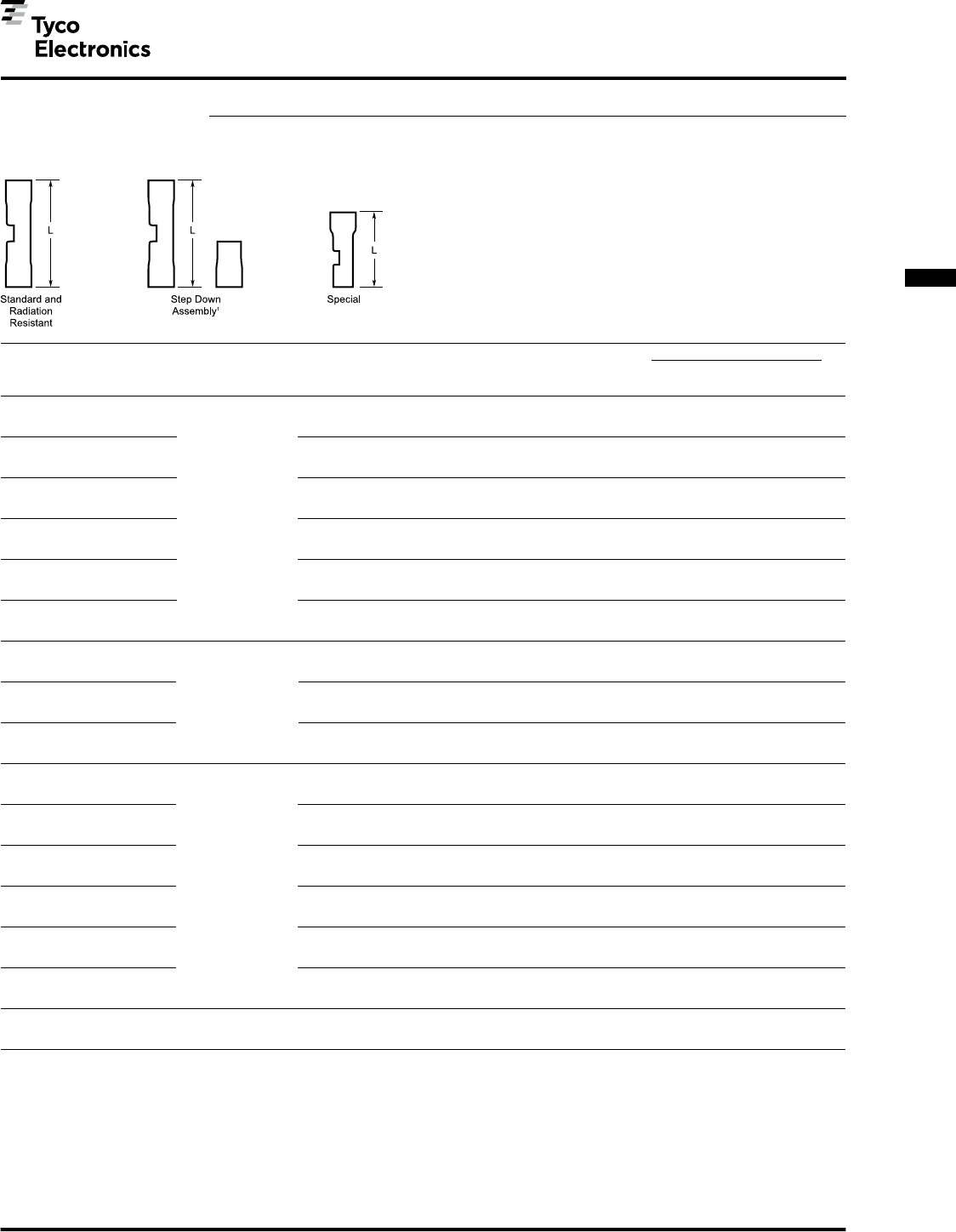

Butt Splices Material
Insulation Sleeve -
Standard, Step Down Assem-
bly and Special–Nylon
Radiation Resistant –
Polyvinylidene Fluoride
(PVF2)
Splice Bodyand Insulation
Support Sleeve-Copper per
ASTM B-152
Plating -Tin per ASTM B-545
Related Product Data
Insulation Color Code -pg. 4
Packaging Quantities -pg. 4
Performance Specifications -
pgs. 4 & 5
Application Tooling-pg. 66
Wire Size
Dimension Splice Wire Insulation Part Numbers
Circular Mils2 Style L Insulation Diameter Loose Tape
[mm2]
Max. Color Max. Piece Mounted
26-243 .890 .082
238-475 Yellow 323994 2-323994-1
[0.12-0.24] 22.61 2.08
26-22 .890 .082
202-810 Yellow 2-323994-2* —
[0.10-0.41] 22.61 2.08
24-20 1.035 .100
320-1,290 Natural 323975 2-323975-3
[0.16-0.65] 26.29 2.54
22-164 1.265 .125
509-3,260 Red 320559* 2-320559-4
[0.26-1.65] 32.13 3.18
16-14 1.265 .150
2,050-5,180 Blue 320562* 2-320562-3
[1.04-2.62] 32.13 3.81
12-10 1.656 .220
5,180-13,100 Yellow 320570* 2-320570-3†
[2.62-6.64] 42.06 5.59
16-14 22-18 1.265 .150/.115
2,050-5,180 to 509-1,900 32.13 Blue 3.81/2.92 327583 2-327583-1
[1.04-2.62] [0.26-0.96]
12-10 22-18 1.656
.220/.140
5,180-13,100 to 509-1,900 42.06 Yellow 5.59/3.56 327639 —
[2.62-6.64] [0.26-0.96]
12-10 16-14 1.656 .220/.170
5,180-13,100 to 2,050-5,180 42.06 Yellow 5.59/4.32 327638 —
[2.62-6.64] [1.04-2.62]
26-243 Radiation .890 Natural w/ .082
238-475 53546-1 —
[0.12-0.24] Resistant 22.61 Yellow Stripes 2.08
26-22 Radiation .890 Natural w/ .082
202-810 53546-3 —
[0.10-0.41] Resistant 22.61 Yellow Stripes 2.08
24-20 1.035 Natural w/ .100
320-1,290 53547-1 53547-2
[0.16-0.65] 26.29 White Stripes 2.54
22-164 1.265 Natural w/ .125
509-3,260 53548-1* 53548-2
[0.26-1.65] 32.13 Red Stripes 3.18
16-14 1.265 Natural w/ .150
2,050-5,180 53549-1* 53549-2
[1.04-2.62] 32.13 Blue Stripes 3.81
12-10 1.656 Natural w/ .220
5,180-13,100 53550-1* —
[2.62-6.64] 42.06 Yellow Stripes 5.59
12-10 1.245 .220
5,180-13,100 Special Yellow 3289615 —
[2.62-6.64] 31.62 5.59
*Available in small packaging quantities.
1Includes adapter insert.
2When using two or more wires in either end of a butt splice, the combined cross sectional area must be within the (CMA) circular mil area
range listed.
326-24 range in accordance with MIL-T-7928.
422-16 splices are 22-18 range in accordance with MIL-T-7928.
512-10 butt splice, threaded 8-32 one end.
†AMP-TAPETRONIC machine tools only.
Standard
Step Down
Assembly
Radiation
Resistant
PIDG Terminals and Splices
Return to digikey.com
AMP Standard Terminals and Splices
32
Catalog 82042 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 54-11-4733-2015
Revised 07-08 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
specified. Values in brackets are Specifications subject Mexico: 01-800-733-8926 Japan: 81-44-844-8013
www.tycoelectronics.com equivalent U.S. Customary Units. to change. C. America: 52-55-5-729-0425 UK: 44-8706-080208

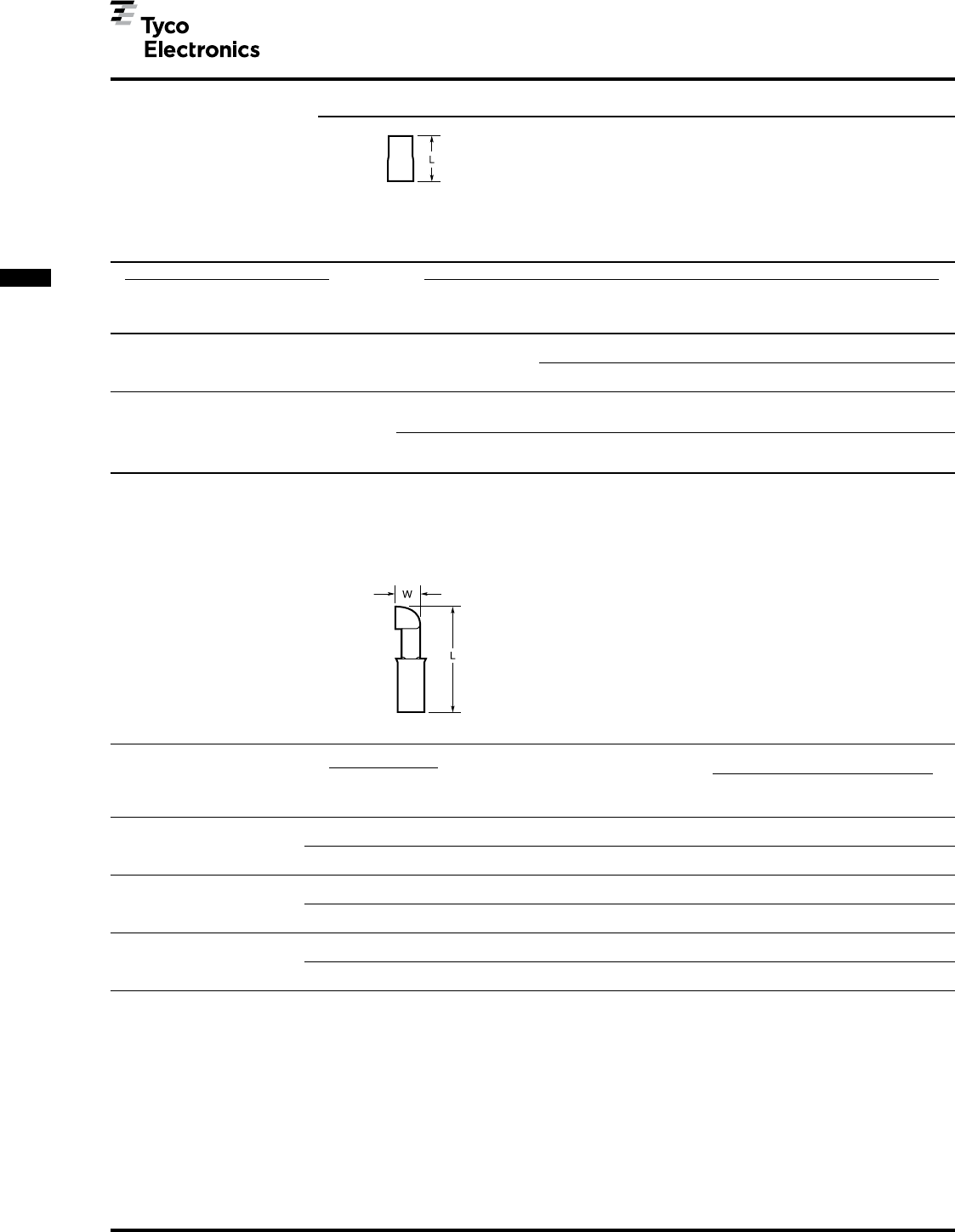

PIDG Terminals and Splices (Continued)

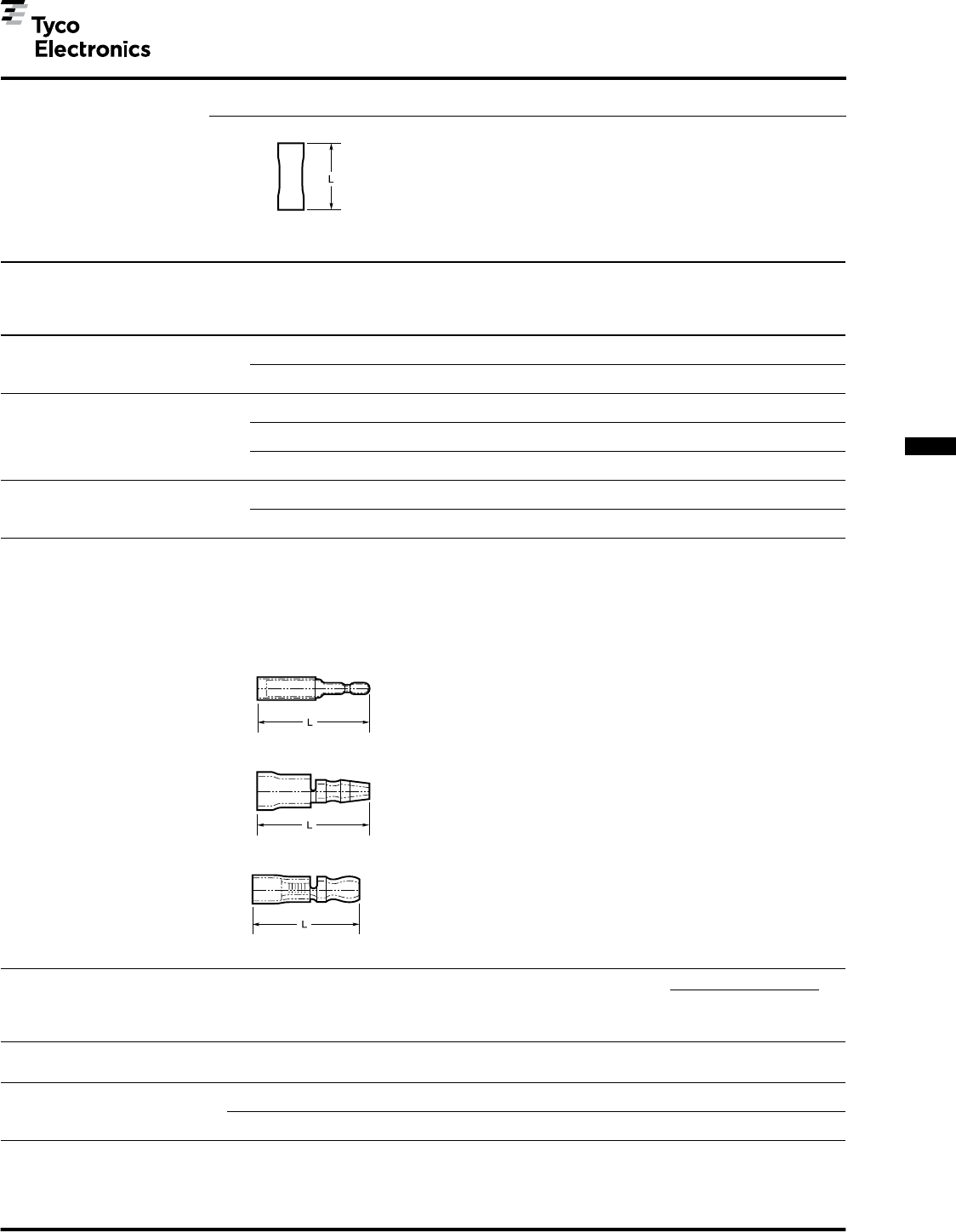

Butt Splice Step Down
Adapter Inserts1
Material
Adapter Body -Copper per
ASTM B-152
Plating -Zinc Plate/
DyeChromate
Related Product Data
Insulation Color Code -pg. 4
Packaging Quantities -pg. 4
Performance Specifications -
pgs. 4 & 5
Application Tooling-pg. 66
Butt Splice Adapter Insert
Wire Size Part No. Wire Size Dimension Color Part Numbers
Circular Mils Circular Mils L Code
[mm2] [mm2]
.350 Red 1-327635-1
16-14
320562
22-18 8.89
2,050-5,180 509-1,900 .402 Red 327635*
[1.04-2.62] [0.26-0.96] 10.21
22-18 .562
509-1,900 Red 327636*
12-10
320570 [0.26-0.96] 14.27
5,180-13,100 16-14 .562
[2.62-6.64] 2,050-5,180 Blue 327637*
1.04-2.62] 14.27
*Available in small packaging quantities.
1Adapter inserts can be ordered separately for use in specific Standard PIDG Butt Splices.
Knife Disconnect Splices Material
Insulation -Nylon, UL 94V-2
Splice Body and Metallic
Sleeve -Copper per ASTM
B-152
Plating -Tin per ASTM B-545
Related Product Data
Insulation Color Code -pg. 4
Packaging Quantities -pg. 4
Performance Specifications -
pgs. 4 & 5
Application Tooling-pg. 66
Wire Size Dimensions Splice Wire Part Numbers
Circular Mils Material W L Insulation Insulation
Loose Piece Tape Mounted
[mm2] Thickness Max. Color Diameter
Max.
.203 .878 Red .125 320555* —
22-16 .031 5.16 22.30 3.18
509-3,260 0.79 .203 .878 Red .140 32446* 2-32446-1
[0.26-1.65] 5.16 22.30 3.56
.203 .878 Blue .150 320566* —
16-14 .031 5.16 22.30 3.81
2,050-5,180 0.79 .203 .878 Blue .170 32448* —
[1.04-2.62] 5.16 22.30 4.32
.281 1.234 Yellow .230 320620* —
12-10
.040 7.14 31.34 5.84
5,180-13,100 1.02 .281 1.260 Yellow .250 35762* —
[2.62-6.64] 7.14 32.00 6.35
*Available in small packaging quantities.
PIDG Terminals and Splices
Return to digikey.com
33
AMP Standard Terminals and Splices
Catalog 82042 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 54-11-4733-2015
Revised 07-08 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
specified. Values in brackets are Specifications subject Mexico: 01-800-733-8926 Japan: 81-44-844-8013
www.tycoelectronics.com equivalent U.S. Customary Units. to change. C. America: 52-55-5-729-0425 UK: 44-8706-080208
PIDG FASTON Terminals and Splices
Product Facts
Pre-insulated terminal
designed for uniformed
reliability in most difficult
circuit environment
Consists of an unplated or
tin-plated brass body or a
tin-plated phosphor
bronze body with a spe-
cially designed copper
sleeve and insulation
sleeve fitted over the ter-
minal barrel
Design of the tool dies
and construction of the
terminal permits uniform
insulation thickness under
crimping pressure, trans-
mitting this pressure
evenly to the center of
the crimp area
The AMP Mated
Tool/Terminal Concept
AMP compression crimp-
ing produces crimps for a
given size wire and termi-
nal that are alike in
appearance and perfor-
mance
Terminal and the crimping
tool are designed as uni-
form matched devices
Dies are precision-
engineered from the fin-
est hard-metal alloys
Crimping pressure is con-
trolled by a ratchet device
on the hand tool or a cor-
responding pre-calibra-
tion in the crimping jaws
of AMP automated crimp-
ing machines
The Crimp
When done properly,
crimping pressure can
neither overstress nor
under stress the terminal
barrel—machined dies
fully bottom to the pre-
cise crimp height
Resulting termination is
free of contamination
Resistant to shock and
critical environments
Tensile strength
approaches that of the
wire itself
Basic Terminal Material. The basic terminal is
constructed of fine grade high conductivity
brass per ASTM B-36 or phosphor bronze per
ASTM B-139. The brass terminal is either
unplated or tin-plated per ASTM B-545.
The phosphor bronze terminal is tin-plated per
ASTM B-545. Tyco Electronics' special plating
process creates durable corrosion resistance to
salt spray and most chemical fumes.
Color Coding. Terminal insulation
is color-coded by wire range to
prevent errors during installation.
Serrations. Serrations inside
barrel provide maximum contact
and tensile strength after crimping.
Funnel Ramp Entry.
Prevents a turned back strand
and rapid wire insertion during
high speed production.
Copper Sleeve. The spe-
cially designed copper
sleeve, fitted over the ter-
minal barrel, provides cir-
cumferential insulation
support to the wire and
allows the wire to be bent
in any direction, without
fraying the wire’s insula-
tion or breaking the
conductor.
Temperature Rating: 105°C Max.
AMP PIDG FASTON Terminals
(Use TETRA-CRIMP Tooling)
AMP Component
Wire Recognized LR 7189
Range File E 66717 Certified
22-18 22-18 Stranded
16-14 16-14 Stranded 300 V Max., 105°C. Max.1
12-10 12-10 Stranded
1UL & CSA—Nylon except where noted
Nylon Insulation. Nylon
sleeve has high dielectric
strength.
AMP PIDG FASTON
Line Splice Connectors
“250” Series
Component 105°C 105°C
Recognized Max. LR 7189 Max.
File E 66717 (Vinyl) Certified (Vinyl)
AMP Part No. 600 V AMP Part No. 300 V
1-321235-0 Max. 1-321235-0 Max.
1-321235-1 1-321235-1
321235 300 V 321235 300 V
321688 Max. 321688 Max.
PIDG FASTON Terminals and Splices
Return to digikey.com
AMP Standard Terminals and Splices
34
Catalog 82042 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 54-11-4733-2015
Revised 07-08 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
specified. Values in brackets are Specifications subject Mexico: 01-800-733-8926 Japan: 81-44-844-8013
www.tycoelectronics.com equivalent U.S. Customary Units. to change. C. America: 52-55-5-729-0425 UK: 44-8706-080208
PIDG FASTON Terminals and Splices (Continued)

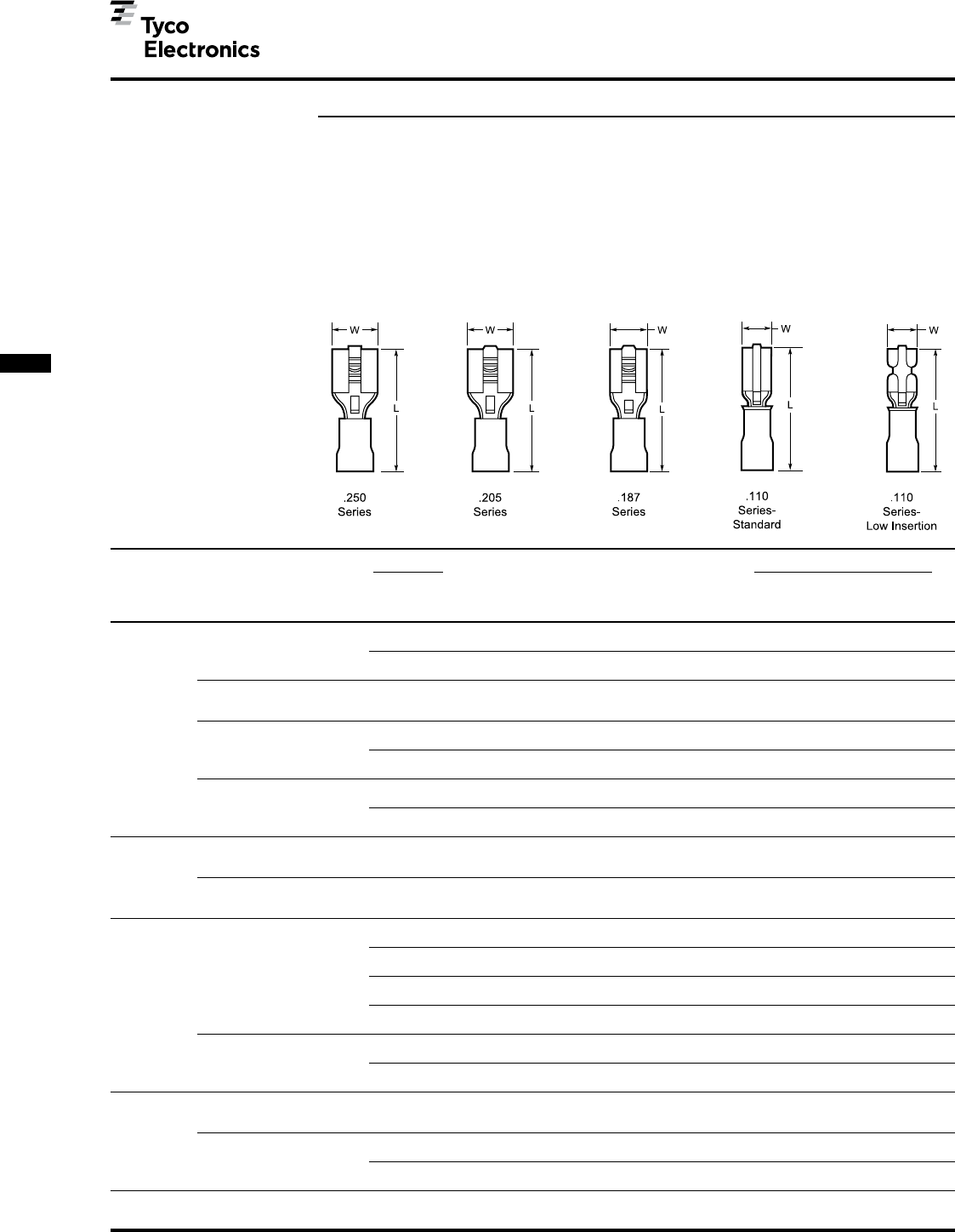

Receptacles Related Product Data
Insulation Color Code -pg. 4
Packaging Quantities -pg. 4
Performance Specifications -
pgs. 4 & 5
Application Tooling -pg. 67
Wire Size
Dimensions Terminal Wire Fits
Part Numbers
Series Circular Mils Style W L Insulation Insulation Recept. Stock Ta b Loose Tape Strip
[mm2]
Nom. Max. Color Diameter Matl. Thk. Thk. Piece Mounted Form
Max.
.300 .900 Red .140 Brass .018 .032 640903-1* 640903-2 640902-1
22-18
B
7.62 22.86 3.56 0.46 0.81
509-1,900 .300 .900 Red .140 Brass .018 .032 55675-12 55675-22 —
[0.26-0.96] 7.62 22.86 3.56 0.46 0.81
16-14 .300 .900 .170 .018 .032
2,050-5,180 B Blue Brass 640905-1* 640905-2 640904-1
[1.04-2.62] 7.62 22.86 4.32 0.46 0.81
.250 .300 1.012 Green .250 Brass .018 .032 42844-1*† 42844-3† 60544-3†
14-12 B
7.62 25.70 6.35 0.46 0.81
3,831-6,4701
.300 1.012 Green .250 Phos. Brz. .018 .032 42844-2*† — —
[1.94-3.28] 7.62 25.70 6.35 0.46 0.81
.300 1.012 Yellow .250 Brass .018 .032 640907-1* 640907-2 640906-1
12-10
B
7.62 25.70 6.35 0.46 0.81
5,180-13,100 .300 1.012 Yellow .250 Phos. Brz. .018 .032 61198-2 61198-4 —
[2.62-6.64] 7.62 25.70 6.35 0.46 0.81
22-18 .300 .900 .145 .016 .032
.250 509-1,900 Red Brass 184262-1 184262-2 184261-1
Low [0.26-0.96] 7.62 22.86 3.68 .406 .813
Insertion 16-14 .300 .900 .173 .016 .032
2,050-5,180 Blue Brass 184265-1 184265-2 184264-1
[1.04-2.62] 7.62 22.86 4.39 .406 .813
.250 .800 Red .135 Brass .016 .020 696018-1 696018-2 —
6.35 20.32 3.43 0.41 0.51
.250 .800 Red .140 Brass .016 .020 640909-1* 640909-2 640908-1
22-18 6.35 20.32 3.56 0.41 0.51
509-1,900
B .250 .800 Red/Black .140 Brass .016 .020 640174-1 — —
[0.26-0.96] 6.35 20.32 3.56 0.41 0.51
.205 .250 .800 Red .140 Brass .016 .032 640911-1* 640911-2 640910-1
6.35 20.32 3.56 0.41 0.81
.250 .800 Blue .170 Brass .016 .020 640913-1* 640913-2 —
16-14
B
6.35 20.32 4.32 0.41 0.51
2,050-5,180 .250 .800 Blue .170 Brass .016 .032 640915-1* 640915-2 —
[1.04-2.62] 6.35 20.32 4.32 0.41 0.81
26-24 .230 .700 .082 .016 .020
238-475 B Yellow Brass 641321-1*† 641321-2† 641320-1†
.187
[0.12-0.24] 5.84 17.78 2.08 0.41 0.51
.230 .800 Red .140 Brass .016 .020 640917-1* 640917-2 640916-1
22-18
B
5.84 20.32 3.56 0.41 0.51
509-1,900 .230 .800 Red .140 Brass .016 .040 — 640578-2† —
[0.26-0.96] 5.84 20.32 3.56 0.41 1.02
Receptacle Style:
A - No dimple with wire stop
B - Dimple with wire stop
C - No dimple, no wire stop
†Not UL or CSA approved or listed. 1Wire range is limited as noted.
*Available in small packaging quantities. 2Unplated receptacle body.
Material
Insulation -Nylon, UL 94V-2
Receptacle Body -Brass per
ASTM B-36 or Phosphor
Bronze per ASTM B-139
Plating -Tin per ASTM B-545
except where noted.
Metallic Sleeve -Copper per
ASTM B-152
Plating -Tin per ASTM B-545
PIDG FASTON Terminals and Splices
Return to digikey.com
35
AMP Standard Terminals and Splices
Catalog 82042 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 54-11-4733-2015
Revised 07-08 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
specified. Values in brackets are Specifications subject Mexico: 01-800-733-8926 Japan: 81-44-844-8013
www.tycoelectronics.com equivalent U.S. Customary Units. to change. C. America: 52-55-5-729-0425 UK: 44-8706-080208
PIDG FASTON Terminals and Splices (Continued)
Reseptacles
(Continued)
Wire Size
Dimensions Terminal Wire Fits
Part Numbers
Series Circular Mils Style W L Insulation Insulation Recept. Stock Ta b Loose Tape Strip
[mm2]
Nom. Max. Color Diameter Matl. Thk. Thk. Piece Mounted Form
Max.
16-14 .230 .800 Blue .170 Brass .016 .020 640919-1* 640919-2 640918-1
.187 2,050-5,180 B 5.84 20.32 4.32 0.41 0.51
[1.04-2.62] .230 .900 Blue .250 Brass .016 .020 696108-1 696108-2 —
5.84 22.86 6.35 0.41 0.51
22-18 .230 .800 .145 .016 .032
.187 509-1,900 Red Brass 184268-1 184268-2 184267-1
Low [0.26-0.96] 5.84 22.86 3.68 .406 .813
Insertion 16-14 .300 .900 .173 .016 .032
2,050-5,180 Blue Brass 184235-1 184235-2 184234-1
[1.04-2.62] 7.62 22.86 4.39 .406 .813
.148 .734 Natural .110 Brass .012 .016 61048-1*† 61048-2† —
3.76 18.64 2.79 0.30 0.41
.110
22-18 .148 .734 Natural .110 Brass .012 .020 61060-1*† 61060-2† 61059-2†
509-1,900 B 3.76 18.64 2.79 0.30 0.51
Standard .148 .734 Natural .110 Brass .012 .032 60894-1*† 60894-2† 60893-2†
[0.26-0.96] 3.76 18.64 2.79 0.30 0.81
.148 .734 Black .110 Brass .012 .032 — 61678-2† —
3.76 18.64 2.79 0.30 0.81
26-24 .160 .700 .082 .016 .020
238-475 A Yellow Brass 641324-1† 641324-2† —
[0.12-0.24] 4.06 17.78 2.08 0.41 0.51
.160 .796 Red .140 Brass .016 .012 — — 350871-1†
Standard 4.06 20.22 3.56 0.41 0.30
22-18 .160 .800 Red .140 Brass .016 .016 640921-1 640921-2 —
.11
Low
0
509-1,900 A
4.06 20.32 3.56 0.41 0.41
[0.26-0.96] .160 .800 Red .140 Brass .016 .020 640923-1* 640923-2 640922-1
4.06 20.32 3.56 0.41 0.51
.160 .800 Red .140 Brass .016 .032 640925-1* 640925-2 640924-1
Insertion 4.06 20.32 3.56 0.41 0.81
A .160 .800 Blue .170 Brass .016 .020 640929-1* 640929-2 —
4.06 20.32 4.32 0.41 0.51
16-14 A .160 .800 Blue .170 Brass .016 .032 640931-1* 640931-2 —
2,050-5,180 4.06 20.32 4.32 0.41 0.81
[1.04-2.62] B .160 .800 Blue .170 Brass .016 .016 640927-1 640927-2 —
4.06 20.32 4.32 0.41 0.41
C .160 .796 Blue .170 Brass .016 .032 641317-1 — —
4.06 20.19 4.32 0.41 0.81
†Not UL or CSA approved or listed.
*Available in small packaging quantities.
Receptacles
(Insulation Restricting)
Material
Insulation -Nylon, UL 94V-2
Receptacle Body -Brass per
ASTM B-36
Receptacle Style B-Dimple
with wire stop
Plating -Tin per ASTM B-545
Metallic Sleeve -Copper per
ASTM B-152
Plating -Tin per ASTM B-545
or Nickel per QQ-N-290
Related Product Data
Insulation Color Code -pg. 4
Packaging Quantities -pg. 4
Performance Specifications -
pgs. 4 & 5
Application Tooling -pg. 67
Wire Size
Dimensions Terminal Wire Fits
Part Numbers
Series Circular Mils Style W L Insulation Insulation Recept. Stock Ta b Loose Tape Strip
[mm2]
Nom. Max. Color Diameter Matl. Thk. Thk. Piece Mounted Form
Solid/Stripe Range
.110 22 .148 .780 Red / .040-.080 .012 .016
754 B Brass 55319-1 55319-3 —
Standard [0.38] 3.76 19.81 Green 1.02-2.03 0.30 0.41
.110
Low
Insertion
PIDG FASTON Terminals and Splices
Return to digikey.com
AMP Standard Terminals and Splices
36
Catalog 82042 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 54-11-4733-2015
Revised 07-08 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
specified. Values in brackets are Specifications subject Mexico: 01-800-733-8926 Japan: 81-44-844-8013
www.tycoelectronics.com equivalent U.S. Customary Units. to change. C. America: 52-55-5-729-0425 UK: 44-8706-080208
PIDG FASTON Terminals and Splices (Continued)

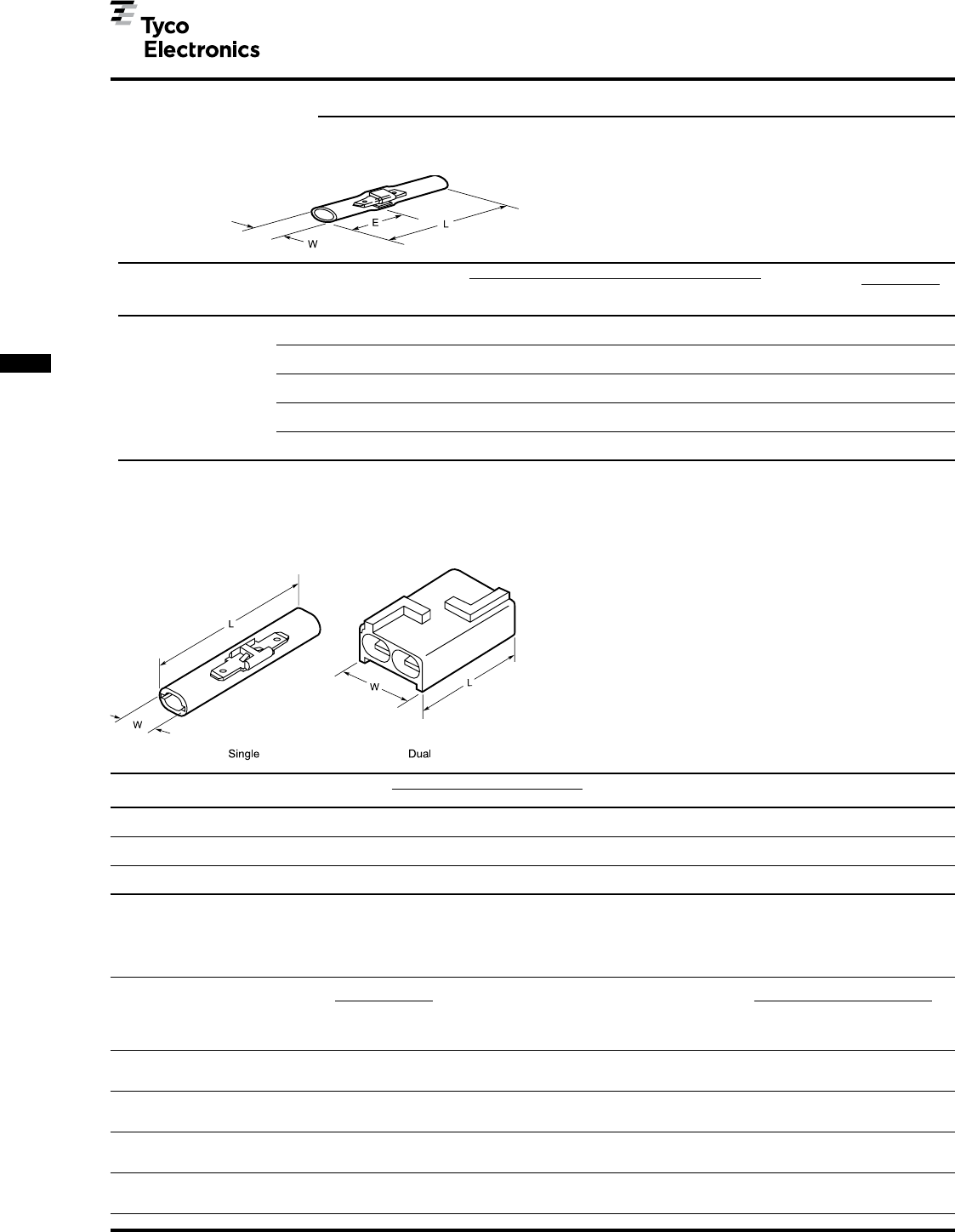

Line Splice Connector
for “250” Series
Terminals
Related Product Data
Insulation Color Code -pg. 4
Packaging Quantities -pg. 4
Performance Specifications -
pgs. 4 & 5
Dimensions Part Numbers
Wire Size Plating W L E Loose Piece
Max. Min.
Unplated .391 2.093 .860 321235*
9.93 53.16 21.84
Tin .391 2.093 .860 321688
9.93 53.16 21.84
22-10 Unplated .409 2.625 1.151 1-321235-0
10.39 66.68 29.24
Tin .409 2.625 1.151 1-321235-1
10.39 66.68 29.24
Unplated .409 2.451 .9702 1-321235-31
10.39 62.26 24.64
*Available in small packaging quantities.
1Oval expansion at end opposite “w”. (.380 x .320 inside diameter.)
2E min. on expansion end only.
Material
Insulation -Vinyl, UL 94V-0
Color -Natural
Splice Body -Brass per ASTM
B-36
Plating -Tin per ASTM B-545
except where noted.
Line Splice Connector
for “187” Series
Terminals
Material
Housing -Nylon, UL 94V-2
Splice Body -Brass per ASTM
B-36
Related Product Data
Insulation Color Code -pg. 4
Packaging Quantities -pg. 4
Performance Specifications -
pgs. 4 & 5
Type Housing Dimensions Temperature Part Numbers
Color W L Rating Loose Piece
Single Natural .345 1.750 — 360035-1†
8.76 44.45
Dual Natural .650 1.750 105°C 360025-1†
16.51 44.45
Dual Black .650 1.750 150°C 360025-2†
16.51 44.45
†
UL File E66717
600 V Max
Wire Size Dimensions Terminal Wire Fits
Part Numbers
Series Circular Mils W L Insulation Insulation Recept. Stock Ta b Loose Tape Strip
[mm2] Nom. Max. Color Diameter Matl. Thk. Thk. Piece Mounted Form
Max.
.250 Low 22-18 .300 .900 .145 .016 .032
509-1,900 Red Brass 184262-1 184262-2 184261-1
Insertion [0.26-0.96] 7.62 22.86 3.68 .406 .813
.250 Low 16-14 .300 .900 .173 .016 .032
2,050-5,180 Blue Brass 184265-1 184265-2 184264-1
Insertion [1.04-2.62] 7.62 22.86 4.39 .406 .813
.187 Low 22-18 .230 .800 .145 .016 .032
509-1,900 Red Brass 184268-1 184268-2 184267-1
Insertion [0.26-0.96] 5.84 22.86 3.68 .406 .813
.187 Low 16-14 .300 .900 .173 .016 .032
2,050-5,180 Blue Brass 184235-1 184235-2 184234-1
Insertion [1.04-2.62] 7.62 22.86 4.39 .406 .813
Receptacle (Low Insertion Force)
PIDG FASTON Terminals and Splices
Return to digikey.com
37
AMP Standard Terminals and Splices
Catalog 82042 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 54-11-4733-2015
Revised 07-08 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
specified. Values in brackets are Specifications subject Mexico: 01-800-733-8926 Japan: 81-44-844-8013
www.tycoelectronics.com equivalent U.S. Customary Units. to change. C. America: 52-55-5-729-0425 UK: 44-8706-080208
Product Facts
Pre-insulated PLASTI-
GRIP solderless terminals
and splices
Designed specifically to
answer the need for
inexpensive, insulated
electrical terminations
Can be used in almost
every type of commer-
cial application
Accommodate wire sizes
from 22 AWG through
2/0 AWG
The Crimp
Carefully engineered
application tooling has
been developed to
ensure uniformly high
quality terminations
Tool and terminal have
been designed as a team
to promote ease and
speed of application and
at the same time to pro-
vide precise crimping
pressure for every wire
size
The wire and the termi-
nal barrel form a homo-
geneous mass of metal,
providing a connection
of maximum conductiv-
ity, tensile strength, and
high resistance to corro-
sion
The quality performance,
the facility of installation
and the inherent simplic-
ity make them well-
suited for many industrial
applications
Basic Terminal Material. The basic terminal is
constructed of fine grade high conductivity
copper per ASTM B-152 and tin-plated per
ASTM B-545. Basic material for Spring Spade
Tongue Terminals is phosphor bronze per
ASTM B-139 or brass per ASTM B-36 and tin-
plated per ASTM B-545. Tyco Electronics'
special plating process creates durable corro-
sion resistance to salt spray and most chemi-
cal fumes.
Color Coding. Terminal insulation
is color-coded by wire size range to
eliminate errors during installation.
Funnel Entry. Assures rapid wire
insertion during high speed pro-
duction. (Except 8 to 2/0 range.)
Serrations. Serrations inside
barrel provide maximum contact
and tensile strength after crimping.
Dimples on 8 to 2/0 range.
Insulation. Vinyl insulation sleeve
provides good dielectric strength
and supports the wire insulation
so that no bare wire is exposed.
Temperature Rating: 90°C Max.
AMP PLASTI-GRIP Terminals and Splices (Use PLASTI-GRIP or PIDG Tooling)
AMP
Wire Listed LR 7189 8 thru 4/0
Range Certified 600V
Except as noted with individual part number listing.
22-16 Terminals, Butt & Parallel Splices
22-16 Solid or Stranded1 600 V Max. Recognized under
16-14 Terminals, Butt & Parallel Splices (1000 V Fixture the component program
16-14 Solid or Stranded1 or Sign) of Underwriters
12-10 Terminals, Butt & Parallel Splices 90°C Max.
Laboratories Incorporated
12-10 Solid or Stranded1 File No. E13288
Note: 22-16 terminals and splices are stamped 22-18 in accordance with MIL-T-7928.
1Stranded wire only using TETRA-CRIMP tooling.
PLASTI-GRIP Terminals and Splices
PLASTIC-GRIP Terminals and Splices
Return to digikey.com
AMP Standard Terminals and Splices
38
Catalog 82042 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 54-11-4733-2015
Revised 07-08 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
specified. Values in brackets are Specifications subject Mexico: 01-800-733-8926 Japan: 81-44-844-8013
www.tycoelectronics.com equivalent U.S. Customary Units. to change. C. America: 52-55-5-729-0425 UK: 44-8706-080208
PLASTI-GRIP Terminals and Splices (Continued)
Ring Tongue Terminals Material
Insulation -Vinyl, UL 94V-0
Terminal Body -Copper per
ASTM B-152
Plating -Tin per ASTM B-545
Related Product Data
Insulation Color Code -pg. 4
Packaging Quantities -pg. 4
Performance Specifications -
pgs. 4 & 5
Application Tooling-pg. 66
Wire Size Tongue Dimensions Wire Part Numbers
Circular Mils Material Stud Style
Terminal Insulation
[mm2] Thickness Size W C E L Insulation Diameter Loose Tape
Max. Min. Max. Max. Color Max. Piece Mounted
2
A
.218 .156 .572 .684 Red .140 134140* 2-34140-1
M2 5.54 3.96 14.53 17.37 3.56
.218 .156 .572 .684 Red .125 132944* 2-32944-1
5.54 3.96 14.53 17.37 3.18
4 A .218 .156 .572 .684 Red .140 134141* 2-34141-1
5.54 3.96 14.53 17.37 3.56
.281 .250 .666 .809 Red .140 34143 2-34143-1
7.14 6.35 16.92 20.55 3.56
.218 .156 .572 .684 Red .125 132945* 2-32945-1
5.54 3.96 14.53 17.37 3.18
.218 .156 .572 .684 Red .140 134142* 1-34142-1
5.54 3.96 14.53 17.37 3.56
.281 .250 .666 .809 Red .125 132947* 2-32947-1
7.14 6.35 16.92 20.55 3.18
.281 .250 .666 .809 Red .140 134144* 2-34144-1
6 A
7.14 6.35 16.92 20.55 3.56
M3.5 .281 .250 .666 .809 Black .140 326819 2-326819-1
7.14 6.35 16.92 20.55 3.56
.281 .250 .666 .809 Red .170 — 2-35449-1
7.14 6.35 16.92 20.55 4.32
.312 .281 .697 .856 Red .125 32950 2-32950-1
7.92 7.14 17.70 21.74 3.18
.312 .281 .697 .856 Red .140 134147* 2-34147-1
7.92 7.14 17.70 21.74 3.56
.281 .250 .666 .809 Red .125 132948* 2-32948-1
7.14 6.35 16.92 20.55 3.18
22-16 .033 .281 .250 .666 .809 Red .140 134145* 2-34145-1
509-3,260 0.84 7.14 6.35 16.92 20.55 3.56
[0.26-1.65] 8
A
.312 .281 .697 .856 Red .125 132951* 2-32951-1
M4 7.92 7.14 17.70 21.74 3.18
.312 .281 .697 .856 Red .140 134148* 2-34148-1
7.92 7.14 17.70 21.74 3.56
.312 .281 .746 .905 Red .200 — 2-34148-4
7.92 7.14 18.95 22.99 5.08
.281 .250 .666 .809 Red .125 132949* 2-32949-1
7.14 6.35 16.92 20.55 3.18
.281 .250 .666 .809 Red .140 134146* 2-34146-1
7.14 6.35 16.92 20.55 3.56
.281 .250 .666 .809 Black .140 2-34146-4 2-34146-5
7.14 6.35 16.92 20.55 3.56
10 A .281 .250 .666 .809 Red .170 35451 2-35451-1
7.14 6.35 16.92 20.55 4.32
.312 .281 .697 .856 Red .125 132952* 2-32952-1
7.92 7.14 17.70 21.74 3.18
.312 .281 .697 .856 Red .140 134149* 2-34149-1
7.92 7.14 17.70 21.74 3.56
.312 .281 .746 .905 Red .200 — 2-34149-3
7.92 7.14 18.95 22.99 5.08
.469 .437 .853 1.090 Red .125 132953* 2-32953-1
11.91 11.10 21.67 27.69 3.18
1/4 A
.469 .437 .853 1.090 Red .140 134150* 2-34150-1
M6 11.91 11.10 21.67 27.69 3.56
.469 .437 .853 1.090 Black .140 — 2-34150-3
11.91 11.10 21.67 27.69 3.56
*Available in small packaging quantities.
L
E
C
W
A
PLASTI-GRIP Terminals and Splices
Return to digikey.com
39
AMP Standard Terminals and Splices
Catalog 82042 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 54-11-4733-2015
Revised 07-08 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
specified. Values in brackets are Specifications subject Mexico: 01-800-733-8926 Japan: 81-44-844-8013
www.tycoelectronics.com equivalent U.S. Customary Units. to change. C. America: 52-55-5-729-0425 UK: 44-8706-080208
PLASTI-GRIP Terminals and Splices (Continued)
Note: “C” dimension applies from edge of metal wire barrel to center of stud hole. (Styles A & E).
.469 .437 .853 1.090 Red .140 1134151* 2-34151-1
5/16 A
11.91 11.10 21.67 27.69 3.56
M8 .469 .437 .853 1.090 Black .140 — 2-34151-3
22-16 .033 11.91 11.10 21.67 27.69 3.56
509-3,260 0.84 .531 .546 .962 1.230 Red .140 1134152* 2-34152-2
[0.26-1.65] 3/8 A 13.49 13.87 24.43 31.24 3.56
.531 .546 .962 1.230 Black .140 — 2-34152-4
13.49 13.87 24.43 31.24 3.56
4 A .250 .171 .587 .715 Blue .170 1134157* 2-34157-1
6.35 4.34 14.91 18.16 4.32
.250 .171 .587 .715 Blue .145 1132957* 2-32957-1
6.35 4.34 14.91 18.16 3.68
.250 .171 .587 .715 Blue .170 1134158* 2-34158-1
6 A 6.35 4.34 14.91 18.16 4.32
M3.5 .343 .281 .697 .871 Blue .145 1132958* 2-32958-1
8.71 7.14 17.70 22.12 3.68
.343 .281 .697 .871 Blue .170 1134159* 2-34159-1
8.71 7.14 17.70 22.12 4.32
.312 .250 .666 .825 Blue .170 1328527* 2-328527-1
7.92 6.35 16.92 20.96 4.32
.343 .281 .697 .871 Blue .145 1132959* 2-32959-1
8 A
8.71 7.14 17.70 22.12 3.68
M4 .343 .281 .697 .871 Blue .170 1134160* 2-34160-1
8.71 7.14 17.70 22.12 4.32
.343 .281 .746 .920 Blue .250 2-34160-2 2-34160-3
8.71 7.14 18.95 23.37 6.35
16-14 .343 .281 .697 .871 Blue .145 1132960* 2-32960-1
2,050-5,180 .033 8.71 7.14 17.70 22.12 3.68
[1.04-2.62] 0.84 .343 .281 .697 .871 Blue .170 1134161* 2-34161-1
8.71 7.14 17.70 22.12 4.32
10 A .343 .281 .746 .920 Blue .250 2-34161-2 2-34161-3
8.71 7.14 18.95 23.37 6.35
.343 .281 .746 .920 Black .250 — 2-34959-1
8.71 7.14 18.95 23.37 6.35
.468 .312 .728 .965 Blue .170 — 2-34954-1
11.89 7.92 18.49 24.51 4.32
.469 .437 .853 1.090 Blue .145 1132961* 2-32961-1
11.91 11.10 21.67 27.69 3.68
1/4 A
.469 .437 .853 1.090 Blue .170 1134162* 2-34162-1
M6 11.91 11.10 21.67 27.69 4.32
.469 .437 .853 1.090 Black .170 2-34162-2 2-34162-3
11.91 11.10 21.67 27.69 4.32
5/16 A .469 .437 .853 1.090 Blue .170 1134163* 2-34163-1
M8 11.91 11.10 21.67 27.69 4.32
.531 .546 .962 1.248 Blue .170 1134164* 2-34164-2
3/8 A 13.49 13.87 24.43 31.70 4.32
.531 .546 .962 1.248 Black .170 — 2-34164-4
13.49 13.87 24.43 31.70 4.32
6
A
.281 .219 .810 .953 Yellow/Blk. .200 134821 2-34821-1
M3.5 7.14 5.56 20.57 24.21 5.08
8
A
.343 .281 .872 1.046 Yellow/Blk. .200 1134822† —
16-14HD1 .050 M4 8.71 7.14 22.15 26.57 5.08
2,050-5,180 1.27 .343 .281 .872 1.046 Yellow/Blk. .200 11134823*† 2-34823-1†
[1.04-2.62] 10 A 8.71 7.14 22.15 26.57 5.08
.343 .281 .872 1.046 Yellow/Blk. .250 321518 2-321518-1
8.71 7.14 22.15 26.57 6.35
Wire Size Tongue Dimensions Wire Part Numbers
Circular Mils Material Stud Style
Terminal Insulation
[mm2] Thickness Size W C E L Insulation Diameter Loose Tape
Max. Min. Max. Max. Color Max. Piece Mounted
Ring Tongue Terminals
(Continued)
† Not UL or CSA Approved or Listed.
*Available in small packaging quantities.
1Heavy Duty for extra mechanical strength.
Note: “C” dimension applies from edge of metal wire barrel to center of stud hole. (Styles A & E).
PLASTIC-GRIP Terminals and Splices
Return to digikey.com
AMP Standard Terminals and Splices
40
Catalog 82042 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 54-11-4733-2015
Revised 07-08 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
specified. Values in brackets are Specifications subject Mexico: 01-800-733-8926 Japan: 81-44-844-8013
www.tycoelectronics.com equivalent U.S. Customary Units. to change. C. America: 52-55-5-729-0425 UK: 44-8706-080208
PLASTI-GRIP Terminals and Splices (Continued)
Wire Size Tongue Dimensions Wire Part Numbers
Circular Mils Material Stud Style
Terminal Insulation
[mm2] Thickness Size W C E L Insulation Diameter Loose Tape
Max. Min. Max. Max. Color Max. Piece Mounted
.500 .344 .935 1.188 Yellow/Blk. .230 35349 2-35349-1
1/4 A
12.70 8.74 23.75 30.18 5.84
M6 .531 .437 1.028 1.296 Yellow/Blk. .200 34824 2-34824-3
13.49 11.10 26.11 32.92 5.08
16-14HD1 .050 5/16 A
.531 .437 1.028 1.296 Yellow/Blk. .200 34825 —
2,050-5,180 1.27 M8 13.49 11.10 26.11 32.92 5.08
[1.04-2.62] 3/8 A .750 .625 1.216 1.594 Yellow/Blk. .200 34826 —
19.05 15.88 30.89 40.49 5.08
1/2 A
.750 .625 1.216 1.594 Yellow/Blk. .200 34827 —
M12 19.05 15.88 30.89 40.49 5.08
0 A .281 .219 .810 .953 Yellow .250 2-34835-4 —
7.14 5.56 20.57 24.21 6.35
4 A .281 .219 .810 .953 Yellow .250 34835 2-34835-1
7.14 5.56 20.57 24.21 6.35
.281 .219 .810 .953 Yellow .250 134852* 2-34852-1
6 A
7.14 5.56 20.57 24.21 6.35
M3.5 .375 .302 .893 1.098 Yellow .230 134168* 2-34168-1
9.53 7.67 22.68 27.89 5.84
.312 .302 .893 1.062 Yellow .250 1— 696047-1
7.92 7.67 22.68 26.97 6.35
.312 .302 .893 1.062 Yellow .250 1— 696048-1
8 A 7.92 7.67 22.68 26.97 6.35
M4 .375 .302 .893 1.098 Yellow .230 134169* 2-34169-1
9.53 7.67 22.68 27.89 5.84
.375 .302 .893 1.098 Yellow .250 134853* 2-34853-1
9.53 7.67 22.68 27.89 6.35
.312 .302 .893 1.052 Yellow .230 330518 —
7.92 7.67 22.68 26.72 5.84
.312 .302 .953 1.111 Yellow .300 — 1-330518-2
7.92 7.67 24.21 28.22 7.6212-10
12-10 10 A .375 .302 .893 1.083 Black .250 — 2-328261-1
5,180-13,100 .042 9.53 7.67 22.68 27.51 6.35
1.07 .375 .302 .893 1.098 Yellow .230 134170* 2-34170-1
[2.62-6.64] 9.53 7.67 22.68 27.89 5.84
.375 .302 .893 1.098 Yellow .250 134854* 2-34854-1
9.53 7.67 22.68 27.89 6.35
E
.400 .468 1.118 1.373 Yellow .300 1-55678-1 1-55678-2
10.16 11.89 28.40 34.87 7.62
.500 .344 .994 1.247 Black .300 35492 —
1/4 12.70 8.74 25.25 31.67 7.62
M6 A
.531 .468 1.059 1.327 Yellow .230 134171* 2-34171-1
13.49 11.89 26.90 33.71 5.84
.531 .468 1.059 1.327 Yellow .250 134855* 2-34855-1
13.49 11.89 26.90 33.71 6.35
.531 .468 1.059 1.327 Yellow .230 134172* 2-34172-1
13.49 11.89 26.90 33.71 5.84
5/16 A
.531 .468 1.059 1.327 Black .230 — 2-34172-3
M8 13.49 11.89 26.90 33.71 5.84
.531 .468 1.059 1.327 Yellow .250 134856* 2-34856-1
13.49 11.89 26.90 33.71 6.35
3/8 A .593 .531 1.122 1.421 Yellow .230 134173* 2-34173-1
15.06 13.49 28.50 36.09 5.84
1/2 A
.750 .625 1.216 1.594 Yellow .250 134837* 2-34837-4
M12 19.05 15.88 30.89 40.49 6.35
Ring Tongue Terminals
(Continued)
L
E
C
W
A E
*Available in small packaging quantities. 1Heavy Duty for extra mechanical strength.
Note: “C” dimension applies from edge of metal wire barrel to center of stud hole. (Styles A & E).
Material
Insulation -Vinyl, UL 94V-0
Terminal Body -Copper per
ASTM B-152
Plating -Tin per ASTM B-545
Related Product Data
Insulation Color Code -pg. 4
Packaging Quantities -pg. 4
Performance Specifications -
pgs. 4 & 5
Application Tooling -
pgs. 66 & 67
PLASTI-GRIP Terminals and Splices
Return to digikey.com
41
AMP Standard Terminals and Splices
Catalog 82042 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 54-11-4733-2015
Revised 07-08 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
specified. Values in brackets are Specifications subject Mexico: 01-800-733-8926 Japan: 81-44-844-8013
www.tycoelectronics.com equivalent U.S. Customary Units. to change. C. America: 52-55-5-729-0425 UK: 44-8706-080208
PLASTI-GRIP Terminals and Splices (Continued)
Wire Size Tongue Dimensions Wire Part Numbers
Circular Mils Material Stud Style
Terminal Insulation
[mm2] Thickness Size W C E L Insulation Diameter Loose Tape
Max. Max. Max. Color Max. Piece Mounted
8
C
.478 .437 1.344 1.586 Red .360 52041 1-52041-6
M4 12.14 11.10 34.14 40.28 9.14
D
.430 .437 1.363 1.605 Red .360 — 1-54351-2
10.92 11.10 34.62 40.77 9.14
.431 .437 1.338 1.556 Red .360 52263 1-52263-2
10 10.95 11.10 33.99 39.52 9.14
B
.431 .437 1.338 1.556 Red .390 1-52263-5 1-52263-4
10.95 11.10 33.99 39.52 9.91
.431 .437 1.358 1.576 Red .330 1-52263-1 1-52263-3
8 10.95 11.10 34.49 40.03 8.38
13,100-20,800 .043 .431 .437 1.303 1.561 Red .360 1-55621-1 1-55621-2
[6.64-10.5] 1.09 10.95 11.10 33.10 39.65 9.14
1/4 C
.478 .437 1.344 1.586 Red .360 52041-1 52041-7
M6 12.14 11.10 34.14 40.28 9.14
.478 .437 1.358 1.600 Red .330 52041-3* 52041-9
12.14 11.10 34.49 40.64 8.38
5/16 C
.587 .500 1.400 1.696 Red .360 52291*1 52291-4
M8 14.91 12.70 35.56 43.08 9.14
3/8 C .587 .500 1.400 1.696 Red .360 52291-1* 52291-5
14.91 12.70 35.56 43.08 9.14
1/2 A
.875 .625 1.420 1.860 Red .330 52262-1 —
M12 22.23 15.88 36.07 47.24 8.38
.500 .515 1.591 1.844 Blue .436 520421* —
8 C
12.70 13.08 40.41 46.84 11.07
M4 .500 .515 1.591 1.869 Blue .360 52042-2 —
12.70 13.08 40.41 47.47 9.14
.468 .421 1.482 1.719 Blue .360 — 52265-4
B 11.89 10.69 37.64 43.66 9.14
.468 .421 1.482 1.719 Blue .436 52265*1 52265-3
10 11.89 10.69 37.64 43.66 11.07
.500 .515 1.591 1.844 Blue .436 52042-4 —
C 12.70 13.08 40.41 46.84 11.07
6 .500 .515 1.591 1.869 Blue .360 52042-5* —
20,800-33,100 .048 12.70 13.08 40.41 47.47 9.14
[10.5-16.8] 1.22 F
.398 .515 1.591 1.846 Blue .450 55679-1 55679-2
10.11 13.08 40.41 46.89 11.43
1/4 .500 .515 1.591 1.844 Blue .436 52042-1 52042-7
M6 C
12.70 13.08 40.41 46.84 11.07
.500 .515 1.591 1.869 Blue .360 52042-3* 52042-9
12.70 13.08 40.41 47.47 9.14
5/16 B
.625 .515 1.591 1.906 Blue .450 52264*1 52264-4
M8 15.88 13.08 40.41 48.41 11.43
3/8 B .625 .515 1.591 1.906 Blue .450 52264-1* 52264-5
15.88 13.08 40.41 48.41 11.43
1/2 C
.815 .515 1.441 1.851 Blue .436 52350*1 —
M12 20.70 13.08 36.60 47.02 11.07
Ring Tongue Terminals
(Continued)
B C D F
*Available in small packaging quantities.
Note: “C” dimension applies from edge of metal wire barrel to center of stud hole. (Styles A & E).
PLASTIC-GRIP Terminals and Splices
Return to digikey.com
AMP Standard Terminals and Splices
42
Catalog 82042 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 54-11-4733-2015
Revised 07-08 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
specified. Values in brackets are Specifications subject Mexico: 01-800-733-8926 Japan: 81-44-844-8013
www.tycoelectronics.com equivalent U.S. Customary Units. to change. C. America: 52-55-5-729-0425 UK: 44-8706-080208
PLASTI-GRIP Terminals and Splices (Continued)
Wire Size Tongue Dimensions Wire Part Numbers
Circular Mils Material Stud Style
Terminal Insulation
[mm2] Thickness Size W C E L Insulation Diameter Loose Tape
Max. Max. Max. Color Max. Piece Mounted
.546 .531 1.672 1.948 Yellow .450 52043-2 —
10 B 13.87 13.49 42.47 49.48 11.43
.546 .531 1.672 1.948 Yellow .515 520431* 52043-4
13.87 13.49 42.47 49.48 13.08
.391 .531 1.672 1.927 Yellow .450 — 55680-2
9.93 13.49 42.47 48.95 11.43
1/4 B
.546 .531 1.672 1.948 Yellow .450 52043-3* 52043-7
4
M6 13.87 13.49 42.47 49.48 11.43
33,100-52,600 .051 .546 .531 1.672 1.948 Yellow .515 52043-1 52043-5
[16.8-26.7] 1.30 13.87 13.49 42.47 49.48 13.08
.679 .531 1.672 2.014 Yellow .450 52266-3 52266-9
5/16 B
17.25 13.49 42.47 51.16 11.43
M8 .679 .531 1.672 2.014 Yellow .515 522661* —
17.25 13.49 42.47 51.16 13.08
.679 .531 1.672 2.014 Yellow .450 52266-4* 1-52266-0
3/8 B 17.25 13.49 42.47 51.16 11.43
.679 .531 1.672 2.014 Yellow .515 52266-1 —
17.25 13.49 42.47 51.16 13.08
.675 .578 1.731 2.071 Red .560 52267-1 —
1/4 B
17.15 14.68 43.97 52.60 14.22
M6 .675 .578 1.731 2.071 Red .632 522671* —
17.15 14.68 43.97 52.60 16.05
2 .711 .578 1.731 2.089 Red .560 52044-4 —
52,600-83,700 .060 5/16 B
18.06 14.68 43.97 53.06 14.22
[26.7-42.4] 1.52 M8 .711 .578 1.731 2.089 Red .632 52044-1 —
18.06 14.68 43.97 53.06 16.05
.711 .578 1.731 2.089 Red .560 52044-5 —
3/8 B 18.06 14.68 43.97 53.06 14.22
.711 .578 1.731 2.089 Red .632 52044-2 —
18.06 14.68 43.97 53.06 16.05
5/16 B .807 .625 2.041 2.447 Blue .684 52045-1 —
M8 20.50 15.88 51.84 62.15 17.37
1/0
.807 .625 2.041 2.447 Blue .665 52045-5 —
83,700-119,500 .073 3/8 B 20.50 15.88 51.84 62.15 16.89
[42.4-60.6] 1.85 .807 .625 2.041 2.447 Blue .684 52045-2 —
20.50 15.88 51.84 62.15 17.37
1/2 B
.875 .625 2.041 2.478 Blue .684 52289-1 —
M12 22.23 15.88 51.84 62.94 17.37
2/0 .083 5/16
.926 .625 2.082 2.477 .775
119,500-150,500 B Yellow 52046-1 —
[60.6-76.3] 2.11 M8
23.52 15.88 52.88 62.92 19.69
*Available in small packaging quantities.
Ring Tongue Terminals
(Continued)
B
Material
Insulation -Vinyl, UL 94V-0
Terminal Body -Copper per
ASTM B-152
Plating -Tin per ASTM B-545
Related Product Data
Insulation Color Code -pg. 4
Packaging Quantities -pg. 4
Performance Specifications -
pgs. 4 & 5
Application Tooling -pg. 67
PLASTI-GRIP Terminals and Splices
Return to digikey.com
43
AMP Standard Terminals and Splices
Catalog 82042 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 54-11-4733-2015
Revised 07-08 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
specified. Values in brackets are Specifications subject Mexico: 01-800-733-8926 Japan: 81-44-844-8013
www.tycoelectronics.com equivalent U.S. Customary Units. to change. C. America: 52-55-5-729-0425 UK: 44-8706-080208
PLASTI-GRIP Terminals and Splices (Continued)
Ring Tongue
90° Bend Terminals
Material
Insulation -Vinyl, UL 94V-0
Terminal Body -Copper per
ASTM B-152
Plating -Tin per ASTM B-545
Related Product Data
Insulation Color Code -pg. 4
Packaging Quantities -pg. 4
Performance Specifications -
pgs. 4 & 5
Application Tooling -pg. 67
Tongue Wire
Wire Size Material Stud Dimensions Terminal Insulation Part Numbers
Circular Mils Thickness Size W D Insulation Diameter Loose
[mm2] Max. Min. Color Max. Piece
10 .431 .311 Red .360 55654-1
8 .043 10.95 7.90 9.14
13,100-20,800 1.09 1/4 .478 .435 Red .360 54725-1
[6.64-10.5] M6 12.14 11.05 9.14
10 .500 .310 Blue .436 54753-1
6 .048 12.70 7.87 11.07
20,800-33,100 1.22 1/4 .500 .379 Blue .436 54754-1
[10.5-16.8] M6 12.70 9.63 11.07
Rectangular
Tongue Terminals
Material
Insulation -Vinyl, UL 94V-0
Terminal Body -Copper per
ASTM B-152
Plating -Tin per ASTM B-545
Related Product Data
Insulation Color Code -pg. 4
Packaging Quantities -pg. 4
Performance Specifica-
tions -pgs. 4 & 5
Application Tooling-pg. 66
Wire Size Tongue Dimensions Wire Part Numbers
Material Stud Terminal Insulation
Circular Mils Thickness Size W C E L X Insulation Diameter Loose Tape
[mm2] Max. Min. Max. Max. Color Max. Piece Mounted
16-14 .033 6 .249 .312 .728 .868 .125 .145
2,050-5,180 Blue 34898 —
[1.04-2.62] 0.84 M3.5 6.32 7.92 18.49 22.05 3.18 3.68
Note: “C” dimension applies from edge of metal wire barrel to center of stud hole.
PLASTIC-GRIP Terminals and Splices
Return to digikey.com
AMP Standard Terminals and Splices
44
Catalog 82042 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 54-11-4733-2015
Revised 07-08 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
specified. Values in brackets are Specifications subject Mexico: 01-800-733-8926 Japan: 81-44-844-8013
www.tycoelectronics.com equivalent U.S. Customary Units. to change. C. America: 52-55-5-729-0425 UK: 44-8706-080208
PLASTI-GRIP Terminals and Splices (Continued)
Spade Tongue Terminals Material
Insulation -Vinyl, UL 94V-0
Terminal Body -Copper per
ASTM B-152
Plating -Tin per ASTM B-545
Related Product Data
Insulation Color Code -pg. 4
Packaging Quantities -pg. 4
Performance Specifications -
pgs. 4 & 5
Application Tooling-pg. 66
Tongue Dimensions Wire Part Numbers
Wire Size Material Stud Terminal Insulation
Circular Mils Thickness Size W C E L X Insulation Diameter Loose Tape
[mm2] Max. Min. Max. Max. Color Max. Piece Mounted
.250 .312 .728 .858 .125 Red .140 327043* 2-327043-1
6.35 7.92 18.49 21.79 3.18 3.56
6 .297 .203 .619 .765 .141 Red .125 327735* 2-327735-1
M3.5 7.54 5.16 15.72 19.43 3.58 3.18
.297 .203 .619 .765 .141 Red .140 320665* 2-320665-1
22-16 7.54 5.16 15.72 19.43 3.58 3.56
509-3,260 .033 .307 .245 .661 .836 .175 Red .140 696003-1 696003-2
0.84 7.80 6.22 16.79 21.23 4.45 3.56
[0.26-1.65]
8 .375 .312 .728 .920 .187 Red .120 * 2-32981-1
M4 9.53 7.92 18.49 23.37 4.75 3.18
.375 .312 .728 .920 .187 Red .140 34155* 2-34155-1
9.53 7.92 18.49 23.37 4.75 3.56
10 .375 .312 .728 .920 .187 Red .140 34156* 2-34156-1
9.53 7.92 18.49 23.37 4.75 3.56
5 .237 .312 .728 .865 .125 Blue .145 696006-1† —
6.02 7.92 18.49 21.97 3.18 3.68
.297 .203 .619 .765 .141 Blue .145 322994* 2-322994-1
7.54 5.16 15.72 19.43 3.58 3.68
6 .297 .203 .619 .765 .141 Blue .170 54367-1 2-54367-2
M3.5 7.54 5.16 15.72 19.43 3.58 4.32
.385 .312 .728 .920 .187 Blue .170 34165* —
16-14 .033 9.78 7.92 18.49 23.37 4.75 4.32
2,050-5,180 0.84 .297 .203 .619 .765 .141 Blue .170 326741 2-326741-1
[1.04-2.62] 7.54 5.16 15.72 19.43 3.58 4.32
8 .307 .245 .661 .836 .175 Blue .170 696024-1 696024-2
M4 7.80 6.22 16.79 21.23 4.45 4.32
.385 .312 .728 .920 .187 Blue .170 34166* 2-34166-1
9.78 7.92 18.49 23.37 4.75 4.32
10 .385 .312 .728 .920 .187 Blue .170 34167* 2-34167-1
9.78 7.92 18.49 23.37 4.75 4.32
12-10 5 .237 .296 .887 1.095 .203 Yellow .230 696007-1† —
5,180-13,100 .042 6.02 7.52 22.53 27.81 5.16 5.84
[2.62-6.64] 1.07 10 .406 .296 .887 1.095 .203 Yellow .230 34176* 2-34176-1
10.31 7.52 22.53 27.81 5.16 5.84
*Available in small packaging quantities.
† Gold
Note: “C” dimension applies from edge of metal wire barrel to center of stud hole.
PLASTI-GRIP Terminals and Splices
Return to digikey.com
45
AMP Standard Terminals and Splices
Catalog 82042 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 54-11-4733-2015
Revised 07-08 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
specified. Values in brackets are Specifications subject Mexico: 01-800-733-8926 Japan: 81-44-844-8013
www.tycoelectronics.com equivalent U.S. Customary Units. to change. C. America: 52-55-5-729-0425 UK: 44-8706-080208
PLASTI-GRIP Terminals and Splices (Continued)
Flanged Spade Tongue
Terminals
Material
Insulation -Vinyl, UL 94V-0
Terminal Body -Copper per
ASTM B-152
Plating -Tin per ASTM B-545
Related Product Data
Insulation Color Code -pg. 4
Packaging Quantities -pg. 4
Performance Specifications -
pgs. 4 & 5
Application Tooling-pg. 66
Tongue Dimensions Wire Part Numbers
Wire Size Material Stud Terminal Insulation
Circular Mils Thickness Size W C E L X H Insulation Diameter Loose Tape
[mm2] Max. Min. Max. Max. Min. Color Max. Piece Mounted
.296 .203 .619 .749 .125 .045 Red .140 322249* 1-322249-1
6 7.52 5.16 15.72 19.02 3.18 1.14 3.56
M3.5 .328 .203 .619 .749 .125 .045 Red .140 324560 2-324560-1
8.33 5.16 15.72 19.02 3.18 1.14 3.56
22-16 .033 .296 .203 .619 .749 .125 .045 Red .140 1-322249-0 1-322249-9
509-3,260 0.84 8 7.52 5.16 15.72 19.02 3.18 1.14 3.56
[0.26-1.65] M4 .416 .250 .666 .842 .171 .062 Red .140 324169* 2-324169-1
10.57 6.35 16.92 21.39 4.34 1.57 3.56
10 .296 .203 .619 .749 .125 .045 Red .140 328516* 2-328516-1
7.52 5.16 15.72 19.02 3.18 1.14 3.56
.294 .203 .619 .749 .125 .047 Blue .170 324165* 2-324165-1
6 7.47 5.16 15.72 19.02 3.18 1.19 4.32
M3.5 .294 .203 .668 .798 .125 .047 Blue .250 — 2-324165-4
16-14 .033 7.47 5.16 16.97 20.27 3.18 1.19 6.35
2,050-5,180 0.84 .294 .203 .619 .749 .125 .047 Blue .170 53874-1 53874-2
[1.04-2.62] 8 7.47 5.16 15.72 19.02 3.18 1.19 4.32
M4 .416 .250 .666 .842 .171 .062 Blue .170 324170 2-324170-1
10.57 6.35 16.92 21.39 4.34 1.57 4.32
6 .296 .250 .841 1.017 .171 .052 Yellow .230 324581* 1-324581-1
M3.5 7.52 6.35 21.36 25.83 4.34 1.32 5.84
12-10 .042 8 .416 .250 .841 1.017 .171 .052 Yellow .230 324172* 1-324172-0
5,180-13,100 1.07 M4 10.57 6.35 21.36 25.83 4.34 1.32 5.84
[2.62-6.64] 10 .416 .250 .841 1.017 .171 .052 Yellow .250 52856 52856-1
10.57 6.35 21.36 25.83 4.34 1.32 6.35
*Available in small packaging quantities.
Note: “C” dimension applies from edge of metal wire barrel to center of stud hole.
PLASTIC-GRIP Terminals and Splices
Return to digikey.com
AMP Standard Terminals and Splices
46
Catalog 82042 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 54-11-4733-2015
Revised 07-08 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
specified. Values in brackets are Specifications subject Mexico: 01-800-733-8926 Japan: 81-44-844-8013
www.tycoelectronics.com equivalent U.S. Customary Units. to change. C. America: 52-55-5-729-0425 UK: 44-8706-080208
PLASTI-GRIP Terminals and Splices (Continued)
Short Spring Spade
Tongue Terminals
Material
Insulation -Vinyl, UL 94V-0
Terminal Body -Phosphor
Bronze per ASTM B-139 for
wire sizes 24 to 14
Brass per ASTM B-36 for wire
sizes 12 to 10
Plating -Tin per ASTM B-545
except where noted
Related Product Data
Insulation Color Code -pg. 4
Packaging Quantities -pg. 4
Performance Specifications -
pgs. 4 & 5
Application Tooling-pg. 66
Tongue Dimensions Wire Part Numbers
Wire Size Material Stud Terminal Insulation
Circular Mils Thickness Size W C E L X Insulation Diameter Loose Tape
[mm2] Max. Min. Max. Max. Color Max. Piece Mounted
24-20 .025 .203 .219 .624 .744 .115 .125
320-1,290 4 White — 53829-2
[0.16-0.65] 0.64 5.16 5.56 15.85 18.90 2.92 3.18
4 .203 .250 .666 .811 .140 Red .140 52947*-1 52947-1
5.16 6.35 16.92 20.60 3.56 3.56
5 .250 .250 .666 .811 .140 Red .140 52948*-1 52948-1
M3 6.35 6.35 16.92 20.60 3.56 3.56
.234 .250 .666 .811 .140 Red .140 53240-1* 53240-2
5.94 6.35 16.92 20.60 3.56 3.56
6 .250 .250 .666 .811 .140 Red .140 52949*-1 52949-1
M3.5 6.35 6.35 16.92 20.60 3.56 3.56
.250 .250 .715 .860 .140 Red .200 52949-2* 52949-3
6.35 6.35 18.16 21.84 3.56 5.08
.244 .281 .697 .872 .170 Red .140 53241-1* 53241-2
22-16 .033 6.20 7.14 17.70 22.15 4.32 3.56
509-3,260 0.84 8 .375 .281 .697 .872 .170 Red .140 52950*-1 52950-1
[0.26-1.65] M4 9.53 7.14 17.70 22.15 4.32 3.56
.375 .281 .746 .921 .170 Red .200 52950-2* 52950-3
9.53 7.14 18.95 23.39 4.32 5.08
.294 .281 .697 .920 .218 Red .140 53242-1* 53242-2
7.47 7.14 17.70 23.37 5.54 3.56
.294 .281 .746 .969 .218 Red .200 53242-5* 53242-6
10 7.47 7.14 18.95 24.61 5.54 5.08
.406 .281 .697 .920 .218 Red .140 52951*-1 52951-1
10.31 7.14 17.70 23.37 5.54 3.56
.406 .281 .746 .969 .218 Red .200 — 52951-3
10.31 7.14 18.95 24.61 5.54 5.08
.250 .250 .666 .811 .140 Blue .170 52955*-1 52955-1
6.35 6.35 16.92 20.60 3.56 4.32
6 .250 .250 .715 .860 .140 Blue .250 52955-2* 52955-3
M3.5 6.35 6.35 18.16 21.84 3.56 6.35
.250 .250 .715 .860 .140 Blue .250 52955-41 —
6.35 6.35 18.16 21.84 3.56 6.35
.244 .281 .697 .872 .170 Blue .170 53244-1* 53244-2
6.20 7.14 17.70 22.15 4.32 4.32
.244 .281 .746 .921 .170 Blue .250 — 53244-4
16-14 8 6.20 7.14 18.95 23.39 4.32 6.35
.033 M4 .375 .281 .697 .872 .170 Blue .170 52956*-1 52956-1
2,050-5,180 0.84 9.53 7.14 17.70 22.15 4.32 4.32
[1.04-2.62] .375 .281 .746 .921 .170 Blue .250 52956-2* 52956-3
9.53 7.14 18.95 23.39 4.32 6.35
.294 .281 .697 .920 .218 Blue .170 53245-1* 53245-2
7.47 7.14 17.70 23.37 5.54 4.32
.294 .281 .746 .969 .218 Blue .250 — 53245-6
10 7.47 7.14 18.95 24.61 5.54 6.35
.406 .281 .697 .920 .218 Blue .170 52957*-1 52957-1
10.31 7.14 17.70 23.37 5.54 4.32
.406 .281 .746 .969 .218 Blue .250 52957-2* 52957-3
10.31 7.14 18.95 24.61 5.54 6.35
*Available in small packaging quantities.
1Terminal body plating— Gold per MIL-G-45204 over Nickel per QQ-N-290.
Note: “C” dimension applies from edge of metal wire barrel to center of stud hole.
PLASTI-GRIP Terminals and Splices
Return to digikey.com
47
AMP Standard Terminals and Splices
Catalog 82042 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 54-11-4733-2015
Revised 07-08 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
specified. Values in brackets are Specifications subject Mexico: 01-800-733-8926 Japan: 81-44-844-8013
www.tycoelectronics.com equivalent U.S. Customary Units. to change. C. America: 52-55-5-729-0425 UK: 44-8706-080208
PLASTI-GRIP Terminals and Splices (Continued)
Short Spring Spade
Tongue Terminals
(Continued)
Tongue Dimensions Wire Part Numbers
Wire Size Material Stud Terminal Insulation
Circular Mils Thickness Size W C E L X Insulation Diameter Loose Tape
[mm2] Max. Min. Max. Max. Color Max. Piece Mounted
.250 .174 .775 .959 .179 Yellow .200 52961*-1 52961-1
6.35 4.42 19.69 24.36 4.55 5.08
6 .250 .174 .775 .959 .179 Yellow .250 53246-1* 53246-2
M3.5 6.35 4.42 19.69 24.36 4.55 6.35
.250 .174 .775 .959 .179 Yellow .250 53246-31 —
6.35 4.42 19.69 24.36 4.55 6.35
.312 .276 .877 1.052 .170 Yellow .250 53247-1* 53247-2
7.92 7.01 22.28 26.72 4.32 6.35
8 .375 .276 .877 1.052 .170 Yellow .200 52962*-1 52962-1
12-10 .042 M4 9.53 7.01 22.28 26.72 4.32 5.08
5,180-13,100 1.07 .375 .276 .936 1.111 .170 Yellow .300 52962-2* 52962-3
[2.62-6.64] 9.53 7.01 23.77 28.22 4.32 7.62
.312 .276 .877 1.100 .218 Yellow .250 53248-1* 53248-2
7.92 7.01 22.28 27.94 5.54 6.35
.406 .276 .877 1.100 .218 Yellow .200 52963*-1 52963-1
10 10.31 7.01 22.28 27.94 5.54 5.08
.406 .276 .877 1.100 .218 Yellow .250 52963-2* 52963-3
10.31 7.01 22.28 27.94 5.54 6.35
.406 .276 .936 1.159 .218 Yellow .300 52963-4* 52963-5
10.31 7.01 23.77 29.44 5.54 7.62
*Available in small packaging quantities.
1Terminal body plating— Gold per MIL-G-45204 over Nickel per QQ-N-290.
Note: “C” dimension applies from edge of metal wire barrel to center of stud hole.
Long Spring Spade
Tongue Terminals
Material
Insulation -Vinyl, UL 94V-0
Terminal Body -Phosphor
Bronze per ASTM B-139 for
wire sizes 22 to 14
Brass per ASTM B-36 for wire
sizes 12 to 10
Plating -Tin per ASTM B-545
Related Product Data
Insulation Color Code -pg. 4
Packaging Quantities -pg. 4
Performance Specifications -
pgs. 4 & 5
Application Tooling-pg. 66
Tongue Dimensions Wire Part Numbers
Wire Size Material Stud Terminal Insulation
Circular Mils Thickness Size W C E L X Insulation Diameter Loose Tape
[mm2] Max. Min. Max. Max. Color Max. Piece Mounted
6 .250 .238 .664 .945 .276 Red .140 52453* 52453-1
M3.5 6.35 6.05 16.87 24.00 7.01 3.56
22-16 .033 8 .281 .270 .696 .991 .290 Red .140 52454* 52454-1
509-3,260 0.84 M4 7.14 6.86 17.68 25.17 7.37 3.56
[0.26-1.65] 10 .343 .283 .709 1.017 .303 Red .140 52455* 52455-1
8.71 7.19 18.01 25.83 7.70 3.56
6 .250 .238 .664 .945 .276 Blue .170 52463* 52463-1
M3.5 6.35 6.05 16.87 24.00 7.01 4.32
16-14 .033 8 .281 .270 .696 .991 .290 Blue .170 52464* 52464-1
2,050-5,180 0.84 M4 7.14 6.86 17.68 25.17 7.37 4.32
[1.04-2.62] 10 .343 .283 .709 1.017 .303 Blue .170 52465* 52465-1
8.71 7.19 18.01 25.83 7.70 4.32
8 .375 .273 .874 1.174 .295 Yellow .200 52474* 52474-1
M4 9.53 6.93 22.20 29.82 7.49 5.08
12-10 .042 .375 .305 .906 1.219 .308 Yellow .200 52475* 52475-1
5,180-13,100 1.07 10 9.53 7.75 23.01 30.96 7.82 5.08
[2.62-6.64] .375 .305 .965 1.278 .308 Yellow .300 — 52475-3
9.53 7.75 24.51 32.46 7.82 7.62
*Available in small packaging quantities.
Note: “C” dimension applies from edge of metal wire barrel to center of stud hole.
PLASTIC-GRIP Terminals and Splices
Return to digikey.com
AMP Standard Terminals and Splices
48
Catalog 82042 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 54-11-4733-2015
Revised 07-08 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
specified. Values in brackets are Specifications subject Mexico: 01-800-733-8926 Japan: 81-44-844-8013
www.tycoelectronics.com equivalent U.S. Customary Units. to change. C. America: 52-55-5-729-0425 UK: 44-8706-080208
PLASTI-GRIP Terminals and Splices (Continued)

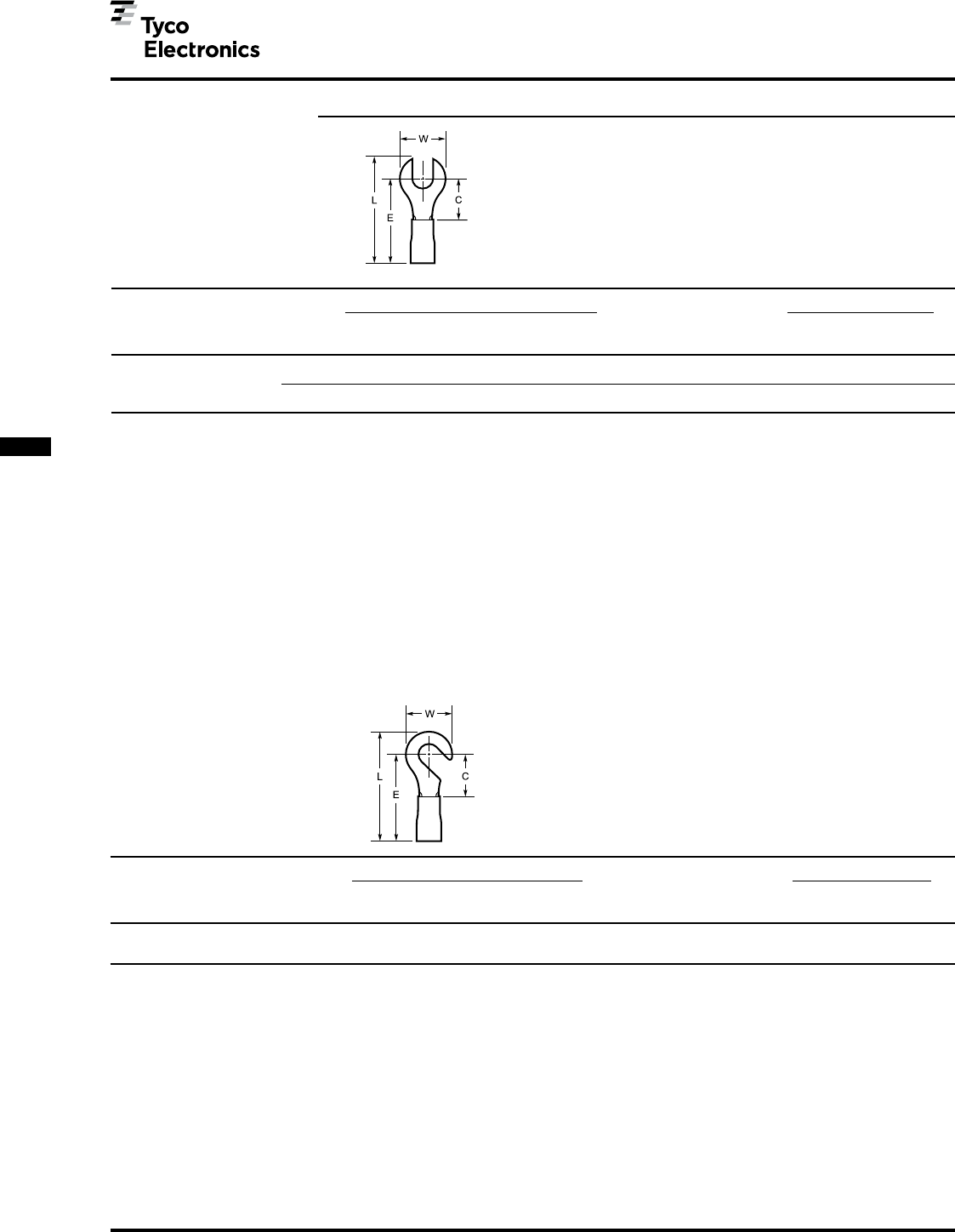

Slotted Ring
Tongue Terminals
Material
Insulation -Vinyl, UL 94V-0
Terminal Body -Copper per
ASTM B-152
Plating -Tin per ASTM B-545
Related Product Data
Insulation Color Code -pg. 4
Packaging Quantities -pg. 4
Performance Specifications -
pgs. 4 & 5
Application Tooling-pg. 66
Wire Size Tongue Dimensions Wire Part Numbers
Circular Mils Material Stud Terminal Insulation
[mm2] Thickness Size W C E L Insulation Diameter Loose Tape
Max. Min. Max. Max. Color Max. Piece Mounted
22-16 6 .218 .156 .572 .658 Red .125 340901 —
509-3,260 .033 M3.5 5.54 3.96 14.53 16.71 3.18
0.84 8 .281 .250 .666 .782 Red .140 324184 2-324184-1
[0.26-1.65] M4 7.14 6.35 16.92 19.86 3.56
Note: “C” dimension applies from edge of metal wire barrel to center of stud hole.
Hook Tongue Terminals Material
Insulation -Vinyl, UL 94V-0
Terminal Body -Copper per
ASTM B-152
Plating -Tin per ASTM B-545
Related Product Data
Insulation Color Code -pg. 4
Packaging Quantities -pg. 4
Performance Specifications -
pgs. 4 & 5
Application Tooling-pg. 66
Wire Size Tongue Dimensions Wire Part Numbers
Circular Mils Material Stud Terminal Insulation
[mm2] Thickness Size W C E L Insulation Diameter Loose Tape
Max. Min. Max. Max. Color Max. Piece Mounted
16-14 .033 8 .343 .281 .697 .871 .170
2,050-5,180 Blue 320263 2-320263-1
[1.04-2.62] 0.84 M4 8.71 7.14 17.70 22.12 4.32
Note: “C” dimension applies from edge of metal wire barrel to center of stud hole.
PLASTI-GRIP Terminals and Splices
Return to digikey.com
49
AMP Standard Terminals and Splices
Catalog 82042 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 54-11-4733-2015
Revised 07-08 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
specified. Values in brackets are Specifications subject Mexico: 01-800-733-8926 Japan: 81-44-844-8013
www.tycoelectronics.com equivalent U.S. Customary Units. to change. C. America: 52-55-5-729-0425 UK: 44-8706-080208
PLASTI-GRIP Terminals and Splices (Continued)
Flag Tongue Terminals Material
Insulation -Vinyl, UL 94V-0
Color -Natural
Terminal Body -Copper per
ASTM B-152
Plating -Tin per ASTM B-545
Related Product Data
Insulation Color Code -pg. 4
Packaging Quantities -pg. 4
Performance Specifications -
pgs. 4 & 5
Application Tooling-pg. 66
Wire Size Tongue Dimensions Terminal Wire Part Numbers
Circular Mils Material Style Stud Insulation Insulation
[mm2] Thickness Size W C L D Stripe Diameter Loose Piece
Max. Min. Max. Max. Color Max.
20-16HD1 .042 .500 .266 .749 .695 .170
810-3,260 A 14 Green 322307
[0.41-1.65] 1.07 12.70 6.76 19.02 17.65 4.32
B 10 .385 .272 .741 .695 Blue .170 322834
16-14 .033 9.78 6.91 18.82 17.65 4.32
2,050-5,180 0.84 A 14 .500 .266 .749 .695 Blue .170 322310
[1.04-2.62] 12.70 6.76 19.02 17.65 4.32
16-14HD1
10 .500 .266 .810 .775 Black .230 322312
2,050-5,180 .050 12.70 6.76 20.57 19.69 5.84
1.27 A 14 .500 .266 .810 .775 Black .230 322313
[1.04-2.62] 12.70 6.76 20.57 19.69 5.84
10 .500 .266 .812 .775 Yellow .230 322315
12.70 6.76 20.62 19.69 5.84
12-10 .042 A 14 .500 .266 .812 .775 Yellow .230 322316
5,180-13,100 1.07 12.70 6.76 20.62 19.69 5.84
[2.62-6.64]
14 .500 .266 .812 .775 Yellow .280 322395
12.70 6.76 20.62 19.69 7.11
1Heavy Duty for extra mechanical strength.
Multiple Stud Terminals Material
Insulation -Vinyl, UL 94V-0
Terminal Body -Copper per
ASTM B-152
Plating -Tin per ASTM B-545
Related Product Data
Insulation Color Code -pg. 4
Packaging Quantities -pg. 4
Performance Specifications -
pgs. 4 & 5
Application Tooling-pg. 66
Wire Size Tongue Dimensions Wire Part Numbers
Circular Mils Material Stud Terminal Insulation
[mm2] Thickness Size W C E L Insulation Diameter Loose Tape
Max. Min. Max. Max. Color Max. Piece Mounted
22-16 .033 .325 .271 .691 .969 .125
509-3,260 6-8-10 Red 54774-1 54774-2
[0.26-1.65] 0.84 8.26 6.88 17.55 24.61 3.18
16-14 .033 .325 .271 .691 .969 .145
2,050-5,180 6-8-10 Blue 54775-1 54775-2
[1.04-2.62] 0.84 8.26 6.88 17.55 24.61 3.68
Note: “C” dimension applies from edge of metal wire barrel to center of stud hole.
A B
PLASTIC-GRIP Terminals and Splices
Return to digikey.com
AMP Standard Terminals and Splices
50
Catalog 82042 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 54-11-4733-2015
Revised 07-08 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
specified. Values in brackets are Specifications subject Mexico: 01-800-733-8926 Japan: 81-44-844-8013
www.tycoelectronics.com equivalent U.S. Customary Units. to change. C. America: 52-55-5-729-0425 UK: 44-8706-080208
PLASTI-GRIP Terminals and Splices (Continued)
Wire Size Dimension Splice Wire Insulation Part Numbers
Circular Mils1 L Insulation Diameter Loose Tape
[mm2] Max. Color Max. Piece Mounted
26-22 .620 .080
202-810 Yellow 321026*† 2-321026-1†
[0.10-0.41] 15.75 2.03
22-18/16-14 1.065 Red/Blue Stripe .170 .115 696010-1 —
27.05 6.86 2.92
1.065 Red .120 34067* 2-34067-1
27.05 3.05
1.065 Red .170 34243* 1-34243-1
27.05 4.32
22-162 1.076 Natural w/ .120 324138* —
509-3,260 27.33 Red Letters 3.05
[0.26-1.65] 1.076 Red .140 34070* 1-34070-1
27.33 3.56
1.076 Natural w/ .140 55792-1* 55792-2
27.33 Red Stripes 3.56
1.065 Red .083 x .171 342033* —
27.05 2.11 x 4.34
.600 Blue — 55629-2 —
15.24
1.065 Blue .140 34068* 2-34068-1
27.05 3.56
1.065 Natural w/ .140 328427* —
27.05 Blue Letters 3.56
16-14 1.065 Blue .170 34071* 2-34071-1
2,050-5,180 27.05 4.32
[1.04-2.62] 1.065 Natural w/ .170 55785-1* 55785-2
27.05 Blue Stripes 4.32
1.065 Blue .215 35244* 2-35244-1
27.05 5.46
1.105 Blue .170 2-34071-24 2-34071-34
28.07 4.32
1.065 Blue .135 x .245 342043* 1-34204-0
27.05 3.43 x 6.22
1.160 Yellow .200 34069 —
29.46 5.08
1.160 Yellow .230 34072* 2-34072-2
29.46 5.84
1.160 Natural w/ .230 55793-1* 55793-2
29.46 Yellow Stripes 5.84
12-10 1.160 Yellow .250 34945* —
5,180-13,100 29.46 6.35
[2.62-6.64] 1.160 Yellow .300 326742 —
29.46 7.62
1.200 Yellow .250 2-34945-14 2-34945-24
30.48 6.35
1.160 Yellow .250 .165 x .315 3212865† —
29.46 6.35 4.19 x 8.00
1.160 Yellow .138 x .281 342053* —
29.46 3.51 x 7.14
8 1.340 Red .250 696025-1 —
34.04 6.35
6 1.530 Blue .330 696026-1 —
38.86 8.38
† Not UL or CSA Approved or Listed.
*Available in small packaging quantities.
1
When using two or more wires in either end of a butt splice, the combined cross sectional area must be within the (CMA) circular mil range
listed. (Not UL or CSA approved with use of multiple wires.)
222-16 splices are 22-18 range in accordance with MIL-T-7928.
3Oval expansion.
4Funnel entry
5Oval expansion at one end; circular expansion at other end.
Butt Splices Material
Insulation -Vinyl, UL 94V-0
Splice Body -Copper per
ASTM B-152
Plating -Tin per ASTM B-545
Related Product Data
Insulation Color Code -pg. 4
Packaging Quantities -pg. 4
Performance Specifications -
pgs. 4 & 5
Application Tooling-pg. 66
PLASTI-GRIP Terminals and Splices
Return to digikey.com
51
AMP Standard Terminals and Splices
Catalog 82042 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 54-11-4733-2015
Revised 07-08 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
specified. Values in brackets are Specifications subject Mexico: 01-800-733-8926 Japan: 81-44-844-8013
www.tycoelectronics.com equivalent U.S. Customary Units. to change. C. America: 52-55-5-729-0425 UK: 44-8706-080208
PLASTI-GRIP Terminals and Splices (Continued)
Parallel Splices Material
Insulation -Vinyl, UL 94V-0
Splice Body -Copper per
ASTM B-152
Plating -Tin per ASTM B-545
Related Product Data
Insulation Color Code -pg. 4
Packaging Quantities -pg. 4
Performance Specifications -
pgs. 4 & 5
Application Tooling-pg. 66
Wire Size Dimension Splice Wire
Circular Mils1 L Insulation Insulation Part Numbers
[mm2] Max. Color Diameter Loose Piece
Max.
.760 Red .120 34131*
22-16 19.30 3.05
509-3,260 .760 Red .140 34132*
[0.26-1.65] 19.30 3.56
.760 Blue .140 34133*
19.30 3.56
16-14 .760 Blue .170 34134*
2,050-5,180 19.30 4.32
[1.04-2.62] .760 Blue .135 x .245 342072*
19.30 3.43 x 6.22
.843 Yellow .200 34135
12-10 21.41 5.08
5,180-13,100 .870 Yellow .230 34136*
[2.62-6.64] 22.10 5.84
*Available in small packaging quantities.
1
When using two or more wires in a parallel splice, the combined cross sectional area must be within the (CMA) circular mil area listed.
2Oval expansion.
Shur-Plug
(.093, .156 and .180 Series)
Material (.093 Series)
Insulation -Vinyl, UL 94V-0
Terminal Body -Brass per
ASTM B-36
Related Product Data
Insulation Color Code -pg. 4
Packaging Quantities -pg. 4
Performance Specifications -
pgs. 4 & 5
Application Tooling-pg. 66
.093 Series
.156 Series
.180 Series
Material
(.156 & .180 Series)
Insulation -Vinyl, UL 94V-0
Terminal Body -Copper per
ASTM B-152
Plating -Tin per ASTM B-545
Wire Size Tongue Dimension Terminal Wire Insulation Part Numbers
Circular Mils Material Series L Insulation Diameter Loose Tape
[mm2] Thickness Max. Color Max. Piece Mounted
Max.
22-16 .812 .140
509-3,260 — .093 Red 34178 —
[0.26-1.65] 20.62 3.56
.156 .800 Blue .170 324227*† 1-324227-0
16-14 .033 20.32 4.32
2,050-5,180 0.84 .180 .753 Blue .170 324228*† —
[1.04-2.62] 19.13 4.32
† Not UL or CSA Approved or Listed.
*Available in small packaging quantities.
PLASTIC-GRIP Terminals and Splices
Return to digikey.com
AMP Standard Terminals and Splices
52
Catalog 82042 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 54-11-4733-2015
Revised 07-08 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
specified. Values in brackets are Specifications subject Mexico: 01-800-733-8926 Japan: 81-44-844-8013
www.tycoelectronics.com equivalent U.S. Customary Units. to change. C. America: 52-55-5-729-0425 UK: 44-8706-080208
PLASTI-GRIP Terminals and Splices (Continued)

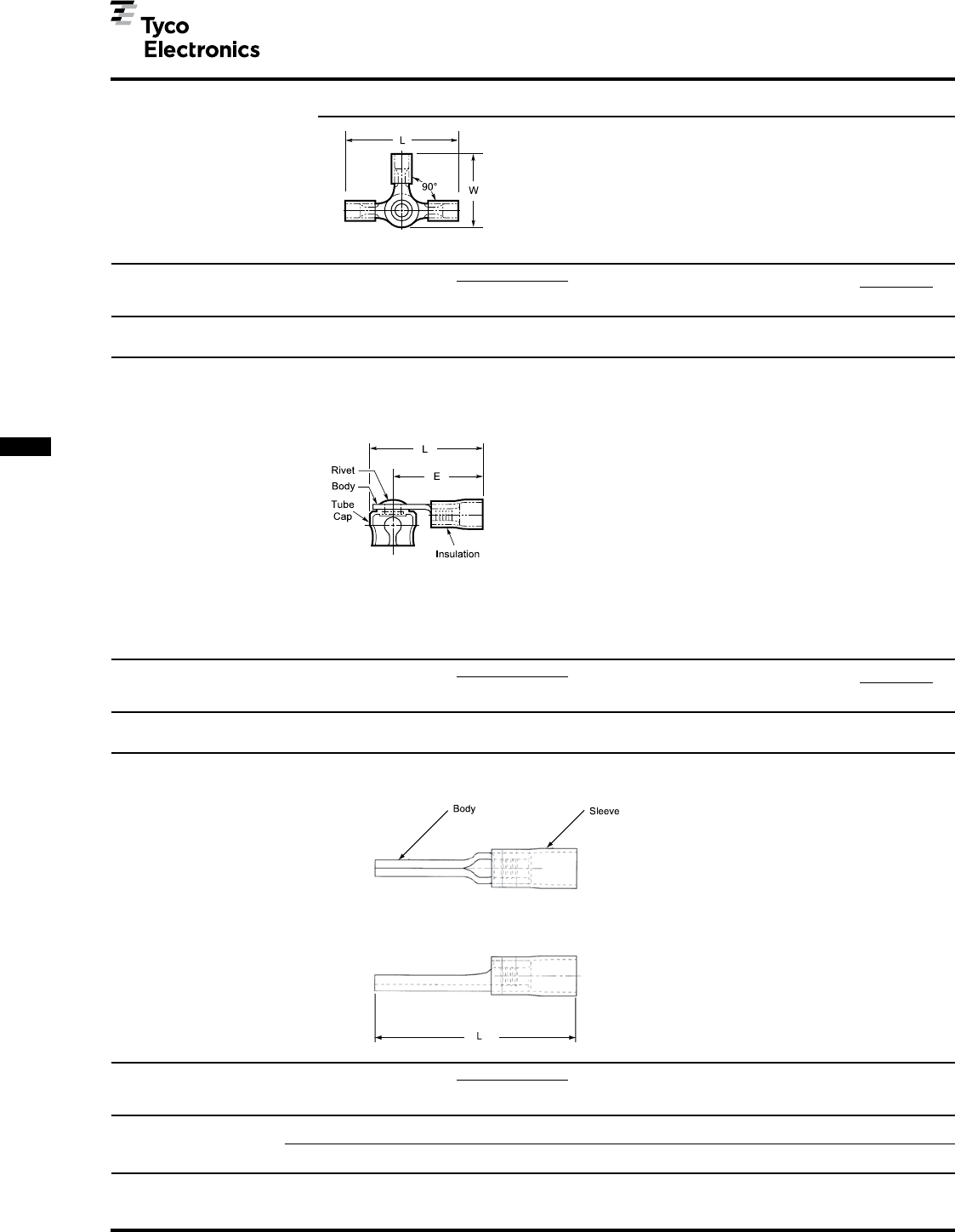

3-Way Connector Material
Insulation -Vinyl, UL 94V-0
Terminal Body -Copper per
ASTM B-152
Rivet -Brass per QQ-B-626
Plating -Tin per ASTM B-545
Related Product Data
Insulation Color Code -pg. 4
Packaging Quantities -pg. 4
Performance Specifications -
pgs. 4 & 5
Application Tooling-pg. 66
Wire Size Tongue Material Dimensions Terminal Wire Insulation Part Number
Circular Mils Thickness W L Insulation Diameter Loose Piece
[mm2] Max. Max. Max. Color Max.
16-14 .033 .877 1.400 .145
2,050-5,180 Blue 34073*
[1.04-2.62] 0.84 22.28 35.56 3.68
*Available in small packaging quantities.
.250 Tube Cap
Assembly
Material
Insulation -Vinyl, UL 94V-0
Terminal Body -Copper per
ASTM B-152
Plating -Tin per ASTM B-545
Tube Cap -Copper/Zinc alloy
per MIL-C-50
Plating -Tin per ASTM B-545
Rivet -Brass
Plating -Tin per ASTM B-545
over Copper
Related Product Data
Insulation Color Code -pg. 4
Packaging Quantities -pg. 4
Performance Specifications -
pgs. 4 & 5
Application Tooling-pg. 66
Wire Size Tongue Material Dimensions Terminal Wire Insulation Part Number
Circular Mils Thickness E L Insulation Diameter Loose Piece
[mm2] Max. Max. Max. Color Max.
22-16 .033 .666 .978 .140
509-3,260 Black 55137-1†
[0.26-1.65] 0.84 16.92 24.84 3.56
† Not UL or CSA Approved or Listed.
Wire Pins
Wire Size Dimensions Terminal Wire Insulation
Circular Mils Tab Ins. L Insulation Diameter Part Number
[mm2] Max. Color Max.
.070 .140 .943 Red .145 696116-1 (Tape)
22-16 1.78 3.56 23.95 3.68
.071 .135 .905 Red .145 165167 (Loose Piece)
1.80 3.43 22.99 3.68
PLASTI-GRIP Terminals and Splices
Return to digikey.com
53
AMP Standard Terminals and Splices
Catalog 82042 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 54-11-4733-2015
Revised 07-08 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
specified. Values in brackets are Specifications subject Mexico: 01-800-733-8926 Japan: 81-44-844-8013
www.tycoelectronics.com equivalent U.S. Customary Units. to change. C. America: 52-55-5-729-0425 UK: 44-8706-080208
TERMINYL Terminals and Splices
TERMINYL Terminals and Splices
Product Facts
Designed to provide insu-
lated terminals and
splices for large wire
sizes, many of which are
used in airborne and
ground support applica-
tions
Tested under the proce-
dures stipulated by MIL
Spec. MIL-T-7928, they
meet and exceed require-
ments
Designed and engineered
to withstand extreme
vibration, shock and
structural stresses, ele-
vated temperatures and
other conditions which
could adversely affect the
circuit requirements in
complex air and space
flight equipment
The use of matching AMP
tooling provides for preci-
sion crimping which
makes all terminations
identical
This uniformity promotes
maximum reliability and,
coupled with tool die
marks on the barrel indi-
cating the wire size and
color coding of the insula-
tion sleeve, also serves as
a built-in quality control
factor
Pre-insulated with color
coded nylon which also
acts as insulation support
Wire size range of termi-
nals is 8 AWG through
4/0 AWG
Basic Terminal Material. The basic termi-
nal is constructed of fine grade high con-
ductivity copper per ASTM B-152 and
tin-plated per ASTM B-545.
Tyco Electronics special plating process
creates durable corrosion resistance to
salt spray and most chemical fumes.
Funnel Entry. Molded insulation for
ease of wire insertion and snug fit
over MIL-standard wire diameters.
Dimples. Dimples afford maximum
contact of barrel and wire and
maximum tensile strength.
Insulation. Nylon insulation for
dielectric strength, color coded
to wire size.
TERMINYL Terminals meet or exceed the requirements of MIL-T-7928, Type II, Class 2.
Refer to AMP Qualified Products for Military Application, Catalog 73-159 for Military Specification
Number to AMP Part Number cross reference.
Temperature Rating: 105°C Max.
Return to digikey.com
AMP Standard Terminals and Splices
54
Catalog 82042 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 54-11-4733-2015
Revised 07-08 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
specified. Values in brackets are Specifications subject Mexico: 01-800-733-8926 Japan: 81-44-844-8013
www.tycoelectronics.com equivalent U.S. Customary Units. to change. C. America: 52-55-5-729-0425 UK: 44-8706-080208
TERMINYL Terminals and Splices
TERMINYL Terminals and Splices (Continued)
Ring Tongue Terminals Material
Insulation -Nylon, UL 94V-2
Terminal Body -Copper per
ASTM B-152
Plating -Tin per ASTM B-545
Related Product Data
Insulation Color Code -pg. 4
Packaging Quantities -pg. 4
Performance Specifications -
pgs. 4 & 5
Application Tooling -pg. 67
Wire Size Tongue Dimensions Wire Part Numbers
Circular Mils Material Stud Terminal Insulation
[mm2] Thickness Size W C E L Insulation Diameter Loose
Max. Max. Max. Color Max. Piece
8 .478 .437 1.183 1.425 Red .256 53041
M4 12.14 11.10 30.05 36.20 6.50
10 .431 .437 1.183 1.402 Red .256 324043
10.95 11.10 30.05 35.61 6.50
8 .043 1/4 .478 .437 1.183 1.425 Red .256 324082
13,100-20,800 1.09 M6 12.14 11.10 30.05 36.20 6.50
[6.64-10.5] 5/16 .587 .500 1.246 1.542 Red .256 324044
M8 14.91 12.70 31.65 39.17 6.50
3/8 .587 .500 1.246 1.542 Red .256 324045
14.91 12.70 31.65 39.17 6.50
.398 .515 1.447 1.700 Blue .314 53119-11
10 10.11 13.08 36.75 43.18 7.98
.468 .421 1.338 1.575 Blue .314 324046
11.89 10.69 33.99 40.01 7.98
6 .048 1/4 .500 .515 1.447 1.700 Blue .314 324047
20,800-33,100 1.22 M6 12.70 13.08 36.75 43.18 7.98
[10.5-16.8] 5/16 .625 .515 1.447 1.762 Blue .314 324048
M8 15.88 13.08 36.75 44.75 7.98
3/8 .625 .515 1.447 1.762 Blue .314 324049
15.88 13.08 36.75 44.75 7.98
8 .437 .265 1.155 1.376 Yellow .382 331456
M4 11.10 6.73 29.34 34.95 9.70
.437 .265 1.155 1.376 Yellow .382 1-331456-0
11.10 6.73 29.34 34.95 9.70
10 .546 .531 1.536 1.812 Yellow .382 324111
4
13.87 13.49 39.01 46.02 9.70
33,100-52,600 .051 1/4 .546 .531 1.536 1.812 Yellow .382 324050
1.30 M6 13.87 13.49 39.01 46.02 9.70
[16.8-26.7] 5/16 .679 .531 1.536 1.878 Yellow .382 324051
M8 17.25 13.49 39.01 47.70 9.70
3/8 .679 .531 1.536 1.878 Yellow .382 324052*
17.25 13.49 39.01 47.70 9.70
1/2 .679 .531 1.536 1.878 Yellow .382 324114
M12 17.25 13.49 39.01 47.70 9.70
1/4 .500 .390 1.349 1.602 Yellow .443 330966
M6 12.70 9.91 34.26 40.69 11.25
4HD3 .094 5/16 .679 .456 1.565 1.907 Yellow .443 1-331421-0
33,100-52,600 2.39 M8 17.25 11.58 39.75 48.44 11.25
[16.8-26.7]
3/8 .679 .456 1.565 1.907 Yellow .443 1-331421-1
17.25 11.58 39.75 48.44 11.25
10 .711 .578 1.705 2.063 Red .468 328655
18.06 14.68 43.31 52.40 11.89
1/4 .679 .578 1.705 2.045 Red .468 324053
M6 17.25 14.68 43.31 51.94 11.89
2 .060 5/16 .711 .578 1.705 2.063 Red .468 324112
52,600-83,700 1.52 M8 18.06 14.68 43.31 52.40 11.89
[26.7-42.4]
3/8 .711 .578 1.705 2.063 Red .468 324054
18.06 14.68 43.31 52.40 11.89
1/2 .855 .578 1.705 2.135 Red .468 324055
M12 21.72 14.68 43.31 54.23 11.89
*Available in small packaging quantities.
1Rectangular tongue terminal
290° bend ring tongue terminal
3Heavy duty for extra mechanical strength.
Return to digikey.com
55
AMP Standard Terminals and Splices
Catalog 82042 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 54-11-4733-2015
Revised 07-08 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
specified. Values in brackets are Specifications subject Mexico: 01-800-733-8926 Japan: 81-44-844-8013
www.tycoelectronics.com equivalent U.S. Customary Units. to change. C. America: 52-55-5-729-0425 UK: 44-8706-080208
TERMINYL Terminals and Splices (Continued)
Ring Tongue Terminals
(Continued)
Wire Size Tongue Dimensions Wire Part Numbers
Circular Mils Material Stud Terminal Insulation
[mm2] Thickness Size W C E L Insulation Diameter Loose
Max. Max. Max. Color Max. Piece
.675 .625 2.033 2.360 Blue .580 55822-1
1/4 17.15 15.88 51.64 59.94 14.73
M6 .807 .625 2.033 2.426 Blue .580 324056
20.50 15.88 51.64 61.62 14.73
1/0 .073 5/16 .807 .625 2.033 2.426 Blue .580 324113
83,700-119,500 1.85 M8 20.50 15.88 51.64 61.62 14.73
[42.4-60.6]
3/8 .807 .625 2.033 2.426 Blue .580 324057
20.50 15.88 51.64 61.62 14.73
1/2 .875 .625 2.017 2.454 Blue .580 324058
M12 22.23 15.88 51.23 62.33 14.73
5/16 .926 .625 2.026 2.416 Yellow .610 324083
M8 23.52 15.88 51.46 61.37 15.49
2/0 .083 3/8 .926 .625 2.026 2.416 Yellow .610 324084
119,500-150,500 2.11 23.52 15.88 51.46 61.37 15.49
[60.6-76.3]
1/2 .926 .625 2.026 2.416 Yellow .610 324085
M12 23.52 15.88 51.46 61.37 15.49
3/0 .094 1.082 .625 2.294 2.794 .680
150,500-190,000 3/8 Red 324185
[76.3-96.3] 2.39 27.48 15.88 58.27 70.97 17.27
.835 .625 2.295 2.700 Blue .765 329150
3/8 21.21 15.88 58.29 68.58 19.43
4/0 .105 1.150 .625 2.295 2.858 Blue .765 324187
190,000-231,100 2.67 29.21 15.88 58.29 72.59 19.43
[96.3-117]
1/2 1.150 .625 2.295 2.858 Blue .765 324188
M12 29.21 15.88 58.29 72.59 19.43
TERMINYL Terminals and Splices
Return to digikey.com
AMP Standard Terminals and Splices
56
Catalog 82042 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 54-11-4733-2015
Revised 07-08 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
specified. Values in brackets are Specifications subject Mexico: 01-800-733-8926 Japan: 81-44-844-8013
www.tycoelectronics.com equivalent U.S. Customary Units. to change. C. America: 52-55-5-729-0425 UK: 44-8706-080208
TERMINYL Terminals and Splices (Continued)

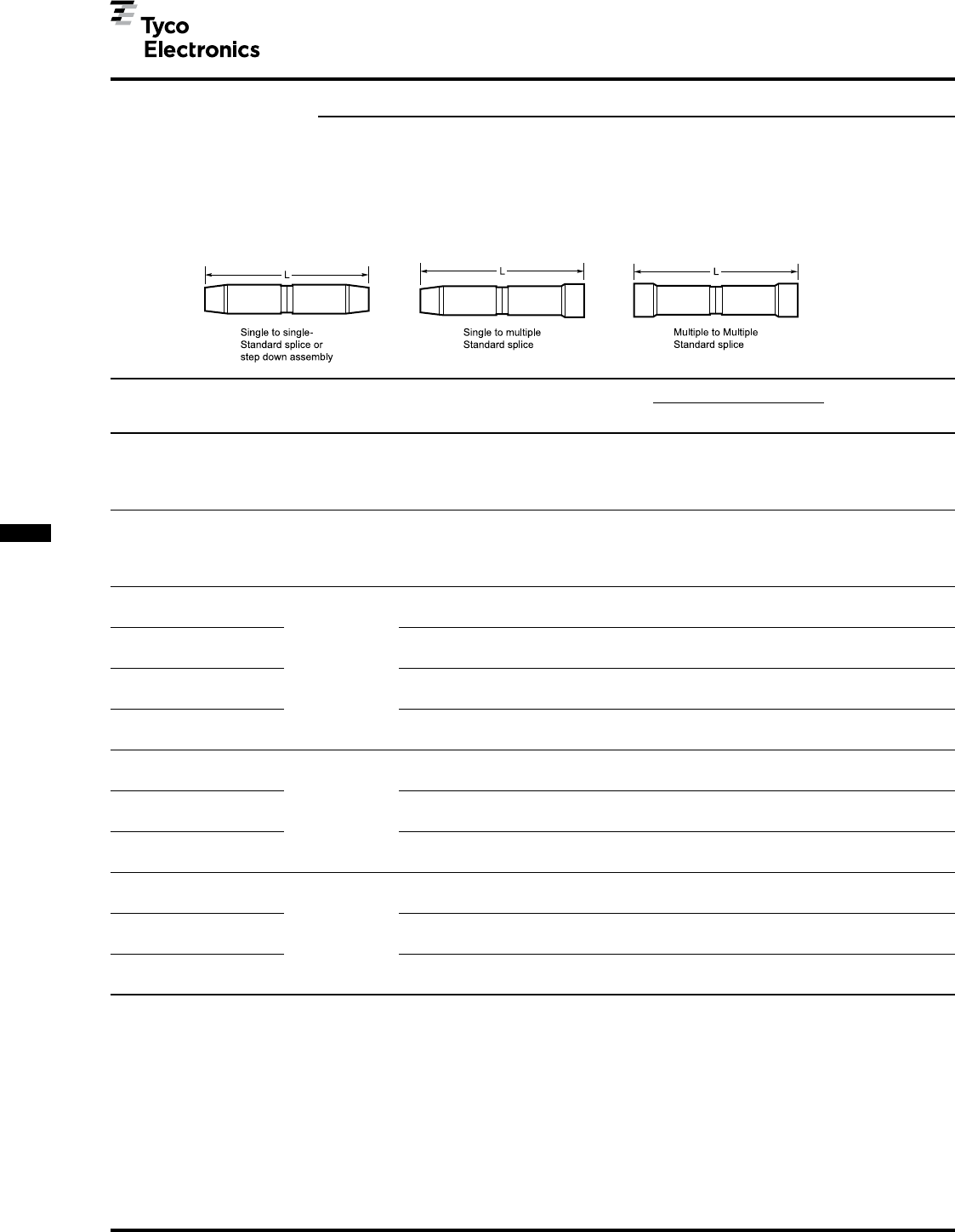

Butt Splices Material
Insulation Sleeve-Nylon, UL
94V-2
Splice Body -Copper per
ASTM B-152
Plating -Tin per ASTM B-545
Related Product Data
Insulation Color Code -pg. 4
Packaging Quantities -pg. 4
Performance Specifications -
pgs. 4 & 5
Application Tooling -pg. 67
Wire Size Dimension Splice Wire Insulation Diameter Max.
Circular Mils Style L Insulation Part Numbers
[mm2] Max. Color Single End Multiple End
8 to 12-10
13,100-20,800 Single to Single
Red w/
[6.64-10.5] Step-Down 2.066 Yellow at .255
to Assembly 52.48 adapter end 6.48 — 328569
5,180-13,100
[2.62-6.64]
6 to 8
20,800-33,100 Single to Single
Blue w/
[10.5-16.8] Step-Down 2.265 Red at .310
to Assembly 57.53 adapter end 7.87 — 328571
13,100-20,800
[6.64-10.5]
8 2.066 .255
13,100-20,800 Red — 324625
[6.64-10.5] 52.48 6.48
6 2.265 .310
20,800-33,100 Blue — 324660
[10.5-16.8] 57.53 7.87
4 2.804 .370
33,100-52,600 Yellow — 324622
[16.8-26.7] 71.22 9.40
2 3.094 .445
52,600-83,700 Red — 324623
[26.7-42.4] 78.59 11.30
8 2.171 .255 .335
13,100-20,800 Red 324658
[6.64-10.5] 55.14 6.48 8.51
6 2.359 .310 .415
20,800-33,100 Blue 324621
[10.5-16.8] 59.92 7.87 10.54
4 2.804 .370 .495
33,100-52,600 Yellow 324662
[16.8-26.7] 71.22 9.40 12.57
8 2.276 .335
13,100-20,800 Red — 324657
[6.64-10.5] 57.81 8.51
6 2.484 .415
20,800-33,100 Blue — 324659
[10.5-16.8] 63.09 10.54
2 3.094 .595
52,600-83,700 Red — 324663
[26.7-42.4] 78.59 15.11
1Step-Down Assembly includes adapter which is visible through insulation sleeve window.
Single to Single
Standard Splice
Single to Multiple
Standard Splice
Multiple to Multiple
Standard Splice
TERMINYL Terminals and Splices
Return to digikey.com
57
AMP Standard Terminals and Splices
Catalog 82042 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 54-11-4733-2015
Revised 07-08 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
specified. Values in brackets are Specifications subject Mexico: 01-800-733-8926 Japan: 81-44-844-8013
www.tycoelectronics.com equivalent U.S. Customary Units. to change. C. America: 52-55-5-729-0425 UK: 44-8706-080208
CERTI-SEAL Terminals and Splices

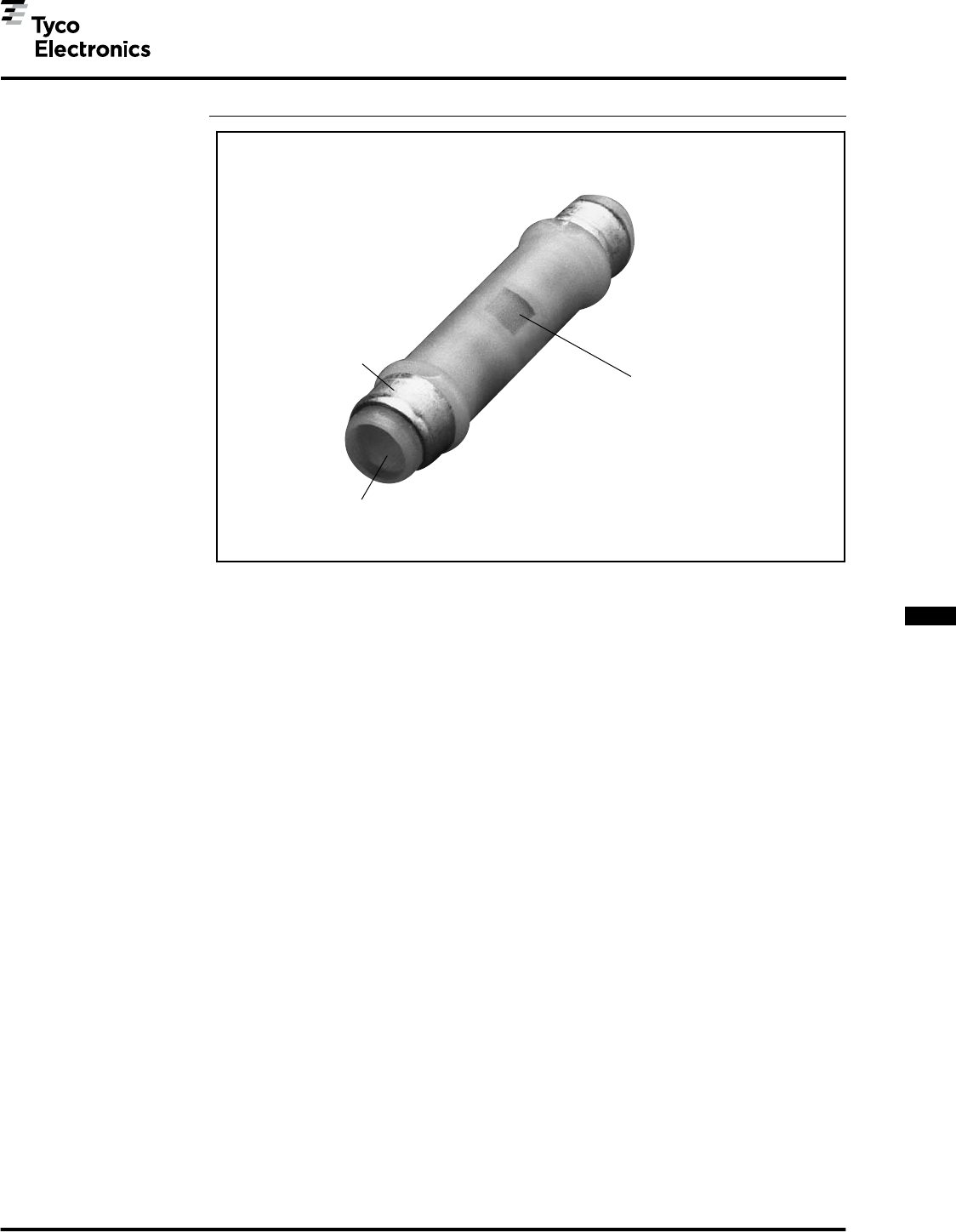

CERTI-SEAL Terminals and Splices
Product Facts
Nylon window splice for
military, commercial, air-
craft, and missile applica-
tions that seals out
vapors and fluids and
imparts exceptional wire
insulation support
Metal rings at both ends
of splice and permanently
crimped to wire insulation
for a moisture tight seal,
even at altitude
Designed to fit more than
100 insulation diameters
in MIL-Spec wires from
#24 to #10 AWG, and is
available in three types
First type is made with a
nylon ring adapter within
the wire entrance
Second type, without
nylon ring adapters
Third type with a nylon
ring adapter in one end
only
Special notch feature on
the outside of the splice
allows locator in the
crimping tool to precisely
position splice before
crimping and to prevent
twisting or horizontal
movement during crimp-
ing
Window area of each
splice permits visual
inspection of the linear
plane of the crimp in rela-
tion to the inner metal
sleeve
Wire-stops in splice barrel
indicate exact insertion
depth of stripped wire-
ends
Color Coding. The splice body is color coded by wire
size: Tin plated for 24-20, Red for 22-18, Blue for 16-14,
Yellow for 12-10. The metal rings are color coded
green or orange to identify the presence of adapters.
Rings. Metal rings at both
ends permanently seal
the splice to the wire
insulation for a moisture
tight seal.
Adapters. Nylon ring
adapter allows for smaller
wire insulation diameters.
Basic Splice Material. The
basic splice body is con-
structed of fine grade high
conductivity copper per ASTM
B-152 and is either color coded
or tin-plated per ASTM B-545.
Tyco Electronics special plat-
ing process creates durable
corrosion resistance to salt
spray and most chemical
fumes.
Insulation. Nylon insulation
assures high dielectric strength.
Special notch feature allows
crimping tool locator to posi-
tion the splice to prevent twist-
ing during crimping.
Return to digikey.com
AMP Standard Terminals and Splices
58
Catalog 82042 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 54-11-4733-2015
Revised 07-08 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
specified. Values in brackets are Specifications subject Mexico: 01-800-733-8926 Japan: 81-44-844-8013
www.tycoelectronics.com equivalent U.S. Customary Units. to change. C. America: 52-55-5-729-0425 UK: 44-8706-080208

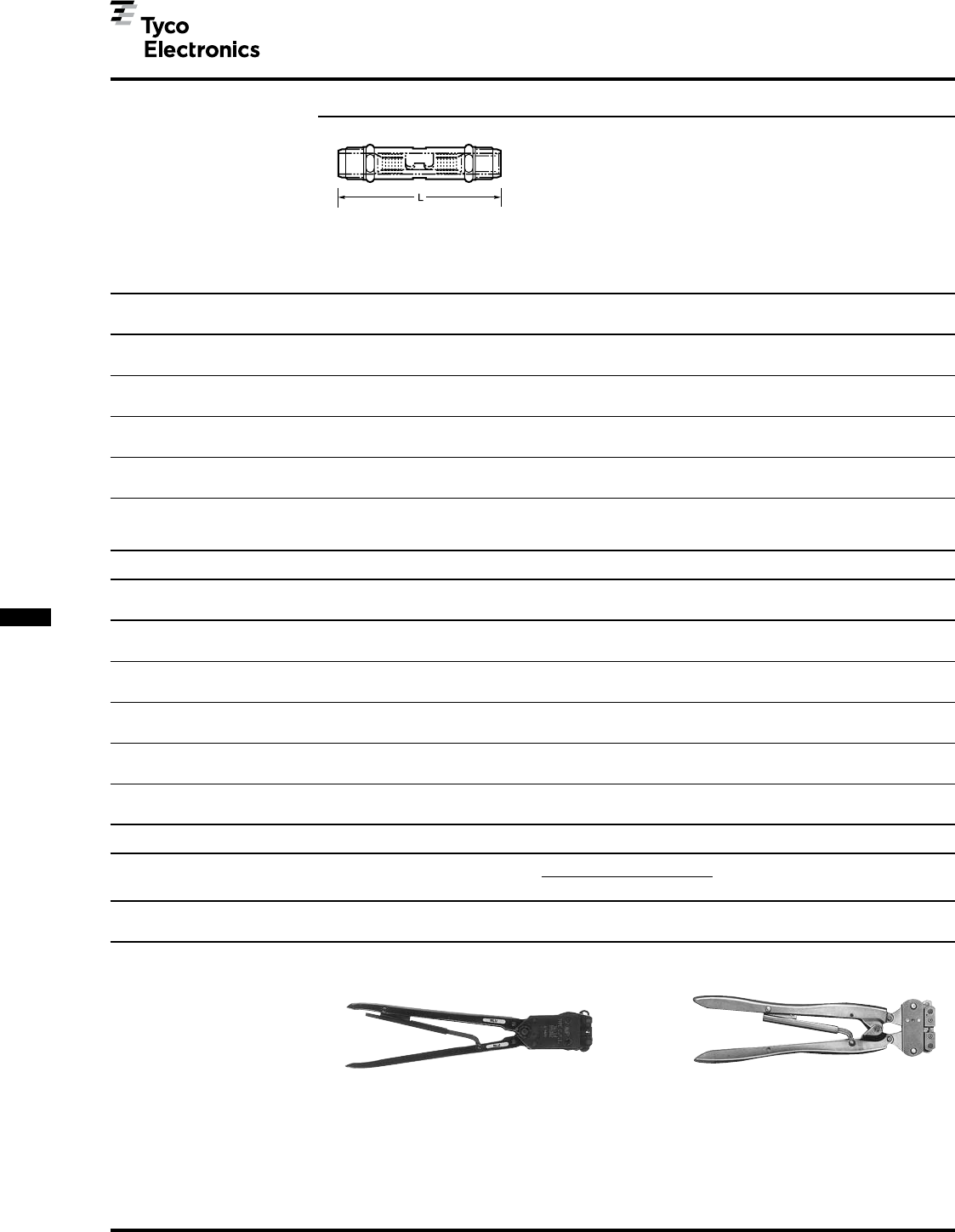

Splice Material
Insulation -Nylon, UL 94V-2
Splice Body -Copper per
ASTM B-152
Plating -Tin per ASTM B-545
or Zinc Plate/Dye Chromate
Related Product Data
Insulation Color Code -pg. 4
Packaging Quantities -pg. 4
Performance Specifications -
pgs. 4 & 5
Application Tooling -shown
below
Splices with nylon wire insulation diameter adapters
Wire Size L Body Ring Wire Part Hand Tool
Circular Mils Max. Color Color Insulation Numbers Part No.
[mm2] Dia. Max.
24-20 .970 .065
320-1,290 Tin Plated Green 324987 46073
[0.16-0.65] 24.64 1.65
24-20 .970 .073
320-1,290 Tin Plated Orange 1-324987-0 46073
[0.16-0.65] 24.64 1.85
22-18 1.156 .101
509-1,900 Red Green 324988 46074
[0.26-0.96] 29.36 2.57
16-14 1.156 .120
2,050-5,180 Blue Green 324989 59282
[1.04-2.62] 29.36 3.05
12-10 1.345 .150
5,180-13,100 Yellow Green 324990 58325-1
[2.62-6.64] 34.16 3.81
Splices without nylon wire insulation diameter adapters
Wire Size L Body Ring Wire Part Hand Tool
Circular Mils Max. Color Color Insulation Numbers Part No.
[mm2] Dia. Max.
24-20 .970 .100
320-1,290 Tin Plated Tin Plated 324544 46073
[0.16-0.65] 24.64 2.54
22-18 1.156 .133
509-1900 Red Tin Plated 324548 46074
[0.26-0.96] 29.36 3.38
16-14 1.156 .157
2,050-5,180 Blue Tin Plated 324549 59282
[1.04-2.62] 29.36 3.99
12-10 1.345 .218
5,180-13,100 Yellow Tin Plated 324631 58325-1
[2.62-6.64] 34.16 5.54
1.345 .218
16-14 HD Tin Plated Tin Plated 55685-1 58325-1
34.16 5.54
Splices with nylon wire insulation diameter adapter in one end
Wire Size L Body Ring Wire Insulation Dia. Max. Part Hand Tool
Circular Mils Max. Color Color Adapter End Other End Number Part No.
[mm2]
24-20 .970 .073 .100
320-1,290 Tin Plated Orange & Tin Plated 1-324987-1 46073
[0.16-0.65] 24.64 1.85 2.54
Tooling
Hand tooling features the AMP CERTI-CRIMP ratchet so that the operator fully closes tool so that crimping
dies in tool head fully “bottom”. Locator feature in head assures that splice is properly oriented in tool.
CERTI-SEAL Tools do not require wire insulation adjustment prior to crimping.
Tool Part No. 46073 or 46074 Tool Part No. 59282 or 58325-1
CERTI-SEAL Terminals and Splices
CERTI-SEAL Terminals and Splices (Continued)
Return to digikey.com
59
AMP Standard Terminals and Splices
Catalog 82042 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 54-11-4733-2015
Revised 07-08 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
specified. Values in brackets are Specifications subject Mexico: 01-800-733-8926 Japan: 81-44-844-8013
www.tycoelectronics.com equivalent U.S. Customary Units. to change. C. America: 52-55-5-729-0425 UK: 44-8706-080208
Approval Dimensional Application Use Performance
Requirement Tooling Requirement
Terminals must comply Hand application tool For procurement
with the dimensional which must conform to by government
Class 1 requirements specified the military’s dimensional agencies for
by the military. and performance maintenance and
specification. repair.
Terminals must comply The terminal For procurement Per Military
with the dimensional manufacturers by contractors Specification
requirements specified recommended and Mil-T-7928G
by the manufacturer’s application tooling. manufacturers
Class 2 customer drawing. For Note: Several tape for high volume
field repair purposes mounted part numbers production,
Class 2 terminals must are currently Class 2 modification,
be capable of being approved. and repair.
replaced by Class 1
Terminals.
Military Specifications
MS 25036
MS25036 PIDG Part Numbers
AWG Dash Loose Piece Tape Mounted Class Stud Size
Numbers
36149 — 1 & 2 6
101 — 2-36149-2 2 6
36150 — 1 & 2 6
— 2-36150-1 2 6
102 51863 — 1 & 2 6
— 51863-1 2 6
36153 — 1 & 2 10
103 — 2-36153-2 2 10
22-18 36154 — 1 & 2 10
— 2-36154-2 2 10
31895 — 1 & 2 5/16
104 — 2-31895-1 2 5/16
320572 — 1 & 2 5/16
— 2-320572-1 2 5/16
31897 — 1 & 2 3/8
105 — 2-31897-2 2 3/8
320573 — 1 & 2 3/8
— 2-320573-4 2 3/8
106 320561 — 1 & 2 6
— 2-320561-2 2 6
107 51864 — 1 & 2 6
— 51864-3 2 6
16-14 108 51864-2 — 1 & 2 10
— 51864-4 2 10
109 320575 — 1 & 2 5/16
— 2-320575-1 2 5/16
110 320564 — 1 & 2 3/8
— 2-320564-3 2 3/8
35107 — 1 & 2 6
111 — 2-35107-1 2 6
320567 — 1 & 2 6
— 2-320567-2 2 6
35109 — 1 & 2 10
112 — 2-35109-1 2 10
12-10
36161 — 1 & 2 10
— 2-36161-2 2 10
35111 — 1 & 2 5/16
113 — 2-35111-1 2 5/16
320576 — 1 & 2 5/16
— 2-320576-1 2 5/16
35112 — 1 & 2 3/8
114 320577 — 1 & 2 3/8
— 2-320577-3 2 3/8
Class 1 and Class 2 Military Approvals
Military Approvals
Return to digikey.com
AMP Standard Terminals and Splices
60
Catalog 82042 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 54-11-4733-2015
Revised 07-08 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
specified. Values in brackets are Specifications subject Mexico: 01-800-733-8926 Japan: 81-44-844-8013
www.tycoelectronics.com equivalent U.S. Customary Units. to change. C. America: 52-55-5-729-0425 UK: 44-8706-080208
Military Approvals
Class 1 and Class 2 Military Approvals (Continued)
Military Specifications
MS 25036
(Continued)
MS25036 TERMINYL Part Numbers
AWG Dash Loose Piece Tape Mounted Class Stud Size
Numbers
115 324043 — 2 10
8 116 324082 — 2 1/4
117 324044 — 2 5/16
118 324045 — 2 3/8
119 324046 — 2 10
6 120 324047 — 2 1/4
121 324048 — 2 5/16
122 324049 — 2 3/8
123 324050 — 2 1/4
4 124 324051 — 2 5/16
125 324052 — 2 3/8
126 324053 — 2 1/4
2 127 324054 — 2 3/8
128 324055 — 2 1/2
129 324056 — 2 1/4
11 130 324057 — 2 3/8
131 324058 — 2 1/2
132 324056 — 2 1/4
1/0 133 324057 — 2 3/8
134 324058 — 2 1/2
135 324083 — 2 5/16
2/0 136 324084 — 2 3/8
137 324085 — 2 1/2
3/0 138 324185 — 2 3/8
4/0 140 324187 — 2 3/8
141 324188 — 2 1/2
1Tyco Electronics recommends #1/0 AWG terminals for #1 AWG application.
Return to digikey.com
61
AMP Standard Terminals and Splices
Catalog 82042 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 54-11-4733-2015
Revised 07-08 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
specified. Values in brackets are Specifications subject Mexico: 01-800-733-8926 Japan: 81-44-844-8013
www.tycoelectronics.com equivalent U.S. Customary Units. to change. C. America: 52-55-5-729-0425 UK: 44-8706-080208
Class 1 and Class 2 Military Approvals (Continued)
Military Specifications
MS 25036
(Continued)
MS25036 PIDG Part Numbers
AWG Dash Loose Piece Tape Mounted Class Stud Size
Numbers
143 54310-1 — 1 & 2 2
323913 — 2 2
144 52189 — 1 & 2 4
323914 2-323914-1 2 4
26-24
145 53073 — 1 & 2 6
326875 2-326875-1 2 6
146 54311-1 — 1 & 2 8
323916 2-323916-1 2 8
54312-1 — 1 & 2 10
147 — 54312-2 2 10
324075 2-324075-1 2 10
31880 — 1 & 2 4
148 — 2-31880-1 2 4
320553 — 1 & 2 4
— 2-320553-2 2 4
31890 — 1 & 2 8
22-18
149 — 2-31890-1 2 8
320551 — 1 & 2 8
— 1-320551-1 2 8
31894 — 1 & 2 1/4
150 — 2-31894-2 2 1/4
320571 — 1 & 2 1/4
— 2-320571-2 2 1/4
151 328975 — 1 & 2 1/2
152 324159 — 1 & 2 4
153 51864-1 — 1 & 2 8
16-14 — 51864-5 2 8
154 320563 — 1 & 2 1/4
— 2-320563-2 2 1/4
155 328976 — 1 & 2 1/2
35108 — 1 & 2 8
156 — 2-35108-1 2 8
320568 — 1 & 2 8
12-10 — 2-320568-1 2 8
35110 — 1 & 2 1/4
157 — 2-35110-1 2 1/4
320569 — 1 & 2 1/4
— 2-320569-3 2 1/4
158 52077 — 2 1/2
Military Approvals
Return to digikey.com
AMP Standard Terminals and Splices
62
Catalog 82042 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 54-11-4733-2015
Revised 07-08 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
specified. Values in brackets are Specifications subject Mexico: 01-800-733-8926 Japan: 81-44-844-8013
www.tycoelectronics.com equivalent U.S. Customary Units. to change. C. America: 52-55-5-729-0425 UK: 44-8706-080208
Class 1 and Class 2 Military Approvals (Continued)
Military Specifications
M7928/1
M7928/1 PIDG-Insulation Restricting
AWG Dash Part Numbers Class Stud Size
Numbers Loose Piece Tape Mounted
1 53078 — 1 & 2 2
2 53049 — 1 & 2 4
26 3 53050 — 1 & 2 6
4 53051 — 1 & 2 8
5 53052 — 1 & 2 10
6 53053 — 1 & 2 2
7 53054 — 1 & 2 4
24 8 53055 — 1 & 2 6
9 53056 — 1 & 2 8
10 53057 — 1 & 2 10
11 52273 — 1 & 2 4
12 2-36149-3 — 1 & 2 6
13 51863-2 — 1 & 2 6
— 51863-5 2 6
14 1-320551-2 — 1 & 2 8
22 — 1-320551-5 2 8
15 2-36153-3 — 1 & 2 10
— 2-36153-6 2 10
16 2-320571-3 — 1 & 2 1/4
17 2-320572-2 — 1 & 2 5/16
18 2-320573-1 — 1 & 2 3/8
19 2-328975-1 — 1 & 2 1/2
20 52273-1 — 1 & 2 4
21 2-36149-4 — 1 & 2 6
22 51863-3 — 1 & 2 6
— 51863-6 2 6
20
23 1-320551-3 — 1 & 2 8
24 2-36153-4 — 1 & 2 10
— 2-36153-8 2 10
25 2-320571-4 — 1 & 2 1/4
26 2-320572-3 — 1 & 2 5/16
27 2-320573-2 — 1 & 2 3/8
28 2-328975-2 — 1 & 2 1/2
29 52273-2 — 1 & 2 4
30 2-36149-5 — 1 & 2 6
31 51863-4 — 1 & 2 6
— 51863-7 2 6
32 1-320551-4 — 1 & 2 8
18 — 1-320551-8 2 8
33 2-36153-5 — 1 & 2 10
— 2-36153-9 2 10
34 2-320571-5 — 1 & 2 1/4
35 2-320572-4 — 1 & 2 5/16
36 2-320573-3 — 1 & 2 3/8
37 2-328975-3 — 1 & 2 1/2
38 52274 — 1 & 2 4
39 2-320561-3 — 1 & 2 6
40 51864-6 — 1 & 2 6
— 1-51864-2 2 6
16
41 1-51864-0 — 1 & 2 8
42 51864-7 — 1 & 2 10
— 1-51864-3 2 10
43 2-320563-3 — 1 & 2 1/4
44 2-320575-2 — 1 & 2 5/16
45 2-320564-1 — 1 & 2 3/8
46 2-328976-1 — 1 & 2 1/2
Military Approvals
Return to digikey.com
63
AMP Standard Terminals and Splices
Catalog 82042 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 54-11-4733-2015
Revised 07-08 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
specified. Values in brackets are Specifications subject Mexico: 01-800-733-8926 Japan: 81-44-844-8013
www.tycoelectronics.com equivalent U.S. Customary Units. to change. C. America: 52-55-5-729-0425 UK: 44-8706-080208
Class 1 and Class 2 Military Approvals (Continued)
Military Specifications
M7928/1
(Continued)
M7928/1 PIDG-Insulation Restricting
AWG Dash Part Numbers Class Stud Size
Numbers Loose Piece Tape Mounted
Military Specifications
M7928/4
M7928/4 PIDG PVF2
AWG Dash Part Numbers Class Stud Size
Numbers Loose Piece Tape Mounted
101 53406-1 — 1 & 2 6
102 53407-1 — 1 & 2 6
22-18 — 53407-2 2 6
103 53409-1 — 1 & 2 10
104 53411-1 — 1 & 2 5/16
105 53412-1 — 1 & 2 3/8
106 53415-1 — 1 & 2 6
107 53416-1 — 1 & 2 6
16-14
— 53416-2 2 6
108 53418-1 — 1 & 2 10
— 53418-2 2 10
109 53420-1 — 1 & 2 5/16
110 53421-1 — 1 & 2 3/8
111 53423-1 — 1 & 2 6
112 53425-1 — 1 & 2 10
12-10 — 53425-2 2 10
113 53427-1 — 1 & 2 5/16
114 53428-1 — 1 & 2 3/8
143 53400-1 — 1 & 2 2
144 53401-1 — 1 & 2 4
26-24 145 53402-1 — 1 & 2 6
146 53403-1 — 1 & 2 8
147 53404-1 — 1 & 2 10
47 52274-1 — 1 & 2 4
48 2-320561-4 — 1 & 2 6
49 51864-8 — 1 & 2 6
50 1-51864-1 — 1 & 2 8
14
— 1-51864-7 2 8
51 51864-9 — 1 & 2 10
— 1-51864-5 2 10
52 2-320563-4 — 1 & 2 1/4
53 2-320575-3 — 1 & 2 5/16
54 2-320564-2 — 1 & 2 3/8
55 2-328976-2 — 1 & 2 1/2
56 2-36161-5 — 1 & 2 6
57 2-320568-2 — 1 & 2 8
12
58 2-36161-3 — 1 & 2 10
59 2-320569-5 — 1 & 2 1/4
60 2-320576-2 — 1 & 2 5/16
61 2-320577-1 — 1 & 2 3/8
62 52077-1 — 2 1/2
63 2-36161-6 — 1 & 2 6
64 2-320568-3 — 1 & 2 8
65 2-36161-4 — 1 & 2 10
10
— 2-36161-8 2 10
66 2-320569-6 — 1 & 2 1/4
— 2-320569-8 2 1/4
67 2-320576-3 — 1 & 2 5/16
68 2-320577-2 — 1 & 2 3/8
69 52077-2 — 2 1/2
Military Approvals
Return to digikey.com
AMP Standard Terminals and Splices
64
Catalog 82042 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 54-11-4733-2015
Revised 07-08 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
specified. Values in brackets are Specifications subject Mexico: 01-800-733-8926 Japan: 81-44-844-8013
www.tycoelectronics.com equivalent U.S. Customary Units. to change. C. America: 52-55-5-729-0425 UK: 44-8706-080208
Class 1 and Class 2 Military Approvals (Continued)
Military Specifications
M7928/4
(Continued)
M7928/4 PIDG PVF2
AWG Dash Part Numbers Class Stud Size
Numbers Loose Piece Tape Mounted
148 53405-1 — 1 & 2 4
149 53408-1 — 1 & 2 8
22-18 — 53408-2 2 8
150 53410-1 — 1 & 2 1/4
— 53410-2 2 1/4
151 53413-1 — 1 & 2 1/2
152 53414-1 — 1 & 2 4
16-14 153 53417-1 — 1 & 2 8
154 53419-1 — 1 & 2 1/4
155 53422-1 — 1 & 2 1/2
156 53424-1 — 1 & 2 8
12-10 — 53424-2 2 8
157 53426-1 — 1 & 2 1/4
158 53429-1 — 2 1/2
Military Specifications
M7928/5
M7928/5 PIDG Window Splice
AWG Dash Part Numbers Class
Numbers Loose Piece Tape Mounted
26-24 1 323994 — 1 & 2
24-20 2 323975 — 1 & 2
— 2-323975-3 2
22-18 3 320559 — 1 & 2
— 2-320559-4 2
16-14 4 320562 — 1 & 2
— 2-320562-3 2
12-10 5 320570 — 1 & 2
Military Specifications
M7928/6
M7928/6 PIDG Window Splice PVF2
AWG Dash Part Numbers Class
Numbers Loose Piece Tape Mounted
26-24 1 53546-1 — 1 & 2
24-20 2 53547-1 — 1 & 2
— 53547-2 2
22-16 3 53548-1 — 1 & 2
— 53548-2 2
16-14 4 53549-1 — 1 & 2
Military Approvals
Return to digikey.com
65
AMP Standard Terminals and Splices
Catalog 82042 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 54-11-4733-2015
Revised 07-08 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
specified. Values in brackets are Specifications subject Mexico: 01-800-733-8926 Japan: 81-44-844-8013
www.tycoelectronics.com equivalent U.S. Customary Units. to change. C. America: 52-55-5-729-0425 UK: 44-8706-080208
Class 1 and Class 2 Military Approvals (Continued)
Military Specifications
MS 17143
MS17143 PIDG
AWG Dash Part Numbers Class Stud Size
Numbers Loose Piece Tape Mounted
22-18 1 327932 — 1 & 2 8
16-14 2 2-327934-2 — 1 & 2 8
12-10 3 327936 — 1 & 2 8
22-18 4 2-327938-1 — 1 & 2 6
— 2-327938-2 2 6
16-14 5 2-327940-4 — 1 & 2 6
12-10 6 327942 — 1 & 2 6
22-18 7 327944 — 1 & 2 8
— 2-327944-2 2 8
16-14 8 2-327946-4 — 1 & 2 8
12-10 9 327948 — 1 & 2 8
22-18 10 2-327950-1 — 1 & 2 5
16-14 11 2-327952-2 — 1 & 2 5
— 2-327952-6 2 5
12-10 12 327954 — 1 & 2 5
— 2-327954-2 2 5
22-18 13 2-327956-1 — 1 & 2 6
16-14 14 2-327958-4 — 1 & 2 6
12-10 15 2-327960-1 — 1 & 2 6
— 2-327960-2 2 6
22-18 16 327962 — 1 & 2 4
16-14 17 2-327964-4 — 1 & 2 4
12-10 18 327966 — 1 & 2 4
22-18 19 2-327968-1 — 1 & 2 4
16-14 20 2-327970-4 — 1 & 2 4
12-10 21 327972 — 1 & 2 4
Military Approvals
Return to digikey.com
AMP Standard Terminals and Splices
66
Catalog 82042 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 54-11-4733-2015
Revised 07-08 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
specified. Values in brackets are Specifications subject Mexico: 01-800-733-8926 Japan: 81-44-844-8013
www.tycoelectronics.com equivalent U.S. Customary Units. to change. C. America: 52-55-5-729-0425 UK: 44-8706-080208
Insulated Terminals and Splices — 30 to 10 AWG Wire Range
Tools for Loose Piece Termination Tools for Tape Mounted Terminations
Hand Tools Pneumatic Tools Tape Dies for Tape Dies for Tape Dies for Tape Dies for Tape Dies for
Description AMP Single Multi- Heads for Heads for Dies for 69875 354500-1 818380-1 AMPOMATOR 565435-5
Wire Wire Wire 6-26 6-26 69365, AMP-TAPETRONIC AMP-O-LECTRIC AUTO-PRO CLS III G, CLS IV AMP-O-LECTRIC
Range Range Range Single Wire Multi-Wire 69365-2, No Applicator Model “G” Applicator Applicator Model “K”
Range Range 69710-13, Required Applicator 818057-2 687658-1 Applicator
217200-14 567200-3 567200-2
30-26 69163–uses — — — — — — — — —
26-22 Terms.
26-22 46121† 59275† 314537-1 — 69344 69877 69877 69877 69877 69877
PIDG 59250† 69872* 69872* 69872* 69872* 69872*
Terminals & 22-16 47386† 59824-1 314270-3 679305-1 47806-2 59826-11 59826-11 59826-11 59826-11 59826-11
Splices 58433-32
and 68343-1 59250† 69873* 69873* 69873* 69873* 69873*
PLASTI-GRIP 16-14 (.250 exp.) 59824-11 314269-1 679305-1 47807-1 59827-11 59827-11 59827-11 59827-11 59827-11
Terminals 47387 58433-32
59239-4†
47808-6 Std. 69874* 69874* 69874* 69874* 69874*
12-10 59287-2 59824-11 679300-1 679305-1 47808-5 69897 69897 69897 69897 69897
16-14 HD (.300 exp.) 58433-32 (.300 exp.) (.300 exp.) (.300 exp.) (.300 exp.) (.300 exp.) (.300 exp.)
59828-11 59828-11 59828-11 59828-11 59828-11
26-22 46121 — — — — — — — — —
(butt spl. only)
45160 58433-32 314868-1
22-16 (butt spl. only) (butt spl. (butt spl. — — 69872 69872 69872 69872 69872
45449 only) only) (butt spl. only) (butt spl. only) (butt spl. only) (butt spl. only) (butt spl. only)
(parallel spl. only)
45575-1 58433-32 314869-1
PLASTI-GRIP 16-14 (butt spl. only) (butt spl. (butt spl. — — 69873 69873 69873 69873 69873
Splices 45450 only) only) (butt spl. only) (butt spl. only) (butt spl. only) (butt spl. only) (butt spl. only
(parallel spl. only)
59489
(butt spl. only)
12-10 59287-1 58433-32
69874 69874 69874 69874 69874
16-14 HD (.300 exp. (butt spl. — — — (butt spl. only) (butt spl. only) (butt spl. only) (butt spl. only) (butt spl. only)
butt spl. only) only)
59270
(parallel spl. only)
†Tooling with adjustable insulation crimp.
*Same die set/configuration as in hand tools.
1TETRA-CRIMP die configuration.
2PRO-CRIMPER II commercial tool not approved for UL applications.
369710-1 hand tool.
46-26 Pneumatic Tool Adapter
Tooling
Tooling
Return to digikey.com
67
AMP Standard Terminals and Splices
Catalog 82042 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 54-11-4733-2015
Revised 07-08 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
specified. Values in brackets are Specifications subject Mexico: 01-800-733-8926 Japan: 81-44-844-8013
www.tycoelectronics.com equivalent U.S. Customary Units. to change. C. America: 52-55-5-729-0425 UK: 44-8706-080208
Insulated Terminals and Splices—8 to 4/0 AWG Wire Range
Tools for Loose Piece Terminations Tools for Tape Mounted Terminations
Description Wire Hand Tools Dies for Crimp Head Dies for Head for Dies for Dies for AMP-
Size 690511 Crimp Head Pneumatic AMP-TAPETRONIC TAPETRONIC Machine
& Hydraulic Hand Tool 690661 Hand Tool Machine with Insulation
59974-1 & 58422-11 69015 68250-1 Adjustment 68250-2
8 69959 48752-1 — — 68247-12 1214512-13
478202 1214512-24
6 — 48753-1 — 68325-1 68248-12 1213500-13
478212 1213500-24
PLASTI-GRIP 4 — 48754-1 — — 68249-12 1213098-13
Terminals 478222 1213098-24
and Splices 2 — 48755-1 — — — —
478232
1/0 — — 48756-1 — — —
2/0 — — 48757-1 — — —
8 — 47820 — 68285-1 — —
6 — 47821 — — — —
4 — 47822 — — — —
TERMINYL 2 — 47823 — — — —
Terminals 1/0 — — 47824 — — —
and Splices 2/0 — — 47825 — — —
3/0 — — 47915 — — —
4/0 — — 47918 — — —
4 HD — — 69463 — — —
1Heads for Power Units 69120-1, 69120-2, or 314979-1.
2No insulation crimp.
3Without insulation crimp.
4With insulation crimp.
Insulated FASTON Terminals and Splices— 26 to 10 AWG Wire Range
Tools for Tape Mounted Terminations Tools for Strip Form Terminations
Tape Dies for Tape Dies for Tape Dies for AMPOMATOR
Wire Size Hand Tool 69875 AMP-TAPETRONIC AMP-O-LECTRIC1 AMPOMATOR CLS III G, CLS IV
No Applicator Required Model “G” CLS III G, CLS IV Applicators
Applicator 567200-3 Applicator 687658-1
26-24 48518-2 69877-2 69877-2 69877-2 —
22-18 59824-1 59826-1 59826-1* 59826-1 466788-32
22-18 90185-1 90248-2 90248-2 90248-2 466554-3
(Natural)
16-14 59824-1 59827-1 59827-1* 59827-1 466789-32
14-12 90246-1 90240-2 90240-2 90240-2 —
12-10 59824-1 59828-1 59828-1* 59828-1 466790-42
*Only UL and CSA approved.
1AMP-O-LECTRIC Model “K” 565435-5 uses applicator 567200-2.
2Die included with applicator.
Tooling (Continued)
Tooling
Return to digikey.com
AMP Standard Terminals and Splices
68
Catalog 82042 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 54-11-4733-2015
Revised 07-08 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
specified. Values in brackets are Specifications subject Mexico: 01-800-733-8926 Japan: 81-44-844-8013
www.tycoelectronics.com equivalent U.S. Customary Units. to change. C. America: 52-55-5-729-0425 UK: 44-8706-080208

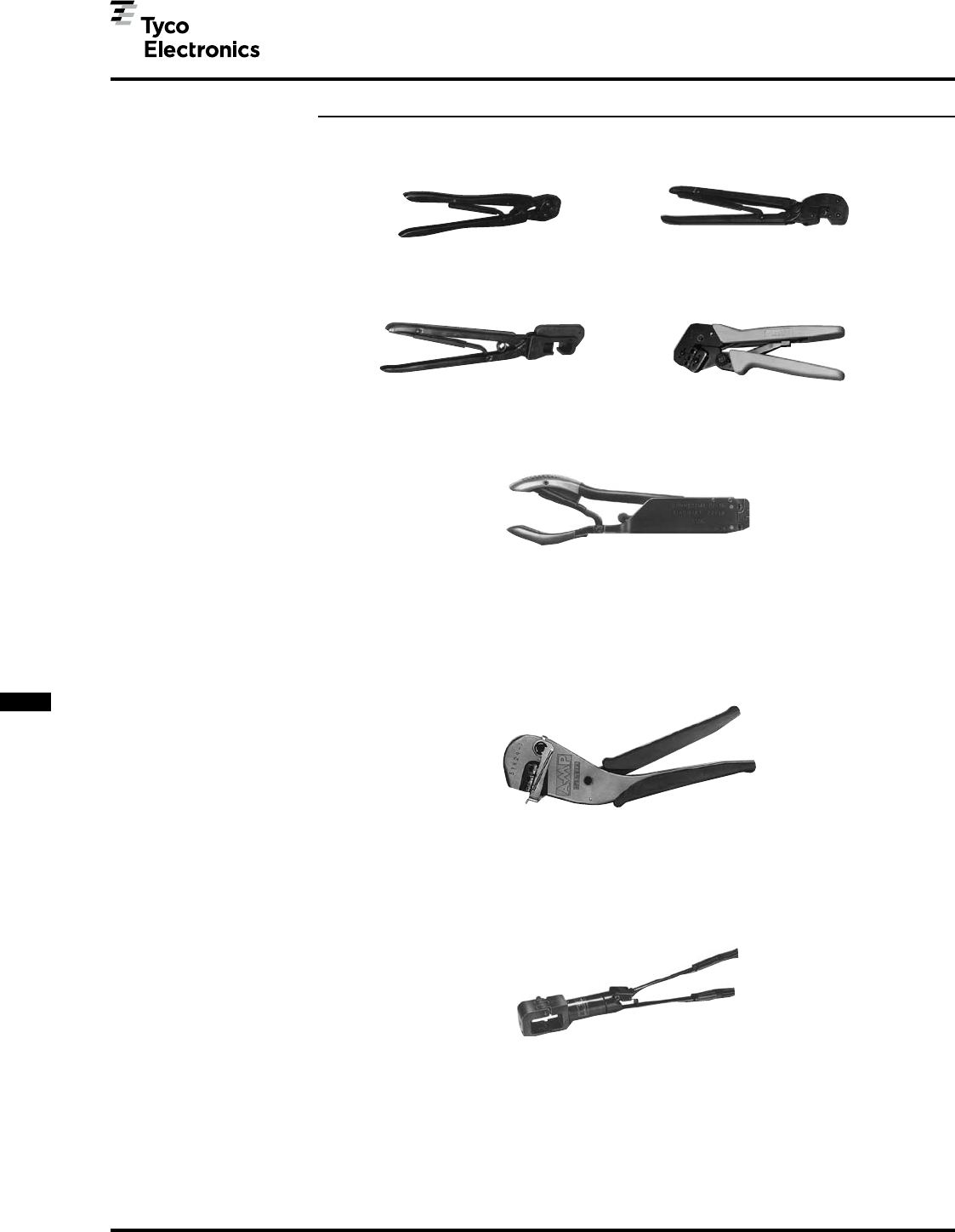

Tooling (Continued)
CERTI-CRIMP Hand Tools
Double Action
Hand Tool
PRO-CRIMPER II
Hand Tool
Part No. 58433-3
“C” Head Straight
Action Hand Tool
Part No. 69710-1
Heavy Head Hand Tool
Part No. 59974-1
(Dies Required)
Hydraulic Hand Tools
TETRA-CRIMP Hand Tool
T-HEAD Tool
Part No. 59250, 59275
Part No. 59824-1
Loose Form Terminal
and Splice Tooling
Tooling
Return to digikey.com
69
AMP Standard Terminals and Splices
Catalog 82042 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 54-11-4733-2015
Revised 07-08 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
specified. Values in brackets are Specifications subject Mexico: 01-800-733-8926 Japan: 81-44-844-8013
www.tycoelectronics.com equivalent U.S. Customary Units. to change. C. America: 52-55-5-729-0425 UK: 44-8706-080208

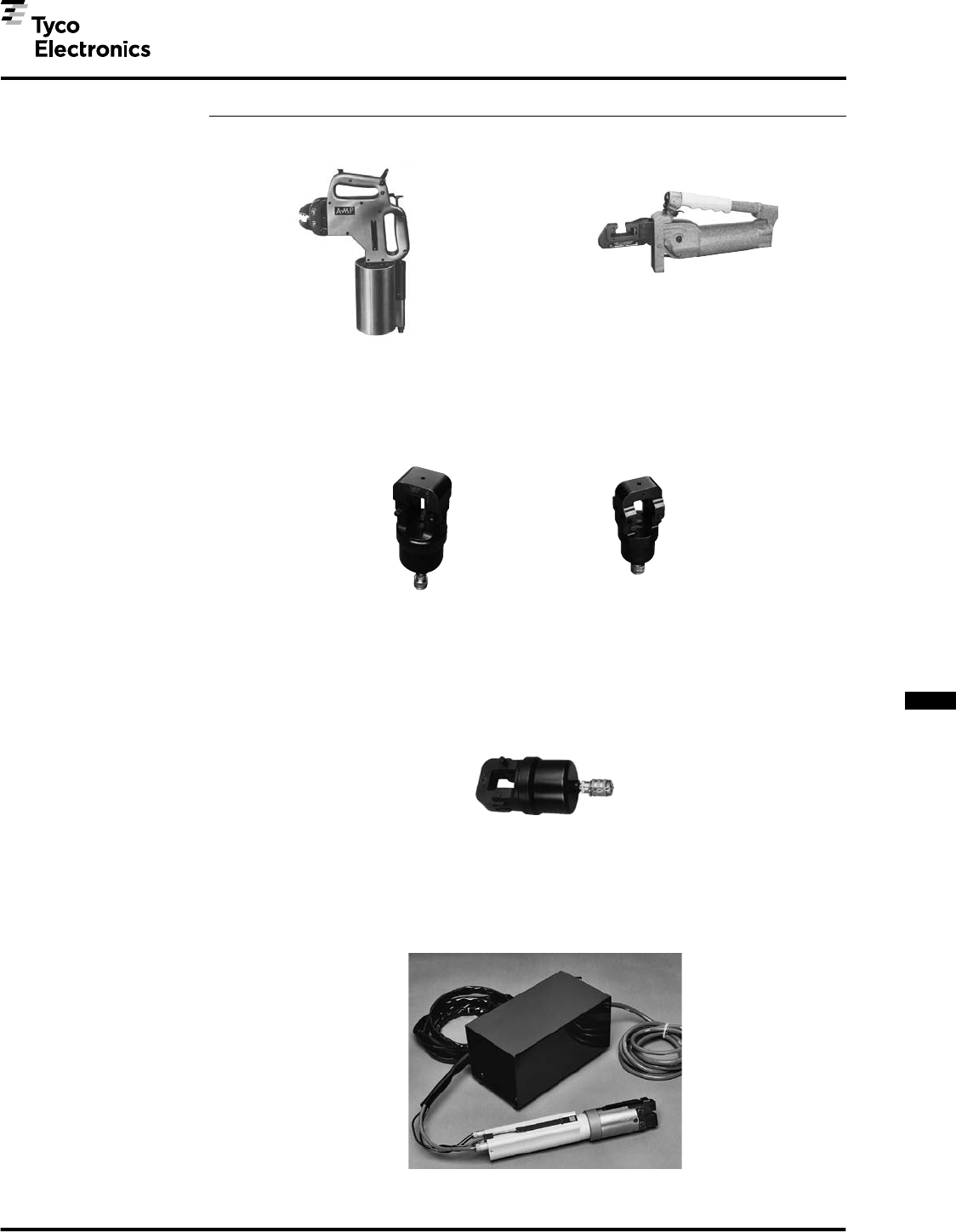

Tooling (Continued)
Part No.
69051
6-26 Tool
Part No.
58422-1
(408-9535)
Part No.
69066
(408-2453)
Crimping Heads
Pneumatic Tools
Part No. 69015
Part No. 69365 (Hand Actuation)
Part No. 69365-2 (Foot Actuation)
Tooling
Return to digikey.com
AMP Standard Terminals and Splices
70
Catalog 82042 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 54-11-4733-2015
Revised 07-08 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
specified. Values in brackets are Specifications subject Mexico: 01-800-733-8926 Japan: 81-44-844-8013
www.tycoelectronics.com equivalent U.S. Customary Units. to change. C. America: 52-55-5-729-0425 UK: 44-8706-080208

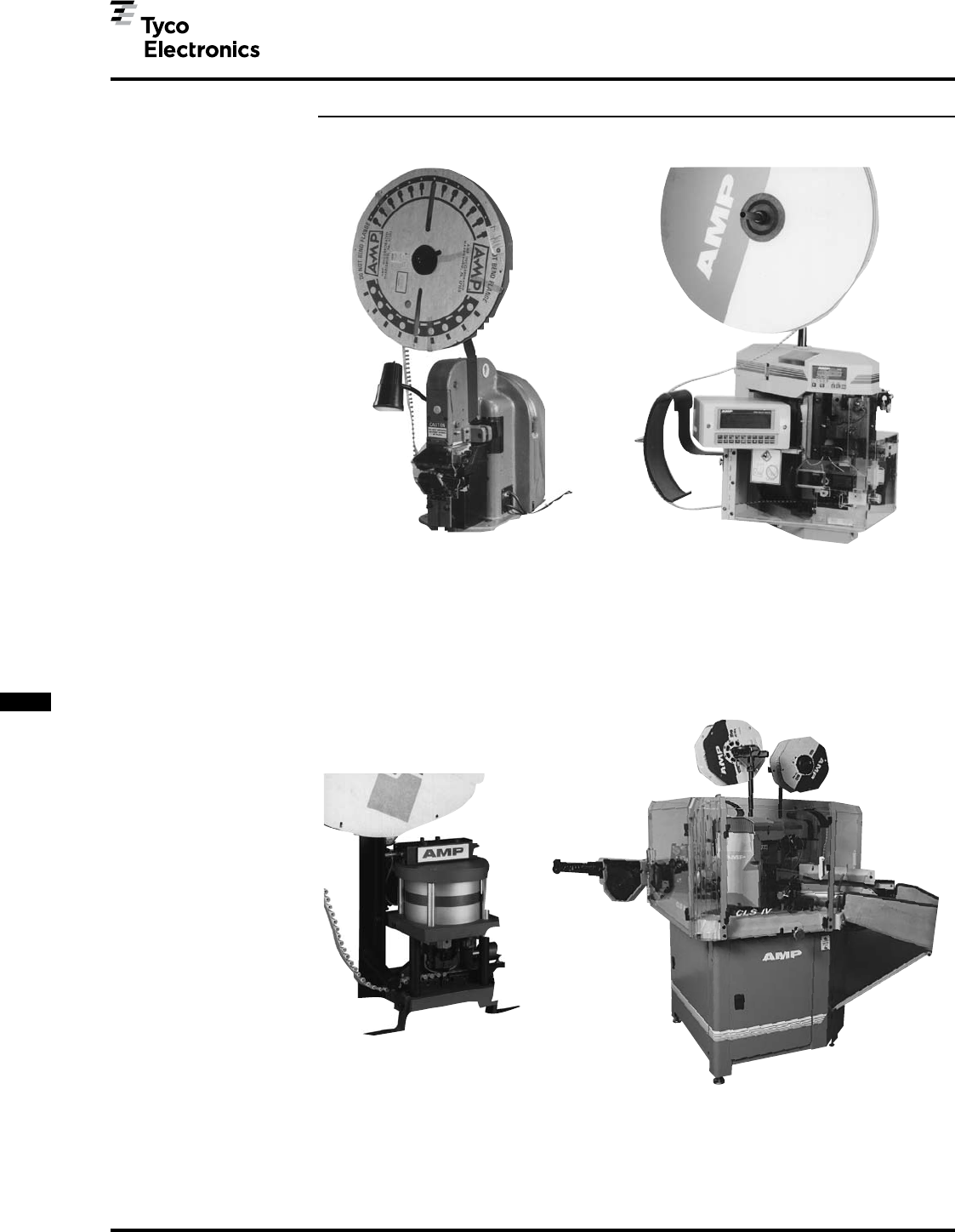

Tooling (Continued)
AMP-TAPETRONIC Machine
69875, 68250-1
(Requires Dies)
AMPOMATOR CLS IV Machine
217500-1
(Requires Applicator and Dies)
AMP-O-LECTRIC, Model “G” Machine
(Requires Applicator and Dies)
Tape Mounted
AUTO-PRO Machine 818380-1
(Requires Applicator and Dies)
Tooling
Return to digikey.com
71
AMP Standard Terminals and Splices
Catalog 82042 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 54-11-4733-2015
Revised 07-08 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
specified. Values in brackets are Specifications subject Mexico: 01-800-733-8926 Japan: 81-44-844-8013
www.tycoelectronics.com equivalent U.S. Customary Units. to change. C. America: 52-55-5-729-0425 UK: 44-8706-080208
Part Number Index
Part Number Index
36203 12
36254 9
36485 14
36954 26
42844 34
50534 8
50881 10
51861 14
51863 9, 15, 16
51864 10, 11, 16, 17
51874 23
52041 41
52042 41
52043 42
52044 42
52045 42
52046 42
52077 13, 17
52124 8
52189 8
52262 41
52263 41
52264 41
52265 41
52266 42
52267 42
52273 15, 16
52274 16, 17
52283 28
52284 28
52289 42
52291 41
52307 15, 16
52350 41
52369 23
52403 25
52408 25
52409 25
52410 25
52411 25
52420 25
52421 25
52422 25
52423 25
52430 25
52431 25
52432 25
52433 25
52453 47
52454 47
52455 47
52463 47
52464 47
52465 47
52474 47
52475 47
52856 45
52921 24
52922 24
52923 24
52924 24
52925 24
52927 24
52928 24
52929 24
34823 39
34824 40
34825 40
34826 40
34827 40
34835 40
34837 40
34852 40
34853 40
34854 40
34855 40
34856 40
34898 43
34945 50
34954 39
34959 39
34974 11
35106 11
35107 12
35108 12
35109 12
35110 12
35111 13
35112 13
35148 12
35149 12
35150 13
35151 13
35152 22
35216 26
35229 9
35244 50
35273 12
35274 11
35279 20
35316 12
35345 14
35346 14
35349 40
35362 14
35363 14
35364 14
35440 26
35449 38
35451 38
35478 14
35481 26
35492 40
35538 14
35559 22
35604 14
35605 14
35634 11
35762 32
35787 12
36149 9, 15, 16
36150 9
36151 9
36152 9
36153 9, 15, 16
36154 9
36157 10
36158 10
36160 11
36161 12, 17
33734 11
34067 50
34068 50
34069 50
34070 50
34071 50
34072 50
34073 52
34080 21
34090 48
34131 51
34132 51
34133 51
34134 51
34135 51
34136 51
34140 38
34141 38
34142 38
34143 38
34144 38
34145 38
34146 38
34147 38
34148 38
34149 38
34150 38
34151 39
34152 39
34155 44
34156 44
34157 39
34158 39
34159 39
34160 39
34161 39
34162 39
34163 39
34164 39
34165 44
34166 44
34167 44
34168 40
34169 40
34170 40
34171 40
34172 40
34173 40
34176 44
34178 51
34203 50
34204 50
34205 50
34207 51
34243 50
34294 30
34313 26
34406 26
34512 20
34541 21
34805 11
34806 11
34810 11
34821 39
34822 39
31880 9
31884 14
31885 14
31886 9
31887 9
31888 14
31890 9
31891 14
31894 10
31895 10
31897 10
31903 14
32050 21
32051 21
32053 21
32054 21
32056 22
32057 22
32058 22
32059 22
32060 22
32403 21
32404 21
32446 32
32448 32
32456 26
32497 23
32498 23
32510 23
32561 23
32562 23
32588 22
32589 22
32835 9
32836 9
32837 9
32883 12
32944 38
32945 38
32947 38
32948 38
32949 38
32950 38
32951 38
32952 38
32953 38
32957 39
32958 39
32959 39
32960 39
32961 39
32981 44
33155 23
33156 23
33168 20
33172 20
33173 20
33476 19
33643 14
33724 11
Part No. Page Part No. Page
Note: This index lists all cataloged
parts by base no. only. Complete
part nos. (with prefixes and/or
suffixes) are shown on the page(s)
indicated.
Part No. Page
Part No. Page
Return to digikey.com
AMP Standard Terminals and Splices
72
Catalog 82042 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 54-11-4733-2015
Revised 07-08 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
specified. Values in brackets are Specifications subject Mexico: 01-800-733-8926 Japan: 81-44-844-8013
www.tycoelectronics.com equivalent U.S. Customary Units. to change. C. America: 52-55-5-729-0425 UK: 44-8706-080208
Part Number Index
Part Number Index (Continued)
320571 10, 15, 16
320572 10, 15, 16
320573 10, 15, 16
320574 11
320575 11, 16, 17
320576 13, 17
320577 13, 17
320619 10
320620 32
320627 11
320629 19
320630 11
320631 11
320634 12
320665 44
320773 9
320861 23
320862 23
320863 23
320882 9
321013 8
321026 50
321035 21
321045 11
321206 19
321233 22
321235 36
321283 20
321286 50
321518 39
321522 10
321611 26
321617 8
321620 8
321688 36
321808 26
322001 21
322238 14
322249 45
322307 49
322310 49
322312 49
322313 49
322315 49
322316 49
322395 49
322426 23
322724 12
322777 23
322834 49
322985 22
322994 44
323008 9
323011 26
323039 27
323676 10
323682 11
323758 9
323762 12
323763 14
323784 13
323817 27
323818 27
323912 8
323913 8
54754 43
54771 27
54773 27
54774 49
54775 49
55137 52
55148 18
55157 14
55319 35
55621 41
55629 50
55654 43
55675 34
55678 40
55679 41
55680 42
55685 58
55694 19
55768 24
55777 19
55785 50
55792 50
55793 50
55822 55
55936 10
60544 34
60893 35
60894 35
61048 35
61059 35
61060 35
61198 34
61678 35
150247 10
165167 52
165429 29
184234 35
184235 35
184261 34
184262 34
184264 34
184265 34
184267 35
184268 35
320209 19
320263 48
320306 26
320381 26
320551 9, 15, 16
320552 9
320553 9
320554 9
320555 32
320559 31
320560 10
320561 10, 16, 17
320562 31
320563 11, 16, 17
320564 11, 16, 17
320565 10
320566 32
320567 12
320568 12, 17
320569 12, 17
320570 31
52930 24
52931 24
52933 24
52934 24
52935 24
52936 24
52937 24
52939 24
52940 24
52941 24
52942 24
52943 24
52945 24
52947 46
52948 46
52949 46
52950 46
52951 46
52955 46
52956 46
52957 46
52961 47
52962 47
52963 47
53041 54
53049 15
53050 15
53051 15
53052 15
53053 15
53054 15
53055 15
53056 15
53057 15
53073 8
53078 15
53115 21
53119 54
53222 29
53240 46
53241 46
53242 46
53244 46
53245 46
53246 47
53247 47
53248 47
53546 31
53547 31
53548 31
53549 31
53550 31
53829 46
53874 45
53912 21
53914 21
53941 10
53942 11
54310 8
54311 8
54312 8
54351 41
54367 44
54725 43
54753 43
Part No. Page Part No. Page Part No. Page
323914 8, 15
323915 8
323916 8, 15
323975 31
323985 8
323986 8
323989 8
323990 8
323994 31
324011 27
324015 23
324043 54, 60
324044 54, 60
324045 54, 60
324046 54, 60
324047 54, 60
324048 54, 60
324049 54, 60
324050 54, 60
324051 54, 60
324052 54, 60
324053 54, 60
324054 54, 60
324055 54, 60
324056 55, 60
324057 55, 60
324058 55, 60
324075 8
324082 54
324083 55, 60
324084 55, 60
324085 55, 60
324086 11
324111 54
324112 54
324113 61
324114 54
324123 10
324138 50
324158 9
324159 10
324165 45
324169 45
324170 45
324172 45
324184 48
324185 55, 60
324187 55, 60
324188 55, 60
324225 29
324227 51
324228 51
324533 11
324543 30
324544 58
324548 58
324549 58
324557 23
324560 45
324567 23
324577 23
324581 45
324587 23
324597 23
324603 20
Part No. Page
Return to digikey.com
73
AMP Standard Terminals and Splices
Catalog 82042 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 54-11-4733-2015
Revised 07-08 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
specified. Values in brackets are Specifications subject Mexico: 01-800-733-8926 Japan: 81-44-844-8013
www.tycoelectronics.com equivalent U.S. Customary Units. to change. C. America: 52-55-5-729-0425 UK: 44-8706-080208
Part Number Index (Continued)
640925 35
640927 35
640929 35
640931 35
641317 35
641320 34
641321 34
641324 35
696003 44
696006 44
696007 44
696010 50
696018 34
696020 18
696024 44
696025 50
696026 50
696047 40
696048 40
696076 26
696077 26
696108 35
696116 52
327964 19
327966 20
327968 19
327970 19
327972 20
328261 40
328281 22
328394 21
328427 50
328489 8
328516 45
328527 39
328569 56
328571 56
328655 54
328657 9
328849 11
328961 31
328975 10, 15, 16
328976 11, 16, 17
328996 10
328998 11
328999 11
329150 55
329389 12
329391 11
329636 8
329697 20
329951 8
330250 19
330518 40
330648 9
330896 12
330966 54
331268 20
331366 23
331421 54
331453 26
331456 54
331467 13
350871 35
360025 36
360035 36
640174 34
640578 34
640902 34
640903 34
640904 34
640905 34
640906 34
640907 34
640908 34
640909 34
640910 34
640911 34
640913 34
640915 34
640916 34
640917 34
640918 35
640919 35
640921 35
640922 35
640923 35
640924 35
324608 23
324615 13
324621 56
324622 56
324623 56
324625 56
324631 58
324657 56
324658 56
324659 56
324660 56
324662 56
324663 56
324915 12
324918 12
324987 58
324988 58
324989 58
324990 58
324993 10
325034 11
325148 19
325150 23
325197 22
325199 22
326741 44
326742 50
326819 38
326859 22
326861 21
326865 23
326875 8, 15
326876 21
326878 9
326882 10
326886 12
327043 44
327174 9
327583 31
327635 32
327636 32
327637 32
327638 31
327639 31
327654 9
327717 21
327735 44
327743 11
327748 30
327932 19
327934 20
327936 20
327938 19
327940 20
327942 20
327944 19
327946 20
327948 20
327950 19
327952 19
327954 20
327956 19
327958 20
327960 20
327962 19
Part No. Page Part No. Page Part No. Page
Part Number Index
Return to digikey.com
AMP Standard Terminals and Splices
74
Catalog 82042 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 54-11-4733-2015
Revised 07-08 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
specified. Values in brackets are Specifications subject Mexico: 01-800-733-8926 Japan: 81-44-844-8013
www.tycoelectronics.com equivalent U.S. Customary Units. to change. C. America: 52-55-5-729-0425 UK: 44-8706-080208
Global Contacts
Contact Us Worldwide
Europe/Middle East/Africa
Austria – Vienna
Phone: +43-1-905-60-0
Fax: +43-1-905-60-1333
Product Information Center:
Phone: +43-1-905-60-1249
Fax: +43-1-905-60-1251
Belarus – Minsk
Phone: +375 17 237 47 94
Fax: +375 17 237 47 94
Belgium – Kessel-Lo
Phone: +32-16-352-300
Fax: +32-16-352-352
Bulgaria – Sofia
Phone: +359-2-971-2152
Fax: +359-2-971-2153
Czech Republic and Slovakia
Czech Republic – Kurim
Phone: +420-541-162-111
Fax: +420-541-162-223
Product Information Center:
Phone: +420-541-162-113
Fax: +420-541-162-132
Denmark – Glostrup
Phone: +45-43-48-04-00
Fax: +45-43-44-14-14
Egypt – Cairo
Phone: +202-419-2334
Fax: +202-417-7647
Estonia – Tartu
Phone: +372-5138-274
Fax: +372-7400-779
Finland – Helsinki
Phone: +358-95-12-34-20
Fax: +358-95-12-34-250
France – Cergy-Pontoise Cedex
Phone: +33-1-3420-8888
Fax: +33-1-3420-8600
Product Information Center:
Phone: +33-1-3420-8686
Fax: +33-1-3420-8623
France Export Divisions –
Cergy-Pontoise Cedex
Phone: +33-1-3420-8804
Fax: +33-1-3420-8699
Germany – Bensheim
Phone: +49-6251-133-0
Fax: +49-6251-133-1600
Product Information Center:
Phone: +49-6251-133-1999
Fax: +49-6251-133-1988
Greece – Athens
Phone: +30-210-9370-396/397
Fax: +30-210-9370-655
Hungary – Budapest
Phone: +36-1-289-1000
Fax: +36-1-289-1010
Product Information Center:
Phone: +36-1-289-1016
Fax: +36-1-289-1017
Ireland – Dublin
Phone: +353-1-866-5612
Fax: +353-1-866-5714
Israel – Petach-Tikva
Phone: +972-3-929-0999
Fax: +972-3-919-1088
Italy – Collegno (Torino)
Phone: +39-011-4012-111
Fax: +39-011-4031-116
Product Information Center:
Phone: +39-011-4012-428
Fax: +39-011-40-287-428
Lithuania and Latvia
Lithuania – Vilnius
Phone: +370-5-213-1402
Fax: +370-5-213-1403
Product Information Center:
Phone: +370-5-211-3016
Fax: +370-5-213-1403
Netherlands – ’s-Hertogenbosch
Phone: +31-73-6246-246
Fax: +31-73-6212-365
Product Information Center:
Phone: +31-73-6246-999
Fax: +31-73-6246-998
Norway – Nesbru
Phone: +47-66-77-88-50
Fax: +47-66-77-88-55
Poland – Warsaw
Phone: +48-22-4576-700
Fax: +48-22-4576-720
Product Information Center:
Phone: +48-22-4576-704
Fax: +48-22-4576-720
Romania – Bucharest
Phone: +40-21-311-3479/3596
Fax: +40-21-312-0574
Russia – Moscow
Phone: +7-495-790-7902
Fax: +7-495-721-1893
Product Information Center:
Phone: +7-495-790-7902-404
Fax: +7-495-790-7902-401
Russia – St. Petersburg
Phone: +7-812-718-8192
Fax: +7-812-718-8193
Slovenia – Ljubljana
Phone: +386-1561-3270
Fax: +386-1561-3240
South Africa – Port Elizabeth
Phone: +27-41-503-4500
Fax: +27-41-581-0440
Spain – Barcelona
Phone: +34-93-291-0330
Fax: +34-93-201-7879
Sweden – Upplands Väsby
Phone: +46-8-50-72-50-00
Fax: +46-8-50-72-50-01
Switzerland – Steinach
Phone: +41-71-447-0447
Fax: +41-71-447-0444
Turkey – Istanbul
Phone: +90-212-281-8181/2/3
+90-212-282-5130/5430
Fax: +90-212-281-8184
Ukraine – Kiev
Phone: +380-44-206-2265
Fax: +380-44-206-2264
Product Information Center:
Phone: +380-44-206-2265
Fax: +380-44-206-2264
United Kingdom –
Stanmore, Middlesex
Phone: +44-8706-080208
Fax: +44-208-954-6234
Product Information Center:
Freephone (UK only):
0800-267-666
Phone: +44-8706-080208
Fax: +44-208-420-8095
Americas
Argentina – Buenos Aires
Phone: +54-11-4733-2200
Fax: +54-11-4733-2211
Brasil – São Paulo
Phone: +55-11-2103-6000
Fax: +55-11-2103-6030
Chile – Santiago
Phone: +56-2-345-0361
Fax: +56-2-223-1477
Canada – Toronto
Phone: +905-475-6222
Fax: +905-474-5520
Product Information Center:
Phone: +905-470-4425
Fax: +905-474-5525
Colombia – Bogota
Phone: +57-1-319-8959
Fax: +57-1-319-8960
Mexico – Mexico City
Phone: +52-55-1106-0800
+01-800-733-8926
Fax: +52-55-1106-0901
For Latin/South American
Countries not shown
Phone: +54-11-4733-2015
Fax: +54-11-4733-2083
United States
Harrisburg, PA
Phone: +1-717-564-0100
Fax: +1-717-986-7575
Product Information Center:
Phone: +1-800-522-6752
Fax: +1-717-986-7575
Troy, MI
Phone: +1-248-273-3359
Fax: +1-248-273-3322
Asia/Pacific
Australia – Sydney
Phone: +61-2-9554-2600
Fax: +61-2-9502-2556
Product Information Center:
Phone: +61-2-9840-8200
Fax: +61-2-9634-6188
India – Bangalore
Phone: +91-80-285-40800
Fax: +91-80-285-40820
Indonesia – Jakarta
Phone: +65-6482-0311
Fax: +65-6482-1012
Japan – Kawasaki, Kanagawa
Phone: +81-44-844-8111
Fax: +81-44-812-3207
Product Information Center:
Phone: +81-44-844-8013
Fax: +81-44-812-3200
Korea – Seoul
Phone: +82-2-3415-4500
Fax: +82-2-3486-3810
Malaysia – Selangor
Phone: +60-3-7805-3055
Fax: +60-3-7805-3066
New Zealand – Auckland
Phone: +64-9-634-4580
Fax: +64-9-634-4586
Philippines – Makati City
Phone: +632-848-0171
Fax: +632-867-8661
People’s Republic of China
Hong Kong
Phone: +852-2735-1628
Fax: +852-2735-0243
Shanghai
Phone: +86-21-2407-1588
Fax: +86-21-2407-1599
Singapore – Singapore
Phone: +65-6482-0311
Fax: +65-6482-1012
Taiwan – Taipei
Phone: +886-2-8768-2788
Fax: +886-2-8768-2268
Thailand – Bangkok
Phone: +66-2-955-0500
Fax: +66-2-955-0505
Vietnam – Ho Chi Minh City
Phone: +84-8-930-5546
Fax: +84-8-930-3443
Return to digikey.com
75
AMP Standard Terminals and Splices
Catalog 82042 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 54-11-4733-2015
Revised 07-08 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
specified. Values in brackets are Specifications subject Mexico: 01-800-733-8926 Japan: 81-44-844-8013
www.tycoelectronics.com equivalent U.S. Customary Units. to change. C. America: 52-55-5-729-0425 UK: 44-8706-080208
Engineering Notes
Engineering Notes
Return to digikey.com
Tyco Electronics Corporation
Harrisburg, PA
82042 - Rev. 7/08 - OG3B
Return to digikey.com
