SHAPING THE FUTURE

CABLE MANAGEMENT SYSTEMS

SHAPING THE FUTURE

CABLE MANAGEMENT SYSTEMS

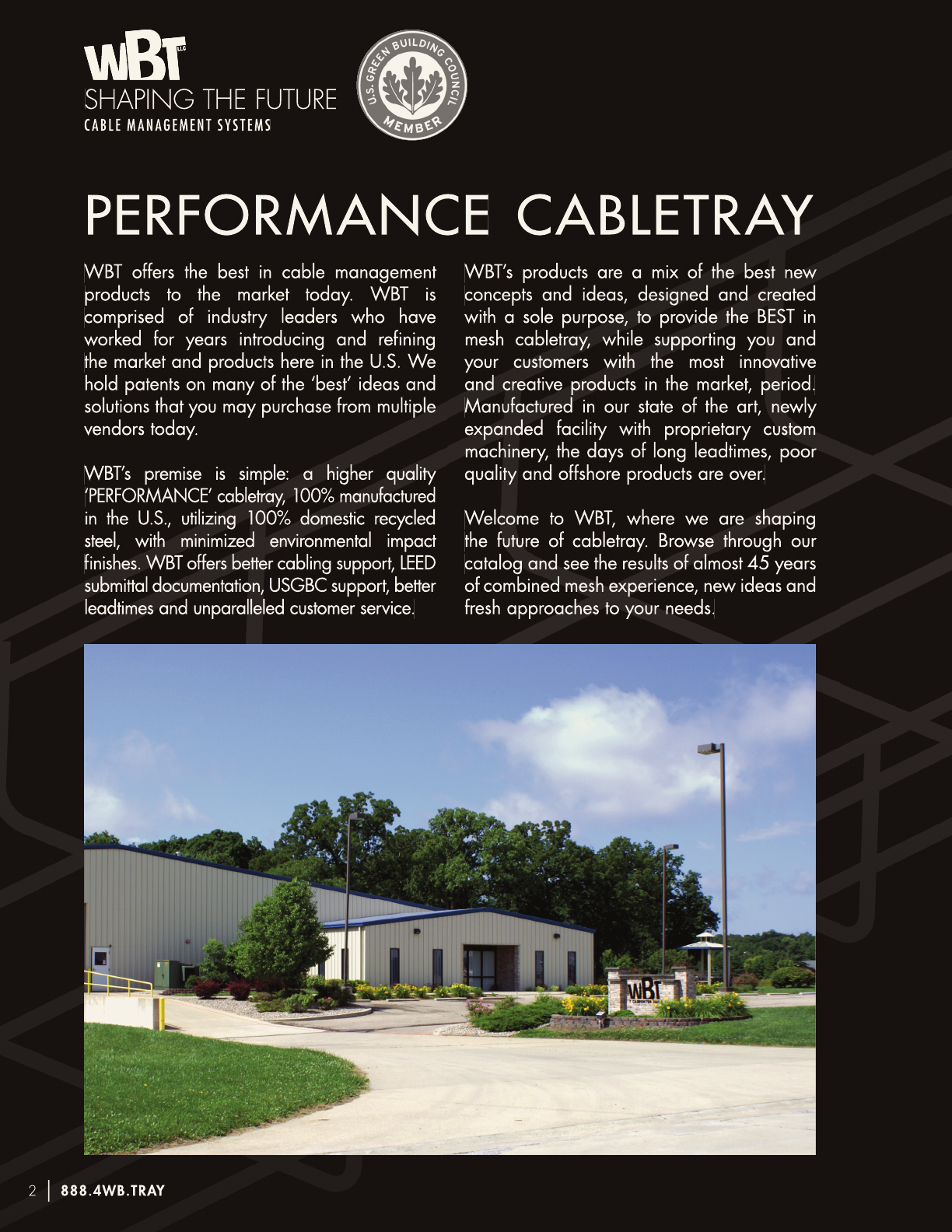

WBT offers the best in cable management

products to the market today. WBT is

comprised of industry leaders who have

worked for years introducing and refi ning

the market and products here in the U.S. We

hold patents on many of the ‘best’ ideas and

solutions that you may purchase from multiple

vendors today.

WBT’s premise is simple: a higher quality

‘PERFORMANCE’ cabletray, 100% manufactured

in the U.S., utilizing 100% domestic recycled

steel, with minimized environmental impact

fi nishes. WBT offers better cabling support, LEED

submittal documentation, USGBC support, better

leadtimes and unparalleled customer service.

WBT’s products are a mix of the best new

concepts and ideas, designed and created

with a sole purpose, to provide the BEST in

mesh cabletray, while supporting you and

your customers with the most innovative

and creative products in the market, period.

Manufactured in our state of the art, newly

expanded facility with proprietary custom

machinery, the days of long leadtimes, poor

quality and offshore products are over.

Welcome to WBT, where we are shaping

the future of cabletray. Browse through our

catalog and see the results of almost 45 years

of combined mesh experience, new ideas and

fresh approaches to your needs.

SHAPING THE FUTURE

CABLE MANAGEMENT SYSTEMS

PERFORMANCE CABLETRAY

2 | 888.4WB.TRAY

WBT offers the best in cable management

products to the market today. WBT is

comprised of industry leaders who have

worked for years introducing and refi ning

the market and products here in the U.S. We

hold patents on many of the ‘best’ ideas and

solutions that you may purchase from multiple

vendors today.

WBT’s premise is simple: a higher quality

‘PERFORMANCE’ cabletray, 100% manufactured

in the U.S., utilizing 100% domestic recycled

steel, with minimized environmental impact

fi nishes. WBT offers better cabling support, LEED

submittal documentation, USGBC support, better

leadtimes and unparalleled customer service.

WBT’s products are a mix of the best new

concepts and ideas, designed and created

with a sole purpose, to provide the BEST in

mesh cabletray, while supporting you and

your customers with the most innovative

and creative products in the market, period.

Manufactured in our state of the art, newly

expanded facility with proprietary custom

machinery, the days of long leadtimes, poor

quality and offshore products are over.

Welcome to WBT, where we are shaping

the future of cabletray. Browse through our

catalog and see the results of almost 45 years

of combined mesh experience, new ideas and

fresh approaches to your needs.

SHAPING THE FUTURE

CABLE MANAGEMENT SYSTEMS

PERFORMANCE

CABLETRAY

2

|

888.4WB.TRAY

SHAPING THE FUTURE

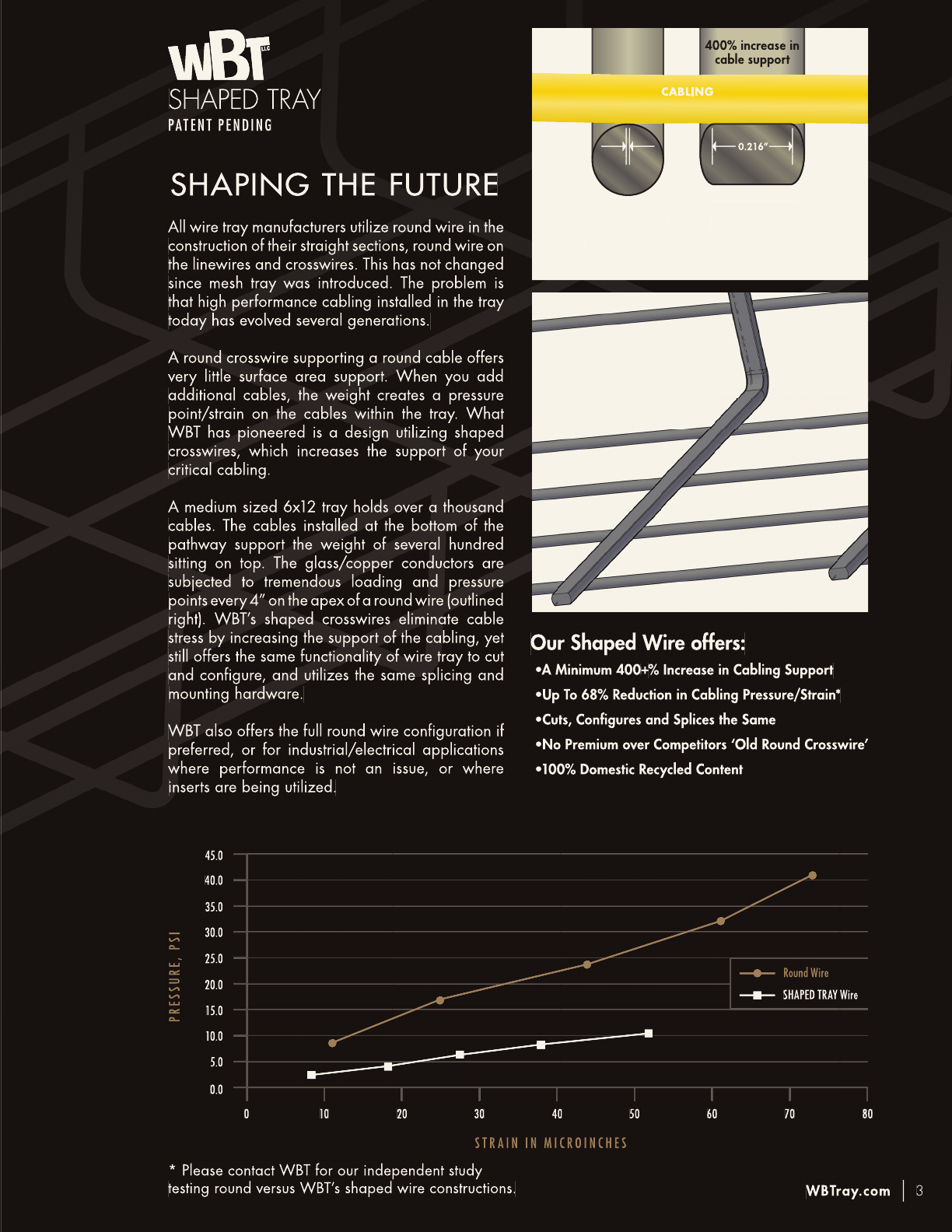

All wire tray manufacturers utilize round wire in the

construction of their straight sections, round wire on

the linewires and crosswires. This has not changed

since mesh tray was introduced. The problem is

that high performance cabling installed in the tray

today has evolved several generations.

A round crosswire supporting a round cable offers

very little surface area support. When you add

additional cables, the weight creates a pressure

point/strain on the cables within the tray. What

WBT has pioneered is a design utilizing shaped

crosswires, which increases the support of your

critical cabling.

A medium sized 6x12 tray holds over a thousand

cables. The cables installed at the bottom of the

pathway support the weight of several hundred

sitting on top. The glass/copper conductors are

subjected to tremendous loading and pressure

points every 4” on the apex of a round wire (outlined

right). WBT’s shaped crosswires eliminate cable

stress by increasing the support of the cabling, yet

still offers the same functionality of wire tray to cut

and confi gure, and utilizes the same splicing and

mounting hardware.

WBT also offers the full round wire confi guration if

preferred, or for industrial/electrical applications

where performance is not an issue, or where

inserts are being utilized.

* Please contact WBT for our independent study

testing round versus WBT’s shaped wire constructions.

SHAPED TRAY

PATENT PENDING

0.216”

CABLING

standard tray

support area:

.0078125” sq.

(based on cable contact area of .125”)

SHAPED TRAY

support area:

.03125” sq.

400% increase in

cable support

0.0

010 20 30 40 50 60 70 80

5.0

10.0

15.0

20.0

25.0

PRESSURE, PSI

STRAIN IN MICROINCHES

Round Wire

SHAPED TRAY Wire

30.0

35.0

40.0

45.0

Our Shaped Wire offers:

•A Minimum 400+% Increase in Cabling Support

•Up To 68% Reduction in Cabling Pressure/Strain*

•Cuts, Confi gures and Splices the Same

•No Premium over Competitors ‘Old Round Crosswire’

•100% Domestic Recycled Content

WBTray.com | 3

SHAPING THE FUTURE

All wire tray manufacturers utilize round wire in the

construction of their straight sections, round wire on

the linewires and crosswires. This has not changed

since mesh tray was introduced. The problem is

that high performance cabling installed in the tray

today has evolved several generations.

A round crosswire supporting a round cable offers

very little surface area support. When you add

additional cables, the weight creates a pressure

point/strain on the cables within the tray. What

WBT has pioneered is a design utilizing shaped

crosswires, which increases the support of your

critical cabling.

A medium sized 6x12 tray holds over a thousand

cables. The cables installed at the bottom of the

pathway support the weight of several hundred

sitting on top. The glass/copper conductors are

subjected to tremendous loading and pressure

points every 4” on the apex of a round wire (outlined

right). WBT’s shaped crosswires eliminate cable

stress by increasing the support of the cabling, yet

still offers the same functionality of wire tray to cut

and confi gure, and utilizes the same splicing and

mounting hardware.

WBT also offers the full round wire confi guration if

preferred, or for industrial/electrical applications

where performance is not an issue, or where

inserts are being utilized.

*

Please contact WBT for our independent study

testing round versus WBT’s shaped wire constructions.

SHAPED TRAY

PATENT PENDING

0.216”

CABLING

standard tray

support area:

.0078125” sq.

(based on cable contact area of .125”)

SHAPED TRAY

support area:

.03125” sq.

400% increase in

cable support

0.0

0

10

20

30

40

50

60

70

80

5.0

10.0

15.0

20.0

25.0

PRESSURE, PSI

STRAIN IN MICROINCHES

Round Wire

SHAPED TRAY Wire

30.0

35.0

40.0

45.0

Our Shaped Wire offers:

•A Minimum 400

+

% Increase in Cabling Support

+% Increase in Cabling Support

+

•Up To 68% Reduction in Cabling Pressure/Strain*

•Cuts, Confi gures and Splices the Same

•No Premium over Competitors ‘Old Round Crosswire’

•100% Domestic Recycled Content

WBTray.com

|

3

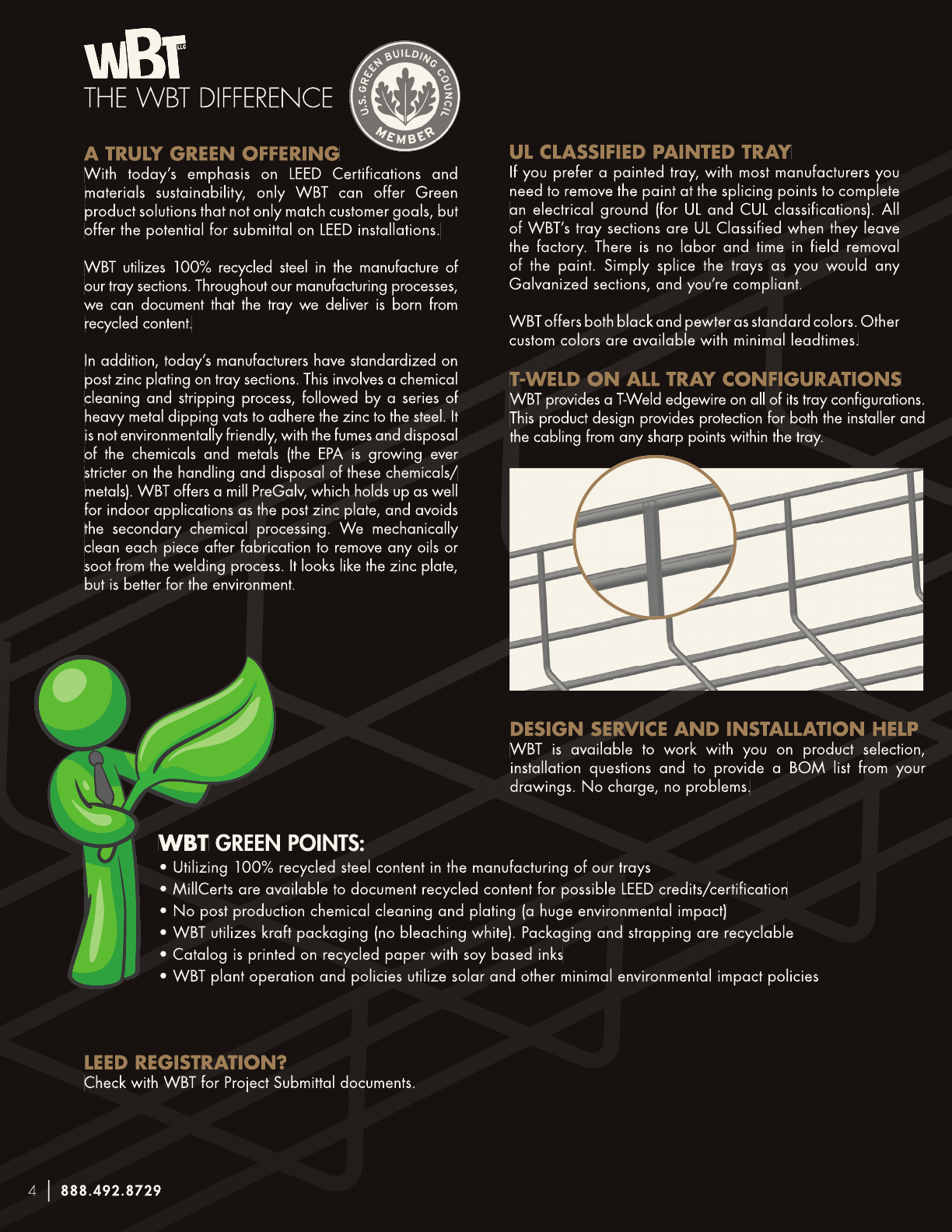

T-WELD ON ALL TRAY CONFIGURATIONS

WBT provides a T-Weld edgewire on all of its tray confi gurations.

This product design provides protection for both the installer and

the cabling from any sharp points within the tray.

DESIGN SERVICE AND INSTALLATION HELP

WBT is available to work with you on product selection,

installation questions and to provide a BOM list from your

drawings. No charge, no problems.

LEED REGISTRATION?

Check with WBT for Project Submittal documents.

A TRULY GREEN OFFERING

With today’s emphasis on LEED Certifi cations and

materials sustainability, only WBT can offer Green

product solutions that not only match customer goals, but

offer the potential for submittal on LEED installations.

WBT utilizes 100% recycled steel in the manufacture of

our tray sections. Throughout our manufacturing processes,

we can document that the tray we deliver is born from

recycled content.

In addition, today’s manufacturers have standardized on

post zinc plating on tray sections. This involves a chemical

cleaning and stripping process, followed by a series of

heavy metal dipping vats to adhere the zinc to the steel. It

is not environmentally friendly, with the fumes and disposal

of the chemicals and metals (the EPA is growing ever

stricter on the handling and disposal of these chemicals/

metals). WBT offers a mill PreGalv, which holds up as well

for indoor applications as the post zinc plate, and avoids

the secondary chemical processing. We mechanically

clean each piece after fabrication to remove any oils or

soot from the welding process. It looks like the zinc plate,

but is better for the environment.

UL CLASSIFIED PAINTED TRAY

If you prefer a painted tray, with most manufacturers you

need to remove the paint at the splicing points to complete

an electrical ground (for UL and CUL classifi cations). All

of WBT’s tray sections are UL Classifi ed when they leave

the factory. There is no labor and time in fi eld removal

of the paint. Simply splice the trays as you would any

Galvanized sections, and you’re compliant.

WBT offers both black and pewter as standard colors. Other

custom colors are available with minimal leadtimes.

THE WBT DIFFERENCE

WBT GREEN POINTS:

• Utilizing 100% recycled steel content in the manufacturing of our trays

• MillCerts are available to document recycled content for possible LEED credits/certifi cation

• No post production chemical cleaning and plating (a huge environmental impact)

• WBT utilizes kraft packaging (no bleaching white). Packaging and strapping are recyclable

• Catalog is printed on recycled paper with soy based inks

• WBT plant operation and policies utilize solar and other minimal environmental impact policies

4 | 888.492.8729

T-WELD ON ALL TRAY CONFIGURATIONS

WBT provides a T-Weld edgewire on all of its tray confi gurations.

This product design provides protection for both the installer and

the cabling from any sharp points within the tray.

DESIGN SERVICE AND INSTALLATION HELP

WBT is available to work with you on product selection,

installation questions and to provide a BOM list from your

drawings. No charge, no problems.

LEED REGISTRATION?

Check with WBT for Project Submittal documents.

A TRULY GREEN OFFERING

With today’s emphasis on LEED Certifi cations and

materials sustainability, only WBT can offer Green

product solutions that not only match customer goals, but

offer the potential for submittal on LEED installations.

WBT utilizes 100% recycled steel in the manufacture of

our tray sections. Throughout our manufacturing processes,

we can document that the tray we deliver is born from

recycled content.

In addition, today’s manufacturers have standardized on

post zinc plating on tray sections. This involves a chemical

cleaning and stripping process, followed by a series of

heavy metal dipping vats to adhere the zinc to the steel. It

is not environmentally friendly, with the fumes and disposal

of the chemicals and metals (the EPA is growing ever

stricter on the handling and disposal of these chemicals/

metals). WBT offers a mill PreGalv, which holds up as well

for indoor applications as the post zinc plate, and avoids

the secondary chemical processing. We mechanically

clean each piece after fabrication to remove any oils or

soot from the welding process. It looks like the zinc plate,

but is better for the environment.

UL CLASSIFIED PAINTED TRAY

If you prefer a painted tray, with most manufacturers you

need to remove the paint at the splicing points to complete

an electrical ground (for UL and CUL classifi cations). All

of WBT’s tray sections are UL Classifi ed when they leave

the factory. There is no labor and time in fi eld removal

of the paint. Simply splice the trays as you would any

Galvanized sections, and you’re compliant.

WBT offers both black and pewter as standard colors. Other

custom colors are available with minimal leadtimes.

THE WBT DIFFERENCE

WBT

GREEN POINTS:

• Utilizing 100% recycled steel content in the manufacturing of our trays

• MillCerts are available to document recycled content for possible LEED credits/certifi cation

• No post production chemical cleaning and plating (a huge environmental impact)

• WBT utilizes kraft packaging (no bleaching white). Packaging and strapping are recyclable

• Catalog is printed on recycled paper with soy based inks

• WBT plant operation and policies utilize solar and other minimal environmental impact policies

4

|

888.492.8729

WBT trays are available in a wide variety of fi nishes to meet the environmental or aesthetic requirements of your

installations. Use the chart below to fi nd the fi nish suffi x that will meet your needs.

Finish codes: WBT2x4 BL = Tray Depth x Width x Finish

Notate fi nish code when ordering trays and fi ttings.

TRAY FINISHES

S u f fi x Finish Specifi cations Use UL/cUL

no

s u f fi x

required

Pre-Galvanized

Finish applied

before fabrication

ASTM A641

Limited industrial &

interior applications

recommended on sizes below when

spliced as recommended

PW

Pewter Powder

Coated Finish

applied after

fabrication

N/A Controlled interior

applications on sizes below when

spliced as recommended

BL

Black Powder

Coated Finish

applied after

fabrication

N/A Controlled interior

applications on sizes below when

spliced as recommended

CPC

Custom Powder

Coated Finish

applied after

fabrication

N/A Controlled interior

applications on sizes below when

spliced as recommended

304L

&

316S

304L Stainless

Steel & 316S

Stainless Steel

ASTM A580

Food preparation, wash-

down areas, highly

corrosive applications &

marine environments

on sizes below when

spliced as recommended

UL CLASSIFIED & cUL LISTED ON PAINTED TRAY

WBT offers painted tray that is UL Classifi ed and cUL Classifi ed as an equipment ground conductor.

No fi eld removal of the paint is required.

CAMERA-READY LOGOTYPE – UL CLASSIFICATION MARK FOR CANADA AND THE U.S.

These Marks are registered by Underwriters Laboratories Inc.

The minimum height of the registered trademark symbol ® shall be 3/64 of an inch. When the overall diameter of the

UL Mark is less than 3/8 of an inch, the trademark symbol may be omitted if it is not legible to the naked eye.

The font for all letter forms is Helvetica Condensed Black, except for the trademark symbol ®, which is

Helvetica Condensed Medium. No other fonts are acceptable.

Please Note:

The word "MARINE" should only be used for UL Classified marine products.

200-195I 20M/11/97

CAMERA-READY LOGOTYPE – UL CLASSIFICATION MARK FOR CANADA AND THE U.S.

These Marks are registered by Underwriters Laboratories Inc.

The minimum height of the registered trademark symbol ® shall be 3/64 of an inch. When the overall diameter of the

UL Mark is less than 3/8 of an inch, the trademark symbol may be omitted if it is not legible to the naked eye.

The font for all letter forms is Helvetica Condensed Black, except for the trademark symbol ®, which is

Helvetica Condensed Medium. No other fonts are acceptable.

Please Note:

The word "MARINE" should only be used for UL Classified marine products.

200-195I 20M/11/97

CAMERA-READY LOGOTYPE – UL CLASSIFICATION MARK FOR CANADA AND THE U.S.

These Marks are registered by Underwriters Laboratories Inc.

The minimum height of the registered trademark symbol ® shall be 3/64 of an inch. When the overall diameter of the

UL Mark is less than 3/8 of an inch, the trademark symbol may be omitted if it is not legible to the naked eye.

The font for all letter forms is Helvetica Condensed Black, except for the trademark symbol ®, which is

Helvetica Condensed Medium. No other fonts are acceptable.

Please Note:

The word "MARINE" should only be used for UL Classified marine products.

200-195I 20M/11/97

CAMERA-READY LOGOTYPE – UL CLASSIFICATION MARK FOR CANADA AND THE U.S.

These Marks are registered by Underwriters Laboratories Inc.

The minimum height of the registered trademark symbol ® shall be 3/64 of an inch. When the overall diameter of the

UL Mark is less than 3/8 of an inch, the trademark symbol may be omitted if it is not legible to the naked eye.

The font for all letter forms is Helvetica Condensed Black, except for the trademark symbol ®, which is

Helvetica Condensed Medium. No other fonts are acceptable.

Please Note:

The word "MARINE" should only be used for UL Classified marine products.

200-195I 20M/11/97

CAMERA-READY LOGOTYPE – UL CLASSIFICATION MARK FOR CANADA AND THE U.S.

These Marks are registered by Underwriters Laboratories Inc.

The minimum height of the registered trademark symbol ® shall be 3/64 of an inch. When the overall diameter of the

UL Mark is less than 3/8 of an inch, the trademark symbol may be omitted if it is not legible to the naked eye.

The font for all letter forms is Helvetica Condensed Black, except for the trademark symbol ®, which is

Helvetica Condensed Medium. No other fonts are acceptable.

Please Note:

The word "MARINE" should only be used for UL Classified marine products.

200-195I 20M/11/97

CAMERA-READY LOGOTYPE – UL CLASSIFICATION MARK

These Marks are registered by Underwriters Laboratories Inc.

The minimum height of the registered trademark symbol ® shall be 3/64 of an inch. When the overall diameter of the

UL Mark is less than 3/8 of an inch, the trademark symbol may be omitted if it is not legible to the naked eye.

The font for all letter forms is Helvetica Condensed Black, except for the trademark symbol ®, which is

Helvetica Condensed Medium. No other fonts are acceptable.

Please Note:

The word "MARINE" should only be used for UL Classified marine products.

200-195G 20M/11/97

CAMERA-READY LOGOTYPE – UL CLASSIFICATION MARK

These Marks are registered by Underwriters Laboratories Inc.

The minimum height of the registered trademark symbol ® shall be 3/64 of an inch. When the overall diameter of the

UL Mark is less than 3/8 of an inch, the trademark symbol may be omitted if it is not legible to the naked eye.

The font for all letter forms is Helvetica Condensed Black, except for the trademark symbol ®, which is

Helvetica Condensed Medium. No other fonts are acceptable.

Please Note:

The word "MARINE" should only be used for UL Classified marine products.

200-195G 20M/11/97

2” depth 4” depth 6” depth 8” depth

WBT2x6/S WBT4x6/S WBT6x8/S WBT8x8/S

WBT2x8/S WBT4x8/S WBT6x12/S WBT8x12/S

WBT2x12/S WBT4x12/S WBT6x16/S WBT8x16/S

WBT2x16/S WBT4x16/S WBT6x18/S WBT8x18/S

WBT2x18/S WBT4x18/S WBT6x20/S WBT8x20/S

WBT2x20/S WBT4x20/S WBT6x22/S

WBT2x24/S WBT4x24/S WBT6x24/S

WBT offers Electro-Zinc Plated material that is UL Classifi ed as well as cUL Classifi ed

/S denotes the part number for shaped. WBTray.com | 5

WBT trays are available in a wide variety of fi nishes to meet the environmental or aesthetic requirements of your

installations. Use the chart below to fi nd the fi nish suffi x that will meet your needs.

Finish codes:

WBT2x4 BL

=

Tray Depth x Width x Finish

Tray Depth x Width x Finish

Notate fi nish code when ordering trays and fi ttings.

TRAY FINISHES

S u f fi x

Finish

Specifi cations

Use

UL/cUL

no

s u f fi x

required

Pre-Galvanized

Finish applied

before fabrication

ASTM A641

Limited industrial &

interior applications

recommended

on sizes below when

spliced as recommended

PW

Pewter Powder

Coated Finish

applied after

fabrication

N/A

Controlled interior

applications

on sizes below when

spliced as recommended

BL

Black Powder

Coated Finish

applied after

fabrication

N/A

Controlled interior

applications

on sizes below when

spliced as recommended

CPC

Custom Powder

Coated Finish

applied after

fabrication

N/A

Controlled interior

applications

on sizes below when

spliced as recommended

304L

&

316S

304L Stainless

Steel & 316S

Stainless Steel

ASTM A580

Food preparation, wash-

down areas, highly

corrosive applications &

marine environments

on sizes below when

spliced as recommended

UL CLASSIFIED & cUL LISTED ON PAINTED TRAY

WBT offers painted tray that is UL Classifi ed and cUL Classifi ed as an equipment ground conductor.

No fi eld removal of the paint is required.

2” depth

4” depth

6” depth

8” depth

WBT2x6/S

WBT4x6/S

WBT6x8/S

WBT8x8/S

WBT2x8/S

WBT4x8/S

WBT6x12/S

WBT8x12/S

WBT2x12/S

WBT4x12/S

WBT6x16/S

WBT8x16/S

WBT2x16/S

WBT4x16/S

WBT6x18/S

WBT8x18/S

WBT2x18/S

WBT4x18/S

WBT6x20/S

WBT8x20/S

WBT2x20/S

WBT4x20/S

WBT6x22/S

WBT2x24/S

WBT4x24/S

WBT6x24/S

WBT offers Electro-Zinc Plated material that is UL Classifi ed as well as cUL Classifi ed

/S denotes the part number for shaped.

WBTray.com

|

5

TRAYS

PART

NUMBER

PART

NUMBER WIDTH WT.

per pc. FILL* LOAD

lbs/ft

SPLICE

quantity

WBT2X4 WBT2X4S 4" 7 lbs 108 45 2

WBT2X6 WBT2X6S 6" 9 lbs 163 50 4

WBT2X8 WBT2X8S 8" 10.5 lbs 218 52 4

WBT2X12 WBT2X12S 12" 12 lbs 326 58 4

WBT2X16 WBT2X16S 16" 15 lbs 439 70 4

WBT2X18 WBT2X18S 18" 23 lbs 495 70 4

WBT2X20 WBT2X20S 20" 25 lbs 550 73 5

WBT2X22 WBT2X22S 22" 27 lbs 600 73 5

WBT2X24 WBT2X24S 24" 31 lbs 660 75 5

WBT2X26 WBT2X26S 26" 33 lbs 671 73 6

WBT2X28 WBT2X28S 28" 35 lbs 723 73 6

WBT2X30 WBT2X30S 30" 38 lbs 826 70 6

WBT2X32 WBT2X32S 32" 39 lbs 881 70 6

PART

NUMBER

PART

NUMBER WIDTH WT.

per pc. FILL* LOAD

lbs/ft

SPLICE

quantity

WBT4X4 WBT4X4S 4" 12 lbs 205 49 4

WBT4X6 WBT4X6S 6" 13 lbs 310 49 5

WBT4X8 WBT4X8S 8" 15 lbs 416 78 6

WBT4X12 WBT4X12S 12" 23 lbs 621 78 6

WBT4X16 WBT4X16S 16" 27 lbs 837 108 7

WBT4X18 WBT4X18S 18" 29 lbs 942 116 7

WBT4X20 WBT4X20S 20" 31 lbs 1047 116 7

WBT4X22 WBT4X22S 22" 33 lbs 1152 116 8

WBT4X24 WBT4X24S 24" 35 lbs 1257 116 8

WBT4X28 WBT4X28S 28" 39 lbs 1460 108 9

2” DEEP TRAY

4” DEEP TRAY

S denotes the part number for shaped.

S denotes the part number for shaped.

6 | 888.4WB.TRAY

TRAYS

PART

NUMBER

PART

NUMBER

WIDTH

WT.

per pc.

FILL*

LOAD

lbs/ft

SPLICE

quantity

WBT2X4

WBT2X4S

4"

7 lbs

108

45

2

WBT2X6

WBT2X6S

6"

9 lbs

163

50

4

WBT2X8

WBT2X8S

8"

10.5 lbs

218

52

4

WBT2X12

WBT2X12S

12"

12 lbs

326

58

4

WBT2X16

WBT2X16S

16"

15 lbs

439

70

4

WBT2X18

WBT2X18S

18"

23 lbs

495

70

4

WBT2X20

WBT2X20S

20"

25 lbs

550

73

5

WBT2X22

WBT2X22S

22"

27 lbs

600

73

5

WBT2X24

WBT2X24S

24"

31 lbs

660

75

5

WBT2X26

WBT2X26S

26"

33 lbs

671

73

6

WBT2X28

WBT2X28S

28"

35 lbs

723

73

6

WBT2X30

WBT2X30S

30"

38 lbs

826

70

6

WBT2X32

WBT2X32S

32"

39 lbs

881

70

6

PART

NUMBER

PART

NUMBER

WIDTH

WT.

per pc.

FILL*

LOAD

lbs/ft

SPLICE

quantity

WBT4X4

WBT4X4S

4"

12 lbs

205

49

4

WBT4X6

WBT4X6S

6"

13 lbs

310

49

5

WBT4X8

WBT4X8S

8"

15 lbs

416

78

6

WBT4X12

WBT4X12S

12"

23 lbs

621

78

6

WBT4X16

WBT4X16S

16"

27 lbs

837

108

7

WBT4X18

WBT4X18S

18"

29 lbs

942

116

7

WBT4X20

WBT4X20S

20"

31 lbs

1047

116

7

WBT4X22

WBT4X22S

22"

33 lbs

1152

116

8

WBT4X24

WBT4X24S

24"

35 lbs

1257

116

8

WBT4X28

WBT4X28S

28"

39 lbs

1460

108

9

2” DEEP TRAY

4” DEEP TRAY

S denotes the part number for shaped.

S denotes the part number for shaped.

6

|

888.4WB.TRAY

PART

NUMBER

PART

NUMBER WIDTH WT.

per pc. FILL* LOAD

lbs/ft

SPLICE

quantity

WBT6X8 WBT6X8S 8" 23 lbs 623 116 6

WBT6X12 WBT6X12S 12" 27 lbs 931 123 6

WBT6X16 WBT6X16S 16" 31 lbs 1255 123 7

WBT6X18 WBT6X18S 18" 33 lbs 1413 127 7

WBT6X20 WBT6X20S 20" 35 lbs 1571 127 7

WBT6X22 WBT6X22S 22" 37 lbs 1728 127 8

WBT6X24 WBT6X24S 24" 39 lbs 1886 150 8

6” DEEP TRAY

CUSTOM TRAY

WBT can fabricate various custom

confi gurations. Please contact the

factory for details.

PART

NUMBER

PART

NUMBER WIDTH WT.

per pc. FILL* LOAD

lbs/ft

SPLICE

quantity

WBT8X8S WBT8X8S 8" 27 lbs 835 116 8

WBT8X12S WBT8X12S 12" 31 lbs 1256 116 8

WBT8X16S WBT8X16S 16" 35 lbs 1677 116 9

WBT8X18S WBT8X18S 18" 37 lbs 1887 116 9

WBT8X20S WBT8X20S 20" 39 lbs 2098 116 9

8” DEEP TRAY

*fi ll is a theoretical calculation based on a .19” diameter cable

S denotes the part number for shaped.

S denotes the part number for shaped.

S denotes the part number for shaped.

S denotes the part number for shaped.

STANDARD FINISH: | AVAILABLE IN FINISHES: BL, PW, CPC

WBTray.com | 7

PART

NUMBER

PART

NUMBER

WIDTH

WT.

per pc.

FILL*

LOAD

lbs/ft

SPLICE

quantity

WBT6X8

WBT6X8S

8"

23 lbs

623

116

6

WBT6X12

WBT6X12S

12"

27 lbs

931

123

6

WBT6X16

WBT6X16S

16"

31 lbs

1255

123

7

WBT6X18

WBT6X18S

18"

33 lbs

1413

127

7

WBT6X20

WBT6X20S

20"

35 lbs

1571

127

7

WBT6X22

WBT6X22S

22"

37 lbs

1728

127

8

WBT6X24

WBT6X24S

24"

39 lbs

1886

150

8

6” DEEP TRAY

CUSTOM TRAY

WBT can fabricate various custom

confi gurations. Please contact the

factory for details.

PART

NUMBER

PART

NUMBER

WIDTH

WT.

per pc.

FILL*

LOAD

lbs/ft

SPLICE

quantity

WBT8X8S

WBT8X8S

8"

27 lbs

835

116

8

WBT8X12S

WBT8X12S

12"

31 lbs

1256

116

8

WBT8X16S

WBT8X16S

16"

35 lbs

1677

116

9

WBT8X18S

WBT8X18S

18"

37 lbs

1887

116

9

WBT8X20S

WBT8X20S

20"

39 lbs

2098

116

9

8” DEEP TRAY

*fi ll is a theoretical calculation based on a .19” diameter cable

S denotes the part number for shaped.

S denotes the part number for shaped.

STANDARD FINISH: | AVAILABLE IN FINISHES:

BL

,

PW

,

CPC

WBTray.com

|

7

PART NUMBER DESCRIPTION WT.

per box

QUANTITY

per box

WASHER SUPPORT

2" square washer that can be

used to splice straight sections and

fi ttings. This part can also be used

as a hold down method.

6 lbs 50

each

SPLICING

SPLICE KIT

WASHER SUPPORT

BAR SPLICE

CORNER SPLICE

PART NUMBER DESCRIPTION WT.

per box

QUANTITY

per box

SPLICE KIT

3 piece staked bolt/washer and nut

combination used to splice straight

sections and fi ttings.

5 lbs 50

sets

PART NUMBER DESCRIPTION WT.

per box

QUANTITY

per box

BAR SPLICE Slotted bar 11-15/16" long used to

splice straight sections and fi ttings. 14 lbs 50

each

PART NUMBER DESCRIPTION WT.

per box

QUANTITY

per box

CORNER SPLICE

Kit used to splice fi ttings. Each kit

includes two 90 degree splice bars

and 8 sets of the splice kit.

1 lbs 1 kit

STANDARD FINISH: ZINC PLATED | AVAILABLE IN FINISH: BL

STANDARD FINISH: ZINC PLATED | AVAILABLE IN FINISHES: BL, PW, CPC

STANDARD FINISH: ZINC PLATED | AVAILABLE IN FINISHES: BL, PW, CPC

STANDARD FINISH: ZINC PLATED | AVAILABLE IN FINISH: BL

8 | 888.492.8729

PART NUMBER

DESCRIPTION

WT.

per box

QUANTITY

per box

WASHER SUPPORT

2" square washer that can be

used to splice straight sections and

fi ttings. This part can also be used

as a hold down method.

6 lbs

50

each

SPLICING

SPLICE KIT

WASHER SUPPORT

BAR SPLICE

CORNER SPLICE

PART NUMBER

DESCRIPTION

WT.

per box

QUANTITY

per box

SPLICE KIT

3 piece staked bolt/washer and nut

combination used to splice straight

sections and fi ttings.

5 lbs

50

sets

PART NUMBER

DESCRIPTION

WT.

per box

QUANTITY

per box

BAR SPLICE

Slotted bar 11-15/16" long used to

splice straight sections and fi ttings.

14 lbs

50

each

PART NUMBER

DESCRIPTION

WT.

per box

QUANTITY

per box

CORNER SPLICE

Kit used to splice fi ttings. Each kit

includes two 90 degree splice bars

and 8 sets of the splice kit.

1 lbs

1 kit

STANDARD FINISH: ZINC PLATED | AVAILABLE IN FINISH:

BL

STANDARD FINISH: ZINC PLATED | AVAILABLE IN FINISHES:

BL

,

PW

,

CPC

STANDARD FINISH: ZINC PLATED | AVAILABLE IN FINISHES:

BL

,

PW

,

CPC

STANDARD FINISH: ZINC PLATED | AVAILABLE IN FINISH:

BL

8

|

888.492.8729

WALL SUPPORTS

SHELF SUPPORT

L BRACKET

C BRACKET

PART NUMBER DESCRIPTION WT.

per pc.

QUANTITY

per box

SHELF SUPT 4 Shelf/Wall support for 4" wide tray. 0.4 lbs 1 each

SHELF SUPT 6 Shelf/Wall support for 6" wide tray. 0.5 lbs 1 each

SHELF SUPT 8 Shelf/Wall support for 8" wide tray. 0.6 lbs 1 each

SHELF SUPT 12 Shelf/Wall support for 12" wide tray. 1.2 lbs 1 each

SHELF SUPT 16 Shelf/Wall support for 16" wide tray. 1.7 lbs 1 each

SHELF SUPT 18 Shelf/Wall support for 18" wide tray. 1.9 lbs 1 each

SHELF SUPT 20 Shelf/Wall support for 20" wide tray. 2.6 lbs 1 each

SHELF SUPT 24 Shelf/Wall support for 24" wide tray. 3.2 lbs 1 each

PART NUMBER DESCRIPTION WT.

per pc.

QUANTITY

per box

L BRACKET 4 Wall L bracket for 4" wide tray. 0.7 lbs 1 each

L BRACKET 6 Wall L bracket for 6" wide tray. 0.8 lbs 1 each

L BRACKET 8 Wall L bracket for 8" wide tray. 0.9 lbs 1 each

L BRACKET 12 Wall L bracket for 12" wide tray. 1.4 lbs 1 each

L BRACKET 16 Wall L bracket for 16" wide tray. 1.5 lbs 1 each

L BRACKET 18 Wall L bracket for 18" wide tray. 1.7 lbs 1 each

L BRACKET 20 Wall L bracket for 20" wide tray. 2.1 lbs 1 each

L BRACKET 24 Wall L bracket for 24" wide tray. 2.3 lbs 1 each

PART NUMBER DESCRIPTION WT.

per pc.

QUANTITY

per box

C BRACKET 4 Wall/Ceiling C bracket for 4" wide tray. 1.2 lbs 1 each

C BRACKET 8 Wall/Ceiling C bracket for 8" wide tray. 1.5 lbs 1 each

C BRACKET 12 Wall/Ceiling C bracket for 12" wide tray. 2 lbs 1 each

C BRACKET 18 Wall/Ceiling C bracket for 18" wide tray. 2.7 lbs 1 each

STANDARD FINISH: ZINC PLATED | AVAILABLE IN FINISHES: BL, PW, CPC

= PRE-GALVANIZED FINISH

STANDARD FINISH: | AVAILABLE IN FINISHES: BL, PW, CPC

STANDARD FINISH: | AVAILABLE IN FINISHES: BL, PW, CPC

WBTray.com | 9

WALL SUPPORTS

SHELF SUPPORT

L BRACKET

C BRACKET

PART NUMBER

DESCRIPTION

WT.

per pc.

QUANTITY

per box

SHELF SUPT 4

Shelf/Wall support for 4" wide tray.

0.4 lbs

1 each

SHELF SUPT 6

Shelf/Wall support for 6" wide tray.

0.5 lbs

1 each

SHELF SUPT 8

Shelf/Wall support for 8" wide tray.

0.6 lbs

1 each

SHELF SUPT 12

Shelf/Wall support for 12" wide tray.

1.2 lbs

1 each

SHELF SUPT 16

Shelf/Wall support for 16" wide tray.

1.7 lbs

1 each

SHELF SUPT 18

Shelf/Wall support for 18" wide tray.

1.9 lbs

1 each

SHELF SUPT 20

Shelf/Wall support for 20" wide tray.

2.6 lbs

1 each

SHELF SUPT 24

Shelf/Wall support for 24" wide tray.

3.2 lbs

1 each

PART NUMBER

DESCRIPTION

WT.

per pc.

QUANTITY

per box

L BRACKET 4

Wall L bracket for 4" wide tray.

0.7 lbs

1 each

L BRACKET 6

Wall L bracket for 6" wide tray.

0.8 lbs

1 each

L BRACKET 8

Wall L bracket for 8" wide tray.

0.9 lbs

1 each

L BRACKET 12

Wall L bracket for 12" wide tray.

1.4 lbs

1 each

L BRACKET 16

Wall L bracket for 16" wide tray.

1.5 lbs

1 each

L BRACKET 18

Wall L bracket for 18" wide tray.

1.7 lbs

1 each

L BRACKET 20

Wall L bracket for 20" wide tray.

2.1 lbs

1 each

L BRACKET 24

Wall L bracket for 24" wide tray.

2.3 lbs

1 each

PART NUMBER

DESCRIPTION

WT.

per pc.

QUANTITY

per box

C BRACKET 4

Wall/Ceiling C bracket for 4" wide tray.

1.2 lbs

1 each

C BRACKET 8

Wall/Ceiling C bracket for 8" wide tray.

1.5 lbs

1 each

C BRACKET 12

Wall/Ceiling C bracket for 12" wide tray.

2 lbs

1 each

C BRACKET 18

Wall/Ceiling C bracket for 18" wide tray.

2.7 lbs

1 each

STANDARD FINISH: ZINC PLATED | AVAILABLE IN FINISHES:

BL

,

PW

,

CPC

= PRE-GALVANIZED FINISH

STANDARD FINISH: | AVAILABLE IN FINISHES:

BL

,

PW

,

CPC

STANDARD FINISH: | AVAILABLE IN FINISHES:

BL

,

PW

,

CPC

WBTray.com

|

9

CEILING SUPPORTS

CENTER SUPPORTS

CEILING SUPPORTS

TRAPEZE SUPPORTS

TRAPEZE SUPPORTS

PART NUMBER DESCRIPTION WT.

per pc.

QUANTITY

per box

CENTER SUPT 4 Center Support for 4" wide tray. 1.6 lbs 1 each

CENTER SUPT 6 Center Support for 6" wide tray. 1.8 lbs 1 each

CENTER SUPT 8 Center Support for 8" wide tray. 2 lbs 1 each

CENTER SUPT 12 Center Support for 12" wide tray. 2.7 lbs 1 each

CENTER SUPT 16 Center Support for 16" wide tray. 3.3 lbs 1 each

CENTER SUPT 18 Center Support for 18" wide tray. 3.4 lbs 1 each

CENTER SUPT 20 Center Support for 20" wide tray. 3.8 lbs 1 each

CENTER SUPT 24 Center Support for 24" wide tray. 4.4 lbs 1 each

PART NUMBER DESCRIPTION WT.

per pc.

QUANTITY

per box

CEILING SUPT 12 Profi le style support for 12" wide tray & smaller. 1.1 lbs 1 each

CEILING SUPT 16 Profi le style support for 16" wide tray. 1.5 lbs 1 each

CEILING SUPT 18 Profi le style support for 18" wide tray. 1.6 lbs 1 each

CEILING SUPT 20 Profi le style support for 20" wide tray. 1.9 lbs 1 each

CEILING SUPT 24 Profi le style support for 24" wide tray. 1.9 lbs 1 each

PART NUMBER DESCRIPTION WT.

per pc.

QUANTITY

per box

TRAP SUPT

Trapeze style side support attaches to the

side of the tray; suggested for tray sizes 16"

wide & smaller.

9 lbs 50pcs/

box

STANDARD FINISH: ZINC PLATED | AVAILABLE IN FINISHES: BL, PW, CPC

STANDARD FINISH: | AVAILABLE IN FINISHES: BL, PW, CPC

STANDARD FINISH: | AVAILABLE IN FINISHES: BL, PW, CPC

= PRE-GALVANIZED FINISH

• No polymer grommets required to hold threaded rod in place

• Able to support two individual sections of tray

• Works with splice hardware at tray junctions

10 | 888.4WB.TRAY

CEILING SUPPORTS

CENTER SUPPORTS

CEILING SUPPORTS

TRAPEZE SUPPORTS

TRAPEZE SUPPORTS

PART NUMBER

DESCRIPTION

WT.

per pc.

QUANTITY

per box

CENTER SUPT 4

Center Support for 4" wide tray.

Center Support for 4" wide tray.

1.6 lbs

1 each

CENTER SUPT 6

Center Support for 6" wide tray.

Center Support for 6" wide tray.

1.8 lbs

1 each

CENTER SUPT 8

Center Support for 8" wide tray.

Center Support for 8" wide tray.

2 lbs

1 each

CENTER SUPT 12

Center Support for 12" wide tray.

Center Support for 12" wide tray.

2.7 lbs

1 each

CENTER SUPT 16

Center Support for 16" wide tray.

Center Support for 16" wide tray.

3.3 lbs

1 each

CENTER SUPT 18

Center Support for 18" wide tray.

Center Support for 18" wide tray.

3.4 lbs

1 each

CENTER SUPT 20

Center Support for 20" wide tray.

Center Support for 20" wide tray.

3.8 lbs

1 each

CENTER SUPT 24

Center Support for 24" wide tray.

Center Support for 24" wide tray.

4.4 lbs

1 each

PART NUMBER

DESCRIPTION

WT.

per pc.

QUANTITY

per box

CEILING SUPT 12

Profi le style support for 12" wide tray & smaller.

Profi le style support for 12" wide tray & smaller.

1.1 lbs

1 each

CEILING SUPT 16

Profi le style support for 16" wide tray.

Profi le style support for 16" wide tray.

1.5 lbs

1 each

CEILING SUPT 18

Profi le style support for 18" wide tray.

Profi le style support for 18" wide tray.

1.6 lbs

1 each

CEILING SUPT 20

Profi le style support for 20" wide tray.

Profi le style support for 20" wide tray.

1.9 lbs

1 each

CEILING SUPT 24

Profi le style support for 24" wide tray.

Profi le style support for 24" wide tray.

1.9 lbs

1 each

PART NUMBER

DESCRIPTION

WT.

per pc.

QUANTITY

per box

TRAP SUPT

Trapeze style side support attaches to the

side of the tray; suggested for tray sizes 16"

wide & smaller.

9 lbs

50pcs/

box

STANDARD FINISH: ZINC PLATED | AVAILABLE IN FINISHES:

BL

,

PW

,

CPC

STANDARD FINISH: | AVAILABLE IN FINISHES:

BL

,

PW

,

CPC

STANDARD FINISH: | AVAILABLE IN FINISHES:

STANDARD FINISH: | AVAILABLE IN FINISHES:

STANDARD FINISH: | AVAILABLE IN FINISHES:

STANDARD FINISH: | AVAILABLE IN FINISHES:

BL

,

PW

,

CPC

= PRE-GALVANIZED FINISH

• No polymer grommets required to hold threaded rod in place

• Able to support two individual sections of tray

• Works with splice hardware at tray junctions

10

|

888.4WB.TRAY

ACCESSORIES

CABLE GUIDES

LABEL CLIP

VERTICAL DOWN

RADIUS DOWN

PART NUMBER DESCRIPTION WT.

per pc.

QUANTITY

per box

VERTICAL DOWN

Use the vertical down when

dropping cables from the end or

the side of tray.

1.5 lbs 1 each

PART NUMBER DESCRIPTION WT.

per pc.

QUANTITY

per box

RADIUS DOWN 4

Radius Down with side panels for

increased cable protection. Allows

connection between both trays.

2.5 lbs 1 each

RADIUS DOWN 6

Radius Down with side panels for

increased cable protection. Allows

connection between both trays.

3.75 lbs 1 each

RADIUS DOWN 12

Radius Down with side panels for

increased cable protection. Allows

connection between both trays.

7.5 lbs 1 each

PART NUMBER DESCRIPTION WT.

per pc.

QUANTITY

per box

CABLE GUIDE

The cable guide is used to maintain

cable bend radius when routing or

pulling cables through fi ttings. It can

also be used as a divider for straight

sections as well as fi ttings.

1 lb 1 each

PART NUMBER DESCRIPTION WT.

per pc.

QUANTITY

per box

LABEL CLIP Label Clip attachment for

all sizes of tray 0.1 lb 1 each

STANDARD FINISH: ZINC PLATED | AVAILABLE FINISHES: BL, PW, CPC

STANDARD FINISH: ZINC PLATED | AVAILABLE FINISHES: BL, PW, CPC

• No polymer grommets required to hold threaded rod in place

• Able to support two individual sections of tray

• Works with splice hardware at tray junctions

WBTray.com | 11

ACCESSORIES

CABLE GUIDES

LABEL CLIP

LABEL CLIP

LABEL CLIP

LABEL CLIP

LABEL CLIP

LABEL CLIP

VERTICAL DOWN

RADIUS DOWN

PART NUMBER

DESCRIPTION

WT.

per pc.

QUANTITY

per box

VERTICAL DOWN

Use the vertical down when

dropping cables from the end or

the side of tray.

1.5 lbs

1 each

PART NUMBER

DESCRIPTION

WT.

per pc.

QUANTITY

per box

RADIUS DOWN 4

Radius Down with side panels for

increased cable protection. Allows

connection between both trays.

2.5 lbs

1 each

RADIUS DOWN 6

Radius Down with side panels for

increased cable protection. Allows

connection between both trays.

3.75 lbs

1 each

RADIUS DOWN 12

Radius Down with side panels for

increased cable protection. Allows

connection between both trays.

7.5 lbs

1 each

PART NUMBER

DESCRIPTION

WT.

per pc.

QUANTITY

per box

CABLE GUIDE

The cable guide is used to maintain

cable bend radius when routing or

pulling cables through fi ttings. It can

also be used as a divider for straight

sections as well as fi ttings.

1 lb

1 each

PART NUMBER

DESCRIPTION

WT.

per pc.

QUANTITY

per box

LABEL CLIP

Label Clip attachment for

all sizes of tray

0.1 lb

1 each

STANDARD FINISH: ZINC PLATED | AVAILABLE FINISHES:

BL

,

PW

,

CPC

STANDARD FINISH: ZINC PLATED | AVAILABLE FINISHES:

BL

,

PW

,

CPC

WBTray.com

|

11

RACK ATTACHMENT PART NUMBER DESCRIPTION WT.

per pc.

QUANTITY

per box

RACK

ATTACHMENT

Attaches tray directly to the top of a

standard rack. 1 lb 1 kit

PART NUMBER DESCRIPTION WT.

per pc.

QUANTITY

per box

TERM SUPPORT 6 Wall termination for 6” wide tray 0.75 lb 1 each

TERM SUPPORT 8 Wall termination for 8” wide tray 1 lb 1 each

TERM SUPPORT 12 Wall termination for 12” wide tray 1.2 lbs 1 each

TERM SUPPORT 16 Wall termination for 16” wide tray 1.4 lbs 1 each

TERM SUPPORT 18 Wall termination for 18” wide tray 1.6 lbs 1 each

TERM SUPPORT 20 Wall termination for 20” wide tray 1.75 lbs 1 each

TERM SUPPORT 24 Wall termination for 24” wide tray 2 lbs 1 each

STANDARD FINISH: ZINC PLATED | AVAILABLE FINISH: BL

* Custom widths available.

ACCESSORIES

FITTING ATTACHMENT PART NUMBER DESCRIPTION WT.

per pc.

QUANTITY

per box

FITTING

ATTACHMENT 2

Use the fi tting attachment 2 to

fi ll the gap in 2" tray when creating

fi ttings.

1 lb 1 each

FITTING

ATTACHMENT 4/6

Use the fi tting attachment 4/6 to

fi ll the gap in 4" or 6" tray when

creating fi ttings.

1 lb 1 each

TERMINATION

SUPPORT

STANDARD FINISH: ZINC PLATED | AVAILABLE IN FINISHES: BL, PW, CPC

STANDARD FINISH: | AVAILABLE IN FINISHES: BL, PW, CPC

= PRE-GALVANIZED FINISH

12 | 888.4WB.TRAY

RACK ATTACHMENT

PART NUMBER

DESCRIPTION

WT.

per pc.

QUANTITY

per box

RACK

ATTACHMENT

Attaches tray directly to the top of a

standard rack.

1 lb

1 kit

PART NUMBER

DESCRIPTION

WT.

per pc.

QUANTITY

per box

TERM SUPPORT 6

Wall termination for 6” wide tray

0.75 lb

1 each

1 each

TERM SUPPORT 8

Wall termination for 8” wide tray

1 lb

1 each

TERM SUPPORT 12

Wall termination for 12” wide tray

1.2 lbs

1 each

TERM SUPPORT 16

Wall termination for 16” wide tray

1.4 lbs

1 each

TERM SUPPORT 18

Wall termination for 18” wide tray

1.6 lbs

1 each

TERM SUPPORT 20

Wall termination for 20” wide tray

1.75 lbs

1 each

TERM SUPPORT 24

Wall termination for 24” wide tray

2 lbs

1 each

STANDARD FINISH: ZINC PLATED | AVAILABLE FINISH:

BL

* Custom widths available.

ACCESSORIES

FITTING ATTACHMENT

PART NUMBER

DESCRIPTION

WT.

per pc.

QUANTITY

per box

FITTING

ATTACHMENT 2

Use the fi tting attachment 2 to

fi ll the gap in 2" tray when creating

fi ttings.

1 lb

1 each

FITTING

ATTACHMENT 4/6

Use the fi tting attachment 4/6 to

fi ll the gap in 4" or 6" tray when

creating fi ttings.

1 lb

1 each

TERMINATION

SUPPORT

SUPPORT

SUPPORT

SUPPORT

SUPPORT

SUPPORT

SUPPORT

SUPPORT

STANDARD FINISH: ZINC PLATED | AVAILABLE IN FINISHES:

BL

,

PW

,

CPC

STANDARD FINISH: | AVAILABLE IN FINISHES:

BL

,

PW

,

CPC

= PRE-GALVANIZED FINISH

12

|

888.4WB.TRAY

PART NUMBER DESCRIPTION WT.

per pc.

QUANTITY

per box

CONDUIT

ATTACHMENT 3

Conduit to tray attachment for 1/2”,

3/4” & 1” Conduit 1.5 lbs 1 each

PART NUMBER DESCRIPTION WT.

per pc.

QUANTITY

per box

SIDE CAR Additional cable support 2” deep 0.5 lb 1 each

PART NUMBER DESCRIPTION WT.

per pc.

QUANTITY

per box

WBTELECTRICALBOX Box to tray attachment 0.75 lb 1 each

CONDUIT ATTACHMENT

SIDECAR

ELECTRICAL BOX

STANDARD FINISH: | AVAILABLE IN FINISHES: BL, PW, CPC

STANDARD FINISH: | AVAILABLE IN FINISHES: BL, PW, CPC

STANDARD FINISH: | AVAILABLE IN FINISHES: BL, PW, CPC

= PRE-GALVANIZED FINISH

WBTray.com | 13

PART NUMBER

DESCRIPTION

WT.

per pc.

QUANTITY

per box

CONDUIT

ATTACHMENT 3

Conduit to tray attachment for 1/2”,

3/4” & 1” Conduit

1.5 lbs

1 each

PART NUMBER

DESCRIPTION

WT.

per pc.

QUANTITY

per box

SIDE CAR

Additional cable support 2” deep

0.5 lb

1 each

PART NUMBER

DESCRIPTION

WT.

per pc.

QUANTITY

per box

WBTELECTRICALBOX

Box to tray attachment

0.75 lb

1 each

CONDUIT ATTACHMENT

SIDECAR

ELECTRICAL BOX

STANDARD FINISH: | AVAILABLE IN FINISHES:

BL

,

PW

,

CPC

STANDARD FINISH: | AVAILABLE IN FINISHES:

BL

,

PW

,

CPC

STANDARD FINISH: | AVAILABLE IN FINISHES:

BL

,

PW

,

CPC

= PRE-GALVANIZED FINISH

WBTray.com

|

13

WBT-U

DATACENTER OR GENERAL OFFICE: WBT-U HAS YOU SUPPORTED.

WBT introduces another innovation to the marketplace, WBT-U. Too many underfl oor/access fl oor solutions in today’s

market are comprised of components that require onsite assembly and confi guration. WBT-U solves that problem.

With WBT-U, the need to assemble each support, multilevel bars, brackets and complex splicing scenarios are gone.

The supports ship as a complete unit. From the box to the fl oor in seconds, no fabrication or assembly, no tools or

fasteners – start to fi nish.

The benefi ts of WBT-U include:

• UL/cUL classifi ed as equipment ground conductor.

• Single and Multilevel tray runs can be supported.

• WBT-U is zinc whisker free.

• Manufactured from PreGalv material, and then mechanically cleaned prior to shipment

to remove oils and metallic particles.

• Tray lengths from 2’ up to 10’. Less splicing, less supports, lower material and installed cost.

• WBT-U is totally self supporting.

• Ships as a complete unit. No fi eld fabrication or assembly.

• The fastest/quickest installation within a DataCenter environment.

• Substantial savings on materials and labor versus

other market solutions.

14 | 888.492.8729

WBT-U

DATACENTER OR GENERAL OFFICE: WBT-U HAS YOU SUPPORTED.

WBT introduces another innovation to the marketplace, WBT-U. Too many underfl oor/access fl oor solutions in today’s

market are comprised of components that require onsite assembly and confi guration. WBT-U solves that problem.

With WBT-U, the need to assemble each support, multilevel bars, brackets and complex splicing scenarios are gone.

The supports ship as a complete unit. From the box to the fl oor in seconds, no fabrication or assembly, no tools or

fasteners – start to fi nish.

The benefi ts of WBT-U include:

• UL/cUL classifi ed as equipment ground conductor.

• Single and Multilevel tray runs can be supported.

• WBT-U is zinc whisker free.

• Manufactured from PreGalv material, and then mechanically cleaned

prior to shipment

to remove oils and metallic particles.

• Tray lengths from 2’ up to 10’. Less splicing, less supports,

lower material and installed cost.

• WBT-U is totally self supporting.

• WBT-U is totally self supporting.

• WBT-U is totally self supporting.

• WBT-U is totally self supporting.

• WBT-U is totally self supporting.

• WBT-U is totally self supporting.

• WBT-U is totally self supporting.

• Ships as a complete unit. No fi eld fabrication or assembly.

• Ships as a complete unit. No fi eld fabrication or assembly.

• Ships as a complete unit. No fi eld fabrication or assembly.

• Ships as a complete unit. No fi eld fabrication or assembly.

• Ships as a complete unit. No fi eld fabrication or assembly.

• Ships as a complete unit. No fi eld fabrication or assembly.

• Ships as a complete unit. No fi eld fabrication or assembly.

• Ships as a complete unit. No fi eld fabrication or assembly.

• Ships as a complete unit. No fi eld fabrication or assembly.

• Ships as a complete unit. No fi eld fabrication or assembly.

• Ships as a complete unit. No fi eld fabrication or assembly.

• Ships as a complete unit. No fi eld fabrication or assembly.

• The fastest/quickest installation within a DataCenter environment.

• The fastest/quickest installation within a DataCenter environment.

• The fastest/quickest installation within a DataCenter environment.

• The fastest/quickest installation within a DataCenter environment.

• The fastest/quickest installation within a DataCenter environment.

• The fastest/quickest installation within a DataCenter environment.

• The fastest/quickest installation within a DataCenter environment.

• The fastest/quickest installation within a DataCenter environment.

• The fastest/quickest installation within a DataCenter environment.

• The fastest/quickest installation within a DataCenter environment.

• The fastest/quickest installation within a DataCenter environment.

• The fastest/quickest installation within a DataCenter environment.

• The fastest/quickest installation within a DataCenter environment.

• The fastest/quickest installation within a DataCenter environment.

• Substantial savings on materials and labor versus

• Substantial savings on materials and labor versus

• Substantial savings on materials and labor versus

• Substantial savings on materials and labor versus

• Substantial savings on materials and labor versus

• Substantial savings on materials and labor versus

• Substantial savings on materials and labor versus

• Substantial savings on materials and labor versus

• Substantial savings on materials and labor versus

• Substantial savings on materials and labor versus

• Substantial savings on materials and labor versus

other market solutions.

other market solutions.

other market solutions.

other market solutions.

other market solutions.

14

|

888.492.8729

TR AYS PART

NUMBER DEPTH WIDTH WT.

per pc. FILL* LOAD

lbs/ft

WBT2X6X2 2 6 2.25 lbs 211 n/a

WBT2X6X4 2 6 4.5 lbs 211 n/a

WBT2X6X6 2 6 6.75 lbs 211 n/a

WBT2X12X2 212 3.25 lbs 419 65

WBT2X12X4 212 6.25 lbs 419 65

WBT2X12X6 212 9.5 lbs 419 58

WBT2X24X2 222 4.75 lbs 772 116

WBT2X24X4 222 9.5 lbs 772 115

WBT2X24X6 222 14.25 lbs 772 75

WBT4X6X2 4 6 2.75 lbs 421 49

WBT4X6X4 4 6 5.5 lbs 421 49

WBT4X6X6 4 6 8.25 lbs 421 49

WBT4X12X2 412 3.75 lbs 838 143

WBT4X12X4 412 7.5 lbs 838 143

WBT4X12X6 412 11.25 lbs 838 78

WBT4X24X2 422 5.5 lbs 1543 116

WBT4X24X4 422 11 lbs 1543 115

WBT4X24X6 422 16.5 lbs 1543 115

WBT6X6X2 6 6 3.5 lbs 632 n/a

WBT6X6X4 6 6 7 lbs 632 n/a

WBT6X6X6 6 6 10.5 lbs 632 n/a

WBT6X12X2 612 4.5 lbs 1256 157

WBT6X12X4 612 9 lbs 1256 157

WBT6X12X6 612 13.5 lbs 1256 123

WBT6X24X2 622 6.25 lbs 2315 151

WBT6X24X4 622 12.5 lbs 2315 151

WBT6X24X6 622 18.75 lbs 2315 150

WBT8X12X2 812 5.25 lbs 1684 150

WBT8X12X4 812 10.5 lbs 1684 150

WBT8X12X6 812 15.75 lbs 1684 116

WBT8X20X2 820 7 lbs 2813 150

WBT8X20X4 820 14 lbs 2813 150

WBT8X20X6 820 21 lbs 2813 116

WBT0x24x2 022 4 lbs n/a 67

8’ sections available. Please consult the factory for details.

*The fi ll is a theoretical calculation based on a .19” diameter cable.

WBTray.com | 15

TR AYS

PART

NUMBER

DEPTH

WIDTH

WT.

per pc.

FILL*

LOAD

lbs/ft

WBT2X6X2

2

6

2.25 lbs

211

n/a

WBT2X6X4

2

6

4.5 lbs

211

n/a

WBT2X6X6

2

6

6.75 lbs

211

n/a

WBT2X12X2

2

12

3.25 lbs

419

65

WBT2X12X4

2

12

6.25 lbs

419

65

WBT2X12X6

2

12

9.5 lbs

419

58

WBT2X24X2

2

22

4.75 lbs

772

116

WBT2X24X4

2

22

9.5 lbs

772

115

WBT2X24X6

2

22

14.25 lbs

772

75

WBT4X6X2

4

6

2.75 lbs

421

49

WBT4X6X4

4

6

5.5 lbs

421

49

WBT4X6X6

4

6

8.25 lbs

421

49

WBT4X12X2

4

12

3.75 lbs

838

143

WBT4X12X4

4

12

7.5 lbs

838

143

WBT4X12X6

4

12

11.25 lbs

838

78

WBT4X24X2

4

22

5.5 lbs

1543

116

WBT4X24X4

4

22

11 lbs

1543

115

WBT4X24X6

4

22

16.5 lbs

1543

115

WBT6X6X2

6

6

3.5 lbs

632

n/a

WBT6X6X4

6

6

7 lbs

632

n/a

WBT6X6X6

6

6

10.5 lbs

632

n/a

WBT6X12X2

6

12

4.5 lbs

1256

157

WBT6X12X4

6

12

9 lbs

1256

157

WBT6X12X6

6

12

13.5 lbs

1256

123

WBT6X24X2

6

22

6.25 lbs

2315

151

WBT6X24X4

6

22

12.5 lbs

2315

151

WBT6X24X6

6

22

18.75 lbs

2315

150

WBT8X12X2

8

12

5.25 lbs

1684

150

WBT8X12X4

8

12

10.5 lbs

1684

150

WBT8X12X6

8

12

15.75 lbs

1684

116

WBT8X20X2

8

20

7 lbs

2813

150

WBT8X20X4

8

20

14 lbs

2813

150

WBT8X20X6

8

20

21 lbs

2813

116

WBT0x24x2

0

22

4 lbs

n/a

67

8’ sections available. Please consult the factory for details.

*The fi ll is a theoretical calculation based on a .19” diameter cable.

WBTray.com

|

15

SUPPORT PART NUMBER DESCRIPTION WT.

per pc.

QUANTITY

per box

WBTUS4 Independent Underfl oor support 4" high. 1.9 lbs 1 each

WBTUS6 Independent Underfl oor support 6" high. 2.1 lbs 1 each

WBTUS8 Independent Underfl oor support 8" high. 2.4 lbs 1 each

WBTUS10 Independent Underfl oor support 10" high. 3.0 lbs 1 each

WBTUS12 Independent Underfl oor support 12" high. 3.5 lbs 1 each

WBTUS14 Independent Underfl oor support 14" high. 4.1 lbs 1 each

WBTUS16 Independent Underfl oor support 16" high. 4.7 lbs 1 each

WBTUS18 Independent Underfl oor support 18" high. 5.3 lbs 1 each

WBTUS20 Independent Underfl oor support 20" high. 5.9 lbs 1 each

WBTUS22 Independent Underfl oor support 22" high. 6.4 lbs 1 each

WBTUS24 Independent Underfl oor support 24" high. 6.5 lbs 1 each

WBTUS26 Independent Underfl oor support 26" high. 7.0 lbs 1 each

WBTUS28 Independent Underfl oor support 28" high. 7.5 lbs 1 each

WBTUS30 Independent Underfl oor support 30" high. 8.1 lbs 1 each

WBT-U

GROUND/HOLD DOWN PART NUMBER DESCRIPTION WT.

per box

QUANTITY

per box

GROUND

SPLICE

Ground/hold down method

used with underfl oor tray. 7 lbs 50 sets

UNDERFLOOR FITTING PART NUMBER DESCRIPTION WT.

per pc.

QUANTITY

per box

WBTUFITTING Intersection fi tting kit used with

WBT0x24x2. 3 lbs 1 kit

16 | 888.4WB.TRAY

SUPPORT

PART NUMBER

DESCRIPTION

WT.

per pc.

QUANTITY

per box

WBTUS4

Independent Underfl oor support 4" high.

1.9 lbs

1 each

WBTUS6

Independent Underfl oor support 6" high.

2.1 lbs

1 each

WBTUS8

Independent Underfl oor support 8" high.

2.4 lbs

1 each

WBTUS10

Independent Underfl oor support 10" high.

3.0 lbs

1 each

WBTUS12

Independent Underfl oor support 12" high.

3.5 lbs

1 each

WBTUS14

Independent Underfl oor support 14" high.

4.1 lbs

1 each

WBTUS16

Independent Underfl oor support 16" high.

4.7 lbs

1 each

WBTUS18

Independent Underfl oor support 18" high.

5.3 lbs

1 each

WBTUS20

Independent Underfl oor support 20" high.

5.9 lbs

1 each

WBTUS22

Independent Underfl oor support 22" high.

6.4 lbs

1 each

WBTUS24

Independent Underfl oor support 24" high.

6.5 lbs

1 each

WBTUS26

Independent Underfl oor support 26" high.

7.0 lbs

1 each

WBTUS28

Independent Underfl oor support 28" high.

7.5 lbs

1 each

WBTUS30

Independent Underfl oor support 30" high.

8.1 lbs

1 each

WBT-U

GROUND/HOLD DOWN

PART NUMBER

DESCRIPTION

WT.

per box

QUANTITY

per box

GROUND

SPLICE

Ground/hold down method

used with underfl oor tray.

7 lbs

50 sets

UNDERFLOOR FITTING

UNDERFLOOR FITTING

PART NUMBER

DESCRIPTION

WT.

per pc.

QUANTITY

per box

WBTUFITTING

Intersection fi tting kit used with

Intersection fi tting kit used with

WBT0x24x2.

3 lbs

3 lbs

1 kit

16

|

888.4WB.TRAY

PART NUMBER DESCRIPTION WT.

per box

QUANTITY

per box

PEDESTAL

CLAMP Underfl oor support clamp. 0.5 lbs 1 each

PEDESTAL CLAMP

PART NUMBER DESCRIPTION WT.

per box

QUANTITY

per box

PEDESTAL

KIT Underfl oor support kit. 3 lbs 1 each

PEDESTAL KIT

UNDERFLOOR C BRACKET PART NUMBER DESCRIPTION WT.

per box

QUANTITY

per box

WBTU6C

Multi-tier C bracket used to

support 2nd tier of 6" wide

tray underfl oor.

2 lbs 1 each

WBTU12C

Multi-tier C bracket used to

support 2nd tier of 12" wide

tray underfl oor.

4 lbs 1 each

PART NUMBER DESCRIPTION WT.

per box

QUANTITY

per box

VERTICAL UP

The Vertical Up is used when

transitioning cabling up from

a raised computer fl oor.

1.75 lbs 1 each

VERTICAL UP

WBTray.com | 17

PART NUMBER

DESCRIPTION

WT.

per box

QUANTITY

per box

PEDESTAL

CLAMP

Underfl oor support clamp.

0.5 lbs

1 each

PEDESTAL CLAMP

PEDESTAL CLAMP

PEDESTAL CLAMP

PEDESTAL CLAMP

PEDESTAL CLAMP

PEDESTAL CLAMP

PEDESTAL CLAMP

PEDESTAL CLAMP

PEDESTAL CLAMP

PEDESTAL CLAMP

PEDESTAL CLAMP

PEDESTAL CLAMP

PART NUMBER

DESCRIPTION

WT.

per box

QUANTITY

per box

PEDESTAL

KIT

Underfl oor support kit.

3 lbs

1 each

PEDESTAL KIT

UNDERFLOOR C BRACKET

PART NUMBER

DESCRIPTION

WT.

per box

QUANTITY

per box

WBTU6C

Multi-tier C bracket used to

support 2nd tier of 6" wide

tray underfl oor.

2 lbs

1 each

WBTU12C

Multi-tier C bracket used to

support 2nd tier of 12" wide

tray underfl oor.

4 lbs

1 each

PART NUMBER

DESCRIPTION

WT.

per box

QUANTITY

per box

VERTICAL UP

The Vertical Up is used when

transitioning cabling up from

a raised computer fl oor.

1.75 lbs

1 each

VERTICAL UP

VERTICAL UP

VERTICAL UP

VERTICAL UP

VERTICAL UP

VERTICAL UP

VERTICAL UP

VERTICAL UP

VERTICAL UP

VERTICAL UP

WBTray.com

|

17

WBT-U ACCESSORIES

WBTFORM

Non metallic solutions

WBT is proud to introduce WBTFORM, a new system for utilizing fl ame retardant polymer for use in

creating tray inserts and covers. WBTFORM allows you to confi gure the material as a tray liner or insert,

with the option of a fl at bottom, or prescored to the tray depth for coverage of the bottom and sides.

WBTFORM can even be utilized to envelop the entire tray, providing bottom, side and cover protection.

WBTFORM is easily confi gurable into a variety of solutions from the simple to creative.

WBTFORM is:

• UL 94V-0 Flame Class Rating.

• RoHS compliant.

• Non-hydroscopic

(moisture absorption <0.1%).

• Temperature range to 115°C/239°F.

• Easily fi eld confi gurable.

• Can be prescored at the factory

for specifi c applications.

• Available in rolls for longer installations.

18 | 888.492.8729

WBT-U ACCESSORIES

WBTFORM

Non metallic solutions

WBT is proud to introduce WBTFORM, a new system for utilizing fl ame retardant polymer for use in

creating tray inserts and covers. WBTFORM allows you to confi gure the material as a tray liner or insert,

with the option of a fl at bottom, or prescored to the tray depth for coverage of the bottom and sides.

WBTFORM can even be utilized to envelop the entire tray, providing bottom, side and cover protection.

WBTFORM is easily confi gurable into a variety of solutions from the simple to creative.

WBTFORM is:

• UL 94V-0 Flame Class Rating.

• RoHS compliant.

• Non-hydroscopic

(moisture absorption <0.1%).

• Non-hydroscopic

(moisture absorption <0.1%).

• Non-hydroscopic

• Temperature range to 115°C/239°F.

• Easily fi eld confi gurable.

• Can be prescored at the factory

for specifi c applications.

• Can be prescored at the factory

for specifi c applications.

• Can be prescored at the factory

• Available in rolls for longer installations.

• Available in rolls for longer installations.

18

|

888.492.8729

WBTFORM

WBTFORM

WBTFORM

WITH SIDES

PART NUMBER DESCRIPTION WT.

per pc.

QUANTITY

per box

WBTFORM04 Polymer bottom insert for 4” wide tray 10’ long 0.5 lb 1 each

WBTFORM06 Polymer bottom insert for 6” wide tray 10’ long 0.65 lb 1 each

WBTFORM08 Polymer bottom insert for 8” wide tray 10’ long 0.75 lb 1 each

WBTFORM12 Polymer bottom insert for 12” wide tray 10’ long 1 lb 1 each

WBTFORM16 Polymer bottom insert for 16” wide tray 10’ long 1.25 lbs 1 each

WBTFORM18 Polymer bottom insert for 18” wide tray 10’ long 1.5 lbs 1 each

WBTFORM20 Polymer bottom insert for 20” wide tray 10’ long 1.75 lbs 1 each

WBTFORM24 Polymer bottom insert for 24” wide tray 10’ long 2.25 lbs 1 each

PART NUMBER DESCRIPTION WT.

per pc.

QUANTITY

per box

WBTFORM__X__ Polymer bottom insert with sides for

specifi c tray depth and width 10’ long 1 lb 1 each

*WBTFORM parts are supplied as one continuous roll.

*WBTFORM parts are supplied as one continuous roll.

KEY: WBTFORMdepthXwidth (i.e. – WBTFORM2X12 is for 2” deep X 12” wide tray)

WBTray.com | 19

WBTFORM

WBTFORM

WBTFORM

WITH SIDES

PART NUMBER

DESCRIPTION

WT.

per pc.

QUANTITY

per box

WBTFORM04

Polymer bottom insert for 4” wide tray 10’ long

0.5 lb

1 each

WBTFORM06

Polymer bottom insert for 6” wide tray 10’ long

0.65 lb

1 each

WBTFORM08

Polymer bottom insert for 8” wide tray 10’ long

0.75 lb

1 each

WBTFORM12

Polymer bottom insert for 12” wide tray 10’ long

1 lb

1 each

WBTFORM16

Polymer bottom insert for 16” wide tray 10’ long

1.25 lbs

1 each

WBTFORM18

Polymer bottom insert for 18” wide tray 10’ long

1.5 lbs

1 each

WBTFORM20

Polymer bottom insert for 20” wide tray 10’ long

1.75 lbs

1 each

WBTFORM24

Polymer bottom insert for 24” wide tray 10’ long

2.25 lbs

1 each

PART NUMBER

DESCRIPTION

WT.

per pc.

QUANTITY

per box

WBTFORM

__

X

__

Polymer bottom insert with sides for

specifi c tray depth and width 10’ long

1 lb

1 each

*WBTFORM parts are supplied as one continuous roll.

*WBTFORM parts are supplied as one continuous roll.

KEY:

WBTFORM

depth

depth

X

width

XwidthX

(i.e. – WBTFORM2X12 is for 2” deep X 12” wide tray)

WBTray.com

|

19

PART NUMBER DESCRIPTION WT.

per pc. LENGTH

COVER4 Metal cover for 4" wide tray galvanized. 3 lbs 5'

COVER6 Metal cover for 6" wide tray galvanized. 3.5 lbs 5'

COVER8 Metal cover for 8" wide tray galvanized. 4.5 lbs 5'

COVER12 Metal cover for 12" wide tray galvanized. 6 lbs 5'

COVER16 Metal cover for 16" wide tray galvanized. 8 lbs 5'

COVER18 Metal cover for 18" wide tray galvanized. 8.5 lbs 5'

COVER20 Metal cover for 20" wide tray galvanized. 9.5 lbs 5'

COVER24 Metal cover for 24" wide tray galvanized. 11 lbs 5'

COVERS

INSERTS

DIVIDERS PART NUMBER DESCRIPTION WT.

per pc. LENGTH

DIVIDER2 Divider used with 2" deep tray galvanized. 2 lbs 5'

DIVIDER4 Divider used with 4" deep tray galvanized. 5 lbs 5'

DIVIDER6 Divider used with 6" deep tray galvanized. 7.5 lbs 5'

DIVIDER8 Divider used with 8" deep tray galvanized. 10 lbs 5'

PART NUMBER DESCRIPTION WT.

per pc. LENGTH

INSERT4 Solid insert used with 4" wide tray galvanized. 3.5 lbs 5'

INSERT6 Solid insert used with 6" wide tray galvanized. 5 lbs 5'

INSERT8 Solid insert used with 8" wide tray galvanized. 7 lbs 5'

INSERT12 Solid insert used with 12" wide tray galvanized. 11 lbs 5'

INSERT16 Solid insert used with 16" wide tray galvanized. 13.5 lbs 5'

INSERT18 Solid insert used with 18" wide tray galvanized. 16.5 lbs 5'

INSERT20 Solid insert used with 20" wide tray galvanized. 18 lbs 5'

INSERT24 Solid insert used with 24" wide tray galvanized. 20 lbs 5'

STANDARD FINISH: | AVAILABLE IN FINISHES: BL, PW, CPC

STANDARD FINISH: | AVAILABLE IN FINISHES: BL, PW, CPC

STANDARD FINISH: | AVAILABLE IN FINISHES: BL, PW, CPC

= PRE-GALVANIZED FINISH

20 | 888.4WB.TRAY

PART NUMBER

DESCRIPTION

WT.

per pc.

LENGTH

COVER4

Metal cover for 4" wide tray galvanized.

3 lbs

5'

COVER6

Metal cover for 6" wide tray galvanized.

3.5 lbs

5'

COVER8

Metal cover for 8" wide tray galvanized.

4.5 lbs

5'

COVER12

Metal cover for 12" wide tray galvanized.

6 lbs

5'

COVER16

Metal cover for 16" wide tray galvanized.

8 lbs

5'

COVER18

Metal cover for 18" wide tray galvanized.

8.5 lbs

5'

COVER20

Metal cover for 20" wide tray galvanized.

9.5 lbs

5'

COVER24

Metal cover for 24" wide tray galvanized.

11 lbs

5'

COVERS

INSERTS

INSERTS

INSERTS

INSERTS

DIVIDERS

DIVIDERS

DIVIDERS

DIVIDERS

DIVIDERS

DIVIDERS

DIVIDERS

DIVIDERS

DIVIDERS

PART NUMBER

DESCRIPTION

WT.

per pc.

LENGTH

DIVIDER2

Divider used with 2" deep tray galvanized.

2 lbs

5'

DIVIDER4

Divider used with 4" deep tray galvanized.

5 lbs

5'

DIVIDER6

Divider used with 6" deep tray galvanized.

7.5 lbs

5'

DIVIDER8

Divider used with 8" deep tray galvanized.

10 lbs

5'

PART NUMBER

DESCRIPTION

WT.

per pc.

LENGTH

INSERT4

Solid insert used with 4" wide tray galvanized.

3.5 lbs

5'

INSERT6

Solid insert used with 6" wide tray galvanized.

5 lbs

5'

INSERT8

Solid insert used with 8" wide tray galvanized.

7 lbs

5'

INSERT12

Solid insert used with 12" wide tray galvanized.

11 lbs

5'

INSERT16

Solid insert used with 16" wide tray galvanized.

13.5 lbs

5'

INSERT18

Solid insert used with 18" wide tray galvanized.

16.5 lbs

5'

INSERT20

Solid insert used with 20" wide tray galvanized.

18 lbs

5'

INSERT24

Solid insert used with 24" wide tray galvanized.

20 lbs

5'

STANDARD FINISH: | AVAILABLE IN FINISHES:

BL

,

PW

,

CPC

STANDARD FINISH: | AVAILABLE IN FINISHES:

BL

,

PW

,

CPC

STANDARD FINISH: | AVAILABLE IN FINISHES:

BL

,

PW

,

CPC

= PRE-GALVANIZED FINISH

20

|

888.4WB.TRAY

APPLICATIONS FOR WBT

Whatever your project details, WBT has a solution (standard or custom) to meet your leadtimes and budgets,

and to exceed your expectations.

Largest number/variety of trays and UL certifi ed solutions.

Industry Firsts:

• WBT shaped wire (patent pending) for increased cable support and

minimized cable strain

• Green PreGalv fi nish

• WBT-U DataCenter/Access Floor solution

• 12’ standard tray sections

• UL Classifi ed on all painted tray colors

• 8” depth trays

• Black and Pewter as standard paint fi nishes

• WBTFORM

• Vertical UP for cable routing from underfl oor into cabinets or racks

COMMUNICATIONS/DATACOM

• Full offering of solutions to install tray in any industrial environment

• Higher loading capabilities allow for higher quantities and heavier cables

• Stainless steel tray, mounting accessories and splicing hardware for outdoor,

caustic environments, food preparation and marine/offshore

• Custom tray confi gurations and solutions for unique environments

• Full inventory of trays and support products for quick ship capabilities

INDUSTRIAL/ELECTRICAL

• WBT offers Stainless Steel tray, mounting accessories and splicing hardware

for marine/offshore

• Hot Dipped tray sections for severe/outdoor installation environments

• Shaped tray offers higher load capabilities than competitive round/

round constructions

• 12’ sections install faster and reduce labor and materials to splice tray

sections by 20%

MARINE/OFFSHORE

WBTray.com | 21

APPLICATIONS FOR WBT

Whatever your project details, WBT has a solution (standard or custom) to meet your leadtimes and budgets,

and to exceed your expectations.

Largest number/variety of trays and UL certifi ed solutions.

Industry Firsts:

• WBT shaped wire (patent pending) for increased cable support and

minimized cable strain

• Green PreGalv fi nish

• WBT-U DataCenter/Access Floor solution

• 12’ standard tray sections

• UL Classifi ed on all painted tray colors

• 8” depth trays

• Black and Pewter as standard paint fi nishes

• WBTFORM

• Vertical UP for cable routing from underfl oor into cabinets or racks

COMMUNICATIONS/DATACOM

• Full offering of solutions to install tray in any industrial environment

• Higher loading capabilities allow for higher quantities and heavier cables

• Stainless steel tray, mounting accessories and splicing hardware for outdoor,

caustic environments, food preparation and marine/offshore

• Custom tray confi gurations and solutions for unique environments

• Full inventory of trays and support products for quick ship capabilities

INDUSTRIAL/ELECTRICAL

• WBT offers Stainless Steel tray, mounting accessories and splicing hardware

for marine/offshore

• Hot Dipped tray sections for severe/outdoor installation environments

• Shaped tray offers higher load capabilities than competitive round/

round constructions

• 12’ sections install faster and reduce labor and materials to splice tray

sections by 20%

MARINE/OFFSHORE

WBTray.com

|

21

VISIT US ONLINE: WWW.WBTRAY.COM

WBT gives you access to a bevy of valuable online tools and forms such as cut sheets, CSI specs,

technical specs, certifi ed test reports & more.

22 | 888.4WB.TRAY

VISIT US ONLINE:

WWW.WBTRAY.COM

WBT gives you access to a bevy of valuable online tools and forms such as cut sheets, CSI specs,

technical specs, certifi ed test reports & more.

22

|

888.4WB.TRAY

WBT offers unrivaled Customer Support.

Our services include the following:

• Installation assistance

• Free BOM from your drawings or blueprints

• Bid Specifi cation Documents

• Engineering Drawings

• Design Assistance

• Custom Fabricated parts for your specifi c installation needs

Please visit our website for further

information and downloads: WBTray.com

Email us: sales@WBTray.com

Call us toll free: 888.4WB.TRAY

888.492.8729

Call us locally: 618.918.3821

Fax us: 618.918.3825

As part of a process of ongoing

innovation, WBT reserves the right

to change specifi cations without prior

notice. This includes changes in product

dimensions, materials and fi nish material/

processes and product availability. Please

consult WBT for any questions.

It is acknowledged that all Trade Marks,

Product Data, Logos, etc. used within this

catalog are the sole and exclusive property

of WBT LLC.

WBTray.com | 23

WBT offers unrivaled Customer Support.

Our services include the following:

• Installation assistance

• Free BOM from your drawings or blueprints

• Bid Specifi cation Documents

• Engineering Drawings

• Design Assistance

• Custom Fabricated parts for your specifi c installation needs

Please visit our website for further

information and downloads:

WBTray.com

Email us:

sales@WBTray.com

Call us toll free:

888.4WB.TRAY

888.492.8729

Call us locally:

618.918.3821

Fax us:

618.918.3825

As part of a process of ongoing

innovation, WBT reserves the right

to change specifi cations without prior

notice. This includes changes in product

dimensions, materials and fi nish material/

processes and product availability. Please

consult WBT for any questions.

It is acknowledged that all Trade Marks,

Product Data, Logos, etc. used within this

catalog are the sole and exclusive property

of WBT LLC.

WBTray.com

|

23

115 Harting Drive

Centralia, IL 62801

888.4WB.TRAY

WBTRAY.COM

SHAPING THE FUTURE

115 Harting Drive

Centralia, IL 62801

888.4WB.TRAY

WBTRAY.COM

SHAPING THE FUTURE

100% POST CONSUMER

RECYCLED CONTENT
