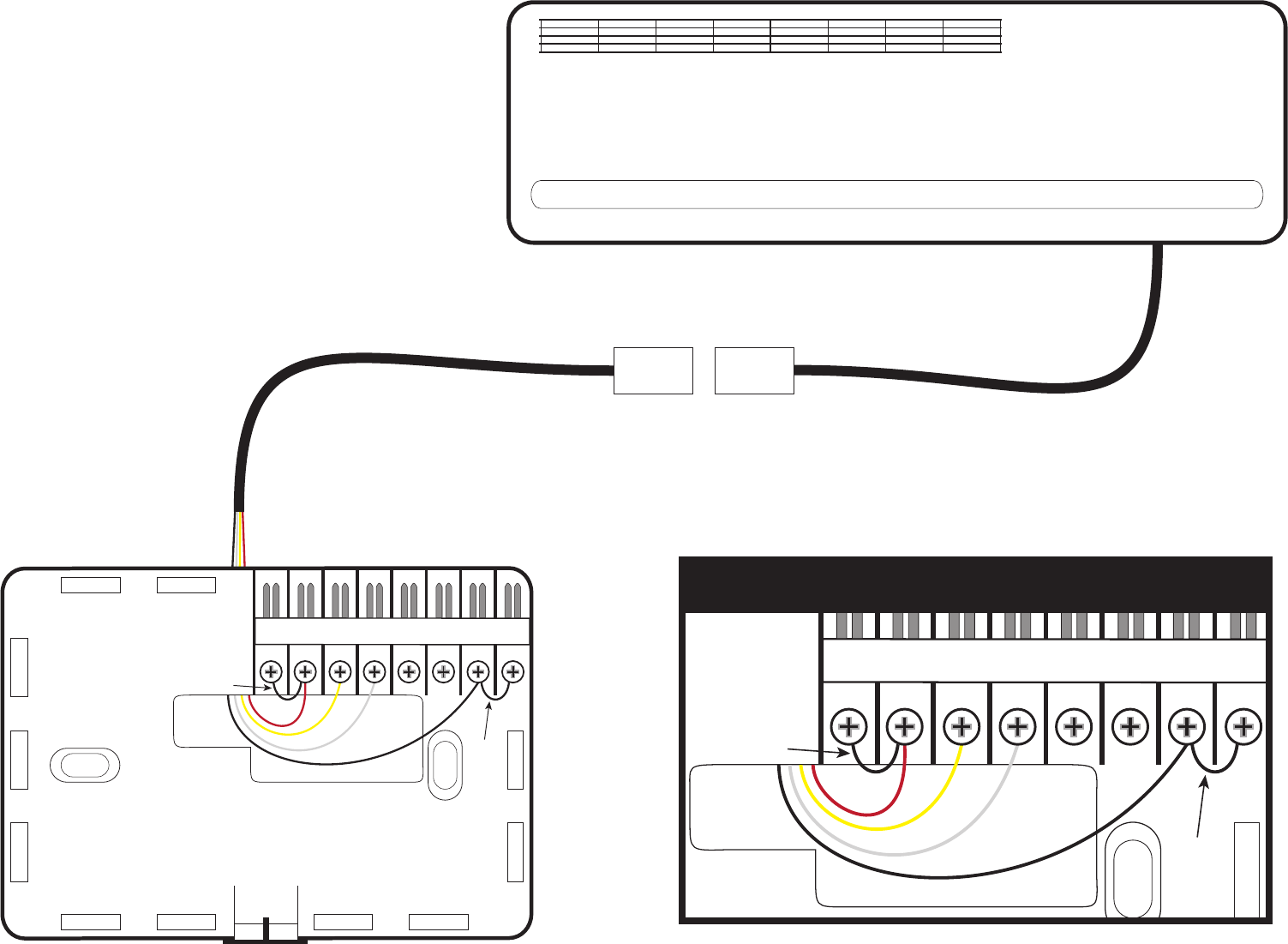

Connect wires from wire cable to

LuxPro (LUXPRO PSP511Ca) Thermostat

ports where indicated.

IMPORTANT:

Connect Port O to Port B with a

jumper wire (not included).

Connect Port RH to Port RC with a

jumper wire (not included).

INDOOR MINI SPLIT UNIT

Jumper

Wire

WIRE CABLE

WIRE CABLE

CONNECTORCONNECTOR

THERMOSTAT

(LUXPRO PSP511Ca)

BORH CGYRC W

red

yellow

white

black

Jumper Wire

Jumper

Wire

BORH CGYRC W

red

yellow

white

black

Jumper Wire

DETAIL DIAGRAM
