HL-2142 6/06

Illuminaire 02454 PGRL Paradome PrismGlo Illumibay CrystalGlo Mirrolume

HOLOPHORMS RECESSED

DESIGNER SERIES

Product Catalog

Introduction

DESIGNER SERIES

Architects and engineers have been practicing

the art of zonal cavity lighting for decades.

Holophane has simplified that process with the

concept of area lighting. There's never before

been a series of products which offer such a

complete palette of lighting choices to address

area lighting like the Designer Series does.

An HB

is any large structure characterized by

high ceilings and open spaces... but unlike the

industry's understanding of "big-box" buildings,

spaces are more than shopping outlets.

spaces are convention centers, factories,

warehouses, transportation concourses,

gymnasiums, school cafeterias and arenas, as

well as retail centers.

Prismatic Holophane Glass

Endural® prismatic glass, a hallmark of

Holophane lighting, allows precise control of the

quality, quantity and direction of the light that

comes through the glass. Blondel flutes evenly

spread light across the entire optic enabling the

glass to appear wholly luminous. This design

feature creates a high-efficiency luminaire that is

low-glare to the viewer. Prism design is another

critical element in optical design. Certain prisms

act as reflectors, or mirrors, sending rays of light

back in the direction they came. Other prisms

are refractors, which bend the light, sending it

out in a prescribed direction. Scientific

placement of these prisms allows Holophane

luminaires to assign exact percentages of uplight

and downlight. Ingenious use of these prisms,

coupled with technology boasting dozens of

patents, makes the Designer Series collection

comfortable to look at and to see by.

The form is Illuminaire, the function a type50

HOLOPHANE®

Indoor Lighting

DESIGNER SERIES

Introduction 3

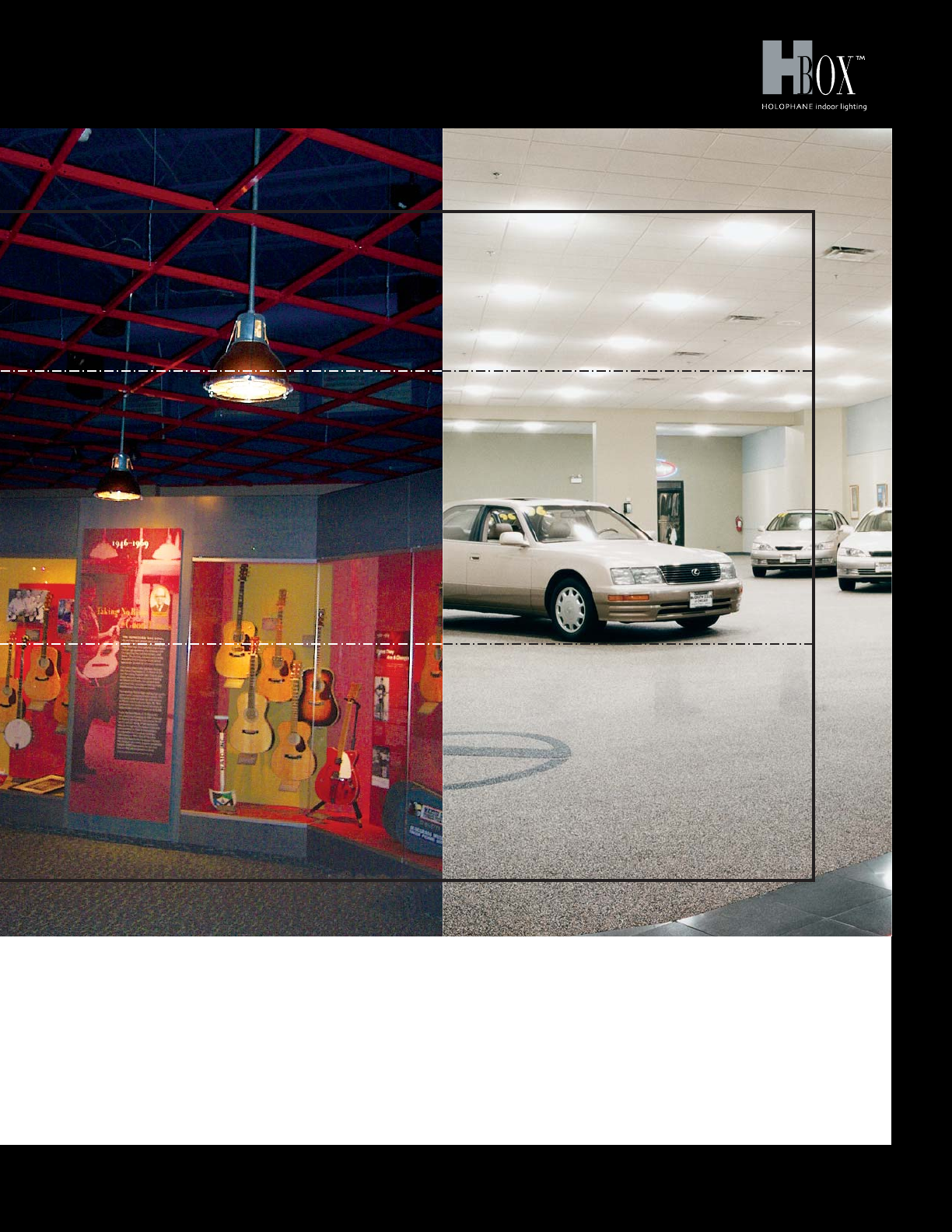

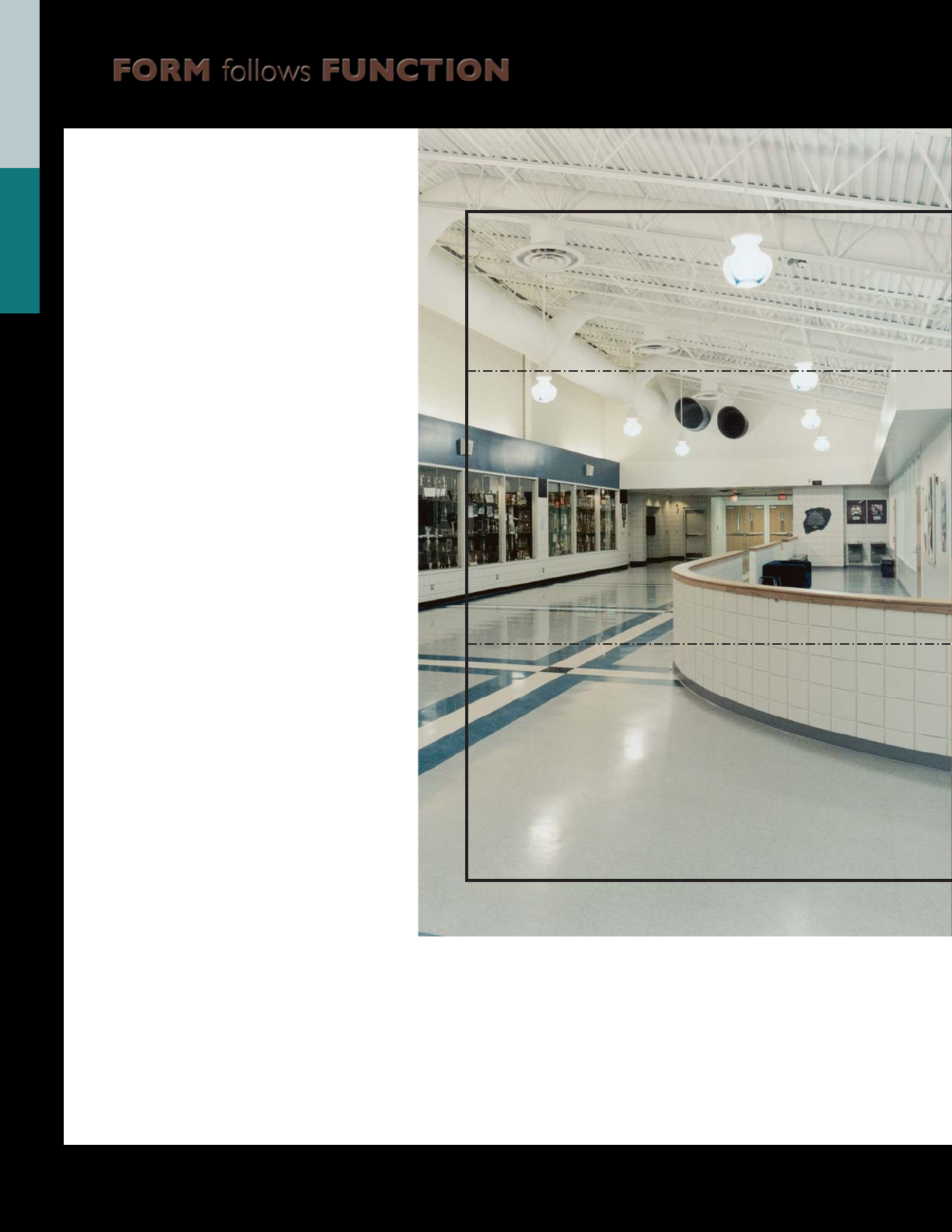

CCeeiilliinngg ppllaannee

FFlloooorr ppllaannee

FFlloooorr ccaavviittyy

RRoooomm ccaavviittyy

CCeeiilliinngg ccaavviittyy

The form is PGRL, the function a type10 The form is CrystalGlo, the function a type30

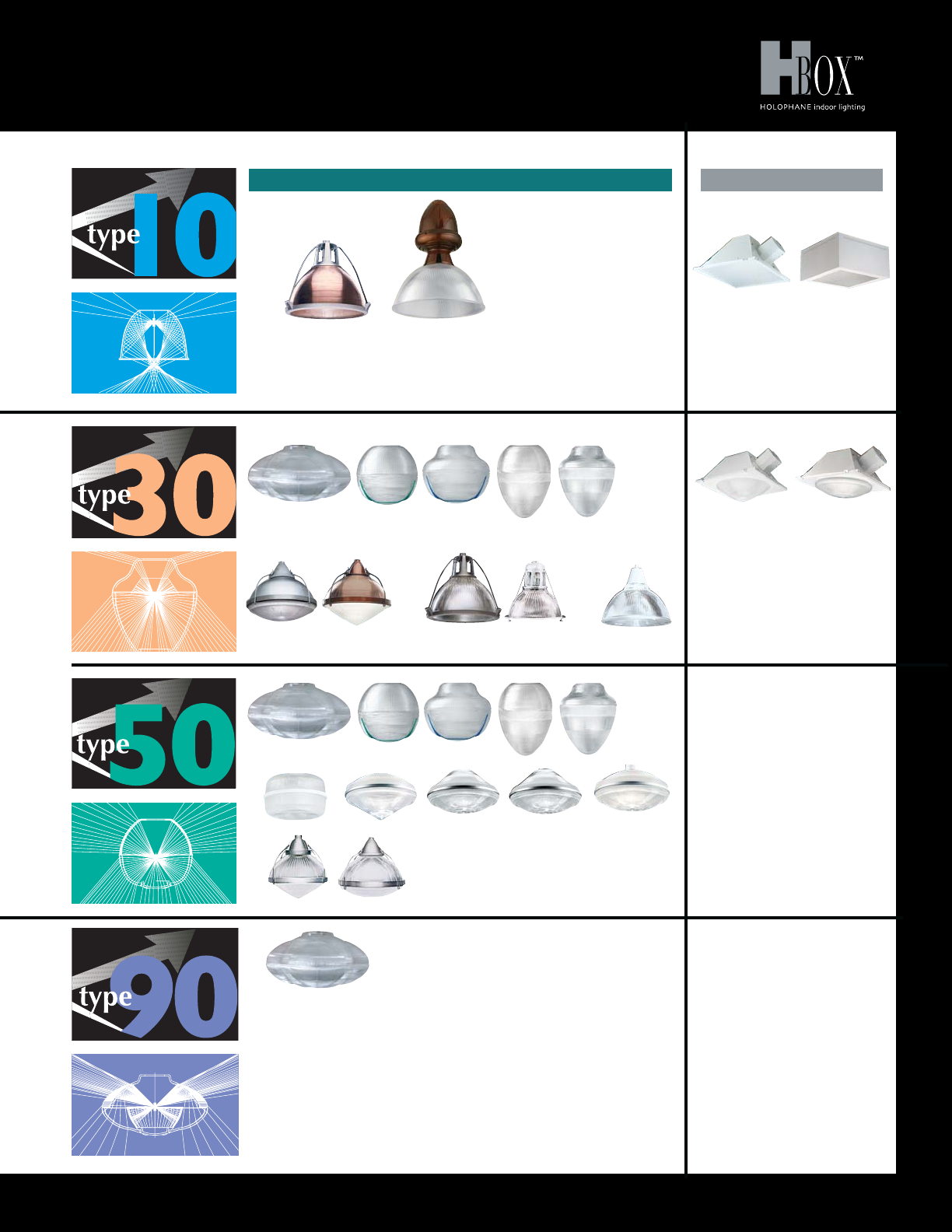

The Designer Series is offered in four types of area lighting: type10, type30, type50, and type90.

Certain applications demand indirect light, which produces no glare or shadows.

Others call for maximum amounts of downlight for precision work. Still others fall somewhere in-between.

Area lights are precision engineered and categorized into types to take the guesswork out of designing a lighting plan.

Maximum Down ...

If illuminating a specific task is the most critical design criteria, a

type10 may be the best solution. It provides maximum levels of

illumination to a particular area. Light is not “wasted” on areas

of less importance.

or Maximum Up ...

Certain spaces demand no glare and no shadows. These spaces

require maximum light to bounce off the ceiling. A type90 might

be used in an airport concourse, an indoor tennis court or other

sports arena, or in an open spaced office setting where computer

glare is an issue.

If the ceiling is vaulted or has beautiful crown moldings, then

type90 optics are also a great choice. A type90 provides diffuse

luminance and creates an airy, open feeling.

Introduction

DESIGNER SERIES

Introduction 1-5

Holophorms 6-47

Illuminaire . . . . . . . . . . . . . . . . .8-11

Large . . . . . . . . . . . . . .12-15

Compact . . . . . . . . . . .16-19

02454 . . . . . . . . . . . . . . . . . .20-23

PGRL . . . . . . . . . . . . . . . . . .24-27

Paradome . . . . . . . . . . . . . . . .28-31

PrismGlo . . . . . . . . . . . . . . . . . .32-35

Large . . . . . . . . . . . . . .36-39

Compact . . . . . . . . . . .40-43

Enhanced . . . . . . . . . .44-45

Illumibay . . . . . . . . . . . . . . . . .46-47

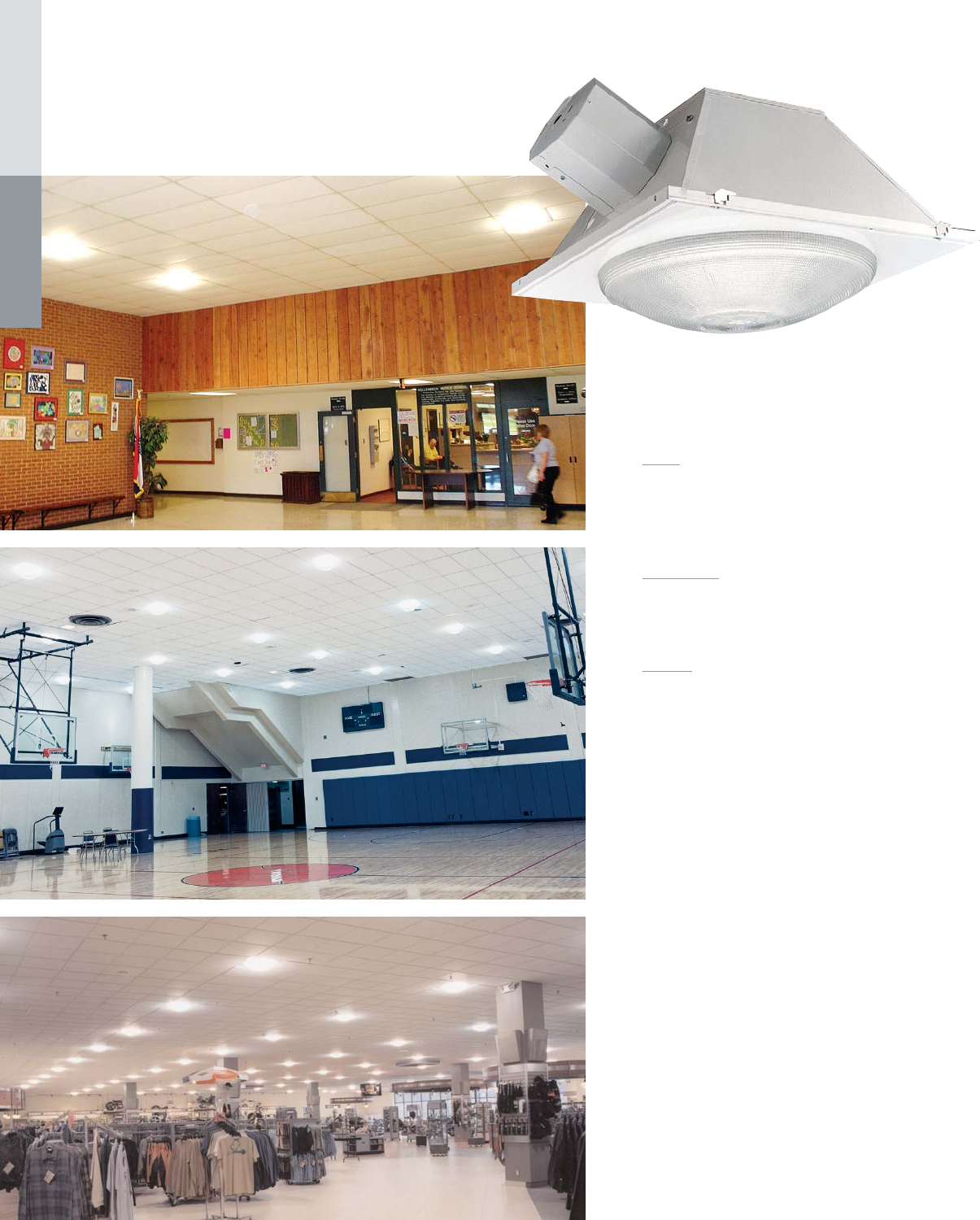

Recessed 48-57

CrystalGlo . . . . . . . . . . . . . . . .50-53

Mirrolume 54-57

Glossary 58-59

What's Your Type?

There's more to lighting a space than

simply providing enough footcandles.

There is a science to these applications,

but there is also art. Not only must the

efficiency of a lighting plan be

considered, but the psychology of its

effects must be thought out as well.

Different types of area lights help to

create different impressions;

simultaneously accomplishing scientific

and aesthetic goals.

Somewhere In-Between ...

When direct light on the work plane is important, but aesthetics

of the space can’t be sacrificed, a type30 area light is the natural

choice. Designed for retail, education and office areas, the type30

maximizes useful light in the design providing an inviting yet

comfortable space.

A type50 area light balances the need for a lot of light in room

and floor cavities, with the desire to diffuse some light by

bouncing it off the ceiling. Sending more light up softens the

overall lighting effect and increases efficiency because fewer

fixtures are needed. HBox spaces that would benefit from a

type50 include retail settings, offices, libraries, and

manufacturing assembly areas.

Table of Contents

HOLOPHANE®

Indoor Lighting

DESIGNER SERIES

Introduction 5

Illuminaire

Quad

CrystalGlo

(80 - 100% uplight)

(0 - 20% uplight)

(40 - 60% uplight)

(20 - 40% uplight)

PGRL Illumibay

Mirrolume

HOLOPHORMS RECESSED

PrismGlo

02454

Illuminaire

02454 PGRL Paradome

Holo

phorms

Introduction

HOLOPHORMS

Holophorms™

If you divide the word into two words —

Holo and phorms — it is easy to see why

the term Holophorms fits this product line

so well.

“Holo” stands for Holophane and

represents our 108-year success in glass,

optics and in manufacturing high-quality

luminaires that require little maintenance.

“Phorm” means shape. The shape you

select to use in your HBox can greatly

affect the overall look and appeal of the

application.

Holophorms™

Illuminaire

02454

PGRL

Paradome

PrismGlo

Illumibay

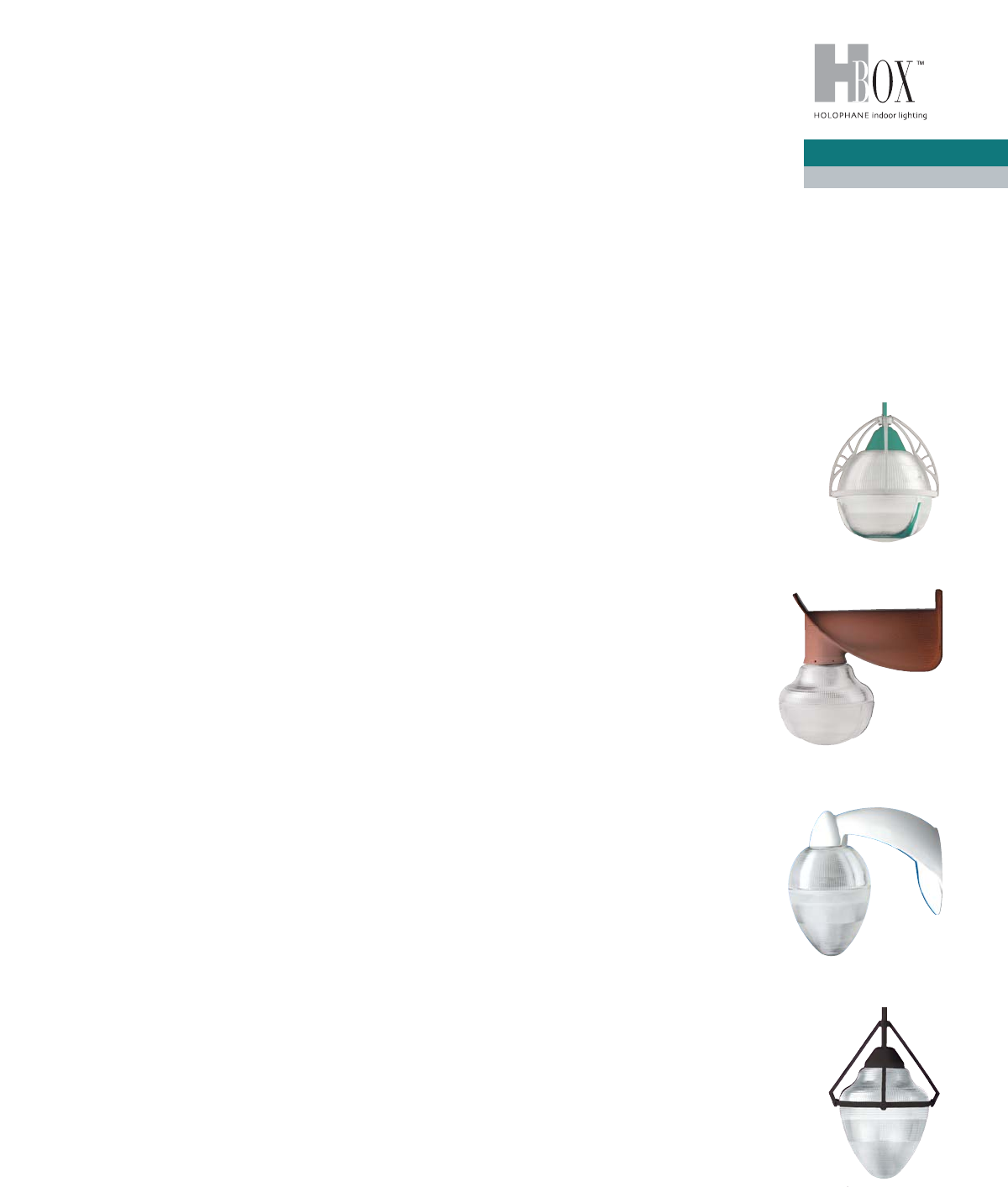

Illuminaire®

HOLOPHORMS

The Tri-Crest

type50, 30

The Egg

type50, 30

HOLOPHANE®

Indoor Lighting

DESIGNER SERIES

Illuminaire 9

Designer Series

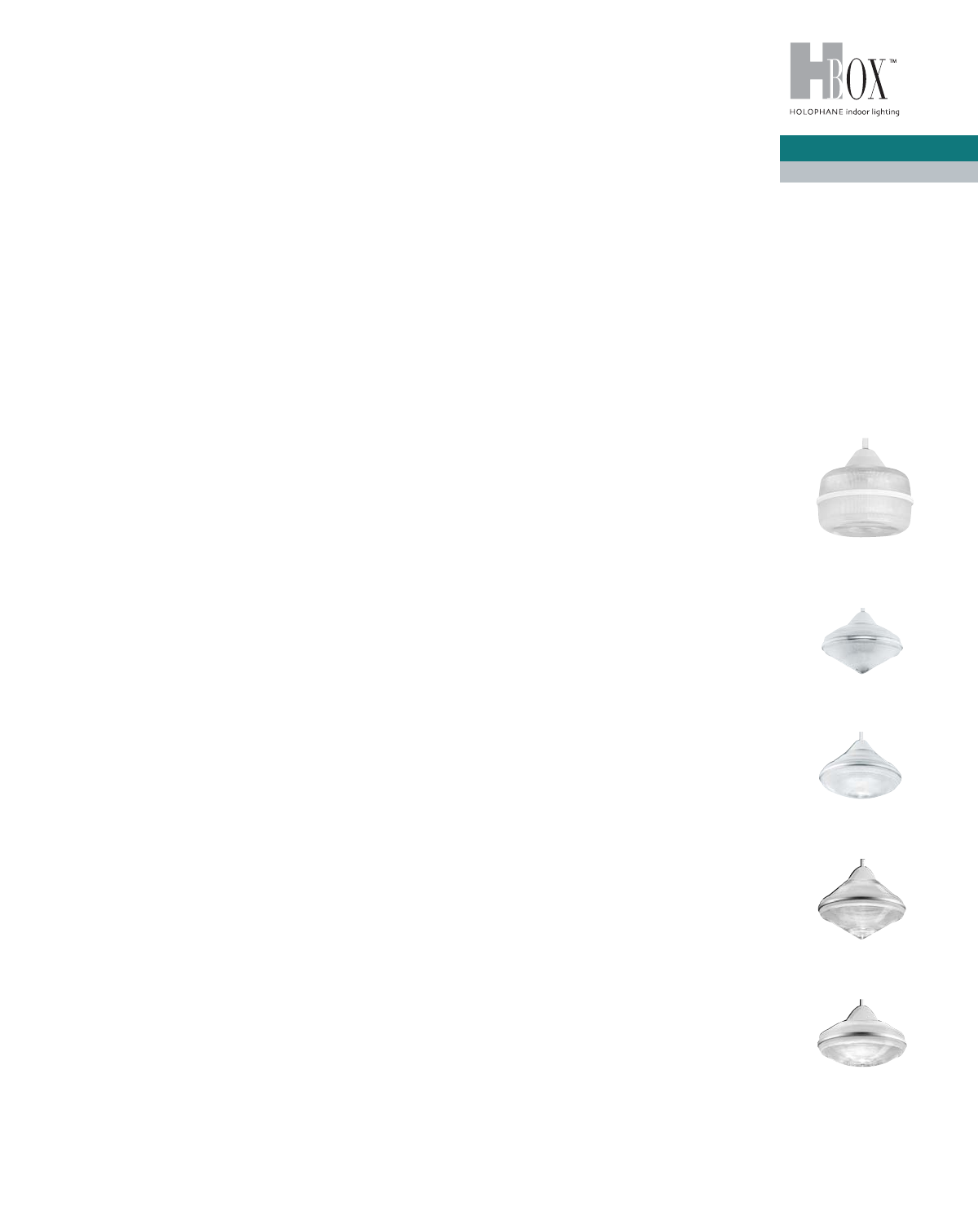

The Tri-Egg

type50, 30

DESIGNER SERIES

Product Catalog

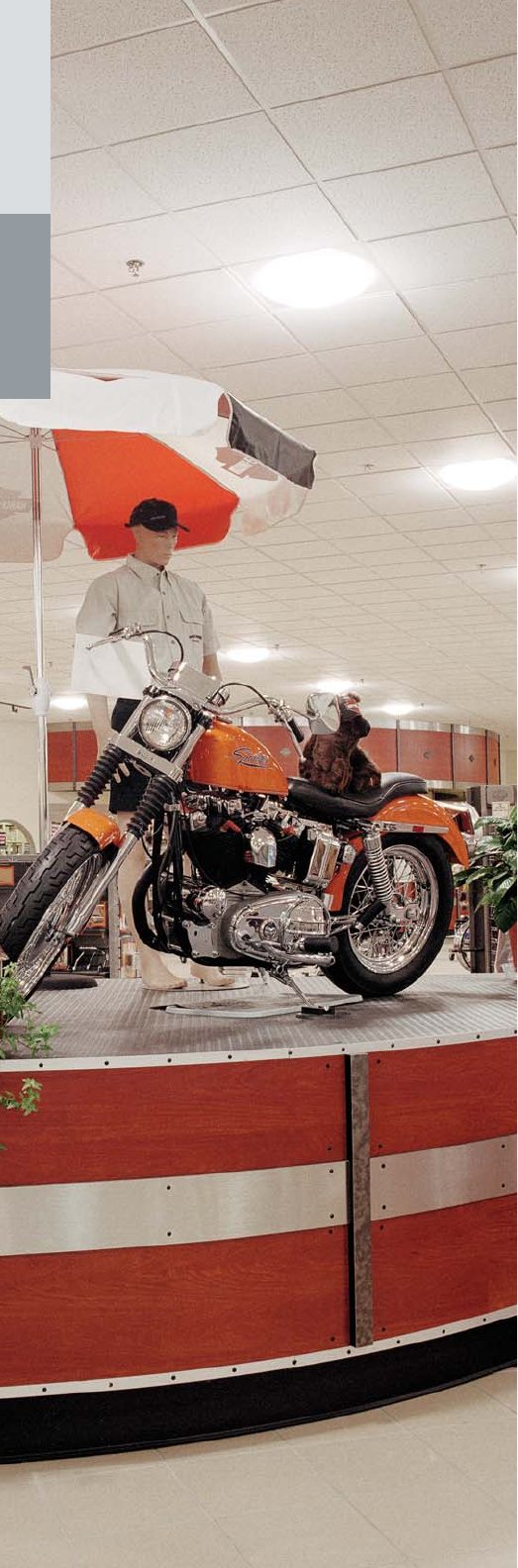

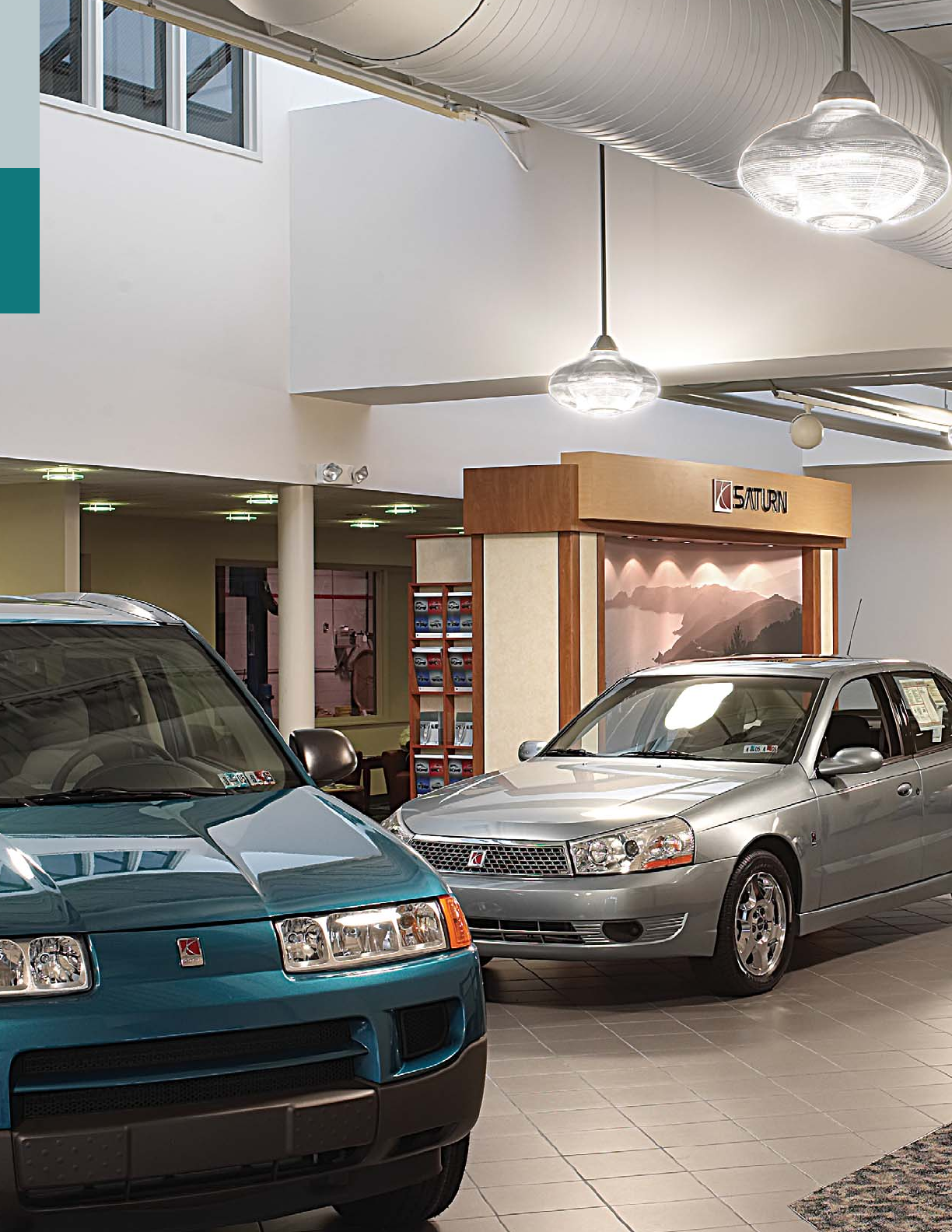

Saturn of Reading; Reading, Pennsylvania

The Crest

type50, 30

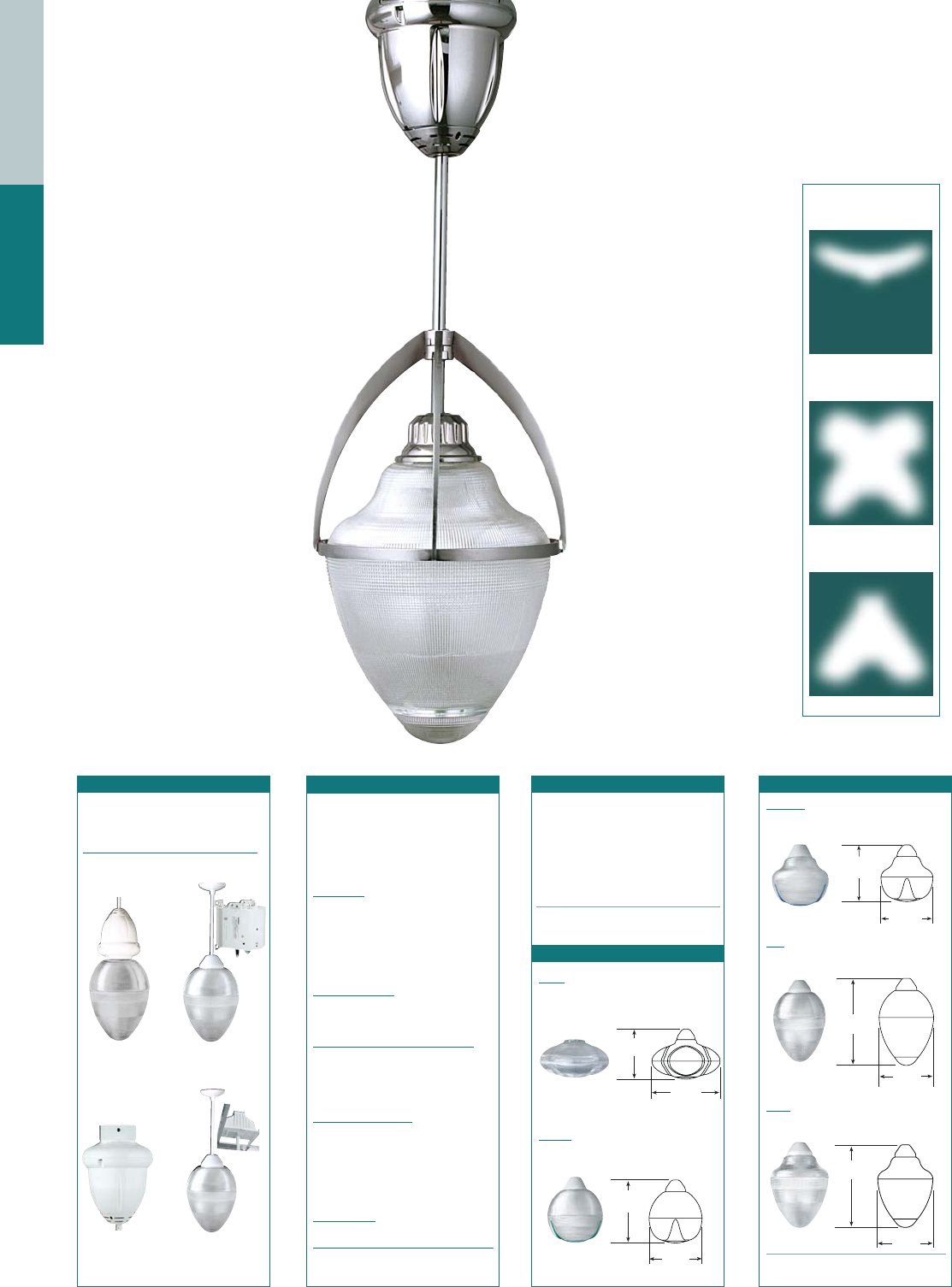

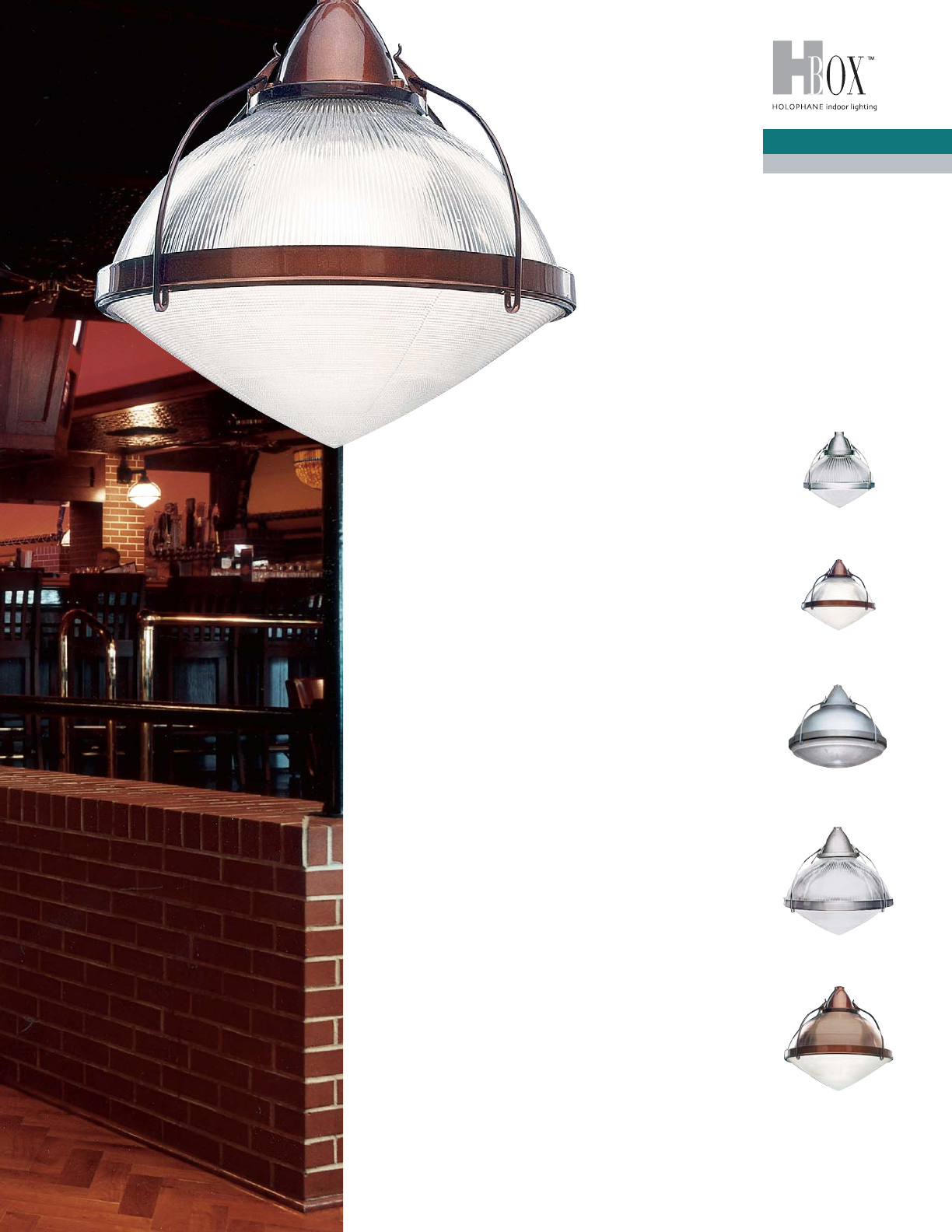

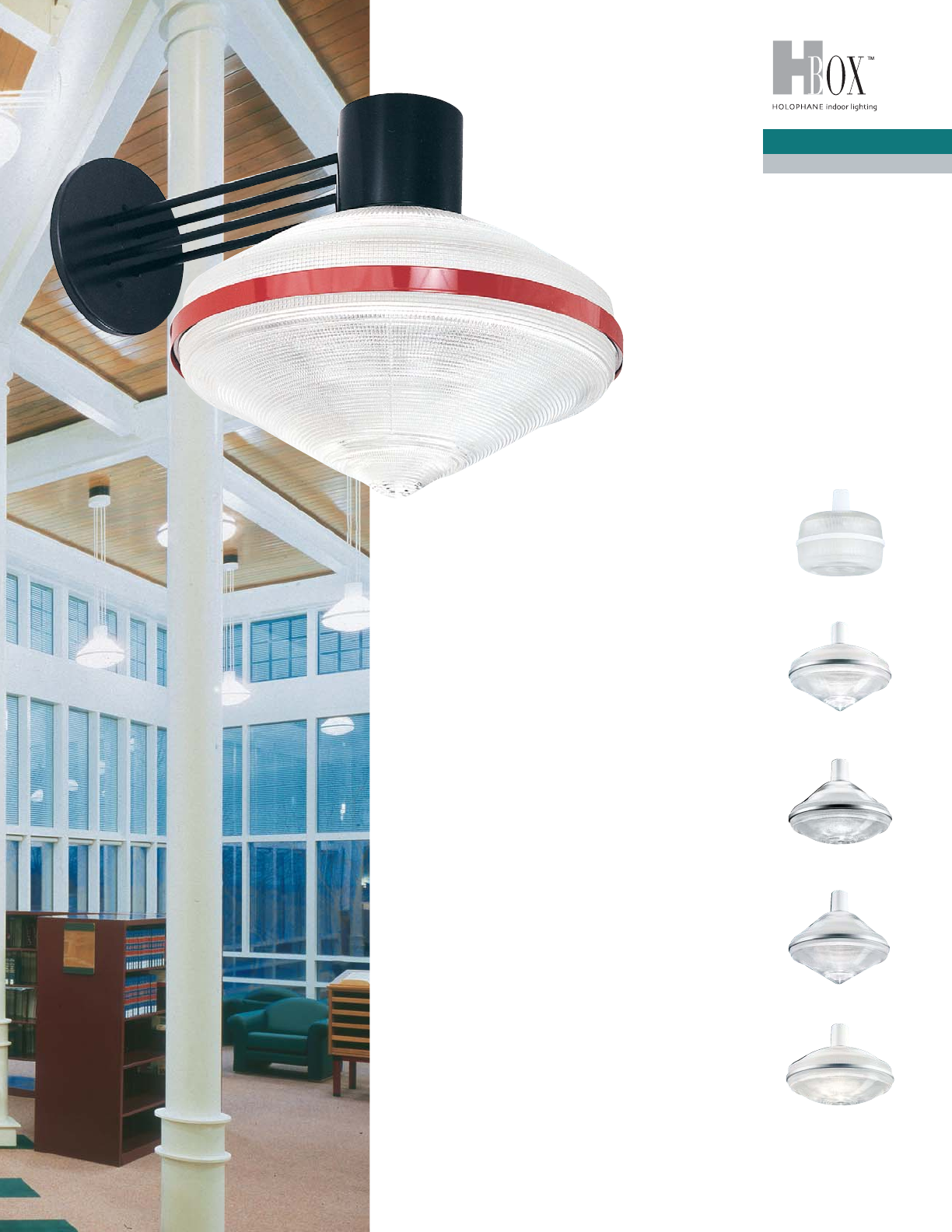

Illuminaire

Designed to satisfy every HBOX application,

the Illuminaire Series has truly melded form

with function. The beauty of the glass alone

is enough to capture the eye. Couple this

with durability and maintenance ease, and

these become the luminaire that everyone has

been searching for. With five optic styles to

choose from, the application possibilities are

endless. Further customize your design with

enhancements such as caps, claws and

metallic finishes. We invite you to turn the

page and see what the Illuminaire fixtures

have to offer.

The Quad

type90, 50, 30

Illuminaire®

HOLOPHORMS

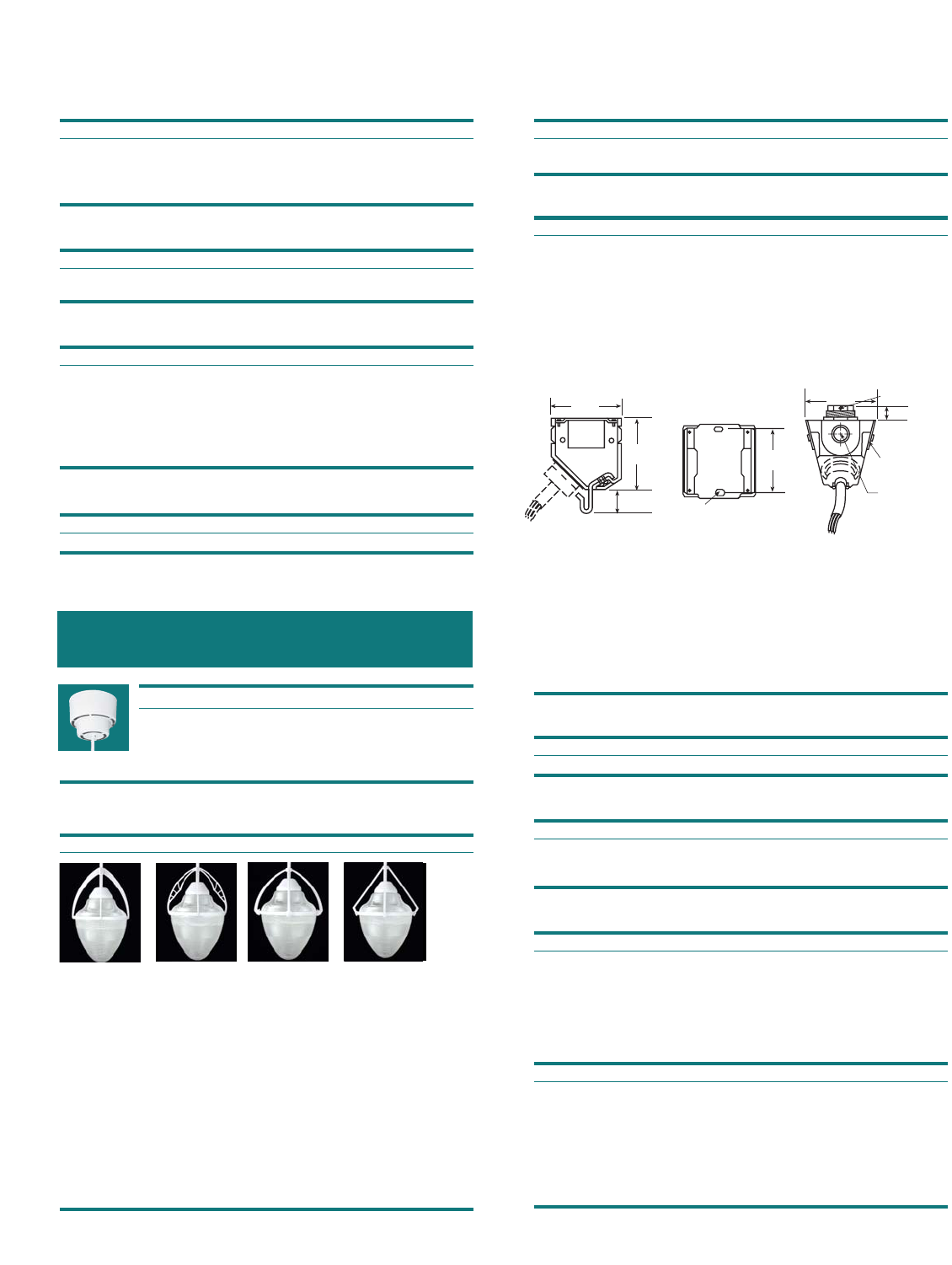

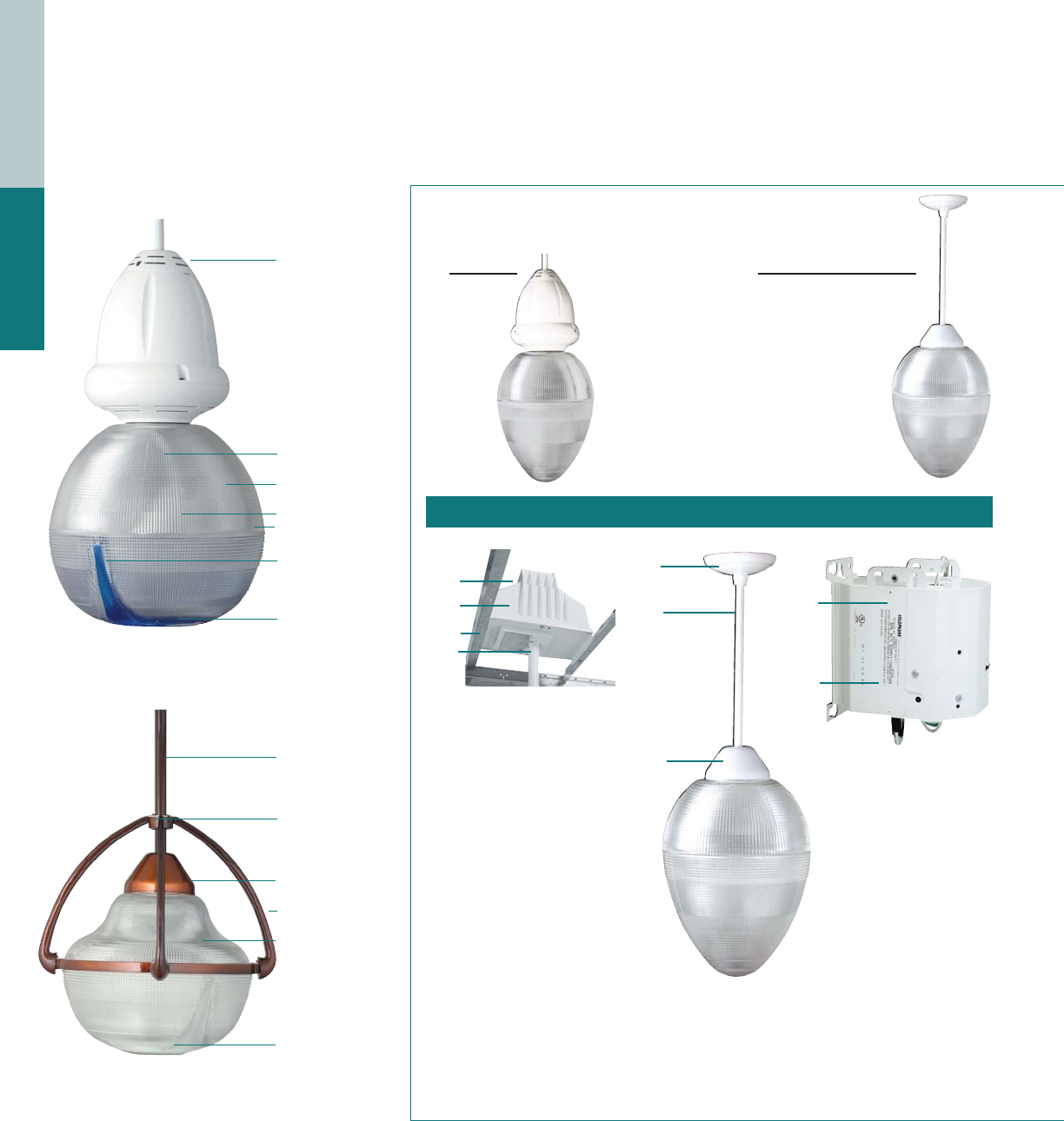

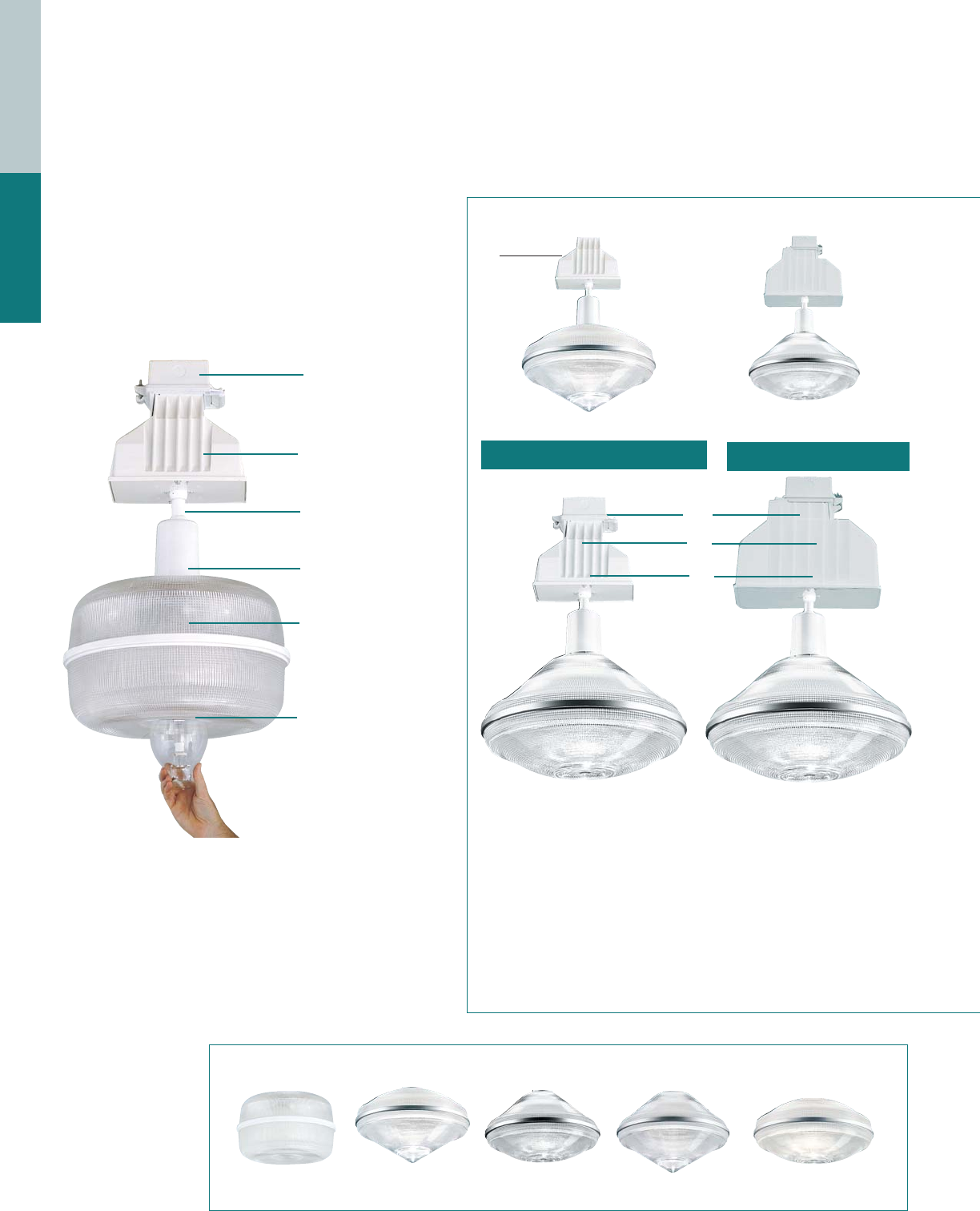

Product Features

Luminaire

mounting

Socket

Optic shape

Internal reflector

RTV bonded

Color: Options on

ballast, stem, cap,

claw, glass area

Relamp door

Stem

Color: Options on

ballast, stem, cap,

claw, glass area

Caps

Claws

Patented

mechanical

cable/spring

Relamp door

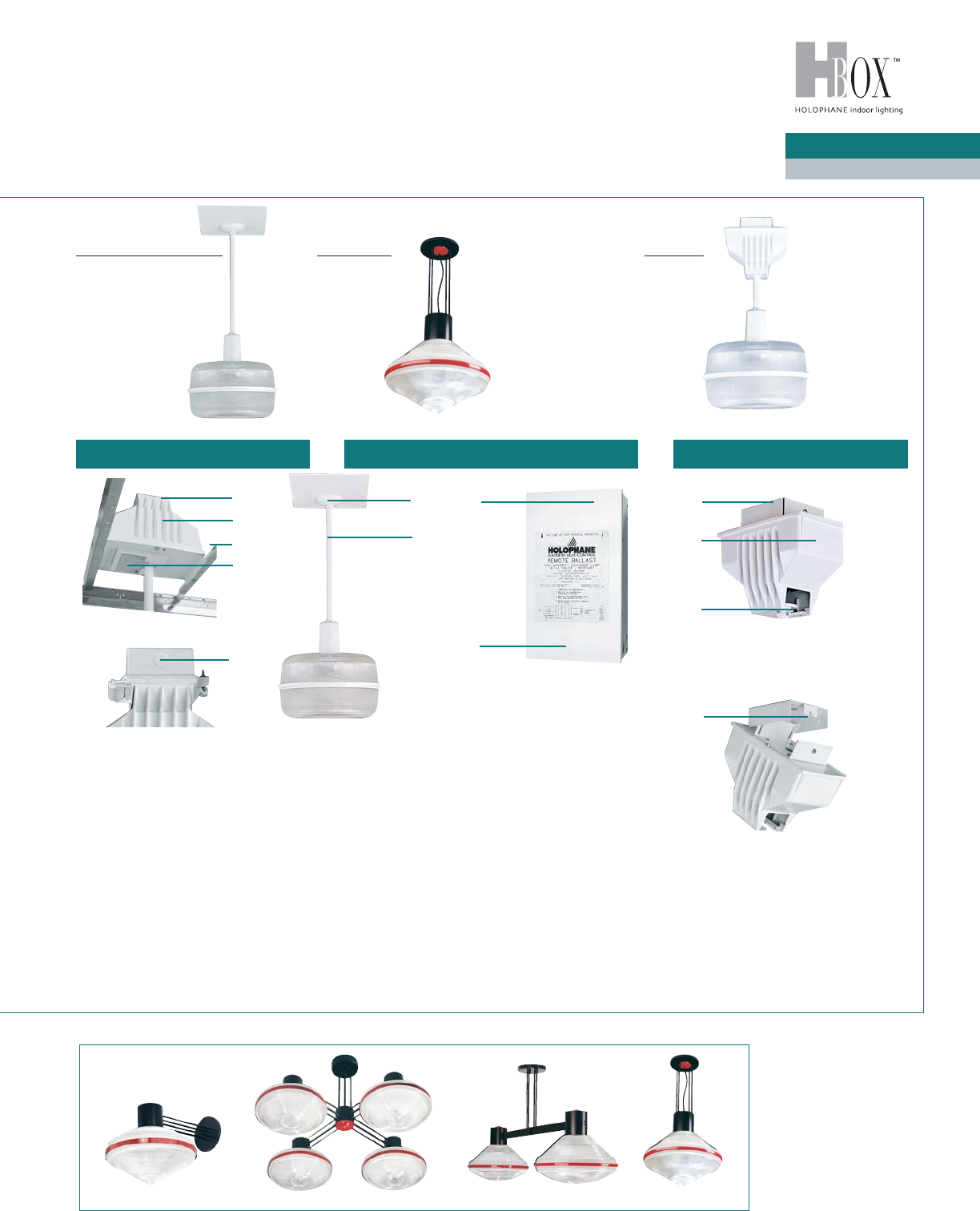

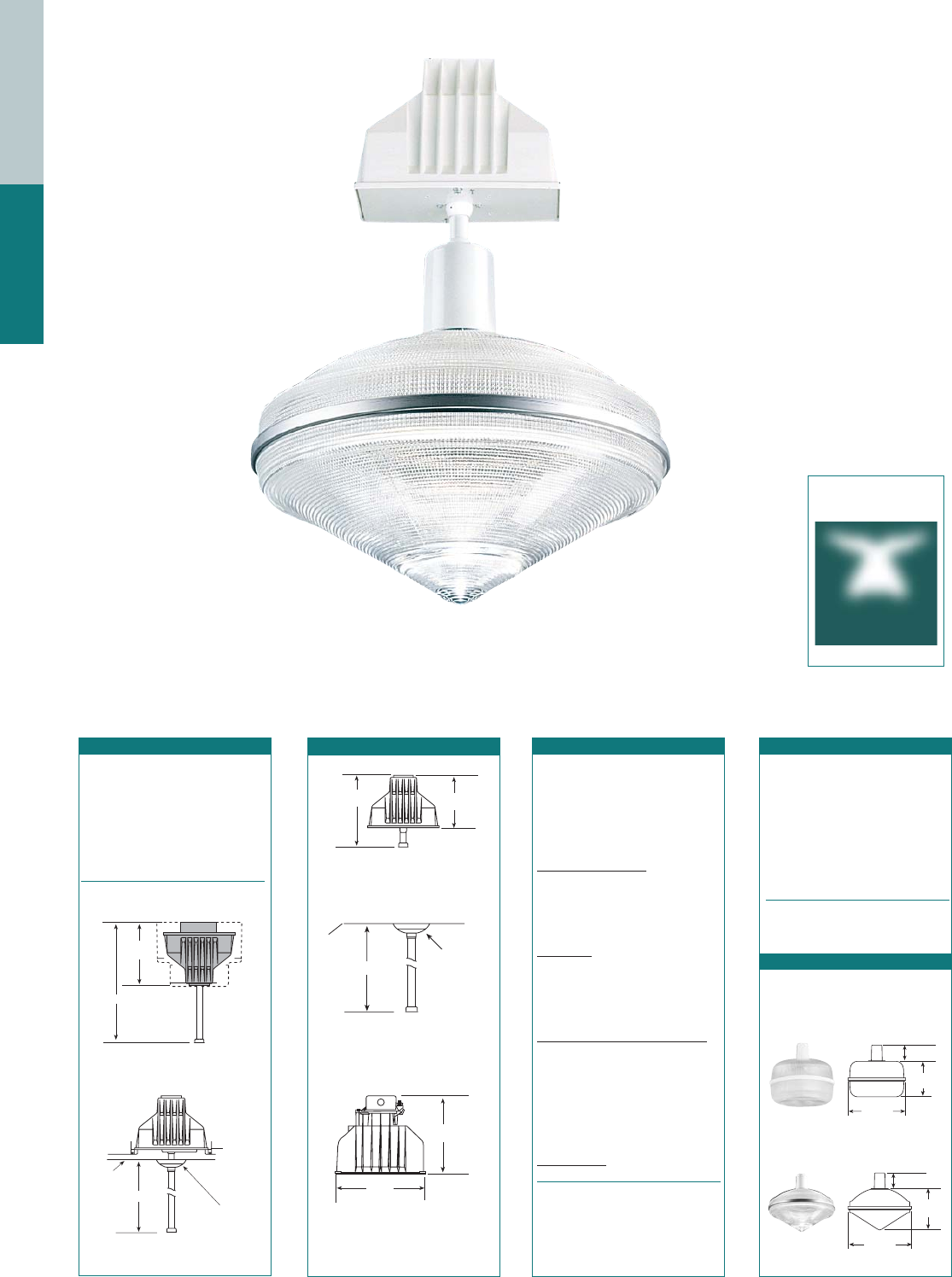

INTEGRAL RECESSED & REMOTE

ILI / CII

ILT / CIT

ILR / CIR

Quick install wiring cover:

Pre-drilled for DN20NPT (.75") conduit

connection, slides on and mates with

electrical splice chamber cover.

Die cast aluminum housing:

Corrosion resistant polyester powder

paint fixture UL listed as a recessed type

non-IC marked spacing for use in 25°C

ambients, energy efficient copper wound HID

ballast with thermal overload protector. CFL

ballasts available as well.

Grid ceiling mounting rails: Positions

housing and optics between tee bar runners.

Integral swivel plate: Provides a 15° motion in a

360° plane for sloped ceilings of 15° or less, fast

connection to, and support of, stem and optical assembly.

Canopy: Provides finished appearance at

junction of ceiling tile and stem.

RECESSED & REMOTE

LUMINAIRE MOUNTINGS

ILT / CIT ILR / CIR

Stem connection: Pipe of various

lengths support optics at specified

mounting height.

Cap: Covers electrical connections

for surface, recessed and remote

mountings.

Remote ballast: Heavy duty steel

housing, with white polyester paint,

knockouts, a hook and integral mounting feet.

High efficiency electrical components:

Low noise, potted, copper wound core and

coil HID assembly, capacitor, starter board, and standby

relay designed for remote mounting from 4.21m (14

)

to 6m (20

) for pulse metal halide, 3.66m (12

) for CFL

and 24.38m (80

) to 141.7m (465

) for standard MH

distance from the luminaire. Rated 40°C

HOLOPHANE®

Indoor Lighting

DESIGNER SERIES

Illuminaire 11

Designer Series

DESIGNER SERIES

Product Catalog

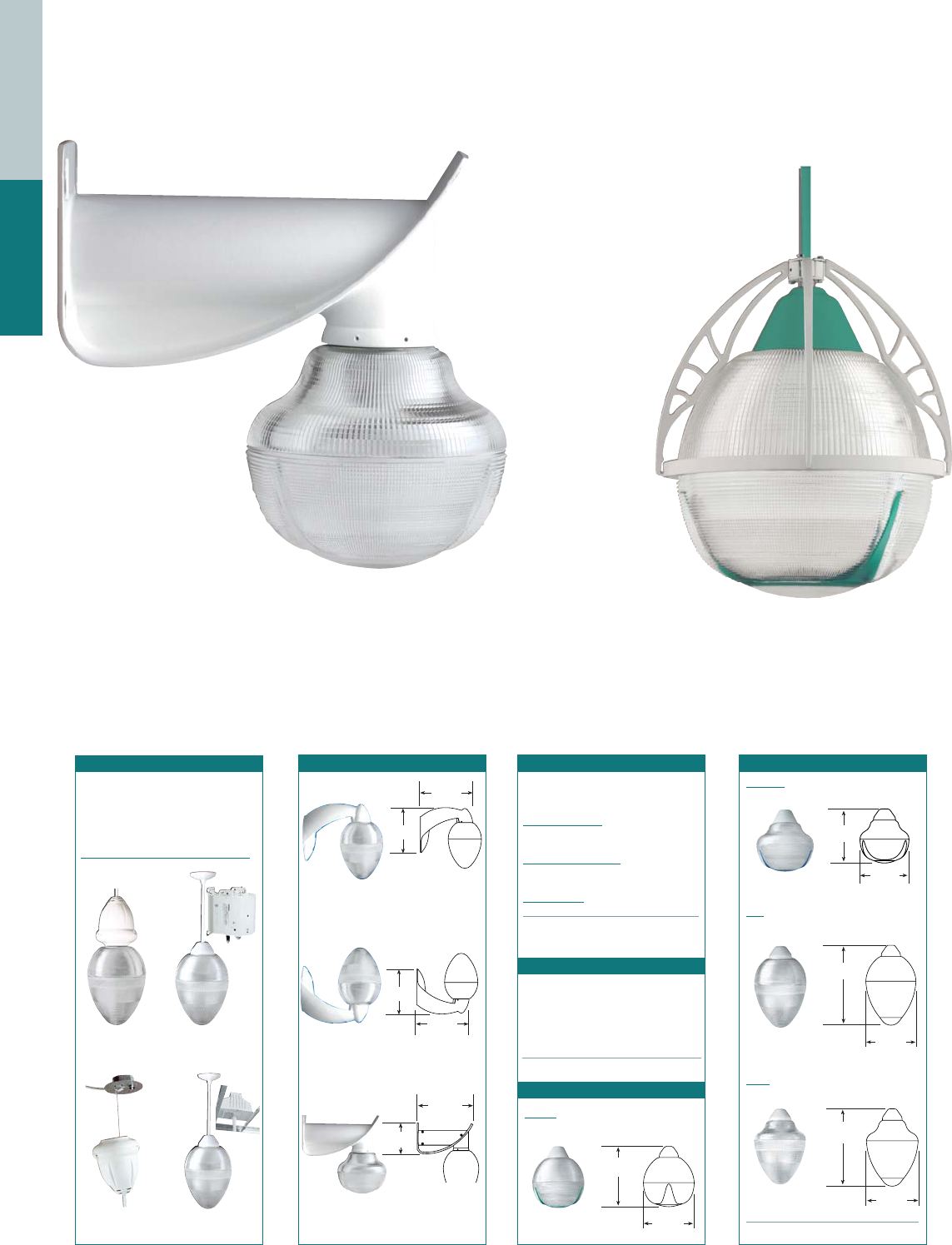

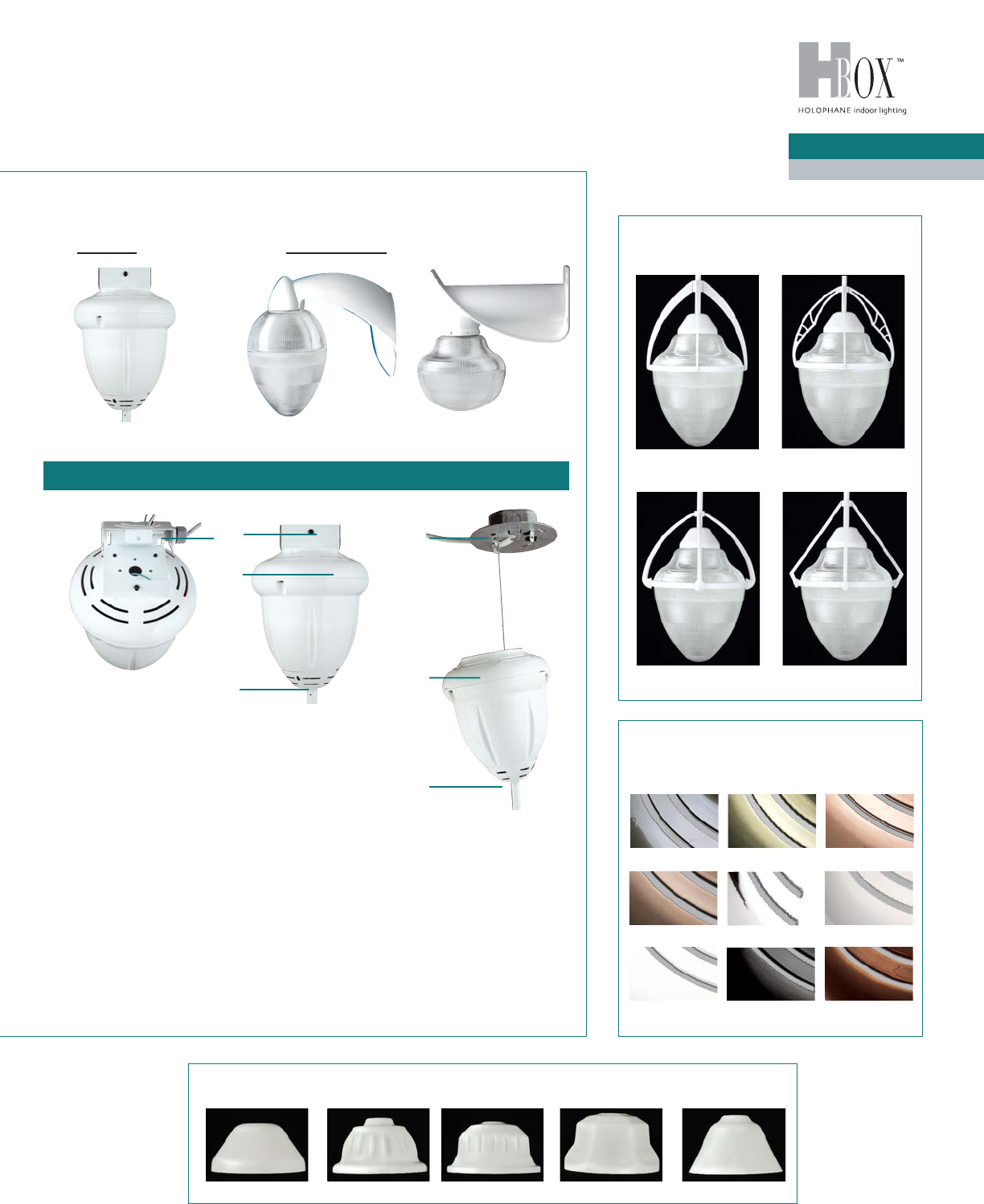

SURFACE WALL MOUNT

CIW ARCHEDILS / CIS CIM NAUTICAL

SURFACE

Quick install box: Ballast housing hinges from throughway

(or concealed) wiring box for quick labor saving installation

and fast maintenance.

Die cast aluminum housing: Corrosion resistant polyester

powder paint or metallic finishes available. UL listed 40°C

damp location, energy efficient copper wound HID ballast.

Integral swivel plate: Provides 10° motion in a 360° plane

for mounting on sloped ceilings of 10° or less.

Surface plate: Ballast housing hangs from cable to free

hands for wire connections. Ballast twists on to plate and is

locked in place with screw. Plate mounts to standard 4" box.

Standard Crescent Notched Hexagonal Angled

CAPS

COLORS

CLAWS

Arch Victorian

Traditional Wrought

The colors are approximate. Cast aluminum parts appear differently

from hydro-formed parts when using metallic finishes.

Smoked Chrome Antique Brass Paint Copper

Satin Copper Chrome Satin Nickel Paint

White Paint Black Paint Copper Paint

ILS CIS

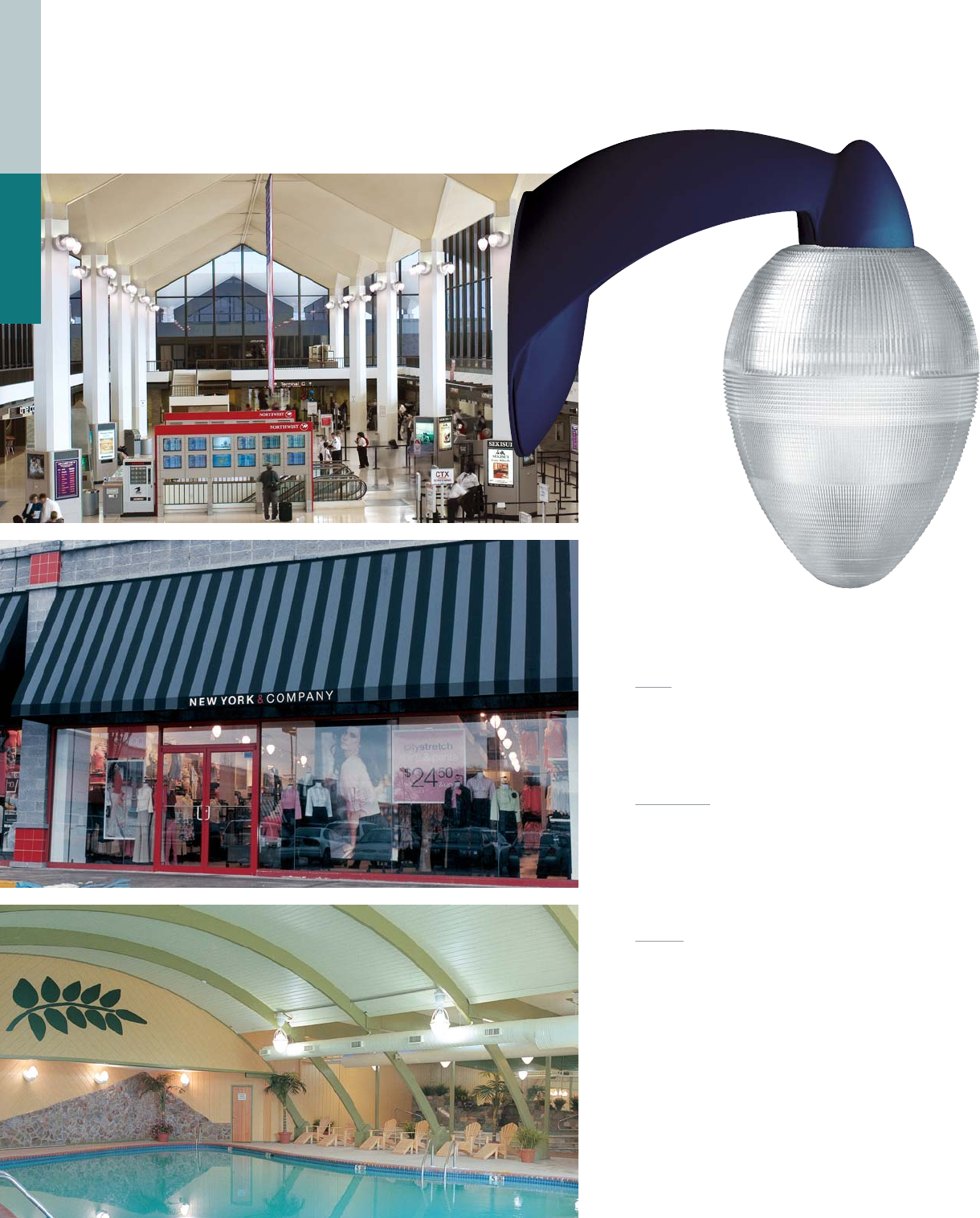

Applications

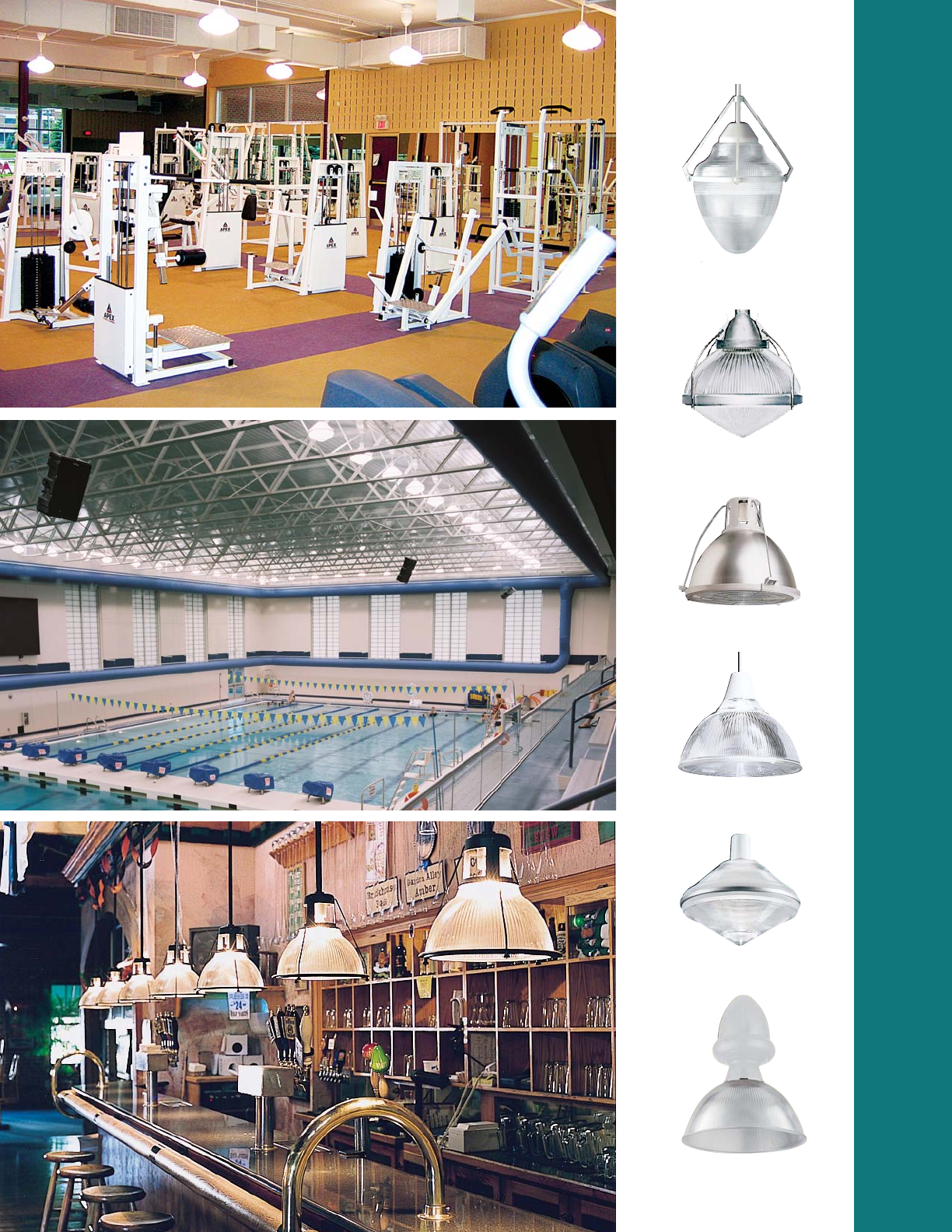

Typical Applications

Retail

•Malls and shopping centers

•Restaurants

•Supermarkets

•Specialty shops

•Mass merchandise and discount stores

Commercial

•Commercial offices

•City halls

•Visitor centers

•Museums

•Places of worship

•Fitness centers

Schools

•Elementary and high schools

•College and universities

•Libraries and activity areas

•Natatoriums

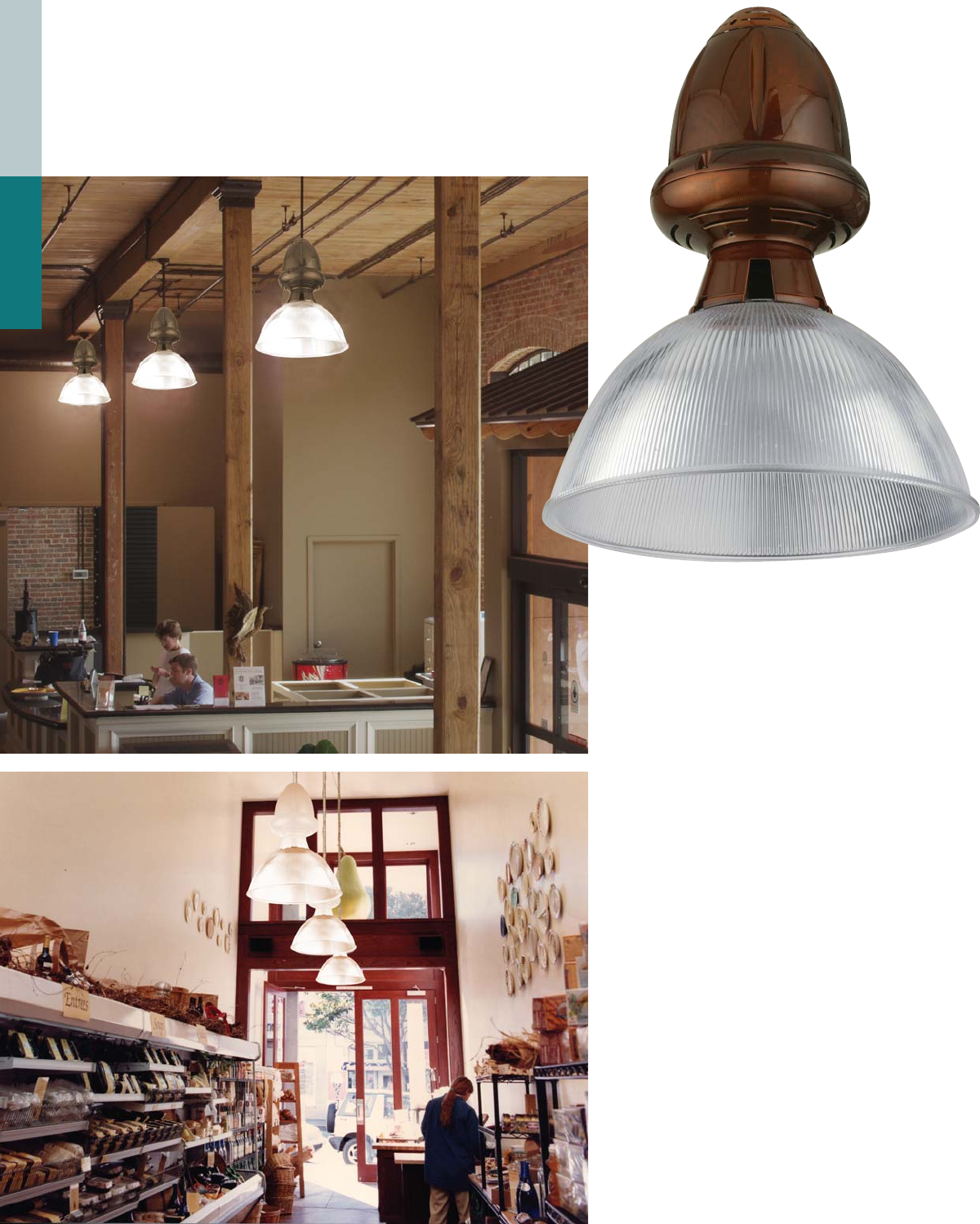

River Mill Antique Mall; Bibb City, Georgia

Holmes High School; Dallas, Texas

Illuminaire®

Los Angeles Athletic Club; Los Angeles, California

HOLOPHORMS

Features

•Seamless optical appearance

•Multiple distributions

•Threaded relamp door with relamp cable

•Glass optics stay clean over time

•Five optic shapes on your choice of four

ballast mountings

•An assortment of caps, stems and claws

•In addition to the 9 standard finishes, there

are unlimited custom color options

Lamp Types

•70-400 watt metal halide

•26- (2) 42 watt compact fluorescent

•300-500 watt incandescent

Approvals

•UL/CUL 1598 damp location listed

The Tri-Egg

type50, 30

The Tri-Crest

type50, 30

The Egg

type50, 30

The Crest

type50, 30

The Quad

type90, 50, 30

HOLOPHANE®

Indoor Lighting

DESIGNER SERIES

Illuminaire 13

Designer Series

DESIGNER SERIES

Product Catalog

Illuminaire®|Large

Intended for HB

spaces with ceiling heights of 15' and higher, all

large Illuminaire fixtures come standard as a type30 and type50.

The Quad is also available as a type90 if you desire increased uplight.

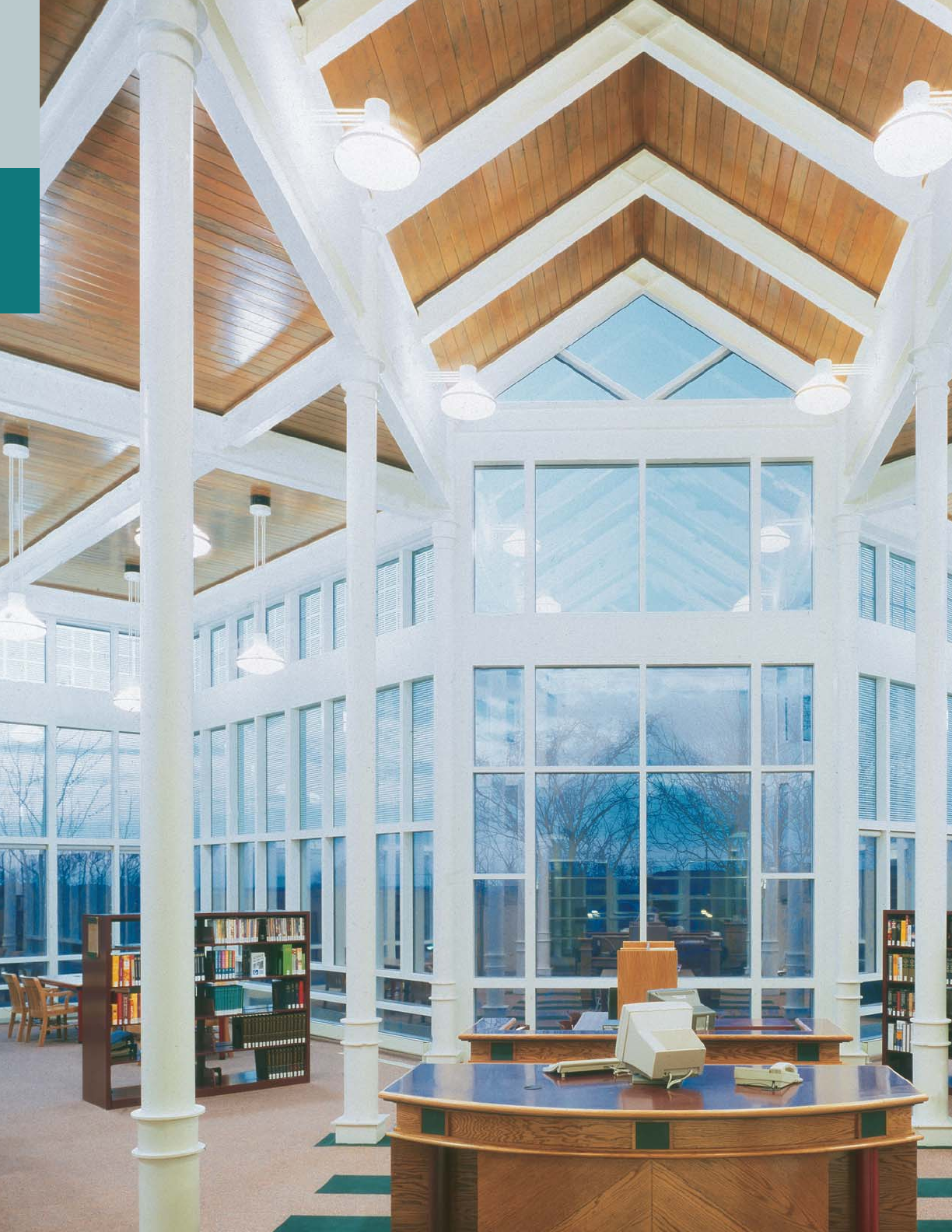

The Illuminaire large optics have been used in libraries, above swimming

pools, fitness centers, convention centers, city halls, high school

corridors, offices, churches, retail stores and various other locations.

Illuminaire®

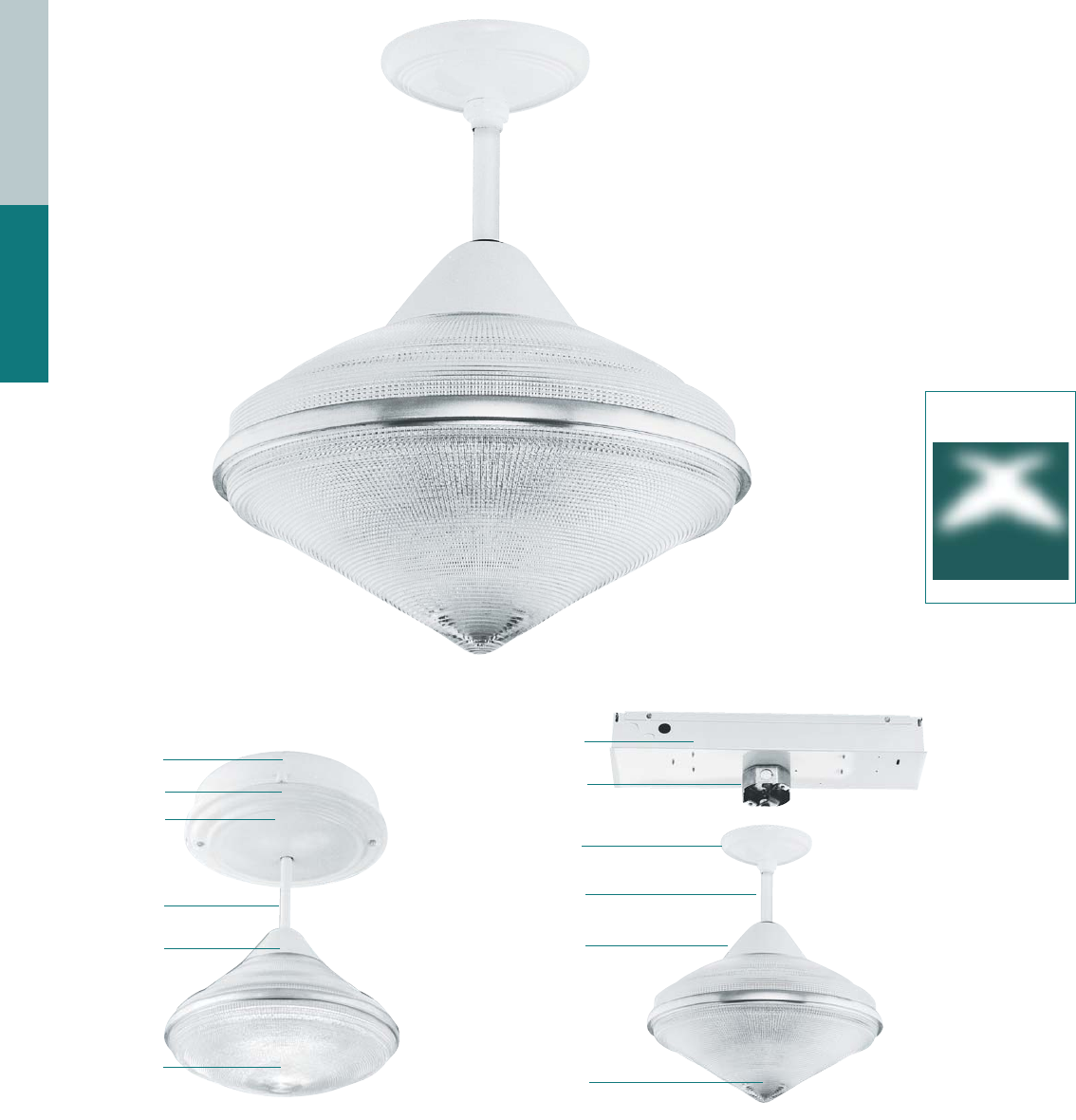

Product Features

HOLOPHORMS

88Stem Length

Catalog number information

STEP 4: OPTIC ... Continued

STEP 4: OPTIC TYPE

11 Luminaire Mounting

22 Source and Wattage

33 Voltage

1100 Options

77 Metal Finish Color

1111 Accessories

44 Optic Type

55 Glass Colorization

66 Glass Color Area

99 Cap

ILI Integral mount

ILR Remote mount

ILS Surface mount

ILT Recessed mount

Please contact your local Holophane Sales

Rep for information on high wattage

electronic ballast

STEP 1: LUMINAIRE MOUNTING

70DMH 70W MH

10DMH 100W MH

15DMH 150W MH

17DMH 175W MH, medium

175MH 175W MH, mogul

250MH 250W MH

400MH 400W MH

Pulse Start

175PM 175W MH, mogul

250PM 250W MH

320PM 320W MH

350PM 350W MH

35EPM 350W MH, linear reactor

400PM 400W MH

40EPM 2400W MH, linear reactor

Electronic Ballast

70DEM 270W MH

10DEM 2100W MH

15DEM 1, 2 150W MH

Energy Saving Ballast, Pulse Start

25LPM 2250W MH

25LMH 2250W MH

35LPM 2350W MH

40LMH 2400W MH

40LPM 2400W MH

Compact Fluorescent

26CFL 26W CFL

42CFL 42W CFL

226CFL 2(2) 26W CFL

242CFL 2(2) 26W CFL

257CFL 2(2) 57W CFL

270CFL 2(2) 70W CFL

457CFL 2(4) 57W CFL

Incandescent

30DIN 3300W

500IN 3500W

1 Available in 120 and 277V only

2 Not available in ILR and ILT version

3 Available in ILR only

12 120V

20 208V

24 240V

27 277V

34 347V

AV 2Auto sensing voltage

MT 1Multi-voltage

VT 1Vari-tap

1 Not available in ILT version

Available with Compact Fluorescent only

STEP 2: SOURCE AND WATTAGE

ILI

Ballast Weight:

9.5 kg (21 lbs)

ILR

Ballast Weight:

4.5 kg (10 lbs)

STEP 3: VOLTAGE

Tri-Crest

G40 up / 60 down

H125 up / 75 down

Egg

A40 up / 60 down

B125 up / 75 down

Crest

C40 up / 60 down

D125 up / 75 down

1 Contains Miro® 4 reflector, single lamp

configurations only

441.9mm

(17.4”)

406.4mm

(16.0”)

647.7mm

(25.51”)

406.4mm

(16.0”)

Quad

J50 up / 50 down

K125 up / 75 down

L180 up / 20 down

Tri-Egg

E40 up / 60 down

F125 up / 75 down

584.2mm

(23.0”)

427.5mm

(16.83”)

406.4mm

(16.0”)

483.4mm

(19.03”)

ILS

Ballast Weight:

12.6 kg (28 lbs)

ILT

Ballast Weight:

10 kg (22 lbs)

Weight:

8.6 kg (41 lbs)

Weight:

13.6 kg (30 lbs)

Weight:

14 kg (31 lbs)

Weight:

15.9 kg (35 lbs)

Weight:

13 kg (29 lbs)

607.0mm

(23.92”)

406.4mm

(16.0”)

Distributions

Spacing Criteria: 1.7

Quad (type90)

Spacing Criteria: 1.8

Egg (type50)

Spacing Criteria: 1.7

Egg (type30)

AAntique brass paint

CCopper paint

H1Chrome

KBlack paint

LSatin nickel paint

M1Smoked chrome

R1Copper

S1Satin copper

WWhite paint

1 Vacuum deposited metallic finish

118”

248”

396”

X1Special stem

4218” with swivel

5248” with swivel

6296” with swivel

XS1, 2 Special stem lengths with swivel

(Not applicable for ILI)

1 Length available in increments of 25mm (1”)

2 Available ILR only

Ordering Information

HOLOPHANE®

Indoor Lighting

DESIGNER SERIES

Illuminaire 15

Designer Series

DESIGNER SERIES

Product Catalog

AStandard

BCrescent

CNotched

DHexagonal

EAngled

(Not available with ILI)

PF-396 Safety hook

PF-397 Loop

HFW Holoflex®flexible wiring system

F1 2Single fuse assembly

F2 2Double fuse assembly

C3 3’ of safety chain

C6 6’ of safety chain

C1 10’ of safety chain

H2HALT®Automatic lamp time-out.

EM 2Standby lighting fixture

ER 2Emergency lighting fixture

CDP-3-PT 3’ cord assembly

CDP-4-PT 4’ cord assembly

CDP-5-PT 5’ cord assembly

CDP-6-PT 6’ cord assembly

3 Conductor Cord and NEMA Plug

CDP-L5-15-X-PT 1120V,

CDP-L6-15-X-PT 1208/240V

CDP-L7-15-X-PT 1277V

CDP-L24-20-X-PT 1347V

See page 58 for definitions

1 Not available in ILR version

2 Available with 70DMH, 100MH, 150MH,

175MH, 250PM, 320PM, 350PM, 400MH,

and 400PM

11Clear

2Frost

3Blue

5Green

XSpecial color

1 Not available on optics E, F, G, H

11Vein only

21Vein and relamp glass only

31Vein and lobes only

4Entire optics

52Relamp glass only

XSpecial coverage area

1 Available with E, F, G, H only

2 Not available with E, F G H

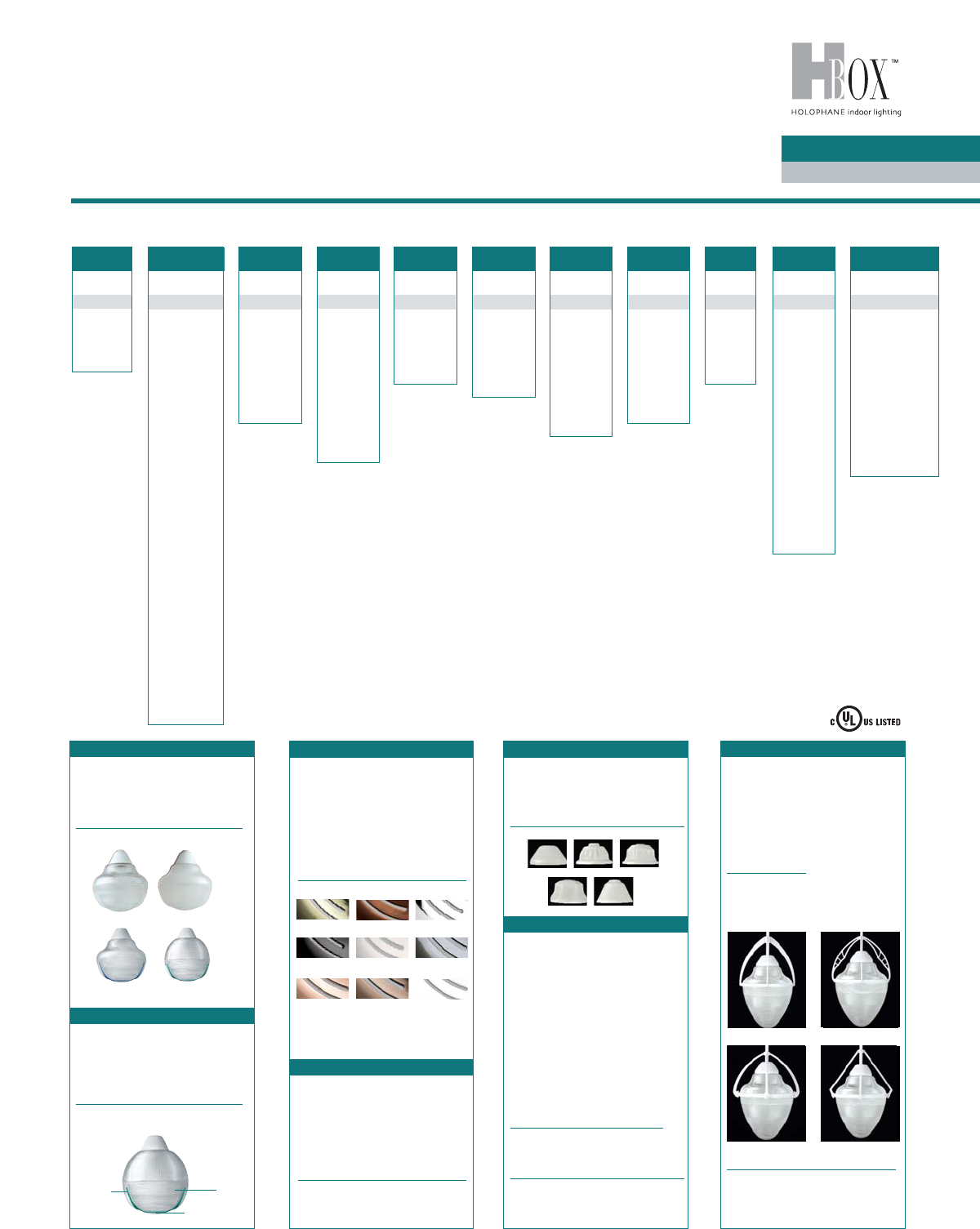

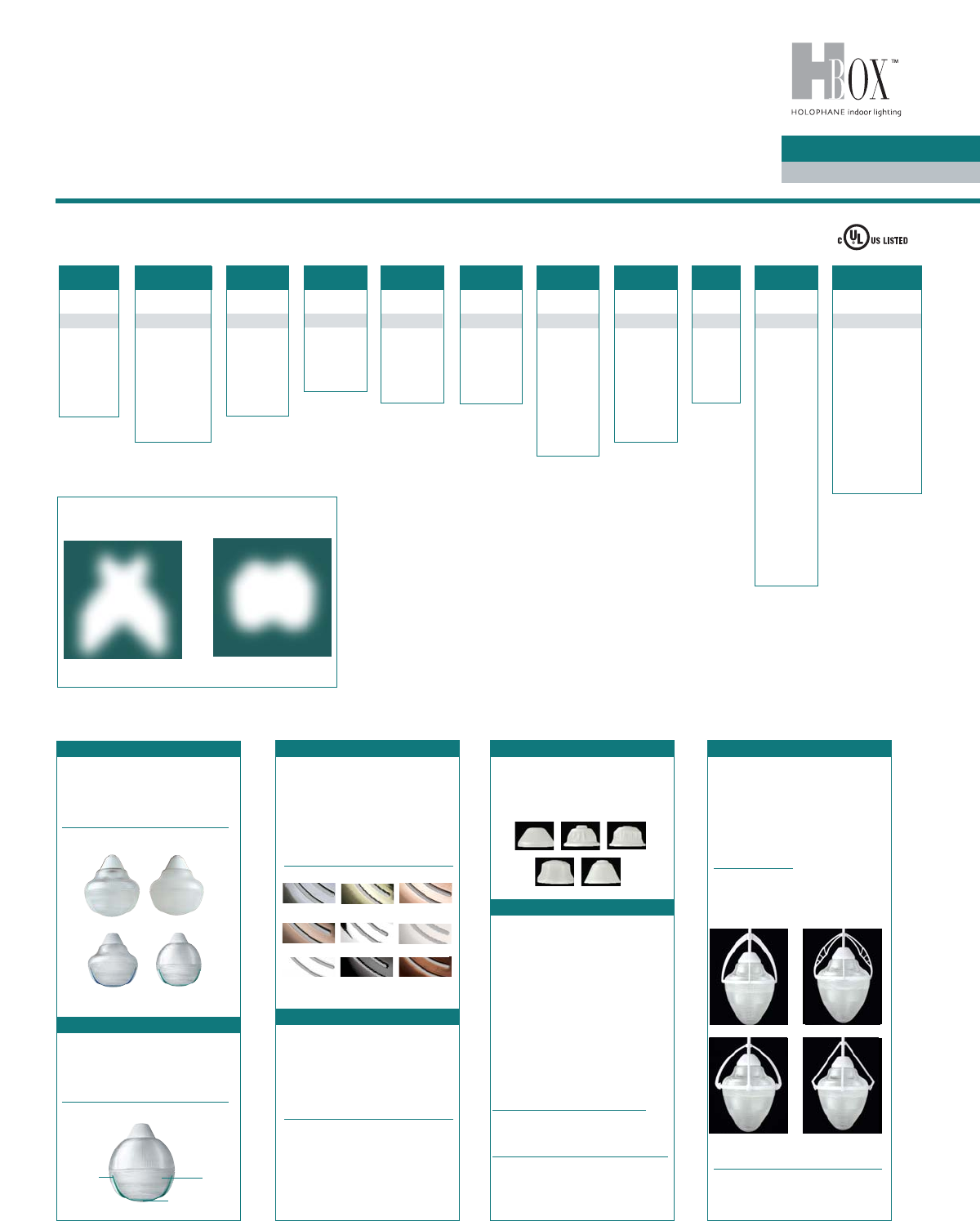

How to Construct a Catalog Number

Example:

ILS

MOUNTING

ILI

ILR

ILS

ILT

VOLTAGE

OPTICS

GLASS COLOR

COLOR AREA

FINISH

STEM LENGTH

CAPS

OPTIONS

PF-396

PF-397

CDP-L5

CDP-L6

CDP-L7

CDP-L24

CDP-3-PT

CDP-4-PT

CDP-5-PT

CDP-6-PT

IL-ARCH-M

ACCESSORIES

LAMP

IL-ARCH-X

IL-VICTORIAN-X

IL-TRADITIONAL-X

IL-WROUGHT-X

PF-396-ACC

PF-347-ACC

ILCHAIN3

ILCHAIN6

ILCHAIN10

STEP 5: GLASS COLORIZATION

Green

Blue

Frosted

Clear

Lobe

Vein

Relamp

STEP 6: GLASS COLOR AREA

STEP 7: FINISH COLOR

STEP 8: STEM LENGTH

STEP 9: CAP

Standard Crescent Notched

STEP 10: OPTIONS

STEP 11: ACCESSORIES

LAMP Appropriate HID lamp

F1 Single fuse assembly

F2 Double fuse assembly

PF-396-ACC Safety hook

PF-347-ACC Safety loop

ILCHAIN3 3’ safety chain

ILCHAIN6 6’ safety chain

ILCHAIN10 10’ safety chain

Decorative Claws

IL-Arch-X 1, 2 Arch

IL-Victorian-X 1, 2 Victorian

IL-Traditional-X 1, 2 Traditional

IL-Wrought-X 1, 2 Wrought

See page 59 for definitions

1 “X” must be replaced with a Finish

designator

2 Not available in ILI version

The colors are approximate. Cast aluminum parts

appear differently from hydro-formed parts when

using metallic finishes.

Copper Paint Chrome

Copper Satin Copper White Paint

Black Paint Satin Nickel Paint Smoked Chrome

Arch Victorian

Traditional Wrought

Hexagonal Angled

Antique Brass Paint

400MH

WATTAGE

70DMH

70DEM

10DMH

10DEM

15DMH

15DEM

17DMH

175MH

175PM

250MH

250PM

25LMH

25LPM

320PM

350PM

35EPM

35LPM

400MH

400PM

40EPM

40LMH

40LPM

26CFL

42CFL

226CFL

242CFL

257CFL

270CFL

457CFL

30DIN

500IN

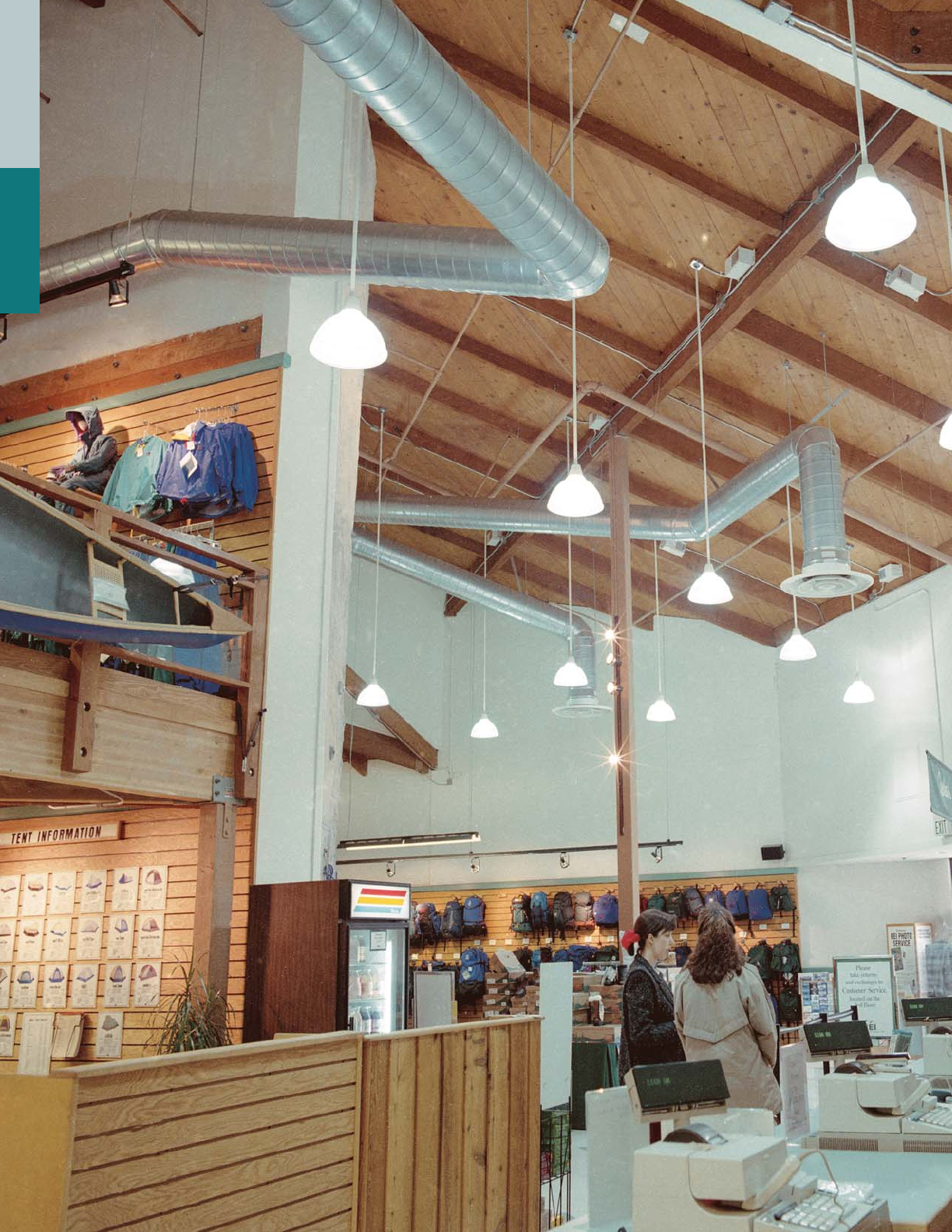

Applications

Typical Applications

Retail

•Malls and shopping centers

•Restaurants

•Grocery stores

•Specialty shops

Commercial

•Commercial offices

•Office building common areas and hallways

•Visitor centers

•Museums

•Places of worship

Schools

•Elementary and high schools

•College and universities

•Libraries and activity areas

•Natatoriums

Memphis International Airport; Memphis, Tennessee

Fernwood Resort and Country Club, Pool Room; Bushkill, Pennsylvania

New York & Company; Staten Island, New York

Illuminaire®

HOLOPHORMS

Features

•Glass optics stay clean over time

•Seamless optical appearance

•Four optic shapes on your choice of six ballast

mountings

•An assortment of cap and claw choices

•In addition to the 9 standard finishes, there are

unlimited custom color options

Lamp Types

•70-150 watt metal halide

•26-42 watt compact fluorescent

•200 watt incandescent

Approvals

•UL/CUL 1598 damp location listed

Illuminaire®|Compact

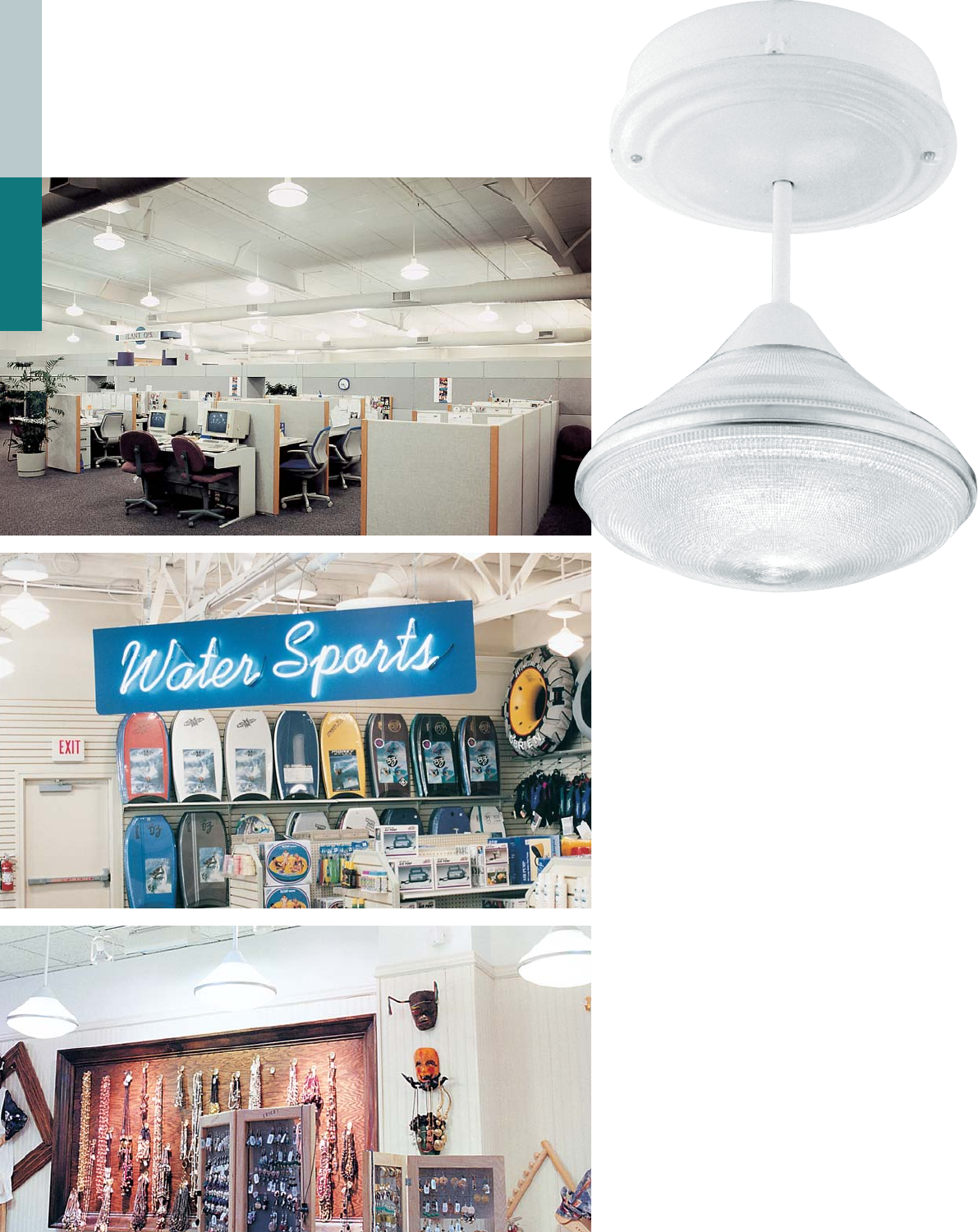

The compact Illuminaire Series can be used in spaces with ceiling heights as

low as 7'6". Designed as a type50, the Illuminaire optics perfectly balance

light both upwards and downwards. Accent a retail store by placing the

compact Illuminaire optic over the check-out counter or mount it on the wall

of a high school cafeteria. Either way, the Illuminaire fixture is bound to gain

attention. The compact Illuminaire optic has successfully illuminated retail

stores, high school stairways and cafeterias, college classrooms, grocery stores,

dance studios, drug stores, reception areas and various other locations.

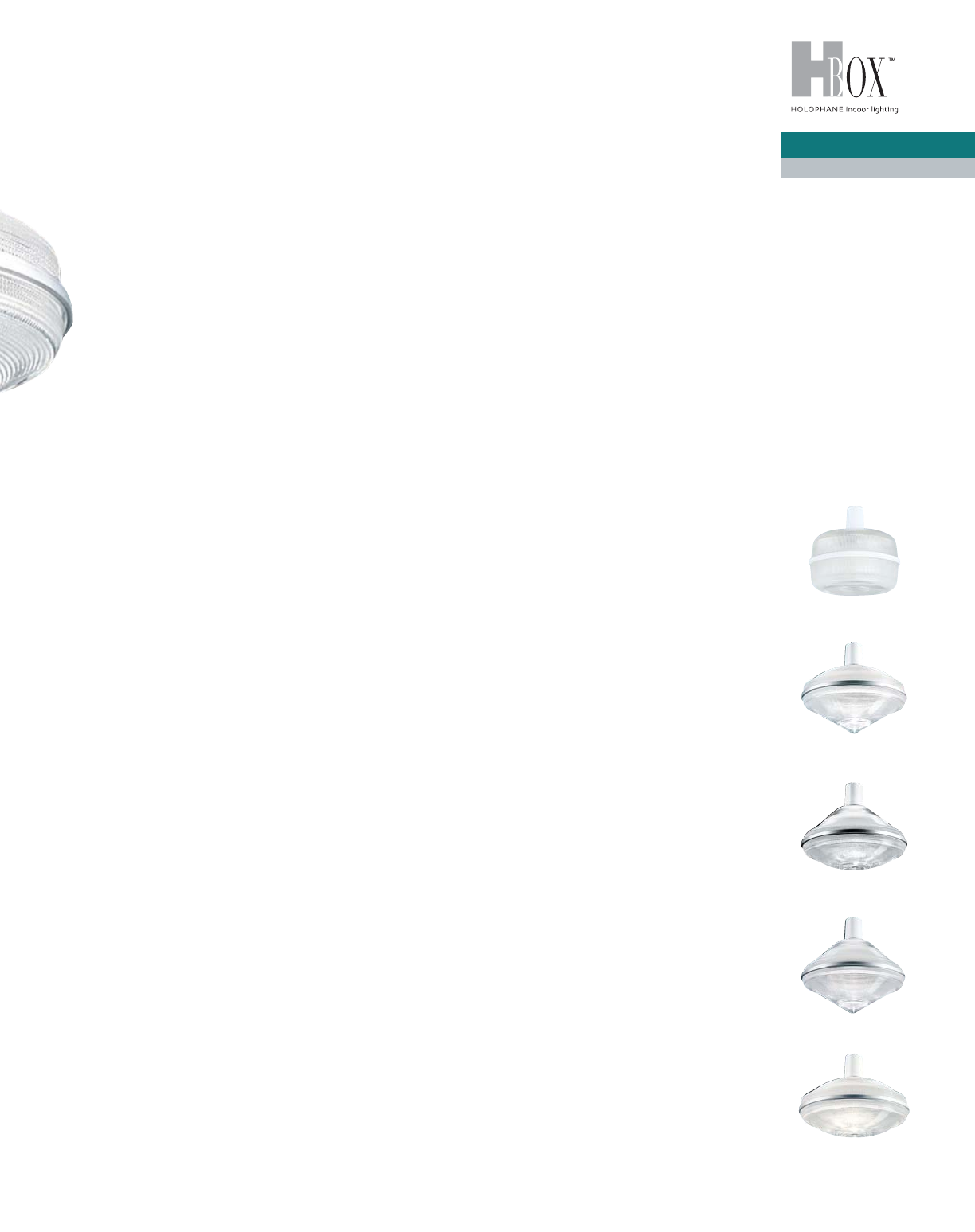

The Egg

type50

The Crest

type50

The Tri-Egg

type50

The Tri-Crest

type50

HOLOPHANE®

Indoor Lighting

DESIGNER SERIES

Illuminaire 17

Designer Series

DESIGNER SERIES

Product Catalog

Illuminaire®

HOLOPHORMS

88Stem Length

Cap

Catalog number information

STEP 4: OPTIC ... Continued

STEP 4: OPTIC TYPE

CII Integral mount

CIM Nautical wall mount

CIR Remote mount

CIS Surface mount

CIT Recessed mount

CIW 1Arched wall mount

1 Wet location option available

STEP 1: LUMINAIRE MOUNTING

12 120V

20 208V

24 240V

27 277V

34 347V

MT 1Multi-voltage

1 Not available in CIT version

STEP 1: LUMINAIRE.. Continued

STEP 3: VOLTAGE

Egg

A40 up / 60 down

Crest

C40 up / 60 down

1 Single lamp configurations only

426.0mm

(16.77”)

266.7mm

(10.50”)

Tri-Egg

E40 up / 60 down

321.5mm

(12.66”)

266.7mm

(10.50”)

CIS

Ballast Weight:

9 kg (22 lbs)

CIT

Ballast Weight:

10 kg (22 lbs)

CII

Ballast Weight:

9 kg (20 lbs)

CIR

Ballast Weight:

4.5 kg (10 lbs)

CIW

Weight:

7.1 kg (15.75 lbs.)

CIW

Weight:

7.1 kg (15.75 lbs.)

Weight:

5 kg (11 lbs.)

398.3mm

(15.68”)

266.7mm

(10.50”)

23.8mm

(9.164”)

417.5mm

(16.435”)

419mm

(16.493”)

289mm

(11.338”)

419mm

(16.493”)

289mm

(11.338”)

STEP 2: SOURCE AND WATTAGE

70DMH 70W MH

10DMH 100W MH

15DMH 150W MH

Electronic Ballast

70DEM 270W MH

10DEM 2100W MH

Compact Fluorescent

26CFL 26W CFL

42CFL 42W CFL

Incandescent

20DIN 3200W

1 Available in 120 and 277V only

2 Not available in CIR and CIT version

3 Available in CIR only

11Luminaire Mounting

22Source and Wattage

33Voltage

1100Options

77Metal Finish Color

1111Accessories

44Optic Type

55Glass Colorization

66Glass Color Area

Product Features

Weight:

4.5 kg (10 lbs.)

Weight:

5.4 kg (12 lbs.)

Weight:

6.1 kg (13.5 lbs.)

266.7mm

(10.50”)

294mm

(11.57”)

CIM

Weight:

8 kg (17.5 lbs.)

Tri-Crest

G40 up / 60 down

HOLOPHANE®

Indoor Lighting

DESIGNER SERIES

Illuminaire 19

Designer Series

DESIGNER SERIES

Product Catalog

Ordering Information

CIT

MOUNTING

CII

CIM

CIR

CIS

CIT

CIW

70DMH

WATTAGE

70DMH

10DMH

15DMH

70DEM

10DEM

26CFL

42CFL

20DIN

VOLTAGE

OPTICS

GLASS COLOR

COLOR AREA

FINISH

STEM LENGTH

CAP

OPTIONS

PF-398

PF-399

CDP-L5

CDP-L6

CDP-L7

CDP-L24

CD-3-PT

CD-4-PT

CD-5-PT

CD-6-PT

CI-ARCH-M

ACCESSORIES

LAMP

CI-ARCH-X

CI-VICTORIAN-X

CI-TRADITIONAL-X

CI-WROUGHT-X

CICHAIN3

CICHAIN6

CICHAIN10

PF-396-ACC

PF-347-ACC

How to Construct a Catalog Number

Example:

AStandard

BCrescent

CNotched

DHexagonal

EAngled

11Clear

2Frost

3Blue

5Green

XSpecial color

1 (Not available on optics E, F, G, H)

11Vein only

21Vein and center glass only

31Vein and lobes only

4Entire optics

XSpecial coverage area

1 Available with E, G only

STEP 5: GLASS COLORIZATION

Green

Blue

Frosted

Clear

Lobe

Vein

Center

STEP 6: GLASS COLOR AREA

STEP 7: FINISH COLOR

AAntique brass paint

CCopper paint

H1Chrome

KBlack paint

LSatin nickel paint

M1Smoked chrome

R1Copper

S1Satin copper

WWhite paint

1 Vacuum deposited metallic finish

118”

248”

396”

X1Special stem

4218” with swivel

5248” with swivel

6296” with swivel

XS1, 2 Special stem lengths with swivel

1 Length available in increments of 25mm (1”)

2 Available CIR only

STEP 8: STEM LENGTH

STEP 9: CAP

Standard Crescent Notched

STEP 10: OPTIONS

STEP 11: ACCESSORIES

LAMP Appropriate HID lamp

F1 Single fuse assembly

F2 Double fuse assembly

PF-396-ACC Safety hook

PF-347-ACC Safety loop

CICHAIN3 3’ safety chain

CICHAIN6 6’ safety chain

CICHAIN10 10’ safety chain

Decorative Claws

CI-Arch-X 1, 2 Arch

CI-Victorian-X 1, 2 Victorian

CI-Traditional-X 1, 2 Traditional

CI-Wrought-X 1, 2 Wrought

See page 59 for definitions

1 “X” must be replaced with a Finish

designator

2 Not available in CII, CIM or CIW version

The colors are approximate.

Smoked Chrome

Antique Brass Paint

Copper

Satin Copper Chrome

Satin Nickel Paint

White Paint Black Paint Copper Paint

Arch Victorian

Traditional Wrought

Hexagonal Angled

Distributions

Spacing Criteria: 1.9

Crest/Egg

Spacing Criteria: 1.9

Tri-Crest/Tri-Egg

PF-398 Safety hook

PF-399 Loop

HFW Holoflex®flexible wiring system

F1 2Single fuse assembly

F2 2Double fuse assembly

C3 3’ of safety chain

C6 6’ of safety chain

C1 10’ of safety chain

H2HALT®Automatic lamp time-out.

EM 2Standby lighting fixture

ER 2Emergency lighting fixture

CDP-3-PT 3’ cord assembly

CDP-4-PT 4’ cord assembly

CDP-5-PT 5’ cord assembly

CDP-6-PT 6’ cord assembly

W3Wet location

3 Conductor Cord and NEMA Plug

CDP-L5-15-X-PT 1120V,

CDP-L6-15-X-PT 1208/240V

CDP-L7-15-X-PT 1277V

CDP-L24-20-X-PT 1347V

See page 58 for definitions

1 Not available in CIR version

2 Available with 70DMH, 100MH, 150MH,

175MH, 250PM, 320PM, 350PM, 400MH,

and 400PM

3 Available with CIW only

02454

HOLOPHORMS

HOLOPHANE®

Indoor Lighting

DESIGNER SERIES

02454 21

Designer Series

DESIGNER SERIES

Product Catalog

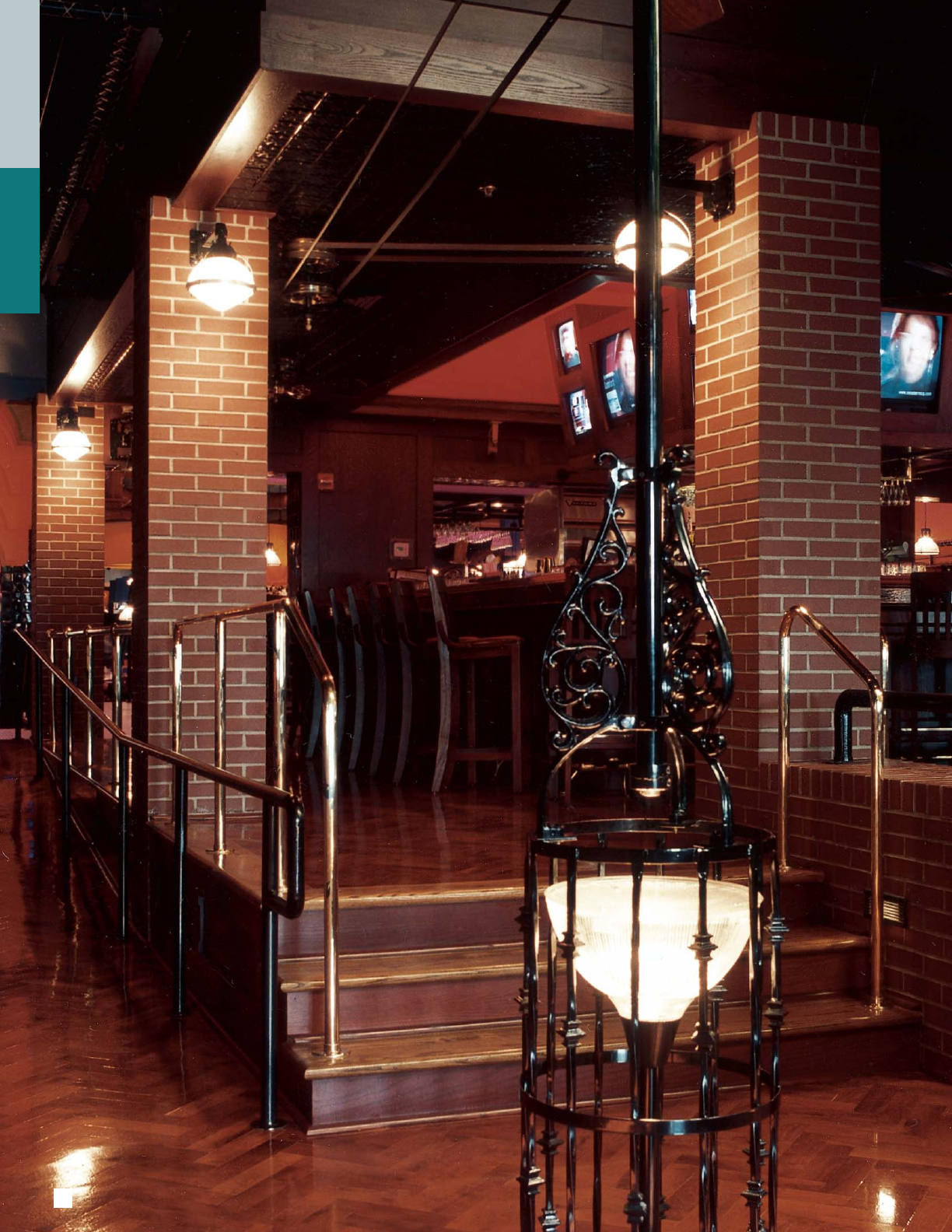

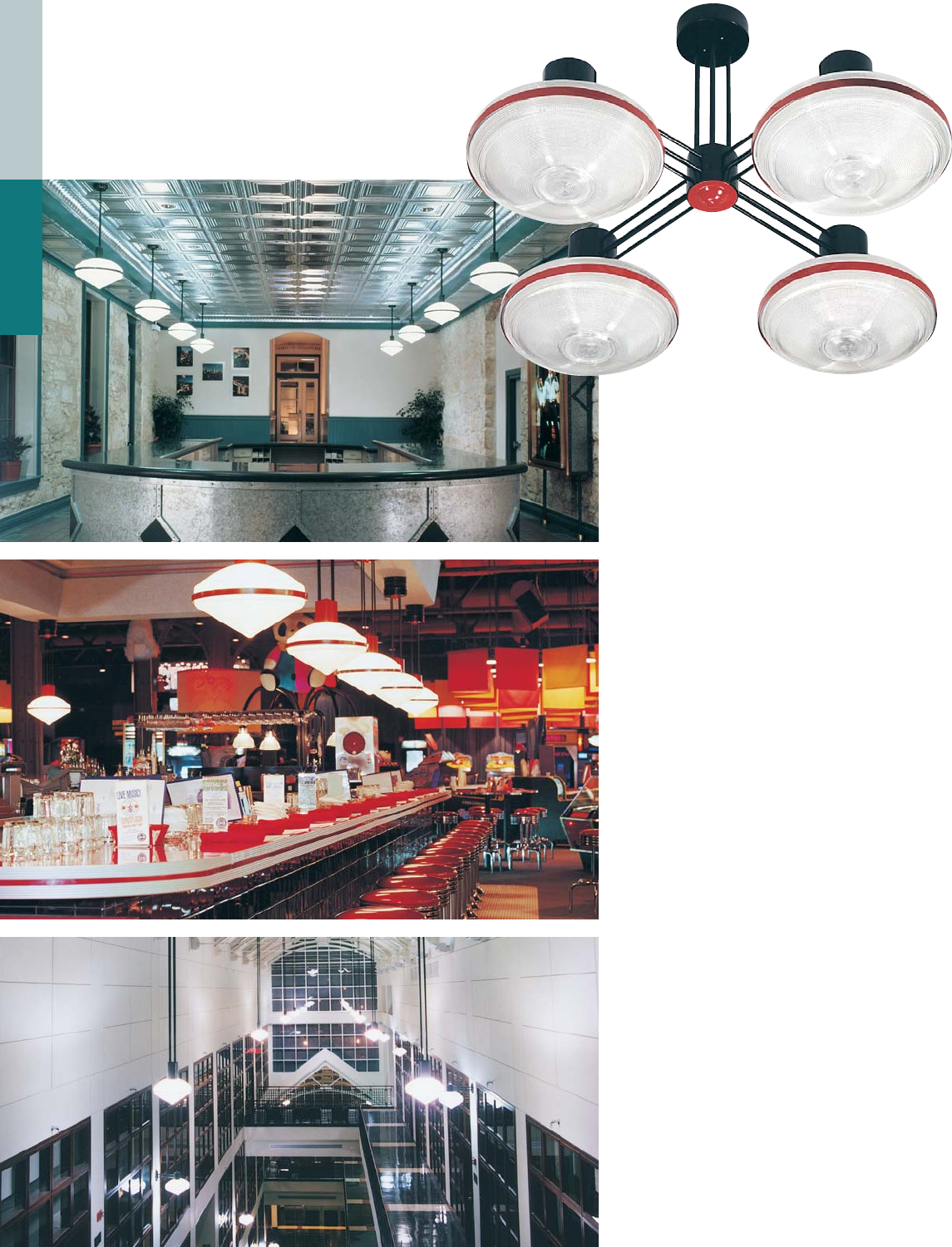

Dave and Buster’s; Columbus, Ohio

D - Delphic

type30

L - Large

type50

C - Compact

type50

C - Compact

type50

L - Large

type30

02454

The 02454 luminaire from Holophane provides

the ideal lighting design element for

applications requiring an industrial, retro

warehouse, or open loft look. This product has

been used in industrial and retail applications

since 1937.

The original 02454 has been the ultimate in

low brightness, energy efficient lighting. A

combination of stainless steel rods, a cast

aluminum husk and ageless prismatic glass

create a luminaire that transcends the years.

The 02454 product line offers two covers and

three color options to contribute to the style

and function of any lighting environment. An

optional copper cover brings out the classic

metal’s beauty to add elegance to the

retro-industrial design.

02454

HOLOPHORMS

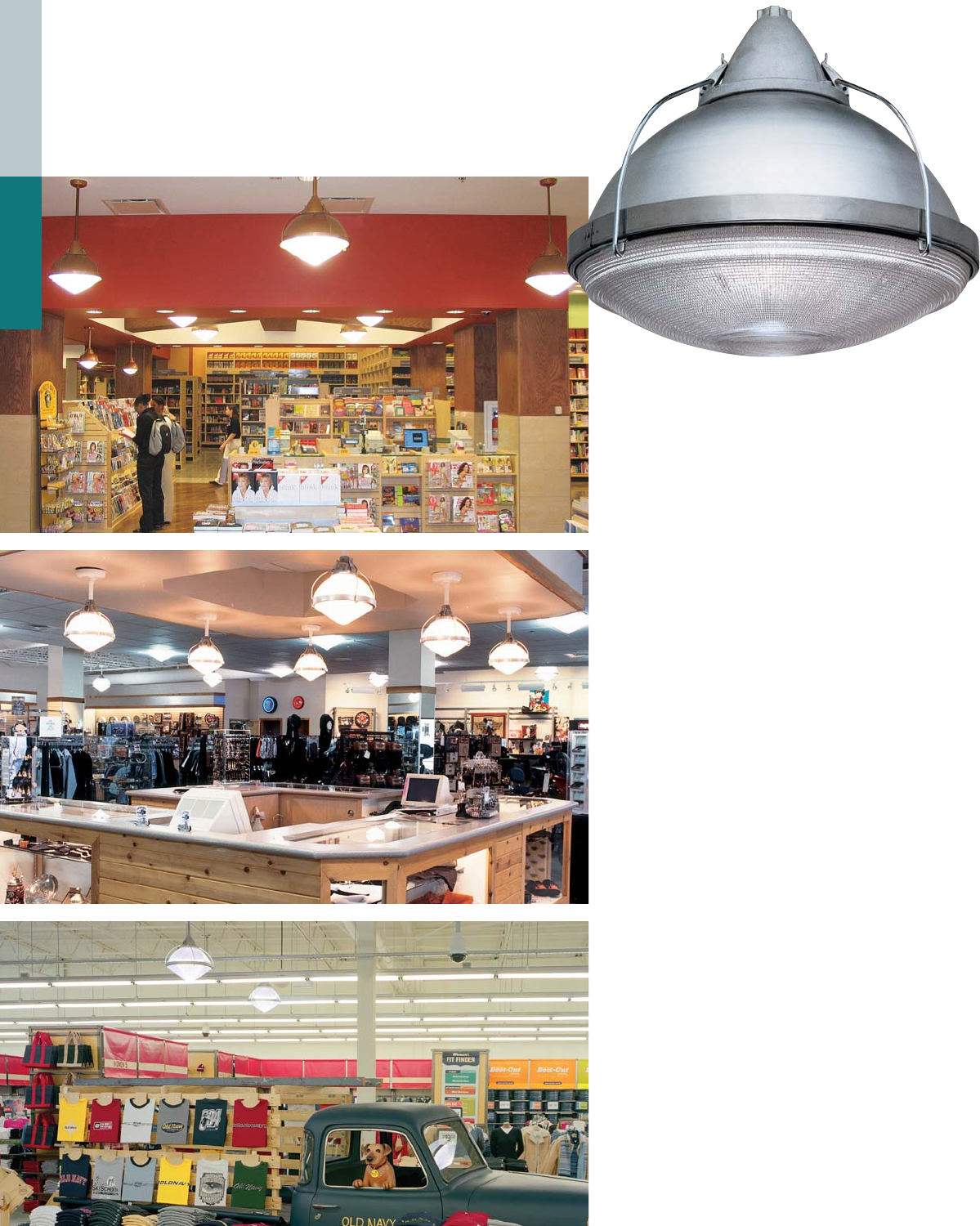

Borders Bookstore; Seattle Washington

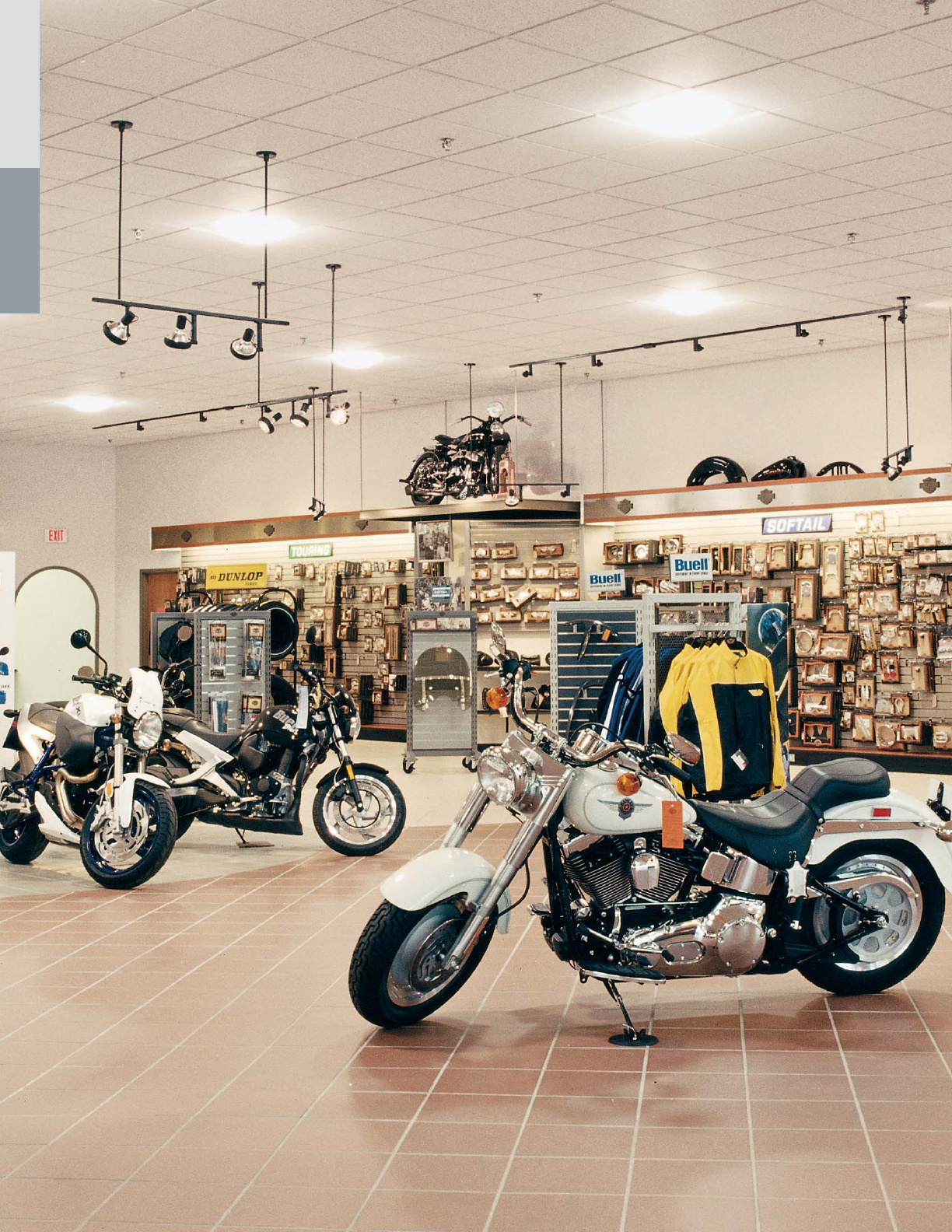

Harley-Davidson; Pueblo, Colorado

Old Navy Clothing Store; Emeryville, California

Applications

Typical Applications

•Retail stores

•Restaurants

•Office buildings

•Lobbies

•Schools

•Libraries

Features

•Superior prismatic glass performance

•Reflector/refractor combination provides

unique design element

•Three optical choices to customize lighting

designs

•Conical or round bottom provides sparkle to

entice customers

Lamp Types

•70-400 watt metal halide, also available in

pulse start, energy saving pulse start,

incandescent, and compact fluorescent

Approvals

•UL/CUL 1598, damp location listing

24N

12 120 Volt

24I, 24S

12 120 Volt

20 208 Volt

24 240 Volt

27 277 Volt

34 347 Volt

MT Multi-Voltage (120 -277V)

AV 3Auto Sensing

24R

12 120 Volt

27 277 Volt

34 347 Volt

MT 1Multi-Voltage (120 -177V)

VT 2Vari-Tap (120, 277, 347V)

AV 3Auto Sensing

1 Available with 175, 250 or 400W only

2 Available with 250 or 400W in Canada only

3 Available with Compact Fluorescent only

HOLOPHANE®

Indoor Lighting

DESIGNER SERIES

Illuminaire 23

Designer Series

DESIGNER SERIES

Product Catalog

24N

LUMINAIRE

24I

24N

24R

24S

VOLTAGE

OPTICS

COLOR

STEM

LAMP

ACCESSORIES

LAMP

SMWG

HOOK-455

LOOP-456

400MH

WATTAGE

70DMH

10DMH

15DMH

17DMH

175MH

175PM

250MH

250PM

25LMH

320PM

35LPM

400MH

400PM

40LMH

40LPM

40LMH

26CFL

42CFL

57CFL

457CFL

20DIN

30DIN

500IN

445mm

(17.5”)

508mm

(20”)

495mm

(19.5”)

508mm

(20”)

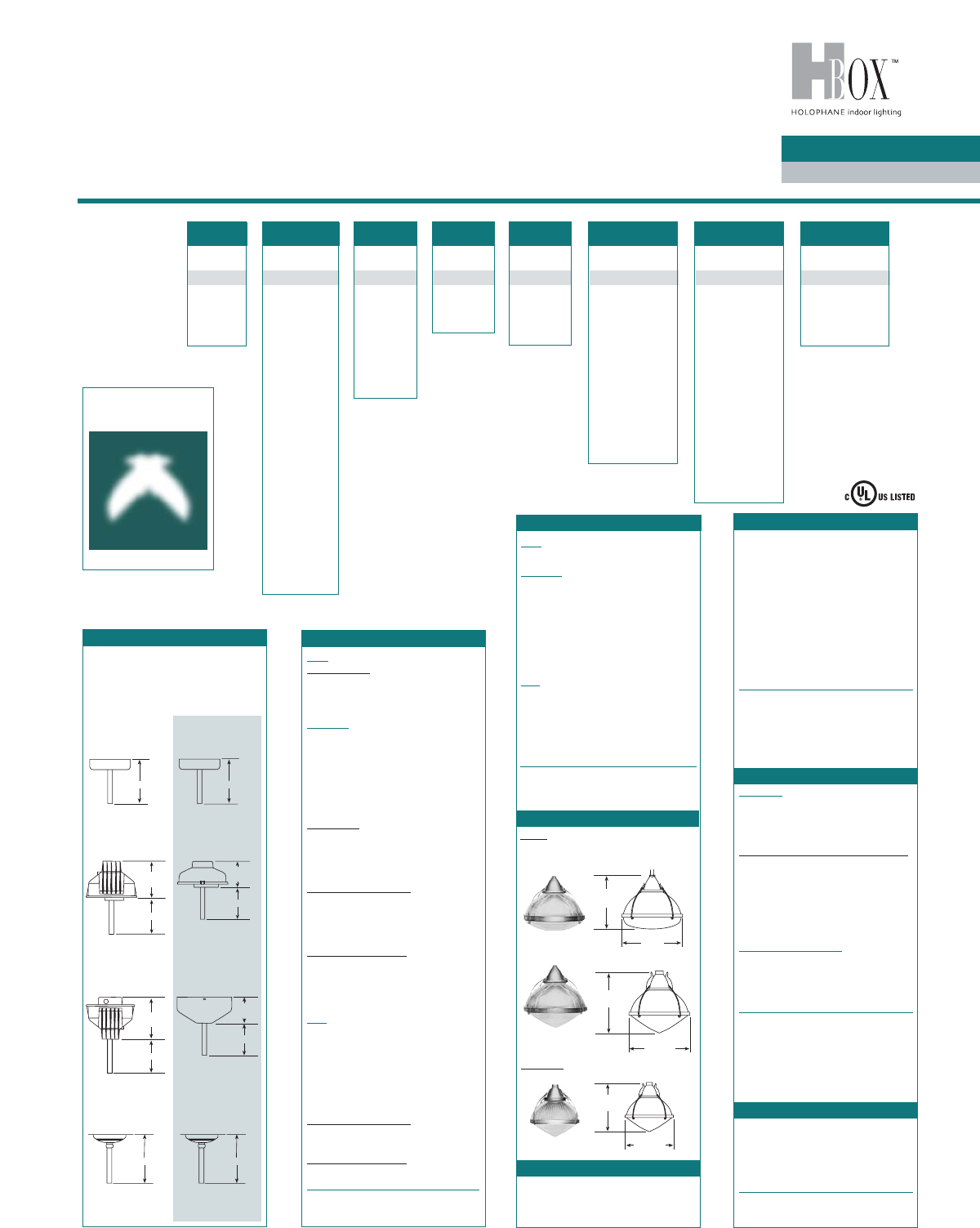

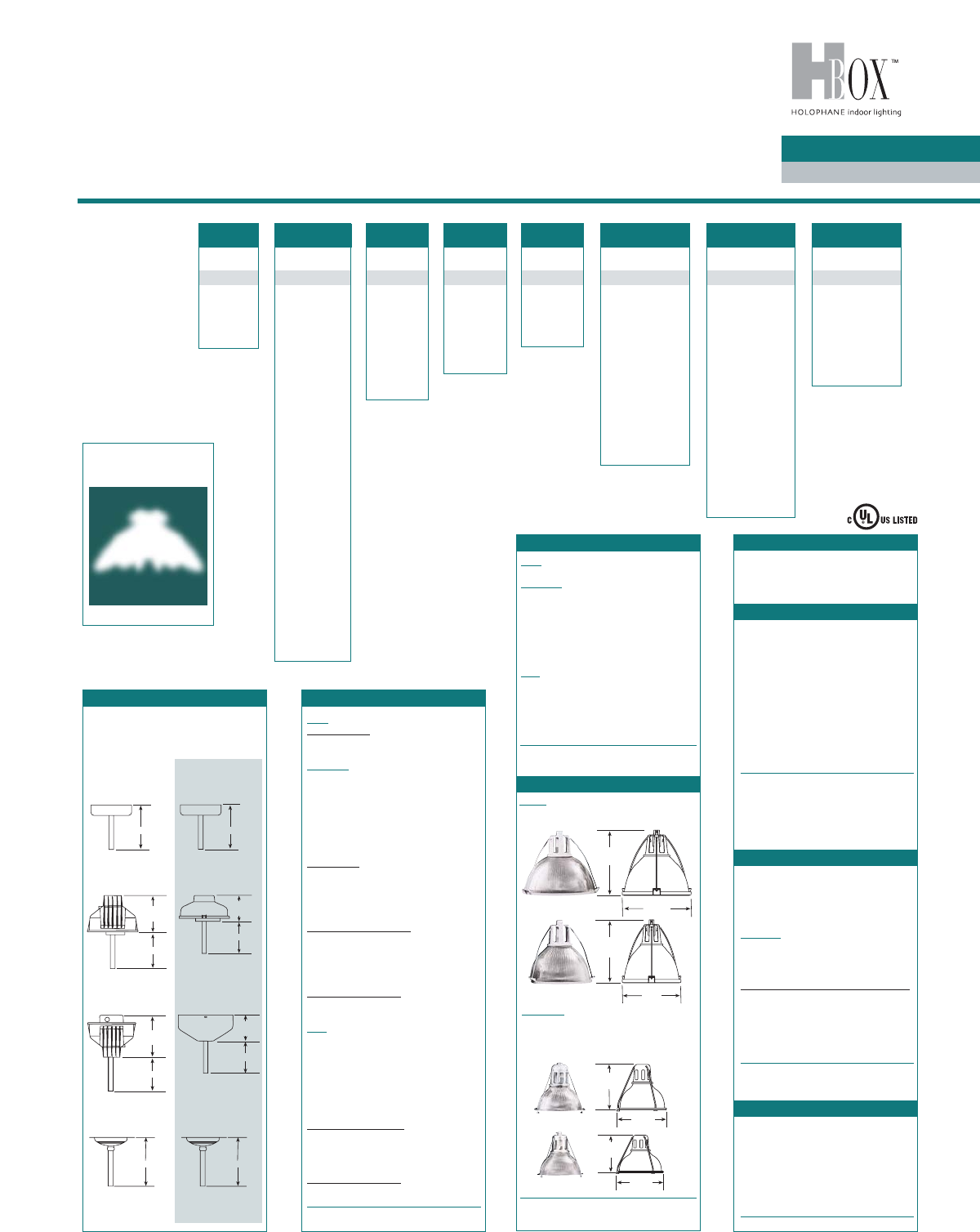

Catalog ordering information

STEP 4: OPTIC TYPE

24N Non-ballasted

24I Integrally mounted

24S Surface mounted

24R Remote mounted 02454

STEP 1: LUMINAIRE MOUNTING

24N

Incandescent

20DIN 200W

30DIN2300W

500IN2500W

24I, 24S

70DMH 70W MH

10DMH 100W MH

15DMH 150W MH

17DMH2175W MH, medium

175MH2175W MH, mogul

250MH2250W MH

400MH2400W MH

Pulse Start

175PM2175W MH, mogul

250PM2250W MH

320PM2320W MH

400PM2400W MH

Energy saving ballast

25LMH2250W MH

35LPM2350W MH, pulse start

40LMH2400W MH

40LPM2400W MH, pulse start

Compact fluorescent

26CFL126W CFL

42CFL142W CFL

57CFL 57W CFL

457CFL (4) 57W CFL

24R

70DMH 70W MH

10DMH 100W MH

15DMH 150W MH (N/A with 347V)

17DMH2175W MH, medium

175MH2175W MH, mogul

250MH2250W MH

400MH2400W MH

Energy saving ballast

25LMH2250W MH

40LMH2400W MH

Compact fluorescent

26CFL126W

42CFL142W

1 Available with 120, 277 and 347 volt only

2 Large optic only

STEP 2: SOURCE AND WATTAGE

STEP 3: VOLTAGE

118” stem

248” stem

3196” stem

42, 5 18” stem with 45° swivel

52, 5 48” stem with 45° swivel

62, 3, 5 96” stem with 45° swivel

740” stem

826” stem

99” stem

10 3” stem

N4No stem for 24N only

X4Special length stem

XS 4Special length stem with swivel

1 Available with 175MH, 250MH, 25LMH,

400MH, 40LMH and all “24R”MH fixtures

2 For 24N and 24R only

3 Not available with compact fluorescent

4 Available in increments of 1”

5 Not available with 175PM, 250PM,

320PM, 35LPM, 400PM, 40LPM

24I only

CD-3 3’ cord only

CD-4 4’ cord only

CD-5 5’ cord only

CD-6 16’ cord only

NEMA 3’ 3 conductor cord and plug

CDP-L5-15-3 2120V

CDP-L6-15-3 2208 and 240V

CDP-L7-15-3 2277V

CDP-L24-20-3 2347V

X3Cord length beyond 3’

LP Loop, 3/4” male

HK Safety hook, 3/4” male

24I, 24S, 24R & 24N

F1 4Single fusing

F2 5Double fusing

EM 6Standby lighting fixture.

AL Aluminum cover

CU Copper cover

See page 58 for definitions

1 For length longer than 6’, order through TSG

2 Order “PF” also.(Not available with “MT”

or “VT”)

3 X = number of feet

4 Not available with 24N

5 Not available with 70, 100, 150W 24R or 24N

6 Not available with 26CFL or 42CFL or 24N

(Ships separately)

Lamp Appropriate lamp

SMWG Wire guard for “C” optics

only

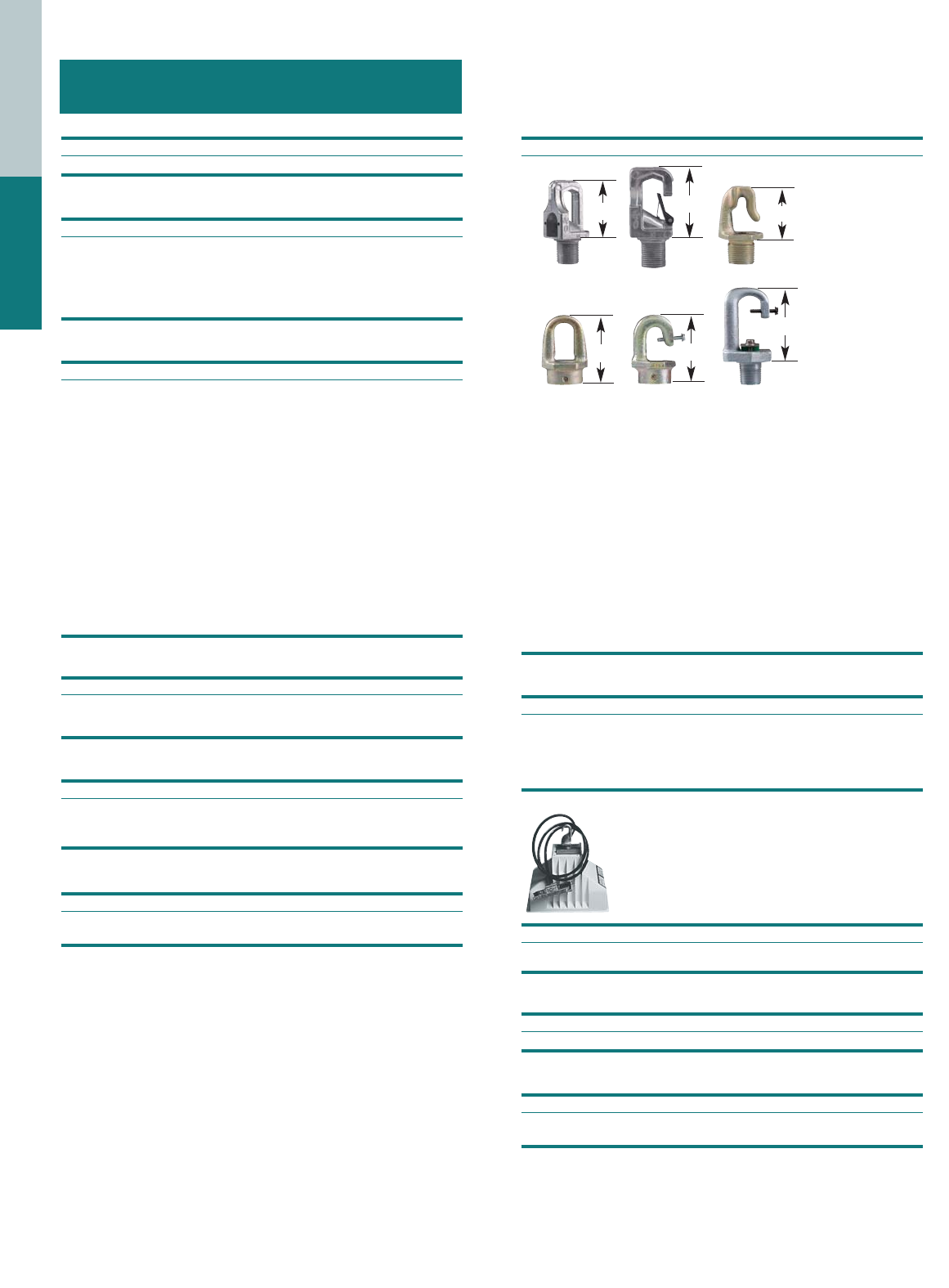

HOOK-4551Safety hook, 3/4” male

LOOP-4561Loop, 3/4” male

See page 59 for definitions

1 Available 24I only

Varies Varies

Varies

240mm

(9.5”)

Varies

150mm

(6”)

Varies

270mm

(10.65”)

Varies

150mm

(6”)

Varies Varies

24N - Non-ballasted Mount

Ballast Weight: Ballast Weight:

> .45 kg (1 lbs) > .45 kg (1 lbs)

24I - Integral Mount

Ballast Weight: Ballast Weight:

7 kg (16 lbs) 3 kg (5 lbs)

24S - Surface Mount

Ballast Weight: Ballast Weight:

7 kg (16 lbs) 3 kg (5 lbs)

24R - Remote Mount

Ballast Weight: Ballast Weight:

> .45 kg (1 lbs) > .45 kg (1 lbs)

292mm

(11.5”)

286mm

(11.25”)

STEP 6: STEM

STEP 7: OPTIONS

STEP 8: ACCESSORIES

KBlack

CCopper

UUnfinished

WWhite

Large Compact

L & D Optics: C Optics:

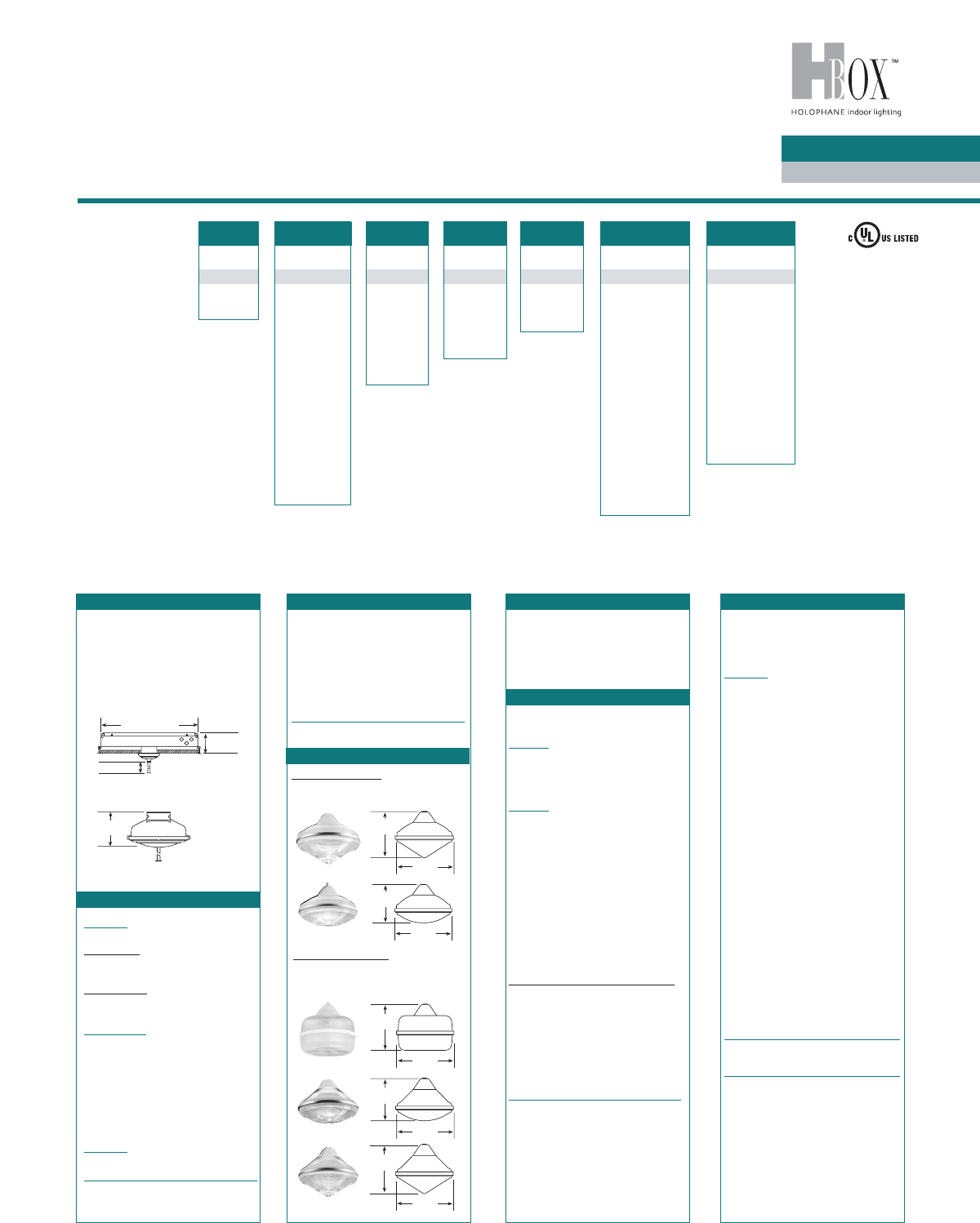

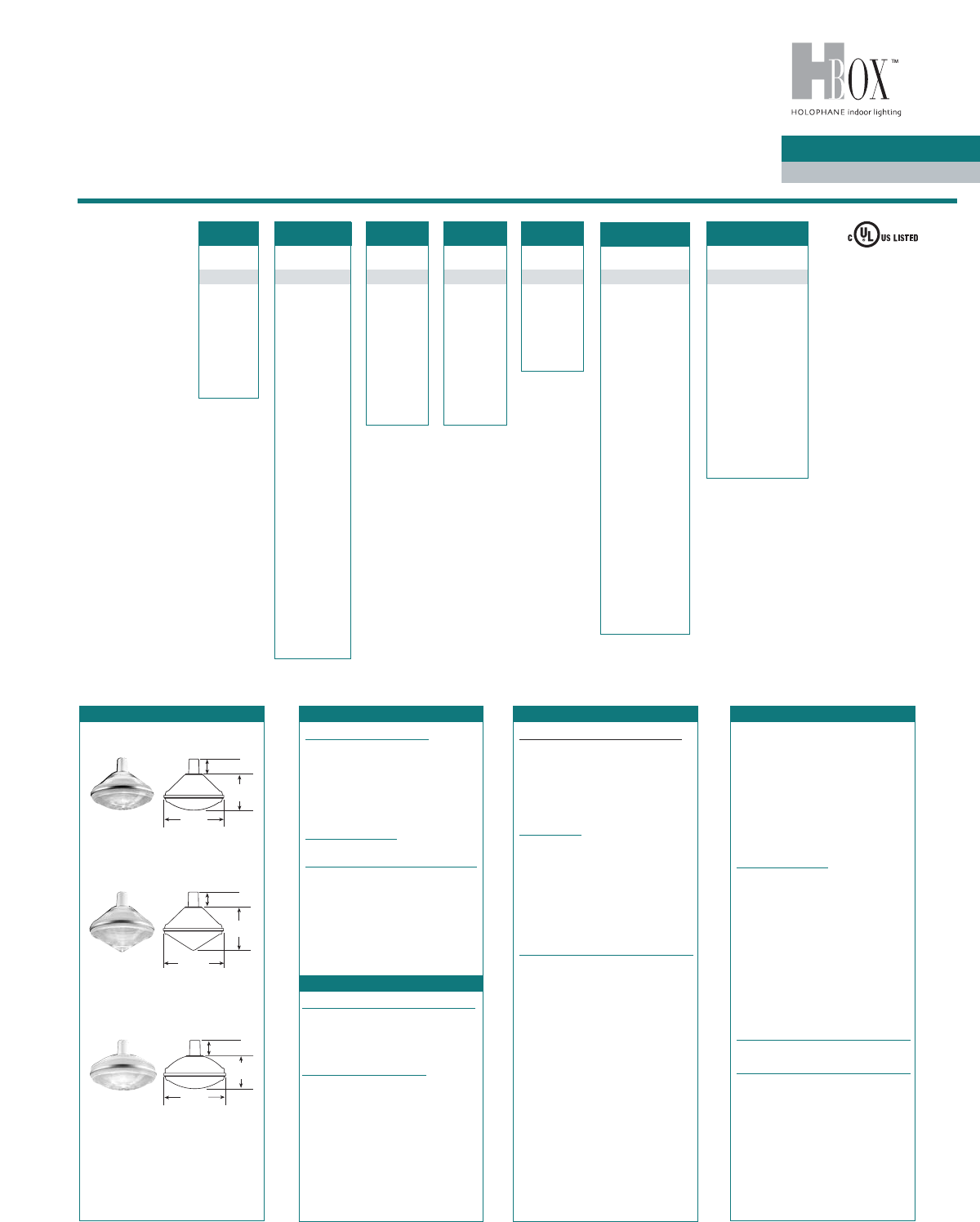

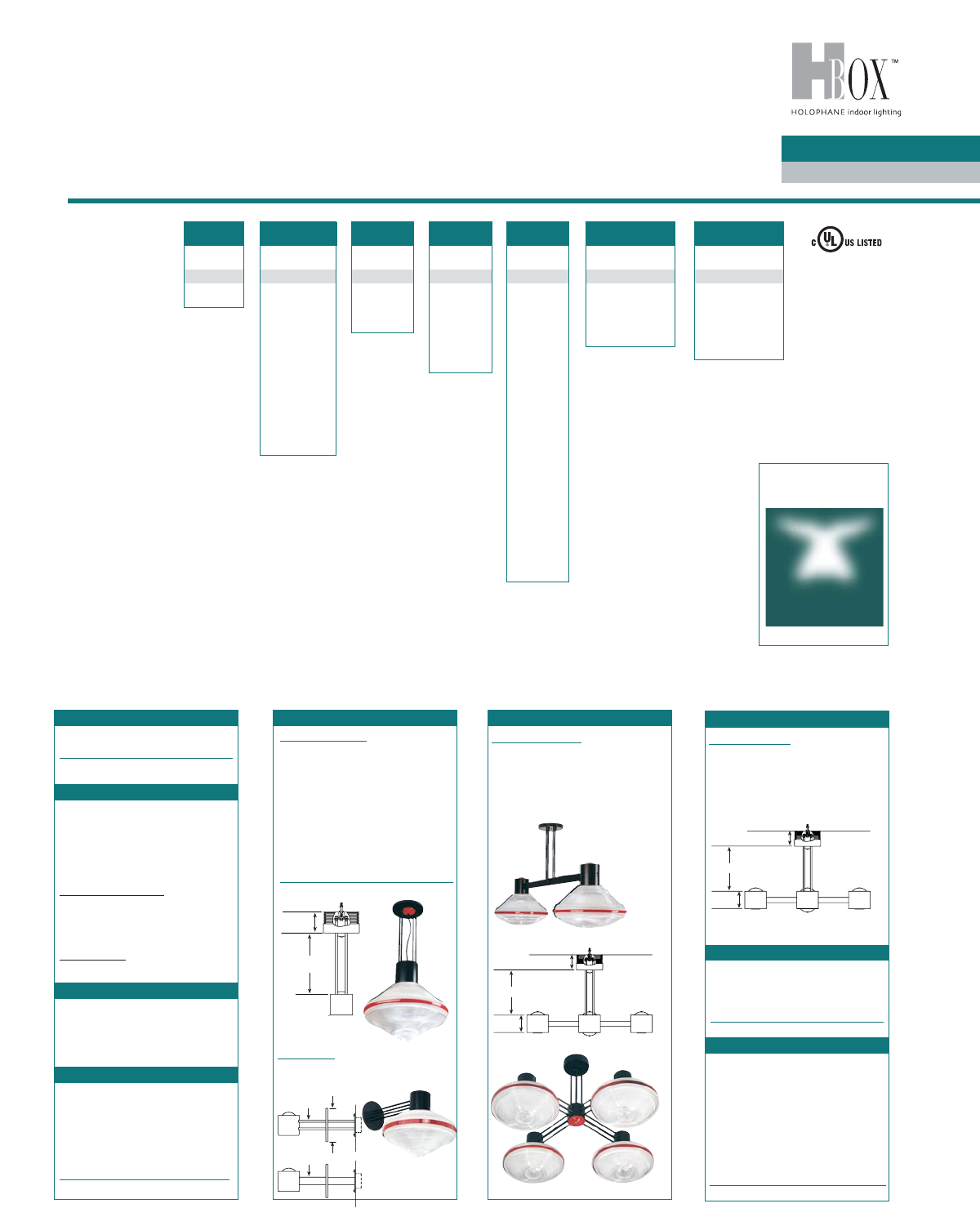

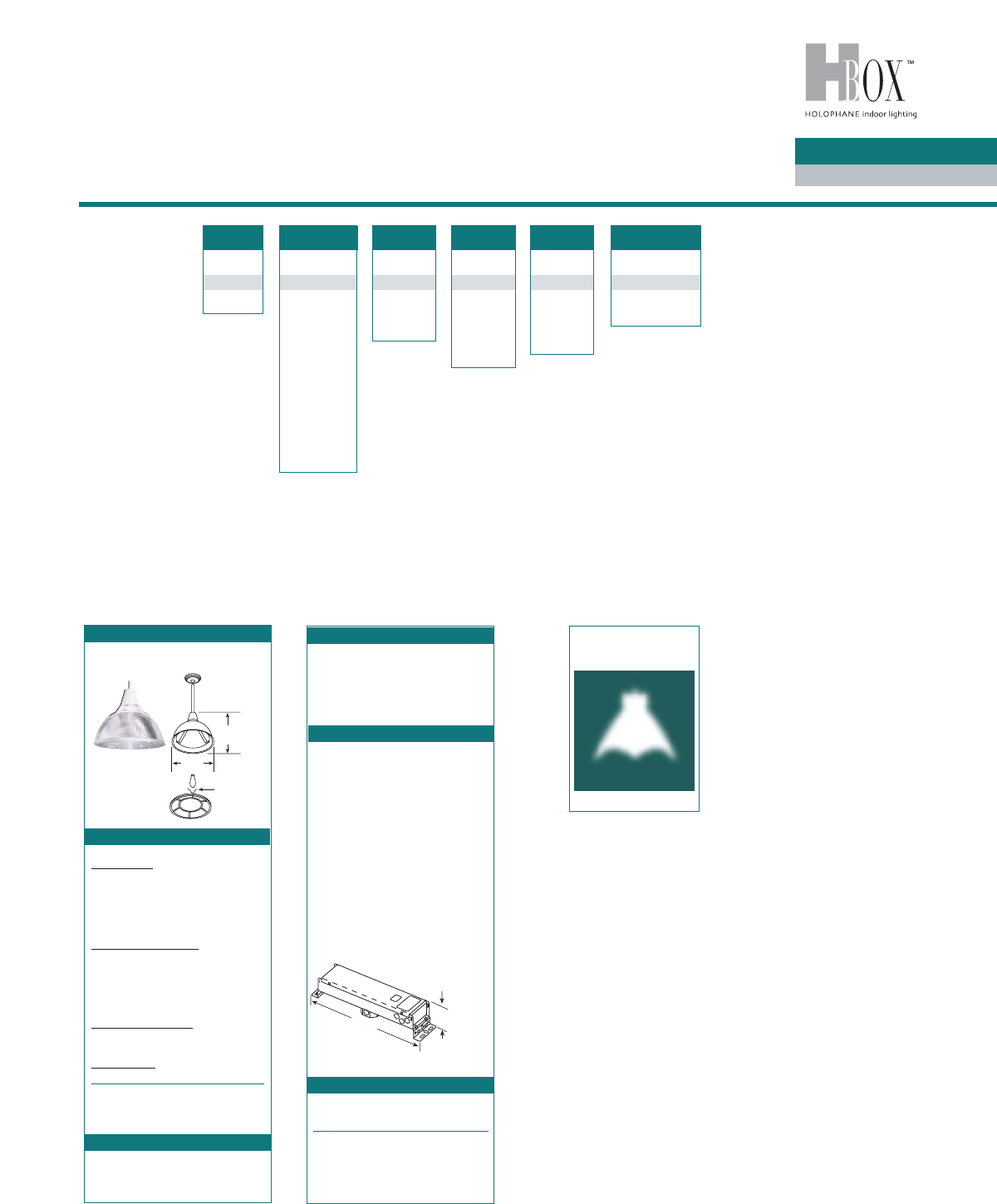

Ordering Information

How to Construct a Catalog Number

Example:

STEP 5: COLOR

Weight:

21 kg (45 lbs.)

Weight:

21 kg (45 lbs.)

Weight:

13 kg (28 lbs.)

Distributions

Spacing Criteria: 2.0

Delphic (type30)

CD-6

OPTIONS

CD-3

CD-4

CD-5

CD-6

CDP-L5-15-3

CDP-L6-15-3

CDP-L7-15-3

CDP-L24-20-3

Large

DDelphic bottom glass

LLarge 02454

Compact

CCompact 02454

PGRL

HOLOPHORMS

HOLOPHANE®

Indoor Lighting

DESIGNER SERIES

PGRL 25

Designer Series

DESIGNER SERIES

Product Catalog

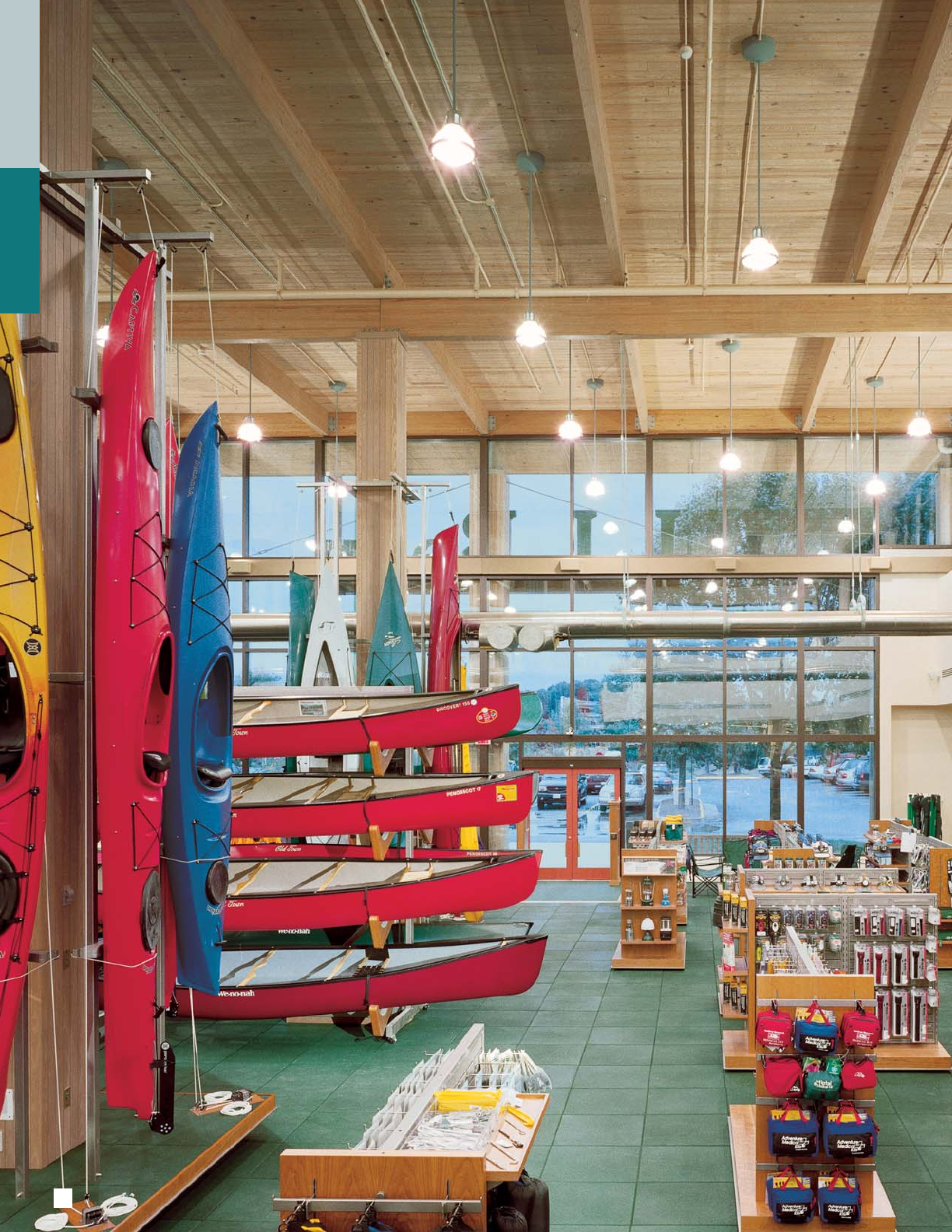

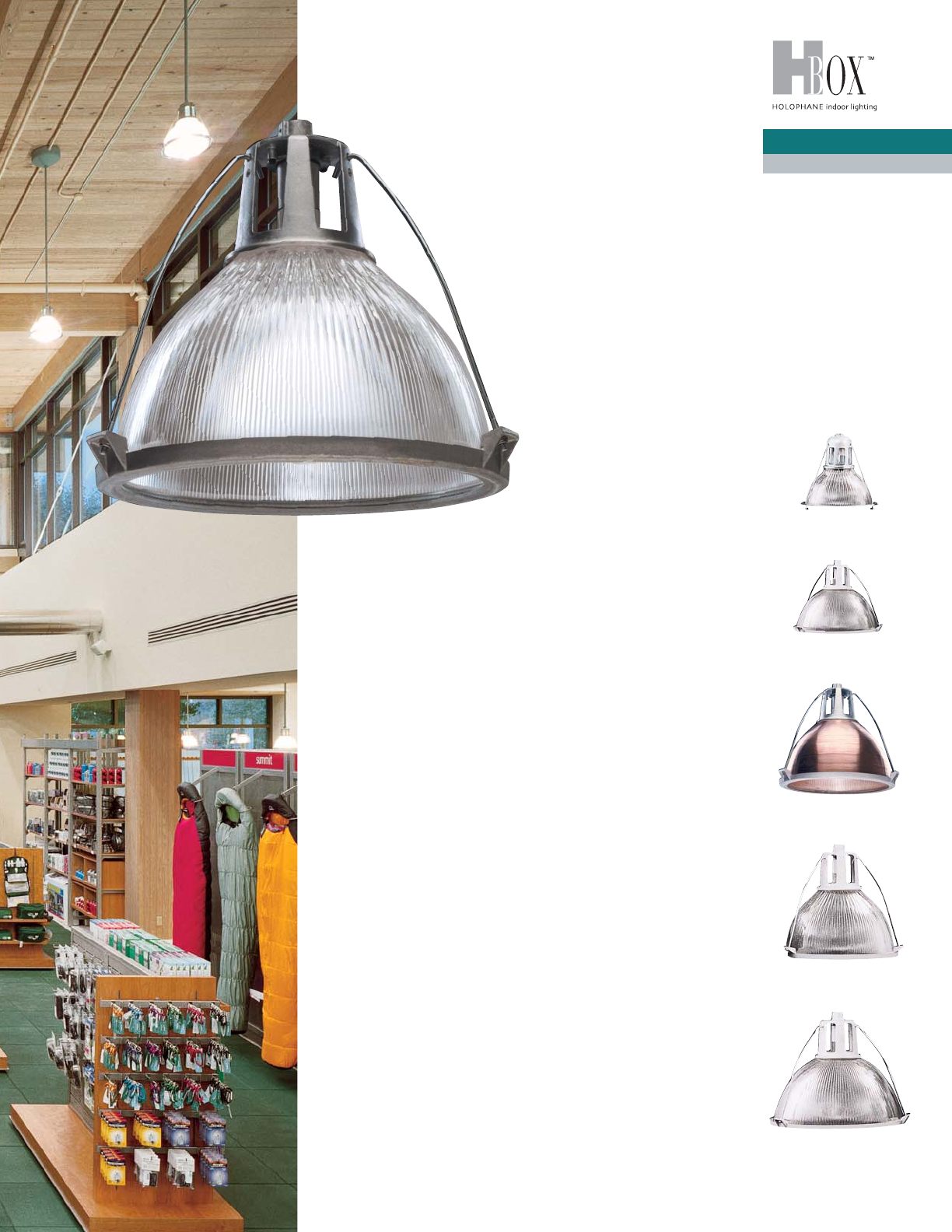

L.L. Bean; Tysons Corner, Virginia

Large - 40

type30

Large - 92

type30

Large - 92

type10

Compact - 84

type30

Compact - 82/85/86

type30

PGRL

The PGRL series is the original Prismatic Glass

Reflector Luminaire. This product’s heritage

can be traced to the beginning of innovative

lighting solutions. The glittering glass reflector

is supported by steel rods attached to a slotted

socket husk. This design creates a timeless

image unequaled by cheap imitations.

The larger unit is available with two glass

reflector choices depending upon desired

dimensions and light distributions. The smaller

optics are available in four shapes and sizes.

This fixture can also be ordered with an

aluminum or copper cover over the prismatic

glass reflector.

Both the aluminum and copper covers

accentuate the modern industrial look with

the metal’s timeless appeal. The rich copper

color emphasizes brass or copper detail

elements in the decor.

Each version is available painted black, white,

copper or unfinished.

PGRL

Typical Applications

•Retail stores

•Restaurants

•Office buildings

•Lobbies

•Schools

•Libraries

Features

•Superior prismatic glass performance

•Reflector/refractor combination provides

unique design element

•Three optical choices to customize lighting

designs

Lamp Types

•70-400 watt metal halide, also available in

pulse start, energy saving pulse start,

incandescent, and compact fluorescent

Approvals

•UL/CUL 1598, damp location listing

HOLOPHORMS

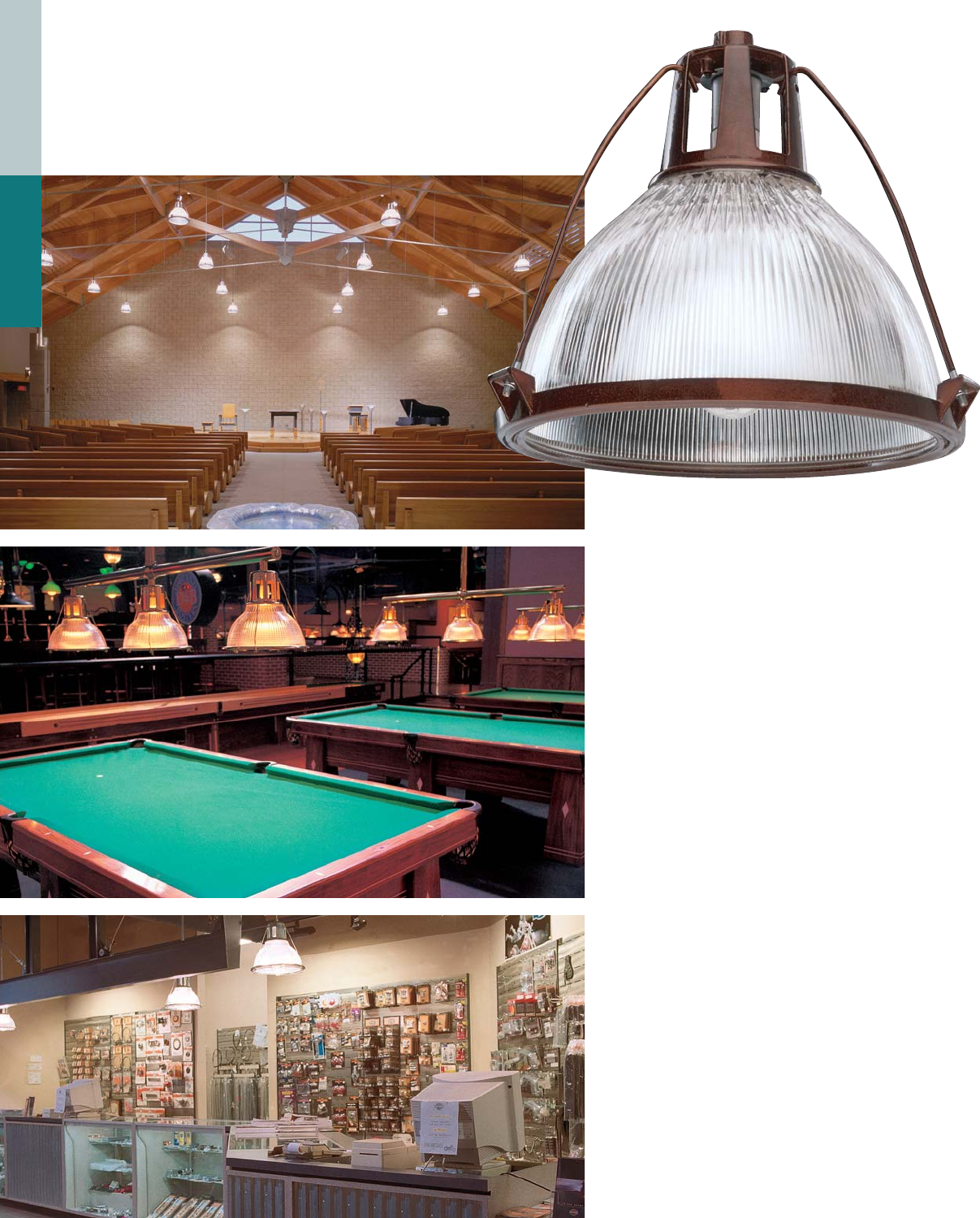

Dave and Buster’s; Philadelphia, Pennsylvania

Harley-Davidson; Pueblo, Colorado

St. Therese Church; Sioux Falls, South Dakota

Applications

PGN

12 120 Volt

PGI, PGS

12 120 Volt

20 208 Volt

24 240 Volt

27 277 Volt

34 347 Volt

AV 3Auto sensing

MT Multi-Voltage (120 -277V)

PGR

12 120 Volt

27 277 Volt

34 347 Volt

AV 3Auto sensing

MT 1Multi-Voltage (120 -177V)

VT 2Vari-Tap (120, 277, 347V)

1 Available with 175, 250 or 400W only

2 Available with 250 or 400W only

3 Available with Compact Fluorescent only

1 Available with 15DMP and below only

2 Available with 30DIN, 26CFL and 46CFL only

Ordering Information

How to Construct a Catalog Number

Example:

HOLOPHANE®

Indoor Lighting

DESIGNER SERIES

PGRL 27

Designer Series

DESIGNER SERIES

Product Catalog

PGI

LUMINAIRE

PGI

PGN

PGR

PGS

VOLTAGE

OPTICS

COLOR

STEM

CD-3

OPTIONS

ELB

CD-3

CD-4

CD-5

CD-6

CDP-L5-15

CDP-L6-15

CDP-L7-15

CDP-L24-20

09230

ACCESSORIES

LAMP

0268

0256

09229

09230

HOOK-455

LOOP-456

457mm

(18”)

546mm

(21.5”)

457mm

(18”)

438mm

(19”)

STEP 5: COLOR

STEP 4: OPTIC TYPE

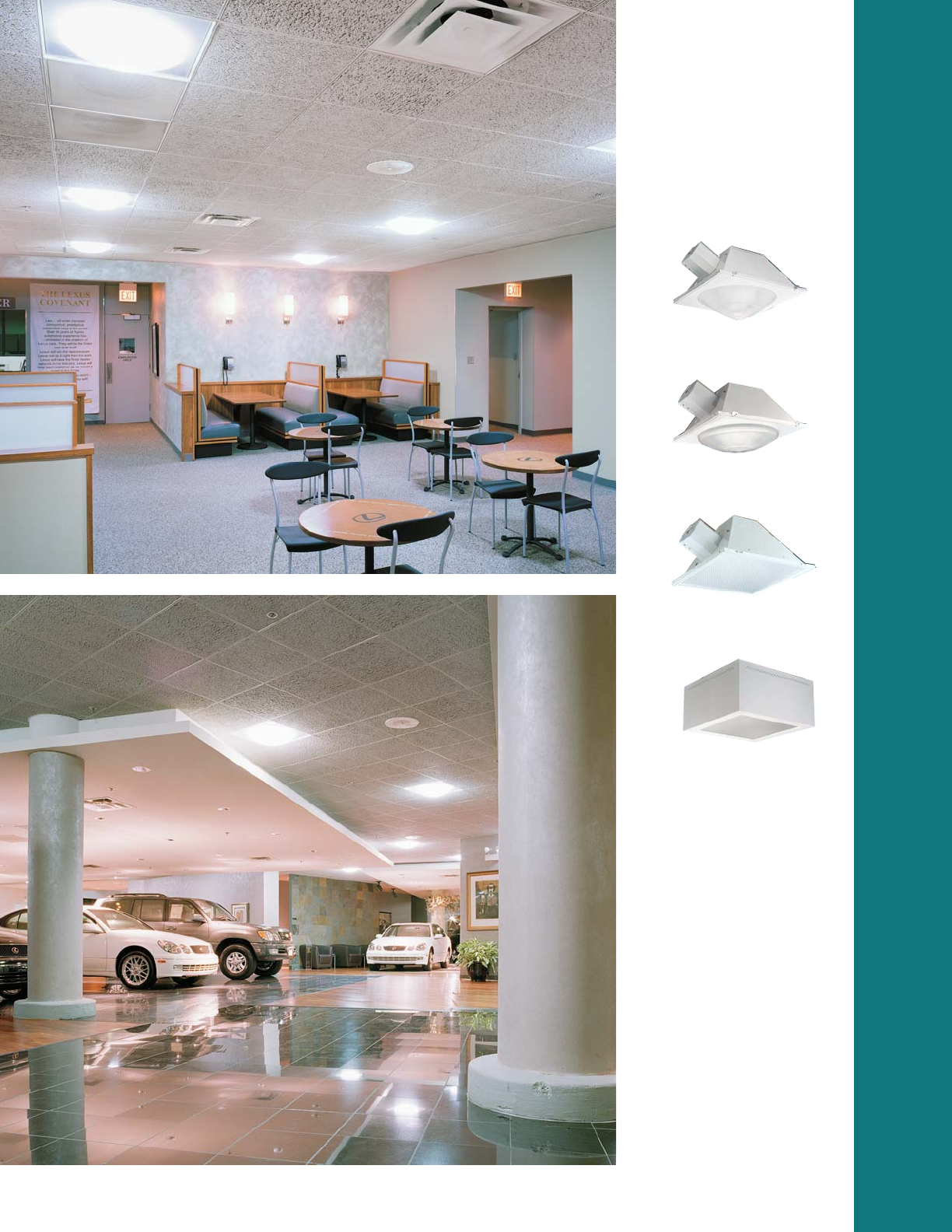

PGI Integrally mounted

PGN Non-ballasted

PGR Remote mounted

PGS Surface mounted

STEP 1: LUMINAIRE MOUNTING

PGN

Incandescent

30DIN2300W Inc.

500IN 2500W Inc.

PGI, PGS

70DMP 70W MH

10DMP 100W MH

15DMP 150W MH

17DMP 2175W MH, medium

175MP 2175W MH, mogul

250MP 2250W MH

400MH 400W MH

400MP 2400W MH

Pulse Start

175PP 2175W MH, mogul

250PP 2250W MH

320PP 2320W MH

400PM 2400W MH, protected

400PP

Energy saving ballast

25LMP 2250W MH

35LPP 2350W MH, pulse start

40LMH 2400W MH

40LPM 2400W MH, pulse start

400LPP 400W MH, protected

Compact fluorescent

26CFL 126W CFL

42CFL 142W CFL

PGR

70DMP 70W MH

10DMP 100W MH

15DMP 150W MH (N/A with 347V)

17DMP 2175W MH, medium

175MP 2175W MH, mogul

250MP 2250W MH

400MH 2400W MH

400MP 400W MH, protected

Energy saving ballast

25LMP 2250W MH

40LMH 2400W MH

400LMP 400W MH, low loss

protected

Compact fluorescent

26CFL126W CFL

42CFL142W CFL

1 Available with 120, 277 and 347 volt only

2 Large optic only

STEP 2: SOURCE AND WATTAGE

STEP 3: VOLTAGE

K Black

C Copper

U Unfinished

W White

118” stem

248” stem

3196” stem

42, 5 18” stem with 45° swivel

52, 5 48” stem with 45° swivel

62, 3, 5 96” stem with 45° swivel

740” stem

826” stem

99” stem

10 3” stem

N4No stem for 24N only

X4Special length stem

XS 4Special length stem with swivel

1 Available with 175MH, 250MH, 25LMH,

400MH, 40LMH and all “PGR”MH fixtures

2 For PGN and PGR only

3 Not available with compact fluorescent

4 Available in increments of 1”

5 Not available with 175PM, 250PM,

320PM, 35LPM, 400PM, 40LPM

F1 Single fusing

F2 Double fusing

ELB Electronic ballast

EM Standby lighting fixture

AL Aluminum cover

CU Copper cover

PGI only

CD-3 3’ cord only

CD-4 4’ cord only

CD-5 5’ cord only

CD-6 6’ cord only

NEMA 3’ 3 conductor cord and plug

CDP-L5-15 120V

CDP-L6-15 208 and 240V

CDP-L7-15 277V

CDP-L24-20 347V

XCord length beyond 3’

LP Loop, 3/4” male

HK Safety hook, 3/4” male

1 Order “PF” also. (NA with “MT” or “VT”)

2 Not available with 24N

3 Not available with 70, 100, 150W PGR or PGN

(Ships separately)

Lamp Lamp

0268 Wire guard, 6584 optics

0256 Wire guard, 6582, 6585

and 6586

09229 Wire guard, 6640 optics

09230 Wire guard, 6692 optics

HOOK-4551Safety hook, 3/4” male

LOOP-4561Loop, 3/4” male

1 PGI only

STEP 6: STEM

STEP 7: OPTIONS

STEP 8: ACCESSORIES

337mm

(13.25”)

356mm

(14”)

292mm

(11.5”)

309mm

(12”)

Weight:

11 kg (25 lbs)

Weight:

11 kg (25 lbs)

Varies

240mm

(9.5”)

Varies

150mm

(6”)

Varies

270mm

(10.65”)

Varies

150mm

(6”)

Varies

PGN - Non-ballasted Mount

Ballast Weight: Ballast Weight:

> .45 kg (1 lbs) > .45 kg (1 lbs)

PGI - Integral Mount

Weight: Weight:

7 kg (16 lbs) 3 kg (5 lbs)

PGS - Surface Mount

Weight: Weight:

7 kg (16 lbs) 3 kg (5 lbs)

PGR - Remote Mount

Ballast Weight: Ballast Weight:

> .45 kg (1 lbs) > .45 kg (1 lbs)

Large Compact

40, 92 Optics: 82, 84, 85,

86 Optics:

82/85/86

Distributions

Spacing Criteria: 1.9

85 optics (type30)

Weight:

16 kg (35 lbs)

Weight:

16 kg (35 lbs)

400MH

WATTAGE

70DMP

10DMP

15DMP

17DMP

175PP

175MP

250MP

250PP

25LMP

320PP

35LPP

400MH

400LMH

400MP

40LMP

40LPM

400PM

400PP

40LPP

40LMP

26CFL

42CFL

57CFL

70CFL

457CFL

470CFL

30DIN

500IN

Catalog ordering information

Large

40 6640 Reflector

92 6692 Reflector

Compact

82 6582 Reflector

84 6584 Reflector

85 6585 Reflector

86 6586 Reflector

Paradome®

HOLOPHORMS

HOLOPHANE®

Indoor Lighting

DESIGNER SERIES

Paradome 29

Designer Series

DESIGNER SERIES

Product Catalog

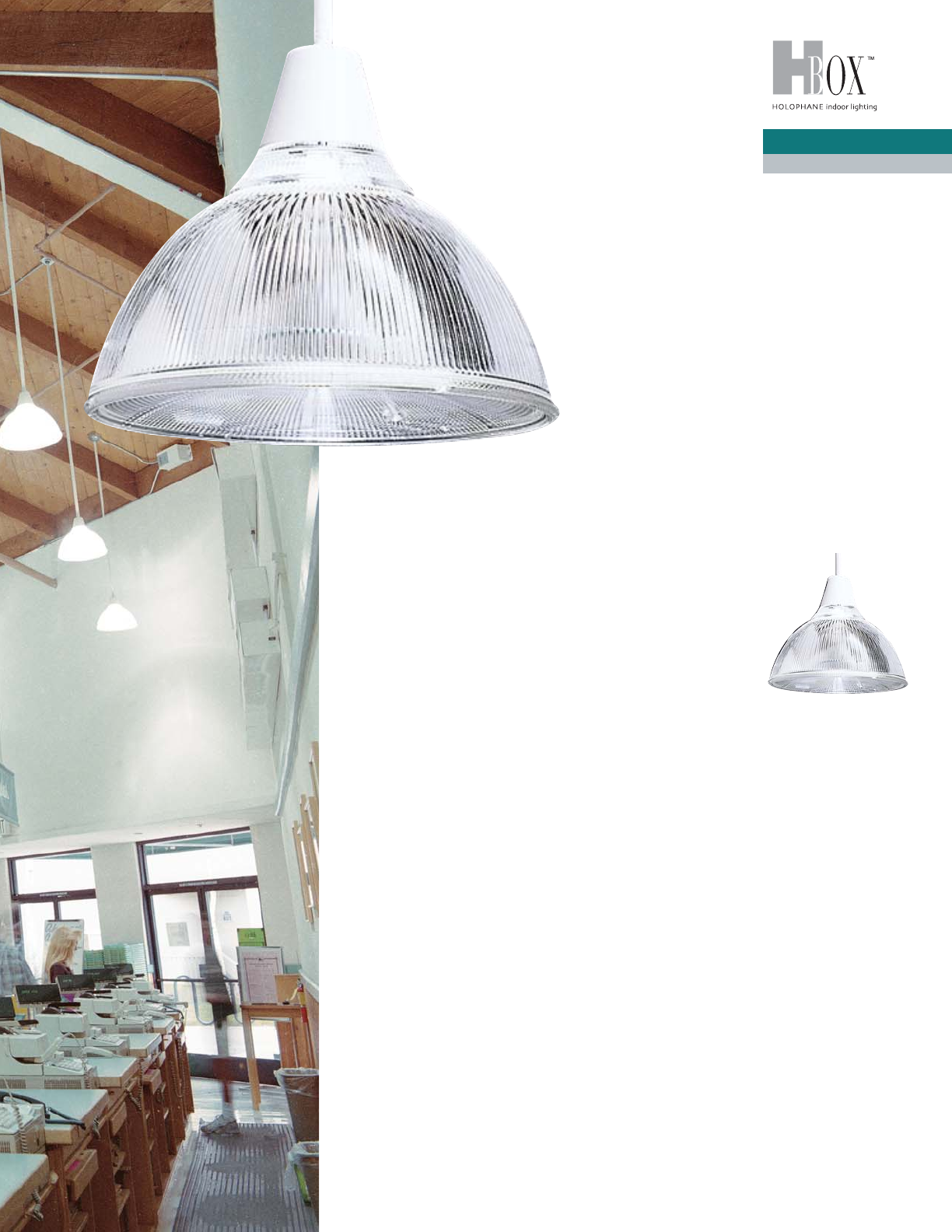

REI; Concord, California

Paradome

The Paradome luminaire from Holophane

combines softened direct illumination with an

indirect component to provide the ideal

photometric curve. Texture, form and

definition are accurately profiled with this type

of light distribution.

The simple uncluttered profile of the Paradome

luminaire blends well with contemporary or

traditional interiors. Standard finish of the

metal components is white polyester powder

paint. Special finishes are also available.

Available with HID, CFL, or incandescent lamp

sources, the Paradome luminaire is an

outstanding complementary design element

for most interiors.

type30

Paradome®

Typical Applications

•Retail stores

•Restaurants

•Office buildings

•Lobbies

•Schools

•Libraries

Features

•Concave bottom refractor provides lamp

concealment

•Borosilicate glass reflector illuminates ceiling

and reduces cavern effect

•Glass optics retain visual clarity over time

•Clean, finished appearance on ceiling

Lamp Types

•50-175 watt metal halide, also available in

pulse start, energy saving pulse start

•70-150 watt high pressure sodium

•150 watt incandescent

•15 - 26 watt compact fluorescent

Approvals

•UL/CUL 1598, damp location listed

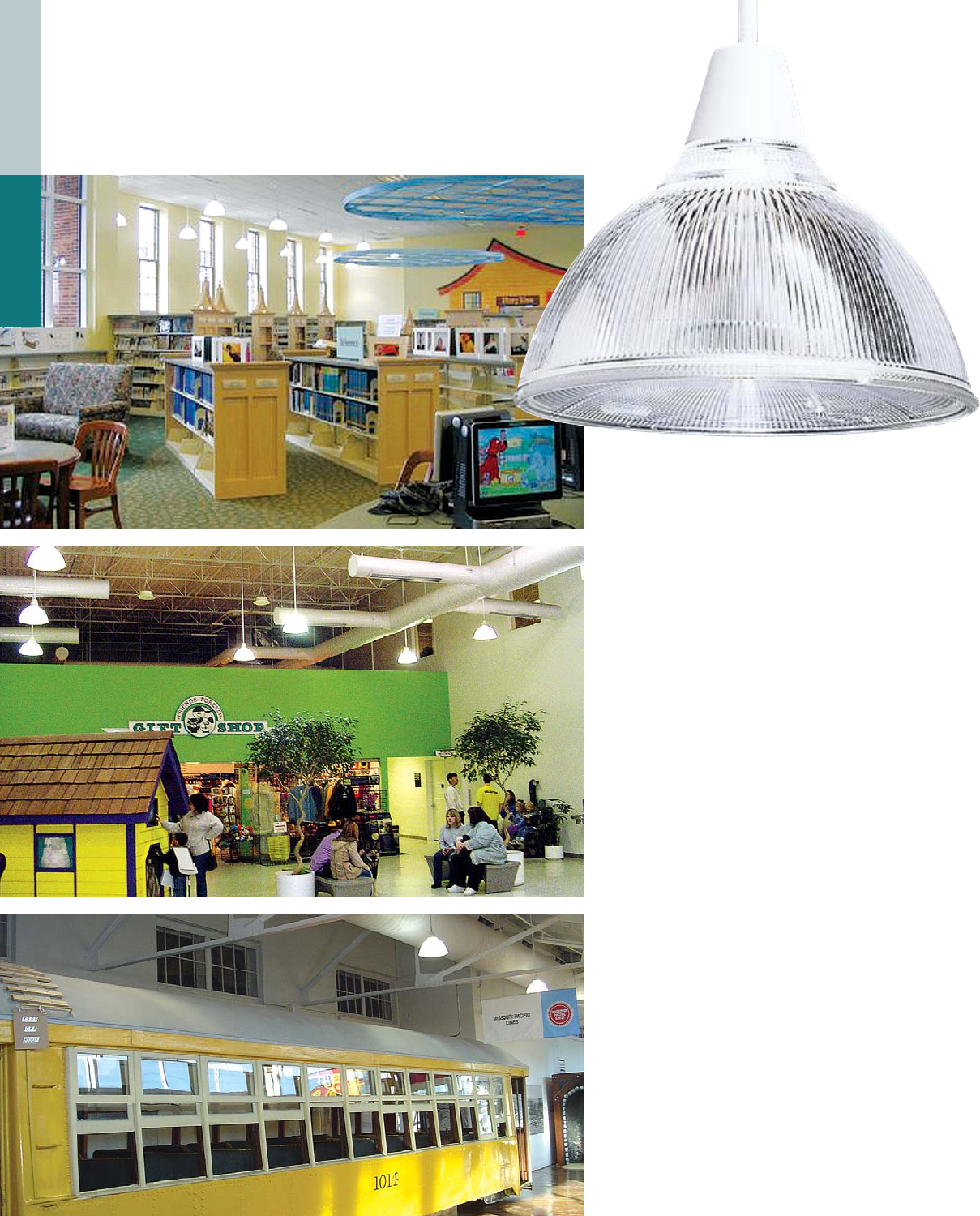

Hudson Library; Hudson, Ohio

HOLOPHORMS

Nebraska Humane Society; Omaha, Nebraska

Western Heritage Museum; Omaha, Nebraska

Applications

Ordering Information

How to Construct a Catalog Number

Example:

HOLOPHANE®

Indoor Lighting

DESIGNER SERIES

Paradome 31

Designer Series

DESIGNER SERIES

Product Catalog

LUMINAIRE

VOLTAGE

STEM LENGTH

OPTIONS

ACCESSORIES

LAMP

10DMH

WATTAGE

50DMH

70DMH

10DMH

15DMH

17DMH

50DWS

10DWS

70DHP

10DHP

15DHP

18CFL

26CFL

15DIN

Catalog number information

STEP 1: LUMINAIRE

PM Paradome

Metal halide

50DMH 50W MH

70DMH 70W MH

10DMH 100W MH

15DMH 150W MH (N/A with 347V)

17DMH 175W MH

High pressure sodium

70DHP 70W HPS

10DHP 100W HPS

15DHP 150W HPS

50DWS150W WhiteSON HPS

10DWS1100W WhiteSON HPS

Compact fluorescent

18CFL 18W CFL (120V only)

26CFL 26W CFL

Incandescent

15DIN 150W Inc. (120V only)

1 (120V only, 381 mm (15.0” stem only)

WhiteSON is a trademark of Philips

Lighting Company

12 120 Volt

27 277 Volt

34 347 Volt

15 381mm (15.0”)

24 610mm (24.0”)

36 914mm (36.0”)

48 1219mm (48.0”)

EM Standby lighting fixture,

supplied with 150 watt tungsten

halogen lamp for 175MH and

150HPS; 100 watt for all

others; not available with

50-70MH, 70HP, CFL, or INC.

ER Emergency lighting fixture less

relay, supplied with 150 watt

tungsten halogen lamp for

175MH and 150HPS; 100 watt

for all others; not available with

50-70MH, 70HP, CFL, or INC.

NRemote ballast mounting bracket

and outlet box enclosure for

attachment to wall or ceiling

(NA with 15DIN)

CSafety cable (inside stem)

Lamp1Appropriate lamp

F12Single fuse assembly

See page 58 for definitions

1 Lamp supplied with fixture — use vertical

burn MH for highest lumen output

2 120, 277 or 347 volt

Prismatic glass

enclosure is

secured by

torsion springs

394mm

(15.5”)

312mm

(12.3”)

STEP 2: SOURCE AND WATTAGE

STEP 3: VOLTAGE

STEP 4: STEM LENGTH

STEP 5: OPTIONS

121mm (4.75”)

146mm (5.75”)

603mm (23.75”)

STEP 6: ACCESSORIES

Weight:

11 kg. (25 lbs.)

Weight:

8 kg. (18 lbs.)

Distributions

Spacing Criteria: 1.3

Paradome (type30)

PrismGlo®

HOLOPHORMS

HOLOPHANE®

Indoor Lighting

DESIGNER SERIES

PrismGlo 33

Designer Series

DESIGNER SERIES

Product Catalog

Johnson County Library; Shawnee, Kansas

Athena®

type50

Electra®

type50

Delphic®

type50

Aurora®

type50

Mentor®

type50

PrismGlo

Commercial, retail and educational spaces

share many of the same lighting requirements.

A wide variety of visual tasks take place within

the same environment. Variable ceiling types

and heights are used to define form and

function. Both horizontal and vertical tasks

require perfectly balanced illumination.

The PrismGlo luminaire has many distinctive

features. Unique shape, multiple distributions,

low brightness and high angle light are just a

few design features making the PrismGlo

luminaire one of a kind.

PrismGlo®

Typical Applications

•Retail stores

•Supermarkets

•Malls

•Restaurants

•Office buildings

•Lobbies

•Schools

•Libraries

•Museums

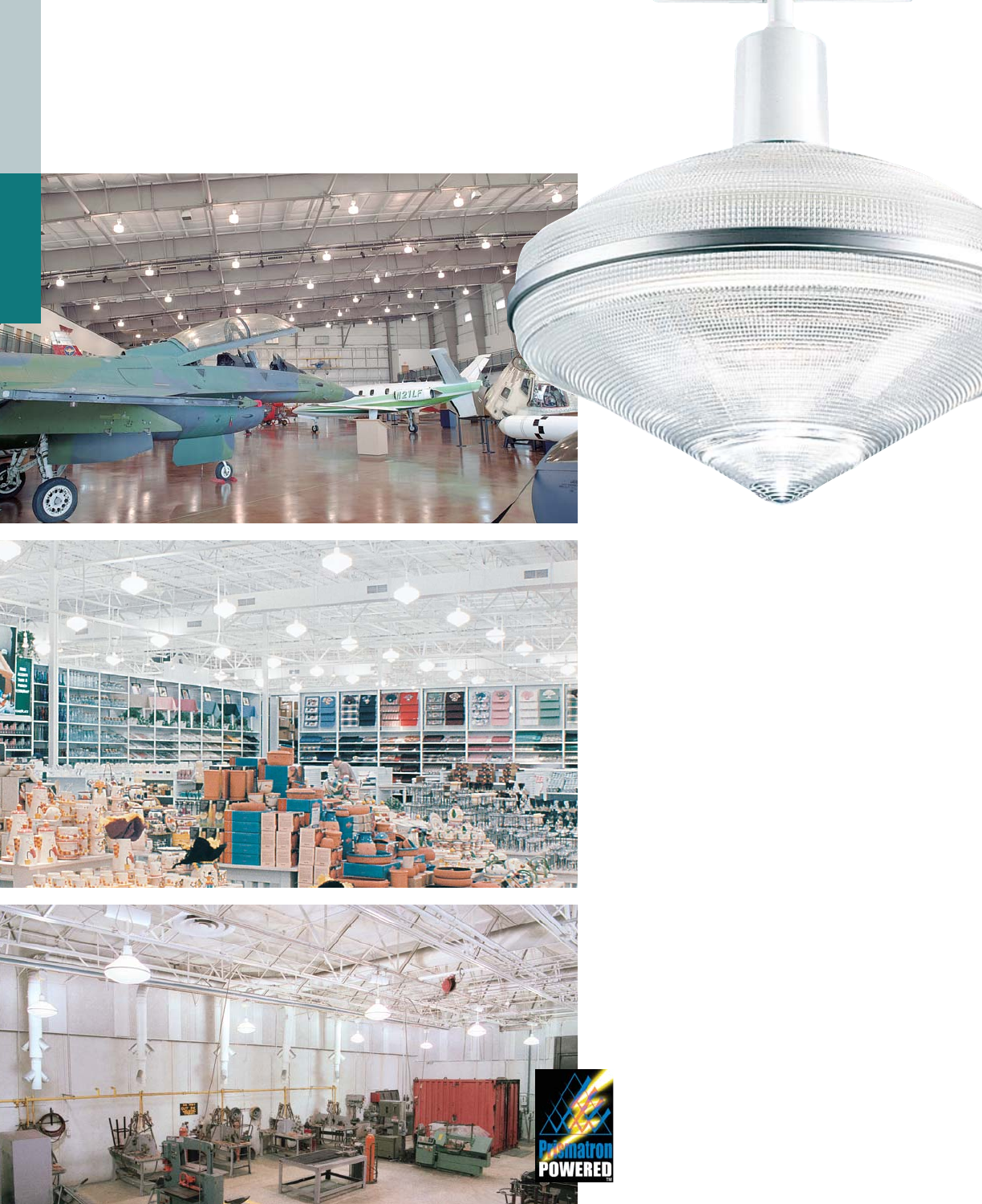

Frontiers of Flight Museum; Dallas, Texas

HOLOPHORMS

HomePlace; Worthington, Ohio

Miami Valley Career Tech Center; Dayton, Ohio

Applications

PrismGlo®|Large

Interior design of commercial space continues to evolve. Open space and open

ceiling offices require illumination of horizontal writing surfaces, catalogs,

computers and charts. The uplight component from PrismGlo reflects off

ceilings into offices without being cut-off by partitions while the horizontal

component provides the illumination needed for exacting visual tasks.

Retail lighting presents a complex challenge. A stylish and inviting setting is

needed, while maintaining effective visibility of merchandise. Color, texture,

form and quality must be effectively illuminated to increase sales. Information

such as prices, instructions, contents and sizes must be easily seen on signs,

labels, tags, shelves and walls. PrismGlo luminaire’s unique lighting has been

proven in many successful installations to improve sales.

HOLOPHANE®

Indoor Lighting

DESIGNER SERIES

PrismGlo 35

Designer Series

DESIGNER SERIES

Product Catalog

Features

•Decorative shapes complement interior

design

•Emphasizes merchandise appearance

•Balanced horizontal and vertical illumination

•High efficiency with reduced glare

•Variety of mounting methods

•Uplight/downlight enhances textures

•Fully luminous environments

Lamp Types

•175-400 watt metal halide and high

pressure sodium, also available in compact

fluorescent, pulse start and energy saving

ballast

Approvals

•UL/CUL 1598, damp location listing

Athena®

type50

Electra®

type50

Delphic®

type50

Aurora®

type50

Mentor®

type50

PrismGlo®

HOLOPHORMS

INTEGRAL BBLL22CC,, BBLL22DDINTEGRAL BBLL22KK

Athena®Electra®

Delphic®

Aurora®Mentor®

OPTIC CHOICES

INTEGRAL

BL2C/BL2D BL2K

LUMINAIRE MOUNTINGS

Product Features

Mounting Options

Ballast Housing

Stem

Socket Husk

Refractor

Relamp Cover

Die cast aluminum housing: Corrosion resistant white

polyester powder paint fixture, UL listed as a recessed

non-type IC marked spacing for use in 25°C ambients, (see page

9 for required minimum spacing), energy efficient copper wound

ballast with thermal overload protector.

Optional quick disconnect: Listed per UL-1059, Terminal

Blocks and UL-98, Enclosed and Dead Front Switches,

permitting luminaire to be disconnected while under load;

branch circuit wiring can be electrically installed and tested

before luminaire is in place.

Ballast: High power factor copper wound ballast is tested

and mounted with capacitors to provide full lamp wattage

CFL ONLY

HOLOPHANE®

Indoor Lighting

DESIGNER SERIES

PrismGlo 37

Designer Series

DESIGNER SERIES

Product Catalog

RECESSED BBLL22BBREMOTE BBLL22EE,, BBLL22FF,, BBLL22GGSURFACE BBLL22AA

ENHANCED

Wall Mount Quad Chandelier Pendant Mount

Double Chandelier

RECESSED & REMOTE ENHANCED SURFACE

BL2B/BL2E/

BL2F/BL2G BL2A/BL2J

BL2H

Quick install box: Ballast housing hinges

from throughway (or concealed) wiring box for

quick labor saving installation and fast maintenance.

Die cast aluminum housing: Corrosion

resistant white polyester powder paint, UL listed

40°C damp location, energy efficient copper wound

ballast.

Integral swivel plate: Provides 15° motion in a

60° plane for mounting on sloped ceilings of

15° or less.

Quick install wiring cover: Pre-drilled for DN20NPT

(.75”) conduit connection, slides on and mates with

electrical splice chamber cover.

Die cast aluminum housing: Corrosion resistant white

polyester powder paint fixture, UL listed as a recessed

non-type IC marked spacing for use in 25°C ambients, (see

page 9 for required minimum spacing), energy efficient

copper wound ballast with thermal overload protector.

Grid ceiling mounting rails: Positions housing and

optics between tee bar runners.

Integral swivel plate: Provides a 15° motion in a 360°

plane for sloped ceilings of 15° or less, fast connection

to, and support of, stem and optical assembly.

Canopy: Provides finished appearance at junction of

ceiling tile and stem.

Stem connection: White pipe of various lengths

support optics at specified mounting height.

Optional quick disconnect: Listed per UL-1059,

Terminal Blocks and UL-98, Enclosed and Dead Front

Switches, permitting luminaire to be disconnected while

under load; branch circuit wiring can be electrically installed

and tested before luminaire is in place.

Remote ballast: Heavy duty steel housing, with white

polyester paint, contains two wiring chambers, knock-

outs and integral mounting feet.

High efficiency electrical components: Low noise,

potted, copper wound core and coil assembly, capacitor,

starter board, and emergency relay designed for remote

mounting from 15m (50’) to 140m (455’) feet from the

luminaire.

PrismGlo®|Large

Product Features

PrismGlo®|Large

Catalog number information

11 Luminaire Mounting

22 Source and Wattage

33 Voltage

66 Options

55 Stem Length

77 Accessories

44 Optic Type

STEP 2: SOURCE AND WATTAGESTEP 1: LUMINAIRE MOUNTING

PrismGlo®

HOLOPHORMS

BL2A Surface mount ballast

BL2B1Recessed mount ballast

BL2C Integral ballast- 55°C

BL2D Integral ballast - 65°C

BL2E2Remote ballast (MT and 480V

only)

BL2F Remote mount ballast

BL2G Remote mount ballast

BL2K Integral ballast - 40°C

1 (120, 277 and 347V only)

2 (Not available with pulse start lamps)

250HP 2250W HPS

400HP 400W HPS

40RHP 3400W HPS, mag. reg.

175MH 175W MH and MV

250MH 250W MH and MV

250MP 250W, MH, open fixture lamp

400MH 400W MH and MV

Energy Saving Ballast

25LHP 2250W HPS

40LHP 400W HPS

25LMH 250W MH

25LMP 250W, MH, open fixture lamp

40LMH 400W MH and MV

Pulse Start

175PM 4175W MH

250PM 4250W MH

320PM 1320W MH

320PP 1320W MH, open fixture lamp

400PM 5400W MH

Pulse Start, Energy Saving Ballast

250PP 4250W MH, open fixture lamp

25LPM 250W MH, open fixture lamp

25LPP 250W MH, open fixture lamp

35LPM 1350W MH

35LPP 1350W MH, open fixture lamp

40LPM 5400W MH

457 7(4) 57W CFL

470 7(4) 70W CFL

Incandescent

500IN 6500W

Not available with BL2B or BL2E

2 Not available with BL2A or BL2C

3 Not available with BL2A, BL2B or “MT”

4 Not available with BL2B

5 Not available with BL2B or BL2E; stem

lengths less than 48”

6 Available with BL2E only, 120V only

7 Available with BL2K only

STEP 1: LUMINAIRE ... Continued

12 1120 volt

20 2208 volt

24 2240 volt

27 1277 volt

34 1347 volt

48 3480 volt

AV 4Auto sensing

NB No ballast

MT 3Multi-voltage (120- 277V)

VT 3Vari-tap (120, 277, 347V)

1 Not available with BL2E

2 Not available with BL2B, BL2E

3 Not available with BL2B

4 Available with BL2K, CFL only

RAthena PrismGlo,

60% up/40% down

JAthena PrismGlo,

40% up/60% down

AAurora PrismGlo,

50% up/50% down

STEP 3: VOLTAGE

STEP 4: OPTICS TYPE

Ceiling

Struts

mount

to T-bar

members

Canopy

Varies

Ceiling

Varies

Canopy

291mm

(11.45") 202mm

(7.95")

BL2A - Surface Mount

Ballast Weight:

7 kg (16 lbs)

BL2B - Recessed Mount

Ballast Weight:

7 kg (16 lbs)

BL2C/BL2D - Integral Mount

Ballast Weight:

7 kg (16 lbs)

BL2E/BL2F/BL2G - Remote Mount

Ballast Weight:

> .45 kg (1 lbs)

Weight:

14.7 kg. (32.5 lbs.)

Weight:

14.8 kg. (33 lbs.)

279mm

(11")

464mm

(18.25")

127mm

(5")

505mm

(19.85")

318mm

(12")

127mm

(5")

Distributions

Spacing Criteria: 1.5

Athena optics

Varies

271mm

(10.65”

271mm

(10.7")

389mm

(15.3")

BL2K - Integral Mount

Ballast Weight:

6.8 kg (15 lbs)

Ordering Information

How to Construct a Catalog Number

Example:

HOLOPHANE®

Indoor Lighting

DESIGNER SERIES

PrismGlo 39

Designer Series

DESIGNER SERIES

Product Catalog

BL2A

LUMINAIRE

BL2A

BL2B

BL2C

BL2D

BL2E

BL2F

BL2G

BL2K

VOLTAGE

OPTICS

STEM LENGTH

OPTIONS

CD-3

CD-4

CD-5

CD-6

CDP-L5-15-3

CDP-L2-15-3

CDP-L7-15-3

CDP-L24-20-3

CDP-L8-20-3

HFW

PF-129

PF-291

PHCB

PHCB-L8-480

ACCESSORIES

LOOP-456

PF-116-A

HOOK-455

PF-122-A

PF-129-A

PF-291-A

UPH-35-XXX-WH

UPH-35-L8-480-WH

UPH-36-XXX-WH

UPH-36-L8-480-WH

LAMP

09205

09206

WCGC

400HP

WATTAGE

175MH

175PM

250HP

250MH

250MP

25LMH

25LMP

250PM

250PP

25LPM

25LPP

25LHP

320PM

320PP

35LPM

35LPP

35EPM

400HP

40RHP

400MH

40LHP

40LMH

400PM

40EPM

40LPM

457

470

500IN

(shipped separately)

LAMP Appropriate HID lamp

supplied with fixture

F1 3Single fuse assembly

F2 4Double fuse assembly

BL2A-CO Decorative ballast cover for

BL2A units only.

09205 Plastic relamp plate for

Athena, Mentor, Delphic

09206 Plastic relamp plate for

Aurora, Electra

BL2C and BL2D only

LOOP-456 1Loop, male

PF-116-A 1Loop, female

HOOK-455 1Safety hook, male

PF-122-A 1Safety hook, female

PF-129-A 1Anti-rotational hook, male

PF-291-A 1Universal gasketed hook

assembly male

UPH-35-XXX-WH 2

Thru-way power-hook

UPH-35-L8-480-WH 2

Thru-way power-hook

UPH-36-XXX-WH 2

Pendant power-hook

UPH-36-L8-480-WH 2

Pendant power-hook

Note: For applications where the luminaire

may be subject to impact, the plastic

relamp plate is required.

See page 59 for definitions

1 Not available with “Q”

2 Order “PHCB” with fixture); all fixtures

except “MT”, “ER”, or “Q”. Insert voltage

for XXX.

3 For 120, 240, 277, or 347 volt (BL2E only)

4 For 208, 240, or 480 volt (BL2E only)

STEP 4: OPTICS ... Continued

DDelphic PrismGlo,

50% up/50% down

EElectra PrismGlo,

50% up/50% down

For BL2A, BL2B, and BL2E

1229mm (9”)

2381mm (15”)

4508mm (20")

5660mm (26")

651016mm (40")

X4Special length

For BL2C and BL2D

376mm (3") factory installed

X4Special length

1 Available with 250HP, 400HP, 250MH,

and 400MH only

2 Not available with 175MH, 250MH and

25LMH

3 Available with BL2C and BL2D only

4 Insert appropriate stem length (No.) in

top catalog number. Available in

increments of 25mm (1") nominal

5 Available with BL2K only

STEP 6: OPTIONS ... Continued

STEP 6: OPTIONS

STEP 7: ACCESSORIES

3 conductor 3’ cord and NEMA plug

CDP-L5-15-X 5120V 914mm

CDP-L6-15-X 5208/240V 914mm

CDP-L7-15-X 5277V 914mm

CDP-L24-20-X 5347V 914mm

CDP-L8-20-X 5480V 914mm

HFW Holoflex®flexible wiring

For BL2C only

EM Standby lighting fixture

ER Emergency lighting fixture

F1 6Single fuse assembly

F2 Double fuse assembly

PS 6HPS protected starter

09160-X Safety chain for BL2A, BL2B,

BL2C, BL2D, and BL2K.

R1 8Plastic Relamp Plate.

R2 9Plastic Relamp Plate.

See page 58 for definitions

1 Not available with “-CDP”, “PHCB”, “PF”, “ER”

2 Not available with “Q”

3 Use with “UPH-35-XXX-WH” or “UPH-36-XXX-

WH”. Not Available with “MT”, “ER”, or “Q”

4 For length longer than 6 ft handle through TSG.

5 Order “PF” also) X = no. of feet. 3’ std length

6 Not available with BL2E

7 Special configuration plug cap and “PF-105”

loop attached

8 Only available with R, J, M and D optics

9 Only available with A and E optics

356mm

(14")

505mm

(19.85")

127mm

(5")

Weight:

13.9 kg. (31 lbs.)

Weight:

14.8 kg. (33 lbs.)

292mm

(11.50")

505mm

(19.85")

127mm

(5")

MMentor PrismGlo, 50%

up/50% down, 250W max.

254mm

(10")

505mm

(19.85")

127mm

(5")

Weight:

13.8 kg. (31 lbs.)

STEP 5: STEM LENGTH

Mounting Options for BL2B, BL2C, BL2D

QQuick disconnect power hanger

for pendant, thru-way wiring

NNon-disconnect, pendant and

thru-way wiring

Options for BL2C and BL2D

LP 2Loop, male

HK 2Safety hook, male

PF-129 2Anti-rotational hook, male

PF-291 2Universal gasketed hook

assembly, male

PHCB 3, 7 Power-hook cord

PHCB-L8-480 3, 7 Power-hook cord

CD-3 43’ Cord only

CD-4 44’ Cord only

CD-5 45’ Cord only

CD-6 46’ Cord only

PrismGlo®

Typical Applications

•Retail stores

•Malls

•Restaurants

•Lobbies

•Schools

•Libraries

Features

•Decorative shapes complement interior design

•Uplight/downlight enhances merchandise

appearance

•Balanced horizontal and vertical illumination

•High efficiency with reduced glare

•Variety of mounting methods

•Fully luminous environments

Lamp Types

•175-400 watt metal halide and high pressure

sodium, also available in pulse start , energy

saving ballast, and 500 watt incandescent

Approvals

•UL/CUL 1598 damp location listing

San Antonio’s Visitor Center; San Antonio, Texas

HOLOPHORMS

Dave and Buster’s; Philadelphia, Pennsylvania

University of Dayton, Law School; Dayton, Ohio

PrismGlo®| Enhanced

HOLOPHANE®

Indoor Lighting

DESIGNER SERIES

PrismGlo 41

Designer Series

DESIGNER SERIES

Product Catalog

Catalog number information

STEP 1: LUMINAIRE

BL2H Enhanced PrismGlo, remote

ballast

Standard color is white

EM Standby lighting fixture

ER Emergency lighting fixture

R1 Plastic relamp plate

R2 Plastic relamp plate

See page 58 for definitions

STEP 5: MOUNTING ... Continued

STEP 5: MOUNTING OPTIONS

STEP 6: OPTIONS

(shipped separately)

LAMP Appropriate HID lamp

supplied with fixture

F1 3Single fuse assembly

F2 4Double fuse assembly

BL2A-CO Decorative ballast cover for

BL2A units only.

09205 Plastic relamp plate for

Athena, Mentor, Delphic

09206 Plastic relamp plate for

Aurora, Electra

See page 59 for definitions

STEP 7: ACCESSORIES

BL2H

LUMINAIRE

BL2H

VOLTAGE

OPTICS

MOUNTINGS

OPTIONS

ACCESSORIES

09205

09206

LAMP

175MH

WATTAGE

175MH

200HP

250HP

250MH

25LHP

25LMH

400HP

400MH

40LHP

40LMH

500IN

Four Rod Pendant

6Recessed, 305mm (12” )

7Recessed, 610mm (24”)

8Recessed, 914mm (36”)

9Surface, 305mm (12”)

10 Surface, 610mm (24”)

11 Surface, 915mm (36”)

12 Swivel, 305mm (12”)

13 Swivel, 610mm (24”)

14 Swivel, 914mm (36”)

15 1Recessed, special length

16 1Surface, special length

17 1Swivel, special length

1 Available in increments of 25mm (1”) nominal

Double Chandelier

20 Rods, 660mm (26”) stem length

21 Extrusion, 660mm (26”) stem

length

22 Rods, special stem length

23 Extrusion, special stem length

Quad Chandelier

24 Rods, 660mm (26”) stem length

25 Extrusion, 660mm (26”)

26 Rods, special stem length

27 Extrusion, special stem length

Double Chandelier

Ceiling Line

127mm

(5”)

102mm (4”)

Stem Length

Double Chandelier

Ceiling Line

127mm

(5”)

102mm (4”)

Stem Length

RODS

ARM

(9”)

(Swivel)

102mm

(4”)

610mm

(24”)

Ordering Information

How to Construct a Catalog Number

Example:

Distributions

Spacing Criteria: 1.5

Athena optics

Weight:

18 kg (40 lbs)

Weight:

16 kg (35 lbs)

Weight:

45 kg (100 lbs)

See photo below

Weight:

90 kg (200 lbs)

STEP 2: SOURCE AND WATTAGE

200HP 200W HPS

250HP 250W HPS

400HP 400W HPS

175MH 175W MH and MV

250MH 250W MH and MV

400MH 400W MH and MV

Energy Saving Ballast

25LHP 250W HPS

40LHP 400W HPS

25LMH 250W MH and MV

40LMH 400W MH and MV

Incandescent

500IN 500W, BL2H, 120V only

MT Multi-voltage for 120, 208,

240 and 277V

NB No ballast

48 480V

RAthena, 60% up/ 40% down

JAthena, 40% up/ 60% down

AAurora, 50% up/ 50% down

DDelphic, 50% up/ 50% down

EElectra, 50% up/50% down

MMentor, 50% up/ 50% down,

250W max

See page 38-39 for details

STEP 3: VOLTAGE

STEP 4: OPTIC TYPE

Wall Mount

18 Rods, 457mm (18”)

19 Extrusion, 457mm (18”)

STEP 5: MOUNTING ... Continued

Quad

PrismGlo®

Typical Applications

•Retail stores

•Specialty stores

•Malls

•Restaurants

•Office buildings

•Lobbies

•Schools

•Libraries

•Museums

HOLOPHORMS

PrismGlo®| Compact

Cox Cable; Spokane, Washington

Sports Chalet; Irvine, California

Chico’s; Tampa, Florida

HOLOPHANE®

Indoor Lighting

DESIGNER SERIES

PrismGlo 43

Designer Series

DESIGNER SERIES

Product Catalog

PrismGlo®|Compact

Similar to the large PrismGlo fixture, compact luminaire applications include retail,

commercial, schools, offices and other applications where decorative, high performing

luminaires are desired. Available in the same optics styles as the large PrismGlo, these

fixtures perfectly complement their large counterparts enabling a continuous theme

through a design space. Multiple ceiling heights or design spaces can be addressed

with a similar styled luminaire.

The Aurora®

type50

The Electra®

type50

Mentor®

type 50

The Delphic®

type50

The Athena®

type50

Features

•Decorative shapes complement interior design

•Uplight/downlight enhances merchandise appearance

•Balanced horizontal and vertical illumination

•High efficiency with reduced glare

•Variety of mounting methods

•Fully luminous environments

Lamp Types

•70-175 watt metal halide and high pressure

sodium, compact fluorescent, and also available in

pulse start and energy saving ballast

Approvals

•UL/CUL, 1598 damp location listing

PrismGlo®

HOLOPHORMS

Product Features PrismGlo®| Compact

11 Luminaire Mounting

22 Source and Wattage

33 Voltage

55 Stem Length

66 Options

77 Accessories

44 Optic Type

UL-1029 and 935 40°C listed ballast for remote mounting and

recessing in grid ceilings with positioning legs, knockouts, ballast

wiring chamber and optical support box.

Octagonal box with optical swivel support bracket and

wiring chamber.

Decorative cover finishes off hole in ceiling tile.

Stem connection: 10mm (.38”) white pipe of various lengths

positions optics at specified mounting height. The stem and optics

are C/UL/US listed per UL 1598 for damp location.

Slide-on socket cover over relamping cable, socket husk and

twist/turn support castings.

Refractor: low brightness prismatic glass refractor with wide spacing

criteria and 55 or 60% downlight.

Variety of mounting options: pendant for DN20NPT (.75”)

conduit, hooks and loops, or ceiling mount.

Die cast aluminum housing: corrosion resistant white

polyester powder finish, C/UL/US listed 40°C, dry locations, and

energy efficient copper wound ballast.

Die cast aluminum optical support cover with corrosion

resistant white polyester powder finish.

Stem connection: 10mm (.38”) white pipe of various lengths

positions optics at specified mounting height. The stem and

optics are C/UL/US listed and listed per UL 1598 for damp location.

Slide on socket cover over relamping cable,

socket husk and twist/turn support castings.

Refractor: low brightness prismatic glass refractor

with wide spacing criteria and 55 or 60% downlight.

Recessed Remote

Integral Ballast

Distributions

Spacing Criteria: 2.2

Athena optics

Ordering Information

How to Construct a Catalog Number

Example:

HOLOPHANE®

Indoor Lighting

DESIGNER SERIES

PrismGlo 45

Designer Series

DESIGNER SERIES

Product Catalog

Catalog number information

STEP 2: SOURCE AND WATTAGE

STEP 1: LUMINAIRE MOUNTING

PAB

LUMINAIRE

PAB

PAC

VOLTAGE

OPTICS

STEM LENGTH

OPTIONS

PF-129

PF-291

PHCB

PHCB-L8-480

CDP-L5-15-3

CDP-L2-15-3

CDP-L7-15-3

CDP-L24-20-3

CDP-L8-20-3

HFW

ACCESSORIES

LAMP

LOOP-456

HOOK-455

PF-129-A

PF-291

UPH-35-XXX-WH

UPH-36-XXX-WH

UPH-36-L8-480

09189

10DMH

WATTAGE

50DMH

50DWS

70DHP

70DMH

10DMH

10DWS

10DHP

15DHP

15DMH

17DMH

18QFL

26QFL

23EFL

42CFL

57CFL

15DIN

PAB Recessed/remote ballast, UL

Listed 1029 and 935, 40°C

dry location, stem and optic UL

listed 1598 damp location

PAC Integral ballast, 40°C. UL Listed

1598 damp location. CSA

Certified

PAB only

50DMH 50W MH

Fluorescent

18CFL 18W CFL

26CFL 26W CFL

Incandescent

15DIN 150W incandescent, 120

volt only

PAB and PAC

70DHP 70W HPS

10DHP 100W HPS

150HP 150W HPS

70DMH 70W MH

10DMH 100W MH

15DMH 150W MH, not available

for 347V

17DMH 175W MH

PAC only

42CFL 42W CFL

57CFL 57W CFL

All HID lamps are medium base socket

12 120 volt

20 1208 volt

24 1240 volt

27 277 volt

34 347 volt (Canada)

48 1480 volt

AV 2Auto Sensing

MT 1Multi-voltage for 120, 208, 240,

and 277 volt

1 Not available in PAB

2 Only available with Compact Fluorescent

40% up / 60% down

AAurora PrismGlo

MMentor PrismGlo

STEP 3: VOLTAGE

45% up / 55% down

JAthena PrismGlo

DDelphic PrismGlo

EElectra PrismGlo

1127mm (5")

2381mm (15")

XSpecial length (available in

increments of 25mm (1”) nominal)

STEP 4: OPTIC TYPE

STEP 5: STEM LENGTH STEP 7: ACCESSORIES

STEP 6: OPTIONS

50mm (2”)

121mm

(4.75”)H

603mm (23.75”)L

146mm (5.75”)W

178mm

(7”)

330mm

(13”)

273mm

(10.75”

330mm

(13”)

216mm

(8.5”)

330mm

(13”)

254mm

(10”)

330mm

(13”)

254mm

(10”)

330mm

(13”)

235mm

(9.25”)

LAMP Appropriate HID lamp

supplied with fixture

F1 Single fuse assembly for

120, 277 and 347 volt

PAC only

F2 Double fuse assembly

CE Ceiling mounting kit

LOOP-456 Loop, male

PF-116-A Loop, female

HOOK-455

Safety hook, male

PF-122-A Safety hook, female

PF-129-A Anti-rotational hook, male

PF-291 Universal gasketed and hook

assembly, male

UPH-35-XXX-WH1

Thru-way power-hook (order

“PHCB” with fixture); all

fixtures except “MT” and

“ER”

UPH-35-L8-480-WH (480V)

Thru-way power-hook (order

“PHCB-L8-480” with fixture);

all fixtures except “ER”

UPH-36-XXX-WH1

Pendant power-hook (order

“PHCB” with fixture); all

fixtures except “MT” and

“ER”.

UPH-36-L8-480 (480V)

Pendant power-hook (order

“PHCB-L8-480” with fixtures);

all fixtures except “ER”

09189-X Safety chain to ballast

housi

ng.

Note: For applications where the luminaire

may be subject to impact, the plastic

relamp plate is required.

See page 59 for definitions

1 Insert voltage for “XXX”. (120, 208, 240,

277, 347V)

EM Standby lighting fixture

ER Emergency lighting fixture

PAB only

NRemote mounting brackets; all

fixtures except 15DIN.

CHidden safety cable for optical

assembly.

PAC only

PS HPS protected starter

LP Loop, male

HK Safety hook, male

PF-129 Anti-rotational hook, male

PF-291 Universal gasketed and hook

assembly, male

PHCB Power-hook cord

PHCB-L8-480 (480V)

Power-hook cord, use with

“UPH-35-L8-480-WH” or

“UPH-36-L8-480-WH” on 480

volt units only); all fixtures

except “ER”

3’, 3 conductor cord and NEMA plug

CDP-L5-15-3 1120V 914mm,

CDP-L6-15-3 1208/240V 914mm

CDP-L7-15-3 1277V 914mm

CDP-L24-20-3 1347V 914mm, (order

“PF” also)

CDP-L8-20-3 1480V 914mm, (order

“PF” also); all fixtures

except “ER”

HFW Holoflex®flexible wiring

See page 58 for definitions

1 Order “PF” also; all fixtures except “ER”

and “MT”

PAB

PAC

Weight:

3.97 kg. (8.75 lbs.)

Weight:

3.74 kg. (8.25 lbs.)

Weight:

5.4 kg. (12 lbs.)

Weight:

3.97 kg. (8.75 lbs.)

Weight:

3.74 kg. (8.25 lbs.)

Ballast Weight:

9 kg. (20 lbs.)

Ballast Weight:

13.6 kg. (30 lbs.)

Illumibay™Applications

Illumibay™

Typical Applications

•Retail stores

•Restaurants

•Lobbies

•Schools

Features

•Open and enclosed optics

•Nine standard paint finishes as well as

custom colors

•Two different optical mounting methods

Lamp Types

•70-400 watt metal halide, also available in

pulse start, and energy saving pulse start

•26- (2) 57 watt compact fluorescent

Approvals

•UL/CUL

HOLOPHORMS

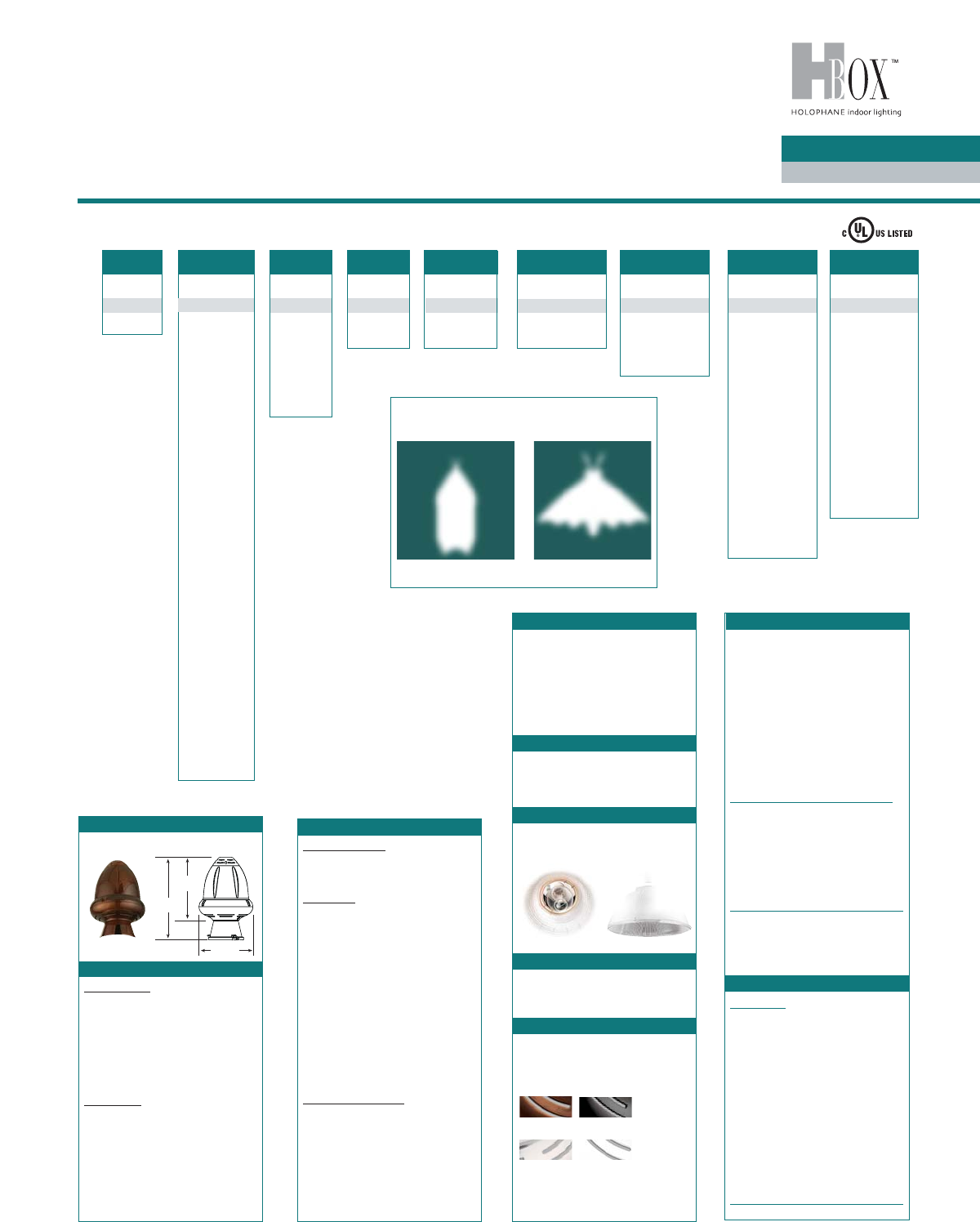

Ordering Information

How to Construct a Catalog Number

Example:

HOLOPHANE®

Indoor Lighting

DESIGNER SERIES

Illumibay 47

Designer Series

DESIGNER SERIES

Product Catalog

ILB

MOUNTING

ILB

VOLTAGE

OPTICS

OPTICAL MTG.

FINISH

OPTIONS

HFW

CDP-L5-15-X-PT

CDP-L6-15-X-PT

CDP-L7-15-X-PT

CDP-L24-20-X-PT

CD-3-PT

CD-4-PT

CD-5-PT

CD-6-PT

PF-396

PF-397

ACCESSORIES

0277

09269

09270

09267

09268

09274

09275

LAMP

PF-396-ACC

PF-397-ACC

ILCHAIN3

ILCHAIN6

ILCHAIN10

STEP 1: MOUNTING

ILB Integral mount

12 120 Volt

20 208 Volt

24 240 Volt

27 277 Volt

34 347 Volt

MT Multi-voltage, 120V - 277V

VT Vari-tap, 120V, 277, 347V

N6612 (narrow)

W6611 (wide)

HHusk optical

GRod and rings

OOpen

EEnclosed

CCopper paint

KBlack paint

LSatin nickel paint

WWhite paint

Medium Base

70DMH 70W MH

70DMP 70W MH, protected

10DMH 100W MH

10DMP 100W MH, protected

15DMH 150W MH

15DMP 150W MH, protected

17DMH 175W MH

17DMP 175W MH, protected

Mogul Base

175MH 175W MH

175MP 175W MH

250MH 250W MH

250MP 250W MH, protected

400MH 400W MH

400MP 400W MH, protected

STEP 3: VOLTAGE

STEP 4: OPTICS (DISTRIBUTION)

326.4mm

(12.85”)

279.9mm

(11.02”)

505.5mm

(19.9”)

STEP 5: OPTICAL MOUNTING

STEP 6: OPTICAL CONFIGURATION

PF-396 Safety hook

PF-397 Loop

HFW Holoflex®flexible wiring

system

F1 2Single fuse assembly

F2 2Double fuse assembly

C3 3’ of safety chain

C6 6’ of safety chain

C1 10’ of safety chain

H2HALT®Automatic lamp

time-out.

EM 2Standby lighting fixture

3 Conductor Cord and NEMA Plug

CDP-L5-15-X-PT 1120V,

CDP-L6-15-X-PT 1208/240V

CDP-L7-15-X-PT 1277V

CDP-L24-20-X-PT 1347V

CD-3-PT 3’ cord

CD-4-PT 4’ cord

CD-5-PT 5’ cord

CD-6-PT 6’ cord

See page 58 for definitions

1 Not available in ILR version

2 Available with 70DMH, 100MH, 150MH,

175MH, 250PM, 320PM, 350PM, 400MH,

and 400PM

Wireguards

0277 Wireguard access door

09269 Husk, open 6611 optic

09270 Husk, open 6612 optic

09267 Husk, enclosed 6611 optic

09268 Husk, enclosed 6612 optic

09274 Rods and Rings, open

6611 optic

09275 Rods and Rings, open

6612 optic

F1 Single fuse assembly

F2 Double fuse assembly

LAMP Appropriate HID lamp

PF-396-ACC Safety hook

PF-397-ACC Loop

ILCHAIN3 3’ of safety chain

ILCHAIN6 6’ of safety chain

ILCHAIN10 10’ of safety chain

See page 59 for definitions

STEP 9: ACCESSORIES

STEP 7: FINISH

STEP 8: OPTIONS

STEP 2: SOURCE AND WATTAGE

The colors are approximate. Cast aluminum parts

appear differently from hydro-formed parts when

using metallic finishes.

Copper Paint Black Paint

Satin Nickel Paint White Paint

CONFIGURATION

Distributions

Spacing Criteria: 0.7 - 1.2

6612 (narrow)

Spacing Criteria: 1.2 - 2.2

6611 (wide)

70DMH

WATTAGE

70DMH

70DEM

70DMP

10DMH

10DEM

10DMP

15DMH

15DEM

15DMP

175MH

17DMH

17DMP

175MP

175PM

250MH

250MP

250PM

250PP

320PM

320PP

350PM

350PP

35EPM

35EPP

400MH

40EPM

40EPP

400MP

400PM

400PP

470CFL

657CFL

257CFL

270CFL

112CFL

Catalog number information

Electronic Ballast

70DEM 70W MH, electronic

10DEM 100W MH, electronic

15DEM 150W MH, electronic

Pulse Start

175PM 175W MH

250PM 250W MH

250PP 250W MH, protected

320PM 320W MH

320PP 320W MH, protected

350PM 350W MH

35EPM 350W MH, linear reactor

350PP 350W MH, protected

35EPP 350W MH, linear reactor,

protected

40EPM 400W MH, linear reactor

400PM 350W MH

400EPP 400W MH, linear reactor,

protected

400PP 350W MH, protected

Compact Fluorescent

470CFL (4) 70W CFL

657CFL (6) 57W CFL

257CFL (2) 57W CFL

270CFL (2) 70W CFL

112CFL 120W CFL

Recessed

Form follows function in our recessed

luminaires. Whether you want a troffer

grid or surface mount for that smooth

appearance in the ceiling. You can choose

between the conventional flat lens

Mirrolume luminaire option, or the

innovative CrystalGlo luminaire with it’s

drop glass, featuring the aesthetically

appealing prismatic glass.

Holophane provides a whole new level of

efficiency from a 2x2 HID luminaire.

The introduction of highly specular

Miro® 4* material for use in the

manufacture of the internal reflector

creates an unequaled level of luminaire

performance.

The Holophane potted ballast provides

excellent thermal dissipation and sound

absorption, for long life and quiet

operation.

Introduction

RECESSED

Miro® 4 is a registered trademark of Alanod

Recessed

CrystalGlo

with Delphic Optics

Mirrolume

with troffer grid

Mirrolume

with surface mount

CrystalGlo

with Electra Optics

CrystalGlo®

RECESSED

CrystalGlo

type30

HOLOPHANE®

Indoor Lighting

DESIGNER SERIES

CrystalGlo 51

Designer Series

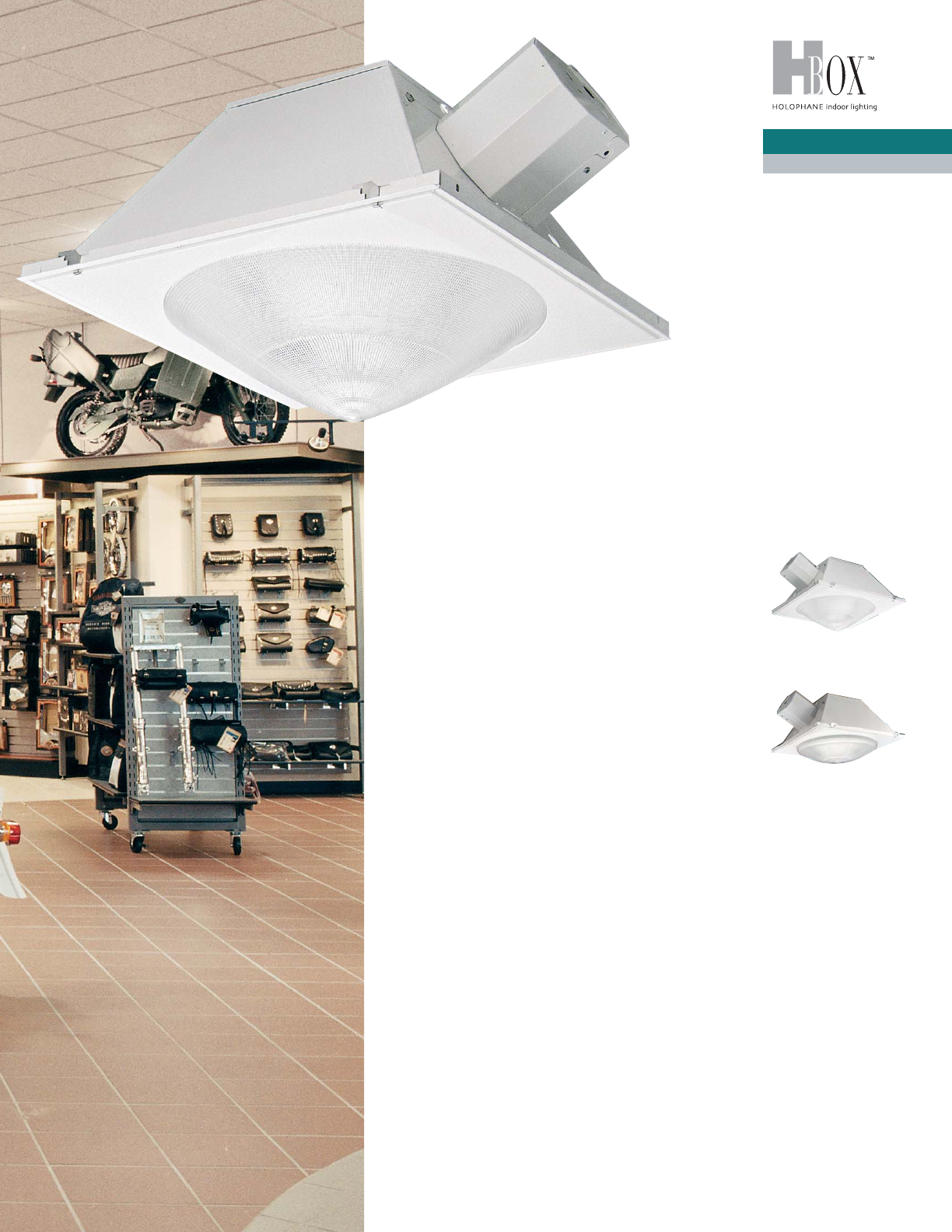

CrystalGlo

type30

CrystalGlo

The CrystalGlo luminaire offers the latest look

in 2x2 HID fixtures for commercial, industrial,

institutional, retail, and academic applications.

The protruding glass element provides an

attractive sparkle making the space pleasant

to be in. The borosilicate glass refractor

uniformly distributes light as it exits the

luminaire providing unequaled visual comfort.

Some of the light is directed to the ceiling to

reduce the luminaire-to-ceiling light contrast.

CrystalGlo is offered in either a recessed or

surface mount configuration for application

into a grid or hard ceiling.

Uniquely designed prismatic glass refractors

allow the luminaire to sparkle when illuminated.

The Electra®optic is pointed at the bottom

whereas the Delphic®optic is rounded; both

providing a smooth appearance in the ceiling.

DESIGNER SERIES

Product Catalog

Cummings’ Harley-Davidson Sales; Burton, Michigan

Applications

CrystalGlo®

Typical Applications

Retail

•Malls and shopping centers

•Supermarkets

•Specialty shops

•Automobile dealerships

Commercial

•Commercial offices

•Museums

•Places of worship

Schools

•Elementary and high schools

•College and universities

•Libraries and activity areas

Features

•Innovative, attractive HID luminaire for

finished ceilings

•Prismatic glass refractor for uniform

illumination and unequaled visual comfort

•Highly engineered specular Miro® 4

segmented reflector for optimal luminaire

efficiency

•Energy efficient, long life Holophane

potted ballast

Lamp Types

•70-400 watt metal halide, also available

in pulse start and energy saving

pulse start

Approvals

•UL/CUL 1598 damp location listing

Hollenbeck School Library; St. Charles, Missouri

RECESSED

Notre Dame Auxiliary Gymnasium; South Bend, Indiana

Cummings’ Harley-Davidson Sales; Burton, Michigan

TG1 Troffer, Grid Mount

TF1 Troffer, Flange Mount

TS1 Surface Mount

1 CUL listed damp location, 25ºC ambient

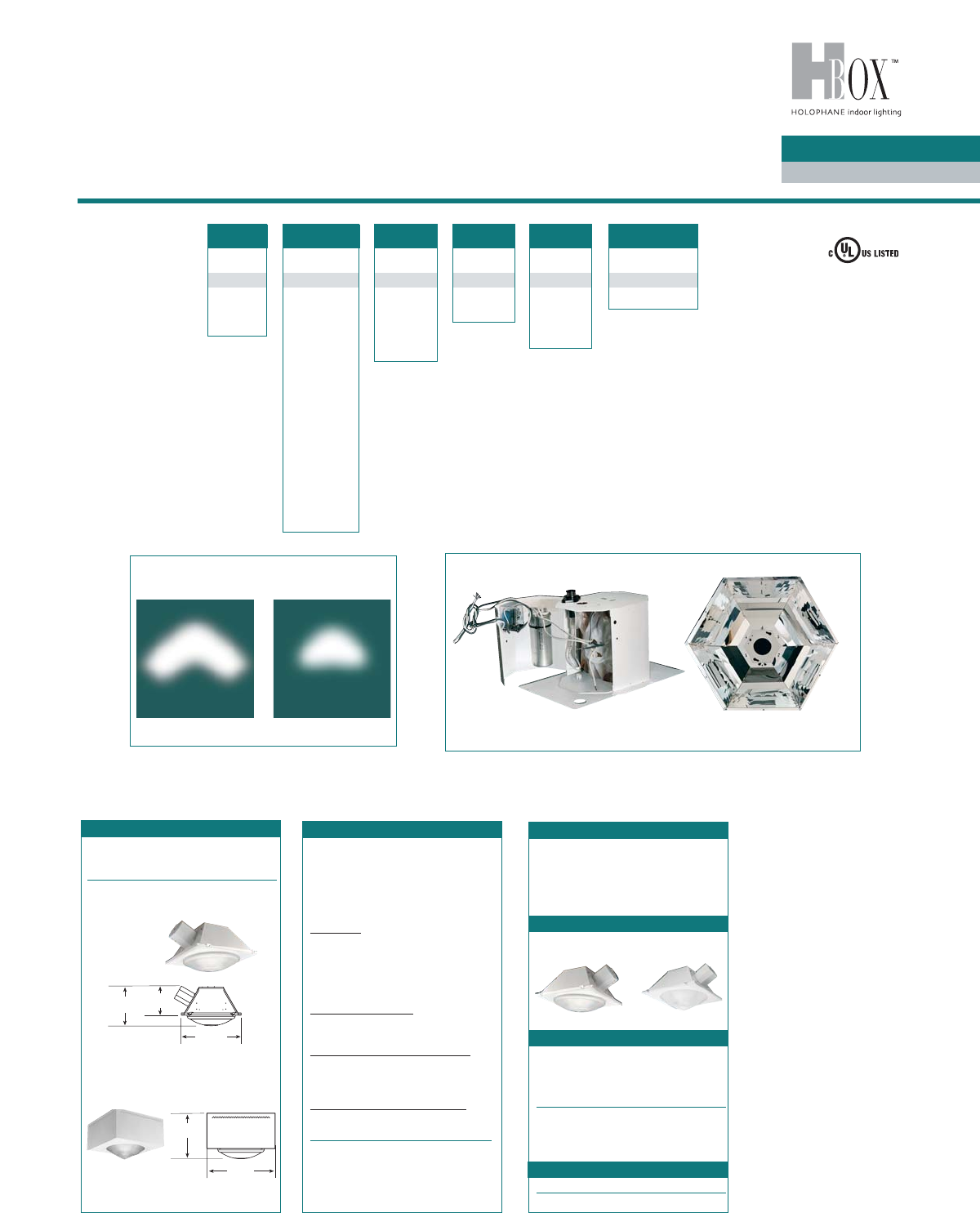

Ordering Information

How to Construct a Catalog Number

Example:

HOLOPHANE®

Indoor Lighting

DESIGNER SERIES

CrystalGlo 53

Designer Series

DESIGNER SERIES

Product Catalog

LUMINAIRE

STEP 1: LUMINAIRE MOUNTING

400MH

WATTAGE

70DMH

1DDMH

15DMH

175MH

250MH

175PM

250PM

320PM

350PM

400PM

25LMH

400MH

40LMH

25LPM

35LPM

40LPM

35EPM

40EPM

VOLTAGE

DEL

OPTICS

DEL

ELE

OPTIONS

WGD

TGWG

ACCESSORIES

TGWG

Catalog number information

STEP 2: SOURCE AND WATTAGE STEP 3: VOLTAGE

12 120V

20 208V

24 240V

27 277V

34 347V

DEL Delphic glass refractor

ELE Electra glass refractor

F11Single fuse assembly

F22Double fuse assembly

EM3Standby lighting fixture

WGD Wire guard

See page 58 for definitions

1 For 120, 240, 277 and 347V

2 For 208 and 240V

3 Not available with 35EPM or 40EPM

TGWG Wire guard

See page 59 for definitions

STEP 5: OPTIONS

STEP 6: ACCESSORIES

DEL ELE

Segmented

specular reflector

Holophane potted ballast

Special Features:

398mm

(15.658”)

602mm

(23.710”)

291mm

(11.461”)

473mm

(18.627”)

711mm

(28”)

70DMH 70W MH

10DMH 100W MH

15DMH 150W MH

175MH 175W MH

250MH 250W MH

400MH 400W MH

Pulse start

175PM 175W MH

250PM 250W MH

320PM 320W MH

350PM 350W MH

400PM 400W MH

Energy saving ballast

25LMH 250W MH

40LMH 400W MH

Pulse start, energy saving ballast

25LPM 250W MH

35LPM 350W MH

40LPM 400W MH

Pulse start, linear reactor ballast

35EPM1350W MH

40EPM1400W MH

1 Available in 277 volt only

TF/TG Weight:

27 kg. (60 lbs.)

Weight:

36 kg. (80 lbs.)

Distributions

Spacing Criteria: 2.3

Electra optics

Spacing Criteria: 2.1

Delphic Optics

STEP 4: OPTICS

Mirrolume®

RECESSED

DESIGNER SERIES

Product Catalog

HOLOPHANE®

Indoor Lighting

DESIGNER SERIES

Mirrolume 55

Designer Series

Crabtree Toyota; New Rochelle, New York

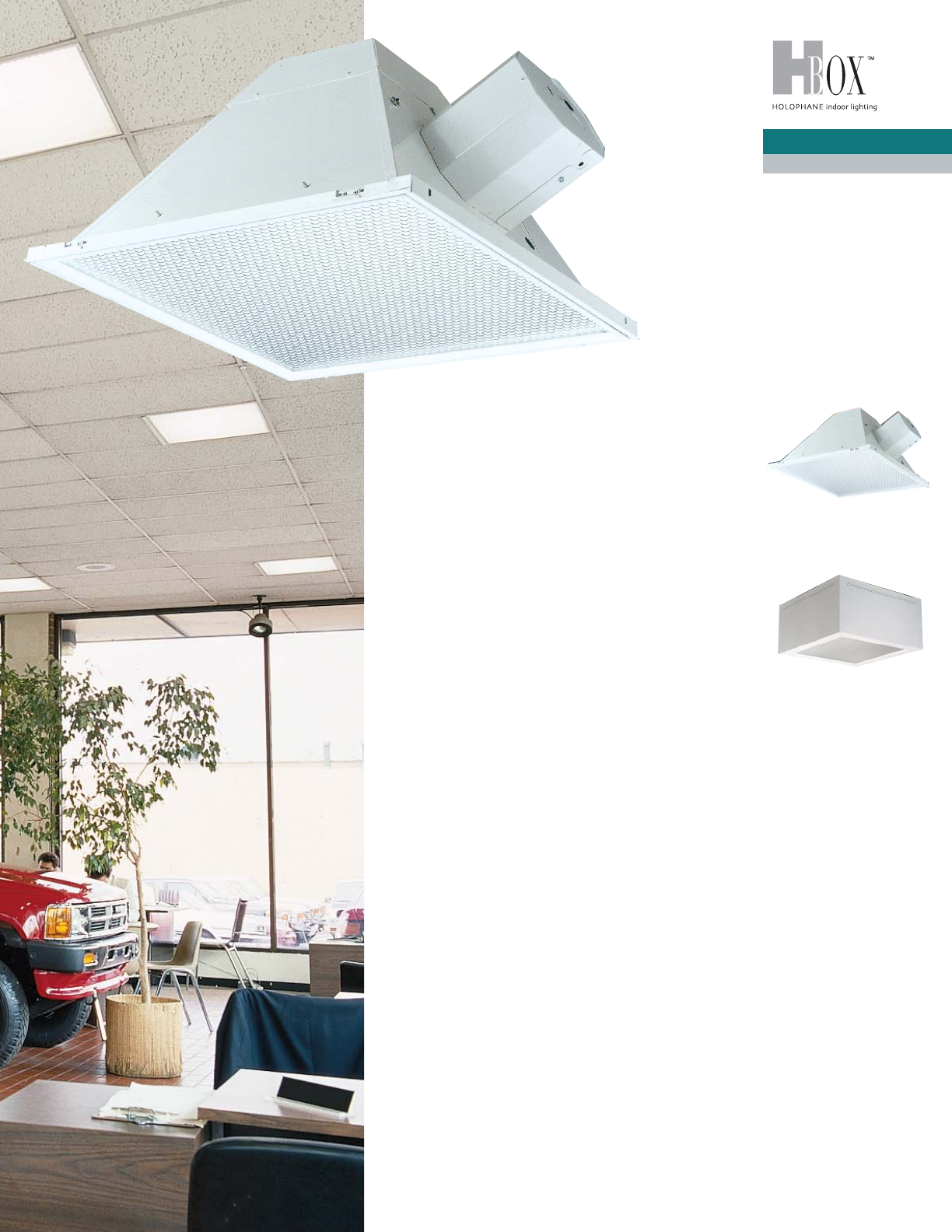

Mirrolume

type10

Mirrolume

type10

Mirrolume

The Mirrolume luminaire is a 2x2 recessed or

surface mounted luminaire with a flat lens for

commercial, retail, industrial, school or

institutional applications. The lens is available

in either glass or plastic. A specular Miro® 4

reflector provides up to 20% more light

output than the conventional flat lensed

fixture.

The Mirrolume luminaire is offered in either a

recessed or surface mount configuration for

application into a grid or hard ceiling. Several

different photometric distributions are also

available to efficiently match the luminaire to

the application requirements.

The Holophane potted ballast provides

excellent thermal dissipation and sound

absorption, for long life and quite operation.

Mirrolume®

Typical Applications

•Retail stores

•Supermarkets

•Schools

•Gymnasiums

•Automobile dealerships

Features

•Specular Miro® 4 reflector and vertical lamp

for outstanding efficiencies

•Task or spread photometric distributions

•Impact resistant lens option for

gymnasium applications

•Energy efficient, long life Holophane potted

ballast

Lamp Types

•70-400 watt metal halide, also available in

pulse start and energy saving pulse start

Approvals

•UL/CUL 1598 damp location listing

RECESSED

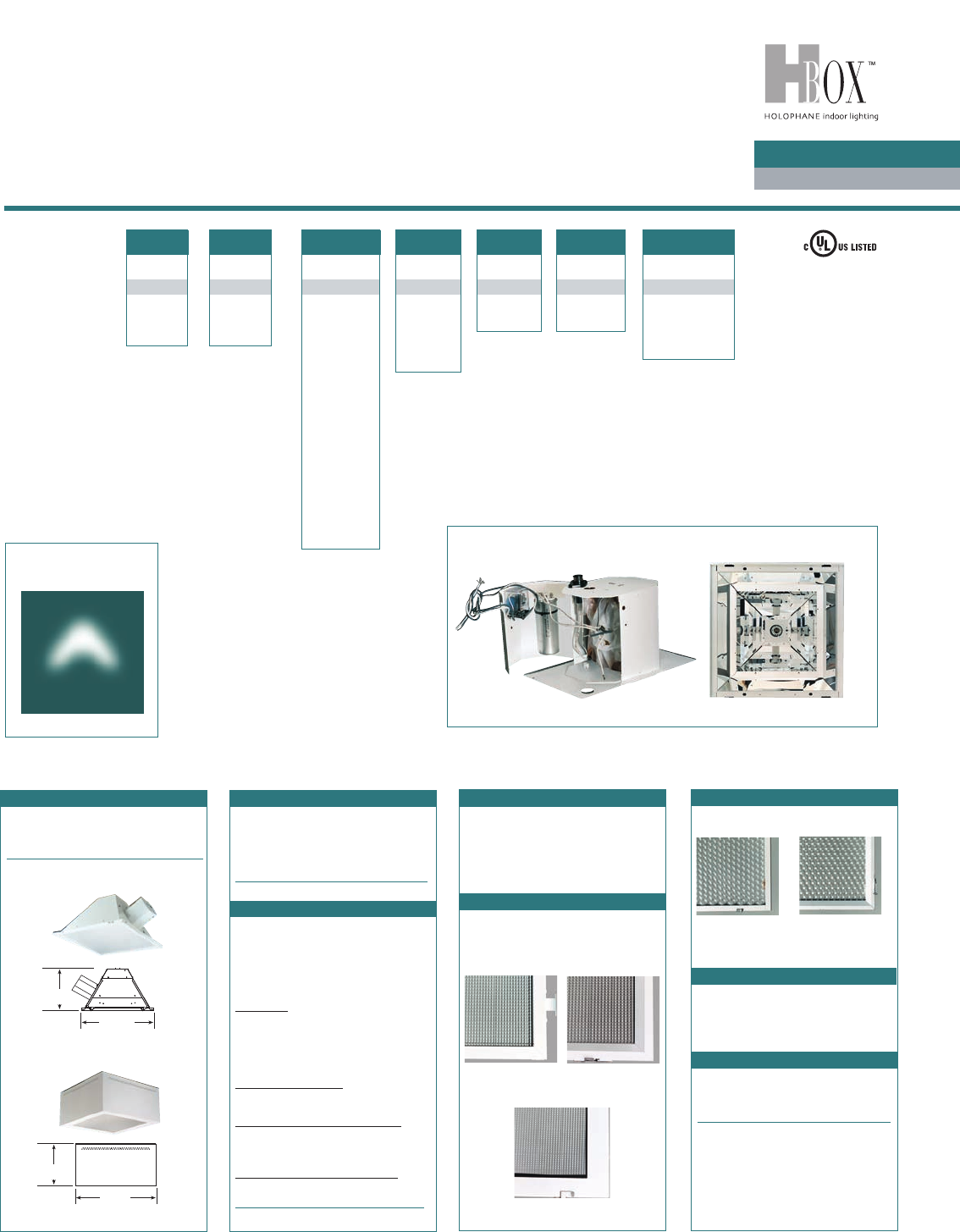

Ordering Information

How to Construct a Catalog Number

Example:

HOLOPHANE ¤

Indoor Lighting

DESIGNER SERIES

Mirrolume 57

Designer Series

DESIGNER SERIES

Product Catalog

M2G

LUMINAIRE

M2G

M2F

M2S

DOOR TYPE

STEP 1: LUMINAIRE MOUNTING

400MH

WATTAGE

70DMH

1DDMH

15DMH

175MH

175PM

250MH

250PM

25LMH

25LPM

320PM

350PM

35LPM

35EPM

400PM

400MH

40LMH

40LPM

40EPM

VOLTAGE

OPTICS

DISTRIBUTION

OPTIONS

Catalog number information

M2G1 Troffer, Grid Mount

M2F1 Troffer, Flange Mount

M2S1 Surface Mount

1 CUL listed damp location, 25ºC ambient

STEP 2: DOOR TYPE STEP 4: VOLTAGE

12 120V

20 208V

24 240V

27 277V

34 347V

Segmented specular reflectorHolophane potted ballast

Special Features:

I1Static, no reveal, flat steel door

with polycarbonate shield

QStatic, no reveal, regressed

aluminum door

TStatic, no reveal, flat steel door

1 Not available with 8227 lens

70DMH 70W MH

10DMH 100W MH

15DMH 150W MH

175MH 175W MH

250MH 250W MH

400MH 400W MH

Pulse start

175PM 175W MH

250PM 250W MH

320PM 320W MH

350PM 350W MH

400PM 400W MH

Energy saving ballast

25LMH 250W MH

40LMH 400W MH

Pulse start, energy saving ballast

25LPM 250W MH

35LPM 350W MH

40LPM 400W MH

Pulse start, linear reactor ballast

35EPM1350W MH

40EPM1400W MH

1 Available in 277 volt only

Distributions

Spacing Criteria: 1.9

Spread

347mm

(13.672”)

602mm

(23.710”)

367mm

(14.468”)

711mm

(28”)

Type “T” Door

8227 Refractive

Grid lens

Type “Q” Door

8227 Refractive

Grid lens

Type “T” Door

Corning 73 glass lens

Type “Q” Door

Corning 73 glass lens

Type “I” Door

Corning 73 glass lens

STEP 3: SOURCE AND WATTAGE

STEP 6: DISTRIBUTION

STEP 5: OPTICS ...CONTINUED

SSpread Beam

TTask beam. Not available with

surface mount.

F11Single fuse assembly

F22Double fuse assembly

EM3Standby lighting fixture

ER Standby lighting fixture less relay

See page 58 for definitions

1 For 120, 240, 277 and 347V

2 For 208 and 240V

3 Uses a D.C. 250W max. bayonet base,

tungsten halogen lamp (included) to provide

standby lighting. Includes internal relay to

switch quartz lamp when temporary power

failure extinguishes HID lamp. (Not available

with 35EPM or 40EPM)

STEP 7: OPTIONS

M2G/M2F

M2S

STEP 5: OPTICS

73 Corning 73 glass lens

82 8227 lens with tempered glass

Weight:

22 kg. (50 lbs.)

Weight:

32 kg. (70 lbs.)

Certain airborne contaminants can diminish the integrity of acrylic. Please refer

to the Acrylic Environmental Compatibility Chart (HL-2445) for suitable uses.

Cable

CSafety cable (inside stem)

Cord

CD-3 3’ Cord only; for length longer than 6 ft handle through TSG.

CD-4 4’ Cord only; for length longer than 6 ft handle through TSG.

CD-5 5’ Cord only; for length longer than 6 ft handle through TSG.

CD-6 6’ Cord only; for length longer than 6 ft handle through TSG.

XCord length beyond 3’

Cord and Plug

CDP-L5-15-X 120V 914mm (3’), three conductor cord and NEMA plug

(order “PF” also) X = no. of feet. 3’ std length

CDP-L6-15-X 208/240V 914mm (3’), three conductor cord and NEMA plug

(order “PF” also) X = no. of feet. 3’ std length

CDP-L7-15-X 277V 914mm (3’), three conductor cord and NEMA plug

(order “PF” also) X = no. of feet. 3’ std length

CDP-L24-20-X 347V 914mm (3’), three conductor cord and NEMA plug

(order “PF” also) X = no. of feet. 3’ std length

CDP-L8-20-X 480V 914mm (3’), three conductor cord and NEMA plug

(order “PF” also) X = no. of feet. 3’ std length

CDP-L5-15-X-PT 120V, three conductor cord and NEMA plug (order “PF” also)

X = 3’, 6’ or 10’ standard length

CDP-L6-15-X-PT 208/240V, three conductor cord and NEMA plug (order “PF”

also) X = 3’, 6’ or 10’ standard length

CDP-L7-15-X-PT 277V, three conductor cord and NEMA plug (order “PF” also)

X = 3’, 6’ or 10’ standard length

CDP-L24-20-X-PT 347V, three conductor cord and NEMA plug (order “PF” also)

X = 3’, 6’ or 10’ standard length

Controls

HHALT®Automatic lamp time-out. Available on a limited num-

ber of fixtures

Covers

AL Aluminum cover

CU Copper cover

ELB AL with extra low brightness (6692 optics only)

Fusing

F1 Single fuse assembly for 120, 240, 277, or 347 volt

F2 Double fuse assembly for 208, 240, or 480 volt

Hooks

PF-396 Safety hook. Available with ILI only

PF-397 Loop. Available with ILI only

PF-398 Safety hook. Available with CII only

PF-399 Loop. Available with CII only

LP Loop, DN20NPT (.75”) male

HK Safety hook, DN20NPT (.75”) male

PF-116 loop, DN20NPT (.75”) female

PF-122 Safety hook, DN20NPT (.75”) female

PF-129 Anti-rotational hook, DN20NPT (.75”) male

PF-291 Universal gasketed hook assembly, 3/4” male

PHCB Power-hook cord, special configuration plug cap and “PF-

105” loop attached (use with “UPH-35-XXX-WH” or “UPH-

36-XXX-WH”); all fixtures except “MT”, “ER”, or “Q”

PHCB-L8-480 Power-hook cord, special configuration plug cap and “PF-

105” loop attached (use with “UPH-35-L8-480-WH” or

“UPH-36-L8-480-WH” on 480 volt units only); all fixtures

except “ER” or “Q”

Mounting

QQuick disconnect power hanger for pendant and thru-way

wiring; all fixtures except “-CDP”, “PHCB”, “PF”, “ER”

NNon-disconnect, pendant and thru-way wiring

NRemote ballast mounting bracket and outlet box enclosure for

attachment to wall or ceiling

Mounting and Wiring

HFW Holoflex®flexible wiring system - Not available in Canada

Protected Starter

PS HPS protected starter (see HL-838).

Relamp Door

R1 Plastic Relamp Plate. Available with D, J, M and R Optic styles.

R2 Plastic Relamp Plate. Available with A and E Optic styles.

Options/Accessories

DESIGNER SERIES

Options

Holoflex®wiring

A modular single or three phase wiring system that

provides flexibility in layout, quick installation and

lower installed cost

57mm

(2.25”)

LP PF-129

73mm

(2.88”)

67mm

(2.63”)

71mm

(2.78”)

92mm

(3.62”)

45mm

(1.75”)

PF-116 PF-122 PF-291

Safety Cable

CHidden safety cable for optical assembly.

C3 3’ of safety chain

C6 6’ of safety chain

C1 10’ of safety chain

Safety Chain

09160-X Safety chain for BL2A, BL2B, BL2C, and BL2D. Insert length

of chain in feet for X. .914m (3’) is standard length.

Standby Lighting

EM Standby lighting fixture uses a D.C. 250W max. bayonet base,

tungsten halogen lamp (included) to provide standby lighting.

Includes internal relay to switch quartz lamp when temporary

power failure extinguishes HID lamp.

ER Emergency lighting fixture less relay for use with a 120 volt

external power source to operate a D.C. 250W max. bayonet

tungsten halogen lamp (included) to provide emergency lighting.

Wire Guards

WGD Wire guard door

Ballast Cover

BL2A-CO Decorative ballast cover for BL2A units only.

Claws

IL-Arch-X Arch decorative claw for large Illuminaire. Not available

with Quad. “X” must be replaced with a Finish designator

IL-Victorian-X Victorian decorative claw for large Illuminaire. Not available

with Quad.“X” must be replaced with a Finish designator

IL-Traditional-X Traditional decorative claw for large Illuminaire. Not available

with Quad.“X” must be replaced with a Finish designator

IL-Wrought-X Wrought decorative claw for large Illuminaire. Not available

with Quad.“X” must be replaced with a Finish designator

CI-Arch-X Arch decorative claw for compact Illuminaire.

“X” must be replaced with a Finish designator

CI-Victorian-X Victorian decorative claw for compact Illuminaire.

“X” must be replaced with a Finish designator

CI-Traditional-X Traditional decorative claw for compact Illuminaire.

“X” must be replaced with a Finish designator

CI-Wrought-X Wrought decorative claw for compact Illuminaire.

“X” must be replaced with a Finish designator

Fusing

F1 Single fuse assembly for 120, 240, 277, or 347 volt

F2 Double fuse assembly for 208, 240, or 480 volt

Hooks

See photos on page 58

LOOP456 Loop, DN20NPT (.75”) male

PF-116-A Loop, DN20NPT (.75”) female

HOOK455 Safety hook, DN20NPT (.75”) male

PF-122-A Safety hook, DN20NPT (.75”) female

PF-129-A Anti-rotational hook, DN20NPT (.75”) male

PF-396-ACC Safety hook

PF-347-ACC Safety loop

PF-291-A Universal gasketed hook assembly 3/4” male

UPH-35-XXX-WH Thru-way power-hook (order “PHCB” with fixture);

all fixtures except “MT”, “ER”, or “Q”.

UPH-35-L8-480-WH Thru-way power-hook (order “PHCB-L8-480”

with fixture); all fixtures except “ER” or “Q”

UPH-36-XXX-WH Pendant power-hook (order “PHCB” with fixture);

all fixtures except “MT”, “ER”, or “Q”.

UPH-36-L8-480-WH Pendant power-hook (order “PHCB-L8-480”

with fixture); all fixtures except “ER” or “Q”

Lamp

LAMP Appropriate HID lamp supplied with fixture

Relamp Plate

09205 Plastic relamp plate for Athena, Mentor, Delphic

09206 Plastic relamp plate for Aurora, Electra

CE Ceiling mounting kit

Safety Chain

CICHAIN3 3’ safety chain

CICHAIN6 6’ safety chain

CICHAIN10 10’ safety chain

ILCHAIN3 3’ safety chain

ILCHAIN6 6’ safety chain

ILCHAIN10 10’ safety chain

Wire Guards

0268 Wire guard for 6584 optics only

0256 Wire guard for 6582, 6585 and 6586 optics only.

09229 Wire guard for 6640 optics only

09230 Wire guard for 6692 optics only

WCGC For BL2B and BL2E with C and H optics and BL2C with

C, H, W or L optics

SMWG Wire guard for “C” optics only

TGWG Wire guard

HOLOPHANE®

Indoor Lighting

DESIGNER SERIES

Options and Accessories 59

Accessories

Thru-way UPH-35 Mounting Detail UPH-35 Pendant UPH-36

88mm (.31”) x 10mm (.38”)

ceiling mounting (2) places

110mm

(4.31”)

DN20NPT (.75”)

threaded entry

22mm (.88”)

(2) wiring access

covers

(2) KO’s for

DN20 (.75”)

conduit

120mm

(4.88”)

130mm

(4.94”)

30mm

(1.06”)

110mm

(4.5”)

Arch Victorian Traditional Wrought

HL-2142 6/06

Printed in USA

Acuity Lighting Group, Inc.

214 Oakwood Ave., Newark, OH 43055 /

Holophane Canada, Inc. 9040 Leslie Street,

Suite 208, Richmond Hill, ON L4B 3M4 /

Holophane Europe Limited, Bond Ave.,

Milton Keynes MK1 1JG, England /

Holophane, S.A. de C.V., Apartado Postal

No. 986, Naucalpan de Juarez, 53000 Edo.

de Mexico

Contact your local Holophane factory sales

representative for application assistance, and

computer-aided design and cost studies. For

information on other Holophane products and

systems, call the Inside Sales Service

Department at 740-345-9631. In Canada call

905-707-5830 or fax 905-707-5695.

Limited Warranty and Limitation of

Liability Refer to the Holophane limited

material warranty and limitation of liability

on this product, which are published in the

“Terms and Conditions” section of the

current Buyers Guide, and is available from

your local Holophane sales representative.

Visit our web site at www.holophane.com

Luminaires may utilize fluorescent or high intensity discharge sources that contain small

amounts of mercury. New disposal labeling for these lamps includes the mercury identifier

shown on the right to indicate that the lamp contains mercury and should be disposed of

in accordance with local requirements.

Information sources regarding lamp recycling and disposal are included on the

packaging of most mercury-containing lamps and also can be located at

www.lamprecycle.org.

70769 Catalog

Navigation menu

Versions of this User Manual:

Views

Navigation
