GX150HR, GX200HF

& EX100

Owners Manual

www.growonix.com

tuned for growing

GX150HR & GX200HF

featuring 2:1 waste ratio

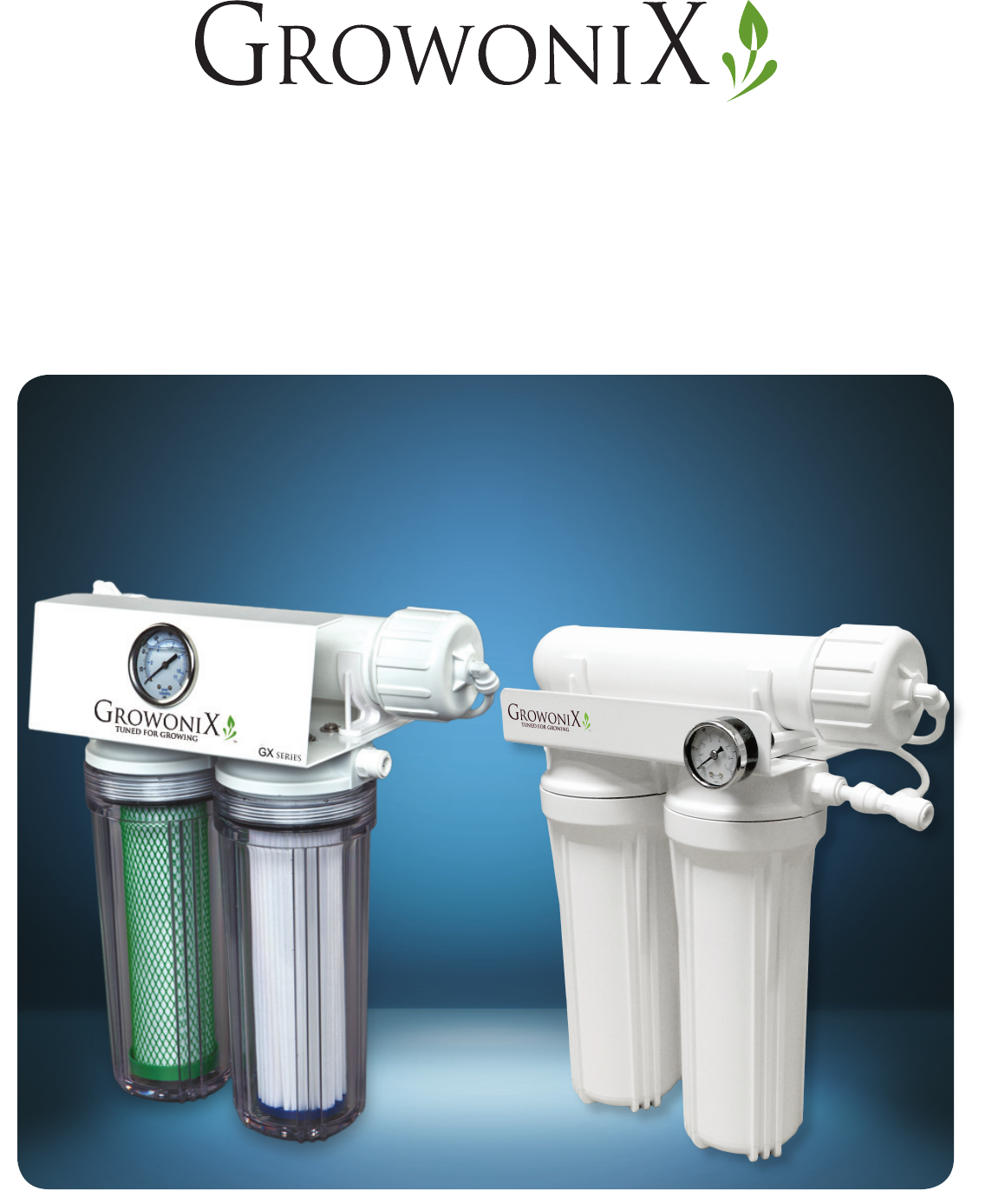

GX150HR/GX200HF features

150 / 200 Gallons Per Day

6.25 Gallons Per Hour

2:1 Waste Ratio

Dow Chemical Membrane

High Flow Washable Sediment Filter

Clear Filter Housings

Stainless Steel Liquid Filled Pressure Gauges

Patented Metal Housing

Auto Shutoff Valve

EZ Hookup Kit

Wall Mountable

Uses 50% less water than traditional RO

systems

The GX150/GX200. When we developed the GX150/GX200, we decided to pack all the

high end features into a tight efcient RO unit. We engineered a 50% increase in water

production over traditional ROs, lowered the waste ratio to 2:1, and still offered it to you

for the same price point of an entry level RO lter. But we didn’t stop there. We topped it

all off with a 2” stainless steel liquid-lled pressure gauge, never before seen in a lter this

size, and integrated it into our patented GX Series bracketing system. A manual ush valve

allows you to clean the membrane, purging out pollutants that could otherwise add buildup

to the system. Flushing adds considerable life to the membrane. With ow rates at 6.25/9

GPH (Gallons Per Hour), the GX150/GX200 delivers the same excellent ltration as our

larger models.

Built in the U.S.A. No Assembly Required

Table of Contents

Introduction

Precautions

Information on ow rates

Information on quick connect ttings

GX150/GX200 Component Diagram

Setup Instructions

Replacing Sediment and Carbon Pre-Filters

Replacing Membrane Element

Flushing the Membrane Element

Specications Charts

RO System Warranty

Return Policy

Replacement Accessories

GX Series Flow Specications

Our Mission

Durability, Reliability, Eciency, Purity, and Conservation form the foundation on which we design and build

all of our products. Consistent and superior quality sets us apart from other manufacturers and increases

our value to you - our customer. Whether you are a hydroponics hobbyist, serious enthusiast, or large-scale

gardener, GrowoniX is committed to bringing you the best solution for water purication systems.

What is Revers Osmosis?

Reverse osmosis (RO) is a ltration method that removes many types of large molecules and ions from

solutions by applying pressure to the solution when it is on one side of a selective membrane. This ltering

process ensures that the solute (waste water) is contained within the pressurized chamber while the pure

solvent (RO water) is allowed to pass freely through the membrane.

Tuned for Growing - In Tune with Our Customers

Traditional RO systems have waste ratios of approximately 4:1, which means there are 4 gallons of waste

water produced for every 1 gallon of puried water. GrowoniX line of water lters achieve waste ratios of 2:1

with the GX150/GX200 and GX300/GX400 and an astounding 1:1 ratio with the GX600 and GX1000.

GrowoniX has created a complete product line that will address the needs of hydroponic operations of all

sizes. Our lters will signicantly reduce your water use while dramatically increasing your yields.

Introduction

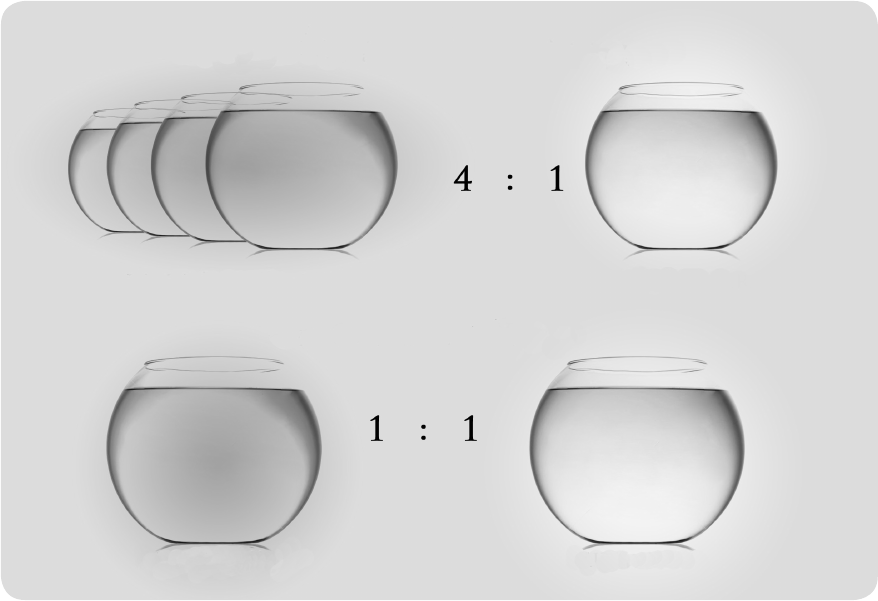

THE TRADITIONAL WAY

takes 4 gallons of waste water to produce 1 gallon of pure water

WASTE WATER PURE WATER

The GrowoniX way

WASTE WATER PURE WATER

Precautions

• Do not use unit with inlet water pressure exceeding 80 psi. If inlet water pressure is too high, install

water pressure regulator before the unit. Regulators and pressure limiters are available at

www.Growonix.com or your local plumbing supply.

• Keep unit away from direct light. Direct light can cause algae and other biologicals to grow inside

of the lter housings.

• Do not install unit near electrical outlets or electrical devices. Do not install in places where a leak

can cause damage.

Information on ow rates

GrowoniX GX150/GX200 RO water lters are rated using supply water that is 77°F, 475ppm, at 70psi.

Slower performance may be noted in areas with colder temperatures, higher water salinity, or lower

inlet

water pressure.

• A minimum of 40psi is recommended to operate GrowoniX water lters. If your inlet water

pressure is too low, booster pumps can be used to increase pressure. Pumps are available at

www.Growonix.com.

• Do not use a ow restrictor other than the one included with your unit.

• Flow restrictors help tune the unit for proper waste ratio.

• Using bigger ow restrictors, or using the unit in areas with exceptionally dirty water, will decrease

membrane performance and longevity.

Information on quick connect ttings

INSERT TUBE INTO FITTING

Push the tubing through the collet and dual o-rings until it bottoms out against the tube stop. The

collet holds the tube in place and the dual o-rings provide a leak resistant seal.

MAKE A CLEAN TUBE CUT

Cut the tube squarely and if using plastic tubing, ensure that the cut has not made the tube out of

round. Also ensure that the tube has a smooth outside diameter without any burrs or score marks

prior to inserting it into the tting.

TEST AND INSPECT

Push and pull the tubing toward and away from the tting to ensure that it has been installed properly.

Test and inspect the installation for any leaks.

TUBE REMOVAL

Relieve pressure from the tubing and tting. Push uniformly around the collet ange against the tting

body while pulling the tubing away from the tting to release it.

Growonix RO water lters use quick connect ttings that allow for easy maintenance.

O-RING COLLET TUBING

PUSH COLLET IN

PULL TUBE OUT

10 9

GX150/GX200 Component Diagram

1. Patented GX series mounting bracket

2. Sediment lter

3. Carbon lter

4. RO membrane

5. Pressure gauge

6. Supply water in

7. RO water out

8. Waste/drain tubing

9. Flow restrictor

10. Membrane ush valve

11. Auto shuto valve

12. Drain saddle clamp

13. In line shuto valve

14. Filter wrench

15. Supply, RO, and drain tubing

16. Garden hose adapter

Important Tips:

• Growonix 300 GPD water lters are designed to be used with between 40-80 psi of

incoming water pressure. Do not exceed 80 psi of incoming water pressure. If incoming

water pressure is too high, install pressure regulator before unit. Pressure regulators are

available at www.growonix.com

• Always turn incoming water pressure on slowly, allowing all air to be discharged before full

water pressure is restored.

Setup Instructions:

Connect the 1/4” blue drain tubing to

ow restrictor, making sure drain tubing

seats all the way in quick-connect tting.

This is the waste/drain tubing that will

also connect to the drain clamp.

Connect 1/4” white RO tubing to the auto

shut-o valve, making sure RO tubing

seats all the way in quick-connect tting.

This is the ltered RO water out line.

Connect 3/8” white supply tubing to the

inlet tting, making sure inlet line seats all

the way in quick-conect tting. This is the

supply water in line.

Mount drain clamp to available drain

pipe. Connect other end of drain tubing

to included drain clamp.

Connect the 1/4” blue drain tubing to the

tee tting just after the ow restrictor.

Important Tips:

• The GX150/GX200 water lters are designed to be used with between 40-80 psi of incoming

water pressure.

• Units upgraded with High Flow Membranes can work with as low as 20 psi of incoming

water pressure.

• Do not exceed 80 psi of incoming water pressure. If incoming water pressure is too high, in-

stall pressure regulator before unit. Pressure regulators are available at www.GrowoniX.com

• Always turn incoming water pressure on slowly, allowing all air to be discharged before full

water pressure is restored.

Connect 3/8” white supply tubbing to the

inlet tting, making sure inlet seats all

the way in quick-connect tting. This is the

supply water in line.

Connect 1/4” white RO tubing to the auto

shut-o valve, making sure RO tubing

seats all the way in quick-connect tting.

This is the ltered RO water out line.

Mount drain clamp to available drain

pipe. Connect other end of drain tubing

to included drain clamp.

Setup Instructions

Replacing Sediment and Carbon Pre-Filters

Unscrew sediment and carbon lter hous-

ings using supplied lter wrench. Wash

inside of lter housings to remove debris.

Tighten lter housings by hand, do not

use lter wrench. Do not over tighten.

When replacing lter housings, make sure

housing O-rings are seated properly. O-

rings function best when lubricated with

food grade silicone lubricant.

Install new sediment and carbon lter,

making sure they go into the correct lter

housings.

Important Tips:

• Pre-lters should be changed when either brown discoloration occurs, or system ow

rates have signicantly declined.

• Always turn incoming water pressure o before servicing the unit.

• Always turn incoming water pressure on slowly, allowing all air to be discharged before

full water pressure is restored.

Sediment Carbon

Replacing Membrane Element

Disconnect input tubes from RO

membrane housing.

Unscrew membrane housing end cap.

Caps can be dicult to remove. Be sure to

have a rm grip on opposite side of hous-

ing . Do not lose O-ring on inside of cap.

Each cap has two O-rings.

Pull out membrane using needle nose

pliers or other similar tool.

Insert new membrane into housing,

making sure the membrane-end with

the two O-rings goes in rst. Make sure

membrane is completely seated in the

housing.

Replace end cap and tighten by hand. If

O-rings are dry, lubricate with food grade

silicone lubricant. Allow system to run for

½ hour before using RO water.

Important Tips:

• Membranes should be replaced

when system output signicantly

declines. Note: system output may

decline due to other factors as well

(see: troubleshooting)

Input tube

1 2

Flushing the Membrane Element

After ushing is complete, simply turn

ush valve to OFF position. Membrane

has been ushed.

Let system run for 3-5 minutes.

Make sure valve is open

(in the ON position).

ush position

closed position

(RO on)

GrowoniX water lters come with a manual ush valve. Flushing the membrane element after each

use for approximately 3-5 minutes will remove standing salts from the membrane, signicantly ex-

tending membrane life. Even weekly ushes will improve membrane life and system performance.

The ush valve is located in the waste line of the RO membrane. To ush the membrane simply turn

the ush valve to the FLUSH position as seen in picture 1. High pressure water will bypass the ow

restrictor and shuto valve and be sent down the drain, carrying membrane pollutants with it. If

using a oat valve and the system happens to be OFF due to valve engagement, opening the ush

valve will start the system again in ush mode, and the membrane will be closed.

Specications Charts

Pleated Sediment Filter

2.5 “ Diameter

Materials of Construction:

• Filter Media

• End Caps

• Core

• Temperature Rating

• Non-woven Polyester

• Vinyl Plastisol

• Polypropylene

• 40˚F to 125˚F (4.4˚C to 51.7˚C)

Size Description:

• 2.5” X 9 7/8”

Initial AP(psi) @ ow rate (gpm):

• 1 psi @ 10 gpm(.01 bar @ 38 L/min)

Eco Coconut Carbon Block Filter

Materials of Construction:

• Carbon: NSF listed 61,

Coconut Shell PAC

• End Caps: Polypropylene

• Inner/Outer Wraps: Polypropylene

• Nettings: Polypropylene

• Gaskets: NBR

• Temperature Ring: 40˚F to 180˚F

OD X Length:

• 2-3/4” X 9-3/4”

Nominal UM Rating

• 10

Initial AP(psi) @ ow rate (gpm):

• 1 PSI @ 30 GPM

Chlorine, Taste, Odor

Reduction Capacity Flow

• >8,000 gallons @ 1 GPM

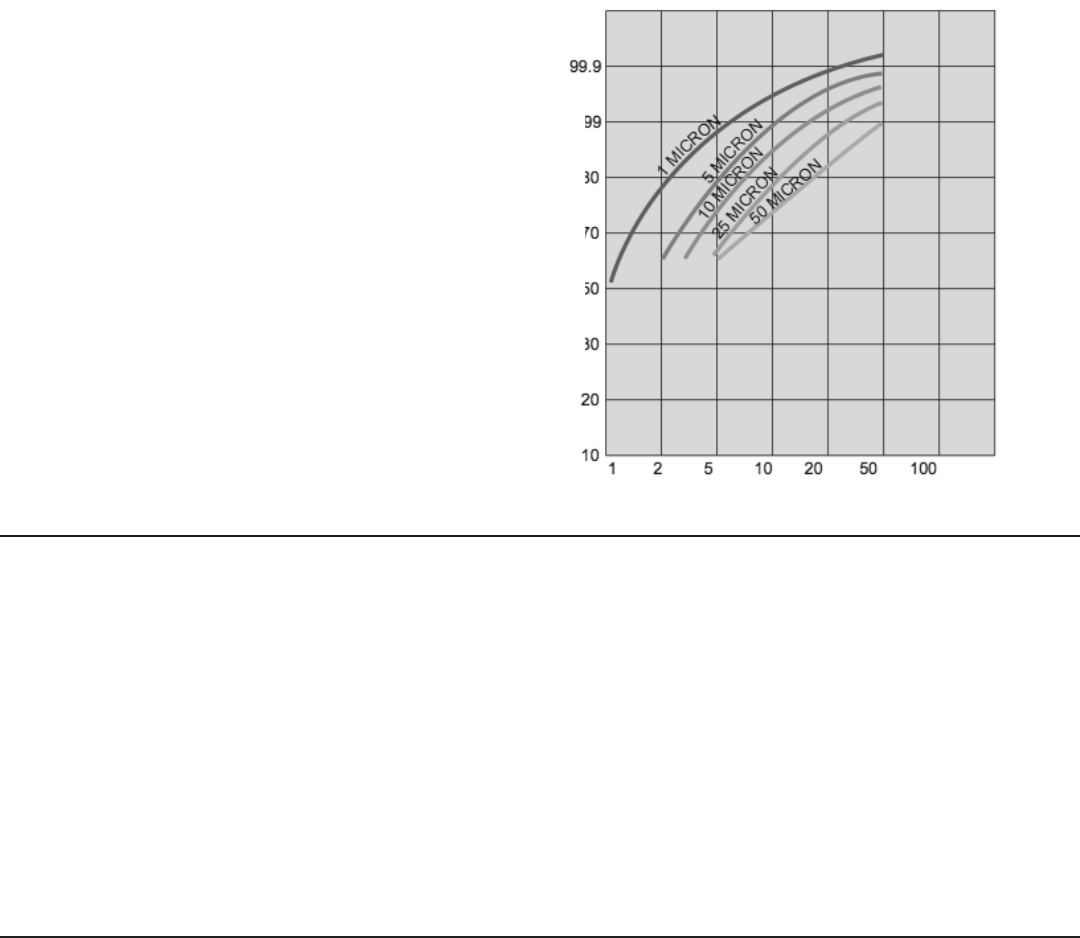

PARTICLE SIZE (MICRONS)

PERCENT EFFICIENCY*

RO Membrane Element

Operating Limits:

• Membrane Type:

Thin lm composite

• Maximum Operating Temperature:

110˚F (45˚C)

• Maximum Operating Pressure:

125 PSI

• Maximum Feed Flow Rate:

1 GPM

• Maximum Concentrate Flow Rate:

4 x Permeate

• pH Range, Continuous Operation:

3-11

• Maximum Feed Water Turbidity:

1 NTU

• Maximum Feed Silt Density Index (SDI):

5 SDI

• Chlorine Tolerance:

0 PPM

• Applied Pressure PSI (BAR):

65 (4.48)

• Permeate Flow Rate GPD:

150

• Nominal Salt Rejection(%):

98%

GrowoniX Return Policy

Merchandise Return Details and Procedure:

If any merchandise was defective —we will refund the full purchase price upon receiving and reviewing the merchandise returned

in undamaged condition.

RMA Number:

You must rst obtain a Return Merchandise Authorization (RMA) number from www.GrowoniX.com. Any products sent to GrowoniX

without an RMA number will not receive a refund and may be returned to the sender at their expense.

All refund amounts will be based on the manufacturer’s warranty and GrowoniX return policy. Refunds will be issued back using the

payment method you used when you placed your order. Refunds take up to 3-5 business days to process once we receive the return.

Packaging:

Please kindly re-pack the product in its original box, or a box of equivalent strength. The unit should be packed in the same manner

as it came to prevent damage in shipping. Please return everything that was in the original box, including any free items if appli-

cable. Be sure to drain out all water from wet systems and parts and wrap them in plastic bags before packing.

Return To:

We will provide you with an GrowoniX warehouse address for return merchandise when we issue the RMA number.

GrowoniX Reverse Osmosis System Warranty

For a period of one year from the date of original purchase, we will replace or repair any part of the GrowoniX reverse osmosis water

system that we nd to be defective in operation due to faulty materials or workmanship with the exception of the replaceable lters

and membranes.

GENERAL CONDITIONS

Damage to any part of this reverse osmosis system because of misuse; misapplication; negligence; alteration; accident; installation;

or operation contrary to our instructions, incompatibility with accessories not installed by GrowoniX, or damage caused by freezing,

ood, re, or Act of God, is not covered by this warranty. In all such cases, regular charges will apply. This limited warranty does not

include service to diagnose a claimed malfunction in this unit. This warranty is void if the claimer is not the original purchaser of the

unit or if the unit is not operated under normal municipal water or well water conditions.

GrowoniX assumes no liability in connection with this reverse osmosis system. GrowoniX assumes no liability for any damages

incurred through the use of this product. It is the responsibility of the end user to gauge the safe use of this product in the environ-

ment where it is applied. We do not authorize any person or representative to assume for us any other obligations on the sale of this

reverse osmosis system. The information given out in the manual we believe to be true, but are oered to you in good faith without

guarantee because each application of this product is dierent and beyond our control.

THE FOLLOWING STANDARD OPERATING CONDITIONS FOR RESIDENTIAL/COMMERCIAL REVERSE OSMOSIS SYSTEMS MUST BE

MET FOR WARRANTY TO BE VALID.

Water Pressure pH Range Maximum TDS Water Temp

Standard System 40-80 psi 2-11 2000 ppm 40-100 F

741705 Instructions

Navigation menu

Versions of this User Manual:

Views

Navigation
