www.geindustrial.com Control Catalog 3-1
Lighting Contactors
Rev. 7/11
Prices and data subject
to change without notice
Section 3
GE lighting contactors are designed for industrial, commercial,
and outdoor applications where efficient control is required of
tungsten and ballast loads as well as noninductive loads.
Numerous modifications are available which add flexibility to
customizing the control to the application.
CR460, CR463 Series
Introduction - 2-12 Pole, 30 Amp...........................................................3-2
Components (CR460)....................................................................................3-6
Electrically Held, Standard Assembled Forms (CR463L) ..............3-8
Electrically Held, Modified Assembled Forms (CR463L).............3-10
Mechanically Held, Standard Assembled Forms (CR463M).....3-12
Mechanically Held, Modified Assembled Forms (CR463M)......3-14
Electrically Held/Mechanically Held -
Wiring Diagrams (CR463L, CR463M)...............................................3-16
Electrically Held/Mechanically Held -
Outlines and Dimensions (CR463L, CR463M)..............................3-17
Electrically Held/Mechanically Held -
Technical Data (CR460, CR463 Series)............................................3-20
CR360L Series
Electrically Held, 2-4 Pole, 30-300 Amp (CR360L)........................3-21
Electrically Held - Outlines, Dimensions
and Weights (CR360L) ............................................................................3-24
CR160MC Series
Mechanically Held, 2-3 Pole, 30-225 Amps (CR160MC) ............3-26
Mechanically Held - Wiring Diagrams (CR460MC).......................3-31
Mechanically Held - Outlines, Dimensions
and Weights (CR160MC)........................................................................3-32
CR360ML Series
Mechanically Held, 2-3 Pole, 400-1000 Amps (CR360ML) .......3-33
Mechanically Held - Outlines, Dimensions
and Weights (CR360ML) ........................................................................3-37
Reference Publications
See Publication Index, Section 17.
Section Updated 11 / 2012
www.geindustrial.com Rev. 7/11
Prices and data subject
to change without notice
Control Catalog
3-2
Lighting Contactors Section 3
Product Number Selection Instructions: See page 3-5
CR460, CR463 Series
Introduction
2-12 Pole, 30 Amp
GE’s new CR460 Series lighting contactors deliver unprecedented
versatility in application, simplicity in configuration and
performance in operation. Ingenious design, rugged construction
and a host of truly useful features make them uniquely appealing
to all those who use them.

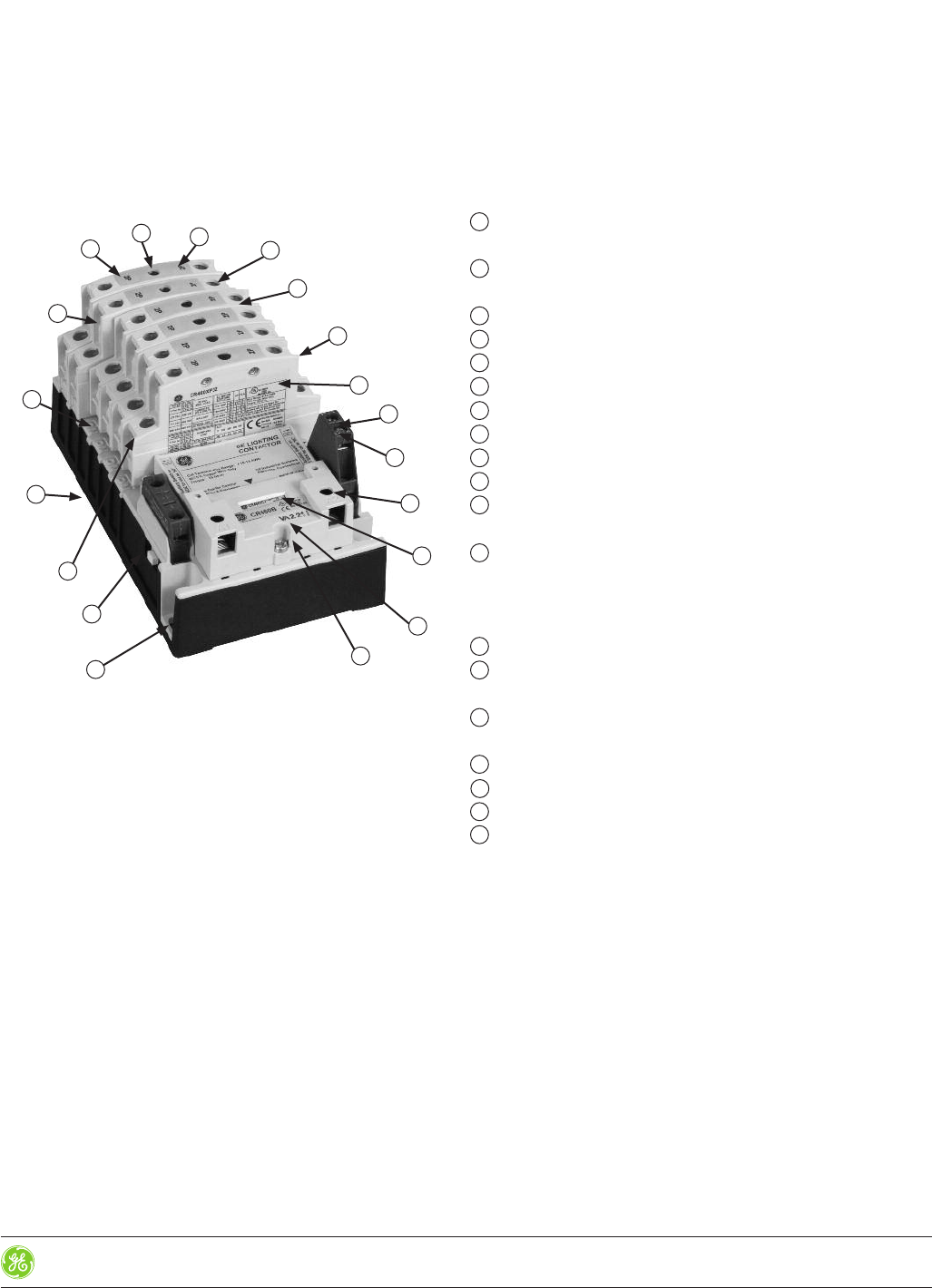

A Contact position indication—when button protrudes,
contact is closed.
B Power poles are available as single or double poles,
creating 74 different circuit combinations.
C Convenient side access field power wiring
D Contact configuration indicator
E Standard base for all pole configurations
F Robust pole terminals accept up to two #8 AWG wires
G Manual operator
H Fast, sure three-point mounting
I Enclosed contacts resist contaminants for greater reliability
J Combination slotted/#2 Phillips screws
K Common, easily installed power poles change from NO to NC
(or vice versa) simply by unlatching and rotating 180°.
L Power poles rated for the range of tasks:
—30A rated contacts
—15A motor rated
—A600 Pilot duty rated
M Easy-to-read rating label
N Auxiliary contacts, rated A600, are suitable for use on low
level circuits down to 12V, 5mA
O Plug-in auxiliary contacts are NO when installed on the left
side of the base, NC on the right
P Finger and back-of-hand safe power terminals
Q Quick-view coil voltage
R Easy-change coil
S Low magnetic noise results in quiet operation

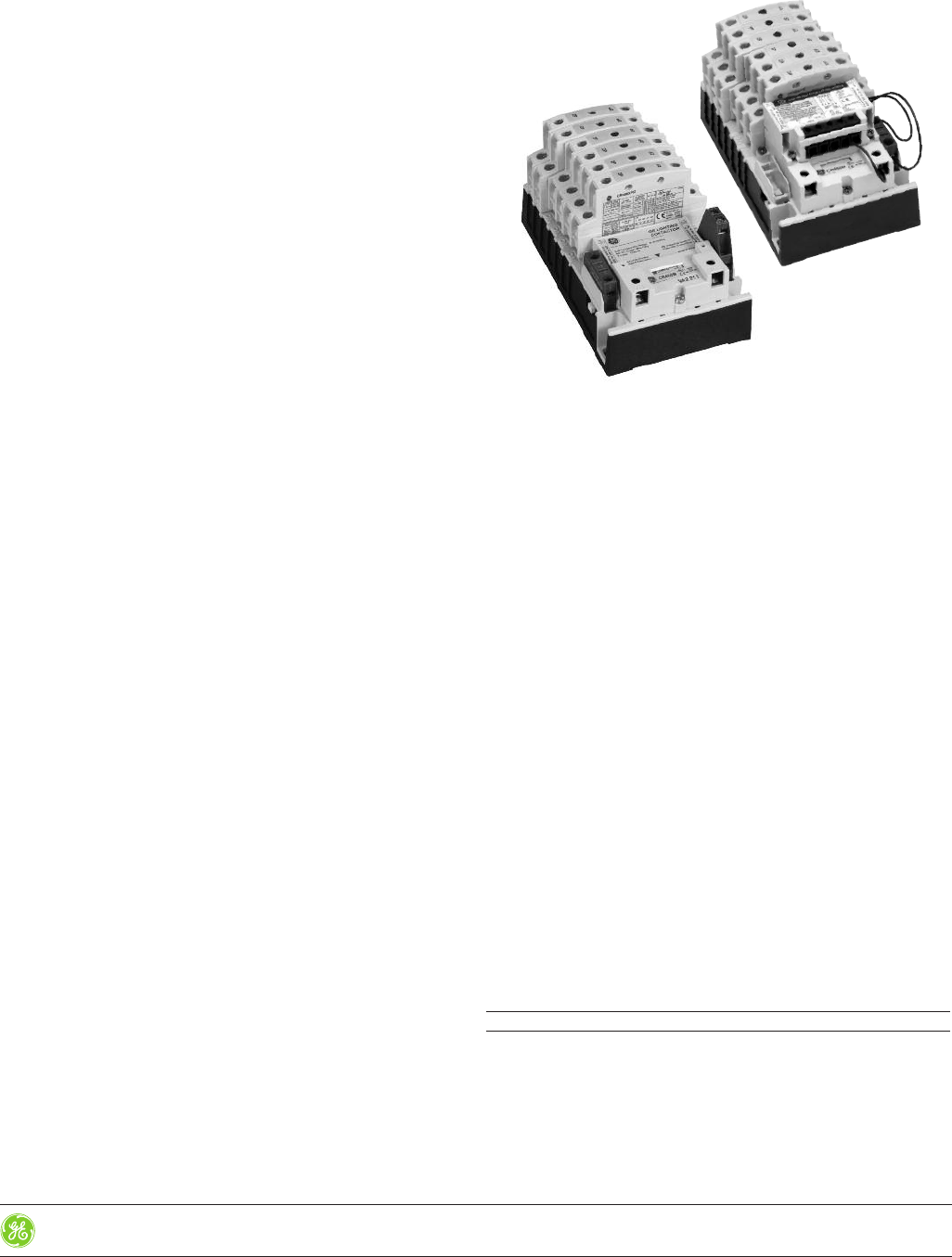

Electrically Held Contactor
I
A
BJ
K
L
M
N
O
P
Q
R
S
G
H
D
E
F
C
Page Updated 11 / 2012
www.geindustrial.com Control Catalog 3-3
Lighting Contactors
Rev. 7/11
Prices and data subject
to change without notice
Section 3
Mechanically Held Contactor
CR460, CR463 Series

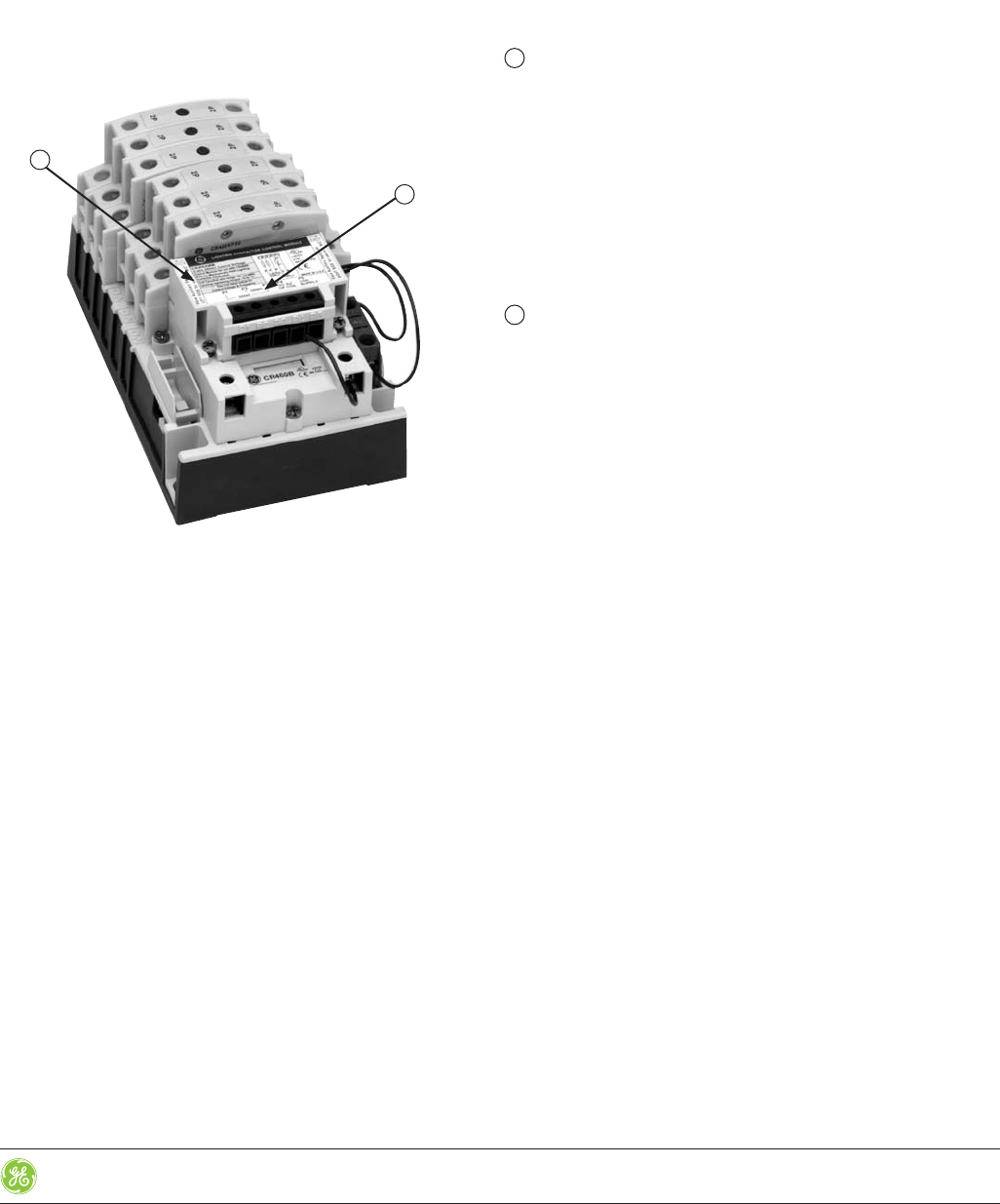

A Two-or-three-wire control module:
—low input VA permits long wire runs
—verifies contact status and has
built-in delays that minimize
excessively frequent signals from
faulty controllers
—come in a wide range of input
voltages. Four modules cover input
voltages from 24-277 VAC and 12-24
VDC. All modules may be used with
coil voltage from 24 VAC-277 VAC.
B Clear labeling shows control module rating,
wire size and torque
Field configurable from standard electrically held contactor with
simple, easy-to-install kits of control modules, latch mechanisms
and auxiliary contacts.
A
B
Mechanically held contactors also feature:
www.geindustrial.com Rev. 7/11
Prices and data subject
to change without notice
Control Catalog
3-4
Lighting Contactors Section 3

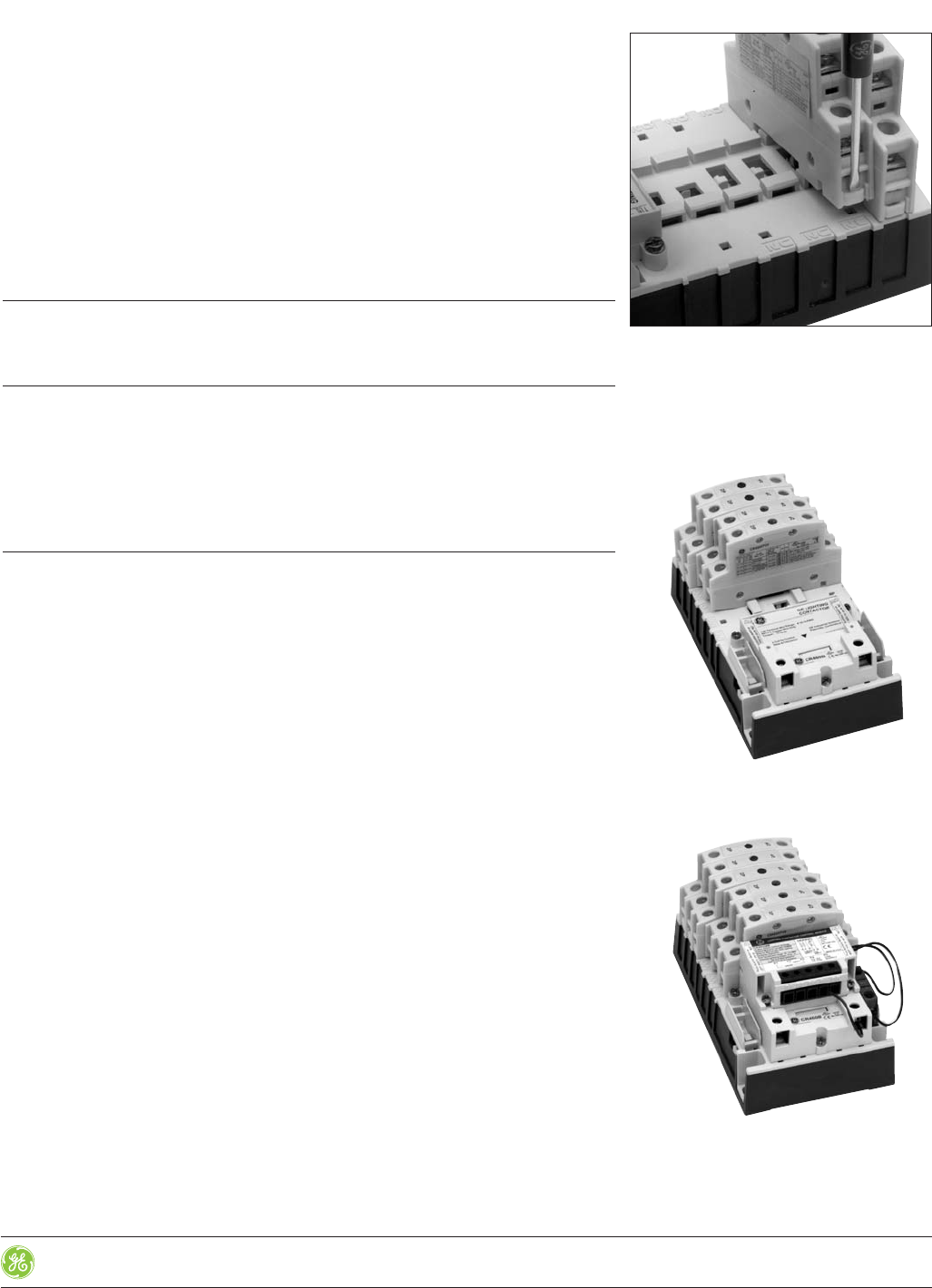

CR460 Series
The ultimate in versatility, simplicity and performance
All CR460 Series lighting contactors deliver unprecedented versatility in application,
simplicity in configuration and performance in operation. Their revolutionary design and
unique features meet most lighting control needs better than ever before.
—Modular design permits fast, on-site configuration
—2-12 power poles
—30 amp rating
—Snap-in auxiliary contacts
—Common components for both electrically and mechanically held versions
—Continuously rated, interchangeable coils
—Finger-safe terminals
Contactor Application
CR463 lighting contactors switch ballast (fluorescent or HID), tungsten and general use
loads and carry motor load, resistive and pilot duty ratings as well.
CR463L Electrically Held Contactors
Operational Mode
1. 3-wire control is typically used when control is desired from multiple locations. The
contactor is operated from a momentary pilot device and requires an auxiliary con-
tact to be used as a holding interlock.
2. 2-wire control is used for single location control with power continuously supplied to
the coil for contactor operation.
CR463M Mechanically Held Contactors
A mechanical latch with a 2- or 3-wire electronic control module delivers reliable
performance and protection from such application abnormalities as line noise,
leakage currents from controller outputs, or short repetitive commands burst from
faulty controllers.
Mechanical Operation
1. Latches after contactor command and removes coil from circuit for
noise-free operation
2. Eliminates all coil losses after contactor is latched
Control Module
1. Coil operation and control circuit at same or different voltages
2. Allows longer control wiring runs
3. Microprocessor validates control signal before operation
—will not respond to momentary voltage spikes or noise
—operation command has built in delay (0.4 sec) to avoid multiple short-term
commands that can cause contact fatigue or failure
—feedback loop prevents contactor from getting out of sequence with switches,
even after power failures
Operational Modes
1. 3 wire control is the choice for use with momentary devices allowing operation from
multiple locations
—a momentary pulse of energy operates contactor; a second pulse on alternate
leg returns contactor to original state
2. 2-wire control is the choice for single-output automatic operation or for operation
from single-pole devices
—latches contactor into position when voltage is applied to input terminals (coil is
removed from circuit while control voltage is continuously supplied); disengages
latch and returns contactor to original state when control voltage is removed.
Power poles latch easily onto the base,
and designating them as NO or NC is a
simple matter of left or right positioning.
Additional poles may be added
at any time.
CR463L Electrically Held
CR463M Mechanically Held
Product Number Selection Instructions: See page 3-5
www.geindustrial.com Control Catalog 3-5
Lighting Contactors
Rev. 7/11
Prices and data subject
to change without notice
Section 3
CR460 Series
The choice is yours:
3 ways to order CR460 Series Lighting Contactors
Ordering the correct contactor for your application may be
accomplished in any of three ways. Choose the one that’s right
for you.
1. Order components and assemble on-site in minutes (see
pages 3-6 and 3-7).
—Cost-effective
—Allows late-point configuration
—Greatest flexibility
—Parts in stock for immediate delivery
2. Order standard assembled contactor and rotate poles to
meet pole requirements (see pages 3-8, 3-9, 3-12 and 3-13).
—Available from stock or short cycle for timely delivery
—Single product number to order—see product numbers in
bold or red type on pages 3-8, 3-9, 3-12 and 3-13
—Allows local stocking of most common assembled forms via
pole reconfiguration
To order standard assembled contactors, select the product
number from the table below that corresponds to the number of
NO and NC contacts required.
When you receive the contactor, simply reconfigure it to the
NO-NC arrangement you require by rotating the appropriate
power poles. It just takes a minute.
Example: 4NO-4NC required. Order CR463L80AJA.
NO Contacts NC Contacts Order Product No. Order Product No. Order Product No.NO Contacts NC Contacts NO Contacts NC Contacts
2 CR463*02- 0 CR463*30- 0 CR463*60-
3 CR463*03- 1 CR463*31- 1 CR463*61-
4 CR463*04- 2 CR463*32- 2 CR463*62-
5 CR463*05- 3 CR463*33- 3 CR463*63-
6 CR463*06- 4 CR463*34- 4 CR463*64-
7 CR463*07- 5 CR463*35- 5 CR463*65-
8 CR463*08- 6 CR463*36- 6 CR463*66-
1 CR463*11- 7 CR463*37- 0 CR463*70-
2 CR463*12- 8 CR463*38- 1 CR463*71-
3 CR463*13- 0 CR463*40- 2 CR463*72-
4 CR463*14- 1 CR463*41- 3 CR463*73-
5 CR463*15- 2 CR463*42- 4 CR463*74-
6 CR463*16- 3 CR463*43- 0 CR463*80-
7 CR463*17- 4 CR463*44- 1 CR463*81-
8 CR463*18- 5 CR463*45- 2 CR463*82-
0 CR463*20- 6 CR463*46- 3 CR463*83-
1 CR463*21- 7 CR463*47- 4 CR463*84-
2 CR463*22- 8 CR463*48- 0 CR463*90-
3 CR463*23- 0 CR463*50- 1 CR463*91-
4 CR463*24- 1 CR463*51- 2 CR463*92-
5 CR463*25- 2 CR463*52- 0 CR463*B0-
6 CR463*26- 3 CR463*53- 1 CR463*B1-
7 CR463*27- 4 CR463*54- 2 CR463*B2-
8 CR463*28- 5 CR463*55- 11 0 CR463*C0-
6 CR463*56- 12 0 CR463*D0-
3
4
5
0
1
2
10
6
7
8
9

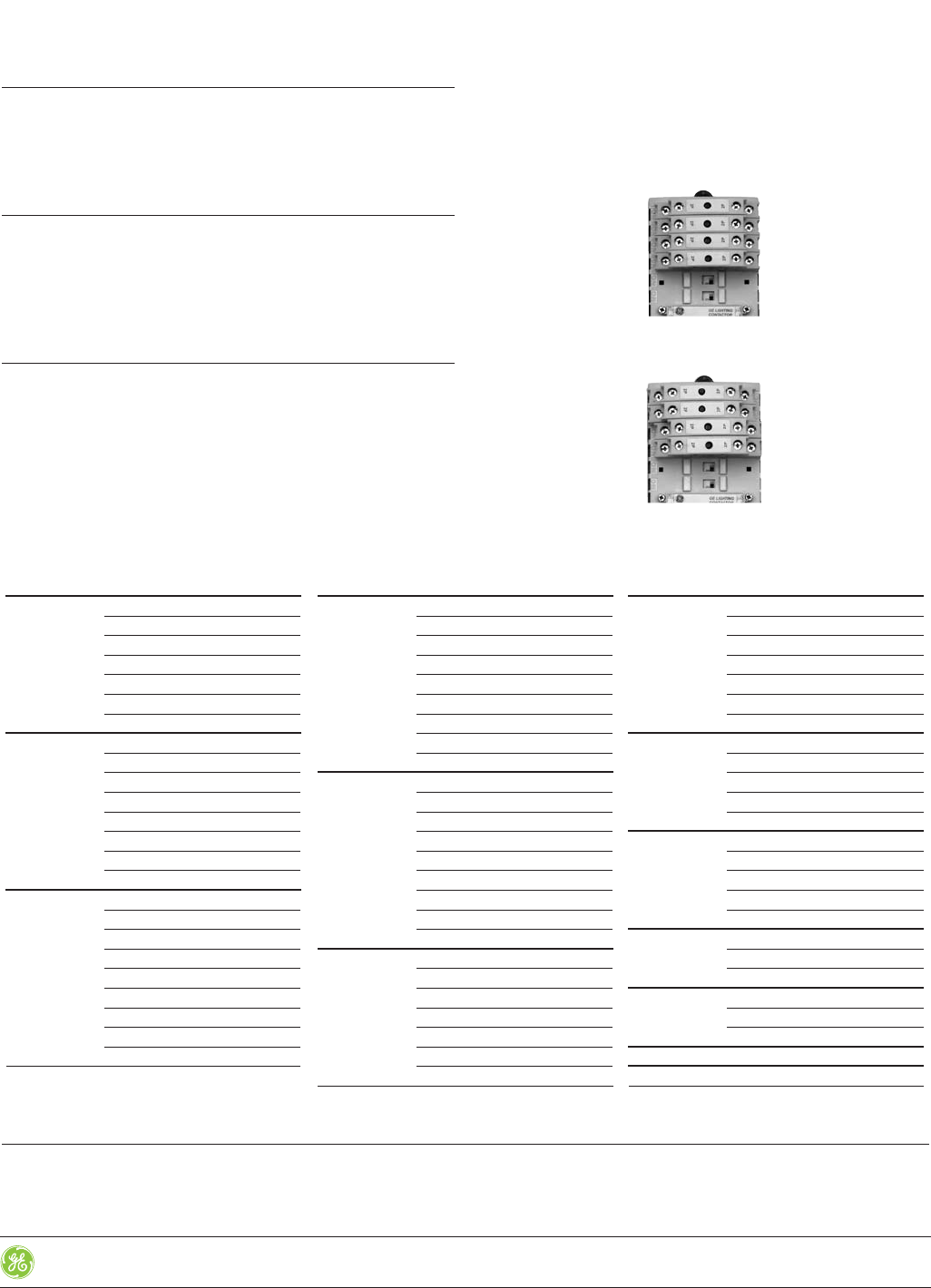

CR463L80AJA (8NO)
Contactor reconfigured as 4NO-4NC
Replace asterisk (*) in product number with L for electrically held and M for mechanically held. See pages 3-8, 3-9, 3-12 and 3-13 to complete product number.
3. Order assembled contactor configured to the exact application need (see pages 3-8 through 3-15).
—Order contactor as required by application
—Arrives fully assembled, ready to install
www.geindustrial.com Rev. 7/11
Prices and data subject
to change without notice
Control Catalog
3-6
Lighting Contactors Section 3

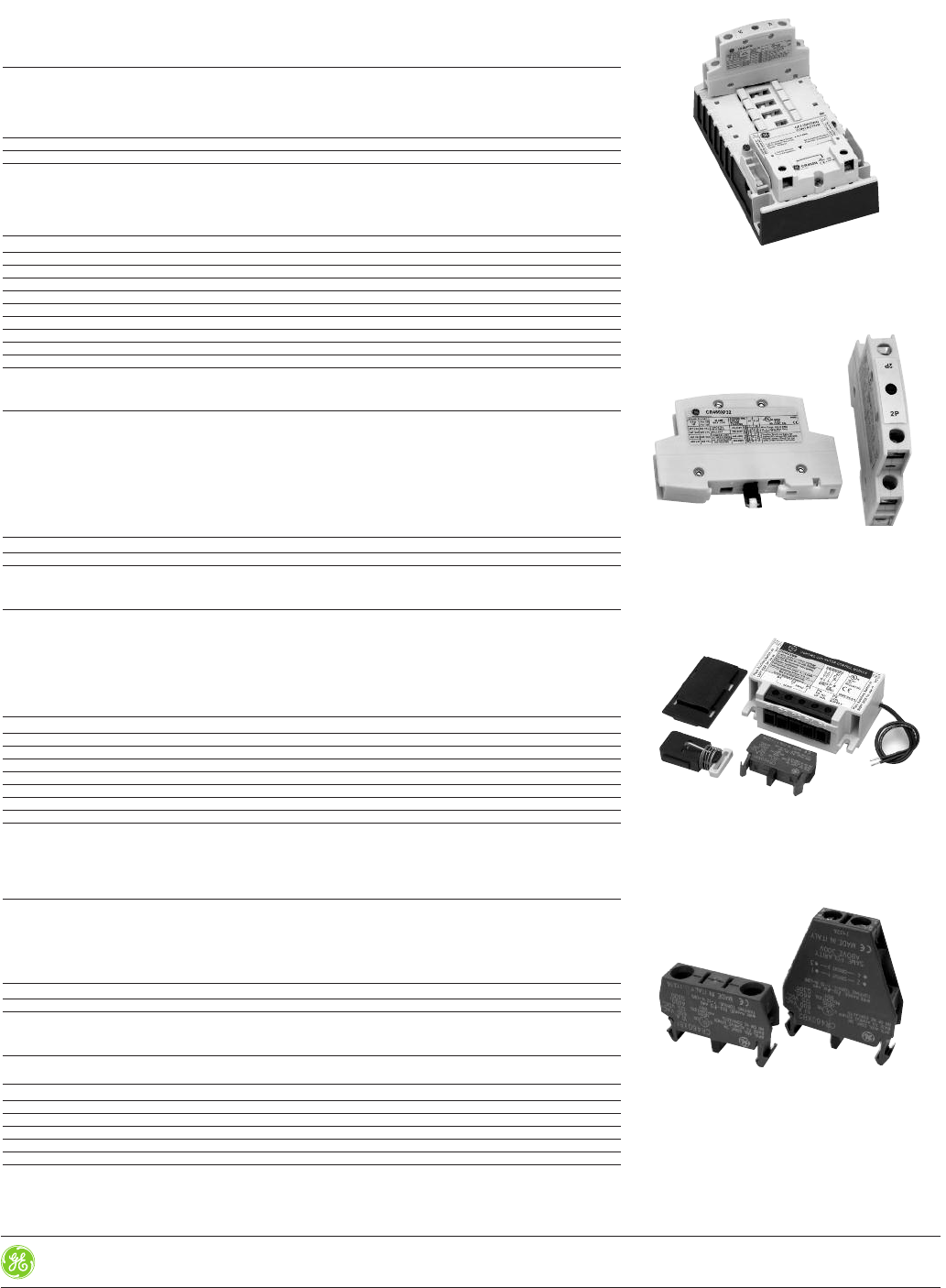

CR460
Components
Basic Contactor
Combined with other appropriate components, basic contactors allow configuration into
any available electrically or mechanically held model. Includes two power poles.
List Price
Contact Configuration Product Number GO-10MB
1NO-1NC CR463L11A*A $165.00
2NO CR463L20A*A $160.00
Replace * in the product number with the appropriate digits from the Coil Voltage table. The resulting product
number will be for an assembled contactor with no additional auxiliary contacts, pilot devices, pilot lights, con-
trol circuit fuses or CPTs. There is no list price adder to Coil Selection.
Coil Voltage
AC, 60Hz AC, 50Hz Electrically Held Mechanically Held Coil Digit
24V 20V √√C
28V 24V √√D
115-120V 110V √√J
200-208V —√ √ L
230-240V 220V √√S
277V 240V √√N
347V —√ 1T
460-480V 440V √ 1U
575-600V 550V √ 1Y
1Control module switching device rated 277V max; use CPT for higher voltage
Power Poles
CR460 Series basic contactors accept up to 6 single- or double-pole power poles. These
can be used to form up to:
—12 NO poles when 6 double-poles are used in the NO positions (1-6) or
—8 NC poles with 4 double-poles in the NC positions (1-4) + 4 NO poles with 2
double-poles in the 2 NO positions (5-6)
List Price
Type Product Number GO-10MB
Single Pole CR460XP31 $43.00
Double Pole CR460XP32 $82.00
Packaged individually and overpacked in multiple of 5.
Conversion Kits for Mechanically Held Contactors
Kits for converting electrically held contactors to a mechanically held version. Kits
includes control module, latch, latch cover and auxiliary contact(s) plus installation
instructions. Conversion kits are suitable for coil voltages 277V and below. Use CPT to
reduce coil voltage if line voltage is higher than 277V.
Coil Voltage Control Circuit Auxiliary Control Circuit List Price
Range Wiring Contacts1Voltage Product Number GO-10MB
24-277 Vac 2-wire (1) 1 Pole 24 Vac CR460XMB $105.00
24-277 Vac 2-wire (1) 1 Pole 110-120 Vac CR460XMC $105.00
24-277 Vac 2-wire (1) 1 Pole 200-277 Vac CR460XMD $105.00
24-277 Vac 2-wire (1) 1 Pole 12-28 Vdc CR460XME $105.00
24-277 Vac 3-wire (2) 1 Pole 24 Vac CR460XMM $115.00
24-277 Vac 3-wire (2) 1 Pole 110-120 Vac CR460XMN $115.00
24-277 Vac 3-wire (2) 1 Pole 200-277 Vac CR460XMP $115.00
24-277 Vac 3-wire (2) 1 Pole 12-28 Vdc CR460XMR $115.00
1Auxiliary contact block required for feedback loop, alternate 2 pole blocks may be required for status feedback
and/or pilot lights. See Fuse and Transformer Kits table on page 3-7 for CPT selection. See wiring diagrams on
page 3-16.
Auxiliary Contacts
Each contactor may use one single or one double auxiliary contact block on each side of
the base. When installed on the left side the contacts are NO, when installed on the right
side the contacts are NC. This allows a total of 2NO + 2NC contacts maximum.
List Price
Type Product Number GO-10MB
Single Pole CR460XB1 $9.00
Double Pole CR460XB2 $17.00
See Additional Auxiliary Contacts tables on pages 3-11 and 3-15 for contact selection data.
Enclosure Kits
List Price
Description Enclosure Type Product Number GO-10MB
With no CPT or pilot device NEMA Type 1 CR460XE1B $43.00
With no CPT or pilot device NEMA Type 1 Flush Mount CR460XE8B $80.00
With no CPT or pilot device NEMA Type 12/3R CR460XE2B $100.00
With provision for CPT and/or pilot devices, lights NEMA Type 1 CR460XE1D $83.00
With provision for CPT and/or pilot devices, lights NEMA Type 12/3R CR460XE2D $140.00
With provision for CPT and/or pilot devices, lights NEMA Type 4 CR460XE4D $235.00

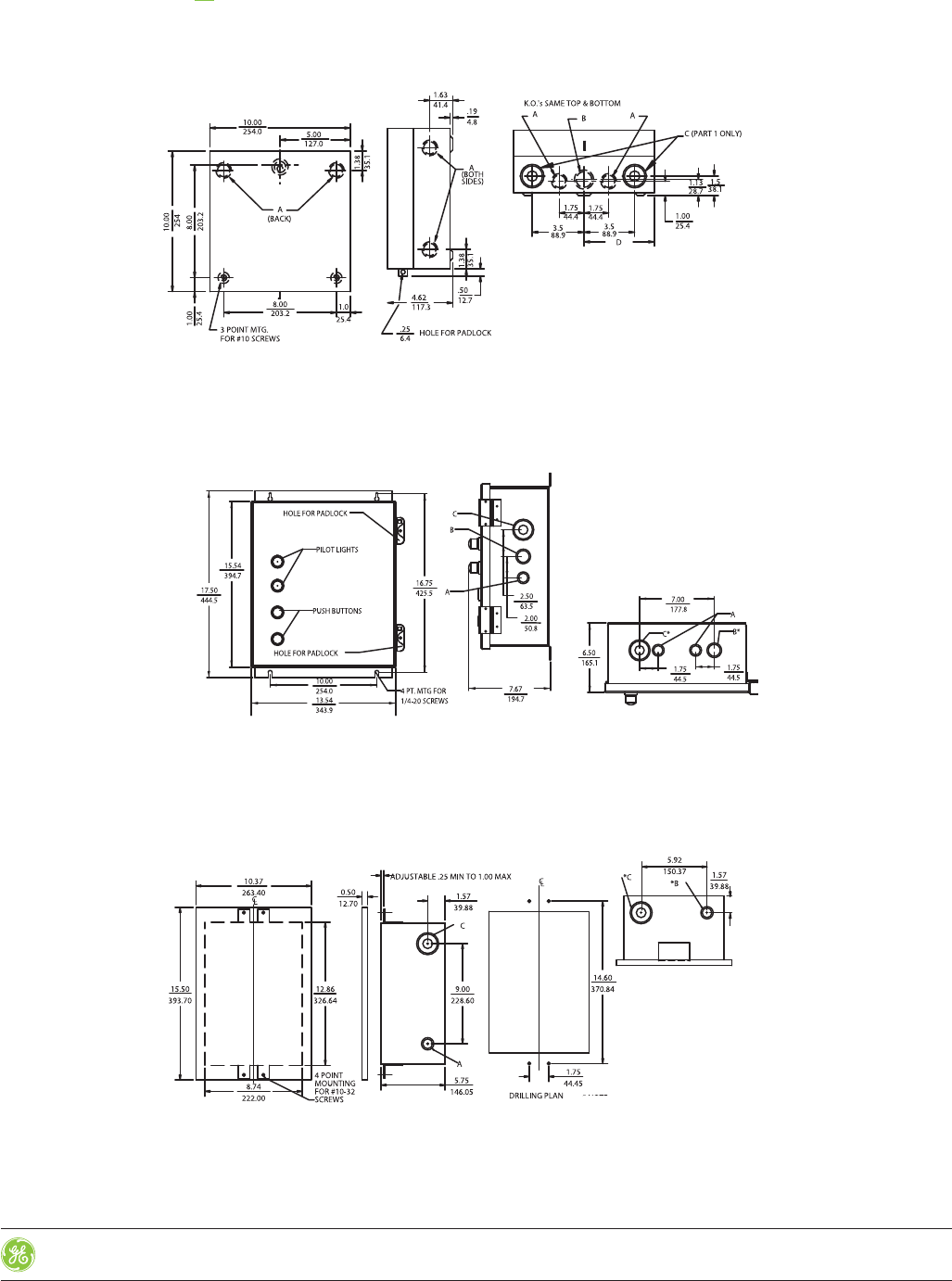

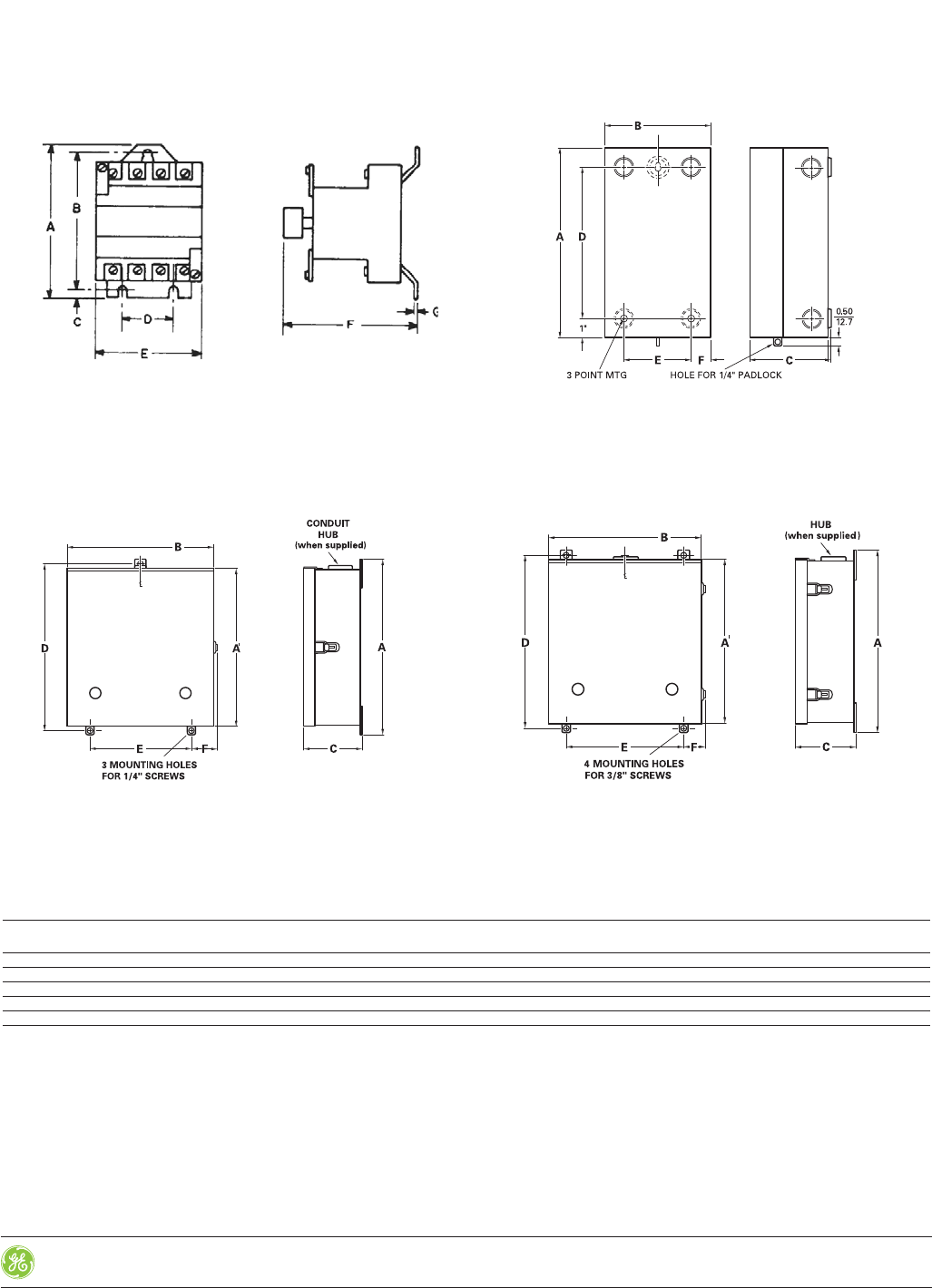

See pages 3-18 to 3-19 for enclosure dimensions.
CR463L—A*A Basic Contactor
CR460XP—Power Poles
CR460XM—Conversion Kits
CR460XB— Auxiliary Contacts
Product Number Selection Instructions: See page 3-5
Page Updated 11 / 2012
www.geindustrial.com Control Catalog 3-7
Lighting Contactors
Rev. 7/11
Prices and data subject
to change without notice
Section 3

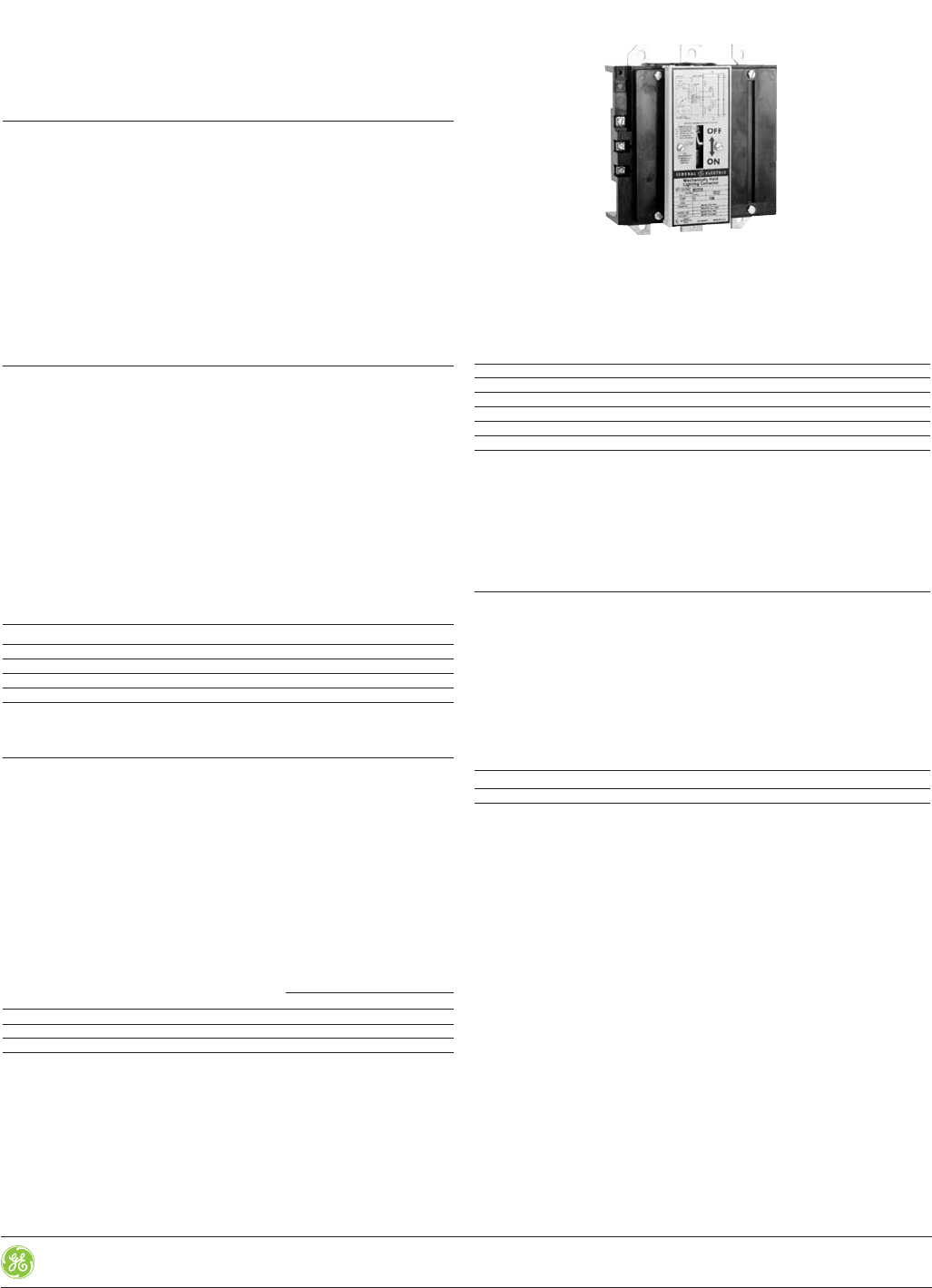

CR460
Components
Enclosure Accessories–Pilot Devices
List Price
Pilot Device Type For Use With Product Number GO-10MB
ON/OFF Push Button Electrically Held with Interlock Aux. CR460XP1 $122.00
(Momentary) Mechanically Held 3-wire Control Module
ON/OFF or OFF/AUTO Electrically Held w/o Interlock Aux. CR460XP2 $122.00
Selector Switch (Maintained) Mechanically Held 2-wire Control Module
Mechanically Held 3-wire Control Module
ON/OFF Selector Switch, Electrically Held with Interlock Aux. CR460XP3 $122.00
Spring Return to Center Mechanically Held 3-wire Control Module
H-O-A or ON/OFF/AUTO Electrically Held w/o Interlock Aux. CR460XP4 $122.00
Selector Switch Mechanically Held 3-wire Control Module
H-O-A or ON/OFF/AUTO Electrically Held w/o Interlock Aux. CR460XP5 $158.00
Keyed Selector Switch Mechanically Held 3-wire Control Module
(Key Removal All Positions)
Enclosure accessory kits contain accessory and complete installation wiring and hardware. Some kits contain
multiple nameplates for alternate markings.
Enclosure Accessories–Pilot Lights
List Price
Pilot Light Type Nameplate Product Number GO-10MB
Standard ON or OFF CR460XLB* $152.00
Push-to-Test ON or OFF CR460XLD* $170.00
Pilot light kits come with interchangeable red and green lenses. Pilot lights may require auxiliary contacts.
Replace * in pilot light product number with appropriate voltage digit from the table below.
See extra contact limitations in the Additional Auxiliary Contacts tables on pages 3-11 and 3-15.
Pilot Light Voltage
Voltage Digit
24 Vac/dc C
120 Vac J
208 Vac L
240 Vac S
277 Vac N
347 Vac T
480 Vac U
600 Vac Y
Transformer Kits
List Price
CPT Primary Volts CPT Secondary Volts Product Number GO-10MB
100VA CPT Kit1208V 120V CR460XTB $347.00
100VA CPT Kit1220-240V 120V CR460XTC $347.00
100VA CPT Kit1277V 120V CR460XTD $347.00
100VA CPT Kit1440-480V2120V CR460XTE $347.00
100VA CPT Kit1600V 120V CR460XTF $347.00
100VA CPT Kit1120V 24V CR460XTL $347.00
100VA CPT Kit1208V 24V CR460XTM $347.00
100VA CPT Kit1220-240V224V CR460XTN $347.00
100VA CPT Kit1277V 24V CR460XTP $347.00
100VA CPT Kit1440-480V 24V CR460XTR $347.00
100VA CPT Kit1600V 24V CR460XTS $347.00
1Includes 2 primary and 1 secondary fuse
2May be reconnected in field for 440-480 volts; requires substitution of two 0.5 amp primary fuses.
Control Circuit Fuse Kit
List Price
For Use With Product Number GO-10MB
Contactor Without CPT CR460XF $155.00

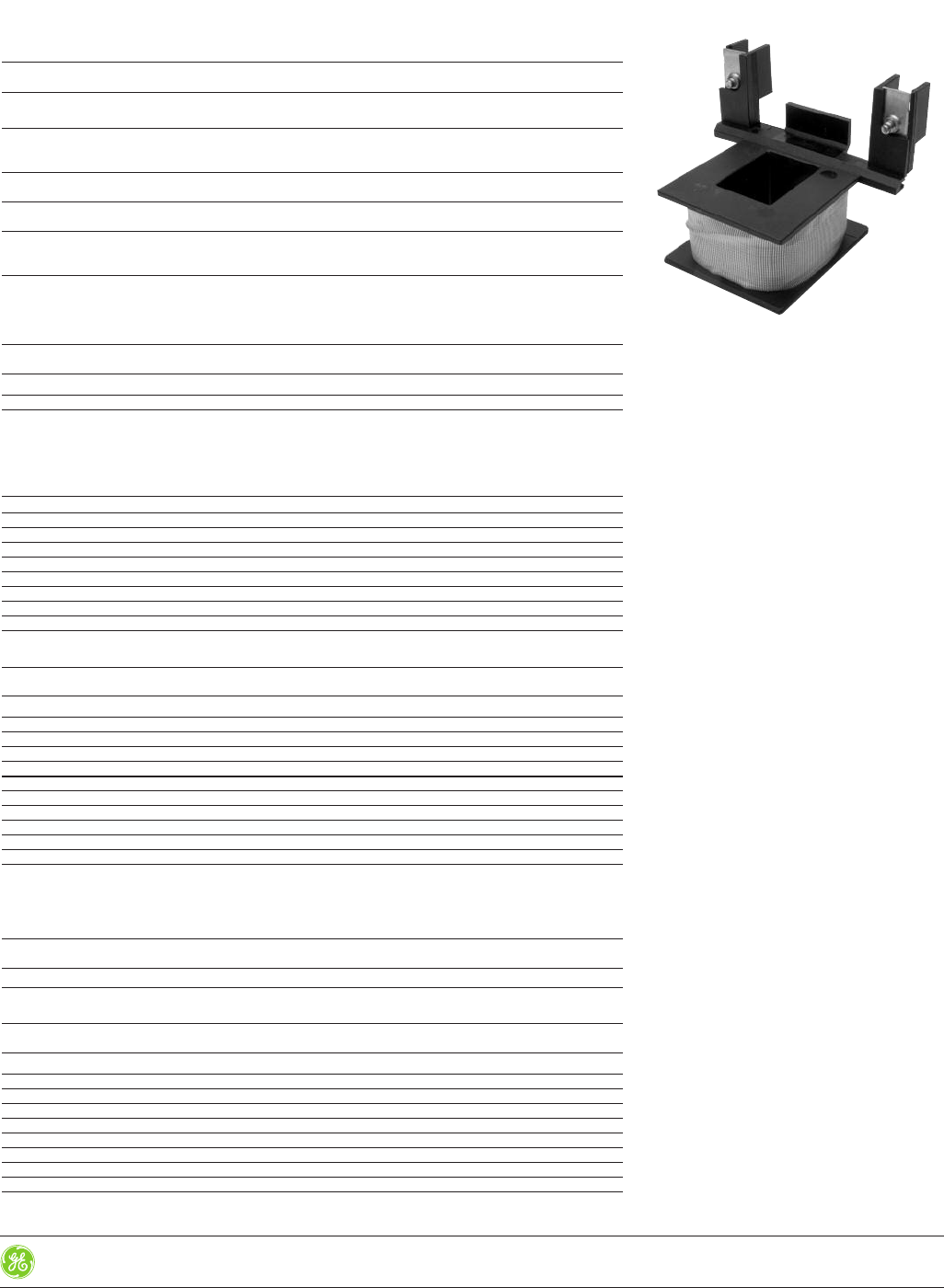

Spare Coils
List Price
Coil Voltage @ 60 Hz Coil Voltage @ 50 Hz Product Number GO-10MB
24 20 CR460XCC $45.00
28 24 CR460XCD $45.00
115-120 110 CR460XCJ $45.00
200-208 — CR460XCL $45.00
230-240 220 CR460XCS $45.00
277 240 CR460XCN $45.00
347 — CR460XCT $45.00
460-480 440 CR460XCU $45.00
575-600 550 CR460XCY $45.00
CR460XC Spare Coils
Page Updated 11 / 2012
www.geindustrial.com Rev. 7/11
Prices and data subject
to change without notice
Control Catalog
3-8
Lighting Contactors Section 3

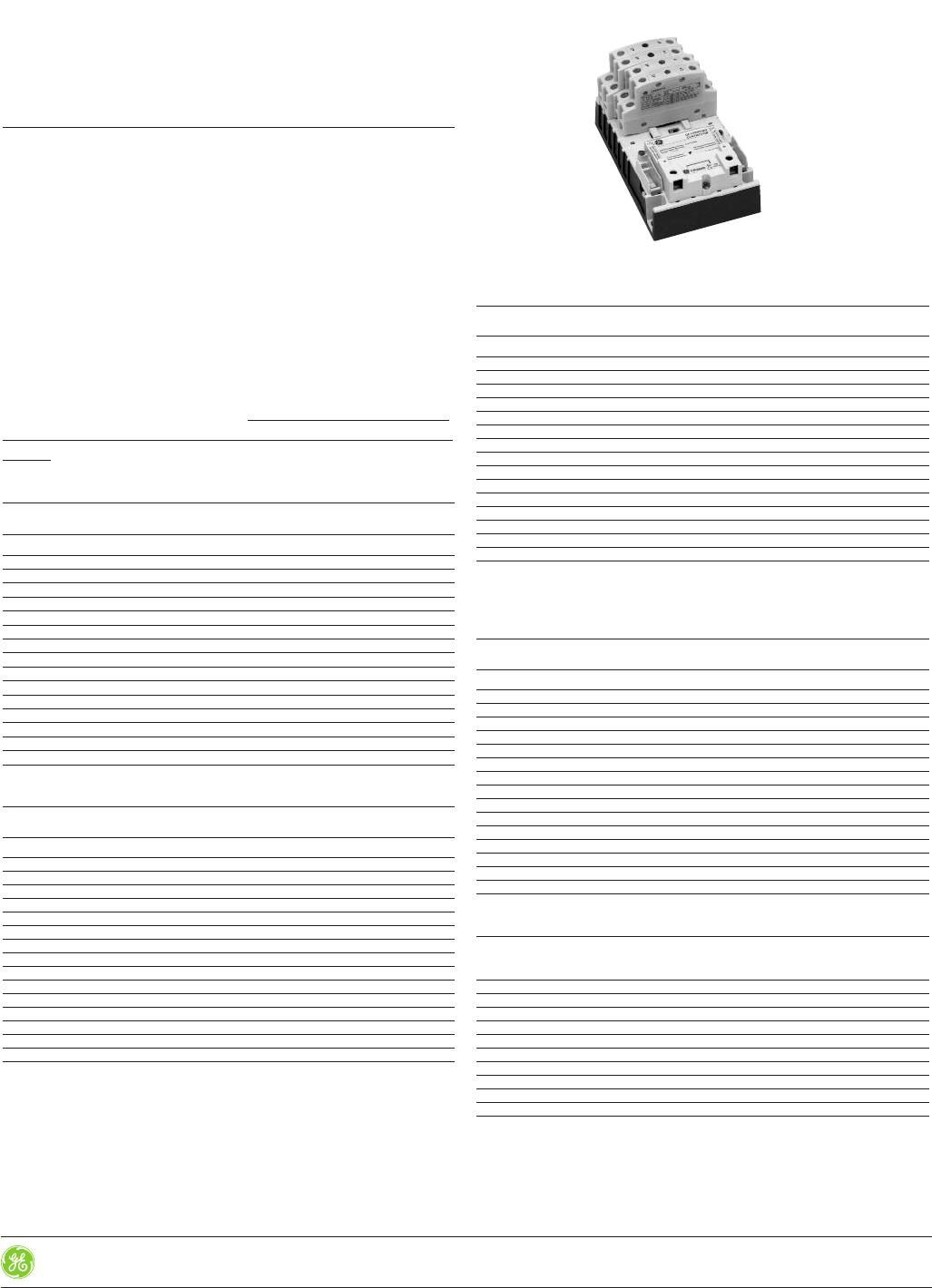

CR463
Electrically Held Contactors
CR463L - 30A (2-12 pole)
Standard Assembled Forms
Product Number Selection Instructions
Replace * in the product number with the appropriate digits from
the Coil Voltage table. The resulting product number will be for
an assembled contactor with no additional auxiliary contacts,
pilot devices, pilot lights, control circuit fuses or CPTs. There is no
list price adder for Coil Selection.
For modified assembled forms with those modifications, see
pages 3-10 and 3-11.
—Items listed here are the most common pole configurations.
—Poles may be reconfigured by the user into alternative combi-
nations of NO and NC contacts.
—All configurations are available as factory-assembled forms.
To order:
Use the modified assembled forms selection data on pages 3-10
and 3-11, or use the web wizard at http://www.geindustrial.com/
industrialsystems/wizards/csp/home.htm?pagesetid=lightingcon-
tactors, or contact your nearest GE sales office.
Open
List Price
No. of Poles Contact Configuration Product Number GO-10MB
2 1NO-1NC CR463L11A*A $165.00
2 2NO CR463L20A*A $160.00
3 3NO CR463L30A*A $204.00
4 3NO-1NC CR463L31A*A $248.00
4 4NO CR463L40A*A $243.00
5 5NO CR463L50A*A $287.00
6 5NO-1NC CR463L51A*A $331.00
6 6NO CR463L60A*A $326.00
7 7NO CR463L70A*A $370.00
8 7NO-1NC CR463L71A*A $414.00
8 8NO CR463L80A*A $409.00
9 9NO CR463L90A*A $453.00
10 9NO-1NC CR463L91A*A $497.00
10 10NO CR463LB0A*A $492.00
11 11NO CR463LC0A*A $536.00
12 12NO CR463LD0A*A $575.00
Enclosed NEMA Type 1 Surface Mount
List Price
No. of Poles Contact Configuration Product Number GO-10MB
2 1NO-1NC CR463L11A*A10A0 $183.00
2 2NO CR463L20A*A10A0 $178.00
3 3NO CR463L30A*A10A0 $222.00
4 3NO-1NC CR463L31A*A10A0 $266.00
4 4NO CR463L40A*A10A0 $261.00
5 5NO CR463L50A*A10A0 $335.00
6 5NO-1NC CR463L51A*A10A0 $379.00
6 6NO CR463L60A*A10A0 $374.00
7 7NO CR463L70A*A10A0 $418.00
8 7NO-1NC CR463L71A*A10A0 $462.00
8 8NO CR463L80A*A10A0 $457.00
9 9NO CR463L90A*A10A0 $501.00
10 9NO-1NC CR463L91A*A10A0 $545.00
10 10NO CR463LB0A*A10A0 $540.00
11 11NO CR463LC0A*A10A0 $584.00
12 12NO CR463LD0A*A10A0 $623.00
Enclosed NEMA Type 1 Surface Mount (Oversize)1
List Price
No. of Poles Contact Configuration Product Number GO-10MB
2 1NO-1NC CR463L11A*A10AA $223.00
2 2NO CR463L20A*A10AA $218.00
3 3NO CR463L30A*A10AA $262.00
4 3NO-1NC CR463L31A*A10AA $306.00
4 4NO CR463L40A*A10AA $301.00
5 5NO CR463L50A*A10AA $375.00
6 5NO-1NC CR463L51A*A10AA $419.00
6 6NO CR463L60A*A10AA $414.00
7 7NO CR463L70A*A10AA $458.00
8 7NO-1NC CR463L71A*A10AA $502.00
8 8NO CR463L80A*A10AA $497.00
9 9NO CR463L90A*A10AA $541.00
10 9NO-1NC CR463L91A*A10AA $585.00
10 10NO CR463LB0A*A10AA $580.00
11 11NO CR463LC0A*A10AA $624.00
12 12NO CR463LD0A*A10AA $663.00
1Oversize enclosures required for field installed pilot devices, pilot lights and control
power transformers.
Enclosed NEMA Type 1 Flush Mount
List Price
No. of Poles Contact Configuration Product Number GO-10MB
2 1NO-1NC CR463L11A*A80A0 $245.00
2 2NO CR463L20A*A80A0 $240.00
3 3NO CR463L30A*A80A0 $284.00
4 3NO-1NC CR463L31A*A80A0 $328.00
4 4NO CR463L40A*A80A0 $323.00
5 5NO CR463L50A*A80A0 $367.00
6 5NO-1NC CR463L51A*A80A0 $411.00
6 6NO CR463L60A*A80A0 $406.00
7 7NO CR463L70A*A80A0 $450.00
8 7NO-1NC CR463L71A*A80A0 $494.00
8 8NO CR463L80A*A80A0 $489.00
9 9NO CR463L90A*A80A0 $533.00
10 9NO-1NC CR463L91A*A80A0 $577.00
10 10NO CR463LB0A*A80A0 $572.00
11 11NO CR463LC0A*A80A0 $616.00
12 12NO CR463LD0A*A80A0 $655.00
Coil Voltage
Insert coil digit in place of * in digit 10.
Coil Voltage
AC, 60Hz AC, 50Hz Coil Digit
24V 20V C
28V 24V D
115-120V 110V J
200-208V —L
230-240V 220V S
277V 240V N
347V —T
460-480V 440V U
575-600V 550V Y
Page Updated 07 / 2011
www.geindustrial.com Control Catalog 3-9
Lighting Contactors
Rev. 7/11
Prices and data subject
to change without notice
Section 3
Enclosed NEMA Type 12/3R
List Price
No. of Poles Contact Configuration Product Number GO-10MB
2 1NO-1NC CR463L11A*A20A0 $275.00
2 2NO CR463L20A*A20A0 $270.00
3 3NO CR463L30A*A20A0 $314.00
4 3NO-1NC CR463L31A*A20A0 $358.00
4 4NO CR463L40A*A20A0 $353.00
5 5NO CR463L50A*A20A0 $397.00
6 5NO-1NC CR463L51A*A20A0 $441.00
6 6NO CR463L60A*A20A0 $436.00
7 7NO CR463L70A*A20A0 $480.00
8 7NO-1NC CR463L71A*A20A0 $524.00
8 8NO CR463L80A*A20A0 $519.00
9 9NO CR463L90A*A20A0 $563.00
10 9NO-1NC CR463L91A*A20A0 $607.00
10 10NO CR463LB0A*A20A0 $602.00
11 11NO CR463LC0A*A20A0 $646.00
12 12NO CR463LD0A*A20A0 $685.00
Enclosed NEMA Type 12/3R (Oversize)1
List Price
No. of Poles Contact Configuration Product Number GO-10MB
2 1NO-1NC CR463L11A*A20AA $315.00
2 2NO CR463L20A*A20AA $310.00
3 3NO CR463L30A*A20AA $354.00
4 3NO-1NC CR463L31A*A20AA $398.00
4 4NO CR463L40A*A20AA $353.00
5 5NO CR463L50A*A20AA $437.00
6 5NO-1NC CR463L51A*A20AA $481.00
6 6NO CR463L60A*A20AA $476.00
7 7NO CR463L70A*A20AA $520.00
8 7NO-1NC CR463L71A*A20AA $564.00
8 8NO CR463L80A*A20AA $559.00
9 9NO CR463L90A*A20AA $603.00
10 9NO-1NC CR463L91A*A20AA $647.00
10 10NO CR463LB0A*A20AA $642.00
11 11NO CR463LC0A*A20AA $686.00
12 12NO CR463LD0A*A20AA $725.00
1Oversize enclosures required for field installed pilot devices, pilot lights and control
power transformers.
Enclosed NEMA Type 4/4X
List Price
No. of Poles Contact Configuration Product Number GO-10MB
2 1NO-1NC CR463L11A*A40A0 $369.00
2 2NO CR463L20A*A40A0 $364.00
3 3NO CR463L30A*A40A0 $408.00
4 3NO-1NC CR463L31A*A40A0 $452.00
4 4NO CR463L40A*A40A0 $447.00
5 5NO CR463L50A*A40A0 $491.00
6 5NO-1NC CR463L51A*A40A0 $535.00
6 6NO CR463L60A*A40A0 $530.00
7 7NO CR463L70A*A40A0 $574.00
8 7NO-1NC CR463L71A*A40A0 $618.00
8 8NO CR463L80A*A40A0 $613.00
9 9NO CR463L90A*A40A0 $657.00
10 9NO-1NC CR463L91A*A40A0 $701.00
10 10NO CR463LB0A*A40A0 $696.00
11 11NO CR463LC0A*A40A0 $740.00
12 12NO CR463LD0A*A40A0 $779.00
Coil Voltage
Insert coil digit in place of * in digit 10.
Coil Voltage
AC, 60Hz AC, 50Hz Coil Digit
24V 20V C
28V 24V D
115-120V 110V J
200-208V —L
230-240V 220V S
277V 240V N
347V —T
460-480V 440V U
575-600V 550V Y
CR463
Electrically Held Contactors
CR463L - 30A (2-12 pole)
Standard Assembled Forms
Page Updated 07 / 2011
www.geindustrial.com Rev. 7/11
Prices and data subject
to change without notice
Control Catalog
3-10
Lighting Contactors Section 3
CR463
Electrically Held Contactors
CR463L - 30A (2-12 pole)
Modified Assembled Forms
CR463L Electrically Held Contactors
Follow the diagram and tables below to select the options and corresponding product number digits for your modified contactor. Total
the prices for each selection to arrive at the total list price, GO-10MB.
C
R
4
6
3
L
Power pole
NO contacts
Power pole
NC contacts
Standard control $0.00 A
Coil $0.00
Aux. contacts $
Enclosure $
Pilot devices $
Pilot lights $
CPT $
Total $
Digit & Meaning List Price,
GO-10MB Prod. No.
O
p
e
n
c
o
n
t
a
c
t
o
r
E
n
c
l
o
s
e
d
c
o
n
t
a
c
t
o
r
Electrically
held
contactor
$77.00
$
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
& Power Pole Contact Configuration
The number of NO contacts is digit 7 and the number of NC contacts is digit 8.
Coil Voltage
There is no price adder to coil selection.
AC, 60Hz AC, 50Hz
24V 20V C
28V 24V D
115-120V 110V J
200-208V —L
230-240V 220V S
277V 240V N
347V —T
460-480V 440V U
575-600V 550V Y
Coil Voltage
Digit 10
Enclosures
Type 1 Surface for
2-4 pole contactors 1 $18.00
Type 1 Surface for
5-12 pole contactors 1 $48.00
Type 1 Flush 8 $80.00
Type 12/3R 2 $110.00
Type 4/4X 4 $204.00
Enclosure Type Digit 12
List Price Adder,
GO-10MB
1For digit 7 with 10 NO contacts, use B; for 11 NO contacts, use C; for 12 NO contacts, use D.
Product Number Selection Instructions: See page 3-8
7 8
10
12
012345678
0——
$83.00 $127.00 $166.00 $210.00 $249.00 $293.00 $332.00
1— $88.00 $127.00 $171.00 $210.00 $254.00 $293.00 $337.00 $376.00
2 $83.00 $127.00 $166.00 $210.00 $249.00 $293.00 $332.00 $376.00 $415.00
3$127.00 $171.00 $210.00 $254.00 $293.00 $337.00 $376.00 $420.00 $459.00
4$166.00 $210.00 $249.00 $293.00 $332.00 $376.00 $415.00 $459.00 $498.00
5$210.00 $254.00 $293.00 $337.00 $376.00 $420.00 $459.00
6$249.00 $293.00 $332.00 $376.00 $415.00 $459.00 $498.00
7$293.00 $337.00 $376.00 $420.00 $459.00
8$332.00 $376.00 $415.00 $459.00 $498.00
9$376.00 $420.00 $459.00
10 (B) $415.00 $459.00 $498.00
11 (C) $459.00
12 (D) $498.00
NO
Contacts
(Digit 7)
List Price Adder, GO-10MB
NC Contacts (Digit 8)
1
1
1
www.geindustrial.com Control Catalog 3-11
Lighting Contactors
Rev. 7/11
Prices and data subject
to change without notice
Section 3
Pilot Devices
Heavy-duty, 30mm pilot devices. Not available in Type 1 flush enclosure.
Not Required Included 21
None $0.00
ON/OFF Push Button (Momentary) $142.00
ON/OFF Selector Switch (Maintained) $132.00
ON-OFF Selector Switch, Spring Return to Center $142.00
H-O-A Selector Switch $132.00
ON-OFF-AUTO Keyed Selector Switch (Removal All Positions) $168.00
H-O-A Keyed Selector Switch (Removal All Positions) $168.00
OFF-AUTO Selector Switch $132.00
ON-OFF-AUTO Selector Switch $132.00
1Contactor supplied in oversize enclosure with these options.
2One holding interlock is included in pilot device digit and pricing.
Pilot Device
Holding Interlock
Digit 13
List Price
Adder,
GO-10MB
CR463
Additional Auxiliary Contacts
Each side of the contactor base will accept one single- or double-pole auxiliary contact block, for a maximum of 2NO-2NC contacts.
Enclosures with OFF pilot lights require 1NC contact. Specify an additional 1NO contact if a holding interlock is required and “not”
selected as part of Digit 13 (1 or 3). For open forms, this is the final digit.
Pilot Lights
Heavy-duty 30mm pilot lights with interchangeable red and green
lenses. See the Additional Auxiliary Contacts table above for con-
tact limitations. OFF light includes extra auxiliary contact. Not
available in Type 1 flush enclosure.
Circuit Fuses/Control Power Transformers
CPT secondary voltage must match control voltage. Not available
in Type 1 flush enclosure.
—None 0
1
$0.00
Without CPT $165.00
CPT Primary
Volts CPT Secondary
Volts
208 B $367.00
220-240 C $367.00
277 D $367.00
440-480 E $367.00
600 F $367.00
120 L $367.00
208 M $367.00
220-240 N $367.00
277 P $367.00
440-480 R $367.00
600 S $367.00
With
100VA CPT
120
24
Digit 15
List Price Adder,
GO-10MB
Control Circuit Fuses
Contactor
Type Description
1
1Contactor supplied in oversize enclosure with these options.
—None A $0.00
ON B $152.00
OFF C
F
$162.00
ON and OFF $314.00
ON D
E
G
$170.00
OFF $180.00
ON and OFF $350.00
Push-to-Test
Standard
1Contactor supplied in oversize enclosure with these options.
3ON is across coil; OFF is through NC contact, which is included in pilot
light digit and pricing.
Type Pilot Light(s)1, 3 Digit 14
List Price Adder,
GO-10MB
11
13
14
15
www.geindustrial.com Rev. 7/11
Prices and data subject
to change without notice
Control Catalog
3-12
Lighting Contactors Section 3
Product Number Selection Instructions
To specify control and coil voltage, replace ** in the product
number with the appropriate digits from the Control Circuit table,
and add the price adder (if any) to the contactor list price. The
resulting product number will be for an assembled contactor with
no additional auxiliary contacts, pilot devices, pilot lights, control
circuit fuses or CPTs. If coil supply voltage is greater than 277V,
use a CPT.
For modified assembled forms with those modifications, see
pages 3-14 and 3-15. Items listed here are the most common
pole
configurations.
Poles may be reconfigured by user into alternative combinations
of NO and NC contacts. All configurations are available as facto-
ry-assembled forms. To order: Use the modified assembled forms
selection data on pages 3-14 and 3-15, or use the web wizard
at http://www.geindustrial.com/industrialsystems/wizards/csp/
home.htm?pagesetid=lightingcontactors, or contact your nearest
GE sales office.
Open
List Price
No. of Poles Contact Configuration Product Number GO-10MB
2 1NO-1NC CR463M11**A $275.00
2 2NO CR463M20**A $270.00
3 3NO CR463M30**A $314.00
4 3NO-1NC CR463M31**A $358.00
4 4NO CR463M40**A $353.00
5 5NO CR463M50**A $397.00
6 5NO-1NC CR463M51**A $441.00
6 6NO CR463M60**A $436.00
7 7NO CR463M70**A $480.00
8 7NO-1NC CR463M71**A $524.00
8 8NO CR463M80**A $519.00
9 9NO CR463M90**A $563.00
10 9NO-1NC CR463M91**A $607.00
10 10NO CR463MB0**A $602.00
11 11NO CR463MC0**A $646.00
12 12NO CR463MD0**A $685.00
Enclosed NEMA Type 1 Surface Mount
List Price
No. of Poles Contact Configuration Product Number GO-10MB
2 1NO-1NC CR463M11**A10A0 $293.00
2 2NO CR463M20**A10A0 $288.00
3 3NO CR463M30**A10A0 $332.00
4 3NO-1NC CR463M31**A10A0 $376.00
4 4NO CR463M40**A10A0 $371.00
5 5NO CR463M50**A10A0 $445.00
6 5NO-1NC CR463M51**A10A0 $489.00
6 6NO CR463M60**A10A0 $484.00
7 7NO CR463M70**A10A0 $528.00
8 7NO-1NC CR463M71**A10A0 $572.00
8 8NO CR463M80**A10A0 $567.00
9 9NO CR463M90**A10A0 $611.00
10 9NO-1NC CR463M91**A10A0 $655.00
10 10NO CR463MB0**A10A0 $650.00
11 11NO CR463MC0**A10A0 $694.00
12 12NO CR463MD0**A10A0 $733.00
Enclosed NEMA Type 1 Surface Mount (Oversize)1
List Price
No. of Poles Contact Configuration Product Number GO-10MB
2 1NO-1NC CR463M11**A10AA $333.00
2 2NO CR463M20**A10AA $328.00
3 3NO CR463M30**A10AA $372.00
4 3NO-1NC CR463M31**A10AA $416.00
4 4NO CR463M40**A10AA $411.00
5 5NO CR463M50**A10AA $485.00
6 5NO-1NC CR463M51**A10AA $529.00
6 6NO CR463M60**A10AA $524.00
7 7NO CR463M70**A10AA $568.00
8 7NO-1NC CR463M71**A10AA $612.00
8 8NO CR463M80**A10AA $607.00
9 9NO CR463M90**A10AA $651.00
10 9NO-1NC CR463M91**A10AA $695.00
10 10NO CR463MB0**A10AA $690.00
11 11NO CR463MC0**A10AA $734.00
12 12NO CR463MD0**A10AA $773.00
1Oversize enclosures required for field installed pilot devices, pilot lights and control
power transformers.
Enclosed NEMA Type 1 Flush Mount
List Price
No. of Poles Contact Configuration Product Number GO-10MB
2 1NO-1NC CR463M11**A80A0 $355.00
2 2NO CR463M20**A80A0 $350.00
3 3NO CR463M30**A80A0 $394.00
4 3NO-1NC CR463M31**A80A0 $438.00
4 4NO CR463M40**A80A0 $433.00
5 5NO CR463M50**A80A0 $477.00
6 5NO-1NC CR463M51**A80A0 $421.00
6 6NO CR463M60**A80A0 $516.00
7 7NO CR463M70**A80A0 $560.00
8 7NO-1NC CR463M71**A80A0 $604.00
8 8NO CR463M80**A80A0 $599.00
9 9NO CR463M90**A80A0 $643.00
10 9NO-1NC CR463M91**A80A0 $687.00
10 10NO CR463MB0**A80A0 $682.00
11 11NO CR463MC0**A80A0 $726.00
12 12NO CR463MD0**A80A0 $765.00
Insert control module/coil digit in place of the ** in digit 9 and 10
of product number.
Control Circuit Ratings
Product No. Digits by Coil Voltage (60 Hz)2
Control Control Module Input 115-120 Vac 277 Vac List Price Adder
2 Wire 110-120 Vac CJ — $0.00
200-277 Vac — DN $0.00
3 Wire 110-120 Vac NJ — $10.00
200-277 Vac — PN $10.00
2For 50 Hz coil ratings see coil table, page 3-8.
CR463
Mechanically Held Contactors
CR463M - 30A (2-12 pole)
Standard Assembled Forms
Page Updated 07 / 2011
www.geindustrial.com Control Catalog 3-13
Lighting Contactors
Rev. 7/11
Prices and data subject
to change without notice
Section 3
Enclosed NEMA Type 12/3R
List Price
No. of Poles Contact Configuration Product Number GO-10MB
2 1NO-1NC CR463M11**A20A0 $385.00
2 2NO CR463M20**A20A0 $380.00
3 3NO CR463M30**A20A0 $424.00
4 3NO-1NC CR463M31**A20A0 $468.00
4 4NO CR463M40**A20A0 $463.00
5 5NO CR463M50**A20A0 $507.00
6 5NO-1NC CR463M51**A20A0 $551.00
6 6NO CR463M60**A20A0 $546.00
7 7NO CR463M70**A20A0 $590.00
8 7NO-1NC CR463M71**A20A0 $634.00
8 8NO CR463M80**A20A0 $629.00
9 9NO CR463M90**A20A0 $673.00
10 9NO-1NC CR463M91**A20A0 $717.00
10 10NO CR463MB0**A20A0 $712.00
11 11NO CR463MC0**A20A0 $756.00
12 12NO CR463MD0**A20A0 $795.00
Enclosed NEMA Type 12/3R (Oversize)1
List Price
No. of Poles Contact Configuration Product Number GO-10MB
2 1NO-1NC CR463M11**A20AA $425.00
2 2NO CR463M20**A20AA $420.00
3 3NO CR463M30**A20AA $464.00
4 3NO-1NC CR463M31**A20AA $508.00
4 4NO CR463M40**A20AA $503.00
5 5NO CR463M50**A20AA $547.00
6 5NO-1NC CR463M51**A20AA $591.00
6 6NO CR463M60**A20AA $586.00
7 7NO CR463M70**A20AA $630.00
8 7NO-1NC CR463M71**A20AA $674.00
8 8NO CR463M80**A20AA $669.00
9 9NO CR463M90**A20AA $713.00
10 9NO-1NC CR463M91**A20AA $757.00
10 10NO CR463MB0**A20AA $752.00
11 11NO CR463MC0**A20AA $796.00
12 12NO CR463MD0**A20AA $835.00
1Oversize enclosures required for field installed pilot devices, pilot lights and control
power transformers.
Enclosed NEMA Type 4/4X
List Price
No. of Poles Contact Configuration Product Number GO-10MB
2 1NO-1NC CR463M11**A40A0 $479.00
2 2NO CR463M20**A40A0 $474.00
3 3NO CR463M30**A40A0 $518.00
4 3NO-1NC CR463M31**A40A0 $562.00
4 4NO CR463M40**A40A0 $557.00
5 5NO CR463M50**A40A0 $610.00
6 5NO-1NC CR463M51**A40A0 $645.00
6 6NO CR463M60**A40A0 $640.00
7 7NO CR463M70**A40A0 $484.00
8 7NO-1NC CR463M71**A40A0 $728.00
8 8NO CR463M80**A40A0 $723.00
9 9NO CR463M90**A40A0 $767.00
10 9NO-1NC CR463M91**A40A0 $811.00
10 10NO CR463MB0**A40A0 $806.00
11 11NO CR463MC0**A40A0 $850.00
12 12NO CR463MD0**A40A0 $889.00
Insert control module/coil digit in place of the ** digit 9 and 10 of
product number.
Control Circuit Ratings
Product No. Digits by Coil Voltage (60 Hz)2
Control Control Module Input 115-120 Vac 277 Vac List Price Adder
2 Wire 110-120 Vac CJ — $0.00
200-277 Vac — DN $0.00
3 Wire 110-120 Vac NJ — $10.00
200-277 Vac — PN $10.00
2For 50 Hz coil ratings see coil table, page 3-8.
CR463
Mechanically Held Contactors
CR463M - 30A (2-12 pole)
Standard Assembled Forms
www.geindustrial.com Rev. 7/11
Prices and data subject
to change without notice
Control Catalog
3-14
Lighting Contactors Section 3
CR463
Mechanically Held Contactors
CR463M - 30A (2-12 pole)
Modified Assembled Forms
CR463M Mechanically Held Contactors
Follow the diagram and tables below to select the options and corresponding product number digits for your modified contactor. Total
the prices for each selection to arrive at the total list price, GO-10MB.
& Power Pole Contact Configuration
The number of NO contacts is digit 7 and the number of NC contacts is digit 8.
012345678
0——$83.00 $127.00 $166.00 $210.00 $249.00 $293.00 $332.00
1—$88.00 $127.00 $171.00 $210.00 $254.00 $293.00 $337.00 $376.00
2$83.00 $127.00 $166.00 $210.00 $249.00 $293.00 $332.00 $376.00 $415.00
3$127.00 $171.00 $210.00 $254.00 $293.00 $337.00 $376.00 $420.00 $459.00
4$166.00 $210.00 $249.00 $293.00 $332.00 $376.00 $415.00 $459.00 $498.00
5$210.00 $254.00 $293.00 $337.00 $376.00 $420.00 $459.00
6$249.00 $293.00 $332.00 $376.00 $415.00 $459.00 $498.00
7$293.00 $337.00 $376.00 $420.00 $459.00
8$332.00 $376.00 $415.00 $459.00 $498.00
9$376.00 $420.00 $459.00
10 (B) $415.00 $459.00 $498.00
11 (C) $459.00
12 (D) $498.00
NO
Contacts
(Digit 7)
List Price Adder, GO-10MB
NC Contacts (Digit 8)
1
1
1
C
R
4
6
3
M
Power pole
NO contacts
Power pole
NC contacts
Aux. contacts $
Enclosure $
Pilot devices $
Pilot lights $
CPT $
Total $
E
n
c
l
o
s
e
d
c
o
n
t
a
c
t
o
r
O
p
e
n
c
o
n
t
a
c
t
o
r
Digit & Meaning List Price,
GO-10MB
Mechanically
held
contactor
Control circuit
Prod. No.
$
$
$187.00
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
& Control Circuit
If coil supply voltage is greater than 277V, use CPT.
24 Vac 115-120 Vac 200-208 Vac 230-240 Vac 277 Vac
24 Vac $0.00
110-120 Vac
BNBC
EC
MC
RC
BJ
CJ CL
DL
EL
ML
NL
PL
RL
CS
DS
ES
MS
NS
PS
RS
CN
DN
EN
MN
NN
PN
RN
EJ
MJ
NJ
RJ
BL BS
$0.00
200-277 Vac $0.00
12-28 Vdc $0.00
24 Vac $10.00
110-120 Vac $10.00
200-277 Vac $10.00
12-28 Vdc $10.00
1For 50 Hz coil ratings see coil table, page 3-8.
Control
Control
Module
Input
Digits 9 & 10 by Coil Voltage (60 Hz)1List Price
Adder,
GO-10MB
2 Wire
3 Wire
1For digit 7 with 10 NO contacts, use B; for 11 NO contacts, use C; for 12 NO contacts, use D.
7 8
910
www.geindustrial.com Control Catalog 3-15
Lighting Contactors
Rev. 7/11
Prices and data subject
to change without notice
Section 3
CR463
Additional Auxiliary Contacts
Each side of the contactor base will accept one single- or double-pole auxiliary contact block, for a maximum of 2NO-2NC contacts.
The 2-wire control module uses 1NC contact and the 3-wire uses 1NO-1NC for feedback and control. The table below indicates the
additional auxiliary contacts available for customer or field use when factory-assembled forms are supplied. For open forms, this is
the final digit.
No pilot
lights
(Digit 14
= A)
ON light
thru NO
contact
(Digit 14
= B, D)
OFF light
thru NC
contact
(Digit 14
= C, E)
ON light thru
NO contact
and OFF light
thru NC contact
(Digit 14 = F, G)
No pilot
devices or
pilot lights
(Digit 14
= A)
ON light
thru NO
contact
(Digit 14
= B, D)
OFF light
thru NC
contact
(Digit 14
= C, E)
ON light thru
NO contact
and OFF light
thru NC contact
(Digit 14 = F, G)
None A $0.00
1NO B $10.00
1NC C $10.00
1NO-1NC D $20.00
2NO E $20.00
Additional
(field use)
Aux.
Contacts Digit 11
List Price
Adder,
GO-10MB
2- wire control (when Digit 9 = B, C, D, E)
Enclosed (when Digit 13 below = 0, 2, 4, 5, 6, 7, 8) Enclosed (when Digit 13 below = 1, 2, 3)
3-wire control (when Digit 9 = M, N, P, R)
Available with
Open
Type
Open
Type
√√ √ √ √ √√ √ √
√√ √ √ √ √√
√√ √ √ √
√√
√√√
√√√
√
√
√
Enclosures
Enclosure Type Digit 12
List Price Adder,
GO-10MB
Type 1 Surface for 2-4 pole contactors 1 $18.00
Type 1 Surface for 5-12 pole contactors 1 $48.00
Type 1 Flush 8 $80.00
Type 12/3R 2 $110.00
Type 4/4X 4 $204.00
Pilot Devices
Heavy-duty, 30mm pilot devices. Not available in Type 1 flush enclosure.
Pilot Device 2-wire 3-wire Digit 13
None $0.00
ON/OFF Push Button (Momentary) $132.00
ON/OFF Selector Switch (Maintained) $132.00
ON-OFF Selector Switch, Spring Return to Center $132.00
H-O-A Selector Switch $132.00
ON-OFF-AUTO Keyed Selector Switch (Removal All Positions) $168.00
H-O-A Keyed Selector Switch (Removal All Positions) $168.00
OFF-AUTO Selector Switch $132.00
ON-OFF-AUTO Selector Switch $132.00
Control Module List Price Adder,
GO-10MB
1
1Oversize enclosure required for field installed Pilot Devices, Pilot Lights and
Control Power Transformers.
Pilot Lights
Heavy-duty 30mm pilot lights with interchangeable red and green
lenses. See the Additional Auxiliary Contacts table above for con-
tact limitations. OFF light includes auxiliary contact. Not available
in Type 1 flush enclosure.
Type Pilot Light(s) 1, 2, 3 Digit 14
List Price Adder,
GO-10MB
None A $0.00
ON B $162.00
OFF C $162.00
ON and OFF F $324.00
ON D $180.00
OFF E $180.00
ON and OFF G $360.00
2Contactor supplied in oversize enclosure with these options.
3ON is through NO contact; OFF is through NC contact. Auxiliary contacts
are included in pilot light digit and pricing.
Standard
Push-to-Test
Control Circuit Fuses/Control Power Transformers
CPT secondary voltage must match control voltage. Not available
in Type 1 flush enclosure.
Contactor
Type Digit 15
List Price Adder,
GO-10MB
None 0
1
1
$0.00
Without CPT $165.00
CPT Primary Volts
CPT Secondary
Volts
208 B $367.00
220-240 C $367.00
277 D $367.00
440-480 E $367.00
600 F $367.00
120 L $367.00
208 M $367.00
220-240 N $367.00
277 P $367.00
440-480 R $367.00
600 S $367.00
Description
Control Circuit Fuses
With
100VA CPT
120
24
1Oversize enclosure required for field installed pilot Devices, pilot Lights and
control power transformers.
11
12
13
14
15
Page Updated 11 / 2012
www.geindustrial.com Rev. 7/11
Prices and data subject
to change without notice
Control Catalog
3-16
Lighting Contactors Section 3
CR463L, CR463M

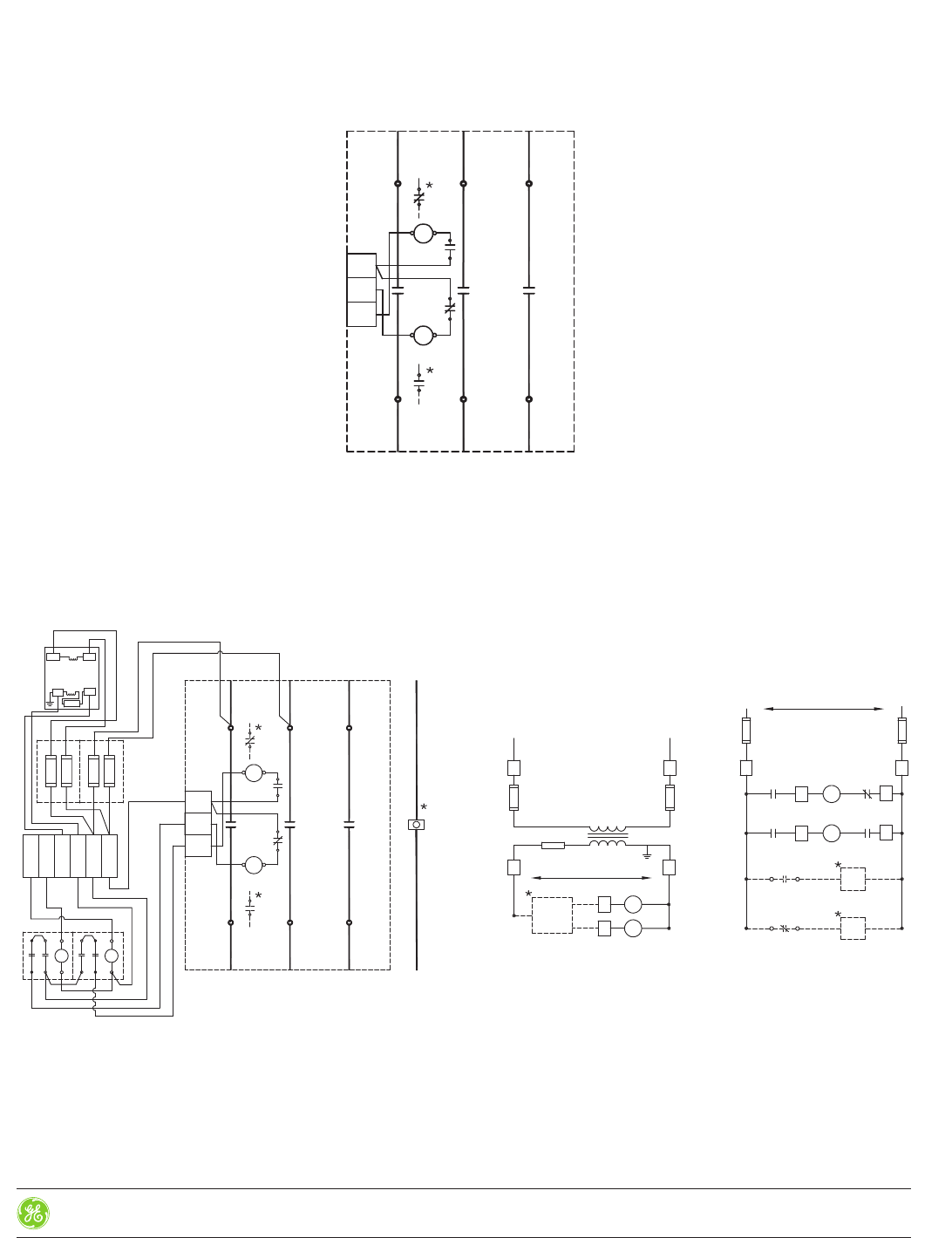

Wiring Diagrams
CR463L Electrically Held
CR463M Mechanically Held
www.geindustrial.com Control Catalog 3-17
Lighting Contactors
Rev. 7/11
Prices and data subject
to change without notice
Section 3
Contactor CR463L...CR463M, Drawing #55-217114P01
Note:
1 Mounting Dimensions remain the same for 1 to 12 Poles
2 Line and Load terminals are interchangeable
3 Up to 2NO and 2NC auxiliary contacts can be added onto the base product
4 Same Power Pole can be configured as NO type or NC type in pole positions 1-4; NO type only in positions 5-6.
CR463L, CR463M

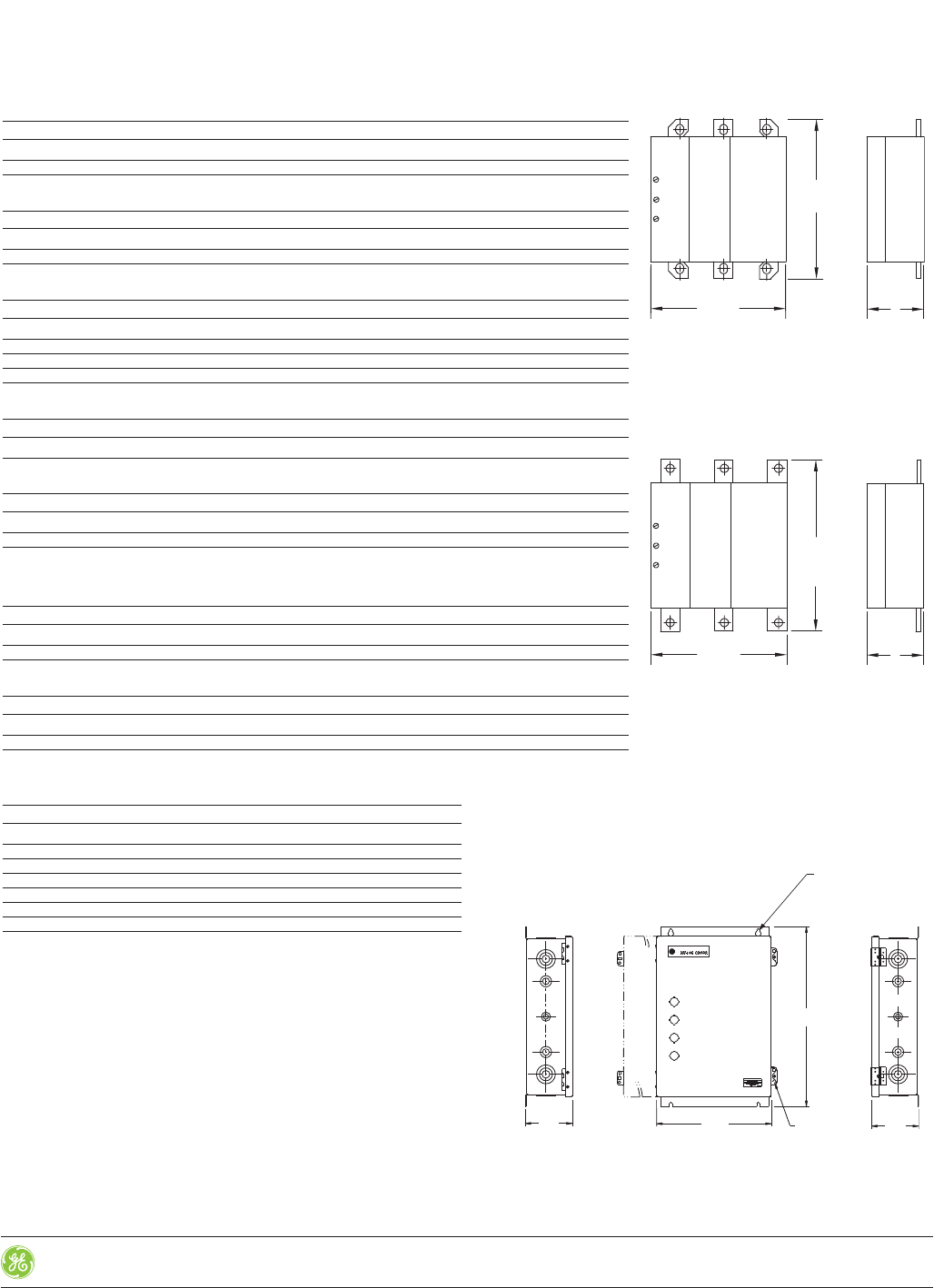

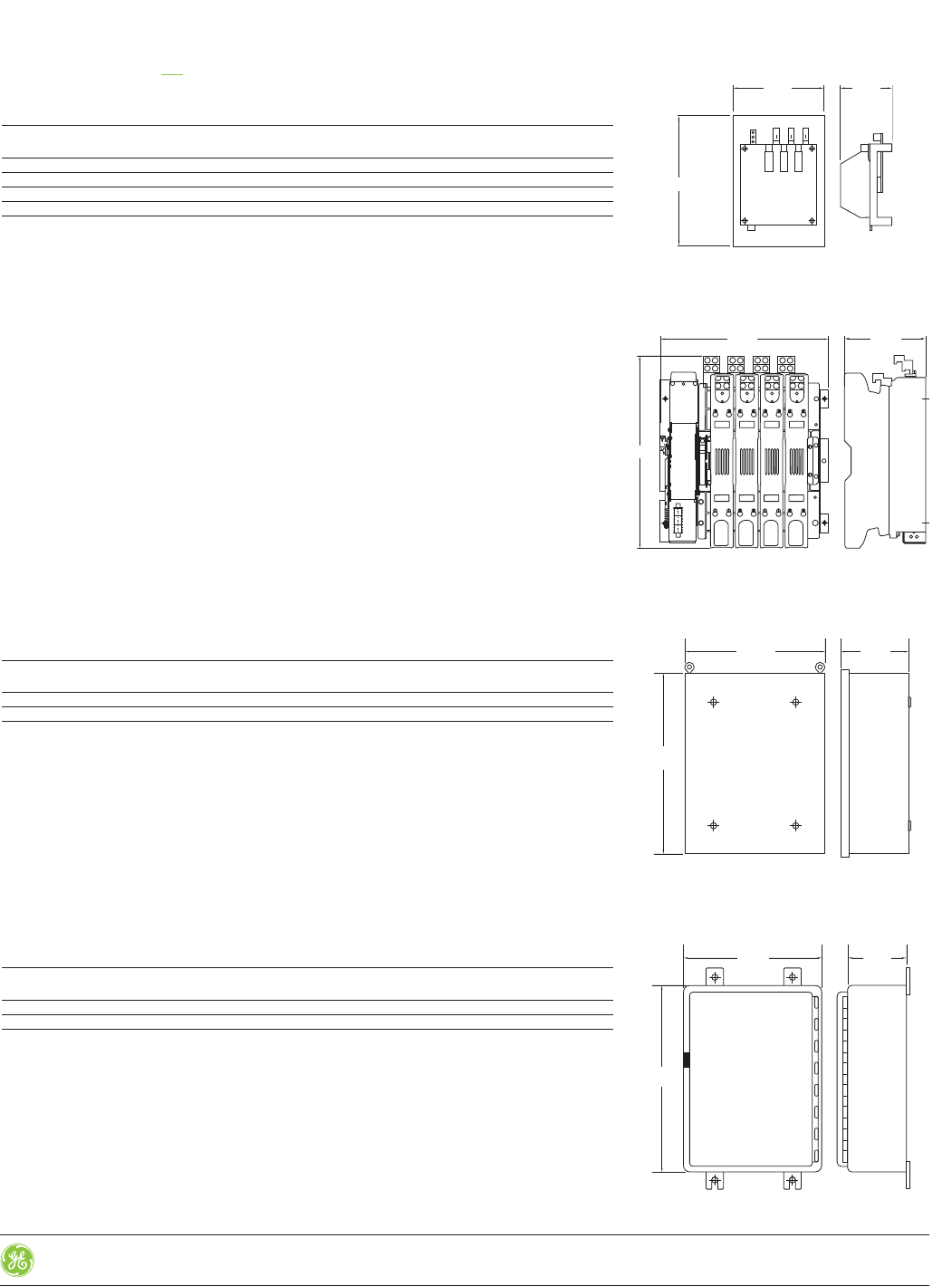

Outlines and Dimensions ( in.
mm) For Estimating Only
A1
NONONONONONO
A2
Only
mount in
vertical
position
as shown
www.geindustrial.com Rev. 7/11
Prices and data subject
to change without notice
Control Catalog
3-18
Lighting Contactors Section 3
NEMA Type 1 with no CPT, pilot devices or pilot lights, Drawing #55-217069 (CR460XE1B)
NEMA Type 1 oversized or with provision for CPT and/or pilot device/pilot lights, Drawing #55-217105 (CR460XE1D)
NEMA Type 1 Flush Drawing #55-217108 (CR460XE8B)
K.O.’s same top and bottom
A. Combination knockout for 1/2 or 3/4-inch conduit
B. Combination knockout for 3/4 or 1-inch conduit
C. Combination knockout for 1/2, 1-1/4 or 1-1/2-inch conduit
A. Combination knockout for 1/2 or 3/4-inch conduit
B. Combination knockout for 3/4 or 1-inch conduit
C. Combination knockout for 1/2, 1-1/4 or 1-1/2-inch conduit
*Note: Knockouts reversed on bottom
A. Combination knockout for 1/2 or 3/4-inch conduit
B. Combination knockout for 3/4 or 1-inch conduit
C. Combination knockout for 1/2, 1-1/4 or 1-1/2-inch conduit
*Note: Knockouts reversed on bottom
Product Number Selection Instructions: See page 3-5
CR463L, CR463M
Outlines and Dimensions ( in.
mm) For Estimating Only
www.geindustrial.com Control Catalog 3-19
Lighting Contactors
Rev. 7/11
Prices and data subject
to change without notice
Section 3

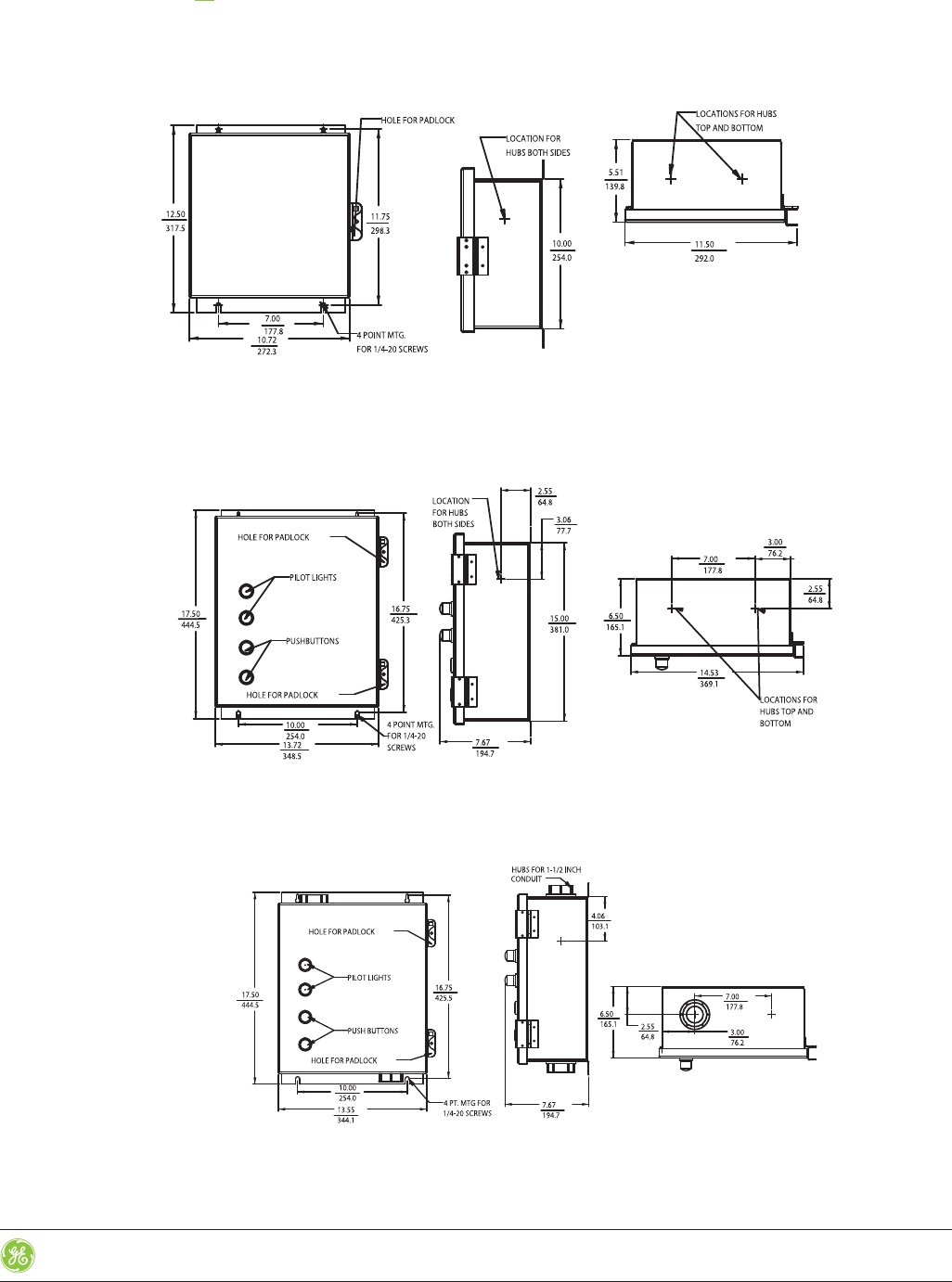

NEMA Type 12/3R with no CPT, pilot device or pilot lights, Drawing #55-217109 (CR460XE2B)
NEMA Type 12/3R oversized with provision for CPT and/or pilot device/pilot lights, Drawing #55-217106 (CR460XE2D)
NEMA Type 4/4X oversized with provision for CPT and/or pilot devices/pilot lights, Drawing #55-217107 (CR460XE4D)
CR463L, CR463M
Outlines and Dimensions ( in.
mm) For Estimating Only
www.geindustrial.com Rev. 7/11
Prices and data subject
to change without notice
Control Catalog
3-20
Lighting Contactors Section 3
Main Power Poles Ratings
Maximum AC Voltage and Amp Ratings
Poles
Load Type Amps Continuous 1 Phase 3 Phase
Ballast 30 347 Vac 600 Vac
Tungsten 20 277 Vac 480 Vac
General Use/AC Resistive 30 600 Vac 600 Vac
Maximum Horsepower Rating (Normal Starting Duty)
1 Pole Single Phase 3 Poles, Three Phase
Volts 110-120V 220-240V 200-208V 220-240V 440-480V 550-600V
HP 123510 15
Short Circuit Current Ratings
For 463 Series Contactors Available Amps (RMS) Symmetrical
Circuit Breakers Enclosure Type Enclosure Type
Inverse Trip Type CR460X*B CR460X*D or Larger
AC Service Breaker TEY/ All other inverse All other inverse
Voltage Size THHQB trip breakers THHQB TEY SE trip breakers
240 30 22,000 14,000 22,000 65,000 100,000 22,000
40 14,000 10,000 22,000 65,000 100,000 22,000
277 30 14000110,000 N/A 14,000 30,000 14,000
40 1400015,000 N/A 14,000 30,000 14,000
480 40 N/A 5,000 N/A N/A 30,000 14,000
600 40 N/A 5,000 N/A N/A 14,000 10,000
1TEY only
Withstand Current Ratings
For 463 Series Contactors - Available Amps (RMS)
Symmetrical Fuses
Enclosure Type Enclosure Type
CR460X*B CR460X*D or Larger
AC Service Fuse
Voltage Size J RK1 J/RK1/RK5 KH
600 and below 30 100,000 50,000 100,000 50,000 10,000
Control Circuit Characteristics
Coil
Inrush 340 VA
Sealed 45 VA
Control Module Steady State Current
Input Voltage @ Rated Voltage (mA) Maximum VA
12-28 VDC 42 2
24 VAC 80 5
115-120 VAC 83 12
200-277 VAC 91 30
Minimum pulse duration (3-wire control module) 250 ms
Maximum allowable leakage current 1.8 mA
EMI 35 V/m
Surge transient peak 6 kV
Frequency range 40-70 Hz
Auxiliary Contacts Rating
A600, 10A, 600VAC
Wire Size Ratings
Wire Range (AWG)
Component Number of Cables (Solid or Stranded) Wire Temp.
Power Poles 1 #14-8 75°C Cu
Power Poles 2 #14-8175°C Cu
Coil 1 or 2 #18-14 60°/75°C Cu
Control Module 1 or 2 #22-12 60°/75°C Cu
Auxiliary Contacts 1 or 2 #22-12 60°/75°C Cu
1#8 AWG stranded only.
Standards and Listings
UL508 File, E1811 Vol 19, cUL, CE
Ambient Operating Temperature
-25° to 40°C
Reference Publications
Instructions DEH-40460
CR460, CR463
Technical Data
Product Number Selection Instructions: See page 3-5
Page Updated 11 / 2012
www.geindustrial.com Control Catalog 3-21
Lighting Contactors
Rev. 7/11
Prices and data subject
to change without notice
Section 3
CR360L
Electrically Held Contactors
CR360L - 30A - 300A (2, 3 & 4 pole)
Application
GE’s CR360L series lighting contactors are electrically held, and
offer solutions for applications between 30 and 300 amps. This is
accomplished in five frame sizes, all built on the successful, and
long established NEMA starters. The ratings are established for
fluorescent, mercury arc, tungsten and sodium lamp loads, cov-
ering a wide spectrum of industrial and commercial applications.
The CR360L contactors offer a wide range of features that include:
—NEMA Type 1, Type 12, Type 3R, and Type 4 stainless steel
enclosures
—A full selection of pilot devices, including pushbuttons, selec-
tor switches, and multi-colored indicating lights wired in
needed configurations
—Main contactors with 2, 3 and 4 power poles
—Generous offering of auxiliary contacts
—Complete list of renewal parts for field installation
—Stock or quick delivery on the majority of products
—UL listing and CSA certification
For your convenience, examples of possible wiring schemes are
provided on this page. Please review the ratings tables below and
use the quick step-by-step selection guide provided, to choose
the exact product required for your application.
Ratings
Open or enclosed ratings are 30-, 60-, 100-, 200-, and 300-
ampere, ac full-load current.
Maximum AC Voltage Rating
Lighting Load Line Load
Tungsten 480 480
Ballast: Fluorescent, Mercury, Sodium, e.g. 600 600
DC Tungsten Rating
Contactor Size, Continuous No. Poles in Series for:
Ampere Rating 125 V Maximum 250 V Maximum
30 23
60 24
100-300 22
Product Number Selection Instructions
Order by complete product number.
1. Select rating and enclosure from Table 1.
2. Select coil voltage from Table 2.
3. For additionally modified enclosed forms, use Tables 2a, 3, 4, and 5.
Note: Coils will be connected line-to-line unless otherwise specified. Complete prod-
uct number must contain 15 digits.
or
Control Circuit Option
Enclosure
CR360L
CR360L 313 04T CAA
Example: 30-ampere, three-pole lighting contactor in a NEMA Type 1 enclosure with a 480/120 Volt
CPT, 2 primary, 1 secondary fuse, standard-duty on/off push button with holding interlock.
# NO
Poles Pilot
Device Pilot
Light Aux.
Contacts
NEMA Type 1 Enclosure, 3 NO Poles
480/120 CPT with 2 Primary / 1 Secondary Fuse
Standard On-Off Push Button
No Indicating Light
Normally Open Holding Interlock
+
+
+
+
=
+
+
+
+
+
=
$
$
$
$
$
$
$
$
$
$
$
$
216.00
List Price, GO-10MB
List Price, GO-10MB
Product Number
367.00
725.00
60.00
82.00
0.00

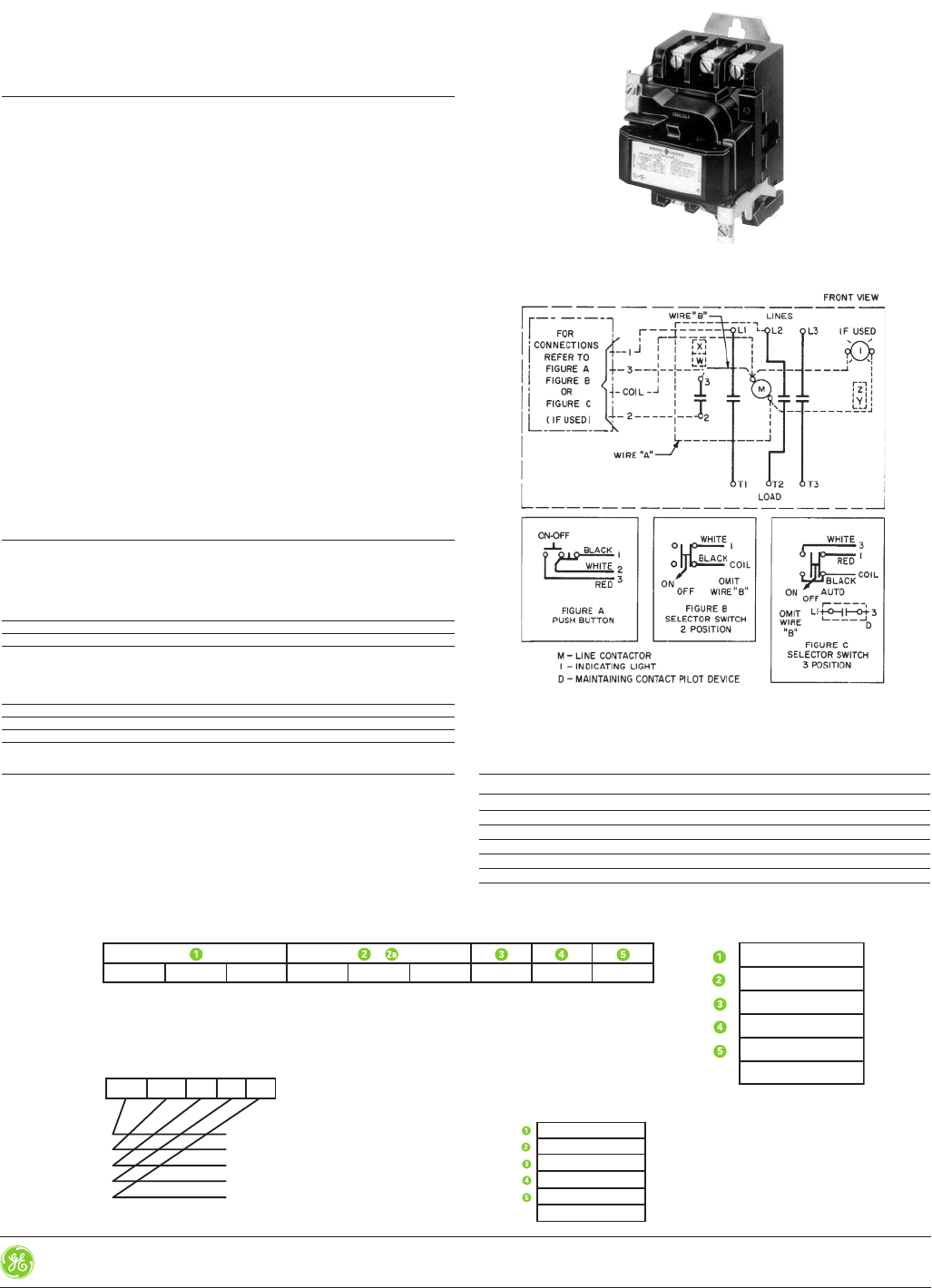

Open 60-Amp Electrically Held Lighting Contactor
Typical Schematic Diagram for
CR360L Lighting Contactor
Reference Publications
Instructions
Continuous Ampere Rating CR360L Contactors
30 GEH-5099
60 GEH-5100
100 GEH-5101
200 GEH-5102
300 GEH-5103
Page Updated 07 / 2011
www.geindustrial.com Rev. 7/11
Prices and data subject
to change without notice
Control Catalog
3-22
Lighting Contactors Section 3
Open
List Price
Continuous Amp Rating No. of Poles Product Number GO-10MB
30A 2 CR360L302 $186.00
30A 3 CR360L303 $204.00
30A 4 CR360L304 $252.00
60A 2 CR360L402 $348.00
60A 3 CR360L403 $372.00
60A 4 CR360L404 $480.00
100A 2 CR360L502 $552.00
100A 3 CR360L503 $600.00
100A 4 CR360L504 $768.00
200A 2 CR360L602 $1332.00
200A 3 CR360L603 $1440.00
200A 4 CR360L604 $2004.00
300A 2 CR360L702 $2886.00
300A 3 CR360L703 $3138.00
300A 4 CR360L704 $5766.00
Enclosed NEMA Type 1
List Price
Continuous Amp Rating No. of Poles Product Number GO-10MB
30A 2 CR360L312 $198.00
30A 3 CR360L313 $216.00
30A 4 CR360L314 $264.00
60A 2 CR360L412 $408.00
60A 3 CR360L413 $432.00
60A 4 CR360L414 $540.00
100A 2 CR360L512 $672.00
100A 3 CR360L513 $720.00
100A 4 CR360L514 $888.00
200A 2 CR360L612 $1584.00
200A 3 CR360L613 $1692.00
200A 4 CR360L614 $2256.00
300A 2 CR360L712 $3348.00
300A 3 CR360L713 $3600.00
300A 4 CR360L714 $6690.00
Enclosed NEMA Type 12
List Price
Continuous Amp Rating No. of Poles Product Number GO-10MB
30A 2 CR360L322 $288.00
30A 3 CR360L323 $306.00
30A 4 CR360L324 $354.00
60A 2 CR360L422 $573.00
60A 3 CR360L423 $597.00
60A 4 CR360L424 $705.00
100A 2 CR360L522 $867.00
100A 3 CR360L523 $915.00
100A 4 CR360L524 $1083.00
200A 2 CR360L622 $2229.00
200A 3 CR360L623 $2337.00
200A 4 CR360L624 $2901.00
300A 2 CR360L722 $4998.00
300A 3 CR360L723 $5250.00
300A 4 CR360L724 $8340.00
Enclosed NEMA Type 3R
List Price
Continuous Amp Rating No. of Poles Product Number GO-10MB
30A 2 CR360L362 $288.00
30A 3 CR360L363 $306.00
30A 4 CR360L364 $354.00
60A 2 CR360L462 $573.00
60A 3 CR360L463 $597.00
60A 4 CR360L464 $705.00
100A 2 CR360L562 $867.00
100A 3 CR360L563 $915.00
100A 4 CR360L564 $1083.00
200A 2 CR360L662 $2229.00
200A 3 CR360L663 $2337.00
200A 4 CR360L664 $2901.00
300A 2 CR360L762 $4998.00
300A 3 CR360L763 $5250.00
300A 4 CR360L764 $8340.00
Enclosed NEMA Type 4, SS
List Price
Continuous Amp Rating No. of Poles Product Number GO-10MB
30A 2 CR360L342 $468.00
30A 3 CR360L343 $486.00
30A 4 CR360L344 $534.00
60A 2 CR360L442 $948.00
60A 3 CR360L443 $972.00
60A 4 CR360L444 $1080.00
100A 2 CR360L542 $1437.00
100A 3 CR360L543 $1485.00
100A 4 CR360L544 $1653.00
200A 2 CR360L642 $2889.00
200A 3 CR360L643 $2997.00
200A 4 CR360L644 $3561.00
300A 2 CR360L742 $4998.00
300A 3 CR360L743 $5250.00
300A 4 CR360L744 $8340.00
Select Coil Voltage
Voltage Product Number Digits
24 24A
120 02A
208123A
240103A
277113A
480104A
1Control circuit fuses required for 200 and 300 amp forms if pilot devices selected in
steps 3 or 4.
CR360L
Electrically Held Contactors
CR360L - 30A - 300A (2, 3 & 4 pole)
Select Size, Number of Poles, and Enclosure
Product Number Selection Instructions: See page 3-21
1
2
Page Updated 07 / 2011
www.geindustrial.com Control Catalog 3-23
Lighting Contactors
Rev. 7/11
Prices and data subject
to change without notice
Section 3
CR360L
Electrically Held Contactors
CR360L - 30A - 300A (2, 3 & 4 pole)
Select Control Circuit Type (Following available only with Enclosure)
Continuous Ampere Rating
30A 60A 100A 200A 300A
Control Product List Price Product List Price Product List Price Product List Price Product List Price
Circuit Coil Number Adder, Number Adder, Number Adder, Number Adder, Number Adder,
Options Voltage Digits GO-10MB Digits GO-10MB Digits GO-10MB Digits GO-10MB Digits GO-10MB
2 Control 24 24D $165.00 24D $165.00 24D $165.00 24D $165.00 24D $165.00
Circuit Fuses 120 02D $165.00 2D $165.00 02D $165.00 02D $165.00 02D $165.00
208 23D $165.00 23D $165.00 23D $165.00 23D $165.00 23D $165.00
240 03D $165.00 03D $165.00 03D $165.00 03D $165.00 03D $165.00
277 13D $165.00 13D $165.00 13D $165.00 13D $165.00 13D $165.00
480 04D $165.00 04D $165.00 04D $165.00 04D $165.00 04D $165.00
CPT Primary
Volts
CPT w/120V 208 82T $367.00 82T $440.00 62T $585.00 48T $675.00 40T $743.00
secondary, 240 03T $367.00 03T $440.00 03T $585.00 03T $675.00 03T $743.00
includes 2 277 61T $367.00 61T $440.00 61T $585.00 61T $675.00 61T $743.00
primary, 1 480 04T $367.00 04T $440.00 04T $585.00 04T $675.00 04T $743.00
secondary fuse
Select Push Buttons or Selector Switch
NEMA Type 1 Only Standard-Duty Any Enclosure Heavy-Duty
Product No. List Price Product No. List Price
Push Button, Selector Switch Options Digit GO-10MB Digit GO-10MB
None A $0.00 A$0.00
On-Off Push Button C** $60.00 K$166.00
Hand-Off-Auto Selector Switch D $60.00 L$165.00
Off-On Selector Switch E $60.00 M$165.00
Hand-Off-Auto Selector Switch With Key ——N$210.00
On-Off-Auto Selector Switch F $60.00 P$165.00
**Add holding interlock with this modification
Select Indicating Lights
NEMA Type 1 Only Standard-Duty Any Enclosure Heavy-Duty
Product No. List Price Product No. List Price
Light Option Digit GO-10MB Digit GO-10MB
None A $0.00 A$0.00
Red Across Coil B $112.00 J$202.00
Green Across Coil ——K$202.00
Select Auxiliary Contacts
List Price
Product Number Digit G0-10MB
None Z—
Holding Interlock A $82.00
Holding Interlock Plus 1 NO B $164.00
Holding Interlock Plus 1 NC C $164.00
Holding Interlock Plus 1 NO, 1 NC D $246.00
Holding Interlock Plus 2 NO E $246.00
Holding Interlock Plus 2 NC F $246.00
Holding Interlock Plus 2 NO, 1 NC G $328.00
2a
3
4
5
Page Updated 07 / 2011
www.geindustrial.com Rev. 7/11
Prices and data subject
to change without notice
Control Catalog
3-24
Lighting Contactors Section 3
CR360L
Electrically Held Contactors
Outlines, Dimensions in.(mm) and Weights (For Estimating Only)
Fig. 2, Enclosed CR360L Type 1,30-100A
w/ Standard Pilot Devices
Fig. 4, Enclosed CR360L Type 1, 12, 3R,
4/4X 4-Point Mounting
Fig. 3, Enclosed CR360L Type 12,
3R, 4/4X 3-Point Mounting
Open CR360L - 30A - 300A (2, 3 & 4 pole)
Product Dimension in.(mm) Dimension in.(mm) Dimension in.(mm) Dimension in.(mm) Dimension in.(mm) Dimension in.(mm) Dimension in.(mm) Approx. Shipping
Number Figure No. A B C D E F G Wt. (Lbs)
CR360L302 1 4.50 (114.3) 4.00 (101.6) 0.25 (6.4) 1.50 (38.1) 3.06 (77.7) 3.81 (96.7) 0.06 (1.5) 2.8
CR360L402 1 6.63 (168.4) 6.00 (152.4) 0.31 (7.8) 2.00 (50.8) 3.75 (95.2) 5.38 (136.6) 0.09 (2.2) 7
CR360L502 1 8.75 (222.2) 7.75 (196.8) 0.63 (16.0) 4.50 (114.3) 5.75 (146.0) 6.50 (165.1) — 17.5
CR360L602 1 12.00 (304.8) 10.88 (276.4) 0.63 (16.0) 3.00 (76.2) 11.50 (292.1) 9.00 (228.6) 0.12 (3.0) 48
CR360L702 1 12.00 (304.8) 10.88 (276.4) 0.63 (16.0) 3.00 (76.2) 11.50 (292.1) 9.00 (228.6) 0.12 (3.0) 50
Fig. 1, Open CR360L 30- to 300-Ampere
2- and 3-Pole Forms
Product Number Selection Instructions: See page 3-21
www.geindustrial.com Control Catalog 3-25
Lighting Contactors
Rev. 7/11
Prices and data subject
to change without notice
Section 3
CR360L
Electrically Held Contactors
Outlines, Dimensions in.(mm) and Weights (For Estimating Only)
Enclosed CR360L NEMA Type 1
Fig. Hub Dimension in.(mm) Dimension in.(mm) Dimension in.(mm) Dimension in.(mm) Dimension in.(mm) Dimension in.(mm) Dimension in.(mm) Approx. Shipping
Device No. Size A A’ B C D E F Wt. (Lbs.)
(30 A) w/o CPT 2 — 10 (254) — 6 (152.4) 4.63 (117.6) 8 (203.2) 4 (101.6) 1 (25.4) 6
(30 A) w/ CPT 2 — 10 (254) — 10 (254) 4.63 (117.6) 8 (203.2) 8 (203.2) 1 (25.4) 10
(30 A) w/ Heavy 4 — 17.4 (442) 14.75 (374.7) 13 (330.2) 5.14 (130.6) 16.4 (416.6) 8 (203.2) 3.25 (82.6) 18
Duty Pilot Devices
(60 A) w/o CPT, 2 — 13.25 (336.6) — 7.38 (187.5) 6.13 (155.7) 11 (279.4) 5 (127) 1.19 (30.2) 13
2- to 3-Pole
(60 A) w/ CPT 2 — 13.25 (336.6) — 12 (304.8) 6.13 (155.7) 11 (279.4) 9 (228.6) 1.5 (38.1) 18
(60 A) w/ Heavy 4 — 19.4 (492.8) 16.68 (423.7) 15 (381) 6.62 (168.1) 18.4 (467.4) 10 (254) 3.25 (82.6) 27
Duty Pilot Devices
(100 A) w/o CPT, 2 — 20.25 (514.4) — 8.75 (222.3) 7.31 (185.7) 17 (431.8) 5.75 (146.1) 1.5 (38.1) 35
2- to 3-Pole
(100 A) All other 2 — 24.2 (614.7) 21.62 (549.1) 18 (457.2) 8.4 (213.4) 23.2 (589.3) 13 (330.2) 3.25 (82.6) 50
(200 A) w/o CPT, 4 — 45.5 (1155.7) 42.75 (1085.9) 17 (431.8) 10.75 (273.1) 44.5 (1130.3) 12 (304.8) 2.5 (63.5) 38
2- to 3-Pole
(200 A) All other 4 — 45.5 (1155.7) 42.75 (1085.9) 23 (584.2) 10.75 (273.1) 44.5 (1130.3) 18 (457.2) 2.5 (63.5) 55
(300 A) w/o CPT, 4 — 45.5 (1155.7) 42.75 (1085.9) 17 (431.8) 10.75 (273.1) 44.5 (1130.3) 12 (304.8) 2.5 (63.5) 130
2- to 3-Pole
(300 A) All other 4 — 45.5 (1155.7) 42.75 (1085.9) 23 (584.2) 10.75 (273.1) 44.5 (1130.3) 18 (457.2) 2.5 (63.5) 140
Enclosed CR360L NEMA Type 12
Fig. Hub Dimension in.(mm) Dimension in.(mm) Dimension in.(mm) Dimension in.(mm) Dimension in.(mm) Dimension in.(mm) Dimension in.(mm) Approx. Shipping
Device No. Size A A’ B C D E F Wt. (Lbs.)
(30 A) w/o CPT 3 — 15.62 (396.7) 14.25 (362) 6.28 (159.5) 5.5 (139.7) 15 (381) 3 (76.2) 2.26 (57.4) 16
(30 A) All other 3 — 15.62 (396.7) 14.25 (362) 14.25 (362) 5.5 (139.7) 15 (381) 11 (279.4) 2.26 (57.4) 20
(60 A) w/o CPT, 3 — 17.62 (447.5) 16.25 (412.8) 7.63 (193.8) 6.25 (158.8) 17 (431.8) 4.38 (111.3) 2.26 (57.4) 29
2- to 3-Pole
(60 A) All other 3 — 17.62 (447.5) 16.25 (412.8) 12.25 (311.2) 6.25 (158.8) 17 (431.8) 9 (228.6) 2.26 (57.4) 38
(100 A) w/o CPT, 4 — 30 (762) 27.25 (692.2) 10.5 (266.7) 7.25 (184.2) 29 (736.6) 5.75 (146.1) 3.25 (82.6) 40
2- to 3-Pole
(100 A) All other 4 — 24 (609.6) 21.38 (543.1) 18 (457.2) 7.88 (200.2) 23 (584.2) 13 (330.2) 3.25 (82.6) 55
(200 A) w/o CPT, 4 — 45.5 (1155.7) 42.75 (1085.9) 17 (431.8) 10.25 (260.4) 44.5 (1130.3) 12 (304.8) 3.25 (82.6) 44
2- to 3-Pole
(200 A) All other 4 — 45.5 (1155.7) 42.75 (1085.9) 23 (584.2) 10.25 (260.4) 44.5 (1130.3) 18 (457.2) 3.25 (82.6) 60
(300 A) w/o CPT, 4 — 45.5 (1155.7) 42.75 (1085.9) 17 (431.8) 10.25 (260.4) 44.5 (1130.3) 12 (304.8) 3.25 (82.6) 140
2- to 3-Pole
(300 A) All other 4 — 45.5 (1155.7) 42.75 (1085.9) 23 (584.2) 10.25 (260.4) 44.5 (1130.3) 18 (457.2) 3.25 (82.6) 150
Enclosed CR360L NEMA Type 3R
Fig. Hub Dimension in.(mm) Dimension in.(mm) Dimension in.(mm) Dimension in.(mm) Dimension in.(mm) Dimension in.(mm) Dimension in.(mm) Approx. Shipping
Device No. Size A A’ B C D E F Wt. (Lbs.)
(30 A) w/o CPT 3 1" 15.62 (396.7 14.5 (368.3) 6.88 (174.8) 5.5 (139.7) 15 (381) 3 (76.2) 2.31 (58.7) 16
(30 A) All other 3 1" 15.62 (396.7) 14.5 (368.3) 10.38 (263.7) 5.5 (139.7) 15 (381) 7 (177.8) 2.31 (58.7) 20
(60 A) w/o CPT 3 1.5" 17.62 (447.5) 16.5 (419.1) 7.84 (199.1) 6.5 (165.1) 17 (431.8) 4.38 (111.3) 2.32 (58.9) 29
(60 A) All other 3 1.5" 17.62 (447.5) 16.5 (419.1) 12.5 (317.5) 6.5 (165.1) 17 (431.8) 8 (203.2) 2.88 (73.2) 38
(100 A) All 4 2" 24.5 (622.3) 22 (558.8) 17.2 (436.9) 7.25 (184.2) 23.5 (596.9) 11 (279.4) 3.62 (91.9) 55
(200 A) All 4 3" 44.5 (1130.3) 41.5 (1054.1) 22 (558.8) 10.25 (260.4) 43.5 (1104.9) 16 (406.4) 3.62 (91.9) 60
(300 A) All 4 3" 44.5 (1130.3) 42 (1066.8) 22 (558.8) 10.25 (260.4) 43.5 (1104.9) 16 (406.4) 3.62 (91.9) 150
Enclosed CR360L NEMA Type 4/4X
Fig. Hub Dimension in.(mm) Dimension in.(mm) Dimension in.(mm) Dimension in.(mm) Dimension in.(mm) Dimension in.(mm) Dimension in.(mm) Approx. Shipping
Device No. Size A A’ B C D E F Wt. (Lbs.)
(30 A) w/o CPT 3 1" 15.62 (396.7) 14.5 (368.3) 6.38 (162.1) 5.5 (139.7) 15 (381) 3 (76.2) 1.69 (42.9) 16
(30 A) All other 3 1" 15.52 (394.2) 14.5 (368.3) 10.38 (263.7) 5.5 (139.7) 15 (381) 7 (177.8) 1.69 (42.9) 20
(60 A) w/o CPT 3 1.5" 17.62 (447.5) 16.5 (419.1) 7.75 (196.9) 6.5 (165.1) 17 (431.8) 4.38 (111.3) 1.69 (42.9) 29
(60 A) All other 3 1.5" 17.62 (447.5) 16.5 (419.1) 12.5 (317.5) 6.25 (158.8) 17 (431.8) 8 (203.2) 2.25 (57.2) 38
(100 A) All 4 2" 24.5 (622.3) 22 (558.8) 17 (431.8) 7.25 (184.2) 23.5 (596.9) 11 (279.4) 3 (76.2) 55
(200 A) All 4 3.5" 44.5 (1130.3) 41.5 (1054.1) 22 (558.8) 10.25 (260.4) 43.5 (1104.9) 16 (406.4) 3 (76.2) 60
(300 A) All 4 3.5" 44.5 (1130.3) 41.5 (1054.1) 22 (558.8) 10.25 (260.4) 43.5 (1104.9) 16 (406.4) 3 (76.2) 150
www.geindustrial.com Rev. 7/11
Prices and data subject
to change without notice
Control Catalog
3-26
Lighting Contactors Section 3
CR160MC
Mechanically Held Contactors
CR160MC shallow mount 30A - 225A (2 & 3 pole)
Application
The CR160MC mechanically held lighting contactors are
designed for control of lighting loads such as tungsten, fluores-
cent, mercury, and sodium, as well as for general noninductive
loads. The shallow-type design makes these contactors particu-
larly adaptable for wall-cavity mounting applications.
The silver cadmium oxide main contacts and silver tungsten arc-
ing contacts give the devices capability of handling a wide vari-
ety of lighting loads. Built-in clearing interlocks allow control
from either momentary or maintained pilot devices.
Features
—Can be mounted in enclosures that fit six-inch thick walls.
—Device is listed by Underwriters Laboratories, Inc.
—Front connected—for convenient wiring.
—Manually operated—by screwdriver or similar tool which
reduces chances of tampering.
—Direct bus-mounted forms—for space savings, reduced
mounting and wiring costs.
—Withstand current rating—22,000 amperes rms symmetrical
at 480 Volts ac maximum and when used with molded case
circuit breaker.
Maximum AC Voltage Ratings
Maximum AC Volts
Type of Load Line Load Load
Tungsten 480 277 480
Ballast 600 277 600
General Use 600 277 600
Control Line Wiring
Control lines extending several hundred feet from the voltage
source and pilot device(s) to the lighting contactor may require
special consideration. Select a wire size adequate to provide not
less than 85% of rated coil voltage at the coil, for pickup, while
passing inrush current through the control circuit. Suggested
wire sizes, for use with a “stiff” source of control voltage, are
listed below. Interposing control relays are available for greater
distances, and for use with pilot devices having ratings lower
than those required for direct operation of the contactor coils.
Approx. Resistance of
Contactor Wire Single Conductor Copper Max. Control Line Distance1
Size Size Wire Ohms/1000 Ft 115V-60 Hz 230V-60 Hz
30-225A 10 1 500 ft 1500 ft
30-225A 12 1.6 315 ft 950 ft
30-225A 14 2.5 200 ft 600 ft
1The use of two contactors on one remote control station would reduce the maxi-
mum control line distance to 1/2 the specified table value, etc.

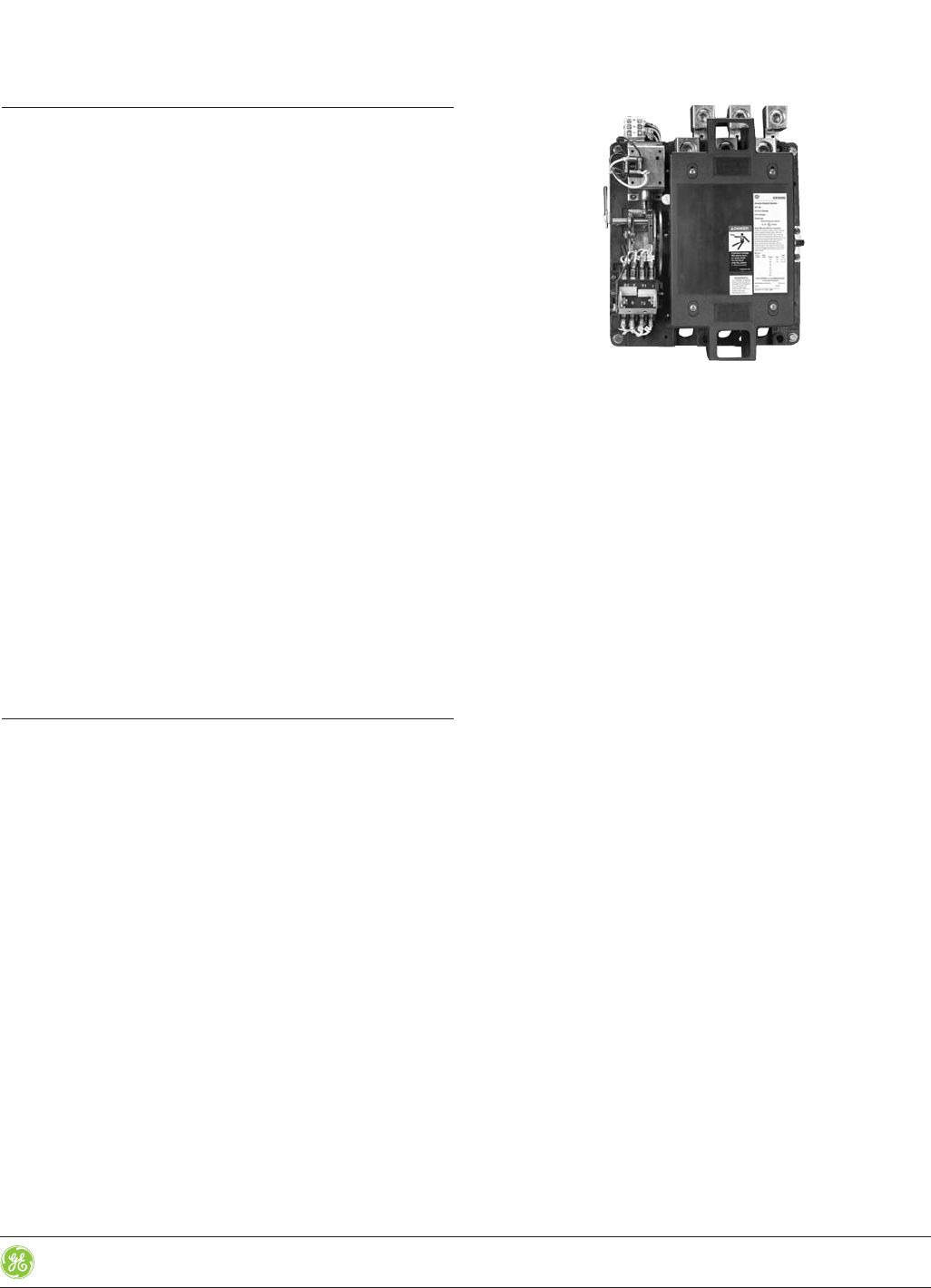

CR160MC Lighting Contactor for Bus Mounting
Coil Inrush Current and Recommended Control
Circuit Fuse Size
Inrush (Amperes) NEC Fuse Size (Amperes)
Voltage 60 Hertz CR160MC CR160MC
115 26 8
230 13 4
277210 3
460272
2Breaking all lines
Note: Use of energy management systems, multiple control stations, or signals
require prime control logic or use of a 2-wire control relay/module, to assure
that on and off signals are never applied simultaneously to a mechanically held
contactor.
Control Transformer Data
When the lighting contactor is used on the secondary of a trans-
former, the transformer must be sized to provide the required
inrush current with 90% voltage applied to the transformer pri-
mary. As an alternative, utilize an interposing relay with a lower
VA CPT. Connect the circuit with the line voltage driving the coil
and the control voltage driving the relay coil.
Reference Publications
Brochure DPE-123
Instructions GEH-3202
Product Number Selection Instructions: See page 3-27
1Separate control voltages may be ordered.
2When no auxiliary contacts are needed with an Open Bus Mounting and Open Sub-Panel device, the 12 digit product number must be ordered.
If auxiliary contacts are required, digits 13 through 16 must be “ACAA” and digit 17 should reflect the needed contacts.
3Replace digits 2 or A for 2 or 3 poles with correct digit if a neutral terminal board is required. Neutral terminal board is not available with flush mount or sub panel
with baseplate controllers.
www.geindustrial.com Control Catalog 3-27
Lighting Contactors
Rev. 7/11
Prices and data subject
to change without notice
Section 3
Product Number Selection Instructions
Order by complete product number.
Step 1. Select ampere rating, enclosure type and number
of poles.
Step 2. Select if neutral terminal option will be added to
basic device.
Step 3. Select coil voltages and control voltages. For Open Bus
Mounting and Open Sub-Panel devices that do not
include Auxiliary contacts, order using the 12 digit
product number.1,2
Step 4. Select factory wiring.
Step 5. Select control circuit type.
Step 6. Select enclosure mounted pilot devices (Enclosed only).
Step 7. Select enclosure mounted pilot lights (Enclosed only).
Step 8. Select extra auxiliary contacts if required.2
CR160MC
Mechanically Held Contactors
CR160MC shallow mount 30A - 225A (2 & 3 pole)
C
R
1
6
0
M
Ampere rating
Enclosure type
Coil & control
voltages1,2
$
$
$
Poles2,3
Factory wired
options
Control circuit
Pilot devices
Pilot lights
$
Total
Digit & Meaning List Price,
GO-10MB Prod. No.
E
n
c
l
o
s
e
d
c
o
n
t
a
c
t
o
r
Mechanically
held
contactor
1
2
3
4
5
6
7
8
9
10
11
12
Neutral Terminal
Option3
12b
13
14
15
Open
Contactor1,2 C
—
$
Auxiliary contacts2
16
17
$
$
—
—
C
R
1
6
0
M
Ampere rating
Enclosure type
Coil & control
voltages1,2
$1406
$ 929
$ —
Poles2,3
Factory wired
options
Control circuit
Pilot devices
Pilot lights
$2702
Total
Digit & Meaning List Price,
GO-10MB Prod. No.
E
n
c
l
o
s
e
d
c
o
n
t
a
c
t
o
r
Mechanically
held
contactor
1
2
3
4
5
6
7
8
9
10
11
12
Neutral Terminal
Option3
12b
13
14
15
Open
Contactor1,2 C
—
$ 165
Auxiliary contacts2
16
17
$ 202
$ —
—
—
4
2
5
2
A
C
R
1
6
0
M
B
B
B
A
C
Product Number and Pricing Example
Description:
60 amp rating, 3 Pole, NEMA 1 Enclosure
208Vac Coil Voltage and 120Vac Control Voltage with user
supplied Control Voltage
No Neutral Terminal Board
Factory Wiring required, 2 Wire Control, On-Off
Selector Switch, Red/Green On Light
No Auxiliary Contacts
www.geindustrial.com Rev. 7/11
Prices and data subject
to change without notice
Control Catalog
3-28
Lighting Contactors Section 3
CR160MC
Mechanically Held Contactors
CR160MC shallow mount 30A - 225A (2 & 3 pole)
Step 2. Neutral Terminal Option
Use in place of the last 2 or A for 2 or 3 poles if a Neutral
Terminal board is required.
List Price Adder
Description Product No. Digit GO-10MB
30 to 100 Amps, 2-Pole 7 $50.00
30 to 100 Amps, 3-Pole 8 $50.00
150 to 225 Amps, 2-Pole 7 $100.00
150 to 225 Amps, 3-Pole 8 $100.00
Note: Only available on enclosed products except flush mount or sub panel with
baseplate controllers.
12 b
1Replace ** with coil and control voltages selection.
2Replace digits 2 or A for 2 or 3 poles with correct digit if a neutral terminal board
is required. Neutral terminal board is not available with flush mount or sub panel
with baseplate controllers.
Product Number Selection Instructions: See page 3-27
Step 1. Select Ampere Rating, Enclosure Type
and Number of Poles
&
Continuous Enclosure No. of Product List Price
Amp Rating Type Poles Number1,2 GO-10MB
30A Enclosed NEMA Type 1 2 CR160MC32**2 $1195.00
30A Enclosed NEMA Type 1 3 CR160MC32**A $1320.00
30A Enclosed NEMA Type 1 Flush Mount 2 CR160MC3G**2 $1582.00
30A Enclosed NEMA Type 1 Flush Mount 3 CR160MC3G**A $1707.00
30A Enclosed NEMA Type 12 / 3R 2 CR160MC3E**2 $1872.00
30A Enclosed NEMA Type 12 / 3R 3 CR160MC3E**A $1997.00
30A Enclosed NEMA Type 4/4X 2 CR160MC3F**2 $2568.00
30A Enclosed NEMA Type 4/4X 3 CR160MC3F**A $2693.00
30A Open Bus Mounting 2 CR160MC35**2 $832.00
30A Open Bus Mounting 3 CR160MC35**A $944.00
30A Open Sub Panel 2 CR160MC31**2 $985.00
30A Open Sub Panel 3 CR160MC31**A $1110.00
30A Sub Panel w/ Baseplate 2 CR160MC3H**2 $1100.00
30A Sub Panel w/ Baseplate 3 CR160MC3H**A $1200.00
60A Enclosed NEMA Type 1 2 CR160MC42**2 $1253.00
60A Enclosed NEMA Type 1 3 CR160MC42**A $1406.00
60A Enclosed NEMA Type 1 Flush Mount 2 CR160MC4G**2 $1640.00
60A Enclosed NEMA Type 1 Flush Mount 3 CR160MC4G**A $1793.00
60A Enclosed NEMA Type 12 / 3R 2 CR160MC4E**2 $1994.00
60A Enclosed NEMA Type 12 / 3R 3 CR160MC4E**A $2147.00
60A Enclosed NEMA Type 4/4X 2 CR160MC4F**2 $2678.00
60A Enclosed NEMA Type 4/4X 3 CR160MC4F**A $2831.00
60A Open Bus Mounting 2 CR160MC45**2 $861.00
60A Open Bus Mounting 3 CR160MC45**A $986.00
60A Open Sub Panel 2 CR160MC41**2 $1037.00
60A Open Sub Panel 3 CR160MC41**A $1190.00
60A Sub Panel w/ Baseplate 2 CR160MC4H**2 $1100.00
60A Sub Panel w/ Baseplate 3 CR160MC4H**A $1200.00
75A Enclosed NEMA Type 1 2 CR160MC82**2 $1253.00
75A Enclosed NEMA Type 1 3 CR160MC82**A $1406.00
75A Enclosed NEMA Type 1 Flush Mount 2 CR160MC8G**2 $1640.00
75A Enclosed NEMA Type 1 Flush Mount 3 CR160MC8G**A $1793.00
75A Enclosed NEMA Type 12 / 3R 2 CR160MC8E**2 $1994.00
75A Enclosed NEMA Type 12 / 3R 3 CR160MC8E**A $2147.00
75A Enclosed NEMA Type 4/4X 2 CR160MC8F**2 $2678.00
75A Enclosed NEMA Type 4/4X 3 CR160MC8F**A $2831.00
75A Open Bus Mounting 2 CR160MC85**2 $861.00
75A Open Bus Mounting 3 CR160MC85**A $986.00
75A Open Sub Panel 2 CR160MC81**2 $1037.00
75A Open Sub Panel 3 CR160MC81**A $1190.00
75A Sub Panel w/ Baseplate 2 CR160MC8H**2 $1100.00
75A Sub Panel w/ Baseplate 3 CR160MC8H**A $1200.00
100A Enclosed NEMA Type 1 2 CR160MC52**2 $1417.00
100A Enclosed NEMA Type 1 3 CR160MC52**A $1622.00
100A Enclosed NEMA Type 1 Flush Mount 2 CR160MC5G**2 $1804.00
100A Enclosed NEMA Type 1 Flush Mount 3 CR160MC5G**A $2009.00
100A Enclosed NEMA Type 12 / 3R 2 CR160MC5E**2 $2278.00
100A Enclosed NEMA Type 12 / 3R 3 CR160MC5E**A $2483.00
100A Enclosed NEMA Type 4/4X 2 CR160MC5F**2 $2925.00
100A Enclosed NEMA Type 4/4X 3 CR160MC5F**A $3130.00
100A Open Bus Mounting 2 CR160MC55**2 $985.00
100A Open Bus Mounting 3 CR160MC55**A $1128.00
100A Open Sub Panel 2 CR160MC51**2 $1173.00
100A Open Sub Panel 3 CR160MC51**A $1378.00
100A Sub Panel w/ Baseplate 2 CR160MC5H**2 $1200.00
100A Sub Panel w/ Baseplate 3 CR160MC5H**A $1500.00
150A Enclosed NEMA Type 1 2 CR160MC62**2 $1786.00
150A Enclosed NEMA Type 1 3 CR160MC62**A $2202.00
150A Enclosed NEMA Type 1 Flush Mount 2 CR160MC6G**2 $2251.00
150A Enclosed NEMA Type 1 Flush Mount 3 CR160MC6G**A $2667.00
150A Enclosed NEMA Type 12 / 3R 2 CR160MC6E**2 $2889.00
150A Enclosed NEMA Type 12 / 3R 3 CR160MC6E**A $3305.00
150A Enclosed NEMA Type 4/4X 2 CR160MC6F**2 $3583.00
150A Enclosed NEMA Type 4/4X 3 CR160MC6F**A $3999.00
150A Open Bus Mounting 2 CR160MC65**2 $1230.00
150A Open Bus Mounting 3 CR160MC65**A $1560.00
150A Open Sub Panel 2 CR160MC61**2 $1464.00
150A Open Sub Panel 3 CR160MC61**A $1880.00
150A Sub Panel w/ Baseplate 2 CR160MC6H**2 $1600.00
150A Sub Panel w/ Baseplate 3 CR160MC6H**A $2000.00
8 9 12
(Step 1 continued)
&
Continuous Enclosure No. of Product List Price
Amp Rating Type Poles Number1,2 GO-10MB
200A Enclosed NEMA Type 1 2 CR160MC72**2 $1969.00
200A Enclosed NEMA Type 1 3 CR160MC72**A $2408.00
200A Enclosed NEMA Type 1 Flush Mount 2 CR160MC7G**2 $2434.00
200A Enclosed NEMA Type 1 Flush Mount 3 CR160MC7G**A $2873.00
200A Enclosed NEMA Type 12 / 3R 2 CR160MC7E**2 $3071.00
200A Enclosed NEMA Type 12 / 3R 3 CR160MC7E**A $3510.00
200A Enclosed NEMA Type 4/4X 2 CR160MC7F**2 $3765.00
200A Enclosed NEMA Type 4/4X 3 CR160MC7F**A $4204.00
200A Open Bus Mounting 2 CR160MC75**2 $1412.00
200A Open Bus Mounting 3 CR160MC75**A $1765.00
200A Open Sub Panel 2 CR160MC71**2 $1646.00
200A Open Sub Panel 3 CR160MC71**A $2085.00
200A Sub Panel w/ Baseplate 2 CR160MC7H**2 $1800.00
200A Sub Panel w/ Baseplate 3 CR160MC7H**A $2200.00
225A Enclosed NEMA Type 1 2 CR160MC92**2 $2737.00
225A Enclosed NEMA Type 1 3 CR160MC92**A $2846.00
225A Enclosed NEMA Type 1 Flush Mount 2 CR160MC9G**2 $3202.00
225A Enclosed NEMA Type 1 Flush Mount 3 CR160MC9G**A $3311.00
225A Enclosed NEMA Type 12 / 3R 2 CR160MC9E**2 $3516.00
225A Enclosed NEMA Type 12 / 3R 3 CR160MC9E**A $3948.00
225A Enclosed NEMA Type 4/4X 2 CR160MC9F**2 $4210.00
225A Enclosed NEMA Type 4/4X 3 CR160MC9F**A $4642.00
225A Open Bus Mounting 2 CR160MC95**2 $1646.00
225A Open Bus Mounting 3 CR160MC95**A $2088.00
225A Open Sub Panel 2 CR160MC91**2 $2091.00
225A Open Sub Panel 3 CR160MC91**A $2523.00
225A Sub Panel w/ Baseplate 2 CR160MC9H**2 $2400.00
225A Sub Panel w/ Baseplate 3 CR160MC9H**A $2600.00
12
98
www.geindustrial.com Control Catalog 3-29
Lighting Contactors
Rev. 7/11
Prices and data subject
to change without notice
Section 3
CR160MC
Mechanically Held Contactors
CR160MC shallow mount 30A - 225A (2 & 3 pole)
Step 4. Select Factory Wiring
Factory
Control Wiring Product No. Digit Enclosure Type
No A Open or Enclosed
Yes B Enclosed
Note: Factory Wiring must be “B” when Coil and Control Voltages are different, or if
Pilot Devices or Pilot Lights are required.
Step 5. Select Control Circuit Type5
Control Circuit Product No. Digit Enclosure Type
2 Wire Control B Enclosed Only
3 Wire Control C Open or Enclosed
Step 6. Select Enclosure Mounted Pilot Devices6
(Available only when there is an enclosure.)
Heavy Duty, Product No. List Price
30mm Operators Digit GO-10MB
None A —
On-Off Push Buttons7B$248.00
Off-On Selector Switch7,8 C$165.00
On-Off-Auto Selector Switch8D$165.00
Hand-Off-Auto Selector Switch8E$165.00
Off-Auto Selector Switch7,8 F$165.00
Off-On Selector Switch With Spring Return To Center7G$195.00
On-Off-Auto Keyed Selector Switch8,9 H$195.00
Hand-Off-Auto Keyed Selector Switch8,9 J$195.00
Step 7. Select Enclosure Mounted Pilot Lights10,11
(Available only when there is an enclosure.)
Heavy Duty, 30mm Pilot Lights
with Interchangeable Product No. List Price
Red and Green Lenses. Type Digit GO-10MB
None — A —
Red/Green Light (“On”) Standard B $202.00
Red/Green Light (“Off”) Standard C $202.00
Red/Green (“On”) & Red/Green (“Off”) Lights Standard F $404.00
Red/Green Light (“On”) Push-to-Test D $202.00
Red/Green Light (“Off”) Push-to-Test E $202.00
Red/Green (“On”) & Red/Green (“Off”) Lights Push-to-Test G $404.00
Step 8. Select Auxiliary Contacts
Product No. List Price,
Description Digit GO-10MB
None A1—
1 NO Extra B $154.00
1 NC Extra C $154.00
1 NO and 1 NC Extra D $308.00
Note: “On” pilot lights use the NO auxiliary contact; off lights use the NC.
13
17
16
15
14
Step 3. Select Coil Voltage and Control Voltage1
& List Price
Coil Voltage2,3 Control Voltage2,4 Product No. Digits Enclosure Type Factory Wiring CPT and Fusing GO-10MB
24V 60Hz 24V 60Hz 24 Open or Enclosed No No CPT or fusing —
115-120V 60Hz 115-120V 60Hz 02 Open or Enclosed No No CPT or fusing —
200-208V 60Hz 200-208V 60Hz 23 Open or Enclosed No No CPT or fusing —
230-240V 60Hz 230-240V 60Hz 03 Open or Enclosed No No CPT or fusing —
265-277V 60Hz 265-277V 60Hz 82 Open or Enclosed No No CPT or fusing —
460-480V 60Hz 460-480V 60Hz 04 Open or Enclosed No No CPT or fusing —
115-120V 60Hz 24V 60Hz 30 Enclosed Only Yes No CPT, 2 Fuses for Coil Circuit & User Supplied Control Voltage $929.00
200-208V 60Hz 24V 60Hz 32 Enclosed Only Yes No CPT, 2 Fuses for Coil Circuit & User Supplied Control Voltage $929.00
230-240V 60Hz 24V 60Hz 34 Enclosed Only Yes No CPT, 2 Fuses for Coil Circuit & User Supplied Control Voltage $929.00
265-277V 60Hz 24V 60Hz 36 Enclosed Only Yes No CPT, 2 Fuses for Coil Circuit & User Supplied Control Voltage $929.00
460-480V 60Hz 24V 60Hz 38 Enclosed Only Yes No CPT, 2 Fuses for Coil Circuit & User Supplied Control Voltage $929.00
115-120V 60Hz 24V DC 40 Enclosed Only Yes No CPT, 2 Fuses for Coil Circuit & User Supplied Control Voltage $929.00
200-208V 60Hz 24V DC 42 Enclosed Only Yes No CPT, 2 Fuses for Coil Circuit & User Supplied Control Voltage $929.00
230-240V 60Hz 24V DC 44 Enclosed Only Yes No CPT, 2 Fuses for Coil Circuit & User Supplied Control Voltage $929.00
265-277V 60Hz 24V DC 46 Enclosed Only Yes No CPT, 2 Fuses for Coil Circuit & User Supplied Control Voltage $929.00
460-480V 60Hz 24V DC 48 Enclosed Only Yes No CPT, 2 Fuses for Coil Circuit & User Supplied Control Voltage $929.00
200-208V 60Hz 120V 60Hz 52 Enclosed Only Yes No CPT, 2 Fuses for Coil Circuit & User Supplied Control Voltage $929.00
230-240 V 60Hz 120V 60Hz 54 Enclosed Only Yes No CPT, 2 Fuses for Coil Circuit & User Supplied Control Voltage $929.00
265-277 V 60Hz 120V 60Hz 56 Enclosed Only Yes No CPT, 2 Fuses for Coil Circuit & User Supplied Control Voltage $929.00
460-480 V 60Hz 120V 60Hz 58 Enclosed Only Yes No CPT, 2 Fuses for Coil Circuit & User Supplied Control Voltage $929.00
115-120 V 60Hz 24V 60Hz 60 Enclosed Only Yes CPT with 2 Primary & 1 Secondary Fuse & 2 Coil Circuit Fuses $1341.00
200-208V 60Hz 24V 60Hz 62 Enclosed Only Yes CPT with 2 Primary & 1 Secondary Fuse & 2 Coil Circuit Fuses $1341.00
230-240 V 60Hz 24V 60Hz 64 Enclosed Only Yes CPT with 2 Primary & 1 Secondary Fuse & 2 Coil Circuit Fuses $1341.00
265-277 V 60Hz 24V 60Hz 66 Enclosed Only Yes CPT with 2 Primary & 1 Secondary Fuse & 2 Coil Circuit Fuses $1341.00
460-480 V 60Hz 24V 60Hz 68 Enclosed Only Yes CPT with 2 Primary & 1 Secondary Fuse & 2 Coil Circuit Fuses $1341.00
200-208V 60Hz 120V 60Hz 92 Enclosed Only Yes CPT with 2 Primary & 1 Secondary Fuse & 2 Coil Circuit Fuses $1341.00
230-240 V 60Hz 120V 60Hz 94 Enclosed Only Yes CPT with 2 Primary & 1 Secondary Fuse & 2 Coil Circuit Fuses $1341.00
265-277 V 60Hz 120V 60Hz 96 Enclosed Only Yes CPT with 2 Primary & 1 Secondary Fuse & 2 Coil Circuit Fuses $1341.00
460-480 V 60Hz 120V 60Hz 98 Enclosed Only Yes CPT with 2 Primary & 1 Secondary Fuse & 2 Coil Circuit Fuses $1341.00
11
10
1For Open Bus Mounting and Open Sub-Panel devices, no other selections are
needed unless auxiliary contacts are required. If auxiliary contacts are not needed,
the 12 digit product number must be ordered.
2Contacts used to operate the device’s coil and control module must have a B600
rating as a minimum.
3For applications where the coil is energized independently the source must be able
to switch 3000VA.
4For applications where the control module will be independently energized, the
source must be able to switch 26VA inrush and 4VA holding (AC circuits) or 3VA
inrush and holding (DC circuits).
5Devices with factory wiring “A” are only available with 3 wire control circuits.
6Not available in flush mount or sub panel with baseplate controllers.
7Momentary operation of pilot device to control contactor. Available with 3 wire
control.
8Maintained operation of pilot device to control contactor. Available with 2 wire
control.
9Key removable in all positions.
10Not available in flush mount or sub panel with baseplate controllers.
11“On” pilot lights use the NO auxiliary contact; for off lights use the NC
auxiliary contact.
Product Number Selection Instructions: See page 3-27
www.geindustrial.com Rev. 7/11
Prices and data subject
to change without notice
Control Catalog
3-30
Lighting Contactors Section 3
Replacement Parts/Field Installed Kits
Enclosure Kits
List Price
Description For Use With Product Number GO-10MB
Type 1 Enclosure 30, 60, 75, 100 amp devices CR160MCXE2A $168.00
Type 1 Enclosure 150, 200, 225 amp devices CR160MCXE2B $312.00
Type 3R/12 Enclosure 30, 60, 75, 100 amp devices CR160MCXEEA $288.00
Type 3R/12 Enclosure 150, 200, 225 amp devices CR160MCXEEB $780.00
Type 4/4X Enclosure 30, 60, 75, 100 amp devices CR160MCXEFA $750.00
Type 4/4X Enclosure 150, 200, 225 amp devices CR160MCXEFB $1314.00
Type 1 Flush Mount Enclosure 30, 60, 75, 100 amp devices CR160MCXEGA $234.00
Type 1 Flush Mount Enclosure 150, 200, 225 amp devices CR160MCXEGB $390.00
Coil Kits
List Price
Description For Use With Product Number GO-10MB
24V 60HZ Coil Open or Enclosed 160MCX124 $598.00
115-120V 60HZ Coil Open or Enclosed 160MCX102 $598.00
200-208V 60HZ Coil Open or Enclosed 160MCX123 $598.00
230-240V 60HZ Coil Open or Enclosed 160MCX103 $598.00
265-277V 60HZ Coil Open or Enclosed 160MCX182 $598.00
460-480V 60HZ Coil Open or Enclosed 160MCX104 $598.00
Pilot Device Kits
List Price
Description For Use With Product Number GO-10MB
On-Off Push Button Enclosed Only CR160MCXPB $132.00
On-Off Selector Switch Enclosed Only CR160MCXPC $132.00
On-Off-Auto Selector Switch Enclosed Only CR160MCXPD $132.00
Hand-Off-Auto Selector Switch Enclosed Only CR160MCXPE $132.00
Off-Auto Selector Switch Enclosed Only CR160MCXPF $132.00
Off-On Selector Switch with
Spring Return to Center Enclosed Only CR160MCXPG $132.00
On-Off-Auto Keyed Selector Switch
(Key Removable In All Positions) Enclosed Only CR160MCXPH $168.00
Hand-Off-Auto Keyed Selector Switch
(Key Removable In All Positions) Enclosed Only CR160MCXPJ $168.00
Pilot Light Kits
List Price
Description For Use With Product Number GO-10MB
Red/Green Light (On) Enclosed Only CR160MCXLB $162.00
Red/Green Light (Off) Enclosed Only CR160MCXLC $162.00
Red/Green Light (On) - Push-to-Test Enclosed Only CR160MCXLD $180.00
Red/Green Light (Off) - Push-to-Test Enclosed Only CR160MCXLE $180.00
Red/Green (On) and Red/Green (Off) Lights Enclosed Only CR160MCXLF $320.00
Red/Green (On) and Red/Green (Off) Lights -
Push-to-Test Enclosed Only CR160MCXLG $360.00
Transformer Kit Type
List Price
Description For Use With Product Number GO-10MB
120V to 24V 50VA Transformer Kit Enclosed Only CR160MCXT60 $132.00
208V to 24V 50VA Transformer Kit Enclosed Only CR160MCXT62 $132.00
240/480V to 24V 50VA Transformer Kit Enclosed Only CR160MCXT64 $132.00
277V to 24V 50VA Transformer Kit Enclosed Only CR160MCXT66 $132.00
240/480V to 24V 50VA Transformer Kit Enclosed Only CR160MCXT68 $132.00
208V to 120V 50VA Transformer Kit Enclosed Only CR160MCXT92 $132.00
240/480V to 120V 50VA Transformer Kit Enclosed Only CR160MCXT94 $132.00
277V to 120V 50VA Transformer Kit Enclosed Only CR160MCXT96 $132.00
240/480V to 120V 50VA Transformer Kit Enclosed Only CR160MCXT98 $132.00
Fuse Kits
List Price
Description For Use With Product Number GO-10MB
Fuse Kit 15A Class CC Enclosed Only CR160MCXF1 $36.00
CR160MC
Mechanically Held Contactors
CR160MC shallow mount 30A - 225A (2 & 3 pole)
www.geindustrial.com Control Catalog 3-31
Lighting Contactors
Rev. 7/11
Prices and data subject
to change without notice
Section 3
CR160MC
Mechanically Held Contactors
Wiring Diagrams
Open Wiring Example
Enclosed Wiring Example
L
C
O
T1 T2 T3
L1 L2 L3
Z2
X3
OP
N.C. AUX.
CONTACT
CL
N.O. AUX.
CONTACT
Z1
X3
L
C
O
L1 L2 L3 N
Z2
X3
OP
N.C. AUX.
CONTACT
CL
N.O. AUX.
CONTACT
Z1
X3
T1 T2 T3 N
NTB
01 C1 X1 X2 X3 X4
CPT
H1 H2
X2 X1
FUSE
CR1 CR2
PFU
PFU
CCF
CCF
FUSE
PFU
X3
CONTROL VOLTAGE
X4
PFU
X1 X2
C1
01
CR1
CR2
H1 H4
CPT
PILOT
DEVICE
PILOT
LIGHT
PILOT
LIGHT
AUX. CONTACT
AUX. CONTACT
ON
OFF
CR2
O OP
OP
L
X3 Z1
X3 Z2
CR1
C CL
CL
L
X3
L1 L2
CCF
CCF
X4
COIL VOLTAGE
*
*
Page Updated 11 / 2012
www.geindustrial.com Rev. 7/11
Prices and data subject
to change without notice
Control Catalog
3-32
Lighting Contactors Section 3
CR160MC
Mechanically Held Contactors
Outlines, Dimensions and Weights (For Estimating Only)
Open Bus Mounting Contactor
Amp Rating Weight (lbs) Weight (kgs) H x W x D (in) H x W x D (mm) Drawing No.
30, 60, 75 & 100 9.0 4.1 8.31 x 7.13 x 3.13 211.0 x 181.1 x 79.5 55-172305
150, 200, & 225 10.0 4.5 9.50 x 7.13 x 3.13 241.3 x 181.1 x 79.5 55-172305
Type 1 Enclosures
Amp Rating Weight (lbs) Weight (kgs) H x W x D (in) H x W x D (mm) Drawing No.
30, 60, 75 & 100 62.0 28.10 25.0 x 15.9 x 6.5 635.0 x 404.4 x 165.9 55-217830
150, 200, & 225 92.0 41.70 42.6 x 18.3 x 6.6 1081.0 x 463.3 x 167.9 55-217831
Open Sub Panel Contactor
Amp Rating Weight (lbs) Weight (kgs) H x W x D (in) H x W x D (mm) Drawing No.
30 13.0 5.9 10.5 x 7.5 x 3.8 266.7 x 190.5 x 95.3 55-172306
60, 75 & 100 14.0 6.4 11.4 x 7.8 x 3.8 289.1 x 196.8 x 95.3 55-172306
150 16.5 7.5 13.3 x 9.0 x 3.8 336.6 x 228.3 x 95.3 55-172306
200 & 225 16.5 7.5 14.0 x 9.0 x 3.8 355.6 x 228.6 x 95.3 55-172306
Open Sub Panel Contactor with Baseplate
Amp Rating Weight (lbs) Weight (kgs) H x W x D (in) H x W x D (mm) Drawing No.
30, 60, 75, 100, 150, 200 & 225 32.0 14.5 20.5 x 13.0 x 4.6 519.2 x 330.2 x 116.0 55-217838
Type 1 Flush Mount Enclosures
Amp Rating Weight (lbs) Weight (kgs) H x W x D (in) H x W x D (mm) Drawing No.
30, 60, 75 & 100 62.0 28.10 21.6 x 14.5 x 5.0 549.1 x 368.3 x 127.0 55-217836
150, 200, & 225 92.0 41.70 39.2 x 14.5 x 5.0 999.5 x 368.3 x 127.0 55-217837
Note: Dimensions do not include flange.
Type 12/3R Enclosures
Amp Rating Weight (lbs) Weight (kgs) H x W x D (in) H x W x D (mm) Drawing No.
30, 60, 75 & 100 62.0 28.10 28.2 x 17.8 x 7.7 715.8 x 452.1 x 194.2 55-217832
150, 200, & 225 92.0 41.70 45.7 x 21.2 x 7.7 1161.8 x 537.7 x 194.2 55-217833
Type 4/4X Enclosures
Amp Rating Weight (lbs) Weight (kgs) H x W x D (in) H x W x D (mm) Drawing No.
30, 60, 75 & 100 62.0 28.10 25.0 x 15.9 x 6.5 635.0 x 404.4 x 165.9 55-217834
150, 200, & 225 92.0 41.70 42.6 x 18.3 x 6.5 1081.0 x 463.3 x 165.9 55-217835
Wiring Diagrams
Control Circuit Enclosure Type Drawing No.
3 wire Open 55-686607
2 wire, No CPT, Control & Coil voltage same Enclosed 55-686608
3 wire, No CPT, Control & Coil voltage same Enclosed 55-686609
2 wire, No CPT, Control & Coil voltage different Enclosed 55-686610
3 wire, No CPT, Control & Coil voltage different Enclosed 55-686611
2 wire, CPT Enclosed 55-686612
3 wire, CPT Enclosed 55-686613
Visit http://www.geindustrial.com for additional product information
including programming guides, drawings, and much more.
Open Bus Mounting Contactor
150, 200 and 225 Amp
Type 1 Enclosure
L
C
O
H
WD
L
C
O
W
H
D
W
H
D
HOLE
FOR PADLOCK
D
DOOR OPEN 160° MAX
2MTG. HOLES
FOR 3/8" BOLTS
Product Number Selection Instructions: See page 3-27
Open Bus Mounting Contactor
30, 60, 75 and 100 Amp
www.geindustrial.com Control Catalog 3-33
Lighting Contactors
Rev. 7/11
Prices and data subject
to change without notice
Section 3
CR360ML
Mechanically Held Contactors
CR360ML - 400A - 1000A (2 & 3 pole)
Description
GE RC Switches Adapt to Your Application and Your
Imagination
In commercial or industrial environments where you need to
control power, heating and lighting loads from across the floor,
across the plant, or across the world, the CR360ML RC switches
from GE are a great solution. These electromagnetically operat-
ed, mechanically held switches, unlike other devices, will not
open or close if the power fails.
By allowing convenient and automatic control of lighting circuits
through wall stations, timers, photocells, or energy management
control systems, GE RC switches provide savings in energy costs
by being the most economical and reliable switching means in
any power distribution system. Because the operator is energized
only during the instant the switch changes position, there is no
ac hum or chatter. Furthermore, because constant power is not
required, an even greater energy savings can be realized along
with lower operating costs. These units are ideally suited for
energy management applications because they are able to
handle all classes of loads up to 1000 amps.
Circuit breakers were designed for overload protection, not for
repetitively turning blocks of lighting on and off on a daily basis.
GE RC switches provide the most reliable, convenient, and
economical means to control lighting, leaving the circuit breakers
for the purpose of overload protection.
GE RC switches work effectively in a broad range of applications
including tungsten, ballast lighting, motor, general use, and total
system loads.
Application Information
Tungsten loads are made up entirely of tungsten filament lamps,
where the inrush current may be as high as 20 times the steady
state current and have a duration of up to 14 cycles.
Ballast lighting (electric discharge lamp) loads are made up
entirely of electric discharge lamps such as fluorescent or
mercury vapor lamps. Depending on the type of ballast used,
the power factor can range from 0.4 to 0.9 or better.
Motor loads are made up entirely of motors capable of drawing
locked rotor current of six times normal running current at 0.4
to 0.5 power factor.
General use loads are made up of heaters, incandescent lamps,
and other resistive loads, in addition to small reactive loads such
as office machinery where the power factor can range from 0.7
to 0.8.
Total system loads are made up from all of the above. The sum
of the motor full load current and the current of the other loads
shall not exceed the amp rating of the switch, and the tungsten
load shall not exceed 30% of the switch rating unless the switch
has been found to be suitable for a higher tungsten load. GE RC
switches are rated for 100% tungsten load in ratings through
400 amps.
The GE CR360ML RC switch reduces wear on the overcurrent
protective devices, provides more flexibility, and increases
system reliability. It can be used for remotely controlled feeder
disconnect applications such as energy management and bulk
load control.
—These units are suitable for heating, ballast lighting, or motor
loads to 480 Vac, in either open or enclosed forms.
—They will also handle 100% tungsten loads rated at 250 Vac up
to 400 amps, and 30% tungsten loads at 600 amps and up.
—Units are UL listed and (WCR) Withstand Current Rated.
—Not only is the interrupting capacity 600% of the rated current
at 480 Vac at a 0.4 to 0.5 power factor, but their thermal
capacity is 20 times the full load rating.
—With contacts that are power-driven and locked into place by
a reliable single-solenoid operator, the GE CR360ML has no
continuous control power consumption, and its rugged con-
struction allows it to be mounted in any position with its flush
dead back.
—There are no extra wires or contacts needed to install signal
lamps at single or multiple control stations.
CR360ML RC Switch
www.geindustrial.com Rev. 7/11
Prices and data subject
to change without notice
Control Catalog
3-34
Lighting Contactors Section 3
Product Number Selection Instructions
Selection and Pricing—Assembled Forms
Here is an easy, step-by-step way to select and order assembled
forms of GE CR360ML switches. In each step, find the options—
amperes, enclosures, voltages, etc., that you need. Transfer the
product number digits to the corresponding boxes in the product
number line on page 3-35 and the price to the appropriate boxes
in the price column. (Photocopying the blank product number line
and price column will allow for repeated use.) When you have
finished, you will have built a complete product number for your
RC switch and established the prices that add up to the total
List Price, GO-10MB.
Select Current Rating
Select the current rating for the RC switch from the table below.
Transfer the corresponding product number digit to the box
marked on the product number line on page 3-35.
Current Rating Product Number Digit
400 Amperes 4
600 Amperes 6
800 Amperes 8
1000 Amperes 1
Select Enclosure
Select the type of enclosure, if any, for the RC switch from the
table below. Transfer the corresponding product number digit to
the box marked on the product number line.
Enclosure Product Number Digit
Open (No Enclosure) 0
NEMA Type 1 1
NEMA Type 12 2
NEMA Type 3R 6
Select Number of Poles
Select either a 2-pole or 3-pole configuration from the table
below. Transfer the corresponding product number digit to the
box marked on the product number line.
Number of Poles Product Number Digit
2 Poles 2
3 Poles 3
Open
List Price
Continuous Amp Rating No. of Poles Product Number GO-10MB
400A 2 CR360ML402 $6850.00
600A 2 CR360ML602 $8800.00
800A 2 CR360ML802 $10750.00
1000A 2 CR360ML102 $19950.00
400A 3 CR360ML403 $8025.00
600A 3 CR360ML603 $10125.00
800A 3 CR360ML803 $12225.00
1000A 3 CR360ML103 $22975.00
Enclosed NEMA Type 1
List Price
Continuous Amp Rating No. of Poles Product Number GO-10MB
400A 2 CR360ML412 $8750.00
600A 2 CR360ML612 $10750.00
800A 2 CR360ML812 $12750.00
1000A 2 CR360ML112 $27750.00
400A 3 CR360ML413 $9925.00
600A 3 CR360ML613 $12075.00
800A 3 CR360ML813 $14275.00
1000A 3 CR360ML113 $31025.00
Enclosed NEMA Type 12
List Price
Continuous Amp Rating No. of Poles Product Number GO-10MB
400A 2 CR360ML422 $10350.00
600A 2 CR360ML622 $12350.00
800A 2 CR360ML822 $14250.00
1000A 2 CR360ML122 $29950.00
400A 3 CR360ML423 $11525.00
600A 3 CR360ML623 $13725.00
800A 3 CR360ML823 $15875.00
1000A 3 CR360ML123 $33425.00
Enclosed NEMA Type 3R
List Price
Continuous Amp Rating No. of Poles Product Number GO-10MB
400A 2 CR360ML462 $10350.00
600A 2 CR360ML622 $12350.00
800A 2 CR360ML862 $14250.00
1000A 2 CR360ML162 $29950.00
400A 3 CR360ML463 $11525.00
600A 3 CR360ML663 $13725.00
800A 3 CR360ML863 $15875.00
1000A 3 CR360ML163 $33425.00
CR360ML
Mechanically Held Contactors
CR360ML - 400A - 1000A (2 & 3 pole)
Pricing Schedule for Options 1, 2, 3
(continued on page 3-35)
1
2
3
1
2
3
www.geindustrial.com Control Catalog 3-35
Lighting Contactors
Rev. 7/11
Prices and data subject
to change without notice
Section 3
CR360ML 6 2 2 6 D 2 D
600 Ampere Rating
NEMA Type 12 Enclosure
2 Pole Configuration
208V-240V Voltage Rating
Fully Rated Neutral Plate
Aux. Control Relay: 2-Wire
208V Control Voltage
+
+
+
+
=
+
+
+
+
=
$
$
$
$
$
$
$
$
$
$
$
$
$
$
0.00
List Price, GO-10MB
List Price, GO-10MB
Example:
0.00
625.00
12,350.00
225.00
$
$13,300.00
100.00
0.00
0.00
0.00
0.00
CR360ML
Product Number
CR360ML
Mechanically Held Contactors
CR360ML - 400A - 1000A (2 & 3 pole)
Select Contactor Coil Voltage Rating
Select the voltage rating of the RC switch from the table below.
Transfer the corresponding product number digit to the box
marked on the product number line.
Voltage Rating (Coil) Product Number Digit
110 to 120 Volts AC 31
208 to 240 Volts AC 6
265 to 277 Volts AC 7
440 to 480 Volts AC 9
Select Auxiliary Contacts and Neutral Options
Select the desired configuration of the RC switch from the table
below. Transfer the corresponding product number to the box
marked on the product number line below and the price to
the box marked in the price column.
Product Number List Price
Auxiliary/Neutral Options Digit Adder, GO-10MB
No Auxiliary Contact or Neutral Plate A $0.00
Auxiliary Contacts: Closed—Main Contacts: Closed (1A) B $75.00
Auxiliary Contacts: Closed—Main Contacts: Open (1B) C $75.00
Fully Rated Neutral Plate D $225.00
Auxiliary Contacts (1A) with Neutral E $295.00
Auxiliary Contacts (1B) with Neutral F $295.00
Select Auxiliary Relays
Select the auxiliary relay configuration needed for the RC switch
from the table below. Transfer the corresponding product number
digit to the box marked on the product number line and the
price to the box marked in the price column.
Product Number List Price
Auxiliary Relays Digit Adder, GO-10MB
No Option—Standard 1 $0.00
Auxiliary Control Relay—2-Wire 2 $625.00
Auxiliary Control Relay—3-Wire 3 $1075.00
Auxiliary Control Relay—Form 3 Control 4 $125.00
Select Contactor Coil Control Voltage
Select the control voltage for driving the contactor coil through
an interposing relay. Transfer the corresponding product number
digit to the box marked on the product number line and the
price to the box marked in the price column.
List Price
Control Voltage (Relay) Product Number Digit Adder, GO-10MB
No Option A $0.00
24 Volts AC B $0.00
120 Volts AC C $0.00
208 Volts AC D $100.00
240 Volts AC E $100.00
277 Volts AC F $100.00
24 Volts DC G $0.00
110 Volts DC H $0.00
Note: Boxes through must be filled in. If no options are selected for , , or ,
the trailing characters can be omitted, and the product number would be
complete after the last non-blank character.
4
5
5
6
6
7
7
147
6
5
4
5
6
7
1Only available on CR360L4 Series
www.geindustrial.com Rev. 7/11
Prices and data subject
to change without notice
Control Catalog
3-36
Lighting Contactors Section 3
Electrical Characteristics
Wire Size for Service and Control Connections
Continuous Amp Rating 400A 600A 800A 1000A
Number of Cables Al or Cu Terminal Lug Wire Range
14 AWG -
600 MCM
2 1/0 AWG - 2 AWG -
250 MCM 600 MCM
4 1/0 AWG - 1/0 AWG -
750 MCM 750 MCM
Control circuit connections designated 1, 2 and 3 will accommodate a wire range of
#14 AWG to #10 AWG copper wire.
Coil Inrush Current Values and Minimum Recommended
Control Circuit Fuse Size
Continuous Amp Rating 400A 600A, 800A, 1000A
Inrush Fuse1Inrush Fuse1
120V 41 10 - -
240V 12 3 18 10
1Fuse must be rated for 100,000 amperes symmetrical @ 600V
Overcurrent protective device ratings for control circuits should be selected and
installed in accordance with the NEC.
This table shows the minimum permissible control circuit fuse size, based on the
operat ing coil’s inrush current.
Max. Distance Between Control Station and One RC Switch with
Source Line Voltage at 90% of Normal
Switch Rating (Amps) Distance in Feet
120V 60Hz 240V 60Hz
14 AWG 12 AWG 10 AWG 14 AWG 12 AWG 10 AWG
400A 95 150 240 660 1050 1650
600A - 1000A - - - 320 510 810
For 208 Volt system, reduce 240 Volt values by 15%. If the control device does not
have adequate current-carrying capacity to control the switch directly, or the con-
trol station is to be located a greater distance from the switch than is allowed in
the above table, auxiliary relays for 2-wire or 3-wire control are available.
Control Relays (Optional)
Two Wire Control Relay Control Voltage Burden of Relay
AC 60Hz DC AC DC
24 24 3va 2.5 watts
120 120 3va 2.5 watts
208, 240, 2772N/A 3va N/A
Three Wire Control Relay Control Voltage Burden of Relay
AC 60Hz DC AC DC
24, 120, 208,
240, 277 VAC 2va
24, 125 VDC 1.2 watts
2Transformer Design
Screw type terminals accept 22-12 AWG
CR360ML
Mechanically Held Contactors
CR360ML - 400A - 1000A (2 & 3 pole)
Technical Data
www.geindustrial.com Control Catalog 3-37
Lighting Contactors
Rev. 7/11
Prices and data subject
to change without notice
Section 3
Height
Width
FRONT SIDE
Depth
Enclosed NEMA Type 3R, 4, 12
CR360ML
Mechanically Held Contactors
CR360ML - 400A - 1000A (2 & 3 pole)
Outlines, Dimensions ( in.
mm) and Weights (For Estimating Only)
Open
Continuous Width Depth Height Weight lbs (kg) Weight lbs (kg)
Amp Rating in. (mm) in. (mm) in. (mm) 2-pole 3-pole
400A 12 (305) 6.87 (175) 18.5 (470) 21 (9.6) 21 (9.6)
600A 26.93 (684) 12.69 (322.5) 30.94 (786) 115 (52) 125 (57)
800A 26.93 (684) 12.69 (322.5) 30.94 (786) 116 (52) 126 (57)
1000A 26.93 (684) 12.69 (322.5) 30.94 (786) 117 (52) 127 (57)
DepthWidth
FRONT SIDE
Height
Open 400A
FRONT SIDE
Height
Width Depth
Open 600A, 800A, 1000A
Height
Width
FRONT SIDE
Depth
Enclosed NEMA Type 1
Enclosed NEMA Type 1
Continuous Width Depth Height Weight
Amp Rating in. (mm) in. (mm) in. (mm) lbs (kg)
400A 18 (457) 13 (330) 48 (1219) 107 (49)
600A, 800A, 1000A 34 (864) 20 (508) 72 (1829) 122 (55)
Enclosed NEMA Type 3R, 4, 12
Continuous Width Depth Height Weight
Amp Rating in. (mm) in. (mm) in. (mm) lbs (kg)
400A 18 (457) 13 (330) 48 (1219) 475 (215.5)
600A, 800A, 1000A 34 (864) 20 (508) 75 (1905) 475 (215.5)
www.geindustrial.com Rev. 7/11
Prices and data subject
to change without notice
Control Catalog
3-38
Lighting Contactors Section 3
NOTES:

Navigation menu
