Pricebook
Canada Reference Guide
and Pricebook
Prices effective
October 15, 2012
Eaton 9E UPS
1
Introduction
Input Plug and Output Receptacle Chart .............................................................................................................................................................................................. 3
Ordering Information, Parts, Accessories and Current List Pricing
Eaton Power Distribution, Monitoring and Enclosures
ePDUs ............................................................................................................................................................................................................................................... 5
Eaton Automatic Transfer Switches ............................................................................................................................................................................................. 9
Eaton HotSwap Maintenance Bypass (MBP) ........................................................................................................................................................................... 9
ePDU Cables . ................................................................................................................................................................................................................................. 10
Eclipse Surge Suppressors ......................................................................................................................................................................................................... 12
Eaton S-Series Rack ...................................................................................................................................................................................................................... 13
Environmental Rack Monitor (ERM) ........................................................................................................................................................................................... 15
Remote Power Panel (RPP) ......................................................................................................................................................................................................... 17
Power Distribution Rack (PDR) ................................................................................................................................................................................................... 21
Eaton Branch Circuit Breakers ................................................................................................................................................................................................... 23
Single-phase Products
Catalog Number Ordering Instructions for Single-phase Products .................................................................................................................................................... 24
Single-phase (Standby)
Eaton 3S UPS (350–750 VA) .......................................................................................................................................................................................................... 25
Single-phase (Line-interactive)
Eaton 5110 UPS (500–1500 VA) .................................................................................................................................................................................................... 26
Eaton 5115 UPS Tower (500–1400 VA) ........................................................................................................................................................................................ 27
Eaton 5115 UPS Rack (500–1500 VA) .......................................................................................................................................................................................... 28
Eaton Evolution UPS (650–2000 VA) ............................................................................................................................................................................................ 29
Eaton 5125 UPS Tower (1000–2200 VA) ...................................................................................................................................................................................... 31
Eaton 5P UPS Rack/Tower (1440–3000 VA) .............................................................................................................................................................................. 32
Eaton 5PX UPS Rack/Tower (1000–3000 VA) ............................................................................................................................................................................. 33
Eaton 5125 UPS Rack (5000–6000 VA) ........................................................................................................................................................................................ 35
Single-phase (Online)
Eaton EX UPS (700–3000 VA)........................................................................................................................................................................................................ 36
Eaton 9130 UPS Rack (700–3000 VA) .......................................................................................................................................................................................... 39
Eaton 9130 UPS Tower (700–3000 VA) ........................................................................................................................................................................................ 42
Eaton 9PX UPS Rack/Tower (5–6 kVA) ....................................................................................................................................................................................... 45
Eaton 9PX UPS Rack/Tower (8– kVA) ......................................................................................................................................................................................... 47
Eaton 9135 UPS Rack/Tower (5000–6000 VA) ............................................................................................................................................................................ 49
Eaton MX UPS (5000 VA, upgradeable to 20,000 VA) .............................................................................................................................................................. 51
Eaton 9140 UPS Rack (10 kVA) .................................................................................................................................................................................................... 53
Eaton EX RT UPS (5–11 kVA) ........................................................................................................................................................................................................ 55
Eaton 9155 UPS (8–15 kVA) .......................................................................................................................................................................................................... 58
Eaton 9170+ UPS Rack/Tower (3–18 kVA) .................................................................................................................................................................................. 61
(table of contents continued on next page)
CANADA REFERENCE GUIDE AND PRICEBOOK
Table of Contents
2EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook
October 1, 2012
CANADA REFERENCE GUIDE AND PRICEBOOK
Table of Contents (continued)
Ordering Information, Parts, Accessories and Current List Pricing (continued)
Series FERRO
Eaton FERRUPS FE UPS 60 Hz (500–3100 VA) .......................................................................................................................................................................... 67
Eaton FERRUPS UPS Rack Series (1.4 kVA–7 kVA) ................................................................................................................................................................. 69
Eaton FERRUPS UPS External Options & Accessories .......................................................................................................................................................... 71
DC Power System
Eaton Enterprise DC Power System .......................................................................................................................................................................................... 73
Eaton Access DC Power System ............................................................................................................................................................................................... 75
Eaton DV2 DC Power System ...................................................................................................................................................................................................... 77
Eaton Matrix 2000 Standalone Inverter .................................................................................................................................................................................... 78
Three-phase (Double-conversion)
Eaton BladeUPS (12–60 kW) ....................................................................................................................................................................................................... 79
Eaton 9355 UPS (10–15 kVA) ....................................................................................................................................................................................................... 86
Eaton 9355 UPS (20–30 kVA) ....................................................................................................................................................................................................... 89
Eaton Emergency Lighting UPS (10–30 kVA) ............................................................................................................................................................................ 92
Eaton 9E UPS (20–60 kVA) ........................................................................................................................................................................................................... 93
Eaton 9390IT UPS (40–160 kVA) .................................................................................................................................................................................................. 97
Additional Products
Ultra-isolator Noise Suppressors ............................................................................................................................................................................................ 101
Power Conditioners .................................................................................................................................................................................................................... 102

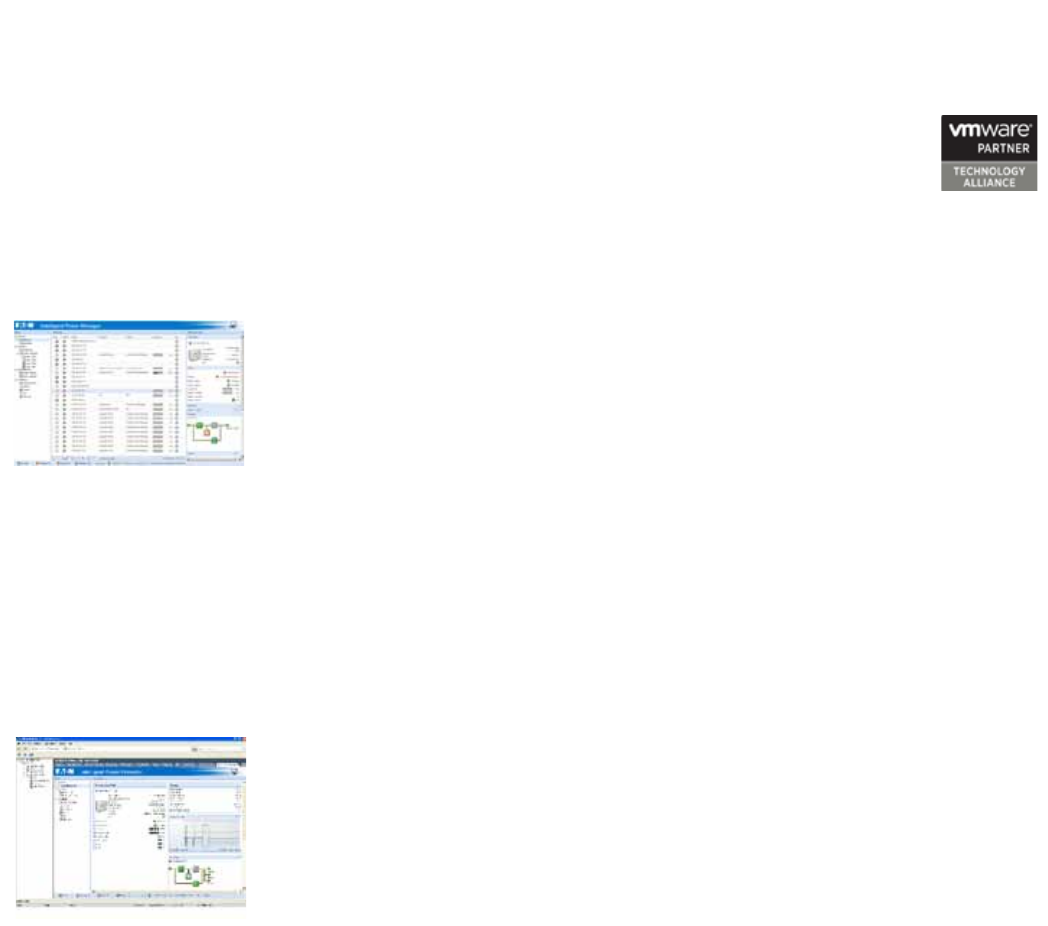

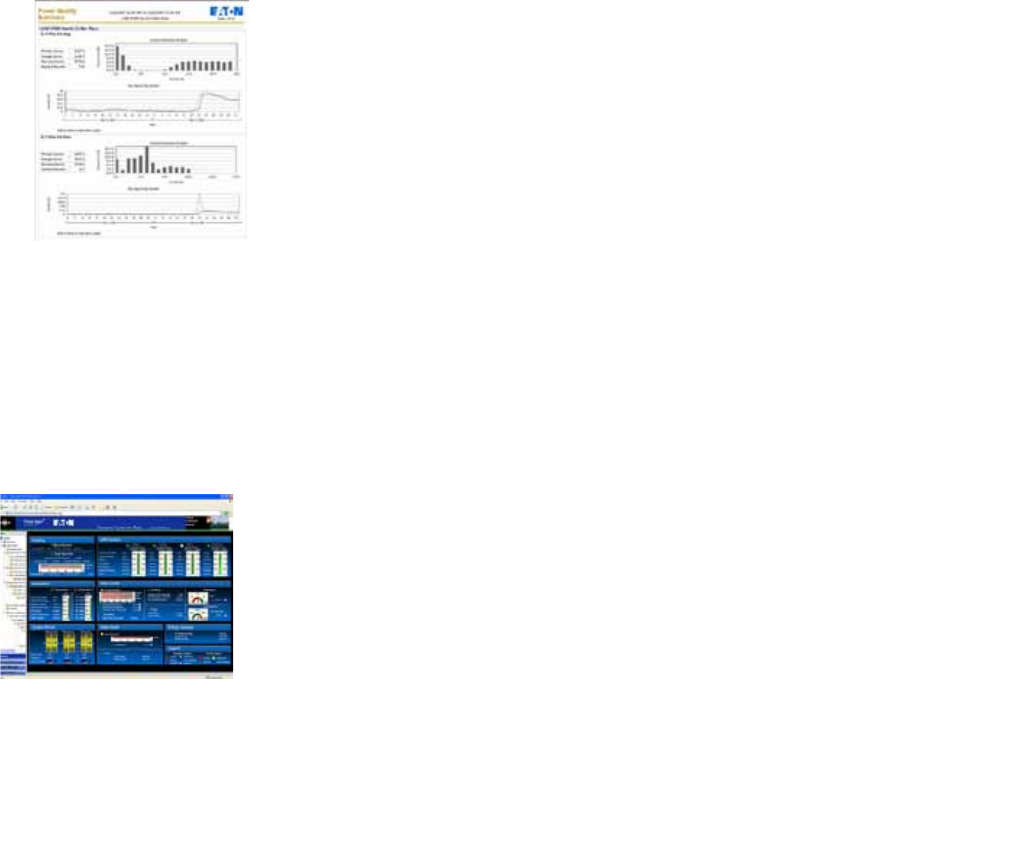

Software Products ...................................................................................................................................................................................................................... 106

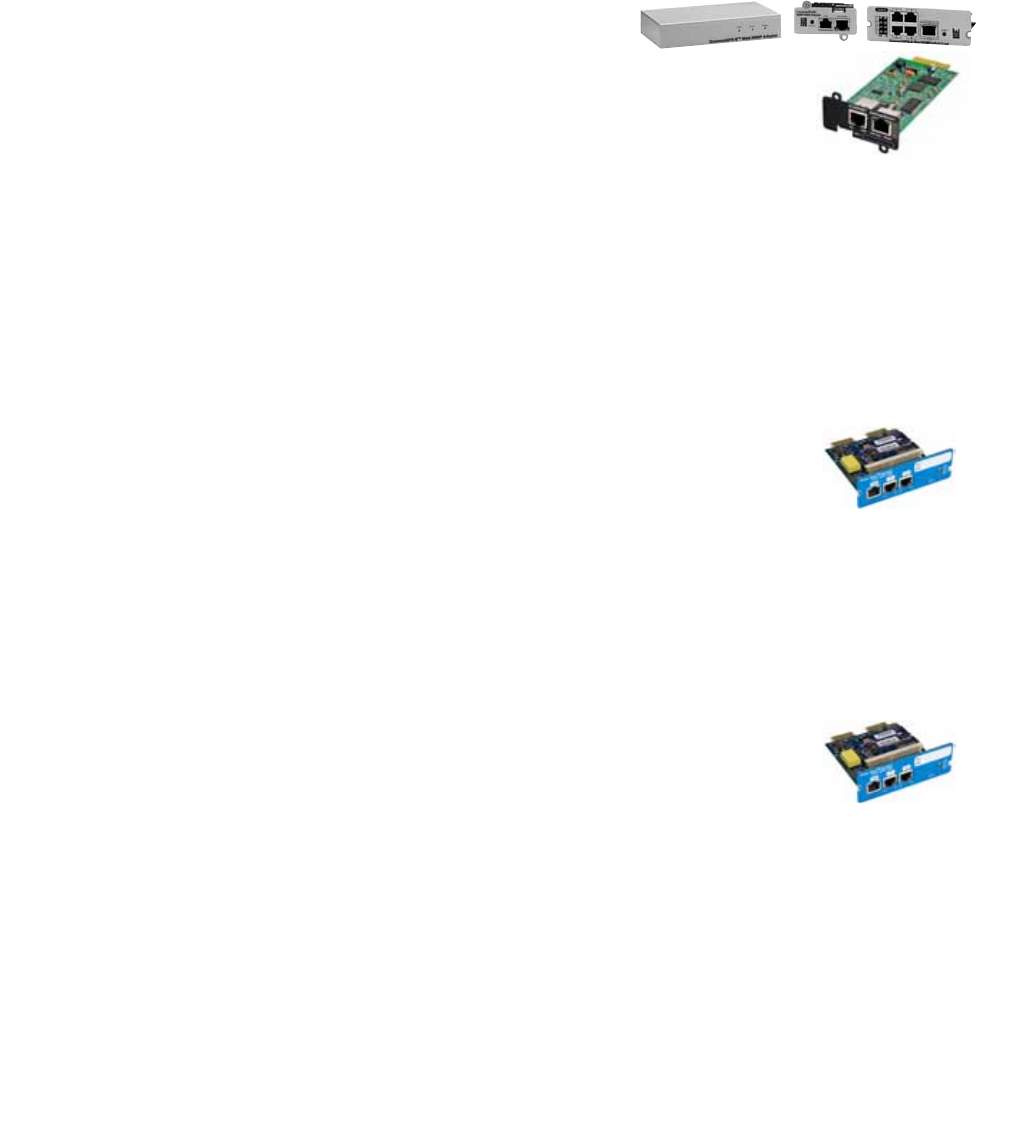

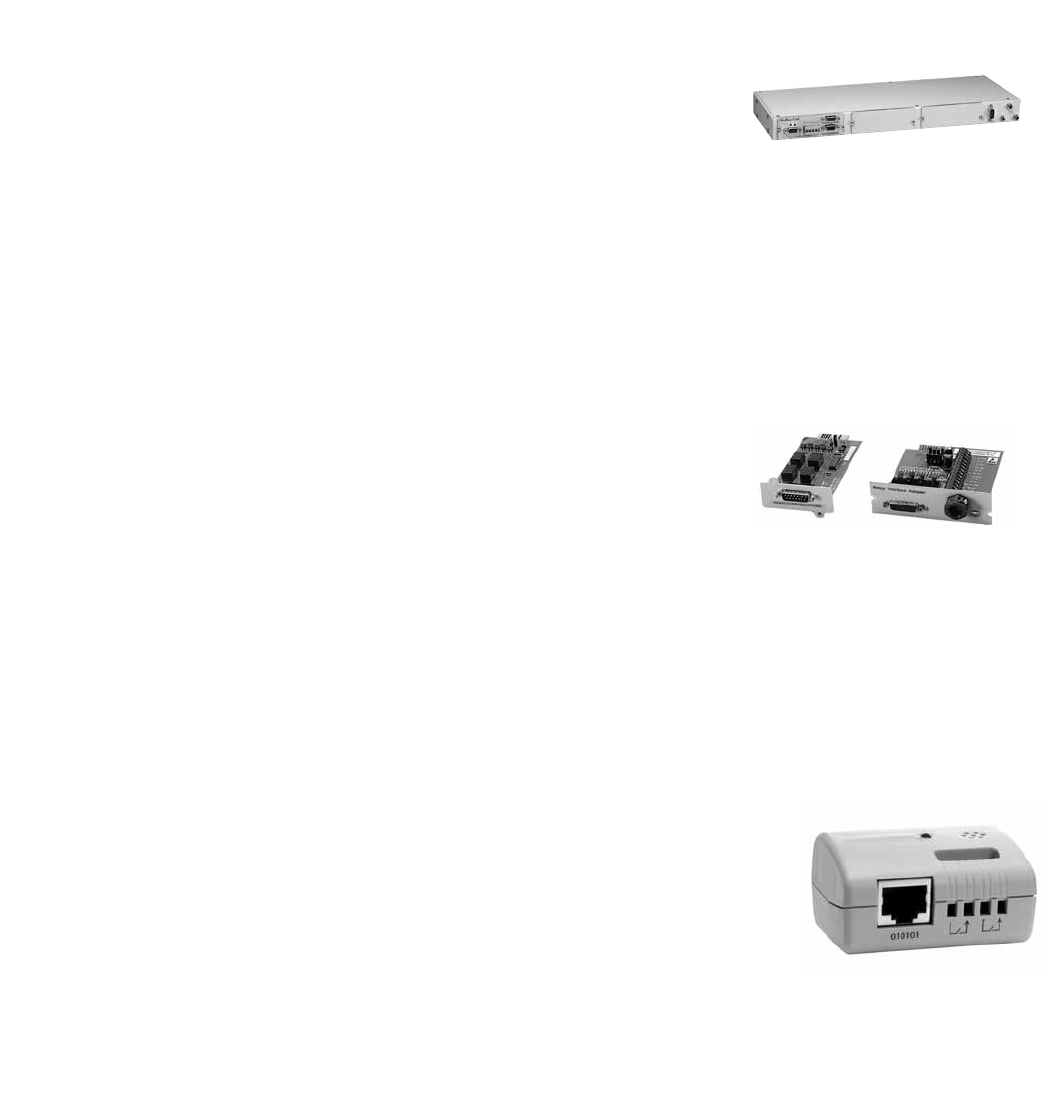

Connectivity Products ................................................................................................................................................................................................................ 109
Services
Single-phase Service Plans Overview .................................................................................................................................................................................... 113
Three-phase Service Plans Overview .................................................................................................................................................................................... 114
eNotify Remote Monitoring ....................................................................................................................................................................................................... 115
Eaton UPS Batteries ................................................................................................................................................................................................................... 115
RMA Policy and Product Warranties
Sales Returned Merchandise Authorization (RMA) Policy ................................................................................................................................................. 116
Product Warranty Statements .................................................................................................................................................................................................. 117
Notes: Due to continuing product improvement programs, all specifications and prices are subject to change without notice.
With the exception of batteries, any UPS parts or parts kit pricing that is included in this reference guide is based on a concurrent purchase of a new unit(s). Pricing for parts or parts kits
purchases made separately from a concurrent unit purchase must be obtained from the Eaton Customer Support Center at 800.356.5737.
3www.eaton.com/powerquality 1.800.461.9166
October 1, 2012
October 1, 2012

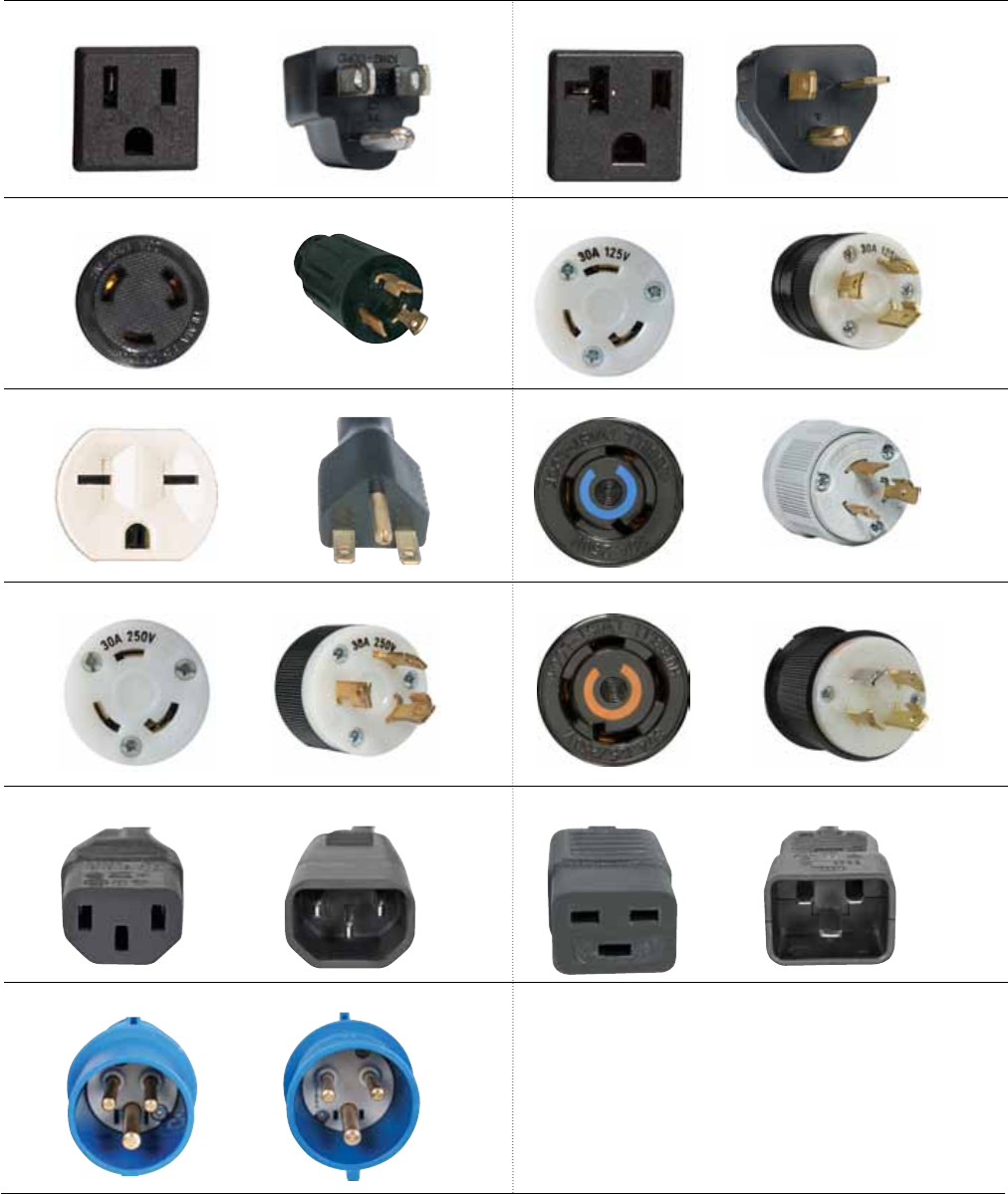

RECEPTACLE CHART
Input Plug and Output Receptacle Chart
5-15R 5-15P 5-20R 5-20P
L5-20R L5-20P L5-30R L5-30P
6-15R 6-15P L6-20R L6-20P
IEC-309, 16A IEC-309, 32A
L6-30R L6-30P L14-30R L14-30P
R indicates receptacle
P indicates plug
L indicates locking plug or receptacle
IEC-320-C13 (female) IEC-320-C14 (male) IEC-320-C19 (female) IEC-320-C20 (male)
4EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook
October 1, 2012
EATON POWER DISTRIBUTION, MONITORING AND EnclosureS
Eaton ePDU Catalog Numbering System
PW 1 04 BA 0U 006
Function / Communications
BA = Basic
MI = Ethernet Monitored
SW = Switched
Branding
PW = Eaton series
Form Factor
OU, 1U, 2U
Unique Three-digit Model Identifier
001-999 Unique for every model
Note that alphas signify international part
numbers
Input Phase
1 = Single- / Split-phase
3 = Three-phase
Max kW Rounded
Two characters, 01- 23
Eaton's smart part numbers help our customers understand our numbering system.
Follow the example below to see what the letters and numbers mean within our ePDU catalog numbers.
Eaton has introduced new part numbers to our product link. Please see details below:
ePBZ
BZ = Basic
eMA
MA = Managed
eAM
AM = Advanced Monitored
5www.eaton.com/powerquality 1.800.461.9166
October 1, 2012
October 1, 2012
EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES
ePDUs
ePDUs feature the broadest portfolio in the industry across all power densities and technologies
to satisfy the needs of every data center.
• VerticalOUorhorizontal1U/2Uconfigurations
• Fivetechnologies:Basic,Monitored,AdvancedMonitored,SwitchedandManaged
• Customdesignsuponrequest
ePDUs
Catalog Max. Cord Input Output Dimensions Cdn List
Number kW Function Length (ft) Plug Receptacles (H x W x D, inches) Price
Basic ePDUs–Designed for reliable and cost effective power distribution; basic ePDUs have the form factor and receptacle choices to meet the needs of demanding data center architects.
Horizontal Mount Models
ePBZ78 2.88 BA 15 L5-30P (20) 5-20R 1.7 x 17.0 x 3.5 $320
ePBZ79 4.99 BA 15 L6-30P (16) C13, (4) C19 1.7 x 17.0 x 5.1 $320
ePBZ82 1.92 BA 15 L5-20P/5-20P* (12) 5-20R 1.7 x 17.3 x 2.3 $183
ePBZ83 1.44 BA 15 5-15P (12) 5-15R 1.7 x 17.3 x 2.3 $122
ePBZ84 2.88 BA 10 L5-30P (10) 5-20R 1.7 x 17.0 x 3.5 $279
ePBZ85 1.92 BA 10 5-20P (12) 5-20R 1.7 x 17.3 x 2.3 $147
ePBZ86 1.44 BA 10 5-15P (12) 5-15R 1.7 x 17.3 x 2.3 $129
ePBZ88 3.33 BA 6 C20 (10) C13, (2) C19 1.7 x 19.0 x 2.4 $159
ePBZ91 4.99 BA 10 L6-30P (10) C13 1.7 x 17.0 x 3.5 $258
ePBZ94 4.99 BA 6 L6-30P (6) C19 1.7 x 19.0 x 2.4 $283
ePBZ95 3.33 BA 6 L6-20P (12) C13, (1) C19 1.7 x 19.0 x 2.4 $159
ePBZ99 1.92 BA 6 L5-20P (12) 5-20R 1.7 x 19.0 x 2.4 $147
EFLXI3000R-PDU1UIEC 3.33 BA 3 C20 (12) C13, (1) C19 1.7 x 17.3 x 2.4 $194
EFLXL1500R-PDU1U 1.44 BA 3 5-15P (12) 5-15R 1.7 x 17.3 x 2.4 $116
EFLXL2000R-PDU1U 1.92 BA 3 5-20P (12) 5-20R 1.7 x 17.3 x 2.4 $129
EFLXL2000R-PDU1UL 1.92 BA 3 5-20P (5) L5-20R 1.7 x 17.3 x 2.4 $168
PW101BA1U140 1.44 BA 9 5-15P (12) 5-15R 1.7 x 19.0 x 7.0 $313
PW102BA1U158 1.92 BA 9 5-20P (12) 5-20R 1.7 x 19.0 x 7.0 $316
PW102BA1U159 1.92 BA 9 L5-20P (12) 5-20R 1.7 x 19.0 x 7.0 $329
PW103BA1U190 2.88 BA 9 L5-30P (12) 5-20R 1.7 x 19.0 x 7.0 $345
PW103BA1U191 3.33 BA 9 L6-20P (12) C13 1.7 x 19.0 x 7.0 $414
PW103BA1U405 3.33 BA 9 C20 (16) C13 1.7 x 19.0 x 7.0 $298
PW103BA1U406 4.99 BA 9 L6-30P (16) C13 1.7 x 19.0 x 7.0 $517
PW105BA1U163 4.99 BA 9 L6-30P (12) C13 1.7 x 19.0 x 7.0 $478
PW105BA1U192 4.99 BA 9 L6-30 P (8) C13, (4) C19 1.7 x 19.0 x 7.0 $512
PW105BA1U404 4.99 BA 9 L14-30P (12) 5-15R 1.7 x 19.0 x 7.0 $580
PW105BA2U420 4.99 BA 9 L6-30P (4) L6-20R 3.4 x 19.0 x 6.0 $716
PW105BA2U422 4.99 BA 9 L14-30P (4) L6-20R 3.4 x 19.0 x 6.0 $TBA
PW314BA1U193 14.4 BA 9 CS8365 (6) C19 1.7 x 17.0 x 7.0 $901
Vertical Mount Models
ePBZ71 1.92 BA 15 5-20P/L5-20P* (30) 5-20R 72.0 x 1.5 x 1.5 $345
ePBZ72 1.92 BA 15 5-20P/L5-20P* (18) 5-20R 48.0 x 1.5 x 1.5 $258
ePBZ73 1.44 BA 15 5-15P (18) 5-15R 48.0 x 1.5 x 1.5 $184
ePBZ74 1.92 BA 15 5-20P/L5-20P* (14) 5-20R 24.0 x 1.5 x 1.5 $209
ePBZ75 1.44 BA 15 5-15P (14) 5-15R 24.0 x 1.5 x 1.5 $147
ePBZ77 1.92 BA 15 L5-20P/5-20P (24) 5-20R 60.0 x 1.5 x 1.5 $271
ePBZ80 4.99 BA 10 L6-30P (30) C13, (6) C19 52.9 x 1.9 x 2.1 $370
ePBZ89 1.44 BA 6 C14 (16) C13 28.0 x 2.2 x 1.9 $122
ePBZ90 2.88 BA 15 L5-30P (24) 5-20R 40.0 x 1.9 x 2.1 $332
ePBZ92 4.99 BA 6 L6-30P (20) C13, (4) C19 42.0 x 2.2 x 1.9 $345
ePBZ93 3.33 BA 6 L6-20P (20) C13, (4) C19 42.0 x 2.2 x 1.9 $283
ePBZ96 1.92 BA 6 L5-20P (24) 5-20R 60.0 x 1.5 x 1.5 $246
ePBZ97 1.92 BA 6 5-20P (24) 5-20R 60.0 x 1.5 x 1.5 $184
ePBZ98 1.44 BA 6 5-15P (18) 5-15R 48.0 x 1.5 x 1.5 $122
PW103BA0U237 3.33 BA 9 L6-20P (24) C13, (4) C19 66.0 x 1.9 x 2.0 $648
PW103BA0U257 2.88 BA 9 L5-30P (24) 5-20R 66.0 x 1.9 x 2.0 $586
PW105BA0U239 4.99 BA 9 L6-30P (24) C13, (4) C19 66.0 x 1.9 x 2.0 $662
PW105BA0U412 4.99 BA 6 L14-30P (12) 5-15R 10.0 x 7.8 x 3.0 $431
PW105BA0U421 4.99 BA 9 L14-30P (24) 5-20R 66.0 x 1.9 x 2.0 $740
PW306BA0U241 5.76 BA 9 L21-20P (30) 5-20R 66.0 x 1.9 x 2.0 $850
PW306BA0U244 5.76 BA 9 L21-20P (36) C13, (6) C19 66.0 x 1.9 x 2.0 $753
PW306BA0U246 5.76 BA 9 L21-20P (18) 5-20R, (6) L6-20R 66.0 x 1.9 x 2.0 $854
PW309BA0U409 8.65 BA 9 L21-30P (24) 5-20R 66.0 x 1.9 x 2.0 $1,086
PW314BA0U251 14.4 BA 9 CS8365 (24) C13, (4) C19, (2) L6-30R 66.0 x 1.9 x 2.0 $959
PW314BA0U253 14.4 BA 9 CS8365 (30) C13, (6) C19 66.0 x 1.9 x 2.0 $1,362
* These units ship with an adapter allowing for 5-20P input plug.
6EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook
October 1, 2012
EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES
ePDUs (continued)
ePDUs
(continued)
Catalog Max. Cord Input Output Dimensions Cdn List
Number kW Function Length (ft) Plug Receptacles (H x W x D, inches) Price
Monitored ePDUs–Designed for high-density, mission-critical server applications, provides maximum power for both standard and blade servers. Monitored ePDUs provide circuit level amperage
metering through both a local digital meter and ethernet network capabilities. This technology allows the data center manager complete access to power information.
Horizontal Mount Models
PW101MI1U221 1.44 MI 9 5-15P (12) 5-15R 1.7 x 17.0 x 7.0 $536
PW101MI1U403 1.44 MI 9 5-20P (12) 5-20R 1.7 x 17.0 x 7.0 $593
PW102MI1U160 1.92 MI 9 L5-20P (12) 5-20R 1.7 x 17.0 x 7.0 $609
PW103MI1U161 2.88 MI 9 L5-30P (12) 5-20 R 1.7 x 17.0 x 7.0 $687
PW103MI1U162 3.33 MI 9 L6-20P (12) C13 1.7 x 17.0 x 7.0 $638
PW105MI1U164 4.99 MI 9 L6-30P (12) C13 1.7 x 17.0 x 7.0 $843
PW105MI1U165 4.99 MI 9 L6-30P (6) C13, (4) C19 1.7 x 17.0 x 7.0 $777
PW105MI2U402 4.99 MI 9 L6-30P (20) C13 3.4 x 19.0 x 7.0 $907
PW317MI2U141 17.29 MI 9 IEC30960 460P9W (12) C19 3.4 x 19.0 x 9.5 $1,751
Vertical Mount Models
PW101MI0U233 1.44 MI 9 5-15P (28) 5-15R 66.0 x 1.9 x 2.0 $675
PW102MI0U234 1.44 MI 9 5-20P (24) 5-20R 66.0 x 1.9 x 2.0 $734
PW102MI0U235 1.92 MI 9 L5-20P (24) 5-20 R 66.0 x 1.9 x 2.0 $705
PW103MI0U236 2.88 MI 9 L5-30P (24) 5-15 R 66.0 x 1.9 x 2.0 $738
PW103MI0U238 3.33 MI 9 L6-20P (24) C13, (4) C19 66.0 x 1.9 x 2.0 $824
PW105MI0U240 4.99 MI 9 L6-30P (24) C13, (4) C19 66.0 x 1.9 x 2.0 $1,014
PW105MI0U255 4.99 MI 9 L14-30P (24) C13, (4) C19, (4) 5-20R 66.0 x 1.9 x 2.0 $1,000
PW306MI0U242 5.76 MI 9 L21-20P (30) 5-20R 66.0 x 1.9 x 2.0 $1,168
PW306MI0U243 5.76 MI 9 L21-20P (24) C13, (3) C19, (6) 5-20R 66.0 x 1.9 x 2.0 $1,063
PW306MI0U245 5.76 MI 9 L21-20P (36) C13, (6) C19 66.0 x 1.9 x 2.0 $1,106
PW306MI0U247 5.76 MI 9 L21-20P (18) 5-20R, (6) L6-20R 66.0 x 1.9 x 2.0 $1,174
PW306MI0U408 5.76 MI 9 L21-20P (30) 5-15R 66.0 x 1.9 x 2.0 $907
PW309MI0U248 8.65 MI 9 L21-30P (24) C13, (3) C19, (6) 5-20R 66.0 x 1.9 x 2.0 $1,187
PW309MI0U250 8.65 MI 9 L21-30P (36) C13 66.0 x 1.9 x 2.0 $1,167
PW309MI0U256 8.65 MI 9 L21-30P (30) C13, (6) C19 66.0 x 1.9 x 2.0 $1,216
PW314MI0U252 14.40 MI 9 CS8365 (24) C13, (4) C19, (2) L6-30R 66.0 x 1.9 x 2.0 $1,751
PW314MI0U254 14.40 MI 9 CS8365 (30) C13, (6) C19 66.0 x 1.9 x 2.0 $1,426
PW317MI0U222 17.29 MI 7 IEC309-60 (12) C13, (12) C19 66.0 x 2.0 x 4.0 $2,335
Switched ePDUs–For receptacle level control choose switched ePDUs, which allow the user to remote reboot or lockout individual receptacles. Switched ePDUs also employee local meters as
well as networking capability via either Ethernet or serial connections. Local LEDs show the status of receptacles and an accessories port allows for temperature and humidity probes to manage local
environmental conditions.
Horizontal Mount Models
PW103SW2U413 3.33 SW 9 C20 (8) C13 1.7 x 19.0 x 9.5 $973
PW103SW2U414 3.33 SW 9 C20 (8) 5-15R 1.7 x 19.0 x 9.5 $973
PW105SW2U223 4.99 SW 9 L6-30P (20) C13 1.7 x 19.0 x 9.5 $1,816
PW105SW2U415 4.99 SW 9 L6-30P (20) C13, (4) C19 1.7 x 19.0 x 9.5 $1,816
Vertical Mount Models
PW101SW0U224 1.44 SW 9 5-15P (16) 5-15R 68.0 x 1.9 x 2.0 $1,519
PW102SW0U150 1.92 SW 9 L5-20P (8) 5-15R 42.0 x 1.9 x 2.0 $1,173
PW102SW0U151 1.92 SW 9 L5-20P (24) 5-15R 66.0 x 1.9 x 2.0 $1,729
PW103SW0U152 2.88 SW 9 L5-30P (16) 5-15R 66.0 x 1.9 x 2.0 $1,729
PW103SW0U153 3.33 SW 9 L6-20P (24) C13 66.0 x 1.9 x 2.0 $1,729
PW105SW0U154 4.99 SW 9 L6-30P (16) C13 66.0 x 1.9 x 2.0 $1,606
PW306SW0U155 5.76 SW 9 L21-20P (24) 5-15R 66.0 x 1.9 x 2.0 $1,729
PW306SW0U156 5.76 SW 9 L21-20P (24) C13 66.0 x 1.9 x 2.0 $1,729
PW309SW0U178 8.65 SW 9 L21-30P (24) C14 66.0 x 1.9 x 2.0 $1,976
PW317SW0U400 17.29 SW 9 IEC 60309P 3P + PE (18) C13, (6) C19 66.0 x 2.0 x 4.0 $2,854
PW317SW0U401 17.29 SW 9 IEC 60309 460P9W (12) C13, (12) C19 66.0 x 2.0 x 4.0 $2,842
7www.eaton.com/powerquality 1.800.461.9166
October 1, 2012
October 1, 2012
EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES
ePDUs (continued)
ePDUs
(continued)
Catalog Max. Cord Input Output Dimensions Cdn List
Number kW Function Length (ft) Plug Receptacles (H x W x D, inches) Price
Advanced Monitored ePDUs–Outlet level monitoring of voltage, current, power and energy (KWH).Provides necessary measurements to calculate Level 3 PUE and to run capacity /usage
analytics. Advanced local display and color coded silk screen.
Vertical Mount Models
eAM001 5.8 AM 10 L6-30P (20) C13, (4) C19 68.0 x 2.2 x 2.6 $1,273
eAM002 5.8 AM 10 L21-20P (21) C13, (3) C19 60.0 x 2.2 x 2.6 $1,446
eAM003 12.6 AM 10 CS8365C (21) C13, (3) C19 68.0 x 2.2 x 2.6 $1,755
eAM004 8.6 AM 10 L21-30P (21) C13, (3) C19 68.0 x 2.2 x 2.6 $1,755
eAM005 17.3 AM 10 IEC309 48A (12) C13, (12) C19 72.4 x 2.2 x 2.6 $2,769
eAM008 3.3 AM 10 C20 (20) C13, (4) C19 60.0 x 2.2 x 2.6 $1,137
Managed ePDUs–Includes outlet level switching to power cycle (reboot) locked servers or turn off unused outlets. Outlet level monitoring of voltage, current, power and energy (KWH). Provides
necessary measurements to calculate Level 3 PUE and to run capacity /usage analytics.
Vertical Mount Models
eMA006 5.8 MA 10 L21-20P (21) C13, (3) C19 60.0 x 2.2 x 2.6 $1,607
eMA007 12.6 MA 10 CS8365C (21) C13, (3) C19 68.0 x 2.2 x 2.6 $1,941
eMA009 17.3 MA 10 IEC309 48A (12) C13, (12) C19 72.4 x 2.2 x 2.6 $3,053
eMA010 5.8 MA 10 L6-30P (20) C13, (4) C19 68.0 x 2.2 x 2.6 $1,421
eMA011 8.6 MA 10 L21-30P (21) C13, (3) C19 68.0 x 2.2 x 2.6 $1,941
eMA012 3.3 MA 10 L6-20P (20) C13, (4) C19 60.0 x 2.2 x 2.6 $1,261
eMA013 11.5 MA 10 IEC309 16A (12) C13, (12) C19 68.0 x 2.2 x 2.6 $2,126
eMA014 17.3 MA 10 IEC309 32A (12) C13, (12) C19 72.4 x 2.2 x 2.6 $2,670
Environmental Probes
Catalog
Number Description Cdn Price
EMP001 Environmental Monitoring Probes for AM and MA units $129
Accessories
Catalog
Number Description Cdn Price
KBLT01 Plug Restraint Cable Tray for AM and MA units $103
Extended Warranty Coverage for ePDU
Extended Warranty ePDU List
Part Number List Price Price Range Description Applicable ePDU Models
ESW5Y-0001-0400P $74 $0 to $400
ESW5Y-0401-1000P $185 $401 to $1,000 ePDU Top Sellers All ePDU Top Seller
ESW5Y-1001-2000P $371 $1,001 to $2,000 (50005), 5-year-total products based on
ESW5Y-2001-5000P $927 $2,001 to $5,000 warranty (ePDU) list price
ESW5Y-5001-9999P call $5,001+
ESW5Y-0001-0400S $93 $0 to $400
ESW5Y-0401-1000S $232 $401 to $1,000 ePDU Build to Order, All ePDU BtO, Specialty
ESW5Y-1001-2000S $464 $1,001 to $2,000 Specialty (50006, 50008), products based on
ESW5Y-2001-5000S $1,159 $2,001 to $5,000 5-year-total warranty (ePDU) list price
ESW5Y-5001-9999S call $5,001+
ESW5Y-0001-0400C $93 $0 to $400
ESW5Y-0401-1000C $232 $401 to $1,000 ePDU Custom, All ePDU Custom
ESW5Y-1001-2000C $464 $1,001 to $2,000 5-year-total warranty (ePDU) products based on
ESW5Y-2001-5000C $1,159 $2,001 to $5,000 list price
ESW5Y-5001-9999C call $5,001+
8EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook
October 1, 2012
EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES
ePDUs (continued)
FlexPDU plug/amp rating UPS model (North American only)
Eaton Evolution Rack UPS, 650–1550 VA
15 Eaton 5PX Rack/Tower UPS, 1000-1500 VA
Eaton 9130 Rack UPS, 700–1500 VA
Eaton EX Rack UPS, 1000–1500 VA
Eaton Evolution Rack/Tower UPS, 2000 VA
20 Eaton 5PX Rack/Tower UPS, 2200-3000 VA
Eaton 9130 Rack UPS, 2000-3000 VA
Eaton EX Rack/Tower UPS, 2200-3000 VA
9www.eaton.com/powerquality 1.800.461.9166
October 1, 2012
October 1, 2012
EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES
Eaton Automatic Transfer Switches
EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES
Eaton HotSwap Maintenance Bypass (MBP)
HotSwap MBP—Facilitating hot-swappable UPS replacement from the rack—the HotSwap MBP is also
ideal when exchanging a faulty unit or upgrading to a new UPS. The HotSwap MBP offers
receptacles in 5-15R and 5-20R.
• GainadditionalreceptaclesonUPSs
• Provideservicecontinuityduringbatteryreplacement,UPSmaintenanceorupgrade
• Easeinstallationwithflexiblemountingoptions(rearpanel,thetop,ontheleftorontherightof
the UPS (depending on the UPS model)
• Accommodatemostspaceconstraintswithminimaldepth1Uformfactor
HOTSWAP MBP
Catalog Max. Cord Input Output Dimensions Cdn List
Number kW Function Length Connection Receptacles (Quantity) (H x W x D, inches) Price
EHBPL1500R-PDU1U 1.44 BA 3' 5-15P (6) 5-15R 2.1 x 3.8 x 17.3 $299
EHBPL2000R-PDU1U 1.92 BA 3' 5-20P (6) 5-15R 2.1 x 3.8 x 17.3 $357
EHBPL3000R-PDU1U 2.88 BA 3' L5-30P (5) 5-20R 2.1 x 3.8 x 17.3 $519
HotSwap MBP UPS model (North American only)
Eaton Evolution Rack UPS, 650–1550 VA
15 Eaton 5PX Rack/Tower UPS, 1000-1500 VA
Eaton 9130 Rack UPS, 700–1500 VA
Eaton EX Rack UPS, 1000–1500 VA
Eaton Evolution Rack/Tower UPS, 2000 VA
20 Eaton 5PX Rack/Tower UPS, 2200 VA
Eaton 9130 Rack UPS, 2000 VA
Eaton EX Rack/Tower UPS, 2200 VA
30 Eaton 5PX Rack/Tower UPS, 3000 VA
Eaton 9130 Rack UPS, 2500–3000 VA
Eaton EX Rack/Tower UPS, 3000 VA
eATS (Automatic Transfer Switch) and STS (Source Transfer Switch) ePDUs—Designed for switching non-phase synchronized AC power sources,
the automatic transfer switch ePDUs' intelligent circuitry monitors both inputs, providing a fast switch transfer from primary to secondary source power
critical equipment without interruption. These ePDUs assure the highest level of redundancy to mission-critical applications.
• 1Uconfigurationsavailable
• Customdesignsuponrequest
eATS (Automatic Transfer Switch) and STS (Source Transfer Switch) ePDUs
Catalog Max. Cord Input Output Dimensions Cdn List
Number kW Function Length (ft) Plug Receptacles (H x W x D, inches) Price
Horizontal Mount Models
PULSTS1400R-1U - AT - (2) 5-15P (6) 5-15R 1.7 x 19.0 x 9.8 $371
PULSTS16AMPR-1U - AT - (2) C20 (6) C13, (1) C19 1.7 x 16.9 x 9.8 $383
PWATSL520004 1.92 AT 9 (2) L5-20P (8) 5-20R 1.7 x 19.0 x 7.0 $907
PWATSL530005 2.88 AT 9 (2) L5-30P (8) 5-20R 1.7 x 19.0 x 7.0 $973
PWATSL530007 2.88 AT 9 (2) L5-30P (1) L5-30R 1.7 x 19.0 x 7.0 $973
PWATSL630006 4.99 AT 9 (2) L6-30P (12) C13 1.7 x 19.0 x 7.0 $1,037
PWATSL630008 4.99 AT 9 (2) L6-30P (1) L6-30R 1.7 x 19.0 x 7.0 $973
PWATSS515002 1.44 AT 9 (2) 5-15P (8) 5-15R 1.7 x 19.0 x 7.0 $777
PWATSS520003 1.92 AT 9 (2) 5-20P (8) 5-20 R 1.7 x 19.0 x 7.0 $843
PWATSSC20001 3.33 AT - (2) C20 (8) C13, (1) C19 1.7 x 19.0 x 7.0 $777
10 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook
October 1, 2012
EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES
ePDU Cables
• Adapters to enable equipment with disparate input/output receptacles to work together
• Jumpers to connect two pieces of equipment without cluttering up the cable arrangement
• Splitters to add extra equipment to a UPS or PDU without using up more outlets
All Eaton power cables are tested and certified for use with Eaton products, such as ePDUs, rack power modules
(RPMs) and UPSs—proven to deliver the reliability and service life needed for the most rigorous data center
applications.
• Choosefromadapters,jumpersandsplittersforanyrackpowerdistributionapplication
• Selectfromabroadrangeofinput/outputconnectors
• StreamlinecablinginEnclosuresbydeployingexactlythecablelengthneeded
• Countonassuredperformancewithpre-testedproductsthatmeetULandEatonstandards
Adapter Cables
Catalog Cdn List
Number Description Leads Input Plug Output Length (ft) Price
010-0020 10 ft IEC320-C14 to IEC320-C13 Jumper Cable 1 C14 C13 10 $21
010-0021 7 ft IEC320-C14 to IEC320-C13 Jumper Cable 1 C14 C13 7 $17
010-0024 15 ft IEC320-C14 to IEC320-C13 Jumper Cable 1 C14 C13 15 $25
010-0025 8 ft IEC320-C14 to IEC320-C13 Jumper Cable 1 C14 C13 8 $19
010-0026 8 ft C19 TO Bare Wire Cable 1 Bare Wire C19 8 $20
010-0027 6 ft IEC320-C14 to IEC320-C13 Jumper Cable 1 C14 C13 6 $16
010-0028 4 ft IEC320-C14 to IEC320-C13 Jumper Cable 1 C14 C13 4 $14
010-0029 2 ft IEC320-C14 to IEC320-C13 Jumper Cable 1 C14 C13 2 $11
010-0032 1 ft IEC320-C14 to 5-15R Adapter Cable 1 C19 C14 1 $19
010-0034 8 ft IEC320-C19 to Bare Wire Adapter Cable 1 C19 Bare 8 $40
010-9332 8 ft IEC320-C13 to 5-15P Jumper Cable 1 5-15P C13 8 $20
010-9334 8 ft IEC320-C19 to 5-15P Adapter Cable 1 5-15P C19 8 $26
010-9335 8 ft IEC320-C19 to 5-20P Adapter Cable 1 5-20P C19 8 $33
010-9336 8 ft IEC320-C19 to 6-15P Adapter Cable 1 6-15P C19 8 $40
010-9337 8 ft IEC320-C19 to 6-20P Adapter Cable 1 6-20P C19 8 $40
010-9338 8 ft IEC320-C19 to L5-15P Adapter Cable 1 L5-15 P C19 8 $46
010-9339 8 ft IEC320-C19 to L5-20P Adapter Cable 1 L5-20 P C19 8 $33
010-9341 8 ft IEC320-C19 to L6-20P Adapter Cable 1 L6-20 P C19 8 $40
010-9342 8 ft IEC320-C19 to IEC320-C20 Adapter Cable 1 C20 C19 8 $40
010-9343 8 ft SCHUCKO to IEC320-C19 Adapter Cable 1 C19 SCHUCKO 8 $37
010-9345 8 ft AS/NZS 3112 to IEC320-C19 Adapter Cable 1 C19 AS/NZS 3112 8 $43
010-9351 8 ft British to IEC320-C19 Adapter Cable 1 C19 British Connector 8 $33
010-9365 8 ft IEC320-C14 to IEC320-C19 Jumper Cable 1 C19 C14 8 $41
CBL146 30 ft Power Cord Assembly 10/3 SOOW 2" Pigtails 2 Pigtails Pigtails 30 $171
CBL147 Cable Assembly High Volt Cover, 15 ft 10/3 SOOW, L6-30P 1 L6-30P 15 $182
SUB-PWRCORD-908 8 ft L6-30R to L6-30P Adapter Cable 1 L6-30P L6-30R 8 $69
Splitter Cables
Catalog Cdn List
Number Description Leads Input Plug Output Length (ft) Price
CBL139 Splitter Cable L14-30P to (2) L6-30R (4ft/2ft) 2 L14-30P L6-30R 4 $195
CBL143 Splitter Cable L14-30P to (2) L5-30R (4ft/2ft) 2 L14-30P L5-30R 4 $195
CBL148 Splitter Cable L14-20P to (2) L5-20R (4ft/2ft) 2 L14-20P L5-20R 4 $209
CBL149 Splitter Cable L21-30P to (3) L5-30R (4ft/2ft/1ft) 3 L21-30P L5-30R 4 $194
CBL150 Splitter Cable L21-20P to (3) L5-20R (4ft/2ft/1ft) 3 L21-20P L5-20R 4 $283
11www.eaton.com/powerquality 1.800.461.9166
October 1, 2012
October 1, 2012
EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES
ePDU Cables (continued)
Accessories
Catalog Cdn List
Number Description Price
010-0322 C19 Receptacle Connector $17
035-0113 C13 Outlet Cap $4
001-0819-1 Mounting Bracket Right $23
001-0819-2 Mounting Bracket Left $23
001-1393-1 Mounting Bracket Adjustable Black - RoHS Compliant $7
001-1928-1 Side Mounting Bracket $32
001-1995-1 Bracket $38
SUB-HRDWARE-017 VPC Bracket - Standard, Offset $15
SUB-HRDWARE-032 Mounting Bracket $6
SUB-HRDWARE-038 Tool-less Mounting Kit $4
Environmental Probes
Catalog Cdn List
Number Description Price
SENSOR-T1-10 Sensor with 1 Temperature Probe $98
SENSOR-T1H1-10 Sensor with 1 Temperature Probe 1 Humidity Probe $122
SENSOR-T2-10 Sensor with 2 Temperature Probes $209
SENSOR-T2H1-10 Sensor with 2 Temperature Probes 1 Humidity Probe $221
12 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook
October 1, 2012
ECLIPSE SURGE SUPPRESSORS
Pulsar series
The Eclipse is Ideal for all uses—computer, peripheral, stereo and video—total
protection against power surges, spikes, nearby lightning strikes and line noise.
• Upto1020joulerating
• Masteron/offswitch
• Instantaneousresponsetime
• Visualalarm(s)
• Audiblealarm(exceptpersonal)
• Circuitbreakerandthermalfuseprotection
• 360ºrotatingplug(exceptpersonal)
Eclipse Surge Suppressors
Catalog Style Dimensions Weight Cdn List
Number Number Description (H x W x D, inches) (lb) Price*
ECLL1800-PER 83500 ECLIPSE Personal 120V 1800W (6) 5-15R 2.00 x 1.25 x 11.00 1.0 $12/ea
ECLL1800-PRO 83501 ECLIPSE Pro 120V 1800W (8) 5-15R 3.88 x 1.31 x 9.75 1.5 $22/ea
ECLL1800-PROTEL 83502 ECLIPSE ProTel 1800W (8) 5-15R 3.88 x 1.31 x 9.75 1.5 $24/ea
* Minimum order in lots of 20 pieces.
13www.eaton.com/powerquality 1.800.461.9166
October 1, 2012
October 1, 2012
EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES
S-Series Rack
Designed for small and medium-sized businesses, the Eaton S-Series Rack manage and support your critical IT equipment.
These standard configured racks are scalable and integrate an array of options including cable management, power
distribution and backup power to provide a full network solution.
• Fully-weldedsteelframethatcanstoreupto2,200poundsofcomputerandnetworkingequipment
• Enhancedframeensureszeroleakagearoundthefrontperimeterandalsofeaturesovalgrommetsinfrontframeverticals
for cable pass-thru between racks
• Splitreardoorsprovideeasieraccessandmaneuverabilityindatacenterenvironments
• Toppanelwithtwosix-inchwidebrushedopeningsforcableegress
• GuaranteedcompatibilitywithEIA-310standardsizeequipment
• Awiderangeofcablemanagementoptionsenhancecableroutinghorizontallyandvertically
• Splitreardoorsprovideeasyaccessandmaneuverability
S-SERIES RACK
Dimensions Cdn List
Description Part Number (H x W x D, inches) Weight (lb) Price
42Ux24"x42" No sides, doors, or castors ETN-ENC422442SE 81.0 x 24.0 x 41.0 171 $1,883
42Ux24"x42" w/divider, castors ETN-ENC422442S 81.0 x 24.0 x 42.0 309 $3,221
42Ux24"x42" w/side panels, castors ETN-ENC422442SB 81.0 x 24.0 x 42.0 367 $3,655
42Ux24"x48" w/divider, castors ETN-ENC422448S 81.0 x 24.0 x 48.0 321 $4,250
42Ux30"x42" w/divider, castors ETN-ENC423042S 81.0 x 30.0 x 48.0 351 $4,101
42Ux30"x48" w/divider, castors ETN-ENC423048S 81.0 x 30.0 x 48.0 364 $5,266
48Ux24"x42" w/divider, castors ETN-ENC482442S 91.0 x 24.0 x 42.0 336 $3,928
48Ux30"x42" w/divider, castors ETN-ENC483042S 91.0 x 30.0 x 42.0 380 $4,708
48Ux24"x48" w/divider, castors ETN-ENC482448S 91.0 x 24.0 x 48.0 350 $4,758
48Ux30"x48" w/divider, castors ETN-ENC483048S 91.0 x 30.0 x 48.0 394 $5,675
S-SERIES RACK OPTIONS
Description Part Number Cdn List Price
Eaton Cable D-Ring Kit 1U (Qty-4) ETN-CMDRNR031U $58
Eaton Cable D-Ring Kit 2U (Qty-4) ETN-CMDRNR032U $62
EatonCableD-RingKit,Plastic,(Qty-4) ETN-STLDRING $154
Eaton Fiber Spool 2.5"H ETN-CMTUNR02 $81
Eaton Fiber Spool 5"H ETN-CMTUNR05 $87
Eaton Velcro Strap 8"L, (Qty-50) ETN-BX45V8 $95
Eaton Velcro Strap 11"L, (Qty-50) ETN-BX45V11 $108
Eaton Velcro Buckle Strap 9"L, (Qty-10) ETN-CMVBCKL $100
Eaton Velcro Buckle Strap 12"L, (Qty-10) ETN-CMVBCKL12 $104
Eaton Cable Strain Relief Bar 2"D ETN-CMRB19022U $104
Eaton Cable Strain Relief Bar 4"D ETN-CMRB19042U $113
Eaton Cable Strain Relief Bar 6"D ETN-CMRB19062U $119
Eaton Cable Strain Relief Bar 8"D ETN-CMRB19082U $123
Eaton Horizontal Ring Manager 1U ETN-CMPD19031U $87
Eaton Horizontal Ring Manager 2U ETN-CMPD19032U $107
Eaton Cable Pass-Thru Panel 1U w/Brush ETN-CMBPBRSH1U $92
Eaton Cable Pass-Thru Panel 2U w/Brush ETN-CMBPBRSH2U $99
Eaton PatchLink Horizontal Cable Manager 1U ETN-CMFD19041U $165
Eaton PatchLink Horizontal Cable Manager 2U ETN-CMFD19042U $225
Eaton Upper Transition Tray 2U x 3.5"D ETN-CMFP19032U $145
Eaton Upper Transition Tray 2U x 5.0"D ETN-CMFP19052U $155
Eaton Lower Transition Tray 2U x 3.5"D ETN-CMLT19032U $183
Eaton Lower Transition Tray 2U x 5.0"D ETN-CMLT19052U $190
Eaton S-Series Data Cable Partition Panel 24" Solid ETN-JCMT24SP $145
Eaton S-Series Data Cable Partition Panel 24" Pass-Thru ETN-JCMT24PP $181
Eaton S-Series Power Cable Trough 24" ETN-JCMT24PT $252
Eaton S-Series Data Cable Partition Panel 30" Solid ETN-JCMT30SP $173
Eaton S-Series Data Cable Partition Panel 30" Pass-Thru ETN-JCMT30PP $180
Eaton S-Series Power Cable Trough 30" ETN-JCMT30PT $275
14 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook
October 1, 2012
EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES
S-Series Rack (continued)
S-SERIES RACK OPTIONS
(continued)
Description Part Number Cdn List Price
Eaton S-Series Cable Ladder Rack 6"W x 10'L BLK ETN-LAD1006B $338
Eaton S-Series Cable Ladder Rack 12"W x 10'L BLK ETN-LAD1012B $383
Eaton S-Series Ladder Rack Bracket Perpendicular ETN-JCMTLDRPD $169
Eaton S-Series Ladder Rack Bracket Parallel ETN-JCMTLDRPR $107
Eaton S-Series Floor Anchor Brackets (S-Series) ETN-JANCHOR1 $240
Eaton Blanking Panel 19" Tool-less Plastic 1U (Qty-10) ETN-PBP1U10 $82
Eaton Blanking Panel 19" Tool-less Plastic 1U (Qty-100) ETN-PBP1U100 $663
Eaton Blanking Panel 19" Tool-less Plastic 2U (Qty-10) ETN-PBP2U10 $108
Eaton Blanking Panel 19" Tool-less Plastic 2U (Qty-100) ETN-PBP2U100 $914
Eaton Blanking Panel 19" Tool-less Plastic 8U (Qty-10) ETN-PBP8U10 $347
Eaton Blanking Panel 19" Tool-less Plastic 8U (Qty-100) ETN-PBP8U100 $2,980
Eaton Shelf Fixed 19" 1U x 20"D 200lbs ETN-FS19201U20 $222
Eaton Shelf Fixed 19" 1U x 20"D 400lbs ETN-FS19201U40 $244
Eaton Shelf Fixed 19" 1U x 24"D 200lbs ETN-FS19241U20 $228
Eaton Shelf Fixed 19" 1U x 24"D 400lbs ETN-FS19241U40 $250
Eaton Shelf Fixed 19" 1U x 28"D 200lbs ETN-FS19281U20 $242
Eaton Shelf Fixed 19" 1U x 28"D 400lbs ETN-FS19281U40 $245
Eaton Shelf Roll-Out 19" 1U x 24"D 100lbs ETN-RS19241U10 $549
Eaton Shelf Roll-Out 19" 2U x 24"D 200lbs ETN-RS19242U20 $886
Eaton Shelf Roll-Out 19" 1U x 28"D 100lbs ETN-RS19281U10 $591
Eaton Shelf Roll-Out 19" 2U x 28"D 200lbs ETN-RS19282U20 $969
Eaton Chassis Support Brackets Adj 19" (20"-32") 400 lbs. ETN-CHASBKT2032 $421
EatonCageNut#10-32HardwareKit(Qty-20) ETN-1032CAGE20 $51
EatonCageNutM6HardwareKit(Qty-20) ETN-M6CAGE20 $56
Eaton S-Series Lacing Bar 42U x 3"W ETN-LACEB42U03 $100
Eaton S-Series Lacing Bar 42U x 8"W ETN-LACEB42U08 $138
Eaton S-Series Lacing Bar 42U x 12"W ETN-LACEB42U12 $182
Eaton S-Series Lacing Bar 48U x 3"W ETN-LACEB48U03 $120
Eaton S-Series Lacing Bar 48U x 8"W ETN-LACEB48U08 $145
Eaton S-Series Lacing Bar 48U x 12"W ETN-LACEB48U12 $190
Eaton S-Series PDU Mounting Brackets ETN-PDUBRCKTW $72
Eaton S-Series Power Mounting Bar 42U x 9"W ETN-PWRBAR42U $181
Eaton S-Series Power Mounting Bar 48U x 9"W ETN-PWRBAR48U $183
Eaton Heavy-Duty Ramp (S-Series) ETN-ENCRMP3784 $305
EatonHeavy-DutyPackagingfor24"WRacksUpcharge ETN-HDPKGUPCH24 $1,474
EatonHeavy-DutyPackagingfor30"WRacksUpcharge ETN-HDPKGUPCH30 $2,317
Eaton Standard-Duty Ramp for 24"W Racks (S-Series) ETN-ENCRMP24 $93
Eaton Standard-Duty Ramp for 30"W Racks (S-Series) ETN-ENCRMP30 $99
EatonFloorGrommet,11"Wx8.25"D(Qty-1) ETN-FLRGR118 $155
EatonFloorGrommet,11"Wx8.25"D(Qty-10) ETN-FLRGR11810 $1,385
EatonFloorGrommet,7.5"Wx6.5"D(Qty-1) ETN-FLRGR76 $139
EatonFloorGrommet,7.5"Wx6.5"D(Qty-10) ETN-FLRGR7610 $1,227
15www.eaton.com/powerquality 1.800.461.9166
October 1, 2012
October 1, 2012
• Connect and monitor up to two temperature sensors, two humidity sensors and four input
contact sensors
• 0Uformfactorspacesavingdesign;doesnottakevaluablespacethatcanbeoccupied
by servers
• Built-inWebserver—access,monitor,configureandevenrebootthedevicefrom
anywhere on the Internet using its own dedicated IP address
• SupportsSNMPandcomeswithitsownMIB(ManagementInformationBase).Can
integrate with any open-standards based Network Management System (NMS) such
as HP OpenView
• One-yearwarrantyonrackmonitorandallsensors
ENVIRONMENTAL RACK MONITORS
Shipping
Dimensions Shipping Cdn List
Description Part Number (H x W x D, inches) Weight (lb) Price
Environmental Rack Monitor, 120V AC 2-pin power input1 103005775 2.5 x 7.6 x 11.9 1.7 $470
Environmental Rack Monitor, C13/C14, 100-250V AC, 50/60Hz 3-pin power input 103005912 2.5 x 7.6 x 11.9 2.2 $470
TH-Module (Black), individual 103005822 2.4 x 6.3 x 8.8 0.7 $98
Environmental Rack Monitor Water Leak Detector, 3ft 103005780 0.6 x 7.9 x 8.2 0.3 $160
Environmental Rack Monitor Water Leak Detector, 12ft 103005894 0.6 x 11.2 x 11.4 0.5 $284
Environmental Rack Monitor Door Contact Sensor 103005781 2.0 x 2.0 x 2.0 0.1 $31
Environmental Rack Monitor Vibration Sensor 103005782 2.0 x 3.0 x 2.0 0.1 $36
Environmental Rack Monitor Power Supply, 120V AC 103005783 2.1 x 2.8 x 4.1 0.2 $24
Environmental Rack Monitor Power Supply, C13/C14 adapter cable, 103005895 2.1 x 2.8 x 4.1 0.2 $43
100-250V AC, 50/60Hz
Environmental Rack Monitor Smoke Detector/Alarm (220V, IEC C-13) 103005779 2.4 x 6.3 x 8.8 2.2 $160
Environmental Rack Monitor Smoke Detector/Alarm (110V, 5-15) 103005890 2.4 x 6.3 x 8.8 2.2 $160
1. Includes one TH-module
EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES
Environmental Rack Monitor (ERM)
16 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook
October 1, 2012
EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES
Eaton Remote Power Panel Part Number Illustration
Eaton is now employing the use of smart part numbers to help our customers understand the product that fits their needs. Follow the example below as
reference only. For ordering purposes please select one of the pre-configured part numbers in the price book or use the online configurator available
through the Power Quality web site.
B1 4 1 A CC 0 3 2 0 3 001
Series
B1 = Small RPP (24”W x 24”D)
B2 = Rack RPP (24”W x 42”D)
Display
0 = None
1 = Single Display
2 = Dual Display
Input Connection
1 = Direct Connect
2-3 = Single Input
4-5 = Dual Input
Door
0 = Solid
1 = See-Thru Plexi
2 = Rack Mesh
Communication
0 = None
2 = Modbus RTU
3=PXGXPDP
4=ModbusRTU&PXGXPDP
Panel Main Breaker
1 = Standard kAIC
2 = High kAIC
Generation
001=Gen1
Panel Type
A = 208V 225A Bolt-on CH
B = 208V 400A Bolt-on CH
C = 208V 225A Plug-on CH
D = 208V 400A Plug-on CH
E = 208V 225A Bolt-on SQD
F = 208V 400A Bolt-on SQD
Front/Rear Configuration
0 = None
A = Top Only (1 Panel)
B = Bottom Only (1 Panel)
C = Top & Bottom (2 Panels)
Metering
0 = None
1 = System Level
2 = Premium BCMS 60A
3 = Premium BCMS 100A
Surge
0 = None
2 = 100kA/ph
3 = 200kA/ph
17www.eaton.com/powerquality 1.800.461.9166
October 1, 2012
October 1, 2012
Eaton RPPs deliver unmatched power distribution with up to 168 factory-installed branch breakers in a
highly compact footprint. These products offer ease of installation through standard top and bottom
cable entry provisions within a free-standing structure. They include extensive monitoring options
such as branch circuit monitoring, which allows you to manage and monitor power effectively.
• Unmatched power distribution in either a highly compact footprint or rack configuration to line and
match with IT equipment racks
• Easeofinstallationthroughstandardtopandbottomcableentryprovision
• Extensivemonitoringoptionsallowyoutomanagepowereffectively
• Factory-testedpowerdistributiontoensurehighestreliability
• Flexibleexpansionforyourpowerdistributionwithinadatacenter
•Includesoneyearlocal(250km)5x8Correctivewarranty,Local5x8start-up
REMOTE POWER PANEL TOPSELLERS (24”W x 24”D x 80”H)
Surge Cdn List
Part Number Description Local Display Protection Door Style Price
Direct Connection to Panel Main Breakers
System Level Monitoring (Includes Power Xpert Gateway PDP Card)
B111AC010113001 Front Only - 2 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front None See-Through Plexi $12,347
B111AC012113001 Front Only - 2 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front 100 kA/ph See-Through Plexi $14,573
per Input
B111BC010103001 Front Only - 2 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer Front None Solid Standard $13,406
B111ACC10213001 Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back None See-Through Plexi $19,537
B111ACC12213001 Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back 100 kA/ph See-Through Plexi $23,991
per Input
B111BCC10203001 Front & Back - 4 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer Front & Back None Solid Standard $21,954
Premium Level Monitoring with BCMS (60A max) (Includes Power Xpert Gateway PDP Card)
B111AC020113001 Front Only - 2 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front None See-Through Plexi $15,714
B111AC022113001 Front Only - 2 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front 100 kA/ph See-Through Plexi $17,941
per Input
B111BC020103001 Front Only - 2 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer Front None Solid Standard $16,773
B111ACC20213001 Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back None See-Through Plexi $23,882
B111ACC22213001 Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back 100 kA/ph See-Through Plexi $28,335
per Input
B111BCC20203001 Front & Back - 4 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer Front & Back None Solid Standard $26,299
Premium Level Monitoring with BCMS (100A max) (Includes Power Xpert Gateway PDP Card)
B111AC030113001 Front Only - 2 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front None See-Through Plexi $16,203
B111AC032113001 Front Only - 2 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front 100 kA/ph See-Through Plexi $18,429
per Input
B111BC030103001 Front Only - 2 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer Front None Solid Standard $17,262
B111ACC30213001 Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back None See-Through Plexi $24,968
B111ACC32213001 Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back 100 kA/ph See-Through Plexi $29,422
per Input
B111BCC30203001 Front & Back - 4 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer Front & Back None Solid Standard $27,385
Single Input Main Lug
System Level Monitoring (Includes Power Xpert Gateway PDP Card)
B121AC010113001 Front Only - 2 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front None See-Through Plexi $13,036
B131ACC10113001 Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front None See-Through Plexi $16,170
B131BAA10103001 Front & Back - 2 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer Front None Solid Standard $15,328
Premium Level Monitoring with BCMS (60A max) (Includes Power Xpert Gateway PDP Card)
B121AC020113001 Front Only - 2 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front None See-Through Plexi $16,404
B131ACC20113001 Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front None See-Through Plexi $22,904
B131BAA20103001 Front & Back - 2 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer Front None Solid Standard $18,695
EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES
Remote Power Panel (RPP)
Remote Power Panel
24"W x 24"D x 80"H
Rack Power Panel
24"W x 42"D x 80"H
18 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook
October 1, 2012
EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES
Remote Power Panel (RPP)
(continued)
REMOTE POWER PANEL TOPSELLERS (24”W x 24”D x 80”H)
(continued)
Surge Cdn List
Part Number Description1 Local Display Protection Door Style Price
Single Input Main Lug (continued)
Premium Level Monitoring with BCMS (100A max) (Includes Power Xpert Gateway PDP Card)
B121AC030113001 Front Only - 2 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front None See-Through Plexi $16,892
B131ACC30113001 Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front None See-Through Plexi $23,991
B131BAA30103001 Front & Back - 2 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer Front None Solid Standard $19,184
Dual Input Main Lugs
System Level Monitoring (Includes Power Xpert Gateway PDP Card)
B141ACC10213001 Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back None See-Through Plexi $20,699
B141BAA10203001 Front & Back - 2 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer Front & Back None Solid Standard $19,858
Premium Level Monitoring with BCMS (60A max) (Includes Power Xpert Gateway PDP Card)
B141ACC20213001 Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back None See-Through Plexi $25,044
B141BAA20203001 Front & Back - 2 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer Front & Back None Solid Standard $20,835
Premium Level Monitoring with BCMS (100A max) (Includes Power Xpert Gateway PDP Card)
B141ACC30213001 Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back None See-Through Plexi $26,130
B141BAA30203001 Front & Back - 2 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer Front & Back None Solid Standard $21,324
RACK POWER PANEL TOPSELLERS (24”W x 42”D x 80”H)
Surge Cdn List
Part Number Description Local Display Protection Door Style Price
Direct Connection to Panel Main Breakers
System Level Monitoring (Includes Power Xpert Gateway PDP Card)
B211AC010113001 Front Only - 2 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front None See-Through Plexi $14,981
B211AC012113001 Front Only - 2 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front 100 kA/ph See-Through Plexi $17,207
per Input
B211BC010103001 Front Only - 2 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer Front None Solid Standard $15,904
B211ACC10213001 Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back None See-Through Plexi $22,171
B211ACC12213001 Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back 100 kA/ph See-Through Plexi $26,516
per Input
B211BCC10203001 Front & Back - 4 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer Front & Back None Solid Standard $24,452
Premium Level Monitoring with BCMS (60A max) (Includes Power Xpert Gateway PDP Card)
B211AC020113001 Front Only - 2 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front None See-Through Plexi $18,348
B211AC022113001 Front Only - 2 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front 100 kA/ph See-Through Plexi $20,575
per Input
B211BC020103001 Front Only - 2 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer Front None Solid Standard $19,271
B211ACC20213001 Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back None See-Through Plexi $26,516
B211ACC22213001 Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back 100 kA/ph See-Through Plexi $30,969
per Input
B211BCC20203001 Front & Back - 4 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer Front & Back None Solid Standard $28,797
Premium Level Monitoring with BCMS (100A max) (Includes Power Xpert Gateway PDP Card)
B211AC030113001 Front Only - 2 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front None See-Through Plexi $18,837
B211AC032113001 Front Only - 2 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front 100 kA/ph See-Through Plexi $21,063
per Input
B211BC030103001 Front Only - 2 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer Front None Solid Standard $19,760
B211ACC30213001 Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back None See-Through Plexi $27,494
B211ACC32213001 Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back 100 kA/ph See-Through Plexi $31,947
per Input
B211BCC30203001 Front & Back - 4 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer Front & Back None Solid Standard $29,775
Single Input Main Lug
System Level Monitoring (Includes Power Xpert Gateway PDP Card)
B221AC010113001 Front Only - 2 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front None See-Through Plexi $15,670
B231ACC10113001 Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front None See-Through Plexi $18,804
B231BAA10103001 Front & Back - 2 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer Front None Solid Standard $17,826
19www.eaton.com/powerquality 1.800.461.9166
October 1, 2012
October 1, 2012
EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES
Remote Power Panel (RPP)
(continued)
RACK POWER PANEL TOPSELLERS (24”W x 42”D x 80”H)
(continued)
Surge Cdn List
Part Number Description Local Display Protection Door Style Price
Single Input Main Lug (continued)
Premium Level Monitoring with BCMS (60A max) (Includes Power Xpert Gateway PDP Card)
B221AC020113001 Front Only - 2 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front None See-Through Plexi $19,038
B231ACC20113001 Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front None See-Through Plexi $25,538
B231BAA20103001 Front & Back - 2 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer Front None Solid Standard $21,194
Premium Level Monitoring with BCMS (100A max) (Includes Power Xpert Gateway PDP Card)
B221AC030113001 Front Only - 2 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front None See-Through Plexi $19,526
B231ACC30113001 Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front None See-Through Plexi $26,516
B231BAA30103001 Front & Back - 2 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer Front None Solid Standard $21,682
Dual Input Main Lugs
System Level Monitoring (Includes Power Xpert Gateway PDP Card)
B241ACC10213001 Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back None See-Through Plexi $23,334
B241BAA10203001 Front & Back - 2 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer Front & Back None Solid Standard $22,356
Premium Level Monitoring with BCMS (60A max) (Includes Power Xpert Gateway PDP Card)
B241ACC20213001 Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back None See-Through Plexi $27,678
B241BAA20203001 Front & Back - 2 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer Front & Back None Solid Standard $23,334
Premium Level Monitoring with BCMS (100A max) (Includes Power Xpert Gateway PDP Card)
B241ACC30213001 Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back None See-Through Plexi $28,656
B241BAA30203001 Front & Back - 2 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer Front & Back None Solid Standard $23,822
REMOTE AND RACK POWER PANEL TOPSELLERS
-
OPTIONS
Part Number Description Cdn List Price
157607364 Transient Suppression Plate - 4'W x 4'D plate $268
157607206 Extra Knock-out Plates - 84 holes $182
157607208 Extra Blank Plates $182
124100030-009 Low Voltage Control Junction Box $396
REMOTE AND RACK POWER PANEL TOPSELLERS
-
BRANCH BREAKERS
For branch breakers, please refer to the Eaton Branch Circuit Breakers section.
For additional service options please call 1-800-461-9166 for pricing.
20 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook
October 1, 2012
EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES
Eaton Power Distribution Rack Part Number Illustration
Eaton is now employing the use of smart part numbers to help our customers understand the product that the fits their needs. Follow the example below
as reference only. For ordering purposes please select one of the pre-configured part numbers in the price book or use the online configurator available
through the Power Quality web site.
PD 1 1 2 0 0 0 2 0 1 0 0 0 1
PDR
Display
1 = Single UCB/display(Front)
2 = Single UCB/Dual Display
3 = Dual UCB/Dual Display
Voltage
208/1/20V
Door
0 = Standard Mesh Door
1 = See-Thru Plexi
2 = Mesh with cut out
None
Input
1 = Direct connection
2 = Single input 800A lug
3 = Dual input 800A lug
4 = Single 400A main CB
5 = Single 600A main CB
6 = Dual 400A main CB
7 = Dual 600A main CB
Gen Code
Front
1 = 1x 225A 42cct PB
2 = 2 x 225A 42 cct PB
3 = 1 x 400A 42 cct PB
4 = 2 x 400A 42 cct PB
Access
1 = No side access
2 = Left side access
Rear
1 = 1x 225A 42cct PB
2 = 2 x 225A 42 cct PB
3 = 1 x 400A 42 cct PB
4 = 2 x 400A 42 cct PB
SPD
0 = None
1 = 50KA 1 unit
2 = 100KA 1 unit
3 = 50KA 2 unit
4 = 100KA 2 unit
5 = 50KA 3 unit
6 = 100KA 3 unit
7 = 50KA 4 unit
8 = 100KA 4 unit
Metering
0 = None
2 = System Level
3 = Premium BCMS 60A
4 = Premium BCMS 100A
Custom
0 = None
1 = Breakers installed
None
21www.eaton.com/powerquality 1.800.461.9166
October 1, 2012
October 1, 2012
EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES
Power Distribution Rack (PDR)
Eaton PDRs are designed for high power applications in data center and rack equipment environments. The PDR packs up
to four 400A column panelboards into a single EIA standard Enclosure allowing users to take full advantage of all 168 pole
positions. The PDR offers top and bottom cable entry for fast, flexible installation. Available options include 100% rated
breakers, plexiglas doors and cabinet main input breakers.
• Flexiblepowerdistributionwithupto168factory-installedbranchbreakersinahighlycompactfootprint
• Designedforhigh-densityracks,with400Apanelsandhighpowerinputs
• Aestheticallypleasingdesign,withanelegantrackEnclosureintexturedblackfinish
• Free-standingunitwithtopandbottomcableentryforfast,flexibleinstallation
• Frontand/orrearaccess,columnpowerpanels,largeLCDforeaseofservicing
• Extensivemonitoringoptions,includingtheEatonEnergyManagementSystem
•Includes one year local (250 km) 5x8 Corrective warranty, Local 5x8 start-up
POWER DISTRIBUTION RACK TOPSELLERS
Surge Cdn List
Part Number Description Local Display Protection Door Style Price
Direct Connection to Panel Main Breakers
System Level Monitoring
PD1122002031001 Front & Back - 4 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back None Plexi $21,536
PD1120102011001 Front only - 2 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front None Plexi $16,061
PD1120032010001 Front only - 2 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front 50 kA/ph Mesh $17,745
per Input
PD1122182030001 Front & Back - 4 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back 100 kA/ph Mesh $26,913
per Input
Premium Level Monitoring with BCMS (60A max)
PD1122003031001 Front & Back - 4 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back None Plexi $25,870
PD1120103011001 Front only - 2 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front None Plexi $19,157
PD1120033010011 Front only - 2 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front 50 kA/ph Plexi $21,112
per Input
PD1122183030001 Front & Back - 4 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back 100 kA/ph Mesh $31,246
per Input
Premium Level Monitoring with BCMS (100A max)
PD1144104030001 Front & Back - 4 Panels - 208/120V 400A Bolt-on Cutler-Hammer Front & Back None Mesh $31,073
PD1122004030001 Front & Back - 4 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back None Mesh $25,946
PD1120004010001 Front only - 2 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front None Mesh $19,048
PD1140004010001 Front only - 2 Panels - 208/120V 400A Bolt-on Cutler-Hammer Front None Mesh $22,046
Single Input Main Lug
System Level Metering
PD1244102030001 Front & Back - 4 Panels - 208/120V 400A Bolt-on Cutler-Hammer Front & Back None Mesh $28,564
PD1222102010001 Front & Back - 4 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back None Mesh $23,437
PD1200002011011 Front only - 2 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front None Plexi $18,234
PD1222002031011 Front & Back - 4 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back None Plexi $23,708
Premium Level Monitoring with BCMS (60A max)
PD1244103030001 Front & Back - 4 Panels - 208/120V 400A Bolt-on Cutler-Hammer Front & Back None Mesh $32,897
PD1222103030001 Front & Back - 4 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back None Mesh $27,771
PD1244103030011 Front & Back - 4 Panels - 208/120V 400A Bolt-on Cutler-Hammer Front & Back None Plexi $33,169
PD1244003030011 Front & Back - 4 Panels - 208/120V 400A Bolt-on Cutler-Hammer Front & Back None Plexi $28,042
Premium Level Monitoring with BCMS (100A max)
PD1244104030001 Front & Back - 4 Panels - 208/120V 400A Bolt-on Cutler-Hammer Front & Back None Mesh $33,245
PD1222104030001 Front & Back - 4 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back None Mesh $28,118
PD1244104030011 Front & Back - 4 Panels - 208/120V 400A Bolt-on Cutler-Hammer Front & Back None Plexi $33,517
PD1220004011001 Front only - 2 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front None Plexi $21,492
22 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook
October 1, 2012
EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES
Power Distribution Rack (PDR)
(continued)
POWER DISTRIBUTION RACK TOPSELLERS
Surge Cdn List
Part Number Description Local Display Protection Door Style Price
Dual Input Main Lugs
System Level Metering
PD1344102031001 Front & Back - 4 Panels - 208/120V 400A Bolt-on Cutler-Hammer Front & Back None Plexi $31,007
PD1322102030001 Front & Back - 4 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back None Mesh $25,609
PD1322002031001 Front & Back - 4 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back None Plexi $25,881
Premium Level Monitoring with BCMS (60A max)
PD1322103031001 Front & Back - 4 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back None Plexi $33,821
PD1344103031001 Front & Back - 4 Panels - 208/120V 400A Bolt-on Cutler-Hammer Front & Back None Plexi $35,341
PD1322003030001 Front & Back - 4 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back None Mesh $29,943
PD1344003031001 Front & Back - 4 Panels - 208/120V 400A Bolt-on Cutler-Hammer Front & Back None Plexi $35,070
Premium Level Monitoring with BCMS (100A max)
PD1322104030001 Front & Back - 4 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back None Mesh $30,291
PD1344104030001 Front & Back - 4 Panels - 208/120V 400A Bolt-on Cutler-Hammer Front & Back None Mesh $35,417
PD1322004031001 Front & Back - 4 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back None Plexi $30,562
PD1344004031001 Front & Back - 4 Panels - 208/120V 400A Bolt-on Cutler-Hammer Front & Back None Plexi $35,689
Single Input Main Breaker (400A)
System Level Metering
PD1420102010001 Front only - 2 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front None Mesh $18,505
PD1422002030001 Front & Back - 4 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back None Mesh $23,980
Premium Level Monitoring with BCMS (60A max)
PD1420003011001 Front only - 2 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front None See-Through Plexi $21,873
PD1420003012001 Front only - 2 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front None Mesh w/ Cut-out $21,764
Premium Level Monitoring with BCMS (100A max)
PD1420004011001 Front only - 2 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front None See-Through Plexi $22,035
PD1420004012001 Front only - 2 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front None Mesh w/ Cut-out $21,927
Dual Input Main Breaker (600A)
System Level Metering
PD1722102030001 Front & Back - 4 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back None Mesh $28,868
PD1744102030001 Front & Back - 4 Panels - 208/120V 400A Bolt-on Cutler-Hammer Front & Back None Mesh $33,995
Premium Level Monitoring with BCMS (60A max)
PD1722103031001 Front & Back - 4 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back None Plexi $33,202
PD1744103030001 Front & Back - 4 Panels - 208/120V 400A Bolt-on Cutler-Hammer Front & Back None Mesh $38,328
Premium Level Monitoring with BCMS (100A max)
PD1722104031001 Front & Back - 4 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back None Plexi $33,549
PD1744104030001 Front & Back - 4 Panels - 208/120V 400A Bolt-on Cutler-Hammer Front & Back None Mesh $38,676
POWER DISTRIBUTION RACK TOPSELLERS
-
OPTIONS
Part Number Description Cdn List Price
103008064-5591 PowerXpertGatewayCommunicationPDPCard  $1,272
124100030-009 Control Junction Box $396
157607364 Transient Suppression Plate $241
Notes: PDRs come with 42-circuit column panelboards with 225A or 400A panel main breakers. Please contact factory for custom configurations.
For additional service options please call 1-800-461-9166 for pricing.
23www.eaton.com/powerquality 1.800.461.9166
October 1, 2012
October 1, 2012
EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES
Eaton Branch Circuit Breakers
Eaton Cutler-Hammer bolt-on branch circuit breakers can be installed in any 42-pole Cutler-Hammer panelboard providing over-current and high
interrupting current protection. Single-, double- and three-pole breakers can be provided from 10 to 100A trip rating and 10 or 22 kAIC.
Single-pole Breakers
Part Number Trip Rating kAIC Cdn List Price
BAB1010 10A 10 $18
BAB1015 15A 10 $18
BAB1020 20A 10 $18
BAB1025 25A 10 $18
BAB1030 30A 10 $18
BAB1035 35A 10 $18
BAB1040 40A 10 $18
BAB1045 45A 10 $18
BAB1050 50A 10 $18
BAB1055 55A 10 $18
BAB1060 60A 10 $18
QBHW1015 15A 22 $28
QBHW1020 20A 22 $28
QBHW1025 25A 22 $28
QBHW1030 30A 22 $28
QBHW1035 35A 22 $28
QBHW1040 40A 22 $28
QBHW1045 45A 22 $28
QBHW1050 50A 22 $28
QBHW1055 55A 22 $28
QBHW1060 60A 22 $28
Double-pole Breakers Three-pole Breakers
Part Number Trip Rating kAIC Cdn List Price Part Number Trip Rating kAIC Cdn List Price
BAB2010 10A 10 $31 BAB3015H 15A 10 $102
BAB2015 15A 10 $31 BAB3020H 20A 10 $102
BAB2020 20A 10 $31 BAB3025H 25A 10 $102
BAB2025 25A 10 $31 BAB3030H 30A 10 $102
BAB2030 30A 10 $31 BAB3035H 35A 10 $102
BAB2035 35A 10 $31 BAB3040H 40A 10 $102
BAB2040 40A 10 $31 BAB3045H 45A 10 $102
BAB2045 45A 10 $31 BAB3050H 50A 10 $102
BAB2050 50A 10 $31 BAB3055H 55A 10 $102
BAB2055 55A 10 $31 BAB3060H 60A 10 $102
BAB2060 60A 10 $31 QBHW3015H 15A 22 $148
BAB2070 70A 10 $60 BAB3070H 70A 10 $163
BAB2080 80A 10 $60 BAB3080H 80A 10 $163
BAB2090 90A 10 $60 BAB3090H 90A 10 $163
BAB2100 100A 10 $60 BAB3100H 100A 10 $163
QBHW2015 15A 22 $44 QBHW3020H 20A 22 $148
QBHW2020 20A 22 $44 QBHW3025H 25A 22 $148
QBHW2025 25A 22 $44 QBHW3030H 30A 22 $148
QBHW2030 30A 22 $44 QBHW3035H 35A 22 $148
QBHW2035 35A 22 $44 QBHW3040H 40A 22 $148
QBHW2040 40A 22 $44 QBHW3045H 45A 22 $148
QBHW2045 45A 22 $44 QBHW3050H 50A 22 $148
QBHW2050 50A 22 $44 QBHW3055H 55A 22 $148
QBHW2055 55A 22 $44 QBHW3060H 60A 22 $148
QBHW2060 60A 22 $44 QBHW3070H 70A 22 $236
QBHW2070 70A 22 $79 QBHW3080H 80A 22 $236
QBHW2080 80A 22 $79 QBHW3090H 90A 22 $236
QBHW2090 90A 22 $79 QBHW3100H 100A 22 $236
QBHW2100 100A 22 $79
24 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook
October 1, 2012
EATON CATALOG NUMBER ORDERING INSTRUCTIONS
Single-phase Products
Eaton is now employing the use of smart part numbers to help our customers design the product that fits their needs and makes ordering a snap.
Follow the example below to see how to easily select your product’s features and create the catalog number for your order.
PW 9130 G 2000 R - XL 2U EU
Series Descriptor
PW = Eaton series
Form Factor
R = Rackmount
T = Tower
Family
9130 = Online 700-3000 kVA
9135 = Online 5-6 kVA
Option Field 1: Runtime
XL = Extended runtime (None = Standard)
EBM = Extended battery module
PDM = Power distribution module
Option Field 2: U size
1U = 1U package (Blank = Tower)
2U = 2U package
3U = 3U package etc...
Voltage
L = 120V, nominal* J = 200V only
G=208V,nominal* N=Voltageirrelevant
I = 230V, nominal*
Option Field 3: Open
Two characters (325 combinations)
EU = European model/IEC outlets
HW = Hardwired
VA
3-5 characters
e.g. 700 or 12000
*Other selectable voltages vary by product
25www.eaton.com/powerquality 1.800.461.9166
October 1, 2012
October 1, 2012
EATON 3S UPS
Eaton series
Standby UPS (350750 VA)
The sleek Eaton 3S delivers high efficiency and energy-saving battery backup and surge protection for your premium home and office equipment —
ready to go right out of the box.
• Easeofuse:Plug-and-playcapability—featuresHID-compliantUSBportforautomaticintegrationwith
Windows, Mac and Linux (no drivers required)
• EcoControlfor30%greaterenergysavingsthanatypicalbatterybackup   
• Attractivedesignandglossyfinishmakethe3Saperfectfitforthemodernofficeenvironment
• Upto10receptacles—(5)batterybackupandsurgeprotection,(5)surgeprotection
• Protectionfordevicesconnectedtotelephone,faxandEthernetlines
• User-replaceablebatteries
• Integratedgracefulshutdowncapabilityforconnecteddevices
• Warranty(USandCanada):Three-yearlimitedwarranty(thirdyearofwarrantyfreewith
online product registration), $25,000 load protection guarantee
3S NORTH AMERICAN MODELS: 120V, 50/60 Hz
Part Rating Input Output Dimensions Weight Cdn List
Model Number (VA/Watts) Connection Receptacles (H x W x D, inches) (lb) Price
3S 350 3S350 350/200 5-15P (8) 5-15R (4 Battery Backup & 3.4 x 5.5 x 13.2 6.6 $67
4 Surge Protection only)
3S 550 3S550 550/330 5-15P (8) 5-15R (4 Battery Backup & 3.4 x 5.5 x 13.2 7.3 $107
4 Surge Protection only)
3S 750 3S750 750/450 5-15P (10) 5-15R (5 Battery Backup & 3.4 x 6.7 x 13.2 9.7 $152
5 Surge Protection only)
3S INTERNATIONAL MODELS: 230V, 50/60 Hz
Part Rating Input Output Dimensions Weight Cdn List
Model Number (VA/Watts) Connection Receptacles (H x W x D, inches) (lb) Price
3S550IEC 3S550IEC 550/330 C14 (8) C13 (4 Battery Backup & 3.4 x 5.5 x 13.2 7.3 $123
(1) IEC-IEC cable 4 Surge only)
3S700IEC 3S700IEC 700/420 C14 (8) C13 (4 Battery Backup & 3.4 x 6.7 x 13.2 9.7 $173
(1) IEC-IEC cable 4 Surge only)
SOFTWARE
To enable EcoControl functionality on the 750 VA unit, download Personal Solution-Pac software at www.eaton.com/psp. The Intelligent Power Software
Suite is available for download free of charge from www.eaton.com/intelligentpower. See the software and connectivity product sections for more
detail.
3S EXTENDED WARRANTY PLANS
Extended Warranty extends term of Factory Warranty and adds Advanced Exchange
Extended Warranty
Part Number UPS Model Description Cdn List Price
3SW5Y-0001-0750U 3S 5 Year Extended Factory Warranty with Advanced Exchange $31
Additional information about service plan features can be found in the Single-phase Service Plans Overview section of this reference guide.
3S BATTERY BACKUP TIMES (in minutes)
UPS model
Load 50W 100W 150W 200W 250W 300W 350W 400W 450W
3S350 30 12 7 5
3S550 42 18 11 6 4
3S750 61 31 20 13 10 7 6 4 3
Note: Battery runtimes are approximate and may vary with equipment, configuration, battery age, temperature, etc.
26 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook
October 1, 2012
EATON 5110 UPS
Powerware series
Line-interactive UPS (5001500 VA)
Protect your SOHO computer and telephone equipment from the damaging threats that lurk in public utility power.
• Protectagainstpoweroutages,surges,sagsandlinenoise
• Savespacewithacompactdesignthatfitseasilyunderadesk,mountedunderacomputerterminal,orona
computer shelf with quick access to all receptacles
• Keepessentialsystemsrunningthroughpoweroutagesbypluggingthemintoreceptacleswithsurgesuppression
and battery backup
• Conservebatteryruntimebypluggingnon-essentialequipmentintoreceptaclesthathavesurgesuppressiononly
• ExtendUPSservicelifewithuser-replaceablebatteriesanddelivershort-termmobilepowerwithstart-on-battery
capability
• Protectnetwork-connectedequipmentfromsurgescomingoverLANortelephonelines
• USBportandcablesarestandard
• Warranty(USandCanada):Three-yearlimitedwarranty(thirdyearofwarrantyfreewith
online product registration), $150,000 load protection guarantee
5110 NORTH AMERICAN MODELS: 120V, 50/60 Hz
Part Power Out Input Output Dimensions Weight Cdn List
Model Number (VA/Watts) Connection* Receptacles** (H x W x D, inches) (lb) Price
5110 500 103004256-5591 500/300 5-15P (8) 5-15R 10.6 x 3.4 x 10.2 12.1 $154
5110 700 103004257-5591 700/420 5-15P (8) 5-15R 10.6 x 3.4 x 10.2 15.2 $180
5110 1000 103004258-5591 1000/600 5-15P (8) 5-15R 10.6 x 3.4 x 15.1 28.0 $223
5110 1500 103004259-5591 1440/900 5-15P (8) 5-15R 10.6 x 3.4 x 15.1 29.1 $315
5110 INTERNATIONAL MODELS: 230V, 50/60 HZ
Part Power Out Input Output Dimensions Weight Cdn List
Model Number (VA/Watts) Connection*** Receptacles** H x W x D (inches) (lb) Price
5110 500i 103004261-5591 500/300 C14 (8) C13 10.6 x 3.4 x 10.2 13.4 $176
5110 700i 103004262-5591 700/420 C14 (8) C13 10.6 x 3.4 x 10.2 16.5 $207
5110 1500i 103004264-5591 1500/900 C14 (8) C13 10.6 x 3.4 x 15.1 30.2 $363
* 1.8m line cord with 90-degree angle plug **Four battery backup & surge protection; four surge protection only *** 1.8m line patch cord IEC to IEC
SOFTWARE
The Intelligent Power Software Suite is available for download free of charge. See the software and connectivity product sections for more detail.
5110 EXTENDED WARRANTY PLANS
Extended Warranty extends term of Factory Warranty
Part Number UPS Model Description Cdn List Price
5XXGX5110XALLCX 5110 SERVICEPW5110500-1500VADomestic-5YearGOLDPlan $275
Additional information about service plan features can be found in the Single-phase Service Plans Overview section of this reference guide.
5110 BATTERY BACKUP TIMES (in minutes)
Load 30W 60W 90W 120W 150W 180W 210W 240W 270W 300W 330W 360W 390W 420W
500 52 35 22 14 11 8 6 5 4 3 - - - -
700 63 46 34 23 16 12 10 8 7 6 5 4 4 3
Load 120W 180W 240W 300W 360W 420W 480W 540W 600W 660W 720W 780W 840W 900W
1000 52 35 23 17 13 10 9 7 5 - - - - -
1500 62 43 29 20 16 14 12 11 9 8 7 6 5 4.4
Note: Battery runtimes are approximate and may vary with equipment, configuration, battery age, temperature, etc.
27www.eaton.com/powerquality 1.800.461.9166
October 1, 2012
October 1, 2012
Line-interactive UPS (500–1400 VA)
The Eaton 5115 UPS offers Series 5 advanced protection for PCs, small-office-home-office
equipment, workstations and small networking devices.
• ABMtechnologysignificantlyincreasesbatteryservicelife
• Puresinewaveoutputdeliverssmooth,continuouspower
• BuckandBoostvoltageregulationcorrectsincomingvoltagefluctuations
• Hot-swappablebatteriessimplifyservice
• NetworkTransientProtectorisolatesnetwork/phonewiring
• IntelligentPowerSoftwareSuiteprovidesmonitoringandshutdowncapabilities
•Warranty(USandCanada):Three-yearlimitedwarranty(thirdyearofwarrantyfreewith
online product registration), $150,000 load protection guarantee
EATON 5115 UPS TOWER
Powerware series
5115 NORTH AMERICAN TOWER MODELS: 120V, 50/60 Hz1
Part Rating Input Output Dimensions Weight Cdn List
Model Number (VA/Watts) Connection Receptacles (H x W x D inches) (lb) Price
5115 500 05146548-5591 500/320 5-15P (4) 5-15R 7.6 x 5.9 x 10.6 17.2 $272
5115 750 05146554-5591 750/500 5-15P (4) 5-15R 7.6 x 5.9 x 13.2 27.3 $391
5115 1000 05146560-5591 1000/670 5-15P (6) 5-15R 7.6 x 5.9 x 13.2 27.8 $495
5115 1400 05146566-5591 1400/950 5-15P (6) 5-15R 7.6 x 5.9 x 15.4 37.0 $644
1. Bundled with Intelligent Power Software Suite CD and communication cable (DB9f to DB9m P/N 60420064-002).
5115 INTERNATIONAL TOWER MODELS: 230V, 50/60 Hz1
Part Rating Input Output Dimensions Weight Cdn List
Model Number (VA/Watts) Connection Receptacles H x W x D (inches) (lb) Price
5115 500i 05146549-5591 500/320 C14 (4) C13 7.6 x 5.9 x 10.6 17.2 $313
5115 750i 05146555-5591 750/500 C14 (4) C13 7.6 x 5.9 x 13.2 27.3 $449
5115 1000i 05146561-5591 1000/670 C14 (6) C13 7.6 x 5.9 x 13.2 27.8 $569
5115 1400i 05146567-5591 1400/950 C14 (6) C13 7.6 x 5.9 x 15.4 37.0 $706
1. Bundled with Intelligent Power Software Suite CD and communication cable (DB9f to DB9m P/N 60420064-002).
5115 EXTENDED WARRANTY PLANS
Extended Warranty extends term of Factory Warranty
Part Number UPS Model Description Cdn List Price
5XXGX5115XALLCX 5115 SERVICEPW5115500-1500VADomestic-5YearGOLDPlan $275
Additional information about service plan features can be found in the Single-phase Service Plans Overview section of this reference guide.
SOFTWARE
The Intelligent Power Software Suite is available for download free of charge. See the software and connectivity product sections for more detail.
5115 BATTERY BACKUP TIMES (in minutes)
Load (VA/Watts) 5115 500 5115 750 5115 1000 5115 1400
200/128 17 38 41 58
300/192 11 27 28 41
500/320 5 14 15 28
600/402 9 10 19
750/503 6 8 14
900/603 – 6 10
1000/670 – 5 8
1200/804 – – 6
1400/938 – – 5
Note: Runtimes are approximate and may vary with equipment, configuration, battery age, temperature, etc.
View interactive runtime graphs at www.eaton.com/5115
28 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook
October 1, 2012
5115 NORTH AMERICAN RACKMOUNT MODELS: 120V, 50/60 Hz1
Part Rating Input Output Dimensions Weight Cdn List
Model Number (VA/Watts) Connection Receptacles (H x W x D, inches) (lb) Price
5115 500 RM 103003266-6591 500/320 5-15P (4) 5-15R 1.75 x 17.3 x 22.8 35.2 $371
5115 750 RM 103003269-6591 750/520 5-15P (4) 5-15R 1.75 x 17.3 x 22.8 41.4 $599
5115 1000 RM 103003272-6591 1000/670 5-15P (4) 5-15R 1.75 x 17.3 x 22.8 41.4 $780
5115 1500 RM 103003275-6591 1440/1000 5-15P (4) 5-15R 1.75 x 17.3 x 22.8 48.6 $1,016
1. Includes all mounting hardware. Bundled with Intelligent Power Software Suite CD and communication cable (DB9f to DB9m, P/N 60420064-002).
5115 INTERNATIONAL RACKMOUNT MODELS: 230V, 50/60 Hz1
Part Rating Input Output Dimensions Weight Cdn List
Model Number (VA/Watts) Connection Receptacles (H x W x D, inches) (lb) Price
5115 750i RM 103003270-6591 750/520 C14 (4) C13 1.75 x 17.3 x 22.8 41.4 $656
5115 1500i RM 103003276-6591 1440/1000 C14 (4) C13 1.75 x 17.3 x 22.8 48.6 $1,102
1. Includes all mounting hardware. Bundled with Intelligent Power Software Suite CD and communication cable (DB9f to DB9m, P/N 60420064-002).
SOFTWARE AND CONNECTIVITY OPTIONS
Description Part Number Cdn List Price
ConnectUPS-X 116750221-001 $449
PowerXpertGatewayUPSCard PXGXUPS $603
Bundled with Intelligent Power Software Suite CD and communication cable.
See software and connectivity product sections for more detail.
5115 RACKMOUNT EXTENDED WARRANTY PLANS
Extended Warranty extends term of Factory Warranty
Part Number UPS Model Description Cdn List Price
5XXGX5115XALLCX 5115RM SERVICEPW5115RM500-1500VADomestic-5YearGOLDPlan $275
Additional information about service plan features can be found in the Single-phase Service Plans Overview section of this reference guide.
5115 RACKMOUNT BATTERY BACKUP TIMES (in minutes)
Load (VA/Watts) 5115 RM 500 5115 RM 750 5115 RM 1000 5115 RM 1500
200/130 19 37 41 76
300/190 11 25 29 58
500/320 5 13 15 28
750/520 - 6 8 16
900/600 - - 6 11
1000/670 - - 5 9
1200/800 - - - 8
1440/1000 - - - 5
Note: Runtimes are approximate and may vary with equipment, configuration, battery age, temperature, etc.
Line-interactive UPS (500–1500 VA)
The Eaton 5115 UPS rackmount offers high-density, Series 5 advanced protection for
servers, storage systems, network equipment and other critical devices.
• 1Urackheightconservesvaluablerackspaceforothercriticaldeviceswhile
delivering powerful performance
• Uniquechassisdesignadaptsto19-inchrack,wall-mount,side-cabinet(0U),and
bench-top applications
• ABMtechnologysignificantlyincreasesbatteryservicelife
• Truesinewaveoutputdeliverssmooth,continuouspower
• Loadsegmentsenablescheduledshutdownsandextendbackuptimeforcriticaldevices
• Hot-swappablebatteriesminimizedowntime
• StandardUSBandRS-232serialportsextendcommunicationcapacity;X-Slot® options available
• IncludedIntelligentPowerSoftwareSuiteCDprovidesUPSpowermanagement,monitoringandautomaticshutdown
•Warranty(USandCanada):Three-yearlimitedwarranty(thirdyearofwarrantyfreewithonlineproductregistration),$150,000load
protection guarantee
EATON 5115 UPS RACKMOUNT
Powerware series
View interactive runtime graphs at www.eaton.com/5115rm
29www.eaton.com/powerquality 1.800.461.9166
October 1, 2012
October 1, 2012
Line-interactive UPS (6502000 VA)
The Eaton Evolution UPS provides high density power protection for network devices.
• Ideal for rackmount servers, conventional rackmount or tower servers, and network
storage systems
• Sinewaveoutput
• USB,serialandcommunicationslotsasstandard
• Hot-swappablebatteries
• Loadsegmentationprovided
EVOLUTION NORTH AMERICAN MODELS: 120V, 50/60 Hz
Catalog Style Rating Input Output Dimensions Weight Cdn List
Number Number Description (VA/Watts) Connection Receptacles (H x W x D, inches) (lb) Price
EVLL650T 81700 Evolution 650 VA Tower 650/420 5-15P (4) 5-15R 9.2 x 5.8 x 16.5 18.5 $380
EVLL850T 81703 Evolution 850 VA Tower 850/600 5-15P (4) 5-15R 9.2 x 5.8 x 16.5 23.9 $459
EVLL1150T 81705 Evolution 1150 VA Tower 1150/770 5-15P (4) 5-15R 9.2 x 5.8 x 16.5 27.6 $590
EVLL1550T 81709 Evolution 1550 VA Tower 1550/1100 5-15P (4) 5-15R 9.2 x 5.8 x 19.4 36.4 $753
EVLL650R-1U 81701 Evolution 650 VA Rackmount (1U) 650/420 5-15P (4) 5-15R 1.7 (1U) x 17.2 x 14.4 22.3 $421
EVLL850R-1U 81704 Evolution 850 VA Rackmount (1U) 850/600 5-15P (4) 5-15R 1.7 (1U) x 17.2 x 20.2 35.5 $629
EVLL1150R-1U 81706 Evolution 1150 VA Rackmount (1U) 1150/770 5-15P (4) 5-15R 1.7 (1U) x 17.2 x 20.2 36.6 $802
EVLL1550R-1U 81710 Evolution 1550 VA Rackmount (1U) 1550/1100 5-15P (4) 5-15R 1.7 (1U) x 17.2 x 21.9 44.1 $1,008
SOFTWARE AND CONNECTIVITY OPTIONS
Catalog Number Description Cdn List Price
Network-MS Network-MS connectivity card $360
See software and connectivity product sections for more detail.
EVOLUTION EXTENDED SERVICE OPTIONS
Extended Warranty extends term of Factory Warranty
Part Number UPS Model Description Cdn List Price
1440EXWAR1YREVLU Evolution SERVICE Evolution Warranty +1 Year 650-1440VA $130
1440EXWAR3YREVLU Evolution SERVICE Evolution Warranty +3 Year 650-1440VA $304
2000EXWAR1YREVLU Evolution SERVICE Evolution Warranty +1 Year 2000VA $247
2000EXWAR3YREVLU Evolution SERVICE Evolution Warranty +3 Year 2000VA $566
Onsite Flex Service Plans include startup and eNotify Remote Monitoring service
Part Number UPS Model Description Cdn List Price
2000FLEX2YREVLU Evolution SERVICE Evolution Flex 2Yr UPS $2,243
2000FLEX3YREVLU Evolution SERVICE Evolution Flex 3Yr UPS $3,402
2000FLEX5YREVLU Evolution SERVICE Evolution Flex 5Yr UPS $5,649
Additional information about service plan features can be found in the Single-phase Service Plans Overview section of this reference guide.
EATON EVOLUTION UPS
Pulsar series
(this product was formerly known as the Evolution UPS)
30 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook
October 1, 2012
EVOLUTION BATTERY BACKUP TIMES (in minutes) @ 0.7 Power Factor*
Load (VA/Watts) Internal Batteries
EVLL650T / EVLL650R-1U
65/42 53
130/84 31
195/126 18
260/168 13
325/210 9
390/252 7
455/294 6
520/336 4
585/378 3
650/420 2
EVLL850T / EVLL850R-1U
85/60 80
170/120 46
255/180 26
340/240 21
425/300 15
510/360 12
595/420 8
680/480 6
765/540 5
850/600 4
EVLL1150T / EVLL1150R-1U
155/110 77
310/220 42
465/330 22
620/440 17
775/550 12
690/462 10
805/539 7
920/616 6
1035/693 5
1150/770 4
EVLL1550T / EVLL1550R-1U
115/77 61
310/220 42
465/330 29
620/440 21
775/550 14
930/660 11
1085/770 8
1240/880 6
1395/990 5
1550/1100 4
* Backup times are approximate and may vary with equipment, configuration, battery age, temperature, etc.
EATON EVOLUTION UPS
Pulsar series (continued) View interactive runtime graphs
at www.eaton.com/evolution
31www.eaton.com/powerquality 1.800.461.9166
October 1, 2012
October 1, 2012
Line-interactive UPS (1000–2200 VA)
The Eaton 5125 UPS delivers cost-effective power protection for PCs, workstations and servers.
• ABMtechnologysignificantlyincreasesbatteryservicelife
• BuckandDoubleBoostvoltageregulationcorrectsvoltagefluctuationsanddeliverspuresine
wave output
• Extendedruntimecapabilitywithextendedbatterymodules(EBMs)
• Loadsegmentsmaximizeruntimeforcriticaldevices
• Hot-swappablebatteriessimplifyservice
•Warranty(USandCanada):Three-yearlimitedwarranty(thirdyearofwarrantyfreewith
online product registration), $150,000 load protection guarantee
EATON 5125 UPS TOWER
Powerware series
5125 NORTH AMERICAN TOWER MODELS: 120V, 50/60 Hz
Part Rating Input Output Dimensions Weight Cdn List
Model Number (VA/Watts) Connection Receptacles (H x W x D, inches) (lb) Price
5125 1000 05146629-5591 1000/700 5-15P (6) 5-15R 9.81 x 6.38 x 15.79 34.3 $642
5125 1500 05146632-5591 1440/1050 5-15P (6) 5-15R 9.81 x 6.38 x 18.39 50.7 $801
5125 2200 05146635-5591 1920/1600 5-20P (6) 5-15R, (2) 5-20R 9.84 x 8.07 x 19.41 68.3 $1,296
5125 OPTIONS
Part Dimensions Weight Cdn List
Description Number (H x W x D, inches) (lb) Price
Extended Battery Modules
5125 24V EBM (for 1000 Tower) 05146638-5591 9.84 x 6.38 x 18.66 59.5 $517
5125 48V EBM (for 1500/2200 Tower) 05146639-5591 9.84 x 6.38 x 18.66 59.5 $565
SOFTWARE AND CONNECTIVITY OPTIONS
Description Part Number Cdn List Price
ConnectUPS-X 116750221-001 $449
PowerXpertGatewayUPSCard PXGXUPS $603
Bundled with Intelligent Power Software Suite CD and communication cable.
See software and connectivity product sections for more detail.
5125 TOWER EXTENDED SERVICE OPTIONS
Extended Warranty extends term of Factory Warranty
Part Number UPS Model Description Cdn List Price
5XXGX51252200CX 5125 SERVICEPW5125Tower1000-2200VADomestic-5YearGoldPlan $394
5XXGX5100BM48CX 5125 SERVICEPW5125TowerEBM24&48Domestic-5YearGoldPlan $569
Additional information about service plan features can be found in the Single-phase Service Plans Overview section of this reference guide.
5125 TOWER BATTERY BACKUP TIMES (in minutes, full load/half load)*
Load (VA) Standard Internal Batteries +1 EBM +2 EBMs +3 EBMs +4 EBMs
1000 5/14 25/60 55/170 83/199 109/228
1500 6/17 33/79 63/146 92/174 120/201
2200 5/14 26/60 55/170 81/198 106/224
*Up to four EBMs can be connected to the 1000–2200 VA models. EBM runtimes include internal batteries. Runtime chart provides typical information. Battery backup times are approximate and may
vary with equipment, configuration, battery age, temperature, etc.
View interactive runtime graphs
at www.eaton.com/5125
32 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook
October 1, 2012
Line-interactive UPS (1440–3000 VA)
The Eaton 5P UPS provides advanced power conditioning and unparalleled battery backup for network closets and small data centers.
• Line-interactivetopologywithsinewaveoutput
• Industry-leadingefficiencyofupto99percent
• MetersenergyconsumptionattheUPSlevel
• DisplayscriticalUPSinformationinanext-generationgraphicalLCD
• Protectsmoredevicesbyprovidingupto28percentmorewattagethantraditionalUPSs
• ABMtechnologyextendsbatterylifeby50percent
• Comeswithfreemonitoringandmanagementsoftware,perfectforvirtualizedenvironments
• Hot-swappablebatteriesallowyoutoreplacebatterieswhiletheUPSstayson
• Loadsegmentsenableshutdownofconnecteddevicesforincreasedruntime
• 4-postrailkitincludedwithRTmodels(2-postrailkitoptional)
•Warranty(USandCanada):Three-yearlimitedwarranty(thirdyearofwarrantyfreewithonline
product registration), five-year extended warranty plans available, $150,000 load protection guarantee
EATON 5P UPS RACK/TOWER
5P RACK/TOWER MODELS¹: 120V, 50/60 Hz
Dimensions
Catalog Rating Input Output (H x W x D, Weight Cdn List
Number Description (VA/Watts) Connection Receptacles inches) (lb) Price
5P1500RT 5P 1500 VA 120V Rack/Tower 2U 1440/1440 5-15P (8) 5-15R 3.4 (2U) x 17.4 x 20.6 72 $1,081
5P2200RT 5P 2200 VA 120V Rack/Tower 2U 1950/1920 5-20P (8) 5-20R 3.4 (2U) x 17.4 x 20.6 73 $1,652
5P3000RT 5P 3000 VA 120V Rack/Tower 2U 3000/2700 L5-30P (6) 5-20R, (1) L5-30R 3.4 (2U) x 17.4 x 20.6 95 $1,978
5P TOWER MODELS¹: 120V, 50/60 Hz
Dimensions
Catalog Rating Input Output (H x W x D, Weight Cdn List
Number Description (VA/Watts) Connection Receptacles inches) (lb) Price
5P2200 5P 2200 VA 120V Tower 1950/1920 5-20P (8) 5-20R 3.4 (2U) x 17.4 x 20.6 67 $1,246
5P3000 5P 3000 VA 120V Tower 3000/2700 L5-30P (6) 5-20R, (1) L5-30R 3.4 (2U) x 17.4 x 20.6 89 $1,685
5P OPTIONS
Catalog Number Description Cdn List Price
Rail kits
103007018-5591 Two-post rack mounting rail kit $87
RK4PC Four-post rack mounting rail kit $62
Catalog For use with Input Output Dimensions Cdn List
Number Description 5P model Connection Receptacles (H x W x D, inches) Price
Power distribution and maintenance bypass
EHBPL1500R-PDU1U HotSwap Maintenance Bypass (MBP) 5P1500RT 5-15P (6) 5-15R 2.1 x 17.3 x 3.8 $299
EHBPL2000R-PDU1U HotSwap Maintenance Bypass (MBP) 5P2200RT 5-20P (6) 5-15R 2.1 x 17.3 x 3.8 $357
EHBPL3000R-PDU1U HotSwap Maintenance Bypass (MBP) 5P3000RT L5-30P (5) 5-20R 2.1 x 17.3 x 3.8 $519
5P EXTENDED SERVICE OPTIONS
Extended Warranty extends term of Factory Warranty
Part Number UPS Model Description Cdn List Price
3000EXWAR2YR5PXU 5P/PX SERVICE 5P/PX UPS Warranty +2 Year 1500-3000va, 5YR Total Depot $481
Additional information about service plan features can be found in the Single-phase Service Plans Overview section of this reference guide
5P BATTERY BACKUP TIMES (in minutes)
UPS model
Load 200W 400W 600W 800W 1000W 1200W 1500W 1800W 22000W 2500W 2700W
5P1500RT 56 26 15 9 7 5 3 - - - -
5P2200RT, 5P2200 59 33 20 13 8 6 4 3 - - -
5P3000RT, 5P3000 - 41 27 19 14 12 9 7 5 4 4
Note: Battery runtimes are approximate and may vary with equipment, configuration, battery age, temperature, etc.
33www.eaton.com/powerquality 1.800.461.9166
October 1, 2012
October 1, 2012
EATON 5PX UPS RACK/TOWER
Extended Run Capable
5PX NORTH AMERICAN MODELS: 120V, 50/60 Hz
Catalog Rating Input Output Dimensions Weight Cdn List
Number Description (VA/Watts) Connection Receptacles (H x W x D, inches) (lb) Price
5PX1000RT Eaton 5PX 1000 VA 120V Rack / Tower 2U 1000/1000 5-15P (8ft) (8) 5-15R 3.4 (2U) x 17.4 x 20.6 62 $872
5PX1500RT Eaton 5PX 1500 VA 120V Rack / Tower 2U 1440/1440 5-15P (8ft) (8) 5-15R 3.4 (2U) x 17.4 x 20.6 65 $1,141
5PX1500RTN Eaton 5PX 1500 VA with Network Card-MS 1440/1440 5-15P (8ft) (8) 5-15R 3.4 (2U) x 17.4 x 20.6 65 $1,450
5PX2200RT Eaton 5PX 2200 VA 120V Rack / Tower 2U 1950/1920 5-20P (8ft) (4) 5-20R, (4) 5-15R 3.4 (2U) x 17.4 x 20.6 65 $1,871
5PX2200RTN Eaton 5PX 2200 VA with Network Card-MS 1950/1920 5-20P (8ft) (4) 5-20R, (4) 5-15R 3.4 (2U) x 17.4 x 20.6 65 $2,179
5PX3000RT2U Eaton 5PX 3000 VA 120V Rack / Tower 2U 3000/2700 L5-30P (10ft) (6) 5-20R, (1) L5-30R 3.4 (2U) x 17.4 x 25.4 87 $2,206
5PX3000RTN Eaton 5PX 3000 VA with Network Card-MS 3000/2700 L5-30P (10ft) (6) 5-20R, (1) L5-30R 3.4 (2U) x 17.4 x 25.4 87 $2,286
5PX3000RT3U Eaton 5PX 3000 VA 120V Rack / Tower 3U 3000/2700 L5-30P (10ft) (6) 5-20R, (1) L5-30R 5.1 (3U) x 17.4 x 19.6 86 $2,314
5PX INTERNATIONAL MODELS: 208/230V, 50/60 Hz
Catalog Rating Input Output Dimensions Weight Cdn List
Number Description (VA/Watts) Connection Receptacles (H x W x D, inches) (lb) Price
5PX1500iRT Eaton 5PX 1500 VA 208/230V Rack / Tower 2U 1500/1350 C14 (8) C13 3.4 (2U) x 17.4 x 20.6 61 $1,293
5PX2200iRT Eaton 5PX 2200 VA 208/230V Rack / Tower 2U 2200/1980 C20 (1) C19, (8) C13 3.4 (2U) x 17.4 x 20.6 63 $2,105
5PX3000iRT2U Eaton 5PX 3000 VA 208/230V Rack / Tower 2U 3000/2700 C20 (1) C19, (8) C13 3.4 (2U) x 17.4 x 25.4 84 $2,488
5PX3000iRTN Eaton 5PX 3000 VA with Network Card-MS 3000/2700 C20 (1) C19, (8) C13 3.4 (2U) x 17.4 x 25.4 84 $2,797
5PX OPTIONS
Catalog Rating For use with Dimensions Weight Cdn List
Number Description (VA) 5PX model (H x W x D, inches) (lb) Price
Extended Battery Modules
5PXEBM48RT Eaton 5PX 48V EBM Rack / Tower 2U 48V 5PX1000RT, 5PX1500RT, 5PX2200RT 3.4 (2U) x 17.4 x 20.0 72 $726
5PXEBM72RT2U Eaton 5PX 72V EBM Rack / Tower 2U 72V 5PX3000RT2U 3.4 (2U) x 17.4 x 25.5 102 $1,065
5PXEBM72RT3U Eaton 5PX 72V EBM Rack / Tower 3U, 72V 5PX3000RT3U 5.1 (3U) x 17.4 x 19.6 98 $1,065
short depth
Two-post rail kit
103007018-5591 Two-post rack mounting rail kit (supports 2U models only) $87
Catalog For use with Input Output Dimensions Cdn List
Number Description 5PX model Connection Receptacles (H x W x D, inches) Price
Power distribution and maintenance bypass
EHBPL1500R-PDU1U HotSwap Maintenance Bypass (MBP) 5PX1000RT, 5PX1500RT 5-15P (6) 5-15R 2.1 x 17.3 x 3.8 $299
EHBPL2000R-PDU1U HotSwap Maintenance Bypass (MBP) 5PX2200RT 5-20P (6) 5-15R 2.1 x 17.3 x 3.8 $357
EHBPL3000R-PDU1U HotSwap Maintenance Bypass (MBP) 5PX3000RT2U, L5-30P (5) 5-20R 2.1 x 17.3 x 3.8 $519
5PX3000RT3U
For detailed information on FlexPDU and HotSwap Maintenance Bypass products, please refer to the Eaton Power Distribution and Enclosures section.
Line-interactive UPS (1000–3000 VA)
The Eaton 5PX UPS provides advanced power conditioning and unparalleled battery backup for network
closets and small data centers.
• Line-interactivetopologywithsinewaveoutput
• Industry-leadingefficiencyofupto99percent
• Metersenergyconsumptiondowntotheoutletsegments
• DisplayscriticalUPSinformationinanext-generationgraphicalLCD
• Protectsmoredevicesbyprovidingupto28percentmorewattagethantraditionalUPSs
• ABMtechnologyextendsbatterylifeby50percent
• Extendedavailableruntimebyaddingupto4EBMs
• Comeswithfreemonitoringandmanagementsoftware,perfectforvirtualizedenvironments
• Hot-swappablebatteriesallowyoutoreplacebatterieswhiletheUPSstayson
• Loadsegmentsenableshutdownofconnecteddevicesforincreasedruntime
• 4-postrailkitincluded(2-postrailkitoptional)
•Warranty(USandCanada):Three-yearlimitedwarranty(thirdyearofwarrantyfreewith
online product registration), five-year extended warranty plans available, $150,000 load protection guarantee
34 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook
October 1, 2012
EATON 5PX UPS RACK/TOWER
Eaton series (continued)
SOFTWARE AND CONNECTIVITY OPTIONS
Catalog Number Description Cdn List Price
Network-MS Network Card-MS $360
See software and connectivity product sections for more detail.
5PX EXTENDED SERVICE OPTIONS
Extended Warranty extends term of Factory Warranty
Part Number UPS Model Description Cdn List Price
1000EXWAR2YR5PXU 5PX SERVICE 5PX UPS Warranty +2 Year 1000va, 5Yr Total Depot $258
2200EXWAR2YR5PXB 5PX SERVICE 5PX EBM Warranty +2 Year 1000-2200va, 5 Yr Total Depot $258
3000EXWAR2YR5PXU 5P/PX SERVICE 5P/PX UPS Warranty +2 Year 1500-3000va, 5YR Total Depot $481
3000EXWAR2YR5PXB 5PX SERVICE 5PX EBM Warranty +2 Year 3000va, 5Yr Total Depot $481
Additional information about service plan features can be found in the Single-phase Service Plans Overview section of this reference guide.
5PX BATTERY BACKUP TIMES (in minutes)1
Load (VA/Watts) Internal Batteries +1 EBM +2 EBMs +3 EBMs +4 EBMs
5PX1000RT (with 5PXEBM48RT)
100/70 120 462 796 1131 1466
250/175 69 286 490 695 899
500/350 30 145 254 364 473
750/525 17 83 151 219 286
1000/700 11 59 108 156 204
1000/10002 7 39 71 103 135
5PX1500RT (with 5PXEBM48RT)
150/105 81 334 550 765 981
375/262 43 187 315 442 569
750/525 18 87 150 214 277
1125/787 9 50 89 129 169
1440/1050 6 35 66 96 126
1440/14402 3 21 41 62 82
5PX2200RT (with 5PXEBM48RT)
195/136 71 274 465 656 847
488/341 39 154 270 385 501
975/682 16 67 123 179 236
1463/1045 8 36 67 93 128
1950/1365 5 26 48 65 93
2200/19202 3 15 29 36 57
5PX3000RT2U or 5PX3000RT3U (with 5PXEBM72RT2U or 5PXEBM72RT3U)
300/210 63 273 470 667 864
750/525 31 148 254 360 465
1500/1050 13 64 111 158 206
2250/1575 8 35 64 94 123
3000/2100 6 26 48 70 91
3000/27002 4 19 35 52 68
1. Battery backup times are approximate and may vary with equipment, configuration, battery age, temperature, etc. International model runtimes are available; please visit www.eaton.com/5PX for
details. 2. Runtimes shown at full load with maximum power factor.
View interactive runtime graphs at www.eaton.com/5PX
35www.eaton.com/powerquality 1.800.461.9166
October 1, 2012
October 1, 2012
Line-interactive UPS (5000–6000 VA)
The 5125 delivers a space-saving 3U rack height package and is the ideal high-density power
protection solution for your servers, storage systems, network equipment and other critical devices.
• ABMtechnologysignificantlyincreasesbatteryservicelife
• Loadsegmentcontrol(separatereceptaclesgroups)enablesscheduledshutdownsand
maximum runtime for each critical device
• Communicationbayallowsforoptionalcommunicationcardsforremotemanagement;
USB and serial ports extend capacity
• Hot-swappablebatteryandelectronicsmodulessimplifyservice,providehighavailability
and faster mean time to repair
•Warranty(USandCanada):Three-yearlimitedwarranty(thirdyearofwarrantyfreewith
 onlineproductregistration),optionalGoldPlansavailable,$150,000loadprotectionguarantee
5125 RACKMOUNT MODELS: 200–240V
Part Rating Input Output Dimensions Weight Cdn List
Model Number (VA/Watts) Connection Receptacles (H x W x D, inches) (lb) Price
5125 5000 103003611-5591 5000/4500 L6-30P L6-30R on short cord 5.25 (3U) x 17.50 x 26.00 161 $3,717
(2) L6-20, (4) C13
5125 6000 HW 103003610-5591 6000/5400 Hardwired Hardwired 5.25 (3U) x 17.50 x 26.00 161 $4,154
(4) C19, (4) C13
5125 RACKMOUNT OPTIONS
Dimensions Weight Cdn List
Model Part Number (H x W x D, inches) (lb) Price
Extended Battery Modules
5125 240V EBM (Black) 103003387-6591 5.25 (3U) x 17.50 x 26.0 169 $1,606
Notes: EBMs are the same EBMs used for the 9125 5000/6000 VA product line.
ENCLOSURES
See the Enclosures section for a comprehensive list of IT Enclosure offerings.
SOFTWARE AND CONNECTIVITY OPTIONS
Part Number Description Style Number Cdn List Price
PXGXUPS PowerXpertGatewayUPSCard 103007974-5591 $603
39J4824 ConnectUPS-X 116750221-001 $449
Bundled with Intelligent Power Software Suite CD and communication cable.
See software and connectivity product sections for more detail.
5125 RACKMOUNT EXTENDED SERVICE OPTIONS
Extended Warranty extends term of Factory Warranty
Part Number UPS Model Description Cdn List Price
5XXGX51256000CX 5125RM SERVICEPW5125RM5/6000VADomestic-5YearGoldPlan $930
5XXGX5125B240CX 5125RM SERVICEPW5125RM5/6000EBM240VDomestic-5YearGoldPlan $1,367
Additional information about service plan features can be found in the Single-phase Service Plans Overview section of this reference guide.
5125 RACKMOUNT BATTERY BACKUP TIMES (in minutes) @ 0.9 Power Factor
Standard
Load (VA/Watts) Internal Batteries +1 EBM +2 EBMs +3 EBMs +4 EBMs
1000/900 59 169 303 452 612
2000/1800 26 79 138 204 274
2200/1980 21 65 112 164 223
2500/2250 19 61 106 156 210
2700/2430 17 52 89 132 180
3000/2700 15 49 85 125 168
3500/3150 13 43 73 110 142
4500/4050 8 27 52 76 102
5000/4500 7 24 46 67 89
5500/4950 6 22 42 61 81
6000/5400 5 19 36 53 71
Note: Backup times are approximate and may vary with equipment, configuration, battery age, temperature, etc.
EATON 5125 UPS RACKMOUNT
Powerware series
View interactive runtime graphs
at www.eaton.com/5125rm
36 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook
October 1, 2012
Online UPS (700–3000 VA)
Ideal protection for servers, data storage, network equipment, telephony, VoIP and
medical equipment—industrial processes.
• Truedouble-conversion
• Hot-swappablebatteries
• Twoloadsegments
• USBandRS-232ports
• Rack/towerconfigurationsprovideversatility
• Four-postrailkitincludedwithrackUPS(exceptwherenoted)
• Optionaltwo-postrailkit
EX NORTH AMERICAN MODELS: 120V, 50/60 Hz
Catalog Style Rating Input Output Dimensions Weight Cdn List
Number Number Description (VA/Watts) Connection Receptacles (H x W x D, inches) (lb) Price
PULSL700T 86700 120V TWR 0.7 kVA 700/630 5-15P (4) 5-15R 9.52 x 6.00 x 17.31 25.7 $695
PULSL1000T 86701 120V TWR 1 kVA 1000/900 5-15P (4) 5-15R 9.52 x 6.00 x 17.31 33.0 $781
PULSL1500T 86703 120V TWR 1.5 kVA 1500/1350 5-15P (4) 5-15R 9.52 x 6.00 x 19.29 39.6 $1,056
PULSL1000R-XL2U 86702 120V RT2U 1 kVA 1000/900 5-15P (6) 5-15R 3.46 (2U) x 17.25 x 19.00 39.6 $870
PULSL1500R-XL2U 86704 120V RT2U 1.5 kVA 1500/1350 5-15P (6) 5-15R 3.46 (2U) x 17.25 x 19.00 - $1,130
PULSML2200-XL2U 86722 120V RT2U 2.2 kVA 2100/1650 5-20P (6) 5-20R, (1) L5-20R 3.40 (2U) x 17.30 x 25.20 68.2 $1,645
PULSML2200-XL3U 86723 120V RT3U 2.2 kVA 2100/1650 5-20P (6) 5-20R, (1) L5-20R 5.14 (3U) x 17.30 x 19.29 70.0 $1,390
PULSML3000-XL2U 86732 120V RT2U 3 kVA 3000/2550 L5-30P (6) 5-20R, (1) L5-30R 3.40 (2U) x 17.30 x 25.20 70.0 $2,238
EX INTERNATIONAL MODELS: 230V, 50/60 Hz
Catalog Style Rating Input Output Dimensions Weight Cdn List
Number Number Description (VA/Watts) Connection Receptacles (H x W x D, inches) (lb) Price
PULSI1000T 68181 230V TWR 1 kVA 1000/900 IEC C14 (10A Socket) (6) IEC C13 (10A) 9.52 x 6.00 x 17.31 33.0 $980
PULSI1000R-XL2U 68182 230V RT2U 1 kVA 1000/900 IEC C14 (10A Socket) (6) IEC C13 (10A) 3.46 (2U) x 17.25 x 19.00 39.6 $1,117
PULSI1500R-XL2U 68184 230V RT2U 1.5 kVA 1500/1350 IEC C14 (10A Socket) (6) IEC C13 (10A) 3.46 (2U) x 17.25 x 19.00 - $1,586
PULSMI2200-XL2U 68401 230V RT2U 2.2 kVA 2200/1980 IEC C20 (16A) or terminal (8) IEC C13 (10A) 3.39 x 17.32 x 25.20 68.3 $2,203
block on 103007536-6591 PPDM (1) IEC C19 (16A)
PULSMI2200-XL3U* 68400 230V RT3U 2.2 kVA 2200/1980 IEC C20 (16A) or terminal (8) IEC C13 (10A) 5.16 x 17.32 x 19.29 66.1 $1,981
block on 103007536-6591 PPDM (1) IEC C19 (16A)
PULSMI3000-XL2U 68403 230V RT2U 3 kVA 3000/2700 IEC C20 (16A) or terminal (8) IEC C13 (10A) 3.39 x 17.32 x 25.20 68.3 $2,864
block on 103007536-6591 PPDM (1) IEC C19 (16A)
PULSMI3000-XL3U* 68402 230V RT3U 3 kVA 3000/2700 IEC C20 (16A) or terminal (8) IEC C13 (10A) 5.16 x 17.32 x 19.29 66.1 $2,578
block on 103007536-6591 PPDM (1) IEC C19 (16A)
*Four-post rail kit not included
EATON EX UPS
Pulsar series
(this product was formerly known as the Pulsar and Pulsar M UPSs)
37www.eaton.com/powerquality 1.800.461.9166
October 1, 2012
October 1, 2012
EATON EX UPS
Pulsar series (continued)
EX OPTIONS
Catalog Style Dimensions Weight Cdn List
Number Number Description (H x W x D, inches) (lb) Price
Extended Battery Modules
PULSL1500T-EBM 86705 120V TWR EBM 1–1.5 kVA 9.52 x 6.00 x 17.32 46.3 $689
PULSL1500R-EBM 86706 120V RT EBM 1-1.5 kVA 3.40 x 17.25 x 19.00 58.1 $796
PULSI1500T-EBM 68185 230V TWR EBM 1–1.5 kVA 9.53 x 6.22 x 15.75 46.3 $612
PULSI1500R-EBM 68186 230V RT EBM 1-1.5 kVA 3.41 x 17.32 x 18.9 58.1 $737
PULSMI3000-EBM 68405 120/230V RT EBM 23 kVA 5.16 x 17.32 x 19.29 92.4 $996
Optional Mounting Hardware
PULSM-RAIL 68441 2U/3U Four-post rail kit - 22.0 $198
- 103007018-5591 Two-post rack mounting rail kit - - $87
Power distribution and maintenance bypass
For detailed information on FlexPDU and HotSwap Maintenance Bypass products, please refer to the Eaton Power Distribution and Enclosures section.
SOFTWARE AND CONNECTIVITY OPTIONS
Catalog Number Description List Price
Network-MS Network Card-MS $269
See software and connectivity product sections for more detail.
EX EXTENDED SERVICE OPTIONS
Extended Warranty extends term of Factory Warranty
Part Number UPS Model Description Cdn List Price
1000EXWAR1YRPULSU EX SERVICE EX Warranty +1 Year 700/1000VA $130
1000EXWAR3YRPULSU EX SERVICE EX Warranty +3 Year 700/1000VA $304
1000EXWAR1YRPULSB EX EBM SERVICE EX Warranty +1 Year EXB for 1000VA $130
1000EXWAR3YRPULSB EX EBM SERVICE EX Warranty +3 Year EXB for 1000VA $304
1500EXWAR1YRPULSU EX SERVICE EX Warranty +1 Year 1500VA $247
1500EXWAR3YRPULSU EX SERVICE EX Warranty +3 Year 1500VA $566
1500EXWAR1YRPULSB EX EBM SERVICE EX Warranty +1 Year EXB for 1500VA $247
1500EXWAR3YRPULSB EX EBM SERVICE EX Warranty +3 Year EXB for 1500VA $566
3000EXWAR1YRPULSMU EX SERVICE EX 2.2k & 3k Warranty +1 Year $478
3000EXWAR3YRPULSMU EX SERVICE EX 2.2k & 3k Warranty +3 Year $1,103
3000EXWAR1YRPULSMB EX EBM SERVICE EX 2.2k & 3k Warranty +1 Year EXB $478
3000EXWAR3YRPULSMB EX EBM SERVICE EX 2.2k & 3k Warranty +3 Year EXB $1,103
Additional information about service plan features can be found in the Single-phase Service Plans Overview section of this reference guide.
EX BATTERY BACKUP TIMES (in minutes)
Load Standard
(VA/Watts) Internal Batteries +1 EBM +2 EBMs +3 EBMs +4 EBMs
EX 700
70/49 71 – –
140/98 36 – –
210/147 25 – –
280/196 20 – –
350/245 16 – –
420/294 12 – –
490/343 10 – –
560/392 8 – –
630/441 6 – –
700/490 5 – –
View interactive runtime graphs at www.eaton.com/ex
38 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook
October 1, 2012
EX BATTERY BACKUP TIMES (in minutes)
(continued)
Load Standard
(VA/Watts) Internal Batteries +1 EBM +2 EBMs +3 EBMs +4 EBMs
EX 1000 / 1000 RT 2U
100/70 75 290 490 790 980
200/140 40 170 290 440 550
300/210 28 125 210 310 390
400/280 21 92 180 240 310
500/350 18 75 150 205 250
600/420 14 60 110 170 220
700/490 11 52 90 145 190
800/560 9 43 78 125 170
900/630 7 40 70 112 155
1000/700 6 35 60 95 135
EX 1500 / 1500 RT 2U
150/105 60 212 360 475 700
300/210 32 110 220 280 380
450/315 21 78 155 210 260
600/420 16 60 115 160 200
750/525 13 47 83 140 180
900/630 10 40 71 110 140
1050/735 8 34 60 90 118
1200/840 7 30 52 76 100
1350/945 6 27 48 70 90
1500/1050 5 24 42 62 80
EX 2200 RT 2U & 3U*
220/154 90 352 587 831 1216
440/308 48 200 340 470 650
660/462 30 130 225 320 450
880/616 22 100 170 260 350
1100/770 16 80 135 215 286
1320/924 13 62 110 180 240
1540/1078 10 50 95 150 200
1760/1232 8 42 80 125 170
1980/1386 7 36 65 110 152
2200/1540 6 30 51 83 134
EX 3000 RT 2U & 3U**
300/210 79 254 454 549 847
600/420 40 130 255 290 445
900/630 25 80 160 205 290
1200/840 18 60 120 162 230
1500/1050 14 48 102 129 187
1800/1260 12 38 82 103 150
2100/1470 9 32 72 86 125
2400/1680 7 27 58 73 100
2700/1890 6 22 50 64 82
3000/2100 5 18 36 47 70
EX 3000 RT 3U XL***
300/210 - 175 375 549 768
600/420 - 90 215 290 405
900/630 - 55 135 205 265
1200/840 - 42 102 162 212
1500/1050 - 34 88 129 173
1800/1260 - 26 70 103 138
2100/1470 - 23 63 86 116
2400/1680 - 20 51 73 93
2700/1890 - 16 44 64 76
3000/2100 - 13 31 47 65
* Output power rating = 1650W ** Standard configuration power rating = 2550W, with EBM = 2100W *** Output power rating = 2150W up to 12 EBMs can be added for extended runtime of 196–1909
minutes
Note: Backup times are approximate and may vary with equipment, configuration, battery age, temperature, etc.
The Eaton EX has a 0.9 power factor, but runtimes are shown here at 0.7 power factor for easy comparison against competitor's products, which have a 0.7 power factor.
EATON EX UPS
Pulsar series (continued)
39www.eaton.com/powerquality 1.800.461.9166
October 1, 2012
October 1, 2012
EATON 9130 UPS RACKMOUNT
Powerware series
9130 NORTH AMERICAN RACK MODELS: 120V, 50/60 Hz
Catalog Rating Input Output Dimensions Weight Cdn List
Number Description (VA/Watts) Connection1 Receptacles (H x W x D, inches)2 (lb) Price
PW9130L700R-XL2U 9130 700 120V RACK 700/630 5-15P (6) 5-15R 3.4 x 17.3 x 16.9 35.3 $952
PW9130L1000R-XL2U 9130 1000 120V RACK 1000/900 5-15P (6) 5-15R 3.4 x 17.3 x 16.9 35.3 $1,184
PW9130L1500R-XL2U 9130 1500 120V RACK 1500/1350 5-15P (6) 5-15R 3.4 x 17.3 x 16.9 43.0 $1,792
PW9130L1500R-XL2UN 9130 1500 120V RACK 1500/1350 5-15P (6) 5-15R 3.4 x 17.3 x 16.9 43.0 $2,094
with Network Card-MS
PW9130L2000R-XL2U 9130 2000 120V RACK 2000/1800 5-20P (6) 5-20R, (1) L5-20R 3.4 x 17.3 x 22.6 63.9 $2,043
PW9130L2000R-XL2UN 9130 2000 120V RACK 2000/1800 5-20P (6) 5-20R, (1) L5-20R 3.4 x 17.3 x 22.6 63.9 $2,347
with Network Card-MS
PW9130L2500R-XL2U 9130 2500 120V RACK 2500/2250 L5-30P (6) 5-20R, (1) L5-30R 3.4 x 17.3 x 22.6 65.0 $2,589
PW9130L3000R-XL2U 9130 3000 120V RACK 3000/2700 L5-30P (6) 5-20R, (1) L5-30R 3.4 x 17.3 x 22.6 65.0 $3,405
PW9130L3000R-XL2UN 9130 3000 120V RACK 3000/2700 L5-30P (6) 5-20R, (1) L5-30R 3.4 x 17.3 x 22.6 65.0 $3,689
with Network Card-MS
9130 GLOBAL RACK MODELS: 208V, 50/60 Hz
Catalog Rating Input Output Dimensions Weight Cdn List
Number Description (VA/Watts) Connection1 Receptacles (H x W x D, inches)2 (lb) Price
PW9130G3000R-XL2U 91303000GRACK 3000/2700 L6-20P3 (1) L6-30R, (1) L6-20R, 3.4 x 17.3 x 22.6 65.0 $3,100
(2) 6-20R
PW9130G3000R-XL2UEU 91303000GEURACK 3000/2700 L6-20P3 (8) C13, (1) C19 3.4 x 17.3 x 22.6 65.0 $3,090
1. Input cord length is 6 ft
2. Rack models occupy 2U of rack space and fit into 19-inch racks
3. C20, w/detachable L6-20P
9130 INTERNATIONAL RACK MODELS: 230V, 50/60 Hz
Catalog Rating Input Output Dimensions Weight Cdn List
Number Description (VA/Watts) Connection1 Receptacles (H x W x D, inches)2 (lb) Price
PW9130i1000R-XL2U 9130 1000 230V RACK 1000/900 C14 (6) C13 3.4 x 17.3 x 16.9 35.3 $1,252
PW9130i1500R-XL2U 9130 1500 230V RACK 1500/1350 C14 (6) C13 3.4 x 17.3 x 16.9 43.0 $1,772
PW9130i2000R-XL2U 9130 2000 230V RACK 2000/1800 C14 (8) C13, (1) C19 3.4 x 17.3 x 22.6 63.9 $2,126
PW9130i3000R-XL2U 9130 3000 230V RACK 3000/2700 C20 (8) C13, (1) C19 3.4 x 17.3 x 22.6 65.0 $3,178
1. Input cord length is 6 ft
2. Rack models occupy 2U of rack space and fit into 19-inch racks
Online UPS (700–3000 VA)
The Eaton 9130 UPS provides more real power and greener IT with high performance protection and
battery backup for unpredictable power in any IT environment.
• Cutsenergyusageandcostswith>95%efficiencyratinginhighefficiencymode
• Conservesvaluablerackspacewith2Urackmountformfactorthatincludesinternalbatteriesanda
4-post rail kit (2-post rail kit optional)
• UPSunitdesignedtofitin19inchracks
• DisplayscriticalUPSinformationonabrightlit,configurableLCDscreen
• Shipswithfreemonitoringandmanagementsoftware,perfectforvirtualizedenvironments
• Providesupto22%morerealpower(watts)toprotectmoreequipmentandleaveroomforexpandingITsystemswitha0.9powerfactor
• SimplifiesUPSmonitoringandmanagementwithabrightLCDuserinterface,intuitivepowermanagementsoftwareandoptionaleNotify
Remote Monitoring service
• Increasesbatteryservicelifeandsystemuptimeupto50%withABMbattery-chargingtechnologyandhot-swappablebatteries
• Maximizesruntimeswithoptionalextendedbatterymodules
• Warranty(USandCanada):Two-yearlimitedwarranty,extendedwarranty,OnsiteFlexandOnsitePowerTrustserviceplans
40 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook
October 1, 2012
9130 RACK OPTIONS
Catalog Style Input Output Dimensions Weight Cdn List
Number Number Description Connection Receptacles (H x W x D, inches) (lb) Price
Extended Battery Modules
PW9130N1000R-EBM2U1 PW9130 700/1000 EBM Rack 3.4 x 17.3 x 16.9 48.7 $731
PW9130N1500R-EBM2U2 PW9130 1500 EBM Rack 3.4 x 17.3 x 16.9 62.0 $731
PW9130N3000R-EBM2U3 PW9130 2000/2500/3000 EBM Rack 3.4 x 17.3 x 22.6 90.6 $861
PowerPass® Distribution Modules (PPDMs)
EPPDMG3000R-2U-15 103007535-6591 PPDM1-HV-US-P2 3 kVA IEC320-C204 (1) L5-30R 3.5 (2U) x 17.0 x 23.9 76.0 $1,010
& (6) 5-20R
EPPDMG3000R-2U-HW5 103007536-6591 PPDM1-HV-US-HW 3 kVA (ROHS) Hardwire Hardwire 3.5 (2U) x 17.0 x 23.9 76.0 $1,010
EPPDML3000R-2U-HW6 103007537-6591 PPDM2-LV-US-HW 3 kVA (ROHS) Hardwire Hardwire 3.5 (2U) x 17.0 x 23.9 20.0 $807
EPPDML3000R-2U-46 103006843-6591 PPDM2-LV-US-P1 3 kVA L5-30P4 (1) L5-30R 3.5 (2U) x 17.0 x 23.9 20.0 $807
& (6) 5-20R
– 103002731-65915 PPDM1-HV-US-P3 3 kVA C20 (6) 5-20R 3.5 (2U) x 17.0 x 23.9 76.0 $1,010
Two-post rail kit
103007018-5591 Two-post rack mounting rail kit - - $87
(supports 2U models only; 3 kVA PPDM not supported)
Four-post rail kit
103005156 Four-post rail kit (supports 3 kVA PPDM) - - $103
Power distribution and maintenance bypass
EHBPL1500R-PDU1U7 - HotSwap Maintenance Bypass (MBP) 5-15P (6) 5-15R 2.1 x 17.3 x 3.8 - $299
EHBPL2000R-PDU1U8 - HotSwap Maintenance Bypass (MBP) 5-20P (6) 5-15R 2.1 x 17.3 x 3.8 - $357
EHBPL3000R-PDU1U9 - HotSwap Maintenance Bypass (MBP) L5-30P (5) 5-20R 2.1 x 17.3 x 3.8 - $519
For detailed information on FlexPDU and HotSwap Maintenance Bypass products, please refer to the Eaton Power Distribution and Enclosures section.
1. This EBM works with 700/1000 VA models, where available
2. This EBM works with 1500 VA model
3. This EBM works with 2000/2500/3000 VA models, where available
4. Connection cables to the UPS are included with the PPDM; use the input cord from the UPS as input to the PPDM, except for hardwire units
5.ThesePPDMsworkwiththefollowing9130models:PW9130G3000R-XL2UEUandPW9130i3000R-XL2U.
6. These PPDMs work with the following 9130 models: PW9130L2500R-XL2U and PW9130L3000R-XL2U.
7. This HotSwap MBP works with the following 9130 models: PW9130L700R-XL2U, PW9130L1000R-XL2U, PW9130L1500R-XL2U
8. This HotSwap MBP works with the following 9130 model: PW9130L2000R-XL2U
9. This HotSwap MBP works with the following 9130 models: PW9130L2500R-XL2U, PW9130L3000R-XL2U
SOFTWARE AND CONNECTIVITY OPTIONS
Catalog Number Description Cdn List Price
Network-MS Network Card-MS $360
See software and connectivity product sections for more detail.
9130 RACK EXTENDED SERVICE OPTIONS
Extended Warranty extends term of Factory Warranty
Part Number UPS Model Description Cdn List Price
1000EXWAR1YR9130U 9130 SERVICE 9130 Warranty +1 Year 700/1000VA $130
1000EXWAR3YR9130U 9130 SERVICE 9130 Warranty +3 Year 700/1000VA $306
1000EXWAR1YR9130B 9130 EBM SERVICE 9130 EBM Warranty +1 Year 700/1000VA $130
1000EXWAR3YR9130B 9130 EBM SERVICE 9130 EBM Warranty +3 Year 700/1000VA $306
1500EXWAR1YR9130U 9130 SERVICE 9130 Warranty +1 Year 1500VA $247
1500EXWAR3YR9130U 9130 SERVICE 9130 Warranty +3 Year 1500VA $566
1500EXWAR1YR9130B 9130 EBM SERVICE 9130 EBM Warranty +1 Year 1500VA $247
1500EXWAR3YR9130B 9130 EBM SERVICE 9130 EBM Warranty +3 Year 1500VA $566
3000EXWAR1YR9130U 9130 SERVICE 9130 Warranty +1 Year 2000-3000VA $480
3000EXWAR3YR9130U 9130 SERVICE 9130 Warranty +3 Year 2000-3000VA $1,103
3000EXWAR1YR9130B 9130 EBM SERVICE 9130 EBM Warranty +1 Year 2000-3000VA $480
3000EXWAR3YR9130B 9130 EBM SERVICE 9130 EBM Warranty +1 Year 2000-3000VA $1,103
Onsite Flex Service Plans include startup and eNotify Remote Monitoring service
Part Number UPS Model Description Cdn List Price
3000FLEX2YR9130U 9130 SERVICE 9130 Flex 2Yr UPS $2,243
3000FLEX2YR9130B 9130 EBM SERVICE 9130 Flex 2Yr EBM $224
3000FLEX3YR9130U 9130 SERVICE 9130 Flex 3Yr UPS $3,402
3000FLEX3YR9130B 9130 EBM SERVICE 9130 Flex 3Yr EBM $340
3000FLEX5YR9130U 9130 SERVICE 9130 Flex 5Yr UPS $5,649
3000FLEX5YR9130B 9130 EBM SERVICE 9130 Flex 5Yr EBM $566
Additional information about service plan features can be found in the Single-phase Service Plans Overview section of this reference guide.
EATON 9130 UPS RACKMOUNT
Powerware series (continued)
41www.eaton.com/powerquality 1.800.461.9166
October 1, 2012
October 1, 2012
9130 RACK MODELS BATTERY BACKUP TIMES (in minutes) @ 0.7 Power Factor*
Internal
VA/Watts Batteries +1EBM +2 EBMs +3 EBMs +4 EBMs
PW9130L700R-XL2U
700/490 14 55 102 148 175
525/368 20 77 140 179 239
350/245 32 124 189 282 414
175/123 64 200 395 552 739
PW9130L1000R-XL2U
1000/700 10 40 73 108 149
750/525 13 58 101 152 219
500/350 24 85 172 249 304
250/175 48 190 310 451 569
PW9130i1000R-XL2U
1000/700 10 40 78 110 150
750/525 13 55 103 151 223
500/350 22 82 186 250 312
250/175 47 190 328 431 584
PW9130L1500R-XL2U
1500/1050 7 34 63 88 135
1125/788 11 44 84 129 210
750/525 18 79 148 207 267
375/263 38 167 278 475 540
PW9130i1500R-XL2U
1500/1050 7 32 61 98 128
1125/788 11 47 83 126 195
750/525 18 81 143 208 262
375/263 38 171 298 416 564
PW9130L2000R-XL2U
2000/1400 9 45 86 124 163
1500/1050 14 66 115 165 225
1000/700 26 101 185 251 343
500/350 52 197 353 481 629
PW9130i2000R-XL2U
2000/1400 9 46 83 118 163
1500/1050 13 64 118 170 221
1000/700 25 95 190 242 345
500/350 53 205 346 488 625
PW9130L2500R-XL2U
2500/2250 7 31 59 87 119
1875/1688 10 43 81 121 154
1250/1125 17 65 120 163 203
625/563 40 145 228 363 491
PW9130L3000R-XL2U
3000/2100 5 25 48 72 100
2250/1575 8 37 72 102 137
1500/1050 13 60 100 165 223
750/525 34 138 228 326 438
PW9130G3000R-XL2U / PW9130G3000R-XL2UEU / PW9130i3000R-XL2U
3000/2100 6 25 45 68 96
2250/1575 8 34 70 96 130
1500/1050 14 62 92 156 211
750/525 34 130 212 355 442
*Battery backup times are approximate and may vary with equipment, configuration, battery age, temperature, etc. The 9130 has a 0.9 power factor, but runtimes are shown here at 0.7 power factor for
easy comparison against competitors' products, which have a 0.7 power factor.
EATON 9130 UPS RACKMOUNT
Powerware series (continued)
View interactive runtime graphs
at www.eaton.com/9130rm
42 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook
October 1, 2012
EATON 9130 UPS TOWER
Powerware series
Online UPS (700–3000 VA)
The Eaton 9130 UPS provides more real power and greener IT with high performance protection and
battery backup for unpredictable power in any IT environment.
• Cutsenergyusageandcostswith>95%efficiencyratinginhighefficiencymode
• DisplayscriticalUPSinformationonabrightlit,configurableLCDscreen
• Shipswithfreemonitoringandmanagementsoftware,perfectforvirtualizedenvironments
• Truetowerformfactor
• Providesupto22%morerealpower(watts)toprotectmoreequipmentandleaveroomforexpandingITsystemswith
a 0.9 power factor
• Increasesbatteryservicelifeandsystemuptimeupto50%withABMbattery-chargingtechnologyandhot-swappablebatteries
• Maximizesruntimeswithoptionalextendedbatterymodules(compatiblewithallunitsexceptthe700VAtowermodels)
• Warranty(USandCanada):Two-yearlimitedwarranty,extendedwarranty,OnsiteFlexandOnsitePowerTrustserviceplans
9130 NORTH AMERICAN TOWER MODELS: 120V, 50/60 Hz
Catalog Rating Input Output Dimensions Weight Cdn List
Number Description (VA/Watts) Connection1 Receptacles (H x W x D, inches) (lb) Price
PW9130L700T PW9130 700 120V TOWER 700/630 5-15P (6) 5-15R 9.1 x 6.3 x 13.9 26.5 $901
PW9130L1000T-XL PW9130 1000 120V TOWER 1000/900 5-15P (6) 5-15R 9.1 x 6.3 x 15.1 30.9 $1,163
PW9130L1500T-XL PW9130 1500 120V TOWER 1500/1350 5-15P (6) 5-15R 9.1 x 6.3 x 17.0 41.8 $1,604
PW9130L2000T-XL PW9130 2000 120V TOWER 2000/1800 5-20P (1) L5-20, (4) 5-20R 12.8 x 8.4 x 16.2 77.2 $2,033
PW9130L3000T-XL PW9130 3000 120V TOWER 3000/2700 L5-30P (4) 5-20R, (1) L5-30R 12.8 x 8.4 x 16.2 77.2 $3,185
1. Input cord length is 6 ft
9130 GLOBAL TOWER MODELS: 208V, 50/60 Hz
Catalog Rating Input Output Dimensions Weight Cdn List
Number Description (VA/Watts) Connection1 Receptacles (H x W x D, inches) (lb) Price
PW9130G2000T-XL PW91302000GTOWER 2000/1800 L6-20P2 (1) L6-20R, (4) 6-20R 12.8 x 8.4 x 16.2 77.2 $1,985
PW9130G2000T-XLEU PW91302000GEUTOWER 2000/1800 L6-20P2 (8) C13, (1) C19 12.8 x 8.4 x 16.1 76.1 $1,935
PW9130G3000T-XL PW91303000GTOWER 3000/2700 L6-20P3 (1) L6-30R, (1) L6-20R, 12.8 x 8.4 x 16.2 77.2 $3,107
(2) 6-20R
PW9130G3000T-XLEU PW91303000GEUTOWER 3000/2700 L6-20P3 (8) C13, (1) C19 12.8 x 8.4 x 16.2 77.2 $3,097
1. Input cord length is 6 ft
2. C14, w/detachable L6-20P
3. C20, w/detachable L6-20P
9130 INTERNATIONAL TOWER MODELS: 230V, 50/60 Hz
Catalog Rating Input Output Dimensions Weight Cdn List
Number Description (VA/Watts) Connection1 Receptacles (H x W x D, inches) (lb) Price
PW9130i700T PW9130 700 230V TOWER 700/630 C14 (6) C13 9.1 x 6.3 x 13.9 26.5 $858
PW9130i1000T-XL PW9130 1000 230V TOWER 1000/900 C14 (6) C13 9.1 x 6.3 x 15.1 30.9 $1,056
PW9130i1500T-XL PW9130 1500 230V TOWER 1500/1350 C14 (6) C13 9.1 x 6.3 x 17.0 41.8 $1,529
PW9130i2000T-XL PW9130 2000 230V TOWER 2000/1800 C14 (8) C13, (1) C19 12.8 x 8.4 x 16.2 77.2 $2,039
PW9130i3000T-XL PW9130 3000 230V TOWER 3000/2700 C20 (8) C13, (1) C19 12.8 x 8.4 x 16.2 77.2 $2,978
1. Input cord length is 6 ft
9130 OPTIONS
Catalog Style Dimensions Weight Cdn List
Number Number Description (H x W x D, inches) (lb) Price
Extended Battery Modules
PW9130N1000T-EBM1 PW9130 1000 EBM Tower 9.1 x 6.3 x 15.1 41.8 $605
PW9130N1500T-EBM2 PW9130 1500 EBM Tower 9.1 x 6.3 x 17.0 52.9 $763
PW9130N3000T-EBM3 PW9130 2000/3000 EBM Tower 12.8 x 8.4 x 16.2 110.2 $872
1. This EBM works with 1000 VA model, where available
2. This EBM works with 1500 VA model
3. This EBM works with 2000/3000 VA models, where available
43www.eaton.com/powerquality 1.800.461.9166
October 1, 2012
October 1, 2012
SOFTWARE AND CONNECTIVITY OPTIONS
Catalog Number Description Cdn List Price
Network-MS Network Card-MS $360
See software and connectivity product sections for more detail.
9130 TOWER EXTENDED SERVICE OPTIONS
Extended Warranty extends term of Factory Warranty
Part Number UPS Model Description Cdn List Price
1000EXWAR1YR9130U 9130 SERVICE 9130 Warranty +1 Year 700/1000VA $130
1000EXWAR3YR9130U 9130 SERVICE 9130 Warranty +3 Year 700/1000VA $306
1000EXWAR1YR9130B 9130 EBM SERVICE 9130 EBM Warranty +1 Year 700/1000VA $130
1000EXWAR3YR9130B 9130 EBM SERVICE 9130 EBM Warranty +3 Year 700/1000VA $306
1500EXWAR1YR9130U 9130 SERVICE 9130 Warranty +1 Year 1500VA $247
1500EXWAR3YR9130U 9130 SERVICE 9130 Warranty +3 Year 1500VA $566
1500EXWAR1YR9130B 9130 EBM SERVICE 9130 EBM Warranty +1 Year 1500VA $247
1500EXWAR3YR9130B 9130 EBM SERVICE 9130 EBM Warranty +3 Year 1500VA $566
3000EXWAR1YR9130U 9130 SERVICE 9130 Warranty +1 Year 2000-3000VA $480
3000EXWAR3YR9130U 9130 SERVICE 9130 Warranty +3 Year 2000-3000VA $1,103
3000EXWAR1YR9130B 9130 EBM SERVICE 9130 EBM Warranty +1 Year 2000-3000VA $480
3000EXWAR3YR9130B 9130 EBM SERVICE 9130 EBM Warranty +1 Year 2000-3000VA $1,103
Onsite Flex Service Plans include startup and eNotify Remote Monitoring service
Part Number UPS Model Description Cdn List Price
3000FLEX2YR9130U 9130 SERVICE 9130 Flex 2Yr UPS $2,243
3000FLEX2YR9130B 9130 EBM SERVICE 9130 Flex 2Yr EBM $224
3000FLEX3YR9130U 9130 SERVICE 9130 Flex 3Yr UPS $3,402
3000FLEX3YR9130B 9130 EBM SERVICE 9130 Flex 3Yr EBM $340
3000FLEX5YR9130U 9130 SERVICE 9130 Flex 5Yr UPS $5,649
3000FLEX5YR9130B 9130 EBM SERVICE 9130 Flex 5Yr EBM $566
Additional information about service plan features can be found in the Single-phase Service Plans Overview section of this reference guide.
EATON 9130 UPS TOWER
Powerware series (continued)
44 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook
October 1, 2012
9130 TOWER MODELS BATTERY BACKUP TIMES (in minutes) @ 0.7 Power Factor*
Internal
VA/Watts Batteries +1EBM +2 EBMs +3 EBMs +4 EBMs
PW9130L700T
700/490 8 N/A N/A N/A N/A
525/368 12 N/A N/A N/A N/A
350/245 21 N/A N/A N/A N/A
175/123 37 N/A N/A N/A N/A
PW9130i700T
700/490 8 N/A N/A N/A N/A
525/368 12 N/A N/A N/A N/A
350/245 19 N/A N/A N/A N/A
175/123 35 N/A N/A N/A N/A
PW9130L1000T-XL
1000/700 10 40 73 108 149
750/525 13 58 101 152 219
500/350 24 85 172 249 304
250/175 48 190 310 451 569
PW9130i1000T-XL
1000/700 10 40 78 110 150
750/525 13 55 103 151 223
500/350 22 82 186 250 312
250/175 47 190 328 431 584
PW9130L1500T-XL
1500/1050 7 34 63 88 135
1125/788 11 44 84 129 210
750/525 18 81 143 208 262
375/263 38 171 298 416 564
PW9130i1500T-XL
1500/1050 7 32 61 88 135
1125/788 11 47 83 126 195
750/525 18 81 143 208 262
375/263 38 171 298 416 564
PW9130L2000T-XL
2000/1400 15 61 111 156 194
1500/1050 21 81 145 184 269
1000/700 34 129 198 193 410
500/350 72 225 449 590 766
PW9130G2000T-XL / XLEU / PW9130i2000T-XL
2000/1400 15 61 111 156 186
1500/1050 21 81 145 184 248
1000/700 34 129 198 293 410
500/350 72 225 449 590 766
PW9130L3000T-XL
3000/2100 9 35 66 95 132
2250/1575 13 53 100 139 183
1500/1050 22 86 153 221 267
750/525 69 168 298 395 545
PW9130G3000T-XL / XLEU / PW9130i3000T-XL
3000/2100 9 36 68 101 137
2250/1575 12 49 90 134 165
1500/1050 20 79 143 180 240
750/525 46 161 267 434 547
*Battery backup times are approximate and may vary with equipment, configuration, battery age, temperature, etc. The 9130 has a 0.9 power factor, but runtimes are shown here at 0.7 power factor for
easy comparison against competitors' products, which have a 0.7 power factor.
EATON 9130 UPS TOWER
Powerware series (continued) View interactive runtime graphs
at www.eaton.com/9130
45www.eaton.com/powerquality 1.800.461.9166
October 1, 2012
October 1, 2012
EATON 9PX UPS RACK/TOWER
5-6 kVA Bundles
Delivering premium backup power and scalable battery runtimes for servers, voice/data networks and
storage systems, the Eaton 9PX UPS is the ideal solution for both rack and stand-alone installations. With
an advanced LCD screen interface and robust power management software, managing a UPS has never
been easier with the 9PX—even in virtualized environments.
• GraphicalLCDscreenenablesyoutocustomizeUPSsettings,diagnoseUPSalarmsandviewloadand
power consumption
• Providesmorerealpower(watts)toprotectmoreequipmentandleaveroomforexpandingITsystems
• Deliversaddedruntimewithextendedbatterymodulesandextendsbatteryservicelifeby50%withABMTechnology
• Virtualization-readyUPSincludesconnectivitycard
• Cutsenergyusageandcostswith93%efficiencyratinginnormalmode
• Maximizesavailabilitywithextendedbatteryruntimeoptions,hot-swappablebatteries,internalbypassandoptional
maintenance bypass
• FullyintegrateswithIntelligentPowerSoftwareSuiteforcontinuousuptimeofserversandvirtualmachines.(Included)
• 4-postrailkitincluded(2-postrailkitoptional)
• Warranty(USandCanada):Two-yearlimitedwarranty,five-yearextendedwarrantyplansavailable,$150,000load
protection guarantee
9PX 5-6 kVA RACK/TOWER: 208V OUTPUT, 50/60 Hz BUNDLES
Catalog Rating Input Output Dimensions Weight Cdn List
Number Description (VA/Watts) Connection1 Receptacles (H x W x D, inches) (lb) Price
9PX5K 5 kVA 9PX UPS 5000/4500 Terminal block with Hardwired + (2) L6-30R, 5.1 (3U) x 17.3 x 28.4 106 $5,383
L6-30P cord (2) L6-20R
9PX6K 6 kVA 9PX UPS 6000/5400 Terminal block with Hardwired + (2) L6-30R, 5.1 (3U) x 17.3 x 28.4 106 $5,950
L6-30P cord (2) L6-20R
9PX6KG 6kVA9PXUPSGlobal 6000/5400 Hardwired Hardwired+(2)C19, 5.1(3U)x17.3x27.0 106 $5,950
(8) C13
9PX 5-6 kVA RACK/TOWER: 120/208V OUTPUT, 50/60 Hz BUNDLES
Catalog Rating Input Output Dimensions Weight Cdn List
Number Description (VA/Watts) Connection Receptacles (H x W x D, inches) (lb) Price
9PX5KTF5 5 kVA 9PX UPS and 5 kVA Transformer 5000/4500 Terminal block with Hardwired + (1) L6-30R, 10.2 (6U) x 17.3 x 28.4 201 $6,296
L6-30P cord (2) L6-20R, (18) 5-20R
9PX5KP1* 5 kVA 9PX UPS and 6 kVA PPDM 5000/4500 L6-30P (1) L14-30R, (1) L6-30R, 10.2 (6U) x 17.3 x 28.4 203 $6,376
(6) 5-20R
9PX5KP2* 5 kVA 9PX UPS and 6 kVA PPDM 5000/4500 Hardwired Hardwired 10.2 (6U) x 17.3 x 28.4 201 $6,376
9PX6KTF5 6 kVA 9PX UPS and 5 kVA Transformer 6000/5400 Terminal block with Hardwired + (1) L6-30R, 10.2 (6U) x 17.3 x 28.4 201 $6,927
L6-30P cord (2) L6-20R, (18) 5-20R
9PX6KP1* 6 kVA 9PX UPS and 6 kVA PPDM 6000/5400 L6-30P (1) L14-30R, (1) L6-30R, 10.2 (6U) x 17.3 x 28.4 203 $7,017
(6) 5-20R
9PX6KP2* 6 kVA 9PX UPS and 6 kVA PPDM 6000/5400 Hardwired Hardwired 10.2 (6U) x 17.3 x 28.4 201 $7,017
* PPDM provides maintenance bypass
9PX OPTIONS
Catalog Rating Input Output Dimensions Weight Cdn List
Number Description (VA/Watts) Connection Receptacles (H x W x D, inches) (lb) Price
Extended runtime
9PXEBM180RT 5/6 kVA EBM (add up to 4 EBMs) 5.1 (3U) x 17.3 x 25.4 150 $1,522
EBMCBL180 6-foot battery cable for EBM $155
CBLADAPT180 Adapter cable from Eaton 9135/MX/EX RT UPS or EBM to 5/6 kVA 9PX UPS models $131
Mounting Hardware (all modules include 4-post rail kits)
RK2PC 2-post rack mounting rail kit $65
BINTSYS Battery integration system and caster kit 7.9 x 20.5 x 31.5 30 $530
Power distribution and maintenance bypass
MBP6K208 Rear-mount 3U, 208V maintenance bypass Hardwired Hardwired + (3) L6-30R call
for 5 and 6 kVA 9PX UPS models
PW105BA2U420 Basic ePDU for additional output receptacles. L6-30P (4) L6-20R 3.5 x 19.0 x 6.0 $716
2U form factor.
PW105BA0U421 Basic ePDU for additional output receptacles. L14-30P (24) 5-20R 66.0 x 1.89 x 2.0 $740
0U form factor.
46 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook
October 1, 2012
EATON 9PX UPS RACK/TOWER (continued)
9PX OPTIONS
(continued)
Catalog Rating Input Output Dimensions Weight Cdn List
Number Description (VA/Watts) Connection Receptacles (H x W x D, inches) (lb) Price
Power distribution and maintenance bypass (continued)
PW105BA2U422 Basic ePDU for additional output receptacles. L14-30P (4) L6-20R 3.5 x 19.0 x 6.0 $
2U form factor.
ePBZ79 Basic ePDU for additional output receptacles. L6-30P (16) C13 and (4) C19 1.7 x 17.0 x 5.1 $320
1U form factor.
Transformer accessories
9PXTFMR5 9PX 5 kVA stepdown transformer 5000 L6-30P (18) 5-20R 5.1 (3U) x 17.3 x 25.4 95 $1,088
9PXPPDM1 9PX PowerPass Distribution Module 6000 L6-30P (1) L14-30R, (1) L6-30R, 5.1 (3U) x 17.3 x 25.4 97 $1,242
(plug-and-play) (6) 5-20R
9PXPPDM2 9PX PowerPass Distribution Module 6000 Hardwired Hardwired 5.1 (3U) x 17.3 x 25.4 95 $1,242
(Hardwired)
* These transformer accessories may be ordered a la cart but for best pricing they should be purchased as bundled solution.
9PX SERVICE PLANS
Please visit Eaton.com/9PX for recommend service coverage, along with scheduled assembly and startup services
9PX BATTERY BACKUP TIMES (in minutes)**
Load (Watts) Internal Batteries +1 EBM +2 EBMs +3 EBMs +4 EBMs
5400 3.0 16 28 47 58
4050 4.5 24 45 62 90
2700 8.5 38 71 104 133
1350 22.0 85 147 214 287
540 57.0 203 399 554 755
** Runtimes shown at full load with maximum power factor, are approximate and may vary with equipment, configuration, battery age, temperature, etc.View interactive runtime graphs at www.eaton.
com/9PX
47www.eaton.com/powerquality 1.800.461.9166
October 1, 2012
October 1, 2012
EATON 9PX UPS RACK/TOWER
8-11 kVA Bundles
Delivering premium backup power and scalable battery runtimes for servers, voice/data networks and
storage systems, the Eaton 9PX UPS is the ideal solution for both rack and stand-alone installations. With
an advanced LCD screen interface and robust power management software, managing a UPS has never
been easier with the 9PX—even in virtualized environments.
• GraphicalLCDscreenenablesyoutocustomizeUPSsettings,diagnoseUPSalarmsandviewloadand
power consumption
• Providesmorerealpower(watts)toprotectmoreequipmentandleaveroomforexpandingITsystems
• Deliversaddedruntimewithextendedbatterymodulesandextendsbatteryservicelifeby50%withABMTechnology
• Virtualization-readyUPSincludesconnectivitycard
• Cutsenergyusageandcostswith94%efficiencyratinginnormalmode
• Maximizesavailabilitywithextendedbatteryruntimeoptions,hot-swappablebatteries,internalbypassandoptional
maintenance bypass
• FullyintegrateswithIntelligentPowerSoftwareSuiteforcontinuousuptimeofserversandvirtualmachines.(Included)
• 4-postrailkitincluded
• Warranty(USandCanada):Two-yearlimitedwarranty,five-yearextendedwarrantyplansavailable,$150,000load
protection guarantee
9PX RACK/TOWER: 208V OUTPUT, 50/60 Hz BUNDLES
Catalog Rating Input Output Dimensions Weight Cdn List
Number Description (VA/Watts) Connection1 Receptacles (H x W x D, inches) (lb) Price
9PX8KHW 8 kVA 9PX UPS power module 8000/7200 Hardwired Hardwired 10.2 (6U) x 17.3 x 27.6 190 $7,152
and 11 kVA EBM
9PX8K 8 kVA 9PX UPS power module, 8000/7200 Hardwired Hardwired + (3) L6-30R 10.2 (6U) x 17.3 x 30.0 205 $7,672
11 kVA EBM and 11 kVA MBP
9PX11KHW 11 kVA 9PX UPS power module 11000/10000 Hardwired Hardwired 10.2 (6U) x 17.3 x 27.6 190 $8,640
and 11 kVA EBM
9PX11K 11 kVA 9PX UPS power module, 11000/10000 Hardwired Hardwired + (3) L6-30R 10.2 (6U) x 17.3 x 30.0 205 $9,061
11 kVA EBM and 11 kVA MBP
9PX RACK/TOWER: 120/208V OUTPUT, 50/60 Hz BUNDLES
Catalog Rating Input Output Dimensions Weight Cdn List
Number Description (VA/Watts) Connection Receptacles (H x W x D, inches) (lb) Price
9PX8KTF5 8 kVA 9PX UPS power module, 8000/7200 Hardwired Hardwired + (2) L6-30R, 15.3 (9U) x 17.3 x 30.0 300 $8,620
11 kVA EBM, 11 kVA MBP and 5 kVA Transformer (18) 5-20R
9PX11KTF5 11 kVA 9PX UPS power module, 11000/10000 Hardwired Hardwired + (2) L6-30R, 15.3 (9U) x 17.3 x 30.0 300 $10,126
11 kVA EBM, 11 kVA MBP and 5 kVA Transformer (18) 5-20R
9PX11KTF11 11 kVA 9PX UPS power module, 11000/10000 Hardwired Hardwired + (2) L14-30R, 15.3 (9U) x 17.3 x 27.6 377 $11,286
11 kVA EBM and 10 kW Transformer (8) 5-20R
9PX OPTIONS
Catalog Rating Input Output Dimensions Weight Cdn List
Number Description (VA/Watts) Connection Receptacles (H x W x D, inches) (lb) Price
Extended runtime
9PXEBM240RT 8/11 kVA EBM (add up to 5 EBMs) 5.1 (3U) x 17.3 x 25.4 150 $1,516
EBMCBL240 6-foot battery cable for EBM $165
CBLADAPT240 Adapter cable from Eaton 9135/MX/EX RT UPS or EBM to 8/11 kVA 9PX UPS models $131
BINTSYS Battery integration system and caster kit 7.9 x 20.5 x 31.5 30 $530
SC240RT 240V supercharger module to add up to 12 EBMs to 8 /11 kVA 9PX UPS models. 5.1 (3U) x 17.3 x 26.8 34 call
Includes 4-post rail kit
Power distribution and maintenance bypass
MBP11K208 Rear-mount 3U, 208V maintenance bypass module Hardwired Hardwired + (3) L6-30R $942
for 8/11 kVA 9PX UPS models.
PW105BA2U420 Basic ePDU for additional output receptacles. L6-30P (4) L6-20R 3.5 x 19.0 x 6.0 $716
2U form factor
PW105BA0U421 Basic ePDU for additional output receptacles. L14-30P (24) 5-20R 66.0 x 1.89 x 2.0 $740
0U form factor.
PW105BA2U422 Basic ePDU for additional output receptacles. L14-30P (4) L6-20R 3.5 x 19.0 x 6.0 $
2U form factor.
ePBZ79 Basic ePDU for additional output receptacles. L6-30P (16) C13 and (4) C19 1.7 x 17.0 x 5.1 $320
1U form factor.
48 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook
October 1, 2012
EATON 9PX UPS RACK/TOWER (continued)
9PX OPTIONS
(continued)
Catalog Rating Input Output Dimensions Weight Cdn List
Number Description (VA/Watts) Connection Receptacles (H x W x D, inches) (lb) Price
Additional modules
9PXTFMR5 9PX 5 kVA stepdown transformer 5000/5000 L6-30P (18) 5-20R 5.1 (3U) x 17.3 x 25.4 95 $1,088
9PXTFMR11 9PX 10 kW stepdown transformer 10000/10000 Hardwired Hardwired + (2) L14-30R, 5.1 (3U) x 17.3 x 25.4 187 $3,174
(8) 5-20R
9PX8KPM 9PX 8 kVA power module 8000/7200 Hardwired Hardwired 5.1 (3U) x 17.3 x 27.6 46 $5,648
9PX11KPM 9PX 11 kVA power module 10000/9000 Hardwired Hardwired 5.1 (3U) x 17.3 x 27.6 46 $7,140
* These transformer accessories may be ordered a la cart but for best pricing they should be purchased as bundled solution.
9PX SERVICE PLANS
Please visit Eaton.com/9PX for recommend service coverage, along with scheduled assembly and startup services
9PX BATTERY BACKUP TIMES (in minutes)**
Load (Watts) Internal Batteries +1 EBM +2 EBMs +3 EBMs +4 EBMs +5 EBMs
10000 3 10 18 25 34 42
7500 5.5 15 25 37 48 61
5000 10 25 42 61 80 98
2500 25 159 237 341 461 541
** Runtimes shown at full load with maximum power factor, are approximate and may vary with equipment, configuration, battery age, temperature, etc.View interactive runtime graphs at www.eaton.
com/9PX
49www.eaton.com/powerquality 1.800.461.9166
October 1, 2012
October 1, 2012
9135 RACK/TOWER GLOBAL MODELS: 208V, 50/60Hz*
Catalog Rating Input Output Dimensions Weight Cdn List
Number Description (VA/Watts) Connection Receptacles (H x W x D, inches) (lb) Price
PW9135G5000-XL3U PW91355000208V3U 5000/3500 TerminalBlock Hardwired+(4)L6-30R 5.14(3U)x17.5x29.2 125.7 $4,884
with L6-30 cord
PW9135G6000-XL3U PW91356000208V3U 6000/4200 TerminalBlock Hardwired+(4)L6-30R 5.14(3U)x17.5x29.2 125.7 $5,498
with L6-30 cord
PW9135G6000-XL3UN PW91356000208V3U 6000/4200 TerminalBlock Hardwired+(4)L6-30R 5.14(3U)x17.5x29.2 125.7 $5,841
with Network Card-MS with L6-30 cord
*Globalmodelscanoperateatnominalvoltagesof200V(10%deratingofoutputpower)208/220/230/240/250V.Thedefaultnominalvoltageis208V.
9135 RACK/TOWER INTERNATIONAL MODELS: 230V, 50/60Hz*
Catalog Rating Input Output Dimensions Weight Cdn List
Number Description (VA/Watts) Connection Receptacles (H x W x D, inches) (lb) Price
PW9135G6000-XL3UEU PW91356000230V3UEU 6000/4200 Hardwired Hardwired+ 5.14(3U)x17.5x29.2 125.7 $5,498 
(2)C19, (8)C13
* International models can operate at nominal voltages of 200V (10% derating of output power) 208/220/230/240/250V. The default nominal voltage is 230V.
9135 RACK/TOWER OPTIONS
Catalog Input Output Input Output Dimensions Weight Cdn List
Number Description Voltage (Vac) Voltage (Vac) Connection Receptacles (H x W x D, inches) (lb) Price
Extended Battery Module
PW9135N6000-EBM3U 9135 EBM - 5/6 kVA R/T (3U) – 5.14 (3U) x 17.5 x 25.6 155.4 $1,571
PowerPass Distribution Modules (PPDMs)—for use with 208V models only.¹
EPPDMG6000-3U-12 PPDM, L6-30 208–240 208–240/120 L6-30P (1) L6-30R, (8) 5-15R 5.25 (3U) x 17.4 x 24.8 106.0 $1,088
EPPDMG6000-3U-22 PPDM, L6-20 208–240 208–240/120 L6-30P (1) L6-20R, (8) 5-15R 5.25 (3U) x 17.4 x 24.8 106.0 $1,088
EPPDMG6000-3U-32 PPDM, L5-30 208–240 208–240/120 L6-30P (1) L5-30R, (8) 5-15R 5.25 (3U) x 17.4 x 24.8 106.0 $1,088
EPPDMG6000-3U-42 PPDM, L14-30R 208–240 208–240/120 L6-30P (1) L14-30R, (8) 5-15R 5.25 (3U) x 17.4 x 24.8 106.0 $1,088
EPPDMG6000-3U-HW2 PPDM, HW 208–240 208–240/120 Hardwired Hardwired 5.25 (3U) x 17.4 x 24.8 106.0 $1,088
EPPDMG6000-3U-HWEU2 PPDM, EURO HW 230–240 230–240 Hardwired Hardwired 5.25 (3U) x 17.4 x 24.8 106.0 $1,037
EPPDMG6000-3U-52 PPDM, L6-30 & L14-30 208–240 208–240/120 L6-30P (1) L6-30R, (1) L14-30R, 5.25 (3U) x 17.4 x 24.8 106.0 $1,088
(4) 5-15R
EPPDMG60000-3U-62 PPDM, (2) L6-303 208–240 208–240/120 L6-30P (2) L6-30R, (4) 5-20R 5.25 (3U) x 17.4 x 24.8 106.0 $1,088
EPPDMG6000-3U-72 PPDM, (2) L6-203 208–240 208–240/120 L6-30P (2) L6-20R, (4) 5-20R 5.25 (3U) x 17.4 x 24.8 106.0 $1,088
1. User-selectable for 208, 220, 230, and 240V. 2. Includes Rail Kit. All models fit in 19-inch rack Enclosures. 3. Black only.
Note: Input and output to the UPS is via L6-30P and L6-30R connection.
SOFTWARE AND CONNECTIVITY OPTIONS
Catalog Number Description Cdn List Price
Network-MS Network Card-MS $360
See software and connectivity product sections for more detail.
RACKMOUNT ePDU OPTIONS
Catalog Max. Cord Input Output Dimensions List
Number kW Function Length (ft) Plug Receptacles (H x W x D, inches) Price
PW105BA2U420 4.99 BA 9 L6-30P (4) L6-20R 3.4 x 19.0 x 6.0 $716
PW105BA0U421 4.99 BA 9 L14-30P (24) 5-20R 66.0 x 1.9 x 2.0 $740
Online UPS (5000–6000 VA)
The Eaton 9135 UPS offers advanced power protection and battery backup for any IT environment,
including networking, centralized retail and manufacturing.
• Protectsmissioncriticalapplicationsfromdowntime,datalossandcorruption,andprocessinterruptionby
providing continuous, clean power
• Shieldsconnectedequipmentfromdamageordegradationcausedbypoweranomalies
• Enablesextendedbackuppowertimeforcriticalsystemsthroughorderlyshutdownofnon-essential
equipment during power outages
• Warranty(USandCanada):Two-yearlimitedwarranty,extendedwarranty,OnsiteFlexandOnsite
PowerTrust service plans and $250,000 load protection guarantee
EATON 9135 UPS RACK/TOWER
Powerware series
50 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook
October 1, 2012
9135 EXTENDED SERVICE OPTIONS
Extended Warranty extends term of Factory Warranty
Part Number UPS Model Description Cdn List Price
6000EXWAR1YR9135U 9135 SERVICE 9135 Warranty +1 Year $480
6000EXWAR1YR9135B 9135 EBM SERVICE 9135 EBM Warranty +1 Year $480
6000EXWAR3YR9135U 9135 SERVICE 9135 Warranty +3 Year $1,103
6000EXWAR3YR9135B 9135 EBM SERVICE 9135 EBM Warranty +3 Year $1,103
Onsite Flex Service Plans include startup and eNotify Remote Monitoring service
Part Number UPS Model Description Cdn List Price
6000FLEX2YR9135U 9135 SERVICE 9135 Flex 2Yr UPS $2,243
6000FLEX2YR9135B 9135 EBM SERVICE 9135 Flex 2Yr EBM $449
6000FLEX3YR9135U 9135 SERVICE 9135 Flex 3Yr UPS $3,402
6000FLEX3YR9135B 9135 EBM SERVICE 9135 Flex 3Yr EBM $679
6000FLEX5YR9135U 9135 SERVICE 9135 Flex 5Yr UPS $5,649
6000FLEX5YR9135B 9135 EBM SERVICE 9135 Flex 5Yr EBM $1,130
Additional information about service plan features can be found in the Single-phase Service Plans Overview section of this reference guide.
9135 RACK/TOWER BATTERY BACKUP TIMES (in minutes)*
Load (VA/Watts) Standard +1 EBM +2 EBMs +3 EBMs +4 EBMs
Internal Batteries
1000/700 36 132 232 332 433
2000/1400 13 52 95 140 184
3000/2100 10 40 74 110 146
4000/2800 7 29 53 80 107
5000/3500 5 22 41 62 83
6000/4200 ** 4 18 33 50 68
* Backup times are approximate and vary with equipment, configuration, battery age, temperature, etc.
** Runtimes available for the 6 kVA model only.
EATON 9135 UPS RACK/TOWER
Powerware series (continued)
View interactive runtime graphs at www.eaton.com/9135
51www.eaton.com/powerquality 1.800.461.9166
October 1, 2012
October 1, 2012
Online double-conversion UPS (5000 VA, upgradeable to
20,000 VA)
A unique, true online double-conversion product family designed to let you pay-as-you-grow
with high-density power protection. Can be used for 20 to 110 servers, ideal for
departmental networks, servers and workstations.
• Twofrontaccesshot-swappablesub-modules(powerandbattery)
for maintenance without load interruption
• Automaticbatterytest(testperiodcanbeset)
• Internalbypassbuilt-intosupplytheloadeveniftheUPSfails
• Largeinputvoltageandfrequencyrangestoavoidusingthebatteriesunnecessarily
MX STANDALONE MODELS
Catalog Style Rating Input Output Dimensions Weight Cdn List
Number Number Description (VA/Watts) Connection Receptacles (H x W x D, inches) (lb) Price
PULSMXG5000-XL3U 87050 MX5000VART 5000/4500 TerminalBlock Hardwired, 5.14(3U)x17.50x27.60 125.7 $4,496
with L6-30 cord (4) L6-30R
PULSMXL5000-XL5U 87150 MX 5000 VA RT LV 5000/4500 Terminal Block Hardwired, 8.64 (5U) x 17.50 x 27.60 209.7 $5,535
with L6-30 cord (3) L6-30R,
(2) L5-20R, (6) 5-20R
MX OPTIONS
Catalog Style Output Dimensions Weight Cdn List
Number Number Description Receptacles (H x W x D, inches) (lb) Price
72-153653-01 72-153653-01 8’ input cable with L6-30P 15.48 (9U) x 17.49 x 28.00 - $161
PULSMXL5000-XFMR2U 87102 MX Transformer 5 kVA (2) L5-20R, (6) 5-20R 3.50 (2U) x 17.50 x 25.60 84.0 $1,041
PULSMXG5000-PWR 87100 MXPowerSub-module  7.80x5.00x23.74 32.0 $2,027
68528 68528 MX 6-foot battery cable - - $63
87410 87410 Caster/Floor Mount Kit - - $183
for MX Frame
Extended Battery Modules
PULSMXG5000-EBM3U 87103 MXEBM-5kVAR/T(3U)  5.14(3U)x17.50x25.60 154.0 $1,490
PULSMXG5000-BAT 87101 MXBatterySub-module  4.57x8.44x19.60 72.0 $566
86005 86005 Battery Integration Kit - - $600
Note:Forreplacementparts,pleasecontactourServiceGroupat800.356.5737forpricing.
SOFTWARE AND CONNECTIVITY OPTIONS
Catalog Number Description List Price
Network-MS Network Card-MS $360
See software and connectivity product sections for more detail.
RACKMOUNT ePDU OPTIONS
Catalog Max. Cord Input Output Dimensions Cdn List
Number kW Function Length (ft) Plug Receptacles (H x W x D, inches) Price
PW105BA2U420 4.99 BA 9 L6-30P (4) L6-20R 3.4 x 19.0 x 6.0 $716
EATON MX UPS
Pulsar series
(this product was formerly known as the Pulsar MX UPS)
52 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook
October 1, 2012
MX EXTENDED SERVICE OPTIONS
Extended Warranty extends term of Factory Warranty
Part Number UPS Model Description Cdn List Price
5000EXWAR1YRPULSMXU MX SERVICE MX Warranty +1 Year 5kVA $478
5000EXWAR3YRPULSMXU MX SERVICE MX Warranty +3 Year 5kVA $1,103
10000EXWAR1YRPULSMXU MX SERVICE MX Warranty +1 Year 10kVA $956
10000EXWAR3YRPULSMXU MX SERVICE MX Warranty +3 Year 10kVA $2,213
20000EXWAR1YRPULSMXU MX SERVICE MX Warranty +1 Year 15 & 20kVA $2,213
20000EXWAR3YRPULSMXU MX SERVICE MX Warranty +3 Year 15 & 2kVA $5,119
5000EXWAR1YRPULSMXB MX EBM SERVICE MX Warranty +1 Year EXB $478
5000EXWAR3YRPULSMXB MX EBM SERVICE MX Warranty +3 Year EXB $1,103
Onsite Flex Service Plans include startup and eNotify Remote Monitoring service
Part Number UPS Model Description Cdn List Price
5000FLEX2YRPULSMXU MX SERVICE MX 5K Flex 2Yr UPS $2,243
5000FLEX3YRPULSMXU MX SERVICE MX 5K Flex 3Yr UPS $3,402
5000FLEX5YRPULSMXU MX SERVICE MX 5K Flex 5Yr UPS $5,649
10000FLEX2YRPULSMXU MX SERVICE MX 10K Flex 2Yr UPS $3,251
10000FLEX3YRPULSMXU MX SERVICE MX 10K Flex 3Yr UPS $4,934
10000FLEX5YRPULSMXU MX SERVICE MX 10K Flex 5Yr UPS $8,191
20000FLEX2YRPULSMXU MX SERVICE MX 15K & 20K Flex 2Yr UPS $3,924
20000FLEX3YRPULSMXU MX SERVICE MX 15K & 20K Flex 3Yr UPS $5,955
20000FLEX5YRPULSMXU MX SERVICE MX 15K & 20K Flex 5Yr UPS $9,887
5000FLEX2YRPULSMXB MX EBM SERVICE MX 5K Flex 2Yr EXB $449
5000FLEX3YRPULSMXB MX EBM SERVICE MX 5K Flex 3Yr EXB $679
5000FLEX5YRPULSMXB MX EBM SERVICE MX 5K Flex 5Yr EXB $1,130
Additional information about service plan features can be found in the Single-phase Service Plans Overview section of this reference guide.
MX BATTERY BACKUP TIMES (in minutes @ .7 pf)*
Load kW Internal Batteries +1 EBM +2 EBMs +3 EBMs
700 36 132 232 332
1050 23 87 156 225
1400 17 64 116 169
1750 13 50 91 134
2100 10 40 74 110
2450 8 33 62 93
2800 7 29 53 80
3150 6 25 47 70
3500 5 22 41 62
MX FRAME BATTERY BACKUP TIMES (PARALLEL UPS, in minutes @ .7 pf, N+0)**
Load% Internal Batteries +1 EBM +2 EBMs +3 EBMs
20 36 132 232 332
30 23 87 156 225
40 17 64 116 169
50 13 50 91 134
60 10 40 74 110
70 8 33 62 93
80 7 29 53 80
90 6 25 47 70
10 5 22 41 62
* Backup times are approximate and vary with equipment, configuration, battery age, temperature, etc.
** For parallel systems, an EBM is required for each power module to reach data point. For example, a 20kVA system with four power modules would need four individual EBMs to reach 22 minutes
at full load.
EATON MX UPS
Pulsar series (continued)
View interactive runtime graphs at www.eaton.com/mx
53www.eaton.com/powerquality 1.800.461.9166
October 1, 2012
October 1, 2012
EATON 9140 UPS RACKMOUNT
Powerware series
Online UPS (10 kVA)
Superior de-centralized power protection for medium and high-density rack environments.
• OnlineUPSdesignedformaximumreliability
• Compactdesignoccupiesonly6Uofrackspace,includinginternalbatteries
• Lightweight,hot-swappablebatteryandelectronicsmodulesallowforeasyinstallationandservice
• Pre-installedrackmounthardwaresignificantlyreducesinstallationtime
• Extendsbatteryruntimeforupto45minuteswithuptofour3UEBMs
• IntuitiveLCDinterfaceprovidesdetailedinformationandUPSmanagementinmultiplelanguages
• USBandserialportsstandard,optionalX-Slotcommunicationcard
• Warranty(USandCanada):Two-yearlimitedwarrantyand$250,000loadprotectionguarantee
9140 RACK USER SELECTABLE MODELS: 208–240V IN (SINGLE-PHASE)
208–240 Vac in (single-phase) / 208–240 Vac out
Style Rating Input Output Dimensions Weight Cdn List
Number Description (VA/Watts) Connection Receptacles (H x W x D, inches) (lb) Price
103004728-6591 PW9140 10000 HW 10000/8000 Hardwired Hardwired, (3) C19, (2) C13 10.5 (6U) x 17.2 x 31.1 254 $6,737
9140 RACK OPTIONS
Style Output Dimensions Weight Cdn List
Number Description Receptacles (H x W x D, inches) (lb) Price
Extended Battery Modules
103004729-6591 9140 EBM - 7.5/10 kVA Rack (3U)1 5.25 (3U) x 17.2 x 26.0 179 $1,925
EX RT/9140 Transformer
EXRTL9140-XFMR3U 7.5/10 kVA Transformer Module2 (2) L6-30R, (8) 5-20R + HW 5.16 (3U) x 17.49 x 25.00 173 $2,787
1. Up to four EBMs can be connected to a single PW9140 UPS.
2. Rail kit included
Note:Forreplacementparts,contactourServiceGroupat800.356.5737forpricing.
ENCLOSURES
See the Enclosures section for a comprehensive list of IT Enclosure offerings.
SOFTWARE AND CONNECTIVITY OPTIONS
Catalog Number Description Style Number Cdn List Price
PXGXUPS PowerXpertGatewayUPSCard 103007974-5591 $603
39J4824 ConnectUPS-X 116750221-001 $449
Bundled with Intelligent Power Software Suite CD and communication cable.
See software and connectivity product sections for more detail.
9140 EXTENDED SERVICE OPTIONS
Extended Warranty extends term of Factory Warranty
Part Number UPS Model Description Cdn List Price
2XXGX91400750CX 9140 SERVICEPW91407500VADomestic-2YearGoldPlan $1,159
3XXGX91400750CX 9140 SERVICEPW91407500VADomestic-3YearGoldPlan $2,171
5XXGX91400750CX 9140 SERVICEPW91407500VADomestic-5YearGoldPlan $4,293
2XXGX91401000CX 9140 SERVICEPW914010000VADomestic-2YearGoldPlan $1,218
3XXGX91401000CX 9140 SERVICEPW914010000VADomestic-3YearGoldPlan $2,283
5XXGX91401000CX 9140 SERVICEPW914010000VADomestic-5YearGoldPlan $4,498
Onsite Flex Service Plans include startup and eNotify Remote Monitoring service
Part Number UPS Model Description Cdn List Price
2OSGX91400750CX 9140 SERVICEPW91407500VADomestic-2YearOnSIte(250KM,7X24)GoldPlan $2,846
3OSGX91400750CX 9140 SERVICEPW91407500VADomestic-3YearOnSIte(250KM,7X24)GoldPlan $3,985
5OSGX91400750CX 9140 SERVICEPW91407500VADomestic-5YearOnSIte(250KM,7X24)GoldPlan $6,280
2OSGX91401000CX 9140 SERVICEPW914010000VADomestic-2YearOnSIte(250KM,7X24)GoldPlan $2,905
3OSGX91401000CX 9140 SERVICEPW914010000VADomestic-3YearOnSIte(250KM,7X24)GoldPlan $4,094
5OSGX91401000CX 9140 SERVICEPW914010000VADomestic-5YearOnSIte(250KM,7X24)GoldPlan $6,500
2OSGP91400750CX 9140 SERVICEPW91407500VADomestic-2YearOnSIte(250KM,7X24)GoldPlanPlus $4,498
3OSGP91400750CX 9140 SERVICEPW91407500VADomestic-3YearOnSIte(250KM,7X24)GoldPlanPlus $5,796
5OSGP91400750CX 9140 SERVICEPW91407500VADomestic-5YearOnSIte(250KM,7X24)GoldPlanPlus $8,319
2OSGP91401000CX 9140 SERVICEPW914010000VADomestic-2YearOnSIte(250KM,7X24)GoldPlanPlus $4,636
3OSGP91401000CX 9140 SERVICEPW914010000VADomestic-3YearOnSIte(250KM,7X24)GoldPlanPlus $6,001
5OSGP91401000CX 9140 SERVICEPW914010000VADomestic-5YearOnSIte(250KM,7X24)GoldPlanPlus $8,642
Additional information about service plan features can be found in the Single-phase Service Plans Overview section of this reference guide.
54 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook
October 1, 2012
EATON 9140 UPS RACKMOUNT
Powerware series (continued)
9140 RACK BATTERY BACKUP TIMES (in minutes)1
Load (VA/Watts) Standard Internal Batteries +1 EBM +2 EBMs +3 EBMs +4 EBMs
1250/1000 80 137 189 275 365
2500/2000 31 61 99 138 181
3750/3000 18 38 68 92 121
5000/4000 12 27 52 69 90
6250/5000 9 21 42 55 72
7500/6000 7 17 35 46 60
8750/7000 6 14 31 40 51
10000/8000 5 12 27 35 45
1. This table provides typical information. Backup times are approximate and vary with equipment, configuration, battery age, temperature, etc.
View interactive runtime graphs at www.eaton.com/9140
55www.eaton.com/powerquality 1.800.461.9166
October 1, 2012
October 1, 2012
High performance UPS
Perfect for rack servers Enclosure and industrial environment.
High-end power protection ideal for:
• Servers, whether rack-mounted or standing
• Networking & VoIP
• Storage
• Telecom equipment
EX RT
Catalog Style Rating Input Output Dimensions Weight Cdn List
Number Number Description (VA/Watts) Connection Receptacles (H x W x D, inches) (lb) Price
EXRTG5000-XL6UMS 86505 EXRT5kVARTHV 5000/4000 Hardwired Hardwired 10.32(6U)x17.49x26.25 192.0 $4,628
EXRTG7000-XL6UMS 86507 EXRT7kVARTHV 7000/4900 Hardwired Hardwired 10.32(6U)x17.49x26.25 192.0 $5,244
EXRTG11000-XL6UMS 86511 EXRT11kVARTHV 11000/8000 Hardwired Hardwired 10.32(6U)x17.49x26.25 211.0 $6,767
EXRTL5000-XL9UMS 86506 EXRT 5 kVA RT LV 5000/4000 Hardwired Hardwired + (2) NEMA 15.48 (9U) x 17.49 x 26.25 365.0 $6,274
L6-30R + (8) NEMA 5-20R
EXRTL7000-XL9UMS 86508 EXRT 7 kVA RT LV 7000/4900 Hardwired Hardwired + (2) NEMA 15.48 (9U) x 17.49 x 26.25 365.0 $7,256
L6-30R + (8) NEMA 5-20R
EXRTL11000-XL9UMS 86512 EXRT 11 kVA RT LV 11000/8000 Hardwired Hardwired + (2) NEMA 15.48 (9U) x 17.49 x 26.25 384.0 $9,033
L6-30R + (8) NEMA 5-20R
EX RT POWER MODULES*
Catalog Number Style Number Description Cdn List Price
EXRTG5000-PWRMS 86056 EXRT5kVAPowerModule $3,250
EXRTG7000-PWRMS 86076 EXRT7kVAPowerModule $3,868
EXRTG11000-PWRMS 86116 EXRT11kVAPowerModule $5,246
* Rail kit included
EX RT OPTIONS
Catalog Style Output Dimensions Weight Cdn List
Number Number Description Receptacles (H x W x D, inches) (lb) Price
EX RT Modules*
EXRTL7000-XFMR3U 86311 EXRT 5/7 kVA Transformer Module (2) L6-30R + (8) 5-20R + HW 5.16 (3U) x 17.49 x 25.00 173.0 $2,627
EXRTL9140-XFMR3U 103007853-6591 EXRT 11 kVA Transformer Module (2) L6-30R + (8) 5-20R + HW 5.16 (3U) x 17.49 x 25.00 173.0 $2,787
EXRTG11000-CHR3U 86004 EXRT5/7/11kVAChargerModule 5.16(3U)x17.49x23.75 25.4 $756
Battery Integration
86005 86005 Battery Integration Kit / Caster Kit - - $600
86006 86006 EXRT 6-ft Battery Extension Cable - - $50
Optional Mounting Hardware
86001 86001 EXRT Power Module Rail Kit - - $88
86002 86002 EXRT EBM/Transformer Rail Kit - - $59
Cabling
72-153653-01 72-153653-01 8’ Cord with L6-30 - - $161
Extended Battery Modules*
EXRTG7000-EBM3U 86079 EXRTEBM-5/7kVA 5.16(3U)x17.49x25.00 142.0 $1,381
EXRTG11000-EBM3U 86119 EXRTEBM-11kVA 5.16(3U)x17.49x25.00 151.0 $1,524
* Rail kit included
SOFTWARE AND CONNECTIVITY OPTIONS
Catalog Number Description Cdn List Price
Network-MS Network Card-MS $360
See software and connectivity product sections for more detail.
EATON EX RT UPS
Pulsar series
(this product was formerly known as the Comet EX RT UPS)
• Medical equipment
• Sensitive electronic equipment in industrial
environment
• High-density server virtualization environment
56 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook
October 1, 2012
RACKMOUNT ePDU OPTIONS
Catalog Max. Cord Input Output Dimensions Cdn List
Number kW Function Length (ft) Plug Receptacles (H x W x D, inches) Price
PW105BA2U420 4.99 BA 9 L6-30P (4) L6-20R 3.4 x 19.0 x 6.0 $716
EX RT EXTENDED SERVICE OPTIONS
Extended Warranty extends term of Factory Warranty
Part Number UPS Model Description Cdn List Price
7000EXWAR1YREXRTU EX RT SERVICE EX / RT Warranty +1 Year 5kVA & 7kVA $478
7000EXWAR3YREXRTU EX RT SERVICE EX / RT Warranty +3 Year 5kVA & 7kVA $1,103
7000EXWAR1YREXRTB EX RT EBM SERVICE EX / RT Warranty +1 Year 5kVA & 7kVA EXB $478
7000EXWAR3YREXRTB EX RT EBM SERVICE EX / RT Warranty +3 Year 5kVA & 7kVA EXB $1,103
11000EXWAR1YREXRTU EX RT SERVICE EX / RT Warranty +1 Year 11kVA $956
11000EXWAR3YREXRTU EX RT SERVICE EX / RT Warranty +3 Year 11kVA $2,213
11000EXWAR1YREXRTB EX RT EBM SERVICE EX / RT Warranty +1 Year 11kVA EXB $956
11000EXWAR3YREXRTB EX RT EBM SERVICE EX / RT Warranty +3 Year 11kVA EXB $2,213
Onsite Flex Service Plans include startup and eNotify Remote Monitoring service
Part Number UPS Model Description Cdn List Price
7000FLEX2YREXRTU EX RT SERVICE EX/RT 5k & 7K Flex 2Yr UPS $2,243
7000FLEX3YREXRTU EX RT SERVICE EX/RT 5k & 7K Flex 3Yr UPS $3,402
7000FLEX5YREXRTU EX RT SERVICE EX/RT 5k & 7K Flex 5Yr UPS $5,649
7000FLEX2YREXRTB EX RT EBM SERVICE EX/RT 5k & 7K Flex 2Yr EXB $449
7000FLEX3YREXRTB EX RT EBM SERVICE EX/RT 5k & 7K Flex 3Yr EXB $679
7000FLEX5YREXRTB EX RT EBM SERVICE EX/RT 5k & 7K Flex 5Yr EXB $1,130
11000FLEX2YREXRTU EX RT SERVICE EX/RT 11k Flex 2Yr UPS $3,251
11000FLEX3YREXRTU EX RT SERVICE EX/RT 11k Flex 3Yr UPS $4,934
11000FLEX5YREXRTU EX RT SERVICE EX/RT 11k Flex 5Yr UPS $8,191
11000FLEX2YREXRTB EX RT EBM SERVICE EX/RT 11k Flex 2Yr EXB $648
11000FLEX3YREXRTB EX RT EBM SERVICE EX/RT 11k Flex 3Yr EXB $985
11000FLEX5YREXRTB EX RT EBM SERVICE EX/RT 11k Flex 5Yr EXB $1,639
Additional information about service plan features can be found in the Single-phase Service Plans Overview section of this reference guide.
EATON EX RT UPS
Pulsar series (continued)
57www.eaton.com/powerquality 1.800.461.9166
October 1, 2012
October 1, 2012
EX RT BATTERY BACKUP TIMES (in minutes)*
Load (VA/Watts) Base Battery Module +1 EBM +2 EBMs +3 EBMs +4 EBMs +5 EBMs
EXRTG5000-XL6U / EXRTL5000-XL9U
500/400 170 358 540 740 892 1220
1000/800 91 170 260 355 505 540
1500/1200 49 110 170 240 290 355
2000/1600 33 84 120 170 235 260
2500/2000 25 60 100 122 170 225
3000/2400 21 46 75 110 135 170
3500/2800 16 39 64 95 119 140
4000/3200 13 31 57 84 105 120
4500/3600 11 27 52 68 92 110
5000/4000 9 25 45 60 84 100
EXRTG7000-XL6U / EXRTL7000-XL9U
700/490 121 266 447 578 756 889
1400/890 57 125 203 244 364 453
2100/1470 37 80 124 185 245 287
2800/1960 28 61 101 128 169 232
3500/2450 21 53 83 108 132 164
4200/2940 15 37 66 90 110 133
4900/3430 12 30 55 75 98 118
5600/3920 10 24 45 61 77 102
6300/4410 8 22 38 53 69 86
7000/4900 7 20 32 45 57 72
EXRTG11000-XL6U / EXRTL11000-XL9U
1100/800 90 191 293 392 525 637
2200/1600 40 93 143 199 261 312
3300/2400 25 61 96 135 172 201
4400/3200 18 43 71 99 120 142
5500/4000 14 30 53 84 102 113
6600/4800 11 24 44 60 86 102
7700/5600 9 20 34 51 67 87
8800/6400 7 17 27 43 56 68
9900/7200 6 15 24 35 48 60
11000/8000 5 14 22 30 42 53
* Backup times are approximate and may vary with equipment, configuration, battery age, temperature, etc.
EATON EX RT UPS
Pulsar series (continued)
View interactive runtime graphs at www.eaton.com/ex-rt
58 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook
October 1, 2012
EATON 9155 UPS
Powerware series
Online double-conversion UPS (8–15 kVA)
This innovative design delivers one of the industry's best combinations of high efficiency, low input current distortion and
highest power factor, while conserving valuable space and offering the most cost-effective, highest performance option
available today.
• Trueonlinedouble-conversiontopologyprotectsequipmentfromallnineofthemostcommonpowerproblems
• Industryleadingpowerdensity,providingupto13percentmorepowercapacityinacompacttowerdesignincluding
batteries
• Upto200percentmorestandardruntimeoutofthebox,600percentmoreruntimeinasmallerfootprintwitha3-highmodule
• Uptoa74percentfootprintreduction
• Flexiblevoltages,assplit-phasearchitecturecreatesupto15kVAat100,120,208or240Vacwithnotransformersrequired
• Flexibleon-boardpowerdistributionmodules(PDMs)allowforhardwiredoutputorupto15differentoutputreceptacle
options, reducing installation and site preparation expenses
• Plug-and-playrackEnclosurepowerdistributionwiththeon-boardPDU
• Inherentlyscalablefrom8–15kVA,allowingyoutopayasyougroworincreasecapacitywithnoadditionalhardware
purchases or installation concerns
• Eaton’spatentedHotSyncparallelingtechnologyallowsforwirelessparallelingintheeventofcommunicationsfailure,
providing the industry’s only truly redundant paralleling technology
• Flexible0footprintextendedrunconfigurationsallowforaddingadditionalruntimeinthesameindustry-leadingcompact
footprint available
• Includeson-site5x8startupandoperatortrainingbyEatonfieldtechnician
• IncludesoneyearofeNotifyremotemonitoringservice(requiresconnectivitypartsandselfinstallation)
• Includesoneyearlocal(250km)5x8Correctivewarranty,Local5x8start-up
9155 MODELS
Part Rating2 Input Output Dimensions Weight3 Cdn List
Model Number1 (kVA/kW) Connection Receptacles (H x W x D, inches) (lb) Price
PW9155 8 kVA 32 Battery (2-high) K40811000000000 8/7.2 Hardwired Optional 32.2 x 12.0 x 33.7 352 $10,209
PW9155 8 kVA 64 Battery (3-high) K40812000000000 8/7.2 Hardwired Optional 47.8 x 12.0 x 33.7 590 $12,140
PW9155 8 kVA 32 Battery K40813000000000 8/7.2 Hardwired Optional 47.8 x 12.0 x 33.7 558 $14,038
w/Trans. Mod. (3-high)
PW9155 10 kVA 32 Battery (2-high) K41011000000000 10/9 Hardwired Optional 32.2 x 12.0 x 33.7 352 $11,713
PW9155 10 kVA 64 Battery (3-high) K41012000000000 10/9 Hardwired Optional 47.8 x 12.0 x 33.7 590 $13,954
PW9155 10 kVA 32 Battery K41013000000000 10/9 Hardwired Optional 47.8 x 12.0 x 33.7 558 $16,047
w/Trans. Mod. (3-high)
PW9155 12 kVA 32 Battery (2-high) K41211000000000 12/10.8 Hardwired Optional 32.2 x 12.0 x 33.7 352 $12,317
PW9155 12 kVA 64 Battery (3-high) K41212000000000 12/10.8 Hardwired Optional 47.8 x 12.0 x 33.7 590 $14,579
PW9155 12 kVA 32 Battery K41213000000000 12/10.8 Hardwired Optional 47.8 x 12.0 x 33.7 558 $16,588
w/Trans. Mod. (3-high)
PW9155 15 kVA 32 Battery (2-high) K41511000000000 15/13.5 Hardwired Optional 32.2 x 12.0 x 33.7 352 $13,383
PW9155 15 kVA 64 Battery (3-high) K41512000000000 15/13.5 Hardwired Optional 47.8 x 12.0 x 33.7 590 $15,932
PW9155 15 kVA 32 Battery K41513000000000 15/13.5 Hardwired Optional 47.8 x 12.0 x 33.7 558 $18,016
w/Trans. Mod. (3-high)
1. 50/60 Hz auto-sensing. All models can be used for frequency/phase conversion with derated 80% load, please refer to manual for details. 2. Input voltage 100/200, 110/220, 120/240, Vac 180° phase
displacement, 120/208, 127/220 Vac 120° phase displacement. Output voltages are user-selectable 100/200, 110/220, 120/240 Vac 180° phase displacement, 120/208, 127/220 Vac 120° phase displacement.
3. Weight is installed weight, add 47 lb (2-modules high) or 50 lb (3-modules high) to determine shipping weight.
BUILT-IN CONNECTIVITY OPTIONS
Available X-Slot card options (The UPS has two X-Slot bays available; one X-Slot card can be factory installed, the second X-Slot card can be ordered separately
and user-installed.)
Value for Part Cdn List
Description CTO Digit 8 Number (if ordered separately) Price
NONE (No Pre-installed X-Slot card) 0 - $0
ConnectUPS-X Web/SNMP Card 3 116750221-001 $449
Modbus Card-X-Slot 4 103005425-5591 $885
Relay Interface Card-X-Slot (AS/400 Compatible) 5 1018460 $195
Industrial Relay and Display Drive Card X-Slot 6 103003055 $449
59www.eaton.com/powerquality 1.800.461.9166
October 1, 2012
October 1, 2012
EATON 9155 UPS
Powerware series (continued)
OUTPUT RECEPTACLES AND MAINTENANCE BYPASS
Order Number Description Dimensions (H x W x D, inches) Weight (lb) Cdn List Price
See worksheet below: Power Distribution Module (PDM) with Mechanical 16.5 x 12.0 x 7.0 25.0 $991
Bypass Switch (rear UPS mount)*
Receptacle Codes (Qty) NEMA Type
(Select digits 912 in the CTO number)
Price Adder
PDM Worksheet CTO Description Voltage Phase per Receptacle Code Chosen
S Mechanical Bypass Module only $991
A (4) 5-15R 120V Single $218
B (4) 5-20R UL 120V Single $218
D (4) 6-15R 208V Dual $218
E (4) 6-20R 208V Dual $218
F (4) L5-15R 120V Single $218
G (2)L5-20R* 120V Single $218
H (2) L5-30R* 120V Single $218
I (2) L6-15R 208V Dual $218
J (2) L6-20R* 208V Dual $218
K (2) L6-30R* 208V Dual $218
L (2) L14-20R* 120/208V Dual $218
M (2) L14-30R* 120/208V Dual $218
X Blank Plate - - $20
0 (Zero) Last Product Identifier Number - - -
Notes: If any output receptacles are chosen, the Maintenance Bypass module will be included and will add $999 to the cost. Maximum 4 choices within CTO part number (9-12). The combined quantities
ofLOCKINGreceptacles(denotedwitha*)mustnotexceedfour.Pleasebesuretoutilizethe"X"designationforanyofthe4totalslotsnotpopulated.*Pleasecontactfactoryforcustomconfiguration
availability.
* If only mechanical bypass is chosen, remaining three slots should be populated with "0".
9155 OPTIONS
Model Number Description Dimensions (H x W x D, inches) Weight (lb) Cdn List Price
Hot Sync (Parallel Systems)*
124100017-001 9155 Parallel Tie Cabinet 24.00 x 20.30 x 6.00 80.0 $1,624
103004336 CAN Bridge Card - - $556
Note: Up to (3) PW9155s can be paralleled within the Parallel Tie Cabinet and each UPS must include a Hot Sync CAN Bridge Card installed in the 2nd X-Slot.
Extended Battery Module
103004192-5501 PW9155 EBM 64 (2-high Stack) 32.20 x 12.00 x 30.20 480.0 $6,223
103004193-5501 PW9155 EBM 96 (3-high Stack) 47.80 x 12.00 x 30.20 710.0 $8,878
Note: Up to (4) EBM64s or (3) EBM96s can be added for additional runtime.
Maintenance Bypass Module (MBM)
BPE20MBB1A Wall-mounted Maintenance Bypass Module 21.00 x 14.00 x 6.75 34.0 $1,865
9155 Upgrade Packages
103004195 PW9155 One-step kVA Upgrade Kit $1,276
103004196 PW9155 Two-step kVA Upgrade Kit $2,553
Seismic Kit
103004194-5501 Seismic kit, Rated Zone 4, UL tested, performance rating 136.0 $2,064
 basedonNEBSGR-63-COREStandardVibrationTest
Notes: An 8 to 15 kVA upgrade would require purchase of a one and two-step upgrade. Up to three 9155s can be paralleled within the Parallel Tie Cabinet and each UPS must include CAN Bridge Card
installed in the second X-Slot. For extended runtime applications, each UPS must have dedicated and identical number of EBMs. Kit includes CAN Bridge Card and Instructions.
* Eaton startup is required for factory warranty of parallel configuration.
SOFTWARE AND CONNECTIVITY
Description Part Number Cdn List Price
PowerXpertGatewayUPSCard PXGXUPS(103007974-5591) $603
Bundled with Intelligent Power Software Suite CD and communication cable. See the software and connectivity sections for more details.
9155 SERVICE OPTIONS
Start-Up Options
Part Number Description Cdn List Price
9155-SU724 Eaton 9155 Upgrade to (7 x 24) Local Start up, Domestic models 8-15kVA $602
60 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook
October 1, 2012
EATON 9155 UPS
Powerware series (continued)
9155 SERVICE OPTIONS
(continued)
Extended Year Warranty Options
Part Number Description Cdn List Price
9155EX-PT2YR Eaton 9155 2-Year, Local, Power Trust ( 5 x 8) , Domestic models 8-15 KVA) $1,995
9155EX-PT3YR Eaton 9155 3-Year, Local, Power Trust ( 5 x 8) , Domestic models 8-15 KVA $3,991
9155EX-PTP1YR Eaton 9155 1-Year, Local, Power Trust Preferred ( 7 x 24) 8-15 KVA $939
9155EX-PTP2YR Eaton 9155 2-Year, Local, Power Trust Preferred ( 7 x 24) 8-15 KVA $2,465
9155EX-PTP3YR Eaton 9155 3-Year, Local, Power Trust Preferred ( 7 x 24) 8-15 KVA $4,930
Parallel Unit Options
Part Number Description Cdn List Price
9155EX-2PT2YR Eaton 9155 2-Year, Local, Power Trust ( 5 x 8) 2 Unit Parallel System 8-15 KVA $3,791
9155EX-2PT3YR Eaton 9155 3-Year, Local, Power Trust ( 5 x 8) 2 Unit Parallel System 8-15 KVA $7,583
9155EX-2PTP1YR Eaton 9155 1-Year, Local, Power Trust Preferred ( 7 x 24) 2 Unit Parallel System 8-15 KVA $1,784
9155EX-2PTP2YR Eaton 9155 2-Year, Local, Power Trust Preferred ( 7 x 24) 2 Unit Parallel System 8-15 KVA $4,684
9155EX-2PTP3YR Eaton 9155 3-Year, Local, Power Trust Preferred ( 7 x 24) 2 Unit Parallel System 8-15 KVA $9,367
9155EX-3PT2YR Eaton 9155 2-Year, Local, Power Trust ( 5 x 8) 3 Unit Parallel System 8-15 KVA $5,387
9155EX-3PT3YR Eaton 9155 3-Year, Local, Power Trust ( 5 x 8) 3 Unit Parallel System 8-15 KVA $10,776
9155EX-3PTP1YR Eaton 9155 1-Year, Local, Power Trust Preferred ( 7 x 24) 3 Unit Parallel System 8-15 KVA $2,535
9155EX-3PTP2YR Eaton 9155 2-Year, Local, Power Trust Preferred ( 7 x 24) 3 Unit Parallel System 8-15 KVA $6,656
9155EX-3PTP3YR Eaton 9155 3-Year, Local, Power Trust Preferred ( 7 x 24) 3 Unit Parallel System 8-15 KVA $13,311
Additional information about service plan features can be found in the Single-phase Service Plans Overview section of this reference guide.
9155 BATTERY BACKUP TIMES (in minutes) @ 0.9 Power Factor
Load UPS + Internal UPS + Internal
(VA/Watts) 32 Battery +1 EBM 64 +2 EBM 64 +3 EBM 64 +4 EBM 64 64 Battery +1 EBM 96 +2 EBM 96 +3 EBM 96
15000/13500 4.6 23.0 43.0 65.1 88.6 13.3 43.0 76.7 113.0
14500/13050 4.9 24.1 45.2 68.3 93.0 14.1 45.2 80.5 119.0
14000/12600 5.2 25.2 47.3 71.5 97.4 14.9 47.3 84.2 125.0
13500/12150 5.5 26.4 49.4 74.7 102.0 15.8 49.4 88.1 130.0
13000/11700 5.8 27.6 51.6 78.1 106.0 16.7 51.6 92.0 136.0
12500/11250 6.1 28.8 54.0 81.6 111.0 17.6 54.0 96.2 142.0
12000/10800 6.5 30.2 56.5 85.5 116.0 18.6 56.5 101.0 149.0
11500/10350 6.9 31.6 59.3 89.7 122.0 19.2 59.3 106.0 156.0
11000/9900 7.3 33.3 62.4 94.4 129.0 20.2 62.4 111.0 164.0
10500/9450 7.8 35.1 65.9 99.6 136.0 21.4 65.9 117.0 174.0
10000/9000 8.4 37.2 69.8 106.0 144.0 22.6 69.8 124.0 184.0
9500/8550 9.1 39.6 74.2 112.0 153.0 24.1 74.2 132.0 196.0
9000/8100 9.9 42.3 79.4 120.0 163.0 25.7 79.4 141.0 209.0
8500/7650 10.8 45.5 85.2 129.0 175.0 27.6 85.2 152.0 225.0
8000/7200 11.9 49.1 91.9 139.0 189.0 29.8 91.9 164.0 242.0
7500/6750 13.1 53.2 99.7 151.0 205.0 32.3 99.7 178.0 263.0
7000/6300 14.6 58.0 109.0 164.0 224.0 35.2 109.0 194.0 286.0
6500/5850 16.3 63.5 119.0 180.0 245.0 38.6 119.0 212.0 314.0
6000/5400 18.4 70.0 131.0 198.0 270.0 42.5 131.0 234.0 346.0
5500/4950 20.1 77.6 145.0 220.0 300.0 47.2 145.0 259.0 383.0
5000/4500 22.4 86.6 162.0 245.0 334.0 52.6 162.0 289.0 428.0
4500/4050 25.2 97.4 182.0 276.0 376.0 59.2 182.0 325.0 -
4000/3600 28.6 110.0 207.0 313.0 426.0 67.1 207.0 369.0 -
3500/3150 32.8 127.0 238.0 359.0 - 77.0 238.0 423.0 -
3000/2700 38.3 148.0 277.0 418.0 - 89.7 277.0 - -
2500/2250 45.6 176.0 329.0 - - 107.0 329.0 - -
Note: Backup times are approximate and may vary with equipment, configuration, battery age, temperature, etc.
61www.eaton.com/powerquality 1.800.461.9166
October 1, 2012
October 1, 2012
Online double-conversion UPS (3–18 kVA)
Reliable online, high-frequency, double-conversion power protection that provides flexible solutions for mission-critical
applications.
• N+Xpowerandlogicredundancyeliminatingallsystemlevelsinglepoint-of-failure
• EasilyscalabletoadapttochangingITenvironmentsbysimplyaddingpowerand/orbatterymodules
• Double-conversion,onlinedesigndeliversthehighestlevelofprotection
• ABMtechnologysignificantlyincreasesbatteryservicelife
• Hot-swappablebatteryandpowermodules,eachweighinglessthan30poundsforeasyhandlingandreplacement
• Powermanagementsoftwarebundleprovidesmonitoringandshutdowncapabilities
• Includestwoyearreturntodepostwarrantyandalocal(250km)5x8start-up
• Warranty(USandCanada):Two-yearlimitedwarrantyand$250,000loadprotectionguarantee;optionalGoldPlans
available
EATON 9170+ UPS RACK/TOWER
Powerware series
9170+ MODELS
Dimensions Weight Cdn List
Model Part Number (H x W x D, inches) (lb) Price
9170+ Modules
Split-phase Power Module (100/200, 120/208, 127/220, 110/220, 120/240V In & Out) ASY-0673 4.23 x 14.12 x 15.25 17 $1,964
Universal Power Module (208-240V In & Out) ASY-0674 4.23 x 14.12 x 15.25 17 $1,880
Battery Module (two required per slot/string)1 ASY-0529 4.23 x 7.012 x 14.75 30 $362
Optional 20 Amp Charger Module (same form factor as 3 kVA power modules) ASY-0675 4.23 x 14.12 x 14.75 17 $2,753
Note:For9170replacementmodules,contactourServiceGroupat800.356.5737forpricing.
UPS Enclosures
3-slot Enclosure (3 kVA max.), Hardwired Input/Output 0660C030AAAAAAAI 17.80 x 17.00 x 25.40 66 $3,332
6-slot Enclosure (3, 6 or 9 kVA), Hardwired Input/Output 0660C060AAAAAAAI 31.50 x 17.00 x 25.40 103 $3,636
9-slot Enclosure (3, 6, 9, 12, 15 or 18 kVA), Hardwired Input/Output 0660C090AAAAAAAI 47.00 x 24.00 x 28.40 158 $3,899
12-slot Enclosure (3, 6, 9, 12, 15 or 18 kVA), Hardwired Input/Output 0660C120AAAAAAAI 60.70 x 24.00 x 28.40 196 $4,192
9-slot rack Enclosure 0660C092AAAAAAAI 45.00 x 17.00 x 25.40 158 $4,206
12-slot rack Enclosure 0660C122AAAAAAAI 58.00 x 17.00 x 25.40 196 $4,490
External Options
Rack Kit (3- & 6-slot Enclosure only) ASY-0547 - 15 $169
Caster option for 3- & 6-slot Enclosure ASY-0527 - 9 $208
External battery connection option (matching cabinet for hot-swap battery modules) ASY-0525 - 8 $273
Floor Anchoring kit ASY-0548 - 6 $69
6-slot external battery Enclosure: black1 ASY-0612 31.50 x 17.00 x 25.40 93 $1,537
9-slot external battery Enclosure: black1 ASY-0737 47.00 x 24.00 x 28.40 148 $1,959
12-slot external battery Enclosure: black1 ASY-0738 60.70 x 24.00 x 28.40 186 $2,673
12-slot Enclosure w/AC for charger option: black ASY-0739 60.70 x 24.00 x 28.40 196 $2,951
12-slot rack external battery Enclosure: black 103004136 58.00 x 17.00 x 25.40 186 $2,466
12-slot rack external battery Enclosure w/AC charger option: black 103004137 58.00 x 17.00 x 25.40 196 $3,110
Rail Kit Option for 3 & 6 slot rackmount2 103007312 - 12 $307
1. External Battery Cabinet connection option (ASY-0525) required with each battery cabinet.
2. Rail kit optional for 3 & 6 slot rackmount chassis - included with 9 & 12 slot rackmount chassis
Wall-mounted Maintenance Bypass Cabinets
3- & 6-slot Enclosure (Make-Before-Break) BPE14MBB1A 21.0 x 14.0 x 6.75 31 $1,374
9- & 12-slot Enclosure (Break-Before-Make) BPE20BBM1A 21.0 x 14.0 x 6.75 34 $1,543
9- & 12-slot Enclosure (Make-Before-Break) BPE20MBB1A 21.0 x 14.0 x 6.75 34 $1,776
62 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook
October 1, 2012
EATON 9170+ UPS RACK/TOWER
Powerware series (continued)
9170+ PRE-CONFIGURED SYSTEMS
Output Dimensions Weight Cdn List
Model Number Rating Input Connection Receptacles (H x W x D, inches) (lb) Price1
Pre-configured Systems with Hardwire Input and Output Options
PW3S3K 3 kVA expandable Hardwired Hardwired 19.5 x 17.0 x 25.5 155 $6,229
Includes: to 3 kVA N+1
(1) 3-slot Enclosure
(1) power module
(2) battery modules
(1) caster kit
PW6S3K 3 kVA expandable Hardwired Hardwired 33.3 x 17.0 x 25.5 155 $ 6,532
Includes: to 9 kVA N+X
(1) 6-slot Enclosure
(1) power module
(2) battery modules
(1) caster kit
PW6S6K 6 kVA expandable Hardwired Hardwired 33.3 x 17.0 x 25.5 232 $ 9,220
Includes: to 9 kVA N+X
(1) 6-slot Enclosure
(2) power modules
(4) battery modules
(1) caster kit
PW6S9K 9 kVA expandable Hardwired Hardwired 33.3 x 17.0 x 25.5 346 $11,908
Includes: to 9 kVA N+X
(1) 6-slot Enclosure
(3) power modules
(6) battery modules
(1) caster kit
PW9S9K 9 kVA expandable Hardwired Hardwired 47.0 x 24.0 x 28.5 389 $11,963
Includes: to 18 kVA N+X
(1) 9-slot Enclosure
(3) power modules
(6) battery modules
PW12S9K 9 kVA expandable Hardwired Hardwired 60.7 x 24.0 x 28.5 427 $12,257
Includes: to 18 kVA N+X
(1) 12-slot Enclosure
(3) power modules
(6) battery modules
PW12S12K 12 kVA expandable Hardwired Hardwired 60.7 x 24.0 x 28.5 504 $14,945
Includes: to 18 kVA N+X
(1) 12-slot Enclosure
(4) power modules
(8) battery modules
PW12S15K 15 kVA expandable Hardwired Hardwired 60.7 x 24.0 x 28.5 581 $17,633
Includes: to 18 kVA N+X
(1) 12-slot Enclosure
(5) power modules
(10) battery modules
PW12S18K 18 kVA expandable Hardwired Hardwired 60.7 x 24.0 x 28.5 658 $20,321
Includes: to 18 kVA N+X
(1) 12-slot Enclosure
(6) power modules
(12) battery modules
1. 2yr return to depot warranty and a local (250kM) 5 x 8 start-up included
Replacement batteries—contact Sales Support 1-800-461-9166.
63www.eaton.com/powerquality 1.800.461.9166
October 1, 2012
October 1, 2012
PRE-CONFIGURED SYSTEMS WITH HARDWIRE INPUT AND RECEPTACLES OUTPUT OPTIONS
Output Dimensions Weight Cdn List
Model Number Rating Input Connection Receptacles (H x W x D, inches) (lb) Price1
PW6S3K-PD 3 kVA expandable Hardwired (2) L14-30R, 33.3 x 17.0 x 25.5 192 $6,943
Includes: to 9 kVA N+X (2) L6-30R,
(1) 6-slot Enclosure (12) 5-20R
(1) power modules
(2) battery modules
(1) caster kit
PW6S6K-PD 6 kVA expandable Hardwired (2) L14-30R, 33.3 x 17.0 x 25.5 269 $9,631
Includes: to 9 kVA N+X (2) L6-30R,
(1) 6-slot Enclosure (12) 5-20R
(2) power modules
(4) battery modules
(1) caster kit
PW6S9K-PD 9 kVA expandable Hardwired (2) L14-30R, 33.3 x 17.0 x 25.5 346 $12,319
Includes: to 9 kVA N+X (2) L6-30R,
(1) 6-slot Enclosure (12) 5-20R
(3) power modules
(6) battery modules
(1) caster kit
PW9S9K-PD 9 kVA expandable Hardwired (2) L14-30R, 47.0 x 24.0 x 28.5 389 $12,374
Includes: to 18 kVA N+X (2) L6-30R,
(1) 9-slot Enclosure (12) 5-20R
(3) power modules
(6) battery modules
PW12S9K-PD 9 kVA expandable Hardwired (3) L14-30R, 60.7 x 24.0 x 28.5 427 $12,804
Includes: to 18 kVA N+X (3) L6-30R,
(1) 12-slot Enclosure (12) 5-20R
(3) power modules
(6) battery modules
PW12S12K-PD 12 kVA expandable Hardwired (3) L14-30R, 60.7 x 24.0 x 28.5 504 $15,492
Includes: to 18 kVA N+X (3) L6-30R,
(1) 12-slot Enclosure (12) 5-20R
(4) power modules
(8) battery modules
PW12S15K-PD 15 kVA expandable Hardwired (3) L14-30R, 60.7 x 24.0 x 28.5 581 $18,180
Includes: to 18 kVA N+X (3) L6-30R,
(1) 12-slot Enclosure (12) 5-20R
(5) power modules
(10) battery modules
PW12S18K-PD 18 kVA expandable Hardwired (3) L14-30R, 60.7 x 24.0 x 28.5 658 $20,868
Includes: to 18 kVA N+X (3) L6-30R,
(1) 12-slot Enclosure (12) 5-20R
(6) power modules
(12) battery modules
PW3S3K-LPD 3 kVA expandable L14-30P (1) L14-30R, 19.5 x 17.0 x 25.5 155 $6,590
Includes: to 3 kVA N+1 (1) L6-30R,
(1) 3-slot Enclosure (4) 5-20R
(1) power modules
(2) battery modules
(1) caster kit
PW6S3K-LPD 3 kVA expandable 14-50P (2) L14-30R, 33.3 x 17.0 x 25.5 192 $7,091
Includes: to 9 kVA N+X (2) L6-30R,
(1) 6-slot Enclosure (12) 5-20R
(1) power modules
(2) battery modules
(1) caster kit
PW6S6K-LPD 6 kVA expandable 14-50P (2) L14-30R, 33.3 x 17.0 x 25.5 269 $9,778
Includes: to 9 kVA N+X (2) L6-30R,
(1) 6-slot Enclosure (12) 5-20R
(2) power modules
(4) battery modules
(1) caster kit
1. 2yr return to depot warranty and a local (250kM) 5 x 8 start-up included
Notes: 50/60 Hz automatic frequency selection. Input/output voltages: 208–240 Vac or 100/200, 110/220, 120/208, 120/240 and 127/220 Vac. Pre-configured systems (3) and (6) slot Enclosure dimensions include
caster kit. Each pre-configured system includes a 6.5-minute runtime. Backup times are approximate and may vary with equipment, configuration, battery age, temperature, etc. Split-phase Power Modules
included.
EATON 9170+ UPS RACK/TOWER
Powerware series (continued)
64 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook
October 1, 2012
SOFTWARE AND CONNECTIVITY OPTIONS
Catalog Number Description Cdn List Price
116750222-001 ConnectUPS-BD $449
Bundled with Intelligent Power Software Suite CD and communication cable.
See software and connectivity product sections for more detail.
UNIVERSAL MODULE ASY-0674 RUNTIME CHART IN MINUTES (FULL LOAD/HALF LOAD)
Load (VA) Number of strings (two battery modules per string; two battery modules occupy one slot)
1 String 2 String 3 String 4 String 5 String 6 String 7 String 8 String 9 String 10 String 11 String 12 String
3 kVA 8/24 24/59 43/95 58/140 80/175 95/125 119/240 135/290 155/335 165/365 200/395 215/450
6 kVA 8/24 16/40 24/59 32/83 40/103 49/114 58/140 69/156 83/175 90/190 103/205
9 kVA 8/24 13/35 18/46 24/59 29/63 35/86 40/103 46/115 54/125 58/140
12 kVA 8/24 13/33 16/40 19.5/43.5 24/59 29/70 33/80 36/90 41/100
15 kVA 8/24 11.5/31 14.5/31.5 18/46 20.5/51 24/58 28/66 31/73
18 kVA 8/24 11/31.5 13/36 15.5/41 18/45 20.5/51 24/58
Note: Additional battery runtimes available up to 8 hours. Please contact your Eaton representative.
13 String 14 String 15 String 16 String 17 String 18 String 19 String 20 String 21 String 22 String 23 String 24 String
3 kVA 225/500 245/540 270/600 290/620 315/650 335/690 350/720 365/780 375/850 395/890 425/920 450/950
6 kVA 113/335 123/255 135/273 143/290 148/315 156/333 165/350 175/365 183/385 190/395 198/420 205/440
9 kVA 63/150 73/165 80/178 86/190 93/200 100/210 107/225 115/240 121/255 125/270 135/280 143/290
12 kVA 47/110 52/121 56/130 58/140 65/147 70/156 75/165 80/175 85/185 90/195 95/205 100/215
15 kVA 34/83 38/94 41.5/103 44.5/113 46.5/117 51/127 56/130 58/140 61/149 66/158 71/165 73/170
18 kVA 27/65 31.5/72 34.5/77 36/83 38/94 41/100 44/105 45/115 48/122 54/131 57/137 58/140
Battery strings above and to the right of the dark line require additional (N+X) power modules or a 20A charger module.
SPLIT-PHASE MODULE ASY-0673 RUNTIME CHART IN MINUTES (FULL LOAD/HALF LOAD)
Load (VA) Number of Strings (two battery modules per string; two battery modules occupy one slot)
1 String 2 String 3 String 4 String 5 String 6 String 7 String 8 String 9 String 10 String 11 String 12 String
3 kVA 6.5/16 16/40 27.5/67.5 40/98 53.5/132 67.5/167 83/204 98/242 115/283 132/324 149/365 167/408
6 kVA 6.5/16 11/27.5 16/40 21.5/53.5 27.5/68 33.5/83 40/98 46.5/115 53.5/132 60.5/149 67.5/167
9 kVA 6.5/16 9.5/23.5 13/31.5 16/40 20/49 23.5/58 27.5/67.5 31.5/78 35.5/88 40/98
12 kVA 6.5/16 9/21.5 11/27.5 13.5/33.5 16/40 19/46.5 21.5/53.5 24.5/60.5 27.5/68
15 kVA 6.5/16 8/20.5 10/25 12/30 14/35 16/40 18.5/45 20.5/50.5
18 kVA 6.5/16 8/20 9.5/23.5 11/27.5 12.5/30 14.5/35.5 16/40
Note: Additional battery runtimes available up to 8 hr. Please contact your Eaton representative. Split-phase Module is for U.S. use.
13 String 14 String 15 String 16 String 17 String 18 String 19 String 20 String 21 String 22 String 23 String 24 String
3 kVA 185/456 204/501 223/549 242/595 262/640 283/692 302/750 323/790 345/850 365/900 387/955 408/1015
6 kVA 75/185 83/204 90/223 98/242 106/262 115/285 123/302 132/324 140/345 149/365 157/388 167/408
9 kVA 44/109 49/120 53.5/132 58/143 63/154 68/167 73/179 78/191 83/204 88/210 93/229 98/242
12 kVA 30.5/75 33.5/83 37/90 40/98 43/106 46.5/115 50/123 53.5/132 57/140 60/149 64/157 68/167
15 kVA 23/56 25/62 27.5/67.5 30/73.5 32.5/79.5 35/86 37.5/92 40/98 42.5/105 45/111 48/118 51/124
18 kVA 18/44 20/49 21.5/53.5 23.5/58 25.5/63 27.5/68 29.5/73 31.5/78 33.5/83 35.5/88 38/93 40/98
Note: Battery strings above and to the right of the dark line require additional (N+X) power modules or a 20A charger module.
CUSTOMIZABLE INPUT PLUG OPTIONS1
Input Plug Power Module Type CTO Digit Cdn List Price
L14-20P2 Split-phase F $108
L14-30P3 Split-phase G $128
14-50P4 Split-phase H $148
Notes: 1. May be configured to order by contacting sales support: 1-800-461-9166. 2. Limits chassis to maximum current of 16A and two power modules for 3 kVA redundant. 3. Limits chassis to maxi-
mum current of 24A and three power modules for 5 kVA redundant. 4. Limits chassis to maximum current of 40A and four power modules for 8 kVA redundant.
EATON 9170+ UPS RACK/TOWER
Powerware series (continued)
65www.eaton.com/powerquality 1.800.461.9166
October 1, 2012
October 1, 2012
CUSTOMIZABLE RECEPTACLE OPTIONS
Output Receptacle Power Module Type # of Bays CTO Digit Cdn List Price
5-20R duplex Split-phase 1 E $49
6-20Rduplex All 1 G $68
L5-20R twist lock Split-phase 1 K $49
L5-30R twist lock Split-phase 1 L $59
L6-15R twist lock duplex All 1 M $78
L6-20R twist lock All 1 N $68
L6-30R twist lock All 1 O $68
L14-30R twist lock Split-phase 1 R $68
3 x 5-15R duplex Split-phase 2 W $68
3 x 5-20R duplex Split-phase 2 X $68
9170+ SERVICE OPTIONS (UPS AND BATTERIES MUST HAVE SAME COVERAGE)
Gold Plan Plus
Part Number Description Cdn List Price
2XXGP91703SLTCX Eaton9170+Service2-YearGoldPlanPlus,3-SlotEnclosure $1,182
3XXGP91703SLTCX Eaton9170+Service3-YearGoldPlanPlus,3-SlotEnclosure $1,629
5XXGP91703SLTCX Eaton9170+Service5-YearGoldPlanPlus,3-SlotEnclosure $2,151
2XXGP91706SLTCX Eaton9170+Service2-YearGoldPlanPlus,6-SlotEnclosure $1,344
3XXGP91706SLTCX Eaton9170+Service3-YearGoldPlanPlus,6-SlotEnclosure $2,356
5XXGP91706SLTCX Eaton9170+Service5-YearGoldPlanPlus,6-SlotEnclosure $3,574
2XXGP91709SLTCX Eaton9170+Service2-YearGoldPlanPlus,9-SlotEnclosure $1,482
3XXGP91709SLTCX Eaton9170+Service3-YearGoldPlanPlus,9-SlotEnclosure $2,993
5XXGP91709SLTCX Eaton9170+Service5-YearGoldPlanPlus,9-SlotEnclosure $4,813
2XXGP917012SLCX Eaton9170+Service2-YearGoldPlanPlus,12-SlotEnclosure $1,637
3XXGP917012SLCX Eaton9170+Service3-YearGoldPlanPlus,12-SlotEnclosure $3,712
5XXGP917012SLCX Eaton9170+Service5-YearGoldPlanPlus,12-SlotEnclosure $6,236
2XXGP9170B6SLCX Eaton9170+Service2-YearGoldPlanPlus,6-SlotEBC $425
3XXGP9170B6SLCX Eaton9170+Service3-YearGoldPlanPlus,6-SlotEBC $1,901
5XXGP9170B6SLCX Eaton9170+Service5-YearGoldPlanPlus,6-SlotEBC $3,565
2XXGP9170B9SLCX Eaton9170+Service2-YearGoldPlanPlus,9-SlotEBC $572
3XXGP9170B9SLCX Eaton9170+Service3-YearGoldPlanPlus,9-SlotEBC $2,876
5XXGP9170B9SLCX Eaton9170+Service5-YearGoldPlanPlus,9-SlotEBC $5,487
2XXGP9170B12SCX Eaton9170+Service2-YearGoldPlanPlus,12-SlotEBC $719
3XXGP9170B12SCX Eaton9170+Service3-YearGoldPlanPlus,12-SlotEBC $3,853
5XXGP9170B12SCX Eaton9170+Service5-YearGoldPlanPlus,12-SlotEBC $7,410
On-Site Gold Plan
Part Number Description Cdn List Price
2OSGX91703SLTCX Eaton9170+Service2-YearLocalOn-SiteGoldPlan,3-SlotEnclosure $1,482
3OSGX91703SLTCX Eaton9170+Service3-YearLocalOn-SiteGoldPlan,3-SlotEnclosure $2,216
5OSGX91703SLTCX Eaton9170+Service5-YearLocalOn-SiteGoldPlan,3-SlotEnclosure $3,272
2OSGX91706SLTCX Eaton9170+Service2-YearLocalOn-SiteGoldPlan,6-SlotEnclosure $1,643
3OSGX91706SLTCX Eaton9170+Service3-YearLocalOn-SiteGoldPlan,6-SlotEnclosure $2,943
5OSGX91706SLTCX Eaton9170+Service5-YearLocalOn-SiteGoldPlan,6-SlotEnclosure $4,689
2OSGX91709SLTCX Eaton9170+Service2-YearLocalOn-SiteGoldPlan,9-SlotEnclosure $1,784
3OSGX91709SLTCX Eaton9170+Service3-YearLocalOn-SiteGoldPlan,9-SlotEnclosure $3,580
5OSGX91709SLTCX Eaton9170+Service5-YearLocalOn-SiteGoldPlan,9-SlotEnclosure $5,936
2OSGX917012SLCX Eaton9170+Service2-YearLocalOn-SiteGoldPlan,12-SlotEnclosure $1,937
3OSGX917012SLCX Eaton9170+Service3-YearLocalOn-SiteGoldPlan,12-SlotEnclosure $4,307
5OSGX917012SLCX Eaton9170+Service5-YearLocalOn-SiteGoldPlan,12-SlotEnclosure $7,359
2OSGX9170B6SLCX Eaton9170+Service2-YearLocalOn-SiteGoldPlan,6-SlotEBC $522
3OSGX9170B6SLCX Eaton9170+Service3-YearLocalOn-SiteGoldPlan,6-SlotEBC $2,033
5OSGX9170B6SLCX Eaton9170+Service5-YearLocalOn-SiteGoldPlan,6-SlotEBC $3,815
2OSGX9170B9SLCX Eaton9170+Service2-YearLocalOn-SiteGoldPlan,9-SlotEBC $669
3OSGX9170B9SLCX Eaton9170+Service3-YearLocalOn-SiteGoldPlan,9-SlotEBC $3,008
5OSGX9170B9SLCX Eaton9170+Service5-YearLocalOn-SiteGoldPlan,9-SlotEBC $5,737
2OSGX9170B12SCX Eaton9170+Service2-YearLocalOn-SiteGoldPlan,12-SlotEBC $822
3OSGX9170B12SCX Eaton9170+Service3-YearLocalOn-SiteGoldPlan,12-SlotEBC $3,985
5OSGX9170B12SCX Eaton9170+Service5-YearLocalOn-SiteGoldPlan,12-SlotEBC $7,659
Maximum of three different
types of receptacles
per Enclosure
Bays available per
Enclosure:
3-slot has (4) bays
6-slot has (8) bays
9-slot has (8) bays
12-slot has (12) bays
EATON 9170+ UPS RACK/TOWER
Powerware series (continued)
66 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook
October 1, 2012
EATON 9170+ UPS RACK/TOWER
Powerware series (continued)
9170+ SERVICE OPTIONS
(continued)
On-Site Gold Plan Plus
Part Number Description Cdn List Price
2OSGP91703SLTCX Eaton9170+Service2-YearLocalOn-SiteGoldPlanPlus,3-SlotEnclosure $2,216
3OSGP91703SLTCX Eaton9170+Service3-YearLocalOn-SiteGoldPlanPlus,3-SlotEnclosure $3,712
5OSGP91703SLTCX Eaton9170+Service5-YearLocalOn-SiteGoldPlanPlus,3-SlotEnclosure $6,089
2OSGP91706SLTCX Eaton9170+Service2-YearLocalOn-SiteGoldPlanPlus,6-SlotEnclosure $2,371
3OSGP91706SLTCX Eaton9170+Service3-YearLocalOn-SiteGoldPlanPlus,6-SlotEnclosure $4,439
5OSGP91706SLTCX Eaton9170+Service5-YearLocalOn-SiteGoldPlanPlus,6-SlotEnclosure $7,512
2OSGP91709SLTCX Eaton9170+Service2-YearLocalOn-SiteGoldPlanPlus,9-SlotEnclosure $2,509
3OSGP91709SLTCX Eaton9170+Service3-YearLocalOn-SiteGoldPlanPlus,9-SlotEnclosure $5,077
5OSGP91709SLTCX Eaton9170+Service5-YearLocalOn-SiteGoldPlanPlus,9-SlotEnclosure $8,759
2OSGP917012SLCX Eaton9170+Service2-YearLocalOn-SiteGoldPlanPlus,12-SlotEnclosure $2,664
3OSGP917012SLCX Eaton9170+Service3-YearLocalOn-SiteGoldPlanPlus,12-SlotEnclosure $5,804
5OSGP917012SLCX Eaton9170+Service5-YearLocalOn-SiteGoldPlanPlus,12-SlotEnclosure $10,176
2OSGP9170B6SLCX Eaton9170+Service2-YearLocalOn-SiteGoldPlanPlus,6-SlotEBC $587
3OSGP9170B6SLCX Eaton9170+Service3-YearLocalOn-SiteGoldPlanPlus,6-SlotEBC $2,216
5OSGP9170B6SLCX Eaton9170+Service5-YearLocalOn-SiteGoldPlanPlus,6-SlotEBC $4,117
2OSGP9170B9SLCX Eaton9170+Service2-YearLocalOn-SiteGoldPlanPlus,9-SlotEBC $742
3OSGP9170B9SLCX Eaton9170+Service3-YearLocalOn-SiteGoldPlanPlus,9-SlotEBC $3,192
5OSGP9170B9SLCX Eaton9170+Service5-YearLocalOn-SiteGoldPlanPlus,9-SlotEBC $6,039
2OSGP9170B12SCX Eaton9170+Service2-YearLocalOn-SiteGoldPlanPlus,12-SlotEBC $889
3OSGP9170B12SCX Eaton9170+Service3-YearLocalOn-SiteGoldPlanPlus,12-SlotEBC $4,167
5OSGP9170B12SCX Eaton9170+Service5-YearLocalOn-SiteGoldPlanPlus,12-SlotEBC $7,961
Additional information about service plan features can be found in the Single-phase Service Plans Overview section of this reference guide.
67www.eaton.com/powerquality 1.800.461.9166
October 1, 2012
October 1, 2012
FERRUPS FE 60 Hz MODELS
Input/Output Runtimes Output Cdn List
CTO Number Voltage Full/Half Load Input Plug Receptacles Price
MODEL FE500 (500 VA/350W)
FA000AA0A0A0A0A 120V/120V 9/25 min Hardwire Hardwire $1,701
FA000BB2A0A0A0A 120V/120V 9/25 min 5-15 (4) 5-15 $1,658
FA010BB2A0A0A0A 120V/120V 20/56 min 5-15 (4) 5-15 $1,731
FA020BB2A0A0A0A 120V/120V 75/212 min 5-15 (4) 5-15 $1,887
MODEL FE700 (700 VA/500W)
FB000AA0A0A0A0A 120V/120V 11/31 min Hardwire Hardwire $1,906
FB000BB2A0A0A0A 120V/120V 11/31 min 5-15 (4) 5-15 $1,862
FB020BB2A0A0A0A 120V/120V 34/96 min 5-15 (4) 5-15 $2,079
FB040BB2A0A0A0A 120V/120V External Battery 5-15 (4) 5-15 $1,751
Model FE850 (850 VA/600W)
FC000AA0A0A0A0A 120V/120V 9/25 min Hardwire Hardwire $2,124
FC000BB2A0A0A0A 120V/120V 9/25 min 5-15 (4) 5-15 $2,081
FC010BB2A0A0A0A 120V/120V 38/107 min 5-15 (4) 5-15 $2,201
Model FE1.15 (1.15 kVA/800W)
FD000AA0A0A0A0A 120V/120V 8/22 min Hardwire Hardwire $2,892
FD000BB3A0A0A0A 120V/120V 8/22 min 5-15 (6) 5-15 $2,848
FD010BB3A0A0A0A 120V/120V 30/85 min 5-15 (6) 5-15 $3,159
FD020BB3A0A0A0A 120V/120V 70/197 min 5-15 (6) 5-15 $3,262
Model FE1.4 (1.4 kVA/1 kW)
FE000AA0A0A0A0A 120V/120V 11/31 min Hardwire Hardwire $3,133
FE000BB3A0A0A0A 120V/120V 11/31 min 5-15 (6) 5-15 $3,089
FE010BB3A0A0A0A 120V/120V 22/62 min 5-15 (6) 5-15 $3,370
Model FE1.8 (1.8 kVA/1.25 kW)
FF000CC3A0A0A0B 120V/120V 11/30 min 5-20 (6) 5-20 $4,493
FF010AA0A0A0A0B 120V/120V 86/206 min Hardwire Hardwire $5,083
FF010CC3A0A0A0B 120V/120V 86/206 min 5-20 (6) 5-20 $5,039
Model FE2.1 (2.1 kVA/1.5 kW)
FG000AA0A0A0A0B 120V/120V 9/25 min Hardwire Hardwire $4,999
FG000CC3A0A0A0B 120V/120V 9/25 min 5-20 (6) 5-20 $4,955
FG010AA0A0A0A0B 120V/120V 66/163 min Hardwire Hardwire $5,535
FG010CC3A0A0A0B 120V/120V 66/163 min 5-20 (6) 5-20 $5,492
Model FE3.1 (3.1 kVA/2.2 kW)
FH000AA0A0A0A0B 120V/120V 14/35 min Hardwire Hardwire $6,243
FH000JC3A0A0A0B 120V/120V 14/35 min L5-30 (6) 5-20 $6,199
FH010AA0A0A0A0B 120V/120V 37/98 min Hardwire Hardwire $6,725
FH010JC3A0A0A0B 120V/120V 37/98 min L5-30 (6) 5-20 $6,682
Note: See following pages for external battery packs and maintenance bypass switches.
Ferroresonant UPS (5003100 VA)
• Bulletproofpowerintegrityandmanagementfortelecommunicationsand
computer loads
• Specialconfigurationsandoptionsavailable—callsalessupportfor
details: 1-800-461-9166
• Warranty(USandCanada):Two-yearlimitedwarrantyand$250,000load
protectionguarantee;optionalGoldPlansavailable
The FERRUPS® can be
customized with many
options and runtimes.
If you do not find the
configuration you need
in this price book, call
1-800-461-9166.
EATON FERRUPS FE UPS 60 HZ
Powerware series
68 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook
October 1, 2012
EATON FERRUPS FE UPS 60 HZ
Powerware series (continued)
FERRUPS FE 60 Hz MODELS
(continued)
Input/Output Runtimes Output Cdn List
Model Number CTO Number Voltage Full/Half Load Input Plug Receptacles Price
Model FE4.3 (4.3 kVA/3 kW)
FE4.3 kVA FI000AA0A0A0A0B 120V/120V 10/24 min Hardwired Hardwired $9,216
FE4.3 kVA FI100AA0A0A0A0B 208-208/120V 10/24 min Hardwired Hardwired $8,924
FE4.3 kVA FI300AA0A0A0A0B 240-240/120V 10/24 min Hardwired Hardwired $8,924
Model FE5.3 (5.3 kVA/3.7 kW)
FE5.3 kVA FJ000AA0A0A0A0B 120V/120V 20/50 min Hardwired Hardwired $10,561
FE5.3 kVA FJ100AA0A0A0A0B 208-208/120V 20/50 min Hardwired Hardwired $10,269
FE5.3 kVA FJ300AA0A0A0A0B 240-240/120V 20/50 min Hardwired Hardwired $10,269
Model FE7 (7 kVA/5 kW)
FE7 kVA FK000AA0A0A0A0B 120V/120V 12/33 min Hardwired Hardwired $13,196
FE7 kVA FK100AA0A0A0A0B 208-208/120V 12/33 min Hardwired Hardwired $12,904
FE7 kVA FK300AA0A0A0A0B 240-240/120V 12/33 min Hardwired Hardwired $12,904
Model FE10 (10 kVA/7.5 kW)
FE10 kVA FL140AA0A0A0A0B 208-208/120V External Hardwired Hardwired $13,822
Recommended system options: EBPS10F Standard external battery pack (11/26 min) $4,868
BPE04BBM1A External maintenance bypass switch (break-before-make) $1,085
System List $19,774
FE10 kVA FL340AA0A0A0A0B 240-240/120V External Hardwired Hardwired $13,822
Recommended system options: EBPS10F Standard external battery pack (11/26 min) $4,868
BPE04MBB1A External maintenance bypass switch (make-before-break) $1,190
System List $19,879
Model FE12.5 (12.5 kVA/10 kW)
FE12.5 kVA FM140AA0A0A0A0B 208-208/120V External Hardwired Hardwired $14,758
Recommended system options: EBPS12F Standard external battery pack (18/48 min) $6,718
BPE04BBM1A External maintenance bypass switch (break-before-make) $1,085
System List $22,561
FE12.5 kVA FM340AA0A0A0A0B 240-240/120V External Hardwired Hardwired $14,758
Recommended system options: EBPS12F Standard external battery pack (18/48 min) $6,718
BPE04MBB1A External maintenance bypass switch (make-before-break) $1,190
System List $22,666
Model FE18 (18 kVA/15 kW)
FE18 kVA FN140AA0A0A0A0B 208-208/120V External Hardwired Hardwired $18,985
Recommended system options: EBPS18F Standard external battery pack (10/26 min) $6,718
BPE05BBM1A External maintenance bypass switch (break-before-make) $1,337
System List $27,040
FE18 kVA FN340AA0A0A0A0B 240-240/120V External Hardwired Hardwired $18,985
Recommended system options: EBPS18F Standard external battery pack (10/26 min) $6,718
BPE05MBB1A External maintenance bypass switch (make-before-break) $1,500
System List $27,203
Note: See following pages for external battery packs and maintenance bypass switches. Call for other configurations and options.
Ferroresonant UPS (4.3–18 kVA)
• Bulletproofpowerintegrityandmanagementfortelecommunicationsandcomputerloads
• Powerfactor-corrected,switch-modeandlinearpowersupplies
The FERRUPS can be
customized with many
options and runtimes.
If you do not find the
configuration you need
in this price book, call
1-800-461-9166.
69www.eaton.com/powerquality 1.800.461.9166
October 1, 2012
October 1, 2012
FERRUPS RACK SERIES 60 Hz MODELS
Input/Output Runtimes Output Cdn List
CTO Number Voltage Full/Half Load Input Plug Receptacles Price
Model FES1.4 (1.4 kVA/1 kW)
RC000BB2A0A0A0A 120V–120V 14/36 min 5-15 (4) 5-15 $6,074
RC000AA0A0A0A0A 120V–120V 14/36 min Hardwired Hardwired $5,944
Model FER2.1 (2.1 kVA/1.5 kW)
RH000CC3A0A0A0B 120V–120V 24/58 min 5-20 (6) 5-20 $7,234
RH000AA0A0A0A0B 120V–120V 24/58 min Hardwired Hardwired $7,035
Model FER3.1 (3.1 kVA/2.2 kW)
RI000JB3A0A0A0B 120V–120V 14/35 min L5-30 (6) 5-15 $7,951
RI000AA0A0A0A0B 120V–120V 14/35 min Hardwired Hardwired $7,713
Model FER7 (7 kVA/5 kW)
RK140AA0A0A0A0B 208–120/208V External Battery Hardwired Hardwired $14,550
RK340AA0A0A0A0B 240–120/240V External Battery Hardwired Hardwired $14,550
EBPS4.3R Standard external battery pack (12/33 min) $4,139
Note: See following pages for external battery packs and maintenance bypass switches. Call for other configurations and options.
SOFTWARE AND CONNECTIVITY OPTIONS
Description Part Number Cdn List Price
Serial CheckUPS Cable DB25M to DB9F INT-0035 $84
BestLink Web/SNMP Adapter (external) 116750225-001 $467
IBM AS/400 Kit Standard Cable Kit IPK-0001 $166
Handheld Remote and Keypad (FE, FES, FER models only) RCK-0007 $462
Caster Assy CAA-0006 $249
FERRUPS RACK AND TOWER BASE UNIT SERVICE PLANS
Contract Gold Plan Cdn List Gold Plan Plus Cdn List Onsite Gold Plan Cdn List Onsite Gold Plan Cdn List
Product Duration Part Number Price Part Number Price Part Number Price Plus Part Number Price
500850VA 2YR 2XXGXFERRX850CX $155 2XXGPFERRX850CX $1,335 2OSGXFERRX850CX $1,482 2OSGPFERRX850CX $1,740
3YR 3XXGXFERRX850CX $507 3XXGPFERRX850CX $1,710 3OSGXFERRX850CX $1,761 3OSGPFERRX850CX $2,773
5YR 5XXGXFERRX850CX $939 5XXGPFERRX850CX $2,415 5OSGXFERRX850CX $2,928 5OSGPFERRX850CX $4,548
1.151.4kVA 2YR 2XXGXFERR1400CX $287 2XXGPFERR1400CX $1,453 2OSGXFERR1400CX $1,666 2OSGPFERR1400CX $1,805
3YR 3XXGXFERR1400CX $801 3XXGPFERR1400CX $2,010 3OSGXFERR1400CX $2,415 3OSGPFERR1400CX $2,993
5YR 5XXGXFERR1400CX $1,373 5XXGPFERR1400CX $2,620 5OSGXFERR1400CX $3,976 5OSGPFERR1400CX $4,968
1.83.1kVA 2YR - - - - 2OSGXFERR3100CX $1,960 2OSGPFERR3100CX $2,304
3YR - - - - 3OSGXFERR3100CX $2,656 3OSGPFERR3100CX $3,867
5YR - - - - 5OSGXFERR3100CX $4,513 5OSGPFERR3100CX $6,420
4.37.0kVA 2YR - - - - 2OSGXFERR7KVACX $2,582 2OSGPFERR7KVACX $4,270
3YR - - - - 3OSGXFERR7KVACX $3,236 3OSGPFERR7KVACX $5,819
5YR - - - - 5OSGXFERR7KVACX $4,636 5OSGPFERR7KVACX $8,900
10kVA 2YR - - - - 2OSGXFERR10KVCX $2,626 2OSGPFERR10KVCX $4,314
3YR - - - - 3OSGXFERR10KVCX $3,712 3OSGPFERR10KVCX $5,936
5YR - - - - 5OSGXFERR10KVCX $5,370 5OSGPFERR10KVCX $9,126
12.518kVA 2YR - - - - 2OSGXFERR18KVCX $2,934 2OSGPFERR18KVCX $4,578
3YR - - - - 3OSGXFERR18KVCX $4,498 3OSGPFERR18KVCX $6,573
5YR - - - - 5OSGXFERR18KVCX $6,758 5OSGPFERR18KVCX $10,608
Ferroresonant UPS (1.4 kVA–7 kVA)
• Bulletproofpowerintegrityandmanagementfortelecommunicationsandcomputerloads
• Powerfactor-corrected,switch-modeandlinearpowersupplies
• Highreliabilityforindustrialandharshenvironment
• Ultra-highreliabilityforstandard,commercialenvironment
The FERRUPS can be
customized with many
options and runtimes.
If you do not find the
configuration you need
in this price book, call
1-800-461-9166.
EATON FERRUPS UPS RACK SERIES 60 HZ
Powerware series
70 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook
October 1, 2012
FERRUPS EXTERNAL BATTERY CABINETS
GROUP 1 Contract Onsite Gold Plan Cdn List Onsite Gold Plan Plus Cdn List
Duration Part Number Price Part Number Price
21ME 2YR 2OSGXFERRXBG1CX $264 2OSGPFERRXBG1CX $425
3YR 3OSGXFERRXBG1CX $704 3OSGPFERRXBG1CX $962
5YR 5OSGXFERRXBG1CX $1,388 5OSGPFERRXBG1CX $1,813
GROUP 2
8MEEBPS4.3R 2YR 2OSGXFERRXBG2CX $293 2OSGPFERRXBG2CX $455
9MEEBPS10 3YR 3OSGXFERRXBG2CX $1,042 3OSGPFERRXBG2CX $1,285
24ME1FE 5YR 5OSGXFERRXBG2CX $2,142 5OSGPFERRXBG2CX $2,532
25ME 1re
GROUP 3
2FE9FE 2YR 2OSGXFERRXBG3CX $337 2OSGPFERRXBG3CX $493
16FE2re 3YR 3OSGXFERRXBG3CX $1,402 3OSGPFERRXBG3CX $1,643
1rd 5YR 5OSGXFERRXBG3CX $2,934 5OSGPFERRXBG3CX $3,316
GROUP 4
EBPS12.5 2YR 2OSGXFERRXBG4CX $331 2OSGPFERRXBG4CX $484
EBPS18 3YR 3OSGXFERRXBG4CX $962 3OSGPFERRXBG4CX $1,212
8FE 5YR 5OSGXFERRXBG4CX $1,981 5OSGPFERRXBG4CX $2,371
GROUP 5
10ME11ME 2YR 2OSGXFERRXBG5CX $440 2OSGPFERRXBG5CX $602
12ME3FE 3YR 3OSGXFERRXBG5CX $2,341 3OSGPFERRXBG5CX $2,385
4FE2rd 5YR 5OSGXFERRXBG5CX $5,041 5OSGPFERRXBG5CX $5,261
GROUP 6
13ME 2YR 2OSGXFERRXBG6CX $478 2OSGPFERRXBG6CX $639
5FE 3YR 3OSGXFERRXBG6CX $2,670 3OSGPFERRXBG6CX $2,913
3rd 5YR 5OSGXFERRXBG6CX $5,722 5OSGPFERRXBG6CX $6,097
GROUP 7
10FE 2YR 2OSGXFERRXBG7CX $551 2OSGPFERRXBG7CX $719
17FE 3YR 3OSGXFERRXBG7CX $2,781 3OSGPFERRXBG7CX $3,096
5YR 5OSGXFERRXBG7CX $6,016 5OSGPFERRXBG7CX $6,406
GROUP 8
14ME6FE 2YR 2OSGXFERRXBG8CX $792 2OSGPFERRXBG8CX $933
11FE12FE 3YR 3OSGXFERRXBG8CX $4,762 3OSGPFERRXBG8CX $4,836
18FE19FE 5YR 5OSGXFERRXBG8CX $10,015 5OSGPFERRXBG8CX $10,455
GROUP 9
15ME7FE 2YR 2OSGXFERRXBG9CX $903 2OSGPFERRXBG9CX $1,065
13FE20FE 3YR 3OSGXFERRXBG9CX $6,280 3OSGPFERRXBG9CX $6,529
5YR 5OSGXFERRXBG9CX $13,800 5OSGPFERRXBG9CX $14,188
GROUP 10
14FE 2YR 2OSGXFERRBG10CX $1,453 2OSGPFERRBG10CX $1,614
21FE 3YR 3OSGXFERRBG10CX $10,235 3OSGPFERRBG10CX $10,484
5YR 5OSGXFERRBG10CX $22,654 5OSGPFERRBG10CX $23,044
GROUP 11
15FE 2YR 2OSGXFERRBG11CX $2,107 2OSGPFERRBG11CX $2,260
22FE 3YR 3OSGXFERRBG11CX $15,670 3OSGPFERRBG11CX $15,919
5YR 5OSGXFERRBG11CX $34,788 5OSGPFERRBG11CX $35,178
Startup and Preventive Maintenance Service
Product Part Number Cdn List Price
Onsite Startup
5x8 Service 0STUPFERRXALLC5 $1,367
7x24 Service 0STUPFERRXALLC7 $1,761
On-siteGoldplansare7x24.
Additional information about service plan features can be found in the Single-phase Service Plans Overview section of this reference guide.
EATON FERRUPS UPS RACK SERIES 60 HZ
Powerware series (continued)
71www.eaton.com/powerquality 1.800.461.9166
October 1, 2012
October 1, 2012
FERRUPS EXTERNAL BATTERY PACK BACKUP TIMES (full/half load)
FERRUPS external battery packs offer extended backup times. Please see following pages for typical backup times. Use of the external battery packs require that
the FERRUPS UPS be configured with external battery or battery charger options as noted below.
EATON FERRUPS UPS EXTERNAL OPTIONS & ACCESSORIES
Powerware series
Tower: 1.4–3.1 kVA
Battery Pack Cdn List Price FE1.15 kVA FE1.4 kVA FE1.8 kVA FE2.1 kVA FE3.1 kVA
8ME $3,254 3h 15m / 9h 11m 2h 20m / 6h 35m - - -
9ME $3,554 3h 50m / 10h 50m 3h 10m / 8h 57m 2h 12m / 4h 53m 1h 41m / 3h 54m 57m / 2h 27m
10ME $6,110 6h 30m / 18h 23m 5h 20m / 15h 5m 3h 38m / 8h 22m 2h 50m / 6h 37m 1h 41m / 4h 03m
11ME $6,769 - - 5h 09m / 11h 30m 4h 03m / 9h 10m 2h 29m / 5h 44m
12ME1 $9,005 - - 6h 07m / 14h 06m 4h 46m / 11h 08m 2h 52m / 6h 50m
13ME1 $10,995 - - 8h 30m / 18h 53m 6h 42m / 15h 04m 4h 07m / 9h 27m
14ME1 $13,492 - - 12h 08m / 27h 06m 9h 33m / 21h 36m 5h 52m / 13h 30m
15ME1 $18,247 - - 18h 52m / 44h 45m 15h 12m / 36h 28m 9h 41m / 22h 18m
Tower: 4.3–7 kVA
Battery Pack Cdn List Price FE4.3 kVA FE5.3 kVA FE7 kVA
1FE $4,390 40m / 1h 42m 27m / 1h 14m -
2FE $6,150 1h 11m / 2h 51m 49m / 2h 10m 34m / 1h 28m
3FE $6,816 1h 49m / 4h 05m 1h 12m / 3h 08m 48m / 2h 13m
4FE2 $9,087 2h 06m / 4h 46m 1h 27m / 3h 39m 60m / 2h 33m
5FE2 $11,108 3h 04m / 6h 46m 2h 13m / 5h 11m 1h 32m / 3h 41m
6FE3 $13,370 4h 27m / 9h 39m 3h 08m / 7h 22m 2h 16m / 5h 14m
7FE3 $18,465 7h 12m / 15h 56m 5h 10m / 12h 10m 3h 45m / 8h 39m
Tower: 10–18 kVA
Battery Pack Cdn List Price FE10 kVA FE12.5 kVA Battery Pack Cdn List Price FE18 kVA
EBPS10F $4,868 11m / 26 m - EBPS18F $6,718 10m / 26m
EBPS12F $6,718 - 18m / 48m 16FE $8,804 14m / 39m
8FE $6,758 27m / 1h 10m - 17FE $13,516 27m / 1h 10m
9FE $8,908 41m / 1h 48m 27m / 1h 13m 18FE $14,538 37m / 1h 46m
10FE $13,565 1h 13m / 2h 59m 49m / 2h 07m 19FE3 $20,379 48m / 2h 04m
11FE $15,042 1h 51m / 4h 16m 1h 12m / 3h 04m 20FE3 $25,507 1h 13m / 3h 01m
12FE2 $20,201 2h 09m / 5h 02m 1h 38m / 4h 05m 21FE3 $29,076 1h 49m / 4h 17m
13FE2 $25,760 3h 07m / 7h 04m 2h 12m / 5h 05m 22FE3 $43,476 3h 04m / 7h 05m
14FE3 $29,912 4h 26m / 10h 04m 3h 08m / 7h 14m
15FE3 $43,452 7h 20m / 16h 38m 5h 10m / 11h 57m
Rackmount: 2.1–7 kVA
Battery Pack Cdn List Price FER2.1 kVA FER3.1 kVA FER7 kVA
1RE $4,213 1h 41m / 3h 54m 57m / 2h 27m -
2RE $7,312 2h 50m / 6h 37m 1h 41m / 4h 03m -
EBPS4.3R $4,139 - - 12m / 33m
1. Requires FERRUPS UPS to be configured with optional 15 Amp battery charger.
2. Requires FERRUPS UPS to be configured with optional 10 Amp battery charger.
3. Requires FERRUPS UPS to be configured with optional 20 Amp battery charger.
Note: Backup times are approximate and vary with equipment, configuration, battery age, temperature etc.
72 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook
October 1, 2012
MAINTENANCE BYPASS SWITCHES
Part Number Description Application Cdn List Price
BPE01MBB1A BPE01 Make-Before-Break Maintenance Bypass Switch For use with:
FE500 VA–2.1 kVA with 120V input
FE3.1 kVA with 120 V input and standard charger $662
BPE02BBM1A BPE02 Break-Before-Make Maintenance Bypass Switch For use with:
FE500 VA–7 kVA with 208V or 220V input $907
BPE02MBB1A BPE02 Make-Before-Break Maintenance Bypass Switch For use with:
FE3.1 kVA with 120V input and 15 Amp charger
FE4.3 kVA with 120V input
FE500 VA–FE7 kVA with 240V input $907
BPE04BBM1A BPE04 Break-Before-Make Maintenance Bypass Switch For use with:
FE10 kVA–12.5 kVA with 208V input $1,085
BPE04MBB1A BPE04 Make-Before-Break Maintenance Bypass Switch For use with:
FE5.3 kVA–7 kVA with 120V input
FE10 kVA–FE12.5 kVA with 240V input $1,200
BPE05MBB1A BPE05 Make-Before-Break Maintenance Bypass Switch For use with:
FE18 kVA with 240V input $1,500
BPE05BBM1A BPE05 Break-Before-Make Maintenance Bypass Switch For use with:
FE18 kVA with 208V input $1,337
Note:SeeFERRUPSCTOConfigurationGuidesforadditionalexternalmaintenancebypassswitchoptions.
SPARE PARTS KITS1
Application Low Voltage Part Number High Voltage Part Number List Price
FE500VA 60 Hz Tower SPK-FALV - call
FE700VA 60 Hz Tower SPK-FBLV - call
FE850VA 60 Hz Tower SPK-FCLV SPK-FCHV call
FE1.15kVA 60 Hz Tower SPK-FDLV SPK-FDHV call
FE1.4kVA 60 Hz Tower SPK-FELV SPK-FEHV call
FE1.8kVA 60 Hz Tower SPK-FFLV SPK-FFHV call
FE2.1kVA60HzTower SPK-FGLV SPK-FGHV call
FE3.1kVA 60 Hz Tower SPK-FHLV SPK-FHHV call
FE4.3kVA 60 Hz Tower, with 5 Amp Battery Charger SPK-FILV-5A SPK-FIHV-5A call
FE4.3kVA 60 Hz Tower, with 10 Amp Battery Charger SPK-FILV-10A SPK-FIHV-10A call
FE4.3kVA 60 Hz Tower, with 20 Amp Battery Charger SPK-FILV-20A SPK-FIHV-20A call
FE5.3kVA 60 Hz Tower, with 5 Amp Battery Charger SPK-FJLV-5A SPK-FJHV-5A call
FE5.3kVA 60 Hz Tower, with 10 Amp Battery Charger SPK-FJLV-10A SPK-FJHV-10A call
FE5.3kVA 60 Hz Tower, with 20 Amp Battery Charger SPK-FJLV-20A SPK-FJHV-20A call
FE7kVA 60 Hz Tower, with 5 Amp Battery Charger SPK-FKLV-5A SPK-FKHV-5A call
FE7kVA 60 Hz Tower, with 10 Amp Battery Charger SPK-FKLV-10A SPK-FKHV-10A call
FE7kVA 60 Hz Tower, with 20 Amp Battery Charger SPK-FKLV-20A SPK-FKHV-20A call
FE10kVA 60 Hz Tower, with 5 Amp Battery Charger - SPK-FLHV-5A call
FE10kVA 60 Hz Tower, with 10 Amp Battery Charger - SPK-FLHV-10A call
FE10kVA 60 Hz Tower, with 20 Amp Battery Charger - SPK-FLHV-20A call
FE12.5kVA 60 Hz Tower, with 5 Amp Battery Charger - SPK-FMHV-5A call
FE12.5kVA 60 Hz Tower, with 10 Amp Battery Charger - SPK-FMHV-10A call
FE12.5kVA 60 Hz Tower, with 20 Amp Battery Charger - SPK-FMHV-20A call
FE18kVA 60 Hz Tower, with 5 Amp Battery Charger - SPK-FNHV-5A call
FE18kVA 60 Hz Tower, with 10 Amp Battery Charger - SPK-FNHV-10A call
FE18kVA 60 Hz Tower, with 20 Amp Battery Charger - SPK-FNHV-20A call
FES850VA 60 Hz rack SPK-RALV SPK-RAHV call
FES1.4kVA 60 Hz rack SPK-RCLV - call
FER or FES2.1kVA 60 Hz rack SPK-RHLV - call
FER or FES3.1kVA 60 Hz rack - SPK-RIHV call
FER7kVA 60 Hz rack, with 5 Amp Battery Charger SPK-RKLV-5A SPK-RKHV-5A call
FER7kVA 60 Hz rack, with 10 Amp Battery Charger SPK-RKLV-10A SPK-RKHV-10A call
1. Spare parts kits must be ordered at time of FERRUPS UPS order.
EATON FERRUPS UPS EXTERNAL OPTIONS & ACCESSORIES
Powerware series (continued)
73www.eaton.com/powerquality 1.800.461.9166
October 1, 2012
October 1, 2012
EPS2, -48 Vdc DC Power
The Eaton EPS2 DC power system is designed for converged data networks and low power telecommunications applications that require a
compact efficient DC power supply.
• 19-inch,2Urackmountsolutionwithtworectifierpositions,controller,10loadbreakerpositionsandtwobatterybreakerpositions
• IncludestheSC200controllerwhichfeaturesaUSBportforlocalcommunicationsanda10BaseTEthernetportforremotenetworkingand
communications
• Canbeequippedwiththreevariantsofrectifiersdependingonloadrequirements
• Operatesat120Vacor208/240Vacinput
• Canbeconnectedtoexternalbatteries,orcanoperatewithoutbatteriesdependingontheapplication
• Warranty(USandCanada):Two-yearlimitedwarranty
Eaton Enterprise DC Power System
EPS2-400 series
EPS2 DC Power System (-48 Vdc)
Catalog Output Rating Input Output Dimensions Weight Cdn List
Description Number Voltage (Watts) Connection Receptacles (H x W x D, inches) (lb) Price
EPS2, -48 Vdc output, 2U EPS2-421-6000 -48 Vdc Up to 4000W* IEC socket Hardwired 3.5 (2U) x 19 x 13.2 25 $2,260
*Non-redundant power rating, depending on rectifier and AC input voltage
EPS2 OPTIONS
Catalog Dimensions Weight Cdn List
Description Number (H x W x D, inches) (lb) Price
Rectifiers1
Rectifier, 2000W output with 208/240 Vac input, 1150W with 120 Vac input APR48-ES - 5 $763
Rectifier,1800Woutputwith208/240Vacinput,1100Wwith120Vacinput APR48-3G - 5 $528
Rectifier,900Woutputwith208/240Vacinput,550Wwith120Vacinput EPR48-3G - 5 $464
Rectifier blank2 RM3B-01 - - $29
AC Line Cords (one required per rectifier)
AC cord set, C15 to NEMA 5-15P 88-92310 - - $88
AC cord set, C15 to NEMA L6-15P 88-92320 - - $106
Load Breakers (minimum of one required per system, 10 positions available)2
Circuit breaker, 6A 307-00601-11 - - $41
Circuit breaker, 10A 307-01001-11 - - $41
Circuit breaker, 15A 307-01501-11 - - $41
Circuit breaker, 20A 307-02001-11 - - $41
Circuit breaker, 25A 307-02501-11 - - $41
Circuit breaker, 30A 307-03001-11 - - $41
Battery Breakers (two positions available)
Circuit breaker, 50A 307-05001-21 - - $70
Circuit breaker, 70A 307-07001-21 - - $70
Battery Cable Kits (one per battery breaker required)
Battery cable kit for use with standard batteries with one hole lugs, 2m CKBATT-01 - - $153
Battery cable kit for use with EBM batteries, 2m CKBATT-02 - - $153
Extended Battery Module
Eaton 5PX 48V EBM Rack / Tower 2U 5PXEBM48RT 3.4 (2U) x 17.4 x 20.0 72 $726
Notes:
1. One rectifier is needed per system.
2. Rectifier blank needed if only one rectifier is purchased.
Additional notes:
Note the following limitations on the load breakers that can be installed in the unit per UL requirements.
Top row (positions 1-2)—6A, 10A and 15A only
Top row (positions 3-5)—6A, 10A 15A and 20A only
Bottom row (positions 6-7)—6A, 10A and 15A only
Bottom row (positions 8-10)—any breaker size
74 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook
October 1, 2012
Eaton Enterprise DC Power System
EPS2-400 series
(continued)
EBM BATTERY BACKUP TIMES* (in minutes)
Load (Watts) +1 EBM
300 >90
600 54
900 34
1200 22
1800 12
* EPS2 does not include internal batteries. External battery backup times are approximate and vary with equipment, configuration, battery age, temperature, etc.
Note: For additional battery options please contact 1-800-461-9166
EPS2 SERVICE PLANS
Call 1-800-461-9166 for service and warranty options
75www.eaton.com/powerquality 1.800.461.9166
October 1, 2012
October 1, 2012
The Eaton APS3 DC power system is designed for converged data networks and low
power telecommunications applications that require a compact efficient DC power
supply.
• 19-inch,3Urackmountsolutionwiththreerectifierpositions,controller,eightloadbreakerpositionsandtwobatterybreakerpositions
• IncludestheSC200controllerwhichfeaturesaUSBportforlocalcommunicationsanda10BaseTEthernetportforremotenetworkingand
communications
• Canbeequippedwithtwovariantsofrectifiersdependingonloadrequirements
• Operatesat120Vacor208/240Vacinput
• Canbeconnectedtoexternalbatteriesorcanoperatewithoutbatteriesdependingontheapplication
• Warranty(USandCanada):Two-yearlimitedwarranty
Eaton Access DC Power System
APS3-400 series
EATON ACCESS DC POWER SYSTEM
Catalog Output Rating Input Output Dimensions Weight Cdn List
Description Number Voltage (Watts) Connection Receptacles (H x W x D, inches) (lb) Price
APS3, -48Vdc output, 3U APS3-421-A0A -48 Vdc Up to 6000W* bulk AC input Hardwired 5.25 (3U) x 19 x 14 30 $3,282
APS3, -48Vdc output, 3U APS3-421-B0A -48 Vdc Up to 6000W* individually AC fed rectifiers Hardwired 5.25 (3U) x 19 x 14 30 $3,493
via IEC connectors
*Non-redundant power rating, depending on rectifier and AC input voltage
APS3 OPTIONS
Catalog Weight Cdn List
Description Number (lb) Price
Rectifiers 1
Rectifier, 2000W output with 208/240 Vac input, 1150W with 120 Vac input APR48-ES 5 $763
Rectifier,1800Woutputwith208/240Vacinput,1100Wwith120Vacinput APR48-3G  5 $528
Rectifier blank 2 RMB-09 - $29
AC Line Cords (one required per rectifier) - for APS3-421-B0A only
AC cord set, C15 to NEMA 5-15P 88-92310 - $88
AC cord set, C15 to NEMA L6-15P 88-92320 - $106
Load Breakers (minimum of one required per system, 8 positions available)
Circuit breaker, 5A 307-00500-02 - $47
Circuit breaker, 10A 307-01000-15 - $47
Circuit breaker, 15A 307-01500-01 - $47
Circuit breaker, 20A 307-02000-13 - $47
Circuit breaker, 25A 307-02500-06 - $47
Circuit breaker, 30A 307-03000-01 - $47
Circuit breaker, 40A 307-04000-15 - $47
Circuit breaker, 50A 307-05000-07 - $47
Circuit breaker, 60A 307-06000-01 - $47
Circuit breaker, 80A 307-08000-02 - $47
Battery Breakers (two positions available)
Circuit breaker, 100A 307-10000-04 - $47
Notes:
1. One rectifier is needed per system.
2. Rectifier blank needed for any unused rectifier positions. Three positions available in this system.
Additional Notes:
For battery options or other technical questions, please contact 1-800-461-9166.
APS3 SERVICE PLANS
Call 1-800-461-9166 for service and warranty options
76 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook
October 1, 2012
Eaton Access DC Power System
APS6-400 series
The Eaton APS6 DC power system is designed for converged data networks and low
power telecommunications applications that require a compact efficient DC power
supply.
• 19-inch,6Urackmountsolutionwithsixrectifierpositions,acontroller,20loadbreakerpositions
and up to six battery breaker positions
• IncludestheSC200controller,whichfeaturesaUSBportforlocalcommunications,anda
10BaseT Ethernet port for remote networking and communications
• Canbeequippedwithtwovariantsofrectifiersdependingonloadrequirements
• Operatesat120Vacor208/240Vacinput,bulkACinput
• Canbeconnectedtoexternalbatteriesorcanoperatewithoutbatteriesdependingontheapplication
• Warranty(USandCanada):Two-yearlimitedwarranty
EATON ACCESS DC POWER SYSTEM
Catalog Output Rating Input Output Dimensions Weight Cdn List
Description Number Voltage (Watts) Connection Receptacles (H x W x D, inches) (lb) Price
APS6, -48 Vdc output, 6U APS6-421-C0A -48 Vdc Up to 12000W* depending Hardwired Hardwired 10.5 (6U) x 19 x 15.5 47 $3,992
on rectifier and AC input voltage
*Non-redundant power rating, depending on rectifier and AC input voltage
APS6 OPTIONS
Catalog Weight Cdn List
Description Number (lb) Price
Rectifiers 1
Rectifier, 2000W output with 208/240 Vac input, 1150W with 120 Vac input APR48-ES 5 $763
Rectifier,1800Woutputwith208/240Vacinput,1100Wwith120Vacinput APR48-3G  5 $528
Rectifier blank 2 RMB-09 - $29
Load Breakers (minimum of one required per system, 20 positions available)
Circuit breaker, 5A 307-00500-02 - $47
Circuit breaker, 10A 307-01000-15 - $47
Circuit breaker, 15A 307-01500-01 - $47
Circuit breaker, 20A 307-02000-13 - $47
Circuit breaker, 25A 307-02500-06 - $47
Circuit breaker, 30A 307-03000-01 - $47
Circuit breaker, 40A 307-04000-15 - $47
Circuit breaker, 50A 307-05000-07 - $47
Circuit breaker, 60A 307-06000-01 - $47
Circuit breaker, 80A 307-08000-02 - $47
Circuit breaker, 100A 307-10000-03 - $47
Battery Breakers (6 pole positions available)
Circuit breaker, 100A (one pole) 307-10000-04 - $47
Circuit breaker, 150A (two pole) 307-915086-81 - $164
Circuit breaker, 200A (two pole) 307-920086-81 - $164
Notes:
1. One rectifier is needed per system.
2. Rectifier blank needed for any unused rectifier positions. Six positions available in this system.
Additional Notes:
Breakers 80A and larger must have space adjacent.
For battery options or other technical questions, please contact 1-800-461-9166.
APS6 SERVICE PLANS
Call 1-800-461-9166 for service and warranty options
77www.eaton.com/powerquality 1.800.461.9166
October 1, 2012
October 1, 2012
Eaton DV2 DC Power System
DV2-Metro UL series
The Eaton DV2-Metro UL DC power system is for converged data networks and
medium power telecommunications applications that require a compact efficient DC power supply.
• Cabinetconfigurationwith20rectifierpositions,acontroller,20loadbreakerpositionsandfourbatterytrays
• IncludestheSC200controller,whichfeaturesaUSBportforlocalcommunications,anda10BaseTEthernet
port for remote networking and communications
• Canbeequippedwithtwovariantsofrectifiersdependingonloadrequirements
• Operatesat208/240Vacinput
• Optionalbatterycabinethasspaceforuptofourinternalbatterystrings
• Warranty(USandCanada):Two-yearlimitedwarranty
EATON DV2-METRO UL DC POWER SYSTEM
Catalog Output Rating Input Output Dimensions Weight Cdn List
Description Number Voltage (Watts) Connection Receptacles (H x W x D, inches) (lb) Price
DV2-Metro UL System DV2-A20B-32111 -48 Vdc Up to 600A Hardwired Hardwired 78.7 x 23.6 x 23.6 1,980 $11,683
DV2-Metro UL Battery Cabinet DV2-EBC4-00100 -48 Vdc 78.7 x 23.6 x 23.6 1,870 $5,865
DV2-METRO UL OPTIONS
Catalog Weight Cdn List
Description Number (lb) Price
Rectifiers
Rectifier, 2000W output with 208/240 Vac input, 1150W with 120 Vac input APR48-ES 5 $763
Rectifier,1800Woutputwith208/240Vacinput,1100Wwith120Vacinput APR48-3G  5 $528
Rectifier blank RMB1U-00 - $29
Load Breakers (minimum of one required per system, 20 positions available)
Circuit breaker, 5A 307-00500-02 - $47
Circuit breaker, 10A 307-01000-15 - $47
Circuit breaker, 15A 307-01500-01 - $47
Circuit breaker, 20A 307-02000-13 - $47
Circuit breaker, 25A 307-02500-06 - $47
Circuit breaker, 30A 307-03000-01 - $47
Circuit breaker, 40A 307-04000-15 - $47
Circuit breaker, 50A 307-05000-07 - $47
Circuit breaker, 60A 307-06000-01 - $47
Circuit breaker, 80A 307-08000-02 - $47
Circuit breaker, 100A 307-10000-03 - $47
Circuit breaker, 150A (two-position) 1 150A-MCB - $94
Circuit breaker, 200A (two-position) 1 200A-MCB - $94
Circuit breaker, 250A (three-position) 2 250A-MCB - $147
Kit for two position breakers, includes bridging copper bar, insulator, and hardware DCMKIT-2 - $41
Kit for three position breakers, includes bridging copper bar, insulator, and hardware DCMKIT-3 - $59
Notes:
Battery cabinet does not includes cables to the main power cabinet.
Breakers 80A and larger must have space adjacent. For battery options or other technical questions, please contact DCPowerSales@eaton.com
1. Each two-position breaker requires one DCMKIT-2.
2. Each three-position breaker requires one DCMKIT-3.
DV2-METRO UL SERVICE PLANS
Call 1-800-461-9166 for service and warranty options
78 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook
October 1, 2012
Eaton Matrix 2000 Standalone Inverter
Matrix series
EATON MATRIX 2000 STANDALONE INVERTER
Catalog Output Rating Input Output Dimensions Weight Cdn List
Number Voltage (VA/Watts) Connection Receptacles (H x W x D, inches) (lb) Price
INV-4820SA 120 Vac 2000/2000 AC = NEMA 5-20P, (2) NEMA 5-20R 1.7 (1U) x 17.3 x 14.2 15.6 $3,523
DC = Two Hole Compression output sockets
Lugs on .625" / 16mm Centers
Note: For presales support please contact DCPowerSales@eaton.com
The Eaton Matrix 2000 Standalone Inverter is designed for use in telecommunications
applications and provides 2000W of reliable AC power in a 1U x 19” rackmount package.
• Input-48Vdc,Output120Vac
• Puresinewaveoutput
• Unitypowerfactor(full2000wattoutputpower)
• Significantoverloadcapability,120%continuously,200%for5seconds
• Highefficiency,>91%
• Highpowerdensity
• BuiltinStaticTransferSwitch(STS)
• DSPdesignforimprovedreliabilityandperformance
• ComprehensiveLCD/LEDwithkeypad
• Warranty(USandCanada):Two-yearlimitedwarranty
79www.eaton.com/powerquality 1.800.461.9166
October 1, 2012
October 1, 2012
Double-conversion on-demand (12–60 kW)
The Eaton BladeUPS is a revolutionary power quality solution, expanding power protection from 12 kW
to 60 kW in a single industry standard 19-inch rack, and, most significantly, providing this robust, compact
solution without generating the additional heat associated with legacy end-of-row, modular UPS products.
• Achievesthehighestpowerdensityinthemarketplace
• Requiresonlysixrackunits(6U)perunit
• Reducessinglepointsoffailurewithanintelligentbypassdesignthateliminateshumanerror
• Providestheultimateinreliabilitythroughapeer-to-peerparallelingrelationship
• Includesoneyearlocal(250km)5x8Correctivewarranty,Local5x8start-up
EATON BLADEUPS
BLADEUPS (12 kW) MODELS: 208V
Input/Output Dimensions Weight1 Cdn List
Description Style Number Rating Voltage (H x W x D, inches) (lb) Price
BladeUPS 12 kW 208V w/60A 5W in/5W out ZC1212200100000 12 kVA (12 kW) 208/208 10.5 (6U) x 17.3 x 28.0 322 $15,028
BladeUPS 12 kW 208V w/60A 5W ZC1212201100000 12 kVA (12 kW) 208/208 10.5 (6U) x 17.3 x 28.0 322 $15,405
in/5W out w/SNMP
BladeUPS 12 kW 208V w/60A 5W in/4W out ZC1212600100000 12 kVA (12 kW) 208/208 10.5 (6U) x 17.3 x 28.0 321 $14,965
BladeUPS 12 kW 208V w/60A 5W ZC1212601100000 12 kVA (12 kW) 208/208 10.5 (6U) x 17.3 x 28.0 321 $15,342
in/4W out w/SNMP
BladeUPS 12 kW 208V w/60A 5W in/RPM ONLY ZC1212000100000 12 kVA (12 kW) 208/208 10.5 (6U) x 17.3 x 28.0 321 $14,777
BladeUPS 12 kW 208V w/60A 5W ZC1212001100000 12 kVA (12 kW) 208/208 10.5 (6U) x 17.3 x 28.0 321 $15,154
in/RPM ONLY w/SNMP
BladeUPS 12 kW 208V w/parallel cord ZC121P060100000 12 kVA (12 kW) 208/208 10.5 (6U) x 17.3 x 28.0 311 $15,028
BladeUPS 12 kW08V w/parallel cord w/SNMP ZC121P061100000 12 kVA (12 kW) 208/208 10.5 (6U) x 17.3 x 28.0 311 $15,405
BladeUPS 12 kW 208V w/60A 5W in/5W out ZC1212208100000 12 kVA (12 kW) 208/208 10.5 (6U) x 17.3 x 28.0 322 $15,594
w/Power Xpert SNMP/ModBus
BladeUPS 12 kW 208V w/60A 5W in/4W out ZC1212608100000 12 kVA (12 kW) 208/208 10.5 (6U) x 17.3 x 28.0 321 $15,531
w/Power Xpert SNMP/ModBus
BladeUPS 12 kW 208V w/parallel cord ZC121P068100000 12 kVA (12 kW) 208/208 10.5 (6U) x 17.3 x 28.0 311 $15,594
w/Power Xpert SNMP/ModBus
1. All weights are installed weight, add 80 lb to determine shipping weight
2. 5W in (wired input plug) is model IEC309-60 HBL560P9W or similar
3. 5W out (output connector) is model IEC309-60 HBL560C9W or similar
4. 4W out (output connector) is model IEC309-60 HBL460C9W or similar
BLADEUPS (12 kW) MODELS: 400V
Input/Output Dimensions Weight1 Cdn List
Description Style Number Rating Voltage (H x W x D, inches) (lb) Price
BladeUPS 12 kW 400V w/IEC 309-32A 5W in/5W out ZC1224400100000 12 kVA (12 kW) 400/400 10.5 (6U) x 17.3 x 28.0 318 $15,028
BladeUPS 12 kW 400V w/IEC 309-32A 5W in/5W out ZC1224401100000 12 kVA (12 kW) 400/400 10.5 (6U) x 17.3 x 28.0 318 $15,405
w/SNMP
BladeUPS 12 kW 400V w/IEC 309-32A 5W in/ RPM ZC1224000100000 12 kVA (12 kW) 400/400 10.5 (6U) x 17.3 x 28.0 314 $14,777
ONLY out
BladeUPS 12 kW 400V w/IEC 309-32A 5W in/ RPM ZC1224001100000 12 kVA (12 kW) 400/400 10.5 (6U) x 17.3 x 28.0 314 $15,154
ONLY out w/SNMP
BladeUPS 12 kW 400V w/parallel cord ZC122P060100000 12 kVA (12 kW) 400/400 10.5 (6U) x 17.3 x 28.0 317 $15,028
1. All weights are installed weight, add 80 lb to determine shipping weight
2. 5W in (wired input plug) is model IEC309-32 HBL532P6W or similar
3. 5W out (output connector) in model IEC309-32 HBL532C6W or similar
BUILT-IN CONNECTIVITY OPTIONS
Select digit “8” Value for Price
Option in the Style Number Style Number digit 8 Adder
X-Slot 2 Standard Relay Card (<60 Vac rated, IBM AS/400) 3 $195
Industrial Relay Card (5A @ 250 Vac) 4 $449
Hot Sync CAN Bridge Card 6 $568
Select digit “9” Value for Price
Option in the Style Number Style Number digit 9 Adder
X-Slot 1 ConnectUPS-X Web/SNMP Card 1 $449
Standard Relay Card (<60 Vac rated, IBM AS/400) 3 $195
Industrial Relay Card (5A @ 250 Vac) 4 $449
 PowerXpertGatewayUPSCard(Web/SNMP/ModBusTCP) 8 $603
Note: All parallel configured systems include a Hot Sync CAN Bridge card in the standard part number
80 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook
October 1, 2012
EATON BLADEUPS (continued)
BLADEUPS (12–60 kW) MODELS: PRE-ASSEMBLED SYSTEMS IN NEW EATON 42U RACK
Factory Installed and Tested UPS Systems in Eaton 42U Rack
Input/Output Dimensions1 Weight2 Cdn List
Description Style Number Rating Voltage (H x W x D, inches) (lb) Price
BladeUPS Pre-Assembled Bottom Entry 12 kW, 208V3 ZP21110XXXXX000 12 kVA (12 kW) 208/208 81.0 x 24.0 x 42.0 683 $23,120
BladeUPS Pre-Assembled Bottom Entry 12 kW, 208V, ZP21111XXXXX000 12 kVA (12 kW) 208/208 81.0 x 24.0 x 42.0 683 $23,497
w/(1) SNMP3
BladeUPS Pre-Assembled Bottom Entry 12 kW, 208V ZP21115XXXXX000 12 kVA (12 kW) 208/208 81.0 x 24.0 x 42.0 683 $23,685
w/(1) Power Xpert SNMP/ModBus3
BladeUPS Pre-Assembled Bottom Entry 24 kW, 208V3 ZP212100XXXX000 24 kVA (24 kW) 208/208 81.0 x 24.0 x 42.0 994 $37,451
BladeUPS Pre-Assembled Bottom Entry 24 kW, 208V ZP212110XXXX000 24 kVA (24 kW) 208/208 81.0 x 24.0 x 42.0 994 $37,828
w/(1) SNMP3
BladeUPS Pre-Assembled Bottom Entry 24 kW, 208V ZP212150XXXX000 24 kVA (24 kW) 208/208 81.0 x 24.0 x 42.0 994 $38,017
w/(1) Power Xpert SNMP/ModBus3
BladeUPS Pre-Assembled Bottom Entry 36 kW, 208V3 ZP2131000XXX000 36 kVA (36 kW) 208/208 81.0 x 24.0 x 42.0 1316 $51,280
BladeUPS Pre-Assembled Bottom Entry 36 kW, 208V ZP2131100XXX000 36 kVA (36 kW) 208/208 81.0 x 24.0 x 42.0 1316 $51,657
w/(1) SNMP3
BladeUPS Pre-Assembled Bottom Entry 36 kW, 208V ZP2131500XXX000 36 kVA (36 kW) 208/208 81.0 x 24.0 x 42.0 1316 $51,846
w/(1) Power Xpert SNMP/ModBus3
BladeUPS Pre-Assembled Bottom Entry 48 kW, 208V3 ZP21410000XX000 48 kVA (48 kW) 208/208 81.0 x 24.0 x 42.0 1638 $62,720
BladeUPS Pre-Assembled Bottom Entry 48 kW, 208V ZP21411000XX000 48 kVA (48 kW) 208/208 81.0 x 24.0 x 42.0 1638 $63,097
w/(1) SNMP3
BladeUPS Pre-Assembled Bottom Entry 48 kW, 208V ZP21415000XX000 48 kVA (48 kW) 208/208 81.0 x 24.0 x 42.0 1638 $63,286
w/(1) Power Xpert SNMP/ModBus3
BladeUPS Pre-Assembled Bottom Entry 60 kW, 208V3 ZP215100000X000 60 kVA (60 kW) 208/208 81.0 x 24.0 x 42.0 1960 $77,680
BladeUPS Pre-Assembled Bottom Entry 60 kW, 208V ZP215110000X000 60 kVA (60 kW) 208/208 81.0 x 24.0 x 42.0 1960 $78,057
w/(1) SNMP3
BladeUPS Pre-Assembled Bottom Entry 60 kW, 208V ZP215150000X000 60 kVA (60 kW) 208/208 81.0 x 24.0 x 42.0 1960 $78,246
w/(1) Power Xpert SNMP/ModBus3
BladeUPS Pre-Assembled Bottom Entry 60 kW N+1, 208V ZP2161000000000 60 kVA (60 kW) N+1 208/208 81.0 x 24.0 x 42.0 2282 $92,389
BladeUPS Pre-Assembled Bottom Entry 60 kW N+1, 208V ZP2161100000000 60 kVA (60 kW) N+1 208/208 81.0 x 24.0 x 42.0 2282 $92,766
w/(1) SNMP
BladeUPS Pre-Assembled Bottom Entry 60 kW N+1, 208V ZP2161500000000 60 kVA (60 kW) N+1 208/208 81.0 x 24.0 x 42.0 2282 $92,955
w/(1) Power Xpert SNMP/ModBus
BladeUPS Pre-Assembled Top Entry 12 kW, 208V3 ZP22110XXXXX000 12 kVA (12 kW) 208/208 81.0 x 24.0 x 42.0 683 $23,120
BladeUPS Pre-Assembled Top Entry 12 kW, 208V, w/SNMP3 ZP22111XXXXX000 12 kVA (12 kW) 208/208 81.0 x 24.0 x 42.0 683 $23,497
BladeUPS Pre-Assembled Top Entry 12 kW, 208V, ZP22115XXXXX000 12 kVA (12 kW) 208/208 81.0 x 24.0 x 42.0 683 $23,685
w/Power Xpert SNMP/ModBus3
BladeUPS Pre-Assembled Top Entry 24 kW, 208V3 ZP222100XXXX000 24 kVA (24 kW) 208/208 81.0 x 24.0 x 42.0 994 $37,451
BladeUPS Pre-Assembled Top Entry 24 kW, 208V, w/SNMP3 ZP222110XXXX000 24 kVA (24 kW) 208/208 81.0 x 24.0 x 42.0 994 $37,828
BladeUPS Pre-Assembled Top Entry 24 kW, 208V, ZP222150XXXX000 24 kVA (24 kW) 208/208 81.0 x 24.0 x 42.0 994 $38,017
w/Power Xpert SNMP/ModBus3
BladeUPS Pre-Assembled Top Entry 36 kW, 208V3 ZP2231000XXX000 36 kVA (36 kW) 208/208 80.0 x 24.0 x 42.0 1316 $51,280
BladeUPS Pre-Assembled Top Entry 36 kW, 208V, w/SNMP3 ZP2231100XXX000 36 kVA (36 kW) 208/208 80.0 x 24.0 x 42.0 1316 $51,657
BladeUPS Pre-Assembled Top Entry 36 kW, 208V, ZP2231500XXX000 36 kVA (36 kW) 208/208 80.0 x 24.0 x 42.0 1316 $51,846
w/Power Xpert SNMP/ModBus3
BladeUPS Pre-Assembled Top Entry 48 kW, 208V3 ZP22410000XX000 48 kVA (48 kW) 208/208 81.0 x 24.0 x 42.0 1638 $62,720
BladeUPS Pre-Assembled Top Entry 48 kW, 208V, w/SNMP3 ZP22411000XX000 48 kVA (48 kW) 208/208 81.0 x 24.0 x 42.0 1638 $63,097
BladeUPS Pre-Assembled Top Entry 48 kW, 208V, ZP22415000XX000 48 kVA (48 kW) 208/208 81.0 x 24.0 x 42.0 1638 $63,286
w/Power Xpert SNMP/ModBus3
BladeUPS Pre-Assembled Top Entry 60 kW, 208V3 ZP225100000X000 60 kVA (60 kW) 208/208 81.0 x 24.0 x 42.0 1960 $77,680
BladeUPS Pre-Assembled Top Entry 60 kW, 208V, w/SNMP3 ZP225110000X000 60 kVA (60 kW) 208/208 81.0 x 24.0 x 42.0 1960 $78,057
BladeUPS Pre-Assembled Top Entry 60 kW, 208V, ZP225150000X000 60 kVA (60 kW) 208/208 81.0 x 24.0 x 42.0 1960 $78,246
w/Power Xpert SNMP/ModBus3
BladeUPS Pre-Assembled Top Entry 60 kW N+1, 208V ZP2261000000000 60 kVA (60 kW) N+1 208/208 81.0 x 24.0 x 42.0 2282 $92,389
BladeUPS Pre-Assembled Top Entry 60 kW N+1, 208V, ZP2261100000000 60 kVA (60 kW) N+1 208/208 81.0 x 24.0 x 42.0 2282 $92,766
w/SNMP
BladeUPS Pre-Assembled Top Entry 60 kW N+1, 208V, ZP2261500000000 60 kVA (60 kW) N+1 208/208 81.0 x 24.0 x 42.0 2282 $92,955
w/Power Xpert SNMP/ModBus
1. Shipping dimensions are 87”H x 37”W x 60”D. If more than 4 units are installed batteries for 5th and 6th units will ship on a separate pallet maximum 15”H x 32”W x 48”D. 2. Total shipping weight for
configurations of 4 UPS modules or less is installed weight plus 345 lbs. For configurations of 5 or 6 UPS modules add 391 lbs. to installed weight. 3. System capable of expansion to a maximum of 60kW
n+1. Additional notes: Factory-installed connectivity for Pre-Assembled Systems: Style Number digits 7 thru 12 (based in number of systems installed) represent the communication card(s) installed in
thesystem.0=Noconnectivity,1=ConnectUPS-XWeb/SNMP,2=ModBusRTU,3=Standardrelaycard,4=Industrialrelaycard,5=PowerXpertGatewayUPSCardForsystemswithmorethanone
UPS module, additional cards can be installed. Please visit the Connectivity Products section for card information, including pricing.
81www.eaton.com/powerquality 1.800.461.9166
October 1, 2012
October 1, 2012
EATON BLADEUPS (continued)
BLADEUPS (12–48 kW) MODELS: PRE-ASSEMBLED SYSTEMS IN NEW EATON 42U RACK
Factory Installed and Tested UPS Systems in Eaton 42U Rack. System capable of expansion to maximum of 48kW
Input/Output Dimensions1 Weight2 Cdn List
Description Style Number Rating Voltage (H x W x D, inches) (lb) Price
BladeUPS Pre-Assembled Bottom Entry 12 kW, 208V3 ZP23110XXXXX000 12 kVA (12 kW) 208/208 81.0 x 24.0 x 42.0 661 $22,114
BladeUPS Pre-Assembled Bottom Entry 12 kW, 208V, ZP23111XXXXX000 12 kVA (12 kW) 208/208 81.0 x 24.0 x 42.0 661 $22,491
w/(1) SNMP3
BladeUPS Pre-Assembled Bottom Entry 12 kW, 208V ZP23115XXXXX000 12 kVA (12 kW) 208/208 81.0 x 24.0 x 42.0 661 $22,680
w/(1) Power Xpert SNMP/ModBus3
BladeUPS Pre-Assembled Bottom Entry 24 kW, 208V3 ZP232100XXXX000 24 kVA (24 kW) 208/208 81.0 x 24.0 x 42.0 972 $36,446
BladeUPS Pre-Assembled Bottom Entry 24 kW, 208V ZP232110XXXX000 24 kVA (24 kW) 208/208 81.0 x 24.0 x 42.0 972 $36,823
w/(1) SNMP3
BladeUPS Pre-Assembled Bottom Entry 24 kW, 208V ZP232150XXXX000 24 kVA (24 kW) 208/208 81.0 x 24.0 x 42.0 972 $37,011
w/(1) Power Xpert SNMP/ModBus3
BladeUPS Pre-Assembled Bottom Entry 36 kW, 208V3 ZP2331000XXX000 36 kVA (36 kW) 208/208 81.0 x 24.0 x 42.0 1294 $50,274
BladeUPS Pre-Assembled Bottom Entry 36 kW, 208V ZP2331100XXX000 36 kVA (36 kW) 208/208 81.0 x 24.0 x 42.0 1294 $50,651
w/(1) SNMP3
BladeUPS Pre-Assembled Bottom Entry 36 kW, 208V ZP2331500XXX000 36 kVA (36 kW) 208/208 81.0 x 24.0 x 42.0 1294 $50,840
w/(1) Power Xpert SNMP/ModBus3
BladeUPS Pre-Assembled Bottom Entry 48 kW, 208V3 ZP23410000XX000 48 kVA (48 kW) 208/208 81.0 x 24.0 x 42.0 1616 $61,714
BladeUPS Pre-Assembled Bottom Entry 48 kW, 208V ZP23411000XX000 48 kVA (48 kW) 208/208 81.0 x 24.0 x 42.0 1616 $62,092
w/(1) SNMP3
BladeUPS Pre-Assembled Bottom Entry 48 kW, 208V ZP23415000XX000 48 kVA (48 kW) 208/208 81.0 x 24.0 x 42.0 1616 $62,280
w/(1) Power Xpert SNMP/ModBus3
BladeUPS Pre-Assembled Top Entry 12 kW, 208V3 ZP24110XXXXX000 12 kVA (12 kW) 208/208 81.0 x 24.0 x 42.0 661 $22,114
BladeUPS Pre-Assembled Top Entry 12 kW, 208V, w/SNMP3 ZP24111XXXXX000 12 kVA (12 kW) 208/208 81.0 x 24.0 x 42.0 661 $22,491
BladeUPS Pre-Assembled Top Entry 12 kW, 208V, ZP24115XXXXX000 12 kVA (12 kW) 208/208 81.0 x 24.0 x 42.0 661 $22,680
w/Power Xpert SNMP/ModBus3
BladeUPS Pre-Assembled Top Entry 24 kW, 208V3 ZP242100XXXX000 24 kVA (24 kW) 208/208 81.0 x 24.0 x 42.0 972 $36,446
BladeUPS Pre-Assembled Top Entry 24 kW, 208V, w/SNMP3 ZP242110XXXX000 24 kVA (24 kW) 208/208 81.0 x 24.0 x 42.0 972 $36,823
BladeUPS Pre-Assembled Top Entry 24 kW, 208V, ZP242150XXXX000 24 kVA (24 kW) 208/208 81.0 x 24.0 x 42.0 972 $37,011
w/Power Xpert SNMP/ModBus3
BladeUPS Pre-Assembled Top Entry 36 kW, 208V3 ZP2431000XXX000 36 kVA (36 kW) 208/208 80.0 x 24.0 x 42.0 1294 $50,274
BladeUPS Pre-Assembled Top Entry 36 kW, 208V, w/SNMP3 ZP2431100XXX000 36 kVA (36 kW) 208/208 80.0 x 24.0 x 42.0 1294 $50,651
BladeUPS Pre-Assembled Top Entry 36 kW, 208V, ZP2431500XXX000 36 kVA (36 kW) 208/208 80.0 x 24.0 x 42.0 1294 $50,840
w/Power Xpert SNMP/ModBus3
BladeUPS Pre-Assembled Top Entry 48 kW, 208V3 ZP24410000XX000 48 kVA (48 kW) 208/208 81.0 x 24.0 x 42.0 1616 $61,714
BladeUPS Pre-Assembled Top Entry 48 kW, 208V, w/SNMP3 ZP24411000XX000 48 kVA (48 kW) 208/208 81.0 x 24.0 x 42.0 1616 $62,092
BladeUPS Pre-Assembled Top Entry 48 kW, 208V, ZP24415000XX000 48 kVA (48 kW) 208/208 81.0 x 24.0 x 42.0 1616 $62,280
w/Power Xpert SNMP/ModBus3
1. Shipping dimensions are 87”H x 37”W x 60”D. If more than 4 units are installed batteries for 5th and 6th units will ship on a separate pallet maximum 15”H x 32”W x 48”D. 2. Total shipping weight for
configurations of 4 UPS modules or less is installed weight plus 345 lbs. For configurations of 5 or 6 UPS modules add 391 lbs. to installed weight. 3. System capable of expansion to a maximum of 60kW
n+1. Additional notes: Factory-installed connectivity for Pre-Assembled Systems: Style Number digits 7 thru 12 (based in number of systems installed) represent the communication card(s) installed in
thesystem.0=Noconnectivity,1=ConnectUPS-XWeb/SNMP,2=ModBusRTU,3=Standardrelaycard,4=Industrialrelaycard,5=PowerXpertGatewayUPSCardForsystemswithmorethanone
UPS module, additional cards can be installed. Please visit the Connectivity Products section for card information, including pricing.
BLADEUPS ASSEMBLIES
Nominal Dimensions Weight Cdn List
Description Style Number Part Number Voltage (H x W x D, inches) (lb) Price
S-Series Rack with 48kW BladeUPS Parallel bar Top w/wireway P-103000505 ETN-BLADERACK4T 208V or 400V 81.0 x 24.0 x 42.0 452 $7,061
S-Series Rack with 48kW BladeUPS Parallel bar Bottom P-103000506 ETN-BLADERACK4B 208V or 400V 81.0 x 24.0 x 42.0 452 $7,061
w/wireway
S-Series Rack with 60kW BladeUPS Parallel bar Top w/wireway P-103000503 ETN-BLADERACK6T 208V or 400V 81.0 x 24.0 x 42.0 466 $8,053
S-Series Rack with 60kW BladeUPS Parallel bar Bottom P-103000504 ETN-BLADERACK6B 208V or 400V 81.0 x 24.0 x 42.0 466 $8,053
w/wireway
BLADEUPS OPTIONS
Description Style Number Dimensions (H x W x D, inches) Weight (lb) Cdn List Price
Extended Battery Modules
BladeUPS 3U EBM1 103005747-6591 5.2 (3U) x 17.2 x 26.0 170 $2,101
Extension Cable
BladeUPS 3 Ft EBM Extension Cable 103006348-001 2.4 x 8.5 x 9.7 2 $273
1. Shipped on pallet with dimensions of 5x40x48.
82 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook
October 1, 2012
EATON BLADEUPS (continued)
BLADEUPS OPTIONS
(continued)
Description Style Number Dimensions (H x W x D, inches) Weight (lb) Cdn List Price
Maintenance Bypass
BladeUPS Maintenance Bypass Module, 208V 103007415-5208 10.5 (6U) x 17.3 x 29.6 76 $7,557
BladeUPS Maintenance Bypass Module, 400V 103007415-5400 10.5 (6U) x 17.3 x 29.6 76 $7,557
MBP 600/208 V for 48 KW BladeUPS
MBP C/w 60 KVA Transformer 600/208 Volts, KM4x12L37103E1RB-DY-H-B 73.5 x 34 x 31.5 1200 $25,490
RIS, MIS and MBS switches
MBP C/w 60 KVA Transformer 600/208 Volts, KM4x12L37103E1RB-DY-42DPM-H-B 73.5 x 34 x 31.5 1350 $29,933
RIS, MIS and MBS switches, 42 circuit panel,
Branch Breakers are extras
MBP C/w 60 KVA Transformer 600/208 Volts , KM4x12L37103E1WMRB-DY-84DPM-H-B 73.5 x 38 x 31.5 1500 $38,175
RIS, MIS and MBS switches, 2x42 circuit panel,
Branch Breakers are extras
MBP 600/208 V for 60 KW BladeUPS
MBP C/w 75 KVA Transformer 600/208 Volts, KM5x12L37103E1RB-DYH-H-B 73.5 x 34 x 31.5 1300 $27,353
RIS, MIS and MBS switches
MBP C/w 75 KVA Transformer 600/208 Volts, KM5x12L37103E1RB-DYH-42DPM-H-B 73.5 x 34 x 31.5 1450 $31,796
RIS, MIS and MBS switches, 42 circuit panel,
Branch Breakers are extras
MBP C/w 75 KVA Transformer 600/208 Volts , KM5x12L37103E1WMRB-DYH-84DPM-H-B 73.5 x 38 x 31.5 1600 $40,205
RIS, MIS and MBS switches, 2x42 circuit panel,
Branch Breakers are extras
UPS Paralleling
BladeUPS 60 kW Bus Bar, Bottom Entry 103007571-55912 71.9 x 6.0 x 5.7 54 $4,581
BladeUPS 60 kW Bus Bar, Top Entry 103007573-55912 71.9 x 6.0 x 5.7 54 $4,581
BladeUPS 60 kW Universal Wireway 103007569-55912 10.4 (6U) x 19.0 x 34.0 45 $1,730
BladeUPS 48 kW BusBar, Top Entry 103007828-55912 51.0 x 6.0 x 5.7 40 $3,837
BladeUPS 48 kW BusBar, Bottom Entry 103007830-55912 51.0 x 6.0 x 5.7 40 $3,837
2. Please consult Application Engineering when purchasing this item.
3. All bus bar assemblies are rated for 208 or 400V installations.
Distribution Options
See ePDU options in the Eaton Power Distribution and Enclosures section of this book.
SOFTWARE AND CONNECTIVITY OPTIONS
Bundled with Intelligent Power Software Suite CD and communication cable. See the software and connectivity product sections for more detail.
BLADEUPS BATTERY BACKUP TIMES (in minutes)
Load (kW) Internal Battery +1 EBM +2 EBMs +3 EBMs +4 EBMs
2 44 85 137 199 258
3 30 56 89 128 165
4 23 42 66 94 120
5 18 33 51 73 94
6 13.6 27 42 60 76
7 11 23 32 50 64
8 9 18 28 43 55
9 7 15 24 38 48
10 6 13 22 33 42
11 5 11 20 30 38
12 4.7 9.5 17 27 34
Note: Backup times are approximate and may vary with equipment, configuration, battery age, temperature, etc.
1 For parallel installations, add same number of EBMs to each 12kW UPS module.
BLADEUPS BATTERY BACKUP TIMES (Parallel UPS, in minutes)
Number of Total Load Internal
UPS Modules (kW) Configuration Battery +1 EBM +2 EBMs +3 EBMs +4 EBMs
2 12 N+1 14 27 42 60 76
3 24 N+1 8.7 18 28 43 55
4 36 N+1 7.3 15 24 38 48
5 48 N+1 6.7 13 23 35 44
6 60 N+1 6.2 13 22 33 42
83www.eaton.com/powerquality 1.800.461.9166
October 1, 2012
October 1, 2012
BLADEUPS OPTIONS: RACK POWER MODULE (RPM)
The RPM delivers up to 36 kW of power in an organized manner to loads of various voltages, power cords
and layouts. The 3U RPM can be deployed in the same rack with the UPS and IT equipment; there’s no need
for a dedicated infrastructure rack. The resulting architecture has fewer cables to manage, fewer distribution
points to monitor, and greater flexibility for IT personnel make changes without an electrician.
• Providesplug-and-playprimarydistributionofpowerfromthree-phaseinputsourcetosecondary
power distribution devices
Serves data center loads with various voltages, power cord configurations and layouts
• Distributesthree-phasepowerto12poles,withchoiceofoutputreceptacletypes
• “PowerEqualizer”LEDgivesquickvisualindicationofeachcircuitsload,reducingpossibilityofoverloadsandbreakerstrippedoffline
• Loadinformationavailablefromthefrontoftherack,noneedtocheckindividualpowerstripsintherearofthecabinet(hotisle)
• Branchcircuitmonitoringoptionallowseasyloadmonitoringoverthenetwork,withPowerXpertinfrastructure
• Installsinonly3UofspaceinEIA19-inchrackorEnclosure(oroptionalwall-mount),allhardwareincluded
• Enablescustomerinstallationandchangeswithouttheservicesofalicensedelectrician
RPM DIMENSIONS
Dimensions (H x W x D, inches) Dimensions (H x W x D, mm) Weight (lb) Weight (kg)
Installed 5.2 x 17.4 x 26.3 132 x 442 x 668 32 15
Shipped 16.2 x 21.5 x 31.0 5.2 x 17.4 x 26.3 44 20
RPM TOPSELLERS
Topseller RPMs are the most popular configurations.
Receptacles
Part Number Input Cable Recep 1 Recep 2 Metering TVSS Cdn List Price
Y03113011100000 BladeUPS 208V 15' L21-20 (2) L21-20 (2) Local Power Meter No $3,582
Y03113022100000 BladeUPS 208V 15' L21-30 (2) L21-30 (2) Local Power Meter No $3,695
Y03113055100000 BladeUPS 208V 15' L6-30 (3) L6-30 (3) Local Power Meter No $3,079
Y03113047100000 BladeUPS 208V 15' L6-20 (3) 5-20 (6) Local Power Meter No $3,123
Y03113017100000 BladeUPS 208V 15' L21-20 (2) 5-20 (6) Local Power Meter No $3,299
Y031130FF100000 BladeUPS 208V 15' L15-30 (2) L15-30 (2) Local Power Meter No $3,594
EATON BLADEUPS (continued)
RPM ACCESSORIES
Description Part Number Cdn List Price
RPM wall-mount bracket kit 103006226 $254
Rack Power Module (RPM)
Y03
Input Cords/Connection
0 = Hardwire
1 = BladeUPS Unit 208V
2 = IEC309-60 5 wire
3 = NEMA l21-30P
4 = BladeUPS Unit 400V
Input Voltage
1 = 208V
2 = 400V
Metering Choices
1 = Power Equalizer
2 = Energy Management System, NO Card
3 = Energy Management System, with card
Input Cord Length
0 = Hardwire
1 = 8 feet
2 = 10 feet
3 = 15 feet
4 = 20 feet
(Base 3U RPM distribution box) 0 0
Output Receptacle Plate #1 & #2
1 = L21-20R
2 = L21-30R
3 = L6-15R
4 = L6-20R
5 = L6-30R
6 = 5-15R
7 = 5-20R
8 = L14-20R
9 = L14-30R
A = IEC320-C13 (208V)
B = IEC320-C19 (208V)
C = IEC320-C13 (230V) International
D = IEC320-C19 (230V) International
E = L15-20R
F = L15-3R
0 0 0 0
Rack Power Module (RPM)
84 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook
October 1, 2012
EATON BLADEUPS (continued)
RACK POWER MODULE CONFIGURATOR
Description Quantity Part Cdn List
Number Digit Value Price
Base 3U RPM Distribution Box - 1 Y
2 0
3 3
Input Voltage 208V - 4 1 $1,953
400V 2 $1,953
Input Cords: Connection Hardwired - 5 0
BladeUPS Unit 208V 1
IEC309-60 5 wire 2
NEMA L21-30P 3
BladeUPS Unit 400V 4
Input Cords: Length Hardwired - 6 0 $267
8 feet - 1 BladeUPS Unit 208V $211
IEC309-60 5 wire $793
NEMA L21-30P $155
BladeUPS Unit 400V $211
10 feet - 2 BladeUPS Unit 208V $285
IEC309-60 5 wire $800
NEMA L21-30P $174
BladeUPS Unit 400V $285
15 feet - 3 BladeUPS Unit 208V $391
IEC309-60 5 wire $874
NEMA L21-30P $192
BladeUPS Unit 400V $391
20 feet - 4 BladeUPS Unit 208V $484
IEC309-60 5 wire $948
NEMA L21-30P $217
BladeUPS Unit 400V $484
Future Option - 7 0 -
Output Receptacle Plate #1 & L21-20R 2 8 & 9 1 $496
Output Receptacle Plate #2 L21-30R 2 2 $552
L6-15R 3 3 $304
L6-20R 3 4 $322
L6-30R 3 5 $248
5-15R 6 6 $211
5-20R 6 7 $217
L14-20R 3 8 $223
L14-30R 3 9 $304
IEC320-C13 (208V) 12 A $223
IEC320-C19 (208V) 6 B $198
IEC320-C13 (230V) 12 C $223
IEC320-C19 (230V) 6 D $198
L15-20 2 E $496
L15-30 2 F $552
Metering Choices Power Equalizer - 10 1 -
Energy Management System, NO card - 2 $862
Energy Management System, with card - 3 $1,271
Future Option - 11 0 -
None - 12 0 $0
- 13 0 -
- 14 0 -
- 15 0 -
How to order: 1. Select base model voltage (208V or 400V), 2. Select input connector option, 3. Select input cord length (corded units only), 4. Select first recep-
tacle plate option, 5. Select second receptacle plate option, 6. Select metering option.
Example of configured model part number: Y03111022300000
85www.eaton.com/powerquality 1.800.461.9166
October 1, 2012
October 1, 2012
EATON BLADEUPS (continued)
EATON BLADEUPS SERVICE OPTIONS
Start-Up Options
Part Number Description Cdn List Price
BLAD24-SU724 Service BladeUPS Local 12- 24kW 7x24 StartUP $734
BLAD60-SU724 Service BladeUPS Local 36kW - 60kWN+1 7x24 StartUP $1,159
Extended coverage options for 12-24K Systems
Part Number Description Cdn List Price
BLAD24EX-PT2YR Service BladeUPS Local 12/24kW 5x8 PowerTrust 2 Year $3,257
BLAD24EX-PT3YR Service BladeUPS Local 12/24kW 5x8 PowerTrust 3 Year $6,529
BLAD24EX-PT4YR Service BladeUPS Local 12/24kW 5x8 PowerTrust 4 Year $9,786
BLAD24EX-PT5YR Service BladeUPS Local 12/24kW 5x8 PowerTrust 5 Year $13,044
BLAD24EX-PTP1YR Service BladeUPS Local 12/24kW 7x24 PowerTrust Preferred 1 Year $1,482
BLAD24EX-PTP2YR Service BladeUPS Local 12/24kW 7x24 PowerTrust Preferred 2 Year $4,901
BLAD24EX-PTP3YR Service BladeUPS Local 12/24kW 7x24 PowerTrust Preferred 3 Year $9,786
BLAD24EX-PTP4YR Service BladeUPS Local 12/24kW 7x24 PowerTrust Preferred 4 Year $14,687
BLAD24EX-PTP5YR Service BladeUPS Local 12/24kW 7x24 PowerTrust Preferred 5 Year $19,587
Extended coverage options for 36 - 60kW n+1 Systems
Part Number Description Cdn List Price
BLAD60EX-PT2YR Service BladeUPS Local 36kW/60kWN+1kW 5x8 PowerTrust 2 Year $4,211
BLAD60EX-PT3YR Service BladeUPS Local 36kW/60kWN+1kW 5x8 PowerTrust 3 Year $8,422
BLAD60EX-PT4YR Service BladeUPS Local 36kW/60kWN+1kW 5x8 PowerTrust 4 Year $12,648
BLAD60EX-PT5YR Service BladeUPS Local 36kW/60kWN+1kW 5x8 PowerTrust 5 Year $16,858
BLAD60EX-PTP1YR Service BladeUPS Local 36kW/60kWN+1kW 7x24 PowerTrust Preferred 1 Year $2,010
BLAD60EX-PTP2YR Service BladeUPS Local 36kW/60kWN+1kW 7x24 PowerTrust Preferred 2 Year $6,324
BLAD60EX-PTP3YR Service BladeUPS Local 36kW/60kWN+1kW 7x24 PowerTrust Preferred 3 Year $12,648
BLAD60EX-PTP4YR Service BladeUPS Local 36kW/60kWN+1kW 7x24 PowerTrust Preferred 4 Year $18,971
BLAD60EX-PTP5YR Service BladeUPS Local 36kW/60kWN+1kW 7x24 PowerTrust Preferred 5 Year $25,295
Installation and assembly
Part Number Description Cdn List Price
BLAD12-INST58 On Site local 5x8 Installation of first 12kW module $500
BLADMOD-INST58 On Site local 5x8 Installation of additional 12kW modules $250
BLADEBM-INST58 On Site local 5x8 installation of EBM module or RPM $250
Additional information about service plan features can be found in the Service Plans Overview section of this reference guide.
86 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook
October 1, 2012
Double-conversion (10–15 kVA)
This innovative design delivers one of the industry’s best combinations of high efficiency, low input current
distortion and highest power factor, while conserving valuable space and offering the most cost-effective,
highest performance option available today.
• Truedouble-conversiontopologyprotectsequipmentfromallnineofthemostcommonpowerproblems
• Industryleadingpowerdensity,providingupto20percentmorepowercapacityinacompacttowerdesign
including batteries
• Upto350percentmorestandardruntime
• Uptoa74percentfootprintreductionanduptoan83percenttotalsizereduction
• Flexibleon-boardpowerdistributionmodules(PDMs)allowforhardwiredoutputorupto15differentoutput
receptacle options, reducing installation and site preparation expenses
• Plug-and-playrackEnclosurepowerdistributionwiththe9355on-boardPDU
• Inherentlyscalablefrom10–15and20–30kVA,allowingyoutopayasyougroworincreasecapacitywithno
additional hardware purchases or installation concerns
• Eaton’spatentedHotSyncparallelingtechnologyallowsforwirelessparallelingintheeventof
communications failure, providing the industry’s only truly redundant paralleling technology
• Flexible0footprintextendedrunconfigurationsallowforaddingadditionalruntimeinthesameindustry-leadingcompactfootprint
• Includesrear-mountedbypassswitch
• Includeson-site5x8startupandoperatortrainingbyEatonfieldtechnician
• IncludesoneyearofeNotifyremotemonitoringservice(requiresconnectivitypartsandselfinstallation)
• Includesoneyearlocal(250km)5x8Correctivewarranty,Local5x8start-up
EATON 9355 UPS
Powerware series
9355 (1015 kVA) MODELS
Input/Output Base Dimensions Weight Cdn List
Description Part Number1 Rating Voltage Runtime (min) (H x W x D, inches)3 (lb)3 Price
PW9355 10 kVA with 32-Battery (2-high) KA1011100000010 10 kVA/9 kW 208/208 8 32.2 x 12.0 x 33.7 373 $17,353
PW9355 10 kVA with 64-Battery (3-high) KA1012100000010 10 kVA/9 kW 208/208 22 47.8 x 12.0 x 33.7 609 $19,318
PW9355 10 kVA with 32-Battery (2-high) KA1011200000010 10 kVA/9 kW 220/2202 8 32.2 x 12.0 x 33.7 373 $17,353
PW9355 10 kVA with 64-Battery (3-high) KA1012200000010 10 kVA/9 kW 220/2202 22 47.8 x 12.0 x 33.7 609 $19,318
PW9355 10 kVA with 32-Battery and input KA1013400000010 10 kVA/9 kW 480/208 8 47.8 x 12.0 x 33.7 577 $22,111
isolation transformer (3-high)
PW9355 10 kVA with 32-Battery and input KA1013600000010 10 kVA/9 kW 600/208 8 47.8 x 12.0 x 33.7 577 $22,111
isolation transformer (3-high)
PW9355 15 kVA with 32-Battery (2-high) KA1511100000010 15 kVA/13.5 kW 208/208 4 32.2 x 12.0 x 33.7 373 $18,850
PW9355 15 kVA with 64-Battery (3-high) KA1512100000010 15 kVA/13.5 kW 208/208 13 47.8 x 12.0 x 33.7 609 $20,863
PW9355 15 kVA with 32-Battery (2-high) KA1511200000010 15 kVA/13.5 kW 220/2202 4 32.2 x 12.0 x 33.7 373 $18,850
PW9355 15 kVA with 64-Battery (3-high) KA1512200000010 15 kVA/13.5 kW 220/2202 13 47.8 x 12.0 x 33.7 609 $20,863
PW9355 15 kVA with 32-Battery and input KA1513400000010 15 kVA/13.5 kW 480/208 4 47.8 x 12.0 x 33.7 577 $23,329
isolation transformer (3-high)
PW9355 15 kVA with 32-Battery and input KA1513600000010 15 kVA/13.5 kW 600/208 4 47.8 x 12.0 x 33.7 577 $23,329
isolation transformer (3-high)
1. 50/60 Hz auto-sensing.
2. 220V units are wye connected 220/127V input and 220/127V output, three-phase, 4-wire plus ground.
3. Add 47 lbs for 2-high configurations or 50 lbs for 3-high configurations to determine shipping weight.
4. An input neutral is required for all configurations unless the input isolation transformer is used.
5.Forparallelsystems,changeCTOdigit#5toa“2”andadd$300tothelistpriceandincludeParallelTieCabinet.
SOFTWARE AND CONNECTIVITY
Description Part Number Cdn List Price
PowerXpertGatewayUPSCard PXGXUPS(103007974-5591) $603
Bundled with Intelligent Power Software Suite CD and communication cable. See the software and connectivity sections for more details.
87www.eaton.com/powerquality 1.800.461.9166
October 1, 2012
October 1, 2012
EATON 9355 UPS
Powerware series (continued)
9355 OPTIONS
Part Additional Input/Output Dimensions Weight Cdn List
Description Number Information Voltage (H x W x D, inches) (lb) Price
PW9355 10-15 kVA 2-High Line & Match Extended Battery Module 103004192-5501 64 Batteries - 32.2 x 12.0 x 30.2 480 $6,223
PW9355 10-15 kVA 3-High Line & Match Extended Battery Module 103004193-5501 96 Batteries - 47.8 x 12.0 x 30.2 710 $8,878
PW9355 Wall Mount Parallel Tie Cabinet, 2-Breaker MBP 124100020-001 - 208V/208V 36.0 x 20.0 x 5.75 681 $1,781
(225A Bus, 200A Neutral, (1) 225A MBP, & (4) 80A MOBs)
PW9355 Wall Mount Parallel Tie Cabinet With MIS Breaker 124100020-002 - 208V/208V 60 x 20.0 x 5.75 140 $4,231
(225A MBP, 225A MIS, & (4) 80A MOBs)
PW9355 Remote EPO Switch 103002939 Wall-mounted - - - $299
PW9355 10-15 kVA Seismic Mounting Kit 103004194-5501 Zone 4 Kit - - - $2,064
Remote Monitor Panel requires Industrial Relay X-Slot Card part See section for Connectivity Options & Pricing
CAN Bridge Parallel Card 103004336 - - - $556
1. This is a net weight; please add 40 lb for the shipping weight of the panels and 50 lb for panels with panelboard provisions.
9355 BYPASS PANELS
Part Input/Output Dimensions Weight Cdn List
Description Number Voltage (H x W x D, inches) (lb)1 Price
PW9355 15 kVA 3-breaker Maintenance Bypass Panel 124100027-001 208V/208V 48.0 x 20.0 x 5.8 120 $3,843
(100A Bus, 200A Neutral, & 60A MBP, MIB, MIS)
PW9355 15 kVA 3-breaker Maintenance Bypass Panel 124100027-002 208V/208V 60.0 x 20.0 x 5.8 120 $7,295
with integral 120 KA TVSS (100A Bus, 200A Neutral,
& 60A MBP, MIB, MIS)
PW9355 15 kVA 3-breaker Maintenance Bypass Panel 124100027-003 208V/208V 72.0 x 20.0 x 5.8 210 $4,289
with 36-Pole Distribution Provisions (Cutler-HammerGHB65kAIC)
PW9355 15 kVA 3-breaker Maintenance Bypass Panel 124100027-004 208V/208V 90.0 x 20.0 x 5.8 225 $7,910
with 36-Pole Distribution Provisions & Integrated TVSS
(Cutler-HammerGHB65kAIC)
PW9355 15 kVA 3-breaker Maintenance Bypass Panel 124100027-006 208V/208V 72.0 x 20.0 x 5.8 210 $4,289
with 36-Pole Distribution Provisions (Cutler-HammerGHBW22kAIC)
PW9355 15 kVA 3-breaker Maintenance Bypass Panel 124100027-007 208V/208V 72.0 x 20.0 x 5.8 210 $4,289
with 36-Pole Distribution Provisions (Cutler-Hammer BAB 10 kAIC)
PW9355 15 kVA 3-breaker Maintenance Bypass Panel 124100027-008 208V/208V 90.0 x 20.0 x 5.8 225 $7,910
with 36-Pole Distribution Provisions & Integrated TVSS
(Cutler-HammerGBHW22kAIC)
PW9355 15 kVA 3-breaker Maintenance Bypass Panel 124100027-009 208V/208V 90.0 x 20.0 x 5.8 225 $7,910
with 36-Pole Distribution Provisions & Integrated TVSS
(Cutler-Hammer BAB 10 kAIC)
1. This is a net weight; please add 40 lb for the shipping weight of the panels and 50 lb for panels with panelboard provisions.
SURGE PROTECTION
See the surge protection product section for more details.
OUTPUT RECEPTACLES
Receptacle Codes (Qty) NEMA Type Enter “Receptacle Code” into CTO Digits # Price Adder for EACH Receptacle Code Chosen
2 (1) L15-30R 9, 10 or 11 only $218
3 (1) L21-20R 9, 10 or 11 only $218
4 (1) L21-30R 9, 10 or 11 only $218
A (2) 5-15R 9,10,11,12 $218
B (2) 5-20R UL 9,10,11,12 $218
D (2) 6-15R 9,10,11,12 $218
E (2) 6-20R 9,10,11,12 $218
F (2) L5-15R 9,10,11,12 $218
G (1)L5-20R* 9,10,11,12 $218
H (1) L5-30R* 9,10,11,12 $218
I (2) L6-15R 9,10,11,12 $218
J (1) L6-20R* 9,10,11,12 $218
K (1) L6-30R* 9,10,11,12 $218
L (1) L14-20R* 9,10,11,12 $218
M (1) L14-30R* 9,10,11,12 $218
X Blank Panel 9,10,11,12 $20
N (2) IEC 320 C13 (120V) 9,10,11,12 $218
P (2) IEC 320 C19 (120V) 9,10,11,12 $218
Note: Arrange receptacle codes in numerical-alphabetical order in digits 9 through 12 of the CTO number
Example 1: a PDM with an L21-20, an L14-30, and Qty 2 IEC320-C19 would have digits 9 through 12 of the CTO arranged as "3MPP"
 Example2:aPDMwitha5-15R,andanL6-30,andanL14-30wouldhavedigits9through12oftheCTOarrangedas“AKMX”
ThecombinedquantitiesofLOCKINGreceptacles(denotedby*)mustnotexceed4perunit.
Please be sure to utilize the "X" designation for any of the 4 total slots not populated.
88 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook
October 1, 2012
EATON 9355 UPS
Powerware series (continued)
BUILT-IN CONNECTIVITY OPTIONS
Value for Part Cdn List
Description CTO Digit 8 Number (if ordered separately) Price
NONE (No Pre-installed X-Slot card) 0 - $0
ConnectUPS-X Web/SNMP Card 3 116750221-001 $449
Modbus Card-X-Slot 4 103005425-5591 $885
Relay Interface Card-X-Slot (AS/400 Compatible) 5 1018460 $195
Industrial Relay and Display Drive Card X-Slot 6 103003055 $449
Note: You can have up to two optional connectivity cards installed.
9355 BATTERY BACKUP TIMES (in minutes) @ 0.9 POWER FACTOR
Load UPS + Internal UPS + Internal
(VA/Watts) 32 Battery +1 EBM 64 +2 EBMs 64 +3 EBMs 64 +4 EBMs 64 64 Battery +1 EBM 96 +2 EBMs 96 +3 EBMs 96
15000/13500 4.6 23.0 43.0 65.1 88.6 13.3 43.0 76.7 113.0
14500/13050 4.9 24.1 45.2 68.3 93.0 14.1 45.2 80.5 119.0
14000/12600 5.2 25.2 47.3 71.5 97.4 14.9 47.3 84.2 125.0
13500/12150 5.5 26.4 49.4 74.7 102.0 15.8 49.4 88.1 130.0
13000/11700 5.8 27.6 51.6 78.1 106.0 16.7 51.6 92.0 136.0
12500/11250 6.1 28.8 54.0 81.6 111.0 17.6 54.0 96.2 142.0
12000/10800 6.5 30.2 56.5 85.5 116.0 18.6 56.5 101.0 149.0
11500/10350 6.9 31.6 59.3 89.7 122.0 19.2 59.3 106.0 156.0
11000/9900 7.3 33.3 62.4 94.4 129.0 20.2 62.4 111.0 164.0
10500/9450 7.8 35.1 65.9 99.6 136.0 21.4 65.9 117.0 174.0
10000/9000 8.4 37.2 69.8 106.0 144.0 22.6 69.8 124.0 184.0
9500/8550 9.1 39.6 74.2 112.0 153.0 24.1 74.2 132.0 196.0
9000/8100 9.9 42.3 79.4 120.0 163.0 25.7 79.4 141.0 209.0
8500/7650 10.8 45.5 85.2 129.0 175.0 27.6 85.2 152.0 225.0
8000/7200 11.9 49.1 91.9 139.0 189.0 29.8 91.9 164.0 242.0
7500/6750 13.1 53.2 99.7 151.0 205.0 32.3 99.7 178.0 263.0
7000/6300 14.6 58.0 109.0 164.0 224.0 35.2 109.0 194.0 286.0
6500/5850 16.3 63.5 119.0 180.0 245.0 38.6 119.0 212.0 314.0
6000/5400 18.4 70.0 131.0 198.0 270.0 42.5 131.0 234.0 346.0
5500/4950 20.1 77.6 145.0 220.0 300.0 47.2 145.0 259.0 383.0
5000/4500 22.4 86.6 162.0 245.0 334.0 52.6 162.0 289.0 428.0
4500/4050 25.2 97.4 182.0 276.0 376.0 59.2 182.0 325.0 -
4000/3600 28.6 110.0 207.0 313.0 426.0 67.1 207.0 369.0 -
3500/3150 32.8 127.0 238.0 359.0 - 77.0 238.0 423.0 -
3000/2700 38.3 148.0 277.0 418.0 - 89.7 277.0 - -
2500/2250 45.6 176.0 329.0 - - 107.0 329.0 - -
Note: Backup times are approximate and may vary with equipment, configuration, battery age, temperature, etc.
EATON 9355 (10-15 KVA) SERVICE OPTIONS
Start-Up Options
Part Number Description Cdn List Price
9355-15SU724 SERVICE PW 9355 -15 Local Start-up (7 x 24) Remote sites extra $646
Extended Year Warranty Options
Part Number Description Cdn List Price
9355-15EXPT2YR SERVICE PW 9355-15 2 year Local PowerTrust (5 x 8) $2,920
9355-15EXPT3YR SERVICE PW 9355-15 3 year Local PowerTrust (5 x 8) $5,854
9355-15EXPTP1YR SERVICE PW 9355-15 1 year Local PowerTrust Preferred (7x24) $939
9355-15EXPTP2YR SERVICE PW 9355-15 2 year Local PowerTrust Preferred (7x24) $4,372
9355-15EXPTP3YR SERVICE PW 9355-15 3 year Local PowerTrust Preferred (7x24) $8,745
Parallel Unit Options
Part Number Description Cdn List Price
9355-15EX2PT2YR SERVICE PW 9355-15 2 year 2 Unit Parallel System Local PowerTrust (5 x 8) $5,548
9355-15EX2PT3YR SERVICE PW 9355-15 3 year 2 Unit Parallel System Local PowerTrust (5 x 8) $11,123
9355-15EX2PTP1YR SERVICE PW 9355-15 1 year 2 Unit Parallel System Local PowerTrust Preferred (7x24) $1,784
9355-15EX2PTP2YR SERVICE PW 9355-15 2 year 2 Unit Parallel System Local PowerTrust Preferred (7x24) $8,307
9355-15EX2PTP3YR SERVICE PW 9355-15 3 year 2 Unit Parallel System Local PowerTrust Preferred (7x24) $16,616
9355-15EX3PT2YR SERVICE PW 9355-15 2 year 3 Unit Parallel System Local PowerTrust (5 x 8) $7,884
9355-15EX3PT3YR SERVICE PW 9355-15 3 year 3 Unit Parallel System Local PowerTrust (5 x 8) $15,806
9355-15EX3PTP1YR SERVICE PW 9355-15 1 year 3 Unit Parallel System Local PowerTrust Preferred (7x24) $2,535
9355-15EX3PTP2YR SERVICE PW 9355-15 2 year 3 Unit Parallel System Local PowerTrust Preferred (7x24) $11,804
9355-15EX3PTP3YR SERVICE PW 9355-15 3 year 3 Unit Parallel System Local PowerTrust Preferred (7x24) $23,612
Additional information about service plan features can be found in the Single-phase Service Plans Overview section of this reference guide.
89www.eaton.com/powerquality 1.800.461.9166
October 1, 2012
October 1, 2012
9355 (20–30 KVA) MODELS
20 kVA (18 kW)
Input/Output Base Dimensions Weight Option Cdn List
Description Part Number1 Voltage Runtime (min) (H x W x D, inches)3 (lb)3 Cabinet(s) Price
PW9355 20 kVA with Internal Batteries KB2013100000010 208/208 18 66.0 x 20.0 x 34.1 1160 $25,233
PW9355 20 kVA Single Feed with KB2013100000010 208/208 18 66.0 x 40.0 x 34.1 1695 KBT001100000010* $31,051
Options Cabinet & Internal Batteries,
including Isolation Transformer
PW9355 20 kVA with Internal Batteries KB2013100000010 208/208 18 66.0 x 60.0 x 34.1 2230 KBT001100000010* $36,869
& Dual Feed Isolation Transformer (2 Opt Cabs) KBT002100000010
PW9355 20 kVA with Internal Batteries KB2013200000010 220/2202 18 66.0 x 20.0 x 34.1 1160 $25,233
PW9355 20 kVA with Internal Batteries KB2013100000010 480/208 18 66.0 x 40.0 x 34.1 1695 KBT001200000010* $31,051
& Single Feed Options Cabinet
PW9355 20 kVA Dual Feed with Options KB2013100000010 480/208 18 66.0 x 60.0 x 34.1 2230 KBT002200000010 $36,869
Cabinets & Internal Batteries (2 Opt Cabs) KBT001200000010*
PW9355 20 kVA Single Feed with Options KB2013100000010 600/208 18 66.0 x 40.0 x 34.1 1695 KBT001300000010 $31,051
Cabinets & Internal Batteries
PW9355 20 kVA Dual Feed with Options KB2013100000010 600/208 18 66.0 x 60.0 x 34.1 2230 KBT001300000010* $36,869
Cabinets & Internal Batteries KBT002300000010
PW9355 20 kVA Single Feed with Options KB2013100000010 480/480 18 66.0 x 40.0 x 34.1 1952 KBT004200000010* $36,869
Cabinet & Internal Batteries (1 Opt Cab)
30 kVA (27 kW)
UPS Part Input/Output Base Dimensions Weight Option Cdn List
Description (CTO) Number Voltage Runtime (min) (H x W x D, inches)3 (lb)3 Cabinet(s) Price
PW9355 30 kVA with Internal Batteries KB3013100000010 208/208 11 66.0 x 20.0 x 34.1 1160 $26,447
PW9355 30 kVA Single Feed with Options KB3013100000010 208/208 11 66.0 x 40.0 x 34.1 1695 KBT001100000010* $32,264
Cabinet & Internal Batteries, including Isolation
PW9355 30 kVA with Internal Batteries & Dual KB3013100000010 208/208 11 66.0 x 60.0 x 34.1 2230 KBT001100000010* $38,082
Feed Isolation Transformer (2 Opts Cabs) KBT002100000010
PW9355 30 kVA with Internal Batteries KB3013200000010 220/2202 11 66.0 x 20.0 x 34.1 1160 $26,447
PW9355 30 kVA with Internal Batteries KB3013100000010 480/208 11 66.0 x 40.0 x 34.1 1695 KBT001200000010* $32,264
& Single Feed Options Cabinet
PW9355 30 kVA Dual Feed with Options KB3013100000010 480/208 11 66.0 x 60.0 x 34.1 2230 KBT001200000010* $38,082
Cabinets & Internal Batteries (2 Opts Cabs) KBT002200000010
PW9355 30 kVA Single Feed with KB3013100000010 600/208 11 66.0 x 40.0 x 34.1 1695 KBT001300000010 $32,297
Options Cabinet & Internal Batteries
PW9355 30 kVA Dual Feed with KB3013100000010 600/208 11 66.0 x 60.0 x 34.1 2230 KBT001300000010* $38,082
Options Cabinet & Internal Batteries KBT002300000010
(2 Opts Cabs)
PW9355 30 kVA Single Feed with Options KB3013100000010 480/480 11 66.0 x 40.0 x 34.1 1952 KBT004200000010* $38,082
Cabinet & Internal Batteries (1 Opts Cab)
* contains MBP Rotary Style
1. 50/60 Hz auto-sensing.
2. 220V units are wye connected 220/127V input and 220/127V output, three-phase, 4-wire plus ground.
3. Add 47 lb for 2-high configurations or 50 lbs for 3-high configurations to determine shipping weight.
4. An input neutral is required for all configurations unless the input isolation transformer is used.
5.Forparallelsystems,changeCTOdigit#5toa“2”andadd$500tothelistpriceandincludeParallelTieCabinet.
EATON 9355 UPS
Powerware series (continued)
90 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook
October 1, 2012
9355 OPTIONS
Part Input/Output Dimensions Weight Cdn List
Description Number Rating Voltage (H x W x D, inches) (lb)1 Price
PW9355 20 & 30 kVA 2 String Line & Match
Extended Battery Cabinet 103005183 36 - 66.0 x 20.0 x 34.1 1105.0 $8,952
PW9355 20 & 30 kVA 4 String Line & Match
Extended Battery Cabinet 103004868 72 - 66.0 x 20.0 x 34.1 2060.0 $13,662
Option Cabinet, Containing Maintenance Bypass,
with No Transformer KBT000000000010 - 208/208 67.0 x 20.0 x 34.1 205.0 $2,561
PW9355 30 kVA Wall-mount Parallel Tie Cabinet 2-Breaker MBP
(400A Bus, 200A Neutral, 1 350A MBP, & (4) 110A MOBs) 124100026-001 - 208/208 48.0 x 20.0 x 5.8 150.01 $3,230
PW9355 30 kVA Wall-mount Parallel Tie Cabinet with MIS
Breaker (350A MBP, 350A MIS, & (4) 110A MOBs) 124100026-002 - 208/208 57.0 x 24.0 x 11.3 235 $7,472
Remote EPO Switch 103002939 Wall-mounted - - - $299
Zone 4 Seismic Kit (UPS Cabinet only) 103004896 Zone 4 Kit - - - $557
Remote Monitor Panel requires Industrial Relay X-Slot Card part See section for Connectivity Options & Pricing
CAN Bridge Parallel Card 103004336 - - - - $556
UPS Optional Output Breaker (125A, Change Digit #5 in CTO number to "3" for RT systems) $268
1. This is a net weight; please add 40 lb for the shipping weight of the panels and 50 lb for panels with panelboard provisions.
Notes: Up to 3 EBMs can be added to each UPS for extended runtime. To find items and pricing for spare parts, kVA upgrades and parallel upgrades, please refer to the 9355 services page.
9355 BYPASS PANELS
Part Input/Output Dimensions Weight Cdn List
Description Number Voltage (H x W x D, inches) (lb)1 Price
PW9355 20 & 30 kVA 3-breaker Maintenance Bypass Panel 124100028-001 208/208 48.0 x 20.0 x 5.8 120 $4,178
(225A Bus, 225A Neutral, & 110A MBP, 125A MIB, 110A MIS)
PW9355 20 & 30 kVA 3-breaker Maintenance Bypass Panel 124100028-002 208/208 60.0 x 20.0 x 5.8 120 $7,932
with integral 120 KA TVSS
(225A Bus, 225A Neutral, & 110A MBP, 125A MIB, 110A MIS)
PW9355 20 & 30kVA 3-Breaker Maintenance Bypass Panel 124100028-003 208/208 72.0 x 20.0 x 5.8 210 $4,818
with36-poleDistributionProvisions(Cutler-HammerGHB65kAIC)
PW9355 20 & 30 kVA 3-Breaker Maintenance Bypass Panel 124100028-004 208/208 90.0 x 20.0 x 5.8 225 $8,300
with 36-pole Distribution Provisions & Integrated TVSS (Cutler-
HammerGHB65kAIC)
PW9355 20 & 30kVA 3-Breaker Maintenance Bypass Panel 124100028-006 208/208 72.0 x 20.0 x 5.8 210 $4,818
with36-poleDistributionProvisions(Cutler-HammerGBHW22kAIC)
PW9355 20 & 30kVA 3-Breaker Maintenance Bypass Panel 124100028-007 208/208 72.0 x 20.0 x 5.8 210 $4,818
with 36-pole Distribution Provisions (Cutler-Hammer BAB 10 kAIC)
PW9355 20 & 30 kVA 3-Breaker Maintenance Bypass Panel 124100028-008 208/208 90.0 x 20.0 x 5.8 225 $8,300
with 36-pole Distribution Provisions & Integrated TVSS (Cutler-
HammerGBHW22kAIC)
PW9355 20 & 30 kVA 3-Breaker Maintenance Bypass Panel 124100028-009 208/208 90.0 x 20.0 x 5.8 225 $8,300
with 36-pole Distribution Provisions & Integrated TVSS (Cutler-
Hammer BAB 10 kAIC)
1. This is a net weight; please add 40 lb for the shipping weight of the panels and 50 lb for panels with panelboard provisions.
Note: Please specify preference for breakers.
9355 BUILT-IN CONNECTIVITY OPTIONS
Available X-Slot card options
Value for Part Cdn List
Description CTO Digit 8 Number (if ordered separately) Price
NONE (No pre-installed X-Slot card) 0 $0
ConnectUPS-X Web/SNMP Card 3 116750221-001 $449
Modbus Card-X-Slot 4 103005425-5591 $885
Relay Interface Card-X-Slot (AS/400 Compatible) 5 1018460 $195
Industrial Relay and Display Drive Card X-Slot 6 103003055 $449
Note: UPS has two X-Slots, one of which can be populated or factory installed, with the second X-Slot accessory supplied separately.
SOFTWARE AND CONNECTIVITY
Description Part Number Cdn List Price
PowerXpertGatewayUPSCard PXGXUPS(103007974-5591) $603
Bundled with Intelligent Power Software Suite CD and communication cable. See the software and connectivity sections for more details.
EATON 9355 UPS
Powerware series (continued)
91www.eaton.com/powerquality 1.800.461.9166
October 1, 2012
October 1, 2012
EATON 9355 UPS
Powerware series (continued)
9355 BATTERY BACKUP TIMES (in minutes)
UPS Internal Internal Internal Internal
Load w/Internal Battery Battery Battery Battery
(VA/Watts) Battery +EBC 36 +EBC 72 +2 EBC 72 +3 EBC 72
30000/27000 11 31 56 89 108
29000/26100 11 33 58 90 109
28000/25200 12 35 60 93 111
27000/24300 12 38 62 95 114
26000/23400 13 40 65 98 118
25000/22500 14 43 68 101 124
24000/21600 14 46 71 103 129
23000/20700 15 48 74 106 134
22000/19800 16 51 76 109 144
21000/18900 17 53 79 111 152
20000/18000 18 56 82 114 160
19000/17100 19 58 85 117 175
18000/16200 20 62 88 120 189
17000/15300 22 66 92 130 204
16000/14400 24 71 96 142 219
15000/13500 26 75 101 154 234
14000/12600 28 79 105 166 249
13000/11700 31 84 110 178 265
12000/10800 35 88 114 201 280
11000/9900 38 94 119 226 319
10000/9000 42 101 134 251 355
7500/6750 58 117 188 347 471
5000/4500 90 188 294 543 610
Note: Battery backup times are approximate and may vary with equipment, configuration, battery age, temperature, etc.
EATON 9355 (20-30 KVA) SERVICE OPTIONS
Start-Up Options
Part Number Description Cdn List Price
9355-30SU724 SERVICE PW 9355 -30 Local Start-up (7 x 24) Remote sites extra $737
Extended Year Warranty Options
Part Number Description Cdn List Price
9355-30EXPT2YR SERVICE PW 9355-30 2 year Local PowerTrust (5 x 8) $3,125
9355-30EXPT3YR SERVICE PW 9355-30 3 year Local PowerTrust (5 x 8) $6,265
9355-30EXPTP1YR SERVICE PW 9355-30 1 year Local PowerTrust Preferred (7x24) $1,262
9355-30EXPTP2YR SERVICE PW 9355-30 2 year Local PowerTrust Preferred (7x24) $4,695
9355-30EXPTP3YR SERVICE PW 9355-30 3 year Local PowerTrust Preferred (7x24) $9,390
Parallel Unit Options
Part Number Description Cdn List Price
9355-30EX2PT2YR SERVICE PW 9355-30 2 year 2 Unit Parallel System Local PowerTrust (5 x 8) $5,938
9355-30EX2PT3YR SERVICE PW 9355-30 3 year 2 Unit Parallel System Local PowerTrust (5 x 8) $11,904
9355-30EX2PTP1YR SERVICE PW 9355-30 1 year 2 Unit Parallel System Local PowerTrust Preferred (7x24) $2,398
9355-30EX2PTP2YR SERVICE PW 9355-30 2 year 2 Unit Parallel System Local PowerTrust Preferred (7x24) $8,921
9355-30EX2PTP3YR SERVICE PW 9355-30 3 year 2 Unit Parallel System Local PowerTrust Preferred (7x24) $17,841
9355-30EX3PT2YR SERVICE PW 9355-30 2 year 3 Unit Parallel System Local PowerTrust (5 x 8) $8,438
9355-30EX3PT3YR SERVICE PW 9355-30 3 year 3 Unit Parallel System Local PowerTrust (5 x 8) $16,916
9355-30EX3PTP1YR SERVICE PW 9355-30 1 year 3 Unit Parallel System Local PowerTrust Preferred (7x24) $3,407
9355-30EX3PTP2YR SERVICE PW 9355-30 2 year 3 Unit Parallel System Local PowerTrust Preferred (7x24) $12,677
9355-30EX3PTP3YR SERVICE PW 9355-30 3 year 3 Unit Parallel System Local PowerTrust Preferred (7x24) $25,353
Additional information about service plan features can be found in the Single-phase Service Plans Overview section of this reference guide.
92 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook
October 1, 2012
EATON EMERGENCY LIGHTING UPS
SINGLE-PHASE EMERGENCY LIGHTING
System Dimensions Individual System
Individual Quantity Rating Input/Output Runtime (H x W x D, Weight List List
Description Part Number Description Required (kVA/kW) Voltage (min) inches) (lb) Price1 Price1
K41013000000000 9155 10 kVA UPS 1 $16,046
Eaton Emergency Lighting BH-08KEL277-100 UPS Upgrade 1 10/7.2 277/277 134 47.8 x 36.0 x 33.7 1,978 $2,767 $38,459
Single-phase 7 kW 277V 103004193-5501 9155 Battery Cabinet 2 $8,878
UPS System BH-EBM96EL-600 Battery Upgrade 2 $945
K41513000000000 9155 15 kVA UPS 1 $18,016
Eaton Emergency Lighting BH-10KEL277-100 UPS Upgrade 1 15/9 277/277 120 47.8 x 36.0 x 33.7 1,978 $3,183 $40,845
Single-phase 9 kW 277V 103004193-5501 9155 Battery Cabinet 2 $8,878
UPS System BH-EBM96EL-600 Battery Upgrade 2 $945
THREE-PHASE EMERGENCY LIGHTING
System Dimensions Individual System
Individual Quantity Rating Input/Output Runtime (H x W x D, Weight List List
Description Part Number Description Required (kVA/kW) Voltage (min) inches) (lb) Price1 Price1
KA1012100000010 9355 10 kVA UPS 1 $19,318
Eaton Emergency Lighting BH-10KEL2083P-100 UPS Upgrade 1 10/8.5 208/208 124 47.8 x 36.0 x 33.7 2,029 $3,542 $42,506
Three-phase 8.5 kW 208V 103004193-5501 9355 Battery Cabinet 2 $8,878
UPS System BH-EBM96EL-600 Battery Upgrade 2 $945
KA1512100000010 9355 15 kVA UPS 1 $20,863
Eaton Emergency Lighting BH-15KEL2083P-100 UPS Upgrade 1 15/13.1 208/208 113 47.8 x 36.0 x 33.7 2,739 $3,954 $54,286
Three-phase 13 kW 208V 103004193-5501 9355 Battery Cabinet 3 $8,878
UPS System BH-EBM96EL-600 Battery Upgrade 3 $945
KB2013100000010 9355 20 kVA UPS 1 $25,233
Eaton Emergency Lighting BH-20KEL2083P-100 UPS Upgrade 1 20/18 208/208 114 66.0 x 60.0 x 34.1 5,280 $4,676 $60,225
Three-phase 18 kW 208V 103004868 9355 Battery Cabinet 2 $13,662
UPS System BH-EBC72EL-600 Battery Upgrade 2 $1,496
KB3013100000010 9355 30 kVA UPS 1 $26,447
Eaton Emergency Lighting BH-30KEL208SF-100 UPS Upgrade 1 30/24 208/208 108 66.0 x 60.0 x 34.1 5,280 $5,055 $61,818
Three-phase 24 kW 208V 103004868 9355 Battery Cabinet 2 $13,662
UPS System BH-EBC72EL-600 Battery Upgrade 2 $1,496
KB3013100000010 9355 30 kVA UPS 1 $26,447
Eaton Emergency Lighting BH-30KEL2083P-100 UPS Upgrade 1 30/27 208/208 90 66.0 x 80.0 x 34.1 7,340 $5,055 $76,976
Three-phase 27 kW 208V 103004868 9355 Battery Cabinet 3 $13,662
UPS System BH-EBC72EL-600 Battery Upgrade 3 $1,496
KB2013100000010 9355 20 kVA UPS 1 $25,233
BH-20KEL2083P-100 UPS Upgrade 1 $4,676
Eaton Emergency Lighting 103004868 9355 Battery Cabinet 2 20/18 480/277 114 66.0 x 80.0 x 34.1 6,072 $13,662 $73,995
Three-phase 18 kW 480V BH-EBC72EL-600 Battery Upgrade 2 $1,496
UPS System KBT004200000010 9355 Options Cabinet 1 $11,475
BH-KBT004-200 Options Upgrade 1 $2,295
KB3013100000010 9355 30 kVA UPS 1 $26,447
BH-30KEL208SF-100 UPS Upgrade 1 $5,055
Eaton Emergency Lighting 103004868 9355 Battery Cabinet 2 30/24 480/277 108 66.0 x 80.0 x 34.1 6,072 $13,662 $75,588
Three-phase 24 kW 480V BH-EBC72EL-600 Battery Upgrade 2 $1,496
UPS System KBT004200000010 9355 Options Cabinet 1 $11,475
BH-KBT004-200 Options Upgrade 1 $2,295
KB3013100000010 9355 30 kVA UPS 1 $26,447
BH-30KEL2083P-100 UPS Upgrade 1 $5,055
Eaton Emergency Lighting 103004868 9355 Battery Cabinet 3 30/27 480/277 90 66.0 x 100.0 x 34.1 8,132 $13,662 $90,746
Three-phase 27 kW 480V BH-EBC72EL-600 Battery Upgrade 3 $1,496
UPS System KBT004200000010 9355 Options Cabinet 1 $11,475
BH-KBT004-200 Options Upgrade 1 $2,295
EMERGENCY LIGHTING UPS SERVICE PLANS
Call 1-800-461-9166 for service and warranty options
Eaton’s Emergency Lighting product line offers a UPS system and line and match battery cabinets to achieve
the minimum UL 924 required 90 minutes of runtime. The Eaton Emergency Lighting UPS line combines the
industry's highest capacity and smallest footprint, making it the most cost-effective solution to comply with
Emergency Lighting.
All solutions are fully tested to comply with UL 924.
• 90minutesofruntime
• Allowsforamanuallyoperatedandprotectedtestswitch
• 10-30kVA/208,277and480Voptions
• Includesoneyearlocal(250km)5x8Correctivewarranty,Local5x8start-up
93www.eaton.com/powerquality 1.800.461.9166
October 1, 2012
October 1, 2012
EATON 9E UPS & ACCESSORIES
The Eaton 9E UPS delivers three key benefits that drive a lower total cost of ownership (TCO): internal
batteries, compact footprint and energy-efficiency.
Energy-efficient
• Deliversupto98%efficiency
• Upto7%moreefficientthancompetitiveunits
• Helpsyouqualifyforlocalutilityrebatesandincentives
Internal batteries
• Deliverupto21minutesofruntime
• Pre-wiredforeasyinstallation
Compact footprint
• Upto35%smallerthansimilarlyspecifiedcompetitivesolutions
• Allowsdedicationofmorefloorspacetorevenue-producingequipment
• Includesoneyearlocal(250km)5x8Correctivewarranty,Local5x8start-up
9E (20-30 KVA) MODELS WITH INTERNAL RUNTIME
Input/Output Internal Dimensions Weight Cdn List
Description Part Number* Voltage Runtime (min) (H x W x D, inches) (lb) Price
20 kVA (16 kW)
20 kVA UPS Single Feed with Internal Batteries 9EA02AA61001000 208/208 22 53.5 x 20.9 x 31.5 1049 $22,882
20 kVA UPS Single Feed with Internal Batteries 9EF02AA63001000 208/208 12 53.5 x 20.9 x 31.5 998 $21,479
and Standard Runtime
20 kVA UPS Single Feed with Internal Batteries 9EA02AA61101000 208/208 22 53.5 x 20.9 x 31.5 1049 $24,414
and Internal Maintenance Bypass System
30 kVA (24 kW)
30 kVA UPS Single Feed with Internal Batteries 9EA03AA61001000 208/208 12 53.5 x 20.9 x 31.5 1049 $24,634
30 kVA UPS Single Feed with Internal Batteries 9EA03AA61101000 208/208 12 53.5 x 20.9 x 31.5 1049 $26,166
and Internal Maintenance Bypass System
9E (20-30 KVA) MODELS FOR EXTERNAL RUNTIME
Input/Output Dimensions Weight Cdn List
Description Part Number* Voltage (H x W x D, inches) (lb) Price
20 kVA (16 kW)
20 kVA UPS Single Feed for External Batteries 9EA02AA60001000 208/208 53.5 x 20.9 x 31.5 434 $17,514
20 kVA UPS Single Feed for External Batteries 9EA02AA60101000 208/208 53.5 x 20.9 x 31.5 434 $19,047
and Internal Maintenance Bypass System
30 kVA (24 kW)
30 kVA UPS Single Feed for External Batteries 9EA03AA60001000 208/208 53.5 x 20.9 x 31.5 434 $19,266
30 kVA UPS Single Feed for External Batteries 9EA03AA60101000 208/208 53.5 x 20.9 x 31.5 434 $20,799
and Internal Maintenance Bypass System
* 50/60 Hz auto-sensing. For 220/220 V Input/Output Voltage change CTO digit #6-7 to BB
* For Dual Feed change Part Number digit #12 to 2 and apply $100 adder per UPS to the list price.
9E (20-30 KVA) EXTENDED BATTERY CABINET
Number of Number of Dimensions Weight Cdn List
Description Part Number Batteries Strings (H x W x D, inches) (lb) Price
20 & 30 kVA Extended Battery Cabinet** 9EZAAC000000000 54 3 53.5 x 20.9 x 31.5 1585 $13,497
** Maximum of 2 Extended Battery Cabinets can be bought for a system. See runtime chart.
20-30 kVA 40-60 kVA
9E (20-30 KVA) INTEGRATED ACCESSORY CABINET - DISTRIBUTION
Dimensions Weight Cdn List
Description Part Number (H x W x D, inches) (lb) Price
20 & 30 kVA IAC - With 42-pole Distribution Panelboard 9EZDA0000000000 53.5 x 20.9 x 31.5 238 $8,319
and No Subfeed Breakers
Subfeed Breaker Options
Select Part Number digits #6, 7, and 8 from the following list for up to 3 Subfeed Breakers
Description Subfeed Part Number Price Adder per Subfeed Breaker
125A Breaker A $636
60A Breaker B $616
40A Breaker C $330
No Subfeed Breaker 0 $0
94 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook
October 1, 2012
EATON 9E UPS & ACCESSORIES
(continued)
9E (20-30 KVA) INTEGRATED ACCESSORY CABINET - MAINTENANCE BYPASS
Dimensions Weight Cdn List
Description Part Number* (H x W x D, inches) (lb) Price
20 & 30 kVA IAC - Maintenance Bypass for Single Feed Units 9EZBA1000000000 53.5 x 20.9 x 31.5 237 $7,064
20 & 30 kVA IAC - Maintenance Bypass for Dual Feed Units 9EZBA2000000000 53.5 x 20.9 x 31.5 237 $7,251
9E (20-30 KVA) INTEGRATED ACCESSORY CABINET - TIE
Dimensions Weight Cdn List
Description Part Number (H x W x D, inches) (lb) Price
20 & 30 kVA IAC - Tie for 1+1 Redundant with 9EZCA0100000000 53.5 x 20.9 x 31.5 326 $9,927
Maintenance Bypass
20 & 30 kVA IAC - Tie for 2+0 Capacity with 9EZCA0200000000 53.5 x 20.9 x 31.5 326 $11,309
Maintenance Bypass
9E (20-30 KVA) INTEGRATED ACCESSORY CABINET - TRANSFORMER
Input/Output Dimensions Weight Cdn List
Description Part Number Voltage (H x W x D, inches) (lb) Price
20 & 30 kVA IAC - Single Transformer 9EZFAA000000000 480/208 53.5 x 20.9 x 31.5 496 $7,923
20 & 30 kVA IAC - Dual Transformers 9EZFAB000000000 480/480 53.5 x 20.9 x 31.5 834 $11,706
9E (20-30 KVA) WALL MOUNT MAINTENANCE BYPASS PANELS
Dimensions Weight Cdn List
Description Part Number (H x W x D, inches) (lb) Price
Up to 30 kVA Wall Mount Maintenance Bypass Panel M1BAAX0X1XXXXXX 57.0 x 24.0 x 11.3 400 $5,370
Upto30kVAWallMountMaintenanceBypassPanel M9EZGA110000000   90.0x24.0x11.3 400 $5,820
with 36 Pole Distribution
Up to 90 kVA Wall Mount Maintenance Bypass Panel M1BI0X0X1XXXXXX 57.0 x 24.0 x 11.3 350 $7,936
Upto90kVAWallMountMaintenanceBypassPanel M9EZGA310000000   90.0x24.0x11.3 350 $8,923
with 36 Pole Distribution
9E (40-60 KVA) MODELS WITH INTERNAL RUNTIME
Input/Output Internal Dimensions Weight Cdn List
Description Part Number* Voltage Runtime (min) (H x W x D, inches) (lb) Price
40 kVA (32 kW)
40 kVA UPS Single Feed with Internal Batteries 9EB04AA61001000 208/208 12 74.0 x 23.6 x 31.5 1499 $39,408
40kVAUPSSingleFeedwithInternalBatteries 9EG04AA63001000 208/208  7 74.0x23.6x31.5 1448 $36,931
and Standard Runtime
40 kVA UPS Single Feed with Internal Batteries 9EB04AA61101000 208/208 12 74.0 x 23.6 x 31.5 1499 $42,375
and Internal Maintenance Bypass System
60 kVA (48 kW)
60 kVA UPS Single Feed with Internal Batteries 9EB06AA61001000 208/208 6 74.0 x 23.6 x 31.5 1499 $43,845
60 kVA UPS Single Feed with Internal Batteries 9EB06AA61101000 208/208 6 74.0 x 23.6 x 31.5 1499 $46,811
and Internal Maintenance Bypass System
9E (40-60 KVA) MODELS FOR EXTERNAL RUNTIME
Input/Output Dimensions Weight Cdn List
Description Part Number* Voltage (H x W x D, inches) (lb) Price
40 kVA (32 kW)
40 kVA UPS Single Feed for External Batteries 9EB04AA60001000 208/208 74.0 x 23.6 x 31.5 434 $17,514
40 kVA UPS Single Feed for External Batteries 9EB04AA60101000 208/208 74.0 x 23.6 x 31.5 434 $19,047
and Internal Maintenance Bypass System
60 kVA (48 kW)
60 kVA UPS Single Feed for External Batteries 9EB06AA60001000 208/208 74.0 x 23.6 x 31.5 434 $19,266
60 kVA UPS Single Feed for External Batteries 9EB06AA60101000 208/208 74.0 x 23.6 x 31.5 434 $20,799
and Internal Maintenance Bypass System
* 50/60 Hz auto-sensing. For 220/220 V Input/Output Voltage change CTO digit #6-7 to BB
* For Dual Feed change Part Number digit #12 to 2 and apply $100 adder per UPS to the list price.
95www.eaton.com/powerquality 1.800.461.9166
October 1, 2012
October 1, 2012
EATON 9E UPS & ACCESSORIES
(continued)
9E (40-60 KVA) EXTENDED BATTERY CABINET
Number of Number of Dimensions Weight Cdn List
Description Part Number Batteries Strings (H x W x D, inches) (lb) Price
40 & 60 kVA Extended Battery Cabinet** 9EZABB000000000 72 4 74.0 x 31.3 x 31.5 2713 $19,813
40 & 60 kVA Extended Battery Cabinet** 9EZABC000000000 108 6 74.0 x 31.3 x 31.5 3117 $26,127
** Maximum of 2 Extended Battery Cabinets can be bought for a system. See runtime chart.
9E (40-60 KVA) INTEGRATED ACCESSORY CABINET - DISTRIBUTION
Dimensions Weight Cdn List
Description Part Number (H x W x D, inches) (lb) Price
40 & 60 kVA IAC - With 42-pole Distribution Panelboard 9EZDB0000000000 74.0 x 20.9 x 31.5 315 $8,462
and No Subfeed Breakers
Subfeed Breaker Options
Select Part Number digits #6, 7, and 8 from the following list for up to 3 Subfeed Breakers
Description Subfeed Part Number Price Adder per Subfeed Breaker
250A Breaker A $843
125A Breaker B $824
80A Breaker C $404
No Subfeed Breaker 0 $0
9E (40-60 KVA) INTEGRATED ACCESSORY CABINET - MAINTENANCE BYPASS
Dimensions Weight Cdn List
Description Part Number (H x W x D, inches) (lb) Price
40 & 60 kVA IAC - Maintenance Bypass for Single Feed Units 9EZBB1000000000 74.0 x 20.9 x 31.5 334 $10,166
40 & 60 kVA IAC - Maintenance Bypass for Dual Feed Units 9EZBB2000000000 74.0 x 20.9 x 31.5 334 $10,395
9E (40-60 KVA) INTEGRATED ACCESSORY CABINET - TIE
Dimensions Weight Cdn List
Description Part Number (H x W x D, inches) (lb) Price
40 & 60 kVA IAC - Tie for 1+1 Redundant with 9EZCB0100000000 74.0 x 20.9 x 31.5 456 $13,877
Maintenance Bypass
40 & 60 kVA IAC - Tie for 2+0 Capacity with 9EZCB0200000000 74.0 x 20.9 x 31.5 456 $15,056
Maintenance Bypass
9E (40-60 KVA) INTEGRATED ACCESSORY CABINET - TRANSFORMER
Input/Output Dimensions Weight Cdn List
Description Part Number Voltage (H x W x D, inches) (lb) Price
40 & 60 kVA IAC - Single Transformer 9EZFBA000000000 480/208 74.0 x 31.3 x 31.5 918 $12,200
40 & 60 kVA IAC - Dual Transformers 9EZFBB000000000 480/480 74.0 x 31.3 x 31.5 1446 $16,067
9E (40-60 KVA) WALL MOUNT MAINTENANCE BYPASS PANELS
Dimensions Weight Cdn List
Description Part Number (H x W x D, inches) (lb) Price
Up to 60 kVA Wall Mount Maintenance Bypass Panel M1BFFX0X1XXXXXX 57.0 x 24.0 x 11.3 700 $8,087
Upto60kVAWallMountMaintenanceBypassPanel M9EZGB110000000   90.0x24.0x11.3 700 $9,074
with 36 Pole Distribution
Up to 180 kVA Wall Mount Maintenance Bypass Panel M1BN0X0X1XXXXXX 73.5 x 36.0 x 11.3 350 $15,261
Upto180kVAWallMountMaintenanceBypassPanel M9EZGB310000000   90.0x36.0x11.3 350 $16,249
with 36 Pole Distribution
9E BATTERY BACKUP TIMES (in minutes)*
Model 100% Load
20 kVA 21
30 kVA 12
40 kVA 10
60 kVA 5
96 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook
October 1, 2012
EATON 9E UPS & ACCESSORIES
(continued)
EATON 9E SERVICE OPTIONS
Start-Up Options
Part Number Description Cdn List Price
9ESU724 SERVICE 9E -30 Local Start-up (7 x 24) Remote sites extra $734
Extended Year Warranty Options
Part Number Description Cdn List Price
9EEXPT2YR SERVICE PW 9E 2 year Local PowerTrust (5 x 8) $3,125
9EEXPT3YR SERVICE PW 9E 3 year Local PowerTrust (5 x 8) $6,265
9EEXPTP1YR SERVICE PW 9E 1 year Local PowerTrust Preferred (7x24) $1,262
9EEXPTP2YR SERVICE PW 9E 2 year Local PowerTrust Preferred (7x24) $4,695
9EEXPTP3YR SERVICE PW 9E 3 year Local PowerTrust Preferred (7x24) $9,390
Parallel Unit Options
Part Number Description Cdn List Price
9EEX2PT2YR SERVICE PW 9E 2 year 2 Unit Parallel System Local PowerTrust (5 x 8) $5,938
9EEX2PT3YR SERVICE PW 9E 3 year 2 Unit Parallel System Local PowerTrust (5 x 8) $11,904
9EEX2PTP1YR SERVICE PW 9E 1 year 2 Unit Parallel System Local PowerTrust Preferred (7x24) $2,398
9EEX2PTP2YR SERVICE PW 9E 2 year 2 Unit Parallel System Local PowerTrust Preferred (7x24) $8,921
9EEX2PTP3YR SERVICE PW 9E 3 year 2 Unit Parallel System Local PowerTrust Preferred (7x24) $17,841
9EEX3PT2YR SERVICE PW 9E 2 year 3 Unit Parallel System Local PowerTrust (5 x 8) $8,438
9EEX3PT3YR SERVICE PW 9E 3 year 3 Unit Parallel System Local PowerTrust (5 x 8) $16,916
9EEX3PTP1YR SERVICE PW 9E 1 year 3 Unit Parallel System Local PowerTrust Preferred (7x24) $3,407
9EEX3PTP2YR SERVICE PW 9E 2 year 3 Unit Parallel System Local PowerTrust Preferred (7x24) $12,677
9EEX3PTP3YR SERVICE PW 9E 3 year 3 Unit Parallel System Local PowerTrust Preferred (7x24) $25,353
Additional information about service plan features can be found in the Single-phase Service Plans Overview section of this reference guide.
9E EBC RUNTIMES
20 kVA 30 kVA 40 kVA 60 kVA
1 EBC 42 minutes 26 minutes 26 minutes - 43 minutes - 14 minutes - 26 minutes -
4 String 6 String 4 String 6 String
2 EBC 102 minutes 62 minutes 62 minutes - 104 minutes - 37 minutes - 62 minutes -
8 String 12 String 8 String 12 String
* Battery backup times are approximate and may vary with equipment, configuration, battery age, temperature, etc.
97www.eaton.com/powerquality 1.800.461.9166
October 1, 2012
October 1, 2012
Double-conversion
• All-in-one, space efficient, completely integrated system with internal batteries (40 kVA) and distribution delivers
optimal end-of-row data center solution
• Industry leading power density, providing up to 23 percent more power capacity in a compact all-in-one tower with
internal batteries
• Industry's smallest footprint at 40 kVA, providing up to a 61 percent footprint reduction
• Scalable 40 kVA modular building block, allowing for cost-effective expansion to 80 kVA with an on-board tie cabinet
and 160 kVA with a four-module tie cabinet
• Up to 40 percent more STANDARD runtime, eliminating the need for external battery cabinets
• On-board pre-wired maintenance bypass and integrated distribution cabinets provide greater redundancy and reduce
installation and maintenance costs
• Reduced footprint extended run modules for longer runtime applications
• Inherently 208 or 480 Vac-capable with no transformers
• Patented Powerware Hot Sync® paralleling technology enables paralleling of up to four 9390 UPSs for additional
capacity or redundancy
• Power management software suite includes applications for remote UPS monitoring, management and shutdown to help insure system and data
integrity
• IncludesEatonSaverSystem,ESS
• 9390ITwithdistributionfrom40-160kVA(standaloneunitsonly)
• Includeson-site5x8startupandoperatortrainingbyEatonfieldtechnician
• IncludesoneyearofeNotifyremotemonitoringservice(requiresconnectivitypartsandselfinstallation)
• Includesoneyearlocal(250km)5x8Correctivewarranty,Local5x8start-up
9390IT (40 kVA) BASE MODELS
Rating Input/Output Base Run- Dimensions Weight Cdn List
Part Number Description (kVA/kW) Voltage time (min) (H x W x D, inches) (lb) Price
TA04A1001150010 9390IT 40 kVA UPS with internal batteries 40 kVA/36 kW 208/208 8 73.7 x 27.9 x 31.0 1,445 $41,862
TA04A2001150010 9390IT 40 kVA UPS with internal batteries 40 kVA/36 kW 480/480 8 73.7 x 27.9 x 31.0 1,445 $38,614
TA04A1001180010 9390IT 40 kVA extended-run UPS module 40 kVA/36 kW 208/208 0 73.7 x 18.9 x 31.6 590 $38,182
(no internal batteries)
TA04A2001180010 9390IT 40 kVA extended-run UPS module 40 kVA/36 kW 480/480 0 73.7 x 18.9 x 31.6 540 $36,149
(no internal batteries)
TA04A1001153010 9390IT 40 kVA UPS with internal batteries and 40 kVA/36 kW 208/208 8 73.7 x 35.9 x 31.0 1,595 $46,804
integrated three-breaker maintenance bypass
sidecar (175A BIB, MBP, & MIS breakers)
TA04A2001153010 9390IT 40 kVA UPS with internal batteries and 40 kVA/36 kW 480/480 8 73.7 x 35.9 x 31.0 1,595 $43,556
integrated three-breaker maintenance bypass
sidecar (70A BIB, MBP, & MIS breakers)
TA04A1001183010 9390IT 40 kVA extended-run UPS module and 40 kVA/36 kW 208/208 0 73.7 x 26.9 x 31.6 740 $43,124
integrated three-breaker maintenance bypass
sidecar (175A BIB, MBP, & MIS breakers)
TA04A2001183010 9390IT 40 kVA extended-run UPS module and 40 kVA/36 kW 480/480 0 73.7 x 26.9 x 31.6 690 $41,091
integrated three-breaker maintenance bypass
sidecar (70A BIB, MBP, & MIS breakers)
TA04A1001159010 9390IT 40 kVA UPS with internal batteries and 40 kVA/36 kW 208/208 8 73.7 x 35.9 x 31.0 1,595 $46,804
two-system parallel tie sidecar (with output
system load breaker)
TA04A2001159010 9390IT 40 kVA UPS with internal batteries and 40 kVA/36 kW 480/480 8 73.7 x 35.9 x 31.0 1,595 $43,556
two-system parallel tie sidecar (with output
system load breaker)
TA04A1001189010 9390IT 40 kVA with internal batteries and 40 kVA/36 kW 208/208 0 73.7 x 26.9 x 31.6 740 $43,124
two-system parallel tie sidecar (with output
system load breaker and no internal batteries)
TA04A2001189010 9390IT 40 kVA with internal batteries and 40 kVA/36 kW 480/480 0 73.7 x 26.9 x 31.6 690 $41,091
two-system parallel tie sidecar (with output
system load breaker and no internal batteries)
For Order Notes please to the bottom of the next page
EATON 9390IT UPS
Powerware series
98 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook
October 1, 2012
EATON 9390IT UPS
Powerware series (continued)
9390IT WITH DISTRIBUTION
Rating Input/Output Base Run- Dimensions Weight Cdn List
Part Number Description (kVA/kW) Voltage time (min) (H x W x D, inches) (lb) Price
TA04A100115K010 9390IT 40 kVA UPS with internal batteries and 40 kVA/36 kW 208/208 8 73.7 x 34.9 x 31.0 1,590 $52,922
integrated IT distribution. Includes 12 / L6-30
receptacles with three breaker maintenance
bypass (BIB, MBP, & MIS breakers)
TA04A100115P010 9390IT 40 kVA UPS with internal batteries and 40 kVA/36 kW 208/208 8 73.7 x 34.9 x 31.0 1,590 $50,616
integrated IT distribution. Includes 6 / L21-30
receptacles with three breaker maintenance
bypass (BIB, MBP, & MIS breakers)
TA04A100115R010 9390IT 40 kVA UPS with internal batteries and 40 kVA/36 kW 208/208 8 73.7 x 34.9 x 31.0 1,590 $53,880
integrated IT distribution. Includes 4 / IEC309-60
receptacles with three breaker maintenance
bypass (BIB, MBP, & MIS breakers)
TA04A100118K010 9390IT 40 kVA extended-run UPS module with 40 kVA/36 kW 208/208 - 73.7 x 26.9 x 31.0 735 $40,323
integrated IT distribution. Includes 12 / L6-30
receptacles with three breaker maintenance
bypass (BIB, MBP, & MIS breakers)
TA04A100118P010 9390IT 40 kVA extended-run UPS module with 40 kVA/36 kW 208/208 - 73.7 x 26.9 x 31.0 735 $38,017
integrated IT distribution. Includes 6 / L21-30
receptacles with three breaker maintenance
bypass (BIB, MBP, & MIS breakers)
TA04A100118R010 9390IT 40 kVA extended-run UPS module with 40 kVA/36 kW 208/208 - 73.7 x 26.9 x 31.0 735 $41,280
integrated IT distribution. Includes 4 / IEC309-60
receptacles with three breaker maintenance
bypass (BIB, MBP, & MIS breakers)
TE04A400118P010 9390IT 40 kVA extended-run UPS module with 40 kVA/36 kW 400/400 - 73.7 x 26.9 x 31.0 735 $51,898
integrated IT distribution. Includes 4 / L22-30
receptacles with three breaker maintenance
bypass (BIB, MBP, & MIS breakers)
TE04A400118R010 9390IT 40 kVA extended-run UPS module with 40 kVA/36 kW 400/400 - 73.7 x 26.9 x 31.0 735 $52,434
integrated IT distribution. Includes 2 / IEC309-60
receptacles with three breaker maintenance
bypass (BIB, MBP, & MIS breakers)
TB08A100118P010 9390IT 80 kVA extended-run UPS module with 80 kVA/72 kW 208/208 - 73.7 x 26.9 x 31.0 790 $65,791
integrated IT distribution. Includes 12 / L21-30
receptacles with three breaker maintenance
bypass (BIB, MBP, & MIS breakers)
TB08A100118R010 9390IT 80 kVA extended-run UPS module with 80 kVA/72 kW 208/208 - 73.7 x 26.9 x 31.0 790 $69,775
integrated IT distribution. Includes 6 / IEC309-60
receptacles with three breaker maintenance
bypass (BIB, MBP, & MIS breakers)
TF08A400118P010 9390IT 80 kVA extended-run UPS module with 80 kVA/72 kW 400/400 - 73.7 x 26.9 x 31.0 785 $68,340
integrated IT distribution. Includes 6 / L22-30
receptacles with three breaker maintenance
bypass (BIB, MBP, & MIS breakers)
TF08A400118R010 9390IT 80 kVA extended-run UPS module with 80 kVA/72 kW 400/400 - 73.7 x 26.9 x 31.0 785 $70,658
integrated IT distribution. Includes 4 / IEC309-60
receptacles with three breaker maintenance
bypass (BIB, MBP, & MIS breakers)
TG12A400118P010 9390IT120kVAextended-runUPSmodulewith 120kVA/108kW 400/400 - 73.7x43.9x31.0 1,110 $76,174
integrated IT distribution. Includes 9 / L22-30
receptacles with three breaker maintenance
bypass (BIB, MBP, & MIS breakers)
TH16A400118R010 9390IT 160 kVA extended-run UPS module with 160 kVA/144 kW 400/400 - 73.7 x 43.9 x 31.0 1,200 $82,740
integrated IT distribution. Includes 6 / IEC209-60
receptacles with three breaker maintenance
bypass (BIB, MBP, & MIS breakers)
1. To order a parallel system, change digit 5 to a B and digit 7 or 8 (Can-Bridge Card) must also be 2. 2. On-board maintenance bypass side-car systems have 65 kAIC breakers @ 208 Vac and 35 kAIC
breakes @ 480 Vac. 3. For Load-sync Control, digit 15 must be a 2 and requires one wall-mounted control box for two systems—see miscellaneous parts. 4. For runtimes exceeding 8 minutes, an extended
Run-UPS BASE Module and battery cabinet is required
99www.eaton.com/powerquality 1.800.461.9166
October 1, 2012
October 1, 2012
CONNECTIVITY OPTIONS
Description CTO Part Number Cdn List Price
HotSync CAN Bridge Card (required to obtain RS485 Port for RMP II/RIM II/SCM II) 103004336 $568
PowerXpertGatewayUPSCard 103007974-5591 $603
ConnectUPS-X WEB/SNMP 116750221-001 $449
ModBus Communication Card 103002510-5501 $885
Standard Relay Card (<60 Vac rated, IBM AS/400 ) 1018460 $195
Industrial Relay and Display Drive Card X-Slot (5A @ 250 Vac) 103003055 $449
9390IT OPTIONS (40 kVA)
Input/Output Dimensions Weight Cdn List
Part Number Description Voltage (H x W x D, inches) (lb) Price
T04112000000001 IDC with MBS and main output breaker 208/208 73.7 x 35.8 x 31.6 350 $6,985
T04112200000021 IDC with MBS, K-13 isolation transformer 208/208 73.7 x 35.8 x 31.6 1,350 $10,102
T04152200000021 IDC with MBS, K-13 isolation transformer 480/208 73.7 x 35.8 x 31.6 1,350 $10,381
T04112040000021 IDC with three-breaker MBS and 42-pole 208/208 73.7 x 35.8 x 31.6 350 $9,191
distribution panel
T04112044000021 IDC with three-breaker MBS and (2) 42-pole 208/208 73.7 x 35.8 x 31.6 350 $11,396
distribution panels
T04112041000021 IDC with three-breaker MBS, 42-pole 208/208 73.7 x 35.8 x 31.6 350 $10,159
distribution panel and (1) sub-feed breaker
TP0442111100010 Parallel tie maintenance bypass cabinet, 208/208 73.5 x 36.0 x 11.5 600 $12,366
(4) UPS modules 120 kVA N+1, 160 kVA
capacity (150A MOBs, 600A MIS, 600A MBP)
TP0442211100010 Parallel tie maintenance bypass cabinet, (4) 480/480 57.0 x 24.0 x 11.5 600 $5,793
UPS modules 120 kVA N+1, 160 kVA capacity
(70A MOBs, 250A MIS, 250A MBP)
9390IT EXTENDED BATTERY OPTIONS
Input/Output Base Run- Dimensions Weight Cdn List
Part Number Description Rating Voltage time (min) (H x W x D, inches) (lb) Price
TS0403E20111100 40 kVA Extended-run battery cabinet 240 Cell 480V Link 22 73.7 x 22.5 x 31.6 2,395 $16,414
TL0403E33111100 40 kVA Extended-run battery cabinet 240 Cell 480V Link 42 73.7 x 42.7 x 31.6 3,580 $22,808
TL0403B47111100 40 kVA Extended-run battery cabinet 240 Cell 480V Link 66 73.7 x 42.7 x 31.6 4,785 $43,586
TS0803E20111100 80 kVA Extended-run battery cabinet 240 Cell 480V Link 7 73.7 x 22.5 x 31.6 2,405 $16,817
TL0803E33111100 80 kVA Extended-run battery cabinet 240 Cell 480V Link 18 73.7 x 42.7 x 31.6 3,590 $23,247
TL0803E50111100 80 kVA Extended-run battery cabinet 240 Cell 480V Link 29 73.7 x 42.7 x 31.6 4,835 $28,560
TL1203E28111100 120 kVA Extended-run battery cabinet 240 Cell 480V Link 7 73.7 x 42.7 x 31.6 3,245 $21,207
TL1203E28211100 120 kVA Extended-run battery cabinet 480 Cell 480V Link 20 73.7 x 85.4 x 31.6 6,490 $41,903
TL1203E50211100 120 kVA Extended-run battery cabinet 480 Cell 480V Link 43 73.7 x 85.4 x 31.6 9,670 $56,605
TL1603E39111100 160 kVA Extended-run battery cabinet 240 Cell 480V Link 8 73.7 x 42.7 x 31.6 3,920 $25,085
TL1603E33211100 160 kVA Extended-run battery cabinet 480 Cell 480V Link 18 73.7 x 85.4 x 31.6 7,180 $46,196
TL1603E50211100 160 kVA Extended-run battery cabinet 480 Cell 480V Link 29 73.7 x 85.4 x 31.6 9,670 $56,820
Order Notes
1. All weights are installed weight, add 65 lb to determine shipping weight
2. Main breaker feeds input of isolation transformer
3. All IDC cabinets listed above include three-breaker UPS wrap-around maintenance bypass switch
4. 42-pole load centers are Cutler-Hammer series, type PRL1A; use type BAB or QBHW bolt-on breakers
5.40kVAIDCuses175AC-Htype"JG"breakersat208Vand70AC-Htype"EG"breakersat480V
6. All breakers have adjustable trip settings; please refer to the Installation Manual for details
7. For seismic zone 4 construction change digit 10 to 1
8. Cabinets ordered remotely will include only one set of side panels and no interconnect (battery cabinet to UPS or battery cabinet to battery
NON-MATCHING MAINTENANCE BYPASS PANELS (40 kVA)
Part Input/Output Dimensions Weight Cdn List
Number Description Rating (amps) Voltage (H x W x D, inches) (lb) Price
M90BEA1XXX Maintenance bypass, 208/208V, three-breaker 225 208/208 73.0 x 24.0 x 11.5 400 $4,824
10 kAIC (225A MIS/MBP/BIB)
M90BFA1XXX Maintenance bypass, 208/208V, three-breaker 175 208/208 73.0 x 24.0 x 11.5 400 $4,601
35 kAIC (175A MIS/MBP/BIB)
EATON 9390IT UPS
Powerware series (continued)
100 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook
October 1, 2012
EATON 9390IT UPS
Powerware series (continued)
NON-MATCHING MAINTENANCE BYPASS PANELS (40 kVA)
(continued)
Part Input/Output Dimensions Weight Cdn List
Number Description Rating (amps) Voltage (H x W x D, inches) (lb) Price
M90BGA1XXX Maintenancebypass,208/208V,three-breaker 175 208/208 73.0x24.0x11.5 400 $5,046
65 kAIC (175A MIS/MBP/BIB)
M90BEE1XXX Maintenance bypass, 480/480V, three-breaker 100 480/480 73.0 x 24.0 x 11.5 400 $3,598
10 kAIC (100A MIS/MBP/BIB)
M90BFE1XXX Maintenance bypass, 480/480V, three-breaker 70 480/480 73.0 x 24.0 x 11.5 400 $4,378
35 kAIC (70A MIS/MBP/BIB)
M90BGE1XXX Maintenancebypass,480/480V,three-breaker 70 480/480 73.0x24.0x11.5 400 $4,824
65 kAIC (70A MIS/MBP/BIB)
MISCELLANEOUS PARTS
Part Number Description Cdn List Price
103006244 REPO switch, wall-mount 1 $456
103004223 Remote Monitor Panel "RMP II" 2 $1,192
103004221 Relay Interface Module "RIM II" 2 $1,170
103004222 Supervisory Contact Module "SCM II" 2 $1,292
103007974-5591 PowerXpertGatewayUPSCard $603
103004336 HotSync CAN Bridge Card, (used for paralleling units and/or RMP II/RIM II/SCM II interface) 3 $568
103004179 9390 UPS/IDC seismic mounting kit 4 $824
103001040 9390 output sync control box, 208 Vac $12,143
103001041 9390 output sync control box, 480 Vac $7,576
103003876 UPS/ battery cabinet/ IDC side panel kit $791
152601664 Battery cabinet to battery cabinet interconnect cables (IBC-S cabinet) $78
152601526 Battery cabinet to battery cabinet interconnect cables (IBC-L cabinet) $78
Notes
1. UPS EPO is selectable as N/O or N/C. 2. Requires HotSync CAN Bridge Card to interface with these devices (only one CAN card required for up to four remote devices). Each UPM requires one card for
paralleling. Same card can be used for communication to RS485 devices (RMP II, RIM II, SCM II). Remote devices (RMP II, RIM II, SCM II) require protected 120V AC source hardwired to the device. 3.
HotSync CAN Bridge Card for parallel operation requires Eaton Service Engineer to configure. 4. 40–80 kVA IDC Seismic kit cannot be installed in the field. Must be factory installed. Order via CTO.
9390IT BATTERY BACKUP TIMES (in minutes)*
Load (VA/Watts) UPS w/Internal Battery
40,000 / 36,000 8.3
36,000 / 32,400 9.9
32,000 / 28,800 11.7
28,000 / 25,200 14.5
24,000 / 21,600 17.2
20,000 / 18,000 21.8
16,000 / 14,400 30.1
12,000 / 10,800 42.7
8,000 / 7,200 60.0
4,000 / 3,600 86.5
* Battery backup times are approximate and may vary with equipment, configuration, battery age, temperature, etc.
EATON 9390IT SERVICE OPTIONS
Start-Up Options
Part Number Description Cdn List Price
9390-ITSU724 SERVICE 9390-IT -30 Local Start-up (7 x 24) Remote sites extra $924
Extended Year Warranty Options
Part Number Description Cdn List Price
9390-ITEXPT2YR SERVICE PW 9390-IT 2 year Local PowerTrust (5 x 8) $4,572
9390-ITEXPT3YR SERVICE PW 9390-IT 3 year Local PowerTrust (5 x 8) $9,144
9390-ITEXPTP1YR SERVICE PW 9390-IT 1 year Local PowerTrust Preferred (7x24) $1,908
9390-ITEXPTP2YR SERVICE PW 9390-IT 2 year Local PowerTrust Preferred (7x24) $6,864
9390-ITEXPTP3YR SERVICE PW 9390-IT 3 year Local PowerTrust Preferred (7x24) $13,728
Additional information about service plan features can be found in the Single-phase Service Plans Overview section of this reference guide.
101www.eaton.com/powerquality 1.800.461.9166
October 1, 2012
October 1, 2012
Ultra-isolator Noise Suppressor and Isolation Provider
The Power-Suppress 100 offers the following advanced features:
• Traps unwanted harmonics
• Removes surge voltages and minimizes reflected THD
• Eliminates load generated feedback
• Available in both hardwired or line cord/receptacle models
• Fast and easy installation
• Long life operation
• Small footprint—saves valuable space
• Meets FCC Category A
• UL 1012, cUL, UL 1449
POWER-SUPPRESS 100 and POWER-SUPPRESS T7
POWER-SUPPRESS 100: 125 to 7500 VA
Style Input/Output Dimensions Weight Cdn List
Catalog Number Number Description Voltage (H x W x D, inches) (lb) Price
Line-cord/receptacle models
T100R-0500 T100R-0500 PWR SUPPRESS T100 RCPT 500 VA 120V IN, 120V OUT 6.5 x 6.1 x 12.0 22 $860
T100R-0750 T100R-0750 PWR SUPPRESS T100 RCPT 750 VA 120V IN, 120V OUT 6.5 x 6.1 x 12.0 - $919
T100R-1000 T100R-1000 PWR SUPPRESS T100 RCPT 1000 VA 120V IN, 120V OUT 6.5 x 6.1 x 12.0 31 $933
T100R-1800 T100R-1800 PWR SUPPRESS T100 RCPT 1800 VA 120V IN, 120V OUT 10.5 x 11.1 x 17.0 54 $1,236
T100R-2400 T100R-2400 PWR SUPPRESS T100 RCPT 2400 VA 120V IN, 120V OUT 10.5 x 11.1 x 17.0 58 $1,401
Terminal style models
T100H-0500 T100H-0500 PWR SUPPRESS T100 HW 500 VA 120/240V IN, 120/240V OUT 6.4 x 6.1 x 12.0 22 $879
T100H-0750 T100H-0750 PWR SUPPRESS T100 HW 750 VA 120/240V IN, 120/240V OUT 6.4 x 6.1 x 12.0 28 $928
T100H-1000 T100H-1000 PWR SUPPRESS T100 HW 1000 VA 120/240V IN, 120/240V OUT 6.4 x 6.1 x 12.0 31 $944
T100H-1800 T100H-1800 PWR SUPPRESS T100 HW 1800 VA 120/240V IN, 120/240V OUT 10.3 x 11.1 x 17.0 54 $1,109
T100H-2500 T100H-2500 PWR SUPPRESS T100 HW 2500 VA 120/240V IN, 120/240V OUT 10.3 x 11.1 x 17.0 58 $1,369
T100H-5000 T100H-5000 PWR SUPPRESS T100 HW 5000 VA 120/240V IN, 120/240V OUT 10.3 x 11.1 x 17.0 86 $1,995
T100H-5001* T100H-5001 PWR SUPPRESS T100 HW V 5000 VA 240/480V IN, 120/240V OUT 10.3 x 11.1 x 17.0 - $2,412
T100H-7500 T100H-7500 PWR SUPPRESS T100 HW 7500 VA 120/240V IN, 120/240V OUT 10.3 x 11.1 x 17.0 116 $2,420
T100H-7501* T100H-7501 PWR SUPPRESS T100 HW 7500 VA 240/480V IN, 120/240V OUT 10.3 x 11.1 x 17.0 116 $2,929
* Please note the higher input voltage on these models
POWER-SUPPRESS T7: 15 to 225 kVA
Style Dimensions Weight Cdn List
Catalog Number Number Description (H x W x D, inches) (lb) Price
T7H208-15K 97201-31 PWR SUPPRESS T7 208/208V 15 kVA 31 x 35 x 18 420 $11,537
T7H208-30K 97203-31 PWR SUPPRESS T7 208/208V 30 kVA 31 x 35 x 18 490 $11,783
T7H208-50K 97205-31 PWR SUPPRESS T7 208/208V 50 kVA 43 x 43 x 22 710 $13,722
T7H208-75K 97207-31 PWR SUPPRESS T7 208/208V 75 kVA 43 x 43 x 22 950 $16,229
T7H480-100K 97410-31 PWR SUPPRESS T7 480/208V 100 kVA 43 x 43 x 22 990 $19,549
T7H480-125K 97412-31 PWR SUPPRESS T7 480/208V 125 kVA 43 x 43 x 22 1,140 $22,602
T7H480-150K 97415-31 PWR SUPPRESS T7 480/208V 150 kVA 43 x 43 x 22 1,240 $24,145
T7H480-15K 97401-31 PWR SUPPRESS T7 480/208V 15 kVA 35 x 31 x 18 420 $12,972
T7H480-225K 97422-31 PWR SUPPRESS T7 480/208V 225 kVA 55 x 47 x 28 1,780 $28,398
T7H480-30K 97403-31 PWR SUPPRESS T7 480/208V 30 kVA 35 x 31 x 18 490 $12,554
T7H480-50K 97405-31 PWR SUPPRESS T7 480/208V 50 kVA 43 x 43 x 22 710 $13,915
T7H480-75K 97407-31 PWR SUPPRESS T7 480/208V 75 kVA 43 x 43 x 22 810 $17,311
The Power-Suppress T7 provides these features
• Traps unwanted harmonics
• 20,000,000:1 (146 dB) common-mode reduction
• Normal-mode noise reduction
• Transient suppression system with status indicators
• Exclusive shielding
• K-20 rated
• Over-temperature protection
• Clean, noise-free power output
• High efficiency
• Fast, easy installation
• UL and cUL listed requirements
102 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook
October 1, 2012
The Power-Sure 700 provides intelligent protection for transmitters & industrial controls.
• Fast microprocessor controlled voltage regulation
• Tight output voltage regulation
• Zero-current switching
• Wide input regulation range
• Triple shielded, computer grade transformer
• Highly efficient—97% typical
• High inrush capability
• Transient protection and high frequency filter
• Over/under voltage protection (optional)
• Includes input circuit breaker
• Manual bypass switch
Optional 10-45 kVA
Standard 50+ kVA
POWER-SURE 700 POWER CONDITIONERS: 208/208V
Style Dimensions Weight Cdn List
Catalog Number Number Description (H x W x D, inches) (lb) Price
TBL-010K-6 TBL-010K-6 PWRSURE 700 208/208V 10 kVA 30.0 x 21.5 x 29.0 440 $16,614
TBL-015K-6 TBL-015K-6 PWRSURE 700 208/208V 15 kVA 30.0 x 21.5 x 29.0 520 $17,980
TBL-025K-6 TBL-025K-6 PWRSURE 700 208/208V 25 kVA 44.0 x 21.5 x 29.0 700 $25,928
TBL-030K-6 TBL-030K-6 PWRSURE 700 208/208V 30 kVA 44.0 x 21.5 x 29.0 720 $22,452
TBL-045K-6 TBL-045K-6 PWRSURE 700 208/208V 45 kVA 44.0 x 45.0 x 29.0 950 $27,985
TBL-050K-6 TBL-050K-6 PWRSURE 700 208/208V 50 kVA 44.0 x 45.0 x 29.0 970 $34,289
TBL-075K-6 TBL-075K-6 PWRSURE 700 208/208V 75 kVA 44.0 x 45.0 x 29.0 1100 $45,258
TBL-100K-6 TBL-100K-6 PWRSURE 700 208/208V 100 kVA 44.0 x 45.0 x 29.0 1660 $52,323
TBL-125K-6 TBL-125K-6 PWRSURE 700 208/208V 125 kVA 44.0 x 45.0 x 29.0 1980 $58,852
TBL-150K-6 TBL-150K-6 PWRSURE 700 208/208V 150 kVA 44.0 x 45.0 x 29.0 2200 $70,035
TBL-225K-6 TBL-225K-6 PWRSURE 700 208/208V 225 kVA 77.0 x 56.0 x 41.5 3300 $108,250
TBL-300K-6 TBL-300K-6 PWRSURE 700 208/208V 300 kVA 77.0 x 56.0 x 41.5 4000 $128,983
POWER-SURE 700 POWER CONDITIONERS: 240/208V
Style Dimensions Weight Cdn List
Catalog Number Number Description (H x W x D, inches) (lb) Price
TCL-010K-6 TCL-010K-6 PWRSURE 700 240/208V 10 kVA 30.0 x 21.5 x 29.0 440 $16,716
TCL-015K-6 TCL-015K-6 PWRSURE 700 240/208V 15 kVA 30.0 x 21.5 x 29.0 520 $17,980
TCL-030K-6 TCL-030K-6 PWRSURE 700 240/208V 30 kVA 44.0 x 21.5 x 29.0 720 $21,772
TCL-045K-6 TCL-045K-6 PWRSURE 700 240/208V 45 kVA 44.0 x 45.0 x 29.0 950 $32,939
TCL-050K-6 TCL-050K-6 PWRSURE 700 240/208V 50 kVA 44.0 x 45.0 x 29.0 970 $28,928
TCL-075K-6 TCL-075K-6 PWRSURE 700 240/208V 75 kVA 44.0 x 45.0 x 29.0 1100 $41,793
TCL-100K-6 TCL-100K-6 PWRSURE 700 240/208V 100 kVA 44.0 x 45.0 x 29.0 1660 $54,304
POWER-SURE 700 POWER CONDITIONERS: 480/208V
Style Dimensions Weight Cdn List
Catalog Number Number Description (H x W x D, inches) (lb) Price
TDL-010K-6 TDL-010K-6 PWRSURE 700 480/208V 10 kVA 30.0 x 21.5 x 29.0 440 $18,414
TDL-015K-6 TDL-015K-6 PWRSURE 700 480/208V 15 kVA 30.0 x 21.5 x 29.0 520 $17,964
TDL-025K-6 TDL-025K-6 PWRSURE 700 480/208V 25 kVA 44.0 x 21.5 x 29.0 700 $21,879
TDL-030K-6 TDL-030K-6 PWRSURE 700 480/208V 30 kVA 44.0 x 21.5 x 29.0 720 $22,827
TDL-045K-6 TDL-045K-6 PWRSURE 700 480/208V 45 kVA 44.0 x 45.0 x 29.0 950 $29,849
TDL-050K-6 TDL-050K-6 PWRSURE 700 480/208V 50 kVA 44.0 x 45.0 x 29.0 970 $30,170
TDL-075K-6 TDL-075K-6 PWRSURE 700 480/208V 75 kVA 44.0 x 45.0 x 29.0 1100 $44,980
TDL-100K-6 TDL-100K-6 PWRSURE 700 480/208V 100 kVA 44.0 x 45.0 x 29.0 1660 $48,804
TDL-125K-6 TDL-125K-6 PWRSURE 700 480/208V 125 kVA 44.0 x 45.0 x 29.0 1980 $48,306
TDL-150K-6 TDL-150K-6 PWRSURE 700 480/208V 150 kVA 44.0 x 45.0 x 29.0 2200 $57,968
TDL-225K-6 TDL-225K-6 PWRSURE 700 480/208V 225 kVA 77.0 x 56.0 x 41.5 3300 $94,501
TDL-300K-6 TDL-300K-6 PWRSURE 700 480/208V 300 kVA 77.0 x 56.0 x 41.5 4000 $100,066
POWER-SURE 700
103www.eaton.com/powerquality 1.800.461.9166
October 1, 2012
October 1, 2012
POWER-SURE 700 (continued)
POWER-SURE 700 POWER CONDITIONERS: 480/480V
Style Dimensions Weight Cdn List
Catalog Number Number Description (H x W x D, inches) (lb) Price
TDN-010K-6 TDN-010K-6 PWRSURE 700 480/480V 10 kVA 30.0 x 21.5 x 29.0 440 $17,005
TDN-025K-6 TDN-025K-6 PWRSURE 700 480/480V 25 kVA 44.0 x 21.5 x 29.0 700 $23,973
TDN-030K-6 TDN-030K-6 PWRSURE 700 480/480V 30 kVA 44.0 x 21.5 x 29.0 720 $23,915
TDN-045K-6 TDN-045K-6 PWRSURE 700 480/480V 45 kVA 44.0 x 45.0 x 29.0 950 $30,738
TDN-075K-6 TDN-075K-6 PWRSURE 700 480/480V 75 kVA 44.0 x 45.0 x 29.0 1100 $36,314
TDN-100K-6 TDN-100K-6 PWRSURE 700 480/480V 100 kVA 44.0 x 45.0 x 29.0 1660 $52,746
TDN-125K-6 TDN-125K-6 PWRSURE 700 480/480V 125 kVA 44.0 x 45.0 x 29.0 1980 $48,884
TDN-150K-6 TDN-150K-6 PWRSURE 700 480/480V 150 kVA 44.0 x 45.0 x 29.0 2200 $59,045
TDN-225K-6 TDN-225K-6 PWRSURE 700 480/480V 225 kVA 77.0 x 56.0 x 41.5 3300 $86,671
TDN-300K-6 TDN-300K-6 PWRSURE 700 480/480V 300 kVA 77.0 x 56.0 x 41.5 - $106,386
POWER-SURE 700 POWER CONDITIONERS: 600/208V
Style Dimensions Weight Cdn List
Catalog Number Number Description (H x W x D, inches) (lb) Price
TEL-010K-6 TEL-010K-6 PWRSURE 700 600/208V 10 kVA 30.0 x 21.5 x 29.0 440 $17,316
TEL-015K-6 TEL-015K-6 PWRSURE 700 600/208V 15 kVA 30.0 x 21.5 x 29.0 520 $18,596
TEL-025K-6 TEL-025K-6 PWRSURE 700 600/208V 25 kVA 44.0 x 21.5 x 29.0 700 $22,543
TEL-030K-6 TEL-030K-6 PWRSURE 700 600/208V 30 kVA 44.0 x 21.5 x 29.0 720 $22,742
TEL-045K-6 TEL-045K-6 PWRSURE 700 600/208V 45 kVA 44.0 x 45.0 x 29.0 950 $30,101
TEL-050K-6 TEL-050K-6 PWRSURE 700 600/208V 50 kVA 44.0 x 45.0 x 29.0 970 $30,765
TEL-075K-6 TEL-075K-6 PWRSURE 700 600/208V 75 kVA 44.0 x 45.0 x 29.0 1100 $47,026
TEL-100K-6 TEL-100K-6 PWRSURE 700 600/208V 100 kVA 44.0 x 45.0 x 29.0 1660 $55,895
TEL-125K-6 TEL-125K-6 PWRSURE 700 600/208V 125 kVA 44.0 x 45.0 x 29.0 1980 $50,620
TEL-150K-6 TEL-150K-6 PWRSURE 700 600/208V 150 kVA 44.0 x 45.0 x 29.0 2200 $68,594
TEL-225K-6 TEL-225K-6 PWRSURE 700 600/208V 225 kVA 77.0 x 56.0 x 41.5 3300 $94,501
TEL-300K-6 TEL-300K-6 PWRSURE 700 600/208V 300 kVA 77.0 x 56.0 x 41.5 - $106,258
POWER-SURE 700 POWER CONDITIONERS: 600/480V
Style Dimensions Weight Cdn List
Catalog Number Number Description (H x W x D, inches) (lb) Price
TEN-010K-6 TEN-010K-6 PWRSURE 700 600/480V 10 kVA 30.0 x 21.5 x 29.0 440 $17,000
TEN-015K-6 TEN-015K-6 PWRSURE 700 600/480V 15 kVA 30.0 x 21.5 x 29.0 520 $19,126
TEN-025K-6 TEN-025K-6 PWRSURE 700 600/480V 25 kVA 44.0 x 21.5 x 29.0 700 $21,081
TEN-030K-6 TEN-030K-6 PWRSURE 700 600/480V 30 kVA 44.0 x 21.5 x 29.0 720 $23,657
TEN-045K-6 TEN-045K-6 PWRSURE 700 600/480V 45 kVA 44.0 x 45.0 x 29.0 950 $27,037
TEN-075K-6 TEN-075K-6 PWRSURE 700 600/480V 75 kVA 44.0 x 45.0 x 29.0 1100 $43,260
TEN-100K-6 TEN-100K-6 PWRSURE 700 600/480V 100 kVA 44.0 x 45.0 x 29.0 1660 $50,802
TEN-125K-6 TEN-125K-6 PWRSURE 700 600/480V 125 kVA 44.0 x 45.0 x 29.0 1980 $52,296
TEN-150K-6 TEN-150K-6 PWRSURE 700 600/480V 150 kVA 44.0 x 45.0 x 29.0 2200 $62,060
TEN-225K-6 TEN-225K-6 PWRSURE 700 600/480V 225 kVA 77.0 x 56.0 x 41.5 3300 $89,622
TEN-300k-6 TEN-300k-6 PWRSURE 700 600/480V 300 kVA 77.0 x 56.0 x 41.5 - $101,753
POWER-SURE 700 OPTIONS
Suffix Description List Price Adder
B Maintenance Bypass 10 kVA to 30 kVA $1,660
B Maintenance Bypass 45 kVA $2,753
M Meter option $3,642
S Integrated Surge Protection $1,821
T Remote Emergency Power off option C/F
U Under/Over Voltage shutdown breaker trip C/F
V Under/Over Voltage shutdown output disabled C/F
W Extended Regulation range (+10% to -40%) C/F
* Catalog Number example:
TDN-045K-6BMS = 45KVA T700 complete with surge protection, Bypass and Meter, $38,954
104 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook
October 1, 2012
POWER-SURE 800
POWER-SURE 800 POWER CONDITIONERS: 60 Hz Models–Receptacle Style (Plug-and-play)
Style Dimensions Weight Cdn List
Catalog Number Number Description (H x W x D, inches) (lb) Price
T800R-00500 T800R-00500 PWRSURE 800 OFC/RCPT 500 VA 8.5 x 12.8 x 9.5 32 $953
T800R-00700 T800R-00700 PWRSURE 800 OFC/RCPT 700 VA 8.5 x 12.8 x 9.5 - $1,300
T800R-00850 T800R-00850 PWRSURE 800 OFC/RCPT 800 VA 8.5 x 12.8 x 9.5 - $1,341
T800R-01000 T800R-01000 PWRSURE 800 OFC/RCPT 1 kVA 8.5 x 12.8 x 17.5 46 $1,424
T800R-01600 T800R-01600 PWRSURE 800 OFC/RCPT 1.6 kVA 8.5 x 12.8 x 17.5 62 $1,787
T800R-02100 T800R-02100 PWRSURE 800 OFC/RCPT 2.1 kVA 8.5 x 12.8 x 17.5 65 $1,954
T800R-02500 T800R-02500 PWRSURE 800 OFC/RCPT 2.5 kVA 8.5 x 12.8 x 17.5 68 $2,049
T800R-03500 T800R-03500 PWRSURE 800 OFC/RCPT 3.5 kVA 8.5 x 12.8 x 17.5 72 $2,456
T800R-03501 T800R-03501 PWRSURE 800 OFC/RCPT 3.5 kVA 8.5 x 12.8 x 17.5 73 $2,598
T800R-05000 T800R-05000 PWRSURE 800 OFC/RCPT 5 kVA 15.0 x 23.8 x 22.5 - $3,723
T800R-07500 T800R-07500 PWRSURE 800 OFC/RCPT 7.5 kVA 15.0 x 23.8 x 22.5 - $4,453
T800R-10000 T800R-10000 PWRSURE 800 OFC/RCPT 10 kVA 15.0 x 23.8 x 22.5 - $6,267
T800R-15000 T800R-15000 PWRSURE 800 OFC/RCPT 15 kVA 15.0 x 23.8 x 22.5 - $7,547
POWER-SURE 800 POWER CONDITIONERS: 60 Hz Models—Hardwired Wall or Panel Mount
Style Dimensions Weight Cdn List
Catalog Number Number Description (H x W x D, inches) (lb) Price
T800P-00500 T800P-00500 PWRSURE 800 PNL/HW 500 VA 9.0 x 14.0 x 10.0 52 $1,144
T800P-00750 T800P-00750 PWRSURE 800 PNL/HW 750 VA 9.0 x 14.0 x 10.0 60 $1,481
T800P-01000 T800P-01000 PWRSURE 800 PNL/HW 1 kVA 9.0 x 14.0 x 10.0 82 $1,469
T800P-01500 T800P-01500 PWRSURE 800 PNL/HW 1.5 kVA 13.0 x 16.5 x 14.8 106 $2,117
T800P-02000 T800P-02000 PWRSURE 800 PNL/HW 2 kVA 13.0 x 16.5 x 14.8 125 $2,046
T800P-03000 T800P-03000 PWRSURE 800 PNL/HW 3 kVA 13.0 x 16.5 x 14.8 142 $3,174
T800P-05000 T800P-05000 PWRSURE 800 PNL/HW 5 kVA 27.0 x 22.5 x 28.5 437 $5,699
T800P-08000 T800P-08000 PWRSURE 800 PNL/HW 8 kVA 27.0 x 22.5 x 28.5 495 $7,016
T800P-10000 T800P-10000 PWRSURE 800 PNL/HW 10 kVA 27.0 x 22.5 x 28.5 - $8,564
POWER-SURE 800 POWER CONDITIONERS: 60 Hz Models—Hardwired Floor Mount
Style Dimensions Weight Cdn List
Catalog Number Number Description (H x W x D, inches) (lb) Price
T800F-05000 T800F-05000 PWRSURE 800 FLR/HW 5 kVA 23.0 x 20.0 x 28.5 407 $5,806
T800F-08000 T800F-08000 PWRSURE 800 FLR/HW 8 kVA 23.0 x 20.0 x 28.5 465 $7,011
T800F-10000 T800F-10000 PWRSURE 800 FLR/HW 10 kVA 23.0 x 20.0 x 28.5 407 $7,868
T800F-15000 T800F-15000 PWRSURE 800 FLR/HW 15 kVA 35.0 x 25.0 x 39.5 830 $12,222
T800F-20000 T800F-20000 PWRSURE 800 FLR/HW 20 kVA 35.0 x 25.0 x 39.5 - $14,793
T800F-25000 T800F-25000 PWRSURE 800 FLR/HW 25 kVA 35.0 x 25.0 x 39.5 - $16,893
Power Conditioners (1.4 to 25 kVA)
Superior power conditioning for industrial, commercial and medical equipment. Power-Sure 800 power conditioners provide high quality
power with inherent surge protection, noise and bi-directional harmonic filtering, as well as superior isolation. Power-Sure 800 units range
from office models to floor or wall/panel mounted industrial models and provide an excellent solution for any application with noisy or poor
power quality.
• Superiorisolation
• Tightvoltageregulation
• Highimmunitytodistortion
• Lightningandsurgeprotection
• Protectionagainstpowerinterruptions
• Powerfactorcorrection
• Bi-directionalharmonicfiltering
• MeetsANSIstandardsforcomputerswithinputsaslowas50%ofnominal
• UL1012,UL544andcULListed
• K-30rateddesign
105www.eaton.com/powerquality 1.800.461.9166
October 1, 2012
October 1, 2012
POWER-SURE 800
CUSTOM OUTPUT RECEPTACLES
Suffix NEMA Volts Amps Output Panels used*
A (1) 5-15R 120 15 1
B (2) 5-15R 120 15 1
C (1) 5-20R 120 20 1
D (2) 5-20R 120 20 1
E (1) 5-30R 120 30 1.5
F (1) 6-15R 208/240 15 1
G (2)6-15R 208/240 15 1
H (1) 6-20R 208/240 20 1
I (2) 6-20R 208/240 20 1
J (1) 6-30R 208/240 30 1.5
K (1) 6-50R 208/240 50 1.5
L (1) 14-20R 120/240 20 1
M (1) 14-30R 120/240 30 1.5
N (1) L5-15R 120 120 1
P (2) L5-15R 120 15 1
R (1) L5-20R 120 20 1
S (1) L5-30R 120 30 1
T (1) L6-15R 208/240 15 1
U (2) L6-15R 208/240 15 1
V (1) L6-20R 208/240 20 1
W (1) L6-30R 208/240 30 1
X (1) L14-30R 120/240 20 1
Y (1) L14-20R 120/240 30 1
Example:
T800R-100002B2Y Consists of 2 (2)5-15R receptecles and 2 (1)L14-30R receptecles
106 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook
October 1, 2012
SOFTWARE
Software Products
Delivering a full line of software, strategic equipment, and connectivity devices, Eaton provides the perfect solution. Implementing these key
components along with our UPS products allows you to get the most out of your power protection system.
Intelligent Power Software Suite
INTELLIGENT POWER MANAGER — MONITORING AND MANAGEMENT SOFTWARE
Ideal for monitoring and managing multiple power and environmental devices, Intelligent Power Manager software from Eaton delivers a global view across the
network from any PC with an Internet browser or VMware's vCenter dashboard. Exceptionally versatile, the software is compatible with devices supporting a
network interface, including Eaton and other manufacturers’ UPSs, environmental sensors, ePDUs, shutdown applications and more. Intelligent Power Manager also
offers the ability to sort units by customized views, centralize alarms and maintain event logs for preventive maintenance of the entire installed equipment base.
Features and benefits
• ViewsimilardevicesandallalertsfromasingleWeb
interface
• Massupgradefirmware
• Manageshutdownagents
• Autodiscoveryautomaticallydetectsnetworkdevices
• EditandconfigureSNMPdevices
• Readandreportonpowerconsumption
• ViewUPSsandotherpowerdevicesfrom
VMware vCenter and Citrix XenCenter dashboards
• TriggersVMware'svMotionandothermigration
applications to move virtual machines to an available
server during a power outage
• Enablesremote,safeshutdownofserversinacluster
running vCenter
• MonitorkWh(kilowatthours)
INTELLIGENT POWER PROTECTOR — SHUTDOWN SOFTWARE
When the power goes out for a prolonged period of time, Intelligent Power Protector facilitates automatic, graceful shutdown of computers, servers and
network devices powered by an Eaton UPS, saving all work-in-progress and ensuring data integrity. This software’s versatile user interface shows you detailed
information about connected servers and UPSs through USB and serial or network communication. Intelligent Power Protector is available free of charge and
can be downloaded from eaton.com/intelligentpower.
Features and benefits
• Gracefullyshutsdowncomputersandserversduringanextendedpoweroutage
• Easy-to-useinterfacefromanyPCwithaWebbrowser
• AcquiresUPSinformationthroughlocalornetworkcommunication
• Easilydeployedonmanycomputers
• Canberemotelymanaged,configuredandupdatedwithIntelligentPowerManager
• CompatiblewithVMwarevCenter,MicrosoftSCVMM,RedHatKVMandCitrixXenServer
Download from eaton.com/
intelligentpower
Download from eaton.com/
intelligentpower
107www.eaton.com/powerquality 1.800.461.9166
October 1, 2012
October 1, 2012
SOFTWARE
Software Products (continued)
Eaton's Power Xpert Reporting
Eaton’s Power Xpert Reporting works in conjunction with Power Xpert Software and Foreseer® allowing a view past individual measurements, trend
graphs and events. It consolidates complex data from a multitude of devices from around the globe into easy-to-understand graphical reports. Stan-
dard reports include: Energy Summary Report; Energy Cost Allocation Report; Power Quality Report; Branch
Circuit Report; Capacity Summary Report; Event Summary Report; Joint Commission; Data Center Efficiency
Report;GreenhouseGasesReport,UtilitiesReport,BaselineComparisonReportandPowerXpertDash-
board Report.
Highlighted features
• HelpsqualityforLEED® credits
• Reportinghierarchiesorganizedevicedata
• Microsoft® Excel® integration for further analysis
• Web-browseraccess
• Connecttomultipledatabasessimultaneously
• Customreportsupport
Eaton Power Xpert Software
MONITORING AND MANAGEMENT SYSTEM
Power Xpert Software is a comprehensive solution for system-level management of your power infrastructure via a Web-browser, from any desktop, on
one screen. Power Xpert Software is designed to take the complexity out of managing your power system and provides a clear picture of what is hap-
pening at a component, device and system level. By gathering, presenting and analyzing data in detail, system-wide, Power Xpert Software provides
insight into cost savings and downtime prevention.
Power Xpert Software Professional Edition
• Gearedtowardsendusers,withbuiltinsupportforEatonpowerdistributionproductssuchasswitchgear,UPSs,
breakers, PDUs, RPPs, meters, relays, VFDs and MCCs among others.
• EatonproductsconnectwiththesoftwaredirectlyviaanEthernetconnection,whilelegacydevicesuseaPower
XpertGatewaytoWeb-enabletheircommunications
• Asubsetofthird-partymetersanddevicesaresupportedasstandardviathegatewayconnection
• OptionalPowerXpertReporting
Power Xpert Software Enterprise Edition
• Gearedtowardsadvancedpowerusers,systemintegratorsandenterpriseswithheterogeneousdevicespectrumandsystemdeveloperswhocan
take advantage of the included SNMP and Modbus integration development utilities
• ExtensivesupportforthirdpartydevicesviastandardSNMPandModbusTCPprotocols
• Largevarietyofreadymadethird-partydropindrivers
• OptionalPowerXpertReporting
108 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook
October 1, 2012
SOFTWARE
Software Products (continued)
EATON POWER XPERT SOFTWARE
Part Number Cdn List Price
Power Xpert Software Professional Edition
Power Xpert Software Professional Edition PXS-PRO $8,033
Power Xpert Software Professional Edition w/ 1 Day Startup* PXS-PROn1S $13,252
Power Xpert Software Professional Edition w/ 2 Day Startup* PXS-PROn2S $16,940
Power Xpert Software Professional Edition w/ 5 Day Startup* PXS-PROn5S $28,048
Power Xpert Software Professional Edition & Power Xpert Reporting PXS-PROnPXR $15,262
Power Xpert Software Enterprise Edition
Power Xpert Software Enterprise Edition PXS-ENT $16,067
Power Xpert Software Enterprise Edition w/ 1 Day Startup* PXS-ENTn1S $20,483
Power Xpert Software Enterprise Edition w/ 2 Day Startup* PXS-ENTn2S $24,170
Power Xpert Software Enterprise Edition w/ 5 Day Startup* PXS-ENTn5S $35,279
Power Xpert Software Enterprise Edition & Power Xpert Reporting PXS-ENTnPXR $22,894
*N/A = Not available for international sales, services are available in continental USA only.
POWER XPERT SOFTWARE ACCESSORIES
Description Part Number Cdn List Price
Environmental Monitoring Probe 116750224-001 $295
*theEMPrequiresconnectivitythroughacommunicationscardlikethePXGXorConnectUPSWeb/SNMPcardtocommunicatewithPXS
POWER XPERT REPORTING
Description Part Number Cdn List Price
Power Xpert Reporting - Single Source DB Connections * PXR $8,033
Power Xpert Reporting - up to 2 Source DB Connections * PXR-2DB $12,048
Power Xpert Reporting - up to 5 Source DB Connections * PXR-5DB $16,867
Power Xpert Reporting - up to 10 Source DB Connections * PXR-10DB $23,615
Power Xpert Reporting - up to 25 Source DB Connections * PXR-25DB $33,061
Power Xpert Reporting - up to 50 Source DB Connections * PXR-50DB $46,285
*Number of supported Source Database Connections to either Power Xpert Software or Foreseer
UPS MANAGEMENT/SUPERVISORY SOFTWARE
Description Part Number Cdn List Price
Intelligent Power Manager, Silver edition: support for 11–100 IP addresses - all series 66925 $762
IntelligentPowerManager,Goldedition:supportforunlimitedIPaddresses-allseries 66926 $3,702
Management-Pac 2–Network Management Systems - Pulsar series 66923 $494
Intelligent Power Software Suite CD: Bundled free-of-charge with Eaton UPSs 103004871
(contains: Intelligent Power Manager supervisory software, Intelligent Power Protector
protection software, Personal Solution-Pac power management software for non-networked
Pulsar series UPSs, LanSafe power management software)
109www.eaton.com/powerquality 1.800.461.9166
October 1, 2012
October 1, 2012
Eaton’s connectivity products are accessory hardware options used to provide Eaton UPS/PDU products to external communication devices. We offer
a variety of connectivity products to ensure communication compatibility with a variety of external devices through the Web, serial, USB, relays or
SNMP.
Features and Benefits
• MonitoringviaWeb(computer,PDAorcellphone)orviaSNMP(Network
Management System) provides easy, anytime, anywhere access
• Built-inthreeportswitchinghub(inX-Slotversion)addsthree
10/100 Mbps power connected network connections
• Alarmnotificationthroughanycombinationofe-mail,SNMPtrapsor
network message speeds corrective action
• IntegratedNetWatchClientsoftwareprovidesgraceful,unattended
shutdown of computer operating systems
• MultiViewsoftwareprovidessimultaneousUPSmonitoringthrough
multiple Network Card-MS and ConnectUPS-X, -BD and -E cards from a
single computer console
• SSLandSSHencryptionandauthentication
• Automaticlocallanguagedetectionandsupport;Spanish,Chinese,
German,Italian,FrenchandPortugueseamongothers
• TheConnectUPS-XwillnolongerbeavailableafterDecember31,2012
CONNECTIVITY
Connectivity Products
Web/SNMP Devices
The Network Card-MS, ConnectUPS-X, ConnectUPS-BD and ConnectUPS-E Web/SNMP devices are designed for the
rigorous task of managing the UPS that protects equipment and the critical data residing throughout the network.
Features and Benefits
• Remotelymonitorandrecordenergyusagedatatorevealopportunities
and verify results of efficiency improvements
• ConfiguretheEnergyManagementSystemthroughgraphical,easy-to-
navigate screens rather than fumbling through a small LCD
• Web-enabledmonitoringofpowerqualitydatadowntothebranchcircuit
level allows for safely tagging and monitoring individual circuit information
• Automaticallymaintainsdata,intervalandeventlogswithtimestampfor
power and energy analysis
• AbilitytointegrateyourPDPintoexistingbuildingmanagementor
network management systems including Power Xpert Software monitoring
software
• ExpandsyourPDP'sLCDtoafully-graphical,Web-enabledremote
monitoring system
Eaton Power Xpert Gateway PDP Card
ThePowerXpertGatewayPDPcardallowsyoutoconnectyourEatonpowerdistributionproductsdirectlytoyourEthernetnetworkandtheInternet.
Withitsbuilt-inWebserverthePowerXpertGatewayPDPcardprovidespowerdistributionproducts’(PDP)informationremotely,withoutadditional
software.
Power Xpert Web/SNMP/Modbus TCP Cards
Eaton Power Xpert Gateway UPS Card
ThePowerXpertGatewayUPScardallowsyoutoconnectyourEatonSeries9UPSdirectlytoyourEthernetnetworkandtheInternet.Withitsbuilt-inWeb
server,thePowerXpertGatewayUPScardprovidesUPSinformationremotely,withoutadditionalsoftware.
Features and Benefits
• Remotelymonitorscriticaldatasuchas:actualUPSenergyusage,THD,
multiple UPS modules with one card, load segment status, percent of full
load, output power, battery status, alarm status
• Enablesyoutoconfiguretheshutdownagent,setupUPSshutdown
schedules and test and control the UPS remotely
• Automaticallymaintainsdata,intervalandeventlogswithtimestampfor
power and energy parameter analysis
• IntegratesyourUPSintoexistingbuildingmanagementornetwork
management systems including Power Xpert Software (monitoring
software)
• ExpandsyourUPS'LCDtoafully-graphical,Web-enabled,remote
monitoring system
110 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook
October 1, 2012
CONNECTIVITY (continued)
Connectivity Products
Features and Benefits
• Monitorstemperature,humidityandstatusoftwocontacts/sensors
• WorkswithanyEatonUPS/PDUwithanyConnectUPSWeb/SNMPCard
andPowerXpertGatewayCard
• Canbelocatedupto20meters(65.6feet)fromtheUPS
• Measuresambienttemperaturesbetween-20ºCand80ºC(-4ºFand176ºF)
• Measuresrelativelyhumiditybetween10and90percent
• DisplaysstatusonWebpage,IPphoneorPDAornetworkmanagement
system
• Auto-sendsalarmsviae-mail,PCSphoneorpager
Environmental Monitoring Probe UPS Connectivity Device
EMP enables you to remotely monitor environmental conditions as easily as
you monitor power conditions. Using a standard Web browser, you can view the ambient temperature and humidity
of the remote environment, as well as the status of two additional contact devices, such as a smoke detector or
open-door sensor.
Features and Benefits
• Providesout-of-bandcommunicationmethodsviaRS-232serial
communications or isolated Form-C relay contacts
• ProvidesisolateddrycontactForm-CrelayoutputsforUtilityfailure,Low
battery, UPS alarm/OK and On bypass
• User-selectablenormallyopen(NO)ornormallyclosed(NC)contacts
• ShutdownfunctiontoremotelyshutdownUPSintheeventofan
emergency
• IBMAS/400computerport(DB-15)
• TerminalblockoutputsavailableonX-Slotcard
Interface Cards
The Relay Interface Cards provide simple alarm notification via isolated contacts to signal remote alarm panels or security
systems in the event of a change of state in UPS operation.
Features and Benefits
• ServesastheframeworkforprotocolconversionviacompatibleX-Slot
cards to: Modbus, SNMP and HTTP
• AddexpandedcommunicationsupportforawiderangeofUPSmodels:
5115, 5125, 9170+, 9315, 9355 and 9390
• Flexiblemountingoptions(viaincludedfeet,rackorwall-mountingkits);
redundant power inputs
• Alarmnotificationspeedscorrectiveactionthroughanycombinationof
e-mail, SNMP traps or NetWatch Client software
• CompatiblewithX-Slotcards:ModbusCard(oneincluded),ConnectUPS-X
Web/SNMPCardPXGX2000andSinglePortSerialCard
Eaton Expansion Chassis & Modbus Card
The Expansion Chassis is a three-slot peripheral device that expands communication methods for a UPS through its support for X-Slot cards. It is pre-
configured with the Eaton Modbus card, which serves as the interface to Modbus networks and as the communications controller for the other slots.
111www.eaton.com/powerquality 1.800.461.9166
October 1, 2012
October 1, 2012
SOFTWARE COMPATIBILITY WITH UPS VIA USB OR SERIAL CABLE (PEER-TO-PEER)
Powerware Series Pulsar Series Eaton BladeUPS
Protection and supervision software
Intelligent Power Protector x x x
Personal Solution-Pac x
Microsoft® Integrated Power Manager x
LanSafe x x x
SOFTWARE AND CONNECTIVITY COMPATIBILITY WITH ETHERNET AND CONNECTIVITY CARD
(NETWORK)
Supervision software—monitors and manages UPSs and connected devices
Intelligent Power Manager x x x x x x
Foreseer and Power Xpert Software -
Professional/Enterprise x x x x x x
LanSafe x x x
Protection software—graceful shutdown of OSs on servers and PCs
Intelligent Power Protector x x x x x x
NetWatch x x x x x x
Network Shutdown Module x x
Power Xpert Software - Professional and
Enterprise Editions x x x x x
LanSafe x x
Enterprise Power Monitoring Software
Power Xpert Software - Professional and
Enterprise Editions x x x x x
Foreseer Services x x x x x x
Connectivity compatibility
3S, 5110 and 5115 tower
5115 RM x x x x
5125 x x x x
Evolution x x
5P x x
5PX x x
EX x x x
9130 x x x x
MX x x x
9135 x x x
EX RT x x x
9140 x x x x
9PX x x
9155 x x x
9170+ x x
FERRUPS x
BladeUPS x x x x
9315 x x x x
9355 x x x x
9E x x x
9390 x x x x
9390IT x x x x
9395 x x x x
*Also compatible with the following high voltage series: Ellipse, Ellipse Max, Protection Center, Protection Station
CONNECTIVITY (continued)
Connectivity Products
Network Card-MS
(Network-MS)
ConnectUPS-BD
(116750222-001)
When purchasing additional
software, make sure that it is
compatible with your UPS’s
connectivity card.
ConnectUPS-X
(116750221-001)
BestLink Web/SNMP
Adapter (116750225-001)
Network and MODBUS
Card-MS (MODBUS-MS)
X-Slot® Modbus Card
(103005425-5591)
Power Xpert Gateway
UPS (PXGXUPS)
Relay card-MS
(Relay-MS)
Relay Interface
Card-X-Slot (1018460)
Relay Interface
Card-BestDock (1014018)
112 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook
October 1, 2012
CONNECTIVITY (continued)
Connectivity Options
WEB/SNMP PRODUCTS
Description Part Number Cdn List Price
ConnectUPS-X Web/SNMP Card 116750221-001 $449
(for use with 5115, 5125, 9140, 9155, BladeUPS, 9355, 9390, 9390IT, 9395)
ConnectUPS-BD Web/SNMP Card (for use with 9130 and 9170+) 116750222-001 $449
ConnectUPS-E Web/SNMP Adapter (for use with legacy Powerware 9150 and 9305 UPSs) 116750223-001 $660
Ethernet SNMP/HTTP Adapter (for use with FERRUPS) 116750225-001 $467
Network Card-MS Web/SNMP Network-MS $360
(for use with Evolution, 5130, 5P, 5PX, Evolution S, 9130, 9135, EX RT, 9E)
PowerXpertGatewayPDPCard(Web/SNMP/ModbusTCP) 103008064-5591 $1,272
PowerXpertGatewayUPSCard 103007974-5591 $603
INTEGRATION PRODUCTS (EXPANDED CONNECTIVITY & OPEN SYSTEM INTEGRATION) -
POWERWARE AND EATON SERIES
Description Part Number Cdn List Price
Expansion Chassis - Provides additional X-Slots via RS-232 DB9 (Includes Modbus Card) 05147063 $2,220
Modbus Card-X-Slot 103005425-5591 $885
Network and MODBUS Card-MS (for use with 5PX, MX, EX RT, 9E) MODBUS-MS $449
CONNECTIVITY AND ENVIRONMENTAL ACCESSORIES
Description Part Number Cdn List Price
Environmental Monitoring Probe 116750224-001 $295
RELAY INTERFACE/REMOTE MONITORING PRODUCTS
Description Part Number Cdn List Price
Relay Card-MS (new card name and part number replacing style #s 103006828 and 66104) 103006828/RELAY-MS $134
Relay Interface Card-BD (AS/400 Compatible) 1014018 $195
Relay Interface Card-X-Slot (AS/400 Compatible) 1018460 $195
Cable 25 ft (compatible with AS/400 model 9406; for use with 1014018 or 1018460) 103004349-5501 $83
Cable 75 ft (compatible with AS/400 model 9406; for use with 1014018 or 1018460) 103004347-5501 $139
Industrial Relay and Display Drive Card X-Slot. 103003055 $449
Provides (4) Form-C Relay contacts (5A @ 250V) for UPS integration into security and alarm
systems. Also provides signal information for the Remote Monitor Display Panel (103002687-001)
Splitter Cable 3 ft (DB15 male to dual DB15 female; for use with 1014018 or 1018460) 124102028-001 $212
Relay Card - Contacts (DB25) & RS232 (DB9) - X-Slot. Includes 30 ft cable DB25 - DB9. 103004741-5591 $420
(compatible with AS/400 model 9406)
Cable 10 ft DB9 - DB9 (compatible with AS/400 model 9406; for use with 103006828) 66033 $134
REMOTE MONITORING PANELS (FOR MONITORING OF UPS STATUS) - POWERWARE SERIES
Description Part Number Cdn List Price
Remote Monitor Display Panel (Requires Industrial Relay and Display Drive Card Part Number 103003055) 103002687-001 $449
INTEGRATION SOFTWARE - POWERWARE AND EATON SERIES
Description Web Download Cdn List Price
IBM Director Snap-in: Network Management System (NMS) software powerquality.eaton.com Free-of-charge
113www.eaton.com/powerquality 1.800.461.9166
October 1, 2012
October 1, 2012
SERVICES
Single-phase Service Plans Overview
SUMMARY OF EATON SERVICE PLANS FOR SINGLE-PHASE MODELS
SELECTING A SERVICE PLAN
Eaton single-phase UPSs come with warranty coverage that typically includes parts and labor for electronics, 7x24 Customer Reliability Center triage and 7x24
technical support access. But to extend the term of the base factory warranty and expedite service delivery, you should recommend a service plan. The best
service plans are essentially offered in two categories:
1. Extended Warranty (recommended for UPSs below 5 kVA)
When your customer notifies Eaton about a defective unit, Eaton ships a replacement unit overnight. Upon receipt of the new UPS, the customer
returns the defective unit to Eaton via ground shipment. The freight for both units is paid by Eaton.
2. Onsite service and repair (recommended for UPSs 5 kVA and above)
Onsite service plans vary by unit and have different levels of coverage – for detailed information, visit www.eaton.com/upsservices. The following
features can be added to service plans to guarantee unparalleled UPS performance:
• ComprehensivecoverageoftheUPSandbatteries
• Telephonetechnicalsupport
• eNotifyremotemonitoring
• Connectivitysupport
• Expediteddeliveryofreplacementparts,modulesandbatteries
• Onsitestartup
• Onsitecorrectivemaintenance
• Next-day24-hourresponse
• AnnualUPSand/orbatterypreventivemaintenance
Single-phase Factory Extended Warranty + Onsite Onsite Flex Onsite PowerTrust Onsite
Service Plan Features Warranty Warranty Extended Warranty Gold Gold Plus (eNotify) (eNotify)
Comprehensivecoverageofthe • • • • • • • 
UPS and standard batteries
Telephonetechnicalsupport • • • • • •
eNotifyremotemonitoring   •
Connectivitysupport • • • • • •
Expediteddeliveryofreplacement • • • • •
parts, modules and batteries
Onsitestartup • • •
Onsitecorrectivemaintenance • • •
Next-day24-hrresponse • • •
AnnualUPSpreventivemaintenance  • •
Annualbatterypreventivemaintenance  • •
1. Onsite startup and corrective maintenance service is 5x8 for Series 5 products; 7x24 for Series 9 products and FERRUPS.
2. Unit must be within 100 miles of Eaton established service location to qualify for 24-hour response.
3. Initial startup serves as the annual PM service for the first year of operation. Subsequent annual PM services are scheduled on request from customer beginning in the second year of operation.
4. eNotify Remote Monitoring service requires Web card and EMP, not included in Flex or PowerTrust contract price. eNotify not available for 3015, 5110, 5115 and FERRUPS.
5. Extended Warranty plans not available for large / hardwired units including Eaton 9155, 9170+, and most FERRUPS.
6. Factory Warranty: Two-year Warranty for 3105, 3S, 5110, 5115, 5125, 5P, 5PX, 9130, 9135, Evolution, Evolution S, EX, MX, EX RT, 9140, 9155, 9170+ and FERRUPS. Eaton 3105, 3S, 5110, 5115, 5125, 5P and
5PX upgrade to 3-Year Warranty when registered online at www.eaton.com/pq/register.
114 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook
October 1, 2012
SERVICES
Three-phase Service Plans Overview
Eaton's three-phase UPS service options, provide the uptime, convenience and value that's right for you and your business. You can leverage onsite
services to meet your specific needs for UPSs, batteries and related equipment. With 240 customer service engineers in North America, we have more
factory-trained personnel than any other UPS manufacturer and customers consistently rank our service number one in quality.
PowerTrust PowerTrust 9E Warranty 9E Warranty
Three-phase Service Plan Features Value ProActive PowerTrust Preferred Flex Extension Upgrade
PartsandLaborforElectronics • • • • •
PartsandLaborforBatteries o o o o •
7x24Startup    •
5x8OnsiteCorrectiveMaintenance •    •
7x24OnsiteCorrectiveMaintenance • • • o •
NextBusinessDayResponse •   
8-HourResponse • • • CustomService o
4-Hour Response o o o Contracts o o
2-Hour Response o o o
5x8UPSPreventiveMaintenanceVisit 1peryear o 1peryear o
7x24 UPS Preventive Maintenance Visit o 1 per year o 2 per year
BatteryPreventiveMaintenanceVisit o o 1peryear 2peryear •
eNotifyRemoteMonitoringService • • • • •
Discounted Spare Parts & Upgrade Kits & T&M 30% 30% 30%
•Includedfeature oOptionalfeature
Eaton's most popular on-site UPS support plans come standard with the above features. Additional preventive maintenance visits can be added to any
packaged plan. Flex Support Plans should be used whenever a standard packaged service plan doesn't exactly match your needs. 9E UPS 3-year war-
ranty extensions or upgrades are only available for 9E (9E may only purchase startup, PM's and external battery warranty extension).
115www.eaton.com/powerquality 1.800.461.9166
October 1, 2012
October 1, 2012
SERVICES
eNotify Remote Monitoring
eNotify Remote Monitoring features 7x24 real-time monitoring of 100+ UPS and battery alarms, with technical experts available to respond
immediately and resolve many issues remotely. With eNotify Remote Monitoring software, processors and firmware inside the UPS collect
performance data and send status messages to Eaton’s Remote Monitoring Command Center. eNotify evaluates the health of your UPS by
comparing current and historical performance data with specified parameters. The analyzed data is then used to make accurate performance
reports of UPS status. Monthly email reports detail UPS performance and alarm history.
eNotify monthly reports Eaton’s eNotify Remote Monitoring Command Center
SELF-INSTALLING ENOTIFY
AQuickStartGuideandself-installationwizardtoolisavailableonlineatwww.eaton.com/enotify.Thisself-installationprocesstakesaslittleas10minutes
to complete. To activate eNotify, customers must have a Power Xpert UPS or ConnectUPS Web/SNMP card and an Environmental Monitoring Probe (EMP).
connectivity parts are not included with service plan or product purchase; purchase separately.
EATON UPS BATTERIES
All Batteries Are Not Created Equal
Did you know that battery failure is the number one cause of load loss and system downtime? The single-most critical element of UPS performance
is battery quality. All it takes is one bad battery to bring your systems down during a power outage or other interruption. Battery performance varies
greatly from one manufacturer to another. Making the wrong decision on batteries can have a serious impact on UPS uptime reliability, causing
potentially devastating consequences from power interruptions.That’s why Eaton offers a line of qualified premium batteries for use with Eaton UPS
models. Eaton UPS qualified batteries must adhere to Eaton’s stringent battery tests and quality specifications.
Benefits of Eaton Batteries
Eaton batteries offer performance and quality at competitive prices. Eaton continuously scans the globe to ensure the highest-quality batteries are
available and qualified for use. As new batteries are introduced, we apply a proven qualification process, testing them with our products to verify that
they meet or exceed manufacturer specifications and supply maximum runtime. Using Eaton-qualified batteries gives your customers confidence that
their batteries will perform as expected and keep their applications running.
• Batteries are the number one cause of UPS load loss
• One bad battery can ruin an entire string
• Eaton-qualified batteries are backed by a service network of trained and qualified battery customer service
engineers
Is your customer willing to risk the availability of their company’s mission-critical applications on an unqualified
battery?
Provide the ultimate in uptime by maintaining your UPS batteries with our battery
replacement program. Eliminate potentially devastating downtime by replacing
batteries before they fail. See the Eaton Battery Replacement Pricebook on the Eaton
Power Quality Salesweb for the most current battery offerings and pricing.
Battery Replacement
116 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook
October 1, 2012
Written authority from Eaton must be obtained before any return or credit will be allowed.
Sales RMAs will be issued for new, unused equipment that is:
A. Within 30 days of original shipment date
B. Returned in original sealed packaging
C. Returned in unmodified, untampered, original condition
D. A current design
Cancellations and Erroneous Orders:
Any order for standard Eaton products may not be cancelled within thirty days of the date scheduled for shipment/delivery by Eaton. Otherwise the order
may be cancelled in accordance with the following:
• SalesRMAsissuedforcancellationsanderroneousorderswillbesubjecttoaminimum15%restocking/cancellationfee
• Restocking/cancellationfeeforstandardproductwillbe15%
• Restocking/cancellationfeeforspecial,customorconfiguredproductswillbeaminimumof50%
• Thebuyerisresponsibleforbothinboundandoutboundfreightcharges
Note: Charges may be waived by mutual agreement between buyer and seller. Proper approval and authorization must be obtained and documented in
writing before the transaction is initiated.
Erroneous Shipments:
Sales RMAs necessary as a result of shipping/order entry errors will be issued and transacted with no charge to the buyer. Eaton will pay inbound
freight, and outbound freight will be similar service level as original shipment.
RMA Expiration:
An RMA is valid for 60 calendar days from date of authorization by Eaton, after which it is subject to cancellation.
Sales Contracts:
An active Sales Contract with clauses relating to return of product for sales credits may supersede the Sales RMA policy statements above.
To request a Sales RMA please contact:
Phone: 1.800.461.9166 x3323
Fax: 416-798-2377
e-mail: list-icc-toron-ordermanagement@eaton.com
For repairs, warranties, and replacements:
Phone: 1.800.461.9166 - Option 4, 1
Fax: 416-798-3352
RMA POLICY AND PRODUCT WARRANTIES
Sales Returned Merchandise Authorization (RMA) Policy
117www.eaton.com/powerquality 1.800.461.9166
October 1, 2012
October 1, 2012
WARRANTY
Eaton Corporation Load Protection Guarantee (US and Canada)
UPS MODELS: 3105, 3S, 5110, 5115, 5125, 5P, 5PX, 9130, 9135, 9140, 9PX, 9155, 9170+ AND FERRUPS
GUARANTOR: TheGuarantorfortheloadprotectionguarantysetforthhereinisEatonCorporation,anOhioCorporationCompany(“Company”).
LIMITED GUARANTY:Thisloadprotectionguaranty(this“Guaranty”)appliesonlytotheoriginalEnd-user(the“End-user”)ofany3105,3S,5110,
5115,5125,5PX,9130,9135,9140,9155,9170+andFERRUPSProducts(individuallyandcollectively,the“Product”)andcannotbetransferred.This
GuarantyappliesevenintheeventthattheProductisinitiallysoldbyCompanyforresaletoanEnd-User.
WHAT THIS GUARANTY COVERS:ForthelifetimeoftheProduct,Guarantorpromisestorepairorreplace,atGuarantor'soption,theequipment
(valueduptothelimitsshownbelow*)thatisdamagedbyanACpowerlinesurge,spikeorothertransientwhenproperlyconnectedtoGuarantor's
uninterruptiblepowersystem(“UPS”).Reimbursementfororrestorationofdatalossexcluded.ThisGuarantyappliesonlyifallofthefollowing
circumstances arise:
1. The UPS is plugged into properly grounded and wired outlets, using no extension cords, adapters, other ground wires or other electrical
connectors;
2. The installation of the UPS complies with all applicable electrical and safety codes described by the National Electric Code (NEC);
3. The UPS was used under normal operating conditions and in accordance with all labels and instructions; and
4. The UPS was not damaged by accident (other than AC power line transient), misuse or abuse.
*Cumulative Limits to be paid by Guarantor under this Load Protection Guaranty:
$25,000 for UPS Model 3105 and 3S
$150,000 for UPS Models 5110, 5115, 5125, 5P and 5PX
$250,000 for UPS Models 9130, 9135, 9140, 9PX, 9155, 9170+ and FERRUPS products
WHAT THIS GUARANTY DOES NOT COVER: Any reimbursement or repair to End-user's equipment does not include reimbursement for or restoration
ofanydataloss.ThisGuarantydoesnotcoveranydefectsordamagescausedby:(a)failuretoproperlystoretheProductbeforeinstallation,
including the charge of batteries no later than the date indicated on the packaging; (b) shipping and delivery of the Product if shipping is FOB
Factory; (c) neglect, accident, abuse, misuse, misapplication, or incorrect installation of Product; (d) repair or alteration of Product not authorized
in writing by Company personnel or performed by an authorized Company Customer Service Engineer or Agent; (e) improper testing, operation,
maintenance, adjustment, or modification of any kind to the Product not authorized in writing by Company personnel or performed by an authorized
Company Customer Service Engineer or Agent; or (f) use of the Product under other than normal operating conditions or in a manner inconsistent
with the Product's labels or instructions.
This Guaranty is not valid: (a) unless the End-user returns to Company the Warranty Registration Card or completes the registration form on
www.powerquality.eaton.com/productregistration within thirty (30) days of purchase; or (b) if the Product's serial numbers have been removed or
are illegible.
Company shall not be responsible for any charges for testing, checking, removal or installation of any items.
LIMITATION OF LIABILITY: THE REMEDIES OF THE END-USER SET FORTH HEREIN ARE EXCLUSIVE AND ARE THE SOLE REMEDIES FOR ANY FAILURE
OFCOMPANYTOCOMPLYWITHITSOBLIGATIONSHEREUNDER.EXCEPTASOTHERWISEPROVIDEDFORINTHISGUARANTY,INNOEVENTSHALL
COMPANYBELIABLEINCONTRACT,INTORT(INCLUDINGNEGLIGENCEORSTRICTLIABILITY)OROTHERWISEFORDAMAGETOPROPERTYOR
EQUIPMENTOTHERTHANTHEPRODUCTS,INCLUDINGLOSSOFPROFITSORREVENUE,LOSSOFUSEOFPRODUCTS,LOSSOFDATA,COSTOF
CAPITAL,CLAIMSOFCUSTOMERSOFTHEEND-USERORANYSPECIAL,INDIRECT,INCIDENTALORCONSEQUENTIALDAMAGESWHATSOEVER.
THETOTALCUMULATIVELIABILITYOFCOMPANYHEREUNDERWHETHERTHECLAIMSAREBASEDINCONTRACT(INCLUDINGINDEMNITY),IN
TORT(INCLUDINGNEGLIGENCEORSTRICTLIABILITY)OROTHERWISE,SHALLNOTEXCEEDTHOSESETFORTHABOVE.
CompanyshallnotberesponsibleforfailuretoproviderepairorreplacementunderthisGuarantyduetocausesbeyondCompany'sreasonable
control.
END-USER’S OBLIGATIONS:InordertoreceivethebenefitsofthisGuaranty,theEnd-usermustusetheProductinanormalway;followthe
Product's operation and maintenance manual; and protect against further damage to the Product if there is a covered defect.
OTHER LIMITATIONS:Company'sobligationsunderthisGuarantyareexpresslyconditioneduponreceiptbyCompanyofallpaymentsduetoit
(including interest charges, if any). During such time as Company has not received payment of any amount due to it for the Product, in accordance
withthecontracttermsunderwhichtheProductissold,CompanyshallhavenoobligationunderthisGuaranty.
COSTS NOT RELATED TO GUARANTY: The End-user shall be invoiced for, and shall pay for, all services not expressly provided for by the terms
ofthisGuaranty,includingwithoutlimitation,sitecallsinvolvinganinspectionthatdeterminesnocorrectivemaintenanceisrequired.Anycosts
for replacement equipment, installation, materials, freight charges, travel expenses or labor of Company representatives outside the terms of this
GuarantywillbebornebytheEnd-user.
TO MAKE A CLAIM: In the USA, call the Customer Reliability Center 7x24 at 800.356.5737. Outside of the USA, contact your local Eaton product sales
or service representative, or call the Customer Reliability Center in the USA at 919.870.3149. For comments or questions about this Load Protection
Guaranty,writetotheCustomerQualityRepresentative,3301SpringForestRoad,Raleigh,NorthCarolina27616USA.
118 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook
October 1, 2012
UPS MODELS: 3105, 3S, 5110, 5115, 5125, 5P AND 5PX (USA AND CANADA)
WARRANTOR: ThewarrantorforthelimitedwarrantiessetforthhereinisEatonCorporation,anOhioCorporationcompany(“Company”).
LIMITED WARRANTY: Thislimitedwarranty(this“Warranty”)appliesonlytotheoriginalEnd-user(the“End-user”)ofany3105,3S,5110,5115,
5125,5Pand5PXProducts(individuallyandcollectively,the“Product”)purchasedonorafterAugust19th,2009,andcannotbetransferred.This
Warranty applies even in the event that the Product is initially sold by Company for resale to an End-user.
LIMITED WARRANTY PERIOD: The period covered by this Warranty for Product installed [and currently located] in the fifty (50) United States, the
District of Columbia and Canada is twenty-four (24) months from the date of purchase, or thirty (30) months from the date of shipment. For units
that are registered online at www.eaton.com/PQ/Register, the warranty is extended to thirty-six (36) months from the date of purchase, or forty-
two (42) months from the date of shipment.
WHAT THIS LIMITED WARRANTY COVERS: The warrantor warrants that the Product and battery (individually and collectively, the ”Warranted
Items”) are free of defects in material and workmanship. If, in the opinion of Company, a Warranted Item is defective and the defect is within the
terms of this Warranty, Company's sole obligation will be to repair or replace such defective Warranted Item (including by providing service, parts
and labor, as applicable), at the option of Company.
PROCEDURES FOR REPAIR OR REPLACEMENT OF WARRANTED ITEMS: The Warranted Item will be repaired or replaced at a Company site or
such other location as determined by Company.
If the Warranted Item is to be replaced by Company, and the End-user supplies a credit card number or purchase order for the value of the
replacement product, Company will use commercially reasonable business efforts to ship (via standard ground shipment and at no cost to the
End-user) the replacement Warranted Item to the End-user within one (1) business day after Company receives notice of the warranty claim. In
such case, the End-user must return (at Company's expense) the defective Warranted Item to Company in the same packaging as the replacement
Warranted Item received by the End-user or as otherwise instructed by Company. If Company does not receive the defective Warranted Item,
Company will either charge the End-user's credit card, or send the End-user an invoice (which the End-user agrees to pay), for the value of the
replacement product.
If the Warranted Item is to be replaced by Company, but the End-user is unwilling or unable to supply a credit card number or purchase order for
the value of the replacement product, Company will use commercially reasonable business efforts to ship (via standard ground shipment and at no
cost to the End-user) the replacement Warranted Item to the End-user within one (1) business day after Company receives the defective product
from the End-user.
In any case, Company will provide shipping instructions and will pay its designated carrier for all shipping charges for return of defective
equipment and replacement of Warranted Items. Any returned Warranted Item or parts that are replaced may be new or reconditioned. All
Warranted Items returned to Company and all parts replaced by Company shall become the property of Company.
WHAT THIS LIMITED WARRANTY DOES NOT COVER: This Warranty does not cover any defects or damages caused by: (a) failure to properly
store the Product before installation, including the charge of batteries no later than the date indicated on the packaging; (b) shipping and delivery
of the Product if shipping is FOB Factory; (c) neglect, accident, abuse, misuse, misapplication or incorrect installation; (d) repair or alteration not
authorized in writing by Company personnel or performed by an authorized Company Customer Service Engineer or Agent; (e) improper testing,
operation, maintenance, adjustment or modification of any kind not authorized in writing by Company personnel or performed by an authorized
Company Customer Service Engineer or Agent; or (f) use of the Product under other than normal operating conditions or in a manner inconsistent
with the Product's labels or instructions.
This Warranty is not valid if the Product's serial numbers have been removed or are illegible. Any Warranted Items repaired or replaced pursuant
to this Warranty will be warranted for the remaining portion of the original Warranty subject to all the terms thereof.
WARRANTY
Limited Warranty
119www.eaton.com/powerquality 1.800.461.9166
October 1, 2012
October 1, 2012
Company shall not be responsible for any charges for testing, checking, removal or installation of Warranted Items.
COMPANY DOES NOT WARRANT EQUIPMENT NOT MANUFACTURED BY COMPANY. IF PERMITTED BY THE APPLICABLE MANUFACTURER,
COMPANY SHALL PASS THROUGH SUCH MANUFACTURER'S WARRANTIES TO END-USER.
COMPANY DOES NOT WARRANT SOFTWARE, INCLUDING SOFTWARE EMBEDDED IN PRODUCTS, THAT IS NOT CREATED BY COMPANY.
WITHOUT LIMITING THE FOREGOING, COMPANY SPECIFICALLY DOES NOT WARRANT SOFTWARE (SUCH AS LINUX) THAT WAS CREATED
USING AN “OPEN SOURCE” MODEL OR IS DISTRIBUTED PURSUANT TO AN OPEN SOURCE LICENSE.
THIS WARRANTY IS THE SOLE AND EXCLUSIVE WARRANTY OFFERED BY COMPANY WITH RESPECT TO THE PRODUCTS AND SERVICES AND,
EXCEPT FOR SUCH FOREGOING WARRANTY COMPANY DISCLAIMS ALL OTHER WARRANTIES INCLUDING BUT NOT LIMITED TO ANY IMPLIED
WARRANTIES OF MERCHANTABILITY, TITLE, NON-INFRINGEMENT AND FITNESS FOR A PARTICULAR PURPOSE. CORRECTION OF NON-
CONFORMITIES IN THE MANNER AND FOR THE PERIOD OF TIME PROVIDED ABOVE SHALL CONSTITUTE COMPANY'S SOLE LIABILITY AND
END-USER'S EXCLUSIVE REMEDY FOR FAILURE OF COMPANY TO MEET ITS WARRANTY OBLIGATIONS, WHETHER CLAIMS OF THE END-USER
ARE BASED IN CONTRACT, IN TORT (INCLUDING NEGLIGENCE OR STRICT LIABILITY) OR OTHERWISE.
LIMITATION OF LIABILITY: The remedies of the End-user set forth herein are exclusive and are the sole remedies for any failure of Company to
comply with its obligations hereunder. In no event shall Company be liable in contract, in tort (including negligence or strict liability) or otherwise
for damage to property or equipment other than the Products, including loss of profits or revenue, loss of use of Products, loss of data, cost of
capital, claims of customers of the End-user or any special, indirect, incidental or consequential damages whatsoever. The total cumulative
liability of Company hereunder whether the claims are based in contract (including indemnity), in tort (including negligence or strict liability) or
otherwise, shall not exceed the price of the Product on which such liability is based.
Company shall not be responsible for failure to provide service or parts due to causes beyond Company's reasonable control.
END-USER’S OBLIGATIONS: In order to receive the benefits of this Warranty, the End-user must use the Product in a normal way; follow the
Product's operation and maintenance manual; and protect against further damage to the Product if there is a covered defect.
OTHER LIMITATIONS: Company's obligations under this Warranty are expressly conditioned upon receipt by Company of all payments due to it
(including interest charges, if any). During such time as Company has not received payment of any amount due to it for the Product, in accordance
with the contract terms under which the Product is sold, Company shall have no obligation under this Warranty. Also during such time, the period
of this Warranty shall continue to run and the expiration of this Warranty shall not be extended upon payment of any overdue or unpaid amounts.
COSTS NOT RELATED TO WARRANTY: The End-user shall be invoiced for, and shall pay for, all services not expressly provided for by the terms
of this Warranty, including without limitation, site calls involving an inspection that determines no corrective maintenance is required. Any costs
for replacement equipment, installation, materials, freight charges, travel expenses or labor of Company representatives outside the terms of this
Warranty will be borne by the End-user.
OBTAINING WARRANTY SERVICE: In the USA, call the Customer Reliability Center 7x24 at 800.843.9433. Outside of the USA, contact your local
Eaton product sales or service representative, or call the Customer Reliability Center in the USA at 919.870.3028. For comments or questions about
this Warranty, write to the Customer Quality Representative, 3301 Spring Forest Road, Raleigh, North Carolina 27616 USA.
WARRANTY
Limited Warranty (continued)
120 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook
October 1, 2012
UPS MODELS: 9130, 9135, 9140, 9PX AND FERRUPS UP TO 3.1 kVA (USA AND CANADA)
WARRANTOR: ThewarrantorforthelimitedwarrantiessetforthhereinisEatonCorporation,anOhioCorporationcompany(“Company”).
LIMITED WARRANTY: Thislimitedwarranty(this“Warranty”)appliesonlytotheoriginalEnd-user(the“End-user”)ofany9130,9135,9140and
FERRUPSupto3.1kVAProducts(individuallyandcollectively,the“Product”)purchasedonorafterJune1,2004,andcannotbetransferred.This
Warranty applies even in the event that the Product is initially sold by Company for resale to an End-user.
LIMITED WARRANTY PERIOD: The period covered by this Warranty for Product installed [and currently located] in the fifty (50) United States, the
District of Columbia and Canada is twenty-four (24) months from the date of purchase, or thirty (30) months from the date of shipment.
WHAT THIS LIMITED WARRANTY COVERS: The warrantor warrants that the Product and battery (individually and collectively, the ”Warranted
Items”) are free of defects in material and workmanship. If, in the opinion of Company, a Warranted Item is defective and the defect is within the
terms of this Warranty, Company's sole obligation will be to repair or replace such defective Warranted Item (including by providing service, parts
and labor, as applicable), at the option of Company.
PROCEDURES FOR REPAIR OR REPLACEMENT OF WARRANTED ITEMS: The Warranted Item will be repaired or replaced at a Company site or
such other location as determined by Company.
If the Warranted Item is to be replaced by Company, and the End-user supplies a credit card number or purchase order for the value of the
replacement product, Company will use commercially reasonable business efforts to ship (via standard ground shipment and at no cost to the
End-user) the replacement Warranted Item to the End-user within one (1) business day after Company receives notice of the warranty claim. In
such case, the End-user must return (at Company's expense) the defective Warranted Item to Company in the same packaging as the replacement
Warranted Item received by the End-user or as otherwise instructed by Company. If Company does not receive the defective Warranted Item,
Company will either charge the End-user's credit card, or send the End-user an invoice (which the End-user agrees to pay), for the value of the
replacement product.
If the Warranted Item is to be replaced by Company, but the End-user is unwilling or unable to supply a credit card number or purchase order for
the value of the replacement product, Company will use commercially reasonable business efforts to ship (via standard ground shipment and at no
cost to the End-user) the replacement Warranted Item to the End-user within one (1) business day after Company receives the defective product
from the End-user.
In any case, Company will provide shipping instructions and will pay its designated carrier for all shipping charges for return of defective
equipment and replacement of Warranted Items. Any returned Warranted Item or parts that are replaced may be new or reconditioned. All
Warranted Items returned to Company and all parts replaced by Company shall become the property of Company.
WHAT THIS LIMITED WARRANTY DOES NOT COVER: This Warranty does not cover any defects or damages caused by: (a) failure to properly
store the Product before installation, including the charge of batteries no later than the date indicated on the packaging; (b) shipping and delivery
of the Product if shipping is FOB Factory; (c) neglect, accident, abuse, misuse, misapplication or incorrect installation; (d) repair or alteration not
authorized in writing by Company personnel or performed by an authorized Company Customer Service Engineer or Agent; (e) improper testing,
operation, maintenance, adjustment or modification of any kind not authorized in writing by Company personnel or performed by an authorized
Company Customer Service Engineer or Agent; or (f) use of the Product under other than normal operating conditions or in a manner inconsistent
with the Product's labels or instructions.
This Warranty is not valid if the Product's serial numbers have been removed or are illegible. Any Warranted Items repaired or replaced pursuant
to this Warranty will be warranted for the remaining portion of the original Warranty subject to all the terms thereof.
WARRANTY
Two-Year Limited Warranty
121www.eaton.com/powerquality 1.800.461.9166
October 1, 2012
October 1, 2012
Company shall not be responsible for any charges for testing, checking, removal or installation of Warranted Items.
COMPANY DOES NOT WARRANT EQUIPMENT NOT MANUFACTURED BY COMPANY. IF PERMITTED BY THE APPLICABLE MANUFACTURER,
COMPANY SHALL PASS THROUGH SUCH MANUFACTURER'S WARRANTIES TO END-USER.
COMPANY DOES NOT WARRANT SOFTWARE, INCLUDING SOFTWARE EMBEDDED IN PRODUCTS, THAT IS NOT CREATED BY COMPANY.
WITHOUT LIMITING THE FOREGOING, COMPANY SPECIFICALLY DOES NOT WARRANT SOFTWARE (SUCH AS LINUX) THAT WAS CREATED
USING AN “OPEN SOURCE” MODEL OR IS DISTRIBUTED PURSUANT TO AN OPEN SOURCE LICENSE.
THIS WARRANTY IS THE SOLE AND EXCLUSIVE WARRANTY OFFERED BY COMPANY WITH RESPECT TO THE PRODUCTS AND SERVICES AND,
EXCEPT FOR SUCH FOREGOING WARRANTY COMPANY DISCLAIMS ALL OTHER WARRANTIES INCLUDING BUT NOT LIMITED TO ANY IMPLIED
WARRANTIES OF MERCHANTABILITY, TITLE, NON-INFRINGEMENT AND FITNESS FOR A PARTICULAR PURPOSE. CORRECTION OF NON-
CONFORMITIES IN THE MANNER AND FOR THE PERIOD OF TIME PROVIDED ABOVE SHALL CONSTITUTE COMPANY'S SOLE LIABILITY AND
END-USER'S EXCLUSIVE REMEDY FOR FAILURE OF COMPANY TO MEET ITS WARRANTY OBLIGATIONS, WHETHER CLAIMS OF THE END-USER
ARE BASED IN CONTRACT, IN TORT (INCLUDING NEGLIGENCE OR STRICT LIABILITY) OR OTHERWISE.
LIMITATION OF LIABILITY: The remedies of the End-user set forth herein are exclusive and are the sole remedies for any failure of Company to
comply with its obligations hereunder. In no event shall Company be liable in contract, in tort (including negligence or strict liability) or otherwise
for damage to property or equipment other than the Products, including loss of profits or revenue, loss of use of Products, loss of data, cost of
capital, claims of customers of the End-user or any special, indirect, incidental or consequential damages whatsoever. The total cumulative
liability of Company hereunder whether the claims are based in contract (including indemnity), in tort (including negligence or strict liability) or
otherwise, shall not exceed the price of the Product on which such liability is based.
Company shall not be responsible for failure to provide service or parts due to causes beyond Company's reasonable control.
END-USER’S OBLIGATIONS: In order to receive the benefits of this Warranty, the End-user must use the Product in a normal way; follow the
Product's operation and maintenance manual; and protect against further damage to the Product if there is a covered defect.
OTHER LIMITATIONS: Company's obligations under this Warranty are expressly conditioned upon receipt by Company of all payments due to it
(including interest charges, if any). During such time as Company has not received payment of any amount due to it for the Product, in accordance
with the contract terms under which the Product is sold, Company shall have no obligation under this Warranty. Also during such time, the period
of this Warranty shall continue to run and the expiration of this Warranty shall not be extended upon payment of any overdue or unpaid amounts.
COSTS NOT RELATED TO WARRANTY: The End-user shall be invoiced for, and shall pay for, all services not expressly provided for by the terms
of this Warranty, including without limitation, site calls involving an inspection that determines no corrective maintenance is required. Any costs
for replacement equipment, installation, materials, freight charges, travel expenses or labor of Company representatives outside the terms of this
Warranty will be borne by the End-user.
OBTAINING WARRANTY SERVICE: In the USA, call the Customer Reliability Center 7x24 at 800.843.9433. Outside of the USA, contact your local
Eaton product sales or service representative, or call the Customer Reliability Center in the USA at 919.870.3028. For comments or questions about
this Warranty, write to the Customer Quality Representative, 3301 Spring Forest Road, Raleigh, North Carolina 27616 USA.
WARRANTY
Two-Year Limited Warranty (continued)
122 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook
October 1, 2012
WARRANTY
Two-Year Limited Warranty
UPS MODELS: 9155, 9170+ AND FERRUPS 4.318 kVA (USA AND CANADA)
WARRANTOR:ThewarrantorforthelimitedwarrantiessetforthhereinisEatonCorporation,anOhioCorporationcompany(“Company”).
LIMITED WARRANTY:Thislimitedwarranty(this“Warranty”)appliesonlytotheoriginalend-user(the“End-user”)ofany9155,9170andFERRUPS
4.3–18kVAProducts(individuallyandcollectively,the“Product”)purchasedonorafterJune1,2004,andcannotbetransferred.ThisWarranty
applies even in the event that the Product is initially sold by Company for resale to an End-user.
LIMITED WARRANTY PERIOD: The period covered by this Warranty for Product installed [and currently located] in the fifty (50) United States, the
District of Columbia and Canada is twenty-four (24) months from the date of purchase for parts, or thirty (30) months from the date of shipment for
parts, and ninety (90) days from the date of purchase for labor, as further clarified in the following sections.
WHAT THIS LIMITED WARRANTY COVERS:ThewarrantorwarrantsthattheProductandbattery(individuallyandcollectively,the“Warranted
Items”) are free of defects in material and workmanship. If, in the opinion of Company, a Warranted Item is defective and the defect is within the
terms of this Warranty, Company's sole obligation will be to repair or replace such defective Warranted Items (including by providing service, parts
and labor, as applicable), at the option of Company, and such repair or replacement shall be at either the End-user's location, Company's site, or such
other location as determined by Company. All Warranted Items returned to Company and all parts replaced by Company shall become the property of
Company. Expenses for any labor to repair the Warranted Item beyond the initial ninety (90) days are the sole responsibility of the End-user.
PROCEDURES FOR REPAIR OR REPLACEMENT OF WARRANTED ITEMS: When shipment is required of End-user: When Company determines that
the Warranted Item will be repaired or replaced at a Company site or such other location, and the End-user must ship to Company the defective
Warranted Item, the following procedures are required.
If the Warranted Item is to be replaced by Company, and the End-user supplies a credit card number or purchase order for the value of the
replacement product, Company will use commercially reasonable business efforts to ship (via standard ground shipment and at no cost to the
End-user) the replacement Warranted Item to the End-user within one (1) business day after Company receives notice of the warranty claim. In
such case, the End-user must return (at Company's expense) the defective Warranted Item to Company in the same packaging as the replacement
Warranted Item received by the End-user or as otherwise instructed by Company. If Company does not receive the defective Warranted Item,
Company will either charge the End-user's credit card, or send the End-user an invoice (which the End-user agrees to pay), for the value of the
replacement product.
If the Warranted Item is to be replaced by Company, but the End-user is unwilling or unable to supply a credit card number or purchase order for the
value of the replacement product, Company will use commercially reasonable business efforts to ship (via standard ground shipment and at no cost
to the End-user) the replacement Warranted Item to the End-user within one (1) business day after Company receives the defective product from the
End-user.
In any case, Company will provide shipping instructions and will pay its designated carrier for all shipping charges for return of defective equipment
and replacement of Warranted Items. Any returned Warranted Item or parts that are replaced may be new or reconditioned. All Warranted Items
returned to Company and all parts replaced by Company shall become the property of Company.
WHAT THIS LIMITED WARRANTY DOES NOT COVER: This Warranty does not cover any defects or damages caused by: (a) failure to properly store
the Product before installation, including the charge of batteries no later than the date indicated on the packaging; (b) shipping and delivery of the
Product if shipping is FOB Factory; (c) neglect, accident, abuse, misuse, misapplication or incorrect installation; (d) repair or alteration not authorized
in writing by Company personnel or performed by an authorized Company Customer Service Engineer or Agent; (e) improper testing, operation,
maintenance, adjustment or modification of any kind not authorized in writing by Company personnel or performed by an authorized Company
Customer Service Engineer or Agent; or (f) use of the Product under other than normal operating conditions or in a manner inconsistent with the
Product's labels or instructions.
This Warranty is not valid if the Product's serial numbers have been removed or are illegible. Any Warranted Items repaired or replaced pursuant to
this Warranty will be warranted for the remaining portion of the original Warranty subject to all the terms thereof.
Company shall not be responsible for any charges for testing, checking, removal or installation of Warranted Items.
123www.eaton.com/powerquality 1.800.461.9166
October 1, 2012
October 1, 2012
WARRANTY
Two-Year Limited Warranty (continued)
COMPANY DOES NOT WARRANT EQUIPMENT NOT MANUFACTURED BY COMPANY. IF PERMITTED BY THE APPLICABLE MANUFACTURER,
COMPANY SHALL PASS THROUGH SUCH MANUFACTURER'S WARRANTIES TO END-USER.
COMPANY DOES NOT WARRANT SOFTWARE, INCLUDING SOFTWARE EMBEDDED IN PRODUCTS, THAT IS NOT CREATED BY COMPANY.
WITHOUT LIMITING THE FOREGOING, COMPANY SPECIFICALLY DOES NOT WARRANT SOFTWARE (SUCH AS LINUX) THAT WAS CREATED USING
AN “OPEN SOURCE” MODEL OR IS DISTRIBUTED PURSUANT TO AN OPEN SOURCE LICENSE.
THIS WARRANTY IS THE SOLE AND EXCLUSIVE WARRANTY OFFERED BY COMPANY WITH RESPECT TO THE PRODUCTS AND SERVICES AND,
EXCEPT FOR SUCH FOREGOING WARRANTY COMPANY DISCLAIMS ALL OTHER WARRANTIES INCLUDING BUT NOT LIMITED TO ANY IMPLIED
WARRANTIES OF MERCHANTABILITY, TITLE, NON-INFRINGEMENT AND FITNESS FOR A PARTICULAR PURPOSE. CORRECTION OF NON-
CONFORMITIES IN THE MANNER AND FOR THE PERIOD OF TIME PROVIDED ABOVE SHALL CONSTITUTE COMPANY'S SOLE LIABILITY AND END-
USER'S EXCLUSIVE REMEDY FOR FAILURE OF COMPANY TO MEET ITS WARRANTY OBLIGATIONS, WHETHER CLAIMS OF THE END-USER ARE
BASED IN CONTRACT, IN TORT (INCLUDING NEGLIGENCE OR STRICT LIABILITY), OR OTHERWISE.
LIMITATION OF LIABILITY: The remedies of the End-user set forth herein are exclusive and are the sole remedies for any failure of Company to
comply with its obligations hereunder. In no event shall Company be liable in contract, in tort (including negligence or strict liability) or otherwise
for damage to property or equipment other than the Products, including loss of profits or revenue, loss of use of Products, loss of data, cost of
capital, claims of customers of the End-user or any special, indirect, incidental or consequential damages whatsoever. The total cumulative liability
of Company hereunder whether the claims are based in contract (including indemnity), in tort (including negligence or strict liability) or otherwise,
shall not exceed the price of the Product on which such liability is based.
Company shall not be responsible for failure to provide service or parts due to causes beyond Company's reasonable control.
END-USER'S OBLIGATIONS: In order to receive the benefits of this Warranty, the End-user must use the Product in a normal way; follow the
Product's operation and maintenance manual; and protect against further damage to the Product if there is a covered defect.
OTHER LIMITATIONS: Company's obligations under this Warranty are expressly conditioned upon receipt by Company of all payments due to it
(including interest charges, if any). During such time as Company has not received payment of any amount due to it for the Product, in accordance
with the contract terms under which the Product is sold, Company shall have no obligation under this Warranty. Also during such time, the period
of this Warranty shall continue to run and the expiration of this Warranty shall not be extended upon payment of any overdue or unpaid amounts.
COSTS NOT RELATED TO WARRANTY: The End-user shall be invoiced for, and shall pay for, all services not expressly provided for by the terms
of this Warranty, including without limitation, site calls involving an inspection that determines no corrective maintenance is required. Any costs
for replacement equipment, installation, materials, freight charges, travel expenses or labor of Company representatives outside the terms of this
Warranty will be borne by the End-user.
OBTAINING WARRANTY SERVICE: In the USA, call the Customer Reliability Center 7x24 at 800.843.9433. Outside of the USA, contact your local
Eaton product sales or service representative, or call the Customer Reliability Center in the USA at 919.870.3028. For comments or questions about
this Warranty, write to the Customer Quality Representative, 3301 Spring Forest Road, Raleigh, North Carolina 27616 USA.
124 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook
October 1, 2012
WARRANTY
Limited Warranty (Global)
UPS MODEL: BLADEUPS
WARRANTOR:ThewarrantorforthelimitedwarrantiessetforthhereinisEatonCorporation,anOhioCorporation(“Eaton”).
LIMITED WARRANTY: Thislimitedwarranty(this“Warranty”)appliesonlytotheoriginalPurchaser(the“End-user”)ofanyBladeUPSProducts
(individuallyandcollectively,the“Product”)purchasedandregisteredwithEatonandcannotbetransferred.Thisrestrictionapplieseveninthe
event that the Product is initially sold by Eaton for resale to an End-user. This Warranty gives you specific legal rights, and you may also have
other rights which vary from State to State (or jurisdiction to jurisdiction).
LIMITED WARRANTY PERIOD: The period covered by this Warranty for the Product is eighteen (18) months from date of Product shipment.
WHAT THIS LIMITED WARRANTY COVERS: Eaton warrants that the Product and battery (individually and collectively, the ”Warranted Items”)
are free of defects in material and workmanship. If, in the opinion of Eaton, a Warranted Item is defective and the defect is within the terms of
this Warranty, Eaton’s sole obligation will be to repair or replace such defective Warranted Item (including providing service, parts and labor, as
applicable), at the option of Eaton.
PROCEDURES FOR REPAIR OR REPLACEMENT OF WARRANTED ITEMS: The Warranted Item will be repaired or replaced at an Eaton site or such
other location as determined by Eaton.
If the Warranted Item is to be replaced by Eaton, and the End-user supplies a credit card number or purchase order for the value of the
replacement product, Eaton will use commercially reasonable business efforts to ship (via standard ground shipment and at no cost to the End-
user) the replacement Warranted Item to the End-user within one (1) business day after Eaton receives notice of the warranty claim. In such case,
the End-user must return (at Eaton’s expense) the defective Warranted Item to Eaton in the same packaging as the replacement Warranted Item
received by the End-user or as otherwise instructed by Eaton. If Eaton does not receive the defective Warranted Item, Eaton will either charge the
End-user’s credit card, or send the End-user an invoice (which the End-user agrees to pay), for the value of the replacement product.
If the Warranted Item is to be replaced by Eaton, but the End-user is unwilling or unable to supply a credit card number or purchase order for the
value of the replacement product, Eaton will use commercially reasonable business efforts to ship (via standard ground shipment and at no cost
to the End-user) the replacement Warranted Item to the End-user within one (1) business day after Eaton receives the defective product from the
End-user.
In any case, Eaton will provide shipping instructions and will pay its designated carrier for all shipping charges for return of defective equipment
and replacement of Warranted Items. Any returned Warranted Item or parts that are replaced may be new or re-conditioned. All Warranted Items
returned to Eaton and, in any replacement endeavor, all parts removed by Eaton shall become the property of Eaton.
WHAT THIS LIMITED WARRANTY DOES NOT COVER: This Warranty does not cover any defects or damages caused by: (a) failure to properly
store the Product before installation, including the charge of batteries no later than the date indicated on the packaging; (b) shipping and
deliveryoftheProductifshippingisFOBFactory;(c)damagecausedbyfire,flood,lightning,vandalism,actsofGod,End-user'sneglect,misuse,
misapplication, incorrect connection or external damage; or that has been subject to repair or alteration by End-user (or a third party) not
authorized by Eaton in writing; (d) repair or alteration not performed by an authorized Eaton Customer Service Engineer or Agent; (e) improper
testing, operation, maintenance, adjustment or modification of any kind not authorized in writing by Eaton personnel or performed by an authorized
Eaton Customer Service Engineer or Agent; or (f) use of the Product under other than normal operating conditions or in a manner inconsistent with
the Product’s labels or instructions.
This Warranty is not valid if the Product’s serial numbers have been removed or are illegible. Any Warranted Items repaired or replaced pursuant
to this Warranty will be warranted for the remaining portion of the original Warranty subject to all the terms thereof.
Eaton shall not be responsible for any charges for testing, checking, removal or installation of Warranted Items.
EATON DOES NOT WARRANT EQUIPMENT NOT MANUFACTURED BY EATON. IF PERMITTED BY THE APPLICABLE MANUFACTURER, EATON
SHALL PASS THROUGH SUCH MANUFACTURER’S WARRANTIES TO END-USER.
125www.eaton.com/powerquality 1.800.461.9166
October 1, 2012
October 1, 2012
EATON DOES NOT WARRANT SOFTWARE, INCLUDING SOFTWARE EMBEDDED IN PRODUCTS, THAT IS NOT CREATED BY EATON. WITHOUT LIMITING
THE FOREGOING, EATON SPECIFICALLY DOES NOT WARRANT SOFTWARE (SUCH AS LINUX) THAT WAS CREATED USING AN “OPEN SOURCE” MODEL
OR IS DISTRIBUTED PURSUANT TO AN OPEN SOURCE LICENSE.
THIS WARRANTY IS THE SOLE AND EXCLUSIVE WARRANTY OFFERED BY EATON WITH RESPECT TO THE PRODUCTS AND SERVICES AND, EXCEPT FOR
SUCH FOREGOING WARRANTY EATON DISCLAIMS ALL OTHER WARRANTIES INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF MER-
CHANTABILITY, TITLE, NON-INFRINGEMENT AND FITNESS FOR A PARTICULAR PURPOSE. CORRECTION OF NON-CONFORMITIES IN THE MANNER AND
FOR THE PERIOD OF TIME PROVIDED ABOVE SHALL CONSTITUTE EATON’S SOLE LIABILITY AND END-USER’S EXCLUSIVE REMEDY FOR FAILURE OF
EATON TO MEET ITS WARRANTY OBLIGATIONS, WHETHER CLAIMS OF THE END-USER ARE BASED IN CONTRACT, IN TORT (INCLUDING NEGLIGENCE
OR STRICT LIABILITY) OR OTHERWISE. SOME STATES OR JURISDICTIONS DO NOT ALLOW THE EXCLUSION OF EXPRESS OR IMPLIED WARRANTIES,
SO THE ABOVE EXCLUSION MAY NOT APPLY TO YOU. IN THAT EVENT, SUCH WARRANTIES ARE LIMITED IN DURATION TO THE LIMITED WARRANTY
PERIOD. SOME STATES OR JURISDICTIONS DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS OR THE EXCLUSION OR
LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS AND/OR EXCLUSIONS MAY NOT APPLY TO YOU.
LIMITATION OF LIABILITY: The remedies of the End-user set forth herein are exclusive and are the sole remedies for any failure of Eaton to comply with
its obligations hereunder. In no event shall Eaton be liable for any indirect, incidental, special or consequential damages of any kind or type whatsoever,
resulting from or in connection with any claim or cause of action, whether brought in contract or in tort (including negligence or strict liability). Some
States or jurisdictions do not allow the exclusion of limitation of incidental or consequential damages, so the above limitation or exclusion may not apply
to you. Eaton shall not be responsible for failure to provide service or parts due to causes beyond Eaton’s reasonable control. In no case will Eaton’s
liability under this Warranty exceed the replacement value of the Warranted Items.
END-USER’S OBLIGATIONS: In order to receive the benefits of this Warranty, the End-user must register the product warranty (via mail or online at
www.eaton.com/powerquality“warrantyregistration”);usetheProductinanormalway;followtheProduct’soperationandmaintenancemanual;and
protect against further damage to the Product if there is a covered defect.
OTHER LIMITATIONS: Eaton’s obligations under this Warranty are expressly conditioned upon receipt by Eaton of all payments due from End-user
(including interest charges, if any). During such time as Eaton has not received payment of any amount due to it for the Product, in accordance with the
contract terms under which the Product is sold, Eaton shall have no obligation under this Warranty. Also during such time, the period of this Warranty
shall continue to run and the expiration of this Warranty shall not be extended upon payment of any overdue or unpaid amounts.
COSTS NOT RELATED TO WARRANTY: The End-user shall be invoiced for, and shall pay for, all services not expressly provided for by the terms of
this Warranty, including without limitation, site calls involving an inspection that determines no corrective maintenance is required. Any costs for
replacement equipment, installation, materials, freight charges, travel expenses or labor of Eaton representatives outside the terms of this Warranty will
be borne by the End-User.
OBTAINING WARRANTY SERVICE: In the United States, call the Customer Reliability Center 7x24 at 800.356.5737. Outside of the United States, contact
your local Eaton product sales or service representative, or call the Customer Reliability Center in the United States at 919.870.3028. For comments or
questions about this Warranty, write to the Customer Quality Representative, 3301 Spring Forest Road, Raleigh, North Carolina 27616 USA.
WARRANTY
Limited Warranty (Global) (continued)
126 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook
October 1, 2012
WARRANTY
Two-Year Limited Warranty (USA and Canada)
CONNECTIVITY DEVICES
WARRANTOR:ThewarrantorforthelimitedwarrantiessetforthhereinisEatonCorporation,anOhioCorporationCompany(“Company”).
LIMITED WARRANTY: Thislimitedwarranty(this“Warranty”)appliesonlytotheoriginalEnd-user(the“End-user”)ofany3,5and9series
ConnectivityDevices(the“Product”)purchasedonorafterJune1,2004,andcannotbetransferred.ThisWarrantyappliesevenintheeventthat
the Product is initially sold by Company for resale to an End-user.
LIMITED WARRANTY PERIOD: The period covered by this Warranty for the Product installed [and currently located] in the fifty (50) United States,
the District of Columbia, and Canada is twenty-four (24) months from the date of purchase.
WHAT THIS LIMITED WARRANTY COVERS: ThewarrantorwarrantsthattheProduct(the“WarrantedItem”)isfreefromdefectsinmaterialand
workmanship. If, in the opinion of Company, a Warranted Item is defective and the defect is within the terms of this Warranty, Company’s sole
obligation will be to repair or replace such defective Warranted Item (including by providing service, parts and labor, as applicable), at the option
of Company.
PROCEDURES FOR REPAIR OR REPLACEMENT OF WARRANTED ITEMS: The Warranted Item will be repaired or replaced at a Company site or
such other location as determined by Company.
If the Warranted Item is to be replaced by Company, and the End-user supplies a credit card number or purchase order for the value of the
replacement Product, Company will use commercially reasonable business efforts to ship (via standard ground shipment and at no cost to the
End-user) the replacement Warranted Item to the End-user within one (1) business day after Company receives notice of the warranty claim. In
such case, the End-user must return (at Company’s expense) the defective Warranted Item to Company in the same packaging as the replacement
Warranted Item received by the End-user or as otherwise instructed by Company. If Company does not receive the defective Warranted Item,
Company will either charge the End-user’s credit card, or send the End-User an invoice (which the End-user agrees to pay), for the value of the
replacement Product.
If the Warranted Item is to be replaced by Company, but the End-user is unwilling or unable to supply a credit card number or purchase order for
the value of the replacement Product, Company will use commercially reasonable business efforts to ship (via standard ground shipment and at no
cost to the End-user) the replacement Warranted Item to the End-user within one (1) business day after Company receives the defective Product
from the End-user.
In any case, Company will provide shipping instructions and will pay its designated carrier for all shipping charges for return of defective
equipment and replacement of Warranted Items. Any returned Warranted Item or parts that are replaced may be new or reconditioned. All
Warranted Items returned to Company and all parts replaced by Company shall become the property of Company.
WHAT THIS LIMITED WARRANTY DOES NOT COVER: This Warranty does not cover any defects or damages caused by: (a) failure to properly
store the Product before installation; (b) shipping and delivery of the Product if shipping is FOB Factory; (c) neglect, accident, abuse, misuse,
misapplication or incorrect installation; (d) repair or alteration not authorized in writing by Company personnel or performed by an authorized
Company Customer Service Engineer or Agent; (e) improper testing, operation, maintenance, adjustment or modification of any kind not authorized
in writing by Company personnel or performed by an authorized Company Customer Service Engineer or Agent; or (f) use of the Product under
other than normal operating conditions or in a manner inconsistent with the Product’s labels or instructions.
This Warranty is not valid if the Product’s serial numbers have been removed or are illegible. Any Warranted Items repaired or replaced pursuant
to this Warranty will be warranted for the remaining portion of the original Warranty subject to all the terms thereof.
Company shall not be responsible for any charges for testing, checking, removal or installation of Warranted Items.
COMPANY DOES NOT WARRANT EQUIPMENT NOT MANUFACTURED BY COMPANY. IF PERMITTED BY THE APPLICABLE MANUFACTURER,
COMPANY SHALL PASS THROUGH SUCH MANUFACTURER’S WARRANTIES TO END-USER.
COMPANY DOES NOT WARRANT SOFTWARE (IF APPLICABLE TO THE PRODUCT), INCLUDING SOFTWARE EMBEDDED IN PRODUCTS, THAT
IS NOT CREATED BY COMPANY. WITHOUT LIMITING THE FOREGOING, COMPANY SPECIFICALLY DOES NOT WARRANT SOFTWARE (SUCH AS
LINUX) THAT WAS CREATED USING AN “OPEN SOURCE” MODEL OR IS DISTRIBUTED PURSUANT TO AN OPEN SOURCE LICENSE.
127www.eaton.com/powerquality 1.800.461.9166
October 1, 2012
October 1, 2012
COMPANY DOES NOT WARRANT SOFTWARE (IF APPLICABLE TO THE PRODUCT), INCLUDING SOFTWARE EMBEDDED IN PRODUCTS, THAT IS NOT
CREATED BY COMPANY. WITHOUT LIMITING THE FOREGOING, COMPANY SPECIFICALLY DOES NOT WARRANT SOFTWARE (SUCH AS LINUX) THAT
WAS CREATED USING AN “OPEN SOURCE” MODEL OR IS DISTRIBUTED PURSUANT TO AN OPEN SOURCE LICENSE.
THIS WARRANTY IS THE SOLE AND EXCLUSIVE WARRANTY OFFERED BY COMPANY WITH RESPECT TO THE PRODUCTS AND SERVICES AND, EXCEPT
FOR SUCH FOREGOING WARRANTY COMPANY DISCLAIMS ALL OTHER WARRANTIES INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTIES
OF MERCHANTABILITY, TITLE, NON-INFRINGEMENT, AND FITNESS FOR A PARTICULAR PURPOSE. CORRECTION OF NON-CONFORMITIES IN THE
MANNER AND FOR THE PERIOD OF TIME PROVIDED ABOVE SHALL CONSTITUTE COMPANY’S SOLE LIABILITY AND END-USER’S EXCLUSIVE REMEDY
FOR FAILURE OF COMPANY TO MEET ITS WARRANTY OBLIGATIONS, WHETHER CLAIMS OF THE END-USER ARE BASED IN CONTRACT, IN TORT
(INCLUDING NEGLIGENCE OR STRICT LIABILITY), OR OTHERWISE.
LIMITATION OF LIABILITY: The remedies of the End-user set forth herein are exclusive and are the sole remedies for any failure of Company to comply
with its obligations hereunder. In no event shall Company be liable in contract, in tort (including negligence or strict liability) or otherwise for damage
to property or equipment other than the Products, including loss of profits or revenue, loss of use of Products, loss of data, cost of capital, claims of
customers of the End-user or any special, indirect, incidental or consequential damages whatsoever. The total cumulative liability of Company hereunder
whether the claims are based in contract (including indemnity), in tort (including negligence or strict liability) or otherwise, shall not exceed the price of
the Product on which such liability is based.
Company shall not be responsible for failure to provide service or parts due to causes beyond Company’s reasonable control.
END-USER’S OBLIGATIONS: In order to receive the benefits of this Warranty, the End-user must use the Product in a normal way; follow the Product’s
user’s guide; and protect against further damage to the Product if there is a covered defect.
OTHER LIMITATIONS: Company’s obligations under this Warranty are expressly conditioned upon receipt by Company of all payments due to it
(including interest charges, if any). During such time as Company has not received payment of any amount due to it for the Product, in accordance with
the contract terms under which the Product is sold, Company shall have no obligation under this Warranty. Also during such time, the period of this
Warranty shall continue to run and the expiration of this Warranty shall not be extended upon payment of any overdue or unpaid amounts.
COSTS NOT RELATED TO WARRANTY: The End-User shall be invoiced for, and shall pay for, all services not expressly provided for by the terms of
this Warranty, including without limitation, site calls involving an inspection that determines no corrective maintenance is required. Any costs for
replacement equipment, installation, materials, freight charges, travel expenses or labor of Company representatives outside the terms of this Warranty
will be borne by the End-User.
OBTAINING WARRANTY SERVICE: In the USA, call the Customer Reliability Center 7x24 at 800.356.5737. Outside of the USA, contact your local product
sales or service representative, or call the Customer Reliability Center in the USA at 919.870.3149. For comments or questions about this Warranty, write
to the Customer Quality Representative, 3301 Spring Forest Road, Raleigh, North Carolina 27616 USA.
WARRANTY
Two-Year Limited Warranty (USA and Canada) (continued)
128 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook
October 1, 2012
WARRANTY
Limited Warranty (USA and Canada)
EPDU ENCLOSURE POWER DISTRIBUTION UNITS
WARRANTOR: ThewarrantorforthelimitedwarrantiessetforthhereinisEatonCorporation,anOhioCorporationCompany(“Company”).
RACKMOUNTED LIMITED WARRANTY:Thislimitedwarranty(this“Warranty”)appliesonlytotheoriginalEnd-user(the“End-user”)ofanyEaton
RackmountedPowerDistributionUnits(the“Product”)purchasedonorafterJuly1,2012,andcannotbetransferred.ThisWarrantyappliesevenin
the event that the Product is initially sold by Company for resale to an End-user.
LIMITED WARRANTY PERIOD: The period covered by this Warranty for Product installed [and currently located] in the fifty (50) United States, the
District of Columbia and Canada is twenty-four (24) months from the date of purchase, or thirty (30) months from the date of shipment. For units
that are registered online at www.eaton.com/PQ/Register, the warranty is extended to thirty-six (36) months from the date of purchase, or fortytwo
(42) months from the date of shipment.
WHAT THIS LIMITED WARRANTY COVERS: ThewarrantorwarrantsthattheProduct(the“WarrantedItem”)isfreefromdefectsinmaterialand
workmanship. If, in the opinion of Company, a Warranted Item is defective and the defect is within the terms of this Warranty, Company’s sole
obligation will be to repair or replace such defective Warranted Item (including by providing service, parts and labor, as applicable), at the option of
Company.
PROCEDURES FOR REPAIR OR REPLACEMENT OF WARRANTED ITEMS:
Standard Product: Defined as ePDU product with the product number sequence PWxxxxxxxxxx or eXXXXX, (whereas x can be any value). The War-
ranted item will be repaired or replaced by the Company.
Custom Product: Defined as ePDU product with any product number sequence that does not equal a standard product as noted above. The War-
ranted item will be repaired at a Company site or such other location as determined by Company.
If the Warranted Item is to be replaced by Company, and the End-user supplies a credit card number or purchase order for the value of the
replacement Product, Company will use commercially reasonable business efforts to ship (via standard ground shipment and at no cost to the
End-user) the replacement Warranted Item to the End-user within one (1) business day after Company receives notice of the warranty claim. In
such case, the End-user must return (at Company’s expense) the defective Warranted Item to Company in the same packaging as the replacement
Warranted Item received by the End-user or as otherwise instructed by Company. If Company does not receive the defective Warranted Item,
Company will either charge the End-user’s credit card, or send the End-user an invoice (which the End-user agrees to pay), for the value of the
replacement Product.
If the Warranted Item is to be replaced by Company, but the End-user is unwilling or unable to supply a credit card number or purchase order for
the value of the replacement Product, Company will use commercially reasonable business efforts to ship (via standard ground shipment and at no
cost to the End-user) the replacement Warranted Item to the End-user within one (1) business day after Company receives the defective Product
from the End-user.
In any case, Company will provide shipping instructions and will pay its designated carrier for all shipping charges for return of defective
equipment and replacement of Warranted Items. Any returned Warranted Item or parts that are replaced may be new or reconditioned. All
Warranted Items returned to Company and all parts replaced by Company shall become the property of Company.
WHAT THIS LIMITED WARRANTY DOES NOT COVER: This Warranty does not cover any defects or damages caused by: (a) failure to properly
store the Product before installation; (b) shipping and delivery of the Product if shipping is FOB Factory; (c) neglect, accident, abuse, misuse,
misapplication or incorrect installation; (d) repair or alteration not authorized in writing by Company personnel or performed by an authorized
Company Customer Service Engineer or Agent; (e) improper testing, operation, maintenance, adjustment or modification of any kind not authorized
in writing by Company personnel or performed by an authorized Company Customer Service Engineer or Agent; or (f) use of the Product under
other than normal operating conditions or in a manner inconsistent with the Product’s labels or instructions.
This Warranty is not valid if the Product’s serial numbers have been removed or are illegible. Any Warranted Items repaired or replaced pursuant
to this Warranty will be warranted for the remaining portion of the original Warranty subject to all the terms thereof.
Company shall not be responsible for any charges for testing, checking, removal or installation of Warranted Items.
129www.eaton.com/powerquality 1.800.461.9166
October 1, 2012
October 1, 2012
COMPANY DOES NOT WARRANT EQUIPMENT NOT MANUFACTURED BY COMPANY. IF PERMITTED BY THE APPLICABLE MANUFACTURER,
COMPANY SHALL PASS THROUGH SUCH MANUFACTURER’S WARRANTIES TO END-USER.
COMPANY DOES NOT WARRANT SOFTWARE (IF APPLICABLE TO THE PRODUCT), INCLUDING SOFTWARE EMBEDDED IN PRODUCTS, THAT
IS NOT CREATED BY COMPANY. WITHOUT LIMITING THE FOREGOING, COMPANY SPECIFICALLY DOES NOT WARRANT SOFTWARE (SUCH AS
LINUX) THAT WAS CREATED USING AN “OPEN SOURCE” MODEL OR IS DISTRIBUTED PURSUANT TO AN OPEN SOURCE LICENSE.
THIS WARRANTY IS THE SOLE AND EXCLUSIVE WARRANTY OFFERED BY COMPANY WITH RESPECT TO THE PRODUCTS AND SERVICES AND,
EXCEPT FOR SUCH FOREGOING WARRANTY COMPANY DISCLAIMS ALL OTHER WARRANTIES INCLUDING BUT NOT LIMITED TO ANY IMPLIED
WARRANTIES OF MERCHANTABILITY, TITLE, NON-INFRINGEMENT AND FITNESS FOR A PARTICULAR PURPOSE. CORRECTION OF NON-
CONFORMITIES IN THE MANNER AND FOR THE PERIOD OF TIME PROVIDED ABOVE SHALL CONSTITUTE COMPANY’S SOLE LIABILITY AND END-
USER’S EXCLUSIVE REMEDY FOR FAILURE OF COMPANY TO MEET ITS WARRANTY OBLIGATIONS, WHETHER CLAIMS OF THE END-USER ARE
BASED IN CONTRACT, IN TORT (INCLUDING NEGLIGENCE OR STRICT LIABILITY), OR OTHERWISE.
LIMITATION OF LIABILITY: The remedies of the End-user set forth herein are exclusive and are the sole remedies for any failure of Company to
comply with its obligations hereunder. In no event shall Company be liable in contract, in tort (including negligence or strict liability) or otherwise
for damage to property or equipment other than the Products, including loss of profits or revenue, loss of use of Products, loss of data, cost of
capital, claims of customers of the End-user or any special, indirect, incidental or consequential damages whatsoever. The total cumulative liability
of Company hereunder whether the claims are based in contract (including indemnity), in tort (including negligence or strict liability) or otherwise,
shall not exceed the price of the Product on which such liability is based.
Company shall not be responsible for failure to provide service or parts due to causes beyond Company’s reasonable control.
END-USER’S OBLIGATIONS: In order to receive the benefits of this Warranty, the End-user must use the Product in a normal way; follow the
Product’s user’s guide; and protect against further damage to the Product if there is a covered defect.
OTHER LIMITATIONS: Company’s obligations under this Warranty are expressly conditioned upon receipt by Company of all payments due to it
(including interest charges, if any). During such time as Company has not received payment of any amount due to it for the Product, in accordance
with the contract terms under which the Product is sold, Company shall have no obligation under this Warranty. Also during such time, the period
of this Warranty shall continue to run and the expiration of this Warranty shall not be extended upon payment of any overdue or unpaid amounts.
COSTS NOT RELATED TO WARRANTY: The End-user shall be invoiced for, and shall pay for, all services not expressly provided for by the terms
of this Warranty, including without limitation, site calls involving an inspection that determines no corrective maintenance is required. Any costs
for replacement equipment, installation, materials, freight charges, travel expenses or labor of Company representatives outside the terms of this
Warranty will be borne by the End-user.
OBTAINING WARRANTY SERVICE: In the USA, call the Customer Reliability Center 7x24 at 800.356.5737. Outside of the USA, contact your local
Eaton product sales or service representative, or call the Customer Reliability Center in the USA at 919.870.3149. For comments or questions about
this Warranty, write to the Customer Quality Representative, 3301 Spring Forest Road, Raleigh, North Carolina 27616 USA.
WARRANTY
Two-Year Limited Warranty (USA and Canada) (continued)
130 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook
October 1, 2012
WARRANTY
Limited Factory Warranty For Eaton Three-phase UPS Products
THREE-PHASE PRODUCTS
WARRANTOR: ThewarrantorforthelimitedwarrantiessetforthhereinisEatonCorporation,anOhioCorporation(“Eaton”).
LIMITED WARRANTY: Thislimitedwarranty(this“Warranty”)appliesonlytotheoriginalEnd-user(the“End-user”)oftheEatonthree-phaseUPS
Products(the“Product”)andcannotbetransferred.ThisWarrantyappliesevenintheeventthattheProductisinitiallysoldbyEatonforresaleto
an End-user.
LIMITED WARRANTY PERIOD: The period covered by this Warranty for Product installed [and currently located] in the fifty (50) United States and
the District of Columbia is twelve (12) months from the date of Product startup or eighteen (18) months from date of Product shipment, whichever
occurs first, for parts coverage and 90 days from the date of Product startup for labor coverage. The period covered by this Warranty for Product
installed [and currently located] outside of the fifty (50) United States and the District of Columbia is twelve (12) months from the date of Product
startup or eighteen (18) months from date of Product shipment, whichever occurs first, for parts coverage.
WHAT THIS LIMITED WARRANTY COVERS: The warrantor warrants that the Eaton three-phase UPS electronics, Eaton-built accessories, and
Eaton-built battery cabinets, (individually and collectively, the ”Warranted Items”) are free from defects in material and workmanship. If, in the
opinion of Eaton, a Warranted Item is defective and the defect is within the terms of this Warranty, Eaton’s sole obligation will be to repair or
replace such defective item (including by providing service, parts and labor, as applicable), at the option of Eaton. The Warranted Item will be
repaired or replaced onsite at the End-user’s location or such other location as determined by Eaton. Any parts that are replaced may be new or
reconditioned. All parts replaced by Eaton shall become the property of Eaton.
WHAT THIS LIMITED WARRANTY DOES NOT COVER: This Warranty does not cover any defects or damages caused by: (a) failure to properly
store the Product before installation, including the "trickle charge" of batteries no later than the date indicated on the packaging; (b) shipping and
deliveryoftheProductifshippingisFOBFactory;(c)neglect,accident,fire,flood,lightning,vandalism,actsofGod,Customer'sneglect,abuse,
misuse, misapplication, incorrect installation; (d) repair or alteration, not authorized in writing by Eaton personnel or performed by an authorized
Eaton Customer Service Engineer or Agent; or (e) improper testing, operation, maintenance, adjustment or any modification of any kind not
authorized in writing by Eaton personnel or performed by an authorized Eaton Customer Service Engineer or Agent.
This Warranty is not valid: (a) unless an authorized Eaton Customer Service Engineer (in USA) or Agent (outside of USA) performs startup and
commissioning of the Product; (b) if the Product is moved to a new location by someone other than an authorized Eaton Customer Service Engineer
(in USA) or Agent (outside of USA); or (c) if the Product’s serial numbers have been removed or are illegible. Any Warranted Items repaired or
replaced pursuant to this Warranty will be warranted for the remaining portion of the original Warranty subject to all the terms thereof. Labor
warranty is not provided for Product located outside of the fifty (50) United States or the District of Columbia. Any equipment, parts or materials
included in the Product and not manufactured by Eaton are warranted solely by the manufacturer of such equipment, parts or materials and are
not included as part of this warranty. Batteries are not warranted by Eaton.
THIS WARRANTY IS THE END-USER'S SOLE REMEDY AND IS EXPRESSLY IN LIEU OF, AND THERE ARE NO OTHER, EXPRESSED OR IMPLIED
GUARANTEES OR WARRANTIES (INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR ANY PURPOSE, WHICH ARE
EXPRESSLY DISCLAIMED).
LIMITATION OF LIABILITY: In no event shall Eaton be liable for any indirect, incidental, special or consequential damages of any kind or type
whatsoever, or based on any claim or cause of action, however denominated. Eaton shall not be responsible for failure to provide service or
parts due to causes beyond Eaton's reasonable control. In no case will Eaton's liability under this Warranty exceed the replacement value of the
Warranted Items.
END-USER’S OBLIGATIONS: In order to receive the benefits of this Warranty, the End-user must use the Product in a normal way; follow the
Product’s operators and maintenance manual; and protect against further damage to the Product if there is a covered defect.
OTHER LIMITATIONS: Eaton’s obligations under this Warranty are expressly conditioned upon receipt by Eaton of all payments due to it (including
interest charges, if any). During such time as Eaton has not received payment of any amount due to it for the Product, in accordance with the
contract terms under which the Product is sold, Eaton shall have no obligation under this Warranty. Also during such time, the period of this
Warranty shall continue to run and the expiration of this Warranty shall not be extended upon payment of any overdue or unpaid amounts.
COSTS NOT RELATED TO WARRANTY: The End-user shall be invoiced for, and shall pay for, all services not expressly provided for by the terms
of this Warranty, including without limitation, site calls involving an inspection that determines no corrective maintenance is required. Any costs
for replacement equipment, installation, materials, freight charges, travel expenses or labor of Eaton representatives outside the terms of this
Warranty will be borne by the End-user.
OBTAINING WARRANTY SERVICE: In the USA, call the Eaton Customer Reliability Center 7x24 at 800.843.9433. Outside of the USA, call your local
Eaton sales or service representative, or call the Eaton Customer Reliability Center in the USA at 919.870.3028. For comment or questions about this
Limited Factory Warranty, write to the Customer Quality Representative, 3301 Spring Forest Road, Raleigh, North Carolina 27616 USA.
131www.eaton.com/powerquality 1.800.461.9166
October 1, 2012
October 1, 2012
WARRANTY
Limited Factory Warranty For Eaton 9355 UPS Products
9355
WARRANTOR: ThewarrantorforthelimitedwarrantiessetforthhereinisEatonCorporation,anOhioCorporation(“Eaton”).
LIMITED WARRANTY: Thislimitedwarranty(this“Warranty”)appliesonlytotheoriginalEnd-user(the“End-user”)ofthe9355UPSProducts(the
“Product”)andcannotbetransferred.ThisWarrantyappliesevenintheeventthattheProductisinitiallysoldbyEatonforresaletoanEnd-user.
WHAT THIS LIMITED WARRANTY COVERS: The warrantor warrants, within the terms of this Warranty, that the Eaton three-phase UPS electronics,
Eaton-built accessories and Eaton-built battery cabinets, (individually and collectively, the ”Warranted Items”) are free from defects in material and
workmanship.
For Product installed (and currently located) in the fifty (50) United States and the District of Columbia, if, in the opinion of Eaton, a Warranted Item
is defective, Eaton’s sole obligation, at the option of Eaton, will be to refurbish or replace such defective Warranted Item (including the costs of
providingdiagnosis,service,andlabor[“laborcoverage”]).ThedefectiveWarrantedItemwillberefurbishedorreplacedonsiteattheEnd-user’s
location or such other location as determined by Eaton. Any parts that are replaced may be new or reconditioned. All parts replaced by Eaton shall
become the property of Eaton.
For Product installed (and currently located) outside the fifty (50) United States and the District of Columbia, if, in the opinion of Eaton, a Warranted
Item is defective, Eaton’s sole obligation, at the option of Eaton, will be to refurbish or replace such defective Warranted Item. (not including the
costs of labor coverage). The defective Warranted Item will be refurbished or replaced onsite at the End-User’s location or such other location as
determined by Eaton. Any parts that are replaced may be new or reconditioned. All parts replaced by Eaton shall become the property of Eaton.
LIMITED WARRANTY PERIOD:
The period covered by this Warranty for Product installed (and currently located) in the fifty (50) United States and the District of Columbia is ninety
(90) days from the date of Product purchase for labor coverage and twelve (12) months from the date of Product purchase or eighteen (18) months
from date of Product shipment, whichever occurs first, for the refurbishment/replacement of parts.
The period covered by this Warranty for Product installed (and currently located) outside of the fifty (50) United States and the District of Columbia
is twelve (12) months from the date of Product purchase or eighteen (18) months from date of Product shipment, whichever occurs first, for the
refurbishment/replacement of parts.
WHAT THIS LIMITED WARRANTY DOES NOT COVER:
This Warranty does not cover any defects or damages caused by: (a) failure to properly store the Product before installation, including the "trickle
charge" of batteries no later than the date indicated on the packaging; (b) shipping and delivery of the Product if shipping is FOB Factory; (c) neglect,
accident,fire,flood,lightning,vandalism,actsofGod,Customer'sneglect,abuse,misuse,misapplication,incorrectinstallation;(d)repairoralteration,
not authorized in writing by Eaton personnel or performed by an authorized Eaton Customer Service Engineer or Agent; or (e) improper testing,
operation, maintenance, adjustment or any modification of any kind not authorized in writing by Eaton personnel or performed by an authorized Eaton
Customer Service Engineer or Agent.
This Warranty is not valid: if the Product’s serial numbers have been removed or are illegible. Any Warranted Items repaired or replaced pursuant to
this Warranty will be warranted for the remaining portion of the original Warranty subject to all the terms thereof. Labor warranty is not provided for
Product located outside of the fifty (50) United States or the District of Columbia. Any equipment, parts or materials included in the Product and
not manufactured by Eaton are warranted solely by the manufacturer of such equipment, parts or materials and are not included as part
of this warranty. Batteries are not warranted by Eaton.
THIS WARRANTY IS THE END-USER'S SOLE REMEDY AND IS EXPRESSLY IN LIEU OF, AND THERE ARE NO OTHER, EXPRESSED OR IM-
PLIED GUARANTEES OR WARRANTIES (INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR ANY PURPOSE,
WHICH ARE EXPRESSLY DISCLAIMED).
LIMITATION OF LIABILITY: In no event shall Eaton be liable for any indirect, incidental, special or consequential damages of any kind or type
whatsoever, or based on any claim or cause of action, however denominated. Eaton shall not be responsible for failure to provide service or parts
due to causes beyond Eaton's reasonable control. In no case will Eaton's liability under this Warranty exceed the replacement value of the War-
ranted Items.
132 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook
October 1, 2012
END-USER’S OBLIGATIONS: In order to receive the benefits of this Warranty, the End-user must register the product warranty (via mail or online
atwww.eaton.com/powerquality“productregistration”);usetheProductinanormalway;followtheProduct’soperatorsandmaintenancemanual;
and protect against further damage to the Product if there is a covered defect.
OTHER LIMITATIONS: Eaton’s obligations under this Warranty are expressly conditioned upon receipt by Eaton of all payments due to it (including
interest charges, if any). During such time as Eaton has not received payment of any amount due to it for the Product, in accordance with the con-
tract terms under which the Product is sold, Eaton shall have no obligation under this Warranty. Also during such time, the period of this Warranty
shall continue to run and the expiration of this Warranty shall not be extended upon payment of any overdue or unpaid amounts.
COSTS NOT RELATED TO WARRANTY: The End-user shall be invoiced for, and shall pay for, all services not expressly provided for by the terms of
this Warranty, including without limitation, site calls involving an inspection that determines no corrective maintenance is required. Any costs for
replacement equipment, installation, materials, freight charges, travel expenses or labor of Eaton representatives outside the terms of this Warranty
will be borne by the End-user.
OBTAINING WARRANTY SERVICE: In the USA, call the Eaton Customer Reliability Center 7x24 at 800.843.9433. Outside of the USA, call your local
Eaton sales or service representative, or call the Eaton Customer Reliability Center in the USA at 919.870.3028. For comment or questions about this
Limited Factory Warranty, write to the Customer Quality Representative, 3301 Spring Forest Road, Raleigh, North Carolina 27616 USA.
WARRANTY
Limited Factory Warranty For Eaton 9355 UPS Products (continued)
133www.eaton.com/powerquality 1.800.461.9166
October 1, 2012
October 1, 2012
WARRANTY
Limited Factory Warranty For Eaton 9E UPS Products
9E
WARRANTOR: ThewarrantorforthelimitedwarrantiessetforthhereinisEatonCorporation,anOhioCorporation(“Eaton”).
LIMITED WARRANTY: Thislimitedwarranty(this“Warranty”)appliesonlytotheoriginalPurchaser(the“End-User”)oftheEaton9EUPSProducts
(the“Product”)andcannotbetransferred.ThisrestrictionappliesevenintheeventthattheProductisinitiallysoldbyEatonforresaletoanEnd-User.
This Warranty gives you specific legal rights, and you may also have other rights which vary from State to State (or jurisdiction to jurisdiction).
WHAT THIS LIMITED WARRANTY COVERS: Eaton warrants, within the terms of this Warranty, that the Eaton three-phase UPS electronics,
Eaton-built accessories, and Eaton-built battery cabinets, (individually and collectively, the”Warranted Items”) are free from defects in material and
workmanship.
For Product installed (and currently located) in the fifty (50) United States and the District of Columbia, if, in the opinion of Eaton, a Warranted Item is
defective, Eaton’s sole obligation, at the option of Eaton, will be to refurbish or replace such defective Warranted Item (including the costs of provid-
ingdiagnosis,service,andlabor[“laborcoverage”]).ThedefectiveWarrantedItemwillberefurbishedorreplacedonsiteattheEnd-User’slocation
or such other location as determined by Eaton. Any parts that are replaced may be new or reconditioned. In any replacement endeavor, all parts
removed by Eaton shall become the property of Eaton.
For Product installed (and currently located) outside the fifty (50) United States and the District of Columbia, if, in the opinion of Eaton, a Warranted
Item is defective, Eaton’s sole obligation, at the option of Eaton, will be to refurbish or replace such defective Warranted Item. (not including the
costs of labor coverage). The defective Warranted Item will be refurbished or replaced onsite at the End-User’s location or such other location
as determined by Eaton. Any parts that are replaced may be new or reconditioned. In any replacement endeavor, all parts removed by Eaton shall
become the property of Eaton.
LIMITED WARRANTY PERIOD: The period covered by this Warranty for Product installed (and currently located) in the fifty (50) United States
and the District of Columbia is six (6) months from the date of Product purchase for labor coverage when no startup is performed by an authorized
Eaton Customer Service Engineer or Agent or twelve (12) months from the date of Product purchase with startup performed by an authorized Eaton
Customer Service Engineer or Agent and twelve (12) months from the date of Product purchase or eighteen (18) months from date of Product
shipment, whichever occurs first, for the refurbishment/replacement of parts.
The period covered by this Warranty for Product installed (and currently located) outside of the fifty (50) United States and the District of Columbia is
twelve (12) months from the date of Product purchase or eighteen (18) months from date of Product shipment, whichever occurs first, for the
refurbishment/replacement of parts.
WHAT THIS LIMITED WARRANTY DOES NOT COVER: This Warranty does not cover any defects or damages caused by: (a) failure to properly
store the Product before installation, including the "trickle charge" of batteries no later than the date indicated on the packaging; (b) shipping and
deliveryoftheProductifshippingisFOBFactory;(c)neglect,accident,fire,flood,lightning,vandalism,actsofGod,End-User’sneglect,abuse,
misuse, misapplication, incorrect installation; (d) repair or alteration, not authorized in writing by Eaton personnel or performed by an authorized Eaton
Customer Service Engineer or Agent; or (e) improper testing, operation, maintenance, adjustment, or any modification of any kind not authorized in
writing by Eaton personnel or performed by an authorized Eaton Customer Service Engineer or Agent.
This Warranty is not valid: if the Product’s serial numbers have been removed or are illegible. Any Warranted Items repaired or replaced pursuant
to this Warranty will be warranted for the remaining portion of the original Warranty subject to all the terms thereof. Eaton does not provide a labor
warranty for Product located outside of the fifty (50) United States or the District of Columbia. Any equipment, parts or materials included in the
Product and not manufactured by Eaton are warranted solely by the manufacturer of such equipment, parts or materials and are not included as part
of this Warranty. Batteries are not warranted by Eaton.
THIS WARRANTY IS THE END-USER'S SOLE REMEDY AND IS EXPRESSLY IN LIEU OF, AND THERE ARE NO OTHER, EXPRESSED OR IM-
PLIED GUARANTEES OR WARRANTIES (INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR ANY PURPOSE,
WHICH ARE EXPRESSLY DISCLAIMED). SOME STATES OR JURISDICTIONS DO NOT ALLOW THE EXCLUSION OF EXPRESS OR IMPLIED
WARRANTIES, SO THE ABOVE EXCLUSION MAY NOT APPLY TO YOU. IN THAT EVENT, SUCH WARRANTIES ARE LIMITED IN DURATION TO
THE LIMITED WARRANTY PERIOD. SOME STATES OR JURISDICTIONS DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WAR-
RANTY LASTS OR THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS AND/
OR EXCLUSIONS MAY NOT APPLY TO YOU..
LIMITATION OF LIABILITY: In no event shall Eaton be liable for any indirect, incidental, special or consequential damages of any kind or type
whatsoever, resulting from or in connection with any claim or cause of action, whether brought in contract or in tort (including negligence and strict
liability). Some States or jurisdictions do not allow the exclusion of limitation of incidental or consequential damages, so the above limitation or ex-
clusion may not apply to you. Eaton shall not be responsible for failure to provide service or parts due to causes beyond Eaton's reasonable control.
In no case will Eaton's liability under this Warranty exceed the replacement value of the Warranted Items.
134 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook
October 1, 2012
WARRANTY
Limited Factory Warranty For Eaton 9E UPS Products (continued)
END-USER’S OBLIGATIONS: In order to receive the benefits of this Warranty, the End-User must register the product warranty (via mail or online
atwww.powerquality.eaton.com/Product-Registration“productregistration”);usetheProductinanormalway;followtheProduct’soperatorsand
maintenance manual; and protect against further damage to the Product if there is a covered defect.
OTHER LIMITATIONS: Eaton’s obligations under this Warranty are expressly conditioned upon receipt by Eaton of all payments due from End-User
(including interest charges, if any). During such time as Eaton has not received payment of any amount due to it for the Product, in accordance with
the contract terms under which the Product is sold, Eaton shall have no obligation under this Warranty. Also during such time, the period of this
Warranty shall continue to run and the expiration of this Warranty shall not be extended upon payment of any overdue or unpaid amounts.
COSTS NOT RELATED TO WARRANTY: The End-User shall be invoiced for, and shall pay for, all services not expressly provided for by the terms
of this Warranty, including without limitation, site calls involving an inspection that determines no corrective maintenance is required. Any costs for
replacement equipment, installation, materials, freight charges, travel expenses or labor of Eaton representatives outside the terms of this Warranty
will be borne by the End-User.
OBTAINING WARRANTY SERVICE: In the United States, call the Eaton Customer Reliability Center 7x24 at 800-843-9433. Outside of the United
States, call your local Eaton sales or service representative, or call the Eaton Customer Reliability Center in the United States at 919-870-3028. For
comment or questions about this Limited Factory Warranty, write to the Customer Quality Representative, 3301 Spring Forest Road, Raleigh, North
Carolina 27616 USA.
135www.eaton.com/powerquality 1.800.461.9166
October 1, 2012
October 1, 2012
WARRANTY
Pulsar series
LIMITED WARRANTY & PROPRIETARY RIGHTS FOR PULSAR SERIES SINGLE-PHASE PRODUCTS (T-11)
STANDARD LIMITED WARRANTY FORM (APPLICABLE WITHIN THE UNITED STATES, CANADA AND LATIN AMERICA)
EATON CORPORATION STANDARD SINGLE-PHASE LIMITED WARRANTY
Eaton Corporation warrants single phase products manufactured by Eaton Corporation to be free from defects in materials and workmanship for the fol-
lowingapplicabletimeperiodsbeginningwiththedateofpurchasebyorforthefirstEnd-user(“Purchaser”):
The following products are covered by a one (1) year warranty period:
• Power-Sure700PowerConditioners
The following products are covered by a two (2) year warranty period:
• NovaAVR,Evolution,EvolutionS,EX,MX,MXFrameandEXRT
• Power-Suppress100Ultra-IsolatorNoiseSuppressorsandPower-Sure800PowerConditioners
The following products are covered by a three (3) year warranty period:
• EclipsePersonal
The following products are covered by a five (5) year warranty period:
• Power-SuppressT7
The following products are covered by a ten (10) year warranty period;
• EclipseProandEclipseProTel
The terms and conditions of this standard limited warranty also apply to extended warranty coverage for the Pulsar series.
Any defects in materials or workmanship must be reported to Eaton Corporation within the applicable warranty period. Where labor is not included in the
warranty, any labor performed by Eaton Corporation shall be billed to Purchaser at, and Purchaser agrees to pay, Eaton Corporation standard labor rates
then in effect for all warranty work performed hereunder. Eaton Corporation shall have the sole right to determine if any defective parts are to be repaired
at the job site or whether they are to be returned to the factory for repair or replacement. All items returned to Eaton Corporation for repair or replacement
mustbesentfreightprepaidtoitsfactory.PurchasermustobtainEatonCorporationReturnMaterialsAuthorization(“RMA”)priortoreturningitems.The
conditions stated herein must be met for Eaton Corporation warranty to be valid. Eaton Corporation will not be liable for any damage done by unauthorized
repairwork,unauthorizedreplacementparts,fromanymisapplicationofthesubjectproduct,fordamageduetoaccident,abuseoractofGod(suchas
earthquake, flood, inclement weather, rain or fire), or relating to Purchaser’s failure to follow proper environmental conditions for the product.
In no event shall Eaton Corporation be liable for loss, damage, or expense directly or indirectly arising from the use of or any defects in the subject prod-
uct, or from any other cause, except as expressly stated in this warranty. EXCEPT AS EXPRESSLY STATED IN THIS WARRANTY, EATON CORPORATION
MAKESNOWARRANTIES,EXPRESSORIMPLIED,INCLUDINGANYWARRANTYASTOMERCHANTABILITYORFITNESSFORAPARTICULARPURPOSE
ORUSEORNON-INFRINGEMENT.SOMESTATESORJURISDICTIONSDONOTALLOWTHEEXCLUSIONOFEXPRESSORIMPLIEDWARRANTIES,SOTHE
ABOVE EXCLUSION MAY NOT APPLY TO YOU. IN THAT EVENT, SUCH WARRANTIES ARE LIMITED IN DURATION TO THE LIMITED WARRANTY PERIOD.
SOMESTATESORJURISDICTIONSDONOTALLOWLIMITATIONSONHOWLONGANIMPLIEDWARRANTYLASTSORTHEEXCLUSIONORLIMITATION
OFINCIDENTALORCONSEQUENTIALDAMAGES,SOTHEABOVELIMITATIONSAND/OREXCLUSIONSMAYNOTAPPLYTOYOU.
Eaton Corporation is not liable for and Purchaser waives any right of action it has or may have against Eaton Corporation for any consequential or special
damages arising out of any breach of warranty, and for any damages Purchaser may claim for damage to any property or injury or death to any person
arising out of its purchase or the use, operation or maintenance of the subject product. In no event will Eaton Corporation be liable for any labor subcon-
tracted or performed by Purchaser for preparation of the warranted item for return to an Eaton Corporation factory or for preparation work for field repair
or replacement, and Eaton Corporation will not be responsible to pay any invoice therefore. Some States and jurisdictions do not allow the exclusion or
limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.
This warranty shall be exclusive of any and all other warranties express or implied and may be modified only by a writing signed by an authorized officer
of Eaton Corporation. This warranty shall extend to the Purchaser but to no one else. Accessories supplied by Eaton Corporation, but manufactured by
others, carry any warranty the manufacturers have made to Eaton Corporation, and which can be passed on to Purchaser.
EATON CORPORATION makes no warranty with respect to whether the products sold hereunder infringe any patent, U.S. or foreign, and Purchaser
136 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook
October 1, 2012
represents that any specially ordered products do not infringe any patent. Purchaser agrees to indemnify and hold EATON CORPORATION harmless from
any liability by virtue of any patent claims where Purchaser has ordered a product conforming to Purchaser’s specifications, or conforming to Purchaser’s
specific design. Purchaser has not relied and shall not rely on any oral representation regarding any products sold hereunder and any oral representation
shall not bind EATON CORPORATION and shall not be part of any warranty.
This warranty gives you specific legal rights, and you may also have other rights which vary from State to State or jurisdiction to jurisdiction.
PROPRIETARY RIGHTS STATEMENT
The information in this manual is the property of EATON CORPORATION, and represents a proprietary article in which EATON CORPORATION retains any
and all intellectual property rights, including exclusive rights of use and/or manufacture and/or sale. Possession of this information does not convey any
permission to reproduce, print, manufacture, or have made the article or articles shown herein. Such permission may be granted only by specific written
authorization signed by an authorized officer of EATON CORPORATION.
IBM, PC-AT, ES/9000, and AS/400 are trademarks of International Business Machines Corporation. Other trademarks that may be used herein are owned by
their respective companies and are referred to in an editorial fashion only.
Eaton Corporation DPQD, 8709 Kerns Street, San Diego, CA 92154 · 800.279.7776 · www.eaton.com/powerquality · www.eaton.com/mgeops
For Single-phase Warranty applicable outside of the United States, Canada and Latin America, contact the appropriate EATON CORPORATION Regional
Office.
WARRANTY
Pulsar series (continued)
137www.eaton.com/powerquality 1.800.461.9166
October 1, 2012
October 1, 2012
WARRANTY
Limited Warranty (USA and Canada)
EATON DC PRODUCTS
EatonCorporation(“themanufacturer”)warrantsitsequipmentagainstdefectsinmaterialsorworkmanship.Thetermofthiswarrantyshallbeas
stated in the Contract of Sale for such equipment. In the absence of any such statement in the Contract of Sale, the term of this warranty shall be ei-
ther i) one year if the date of initial sale of equipment was before July 1st, 2007, or ii) two years if the date of initial sale of equipment was on or after
July 1st, 2007, AND the purchaser of the equipment is a registered business in the United States of America or Canada. Warranty only applies to the
original purchaser. It does not apply to pre-used equipment.
This warranty is void in any of the following circumstances: (a) the equipment has been misused, neglected, damaged or abused; (b) the equipment
has been improperly installed, operated, repaired or maintained; (c) the equipment has been modified; (d) the equipment has been connected to
other equipment with which it is not compatible; (e) the equipment has been used or stored in conditions outside its electrical or environmental
Specifications; (f) the equipment has been used for purposes other than for which it was designed; (g) the equipment has been used outside its
stated specifications and operating parameters.
Unless otherwise provided in a contract of sale, correct installation is the owner’s responsibility. The equipment must be installed in accordance
with the installation procedures in the relevant supporting documentation. Failure to follow such installation procedures may, at the manufacturer’s
discretion, render this warranty null and void. The manufacturer shall not be liable if the equipment has been altered, damaged or rendered non-
functional through incorrect installation.
The manufacturer does not warrant any modules or components manufactured by third parties. However, the manufacturer shall extend to the
owner, in so far as practicable, the benefit of any warranties that such third party manufacturers may have given to the manufacturer concerning
such modules and components.
Toassertawarrantyclaim,completetheReturnMaterialsAuthorizationform(“RMAform”).AnRMAformisavailablefromthemanufacturerorits
authorized service agent. If the manufacturer accepts the warranty claim, it shall instruct the owner to return the equipment either to the manu-
facturer or its authorized service agent. Wherever possible, use the original packaging to return items. The manufacturer may request proof of
purchase.
If the manufacturer accepts the warranty claim, the manufacturer will provide, or arrange for, service, repair or replacement, as the manufacturer
shall determine in its sole discretion. The manufacturer shall bear the cost of such service, repair or replacement. The owner shall bear the cost of
freight and insurance on the equipment to the manufacturer or its authorized service agent, as the case may be. The manufacturer shall bear the
cost of freight and insurance to return the equipment to the owner.
The manufacturer’s sole responsibility is to repair, replace or service equipment subject to a valid warranty claim. Under no circumstance will the
manufacturer be liable for direct, indirect, incidental, special or consequential costs or damages, including dismantling and re-installation costs,
loss of operations or profits, to the maximum extent permitted by law.
The manufacturer accepts no liability for personal injury or property damage resulting from failure to heed relevant installation, operating and
safety procedures specified by the manufacturer or imposed by law.
This is an express warranty. The manufacturer disclaims any other express or implied warranties, including warranties of merchantability or fitness
for purpose, to the maximum extent permitted by law.
Some jurisdictions do not allow limitations or disclaimers of implied or statutory warranties. Some jurisdictions do not allow disclaimers or exclu-
sions of consequential or incidental damages. Therefore, the above disclaimers, limitations and exclusions may not apply in all jurisdictions in
which the manufacturer sells its equipment.
This warranty gives the owner specific legal rights. The owner may have other rights or remedies pursuant to the laws in its territory. Nothing in
this limited warranty should be construed as limiting or restricting any other statutory right or remedy of the owner, except for such limitations or
restrictions herein as may be allowed by the law of the territory.
The manufacturer has a policy of continual product improvement and specifications are subject to change without notice.
