Qualcomm Technologies, Inc.
Confidential and Proprietary – Qualcomm Technologies, Inc.
© 2012-2015 Qualcomm Technologies, Inc. and/or its affiliated companies. All rights reserved.
NO PUBLIC DISCLOSURE PERMITTED: Please report postings of this document on public servers or websites to:
DocCtrlAgent@qualcomm.com.
Restricted Distribution: Not to be distributed to anyone who is not an employee of either Qualcomm Technologies, Inc. or its
affiliated companies without the express approval of Qualcomm Configuration Management.
Not to be used, copied, reproduced, or modified in whole or in part, nor its contents revealed in any manner to others without the
express written permission of Qualcomm Technologies, Inc.
Qualcomm IZat is a product of Qualcomm Atheros, Inc. Other Qualcomm products referenced herein are products of Qualcomm
Technologies, Inc. or its subsidiaries.
Geofencing Reference Guide
80-NB758-1 E
August 24, 2015
Qualcomm is a trademark of Qualcomm Incorporated, registered in the United States and other countries. IZat is a trademark of
Qualcomm Incorporated. All Qualcomm Incorporated trademarks are used with permission. Other product and brand names may be
trademarks or registered trademarks of their respective owners.
This technical data may be subject to U.S. and international export, re-export, or transfer (“export”) laws. Diversion contrary to U.S.
and international law is strictly prohibited.
Qualcomm Technologies, Inc.
5775 Morehouse Drive
San Diego, CA 92121
U.S.A.
80-NB758-1 E Confidential and Proprietary – Qualcomm Technologies, Inc. 3
MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
Revision history
Revision Date Description
A July 2012 Initial relase
B September 2013 Numerous changes were made including the addition of Geofence 3.0; it
should be read in its entirety
C October 2014 Added Geofence 3.0.1 and 3.1; changes cover WWAN motion
classification enhanced Wi-Fi motion detector and proximity Geofence
indication
D January 2015 Added information regarding Geofence use of RF Context Data and
persistent storage
E August 2015 Numerous changes were made including the addition of Geofence 3.3; it
should be read in its entirety
Note: There is no Rev. I, O, Q, S, X, or Z per Mil. standards.
80-NB758-1 E Confidential and Proprietary – Qualcomm Technologies, Inc. 4
MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
Contents
1 Introduction ...................................................................................................... 6
1.1 Purpose.......................................................................................................................... 6
1.2 Conventions .................................................................................................................. 6
1.3 Technical assistance ...................................................................................................... 6
2 Geofence management and timeline ............................................................. 7
2.1 How geofences are managed ........................................................................................ 7
2.2 IZat geofencing timeline – Major releases .................................................................... 8
3 Modem and low-power processor-based implementation ........................... 9
3.1 Low-power geofence implementation .......................................................................... 9
3.2 Geofence performance .................................................................................................. 9
3.3 Power optimization algorithms ................................................................................... 10
4 Geofence Android and Windows Phone architecture ................................ 12
4.1 Geofence Android architecture ................................................................................... 12
4.2 Geofence architecture on Windows Phone 8.1 ........................................................... 13
5 Geofence 3.x .................................................................................................. 14
5.1 Geofence 3.0 ............................................................................................................... 14
5.2 Geofence 3.0.1 ............................................................................................................ 15
5.3 Geofence 3.1 ............................................................................................................... 15
5.4 Geofence 3.3 ............................................................................................................... 16
6 Geofence configurations .............................................................................. 18
6.1 Geofence GNSS position QoS session timeout .......................................................... 18
6.2 Geofence GNSS unavailable indication timeout ........................................................ 18
6.3 Geofence GNSS max position uncertainty accepted .................................................. 18
6.4 Geofence motion detection sources ............................................................................ 19
6.5 Geofence position sources .......................................................................................... 19
6.6 Geofence medium responsiveness backoff ................................................................. 19
6.7 Geofence CPI request rate .......................................................................................... 20
6.8 Geofence challenging GPS environmental-based backoff .......................................... 20
6.9 Geofence challenging GPS environmental motion sensing distance .......................... 20
6.10 Geofence motion state speed .................................................................................... 21
6.11 Geofence use network-assisted fixes ........................................................................ 21
6.12 Geofence high responsiveness .................................................................................. 22
6.13 Geofencing LOWI registration enable ...................................................................... 22
Geofencing Reference Guide Contents
80-NB758-1 E Confidential and Proprietary – Qualcomm Technologies, Inc. 5
MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
6.14 Geofencing LOWI subscription mask....................................................................... 22
6.15 Geofencing LOWI registration config ...................................................................... 22
6.16 Geofencing filter WLAN frequencies mask ............................................................. 23
6.17 Geofencing indoor outdoor sensor configuration switches mask ............................. 24
7 API and call flows .......................................................................................... 25

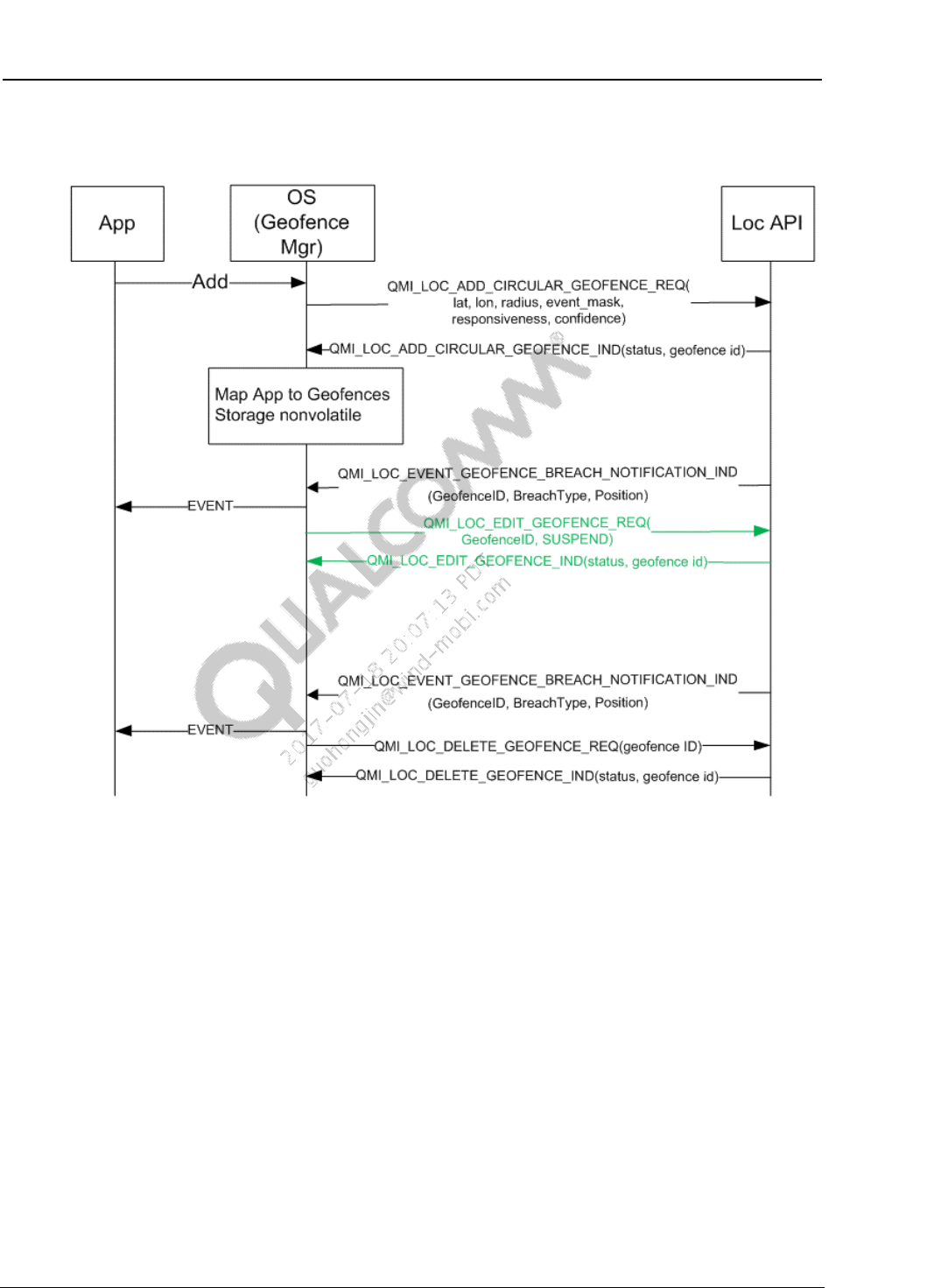

7.1 Add, delete, and geofence breach indication .............................................................. 25

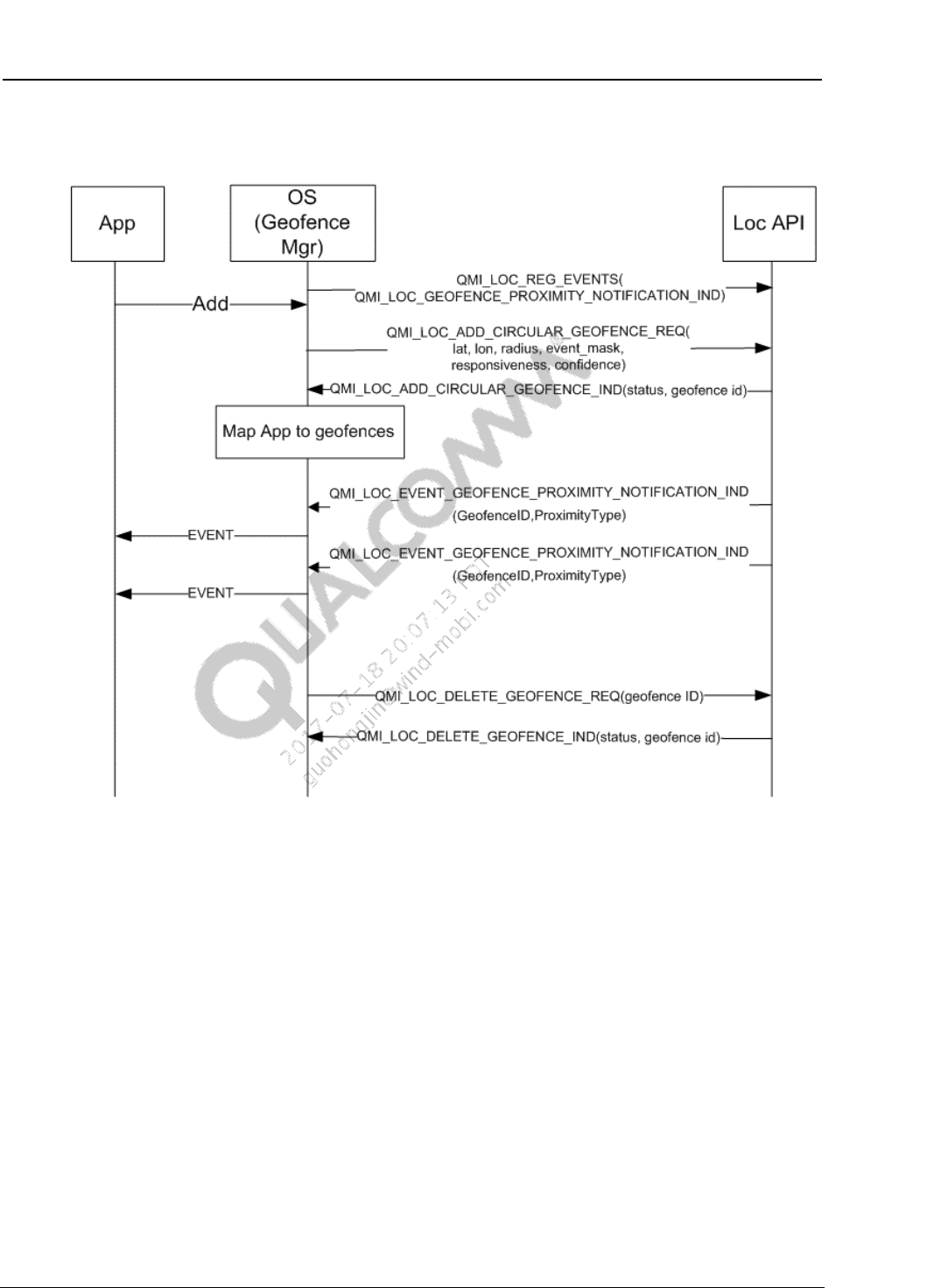

7.2 Add, delete, and geofence proximity indication ......................................................... 26
7.3 Edit a geofence ............................................................................................................ 27

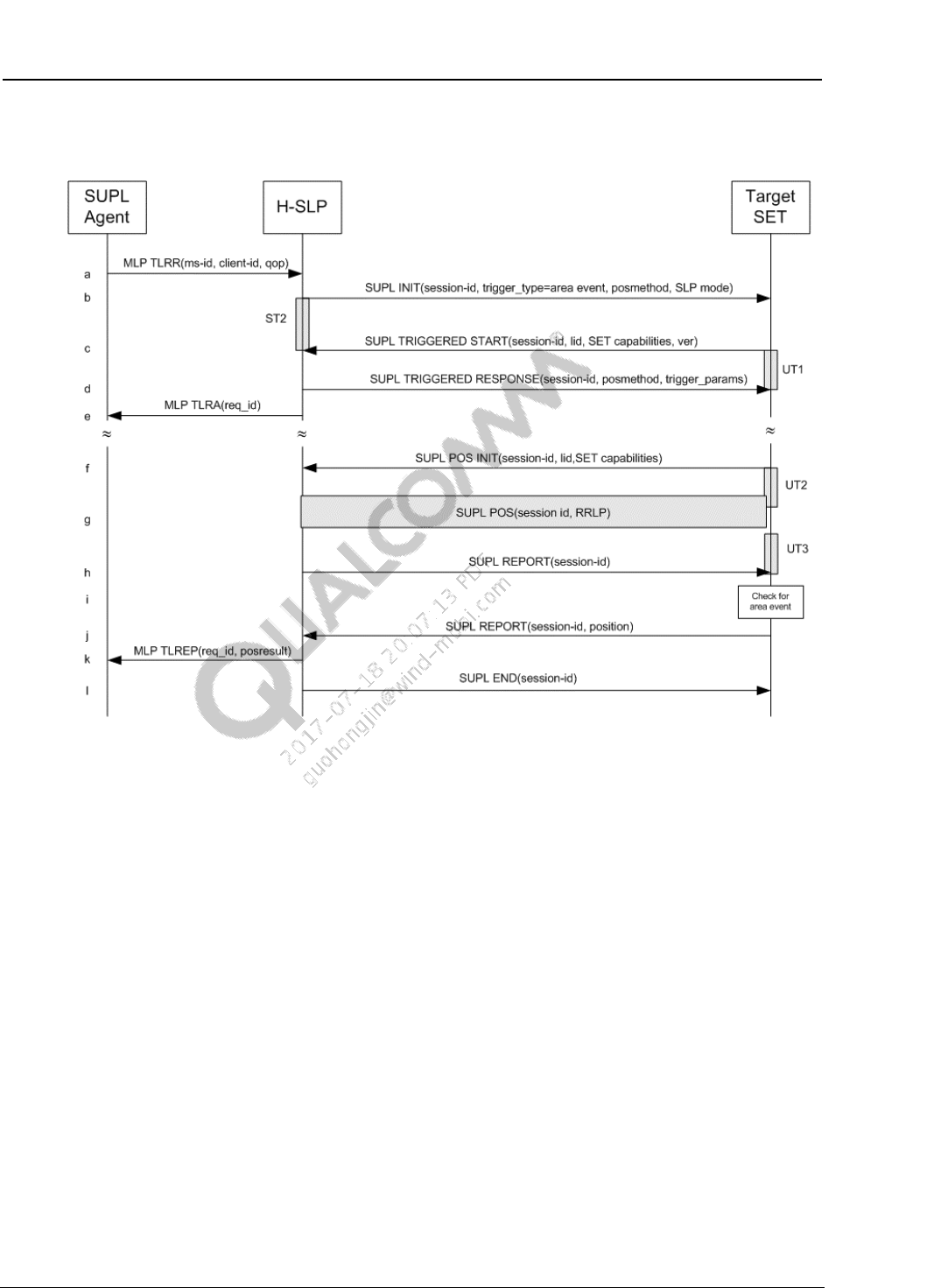

7.4 SUPL2.0 NI geofence implementation ....................................................................... 28
7.5 Geofence batch breach notification ............................................................................ 29
7.6 Geofence batch dwell notification .............................................................................. 30
7.7 Set geofence engine configuration .............................................................................. 31
7.8 Get geofence engine configuration ............................................................................. 32
7.9 Geofence API details .................................................................................................. 32
A References ..................................................................................................... 35
A.1 Related documents ..................................................................................................... 35
A.2 Acronyms and terms .................................................................................................. 35
80-NB758-1 E Confidential and Proprietary – Qualcomm Technologies, Inc. 6
MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
1 Introduction
1.1 Purpose
This document provides an overview of geofencing, including architecture, configuration, and
call flows. The document is for OEMs, carriers, and partners using the low power and high
responsiveness and availability of Qualcomm® IZat™ location services geofencing.

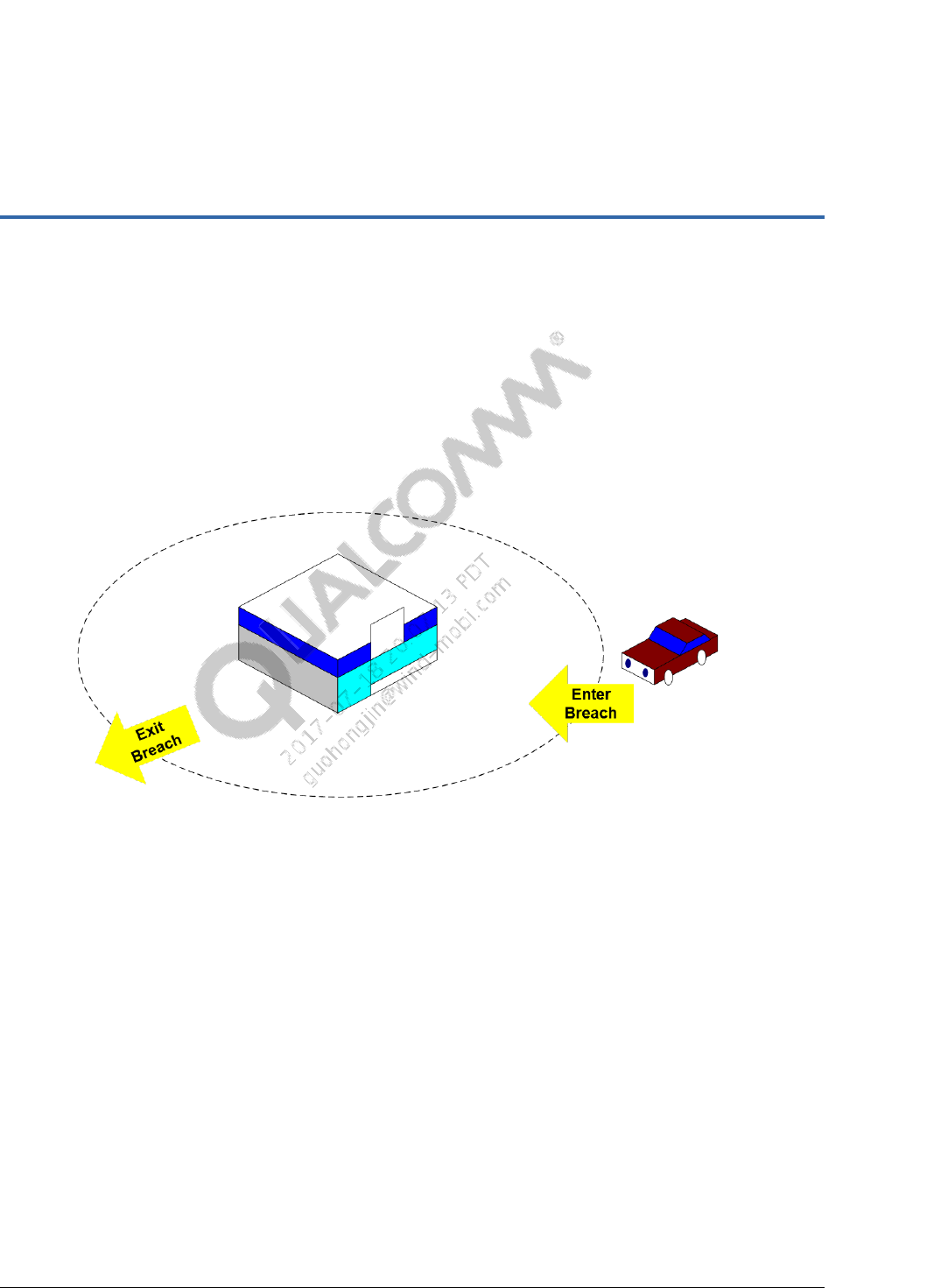

A geofence is a virtual perimeter on a geographic area using a location-based service. When a
geofencing device enters or exits the area, a notification is generated.
1.2 Conventions
Function declarations, function names, type declarations, attributes, and code samples appear in a
different font, for example, #include.
1.3 Technical assistance
For assistance or clarification on information in this document, submit a case to Qualcomm
Technologies, Inc. (QTI) at https://createpoint.qti.qualcomm.com/.
If you do not have access to the CDMATech Support website, register for access or send email to
support.cdmatech@qti.qualcomm.com.
80-NB758-1 E Confidential and Proprietary – Qualcomm Technologies, Inc. 7
MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
2 Geofence management and timeline
2.1 How geofences are managed
Geofences can be Mobile-Originated (MO) or Mobile-Terminated (MT). The core geofence
task/logic is independent of how the geofence is set.
MO includes the following:
MDM – Geofences added or deleted by Loc API (QTI-provided API on MDMs)
MSM™
Geofences added or deleted by Android™ AddProximityAlert()
Geofences added or deleted by Google Play Services API
MT includes geofences added or deleted by network side apps via MT protocol, that is, OMA
SUPL 2.0 MT Area Event Triggers.
Geofencing Reference Guide Geofence management and timeline
80-NB758-1 E Confidential and Proprietary – Qualcomm Technologies, Inc. 8
MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION

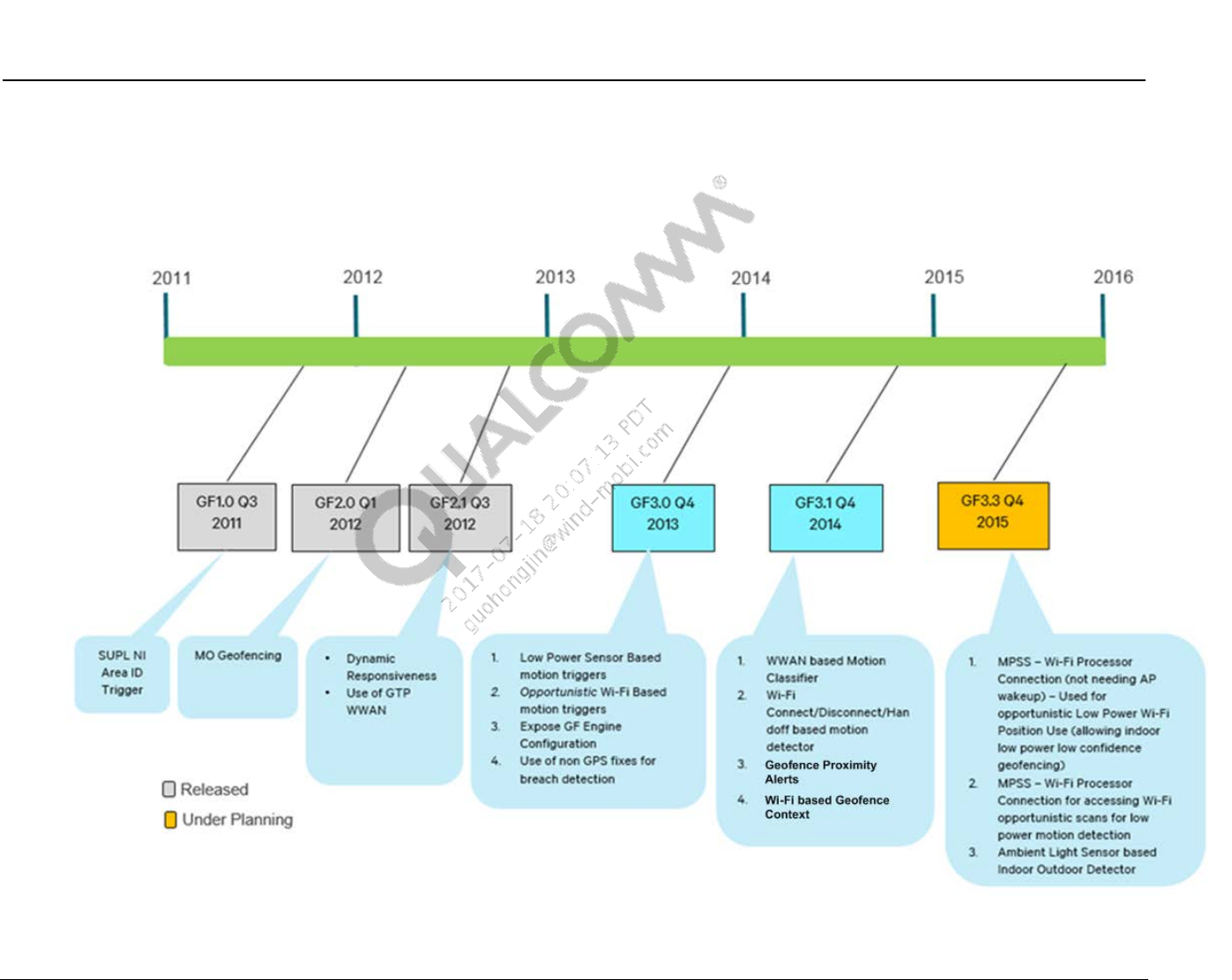

2.2 IZat geofencing timeline – Major releases
The following figure shows a brief timeline of the IZat geofencing solution, including which features have been added already and which
are expected to be added in future releases.
80-NB758-1 E Confidential and Proprietary – Qualcomm Technologies, Inc. 9
MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
3 Modem and low-power processor-based
implementation
3.1 Low-power geofence implementation
A low-power geofence task within the modem provides core geofencing event detection
capability. The geofence task uses algorithms to provide optimal power usage and geofence event
detection. In most cases, these algorithms cannot be run at an application level. The algorithms
are as follows:
Use of Area IDs (from SUPL 2.0) to minimize invocation of high precision (GNSS) fix
Optimal rate at which to invoke GNSS fixes (when needed) to minimize power usage
Distance-based backoff when no cell database list, e.g., Area ID list in SUPL 2.0, is available
Use of auxiliary information, for example, GTP WWAN, sensors, to reduce the need for a
GNSS fix
Use of Zero Power Positioning and GTP WWAN planned as a trial feature in Q1 2012
package
Sensor use under planning for a future release
The SUPL 2.0 protocol module uses the geofence task as of the GF2.0 Q3 2011 package. Benefits
of this approach were made available to all applications via HLOS side APIs and customer APIs
via the GF2.0 Q1 2012 package.
3.2 Geofence performance
Responsiveness describes how soon a device can recognize that it has entered or left a geofence.
There is a delay tolerance for detecting a geofence breach compared to the time when the true
breach occurred. The lower the responsiveness, the higher the probability for a missed geofence
breach event and the user experience and the power consumed are lower. Valid values are low,
med, and high.
Confidence describes how accurate the detection is when entering and leaving an event for a
geofence. Confidence affects the use of high-precision fix requests. The lower the confidence, the
higher the probability for a false geofence breach and the user experience and the power
consumed are lower. Valid values are low, med, and high.
Geofencing Reference Guide Modem and low-power processor-based implementation
80-NB758-1 E Confidential and Proprietary – Qualcomm Technologies, Inc. 10
MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
3.3 Power optimization algorithms
Several algorithms are used to optimize power:
Area ID-based power optimization determines when to perform position fixes and when to go
dormant.
Distance-based backoff calculates the rate of position fixes depending on the distance of the
handset from the border of the geofence.
Hysteresis handling uses hysteresis to avoid frequent breach reports when the handset is
frequently criss-crossing across the border of the geofence.
Handling challenging GPS environment performs exponential backoff when in a challenging
GPS environment until it is detected that the handset has exited the challenging environment.
DPO-based tracking saves power by detecting beneficial times to enter and exit DPO
tracking. This algorithm uses the dynamic power optimization feature of the GNSS engine
instead of doing single-shot fixes.
Geofencing Reference Guide Modem and low-power processor-based implementation
80-NB758-1 E Confidential and Proprietary – Qualcomm Technologies, Inc. 11
MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
Advanced distance-based backoff uses cell change events to gate the use of GNSS fixes.
Motion detection using sensors, Wi-Fi, and WWAN uses sensors, Wi-Fi scan
measurements/Wi-Fi events, and WWAN measurements for motion detection to reduce the
number of GNSS fixes.
Context-based backoff learns and uses Wi-Fi context to gate the use of GNSS fixes.
NOTE: For a future roadmap, see Section 2.2.
80-NB758-1 E Confidential and Proprietary – Qualcomm Technologies, Inc. 12
MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
4 Geofence Android and Windows Phone
architecture

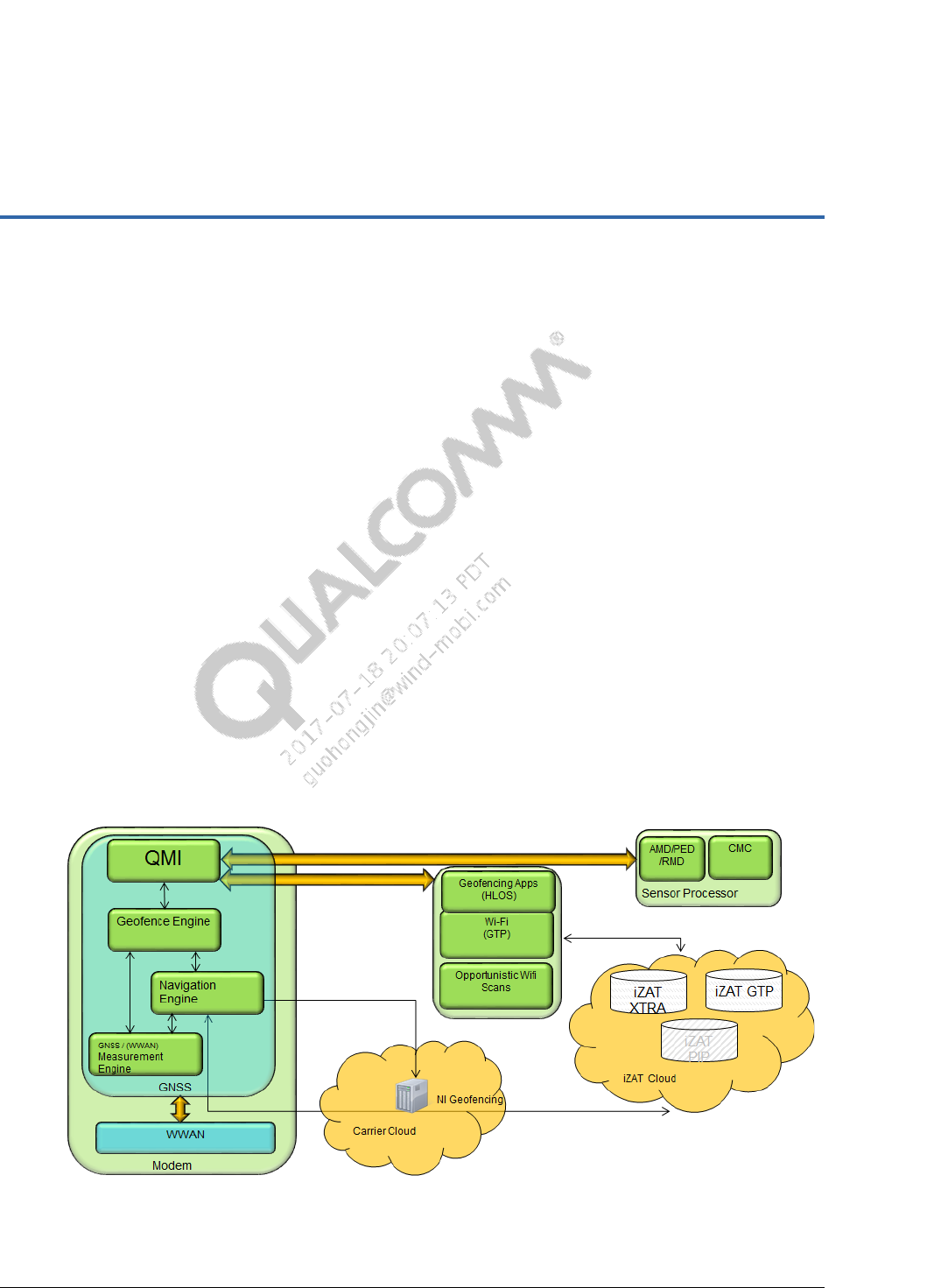

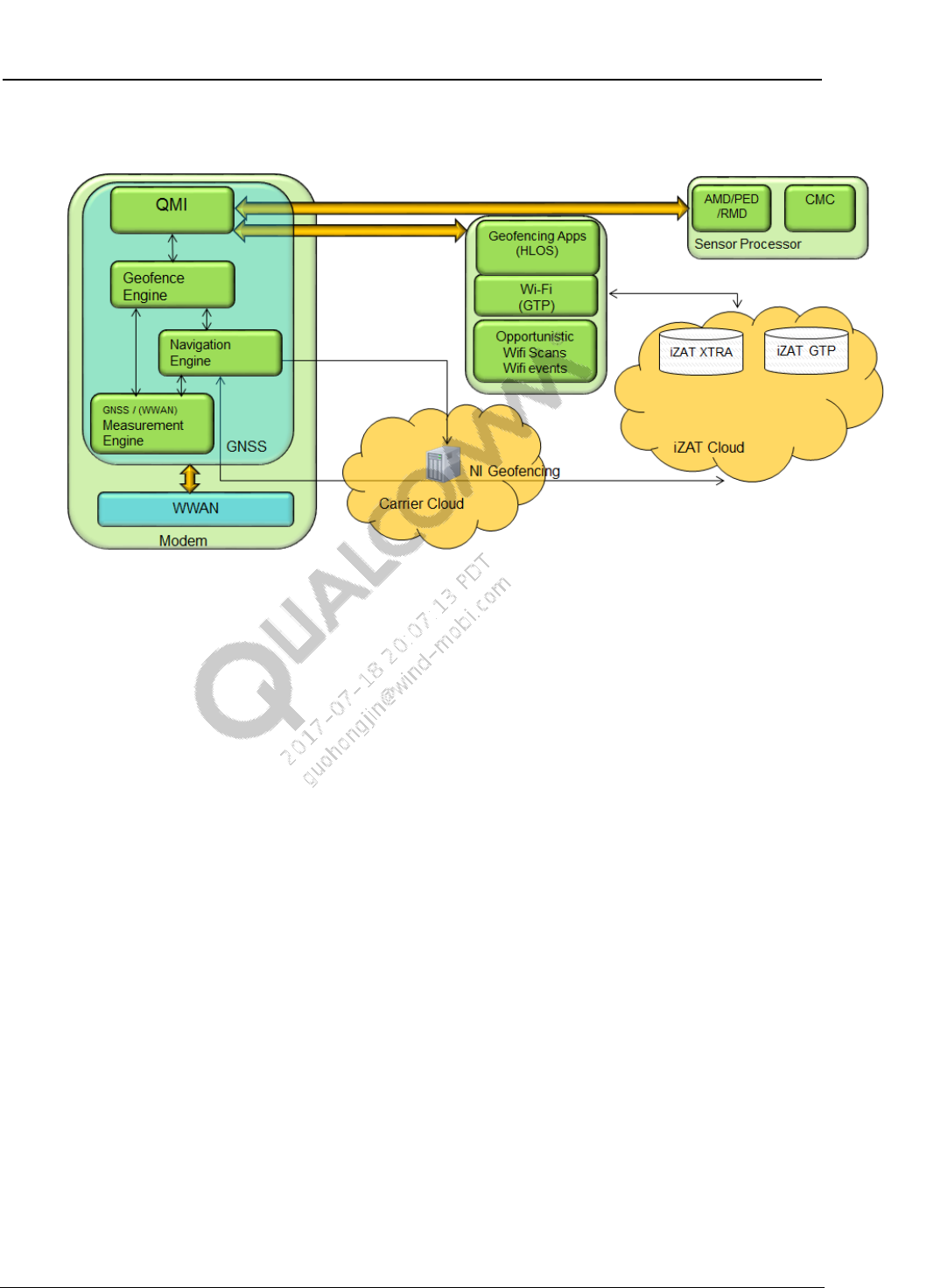

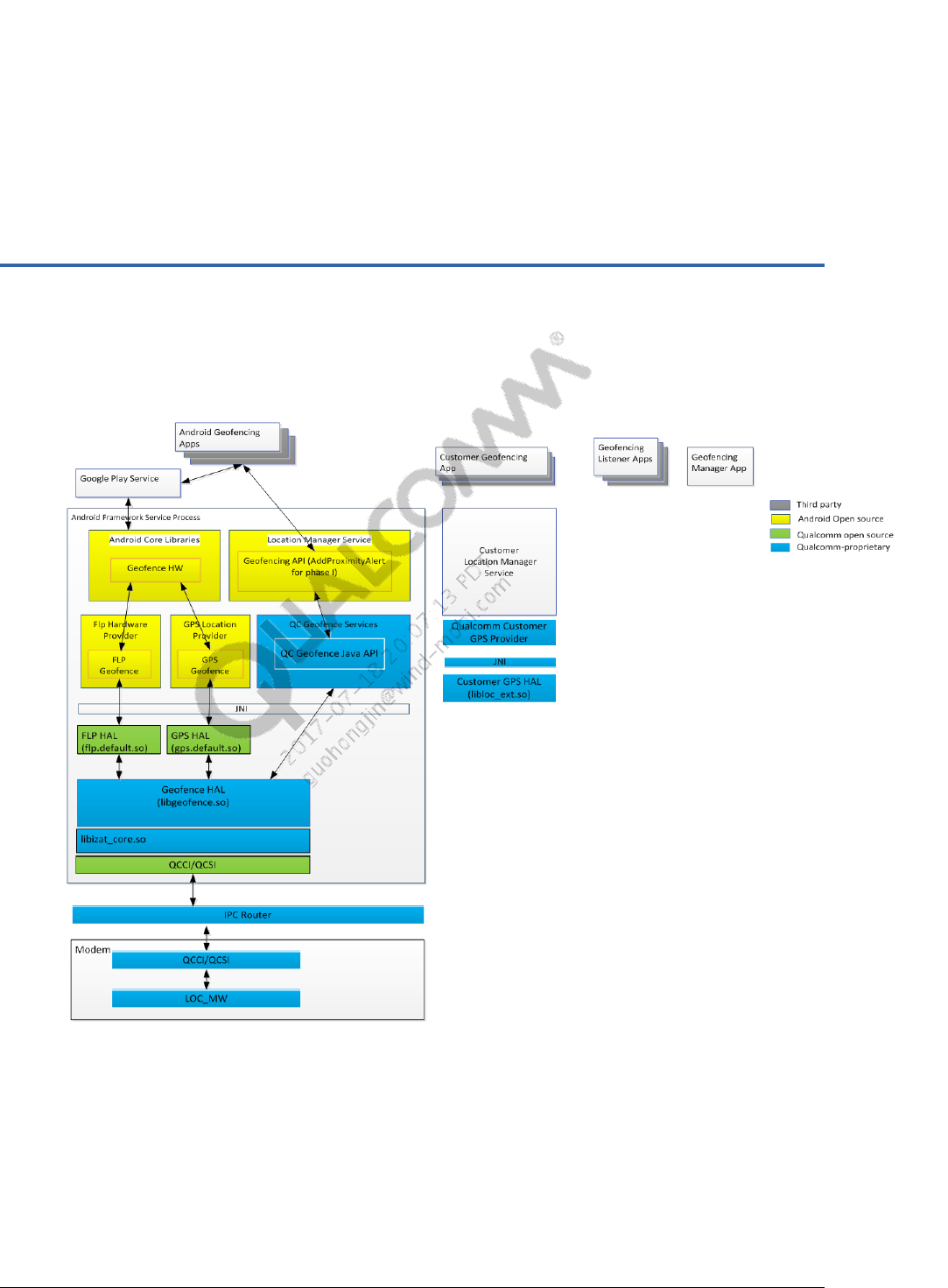

4.1 Geofence Android architecture
Geofencing Reference Guide Geofence Android and Windows Phone architecture
80-NB758-1 E Confidential and Proprietary – Qualcomm Technologies, Inc. 13
MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION

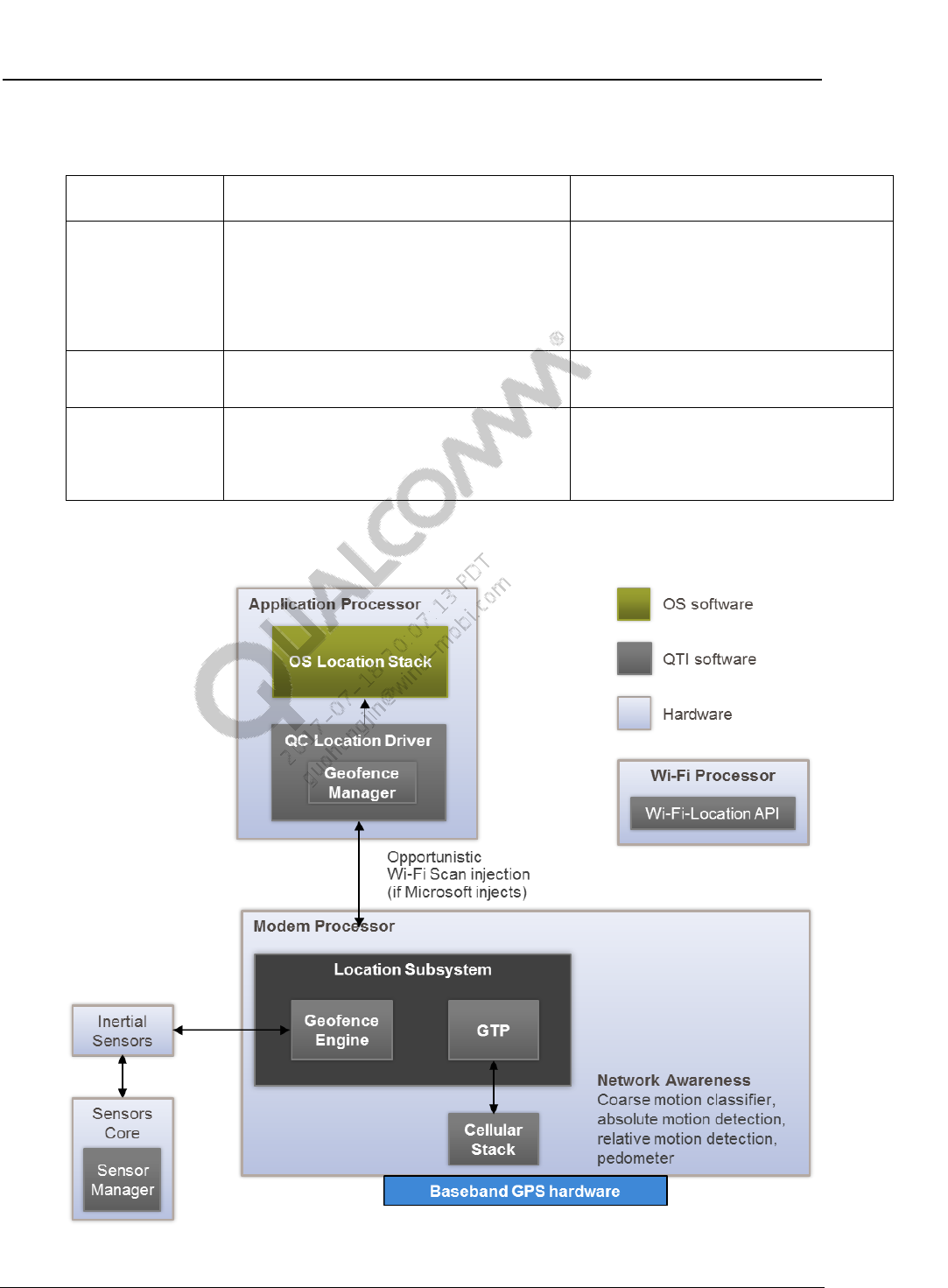

Geofence API options
Description Control of geofence engine Configurability of geofence parameters
Google Play
Services/FLP
Geofencing APIs
Partial control – Current Google Play
Services/FLP implementation is to defer to
IZat low-power geofencing, then take over
servicing of geofence when IZat GF is unable
to determine GF status; in the future, Android
could adjust the “deferral logic”
Limited to Android API configuration
options
Proximity Alert API Full control – Geofences are fully run within
IZat low-power Geofencing. Limited to Android API configuration
options
QMI-LOC Full control – Geofences are fully run within
IZat low-power geofencing. Enhanced, including configurations for
confidence and responsiveness; additional
options might be possible in the future, for
example, polygon
4.2 Geofence architecture on Windows Phone 8.1
80-NB758-1 E Confidential and Proprietary – Qualcomm Technologies, Inc. 14
MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
5 Geofence 3.x
5.1 Geofence 3.0
Geofence 3.0 provides less power consumption using sensor and opportunistic Wi-Fi scan results
(fewer GNSS-based position requests). It requires an enabled QTI SSC™ (Snapdragon™ Sensor
Core) for low-power sensor (accelerometer-based) motion detection and needs a physical sensor
(accelerometer) with FIFO buffering capability for optimal power savings.
Geofence 3.0 injects opportunistic, periodic Wi-Fi scans using a listener for Wi-Fi scans when the
Access Point (AP) wakes up. Geofencing does not explicitly wake up the AP for these scans, and
hence powerwise, these scans are free for geofencing.
Geofence 3.0 includes ultrahigh responsiveness for applications requiring breach notifications
with responsiveness of 1 sec or less. The geofence engine configuration uses sensors in
geofencing and On Demand Coarse Position Injection (ODCPI) when GPS is unavailable.
For non-GPS fixes, Geofence 3.0 uses the following:
GTP WWAN fixes
Wi-Fi-based ODCPI fixes when GPS is not available
Higher power consumption is implied and hence, used only when GPS is not available; use of
ODCPI is limited to gate power consumption.
Architecture
Geofencing Reference Guide Geofence 3.x
80-NB758-1 E Confidential and Proprietary – Qualcomm Technologies, Inc. 15
MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
5.2 Geofence 3.0.1
Geofence 3.0.1 provides enhancements to improve breach latencies for high responsiveness
geofence. It also provides better GNSS QoS management for power optimization, that is, it
manages GNSS QoS requirement for a GNSS fix to bring in power optimization
Geofence 3.0.1 allows configuration of various aspects of the geofencing engine through QMI
and NV. See Chapter 6 for details.
5.3 Geofence 3.1
Geofence 3.1 includes many improvements:
Enhanced Wi-Fi motion detection
Better power and performance tradeoff using opportunistic Wi-Fi events from HLOS
Support of Wi-Fi context
Provides better responsiveness using Wi-Fi Context
Future geofencing releases will support other contextual information
Geofencing 3.1 stores the context in RAM and is deleted once the phone reboots
WWAN motion classification
Brings in power optimization using WWAN measurements; supported for LTE and WCDMA
Proximity detection
Brings in new capability to register indication for proximity to a geofence
Geofencing Reference Guide Geofence 3.x
80-NB758-1 E Confidential and Proprietary – Qualcomm Technologies, Inc. 16
MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
Architecture
5.4 Geofence 3.3
Background engine enhancements supporting Geofence 3.3 are listed. Geofence 3.2 was an
internal release with the architecture changes detailed in the following figure.
Opportunistic/Snoop low power Wi-Fi discover scan – HLOS offload Wi-Fi discovery scans
to the Wi-Fi processor in certain conditions. When scans are offloaded, no opportunistic
scans are available from the application processor. Wi-Fi scans are used for motion detection
purposes in the background engine and can result in significant energy savings by deferring
the use of GNSS when there is limited motion.
Android example – The AP offloads scans when the device is not associated with an AP (Wi-
Fi is on). In this case, snoop scans are received every 10 to 18 sec in MPSS directly from
WCNSS.
Opportunistic low power GTP Wi-Fi positioning use – Background engine uses the low
power GTP Wi-Fi fix whenever the fixes are made using opportunistic Wi-Fi discovery
scans. The advantage is that it allows further deferring of the use of GNSS fixes when
outdoors. When indoors, it provides increased positioning availability at low power, which
helps in better responsiveness for geofences and higher availability for location batching.
Ambient light sensor and proximity sensor based indoor outdoor detector – Low power
mechanism to determine when the devices moves out from indoor (GNSS denied case) to
outdoor (GNSS available case). This helps to provide better Geofence exit responsiveness
and higher accuracy batching fixes at low power.
Geofencing Reference Guide Geofence 3.x
80-NB758-1 E Confidential and Proprietary – Qualcomm Technologies, Inc. 17
MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION

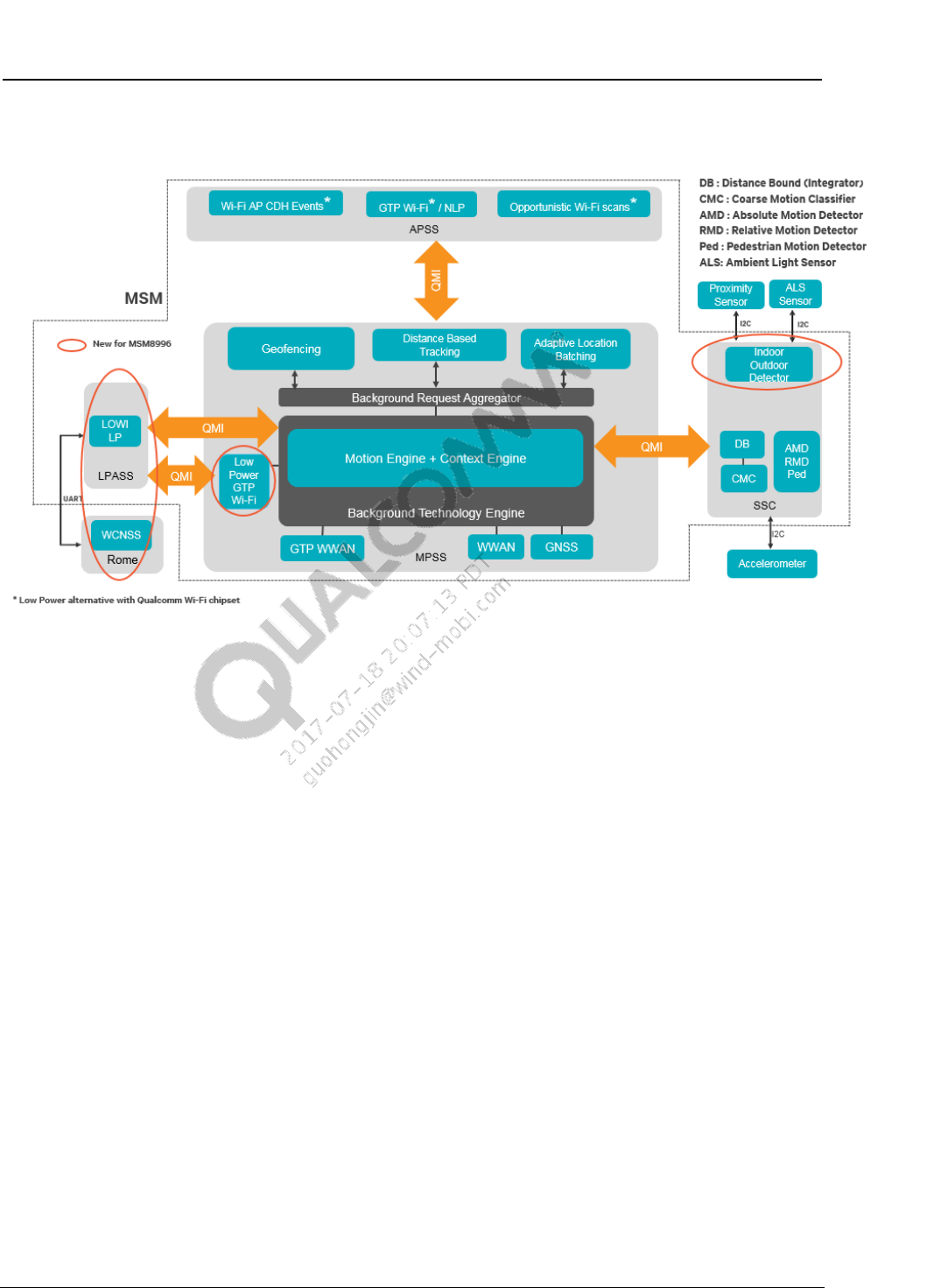

Architecture
80-NB758-1 E Confidential and Proprietary – Qualcomm Technologies, Inc. 18
MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
6 Geofence configurations
6.1 Geofence GNSS position QoS session timeout
NV item – 71563
Default – 30 sec; the value can only be set between min 10 and max 40
Description – This NV item is used by the geofencing engine as session timeout while
requesting a GNSS fix. This NV item impacts power usage, as it can affect the engine on time
for GNSS fixes requested for geofencing.
QMI control – QMI_LOC_SET_GEOFENCE_ENGINE_CONFIG_REQ_MSG: Optional
TLV: GNSS_POSITION_SESSION_TIMEOUT
NV available from Geofencing 3.0
6.2 Geofence GNSS unavailable indication timeout
NV item – 71555
Default – 40 sec
Description – This NV item is used by the geofencing engine as a timeout, after which it is
required to send a GNSS Unavailable QMI indication to the client when under bad GNSS
environment.
QMI control – QMI_LOC_SET_GEOFENCE_ENGINE_CONFIG_REQ_MSG: Optional
TLV: GNSS_UNAVAILABLE_INDICATION_TIMEOUT
NV available from Geofencing 3.0
6.3 Geofence GNSS max position uncertainty accepted
NV item – 72514
Default – 100 m
Description – This NV item is used to configure the maximum position uncertainty in the
GNSS position fix accepted by the geofencing engine when detecting breaches. The position
uncertainty value should be the 99% converted HEPE.
QMI control – QMI_LOC_SET_GEOFENCE_ENGINE_CONFIG_REQ_MSG: Optional
TLV: GNSS_POSITION_MAX_PUNC_ACCEPTABLE
NV available from Geofencing 3.0
Geofencing Reference Guide Geofence configurations
80-NB758-1 E Confidential and Proprietary – Qualcomm Technologies, Inc. 19
MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
6.4 Geofence motion detection sources
NV item – 71562
Bit 0 – Enable or disable sensors-based motion classification; default: 0 (disable)
Bit 1 – Enable or disable Wi-Fi-based motion detection; default: 1 (enable)
Bit 2 – Enable or disable WWAN-based motion classification; default: 1 (enable)
Description – This NV item enables or disables different sources for motion classifications.
When turning on sensor-based motion detection, OEMs must check whether the sensor in use
supports FIFO. With FIFO support, OEMs can see geofencing power benefits.
QMI control – QMI_LOC_SET_GEOFENCE_ENGINE_CONFIG_REQ_MSG: Optional
TLV QMI_LOC_MOTION_DETECTION_SOURCE_MASK
QMI_LOC_MOTION_DETECTION_SOURCE_SENSORS
QMI_LOC_MOTION_DETECTION_SOURCE_WIFI
QMI_LOC_MOTION_DETECTION_SOURCE_WWAN
NV available from Geofencing 3.0
NOTE: This NV item should be changed to disable all motion sensing while running SUPL Area-ID test
cases on simulated test environment; for example, Spirent.
6.5 Geofence position sources
NV item – 71573
Bit 0 – Enable or disable ODCPI
Default
Geofencing 3.0 – 0 (disable)
Geofencing 3.1 and later – 1 (enable)
Description – This NV item is used to configure position sources that geofencing can use.
QMI control – QMI_LOC_SET_GEOFENCE_ENGINE_CONFIG_REQ_MSG: Optional
TLV ENABLE_CPI_USAGE
NV available from Geofencing 3.0
6.6 Geofence medium responsiveness backoff
NV item – 72569
Default – 120 sec
If the value is configured for less than 30 sec, the value is set at 30 sec
If the value is configured for more than 600 sec, the value is set at 600 sec
Description – This NV item configures the responsiveness value in seconds that geofencing
engine shall use for all medium responsiveness geofences.
Geofencing Reference Guide Geofence configurations
80-NB758-1 E Confidential and Proprietary – Qualcomm Technologies, Inc. 20
MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
QMI control – QMI_LOC_SET_GEOFENCE_ENGINE_CONFIG_REQ_MSG: Optional
TLV MEDIUM_RESPONSIVENESS_VALUE
NV available from Geofencing 3.0.1
NOTE: If the medium responsiveness value is changed, the responsiveness of the existing medium
responsiveness geofence does not change until the next position fix, which is based on the
previous medium responsiveness setting.
6.7 Geofence CPI request rate
NV item – 72559
Default – 300 sec (5 min)
Description – This NV item configures the minimum seconds geofencing engine shall wait
between two Coarse Position Injection (CPI) requests. The requests are further gated by
motion sensing.
QMI control – QMI_LOC_SET_GEOFENCE_ENGINE_CONFIG_REQ_MSG: Optional
TLV CHAL_GNSS_ENV_MIN_CPI_WAIT_INTERVAL
NV available from Geofencing 3.0.1
6.8 Geofence challenging GPS environmental-based backoff
NV item – 72570
Default min – 30 sec
Default max – 960 sec (16 min)
Description – This NV item configures the behavior of GPS fix tries by the geofencing
engine when a challenging GPS environment is detected.
The geofencing engine follows an exponential backoff between GPS fix attempts when in a
challenging GPS environment. The exponential backoff starts from the Challenging GPS Env
Backoff Min value and doubles every time a GPS position fix fails, until the exponential
backoff value reaches Challenging GPS Env Backoff Max, after which the exponential
backoff stays at that value.
QMI control – NA
NV available from Geofencing 3.0.1
6.9 Geofence challenging GPS environmental motion
sensing distance
NV item – 72572
Description – This NV item is used to configure the distance in meters that the geofencing
engine shall accumulate for before trying a GNSS or CPI fix when in a challenging GPS
environment.
Geofencing Reference Guide Geofence configurations
80-NB758-1 E Confidential and Proprietary – Qualcomm Technologies, Inc. 21
MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
Motion sensing distance for CPI
Default – 50 m
Description – This is the minimum distance in meters that the geofencing engine should
accumulate before trying another CPI fix when in a challenging GPS environment.
Motion sensing distance for GPS
Default – 50 m
Description – This is the minimum distance in meters that the geofencing engine should
accumulate before trying another GPS fix when in a challenging GPS environment.
QMI control – NA
NV available from Geofencing 3.0.1
6.10 Geofence motion state speed
NV item – 72571
Description – This NV item is used to configure the motion state speeds in meters per second
that geofencing shall use during distance accumulation.
Walk
Default – 3 m/s
Description – This is the speed in meters per second that the geofencing engine uses for
accumulating distance when pedestrian walk motion is detected.
Run
Default – 8 m/s
Description – This is the speed in meters per second that the geofencing engine uses for
accumulating distance when pedestrian run motion is detected.
QMI control – QMI_LOC_SET_GEOFENCE_ENGINE_CONFIG_REQ_MSG: Optional
TLV QMI_LOC_GEOFENCE_MOTION_STATE_CONFIG_STRUCT
NV available from Geofencing 3.0.1
6.11 Geofence use network-assisted fixes
NV item – 72535
Default – 0 (disabled)
Description – This NV item is used to enable or disable the GM engine to use network-
assisted fixes for breach detection. The network-assisted fixes include MSA, AFLT fixes, etc.
QMI control – NA
NV available from Geofencing 3.0.1
Geofencing Reference Guide Geofence configurations
80-NB758-1 E Confidential and Proprietary – Qualcomm Technologies, Inc. 22
MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
6.12 Geofence high responsiveness
NV item – 72511
Default – 1 (enabled)
Description – This NV item is used to enable high responsiveness enhancement to improve
breach detection latency at a cost of increased power when near the geofence boundary and
when handset is detected entering the geofence.
QMI control – NA
NV available from Geofencing 3.0.1
6.13 Geofencing LOWI registration enable
NV item – 73652
Default value – 1
Description – This NV item is used to register geofencing as a client to LOWI service on
LPASS. Geofencing uses the LOWI LP for Wi-Fi scans, connect, disconnect, or handover
events, etc.
QMI control – NA
NV available from Geofencing 3.3
6.14 Geofencing LOWI subscription mask
NV item – 73653
Default value – 0x1
Description – This NV item is used to subscribe to different services supported on LOWI LP.
Currently subscribed to snoop scans from LOWI only. But there are other services supported
on LOWI as well such as discovery scans, Wi-Fi connect, disconnect, or handover events,
etc., which could be used in the future.
Value
– Bit 0 – Register for snoop scans from LOWI
QMI control – NA
NV available from Geofencing 3.3
6.15 Geofencing LOWI registration config
NV item – 73654
Default value – 0x1
Description – This NV is used to configure how GM registers with LOWI service on LPASS.
NV available from Geofencing 3.3
Geofencing Reference Guide Geofence configurations
80-NB758-1 E Confidential and Proprietary – Qualcomm Technologies, Inc. 23
MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
This NV has two fields:
Enable timer mask
– Range – 0 – 0xFFFFFFFF
– Value
• Bit 0: Enable short-term retry timer
• Bit 1 – Enable long-term retry timer
• Default value – 0x3
– Description – If the LOWI registration fails from GM, this NV is used to configure
how to retry the re-registration attempts with LOWI. There are two timers for this
purpose:
• Short-term retry timer – This timer tries aggressively for retries configured by NV
with a periodicity of 10 sec between the retries
• Long-term retry timer – When this timer is enabled , if the short-term registration
retries fail, this timer tries less aggressively for LOWI registration. The periodicity
is not configurable.
• QMI control – NA
Short-term timer max retry count
– Range – 0 to 50
– Units – NA
– Default value – 12
– Description – Short-term retry timer uses the configured value to try LOWI
registration retries
– QMI control – NA
6.16 Geofencing filter WLAN frequencies mask
NV item – 73722
Default value – 0x1
Description – This NV is used to filter and accept the requested WLAN frequencies by GM
and filter out the remaining ones. The WLAN frequencies may be injected from HLOS,
LOWI, or other capable sources.
Value
0 – Disable GM filtering of WLAN frequencies. Accept all frequencies. No filtering. This
value should not be used.
0x1 – Enable GM filtering and accept 2.4 GHz band from the WLAN frequencies
0x2 – Enable GM filtering and accept 5 GHz band from the WLAN frequencies
QMI control – NA
NV available from Geofencing 3.3
Geofencing Reference Guide Geofence configurations
80-NB758-1 E Confidential and Proprietary – Qualcomm Technologies, Inc. 24
MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
6.17 Geofencing indoor outdoor sensor configuration
switches mask
NV item – 73692
Default value – 0x0 (disabled)
Description – This NV item is a bit mask used to set configuration switches for geofencing
indoor outdoor detection feature. A bit value of 1 is treated as on and a bit value of 0 is
treated as off.
Value
0x0 – Disable the ambient light sensor-based indoor outdoor detection
0x1– Enable the ambient light sensor-based indoor outdoor detection
NV available from Geofencing 3.3
80-NB758-1 E Confidential and Proprietary – Qualcomm Technologies, Inc. 25
MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
7 API and call flows

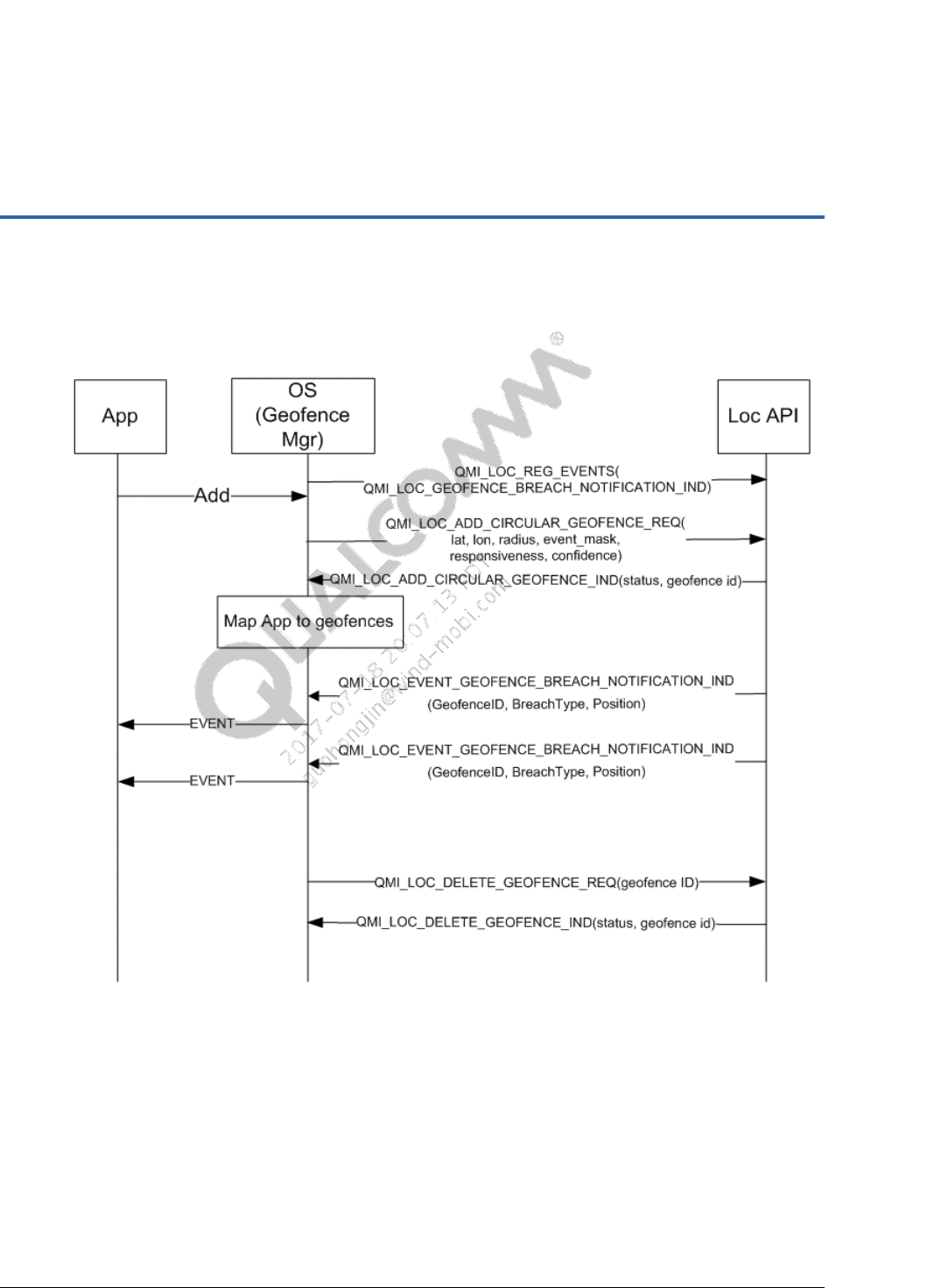

7.1 Add, delete, and geofence breach indication
Geofencing Reference Guide API and call flows
80-NB758-1 E Confidential and Proprietary – Qualcomm Technologies, Inc. 26
MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
7.2 Add, delete, and geofence proximity indication
Geofencing Reference Guide API and call flows
80-NB758-1 E Confidential and Proprietary – Qualcomm Technologies, Inc. 27
MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
7.3 Edit a geofence
Geofencing Reference Guide API and call flows
80-NB758-1 E Confidential and Proprietary – Qualcomm Technologies, Inc. 28
MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
7.4 SUPL2.0 NI geofence implementation
Geofencing Reference Guide API and call flows
80-NB758-1 E Confidential and Proprietary – Qualcomm Technologies, Inc. 29
MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
7.5 Geofence batch breach notification
App OS
(Geofence Mgr) Loc API
QMI_LOC_REG_EVENTS
(QMI_LOC_EVENT_GEOFENCE_BATCHED_BREACH_NOTIFICATION_IND)
QMI_LOC_ADD_CIRCULAR_GEOFENCE_REQ
(lat, lon, radius, event_mask, responsiveness, confidence)
QMI_LOC_EVENT_GEOFENCE_BATCHED_BREACH_NOTIFICATION_IND
(GeofenceIdContinuousList, GeofenceIdDiscreteList, BreachType, Position)
EVENT
QMI_LOC_DELETE_GEOFENCE_REQ(geofence ID)
QMI_LOC_DELETE_GEOFENCE_IND(statuc, geofence ID)
Map App to geofences
QMI_LOC_ADD_CIRCULAR_GEOFENCE_IND
(status, geofence id)
QMI_LOC_ADD_CIRCULAR_GEOFENCE_REQ
(lat, lon, radius, event_mask, responsiveness, confidence)
QMI_LOC_ADD_CIRCULAR_GEOFENCE_IND
(status, geofence id)
Geofencing Reference Guide API and call flows
80-NB758-1 E Confidential and Proprietary – Qualcomm Technologies, Inc. 30
MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION

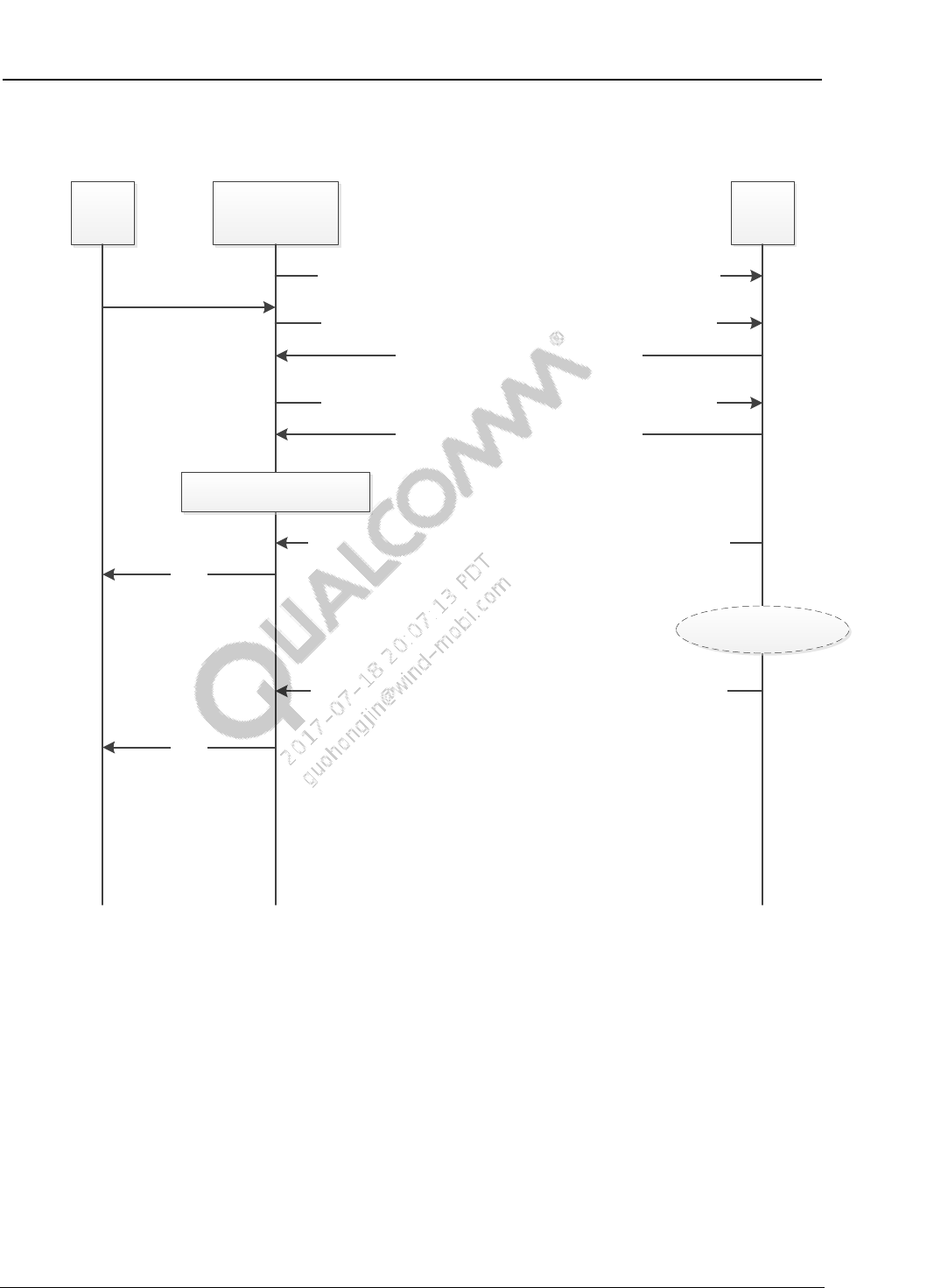

7.6 Geofence batch dwell notification
App OS
(Geofence Mgr) Loc API
QMI_LOC_REG_EVENTS
(QMI_LOC_EVENT_GEOFENCE_BATCHED_DWELL_NOTIFICATION_IND|
QMI_LOC_EVENT_GEOFENCE_BATCHED_BREACH_NOTIFICATION_IND)
QMI_LOC_ADD_CIRCULAR_GEOFENCE_REQ
(lat, lon, radius, event_mask, responsiveness, confidence, dwell time)
QMI_LOC_EVENT_GEOFENCE_BATCHED_BREACH_NOTIFICATION_IND
(GeofenceIdContinuousList, GeofenceIdDiscreteList, BreachType, Position)
EVENT
EVENT
Map App to geofences
QMI_LOC_ADD_CIRCULAR_GEOFENCE_IND
(status, geofence id)
QMI_LOC_ADD_CIRCULAR_GEOFENCE_REQ
(lat, lon, radius, event_mask, responsiveness, confidence, dwell time)
QMI_LOC_ADD_CIRCULAR_GEOFENCE_IND
(status, geofence id)
QMI_LOC_EVENT_GEOFENCE_BATCHED_DWELL_NOTIFICATION_IND
(GeofenceIdContinuousList, GeofenceIdDiscreteList, DwellType, Position)
Dwell time expires
Geofencing Reference Guide API and call flows
80-NB758-1 E Confidential and Proprietary – Qualcomm Technologies, Inc. 31
MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION

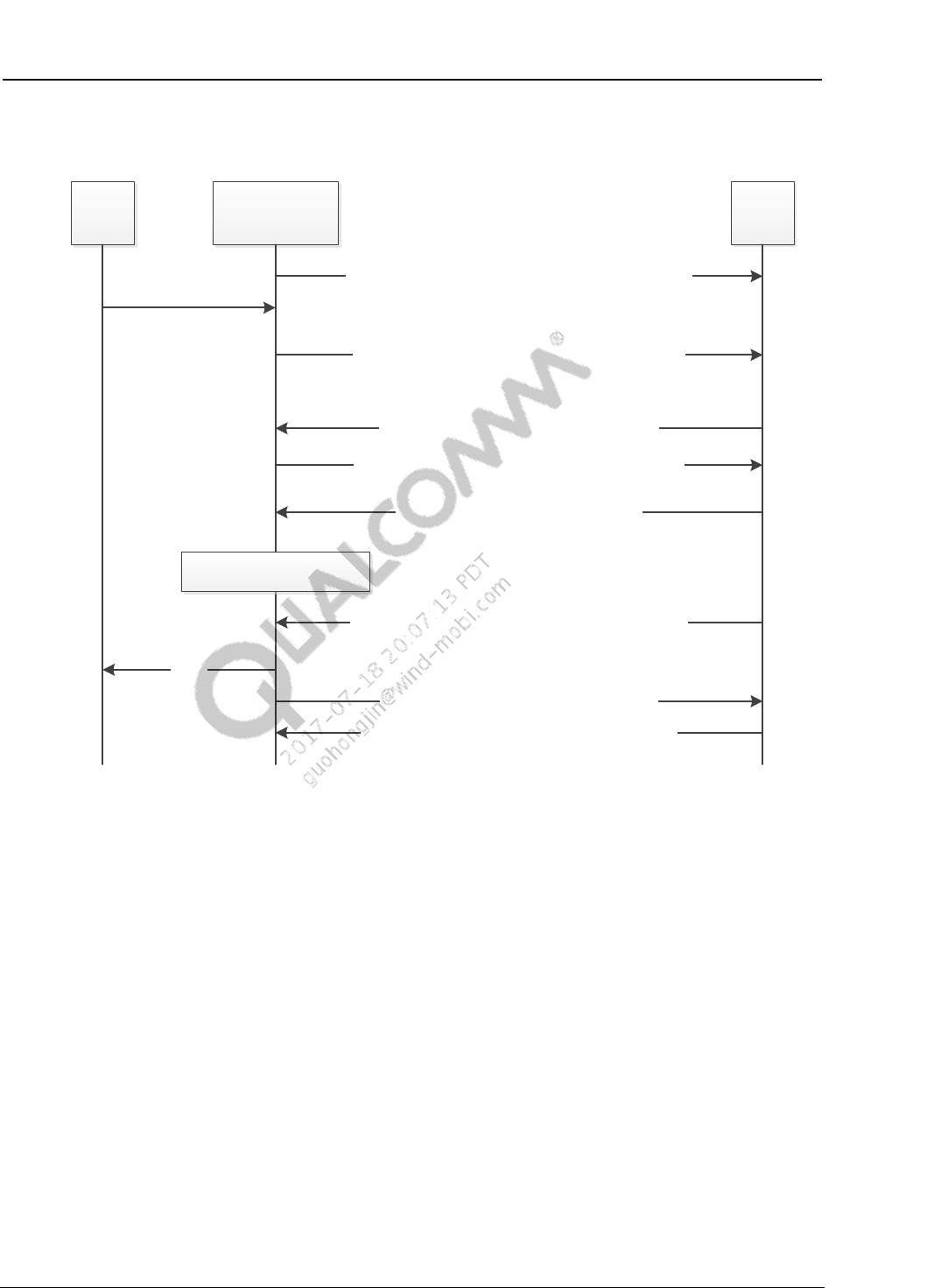

7.7 Set geofence engine configuration
App OS
(Geofence Mgr) Loc API
QMI_LOC_REG_EVENTS
(QMI_LOC_EVENT_GEOFENCE_BREACH_NOTIFICATION_IND)
QMI_LOC_ADD_CIRCULAR_GEOFENCE_REQ
(lat, lon, radius, event_mask, responsiveness, confidence )
QMI_LOC_EVENT_GEOFENCE_BREACH_NOTIFICATION_IND
(GeofenceID, BreachType, Position)
EVENT
Map App to geofences
QMI_LOC_ADD_CIRCULAR_GEOFENCE_IND
(status, geofence id)
QMI_LOC_SET_GEOFENCE_ENGINE_CONFIG_REQ
(gnssUnavaiTimeout, maxGeofences,
enableMotionDetectionSources, enableCpiUsage,
gnssPosSessionTimeout,maxPuncAcceptable,
mediumResponsiveness, chalGnssEnvMinCpiWaitInterval )
QMI_LOC_SET_GEOFENCE_ENGINE_CONFIG_IND
(status)
QMI_LOC_DELETE_GEOFENCE_REQ(geofence ID)
QMI_LOC_DELETE_GEOFENCE_IND(statuc, geofence ID)
Geofencing Reference Guide API and call flows
80-NB758-1 E Confidential and Proprietary – Qualcomm Technologies, Inc. 32
MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION

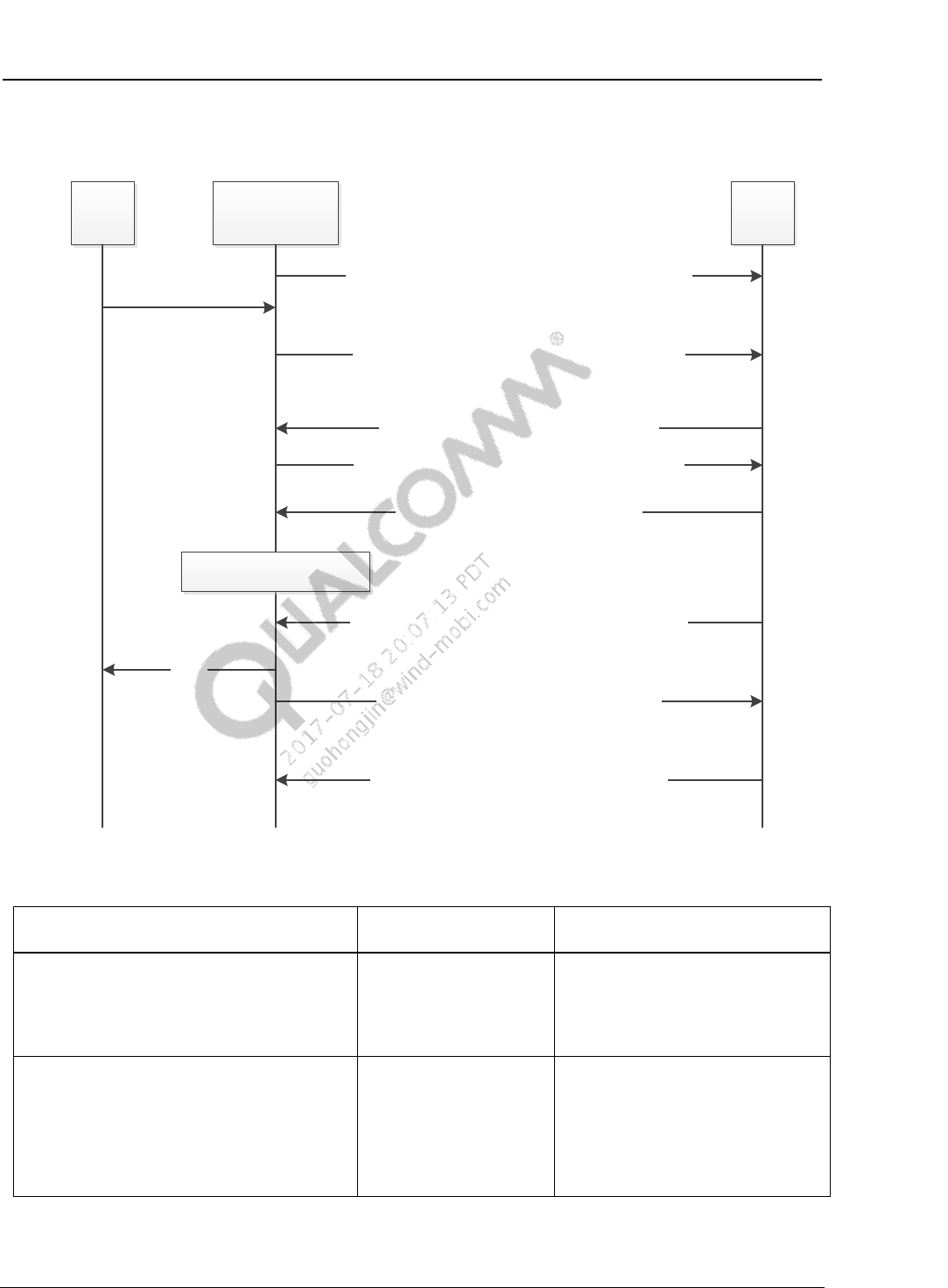

7.8 Get geofence engine configuration
App OS
(Geofence Mgr) Loc API
QMI_LOC_REG_EVENTS
(QMI_LOC_EVENT_GEOFENCE_BREACH_NOTIFICATION_IND)
QMI_LOC_ADD_CIRCULAR_GEOFENCE_REQ
(lat, lon, radius, event_mask, responsiveness, confidence )
QMI_LOC_EVENT_GEOFENCE_BREACH_NOTIFICATION_IND
(GeofenceID, BreachType, Position)
EVENT
Map App to geofences
QMI_LOC_ADD_CIRCULAR_GEOFENCE_IND
(status, geofence id)
QMI_LOC_SET_GEOFENCE_ENGINE_CONFIG_REQ
(gnssUnavaiTimeout, maxGeofences,
enableMotionDetectionSources, enableCpiUsage,
gnssPosSessionTimeout,maxPuncAcceptable,
mediumResponsiveness, chalGnssEnvMinCpiWaitInterval )
QMI_LOC_SET_GEOFENCE_ENGINE_CONFIG_IND
(status)
QMI_LOC_GET_GEOFENCE_ENGINE_CONFIG_REQ
QMI_LOC_GET_GEOFENCE_ENGINE_CONFIG_IND
(gnssUnavaiTimeout, maxGeofences,
enabledMotionDetectionSources, enabledCpiUsage)
7.9 Geofence API details
Commands Request Response (indication)
QMI_LOC_ADD_CIRCULAR_GEOFENCE Lat, long, radius
event_mask
Responsiveness
Confidence
Status
Geofence ID
QMI_LOC_QUERY_GEOFENCE Geofence ID Origin – Network, device
PositionWrtGeofence – Inside,
outside
Geofence parameters – Lat,
long, radius
State (active/suspend)
Geofencing Reference Guide API and call flows
80-NB758-1 E Confidential and Proprietary – Qualcomm Technologies, Inc. 33
MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
Commands Request Response (indication)
QMI_LOC_EDIT_GEOFENCE_REQ Geofence ID
State
(Active/Suspend)
Breach mask –
Entering, leaving
Geofence ID
Status
Failed parameters
QMI_LOC_GET_GEOFENCE_LIST Status
List of geofences
QMI_LOC_SET_GEOFENCE_ENGINE_
CONFIG_REQ
Status
GNSS unavailable
indication timeout
Max geofences to be
programmed
Motion detection
sources to be
enabled
Enable/Disable CPI
usage
GNSS position
session timeout
GNSS max punc
acceptable
Medium
responsiveness value
of geofences
Challenged GNSS
environment
minimum CPI wait
interval
Set motion state
speed for different
motion states
Status
QMI_LOC_GET_GEOFENCE_ENGINE_
CONFIG_REQ
Transaction ID Status
GNSS Unavailable Indication
Timeout
Max geofences programmed
Enabled motion detection
sources
Status of CPI usage
Notifications Values
EVENT_GEOFENCE_BREACH_NOTIFICATION GEOFENCE_BREACH_TYPE_ENTERING
GEOFENCE_BREACH_TYPE_LEAVING
EVENT_GEOFENCE_PROXIMITY_NOTIFICATION GEOFENCE_PROXIMITY_TYPE_IN
GEOFENCE_PROXIMITY_TYPE_OUT
Geofencing Reference Guide API and call flows
80-NB758-1 E Confidential and Proprietary – Qualcomm Technologies, Inc. 34
MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
Notifications Values
EVENT_NI_GEOFENCE_NOTIFICATION ADDED
DELETED
EDITED
EVENT_GEOFENCE_GEN_ALERT_IND GEOFENCE_GEN_ALERT_GNSS_
UNAVAILABLE
GEOFENCE_GEN_ALERT_GNSS_
AVAILABLE
GEOFENCE_GEN_ALERT_OOS
GEOFENCE_GEN_ALERT_TIME_INVALID
EVENT_GEOFENCE_BATCHED_BREACH_NOTIFICATION_
IND
GEOFENCE_BREACH_TYPE_ENTERING
GEOFENCE_BREACH_TYPE_LEAVING
GEOFENCE ID CONTINUOUS LIST
GEOFENCE ID DISCRETE LIST
EVENT_GEOFENCE_BATCHED_DWELL_NOTIFICATION_
IND
GEOFENCE_DWELL_TYPE_ENTERING
GEOFENCE_DWELL_TYPE_LEAVING
GEOFENCE ID CONTINUOUS LIST
GEOFENCE ID DISCRETE LIST
80-NB758-1 E Confidential and Proprietary – Qualcomm Technologies, Inc. 35
MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
A References
A.1 Related documents
Title Number
Qualcomm Technologies, Inc.
Optimized Geofence Management on Qualcomm Platforms 80-NB607-1
A.2 Acronyms and terms
Acronym or term Definition
AP Access Point
CPI Coarse Position Injection
MO Mobile-Originated
MT Mobile-Terminated
ODCPI On Demand Coarse Position Injection
SSC Snapdragon™ Sensor Core

Navigation menu
