RCS Integration Guide
80-NV182-1 C
August 4, 2016
80-NV182-1 C Confidential and Proprietary – Qualcomm Technologies, Inc. 2
MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
Revision history
Revision Date Description
A January 2015 DRAFT release
B February 2015 Initial release
C Aug 2016 Numerous changes were made in this revision. It should be read in its
entirety.
80-NV182-1 C Confidential and Proprietary – Qualcomm Technologies, Inc. 3
MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
Contents
1 Introduction ...................................................................................................... 5
1.1 Purpose.......................................................................................................................... 5
1.2 Conventions .................................................................................................................. 5
1.3 Technical assistance ...................................................................................................... 5
2 RCS architecture ............................................................................................. 6
2.1 RCS component list ...................................................................................................... 7
2.2 Changes to the RCS UI module .................................................................................... 8
2.3 Changes to the RCS DB .............................................................................................. 10
3 Integration steps ............................................................................................ 12
3.1 Download the latest version ........................................................................................ 12
3.2 Verify that the configurations are correct ................................................................... 12
3.3 Verify the newly added RCS components .................................................................. 13
3.3.1 Libraries ........................................................................................................... 13
3.3.2 Permission files ................................................................................................ 13
3.3.3 Framework jars ................................................................................................ 13
3.3.4 APKs ................................................................................................................ 13
3.4 Install the RCS plugin ................................................................................................. 14
4 Validate the RCS function ............................................................................. 15
4.1 Procedure to use the RCS function ............................................................................. 15
4.2 Procedure to provision the RCS function ................................................................... 16
A References ..................................................................................................... 17

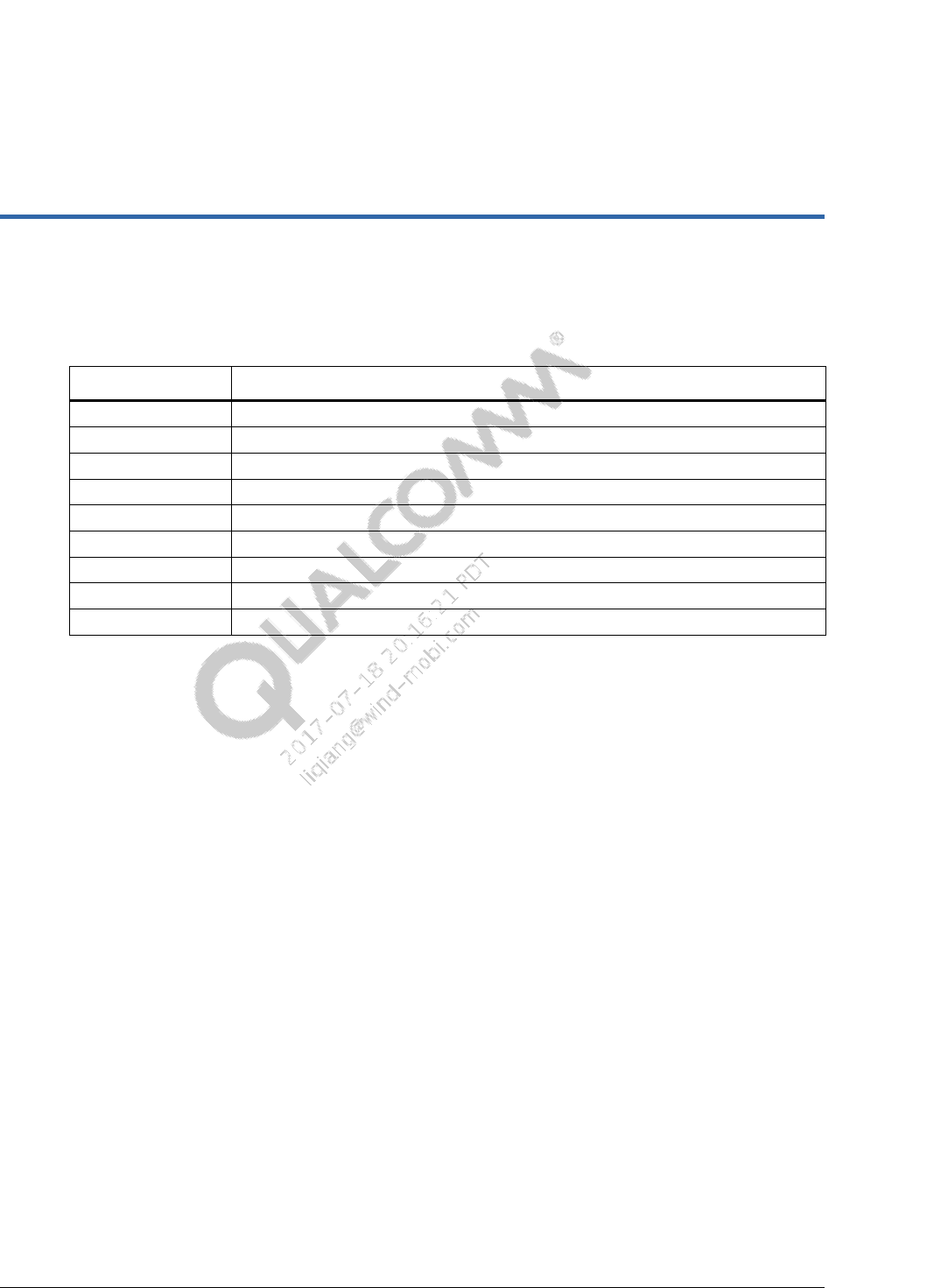

A.1 Acronyms and terms .................................................................................................. 17
RCS Integration Guide Contents
80-NV182-1 C Confidential and Proprietary – Qualcomm Technologies, Inc. 4
MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
Figures
Figure 2-1 RCS system architecture ............................................................................................................ 6
Figure 2-2 Jump from Mms.apk to NativeUI.apk ........................................................................................ 9
Tables
Table 2-1 RCS component list ..................................................................................................................... 7
Table 2-2 UI changes based on the QTI Android platform ......................................................................... 8
Table 2-3 Newly-added UI APKs ................................................................................................................ 9
Table 2-4 Newly added fields in the SMS table ........................................................................................ 10
Table 2-5 Newly added fields in the thread table ...................................................................................... 11
Table 4-1 Parameter descriptions for rcs_service.properties ..................................................................... 15
80-NV182-1 C Confidential and Proprietary – Qualcomm Technologies, Inc. 5
MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
1 Introduction
NOTE: Numerous changes were made to this document revision; it should be read in its entirety.
1.1 Purpose
This document provides integration guidelines for OEMs using the Qualcomm Technologies, Inc.
(QTI) RCS solution to meet China Mobile (CMCC) requirements.
1.2 Conventions
Function declarations, function names, type declarations, attributes, and code samples appear in a
different font, for example, #include.
Code variables appear in angle brackets, for example, <number>.
Shading indicates content that has been added or changed in this revision of the document.
1.3 Technical assistance
For assistance or clarification on information in this document, submit a case to Qualcomm
Technologies, Inc. (QTI) at https://createpoint.qti.qualcomm.com/.
If you do not have access to the CDMATech Support website, register for access or send email to
support.cdmatech@qti.qualcomm.com.
80-NV182-1 C Confidential and Proprietary – Qualcomm Technologies, Inc. 6
MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
2 RCS architecture
The RCS system architecture can be divided into five layers. The main functions of each layer
are:
UI – Responsible for UI render/presentation to interact with the user
Device API – Responsible for interacting with the RCS service by way of AIDL
Service and Plug-in – Responsible for handling the most basic RCS service logic and
encapsulating the plug-in of CMCC
Stack API – Responsible for the interaction of the RCS adaptation layer and RCS protocol
layer by way of JNI
RCS framework – Responsible for the RCS transport protocol
The RCS system architecture is shown in Figure 2-1.

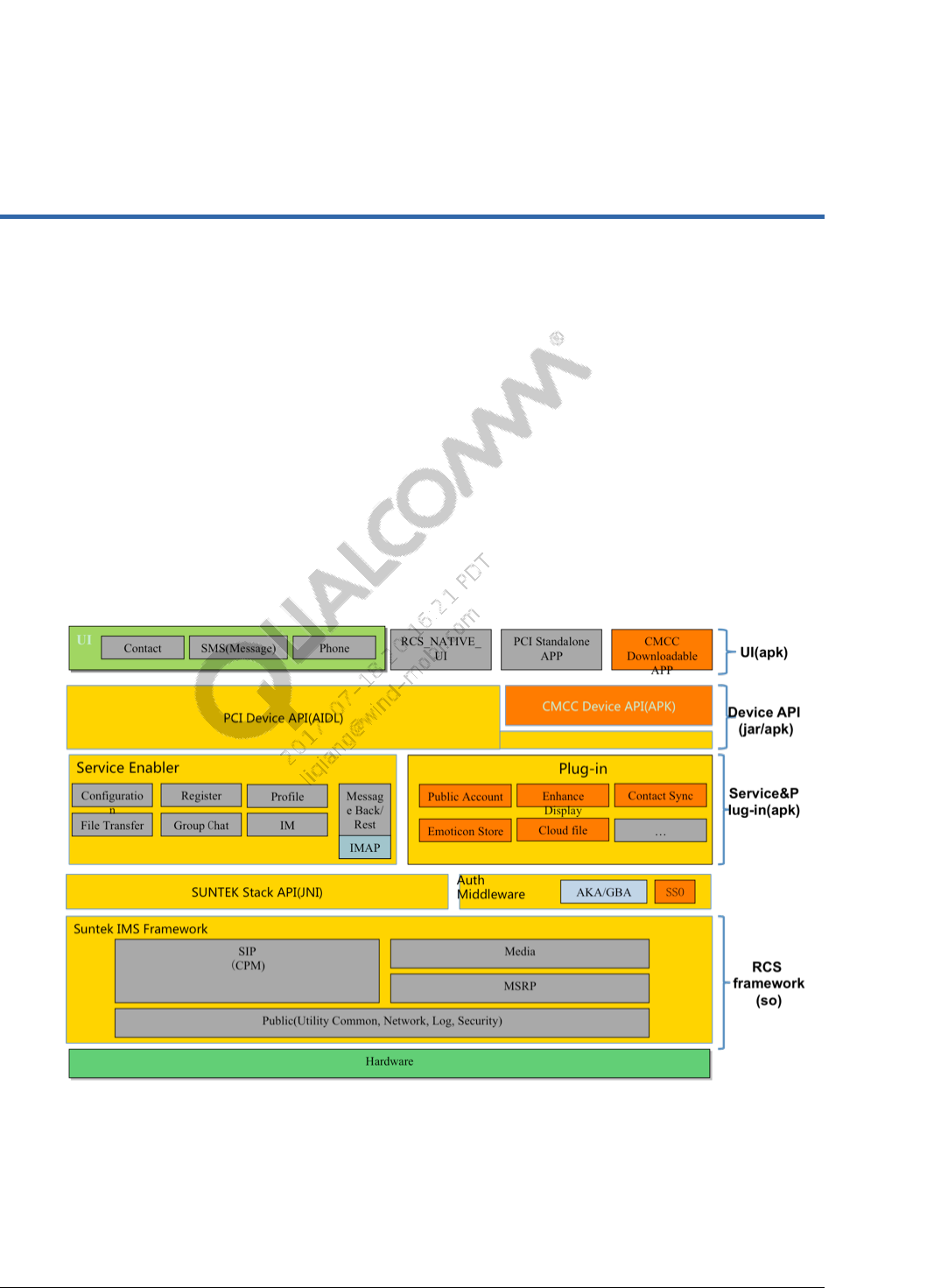

Figure 2-1 RCS system architecture
RCS Integration Guide RCS architecture
80-NV182-1 C Confidential and Proprietary – Qualcomm Technologies, Inc. 7
MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
2.1 RCS component list
Table 2-1 lists the modules (components) of the RCS system.
Table 2-1 RCS component list
Product location Usage Owner Release to
OEMs
system/framework/rcs_service_aidl.jar Definition of the common AIDL of
rcs_service_api and rcs_service PCI Source code
system/etc/permissions/rcs_service_
aidl.xml Used to dynamically load
rcs_service_aidl.jar PCI Source code
system/framework/rcs_service_api.jar Used for all RCS interfaces of
the UI PCI Source code
system/etc/permissions/rcs_service_
api.xml Used to dynamically load
rcs_service_api.jar PCI Source code
system/framework/device_api.jar Device API interface PCI binary
system/etc/permissions/device_api.xml Used to dynamically load
device_api.jar PCI binary
system/framework/rcs_plugin_aidl.jar Definition of the common AIDL of
rcs_service and rcs_plugin PCI binary
system/etc/permissions/rcs_plugin_aidl.x
ml Used to dynamically load
rcs_plugin_aidl.jar PCI binary
system/vendor/ChinaMobile/system/app/D
eviceApiService/DeviceApiService.apk Device API serivce PCI binary
system/vendor/ChinaMobile/system/app/R
csGbaProxy/RcsGbaProxy.apk GBA authentication middleware PCI binary
system/vendor/ChinaMobile/system/app/R
csService/RcsService.apk RCS service logic
implementation, which acts as a
bridge to connect the protocol
stack and the UI
PCI binary
system/vendor/lib/librcs_jni.so RCS protocol stack PCI binary
system/vendor/ChinaMobile/system/priv-
app/BiaoQingStore4Rcs_APK
/BiaoQingStore4Rcs_APK.apk
Emoticon store plug-in CMCC binary
system/vendor/ChinaMobile/system/app/
OnlineBusinessHall/OnlineBusinessHall.a
pk
Online Business Hall plug-in CMCC binary
system/vendor/ChinaMobile/system/app/R
csMap/RcsMap.apk Map plug-in PCI binary
system/vendor/ChinaMobile/system/app/C
aiYinRCS/CaiYinRCS.apk Enhanced screen plug-in CMCC binary
data/app/cmccsso/cmccsso.apk SSO authentication service CMCC binary
data/app/RcsPlugin/RcsPlugin.apk Integrate plug-in function to
provide service to the UI PCI binary
system/vendor/ChinaMobile/system/app/R
csSystemService/RcsSystemService.apk Set RCS enable/disable PCI binary
RCS Integration Guide RCS architecture
80-NV182-1 C Confidential and Proprietary – Qualcomm Technologies, Inc. 8
MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
2.2 Changes to the RCS UI module
The RCS UI is divided into two parts – one part is anAndroid open source-based UI, such as
Contacts, Dialer, MMS, etc., which is integrated with the features of RCS.
Table 2-2 lists the UI modules in which RCS has changed the open source code.
Table 2-2 UI changes based on the QTI Android platform
Module Main changes
frameworks/opt/telephony The permission for rcs_service to write
SMS is added
packages/apps/Contacts Profile, RCS capability discovery, QR
code scan, and Enhanced screen
packages/providers/ContactsProvider Newly added field that supports RCS data
storage
packages/apps/ContactsCommon UI change of the contacts
packages/apps/Mms Text message, file transfer, 1-1 chat, 1-n
chat, group chat
packages/providers/TelephonyProvider Newly added field that supports RCS data
storage
packages/apps/Dialer The entry of Blacklist and Send Message
are added
packages/apps/InCallUI Enhanced screen
vendor\qcom\proprietary\qrdplus\ChinaMobile\apps\Firewall RCS message intercept
vendor\qcom\proprietary\qrdplus\ChinaMobile\res\Mms Whether MMS supports to set the toggle
(enable/disable) of RCS message storage
under CMCC mode
vendor\qcom\proprietary\qrdplus\ChinaMobile\res\Telephony
Provider Whether telephonyProvider supports
RCS field under CMCC mode
The other part is the newly-added RCS UI. To reduce the coupling with the Android original
system UI, these UI changes are placed in a separate APK to be installed in the handset.The
interaction between UIs is done by the Intent mechanism.
For example, in the group chat UI of MMS, clicking the Group Chat Detail jumps to the group
management UI of the original UI, as shown in Figure 2-2.
RCS Integration Guide RCS architecture
80-NV182-1 C Confidential and Proprietary – Qualcomm Technologies, Inc. 9
MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION

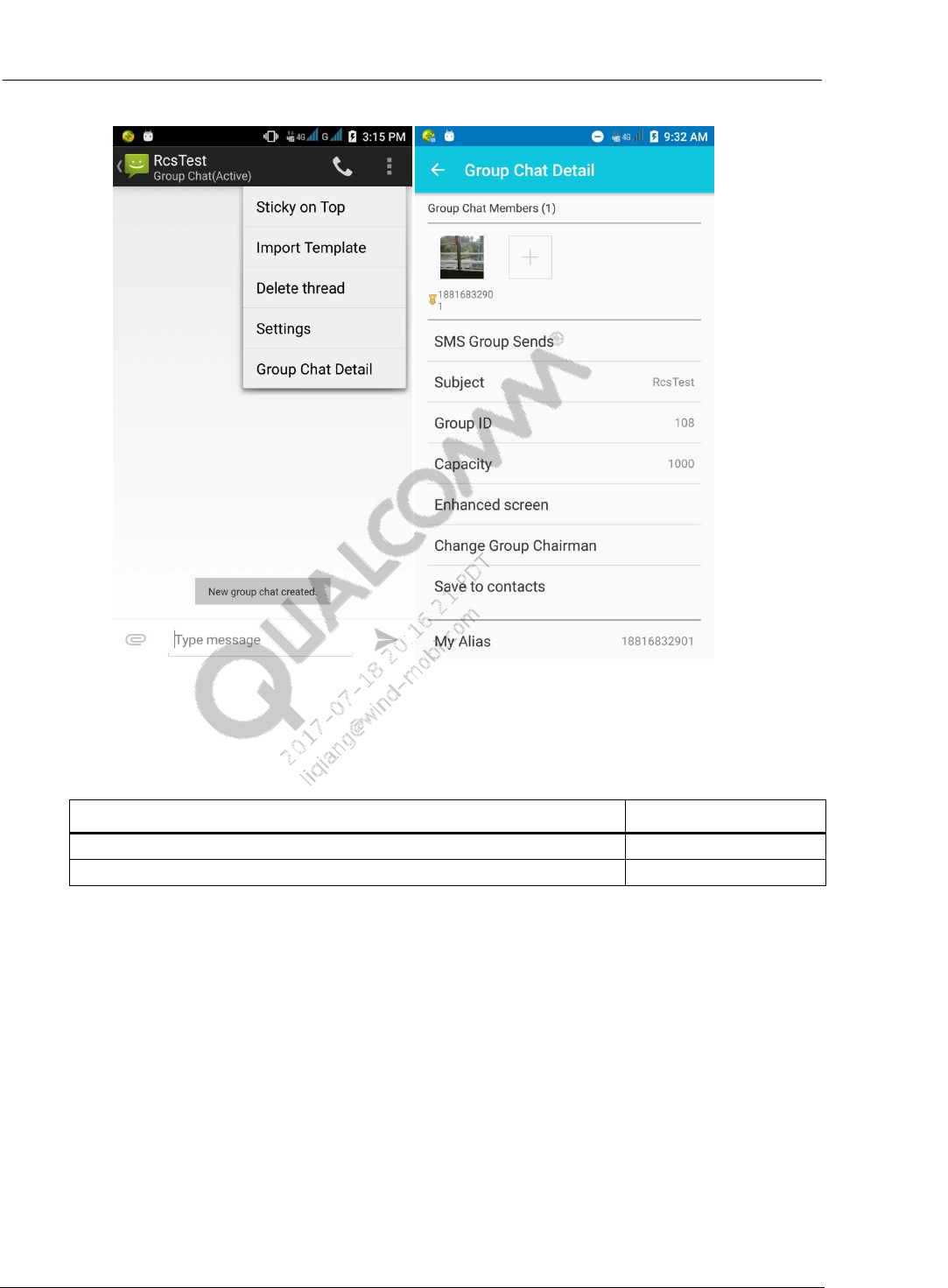

Figure 2-2 Jump from Mms.apk to NativeUI.apk
The newly-added UI APKs are listed in Table 2-3.
Table 2-3 Newly-added UI APKs
Module Main changes
vendor/qcom/proprietary/qrdplus/ChinaMobile/apps/Rcs/rcs_native_ui Newly added RCS UI
vendor/qcom/proprietary/qrdplus/ChinaMobile/apps/Rcs/rcs_public_account Public account message
RCS Integration Guide RCS architecture
80-NV182-1 C Confidential and Proprietary – Qualcomm Technologies, Inc. 10
MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
2.3 Changes to the RCS DB
The SMS table is extended in the SmsProvider of TelephonyProvider to store the fields related to
new RCS messages. The changes are listed in Table 2-4.

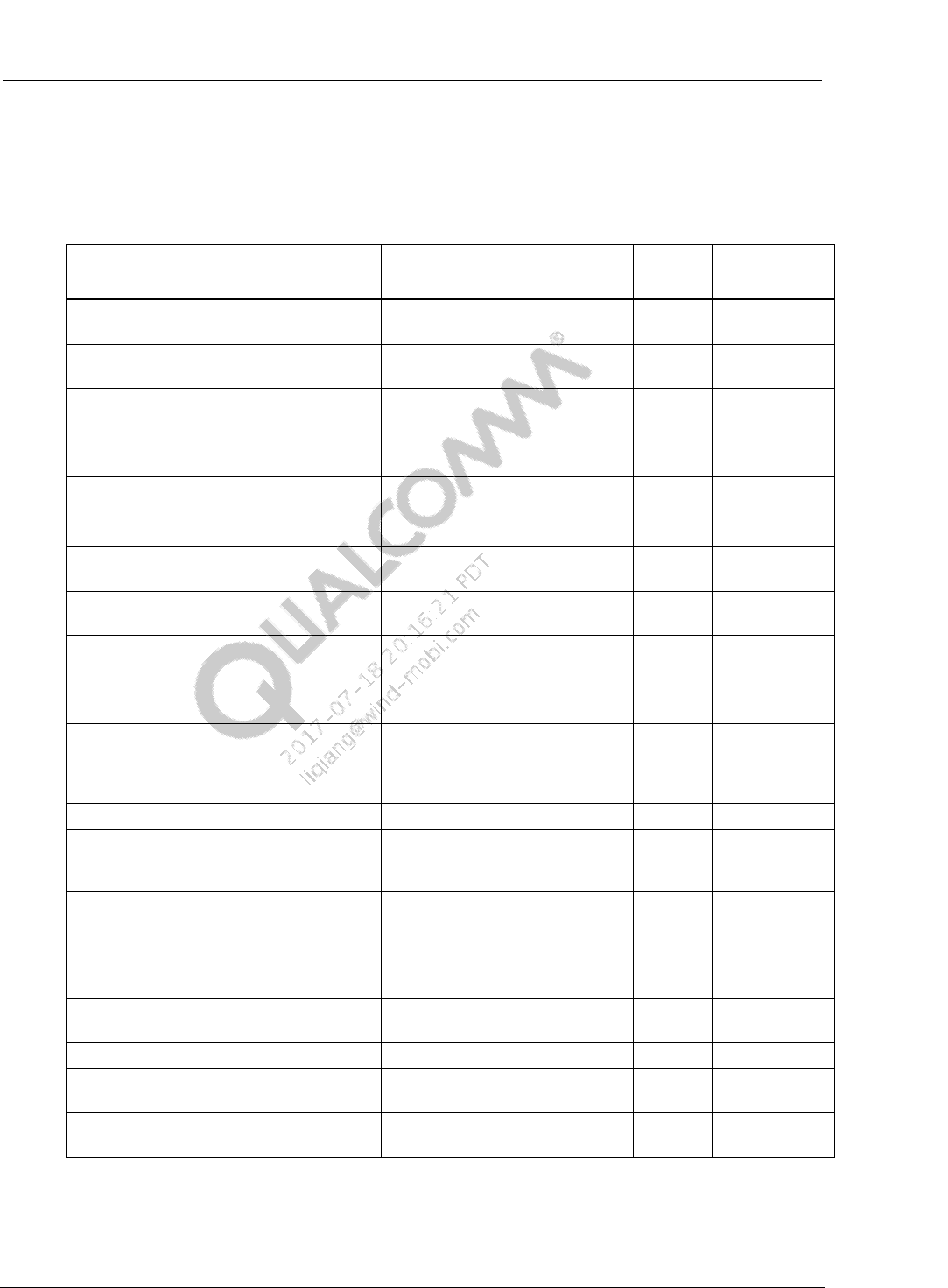

Table 2-4 Newly added fields in the SMS table
Field Data type Field name Description
favorite INTEGER Added to favorite or not 0: Not added; 1: Added
rcs_message_id TEXT Message ID
rcs_file_name TEXT Attachment name
rcs_mime_type TEXT Attachment type Text, image, audio, video
rcs_msg_type INTEGER Message type
rcs_msg_state INTEGER Message state Sender: Sending, Sent,
Delivered, Sent Fail,
Read, Burnt
Receiver: Unread, Read,
Burnt
rcs_chat_type INTEGER Conversation type 1-1, 1-n, n-n
rcs_conversation_id TEXT RCS conversation ID
rcs_contribution_id TEXT RCS contribution ID
rcs_file_selector TEXT File description
rcs_file_transfered TEXT How many bytes have
been transferred
rcs_file_transfer_id TEXT File transfer ID
rcs_file_icon TEXT File thumbnail
rcs_burn INTEGER Burn after reading -1: Do not burn after
reading
Other: Burn the
message N seconds
after it is read
rcs_header TEXT From, To date in received
message
rcs_file_path TEXT File path
rcs_is_download INTEGER Download or not
rcs_file_size INTEGER Attachment size
rcs_thumb_path TEXT Attachment thumbnail
path
rcs_burn_body TEXT Burn message body
rcs_ext_contact TEXT Extend contact
information
rcs_file_record INTEGER Recorded file or not Used to determine
whether the file being
transferred is a recorded
file or not
1: Recorded file
2: Not a recorded file
RCS Integration Guide RCS architecture
80-NV182-1 C Confidential and Proprietary – Qualcomm Technologies, Inc. 11
MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION

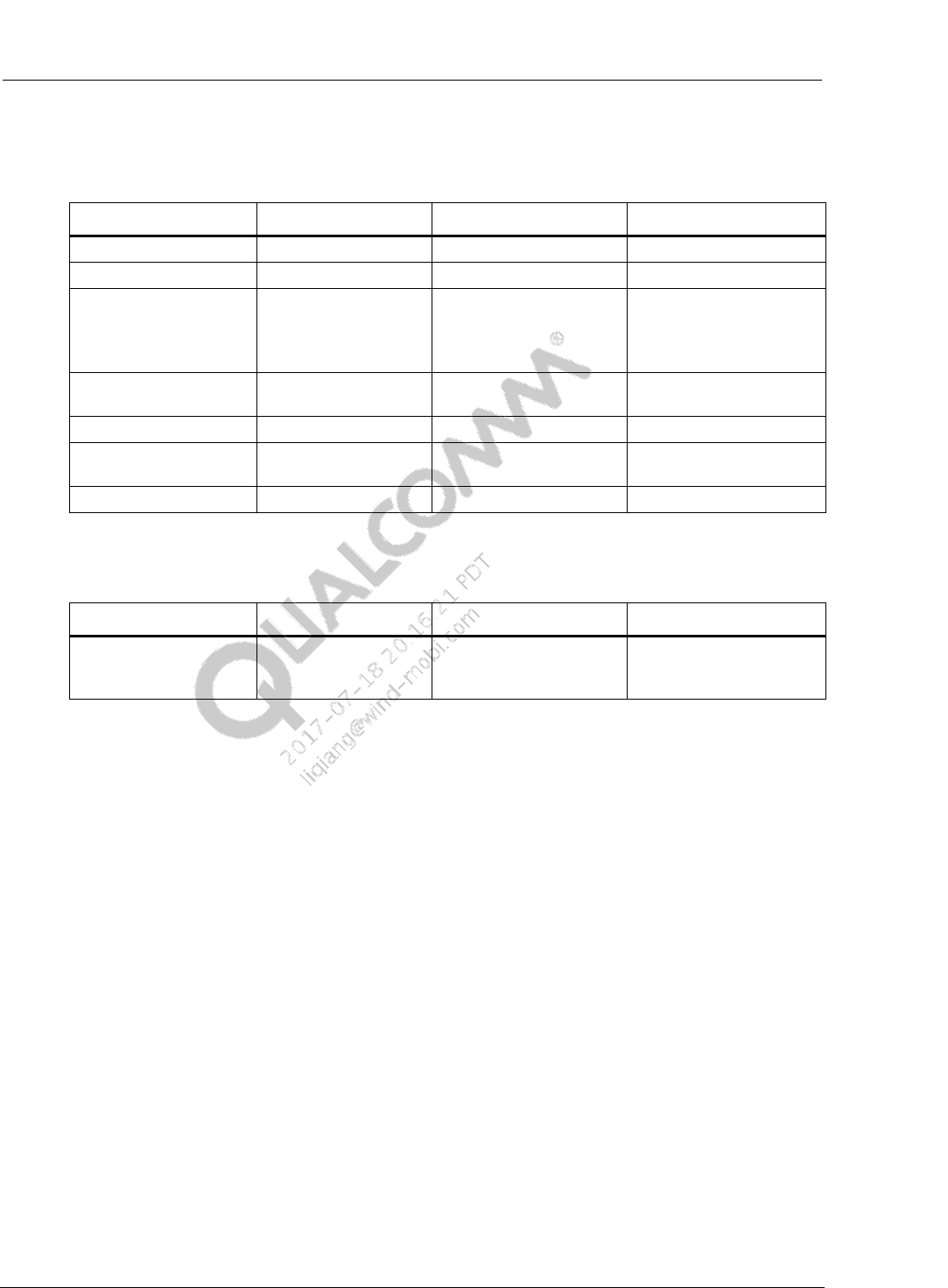

Table 2-5 lists the changes to the thread table to store information related to group chat and top.
Table 2-5 Newly added fields in the thread table
Field Data type Field name Description
rcs_top INTEGER Top conversation or not
rcs_top_time INTEGER Top time
rcs_number TEXT The other party’s number For 1-1, it is the other
party’s number;
For 1-n, it is a list of
numbers
last_msg_id INTEGER ID of the last message Used to update the
snippet display
msg_chat_type INTEGER Conversation type Group chat or 1-1
last_msg_type INTEGER Type of the last message Used to updat the snippet
display
rcs_unread_count INTEGER Unread message count
In the raw_contacts table of ContactsProvider, local_photo_setted is used to determine whether a
local photo is set.
Field Data type Field name Description
local_photo_setted INTEGER Whether a local photo is
set In the code, it is used to
determine photo updates
in different situations
80-NV182-1 C Confidential and Proprietary – Qualcomm Technologies, Inc. 12
MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
3 Integration steps
3.1 Download the latest version
Get the latest version from the Qualcomm ChipCode website.
3.2 Verify that the configurations are correct
device/qcom/{$TARGET}/BoardConfig.mk
TARGET_USES_PCI_RCS := true；
device/qcom/common/base.mk
#RCS
RCS := rcs_service_aidl
RCS += rcs_service_aidl.xml
RCS := rcs_service_aidl_static
RCS += rcs_service_api
RCS += rcs_service_api.xml
PRODUCT_PACKAGES += $(RCS)
vendor/qcom/proprietary/qrdplus/ChinaMobile/product.mk
ifneq ($(TARGET_USES_PCI_RCS),true)
#RCS in ChinaMobile folder
RCS := NativeUI
RCS += PublicAccount
#RCS in other folders
RCS += librcs_jni
RCS += rcs_plugin_aidl_libs_gson_static.jar
RCS += rcs_plugin_aidl
RCS += rcs_plugin_aidl.xml
RCS += RcsService
RCS += RcsSystemService
RCS += device_api
RCS += device_api.xml
RCS += DeviceApiService
#RCS no ship
RCS_NO_SHIP += libbinaryByFounder
RCS_NO_SHIP += libqrcodedecoder
RCS_NO_SHIP += RcsPlugin
RCS_NO_SHIP += RcsGbaProxy
RCS Integration Guide Error! No text of specified style in document. Integration steps
80-NV182-1 C Confidential and Proprietary – Qualcomm Technologies, Inc. 13
MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
RCS_NO_SHIP += cmccsso
RCS_NO_SHIP += OnlineBusinessHall
RCS_NO_SHIP += CaiYinRCS
RCS_NO_SHIP += BiaoQingStore4Rcs_APK
PRODUCT_PACKAGES += RCS
PRODUCT_PACKAGES += RCS_NO_SHIP
endif
Continue the compilation after all the configurations are verified to be correct.
3.3 Verify the newly added RCS components
3.3.1 Libraries
system/vendor/lib/librcs_jni.so
3.3.2 Permission files
system/etc/permissions/rcs_service_aidl.xml
system/etc/permissions/rcs_service_api.xml
system/etc/permissions/rcs_plugin_aidl.xml
system/etc/permissions/device_api.xml
3.3.3 Framework jars
system/framework/rcs_service_aidl.jar
system/framework/rcs_service_api.jar
system/framework/device_api.jar
system/framework/rcs_plugin_aidl.jar
3.3.4 APKs
system/vendor/ChinaMobile/system/app/RcsService/RcsService.apk
system/vendor/ChinaMobile/system/app/DeviceApiService/DeviceApiService.apk
system/vendor/ChinaMobile/system/app/RcsSystemService/RcsSystemService.apk
system/vendor/ChinaMobile/system/app/NativeUI/NativeUI.apk
* system/vendor/ChinaMobile/system/app/RcsGbaProxy/RcsGbaProxy.apk
* system/vendor/ChinaMobile/system/priv-app\BiaoQingStore4Rcs_APK
* system/vendor/ChinaMobile/system/app/OnlineBusinessHall/OnlineBusinessHall.apk
*data/app/RcsPlugin/RcsPlugin.apk
*data/app/RcsMap/RcsMap.apk
RCS Integration Guide Error! No text of specified style in document. Integration steps
80-NV182-1 C Confidential and Proprietary – Qualcomm Technologies, Inc. 14
MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
* data/app/cmccsso/cmccsso.apk
* data/app/CaiYinRCS/CaiYinRCS.apk
The components that are marked with * are plug-in functions. Refer to Chapter 4 if they are
needed.
3.4 Install the RCS plugin
Install the following plugins.
adb push OnlineBusinessHall.apk /system/app/OnlineBusinessHall/
adb push BiaoQingStore4Rcs_APK.apk /system/priv-app/BiaoQingStore4Rcs_APK/
adb install -r RcsPlugin.apk
adb install -r cmccsso.apk
adb install -r CaiYinRCS.apk
adb install -r RcsMap.apk
80-NV182-1 C Confidential and Proprietary – Qualcomm Technologies, Inc. 15
MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
4 Validate the RCS function
Precondition
A CMCC USIM card that has the RCS service enabled.
4.1 Procedure to use the RCS function
Follow these steps to use the RCS function.
1. Turn on RCS toggle
adb shell setproppersist.sys.rcs.enabled1
2. Push the rcs_service.properties configuration file.
adb push rcs_service.properties/sdcard/Android/data/
com.suntek.mway.rcs.app.service/rcs_service.properties
The followings are examples of rcs_service.properties with descriptions of the parameters:
isTest=true
isForcedTest=true
testImsi0=460078132911067
dms_server_http=http://14.23.86.58:9080/dmsinterface/authen.do
dms_server_https=https://14.23.86.58:8443/dmsinterface/authen.do
network_type=0
sms_port=37273
sbc_conntype=tcp
add_dms_header=true
testMsisdn=+8618816832860
conf_uri=sip:1252000199@bfas1axm.gc.rcs2.chinamobile.com

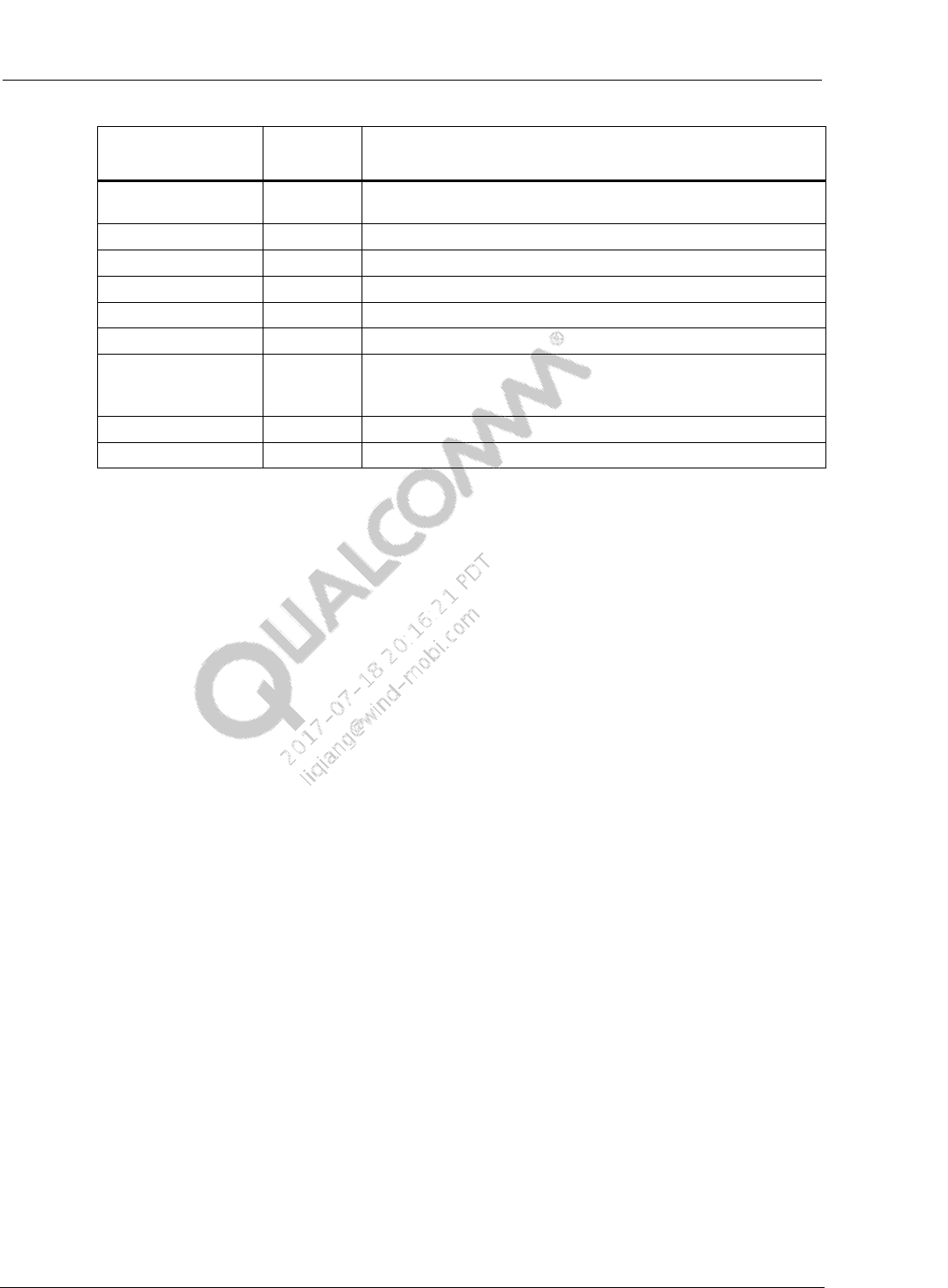

Table 4-1 provides the rcs_service.properties parameter descriptions.
Table 4-1 Parameter descriptions for rcs_service.properties
Configuration
name Mandatory
or not Function
isTest Optional Whether to use the configured IMSI.
The value is TRUE if no SIM card is installed, in which case
testImsi(x) is used
isForcedTest Optional Whether to use the configured IMSI mandatorily.
testImsi(x) is used no matter if a SIM card is installed or not
RCS Integration Guide Error! No text of specified style in document. Validate the RCS function
80-NV182-1 C Confidential and Proprietary – Qualcomm Technologies, Inc. 16
MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
Configuration
name Mandatory
or not Function
testImsi0 Optional If this IMSI is used, 0 indicates the slot number; more than 1
can be configured, such as testImsi1, testImsi2, etc.
dms_server_http Mandatory The requested DMS HTTP address
dms_server_https Mandatory The requested DMS HTTPS address
network_type Optional Set the current network type – 1: Wi-Fi mode; 0: PS mode
sms_port Optional The port to monitor OTP and configuration messages
sbc_conntype Optional Define the registered transmission mode (tcpudptls)
add_dms_header Optional DMS HTTP request header is added, in which the x-up-calling-
line-id must use the testMsisdn configuration (used for
accessing ZTE DMS)
testMsisdn Optional Phone number (used for accessing ZTE DMS)
conf_uri Optional ZTE north nodes group (used for testing Fetionfusion)
NOTE: When it comes to the commercial stage, rcs_service.properties is not mandatory. Currently,
due to the consideration of the specification, by default, the RCS service accesses the
standard DMS address by domain name. Because there is no account available for the
commercial domain name, this parameter must be configured to test the RCS function before
the commercial stage.
3. Reboot the handset
adb reboot
4.2 Procedure to provision the RCS function
Follow these steps to provision the RCS function.
1. Set the RCS log level and turn on the RCS log toggle.
adb shell setproppersist.sys.rcs.log.level 1
adb shell am broadcast -a
com.suntek.mway.rcs.app.service.framework.ReloadLog
adb reboot
2. Export the RCS-related log and analyze the log.
adb pull /sdcard/Android/data/com.suntek.mway.rcs.app.service \desktop
80-NV182-1 C Confidential and Proprietary – Qualcomm Technologies, Inc. 17
MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
A References
A.1 Acronyms and terms
Acronym or term Definition
AIDL Android™ interface description language
APK Android application package
GBA Generic Bootstrapping Architecture
JNI Java® Native Interface
MMS Multimedia Messaging System
QR code Quick response
RCS Rich communication services (also, rich communication suite)
SDK Software development kit
SSO Single sign-on
