QCA61x4, QCA65x4, and QCA937x
Configuration Parameters Specification
80-Y7674-11 Rev. K
April 7, 2017
80-Y7674-11 Rev. K Confidential and Proprietary – Qualcomm Technologies, Inc. 2
MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
Revision history
Revision
Date
Description
A
February 2014
Initial release.
B
April 2014
Updated the power configuration.
C
October 2014
Removed BTCoex parameters since it does not apply to QCA6174,
added Section 2.6.3 gTDLSExternalControl parameter.
D
October 2014
Changed the distribution type from internal to external.
E
November 2014
Changed the document title and replaced the QCA6174 device with the
QCA61x4 and QCA65x4 devices.
Modified Table 1-1, reference documents and standards, and minor
changes in Sections 2.2, 2.6, 2.7, and 2.8.
F
February 2015
Minor changes in Section 1.1 and 1.2, removed reference documents
from Table 1-1 and updated most of chapter 2.
G
June 2015
Added new parameters and created Wi-Fi Direct (P2P) and Thermal
Mitigation sections (Sections 2.5 and 2.12).
H
September 2015
Updated gChannelBondingMode5GHz.
Added: gDisableDFSChSwitch, gRoamScanOffloadEnabled,
gRoamBmissFirstBcnt, gRoamBmissFinalBcnt and
gInitialScanNoDFSChnl.
J
September 2016
Updated the parameter values according to MSM8976SG
K
April 2017
Changed the description of the parameter gChannelBondingMode24GHz
from Auto to 20 MHz only.
80-Y7674-11 Rev. K Confidential and Proprietary – Qualcomm Technologies, Inc. 3
MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
Contents
1 Introduction ........................................................................................................................... 5
2 General .................................................................................................................................. 6
2.1 PHY mode settings .................................................................................................................................. 12
3 Power save ...........................................................................................................................13
3.1 gDataInactivityTimeout workflow ............................................................................................................. 14
4 SoftAP ...................................................................................................................................15
5 Channel range and auto-channel select .............................................................................17
6 Wi-Fi direct ...........................................................................................................................18
7 Virtual STA ...........................................................................................................................19
8 TDLS .....................................................................................................................................20
9 Packet filtering .....................................................................................................................22
10 Scanning .............................................................................................................................23
11 Roaming .............................................................................................................................24
12 802.11ac ..............................................................................................................................26
13 Thermal mitigation .............................................................................................................28
14 Invalid or unused ...............................................................................................................30
A References ...........................................................................................................................31
Figures
Figure 3-1 gDataInactivityTimeout workflow ............................................................................................................... 14
QCA61x4, QCA65x4, and QCA937x Configuration Parameters Specification Contents
80-Y7674-11 Rev. K Confidential and Proprietary – Qualcomm Technologies, Inc. 4
MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
Tables
Table 2-1 General parameters ...................................................................................................................................... 6
Table 2-2 PHY mode settings ..................................................................................................................................... 12
Table 3-1 Power save configuration parameters ......................................................................................................... 13
Table 4-1 SoftAP configuration parameters ................................................................................................................ 15
Table 5-1 Channel range and auto channel select configuration parameters ............................................................. 17
Table 6-1 Wi-Fi direct configuration parameters ......................................................................................................... 18
Table 7-1 Virtual STA configuration parameters ......................................................................................................... 19
Table 8-1 TDLS configuration parameters .................................................................................................................. 20
Table 9-1 Packet filtering configuration parameters .................................................................................................... 22
Table 10-1 Scanning configuration parameters .......................................................................................................... 23
Table 11-1 Roaming configuration parameters ........................................................................................................... 24
Table 12-1 802.11 ac configuration parameters .......................................................................................................... 26
Table 13-1 Thermal mitigation configuration parameters ............................................................................................ 28
80-Y7674-11 Rev. K Confidential and Proprietary – Qualcomm Technologies, Inc. 5
MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
1 Introduction
This document describes configuration parameters for the Qualcomm® QCA CLD2.0
device driver on the Android, Linux, and QNX platforms.
These parameters apply to the following WLAN-Bluetooth devices:
■ QCA61x4A
■ QCA65x4A
■ QCA937x
80-Y7674-11 Rev. K Confidential and Proprietary – Qualcomm Technologies, Inc. 6
MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
2 General
Table 2-1 General parameters
Parameter
Description
Max
Default
BandCapability
Preferred band (0: both, 1: 2.4 G only, 2: 5 G
only)
2
1
gChannelBondingMode5GHz
Configures channel bonding in 5 GHz
0, 20 MHz
1, for STA, use the AP mode; for SoftAP or
GO, value depends on gVhtChannelWidth
Other values are reserved
9
0
gChannelBondingMode24GHz
Configures channel bonding in 24 GHz
0, 20 MHz only
1, HT40 mode, upper primary channel
2, HT40 mode, lower primary channel
2
0
gDot11Mode
PHY mode; see Table 2-2
9
0
gTxPowerCap
This ini is used to cap TxPower
Do not use CFG default; if there is no registry
setting, this is ignored by SME.
128
27
gMaxPsPoll
Maximum number of Ps polls sent by STA to
retrieve buffered frames before leaving out of
power save if more data is buffered in AP
255
0
g11dSupportEnabled
Enables or disables 11d support; all recent PLs
disables through ini file
1
1
InfraUapsdVoSrvInTv
Unscheduled automatic power save delivery
service interval for VO traffic in ms
4294967295UL
20
InfraUapsdViSrvInTv
UAPSD service interval for VI traffic
4294967295UL
300
InfraUapsdBeSrvInTv
Unscheduled automatic power save delivery
service interval for BE traffic in ms.
4294967295UL
300
InfraUapsdBkSrvInTv
UAPSD service interval for Bk traffic
4294967295UL
300
InfraUapsdBkSrvInTv
(Applies only when STA is connected to AP)
Unscheduled automatic power save delivery
driven by QoS-aware applications, such as
VoIP. Aabbreviations:
BK, background
BE, best effort
VI, video
VO, voice 1
-
-
gShortGI20Mhz
Short guard interval for HT20
1, Enable
0, Disable
1
1
QCA61x4, QCA65x4, and QCA937x Configuration Parameters Specification General
80-Y7674-11 Rev. K Confidential and Proprietary – Qualcomm Technologies, Inc. 7
MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
Parameter
Description
Max
Default
gShortGI40Mhz
Short guard interval for HT40
1, Enable
0, Disable
1
1
g11hSupportEnabled
802.11h support
1, Enable
0, Disable
1
1
ImplicitQosIsEnabled
Implicit QoS for WMM AC handling
1, Enable, driver enables QoS support
0, Disable
1
1
gEnableLogp
Driver watchdog thread for driver fatal error
recovery
1, Enable
0, Disable
1
0
gStaKeepAlivePeriod
Sends NULL frame to AP periodically in
seconds to notify STA existence
65535
0
gEnablefwlog
Firmware log in the kernel message
1, Enable
0, Disable
1
0
gEnablefwprint
Print firmware messages on the QCA device
UART port
1, Enable
0, Disable
1
0
gEnableMCCMode
Multi-channel concurrency mode
1, Enable
0, Disable, MCC not allowed
1
1
gDot11PMode
(Applies to QCA6584 only) 802.11p support in
driver and WLAN0 interface
0, Disable (default)
1, Enable_standalone (only WLANOCB0
mode is supported, WLAN0 is disabled)
2, Enable_standby (enable both WLANOCB0
and WLAN0 interfaces)
2
0
RTSThreshold
Sets RTS threshold (depends on maximum
frame size)
1048576
2347
gFragmentationThreshold
Sets the fragmentation threshold
8000
8000
Intf0MacAddress
Default MAC address for interface 0
FFFFFFFFFFFF
00:0A:F5:89
:89:80
Intf1MacAddress
Default MAC address for interface 1
FFFFFFFFFFFF
00:0A:F5:89
:89:81
Intf2MacAddress
Default MAC address for interface 2
FFFFFFFFFFFF
00:0A:F5:89
:89:82
Intf3MacAddress
Default MAC address for interface 3
FFFFFFFFFFFF
00:0A:F5:89
:89:83
gAddTSWhenACMIsOff
Sends AddTs even when ACM is not set for the
AC
1
0
QCA61x4, QCA65x4, and QCA937x Configuration Parameters Specification General
80-Y7674-11 Rev. K Confidential and Proprietary – Qualcomm Technologies, Inc. 8
MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
Parameter
Description
Max
Default
WmmIsEnabled
WMM feature
0, STA associates with any AP even if AP
supports QoS
1, STA associates QBSS capable AP
2
0
gEnableDFSMasterCap
DFS master capability
0, Disable
1, Enable
1
0
EseEnabled
Enterprise security enhancements (ESE)
feature; EseEnabled replaces "CcxEnabled
(same functionality)
0, Disable
1, Enable
1
0
enableBeaconEarlyTermination
Beacon early termination feature; allows power
down as soon as TIM bit is clear without waiting
for entire beacon to be received and FCS
checked. Power savings depends on beacon
size and placement of the TIM IE within the
beacon.
For scenario (150-byte beacon and Cisco 1252
AP), active receive duration shrinks from 1.3 ms
to 800 µs with BET enabled
1
0
beaconEarlyTerminationWakeInt
erval
For BET, a FCS check is not performed when
TIM is clear; RXP does not update TSF using
timestamp from the beacon.
Can result in drift over time when no traffic for
STA
Periodically and temporarily suspends BET
for a TSF resync by allowing a full beacon to
be received with FCS check and RXP update
of TSF
255
3
gEnableBypass11d
Bypass 802.11d; when enabled, start with an
active scan based on the default country code
(in NV.bin); WLAN bypasses the initial passive
scan needed for 11d to determine the country
code and domain, which reduces time to
associate with AP
0, Disable
1, Enable
1
1
gSetTxChainmask1x1
Sets transmit chain mask; if gEnable2x2 is
disabled, gSetTxChainmask1x1 and
gSetRxChainmask1x1 values are considered.
If chainmask value exceeds the maximum
number of chains supported by target, the max
number of chains is used. By default, chain0 is
selected for both Tx and Rx.
1, gSetTxChainmask1x1 or
gSetRxChainmask1x1 to select chain0
2, gSetTxChainmask1x1 or
gSetRxChainmask1x1 to select chain1
2
1
QCA61x4, QCA65x4, and QCA937x Configuration Parameters Specification General
80-Y7674-11 Rev. K Confidential and Proprietary – Qualcomm Technologies, Inc. 9
MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
Parameter
Description
Max
Default
gSetRxChainmask1x1
Sets receive chain mask. If gEnable2x2 is
disabled, gSetTxChainmask1x1 and
gSetRxChainmask1x1 values are taken into
account. If chainmask value exceeds the
maximum number of chains supported by
target, the max number of chains is used. By
default, chain0 is selected for both Tx and Rx.
1, gSetTxChainmask1x1 or
gSetRxChainmask1x1 to select chain0
2, gSetTxChainmask1x1 or
gSetRxChainmask1x1 to select chain1
2
1
gMaxMediumTime
Maximum channel time. Valid values are 2048,
4096, 8192, and so on. Do not use other values.
65535
2048
gRrmEnable
Controls the capabilities (11 k) included in the
capabilities field.
0, Disable
1, Enable
1
0
gRrmOperChanMax
Radio resource management operating channel
measurement duration
8
3
gRrmNonOperChanMax
Radio resource management nonoperating
channel measurement duration
8
3
gRrmRandnIntvl
Randomization interval in Tus
0, Disable randomization interval (no random
delay is to be used); used to specify the
desired maximum random delay in the
measurement start time
100
100
gNumStaChanCombinedConc
Number of channels combined for STA in each
split scan operation
255
3
gEnableRxThread
(Debug only) Receive thread
0, Disable
1, Enable
1
1
TxPower2g
SAR Thermal limit values for 2.4 GHz
30
30
TxPower5g
SAR Thermal limit values for 5 GHz
30
30
gEnable5gEBT
5 G early beacon termination
0, Disable
1, Enable, terminate the reception of beacon
if the TIM element is clear for the power
saving
1
0
ssdp
Simple service discovery protocol (SSDP)
multicast DNS and Link-Local Multicast Name
Resolution (LLMNR) protocol in firmware in
WoW mode
0, Disable
1, Enable
1
1
gEnableHystereticMode
Debug setting that depends on QCA6174
hardware version; enabled by default.
1
1
gEnableStrictRegulatoryForFCC
Strict FCC regulatory
0, Disable
1, Enable
1
1
gEnablePacketLog
Internal debugging parameter to enable WLAN
Firmware packet logging feature
1
1
QCA61x4, QCA65x4, and QCA937x Configuration Parameters Specification General
80-Y7674-11 Rev. K Confidential and Proprietary – Qualcomm Technologies, Inc. 10
MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
Parameter
Description
Max
Default
gBusBandwidthHighThreshold
Requests higher bus bandwidth and also for
TCP delayed acknowledgment feature. This
value is set as optimal from experiment results,
so it is not recommended to change.
4294967295UL
40000
gBusBandwidthLowThreshold
Number of packet(s) water mark to switch to
default TCP delayed acknowledgment behavior.
Set as optimal from experiment results, so it is
not recommended to change.
4294967295UL
150
gBusBandwidthComputeInterval
Interval for which the bus bandwidth in terms of
packets is evaluated.
Set as optimal from experiment results, so it is
not recommended to change.
10000
100
gRegulatoryChangeCountry
Strict regulatory or customer regulatory settings.
For details, see QCA61x4 and QCA65x4
Regulatory Guidelines (80-Y7674-300)
0, Disable
1, Enable customer regulatory
1
0
gRArateLimitInterval
Router advertisement in Ipv6 (RA) rate Limit
Interval. RA filtering rate limit is in effect when
RA filter is enabled with gRAFilterEnable.
300
60
gMaxConcurrentActiveSessions
Number of active sessions (personality, for
example, STA/SAP/GO/IBSS) allowed on
device at most. If a value of 3 was assigned,
only three active session are allowed, for
example, SAP/STA/P2P GO.
4
2
gPNOScanSupport
Preferred network offload (PNO) feature that
WLAN firmware scans for saved SSID while in
system suspend and not connected with AP.
0, Disable
1, Enable
0
1
gReorderOffloadSupported
Packet reordering offload to firmware.
0, Disable
1, Enable
1
0
gEnableLpassSupport
WLAN location to deliver to LOWI server though
QMI interface. This is related to Geofencing
location feature.
0, Disable
1, Enable
1
0
gCountryCodePriority
Driver retrieves the runtime country code from
either the AP 11d IE or from framework over a
private IOCTL command. User can configure
the country through IOCTL/IW only when this
flag is set—then the driver disables
11dSupportEnabled (this implies that driver
does not take country from beacons)
0, Country code from AP 11d IE has higher
priority
1, Country code from framework over private
IOCTL command has higher priorit
1
0
QCA61x4, QCA65x4, and QCA937x Configuration Parameters Specification General
80-Y7674-11 Rev. K Confidential and Proprietary – Qualcomm Technologies, Inc. 11
MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
Parameter
Description
Max
Default
gEnableSifsBurst
SIFS burst
0, SIFS burst totally disable
1, SIFS burst enabled, but disabled for
legacy mode
3, SIFS burst enabled, also for legacy mode
3
0
gIbssTxSpEndInactivityTime
In IBSS mode Tx Service Period, inactivity time
in ms indicates the time after which Tx Service
Period is terminated by sending a QoS Null
frame with EOSP.
0, Tx SP is terminated with the last buffered
packet, instead of waiting for the inactivity.
100
0
gEnableCustomConcRule1
Used in automobile applications (STA + GO +
SoftAP) to make SoftAP follow STA’s channel. If
SoftAP came up first and STA coming up later.
When enabled, it ensures SoftAP and STA are
always SCC if STA comes up after SoftAP.
1
0
gEnableCustomConcRule2
Used in automobile applications to make P2P
GO follow STA’s channel. If P2P GO comes up
first and STA comes up later. When enabled, it
ensures P2P GO and STA are always SCC if
STA comes up after P2P GO.
1
0
gEnableStaConnectionIn5Ghz
Used in automobile applications (STA
connection not allowed on 5 GHz). If the
application does not want P2P GO restart, set
gEnableCustomConcRule1=1 and set
gEnableStaConnectionIn5Ghz=0, so, STA
connection will not happen in 5 GHz and hence
P2P GO restart is not required.
0, Disable
1, Enable
1
1
gInitialScanNoDFSChnl
0, Disable
1, Enable, for the first scan after driver boots up,
WLAN skips scanning the DFS channels
1
0
QCA61x4, QCA65x4, and QCA937x Configuration Parameters Specification General
80-Y7674-11 Rev. K Confidential and Proprietary – Qualcomm Technologies, Inc. 12
MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
2.1 PHY mode settings
Table 2-2 lists the PHY mode settings (0-9) and the corresponding STA values and the user
settings.
Table 2-2 PHY mode settings
STA
PHY mode
11abg
11b
11g
11n
11g only
11n only
11b only
11ac only
11ac
0
802.11_MODE_AUTO
a, g
b
g
n
g
n
b
11ac
11ac
1
802.11_MODE_ABG
a, g
b
g
a, g
g
NC
b
NC
a, g
2
802.11_MODE_B
b
b
b
b
NC
NC
b
NC
b
3
802.11_MODE_G
g
b
g
g
g
NC
b
NC
g
4
802.11_MODE_N
a, g
b
g
n
g
n
b
NC
n
5
802.11_MODE_G_Only
g
NC
g
NC
g
NC
NC
NC
NC
6
802.11_MODE_N_Only
NC
NC
NC
n
NC
n
NC
NC
NC
7
802.11_MODE_B_Only
b
b
NC
NC
NC
NC
b
NC
NC
8
802.11_MODE_11AC_Only
NC
NC
NC
NC
NC
NC
NC
11ac
11ac
9
802.11_MODE_11AC
a, g
b
g
n
g
n
b
11ac
11ac
80-Y7674-11 Rev. K Confidential and Proprietary – Qualcomm Technologies, Inc. 13
MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
3 Power save
Table 3-1 Power save configuration parameters
Parameter
Description
Min
Max
Default
gEnableBmps
STA mode power save
1, Enable
0, Disable
0
1
1
gEnableDynamicDTIM
Uses Dynamic DTIM.
See reference document CNSS.SW_RM Wi-
Fi Software Architecture Overview
(80-Y7674-2)
0
5
0
gDataInactivityTimeout
Timer in ms indicating the amount of time the
station waits for data frames.
1
255
20
gEnableWoW
0, Disable both magic pattern match and
pattern byte match
1, Enable magic pattern match on all
interfaces
2, Enable pattern byte match on all
interfaces
3, Enable both magic patter and pattern
byte match on all interfaces
0
3
3
gMaxWoWFilters
Maximum number of WoW filters required
0
22
22
gEnablePowerSaveOffl
oad
Power save offload
0, Disable
1, Legacy power save
2, QPower
3-4, Reserved
0
5
0
UapsdMask
ACs to setup U-APSD
Bit 0 set, Voice both deliver/trigger
enabled
Bit 1 set, Video both deliver/trigger
enabled
Bit 2 set, Background both deliver/trigger
enabled
Bit 3 set, Best Effort both deliver/trigger
enabled
0x00
0xFF
0xaa
InfraUapsdVoSrvIntv
Voice service interval if UAPSD for voice is
enabled
0
4294967295UL
20
InfraUapsdVoSuspIntv
UAPSD suspension interval for VO traffic
0
4294967295UL
2000
InfraUapsdViSrvIntv
UAPSD service interval for VI traffic
0
4294967295UL
300
InfraUapsdViSuspIntv
Video Suspend Interval if UAPSD for video is
enabled
0
4294967295UL
2000
QCA61x4, QCA65x4, and QCA937x Configuration Parameters Specification Power save
80-Y7674-11 Rev. K Confidential and Proprietary – Qualcomm Technologies, Inc. 14
MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
Parameter
Description
Min
Max
Default
InfraUapsdBeSrvIntv
Best effort service interval if UAPSD for BE is
enabled
0
4294967295UL
300
InfraUapsdBeSuspIntv
Best effort suspend interval if UAPSD for BE
is enabled
0
4294967295UL
2000
InfraUapsdBkSrvIntv
UAPSD service interval for BK traffic
0
4294967295UL
300
InfraUapsdBkSuspIntv
UAPSD suspension interval for BK traffic
0
4294967295UL
2000
DelayedTriggerFrmInt
Delayed trigger frame interval in ms; used by
firmware to send trigger frames if there is no
traffic for suspend interval
1
4294967295UL
3000

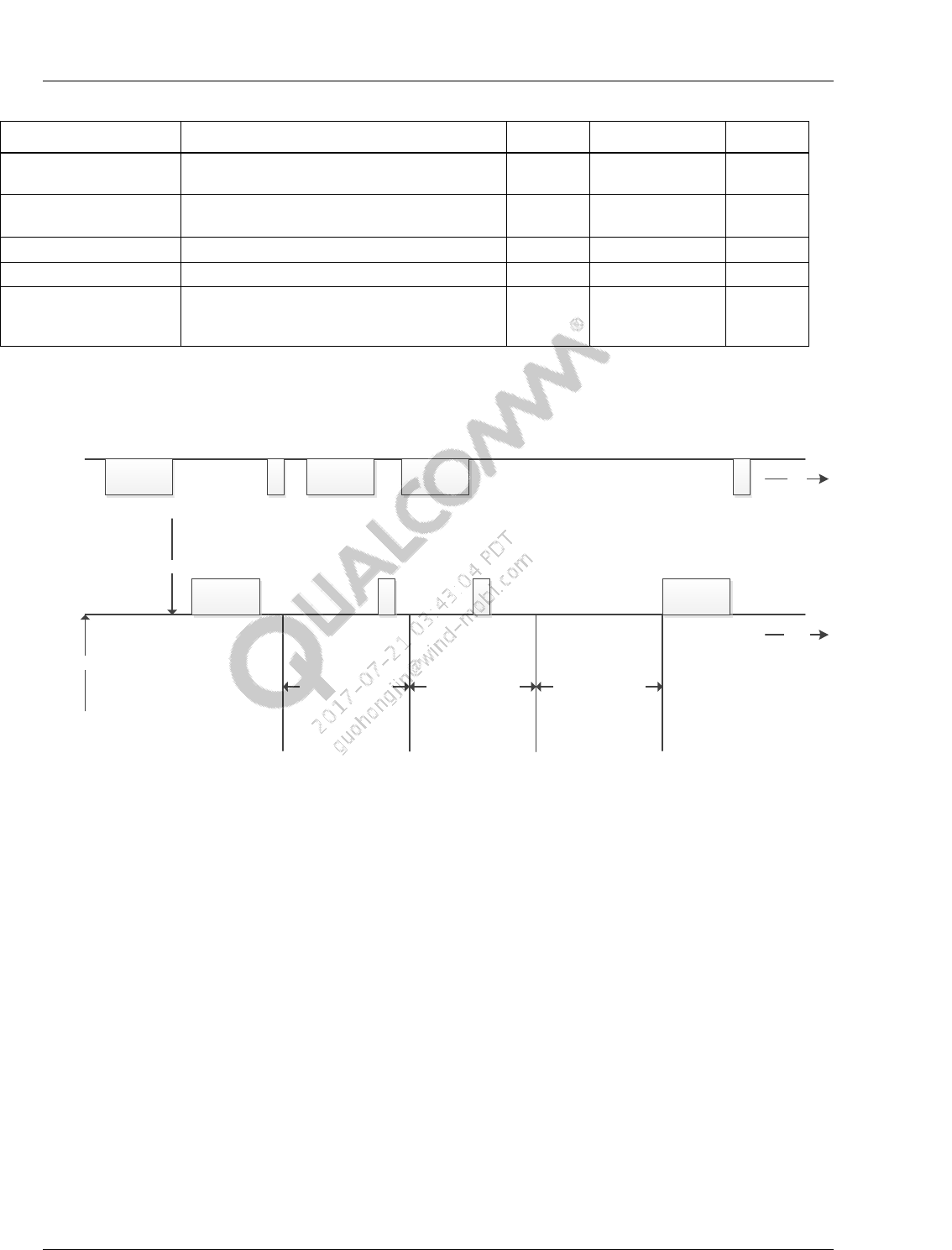

3.1 gDataInactivityTimeout workflow
Beacon Data Frm Data Frm
a
c
k
a
c
k
AP
Null Frm
PM=1
a
c
k
STA
TIM Interrupt
a
c
k
PMU Wakeup
FW starts timer
Null Frm
PM=0
pkts recv>0
so Restart Timer
AP might be having more
packets
UnicastDataTimeout UnicastDataTimeout UnicastDataTimeout
pkts recv>0
so Restart Timer
No pkts recv
Initiate PwrDown
Figure 3-1 gDataInactivityTimeout workflow
1. AP indicates queued frames for QCA devices by turning on the TIM bit in beacon.
2. QCA device sends data null frame with PM bit set to 0, which implies QCA device is out of
sleep.
3. QCA61x4 starts a software timer with gDataInactivityTimeout value.
4. AP sends the queued frames. The QCA device acknowledges accordingly.
5. When the timer expires, if the QCA devices receives any data frame from AP, it restarts the
timer.
NOTE: If the device receives no data, it sends data null with PM set to 1. This implies it is going to
sleep. If AP has frames for the QCA device, AP queues them until next beacon interval.
80-Y7674-11 Rev. K Confidential and Proprietary – Qualcomm Technologies, Inc. 15
MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
4 SoftAP
Table 4-1 SoftAP configuration parameters
Parameter
Description
Min
Max
Default
gEnableApProt
802.11 protection flag; controls the protection bit
when a legacy client joins the SAP; this enables the
protection by setting protection bits in the beacons.
0, Disable
1, Enable
0
1
1
gEnableApOBSSProt
Overlapping BSS (OBSS) protection. This parameter
controls and updates the protection bit.
0, Disable
1, Enable, required for certification When a legacy
AP is present on the same channel OBSS as that
of SAP or when the SAP is operating in 5 GHz
with 40 MHz, and the overlapping legacy AP is
present on its current channel of operation or
extension channel
0
1
0
gEnableApUapsd
Unscheduled automatic power save delivery
(UAPSD) for SoftAP.
0, Disable
1, Enable
0
1
1
gAPAutoShutOff
AutoShutdown is to disable AP and turn off Wi-Fi
after a user-configurable period of inactivity and when
no clients are connected. Auto Shutdown value is in
seconds.
0
4294967295(UL)
0
gDisableIntraBssFwd
Intra BSS forwarding. When set for SoftAP mode,
WLAN firmware forwards packets in its BSS to other
client without waking up host.
0, Disable
1, Enable
0
1
0
gAPCntryCode
Country code; ISO country code as per 802.11d
specification
USI
USI
FFF
gSapSccChanAvoidance
Toggles channel avoidance in SAP mode.
0, Disable, WLAN driver does not send channel
avoid event indication to upper layers; usually sent
to make SoftAP/P2P GO stop if its channel is
within the list of channel avoidance ranges
1, Enable, stopping SAP/P2P GO is handled by
HOSTAPD/wpa_supplicant and not via WLAN
driver. For 3port(STA + GO + SoftAP)
concurrency, must be done by WLAN driver and
gSapSccChanAvoidance is set to 0.
0
1
0
QCA61x4, QCA65x4, and QCA937x Configuration Parameters Specification SoftAP
80-Y7674-11 Rev. K Confidential and Proprietary – Qualcomm Technologies, Inc. 16
MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
Parameter
Description
Min
Max
Default
gWlanAutoShutdow
SoftAP auto shutdown feature
0, Disable
Other, shutdown timer in seconds (max value is
one day). If the SoftAP is idle (no connection) for
certain time it unloads driver; for an MDM device.
0
86400
0
gApKeepAlivePeriod
For a certain period of seconds, if there is no activity
from the connected STA, the SAP disconnects the
STA. Applies when WCN is running as SAP.
1
65535
20
gWlanMccToSccSwitchMo
de
MCC To SCC switch mode
0, Disable
1, Enable
2, Force to switch
It decides if SoftAP needs to restart/come up on
STA’s channel in a SoftAP + STA concurrency case;
for an MDM device.
0
2
0
gEnableOverLapCh
Overlap channel
0, Disable
1, Enable, allows overlapping channels to be
selected for the SoftAP
0
1
0
gEnableGreenAp
0, Disable
1, Enable, only one Tx/Rx chain when there are no
STAs connected in SoftAP mode. Whenever STA
is connected, GreenAP mode is disabled
0
1
1
gDFSradarMappingPriMult
iplier
Radar pulse compensating multiplier in the SAP DFS
master mode.
0
10
4
gSoftApMaxPeers
Maximum allowable STAs connected in SoftAP mode
1
32
32
gDisableDFSChSwitch
Sets the softAP in DFS test mode.
0, AP changes channel when radar is injected
which is the default behavior.
1, Put the softAP in DFS test mode allowing the
AP to continue to stay on the same channel after
injecting the radar in order to test the radar
probability detection for DFS test labs.
0
1
0
80-Y7674-11 Rev. K Confidential and Proprietary – Qualcomm Technologies, Inc. 17
MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
5 Channel range and auto-channel select
Table 5-1 Channel range and auto channel select configuration parameters
Parameter
Description
Min
Max
Default
gApAutoChannelSelection
Enables SoftAP Auto Channel selection
0, Disable
1, Enable
0
1
0
gAPChannelSelectStartChannel
Starts channel to be used by SoftAP for
Auto Channel Selection. Valid only when
gApAutoChannelSelection is set.
0
0XFF
0
gAPChannelSelectEndChannel
Ends channel to be used by SoftAP for
Auto Channel Selection. Valid only when
gApAutoChannelSelection is set.
0
0XFF
11
80-Y7674-11 Rev. K Confidential and Proprietary – Qualcomm Technologies, Inc. 18
MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
6 Wi-Fi direct
Table 6-1 Wi-Fi direct configuration parameters
Parameter
Description
Min
Max
Default
isP2pDeviceAddrAdministrated
Derive the P2P MAC address from the
primary MAC address
0, Disable
1, Enable
0
1
1
gEnableP2pListenOffload
P2P Listen offload, which puts WLAN
firmware in P2P listen state. Firmware
responds to incoming probe requests
with P2P IEs.
1, Enable
0, Disable
0
1
0
gGoKeepAlivePeriod
Time spent checking whether the
frames are sending or not. Hence, the
total effective detection time is
gGoLinkMonitorPeriod+
gGoKeepAlivePeriod/gApLinkMonitorP
eriod+ gApKeepAlivePeriod.
1
65535
20
gNumP2PChanCombinedConc
Number of channels combined for P2P
in each split scan operation
1
255
1
gEnableMCCAdaptiveScheduler
MCC adaptive scheduler feature
0, Disable
1, Enable
0
1
1
80-Y7674-11 Rev. K Confidential and Proprietary – Qualcomm Technologies, Inc. 19
MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
7 Virtual STA
Table 7-1 Virtual STA configuration parameters
Parameter
Description
Min
Max
Default
gEnableVSTASupport
Enables Virtual STA support which is
needed to support 32 STAs for SoftAP
0, Disable
1, Enable
0
1
0
80-Y7674-11 Rev. K Confidential and Proprietary – Qualcomm Technologies, Inc. 20
MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
8 TDLS
Table 8-1 TDLS configuration parameters
Parameter
Description
Min
Max
Default
gEnableTDLSSupport
Global flag that controls the TDLS feature
0, Disable
1, Enable
0
1
0
gEnableTDLSImplicitTrigger
Controls only implicit trigger. For implicit
trigger to work, both gEnableTDLSSupport
and gEnableTDLSImplicitTrigger are
enabled.
CLD driver initiates TDLS discovery to a
peer when TDLS setup criteria (throughput
and RSSI thresholds) is met; then it tears
down TDLS when teardown criteria (idle
packet count and RSSI) is met
0, Disable
1, Enable
0
1
1
gTDLSExternalControl
TDLS external control works with TDLS
implicit trigger. TDLS external control allows
a user to add a MAC address of potential
TDLS peers so that the CLD driver can
initiate implicit TDLS setup to only those
peers when criteria for TDLS setup
(throughput and RSSI threshold) is met.
When TDLS external control is enabled,
CLD driver does not initiate TDLS setup
to a peer if it has not been added
externally, even though traffic towards
that peer meets implicit TDLS criteria
If TDLS connection is initiated from a
peer, the CLD driver accepts the TDLS
connection, even if that peer MAC is not
configured before connection setup
For TDLS external control to work,
supplicant also needs to be configured for
external control
0
1
1
gTDLSTxStatsPeriod
Time period (in ms) to evaluate whether the
number of Tx/Rx packets exceeds
TDLSTxPacketThreshold and triggers a
TDLS Discovery request
10
4294967295UL
40
gTDLSTxPacketThreshold
Number of Tx/Rx packets during the period
of gTDLSTxStatsPeriod when exceeded, a
TDLS Discovery request is triggered
0
4294967295UL
40
QCA61x4, QCA65x4, and QCA937x Configuration Parameters Specification TDLS
80-Y7674-11 Rev. K Confidential and Proprietary – Qualcomm Technologies, Inc. 21
MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
Parameter
Description
Min
Max
Default
gTDLSMaxDiscoveryAttempt
Number of failures of discover request,
when exceeded, the peer is assumed to be
not TDLS capable and no further TDLS
discovery request is made
1
100
5
gTDLSIdlePacketThreshold
Number of Tx/Rx packet, if less than within
last gTDLSTxStatsPeriod period is an idle
condition
0
40000
3
gTDLSRSSITriggerThreshold
Absolute value (in dB) of the peer RSSI, less
which a TDLS setup request is triggered.
-120
0
-75
gTDLSRSSITeardownThresh
old
Absolute value (in dB) of the peer RSSI,
when exceed, a TDLS teardown is triggered
-120
0
-75
gEnableTDLSBufferSta
Global flag that controls the TDLS buffer
0
1
1
gTDLSUapsdMask
Access categories, for which mask needs to
be enabled
0x1, Background
0x2, Best effort
0x4, Video
0x8, Voice
0x0
0x0f
0x0f
gTDLSPuapsdPTRTimeout
Peer traffic Response timer duration in ms
0
10000
5000
gEnableTDLSWmmMode
WMM support over TDLS link
0, Disable
1, Enable, required for any TDLS and
uAPSD functionality
0
1
0
gEnableTDLSOffChannel
Off-channel support for TDLS link
0, Disable
1, Enable
0
1
0
gTDLSPrefOffChanNum
Preferred TDLS channel number when off-
channel support is enabled.
1
165
36
gTDLSPrefOffChanBandwidt
h
TDLS off-channel bandwidth
0x1, 20 MHz
0x2, 40 MHz
0x4, 80 MHz
0x8 , 160 MHz
When more than one bit is set, firmware
starts from the highest and selects one
based on capability of peer
0
0x0f
0x07
80-Y7674-11 Rev. K Confidential and Proprietary – Qualcomm Technologies, Inc. 22
MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
9 Packet filtering
Table 9-1 Packet filtering configuration parameters
Parameter
Description
Min
Max
Default
mcastBcastFilter
Filters Mcast and Bcast Rx packets
completely
0, No filtering
1, Filter all multicasts
2, Filter all broadcast
3, Filter all Mcast and Bcast
0
3
0
hostArpOffload
HostARPOffload feature for ARP response
is sent by the QCA device target firmware
0, Disable
1, Enable
0
1
0
gEnableActiveModeOffload
Enables/disables packet filter/arp offloading
to the QCA device target firmware in active
mode.
0, Disable
1, Enable
0
1
1
hostNSOffload
hostNSOffload feature
0, Disable
1, Enable
0
1
0
80-Y7674-11 Rev. K Confidential and Proprietary – Qualcomm Technologies, Inc. 23
MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
10 Scanning
Table 10-1 Scanning configuration parameters
Parameter
Description
Min
Max
Default
gEnableDFSChnlScan
DFS channel scan
0, Disable scan on DFS channels
1, Enables passive scan on DFS
channels
2: Enables active scan on DFS channels
for static list
Static or CFG list is the channel list set by
IOCTL SETROAMSCANCHANNELS
0
2
1
gEnableDirectedScanOffload
Directed scan offload to the QCA device
target firmware
0, Disable
1, Enable
0
1
0
gScanAgingTime
Scan aging timeout value in seconds;
purge the scan results based on aging
0
200
60
80-Y7674-11 Rev. K Confidential and Proprietary – Qualcomm Technologies, Inc. 24
MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
11 Roaming
Table 11-1 Roaming configuration parameters
Parameter
Description
Min
Max
Default
FastTransitionEnabled
802.11r support
0, Disable
1, Enable
0
1
1
gNeighborScanTimerPeriod
CX support and fast transition, the time
between individual channels in scan; scan
timer. When this timer expires, BGSCAN starts
roaming.
LFR1.5, started when lookup down event is
sent by FW to host
LFR 2.0, scanTimerPeriod is sent to FW
during scan offload as scan is offloaded to
FW (in ms)
3
300
200
gNeighborLookupThreshold
Defines the lookup threshold. When the RSSI
is reached, FW sends indication to host to scan
the better APs.
0, the host calculates the adaptive threshold
based on the minimum supported data rate,
and the RSSI threshold triggers a
background scan to find potential roam
candidates
10
120
78
gNeighborScanChannelMinTime
Minimum dwell time for scan in ms
10
40
20
gNeighborScanChannelMaxTime
Maximum dwell time for scan
3
300
30
gNeighborScanChannelList
List of channels scan; provides channel list,
contains all valid channels; no min and max
values or default channel.
—
—
Null
FastRoamEnabled
Legacy (non-CCX, non-802.11r) fast roaming
support
0, Disable
1, Enable
0
1
0
RoamRssiDiff
Configuration item for an AP to be qualified as
a candidate AP when the AP shows
RoamRssiDiff higher in RSSI than current AP
0
30
5
gMaxNeighborReqTries
Configures the number of times to retry the
neighboring requests if a failure or timeout
1
4
3
gEnableFastRoamInConcurrency
Legacy fast roaming (LFR) on STA link during
concurrent sessions
0, Disable
1, Enable
0
1
1
QCA61x4, QCA65x4, and QCA937x Configuration Parameters Specification Roaming
80-Y7674-11 Rev. K Confidential and Proprietary – Qualcomm Technologies, Inc. 25
MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
Parameter
Description
Min
Max
Default
gRoamScanOffloadEnabled
Offload the roam scan to firmware
0, Disable
1, Enable
0
1
1
gRoamBmissFirstBcnt
After consecutive number of beacons missed
as configured by gRoamBmissFirstBcnt, the
system stays alive (no power collapse) to
receive beacons until final BMISS (consecutive
number of beacons missed as configured by
gRoamBmissFinalBcnt)
5
100
10
gRoamBmissFinalBcnt
After consecutive number of beacons missed
as configured by gRoamBmissFirstBcnt, the
system stays alive (no power collapse) to
receive beacons until final BMISS (consecutive
number of beacons missed as configured by
gRoamBmissFinalBcnt)
5
100
10
80-Y7674-11 Rev. K Confidential and Proprietary – Qualcomm Technologies, Inc. 26
MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
12 802.11ac
Table 12-1 802.11 ac configuration parameters
Parameter
Description
Min
Max
Default
gEnableRXSTBC
Rx STBC capability in STA mode
0, Disable
1, Enable
0
1
1
gEnableTXSTBC
Tx STBC capability in STA mode
0, Disable
1, Enable
0
1
0
gEnableRXLDPC
Rx LDPC capability in STA mode
0, Disable
1, Enable
0
1
1
gVhtRxMCS
VHT Rx MCS capability for 1x1 mode
0, MCS0-7
1, MCS0-8
2, MCS0-9
0
2
2
gVhtTxMCS
VHT Tx MCS capability for 1x1 mode
0, MCS0-7
1, MCS0-8
2, MCS0-9
0
2
2
gVhtChannelWidth
Channel width capability for 11ac (valid only for
SoftAP and P2P GO modes). If
gChannelBondingMode5GHz=0, the bandwidth is
always 20 MHz.
0, 20 MHz
1, 20 and 40 MHz
2, 20 and 80 MHz (default)
0
2
2
gVhtMpduLen
Maximum MPDU length (VHT only)
0, 3895 octets
1, 7991 octets
2, 11454 octets
0
2
0
gVhtAmpduLenExponent
Maximum receive AMPDU size (VHT only)
0, 8 k
1, 16 k
2, 32 k
3, 64 k
4, 128 k
0
7
7
gEnable2x2
VHT Tx/Rx MCS values for 2x2
0, Disable
1, Enable
0
1
0
QCA61x4, QCA65x4, and QCA937x Configuration Parameters Specification 802.11ac
80-Y7674-11 Rev. K Confidential and Proprietary – Qualcomm Technologies, Inc. 27
MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
Parameter
Description
Min
Max
Default
gVhtRxMCS2x2
VHT Rx MCS values for 2x2
0, MCS0-7
1, MCS0-8
2, MCS0-9
0
2
0
gVhtTxMCS2x2
VHT Tx MCS values for 2x2.
0, MCS0-7
1, MCS0-8
2, MCS0-9
0
2
0
gTxBFEnable
Transmit beamfoaming feature
0, Disable
1, Enable
0
1
1
gEnableTxBFin20MHz
Transmit beamfoaming in 20 MHz mode
0, Disable
1, Enable
0
1
0
gEnableVhtFor24GHzBand
VHT supporting in 2.4 GHz band
0, Disable
1, Enable, SoftAP beacon on 2.4 has VHT IE
0
1
0
gEnableMuBformee
Multi-user (MU) beam formee capability
0, Disable
1, Enable, when gTxBFEnable and
gEnableMuBformee are 1, MU beam formee
capability is enabled
0
1
1
80-Y7674-11 Rev. K Confidential and Proprietary – Qualcomm Technologies, Inc. 28
MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
13 Thermal mitigation
Table 13-1 Thermal mitigation configuration parameters
Parameter
Description
Min
Max
Default
gThermalMitigationEnable
Thermal mitigation feature, which prevents the
WLAN chip from overheating. When the WLAN chip
temperature is too high, the transmit ratio is
adjusted lower to reduce heat
0, Disable
1, Enable
0
1
1
gThrottlePeriod
Throttle period defines transmit on and off time ratio
Level0
Transmit on time: gThrottlePeriod>>0 (shift right
0 bit=same value)
Transmit off time: gThrottlePeriod-(on time)
Level3
Transmit on time: gThrottlePeriod>>3 (shift right
0 bit=divided by 8)
Transmit off time: gThrottlePeriod-(on time)
10
10000
4000
gThermalTempMinLevel0
Thermal temperature maximum level 0. When
temperature crosses gThermalTempMaxLevelX, it
moves to next upper level.
If temperature crosses gThermalTempMinLevelX, it
moves to next lower level.
0
1000
0
gThermalTempMaxLevel0
Thermal temperature minimum level 0. When
temperature crosses gThermalTempMaxLevelX, it
moves to next upper level. If temperature crosses
gThermalTempMinLevelX, it moves to next lower
level.
0
1000
90
gThermalTempMinLevel1
Thermal temperature minimum level 1. When
temperature crosses gThermalTempMaxLevelX, it
moves to next upper level. If temperature crosses
gThermalTempMinLevelX, it moves to next lower
level.
0
1000
70
gThermalTempMaxLevel1
Thermal temperature maximum level 1. When
temperature crosses gThermalTempMaxLevelX, it
moves to next upper level. If temperature crosses
gThermalTempMinLevelX, it moves to next lower
level.
0
1000
110
gThermalTempMinLevel2
Thermal temperature minimum level 2. When
temperature crosses gThermalTempMaxLevelX, it
moves to next upper level. If temperature crosses
gThermalTempMinLevelX, it moves to next lower
level.
0
1000
90
QCA61x4, QCA65x4, and QCA937x Configuration Parameters Specification Thermal mitigation
80-Y7674-11 Rev. K Confidential and Proprietary – Qualcomm Technologies, Inc. 29
MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
Parameter
Description
Min
Max
Default
gThermalTempMaxLevel2
Thermal temperature maximum level 2. When
temperature crosses gThermalTempMaxLevelX, it
moves to next upper level. If temperature crosses
gThermalTempMinLevelX, it moves to next lower
level.
0
1000
125
gThermalTempMinLevel3
Thermal temperature minimum level 3. When
temperature crosses gThermalTempMaxLevelX, it
moves to next upper level. If temperature crosses
gThermalTempMinLevelX, it moves to next lower
level.
0
1000
110
gThermalTempMaxLevel3
Thermal temperature maximum level 3. When
temperature crosses gThermalTempMaxLevelX, it
moves to next upper level. If temperature crosses
gThermalTempMinLevelX, it moves to next lower
level.
0
1000
0
80-Y7674-11 Rev. K Confidential and Proprietary – Qualcomm Technologies, Inc. 30
MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
14 Invalid or unused
The following parameters are invalid or unused for the current release. These can be ignored in
the ini file:
■ gEnableIdleScan
■ gEnableHandoff
■ gRoamingTime
■ BtAmpPreferredChannel
■ gEnableBtAmp
■ gApMacAddr
■ gImmediateRoamRssiDiff
■ gNeighborReassocThreshold
■ gListOfNon11acCountryCode
■ gFlexConnectPowerFactor
■ gIPAEnable
■ gIPAPreFilterEnable
■ gIPARMEnable
■ gIPAIPv6Enable
80-Y7674-11 Rev. K Confidential and Proprietary – Qualcomm Technologies, Inc. 31
MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
A References
Document
Document ID
QCA6174 Power Debugging Guide
80-Y7674-5
CNSS.SW RM Wi-Fi Software Architecture Overview
80-Y7674-2
QCA61x4 and QCA65x4 Regulatory Guidelines
80-Y7674-300
Part 11: Wireless LAN Medium Access Control (MAC) and Physical Layer
(PHY) Specifications Amendment 4: Enhancements for Higher Throughput
IEEE P802.11n/D7.0, Sep 2008
Codes for the Representation of Names of Countries and Their Subdivisions,
Part 1: Country Codes
ISO/IEC 3166-1

Navigation menu
