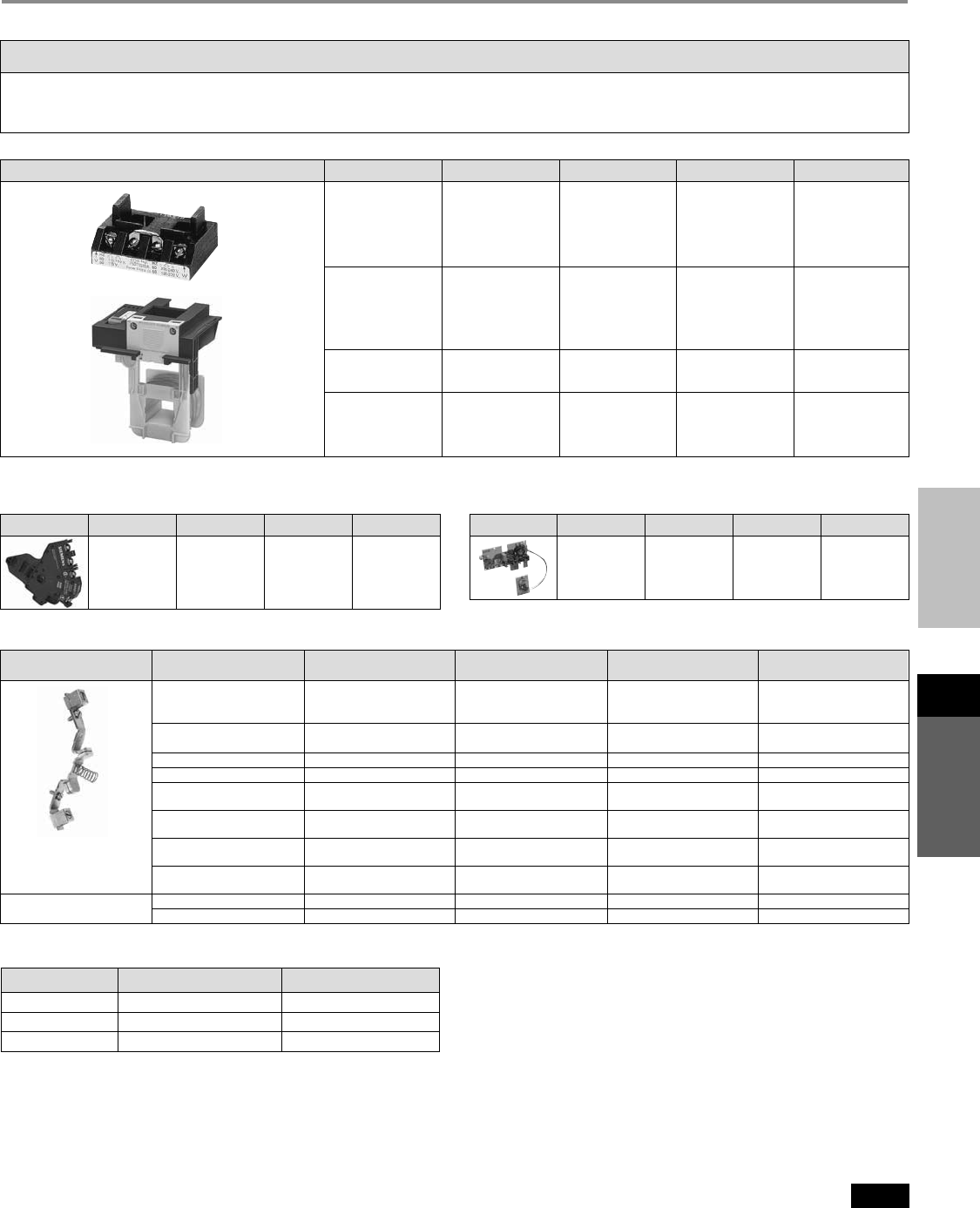

Siemens Industry, Inc. SPEEDFAX™ 2011 Product Catalog
17-170
17
CONTROL
PRODUCTS
NEMA & General
Purpose Control
Replacement Parts
Starters and Contactors – AC Coils
Selection
Volts
Size Model 60Hz 50Hz Catalog Number List Price $
24 24 75D73070J
120 110 75D73070F
110–120/220–240 110/190–220 75D73070A
P 208 — 75D73070D
00–21⁄2 U (ESP200) 220–240 190–220 75D73070G
277 240 75D73070L
220–240/440–480 190–220/380–440 75D73070C
440–480 380–440 75D73070H
575–600 550 75D73070E
24 24 75D73251J
120 110 75D73251F
110–120/220–240 110/190–220 75D73251A
P 208 — 75D73251D
3 , 31⁄2 U (ESP200) 220–240 190–220 75D73251G
277 240 75D73251L
220–240/440–480 190–220/380–440 75D73251C
440–480 380–440 75D73251H
575–600 550 75D73251E
24 24 75D70131J
120 110 75D70131F
120/220–240 110/190–220 75D70131A
G 208 — 75D70131D
4 U (ESP200) 220–240 190–220 75D70131G
277 240 75D70131L
220–240/440–480 190–220/380–440 75D70131C
440–480 380–440 75D70131H
575–600 550 75D70131E
23-26 23-26 3RT1966-5AB31
110-127 110-127 3RT1966-5AF31
200-220 200-220 3RT1966-5AM31
4, 5 V (Vacuum) 220-240 220-240 3RT1966-5AP31
240-277 240-277 3RT1966-5AU31
380-420 380-420 3RT1966-5AV31
440-480 440-480 3RT1966-5AR31
575-600 575-600 3RT1966-5AT31
23-26 23-26 3RT1965-5AB31
110-127 110-127 3RT1965-5AF31
200-220 200-220 3RT1965-5AM31
5 P 220-240 220-240 3RT1965-5AP31
240-277 240-277 3RT1965-5AU31
380-420 380-420 3RT1965-5AV31
440-480 440-480 3RT1965-5AR31
575-600 575-600 3RT1965-5AT31
23-26 23-26 3RT1975-5AB31
110-127 110-127 3RT1975-5AF31
200-220 200-220 3RT1975-5AM31
6 P 220-240 220-240 3RT1975-5AP31
V (Vacuum) 240-277 240-277 3RT1975-5AU31
380-420 380-420 3RT1975-5AV31
440-480 440-480 3RT1975-5AR31
575-600 575-600 3RT1975-5AT31
7 H 100-250 100-250 75ZAF750-70
150-500 150-500 75ZAF750-71
8 H 100-250 100-250 75ZAF1650-70a
Ordering Information
� 4th character of starter or contactor catalog number indicates model.
AC Coils — For Class 14, 17, 18, 22, 25, 26, 30, 32, 36, 37, 40, 43, 83, 84, 87, 88
a Set of 2 coils. Recommend to change printed circuit
board when changing coils. 49ZP1650 see page 17-171.
Product Category: NEMA

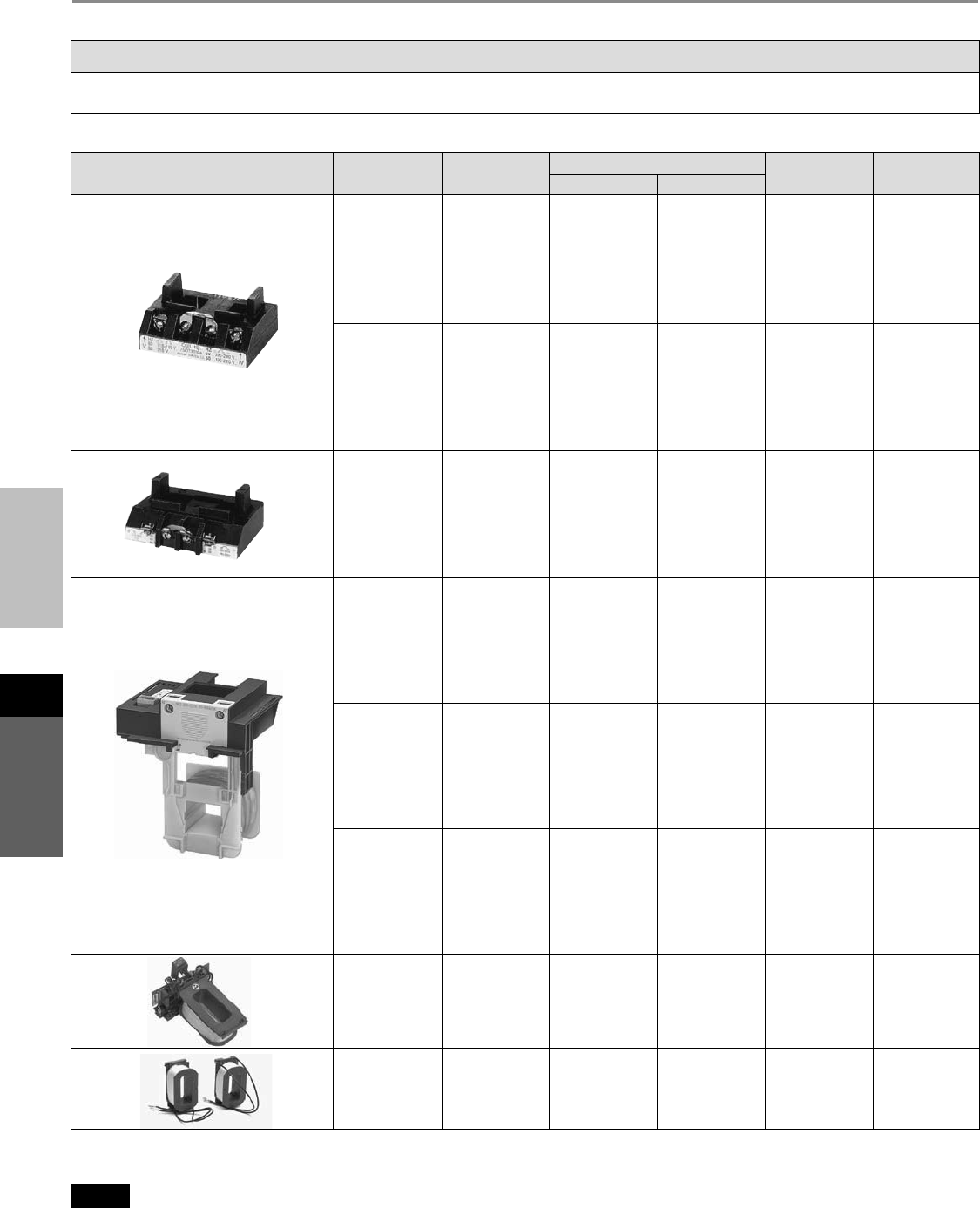

Siemens Industry, Inc. SPEEDFAX™ 2011 Product Catalog 17-171
17 CONTROL
PRODUCTS
NEMA & General
Purpose Control
Replacement Parts
Starters and Contactors – DC Coils, Late Break Aux Contacts, Rectifiers, Contact Kits
Selection
Armature and Magnet Kits
Ordering Information
� 4th character of starter or contactor catalog number indicates model.
� DC Coils for Size 00-4 require Late Break Interlock.
DC Coils — For Class 14, 17, 18, 22, 25, 26, 30, 32, 40, 43
Size Model Volts DC Catalog Number List Price $
12 75D73070R
24 75D73070S
32 75D73070T
00–21⁄2 P 48 75D73070U
U (ESP200) 125 75D73070V
250 75D73070W
12 75D73251R
24 75D73251S
32 75D73251T
3, 31⁄2 P 48 75D73251U
U (ESP200) 125 75D73251V
250 75D73251W
G 48 75D70131U
4 U (ESP200) 125 75D70131V
250 75D70131W
23-26 3RT1966-5AB31
4, 5 V (Vacuum) 42-48 3RT1966-5AD31
110-127 3RT1966-5AF31
240-277 3RT1966-5AU31
a
On 3-phase controls, all 3-poles should be replaced -
3 kits required.
Control Size Model Catalog Number List Price $
00–4 P, G, S, T 49AB01LB
Late Break Auxiliary Contacts
Note: For sizes 7 & 8 contactors the AC coils are used for DC see page 17-168.
Model
Description Size Number of Poles in Kit
(4th position
in part number)
Catalog Number List Price $
Internal Aux Contact (00-1-3⁄4) P, U 75AF14
00 P, U 75BF14
0 P, U 75CF14
1 1 P, U 75DF14
13⁄4–1P P, U 75EF14
2 1 P, U 75FP14
21⁄2 1 P, U 75GP14
3 P, U 75HF14
31⁄2 1 P, U 75IF14
4 1 G, T 75JG14
4 (Vacuum) 3 (Bottles) V, C 3RT1964-6V
Class 14, 17, 18, 22, 25, 5 3 P 3RT1966-6A
26, 30, 32, 36, 37, 40, 43, 5 (Vacuum) 3 (Bottles) V, C 3RT1966-6V
83, 84, 87, 88 6 3 P 3RT1976-6A
6 (Vacuum) 3 (Bottles) V, C 3RT1976-6V
14, 40 7 3 H 49ZL750
8 3 H 49ZL1650
Contact Kits – Single Pole Stationary and Movable Contacts, Contact Springa
Control Size Model Catalog Number List Price
8 H
49ZP1650
Board for Size 8 Contactor
Size Catalog Number List Price $
00–21⁄249AMSA2
3–31⁄249AMSA3
449AMSA4
Product Category: NEMA

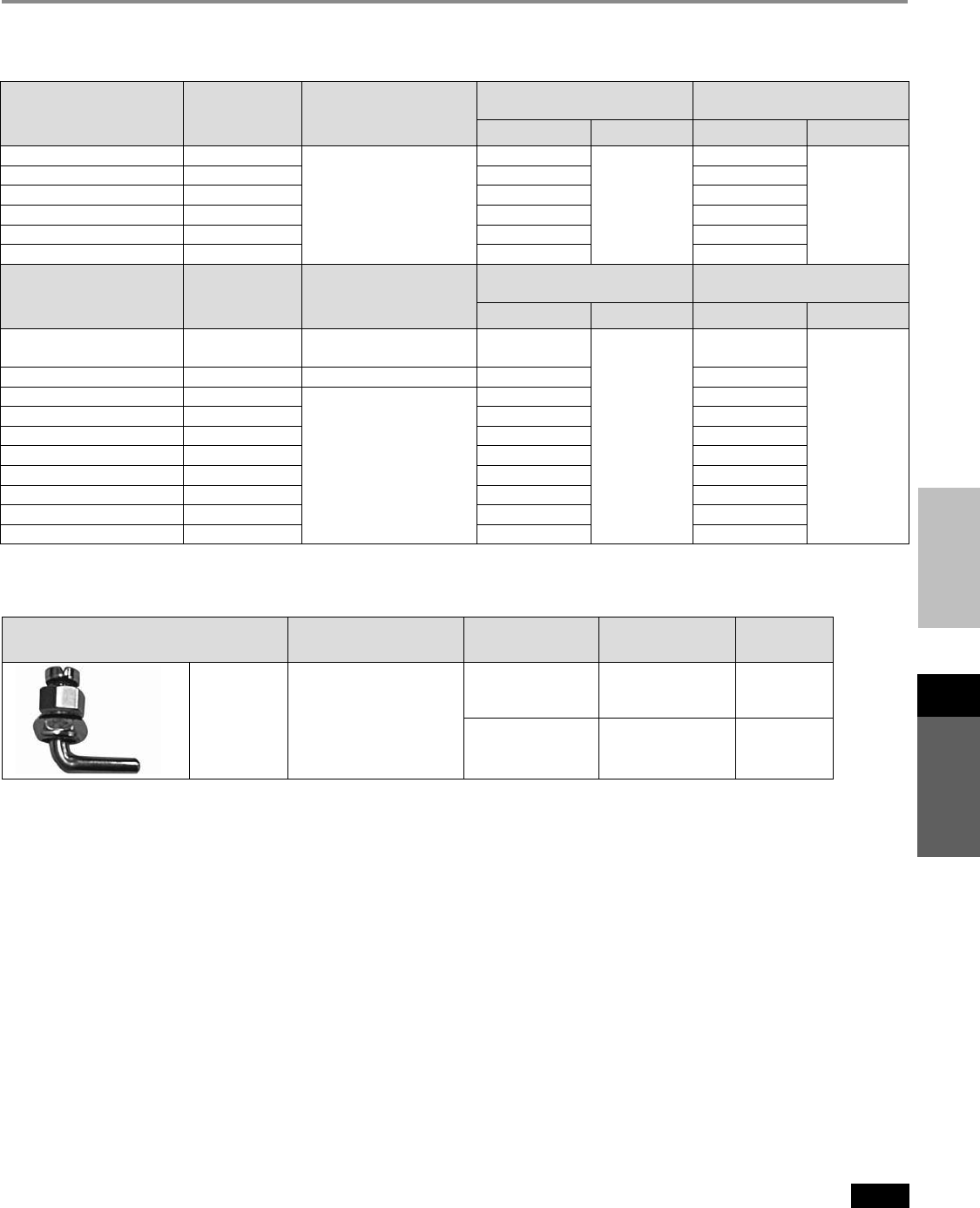

Siemens Industry, Inc. SPEEDFAX™ 2011 Product Catalog
17-172
17
CONTROL
PRODUCTS
NEMA & General
Purpose Control
Replacement Parts
Starters and Contactors – Coil VA Ratings and Overload Relays
Selection
a For replacement Solid State overload relays, please see the Overload Relay section
found starting on page 17-49.
b Includes overload mounting plate to be coupled to contactor mounting plate.
Half Ambient Comp Bimetal
Size Size Model Number Poles Catalog Number (1) NC List Price $ Catalog Number (1) NO/NC List Price $
00–1 — P 1 48DC18AA3
3 48DC38AA3 48DC39AA3
1P — P 1 48EC18AA3
— 13⁄4 P 3 48EC38AA3 48EC39AA3
2 — P 1 48GC18AA3
3 48GC38AA3 48GC39AA3
— 21⁄2 P 1 48GC18AA3
3 48GC38AA3 48GC39AA3
3 — P 3 48HC38AA3
— 31⁄2 P 3 48HC38AA3
4 — G 3 48JC38AA3
Overload Relays
ab
– For Class 14, 17, 18, 22, 25, 26, 30, 32, 83, 84, 87
For Starter and Contactor replacement parts not found in this section, please refer to Field Modification kits found starting on page 17-92.
Device Type Contactor Size Amps Volts Number of Poles Total Inrush VA Total Sealed VA
00 thru 2 1/2 — — — 218 25
3 thru 3 1/2 — — — 310 26
4 — — — 510 51
5 — — — 590 6.7
NEMA Starter 6 — — — 830 9.2
7 — — — 850 12
8 — — — 1900 48
4,5,6 (Vacuum) — — — 630 7.4
— 20 — 2-12 625 6
— 30 — 2-5 410 40
Lighting Contactor — 60 — 2-3 410 40
Mechanically Held (CLM) — 60 — 4-5 600 40
— 100 - 200 — 2-3 900 200
— 100 - 200 — 4-5 1300 130
— 300 - 400 — 3 1600 550
— 20 24 3 49.6 6.9
— 20 120 3 51.3 6.57
— 20 208 3 75.79 11.94
— 20 240 3 86.78 14.25
— 20 277 3 79.1 11.97
— 20 480 3 83.7 12.9
— 20 600 3 84.1 13.2
— 20 24 12 73.31 12.66
— 20 120 12 75.1 13.1
— 20 208 12 73.97 13.25
— 20 240 12 89.15 14.85
— 20 277 12 78.55 12.77
— 20 480 12 84 12.9
— 20 600 12 81.9 13.4
— 30 24 3 49.67 7.08
— 30 120 3 51.94 6.48
— 30 208 3 76.57 11.78
— 30 240 3 64.44 8.99
Lighting Contactor — 30 277 3 77.85 14.2
Electrically Held Held (LE) — 30 480 3 83.6 13.1
— 30 600 3 82.1 13.4
— 60 24 3 74.94 13.16
— 60 120 3 75.77 13.59
— 60 208 3 78.73 12.05
— 60 240 3 89.92 14.42
— 60 277 3 84.89 12.93
— 60 480 3 87.6 12.7
— 60 600 3 85.4 13.8
— 100 24 3 182.28 32.85
— 100 120 3 191.42 32.26
— 100 208 3 187.78 31.15
— 100 240 3 215.32 35.63
— 100 277 3 175.92 30.62
— 100 480 3 198.2 34.8
— 100 600 3 171.1 29.6
— 200 All Voltages 3 300 5.8
— 300 Electrically 3 590 6.7
— 400 Held 3 830 9.2
Coil VA Ratings
Product Category: NEMA

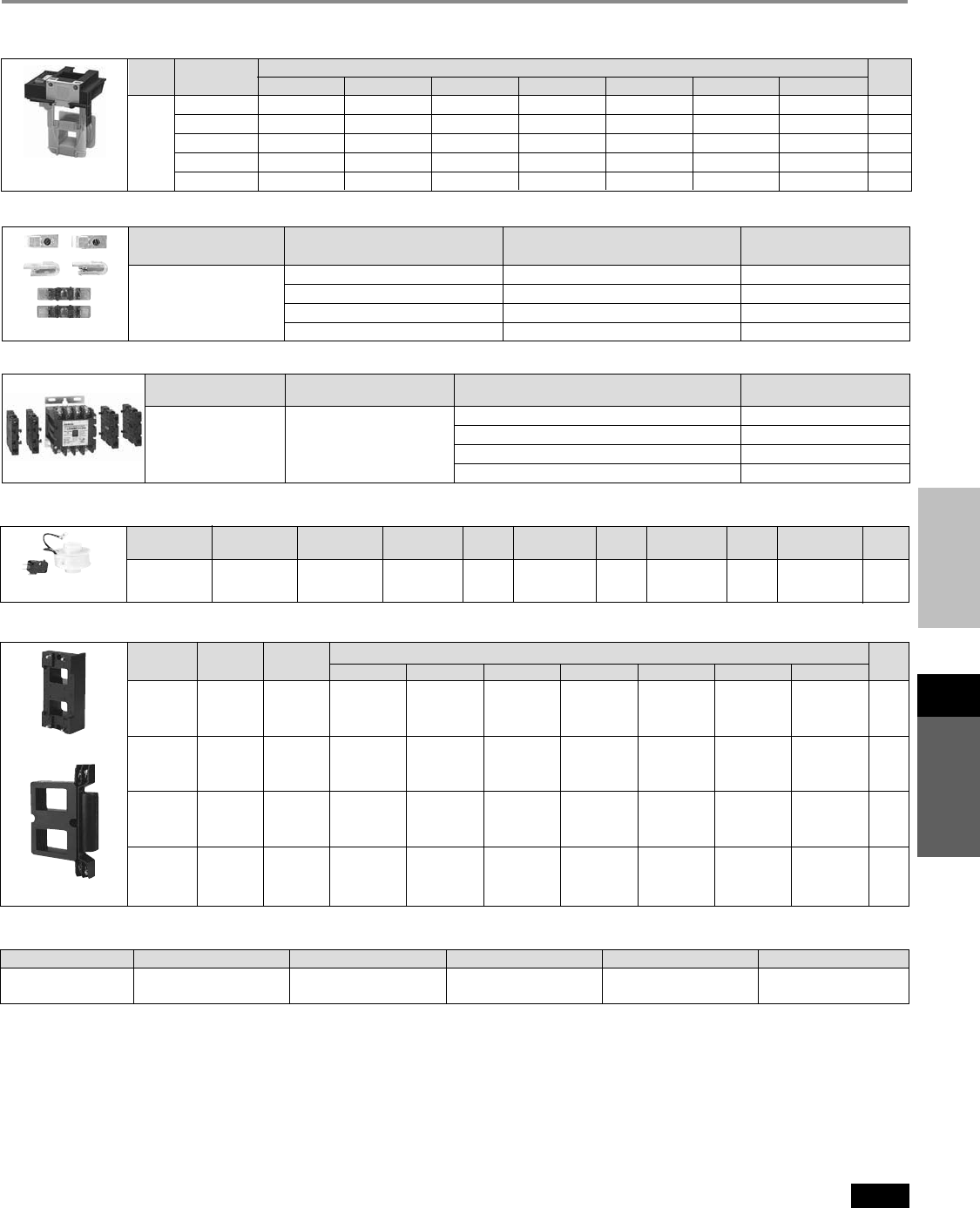

Siemens Industry, Inc. SPEEDFAX™ 2011 Product Catalog 17-173
17 CONTROL
PRODUCTS
NEMA & General
Purpose Control
Replacement Parts
Lighting and Heating Contactors, Type LE, CLM, CMF, CMN
Selection
Catalog
(Verify catalog number on
Type Contactor Size Number
side of contact assembly)
List Price $
49LN02A, 2 NC Contacts Non-Stackable
LE 20 Amp 49LN20A, 2 NO Contacts Non-Stackable
49LS20A, 2 NO Contacts Stackable
49LS10A, 1 NO Contact Stackable
Type Device Contactor Size Number of Poles Catalog Number List Price $
CLM
CLM†C to
30–200 Amps
All
CLMKCMR
CLM†F
Contactor Number Catalog Number List
Type Size of Poles 24V AC 120V AC 208V AC 220/240V AC 277V AC 480V AC 600V AC Price $
2–3-Pole CLMC4C024 CLMC4C120 CLMC4C208 CLMC4C240 CLMC4C277 CLMC4C480 CLMC4C600
CLM†C 30 Amp 4-Pole CLMC4C024 CLMC4C120 CLMC4C208 CLMC4C240 CLMC4C277 CLMC4C480 CLMC4C600
5-Pole CLMC5C024 CLMC5C120 CLMC5C208 CLMC5C240 CLMC5C277 CLMC5C480 CLMC5C600
2–3-Pole CLMD3C024 CLMD3C120 CLMD3C208 CLMD3C240 CLMD3C277 CLMD3C480 CLMD3C600
CLM†D 60 Amp 4-Pole CLMD5C024 CLMD5C120 CLMD5C208 CLMD5C240 CLMD5C277 CLMD5C480 CLMD5C600
5-Pole CLMD5C024 CLMD5C120 CLMD5C208 CLMD5C240 CLMD5C277 CLMD5C480 CLMD5C600
2–3-Pole CLME3C024 CLME3C120 CLME3C208 CLME3C240 CLME3C277 CLME3C480 CLME3C600
CLM†E 100, 200 4-Pole CLME5C024 CLME5C120 CLME5C208 CLME5C240 CLME5C277 CLME5C480 CLME5C600
Amp 5-Pole CLME5C024 CLME5C120 CLME5C208 CLME5C240 CLME5C277 CLME5C480 CLME5C600
CLM†G 300/400
Latching Coil Amp 2–3-Pole — CLMGL3C120 CLMGL3C208 CLMGL3C240 CLMGL3C277 CLMGL3C480 CLMGL3C600
Unlatch Coil 2–3-Pole — CLMGU3C120 CLMGU3C208 CLMGU3C240 CLMGU3C277 CLMGU3C480 CLMGU3C600
Contactor Number 120V, 60Hz List 240V, 60Hz List 277V List 480V, 60Hz List
Type Size of Poles 110V, 50Hz Price $ 208V, 50Hz Price $ 50/60Hz Price $ 440V, 50Hz Price $
CLM 20 Amp 2–12 CLM4097341 CLM4097342 CLM4097343 CLM4097344
Type Contactor Size Catalog Number List Price $
20–100 Amp Not Replaceable —
LE 200 Amp 3RT1956-6Aa
300 Amp 3RT1965-6Aa
400 Amp 3RT1975-6Aa
Contactor Catalog Number List
Type Size 24VAC 120VAC 208VAC 240VAC 277VAC 480VAC 600VAC Price $
20, 30, 60 Amp 75D70646J 75D70646F 75D70646D 75D70646G 75D70646L 75D70646H 75D70646E
100 Amp 75D54772J 75D54772F 75D54772D 75D54772G 75D54772L 75D54772H 75D54772E
LE 200 Ampa 3RT1955-5AB31 3RT1955-5AF31 3RT1955-5AM31 3RT1955-5AP31 3RT1955-5AU31 3RT1955-5AR31 3RT1955-5AT31
300 Ampa 3RT1965-5AB31 3RT1965-5AF31 3RT1965-5AM31 3RT1965-5AP31 3RT1965-5AU31 3RT1965-5AR31 3RT1965-5AT31
400 Ampa 3RT1975-5AB31 3RT1975-5AF31 3RT1975-5AM31 3RT1975-5AP31 3RT1975-5AU31 3RT1975-5AR31 3RT1975-5AT31
a Product Category: IEC.
b Coil kits for 20 amp CLM contactors include the coil
clearing auxiliary contact.
c For 30–200 amp CLM contactors, in the event that
either the coil or the control module fails, it is
recommended that both be replaced.
AC Coils – 20-400 Amps
3RT1955-5AF31
3RT1965-6A
Main Contacts (Includes 3 Moving and 6 Fixed Contacts)
Lighting Contact Assembly - 20 Amp (Power Poles)
AC Coils 20 Amps
b
CLM4097341
Control Module Rectifier
c
CLMGU3C120
AC Coils 30–400 Amps
c
CLMC4C120
Product Category: NEMA

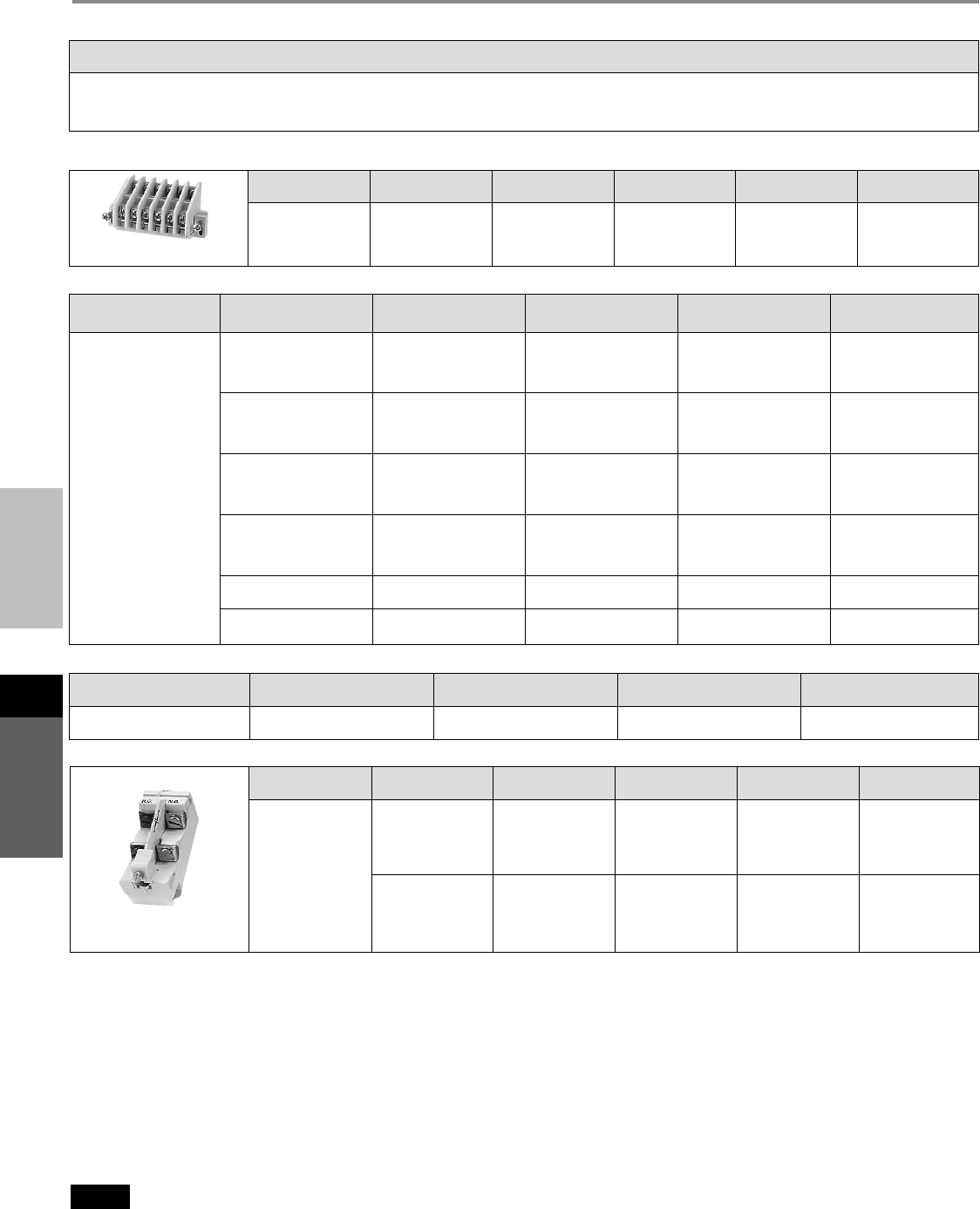

Siemens Industry, Inc. SPEEDFAX™ 2011 Product Catalog
17-174
17
CONTROL
PRODUCTS
NEMA & General
Purpose Control
Replacement Parts
Lighting Contactors, CLM, CMB, CMF & CMN
Selection
Frame Contactor Contact Catalog List
Type Size Size Configuration Number Price $
1 NO and 1 NC CLMFCAK11
C to Fb 30–200 Amps 2 NC CLMFCAK02
2 NO CLMFCAK20
1 Coil Clearing CLMFCCK11
CLM NO and NC
1 NO and 1 NC CLMHCAK11
G to Ha 300–400 Amps 2 NC CLMHCAK02
2 NO CLMHCAK20
1 Coil Clearing CLMHCCK11
NO and NC
Contactor Catalog List
Type Size Contacts Number Price $
CLM 20 Amp 1 Form C NO, NC Contact CLM4097291
2 Form C NO, NC Contacts CLM4097292
Frame Contactor Number of Catalog List
Type Size Size Poles Number Price $
2 CLMCCK02
C 30 Amp 3 CLMCCK03
4 CLMCCK04
5 CLMCCK05
2 CLMDCK02
D 60 Amp 3 CLMDCK03
4 CLMDCK04
5 CLMDCK05
2 CLMECK02
CLM E 100 Amp 3 CLMECK03
4 CLMECK04
5 CLMECK05
2 CLMFCK02
F 200 Amp 3 CLMFCK03
4 CLMFCK04
5 CLMFCK05
G 300 Amp 2 CLMGCK02
3 CLMGCK03
H 400 Amp 2 CLMHCK02
3 CLMHCK03
Contactor Number of Catalog List
Type Size Poles Location Number Price $
2 Top or Bottom CLM4097331
CLM 20 Amp 3 Top CLM4097332
4 Top or Bottom CLM4097333
6 Top or Bottom CLM4097334
CLM4097334
Main Contacts 20 Amp Lighting Contactors
Auxiliary Contact Blocks 20 Amp Lighting Contactors
b
a Maximum 1 block per contactor.
b Maximum 2 blocks per contactor.
Main Contacts 30–400 Amp Lighting Contactors
CLMFCAK11
Auxiliary Contact Blocks 30–400 Amp Lighting Contactors
Ordering Information
� For CLM: 5th character of contactor catalog number indicates Frame Size.
� For CMB, CMF, CMN: 4th character of contactor catalog number indicates Frame Size.
Product Category: NEMA
Siemens Industry, Inc. SPEEDFAX™ 2011 Product Catalog 17-175
17 CONTROL
PRODUCTS
NEMA & General
Purpose Control
Replacement Parts
Miscellaneous
Selection
Replacement Handle Assemblies and Disconnect Mechanisms
Enclosure Types 1, 3R, 4, 4X Stainless Steel & 12
Class Disconnect (Amps) Enclosure Size
Handle Assembly Only
Handle Assembly and
Disconnect Mechanism
Catalog Number List Price $ Catalog Number List Price $
17, 25, 32, 84, 87, CM, LE 30, 60 & 100
All Standard and Extra-wide Sizes
75D73944015
75D68257103
37, 88 30 & 60 75D73944018 75D68257048
17, 25, 32, 84 200 75D73944015 75D68257105
37, 88, CM, LE 200 75D73944015 75D68257063
87 200 75D73944023 75D68257068
17, 25, 37, 87, 88, CM, LE 400 & 600 75D73944027 75D68257078
Class
Motor Circuit
Interrupter (Amps) Enclosure Size
Handle Assembly Only
Handle Assembly and
Disconnect Mechanism
Catalog Number List Price $ Catalog Number List Price $
18, 26, 32, CM, LE 3 - 125 (24”H x 11”W x 8”D),
(24”H x 20”W x 8”D) 75D73944025
75D68257080
18, 26, 32 100 - 125 (36”H x 24”W x 8”D) 75D73944025 75D68257073
18, 26, 32 150 & 250
All Standard Sizes
75D73944028 75D68257089
18, 26, 37, 87, 88, CM 300 - 600 75D73944027 75D68257078
87 3 - 125 75D73944025 75D68257080
87 150 75D73944028 75D68257089
87 250 75D73944011 75D68257077
37, 88 30 - 125 75D73944025 75D68257073
37, 84, 88, CM 150 - 250 75D73944011 75D68257077
84 3 - 125 75D73944025 75D68257074
Quarter Turn Assemblies
Description Class Enclosure Type Catalog Number List Price $
Quarter-Turn
Latch 17, 18, 25, 26, 32, 87 & 88
1, 3/3R & 12 75D46260004
4 & 4X 75D46260005
Product Category: NEMA
