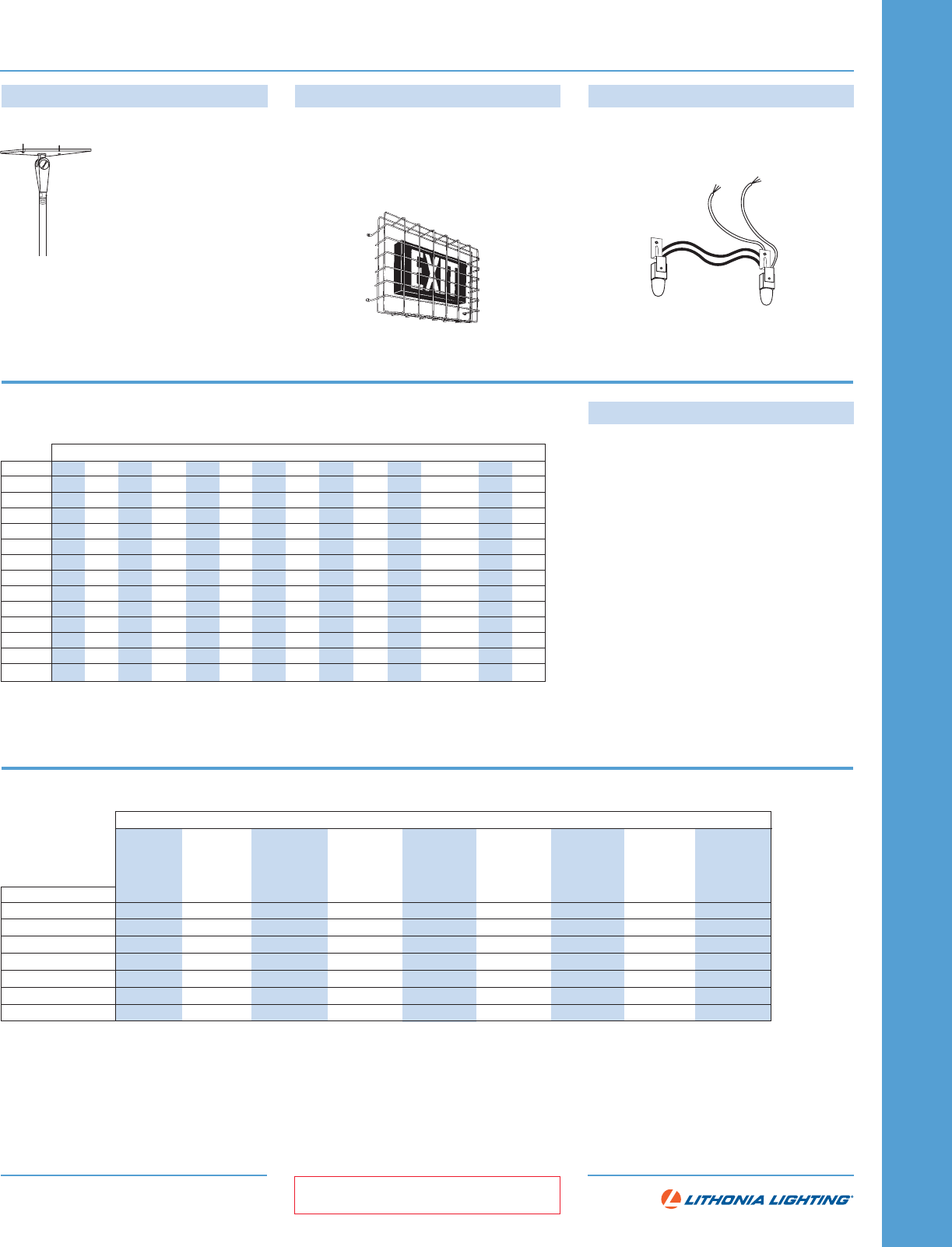

Exit Accessories

Exit Options and Compatibility

NOTES:

1 Must specify input voltage.

2 Supplemental emergency circuits designed for normally off operation only.

CSA Certified product only.

3 Only available with exits containing battery.

4 Not available with X2 option.

5 Not available with flashing option.

6 Not available wit h CSA Certified product.

Exit Replacement Batteries

❑Standard

■Option available

(blank) Option not available

www.lithonia.com

NOTES:

1 Series 15-16.

2 Series 10-12.

3 Series 10-14.

4 Series 20-23.

5 Series 20-21.

Not all batteries and equipment are shown. Consult factory for additional requirements. All dimensions are inches (millimeters) unless otherwise noted.

Options

EL Lead-calcium battery

NNickel-cadmium battery3

SD Self-diagnostics3,4

X2 Lamps wired on two separate circuits5,6

FFlashing emergency operation3,4,6

FA Flashing and audible emergency operation3,4,6

FI Fire alarm flashing interface4,5,6

HO High-output battery5

DL UL Listed for damp locations

TP Tamperproof Torx-head screws

VR Vandal-resistant shield (polycarbonate, .1" thick)

LDC12/48 12-48V DC input for LED lamps2

CSA CSA Certified

4X NEMA 4X suitable for wet-mounting applications

NOTES:

1 Stem color is brushed aluminum. Standard canopy color is brushed alumi-

num. To order white or black canopy, add W or B to catalog number. For other

lengths, replace 12 with appropriate stem length in inches. Example: ELA W

US24.

2 See page 450 for additional wireguard information.

3 Supplemental emergency circuits designed for normally off operation only.

Stem kits1

ELA US12 Signature® LE standard or emergency, Precise®

LRP with TM option, Quantum®, Titan® LED

Family EL N SD X2 F FA FI HO DL TP VR LDC12/48 CSA 4X

LE ■1■ ■■■ ■ ■

LE EL N ❑■ ■■■ ■■■ ■

LRE ■1■ ■■■

LRE EL N ❑❑ ■■■ ■■

LQM ■■■ ■■

LQM EL N ❑■ ■■■ ■

LHQM ❑■ ■■■■

LRP ■1■■■

LRP EL N ❑■■■

LX ■■

LX EL N ❑■■■■

LV ■1■■❑❑■■■

LV EL N ❑■■■■❑❑ ■■

EXIT SIGNSEXIT SIGNS

EXIT SIGNSEXIT SIGNS

EXIT SIGNS

Batteries

ELB 06042 ELB 0607 ELB 0610 ELB 1P201N ELB 4814N ELB 0604N ELB 0701N ELB 1201N ELB 1P201N2

lead-calcium lead-calcium lead-calcium nickel-cadmium nickel-cadmium nickel-cadmium nickel-cadmium nickel-cadmium nickel-cadmium

L: 3-7/8 (98)

W: 2-3/8 (60)

H: 2-3/8 (60)

L: 5-1/4 (133)

W: 1 (25)

H: 1-3/4 (44)

L: 1-5/8 (43)

Dia: 3/4 (19)

L: 2-3/4 (70)

W: 1-7/8 (48)

H: 4-1/8 (102)

L: 4 (102)

W: 1-1/2 (38)

H: 6 (152)

L: 6 (152)

W: 2 (51)

D: 4 (102)

L: 1-5/8 (43)

Dia: 3/4 (19)

L: 3-1/2 (89)

W: 1 (25)

H: 1-3/4 (44)

L: 1-5/8 (43)

Dia: 3/4 (19)

Wireguards2

ELA WGEX Back-mount wireguard (shown) 13 5/8"W x

13 5/8"H x 43/4"D

ELA WGEXT Top-mount wireguard 14"W x 11"H x 63/4"D

ELA WGEXE End-mount wireguard 15"W x 11"H x 43/4"D

ELA WGHQM Back mount for LHQM combo 28" W x 15" H

x 8" D

DC input kits3

LED Signature® Series

ELA LEDC6 6V 12W kit

ELA LEDC12 12V 12W kit

6 Series 30.

7 With HO option.

8 Single face, no options.

9 With N option.

10 Double face, no options.

Options

■Battery available

(blank) Battery not available

Family

QM EL/X EL ■■

9

LHQM1/LQM EL2■

LHQM3/HQM ■■

7

LX EL N ■

LQM EL N4/LE EL N5■

LV EL N ■8■10

LQM ELN6■

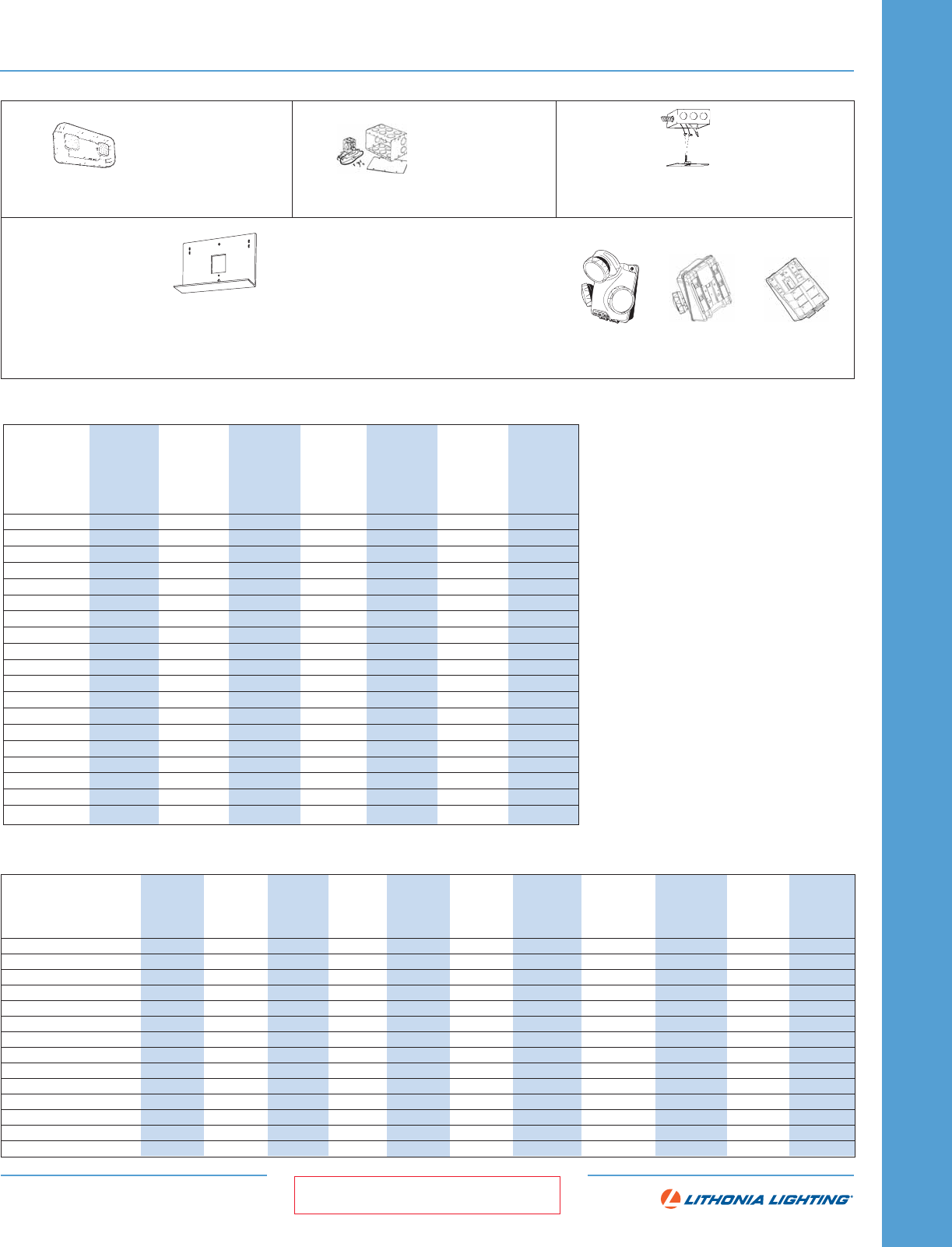

PSG9

LITHONIA EMERGENCYLITHONIA EMERGENCY

LITHONIA EMERGENCYLITHONIA EMERGENCY

LITHONIA EMERGENCY

451

Unit Accessories/Replacement Batteries

Low Voltage Relay

ELA LVR

Vandal Shield

ELA VS2

ELA VS

Mounting Shelves

ELA MS4/81ELM4, ELM10,

ELA MST2ELT125, ELT180, ELT275

ELA MSTS2ELT16, ELT24, ELT24C,

ELT36, ELT36C, ELT50

Provides remote testing capa-

bility to all Lithonia Lighting unit

equipment, exit signs, fluores-

cent battery packs and

emergency downlights. Mounts

on standard J-box, ceiling or wall.

Remote Test Switch

Less Pilot Light

ELA RTLP

Indura® Accessories

ELA IND PM Pendant mount kit for Indura® small housing

ELA IND CM1 Ceiling mount kit for IND618

ELA IND CM2 Ceiling mount kit for IND654, IND1236 and IND1254

ELA IND CM3 Ceiling mount kit for IND6100

ELA INDX CM2 Ceiling mount kit for INDX654, INDX1236 and INDX1254

ELA IND R3 Prepack kit to field install third head on Indura® unit

ELA RTT Remote transmitter

ELA BS Banding strip

ELA IND RHB Remote head bracket for surface-mounted j-boxes

1/8," thick, (ELAVS2) high-impact or 3/16"

thick (ELAVS) transparent polycarbon-

ate shield. Fits all Lithonia Quantum

ELM and ELM2 (ELA VS), and ELM618,

ELM627, ELM654, ELM1254, ELM1272

(ELA VS2) units. 10"H x 22" W x 9-3/4" D

(ELA VS2); 81/2"H x 15" W x 43/4" D (ELA

VS).

Converts any incandescent low

voltage (12V) downlight (75W

maximum) to an emergency

downlight when remoted from

a 12V Lithonia emergency light-

ing unit (ELT125, etc.).

ELM/ELM2 ■

ELM618 ■

ELM627 ■

ELM654 ■ 3

ELM1254 ■ 3

ELM1272 ■ 3

ELSQ/ELSQM ■

ELSQM N ■

ELT16 ■

ELT16 N

ELT36/36C ■

ELT50 ■ 3

ELT125 ■

ELT275 ■

ELR2 ■

ELR2 N ■

ELR4 ■ 3

ELCC/ ELCCT ■

AFN ■

L: 2-3/4 (70)

W: 1-7/8 (48)

H: 4-1/8 (102)

L: 3-7/8 (98)

W: 2-3/8 (60)

H: 2-3/8 (60)

L: 4 (102)

W: 1-1/2 (38)

H: 6 (152)

L: 6 (152)

W: 2 (51)

D: 4 (102)

L: 4-1/4 (108)

W: 2-3/4 (70)

H: 5-1/2 (140)

L: 7-7/8 (198)

W: 5-1/4 (133)

H: 7-3/8 (187)

L: 10-1/4 (259)

W: 6-3/4 (171)

D: 8-3/4 (222)

Replacement Batteries for Emergency Lighting Units

ELB 06042 ELB 0607 ELB 0612A ELB 0614 ELB 1228 ELB 1255 ELB 0604N

lead-calcium lead-calcium lead-calcium lead-calcium lead-calcium lead-calcium nickel-cadmium

Indura®/Indura® 4x Replacement Batteries4

NOTES:

1 Standard color is desert tan. To order white, add W to catalog number

(Example: ELA W MS4/8).

2 Standard instrument tan.

3 Uses two batteries.

4 Replacement batteries are for Indura® Series 12 units. Consult factory for

replacement batteries for previous series.

EMERGENCY LIGHTING UNITSEMERGENCY LIGHTING UNITS

EMERGENCY LIGHTING UNITSEMERGENCY LIGHTING UNITS

EMERGENCY LIGHTING UNITS

ELB 0612A ELB 0636 ELB1224B ELB 1208AH ELB 1228 ELB1228AH ELB 1250 ELB 1255 ELB 12100 ELB 2412A ELB0607NFH

L: 4-1/4 (108) L: 5-7/8 (150) L: 3-7/8 L: 5-7/8 (150) L: 7-7/8 (198) L: 6-3/4 (173) L: 8-5/8 (221) L: 10-7/32 (262) L: 12 (307) L: 5-7/8 (150) L: 6-3/4 (171)

W: 2-3/4 (70) W: 6 (154) W: 6 (154) W: 8 (205) W: 5-1/4 (133) W: 6-1/2 (166) W: 5-5/16 (136) W: 6-11/16 (171) W: 6-11/16 (171) W: 8 (205) W: 1-1/3 (34)

H: 5-1/2 (140) H: 3-5/8 (93) H: 7-3/4 (198) H: 3-5/8 (93) H: 7-3/8 (187) H: 7-3/4 (198) H: 8-13/16 (226) H: 9-21/32 (247) H: 9-3/4 (250) H: 3-5/8 (93) H: 3-3/4 (95)

IND618/INDX618 ■

IND654/INDX654 ■

IND6100/INDX6100 ■ 3

IND1236/INDX1236 ■

IND1236ULT/INDX1236ULT ■

IND1254/INDX1254 ■ 3

IND1254ULT/INDX1254ULT ■

IND12100/INDX12100 ■■

IND12100ULT/INDX12100ULT ■

IND12150/INDX12150 ■ 3

IND12300/INDX12300

IND12450/INDX12450 ■ 3

IND24100/INDX24100 ■

IND24450/INDX24450 ■ 3
