Panelboards
Rev. 11/13
Data subject to change
without notice
Section 11
A-Series™Panelboards
Applications................................................................................................11-3
Types..............................................................................................................11-4
Terminal Lugs ............................................................................................11-7
Pricing and Ordering ..............................................................................11-8
Column Panels ..........................................................................................11-9
Column – Field Installed Kits/Replacement
Parts/Enclosures.................................................................................11-10
Lighting Control Panel—Remote Operated
Circuit Breakers...................................................................................11-11
Pro-Stock Panelboards – Unassembled.....................................11-13
Product Options.....................................................................................11-19
Accessories ..............................................................................................11-20
Power Panelboards..............................................................................11-21
Branch Circuit Monitoring.................................................................11-23
Spectra™Series Panelboards .................................................11-24
Fusible Switches Load and Interrupting Ratings ...................11-25
Merchandisable Kits and Sizing Information...........................11-27
Terminal Lugs..........................................................................................11-28
PCU Selection..........................................................................................11-29
Interior, Enclosure Options................................................................11-30
Integrated Submetering Panelboard...........................................11-32
Renewal Parts Modular Concept...................................................11-33
Renewal Parts Circuit Breaker Sizing...........................................11-34
Replacement Boxes and Fronts.....................................................11-35
Renewal Parts Product Number Structure ...............................11-37
Renewal Parts – Mounting Hardware .........................................11-40
Renewal Parts – Main Lug Modules;
Neutral and Ground Kits.................................................................11-45
Renewal Parts – Accessories...........................................................11-46
Renewal Parts – Interiors, Boxes and Fronts...........................11-47
Renewal Parts – Type SCP Panelboards ....................................11-48
Renewal Parts – Type CCB and QMR Panelboards...............11-49
Available Publications .............................................................11-52
— FE as a main breaker in A-Series™Panelboards: Expanding
GE’s selectivity offering. The FE main breaker in A-Series allows
full instantaneous selectivity, which can be coordinated with
upstream and downstream GE breakers.
— A-Series Branch Circuit Monitoring (BCM): This new energy
management product allows for monitoring key electrical param-
eters down to a branch circuit level. This product is factory
installed which makes for a clean installation and reduced labor
in the field.
— AS style A-Series panel: New AE subtype panel, AS, allows for
the combination of expanded selectivity and fully rated solution
up to 65kAIC at 480V. This solution also decreases overall foot-
prints of our panelboard, which has an important aspect of
current day installations.
Section Updated 07 / 2014
www.geindustrial.com Rev. 11/13
Data subject to change
without notice
BuyLog™Catalog
11-2
This page left blank intentionally.
www.geindustrial.com BuyLog™Catalog 11-3
Panelboards
A-Series™Panelboards
Applications
Rev. 11/13
Data subject to change
without notice
Section 11
Standards
All GE panelboards meet the latest revision of the following
standards.
—National Electrical Code-Ref. Article 384.
—UL67 panelboards: UL50 cabinets and boxes. UL943 GFCI.
—UL489 molded case circuit breakers. UL98 fusible switches.
—CSA or C-uL listing for Spectra™Series Power Panelboards.
—C-uL Listing for A-Series™non-service entrance panelboards
—International Building Code Seismic Zone 3 and 4.
—California Building Code Seismic Zone 4.
—NEMA PB1.
—Federal Specifications
—Panelboards, W-P-115c.
Type 1—Circuit breaker equipped
Class 1—Panelboards
Class 2—Load centers
—Molded case circuit breakers, WC-375B/GEN.
—Fusible switches, W-S-865c.
Application
The following classifications and limitations of panelboards have
been established by the Underwriters Laboratories and the
National Electrical Code. Note— “an overcurrent protective device
is a circuit breaker pole or single fuse”. Panelboards have no fire
wall ratings. All 50/60 Hz rated. There is no limitation as to the
number and rating of branch
circuits, except as determined by
available enclosures.
Interrupting Ratings—Circuit Breakers
Panelboards have integrated short circuit ratings. When fully
rated, the rating is that of the lowest rated device in the panel-
board. When series connected rated, the rating is that of the
main device in panel (or remote line side protected device) and
branch-tested/UL Listed combination.
Short-Circuit Ratings—Fusible Switch Units
The interrupting rating of the fuse must equal or exceed the
short-circuit rating of the switch. If it is lower, then the interrupt-
ing rating of the switch is the same as the fuse. Switches have no
short-circuit rating if renewable fuses are used.
Seismic Ratings
All A-Series™Lighting Panels and Spectra™Power Panels have
been tested and certified to meet the International Building Code
(IBC) Zone 3 and Zone 4 as well as the California Building Code
(CBC) Zone 4.
Features
—Symmetrical design, no required top or bottom mountings
—Wide, easy-to-install galvanized enclosures with removable
endwalls
—Flush or surface mounting
—Standard concealed mounting hardware and hinges
—Interiors that allow “straight-in” wiring
—Split neutral
—Field-installable, UL Listed, 200% neutral for non-linear loads
—Branch-bus direct connection
—Captive hardware on branch breakers
—Short circuit ratings allow up to 100KA @ 480Y/277Vac; 200KA
@ 240Vac
—Main bus ratings of 125 to 800 amps copper, 125 to 600 amps
aluminum
—Spectra RMS and vertically mounted main circuit breakers
available
—Bus-connected TVSS for maximum surge protection
—Optional door-in-door or front-hinged-to-box door
—Enclosures available in NEMA Type 1, Type 3R/12, Type 4/4X
www.geindustrial.com Rev. 11/13
Data subject to change
without notice
BuyLog™Catalog
11-4
Section 11

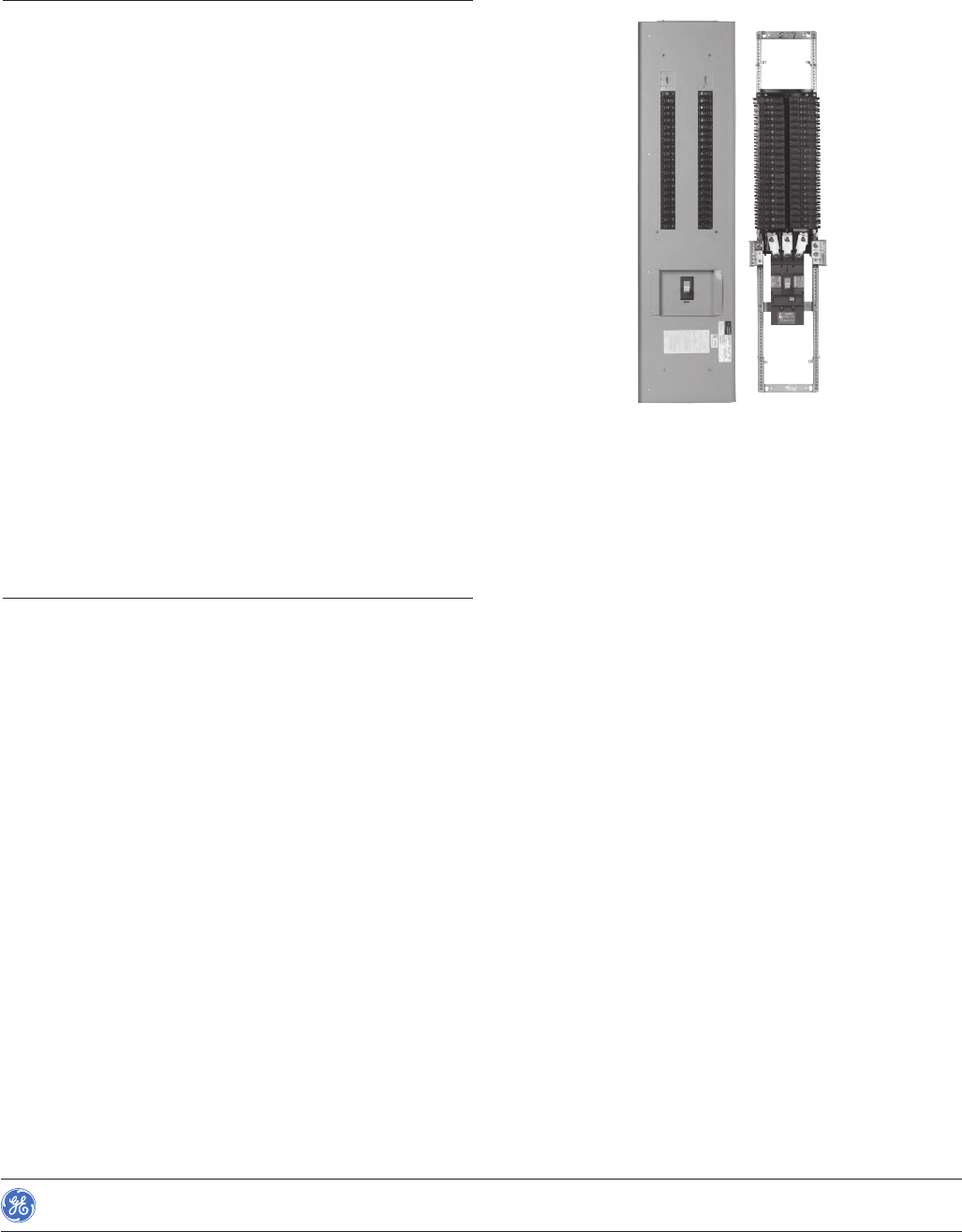

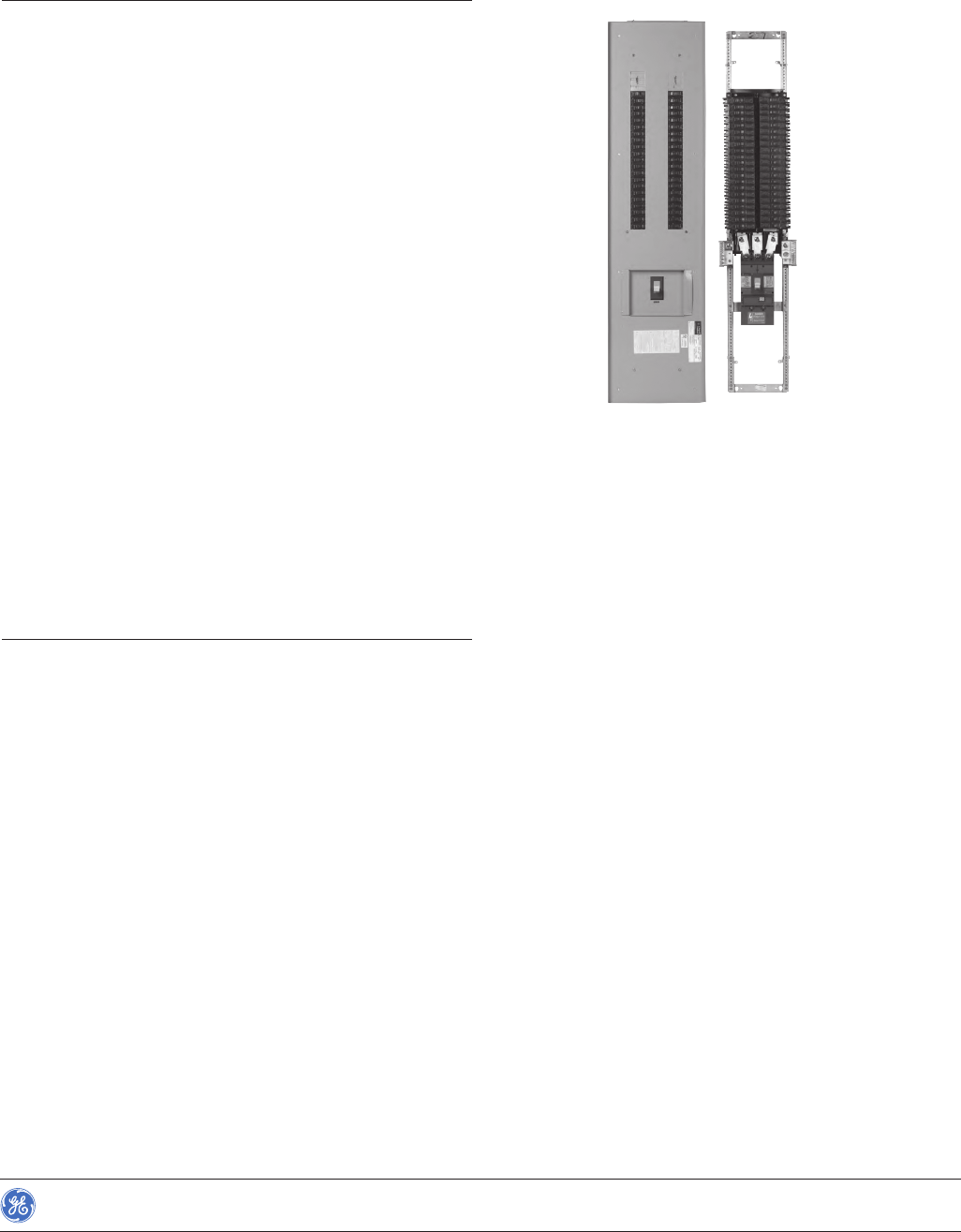

Type AL
Service Information:
1P, 3W-120/240 Vac
3P, 3W-240 Vac
3P, 4W-240/120 Vac, 208/120 Vac
Mains
Breakers:
100A-THQB, THHQB, TEY, SE, FE
225A-TQD, THQD, SF, FE
400A-TJD, SG
600A-SG
800A-SK
Main Lug:
125-800A
Branch Breakers (Plug-in):
Amperage-15-100A
Poles-1, 2, 3
Types-THQL, THHQL, TXQL
Enclosures
Length-25.5, 31.5, 37.5, 43.5, 49.5, 55.5, 64.5, 76.5, 82.5, 88.5
Width-20”
Depth-5.81”
Type AQ
Service Information:
1P, 3W-120/240 Vac
3P, 3W-240 Vac
3P, 4W-240/120 Vac, 208/120 Vac
Fully Rated: 65kAIC at 240V
Series Rated: 200kAIC at 240V
Mains
Breakers:
100A-THQB, THHQB, TEY, SE, FE
225A-TQD, THQD, SF, FE
400A-TJD, SG, FG
600A-SG
800A-SK
Main Lug:
125-800A
Branch Breakers (Bolt-on):
Amperage-15-100A
Poles-1, 2, 3
Types-THQB, THHQB, TXQB
Enclosures
Length-25.5, 31.5, 37.5, 43.5, 49.5, 55.5, 64.5, 76.5, 82.5, 88.5
Width-20”
Depth-5.81”
Panelboards
A-Series™Panelboards
Types
www.geindustrial.com BuyLog™Catalog 11-5
Rev. 11/13
Data subject to change
without notice
Section 11
Type AE (includes subtype AS)
Service Information:
1P, 3W-120/240 Vac, 125/250 Vdc
3P, 3W-240 Vac
3P, 4W-480/277 Vac, 208/120 Vac, 240/120 Vac
Fully Rated: 65kAIC at 480Y/277V, 100kAIC at 240V
Series Rated: 100kAIC at 480V
Mains
Breakers:
100A-TEY, SE, FE
225A-TFJ, SF, FE
400A-TJJ, SG, FG
600A-SG
800A-SK
Main Lug:
125-800A
Branch Breakers (Bolt-on):
Amperage-15-100A
Poles-1, 2, 3
Types-TEY, TEYF, TEYD, TEYH, TEYL
Amperage-110A, 125A
Poles-2, 3
Types-TEYD, TEYH, TEYL
Enclosures
Length-25.5, 31.5, 37.5, 43.5, 49.5, 55.5, 64.5, 76.5, 82.5, 88.5
Width-20”
Depth-5.81”
Note: Bold items are features of AS Panels
Type AD
Service Information:
3P, 3W-480 Vac, 600 Vac
3P, 4W-208/120 Vac, 480/277 Vac, 600/347 Vac
Fully Rated: 35kAIC at 600Y/347V, 100kAIC at 480V
Series Rated: 35kAIC at 600Y/347V
Mains
Breakers:
150A-THED, SE
225A-TFJ, SF
400A-TJJ, SG
600A-SG
800A-SK
Main Lug:
150-800A
Branch Breakers (Bolt-on):
Amperage-15-100A (1P, 2P)
15-150A (3P)
220A Max. double branch
Types-TED, SE, FB
Enclosures
Length-31.5, 37.5, 43.5, 49.5, 55.5, 64.5, 76.5, 82.5, 88.5
Width-20”
Depth-5.81”
Panelboards
A-Series™Panelboards
Types
www.geindustrial.com Rev. 11/13
Data subject to change
without notice
BuyLog™Catalog
11-6
Panelboards
A-Series™Panelboards
Section 11
Panelboard Types
A-Series™Standard Main Breaker Types and Ratings
Distribution Panels
AL
Page 11-4 Page 11-4 Page 11-5 Page 11-5 Page 11-11 Page 11-9 Page 11-9 Page 11-9 Page 11-24
AQ AE/AS AD/AD Plus ALC AQC AEC Spectra
480Y/277Vac1
480Y/277Vac 480/277Vac 600Vac
125/250Vdc 125/250Vdc 250Vdc
TEY, TFJ, TJJ, TEYF,
TEYD, TEYH, TEYL THED, TFJ, TJJ TEY, TFJ,
SE, SF
100A-1 ph, 2ph 80A-8 1/2 Box
150A-3 ph 80A-7 1/2 Box
Branch
Devices THQL, THHQL
THQB,
THHQB,
TXQB
(Bolt-on)
TEY. TEYF, TEYD5,
TEYH5, TEYL5FB,TED,
THED, SE
THQL,
THHQL
TEY, SE, TFJ,
SF, TJJ,
SG
TEYRC, TEY,
THQBGF
THQB,
THHQB,
TXQB
(Bolt on)
TEY
TED, SE, SF, SG, SK,
THQB, THHQB, TEY,
TQD, ADS Switches,
FB, FC, FE, FG
Subfeeds
Max. Amps
(100% Rated)
225 225 225 225 225 150 150 150 —
—
Subfeed
Breaker Types TQD, THQD TQD, THQD TED, TFJ, SE, SF TED, TFJ, SE, SF TED, TFJ, SE, SF TQD, THQD TQD, THQD TED
Max. Main Lug
Amperes
Max. Main Breaker
or Switch Amperes
Branches
Max. Amps
THQB, THHQB, TQD,
THQD, TEY, TFJ,
SE, SF
Main Devices
225A 225A
225A 225A
SF, SG, SK,
ADS Switches,
FB, FC, FE, FG
100A 100A 125A 100A 100A 1200A
THQB, THHQB, TQD, THQD,
TEY, TJD, TFJ
SE, SF, SG, SK
225A 1200A800A 800A 800A 800A
225A 1200A800A 800A 800A 800A 400A
400A
100A
Item
A-Series
Lighting
Control Panel
Column Type Panels
Max.
Voltage 240Vac 240Vac 600Vac 240Vac 240Vac
100A 225A 400A3600A3800A3150A 225A 400A 600A 800A 150A 225A 400A 600A 800A
10 240 THQB TQD/TFJ SKHA8
22 240 THHQB THQD TJD SGHA6
65 240 TEY SFHA SGHA4 SGHA6 SFHA4SGHA44SGHA6
100 240 SEL/TEYL SFL SGL SGL6
200 240 SEP SFP SGPA4
142480Y/277 TEY4TFJ4SGHA/TJJ4SGHA6 SKHA8 TED TFJ TJJ
35 480Y/277 SEHA SFHA SGHA4 SGHA6
18 SKHA8
25
SELA4/TEYL
SEHA4/TEYD SFHA4SEHA SFHA
65 480Y/277 SFLA4SGLA4 SGLA6
100 480Y/277
35k2600Y/347
SEPA4SFPA
142480 TED TFJ TJJ SGHA6
SEPA SFPA SGPA4 SGPA6
65 480 SELA SFLA SGLA4 SGLA6
100 480 SEPA SFPA SGPA4 SGLA6
182600 THED TFJ TJJ SGHA6 SKHA6
25 600 SELA SFLA SGHA4 SGHA6
2Not series rated.
3Not available in column panelboards.
4Light Control Panel ratings.
For installation in AS panels only.
IC
Ratings Voltage
Panel Type
AQ/AL AE / Lighting Control Panel AD / AD Plus
SEPA SFPA SGPA4 SGPA6
1AE Panels are suitable for use on 3-PH, 3W applications when derived from 3PH, 4W 480V/277 service
where the neutral is not connected to the panel. For 3ph-Delta use AD Panels.
5
Types
www.geindustrial.com BuyLog™Catalog 11-7
Rev. 11/13
Data subject to change
without notice
Section 11
Terminal Lugs
Molded Case Circuit Breakers
Circuit Breaker Frame Terminal Lugs (Cu-Al)
Current High No. Per Product Wire—Cu-Al (Unless otherwise noted)
Standard Hi-Break Tri-Break™Limiting Interrupting Poles Pole Number Per Lug Range
THQL TXQL, ———1,2,3 (15-30A) #14-4 Cu or #12-4 Al
THHQL 11
(35-100A) #14-1/0 Cu or #12-1/0 Al
THQB TXQB, ———1,2,3 Fixed to
THHQB Breaker Terminal (15-25A) #14-#12 Cu or #12-#10 Al
TEY ————1,2,3 11(30-60A) #10-#6 Cu or #8-#4 Al
(70-100A) #4-#1 Cu or #2-1/0 Al
TEB ————1,2,3 TCAL14 (15-30A, TCAL14)–#14-8
TED THED1——— 1 1TCAL12 1(30-60A, TCAL12)–#14-3 Cu, #12-1 Al
TED4 ————2-3 TCAL12A (70-90A, TCAL12A)–#6-2/0 Cu, #4-2/0 Al
TED6 THED ———2-3 TCAL15 (100-150A, TCAL15)–#3-3/0
FBV FBN FCAL12 (15-20A) #14-#12 Cu or #10-#12 Al
———
FBH FBL — 1,2,3 1 FCAL13 1 (35-60A) #10-#6 Cu or #8-#4 Al
FCAL14 (70-100A) #4-#1 Cu or #2-1/0 Al
FCS FCV FCN FCALK12 (15-20A) #14-#12 Cu or #10-#12 Al
———
FCH FCL — 2,3 1 FCALK13 1 (35-60A) #10-#6 Cu or #8-#4 Al
FCALK14 (70-100A) #4-#1 Cu or #2-1/0 Al
SEDA SEHA — SELA SEPA — 2-3 1 TCAL18 1 #12-3/0 Cu, #12-3/0 Al
———
FES1T FEV1T — 2-3 1 FCALK15 1 #12-3/0 Cu, #14-1/0 Al
FEN1T FEH1T FEL1T
———
FES1E FEV1E — 2-3 1 FCALK15 1 #12-3/0 Cu, #14-1/0 Al
FEN1E FEH1E FEL1E
TQD THQD ———2-3 1 TCAL25 1 #1-300kcmil
SFHA ——SFLA SFPA — 2-3 1 TCAL29 1 #8-350kcmil
TFJ, TFK THFK ———2-3 1 TCAL24, 26 1 #4-300kcmil
———
FES2T FEV2T — 2-3 1 FCALK16 1 #8-250kcmil Cu, #8-250kcmil
FEN2T FEH2T FEL2T
———
FES2E FEV2E — 2-3 1 FCALK16 1 #8-250kcmil Cu, #8-250kcmil
FEN2E FEH2E FEL2E
SGDA ——
SGL —2 1TCLK2652—2(2/0-400kcmil Cu) or
SGHA SGP 2(2/0-500kcmil Al) or #6-600kcmil
SGDA ——
SGL —3 1TCLK3652—2(2/0-400kcmil Cu) or
SGHA SGP 2(2/0-500kcmil Al) or #6-600kcmil
FGV2 Top hole #8-400kcmil Cu or
———FGN2 FGH2 — 2-3 1 FCALK318H — #6-500kcmil Al
FGL2 FGP2 Bottom hole #2/0-600kcmil Cu & Al
FGV4 Top hole #8-400kcmil Cu or
———FGN4 FGH4 — 2-3 1 FCALK318H — #6-500kcmil Al
FGL4 FGP4 Bottom hole #2/0-600kcmil Cu & Al
FGV6 Top hole #8-400kcmil Cu or
———FGN6 FGH6 — 2-3 1 FCALK318H — #6-500kcmil Al
FGL6 FGP6 Bottom hole #2/0-600kcmil Cu & Al
TJJ, TJK4 THJK4 TB4 ——2-3 1 TCAL43 1 #6-600kcmil or 2-(2/0-250kcmil)
TJD ————2-3 1 TCAL43 1 #6-600kcmil or 2-(2/0-250kcmil)
TJK6 THJK6, THJ4V ———2-3 1 TCAL43 1 #6-600kcmil or 2-(2/0-250kcmil)
TCAL63 2 250-350kcmil, Cu, or 350-500kcmil, Al
——TB6 —— 3 1TCAL61 2 2/0-500kcmil
SKHA8 SKLA8 TCAL41 1 #4-600kcmil or 2-(1/0-250kcmil)
TKM84THKM8 ——
SKPA8 2-3 1 TCAL61 2 2/0-500kcmil
TCAL81 3 3/0-500kcmil
————Load End —1TCAL91 3 3/0-500kcmil
——TB8 —— 3 1TCAL81 3 3/0-500kcmil
SKHA12, THKM12 ——
SKLA12, 2-3 1 TCAL81 3 3/0-500kcmil
TKM124SKPA12 TCAL121 4 250-350kcmil Cu or 350-5000kcmil Al
————Load End 2-3 1 TCAL131 4 250-350kcmil Cu or 350-500kcmil Al
TCAL12 (15-60A, TCAL12)#14-#3 Cu or #12-#1 Al
——TB1 THLC1 —3 1TCAL12A 1 (70-100A, TCAL12A)#6-2/0 Cu or #4-2/0 Al
TCAL15 (100-150A, TCAL15)#3-3/0 Cu or #1-3/0 Al
———THLC2 —3 1TCAL27 1 (125-225A, TCAL27)#4-300kcmil
———THLC4 TLB4431TCLK433— 3/0-500kcmil or 2-(3/0-250kcmil)
1One-pole THED frame available only in 15-30 amp trip. 3Three-pole lug assembly suitable for line or load end.
2Lug kit—includes line or load end cover. 4For replacement use only.
ADS Fusible Switch Module Terminations (CU/AL Mechanical)5
Amp Rating Voltage Wire Size (CU/AL) # Wires Per Lug # Lugs Per Phase
30 240/600 #2-#14
60 240 #2-#14
60 600 #14-I/O
100 240/600 #14-I/O
200 240/600 #6-250kcmil
400 240/600 I/O-250kcmil or #2-600kcmil 2 or 1
11
11
11
11
11
1
1
1
1
600 240/600 I/O-250kcmil or #2-600kcmil 2 or 1
800 600 I/O-250kcmil or #2-600kcmil 2 or 1
1200 600 I/O-250kcmil or #2-600kcmil 2 or 1
5For optional mechanical or compression lugs refer to GET-7006.
Panelboards
A-Series™Panelboards
www.geindustrial.com Rev. 11/13
Data subject to change
without notice
BuyLog™Catalog
11-8
Section 11Panelboards
A-Series™Panelboards
Pricing and Ordering
Information Required to Price and Order a Panelboard
—Short-circuit Rating (10kA, 18kA, etc.)
—Service Entrance Label (Yes) or (No)
—Mark(s) (LPA, MDP, RPC, etc.)
—Service (3-ph, 4-w 208Y/120; 3-ph, 3-w 480 volts, etc.)
—Entrance of Incoming Line (Top) or (Bottom).
(Bottom Supplied as Standard)
—Trim (Surface) or (Flush)
—Incoming Wire Size (500kcmil, 250kcmil, etc.)
—Incoming Number of Wires per phase (1, 2, 3, etc.)
—Wire Material (Copper or Aluminum)
—Main Type (Main Lugs Only, Circuit Breaker, Fusible Switch, etc.)
—Amperage of Main Bus
—Frame of Main Circuit Breaker (SG, SK, TJK, etc.) (if applicable)
—Options to Mains (Shunt Trip, Lighting Contactor, etc.)
—Equipment Ground (Optional)
—Branches
– Amp Rating (20, 30, 50, etc.)
– Poles (1, 2, or 3)
– Frame (THQB, TED, etc.)
– Quantity (1, 10, 15, etc.)
—Options:
– Interior (Copper bus, 200% rated neutral, etc.)
– Box (Painted, Increased Gutter, etc.)
– Front (Door in Door, etc.)
– Ground Fault Protection (Yes) or (No)
—Type of Panel (AQ, AE, Spectra™Bolt-on, etc.)
How to Price Factory Assembled Panelboards
Main Price (or Interior Price for A-Series™) + Branch Circuits +
Options = Total List of Panelboard. The sum of these list prices is
the total list for the complete panelboard including box and front.
Please refer to Speedi for quoting, pricing and ordering GE panels
How to Lay Out Factory Assembled Panelboards
—Multi-section panels must have a main circuit breaker or main
lugs in each section. Double (dual) main lugs or thru-feed lugs
must be added as required in all but the last section.
Please refer to Speedi for quoting, pricing and ordering GE panels
How to select a Pro-Stock, unassembled panelboard
Total the following components:
—Interior
—Box (add ground bars as required)
—Front
—Main breaker or lug kit
—Subfeed breaker or feed thru lug kit (if required)
—Branch Breakers (from Section 3)
—Accessories (200% neutral, service entrance etc.)
Please consult your local distributor for net pricing and current
stock levels.
For additional details on selecting Pro-Stock panelboards, please
refer to publication DEP-104.
www.geindustrial.com BuyLog™Catalog 11-9
Rev. 11/13
Data subject to change
without notice
Section 11Panelboards
A-Series™Panelboards
Column Panels
Type ALC
Service Information:
1P, 3W-120/240 Vac
3P, 4W–208/120 Vac, 480/277 Vac
3P, 4W-240 Vac
Mains
Breakers:
100A-THQB, THHQB, TEY, SE
225A-TQD, THQD, SF
Main Lug:
125-225A
Branch Breakers (Plug-in):
Amperage-15-100A (1P, 2P, 3P)
Types-THQL, THHQL, TXQL
Enclosures
Length-37.5, 43.5, 49.5, 55.5, 64.5, 76.5
Width-8.62”
Depth-5.81”
Type AQC
Service Information:
1P, 3W-240/120 Vac
3P, 3W-240 Vac
3P, 4W-240 Vac
Mains
Breakers:
100A-THQB, THHQB, TEY, SE
225A-TQD, THQD, SF
Main Lug:
125-225A
Branch Breakers (Bolt-on):
Amperage-15-100A (1P, 2P, 3P)
Types-THQB, THHQB, TXQB
Enclosures
Length-37.5, 43.5, 49.5, 55.5, 64.5, 76.5
Width-8.62”
Depth-5.81”
Type AEC
Service Information:
3P, 4W-480/277 Vac
Mains
Breakers:
100A-TEY, SE
225A-TFJ, SF
Main Lug:
125-225A
Branch Breakers (Bolt-on):
Amperage-15-80A (1P, 2P, 3P)
Types-TEY
Enclosures
Length-37.5, 43.5, 49.5, 55.5, 64.5, 76.5
Width-8.62”
Depth-5.81”
www.geindustrial.com Rev. 11/13
Data subject to change
without notice
BuyLog™Catalog
11-10
Section 11Panelboards
A-Series™Panelboards
Description
Product
Number

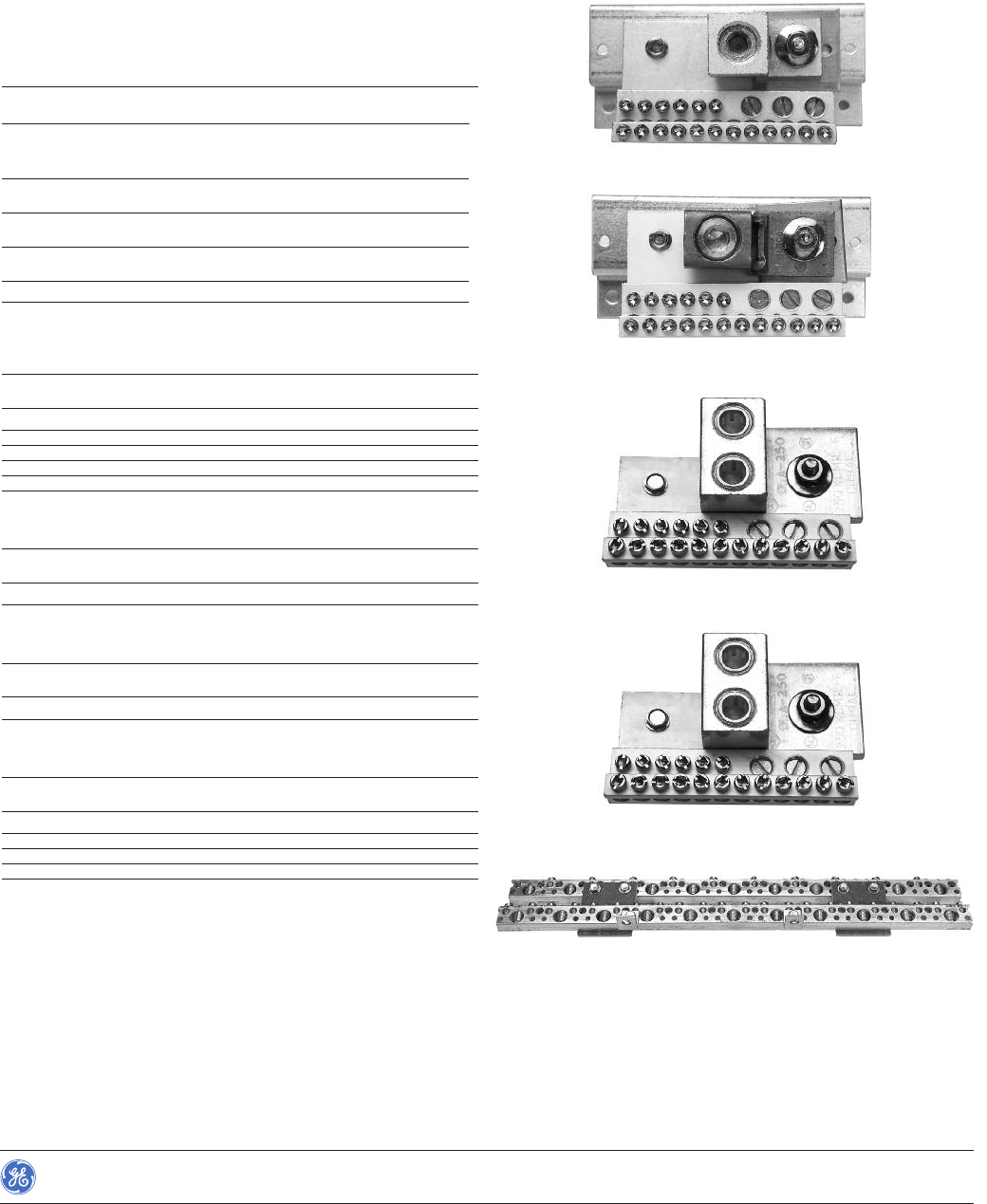

Equipment Grounds:
Standard Terminal Strip
With Provision for
(11) 14-8 Cu or 12-8 Al
(3) 14-4 Cu or 6-4 Al
TGL2
Above terminal with Copper Strap TGC2
Main Lug 6-2/0 Cu/Al TGL20
Standard Isolated Insulated
(11) 14-8 Cu or 12-8 Al
(3) 14-4 Cu or 6-4 Al EGS12
Above terminal with Copper Strap EGC12
Handle Locking Devices:
THQL, THHQL THQB, THHQB THL103
TEY TEYLD1
TED TLD3
TFJ, TFL, TLB4 TFKLD1
Padlocking Devices:
THQL, THHQL, TXQL
THQB, THHQB, TXQB THP100
TEY TEYPLD1
TED, TEL TEFPLD1
TQD TQDPLD1
TFJ, TFL TFKPLD1
Filler Plate for Q Line
and TEY Breakers TQLFP1
Gasketing Kit AGSK
Safety Catch for Trough Covers
1
ACHK
1
Standard on pull box.
Column
Field Installed Kits/Replacement Parts
Miscellaneous Kits
Order by Product Number from the National Service Center
Panelboards Parts
Order from Factory
Description Product Number
Directory Card 139C5612P2
Circuit Numbering
Strips - 1-48 569B806G1
43-84 569B806G2
Directory Card Holder 139C5491P4
Permanent Circuit Number Kits
Order from Factory
Product Number Description
APN48 No's 1-48
APN84 No's 43-84
www.geindustrial.com BuyLog™Catalog 11-11
Rev. 11/13
Data subject to change
without notice
Section 11

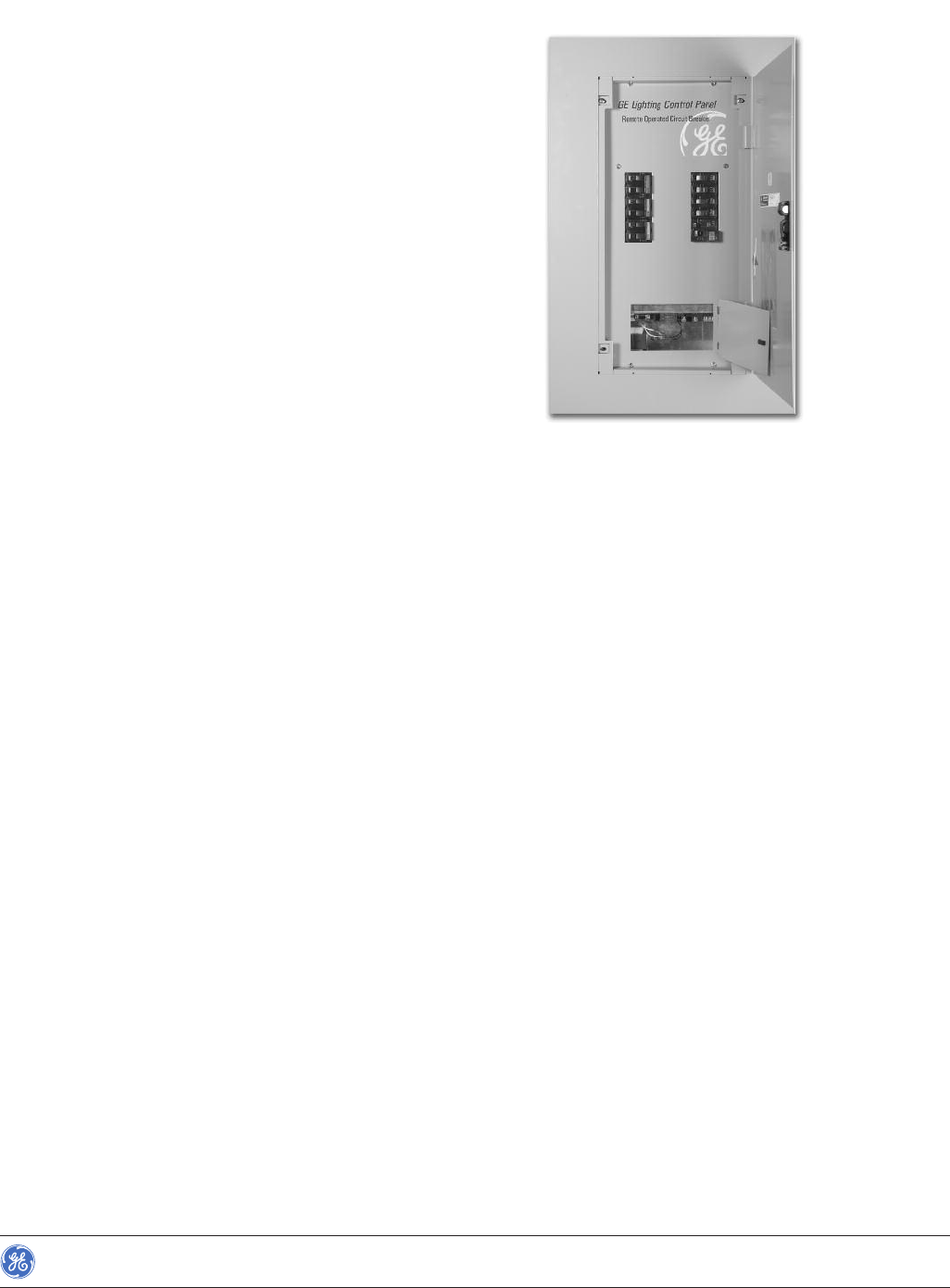

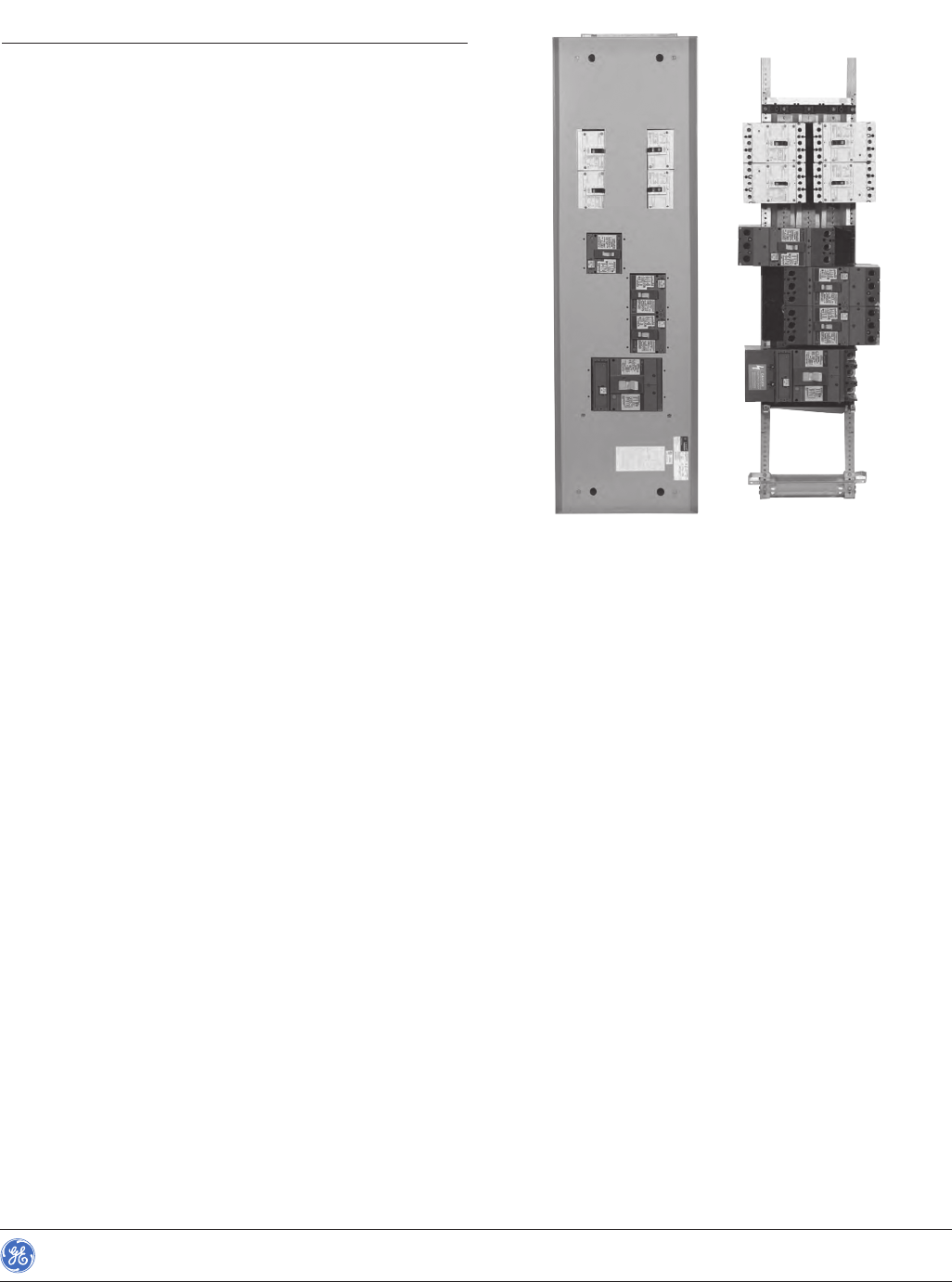

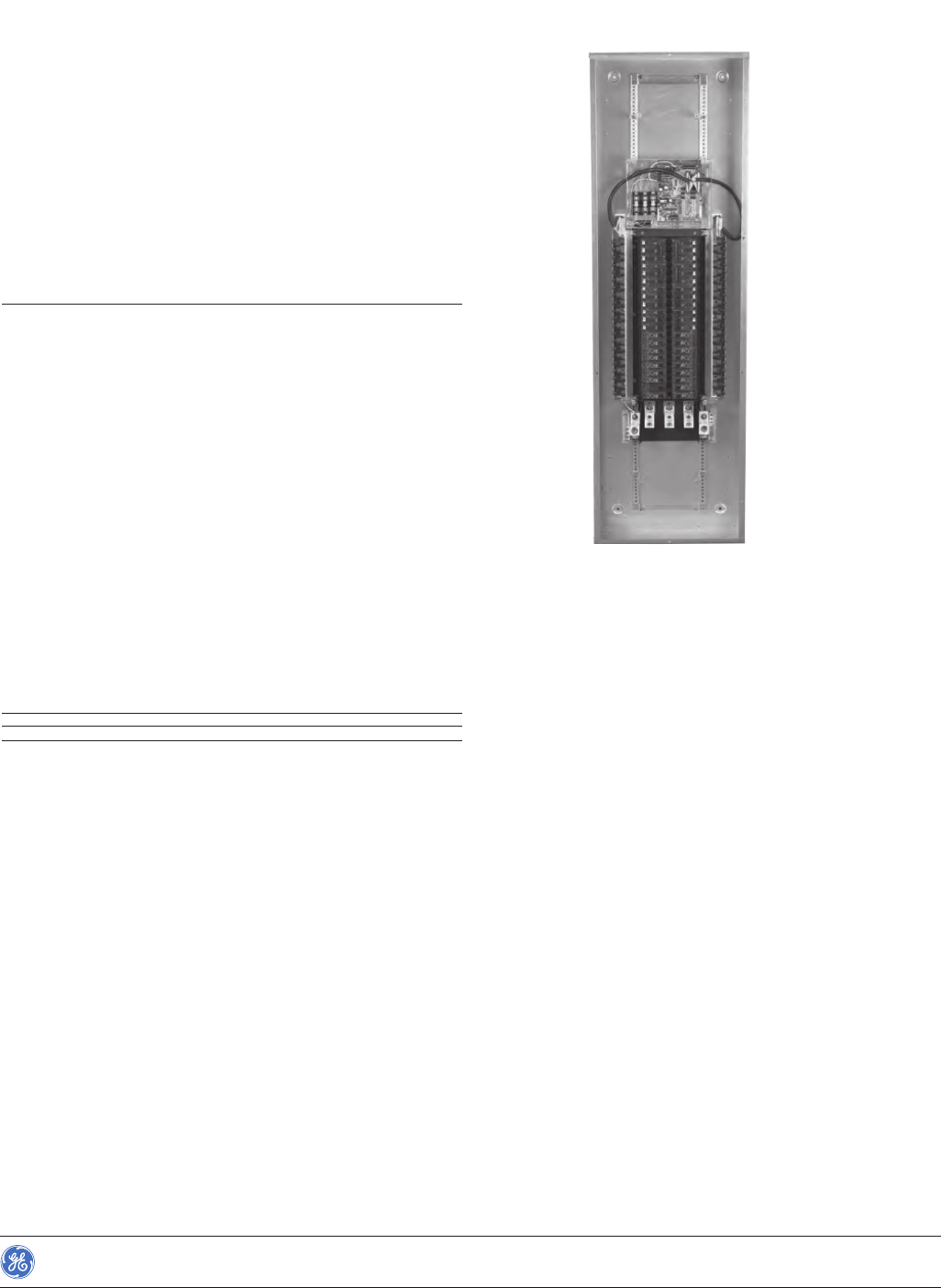

Lighting Control Panel
480Y/277 Vac/120/208 Vac
Remote Operated Circuit Breakers
Bolt-On Factory Assembled
Three-Phase, 4-Wire Pricing
Service Information:
1P, 3W-120/240 Vac
3P, 4W-208/120 Vac, 480/277 Vac
Mains
Breakers:
100A-TEY, SE
225A-TFJ, SF
400A-TJJ, SG
Main Lug:
125-400A
Branch Breakers (Bolt-on):
Amperage-15-30A (1P, 2P): TEYRC
15-100A (1P, 2P, 3P): TEY
220A Max. double branch
Types- TED, SE, FB
Enclosures
Length-25.5 31.5, 37.5, 43.5, 49.5, 55.5, 64.5, 76.5
Width-20”
Depth-5.81”
Panelboards
A-Series™Panelboards
www.geindustrial.com Rev. 11/13
Data subject to change
without notice
BuyLog™Catalog
11-12
Section 11Panelboards
A-Series™Panelboards
Lighting Control Panel
480Y/277 Vac/120/208 Vac
Remote Operated Circuit Breaker
Accessories
Product
Description Number

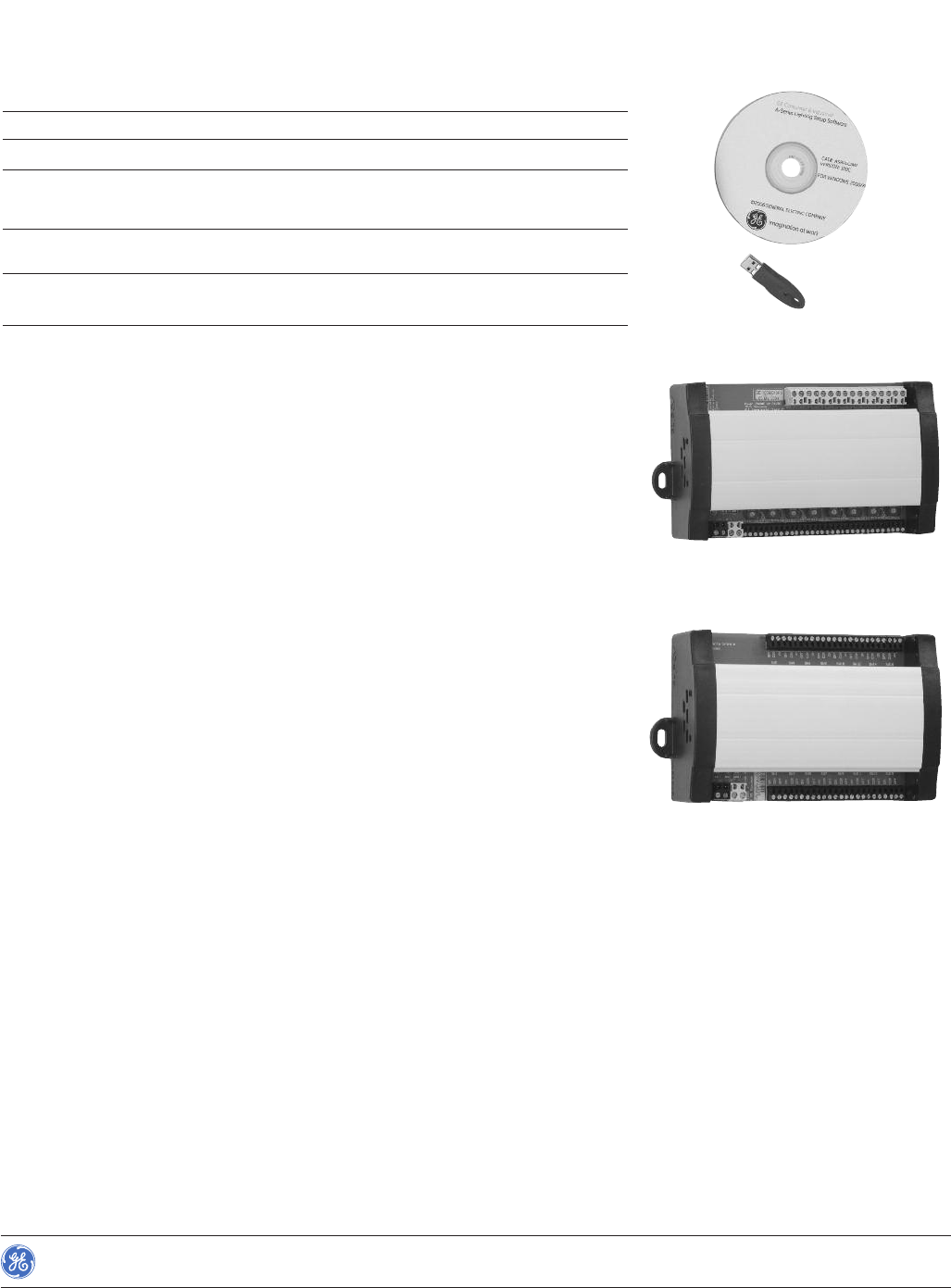

Programming Software ASROCBPRGM
PC-based start up software
Daylight Optimization Module ASRGLCDOK
Peforms sunlight harvesting by measuring the
amount of light and provides a control signal to a
dimming mechanism to maintain a preset lighting level.
Remote Switch Expansion Module ASRGLCDSK
Provides additional 16 digital input
signals to the controller for each module
Control Wiring Insulation Tubing ASRGLCCWT
Requirement per UL67 and NEC725.55, that low
voltage class 2 and 3 control wiring be separated with
tubing having an insulation rating equal to branch load wiring.
Dimming Module
Remote Switch Module
Programming Software
www.geindustrial.com BuyLog™Catalog 11-13
Rev. 11/13
Data subject to change
without notice
Section 11

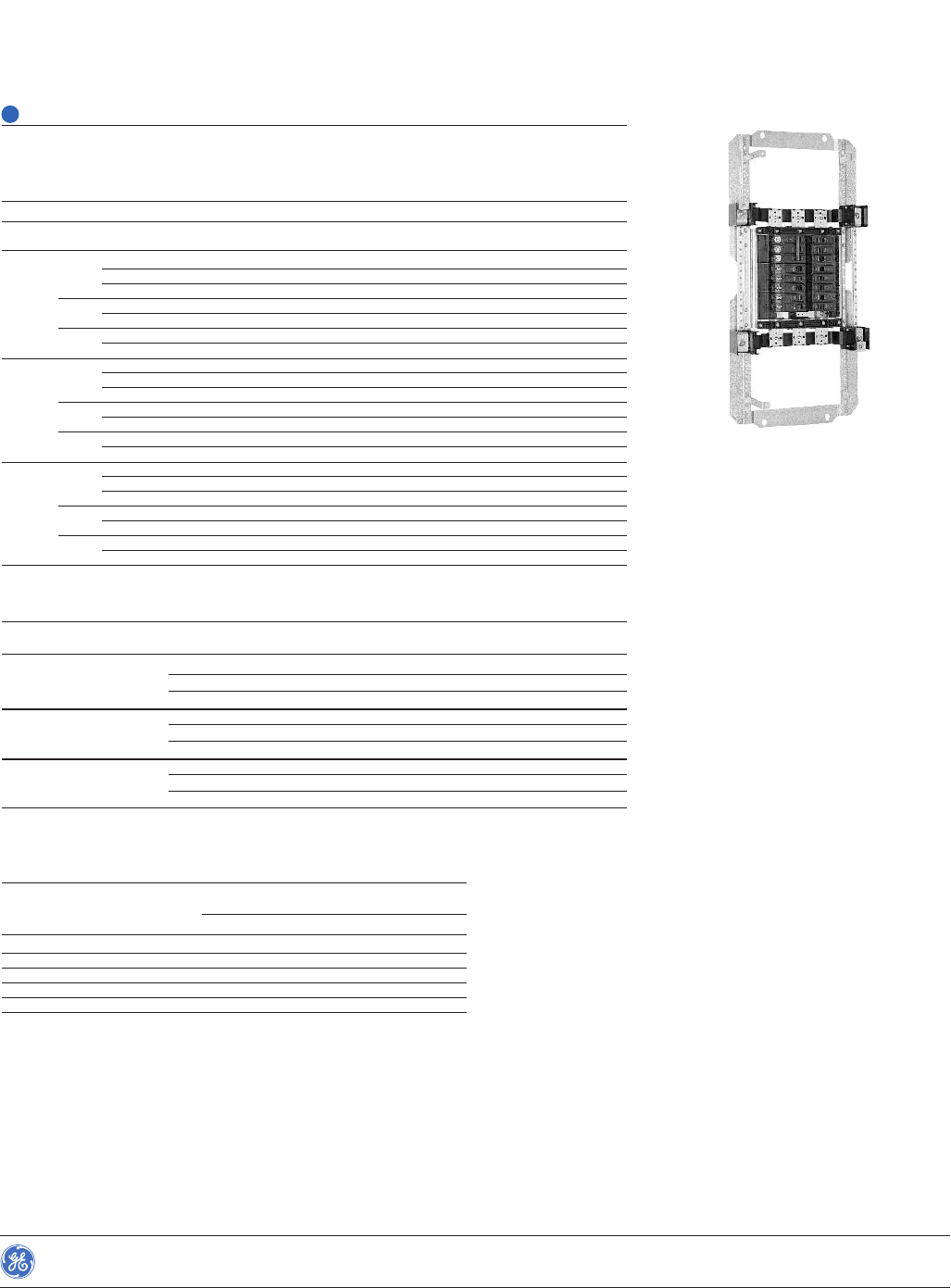

Pro-Stock, Unassembled Lighting Panels
100-600A
240 Vac 1 or 3 Phase or 480Y/277 Vac 3 Phase
Order by Product Number from the Customer Service Center
Select Interior
Select the interior by bus type, panel rating and number of circuits. Identify the box/front
height for use in Steps 2 and 3.
Copper Bus
Feed-thru Non Feed-thru
Rating No. of Product Box/Front Product Box/Front TGL2 Ground
Voltage (Amps) Circuits Number1Height Number1Height Bars2,3
100- 18 AQU1182RCXAXT1B4 37.5" AQU1182RCXAXB4 31.5" 2
225 30 AQU1302RCXAXT1B4 43.5" AQU1302RCXAXB4 37.5" 3
240 Vac, 42 AQU1422RCXAXT1B4 49.5" AQU1422RCXAXB4 43.5" 4
1 Phase 400 18 AQU1184RCXAXT1B4 64.5" ––2
42 AQU1424RCXAXT1B4 76.5" AQU1424RCXAXB4 64.5" 4
600 18 AQU1186RCXAXT1B4 64.5" ––2
42 AQU1426RCXAXT1B4 76.5" AQU1426RCXAXB4 64.5" 4
100- 18 AQU3182RCXAXT1B4 37.5" AQU3182RCXAXB4 31.5" 2
225 30 AQU3302RCXAXT1B4 43.5" AQU3302RCXAXB4 37.5" 3
208/120 42 AQU3422RCXAXT1B4 49.5" AQU3422RCXAXB4 43.5" 4
Vac, 400 18 AQU3184RCXAXT1B4 64.5" ––2
3 Phase 42 AQU3424RCXAXT1B4 76.5" AQU3424RCXAXB4 64.5" 4
600 18 AQU3186RCXAXT1B4 64.5" ––2
42 AQU3426RCXAXT1B4 76.5" AQU3426RCXAXB4 64.5" 4
100- 18 AEU3182RCXAXT1B4 37.5" AEU3182RCXAXB4 31.5" 2
225 30 AEU3302RCXAXT1B4 43.5" AEU3302RCXAXB4 37.5" 3
480/277 42 AEU3422RCXAXT1B4 49.5" AEU3422RCXAXB4 43.5" 4
Vac, 400 18 AEU3184RCXAXT1B4 64.5" ––2
3 Phase 42 AEU3424RCXAXT1B4 76.5" AEU3424RCXAXB4 64.5" 4
600 18 AEU3186RCXAXT1B4 64.5" ––2
42 AEU3426RCXAXT1B4 76.5" AEU3426RCXAXB4 64.5"4
Aluminum Bus
Rating No. of Feed-thru Box/Front TGL2
Voltage (Amps) Circuits Product Number1Height Ground Bars2,3
240 Vac, 18 AQU1182RCXAXT1 37.5" 2
1 Phase 100-225 30 AQU1302RCXAXT1 43.5" 3
42 AQU1422RCXAXT1 49.5" 4
208/120 Vac, 18 AQU3182RCXAXT1 37.5" 2
3 Phase 100-225 30 AQU3302RCXAXT1 43.5" 3
42 AQU3422RCXAXT1 49.5" 4
480/277 Vac, 18 AEU3182RCXAXT1 37.5" 2
3 Phase 100-225 30 AEU3302RCXAXT1 43.5" 3
42 AEU3422RCXAXT1 49.5" 4
TGL20 Ground Lug Quantities
No. of TGL20s Required
by Panel Rating
Interior Type 100A-225A 400A 600A
Main Lug Only 112
Main Lug and Feed-thru 224
Main Breaker Only 111
Main Breaker and Sub-feed 111
Main Breaker and Feed-thru 223
1For CSA label, add "M8" suffix to product number.
2For TGL20 ground lug quantities, see TGL20 Ground Lug Quantities table above.
3For isolated ground, use EGS12. When using the EGS12, 3, 5 and 7 ground lugs
(TGL20s) are required for 18, 30 and 42 circuits respectively.
1
Panelboards
A-Series™Panelboards
www.geindustrial.com Rev. 11/13
Data subject to change
without notice
BuyLog™Catalog
11-14
Section 11Panelboards
A-Series™Panelboards
Pro-Stock, Unassembled Lighting Panels
Select Front
Select a front of the correct height (see Step 1).
Select Box
Select a box of the correct height (see Step 1). Boxes come with blank endwalls.
If endwalls with knockouts are required, also order knockout endwall kit AKEW2.

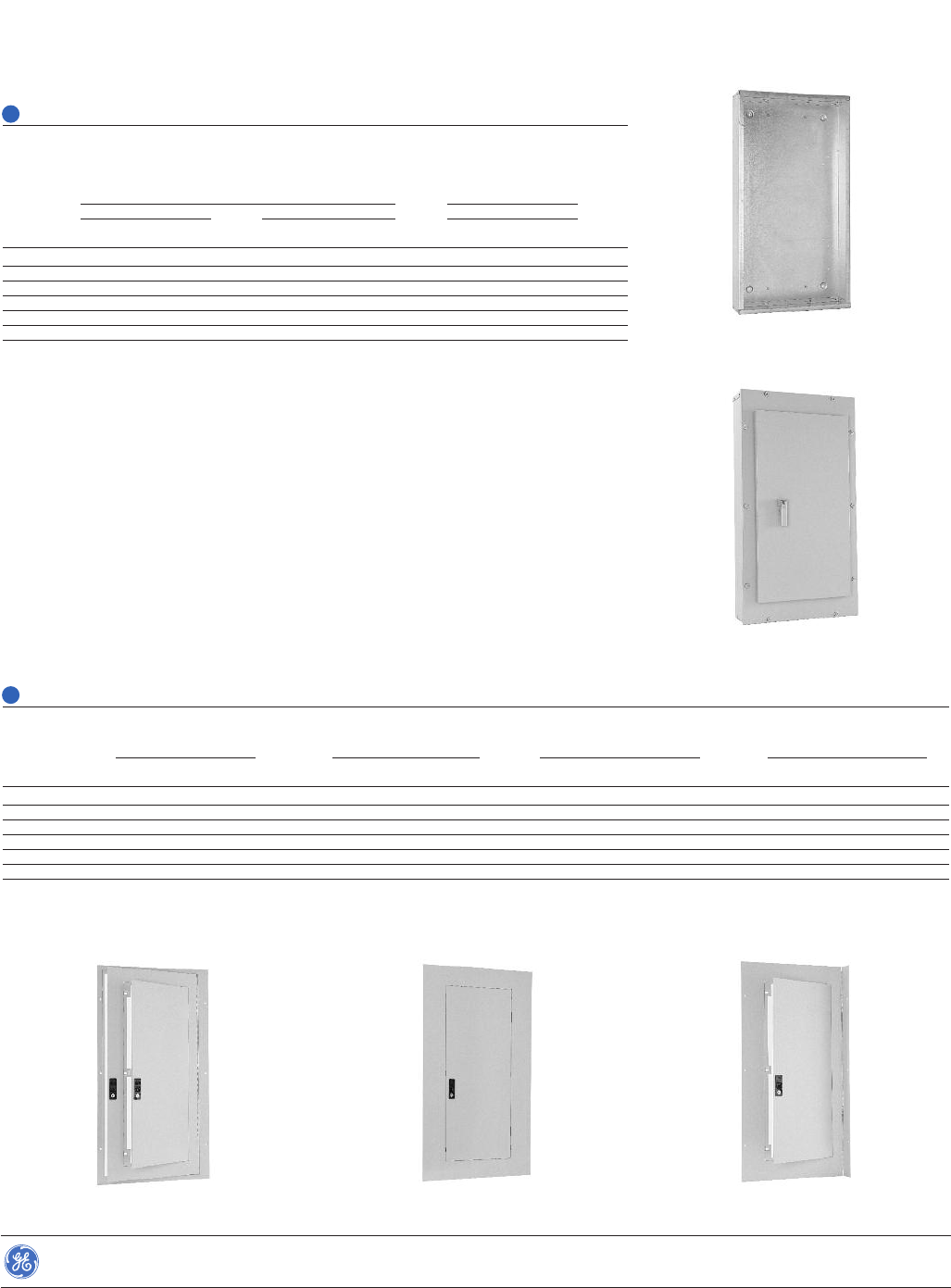

NEMA 1
Door Within Door Standard Front Hinged to Box
NEMA 3R/12
Standard (20" wide) Door Within Door (20" wide) Front Hinged To Box (20" wide) Standard (30" Wide)
Front Height Flush1Surface1Flush1Surface1Flush1Surface1Flush1Surface1
31.5" AF31F AF31S AF31FP AF31SP AF31FD AF31SD AF31FW AF31SW
37.5" AF37F AF37S AF37FP AF37SP AF37FD AF37SD AF37FW AF37SW
43.5" AF43F AF43S AF43FP AF43SP AF43FD AF43SD AF43FW AF43SW
49.5" AF49F AF49S AF49FP AF49SP AF49FD AF49SD AF49FW AF49SW
64.5" AF64F AF64S AF64FP AF64SP AF64FD AF64SD AF64FW AF64SW
76.5" AF76F AF76S AF76FP AF76SP AF76FD AF76SD AF76FW AF76SW
1For CSA label, add "A" suffix to product number.
2
3
NEMA 1 NEMA 3R/12
20" Wide 30" Wide 20" Wide
Box Product Product Product
Height Number1Number1Number1
31.5" AB31B AB31BW AB313
37.5" AB37B AB37BW AB373
43.5" AB43B AB43BW AB433
49.5" AB49B AB49BW AB493
64.5" AB64B AB64BW AB643
76.5" AB76B AB76BW AB763
1For CSA label, add "A" suffix to product number.
www.geindustrial.com BuyLog™Catalog 11-15
Rev. 11/13
Data subject to change
without notice
Section 11
Interior Product Rating No. of Breaker Rating (kAIC)
Type Number1Amps Poles 10 14 22 25 65 100 200
MB612 100 2 THQB THHQB
MB614 100 4 (2) THQB (2) THHQB
AQU1: MB512 225 2 TQD THQD
240 VAC MB332 400 2 SGHA SGLA SGPA
1 Phase MB332 600 2 SGHA SGLA SGPA
MB332WB 600 2 SGHA+Kit
MB613 100 3 THQB THHQB
MB616 100 6 (2) THQB (2) THHQB
MB513 225 3 TQD THQD
AQU3: MB516 400 6 (2) TQD (2) THQD
208/120 MB233 225 3 SFHA SFLA SFPA
VAC, MB233WB 225 3 SFHA+Kit
3 Phase MB23325400 652nd SFHA
MB2332WB5400 652nd SFHA+Kit
MB333 400 3 SGHA SGLA SGPA
MB333 600 3 SGHA SGLA SGPA
MB333WB 600 3 SGHA+Kit
MB423 100 3 TEY
MB426 100 6 (2) TEY
MB133 150 3 TED2THED
MB133 150 3 SEHA SELA SEPA
MB133WB 150 3 SEHA+Kit
AEU3: MB233 225 3 SFHA4SFLA SFPA
480/277 MB233WB 225 3 SFHA+Kit4
Vac, MB23325400 652nd SFHA4
3 Phase MB2332WB5400 652nd SFHA+Kit4
MB333 400 3 SGHA4SGLA SGPA
MB333 600 3 SGHA4SGLA SGPA
MB333WB 600 3 SGHA+Kit4
1Breaker not included except for “WB” kits (where product number ends in “WB”). “WB” kits include a breaker, mounting kit and load-side lugs. Rating plugs must be
ordered separately.
2Actual breaker rating is 18kAIC.
3Actual breaker rating is 30kAIC.
4Actual breaker rating is 35kAIC.
5To achieve 6 poles of subfeed, the MB233WB or MB233 kit is also required. 6 poles of subfeed only work with 400A and 600A interiors.
Pro-Stock, Unassembled Lighting Panels

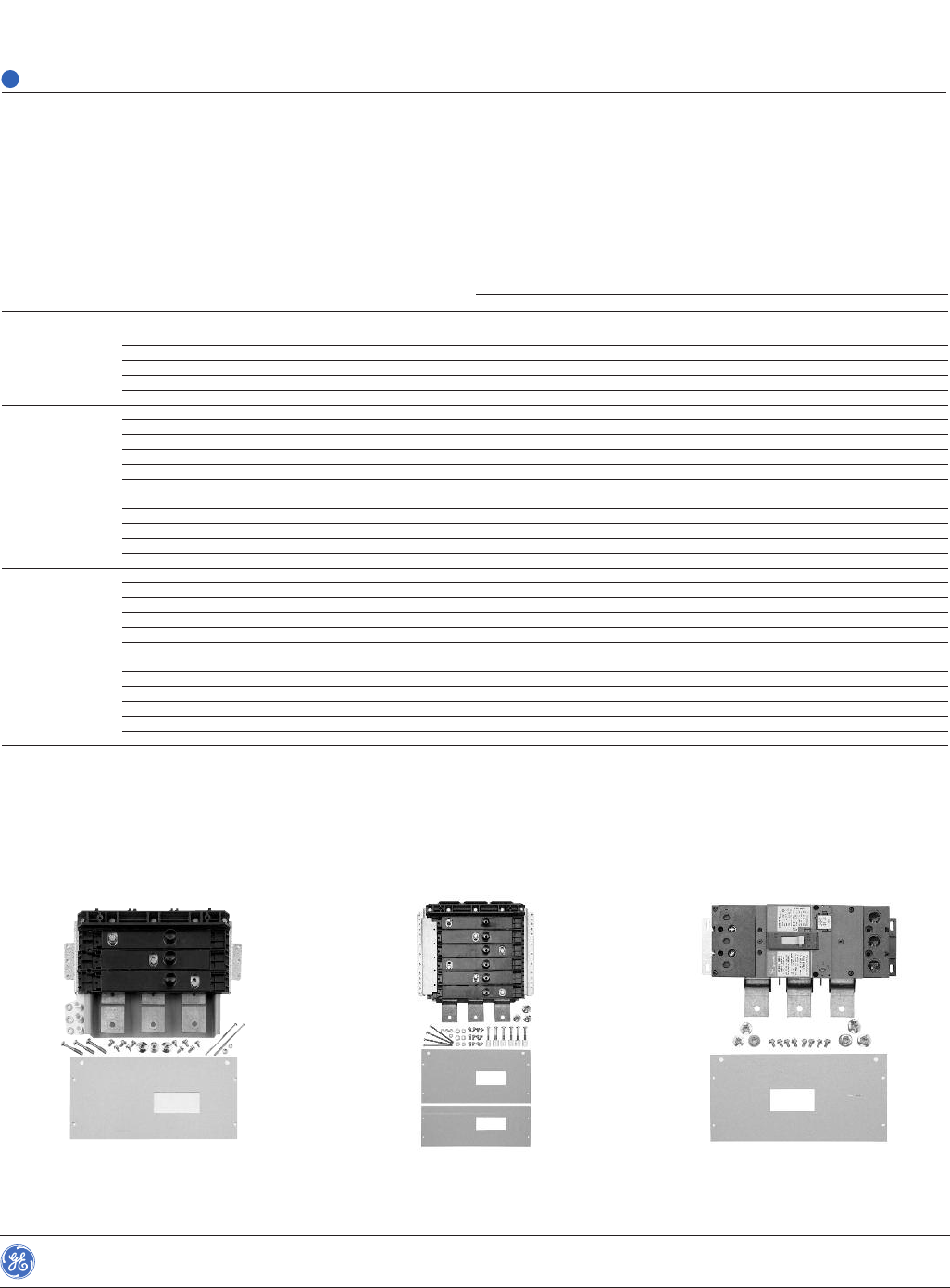

MB513 Breaker Kit MB516 6-Pole Breaker Kit MB233WB “WB” Breaker Kit
Select Main and/or Sub-feed Breaker Kit
Select main breaker kit appropriate for your interior type (see Step 1), amp rating and kAIC rating. If a sub-feed breaker is required,
repeat the selection process.
Note: 400A and 600A breaker kits cannot be used for sub-feed applications in Pro-Stock panelboards.
For additional details, see Section 6 of the BuyLog.
4
Panelboards
A-Series™Panelboards
www.geindustrial.com Rev. 11/13
Data subject to change
without notice
BuyLog™Catalog
11-16
Section 11Panelboards
A-Series™Panelboards
Pro-Stock, Unassembled Lighting Panels
—Skip Step 5 if you selected a main breaker kit ending in “WB” —
no breaker is required.
—To correlate breaker types with the kAIC rating in specific panel-
boards, see the table for Step 4. For more rating details, see
A-Series™Lighting Panels Rating Series Labels (DEH-40007).
—All TQD and Spectra™main breakers require line-side lugs.
—For TEY and THQB main breakers, see branch breakers tables in
Step 7.
Digital, Solid State Spectra™RMS Breakers (3-pole) For use with appropriate main breaker kit (see Step 4).
Breaker Rating Plug1Terminal Lugs for Front Connection2
Current Amp Wire Range
Poles Sensor Product Number Rating Product Number Product Number (Cu/Al)
SEDA36AT0100
100 SEHA36AT0100 100 SRPE100A100
SELA36AT0100
SEPA36AT0100 TCAL18 #12-3/0
SEDA36AT0150 110 SRPE150A110
150 SELA36AT0150 125 SRPE150A125
SEPA36AT0150 150 SRPE150A150
3 70 SRPF250A70
90 SRPF250A90
100 SRPF250A100
110 SRPF250A110
250 SFLA36AT0250 125 SRPF250A125 TCAL29 #8-350 MCM
SFPA36AT0250 150 SRPF250A150
175 SRPF250A175
200 SRPF250A200
225 SRPF250A225
125 SRPG400A125
SGHA36AT0400 150 SRPG400A150
3 400 SGLA36AT0400 175 SRPG400A175 TCLK365
SGPA36AT0400 200 SRPG400A200
225 SRPG400A225 Al: (2) 2/0-500
SGHA26AT0400 250 SRPG400A250 MCM or (1)
2 400 SGLA26AT0400 300 SRPG400A300 TCLK265 #6-600 MCM
SGPA26AT0400 350 SRPG400A350 Cu: (2) 2/0-400
400 SRPG400A400 MCM or (1)
250 SRPG600A250 #8-600 MCM
3 600 SGLA36AT0600 300 SRPG600A300 TCLK365
SGPA36AT0600 350 SRPG600A350
400 SRPG600A400
2 600 SGLA26AT0600 500 SRPG600A500 TCLK265
SGPA26AT0600 600 SRPG600A600
1Any rating plug within a given current sensor group may be paired with any breaker in that group.
2Except for “WB” kits, lugs must be ordered separately for Spectra™breakers. All Spectra™breakers also require an appropriate rating plug.
Main or subfeed breakers for use with AQ panels (208/120 Vac 3-phase or 240 Vac single phase). See Step 4.
2-pole 3-pole
10kAIC 22kAIC 10kAIC 22kAIC
Amp Product3Product Product3Product
Rating Number Number Number Number
100 TQD22100X2 THQD22100X2 TQD32100X2 THQD32100X2
125 TQD22125X2 THQD22125X2 TQD32125X2 THQD32125X2
150 TQD22150X2 THQD22150X2 TQD32150X2 THQD32150X2
175 TQD22175X2 THQD22175X2 TQD32175X2 THQD32175X2
200 TQD22200X2 THQD22200X2 TQD32200X2 THQD32200X2
225 TQD22225X2 THQD22225X2 TQD32225X2 THQD32225X2
250 – TJD422250L2 – TJD432250L3
300 – TJD422300L2 – TJD432300L3
350 – TJD422350L2 – TJD432350L3
400 – TJD422400L2 – TJD432400L3
Typical Main Breakers
5
3Any load-side lugs on TQD breakers must be removed before assembly. TQD breakers with X2 product number suffix feature line-side lugs only.
Main or subfeed breakers for use with AE panels (480/277 Vac 3-phase). See Step 4.
3-pole
18kAIC 22kAIC 30kAIC
Amp Rating Product Number Product Number Product Number
100 TED134110WL THED134110WL MB233WB
125 TED134125WL THED134125WL MB233WB
150 TED134150WL THED134150WL MB233WB
175 –– MB233WB
200 –– MB233WB
225 –– MB233WB
250 –– TJJ436250L3
300 –– TJJ436300L3
350 –– TJJ436350L3
400 –– TJJ436400L3
www.geindustrial.com BuyLog™Catalog 11-17
Rev. 11/13
Data subject to change
without notice
Section 11

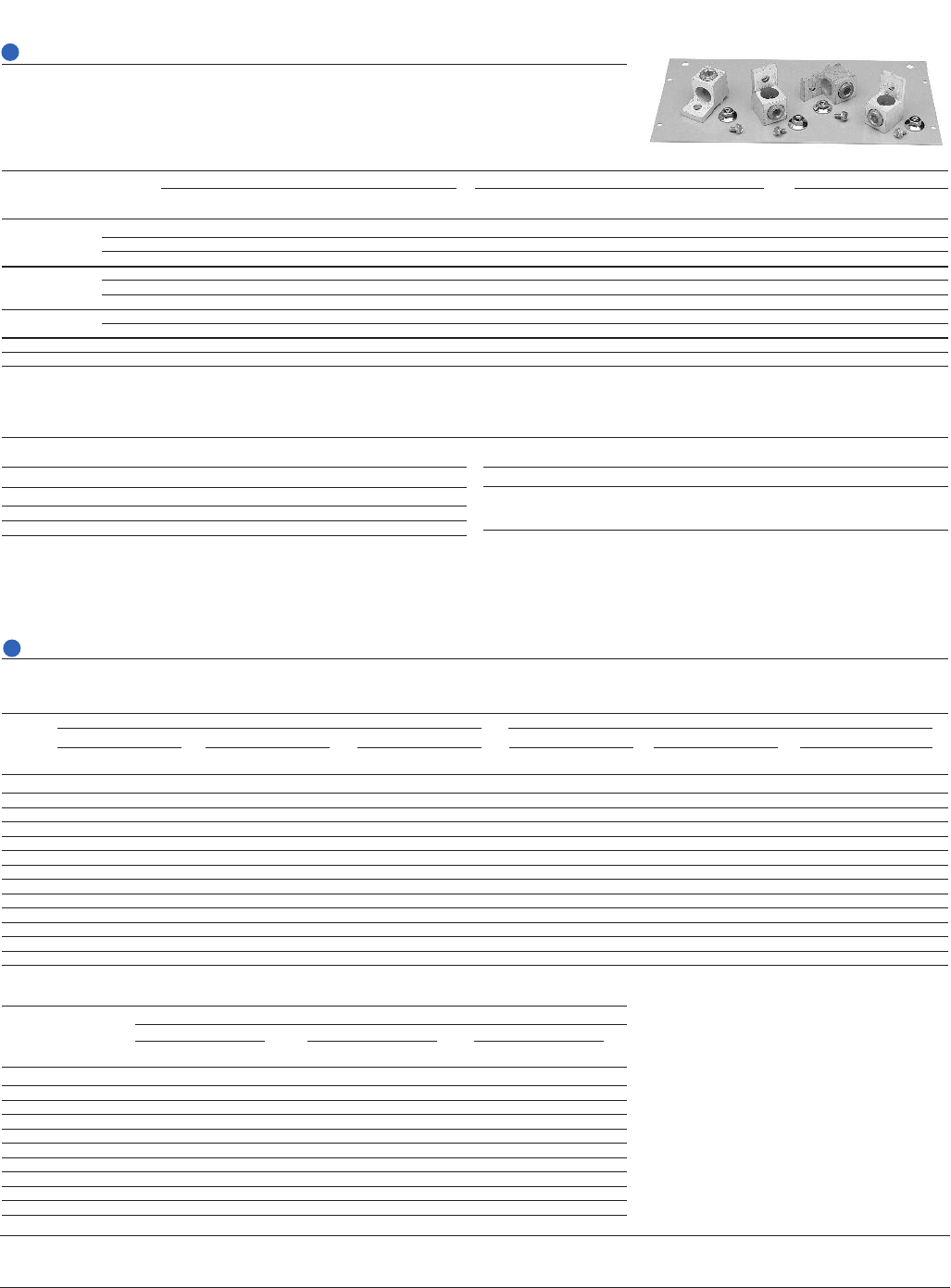

Select Main Lug Kit and Accessories
Select lug kit(s) for main lug and/or feed-thru applications, if required. (All lugs are
suitable for interiors with either copper or aluminum bus.) Also select any accessories
required.
Pro-Stock, Unassembled Lighting Panels
Main Lug Kits
Standard Oversized 200% Neutral
Amp Product Product Product
Lug Type Rating Number Wire Range Number Wire Range Number
225 MLA1 6-350 MCM MLA2 1-600 MCM or (2) 1/0-250 MCM NKA
Pressure 400 MLA41 2-600 MCM or (2) 1/0-250 MCM MLA62 3/0-800 MCM NKA42
600 MLA61 (2) 2/0-500 MCM MLA62 3/0-800 MCM –
225 MLR1 4-350 MCM MLR2 1-600 MCM NKR
Copper 400 MLR41 1-600 MCM MLR61 (2) 2/0-500 MCM NKR4
600 MLR61 (2) 2/0-500 MCM –– –
Compression 225 MLT1 2/0-300 MCM MLT2 4/0-500 MCM NKT
400 MLT42 250-600 MCM MLT41 500-750 MCM1NKT4
Dual 225 MLA2 1-600 MCM or (2) 1/0-250 MCM –– –
Main 400 MLA61 (2) 2/0-500 MCM –– –
1500 MCM Cu, 750 MCM Al.
2For 200% neutral feed-thru, order NKA4FT, (GO-101P). Wire range (2) 2/0 – 600 MCM or (4) 4-250 MCM.
Accessories
Service Entrance3
Amp Rating Product Number
225A BNDKT
400A BNDKT6
600A BNDKT6
3Service entrance kit includes a bonding strap with hardware and a service entrance
label.
ProCare Kit4
Description Product Number
ProCare Kit for Pro-Stock PROCARE
panelboard installation
and maintenance
4ProCare Kit includes: (5) filler plate hardware kits, (9) bus stud nuts, (5) MLA1 filler
plates, (2) 225A phase barriers, (2) feed-thru barriers, (1) 400/600A phase barrier,
(50) directory cards/rating books, (50) circuit number strips (1-48), (50) circuit
number strips (43-84), (5) standard locks and keys, (50) deadfront screws, (10)
AQ/AE front hardware kits, (10) AD front hardware kits, (50) service disconnect
labels, (50) main labels.
Typical Bolt-On Branch Breakers
These tables show typical branch breakers, but do not include all branch breakers that can be used with Pro-Stock panelboards.
Branch circuit breakers for use with AQ panels (208/120 Vac 3-phase or 240 Vac single phase)
10kAIC 22kAIC
1-pole 2-pole 3-pole 1-pole 2-pole 3-pole
Amp Product Product Product Product Product Product
Rating Number Number Number Number Number Number
15 THQB1115 THQB2115 THQB32015 THHQB1115 THHQB2115 THHQB32015
20 THQB1120 THQB2120 THQB32020 THHQB1120 THHQB2120 THHQB32020
25 THQB1125 THQB2125 THQB32025 THHQB1125 THHQB2125 THHQB32025
30 THQB1130 THQB2130 THQB32030 THHQB1130 THHQB2130 THHQB32030
35 THQB1135 THQB2135 THQB32035 THHQB1135 THHQB2135 THHQB32035
40 THQB1140 THQB2140 THQB32040 THHQB1140 THHQB2140 THHQB32040
45 THQB1145 THQB2145 THQB32045 THHQB1145 THHQB2145 THHQB32045
50 THQB1150 THQB2150 THQB32050 THHQB1150 THHQB2150 THHQB32050
60 THQB1160 THQB2160 THQB32060 THHQB1160 THHQB2160 THHQB32060
70 THQB1170 THQB2170 THQB32070 THHQB1170 THHQB2170 THHQB32070
80 – THQB2180 THQB32080 – THHQB2180 THHQB32080
90 – THQB2190 THQB32090 – THHQB2190 THHQB32090
100 – THQB21100 THQB32100 – THHQB21100 THHQB32100
Branch circuit breakers for use with AE panels (480/277 Vac 3-phase)
14kAIC
1-pole 2-pole 3-pole
Product Product Product
Amp Rating Number Number Number
15 TEY115 TEY215 TEY315
20 TEY120 TEY220 TEY320
30 TEY130 TEY230 TEY330
40 TEY140 TEY240 TEY340
50 TEY150 TEY250 TEY350
60 TEY160 TEY260 TEY360
70 TEY170 TEY270 TEY370
80 TEY180 TEY280 TEY380
90 TEY190 TEY290 TEY390
100 TEY1100 TEY2100 TEY3100
6
7
Panelboards
A-Series™Panelboards
www.geindustrial.com Rev. 11/13
Data subject to change
without notice
BuyLog™Catalog
11-18
Section 11Panelboards
A-Series™Panelboards
Pro-Stock, Unassembled Lighting Panels
Pro-Stock Interiors Product Number Structure
Catalog Number Structure
Interior Type
AQU 240 Vac
AEU 480Y/277 Vac
Phase
1 1 Phase
3 3 Phase
No. of Circuits
18 18 Circuits
30 30 Circuits
42 42 Circuits
Max. Amp
Rating
2 225A
4 400A
6 600A
Bus
B4 Copper
Blank Aluminum
T1 Feed-thru
Blank Non Feed-thru* (requires copper bus [B4])
* For retrofit applications
AEU 1 18 2 RCXAX T1 B4
www.geindustrial.com BuyLog™Catalog 11-19
Rev. 11/13
Data subject to change
without notice
Section 11
BOX EXTENSIONS—For additional end gutter space or conduit
skirt applications–see page 11-20.
Equipment Grounds—Factory Supplied with Panelboard
Optional Equipment Grounds
Description Product Number
Aluminum Extruded Bonded AEBG
Copper Extruded Bonded AEBGC
Aluminum Extruded Isolated AEIG
Copper Extruded Isolated AEIGC
Copper Isolated/Bonded ASPGIBC
THQB/THHQB/THQL/THHQL/TEY Filler Plates
Product Number
TQLFP1
TQD/THQD/TED4/SE/FB Filler Plates
Product Number
TEDFP1
Breaker Mounting1Hardware Kits
Description Product Number
Breaker type TED/THED4/SE ASPTED3P
Breaker type TQD/THQD ASPTQD3P
Breaker type FB–for mounting 12 poles ASPFB12P2
Breaker type FB–for mounting 3 poles ASPFB3P3
1Use to mount breaker in existing space.
2Includes mounting screws and washers only.
3Includes screws, washers and A-Series panelboard connectors.
Description Product Number
Field installed kits
Standard bonded to box-for each 12 branch
positions TGL2
Copper bonded to box-for each 12 branch
positions TGC2
Standard-isolated/insulated-for each 12
branch positions EGS12
Copper-isolated/insulated-for each 12
branch positions EGC12
Main lug for above terminal kits TGL20
Product Options
Enclosure Options
AEBGC
AEIG
AEIGC
ASPGIBC
AEBG
Panelboards
A-Series™Panelboards
www.geindustrial.com Rev. 11/13
Data subject to change
without notice
BuyLog™Catalog
11-20
Section 11Panelboards
A-Series™Panelboards
Endwall Kits
Field installed. For standard 20"w x 5.81"d boxes.
Panelboards Parts
Permanent Circuit Number Kits
Description
Product
Number
Directory Card 139C5612P3
Replacement Lock with Std. Key 569B737P1
Additional Keys for Above Lock 569B737P5
Circuit Numbering Strips -
1-48 569B806G1
49-84 569B806G2
85-126 569B806G3
Adhesive Backed Lamicoid Nameplate 3/4 in. x 3 in. 315A7190P1
Metal Directory Card Holder 139C5491G1
Directory Card Holder 139C5491P4
Delta Hi-leg Conversion Kit, to Add B-Phase
Plug on AL Panels APHBL
Bolt on AE/AQ Panels APHBQ
NEMA 3R/12 Tamper Proof Tork Screw Kit NEMATRX
2P to 3P TQD Conv. Kit ASP2PTQD3P
2P to 3P SF Conv. Kit for horizontal subfeed ASP2PTFJ3P
AD 25 to 65 kAIC Barrier kit ASP25AD65KA
1
Service Entrance Kit ASPSERENT
2 wire Relay Kit ASP2WRelay
Yale Lock Kit ASPYALE47
Corbin Lock Kit ASPCORBNTEU1
1
Included in factory assembled panels—AD panels with Spectra™
branch breakers.
Replacement Lock with GE75 Key 569B737P2
2-3 pole TQD Mechanical Interlock TQDFM1
AQ/AL/AE Rail Bracket ASPAQLEBKT
Front Flush Adjust Kit ASPFLUSHADJ
AE Front Mounting Kit 139C5720G3
AQ/AL Front Mounting Kit 139C5720G6
AD Front Mounting Kit 139C5720G9
Front Hinge to Box Mounting Kit 139C5700G6
Front Extension Mounting Kit 139C5700G11
Product Number Description Qty.
ABEW2 Blank 1
1
AKEW2 Knockout
Accessories
Field Installed Kits/Replacement Parts
Order By Product Number from Factory
Box Width
and Depth Box Mounting
Box Extension
Length (Inches)
Box Extension
Product Number
9ABX2509F
18 ABX2518F
24 ABX2524F
9ABX2509S
18 ABX2518S
24 ABX2524S
31 ABX2531S
37 ABX2537S
43 ABX2543S
49 ABX2549S
55 ABX2555S
64 ABX2564S
76 ABX2576S
18 ABX3518F
24 ABX3524F
18 ABX3518S
24 ABX3524S
18 ABX3718F
24 ABX3724F
18 ABX3718S
24 ABX3724S
30 x 7.81
Flush
Surface
20 x 5.81
Flush
Surface
30 x 5.81
Flush
Surface
Description Product Number
9" Covers Surface ASPABX09S
9" Covers Flush ASPABX09F
18" Covers Surface ASPABX18S
18" Covers Flush ASPABX18F
64" to 76" Covers Surface ASPABX20S
64" to 76" Covers Flush ASPABX20F
Box Extensions Covers Only
10 covers per kit.
AQ, AL, AE AD
APN48 APN48AD No’s 1-48
APN84 APN84AD No’s 43-84
APN126 APN126AD No’s 85-126
Product Number
Description
Box Extensions
Bolts to A-SERIES™box with or without box endwall in place.
Extensions can be combined to obtain lengths greater than 18
and 24 inches.

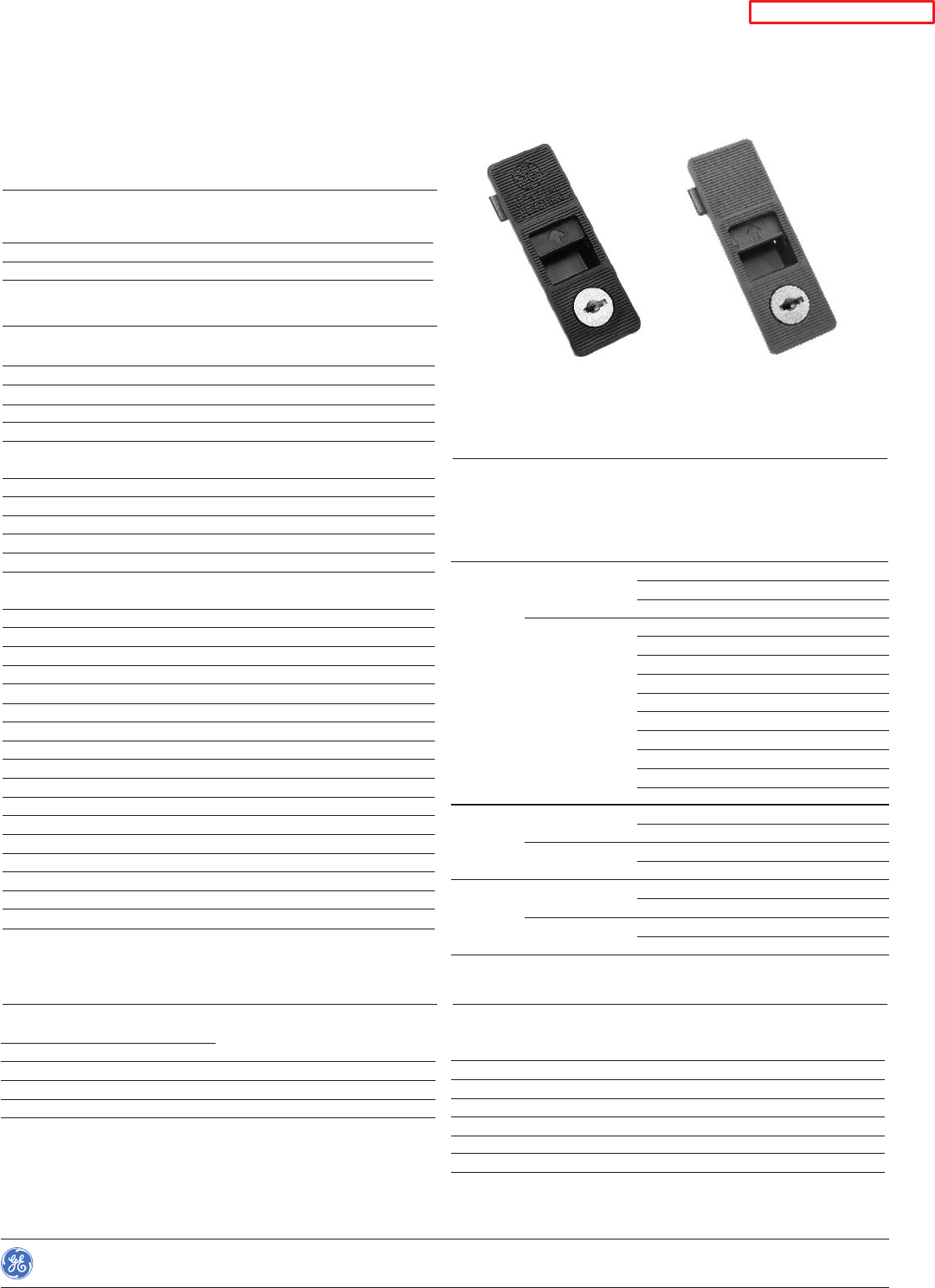

Replacement Lock with
Standard Key – Black
with GE Monogram
Replacement Lock with
GE75 Key – Red with no
GE Monogram
Page Updated 07 / 2014
www.geindustrial.com BuyLog™Catalog 11-21
Rev. 11/13
Data subject to change
without notice
Section 11

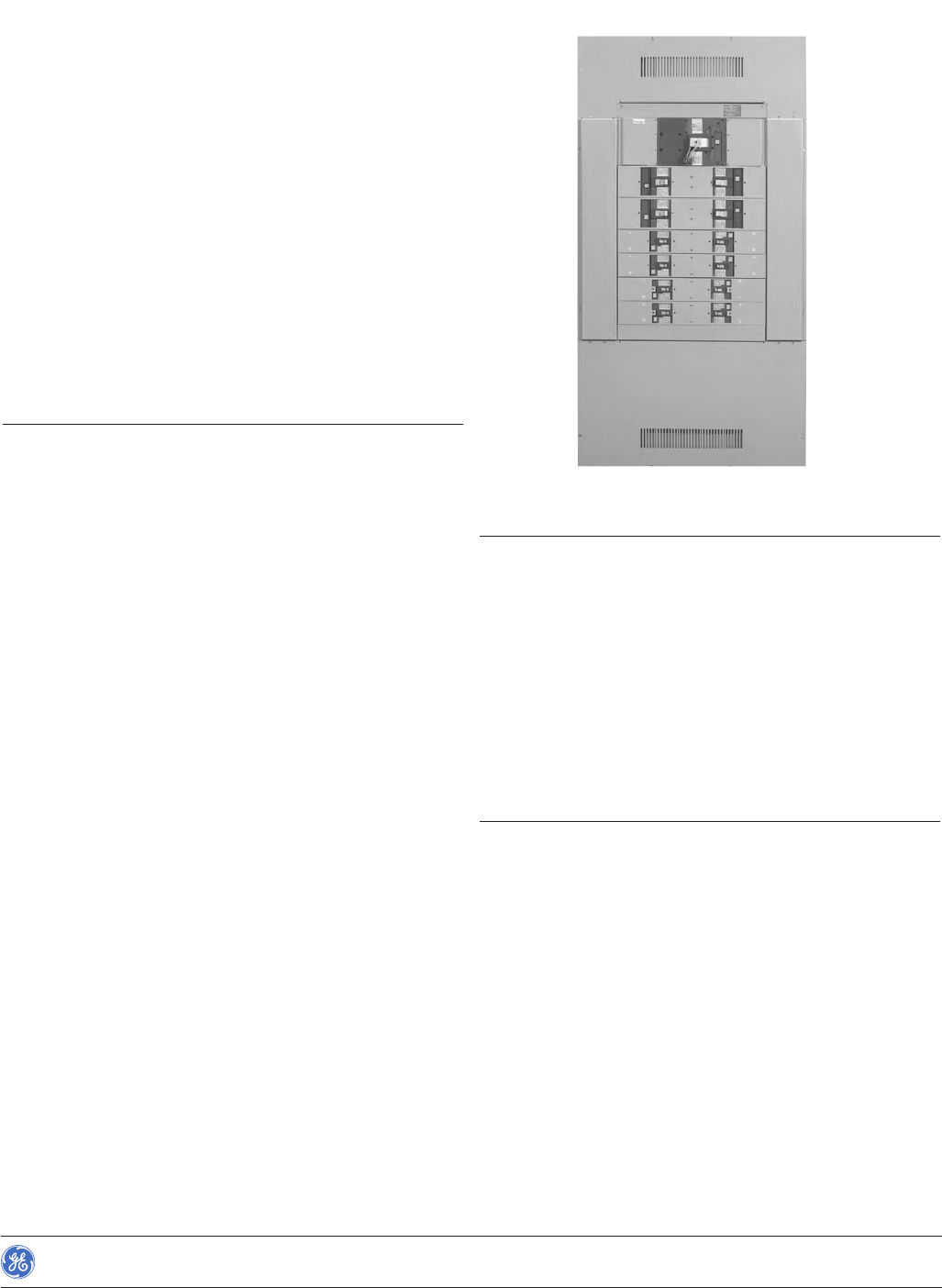

Features
—Symmetrical design, no required top or bottom mountings
—Single-piece deadfront – no filler plates needed
—Smaller, lighter panel than Spectra Series panelboards
—Easy-to-install galvanized enclosures with removable endwalls
—Ready-to-install hinged trim options
—Branch-bus direct connection
—Up to 600A breaker mounted as a branch device
—Deeper (8"), wider (30") A-Series box to accommodate larger
wire sizes
—Double branched 150A (ED/SE) and 225A (QD) breakers
—Vertically mounted main circuit breakers in 800A
—Captive hardware on branch breakers
—Staggered, center-mounted, larger frame breakers (SG, SF) for
easy installation
—Bus-connected TVSS for maximum surge protection
—Narrow design to minimize footprint
—Enclosure available in NEMA Type 1, Type 3R/12, Type 4/4X
Panelboards

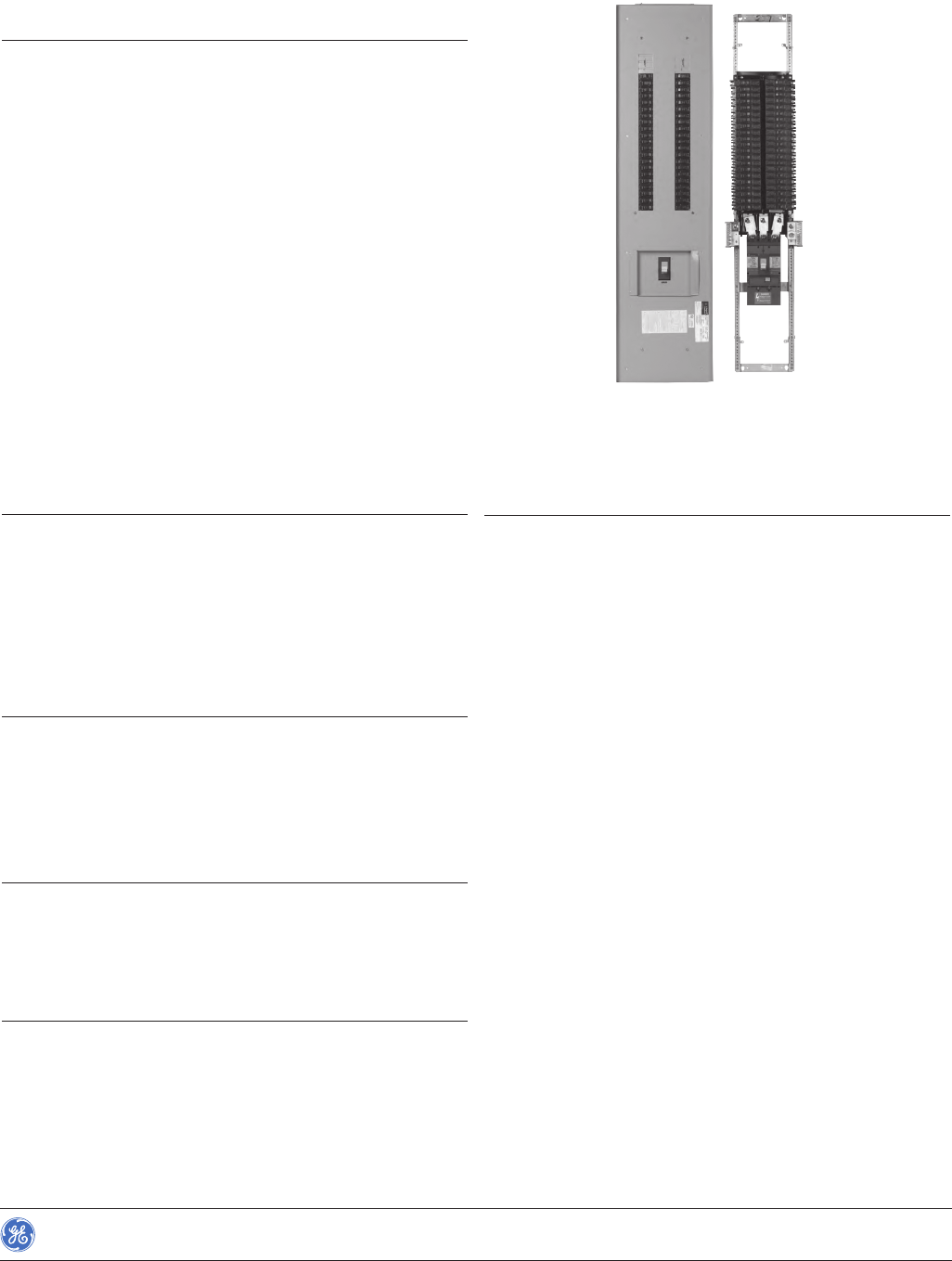

A-Series™Power Panelboards
www.geindustrial.com Rev. 11/13
Data subject to change
without notice
BuyLog™Catalog
11-22
Section 11
Type AQP
Service Information:
1P, 3W-240/120 Vac
3P, 3W-240 Vac
3P, 4W-208/120 Vac
Fully Rated-65kAIC at 240 Vac
Series Rated-200kAIC at 240 Vac
Mains
Breakers:
125-800A: SG, SK
MainLug:
600-800A
Branch Breakers (Bolt-on):
15A-100A (1P, 2P, 3P): QB
Double Branch- TQD, SE
Center-Mounted- SF, SG
Enclosures
Length-25.5, 31.5, 37.5, 43.5, 49.5, 55.5, 64.5, 76.5, 82.5, 88.5
Width-30”
Depth-8”
Type AEP
Service Information:
1P, 3W-240/120 Vac
3P, 3W-240 Vac
3P, 4W-208/120 Vac, 480/277 Vac
Fully Rated- 18kAIC at 480/277 Vac, 65kAIC at 240Vac
Series Rated- 100kAIC at 480 Vac, 200kAIC at 240 Vac
Mains
Breakers:
125-800A: SG, SK
MainLug:
600-800A
Branch Breakers (Bolt-on):
15A-100A (1P, 2P, 3P): TEY, TEYF
Double Branch- TED, SE
Center-Mounted-SF, SG
Enclosures
Length-25.5, 31.5, 37.5, 43.5, 49.5, 55.5, 64.5, 76.5, 82.5, 88.5
Width-30”
Depth-8”
Type ADP
Service Information:
1P, 3W-240/120 Vac
3P, 3W-240 Vac
3P, 4W-208/120 Vac, 480/277 Vac
Fully Rated-100kAIC at 480 Vac
Series Rated-100kAIC at 480 Vac
Mains
Breakers:
125-800A: SG, SK
MainLug:
600-800A
Branch Breakers (Bolt-on):
15A-100A (1P, 2P, 3P): FB Breakers
15A-100A (1P, 2P, 3P): THED Breakers
15A-150A (3P): THED Breakers
Double Branch-TED, SE
Center-Mounted-SF, SG
Enclosures
Length-25.5, 31.5, 37.5, 43.5, 49.5, 55.5, 64.5, 76.5, 82.5, 88.5
Width-30”
Depth-8”
Panelboards
A-Series™Power Panelboards
www.geindustrial.com BuyLog™Catalog 11-23
Rev. 11/13
Data subject to change
without notice
Section 11Panelboards
A-Series™Panelboards

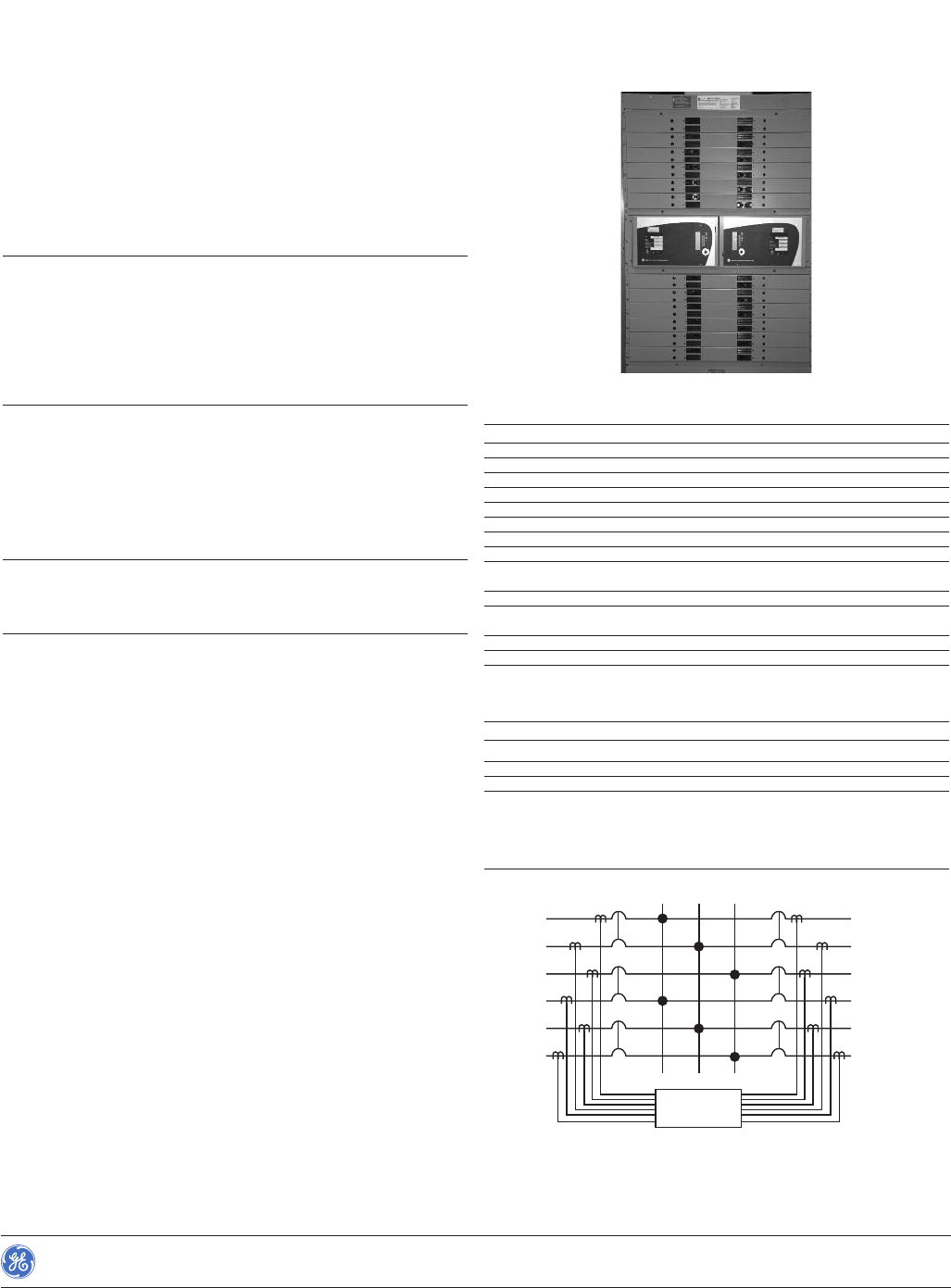

Branch Circuit Monitoring
This panelboard provides branch circuit reporting capabilities in a
Type AQ or AE panelboard. It delivers valuable branch usage data,
similar to the Spectra Integrated Submetering Panelboard, but in
the A-Series platform. Via a building automation system, users
can tap this data to analyze usage and identify potential cost-
savings measures, create load based cost allocation billing, and
head off potential problems before they occur.
Features
—Accuracy: Revenue Class, +-0.5%; IEC 62053-21 Class 1, ANSI
C12.1-2008
—Ability to report volts, amps, power, and energy for each circuit
—Monitors 42 circuits (and mains as an option) with one product
—4 user-configurable alarm threshold registers improve load
management
—Built-in ability to set the orientation and numbering of the cir-
cuits
—1/4 amp to 100 amp monitoring – the widest dynamic range in
the industry
—1, 2, 3 pole breaker support
—5 year warranty
—Modbus RTU via RS485 communications
References
DEA-539 for additional information
Speedi for configuration/quotation purposes
www.geindustrial.com Rev. 11/13
Data subject to change
without notice
BuyLog™Catalog
11-24
Section 11
MCCB and Fusible Mains and Feeders
Service Information:
600 Vac maximum
250 Vdc maximum
1ph-3w, 3ph-3w/4w
Mains:
1200 A maximum main lugs, circuit breaker, or fusible switch
Branches:
15-1200 Circuit
Breakers
30-1200 (2P, 3P) Fusible Switch
Fuse:
Not Included
Fuse Provisions:
30-600 Amp Units: Class R1
800-1200 amp units: Class L2
Features
—Main bus, 250-1200 amp, copper or aluminum
—Wide, easy-to-install galvanized enclosures with removable
endwalls
—5 box widths simplify installation and design
—Enclosures available in NEMA Type 1, Type 3R/12, Type 4/4X
—Integrated TVSS for maximum surge protection
—Optional door-in-door or front-hinged-to-box construction
—Reduced density copper or aluminum bus
—200% rated neutrals available
—Vertically mounted main circuit breakers available
—Branch-bus direct connection
—Captive hardware on branch breakers
—Front accessible main lug assembly
—Process control unit in plug-in style
—Spectra MVT breaker option for main/branch breakers
—100% rated breakers available
—Individual breaker cover plates
Panelboards
Spectra™Series Panelboards
Bolt On
Service Information:
1P, 3W-600/347 Vac
3P, 4W-600/347 Vac
Fully Rated- 200KAIC at 480/277 Vac
Series Rated- 200KAIC at 480/277 Vac
Mains
Breakers:
250A-1200A: SF, SG, SK, FG
Branch Breakers (Bolt-on):
Double Branch-SE, SF, SG, FG, FB, TEY, TEB, TQD Breakers
Center-mounted-SK Breakers
Plug In
Service Information:
1P, 3W-600/347 Vac
3P, 4W-600/347 Vac
Fully Rated-200KAIC at 480/277 Vac
Series Rated-200KAIC at 480/277 Vac
Mains
Breakers:
250A-1200A: SF, SG, SK, FG
Branch Breakers/Switches (Plug In):
Double Branch-SE, SF, SG, FG, FB, TEY, TEB, TQD Breakers
Center-mounted- SK Breakers
30A-1200A Fused Switches (R, J, H, K, T Fuses)
www.geindustrial.com BuyLog™Catalog 11-25
Rev. 11/13
Data subject to change
without notice
Section 11
Short Circuit Ratings—Fusible Switch Units (Plug-In Only)

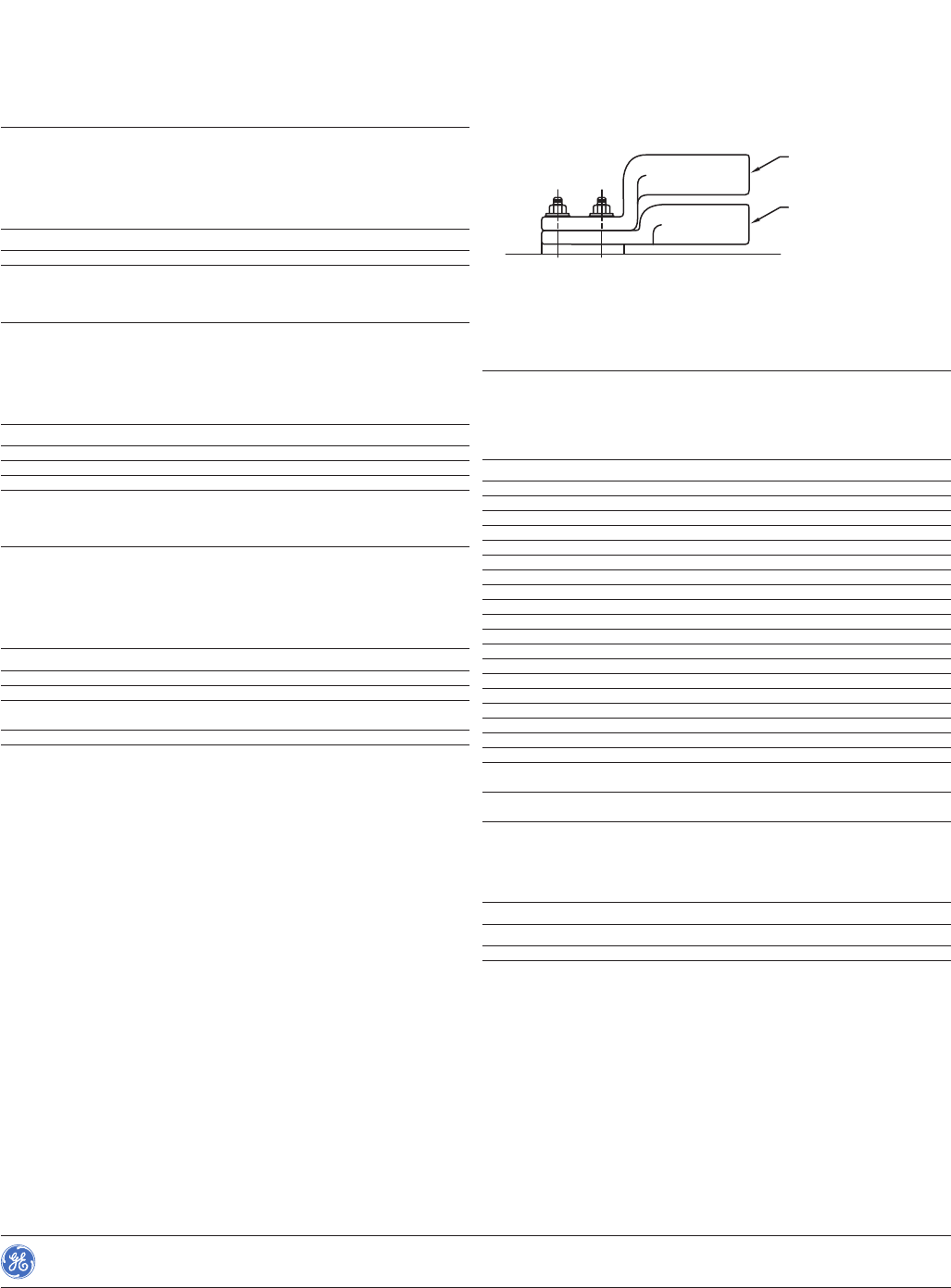

Panelboard Terminal Lugs - Main Lugs2
and Neutral Incoming Lugs
Lighting Panels (A-Series™)
200% Neutral Lugs
125A - (2) - #14—2/0
225A - (2) - #6—250 MCM
400A - (2) - #4—600 MCM
600A - (4) - #4—600 MCM
Branch Neutral Lugs
Small Holes #14—#4
Large Holes #14—2/0
Column Type Panels
Maximum Horsepower Ratings1ADS Fusible Switch
Spectra™Optional Main Lug Terminations
No. Per Lug Range
100 1 1 #6-2/0
225 1 1 #6-350kcmil
ALC
AQC
AEC
Panelboard Terminal Lugs (Cu-Al)
Types
Max. Main Bus
Rating in Amps No. Per
Wire (Cu-Al)
250-600A
800A
1200A
21"
800A
1200A
27"
CU/AL Mechanical
#6-350 kcmil 1 2 2 4
#2-500 kcmil 2 2 2 4
#2-600 kcmil 2 2 2 4
3/0 750 kcmil 2 2 2 4
CU/AL Compression3
1/0 1 4 4 8
2/0 1 4 4 8
3/0 1 4 4 8
4/0 1 4 4 8
250 kcmil 1 4 4 8
300 kcmil 1 4 4 8
350 kcmil 1 4 4 8
400 kcmil 1 4 4 8
500 kcmil 1 4 4 8
600 kcmil 1 4 4 8
750 kcmil 1 4 4 8
# Wires
Per Lug
Max. # Lugs Per Phase
3Not available on 19" main lug module.
2-Pole 2-Pole
120 240 480 600 240 480 600 125 250
30 1/2 1 1/2 333
5
7 1/2 2
5
3
60 1 1/2 103 7 1/2 15
5
15
100 7 1/2 10 15 15 25 30
15
3
10
15
15
25 30 25 50 60
200 40
5
10
20
50
50
400 50 100 125
600 75 150 200
30 7 1/2
20
30
50
25
40
50
15
30
30
60
50
75
60
2
3
10 7 1/2 15 20
60
100
200 125 150
400 125 250 350
600 200 400 500
With Standard Fuses
With "Time-delay" Fuses
1Ratings are based on latest revision of the National Electrical Code
Article 430. Horsepower ratings for switches with Standard Class H
fuses are based on one-time fuses having minimum time-delay. When
time-delay fuses are used, the horsepower ratings are maximum for
the switches.
Rating
in
Amps1
Volts, ac Volts, dc
2-Pole 3-Pole
—
—
—
—
—
————
—— — —
———— —
—
—
—
—— — — —
—
—
—
—
—
—
—
—
—
UL
Class
Available
Amp
Rating
Maximum
Short-Circuit
Rating in Sym.
rms Amps
Max.
Voltage Application
H 30-600 10,000 250/600 One-time general purpose
J 30-600 200,000 600 Fast-acting rejection sizing
mains & feeders, current limiting
50,000
100,000
200,000
Rejection means available in two forms
Fast-acting mains & feeders
Time-delay motor starting
current limiting
100,000
200,000
T 100-600 200,000 250/600 Fast-acting small physical size
mains & feeders, current limiting
R30-600 250/600
Dual element rejection means,
motor starting current limiting
L 800-1200 200,000 600
Dual element no rejection means,
motor starting current limiting
K30-600 250/600
No. Per Lug Range
125 1 1 #14-2/0
225 1 1 #6-350kcmil
1#4-600kcmil
or
21/0-250kcmil
600 1 2 2/0-500 mcm
800 2 2 3/0-500 mcm
Panelboard Terminal Lugs (Cu-Al)
Types
Max. Main Bus
Rating in Amps No. Per
Wire (Cu-Al)
2Additional lug sizes available using oversize items.
AL
AQ
AE
AD
400 1
Fusible Switches Load and Interrupting Ratings
Panelboards
Spectra™Series Panelboards
www.geindustrial.com Rev. 11/13
Data subject to change
without notice
BuyLog™Catalog
11-26
Section 11
Fusible Switches Load and Interrupting Ratings
Product
Number
Accepts Wire
Size (Cu/Al)
Product
Number
Accepts Wire
Size (Cu/Al)
Amps
2 ( Main) #2 - 600kcmil 2 ( Main) #2 - 600kcmil
16 #14 - 2/0 16 #14 - 2/0
5 #6 - 300kcmil 5 #6 - 300kcmil
24 #14 - #4 24 #14 - #4
2 ( Main) #2 - 600kcmil 8 ( Main) #2 - 600kcmil
16 #14 - 2/0 9 #14 - 2/0
5 #6 - 300kcmil 10 #6 - 300kcmil
24 #14 - #4 10 #14 - #4
8 ( Main) #2 - 600kcmil 8 ( Main) #2 - 600kcmil
9 #14 - 2/0 9 #14 - 2/0
10 #6 - 300kcmil 10 #6 - 300kcmil
10 #14 - #4 10 #14 - #4
8 ( Main) #2 - 600kcmil 8 ( Main) #2 - 500kcmil
9 #14 - 2/0 8 #14 - 2/0
10 #6 - 300kcmil 10 #6 - 300kcmil
10 #14 - #4 4 #2 - 500kcmil
8 ( Main) #2 - 600kcmil 8 ( Main) #2 - 500kcmil
9 #14 - 2/0 8 #14 - 2/0
10 #6 - 300kcmil 10 #6 - 300kcmil
10 #14 - #4 4 #2 - 500kcmil
400
ANK120D
ANK800D800 ANKN120
600 ANKN120 ANKN120
1200 ANKN120
Accepts
Wire Qty.
ANKN400 ANKN120
4For 3ph, 4W single-section panelboards, use a standard neutral.
5For 3ph, 4W multi-section panelboards, use a standard neutral on the last section, and a dual main neutral on the first and middle sections.
Standard Neutral (Single Main Lug)4Dual Main Neutral5
Accepts
Wire Qty.
250 ANKN400 ANKN400
Spectra™Series Neutral Kits
—Includes mechanical lugs and bonding strap.
—250 to 600A neutral kits can be converted to dual main version by doubling the main lug quantity using lug kits (see Accessories).
—Main lug on neutral kit can be converted to compression main using AMKP lug kit.
Panelboards
Spectra™Series Panelboards
EY, QB
T(H)E, SE, FC, FE
T(H)QD
T(H)J, SF
T(H)J, SF
SG, FG
EY, QB
T(H)E, SE, FC, FE
T(H)QD
T(H)J, SF
SG, FG
SG, FG
T(H)K, SK
A
B
C
D
E
F
FE J
G
H

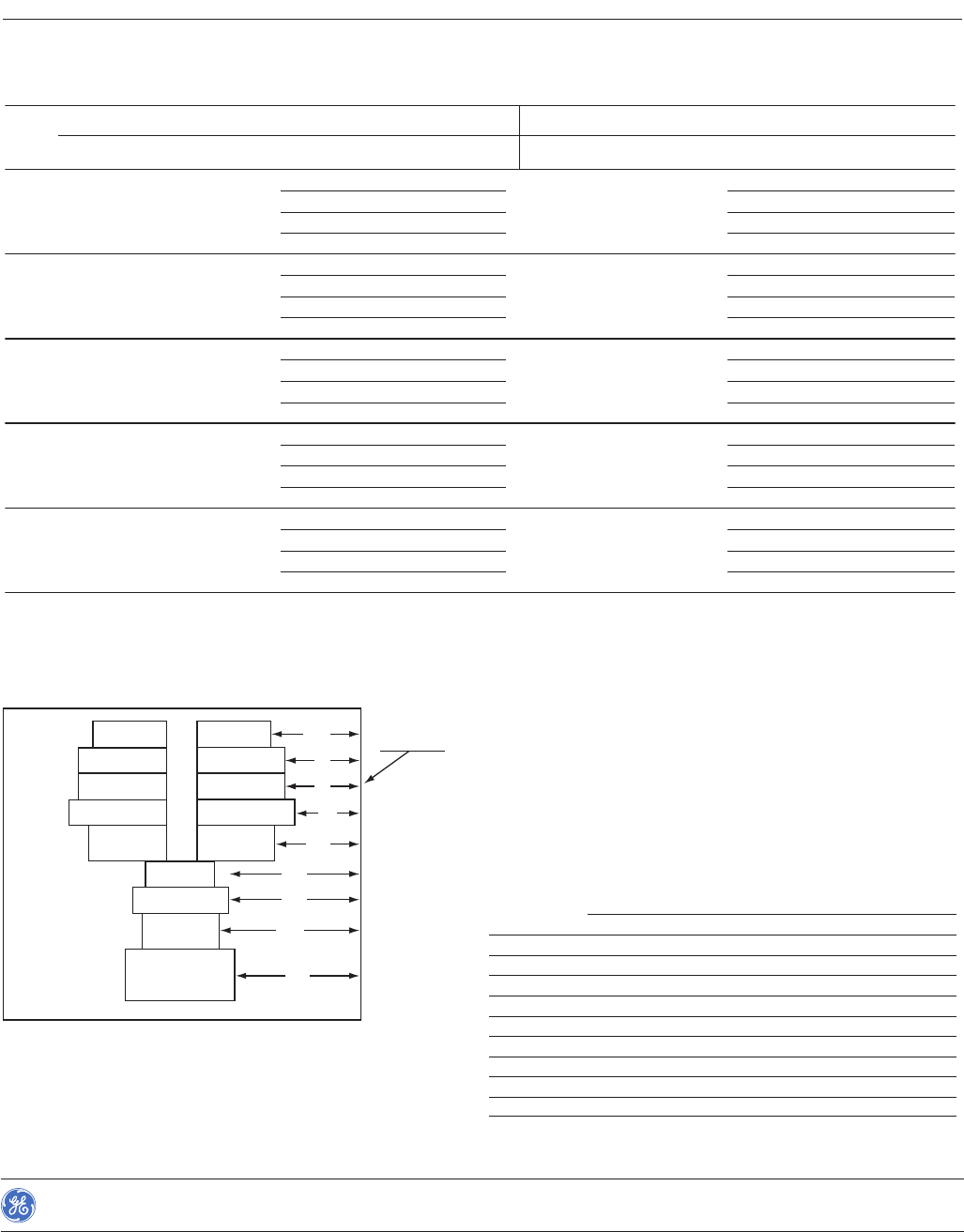

Breaker Side Gutter Space
ENCLOSURE
SIDE WALL
27 31 36 40 44
A7.88 9.88 12.38 14.38 16.38
B5.75 7.75 10.25 12.25 14.25
C5.63 7.63 10.13 12.13 14.13
DN/A 5.50 8 1012
EN/A N /A6.38
Breaker not available at time of printing
8.38 10.38
F 8.88 10.88 13.38 15.38 17.38
G 8.13 10.13 12.63 14.63 16.63
H N/A N /AN/A12.6314.63
Letter Reference
Enclosure Width
J
ALL DIMENSIONS ARE FROM FACE OF LUG, SHOWN IN INCHES
AND ± .250 Single mounted devices as branch or main
Breakers are arranged, as a standard and if not specified, with
largest and highest amperage closest to main incoming and the
smallest, lowest amperage furthest from the main incoming. The
spaces, if any, will follow after the breakers. All main breakers are
mounted horizontally and incoming lugs are, as a standard and if
not specified, always oriented to the left gutter regardless if top
or bottom feed. If 2 or more large branch breakers (SK, SG single
mounted) are supplied with the board then the factory will start
the first breaker with the lugs to the right and the second breaker
with lugs to left and will continue staggering them until all have
been installed. If any further clarification is needed, please con-
tact your local GE representative.
www.geindustrial.com BuyLog™Catalog 11-27
Rev. 11/13
Data subject to change
without notice
Section 11
Merchandisable Kits and Sizing Information
Spectra™Series Type ANKN/ANK/ANKT Neutral Kits
Amps (N = Neutral, GF = Ground Fault) Box Width Main Lug Type Ground Fault Product Number
27-36" Single/Dual Mechanical No ANKN4001
27-36" Single Mechanical No ANK2502
250A Single & Dual 27-36" Dual Mechanical No ANK250D2
36" Single Crimp Main & Feeders No ANK250C
36" Dual Crimp Main & Feeders No ANK250DC
36" Single/Dual Mechanical No ANKN1201
250A 200%N 36" Single Mechanical No ANKT362502
36" Dual Mechanical No ANKT36250D2
27-44" Single Mechanical No ANKN4001
27-44" Single Mechanical No ANK4002
27-44" Single Mechanical No ANKCU4004
400A Single & Dual 27-44" Dual Mechanical No ANKN1201
27-44" Dual Mechanical No ANK400D2
36-44" Single Crimp Main & Feeders No ANK400C
36-44" Dual Crimp Main & Feeders No ANK400DC
400A GF 27-44" Single Mechanical Yes ANK400GF
36-44" Single Crimp Main, Mech. Feeders Yes ANK400GFCM
36-44" Single/Dual Mechanical No ANKN1201
36" Single Mechanical No ANKT364002
40" Single Mechanical No ANKT404002
400A 200%N 44" Single Mechanical No ANKT444002
36" Dual Mechanical No ANKT36400D2
40" Dual Mechanical No ANKT40400D2
44" Dual Mechanical No ANKT44400D2
27-44" Single/Dual Mechanical No ANKN1201
27-44" Single Mechanical No ANK6002
600A Single & Dual 27-44" Dual Mechanical No ANK600D2
36-44" Single Crimp Main & Feeders No ANK600C
36-44" Dual Crimp Main & Feeders No ANK600DC
600A GF 27-44" Single Mechanical Yes ANK600GF
36-44” Single Mechanical No ANKN1201
36" Single Mechanical No ANKT366002
40" Single Mechanical No ANK406002
600A 200%N 44" Single Mechanical No ANK446002
36" Dual Mechanical No ANKT36600D
40" Dual Mechanical No ANKT40600D
44" Dual Mechanical No ANKT44600D
31-44" Single Mechanical No ANKN1201
31-44" Single Mechanical No ANK8002
800A Single & Dual 31-44" Dual Mechanical No ANK800D3
36-44" Single Crimp Main & Feeders No ANK800C
36-44" Dual Crimp Main & Feeders No ANK800DC3
800A GF 31-44" Single Mechanical Yes ANK800GF3
36-44" Single Crimp Main & Feeders Yes ANK800GFC3
36" Single Mechanical No ANKT368003
40" Single Mechanical No ANKT408003
800A 200%N 44" Single Mechanical No ANKT448003
36" Dual Mechanical No ANKT36800D3
40" Dual Mechanical No ANKT40800D3
44" Dual Mechanical No ANKT44800D3
1000A GF 31-44" Single Mechanical Yes ANK100GF3
36-44" Single Crimp Main & Feeders Yes ANK100GFC3
31-44" Single Mechanical No ANKN1201
31-44" Single Mechanical No ANKNCU1204
31-44" Single Mechanical No ANK1202
1200A Single & Dual 31-44" Dual Mechanical No ANK120D3
31-44" Dual Mechanical No ANKNCU120D4
36-44" Single Crimp Main & Feeders No ANK120C
36-44" Dual Crimp Main & Feeders No ANK120DC3
1200A GF 31-44" Single Mechanical Yes ANK120GF3
36-44" Single Crimp Main & Feeders Yes ANK120GFC3
36" Single Mechanical No ANKT361203
40" Single Mechanical No ANKT401203
1200A 200%N 44" Single Mechanical No ANKT441203
36" Dual Mechanical No ANKT36120D3
40" Dual Mechanical No ANKT40120D3
44" Dual Mechanical No ANKT44120D3
1Wire range #2AWG through 600 kcmil.
2Wire range above 600 kcmil.
3These neutrals require the 29 inch “A” gutters in the 75" and 96" high enclosures (75 High-23X or 96 High-38X)
4Material = Copper main lugs, copper feeder.
Panelboards
Spectra™Series Panelboards
www.geindustrial.com Rev. 11/13
Data subject to change
without notice
BuyLog™Catalog
11-28
Section 11
Terminal Lugs
Spectra™Series Main Lugs Top or Bottom Feed 240 Vac and 600 Vac, 200-1200 Amperes
Main Lug Kits (Factory Installed and/or Merchandise Panelboards)
—Kit bolts directly to interior bus bars (either APN Plug-In Style or APNB Bolt-On Style).
—Can be used for feed-through lug application by replacing standard cover plate with AFL feed-through cover plate kit (See
Accessories).
—F suffix indicates all AFPML cover plates are included to fit applicable box widths. If cover plates are not necessary, remove the F suffix.
—For 2 pole applications, replace the third digit or numeral “3” in the product number with the number “2”.
—Aluminum mechanical lugs can be converted to copper by replacing the first from last digit from an A to a C.
Main
Amps
Single or Dual
Configuration
Module
“X”
Height
Product
Number
Max. Wires
Per Phase
Cover Plate
Kit Included
Product Number
Min.
Box
Width
Single 6X AMB3120NF 4 AFPML6X 36"
Dual 6X AMB3120NF 4 AFPML6X 36"
Single 6X AMB3120NF 4 AFPML6X 36"
Dual 6X AMB3120NF 4 AFPML6X 36"
Single 6X AMB3120NF 4 AFPML6X 36"
Dual 6X AMB3120NF 4 AFPML6X 36"
Single 6X AMB3120NF 4 AFPML6X 36"
Dual 6X AMB3120DNF 8 AFPML6XW 36"
Single 6X AMB3120NF 4 AFPML6X 36"
Dual 6X AMB3120DNF 8 AFPML6XW 36"
800
1200
Provisional Main Lug Kit
250
400
600
Main
Amps
Single or Dual
Configuration
Module
“X”
Height
Product
Number
Lugs.
Incl. Per
Phase
Wires
Per
Lug
Wire Range
(Cu/Al)
Cover Plate
Kit Included
Product
Number
Min.
Box
Width
Single 6X AMB3250CAF 1 2 350 kcmil AFPML6X 36"
Dual 6X AMB3250DCAF 2 1 350 kcmil AFPML6X 36"
Single 6X AMB3600CAF 2 1 500 kcmil AFPML6X 36"
Dual 6X AMB3600DCAF 4 1 500 kcmil AFPML6X 36"
Single 6X AMB3600CAF 1 2 500 kcmil AFPML6X 36"
Dual 6X AMB3600DCAF 4 1 500 kcmil AFPML6X 36"
Single 6X AMB3800CAF 3 1 500 kcmil AFPML6X 36"
Dual 6X AMB3800DCAF 6 1 500 kcmil AFPML6XW 36"
Single 6X AMB3120CAF 4 1 500 kcmil AFPML6X 36"
Dual 6X AMB3120DCAF 8 1 500 kcmil AFPML6XW 36"
1200
250
Compression Main Lug Kit
400
600
800
Main
Amps
Single or Dual
Configuration
Module
“X”
Height
Product
Number
Lugs.
Incl. Per
Phase
Wires
Per
Lug
Wire Range
(Cu/Al1)
Cover Plate
Kit Included
Product
Number
Min.
Box
Width
250 Single & Dual 4X AMB3600MAF 1 2 8-500kcmil(1)
2/0-600kcmil(1) AFPML4X 27"
Single 4X AMB3600MAF 1 2 8-500kcmil(1)
2/0-600kcmil(1) AFPML4X 27"
Dual 4X AMB3120MAF 1 4 2/0-600kcmil(4) AFPML4X 27"
Single 4X AMB3600MAF 1 2 8-500kcmil(1)
2/0-600kcmil(1) AFPML4X 27"
Dual 4X AMB3120MAF 1 4 2/0-600kcmil(4) AFPML4X 27"
Single 4X AMB3120MAF 1 4 2/0-600kcmil(4) AFPML4X 31"
Dual 4X AMB3120DMAF 1 8 2/0-600kcmil(8) AFPML4X 36"
Single 4X AMB3120MAF 1 4 2/0-600kcmil(4) AFPML4X 31"
Dual 4X AMB3120DMAF 1 8 2/0-600kcmil(8) AFPML4X 36"
1200
1Copper lugs can only be used with copper wire .
Standard Main Lug Kit (Mechanical Lugs)
400
600
800
Panelboards
Spectra™Series Panelboards
www.geindustrial.com BuyLog™Catalog 11-29
Rev. 11/13
Data subject to change
without notice
Section 11
PCU Selection
Order from the Customer Service Center
Available in Spectra™Plug-in Only
Pilot Device Mount Product Number1
Yes Double APCU151FNDPD**
Yes Single APCU151FNDPSX*
No Double APCU151FNDND**
No Single APCU151FNDNSX*
1Replace * with required overload range from table.
Overload Range*
B0.16-0.26A
C0.25-0.41A
D0.40-0.65A
F 0.65-1.1A
G1.0-1.5A
H1.3-1.9A
J1.8-2.7A
K2.5-4.1A
L4.0-6.3A
M 5.5-8.5A
N8.0-12.0A
P10.0-16.0A
S14.5-18.0A
T
X
17.5-22.0A
BLANK
Continuous
kVA
Primary
Voltage2Capacity Product Number
.200 600 Standard APCUCKA200
.300 600 Extra APCUCKA300
.200 480/240 Standard APCUCKB200
.300 480/240 Extra APCUCKB300
.200 208 Standard APCUCKC200
.300 208 Extra APCUCKC300
2Secondary voltage is 120Vac.
Product Number
Spectra PCU Pilot Light Option
(Kit includes red and green pilot lights) APCUKPLT
Spectra PCU Wiring Kit (Optional kit for remote wiring) APCUWK
APCUEKAF (left side)
APCURKAF (right side)
4X APCUDCAN4X
7X APCUDCAN7X
Spectra PCU Blank Cans
(Provides space for future PCU starters, other devices)
Spectra PCU Expansion Kit to expand or rebuild PCU units)
Description
Spectra™Series PCU Selection Guide
(Ref DET-104) Specify Overload Relay Amps
(Included w/PCU)
Description: 15hp max, 22A, 600V max
Configuration: 3PH, 3W, & ground; all units are 4X height, 120V
control.
PCU Overload Selection
Spectra™PCU Control Power Transformer Kits
One kit required per panel unless an external, 120VAC is brought
into the panel.
Spectra™PCU Kits
Panelboards
Spectra™Series Panelboards
www.geindustrial.com Rev. 11/13
Data subject to change
without notice
BuyLog™Catalog
11-30
Section 11
Interior, Enclosure Options
Bus Bars
Locking Devices
Locking Devices EUSERC Approved—Factory Installed Only
Silver plated copper in lieu of silver
plated aluminum
Reduces current density from
750 amps/sq-in. to 600 amps/sq-in.
Reduces current density from
1000 amps/sq-in to 800 amps/sq-in.
Aluminum 600 Amp/sq-in. Main Bus Density
Copper 800 Amp/sq-in. Main Bus Density
Description
Copper 1000 Amp/sq-in. Main Vertical Bus
Frame Style
Q
1
E
Padlocking Device (single padlock)
SE, E
FC
FE
FG
QD
SG
SK, K
Q
1
E
Description
THQB, THHQB
TEY
TEB, TED, THED
SED, SEH, SEL, SEP
FCS, FCV, FCN,
FCH, FCL, FCPF
FES, FEV, FEN,
FEH, FEL, FEPF
FGV, FGN, FGH,
FGL, FGP, FGPF
TQD, THQD
SFH, SFL, SFP
SGD, SGH, SGL, SGP
SKH, SKL, SKP
THQB, THHQB
TEB, TED, THED
Product
Number
THP100
FCPLD
TEYPLD1
TEFPLD1
SEPLD
Breaker not available
at time of printing
TQDPLD1
SEPLD
SGPLD
SKPLD
FGPLD
THL103
TLD3
Handle Locking (nonpadlocking)
1
Not available for ground fault breakers.
SF, F
Breaker Type Product Number
TQD TQDPLD2
E150 TEDPLD2
SE150, SF2502SEFPLD2
SG600 SGPLD2
J600 TJKPLD2
SK1200 SKPLD2
2Field Installable
FG FGV, FGN, FGH,
FGL, FGP, FGPE
FC FCS, FCV, FCN,
FCH, FCL, FCPE
FE FES, FEV, FEN,
FEH, FEL, FEPE
Equipment Ground Bars
Spectra™grounding kits are sized according to the number of
panel circuits (one per circuit or space).
Enclosures (Box)

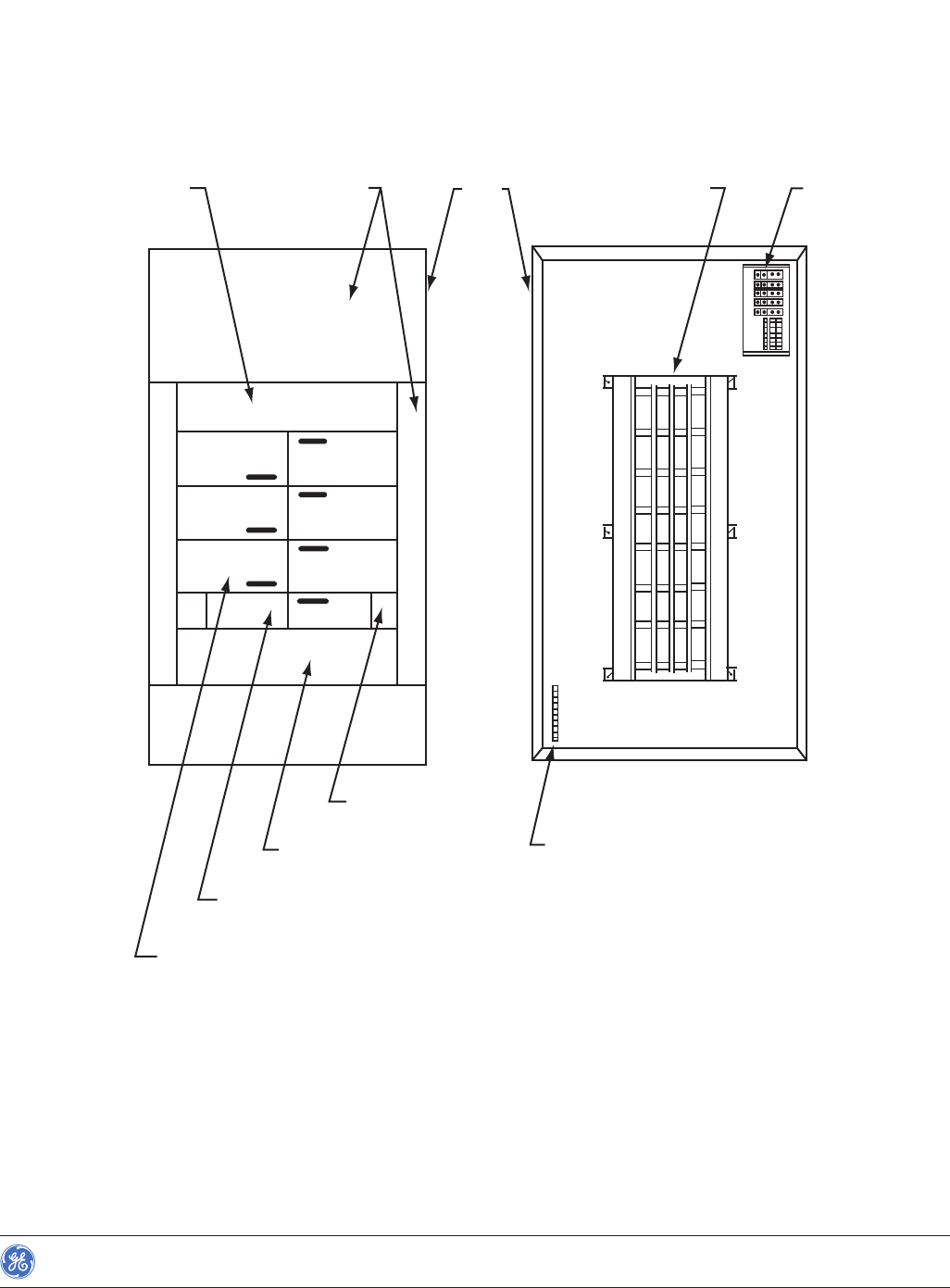

Fronts
Front Modifications
Description
Bondable to box—includes bonding strap and main terminal
Insulated/isolated—includes main terminal
Description
Painted/Increased Gage
One option provides 12 gage box painted
ANSI 61 gray (not available separately)
NEMA 3R
NEMA 12
Wide Box (increased gutter space)
To increase to 31" from 27" box
To increase to 36" from 31" box
To increase to 44" from 40" box
To increase to 44" from 36" box
Narrow Box 4
To decrease to 27" from 36" box (circuit breakers only)
To decrease to 36" from 44" box
Box skirt — 12" high
Touch-up Paint
ANSI 61 gray, 12 oz. can
4Narrow box option limited to panels with maximum 600-amp circuit
breaker feeders and 400-amp fusible feeders with T or J fuse clips. This
option single branches some double branched devices and may result in
additional sections. See page 11-33 and 11-34 for sizing information.
NEMA 4X Stainless Steel
27" 31" 36" 40" 44"
Optional regular door
(27W, surface only)
Optional door 5,6
within a door front
Optional front hinged
to box surface only
5Specify surface or flush.
6Not available in 27" wide.
4 piece surface only (no door)
Standard
Arrangement
Description
Lexan Cardholder for fronts with doors
Lamicoid Nameplate (1 per panel)
Yale 511S Spring Bolt Lock with Rosette Sleeve
Corbin 15767 Latch Bolt
3 pt Catch and Vault Handle
Permanent Number Tabs #1-49
Permanent Number Tabs #1-99
Panelboards
Spectra™Series Panelboards
www.geindustrial.com BuyLog™Catalog 11-31
Rev. 11/13
Data subject to change
without notice
Section 11
TVSS (Transient Voltage Surge Suppression)
Energy Management Meters
Product
Number
System
Voltage
Phase/
Wire
Ship
Cycle
600/347V 3P 4W/3P 3W
480V 3P 4W/3P 3W
208/120V 3P 4W
600/347V 3P 4W/3P 3W
480V 3P 4W/3P 3W
240V 3P 3W
240/120V HI-Leg 3P 4W
208/120V 3P 4W
7X required for panel distribution section mounting
Fits in 27", 31", 36", 40" and 44" wide sections
N
N
600/347V 3P 4W/3P 3W
480V 3P 4W/3P 3W
240V 3P 3W
240/120V HI-Leg 3P 4W
208/120V 3P 4W
N
EPM6000/
PQM Meter
Module
PQMII Meter
Module
EPM2200/
EPM7000
Product
Number System Voltage
Panel
Width
X
Height
Panel
Type
Surge Current
Capability
(per mode)
65ka
80ka
100ka
150ka
200ka
Plug-in/
Bolt-on
ATHE
120/208V, 240V
Delta, 120/240V
Delta, 120/240V
Delta, 277/480V,
480V Delta
ATME
120/208V, 240V
Delta, 120/240V
Delta, 120/240V
Delta, 277/480V,
480V Delta
27" - 44" 7X
27" - 44" 7X Plug-in/
Bolt-on
*Add a “K” to the end of the full Product Number for the kit number.
*Kits include: TVSS unit, 3 cover sizes, cover mounting brackets and cable.
*Field installable kits are available for adding to existing boards.
Panelboards
Spectra™Series Panelboards
www.geindustrial.com Rev. 11/13
Data subject to change
without notice
BuyLog™Catalog
11-32
Section 11
Integrated Submetering Panelboard
Submetering lets you measure and bill energy use (electrical,
water, gas) in master-metered commercial and/or residential
buildings. Suitable for either new construction or retrofit, the
Spectra™Series Integrated Submetering Panelboard combines
the benefits of a multi-tenant digital meter with a reliable GE
Spectra™Series panelboard.
Save Valuable Real Estate
GE’s fully-integrated solution maximizes valuable real estate by
combining meters, current transformers, communications and
overload protection into a single UL Listed, factory-assembled
panel. It requires only a fraction of the space needed for
traditional modular metering.
Lower Construction Costs
Because this panelboard requires no special communications
wiring, you’ll reduce wire, conduit and installation costs. Individual
branch circuit readings communicate through power line com-
munication. All in all, it’s lighter, more flexible, faster and easier to
install than conventional utility metering.
Save Time
Fully assembled and wired in the factory.
Features and benefits
—Factory assembled/wired internal meters minimize installation
labor
—Factory installed/wired CTs eliminate lengthy wiring runs and
wiring errors
—Small footprint takes up less wall space than separate panels and
meters
—UL Listed
—Communication:
– Power line communication standard on all meters
– Optional Modbus RS-485 communication
– Up to 48 pulse inputs to capture energy data from other pulse-
type energy devices (water, gas, steam meters)
—IEC optical front panel interface for programming
—Real-time, per-phase viewing of voltage, current, power factor,
phase angle, watts, VARs, VA and frequency
—Event reporting with time and date stamps
– Local LCD display
– Push-button scroll
– 32-digit liquid crystal display (16 digit x 2 rows)
– Programmable display scroll and decimal place display
—Meets ANSI C12.1 and C12.16 revenue certifiable accuracy
specifications and Canada (AE-1148)
—Data can be accessed and collected through third party read-
bill-collect service or, with Modbus option, the internal EPM
4000 platform utilizes GE’s Energy Aggregator billing software,
an ideal web-based solution for tracking and monitoring energy
consumption. Energy Aggregator allows for the creation of utility
rate structures and automatic billing generation.
Specifications
Panel Type Spectra Bolt-On (SBO)
Certifications UL, cUL
Services 1P3W, 3P3W, 3P4W
Voltages 120/240V, 120/208V, 480/277V
Main Amps 250, 400, 600, 800, 1200
Main Types SF, SG, SK
Busing Cu
Feeder Types TED, TQD, THQD, SE, SF
Feeder Amps 15-250A
Max Fully Rated
AIC Ratings 65kAIC
Branch Devices 24-2 pole max.; 18-3 pole max.
No. of Meter
Points/Panel 6, 9, 12, 15, 18, 21, 24
Series Ratings 65kAIC
Meter Specifications Per EPM 4000 Brochure
Typical Dimensions
Tenants Panel Dimensions (inches)
6 65H x 40W x 11.5D
12 76H x 40W x 11.5D
18/24 89H x 44W x 11.5D
Example of 6-unit Wiring Diagram
ABC
GE Multipoint
Meter
Panelboards
Spectra™Series Panelboards
www.geindustrial.com BuyLog™Catalog 11-33
Rev. 11/13
Data subject to change
without notice
Renewal Parts
Modular Concept
Order all components from Customer Service Center
Fig. 1.1 is a front view of a typical Spectra™Series fusible panelboard.
Fig. 1.2 is also a front view, but with the front (4 piece trim), all fusible switches, and all filler plates removed.
Main Lug
Module
Front (4 pc)
Ground
Note: Incoming conduit location
should be in top or bottom
ends of enclosure. Must avoid
conduit entrances that would
interfere with ground and
neutral assembly location.
Side Filler Plate
Full Filler Plate
Fusible Switch (one side blank)
Fusible Switch (Branch)
Box Interior Neutral
Fig. 1.1 Fig. 1.2
Panelboards
Spectra™Series Panelboards Section 11
www.geindustrial.com Rev. 11/13
Data subject to change
without notice
BuyLog™Catalog
11-34
Section 11
Renewal Parts
Circuit Breaker Sizing
2P 2P
2P 2P
3P 3P
3P 3P
2P 2P
2P 2P
3P 3P
3P 3P
3P 3P
3P 3P
3P 3P
2P or 3P 27" W
THQB, THHQB,
TEY, THLC1,
THED, SE-Frame,
FC (FE Future)
TQD, THQD,
TEB, TED
TFJ, TFK, THFK,
SF-Frame,
(FE Future)
SG-Frame,
FG
THLC2, THLC4
TJD, TJJ, TJK,
THJK
SF-Frame, TFJ,
TFK, THFK
SF-Frame Double,
FC (FE Future),
Branch Adjacent
to Switch
SF-Frame Single,
Branch or Main
Adjacent to Switch
THLC2, THLC4
SG-Frame
FG
TKM, THKM,
SKHA, SKLA
TJD, TJJ, TJK,
THJK
SKPA
31" W
36" W
40" W
44" W
2P or 3P
2P or 3P
2P or 3P
2P or 3P
2P or 3P
2P or 3P
Panelboards
Spectra™Series Panelboards
www.geindustrial.com BuyLog™Catalog 11-35
Rev. 11/13
Data subject to change
without notice
Section 11
Replacement Boxes and Fronts
Order from the Customer Service Center
Type APB NEMA 1 Enclosure
Interior Product
Width Height X-Height Modification Number
11.50"D, Std Gauge APB2765AS
18X 11.50"D, Painted/Heavy Gauge APB2765ASP
14.25"D, Std Gauge APB2765A
14.25"D, Painted/Heavy Gauge APB2765AP
11.50"D, Std Gauge APB2765BS
65" 23X 11.50"D, Painted/Heavy Gauge APB2765BSP
14.25"D, Std Gauge APB2765B
14.25"D, Painted/Heavy Gauge APB2765BP
11.50"D, Std Gauge APB2765CS
27" 28X 11.50"D, Painted/Heavy Gauge APB2765CSP
14.25"D, Std Gauge APB2765C
14.25"D, Painted/Heavy Gauge APB2765CP
11.50"D, Std Gauge APB2775S
75" 28X 11.50"D, Painted/Heavy Gauge APB2775SP
14.25"D, Std Gauge APB2775
14.25"D, Painted/Heavy Gauge APB2775P
11.50"D, Std Gauge APB2789S
89" 33X, 38X 11.50"D, Painted/Heavy Gauge APB2789SP
14.25"D, Std Gauge APB2789
14.25"D, Painted/Heavy Gauge APB2789P
11.50"D, Std Gauge APB3165A
18X 11.50"D, Painted/Heavy Gauge APB3165AP
14.25"D, Std Gauge APB3165AD
14.25"D, Painted/Heavy Gauge APB3165ADP
11.50"D, Std Gauge APB3165B
65" 23X 11.50"D, Painted/Heavy Gauge APB3165BP
14.25"D, Std Gauge APB3165BD
14.25"D, Painted/Heavy Gauge APB3165BDP
11.50"D, Std Gauge APB3165C
28X 11.50"D, Painted/Heavy Gauge APB3165CP
14.25"D, Std Gauge APB3165CD
14.25"D, Painted/Heavy Gauge APB3165CDP
11.50"D, Std Gauge APB3175
31" 75" 23X, 28X 11.50"D, Painted/Heavy Gauge APB3175P
14.25"D, Std Gauge APB3175D
14.25"D, Painted/Heavy Gauge APB3175DP
11.50"D, Std Gauge APB3189
89" 33X, 38X 11.50"D, Painted/Heavy Gauge APB3189P
14.25"D, Std Gauge APB3189D
14.25"D, Painted/Heavy Gauge APB3189DP
11.50"D, Std Gauge APB3196A
38X, 43X 11.50"D, Painted/Heavy Gauge APB3196AP
14.25"D, Std Gauge APB3196AD
96" 14.25"D, Painted/Heavy Gauge APB3196ADP
11.50"D, Std Gauge APB3196B
48X 11.50"D, Painted/Heavy Gauge APB3196BP
14.25"D, Std Gauge APB3196BD
14.25"D, Painted/Heavy Gauge APB3196BDP
Type APB NEMA 1 Enclosure (Continued)
Interior Product
Width Height X-Height Modification Number
11.50"D, Std Gauge APB3665
65 18X, 23X, 11.50"D, Painted/Heavy Gauge APB3665P
28X 16.25"D, Std Gauge APB3665D
16.25"D, Painted/Heavy Gauge APB3665DP
11.50"D, Std Gauge APB3675
75" 23X, 28X 11.50"D, Painted/Heavy Gauge APB3675P
16.25"D, Std Gauge APB3675D
36" 16.25"D, Painted/Heavy Gauge APB3675DP
11.50"D, Std Gauge APB3689
89" 33X, 38X 11.50"D, Painted/Heavy Gauge APB3689P
16.25"D, Std Gauge APB3689D
16.25"D, Painted/Heavy Gauge APB3689DP
11.50"D, Std Gauge APB3696
96" 38X, 43X, 11.50"D, Painted/Heavy Gauge APB3696P
48X 16.25"D, Std Gauge APB3696D
16.25"D, Painted/Heavy Gauge APB3696DP
11.50"D, Std Gauge APB4065
65" 18X, 23X 11.50"D, Painted/Heavy Gauge APB4065P
14.25"D, Std Gauge APB4065D
14.25"D, Painted/Heavy Gauge APB4065PD
11.50"D, Std Gauge APB4075
75" 23X, 28X 11.50"D, Painted/Heavy Gauge APB4075P
14.25"D, Std Gauge APB4075D
40" 14.25"D, Painted/Heavy Gauge APB4075DP
11.50"D, Std Gauge APB4089
89" 33X, 38X 11.50"D, Painted/Heavy Gauge APB4089P
14.25"D, Std Gauge APB4089D
14.25"D, Painted/Heavy Gauge APB4089DP
11.50"D, Std Gauge APB4096
96" 38X, 43X, 11.50"D, Painted/Heavy Gauge APB4096P
48X 14.25"D, Std Gauge APB4096D
14.25"D, Painted/Heavy Gauge APB4096DP
11.50"D, Std Gauge APB4465
65" 18X, 23X 11.50"D, Painted/Heavy Gauge APB4465P
16.25"D, Std Gauge APB4465D
16.25"D, Painted/Heavy Gauge APB4465DP
11.50"D, Std Gauge APB4475
75" 23X, 28X 11.50"D, Painted/Heavy Gauge APB4475P
16.25"D, Std Gauge APB4475D
44" 16.25"D, Painted/Heavy Gauge APB4475DP
11.50"D, Std Gauge APB4489
89" 33X, 38X 11.50"D, Painted/Heavy Gauge APB4489P
16.25"D, Std Gauge APB4489D
16.25"D, Painted/Heavy Gauge APB4489DP
11.50"D, Std Gauge APB4496
96" 38X, 43X, 11.50"D, Painted/Heavy Gauge APB4496P
48X 16.25"D, Std Gauge APB4496D
16.25"D, Painted/Heavy Gauge APB4496DP
Panelboards
Spectra™Series Panelboards
www.geindustrial.com Rev. 11/13
Data subject to change
without notice
BuyLog™Catalog
11-36
Section 11
Compression Lugs
Main Lugs, Neutral Lugs and Fusible Switches
The standard sizes and number of mechanical lugs are shown on
page 11-28.
Description Description
#12 1/0 500 kcmil
2/0-300 kcmil 600-750 kcmil
Type APB NEMA 3R and 12 Enclosures
Interior
Width Depth Height X-Height1Product Number2
18X APB(D,R)276518(B,T)
65" 23X APB(D,R)276523(B,T)
27" 14.25" 28X APB(D,R)276528(B,T)
75" 28X APB(D,R)277528(B,T)
89" 33X APB(D,R)278933(B,T)
38X APB(D,R)278938(B,T)
18X APB(D,R)316518(B,T)
65" 23X APB(D,R)316523(B,T)
28X APB(D,R)316528(B,T)
31" 14.25" 23X APB(D,R)317523E(B,T)
75" 23X GF APB(D,R)317523E(B,T)
28X APB(D,R)317528(B,T)
89" 33X APB(D,R)318933(B,T)
38X APB(D,R)318938(B,T)
18X APB(D,R)366518(B,T)
65" 23X APB(D,R)366523E(B,T)
28X APB(D,R)366528(B,T)
36" 16.25" 23X APB(D,R)367523E(B,T)
75" 23X DM APB(D,R)367523E(B,T)
28X APB(D,R)367528(B,T)
89" 33X APB(D,R)368933(B,T)
38X APB(D,R)368938(B,T)
65" 18X APB(D,R)406518(B,T)
23X APB(D,R)406523(B,T)
40" 14.25" 23X APB(D,R)407523E(B,T)
75" 23X DM APB(D,R)407523E(B,T)
28X APB(D,R)407528(B,T)
65" 18X APB(D,R)446518(B,T)
23X APB(D,R)446523(B,T)
44" 16.25" 23X APB(D,R)447523(B,T)
75" 23X DM APB(D,R)447523E(B,T)
28X APB(D,R)447528(B,T)
1GF = Ground Fault
DM = Dual Main, Ground Fault, 200% Neutral
2(D,R) D = NEMA 12
R = NEMA 3R
(B,T) B = Bottom Feed
T = Top Feed
Replacement Boxes and Fronts
Order from the Customer Service Center
200% Neutral
Provides second neutral assembly of equal amperage rating.
Panelboards
Spectra™Series Panelboards
www.geindustrial.com BuyLog™Catalog 11-37
Rev. 11/13
Data subject to change
without notice
Section 11
Renewal Parts
Product Number Structure
Panelboard Interior – Type APN
Panelboard Interior – Type APNB
Panelboard Box – Type APB
Panelboard Front – Type APF
APNB 38 06 U B4
Example:
“X” Hgt of
Interior
18 = 18X
23 = 23X
28 = 28X
33 = 33X
38 = 38X
43 = 43X
48 = 48X
53 = 53X
Ampere Rating
02 = 200A
04 = 400A
06 = 600A
08 = 800A
12 = 1200A
Interior Type
U = Unassembled
Modification Code
Blank = Standard
(Aluminum Bus)
B4 = Copper Bus
(100A/sq in.)
APF 89 38
Example:
Box
Height
65 = 65
"
75 = 75
"
89 = 89"
96 = 96"
“X” Hgt of
Interior
18 = 18X
23 = 23X
28 = 28X
33 = 33X
38 = 38X
43 = 43X
48 = 48X
53 = 53X
Modification Code
Blank = For Std Box (36
" wide)
S = For Slim Box (27" wide)
W = For Wide Box (44" wide)
E = Extra Line Gutter Space for
Dual Main Neutral
N = Nonvented Front
(for 250A only)
APB 36 89
Example:
Box
Width
27 = 27
"
36 = 36
"
44 = 44"
Box
Height
65 = 65
"
75 = 75
"
89 = 89"
96 = 96"
Modification Code
Blank = Any box except APB2765
A = For APB2765 with 18X interior
B = For APB2765 with 23X interior
C = For APB2765 with 28X interior
APN 38 06 U B4
Example:
“X” Hgt of
Interior
18 = 18X
23 = 23X
28 = 28X
33 = 33X
38 = 38X
43 = 43X
48 = 48X
53 = 53X
Ampere Rating
02 = 200A
04 = 400A
06 = 600A
08 = 800A
12 = 1200A
Interior Type
U = Unassembled
Modification Code
Blank = Standard
(Aluminum Bus)
B4 = Copper Bus
(100A/sq in.)
Panelboards
Spectra™Series Panelboards
www.geindustrial.com Rev. 11/13
Data subject to change
without notice
BuyLog™Catalog
11-38
Section 11
Renewal Parts
Product Number Structure (Continued)
Disconnect Switches – Type ADS
Circuit Breaker Mounting Modules – Type AMC
Bolt-on Strap Kits – Type AMCB
AMC 6 EB S FP
Example:
No. of Total CB Poles
on Module Breaker Frames
QB = THQB, THHQB
EY = TEY
EB = TEB, TED, THED, SED,
SEH, SEL, SEP
FDB = FC
FEB = FE Future
FJ = TFJ, TFK, THFK, TFL,
SFH, SFL, SFP
JK = TJD, TJJ, TJK, THJK,
TJ4V, TJL4V
LB = TLB4, THLC2, THLC4
GB or GM = SGD, SGH, SGL, SGP
FGB = FG
KM = TKM, THKM, TK4V, TKL4V,
SKH, SKL, SKP
FB = FB
Unit Type
Blank = Std.
S = Special Type to allow
TFL, SE and SF to be
mounted adjacent to
a switch
6 = 6 poles
(3-pole breakers,
double branched)
4 = 4 poles
(2-pole breakers,
double branched)
3 = 3 poles
(3-pole breakers,
single branched)
2 = 2 poles
(2-pole breakers,
single branched)
Accessory Code
FP = With Filler Plate Kit
(full width plates with
cutouts for handles,
etc.)
ADS 3 200 D FP
Example:
No. of
Poles
2 = 2 poles
3 = 3 poles
Ampere Rating
030 = 30A
060 = 60A
100 = 100A
200 = 200A
400 = 400A
600 = 600A
800 = 800A
120 = 1200A
6
Voltage Rating
2 = 240V
6 = 600V
Unit Type
D = Double Unit
with 2 switches
S = Single Switch
in a Double Unit
B = Single Branch Unit
M = Main Switch
K = Expansion Kit
(switch only . . .
no module)
H
Fuse Type
H = Class H,
R, or K
T = Class T
J = Class J
L = Class L
Accessory Code
FP = With Filler
Plate Kit
(side fillers)
Panelboards
Spectra™Series Panelboards
AMCB 6EB B FP
Example:
Poles
2
3
4
6
C/B Frame
EB = SE, TEB, T(H)ED
EY = TEY
FDB = FC
FE = FEB Future
FJ = SF
G = SG
FG = FGB
K = SK, T(H)KM
LB = THLC2,4
QD = T(H)QD
SE = SE, THED
Mounting
Blank = Main or Branch
B = Branch Only
M = Main Only
Accessory Code
FP = With Filler
Plate Kit
(full width
plates with
cutouts for
handles, etc)
www.geindustrial.com BuyLog™Catalog 11-39
Rev. 11/13
Data subject to change
without notice
Section 11
Renewal Parts
Product Number Structure (Continued)
Neutral Kits – Type ANK
Equipment Ground Kits – Type AEG
NEMA 1 Box Extensions - Type APB1
AEG 21 S
Example:
No. of
Circuits
10
21
31
Modification Code
Blank = Std (bonded)
S = Insulated/Isolated
ANK 800 D
Example:
Ampere
Rating
250 = 250A
400 = 400A
600 = 600A
800 = 800A
100 = 1000A
120 = 1200A
Modification Code
Blank = Std (single main)
D = Dual Main
GF = Ground Fault Only
APB 27 E
Example:
Width
27
31
36
40
44
Extension Depth
E = 12H, 11.5D, 31/36/40/44W
12H, 14.25D, 27W
ED = 12H, 14.25D, 31/40W
12H, 16.25D, 36/44W
ES = 12H, 11.5D, 27W
1Note: Available in SPEEDI under “EXT” code on modifications screen. Also available by product number through ONE STOP.
Panelboards
Spectra™Series Panelboards
www.geindustrial.com Rev. 11/13
Data subject to change
without notice
BuyLog™Catalog
11-40
Section 11
Renewal Parts
Mounting Hardware
Order from the Customer Service Center
Product Features
—Use to mount main or branch circuit breakers into panelboard. Breakers bolt on to the mounting modules.
—FP suffix indicates that all AFP filler plates, with cutouts for handles, are included to fit all applicable box widths. On double branch modules,
filler plates to cover any unused breaker poles are also included.
—Circuit breakers not included in module price.
—Includes all necessary hardware.
Circuit Breaker Mounting Modules Plug-In Spectra™3-pole
Mounting Maximum Breaker Breaker X Filler Plate Kit Box Product
Arrangement Amperage Frame Height Product Number Width Range Number
Double Branch 100 THQB or THHQB 3X AFP3QBD 27", 31", 36" 40", 44" AMC6QBFP
Double Branch 100 TEY 3X AFP3EYD 27", 31", 36" 40", 44" AMC6EYFP
Double Branch 100 FBV, FBN, FBH, or FBL 3X AFP3FBD 27", 31", 36", 40", 44" AMC6FBFP
Double Branch 100 FCS, FCV, FCN, FCH or FCL 3X AFP3FDD 27", 31", 36", 40", 44" AMC6FDBFP
Double Branch 150 TEB, TED, THED, SEDA 3X AFP3SED 27", 31", 36" 40", 44" AMC6EBFP
SEHA, SELA or SEPA
Double Branch 225 TQD or THQD 3X AFP3QDD 27", 31", 36" 40", 44" AMC6QDFP
Double Branch 225 TFJ or TFK or THFK 3X AFP3TFD 31", 36", 40", 44" AMC6FJFPTF
Double Branch 250 SFHA or SFLA or SFPA 3X AFP3SFD 31", 36", 40" 44" AMC6FJFP1
Double Branch 400 TJD or TJJ 6X AFP6TJD 44" AMC6JKFP
Double Branch 600 TJK or THJK 6X AFP6TJD 44" AMC6JKFP
Double Branch 600 FGL, FGN, FGH or FGP 4X AFP4FGD 40", 44" AMC6FGBFP
Double Branch 600 SGDA or SGHA or SGLA or SGPA 4X AFP4SGD 40", 44" AMC6GBFP2
Double Branch Adjacent to Switch 100 FCS, FCV, FCN, FCH or FCL 4X AFP4FDD 36", 44" AMC6FDSPF
Double Branch Adjacent to Switch 150 SEDA or SEHA or SELA or SEPA 4X AFP4SED 36", 44" AMC6EBSFP
Double Branch Adjacent to Switch 250 SFHA or SFLA or SFPA 4X AFP4SFD 36", 44" AMC6FLSFP
Single Branch or Main 225 TFJ or TFK or THFK 3X AFP3TFS 27", 31", 36", 40", 44" AMC3FJFPTF
Single Branch or Main 250 SFHA or SFLA or SFPA 3X AFP3SFS 27", 31", 36", 40", 44" AMC3FJFP1
Single Branch or Main 400 TJD or TJJ 6X AFP6TJS 27", 31", 36", 40", 44" AMC3JKFP
Single Branch or Main 600 TJK or THJK 6X AFP6TJS 27", 31", 36", 40", 44" AMC3JKFP
Single Branch or Main 600 FGV, FGN, FGH or FGP 4X AFP4FGS 27", 31", 36", 40", 44" AMC3FGMFP
Single Branch or Main 600 SGDA or SGHA or SGLA or SGPA 4X AFP4SGS 27", 31", 36", 40", 44" AMC3GMFP
Single Branch or Main 1200 TKM or THKM or SKHA or SKLA 6X AFP6SKS 40", 44" AMC3KMFP
Single Branch or Main 1200 SKPA 6X AFP6SKS 44" AMC3KMFP
Single Branch or Main 250 SFHA or SFLA or SFPA 4X AFP4SFS 36", 44" AMC3FLSFP
Adjacent to Switch
Circuit Breaker Mounting Modules Plug-In Spectra™2-pole
Mounting Maximum Breaker Breaker X Filler Plate Kit Box Product
Arrangement Amperage Frame Height Product Number Width Range Number
Double Branch 100 THQB or THHQB 3X AFP3QBD 27", 31", 36" 40", 44" AMC6QBFP
Double Branch 100 TEY 3X AFP3EYD 27", 31", 36" 40", 44" AMC6EYFP
Double Branch 100 FCS, FCV, FCN, FCH or FCL 3X AFP3FDD 27", 31", 36", 40", 44" AMC4FDBFP
Double Branch 150 TEB or TED 3X AFP2TED 27", 31", 36" 40", 44" AMC4EBFP
Double Branch 150 SEDA or SEHA or SELA or SEPA, THED 3X AFP3SED 27", 31", 36" 40", 44" AMC4SEFP
Double Branch 225 TQD or THQD 2X AFP2QDD 27", 31", 36" 40", 44" AMC4QDFP
Double Branch 225 TFJ or TFK or THFK 3X AFP3TFD 31", 36", 40", 44" AMC4FJFPTF
Double Branch 250 SFHA or SFLA or SFPA 3X AFP3SFD 31", 36", 40" 44" AMC4FJFP1
Double Branch 400 TJD or TJJ 6X AFP6TJD 44" AMC4JKFP
Double Branch 600 TJK or THJK 6X AFP6TJD 44" AMC4JKFP
Double Branch 600 FGV, FGN, FGH or FGP 4X AFP4FGD 40", 44" AMC4FGBFP
Double Branch 600 SGDA or SGHA or SGLA or SGPA 4X AFP4SGD 40", 44" AMC4GBFP2
Double Branch Adjacent to Switch 100 FCS, FCV, FCN, FCH or FCL 4X AFP4FDD 36", 44" AMC4FDSFP
Double Branch Adjacent to Switch 150 SEDA or SEHA or SELA or SEPA 4X AFP4SED 36", 44" AMC4EBSFP
Double Branch Adjacent to Switch 250 SFHA or SFLA or SFPA 4X AFP4SFD 36", 44" AMC4FLSFP
Single Branch or Main 225 TFJ or TFK or THFK 3X AFP3TFS 27", 31", 36", 40", 44" AMC2FJFPTF
Single Branch or Main 250 SFHA or SFLA or SFPA 3X AFP3SFS 27", 31", 36", 40", 44" AMC2FJFP1
Single Branch or Main 400 TJD or TJJ 6X AFP6TJS 27", 31", 36", 40", 44" AMC2JKFP
Single Branch or Main 600 TJK or THJK 6X AFP6TJS 27", 31", 36", 40", 44" AMC2JKFP
Single Branch or Main 600 FGV, FGN, FGH or FGP 4X AFP4FGS 27", 31", 36", 40", 44" AMC2FGMFP
Single Branch or Main 600 SGDA or SGHA or SGLA or SGPA 4X AFP4SGS 27", 31", 36", 40", 44" AMC2GMFP
Single Branch or Main 1200 TKM or THKM or SKHA or SKLA 6X AFP6SKS 40", 44" AMC2KMFP
Single Branch or Main 1200 SKPA 6X AFP6SKS 44" AMC2KMFP
Single Branch or 250 SFHA or SFLA or SFPA 4X AFP4SFS 36", 44" AMC2FLSFP
Main Adjacent to Switch
1SE and SF breakers located adjacent to a fusible switch, PCU or TVSS require mounting modules suitable for mounting “Adjacent to Switch.”
SGDA circuit breaker rated 400 amps maximum.
2THLC 1/2/4 breaker no longer available.
Note: 1X = 1 3/8" vertical panel space.
Panelboards
Spectra™Series Panelboards
www.geindustrial.com BuyLog™Catalog 11-41
Rev. 11/13
Data subject to change
without notice
Section 11
Renewal Parts
Mounting Hardware
Order from the Customer Service Center
Product Features
—Module includes fusible switch and panelboard mounting connectors. Fuses not included.
—Class R Fuse Clip Kit (for field installation) included with all switches that accept Class R Fuses.
—FP suffix indicates that all AFP filler plates are included to fit applicable box widths.
Branch Switch Modules Plug-In Spectra™240 Volts 3-pole
Mounting Fuse Switch X Side Filler Plate Box Width Product
Arrangement Type Amperes Height Kit Part Number Range Number
Double Branch-2 switches H, R, or K 30 4X AFP4X 36", 44" ADS32030HDFP
Double Branch-2 switches H, R, or K 60 4X AFP4X 36", 44" ADS32060HDFP
Double Branch-2 switches H, R, or K 100 5X AFP5X 36", 44" ADS32100HDFP
Double Branch-2 switches T 100 7X AFP7T 36", 44" ADS32100TDFP
Double Branch-2 switches H, R, or K 200 7X AFP7X2 44" ADS32200HDFP
Double Branch-2 switches T 200 7X AFP7T 36", 44" ADS32200TDFP
Double Branch-switch plus space H, R, or K 30 4X AFP4X 36", 44" ADS32030HSFP
Double Branch-switch plus space H, R, or K 60 4X AFP4X 36", 44" ADS32060HSFP
Double Branch-switch plus space H, R, or K 100 5X AFP5X 36", 44" ADS32100HSFP
Single Branch H, R, or K 200 7X AFP7X 36", 44" ADS32200HBFP
Single Branch H, R, or K 400 10X AFP10X 44" ADS32400HBFP
Single Branch T 400 10X AFP10T 36", 44" ADS32400TBFP
Single Branch H, R, or K 600 10X AFP10X 44" ADS32600HBFP
Single Branch T 600 10X AFP10T 36", 44" ADS32600TBFP
Branch Switch Modules Plug-In Spectra™240 Volts 2-pole
Mounting Fuse Switch X Side Filler Plate Box Width Product
Arrangement Type Amperes Height Kit Part Number Range Number
Double Branch-2 switches H, R, or K 30 4X AFP4X 36", 44" ADS22030HDFP
Double Branch-2 switches H, R, or K 60 4X AFP4X 36", 44" ADS22060HDFP
Double Branch-2 switches T 100 7X AFP7T 36", 44" ADS32100TDFP
Double Branch-2 switches H, R, or K 100 5X AFP5X 36", 44" ADS22100HDFP
Double Branch-2 switches H, R, or K 200 7X AFP7X2 44" ADS22200HDFP
Double Branch-2 switches T 200 7X AFP7T 36", 44" ADS22200TD
Double Branch-switch plus space H, R, or K 30 4X AFP4X 36", 44" ADS22030HSFP
Double Branch-switch plus space H, R, or K 60 4X AFP4X 36", 44" ADS22060HSFP
Double Branch-switch plus space H, R, or K 100 5X AFP5X 36", 44" ADS22100HSFP
Single Branch H, R, or K 200 7X AFP7X 36", 44" ADS22200HBFP
Single Branch T 200 7X AFP7X 36", 44" ADS22200TS
Single Branch H, R, or K 400 10X AFP10X 44" ADS22400HBFP
Single Branch T 400 10X AFP10T 36", 44" ADS22400TBFP
Single Branch H, R, or K 600 10X AFP10X 44" ADS22600HBFP
Single Branch T 600 10X AFP10T 36", 44" ADS22600TBFP
Note: 1X = 1 3/8" vertical panel space
Panelboards
Spectra™Series Panelboards
www.geindustrial.com Rev. 11/13
Data subject to change
without notice
BuyLog™Catalog
11-42
Section 11
Product Features
—Module includes fusible switch and panelboard mounting connectors. Fuses not included.
—Class R Fuse Clip Kit (for field installation) included with all switches that accept Class R Fuses.
—FP suffix indicates that all AFP filler plates are included to fit applicable box widths.
Branch Switch Modules Plug-In Spectra™600 Volts 3-pole
Mounting Fuse Switch X Side Filler Plate Box Width Product
Arrangement Type Amperes Height Kit Part Number Range Number
Double Branch-2 switches H, R, J, or K 30 4X AFP4X 36", 44" ADS36030HDFP
Double Branch-2 switches H, R, J, or K 60 5X AFP5X 36", 44" ADS36060HDFP
Double Branch-2 switches H, R, J, or K 100 5X AFP5X 36", 44" ADS36100HDFP
Double Branch-2 switches H, R, or K 200 7X AFP7X2 44" ADS36200HDFP
Double Branch-2 switches J 200 7X AFP7T 36", 44" ADS36200JDFP
Double Branch-switch plus space H, R, J, or K 30 4X AFP4X 36", 44" ADS36030HSFP
Double Branch-switch plus space H, R, J, or K 60 5X AFP5X 36", 44" ADS36060HSFP
Double Branch-switch plus space H, R, J, or K 100 5X AFP5X 36", 44" ADS36100HSFP
Single Branch H, R, or K 200 7X AFP7X 36", 44" ADS36200HBFP
Single Branch H, R, or K 400 10X AFP10X 44" ADS36400HBFP
Single Branch J 400 10X AFP10T 36", 44" ADS36400JBFP
Single Branch T 400 10X AFP10T 36", 44" ADS36400TBFP
Single Branch H, R, or K 600 10X AFP10X 44" ADS36600HBFP
Single Branch J 600 10X AFP10T 36", 44" ADS36600JBFP
Single Branch T 600 10X AFP10T 36", 44" ADS36600TBFP
Single Branch L 800 19X AFP19X 44" ADS36800LBFP
Single Branch L 1200 19X AFP19X 44" ADS36120LBFP
Branch Switch Modules Plug-In Spectra™600 Volts 2-pole
Mounting Fuse Switch X Side Filler Plate Box Width Product
Arrangement Type Amperes Height Kit Part Number Range Number
Double Branch-2 switches H, R, J, or K 30 4X AFP4X 36", 44" ADS26030HDFP
Double Branch-2 switches H, R, J, or K 60 5X AFP5X 36", 44" ADS26060HDFP
Double Branch-2 switches H, R, J, or K 100 5X AFP5X 36", 44" ADS26100HDFP
Double Branch-2 switches T 100 7X N/A ADS26100TDFP
Double Branch-2 switches H, R, or K 200 7X AFP7X2 44" ADS26200HDFP
Double Branch-2 switches J 200 7X AFP7T 36", 44" ADS26200JDFP
Double Branch-switch plus space H, R, J, or K 30 4X AFP4X 36", 44" ADS26030HSFP
Double Branch-switch plus space H, R, J, or K 60 5X AFP5X 36", 44" ADS26060HSFP
Double Branch-switch plus space H, R, J, or K 100 5X AFP5X 36", 44" ADS26100HSFP
Single Branch H, R, or K 200 7X AFP7X 36", 44" ADS26200HBFP
Single Branch J 200 7X AFP7X 36" ADS26200JSFP
Single Branch H, R, or K 400 10X AFP10X 44" ADS26400HBFP
Single Branch J 400 10X AFP10T 36", 44" ADS26400JBFP
Single Branch T 400 10X AFP10T 36", 44" ADS26400TBFP
Single Branch H, R, or K 600 10X AFP10X 44" ADS26600HBFP
Single Branch J 600 10X AFP10T 36", 44" ADS26600JBFP
Single Branch T 600 10X AFP10T 36", 44" ADS26600TBFP
Single Branch L 800 19X AFP19X 44" ADS26800LBFP
Single Branch L 1200 19X AFP19X 44" ADS26120LBFP
Note: 1X = 1 3/8" vertical space
Renewal Parts
Mounting Hardware
Order from the Customer Service Center
Panelboards
Spectra™Series Panelboards
www.geindustrial.com BuyLog™Catalog 11-43
Rev. 11/13
Data subject to change
without notice
Section 11
Mounting Hardware With Filler Plate, Straps and Brackets Bolt-On Spectra™
Mounting kit with filler plate includes hardware straps, brackets and filler plate.
Filler plate kit includes filler plate and associated hardware only.
Product
Mounting Arrangement Breaker Frame Number of Poles Box Width Range X Height Number
Dual Mounted TEB, TED 2-pole 27"-44" 2X AMCB4EBFP
Dual Mounted TEY 2-pole 27"-44" 3X AMCB4EYFP
Dual Mounted FBV, FBN, FBH, or FBL 2-pole 27"-44" 2X AMCB4FBFP
Dual Mounted FCS, FCV, FCN, FCH or FCL 2-pole 27", 31", 36", 40", 44" 3X AMCB4FDBFP
Dual Mounted TQD, THQD 2-pole 27"-44" 2X AMCB4QDFP
Dual Mounted THED, SED, SEH, SEL, SEP 2-pole 27"-44" 3X AMCB4SEFP
Dual Mounted TEB, TED, THED, 3-pole 27"-44" 3X AMCB6EBFP
SED, SEH, SEL, SEP
Dual Mounted TEY 3-pole 27"-44" 3X AMCB6EYFP
Dual Mounted FBV, FBN, FBH, or FBL 3-pole 27"-44" 3X AMCB6FBFP
Dual Mounted FCS, FCV, FCN, FCH or FCL 3-pole 27", 31", 36", 40", 44" 3X AMCB6FDBFP
Dual Mounted TQD, THQD 3-pole 27"-44" 3X AMCB6QDFP
Dual Mounted SFH, SFL, SFP 2-pole 31"-44" 3X AMCB4FJFP
Dual Mounted SFH, SFL, SFP 3-pole 31"-44" 3X AMCB6FJFP
Dual Mounted TFJ, TFK, THFK 2-pole 36"-44" 2X AMCB4FJFPTF
Dual Mounted TFJ, TFK, THFK 3-pole 36"-44" 3X AMCB6FJFPTF
Dual Mounted FGV, FGN, FGH or FGP 2-pole 40", 44" 4X AMCB4FGBFP
Dual Mounted SGH, SGL, SGP 2-pole 40"-44" 4X AMCB4GBFP
Dual Mounted FGV, FGN, FGH or FGP 3-pole 40", 44" 4X AMCB6FGBFP
Dual Mounted SGH, SGL, SGP 3-pole 40"-44" 4X AMCB6GBFP
Single Mounted SFH, SFL, SFP 2-pole 27"-44" 3X AMCB2FJFP
Single Mounted TFJ, TFK, THFK 2-pole 27"-44" 3X AMCB2FJFPTF
Single Mounted FGV, FGN, FGH or FGP 2-pole 27", 31", 36", 40", 44" 4X AMCB2FGMFP
Single Mounted SGH, SGL, SGP 2-pole 27"-44" 4X AMCB2GMFP
Single Mounted SFH, SFL, SFP 3-pole 27"-44" 3X AMCB3FJFP
Single Mounted TFJ, TFK, THFK 3-pole 27"-44" 3X AMCB3FJFPTF
Single Mounted FGV, FGN, FGH or FGP 3-pole 27", 31", 36", 40", 44" 4X AMCB3FGMFP
Single Mounted SGH, SGL, SGP 3-pole 27"-44" 4X AMCB3GMFP
Single Mounted SKP 2-pole 27"-44" 6X AMCB3LBFP
Single Mounted SKH, SKL, SKP, TKM, THKM 2-pole 40"-44" 6X AMCB2KMFP
Single Mounted SKH, SKL, SKP, TKM, THKM 3-pole 40"-44" 6X AMCB3KMFP
Filler Plates Bolt-On Spectra™
Filler plate kit includes filler plate and associated hardware only.
Product
Mounting Arrangement Breaker Frame Number of Poles Box Width Range X Height Number
Dual Mounted TQD, THQD 2-pole 27"-44" 2X AFP2QDD
Dual Mounted TEB, TED 2-pole 27"-44" 2X AFP2TED
Dual Mounted TEY 2-, 3-pole 27"-44" 3X AFP3EYD
Dual Mounted FBV, FBN, FBH, or FBL 2-pole 27"-44" 2X AFP2FBD
Dual Mounted FBV, FBN, FBH, or FBL 3-pole 27"-44" 3X AFP3FBD
Dual Mounted TQD, THQD 3-pole 27"-44" 3X AFP3QDD
Dual Mounted TEB, TED, THED, 2-, 3-pole 27"-44" 3X AFP3SED
SED, SEH, SEL, SEP
Dual Mounted SFH, SFL, SFP 2-, 3-pole 31"-44" 3X AFP3SFD
Dual Mounted TFJ, TFK, THFK 2-, 3-pole 36"-44" 2X, 3X AFP3TFD
Dual Mounted FGV, FGN, FGH or FGP 3-pole 40", 44" 4X AFP4FGD
Dual Mounted SGH, SGL, SGP 2-, 3-pole 40"-44" 4X AFP4SGD
Single Mounted SFH, SFL, SFP 2-, 3-pole 27"-44" 3X AFP3SFS
Single Mounted TFJ, TFK, THFK 2-, 3-pole 27"-44" 3X AFP3TFS
Single Mounted FGV, FGN, FGH or FGP 2-, 3-pole 27", 31", 36", 40", 44" 4X AFP4FGS
Single Mounted SGH, SGL, SGP 2-, 3-pole 27"-44" 4X AFP4SGS
Single Mounted SKP 2-pole 27"-44" 6X AFP5LCS
Single Mounted SKP, SKH, SKL, TKM, THKM 3-pole 44"-44" 6X AFP6SKS
Notes: 1X = 1 3/8" vertical space. THLC 1/2/4 breaker no longer available.
Renewal Parts
Mounting Hardware
Order from the Customer Service Center
Panelboards
Spectra™Series Panelboards
www.geindustrial.com Rev. 11/13
Data subject to change
without notice
BuyLog™Catalog
11-44
Section 11
Filler Plates Plug-In or Bolt-On Spectra™
Use to cover unused spaces.
Includes filler plate support brackets and hardware.
Space Switchboard Product
X Height1Box Width Range Section Widths Number
1X 27", 31" 35 APP1S
2X 27", 31" 35 APP2S
3X 27", 31" 35 APP3S
4X 27", 31" 35 APP4S
5X 27", 31" 35 APP5S
6X 27", 31" 35 APP6S
1X 36", 40" 40 APP1
2X 36", 40" 40 APP2
3X 36", 40" 40 APP3
4X 36", 40" 40 APP4
5X 36", 40" 40 APP5
6X 36", 40" 40 APP6
1X 44" 45 APP1W
2X 44" 45 APP2W
3X 44" 45 APP3W
4X 44" 45 APP4W
5X 44" 45 APP5W
6X 044" 45 APP6W
1X-height: 1X = 1 3/8"
Mounting Hardware Plug-In or Bolt-On Spectra™ADS Switch
Replacement Load Base Kits
Includes load base, clips and lugs.
Replacement
for Load Base Load Base Load Base - Load Base Product
Part Number Ampere Rating No. of Poles Voltage Number
ADS22030HD –– –331A1519G1
ADS32030HD –– –331A1519G2
ADS322060HD –– –331A1519G3
ADS32060HD –– –331A1519G4
ADS26030HD –– –331A1519G5
ADS36030HD –– –331A1519G6
ADS26060HD –– –331A1519G7
ADS36060HD –– –331A1519G8
ADS36200JD –– –331A1519G12
ADS26200JD –– –331A1519G16
ADS36200JM –– –331A1519G20
ADS26200JM –– –331A1519G22
– 100A 2-pole 240V & 600V 331A1519G9
– 100A 3-pole 240V & 600V 331A1519G10
– 100A 3-pole 240V & 600V 331A1519G14
– 100A 2-pole 240V & 600V 331A1519G18
– 200A 3-pole 240V & 600V 331A1519G11
– 200A 2-pole 240V & 600V 331A1519G13
– 200A 2-pole 240V & 600V 331A1519G15
– 200A 2-pole 240V & 600V 331A1519G17
– 200A 3-pole 240V & 600V 331A1519G19
– 200A 2-pole 240V & 600V 331A1519G21
– 400A 2-pole 240V & 600V 331A1545G1
– 400A 3-pole 240V & 600V 331A1545G3
– 400A 2-pole 240V & 600V 331A1545G5
– 400A 3-pole 240V & 600V 331A1545G7
– 600A 2-pole 240V & 600V 331A1545G2
– 600A 3-pole 240V & 600V 331A1545G4
– 600A 2-pole 240V & 600V 331A1545G6
– 600A 3-pole 240V & 600V 331A1545G8
– 400-1200A ––331A1543G1
Renewal Parts
Mounting Hardware
Order from the Customer Service Center
Mounting Hardware Single Breaker Plug-In Spectra™
Included when ordering AMC module. Only required when mount-
ing breaker on existing module.
Kit contains screws and washers to mount one circuit breaker on
AMC circuit breaker mounting module.
Circuit Breaker Mounting Product
Module Part Number Number
AMC6EB AHKE1
AMC4SE
AMC4EB
AMC6EBS
AMC6EL AHKEL1
AMC2FLS AHKF1
AMC6FJ
AMC4FJ
AMC3FJ
AMC2FJ
AMC6FLS
AMC3FLS
AMC4FLS
AMC2GM AHKG1
AMC6GB
AMC4GB
AMC3GM
AMC2JK AHKJ1
AMC6JK
AMC4JK
AMC3JK
AMC3LB AHKLB1
AMC6LB
AMC4QD AHKQ1
AMC6QD
FCS, FCV, FCN, FCH or FCL AHKFD1
FGV, FGN, FGH or FGP AHKFG1
Mounting Hardware—Hardware only; no brackets
or straps Bolt-On Spectra™
Product
Breaker Frame Number
SE AHKBE1
SF AHKBF1
SG AHKBG1
THQD AHKBQ1
FCS, FCV, FCN, FCH or FCL AHKBFD1
FGV, FGN, FGH or FGP AHKBFG1
FB AHKBFB1
Panelboards
Spectra™Series Panelboards
www.geindustrial.com BuyLog™Catalog 11-45
Rev. 11/13
Data subject to change
without notice
Renewal Parts
Main Lug Modules; Neutral and Ground Kits
Plug-In or Bolt-On
Lug Kits and Modules Plug-In Spectra™
—FP suffix indicates all AFPML cover plates included to fit applicable box widths.
—Can be converted to dual main lug version by adding lug kits (see Accessories).
—Mechanical lug modules can be converted to compression lug modules by replacing standard lugs with AMKP compression lug kit
(see Accessories)
—Can be used for feed-thru lugs application by replacing standard cover plate with AFL feed-thru lug cover plate kit (see Accessories).
Lug Ampere Lug X Lugs Wires Wire Range Included Box Width Product
Rating Type Height Per Phase per Lug (Cu/Al) Cover Plate Range Number
250 Mechanical 4X 11 #6-350kcmil AFPML4X 27",36" AML3250SFP1
250 Mechanical 6X 11 #6-350kcmil AFPML6X 36" AML3250FP
400 Mechanical 4X 12 #2-500kcmil AFPML4X 27",36",44" AML3400SFP1
400 Mechanical 6X 12 #2-500kcmil AFPML6X 36",44" AML3400FP
600 Mechanical 4X 12 #2-500kcmil AFPML4X 27",36",44" AML3600SFP1
600 Mechanical 6X 12 #2-500kcmil AFPML6X 36",44" AML3600FP
800 Mechanical 6X 22 #2-500kcmil AFPML6XW 36",44" AML3800FP
1200 Mechanical 6X 22 #2-500kcmil AFPML6XW 36",44" AML3120FP
250 Compression 6X 21 350kcmil AFPML6X 36" AML3250CFP
400 Compression 6X 21 500kcmil AFPML6X 36",44" AML3400CFP
600 Compression 6X 21 500kcmil AFPML6X 36",44" AML3600CFP
800 Compression 6X 41 500kcmil AFPML6XW 36",44" AML3800CFP
1200 Compression 6X 41 500ckmil AFPML6XW 36",44" AML3120CFP
14X modules cannot be converted to compression lug version.
Lug Kits and Modules Plug-In or Bolt-On Spectra™—Neutral
—Includes mechanical lugs and bonding strap.
250 to 600A neutral kits can be converted to dual main version by doubling the main lug quantity using lug kits (see Accessories).
Main lug on neutral kit can be converted to compression main using AMKP lug kit.
Product
Lug Amp Rating No. of Main Lugs No. of Wires Wire Range (Cu/Al) Number
Bolt-On
250/400 Single/Dual 2 (MAIN) #2 - 600kcmil ANKN400
16 #14 - 2/0
5 #6 - 300kcmil
24 #14 - #4
600/800/1200 Single/Dual 8 (MAIN) #2 - 600kcmil ANKN120
9 #14 - 2/0
10 #6 - 300kcmil
10 #14 - #4
Plug-In
800 Dual 8 (MAIN) #2 - 500kcmil ANK800D
8 #14 - 2/0
10 #6 - 300kcmil
4 #2 - 500kcmil
1200 Dual 8 (MAIN) #2 - 500kcmil ANK120D
8 #14 - 2/0
10 #6 - 300kcmil
4 #2 - 500kcmil
For 3ph, 4W single-section panelboards, use a standard neutral.
For 3ph, 4W multi-section panelboards, use a standard neutral on the last section, and a dual main neutral on the first and middle sections.
Lug Kits and Modules Plug-In or Bolt-On Spectra™—Ground
—AEG10 and AEG21 should be ordered in multiples of 10 due to 10 kits per carton bulk-packaging.
—AEG21S and AEG31S are packaged as quantity 1 kit per carton.
Product
Bonding Type Total Circuits No. of Wires Wire Range (Cu/Al) Number
Bonded 10 10 #6-2/0 Cu/AI AEG10
Bonded 21 9 Solid: #14-#8 Cu or #12-#8 AI AEG21
or Stranded: #12-#8 Cu or #12-#8 AI
or Stranded: #10-#4 Cu or #10-#4 AI
Insulated/Isolated 21 9 Solid: #14-#8 Cu or #12-#8 AI AEG21S
or Stranded: #12-#8 Cu or #12-#8 AI
or Stranded: #10-#4 Cu or #10-#4 AI
Insulated/Isolated 31 10 #6-2/0 Cu/AI AEG31S
Panelboards
Spectra™Series Panelboards
www.geindustrial.com Rev. 11/13
Data subject to change
without notice
BuyLog™Catalog
11-46
Section 11
Feed Thru Lug Cover Plate Kits
—Use to convert AML main lug module to feed thru lug module
—Kit includes barrier and oversized cover plates.
(Discard original cover plates.)
Product
Lug Amp Rating X Height Box Width Range Number
250/400/600 9X 27", 36", 44" AFL600
800/1200 12X 36", 44" AFL120
Mechanical Lug Kits and Modules
—Use to convert AML main mechanical lug modules or ANK
neutral modules to dual main lug version.
—Can be used to replace standard lugs with oversized lugs.
Lugs Product
Wire Range (Cu/Al) Per Kit Wires per Lug Number
#6-350kcmil 31AMK350
#2-500kcmil 32AMK500
#2-600kcmil 32AMK600
3/0-750kcmil 32AMK750
Compression Lug Kits
—Use to replace standard load-side mechanical lugs on ADS
branch switches.
—Each kit includes 3 lugs.
Product
Wire Range Lugs Per Phase For Switch Amperes Number
#8-1/0 Cu/AI 1 30, 60, or 100 KLP101
#4-300kcmil Cu/Al 1 200 KLP300
2/0-500kcmil Cu/Al 2, 4 800 or 1200 KLP500
400-500kcmil Cu or 2, 4 800 or 1200 KLP600
400-600kcmil Al
500-750kcmil Cu/Al 2, 4 800 or 1200 KLP750
Merchandise
Renewal Parts
Accessories
Note: This lug furnished with
6 pack kits only. (For dual
main lug conversion)
Note: This lug furnished with
all kits.
Crimp Lugs
Compression Lug Kits and Modules
Use to convert AML main mechanical lug modules to compression
lug version.
Crimp Tool Crimp Tool Crimp Tool
Wire Package Die Cat. Die Cat. Die Cat. Product
Size Type No. Homac No. Burndy No. T&B Number
1/0 3 PACK 15CA52 296 50 AMKP101
1/0 6 PACK 15CA52 296 50 AMKP2101
2/0 3 PACK 15CA52 297 54H AMKP202
2/0 6 PACK 15CA52 297 54H AMKP2202
3/0 3 PACK 15CA66 467 60 AMKP303
3/0 6 PACK 15CA66 467 60 AMKP2303
4/0 3 PACK 15CA71H 298 66 AMKP404
4/0 6 PACK 15CA71H 298 66 AMKP2404
250kcmil 3 PACK 15CA76 324 71H AMKP250
250kcmil 6 PACK 15CA76 324 71H AMKP2250
300kcmil 3 PACK 15CA87H 15C87 470 76 AMKP300
300kcmil 6 PACK 15CA87H 15C87 470 76 AMKP2300
350kcmil 3 PACK 15CA96H 15C96H 299 87H AMKP350
350kcmil 6 PACK 15CA96H 15C96H 299 87H AMKP2350
400kcmil 3 PACK 15CA96H 15C96H 472 94H AMKP400
400kcmil 6 PACK 15CA96H 15C96H 472 94H AMKP2400
500kcmil 3 PACK 15CA106A 15C106R 300 99H AMKP500
500kcmil 6 PACK 15CA106A 15C106R 300 99H AMKP2500
600kcmil 3 PACK 15CA115H 15C115H 473 106H AMKP600
600kcmil 6 PACK 15CA115H 15C115H 473 106H AMKP2600
700/750 3 PACK 15C125H 936 115H AMKP750
kcmil
700/750 6 PACK 15C125H 936 115H AMKP2750
kcmil
Notes: For dual main applications, double the kit quantity.
Permanent Circuit Number Tabs
For Circuit Numbers Product Number
1-49 APN49
1-99 APN99
Panelboards
Spectra™Series Panelboards
www.geindustrial.com BuyLog™Catalog 11-47
Rev. 11/13
Data subject to change
without notice
Section 11
Product Features
—In selecting an interior X-height, add up all required main and
branch module X-heights, plus any required spaces for future.
—UL Service Entrance label is included on all interiors.
Boxes
Panel Current Space X Box Box Product
Rating (amperes) Height Width/Depth Height (inches) Number
250, 400 18 27" W x 14.5" D 64.63 APB2765A
250 28 27" W x 14.5" D 64.63 APB2765C
250, 400, 600 38 27" W x 14.5" D 89.25 APB2789
400 28 27" W x 14.5" D 75.5 APB2775
600 23 27" W x 14.5" D 64.63 APB2765B
250, 400, 600 18, 28 36" W x 11.5" D 64.63 APB3665
400, 800, 1200 28 36" W x 11.5" D 75.5 APB3675
250, 400, 600, 38 36" W x 11.5" D 89.25 APB3689
800, 1200
250, 400, 600, 43,48 36" W x 11.5" D 96.13 APB3696
800, 1200 53
400, 600 18, 23 44" W x 11.5" D 64.63 APB4465
400, 800, 1200 23, 28 44" W x 11.5" D 75.5 APB4475
400, 600, 800, 38 44" W x 11.5" D 89.25 APB4489
1200
400, 600, 800, 43, 48 44" W x 11.5" D 96.13 APB4496
1200
Front w/Door
Panel Current Space X Box Box Product
Rating (amperes) Height Width/Depth Height (inches) Number
250 18 27" W x 14.5" D 64.63 APF6518NS
250 28 27" W x 14.5" D 64.63 APF6528NS
250 38 27" W x 14.5" D 89.25 APF8938NS
400 18 27" W x 14.5" D 64.63 APF6518S
400 28 27" W x 14.5" D 75.5 APF7528S
600 23 27" W x 14.5" D 64.63 APF6523S
600 38 27" W x 14.5" D 89.25 APF8938S
4-pc Fronts
Panel Current Space X Box Box Product
Rating (amperes) Height Width/Depth Height (inches) Number
250 18 36" W x 11.5" D 64.63 APF6518N
250 28 36" W x 11.5" D 64.63 APF6528N
250 38 36" W x 11.5" D 89.25 APF8938N
250 53 36" W x 11.5" D 96.13 APF9653N
400 18 36" W x 11.5" D 64.63 APF6518
400, 800, 1200 28 36" W x 11.5" D 75.5 APF7528
400, 600, 800, 1200 38 36" W x 11.5" D 89.25 APF8938
600 23 36" W x 11.5" D 64.63 APF6523
400, 600, 800, 1200 48 36" W x 11.5" D 96.13 APF9648
800 23 36" W x 11.5" D 75.5 APF7523
800, 1200 43 36" W x 11.5" D 96.13 APF9643
400 18 44" W x 11.5" D 64.63 APF6518W
600 23 44" W x 11.5" D 64.63 APF6523W
800 23 44" W x 11.5" D 75.5 APF7523W
400, 1200 28 44" W x 11.5" D 75.5 APF7528W
400, 600, 800, 1200 38 44" W x 11.5" D 89.25 APF8938W
800, 1200 43 44" W x 11.5" D 96.13 APF9643W
400, 600 48 44" W x 11.5" D 96.13 APF9648W
Interior Aluminum
Panel Current Product
Rating (amperes) Space X Height Number
250 18 APN1802U
250 28 APN2802U
250 38 APN3802U
250 53 APN5302U
400 18 APN1804U
400 28 APN2804U
400 38 APN3804U
400 48 APN4804U
600 23 APN2306U
600 38 APN3806U
600 48 APN4806U
800 23 APN2308U
800 38 APN3808U
800 43 APN4308U
1200 28 APN2812U
1200 38 APN3812U
1200 43 APN4312U
Interior Copper
Panel Current Product
Rating (amperes) Space X Height Number
250 18 APN1802UB4
250 28 APN2802UB4
250 38 APN3802UB4
250 53 APN5302UB4
400 18 APN1804UB4
400 28 APN2804UB4
400 38 APN3804UB4
400 48 APN4804UB4
600 23 APN2306UB4
600 38 APN3806UB4
600 48 APN4806UB4
800 23 APN2308UB4
800 38 APN3808UB4
800 43 APN4308UB4
1200 28 APN2812UB4
1200 38 APN3812UB4
1200 43 APN4312UB4
Merchandise
Renewal Parts
Interiors, Boxes and Fronts
Order from Customer Service Center
Panelboards
Spectra™Series Panelboards
Section 11
www.geindustrial.com Rev. 11/13
Data subject to change
without notice
BuyLog™Catalog
11-48
Boxes
Product
Box Width/Depth X Height Box Height (inches) Number
31"W x 11.5"D 15 49.375 ACB311149
31"W x 11.5"D 18 53.5 ACB311153
31"W x 11.5"D 21 57.625 ACB311157
31"W x 11.5"D 24 61.75 ACB311161
31"W x 11.5"D 27 65.875 ACB311165
31"W x 11.5"D 30 70 ACB311170
31"W x 11.5"D 33 74.125 ACB311174
31"W x 11.5"D 36 78.25 ACB311178
31"W x 11.5"D 39 82.275 ACB311182
31"W x 11.5"D 42 86.5 ACB311186
40"W x 11.5"D 15 49.375 ACB401149
40"W x 11.5"D 18 53.5 ACB401153
40"W x 11.5"D 21 57.625 ACB401157
40"W x 11.5"D 24 61.75 ACB401161
40"W x 11.5"D 27 65.875 ACB401165
40"W x 11.5"D 30 70 ACB401170
40"W x 11.5"D 33 74.125 ACB401174
40"W x 11.5"D 36 78.25 ACB401178
40"W x 11.5"D 39 82.275 ACB401182
40"W x 11.5"D 42 86.5 ACB401186
Box dimensions are inside dimensions. Add 1/4-inch for outside dimensions.
Boxes furnished with no knockouts.
Fronts
Product
Box Width/Depth X Height Box Height (inches) Number
31"W x 11.5"D 15 49.375 ACF3149S
31"W x 11.5"D 18 53.5 ACF3153S
31"W x 11.5"D 21 57.625 ACF3157S
31"W x 11.5"D 24 61.75 ACF3161S
31"W x 11.5"D 27 65.875 ACF3165S
31"W x 11.5"D 30 70 ACF3170S
31"W x 11.5"D 33 74.125 ACF3174S
31"W x 11.5"D 36 78.25 ACF3178S
31"W x 11.5"D 39 82.275 ACF3182S
31"W x 11.5"D 42 86.5 ACF3186S
40"W x 11.5"D 15 49.375 ACF4049S
40"W x 11.5"D 18 53.5 ACF4053S
40"W x 11.5"D 21 57.625 ACF4057S
40"W x 11.5"D 24 61.75 ACF4061S
40"W x 11.5"D 27 65.875 ACF4065S
40"W x 11.5"D 30 70 ACF4070S
40"W x 11.5"D 33 74.125 ACF4074S
40"W x 11.5"D 36 78.25 ACF4078S
40"W x 11.5"D 39 82.275 ACF4082S
40"W x 11.5"D 42 86.5 ACF4086S
Flush fronts (F) are 2 inches larger than box. Surface fronts (S) are 1/4-inch larger
than box.
Note: If filler plates for SCP+ panels are required, please contact
Houston equipment plant.
Note: THLC 1/2/4 breaker no longer available.
Type SCP Plus
Renewal Parts
Enclosure Options, Mounting Hardware and Spare Parts
Order through the Customer Service Center unless stated otherwise below.
Mounting Hardware—Hardware Kit and Straps
Maximum Breaker
Mounting Breaker Breaker Number Product
Arrangement Frame Amperage of Poles Number
Dual Mounted SHE, SEL, 150A ACTMKSE
SED, SEP
Dual Mounted TEB, TED, THED 150A single-pole ACTMKEB1P
Dual Mounted TEB, TED, THED 150A two-pole ACTMKEB2P
Dual Mounted TEB, TED, THED 150A three-pole ACTMKEB3P
Dual Mounted TFK, SFH, 250A ACTMKSF
SFL, SFP
Dual Mounted TQD, THQD 225A two-pole ACTMKQD2P
Dual Mounted TQD, THQD 225A three-pole ACTMKQD3P
Dual Mounted TJD, TJJ, TJK 400A ACTMKJD
Dual Mounted SGD, SGH, 400A, 600A ACTMKSG
SGL, SGP
Single Mounted SGD, SGH, 400A, 800A ACSMKSG
SGL, SGP
Single Mounted SKH, SKL 800A, 1200A ACSMKSK
Single Mounted TB4 400A ACSMKTB4
Single Mounted TB6 600A ACSMKTB6
Single Mounted TB8 800A ACSMKTB8
Mounting Hardware—Filler Plate and Filler Hardware
Maximum Breaker
Mounting Breaker Breaker Number Product
Arrangement Frame Amperage of Poles Number
Dual Mounted SHE, SEL, 150A ACTFPKSE
SED, SEP
Dual Mounted TEB, TED, THED 150A single-pole ACTFPKEB1P
Dual Mounted TEB, TED, THED 150A two-pole ACTFPKEB2P
Dual Mounted TEB, TED, THED 150A three-pole ACTFPKEB3P
Dual Mounted TFK, SFH, 250A ACTFPKSF
SFL, SFP
Dual Mounted TQD, THQD 225A two-pole ACTFPKQD2P
Dual Mounted TQD, THQD 225A three-pole ACTFPKQD3P
Dual Mounted TJD, TJJ, TJK 400A ACTFPKJD
Dual Mounted SGD, SGH, 400A, 600A ACTFPKSG
SGL, SGP
Single Mounted SGD, SGH, 400A, 800A ACSFPKSG
SGL, SGP
Single Mounted SKH, SKL 800A, 1200A ACSFPKSK
Single Mounted TB4 400A ACSFPKTB4
Mounting Hardware—Hardware to Mount One Breaker
Maximum Breaker
Mounting Breaker Breaker Number Product
Arrangement Frame Amperage of Poles Number
Dual Mounted SHE, SEL, 150A ACTHKSE
SED, SEP
Dual Mounted TEB, TED, THED 150A single-pole ACTHKEB1P
Dual Mounted TEB, TED, THED 150A two-pole ACTHKEB2P
Dual Mounted TEB, TED, THED 150A three-pole ACTHKEB3P
Dual Mounted TFK, SFH, 250A ACTHKSF
SFL, SFP
Dual Mounted TQD, THQD 225A two-pole ACTHKQD2P
Dual Mounted TQD, THQD 225A three-pole ACTHKQD3P
Dual Mounted TJD, TJJ, TJK 400A ACTHKJD
Dual Mounted SGD, SGH, 400A, 600A ACTHKSG
SGL, SGP
Single Mounted SGD, SGH, 400A, 800A ACSHKSG
SGL, SGP
Single Mounted SKH, SKL 800A, 1200A ACSHKSK
Single Mounted TB4 400A ACSHKTB4
Panelboards
Spectra™Series Panelboards
www.geindustrial.com BuyLog™Catalog 11-49
Rev. 11/13
Data subject to change
without notice
Section 11
Mounting Hardware—Copper Straps for Use on Cu or Al
Main Bus Dual Mounted
Product
Breaker Frame Kit Ampere Rating Number
TEB/TED 150A TED1DPK
TFJ/TFK/TFL 225A TF2DPK
TQD 225A TQ2DPK
TJD/TJJ/TJK 400A TJ4DPK
TJK 600A TJ6DPK
TLB1/THLC1 150A THLC1DPK
TEL 150A TEL1DPK
TB1 150A TB1DPK
SFH/SFL 225A SF2DPK1,2
1If mounting hardware exists – must order SFCARE for additional insulators.
2225A Maximum
Mounting Hardware—Copper Straps for Use on Cu or Al
Main Bus Single Mounted
Product
Breaker Frame Kit Ampere Rating Number
TKM8/THKM8 800A TK8SPK3
TB1 100A TB1SPK3
TB6 600A TB6SPK3
TB8 800A TB8SPK3
TKM12/THKM12 1200A TK12SPK3,4
SKH8 800A SK8SPK3
SKH12 1200A SK12SPK3
3Deep mounted interior is required.
4Requires 7x of space if mounted at extreme end (top or bottom) of interior or 8x if
mounted in center of interior.
Device and Hardware Suffix Selection
Device Type
Panelboard Twin (Double) TQD, TED,
Lighting Type Mount Single Mount Panel Subfeed
CCB/QMR DPK SPK —
Switchboards DPK SPK —
To ensure a unit shipment, you must order using the device
product number plus suffix; orders for the device and kit as
separate items will ship as separate items.
Power
Renewal Parts
Type CCB and QMR Panelboards
Order through the Customer Service Center unless stated otherwise below.
Panelboards
Spectra™Series Panelboards
www.geindustrial.com Rev. 11/13
Data subject to change
without notice
BuyLog™Catalog
11-50
Section 11
Replacement Panelboard CCB Front (Flush or Surface)
Box Height Product
Box Width/Depth X Height (inches) Number1
31" Wide x 9 1/2" 15X 49 CBA3121S,F
Deep Box (No Knockouts)
31" Wide x 9 1/2" 18X 53 1/2 CBA3124S,F
Deep Box (No Knockouts)
31" Wide x 9 1/2" 21X 57 5/8 CBA3127S,F
Deep Box (No Knockouts)
31" Wide x 9 1/2" 24X 61 3/4 CBA3130S,F
Deep Box (No Knockouts)
31" Wide x 9 1/2" 30X 70 CBA3136S,F
Deep Box (No Knockouts)
31" Wide x 9 1/2" 42X 86 1/2 CBA3148S,F
Deep Box (No Knockouts)
35" Wide x 11 1/2" 36X 78 1/4 CBA3542S,F
Deep Box (No Knockouts)
40" Wide x 11 1/2" 21X 57 5/8 CBA4027S,F
Deep Box (No Knockouts)
40" Wide x 11 1/2" 24X 61 3/4 CBA4030S,F
Deep Box (No Knockouts)
40" Wide x 11 1/2" 30X 70 CBA4036S,F
Deep Box (No Knockouts)
40" Wide x 11 1/2" 33X 74 1/8 CBA4039S,F
Deep Box (No Knockouts)
40" Wide x 11 1/2" 36X 78 1/4 CBA4042S,F
Deep Box (No Knockouts)
40" Wide x 11 1/2" 39X 82 3/8 CBA4045S,F
Deep Box (No Knockouts)
1Flush fronts (F) are 2 inches larger than box. Surface fronts (S) are 1/4-inch larger
than box.
Replacement Panelboard CCB Box
Product
Box Width/Depth X Height Box Height (inches) Number
31" Wide x 9 1/2" 15X 49 DASW3121
Deep Box (No Knockouts)
31" Wide x 9 1/2" 21X 57 5/8 DASW3127
Deep Box (No Knockouts)
31" Wide x 9 1/2" 24X 61 3/4 DASW3130
Deep Box (No Knockouts)
31" Wide x 9 1/2" 27X 65 7/8 DASW3133
Deep Box (No Knockouts)
31" Wide x 9 1/2" 30X 70 DASW3136
Deep Box (No Knockouts)
31" Wide x 9 1/2" 36X 78 1/4 DASW3142
Deep Box (No Knockouts)
35" Wide x 11 1/2" 33X 74 1/8 DACB3539
Deep Box (No Knockouts)
35" Wide x 11 1/2" 39X 82 3/8 DACB3545
Deep Box (No Knockouts)
40" Wide x 11 1/2" 21X 57 5/8 DACB4027
Deep Box (No Knockouts)
40" Wide x 11 1/2" 24X 61 3/4 DACB4030
Deep Box (No Knockouts)
40" Wide x 11 1/2" 27X 65 7/8 DACB4033
Deep Box (No Knockouts)
40" Wide x 11 1/2" 30X 70 DACB4036
Deep Box (No Knockouts)
40" Wide x 11 1/2" 33X 74 1/8 DACB4039
Deep Box (No Knockouts)
40" Wide x 11 1/2" 36X 78 1/4 DACB4042
Deep Box (No Knockouts)
40" Wide x 11 1/2" 39X 82 3/8 DACB4045
Deep Box (No Knockouts)
40" Wide x 11 1/2" 42X 86 1/2 DACB4048
Deep Box (No Knockouts)
Note: Box dimensions are inside dimensions. Add 1/4-inch for outside dimensions.
Boxes furnished without knockouts as standard.
Filler Plates
Product
Panel Type X Height Number
QMR 1X QMRFP1
QMR 2X QMRFP2
QMR 5X QMRFP5
QMR 3X 75C145005G703
CCB 1X CCBFP1
CCB 3X CCBFP3
CCB 5X CCBFP5
CCB 2X 75C145005G711
CCB 6X 75C145005G715
SCP+ 1X SCPFP1
SCP+ 2X SCPFP2
SCP+ 3X SCPFP3
SCP+ 5X SCPFP5
(Order from Local Sales Office or Equipment Plant)
Power
Renewal Parts
Type CCB and QMR Panelboards
Order through the Customer Service Center unless stated otherwise below.
11-50
Panelboards
Spectra™Series Panelboards
www.geindustrial.com BuyLog™Catalog 11-51
Rev. 11/13
Data subject to change
without notice
Section 11
QMR Mounting Hardware Kits Are Copper for Use with
Cu or Al Main Bus Dual Mounted
Product
Breaker Frame Kit Ampere Rating Voltage Number
THFP 30-60A 240 & 600V THFP62DPK
THFP 100A 600V THFP63DPKJ
THFP 100A 240 & 600V THFP63DPK
THFP 100-30/60 600V THFP63DPKC
Note: QMR Power Panelboards 600V, 100A double branch units require a minimum
width of 40". 600V, 30A and 60A double branch, and 240V, 30A, 60A and 100A
single and double branch units can be built in a 35" wide enclosure.
QMR Mounting Hardware Kits Are Copper for Use with
Cu or Al Main Bus Single Mounted
Product
Breaker Frame Kit Ampere Rating Voltage Number
THFP 30/60A 240V THFP22SPK
THFP 30/60/100A 240V & 600V THFP62SPK
THFP 100A 600V THFP63SPK
THFP 200A 240 & 600V THFP64SPK
THFP 400A 240 & 600V THFP65SPK
THFP 600A 240 & 600V THFP66SPK
THFP 1200A 240 & 600V THFP67SPK
Note: QMR Power Panelboards 600V, 100A double branch units require a minimum
width of 40". 600V, 30A and 60A double branch, and 240V, 30A, 60A and 100A
single and double branch units can be built in a 35" wide enclosure.
Maximum Horsepower Ratings QMR Fusible Switch
Vac Vdc
Rating in 2-Pole 3-Pole 2-Pole 3-Pole
Amperes3120 240 480 600 240 480 600 125 250
With Standard and Fuses (Class H)
30 1/2 1 1/2 33 3 57 1/2 25
60 1 1/2 3510 7 1/2 15 15 5 10
100 — 7 1/2 10 15 15 25 30 — 20
200 — 15 25 30 25 50 60 — 40
400 —— —— 50 100 125 ——
600 —— —— 75 150 200 ——
With “Time-delay” Fuses (Class H)
30 2510 15 10 20 20 3—
60 3 10 20 25 20 40 50 5—
100 — 15 30 40 30 60 75 ——
200 — 30 50 50 60 125 150 ——
400 —— ——125 250 350 ——
600 —— ——200 400 500 ——
3Ratings are based on latest revision of the National Electric Code Article 430.
Horsepower ratings for switches with standard class H fuses are based on
one-time fuses having minimum time-delay.
When time-delay fuses are used the horsepower ratings are maximum for the
switches.
QMR Fusible Switch Terminations4
Switch Wire Range Wires Lugs
Amperes Voltage (Cu/Al) per Lug per Phase
30 250/600 #14-10 11
60 250/600 #14-2 11
100 250/600 #10-1/0 11
200 250/600 #6-250kcmil or 11
2(I/O-250kcmil)
400 250/600 #6-250kcmil or 11
2(I/O-250kcmil)
600 250/600 250-350kcmil Cu or 22
350-500kcmil Al
800 250/600 #4-600kcmil 14
1000 250/600 #4-600kcmil 14
4For optional lugs refer to GEH-460B
Panelboards
Spectra™Series Panelboards
Power
Renewal Parts
Type CCB and QMR Panelboards
Order through the Customer Service Center unless stated otherwise below.
QMR Fusible Switch 240V1, 2
Switch Number Product
Amps of Poles Description Number
30 3 Left Hand Unit THFP321L
30 3 Right Hand Unit - 3X THFP321X
60 3 Right Hand Unit THFP322
60 3 Left Hand Unit THFP322L
60 3 Right Hand Unit - 3X THFP322X
60 3 Left Hand Unit - 3X THFP322XL
100 3 Right Hand Unit THFP323
100 3 Left Hand Unit THFP323L
200 3 Center Mount THFP324
400 3 Center Mount THFP325
600 3 Center Mount THFP326
1Limited availability. Obsolete when inventory depleted.
2Switch and mounting hardware kit must be ordered separately
QMR Fusible Switch 600V1, 2
Switch Number Product
Amps of Poles Description Number
30 3 Right Hand Unit THFP361
30 3 Left Hand Unit THFP361L
60 3 Right Hand Unit THFP362
60 3 Left Hand Unit THFP362L
100 3 Right Hand Unit THFP363
100 3 Left Hand Unit THFP363L
200 3 Center Mount THFP364
400 3 Center Mount THFP365
600 3 Center Mount THFP366
800 3 Center Mount THFP367
1200 3 Center Mount THFP368
Available Publications
Spectra™Series Power Panels Plug-In and Bolt-On
TKM, THKM, TK4V, TKL4V, SKHA, SKLA, SKPA GEH-5623
TJK, TJD, TJJ, THJK, TJ4V, THJ4V, TJL4V GEH-5624
TEB, TED, THED, TEL, SEDA, SEHA, SELA, SEPA GEH-5625
TFJ, TFK, THFK, TFL, SFHA, SFLA, SEPA GEH-5626
TQD, THQD GEH-5643
THLC1 GEH-5644
SGDA, SGHA, SGLA, SGPA (3 pole) GEH-5673
SGDA, SGHA, SGLA, SGPA (2 pole) GEH-5674
THLC2, THLC4, TLB4 (3 pole) GEH-5675
THLC2, THLC4, TLB4 (2 pole) GEH-5676
TEY, THQB, THHQB GEH-5677
TQD, THQD, SE TEB, TED, THED, THLC1, SF, TFJ, TFK, THFK, SG,
TJK, THJK, TJD, TJJ, THLC2, THLC4 GEH-5913
Type AML Main Lug Kits GEH-5588
Type AML Feed Thru Main Lug Kits GEH-5630
Fuse Pullers DEH-034
Class R Fuse Rejector Kit GEH-4616
R Fuse Rejection Pin, 400-600 Ampere Switch Units GEH-5577
Lug Kits into GE Type ADS Switches GEH-5944
Alternate Lugs, 30-1200 Ampere Fusible Switch Units GEJ-3050
30/60 Ampere Expansion Kit GEH-5547
60A, 100A Expansion Kits for Type ADS Fusible Switch Units GEH-5581
200 Ampere Expansion Kit (J, T Fuses) GEH-5582
200 Ampere Expansion Kit (H, K, R Fuses) GEH-5889
Handle Replacement: 400-1200 Ampere Switches GEH-5553
Load Base Replacement for Type ADS 400-600 Ampere Switches GEH-5576
Typical - Fusible Mains and Feeders DE-166
Technical Data, Spectra Series Panelboards - Pressure Locked
Connectors DE-168
Installing Fusible Switch Expansion Kits
Miscellaneous
Handle and Load Base Replacements on Fusible Switches
Circuit Breaker Mounting Instructions (Modules)
Circuit Breaker Mounting Hardware Kits
Installing Lugs
Installing Fusible Switches
Spectra™Series Plug-In (Only)
TKM, THKM, TK4V, TKL4V, SKHA, SKLA, SKPA GEH-5623
TJK, TJD, TJJ, THJK, TJ4V, THJ4V, TJL4V GEH-5624
TEB, TED, THED, TEL, SEDA, SEHA, SELA, SEPA GEH-5625
TFJ, TFK, THFK, TFL, SFHA, SFLA, SEPA GEH-5626
TQD, THQD GEH-5643
SGDA, SGHA, SGLA, SGPA (3 pole) GEH-5673
SGDA, SGHA, SGLA, SGPA (2 pole) GEH-5674
THLC2, THLC4, TLB4 (3 pole) GEH-5675
TQD, THQD, SE TEB, TED, THED, THLC1, SF, TFJ, TFK, THFK, SG,
TJK, THJK, TJD, TJJ, THLC2, THLC4 GEH-5913
Type AML Main Lug Kits GEH-5588
Type AML Feed Thru Main Lug Kits GEH-5630
Circuit Breaker Mounting Instructions (Modules)
Circuit Breaker Mounting Hardware Kits
Installing Lugs
Spectra™Series Plug-In (Only) (continued)
Fuse Pullers DEH-034
Class R Fuse Rejector Kit GEH-4616
R Fuse Rejection Pin, 400-600 Ampere Switch Units GEH-5577
Lug Kits into GE Type ADS Switches GEH-5944
Alternate Lugs, 30-1200 Ampere Fusible Switch Units GEJ-3050
30/60 Ampere Expansion Kit GEH-5547
60A, 100A Expansion Kits for Type ADS Fusible Switch Units GEH-5581
200 Ampere Expansion Kit (J, T Fuses) GEH-5582
200 Ampere Expansion Kit (H, K, R Fuses) GEH-5889
Handle Replacement: 400-1200 Ampere Switches GEH-5553
Load Base Replacement for Type ADS 400-600 Ampere Switches GEH-5576
Typical - Fusible Mains and Feeders DE-166
Technical Data, Spectra Series Panelboards - Pressure Locked
Connectors DE-168
Installing Fusible Switch Expansion Kits
Miscellaneous
Handle and Load Base Replacements on Fusible Switches
Installing Fusible Switches
Spectra™Series Bolt-On (Only)
TEB, TED, THED, SED, SEH, SEL, SEP DEH-047
SGH, SFL, SFP DEH-059
SGH, SGL, SGP DEH-060
SKH, SKL, SKP, TKM, THKM DEH-061
TEY DEH-062
TQD, THQD DEH-065
Circuit Breaker Mounting Instructions (Straps)
A-Series™Panelboards
Lighting Panel Rating Labels DEH-40007
GE Panelboards DEA-185
Stainless Steel Enclosures DET-386
AD Plus Lighting Panelboards DEP-131
UL Recognized Series Connected Ratings DET-008
A-Series™Lighting Control Panel
Lighting Control Panel Catalog/Selection Guide DEA-388
Fact Sheet DET-398
Pro-Stock Panelboard
Selection and Pricing Guide DEP-104A
Fact Sheet DET-233
Product Summary DEE-240
Initial Stock Order Form DEZ-176
Branch Breaker Recommended Stock List DEE-241
Pro-Stock Literature Order Form DEZ-178
Sell Sheet DEA-232
New Product Commercialization Summary DEE-240
Q & A DEQ-068
Section 11
www.geindustrial.com Rev. 11/13
Data subject to change
without notice
BuyLog™Catalog
11-52
Panelboards
Spectra™Series Panelboards
