www.geindustrial.com BuyLog™Catalog 10-1
Dry Type Transformers
Rev. 11/13
Data subject to change
without notice
Section 10
General Information
Types QB, QMS, QL and TransforMore™........................................10-2
General Purpose
Single-Phase TP-1, Aluminum............................................................10-4
Single-Phase TP-1, Copper..................................................................10-5
Three-Phase TP-1, Aluminum ............................................................10-6
Three-Phase TP-1, Copper...................................................................10-9
K-Factor
Three-Phase TP-1, Aluminum..........................................................10-10
Three-Phase TP-1, Copper................................................................10-14
K-Factor Low Noise
Three-Phase TP-1, Aluminum..........................................................10-18
Three-Phase TP-1, Copper................................................................10-20
Low Noise
Three-Phase TP-1, Aluminum..........................................................10-22
Three-Phase TP-1, Copper................................................................10-23
Noise Isolation – Guard I
Three-Phase TP-1, Aluminum..........................................................10-24
Three-Phase TP-1, Copper................................................................10-25
Noise Isolation – Guard II .......................................................10-26
Three-Phase TP-1, Aluminum..........................................................10-27
Three-Phase TP-1, Copper................................................................10-28
Harmonic Mitigating – Guard III
Three-Phase TP-1, Copper................................................................10-29
Ultra Energy Efficient
Three-Phase CSL-3, NEMA Premium™, Copper .......................10-30
K-Factor, Three-Phase NEMA Premium™, Copper..................10-31
Harmonic Mitigating,
Three-Phase NEMA Premium™, Copper...................................10-32
Servicenter Mini-Unit Substations –
Integral Transformer and Distribution Center...................10-33
Single-Phase and Three-Phase ......................................................10-34
Outlines, Dimensions, Wiring Diagrams.....................................10-35
Totally Enclosed, Nonventilated – TENV ..............................10-36
Aluminum and Copper .......................................................................10-37
Midtapped
Aluminum..................................................................................................10-38
Copper........................................................................................................10-39
Drive Isolation
Three-Phase.............................................................................................10-40
Accessories and Lugs ..............................................................10-42
Enclosure Parts.........................................................................10-44
Wiring Diagrams ......................................................................10-45
Dimensions................................................................................10-46
General Purpose Transformers in Enclosures
Single-Phase............................................................................................10-47
Buck-Boost Encapsulated Transformers .............................10-50
Selection Tables.....................................................................................10-53
Connection Diagrams .........................................................................10-60
Open Core and Coil Transformers ........................................10-61
Machine Tool Applications................................................................10-62
Control........................................................................................................10-63
Options and Fusing Guide ................................................................10-65
Wiring Diagrams ...................................................................................10-66
Outlines and Dimensions ..................................................................10-67
CE-Rated....................................................................................................10-68
—Find What You Need Faster - Page headings and table for-
matmake product selection easier.
—Easy Cross Reference -Frame sizelisted with each model
number. Useframe size tocross-reference dimensions,
enclosure parts, andaccessories.
For more information on these products, order publications listed
in Section 27.
www.geindustrial.com Rev. 11/13
Data subject to change
without notice
BuyLog™Catalog
10-2
Dry Type Transformers
General Information
Section 10
Types QB, QMS, QL, and TransforMore™
600 Volts and Below
General Information
The complete family of transformers from GE provide quiet,
reliable transformer operation.
All of the dry-type transformers through 1,000 kVA are UL listed
under the requirements of Standard 5085 and 1561. In addition,
each transformer meets the requirements of NEMA ST-20, 1992.
Type IP, QB and QMS models are C-UL listed.
General-purpose transformers are rated 600 Volts and below for
supplying appliance, lighting, and power loads from electrical
distribution systems. Standard distribution voltages are 600, 480,
and 240 Volts; standard load voltages are 480, 240, 208, and 120
Volts. The transformer is used to obtain the load voltage from the
distribution voltage. Since no vaults are required for installation,
these transformers can be located right at the load to provide
the correct voltage for the application. This eliminates the need
for long, costly, low-voltage feeders.
Construction
Types QB and QMS
Core and coils are contained within a NEMA 3R nonventilated
weatherproof enclosure. Type QB and QMS units feature
encapsulated core and coils.
Type QL
Units are enclosed in a NEMA 2 drip-proof metal enclosure with
natural-draft ventilation. Core-and-coil assembly is mounted on
rubber isolation pads to reduce noise. Weathershield kits are
available for conversion to a NEMA 3R enclosure suitable for
outdoor service. NEMA 3R stainless steel (Type 316) enclosure is
available up to 150kVA. To specify a stainless steel enclosure,
substitute an “S” in the fifth character in the GE product number.
Example: 9T83B3874 changes to 9T83S3874. All QL model
product numbers begin with 9T6, 9T7, 9T8, or 9T9.
TransforMore™
Units utilize fan assisted cooling to achieve reduced size and
improved efficiency. These units incorporate an audible alarm
and shunt activated disconnect switch for improved safety.
Weathershields are available to convert to NEMA 3R enclosure
for outdoor service. All TransforMore™model product numbers
begin with 9T4.
Voltage Tap Arrangement
Transformer taps compensate for high or low line voltages.
Standard NEMA, ANSI three-phase taps are two 5 percent taps
below normal on transformers smaller than 30 kVA. This arrange-
ment provides a 10 percent range of tap voltage adjustment.
Most standard QL units rated 15 through 300 kVA have available
six universal voltage taps—four 2 1/2 percent below normal, and
two 2 1/2 percent above normal. This arrangement provides a 15
percent range of tap voltage adjustment.
Temperature Class
Industry standards classify insulation systems in accordance with
the rating system shown below.
Insulation System Classification
Ambient + Winding Rise + Hot Spot = Temp. Class
40°C 55°C 10°C 105°C
40°C 80°C 30°C 150°C
40°C 115°C 25°C 180°C
40°C 150°C 30°C 220°C
All standard, general-purpose, GE transformers meet all applicable
NEMA, ANSI, UL, and IEEE standards.
The design life of transformers having different insulation systems
is the same, since the allowable temperature rise of an insulation
material system is predicated on a specified life for all insulation.
The lower temperature systems are designed for the same life as
higher temperature systems.
Sound Levels
All general-purpose transformers are as quiet, or quieter than
required by NEMA ST-20. Average sound levels are warranted not
to exceed the values listed for each load rating shown in the
adjacent table. Sound characteristics vary between transformers
of identical voltage and kVA rating. The range of variation may be
4 to 8 decibels.
These values apply only to specified test conditions because the
characteristic of the
installation can cause them to be higher
under operating conditions. Where acoustical noise is deemed to
be of unusual concern, proper steps should be taken during
installation to minimize audible noise transmission.
TransforMore™sound levels are ≤67dB and meet specs in the table
below when the fans are off and the transformer is operating at less
than 50% rated load.
Sound Levels (Decibels)1for 150°C Rise Models
kVA Sound Levels
0 - 9 40
10 - 50 45
51 - 150 50
151 - 300 55
301 - 500 60
1Measured per NEMA ST-20.
Dry Type Transformers
General Information
Section 10
Type QB, .050 kVA-3 kVA, Single-Phase
Type QMS, 5 kVA-25 kVA, Single-Phase
Type QL, 15 kVA-250 kVA, Single-Phase, TP-1
15 kVA-750 kVA, Three-Phase, TP-1
TransforMore™, 150 kVA-1000 kVA, Three-Phase, TP-1
Types QB, QMS, QL, and TransforMore™
600 Volts and Below
Termination
Improved termination spacing and wiring compartment room
gives greater flexibility in selecting various UL listed connectors
for either copper or aluminum cable.
Product Number Selection Instructions
1. Establish phase and frequency
2. Determine the primary voltage—the voltage presently available
3. Determine the secondary voltage—the voltage needed at
the load
4. Determine the kVA load, allowing room for expansion
5. Using the facts determined in the four steps, locate the
transformer model in the listings on the following pages.
www.geindustrial.com BuyLog™Catalog 10-3
Rev. 11/13
Data subject to change
without notice
www.geindustrial.com
10-4
Aluminum
Single-Phase TP-1
150°C Rise NEMA 2
Input Output Wiring Approx. Net Frame Product
Voltage Voltage kVA Taps Diagram No.1Weight (Lbs) Size Number
240 x 480 Volts 120/240 Volts 15 (+2, -4 2.5%) 23 320 YF171 9T83B2670
240 x 480 Volts 120/240 Volts 25 (+2, -4 2.5%) 23 320 YF171 9T83B2671
240 x 480 Volts 120/240 Volts 37.5 (+2, -4 2.5%) 23 320 YF171 9T83B2672
240 x 480 Volts 120/240 Volts 50 (+2, -4 2.5%) 23 400 YF172 9T83B2673
240 x 480 Volts 120/240 Volts 75 (+2, -4 2.5%) 23 510 YF174 9T83B2674
240 x 480 Volts 120/240 Volts 100 (+2, -4 2.5%) 23 900 YF175 9T83B2675
240 x 480 Volts 120/240 Volts 167 (+2, -4 2.5%) 23 1360 YF176 9T83B2676
240 x 480 Volts 120/240 Volts 250 (+2, -4 2.5%) 23 1700 YF177 9T83B2677
115°C Rise NEMA 2
Input Output Wiring Approx. Net Frame Product
Voltage Voltage kVA Taps Diagram No.1Weight (Lbs) Size Number
240 x 480 Volts 120/240 Volts 15 (+2, -4 2.5%) 23 320 YF171 9T83B2670G15
240 x 480 Volts 120/240 Volts 25 (+2, -4 2.5%) 23 320 YF171 9T83B2671G15
240 x 480 Volts 120/240 Volts 37.5 (+2, -4 2.5%) 23 400 YF172 9T83B2672G15
240 x 480 Volts 120/240 Volts 50 (+2, -4 2.5%) 23 500 YF173 9T83B2673G15
240 x 480 Volts 120/240 Volts 75 (+2, -4 2.5%) 23 510 YF174 9T83B2674G15
240 x 480 Volts 120/240 Volts 100 (+2, -4 2.5%) 23 900 YF175 9T83B2675G15
240 x 480 Volts 120/240 Volts 167 (+2, -4 2.5%) 23 1360 YF176 9T83B2676G15
80°C Rise NEMA 2
Input Output Wiring Approx. Net Frame Product
Voltage Voltage kVA Taps Diagram No.1Weight (Lbs) Size Number
240 x 480 Volts 120/240 Volts 15 (+2, -4 2.5%) 23 320 YF171 9T83B2670G80
240 x 480 Volts 120/240 Volts 25 (+2, -4 2.5%) 23 320 YF171 9T83B2671G80
240 x 480 Volts 120/240 Volts 37.5 (+2, -4 2.5%) 23 400 YF172 9T83B2672G80
240 x 480 Volts 120/240 Volts 50 (+2, -4 2.5%) 23 510 YF174 9T83B2673G80
240 x 480 Volts 120/240 Volts 75 (+2, -4 2.5%) 23 900 YF175 9T83B2674G80
240 x 480 Volts 120/240 Volts 100 (+2, -4 2.5%) 23 1360 YF176 9T83B2675G80
240 x 480 Volts 120/240 Volts 167 (+2, -4 2.5%) 23 1700 YF177 9T83B2676G80

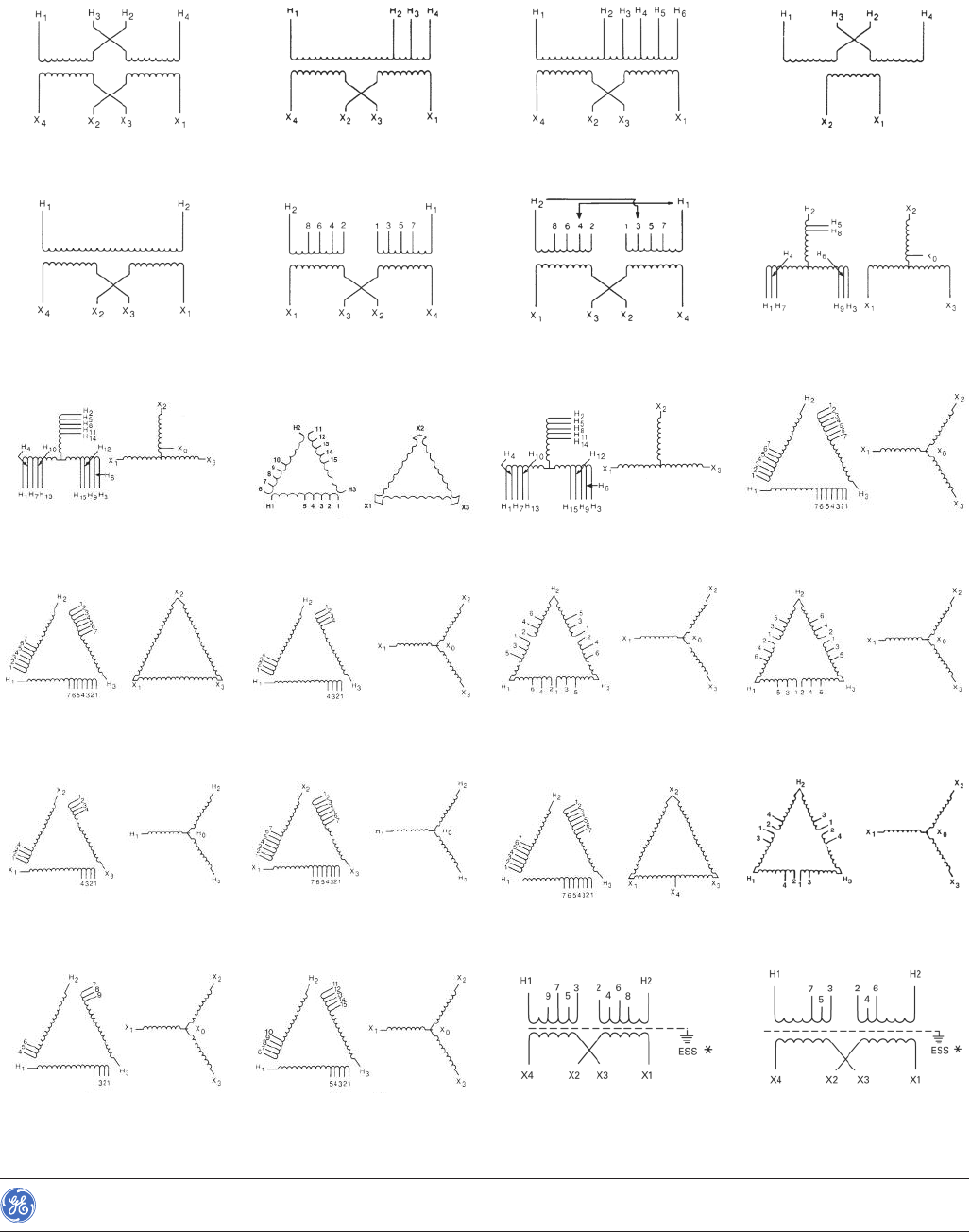

1See page 10-45 for wiring diagrams.
Rev. 11/13
Data subject to change
without notice
BuyLog™Catalog
Section 10
Dry Type Transformers
General Purpose
www.geindustrial.com 10-5
Copper
Single-Phase TP-1
150°C Rise NEMA 2
Input Output Wiring Approx. Net Frame Product
Voltage Voltage kVA Taps Diagram No.1Weight (Lbs) Size Number
240 x 480 Volts 120/240 Volts 15 (+2, -4 2.5%) 23 350 YF171 9T83C2570
240 x 480 Volts 120/240 Volts 25 (+2, -4 2.5%) 23 350 YF171 9T83C2571
240 x 480 Volts 120/240 Volts 37.5 (+2, -4 2.5%) 23 500 YF172 9T83C2572
240 x 480 Volts 120/240 Volts 50 (+2, -4 2.5%) 23 520 YF173 9T83C2573
240 x 480 Volts 120/240 Volts 75 (+2, -4 2.5%) 23 635 YF174 9T83C2574
240 x 480 Volts 120/240 Volts 100 (+2, -4 2.5%) 23 1050 YF175 9T83C2575
240 x 480 Volts 120/240 Volts 167 (+2, -4 2.5%) 23 1675 YF176 9T83C2576
115°C Rise NEMA 2
Input Output Wiring Approx. Net Frame Product
Voltage Voltage kVA Taps Diagram No.1Weight (Lbs) Size Number
240 x 480 Volts 120/240 Volts 15 (+2, -4 2.5%) 23 350 YF171 9T83C2570G15
240 x 480 Volts 120/240 Volts 25 (+2, -4 2.5%) 23 350 YF171 9T83C2571G15
240 x 480 Volts 120/240 Volts 37.5 (+2, -4 2.5%) 23 500 YF172 9T83C2572G15
240 x 480 Volts 120/240 Volts 50 (+2, -4 2.5%) 23 520 YF173 9T83C2573G15
240 x 480 Volts 120/240 Volts 75 (+2, -4 2.5%) 23 635 YF174 9T83C2574G15
240 x 480 Volts 120/240 Volts 100 (+2, -4 2.5%) 23 1050 YF175 9T83C2575G15
240 x 480 Volts 120/240 Volts 167 (+2, -4 2.5%) 23 1675 YF176 9T83C2576G15
80°C Rise NEMA 2
Input Output Wiring Approx. Net Frame Product
Voltage Voltage kVA Taps Diagram No.1Weight (Lbs) Size Number
240 x 480 Volts 120/240 Volts 15 (+2, -4 2.5%) 23 350 YF171 9T83C2570G80
240 x 480 Volts 120/240 Volts 25 (+2, -4 2.5%) 23 350 YF171 9T83C2571G80
240 x 480 Volts 120/240 Volts 37.5 (+2, -4 2.5%) 23 500 YF172 9T83C2572G80
240 x 480 Volts 120/240 Volts 50 (+2, -4 2.5%) 23 635 YF174 9T83C2573G80
240 x 480 Volts 120/240 Volts 75 (+2, -4 2.5%) 23 1050 YF175 9T83C2574G80
240 x 480 Volts 120/240 Volts 100 (+2, -4 2.5%) 23 1675 YF176 9T83C2575G80
240 x 480 Volts 120/240 Volts 167 (+2, -4 2.5%) 23 1960 YF177 9T83C2576G80
1See page 10-45 for wiring diagrams.
BuyLog™Catalog
Rev. 11/13
Data subject to change
without notice
Section 10
Dry Type Transformers
General Purpose
www.geindustrial.com
10-6
Aluminum
Three-Phase TP-1
Advantages
—Quiet performance
—No-weld design – an industry first
—Comprehensive factory testing assures quality
—Easy, fast installation saves time
—Clear, comprehensive documentation and labeling
enhance safety
Key Features
—Unique core and coil design makes QL transformers among the
quietest available
—Core and coil assemblies are mounted on rubber isolation pads
to reduce noise
—Bolted coil terminations are more reliable than welded termina-
tions, and they eliminate weld failures and problems associated
with welding and weld splatter
—Single-piece front/back is easily removable for service
—Accessible mounting flanges with front/back slotted mounting
holes make installation easier
—100% factory tested for shorts and coil integrity, current and
loss, voltage, impedance and noise.
—NEMA 2 powder-coat drip-proof enclosure is standard.
Weathershield kit is available for conversion to NEMA 3R
outdoor.
—NEMA 3R stainless steel enclosure is available up to 150kVA.
To specify a stainless steel enclosure, substitute an “S” in the
fifth character in the GE catalog number.
Example: 9T83B3874 changes to 9T83S3874.
Motors XX X
Incandescent Lighting XX X
Resistance Heating XX X
Motor Generators (without solid state drives) XX X
HID Lighting X
Induction Heaters X
Welders X
UPS with optional input filtering X
PLC & Solid state controls X
Multiple receptacle circuits in heath care facilities X
UPS without optional input filtering X
Production or assembly line equipment X
Schools & Classroom facilities X
Surge Supression X
Office Buildings XXX X
SCR Variable Speed Drives XX
Circuits with exclusive data processing equipment XX XX
Critical Care facilities XX XX
Hospital Operating Rooms XX XX
X-ray equipment XX XX
Computer Installations XX XX
Programmable Controllers XX XX
Instrumentation XX XX
AC or DC Variable Speed Drives X
Rectifier outputs X
Temporary Power X
Airborne contamins or dust-laden environments (indoor and outdoor) X
Corrosive environments including water/wastewater and salt spray X
Standard
Guard I
Guard II
Guard III
K -Factor (K=4)
K -Factor (K=13)
K -Factor (K=20)
K -Factor (K=30)
DIT
Service Center
TENV
Stainless Steel
(type 316) Enclosure
—Seismic qualified to the requirements of ASCE 7.05,
IEEE-693-2005 and IBC-2006
—Copper or aluminum windings
—Copper ground strap
—Robust packaging with top and side protection protects against
shipping damage
Applications
—Commercial
—Industrial
—Motors
—Incandescent lighting
—Resistance heating
—Motor generators (without solid state drives)

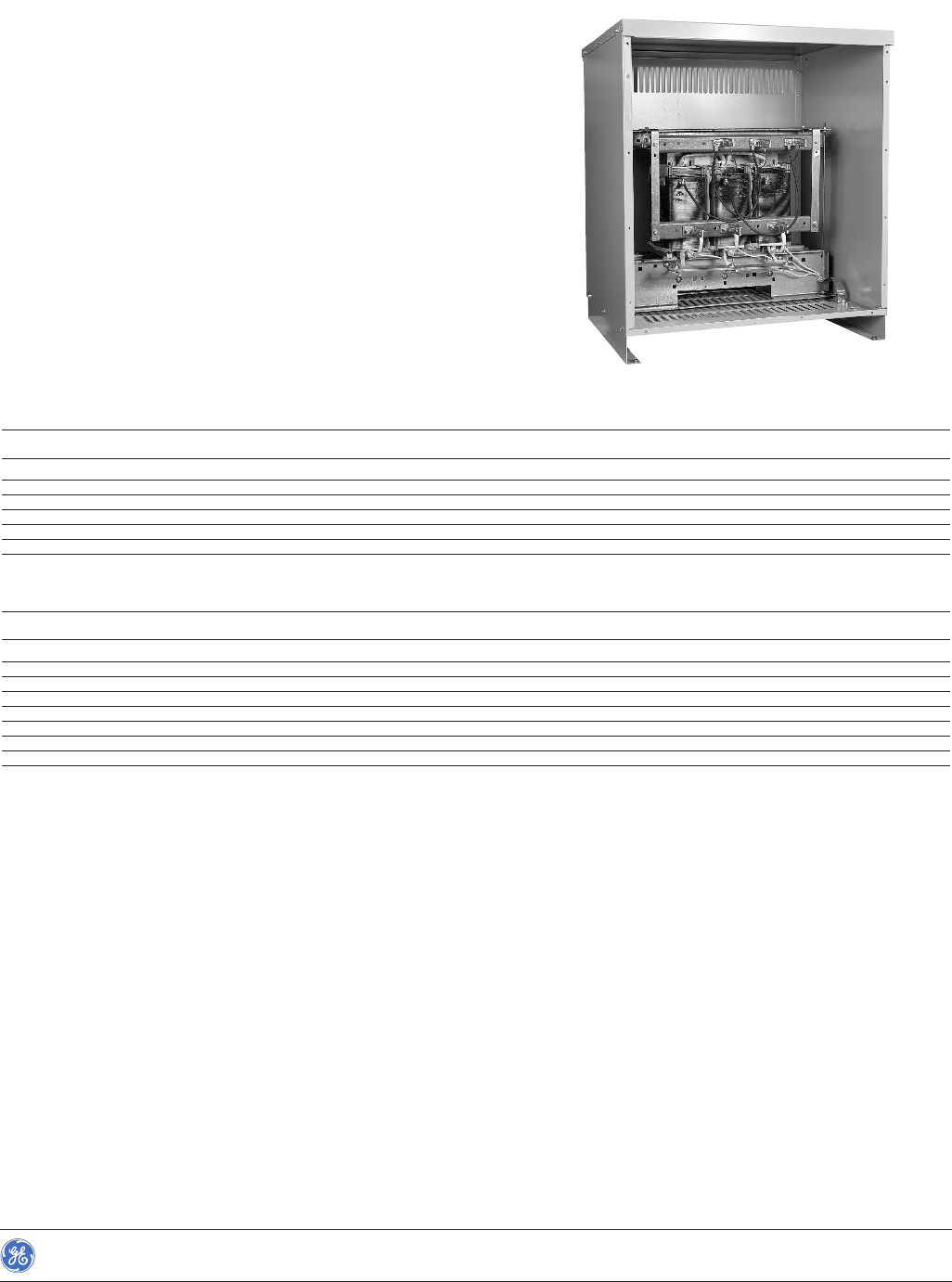

Type QL Transformer
Transformer Selection Guide
Rev. 11/13
Data subject to change
without notice
BuyLog™Catalog
Section 10
Dry Type Transformers
General Purpose
www.geindustrial.com 10-7
Aluminum
Three-Phase TP-1

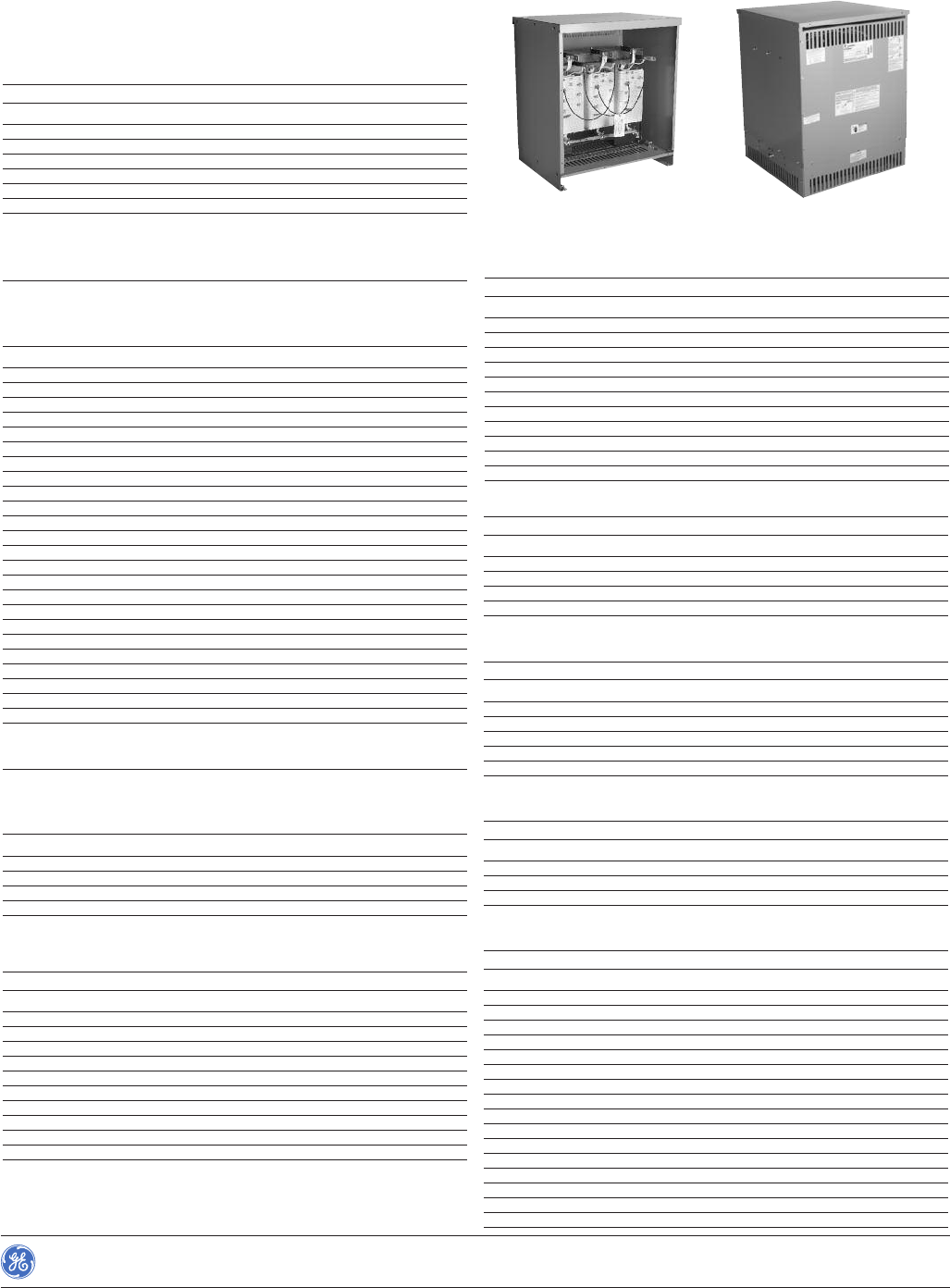

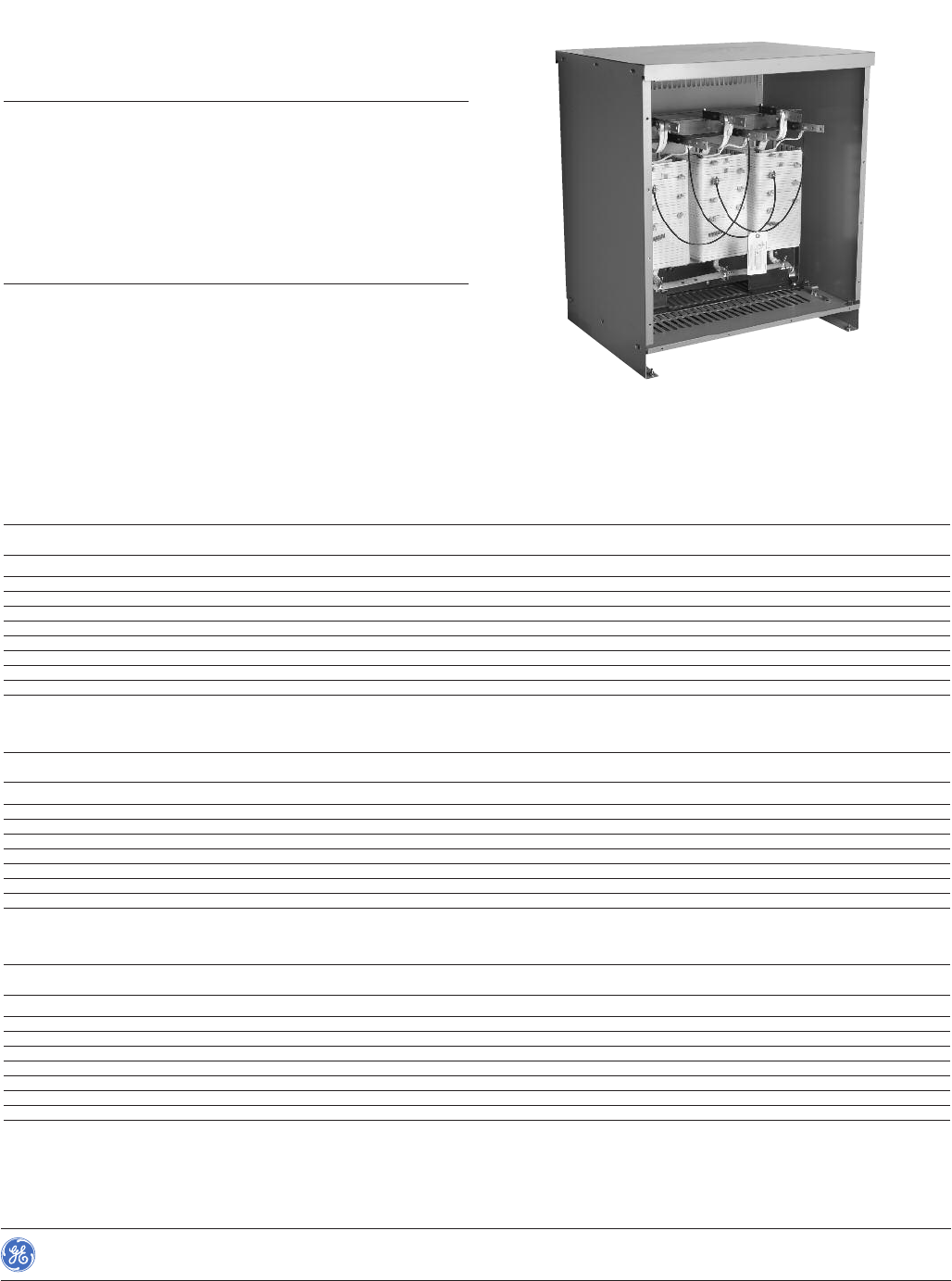

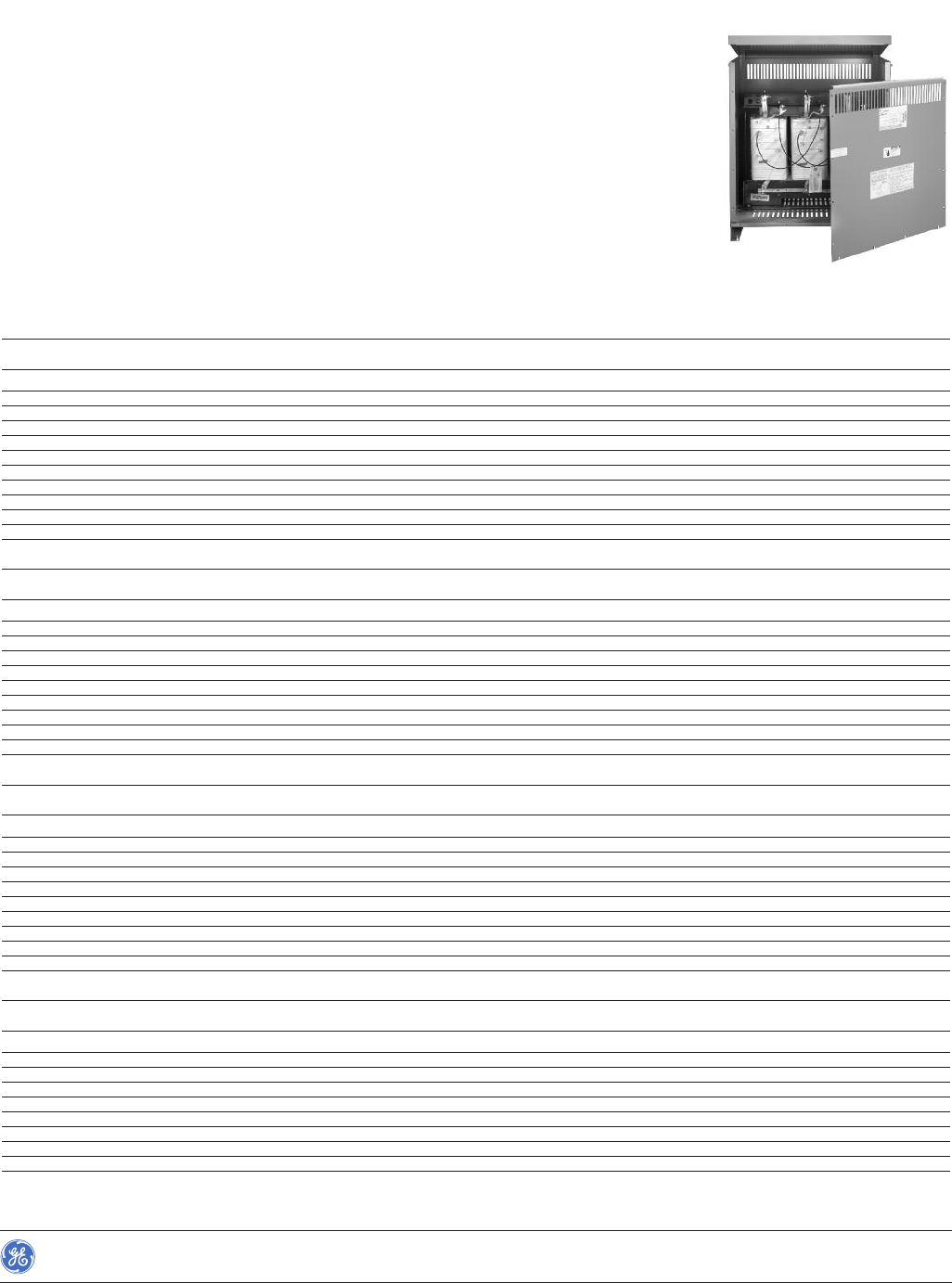

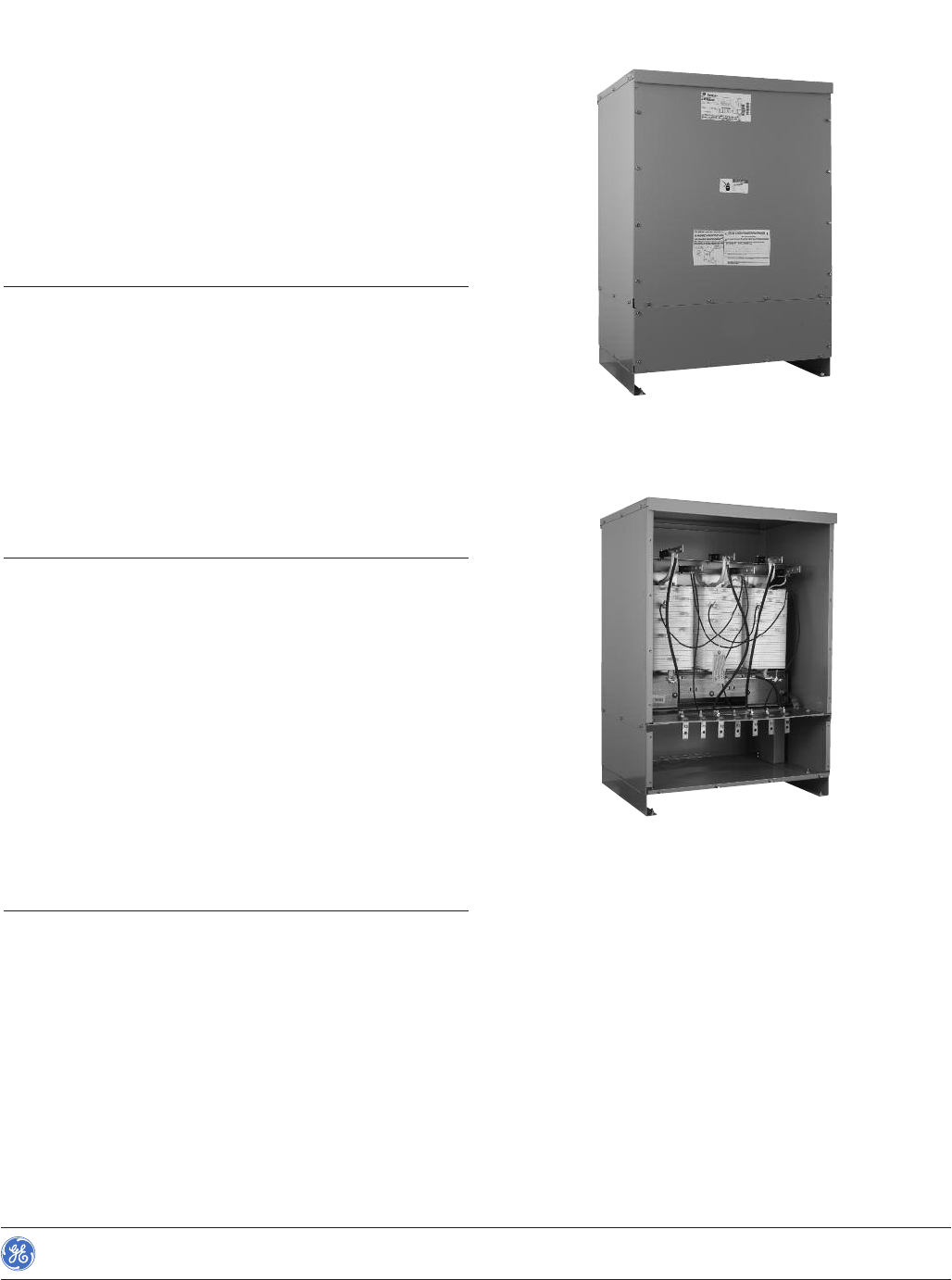

Type QL Transformer
(Front Panel Removed)
150°C Rise NEMA 2
Input Output Wiring Approx. Net Frame Product
Voltage Voltage kVA Taps Diagram No.1Weight (Lbs) Size Number
480 Volts 208Y/120 V 15 (+2, -4 2.5%) 12 240 Y371A 9T83B3871
480 Volts 208Y/120 V 30 (+2, -4 2.5%) 12 334 Y372A 9T83B3872
480 Volts 208Y/120 V 45 (+2, -4 2.5%) 12 415 Y373A 9T83B3873
480 Volts 208Y/120 V 75 (+2, -4 2.5%) 12 620 Y374A 9T83B3874
480 Volts 208Y/120 V 112.5 (+2, -4 2.5%) 12 765 XV375 9T83B3875
480 Volts 208Y/120 V 150 (+2, -4 2.5%) 12 1070 XV376 9T83B3876
480 Volts 208Y/120 V 225 (+2, -4 2.5%) 12 1210 L37AA 9T83B3877
480 Volts 208Y/120 V 300 (+2, -4 2.5%) 12 1470 L38AA 9T83B3878
480 Volts 208Y/120 V 500 (+2, -2 2.5%) 12 3400 L39AA 9T83B3879
480 Volts 208Y/120 V 750 (+2, -2 2.5%) 12 4000 L47AA 9T83B3867
480 Volts 208Y/120 V 1000 (+2, -2 2.5%) 12 3250 FC68 9T40G0011
115°C Rise NEMA 2
Input Output Wiring Approx. Net Frame Product
Voltage Voltage kVA Taps Diagram No.1Weight (Lbs) Size Number
480 Volts 208Y/120 V 15 (+2, -4 2.5%) 12 240 Y371A 9T83B3871G15
480 Volts 208Y/120 V 30 (+2, -4 2.5%) 12 334 XV372 9T83B3872G15
480 Volts 208Y/120 V 45 (+2, -4 2.5%) 12 415 XV373 9T83B3873G15
480 Volts 208Y/120 V 75 (+2, -4 2.5%) 12 620 XV374 9T83B3874G15
480 Volts 208Y/120 V 112.5 (+2, -4 2.5%) 12 1070 XV376 9T83B3875G15
480 Volts 208Y/120 V 150 (+2, -4 2.5%) 12 1210 L37AA 9T83B3876G15
480 Volts 208Y/120 V 225 (+2, -4 2.5%) 12 1470 L38AA 9T83B3877G15
480 Volts 208Y/120 V 300 (+2, -4 2.5%) 12 3400 L39AA 9T83B3878G15
480 Volts 208Y/120 V 500 (+2, -2 2.5%) 12 3250 FC67 9T40G0009G51
480 Volts 208Y/120 V 750 (+2, -2 2.5%) 12 3250 FC68 9T40G0010G51
80°C Rise NEMA 2
Input Output Wiring Approx. Net Frame Product
Voltage Voltage kVA Taps Diagram No.1Weight (Lbs) Size Number
480 Volts 208Y/120 V 15 (+2, -4 2.5%) 12 334 XV372 9T83B3871G80
480 Volts 208Y/120 V 30 (+2, -4 2.5%) 12 415 XV373 9T83B3872G80
480 Volts 208Y/120 V 45 (+2, -4 2.5%) 12 620 Y374A 9T83B3873G80
480 Volts 208Y/120 V 75 (+2, -4 2.5%) 12 765 XV375 9T83B3874G80
480 Volts 208Y/120 V 112.5 (+2, -4 2.5%) 12 1070 XV376 9T83B3875G80
480 Volts 208Y/120 V 150 (+2, -4 2.5%) 12 1210 L37AA 9T83B3876G80
480 Volts 208Y/120 V 225 (+2, -4 2.5%) 12 1470 L38AA 9T83B3877G80
480 Volts 208Y/120 V 300 (+2, -4 2.5%) 12 3400 L39AA 9T83B3878G80
480 Volts 208Y/120 V 500 (+2, -2 2.5%) 12 3250 FC67 9T40G0009G81
480 Volts 208Y/120 V 750 (+2, -2 2.5%) 12 3250 FC68 9T40G0010G81
150°C Rise NEMA 2
Input Output Wiring Approx. Net Frame Product
Voltage Voltage kVA Taps Diagram No.1Weight (Lbs) Size Number
208 Volts 208Y/120 V 15 (+2, -4 2.5%) 12 240 XV371 9T83B3091
208 Volts 208Y/120 V 30 (+2, -4 2.5%) 12 334 XV372 9T83B3092
208 Volts 208Y/120 V 45 (+2, -4 2.5%) 12 415 XV373 9T83B3093
208 Volts 208Y/120 V 75 (+2, -4 2.5%) 12 620 XV374 9T83B3094
208 Volts 208Y/120 V 112.5 (+2, -4 2.5%) 12 765 XV375 9T83B3095
208 Volts 208Y/120 V 150 (+2, -4 2.5%) 12 1070 XV376 9T83B3096
208 Volts 208Y/120 V 225 (+2, -4 2.5%) 12 1590 FC79 9T83B3097
208 Volts 208Y/120 V 300 (+2, -4 2.5%) 12 1820 YF378 9T83B3098
208 Volts 208Y/120 V 500 (+2, -2 2.5%) 12 3400 YF379 9T83B3099
1See page 10-45 for wiring diagrams.
Note: Product numbers beginning with 9T4 have fan-assisted cooling.
BuyLog™Catalog
Rev. 11/13
Data subject to change
without notice
Section 10
Dry Type Transformers
General Purpose
Dry Type Transformers
General Purpose
www.geindustrial.com
10-8
Aluminum
Three-Phase TP-1
150°C Rise NEMA 2
Input Output Wiring Approx. Net Frame Product
Voltage Voltage kVA Taps Diagram No.1Weight (Lbs) Size Number
208 Volts 480Y/277 V 15 (+2, -4 2.5%) 12 240 XV371 9T83B3801
208 Volts 480Y/277 V 30 (+2, -4 2.5%) 12 334 XV372 9T83B3802
208 Volts 480Y/277 V 45 (+2, -4 2.5%) 12 415 XV373 9T83B3803
208 Volts 480Y/277 V 75 (+2, -4 2.5%) 12 620 XV374 9T83B3804
208 Volts 480Y/277 V 112.5 (+2, -4 2.5%) 12 765 XV375 9T83B3805
208 Volts 480Y/277 V 150 (+2, -4 2.5%) 12 1070 XV376 9T83B3806
208 Volts 480Y/277 V 225 (+2, -4 2.5%) 12 1590 XV377 9T83B3807
208 Volts 480Y/277 V 300 (+2, -4 2.5%) 12 1820 YF378 9T83B3808
208 Volts 480Y/277 V 500 (+2, -2 2.5%) 12 3400 YF379 9T83B3809
150°C Rise NEMA 2
Input Output Wiring Approx. Net Frame Product
Voltage Voltage kVA Taps Diagram No.1Weight (Lbs) Size Number
240 Volts 208Y/120 V 15 (+2, -4 2.5%) 12 240 XV371 9T83B3811
240 Volts 208Y/120 V 30 (+2, -4 2.5%) 12 334 XV372 9T83B3812
240 Volts 208Y/120 V 45 (+2, -4 2.5%) 12 415 XV373 9T83B3813
240 Volts 208Y/120 V 75 (+2, -4 2.5%) 12 620 XV374 9T83B3814
240 Volts 208Y/120 V 112.5 (+2, -4 2.5%) 12 765 XV375 9T83B3815
240 Volts 208Y/120 V 150 (+2, -4 2.5%) 12 1070 XV376 9T83B3816
240 Volts 208Y/120 V 225 (+2, -4 2.5%) 12 1590 XV377 9T83B3817
240 Volts 208Y/120 V 300 (+2, -4 2.5%) 12 1820 YF378 9T83B3818
240 Volts 208Y/120 V 500 (+2, -2 2.5%) 12 3400 YF379 9T83B3819
150°C Rise NEMA 2
Input Output Wiring Approx. Net Frame Product
Voltage Voltage kVA Taps Diagram No.1Weight (Lbs) Size Number
240 Volts 480Y/277 V 15 (+2, -4 2.5%) 12 240 XV371 9T83B3051
240 Volts 480Y/277 V 30 (+2, -4 2.5%) 12 334 XV372 9T83B3052
240 Volts 480Y/277 V 45 (+2, -4 2.5%) 12 415 XV373 9T83B3053
240 Volts 480Y/277 V 75 (+2, -4 2.5%) 12 620 XV374 9T83B3054
240 Volts 480Y/277 V 112.5 (+2, -4 2.5%) 12 765 XV375 9T83B3055
240 Volts 480Y/277 V 150 (+2, -4 2.5%) 12 1070 XV376 9T83B3056
240 Volts 480Y/277 V 225 (+2, -4 2.5%) 12 1590 XV377 9T83B3057
240 Volts 480Y/277 V 300 (+2, -4 2.5%) 12 1820 YF378 9T83B3058
240 Volts 480Y/277 V 500 (+2, -2 2.5%) 12 3400 YF379 9T83B3059
150°C Rise NEMA 2
Input Output Wiring Approx. Net Frame Product
Voltage Voltage kVA Taps Diagram No.1Weight (Lbs) Size Number
480 Volts 240/120 V 15 (+2, -4 2.5%) 19 240 XV371 9T83B3841
480 Volts 240/120 V 30 (+2, -4 2.5%) 19 334 XV372 9T83B3842
480 Volts 240/120 V 45 (+2, -4 2.5%) 19 415 XV373 9T83B3843
480 Volts 240/120 V 75 (+2, -4 2.5%) 19 620 XV374 9T83B3844
480 Volts 240/120 V 112.5 (+2, -4 2.5%) 19 765 XV375 9T83B3845
480 Volts 240/120 V 150 (+2, -4 2.5%) 19 1070 XV376 9T83B3846
480 Volts 240/120 V 225 (+2, -4 2.5%) 19 1590 XV377 9T83B3847
480 Volts 240/120 V 300 (+2, -4 2.5%) 19 1820 YF378 9T83B3848
480 Volts 240/120 V 500 (+2, -2 2.5%) 19 3400 YF379 9T83B3849
150°C Rise NEMA 2
Input Output Wiring Approx. Net Frame Product
Voltage Voltage kVA Taps Diagram No.1Weight (Lbs) Size Number
480 Volts 480Y/277 V 15 (+2, -4 2.5%) 12 240 XV371 9T83B3851
480 Volts 480Y/277 V 30 (+2, -4 2.5%) 12 334 XV372 9T83B3852
480 Volts 480Y/277 V 45 (+2, -4 2.5%) 12 415 XV373 9T83B3853
480 Volts 480Y/277 V 75 (+2, -4 2.5%) 12 620 XV374 9T83B3854
480 Volts 480Y/277 V 112.5 (+2, -4 2.5%) 12 765 XV375 9T83B3855
480 Volts 480Y/277 V 150 (+2, -4 2.5%) 12 1070 XV376 9T83B3856
480 Volts 480Y/277 V 225 (+2, -4 2.5%) 12 1590 XV377 9T83B3857
480 Volts 480Y/277 V 300 (+2, -4 2.5%) 12 1820 YF378 9T83B3858
480 Volts 480Y/277 V 500 (+2, -2 2.5%) 12 3400 YF379 9T83B3859
480 Volts 480Y/277 V 750 (+2, -2 2.5%) 12 3250 FC67 9T40G0410
1See page 10-45 for wiring diagrams.
BuyLog™Catalog
Section 10
Rev. 11/13
Data subject to change
without notice
www.geindustrial.com 10-9
Dry Type Transformers
General Purpose
Copper
Three-Phase TP-1
150°C Rise NEMA 2
Input Output Wiring Approx. Net Frame Product
Voltage Voltage kVA Taps Diagram No.1Weight (Lbs) Size Number
480 Volts 240 V 15 (+2, -4 2.5%) 13 240 XV371 9T83B3881
480 Volts 240 V 30 (+2, -4 2.5%) 13 334 XV372 9T83B3882
480 Volts 240 V 45 (+2, -4 2.5%) 13 415 XV373 9T83B3883
480 Volts 240 V 75 (+2, -4 2.5%) 13 620 XV374 9T83B3884
480 Volts 240 V 112.5 (+2, -4 2.5%) 13 765 XV375 9T83B3885
480 Volts 240 V 150 (+2, -4 2.5%) 13 1070 XV376 9T83B3886
480 Volts 240 V 225 (+2, -4 2.5%) 13 1590 XV377 9T83B3887
480 Volts 240 V 300 (+2, -4 2.5%) 13 1820 YF378 9T83B3888
480 Volts 240 V 500 (+2, -2 2.5%) 13 3400 YF379 9T83B3889
150°C Rise NEMA 2
Input Output Wiring Approx. Net Frame Product
Voltage Voltage kVA Taps Diagram No.1Weight (Lbs) Size Number
600 Volts 208Y/120 V 15 (+2, -4 2.5%) 12 240 XV371 9T83B3891
600 Volts 208Y/120 V 30 (+2, -4 2.5%) 12 334 XV372 9T83B3892
600 Volts 208Y/120 V 45 (+2, -4 2.5%) 12 415 XV373 9T83B3893
600 Volts 208Y/120 V 75 (+2, -4 2.5%) 12 620 XV374 9T83B3894
600 Volts 208Y/120 V 112.5 (+2, -4 2.5%) 12 765 XV375 9T83B3895
600 Volts 208Y/120 V 150 (+2, -4 2.5%) 12 1070 XV376 9T83B3896
600 Volts 208Y/120 V 225 (+2, -4 2.5%) 12 1590 XV377 9T83B3897
600 Volts 208Y/120 V 300 (+2, -4 2.5%) 12 1820 YF378 9T83B3898
600 Volts 208Y/120 V 500 (+2, -2 2.5%) 12 3400 YF379 9T83B3899
150°C Rise NEMA 2
Input Output Wiring Approx. Net Frame Product
Voltage Voltage kVA Taps Diagram No.1Weight (Lbs) Size Number
480 Volts 208Y/120 V 15 (+2, -4 2.5%) 12 250 Y371C 9T83C9871
480 Volts 208Y/120 V 30 (+2, -4 2.5%) 12 377 Y372C 9T83C9872
480 Volts 208Y/120 V 45 (+2, -4 2.5%) 12 490 Y373C 9T83C9873
480 Volts 208Y/120 V 75 (+2, -4 2.5%) 12 710 Y374C 9T83C9874
480 Volts 208Y/120 V 112.5 (+2, -4 2.5%) 12 949 Y375C 9T83C9875
480 Volts 208Y/120 V 150 (+2, -4 2.5%) 12 1190 Y376C 9T83C9876
480 Volts 208Y/120 V 225 (+2, -4 2.5%) 12 1400 L37AA 9T83C9877
480 Volts 208Y/120 V 300 (+2, -4 2.5%) 12 2480 L38AA 9T83C9878
480 Volts 208Y/120 V 500 (+2, -2 2.5%) 12 4050 L39AA 9T83C9879
480 Volts 208Y/120 V 750 (+2, -2 2.5%) 12 4030 FC67 9T45G0010
480 Volts 208Y/120 V 1000 (+2, -2 2.5%) 12 4030 FC68 9T45G0011
115°C Rise NEMA 2
Input Output Wiring Approx. Net Frame Product
Voltage Voltage kVA Taps Diagram No.1Weight (Lbs) Size Number
480 Volts 208Y/120 V 15 (+2, -4 2.5%) 12 250 XV371 9T83C9871G15
480 Volts 208Y/120 V 30 (+2, -4 2.5%) 12 377 XV372 9T83C9872G15
480 Volts 208Y/120 V 45 (+2, -4 2.5%) 12 490 XV373 9T83C9873G15
480 Volts 208Y/120 V 75 (+2, -4 2.5%) 12 710 XV374 9T83C9874G15
480 Volts 208Y/120 V 112.5 (+2, -4 2.5%) 12 949 XV375 9T83C9875G15
480 Volts 208Y/120 V 150 (+2, -4 2.5%) 12 1400 L37AA 9T83C9876G15
480 Volts 208Y/120 V 225 (+2, -4 2.5%) 12 2480 L38AA 9T83C9877G15
480 Volts 208Y/120 V 300 (+2, -4 2.5%) 12 4050 L39AA 9T83C9878G15
480 Volts 208Y/120 V 750 (+2, -2 2.5%) 12 4030 FC67 9T45G0010G51
80°C Rise NEMA 2
Input Output Wiring Approx. Net Frame Product
Voltage Voltage kVA Taps Diagram No.1Weight (Lbs) Size Number
480 Volts 208Y/120 V 15 (+2, -4 2.5%) 12 377 XV372 9T83C9871G80
480 Volts 208Y/120 V 30 (+2, -4 2.5%) 12 490 XV373 9T83C9872G80
480 Volts 208Y/120 V 45 (+2, -4 2.5%) 12 710 XV374 9T83C9873G80
480 Volts 208Y/120 V 75 (+2, -4 2.5%) 12 949 XV375 9T83C9874G80
480 Volts 208Y/120 V 112.5 (+2, -4 2.5%) 12 1190 XV376 9T83C9875G80
480 Volts 208Y/120 V 150 (+2, -4 2.5%) 12 1400 L37AA 9T83C9876G80
480 Volts 208Y/120 V 225 (+2, -4 2.5%) 12 2480 L38AA 9T83C9877G80
480 Volts 208Y/120 V 300 (+2, -4 2.5%) 12 4050 L39AA 9T83C9878G80
480 Volts 208Y/120 V 500 (+2, -2 2.5%) 12 4030 FC67 9T45G0009G81
480 Volts 208Y/120 V 750 (+2, -2 2.5%) 12 4030 FC68 9T45G0010G81
1See page 10-45 for wiring diagrams.
BuyLog™Catalog
Rev. 11/13
Data subject to change
without notice
Section 10
www.geindustrial.com
10-10
Dry Type Transformers
K-Factor
Aluminum
Three-Phase TP-1
Product Description
These type QL transformers have passed the UL K-factor testing
program. K-factor is a standardized way to indicate the ability of
a transformer to withstand harmonics. These units shall not
exceed rated winding temperature rise at full load and rated K-
factor. Neutrals are capable of handling 200% of rated secondary
phase current.
Full-width copper electrostatic shielding is standard on all GE
K-factor rated transformers. Effective coupling capacitance is
30 pf. Common mode noise attenuation averages 120 dB, and
transverse mode noise attenuation averages 30 dB.
Application
For commercial applications with significance nonlinear electron-
ic loading, use K=4 for systems with 50% connected nonlinear
electronic loads; K=13 for systems with 100% connected nonlin-
ear
electronic loads.
Higher K-factor rated units are available for unique applications.
K=4 150°C Rise NEMA 2
Input Output Wiring Approx. Net Frame Product
Voltage Voltage kVA Taps Diagram No.1Weight (Lbs) Size Number
480 Volts Delta 208Y/120 Volts 15 (+2, -4 2.5%) 12 240 XV371 9T83B3461G03
480 Volts Delta 208Y/120 Volts 30 (+2, -4 2.5%) 12 334 XK372 9T83B3462G03
480 Volts Delta 208Y/120 Volts 45 (+2, -4 2.5%) 12 620 XV374 9T83B3463G03
480 Volts Delta 208Y/120 Volts 75 (+2, -4 2.5%) 12 765 XV375 9T83B3464G03
480 Volts Delta 208Y/120 Volts 112.5 (+2, -4 2.5%) 12 1070 XV376 9T83B3465G03
480 Volts Delta 208Y/120 Volts 150 (+2, -4 2.5%) 12 1590 XV377 9T83B3466G03
480 Volts Delta 208Y/120 Volts 225 (+2, -4 2.5%) 12 1470 L38AA 9T64B3877G03
480 Volts Delta 208Y/120 Volts 300 (+2, -4 2.5%) 12 3400 YF379 9T64B3878G03
480 Volts Delta 208Y/120 Volts 500 (+2, -2 2.5%) 12 3250 FC68 9T44G0009G03
480 Volts Delta 208Y/120 Volts 750 (+2, -2 2.5%) 12 3250 FC68 9T44G0010G03
K=4 115°C Rise NEMA 2
Input Output Wiring Approx. Net Frame Product
Voltage Voltage kVA Taps Diagram No.1Weight (Lbs) Size Number
480 Volts Delta 208Y/120 Volts 15 (+2, -4 2.5%) 12 240 XV371 9T83B3461G13
480 Volts Delta 208Y/120 Volts 30 (+2, -4 2.5%) 12 415 XV373 9T83B3462G13
480 Volts Delta 208Y/120 Volts 45 (+2, -4 2.5%) 12 620 XV374 9T83B3463G13
480 Volts Delta 208Y/120 Volts 75 (+2, -4 2.5%) 12 765 XV375 9T83B3464G13
480 Volts Delta 208Y/120 Volts 112.5 (+2, -4 2.5%) 12 1070 XV376 9T83B3465G13
480 Volts Delta 208Y/120 Volts 150 (+2, -4 2.5%) 12 1470 L38AA 9T64B3876G13
480 Volts Delta 208Y/120 Volts 225 (+2, -4 2.5%) 12 3400 YF379 9T64B3877G13
480 Volts Delta 208Y/120 Volts 300 (+2, -4 2.5%) 12 3400 YF379 9T64B3878G13
480 Volts Delta 208Y/120 Volts 500 (+2, -2 2.5%) 12 3250 FC68 9T44G0009G53
K=4 80°C Rise NEMA 2
Input Output Wiring Approx. Net Frame Product
Voltage Voltage kVA Taps Diagram No.1Weight (Lbs) Size Number
480 Volts Delta 208Y/120 Volts 15 (+2, -4 2.5%) 12 334 XV372 9T64B3871G83
480 Volts Delta 208Y/120 Volts 30 (+2, -4 2.5%) 12 415 XV373 9T83B3462G83
480 Volts Delta 208Y/120 Volts 45 (+2, -4 2.5%) 12 620 XV374 9T83B3463G83
480 Volts Delta 208Y/120 Volts 75 (+2, -4 2.5%) 12 1070 XV376 9T64B3874G83
480 Volts Delta 208Y/120 Volts 112.5 (+2, -4 2.5%) 12 1590 XV377 9T64B3875G83
480 Volts Delta 208Y/120 Volts 150 (+2, -4 2.5%) 12 1470 L38AA 9T64B3876G83
480 Volts Delta 208Y/120 Volts 225 (+2, -4 2.5%) 12 1020 FC78 9T44G0007G83
480 Volts Delta 208Y/120 Volts 300 (+2, -4 2.5%) 12 1590 FC79 9T44G0008G83
480 Volts Delta 208Y/120 Volts 500 (+2, -2 2.5%) 12 3250 FC68 9T44G0009G83
1See page 10-45 for wiring diagrams.
Note: Product numbers beginning with 9T4 have fan-assisted cooling.

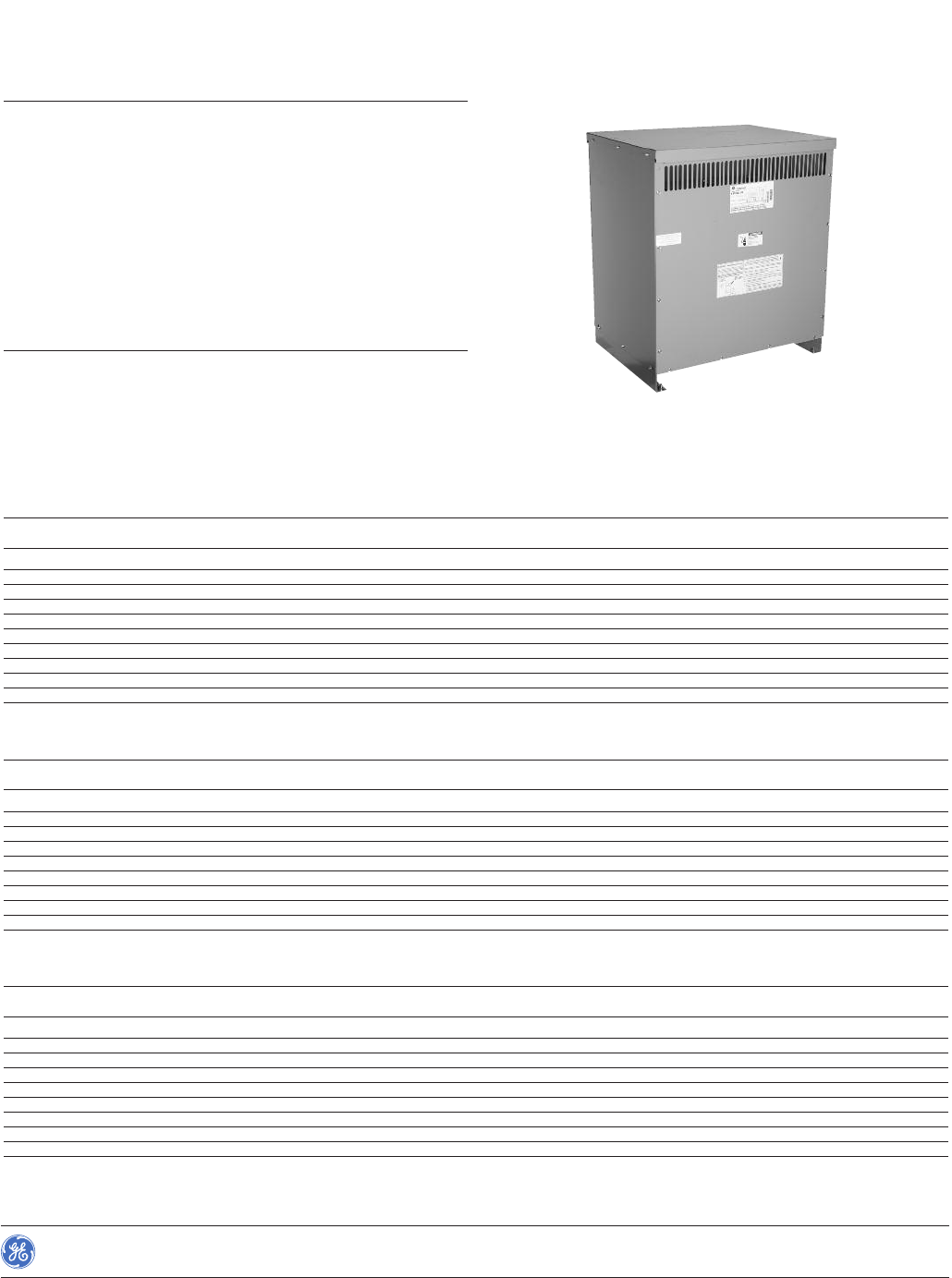

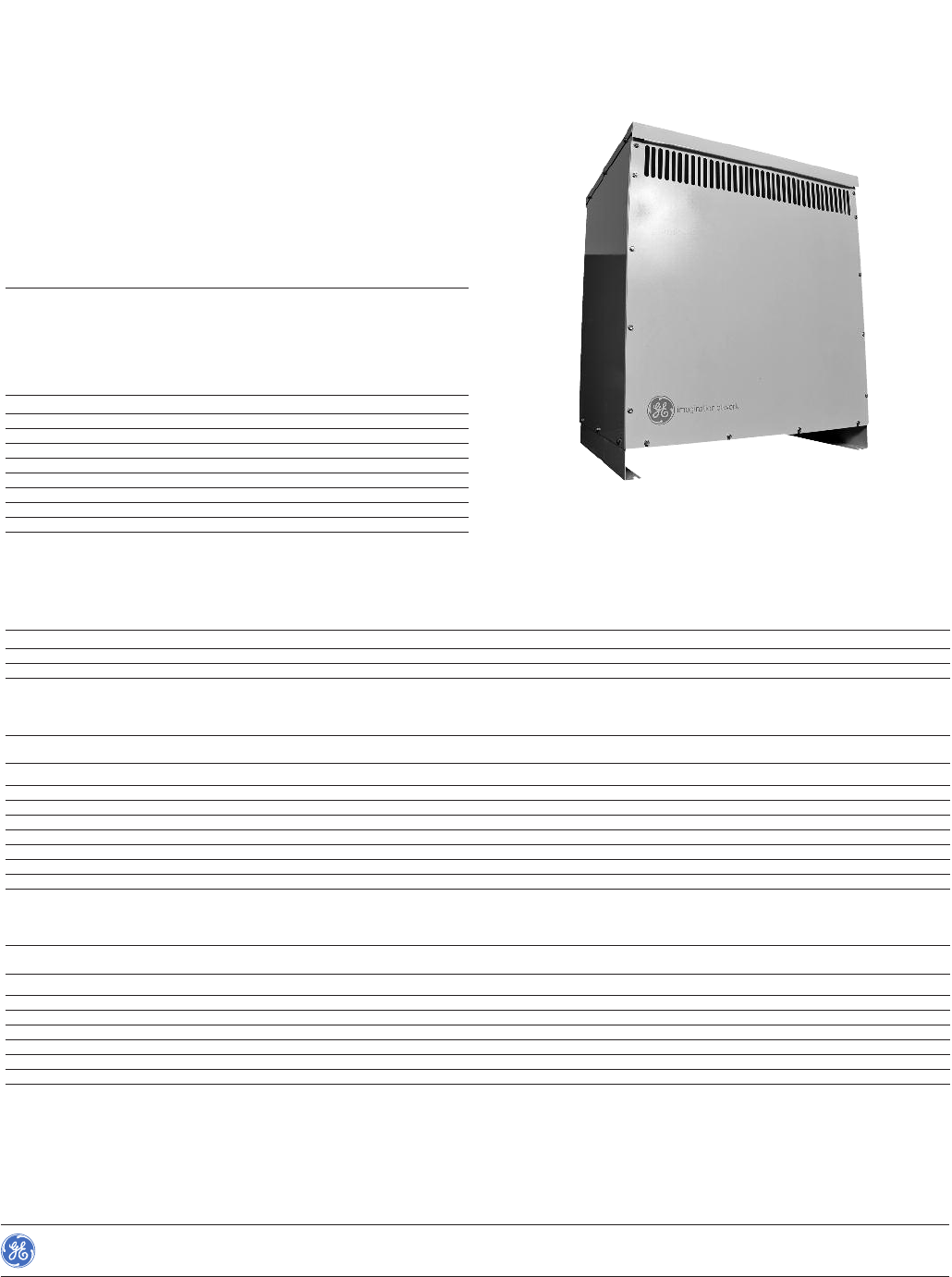

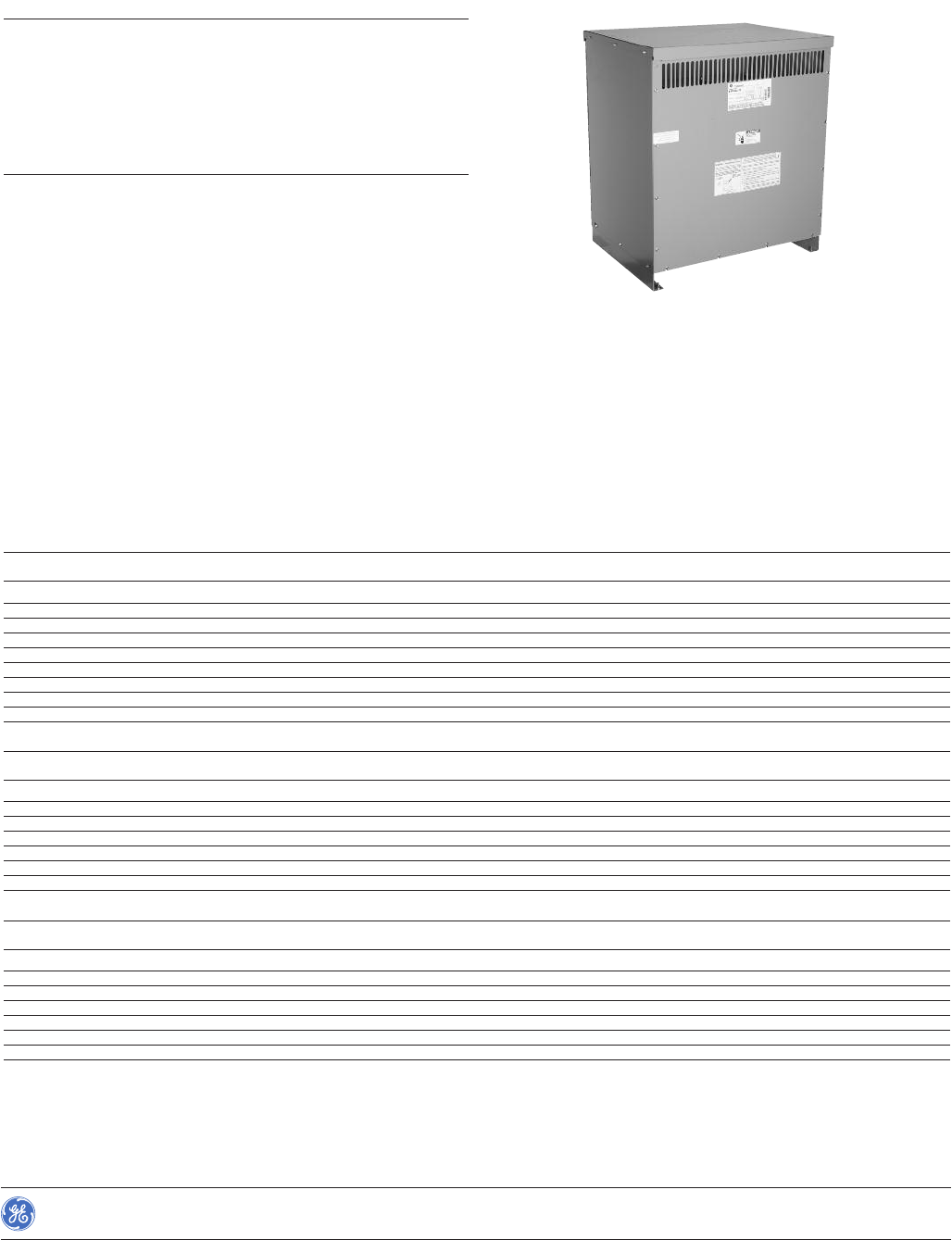

Type QL, UL K-Factor Transformer
BuyLog™Catalog
Section 10
Rev. 11/13
Data subject to change
without notice
www.geindustrial.com 10-11
Dry Type Transformers
K-Factor
Aluminum
Three-Phase TP-1
K=13 150°C Rise NEMA 2
Input Output Wiring Approx. Net Frame Product
Voltage Voltage kVA Taps Diagram No.1Weight (Lbs) Size Number
480 Volts Delta 208Y/120 Volts 15 (+2, -4 2.5%) 12 240 XV371 9T83B3471G03
480 Volts Delta 208Y/120 Volts 30 (+2, -4 2.5%) 12 334 XK372 9T83B3472G03
480 Volts Delta 208Y/120 Volts 45 (+2, -4 2.5%) 12 620 XV374 9T83B3473G03
480 Volts Delta 208Y/120 Volts 75 (+2, -4 2.5%) 12 765 XV375 9T83B3474G03
480 Volts Delta 208Y/120 Volts 112.5 (+2, -4 2.5%) 12 1070 XV376 9T83B3475G03
480 Volts Delta 208Y/120 Volts 150 (+2, -4 2.5%) 12 1590 XV377 9T83B3476G03
480 Volts Delta 208Y/120 Volts 225 (+2, -4 2.5%) 12 1470 L38AA 9T61B3877G03
480 Volts Delta 208Y/120 Volts 300 (+2, -4 2.5%) 12 3400 YF379 9T61B3878G03
480 Volts Delta 208Y/120 Volts 500 (+2, -2 2.5%) 12 3250 FC68 9T41G0009G03
K=13 115°C Rise NEMA 2
Input Output Wiring Approx. Net Frame Product
Voltage Voltage kVA Taps Diagram No.1Weight (Lbs) Size Number
480 Volts Delta 208Y/120 Volts 15 (+2, -4 2.5%) 12 240 XV371 9T83B3471G13
480 Volts Delta 208Y/120 Volts 30 (+2, -4 2.5%) 12 415 XV373 9T83B3472G13
480 Volts Delta 208Y/120 Volts 45 (+2, -4 2.5%) 12 620 XV374 9T83B3473G13
480 Volts Delta 208Y/120 Volts 75 (+2, -4 2.5%) 12 765 XV375 9T83B3474G13
480 Volts Delta 208Y/120 Volts 112.5 (+2, -4 2.5%) 12 1590 XV377 9T61B3875G13
480 Volts Delta 208Y/120 Volts 150 (+2, -4 2.5%) 12 1470 L38AA 9T61B3876G13
480 Volts Delta 208Y/120 Volts 225 (+2, -4 2.5%) 12 3400 YF379 9T61B3877G13
480 Volts Delta 208Y/120 Volts 300 (+2,-4 2.5%) 12 3250 FC68 9T41G0008G53
K=13 80°C Rise NEMA 2
Input Output Wiring Approx. Net Frame Product
Voltage Voltage kVA Taps Diagram No.1Weight (Lbs) Size Number
480 Volts Delta 208Y/120 Volts 15 (+2, -4 2.5%) 12 334 XK372 9T61B3871G83
480 Volts Delta 208Y/120 Volts 30 (+2, -4 2.5%) 12 620 XV374 9T61B3872G83
480 Volts Delta 208Y/120 Volts 45 (+2, -4 2.5%) 12 620 XV374 9T83B3473G83
480 Volts Delta 208Y/120 Volts 75 (+2, -4 2.5%) 12 1070 XV376 9T61B3874G83
480 Volts Delta 208Y/120 Volts 112.5 (+2, -4 2.5%) 12 1590 XV377 9T61B3875G83
480 Volts Delta 208Y/120 Volts 150 (+2, -4 2.5%) 12 1470 L38AA 9T61B3876G83
480 Volts Delta 208Y/120 Volts 225 (+2, -4 2.5%) 12 1590 FC79 9T41G0007G83
480 Volts Delta 208Y/120 Volts 300 (+2, -4 2.5%) 12 3250 FC68 9T41G0008G83
1See page 10-45 for wiring diagrams.
BuyLog™Catalog
Rev. 11/13
Data subject to change
without notice
Section 10
www.geindustrial.com
10-12
Dry Type Transformers
K-Factor
Aluminum
Three-Phase TP-1
K=20 150°C Rise NEMA 2
Input Output Wiring Approx. Net Frame Product
Voltage Voltage kVA Taps Diagram No.1Weight (Lbs) Size Number
480 Volts Delta 208Y/120 Volts 15 (+2, -4 2.5%) 12 240 XV371 9T83B3481G03
480 Volts Delta 208Y/120 Volts 30 (+2, -4 2.5%) 12 415 XV373 9T83B3482G03
480 Volts Delta 208Y/120 Volts 45 (+2, -4 2.5%) 12 620 XV374 9T83B3483G03
480 Volts Delta 208Y/120 Volts 75 (+2, -4 2.5%) 12 765 XV375 9T62B3874G03
480 Volts Delta 208Y/120 Volts 112.5 (+2, -4 2.5%) 12 1590 XV377 9T62B3875G03
480 Volts Delta 208Y/120 Volts 150 (+2, -4 2.5%) 12 1470 L38AA 9T62B3876G03
480 Volts Delta 208Y/120 Volts 225 (+2, -4 2.5%) 12 3400 YF379 9T62B3877G03
480 Volts Delta 208Y/120 Volts 300 (+2, -4 2.5%) 12 1590 FC79 9T42G0008G03
K=20 115°C Rise NEMA 2
Input Output Wiring Approx. Net Frame Product
Voltage Voltage kVA Taps Diagram No.1Weight (Lbs) Size Number
480 Volts Delta 208Y/120 Volts 15 (+2, -4 2.5%) 12 334 XK372 9T62B3871G13
480 Volts Delta 208Y/120 Volts 30 (+2, -4 2.5%) 12 415 XV373 9T83B3482G13
480 Volts Delta 208Y/120 Volts 45 (+2, -4 2.5%) 12 620 XV374 9T83B3483G13
480 Volts Delta 208Y/120 Volts 75 (+2, -4 2.5%) 12 1070 XV376 9T62B3874G13
480 Volts Delta 208Y/120 Volts 112.5 (+2, -4 2.5%) 12 1590 XV377 9T62B3875G13
480 Volts Delta 208Y/120 Volts 150 (+2, -4 2.5%) 12 1470 L38AA 9T62B3876G13
480 Volts Delta 208Y/120 Volts 225 (+2, -4 2.5%) 12 1590 FC79 9T42G0007G53
480 Volts Delta 208Y/120 Volts 300 (+2, -4 2.5%) 12 3250 FC68 9T42G0008G53
K=20 80°C Rise NEMA 2
Input Output Wiring Approx. Net Frame Product
Voltage Voltage kVA Taps Diagram No.1Weight (Lbs) Size Number
480 Volts Delta 208Y/120 Volts 15 (+2, -4 2.5%) 12 334 XK372 9T62B3871G83
480 Volts Delta 208Y/120 Volts 30 (+2, -4 2.5%) 12 620 XV374 9T62B3872G83
480 Volts Delta 208Y/120 Volts 45 (+2, -4 2.5%) 12 620 XV374 9T83B3483G83
480 Volts Delta 208Y/120 Volts 75 (+2, -4 2.5%) 12 1070 XV376 9T62B3874G83
480 Volts Delta 208Y/120 Volts 112.5 (+2, -4 2.5%) 12 1590 XV377 9T62B3875G83
480 Volts Delta 208Y/120 Volts 150 (+2, -4 2.5%) 12 1020 FC78 9T42G0006G83
480 Volts Delta 208Y/120 Volts 225 (+2, -4 2.5%) 12 3250 FC68 9T42G0007G83
480 Volts Delta 208Y/120 Volts 300 (+2, -4 2.5%) 12 3250 FC68 9T42G0008G83
1See page 10-45 for wiring diagrams.
BuyLog™Catalog
Section 10
Rev. 11/13
Data subject to change
without notice
www.geindustrial.com 10-13
Dry Type Transformers
K-Factor
Aluminum
Three-Phase TP-1
K=30 150°C Rise NEMA 2
Input Output Wiring Approx. Net Frame Product
Voltage Voltage kVA Taps Diagram No.1Weight (Lbs) Size Number
480 Volts Delta 208Y/120 Volts 15 (+2, -4 2.5%) 12 240 XV371 9T83B3491G03
480 Volts Delta 208Y/120 Volts 30 (+2, -4 2.5%) 12 415 XV373 9T83B3492G03
480 Volts Delta 208Y/120 Volts 45 (+2, -4 2.5%) 12 620 XV374 9T83B3493G03
480 Volts Delta 208Y/120 Volts 75 (+2, -4 2.5%) 12 765 XV375 9T83B3494G03
480 Volts Delta 208Y/120 Volts 112.5 (+2, -4 2.5%) 12 1590 XV377 9T63B3875G03
480 Volts Delta 208Y/120 Volts 150 (+2, -4 2.5%) 12 1470 L38AA 9T63B3876G03
480 Volts Delta 208Y/120 Volts 225 (+2, -4 2.5%) 12 1590 FC79 9T43G0007G03
480 Volts Delta 208Y/120 Volts 300 (+2, -4 2.5%) 12 3250 FC68 9T43G0008G03
K=30 115°C Rise NEMA 2
Input Output Wiring Approx. Net Frame Product
Voltage Voltage kVA Taps Diagram No.1Weight (Lbs) Size Number
480 Volts Delta 208Y/120 Volts 15 (+2, -4 2.5%) 12 334 XK372 9T63B3871G13
480 Volts Delta 208Y/120 Volts 30 (+2, -4 2.5%) 12 415 XV373 9T83B3492G13
480 Volts Delta 208Y/120 Volts 45 (+2, -4 2.5%) 12 620 XV374 9T83B3493G13
480 Volts Delta 208Y/120 Volts 75 (+2, -4 2.5%) 12 1070 XV376 9T63B3874G13
480 Volts Delta 208Y/120 Volts 112.5 (+2, -4 2.5%) 12 1590 XV377 9T63B3875G13
480 Volts Delta 208Y/120 Volts 150 (+2, -4 2.5%) 12 1470 L38AA 9T63B3876G13
480 Volts Delta 208Y/120 Volts 225 (+2, -4 2.5%) 12 3250 FC68 9T43G0007G53
K=30 80°C Rise NEMA 2
Input Output Wiring Approx. Net Frame Product
Voltage Voltage kVA Taps Diagram No.1Weight (Lbs) Size Number
480 Volts Delta 208Y/120 Volts 15 (+2, -4 2.5%) 12 334 XK372 9T63B3871G83
480 Volts Delta 208Y/120 Volts 30 (+2, -4 2.5%) 12 620 XV374 9T63B3872G83
480 Volts Delta 208Y/120 Volts 45 (+2, -4 2.5%) 12 765 XV375 9T63B3873G83
480 Volts Delta 208Y/120 Volts 75 (+2, -4 2.5%) 12 Contact GE Sales Contact GE Sales Contact GE Sales
480 Volts Delta 208Y/120 Volts 112.5 (+2, -4 2.5%) 12 Contact GE Sales Contact GE Sales Contact GE Sales
480 Volts Delta 208Y/120 Volts 150 (+2, -4 2.5%) 12 1020 FC78 9T43G0006G83
1See page 10-45 for wiring diagrams.
BuyLog™Catalog
Rev. 11/13
Data subject to change
without notice
Section 10
www.geindustrial.com
10-14
Dry Type Transformers
K-Factor
Copper
Three-Phase TP-1
K=4 150°C Rise NEMA 2
Input Output Wiring Approx. Net Frame Product
Voltage Voltage kVA Taps Diagram No.1Weight (Lbs) Size Number
480 Volts Delta 208Y/120 Volts 15 (+2, -4 2.5%) 12 250 XV371 9T83C9461G03
480 Volts Delta 208Y/120 Volts 30 (+2, -4 2.5%) 12 377 XV372 9T64C9872G03
480 Volts Delta 208Y/120 Volts 45 (+2, -4 2.5%) 12 710 XV374 9T83C9463G03
480 Volts Delta 208Y/120 Volts 75 (+2, -4 2.5%) 12 949 XV375 9T83C9464G03
480 Volts Delta 208Y/120 Volts 112.5 (+2, -4 2.5%) 12 1190 XV376 9T83C9465G03
480 Volts Delta 208Y/120 Volts 150 (+2, -4 2.5%) 12 1400 L37AA 9T64C9876G03
480 Volts Delta 208Y/120 Volts 225 (+2, -4 2.5%) 12 2480 L38AA 9T64C9877G03
480 Volts Delta 208Y/120 Volts 300 (+2, -4 2.5%) 12 2480 L38AA 9T64C9878G03
480 Volts Delta 208Y/120 Volts 500 (+2, -2 2.5%) 12 4030 FC68 9T49G0009G03
480 Volts Delta 208Y/120 Volts 750 (+2, -2 2.5%) 12 4030 FC68 9T49G0010G03
K=4 115°C Rise NEMA 2
Input Output Wiring Approx. Net Frame Product
Voltage Voltage kVA Taps Diagram No.1Weight (Lbs) Size Number
480 Volts Delta 208Y/120 Volts 15 (+2, -4 2.5%) 12 250 XV371 9T83C9461G13
480 Volts Delta 208Y/120 Volts 30 (+2, -4 2.5%) 12 490 XV373 9T83C9462G13
480 Volts Delta 208Y/120 Volts 45 (+2, -4 2.5%) 12 710 XV374 9T83C9463G13
480 Volts Delta 208Y/120 Volts 75 (+2, -4 2.5%) 12 949 XV375 9T83C9464G13
480 Volts Delta 208Y/120 Volts 112.5 (+2, -4 2.5%) 12 1190 XV376 9T83C9465G13
480 Volts Delta 208Y/120 Volts 150 (+2, -4 2.5%) 12 1400 L37AA 9T64C9876G13
480 Volts Delta 208Y/120 Volts 225 (+2, -4 2.5%) 12 2480 L38AA 9T64C9877G13
480 Volts Delta 208Y/120 Volts 300 (+2, -4 2.5%) 12 Contact GE Sales Contact GE Sales Contact GE Sales
480 Volts Delta 208Y/120 Volts 500 (+2, -2 2.5%) 12 4030 FC68 9T49G0009G53
480 Volts Delta 208Y/120 Volts 750 (+2, -2 2.5%) 12 4030 FC68 9T49G0010G53
K=4 80°C Rise NEMA 2
Input Output Wiring Approx. Net Frame Product
Voltage Voltage kVA Taps Diagram No.1Weight (Lbs) Size Number
480 Volts Delta 208Y/120 Volts 15 (+2, -4 2.5%) 12 377 XV372 9T64C9871G83
480 Volts Delta 208Y/120 Volts 30 (+2, -4 2.5%) 12 490 XV373 9T64C9872G83
480 Volts Delta 208Y/120 Volts 45 (+2, -4 2.5%) 12 710 XV374 9T83C9463G83
480 Volts Delta 208Y/120 Volts 75 (+2, -4 2.5%) 12 1190 XV376 9T83C9464G83
480 Volts Delta 208Y/120 Volts 112.5 (+2, -4 2.5%) 12 1400 L37AA 9T64C9875G83
480 Volts Delta 208Y/120 Volts 150 (+2, -4 2.5%) 12 1400 L37AA 9T64C9876G83
480 Volts Delta 208Y/120 Volts 225 (+2, -4 2.5%) 12 1160 FC78 9T49G0007G83
480 Volts Delta 208Y/120 Volts 300 (+2, -4 2.5%) 12 1780 FC79 9T49G0008G83
480 Volts Delta 208Y/120 Volts 500 (+2, -2 2.5%) 12 4030 FC68 9T49G0009G83
1See page 10-45 for wiring diagrams.
BuyLog™Catalog
Section 10
Rev. 11/13
Data subject to change
without notice
www.geindustrial.com 10-15
Dry Type Transformers
K-Factor
Copper
Three-Phase TP-1
K=13 150°C Rise NEMA 2
Input Output Wiring Approx. Net Frame Product
Voltage Voltage kVA Taps Diagram No.1Weight (Lbs) Size Number
480 Volts Delta 208Y/120 Volts 15 (+2, -4 2.5%) 12 250 XV371 9T61C9871G03
480 Volts Delta 208Y/120 Volts 30 (+2, -4 2.5%) 12 377 XV372 9T61C9872G03
480 Volts Delta 208Y/120 Volts 45 (+2, -4 2.5%) 12 710 XV374 9T83C9473G03
480 Volts Delta 208Y/120 Volts 75 (+2, -4 2.5%) 12 949 XV375 9T83C9474G03
480 Volts Delta 208Y/120 Volts 112.5 (+2, -4 2.5%) 12 1190 XV376 9T83C9475G03
480 Volts Delta 208Y/120 Volts 150 (+2, -4 2.5%) 12 1400 L37AA 9T61C9876G03
480 Volts Delta 208Y/120 Volts 225 (+2, -4 2.5%) 12 2480 L38AA 9T61C9877G03
480 Volts Delta 208Y/120 Volts 300 (+2, -4 2.5%) 12 4050 YF379 9T61C9878G03
480 Volts Delta 208Y/120 Volts 500 (+2, -2 2.5%) 12 4030 FC68 9T46G0009G03
K=13 115°C Rise NEMA 2
Input Output Wiring Approx. Net Frame Product
Voltage Voltage kVA Taps Diagram No.1Weight (Lbs) Size Number
480 Volts Delta 208Y/120 Volts 15 (+2, -4 2.5%) 12 377 XV372 9T61C9871G13
480 Volts Delta 208Y/120 Volts 30 (+2, -4 2.5%) 12 490 XV373 9T83C9472G13
480 Volts Delta 208Y/120 Volts 45 (+2, -4 2.5%) 12 710 XV374 9T83C9473G13
480 Volts Delta 208Y/120 Volts 75 (+2, -4 2.5%) 12 949 XV375 9T83C9474G13
480 Volts Delta 208Y/120 Volts 112.5 (+2, -4 2.5%) 12 1710 XV377 9T61C9875G13
480 Volts Delta 208Y/120 Volts 150 (+2, -4 2.5%) 12 1400 L37AA 9T61C9876G13
480 Volts Delta 208Y/120 Volts 225 (+2, -4 2.5%) 12 2480 L38AA 9T61C9877G13
480 Volts Delta 208Y/120 Volts 300 (+2, -4 2.5%) 12 1780 FC79 9T46G0008G53
480 Volts Delta 208Y/120 Volts 500 (+2, -2 2.5%) 12 4030 FC68 9T46G0009G53
K=13 80°C Rise NEMA 2
Input Output Wiring Approx. Net Frame Product
Voltage Voltage kVA Taps Diagram No.1Weight (Lbs) Size Number
480 Volts Delta 208Y/120 Volts 15 (+2, -4 2.5%) 12 377 XV372 9T61C9871G83
480 Volts Delta 208Y/120 Volts 30 (+2, -4 2.5%) 12 710 XV374 9T61C9872G83
480 Volts Delta 208Y/120 Volts 45 (+2, -4 2.5%) 12 710 XV374 9T83C9473G83
480 Volts Delta 208Y/120 Volts 75 (+2, -4 2.5%) 12 1190 XV376 9T61C9874G83
480 Volts Delta 208Y/120 Volts 112.5 (+2, -4 2.5%) 12 1400 L37AA 9T61C9875G83
480 Volts Delta 208Y/120 Volts 150 (+2, -4 2.5%) 12 2480 L38AA 9T61C9876G83
480 Volts Delta 208Y/120 Volts 225 (+2, -4 2.5%) 12 1780 FC79 9T46G0007G83
480 Volts Delta 208Y/120 Volts 300 (+2, -4 2.5%) 12 4030 FC68 9T46G0008G83
1See page 10-45 for wiring diagrams.
BuyLog™Catalog
Rev. 11/13
Data subject to change
without notice
Section 10
www.geindustrial.com
10-16
Dry Type Transformers
K-Factor
Copper
Three-Phase TP-1
K=20 150°C Rise NEMA 2
Input Output Wiring Approx. Net Frame Product
Voltage Voltage kVA Taps Diagram No.1Weight (Lbs) Size Number
480 Volts Delta 208Y/120 Volts 15 (+2, -4 2.5%) 12 377 XV372 9T62C9871G03
480 Volts Delta 208Y/120 Volts 30 (+2, -4 2.5%) 12 490 XV373 9T83C9482G03
480 Volts Delta 208Y/120 Volts 45 (+2, -4 2.5%) 12 710 XV374 9T83C9483G03
480 Volts Delta 208Y/120 Volts 75 (+2, -4 2.5%) 12 949 XV375 9T83C9484G03
480 Volts Delta 208Y/120 Volts 112.5 (+2, -4 2.5%) 12 1710 XV377 9T62C9875G03
480 Volts Delta 208Y/120 Volts 150 (+2, -4 2.5%) 12 1400 L37AA 9T62C9876G03
480 Volts Delta 208Y/120 Volts 225 (+2, -4 2.5%) 12 2480 L38AA 9T62C9877G03
480 Volts Delta 208Y/120 Volts 300 (+2, -4 2.5%) 12 1780 FC79 9T47G0008G03
K=20 115°C Rise NEMA 2
Input Output Wiring Approx. Net Frame Product
Voltage Voltage kVA Taps Diagram No.1Weight (Lbs) Size Number
480 Volts Delta 208Y/120 Volts 15 (+2, -4 2.5%) 12 377 XV372 9T62C9875G13
480 Volts Delta 208Y/120 Volts 30 (+2, -4 2.5%) 12 490 XV373 9T83C9482G13
480 Volts Delta 208Y/120 Volts 45 (+2, -4 2.5%) 12 710 XV374 9T83C9483G13
480 Volts Delta 208Y/120 Volts 75 (+2, -4 2.5%) 12 1190 XV376 9T83C9484G13
480 Volts Delta 208Y/120 Volts 112.5 (+2, -4 2.5%) 12 1400 L37AA 9T62C9875G13
480 Volts Delta 208Y/120 Volts 150 (+2, -4 2.5%) 12 1400 L37AA 9T62C9876G13
480 Volts Delta 208Y/120 Volts 225 (+2, -4 2.5%) 12 2480 L38AA 9T62C9877G13
480 Volts Delta 208Y/120 Volts 300 (+2, -4 2.5%) 12 4030 FC68 9T47G0008G53
K=20 80°C Rise NEMA 2
Input Output Wiring Approx. Net Frame Product
Voltage Voltage kVA Taps Diagram No.1Weight (Lbs) Size Number
480 Volts Delta 208Y/120 Volts 15 (+2, -4 2.5%) 12 377 XV372 9T62C9871G83
480 Volts Delta 208Y/120 Volts 30 (+2, -4 2.5%) 12 710 XV374 9T62C9872G83
480 Volts Delta 208Y/120 Volts 45 (+2, -4 2.5%) 12 710 XV374 9T62C9873G83
480 Volts Delta 208Y/120 Volts 75 (+2, -4 2.5%) 12 1190 XV376 9T62C9874G83
480 Volts Delta 208Y/120 Volts 112.5 (+2, -4 2.5%) 12 1710 XV377 9T62C9875G83
480 Volts Delta 208Y/120 Volts 150 (+2, -4 2.5%) 12 2480 L38AA 9T62C9876G83
1See page 10-45 for wiring diagrams.
BuyLog™Catalog
Section 10
Rev. 11/13
Data subject to change
without notice
www.geindustrial.com 10-17
Dry Type Transformers
K-Factor
Copper
Three-Phase TP-1
K=30 150°C Rise NEMA 2
Input Output Wiring Approx. Net Frame Product
Voltage Voltage kVA Taps Diagram No.1Weight (Lbs) Size Number
480 Volts Delta 208Y/120 Volts 15 (+2, -4 2.5%) 12 377 XV372 9T63C9871G03
480 Volts Delta 208Y/120 Volts 30 (+2, -4 2.5%) 12 490 XV373 9T83C9492G03
480 Volts Delta 208Y/120 Volts 45 (+2, -4 2.5%) 12 710 XV374 9T83C9493G03
480 Volts Delta 208Y/120 Volts 75 (+2, -4 2.5%) 12 949 XV375 9T83C9494G03
480 Volts Delta 208Y/120 Volts 112.5 (+2, -4 2.5%) 12 1710 XV377 9T63C9875G03
480 Volts Delta 208Y/120 Volts 150 (+2, -4 2.5%) 12 1400 L37AA 9T63C9876G03
480 Volts Delta 208Y/120 Volts 225 (+2, -4 2.5%) 12 2480 L38AA 9T63C9877G03
K=30 115°C Rise NEMA 2
Input Output Wiring Approx. Net Frame Product
Voltage Voltage kVA Taps Diagram No.1Weight (Lbs) Size Number
480 Volts Delta 208Y/120 Volts 15 (+2, -4 2.5%) 12 377 XV372 9T63C9871G13
480 Volts Delta 208Y/120 Volts 30 (+2, -4 2.5%) 12 490 XV373 9T63C9872G13
480 Volts Delta 208Y/120 Volts 45 (+2, -4 2.5%) 12 710 XV374 9T83C9493G13
480 Volts Delta 208Y/120 Volts 75 (+2, -4 2.5%) 12 1190 XV376 9T83C9494G13
480 Volts Delta 208Y/120 Volts 112.5 (+2, -4 2.5%) 12 1400 L37AA 9T63C9875G13
480 Volts Delta 208Y/120 Volts 150 (+2, -4 2.5%) 12 1400 L37AA 9T63C9876G13
480 Volts Delta 208Y/120 Volts 225 (+2, -4 2.5%) 12 1780 FC79 9T48G0007G53
K=30 80°C Rise NEMA 2
Input Output Wiring Approx. Net Frame Product
Voltage Voltage kVA Taps Diagram No.1Weight (Lbs) Size Number
480 Volts Delta 208Y/120 Volts 15 (+2, -4 2.5%) 12 377 XV372 9T63C9871G83
480 Volts Delta 208Y/120 Volts 30 (+2, -4 2.5%) 12 710 XV374 9T63C9872G83
480 Volts Delta 208Y/120 Volts 45 (+2, -4 2.5%) 12 949 XV375 9T63C9873G83
480 Volts Delta 208Y/120 Volts 75 (+2, -4 2.5%) 12 1190 XV376 9T63C9874G83
480 Volts Delta 208Y/120 Volts 150 (+2, -4 2.5%) 12 2480 L38AA 9T63C9876G83
1See page 10-45 for wiring diagrams.
BuyLog™Catalog
Rev. 11/13
Data subject to change
without notice
Section 10
www.geindustrial.com
10-18
Dry Type Transformers
K-Factor Low Noise
Aluminum
Three-Phase TP-1
K=4 150°C Rise
Input Output Wiring Approx. Net Frame Product
Voltage Voltage kVA Taps Diagram No.1Weight (Lbs) Size Number
480 208Y/120 15 (+2, -4 2.5%) 12 240 XV371 9T64B3871G53
480 208Y/120 30 (+2, -4 2.5%) 12 334 XK372 9T64B3872G53
480 208Y/120 45 (+2, -4 2.5%) 12 620 XV374 9T64B3873G53
480 208Y/120 75 (+2, -4 2.5%) 12 765 XV375 9T64B3874G53
480 208Y/120 112.5 (+2, -4 2.5%) 12 1070 XV376 9T64B3875G53
480 208Y/120 150 (+2, -4 2.5%) 12 1590 XV377 9T64B3876G53
480 208Y/120 225 (+2, -4 2.5%) 12 1820 YF378 9T64B3877G53
480 208Y/120 300 (+2, -4 2.5%) 12 3400 YF379 9T64B3878G53
K=4 115°C Rise
Input Output Wiring Approx. Net Frame Product
Voltage Voltage kVA Taps Diagram No.1Weight (Lbs) Size Number
480 208Y/120 15 (+2, -4 2.5%) 12 240 XV371 9T64B3871G23
480 208Y/120 30 (+2, -4 2.5%) 12 415 XV373 9T64B3872G23
480 208Y/120 45 (+2, -4 2.5%) 12 620 XV374 9T64B3873G23
480 208Y/120 75 (+2, -4 2.5%) 12 765 XV375 9T64B3874G23
480 208Y/120 112.5 (+2, -4 2.5%) 12 1070 XV376 9T64B3875G23
480 208Y/120 150 (+2, -4 2.5%) 12 1590 XV377 9T64B3876G23
480 208Y/120 225 (+2, -4 2.5%) 12 3400 YF379 9T64B3877G23
480 208Y/120 300 (+2, -4 2.5%) 12 3400 YF379 9T64B3878G23
K=4 80°C Rise
Input Output Wiring Approx. Net Frame Product
Voltage Voltage kVA Taps Diagram No.1Weight (Lbs) Size Number
480 208Y/120 15 (+2, -4 2.5%) 12 Contact GE Sales Contact GE Sales Contact GE Sales
480 208Y/120 30 (+2, -4 2.5%) 12 415 XV373 9T64B3872G93
480 208Y/120 45 (+2, -4 2.5%) 12 620 XV374 9T64B3873G93
480 208Y/120 75 (+2, -4 2.5%) 12 1070 XV376 9T64B3874G93
480 208Y/120 112.5 (+2, -4 2.5%) 12 1590 XV377 9T64B3875G93
480 208Y/120 150 (+2, -4 2.5%) 12 1820 YF378 9T64B3876G93
K=13 150°C Rise
Input Output Wiring Approx. Net Frame Product
Voltage Voltage kVA Taps Diagram No.1Weight (Lbs) Size Number
480 208Y/120 15 (+2, -4 2.5%) 12 240 XV371 9T61B3871G53
480 208Y/120 30 (+2, -4 2.5%) 12 334 XK372 9T61B3872G53
480 208Y/120 45 (+2, -4 2.5%) 12 620 XV374 9T61B3873G53
480 208Y/120 75 (+2, -4 2.5%) 12 765 XV375 9T61B3874G53
480 208Y/120 112.5 (+2, -4 2.5%) 12 1070 XV376 9T61B3875G53
480 208Y/120 150 (+2, -4 2.5%) 12 1590 XV377 9T61B3876G53
480 208Y/120 225 (+2, -4 2.5%) 12 3400 YF379 9T61B3877G53
480 208Y/120 300 (+2, -4 2.5%) 12 3400 YF379 9T61B3878G53
K=13 115°C Rise
Input Output Wiring Approx. Net Frame Product
Voltage Voltage kVA Taps Diagram No.1Weight (Lbs) Size Number
480 208Y/120 15 (+2, -4 2.5%) 12 240 XV371 9T61B3871G23
480 208Y/120 30 (+2, -4 2.5%) 12 415 XV373 9T61B3872G23
480 208Y/120 45 (+2, -4 2.5%) 12 620 XV374 9T61B3873G23
480 208Y/120 75 (+2, -4 2.5%) 12 765 XV375 9T61B3874G23
480 208Y/120 112.5 (+2, -4 2.5%) 12 1590 XV377 9T61B3875G23
480 208Y/120 150 (+2, -4 2.5%) 12 1820 YF378 9T61B3876G23
480 208Y/120 225 (+2, -4 2.5%) 12 3400 YF379 9T61B3877G23
K=13 80°C Rise
Input Output Wiring Approx. Net Frame Product
Voltage Voltage kVA Taps Diagram No.1Weight (Lbs) Size Number
480 208Y/120 15 (+2, -4 2.5%) 12 Contact GE Sales Contact GE Sales Contact GE Sales
480 208Y/120 30 (+2, -4 2.5%) 12 Contact GE Sales Contact GE Sales Contact GE Sales
480 208Y/120 45 (+2, -4 2.5%) 12 620 XV374 9T61B3873G93
480 208Y/120 75 (+2, -4 2.5%) 12 1070 XV376 9T61B3874G93
480 208Y/120 112.5 (+2, -4 2.5%) 12 1590 XV377 9T61B3875G93
1See page 10-45 for wiring diagrams.
BuyLog™Catalog
Section 10
Rev. 11/13
Data subject to change
without notice
www.geindustrial.com 10-19
Dry Type Transformers
K-Factor Low Noise
Aluminum
Three-Phase TP-1
K=20 150°C Rise
Input Output Wiring Approx. Net Frame Product
Voltage Voltage kVA Taps Diagram No.1Weight (Lbs) Size Number
480 208Y/120 15 (+2, -4 2.5%) 12 240 XV371 9T62B3871G53
480 208Y/120 30 (+2, -4 2.5%) 12 415 XV373 9T62B3872G53
480 208Y/120 45 (+2, -4 2.5%) 12 620 XV374 9T62B3873G53
480 208Y/120 75 (+2, -4 2.5%) 12 765 XV375 9T62B3874G53
480 208Y/120 112.5 (+2, -4 2.5%) 12 1590 XV377 9T62B3875G53
480 208Y/120 150 (+2, -4 2.5%) 12 1590 XV377 9T62B3876G53
480 208Y/120 225 (+2, -4 2.5%) 12 3400 YF379 9T62B3877G53
K=20 115°C Rise
Input Output Wiring Approx. Net Frame Product
Voltage Voltage kVA Taps Diagram No.1Weight (Lbs) Size Number
480 208Y/120 15 (+2, -4 2.5%) 12 Contact GE Sales Contact GE Sales Contact GE Sales
480 208Y/120 30 (+2, -4 2.5%) 12 415 XV373 9T62B3872G23
480 208Y/120 45 (+2, -4 2.5%) 12 620 XV374 9T62B3873G23
480 208Y/120 75 (+2, -4 2.5%) 12 1070 XV376 9T62B3874G23
480 208Y/120 112.5 (+2, -4 2.5%) 12 1590 XV377 9T62B3875G23
K=20 80°C Rise
Input Output Wiring Approx. Net Frame Product
Voltage Voltage kVA Taps Diagram No.1Weight (Lbs) Size Number
480 208Y/120 15 (+2, -4 2.5%) 12 Contact GE Sales Contact GE Sales Contact GE Sales
480 208Y/120 30 (+2, -4 2.5%) 12 Contact GE Sales Contact GE Sales Contact GE Sales
480 208Y/120 45 (+2, -4 2.5%) 12 620 XV374 9T62B3873G93
480 208Y/120 75 (+2, -4 2.5%) 12 1070 XV376 9T62B3874G93
480 208Y/120 112.5 (+2, -4 2.5%) 12 1590 XV377 9T62B3875G93
K=30 150°C Rise
Input Output Wiring Approx. Net Frame Product
Voltage Voltage kVA Taps Diagram No.1Weight (Lbs) Size Number
480 208Y/120 15 (+2, -4 2.5%) 12 240 XV371 9T63B3871G53
480 208Y/120 30 (+2, -4 2.5%) 12 415 XV373 9T63B3872G53
480 208Y/120 45 (+2, -4 2.5%) 12 620 XV374 9T63B3873G53
480 208Y/120 75 (+2, -4 2.5%) 12 765 XV375 9T63B3874G53
480 208Y/120 112.5 (+2, -4 2.5%) 12 1590 XV377 9T63B3875G53
480 208Y/120 150 (+2, -4 2.5%) 12 1820 YF378 9T63B3876G53
K=30 115°C Rise
Input Output Wiring Approx. Net Frame Product
Voltage Voltage kVA Taps Diagram No.1Weight (Lbs) Size Number
480 208Y/120 15 (+2, -4 2.5%) 12 Contact GE Sales Contact GE Sales Contact GE Sales
480 208Y/120 30 (+2, -4 2.5%) 12 415 XV373 9T63B3872G23
480 208Y/120 45 (+2, -4 2.5%) 12 620 XV374 9T63B3873G23
480 208Y/120 75 (+2, -4 2.5%) 12 1070 XV376 9T63B3874G23
480 208Y/120 112.5 (+2, -4 2.5%) 12 1590 XV377 9T63B3875G23
1See page 10-45 for wiring diagrams.
BuyLog™Catalog
Rev. 11/13
Data subject to change
without notice
Section 10
www.geindustrial.com
10-20
Dry Type Transformers
K-Factor Low Noise
Copper
Three-Phase TP-1
K = 4 150°C Rise
Input Output Wiring Approx. Net Frame Product
Voltage Voltage kVA Taps Diagram No.1Weight (Lbs) Size Number
480 208Y/120 15 (+2, -4 2.5%) 12 250 XV371 9T64C9871G53
480 208Y/120 30 (+2, -4 2.5%) 12 490 XV373 9T64C9872G53
480 208Y/120 45 (+2, -4 2.5%) 12 710 XV374 9T64C9873G53
480 208Y/120 75 (+2, -4 2.5%) 12 949 XV375 9T64C9874G53
480 208Y/120 112.5 (+2, -4 2.5%) 12 1190 XV376 9T64C9875G53
480 208Y/120 150 (+2, -4 2.5%) 12 1710 XV377 9T64C9876G53
480 208Y/120 225 (+2, -4 2.5%) 12 3150 YF378 9T64C9877G53
480 208Y/120 300 (+2, -4 2.5%) 12 4050 YF379 9T64C9878G53
K = 4 115°C Rise
Input Output Wiring Approx. Net Frame Product
Voltage Voltage kVA Taps Diagram No.1Weight (Lbs) Size Number
480 208Y/120 15 (+2, -4 2.5%) 12 250 XV371 9T64C9871G23
480 208Y/120 30 (+2, -4 2.5%) 12 490 XV373 9T64C9872G23
480 208Y/120 45 (+2, -4 2.5%) 12 710 XV374 9T64C9873G23
480 208Y/120 75 (+2, -4 2.5%) 12 949 XV375 9T64C9874G23
480 208Y/120 112.5 (+2, -4 2.5%) 12 1190 XV376 9T64C9875G23
480 208Y/120 150 (+2, -4 2.5%) 12 1710 XV377 9T64C9876G23
480 208Y/120 225 (+2, -4 2.5%) 12 4050 YF379 9T64C9877G23
480 208Y/120 300 (+2, -4 2.5%) 12 4050 YF379 9T64C9878G23
K = 4 80°C Rise
Input Output Wiring Approx. Net Frame Product
Voltage Voltage kVA Taps Diagram No.1Weight (Lbs) Size Number
480 208Y/120 15 (+2, -4 2.5%) 12 377 XV372 9T64C9871G93
480 208Y/120 30 (+2, -4 2.5%) 12 490 XV373 9T64C9872G93
480 208Y/120 45 (+2, -4 2.5%) 12 710 XV374 9T64C9873G93
480 208Y/120 75 (+2, -4 2.5%) 12 1190 XV376 9T64C9874G93
480 208Y/120 112.5 (+2, -4 2.5%) 12 1710 XV377 9T64C9875G93
480 208Y/120 150 (+2, -4 2.5%) 12 1400 L37AA 9T64C9876G93
480 208Y/120 225 (+2, -4 2.5%) 12 Contact GE Sales Contact GE Sales Contact GE Sales
K = 13 150°C Rise
Input Output Wiring Approx. Net Frame Product
Voltage Voltage kVA Taps Diagram No.1Weight (Lbs) Size Number
480 208Y/120 15 (+2, -4 2.5%) 12 250 XV371 9T61C9871G53
480 208Y/120 30 (+2, -4 2.5%) 12 490 XV373 9T61C9872G53
480 208Y/120 45 (+2, -4 2.5%) 12 710 XV374 9T61C9873G53
480 208Y/120 75 (+2, -4 2.5%) 12 949 XV375 9T61C9874G53
480 208Y/120 112.5 (+2, -4 2.5%) 12 1190 XV376 9T61C9875G53
480 208Y/120 150 (+2, -4 2.5%) 12 1710 XV377 9T61C9876G53
480 208Y/120 300 (+2, -4 2.5%) 12 4050 YF379 9T61C9878G53
K = 13 115°C Rise
Input Output Wiring Approx. Net Frame Product
Voltage Voltage kVA Taps Diagram No.1Weight (Lbs) Size Number
480 208Y/120 15 (+2, -4 2.5%) 12 377 XV372 9T61C9871G23
480 208Y/120 30 (+2, -4 2.5%) 12 490 XV373 9T61C9872G23
480 208Y/120 45 (+2, -4 2.5%) 12 710 XV374 9T61C9873G23
480 208Y/120 75 (+2, -4 2.5%) 12 949 XV375 9T61C9874G23
480 208Y/120 112.5 (+2, -4 2.5%) 12 1190 XV376 9T61C9875G23
480 208Y/120 150 (+2, -4 2.5%) 12 1710 XV377 9T61C9876G23
K = 13 80°C Rise
Input Output Wiring Approx. Net Frame Product
Voltage Voltage kVA Taps Diagram No.1Weight (Lbs) Size Number
480 208Y/120 15 (+2, -4 2.5%) 12 377 XV372 9T61C9871G93
480 208Y/120 30 (+2, -4 2.5%) 12 Contact GE Sales Contact GE Sales Contact GE Sales
480 208Y/120 45 (+2, -4 2.5%) 12 710 XV374 9T61C9873G93
480 208Y/120 75 (+2, -4 2.5%) 12 1190 XV376 9T61C9874G93
480 208Y/120 112.5 (+2, -4 2.5%) 12 1710 XV377 9T61C9875G93
480 208Y/120 150 (+2, -4 2.5%) 12 Contact GE Sales Contact GE Sales Contact GE Sales
1See page 10-45 for wiring diagrams.
BuyLog™Catalog
Section 10
Rev. 11/13
Data subject to change
without notice
www.geindustrial.com 10-21
Dry Type Transformers
K-Factor Low Noise
Copper
Three-Phase TP-1
K = 20 150°C Rise
Input Output Wiring Approx. Net Frame Product
Voltage Voltage kVA Taps Diagram No.1Weight (Lbs) Size Number
480 208Y/120 15 (+2, -4 2.5%) 12 377 XV372 9T62C9871G53
480 208Y/120 30 (+2, -4 2.5%) 12 490 XV373 9T62C9872G53
480 208Y/120 45 (+2, -4 2.5%) 12 710 XV374 9T62C9873G53
480 208Y/120 75 (+2, -4 2.5%) 12 949 XV375 9T62C9874G53
480 208Y/120 112.5 (+2, -4 2.5%) 12 1710 XV377 9T62C9875G53
480 208Y/120 150 (+2, -4 2.5%) 12 1710 XV377 9T62C9876G53
K = 20 115°C Rise
Input Output Wiring Approx. Net Frame Product
Voltage Voltage kVA Taps Diagram No.1Weight (Lbs) Size Number
480 208Y/120 15 (+2, -4 2.5%) 12 377 XV372 9T62C9871G23
480 208Y/120 30 (+2, -4 2.5%) 12 490 XV373 9T62C9872G23
480 208Y/120 45 (+2, -4 2.5%) 12 710 XV374 9T62C9873G23
480 208Y/120 75 (+2, -4 2.5%) 12 1190 XV376 9T62C9874G23
480 208Y/120 112.5 (+2, -4 2.5%) 12 1710 XV377 9T62C9875G23
480 208Y/120 150 (+2, -4 2.5%) 12 1400 L37AA 9T62C9876G23
K = 20 80°C Rise
Input Output Wiring Approx. Net Frame Product
Voltage Voltage kVA Taps Diagram No.1Weight (Lbs) Size Number
480 208Y/120 15 (+2, -4 2.5%) 12 Contact GE Sales Contact GE Sales Contact GE Sales
480 208Y/120 30 (+2, -4 2.5%) 12 Contact GE Sales Contact GE Sales Contact GE Sales
480 208Y/120 45 (+2, -4 2.5%) 12 710 XV374 9T62C9873G93
480 208Y/120 75 (+2, -4 2.5%) 12 1190 XV376 9T62C9874G93
480 208Y/120 112.5 (+2, -4 2.5%) 12 1710 XV377 9T62C9875G93
K = 30 150°C Rise
Input Output Wiring Approx. Net Frame Product
Voltage Voltage kVA Taps Diagram No.1Weight (Lbs) Size Number
480 208Y/120 15 (+2, -4 2.5%) 12 Contact GE Sales Contact GE Sales Contact GE Sales
480 208Y/120 30 (+2, -4 2.5%) 12 490 XV373 9T63C9872G53
480 208Y/120 45 (+2, -4 2.5%) 12 710 XV374 9T63C9873G53
480 208Y/120 75 (+2, -4 2.5%) 12 949 XV375 9T63C9874G53
480 208Y/120 112.5 (+2, -4 2.5%) 12 1710 XV377 9T63C9875G53
480 208Y/120 150 (+2, -4 2.5%) 12 1710 XV377 9T63C9876G53
K = 30 115°C Rise
Input Output Wiring Approx. Net Frame Product
Voltage Voltage kVA Taps Diagram No.1Weight (Lbs) Size Number
480 208Y/120 15 (+2, -4 2.5%) 12 Contact GE Sales Contact GE Sales Contact GE Sales
480 208Y/120 30 (+2, -4 2.5%) 12 Contact GE Sales Contact GE Sales Contact GE Sales
480 208Y/120 45 (+2, -4 2.5%) 12 710 XV374 9T63C9873G23
480 208Y/120 75 (+2, -4 2.5%) 12 1190 XV376 9T63C9874G23
480 208Y/120 112.5 (+2, -4 2.5%) 12 1710 XV377 9T63C9875G23
1See page 10-45 for wiring diagrams.
BuyLog™Catalog
Rev. 11/13
Data subject to change
without notice
Section 10
www.geindustrial.com
10-22
Dry Type Transformers
Low Noise
Aluminum
Three-Phase TP-1
Product Description
These low noise transformers are designed to operate at reduced
noise levels. The vibrations within the magnetic steel core were
greatly reduced, thus lowering the humming of the transformer
from 3 to 5 dB less than NEMA/ANSI standards. Available in
Aluminum or Copper windings, with either a 150°C, 115°C or
80°C rise.
Application
Type QL low noise transformers are ideal when quiet operation is
required such as near offices, in school buildings, or hospitals.
Although they are inherently quieter, installation can greatly
influence their noise level and therefore care should be taken in
following acoustical principles as well as proper installation
procedures. Closets and corners should be avoided as they act as
megaphones by seemingly increasing noise levels.
150°C Rise NEMA 2
Input Output Wiring Approx Net Frame Product
Voltage Voltage kVA Taps Diagram No.1Weight (Lbs) Size Number
480 Volts Delta 208Y/120 Volts 15 (+2, -4 2.5%) 12 240 XV371 9T83B3141
480 Volts Delta 208Y/120 Volts 30 (+2, -4 2.5%) 12 334 Y372A 9T83B3142
480 Volts Delta 208Y/120 Volts 45 (+2, -4 2.5%) 12 415 XV373 9T83B3143
480 Volts Delta 208Y/120 Volts 75 (+2, -4 2.5%) 12 620 XV374 9T83B3144
480 Volts Delta 208Y/120 Volts 112.5 (+2, -4 2.5%) 12 765 XV375 9T83B3145
480 Volts Delta 208Y/120 Volts 150 (+2, -4 2.5%) 12 1070 XV376 9T83B3146
480 Volts Delta 208Y/120 Volts 225 (+2, -4 2.5%) 12 1590 XV377 9T83B3147
480 Volts Delta 208Y/120 Volts 300 (+2, -4 2.5%) 12 1820 YF378 9T83B3148
480 Volts Delta 208Y/120 Volts 500 (+2, -2 2.5%) 12 3400 YF379 9T83B3149
115°C Rise NEMA 2
Input Output Wiring Approx Net Frame Product
Voltage Voltage kVA Taps Diagram No.1Weight (Lbs) Size Number
480 Volts Delta 208Y/120 Volts 15 (+2, -4 2.5%) 12 240 XV371 9T83B3141G15
480 Volts Delta 208Y/120 Volts 30 (+2, -4 2.5%) 12 334 XV372 9T83B3142G15
480 Volts Delta 208Y/120 Volts 45 (+2, -4 2.5%) 12 415 XV373 9T83B3143G15
480 Volts Delta 208Y/120 Volts 75 (+2, -4 2.5%) 12 620 XV374 9T83B3144G15
480 Volts Delta 208Y/120 Volts 112.5 (+2, -4 2.5%) 12 1070 XV376 9T83B3145G15
480 Volts Delta 208Y/120 Volts 150 (+2, -4 2.5%) 12 1590 XV377 9T83B3146G15
480 Volts Delta 208Y/120 Volts 225 (+2, -4 2.5%) 12 1820 YF378 9T83B3147G15
480 Volts Delta 208Y/120 Volts 300 (+2, -4 2.5%) 12 Contact GE Sales Contact GE Sales Contact GE Sales
80°C Rise NEMA 2
Input Output Wiring Approx Net Frame Product
Voltage Voltage kVA Taps Diagram No.1Weight (Lbs) Size Number
480 Volts Delta 208Y/120 Volts 15 (+2, -4 2.5%) 12 334 XV372 9T83B3141G80
480 Volts Delta 208Y/120 Volts 30 (+2, -4 2.5%) 12 415 XV373 9T83B3142G80
480 Volts Delta 208Y/120 Volts 45 (+2, -4 2.5%) 12 620 XV374 9T83B3143G80
480 Volts Delta 208Y/120 Volts 75 (+2, -4 2.5%) 12 765 XV375 9T83B3144G80
480 Volts Delta 208Y/120 Volts 112.5 (+2, -4 2.5%) 12 Contact GE Sales Contact GE Sales Contact GE Sales
480 Volts Delta 208Y/120 Volts 150 (+2, -4 2.5%) 12 Contact GE Sales Contact GE Sales Contact GE Sales
480 Volts Delta 208Y/120 Volts 225 (+2, -4 2.5%) 12 1820 YF378 9T83B3147G80
480 Volts Delta 208Y/120 Volts 75 (+2, -4 2.5%) 12 765 XV375 9T83B3874G90
1See page 10-45 for wiring diagrams.
Type QL Low Noise Transformer (front panel removed)
BuyLog™Catalog
Section 10
Rev. 11/13
Data subject to change
without notice
www.geindustrial.com 10-23
Dry Type Transformers
Low Noise
Copper
Three-Phase TP-1
150°C Rise NEMA 2
Input Output Wiring Approx Net Frame Product
Voltage Voltage kVA Taps Diagram No.1Weight (Lbs) Size Number
480 Volts Delta 208Y/120 Volts 15 (+2, -4 2.5%) 12 250 XV371 9T83C9141
480 Volts Delta 208Y/120 Volts 30 (+2, -4 2.5%) 12 377 XV372 9T83C9142
480 Volts Delta 208Y/120 Volts 45 (+2, -4 2.5%) 12 490 XV373 9T83C9143
480 Volts Delta 208Y/120 Volts 75 (+2, -4 2.5%) 12 710 XV374 9T83C9144
480 Volts Delta 208Y/120 Volts 112.5 (+2, -4 2.5%) 12 949 XV375 9T83C9145
480 Volts Delta 208Y/120 Volts 150 (+2, -4 2.5%) 12 1190 XV376 9T83C9146
480 Volts Delta 208Y/120 Volts 225 (+2, -4 2.5%) 12 1710 XV377 9T83C9147
480 Volts Delta 208Y/120 Volts 300 (+2, -4 2.5%) 12 3150 YF378 9T83C9148
480 Volts Delta 208Y/120 Volts 500 (+2, -2 2.5%) 12 4050 YF379 9T83C9149
115°C Rise NEMA 2
Input Output Wiring Approx Net Frame Product
Voltage Voltage kVA Taps Diagram No.1Weight (Lbs) Size Number
480 Volts Delta 208Y/120 Volts 15 (+2, -4 2.5%) 12 250 XV371 9T83C9141G15
480 Volts Delta 208Y/120 Volts 30 (+2, -4 2.5%) 12 377 XV372 9T83C9142G15
480 Volts Delta 208Y/120 Volts 45 (+2, -4 2.5%) 12 490 XV373 9T83C9143G15
480 Volts Delta 208Y/120 Volts 75 (+2, -4 2.5%) 12 710 XV374 9T83C9144G15
480 Volts Delta 208Y/120 Volts 112.5 (+2, -4 2.5%) 12 949 XV375 9T83C9145G15
480 Volts Delta 208Y/120 Volts 150 (+2, -4 2.5%) 12 1710 XV377 9T83C9146G15
480 Volts Delta 208Y/120 Volts 225 (+2, -4 2.5%) 12 3150 YF378 9T83C9147G15
480 Volts Delta 208Y/120 Volts 75 (+2, -4 2.5%) 12 710 XV374 9T83C9874G20
480 Volts Delta 208Y/120 Volts 112.5 (+2, -4 2.5%) 12 949 XV375 9T83C9875G20
480 Volts Delta 208Y/120 Volts 300 (+2, -4 2.5%) 12 4050 L39AA 9T83C9878G20
80°C Rise NEMA 2
Input Output Wiring Approx Net Frame Product
Voltage Voltage kVA Taps Diagram No.1Weight (Lbs) Size Number
480 Volts Delta 208Y/120 Volts 15 (+2, -4 2.5%) 12 377 XV372 9T83C9141G80
480 Volts Delta 208Y/120 Volts 30 (+2, -4 2.5%) 12 490 XV373 9T83C9142G80
480 Volts Delta 208Y/120 Volts 45 (+2, -4 2.5%) 12 710 XV374 9T83C9143G80
480 Volts Delta 208Y/120 Volts 75 (+2, -4 2.5%) 12 949 XV375 9T83C9144G80
480 Volts Delta 208Y/120 Volts 112.5 (+2, -4 2.5%) 12 1190 XV376 9T83C9145G80
480 Volts Delta 208Y/120 Volts 150 (+2, -4 2.5%) 12 Contact GE Sales Contact GE Sales Contact GE Sales
480 Volts Delta 208Y/120 Volts 225 (+2, -4 2.5%) 12 3150 YF378 9T83C9147G80
480 Volts Delta 208Y/120 Volts 300 (+2, -4 2.5%) 12 Contact GE Sales Contact GE Sales Contact GE Sales
1See page 10-45 for wiring diagrams.
BuyLog™Catalog
Rev. 11/13
Data subject to change
without notice
Section 10
www.geindustrial.com
10-24
Dry Type Transformers
Noise Isolation — Guard I (Electrostatic Shield)
Aluminum
Three-Phase TP-1
150°C Rise NEMA 2
Input Output Wiring Approx Net Frame Product
Voltage Voltage kVA Taps Diagram No.1Weight (Lbs) Size Number
480 208Y/120 15 (+2, -4 2.5%) 12 240 XV371 9T83B3871G03
480 208Y/120 30 (+2, -4 2.5%) 12 334 XV372 9T83B3872G03
480 208Y/120 45 (+2, -4 2.5%) 12 415 XV373 9T83B3873G03
480 208Y/120 75 (+2, -4 2.5%) 12 620 XV374 9T83B3874G03
480 208Y/120 112.5 (+2, -4 2.5%) 12 765 XV375 9T83B3875G03
480 208Y/120 150 (+2, -4 2.5%) 12 1070 XV376 9T83B3876G03
480 208Y/120 225 (+2, -4 2.5%) 12 1590 XV377 9T83B3877G03
480 208Y/120 300 (+2, -4 2.5%) 12 1820 YF378 9T83B3878G03
480 208Y/120 500 (+2, -2 2.5%) 12 3400 YF379 9T83B3879G03
480 208Y/120 750 (+2, -2 2.5%) 12 3250 FC67 9T40G0010G03
480 208Y/120 1000 (+2, -2 2.5%) 12 3250 FC68 9T40G0011G03
115°C Rise NEMA 2
Input Output Wiring Approx Net Frame Product
Voltage Voltage kVA Taps Diagram No.1Weight (Lbs) Size Number
480 208Y/120 15 (+2, -4 2.5%) 12 240 XV371 9T83B3871G13
480 208Y/120 30 (+2, -4 2.5%) 12 334 XV372 9T83B3872G13
480 208Y/120 45 (+2, -4 2.5%) 12 415 XV373 9T83B3873G13
480 208Y/120 75 (+2, -4 2.5%) 12 620 XV374 9T83B3874G13
480 208Y/120 112.5 (+2, -4 2.5%) 12 1070 XV376 9T83B3875G13
480 208Y/120 150 (+2, -4 2.5%) 12 1590 XV377 9T83B3876G13
480 208Y/120 225 (+2, -4 2.5%) 12 1820 YF378 9T83B3877G13
480 208Y/120 300 (+2, -4 2.5%) 12 3400 L39AA 9T83B3878G13
480 208Y/120 500 (+2, -2 2.5%) 12 3250 FC67 9T40G0009G53
80°C Rise NEMA 2
Input Output Wiring Approx Net Frame Product
Voltage Voltage kVA Taps Diagram No.1Weight (Lbs) Size Number
480 208Y/120 15 (+2, -4 2.5%) 12 334 XV372 9T83B3871G83
480 208Y/120 30 (+2, -4 2.5%) 12 415 XV373 9T83B3872G83
480 208Y/120 45 (+2, -4 2.5%) 12 620 XV374 9T83B3873G83
480 208Y/120 75 (+2, -4 2.5%) 12 765 XV375 9T83B3874G83
480 208Y/120 112.5 (+2, -4 2.5%) 12 1590 XV377 9T83B3875G83
480 208Y/120 150 (+2, -4 2.5%) 12 850 FC77 9T40G0006G83
480 208Y/120 225 (+2, -4 2.5%) 12 1820 YF378 9T83B3877G83
480 208Y/120 300 (+2, -4 2.5%) 12 3400 L39AA 9T83B3878G83
1See page 10-45 for wiring diagrams.
Note: Product numbers beginning with 9T4 have fan-assisted cooling.
BuyLog™Catalog
Section 10
Rev. 11/13
Data subject to change
without notice
www.geindustrial.com 10-25
Dry Type Transformers
Noise Isolation — Guard I (Electrostatic Shield)
Copper
Three-Phase TP-1
150°C Rise NEMA 2
Input Output Wiring Approx Net Frame Product
Voltage Voltage kVA Taps Diagram No.1Weight (Lbs) Size Number
480 208Y/120 15 (+2, -4 2.5%) 12 250 XV371 9T83C9871G03
480 208Y/120 30 (+2, -4 2.5%) 12 377 XV372 9T83C9872G03
480 208Y/120 45 (+2, -4 2.5%) 12 490 XV373 9T83C9873G03
480 208Y/120 75 (+2, -4 2.5%) 12 710 XV374 9T83C9874G03
480 208Y/120 112.5 (+2, -4 2.5%) 12 949 XV375 9T83C9875G03
480 208Y/120 150 (+2, -4 2.5%) 12 1190 XV376 9T83C9876G03
480 208Y/120 225 (+2, -4 2.5%) 12 1710 XV377 9T83C9877G03
480 208Y/120 300 (+2, -4 2.5%) 12 3150 YF378 9T83C9878G03
480 208Y/120 500 (+2, -2 2.5%) 12 4050 YF379 9T83C9879G03
480 208Y/120 750 (+2, -2 2.5%) 12 4030 FC67 9T45G0010G03
480 208Y/120 1000 (+2, -2 2.5%) 12 4030 FC68 9T45G0011G03
115°C Rise NEMA 2
Input Output Wiring Approx Net Frame Product
Voltage Voltage kVA Taps Diagram No.1Weight (Lbs) Size Number
480 208Y/120 15 (+2, -4 2.5%) 12 250 XV371 9T83C9871G13
480 208Y/120 30 (+2, -4 2.5%) 12 377 XV372 9T83C9872G13
480 208Y/120 45 (+2, -4 2.5%) 12 490 XV373 9T83C9873G13
480 208Y/120 75 (+2, -4 2.5%) 12 710 XV374 9T83C9874G13
480 208Y/120 112.5 (+2, -4 2.5%) 12 949 XV375 9T83C9875G13
480 208Y/120 150 (+2, -4 2.5%) 12 1710 XV377 9T83C9876G13
480 208Y/120 225 (+2, -4 2.5%) 12 3150 YF378 9T83C9877G13
480 208Y/120 300 (+2, -4 2.5%) 12 4050 L39AA 9T83C9878G13
80°C Rise NEMA 2
Input Output Wiring Approx Net Frame Product
Voltage Voltage kVA Taps Diagram No.1Weight (Lbs) Size Number
480 208Y/120 15 (+2, -4 2.5%) 12 377 XV372 9T83C9871G83
480 208Y/120 30 (+2, -4 2.5%) 12 490 XV373 9T83C9872G83
480 208Y/120 45 (+2, -4 2.5%) 12 710 XV374 9T83C9873G83
480 208Y/120 75 (+2, -4 2.5%) 12 949 XV375 9T83C9874G83
480 208Y/120 112.5 (+2, -4 2.5%) 12 1190 XV376 9T83C9875G83
480 208Y/120 150 (+2, -4 2.5%) 12 1710 XV377 9T83C9876G83
480 208Y/120 225 (+2, -4 2.5%) 12 3150 YF378 9T83C9877G83
480 208Y/120 300 (+2, -4 2.5%) 12 4050 L39AA 9T83C9878G83
1See page 10-45 for wiring diagrams.
BuyLog™Catalog
Rev. 11/13
Data subject to change
without notice
Section 10
www.geindustrial.com
10-26
Dry Type Transformers
Noise Isolation — Guard II
Guard II noise isolation transformers provide common mode
noise attenuation plus an enhanced level of transverse mode
noise attenuation for increased protection of sensitive electronic
equipment.
Key Features
—Grounded copper electrostatic shield between
primary and secondary windings
—Noise suppressors and spike/surge suppressors
—120dB common mode noise rejection
—60dB transverse mode noise rejection
—Compliance with ANSI and NEMA standards
—Sound levels below NEMA ST-20 limits
—UL Listed
—NEMA 2 enclosure
Applications
—Schools and colleges
—Large computer installations
—Small commercial offices
—Motor installations
—Process controllers
—Hospitals
—X-ray rooms
—Electrical laboratories
—High lightning strike areas
Guard II Transformer
Guard II Transformer, (front panel removed)
BuyLog™Catalog
Section 10
Rev. 11/13
Data subject to change
without notice
www.geindustrial.com 10-27
Dry Type Transformers
Noise Isolation — Guard II
Aluminum
Three-Phase TP-1
150°C Rise
Input Output Approx Net Frame Product
Voltage Voltage kVA Taps Weight (Lbs) Size Number
480 208Y/120 15 (+2, -4 2.5%) 260 XV371 9T86B3871G03
480 208Y/120 30 (+2, -4 2.5%) 370 XV372 9T86B3872G03
480 208Y/120 45 (+2, -4 2.5%) 460 XV373 9T86B3873G03
480 208Y/120 75 (+2, -4 2.5%) 680 XV374 9T86B3874G03
480 208Y/120 112.5 (+2, -4 2.5%) 830 XV375 9T86B3875G03
115°C Rise
Input Output Approx Net Frame Product
Voltage Voltage kVA Taps Weight (Lbs) Size Number
480 208Y/120 15 (+2, -4 2.5%) 260 XV371 9T86B3871G13
480 208Y/120 30 (+2, -4 2.5%) 370 XV372 9T86B3872G13
480 208Y/120 45 (+2, -4 2.5%) 460 XV373 9T86B3873G13
480 208Y/120 75 (+2, -4 2.5%) 680 XV374 9T86B3874G13
80°C Rise
Input Output Approx Net Frame Product
Voltage Voltage kVA Taps Weight (Lbs) Size Number
480 208Y/120 15 (+2, -4 2.5%) 370 XV372 9T86B3871G83
480 208Y/120 30 (+2, -4 2.5%) 460 XV373 9T86B3872G83
480 208Y/120 45 (+2, -4 2.5%) 680 XV374 9T86B3873G83
480 208Y/120 75 (+2, -4 2.5%) 830 XV375 9T86B3874G83
150°C Rise
Input Output Approx Net Frame Product
Voltage Voltage kVA Taps Weight (Lbs) Size Number
208 208Y/120 15 (+2, -4 2.5%) 260 XV371 9T86B3091G03
208 208Y/120 30 (+2, -4 2.5%) 370 XV372 9T86B3092G03
208 208Y/120 45 (+2, -4 2.5%) 460 XV373 9T86B3093G03
208 208Y/120 75 (+2, -4 2.5%) 680 XV374 9T86B3094G03
208 208Y/120 112.5 (+2, -4 2.5%) 830 XV375 9T86B3095G03
115°C Rise
Input Output Approx Net Frame Product
Voltage Voltage kVA Taps Weight (Lbs) Size Number
208 208Y/120 15 (+2, -4 2.5%) 260 XV371 9T86B3091G13
208 208Y/120 30 (+2, -4 2.5%) 370 XV372 9T86B3092G13
208 208Y/120 45 (+2, -4 2.5%) 460 XV373 9T86B3093G13
208 208Y/120 75 (+2, -4 2.5%) 680 XV374 9T86B3094G13
80°C Rise
Input Output Approx Net Frame Product
Voltage Voltage kVA Taps Weight (Lbs) Size Number
208 208Y/120 15 (+2, -4 2.5%) 370 XV372 9T86B3091G83
208 208Y/120 30 (+2, -4 2.5%) 460 XV373 9T86B3092G83
208 208Y/120 45 (+2, -4 2.5%) 680 XV374 9T86B3093G83
208 208Y/120 45 (+2, -4 2.5%) 830 XV375 9T86B3094G83
BuyLog™Catalog
Rev. 11/13
Data subject to change
without notice
Section 10
www.geindustrial.com
10-28
Dry Type Transformers
Noise Isolation — Guard II
Copper
Three-Phase TP-1
150°C Rise
Input Output Approx Net Frame Product
Voltage Voltage kVA Taps Weight (Lbs) Size Number
480 208Y/120 15 (+2, -4 2.5%) 270 XV371 9T86C9871G03
480 208Y/120 30 (+2, -4 2.5%) 420 XV372 9T86C9872G03
480 208Y/120 45 (+2, -4 2.5%) 540 XV373 9T86C9873G03
480 208Y/120 75 (+2, -4 2.5%) 770 XV374 9T86C9874G03
480 208Y/120 112.5 (+2, -4 2.5%) 1010 XV375 9T86C9875G03
115°C Rise
Input Output Approx Net Frame Product
Voltage Voltage kVA Taps Weight (Lbs) Size Number
480 208Y/120 15 (+2, -4 2.5%) 270 XV371 9T86C9871G13
480 208Y/120 30 (+2, -4 2.5%) 420 XV372 9T86C9872G13
480 208Y/120 45 (+2, -4 2.5%) 540 XV373 9T86C9873G13
480 208Y/120 75 (+2, -4 2.5%) 770 XV374 9T86C9874G13
480 208Y/120 112.5 (+2, -4 2.5%) 1010 XV375 9T86C9875G13
80°C Rise
Input Output Approx Net Frame Product
Voltage Voltage kVA Taps Weight (Lbs) Size Number
480 208Y/120 15 (+2, -4 2.5%) 420 XV372 9T86C9871G83
480 208Y/120 30 (+2, -4 2.5%) 540 XV373 9T86C9872G83
480 208Y/120 45 (+2, -4 2.5%) 770 XV374 9T86C9873G83
480 208Y/120 75 (+2, -4 2.5%) 1010 XV375 9T86C9874G83
150°C Rise
Input Output Approx Net Frame Product
Voltage Voltage kVA Taps Weight (Lbs) Size Number
208 208Y/120 15 (+2, -4 2.5%) 270 XV371 9T86C9091G03
208 208Y/120 30 (+2, -4 2.5%) 420 XV372 9T86C9092G03
208 208Y/120 45 (+2, -4 2.5%) 540 XV373 9T86C9093G03
208 208Y/120 75 (+2, -4 2.5%) 770 XV374 9T86C9094G03
208 208Y/120 112.5 (+2, -4 2.5%) 1010 XV375 9T86C9095G03
115°C Rise
Input Output Approx Net Frame Product
Voltage Voltage kVA Taps Weight (Lbs) Size Number
208 208Y/120 15 (+2, -4 2.5%) 270 XV371 9T86C9091G13
208 208Y/120 30 (+2, -4 2.5%) 420 XV372 9T86C9092G13
208 208Y/120 45 (+2, -4 2.5%) 540 XV373 9T86C9093G13
208 208Y/120 75 (+2, -4 2.5%) 770 XV374 9T86C9094G13
208 208Y/120 112.5 (+2, -4 2.5%) 1010 XV375 9T86C9095G13
BuyLog™Catalog
Section 10
Rev. 11/13
Data subject to change
without notice
www.geindustrial.com 10-29
Dry Type Transformers
Harmonic Mitigating — Guard III
115°C Rise NEMA 2
Input Output Approx Net Product
Voltage Voltage kVA Temp Rise Phase Shift Weight (Lbs) Frame Size Number
480 208Y/120 15 115 0˚ 315 H371C 9T96C9871G13
480 208Y/120 30 115 0˚ 550 H372C 9T96C9872G13
480 208Y/120 45 115 0˚ 550 H372C 9T96C9873G13
480 208Y/120 75 115 0˚ 1050 H374C 9T96C9874G13
480 208Y/120 112.5 115 0˚ 1975 H375C 9T96C9875G13
480 208Y/120 150 115 0˚ 2000 H376C 9T96C9876G13
150°C Rise NEMA 2
Input Output Approx Net Product
Voltage Voltage kVA Temp Rise Phase Shift Weight (Lbs) Frame Size Number
480 208Y/120 15 150 -30˚ 315 H371C 9T97C9871G03
480 208Y/120 30 150 -30˚ 550 H372C 9T97C9872G03
480 208Y/120 45 150 -30˚ 640 H373C 9T97C9873G03
480 208Y/120 75 150 -30˚ 1050 H374C 9T97C9874G03
480 208Y/120 112.5 150 -30˚ 1975 H375C 9T97C9875G03
480 208Y/120 150 150 -30˚ 2000 H376C 9T97C9876G03
480 208Y/120 225 150 -30˚ Call GE Sales H377C 9T97C9877G03
480 208Y/120 300 150 -30˚ Call GE Sales Call GE Sales 9T97C9878G03
Copper
Three-Phase TP-1
BuyLog™Catalog
Rev. 11/13
Data subject to change
without notice
Section 10
Dry Type Transformers
Ultra Energy Efficient
Copper (Also available with Aluminum Windings)
Three-Phase CSL-3
Three-Phase NEMA Premium™
More energy efficient than the TP-1 design, the GE QL Ultra
Efficient transformer can save customers nearly $4,000 per year
in operating costs, based on a facility the size of an elementary
school*, and help them earn U. S. Green Building Council’s LEED®
certification points on a project. It’s significantly quieter than
standard transformers and features all of the convenience and
reliability you expect from a QL transformer.
Applications
LEED®buildings, schools, university buildings, stadiums,
government buildings, healthcare and commercial buildings.
Maximum No Load Loss (Watts)
kVA TP-1 QL Ultra Efficient % Change
15 92 49 -47%
30 152 85 -44%
45 191 97 -50%
75 320 142 -56%
112 417 200 -52%
150 421 203 -52%
225 715 313 -56%
300 751 330 -56%
*Based on upgrading pre-2007 (non-TP-1) GE transformers at an elementary school
with 13 transformers, ranging in size from 30kVA to 112.5kVA and energy costs of
$.077/kwh to the equivalent GE QL Ultra transformers.
Energy Efficiency TP-1 vs. CSL-3
15kVA 30kVA 45kVA 75kVA 112.5kVA 150kVA 225kVA 300kVA
TP-1 97.0% 97.5% 97.7% 98.0% 98.2% 98.3% 98.5% 98.6%
QL Ultra Efficient (CSL-3) 97.90% 98.25% 98.39% 98.60% 98.74% 98.81% 98.75% 99.02%
150°C Rise NEMA 2
Input Output Wiring Approx. Net Frame Product
Voltage Voltage kVA Taps Diagram No. Weight (Lbs.) Size Number
480 208Y/120 15 (+2, -4 2.5%) 12 240 S31AC 9T73C9871
480 208Y/120 30 (+2, -4 2.5%) 12 360 S32AC 9T73C9872
480 208Y/120 45 (+2, -4 2.5%) 12 460 S33AC 9T73C9873
480 208Y/120 75 (+2, -4 2.5%) 12 690 S34AC 9T73C9874
480 208Y/120 112.5 (+2, -4 2.5%) 12 850 S35AC 9T73C9875
480 208Y/120 150 (+2, -4 2.5%) 12 1190 S36AC 9T73C9876
480 208Y/120 225 (+2, -4 2.5%) 12 1710 S37AC 9T73C9877
480 208Y/120 300 (+2, -4 2.5%) 12 3170 S38AC 9T73C9878
115°C Rise NEMA 2
Input Output Wiring Approx. Net Frame Product
Voltage Voltage kVA Taps Diagram No. Weight (Lbs.) Size Number
480 208Y/120 15 (+2, -4 2.5%) 12 240 S31AC 9T73C9871G15
480 208Y/120 30 (+2, -4 2.5%) 12 360 S32AC 9T73C9872G15
480 208Y/120 45 (+2, -4 2.5%) 12 460 S33AC 9T73C9873G15
480 208Y/120 75 (+2, -4 2.5%) 12 690 S34AC 9T73C9874G15
480 208Y/120 112.5 (+2, -4 2.5%) 12 850 S35AC 9T73C9875G15
480 208Y/120 150 (+2, -4 2.5%) 12 1710 S37AC 9T73C9876G15
480 208Y/120 225 (+2, -4 2.5%) 12 3170 S38AC 9T73C9877G15
www.geindustrial.com
10-30 BuyLog™Catalog
Section 10
Rev. 11/13
Data subject to change
without notice
www.geindustrial.com 10-31
BuyLog™Catalog
Rev. 11/13
Data subject to change
without notice
Section 10
Dry Type Transformers
Ultra Energy Efficient K-Factor
K=4 150°C Rise NEMA 2
Input Output Wiring Approx. Net Frame Product
Voltage Voltage kVA Taps Diagram No. Weight (Lbs.) Size Number
480 208Y/120 15 (+2, -4 2.5%) 12 360 S32AC 9T73C9461G03
480 208Y/120 30 (+2, -4 2.5%) 12 360 S32AC 9T73C9462G03
480 208Y/120 45 (+2, -4 2.5%) 12 690 S34AC 9T73C9463G03
480 208Y/120 75 (+2, -4 2.5%) 12 850 S35AC 9T73C9464G03
480 208Y/120 112.5 (+2, -4 2.5%) 12 1190 S36AC 9T73C9465G03
480 208Y/120 150 (+2, -4 2.5%) 12 1710 S37AC 9T73C9466G03
K=4 115°C Rise NEMA 2
Input Output Wiring Approx. Net Frame Product
Voltage Voltage kVA Taps Diagram No. Weight (Lbs.) Size Number
480 208Y/120 15 (+2, -4 2.5%) 12 360 S32AC 9T73C9461G13
480 208Y/120 30 (+2, -4 2.5%) 12 460 S33AC 9T73C9462G13
480 208Y/120 45 (+2, -4 2.5%) 12 690 S34AC 9T73C9463G13
480 208Y/120 75 (+2, -4 2.5%) 12 850 S35AC 9T73C9464G13
480 208Y/120 112.5 (+2, -4 2.5%) 12 1190 S36AC 9T73C9465G13
480 208Y/120 150 (+2, -4 2.5%) 12 1710 S37AC 9T73C9466G13
K=4 80°C Rise NEMA 2
Input Output Wiring Approx. Net Frame Product
Voltage Voltage kVA Taps Diagram No. Weight (Lbs.) Size Number
480 208Y/120 15 (+2, -4 2.5%) 12 360 S32AC 9T73C9461G83
480 208Y/120 30 (+2, -4 2.5%) 12 460 S33AC 9T73C9462G83
480 208Y/120 45 (+2, -4 2.5%) 12 690 S34AC 9T73C9463G83
480 208Y/120 75 (+2, -4 2.5%) 12 9T73C9464G83
480 208Y/120 112.5 (+2, -4 2.5%) 12 1710 S37AC 9T73C9465G83
480 208Y/120 150 (+2, -4 2.5%) 12 3170 S38AC 9T73C9466G83
K=13 150°C Rise NEMA 2
Input Output Wiring Approx. Net Frame Product
Voltage Voltage kVA Taps Diagram No. Weight (Lbs.) Size Number
480 208Y/120 15 (+2, -4 2.5%) 12 240 S31AC 9T73C9471G03
480 208Y/120 30 (+2, -4 2.5%) 12 360 S32AC 9T73C9472G03
480 208Y/120 45 (+2, -4 2.5%) 12 690 S34AC 9T73C9473G03
480 208Y/120 75 (+2, -4 2.5%) 12 850 S35AC 9T73C9474G03
480 208Y/120 112.5 (+2, -4 2.5%) 12 1190 S36AC 9T73C9475G03
480 208Y/120 150 (+2, -4 2.5%) 12 1710 S37AC 9T73C9476G03
K=13 115°C Rise NEMA 2
Input Output Wiring Approx. Net Frame Product
Voltage Voltage kVA Taps Diagram No. Weight (Lbs.) Size Number
480 208Y/120 15 (+2, -4 2.5%) 12 360 S32AC 9T73C9471G13
480 208Y/120 30 (+2, -4 2.5%) 12 460 S33AC 9T73C9472G13
480 208Y/120 45 (+2, -4 2.5%) 12 690 S34AC 9T73C9473G13
480 208Y/120 75 (+2, -4 2.5%) 12 850 S35AC 9T73C9474G13
480 208Y/120 112.5 (+2, -4 2.5%) 12 1710 S37AC 9T73C9475G13
480 208Y/120 150 (+2, -4 2.5%) 12 1710 S37AC 9T73C9476G13
K=13 80°C Rise NEMA 2
Input Output Wiring Approx. Net Frame Product
Voltage Voltage kVA Taps Diagram No. Weight (Lbs.) Size Number
480 208Y/120 15 (+2, -4 2.5%) 12 9T73C9471G83
480 208Y/120 30 (+2, -4 2.5%) 12 9T73C9472G83
480 208Y/120 45 (+2, -4 2.5%) 12 9T73C9473G83
480 208Y/120 75 (+2, -4 2.5%) 12 1190 S36AC 9T73C9474G83
480 208Y/120 112.5 (+2, -4 2.5%) 12 9T73C9475G83
480 208Y/120 150 (+2, -4 2.5%) 12 9T73C9476G83
Copper (Also available with Aluminum Windings)
Three-Phase NEMA Premium™
www.geindustrial.com
10-32
Dry Type Transformers
Ultra Energy Efficient Harmonic Mitigating
Copper (Also available with Aluminum Windings)
Three-Phase NEMA Premium™
0°C Phase Shift NEMA 2
Input Output Wiring Approx. Net Frame Product
Voltage Voltage kVA Taps Diagram No. Weight (Lbs.) Size Number
480 208Y/120 15 (+2, -4 2.5%) 12 240 S31AC 9T76H9871G03
480 208Y/120 30 (+2, -4 2.5%) 12 360 S32AC 9T76H9872G03
480 208Y/120 45 (+2, -4 2.5%) 12 460 S33AC 9T76H9873G03
480 208Y/120 75 (+2, -4 2.5%) 12 690 S34AC 9T76H9874G03
480 208Y/120 112.5 (+2, -4 2.5%) 12 850 S35AC 9T76H9875G03
480 208Y/120 150 (+2, -4 2.5%) 12 1190 S36AC 9T76H9876G03
480 208Y/120 225 (+2, -4 2.5%) 12 1710 S37AC 9T76H9877G03
480 208Y/120 300 (+2, -4 2.5%) 12 3170 S38AC 9T76H9878G03
-30°C Phase Shift NEMA 2
Input Output Wiring Approx. Net Frame Product
Voltage Voltage kVA Taps Diagram No. Weight (Lbs.) Size Number
480 208Y/120 15 (+2, -4 2.5%) 12 240 S31AC 9T77H9871G03
480 208Y/120 30 (+2, -4 2.5%) 12 360 S32AC 9T77H9872G03
480 208Y/120 45 (+2, -4 2.5%) 12 460 S33AC 9T77H9873G03
480 208Y/120 75 (+2, -4 2.5%) 12 690 S34AC 9T77H9874G03
480 208Y/120 112.5 (+2, -4 2.5%) 12 850 S35AC 9T77H9875G03
480 208Y/120 150 (+2, -4 2.5%) 12 1190 S36AC 9T77H9876G03
480 208Y/120 225 (+2, -4 2.5%) 12 1710 S37AC 9T77H9877G03
480 208Y/120 300 (+2, -4 2.5%) 12 3170 S38AC 9T77H9878G03
BuyLog™Catalog
Section 10
Rev. 11/13
Data subject to change
without notice
www.geindustrial.com 10-33
BuyLog™Catalog
Rev. 11/13
Data subject to change
without notice
Section 10
Dry Type Transformers
Servicenter Mini-Unit Substations
Product Description
This easily installed and serviceable unit incorporates a Type QMS
transformer (single-phase) or a Type QL transformer (three-
phase), a primary main circuit breaker, a secondary main circuit
breaker, and a load-center-design breaker panel. Since these
components don’t have to be installed and interconnected sepa-
rately, the contractor or user can reduce installation time and
costs. Because of the single-unit concept, only one, handy
Servicenter needs to be mounted.
Available in single-phase, 5 through 25 kVA, and in three-phase,
15 through 30 kVA, 600 Volt class ratings, the GE Servicenter is a
convenient, economical way to meet your industrial and tempo-
rary power requirements.
The Transformer—The Servicenter utilizes GE transformer design
which has twenty years of field-proven experience behind it and
a long track record for assuring consistent, reliable performance.
Type QMS transformers employ a 180°C UL Recognized insulation
system with a 115°C rise. Type QL transformers employ a 220°C
UL Recognized insulation system with a 150°C rise.
The Panel—The panel assembly includes the rugged GE
PowerMark Plus™circuit breaker load center interior, E-frame pri-
mary breakers, and E-frame or Q Line secondary breakers. The
load center will accept one-, two-, or three-pole (three-phase)
common trip circuit breakers and ground fault breakers. All
Servicenters come equipped with the properly sized primary main
and secondary main circuit breakers installed and prewired.
Branch breakers are not included.
Advantages
—Transformer, distribution panel and breakers are all designed,
built and assembled by GE
—Saves time and money - pre-assembled, pre-wired unit saves
time on the job
—High reliability – assembled and tested in our UL approved
factory to assure consistency and quality
—Available GE ground-fault breakers ensure electrical safety
around construction sites or wherever water may be present
Key Features
—Keyhole mounting flange facilitates easy mounting
—Indoor and outdoor use
—Front-accessible, hinged or removable panel door is safe
and convenient
—Heat barrier under core and coil provides electrical and thermal
isolation for wiring compartment
—High-efficiency core construction results in quiet transformer
operation and low no-load losses
—Factory installed and wired GE main and secondary main
circuit breakers

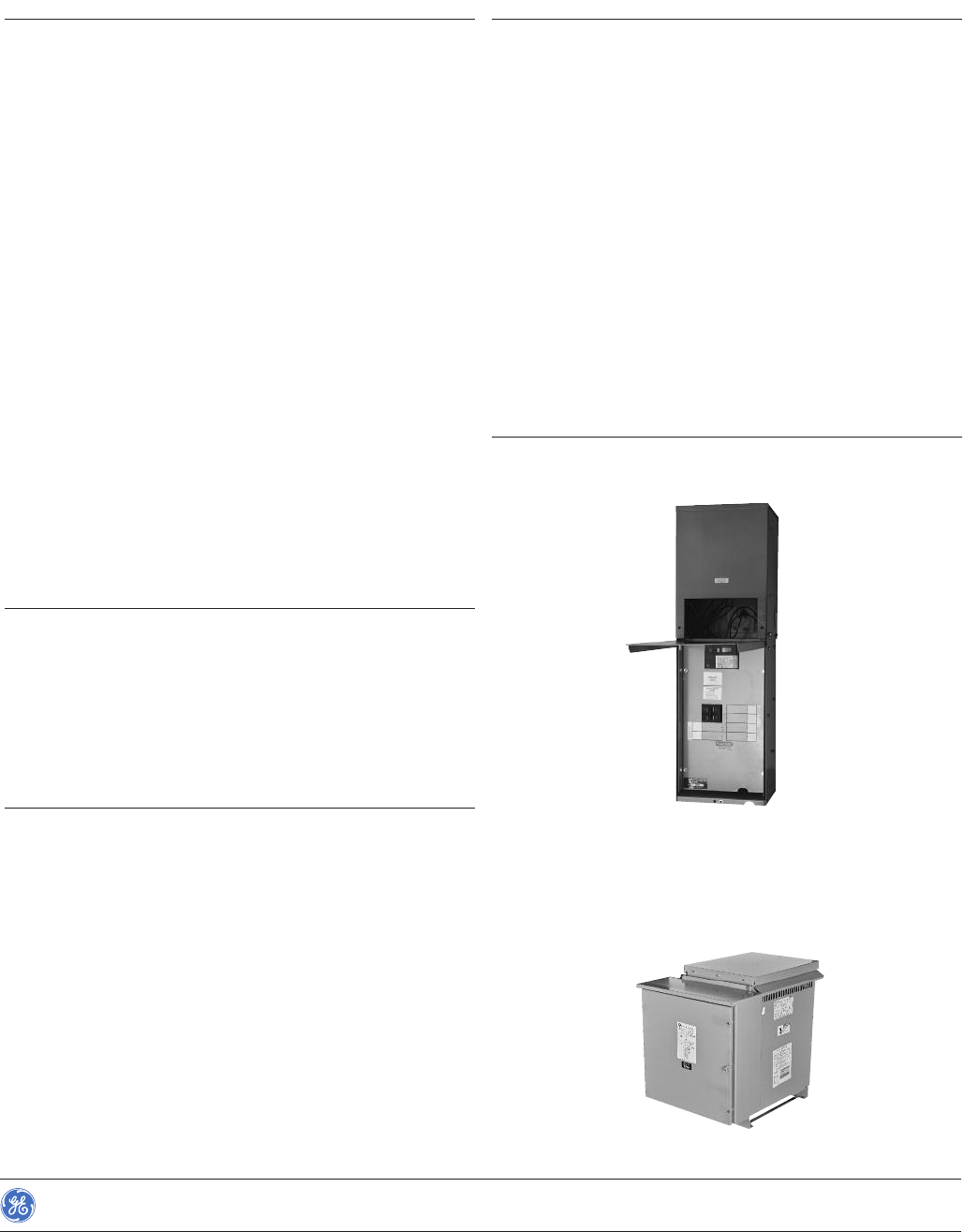

Single-Phase Servicenter, Hinged Door Removed
Three-Phase Servicenter, Closed View
Application
The single-phase Servicenter can be used wherever 480 Volt
power is available and 120 or 240 Volt branch circuits are
required. The three-phase Servicenter can be used wherever 240
Volt∅, 480 Volt∅ or 600 Volt∅ is available and 208 Volt Y/120
Volt circuits are required. The unit can be used in such applica-
tions as vending machine areas, construction laboratory test
areas, general construction sites where temporary or quickly
obtained power is required, or where future expansion of branch
circuits is planned.
—Vending or concession areas
—Office buildings
—Assembly lines
—Mining applications
—Parking lots
—Light industrial areas
—Warehouses
—Construction sites
NEC Requirements
The Servicenter conforms with Article 450-3 of the 1993 National
Electric Code.
Integral Transformer and Distribution Center
www.geindustrial.com Rev. 11/13
Data subject to change
without notice
BuyLog™Catalog
10-34
Dry Type Transformers
Servicenter Mini-Unit Substations
Integral Transformer and Distribution Center
Single-Phase and Three-Phase TP-1
Single-Phase Indoor/Outdoor 60 Hz
Max. Branch Max. Branch Max. Branch Max. Branch
Input Output Spaces 1 THQL, Spaces 1 THQL, Spaces 1/2 THQP, Spaces 1/2 THQP, Total Breaker Rating- Breaker Rating- Product
Voltage Voltage kVA 1-pole 2-pole 1-pole 2-pole 1-pole Spaces Primary Main Secondary Main Number
480 Volts 120/240 Volts 56 3 12 4 12 25A 30A 9T21S1050
480 Volts 120/240 Volts 7.5 63 12 4 12 35A 40A 9T21S1070
480 Volts 120/240 Volts 10 84 16 6 16 50A 50A 9T21S1100
480 Volts 120/240 Volts 15 12 6 24 10 24 60A 70A 9T21S1150
480 Volts 120/240 Volts 25 20 10 8224 100A 150A 9T21S1250
Three-Phase Indoor/Outdoor 60 Hz1TP-1
Input Output Max. Branch Max. Branch Total Breaker Rating- Breaker Rating- Product
Voltage Voltage kVA Spaces, 1-pole Spaces 3-pole 1-pole Spaces Primary Main Secondary Main Number
240 Volts 208Y/120 Volts 15 12 4 12 100A 50A 9T83B0001
240 Volts 208Y/120 Volts 22.5 18 6 18 100A 70A 9T83B0002
240 Volts 208Y/120 Volts 30 24 8 24 100A 100A 9T83B0003
480 Volts 208Y/120 Volts 15 12 4 12 40A 50A 9T83B0011
480 Volts 208Y/120 Volts 22.5 18 6 18 70A 70A 9T83B0012
480 Volts 208Y/120 Volts 30 24 8 24 90A 100A 9T83B0013
600 Volts 208Y/120 Volts 15 12 4 12 40A 50A 9T83B0021
600 Volts 208Y/120 Volts 22.5 18 6 18 40A 70A 9T83B0022
600 Volts 208Y/120 Volts 30 24 8 24 40A 100A 9T83B0023
1(3) 5% taps 1 above and 2 below rated primary volts.
Three-Phase Indoor/Outdoor 60 Hz1TP-1 Copper Transformer Windings
Input Output Max. Branch Max. Branch Total Breaker Rating- Breaker Rating- Product
Voltage Voltage kVA Spaces, 1-pole Spaces 3-pole 1-pole Spaces Primary Main Secondary Main Number
240 Volts 208Y/120 Volts 15 12 4 12 100A 50A 9T83C0001
240 Volts 208Y/120 Volts 22.5 18 6 18 100A 70A 9T83C0002
240 Volts 208Y/120 Volts 30 24 8 24 100A 100A 9T83C0003
480 Volts 208Y/120 Volts 15 12 4 12 40A 50A 9T83C0011
480 Volts 208Y/120 Volts 22.5 18 6 18 70A 70A 9T83C0012
480 Volts 208Y/120 Volts 30 24 8 24 90A 100A 9T83C0013
600 Volts 208Y/120 Volts 15 12 4 12 40A 50A 9T83C0021
600 Volts 208Y/120 Volts 22.5 18 6 18 40A 70A 9T83C0022
600 Volts 208Y/120 Volts 30 24 8 24 40A 100A 9T83C0023

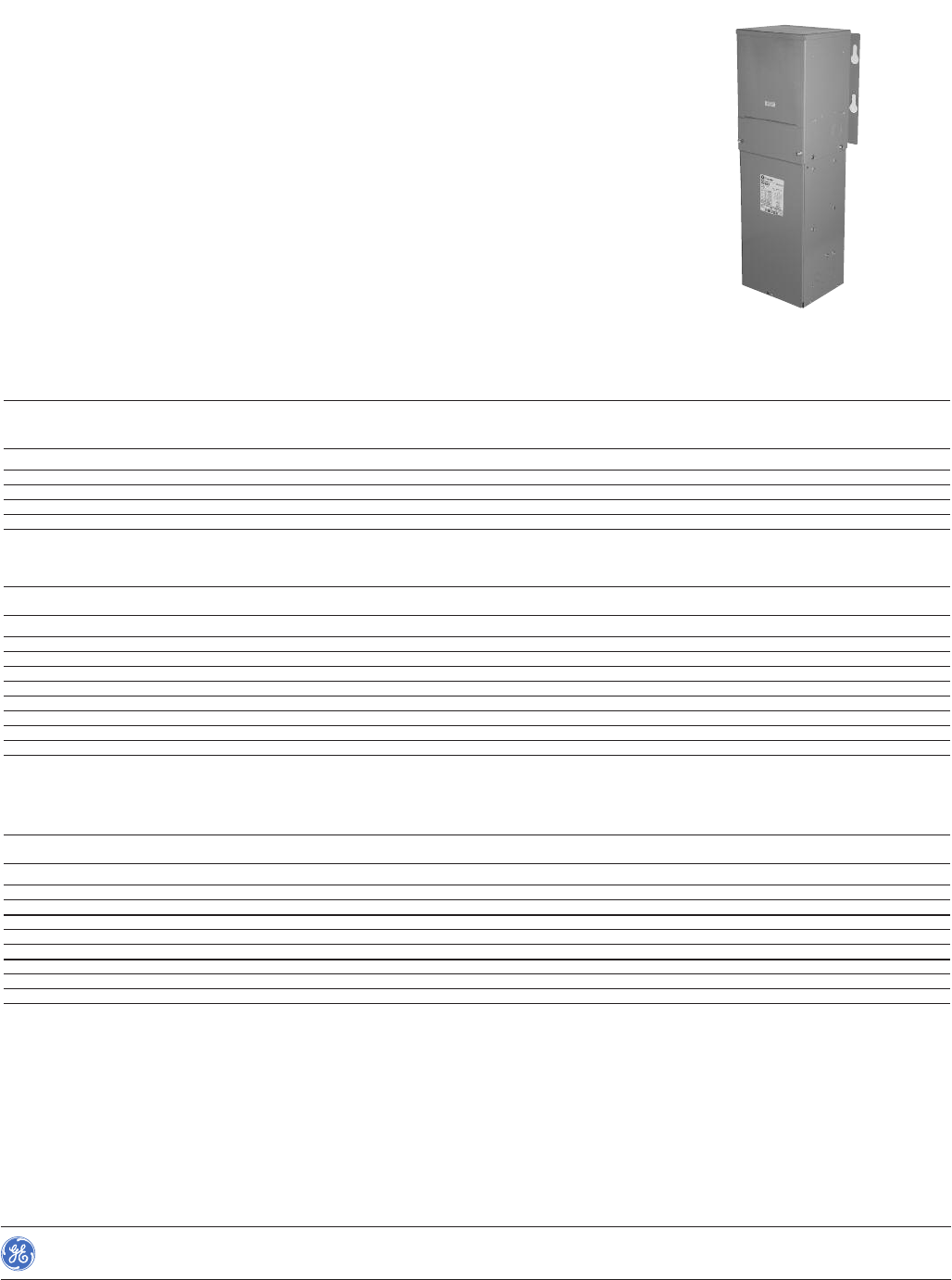

Single-Phase Servicenter
Section 10
www.geindustrial.com BuyLog™Catalog 10-35
Rev. 11/13
Data subject to change
without notice
Section 10
1For 22.5 and 15 kVA three-phase Servicenters, secondary main
breaker is a backfed plug-in type with positive retainers.
Integral Transformer and Distribution Center

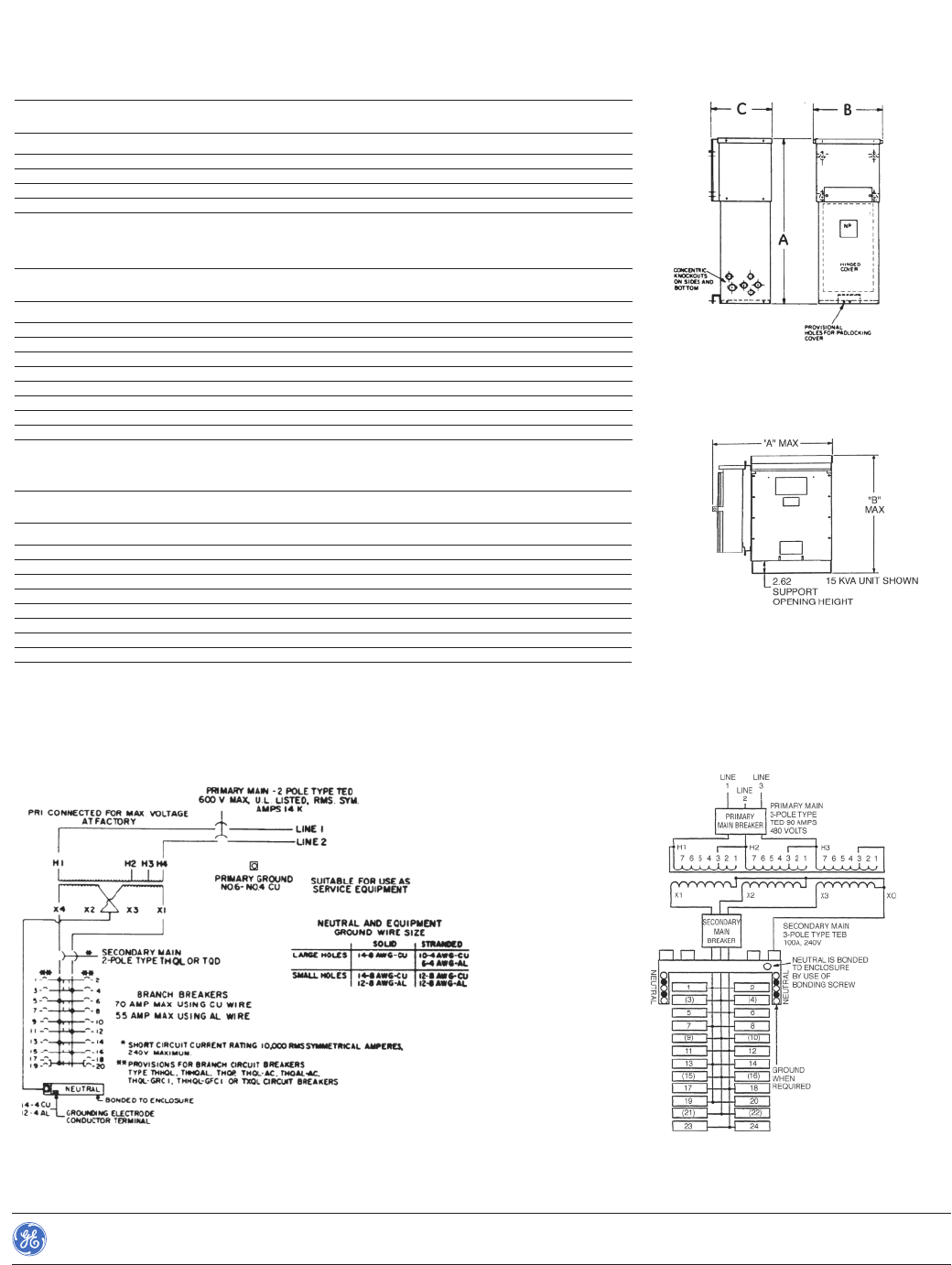

Outlines, Dimensions and Wiring Diagrams
Single-Phase
Product Approx. Net "A" "B" "C" Frame
kVA Number Weight (Lbs.) Height (in.) Width (in.) Depth (in.) Size
5 9T21S1050 103 32.5 10.75 11.12 16350
7.5 9T21S1070 147 32.5 10.75 11.12 16600
10 9T21S1100 198 35 12.62 12.62 19400
15 9T21S1150 220 35 12.62 12.62 19500
25 9T21S1250 388 44.75 16.75 16 50500
Three-Phase TP-1 Aluminum
Product Approx. Net "B" "A" Frame
kVA Number Weight (Lbs.) Height (in.) Width (in.) Depth (in.) Size
15 9T83B0001 280 27.3 27.4 16.9 XV371
22.5 9T83B0002 450 32.2 34.5 24 XV372
30 9T83B0003 450 32.2 34.5 24 XV372
15 9T83B0011 280 27.3 27.4 16.9 XV371
22.5 9T83B0012 450 32.2 34.5 24 XV372
30 9T83B0013 450 32.2 34.5 24 XV372
15 9T83B0021 280 27.3 27.4 16.9 XV371
22.5 9T83B0022 450 32.2 34.5 24 XV372
30 9T83B0023 450 32.2 34.5 24 XV372
Dimensions Single-Phase
Dimensions Three-Phase
Typical Wiring Diagram Single-Phase Typical Wiring Diagram Three-Phase1
Dry Type Transformers
Servicenter Mini-Unit Substations
Three-Phase TP-1 Copper
Product Approx Net "A" "B" "C" Frame
kVA Number Weight (Lbs) Height (in.) Height (in.) Height (in.) Size
15 9T83C0001 290 27.3 27.4 16.9 XV371
22.5 9T83C0002 460 32.2 34.5 24 XV372
30 9T83C0003 460 32.2 34.5 24 XV372
15 9T83C0011 290 27.3 27.4 16.9 Y371C
22.5 9T83C0012 460 32.2 34.5 24 Y372C
30 9T83C0013 460 32.2 34.5 24 Y372C
15 9T83C0021 290 27.3 27.4 16.9 XV371
22.5 9T83C0022 460 32.2 34.5 24 XV372
30 9T83C0023 460 32.2 34.5 24 XV372
www.geindustrial.com
10-36
Dry Type Transformers
Totally Enclosed, Nonventilated
TENV
15-75kVA, Three-Phase, TP-1
Totally enclosed nonventilated (TENV) transformers are an
excellent choice for applications where dry-type transformer
benefits are desired but the standard enclosure openings are
unacceptable because of adverse atmospheric conditions. TENV
transformers are recommended where dust, dirt or lint may be
present or where transformers are subject to sprays or controlled
wash-down conditions. They are UL Listed through 75kVA for
indoor or protected outdoor applications.
Advantages
—Dry-type transformer is housed in an enclosed NEMA 3R
non-ventilated compartment
—Convenient wiring compartment is located beneath the
transformer and has removable front and rear covers
—Copper bus bars are located at the front of the wiring
compartment and are clearly labeled
—All electrical connections between the transformer and
bus bars are factory wired
—Quiet performance – meets NEMA ST-20
—No-weld coil termination design – an industry first
—Comprehensive factory testing assures quality
Features
—Quiet design - unique core and coil design makes GE TENV
transformers among the quietest available
—Core and coil assembly mounted on rubber isolation pads to
reduce noise
—Bolted coil terminations are more reliable than welded
terminations, and they eliminate weld failures and problems
associated with welding and weld splatter
—100% factory tested for shorts and coil integrity, current and
loss, voltage, impedance and noise
—Qualified to the seismic requirements of IEEE-693-1997 and
IBC-2003
—Copper ground strap
—Copper or aluminum windings available
—Available in 150°C, 115°C, and 80°C rise models
—Indoor or outdoor use
Applications
—Textile
—Automotive
—Foundry
—Paper mills
—Wash-down areas
TENV Transformer
TENV Transformer (front panel removed)
BuyLog™Catalog
Section 10
Rev. 11/13
Data subject to change
without notice
www.geindustrial.com 10-37
BuyLog™Catalog
Rev. 11/13
Data subject to change
without notice
Section 10
Dry Type Transformers
Totally Enclosed, Nonventilated
Aluminum 150°C Rise
Input Output Net
Voltage Voltage kVA Taps Weight (Lbs.) Frame Size Product Number
480 208Y/120 15 (+2,-4 2.5%) 370 XV372 9T85B3871
480 208Y/120 30 (+2,-4 2.5%) 450 XV373 9T85B3872
480 208Y/120 45 (+2,-4 2.5%) 670 XV374 9T85B3873
480 208Y/120 75 (+2,-4 2.5%) 815 XV375 9T85B3874
Aluminum 115°C Rise
Input Output Net
Voltage Voltage kVA Taps Weight (Lbs.) Frame Size Product Number
480 208Y/120 15 (+2,-4 2.5%) 370 XV372 9T85B3871G15
480 208Y/120 30 (+2,-4 2.5%) 450 XV373 9T85B3872G15
480 208Y/120 45 (+2,-4 2.5%) 670 XV374 9T85B3873G15
Aluminum 80°C Rise
Input Output Net
Voltage Voltage kVA Taps Weight (Lbs.) Frame Size Product Number
480 208Y/120 30 (+2,-4 2.5%) 670 XV374 9T85B3872G80
480 208Y/120 45 (+2,-4 2.5%) 670 XV374 9T85B3873G80
Copper 150°C Rise
Input Output Net
Voltage Voltage kVA Taps Weight (Lbs.) Frame Size Product Number
480 208Y/120 15 (+2,-4 2.5%) 410 XV372 9T85C9871
480 208Y/120 30 (+2,-4 2.5%) 525 XV373 9T85C9872
480 208Y/120 45 (+2,-4 2.5%) 760 XV374 9T85C9873
480 208Y/120 75 (+2,-4 2.5%) 1000 XV375 9T85C9874
Copper 115°C Rise
Input Output Net
Voltage Voltage kVA Taps Weight (Lbs.) Frame Size Product Number
480 208Y/120 15 (+2,-4 2.5%) 410 XV372 9T85C9871G15
480 208Y/120 30 (+2,-4 2.5%) 525 XV373 9T85C9872G15
480 208Y/120 45 (+2,-4 2.5%) 760 XV374 9T85C9873G15
480 208Y/120 75 (+2,-4 2.5%) 1000 XV375 9T85C9874G15
Copper 80°C Rise
Input Output Net
Voltage Voltage kVA Taps Weight (Lbs.) Frame Size Product Number
480 208Y/120 15 (+2,-4 2.5%) 410 XV372 9T85C9871G80
480 208Y/120 30 (+2,-4 2.5%) 760 XV374 9T85C9872G80
480 208Y/120 45 (+2,-4 2.5%) 760 XV374 9T85C9873G80
TENV
Three-Phase TP-1
www.geindustrial.com
10-38
Dry Type Transformers

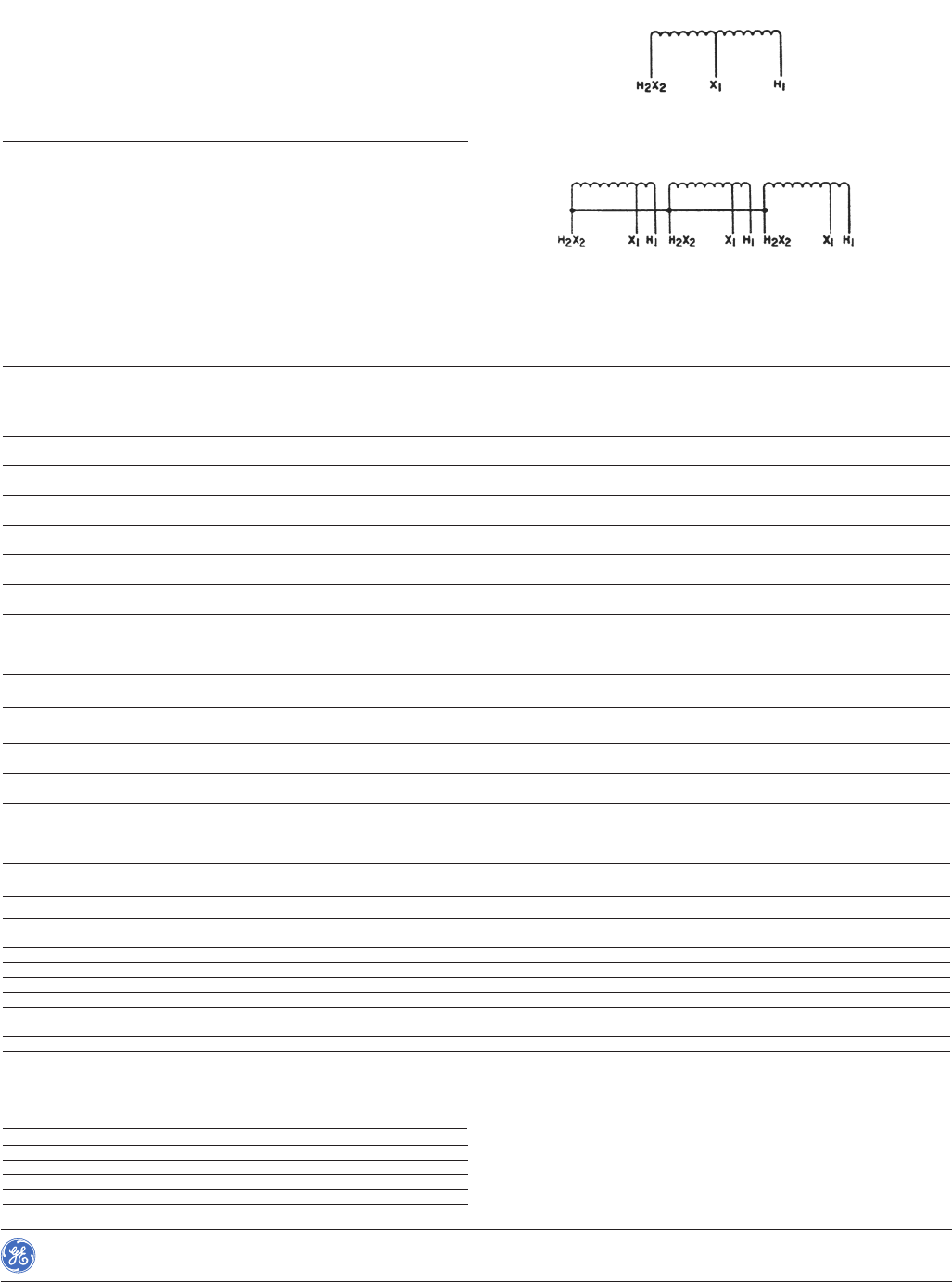

Midtapped
Three-Phase TP-1
Product Description
GE Type QL midtapped transformer enables the user to transform
three-phase power from 480 Volts primary to 240 Volts second-
ary and have 120 Volt, reduced capacity tap (RCT) single-phase
capability as well. This is because a single-phase midtap is
brought out of one coil of the unit’s three-phase secondary wind-
ing. These transformers are UL listed, File E-79145.
Application
The Type QL midtapped design can be used wherever there is 480
Volt, three-phase supply available and the load is primarily 240
Volt three-phase with a nominal amount of 120 Volt, single-phase
power required. Normally, in this instance, a small single-phase
as well as a three-phase transformer would be required to
provide the necessary transformation.
Caution: When utilizing the 120 Volt midtap for single-phase
applications, the single-phase load should not exceed 5 percent
of the three-phase kVA rating. The three-phase kVA load must be
reduced by the same percentage as that added by the single-
phase load. Additional loading beyond 5 percent may cause the
transformer to overheat and fail. If the single-phase load is in
excess of 5 percent, it is recommended that a separate single-
phase unit be used to handle the load.
Type QL Midtapped Transformer
Aluminum
150°C Rise 60Hz
Input Output Net
Voltage Voltage kVA Taps Weight (Lbs.) Frame Size Product Number
480 240/120 15 (+2,-4 2.5%) 240 XV371 9T83B3841
480 240/120 30 (+2,-4 2.5%) 334 XV372 9T83B3842
480 240/120 45 (+2,-4 2.5%) 415 XV373 9T83B3843
480 240/120 75 (+2,-4 2.5%) 620 XV374 9T83B3844
480 240/120 112.5 (+2,-4 2.5%) 765 XV375 9T83B3845
480 240/120 150 (+2,-4 2.5%) 1070 XV376 9T83B3846
480 240/120 225 (+2,-4 2.5%) 1590 XV377 9T83B3847
480 240/120 300 (+2,-4 2.5%) 1820 YF378 9T83B3848
480 240/120 500 (+2,-2 2.5%) 3400 YF379 9T83B3849
115°C Rise 60Hz
Input Output Net
Voltage Voltage kVA Taps Weight (Lbs.) Frame Size Product Number
480 240/120 15 (+2,-4 2.5%) 240 XV371 9T83B3841G15
480 240/120 30 (+2,-4 2.5%) 334 XV372 9T83B3842G15
480 240/120 45 (+2,-4 2.5%) 415 XV373 9T83B3843G15
480 240/120 75 (+2,-4 2.5%) 620 XV374 9T83B3844G15
480 240/120 112.5 (+2,-4 2.5%) 1070 XV376 9T83B3845G15
480 240/120 150 (+2,-4 2.5%) 1590 XV377 9T83B3846G15
480 240/120 225 (+2,-4 2.5%) 1820 YF378 9T83B3847G15
80°C Rise 60Hz
Input Output Net
Voltage Voltage kVA Taps Weight (Lbs.) Frame Size Product Number
480 240/120 15 (+2,-4 2.5%) 334 XV372 9T83B3841G80
480 240/120 30 (+2,-4 2.5%) 415 XV373 9T83B3842G80
480 240/120 45 (+2,-4 2.5%) 620 XV374 9T83B3843G80
480 240/120 75 (+2,-4 2.5%) 765 XV375 9T83B3844G80
480 240/120 112.5 (+2,-4 2.5%) 1070 XV376 9T83B3845G80
480 240/120 150 (+2,-4 2.5%) 1590 XV377 9T83B3846G80
480 240/120 225 (+2,-4 2.5%) 1820 YF378 9T83B3847G80
BuyLog™Catalog
Section 10
Rev. 11/13
Data subject to change
without notice
www.geindustrial.com 10-39
BuyLog™Catalog
Rev. 11/13
Data subject to change
without notice
Section 10
Dry Type Transformers
Midtapped
Copper
Three-Phase TP-1
150°C Rise 60Hz
Input Output Net
Voltage Voltage kVA Taps Weight (Lbs.) Frame Size Product Number
480 240/120 15 (+2,-4 2.5%) 250 XV371 9T83C9841
480 240/120 30 (+2,-4 2.5%) 377 XV372 9T83C9842
480 240/120 45 (+2,-4 2.5%) 490 XV373 9T83C9843
480 240/120 75 (+2,-4 2.5%) 710 XV374 9T83C9844
480 240/120 112.5 (+2,-4 2.5%) 949 XV375 9T83C9845
480 240/120 150 (+2,-4 2.5%) 1190 XV376 9T83C9846
480 240/120 225 (+2,-4 2.5%) 1710 XV377 9T83C9847
480 240/120 300 (+2,-4 2.5%) 3150 YF378 9T83C9848
480 240/120 500 (+2,-2 2.5%) 4050 YF379 9T83C9849
115°C Rise 60Hz
Input Output Net
Voltage Voltage kVA Taps Weight (Lbs.) Frame Size Product Number
480 240/120 15 (+2,-4 2.5%) 250 XV371 9T83C9841G15
480 240/120 30 (+2,-4 2.5%) 377 XV372 9T83C9842G15
480 240/120 45 (+2,-4 2.5%) 490 XV373 9T83C9843G15
480 240/120 75 (+2,-4 2.5%) 710 XV374 9T83C9844G15
480 240/120 112.5 (+2,-4 2.5%) 949 XV375 9T83C9845G15
480 240/120 150 (+2,-4 2.5%) 1710 XV377 9T83C9846G15
480 240/120 225 (+2,-4 2.5%) 3150 YF378 9T83C9847G15
80°C Rise 60Hz
Input Output Net
Voltage Voltage kVA Taps Weight (Lbs.) Frame Size Product Number
480 240/120 15 (+2,-4 2.5%) 377 XV372 9T83C9841G80
480 240/120 30 (+2,-4 2.5%) 490 XV373 9T83C9842G80
480 240/120 45 (+2,-4 2.5%) 710 XV374 9T83C9843G80
480 240/120 75 (+2,-4 2.5%) 949 XV375 9T83C9844G80
480 240/120 112.5 (+2,-4 2.5%) 1190 XV376 9T83C9845G80
480 240/120 150 (+2,-4 2.5%) 1710 XV377 9T83C9846G80
480 240/120 225 (+2,-4 2.5%) 3150 YF378 9T83C9847G80
www.geindustrial.com
10-40
Dry Type Transformers
Drive Isolation
Aluminum
Three-Phase
Application
The use of SCR control circuitry with adjustable-speed drives has
resulted in a need for a line of isolation transformers specifically
designed to meet the demanding requirements of SCR drives.
Symmetrically placed taps and added coil bracing minimize
mechanical forces caused by the often severe SCR drive duty
cycles. These features also help protect the transformer from the
regenerative duty and more frequent short-circuits associated
with SCR drives. Isolation transformers also reduce line-pollution
feedback resulting from SCR firing circuits. The GE delta-wye
designs meet the NEC requirements for grounded secondary
neutrals that isolate primary distribution systems. kVA ratings of
the DIT line cover most dc motor requirements from 3 to 1000 hp.
Enclosed drive isolation transformers are UL listed.
15 - 220 kVA Indoor Type QL UL Listed
Input Output Wiring Weight Frame Product
Voltage Voltage kVA Frequency (Hz) Diagram No.1(Lbs) Size Number
230 Volts Delta 230Y/133 Volts 15 60Hz 16 240 XV371 9T83B4000G29
230 Volts Delta 230Y/133 Volts 20 60Hz 16 334 XV372 9T83B4001G29
230 Volts Delta 230Y/133 Volts 27 60Hz 16 334 XV372 9T83B4002G29
230 Volts Delta 230Y/133 Volts 34 60Hz 16 334 XV372 9T83B4003G29
230 Volts Delta 230Y/133 Volts 40 60Hz 16 415 XV373 9T83B4004G29
230 Volts Delta 230Y/133 Volts 51 60Hz 16 415 XV373 9T83B4005G29
230 Volts Delta 230Y/133 Volts 63 60Hz 16 620 XV374 9T83B4006G29
230 Volts Delta 230Y/133 Volts 75 60Hz 16 620 XV374 9T83B4007G29
230 Volts Delta 230Y/133 Volts 93 60Hz 16 765 XV375 9T83B4008G29
230 Volts Delta 230Y/133 Volts 118 60Hz 16 1070 XV376 9T83B4009G29
230 Volts Delta 230Y/133 Volts 145 60Hz 16 1070 XV376 9T83B4010G29
230 Volts Delta 230Y/133 Volts 175 60Hz 16 1590 XV377 9T83B4011G29
230 Volts Delta 230Y/133 Volts 220 60Hz 16 1590 XV377 9T83B4012G29
230 Volts Delta 460Y/266 Volts 15 60Hz 16 240 XV371 9T83B4000G28
230 Volts Delta 460Y/266 Volts 20 60Hz 16 334 XV372 9T83B4001G28
230 Volts Delta 460Y/266 Volts 27 60Hz 16 334 XV372 9T83B4002G28
230 Volts Delta 460Y/266 Volts 34 60Hz 16 334 XV372 9T83B4003G28
230 Volts Delta 460Y/266 Volts 40 60Hz 16 415 XV373 9T83B4004G28
230 Volts Delta 460Y/266 Volts 51 60Hz 16 415 XV373 9T83B4005G28
230 Volts Delta 460Y/266 Volts 63 60Hz 16 620 XV374 9T83B4006G28
230 Volts Delta 460Y/266 Volts 75 60Hz 16 620 XV374 9T83B4007G28
230 Volts Delta 460Y/266 Volts 93 60Hz 16 765 XV375 9T83B4008G28
230 Volts Delta 460Y/266 Volts 118 60Hz 16 1070 XV376 9T83B4009G28
230 Volts Delta 460Y/266 Volts 145 60Hz 16 1070 XV376 9T83B4010G28
230 Volts Delta 460Y/266 Volts 175 60Hz 16 1590 XV377 9T83B4011G28
230 Volts Delta 460Y/266 Volts 220 60Hz 16 1590 XV377 9T83B4012G28
1See page 10-45 for wiring diagrams.
BuyLog™Catalog
Section 10
Rev. 11/13
Data subject to change
without notice
www.geindustrial.com 10-41
BuyLog™Catalog
Rev. 11/13
Data subject to change
without notice
Section 10
Dry Type Transformers
Drive Isolation
Aluminum
Three-Phase
15 - 220 kVA Indoor Type QL UL Listed (continued)
Input Output Wiring Weight Frame Product
Voltage Voltage kVA Frequency (Hz) Diagram No.1(Lbs) Size Number
460 Volts Delta 230Y/133 15 60 Hz 16 240 XV371 9T83B4000G23
460 Volts Delta 230Y/133 20 60 Hz 16 334 XV372 9T83B4001G23
460 Volts Delta 230Y/133 27 60 Hz 16 334 XV372 9T83B4002G23
460 Volts Delta 230Y/133 34 60 Hz 16 334 XV372 9T83B4003G23
460 Volts Delta 230Y/133 40 60 Hz 16 415 XV373 9T83B4004G23
460 Volts Delta 230Y/133 51 60 Hz 16 415 XV373 9T83B4005G23
460 Volts Delta 230Y/133 63 60 Hz 16 620 XV374 9T83B4006G23
460 Volts Delta 230Y/133 75 60 Hz 16 620 XV374 9T83B4007G23
460 Volts Delta 230Y/133 93 60 Hz 16 765 XV375 9T83B4008G23
460 Volts Delta 230Y/133 118 60 Hz 16 1070 XV376 9T83B4009G23
460 Volts Delta 230Y/133 145 60 Hz 16 1070 XV376 9T83B4010G23
460 Volts Delta 230Y/133 175 60 Hz 16 1590 XV377 9T83B4011G23
460 Volts Delta 230Y/133 220 60 Hz 16 1590 XV377 9T83B4012G23
460 Volts Delta 460Y/266 15 60 Hz 16 240 XV371 9T83B4000G22
460 Volts Delta 460Y/266 20 60 Hz 16 334 XV372 9T83B4001G22
460 Volts Delta 460Y/266 27 60 Hz 16 334 XV372 9T83B4002G22
460 Volts Delta 460Y/266 34 60 Hz 16 334 XV372 9T83B4003G22
460 Volts Delta 460Y/266 40 60 Hz 16 415 XV373 9T83B4004G22
460 Volts Delta 460Y/266 51 60 Hz 16 415 XV373 9T83B4005G22
460 Volts Delta 460Y/266 63 60 Hz 16 620 XV374 9T83B4006G22
460 Volts Delta 460Y/266 75 60 Hz 16 620 XV374 9T83B4007G22
460 Volts Delta 460Y/266 93 60 Hz 16 765 XV375 9T83B4008G22
460 Volts Delta 460Y/266 118 60 Hz 16 1070 XV376 9T83B4009G22
460 Volts Delta 460Y/266 145 60 Hz 16 1070 XV376 9T83B4010G22
460 Volts Delta 460Y/266 175 60 Hz 16 1590 XV377 9T83B4011G22
460 Volts Delta 460Y/266 220 60 Hz 16 1590 XV377 9T83B4012G22
575 Volts Delta 230Y/133 15 60 Hz 16 240 XV371 9T83B4000G27
575 Volts Delta 230Y/133 20 60 Hz 16 334 XV372 9T83B4001G27
575 Volts Delta 230Y/133 27 60 Hz 16 334 XV372 9T83B4002G27
575 Volts Delta 230Y/133 34 60 Hz 16 334 XV372 9T83B4003G27
575 Volts Delta 230Y/133 40 60 Hz 16 415 XV373 9T83B4004G27
575 Volts Delta 230Y/133 51 60 Hz 16 415 XV373 9T83B4005G27
575 Volts Delta 230Y/133 63 60 Hz 16 620 XV374 9T83B4006G27
575 Volts Delta 230Y/133 75 60 Hz 16 620 XV374 9T83B4007G27
575 Volts Delta 230Y/133 93 60 Hz 16 765 XV375 9T83B4008G27
575 Volts Delta 230Y/133 118 60 Hz 16 1070 XV376 9T83B4009G27
575 Volts Delta 230Y/133 145 60 Hz 16 1070 XV376 9T83B4010G27
575 Volts Delta 230Y/133 175 60 Hz 16 1590 XV377 9T83B4011G27
575 Volts Delta 230Y/133 220 60 Hz 16 1590 XV377 9T83B4012G27
575 Volts Delta 460Y/266 15 60 Hz 16 240 XV371 9T83B4000G26
575 Volts Delta 460Y/266 20 60 Hz 16 334 XV372 9T83B4001G26
575 Volts Delta 460Y/266 27 60 Hz 16 334 XV372 9T83B4002G26
575 Volts Delta 460Y/266 34 60 Hz 16 334 XV372 9T83B4003G26
575 Volts Delta 460Y/266 40 60 Hz 16 415 XV373 9T83B4004G26
575 Volts Delta 460Y/266 51 60 Hz 16 415 XV373 9T83B4005G26
575 Volts Delta 460Y/266 63 60 Hz 16 620 XV374 9T83B4006G26
575 Volts Delta 460Y/266 75 60 Hz 16 620 XV374 9T83B4007G26
575 Volts Delta 460Y/266 93 60 Hz 16 765 XV375 9T83B4008G26
575 Volts Delta 460Y/266 118 60 Hz 16 1070 XV376 9T83B4009G26
575 Volts Delta 460Y/266 145 60 Hz 16 1070 XV376 9T83B4010G26
575 Volts Delta 460Y/266 175 60 Hz 16 1590 XV377 9T83B4011G26
575 Volts Delta 460Y/266 220 60 Hz 16 1590 XV377 9T83B4012G26
1See page 10-45 for wiring diagrams.
NOTE: Full capacity symmetrical taps (1) +5% and (1) –5%, in primary windings for 230 and 460 Y thru 550 kVA; (1) +6.2% and (1) –6.2% at 750 kVA; (1) +6.4% and (1) –6.4%)
at 1000 kVA. With 575 V primary, symmetrical 5% taps apply thru 750 kVA; at 1000 kVA, (1) +5.1% and (1) –5.1%. For ratings less than 15 kV contact GE Energy Sales
Office.
Conversion Chart
Decimal Fraction
.13 1/8
.38 3/8
.63 5/8
.88 7/8
www.geindustrial.com
10-42
Dry Type Transformers
Accessories and Lugs
Single-Phase and Three-Phase
Wall Mount Bracket
Frame Size Product Number
H371C 9T18Y5042
H372C 9T18Y5042
H373C 9T18Y5042
H374C 9T18Y5043
S31AC 9T18Y5042
S32AC 9T18Y5042
S33AC 9T18Y5042
S34AC 9T18Y5043
XK372 9T18Y5042
XV173 9T18Y5043
XV371 9T18Y5042
XV372 9T18Y5042
XV373 9T18Y5042
XV374 9T18Y5043
Y371A 9T18Y5042
Y371C 9T18Y5042
Y372A 9T18Y5042
Y372C 9T18Y5042
Y373A 9T18Y5042
Y373C 9T18Y5042
Y374A 9T18Y5043
Y374C 9T18Y5043
YF171 9T18Y5042
YF172 9T18Y5043
YF173 9T18Y5043
YF174 9T18Y5043
Rainshield Kit
Frame Size Product Number
FC67 9T18Y4322G68
FC68 9T18Y4322G68
FC77 9T18Y4322G77
FC78 9T18Y4322G78
FC79 9T18Y4322G79
H371C 9T18Y4317G11
H372C 9T18Y4317G05
H373C 9T18Y4317G05
H374C 9T18Y4317G06
H375C 9T18Y4322G79
H376C 9T18Y4322G79
S31AC 9T18Y4317G11
S32AC 9T18Y4317G05
S33AC 9T18Y4317G05
S34AC 9T18Y4317G06
S35AC 9T18Y4317G06
S36AC 9T18Y4317G07
S37AC 9T18Y4322G79
S38AC 9T18Y4322G88
XK372 9T18Y4317G05
XV173 9T18Y4317G06
XV371 9T18Y4317G11
XV372 9T18Y4317G05
XV373 9T18Y4317G05
XV374 9T18Y4317G06
XV375 9T18Y4317G06
XV376 9T18Y4317G07
XV377 9T18Y4322G88
Y371A 9T18Y4317G11
Y371C 9T18Y4317G11
Y372A 9T18Y4317G05
Y372C 9T18Y4317G05
Y373A 9T18Y4317G05
Y373C 9T18Y4317G05
Y374A 9T18Y4317G06
Y374C 9T18Y4317G06
Y375C 9T18Y4317G06
Y376C 9T18Y4317G07
YF171 9T18Y4317G05
YF172 9T18Y4317G06
YF173 9T18Y4317G06
YF174 9T18Y4317G06
YF175 9T18Y4322G77
YF176 9T18Y4322G79
YF177 9T18Y4322G79
YF378 9T18Y4322G88
YF379 9T18Y4322G68
XV378 9T18Y4322G88
L37AA 9T18Y4322G88
L38AA 9T18Y4322G88
L39AA 9T18Y4322G68
L47AA 9T18Y4322G98
Bottom Pan
Frame Size Product Number
F77C 9T18Y4504G77
FC67 9T18Y4504G68
FC68 9T18Y4504G68
FC77 9T18Y4504G77
FC78 9T18Y4504G78
FC79 9T18Y4504G79
S37AC 9T18Y4504G79
S38AC 9T18Y4504G79
XV377 9T18Y4504G79
Y377A 9T18Y4504G79
YF175 9T18Y4504G77
YF176 9T18Y4504G79
YF177 9T18Y4504G79
YF378 9T18Y4504G79
YF379 9T18Y4504G68
XV378 9T18Y4504G79
H375C 9T18Y4504G79
H376C 9T18Y4504G79
L37AA 9T18Y4504G79
L38AA 9T18Y4504G79
L39AA 9T18Y4504G68
Lug Kits for QL Transformers
Frame Size Product Number
F77C 9T18Y7242G02
FC67 9T18Y7242G10
FC68 9T18Y7242G10
FC77 9T18Y7242G02
FC78 9T18Y7242G04
FC79 9T18Y7242G06
H371C 9T18Y7327
H372C 9T18Y7240
H373C 9T18Y7240
H374C 9T18Y7241
H375C 9T18Y7242
H376C 9T18Y7242G03
S31AC 9T18Y7327
S32AC 9T18Y7240
S33AC 9T18Y7240
S34AC 9T18Y7241
S35AC 9T18Y7242
S37AC 9T18Y7242G02
S38AC 9T18Y7242G04
XK372 9T18Y7240
XV173 9T18Y7241G03
XV371 9T18Y7327
XV372 9T18Y7240
XV373 9T18Y7240
XV374 9T18Y7241
XV375 9T18Y7242
XV376 9T18Y7242G03
XV377 9T18Y7242G06
XV378 9T18Y7242G04
Y371A 9T18Y7327
Y371C 9T18Y7327
Y372A 9T18Y7240
Y372C 9T18Y7240
Y373A 9T18Y7240
Y373C 9T18Y7240
Y374A 9T18Y7241
Y374C 9T18Y7241
Y375C 9T18Y7242
Y376C 9T18Y7242G03
Y377A 9T18Y7242G02
YF171 9T18Y7240G02
YF172 9T18Y7241G03
YF174 9T18Y7240G03
YF175 9T18Y7242G07
YF176 9T18Y7242G05
YF378 9T18Y7242G04
YF379 9T18Y7242G06
L37AA 9T18Y7242G02
L38AA 9T18Y7242G04
L39AA 9T18Y7242G06
L47AA 9T18Y7242G10
BuyLog™Catalog
Section 10
Rev. 11/13
Data subject to change
without notice
Lug Kit Information for QL Transformers
Specified Lug Kit
Lug Size No.1 Lug Size No.2
Frame Typical Primary Bus Bar Secondary Bus Bar Kit Conductor Stud Conductor Stud
Size Transformer Size Holes (Qty/Size) Holes (Qty/Size) Number Qty Size Hole Size Qty Size Hole Size
YF171 1 ph - 15/25 kVA (2) .406 dia (2) .406 dia
9T18Y7240G0218 6 AWG to 250 MCM 5/16 N/A N/A N/A
(2670/2671)
YF171 1 ph - 37.5 kVA (2) .563 dia (2) .563 dia
(2672)
YF172 1 ph - 50 kVA (2) .563 dia (2) .563 dia 9T18Y7241G03 4 6 AWG to 250 MCM 5/16 4 6 AWG to 350 MCM 3/8
(2673)
YF174 1 ph - 75 kVA (2) .563 dia (2) .563 dia 9T18Y7240G03 12 6 AWG to 250 MCM 5/16 N/A N/A N/A
(2674)
YF175 1 ph -100 kVA (2) .563 dia (2) .563 dia 9T18Y7242G07 12 6 AWG to 350 MCM 3/8 N/A N/A N/A
(2675)
YF176 1 ph - 167 kVA (4) .563 dia (4) .563 dia 9T18Y7242G05 8 6 AWG to 350 MCM 3/8 12 4 AWG to 500 MCM 3/8
(2676)
XV371 3 ph - 15 kVA (2) .406 dia (2) .406 dia 9T18Y732717 14 AWG to 1/0 AWG 1/4 N/A N/A N/A
(3871)
XV372/XV373 3 ph - 30/45 kVA (2) .406 dia (2) .406 dia 9T18Y724017 6 AWG to 250 MCM 5/16 N/A N/A N/A
(3872/3873)
XV374 3 ph - 75 kVA (2) .406 dia (2) .406 dia 9T18Y7241 3 6 AWG to 250 MCM 5/16 8 6 AWG to 350 MCM 3/8
(3874)
XV375 3 ph - 112.5 kVA (1) .563 dia (2) .563 dia 9T18Y7242 11 6 AWG to 350 MCM 3/8 N/A N/A N/A
(3875)
XV376 3 ph - 150 kVA (1) .563 dia (2) .563 dia 9T18Y7242G03 3 6 AWG to 350 MCM 3/8 8 4 AWG to 500 MCM 3/8
(3876)
XV377 3 ph - 225 kVA (2) .563 dia (4) .563 dia 9T18Y7242G02 22 6 AWG to 350 MCM 3/8 N/A N/A N/A
(3877)
XV378 3 ph - 300 kVA (2) .563 dia (4) .563 dia 9T18Y7242G04 6 6 AWG to 350 MCM 3/8 16 4 AWG to 500 MCM 3/8
(3878)
XV379 3 ph - 500 kVA (4) .563 dia (6) .563 dia 9T18Y7242G06 9 6 AWG to 350 MCM 3/8 24 4 AWG to 500 MCM 3/8
(3879)
1Proximity of bus bars would prohibit dual lugs per bus bar
www.geindustrial.com 10-43
Dry Type Transformers
Accessories and Lugs
TransforMore™Disconnect Switch Lug Information
(TransforMore™transformers are supplied with lugs on the primary side of the disconnect switch. This chart provides information on
those lugs.)
Primary Load Lugs
Lug Hole No.1 Lug Hole No.2 Lug Hole No.3
Frame Lug Qty of Holes Qty of Lugs UL Certified UL Certified UL Certified
Size Part No. Amps Per Lug Per Phase Dia (in.) Wire Sizes Cu-AL Dia (in.) Wire Sizes Cu-AL Dia (in.) Wire Sizes Cu-AL
FC77 TCAL432thru 400 21 0.922 2/0 - 600 Kcmil Cu or Al 0.609 6 - 250 Kcmil Cu or Al N/A N/A
FC78 TCAL633450-600 21 0.844 4/0-350 Kcmil Cu or 0.844 4/0-350 Kcmil Cu or N/A N/A
3/0-500 Kcmil Al 3/0-500 Kcmil Al
FC79 TCAL814700-1000 31 0.844 3/0-500 Kcmil Cu or Al 0.844 3/0-500 Kcmil Cu or Al 0.844 500 MCM
FC67 TCAL814700-1000 32 0.844 3/0-500 Kcmil Cu or Al 0.844 3/0-500 Kcmil Cu or Al 0.844 500 MCM
FC68 TCAL814700-1000 32 0.844 3/0-500 Kcmil Cu or Al 0.844 3/0-500 Kcmil Cu or Al 0.844 500 MCM
2May use twin 250 Kcmil Cu or Al.
3The TCAL43 lugs could be substituted for the TCAL63 lugs to give customer a 600 mcm hole.
4The TCAL124 lubs can be substituted for the TCAL81 lugs. TCAL124 = 3 holes at 350–750 Kcmil (1.055 dia) > some sizing differences.
Single-Phase and Three-Phase
BuyLog™Catalog
Rev. 11/13
Data subject to change
without notice
Section 10
www.geindustrial.com
10-44
Dry Type Transformers
Enclosure Parts
Enclosure Parts for TransforMore™Transformers
Frame Size
FC77 (225 kVA frame size) FC78 (300 kVA frame size) FC79 (500 kVA frame size) FC67 (750 kVA frame size) FC68 (1000 kVA frame size)
Description Product No. Product No. Product No. Product No. Product No.
Cover (Top) Panel 9T18Y4501G77 9T18Y4501G78 9T18Y4501G79 9T18Y4501G68 9T18Y4501G68
Front/Back Panel 9T18Y4502G77 9T18Y4502G78 9T18Y4502G79 9T18Y4502G68 9T18Y4502G68
Grill, Front/Back 9T18Y4503G77 9T18Y4503G78 9T18Y4503G79 9T18Y4503G68 9T18Y4503G68
Bottom Pan 9T18Y4504G77 9T18Y4504G78 9T18Y4504G79 9T18Y4504G68 9T18Y4504G68
Side Panel 9T18Y4505G77 9T18Y4505G78 9T18Y4505G79 9T18Y4505G68 9T18Y4505G68
Enclosure Kit19T18Y4506G77 9T18Y4506G78 9T18Y4506G79 9T18Y4506G68 9T18Y4506G68
Fan Assembly 9T18Y4507G77 9T18Y4507G78 9T18Y4507G79 9T18Y4507G68 9T18Y4507G68
Isomode Pads 9T18Y4508G77 9T18Y4508G78 9T18Y4508G79 9T18Y4508G68 9T18Y4508G68
Disconnect Switch 9T18Y4509G77 9T18Y4509G78 9T18Y4509G79 9T18Y4509G68 9T18Y4509G68
Rainshield Kit 9T18Y4322G77 9T18Y4322G78 9T18Y4322G79 9T18Y4322G68 9T18Y4322G68
1Enclosure Kit Contains 2 Side Panels, 2 Front/Back panels, and Cover
Enclosure Parts for QL Transformers
Enclosure Kit2Front/Back Panel Side Panel Cover (Top) Panel Base
Frame
Size Product No. Product No. Product No. Product No. Product No.
XV371 9T18Y4421 9T18Y4421G03 9T18Y4421G04 9T18Y4421G05
XV372 9T18Y4412 9T18Y4412G03 9T18Y4412G04 9T18Y4412G05
XV373 9T18Y4412 9T18Y4412G03 9T18Y4412G04 9T18Y4412G05 Not User Replaceable
XV374 9T18Y4413 9T18Y4413G03 9T18Y4413G04 9T18Y4414G05 Contact Technical Support
XV375 9T18Y4414 9T18Y4414G03 9T18Y4414G04 9T18Y4414G05
XV376 9T18Y4415 9T18Y4415G03 9T18Y4415G04 9T18Y4415G05
XV377 9T18Y4506G79 9T18Y4502G79 9T18Y4505G79 9T18Y4501G79
2Enclosure Kit Contains 2 Front/Backs, 2 Sides, 1 Cover

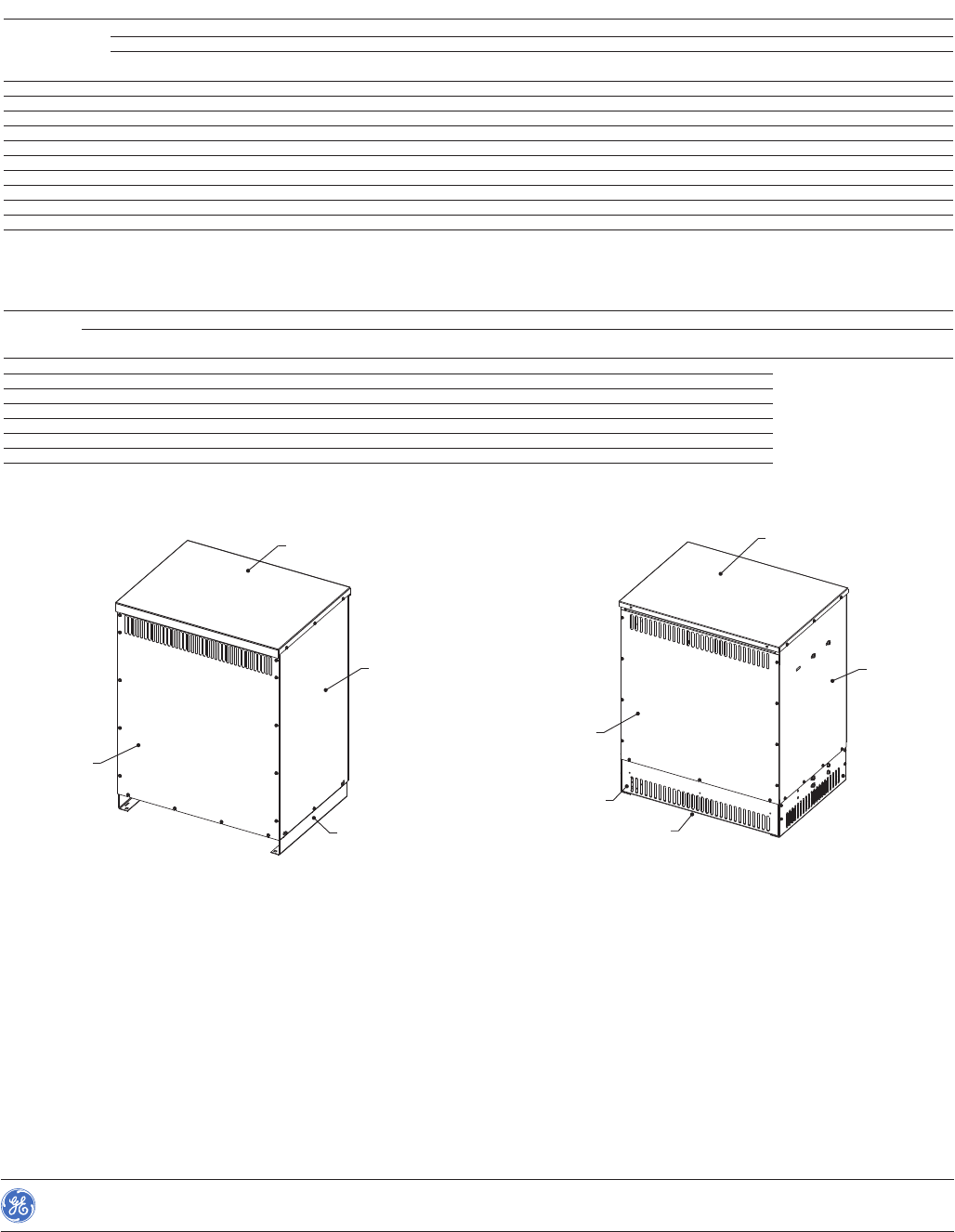

FRONT/BACK
PANEL
COVER (TOP)
PANEL
SIDE PANEL
BASE
ENCLOSURE KIT: 1 COVER + 2 SIDES + 2 FRONTS
QL Style Enclosure
FRONT/BACK
PANEL
COVER (TOP)
PANEL
SIDE PANEL
GRILL
BOTTOM PAN
(NOT SHOWN)
ENCLOSURE KIT: 1 COVER + 2 SIDES + 2 FRONTS
TransforMore™Style Enclosure
BuyLog™Catalog
Section 10
Rev. 11/13
Data subject to change
without notice
www.geindustrial.com 10-45
Dry Type Transformers
Wiring Diagrams
Diagram 1 Diagram 2 Diagram 3 Diagram 4
Diagram 5 Diagram 6 Diagram 7 Diagram 8
Diagram 9 Diagram 10 Diagram 11
Diagram 13 Diagram 14 Diagram 15 Diagram 16
Diagram 17 Diagram 18 Diagram 19 Diagram 20
Diagram 21 Diagram 22 Diagram 23 Diagram 24
Diagram 12
BuyLog™Catalog
Rev. 11/13
Data subject to change
without notice
Section 10
www.geindustrial.com
10-46
Dry Type Transformers
Dimensions
TransforMore™Transformer
QL Transformer
(Front Panel Removed)
1-Phase Vented QL Transformers
Frame Size Outline Drawing No. Height (In.) Width (In.) Depth (In.)
YF171 303B406AAP071 32.1 23.8 18.4
YF172 303B406AAP072 35.7 31.8 24
XV173 303B406AAP073 35.7 31.8 24
YF174 303B406AAP074 39.9 31.8 24
YF175 303B932AAP075 37.4 29.5 28.5
YF176 303B932AAP076 45.5 38.5 33
YF177 303B932AAP077 45.5 38.5 33
3-Phase, Vented, Non-Fan Cooled QL Transformers
(9T8, 9T7, 9T6 models)
Includes General Purpose, K-Factor, K-Factor Low Noise,
Low Noise, Guard I, Midtapped, Drive Isolation
Frame Size Outline Drawing Height (in.) Width (In.) Depth (In.)
XV371 303B401AAP071 27.3 18.7 16.9
Y371A 303B401AAP071 27.3 18.7 16.9
Y371C 303B401AAP071 27.3 18.7 16.9
XV372 303B401AAP072 32.1 23.8 18.4
XK372 303B401AAP072 32.1 23.8 18.4
Y372A 303B401AAP072 32.1 23.8 18.4
Y372C 303B401AAP072 32.1 23.8 18.4
XV373 303B401AAP073 32.1 23.8 18.4
Y373A 303B401AAP073 32.1 23.8 18.4
Y373C 303B401AAP073 32.1 23.8 18.4
XV374 303B401AAP074 35.7 31.8 24
Y374A 303B401AAP074 35.7 31.8 24
Y374C 303B401AAP074 35.7 31.8 24
XV375 303B401AAP075 39.9 31.8 24
Y375C 303B401AAP075 39.9 31.8 24
XV376 303B401AAP076 45.9 34.8 24
Y376C 303B401AAP076 45.9 34.8 24
L47AA 303B912AAP167 65.7 57.7 48.2
L37AA 303B912AAP177 45.4 38.4 33
L38AA 303B912AAP178 57.1 38.4 33
L39AA 303B912AAP179 65.7 47.1 38
XV377 303B919AAP077 45.5 38.5 33
Y377A 303B919AAP077 45.5 38.5 33
YF378 303B919AAP178 57.1 38.5 33
YF379 303B919AAP179 65.7 47.3 38
3-Phase Fan-Cooled TransforMore™Transformers (9T4-models)
Includes General Purpose, K-Factor, K-Factor Low Noise,
Low Noise, Guard I, Midtapped, and Drive Isolation
Frame Size Outline Drawing Height (in.) Width (In.) Depth (In.)
FC77 303B899AAP077 37.3 29.5 28.5
FC78 303B899AAP078 40.9 34.8 25.6
FC79 303B899AAP079 45.4 38.5 33.6
FC67 303B899AAP067 57.5 47.5 40
FC68 303B899AAP068 57.5 47.5 40
Servicenter Transformers
Frame Size Outline Drawing Height (in.) Width (In.) Depth (In.)
16350 303B915AAP005 32.5 10.75 11.12
16600 303B915AAP007 32.5 10.75 11.12
19400 303B915AAP010 35 12.62 12.62
19500 303B915AAP015 35 12.62 12.62
50500 303B915AAP025 44.75 16.75 16
XV371 303B404AAP015 27.3 27.4 16.9
XV372 303B404AAP022 32.2 34.5 24
XV372 303B404AAP030 32.2 34.5 24
Y371C 303B404AAP015 27.3 27.4 16.9
Y372C 303B404AAP022 32.2 34.5 24
Y372C 303B404AAP030 32.2 34.5 24
Guard II Transformers
Frame Size Outline Drawing No. Height (In.) Width (In.) Depth (In.)
XV371 303B403AAP071 34.5 18.7 16.9
XV372 303B403AAP072 41.3 23.8 18.4
XV373 303B403AAP073 41.3 23.8 18.4
XV374 303B403AAP074 44.8 31.8 24
XV375 303B403AAP075 49.1 31.8 24
Guard III Harmonic Mitigating
Frame Size Outline Drawing No. Height (In.) Width (In.) Depth (In.)
H371C 303B431AAP071 32.3 23.8 18.4
H372C 303B431AAP072 35.7 31.8 24
H373C 303B431AAP073 35.7 31.8 24
H374C 303B431AAP074 39.9 31.8 24
H375C 303B931AAP075 45.5 38.6 33
H376C 303B931AAP076 45.4 38.5 33
TENV Transformers
Frame Size Outline Drawing No. Height (In.) Width (In.) Depth (In.)
XV372 303B405AAP072 41.3 23.8 18.4
XV373 303B405AAP073 41.3 23.8 18.4
XV374 303B405AAP074 44.8 31.8 24
XV375 303B405AAP075 49.1 31.8 24
QB Transformers
Frame Size Outline Drawing No. Height (In.) Width (In.) Depth (In.)
6100 303B920AAP001 6.38 5.12 3.25
6150 303B920AAP001 6.38 5.12 3.25
6200 303B920AAP001 6.38 5.12 3.25
8175 303B920AAP002 7.38 6.12 4.25
8200 303B920AAP002 7.38 6.12 4.25
10200 303B920AAP003 8.38 6.88 4.88
10225 303B920AAP003 8.38 6.88 4.88
12200 303B920AAP004 9.62 7.88 5.5
12225 303B920AAP004 9.62 7.88 5.5
12275 303B920AAP004 9.62 7.88 5.5
12300 303B920AAP004 9.62 7.88 5.5
14200 303B920AAP005 11.12 9.38 6.72
14225 303B920AAP005 11.12 9.38 6.72
14250 303B920AAP005 11.12 9.38 6.72
14300 303B920AAP005 11.12 9.38 6.72
14350 303B920AAP005 11.12 9.38 6.72
14400 303B920AAP005 11.12 9.38 6.72
QMS Transformers
Frame Size Outline Drawing Height (in.) Width (In.) Depth (In.)
16350 303B923AAP005 14.5 10.62 11
16400 303B923AAP005 14.5 10.62 11
16450 303B923AAP005 14.5 10.62 11
16600 303B923AAP007 17.06 10.62 11
19400 303B923AAP010 17.06 12.5 12.5
19450 303B923AAP010 17.06 12.5 12.5
19500 303B915AAP015 35 12.62 12.62
1619 303B922AAP001 14.50 10.75 11.12
1620 303B922AAP001 14.50 10.75 11.12
1921 303B922AAP003 17.12 12.62 12.75
1923 303B922AAP004 18.81 14.75 14.53
50500 303B915AAP025 44.75 16.75 16
BuyLog™Catalog
Section 10
Rev. 11/13
Data subject to change
without notice
www.geindustrial.com 10-47
Dry Type Transformers
General Purpose Encapsulated
Single-Phase NEMA 3R
.050 - 3 kVA Indoor/Outdoor Type QB UL Listed C-UL Listed
Input Output Frequency Wiring Weight Frame Product
Voltage Voltage kVA (Hz) Taps Diagram No.1(Lbs) Size Number
240 x 480 Volts, 480 Volts 120/240 Volts 0.05 60 Hz No Taps 166100 9T51B0002
240 x 480 Volts 120/240 Volts 0.05 50 Hz No Taps 166100 9T51B0502
240 x 480 Volts, 480 Volts 120/240 Volts 0.075 60 Hz No Taps 166200 9T51B0003
240 x 480 Volts 120/240 Volts 0.075 50 Hz No Taps 166200 9T51B0503
240 x 480 Volts, 480 Volts 120/240 Volts 0.1 60 Hz No Taps 166200 9T51B0004
240 x 480 Volts 120/240 Volts 0.1 50 Hz No Taps 166200 9T51B0504
240 x 480 Volts, 480 Volts 120/240 Volts 0.15 60 Hz No Taps 1 10 8175 9T51B0005
240 x 480 Volts 120/240 Volts 0.15 50 Hz No Taps 1 10 8175 9T51B0505
240 x 480 Volts, 480 Volts 120/240 Volts 0.25 60 Hz No Taps 1 10 8175 9T51B0007
240 x 480 Volts 120/240 Volts 0.25 50 Hz No Taps 1 10 8200 9T51B0507
240 x 480 Volts, 480 Volts 120/240 Volts 0.5 60 Hz No Taps 1 16 10200 9T51B0008
240 x 480 Volts 120/240 Volts 0.5 50 Hz No Taps 1 20 10225 9T51B0508
240 x 480 Volts, 480 Volts 120/240 Volts 0.75 60 Hz No Taps 1 25 12200 9T51B0009
240 x 480 Volts 120/240 Volts 0.75 50 Hz No Taps 1 25 12225 9T51B0509
240 x 480 Volts, 480 Volts 120/240 Volts 1 60 Hz No Taps 1 25 12225 9T51B0010
240 x 480 Volts 120/240 Volts 1 50 Hz No Taps 1 30 12275 9T51B0510
240 x 480 Volts, 480 Volts 120/240 Volts 1.5 60 Hz No Taps 1 40 14200 9T51B0011
240 x 480 Volts 120/240 Volts 1.5 50 Hz No Taps 1 40 14225 9T51B0511
240 x 480 Volts, 480 Volts 120/240 Volts 2 60 Hz No Taps 1 45 14250 9T51B0012
240 x 480 Volts 120/240 Volts 2 50 Hz No Taps 1 50 14300 9T51B0512
240 x 480 Volts, 480 Volts 120/240 Volts 3 60 Hz No Taps 1 55 14350 9T51B0013
240 x 480 Volts 120/240 Volts 3 50 Hz No Taps 1 60 14400 9T51B0513
480 Volts 120/240 Volts 0.5 50 Hz (-2 5.0%) 2 20 10225 9T51B0548
480 Volts 120/240 Volts 0.75 50 Hz (-2 5.0%) 2 25 12200 9T51B0549
480 Volts 120/240 Volts 1 60 Hz (-2 5.0%) 2 25 12225 9T51B0050
480 Volts 120/240 Volts 1 50 Hz (-2 5.0%) 2 30 12275 9T51B0550
480 Volts 120/240 Volts 1.5 60 Hz (-2 5.0%) 2 40 14200 9T51B0051
480 Volts 120/240 Volts 1.5 50 Hz (-2 5.0%) 2 40 14225 9T51B0551
480 Volts 120/240 Volts 2 60 Hz (-2 5.0%) 2 45 14250 9T51B0052
480 Volts 120/240 Volts 2 50 Hz (-2 5.0%) 2 50 14300 9T51B0552
480 Volts 120/240 Volts 3 60 Hz (-2 5.0%) 2 55 14350 9T51B0053
480 Volts 120/240 Volts 3 60 Hz (+2,-2 2.5%) 3 55 14350 9T51B0135
480 Volts 120/240 Volts 3 50 Hz (-2 5.0%) 2 60 14400 9T51B0553
600 Volts 120/240 Volts 0.05 60 Hz No Taps 566100 9T51B0082
600 Volts 120/240 Volts 0.075 60 Hz No Taps 566200 9T51B0083
600 Volts 120/240 Volts 0.1 60 Hz No Taps 566200 9T51B0084
600 Volts 120/240 Volts 0.1 50 Hz No Taps 566200 9T51B0584
600 Volts 120/240 Volts 0.15 60 Hz No Taps 5 10 8175 9T51B0085
600 Volts 120/240 Volts 0.25 60 Hz No Taps 5 10 8175 9T51B0087
600 Volts 120/240 Volts 0.25 50 Hz No Taps 5 10 8200 9T51B0587
600 Volts 120/240 Volts 0.5 60 Hz No Taps 5 16 10200 9T51B0088
600 Volts 120/240 Volts 0.5 50 Hz (-2 5.0%) 2 20 10225 9T51B0568
600 Volts 120/240 Volts 0.75 60 Hz No Taps 5 25 12200 9T51B0089
600 Volts 120/240 Volts 0.75 50 Hz (-2 5.0%) 2 25 12200 9T51B0569
600 Volts 120/240 Volts 1 60 Hz (-2 5.0%) 2 25 12225 9T51B0070
600 Volts 120/240 Volts 1 60 Hz No Taps 5 25 12225 9T51B0090
600 Volts 120/240 Volts 1 50 Hz (-2 5.0%) 2 30 12275 9T51B0570
600 Volts 120/240 Volts 1.5 60 Hz (-2 5.0%) 2 40 14200 9T51B0071
600 Volts 120/240 Volts 1.5 60 Hz No Taps 5 40 14200 9T51B0091
600 Volts 120/240 Volts 1.5 50 Hz (-2 5.0%) 2 40 14225 9T51B0571
600 Volts 120/240 Volts 2 60 Hz (-2 5.0%) 2 45 14250 9T51B0072
600 Volts 120/240 Volts 2 60 Hz No Taps 5 45 14250 9T51B0092
600 Volts 120/240 Volts 2 50 Hz (-2 5.0%) 2 50 14300 9T51B0572
600 Volts 120/240 Volts 2 50 Hz No Taps 50 14300 9T51B0592
600 Volts 120/240 Volts 3 60 Hz (-2 5.0%) 2 55 14350 9T51B0073
600 Volts 120/240 Volts 3 60 Hz No Taps 5 55 14350 9T51B0093
600 Volts 120/240 Volts 3 50 Hz (-2 5.0%) 2 60 14400 9T51B0573
600 Volts 120/240 Volts 3 50 Hz No Taps 60 14400 9T51B0593
1See page 10-45 for wiring diagrams.
BuyLog™Catalog
Rev. 11/13
Data subject to change
without notice
Section 10
www.geindustrial.com
10-48
Dry Type Transformers
General Purpose Encapsulated
Single-Phase NEMA 3R
.050 - 3 kVA Indoor/Outdoor Type QB UL Listed C-UL Listed
Input Output Frequency Wiring Weight Frame Product
Voltage Voltage kVA (Hz) Taps Diagram No.1(Lbs) Size Number
120 x 240 Volts 120/240 Volts 0.05 60 Hz No Taps 166100 9T51B0022
120 x 240 Volts 120/240 Volts 0.1 60 Hz No Taps 166200 9T51B0024
120 x 240 Volts 120/240 Volts 0.15 60 Hz No Taps 1 10 8175 9T51B0025
120 x 240 Volts 120/240 Volts 0.25 60 Hz No Taps 1 10 8175 9T51B0027
120 x 240 Volts 120/240 Volts 0.5 60 Hz No Taps 1 16 10200 9T51B0028
120 x 240 Volts 120/240 Volts 0.75 60 Hz No Taps 1 25 12200 9T51B0029
120 x 240 Volts 120/240 Volts 1 60 Hz No Taps 1 25 12225 9T51B0030
120 x 240 Volts 120/240 Volts 1.5 60 Hz No Taps 1 40 14200 9T51B0031
120 x 240 Volts 120/240 Volts 2 60 Hz No Taps 1 45 14250 9T51B0032
120 x 240 Volts 120/240 Volts 3 60 Hz No Taps 1 60 14400 9T51B0033
208 Volts 120/240 Volts 0.5 60 Hz No Taps 4 16 10200 9T51B0158
208 Volts 120/240 Volts 0.75 60 Hz No Taps 4 25 12200 9T51B0159
208 Volts 120/240 Volts 1 60 Hz No Taps 4 25 12225 9T51B0160
208 Volts 120/240 Volts 2 60 Hz No Taps 4 45 14250 9T51B0156
208 Volts 120/240 Volts 3 60 Hz No Taps 4 55 14350 9T51B0157
.050 - 3 kVA Indoor/Outdoor Type QB UL Listed C-UL Listed
Input Output Frequency Wiring Weight Frame Product
Voltage Voltage kVA (Hz) Taps Diagram No.1(Lbs) Size Number
277 Volts 120/240 Volts 0.25 60 Hz (-2 5.1%) 2 10 8175 9T51B0187
277 Volts 120/240 Volts 0.5 60 Hz (-2 5.1%) 2 16 10200 9T51B0188
277 Volts 120/240 Volts 0.75 60 Hz (-2 5.1%) 2 25 12200 9T51B0189
277 Volts 120/240 Volts 1 60 Hz (-2 5.1%) 2 30 12275 9T51B0190
277 Volts 120/240 Volts 1.5 60 Hz (-2 5.1%) 2 40 14200 9T51B0191
277 Volts 120/240 Volts 2 60 Hz (-2 5.1%) 2 45 14250 9T51B0192
277 Volts 120/240 Volts 3 60 Hz (-2 5.1%) 2 55 14350 9T51B0193
380/400/416 Volts 120/240 Volts 0.05 50 Hz No Taps 266150 9T51B0162
380/400/416 Volts 120/240 Volts 0.15 50 Hz No Taps 2 10 8175 9T51B0165
380/400/416 Volts 120/240 Volts 0.25 50 Hz No Taps 2 10 8200 9T51B0167
380/400/416 Volts 120/240 Volts 0.5 50 Hz No Taps 2 20 10225 9T51B0168
380/400/416 Volts 120/240 Volts 0.75 50 Hz No Taps 2 25 12200 9T51B0169
380/400/416 Volts 120/240 Volts 1 50 Hz No Taps 2 30 12275 9T51B0170
380/400/416 Volts 120/240 Volts 1.5 50 Hz No Taps 2 40 14225 9T51B0171
380/400/416 Volts 120/240 Volts 2 50 Hz No Taps 2 50 14300 9T51B0172
380/400/416 Volts 120/240 Volts 3 50 Hz No Taps 2 60 14400 9T51B0173
1See page 10-45 for wiring diagrams.
BuyLog™Catalog
Section 10
Rev. 11/13
Data subject to change
without notice
www.geindustrial.com 10-49
Dry Type Transformers
General Purpose Encapsulated
Single-Phase NEMA 3R
5 - 25 kVA Indoor/Outdoor Type QMS 115°C Rise UL Listed C-UL Listed
Input Output Frequency Wiring Weight Frame Product
Voltage Voltage kVA (Hz) Taps Diagram No.1(Lbs) Size Number
120 x 240 Volts 120/240 Volts 5 60 Hz No Taps 1 103 16350 9T21B1001G02
120 x 240 Volts 120/240 Volts 7.5 60 Hz No Taps 1 147 16600 9T21B1002G02
120 x 240 Volts 120/240 Volts 10 60 Hz No Taps 1 198 19400 9T21B1003G02
120 x 240 Volts 120/240 Volts 10 60 Hz No Taps 1 198 19400 9T21B1054G02
120 x 240 Volts 120/240 Volts 15 60 Hz No Taps 1 220 19500 9T21B9101
120 x 240 Volts 120/240 Volts 15 60 Hz No Taps 1 233 19550 9T21B9131
120 x 240 Volts 120/240 Volts 25 60 Hz No Taps 1 233 19550 9T21B9102
208 Volts 120/240 Volts 5 60 Hz No Taps 4 103 16350 9T21B1028G02
208 Volts 120/240 Volts 7.5 60 Hz No Taps 4 147 16600 9T21B1029G02
208 Volts 120/240 Volts 10 60 Hz No Taps 4 198 19400 9T21B1030G02
208 Volts 120/240 Volts 15 60 Hz No Taps 4 220 19500 9T21B9119
208 Volts 120/240 Volts 25 60 Hz No Taps 4 388 50500 9T21B9120
1See page 10-45 for wiring diagrams.
2For Outdoor NEMA 3R Enclosure add suffix G62 to product number.
5 - 25 kVA Indoor/Outdoor Type QMS 115°C Rise UL Listed C-UL Listed
Input Output Frequency Wiring Weight Frame Product
Voltage Voltage kVA (Hz) Taps Diagram No.1(Lbs) Size Number
277 Volts 120/240 Volts 5 60 Hz (-2 5.1%) 2 103 16350 9T21B1046G02
277 Volts 120/240 Volts 5 60 Hz (-2 2.5%) 2 103 16350 9T21B1265G02
277 Volts 120/240 Volts 7.5 60 Hz (-2 5.1%) 2 147 16600 9T21B1047G02
277 Volts 120/240 Volts 10 60 Hz (-2 5.1%) 2 198 19400 9T21B1048G02
277 Volts 120/240 Volts 10 60 Hz (-2 2.5%) 2 198 19400 9T21B1266G02
277 Volts 120/240 Volts 15 60 Hz (-2 5.1%) 2 220 19500 9T21B9143
277 Volts 120/240 Volts 25 60 Hz (-2 4.7%) 2 388 50500 9T21B9144
1See page 10-45 for wiring diagrams.
5 - 25 kVA Indoor/Outdoor Type QMS 115°C Rise UL Listed C-UL Listed
Input Output Frequency Wiring Weight Frame Product
Voltage Voltage kVA (Hz) Taps Diagram No.1(Lbs) Size Number
240 x 480 Volts 120/240 Volts 5 60 No Taps 1 103 16350 9T21B1004G02
240 x 480 Volts 120/240 Volts 5 50 No Taps 1 115 16400 9T21B1055G02
240 x 480 Volts 120/240 Volts 7.5 60 No Taps 1 147 16600 9T21B1005G02
240 x 480 Volts 120/240 Volts 7.5 50 No Taps 1 174 16600 9T21B1056G02
240 x 480 Volts 120/240 Volts 10 60 No Taps 1 198 19400 9T21B1006G02
240 x 480 Volts 120/240 Volts 10 50 No Taps 1 198 19400 9T21B1057G02
240 x 480 Volts 120/240 Volts 15 60 No Taps 1 220 19500 9T21B9103
240 x 480 Volts 120/240 Volts 15 50 No Taps 1 233 19550 9T21B9133
240 x 480 Volts 120/240 Volts 25 60 No Taps 1 388 50500 9T21B9104
240 x 480 Volts 120/240 Volts 25 50 No Taps 1 428 50600 9T21B9134
480 Volts 120/240 Volts 5 60 (-2 5.0%) 2 103 16350 9T21B1007G02
480 Volts 120/240 Volts 5 60 (+2,-2 2.5%) 3 103 16350 9T21B1013G02
480 Volts 120/240 Volts 7.5 60 (-2 5.0%) 2 147 16600 9T21B1008G02
480 Volts 120/240 Volts 7.5 60 (+2,-2 2.5%) 3 147 16600 9T21B1014G02
480 Volts 120/240 Volts 10 60 (-2 4.9%) 2 198 19400 9T21B1009G02
480 Volts 120/240 Volts 10 60 (+2,-2 2.6%) 3 198 19400 9T21B1015G02
480 Volts 120/240 Volts 15 60 (-2 5.0%) 2 220 19500 9T21B9105
480 Volts 120/240 Volts 15 60 (+2,-2 2.5%) 3 220 19500 9T21B9109
480 Volts 120/240 Volts 25 60 (-2 5.0%) 2 388 50500 9T21B9106
480 Volts 120/240 Volts 25 60 (+2,-2 2.5%) 3 388 50500 9T21B9110
600 Volts 120/240 Volts 5 60 No Taps 5 103 16350 9T21B1016G02
600 Volts 120/240 Volts 5 60 (-2 5.0%) 2 103 16350 9T21B1019G02
600 Volts 120/240 Volts 5 60 (+2,-2 2.5%) 107 16350 9T21B1025G02
600 Volts 120/240 Volts 7.5 60 (-2 5.0%) 2 147 16600 9T21B1020G02
600 Volts 120/240 Volts 10 60 (-2 4.9%) 2 198 19400 9T21B1021G02
600 Volts 120/240 Volts 15 60 No Taps 5 220 19500 9T21B9111
600 Volts 120/240 Volts 15 60 (-2 4.8%) 2 220 19500 9T21B9113
600 Volts 120/240 Volts 25 60 (-2 5.0%) 2 388 50500 9T21B9114
1See page 10-45 for wiring diagrams..
BuyLog™Catalog
Rev. 11/13
Data subject to change
without notice
Section 10
www.geindustrial.com
10-50
Dry Type Transformers
Buck-Boost
Encapsulated
Autotransformers
For Bucking and Boosting Voltage
Application
For General Lighting and Power Service
Autotransformers are more economical than isolation transform-
ers designed to carry the same load. Within their voltage limita-
tions, they will perform the same function as transformers with
the exception of insulating two circuits. You can use these auto-
transformers to obtain 120 Volts from a 240 Volt circuit, to derive
a neutral on a 240 Volt, two-wire circuit, or to balance a 120/240
Volt, three-wire circuit. They also may be used in banks on
polyphase circuits. See footnotes below.
For Bucking or Boosting Voltage of Single-Phase Indoor/Outdoor Type QB 60 Hz UL Listed CSA Certified1
Approx. Net Frame Product
Input Voltage Output Voltage kVA2Height (in) Width (in) Depth (in) Weight (Lbs.) Size Number
240/120 Volts 120 or 240/120 Volts 0.5 7.38 6.13 4.25 10 8175 9T51B0136
(Three-Wire)
240/120 Volts 120 or 240/120 Volts 0.75 8.38 6.88 4.88 16 10200 9T51B0137
(Three-Wire)
240/120 Volts 120 or 240/120 Volts 1 8.38 6.88 4.88 16 10200 9T51B0138
(Three-Wire)
240/120 Volts 120 or 240/120 Volts 1.5 9.63 7.88 5.5 25 12200 9T51B0139
(Three-Wire)
240/120 Volts 120 or 240/120 Volts 2 9.63 7.88 5.5 25 12225 9T51B0140
(Three-Wire)
240/120 Volts 120 or 240/120 Volts) 3 11.13 9.38 6.75 40 14200 9T51B0141
(Three-Wire)
240/120 Volts 120 or 240/120 Volts 5 11.13 9.38 6.75 60 14400 9T51B0142
(Three-Wire)
1Through 3 kVA
For Bucking or Boosting Voltage of Single-Phase Indoor/Outdoor Type QMS 60 Hz UL Listed CSA Certified
Approx. Net Frame Product
Input Voltage Output Voltage kVA2Height (in) Width (in) Depth (in) Weight (Lbs.) Size Number
240/120 Volts 120 or 240/120 Volts 10 14.50 10.62 11.00 103 16350 9T21B4553G02
(Three-Wire)
240/120 Volts 120 or 240/120 Volts 15 17.06 10.62 11.00 147 16600 9T21B9201
(Three-Wire)
240/120 Volts 120 or 240/120 Volts 25 17.06 12.50 12.50 220 19500 9T21B9202
(Three-Wire)
2kVA output at 120 Volts, two-wire, or allowable unbalance at 240/120 Volts, three-wire.
For Boosting Voltage of Three-Phase Indoor/Outdoor Type QB 60 Hz UL Listed
Approx. Net Frame Product
Input Voltage Output Voltage kVA3Height (in) Width (in) Depth (in) Weight (Lbs.) Size Number
208Y/120 Volts 230/133 Volts 6 7.38 6.13 4.25 10 8175 9T51B0143
208Y/120 Volts 230/133 Volts 9 8.38 6.88 4.88 16 10200 9T51B0144
208Y/120 Volts 230/133 Volts 15 8.38 6.88 4.88 20 10225 9T51B0145
208Y/120 Volts 230/133 Volts 30 9.63 7.88 5.50 30 12275 9T51B0146
208Y/120 Volts 230/133 Volts 45 11.13 9.38 6.75 40 14200 9T51B0147
208Y/120 Volts 230/133 Volts 75 11.13 9.38 6.75 60 14400 9T51B0148
208Y/120 Volts 240/120 Volts 6 7.38 6.13 4.25 10 8175 9T51B0150
208Y/120 Volts 240/120 Volts 15 9.63 7.88 5.50 25 12200 9T51B0152
208Y/120 Volts 240/120 Volts 30 11.13 9.38 6.75 40 14200 9T51B0153
208Y/120 Volts 240/120 Volts 45 11.13 9.38 6.75 45 14250 9T51B0154
3Bank of three single-phase autotransformers to be connected wye. Price is for one single unit. Dimensions and weights are for each unit in bank. Each single autotrans-
former is rated 1/3 of the bank kVA rating. Order three single-phase transformers for each three-phase bank.
Conversion Chart
Decimal Fraction
.13 1/8
.38 3/8
.63 5/8
.88 7/8
Wiring Diagram: Single-Phase
Wiring Diagram: Three-Phase
BuyLog™Catalog
Section 10
Rev. 11/13
Data subject to change
without notice
www.geindustrial.com 10-51
Dry Type Transformers
Buck-Boost
Encapsulated
For Bucking and Boosting Voltage
Product Description
Buck boost transformers are small, single-phase, dry type distri-
bution transformers designed and shipped as insulating/isolating
transformers. They have a dual voltage primary and a dual volt-
age secondary. These transformers can be connected for a wide
range of voltage combinations. The most common use is to buck
(lower) or boost (raise) the supply voltage a small amount, usual-
ly 5 to 27%. Buck boost transformers comply with NEC Article
210-9, Exception 1, when field connected as an autotransformer.
GE bucking and boosting transformers provide an economical
and convenient means for bucking or boosting voltage, usually
no more than ±20% on single- and three-phase circuits. They are
compact, relatively light in weight, and can be easily installed for
indoor or outdoor service.
Buck-boost transformers are employed primarily for boosting
single-and three-phase circuits by connecting them as auto-
transformers. When connected as an autotransformer, only the
low-voltage, high-current capacity secondary windings are
required to carry the load. Because this load is only transformed
over a small change in voltage, the buck-boost transformer can
handle loads many times its nameplate kVA rating.
The transformers with series-multiple 12/24, 24/48, or 16/32 Volt
secondary windings are suitable for a wide variety of applica-
tions. Two or more units can be used in various combinations to
obtain many other special voltages. (For fluctuating voltage con-
ditions, refer to Power Conditioning Equipment Products section
starting on page 10-36).
Advantages
—Efficient insulating materials permit compact size and
light weight
—Dual voltage primary and dual voltage secondary for
maximum versatility
—Large, front-accessible wiring compartment permits fast,
easy wiring
—Convenient conduit knockouts located on side, bottom and
back of wiring compartment
—GE Buck-Boost Transformer Selector makes selection fast
and easy
—Many GE buck-boost transformers fit competitor mounting
footprints
—Indoor or outdoor service
Key Features
—Convenient and least expensive method of matching line
voltage with equipment voltage
—More efficient than equivalent isolation transformers
—Ability to handle loads up to 20 times nameplate rating when
connected as an autotransformer
—Ideal for changing line voltages by small amounts
—Primary voltages include 120V, 240V and 480V
—Secondary voltages include 12V, 16V, 24V, 32V, 48V
—UL and cUL Listed
Wiring Diagram for Low Voltage Loads
Indoor/Outdoor Type QB Transformer; Single-Phase
—Qualified to the seismic requirements of IEEE-693-1997 and
IBC-2003
—ABS (American Bureau of Shipping) Type Approved
Applications
—International voltage adaptation
—Commercial and industrial air conditioning
—Heating systems
—Induction motors
—Voltage line drop correction
—Landscape lighting
—Low-voltage lighting
—Marine and Offshore - ABS Classed Vessels
Efficient operation of electrical equipment requires that line volt-
age be at or near the nameplate rating of the equipment. In
order to match available line voltage (whether it be too high or
low) with equipment voltage, buck-boost transformers provide
the most
convenient and least expensive method.
Do not use buck-boost transformers to solve a fluctuating voltage
problem. They should be used to compensate for high- or low-
voltage conditions only when the available line voltage is
reasonably constant.
BuyLog™Catalog
Rev. 11/13
Data subject to change
without notice
Section 10
www.geindustrial.com
10-52
Dry Type Transformers
Buck-Boost
Encapsulated
For Bucking and Boosting Voltage
Single-Phase Indoor/Outdoor Type QB 60 Hz UL Listed C-UL Listed
Approx. Net Frame Product
Input Voltage Output Voltage kVA Height (in) Width (in) Depth (in) Weight (Lbs.) Size Number
120/240 Volts 12/24 Volts 0.05 6.38 5.12 3.25 6 6100 9T51B0102
120/240 Volts 12/24 Volts 0.075 6.38 5.12 3.25 6 6200 9T51B0103
120/240 Volts 12/24 Volts 0.1 6.38 5.12 3.25 6 6200 9T51B0104
120/240 Volts 12/24 Volts 0.15 7.38 6.12 4.25 10 8175 9T51B0105
120/240 Volts 12/24 Volts 0.25 7.38 6.12 4.25 10 8175 9T51B0107
120/240 Volts 12/24 Volts 0.5 8.38 6.88 4.88 20 10225 9T51B0108
120/240 Volts 12/24 Volts 0.75 9.62 7.88 5.50 25 12200 9T51B0109
120/240 Volts 12/24 Volts 1 9.62 7.88 5.50 25 12225 9T51B0110
120/240 Volts 12/24 Volts 1.5 11.12 9.38 6.72 40 14200 9T51B0111
120/240 Volts 12/24 Volts 2 11.12 9.38 6.72 50 14300 9T51B0112
120/240 Volts 12/24 Volts 3 9.38 6.72 55 14350 9T51B0113
120/240 Volts 16/32 Volts 0.05 6.38 5.12 3.25 6 6100 9T51B0122
120/240 Volts 16/32 Volts 0.075 6.38 5.12 3.25 6 6200 9T51B0123
120/240 Volts 16/32 Volts 0.1 6.38 5.12 3.25 6 6200 9T51B0124
120/240 Volts 16/32 Volts 0.15 7.38 6.12 4.25 10 8175 9T51B0125
120/240 Volts 16/32 Volts 0.25 7.38 6.12 4.25 10 8175 9T51B0127
120/240 Volts 16/32 Volts 0.5 8.38 6.88 4.88 20 10225 9T51B0128
120/240 Volts 16/32 Volts 0.75 9.62 7.88 5.50 25 12200 9T51B0129
120/240 Volts 16/32 Volts 1 9.62 7.88 5.50 30 12300 9T51B0130
120/240 Volts 16/32 Volts 1.5 11.12 9.38 6.72 40 14200 9T51B0131
120/240 Volts 16/32 Volts 2 11.12 9.38 6.72 50 14300 9T51B0132
120/240 Volts 16/32 Volts 3 9.38 6.72 55 14350 9T51B0133
240/480 Volts 24/48 Volts 0.05 6.38 5.12 3.25 6 6100 9T51B0202
240/480 Volts 24/48 Volts 0.075 6.38 5.12 3.25 6 6200 9T51B0203
240/480 Volts 24/48 Volts 0.1 6.38 5.12 3.25 6 6200 9T51B0204
240/480 Volts 24/48 Volts 0.15 7.38 6.12 4.25 10 8175 9T51B0205
240/480 Volts 24/48 Volts 0.25 7.38 6.12 4.25 10 8175 9T51B0207
240/480 Volts 24/48 Volts 0.5 8.38 6.88 4.88 20 10225 9T51B0208
240/480 Volts 24/48 Volts 0.75 9.62 7.88 5.50 25 12200 9T51B0209
240/480 Volts 24/48 Volts 1 9.62 7.88 5.50 30 12275 9T51B0210
240/480 Volts 24/48 Volts 1.5 11.12 9.38 6.72 40 14200 9T51B0211
240/480 Volts 24/48 Volts 2 11.12 9.38 6.72 50 14300 9T51B0212
240/480 Volts 24/48 Volts 3 11.12 9.38 6.72 55 14350 9T51B0213
Single-Phase Indoor/Outdoor Type QMS 60 Hz UL Listed C-UL Listed
Approx. Net Frame Product
Input Voltage Output Voltage kVA Height (in) Width (in) Depth (in) Weight (Lbs.) Size Number
120/240 Volts 12/24 Volts 5 14.5 10.62 11 103 16350 9T21B1037G02
120/240 Volts 16/32 Volts 5 14.5 10.62 11 115 16400 9T21B1040G02
Single-Phase Indoor/Outdoor Type QMS 50 Hz UL Listed C-UL Listed
Approx. Net Frame Product
Input Voltage Output Voltage kVA Height (in) Width (in) Depth (in) Weight (Lbs.) Size Number
120/240 Volts 12/24 Volts 5 14.5 10.62 11 115 16400 9T21B1061G02
120/240 Volts 16/32 Volts 5 14.5 10.62 11 127 16450 9T21B1064G02
NOTE: In addition to bucking or boosting low circuit voltages to related value, these transformers can be used as two winding transformers to supply the rated nameplate
low voltages, 12 to 48 Volts, two-wire or 12/24 to 24/48 Volts, three-wire. Also available in 50/60 Hz ratings.
BuyLog™Catalog
Section 10
Rev. 11/13
Data subject to change
without notice
www.geindustrial.com 10-53
Dry Type Transformers
Buck-Boost Selection Tables
Encapsulated
For Bucking and Boosting Voltage
5-Step Selection
The tables on these pages greatly facilitate buck-boost trans-
former selection. Simply follow these five easy steps:
1. Refer to the table having the same “output voltage” as the
equipment you want to operate. For example, if you are
installing a 230 Volt single-phase air conditioner, use the
230 Volt table.
2. Different available “line voltages” are listed across the top of
each table. Select the line voltage column closest to your
actual supply. If your available line voltage is exactly midway
between two listed voltage levels, you may use either voltage
column. For example, in the 230 Volt table, if you have 212
available, use either the 208 or the 216 column.
3. Read down the available line voltage column until you reach
the rated load kVA of the equipment you want to operate or
“the next higher kVA” rating. For example, in the 230 Volt table
under the 208 available line voltage column, you want to oper-
ate an air conditioner rated 2 kVA. Since 2 kVA is not list ed as
such, you must read down to the next higher value or 2.4 kVA.
Table 1
230 Volts Output, 60 Hertz, Single-Phase
Available Line Voltage
192 203 208 216 219 242 245 353 261 276
Product Number Load kVA1
9T51B0102 ——0.480 — 0.960 1.0 — 0.530 ——
9T51B0122 — 0.360 — 0.720 ——0.770 — 0.410 —
9T51B0202 0.240 ————————0.288
9T51B0103 ——0.720 — 1.5 1.6 — 0.800 ——
9T51B0123 — 0.540 — 1.1 ——1.2 — 0.620 —
9T51B0203 0.359 ————————0.431
9T51B0104 ——0.960 — 2.0 2.1 — 1.1 ——
9T51B0124 — 0.720 — 1.5 ——1.6 — 0.820 —
9T51B0204 0.479 ————————0.575
9T51B0105 ——1.5 — 2.9 3.1 — 1.6 ——
9T51B0125 — 1.1 — 2.2 ——2.3 — 1.3 —
9T51B0205 0.719 ————————0.863
9T51B0107 ——2.4 — 4.8 5.1 — 2.7 ——
9T51B0127 — 1.8 — 3.6 ——3.9 — 2.1 —
9T51B0207 1.2 ————————1.4
9T51B0108 ——4.8 — 9.6 10.1 — 5.3 ——
9T51B0128 — 3.6 — 7.2 ——7.7 — 4.1 —
9T51B0208 2.4 ————————2.9
9T51B0109 ——7.2 — 14.4 15.2 — 7.9 ——
9T51B0129 — 5.4 — 10.8 ——11.5 — 6.2 —
9T51B0209 3.6 ————————4.3
9T51B0110 ——9.6 — 19.2 20.2 — 10.6 ——
9T51B0130 — 7.2 — 14.4 ——15.4 — 8.2 —
9T51B0210 4.8 ————————5.7
9T51B0111 ——14.4 — 28.8 30.3 — 15.9 ——
9T51B0131 — 10.8 — 21.6 ——23.0 — 12.3 —
9T51B0211 7.2 ————————8.6
9T51B0112 ——19.1 — 38.4 40.4 — 21.1 ——
9T51B0132 — 14.4 — 28.8 ——30.7 — 16.4 —
9T51B0212 9.6 ————————11.5
9T51B0113 ——28.7 — 57.5 60.5 — 31.7 ——
9T51B0133 — 21.6 — 43.2 ——46.0 — 24.5 —
9T51B0213 14.4 ————————17.3
9T21B1037G02 ——47.8 — 95.9 100.9 — 52.7 ——
9T21B1040G02 — 36.0 — 72.0 ——77.0 — 40.8 —
Connection Diagram CAABBBBAAC
Page 10-60
1The load kVA is the maximum load at voltages shown when transformers are connected as autotransformers according to the diagram referenced.
4. Once you have established this point, read across to the far
left column for the exact GE buck-boost model number for
your application. For example, the 230 Volt table under the
208 column for a 2 kVA air conditioner, read across from 2.4
(next higher kVA rating) and the model number is 9T51B0107.
5. Connect the buck-boost transformer you have selected per
the connection diagram specified at the “bottom” of the avail-
able line voltage column you used. For example, if you used
the 208 column, you would connect the buck-boost trans-
former per connection diagram A. That’s all there is to it! The
transformer you’ve selected will meet your exact requirements
when connected in the specified manner.
The formula for calculating single-phase kVA is:
Load Voltage ×Full Load Amps
1000
The formula for calculating three-phase kVA is:
1.732 ×Load Voltage ×Load Amps
1000
BuyLog™Catalog
Rev. 11/13
Data subject to change
without notice
Section 10
www.geindustrial.com
10-54
Dry Type Transformers
Buck-Boost Selection Tables
Encapsulated
For Bucking and Boosting Voltage
Table 2
240 Volts Output, 60 Hertz, Single-Phase
Available Line Voltage
200 212 218 225 229 252 256 264 272 288
Product Number Load kVA1
9T51B0102 ——0.500 — 1.0 1.1 — 0.6 ——
9T51B0122 — 0.380 — 0.750 ——0.800 — 0.430 —
9T51B0202 0.250 ————————0.300
9T51B0103 ——0.750 — 1.5 1.6 — 0.825 ——
9T51B0123 — 0.570 — 1.2 ——1.2 — 0.640 —
9T51B0203 0.375 ————————0.391
9T51B0104 ——1.0 — 2.0 2.1 — 1.1 ——
9T51B0124 — 0.750 — 1.5 ——1.6 — 0.850 —
9T51B0204 0.500 ————————0.522
9T51B0105 ——1.5 — 3.0 3.2 — 1.7 ——
9T51B0125 — 1.2 — 2.3 ——2.4 — 1.3 —
9T51B0205 0.750 ————————0.782
9T51B0107 ——2.5 — 5.0 5.3 — 2.8 ——
9T51B0127 — 1.9 — 3.8 ——4.0 — 2.2 —
9T51B0207 1.3 ————————1.4
9T51B0108 ——5.0 — 10.0 10.5 — 5.5 ——
9T51B0128 — 3.8 — 7.5 ——8.0 — 4.3 —
9T51B0208 2.5 ————————2.6
9T51B0109 ——7.5 — 15.0 15.8 — 8.3 ——
9T51B0129 — 5.7 — 11.3 ——12.0 — 6.4 —
9T51B0209 3.8 ————————4.0
9T51B0110 ——10.0 — 20.0 21.0 — 11.0 ——
9T51B0130 — 7.5 — 15.0 ——16.0 — 8.5 —
9T51B0210 5.0 ————————5.2
9T51B0111 ——15.0 — 30.0 31.5 — 16.5 ——
9T51B0131 — 11.3 — 22.5 ——24.0 — 12.8 —
9T51B0211 7.5 ————————7.8
9T51B0112 ——20.0 — 40.0 42.6 — 22.0 ——
9T51B0132 — 15.0 — 30.0 ——32.0 — 17.0 —
9T51B0212 10.0 ————————10.4
9T51B0113 ——30.0 — 60.0 63.0 — 33.0 ——
9T51B0133 — 22.5 — 45.0 ——48.0 — 25.5 —
9T51B0213 15.0 ————————15.6
9T21B1037G02 ——50.0 — 100.0 105.0 — 55.0 ——
9T21B1040G02 — 37.5 — 75.0 ——80.0 — 42.5 —
Connection Diagram CAABBBBAAC
Page 10-60
1The load kVA is the maximum load at voltages shown when transformers are connected as autotransformers according to the diagram referenced.
BuyLog™Catalog
Section 10
Rev. 11/13
Data subject to change
without notice
www.geindustrial.com 10-55
Dry Type Transformers
Buck-Boost Selection Tables
Encapsulated
For Bucking and Boosting Voltage
Table 3
115 Volts Output, 60 Hertz, Single-Phase
Available Line Voltage
91 96 101 105 127 130 138 146
Product Number Load kVA1
9T51B0102 — 0.240 — 0.480 0.539 — 0.290 —
9T51B0122 0.180 — 0.360 ——0.410 — 0.230
9T51B0103 — 0.360 — 0.720 0.800 — 0.440 —
9T51B0123 0.270 — 0.540 ——0.610 — 0.350
9T51B0104 — 0.480 — 0.960 1.1 — 0.580 —
9T51B0124 0.360 — 0.720 ——0.820 — 0.460
9T51B0105 — 0.720 — 1.5 1.6 — 0.870 —
9T51B0125 0.540 — 1.1 ——1.3 — 0.690
9T51B0107 — 1.2 — 2.4 2.7 — 1.5 —
9T51B0127 0.900 — 1.8 ——2.1 — 1.2
9T51B0108 — 2.4 — 4.8 5.3 — 2.9 —
9T51B0128 1.8 — 3.6 ——4.1 — 2.3
9T51B0109 — 3.6 — 7.2 8.0 — 4.4 —
9T51B0129 2.7 — 5.4 ——6.1 — 3.5
9T51B0110 — 4.8 — 9.6 10.6 — 5.8 —
9T51B0130 3.6 — 7.2 ——8.2 — 4.6
9T51B0111 — 7.2 — 14.4 15.9 — 8.6 —
9T51B0131 5.4 — 10.8 ——12.2 — 6.9
9T51B0112 — 9.6 — 19.2 21.2 — 11.5 —
9T51B0132 7.2 — 14.4 ——16.3 — 9.2
9T51B0113 — 14.4 — 28.8 31.8 — 17.3 —
9T51B0133 10.8 — 21.6 ——24.4 — 13.7
9T21B1061G02 — 24.0 — 48.0 53.0 — 28.8 —
9T21B1037G02 — 24.0 — 48.0 53.0 — 28.8 —
9T21B1064G02 18.0 — 36.0 ——41.0 — 22.9
9T21B1040G02 18.0 — 36.0 ——41.0 — 22.9
Connection Diagram CC D D D D C C
Page 10-60
1The load kVA is the maximum load at voltages shown when transformers are connected as autotransformers according to the diagram referenced.
Table 4
120 Volts Output, 60 Hertz, Single-Phase
Available Line Voltage
95 100 106 109 132 136 144 152
Product Number Load kVA1
9T51B0102 — 0.250 — 0.500 0.550 — 0.300 —
9T51B0122 0.190 — 0.380 ——0.430 — 0.240
9T51B0103 — 0.380 — 0.750 0.830 — 0.450 —
9T51B0123 0.290 — 0.570 ——0.640 — 0.360
9T51B0104 — 0.500 — 1.0 1.1 — 0.600 —
9T51B0124 0.380 — 0.750 ——0.850 — 0.480
9T51B0105 — 0.750 — 1.5 1.7 — 0.900 —
9T51B0125 0.570 — 1.2 ——1.3 — 0.720
9T51B0107 — 1.3 — 2.5 2.8 — 1.5 —
9T51B0127 0.940 — 1.9 ——2.2 — 1.2
9T51B0108 — 2.5 — 5.0 5.5 — 3.0 —
9T51B0128 1.9 — 3.8 ——4.3 — 2.4
9T51B0109 — 3.8 — 7.5 8.3 — 4.5 —
9T51B0129 2.9 — 5.7 ——6.4 — 3.6
9T51B0110 — 5.0 — 10.0 11.0 — 6.0 —
9T51B0130 3.8 — 7.5 ——8.5 — 4.8
9T51B0111 — 7.5 — 15.0 16.5 — 9.0 —
9T51B0131 5.7 — 11.3 ——12.8 — 7.2
9T51B0112 — 10.0 — 20.0 22.0 — 12.0 —
9T51B0132 7.5 — 15.0 ——17.0 — 9.5
9T51B0113 — 15.0 — 30.0 33.0 — 18.0 —
9T51B0133 11.3 — 22.5 ——25.5 — 14.3
9T21B1061G02 — 25.0 — 50.0 55.0 — 30.0 —
9T21B1037G02 — 25.0 — 50.0 55.0 — 30.0 —
9T21B1064G02 18.8 — 38.0 ——43.0 — 23.8
9T21B1040G02 18.8 — 38.0 ——43.0 — 23.8
Connection Diagram CC D D D D C C
Page 10-60
1The load kVA is the maximum load at voltages shown when transformers are connected as autotransformers according to the diagram referenced.
BuyLog™Catalog
Rev. 11/13
Data subject to change
without notice
Section 10
www.geindustrial.com
10-56
Dry Type Transformers
Buck-Boost Selection Tables
Encapsulated
For Bucking and Boosting Voltage
Table 5
230 Volts, 3-Wire Output, 60 Hertz, Three-Phase2
Available Line Voltage
Quantity Required Product 181Y/105 192Y/111 203Y/117 208Y/120 277Y/160
Per Bank Number Load kVA1
3 9T51B0102 — 0.830 — 1.7 —
3 9T51B0122 0.620 — 1.3 ——
3 9T51B0202 ————0.480
3 9T51B0103 — 1.2 — 2.5 —
3 9T51B0123 0.930 — 1.9 ——
3 9T51B0203 ————0.720
3 9T51B0104 — 1.7 — 3.4 —
3 9T51B0124 1.2 — 2.5 ——
3 9T51B0204 ————0.960
3 9T51B0105 — 2.5 — 5.0 —
3 9T51B0125 1.9 — 3.7 ——
3 9T51B0205 ————1.44
3 9T51B0107 — 4.2 — 8.3 —
3 9T51B0127 3.1 — 6.2 ——
3 9T51B0207 ————2.4
3 9T51B0108 — 8.3 — 16.6 —
3 9T51B0128 6.2 — 12.5 ——
3 9T51B0208 ————4.8
3 9T51B0109 — 12.5 — 25.0 —
3 9T51B0129 9.3 — 18.7 ——
3 9T51B0209 ————7.2
3 9T51B0110 — 16.6 — 33.2 —
3 9T51B0130 12.5 — 25.0 ——
3 9T51B0210 ————9.6
3 9T51B0111 — 25.0 — 50.0 —
3 9T51B0131 18.7 — 37.0 ——
3 9T51B0211 ————14.4
3 9T51B0112 — 33.0 — 66.0 —
3 9T51B0132 25.0 — 50.0 ——
3 9T51B0212 ————19.2
3 9T51B0113 — 50.0 — 100.0 —
3 9T51B0133 37.5 — 75.0 ——
3 9T51B0213 ————28.8
3 9T21B1037G02 — 83.0 — 167.0 —
3 9T21B1040G02 62.0 — 125.0 ——
Connection Diagram FFGGF
Page 10-60
1The load kVA is the maximum load at voltages shown when transformers are connected as autotransformers according to the diagram referenced.
2See Caution page 10-58, footnote 1.
BuyLog™Catalog
Section 10
Rev. 11/13
Data subject to change
without notice
www.geindustrial.com 10-57
Dry Type Transformers
Buck-Boost Selection Tables
Encapsulated
For Bucking and Boosting Voltage
Table 6
240 Volts, 3-Wire Output, 60 Hertz, Three-Phase2
Available Line Voltage
189Y/109 200Y/115 208Y/1203218Y/126 288Y/166
Quantity Required Product 212Y/122
Per Bank Number Load kVA1
3 9T51B0102 — 0.870 — 1.7 —
3 9T51B0122 0.650 — 1.3 ——
3 9T51B0202 ————0.500
3 9T51B0103 — 1.3 — 2.6 —
3 9T51B0123 0.970 — 2.0 ——
3 9T51B0203 ————0.750
3 9T51B0104 — 1.7 — 3.5 —
3 9T51B0124 1.3 — 2.6 ——
3 9T51B0204 ————1.0
3 9T51B0105 — 2.6 — 5.2 —
3 9T51B0125 2.0 — 3.9 ——
3 9T51B0205 ————1.5
3 9T51B0107 — 4.3 — 8.7 —
3 9T51B0127 3.2 — 6.5 ——
3 9T51B0207 ————2.5
3 9T51B0108 — 8.7 — 17.3 —
3 9T51B0128 6.5 — 13.0 ——
3 9T51B0208 ————5.0
3 9T51B0109 — 13.0 — 26.0 —
3 9T51B0129 9.7 — 19.5 ——
3 9T51B0209 ————7.5
3 9T51B0110 — 17.3 — 34.6 —
3 9T51B0130 13.0 — 26.0 ——
3 9T51B0210 ————10.0
3 9T51B0111 — 26.0 — 52.0 —
3 9T51B0131 19.5 — 39.0 ——
3 9T51B0211 ————15.0
3 9T51B0112 — 35.0 — 70.0 —
3 9T51B0132 26.0 — 52.0 ——
3 9T51B0212 ————20.0
3 9T51B0113 — 52.0 — 104.0 —
3 9T51B0133 39.0 — 78.0 ——
3 9T51B0213 ————30.0
3 9T21B1037G02 — 87.0 — 173.0 —
3 9T21B1040G02 65.0 — 130.0 ——
Connection Diagram FFGGF
Page 10-60
1The load kVA is the maximum load at voltages shown when transformers are connected as autotransformers according to the diagram referenced.
2See Caution page 10-58, footnote 1.
3When 208Y/120 Volts is the available line voltage, the 212Y/122 column may be used to obtain 236 Volts which should be satisfactory for most applications.
BuyLog™Catalog
Rev. 11/13
Data subject to change
without notice
Section 10
www.geindustrial.com
10-58
Dry Type Transformers
Buck-Boost Selection Tables
Encapsulated
For Bucking and Boosting Voltage
Table 7
460 Volts, 3-Wire Output, 60 Hertz, Three-Phase1
Available Line Voltage — 3- or 4-Wire
Quantity Required Product 385 406 418 432 438
Per Bank Number Load kVA2
3 9T51B0102 ——1.66 — 3.32
3 9T51B0122 — 1.25 — 2.49 —
3 9T51B0202 0.830 ————
3 9T51B0103 ——2.48 — 4.96
3 9T51B0123 — 1.87 — 3.73 —
3 9T51B0203 1.2 ————
3 9T51B0104 ——3.31 — 6.62
3 9T51B0124 — 2.49 — 4.97 —
3 9T51B0204 1.7 ————
3 9T51B0105 ——4.97 — 9.94
3 9T51B0125 — 3.73 — 3.9 —
3 9T51B0205 2.5 ————
3 9T51B0107 ——8.28 — 16.6
3 9T51B0127 — 6.22 — 6.5 —
3 9T51B0207 4.2 ————
3 9T51B0108 ——16.6 — 33.2
3 9T51B0128 — 12.5 — 13.0 —
3 9T51B0208 8.3 ————
3 9T51B0109 ——24.8 — 59.6
3 9T51B0129 — 18.7 — 19.5 —
3 9T51B0209 12.5 ————
3 9T51B0110 ——33.1 — 66.2
3 9T51B0130 — 24.9 — 26.0 —
3 9T51B0210 16.6 ————
3 9T51B0111 ——49.7 — 99.4
3 9T51B0131 — 37.3 — 39.0 —
3 9T51B0211 24.9 ————
3 9T51B0112 ——66.3 — 133.0
3 9T51B0132 — 49.7 — 52.0 —
3 9T51B0212 33.2 ————
3 9T51B0113 ——99.3 — 198.6
3 9T51B0133 — 74.6 — 78.0 —
3 9T51B0213 49.8 ————
3 9T21B1037G02 ——166.0 — 322.0
3 9T21B1040G02 — 125.0 — 130.0 —
Connection Diagram FHHII
Page 10-60
1Caution: If input is 3-wire Delta or 4-wire midtapped Delta, the neutral established from the bank of buck-boost transformers must be insulated and isolated
from the input power neutral and/or ground.
2The load kVA is the maximum load at voltages shown when transformers are connected as autotransformers according to the diagram referenced.
BuyLog™Catalog
Section 10
Rev. 11/13
Data subject to change
without notice
www.geindustrial.com 10-59
Dry Type Transformers
Buck-Boost Selection Tables
Encapsulated
For Bucking and Boosting Voltage
Table 8
480 Volts, 3-Wire Output, 60 Hertz, Three-Phase1
Available Line Voltage — 3- or 4-Wire
Quantity Required Product 400 424 436 450
Per Bank Number Load kVA2
9T51B0102 ——1.74 —
3 9T51B0122 — 1.3 — 2.6
3 9T51B0202 0.866 ———
3 9T51B0103 ——2.6 —
3 9T51B0123 — 1.95 — 3.9
3 9T51B0203 1.3 ———
3 9T51B0104 ——3.5 —
3 9T51B0124 — 2.6 — 5.2
3 9T51B0204 1.7 ———
3 9T51B0105 ——5.2 —
3 9T51B0125 — 3.9 — 7.8
3 9T51B0205 2.6 ———
3 9T51B0107 ——8.7 —
3 9T51B0127 — 6.3 — 13.0
3 9T51B0207 4.3 ———
3 9T51B0108 ——17.4 —
3 9T51B0128 — 13.0 — 26.0
3 9T51B0208 8.7 ———
3 9T51B0109 ——26.0 —
3 9T51B0129 — 19.5 — 39.0
3 9T51B0209 13.0 ———
3 9T51B0110 ——35.0 —
3 9T51B0130 — 26.0 — 52.0
3 9T51B0210 17.3 ———
3 9T51B0111 ——52.2 —
3 9T51B0131 — 39.0 — 78.0
3 9T51B0211 26.0 ———
3 9T51B0112 ——69.0 —
3 9T51B0132 — 52.0 — 104.0
3 9T51B0212 34.6 ———
3 9T51B0113 ——104.0 —
3 9T51B0133 — 78.0 — 156.0
3 9T51B0213 51.9 ———
3 9T21B1037G02 ——174.0 —
3 9T21B1040G02 — 130.0 — 260.0
Connection Diagram FHHI
Page 10-60
Table 9
208 Volts, 3-Wire, 60 Hertz, Three-Phase1
Available Line Voltage — 3- or 4-Wire
Quantity Required Product 218 222 229 236
Per Bank Number Load kVA2
2 9T51B0102 1.6 — 0.800 —
2 9T51B0122 — 1.2 — 0.640
2 9T51B0103 2.3 — 1.2 —
2 9T51B0123 — 1.8 — 0.960
2 9T51B0104 3.2 — 1.6 —
2 9T51B0124 — 2.4 — 1.3
2 9T51B0105 4.7 — 2.5 —
2 9T51B0125 — 3.6 — 1.9
2 9T51B0107 7.8 — 4.1 —
2 9T51B0127 — 6.0 — 3.2
2 9T51B0108 16 — 8.0 —
2 9T51B0128 — 12.0 — 6.4
2 9T51B0109 23.6 — 12.4 —
2 9T51B0129 — 18.0 — 9.6
2 9T51B0110 31.5 — 16.5 —
2 9T51B0130 — 24.0 — 12.7
2 9T51B0111 47.5 — 24.8 —
2 9T51B0131 — 36.0 — 19.1
2 9T51B0112 63.0 — 33.0 —
2 9T51B0132 — 48.0 — 25.6
2 9T51B0113 94 — 49.6 —
2 9T51B0133 — 72.0 — 38.3
Connection Diagram JJZZ
Page 10-60
1Caution: If input is 3-wire Delta or 4-wire midtapped Delta, the neutral established from the bank of buck-boost transformers must be insulated and isolated
from the input power neutral and/or ground.
2The load kVA is the maximum load at voltages shown when transformers are connected as autotransformers according to the diagram referenced.
BuyLog™Catalog
Rev. 11/13
Data subject to change
without notice
Section 10
www.geindustrial.com
10-60
Dry Type Transformers
Buck-Boost Connection Diagrams
Encapsulated
For Bucking and Boosting Voltage
Connection Diagrams
BuyLog™Catalog
Section 10
Rev. 11/13
Data subject to change
without notice
www.geindustrial.com 10-61
Dry Type Transformers
Open Core and Coil Transformers
Machine Tool and Control Power
Product Description
Core and coil transformers for machine tools are used to provide
voltage to control devices in applications where regulation and
minimum space are important. Welded cores provide the highest
quality electrical performance and quiet operation.
Standards: Type IP transformers conform to NEMA ST20
Listings: UL listed under UL-5085, File E2739
CSA Certified under C22.2, Number 66, File 3272
Insulation Classes: 150VA and below: 105°C insulation class,
55°C Rise
200VA and above: 185°C (NEMA)
180°C (UL) insulation class, 115°C Rise
Frequency: 60 Hz standard; 50 Hz optional.
Voltage Regulation: All designs 2.0 kVA and below are compen-
sated for voltage drop. Compensation ranges from 10% in the
smallest rating to 3% for the largest. All machine tool designs
meet or exceed NMTBA regulation requirements.
Series-Multiple Secondary Connections: Transformers with
120/240 V secondaries (series-multiple) may be connected for
120 V, 240 V or 240/120 V three-wire. Jumpers are provided.
Overcurrent Protection: Type IP transformers are low impedance
transformers that require overcurrent protection for most
applications. They provide for optional integral primary and/or
secondary fusing.
Mounting Dimensions: Type IP transformers are lightweight,
small, and designed for minimum mounting dimensions. Many
units will fit competitors mounting footprints.
Advantages
—Finger-safe terminals offer added protection and safety
—Pressure plate terminals ensure secure connections
—Wide variety of fusing options
Key Features—Terminal Board Connection
—Rugged, high-impact plastic terminal board
—Full head #8 brass screws assure quick, easy terminations with
maximum connection integrity
—Copper windings
—Flexible design allows input or output voltage to match any
application
—CUL, CE, UL approvals
—Available fuse-blocks offer simple, low-cost fusing

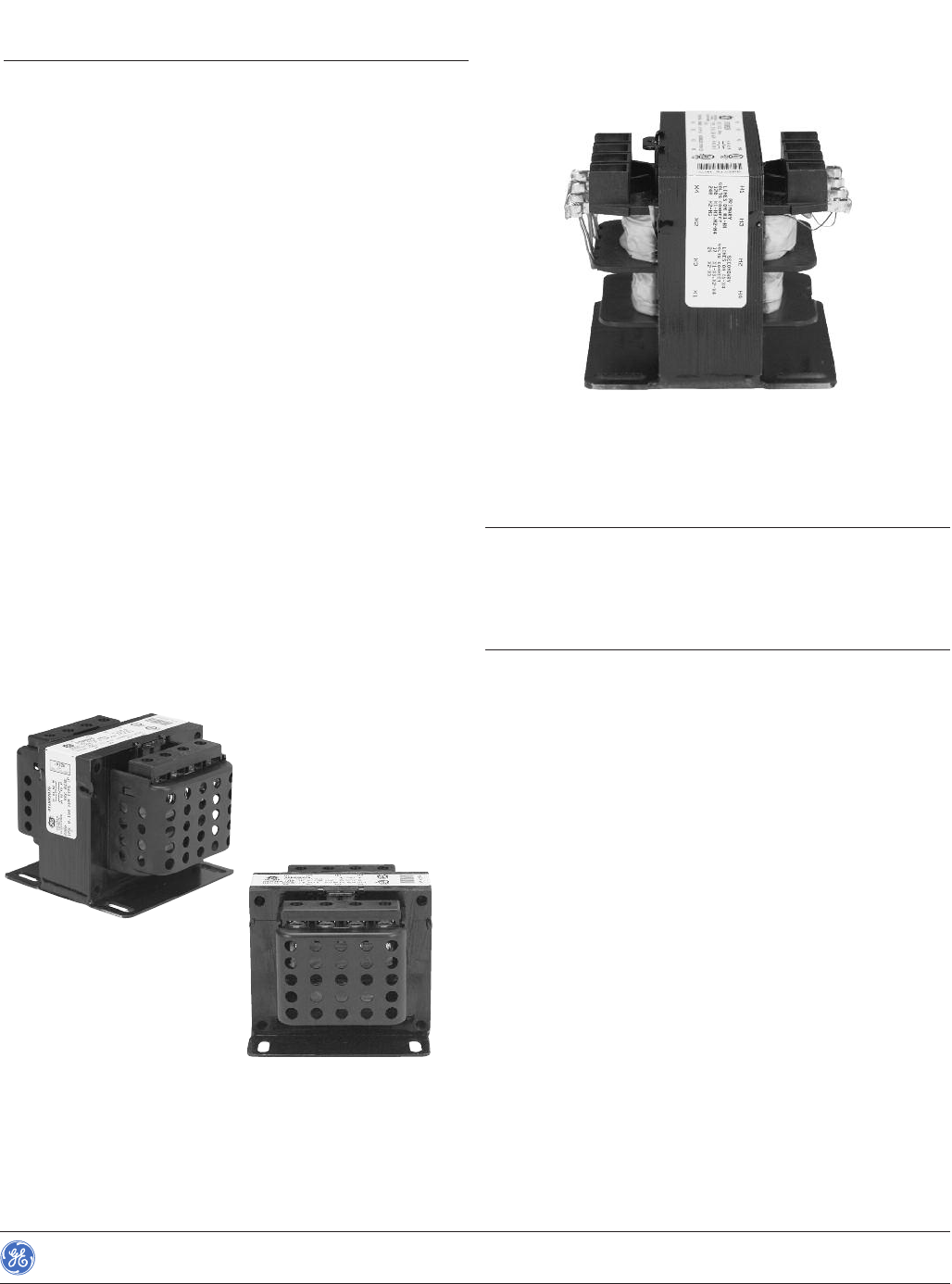

Core and Coil Transformer
Core and Coil Transformer
BuyLog™Catalog
Rev. 11/13
Data subject to change
without notice
Section 10
www.geindustrial.com
10-62
Dry Type Transformers
Open Core and Coil Transformers
Machine Tool Applications
Single-Phase, Non-encapsulated Design
60 Hz Terminal Board Connection
Input Output Wiring Approx. Net Frame Product
Voltage Voltage kVA Diagram No.1Weight (Lbs) Size Number
220x440, 230x460,240x480 Volts 110, 115, 120 Volts 0.05 1 2.4 6100 9T58R0042
220x440, 230x460,240x480 Volts 110, 115, 120 Volts 0.08 1 2.8 6125 9T58R0043
220x440, 230x460,240x480 Volts 110, 115, 120 Volts 0.10 1 3.6 8100 9T58R0044
220x440, 230x460,240x480 Volts 110, 115, 120 Volts 0.15 1 5.1 8150 9T58R0045
220x440, 230x460,240x480 Volts 110, 115, 120 Volts 0.20 1 5.8 8175 9T58R0046
220x440, 230x460,240x480 Volts 110, 115, 120 Volts 0.25 1 6.5 8200 9T58R0047
220x440, 230x460,240x480 Volts 110, 115, 120 Volts 0.30 1 7.6 8250 9T58R0048
220x440, 230x460,240x480 Volts 110, 115, 120 Volts 0.38 1 7.6 8250 9T58R0049
220x440, 230x460,240x480 Volts 110, 115, 120 Volts 0.50 1 10.7 10225 9T58R0050
220x440, 230x460,240x480 Volts 110, 115, 120 Volts 0.75 1 12 12225 9T58R0051
220x440, 230x460,240x480 Volts 110, 115, 120 Volts 1116.1 12300 9T58R0052
220x440, 230x460,240x480 Volts 110, 115, 120 Volts 2126.7 14225 9T58R0053
220x440, 230x460,240x480 Volts 110, 115, 120 Volts 2132.7 14300 9T58R0054
220x440, 230x460,240x480 Volts 110, 115, 120 Volts 3147.4 14475 9T58R0055
50/60 Hz Terminal Board Connection
Input Output Wiring Approx. Net Frame Product
Voltage Voltage kVA Diagram No.1Weight (Lbs) Size Number
230/460/575 Volts 115/95 Volts 0.05 2 3.1 6150 9T58R0062
230/460/575 Volts 115/95 Volts 0.08 2 3.6 8100 9T58R0063
230/460/575 Volts 115/95 Volts 0.10 2 5.1 8150 9T58R0064
230/460/575 Volts 115/95 Volts 0.15 2 6.5 8200 9T58R0065
230/460/575 Volts 115/95 Volts 0.20 2 6.5 8200 9T58R0066
230/460/575 Volts 115/95 Volts 0.25 2 7.6 8250 9T58R0067
230/460/575 Volts 115/95 Volts 0.30 2 10.7 10225 9T58R0068
230/460/575 Volts 115/95 Volts 0.38 2 10.7 10225 9T58R0069
230/460/575 Volts 115/95 Volts 0.50 2 10.7 10225 9T58R0070
230/460/575 Volts 115/95 Volts 0.75 2 16.1 12300 9T58R0071
230/460/575 Volts 115/95 Volts 1226.7 14225 9T58R0072
230/460/575 Volts 115/95 Volts 1.5 2 32.7 14300 9T58R0073
230/460/575 Volts 115/95 Volts 2247.4 14475 9T58R0074
208/277/380 Volts 115/95 Volts 0.05 3 3.1 6150 9T58R0082
208/277/380 Volts 115/95 Volts 0.08 3 3.6 8100 9T58R0083
208/277/380 Volts 115/95 Volts 0.10 3 5.1 8150 9T58R0084
208/277/380 Volts 115/95 Volts 0.15 3 6.5 8200 9T58R0085
208/277/380 Volts 115/95 Volts 0.20 3 6.5 8200 9T58R0086
208/277/380 Volts 115/95 Volts 0.25 3 7.6 8250 9T58R0087
208/277/380 Volts 115/95 Volts 0.30 3 10.7 10225 9T58R0088
208/277/380 Volts 115/95 Volts 0.38 3 10.7 10225 9T58R0089
208/277/380 Volts 115/95 Volts 0.50 3 10.7 10225 9T58R0090
208/277/380 Volts 115/95 Volts 0.75 3 16.1 12300 9T58R0091
208/277/380 Volts 115/95 Volts 1326.7 14225 9T58R0092
208/277/380 Volts 115/95 Volts 1.5 3 32.7 14300 9T58R0093
208/277/380 Volts 115/95 Volts 2347.4 14475 9T58R0094
1See page 10-66 for wiring diagrams.
Factory- or Field-Installed Options
Secondary Fusing—Factory- or field-installed secondary fuse
clips are available. They are restricted to units with terminal strips
and a single secondary voltage or secondary with one tap.
Dual Primary and Secondary Fusing—Factory- or field-installed
dual primary and secondary fuse clips are available on all units.
BuyLog™Catalog
Section 10
Rev. 11/13
Data subject to change
without notice
www.geindustrial.com 10-63
Dry Type Transformers
Open Core and Coil Transformers
Control
Single-Phase, Non-encapsulated Design
60 Hz Terminal Board Connection
Input Output Wiring Approx. Net Frame Product
Voltage Voltage kVA Diagram No.1Weight (Lbs) Size Number
240x480 Volts 120/240 Volts 0.05 4 2.4 6100 9T58R2802
240x480 Volts 120/240 Volts 0.08 4 2.8 6125 9T58R2803
240x480 Volts 120/240 Volts 0.10 4 3.6 8100 9T58R2804
240x480 Volts 120/240 Volts 0.15 4 5.1 8150 9T58R2805
240x480 Volts 120/240 Volts 0.20 4 5.8 8175 9T58R2806
240x480 Volts 120/240 Volts 0.25 4 6.5 8200 9T58R2807
240x480 Volts 120/240 Volts 0.30 4 6.5 8200 9T58R2808
240x480 Volts 120/240 Volts 0.38 4 7.6 8250 9T58R2809
240x480 Volts 120/240 Volts 0.50 4 10.7 10225 9T58R2810
240x480 Volts 120/240 Volts 0.75 4 12 12225 9T58R2811
240x480 Volts 120/240 Volts 14 16.1 12300 9T58R2812
240x480 Volts 120/240 Volts 1.5 4 26.7 14225 9T58R2813
240x480 Volts 120/240 Volts 24 32.7 14300 9T58R2814
240x480 Volts 120/240 Volts 34 47.4 14475 9T58R2815
600 Volts 120/240 Volts 0.08 5 2.8 6125 9T58R2823
600 Volts 120/240 Volts 0.10 5 3.6 8100 9T58R2824
600 Volts 120/240 Volts 0.20 5 5.8 8175 9T58R2826
600 Volts 120/240 Volts 0.25 5 6.5 8200 9T58R2827
600 Volts 120/240 Volts 0.30 5 6.5 8200 9T58R2828
600 Volts 120/240 Volts 0.50 5 10.7 10225 9T58R2830
600 Volts 120/240 Volts 0.75 5 12 12225 9T58R2831
600 Volts 120/240 Volts 15 16.1 12300 9T58R2832
600 Volts 120/240 Volts 1.5 5 26.7 14225 9T58R2833
600 Volts 120/240 Volts 25 32.7 14300 9T58R2834
600 Volts 120/240 Volts 35 47.4 14475 9T58R2835
120x240 Volts 120/240 Volts 0.10 6 3.6 8100 9T58R2907
120x240 Volts 120/240 Volts 0.20 6 5.8 8175 9T58R2909
120x240 Volts 120/240 Volts 0.30 6 6.5 8200 9T58R2911
120x240 Volts 120/240 Volts 0.50 6 10.7 10225 9T58R2913
120x240 Volts 120/240 Volts 0.75 6 12 12225 9T58R2914
120x240 Volts 120/240 Volts 16 16.1 12300 9T58R2915
120x240 Volts 120/240 Volts 26 32.7 14300 9T58R2917
120x240 Volts 120/240 Volts 36 47.4 14475 9T58R2918
60 Hz Terminal Board Connection
Input Output Wiring Approx. Net Frame Product
Voltage Voltage kVA Diagram No.1Weight (Lbs) Size Number
120 x 240 Volts 12/24 Volts 0.05 7 2.4 6100 9T58R2873
120 x 240 Volts 12/24 Volts 0.075 7 2.8 6125 9T58R2874
120 x 240 Volts 12/24 Volts 0.10 7 3.6 8100 9T58R2875
120 x 240 Volts 12/24 Volts 0.15 7 5.1 8150 9T58R2876
120 x 240 Volts 12/24 Volts 0.20 7 5.8 8175 9T58R2877
120 x 240 Volts 12/24 Volts 0.25 7 6.5 8200 9T58R2878
120 x 240 Volts 12/24 Volts 0.30 7 6.5 8200 9T58R2879
240 x 480 Volts 12/24 Volts 0.25 --- 6.5 8200 9T58R3024
240 x 480 Volts 12/24 Volts 0.05 --- 2.4 6100 9T58R3164
240 x 480 Volts 12/24 Volts 0.10 --- 3.6 8100 9T58R4132
240 x 480 Volts 12/24 Volts 0.15 --- 5.1 8150 9T58R4133
208 x 240 Volts 12/24 Volts 0.05 --- 2.4 6100 9T58R4050
208 x 240 Volts 12/24 Volts 0.10 --- 3.6 8100 9T58R4051
208 x 240 Volts 12/24 Volts 0.15 --- 5.1 8150 9T58R4052
208 x 240 Volts 12/24 Volts 0.25 --- 6.5 8200 9T58R4053
50/60 Hz Terminal Board Connection
Input Output Wiring Approx. Net Frame Product
Voltage Voltage kVA Diagram No.1Weight (Lbs) Size Number
240 x 480 Volts 120/240 Volts 0.50 4 10.7 10225 9T58R2930
240 x 480 Volts 120/240 Volts 0.75 4 16.1 12300 9T58R2931
240 x 480 Volts 120/240 Volts 14 26.7 14225 9T58R2932
240 x 480 Volts 120/240 Volts 1.5 4 32.7 14300 9T58R2933
240 x 480 Volts 120/240 Volts 24 47.4 14475 9T58R2934
240 x 480 Volts 120/240 Volts 34 47.4 14475 9T58R2935
380/400/416 Volts 115/230 Volts 0.25 8 6.5 8200 9T58R2975
380/400/416 Volts 115/230 Volts 0.50 8 10.7 10225 9T58R2978
380/400/416 Volts 115/230 Volts 0.75 8 16.1 12300 9T58R2979
380/400/416 Volts 115/230 Volts 18 26.7 14225 9T58R2980
380/400/416 Volts 115/230 Volts 1.5 8 32.7 14300 9T58R2981
380/400/416 Volts 115/230 Volts 28 47.4 14475 9T58R2982
380/400/416 Volts 115/230 Volts 38 47.4 14475 9T58R2983
1See page 10-66 for wiring diagrams.
2Secondary fusing not available.
BuyLog™Catalog
Rev. 11/13
Data subject to change
without notice
Section 10
www.geindustrial.com
10-64
Dry Type Transformers
Open Core and Coil Transformers
Control
Single-Phase, Non-encapsulated Design
60 Hz Leads Out Connection2
Input Output Wiring Approx. Net Frame Product
Voltage Voltage kVA Diagram No.1Weight (Lbs) Size Number
120x240 Volts 12/24 Volts 0.05 7 2.4 6100 9T58R1873G07
120x240 Volts 12/24 Volts 0.075 7 2.8 6125 9T58R1874G07
120x240 Volts 12/24 Volts 0.10 7 3.6 8100 9T58R1875G07
120x240 Volts 12/24 Volts 0.15 7 5.1 8150 9T58R1876G07
120x240 Volts 12/24 Volts 0.20 7 5.8 8175 9T58R1877G07
120x240 Volts 12/24 Volts 0.25 7 6.5 8200 9T58R1878G07
120x240 Volts 12/24 Volts 0.30 7 6.5 8200 9T58R1879G07
120x240 Volts 12/24 Volts 0.50 7 10.7 10225 9T58R1881G07
120x240 Volts 12/24 Volts 0.75 7 12 12225 9T58R1882G07
120x240 Volts 12/24 Volts 17 26.7 14225 9T58R1883G07
60 Hz Leads Out Connection2
Input Output Wiring Approx. Net Frame Product
Voltage Voltage kVA Diagram No.1Weight (Lbs) Size Number
240 x 480 Volts 120/240 Volts 0.05 4 2.4 6100 9T58R1802G07
240 x 480 Volts 120/240 Volts 0.075 4 2.8 6125 9T58R1803G07
240 x 480 Volts 120/240 Volts 0.10 4 3.6 8100 9T58R1804G07
240 x 480 Volts 120/240 Volts 0.15 4 5.1 8150 9T58R1805G07
240 x 480 Volts 120/240 Volts 0.20 4 5.8 8175 9T58R1806G07
240 x 480 Volts 120/240 Volts 0.25 4 6.5 8200 9T58R1807G07
240 x 480 Volts 120/240 Volts 0.30 4 6.5 8200 9T58R1808G07
240 x 480 Volts 120/240 Volts 0.375 4 7.6 8250 9T58R1809G07
240 x 480 Volts 120/240 Volts 0.50 4 10.7 10225 9T58R1810G07
240 x 480 Volts 120/240 Volts 0.75 4 12 12225 9T58R1811G07
240 x 480 Volts 120/240 Volts 14 16.1 12300 9T58R1812G07
240 x 480 Volts 120/240 Volts 1.5 4 26.7 14225 9T58R1813G07
240 x 480 Volts 120/240 Volts 24 32.7 14300 9T58R1814G07
240 x 480 Volts 120/240 Volts 34 47.4 14475 9T58R1815G07
600 Volts 120/240 Volts 0.10 5 3.6 8100 9T58R1824G07
600 Volts 120/240 Volts 0.20 5 5.8 8175 9T58R1826G07
600 Volts 120/240 Volts 0.30 5 6.5 8200 9T58R1828G07
600 Volts 120/240 Volts 0.50 5 10.7 10225 9T58R1830G07
600 Volts 120/240 Volts 15 26.7 14225 9T58R1832G07
600 Volts 120/240 Volts 25 32.7 14300 9T58R1834G07
600 Volts 120/240 Volts 35 47.4 14475 9T58R1835G07
50/60 Hz Leads Out Connection2
Input Output Wiring Approx. Net Frame Product
Voltage Voltage kVA Diagram No.1Weight (Lbs) Size Number
240x480 Volts 120/240 Volts 0.25 4 6.5 8200 9T58R1927G07
240x480 Volts 120/240 Volts 0.30 4 7.6 8250 9T58R1928G07
240x480 Volts 120/240 Volts 0.50 4 10.7 10225 9T58R1930G07
240x480 Volts 120/240 Volts 0.75 4 16.1 12300 9T58R1931G07
240x480 Volts 120/240 Volts 1.5 4 32.7 14300 9T58R1933G07
240x480 Volts 120/240 Volts 34 47.4 14475 9T58R1935G07
380/400/416 Volts 115/230 Volts 0.50 8 10.7 10225 9T58R1978G07
380/400/416 Volts 115/230 Volts 0.75 8 16.1 12300 9T58R1979G07
380/400/416 Volts 115/230 Volts 18 26.7 14225 9T58R1980G07
380/400/416 Volts 115/230 Volts 1.5 8 32.7 14300 9T58R1981G07
1See page 10-66 for wiring diagrams.
2Secondary fusing not available.
50/60 Hz Universal Voltage/Multitap Terminal Strip Connection
Frame Product
kVA Size Number
0.25 10225 9T58R3715
0.35 10225 9T58R3716
0.50 12225 9T58R3717
0.75 12300 9T58R3718
1 14225 9T58R3719
1.5 14300 9T58R3720
2 14475 9T58R3721
Voltage Table
Incoming Voltage Output Voltage
H1 H2 H1 H3 H1 H4 H1 H5 X1 X2 X1 X3 X1 X4
208 500 85 100 110
415 86 104 113
220 380 440 550 91 110 120
230 40 460 575 95 115 125
240 416 480 600 99 120 130
BuyLog™Catalog
Section 10
Rev. 11/13
Data subject to change
without notice
www.geindustrial.com 10-65
Dry Type Transformers
Open Core and Coil Transformers
Options and Fusing Guide
Transformer Options
Accessory Description Product Number
Jumper Links 9T58R0000G01
Lead Kit (12 GA) SM (10" long) (6-8 fr) 9T58R0000G07
Lead Kit (10 GA) LG (10" long) (10-14 fr) 9T58R0000G08
(1) Quarter-Inch Fuseholder 9T58R0000G10
(1) Midget Fuseholder 9T58R0000G20
(1) H/K Fuseholder 9T58R0000G30
(2) CC Fuseholder 9T58R0000G40
(2) H/K Fuseholder 9T58R0000G50
(2) CC + (1) Quarter-Inch Fuseholder 9T58R0000G60
(2) CC + (1) Midget Fuseholder 9T58R0000G70
(2) CC + (1) H/K Fuseholder 9T58R0000G80
(2) CC Fuseholder 9T58E0000G40
(2) CC + (1) Midget Fuseholder 9T58E0000G70
Fuse Guide
Midget Class CC Rejection Fuse
Transformer Continuous Power Rating (VA)
Primary 50 75 100 150 200 250 300 375 500
Voltage Fuse Rating (Amperes)
100 1.50 2.00 3.00 4.00 3.00 4.00 5.00 6.00 8.00
110 1.25 2.00 2.50 4.00 5.00 3.00 4.00 5.00 7.00
120 1.25 1.60 2.50 3.00 5.00 3.00 4.00 5.00 6.00
200 0.75 1.00 1.50 2.00 3.00 3.00 4.00 5.00 4.00
208 0.60 1.00 1.25 2.00 2.50 3.00 4.00 5.00 4.00
220 0.60 1.00 1.25 2.00 2.50 3.00 4.00 5.00 3.00
230 0.60 0.80 1.25 1.60 2.50 3.00 3.00 4.00 3.00
240 0.60 0.80 1.25 1.60 2.50 3.00 3.00 4.00 3.00
277 0.50 0.80 1.00 1.60 2.00 2.50 3.00 4.00 5.00
380 0.30 0.50 0.75 1.00 1.50 1.60 2.00 2.50 3.00
400 0.30 0.50 0.75 1.00 1.50 1.60 2.00 2.50 3.00
416 0.30 0.50 0.60 1.00 1.25 1.60 2.00 2.50 3.00
440 0.30 0.50 0.60 1.00 1.25 1.60 2.00 2.50 3.00
460 0.30 0.40 0.60 0.80 1.25 1.60 1.60 2.00 3.00
480 0.30 0.40 0.60 0.80 1.25 1.50 1.60 2.00 3.00
550 0.25 0.40 0.50 0.80 1.00 1.25 1.60 2.00 2.50
575 0.25 0.30 0.50 0.75 1.00 1.25 1.50 1.60 2.50
600 0.25 0.30 0.50 0.75 1.00 1.25 1.50 1.60 2.50
For motor control circuits fusing, refer to NEC 430-72.
Secondary Fuse Selection
Glass Fuse
Transformer Continuous Power Rating (VA)
Secondary 50 75 100 150 200 250 300 375 500 750 1000 1500 2000 3000
Voltage Fuse Rating (Amperes)
12 6.00 10.00 12.00 15.00 20.00 25.00 30.00 ——————
24 3.00 5.00 6.00 10.00 12.00 12.00 15.00 — 25.00 —— — ——
36 2.00 3.00 4.00 6.00 8.00 10.00 12.00 — 15.00 —— — ——
48 1.50 2.50 3.00 5.00 6.00 8.00 10.00 12.00 12.00 —— — ——
95 0.80 1.25 1.60 2.50 3.00 4.00 5.00 6.00 8.00 12.00 15.00 20.00 25.00 —
110 0.75 1.00 1.50 2.00 3.00 3.00 4.00 5.00 7.00 10.00 12.00 20.00 25.00 30.00
115 0.60 1.00 1.25 2.00 2.50 3.00 4.00 5.00 7.00 10.00 12.00 20.00 20.00 30.00
120 0.60 1.00 1.25 2.00 2.50 3.00 4.00 5.00 6.00 10.00 12.00 15.00 20.00 30.00
208 0.40 0.60 0.80 1.00 1.60 2.00 2.00 3.00 4.00 6.00 8.00 12.00 15.00 20.00
220 0.30 0.50 0.75 1.00 1.50 1.60 2.00 2.50 3.00 5.00 7.00 10.00 12.00 20.00
230 0.30 0.50 0.60 1.00 1.25 1.60 2.00 2.50 3.00 5.00 7.00 10.00 12.00 20.00
240 0.30 0.50 0.60 1.00 1.25 1.60 2.00 2.50 3.00 5.00 6.00 10.00 12.00 15.00
BuyLog™Catalog
Rev. 11/13
Data subject to change
without notice
Section 10
www.geindustrial.com
10-66
Dry Type Transformers
Open Core and Coil Transformers
Machine Tool Applications
Control
Wiring Diagrams
Diagram 1
Diagram 2
Diagram 3
Diagram 4
Diagram 5
Diagram 6
Diagram 7
Diagram 8
BuyLog™Catalog
Section 10
Rev. 11/13
Data subject to change
without notice
www.geindustrial.com 10-67
Dry Type Transformers
Open Core and Coil Transformers

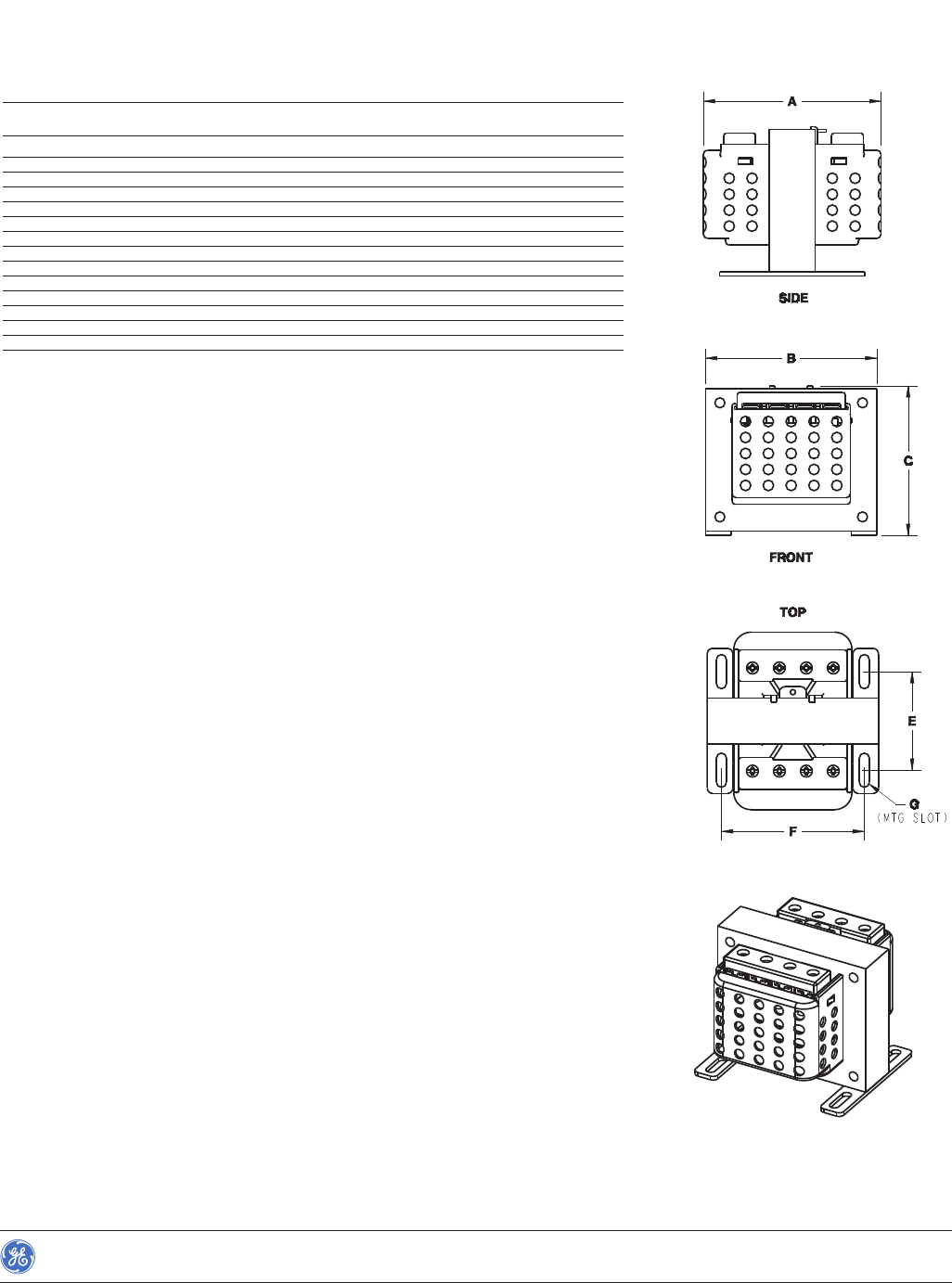

Outlines and Dimensions
6, 8, 10, 12 and 14 Frames
Terminal Board and Leads Out Connection Style
Frame Approx. Net A Depth B Width C Height E Mounting F Mounting Mounting
Size Outline Weight (Lbs.) (in.) (in.) (in.) Depth (in.) Width (in.) Slot (in.)
6100 303B957AA 2.4 3.75 3 2.65 2.16 2.5 .219x.750
6125 303B957AA 2.8 432.65 2.41 2.5 .219x.750
6150 303B957AA 3.1 4.25 3 2.65 2.66 2.5 .219x.750
8100 303B957CA 3.6 4 3.75 3.28 2.16 3.13 .219x.750
8150 303B957CA 5.1 4.5 3.75 3.28 2.66 3.13 .219x.750
8175 303B957CA 5.8 4.75 3.75 3.28 2.91 3.13 .219x.750
8200 303B957CA 6.5 5 3.75 3.28 3.16 3.13 .219x.750
8250 303B957CA 7.6 5.5 3.75 3.28 3.66 3.13 .219x.750
10225 303B957EA 10.7 5.62 4.5 3.9 3.38 3.75 .297x.580
12225 303B957GA 12 5.88 5.25 4.53 3.38 4 .297x.580
12300 303B957GA 16.1 6.62 5.25 4.53 4.12 4 .297x.580
14225 303B957JA 26.7 6.5 6.75 5.78 3.38 5.5 .297x.580
14300 303B957JA 32.7 7.25 6.75 5.78 4.12 5.5 .297x.580
14475 303B957JA 47.4 9 6.75 5.78 5.88 5.5 .297x.580
BuyLog™Catalog
Rev. 11/13
Data subject to change
without notice
Section 10
CE-Rated
Application
This product is designed to be incorporated into equipment man-
ufactured for sale in the European Community. This product is in
conformity with the European Standard:
EN 60 742, 1995 per the provisions of the Low Voltage (LV)
Directive 73/23/EEC in 1973 as amended by 93/68/EEC in 1995.
The Type “IP” offering utilizes all copper windings, which are
encapsulated in a hardened epoxy, making the winding impervi-
ous to the elements. These designs are rated at 55° C rise with a
40° C ambient. Standard on these designs are terminal board
covers. These provide added protection from current carrying ter-
minals. These designs incorporate customer friendly connection
on rugged high-impact molded terminal boards.
Besides being rated, these designs are both UL and C-UL listed.
50/60 Hz
Input Output Approx. Net Frame Product
Voltage Voltage kVA Weight (Lbs) Size Number
230/400 Volts 12/24 Volts 0.025 3 6100 9T58E0020
230/400 Volts 12/24 Volts 0.05 4 6150 9T58E0021
230/400 Volts 12/24 Volts 0.075 4 8100 9T58E0023
230/400 Volts 12/24 Volts 0.1 5 8150 9T58E0024
230/400 Volts 12/24 Volts 0.15 7 8200 9T58E0025
230/400 Volts 12/24 Volts 0.2 12 10225 9T58E0026
230/400 Volts 12/24 Volts 0.25 12 10225 9T58E0027
230/400 Volts 12/24 Volts 0.3 12 10225 9T58E0028
230/400 Volts 12/24 Volts 0.375 16 12225 9T58E0029
230/400 Volts 24/48 Volts 0.05 4 6150 9T58E0061
230/400 Volts 24/48 Volts 0.075 4 8100 9T58E0063
230/400 Volts 24/48 Volts 0.1 5 8150 9T58E0064
230/400 Volts 24/48 Volts 0.15 7 8200 9T58E0065
230/400 Volts 24/48 Volts 0.2 12 10225 9T58E0066
230/400 Volts 24/48 Volts 0.5 19 12300 9T58E0071
230/400 Volts 24/48 Volts 0.75 28 14225 9T58E0073
220/380, 230/400, 240/415 Volts 110/220, 115/230, 120/240 Volts 0.025 3 6100 9T58E0150
220/380, 230/400, 240/415 Volts 110/220, 115/230, 120/240 Volts 0.05 4 6150 9T58E0151
220/380, 230/400, 240/415 Volts 110/220, 115/230, 120/240 Volts 0.075 4 8100 9T58E0153
220/380, 230/400, 240/415 Volts 110/220, 115/230, 120/240 Volts 0.1 5 8150 9T58E0154
220/380, 230/400, 240/415 Volts 110/220, 115/230, 120/240 Volts 0.15 7 8200 9T58E0155
220/380, 230/400, 240/415 Volts 110/220, 115/230, 120/240 Volts 0.2 12 10225 9T58E0156
220/380, 230/400, 240/415 Volts 110/220, 115/230, 120/240 Volts 0.25 12 10225 9T58E0157
220/380, 230/400, 240/415 Volts 110/220, 115/230, 120/240 Volts 0.3 12 10225 9T58E0158
220/380, 230/400, 240/415 Volts 110/220, 115/230, 120/240 Volts 0.375 16 12225 9T58E0159
220/380, 230/400, 240/415 Volts 110/220, 115/230, 120/240 Volts 0.5 19 12300 9T58E0161
220/380, 230/400, 240/415 Volts 110/220, 115/230, 120/240 Volts 0.75 28 14225 9T58E0163
220/380, 230/400, 240/415 Volts 110/220, 115/230, 120/240 Volts 1 34 14300 9T58E0164
220/380, 230/400, 240/415 Volts 110/220, 115/230, 120/240 Volts 1.5 45 14475 9T58E0165
Factory- or Field-Installed Options
Available as an option are two fuse blocks that have fuse covers
that provide the touch safety like the terminal blocks. These can
be ordered factory-installed or as kits.
In kit form order:
Fuse block for 2 class CC fuses is 9T58E0000G46. Fuse block for 2
class CC and 1 Midget fuse is 9T58E0000G47.
For factory installation add the G46 or G47 suffix to the trans-
former product number (example 9T58E0020G47).
Dry Type Transformers
Open Core and Coil Transformers
10-68 www.geindustrial.comBuyLog™Catalog
Section 10
Rev. 11/13
Data subject to change
without notice
