Industry Standards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 452-453

Enclosure Comparison Charts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 454-455

Materials & Finishes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 456

Corrosion Charts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 457-461

Wireway Selection Charts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 462-464

Decimal & Metric Equivalents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 465

Metric Conservion Charts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 466

Engineering Data

Electrical Enclosures

451

Electrical Enclosures

Industry Standards

Enclosure Ratings

Third party certifiers, such as UL & CSA, have adopted most of the enclosure ratings from the ANSI /NEMA 250

standard for electrical enclosures. Such ratings identify the environmental capabilities of enclosures based on

specified performance criteria. Thus, the type of enclosure can be selected as deemed appropriate for the

application.

These enclosures are intended to house electrical equipment rated at no more than 1000 volts for use in

nonhazardous locations. Such enclosures do not protect devices against conditions such as condensation, icing,

corrosion or contamination which may occur within the enclosure or may enter via the conduit or unsealed

openings, and are not intended to prevent entry or operation by unauthorized personnel.

Sources of Standards

NATIONAL ELECTRICAL MANUFACTURERS ASSOCIATION

1300 North 17th Street

Suite 1847

Rosslyn, VA 22209

• NEMA Standards Publication No. 250, Enclosures for Electrical Equipment (1000 Volts Maximum)

• NEMA Standards Publication No. ICS6, Enclosures for Industrial Controls and Systems

ELECTRICAL/ELECTRONIC MANUFACTURERS ASSOCIATION OF CANADA

10 Carlson Court, Suite 500

Rexdale (Toronto), Ontario

Canada, M9W 6L2

UNDERWRITERS LABORATORIES INC.

333 Pfingsten Road

Northbrook, IL 60062

• UL 50, Enclosures for Electrical Equipment

• UL 508, Industrial Control Equipment

• UL 870, Wireway, Auxiliary Gutters and Associated Fittings

• UL 414, Meter Sockets

JOINT INDUSTRY COUNCIL

7901 Westpark Drive

McLean, VA 22101

• EMP-1, Electrical Standards for Mass Production Equipment

• EGP-1, Electrical Standards for General Purpose Machine Tools

CANADIAN STANDARDS ASSOCIATION

178 Rexdale Boulevard

Rexdale (Toronto), Ontario

Canada, M9W IR3

• CSA Standard C22.2 No. 94-M91, Industrial Control Equipment for use in Ordinary (Nonhazardous)

locations.

• CSA Standard C22.2 No. 40 M1989, Cutout, Junction & Pull Boxes

• CSA Standard C22.2 No. 26 1952, Wireways, Auxillary Gutters & Associated Fittings

• CSA Standard C22.1, 1990, Canadian Electrical Code

NATIONAL FIRE PROTECTION ASSOCIATION

Batterymarch Park

Quincy, MA 02269

• NFPA 70 National Electrical Code (1999)

NFPA

Engineering Data

452

Engineering Data

Electrical Enclosures

Industry Standards

An enclosure is a surrounding case constructed to provide a degree of protection to personnel against incidental

contact with the enclosed equipment and to provide a degree of protection to the enclosed equipment against

specified environmental conditions.

A brief description of the more common types of enclosures used by the electrical industry relating to their

environmental capabilities follows:

NEMA UL (UL 50) CSA 22.2 No. 94-M91

Enclosures are intended for indoor use

primarily to provide a degree of

protection against limited amounts of

falling dirt.

Enclosures are intended for outdoor

use primarily to provide a degree of

protection against rain, sleet, wind

blown dust and damage from external

ice formation.

Enclosures are intended for outdoor

use primarily to provide a degree of

protection against rain, sleet and

damage from external ice formation.

Enclosures are intended for indoor or

outdoor use primarily to provide a

degree of protection against windblown

dust and rain, splashing water,

hose-directed water and damage from

external ice formation.

Enclosures are intended for indoor or

outdoor use primarily to provide a

degree of protection against corrosion,

windblown dust and rain, splashing

water, hose-directed water and damage

from external ice formation.

Enclosures are intended for indoor

use primarily to provide a degree of

protection against circulating dust,

falling dirt and dripping noncorrosive

liquids.

Enclosures with knockouts are intended

for indoor use primarily to provide a

degree of protection against circulating

dust, falling dirt and dripping non-

corrosive liquids.

Enclosures are intended for indoor

use primarily to provide a degree of

protection against dust, spraying of

water, oil and noncorrosive coolant.

Indoor use primarily to provide a degree

of protection against limited amounts of

falling dirt.

Outdoor use primarily to provide a

degree of protection against rain, sleet,

windblown dust and damage from

external ice formation.

Outdoor use primarily to provide a

degree of protection against rain,

sleet, and damage from external ice

formation.

Indoor or outdoor use primarily to

provide a degree of protection against

windblown dust and rain, splashing

water, hose-directed water and

damage from external ice formation.

Indoor or outdoor use primarily to

provide a degree of protection against

corrosion, windblown dust and rain,

splashing water, hose-directed water

and damage from external ice forma-

tion.

Indoor use primarily to provide a degree

of protection against circulating dust,

falling dirt and dripping noncorrosive

liquids.

Indoor use primarily to provide a degree

of protection against dust, spraying of

water, oil and noncorrosive coolant.

General purpose enclosure. Protects

against accidental contact with live parts.

An enclosure for either indoor or outdoor

use, constructed so as to provide a

degree of protection against rain, snow,

and windblown dust; undamaged by

the external formation of ice on the

enclosure.

An enclosure for either indoor or outdoor

use, constructed so as to provide a

degree of protection against rain, and

snow, undamaged by the external

formation of ice on the enclosure.

An enclosure for either indoor or outdoor

use, constructed so as to provide a

degree of protection against rain, snow,

windblown dust, splashing and

hose-directed water; undamaged by

the external formation of ice on the

enclosure.

An enclosure for either indoor or outdoor

use, constructed so as to provide a

degree of protection against rain, snow,

windblown dust, splashing and

hose-directed water; undamaged by

the external formation of ice on the

enclosure; resists corrosion.

An enclosure for indoor use, constructed

so as to provide a degree of protection

against circulating dust, lint, fibres, and

flyings; dripping and light splashing of

noncorrosive liquids; not provided with

knockouts.

An enclosure for indoor use, constructed

so as to provide a degree of protection

against circulating dust, lint, fibres, and

flyings; dripping and light splashing of

noncorrosive liquids; and provided with

knockouts.

An enclosure for indoor use, constructed

so as to provide a degree of protection

against circulating dust, lint, fibres, and

flyings; seepage and spraying of

noncorrosive liquids including oils and

coolants.

Type 1

Type 3

Type 3R

Type 4

Type 4X

Type 12

Type 12K

Type 13

Type 1

Type 3

Type 3R

Type 4

Type 4X

Type 12/

12K

Type 13

Type 1

Type 3

Type 3R

Type 4

Type 4X

Type 12

Type 12K

Type 13

This material reprinted by permission of the

National Electrical Manufacturers Association from

by NEMA.

Engineering Data

453

Electrical Enclosures

Comparison of Specific Applications

of Enclosures for Indoor Nonhazardous Locations

Enclosure Type

Provides a degree of protection

against the following environmental conditions 1* 4 4X 12 12K 13

Incidental contact with the enclosed equipment XXXXXX

Falling Dirt XXXXXX

Falling liquids and light splashing XXXXX

Circulating dust, lint, fibers and flyings** XXXXX

Settling airborne dust, lint, fibers and flyings** XXXXX

Hosedown and splashing water XX

Oil and coolant seepage XXX

Oil or coolant spraying and splashing X

Corrosive agents X

Occasional temporary submersion

Occasional prolonged submersion

* These enclosures may be ventilated.

** These fibers and flying are nonhazardous materials and are not considered the Class III type ignitable fibers or combustible flyings. For Class III

type ignitable fibers or combustible flyings see the National Electrical Code, Article 500.

Comparison of Specific Applications

of Enclosures for Outdoor Nonhazardous Locations

Enclosure Type

Provides a degree of protection

against the following environmental conditions: 3 3R*** 4 4X

Incidental contact with the enclosed equipment XXXX

Rain, snow and sleet* XXXX

Sleet**

Windblown dust XXX

Hosedown XX

Corrosive agents X

Occasional temporary submersion

Occasional prolonged submersion

* External operating mechanisms are not required to be operable when the enclosure is ice covered.

** External operating mechanisms are operable when the enclosure is ice covered.

*** These enclosures may be ventilated.

“This material is reproduced by permission of the National Electrical Manufacturers Association from

Engineering Data

454

Engineering Data

Electrical Enclosures

IEC Publication 529 Classification of Degrees of Protection Provided by Enclosures provides a system for

specifying the enclosures of electrical equipment on the basis of degree of protection provided by the

enclosure. IEC 529 does not specify degrees of protection against mechanical damage of equipment, risk of

explosions, or conditions such as moisture (produced for example by condensation), corrosive vapors, fungus

or vermin. NEMA Standards Publication 250 does test for environmental conditions such as corrosion, rust,

icing, oil and coolants. For this reason, and because the tests and evaluations for other characteristics are not

identical, the IEC Enclosure Classification Designations cannot be exactly equated with NEMA Enclosure Type

Numbers.

The IEC designation consists of the letters IP followed by two numerals. The first characteristic numeral

indicates the degree of protection provided by the enclosure with respect to persons and solid foreign objects

entering the enclosure. The second characteristic numeral indicates the degree of protection provided by the

enclosure with respect to the harmful ingress of water.

Table A-1 provides an equivalent conversion from NEMA Enclosure Type Numbers to IEC Enclosure

Classification Designations. The NEMA Types meet or exceed the test requirements for the associated IEC

Classifications; for this reason Table A-1 cannot be used to convert from IEC Classifications to NEMA Types.

Table A-1 Conversion of NEMA Type Numbers to IEC Classification Designations

(Cannot be used to convert IEC Classification Designations to NEMA Type Numbers)

NEMA ENCLOSURE IEC ENCLOSURE

TYPE NUMBER CLASSIFICATION DESIGNATION

1 IP20

2 IP22

3 IP55

3R IP24

3S IP55

4 and 4X IP66

5 IP53

6 and 6P IP67

12 and 12K IP54

13 IP54

Note: This comparison is based on tests specified in IEC Publication 529.

Components Suitable for Closing Openings in Enclosures

Enclosure Openings shall be closed by equipment

Type rated for enclosure types

3 3, 3S, 4, 4X

3R 3, 3R, 3S, 4, 4X

4 4, 4X

4X 4X

12,12K 12, 12K, 13, 4, 4X

13 13

Comparison Between NEMA Enclosure Type Numbers and

IEC Enclosure Classification Designations*

Engineering Data

455

Electrical Enclosures

Caution: Environmental capabilities of enclosures, including materials and finishes, are limited to the degree of

protection provided by the “type” rating of the selected enclosure. See industry standards for more information.

METALS

Characteristics of Various Metals

Hot Rolled Pickled and Oiled Steel Sheets (ASTM A1011)

A low-carbon, hot-finished steel that has had the normal mill

oxide removed by means of an acid bath. After de-scaling, an

oil film is applied to protect the surface. Removal of the mill

oxide improves the surface appearance, uniformity, and

finishing quality.

Cold Rolled Steel (ASTM A1008)

A low-carbon, cold-finished steel having commercial quality,

close thickness tolerance and better surface than hot rolled

pickled and oiled.

Galvanized Steel (ASTM A653)

Steel with a zinc coating applied by the hot dip galvanizing

process. The zinc coating provides a degree of corrosion

protection, and also provides some protection at the sheared

edges.

Stainless Steel Type 302/304 (ASTM-A240)

An excellent corrosion resistant material with excellent

mechanical properties. It has many of the same chemical

resistance attributes of fiberglass materials.

5052-H32 Aluminum (ASTM B209)

An excellent alloy for enclosure manufacturing. It exhibits

good resistance to corrosion in a marine atmosphere.

Gasket Material

Poron 4701-40

High density polyurethane with excellent compression set,

resistance and good oil resistance.

Finishes

Polyester Urethane - Powder: A durable and smooth coating with good adhesion and corrosion resistance

suitable for outdoor use. Provides good impact protection against heat or chemicals.

Electrocoat (E-Coat) - Liquid: A rugged cathodic acrylic coating that results in a unique combination of

durability and corrosion resistance.

Epoxy - Powder: A tough, durable finish which is corrosion resistant and resistant to many solvent oils. Gloss

may be affected by prolonged exposure to UV light.

Materials and Finishes

Magnesium

Magnesium Alloys

Zinc

Beryllium

Aluminum - Zinc Alloys (7000 series)

Aluminum - Magnesium Alloys (5000 series)

Aluminum (1000 series)

Aluminum - Magnesium Alloys (3000 series)

Aluminum - Magnesium - Silicon Alloys (6000 series)

Cadmium

Aluminum - Copper Alloys (2000 series)

Cast Iron, Wrought Iron, Mild Steel

Austenitic Nickel Cast Iron

Type 410 Stainless Steel (active)

Type 316 Stainless Steel (active)

Type 304 Stainless Steel (active)

Naval Brass, Yellow Brass, Red Brass

Tin

Copper

Lead-Tin Solders

Admiralty Brass, Aluminum Brass

Manganese Bronze

Silicon Bronze

Tin Bronze

Type 410 Stainless Steel (passive)

Nickel - Silver

Copper Nickel Alloys

Lead

Nickel - Aluminum Bronze

Silver Solder

Nickel 200

Silver

Type 316 Stainless Steel (passive)

Type 304 Stainless Steel (passive)

Incoloy 825

Hastelloy B

Titanium

Hastelloy C

Platinum

Graphite

More Anodic

Anodic End

Cathodic End

Engineering Data

456

Engineering Data

Electrical Enclosures

B-Line Manufactures enclosures from a wide range of materials, offering varying degrees of resistance against chemical

corrosion. All materials are affected by corrosion in some manner. Depending on the physical properties of the material and

the environment to which it is exposed, chemical or electromechanical corrosion may occur. In order to select the appropriate

material for your application, refer to the corrosion resistance table on the following pages.

Atmospheric Corrosion

Atmospheric corrosion occurs when a material is exposed to airborne liquids, solids, or gases. Some sources of atmospheric

corrosion are moisture, salt, dirt, and sulfuric acid. This form of corrosion is typically worse outdoors, and especially near

marine environments.

To combat the effects of atmospheric corrosion, the National Electrical Manufacturers Association (NEMA) has developed the

NEMA 4X rating. An enclosure carrying the NEMA 4X rating meets certain minimum conditions of corrosion resistance.

Specifically, the materials from which NEMA 4X rated enclosures are formed must withstand two hundred hours of salt spray

with no more evidence of corrosive pitting than is exhibited by a concurrently tested sample of Type 304 stainless steel.

B-Line offers metallic NEMA 4X rated enclosures in aluminum, and stainless steel Type 304 and Type 316L as well as a full line

of NEMA 4X rated non-metallic enclosures.

Chemical Corrosion

Chemical corrosion takes place when a material comes into direct contact with a corrosive agent. The severity of chemical

corrosion is affected by chemical concentration level, frequency of washing, and operating temperature. Refer to the chart

below for a general overview of how different enclosures might perform when in contact with chemicals of varying pH. The

chart is provided as a quick guide to how different materials might perform in your environment. We recommend consulting

the detailed corrosion resistance table provided on the following pages to be sure that the appropriate material is selected.

Storage Corrosion

Wet storage stain (White rust) is caused by the entrapment of moisture between the surfaces of closely packed and poorly

ventilated material for an extended period. Wet storage stain is usually superficial, having little affect on the properties of the

material.

Proper handling and storage will help to assure stain free material. If a product arrives wet, it should be unpacked and allowed

to dry before storage. Dry material should be stored in a well-ventilated, low-moisture environment to avoid the formation of

condensation. Outdoor storage is undesirable and should be avoided whenever possible.

Galvanic Corrosion

Galvanic corrosion occurs when two or more dissimilar metals are in contact in the presence of seawater or another electrolyte.

In this situation, an electrolytic cell is created and the metals become either an anode or a cathode. The anodic material will

corrode and the cathodic material will be protected.

Whether a material is anodic depends on the relative positions of the interacting materials in the Galvanic Series Table (shown

at left). For example: If zinc and steel are in contact, the zinc acts as the anode and will corrode while protecting the steel. If

steel and copper are in contact, the steel is now the anode and will corrode while protecting the copper.

The rate at which galvanic corrosion occurs depends

on several factors:

1. The amount and concentration of electrolyte

present. An indoor, dry environment will support

little or no galvanic corrosion relative to a wet

atmosphere.

2. The relative amount of the materials. A small

amount of anodic material in contact with a large

amount of cathodic material will result in

accelerated corrosion of the anodic material.

Inversely, a large amount of anodic material in

contact with a small amount of cathodic material

will decrease the rate of corrosion.

3. The relative position of the materials in the

Galvanic Series. The further apart the interacting

materials are in the Galvanic Series, the greater

the potential for corrosion of the anodic material.

Corrosion Resistance

Solvent Caustic Acid

Stainless Steel Type 316 Non-Metallic Non-Metallic

Stainless Steel Type 304 Stainless Steel Type 316 Stainless Steel Type 316

Non-Metallic Stainless Steel Type 304 Stainless Steel Type 304

Aluminum

Steel, Epoxy Powder Coated

Non-Metallic

Steel, Epoxy Powder Coated

Aluminum Aluminum

Preferred

SatisfactoryLimited

Note: The corrosion data given in the table on the following pages is for general comparison only. (Reference Corrosion Resistance Tables, Second Edition)

The presence of contaminates in chemical environments can greatly affect the corrosion rate of any material. B-Line strongly suggests that field service tests or simulated laboratory

tests using actual environmental conditions be conducted in order to determine the proper materials and finishes to be selected. B-Line offers no guarantee or warranty as to the

suitability of a particular material for use in any specific environment which is beyond our control.

Engineering Data

457

Electrical Enclosures

Unpainted Metal Enclosures Painted Steel Enclosures

Aluminum Stainless Steel Stainless Steel Acrylic Electrocoat, Polyester Powdercoat,

Type 304 Type 316 ANSI 61 Gray ANSI 61 Gray

Chemical Cold Warm Hot Cold Warm Hot Cold Warm Hot Cold Warm Hot Cold Warm Hot

Acetic Acid, 50% RLU R R L R R R U U U R R U

Acetic Acid, 10% RLU R R R R R R U U U R R R

Acetone RRR R R R R R R U U U U U U

Aluminum Chloride UUU R R R R R R R -- -- RRR

Aluminum Sulfate ,Saturated RRR R R R R R R R -- -- RRR

Ammonia Gas -- -- -- R -- -- R -- -- R -- -- RRL

Ammonium Hydroxide, 10% LLL R R R R R R R -- -- LLL

Amyl Acetate RRR R R R R R R U U U L U U

Amyl Alcohol RRR R -- -- RRRR-- -- RRR

Aniline RRR R R R R R R U U U U U U

Aqua Regia UUU U U U U U U -- -- -- UUU

Benzene, Benzol RRR R R R R R R U U U U U U

Benzoic Acid LLU R R R R R R U U U R R --

Boric Acid RR L R R R R R R R -- -- RR--

Bromine Water UUU U U U U U U U U U U U U

Butyl Acetate RRR R -- -- RRRUUU L U U

Butyl Alcohol, Tertiary RRR R R R R R R R -- -- R -- --

Butyric Acid LLL R R R R R R U U U R R --

Calcium Chloride LLU R R R R R R R -- -- RRR

Calcium Hydroxide U -- -- RRR R RR R -- -RR--

Calcium Nitrate RR-- R -- -- RRR-- -- -- RRR

Carbon Dioxide, Wet RR-- RRL R R L R-- -- RRR

Carbon Disulfide (Bisulfide) RRR R R L R R R R -- -- UUU

Carbon Monoxide RRR R R R R R R -- -- -- RRR

Carbon Tetrachloride LLU L L L R R R U U U U U U

Chlorine, Liquid -- -- -- RL-- -- -- -- -- -- -- -- -- --

Chlorine Water, Saturated R -- -- UUU U UU R -- -- RRR

Chlorobenzene (Phenylchloride) RR-- RRL R RR U U U U U U

Chloroform RLU R L L R R R U U U U U U

Chlorox Bleach Solution, 5.5% Chlorine

UUU -- -- -- R -- -- -- -- -- -- -- --

Chromic Acid, 10% RR-- RRL R RR U U U U U U

Citric Acid, 5% LLL R U U R R R R -- -- RRR

Copper Chloride UUU U U U U U U R -- -- RRR

Copper Sulfate UUU R R R R R R U U U R R R

Cresol RL-- RR-- RL-- UUU U U U

Crude Oil RR-- RRR R RR -- -- -- RRR

Diesel Fuels R -- -- R -- -- R -- -- -- -- -- RR--

Dimethyl Formamide R -- -- -- -- -- RRRUUU UUU

Dioxane RRR R R R R R R -- -- -- UUU

Ethyl Acetate RRR R R L R R R U U U U U U

Ethyl Alcohol RRR R R R R R R U U U R -- --

Ethyl Chloride RRR R R R R R R U U U -- -- --

Ethyl Ether R -- -- RRR R R R U U U U U U

Ethylene Glycol RR L R R-- RRRR-- -- RRR

Ethylene Oxide RRR R R L R R R -- -- -- UUU

Ferric Chloride UUU U U U U U U R -- -- RR--

Formaldehyde, 37% Solution RRR R R R R R R R -- -- RR--

Formic Acid, 10% RR-- RRU R RR U U U -- -- --

Freon, F-22 R -- -- R -- -- RRR-- -- -- -- -- --

Gasoline, Unleaded RR R R -- -- R -- -- RUU R R R

Heptane RL-- RRR R RR -- -- -- RRR

Hexane R -- -- RRR R RR R -- -- R -- --

Hydrobromic Acid, Dilute UUU U U U U U U -- -- -- RR--

Corrosion Resistance Table

The corrosion data given in this table is for general comparison only. (Reference Corrosion Resistance Tables, Second Edition)

The presence of contaminates in chemical environments can greatly affect the corrosion rate of any material.

R = Recommended L = Limited Use U = Unsatisfactory -- = Information not available Cold = 50-80°F Warm = 130-170°F Hot = 200-212°F

Engineering Data

458

Engineering Data

Electrical Enclosures

Corrosion Resistance Table

Non-Metallic Enclosures Door Gasket Materials

Foam-in-Place Poron Neoprene Silicone

Polyurethane Polyurethane Rubber Rubber Viton, Rubber

Polyamide Polycarbonate Polyester Sponge Sponge Sponge Sponge Sponge

LLR-- -- LR R

RRR L LLRR

RU U U ULUU

LRR R RRRR

UU L R RR-- U

UU U R RRRR

-- UL U UUUU

-- LL U URUR

UU U U UURR

-- LU U U-- -- R

RUL U URUR

LU L R URRR

LR R R LURR

-- UU -- UUUR

-- UL R UURR

RRR -- -- UR R

LU L -- -- UU R

RR R R RRRR

U -- U -- LRRR

LR R -- LRRR

L -- RRRRRR

RU L -- -- U -- R

L -- R -- RRRR

RU L U UUUR

LL L -- -- UU R

RR R -- UUUR

RU U L UUUR

-- LR-- -- UU U

UR L U UULR

RR R R -- RR R

LR-- -- RRRR

LR R -- RR-- R

UU U -- UU-- R

L -- L -- LUUR

-- RR R -- RU R

UU L U -- UL L

-- UL -- -- UL L

RU L L UURU

RL R R UURU

RU L -- -- LU R

RU U -- UUUU

LR R R RRRR

-- RR -- UUUU

LR R -- RRRR

LR R -- UR-- L

RR L U URRR

-- UR -- URUR

RL R -- RRUR

RR R R URUR

-- LR R RRUR

L -- L -- -- UU R

Engineering Data

The corrosion data given in this table is for general comparison only. (Reference Corrosion Resistance Tables, Second Edition)

The presence of contaminates in chemical environments can greatly affect the corrosion rate of any material.

R = Recommended L = Limited Use U = Unsatisfactory -- = Information not available Cold = 50-80°F Warm = 130-170°F Hot = 200-212°F

Engineering Data

459

Electrical Enclosures

Corrosion Resistance Table cont.

Unpainted Metal Enclosures Painted Steel Enclosures

Aluminum Stainless Steel Stainless Steel Acrylic Electrocoat, Polyester Powdercoat,

Type 304 Type 316 ANSI 61 Gray ANSI 61 Gray

Chemical Cold Warm Hot Cold Warm Hot Cold Warm Hot Cold Warm Hot Cold Warm Hot

Hydrochloric Acid, 20% UUU U U U U U U R -- -- RR--

Hydroflouric Acid, 10% UUU U U U U U U -- -- -- R -- --

Hydrogen Peroxide, 30% RRR R R R R R R -- -- -- R -- --

Hydrogen Sulfide, Wet R -- -- UUU R RR R R-- RR--

Isopropyl Alcohol R -- -- RR-- RRR-- -- -- UUU

Jet Fuels RR-- R -- -- RRRR-- -- RR--

Kerosine RR-- RRR R RR R -- -- RR--

Lactic Acid, 10% R -- -- RRL R RR U U U R R R

Magnesium Chloride UUU L L L R R R R -- -- RRR

Methyl Alcohol RL-- RRL R RR -- -- -- RR--

Methyl Ethyl Ketone RL-- RL-- RRRUUU UU U

Methylene Chloride RRR R R L R R R U U U U U U

Mineral Oils RR-- R -- -- RRRR-- -- R -- --

Naptha R -- -- RR-- R -- -- RUU R R R

Nitric Acid, 10% UUU R R R R R R R -- -- RRU

Nitrobenzene R -- -- RRL R RR U U U U U U

Oleic Acid R -- -- RRL R RR R R -- RRR

Oleum R -- -- R -- -- R -- -- UUU U U U

Oxalic Acid, 10% RL-- UUU U UU R-- -- RR--

Oxygen RR-- R -- -- RRR-- -- -- -- -- --

Ozone RR-- RR-- RRR-- -- -- -- -- --

Perchloroethylene RRR R R R R R R -- -- -- RUU

Phenol RRR R R R R R R R -- -- UUU

Phosphoric Acid, 25% UU U R R L R L U R -- -- RRR

Phthalic Acid RR R R R R R R R -- -- -- R -- --

Potassium Chloride, 30% UU U R R R R R R R -- -- RRR

Potassium Dichromate, 30% RR L R R R R R R R -- -- RRR

Potassium Hydroxide, 10% UUU R R L R R R R R U U U U

Potassium Nitrate, 50% RRR R R L R R R R -- -- RRR

Potassium Permanganate, 10% RRR R L L R R L U U U R R --

Pyradine RRR R R R R R R -- -- -- UUU

Sodium Bicarbonate, 20% R -- -- RRR R RR R-- -- RR--

Sodium Bisulfite, 10% UUU R R L R R R R -- -- RR--

Sodium Carbonate, 10% UUU R R L R R R U U U R R U

Sodium Chlorate, 10% RRR R R R R R R R -- -- RR--

Sodium Chloride, 10% RUU R R L R R R R -- -- RRR

Sodium Hydroxide, 10% UUU R R R R R R R -- -- RUU

Sodium Hypochlorite, 10% RL L R L U R -- -- RR-- UUU

Sodium Nitrate RRR R R U R R R R -- -- RRR

Sodium Sulfate RR L R R U R R R R -- -- RRU

Sulfur Dioxide RRR R R R R R R R R -- RRR

Sulfuric Acid, 5% UUU L U U R -- -- R -- -- RRR

Tartaric Acid LUU R R R R R R -- -- -- RRR

Tetrahydrofuran UU U R -- -- LLL-- -- -- UUU

Toluene RR R R R R R R R U U U R U U

Trichloroacetic Acid UUU U U U U U U -- -- -- RRU

Trichloroethylene RR L R L L R R L U U U U U U

Trisodium Phosphate UUU R R -- RR-- -- -- -- RRU

Turpentine L -- -- RR-- RRLR-- -- RR--

Water RR L R R R R R R R -- -- RRR

Xylene RRR R R R R R R -- -- -- R -- --

Zinc Chloride UU U U U U L L L R -- -- RRR

Zinc Sulfate UUU R R R R R R R -- -- RRR

Engineering Data

The corrosion data given in this table is for general comparison only. (Reference Corrosion Resistance Tables, Second Edition)

The presence of contaminates in chemical environments can greatly affect the corrosion rate of any material.

R = Recommended L = Limited Use U = Unsatisfactory -- = Information not available Cold = 50-80°F Warm = 130-170°F Hot = 200-212°F

460

Engineering Data

Electrical Enclosures

Corrosion Resistance Table

Non-Metallic Enclosures Door Gasket Materials

Foam-in-Place Poron Neoprene Silicone

Polyurethane Polyurethane Rubber Rubber Viton, Rubber

Polyamide Polycarbonate Polyester Sponge Sponge Sponge Sponge Sponge

LLL R RRRR

LRL -- -- RU R

-- RR -- -- UR R

LR R -- -- RL U

RRR -- UUUU

RLR-- UUUR

RR R -- URUR

LR R -- -- RR R

LRR R RRRR

RL L U URUU

RU L U UUUU

RUU U U-- -- R

LRR R RRRR

-- RR -- RUUR

LRL U UUUR

LU L -- UUUR

LR R R RLUR

U -- U -- ULUR

LR R -- -- UR R

-- UL R -- LR R

R -- UUUUUR

LU U -- URUR

LL L -- -- R -- --

L -- R -- -- RR R

-- RR R RRRR

U -- L -- RRRR

LU U -- RRLR

LR R -- -- RR R

UR L -- -- R -- R

LU-- -- -- LR R

UR R -- -- RR R

-- RR -- -- RR R

UR R -- -- RR R

-- RR -- -- RL R

LR R R RRRR

RU L -- -- RR R

UR L -- -- LR R

LU R -- -- RU R

LR R -- RRRR

LL R -- -- RR R

LL L U UUUR

LR R -- RRRR

-- UU U -- UU U

LU L L U-- RR

-- RU -- -- UU L

L -- LLUUUR

UL -- -- RRRR

-- LR R UUUR

RR R R RU-- R

-- UL L UUUR

LR R -- -- RR R

Engineering Data

The corrosion data given in this table is for general comparison only. (Reference Corrosion Resistance Tables, Second Edition)

The presence of contaminates in chemical environments can greatly affect the corrosion rate of any material.

R = Recommended L = Limited Use U = Unsatisfactory -- = Information not available Cold = 50-80°F Warm = 130-170°F Hot = 200-212°F

Engineering Data

461

Electrical Enclosures

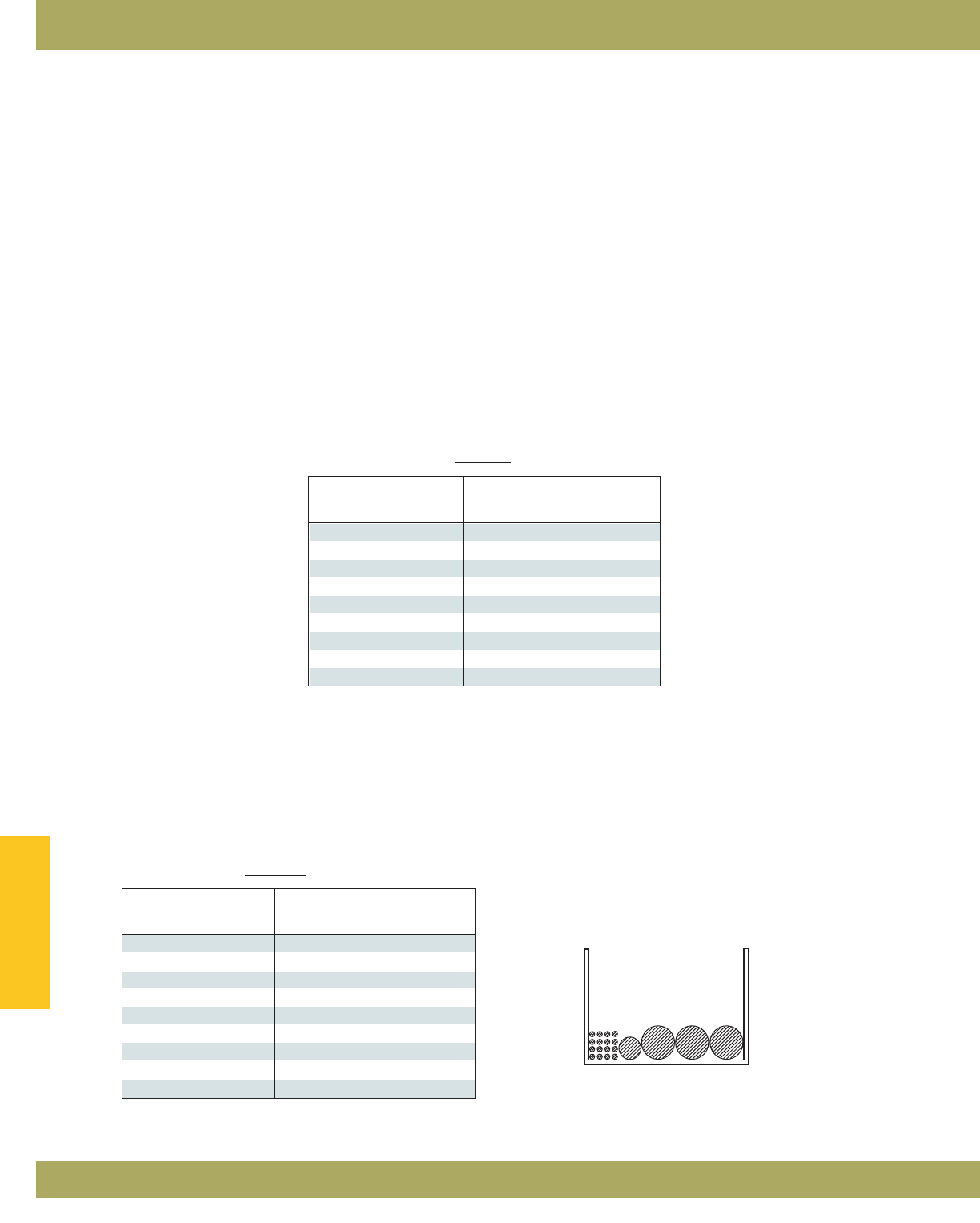

Wireway Selection (Reference NFPA 70, National Electrical Code 2002)

Definition

Wireways are troughs with hinged or removable covers for housing and protecting electric wires and cable.

Conductors are laid into the wireway after the wireway has been installed as a complete system.

Uses

The use of wireways are permitted as follows:

1. For exposed work in dry locations. For outdoor or wet locations, use Type 3R wireway.

2. If installed in inaccessible spaces, the use of wireway is permitted only for use with audio

signal conductors (per NEC®376-10).

3. In hazardous locations as permitted by NEC®sections 501, 502 and 504.

4. For extensions through walls, if the length passing through the wall is unbroken and access

to conductors can be maintained from both sides.

The use of wireways is not permitted where a risk of severe physical damage or corrosive vapor is present.

Size of Conductors

Table I shows maximum allowable cable sizes for varying wireway sizes. (Based on UL 870 Table 7.1)

Table I

Conductors entering the wireway only at the ends of runs are limited in size only by the 20 percent fill

requirement of the NEC®. However, it is recommended that wire sizes not exceed those in Table I above.

Number of Conductors

Wireways which contain no more than 30 current-carrying conductors at any cross section, and for which the sum of the

cross-sectional areas of all contained conductors at any cross section does not exceed 20% of the interior cross-sectional

area of the wireway, require no derating of cables. (Refer to Table II below)

Wireway Size Maximum Cable Size

Inches AWG or kcmil

2.5x2.5 2

3x3 1

4x4 4/0

4x6 4/0

6x6 500

12x6 500

8x8 900

10x10 1250

12x12 2000

Wireway Size Allowable Cable Area

Inches sq. in.

2.5x2.5 1.2

3x3 1.8

4x4 3.2

4x6 4.8

6x6 7.2

8x8 12.8

12x6 14.4

10x10 20.0

12x12 28.8

Cross sectional area of conductors

≤ 20% of cross sectional

area of wireway.

For exceptions allowing more

conductors, see NEC® 362-5.

Table II

Engineering Data

462

Engineering Data

Electrical Enclosures

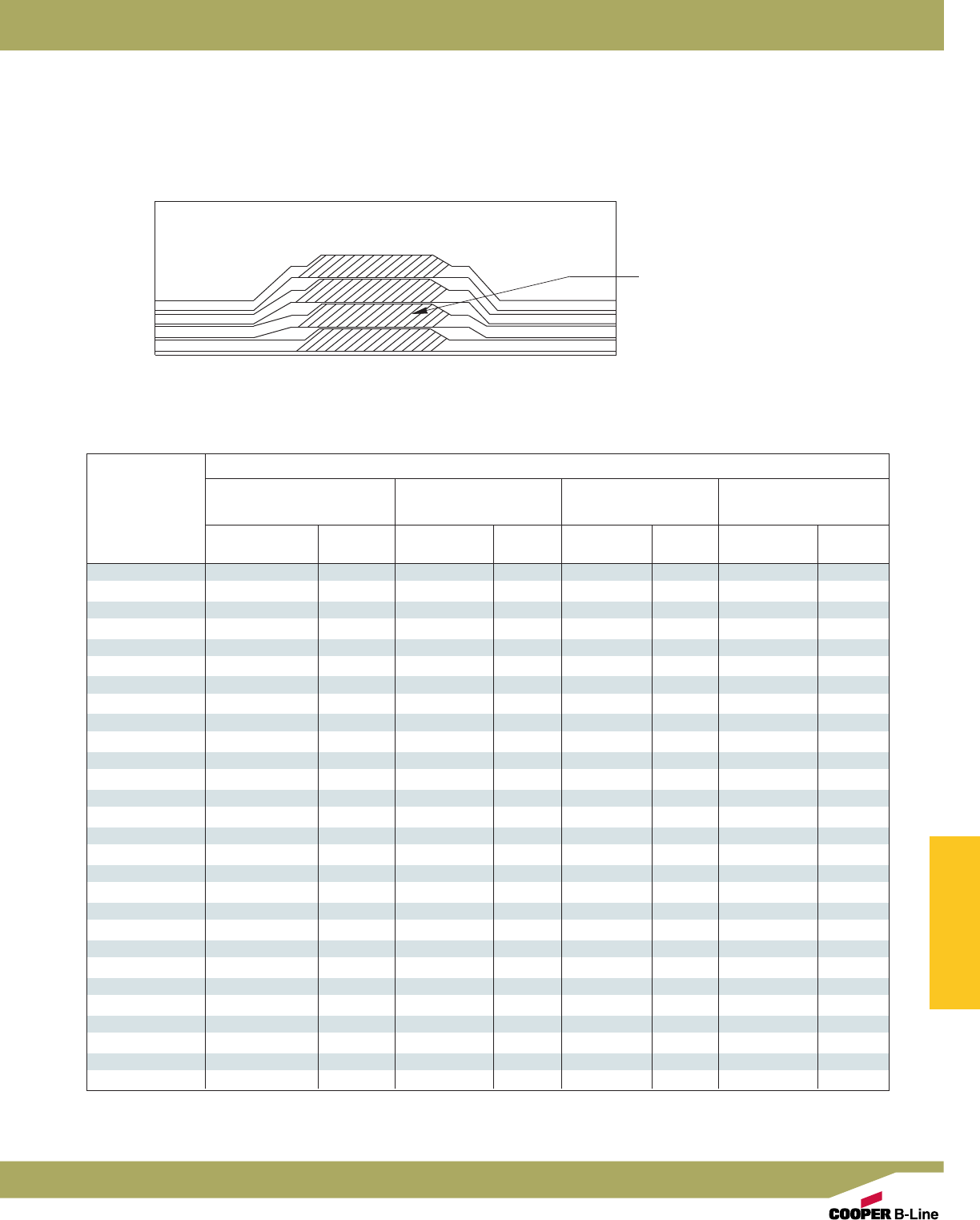

Wireway Selection

Splices and Taps

Splices and taps are permitted within a wireway, provided they are accessible. The conductors, including

splices and taps, shall not fill the wireway to more than 75 percent of its area at the point of a splice or tap.

Cross sectional area of

splices and taps is less

than 75% of wireway’s

cross sectional area

Cross Sectional Area of Conductors (sq. in.)

SIZE XXHW, XXHW-2, THHN, THWN THW, THW-2, RHH*, RHW*

XHH THWN-2 THHW RHW-2*

AWG- Diameter Area Diameter Area Diameter Area Diameter Area

kcml in. in.2in. in.2in. in.2in. in.2

14 0.1330 1.0139 0.1110 0.0097 0.1630 0.0209 0.1930 0.0293

12 0.1520 1.0181 0.1300 0.0133 0.1820 0.0260 0.2120 0.0353

10 0.1760 0.0243 0.1640 0.0211 0.2060 0.0333 0.2360 0.0437

8 0.2360 0.0437 0.2160 0.0366 0.2660 0.0556 0.3260 0.0835

6 0.2740 0.0590 0.2540 0.0507 0.3040 0.0726 0.3640 0.1041

4 0.3220 0.0814 0.3240 0.0824 0.3520 0.0973 0.4120 0.1333

3 0.3500 0.0962 0.3520 0.0973 0.3800 0.1134 0.4400 0.1521

2 0.3820 0.1146 0.3840 0.1158 0.4120 0.1333 0.4720 0.1750

1 0.4420 0.1534 0.4460 0.1562 0.4920 0.1901 0.5850 0.2688

1/0 0.4820 0.1825 0.4860 0.1855 0.5320 0.2223 0.6220 0.3039

2/0 0.5280 0.2190 0.5320 0.2223 0.5780 0.2624 0.6680 0.3505

3/0 0.5800 0.2642 0.5840 0.2679 0.6300 0.3117 0.7200 0.4072

4/0 0.6380 0.3197 0.6420 0.3237 0.6880 0.3718 0.7780 0.4754

250 0.7050 0.3904 0.7110 0.3970 0.7650 0.4596 0.8950 0.6291

300 0.7600 0.4536 0.7660 0.4608 0.8200 0.5281 0.9500 0.7088

350 0.8110 0.5166 0.8170 0.5242 0.8710 0.5958 1.0010 0.7870

400 0.8580 0.5782 0.8640 0.5863 0.9180 0.6619 1.0480 0.8626

500 0.9430 0.6984 0.9490 0.7073 1.0030 0.7901 1.1330 1.0082

600 1.0530 0.8790 1.0510 0.8676 1.1130 0.9729 1.2430 1.2135

700 1.1240 0.9923 1.1220 0.9887 1.1840 1.1010 1.3140 1.3561

750 1.1580 1.0532 1.1560 1.0496 1.2180 1.1652 1.3480 1.4272

800 1.1900 1.1122 1.1880 1.1085 1.2500 1.2272 1.3800 1.4957

900 1.2540 1.2351 1.2520 1.2311 1.3140 1.3561 1.4440 1.6377

1000 1.3120 1.3519 1.3100 1.3478 1.3720 1.4784 1.5020 1.7719

1250 1.4790 1.7180 --1.5390 1.8602 1.7290 2.3479

1500 1.6020 2.0156 --1.6620 2.1695 1.8520 2.6938

1750 1.7160 2.3127 --1.7760 2.4773 1.9660 3.0357

2000 1.8220 2.6073 --1.8820 2.7818 2.0720 3.3719

* RHH, RHW and RHW-2 without covering have the same dimension as THW.

Cross Sectional Area of Conductors

Single Conductor Cable 600V

Engineering Data

463

Electrical Enclosures

Wireway Selection

Sample Calculation

A. Wireway dimensions are obtained as follows:

1. List cables by size and types.

2. List cable cross sectional areas.

3. List the number of each size of cable.

4. Multiply cable cross sectional areas by number of each cable.

5. Sum the total cross sectional areas of each cable type to obtain the total cross sectional

areas for the conductors.

6. The wireway must first meet the dimensional requirements for the largest conductor. In

the example above, the largest conductor is 750 kcmil. The minimum wireway cross section

based on the largest conductor size requirements is 8” x 8”, as shown in Table I on page 462.

7. The wireway dimensions must meet 20% fill requirements. Based on the sum of the total

conductor cross sectional areas (3.19 sq. in.), the minimum wireway cross section, based on

the 20% fill requirements is 4” x 4” as shown in Table II on page 462.

8. In this example, the wireway dimensions must be the larger of the two cross sections obtained

in steps 6 and 7. In this case, 8” x 8” wireway is required.

List Cable Sizes List Cable Cross List Number Multiply (A) x (N) =

and Types Sectional Areas (A) of Cables (N) Total Cross Sectional Area for Each Size

sq. in. sq. in.

2 AWG-XXHW 0.1182 x4= 0.4728

2/0-TW 0.2290 x2= 0.4580

750 kcmil-RHH 1.1300 x2= 2.2600

Sum of the total cross sectional areas = 3.1908

Engineering Data

464

Engineering Data

Electrical Enclosures

Decimal and Metric Equivalents

4ths 8ths 16ths 32nds 64ths To 3 places To 2 places Millimeters

1/64 .016 .02 0

1/32 .031 .03 1

3/64 .047 .05 1

1/16 .062 .06 2

5/64 .078 .08 2

3/32 .094 .09 2

7/64 .109 .11 3

1/8.125 .12 3

9/64 .141 .14 4

5/32 .156 .16 4

11/64 .172 .17 4

3/16 .188 .19 5

13/64 .203 .20 5

7/32 .219 .22 6

15/64 .234 .23 6

1/4.250 .25 6

17/64 .266 .27 7

9/32 .281 .28 7

19/64 .297 .30 8

5/16 .312 .31 8

21/64 .328 .33 8

11/32 .344 .34 9

23/64 .359 .36 9

3/8.375 .38 10

25/64 .391 .39 10

13/32 .406 .41 10

27/64 .422 .42 11

7/16 .438 .44 11

29/64 .453 .45 12

15/32 .469 .47 12

31/64 .484 .48 12

1/2.500 .50 13

33/64 .516 .52 13

17/32 .531 .53 13

35/64 .547 .55 14

9/16 .562 .56 14

37/64 .578 .58 15

19/32 .594 .59 15

39/64 .609 .61 15

5/8.625 .62 16

41/64 .641 .64 16

21/32 .656 .66 17

43/64 .672 .67 17

11/16 .688 .69 17

45/64 .703 .70 18

23/32 .719 .72 18

47/64 .734 .73 19

3/4.750 .75 19

49/64 .766 .77 19

25/32 .781 .78 20

51/64 .797 .80 20

13/16 .812 .81 21

53/64 .828 .83 21

27/32 .844 .84 21

55/64 .859 .86 22

7/8.875 .88 22

57/64 .891 .89 23

29/32 .906 .91 23

59/64 .922 .92 23

15/16 .938 .94 24

61/64 .953 .95 24

31/32 .969 .97 25

63/64 .984 .98 25

1 1.000 1.00 25

Engineering Data

465

Electrical Enclosures

Metric Conversion Tables

LENGTH

U.S. to Metric Metric to U.S.

1 inch = 25.40 millimeters

1 inch = 2.540 centimeters

1 foot = 30.480 centimeters

1 foot = 0.3048 meter

1 yard = 91.440 centimeters

1 yard = 0.9144 meter

1 mile = 1.609 kilometers

1 millimeter = 0.03937 inch

1 centimeter = 0.3937 inch

1 meter = 39.37 inches

1 meter = 3.2808 feet

1 meter = 1.0936 yards

1 kilometer = 0.62137 mile

AREA

U.S. to Metric Metric to U.S.

1 sq. inch = 645.16 sq. millimeters

1 sq. inch = 6.4516 sq. centimeters

1 sq. foot = 929.03 sq. centimeters

1 sq. foot = 0.0929 sq. meter

1 sq. yard = 0.836 sq. meter

1 sq. millimeter = 0.00155 sq. inch

1 sq. centimeter = 0.1550 sq. inch

1 sq. meter = 10.7640 sq. feet

1 sq. meter = 1.196 sq. yards

Engineering Data

466

Engineering Data

Product Number Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 468-504

Index

Electrical Enclosures

467

Electrical Enclosures

Index

468

Index

00011184 A 422

10TB 436

10TS 435

10URMA 157, 213

10.5 BAP 445

1010 C 11

1010 E 11

1010 E NK 11

1010 EGV 11

1010 EGV NK 11

1010 FH 12, 18

1010 FL IN 13

1010 FL OUT 13

1010 FL SIDE 13

1010 FTF 11, 17

1010 FTFGV 11

1010 GF 11

1010 GFGV 11

1010 HSC 17

1010 HSCA 17

1010 HSCU 17

1010 HSE 17

1010 HSE NK 17

1010 HSF 18

1010 HSL IN 19

1010 HSL OUT 19

1010 HSL SIDE 19

1010 HST 20

1010 HSX 20

1010 L COMBO 13

1010 L COMBOGV 13

1010 L SIDE 13

1010 L SWEEP 13

1010 L SWEEPGV 13

1010 LTX 12

1010 LTXGV 12

1010 SCF 53

1010 SCS 53

1010 T 14

1010 TCF 80

1010 TCS 80

1010 TGV 14

1010 WB 407

1010 X 14

1010 XGV 14

1010-12BK 12, 18

101012 G 10

101012 G NK 10

101012 GGV NK 10

101012 HS 16

101012 HS NK 16

1010120 G 10

1010120 G NK 10

1010120 GGV NK 10

1010120 GRT NK 43

1010120 GRTGV NK 43

1010120 HS 16

1010120 HS NK 16

10101212 FR 12, 17

101024 G 10

101024 G NK 10

101024 GGV NK 10

101024 GRT NK 43

101024 GRTGV NK 43

101024 HS 16

101024 HS NK 16

101036 G 10

101036 G NK 10

101036 GGV 10

101036 GRT NK 43

101036 GRTGV NK 43

101036 HS 16

101036 HS NK 16

10104 HC 54

10104 HC NK 54

10104 RTHC 58

10104 RTHC NK 58

10104 RTSC 57

10104 RTSC NK 57

10104 RTSCGV 57

10104 RTSCGV NK 57

10104 SC 51

10104 SC NK 51

10104 SCG 61

10104 SCGV 51

10104 SCGV NK 51

10104 TCF 80

10104 TCS 80

10104 WPSC 63

10104-1 65

10104-12CHSC 97

10104-12SC 95

101045 HSL COMBO 19

101045 HSL SIDE 19

101045 L COMBO 14

101045 L COMBOGV 14

101045 L SIDE 14

101048 G 10

101048 G NK 10

101048 GGV NK 10

101048 GRT NK 43

101048 GRTGV NK 43

101048 GTGV NK 41

101048 HS 16

101048 HS NK 16

10106 HC 54

10106 HC NK 54

10106 RTSC 57

10106 RTSC NK 57

10106 RTSCGV 57

10106 RTSCGV NK 57

10106 SC 52

10106 SC NK 52

10106 SCG 61

10106 SCGV 52

10106 SCGV NK 52

10106 TCF 80

10106 TCS 80

10106 WPSC 63

10106-1 65

Catalog Page

Number Number

Catalog Page

Number Number

Catalog Page

Number Number

Electrical Enclosures

Index

469

10106-12CHC 93

10106-12CHSC 97

10106-12SC 95

10106-4QT 143

101060 G 10

101060 G NK 10

101060 GGV NK 10

101060 GRT NK 43

101060 GRTGV NK 43

101060 HS 16

101060 HS NK 16

101072 G 10

101072 G NK 10

101072 GGV NK 10

101072 GRT NK 43

101072 GRTGV NK 43

10108 A 448

10108 RTSC 57

10108 RTSC NK 57

10108 RTSCGV NK 57

10108 SC NK 52

10108 SCGV NK 52

10108-12CHC 93

101096 GRT NK 43

101096 GRTGV NK 43

10118 A 448

10119 A 448

10129 A 448

10166 A 448

10167 A 448

10168 403, 404, 448

10169 448

10184 A 449

10184 B 449

10184 C 449

10240 A 448

10242 A 448

10242 B 448

10242 C 448

10242 D 448

10243 A 448

10243 B 448

10243 C 448

10243 D 448

1064 SC NK 51

1064 SCGV NK 51

108P 154, 210

108PSS4 154, 210

108 SCF 53

108TB 436

108TS 435

1084-FTC 103

1084 HC 54

1084 HC NK 54

1084 RTSC 57

1084 RTSC NK 57

1084 SC 51

1084 SC NK 51

1084 SCG 61

1084 SCGV 51

1084 SCGV NK 51

1084-SD 147

1084-SDSS4 207

1084-SDSS6 208

1084 WPSC 63

1084-1 65

1084-12CHC 93

1084-12CHCS 93

1084-12CHQRC 99

1084-12CHSC 97

1084-12LC 91

1084-12SC 95

1084-4CHC 141

1084-4LC 139

1084-4QT 143

1084-4XACHC 199

1084-4XALC 195

1084-4XFCHQRC 261

1084-4XFCHQRCW 263

1084-4XFCHSC 259

1084-4XFLC 257

1084-4XSCHC 197

1084-4XSLC 193

1084-4XSQT 201

1084-4XSS6CHC 197

1084-4XSS6LC 193

1085-4XFCHQRC 261

1085-4XFCHQRCW 263

1085-4XFCHSC 259

1085-4XFLC 257

1086 HC 54

1086 HC NK 54

1086 RHC 72

1086 RTSC 57

1086 RTSC NK 57

1086 SC 52

1086 SC NK 52

1086 SCGV 52

1086 SCGV NK 52

1086-SD 147

1086-SDF 265

1086-SDFQR 267

1086-SDFQRCC 269

1086-SDSS4 207

1086-SDSS6 208

1086-1 65

1086-12CHC 93

1086-12CHSC 97

1086-12SC 95

1086-4CHC 141

1086-4QT 143

1086-4XSQT 201

1144-4XFSC 271

12DR1P 156, 212

12DR3P 156, 212

12DRCP 156, 212

12GS1 156, 212

12MC 155, 211

12PMK 159, 215

12TB 436

Catalog Page

Number Number

Catalog Page

Number Number

Catalog Page

Number Number

Electrical Enclosures

Index

470

Index

12TS 435

12URMA 157, 213

1210P 154, 210

1210PSS4 154, 210

1210TB 436

1210 TCF 80

1210 TCS 80

1210TS 435

1210 WB 407

12104 HC 54

12104 HC NK 54

12104 RTSC 57

12104 RTSC NK 57

12104 SC 51

12104 SC NK 51

12104 SCGV 51

12104 SCGV NK 51

12104 TCF 80

12104 TCS 80

12104-1 65

12104-12CHSC 97

12105-12CHC 93

12105-12CHCS 93

12105-12CHQRC 99

12105-12LC 91

12105-12SC 95

12105-4CHC 141

12105-4LC 139

12105-4QT 143

12105-4XALC 195

12105-4XFCHQRC 261

12105-4XFCHQRCW 263

12105-4XFCHSC 259

12105-4XFLC 257

12105-4XSLC 193

12105-4XSQT 201

12105-4XSS6LC 193

12105-FTC 103

12106 HC 54

12106 HC NK 54

12106 RHC 72

12106 RTHC 58

12106 RTHC NK 58

12106 RTSC 57

12106 RTSC NK 57

12106 SC 52

12106 SC NK 52

12106 SCG 61

12106 SCGV 52

12106 SCGV NK 52

12106-SD 147

12106-SDF 265

12106-SDFQR 267

12106-SDFQRCC 269

12106-SDSS4 207

12106-SDSS6 208

12106 TCF 80

12106 TCS 80

12106-1 65

12106-12CHC 93

12106-12CHSC 97

12106-4QT 143

12106-4XACHC 199

12106-4XSCHC 197

12106-4XSS6CHC 197

12108-12CHC 93

12108-4QT 143

12108-4XSQT 201

1212 C 11

1212DF 155, 211

1212 E 11

1212 E NK 11

1212 EGV 11

1212 EGV NK 11

1212 FH 12, 18

1212 FL IN 13

1212 FL OUT 13

1212 FL SIDE 13

1212 FTF 11, 17

1212 FTFGV 11

1212 GF 11

1212 GFGV 11

1212 HSC 17

1212 HSCA 17

1212 HSCU 17

1212 HSE 17

1212 HSE NK 17

1212 HSF 18

1212 HSL IN 19

1212 HSL OUT 19

1212 HSL SIDE 19

1212 HST 20

1212 HSX 20

1212 L COMBO 13

1212 L COMBOGV 13

1212 L SIDE 13

1212 L SWEEP 13

1212 L SWEEP GV 13

1212 LTX 12

1212 LTXGV 12

1212P 154, 210

1212PSS4 154, 210

1212 SCF 53

1212 SCS 53

1212SP 155, 211

1212 T 14

1212 TCF 80

1212 TCS 80

1212 TGV 14

1212TS 435

1212 WB 407

1212 X 14

1212 XGV 14

1212-12BK 12, 18

1212-12LASD 30

121210 RHC 72

121210 RTSC 57

121210 RTSC NK 57

121210 SC NK 53

121210 SCGV NK 53

0.381Catalog Page

Number Number

Catalog Page

Number Number

Catalog Page

Number Number

Electrical Enclosures

Index

471

121212 G 10

121212 G NK 10

121212 GGV NK 10

121212 HS 16

121212 HS NK 16

121212 SC NK 53

121212 SCGV NK 53

1212120 G 10

1212120 G NK 10

1212120 GGV NK 10

1212120 GRT NK 43

1212120 GRTGV NK 43

1212120 HS 16

1212120 HS NK 16

121224 G 10

121224 G NK 10

121224 GGV NK 10

121224 GRT NK 43

121224 GRTGV NK 43

121224 GTGV NK 41

121224 HS 16

121224 HS NK 16

121236 G 10

121236 G NK 10

121236 GGV NK 10

121236 GRT NK 43

121236 GRTGV NK 43

121236 GTGV NK 41

121236 HS 16

121236 HS NK 16

12124 HC 54

12124 HC NK 54

12124 RTC 81

12124 RTHC 58

12124 RTHC NK 58

12124 RTSC 57

12124 RTSC NK 57

12124 RTSCGV 57

12124 RTSCGV NK 57

12124 SC 51

12124 SC NK 51

12124 SCG 61

12124 SCGV 51

12124 SCGV NK 51

12124 TCF 80

12124 TCS 80

12124 WPSC 63

12124-1 65

121245 HSL COMBO 19

121245 HSL SIDE 19

121245 L COMBO 14

121245 L COMBOGV 14

121245 L SIDE 14

121248 G 10

121248 G NK 10

121248 GGV NK 10

121248 GRT NK 43

121248 GRTGV NK 43

121248 GTGV NK 41

121248 HS 16

121248 HS NK 16

12126-FM 151

12126 HC 54

12126 HC NK 54

12126 RHC 72

12126 RTC 81

12126 RTHC 58

12126 RTHC NK 58

12126 RTSC 57

12126 RTSC NK 57

12126 RTSCGV 57

12126 RTSCGV NK 57

12126 SC 52

12126 SC NK 52

12126 SCG 61

12126 SCGV 52

12126 SCGV NK 52

12126-SD 147

12126-SDSS4 207

12126-SDSS6 208

12126-SDW 147

12126-SDWSS4 207

12126 TCF 80

12126 TCS 80

12126 WPSC 63

12126-1 65

12126-1PP 70

12126-12CHC 93

12126-12CHSC 97

12126-12SC 95

12126-4CHC 141

12126-4QT 143

12126-4XACHC 199

12126-4XFCHQRC 261

12126-4XFCHSC 259

12126-4XFLC 257

12126-4XSCHC 197

12126-4XSQT 201

12126-4XSS6CHC 197

121260 G 10

121260 G NK 10

121260 GGV NK 10

121260 GRT NK 43

121260 GRTGV NK 43

121260 HS 16

121260 HS NK 16

121272 G 10

121272 G NK 10

121272 GGV NK 10

121272 GRT NK 43

121272 GRTGV NK 43

12128 RTC 81

12128 RTHC 58

12128 RTHC NK 58

12128 RTSC 57

12128 RTSC NK 57

12128 RTSCGV NK 57

12128 SC 52

12128 SC NK 52

12128 SCG 61

Catalog Page

Number Number

Catalog Page

Number Number

Catalog Page

Number Number

Electrical Enclosures

Index

472

Index

12128 SCGV NK 52

12128 WPSC 63

12128-1 65

121296 GRT NK 43

121296 GRTGV NK 43

12246-12 106

12248-12 106

122AMK 159, 215

124AMK 159, 215

126-12LAHM 30

126-12LAHW 30

126-12LBC 31

126-12LC 30

126-12LCF 27

126-12LCP 31

126-12LE15A 29

126-12LE45A 29

126-12LE45B 29

126-12LE45C 29

126-12LE9A 28

126-12LE9B 28

126-12LE9C 28

126-12LN1 28

126-12LN2 28

126-12LN3 28

126-12LSP 31

126-12LTA 29

126-12LTF 27

12604-12LW 27

12606-12LW 27

12612-12LW 27

126120-12LW 27

12624-12LW 27

12636-12LW 27

1264 SC 51

1264 SC NK 51

1264 SCGV NK 51

1264-12CHC 93

1264-4QT 143

12644-12LR 30

12648-12LW 27

1266 SC NK 52

12660-12LW 27

12666-12LR 30

128 SCF 53

128 TCF 80

128 TCS 80

128 WB 407

1284 HC 54

1284 HC NK 54

1284 RTSC 57

1284 RTSC NK 57

1284 SC 51

1284 SC NK 51

1284 SCGV 51

1284 SCGV NK 51

1284 TCF 80

1284 TCS 80

1286 RTHC 58

1286 RTHC NK 58

1286 RTSC 57

1286 SC NK 52

1286 SCGV NK 52

1286 TCF 80

1286 TCS 80

1286 WPSC 63

14TB 436

14TS 435

1412TB 436

1412TS 435

14124-1 65

14126-FTC 103

14126-SDF 265

14126-SDFQR 267

14126-SDFQRCC 269

14126-1 65

14126-12CHC 93

14126-12CHCS 93

14126-12CHQRC 99

14126-12CHSC 97

14126-12LC 91

14126-12SC 95

14126-4CHC 141

14126-4LC 139

14126-4QT 143

14126-4XACHC 199

14126-4XALC 195

14126-4XFCHQRC 261

14126-4XFCHQRCW 263

14126-4XFCHSC 259

14126-4XFLC 257

14126-4XSCHC 197

14126-4XSLC 193

14126-4XSQT 201

14126-4XSS6CHC 197

14126-4XSS6LC 193

14128-SDF 265

14128-SDFQR 267

14128-SDFQRCC 269

14128-1 65

14128-12CHC 93

14128-4QT 143

14128-4XSQT 201

1414148 GRT NK 43

1414148 GRTGV NK 43

1432-4XFSC 271

1476-4XFCHQRC 261

1476-4XFCHQRCW 263

1476-4XFCHSC 259

1476-4XFLC 257

1486-12CHC 93

1486-4QT 143

15124 RTSC 57

15154 SC NK 51

15154 SCGV 51

15156 SC NK 52

15156 SCGV NK 52

16DR1P 156, 212

16DR3P 156, 212

Catalog Page

Number Number

Catalog Page

Number Number

Catalog Page

Number Number

Electrical Enclosures

Index

473

16DRCP 156, 212

16GS1 156, 212

16MC 155, 211

16PMK 159, 215

16S 437

16TB 436

16TS 435

16TS12 437

16URMA 157, 213

16106-12CHC 93

16106-4QT 143

1612DF 155, 211

1612P 154, 210

1612PSS4 154, 210

1612SP 155, 211

1612 TCF 80

1612 TCS 80

1612 WB 407

161210-12 107

161210-SD 148

161210-SDW 148

16124 RTSC 57

16124 RTSC NK 57

16124 SC 51

16124 SC NK 51

16124 SCGV 51

16124 SCGV NK 51

16124 TCF 80

16124 TCS 80

16126-1PP 70

16126-FM 151

16126 HC 54

16126 HC NK 54

16126RHC 74

16126 RTSC 57

16126 RTSC NK 57

16126 SC 52

16126 SC NK 52

16126 SCG 61

16126 SCGV 52

16126 SCGV NK 52

16126-SD 147

16126-SDSS4 207

16126-SDSS6 208

16126-SDW 147

16126-SDWSS4 207

16126 TCF 80

16126 TCS 80

16126 WPSC 63

16126-1 67

16126-12 106

16126-12TE 109

16126-4 146

16126-4XA 204

16126-4XS 203

16126-4XSS6 203

16128 SC 52

16128 SC NK 52

16128 SCGV NK 52

16128-SD 148

16128-SDSS4 207

16128-SDSS6 208

16128-SDW 148

16128-1 67

16128-12 106

16128-4 146

16128-4XA 204

16128-4XS 203

16128-4XSS6 203

1614TB 436

1614TS 435

161410-12CHC 93

161410-4QT 143

161410-4XSQT 201

16146-FTC 103

16146-12CHC 93

16146-12CHCS 93

16146-12CHQRC 99

16146-12LC 91

16146-12SC 95

16146-4CHC 141

16146-4LC 139

16146-4QT 143

16146-4XACHC 199

16146-4XALC 195

16146-4XFCHQRC 261

16146-4XFCHQRCW 263

16146-4XFCHSC 259

16146-4XFLC 257

16146-4XSCHC 197

16146-4XSLC 193

16146-4XSQT 201

16146-4XSS6CHC 197

16146-4XSS6LC 193

16148-SDF 265

16148-SDFQR 267

16148-SDFQRCC 269

16148-12CHC 93

16148-4QT 143

1616P 154, 210

1616PSS4 154, 210

1616 SCF 53

1616SP 155, 211

161610-SD 148

16164 RTSC 57

16164 RTSC NK 57

16164 SC 51

16164 SC NK 51

16164 SCGV 51

16166 HC 54

16166 HC NK 54

16166RHC 74

16166 RTSC 57

16166 RTSC NK 57

16166 SC 52

16166 SC NK 52

16166 SCG 61

16166 SCGV 52

16166 SCGV NK 52

16166-SD 147

Catalog Page

Number Number

Catalog Page

Number Number

Catalog Page

Number Number

Electrical Enclosures

Index

474

Index

16166-SDSS4 207

16166-SDSS6 208

16166-1 67

16166-12 106

16166-4 146

16166-4XA 204

16166-4XS 203

16166-4XSS6 203

16168-SD 148

16168-SDSS4 207

16168-SDSS6 208

16168-12 106

1620SP 155, 211

162010-SD 148

16206-1 67

16206-12 106

16206-4 146

16206-4XS 203

16206-4XSS6 203

16206-SD 147

16208-12 106

16208-SD 148

16208-SDSS4 207

16208-SDSS6 208

1732-4XFSC 271

1812 SCF 53

1812 TCF 80

1812 TCS 80

1812 WB 407

181210 RTSC 57

181210 SC 53

181210 SC NK 53

181210 SCGV NK 53

18124 HC 54

18124 HC NK 54

18124 RTSC 57

18124 SC 51

18124 SC NK 51

18124 SCGV 51

18124 SCGV NK 51

18124 TCF 80

18124 TCS 80

18126 HC 54

18126 HC NK 54

18126 RTC 81

18126 RTHC 58

18126 RTHC NK 58

18126 RTSC 57

18126 RTSCGV NK 57

18126 RTSC NK 57

18126 SC 52

18126 SC NK 52

18126 SCGV 52

18126 SCGV NK 52

18126 TCF 80

18126 TCS 80

18126 WPSC 63

18128 RTSC 57

18128 RTSC NK 57

18128 SC 52

18128 SC NK 52

18128 SCGV NK 52

1815 TCF 80

1815 TCS 80

1815 WB 407

18154 SC NK 51

18154 SCGV 51

18154 TCF 80

18154 TCS 80

18156 SC NK 52

18156 SCGV NK 52

18156 TCF 80

18156 TCS 80

1818 SCF 53

1818 SCS 53

1818 TCF 80

1818 TCS 80

1818 WB 407

181810 RHC 74

181810 RTSC 57

181810 RTSC NK 57

181810 SC 53

181810 SC NK 53

181810 SCGV NK 53

181610-SDF 265

181610-SDFQR 267

18168-4XFCHQRC 261

18168-4XFCHQRCW 263

18168-4XFCHSC 259

18168-4XFLC 257

181810 RHC 74

181812 SC 53

181812 SC NK 53

181812 SCGV NK 53

18184 RTSC 57

18184 RTSC NK 57

18184 SC 51

18184 SC NK 51

18184 SCGV 51

18184 SCGV NK 51

18184 TCF 80

18184 TCS 80

18184 WPSC 63

18186 HC 54

18186 HC NK 54

18186 RHC 74

18186 RTC 81

18186 RTSC 57

18186 RTSC NK 57

18186 RTSCGV 57

18186 RTSCGV NK 57

18186 SC 52

18186 SC NK 52

18186 SCG 61

18186 SCGV 52

18186 SCGV NK 52

18186 TCF 80

18186 TCS 80

18186 WPSC 63

18188 RTC 81

Catalog Page

Number Number

Catalog Page

Number Number

Catalog Page

Number Number

Electrical Enclosures

Index

475

18188 RTHC 58

18188 RTHC NK 58

18188 RTSC 57

18188 RTSC NK 57

18188 RTSCGV NK 57

18188 SC 52

18188 SC NK 52

18188 SCGV NK 52

18188 WPSC 63

18249 RTCT 84

19URMA 157, 213

20DR1P 156, 212

20DR3P 156, 212

20DRCP 156, 212

20GS1 156, 212

20MC 155, 211

20PMK 159, 215

20S 437

20TS16 437

20TS20 437

20126-1 65

20126-12 106

20128-12 106

2016DF 155, 211

2016P 154, 210

2016PSS4 154, 210

2016SP 155, 211

201610-12 107

201610-4 146

201610-4XA 205

201610-4XS 203

201610-4XSS6 203

201610-SD 148

201610-SDF 265

201610-SDFQR 267

201610-SDW 148

201612-12 107

201612-4XF 277

20166-FM 151

20166RHC 74

20166 SCG 61

20166-SD 147

20166-SDSS4 207

20166-SDSS6 208

20166-SDW 147

20166-SDWSS4 207

20166-1 67

20166-1PP 70

20166-12 106

20166-12TE 109

20166-4 146

20166-4XA 204

20166-4XS 203

20166-4XSS6 203

20167-12CHSC 101

20168-SD 148

20168-SDSS4 207

20168-SDSS6 208

20168-SDW 148

20168-SDWSS4 207

20168-1 67

20168-12 106

20168-4 146

20168-4XA 204

20168-4XFCHQRC 261

20168-4XFCHQRCW 263

20168-4XFCHSC 259

20168-4XFLC 257

20168-4XS 203

20168-4XSS6 203

2020DF 155, 211

2020P 154, 210

2020PSS4 154, 210

2020SP 155, 211

202010-12 107

202010-SD 148

202010-SDW 148

202012-SD 148

202012-SDSS4 207

202012-SDSS6 208

202012-SDW 148

202012-SDWSS4 207

20206-FM 151

20206-SD 147

20206-SDSS4 207

20206-SDSS6 208

20206-SDW 147

20206-SDWSS4 207

20206-1 67

20206-12 106

20206-12TE 109

20206-4 146

20206-4XA 204

20206-4XS 203

20206-4XSS6 203

20207-12CHSC 101

20208RHC 74

20208 SCG 61

20208-SD 148

20208-SDSS4 207

20208-SDSS6 208

20208-SDW 148

20208-SDWSS4 207

20208-1 67

20208-12 106

20208-4 146

20208-4XS 203

20208-4XSS6 203

2024SP 155, 211

202410-SD 148

20246-12 106

20248-SD 148

20248-1 67

20248-12 106

20248-4 146

20248-4XS 203

20248-4XSS6 203

203611 HRTCT 87

22 C 11

22 E 11

Catalog Page

Number Number

Catalog Page

Number Number

Catalog Page

Number Number

Electrical Enclosures

Index

476

Index

22 E NK 11

22 EGV 11

22 EGV NK 11

22 FH 12, 18

22 FTF 11, 17

22 FTFGV 11

22 GF 11

22 GFGV 11

22 HSC 17

22 HSCA 17

22 HSCU 17

22 HSE 17

22 HSE NK 17

22 HSF 18

22 HSL IN 19

22 HSL OUT 19

22 HSL SIDE 19

22 HST 20

22 HSX 20

22 L COMBO 13

22 L COMBOGV 13

22 L SIDE 13

22 L SWEEP 13

22 L SWEEPGV 13

22 LTX 12

22 LTXGV 12

22 T 14

22 TGV 14

22 X 14

22 XGV 14

22-12BK 12, 18, 31

22-12LAHM 30

22-12LAHW 30

22-12LASD 30

22-12LBC 31

22-12LBH 31

22-12LC 30

22-12LCF 27

22-12LCP 31

22-12LDH 31

22-12LE15A 29

22-12LE45A 29

22-12LE45B 29

22-12LE45C 29

22-12LE9A 28

22-12LE9AC 28

22-12LE9B 28

22-12LE9C 28

22-12LE9TC 28

22-12LE9TCC 28

22-12LJB 30

22-12LN1 28

22-12LN2 28

22-12LN3 28

22-12LSP 31

22-12LTA 29

22-12LTC 29

22-12LTF 27

22-12LTSC 27

22-12LTSCC 27

2204-12LW 27

2206-12LW 27

2212 G 9

2212 G NK 9

2212 GGV NK 9

2212 HS 16

2212 HS NK 16

2212-12LW 27

22120 G 9

22120 G NK 9

22120 GGV 9

22120 GGV NK 9

22120 HS 16

22120 HS NK 16

22120-12LW 27

2224 G 9

2224 G NK 9

2224 GGV 9

2224 GGV NK 9

2224 HS 16

2224 HS NK 16

2224-12LW 27

2233 FR 12, 17

2236 G 9

2236 G NK 9

2236 GGV 9

2236 GGV NK 9

2236 HS 16

2236 HS NK 16

2236-12LW 27

2245 HSL COMBO 19

2245 HSL SIDE 19

2245 L COMBO 14

2245 L COMBOGV 14

2245 L SIDE 14

2248 G 9

2248 G NK 9

2248 GGV NK 9

2248 HS 16

2248 HS NK 16

2248-12LW 27

2260 G 9

2260 G NK 9

2260 GGV 9

2260 GGV NK 9

2260 HS 16

2260 HS NK 16

2260-12LW 27

2272 HS 16

2272 HS NK 16

24DR1P 156, 212

24DR3P 156, 212

24DRCP 156, 212

24GS1 156, 212

24MC 155, 211

24PMK 159, 215

24S 437

24TS20 367, 437

24TS24 367, 437

2412 TCF 80

Catalog Page

Number Number

Catalog Page

Number Number

Catalog Page

Number Number

Electrical Enclosures

Index

477

2412 TCS 80

2412 WB 407

241210 SC NK 53

241210 SCGV NK 53

241210-12 107

241210-4XF 277

241212 SC 53

241212 SC NK 53

241212 SCGV NK 53

24124 SC 51

24124 SC NK 51

24124 SCGV 51

24124 TCF 80

24124 TCS 80

24126 RTC 81

24126 RTSC 57

24126 RTSC NK 57

24126 SC NK 52

24126 SCGV NK 52

24126 TCF 80

24126 TCS 80

24126-12 106

24126-4 146

24126-4XF 277

24126-4XS 203

24126-4XSS6 203

24128 SC 52

24128 SC NK 52

24128 SCGV NK 52

24128-12 106

2416P 154, 210

2416PSS4 154, 210

2416SP 155, 214

241610-SD 148

24166-1 67

24166-12 106

24166-4 146

24166-4XS 203

24166-4XSS6 203

24166-SD 147

24168 RTSC 57

24168 RTSC NK 57

24168-SD 148

24168-SDSS4 207

24168-SDSS6 208

24168-12 106

24168-4XA 204

24168-4XS 203

24168-4XSS6 203

2418 SCF 53

2418 TCF 80

2418 TCS 80

2418 WB 407

241810 RTSC 57

241810 RTSC NK 57

241810 SC 53

241810 SC NK 53

241810 SCGV NK 53

241812 SC 53

241812 SC NK 53

241812 SCGV NK 53

24184 SC NK 51

24184 SCGV 51

24184 TCF 80

24184 TCS 80

24186 HC 54

24186 HC NK 54

24186 RTC 81

24186 RTSC 57

24186 RTSC NK 57

24186 SC 52

24186 SC NK 52

24186 SCGV 52

24186 SCGV NK 52

24186 TCF 80

24186 TCS 80

24186 WPSC 63

24188 RTHC 58

24188 RTHC NK 58

24188 RTSC 57

24188 RTSC NK 57

24188 SC 52

24188 SC NK 52

24188 SCGV NK 52

2420DF 155, 211

2420P 154, 210

2420PSS4 154, 210

2420SP 155, 211

242010-1 67

242010-12 107

242010-4 146

242010-4XA 205

242010-4XS 203

242010-4XS3PT 216

242010-4XSS6 203

242010-4XSS63PT 216

242010-43PT 160

242010-SD 148

242010-SDW 148

242012-1 67

242012-12 107

242012-SD 148

242012-SDW 148

242016-12 107

24206 SC NK 52

24206 SCGV NK 52

24206-SD 147

24206-SDW 147

24206-1 67

24206-1PP 70

24206-12 106

24206-12TE 109

24206-4 146

24206-4XA 204

24206-4XS 203

24206-4XS3PT 216

24206-4XSS6 203

24206-4XSS63PT 216

24206-43PT 160

24207-12CHSC 101

Catalog Page

Number Number

Catalog Page

Number Number

Catalog Page

Number Number

Electrical Enclosures

Index

478

Index

24208-FM 151

24208RHC 74

24208 SC NK 52

24208 SCG 61

24208 SCGV NK 52

24208-SD 148

24208-SDSS4 207

24208-SDSS6 208

24208-SDW 148

24208-SDWSS4 207

24208-1 67

24208-12 106

24208-4 146

24208-4XA 204

24208-4XF 277

24208-4XS 203

24208-4XS3PT 216

24208-4XSS6 203

24208-4XSS63PT 216

24208-43PT 160

24209-12CHSC 101

2424DF 155, 211

2424P 154, 210

2424PSS4 154, 210

2424 SCF 53

2424 SCS 53

2424SF 157, 213

2424SP 155, 211

2424 TCF 80

2424 TCS 80

2424 WB 407

242410 RHC 74

242410 RTHC 58

242410 RTHC NK 58

242410 RTSC 57

242410 RTSC NK 57

242410 RTSCGV NK 57

242410 SC 53

242410 SC NK 53

242410 SCGV NK 53

242410-SD 148

242410-SDW 148

242410-12 107

242410-4D3PT 162

242410-4XF 277

242410-RHCF 275

242411 RTCT 84

242412 RTSC 57

242412 RTSC NK 57

242412 RTSCGV NK 57

242412 SC 53

242412 SC NK 53

242412 SCG 61

242412 SCGV NK 53

242412-1 67

242412-12 107

242412-4XA 205

242412-4XF 277

242412-4XS 203

242412-4XSS6 203

242412-SD 148

242412-SDSS4 207

242412-SDSS6 208

242412-SDW 148

242412-4XS3PT 217

242412-4XSS63PT 217

242412-43PT 161

242416-12 107

242416-SD 148

242416-SDW 148

242420-SD 148

242420-SDW 148

24244 RTSC 57

24244 RTSC NK 57

24244 SC 51

24244 SC NK 51

24244 SCGV 51

24244 SCGV NK 51

24244 TCF 80

24244 TCS 80

24246 HC 54

24246 HC NK 54

24246 RTC 81

24246 RTSC 57

24246 RTSC NK 57

24246 RTSCGV NK 57

24246 SC 52

24246 SC NK 52

24246 SCG 61

24246 SCGV 52

24246 SCGV NK 52

24246-SD 147

24246-SDW 147

24246 TCF 80

24246 TCS 80

24246 WPSC 63

24246-1 67

24246-12 106

24246-12TE 109

24246-4 146

24246-4XS 203

24246-4XSS6 203

24248-FM 151

24248RHC 74

24248 RTC 81

24248 RTHC 58

24248 RTHC NK 58

24248 RTSC 57

24248 RTSC NK 57

24248 RTSCGV NK 57

24248 SC 52

24248 SC NK 52

24248 SCG 61

24248 SCGV NK 52

24248-SD 148

24248-SDSS4 207

24248-SDSS6 208

24248-SDW 148

24248-SDWSS4 207

24248 WPSC 63

Catalog Page

Number Number

Catalog Page

Number Number

Catalog Page

Number Number

Electrical Enclosures

Index

479

24248-1 67

24248-12 106

24248-4 146

24248-4XA 204

24248-4XS 203

24248-4XS3PT 216

24248-4XSS6 203

24248-4XSS63PT 216

24248-43PT 160

243010-SD 148

243011 HRTCT 87

243011 RTCT 84

24308-12 106

24308-4 146

24308-4XA 204

24308-4XS 203

24308-4XSS6 203

24308-SD 148

24329 RTCT 84

243611 RTCT 84

24428-12D 110

24428-4XSD3PT 218

24428-TD 153

2442P 154, 210

2442PSS4 154, 210

244811 HRTCT 87

244811 RTCT 84

24488-12D 110

24488-4XSD3PT 218

25012A 368, 438

25092 A (B) 415

25228 A (B, C, D) 421

25270 A 415

25277 A 415

25278 A 415

25288 A 415

25289 A 415

25345 A 420

25350 A 418

25351 A 413

25352 A 413

25421 A 418

26URMA 157, 213

3MDBLK 158, 214, 414

3MD1BLK 414

3MT4DBLKB 417

30GS1 156, 212

30MC 155, 211

30PMK 159, 215

30S 437

30TS20 437

30TS24 437

3015 TCF 80

3015 TCS 80

3015 WB 407

30154 TCF 80

30154 TCS 80

30156 TCF 80

30156 TCS 80

30166-12 106

3018 TCF 80

3018 TCS 80

3018 WB 407

30184 SC NK 51

30184 SCGV 51

30184 SCGV NK 51

30184 TCF 80

30184 TCS 80

30186 SC NK 52

30186 SCGV NK 52

30186 TCF 80

30186 TCS 80

3020P 154, 210

3020PSS4 154, 210

3020SP 155, 211

302010-RHCF 275

302010-SD 148

302010-12 107

302010-4XF 277

302012-4XF 277

30206-1 67

30206-12 106

30206-12TE 109

30206-4 146

30206-4XF 277

30207-12CHSC 101

30208-RHCF 275

30208-SD 148

30208-1 67

30208-12 106

30208-4 146

30208-4XA 204

30208-4XF 277

30208-4XS 203

30208-4XSS6 203

30209-12CHSC 101

3024DF 155, 211

3024P 154, 210

3024PSS4 154,210

3024SF 157, 213

3024SP 155, 211

3024 TCF 80

3024 TCS 80

3024 WB 407

302410 RHC 74

302410-RHCF 275

302410 RTSC 57

302410 RTSC NK 57

302410 SC NK 53

302410 SCGV NK 53

302410-SD 148

302410-SDW 148

302410 WPSC 63

302410-1 67

302410-12 107

302410-4 146

302410-4XF 277

302410-4XS 203

302410-4XSS6 203

302412-RHCF 275

Catalog Page

Number Number

Catalog Page

Number Number

Catalog Page

Number Number

Electrical Enclosures

Index

480

Index

302412 RTSC 57

302412 RTSC NK 57

302412 SC 53

302412 SC NK 53

302412 SCGV NK 53

302412-SD 148

302412-SDSS4 207

302412-SDSS6 208

302412-SDW 148

302412-SDWSS4 207

302412-1 67

302412-12 107

302412-4 146

302412-4XA 205

302412-4XF 277

302412-4XS 203

302412-4XS3PT 217

302412-4XSS6 203

302412-4XSS63PT 217

302412-43PT 161

302416-12 107

302416-4XS 203

302416-4XSS6 203

302420-SD 148

302420-SDW 148

302420-12 107

302424-12 107

30244 SC 51

30244 SC NK 51

30244 SCGV 51

30244 SCGV NK 51

30244 TCF 80

30244 TCS 80

30246 HC 54

30246 HC NK 54

30246 RTC 81

30246 SC 52

30246 SC NK 52

30246 SCGV 52

30246 SCGV NK 52

30246 TCF 80

30246 TCS 80

30246-1 67

30246-12 106

30246-12TE 109

30246-4 146

30246-4XS 203

30246-4XSS6 203

30247-12CHSC 101

30248-FM 151

30248RHC 74

30248 SC 52

30248 SC NK 52

30248 SCGV 52

30248 SCGV NK 52

30248-SD 148

30248-SDSS4 207

30248-SDSS6 208

30248-SDW 148

30248-SDWSS4 207

30248-1 67

30248-12 106

30248-4 146

30248-4XA 204

30248-4XF 277

30248-4XS 203

30248-4XS3PT 216

30248-4XSS6 203

30248-4XSS63PT 216

30248-43PT 160

30249-12CHSC 101

3030P 154, 210

3030PSS4 154, 210

3030SP 155, 211

3030 TCF 80

3030 TCS 80

3030 WB 407

303010 RTSC NK 57

303010 SC NK 53

303010 SCGV NK 53

303010-SD 148

303011 RTCT 84

303012RHC 74

303012 RTSCGV NK 57

303012 SC NK 53

303012 SCG 61

303012 SCGV NK 53

303012-SD 148

303012-12 107

303016 RHC 74

303016 SC NK 53

30304 SC NK 51

30304 SCGV NK 51

30304 TCF NK 80

30304 TCS NK 80

30306 SC NK 52

30306 SCGV NK 52

30306 TCF NK 80

30306 TCS NK 80

30308 RHC 74

30308 SC NK 52

30308 SCGV NK 52

30308-SD 148

30308-SDSS4 207

30308-SDSS6 208

30308-1 67

30308-12 106

30308-4 146

30308-4XA 204

30308-4XS 203

30308-4XS3PT 216

30308-4XSS6 203

30308-4XSS63PT 216

30308-43PT 160

303611 HRTCT 87

303611 RTCT 84

303612-4XSS63PT 217

303614 RTCT 84

303616DRHC 76

30368-12 106

Catalog Page

Number Number

Catalog Page

Number Number

Catalog Page

Number Number

Electrical Enclosures

Index

481

304210-12D 110

304210-4D3PT 162

304210-4XSD3PT 218

304212DRHC 76

3048P 154, 210

3048PSS4 154, 210

304810-12D 110

304810-4D3PT 162

304810-4XSD3PT 218

304811 HRTCT 87

30488-TD 153

3060P 154, 210

3060PSS4 154, 210

306010-12D 110

306010-4D3PT 162

306010-4XSD3PT 218

306012-TD 153

32170 158, 214, 412

32171 158, 214, 412

32172 412

33 C 11

33 E 11

33 E NK 11

33 FH 12

33 FL IN 13

33 FL OUT 13

33 FL SIDE 13

33 FTF 11, 17

33 GF 11

33 L COMBO 13

33 L SIDE 13

33 L SWEEP 13

33 LTX 12

33 T 14

33 X 14

33-12BK 12, 18

332-4XFSC 271

3312 G NK 9

33120 G NK 9

3324 G NK 9

3336 G NK 9

3344 FR 12, 17

3345 L COMBO 14

3345 L SIDE 14

3348 G NK 9

3360 G NK 9

3372 G NK 9

36GS3 156, 212

36MC 155, 211

36S 437

36TS24 437

36TS30 437

3624P 154, 210

3624PSS4 154, 210

3624SF 157, 213

3624SP 155, 211

3624 TCF 80

3624 TCS 80

3624 WB 407

362410 RTHC 58

362410 RTHC NK 58

362410 SC NK 53

362410 SCGV NK 53

362410-SD 148

362410-12 107

362410-4XA 205

362410-4XS 203

362410-4XSS6 203

362412RHC 74

362412 RTSC 57

362412 RTSC NK 57

362412 SC 53

362412 SC NK 53

362412 SCGV NK 53

362412-SD 148

362412-SDSS4 207

362412-SDSS6 208

362412-12 107

362416-4XA 205

36244 TCF 80

36244 TCS 80

36246 HC 54

36246 HC NK 54

36246 RTC 81

36246 SC 52

36246 SC NK 52

36246 SCGV 52

36246 SCGV NK 52

36246 TCF 80

36246 TCS 80

36246-1 67

36246-1PP 70

36246-12 106

36246-12TE 109

36246-4 146

36246-4XS 203

36246-4XSS6 203

36247-12CHSC 101

36248 HC 54

36248 HC NK 54

36248 SC 52

36248 SC NK 52

36248 SCGV NK 52

36248-SD 148

36248-SDSS4 207

36248-SDSS6 208

36248-1 67

36248-12 106

36248-4 146

36248-4XA 204

36248-4XS 203

36248-4XS3PT 216

36248-4XSS6 203

36248-4XSS63PT 216

36248-43PT 160

36249-12CHSC 101

3630P 154, 210

3630PSS4 154, 210

3630SP 155, 211

3630 TCF 80

Catalog Page

Number Number

Catalog Page

Number Number

Catalog Page

Number Number

Electrical Enclosures

Index

482

Index

3630 TCS 80

3630 WB 407

363010-RHCF 275

363010-SD 148

363010-12 107

363010-4 146

363010-4XA 205

363010-4XF 277

363010-4XS 203

363010-4XS3PT 216

363010-4XSS6 203

363010-4XSS63PT 216

363010-43PT 160

363012RHC 74

363012-RHCF 275

363012 RTHC NK 58

363012 RTSC NK 57

363012-SD 148

363012-SDSS4 207

363012-SDSS6 208

363012-1 67

363012-12 107

363012-4 146

363012-4XA 205

363012-4XF 277

363012-4XS 203

363012-4XS3PT 217

363012-4XSS6 203

363012-4XSS63PT 217

363012-43PT 161

363016-SD 148

363016-12 107

363016-4 146

363016-4XA 205

363016-4XS 203

363016-4XSS6 203

363016-43PT 161

363020-SD 148

363020-12 107

36304 TCF NK 80

36304 TCS NK 80

36306 SC NK 52

36306 SCGV NK 52

36306 TCF NK 80

36306 TCS NK 80

36306-1 67

36306-1PP 70

36306-12 106

36308-RHCF 275

36308 SC NK 52

36308 SCGV NK 52

36308-SD 148

36308-SDSS4 207

36308-SDSS6 208

36308-1 67

36308-12 106

36308-12TE 109

36308-4 146

36308-4XA 204

36308-4XF 277

36308-4XS 203

36308-4XS3PT 216

36308-4XSS6 203

36308-4XSS63PT 216

36308-43PT 160

3636P 154, 210

3636PSS4 154, 210

3636SP 155, 211

3636 TCF 80

3636 TCS 80

3636 WB 407

363610 RHC 74

363610 SC NK 53

363610 SCGV NK 53

363610-SD 148

363611 HRTCT 87

363611 RTCT 84

363612RHC 74

363612 RTSC NK 57

363612 RTSCGV NK 57

363612 SC NK 53

363612 SCG 61

363612 SCGV NK 53

363612-SD 148

363612-SDSS4 207

363612-SDSS6 208

363612-12 107

363612-4XS 203

363612-4XS3PT 217

363612-4XSS6 203

363612-4XSS63PT 217

363612-43PT 161

363616 SC NK 53

363616 SCGV NK 53

36364 TCF NK 80

36364 TCS NK 80

36366 SC NK 52

36366 SCGV NK 52

36366 TCF NK 80

36366 TCS NK 80

36368 RTSC 57

36368 RTSC NK 57

36368-SD 148

36368-12 106

364211 RTCT 84

364212-12D 110

364212-4XSD3PT 218

364216DRHC 76

364811 HRTCT 87

364811 RTCT 84

364812DRHC 76

364812-TD 153

364812-12D 110

364812-4D3PT 162

364812-4XFD 279

364812-4XSD3PT 218

364814 RTCT 84

366012-12D 110

366012-TD 153

366012-4D3PT 162

Catalog Page

Number Number

Catalog Page

Number Number

Catalog Page

Number Number

Electrical Enclosures

Index

483

366012-4XSD3PT 218

4MT4HXLKBM 417

42GS3 156, 212

42MC 155, 211

42S 437

42TS30 437

42248-1 67

42248-12 106

4230P 154, 210

4230PSS4 154, 210

423010-12 107

423010-4XA 205

423010-4XS 203

423010-4XS3PT 216

423010-4XSS6 203

423012-12 107

423012RHC 74

423013-1 69

42308-12 106

42308-12TE 109

42308-4 146

42308-4XS 203

42308-4XSS6 203

42309-1 69

4236P 154, 210

4236PSS4 154, 210

423610-SD 148

423610-12 107

423612RHC 74

423612-SD 148

423612-SDSS4 207

423612-SDSS6 208

423612-12 107

423612-4XS3PT 217

423612-4XSS63PT 217

423613-1 69

423616-12 107

42368-12 106

42368-4 146

42368-4XA 204

42368-4XS 203

42368-4XSS6 203

42369-1 69

424211 RTCT 84

424212-12D 110

424212-4XSD3PT 218

424812-12D 110

424812-4XSD3PT 218

426012-12D 110

426012-4XSD3PT 218

44 C 11

44 E 11

44 E NK 11

44 EGV 11

44 EGV NK 11

44 FH 12, 18

44 FL IN 13

44 FL OUT 13

44 FL SIDE 13

44 FTF 11, 17

44 FTFGV 11

44 GF 11

44 GFGV 11

44 HSC 17

44 HSCA 17

44 HSCU 17

44 HSE 17

44 HSE NK 17

44 HSF 18

44 HSL IN 19

44 HSL OUT 19

44 HSL SIDE 19

44 HST 20

44 HSX 20

44 L COMBO 13

44 L COMBOGV 13

44 L SIDE 13

44 L SWEEP 13

44 L SWEEPGV 13

44 LTX 12

44 LTXGV 12

44 SCF 53

44 T 14

44 TGV 14

44 X 14

44 XGV 14

44-12BH 35

44-12BK

12, 18, 24, 31, 34, 38

44-12DH 35

44-12FBC 34

44-12FC 35

44-12FCF 34

44-12FCP 34

44-12FE45 35

44-12FE9 35

44-12FFF 35

44-12FGK 34

44-12FN1 34

44-12FN2 34

44-12FN3 34

44-12FN6 34

44-12FT 35

44-12FTF 33

44-12LAFW 30

44-12LAHM 30

44-12LAHW 30

44-12LASD 30

44-12LBC 31

44-12LBH 31

44-12LC 30

44-12LCF 27

44-12LCP 31

44-12LDH 31

44-12LE15A 29

44-12LE45A 29

44-12LE45B 29

44-12LE45C 29

44-12LE9A 28

44-12LE9AC 28

44-12LE9B 28

Catalog Page

Number Number

Catalog Page

Number Number

Catalog Page

Number Number

Electrical Enclosures

Index

484

Index

44-12LE9C 28

44-12LE9TC 28

44-12LE9TCC 28

44-12LJB 30

44-12LN1 28

44-12LN2 28

44-12LN3 28

44-12LSP 31

44-12LTA 29

44-12LTC 29

44-12LTF 27

44-12LTSC 27

44-12LTSCC 27

44-3RAHSC 22

44-3RAHSE NK 23

44-3RAHSF 23

44-3RAHSL SIDE 23

44-3RAHST 23

44-3RAHSXJ 24

44-3RAHSXS 24

44-3RASCX 23

44-3RBKA 24

44-3RHSC 22

44-3RHSE NK 23

44-3RHSF 23

44-3RHSL SIDE 23

44-3RHST 23

44-3RHSXJ 24

44-3RHSXS 24

44-3RSCX 23

44-4XSBH 39

44-4XSDH 39

44-4XSFBC 38

44-4XSFC 39

44-4XSFCF 38

44-4XSFCP 38

44-4XSFE45 39

44-4XSFE9 39

44-4XSFFF 39

44-4XSFGK 38

44-4XSFN1 38

44-4XSFN2 38

44-4XSFN3 38

44-4XSFN6 38

44-4XSFT 39

44-4XSFTF 37

4404-12LW 27

4406-12LW 27

4412 G 9

4412 G NK 9

4412 GGV 9

4412 GGV NK 9

4412 GRT 43

4412 GRT NK 43

4412 GRTGV NK 43

4412 GTGV NK 41

4412 HS 16

4412 HS NK 16

4412-12FW 33

4412-12LW 27

4412-12WT 45

4412-3RHS NK 22

4412-3RAHS NK 22

4412-4XSFW 37

4412-4XSWT 47

44120 G 9

44120 G NK 9

44120 GGV 9

44120 GGV NK 9

44120 GRT NK 43

44120 GRTGV NK 43

44120 HS 16

44120 HS NK 16

44120-3RHS NK 22

44120-3RAHS NK 22

44120-12FW 33

44120-12LW 27

44120-4XSFW 37

4418 G 9

4418 G NK 9

4418 GGV NK 9

4418 GRT 43

4418 GRT NK 43

4418-12WT 45

4418-4XSWT 47

4422-12LR 30

4424 G 9

4424 G NK 9

4424 GGV 9

4424 GGV NK 9

4424 GRT 43

4424 GRT NK 43

4424 GRTGV NK 43

4424 GTGV NK 41

4424 HS 16

4424 HS NK 16

4424-12FW 33

4424-12LW 27

4424-12WT 45

4424-4XSFW 37

4424-4XSWT 47

443 SC 51

443 SC NK 51

443 SCGV 51

443 SCGV NK 51

443-12CHC 93

443-12LC 91

443-12SC 95

443-4CHC 141

443-4LC 139

443-4QT 143

443-4XALC 195

443-4XSLC 193

443-4XSS6LC 193

4430-12WT 45

4430-4XSWT 47

4436 G 9

4436 G NK 9

4436 GGV 9

4436 GGV NK 9

Catalog Page

Number Number

Catalog Page

Number Number

Catalog Page

Number Number

Electrical Enclosures

Index

485

4436 GRT 43

4436 GRT NK 43

4436 GRTGV NK 43

4436 GTGV NK 41

4436 HS 16

4436 HS NK 16

4436-12FW 33

4436-12LW 27

4436-12WT 45

4436-4XSFW 37

4436-4XSWT 47

444 RTSC 57

444 RTSC NK 57

444 RTSCGV 57

444 SC 51

444 SC NK 51

444 SCG 61

444 SCGV 51

444 SCGV NK 51

444 WPSC 63

444-12CHC 93

444-12LC 91

444-12SC 95

444-4QT 143

4445 HSL COMBO 19

4445 HSL SIDE 19

4445 L COMBO 14

4445 L COMBOGV 14

4445 L SIDE 14

4448 G 9

4448 G NK 9

4448 GGV 9

4448 GGV NK 9

4448 GRT 43

4448 GRT NK 43

4448 GRTGV NK 43

4448 GTGV NK 41

4448 HS 16

4448 HS NK 16

4448-12FW 33

4448-12LW 27

4448-12WT 45

4448-4XSFW 37

4448-4XSWT 47

4460 G 9

4460 G NK 9

4460 GGV 9

4460 GGV NK 9

4460 GRT 43

4460 GRT NK 43

4460 GRTGV NK 43

4460 GTGV NK 41

4460 HS 16

4460 HS NK 16

4460-3RHS NK 22

4460-3RAHS NK 22

4460-12FW 33

4460-12LW 27

4460-12WT 45

4460-4XSFW 37

4460-4XSWT 47

4466 FR 12, 17

4466-3RASCR 24

4466-3RSCR 24

4472 G 9

4472 G NK 9

4472 GGV 9

4472 GGV NK 9

4472 GRT 43

4472 GRT NK 43

4472 GRTGV NK 43

4472 GTGV NK 41

4472 HS 16

4472 HS NK 16

4472-12WT 45

4472-4XSWT 47

4488-3RASCR 24

4488-3RSCR 24

4496 GRT NK 43

4700-CC 432

4700-CC2 432

48GS3 155, 212

48MC 155, 210

48S 437

48TS36 437

4824P 154, 210

4824PSS4 154, 210

4824 TCF 80

4824 TCS 80

4824 WB 407

482410-SD 148

482412-SD 148

48244 TCF 80

48244 TCS 80

48246 TCF 80

48246 TCS 80

48248-12 106

483010-12 107

483010-4 146

483010-4XS 203

483010-4XSS6 203

48308-12 106

4836P 154, 210

4836PSS4 154, 210

4836 TCF 80

4836 TCS 80

4836 WB 407

483610-SD 148

483610-12 107

483610-4 146

483610-4XS 203

483610-4XS3PT 216

483610-4XSS6 203

483610-4XSS63PT 216

483610-43PT 160

483611-1 69

483612RHC 74

483612-RHCF 275

483612-SD 148

483612-SDSS4 207

Catalog Page

Number Number

Catalog Page

Number Number

Catalog Page

Number Number

Electrical Enclosures

Index

486

Index

483612-SDSS6 208

483612-12 107

483612-4 146

483612-4XA 205

483612-4XF 277

483612-4XS 203

483612-4XS3PT 217

483612-4XSS6 203

483612-4XSS63PT 217

483612-43PT 161

483613-1 69

483616 RHC 74

483616-RHCF 275

483616-SD 148

483616-12 107

483616-4 146

483616-4XA 205

483616-4XF 277

483616-4XS 203

483616-4XS3PT 217

483616-4XSS6 203

483616-4XSS63PT 217

483616-43PT 161

483617-1 69

483620-12 107

48364 TCF NK 80

48364 TCS NK 80

48366 SC NK 52

48366 SCGV NK 52

48366 TCF NK 80

48366 TCS NK 80

48368-12 106

48368-12TE 109

48368-4 146

48368-4XA 204

48368-4XS 203

48368-4XS3PT 216

48368-4XSS6 203

48368-4XSS63PT 216

48368-43PT 160

48369-1 69

4848 TCF 80

4848 TCS 80

4848 WB 407

484811 RTCT 84

484812-12D 110

484812-4XSD3PT 218

484812 SC NK 53

484812 SCGV NK 53

484816 SC NK 53

484816 SCGV NK 53

48484 TCF NK 80

48484 TCS NK 80

48486 SC NK 52

48486 SCGV NK 52

48486 TCF NK 80

48486 TCS NK 80

532-4XFSC 271

54428-12FD 112

6MT4SLKBM 417

6.5MT4TLKBM 417

60GS3 156, 212

60MC 155, 211

60S 437

60TS36 437

602418-12FS 115

602418-4FS3PT 175

602418-4XSFS3PT 233

6036P 154, 210

6036PSS4 154, 210

603610-SD 148

603610-12 107

603610-4 146

603610-4XS 203

603610-4XSS6 203

603612RHC 74

603612-SD 148

603612-SDSS4 207

603612-SDSS6 208

603612-12 107

603612-4XA 205

603612-4XF 277

603612-4XS 203

603612-4XS3PT 217

603612-4XSS6 203

603612-4XSS63PT 217

603612-43PT 161

603616-12 107

603616-4 146

603616-4XF 277

603616-4XS 203

603616-4XS3PT 217

603616-4XSS6 203

603616-4XSS63PT 217

603620-12 107

603624-12FS 115

603624-4FS3PT 175

603624-4XSFS3PT 233

60368-12 106

60368-12TE 109

60368-4 146

604810-12FD 112

604812-12FD 112

604812-4FDQT 166

604812-4XSFDQT 224

604816-12FD 112

604818-12FSD 118

604818-4XSFDQT 224

604818-4XSFSD3PT 237

604820-12FD 112

604824-12FD 112

60488-12FD 112

606010-12FD 112

606012-12FD 112

606012-4FDQT 166

606012-4XSFDQT 224

606016-12FD 112

606018-4XSFDQT 224

606024-12FD 112

624810-4FD 164

Catalog Page

Number Number

Catalog Page

Number Number

Catalog Page

Number Number

Electrical Enclosures

Index

487

624810-4XAFD 222

624810-4XSFD 220

624810-4XSS6FD 220

624812-4FD3PT 168

624812-4XAFD 222

624812-4XSFD 220

624812-4XSFD3PT 226

624812-4XSS6FD 220

624812-4XSS6FD3PT 226

624818-4XSFD3PT 226

624818-4XSS6FD3PT 226

626012-4FD 164

626012-4FD3PT 168

626012-4XAFD 222

626012-4XSFD 220

626012-4XSFD3PT 226

626012-4XSS6FD 220

626012-4XSS6FD3PT 226

64AMK 159, 215

64 C 11

64 E 11

64 E NK 11

64 FTF 11

64 GF 11

64 L COMBO 13

64 L SIDE 13

64 L SWEEP 13

64 LTX 12

64 T 14

64 X 14

6412 G NK 9

64120 G NK 9

6418 G NK 9

6424 G NK 9

643-12CHC 93

643-12CHQRC 99

643-12LC 91

643-12SC 95

643-4CHC 141

643-4LC 139

643-4QT 143

643-4XALC 195

643-4XSLC 193

643-4XSS6LC 193

6436 G NK 9

644 RHC 72

644-FTC 103

644 RTHC 58

644 RTHC NK 58

644 RTSC 57

644 RTSC NK 57

644 SC 51

644 SC NK 51

644 SCGV 51

644 SCGV NK 51

644 WPSC 63

644-12CHC 93

644-12LC 91

644-12SC 95

644-4CHC 141

644-4QT 143

644-4XACHC 199

644-4XFCHQRC 261

644-4XFCHQRCW 263

644-4XFCHSC 259

644-4XFLC 257

644-4XFSC 271

644-4XSCHC 197

644-4XSQT 201

644-4XSS6CHC 197

6445 L COMBO 14

6445 L SIDE 14

6448 G NK 9

6460 G NK 9

6472 G NK 9

66 C 11

66 E 11

66 E NK 11

66 EGV 11

66 EGV NK 11

66 FH 12, 18

66 FL IN 13

66 FL OUT 13

66 FL SIDE 13

66 FTF 11, 17

66 FTFGV 11

66 GF 11

66 GFGV 11

66 HSC 17

66 HSCA 17

66 HSCU 17

66 HSE 17

66 HSE NK 17

66 HSF 18

66 HSL IN 19

66 HSL OUT 19

66 HSL SIDE 19

66 HST 20

66 HSX 20

66 L COMBO 13

66 L COMBOGV 13

66 L SIDE 13

66 L SWEEP 13

66 L SWEEPGV 13

66 LTX 12

66 LTXGV 12

66 SCF 53

66 SCS 53

66 T 14

66 TGV 14

66 X 14

66 XGV 14

66-3RAHSXJ 24

66-3RAHSXS 24

66-3RBKA 24

66-3RHSC 22

66-3RHSE 23

66-3RHSF 23

66-3RHSL-SIDE 23

66-3RHST 23

Catalog Page

Number Number

Catalog Page

Number Number

Catalog Page

Number Number

Electrical Enclosures

Index

488

Index

66-3RHSXJ 24

66-3RHSXS 24

66-3RSCX 23

66-3RAHSC 22

66-3RAHSE 23

66-3RAHSF 23

66-3RAHSL-SIDE 23

66-3RAHST 23

66-3RASCX 23

66-12BH 35

66-12BK

12, 18, 24, 31, 34, 38

66-12DH 35

66-12FBC 34

66-12FC 35

66-12FCF 34

66-12FCP 34

66-12FE45 35

66-12FE9 35

66-12FFF 35

66-12FGK 34

66-12FN1 34

66-12FN2 34

66-12FN3 34

66-12FN6 34

66-12FT 35

66-12FTF 33

66-12LAFW 30

66-12LAHM 30

66-12LAHW 30

66-12LASD 30

66-12LBC 31

66-12LBH 31

66-12LC 30

66-12LCF 27

66-12LCP 31

66-12LDH 31

66-12LE15A 29

66-12LE45A 29

66-12LE45B 29

66-12LE45C 29

66-12LE9A 28

66-12LE9AC 28

66-12LE9B 28

66-12LE9C 28

66-12LE9TC 28

66-12LE9TCC 28

66-12LJB 30

66-12LN1 28

66-12LN2 28

66-12LN3 28

66-12LSP 31

66-12LTA 29

66-12LTC 29

66-12LTF 27

66-12LTSC 27

66-12LTSCC 27

66-4XSBH 39

66-4XSDH 39

66-4XSFBC 38

66-4XSFC 39

66-4XSFCF 38

66-4XSFCP 38

66-4XSFE45 39

66-4XSFE9 39

66-4XSFFF 39

66-4XSFGK 38

66-4XSFN1 38

66-4XSFN2 38

66-4XSFN3 38

66-4XSFN6 38

66-4XSFT 39

66-4XSFTF 37

6604-12LW 27

6606-12LW 27

6612 G 9

6612 G NK 9

6612 GGV 9

6612 GGV NK 9

6612 GRT 43

6612 GRT NK 43

6612 GRTGV NK 43

6612 GTGV NK 41

6612 HS 16

6612 HS NK 16

6612-3RHS NK 22

6612-3RAHS NK 22

6612-12FW 33

6612-12LW 27

6612-12WT 45

6612-4XSFW 37

6612-4XSWT 47

66120 G 9

66120 G NK 9

66120 GGV 9

66120 GGV NK 9

66120 GRT NK 43

66120 GRTGV NK 43

66120 HS 16

66120 HS NK 16

66120-12FW 33

66120-12LW 27

66120-3RHS NK 22

66120-3RAHS NK 22

66120-4XSFW 37

6618 G 9

6618 G NK 9

6618 GGV NK 9

6618 GRT 43

6618 GRT NK 43

6618 GRTGV NK 43

6618-12WT 45

6618-4XSWT 47

6624 G 9

6624 G NK 9

6624 GGV 9

6624 GGV NK 9

6624 GRT 43

6624 GRT NK 43

6624 GRTGV NK 43

6624 GTGV NK 41

Catalog Page

Number Number

Catalog Page

Number Number

Catalog Page

Number Number

Electrical Enclosures

Index

489

6624 HS 16

6624 HS NK 16

6624-12FW 33

6624-12LW 27

6624-12WT 45

6624-4XSFW 37

6624-4XSWT 47

663 SC 51

663 SC NK 51

663 SCGV 51

663 SCGV NK 51

6636 G 9

6636 G NK 9

6636 GGV 9

6636 GGV NK 9

6636 GRT 43

6636 GRT NK 43

6636 GRTGV NK 43

6636 GTGV NK 41

6636 HS 16

6636 HS NK 16

6636-12FW 33

6636-12LW 27

6636-12WT 45

6636-4XSFW 37

6636-4XSWT 47

664 HC 54

664 HC NK 54

664 RHC 72

664 RTC 81

664 RTHC 58

664 RTHC NK 58

664 RTSC 57

664 RTSC NK 57

664 RTSCGV 57

664 RTSCGV NK 57

664 SC 51

664 SC NK 51

664 SCG 61

664 SCGV 51

664 SCGV NK 51

664-SDF 265

664-SDFQR 267

664-SDFQRCC 269

664 WPSC 63

664-1 65

664-12CHC 93

664-12CHQRC 99

664-12CHSC 97

664-12LC 91

664-12SC 95

664-4CHC 141

664-4LC 139

664-4QT 143

664-4XACHC 199

664-4XALC 195

664-4XFCHQRC 261

664-4XFCHQRCW 263

664-4XFCHSC 259

664-4XFLC 257

664-4XSCHC 197

664-4XSLC 193

664-4XSQT 201

664-4XSS6CHC 197

664-4XSS6LC 193

664-FTC 103

6644-12FRC 34

6644-12FRE 34

6644-12LR 30

6644-4XSFRC 38

6644-4XSFRE 38

6645 HSL COMBO 19

6645 HSL SIDE 19

6645 L COMBO 14

6645 L COMBOGV 14

6645 L SIDE 14

6648 G 9

6648 G NK 9

6648 GGV 9

6648 GGV NK 9

6648 GRT 43

6648 GRT NK 43

6648 GRTGV NK 43

6648 GTGV NK 41

6648 HS 16

6648 HS NK 16

6648-12FW 33

6648-12LW 27

6648-12WT 45

6648-4XSFW 37

6648-4XSWT 47

666 HC 54

666 HC NK 54

666 RTSC 57

666 RTSC NK 57

666 RTSCGV 57

666 RTSCGV NK 57

666 SC 52

666 SC NK 52

666 SCG 61

666 SCGV 52

666 SCGV NK 52

666 WPSC 63

6660 G 9

6660 G NK 9

6660 GGV 9

6660 GGV NK 9

6660 GRT 43

6660 GRT NK 43

6660 GRTGV NK 43

6660 GTGV NK 41

6660 HS 16

6660 HS NK 16

6660-3RHS NK 22

6660-3RAHS NK 22

6660-12FW 33

6660-12LW 27

6660-12WT 45

6660-4XSFW 37

6660-4XSWT 47

Catalog Page

Number Number

Catalog Page

Number Number

Catalog Page

Number Number

Electrical Enclosures

Index

490

Index

6672 G 9

6672 G NK 9

6672 GGV 9

6672 GGV NK 9

6672 GRT 43

6672 GRT NK 43

6672 GRTGV NK 43

6672 GTGV NK 41

6672 HS 16

6672 HS NK 16

6672-12WT 45

6672-4XSWT 49

6688 FR 12, 17

6688-3RSCR 24

6688-3RASCR 24

6696 GRT NK 43

7MSLK 158, 214, 414

7MT4SLKB 417

7MT4TLKB 417

7MTLK 158, 214, 414

7MT1SLK 414

7MT1TLK 414

7.5 BAP 445

722418-12FS 115

722418-4FS3PT 175

722418-4FSQT 172

722418-4XSFQT 230

722418-4XSFS3PT 233

722424-12FS 115

722424-12FSDA 116

722424-4FS3PT 175

722424-4XSFS3PT 233

722424-4XSFDA3PT 235

722430-12FS 115

722430-12FSDA 116

722430-4XSFDA3PT 235

722436-12FSDA 116

722436-4XSFDA3PT 235

722518-4FS 171

722518-4XSFS 229

722518-4XSS6FS 229

722524-4FS 171

722524-4XSFS 229

722524-4XSS6FS 229

723016-12 107

723018-12FS 115

723018-4FS3PT 175

723018-4XSFS3PT 233

723020-12 107

723024-12 107

723024-12FS 115

723024-12FSDA 116

723024-4FS3PT 175

723024-4FSQT 172

723024-4XSFS3PT 233

723024-4XSFSDA3PT 235

723024-4XSFSQT 230

723118-4FS 171

723118-4XSFS 229

723118-4XSS6FS 229

723124-4FS 171

723124-4XSFS 229

723124-4XSS6FS 229

723612-12 107

723618-12FS 115

723618-4FS3PT 175

723618-4XFFS 281

723618-4XSFS3PT 233

723624-12FS 115

723624-12FSDA 116

723624-4FS3PT 175

723624-4FSQT 172

723624-4XFFS 281

723624-4XSFS3PT 233

723624-4XSFSDA3PT 235

723624-4XSFSQT 230

723630-12FS 115

723630-4FS3PT 175

723630-4XSFS3PT 233

723636-12FS 115

723636-12FSDA 116

723636-4FS3PT 175

723636-4XSFS3PT 233

723636-4XSFSDA3PT 235

723718-4FS 171

723718-4XSFS 229

723718-4XSS6FS 229

723724-4FS 171

723724-4XSFS 229

723724-4XSS6FS 229

724818-12FSD 118

724818-4XFFSD 283

724818-4XSFSD3PT 237

724824-12FSD 118

724824-12FSDDA 119

724824-4XSFSD3PT 237

724824-4XSFSDDA3PT 239

726010-12FD 112

726012-12FD 112

726012-4FDQT 166

726012-4XSFDQT 224

726016-12FD 112

726018-12FSD 118

726018-4XSFDQT 224

726018-4XSFSD3PT 237

726020-12FD 112

726024-12FD 112

726024-12FSD 118

726024-12FSDDA 119

726024-4XSFSD3PT 237

726024-4XSFSDDA3PT 239

726036-12FSD 118

726036-12FSDDA 119

726036-4XSFSD3PT 237

726036-4XSFSDDA3PT 239

727210-12FD 112

727212-12FD 112

727212-4FDQT 166

727212-4XSFDQT 224

727216-12FD 112

Catalog Page

Number Number

Catalog Page

Number Number

Catalog Page

Number Number

Electrical Enclosures

Index

491

727218-12FSD 118

727218-4XFFSD 283

727218-4XSFDQT 224

727218-4XSFSD3PT 237

727220-12FD 112

727224-12FD 112

727224-12FSD 118

727224-12FSDDA 119

727224-4FDQT 166

727224-4XSFDQT 224

727224-4XSFSD3PT 237

727224-4XSFSDDA3PT 239

746012-4FD 164

746012-4FD3PT 168

746012-4XAFD 222

746012-4XSFD 220

746012-4XSFD3PT 226

746012-4XSS6FD 220

746012-4XSS6FD3PT 226

747212-4FD 164

747212-4FD3PT 168

747212-4XAFD 222

747212-4XSFD 220

747212-4XSFD3PT 226

747212-4XSS6FD 220

747212-4XSS6FD3PT 226

747224-4FD 164

747224-4FD3PT 168

747224-4XAFD 222

747224-4XSFD 220

747224-4XSFD3PT 226

747224-4XSS6FD 220

747224-4XSS6FD3PT 226

763-4XFSC 273

8TB 436

8TS 435

82AMK 159, 215

832-4XFSC 271

84AMK 159, 215

84033 450

84034 450

844-4XFSC 271

86 SCF 53

86TB 436

86TS 435

8611214-12FS 134

8615014-12FS 135

8618714-12FS 136

863 SC 51

863 SC NK 51

863 SCGV 51

863 SCGV NK 51

863.5-12CHC 93

863.5-12CHQRC 99

863.5-12LC 91

863.5-12SC 95

863.5-4CHC 141

863.5-4LC 139

863.5-4QT 143

863.5-4XSQT 201

864-FTC 103

864 HC 54

864 HC NK 54

864 RHC 72

864 RTHC 58

864 RTHC NK 58

864 RTSC 57

864 RTSC NK 57

864 SC 51

864 SC NK 51

864 SCG 61

864 SCGV 51

864 SCGV NK 51

864-SDF 265

864-SDFQR 267

864-SDFQRCC 269

864 WPSC 63

864-1 65

864-12CHSC 97

864-4QT 143

864-4XACHC 199

864-4XALC 195

864-4XFCHQRC 261

864-4XFCHQRCW 263

864-4XFCHSC 259

864-4XFLC 257

864-4XSCHC 197

864-4XSLC 193

864-4XSQT 201

864-4XSS6CHC 197

864-4XSS6LC 193

866 RTSC 57

866 RTSC NK 57

866 SC 52

866 SC NK 52

866 SCGV 52

866 SCGV NK 52

866-1 65

866-12CHC 93

866-12CHSC 97

866-12SC 95

866-4QT 143

866-4XSQT 201

88 C 11

88 E 11

88 E NK 11

88 EGV 11

88 EGV NK 11

88 FH 12, 18

88 FL IN 13

88 FL OUT 13

88 FL SIDE 13

88 FTF 11, 17

88 FTFGV 11

88 GF 11

88 GFGV 11

88 HSC 17

88 HSCA 17

88 HSCU 17

88 HSE 17

Catalog Page

Number Number

Catalog Page

Number Number

Catalog Page

Number Number

Electrical Enclosures

Index

492

Index

88 HSE NK 17

88 HSF 18

88 HSL IN 19

88 HSL OUT 19

88 HSL SIDE 19

88 HST 20

88 HSX 20

88 L COMBO 13

88 L COMBOGV 13

88 L SIDE 13

88 L SWEEP 13

88 L SWEEPGV 13

88 LTX 12

88 LTXGV 12

88 SCF 53

88 SCS 53

88 T 14

88 TCF 80

88 TCS 80

88 TGV 14

88 WB 407

88 X 14

88 XGV 14

88-3RAHSC 22

88-3RAHSE NK 23

88-3RAHSF 23

88-3RAHSL SIDE 23

88-3RAHST 23

88-3RAHSXJ 24

88-3RAHSXS 24

88-3RBKA 24

88-3RASCX 23

88-3RHSC 22

88-3RHSE NK 23

88-3RHSF 23

88-3RHSL SIDE 23

88-3RHST 23

88-3RHSXJ 24

88-3RHSXS 24

88-3RSCX 23

88-12BH 35

88-12BK 12, 18, 24, 31, 34

88-12DH 35

88-12FBC 34

88-12FC 35

88-12FCF 34

88-12FCP 34

88-12FE45 35

88-12FE9 35

88-12FFF 35

88-12FGK 34

88-12FN1 34

88-12FN2 34

88-12FN3 34

88-12FN6 34

88-12FT 35

88-12FTF 33

88-12LAFW 30

88-12LAHM 30

88-12LAHW 30

88-12LASD 30

88-12LBC 31

88-12LBH 31

88-12LC 30

88-12LCF 27

88-12LCP 31

88-12LDH 31

88-12LE15A 29

88-12LE45A 29

88-12LE45B 29

88-12LE45C 29

88-12LE9A 28

88-12LE9AC 28

88-12LE9B 28

88-12LE9C 28

88-12LE9TC 28

88-12LE9TCC 28

88-12LJB 30

88-12LN1 28

88-12LN2 28

88-12LN3 28

88-12LSP 31

88-12LTA 29

88-12LTC 29

88-12LTF 27

88-12LTSC 27

88-12LTSCC 27

8804-12LW 27

8806-12LW 27

881010 FR 12, 17

8812 G 9

8812 G NK 9

8812 GGV 9

8812 GGV NK 9

8812 GRT 43

8812 GRT NK 43

8812 GRTGV NK 43

8812 HS 16

8812 HS NK 16

8812-12FW 33

8812-12LW 27

8812-12WT 45

8812-3RHS NK 22

8812-3RAHS NK 22

88120 G 9

88120 G NK 9

88120 GGV 9

88120 GGV NK 9

88120 GRT NK 43

88120 GRTGV NK 43

88120 HS 16

88120 HS NK 16

88120-12FW 33

88120-12LW 27

88120-3RHS NK 22

88120-3RAHS NK 22

8818 G 9

8818 G NK 9

8818 GGV NK 9

8818 GRT 43

Catalog Page

Number Number

Catalog Page

Number Number

Catalog Page

Number Number

Electrical Enclosures

Index

493

8818 GRT NK 43

8824 G 9

8824 G NK 9

8824 GGV 9

8824 GGV NK 9

8824 GRT 43

8824 GRT NK 43

8824 GRTGV NK 43

8824 GTGV NK 41

8824 HS 16

8824 HS NK 16

8824-12FW 33

8824-12LW 27

8824-12WT 45

8836 G 9

8836 G NK 9

8836 GGV 9

8836 GGV NK 9

8836 GRT 43

8836 GRT NK 43

8836 GRTGV NK 43

8836 GTGV NK 41

8836 HS 16

8836 HS NK 16

8836-12FW 33

8836-12LW 27

8836-12WT 45

884 HC 54

884 HC NK 54

884 RHC 72

884 RTC 81

884 RTHC 58

884 RTHC NK 58

884 RTSC 57

884 RTSC NK 57

884 RTSCGV 57

884 RTSCGV NK 57

884 SC 51

884 SC NK 51

884 SCG 61

884 SCGV 51

884 SCGV NK 51

884-SDF 265

884-SDFQR 267

884-SDFQRCC 269

884 TCF 80

884 TCS 80

884 WPSC 63

884-1 65

884-12CHC 93

884-12CHSC 97

884-12LC 91

884-12SC 95

884-4QT 143

884-4XALC 195

884-4XFCHQRC 261

884-4XFCHSC 259

884-4XFLC 257

884-4XSCHC 197

884-4XSLC 193

884-4XSS6CHC 197

884-4XSS6LC 193

8845 HSL COMBO 19

8845 HSL SIDE 19

8845 L COMBO 14

8845 L COMBOGV 14

8845 L SIDE 14

8848 G 9

8848 G NK 9

8848 GGV 9

8848 GGV NK 9

8848 GRT 43

8848 GRT NK 43

8848 GRTGV NK 43

8848 GTGV NK 41

8848 HS 16

8848 HS NK 16

8848-12FW 33

8848-12LW 27

8848-12WT 45

886 HC 54

886 HC NK 54

886 RHC 72

886 RTSC 57

886 RTSC NK 57

886 RTSCGV 57

886 RTSCGV NK 57

886 SC 52

886 SC NK 52

886 SCG 61

886 SCGV 52

886 SCGV NK 52

886 WPSC 63

886-1 65

886-12CHC 93

886-12CHSC 97

886-4QT 143

8860 G 9

8860 G NK 9

8860 GGV 9

8860 GGV NK 9

8860 GRT 43

8860 GRT NK 43

8860 GRTGV NK 43

8860 GTGV NK 41

8860 HS 16

8860 HS NK 16

8860-12FW 33

8860-12LW 27

8860-12WT 45

8866-12FRC 34

8866-12FRE 34

8866-12LR 30

8860-3RHS NK 22

8860-3RAHS NK 22

8872 G 9

8872 G NK 9

8872 GGV 9

8872 GGV NK 9

8872 GRT 43

Catalog Page

Number Number

Catalog Page

Number Number

Catalog Page

Number Number

Electrical Enclosures

Index

494

Index

8872 GRT NK 43

8872 GRTGV NK 43

8872 GTGV NK 41

8872 HS 16

8872 HS NK 16

8872-12WT 45

888 SC 52

888 SC NK 52

888 SCGV 52

888 SCGV NK 52

8896 GRT NK 43

8896 GRTGV NK 43

902420-12FS 115

902420-4XSFS3PT 233

903620-12FS 115

903620-4XSFS3PT 233

903624-12FS 115

903624-12FSDA 116

903624-4XSFS3PT 233

903624-4XSFSDA3PT 235

903636-12FS 115

903636-12FSDA 116

903636-4XFFS 281

903636-4XSFS3PT 233

903636-4XSFSDA3PT 235

904820-12FSD 118

904820-4XSFSD3PT 237

907220-12FSD 118

907220-4XSFSD3PT 237

907224-12FSD 118

907224-12FSDDA 119

907224-4XSFSD3PT 237

907224-4XSFSDDA3PT 239

907236-12FSD 118

907236-4XSFSD3PT 237

932-4XFSC 271

963-4XFSC 273

AC-1224B 358

AC-1224T 358

AC-1224W 358

AC-1236B 358

AC-1236T 358

AC-1236W 358

AC-1248B 358

AC-1248T 358

AC-1248W 358

AC-12C12 354

AC-12C12SS 354

AC-12C16 354

AC-12C16SS 354

AC-12C20 354

AC-12C20SS 354

AC-12C24 354

AC-12C24SS 354

AC-1424B 362, 366, 367

AC-1424HP 366

AC-1424P 366

AC-1424SWP 367

AC-1424T 362

AC-1424W 362

AC-1436B 362, 366, 367

AC-1436HP 366

AC-1436P 366

AC-1436SWP 367

AC-1436T 362

AC-1436W 362

AC-1448B 362, 366

AC-1448HP 366

AC-1448P 366

AC-1448T 362

AC-1448W 362

AC-1460B 362, 366

AC-1460HP 366

AC-1460P 366

AC-1460T 362

AC-1460W 362

AC-1472B 362, 366

AC-1472P 366

AC-1472T 362

AC-1472W 362

AC-16C16 354

AC-16C16SS 354

AC-16C20 354

AC-16C20SS 354

AC-16C24 354

AC-16C24SS 354

AC-16C30 354

AC-16C30SS 354

AC-16C36 354

AC-16C36SS 354

AC-1818BASE 446

AC-20C20 354

AC-20C20SS 354

AC-20C24 354

AC-20C24SS 354

AC-20C30 354

AC-20C30SS 354

AC-2424BASE 446

AC-44ACOL 446

AC-44COL 446

AC-66ACOL 446

AC-66COL 446

AC-8C12 354

AC-8C12SS 354

AC-8C16 354

AC-8C16SS 354

AC-8C20 354

AC-8C20SS 354

AC-8C8 354

AC-8C8SS 354

AC-924B 356

AC-936B 356

AF6018SP 123, 181, 245

AF6024HP 120, 178, 242

AF6024HSWP 124,125,182,183,246,247

AF6024P 120, 178, 242

AF6024SWP 124,125,182,183,246,247

AF6036HP 120, 178, 242

AF6036HSWP 124, 182, 246

AF6036P 120, 178, 242

Catalog Page

Number Number

Catalog Page

Number Number

Catalog Page

Number Number

Electrical Enclosures

Index

495

AF6036SWP 124, 182, 246

AF6048HP 122, 180, 244

AF6048P 121, 179, 243

AF6060P 121, 179, 243

AF60CPS 123, 181, 245

AF7218SP 123, 181, 245

AF7224HP 120, 178, 242

AF7224HSWP 124,125,182,183,246,247

AF7224P 120, 178, 242

AF7224SP 123, 181, 245

AF7224SWP 124,125,182,183,246,247

AF7230HP 120, 178, 242

AF7230HSWP 124,125,182,183,246,247

AF7230P 120, 178, 242

AF7230SWP 124,125,182,183,246,247

AF7236HP 120, 178, 242

AF7236HSWP 124,125,182,183,246,247

AF7236P 120, 178, 242

AF7236SWP 124,125,182,183,246,247

AF7248HP 122, 180, 244

AF7248P 121, 179, 243

AF7260HP 122, 180, 244

AF7260P 121, 179, 243

AF7272HP 122, 180, 244

AF7272P 121, 179, 243

AF72CPS 123, 181, 245

AF9018SP 123, 245

AF9024HP 120, 242

AF9024HSWP

124, 125, 246, 247

AF9024P 120, 242

AF9024SP 123, 245

AF9024SWP

124, 125, 246, 247

AF9036HP 120, 242

AF9036HSWP

124, 125, 246, 247

AF9036P 120, 242

AF9036SWP

124, 125, 246, 247

AF9048HP 122, 244

AF9048P 121, 243

AF9072HP 122, 244

AF9072P 121, 243

AF90CPS 123, 245

AFCBRKT3 126, 184, 248

AFCMH3

126, 184, 248, 368

AFPSUP2 126, 184, 248

AFSBRKT1

126, 184, 248, 368

AP-ABFD 445

AP-ABV 445

AP-CH 445

AP-GE 445

AP-ITE 445

AP-SD 445

AP-WAMT 445

AP-WSM 445

AW1010P (AP, GP, SP) 400

AW1010PP 403

AW108P (AP, GP, SP) 290, 400

AW108PP 403

AW1210P (AP, GP, SP) 290, 400

AW1210PP 403

AW1212P (AP, GP, SP) 290, 400

AW1212PP 403

AW126P 400

AW126PP 403

AW1412P (AP, GP, SP) 290, 400

AW1412PP 403

AW147P (AP, GP, SP) 290

AW148P 400

AW148PP 403

AW1610P 400

AW1610PP 403

AW1612P (AP, GP, SP) 402

AW1612-1P 402

AW1612-1PP 404

AW1614P (AP, GP, SP) 290, 400

AW1614PP 403

AW1616P (AP, GP, SP) 402

AW1616-1P 402

AW1616-1PP 404

AW1620-1P 402

AW1620-1PP 404

AW1816P (AP, GP, SP) 290

AW2012P 402

AW2016P (AP, GP, SP) 290, 402

AW2016PJ (AP, SP) 290

AW2016-1P 402

AW2016-1PP 404

AW2020P (AP, GP, SP) 402

AW2020-1P 402

AW2020-1PP 404

AW2024-1P 402

AW2024-1PP 404

AW2412P (AP, GP, SP) 290, 402

AW2416P (AP, GP, SP) 402

AW2416-1P 402

AW2416-1PP 404

AW2420P (AP, GP, SP) 405

AW2420-1P 402

AW2420-1PP 404

AW2424P (AP, GP, SP) 290, 405

AW2424-1P 402

AW2424-1PP 404

AW3016P (AP, GP, SP) 405

AW3020P (AP, GP, SP) 405

AW3020-1P 402

AW3020-1PP 404

AW3024P (AP, GP, SP) 405

AW3024-1P 402

AW3024-1PP 404

AW3030P (AP, GP, SP) 405

AW3030-1P 402

AW3030-1PP 404

AW3624P (AP, GP, SP) 405

AW3624-1P 402

AW3624-1PP 404

AW3630P (AP, GP, SP) 405

AW3630-1P 402

AW3630-1PP 404

AW3636P (SP) 405

AW4224-1P 402

AW4224-1PP 404

Catalog Page

Number Number

Catalog Page

Number Number

Catalog Page

Number Number

Electrical Enclosures

Index

496

Index

AW4224P 405

AW4230P (AP, GP, SP) 405

AW4236P (AP, GP, SP) 405

AW4242P 405

AW4824P 405

AW4830P (GP, SP) 405

AW4836P (AP, GP, SP) 405

AW4842P (AP, GP, SP) 405

AW4848P 405

AW5442P 406

AW6030P 405

AW6036P (AP, GP, SP) 405

AW6042P 405

AW6048P (AP, SP) 406

AW6060P (AP, SP) 406

AW64P (AP, GP, SP) 290, 400

AW64PP 403

AW66P (AP, GP, SP) 290, 400

AW66PP 403

AW7230P 405

AW7236P 405

AW7260P (AP, SP) 406

AW7272P (AP, SP) 406

AW76P (AP, GP, SP) 290

AW86P (AP, GP, SP) 290, 400

AW86PP 403

AW88P (AP, GP, SP) 290, 400

AW88PP 403

AW96P 290

AWF2420P (AP, SP) 290

AWF2424P (AP, SP) 290

AWF3020P (AP, SP) 290

AWF3024P (AP, SP) 290

AWF3622P (AP, SP) 290

AWF3630P (AP, SP) 290

AWF4836P (AP, SP) 291

AWF6036P (AP, SP) 291

AWF7221P (AP, SP) 291

AWF7224P (AP, SP) 291

AWF7233P (AP, SP) 291

AWF7236P (AP, SP) 291

AWF9036P (AP, SP) 291

BAEK115 442

BAEK115NDH 442

BAEKDF 442

BK412 433

BK415 433

BK418 433

BK424 433

BK430 433

BK436 433

BK448 433

BK612 433

BK615 433

BK618 433

BK624 433

BK630 433

BK636 433

BK648 433

BLVC 292

BV4X 292

BP23 431

BP33 431

BP34 431

BP43 431

BP44 431

BP64 431

BP66 431

BP812 431

BP84 431

BP86 431

BP88 431

CARRY HANDLE 293

CD604812-12FD 308

CD606012-12FD 308

CD726012-12FD 308

CD727212-12FD 308

CD727218-12FD 308

CE6001 368, 438

CT6005 368, 438

CTB3005 368, 438

CTC2 368, 438

CTE3001 368, 438

DSC20228 300

DSC20228SS4 300

DSC20228SS6 300

DSC24228 300

DSC24228SS4 300

DSC24228SS6 300

DSC24268 300

DSC24268SS4 300

DSC24268SS6 300

DSC30268 300

DSC30268SS4 300

DSC30268SS6 300

DSC36268 300

DSC36268SS4 300

DSC36268SS6 300

DSC36328 300

DSC36328SS4 300

DSC36328SS6 300

DSC423212 300

DSC423212SS4 300

DSC423212SS6 300

DSC423812 300

DSC423812SS4 300

DSC423812SS6 300

DSC483812 300

DSC483812SS4 300

DSC483812SS6 300

DSC603812 300

DSC603812SS4 300

DSC603812SS6 300

DK12A 432

DK12SS 432

DK16A 432

DK16SS 432

DK20A 432

DK20SS 432

DK24A 432

Catalog Page

Number Number

Catalog Page

Number Number

Catalog Page

Number Number

Electrical Enclosures

Index

497

DK24SS 432

DK30A 432

DK30SS 432

DK36A 432

DK36SS 432

DSTOPK 412

DV 292

DV4X 292

E2-MA-1032-PHMS-100 159, 188, 215, 252

E2-MA-1224-PHMS-100 159, 188, 215, 252

E2-MA-CN-1032-100 159, 188, 215, 252

E2-MA-CN-1224-100 159, 188, 215, 252

E2-MA-CN-M6-100 159, 188, 215, 252

E2-MA-M6-PHMS-100 159, 188, 215, 252

E2-PS-2.5F-6P-15A-L 443

E2-PS-2.5F-6P-15A-S 443

E2-PS-2.5F-6P-20A-L 443

E2-PS-3.5F-6P-15A-L 443

E2-PS-3.5F-6P-15A-S 443

E2-PS-3.5F-6P-20A-L 443

E2-PS-5F-10P-15A-L 443

E2-PS-5F-10P-15A-S 443

E2-PS-5F-10P-20A-L 443

E2-PS-6F-12P-15A-L 443

E2-PS-6F-12P-15A-S 443

E2-PS-6F-12P-20A-L 443

E2-PS-RM-6P-15A-NS 443

E2-PS-RM-6P-15A-SS 443

ECMD1 434

EFH100-120 397

EFH150-120 397

EFH200-120 397

EFH300-120 397

EFH400-120 397

EFHT550F-120 395

EFHT650F-120 395

EH100 396

EH15 396

EH150 396

EH30 396

EH45 396

EH60 396

EH75 396

EHTC120-F 398

ELMS25-120 441

ELMSRM25-120 441

ELS25-120 441

ENCAP2K 293

ENCAP4K 293

ER1 444

ER2 444

ER3 444

ER4 444

ER5 444

ES2 428

ES-48RMA-L 187, 251

ES-48RMA-U 187, 251

ES-48SORMF 188, 252

ES-60RMA-L 187, 251

ES-60RMA-U 187, 251

ES-60SORMF 188, 252

ES-604812-4 177

ES-604812-4XS 241

ES-604812-4XSS6 241

ES-604816-4 177

ES-604816-4XS 241

ES-604816-4XSS6 241

ES-604820-4 177

ES-604820-4XS 241

ES-604820-4XSS6 241

ES-604824-4 177

ES-604824-4XS 241

ES-604824-4XSS6 241

ES-606012-4 177

ES-606012-4XS 241

ES-606012-4XSS6 241

ES-606016-4 177

ES-606016-4XS 241

ES-606016-4XSS6 241

ES-606020-4 177

ES-606020-4XS 241

ES-606020-4XSS6 241

ES-606024-4 177

ES-606024-4XS 241

ES-606024-4XSS6 241

ES-72RMA-L 187, 251

ES-72RMA-U 187, 251

ES-72SORMF 188, 252

ES-726012-4 177

ES-726012-4XS 241

ES-726012-4XSS6 241

ES-726016-4 177

ES-726016-4XS 241

ES-726016-4XSS6 241

ES-726020-4 177

ES-726020-4XS 241

ES-726020-4XSS6 241

ES-726024-4 177

ES-726024-4XS 241

ES-726024-4XSS6 241

ES-727212-4 177

ES-727212-4XS 241

ES-727212-4XSS6 241

ES-727216-4 177

ES-727216-4XS 241

ES-727216-4XSS6 241

ES-727220-4 177

ES-727220-4XS 241

ES-727220-4XSS6 241

ES-727224-4 177

ES-727224-4XS 241

ES-727224-4XSS6 241

ES-90RMA-L 187, 251

ES-90RMA-U 187, 251

ES-90SORMF 188, 252

ES-SMFK6 253

ESTNC-F 398

ESTNO-F 398

FAS-412 430

FC412SS 425

Catalog Page

Number Number

Catalog Page

Number Number

Catalog Page

Number Number

Electrical Enclosures

Index

498

Index

FD202110-12 297

FD20218-12 297

FD242110-12 297

FD24218-12 297

FD242510-12 297

FD24258-12 297

FD302110-12 297

FD30218-12 297

FD302510-12 297

FD302512-12 297

FD30258-12 297

FD362510-12 297

FD36258-12 297

FD363110-12 297

FD363112-12 297

FD363116-12 297

FD36318-12 297

FD423110-12 297

FD423112-12 297

FD42318-12 297

FD423710-12 297

FD423712-12 297

FD42378-12 297

FD483710-12 297

FD483712-12 297

FD483716-12 297

FD48378-12 297

FD603710-12 297

FD603712-12 297

FD603712A-12 297

FD603716-12 297

FD60378-12 297

FD604912-12FD 308

FD604918-12FD 308

FD606112-12FD 308

FD606118-12FD 308

FD722718-12FS 321

FD723318-12FS 321

FD723918-12FS 321

FD725318-12FS 322

FD726112-12FD 308

FD726118-12FD 308

FD726518-12FS 322

FD727312-12FD 308

FD727318-12FD 308

FD727324-12FD 308

FD727718-12FS 322

FD727724-12FS 322

FD729918-12FS 323

FD8411718-12FS 323

FD8415718-12FS 324

FD8419618-12FS 325

FD843918-12FS 321

FD847718-12FS 322

FD9011724-12FS 323

FD903920-12FS 321

FD903924-12FS 321

FD907720-12FS 322

FD907724-12FS 322

FE6001 368, 439

FLT33 430

FLT34 430

FLT43 430

FLT44 430

FLT64 430

FLT66 430

FLT812 430

FLT84 430

FLT86 430

FLT88 430

FLWK133 411

FLWK52 411

FLWK96 411

FSHELF12 427

FSHELF18 427

FT6005 368, 439

FTB3005 368, 439

FTE3001 368, 439

GLK2 449

GP610 427

GP618 427

GS416 449

GS48 449

GS816 449

GS88 449

HWK1212 412

HWK1612 412

HWK2016 412

HWK2020 412

HWK2420 412

HWK3024 412

J12CK2 424

J4XCK2 424

JICSPK 408

K2A4C1.2MML 375

K2A4C2RP17R 381

K2A4C2.0NP17L 377

K2A4C3RP28R 381

K2A4C4HTL 380

K2A4C4NP33L 378

K2A4C4RP33R 381

K2A4C6RP36R 381

K2A4C7NP47L 379

K2NA4C10P38L 384

K2NA4C10P47L 384

K2NA4C10P59L 384

K2NA4C4P32L 384

K2NA4C7P38L 384

K2NA4C7P47L 384

K2NA4C7P59L 384

K2P500A 390

K2P500B 390

K2P100 392

K2P40 392

K2P529A 393

K2P529B 393

K2P529C 393

K2P529D 393

K2P60 392

K2P875A 390

Catalog Page

Number Number

Catalog Page

Number Number

Catalog Page

Number Number

Electrical Enclosures

Index

499

K2P875B 390

K2XHE120A 388

K2XHE125A 388

KA4C1.0MML 375

KA4C2RP17R 381

KA4C2.0NP17L 377

KA4C3RP28R 381

KA4C4HTL 380

KA4C4NP33L 378

KA4C4RP33R 381

KA4C7NP47L 379

KA4C6RP36R 381

KFG525-19 393

KFG875-19 393

KNA4C4P32L 384

KNA4C7P38L 384

KNA4C7P47L 384

KNA4C7P59L 384

KP100 392

KP40 392

KP500A 390

KP500B 390

KP529A 393

KP529B 393

KP529C 393

KP529D 393

KP60 392

KP875A 390

KP875B 390

KXHE120A 388

KXHE125A 388

L23 424

L23SS 424

LPKF 293

LPK23 429

LPK33 429

LPK34 429

LPK43 429

LPK44 429

LPK64 429

LPK66 429

LPK812 429

LPK84 429

LPK86 429

LPK88 429

M7218-12FBK 132, 330

M7218-12FEK 132, 330

M7218-12FGK 132, 330

M723818-12FS 130

M727718-12FS 131

M8418-12FBK 132, 330

M8418-12FEK 132, 330

M8418-12FGK 132, 330

M8424-12FBK 132, 330

M8424-12FEK 132, 330

M8424-12FGK 132, 330

M843818-12FS 130

M843824-12FS 130

M847718-12FS 131

M847724-12FS 131

MFD723918-12FS 328

MFD727818-12FS 329

MFD843918-12FS 328

MFD843924-12FS 328

MFD847818-12FS 329

MFD847824-12FS 329

MFK10 428

MFK10XS 428

MFK12 189, 428

MFK12XS 253, 428

MFK16 189, 428

MFK16XS 253, 428

MFK20 189, 428

MFK20XS 253, 428

MFK24 189, 428

MFK24XS 253, 428

MFK8 428

MFK8XS 428

MTGFTKITSD 294

N1010P 400

N1010PP 403

N108P 400

N108PP 403

N1210P 400

N1210PP 403

N1212P 400

N1212PP 403

N12CK2 425

N1412P 400

N1412PP 403

N1612P 401

N1616P 401

N1818P 401

N2012P 400

N2012PP 403

N2016P 401

N2020P 401

N2420P 401

N2424P 401

N3024P 401

N3030P 401

N3624P 401

N3630P 401

N3636P 401

N4230P 401

N4236P 401

N4830P 401

N4836P 401

N4XCK2 425

N6036P 401

N624-20 450

N627-20 450

N66P 400

N66PP 403

N86P 400

N86PP 403

N88P 400

N88PP 403

NSPK 409

PB1 (SS, SS6) 343

Catalog Page

Number Number

Catalog Page

Number Number

Catalog Page

Number Number

Electrical Enclosures

Index

500

Index

PB12 (SS, SS6) 343

PB12B 347

PB16 343

PB16B 347

PB1B 347

PB1M (SS) 343

PB2 (SS, SS6) 343

PB2B 347

PB2M (SS) 343

PB20 343

PB20B 347

PB25 343

PB25B 347

PB3 343

PB30B 347

PB4 343

PB4B 347

PB4F 289

PB6 (SS, SS6) 343

PB6B 347

PB6F 289

PB9 (SS, SS6) 343

PB9B 347

PB9F 289

PBC12 351

PBC16 351

PBC2 351

PBC20 351

PBC25 351

PBC3 351

PBC4 351

PBC6 351

PBC8 351

PBC9 351

PBCS12 351

PBCS3 351

PBCS4 351

PBP12 349

PBP16 349

PBP20 349

PBP25 349

PBP30 349

PBP36 349

PBP4 349

PBP42 349

PBP6 349

PBP9 349

PBS3B 347

PBS4B 347

PBX10 345

PBX12 345

PBX16 345

PBX20 345

PBX25 345

PBX30 345

PBX36 345

PBX4 345

PBX6 345

PBX9 345

PCK4 154, 210

PLH 410

PLKJIC 426

PLKJICSS6 426

PS3 410

PS9 410

PV1F 285

PV1MF 287

PV10 343

PV2F 285

PV2MF 287

PV3 (SS, SS6) 343

PV3F 285

PV3MF 287

PV3M (SS) 343

PV4 (SS, SS6) 343

PV4F 285

PV4MF 287

PV4M (SS) 343

PV5 343

PV5F 285

PV5MF 287

PV6 343

PV6F 285

PV6MF 287

PV8 343

PVX1 (SS) 345

PVX2 (SS) 345

PVX3 (SS) 345

PVX4 (SS) 345

PWK133 (SS) 411

PWK138 (SS) 411

PWK1711 (SS) 411

PWK175 (SS) 411

PWK2315 (SS) 411

PWK2919 (SS) 411

PWK3523 (SS) 411

PWK53 (SS) 411

PWK95 (SS) 411

S050 (SS) 431

S050FG 293

S075 (SS) 431

S075FG 293

S100 (SS) 431

S100FG 293

S125 (SS) 431

S125FG 293

S150 (SS) 431

S150FG 293

S200 (SS) 431

S200FG 293

S250 (SS) 431

S250FG 293

S300 (SS) 431

S300FG 293

S350 (SS) 431

S350FG 293

S400 (SS) 431

S400FG 293

SEALC 450

SEALS 450

Catalog Page

Number Number

Catalog Page

Number Number

Catalog Page

Number Number

Electrical Enclosures

Index

501

SEALWN 450

SPB (SS) 431

SPBFG 293

SPBG (SS) 431

SPBGFG 293

SS2PK 293

SS4PK 293

T1EFL 413

T1KLBM 416

T12KLB 416

T4DLBM 416

T4KLTHB 417

T4KLWNB 416

T4KLWNBM 416

T4LDLB 416

T4PHSS 423

T4PKHB 422, 423

T4PLWNB 416

T4THB 417

T4WNB 416

T4WNBM 417

T4XDLSSM 417

T4XLDLSS 417

TN228-20 450

TSK 440

WMHK-01 158, 214, 419

WMHK-02 158, 214, 419

WMHK-03 158, 214, 419

WMHK-04 158, 214, 419

WMHNL 158, 214, 419

WMHPTO 158, 214, 419

WMKSS6 154, 210

Catalog Page

Number Number

Catalog Page

Number Number

Catalog Page

Number Number

Electrical Enclosures

502

Notes

SYSTEMS THAT MAKE SENSE

“B-VOCALSM

Questions, Comments, Suggestions?

with Cooper B-Line

”

Voice Of the Customer...Actively Listening

bvocal@cooperindustries.com

877-351-9450

“B-VOCALSM

Electrical Enclosures

NOTICE

Cooper B-Line reserves the right to change the specifications, materials, equipment, prices or the

availability of products at any time without prior notice. While every effort has been made to assure the

accuracy of information contained in this catalog at the time of publication, Cooper B-Line is not

responsible for inaccuracies resulting from undetected errors or omissions.

*ENC-12 Cover singles (2012) new_Layout 1 10/24/12 8:04 AM Page 3

Global Locations:

Cooper B-Line’s U.S. Customer Service Service Facility - Canada: Cooper B-Line - Saudi Arabia:

Center is staffed Monday through Friday from Cooper B-Line - Canada PO Box 70160 - Al Khobar - 31952

7 a.m. to 5:00 p.m. Central Standard Time. Div. of Cooper Ind. Canada, Inc. Kingdom of Saudia Arabia

If a situation requires that you have to contact 5925 McLaughlin Road Phone: 00966 3 812 2236

us after hours, please leave a message via Mississauga, ON L5R 1B8 Fax: 00966 3 812 1291

phone or E-mail so we can give it immediate Canada Email: blineme@cooperindustries.com

attention the following business day. Phone: (800) 569-3660

Fax: (888) 753-3355 Literature Fulfillment Questions:

Service Facility - United States: Email: blinecanada@cooperindustries.com Phone: (314) 426-1800

Cooper B-Line - USA Fax: (314) 426-6022

509 West Monroe Street Service Facility - Europe: Email: cooperbline@repcographics.com

Highland, IL 62249 Cooper B-Line, Ltd. - UK

United States Walrow, Highbridge Request Literature Website:

Phone: (800) 851-7415 Somerset, TA9 4AQ http://order.repcographics.com/cooperb/

Fax: (800) 356-1438 United Kingdom

Email: blineus@cooperindustries.com Phone: + 44 (0) 1278 783371

Fax: + 44 (0) 1278 789037

Email: sales@cooperbline.co.uk

Cooper B-Line

509 West Monroe Street

Highland, IL 62249

Phone: 800-851-7415

Fax: 800-257-4312

www.cooperbline.com/enclosures

Cooper US, Inc.

600 Travis, Ste. 5600

Houston, TX 77002-1001

Phone: 713-209-8400

www.cooperindustries.com

*ENC-12 Cover singles (2012) new_Layout 1 10/24/12 8:04 AM Page 4

Cooper B Line Electrical Enclosures Engineering Data & 88175 Catalog

Navigation menu

Versions of this User Manual:

Views

Navigation
