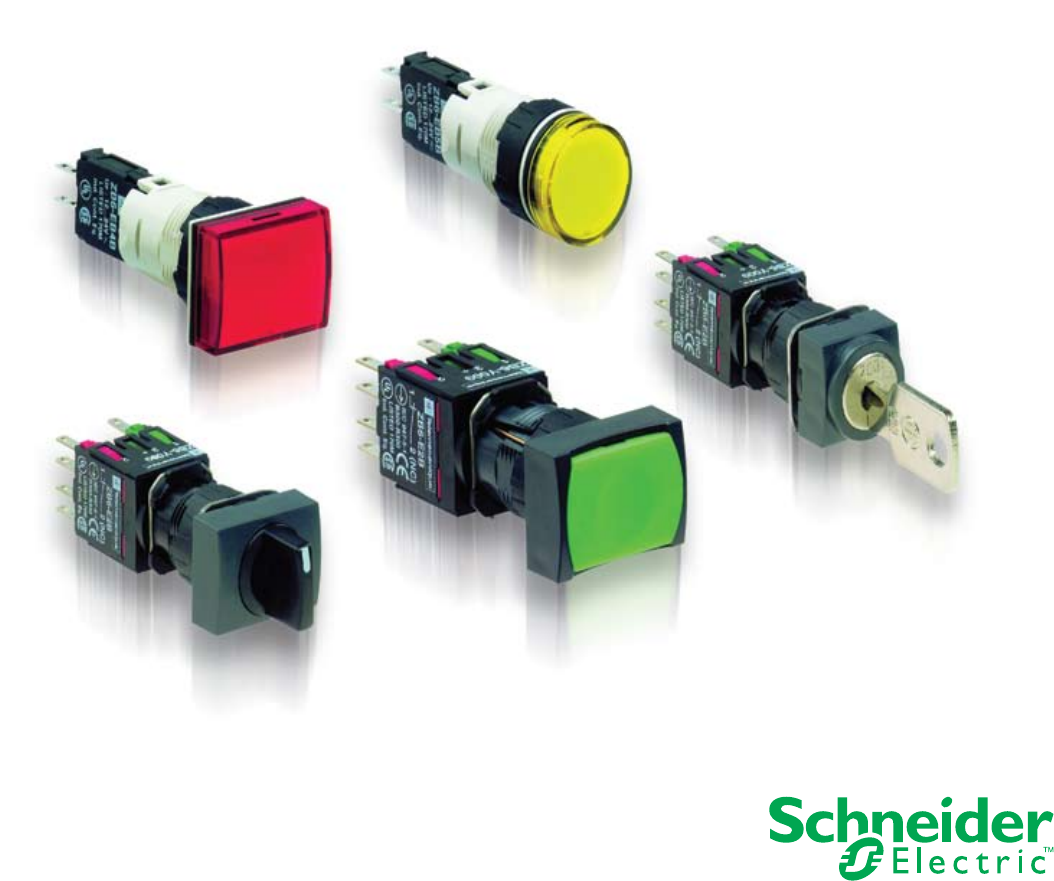

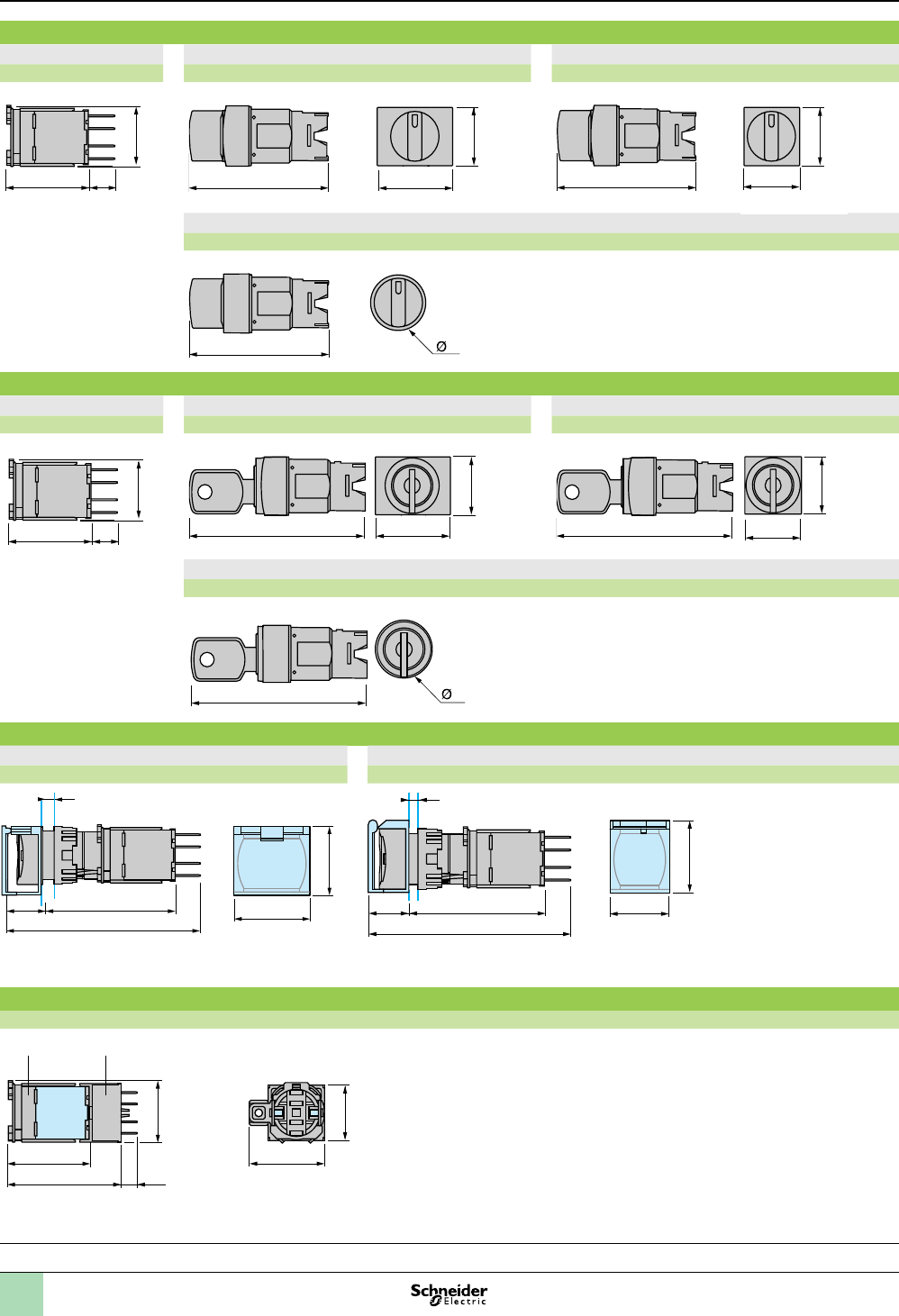

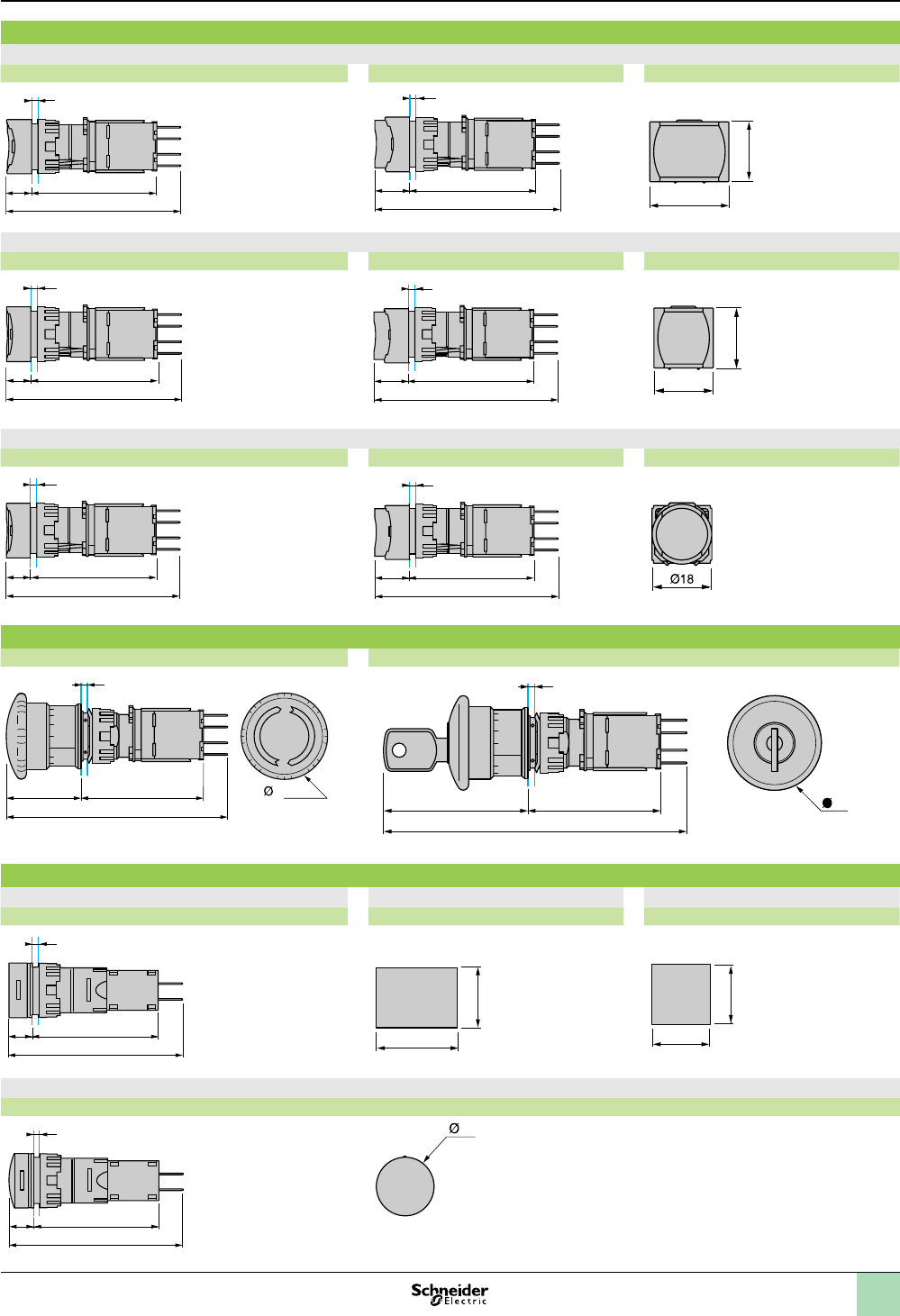

Harmony™ XB6/ZB6
16 mm push buttons
Catalog
2011
3
Contents Harmony™ XB6/ZB6
16 mm push buttons
Introduction .........................................4
Product range .......................................5
Specications ......................................10
Assembled products .................................12
References
Complete units
v .....................................15
Electrical components
v ................................18
Illuminated operators
v .................................19
Non-illuminated operators and selector switches
v ..............20
Keyed selector switches
v ...............................21
Accessories
v .......................................22

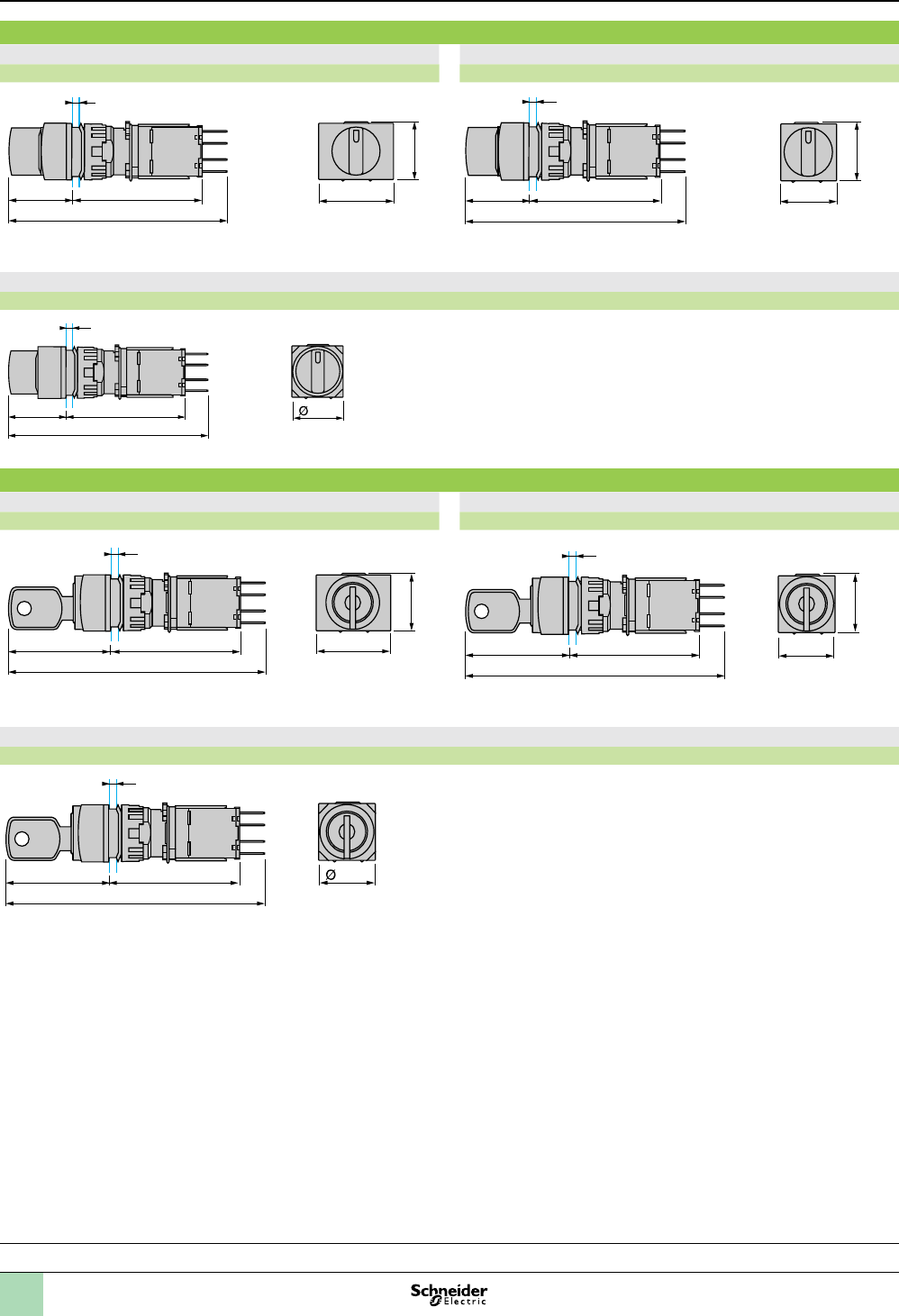

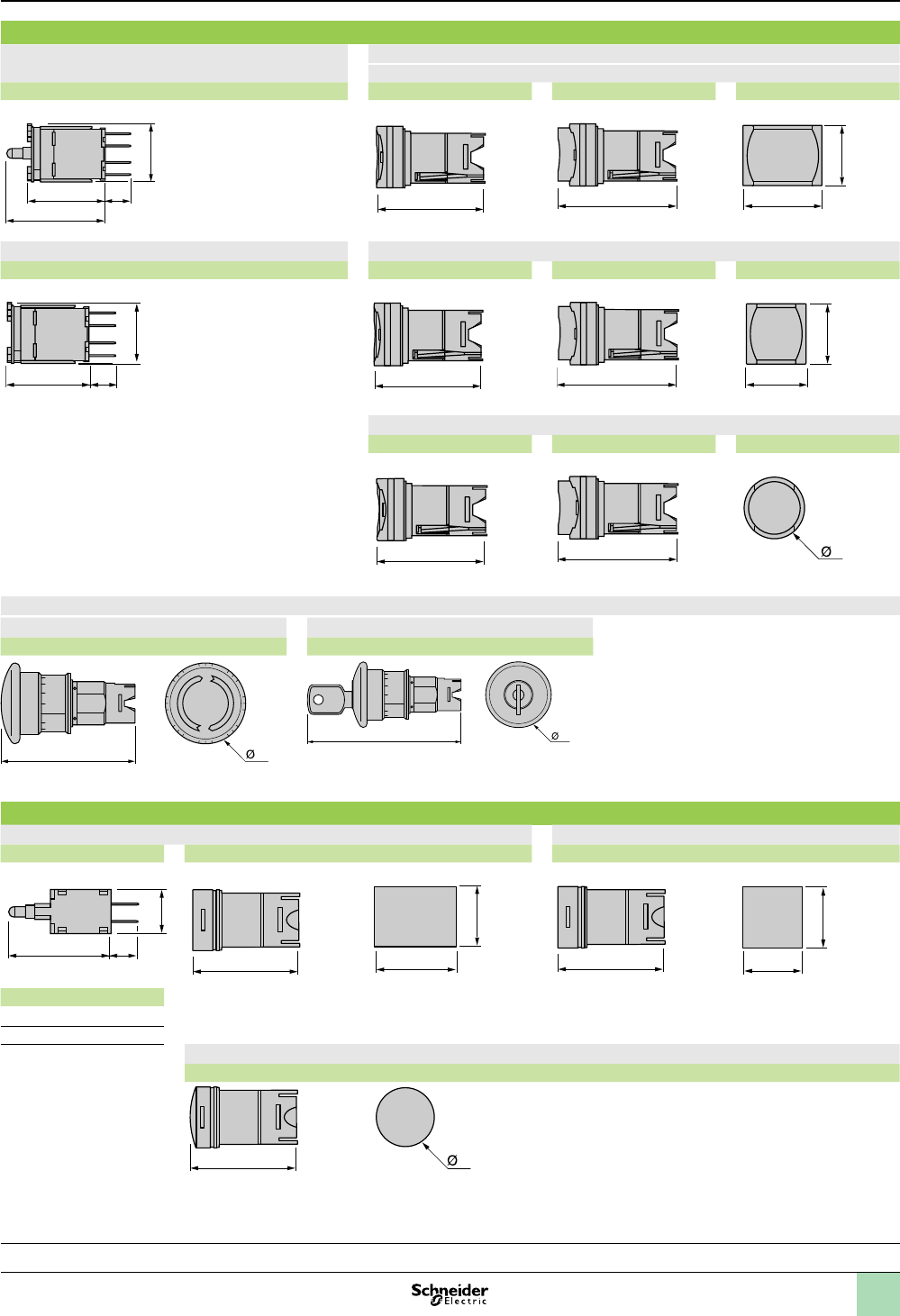

Dimensions ........................................25
Index ..............................................31
4
Harmony™ XB6/ZB6
16 mm push buttons

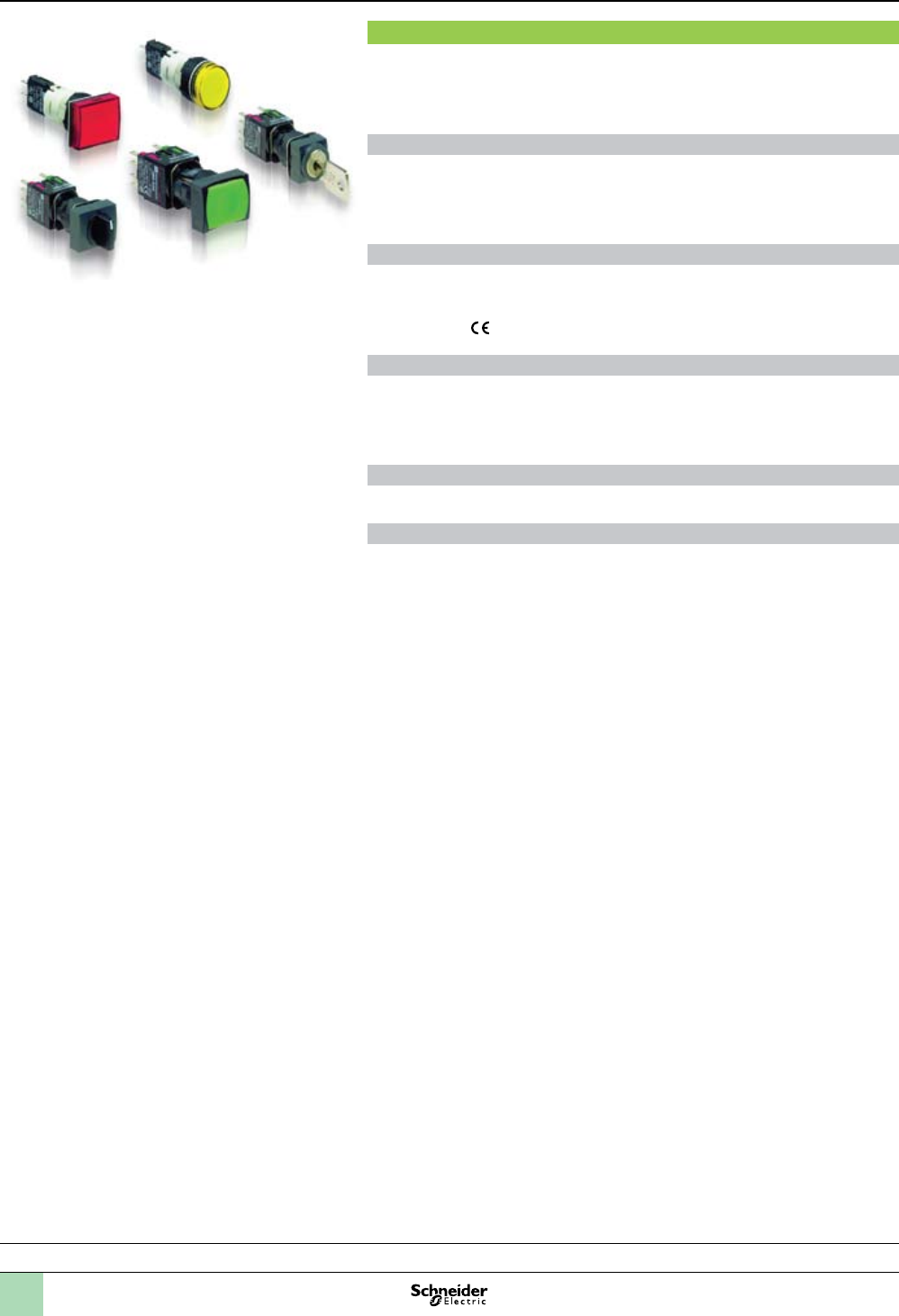

Introduction
Introduction
Schneider Electric’s Harmony™ XB6/ZB6 16 mm push buttons, pilot lights and
selector switches–with plastic bezels–are specically designed for applications
where the surface area is restricted. The IP 65 degree of protection enables these
products to be used in all types of applications.
Applications:
b Industry: Small nishing machines. Local and remote control panels.
b Buildings: Control boards, surveillance rooms, alarms.
b Tertiary: Laboratories and medical instrumentation. Transport. Small electronic
equipment.
Product features:
b Circular, square or rectangular heads
b Tags for quick connectors, solder connection or printed circuit board pins
b Degree of protection: IP 65
b Certications: , UL, CSA, CCC
Contact functions:
b Push buttons with spring return and latching
b Selector switches and key switches, 2 or 3 positions
b Trigger action
b Emergency stop
Light functions:
b LED pilot lights (Protected LED), neon and incandescent bulbs
Combined functions (contact + light):
b Illuminated push buttons, ush push, spring return and latching
b Illuminated selector switches
Specications:
page 10
Assembled products:
page 12
References:
page 15
Dimensions:
page 25
5
Harmony™ XB6/ZB6
16 mm push buttons

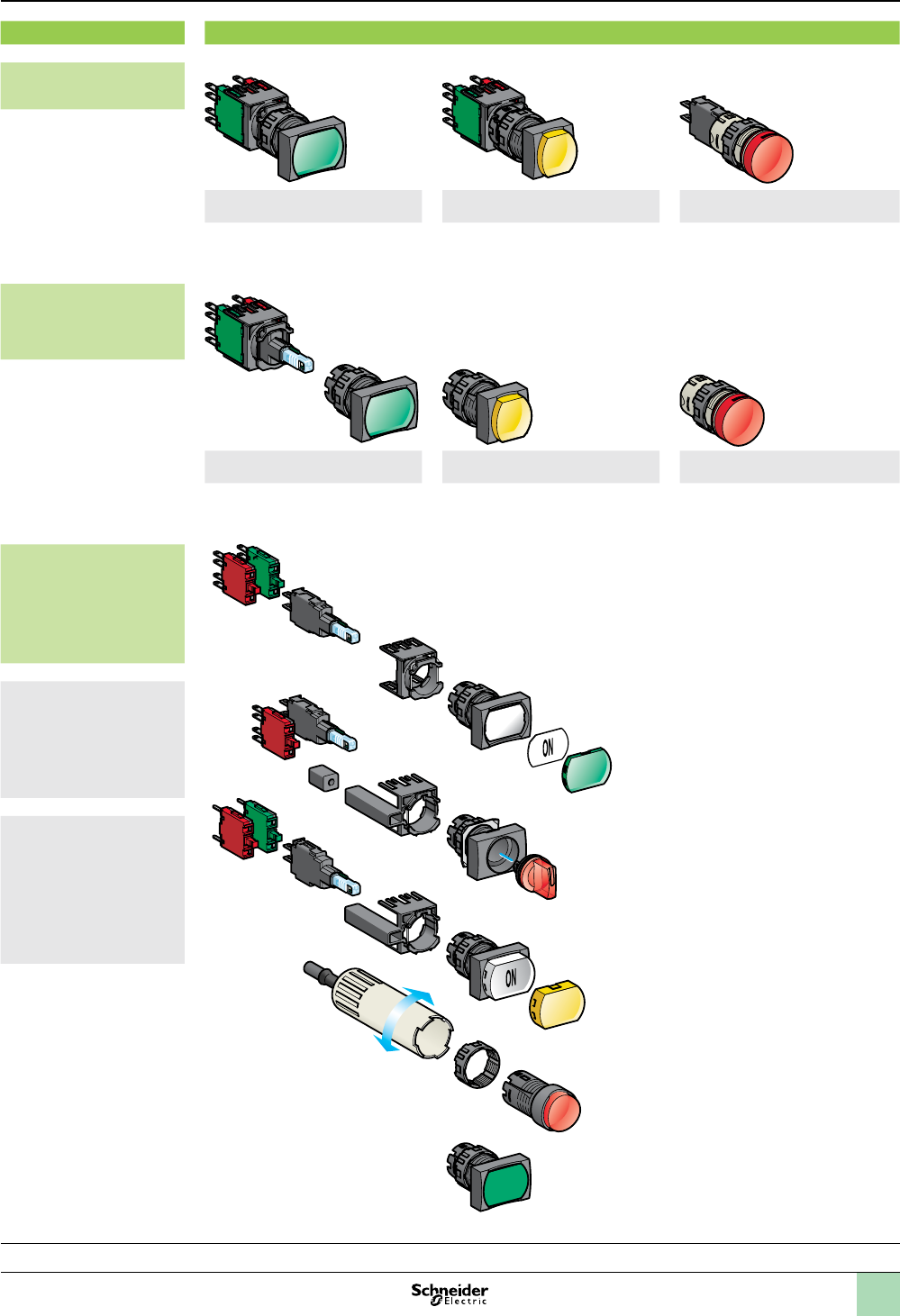

Description The 16 mm range of double insulated control and signaling units is comprised of:
Complete units
XB6 push buttons,
switches and pilot lights
XB6D with rectangular head XB6C with square head XB6A with circular head
Sub-assemblies
for user assembly
ZB6 push buttons,
switches and pilot lights
Body + head sub-assemblies
ZB6D with rectangular head ZB6C with square head ZB6A with circular head
ZB component parts
and accessories
Any of the push buttons,
switches or pilot lights in the
range may be adapted by
replacing certain component
parts, such as:
For heads
Caps or lenses
b
Pre-printed legends
b
Link enabling operation of
b
the 3rd contact (cannot be
tted on illuminated push
buttons)
For bodies
LED, incandescent and
b
neon bulbs
N/C or N/O contact blocks,
b
max. 3 contacts per block,
with quick connector or for
printed circuit board
Silver or gold ashed N/C or
b
N/O contact blocks
Product range
Introduction:
page 4
Specications:
page 10
Assembled products:
page 12
References:
page 15
Dimensions:
page 25
6
Harmony™ XB6/ZB6
16 mm push buttons

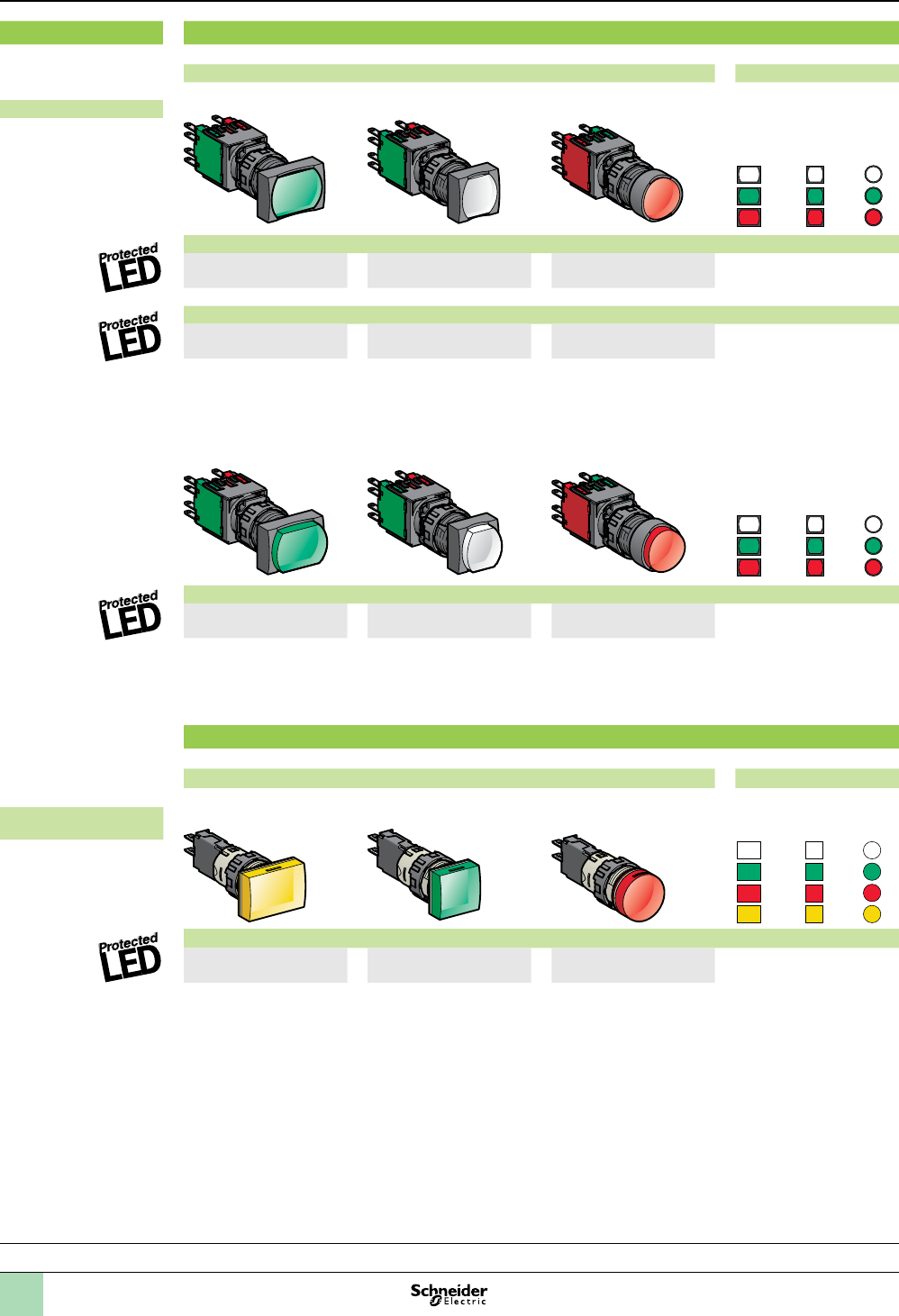

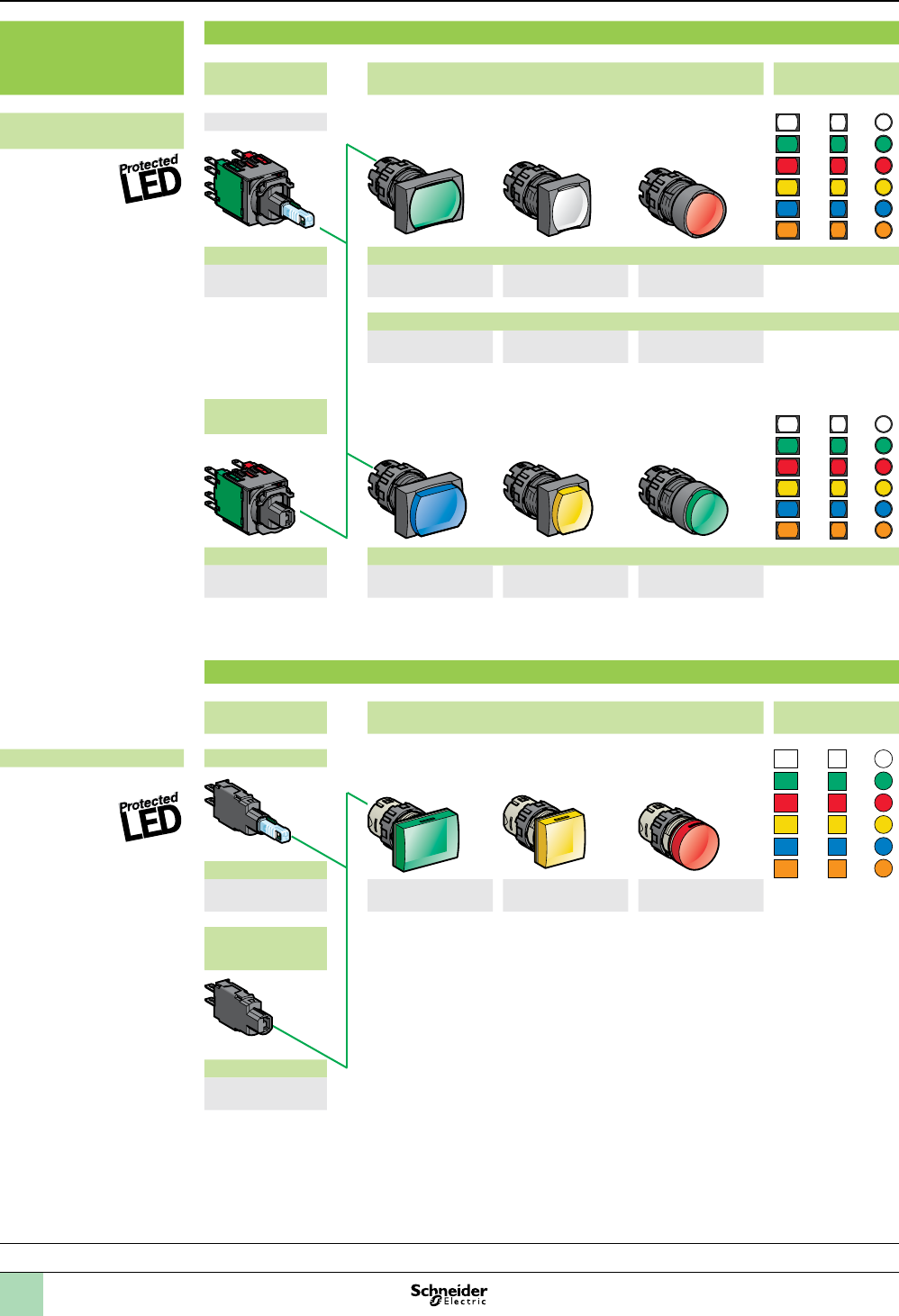

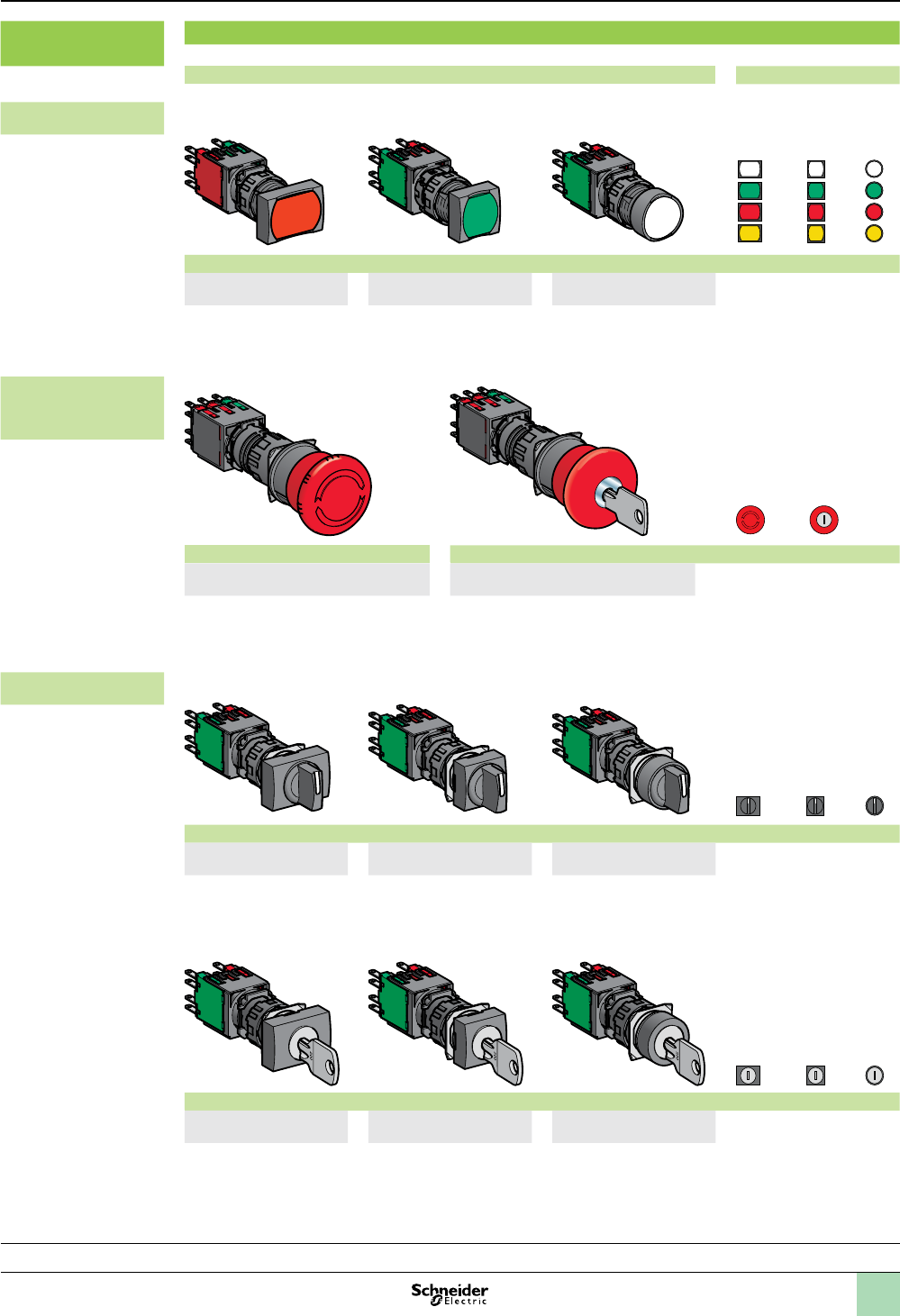

Complete units Combined functions (contact + signaling)
Illuminated push buttons with rectangular, square or circular head Head colors
Illuminated push buttons
Full guard with integral LED, spring return
XB6DWpppp
page 15
XB6CWpppp
page 15
XB6AWpppp
page 15
Full guard with integral LED, maintained
XB6DFpppp
page 15
XB6CFpppp
page 15
XB6AFpppp
page 15
No guard with integral LED, spring return
XB6DEpppp
page 15
XB6CEpppp
page 15
XB6AEpppp
page 15
Signaling functions
Pilot lights with rectangular, square or circular head Head colors
Pilot lights
With integral LED
XB6DVppp
page 16
XB6CVppp
page 16
XB6AVppp
page 16
Product range (continued)
Introduction:
page 4
Specications:
page 10
Assembled products:
page 12
References:
page 15
Dimensions:
page 25
7
Harmony™ XB6/ZB6
16 mm push buttons
Complete units
(continued)

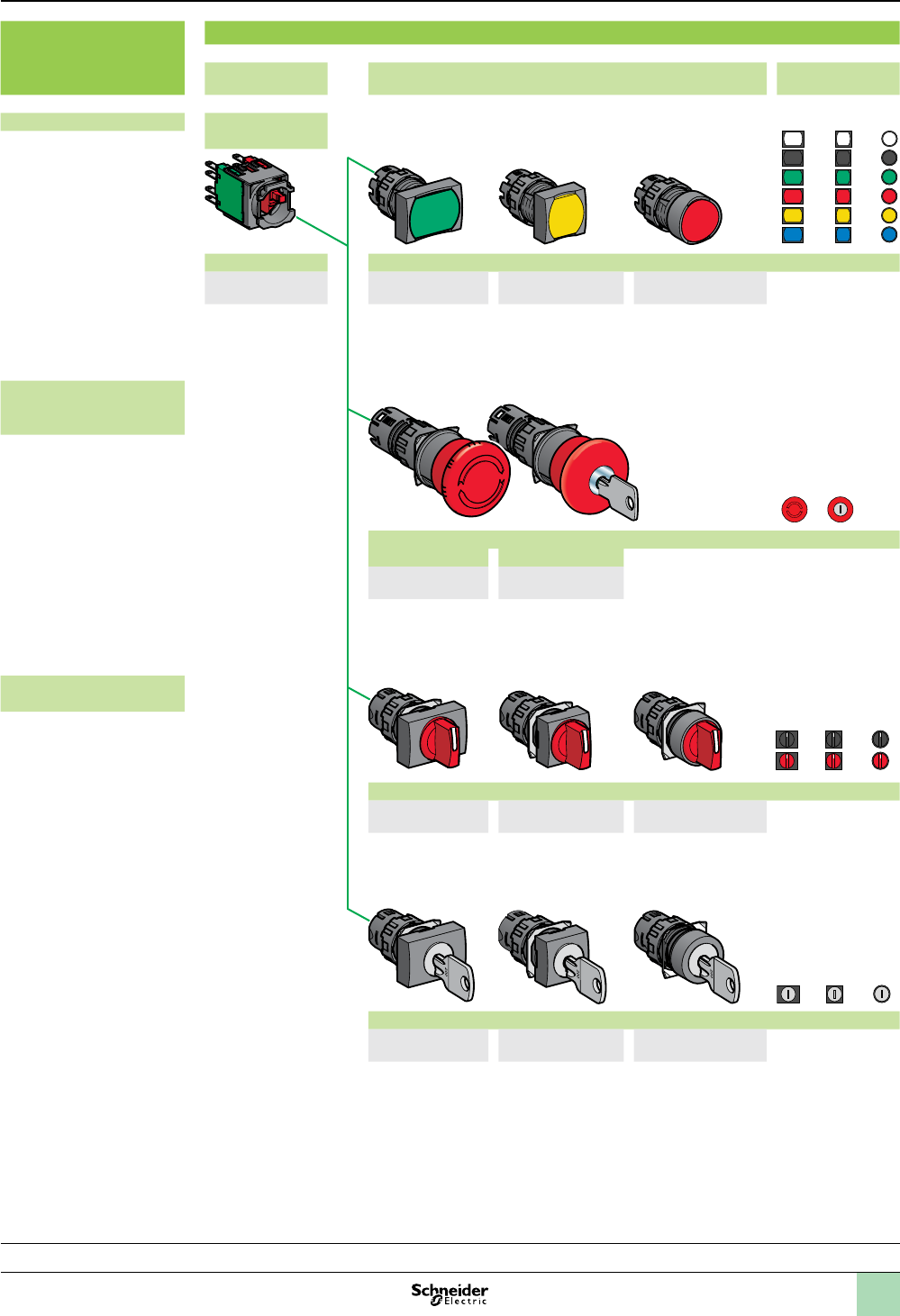

Contact functions
Push buttons with rectangular, square or circular head Head colors
Push buttons,
spring return
Full guard
XB6DAppp
page 16
XB6CAppp
page 16
XB6AAppp
page 16
Mushroom head,
Emergency stop,
maintained and trigger
action
Turn to release (EN/ISO 13850: 2006) Key release (EN/ISO 13850: 2006)
XB6AS834pB
page 13
XB6AS934pB
page 13

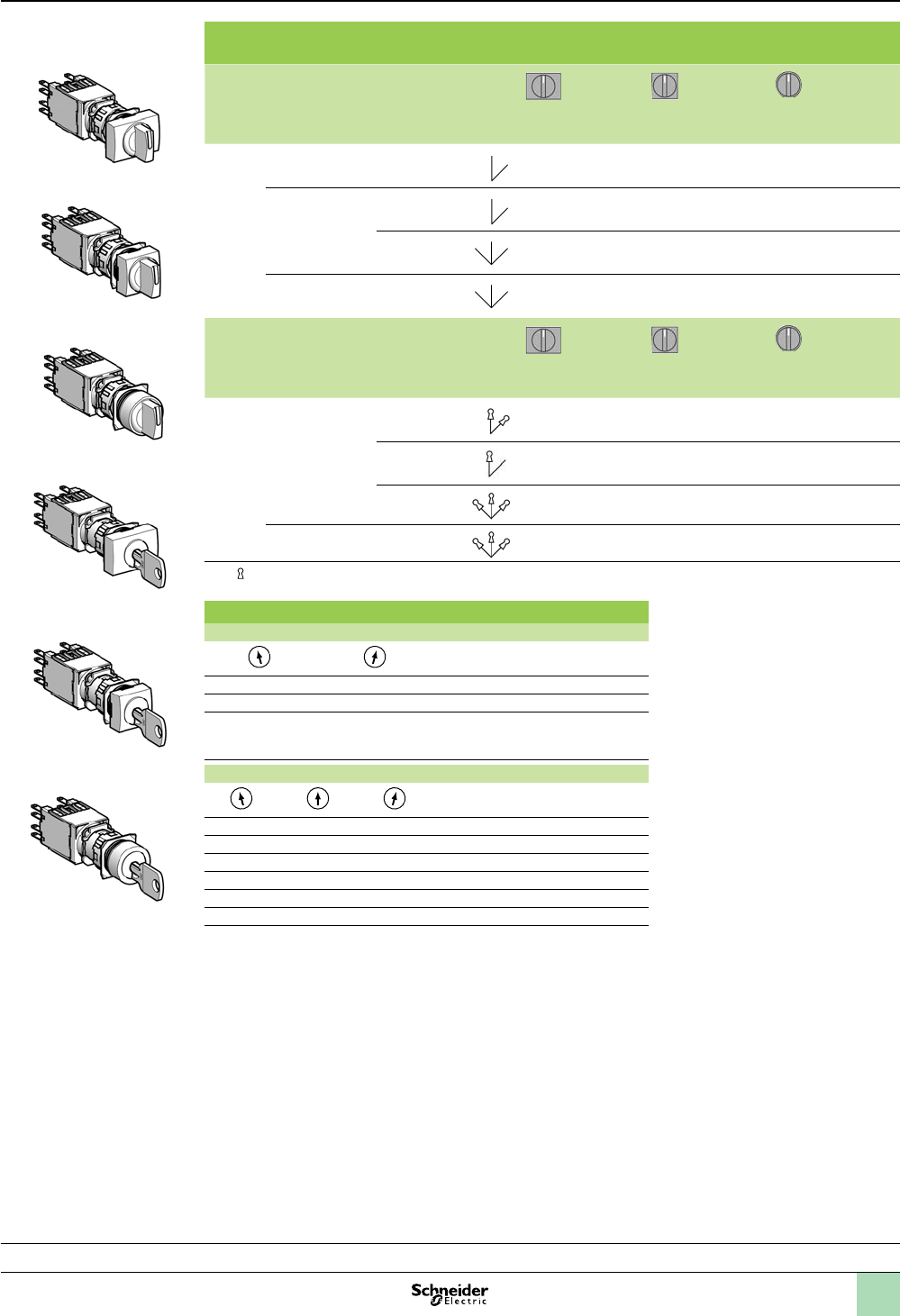

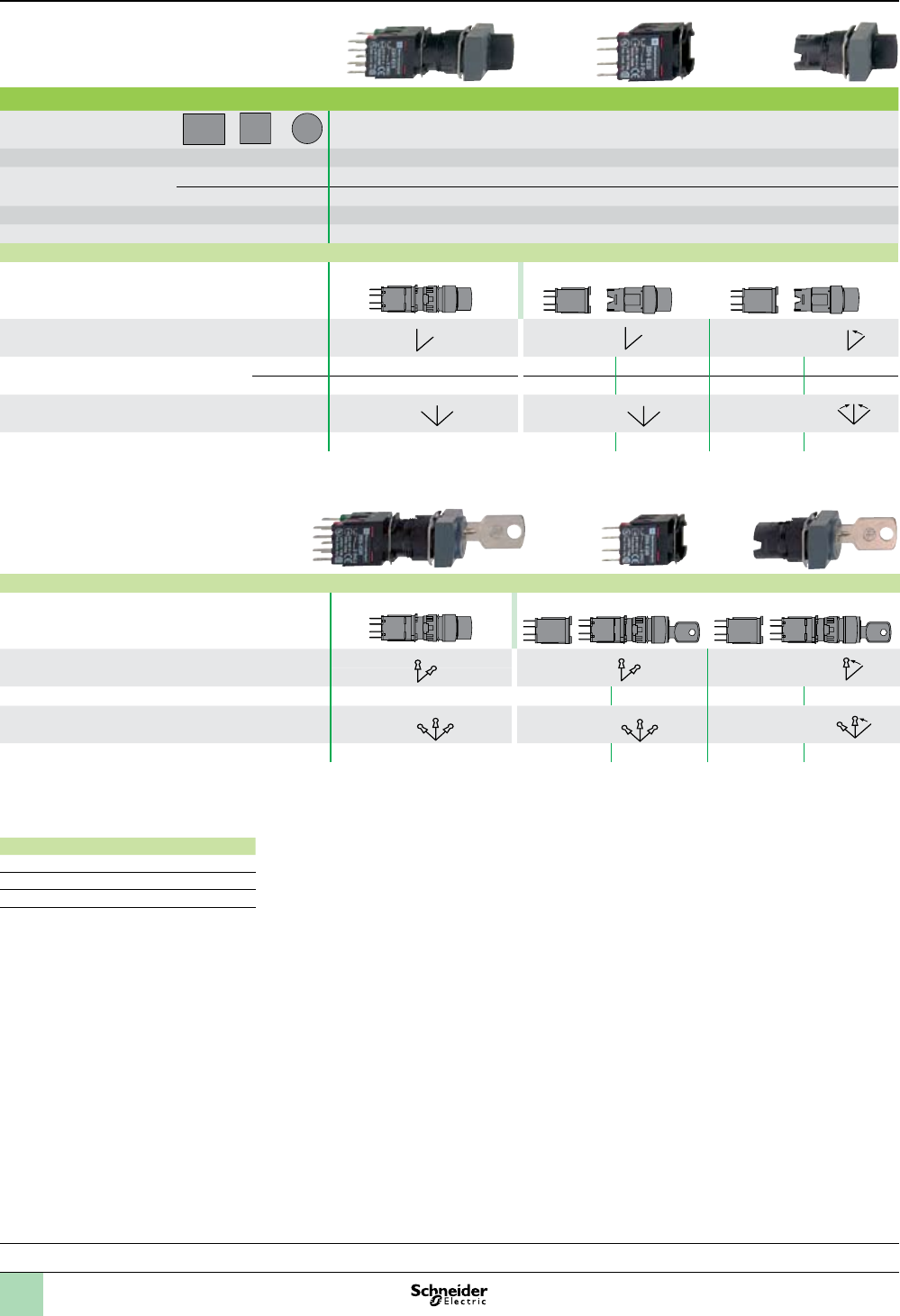

Selector switches
and key switches
Standard handle operator
XB6DDppp
page 17
XB6CDppp
page 17
XB6ADppp
page 17
Key switches
XB6DGppp
page 17
XB6CGppp
page 17
XB6AGppp
page 17
Product range (continued)
Introduction:
page 4
Specications:
page 10
Assembled products:
page 12
References:
page 15
Dimensions:
page 25
8
Illuminated units
for user assembly
Combined functions (contact + signaling)
Body
sub-assemblies
Head sub-assemblies,
rectangular, square or circular
Head colors
For illuminated push buttons
and selector switches
With integral LED
Quick connector Full guard, spring return
ZB6ZBppB
page 18
ZB6DWp
page 19
ZB6CWp
page 19
ZB6AWp
page 19
Full guard, maintained
ZB6DFpppB
page 19
ZB6CFpppB
page 19
ZB6AFpppB
page 19
Direct supply for
incandescent bulb
Quick connector No guard, spring return
ZB6ZHppB
page 18
ZB6DEp
page 19
ZB6CEp
page 19
ZB6AEp
page 19
Signaling functions
Body
sub-assemblies
Head sub-assemblies,
rectangular, square or circular
Head colors
For pilot lights With integral LED
Quick connector
ZB6EppB
page 18
ZB6DVp
page 19
ZB6CVp
page 19
ZB6AVp
page 19
Direct supply for
incandescent bulb
or with resistor
Quick connector
ZB6Ep0B
page 18
Harmony™ XB6/ZB6
16 mm push buttons
Product range (continued)
Introduction:
page 4
Specications:
page 10
Assembled products:
page 12
References:
page 15
Dimensions:
page 25
9
Harmony™ XB6/ZB6
16 mm push buttons
Non illuminated
units for user
assembly
Contact functions
Body
sub-assemblies
Head sub-assemblies,
rectangular, square or circular
Head colors
For push buttons Direct supply for
incandescent bulb
Quick connector Full guard, spring return
ZB6ZpB
page 18
ZB6DAp
page 20
ZB6CAp
page 20
ZB6AAp
page 20
For mushroom head push
buttons and
Emergency stop heads
Maintained, trigger action 30 mm (EN/ISO 13850: 2006)
Turn to release Key release
ZB6AS834
page 20
ZB6AS934
page 20
For selector switches
and key switches
Standard handle operator
ZB6DDpp
page 20
ZB6CDpp
page 20
ZB6ADpp
page 20
Key switches
ZB6DGpp
page 21
ZB6CGpp
page 21
ZB6AGpp
page 21
Product range (continued)
Introduction:
page 4
Specications:
page 10
Assembled products:
page 12
References:
page 15
Dimensions:
page 25
10
Harmony™ XB6/ZB6
16 mm push buttons
Environmental specications
Conforming to standards
Marked
IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4,
EN 60947-5-1, JIS C 4520 and 852, UL 508,
CSA C22.2 No. 14, RoHS compliant (Reduction of
Hazardous Substances)
Product certications File E164353 File LR 44087
CCN NKCR Class 3211 03
UL, CSA
ASE, BV, JIS, RINA, LROS, DNV, GL: pending
Protective treatment
standard version
“TC”
Ambient air temperature
around the device
Storage °C (°F) - 40 to +70 (- 40 to +158)
Operation °C (°F) - 25 to +70 (-13 to +158)
Vibration resistance Conforming to IEC 60068-2-6 (2 to 500 Hz) 3 mm peak to peak or 5 gn
Shock resistance Conforming to IEC 60068-2-27 Half sine wave 18 ms, 30 gn
Half sine wave 11 ms, 50 gn
Electric shock protection Conforming to IEC 60536 & NF C 20-030 Class II
Degree of protection Conforming to IEC 60529 & NF C 20-010
Conforming to UL 50 & CSA C22.2 No. 94
IP 65
Type 1, 4, 4X and 12 (not for key selector switches)
Mechanical durability
(in operating cycles)
Spring return push buttons 2 million
Maintained push buttons 300,000
Key operated selector switches 200,000
Handle operated selector switches 500,000
Mounting positions All
Electrical specications of LED pilot lights
Voltage limits 6 - 30 Vac/Vdc
Current draw mA 15
Surge withstand Conforming to IEC 61000-4-5 kV 2/1
Resistance to fast transients Conforming to IEC 61000-4-4 kV 2
Resistance to electromagnetic elds Conforming to IEC 61000-4-3 V/m 10
Resistance to electrostatic discharges Conforming to IEC 61000-4-2 kV 8/6
Electromagnetic emission Conforming to IEC 55011 Class B
Service life At nominal voltage and 25 °C ambient 100,000 hrs
Specications
Product range:
page 5
Assembled products:
page 12
References:
page 15
Dimensions:
page 25
11
Harmony™ XB6/ZB6
16 mm push buttons
Electrical specications of contacts
Rated operational specications AC-15 B300, Ue = 240 Vac and Ie = 1.5 A or Ue 120 Vac and Ie = 3 A
DC-13 R300, Ue = 250 Vdc and Ie = 0.1 A or Ue = 125 Vdc and Ie = 0.22 A
Rated insulation voltage Conforming to IEC 60947-1 Ui = 250 V
Degree of pollution 3 (Except pilot lights with incandescent
or neon bulb: degree of pollution 2)
Rated impulse withstand voltage Conforming to EN/IEC 60947-1 kV Uimp = 4
Contact material Normal environment and usage Silver alloy
Chemically corrosive environment or
infrequent operation
Gold
Contact operation N/C or N/O Slow break, with indication of change of state by the tactile feedback on
push and audibility
Differential travel of contacts With push button head in (mm) Changing N/C state: 0.04 (1.0)
Changing N/O state: 0.08 (2.0)
Total travel: 0.14 (3.5)
Operating force N/C contact lbf (N) 0.56 (2.5)
N/O contact lbf (N) 0.36 (1.6)
Push button head + N/O contact lbf (N) 0.79 (3.5)
Push button head + N/C contact lbf (N) 1.01 (4.5)
Positive operation Conforming to IEC 60947-5-2 lbf (N) N/C contact with positive opening operation
Positive opening force: 3.38 (15)
Terminal referencing Conforming to EN 50005 and EN 50013
Short-circuit protection Cartridge fuse mounted upstream 6 A gG, 6 A Class CC, Bussman KTK-R
Electrical reliability Failure rate
Conforming to IEC 60947-5-4
With condence level of 90 %: λ90 = 10-8
5 V - 1 mA, defect contact voltage drop = 0.5 V
Cabling in (mm) By Quick Connectors/Solder tabs 0.11 x 0.02 (2.8 x 0.5)
By pins for printed circuit board connection 0.04 x 0.02 (1 x 0.5)
Electrical durability Conforming to IEC 947-5-1 Appendix C
Utilization category AC-15 and DC-13
Operating rate 3600 operating cycles/h
Load factor 0.5
1 million operating cycles - 200 VA-230 V
1Switching capacity conforming to EN/IEC 60947-5-1,
utilization category AC-15, DC-13
B300 240 Vac 1.5 A
R300 250 Vdc 0.1 A
2Switching capacity conforming to EN/IEC 60947-5-1,
utilization category AC-15, DC-13
B300 120 Vac 3 A
R300 125 Vdc 0.22 A
1 mA 2 mA 3 mA 6 mA 10 mA
5
6
10
8
20
60
100
15
150
200
2 A1,5 A3 A1 A
120
240
250
24
V
I (Ith)
48
2
1
Specications (continued)
Product range:
page 5
Assembled products:
page 12
References:
page 15
Dimensions:
page 25
12
Illuminated push buttons
Type of head Full guard
Shape of head rectangular (2)
Degree of protection IP 65 / Nema 4, 4X, 12 / Class II

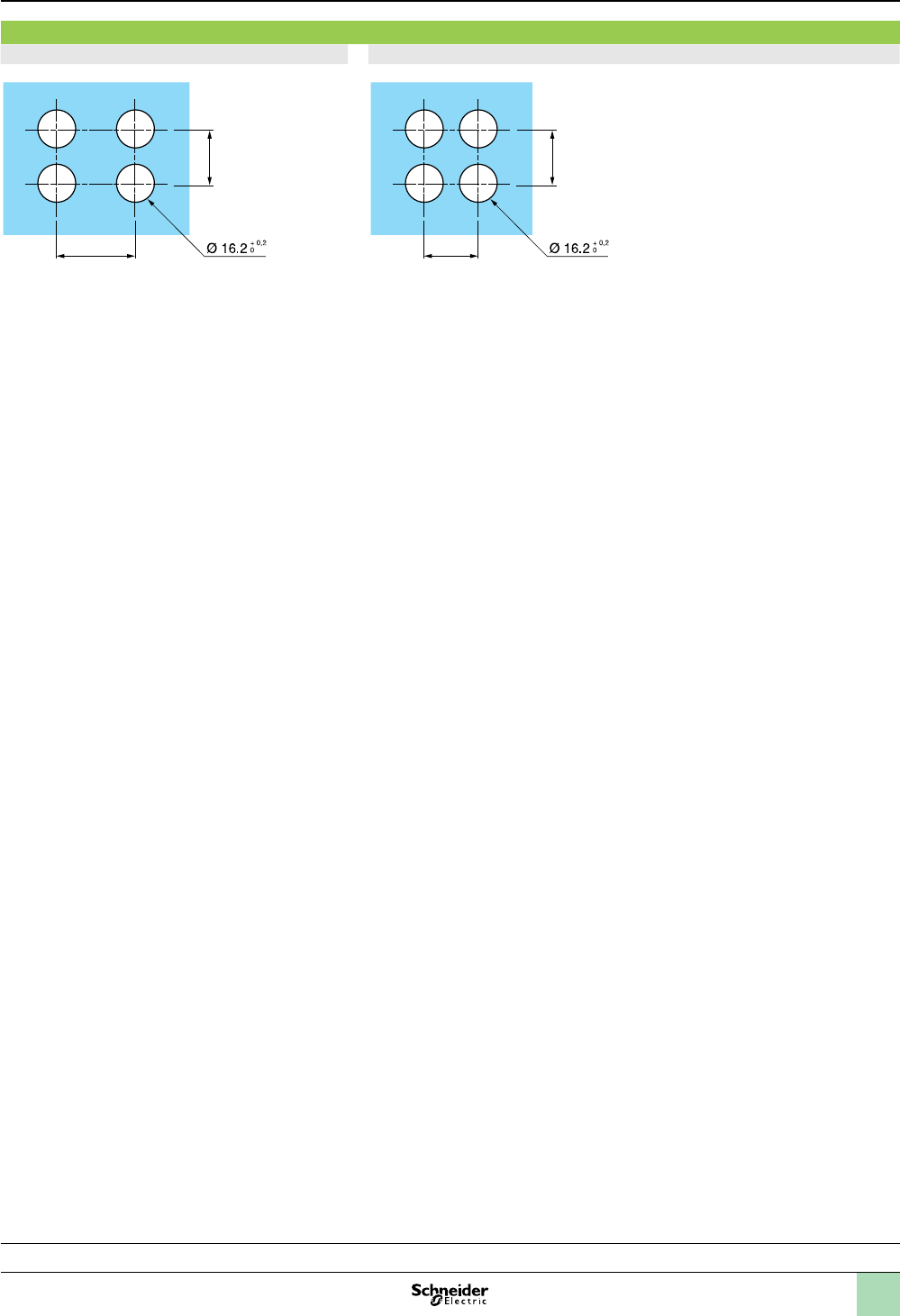

Mounting (mm) panel cut-out 16.2 mm
+ 0.2
0
mounting centers
24 x 18 with rectangular head, 18 x 18 with square or circular head
Dimensions (mm) W x H x D (below head)
24 x 18 x 50 with rectangular head, 18 x 18 x 50 with square or circular head
Connection (3)
Tags for 2.8 x 0.5 quick connectors or for soldering
Type of push: Spring return
Complete products
12 to 24 V AC/DC
Products for user assembly
References white N/O XB6DW1B1B ZB6Ep1B (1) ZB6Z1B ZB6DW1
N/C + N/O XB6DW1B5B ZB6Ep1B (1) ZB6Z5B ZB6DW1
green N/O XB6DW3B1B ZB6Ep3B (1) ZB6Z1B ZB6DW3
N/C + N/O XB6DW3B5B ZB6Ep3B (1) ZB6Z5B ZB6DW3
red N/C XB6DW4B2B ZB6Ep4B (1) ZB6Z2B ZB6DW4
N/C + N/O XB6DW4B5B ZB6Ep4B (1) ZB6Z5B ZB6DW4
yellow N/O –ZB6Ep5B (1) ZB6Z1B ZB6DW5
N/C + N/O XB6DW5B5B ZB6Ep5B (1) ZB6Z5B ZB6DW5
Type of push: Maintained
References white N/O –ZB6Ep1B (1) ZB6Z1B ZB6DF1
N/C + N/O XB6DF1B5B ZB6Ep1B (1) ZB6Z5B ZB6DF1
green N/O XB6DF3B1B ZB6Ep3B (1) ZB6Z1B ZB6DF3
N/C + N/O XB6DF3B5B ZB6Ep3B (1) ZB6Z5B ZB6DF3
red N/C XB6DF4B2B ZB6Ep4B (1) ZB6Z2B ZB6DF4
N/C + N/O XB6DF4B5B ZB6Ep4B (1) ZB6Z5B ZB6DF4
yellow N/O –ZB6Ep5B (1) ZB6Z1B ZB6DF5
N/C + N/O –ZB6Ep5B (1) ZB6Z5B ZB6DF5
Pilot lights
Type of head Smooth lens cap
Shape of head rectangular (2)
Complete products
12 to 24 V AC/DC
Products for user assembly
References white XB6DV1BB ZB6Ep1B (1) ZB6DV1
green XB6DV3BB ZB6Ep3B (1) ZB6DV3
red XB6DV4BB ZB6Ep4B (1) ZB6DV4
yellow XB6DV5BB ZB6Ep5B (1) ZB6DV5
blue – ZB6Ep6B (1) ZB6DV6
(1) Basic reference, to be completed by the letter B, G or M indicating the required voltage. See Voltage Table below.
(2) For products with a square head, replace the letter D in the reference by the letter C (XB6DW1B1B becomes XB6CW1B1B).
For products with a circular head, replace the letter D in the reference by the letter A (XB6DW1B1B becomes XB6AW1B1B).
(3) Use ZB6Y010 Plug-in Socket Adapter for 1 x 0.5 pin printed circuit board connection.
Voltage Table
Voltage Letter (p)
12 to 24 V AC/DC (15 mA) B
48 to 120 V AC (25 mA) G
230 to 240 V AC (25 mA) M
Harmony™ XB6/ZB6
16 mm push buttons
Contact functions and light functions with
integral LED
Assembled products
=+
=+ +
Product range:
page 5
Specications:
page 10
References:
page 15
Dimensions:
page 25
13

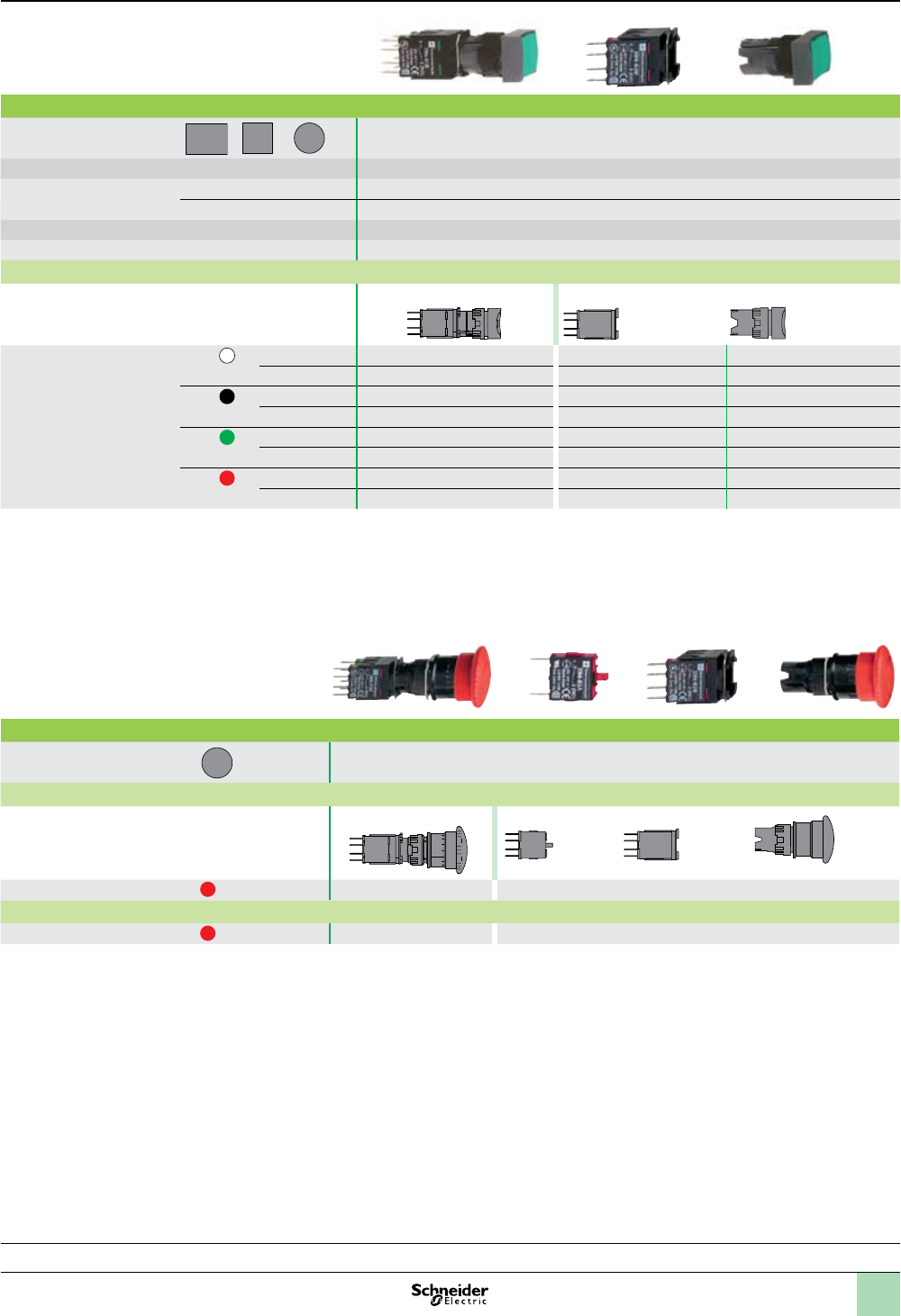

Non-illuminated push buttons
Type of head Full guard
Shape of head rectangular (1)
Degree of protection IP 65 / Nema 4, 4X, 12 / Class II
Mounting (mm) panel cut-out 16.2 mm
+ 0.2
0
mounting centers 24 x 18 with rectangular head, 18 x 18 with square or circular head
Dimensions (mm) W x H x D (below head) 24 x 18 x 50 with rectangular head, 18 x 18 x 50 with square or circular head
Connection (2) Tags for 2.8 x 0.5 quick connectors or for soldering
Type of push: Spring Return
Complete products Products for user assembly
References white N/O XB6DA11B ZB6Z1B ZB6DA1
N/C + N/O XB6DA15B ZB6Z5B ZB6DA1
black N/O –ZB6Z1B ZB6DA2
N/C + N/O XB6DA25B ZB6Z5B ZB6DA2
green N/O XB6DA31B ZB6Z2B ZB6DA3
N/C + N/O XB6DA35B ZB6Z5B ZB6DA3
red N/O –ZB6Z1B ZB6DA4
N/C + N/O XB6DA45B ZB6Z5B ZB6DA4
(1) For products with a square head, replace the letter D in the reference by the letter C (XB6DA11B becomes XB6CA11B).
For products with a circular head, replace the letter D in the reference by the letter A (XB6DA11B becomes XB6AA11B).
(2) Alternative connection: 1 x 0.5 pins for printed circuit boards.
Mushroom head Emergency stop push buttons (3)
Type of head Trigger action (EN/ISO 13850: 2006)
Shape of head cylindrical
Type of push: Turn to release
Complete products Products for user assembly
References red 2 N/C + 1 N/O XB6AS8349B ZB6E2B ZB6Z5B ZB6AS834
Type of push: Key release, Ronis 200
References red 2 N/C + 1 N/O XB6AS9349B ZB6E2B ZB6Z5B ZB6AS934
(3) Complies with EN418/ISO13850 standards for Emergency Stop push buttons when used with circular Legend Plate ZB6Y7330 (see page 24).
mounting centers 24 x 18 with rectangular head, 18 x 18 with square or circular head
Harmony™ XB6/ZB6
16 mm push buttons
Contact functions
Assembled products
(continued)
=+
=++
Product range:
page 5
Specications:
page 10
References:
page 15
Dimensions:
page 25
14
Non-illuminated selector switches and key switches
Type of head Black handle
Shape of head rectangular (1)
Degree of protection IP 66 / Nema 4, 4X, 12 / Class II
Mounting (mm) panel cut-out 16.2 mm + 0.2
0
mounting centers 24 x 18 with rectangular head, 18 x 18 with square or circular head
Dimensions (mm) W x H x D (below head) 24 x 18 x 50 with rectangular head, 18 x 18 x 50 with square or circular head
Connection (2) Tags for 2.8 x 0.5 quick connectors or for soldering
Type of operator: Black handle
Complete products Products for user assembly
Number and type of positions 2 positions 2 positions 2 positions
maintained maintained spring return to center
References N/O XB6DD221B ZB6Z1B ZB6DD22 ZB6Z1B ZB6DD24
N/C + N/O XB6DD225B ZB6Z5B ZB6DD22 ZB6Z5B ZB6DD24
Number and type of positions 3 positions 3 positions 3 positions
maintained maintained spring return to center
References N/O XB6DD235B ZB6Z5B ZB6DD23 ZB6Z5B ZB6DD25
Type of operator: Ronis key, No. 200
Complete products Products for user assembly
Number and type of positions 2 positions 2 positions 2 positions
maintained maintained spring return to center
References N/C + N/O XB6DGC5B ZB6Z5B ZB6DGC ZB6Z5B ZB6DGB
Number and type of positions 3 positions 3 positions 3 positions
maintained maintained spring return to center
References N/C + N/O XB6DGH5B ZB6Z5B ZB6DGH ZB6Z5B ZB6DGS
(1) For products with a square head, replace the letter D in the reference by the letter C (XB6DD221B becomes XB6CD221B).
For products with a circular head, replace the letter D in the reference by the letter A (XB6DD221B becomes XB6AD221B).
(2) Alternative connection: 1 x 0.5 pins for printed circuit boards.
=+
Voltage Table
Voltage Letter (p)
12 to 24 V AC/DC (15 mA) B
48 to 120 V AC (25 mA) G
230 to 240 V AC (25 mA) M
Harmony™ XB6/ZB6
16 mm push buttons
Contact functions and light functions with
integral LED
Assembled products
(continued)
60° 60° 45°
60°60° 60°60° 45°45°
=+
70° 70° 45°
70°70° 70°70° 45°45°
Product range:
page 5
Specications:
page 10
References:
page 15
Dimensions:
page 25
15

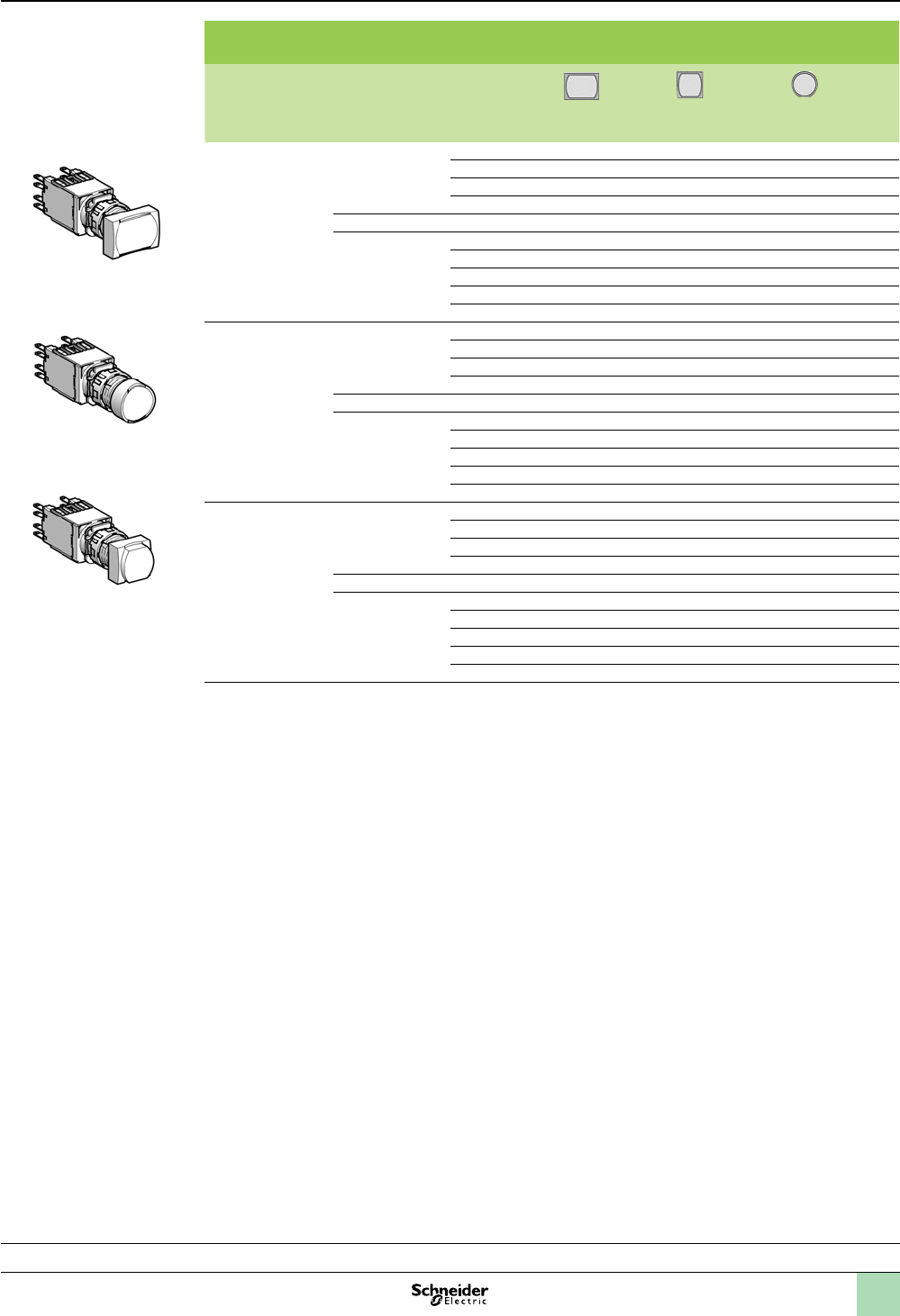

Illuminated Push Buttons (12–24 Vac/Vdc LED included)
Complete Units with Quick Connectors/Solder Tabs
Type of Operator Type of Contact Color
Rectangular Square Round
N.O. N.C. Reference Reference Reference
Flush,
spring return
1 — White XB6DW1B1B XB6CW1B1B XB6AW1B1B
Green XB6DW3B1B XB6CW3B1B XB6AW3B1B
Yellow XB6DW5B1B XB6CW5B1B XB6AW5B1B
Blue XB6DW6B1B XB6CW6B1B XB6AW6B1B
— 1 Red XB6DW4B2B XB6CW4B2B XB6AW4B2B
1 1 White XB6DW1B5B XB6CW1B5B XB6AW1B5B
Green XB6DW3B5B XB6CW3B5B XB6AW3B5B
Red XB6DW4B5B XB6CW4B5B XB6AW4B5B
Yellow XB6DW5B5B XB6CW5B5B XB6AW5B5B
Blue XB6DW6B5B XB6CW6B5B XB6AW6B5B
Flush, maintained 1 — White XB6DF1B1B XB6CF1B1B XB6AF1B1B
Green XB6DF3B1B XB6CF3B1B XB6AF3B1B
Yellow XB6DF5B1B XB6CF5B1B XB6AF5B1B
Blue XB6DF6B1B XB6CF6B1B XB6AF6B1B
— 1 Red XB6DF4B2B XB6CF4B2B XB6AF4B2B
1 1 White XB6DF1B5B XB6CF1B5B XB6AF1B5B
Green XB6DF3B5B XB6CF3B5B XB6AF3B5B
Red XB6DF4B5B XB6CF4B5B XB6AF4B5B
Yellow XB6DF5B5B XB6CF5B5B XB6AF5B5B
Blue XB6DF6B5B XB6CF6B5B XB6AF6B5B
Extended,
spring return
1 — White XB6DE1B1B XB6CE1B1B XB6AE1B1B
Green XB6DE3B1B XB6CE3B1B XB6AE3B1B
Yellow XB6DE5B1B XB6CE5B1B XB6AE5B1B
Blue XB6DE6B1B XB6CE6B1B XB6AE6B1B
— 1 Red XB6DE4B2B XB6CE4B2B XB6AE4B2B
1 1 White XB6DE1B5B XB6CE1B5B XB6AE1B5B
Green XB6DE3B5B XB6CE3B5B XB6AE3B5B
Red XB6DE4B5B XB6CE4B5B XB6AE4B5B
Yellow XB6DE5B5B XB6CE5B5B XB6AE5B5B
Blue XB6DE6B5B XB6CE6B5B XB6AE6B5B
Illuminated Push Buttons 120 Vac LED are available as Complete Units with Quick Connectors/Solder Tabs. Use 12–24 V table above.
Change Voltage Code (2nd B) to “G”. Example: XB6DW1B1B (White 24 V, 1 N.O.) becomes XB6DW1G1B.
For Legends, see pages 22 and 24.
XB6DW•••B
XB6CE•••B
XB6AF•••B
Harmony™ XB6/ZB6
16 mm push buttons
Complete units
References
Product range:
page 5
Specications:
page 10
Assembled products:
page 12
Dimensions:
page 25
16

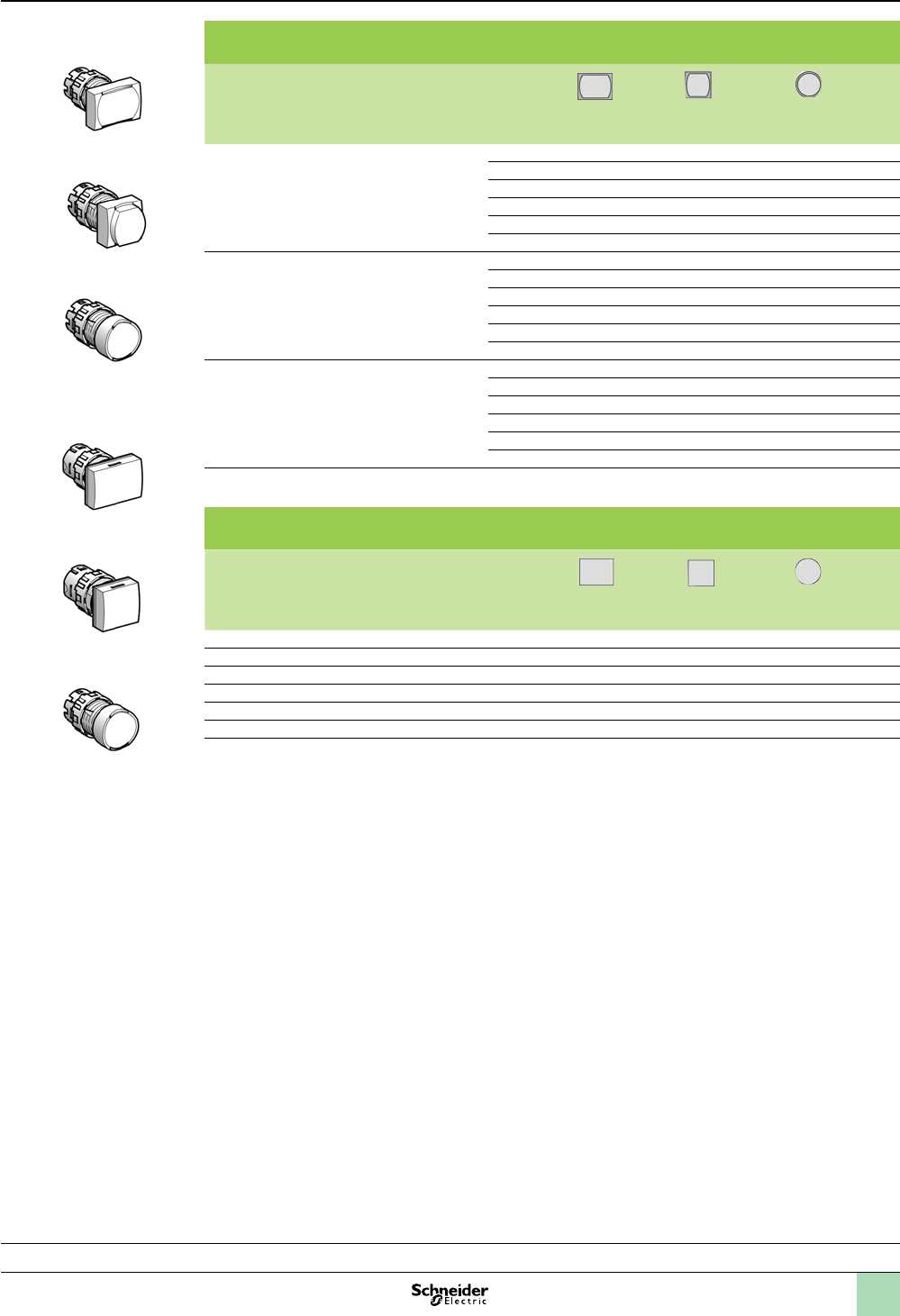

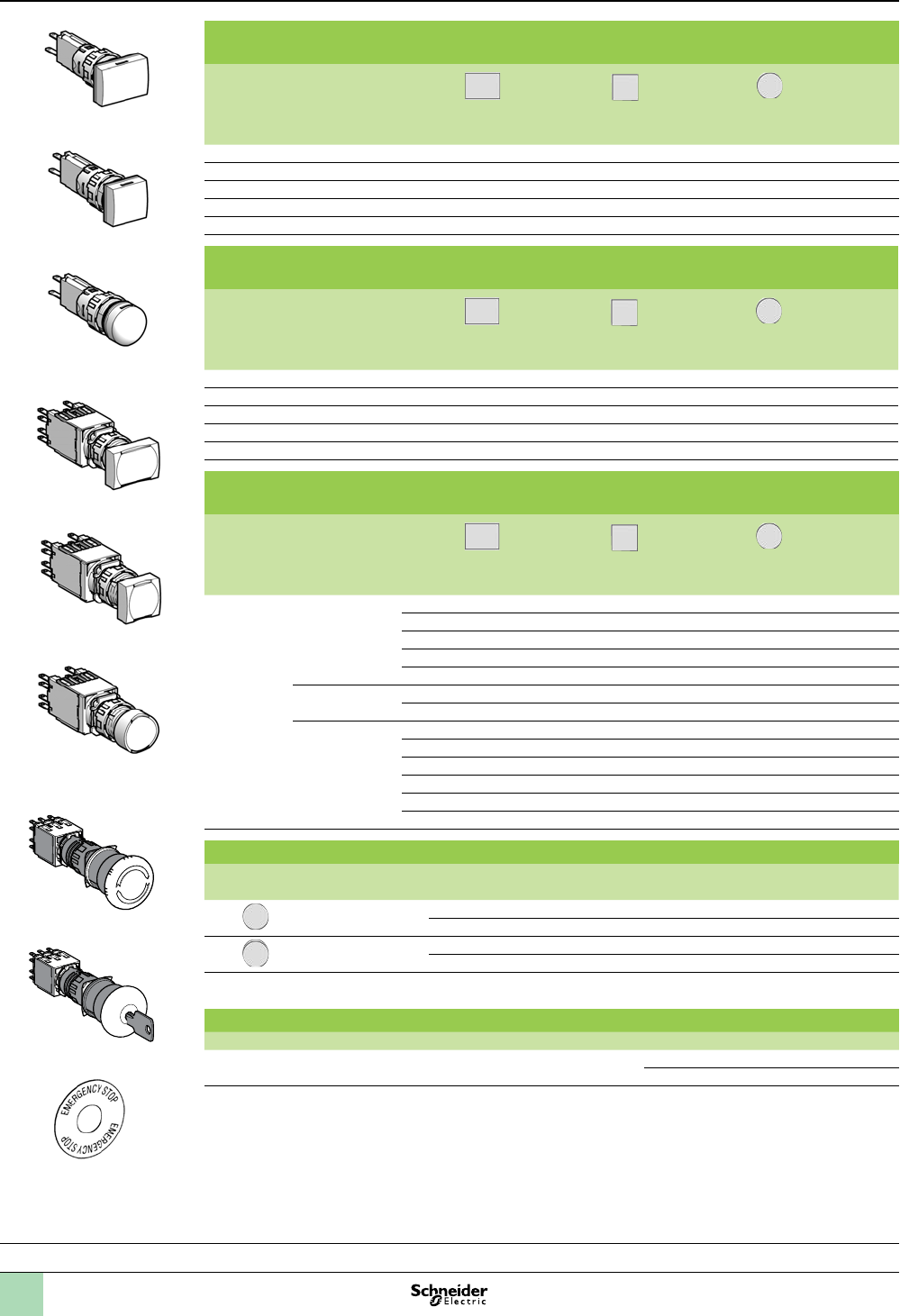

Pilot Lights (12–24 Vac/Vdc LED included)
Complete Units with Quick Connectors/Solder Tabs
Color
Rectangular Square Round
Reference Reference Reference
White XB6DV1BB XB6CV1BB XB6AV1BB
Green XB6DV3BB XB6CV3BB XB6AV3BB
Red XB6DV4BB XB6CV4BB XB6AV4BB
Yellow XB6DV5BB XB6CV5BB XB6AV5BB
Blue XB6DV6BB XB6CV6BB XB6AV6BB
Pilot Lights (120 Vac LED)
Complete Units with Quick Connectors/Solder Tabs
Color
Rectangular Square Round
Reference Reference Reference
White XB6DV1GB XB6CV1GB XB6AV1GB
Green XB6DV3GB XB6CV3GB XB6AV3GB
Red XB6DV4GB XB6CV4GB XB6AV4GB
Yellow XB6DV5GB XB6CV5GB XB6AV5GB
Blue XB6DV6GB XB6CV6GB XB6AV6GB

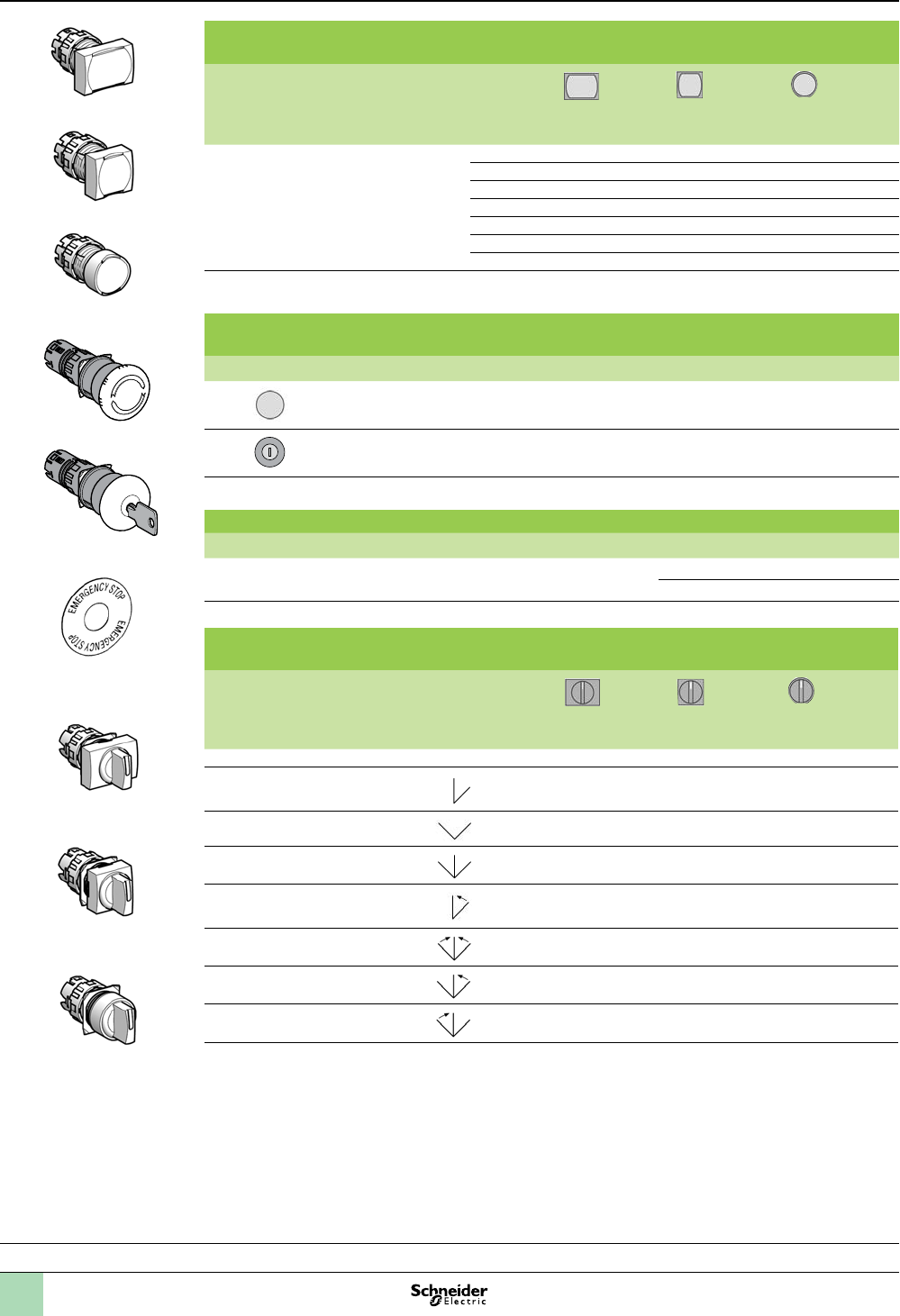

Push Buttons (Non-Illuminated)
Complete Units with Quick Connectors/Solder Tabs
Type of Push Type of Contact Color
Rectangular Square Round
N.O. N.C. Reference Reference Reference
Flush, spring
return
1 — White XB6DA11B XB6CA11B XB6AA11B
Black XB6DA21B XB6CA21B XB6AA21B
Green XB6DA31B XB6CA31B XB6AA31B
Yellow XB6DA51B XB6CA51B XB6AA51B
Blue XB6DA61B XB6CA61B XB6AA61B
— 1 Black XB6DA22B XB6CA22B XB6AA22B
Red XB6DA42B XB6CA42B XB6AA42B
1 1 White XB6DA15B XB6CA15B XB6AA15B
Black XB6DA25B XB6CA25B XB6AA25B
Green XB6DA35B XB6CA35B XB6AA35B
Red XB6DA45B XB6CA45B XB6AA45B
Yellow XB6DA55B XB6CA55B XB6AA55B
Blue XB6DA65B XB6CA65B XB6AA65B
Trigger Action Emergency Stop Mushroom Head Push Buttons (Color Red) (1)
Shape of Head Type of Push Type of Contact Diameter
of Head (mm)
Reference
N.O. N.C.
Turn-to-release — 1 30 XB6AS8342B
1 1 30 XB6AS8345B
Key release — 1 30 XB6AS9342B
1 1 30 XB6AS9345B
(1) Complies with EN418/ISO13850 standards for Emergency Stop push buttons when used with circular Legend Plate ZB6Y7330 (see page 24).
Circular Legends, 45 mm
Description Color Text Reference
Circular legends, 45 mm Yellow Blank ZB6Y7001
Emergency stop ZB6Y7330
For Legends, pages 22 and 24.
XB6DV••B
XB6CV••B
XB6AV••B
XB6DA••B
XB6CA••B
XB6AA••B
ZB6Y7330
Harmony™ XB6/ZB6
16 mm push buttons
Complete units
References (continued)
Product range:
page 5
Specications:
page 10
Assembled products:
page 12
Dimensions:
page 25
XB6AS9345B
XB6AS8345B
17

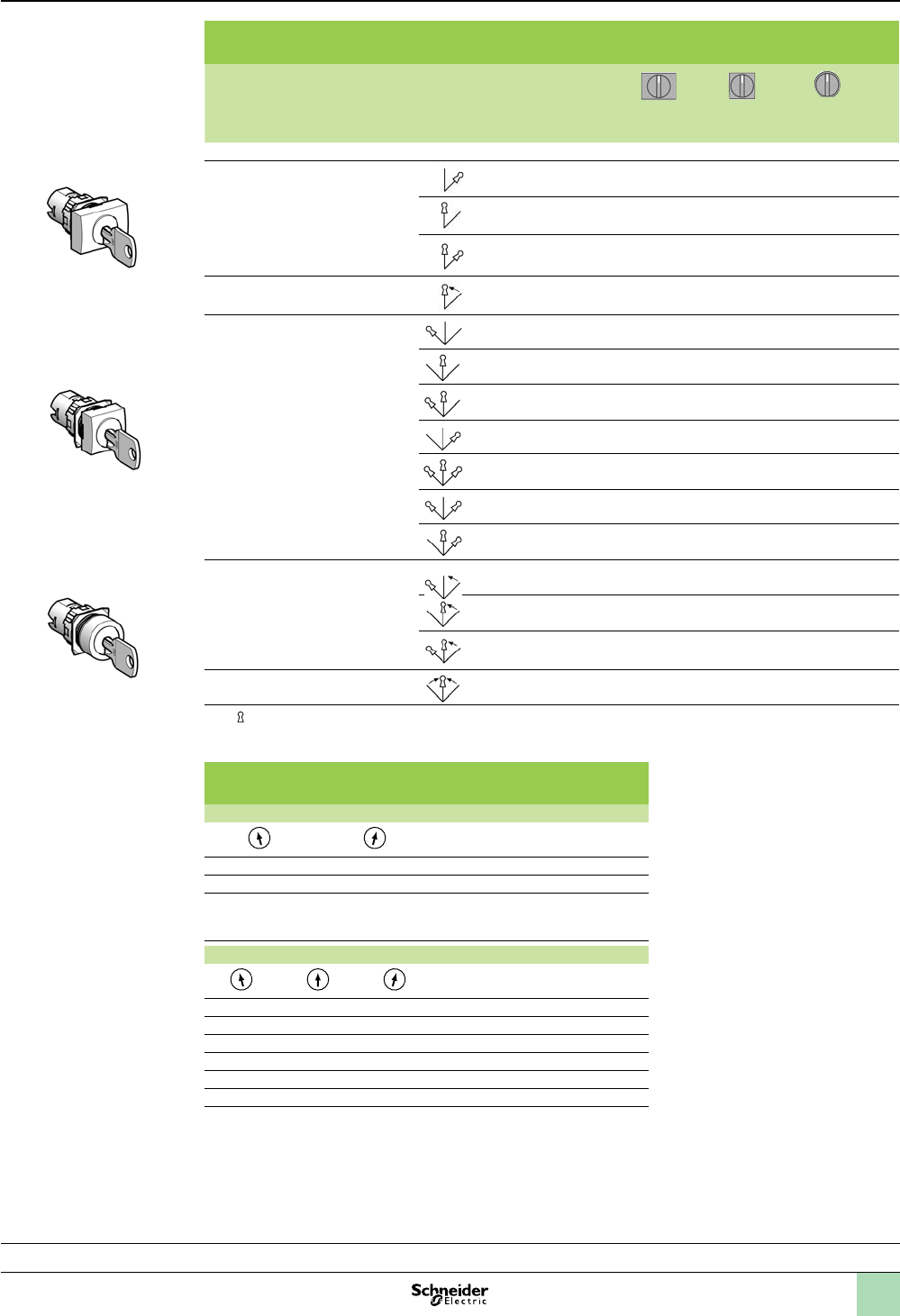

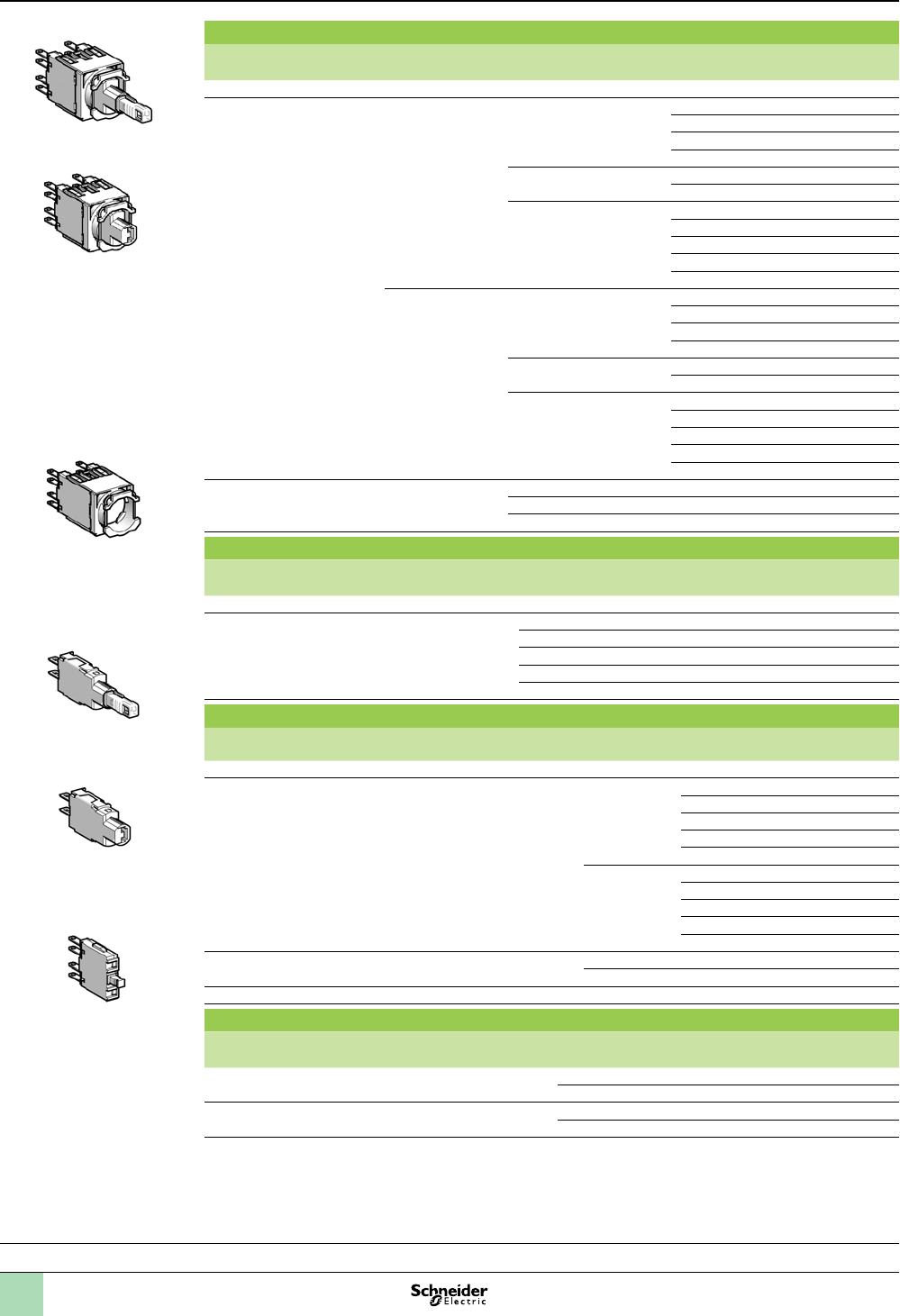

Selector Switches (Switching Angle: Handle: 60o, Key: 70o)
Complete Units with Quick Connectors/Solder Tabs
Type of
Operator
Type of Contact Number and Type of
Positions
Rectangular Square Round
N.O. N.C. Reference Reference Reference
Handle 1 — 2-maintained XB6DD221B XB6CD221B XB6AD221B
112-maintained XB6DD225B XB6CD225B XB6AD225B
3-maintained XB6DD235B XB6CD235B XB6AD235B
2—3-maintained XB6DD233B XB6CD233B XB6AD233B
Type of
Operator
Type of Contact Number and Type of
Positions
Rectangular Square Round
N.O. N.C. Reference Reference Reference
Key 112-maintained XB6DGC5B XB6CGC5B XB6AGC5B
2-maintained XB6DGB5B XB6CGB5B XB6AGB5B
3-maintained XB6DGH5B XB6CGH5B XB6AGH5B
2—3-maintained XB6DGH3B XB6CGH3B XB6AGH3B
Note: Indicates key withdrawal position.
Selector Switch Sequence
2 Position Selector Switch
Contact block guide (1)
Ox1 N.O. (left or right)
xO 1 N.C. (left or right)
O
x
x
O
1 N.O.
and
1 N.C.
3 Position Selector Switch
Contact block guide (1)
OOx1 N.O. (left)
xOx2 N.O. wired in parallel (side by side)
xO O 1 N.O. (right)
Oxx1 N.C. (right)
xxO 1 N.C. (left)
OxO 2 N.C. wired in series (side by side)
(1) As viewed from the front of the panel.
For Legends, see pages 22 and 24.
XB6DD•••B
XB6CD•••B
XB6AD•••B
XB6DG••B
XB6CG••B
XB6AG••B
Harmony™ XB6/ZB6
16 mm push buttons
Complete units
References (continued)
Product range:
page 5
Specications:
page 10
Assembled products:
page 12
Dimensions:
page 25
18
Contact Blocks and Light Modules for Illuminated Push Buttons (1)
Description Supply Voltage Type of Contact Color of Light
Source
Reference
N.O. N.C.
Quick connectors/solder tabs
Integral LED (2) 12–24 Vac/Vdc 1 — White ZB6ZB11B
Green ZB6ZB31B
Yellow ZB6ZB51B
Blue ZB6ZB61B
— 1 Red ZB6ZB42B
Yellow ZB6ZB52B
1 1 White ZB6ZB15B
Green ZB6ZB35B
Red ZB6ZB45B
Yellow ZB6ZB55B
Blue ZB6ZB65B
120 Vac 1 — White ZB6ZG11B
Green ZB6ZG31B
Yellow ZB6ZG51B
Blue ZB6ZG61B
— 1 Red ZB6ZG42B
Yellow ZB6ZG52B
1 1 White ZB6ZG15B
Green ZB6ZG35B
Red ZB6ZG45B
Yellow ZB6ZG55B
Blue ZB6ZG65B
Direct for incandescent bulb
(not included) (4)
< 24 Vac/Vdc 1 — — ZB6ZH01B
— 1 — ZB6ZH02B
11— ZB6ZH05B
Contact Blocks for Push Buttons and Selector Switches
Description Type of Contact Reference
N.O. N.C.
Quick connectors/solder tabs
Contact blocks with mounting base 1 — ZB6Z1B
— 1 ZB6Z2B
2—ZB6Z3B
—2ZB6Z4B
11ZB6Z5B
Light Modules for Pilot Lights
Description Supply Voltage Color of Light
Source
Reference
Quick connectors/solder tabs (6)
Integral LED (3) 12–24 Vac/Vdc White ZB6EB1B
Green ZB6EB3B
Red ZB6EB4B
Yellow ZB6EB5B
Blue ZB6EB6B
120 Vac White ZB6EG1B
Green ZB6EG3B
Red ZB6EG4B
Yellow ZB6EG5B
Blue ZB6EG6B
With resistor for 95 V neon bulb (not included) (4) (5) 110 Vac —ZB6EG0B
230 Vac — ZB6EM0B
Direct supply for 0.6 W max. incandescent bulb (not included) (4)
< 24 Vac/Vdc —ZB6EH0B
Separate Contact Blocks (Maximum of 3 contacts per mounting base.)
Contact Material For use with mounting base Type of Contact Reference
N.O. N.C.
Silver alloy Quick connectors/solder tabs 1 — ZB6E1B
— 1 ZB6E2B
Gold ashed Quick connectors/solder tabs 1 — ZB6E1E
— 1 ZB6E2E
(1) Illuminated selector switches can be assembled by using a contact block/light module assembly in conjunction with a selector switch head,
supplied without handle, and a transparent handle. See page 19.
(2) The LED must be the same color as the push button cap.
(3) The LED must be the same color as the lens.
(4) Order bulbs separately. See page 24.
(5) Neon bulb can only be used with a red, yellow, or white cap.
(6) Electrical components with connection by printed circuit board pins are available. See page 24.
ZB6ZB••B
ZB6ZH••B
ZB6Z•B
ZB6E••B
ZB6E•0B
ZB6E•B
Harmony™ XB6/ZB6
16 mm push buttons
Electrical components
References (continued)
Product range:
page 5
Specications:
page 10
Assembled products:
page 12
Dimensions:
page 25
19
Heads for Illuminated Push Buttons
(To combine with complete bodies and contact blocks, see page 18)
Type of Push Color
Rectangular Square Round
Reference Reference Reference
Flush, spring return White ZB6DW1 ZB6CW1 ZB6AW1
Green ZB6DW3 ZB6CW3 ZB6AW3
Red ZB6DW4 ZB6CW4 ZB6AW4
Yellow ZB6DW5 ZB6CW5 ZB6AW5
Blue ZB6DW6 ZB6CW6 ZB6AW6
5 colors (1) ZB6DW9 ZB6CW9 ZB6AW9
Flush, maintained White ZB6DF1 ZB6CF1 ZB6AF1
Green ZB6DF3 ZB6CF3 ZB6AF3
Red ZB6DF4 ZB6CF4 ZB6AF4
Yellow ZB6DF5 ZB6CF5 ZB6AF5
Blue ZB6DF6 ZB6CF6 ZB6AF6
5 colors (1) ZB6DF9 ZB6CF9 ZB6AF9
Extended, spring return White ZB6DE1 ZB6CE1 ZB6AE1
Green ZB6DE3 ZB6CE3 ZB6AE3
Red ZB6DE4 ZB6CE4 ZB6AE4
Yellow ZB6DE5 ZB6CE5 ZB6AE5
Blue ZB6DE6 ZB6CE6 ZB6AE6
5 colors (1) ZB6DE9 ZB6CE9 ZB6AE9
(1) Five different color caps included with head (white, green, red, yellow, and blue).
Heads for Pilot Lights
(To combine with light modules, see page 18)
Color
Rectangular Square Round
Reference Reference Reference
White ZB6DV1 ZB6CV1 ZB6AV1
Green ZB6DV3 ZB6CV3 ZB6AV3
Red ZB6DV4 ZB6CV4 ZB6AV4
Yellow ZB6DV5 ZB6CV5 ZB6AV5
Blue ZB6DV6 ZB6CV6 ZB6AV6
5 colors (2) ZB6DV9 ZB6CV9 ZB6AV9
(2) Five different color caps included with head (white, green, red, yellow, and blue).
For Legends, see pages 22 and 24.
ZB6DW•
ZB6CE•
ZB6AF•
ZB6DV•
ZB6CV•
ZB6AV•
Harmony™ XB6/ZB6
16 mm push buttons
Illuminated operators
References (continued)
Product range:
page 5
Specications:
page 10
Assembled products:
page 12
Dimensions:
page 25
20
Non-Illuminated Operators – Heads for Push Buttons
(To combine with complete bodies and contact blocks, see page 18)
Type of Push Color
Rectangular Square Round
Reference Reference Reference
Flush, spring return White ZB6DA1 ZB6CA1 ZB6AA1
Black ZB6DA2 ZB6CA2 ZB6AA2
Green ZB6DA3 ZB6CA3 ZB6AA3
Red ZB6DA4 ZB6CA4 ZB6AA4
Yellow ZB6DA5 ZB6CA5 ZB6AA5
Blue ZB6DA6 ZB6CA6 ZB6AA6
6 colors (1) ZB6DA9 ZB6CA9 ZB6AA9
(1) Five different color caps included with head (white, green, red, yellow, and blue).
Non-Illuminated Operators – Mushroom Heads for Trigger Action Push Buttons
(30 mm) (2)
Shape of Head Type of Push Cap Color Reference
Turn-to-release Red ZB6AS834
Key release Red ZB6AS934
(2) Complies with EN418/ISO13850 standards for Emergency Stop push buttons when used with circular Legend Plate ZB6Y7330 (see page 24).
Non-Illuminated Operators – Circular Legends, 45 mm
Description Color Text Reference
Circular legends, 45 mm Yellow Blank ZB6Y7001
Emergency stop ZB6Y7330
Heads for Non-Illuminated Selector Switches (3) (5)
(To combine with complete bodies and contact blocks, see page 18)
Number and Type of Positions Color of
Handle
Rectangular Square Round
Reference Reference Reference
Switching angle: maintained positions 60°, spring return positions 45°
2-maintained Black ZB6DD22 ZB6CD22 ZB6AD22
2-maintained Black ZB6DD28 (4) ZB6CD28 (4) ZB6AD28 (4)
3-maintained Black ZB6DD23 ZB6CD23 ZB6AD23
2-spring return to center Black ZB6DD24 ZB6CD24 ZB6AD24
3-spring return to center Black ZB6DD25 ZB6CD25 ZB6AD25
3-spring return from right to center Black ZB6DD26 ZB6CD26 ZB6AD26
3-spring return from left to center Black ZB6DD27 ZB6CD27 ZB6AD27
(3) For bodies with 2 contact blocks, maximum.
(4) Switching angle: maintained positions 90º.
(5) See selector switch sequence charts on page 17.
For Legends, see pages 22 and 24.
ZB6DA•
ZB6CA•
ZB6AA•
ZB6Y7330
ZB6DD••
ZB6CD••
ZB6AD••
Harmony™ XB6/ZB6
16 mm push buttons
Non-illuminated operators and selector switches
References (continued)
Product range:
page 5
Specications:
page 10
Assembled products:
page 12
Dimensions:
page 25
ZB6AS834
ZB6AS934
21
Heads for Ronis Key Operated Selector Switches (1)
(To combine with complete bodies and contact blocks, see page 18
Number and Type of Positions Key Withdrawal
Rectangular Square Round
Reference Reference Reference
Switching angle: maintained positions 70o, spring return positions 45o
2-maintained Right-hand position ZB6DGA ZB6CGA ZB6AGA
Center position ZB6DGB ZB6CGB ZB6AGB
Both positions ZB6DGC ZB6CGC ZB6AGC
2-spring return from right to center Center position ZB6DGL ZB6CGL ZB6AGL
3-maintained Left-hand position ZB6DGD ZB6CGD ZB6AGD
Center position ZB6DGE ZB6CGE ZB6AGE
Left-hand and center
positions
ZB6DGF ZB6CGF ZB6AGF
Right-hand position ZB6DGG ZB6CGG ZB6AGG
All 3 positions ZB6DGH ZB6CGH ZB6AGH
Left-hand and right-hand
positions
ZB6DGJ ZB6CGJ ZB6AGJ
Right-hand and center
positions
ZB6DGK ZB6CGK ZB6AGK
3-spring return from right to center Left-hand position ZB6DGQ ZB6CGQ ZB6AGQ
Center position ZB6DGR ZB6CGR ZB6AGR
Left-hand and center
positions
ZB6DGS ZB6CGS ZB6AGS
3-spring return to center Center position ZB6DGT ZB6CGT ZB6AGT
Note: Indicates key withdrawal position.
(1) Ronis 200 key standard. Other keys available, refer to Catalog 9001CT0001.
Selector Switch Sequence (using contact block
assemblies, page 18)
2 Position Selector Switch
Contact block guide (2)
Ox1 N.O. (left or right)
xO 1 N.C. (left or right)
O
x
x
O
1 N.O.
and
1 N.C.
3 Position Selector Switch
Contact block guide (2)
OOx1 N.O. (left)
xOx2 N.O. wired in parallel (side by side)
xO O 1 N.O. (right)
Oxx1 N.C. (right)
xxO 1 N.C. (left)
OxO 2 N.C. wired in series (side by side)
(2) As viewed from the front of the panel.
For Legends, see pages 22 and 24.
ZB6DG•
ZB6CG•
ZB6AG•
Harmony™ XB6/ZB6
16 mm push buttons
Keyed selector switches
References (continued)
Product range:
page 5
Specications:
page 10
Assembled products:
page 12
Dimensions:
page 25
22

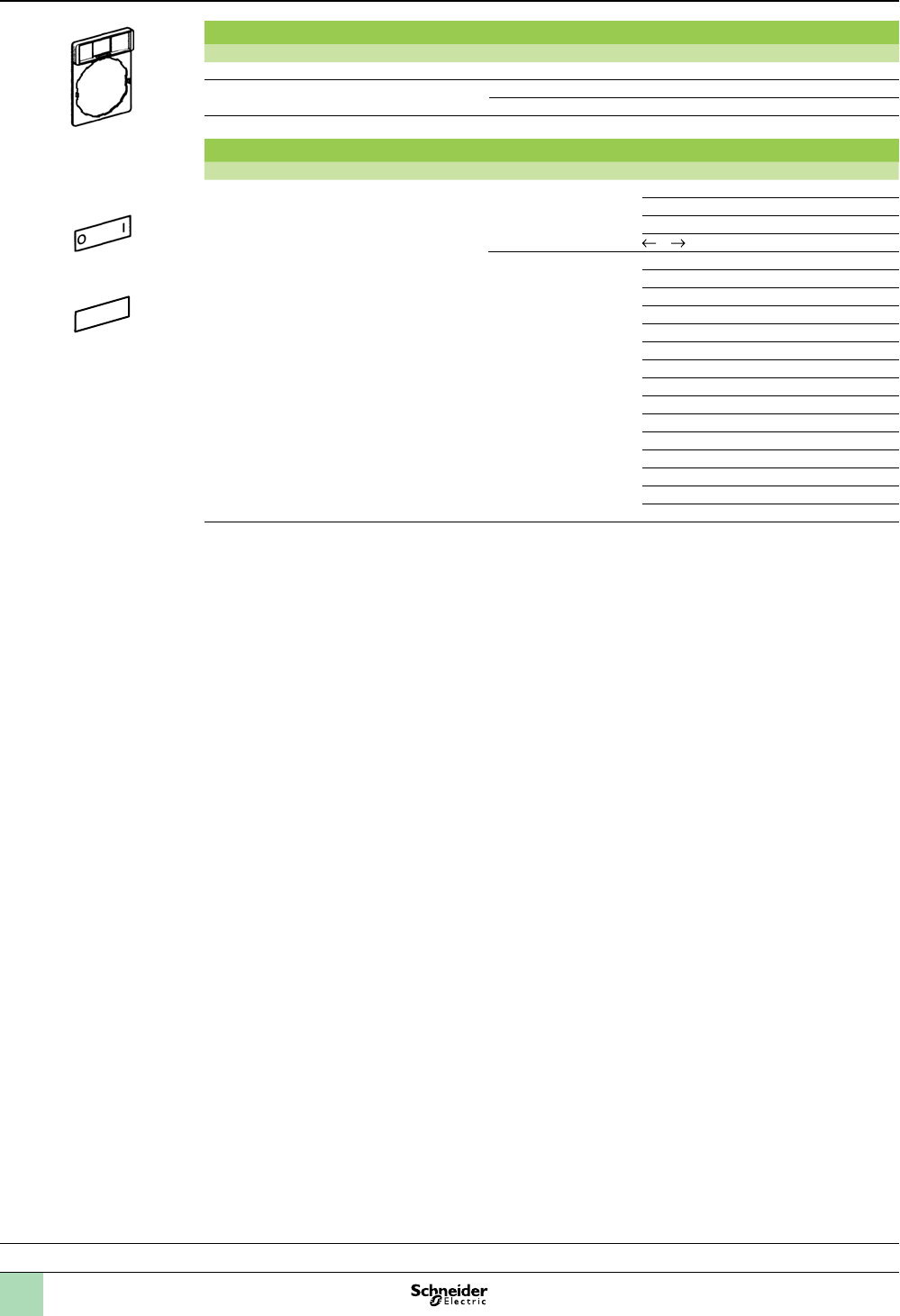

Standard Legend Plate (24 x 28 mm) for 8 x 21 mm Legend
Description Background Color of Legend Reference
Without legend insert —ZB6YD20
With blank legend insert White or yellow ZB6YD21
Black or red ZB6YD22
8 x 21 mm Marked Legends (for 24 x 28 mm legend holder ZB6YD20)
Color Marking Reference
White Text
Red Background (Stop and Fault)
Black Background (all others)
International O-I ZB6Y2178
I-II ZB6Y2179
I-O-II ZB6Y2186
O ZB6Y2190
English HAND-O-AUTO ZB6Y2387
CLOSE ZB6Y2314
DOWN ZB6Y2308
FORWARD ZB6Y2305
FAULT ZB6Y2334
LEFT ZB6Y2310
OFF ZB6Y2312
ON ZB6Y2303
OPEN ZB6Y2313
RESET ZB6Y2323
REVERSE ZB6Y2306
RIGHT ZB6Y2309
RUN ZB6Y2311
STOP ZB6Y2304
UP ZB6Y2307
ZB6YD20
ZB6Y2178
STOP
ZB6Y2304
Harmony™ XB6/ZB6
16 mm push buttons
Accessories
References (continued)
Product range:
page 5
Specications:
page 10
Assembled products:
page 12
Dimensions:
page 25
23

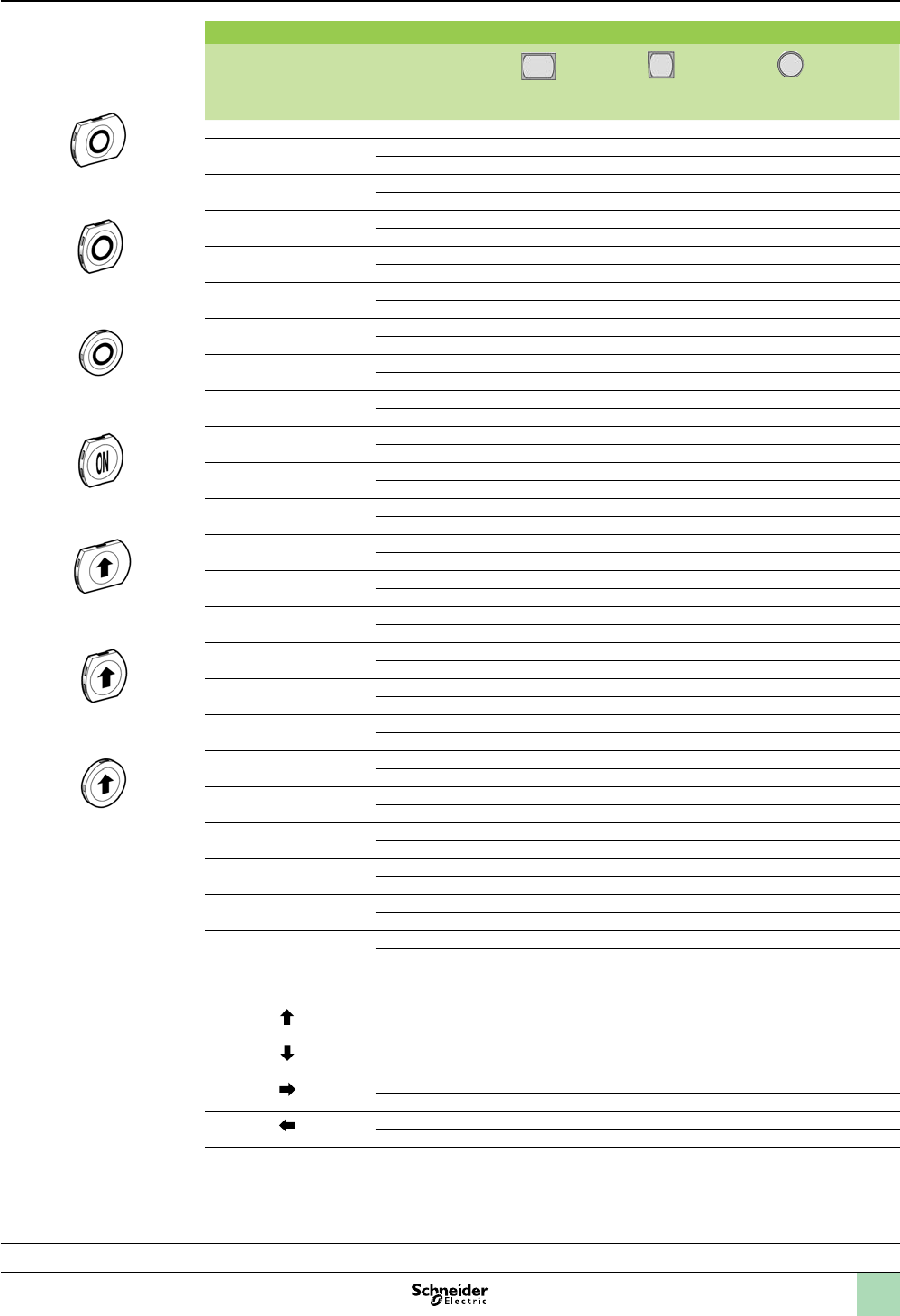

Push Button Caps—Marked
Ink Marking Color:
White on colored cap
Black on white cap
Color
Rectangular Square Round
Reference Reference Reference
For non-illuminated push buttons
0White ZB6YD100 ZB6YC100 ZB6YA100
Black ZB6YD200 ZB6YC200 ZB6YA200
1White ZB6YD101 ZB6YC101 ZB6YA101
Black ZB6YD201 ZB6YC201 ZB6YA201
2White ZB6YD102 ZB6YC102 ZB6YA102
Black ZB6YD202 ZB6YC202 ZB6YA202
3White ZB6YD103 ZB6YC103 ZB6YA103
Black ZB6YD203 ZB6YC203 ZB6YA203
4White ZB6YD104 ZB6YC104 ZB6YA104
Black ZB6YD204 ZB6YC204 ZB6YA204
5White ZB6YD105 ZB6YC105 ZB6YA105
Black ZB6YD205 ZB6YC205 ZB6YA205
6White ZB6YD106 ZB6YC106 ZB6YA106
Black ZB6YD206 ZB6YC206 ZB6YA206
7White ZB6YD107 ZB6YC107 ZB6YA107
Black ZB6YD207 ZB6YC207 ZB6YA207
8White ZB6YD108 ZB6YC108 ZB6YA108
Black ZB6YD208 ZB6YC208 ZB6YA208
9White ZB6YD109 ZB6YC109 ZB6YA109
Black ZB6YD209 ZB6YC209 ZB6YA209
ON White ZB6YD117 ZB6YC117 ZB6YA117
Green ZB6YD317 ZB6YC317 ZB6YA317
OFF Black ZB6YD224 ZB6YC224 ZB6YA224
Red ZB6YD424 ZB6YC424 ZB6YA424
IWhite ZB6YD111 ZB6YC111 ZB6YA111
Green ZB6YD311 ZB6YC311 ZB6YA311
OBlack ZB6YD210 ZB6YC210 ZB6YA210
Red ZB6YD410 ZB6YC410 ZB6YA410
RBlack ZB6YD226 ZB6YC226 ZB6YA226
Blue ZB6YD626 ZB6YC626 ZB6YA626
START White ZB6YD140 ZB6YC140 ZB6YA140
Green ZB6YD340 ZB6YC340 ZB6YA340
STOP Black ZB6YD241 ZB6YC241 ZB6YA241
Red ZB6YD441 ZB6YC441 ZB6YA441
II White ZB6YD112 ZB6YC112 ZB6YA112
Black ZB6YD212 ZB6YC212 ZB6YA212
III White ZB6YD113 ZB6YC113 ZB6YA113
Black ZB6YD213 ZB6YC213 ZB6YA213
+White ZB6YD114 ZB6YC114 ZB6YA114
Black ZB6YD214 ZB6YC214 ZB6YA214
-White ZB6YD115 ZB6YC115 ZB6YA115
Black ZB6YD215 ZB6YC215 ZB6YA215
UP White ZB6YD127 ZB6YC127 ZB6YA127
Black ZB6YD227 ZB6YC227 ZB6YA227
DOWN White ZB6YD128 ZB6YC128 ZB6YA128
Black ZB6YD228 ZB6YC228 ZB6YA228
CLOSE White ZB6YD132 ZB6YC132 ZB6YA132
Black ZB6YD232 ZB6YC232 ZB6YA232
White ZB6YD119 ZB6YC119 ZB6YA119
Black ZB6YD219 ZB6YC219 ZB6YA219
White ZB6YD120 ZB6YC120 ZB6YA120
Black ZB6YD220 ZB6YC220 ZB6YA220
White ZB6YD121 ZB6YC121 ZB6YA121
Black ZB6YD221 ZB6YC221 ZB6YA221
White ZB6YD122 ZB6YC122 ZB6YA122
Black ZB6YD222 ZB6YC222 ZB6YA222
ZB6YD•10
ZB6YC•10
ZB6YA•10
ZB6YD•17
ZB6YD•19
ZB6YC•19
ZB6YA•19
Harmony™ XB6/ZB6
16 mm push buttons
Accessories
References (continued)
Product range:
page 5
Specications:
page 10
Assembled products:
page 12
Dimensions:
page 25
24

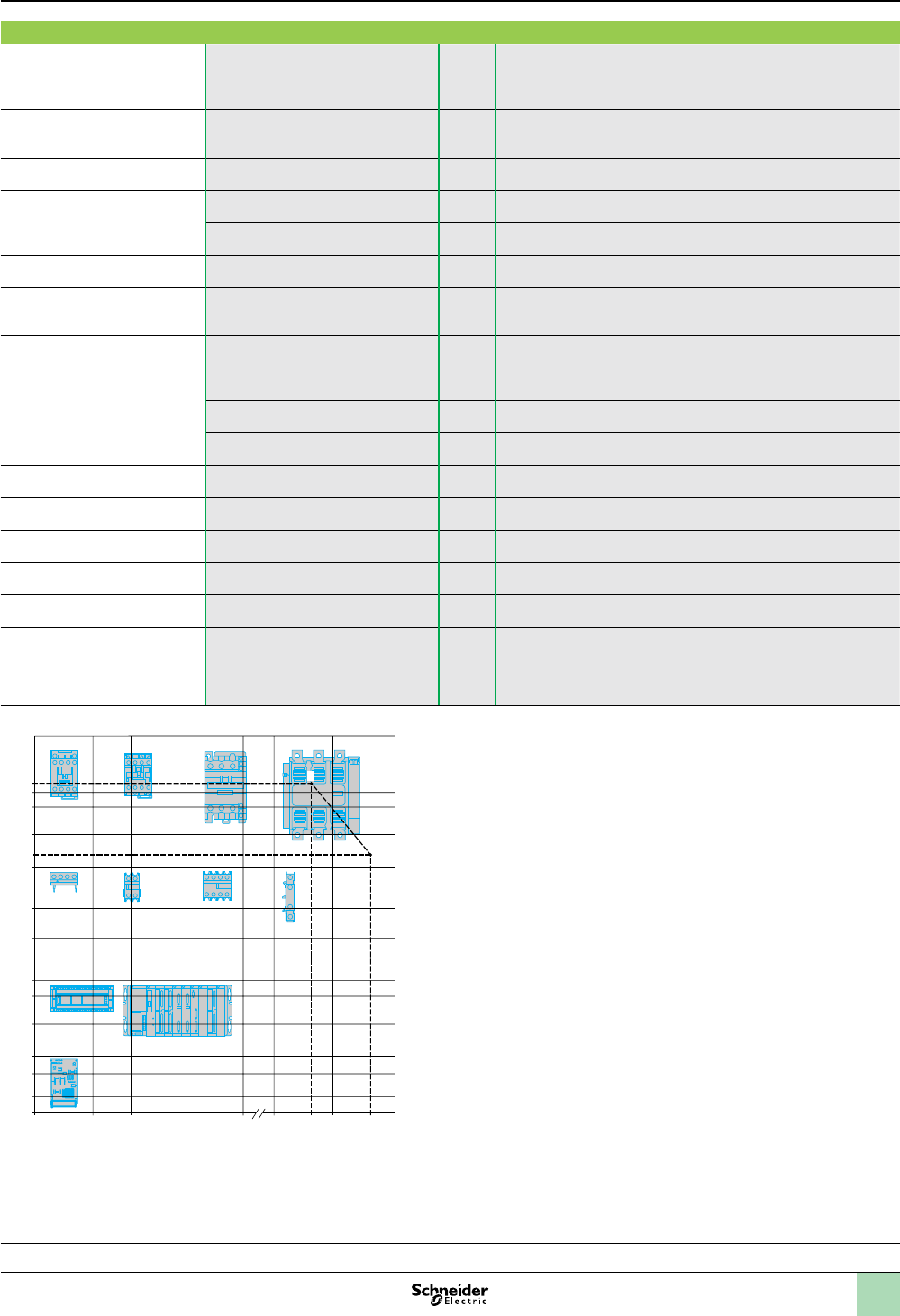

Accessories
Description Application Reference
Body Attaching contact blocks ZB6Y009
Bezel tightening tool + bulb extractor Mounting the switch and changing bulbs ZB6Y905
Three piece dismantling tool kit Removing contacts, mounting nuts and
push button caps
ZB6Y019
Nut Mounting head to panel ZB6Y002
Adaptor Flush mounting a circular head push
button or pilot light in 22 mm cut-out
ZB6YA002
Shroud Protecting contacts against touching ZB6Y001
Protective cover Circular and square head push buttons
and switches
ZB6YA001
Rectangular head push buttons and
switches
ZB6YD001
Female Quick connector/Solder tab Sold in lots of 100 pieces ZB6Y004
Blanking plug Plugging an unused knockout ZB6Y005
Ronis key, 2 pieces Key operated selector switches and
emergency stop mushroom
ZB6Y007
Incandescent bulbs, bayonet T1 1/4 6 V ZB6YA006
12 V ZB6YJ012
28 V (1) ZB6YB028
Neon bulbs 110/230 V (2) ZB6YG095
(1) 28 V bulb supplied, for use on 24 V.
(2) 95 V bulb supplied, for use on 110/230 V.
Standard Legend Plate (24 x 28 mm) for 8 x 21 mm Legend (3)
Description Background Color of Legend Reference
Without legend insert —ZB6YD20
With blank legend insert White or yellow ZB6YD21
Black or red ZB6YD22
8 x 21 mm Marked Legends
(for 24 x 28 mm legend holder ZB6YD20) (3)
Color Marking Reference
White Text
Red Background (Stop and Fault)
Black Background (all others)
International O-I ZB6Y2178
I-II ZB6Y2179
I-O-II ZB6Y2186
O ZB6Y2190
English HAND-O-AUTO ZB6Y2387
CLOSE ZB6Y2314
DOWN ZB6Y2308
FORWARD ZB6Y2305
FAULT ZB6Y2334
LEFT ZB6Y2310
OFF ZB6Y2312
ON ZB6Y2303
OPEN ZB6Y2313
RESET ZB6Y2323
REVERSE ZB6Y2306
RIGHT ZB6Y2309
RUN ZB6Y2311
STOP ZB6Y2304
UP ZB6Y2307
(3) Additional legend plate sizes and markings are available in Catalog 9001CT0001.
Circular Legends, 45 mm
Description Color Text Reference
Circular legends, 45 mm Yellow Blank ZB6Y7001
Emergency stop ZB6Y7330
Accessories for Printed Circuit Board Mounting
Description for use with Reference
Plug-in Socket Adapter contact blocks and light modules ZB6Y010
Body Bracket plug-in socket adapter ZB6Y011
ZB6Y905
ZB6Y009
ZB6Y002
ZB6Y001
ZB6Y005
ZB6Y007
ZB6YD20
ZB6YD001
ZB6YA001
ZB6Y2178
STOP
ZB6Y2304
ZB6Y7330
Harmony™ XB6/ZB6
16 mm push buttons
Accessories
References (continued)
Product range:
page 5
Specications:
page 10
Assembled products:
page 12
Dimensions:
page 25
ZB6Y010 ZB6Y011
25
Harmony™ XB6/ZB6
16 mm push buttons
Push buttons (illuminated and non illuminated)
Rectangular head
XB6DWpppp, DFpppp, DApp XB6DEpppp Common face view
Square head
XB6CWpppp, CFpppp, CApp XB6CEpppp Common face view
Circular head
XB6AWpppp, AFpppp, AApp XB6AEpppp Common face view
Mushroom head push buttons
XB6AS8349B XB6AS9349B
e: panel thickness 1 to 6 mm
Pilot lights
Common side view Rectangular head Square head
XB6DVppp, XB6CVppp XB6DVppp XB6CVppp
Circular head
XB6AVppp
e: panel thickness
1 to 6 mm
e: panel thickness
1 to 6 mm
e: panel thickness
1 to 6 mm
e: panel thickness
1 to 6 mm
e: panel thickness
1 to 6 mm
Dimensions
Dual Dimensions: in (mm)
3.8125
(97)
e
1.8125
(46)
1.1875
(30)
1.625
(41.5)
3.0
(77)
e
1.0
(26)
1.625
(41.5)
1.1875
(30)
e
2.25
(57)
1.625
(41.5)
0.33
(8.5)
0.75
(18)
2.25
(57)
1.625
(41.5)
e
0.33
(8.5)
2.375
(61)
e
0.5
(11.5)
1.625
(41.5)
0.9375
(23.5)
0.75
(18)
2.375
(61)
e
0.5
(11.5)
1.625
(41.5)
0.9375
(23.5)
0.75
(18)
e
2.25
(57)
1.625
(41.5)
0.33
(8.5)
e
1.625
(41.5) 2.375
(61)
0.5
(11.5)
0.75
(18)
0.75
(18)
e
1.625
(41.5) 2.375
(61)
0.5
(11.5)
0.75
(18)
0.75
(18)
e
1.625
(41.5) 2.375
(61)
0.5
(11.5)
e
1.625
(41.5) 2.375
(61)
0.5
(11.5)
e
2.25
(57)
1.625
(41.5)
0.33
(8.5)
e
0.9375
(24)
2.25
(57)
1.625
(41.5)
0.33
(8.5)
0.75
(18)
e
0.9375
(24)
2.25
(57)
1.625
(41.5)
0.33
(8.5)
0.75
(18)
0.75
(18)
0.75
(18)
e
2.25
(57)
1.625
(41.5)
0.33
(8.5)
0.75
(18)
26
Harmony™ XB6/ZB6
16 mm push buttons
Selector switches, standard handle (illuminated and non illuminated)
Rectangular head Square head
XB6DDpppp, XB6CDpppp,
Circular head
XB6ADpppp
Key switches
Rectangular head Square head
XB6DGppp XB6CGppp
Circular head
XB6AGppp
e: panel thickness 1 to 6 mm
e: panel thickness 1 to 6 mm
e: panel thickness 1 to 6 mm
Dimensions (continued)
Product range:
page 5
Specications:
page 10
Assembled products:
page 12
References:
page 15
Dual Dimensions: in (mm)
2.6875
(68)
0.75
(19)
e
1.625
(41.5)
0.75
(18)
0.9375
(24)
e
1.625
(41.5)
0.75
(19) 2.6875
(68)
0.75
(18)
0.75
(18)
e
1.625
(41.5)
0.75
(19) 2.6875
(68)
0.75
(18)
3.15
(80)
e
1.34
(34)
0.75
(18)
1.625
(41.5)
0.9375
(24)
0.75
(18)
e
1.625
(41.5)
1.34
(34) 3.15
(80)
0.75
(18)
e: panel thickness 1 to 6 mm
e
1.625
(41.5)
1.34
(34) 3.15
(80)
0.75
(18)
27
Harmony™ XB6/ZB6
16 mm push buttons
Push buttons
Bodies for illuminated push buttons Heads for illuminated and non illuminated push buttons
Rectangular
ZB6ZpppB ZB6DWp, DFp, DAp ZB6DEp Common face view
Bodies for non illuminated push buttons Square
ZB6ZpB ZB6CWp, CFp, CAp ZB6CEp Common face view
Circular
ZB6AWp, AFp, AAp ZB6AEp Common face view
Dimensions (continued)
Product range:
page 5
Specications:
page 10
Assembled products:
page 12
References:
page 15
Heads for mushroom head push buttons
Trigger action Trigger action
ZB6AS834 ZB6AS934
ZB6AS834-ENC-2-M
2.0
(50)
1.1875
(30)
ZB6AS934-ENC-2-M
2.75
(70)
1.1875
(30)
Pilot lights
Bodies Rectangular head Square head
ZB6EBpp ZB6DVp ZB6CVp
b
ZB6EppB13.5
ZB6EBpA15.5
Circular head
ZB6AVp
Dual Dimensions: in (mm)
1.25
(32) 0.3125
(8)
0.75
(18)
1.6875
(42.5)
0.75
(18)
1.25
(32) 0.3125
(8)
0.75
(18)
1.4375
(36)
0.75
(18)
1.28
(32.5)
1.28
(32.5)
1.4375
(36)
0.9375
(23.5)
0.75
(18)
1.4375
(36)
0.9375
(23.5)
0.75
(18)
1.28
(32.5)
0.75
(18)
1.4375
(36)
0.75
(18)
0.75
(18)
1.4375
(36)
0.75
(18)
1.28
(32.5)
0.75
(18)
1.4375
(36)
b
2.0
(50)
0.31
(8)
0.75
(18)
0.9375
(24)
1.28
(32.5)
0.75
(18)
0.9375
(24)
1.28
(32.5)
0.75
(18)
1.28
(32.5)
0.75
(18)
0.75
(18)
1.28
(32.5)
0.75
(18)
0.75
(18)
1.28
(32.5)
28
Harmony™ XB6/ZB6
16 mm push buttons
Selector switches, standard handle (illuminated and non illuminated)
Bodies Rectangular head Square head
ZB6ZpB ZB6DDpp ZB6CDpp
Circular head
ZB6ADpp
Key switches
Bodies Rectangular head Square head
ZB6ZpB ZB6DGp ZB6CGp
Circular head
ZB6AGp
Dimensions (continued)
Product range:
page 5
Specications:
page 10
Assembled products:
page 12
References:
page 15
Protective shutter
For rectangular head For square or circular head
ZB6YD001 ZB6YA001
e: panel thickness 1 to 6 mm
Plug-in socket adaptor for printed circuit board mounting and body bracket
ZB6Y010 + ZB6Y011
2.375
(60.5)
e
0.5625
(14)
0.9375
(23)
1.625
(41.5) 0.9375
(23.5)
e
0.5625
(14)
1.625
(41.5)
0.9375
(23)
0.75
(18)
2.375
(60.5)
Dual Dimensions: in (mm)
0.75
(18)
1.6875
(43)
2.1875
(55)
0.75
(18)
0.75
(18)
1.25
(32) 0.3125
(8)
1.6875
(43)
0.75
(18)
0.9375
(24)
1.6875
(43)
0.75
(18)
0.9375
(24)
0.75
(18)
1.6875
(43)
0.75
(18)
0.75
(18)
1.6875
(43)
0.75
(18)
0.75
(18)
1.6875
(43)
0.75
(18)
1.25
(32) 0.3125
(8)
2.1875
(55)
0.75
(18)
0.9375
(24)
2.1875
(55)
0.75
(18)
0.9375
(24)
0.75
(18)
0.75
(18)
2.1875
(55)
0.75
(18)
0.75
(18)
2.1875
(55)
2.1875
(55)
0.75
(18)
1.65
(42)
0.22
(5.5)
0.71
(18)
1.26
(32)
0.94
(24)
ZB6Y011 ZB6Y010
0.71
(18)
30

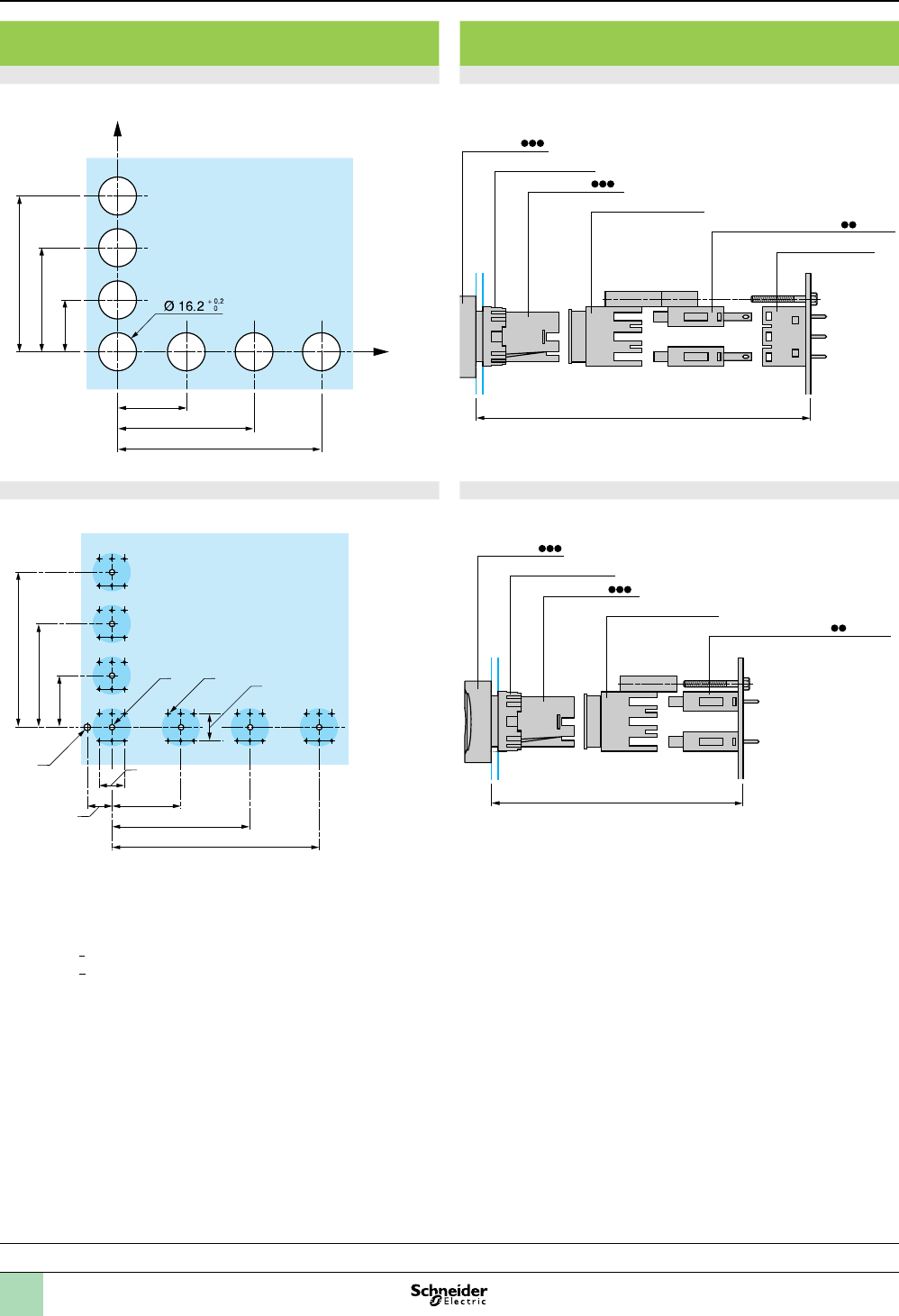

Push buttons, switches and pilot lights
for printed circuit board connection
Mounting with body bracket
Front panel cut-out (viewed from installer’s side) With socket adaptor ZB6Y010
Printed circuit board drillings (viewed from electrical block side) (1) Direct mounting without socket adaptor ZB6Y010
A: 24 mm minimum for rectangular heads
18 mm minimum for square or circular heads
B:: 18 mm minimum
1 6 x Ø 1.1 mm holes.
2 1 x Ø 2.6
0 0.2 hole for locating pin, only when using socket adaptor ZB6Y010.
3 1 x Ø 3.2
0 0.2 hole for mounting of printed circuit board onto the front panel using body bracket ZB6Y011.
This hole must be drilled on the left side, when heads are positioned at the normal angle. Attach a body bracket ZB6Y011 every 72 mm
maximum for cut-outs on 24 mm centers (rectangular heads) and 54 mm maximum for cut-outs on 18 mm centers (square or circular heads).
General tolerances of the panel and printed circuit board: T1, T2
The cumulative tolerance must not exceed 0.3 mm: T1 + T2 = 0.3 mm maximum.
Installation precautions:
Thickness of printed circuit board: 1.6 mm minimum.
(1) The cut-out dimensions are the same for direct mounting and for mounting using socket adaptor ZB6Y010.
Product range:
page 5
Specications:
page 10
Assembled products:
page 12
References:
page 15
Harmony™ XB6/ZB6
16 mm push buttons
Dimensions (continued)
Dual Dimensions: in (mm)
A1±T1
A±T1
An±T1
Y
Bn±T1
B±T1
B1±T1
X
2.03
(51.5)
Nut ZB6Y002
Body bracket
Socket adaptor
ZB6Y010
Printed
circuit
Panel
Head ZB6
Body ZB6
Contact block ZB6E B
ZB6Y011
0.47
(12)
0.47
(12)
A ± T2
A1 ± T2
An ± T2
B ± T2
B1 ± T2
Bn ± T2
0.5
(12.7)
0.12
(3)
0.08
(2)
0.04
(1)
1.63
(41.5)
Nut ZB6Y002
Body bracket
ZB6Y011
Printed
circuitPanel
Head ZB6
Body ZB6
Contact block ZB6E A
31
Harmony™ XB6/ZB6
16 mm push buttons
Index
XB6
XB6AA11B 13, 16
XB6AA15B 13, 16
XB6AA21B 16
XB6AA22B 16
XB6AA25B 13, 16
XB6AA31B 13, 16
XB6AA35B 13, 16
XB6AA42B 16
XB6AA45B 13, 16
XB6AA51B 16
XB6AA55B 16
XB6AA61B 16
XB6AA65B 16
XB6AD221B 14, 17
XB6AD225B 14, 17
XB6AD233B 17
XB6AD235B 14, 17
XB6AE1B1B 15
XB6AE1B5B 15
XB6AE3B1B 15
XB6AE3B5B 15
XB6AE4B2B 15
XB6AE4B5B 15
XB6AE5B1B 15
XB6AE5B5B 15
XB6AE6B1B 15
XB6AE6B5B 15
XB6AF1B1B 15
XB6AF1B5B 12, 15
XB6AF3B1B 12, 15
XB6AF3B5B 12, 15
XB6AF4B2B 12, 15
XB6AF4B5B 12, 15
XB6AF5B1B 15
XB6AF5B5B 15
XB6AF6B1B 15
XB6AF6B5B 15
XB6AGB5B 17
XB6AGC5B 14, 17
XB6AGH3B 17
XB6AGH5B 14, 17
XB6AS8342B 16
XB6AS8345B 16
XB6AS8349B 13
XB6AS9342B 16
XB6AS9345B 16
XB6AS9349B 13
XB6AV1BB 12, 16
XB6AV1GB 16
XB6AV3BB 12, 16
XB6AV3GB 16
XB6AV4BB 12, 16
XB6AV4GB 16
XB6AV5BB 12, 16
XB6AV5GB 16
XB6AV6BB 16
XB6AV6GB 16
XB6AW1B1B 12, 15
XB6AW1B5B 12, 15
XB6AW3B1B 12, 15
XB6AW3B5B 12, 15
XB6AW4B2B 12, 15
XB6AW4B5B 12, 15
XB6AW5B1B 15
XB6AW5B5B 12, 15
XB6AW6B1B 15
XB6AW6B5B 15
XB6CA11B 13, 16
XB6CA15B 13, 16
XB6CA21B 16
XB6CA22B 16
XB6CA25B 13, 16
XB6CA31B 13, 16
XB6CA35B 13, 16
XB6CA42B 16
XB6CA45B 13, 16
XB6CA51B 16
XB6CA55B 16
XB6CA61B 16
XB6CA65B 16
XB6CD221B 14, 17
XB6CD225B 14, 17
XB6CD233B 17
XB6CD235B 14, 17
XB6CE1B1B 15
XB6CE1B5B 15
XB6CE3B1B 15
XB6CE3B5B 15
XB6CE4B2B 15
XB6CE4B5B 15
XB6CE5B1B 15
XB6CE5B5B 15
XB6CE6B1B 15
XB6CE6B5B 15
XB6CF1B1B 15
XB6CF1B5B 12, 15
XB6CF3B1B 12, 15
XB6CF3B5B 12, 15
XB6CF4B2B 12, 15
XB6CF4B5B 12, 15
XB6CF5B1B 15
XB6CF5B5B 15
XB6CF6B1B 15
XB6CF6B5B 15
XB6CGB5B 17
XB6CGC5B 14, 17
XB6CGH3B 17
XB6CGH5B 14, 17
XB6CV1BB 12, 16
XB6CV1GB 16
XB6CV3BB 12, 16
XB6CV3GB 16
XB6CV4BB 12, 16
XB6CV4GB 16
XB6CV5BB 12, 16
XB6CV5GB 16
XB6CV6BB 16
XB6CV6GB 16
XB6CW1B1B 12, 15
XB6CW1B5B 12, 15
XB6CW3B1B 12, 15
XB6CW3B5B 12, 15
XB6CW4B2B 12, 15
XB6CW4B5B 12, 15
XB6CW5B1B 15
XB6CW5B5B 12, 15
XB6CW6B1B 15
XB6CW6B5B 15
XB6DA11B 13, 16
XB6DA15B 13, 16
XB6DA21B 16
XB6DA22B 16
XB6DA25B 13, 16
XB6DA31B 13, 16
XB6DA35B 13, 16
XB6DA42B 16
XB6DA45B 13, 16
XB6DA51B 16
XB6DA55B 16
XB6DA61B 16
XB6DA65B 16
XB6DD221B 14, 17
XB6DD225B 14, 17
XB6DD233B 17
XB6DD235B 14, 17
XB6DE1B1B 15
XB6DE1B5B 15
XB6DE3B1B 15
XB6DE3B5B 15
XB6DE4B2B 15
XB6DE4B5B 15
XB6DE5B1B 15
XB6DE5B5B 15
XB6DE6B1B 15
XB6DE6B5B 15
XB6DF1B1B 15
XB6DF1B5B 12, 15
XB6DF3B1B 12, 15
XB6DF3B5B 12, 15
XB6DF4B2B 12, 15
XB6DF4B5B 12, 15
XB6DF5B1B 15
XB6DF5B5B 15
XB6DF6B1B 15
XB6DF6B5B 15
XB6DGB5B 17
XB6DGC5B 14, 17
XB6DGH3B 17
XB6DGH5B 14, 17
XB6DV1BB 12,16
XB6DV1GB 16
XB6DV3BB 12,16
XB6DV3GB 16
XB6DV4BB 12,16
XB6DV4GB 16
XB6DV5BB 12,16
XB6DV5GB 16
XB6DV6BB 16
XB6DV6GB 16
XB6DW1B1B 12, 15
XB6DW1B5B 12, 15
XB6DW3B1B 12, 15
XB6DW3B5B 12, 15
XB6DW4B2B 12, 15
XB6DW4B5B 12, 15
XB6DW5B1B 15
XB6DW5B5B 12, 15
XB6DW6B1B 15
XB6DW6B5B 15
ZB6
ZB6AA1 20
ZB6AA2 20
ZB6AA3 20
ZB6AA4 20
ZB6AA5 20
ZB6AA6 20
ZB6AA9 20
ZB6AD22 20
ZB6AD23 20
ZB6AD24 20
ZB6AD25 20
ZB6AD26 20
ZB6AD27 20
ZB6AD28 20
ZB6AE1 19
ZB6AE3 19
ZB6AE4 19
ZB6AE5 19
ZB6AE6 19
ZB6AE9 19
ZB6AF1 19
ZB6AF3 19
ZB6AF4 19
ZB6AF5 19
ZB6AF6 19
ZB6AF9 19
ZB6AGA 21
ZB6AGB 21
ZB6AGC 21
ZB6AGD 21
ZB6AGE 21
ZB6AGF 21
ZB6AGG 21
ZB6AGH 21
ZB6AGJ 21
ZB6AGK 21
ZB6AGL 21
ZB6AGQ 21
ZB6AGR 21
ZB6AGS 21
ZB6AGT 21
ZB6AS834 13, 20
ZB6AS934 13, 20
ZB6AV1 19
ZB6AV3 19
ZB6AV4 19
ZB6AV5 19
ZB6AV6 19
ZB6AV9 19
ZB6AW1 19
ZB6AW3 19
ZB6AW4 19
ZB6AW5 19
ZB6AW6 19
ZB6AW9 19
ZB6CA1 20
ZB6CA2 20
ZB6CA3 20
ZB6CA4 20
ZB6CA5 20
ZB6CA6 20
ZB6CA9 20
ZB6CD22 20
ZB6CD23 20
ZB6CD24 20
ZB6CD25 20
ZB6CD26 20
ZB6CD27 20
ZB6CD28 20
ZB6CE1 19
ZB6CE3 19
ZB6CE4 19
ZB6CE5 19
ZB6CE6 19
ZB6CE9 19
ZB6CF1 19
ZB6CF3 19
ZB6CF4 19
ZB6CF5 19
ZB6CF6 19
ZB6CF9 19
ZB6CGA 21
ZB6CGB 21
ZB6CGC 21
ZB6CGD 21
ZB6CGE 21
ZB6CGF 21
ZB6CGG 21
ZB6CGH 21
ZB6CGJ 21
ZB6CGK 21
ZB6CGL 21
ZB6CGQ 21
ZB6CGR 21
ZB6CGS 21
ZB6CGT 21
ZB6CV1 19
ZB6CV3 19
ZB6CV4 19
ZB6CV5 19
ZB6CV6 19
ZB6CV9 19
ZB6CW1 19
ZB6CW3 19
ZB6CW4 19
ZB6CW5 19
ZB6CW6 19
ZB6CW9 19
ZB6DA1 13, 20
ZB6DA2 13, 20
ZB6DA3 13, 20
ZB6DA4 13, 20
ZB6DA5 20
ZB6DA6 20
ZB6DA9 20
ZB6DD22 14, 20
ZB6DD23 14, 20
ZB6DD24 14, 20
ZB6DD25 14, 20
ZB6DD26 20
ZB6DD27 20
ZB6DD28 20
ZB6DE1 19
ZB6DE3 19
ZB6DE4 19
ZB6DE5 19
ZB6DE6 19
ZB6DE9 19
ZB6DF1 12, 19
ZB6DF3 12, 19
ZB6DF4 12, 19
ZB6DF5 12, 19
ZB6DF6 19
ZB6DF9 19
ZB6DGA 21
ZB6DGB 14, 21
ZB6DGC 14, 21
ZB6DGD 21
ZB6DGE 21
ZB6DGF 21
ZB6DGG 21
ZB6DGH 14, 21
ZB6DGJ 21
ZB6DGK 21
ZB6DGL 21
ZB6DGQ 21
ZB6DGR 21
ZB6DGS 14, 21
ZB6DGT 21
ZB6DV1 12, 19
ZB6DV3 12, 19
ZB6DV4 12, 19
ZB6DV5 12, 19
ZB6DV6 12, 19
ZB6DV9 19
ZB6DW1 12, 19
ZB6DW3 12, 19
ZB6DW4 12, 19
ZB6DW5 12, 19
ZB6DW6 19
ZB6DW9 19
ZB6E1B 18
ZB6E1E 18
ZB6E2B 13, 18
ZB6E2E 18
ZB6EB1B 18
ZB6EB3B 18
ZB6EB4B 18
ZB6EB5B 18
ZB6EB6B 18
ZB6EG0B 18
ZB6EG1B 18
ZB6EG3B 18
ZB6EG4B 18
32
Harmony™ XB6/ZB6
16 mm push buttons
Index (continued)
ZB6EG5B 18
ZB6EG6B 18
ZB6EH0B 18
ZB6EM0B 18
ZB6Ep1B 12
ZB6Ep3B 12
ZB6Ep4B 12
ZB6Ep5B 12
ZB6Ep6B 12
ZB6Y001 24
ZB6Y002 24
ZB6Y004 24
ZB6Y005 24
ZB6Y007 24
ZB6Y009 24
ZB6Y010 24
ZB6Y011 24
ZB6Y019 24
ZB6Y2178 22, 24
ZB6Y2179 22, 24
ZB6Y2186 22, 24
ZB6Y2190 22, 24
ZB6Y2303 22, 24
ZB6Y2304 22, 24
ZB6Y2305 22, 24
ZB6Y2306 22, 24
ZB6Y2307 22, 24
ZB6Y2308 22, 24
ZB6Y2309 22, 24
ZB6Y2310 22, 24
ZB6Y2311 22, 24
ZB6Y2312 22, 24
ZB6Y2313 22, 24
ZB6Y2314 22, 24
ZB6Y2323 22, 24
ZB6Y2334 22, 24
ZB6Y2387 22, 24
ZB6Y7001 16, 20, 24
ZB6Y7330 16, 20, 24
ZB6Y905 24
ZB6YA001 24
ZB6YA002 24
ZB6YA006 24
ZB6YA100 23
ZB6YA101 23
ZB6YA102 23
ZB6YA103 23
ZB6YA104 23
ZB6YA105 23
ZB6YA106 23
ZB6YA107 23
ZB6YA108 23
ZB6YA109 23
ZB6YA111 23
ZB6YA112 23
ZB6YA113 23
ZB6YA114 23
ZB6YA115 23
ZB6YA117 23
ZB6YA119 23
ZB6YA120 23
ZB6YA121 23
ZB6YA122 23
ZB6YA127 23
ZB6YA128 23
ZB6YA132 23
ZB6YA140 23
ZB6YA200 23
ZB6YA201 23
ZB6YA202 23
ZB6YA203 23
ZB6YA204 23
ZB6YA205 23
ZB6YA206 23
ZB6YA207 23
ZB6YA208 23
ZB6YA209 23
ZB6YA210 23
ZB6YA212 23
ZB6YA213 23
ZB6YA214 23
ZB6YA215 23
ZB6YA219 23
ZB6YA220 23
ZB6YA221 23
ZB6YA222 23
ZB6YA224 23
ZB6YA226 23
ZB6YA227 23
ZB6YA228 23
ZB6YA232 23
ZB6YA241 23
ZB6YA311 23
ZB6YA317 23
ZB6YA340 23
ZB6YA410 23
ZB6YA424 23
ZB6YA441 23
ZB6YA626 23
ZB6YB028 24
ZB6YC100 23
ZB6YC101 23
ZB6YC102 23
ZB6YC103 23
ZB6YC104 23
ZB6YC105 23
ZB6YC106 23
ZB6YC107 23
ZB6YC108 23
ZB6YC109 23
ZB6YC111 23
ZB6YC112 23
ZB6YC113 23
ZB6YC114 23
ZB6YC115 23
ZB6YC117 23
ZB6YC119 23
ZB6YC120 23
ZB6YC121 23
ZB6YC122 23
ZB6YC127 23
ZB6YC128 23
ZB6YC132 23
ZB6YC140 23
ZB6YC200 23
ZB6YC201 23
ZB6YC202 23
ZB6YC203 23
ZB6YC204 23
ZB6YC205 23
ZB6YC206 23
ZB6YC207 23
ZB6YC208 23
ZB6YC209 23
ZB6YC210 23
ZB6YC212 23
ZB6YC213 23
ZB6YC214 23
ZB6YC215 23
ZB6YC219 23
ZB6YC220 23
ZB6YC221 23
ZB6YC222 23
ZB6YC224 23
ZB6YC226 23
ZB6YC227 23
ZB6YC228 23
ZB6YC232 23
ZB6YC241 23
ZB6YC311 23
ZB6YC317 23
ZB6YC340 23
ZB6YC410 23
ZB6YC424 23
ZB6YC441 23
ZB6YC626 23
ZB6YD001 24
ZB6YD100 23
ZB6YD101 23
ZB6YD102 23
ZB6YD103 23
ZB6YD104 23
ZB6YD105 23
ZB6YD106 23
ZB6YD107 23
ZB6YD108 23
ZB6YD109 23
ZB6YD111 23
ZB6YD112 23
ZB6YD113 23
ZB6YD114 23
ZB6YD115 23
ZB6YD117 23
ZB6YD119 23
ZB6YD120 23
ZB6YD121 23
ZB6YD122 23
ZB6YD127 23
ZB6YD128 23
ZB6YD132 23
ZB6YD140 23
ZB6YD20 22, 24
ZB6YD200 23
ZB6YD201 23
ZB6YD202 23
ZB6YD203 23
ZB6YD204 23
ZB6YD205 23
ZB6YD206 23
ZB6YD207 23
ZB6YD208 23
ZB6YD209 23
ZB6YD21 22, 24
ZB6YD210 23
ZB6YD212 23
ZB6YD213 23
ZB6YD214 23
ZB6YD215 23
ZB6YD219 23
ZB6YD22 22, 24
ZB6YD220 23
ZB6YD221 23
ZB6YD222 23
ZB6YD224 23
ZB6YD226 23
ZB6YD227 23
ZB6YD228 23
ZB6YD232 23
ZB6YD241 23
ZB6YD311 23
ZB6YD317 23
ZB6YD340 23
ZB6YD410 23
ZB6YD424 23
ZB6YD441 23
ZB6YD626 23
ZB6YG095 24
ZB6YJ012 24
ZB6Z1B 12, 13, 14, 18
ZB6Z2B 12, 13, 14, 18
ZB6Z3B 18
ZB6Z4B 18
ZB6Z5B 12, 13, 18
ZB6ZB11B 18
ZB6ZB15B 18
ZB6ZB31B 18
ZB6ZB35B 18
ZB6ZB42B 18
ZB6ZB45B 18
ZB6ZB51B 18
ZB6ZB52B 18
ZB6ZB55B 18
ZB6ZB61B 18
ZB6ZB65B 18
ZB6ZG11B 18
ZB6ZG15B 18
ZB6ZG31B 18
ZB6ZG35B 18
ZB6ZG42B 18
ZB6ZG45B 18
ZB6ZG51B 18
ZB6ZG52B 18
ZB6ZG55B 18
ZB6ZG61B 18
ZB6ZG65B 18
ZB6ZH01B 18
ZB6ZH02B 18
ZB6ZH05B 18
Schneider Electric USA, Inc.
80 01 Knightdale Blvd.
Knightdale, NC 27545
USA Customer Care Center
Tel: 888-778-2733
Schneider Electric Canada
5985 McLaughlin Rd.
Missassauga, Ontario, Canada L5R 1B8
Canada Customer Care Center
Tel: 800 -565 - 6699
The information and dimensions in this catalog are provided for the convenience of our customers.
While this information is believed to be accurate, Schneider Electric reserves the right to make
updates and changes without prior notication and assumes no liability for any errors or omissions.
Harmony, Schneider Electric and logo are trademarks or registered trademarks of Schneider
Electric or its afliates in the United States and other countries. Other trademarks used herein
are the property of their respective owners.
Design: Schneider Electric
Photos: Schneider Electric
© 2011 Schneider Electric. All rights reserved. 05/2011
9001CT1102
http://www.schneider-electric.us/
