Disconnect
switches
Non-fusible
19
Non-fusible disconnect switches
16A – 3150A, 600VAC
200-600A, 1000VDC
ABB SwitchLine includes 16 different amperage sizes from 16A to 3150A. The basic
construction provides flexibility, safety, and high performance in an extremely compact
size. ABB SwitchLine is a perfect choice for all switching applications from industrial motor
control to construction safety switches.
Non-fusible
Disconnect switches
International acceptance
UL listed, CSA approved, IEC rated, CE marked, and most other international standards.
UL98 (CSA 22.2 No.4) — UL File # E101914, CSA File #LR58077
For OT30, OT60, OT100, OT200, OT400, OT600, OT800, OT1200
OETL-NF1600 – OETL-NF2000 switches, OH_ pistol grip handles
Suitable for use as motor disconnects or industrial control panel disconnects on service
entrance equipment, panelboards, switchboards, industrial control equipment, motor
control centers, etc. and are horsepower rated and ampere rated.
UL508 (CSA 22.2 No. 14) — UL File # E63822, CSA File #LR58247
For OT16 – OT80 switches, OH_ selector handles
Suitable for use in equipment or machinery as motor controllers & motor disconnects and
are horsepower and ampere rated.
IEC
Tested in accordance to IEC 947-1 and 3, IEC 664, IEC 269, and IEC 204
CE
Compliance with the European Machine Directive IEC 204 (EN 60204)
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Disconnect
switches
Non-fusible
19

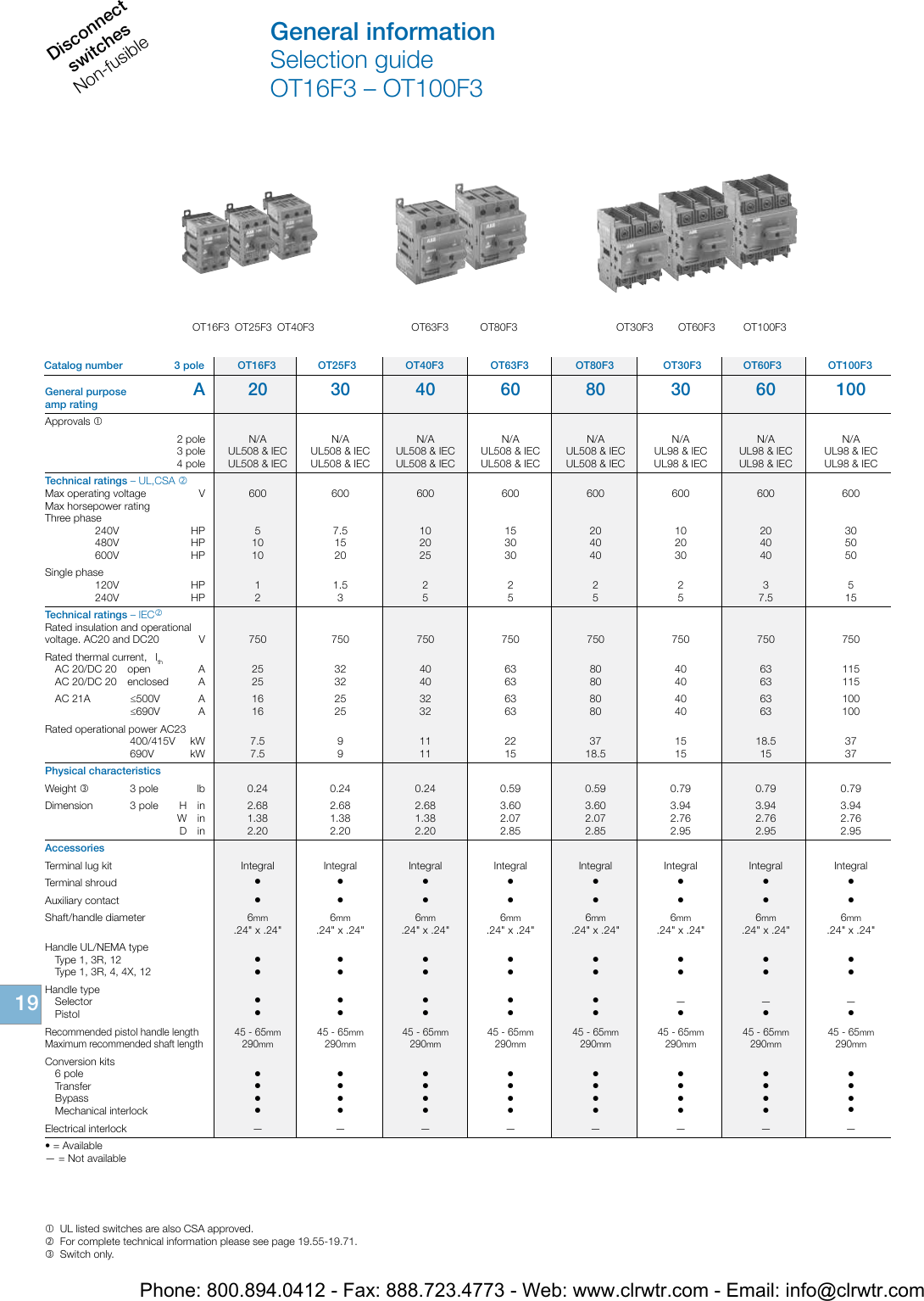

General information
Selection guide
OT16F3 – OT100F3
1 UL listed switches are also CSA approved.
2 For complete technical information please see page 19.55-19.71.
3 Switch only.
Catalog number 3 pole OT16F3 OT25F3 OT40F3 OT63F3 OT80F3 OT30F3 OT60F3 OT100F3
OT16F3 OT25F3 OT40F3 OT63F3 OT80F3 OT30F3 OT60F3 OT100F3
General purpose A 20 30 40 60 80 30 60 100
amp rating
Approvals 1
2 pole N/A N/A N/A N/A N/A N/A N/A N/A
3 pole UL508 & IEC UL508 & IEC UL508 & IEC UL508 & IEC UL508 & IEC UL98 & IEC UL98 & IEC UL98 & IEC
4 pole UL508 & IEC UL508 & IEC UL508 & IEC UL508 & IEC UL508 & IEC UL98 & IEC UL98 & IEC UL98 & IEC
Technical ratings – UL,CSA 2
Max operating voltage V 600 600 600 600 600 600 600 600
Max horsepower rating
Three phase
240V HP 5 7.5 10 15 20 10 20 30
480V HP 10 15 20 30 40 20 40 50
600V HP 10 20 25 30 40 30 40 50
Single phase
120V HP 1 1.5 2 2 2 2 3 5
240V HP 2 3 5 5 5 5 7.5 15
Technical ratings – IEC2
Rated insulation and operational
voltage. AC20 and DC20 V 750 750 750 750 750 750 750 750
Rated thermal current, Ith
AC 20/DC 20 open A 25 32 40 63 80 40 63 115
AC 20/DC 20 enclosed A 25 32 40 63 80 40 63 115
AC 21A ≤500V A 16 25 32 63 80 40 63 100
≤690V A 16 25 32 63 80 40 63 100
Rated operational power AC23
400/415V kW 7.5 9 11 22 37 15 18.5 37
690V kW 7.5 9 11 15 18.5 15 15 37
Physical characteristics
Weight 3 3 pole lb 0.24 0.24 0.24 0.59 0.59 0.79 0.79 0.79
Dimension 3 pole H in 2.68 2.68 2.68 3.60 3.60 3.94 3.94 3.94
W in 1.38 1.38 1.38 2.07 2.07 2.76 2.76 2.76
D in 2.20 2.20 2.20 2.85 2.85 2.95 2.95 2.95
Accessories
Terminal lug kit Integral Integral Integral Integral Integral Integral Integral Integral
Terminal shroud ••••••••
Auxiliary contact ••••••••
Shaft/handle diameter 6mm 6mm 6mm 6mm 6mm 6mm 6mm 6mm
.24" x .24" .24" x .24" .24" x .24" .24" x .24" .24" x .24" .24" x .24" .24" x .24" .24" x .24"
Handle UL/NEMA type
Type 1, 3R, 12 ••••••••
Type 1, 3R, 4, 4X, 12 ••••••••
Handle type
Selector • • • • • ———
Pistol ••••••••
Recommended pistol handle length 45 - 65
mm
45 - 65
mm
45 - 65
mm
45 - 65
mm
45 - 65
mm
45 - 65
mm
45 - 65
mm
45 - 65
mm
Maximum recommended shaft length 290
mm
290
mm
290
mm
290
mm
290
mm
290
mm
290
mm
290
mm
Conversion kits
6 pole ••••••••
Transfer ••••••••
Bypass ••••••••
Mechanical interlock ••••••••
Electrical interlock — — — — — — — —
• = Available
— = Not available
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Disconnect
switches
Non-fusible
19

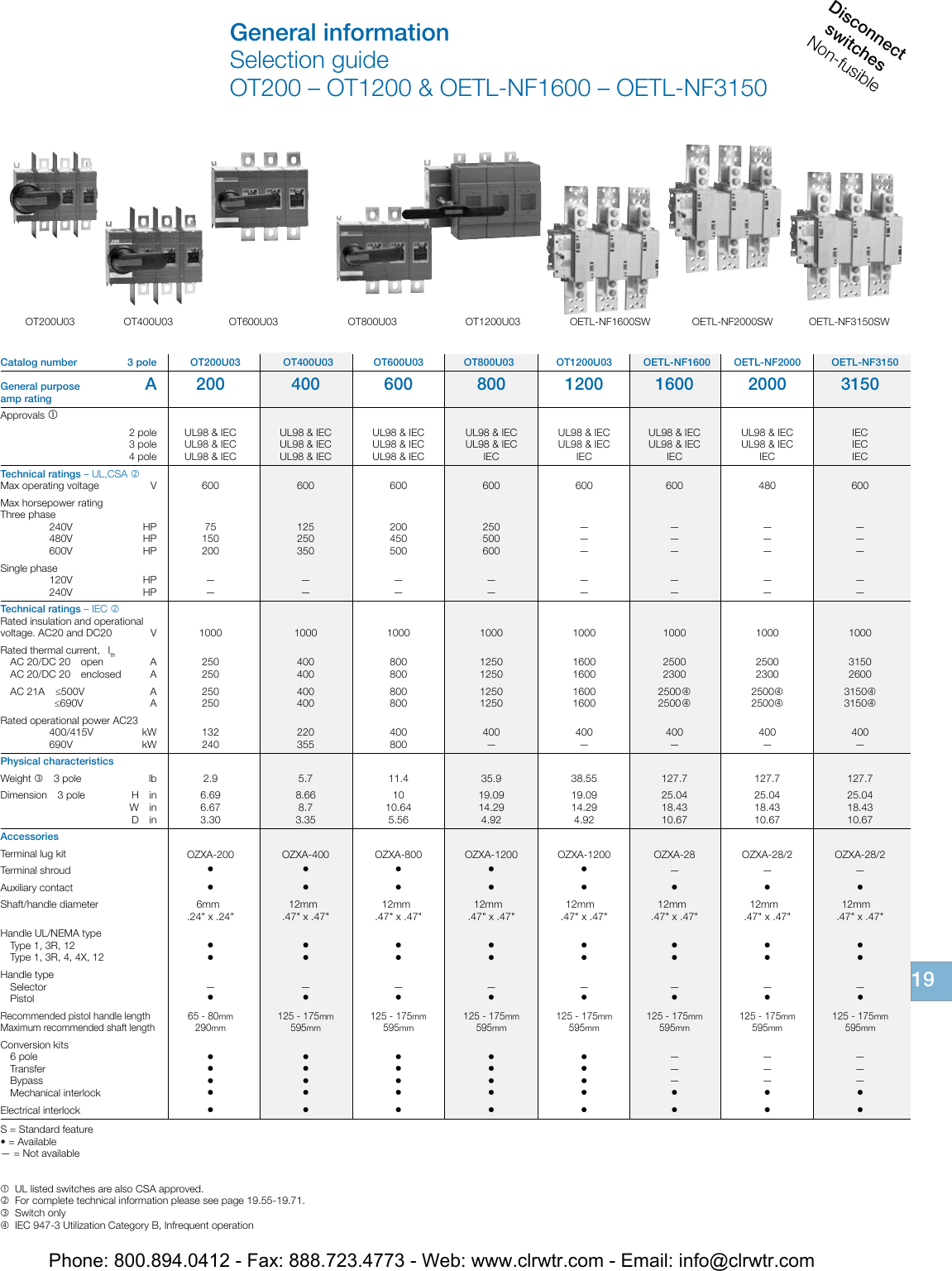

General information
Selection guide
OT200 – OT1200 & OETL-NF1600 – OETL-NF3150
1 UL listed switches are also CSA approved.
2 For complete technical information please see page 19.55-19.71.
3 Switch only
4 IEC 947-3 Utilization Category B, Infrequent operation
S = Standard feature
• = Available
— = Not available
OT200U03 OT400U03 OT600U03 OT800U03 OT1200U03 OETL-NF1600SW OETL-NF2000SW OETL-NF3150SW
Catalog number 3 pole OT200U03 OT400U03 OT600U03 OT800U03 OT1200U03 OETL-NF1600 OETL-NF2000 OETL-NF3150
General purpose A 200 400 600 800 1200 1600 2000 3150
amp rating
Approvals 1
2 pole UL98 & IEC UL98 & IEC UL98 & IEC UL98 & IEC UL98 & IEC UL98 & IEC UL98 & IEC IEC
3 pole UL98 & IEC UL98 & IEC UL98 & IEC UL98 & IEC UL98 & IEC UL98 & IEC UL98 & IEC IEC
4 pole UL98 & IEC UL98 & IEC UL98 & IEC IEC IEC IEC IEC IEC
Technical ratings – UL,CSA 2
Max operating voltage V 600 600 600 600 600 600 480 600
Max horsepower rating
Three phase
240V HP 75 125 200 250 — — — —
480V HP 150 250 450 500 — — — —
600V HP 200 350 500 600 — — — —
Single phase
120V HP — — — — — — — —
240V HP — — — — — — — —
Technical ratings – IEC 2
Rated insulation and operational
voltage. AC20 and DC20 V 1000 1000 1000 1000 1000 1000 1000 1000
Rated thermal current, Ith
AC 20/DC 20 open A 250 400 800 1250 1600 2500 2500 3150
AC 20/DC 20 enclosed A 250 400 800 1250 1600 2300 2300 2600
AC 21A ≤500V A 250 400 800 1250 1600 250042500431504
≤690V A 250 400 800 1250 1600 250042500431504
Rated operational power AC23
400/415V kW 132 220 400 400 400 400 400 400
690V kW 240 355 800 — — — — —
Physical characteristics
Weight 3 3 pole lb 2.9 5.7 11.4 35.9 38.55 127.7 127.7 127.7
Dimension 3 pole H in 6.69 8.66 10 19.09 19.09 25.04 25.04 25.04
W in 6.67 8.7 10.64 14.29 14.29 18.43 18.43 18.43
D in 3.30 3.35 5.56 4.92 4.92 10.67 10.67 10.67
Accessories
Terminal lug kit OZXA-200 OZXA-400 OZXA-800 OZXA-1200 OZXA-1200 OZXA-28 OZXA-28/2 OZXA-28/2
Terminal shroud • • • • • ———
Auxiliary contact • • • • • • • •
Shaft/handle diameter 6mm 12mm 12mm 12mm 12mm 12mm 12mm 12mm
.24" x .24" .47" x .47" .47" x .47" .47" x .47" .47" x .47" .47" x .47" .47" x .47" .47" x .47"
Handle UL/NEMA type
Type 1, 3R, 12 • • • • • • • •
Type 1, 3R, 4, 4X, 12 • • • • • • • •
Handle type
Selector — — — — — — — —
Pistol • • • • • • • •
Recommended pistol handle length 65 - 80
mm
125 - 175
mm
125 - 175
mm
125 - 175
mm
125 - 175
mm
125 - 175
mm
125 - 175
mm
125 - 175
mm
Maximum recommended shaft length 290
mm
595
mm
595
mm
595
mm
595
mm
595
mm
595
mm
595
mm
Conversion kits
6 pole • • • • • ———
Transfer • • • • • ———
Bypass • • • • • ———
Mechanical interlock • • • • • • • •
Electrical interlock • • • • • • • •
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Disconnect
switches
Non-fusible
19

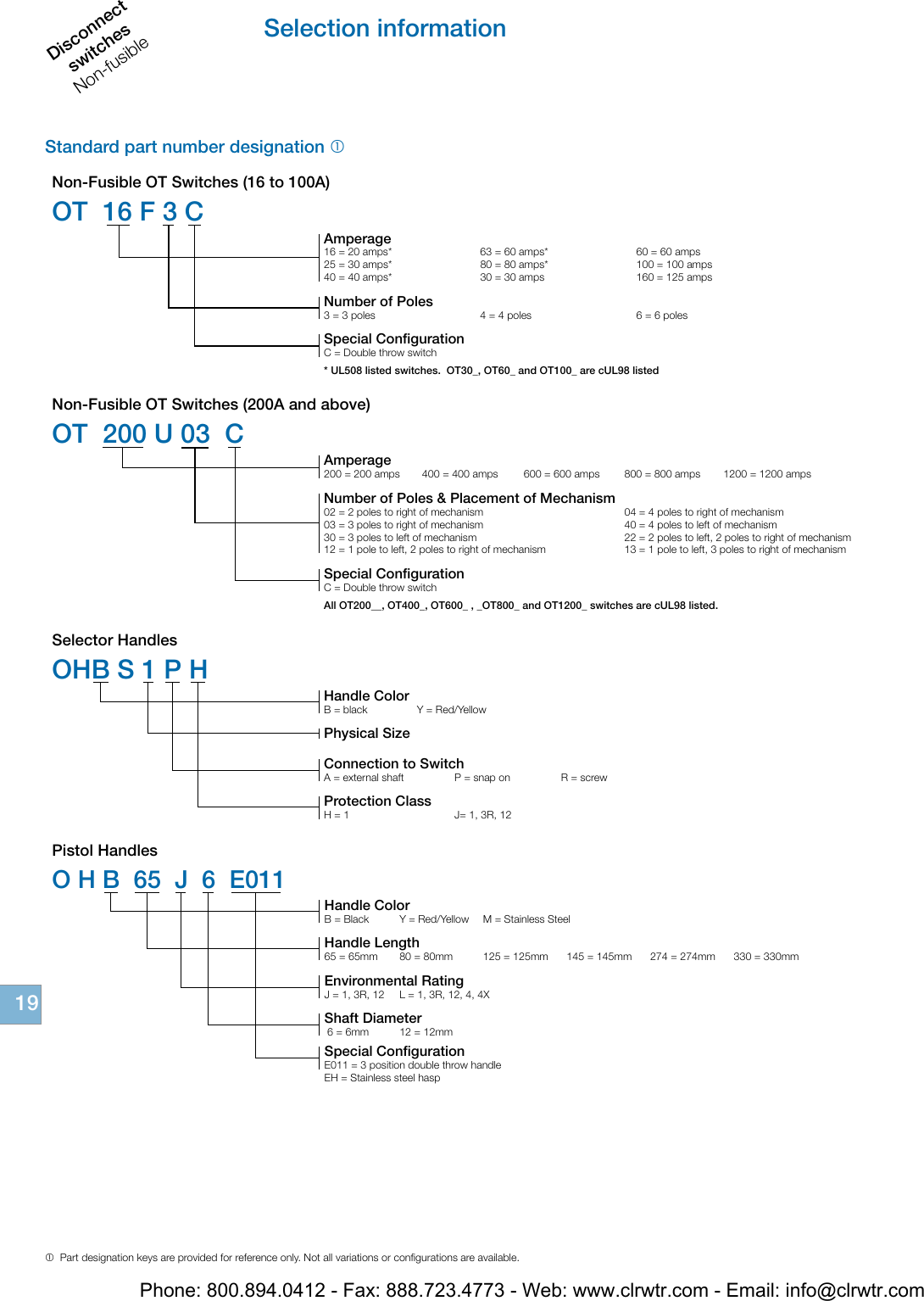

Selection information
Standard part number designation 1
Non-Fusible OT Switches (16 to 100A)
OT 16 F 3 C
Amperage
16 = 20 amps* 63 = 60 amps* 60 = 60 amps
25 = 30 amps* 80 = 80 amps* 100 = 100 amps
40 = 40 amps* 30 = 30 amps 160 = 125 amps
Number of Poles
3 = 3 poles 4 = 4 poles 6 = 6 poles
Special Configuration
C = Double throw switch
* UL508 listed switches. OT30_, OT60_ and OT100_ are cUL98 listed
Non-Fusible OT Switches (200A and above)
OT 200 U 03 C
Amperage
200 = 200 amps 400 = 400 amps 600 = 600 amps 800 = 800 amps 1200 = 1200 amps
Number of Poles & Placement of Mechanism
02 = 2 poles to right of mechanism 04 = 4 poles to right of mechanism
03 = 3 poles to right of mechanism 40 = 4 poles to left of mechanism
30 = 3 poles to left of mechanism 22 = 2 poles to left, 2 poles to right of mechanism
12 = 1 pole to left, 2 poles to right of mechanism 13 = 1 pole to left, 3 poles to right of mechanism
Special Configuration
C = Double throw switch
All OT200__, OT400_, OT600_ , _OT800_ and OT1200_ switches are cUL98 listed.
Selector Handles
OHB S 1 P H
Handle Color
B = black Y = Red/Yellow
Physical Size
Connection to Switch
A = external shaft P = snap on R = screw
Protection Class
H = 1 J= 1, 3R, 12
Pistol Handles
O H B 65 J 6 E011
Handle Color
B = Black Y = Red/Yellow M = Stainless Steel
Handle Length
65 = 65mm 80 = 80mm 125 = 125mm 145 = 145mm 274 = 274mm 330 = 330mm
Environmental Rating
J = 1, 3R, 12 L = 1, 3R, 12, 4, 4X
Shaft Diameter
6 = 6mm 12 = 12mm
Special Configuration
E011 = 3 position double throw handle
EH = Stainless steel hasp
1 Part designation keys are provided for reference only. Not all variations or configurations are available.
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Disconnect
switches
Non-fusible
19

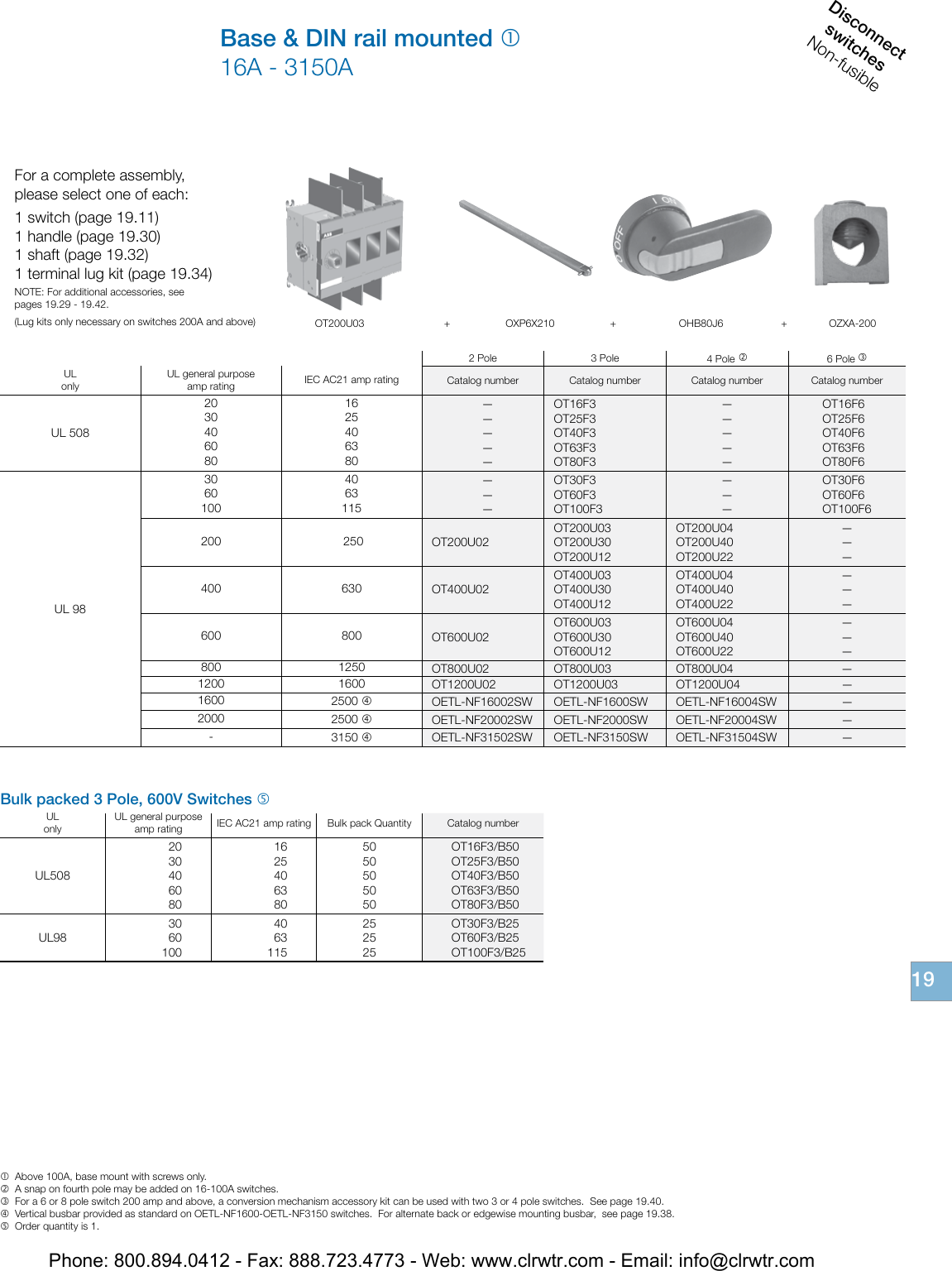

Base & DIN rail mounted 1
16A - 3150A
2 Pole 3 Pole 4 Pole 26 Pole 3
UL
only
UL general purpose
amp rating IEC AC21 amp rating Catalog number Catalog number Catalog number Catalog number
UL 508
20
30
40
60
80
16
25
40
63
80
—
—
—
—
—
OT16F3
OT25F3
OT40F3
OT63F3
OT80F3
—
—
—
—
—
OT16F6
OT25F6
OT40F6
OT63F6
OT80F6
UL 98
30
60
100
40
63
115
—
—
—
OT30F3
OT60F3
OT100F3
—
—
—
OT30F6
OT60F6
OT100F6
200 250 OT200U02
OT200U03
OT200U30
OT200U12
OT200U04
OT200U40
OT200U22
—
—
—
400 630 OT400U02
OT400U03
OT400U30
OT400U12
OT400U04
OT400U40
OT400U22
—
—
—
600 800 OT600U02
OT600U03
OT600U30
OT600U12
OT600U04
OT600U40
OT600U22
—
—
—
800 1250 OT800U02 OT800U03 OT800U04 —
1200 1600 OT1200U02 OT1200U03 OT1200U04 —
1600 2500 4OETL-NF16002SW OETL-NF1600SW OETL-NF16004SW —
2000 2500 4OETL-NF20002SW OETL-NF2000SW OETL-NF20004SW —
-3150 4OETL-NF31502SW OETL-NF3150SW OETL-NF31504SW —
Bulk packed 3 Pole, 600V Switches 5
UL
only
UL general purpose
amp rating IEC AC21 amp rating Bulk pack Quantity Catalog number
UL508
20
30
40
60
80
16
25
40
63
80
50
50
50
50
50
OT16F3/B50
OT25F3/B50
OT40F3/B50
OT63F3/B50
OT80F3/B50
UL98
30
60
100
40
63
115
25
25
25
OT30F3/B25
OT60F3/B25
OT100F3/B25
1 Above 100A, base mount with screws only.
2 A snap on fourth pole may be added on 16-100A switches.
3 For a 6 or 8 pole switch 200 amp and above, a conversion mechanism accessory kit can be used with two 3 or 4 pole switches. See page 19.40.
4 Vertical busbar provided as standard on OETL-NF1600-OETL-NF3150 switches. For alternate back or edgewise mounting busbar, see page 19.38.
5 Order quantity is 1.
For a complete assembly,
please select one of each:
1 switch (page 19.11)
1 handle (page 19.30)
1 shaft (page 19.32)
1 terminal lug kit (page 19.34)
NOTE: For additional accessories, see
pages 19.29 - 19.42.
(Lug kits only necessary on switches 200A and above)
OT200U03 + OXP6X210 + OHB80J6 + OZXA-200
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Disconnect
switches
Non-fusible
19

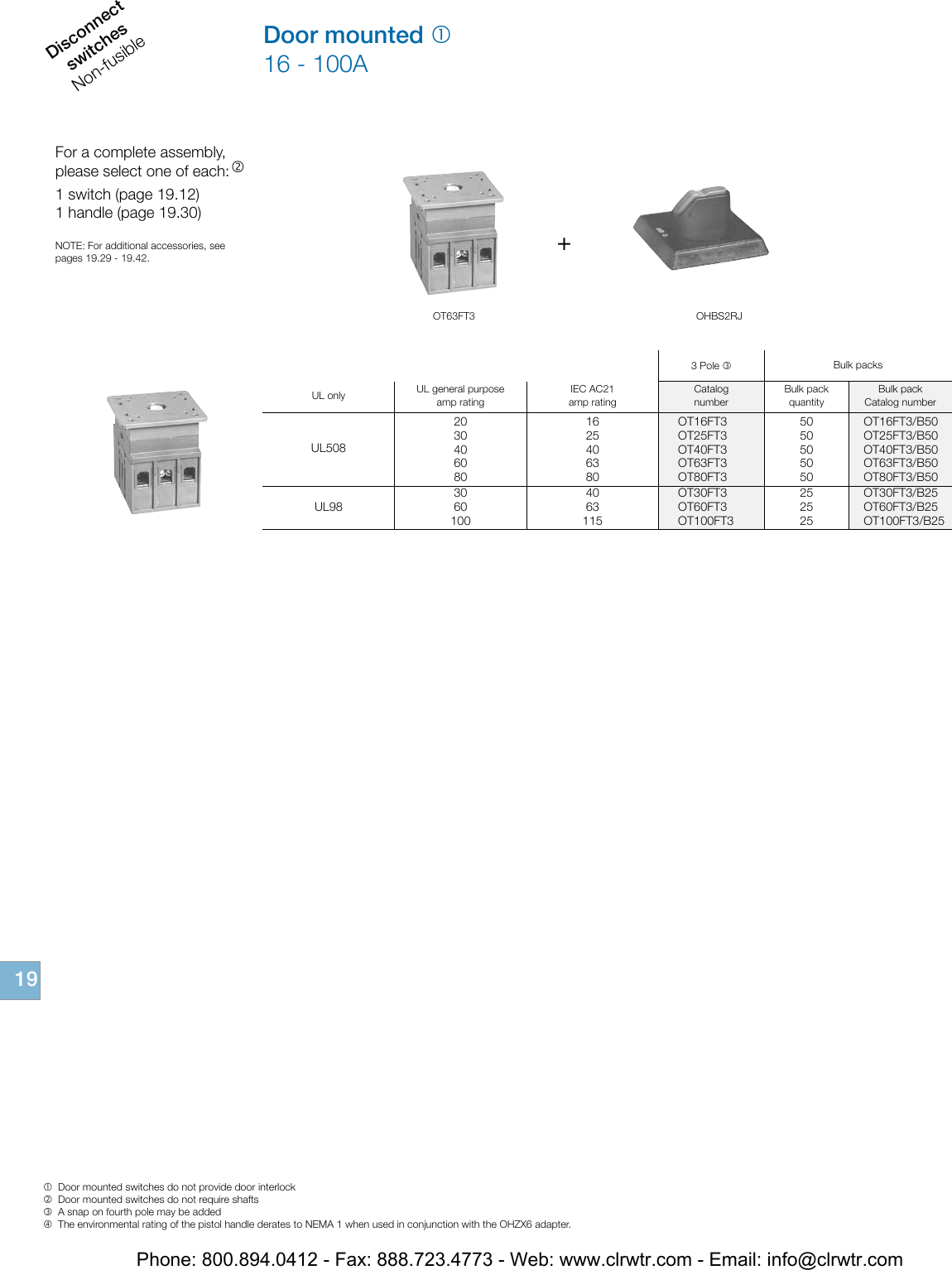

Door mounted 1
16 - 100A
For a complete assembly,
please select one of each:2
1 switch (page 19.12)
1 handle (page 19.30)
NOTE: For additional accessories, see
pages 19.29 - 19.42.
OT63FT3 OHBS2RJ
3 Pole 3Bulk packs
UL only UL general purpose
amp rating
IEC AC21
amp rating
Catalog
number
Bulk pack
quantity
Bulk pack
Catalog number
UL508
20
30
40
60
80
16
25
40
63
80
OT16FT3
OT25FT3
OT40FT3
OT63FT3
OT80FT3
50
50
50
50
50
OT16FT3/B50
OT25FT3/B50
OT40FT3/B50
OT63FT3/B50
OT80FT3/B50
UL98
30
60
100
40
63
115
OT30FT3
OT60FT3
OT100FT3
25
25
25
OT30FT3/B25
OT60FT3/B25
OT100FT3/B25
1 Door mounted switches do not provide door interlock
2 Door mounted switches do not require shafts
3 A snap on fourth pole may be added
4 The environmental rating of the pistol handle derates to NEMA 1 when used in conjunction with the OHZX6 adapter.
+
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Disconnect
switches
Non-fusible
19

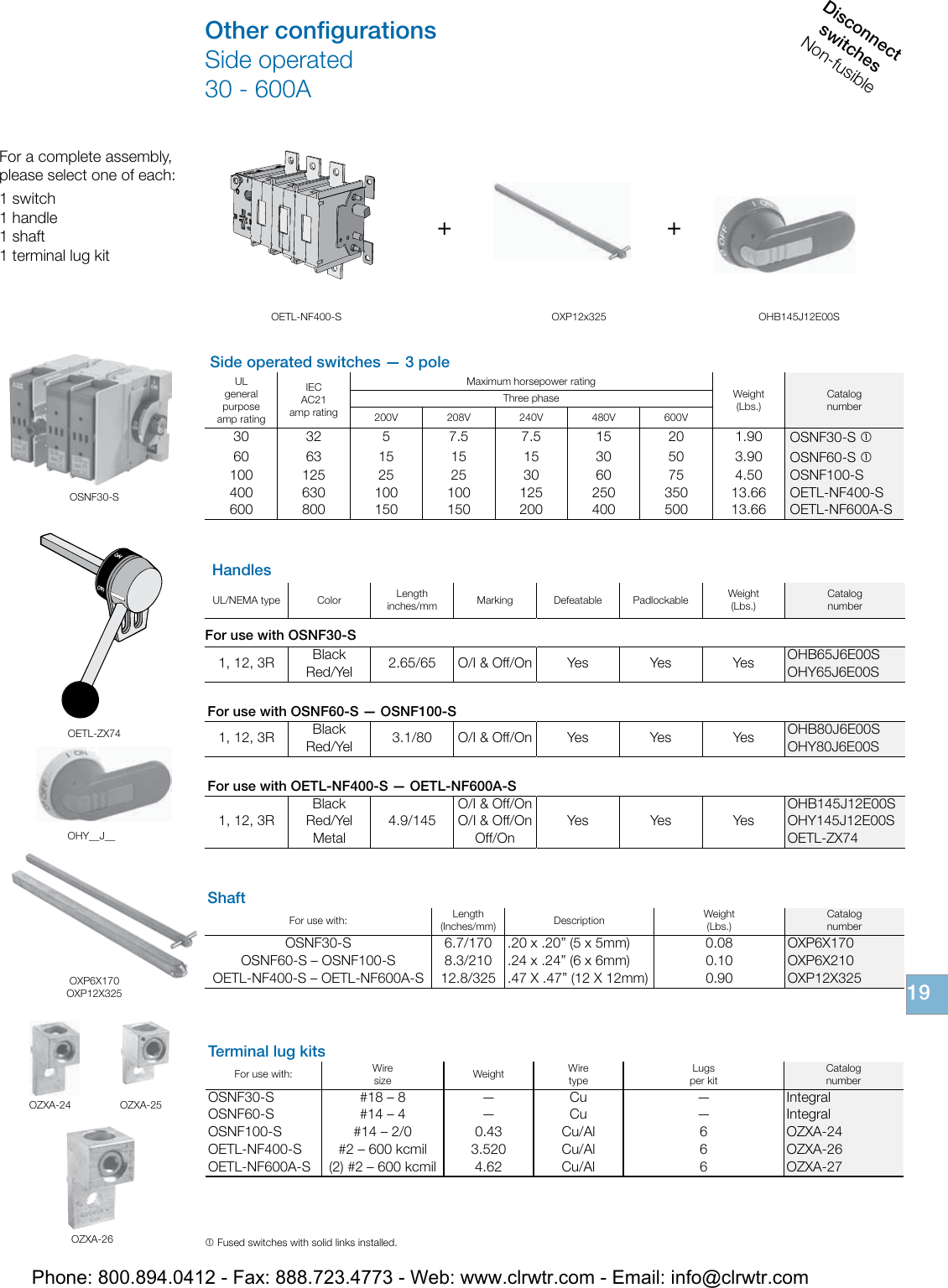

Other configurations
Side operated
30 - 600A
For a complete assembly,
please select one of each:
1 switch
1 handle
1 shaft
1 terminal lug kit
Side operated switches — 3 pole
UL
general
purpose
amp rating
IEC
AC21
amp rating
Maximum horsepower rating
Weight
(Lbs.)
Catalog
number
Three phase
200V 208V 240V 480V 600V
30 32 5 7.5 7.5 15 20 1.90 OSNF30-S 1
60 63 15 15 15 30 50 3.90 OSNF60-S 1
100 125 25 25 30 60 75 4.50 OSNF100-S
400 630 100 100 125 250 350 13.66 OETL-NF400-S
600 800 150 150 200 400 500 13.66 OETL-NF600A-S
Handles
UL/NEMA type Color Length
inches/mm Marking Defeatable Padlockable Weight
(Lbs.)
Catalog
number
For use with OSNF30-S
1, 12, 3R Black 2.65/65 O/I & Off/On Yes Yes Yes OHB65J6E00S
Red/Yel OHY65J6E00S
For use with OSNF60-S — OSNF100-S
1, 12, 3R Black 3.1/80 O/I & Off/On Yes Yes Yes OHB80J6E00S
Red/Yel OHY80J6E00S
For use with OETL-NF400-S — OETL-NF600A-S
1, 12, 3R
Black
4.9/145
O/I & Off/On
Yes Yes Yes
OHB145J12E00S
Red/Yel O/I & Off/On OHY145J12E00S
Metal Off/On OETL-ZX74
Shaft
For use with: Length
(Inches/mm) Description Weight
(Lbs.)
Catalog
number
OSNF30-S 6.7/170 .20 x .20” (5 x 5mm) 0.08 OXP6X170
OSNF60-S – OSNF100-S 8.3/210 .24 x .24” (6 x 6mm) 0.10 OXP6X210
OETL-NF400-S – OETL-NF600A-S 12.8/325 .47 X .47” (12 X 12mm) 0.90 OXP12X325
Terminal lug kits
For use with: Wire
size Weight Wire
type
Lugs
per kit
Catalog
number
OSNF30-S #18 – 8 — Cu — Integral
OSNF60-S #14 – 4 — Cu — Integral
OSNF100-S #14 – 2/0 0.43 Cu/Al 6 OZXA-24
OETL-NF400-S #2 – 600 kcmil 3.520 Cu/Al 6 OZXA-26
OETL-NF600A-S (2) #2 – 600 kcmil 4.62 Cu/Al 6 OZXA-27
OETL-NF400-S OXP12x325 OHB145J12E00S
OSNF30-S
OHY__J__
OETL-ZX74
OXP6X170
OXP12X325
OZXA-24 OZXA-25
OZXA-26
+ +
1 Fused switches with solid links installed.
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Disconnect
switches
Non-fusible
19
DSFHN-HS12
DSFHS-12
OT100F3 Flange handles — for use with OT30_, OT60_, OT100
UL/ NEMA type Marking Defeatable Padlockable Catalog
number
1, 3R, 12
4, 4X
OFF/ON
OFF/ON
Yes
Yes
Yes
Yes
DSFHN-HS12
DSFHN-HS4
Shafts
For use with: Maximum enclosure
depth (inches)
Catalog
number
OT30_ - OT100_
OT30_ - OT100_
16
24
OTFS-16
OTFS-24

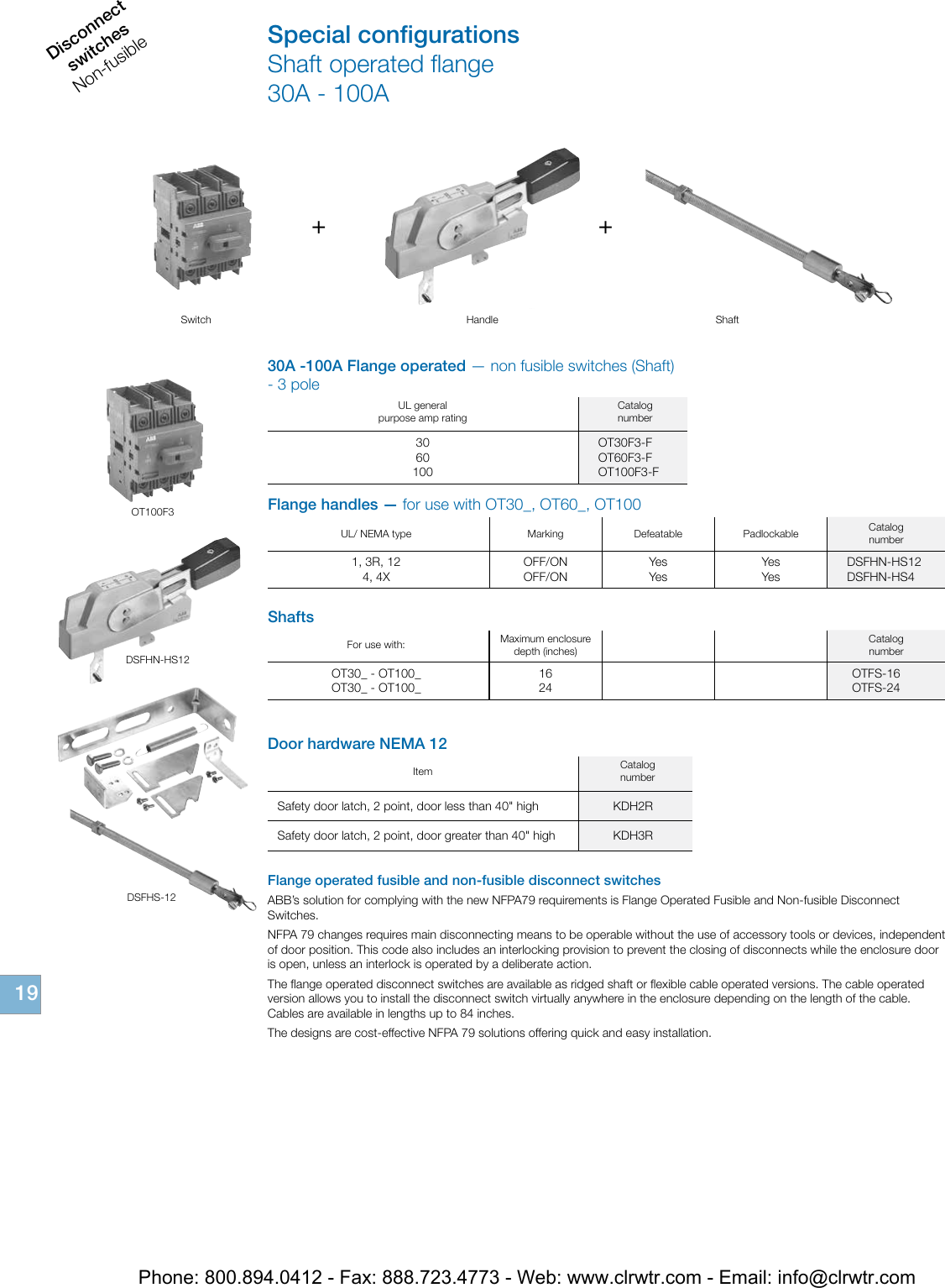

Special configurations
Shaft operated flange
30A - 100A
Switch Handle Shaft
Flange operated fusible and non-fusible disconnect switches
ABB’s solution for complying with the new NFPA79 requirements is Flange Operated Fusible and Non-fusible Disconnect
Switches.
NFPA 79 changes requires main disconnecting means to be operable without the use of accessory tools or devices, independent
of door position. This code also includes an interlocking provision to prevent the closing of disconnects while the enclosure door
is open, unless an interlock is operated by a deliberate action.
The flange operated disconnect switches are available as ridged shaft or flexible cable operated versions. The cable operated
version allows you to install the disconnect switch virtually anywhere in the enclosure depending on the length of the cable.
Cables are available in lengths up to 84 inches.
The designs are cost-effective NFPA 79 solutions offering quick and easy installation.
30A -100A Flange operated — non fusible switches (Shaft)
- 3 pole
UL general
purpose amp rating
Catalog
number
30
60
100
OT30F3-F
OT60F3-F
OT100F3-F
Door hardware NEMA 12
Item Catalog
number
Safety door latch, 2 point, door less than 40" high KDH2R
Safety door latch, 2 point, door greater than 40" high KDH3R
+ +
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Disconnect
switches
Non-fusible
Low Voltage Products & Systems
19
Flange handles — UL98; UL file #E101914
For use with: Environmental
rating
Catalog
number
OT30 - 100F3, OT160E3, OT200U30 NEMA 1, 3R, 12 OHF1C12
NEMA 4, 4X OHF1C4
OT400_, OETL-NF600_, OETL-NF1200_ NEMA 1, 3R, 12 K7FCH
NEMA 4, 4X K7FCH4
Flexible cables
For use with: Cable length (inches) Catalog
number
OT30 - 100F3, OT160E3,
OT200U30
36
48
60
72
84
OXC1L36
OXC1L48
OXC1L60
OXC1L72
OXC1L84
OT400_, OETL-NF600_, OETL-NF1200_
48
60
72
84
K7C048
K7C060
K7C072
K7C084
Operating mechanisms
For use with: Catalog
number
OT30 - 100F3 MKCS1
OT160E3 MKCS3
OT200U30 MKCS4
OETL-NF400-FC - OETL-NF1200-FC Included

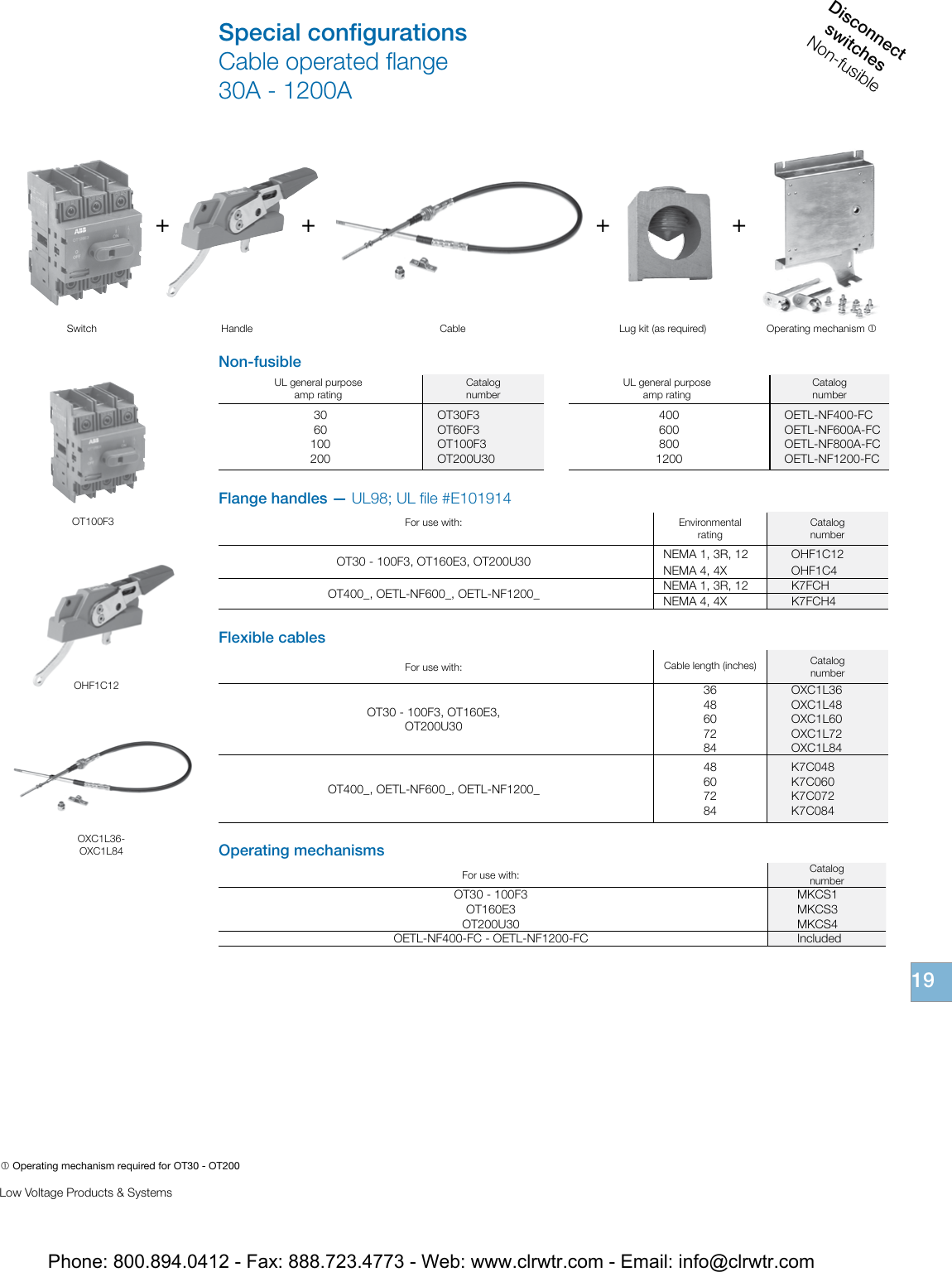

Special configurations
Cable operated flange
30A - 1200A
Non-fusible
UL general purpose
amp rating
Catalog
number
UL general purpose
amp rating
Catalog
number
30
60
100
200
OT30F3
OT60F3
OT100F3
OT200U30
400
600
800
1200
OETL-NF400-FC
OETL-NF600A-FC
OETL-NF800A-FC
OETL-NF1200-FC
Switch Handle Cable Lug kit (as required) Operating mechanism 1
OT100F3
OHF1C12
OXC1L36-
OXC1L84
+ + + +
1 Operating mechanism required for OT30 - OT200
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Disconnect
switches
Non-fusible
19

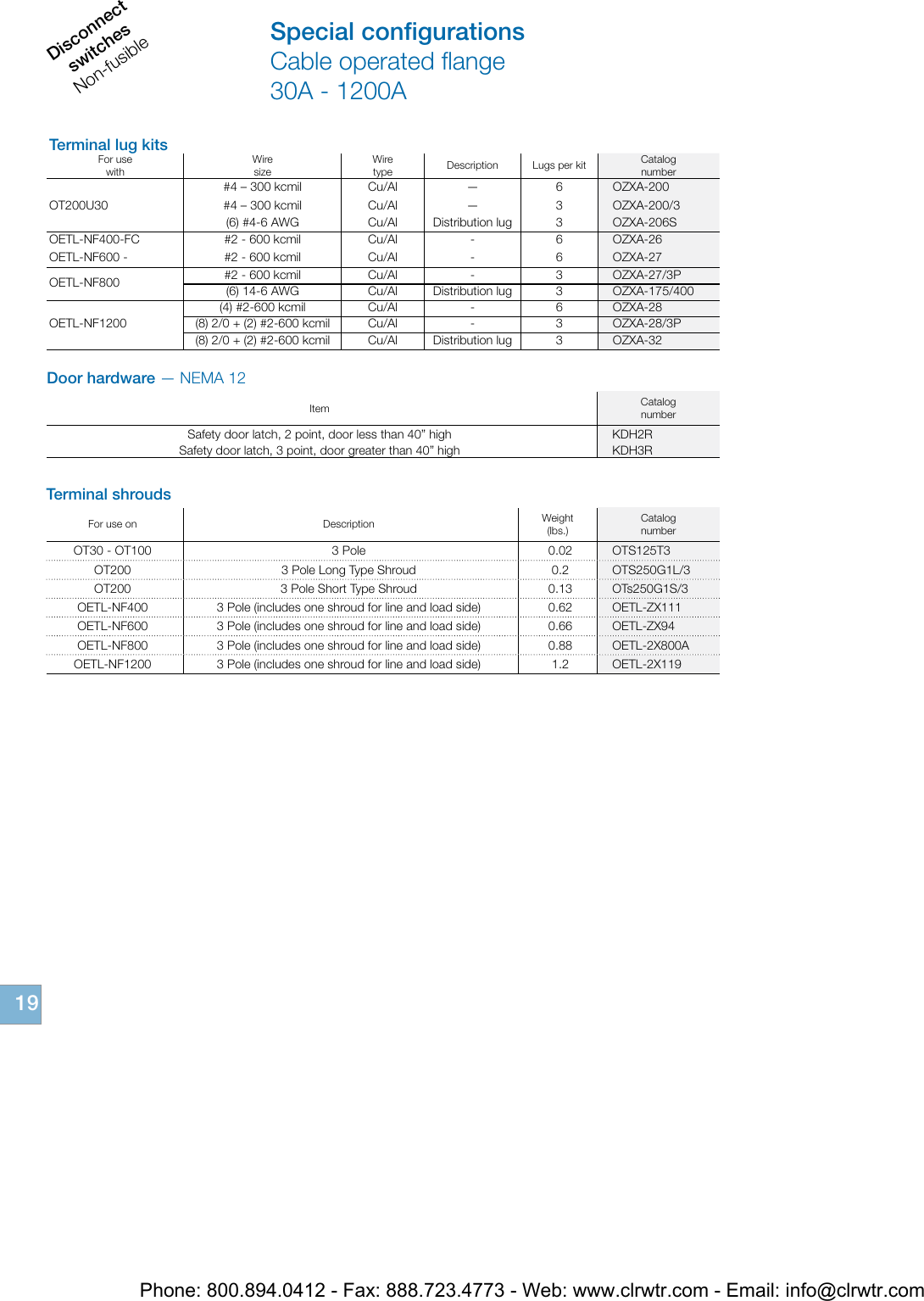

Special configurations
Cable operated flange
30A - 1200A
Door hardware — NEMA 12
Item Catalog
number
Safety door latch, 2 point, door less than 40” high KDH2R
Safety door latch, 3 point, door greater than 40” high KDH3R
Terminal lug kits
For use
with
Wire
size
Wire
type Description Lugs per kit Catalog
number
#4 – 300 kcmil Cu/Al — 6 OZXA-200
OT200U30 #4 – 300 kcmil Cu/Al — 3 OZXA-200/3
(6) #4-6 AWG Cu/Al Distribution lug 3 OZXA-206S
OETL-NF400-FC #2 - 600 kcmil Cu/Al - 6 OZXA-26
OETL-NF600 - #2 - 600 kcmil Cu/Al - 6 OZXA-27
OETL-NF800 #2 - 600 kcmil Cu/Al - 3 OZXA-27/3P
(6) 14-6 AWG Cu/Al Distribution lug 3 OZXA-175/400
OETL-NF1200
(4) #2-600 kcmil Cu/Al - 6 OZXA-28
(8) 2/0 + (2) #2-600 kcmil Cu/Al - 3 OZXA-28/3P
(8) 2/0 + (2) #2-600 kcmil Cu/Al Distribution lug 3 OZXA-32
Terminal shrouds
For use on Description Weight
(lbs.)
Catalog
number
OT30 - OT100 3 Pole 0.02 OTS125T3
OT200 3 Pole Long Type Shroud 0.2 OTS250G1L/3
OT200 3 Pole Short Type Shroud 0.13 OTs250G1S/3
OETL-NF400 3 Pole (includes one shroud for line and load side) 0.62 OETL-ZX111
OETL-NF600 3 Pole (includes one shroud for line and load side) 0.66 OETL-ZX94
OETL-NF800 3 Pole (includes one shroud for line and load side) 0.88 OETL-2X800A
OETL-NF1200 3 Pole (includes one shroud for line and load side) 1.2 OETL-2X119
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Disconnect
switches
Non-fusible
19
For a complete assembly,
please select one of each:
1 switch (page 19.17)
1 handle (page 19.30)
1 shaft (page 19.32)
1 terminal lug kit (page 19.34)
1 bridging bar (page 19.17)
NOTE: For additional accessories, see
pages 19.29 - 19.42
(Lug kits only necessary on switches 200A and above)
OT63F3C
OXS6X__
OHY__J6E011 Lug kit (as required)
3 Pole 4 Pole 1
UL
only
UL general
purpose amp
rating
IEC AC21
amp rating Catalog number Catalog number
UL508
20
30
40
60
80
16
25
40
63
80
OT16F3C
OT25F3C
OT40F3C
OT63F3C
OT80F3C
—
—
—
—
—
UL98
30
60
100
40
63
115
OT30F3C
OT60F3C
OT100F3C
—
—
—
200 250 OT200U03C
OT200U30C
OT200U04C
OT200U40C
400 630 OT400U03C
OT400U30C
OT400U04C
OT400U40C
600 800 OT600U03C
OT600U30C
OT600U04C
OT600U40C
800 1250 OT800U03C
OT800U30C
OT800U04C
OT800U40C
Bridging busbar kits — required for OT200_C through
OT600_C 2
Description For Use On: Catalog number
3 Pole Kit
OT200_C
OT400_C
OT600_C
OT800_C
OTZC13
OTZC23
OTZC33
OTZC53
4 Pole kit
OT200_C
OT400_C
OT600_C
OT800_C
OTZC14
OTZC24
OTZC34
OTZC54
Bridging bars are required on 200-600A double throw switches to operate as standard double
throw switches.
Otherwise, they will operate as two mechanically interlocked switches.
1 A snap on power pole may be added to build a 4 pole 16-100A double throw switch.
2 For 16-100A double throw switches, jumpers are not provided.

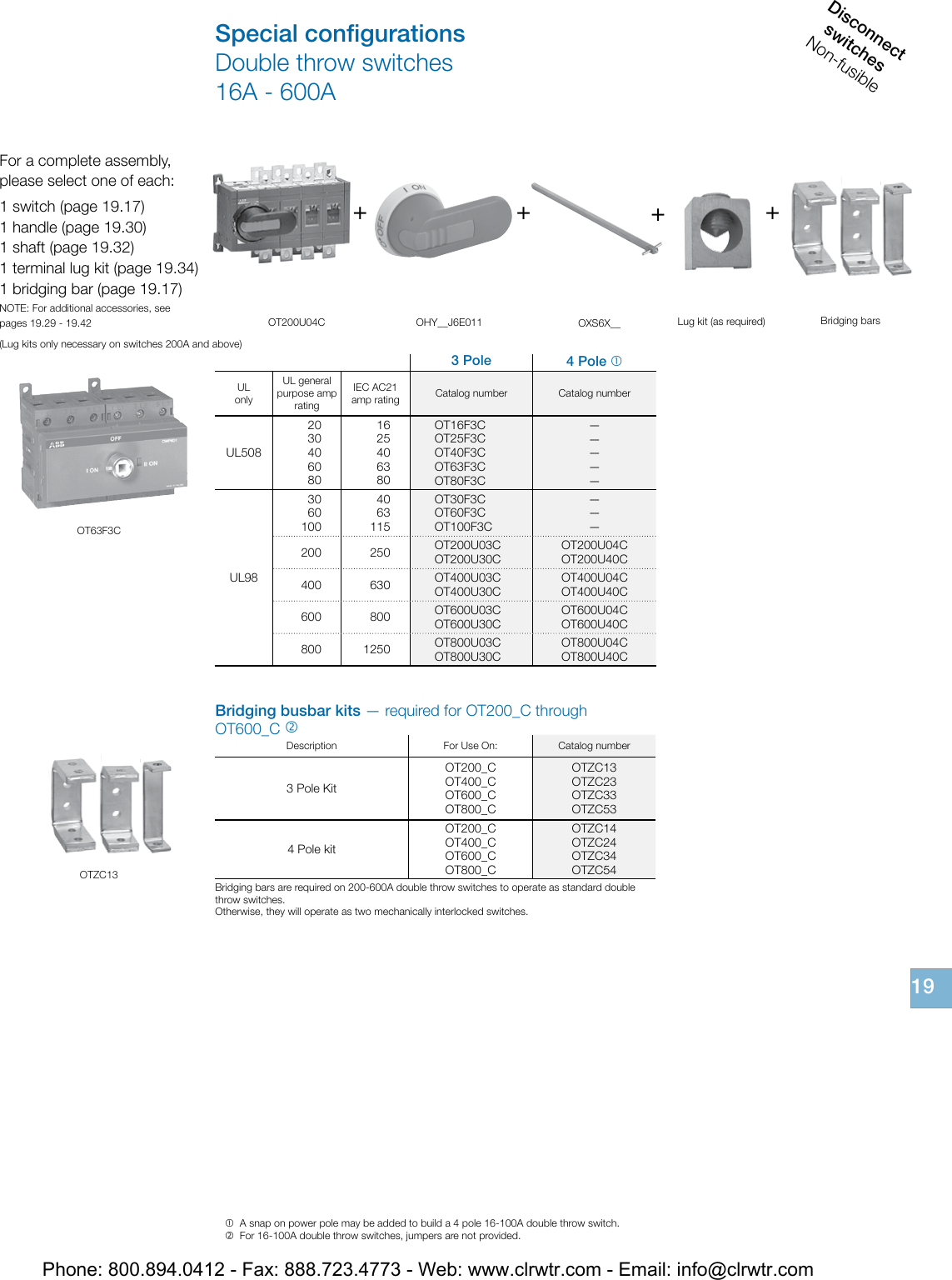

Special configurations
Double throw switches
16A - 600A
Bridging bars
OT200U04C
+ + ++
OTZC13
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Disconnect
switches
Non-fusible
19

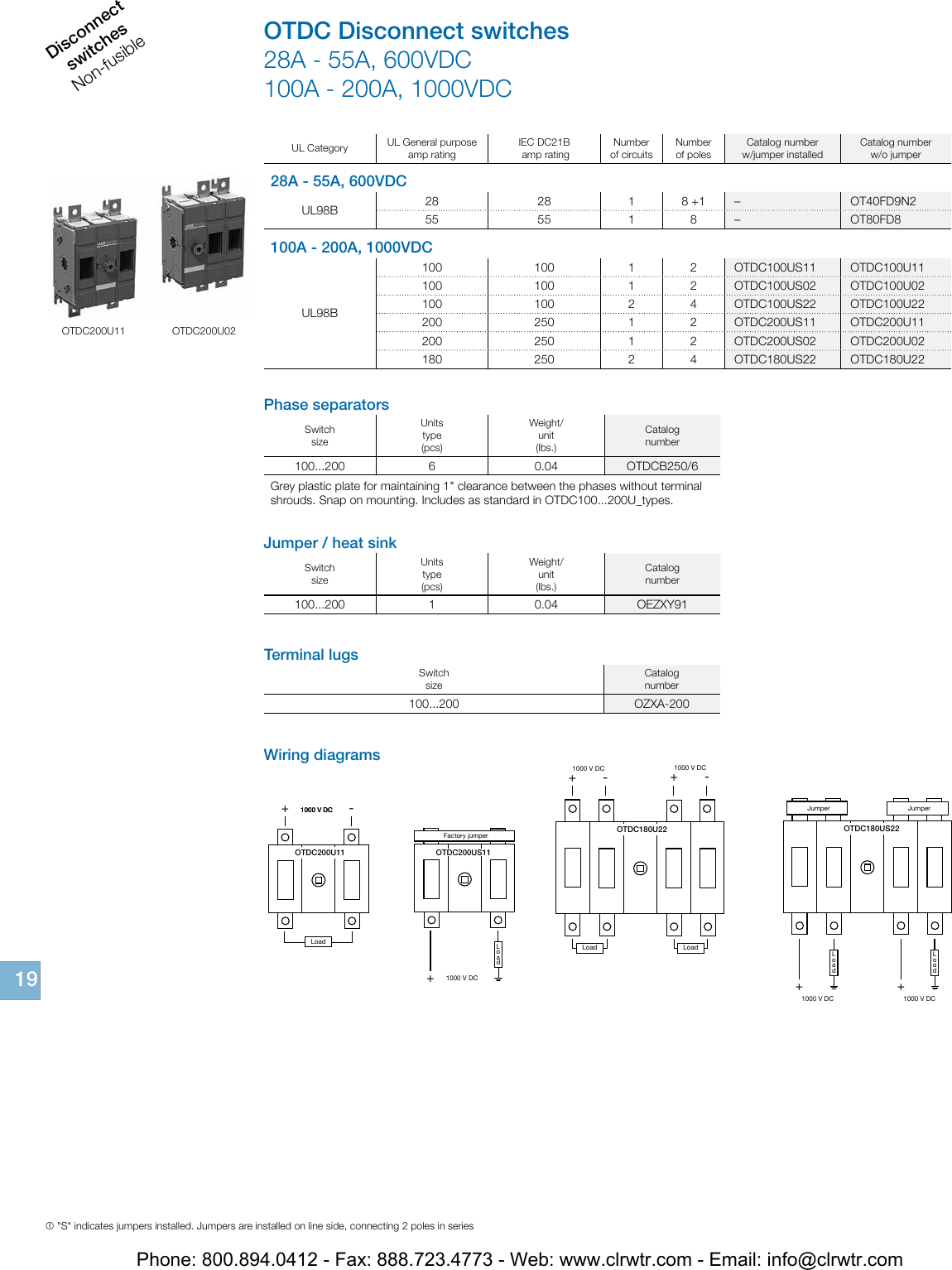

OTDC Disconnect switches
28A - 55A, 600VDC
100A - 200A, 1000VDC
UL Category UL General purpose
amp rating
IEC DC21B
amp rating
Number
of circuits
Number
of poles
Catalog number
w/jumper installed
Catalog number
w/o jumper
28A - 55A, 600VDC
UL98B 28 28 1 8 +1 – OT40FD9N2
55 55 1 8 – OT80FD8
100A - 200A, 1000VDC
UL98B
100 100 1 2 OTDC100US11 OTDC100U11
100 100 1 2 OTDC100US02 OTDC100U02
100 100 2 4 OTDC100US22 OTDC100U22
200 250 1 2 OTDC200US11 OTDC200U11
200 250 1 2 OTDC200US02 OTDC200U02
180 250 2 4 OTDC180US22 OTDC180U22
1 "S" indicates jumpers installed. Jumpers are installed on line side, connecting 2 poles in series
Phase separators
Switch
size
Units
type
(pcs)
Weight/
unit
(lbs.)
Catalog
number
100...200 6 0.04 OTDCB250/6
Grey plastic plate for maintaining 1" clearance between the phases without terminal
shrouds. Snap on mounting. Includes as standard in OTDC100...200U_types.
OTDC200U11 OTDC200U02
Jumper / heat sink
Switch
size
Units
type
(pcs)
Weight/
unit
(lbs.)
Catalog
number
100...200 1 0.04 OEZXY91
L
o
a
d
+
OTDC200U11
Load
1000 V DC
+ -
Factory jumper
1000 V DC1000 V DC
OTDC200US11
1000 V DC
OTDC180U22
+ -
1000 V DC + -
1000 V DC
Load Load
OTDC180US22
Jumper Jumper
L
o
a
d
L
o
a
d
+
1000 V DC
+
1000 V DC
Wiring diagrams
Terminal lugs
Switch
size
Catalog
number
100...200 OZXA-200
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
