C.103

www.panduit.com For service and technical support, call 866-405-6654 (outside the U.S. and Canada, see catalog back cover).

A.

System

Overview

B.

Copper

Systems

C.

Fiber

Optic

Systems

D.

Power

over

Ethernet

E.

Zone

Cabling

F.

Wireless

G.

Outlets

H.

Media

Distribution

I.

Physical

Infrastructure

Management

J.

Overhead &

Underfloor

Routing

K.

Surface

Raceway

L.

Cabinets,

Racks &

Cable

Management

M.

Grounding &

Bonding

N.

Industrial

O.

Labeling &

Identification

P.

Cable

Management

Accessories

Q.

Index

PHYSICAL INFRASTRUCTURE SYSTEMS

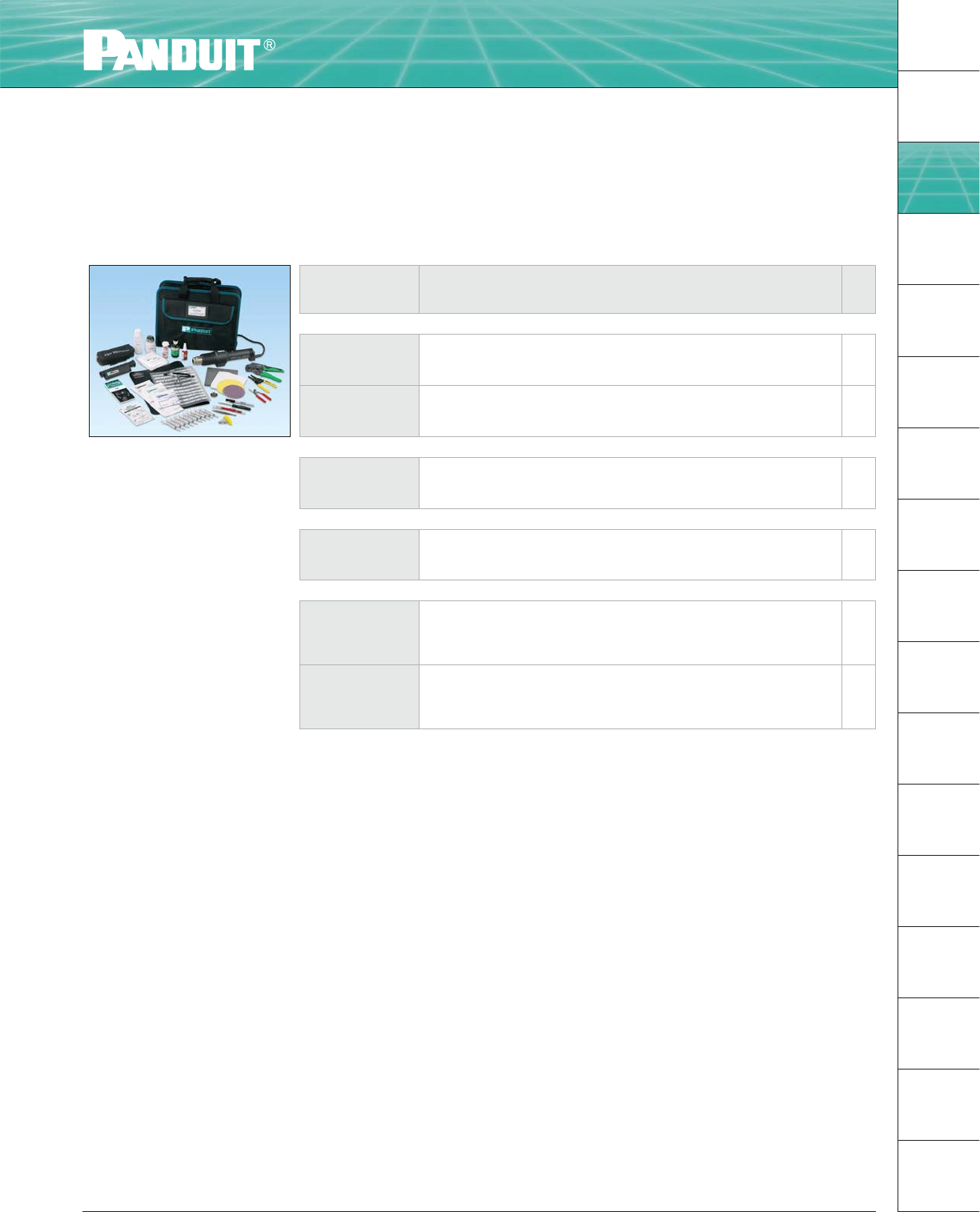

Field Polish Fiber Optic Termination Kits

• For termination of all Panduit field polish connectors

• Fast acting adhesive; no long curing epoxy required

for termination

• Kit provides consumables for terminating up to 200 field

polish connectors

• Include installation instructions and stripping templates for

all Panduit field polish connectors; also available on

www.panduit.com

For OptiCam ®Pre-Polished Cam Termination Kits, see page C.101 of SA-NCCB51.

Part Number Part Description

Std.

Pkg.

Qty.

Field Polish Termination Kits

FIELDKIT Tools, consumables, installation instructions and stripping templates

necessary for termination of all Panduit field polish connectors; includes

FHSCT heat shrink curing tool – 110VAC, 60Hz.

1

FIELDKIT-G Tools, consumables, installation instructions and stripping templates

necessary for termination of all Panduit field polish connectors; includes

FHSCT-W heat shrink curing tool – 230VAC, 50Hz.

1

Field Polish Consumables Refurbishment Kit

FIELDKITRFB Replenishes the field polish consumables required for termination of all

field polish connectors; includes all of the same consumable items as

the FIELDKIT or FIELDKIT-G field polish termination kit.

1

Cleaning Consumables Kit

FCLEANKIT Replenishes the cleaning consumables required for termination of all

fiber optic connectors; includes all of the same cleaning consumable

items that are included in all Panduit termination kits.

1

OptiCam®Kit Upgrade for Field Polish Connector Termination

FCAMKITUPG Upgrades FCAMKIT with the additional tools, consumables, installation

instructions and stripping templates required for termination of all

Panduit field polish connectors; includes FHSCT heat shrink curing tool

– 110VAC, 60Hz.

1

FCAMKITUPG-G Upgrades FCAMKIT with the additional tools, consumables, installation

instructions and stripping templates required for termination of all

Panduit field polish connectors; includes FHSCT-W heat shrink curing

tool – 230VAC, 50Hz.

1

FIELDKIT

Order number of pieces required, in multiples of Standard Package Quantity. Prime items appear in BOLD.

PHYSICAL INFRASTRUCTURE SYSTEMS

A.

System

Overview

B.

Copper

Systems

C.

Fiber

Optic

Systems

D.

Power

over

Ethernet

E.

Zone

Cabling

F.

Wireless

G.

Outlets

H.

Media

Distribution

I.

Physical

Infrastructure

Management

J.

Overhead &

Underfloor

Routing

K.

Surface

Raceway

L.

Cabinets,

Racks &

Cable

Management

M.

Grounding &

Bonding

N.

Industrial

O.

Labeling &

Identification

P.

Cable

Management

Accessories

Q.

Index

Components for Field Polish Fiber Optic Termination Kits

Part Number Part Description

Std.

Pkg.

Qty.

Std.

Ctn.

Qty.

Tools (included in FIELDKIT and FIELDKIT-G)

FKITCASE Case for fiber termination kits. 1 —

CST115 Fiber cable jacket stripper. 1 —

FALC Alcohol bottle (empty). 1 10

FBFSP Fiber buffer stripper. 1 10

FSCDVR Screwdriver. 1 50

FGLS Safety glasses. 1 10

FTWZR Tweezers. 1 10

FWBTL Water bottle (empty). 1 10

FKS Fiber Kevlar shears. 1 10

FWRKMAT Fiber safe workmat. 1 10

Tools (included in FIELDKIT, FIELDKIT-G, FCAMKITUPG and FCAMKITUPG-G)

FSCRIBE Carbide scribe. 1 10

FLCASCP 1.25mm adapter for FSCOPE. 1 —

FLOUPEX10 Eye loupe (10x). 1 —

FCRP5 Crimp tool (hex sizes: 0.048", 0.100", 0.128", 0.151", 0.190"). 1 —

FLPT Crimp tool required for 1.6mm/2.0mm jacketed

cable termination.

1 —

FJPKGU Universal polishing puck (2.5mm ferrule). 1 10

FLCPK LC polishing puck (1.25mm ferrule). 1 —

FPAD Fiber polishing pad (70 durometer). 1 10

FLCPAD Polishing pad and plate (85 durometer). 1 10

FHSCT Heat shrink curing tool (110VAC, 60Hz) required for

1.6mm/2.0mm jacketed cable termination (included in

FIELDKIT and FCAMKITUPG).

1 —

FHSCT-W Heat shrink curing tool (230VAC, 50Hz) required for

1.6mm/2.0mm jacketed cable termination (included in

FIELDKIT-G and FCAMKITUPG-G).

1 —

Field Polish Consumables (included in FIELDKIT, FIELDKIT-G, FIELDKITRFB,

FCAMKITUPG and FCAMKITUPG-G)

FSYR-X Syringes with needle tips. 10 50

FPWIRE Piano wire. 1 10

LJSL4-Y3-2.5 Cable labels. 1 10

FJPMR Primer (50ml). 1 10

FJPXY Anaerobic adhesive (10ml). 1 10

FPP5-L 5µm polishing paper (AL2O3). 50 250

FPF1-V 1µm diamond polishing film. 5 50

FLCFPLF-X 0.05µm lapping film. 10 —

Cleaning Consumables (included in FIELDKIT, FIELDKIT-G, FIELDKITRFB

and FCLEANKIT)

FWP-C Lint-free wipes. 100 1000

FSWB-C Cleaning swabs. 100 1000

FSTY Safety stickers for fiber scraps. 1 10

PFX-0 Permanent marking pen – fine tip (one included in each kit). 12 144

Replacement Parts

FSCRBLD Replacement blade for carbide scribe. 1 10
