Cooper Interconnect 4758 Washington Street LaGrange, NC 28551 252-566-3014

Posi-Lok™ Plugs and Panels

3, 4, 5 OR 6 WIRE SYSTEM, RATEDUPTO

400 AMPS, CONTINUOUS, 600 VOLTS,

1050C.

E0400 SERIES

E0400 SERIES

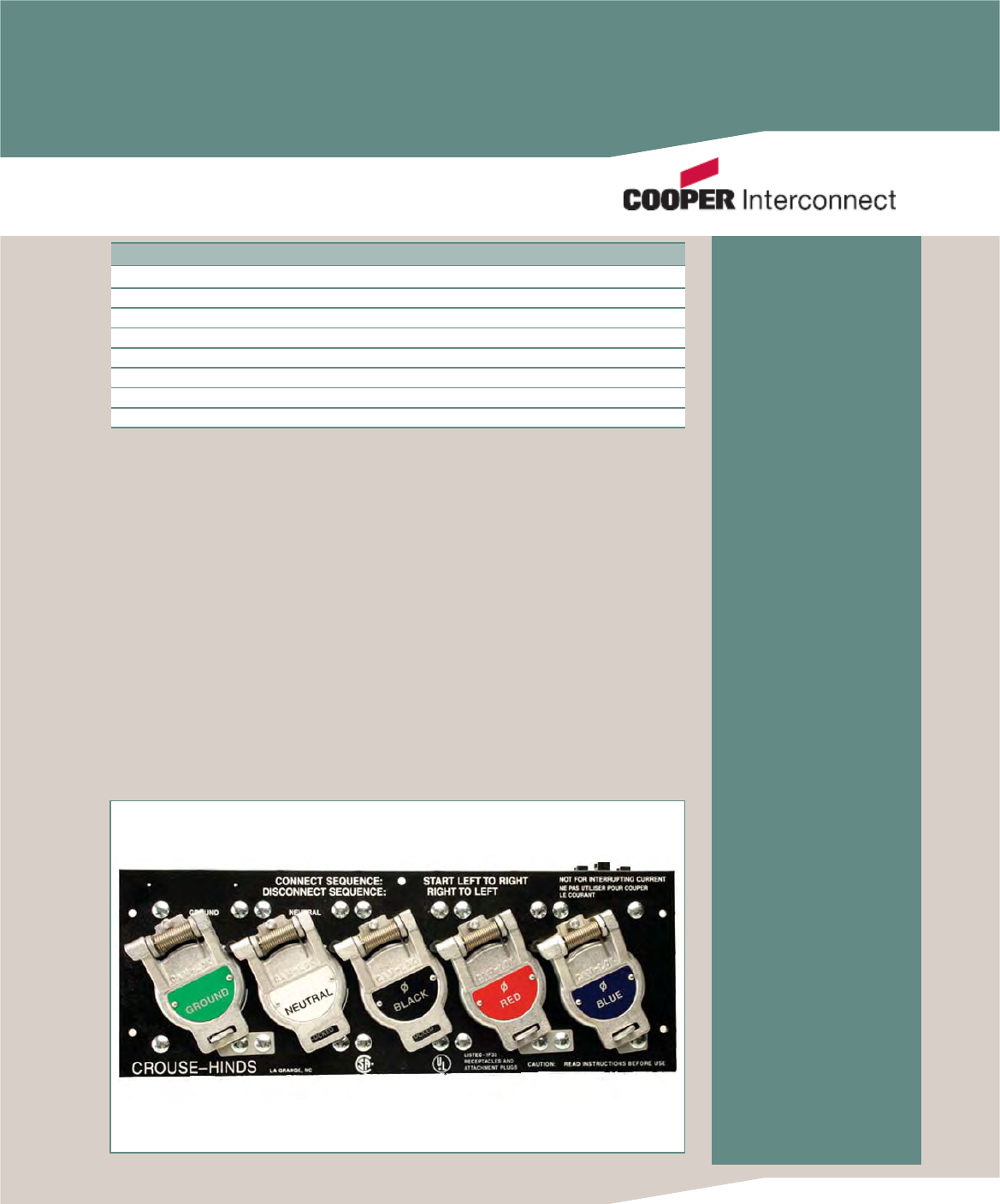

FEMALE PANEL PART NUMBERS

RECEPTACLES PER PANEL FEMALE PANELS COVER COLOR CODE

3E0400-1685 GR, WH, BK

4E0400-1686-NN GR, BK, RD, BU

4E0400-1696 GR, WH, BK, RD

4E0400-1883-NN GR, BRN, ORG, YEL

5E0400-1687 GR, WH, BK, RD, BU

5E0400-1702 GR, WH, BRN, ORG, YEL

6E0400-1885 GR, WH, WH, BK, RD, BU

GR = Green

WH = White

BK = Black

RD = Red

BU = Blue

BRN = Brown

ORG = Orange

YEL = Yellow

NN = Panel without Neutral

Other Color Codes available; consult factory.

Add “LS” suffix to end of part number to order panels with a limit switch. Available on all

positions. Consult factory.

Limit switch ratings are 15A-125, 250, 480VAC.

.5A 125VDC

.25A 250VDC

Plugs must be ordered separately. See chart.

NOTE: FOR 400 AMPS, THE FOLLOWING

CABLE TYPES MAY BE USED:

UL TYPE SC, CSA TYPE PPC 1050C

OR TYPE W 900C.

POSI-LOK CONTACTS FEATURE EXCLUSIVE

CAM-LOK® ACTION.

4758 Washington Street LaGrange, NC 28551 252-566-3014 www.cooperinterconnect.com

88

Posi-Lok™ Plugs and Panels

NOTES: AMPACITY IS BASED ON CABLE

SIZE OR CONTACT RATING, WHICHEVER IS

LESS.

E0400 SERIES HAS SILVER-PLATED

COPPER CONTACTS.

PANEL DOES NOT INCLUDE ENCLOSURE OR

BREAKERS. POSI-LOK SYSTEM MUST BE

INSTALLED PER LOCAL AND NATIONAL

STANDARDS.

PANEL RECEPTACLES HAVE LOCK

WASHERS, FLAT WASHERS AND JAM NUTS

INCLUDED.

E0400 SERIES

E0400 SERIES

Assembled length is 7 1/4”

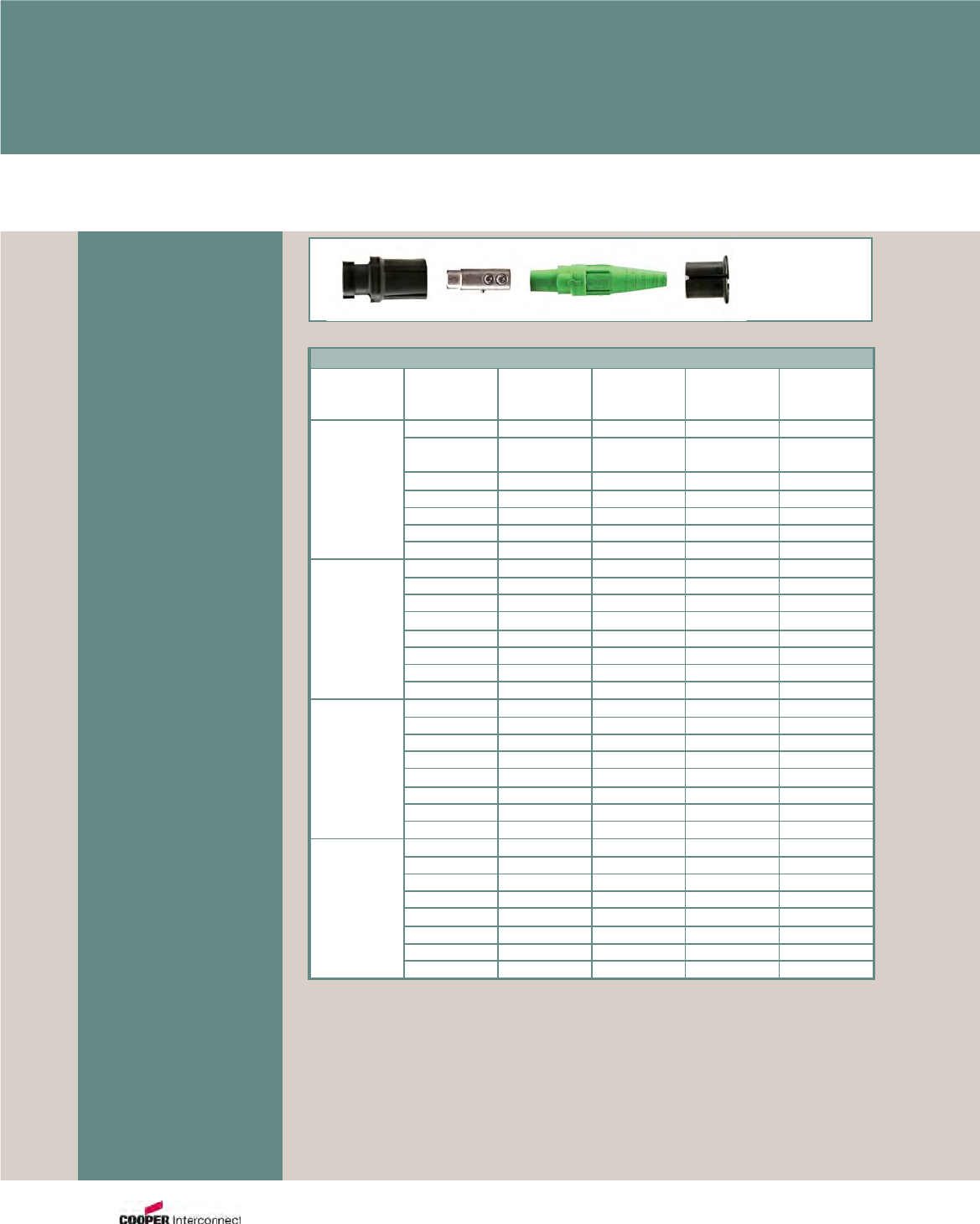

MALE PLUGS

DESCRIPTION POSITION MALE

COMPLETE

PART NO.

MALE

CONTACT ONLY

PART NO.

MALE

INSULATOR

PART NO.

POLARIZING

SHELL

PART NO.

Crimp Green E0400-141 A201271-2 3336200-1 A201263-6

1/0-2/0 White E0400-142 A201271-2 3336200-2 A201263-7

Black E0400-143 A201271-2 3336200-3 A201263-8

1/0 - 260 AMPS Red E0400-144 A201271-2 3336200-4 A201263-9

2/0 - 300 AMPS Blue E0400-145 A201271-2 3336200-5 A201263-10

Brown E0400-146 A201271-2 3336200-6 A201263-29

Orange E0400-147 A201271-2 3336200-7 A201263-30

Yellow E0400-148 A201271-2 3336200-8 A201263-31

Crimp Green E0400-161 A201271-1 3336200-9 A201263-1

3/0-4/0 White E0400-162 A201271-1 3336200-10 A201263-2

Black E0400-163 A201271-1 3336200-11 A201263-3

3/0 - 350 AMPS Red E0400-164 A201271-1 3336200-12 A201263-4

4/0 - 400 AMPS Blue E0400-165 A201271-1 3336200-13 A201263-5

Brown E0400-166 A201271-1 3336200-14 A201263-26

Orange E0400-167 A201271-1 3336200-15 A201263-23

Yellow E0400-168 A201271-1 3336200-16 A201263-25

Double Set Screw Green E0400-151 A201283-3 3336200-1 A201263-6

#2-2/0 White E0400-152 A201283-3 3336200-2 A201263-7

Black E0400-153 A201283-3 3336200-3 A201263-8

#2 - 190 AMPS Red E0400-154 A201283-3 3336200-4 A201263-9

#1 - 220 AMPS Blue E0400-155 A201283-3 3336200-5 A201263-10

1/0 - 260 AMPS Brown E0400-156 A201283-3 3336200-6 A201263-29

2/0 - 300 AMPS Orange E0400-157 A201283-3 3336200-7 A201263-30

Yellow E0400-158 A201283-3 3336200-8 A201263-31

Double Set Screw Green E0400-181 A201283-1 3336200-9 A201263-1

3/0-4/0 White E0400-182 A201283-1 3336200-10 A201263-2

Black E0400-183 A201283-1 3336200-11 A201263-3

3/0 - 350 AMPS Red E0400-184 A201283-1 3336200-12 A201263-4

4/0 - 400 AMPS Blue E0400-185 A201283-1 3336200-13 A201263-5

Brown E0400-199 A201283-1 3336200-14 A201263-26

Orange E0400-195 A201283-1 3336200-15 A201263-23

Yellow E0400-192 A201283-1 3336200-16 A201263-25

89

Cooper Interconnect 4758 Washington Street LaGrange, NC 28551 252-566-3014

Posi-Lok™ Plugs and Panels

3, 4, 5 OR 6 WIRE SYSTEM, RATEDUPTO

400 AMPS, CONTINUOUS, 600 VOLTS,

1050C.

E0400 SERIES

E0400 SERIES

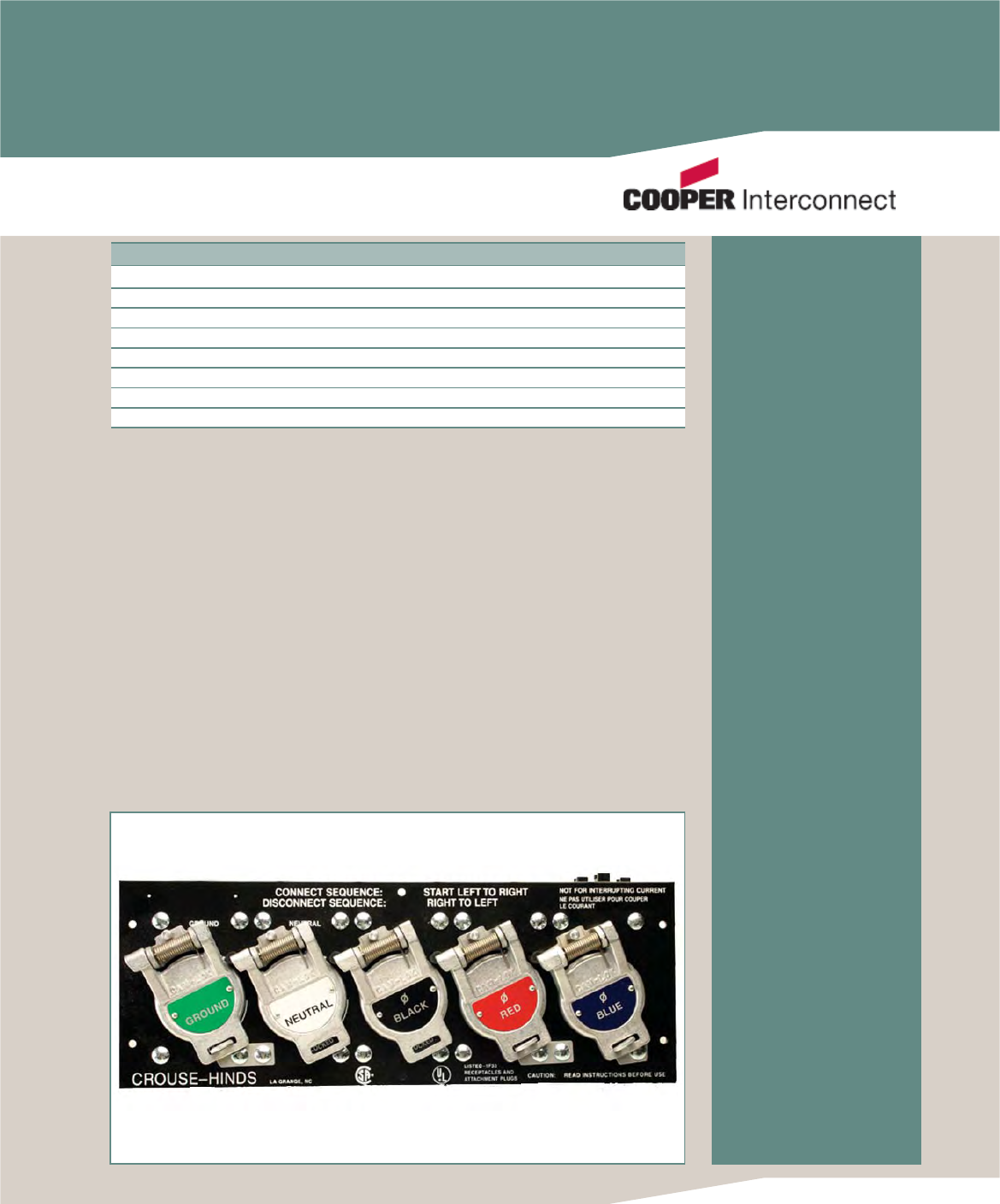

MALE PANEL PART NUMBERS

RECEPTACLES PER PANEL MALE PANELS COVER COLOR CODE

3E0400-1660 GR, WH, BK

4E0400-1661-NN GR, BK, RD, BU

4E0400-1672 GR, WH, BK, RD

4E0400-1862-NN GR, BRN, ORG, YEL

5E0400-1662 GR, WH, BK, RD, BU

5E0400-1703 GR, WH, BRN, ORG, YEL

6E0400-1860 GR, WH, WH, BK, RD, BU

GR = Green

WH = White

BK = Black

RD = Red

BU = Blue

BRN = Brown

ORG = Orange

YEL = Yellow

NN = Panel without Neutral

Other Color Codes available; consult factory.

Add “LS” suffix to end of part number to order panels with a limit switch. Available on all

positions. Consult factory.

Limit switch ratings are 15A-125, 250, 480VAC.

.5A 125VDC

.25A 250VDC

Plugs must be ordered separately. See chart.

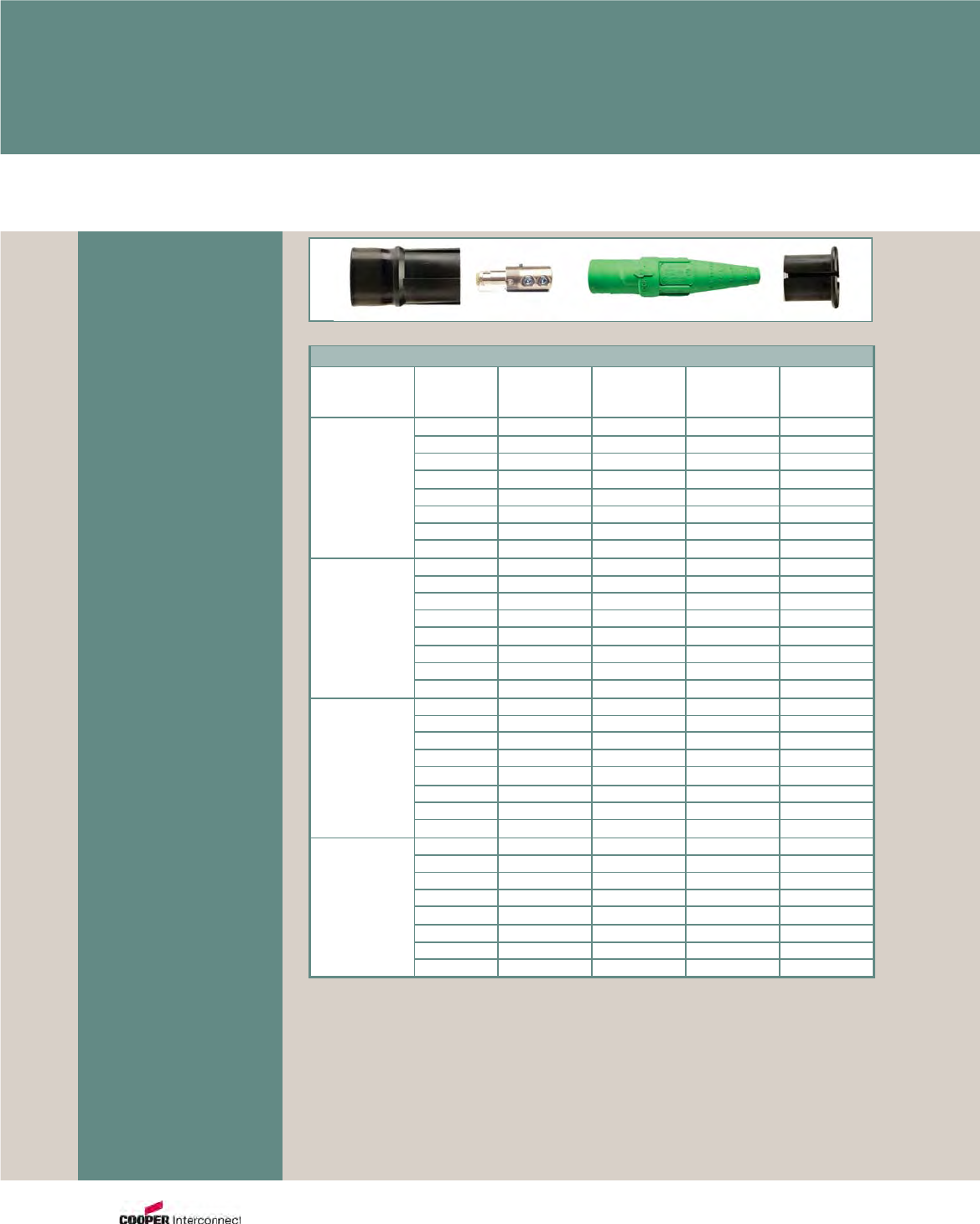

FEMALE PLUGS

DESCRIPTION POSITION FEMALE

COMPLETE

PART NO.

FEMALE

CONTACT ONLY

PART NO.

FEMALE

INSULATOR

PART NO.

POLARIZING

SHELL

PART NO.

Crimp Green E0400-241 A201272-4 3336199-1 A201262-6

1/0-2/0 White E0400-242 A201272-4 3336199-2 A201262-7

Black E0400-243 A201272-4 3336199-3 A201262-8

1/0 - 260 AMPS Red E0400-244 A201272-4 3336199-4 A201262-9

2/0 - 300 AMPS Blue E0400-245 A201272-4 3336199-5 A201262-10

Brown E0400-246 A201272-4 3336199-6 A201262-27

Orange E0400-247 A201272-4 3336199-7 A201262-28

Yellow E0400-248 A201272-4 3336199-8 A201262-29

Crimp Green E0400-261 A201272-2 3336199-9 A201262-1

3/0-4/0 White E0400-262 A201272-2 3336199-10 A201262-2

Black E0400-263 A201272-2 3336199-11 A201262-3

3/0 - 350 AMPS Red E0400-264 A201272-2 3336199-12 A201262-4

4/0 - 400 AMPS Blue E0400-265 A201272-2 3336199-13 A201262-5

Brown E0400-266 A201272-2 3336199-14 A201262-26

Orange E0400-267 A201272-2 3336199-15 A201262-23

Yellow E0400-268 A201272-2 3336199-16 A201262-25

Double Set Screw Green E0400-251 A201284-3 3336199-1 A201262-6

#2-2/0 White E0400-252 A201284-3 3336199-2 A201262-7

Black E0400-253 A201284-3 3336199-3 A201262-8

#2 - 190 AMPS Red E0400-254 A201284-3 3336199-4 A201262-9

#1 - 220 AMPS Blue E0400-255 A201284-3 3336199-5 A201262-10

1/0 - 260 AMPS Brown E0400-256 A201284-3 3336199-6 A201262-27

2/0 - 300 AMPS Orange E0400-257 A201284-3 3336199-7 A201262-28

Yellow E0400-258 A201284-3 3336199-8 A201262-29

Double Set Screw Green E0400-281 A201284-1 3336199-9 A201262-1

3/0-4/0 White E0400-282 A201284-1 3336199-10 A201262-2

Black E0400-283 A201284-1 3336199-11 A201262-3

3/0 - 350 AMPS Red E0400-284 A2012834 3336199-12 A201262-4

4/0 - 400 AMPS Blue E0400-285 A201284-1 3336199-13 A201262-5

Brown E0400-299 A201284-1 3336199-14 A201262-26

Orange E0400-295 A201284-1 3336199-15 A201262-23

Yellow E0400-292 A201284-1 3336199-16 A201262-25

4758 Washington Street LaGrange, NC 28551 252-566-3014 www.cooperinterconnect.com

90

Posi-Lok™ Plugs and Panels

E0400 SERIES

E0400 SERIES

NOTES: AMPACITY IS BASED ON CABLE

SIZE OR CONTACT RATING, WHICHEVER IS

LESS.

E0400 SERIES HAS SILVER PLATED

COPPER CONTACTS.

PANEL DOES NOT INCLUDE ENCLOSURE OR

BREAKERS. POSI-LOK SYSTEM MUST BE

INSTALLED PER LOCAL AND NATIONAL

STANDARDS.

Assembled length is 7 1/4”

91

Cooper Interconnect 4758 Washington Street LaGrange, NC 28551 252-566-3014

Posi-Lok™ Plugs and Panels

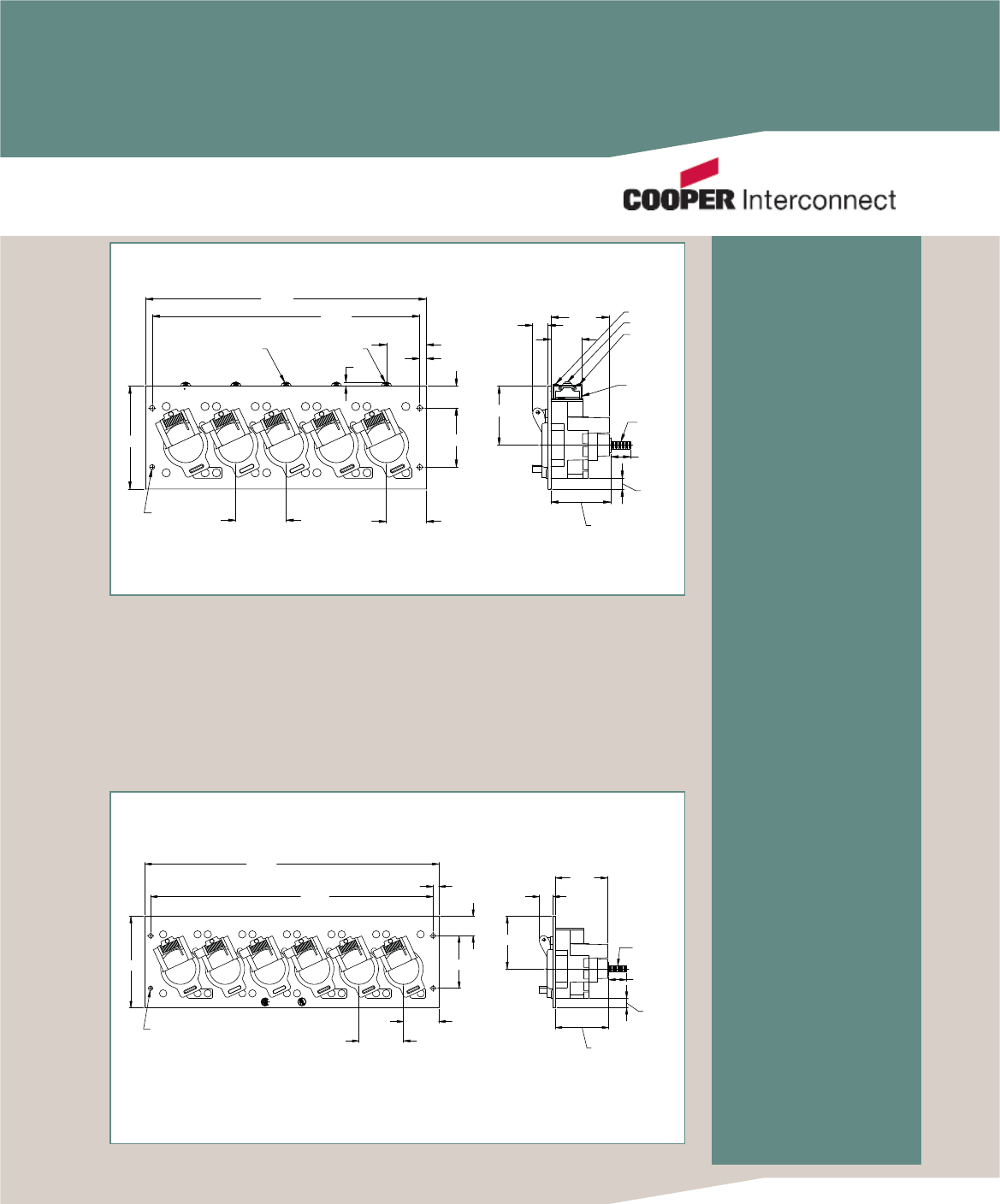

PANEL DIMENSIONS

PANEL DIMENSIONS

E0315/E0400

E0315/E0400

4.00

6.97

2.70

Ø.34

4 PLCS. 3.40

TYPICAL

.44

22.40

1.48

21.53 1.04

4.00

4.06 TO

STUD SHOULDER

.62

4.00 1/2-13

THREAD

1.35

CROUSE-HINDS LAGRANGE, NC RECEPTACLES AND

RATTACHMENT PLUGS

LISTED-1F33

CAUTION: READ INSTRUCTIONS BEFORE USE

cam-lok

DISCONNECT SEQUENCE: RIGHT TO LEFT

CONNECT SEQUENCE: START LEFT TO RIGHT

EO400 SERIES

400 AMP MAX.

600 VAC 105∞C

POSI-LOK PANEL

GROUND

GROUND

cam-lok

cam-lok

cam-lok

cam-lok

cam-lok

NE PAS UTILISER POUR COUPER LE COURANT

NOT FOR INTERRUPTING

R

cam-lok

cam-lok

cam-lok

cam-lok

cam-lok

DISCONNECT SEQUENCE: RIGHT TO LEFT

CONNECT SEQUENCE: START LEFT TO RIGHT

LISTED-1F33

ATTACHMENT PLUGS

RECEPTACLES AND

CROUSE-HINDS LAGRANGE, NC

600 VAC 105∞C

400 AMP MAX.

E0400 SERIES

POSI-LOK PANEL

GROUND

R

CAUTION: READ INSTRUCTIONS BEFORE USE

NE PAS UTILISER POUR COUPER

NOT FOR INTERRUPTING

LE COURANT

CURRENT

1.04 4.00

4.06 TO

STUD SHOULDER

.62

4.00 1/2-13

THREAD

1.35

.27

LIMIT

SWITCH

(TYP. ALL

POSITIONS)

2.70

LIMIT SWITCH

2.09

COM

NO

NC

4.00

6.97

2.70

Ø.34

4 PLCS.

.44

19.00

1.48

18.12

3.40

TYPICAL

OPTIONAL LIMIT

SWITCH POSITIONS

E0315 and E0400 Panel with limit switch mounting dimensions

E0315 and E0400 Panel without limit switch mounting dimensions

4758 Washington Street LaGrange, NC 28551 252-566-3014 www.cooperinterconnect.com

92

Posi-Lok™ Plugs and Panels

PARTS, TOOLS AND

PARTS, TOOLS AND

ACCESSORIES

ACCESSORIES

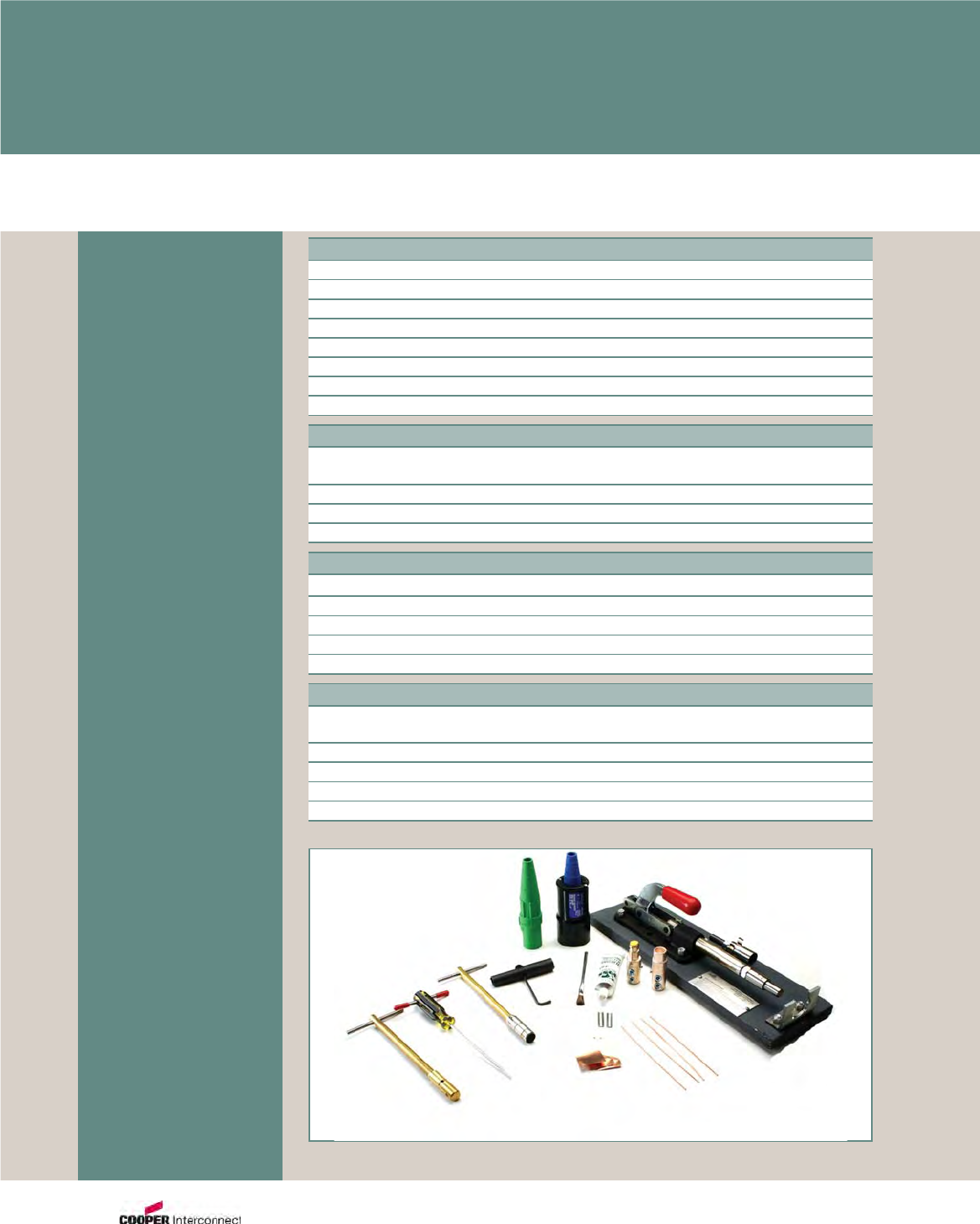

PART NUMBER DESCRIPTION

A400001 E0315 and E0400 Assembly Tool.

A100632 Tool for removing E0315 and E0400 contacts from insulators.

A100072 Cable Cutter - #2 - 4/0 Cable.

201310 Insulator holding bracket.

A201303 Assembly tool for 200A plugs.

A200020-3 COM-A-LONG for pulling male contact in E0315 and E0400 Series.

A200020-4 COM-A-LONG for pulling female contact in E0315 and E0400 Series.

A101208 2 oz. tube silicon grease for lubricating mating end of synthetic rubber insulators.

PROTECTIVE PLUG CAPS

PART NO. DESCRIPTION

A100601-17 Cap for male E0315 or E0400

A100602-17 Cap for female E0315 or E0400

A201319-1 Cap for male E0200

A201319-1 Cap for female E0200

E0315 AND E0400 SERIES CRIMPING NEST AND PRESSES*

CABLE SIZE CRIMPING NESTS

PART NO.

CRIMPING PRESSES

(INCLUDES CRIMP NEST)

#2-#1 100514-3 A200914-3

1/0-2/0 100514-4 A200914-4

3/0 100514-5 A200914-5

4/0 100514-6 A200914-6

REPLACEMENT PARTS

CONNECTOR

SERIES NO.

SET SCREW COPPER SHIM PRESSURE PAD RETAINING WIRE

E0200 100012-33 100400-5 100573-1

E0315 100012-18 100400-5 101214 100573-1

E0400 100012-18 100400-8 101214 100573-1

*REFER TO INSTRUCTION SHEETS FOR

E0200 CRIMPING INFORMATION
