PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
PH (763) 422-2211
FX (763) 422-2600

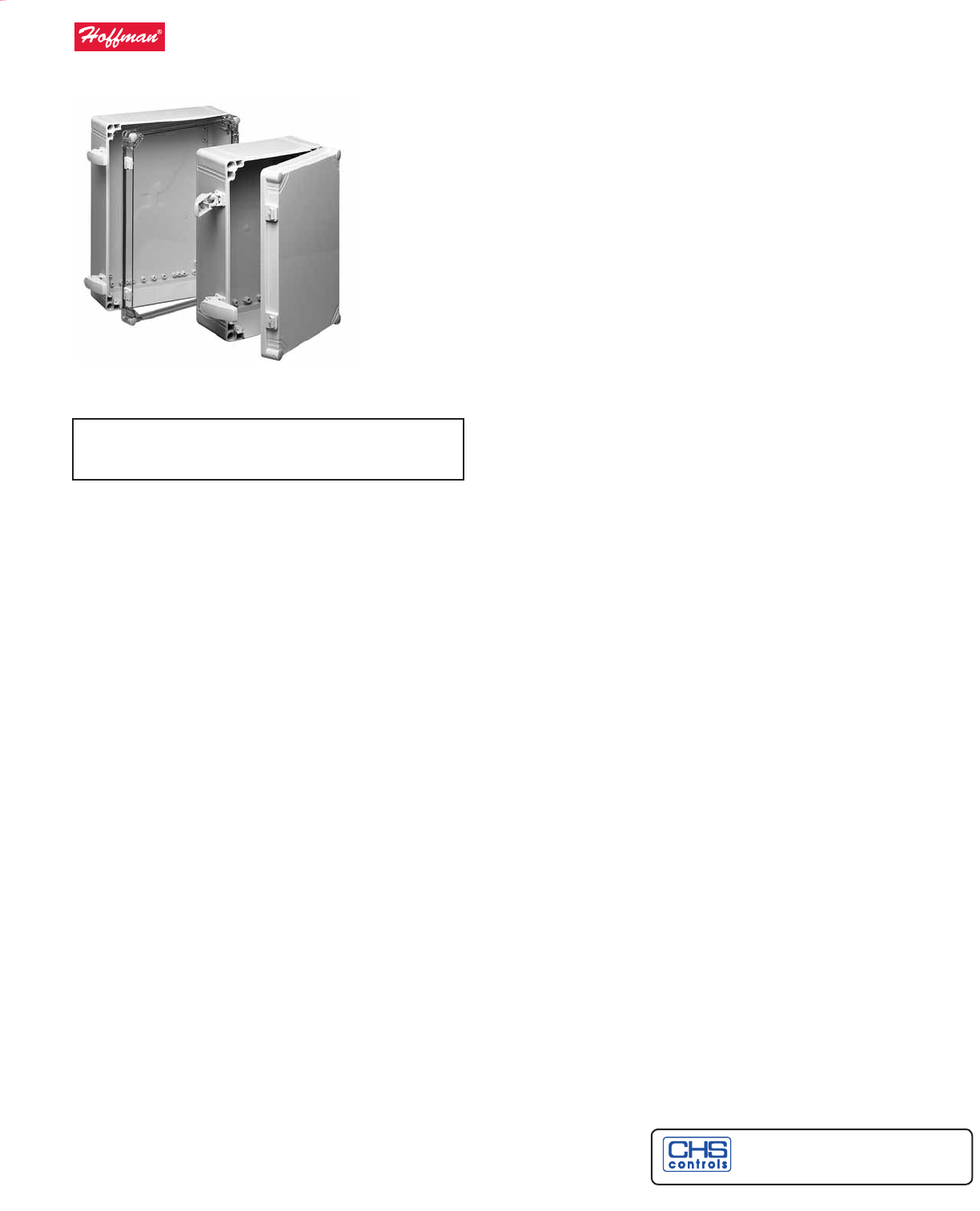

Featured
Products
in this
Chapter ▶ POLYPRO®, Type 4X P. 228
CHAPTER 3
Non-Metallic
CHS Controls AB
Tel +46 42 38 61 00, Fax +46 42 38 61 29
chs@chscontrols.se www.chscontrols.se
227
:
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
CHAPTER CONTENTS
3
Polyester
POLYPRO®, Type 4X
POLYPRO®, Type 4X ............................................. 228
Adjustable Panel Block Kit ...................................... 230
Polyester Mounting Bracket Kits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 230
Aluminum Swing-Out Panels ....................................231
Stainless Steel Latches (Padlockable) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 232
Hinge Retainers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 232
Fiberglass

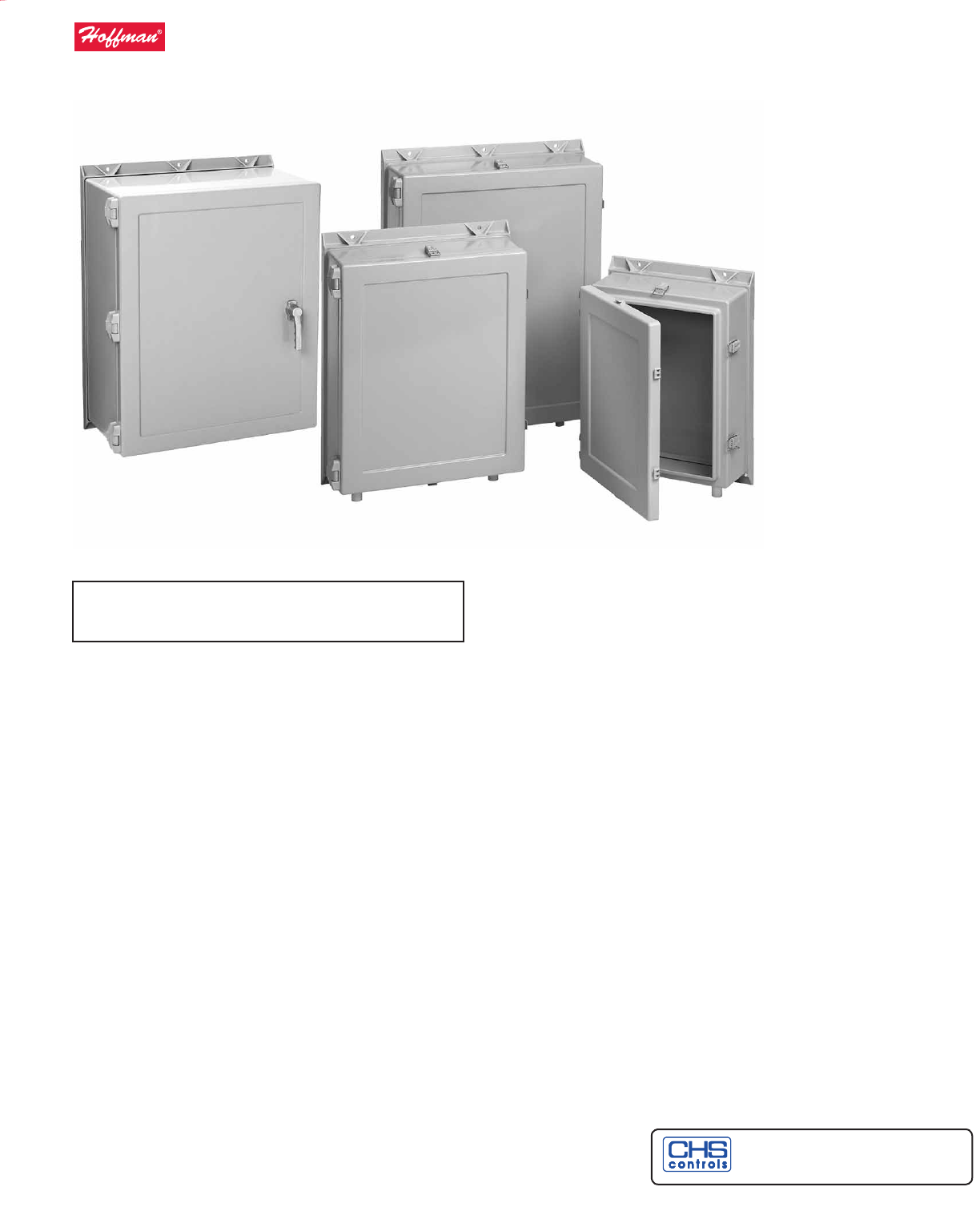

Continuous Hinge
Continuous Hinge, Type 4X ..................................... 234
Quick-Release Latch Kit ..........................................237

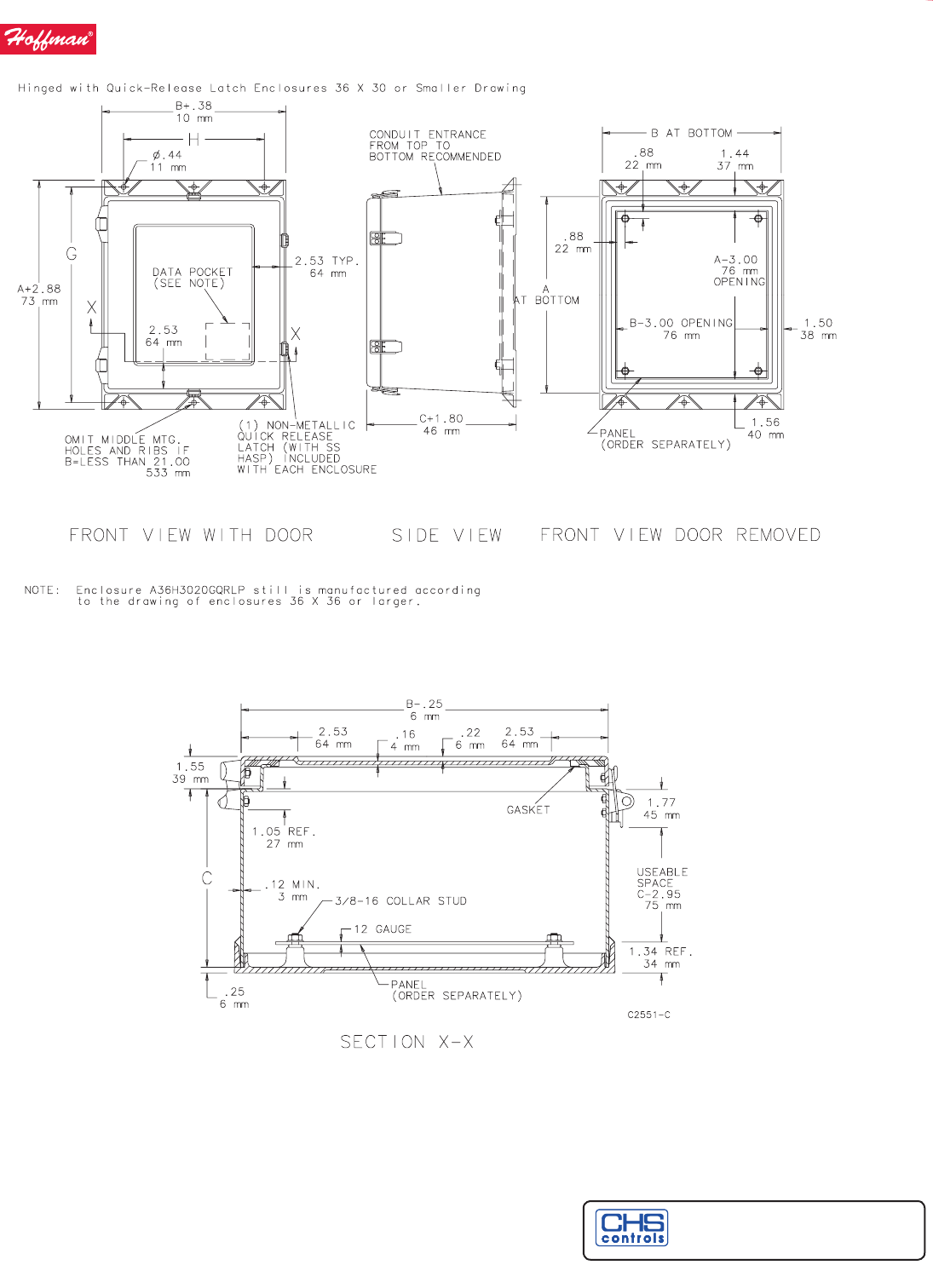

Screw- or Hinge-Cover with Quick-Release Latch . . . . . . . . . . . . . . . . 238
Screw- or Hinge-Cover with Quick-Release Latch, Type 4X . . . . . . . 238
Fiberglass Mounting Bracket Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .241

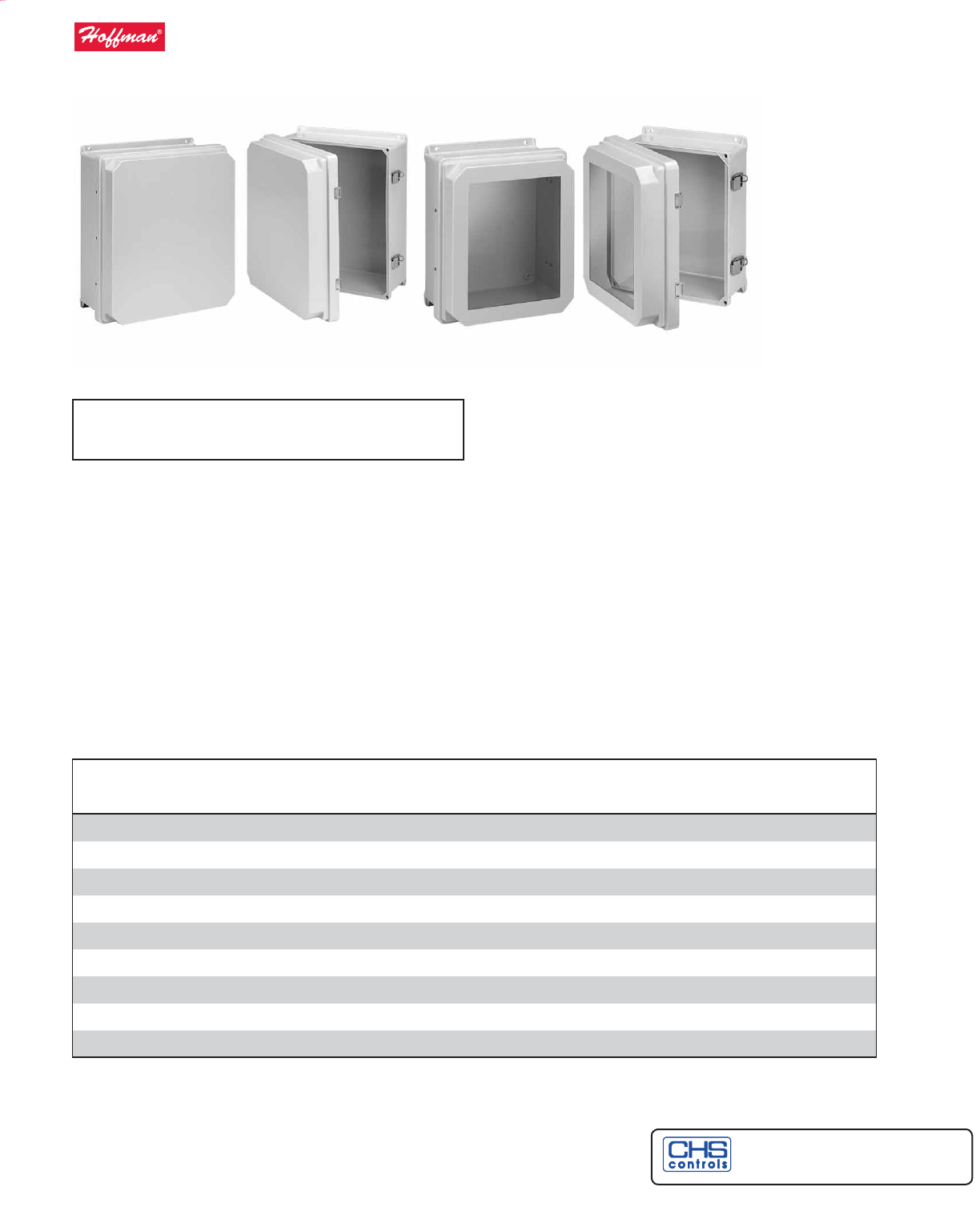

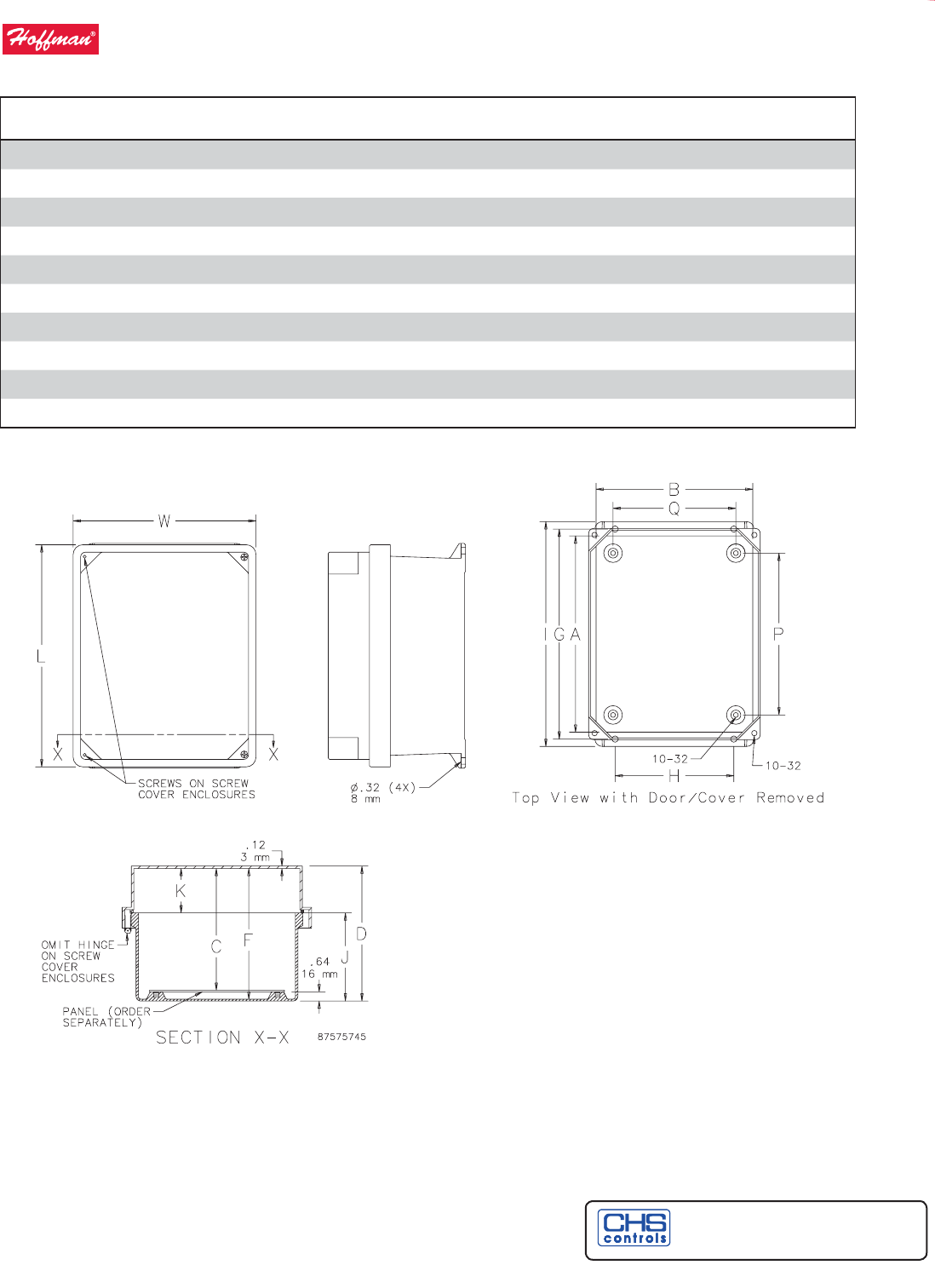

Overlapping Cover

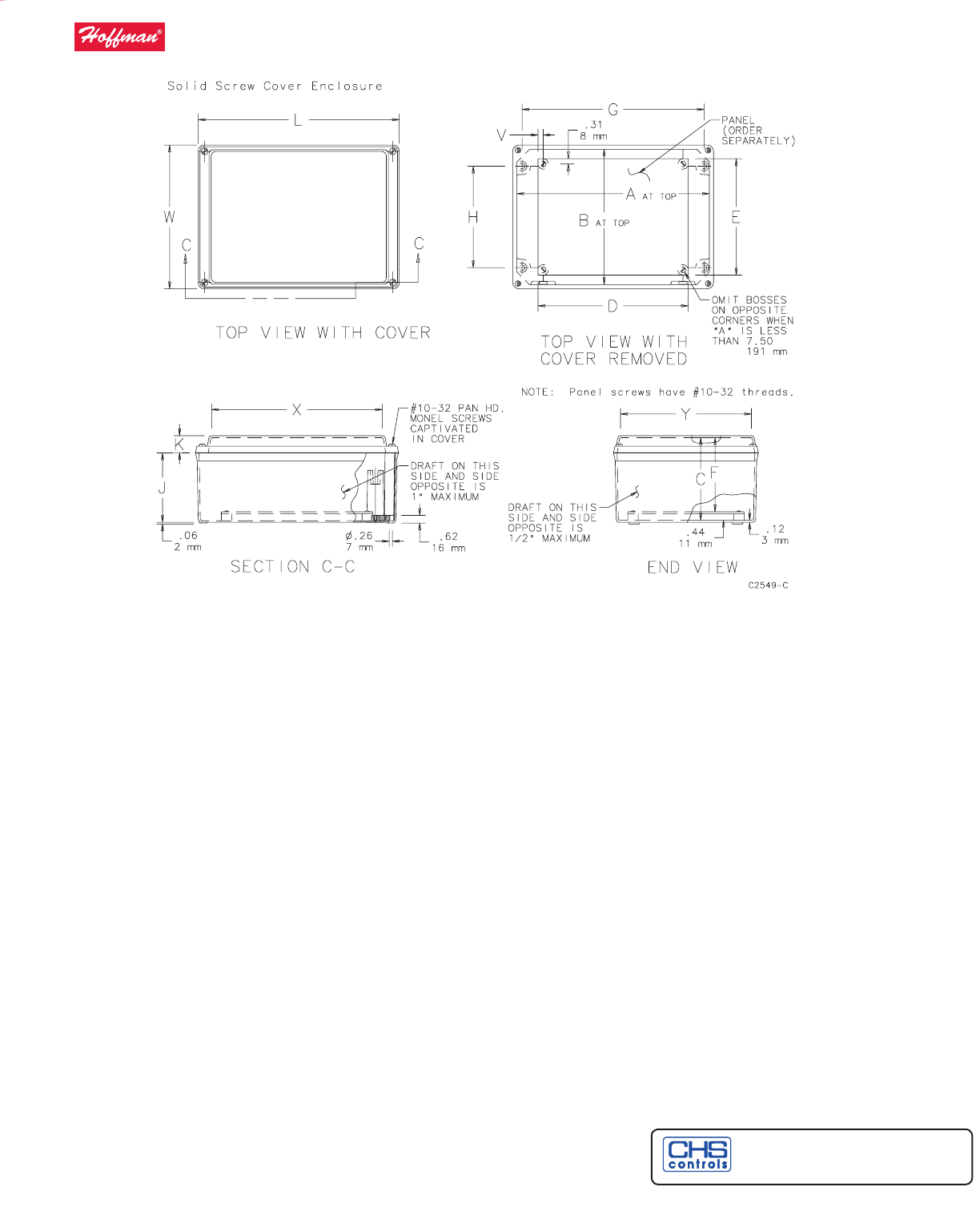

Raised Cover with Screws, Type 4X . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .242
Raised Cover with Latches, Type 4X . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 244
Flat Cover with Screws, Type 4X . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 246
Flat Cover with Latches, Type 4X . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 248

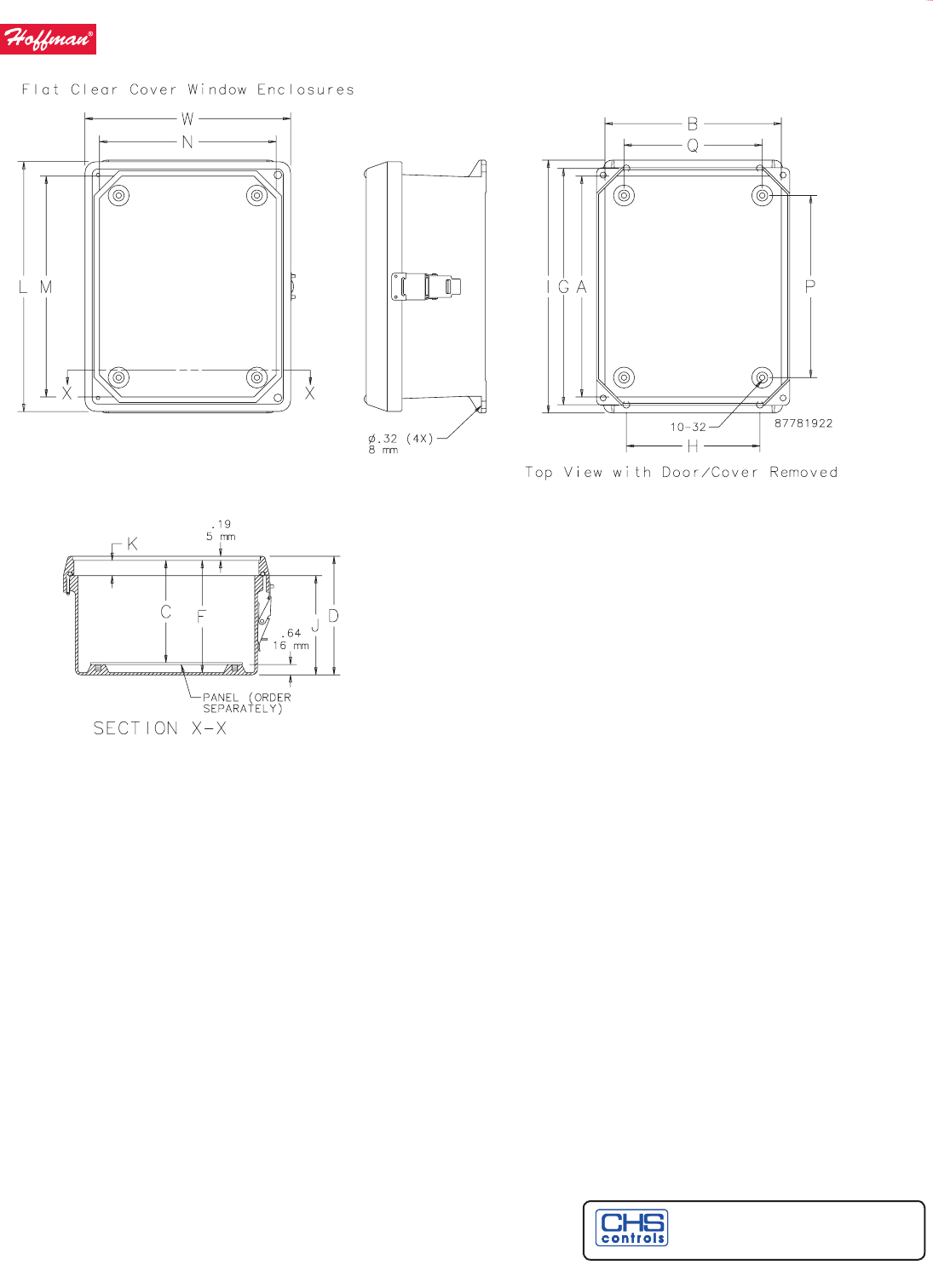

Flat Clear Cover with Latches, Type 4X . . . . . . . . . . . . . . . . . . . . . . . . . . . 250
ULTRX®
ULTRX®, Type 4X ................................................ 252
Grounding Device .............................................. 254
Panels for Type 3R, 4, 4X, 12 and 13 Enclosures . . . . . . . . . . . . . . . . . . . 254
Rack Angles (Type RA) .......................................... 255

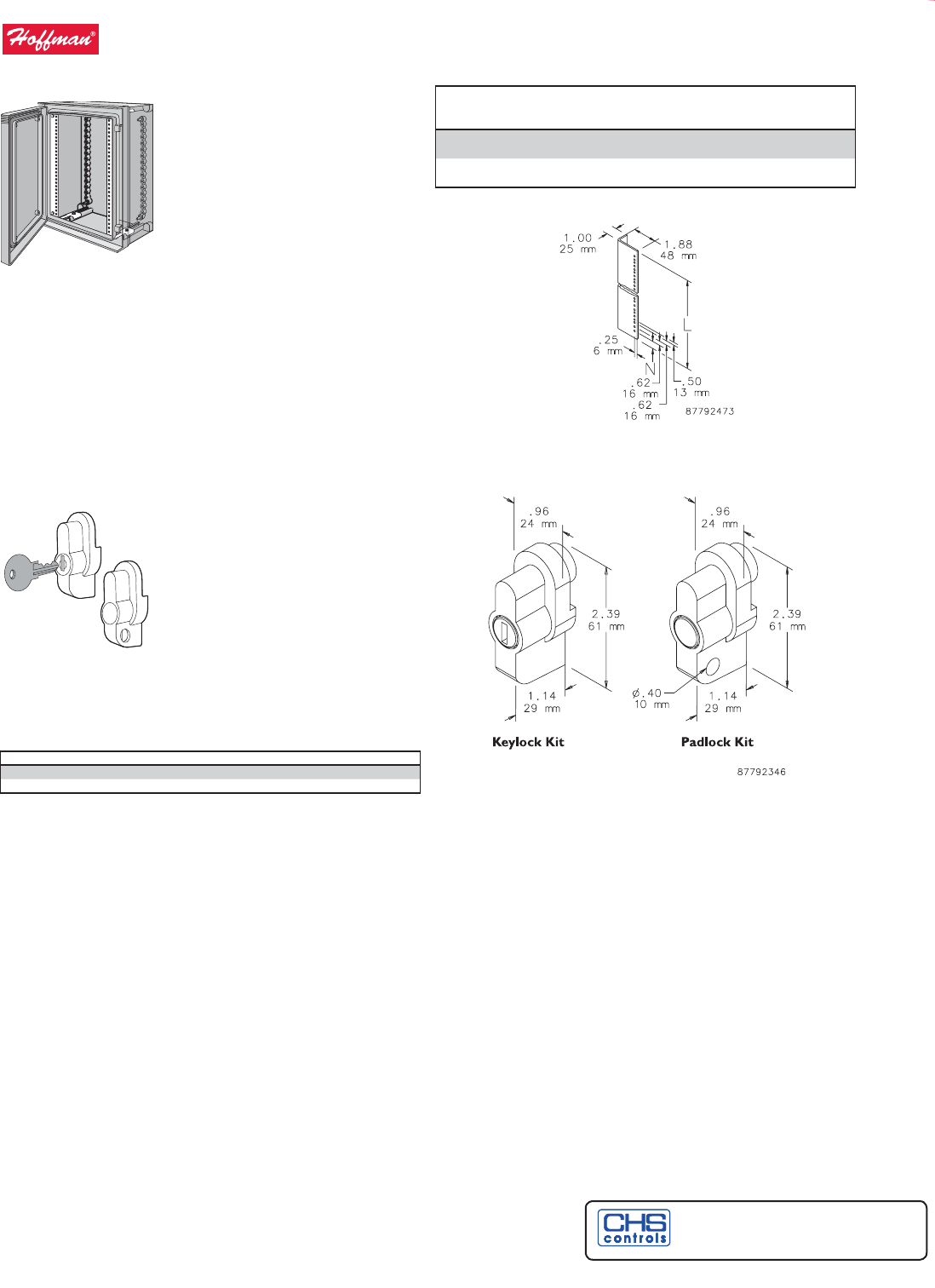

Keylock Kit and Padlock Kit ..................................... 255
Door Stop Kit ................................................... 256
Swing Frame ................................................... 256
ULTRX® Key Insert ............................................... 257
ULTRX® Mounting Bracket Kit ................................... 257
Hinge-Cover with 3-Point Latch or Quick-Release Latches
Hinge-Cover with 3-Point Latch or Quick-Release Latches,
Type 4X ....................................................... 258

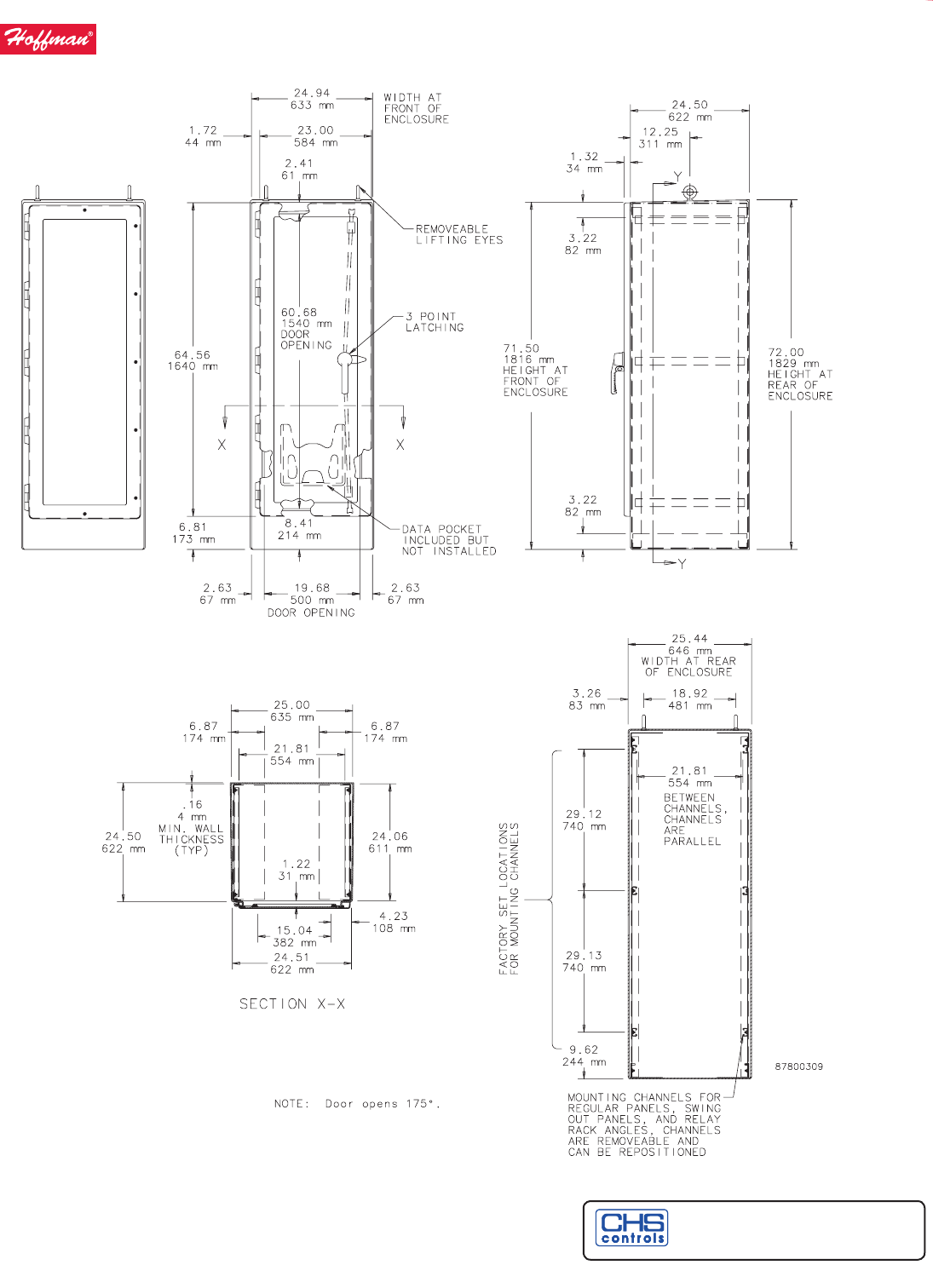

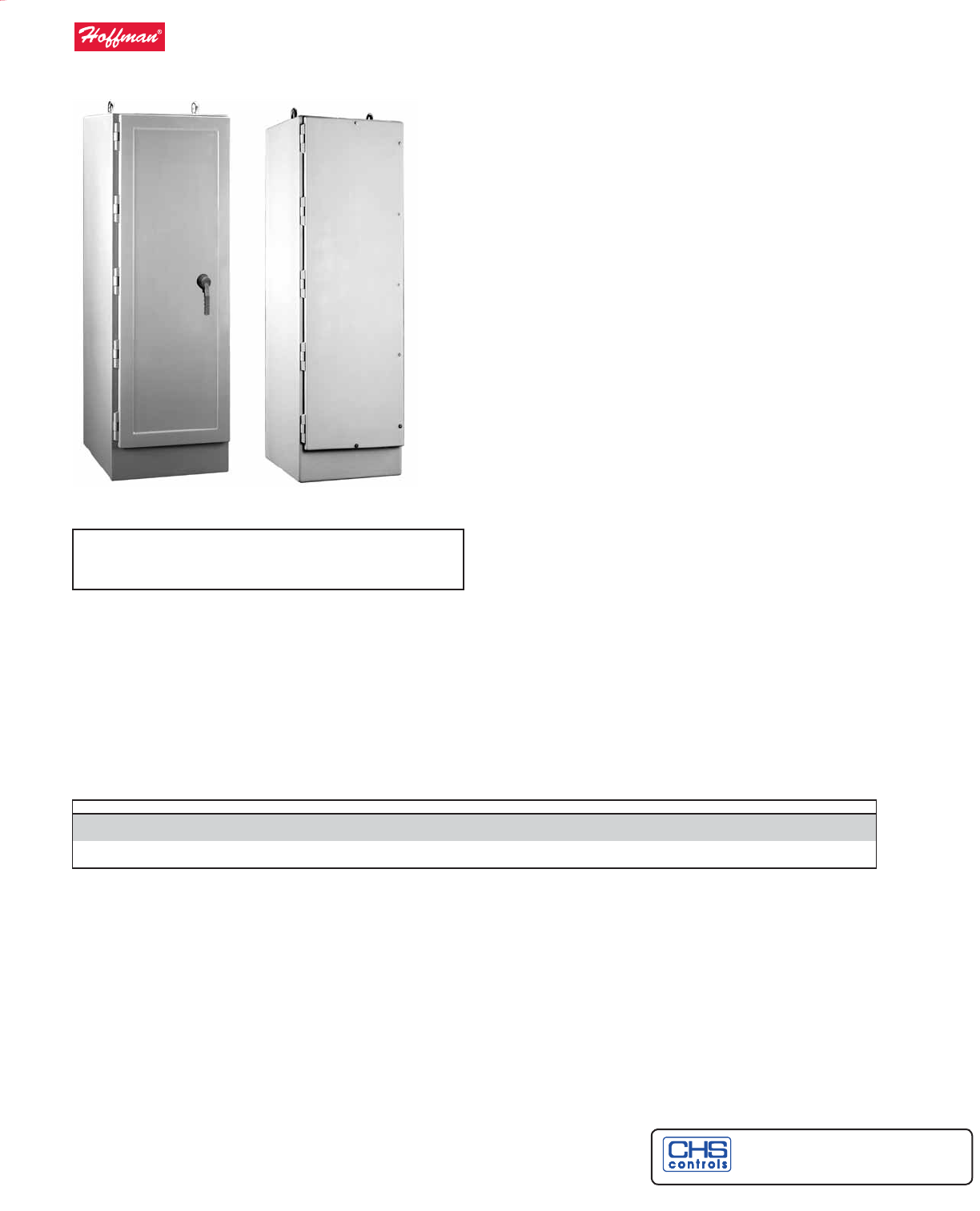

Free-Stand
Free-Stand, Type 4X ............................................. 264
Accessory Selection for Free-Stand, Type 4X . . . . . . . . . . . . . . . . . . . . . 266
Rack Mounting Accessory Selection for Free-Stand, Type 4X . . . . . .267

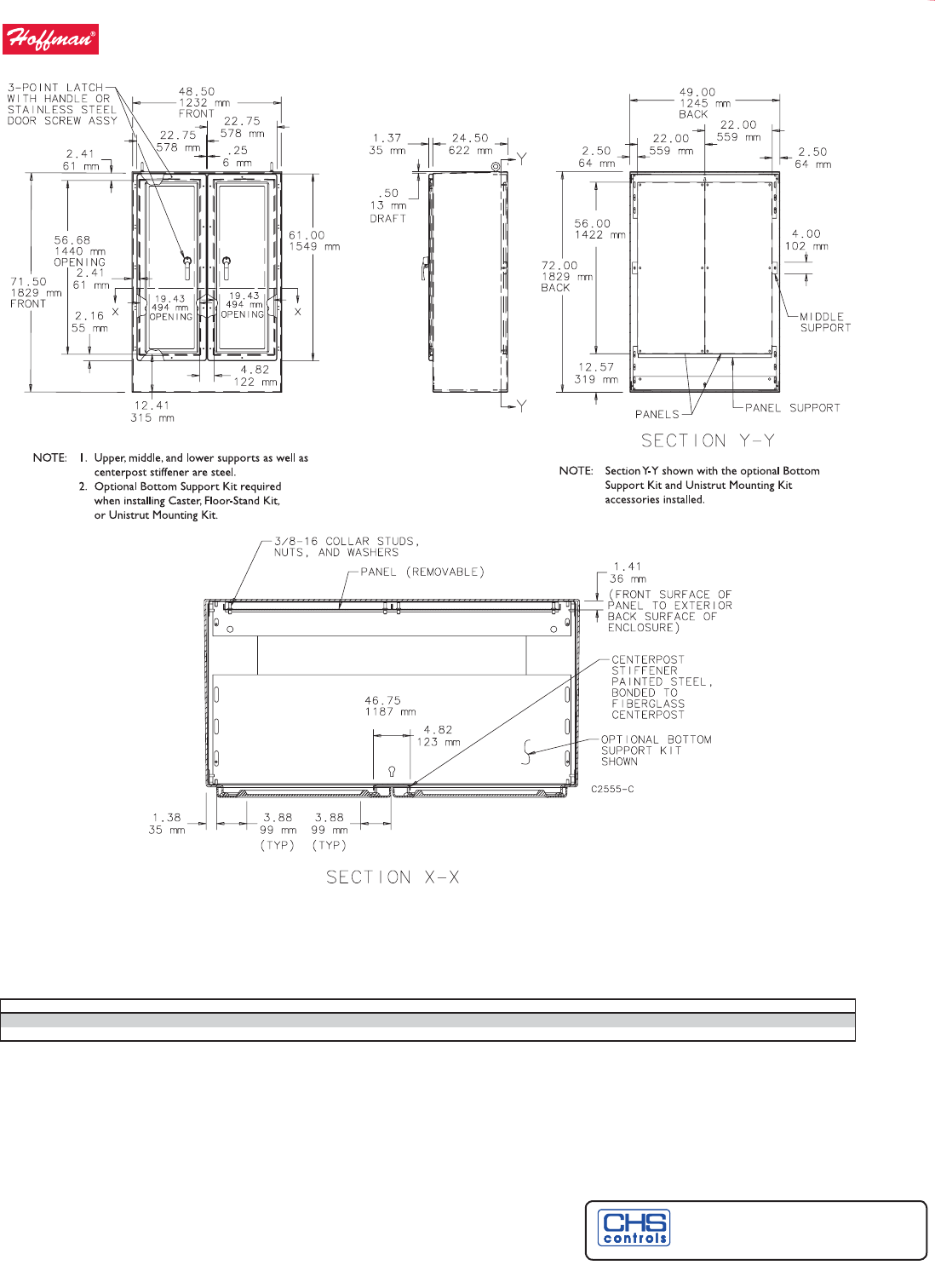

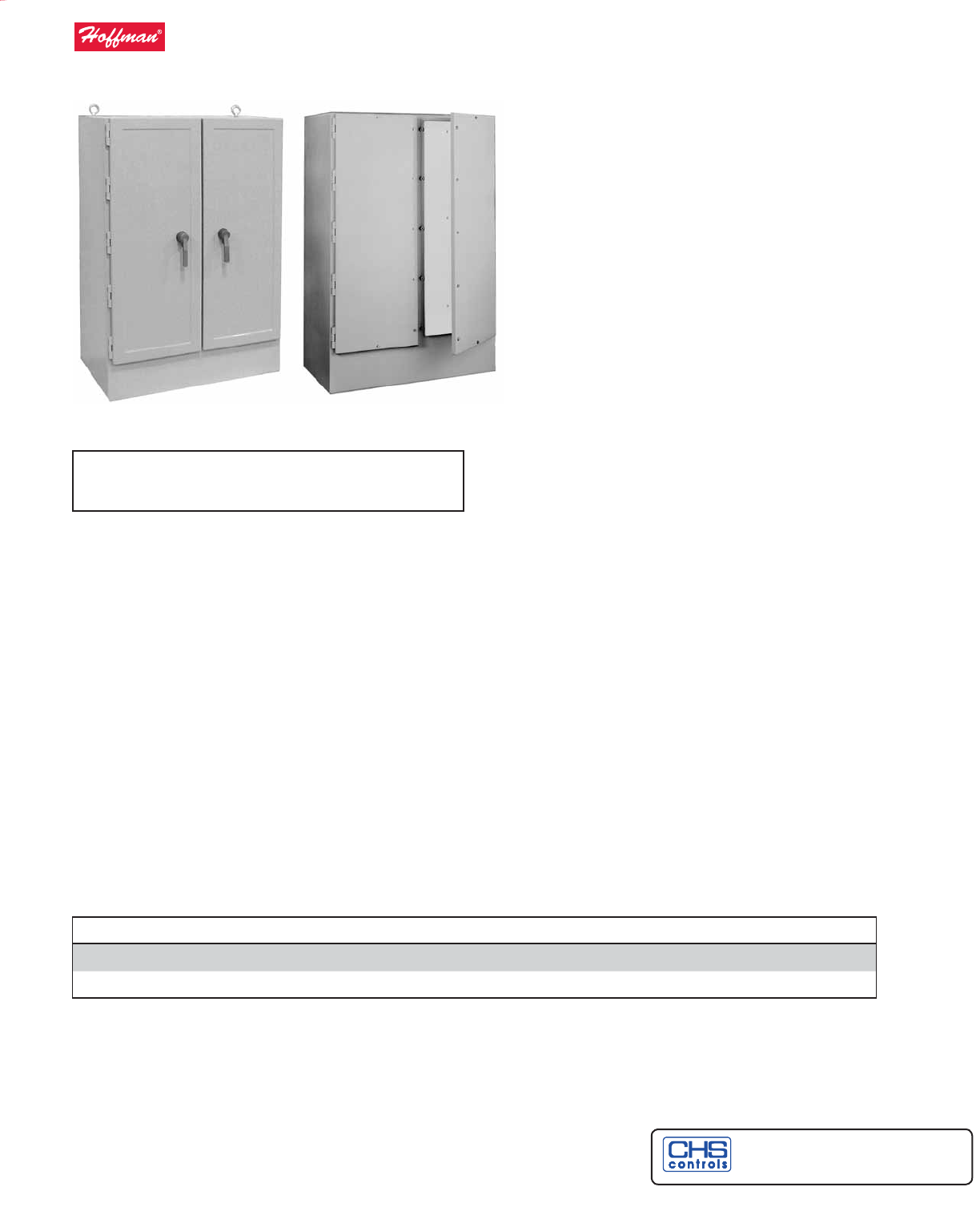

Two-Door Free-Stand
Two-Door Free-Stand, Type 4X . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 268
Bottom Support Kits ............................................ 269
Polycarbonate and ABS
QLINE® D

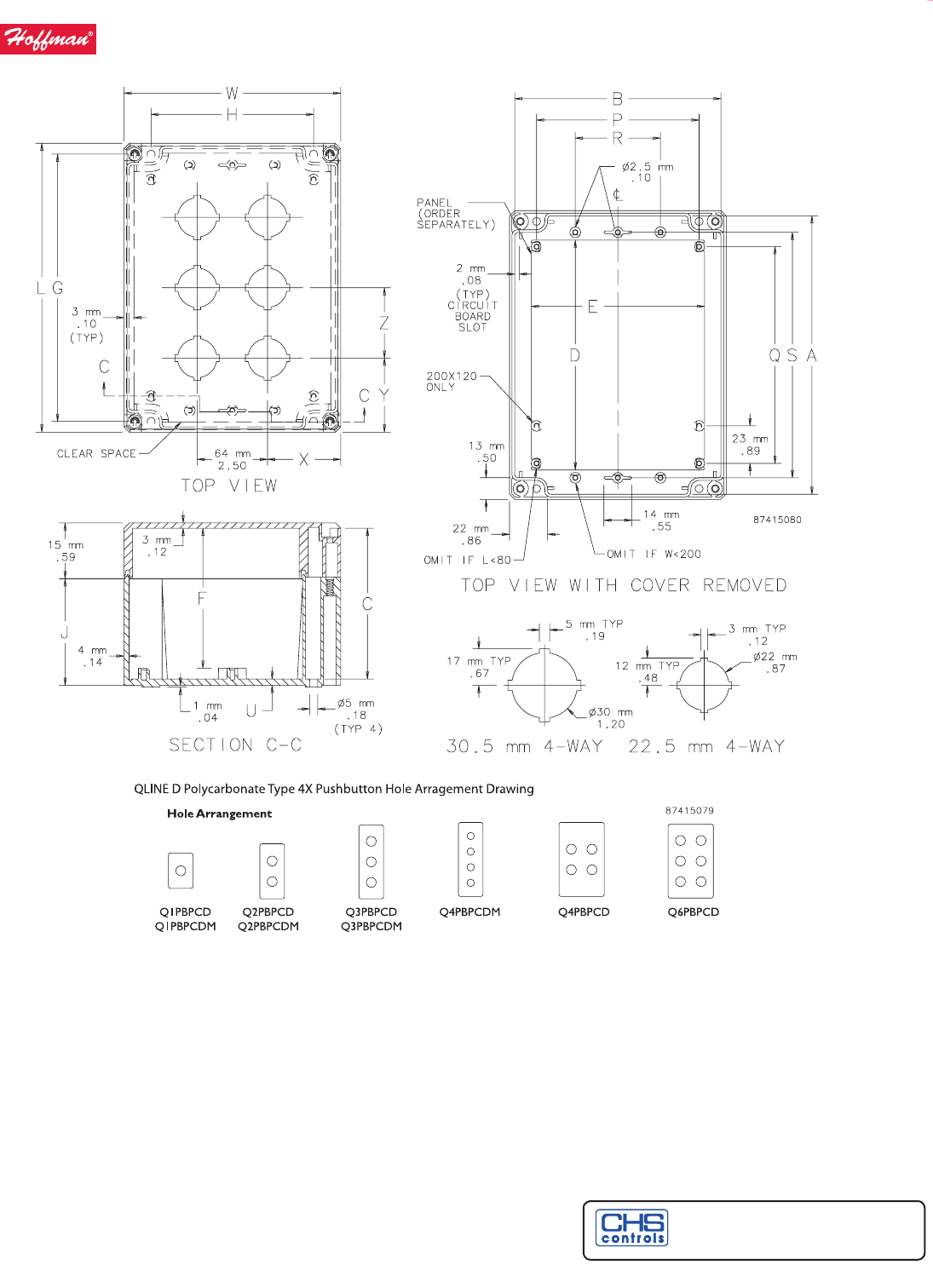

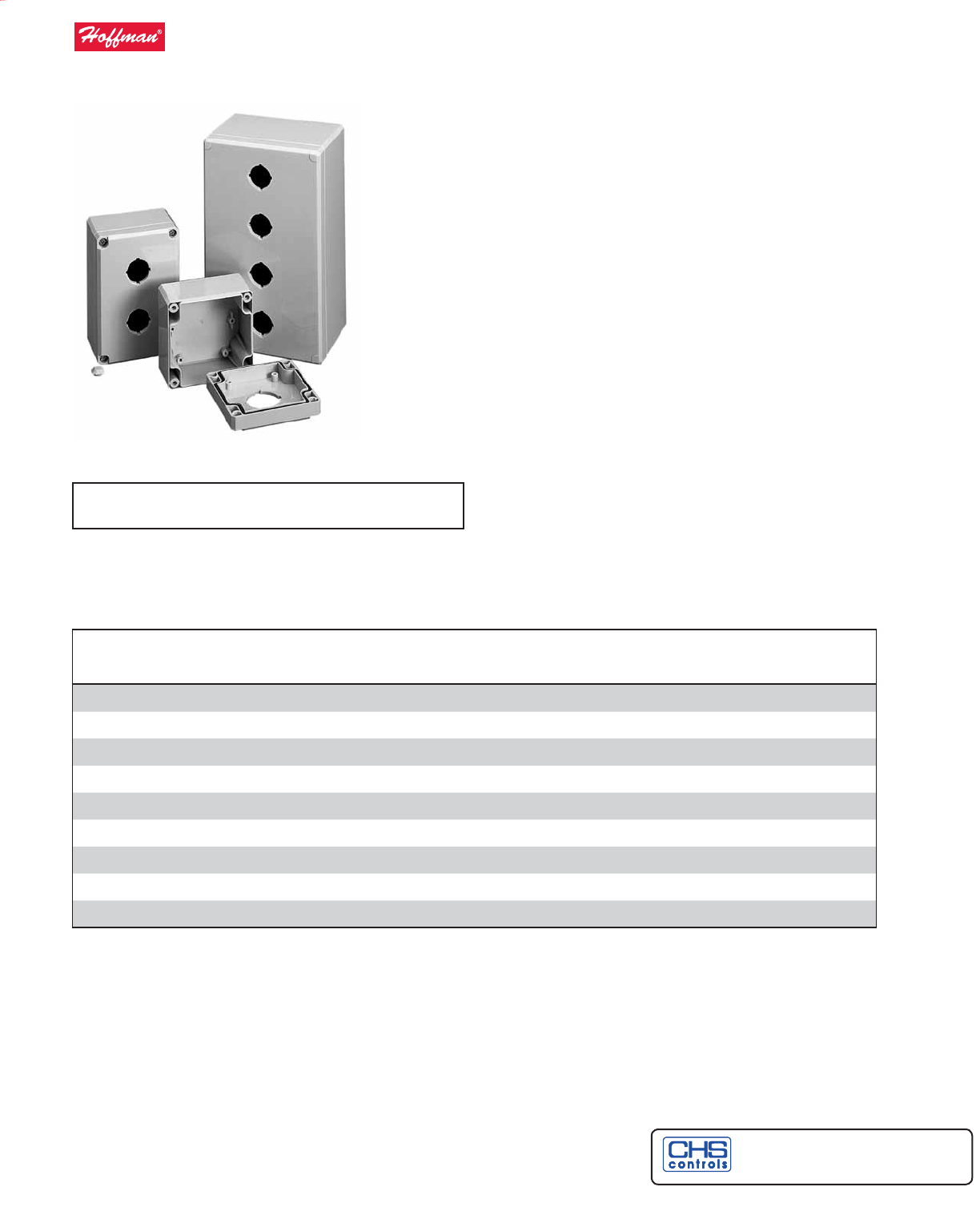

QLINE® D Pushbutton, Type 4X ...................................270
QLINE® D, Type 4X ...............................................272
Hinge Kit ........................................................276
Mounting Bracket Kit ............................................276
Hardware Kit ....................................................276
Panels ...........................................................276
QLINE® D, EMC, Type 4X ..........................................278
QLINE® E
QLINE® E, Type 4X ............................................... 280
Brass Inserts .................................................... 284
Hinge Kit ....................................................... 284
Mounting Bracket Kit ........................................... 284
Hardware Kit ................................................... 284
Panels .......................................................... 284
QLINE® E, EMC, Type 4X ......................................... 286
QLINE® I

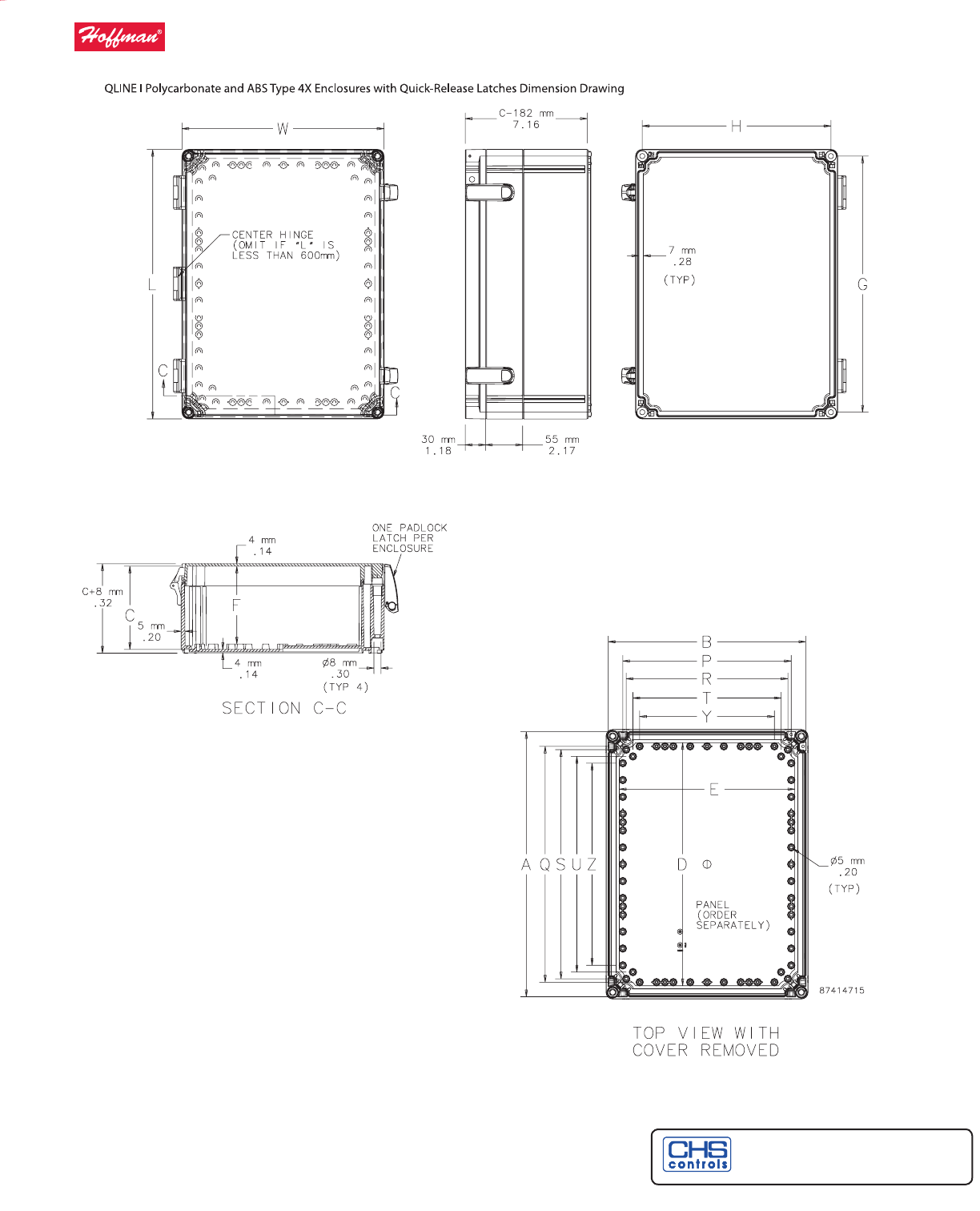

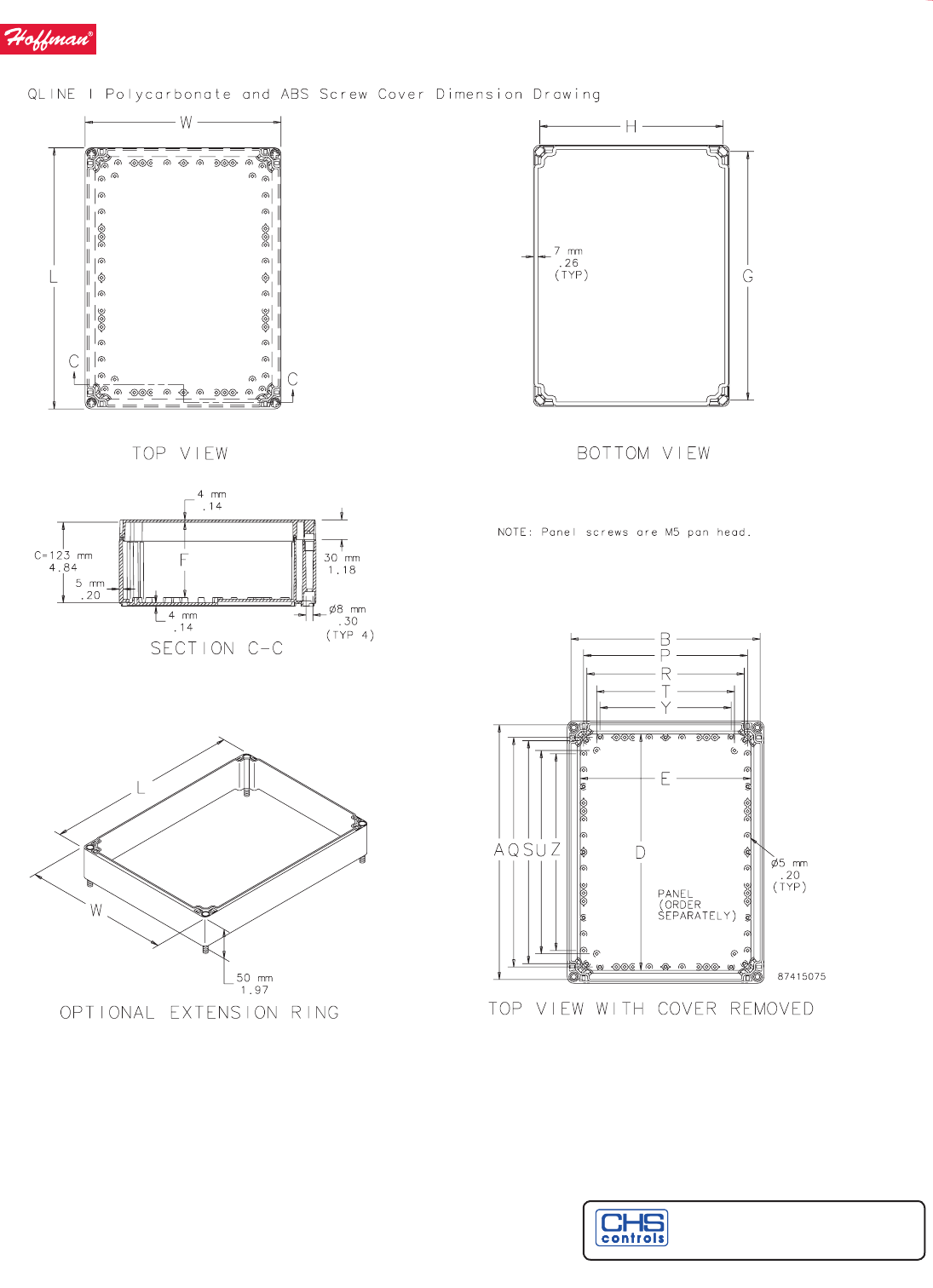

QLINE® I, Type 4X ............................................... 288
Cover Screw Kit ................................................. 294
Brass Insert Kit .................................................. 294
Panel Depth Fitting ............................................. 294
Swing Panel .................................................... 294
Hinge Kit ....................................................... 295
Mounting Bracket Kit ........................................... 295
Hardware Kit ................................................... 295
Extension Rings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 295
Panels .......................................................... 295
QLINE® I, EMC, Type 4X .......................................... 296
CHS Controls AB
Tel +46 42 38 61 00, Fax +46 42 38 61 29
chs@chscontrols.se www.chscontrols.se
228
Non-Metallic: Polyester

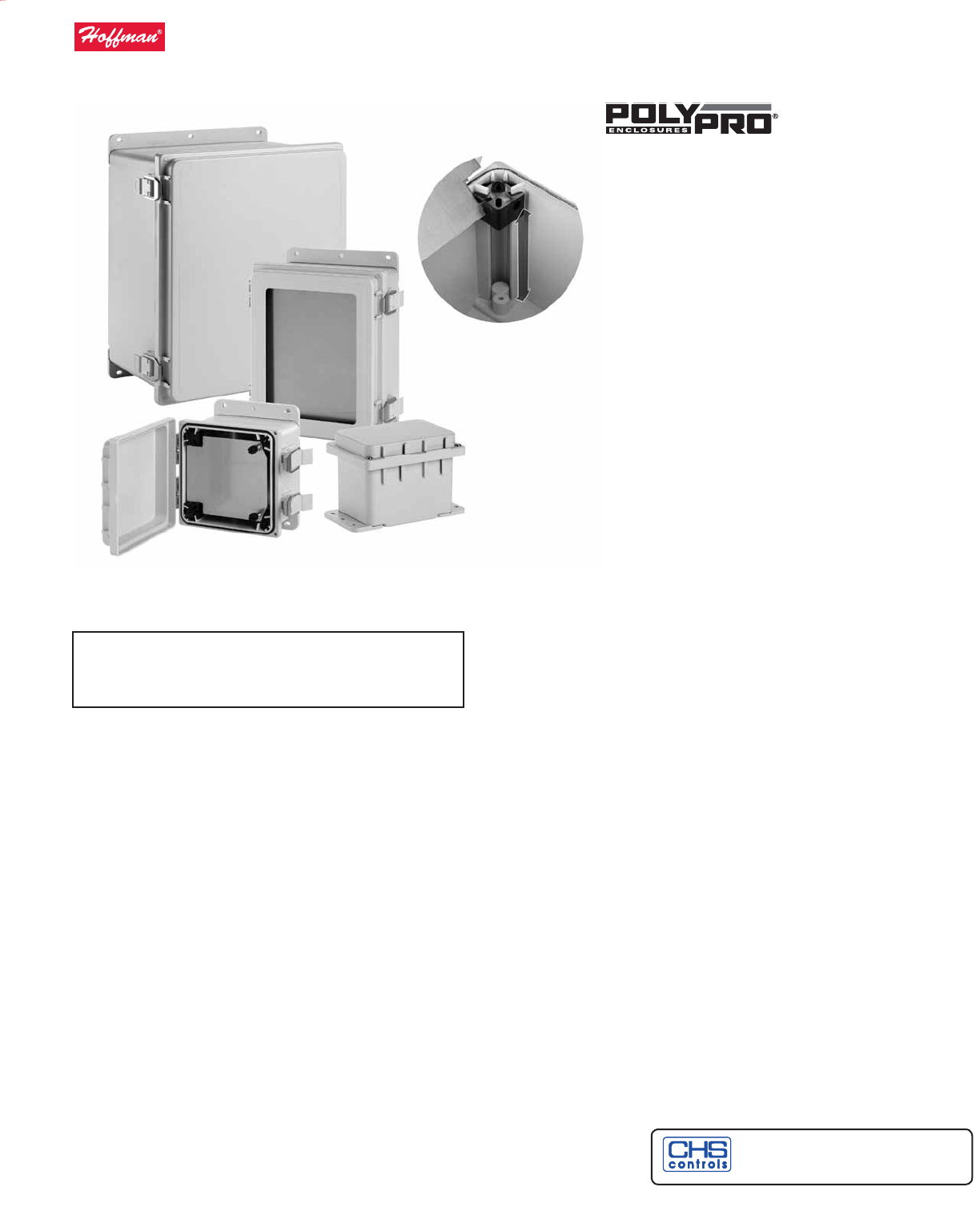

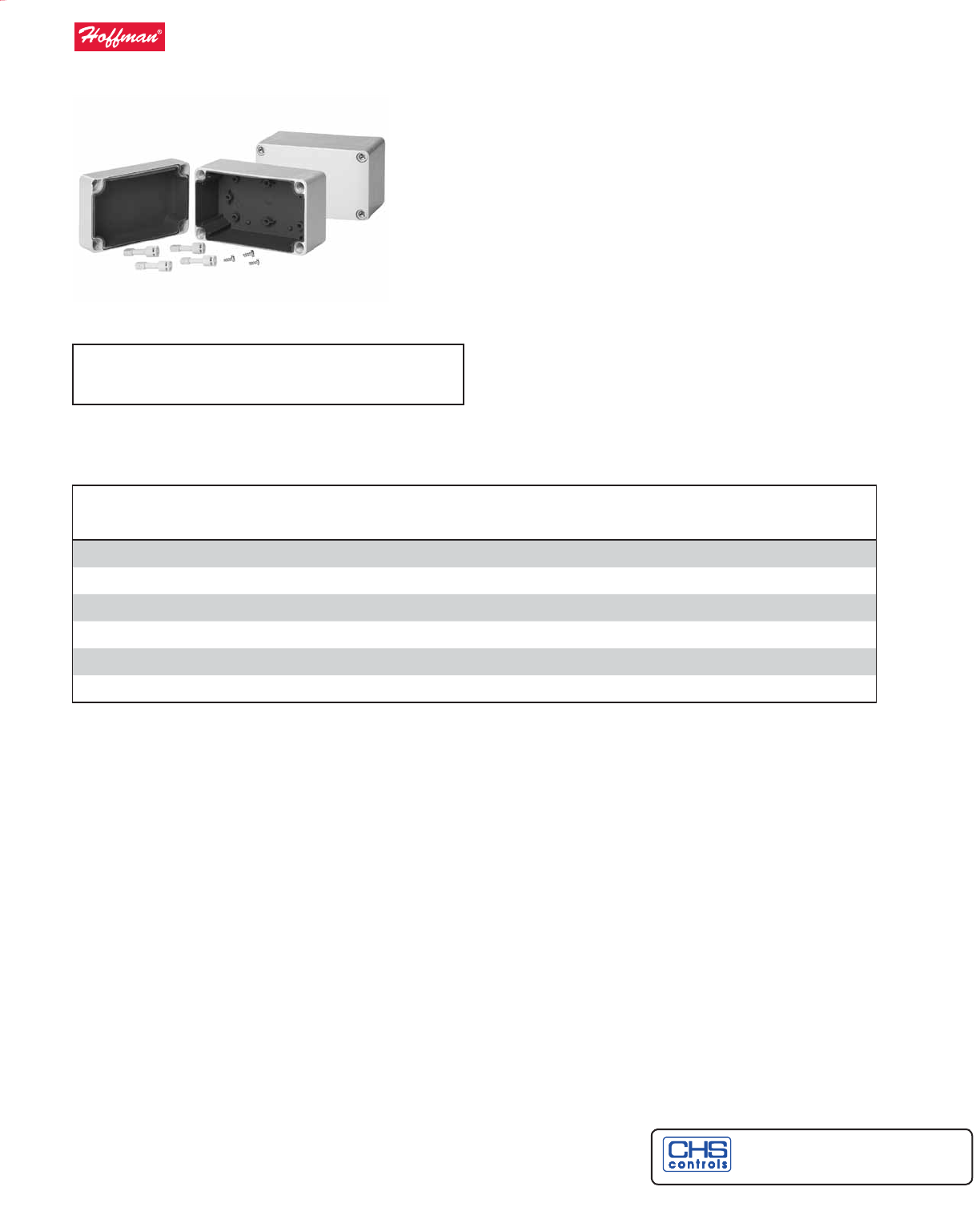

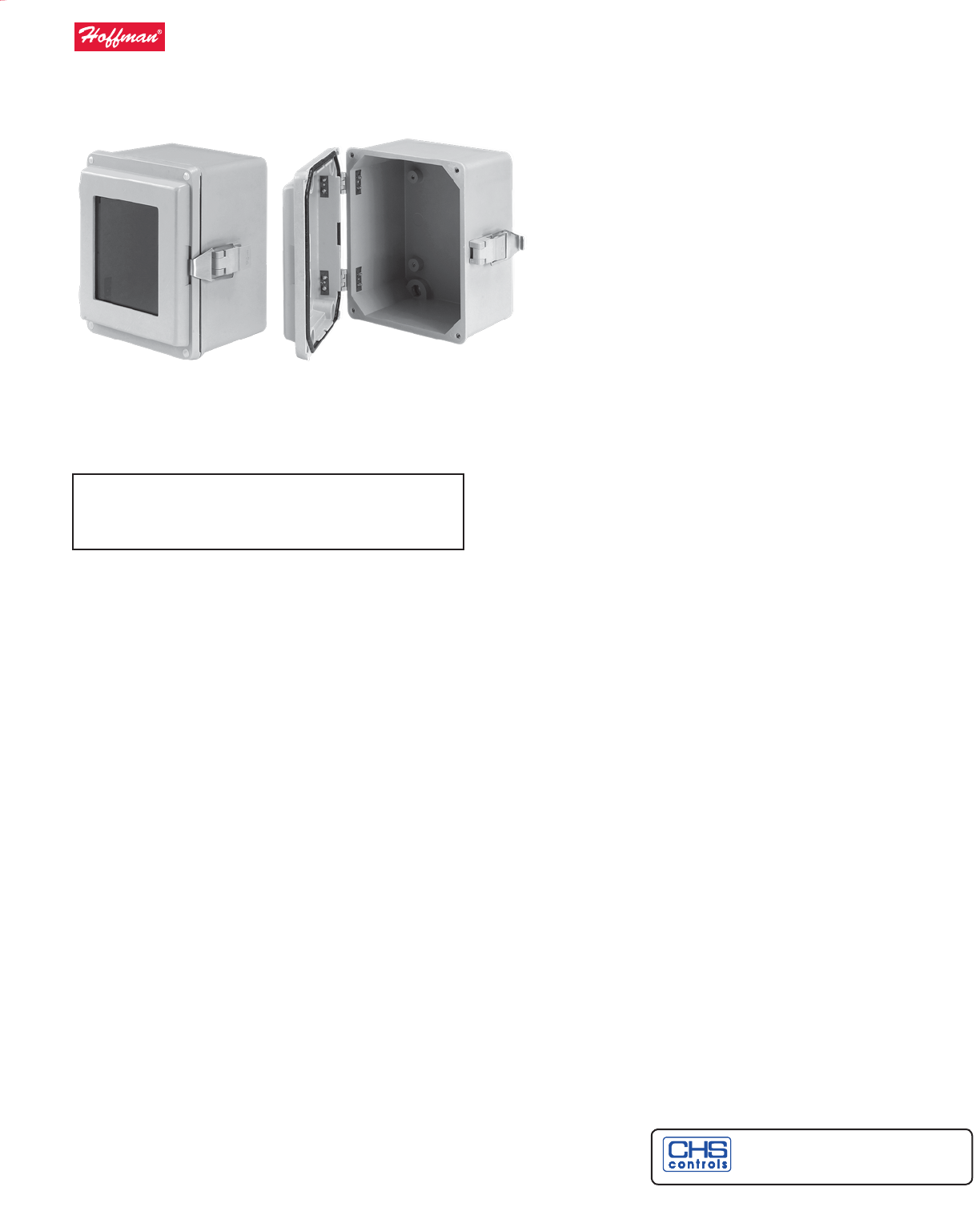

POLYPRO®, Type 4X
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
Non-Metal lic
Polyester

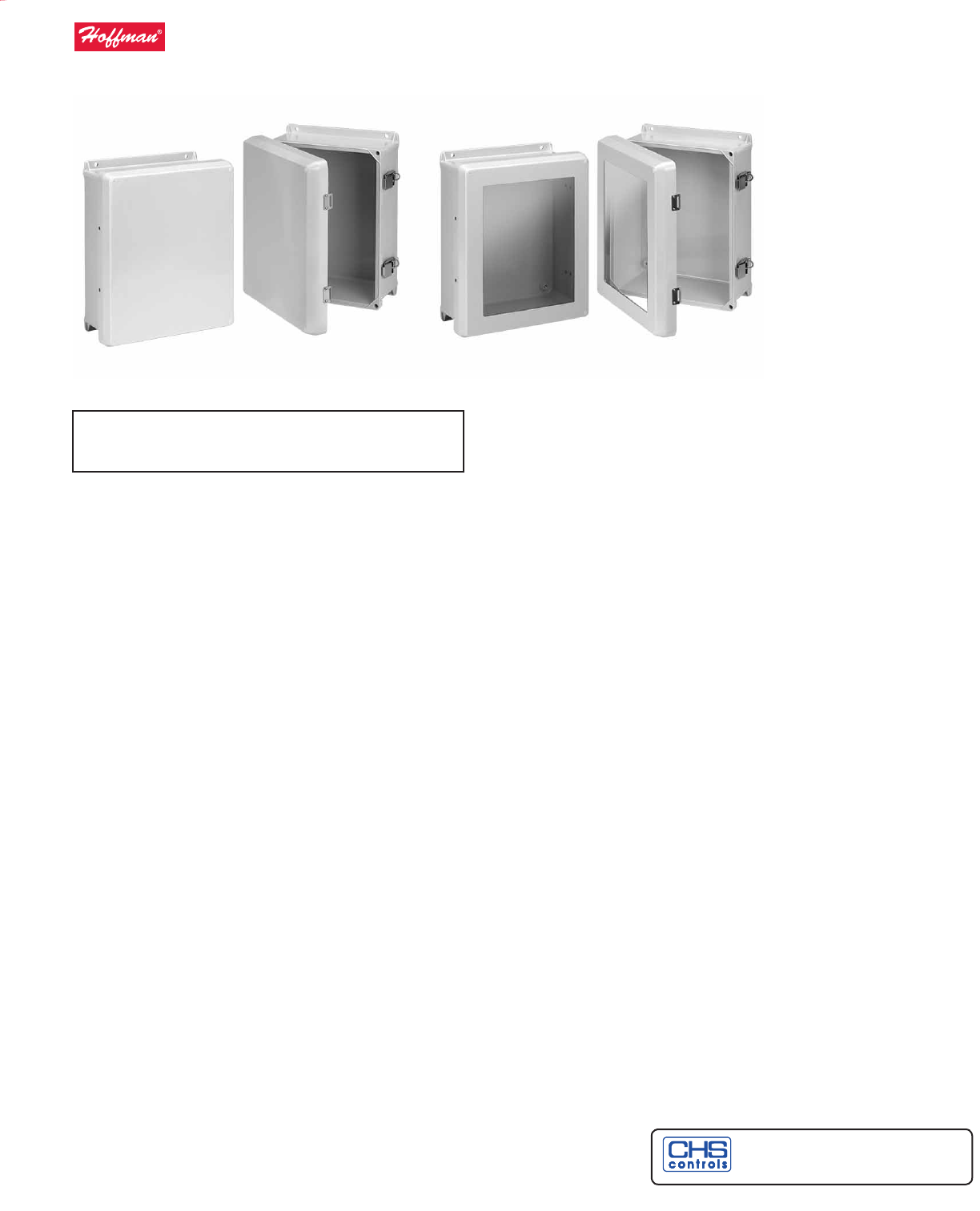

POLYPRO®, Type 4X
POLYPRO®, Type 4X
Industry Standards
Mounting brackets required to meet UL/CSA external mounting
requirements.
UL 508A Listed; Type 4, 4X, 12, 13; File No. E61997
cUL Listed per CSA C22.2 No 94; Type 4, 4X, 12, 13; File No.
E61997
Enclosure ammability evaluated per UL 508A
Window ammability evaluated per UL 508A
NEMA/EEMAC Type 4, 4X, 12, 13
CSA File No. 42186; Type 4, 4X, 12, 13 (solid covers only)
IEC 60529, IP66
Application
POLYPRO
® polyester enclosures perform exceptionally well in
applications where harsh chemicals, weather extremes and corrosive
environments demand toughness from a lightweight enclosure.
Providing excellent ultraviolet protection and a tight environmental
seal, these versatile, feature-rich enclosures are also recyclable.
Specications
•
Non-glass-lled polyester material oers superior UV resistance;
eliminates berbloom associated with berglass
•
Provides excellent chemical resistance to a broad range of
solvents, alkalis and acids
•
Resists cracking and provides excellent impact resistance
•
Lighter-weight than berglass
•
Recyclable
•
Easy, dustless in-eld modications using standard tools
•
Overlapping tongue-and-groove raised cover and gasket provide a
secure Type 4X seal
• Removable snap-hinge cover allows for easy access to cover and
body for modications
• Molded layout grid on inside of body and solid covers assists with
component mounting
• Molded-in embosses for rear panel mounting
• Optional cover screws included with all models
• Internal rail system and adjustable panel blocks allow for panel
height adjustment and installation of multiple panels
• Scratch-resistant polycarbonate windows
• Standard models include body and cover, two mounting feet,
two latch assemblies with optional cover screws and hardware
(adjustable panel blocks and panels sold separately)
Finish
RAL 7035 light-gray textured nish inside and out
Accessories
See also Accessories.
Adjustable Panel Block Kit
Panels for Junction Boxes
HOL-SEALERSTM Non-Metallic Hole Seals
Aluminum Swing-Out Panels

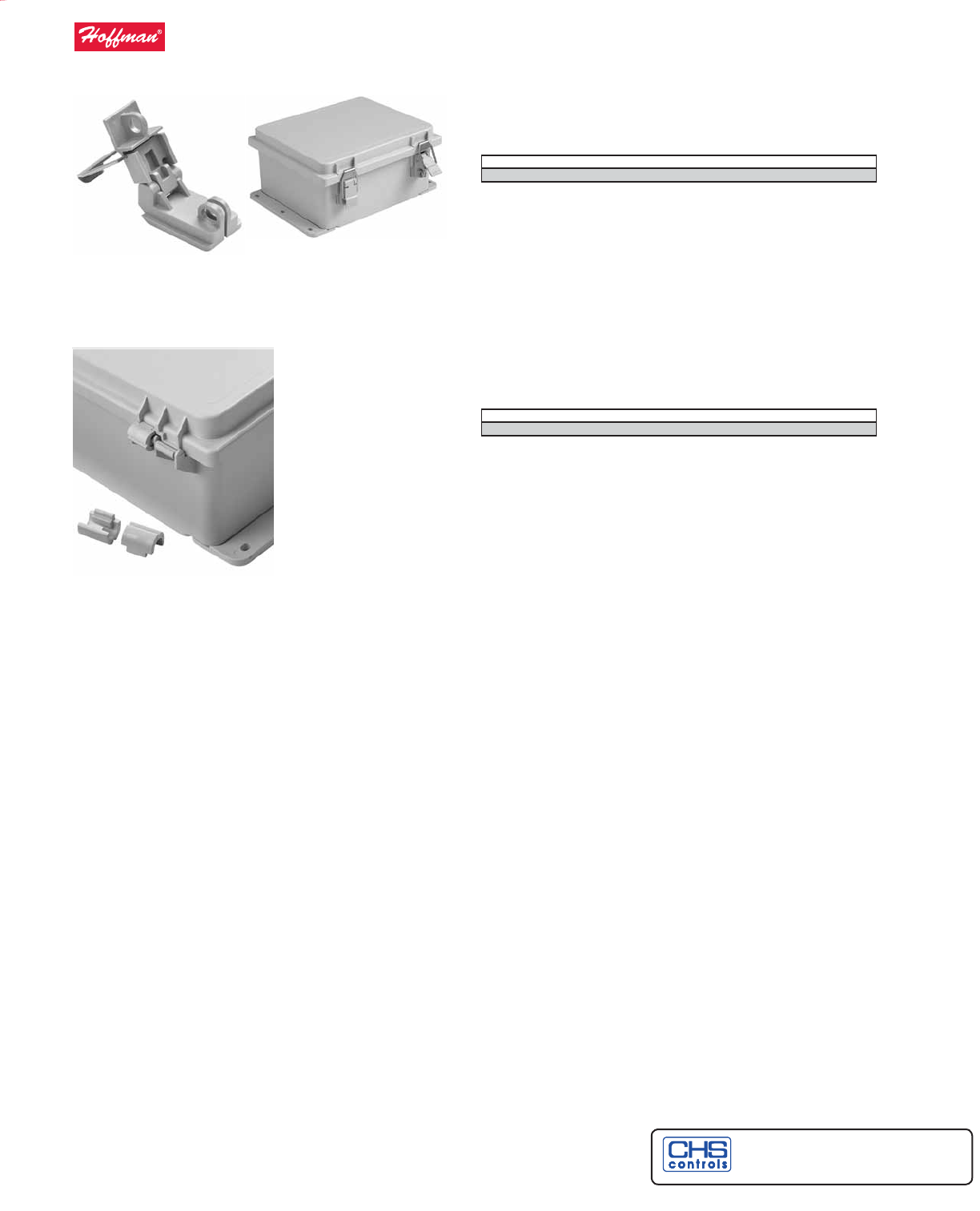

Stainless Steel Latches (Padlockable)
Hinge Retainers
Modication and Customization
Homan excels at modifying and customizing products to your
specications. Contact your local Homan sales oce or distributor
for complete information.
Bulletin: PCR
CHS Controls AB
Tel +46 42 38 61 00, Fax +46 42 38 61 29
chs@chscontrols.se www.chscontrols.se
229
Non-Metallic: Polyester
POLYPRO®, Type 4X
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products

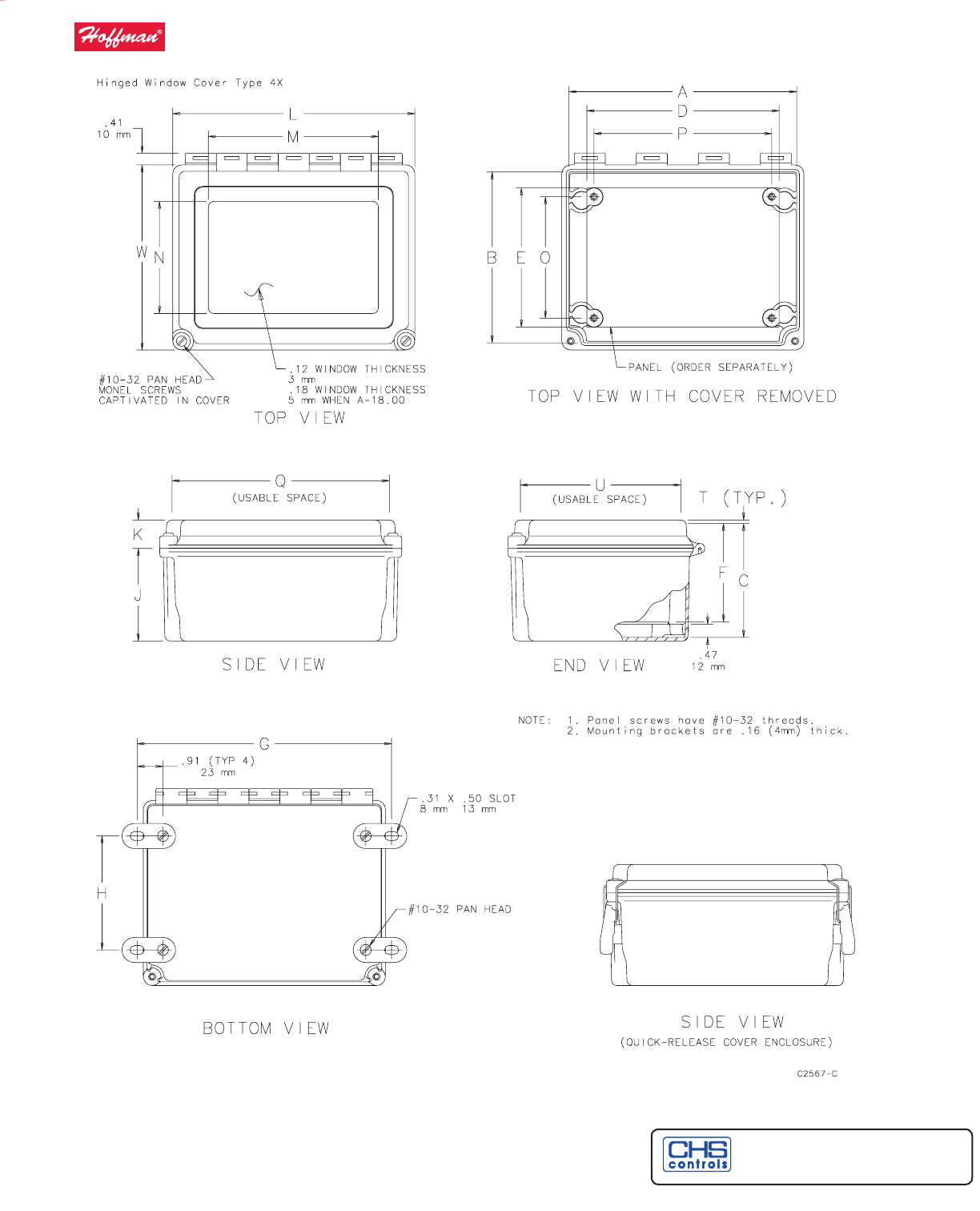

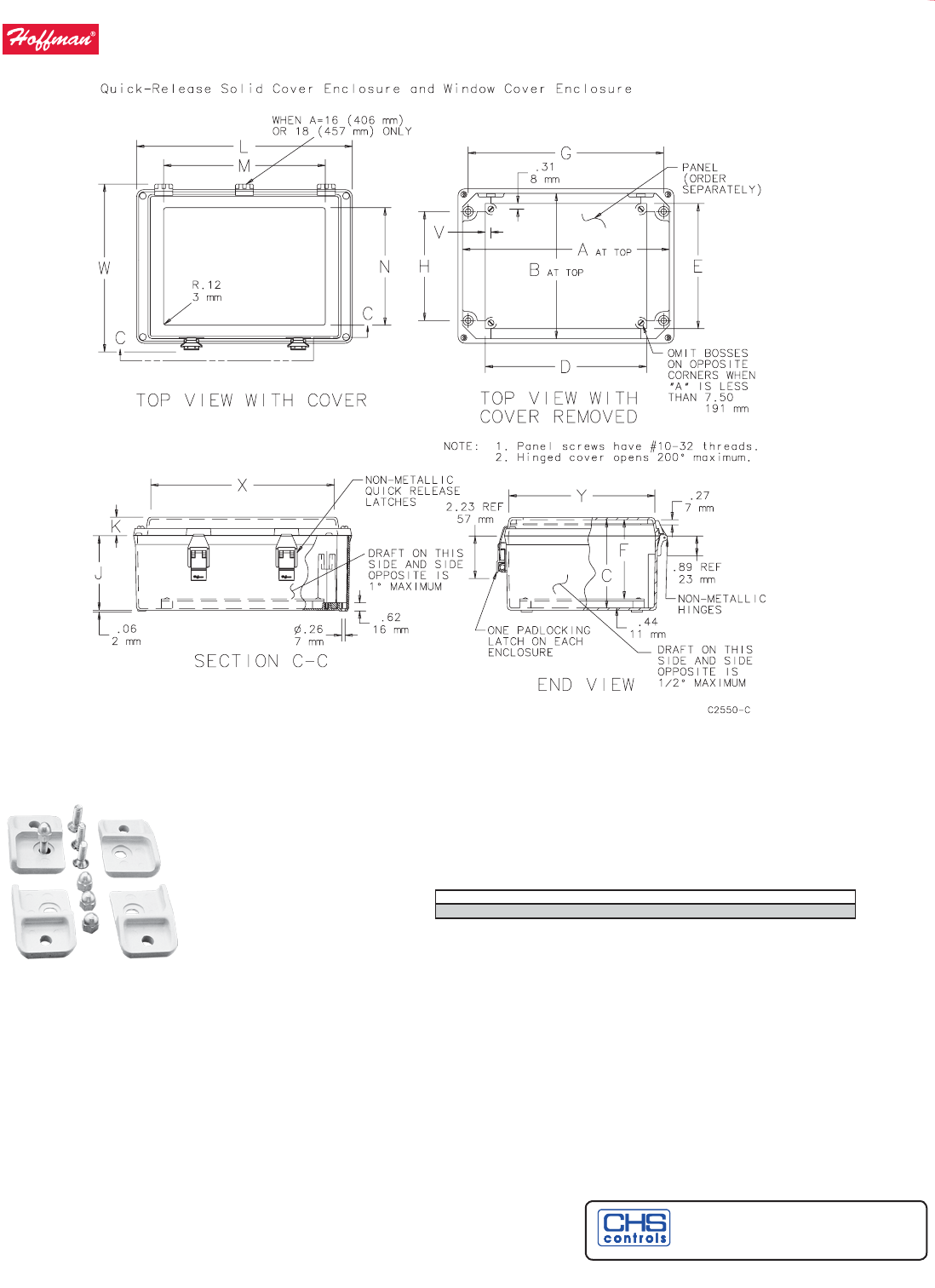

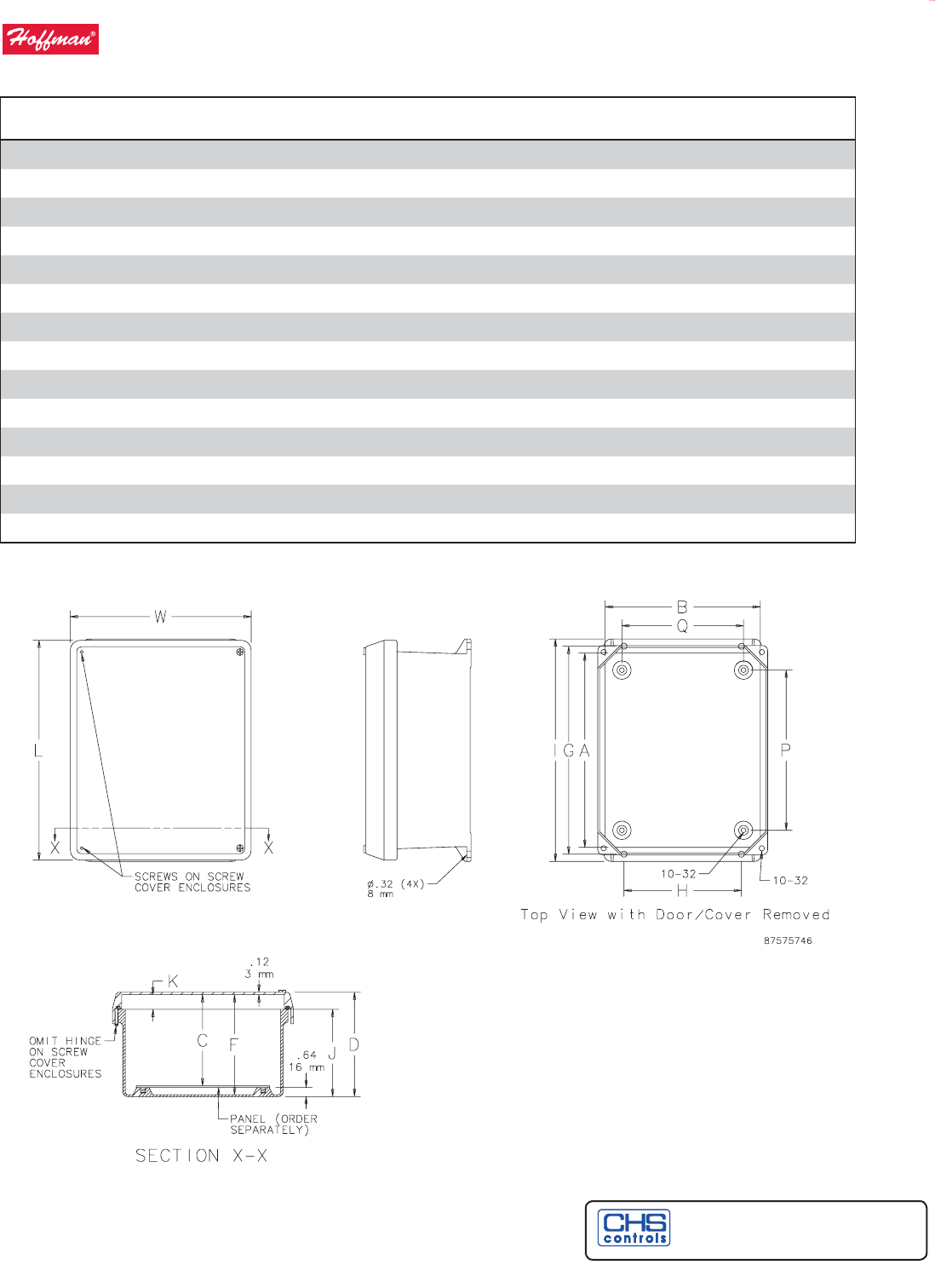

Standard Product

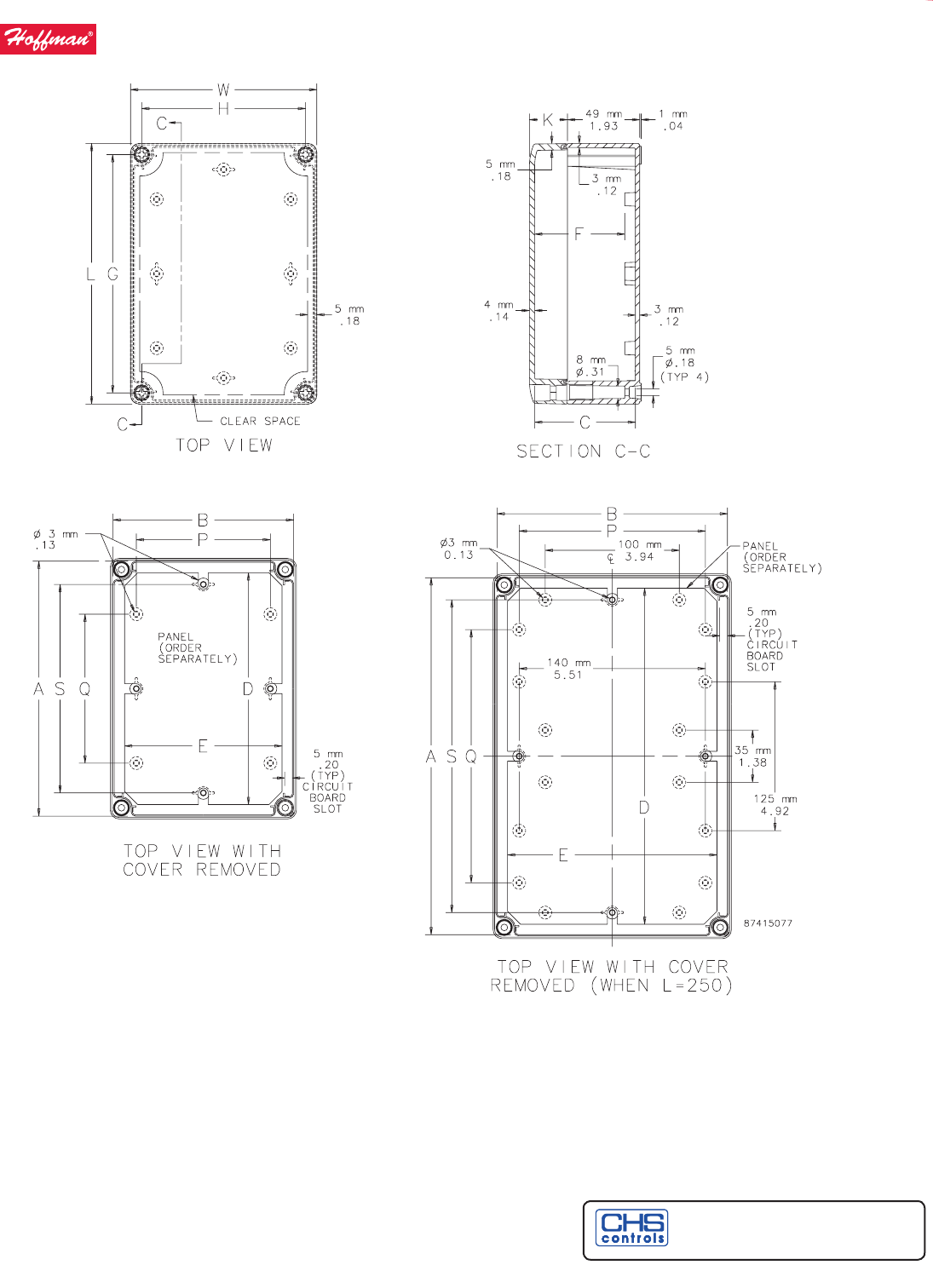

Catalog Number AxBxC in./mm
Cover
Type
Steel
Panel
Aluminum
Panel
Panel Size
D x E
in./mm
F
in./mm
G
in./mm
H
in./mm
J
in./mm
L
in./mm
M
in./mm
N
in./mm
W
in./mm
A644PHC 6.12 x 4.12 x 4.38
155 x 105 x 111
Solid A6P4 A6P4AL 4.88 x 2.88
124 x 73
4.32
110
7.38
187
2.56
65
3.91
99
8.15
207
—
—
—
—
5.23
133
A644PHCW 6.12 x 4.12 x 4.38
155 x 105 x 111
Window A6P4 A6P4AL 4.88 x 2.88
124 x 73
4.32
110
7.38
187
2.56
65
3.91
99
8.15
207
4.25
108
2.25
57
5.23
133
A664PHC 6.12 x 6.12 x 4.38
155 x 155 x 111
Solid A6P6 A6P6AL 4.88 x 4.88
124 x 124
4.32
110
7.38
187
4.56
116
3.91
99
8.15
207
—
—
—
—
7.23
184
A664PHCW 6.12 x 6.12 x 4.38
155 x 155 x 111
Window A6P6 A6P6AL 4.88 x 4.88
124 x 124
4.32
110
7.38
187
4.56
116
3.91
99
8.15
207
4.25
108
4.25
108
7.23
184
A864PHC 8.12 x 6.12 x 4.38
206 x 155 x 111
Solid A8P6 A8P6AL 6.75 x 4.88
171 x 124
4.32
110
9.38
238
4.56
116
3.91
99
10.15
258
—
—
—
—
7.23
184
A864PHCW 8.12 x 6.12 x 4.38
206 x 155 x 111
Window A8P6 A8P6AL 6.75 x 4.88
171 x 124
4.32
110
9.38
238
4.56
116
3.91
99
10.15
258
6.25
159
4.25
108
7.23
184
A884PHC 8.12 x 8.12 x 4.38
206 x 206 x 111
Solid A8P8 A8P8AL 6.75 x 6.88
171 x 175
4.32
110
9.38
238
6.56
167
3.91
99
10.15
258
—
—
—
—
9.23
234
A884PHCW 8.12 x 8.12 x 4.38
206 x 206 x 111
Window A8P8 A8P8AL 6.75 x 6.88
171 x 175
4.32
110
9.38
238
6.56
167
3.91
99
10.15
258
6.25
159
6.25
159
9.23
234
A1084PHC 10.12 x 8.12 x 4.38
257 x 155 x 111
Solid A10P8 A10P8AL 8.75 x 6.88
222 x 175
4.32
110
11.38
289
6.56
167
3.91
99
12.15
309
—
—
—
—
9.23
234
A1084PHCW 10.12 x 8.12 x 4.38
257 x 155 x 111
Window A10P8 A10P8AL 8.75 x 6.88
222 x 175
4.32
110
11.38
289
6.56
167
3.91
99
12.15
309
8.25
210
6.25
159
9.23
234
A10106PHC 10.04 x 10.04 x 6.38
255 x 255 x 162
Solid A10P10 A10P10AL 8.75 x 8.88
222 x 226
6.32
161
11.31
287
8.56
217
5.91
150
12.08
307
—
—
—
—
11.23
285
A10106PHCW 10.04 x 10.04 x 6.38
255 x 255 x 162
Window A10P10 A10P10AL 8.75 x 8.88
222 x 226
6.32
161
11.31
287
8.56
217
5.91
150
12.08
307
8.25
210
8.25
210
11.23
285
A12106PHC 12.08 x 10.09 x 6.38
307 x 256 x 162
Solid A12P10 A12P10AL 10.75 x 8.88
273 x 226
6.32
161
13.34
339
8.56
217
5.91
150
14.08
358
—
—
—
—
11.23
285
A12106PHCW 12.08 x 10.09 x 6.38
307 x 256 x 162
Window A12P10 A12P10AL 10.75 x 8.88
273 x 226
6.32
161
13.34
339
8.56
217
5.91
150
14.08
358
10.25
260
8.25
210
11.23
285
A14128PHC 14.02 x 12.01 x 8.35
356 x 305 x 212
Solid A14P12 A14P12AL 12.75 x 10.88
324 x 276
8.27
210
15.27
388
10.56
268
7.91
201
16.04
407
—
—
—
—
13.32
338
A14128PHCW 14.02 x 12.01 x 8.35
356 x 305 x 212
Window A14P12 A14P12AL 12.75 x 10.88
324 x 276
8.27
210
15.27
388
10.56
268
7.91
201
16.04
407
12.25
311
10.25
260
13.32
338
A16148PHC 16.02 x 14.01 x 8.35
407 x 356 x 212
Solid A16P14 A16P14AL 14.75 x 12.88
375 x 327
8.27
210
17.27
439
12.56
319
7.91
201
18.04
458
—
—
—
—
15.32
389
A16148PHCW 16.02 x 14.01 x 8.35
407 x 356 x 212
Window A16P14 A16P14AL 14.75 x 12.88
375 x 327
8.27
210
17.27
439
12.56
319
7.91
201
18.04
458
14.25
362
12.25
311
15.32
389
A181610PHC 17.95 x 15.94 x 10.35
456 x 405 x 263
Solid A18P16 A18P16AL 16.75 x 14.88
425 x 378
10.27
261
19.20
488
14.56
370
9.91
252
19.97
507
—
—
—
—
17.32
440
A181610PHCW 17.95 x 15.94 x 10.35
456 x 405 x 263
Window A18P16 A18P16AL 16.75 x 14.88
425 x 378
10.27
261
19.20
488
14.56
370
9.91
252
19.97
507
16.25
413
14.25
362
17.32
440
Purchase panels separately. Panels are available in aluminum, mild steel, stainless steel, conductive and composite materials.
CHS Controls AB
Tel +46 42 38 61 00, Fax +46 42 38 61 29
chs@chscontrols.se www.chscontrols.se
230
Non-Metallic: Polyester
POLYPRO®, Type 4X
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products

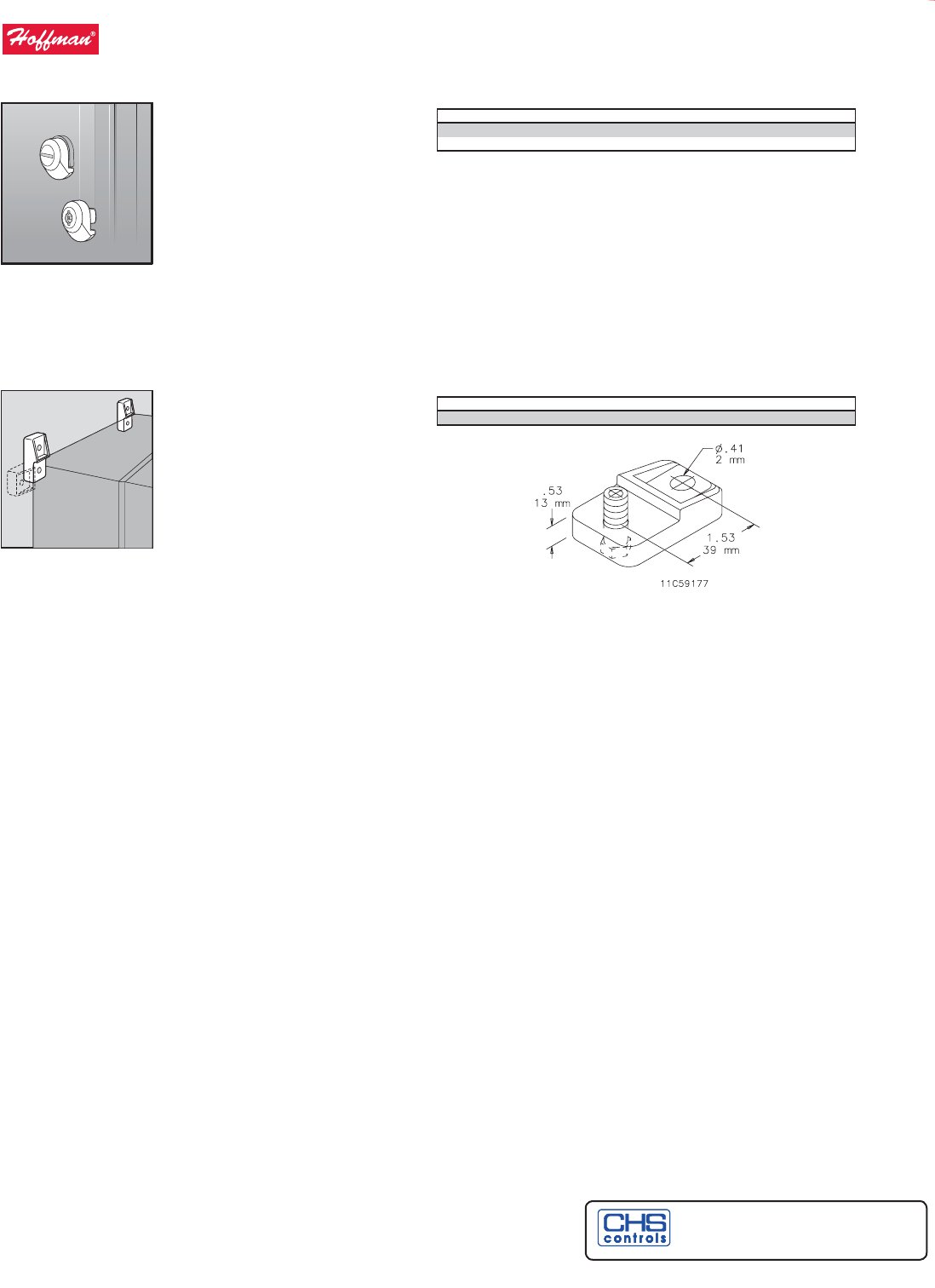

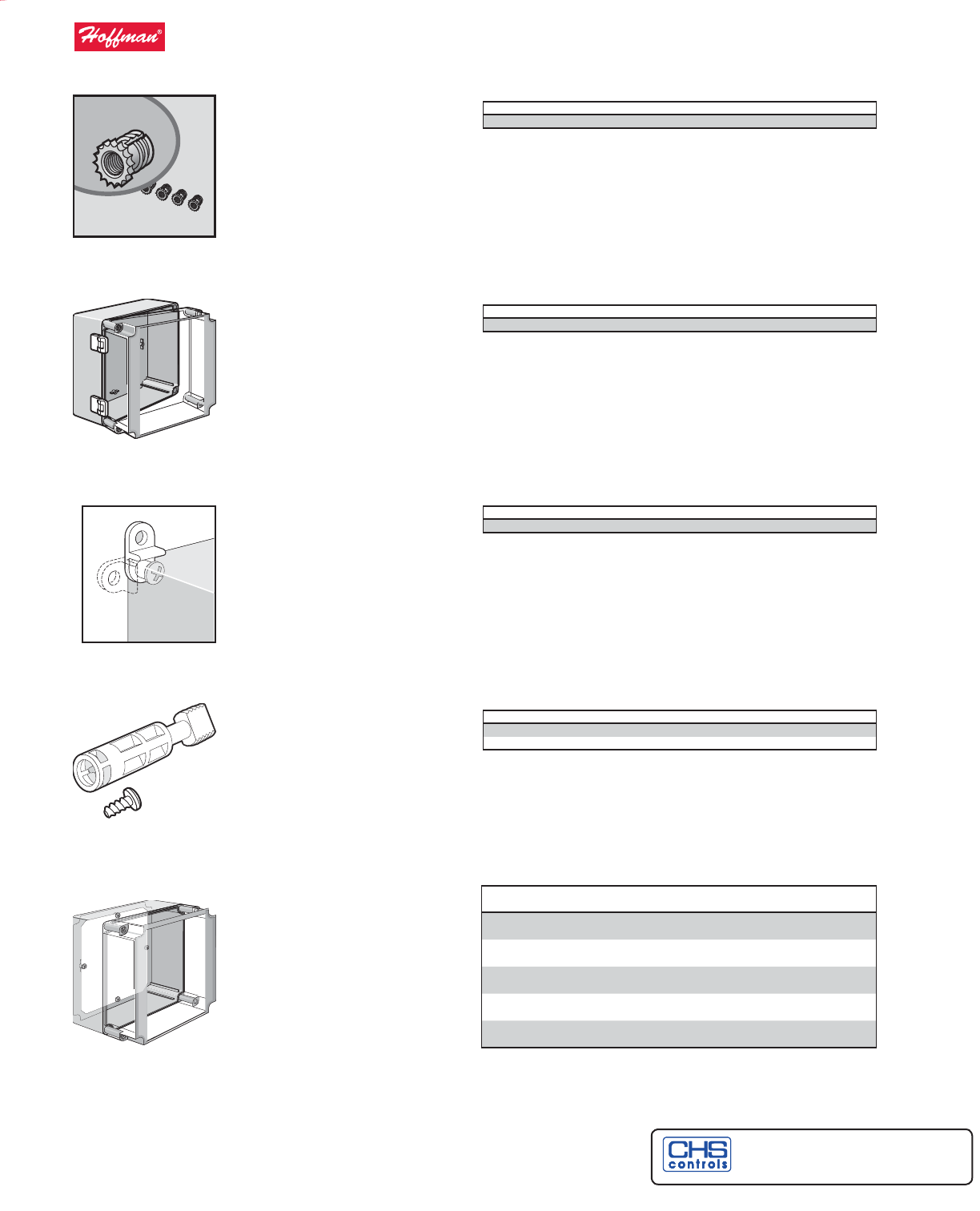

Adjustable Panel Block Kit
Panel blocks slide inside POLYPRO internal rail system for panel
height adjustment within top 5 in. of enclosure. Allows for installation
of multiple panels.
Bulletin: PCRY
Catalog Number Qty.
APNLBLK 4
Includes Allen wrench

$GMXVWDEOH
SDQHOEORFN
;

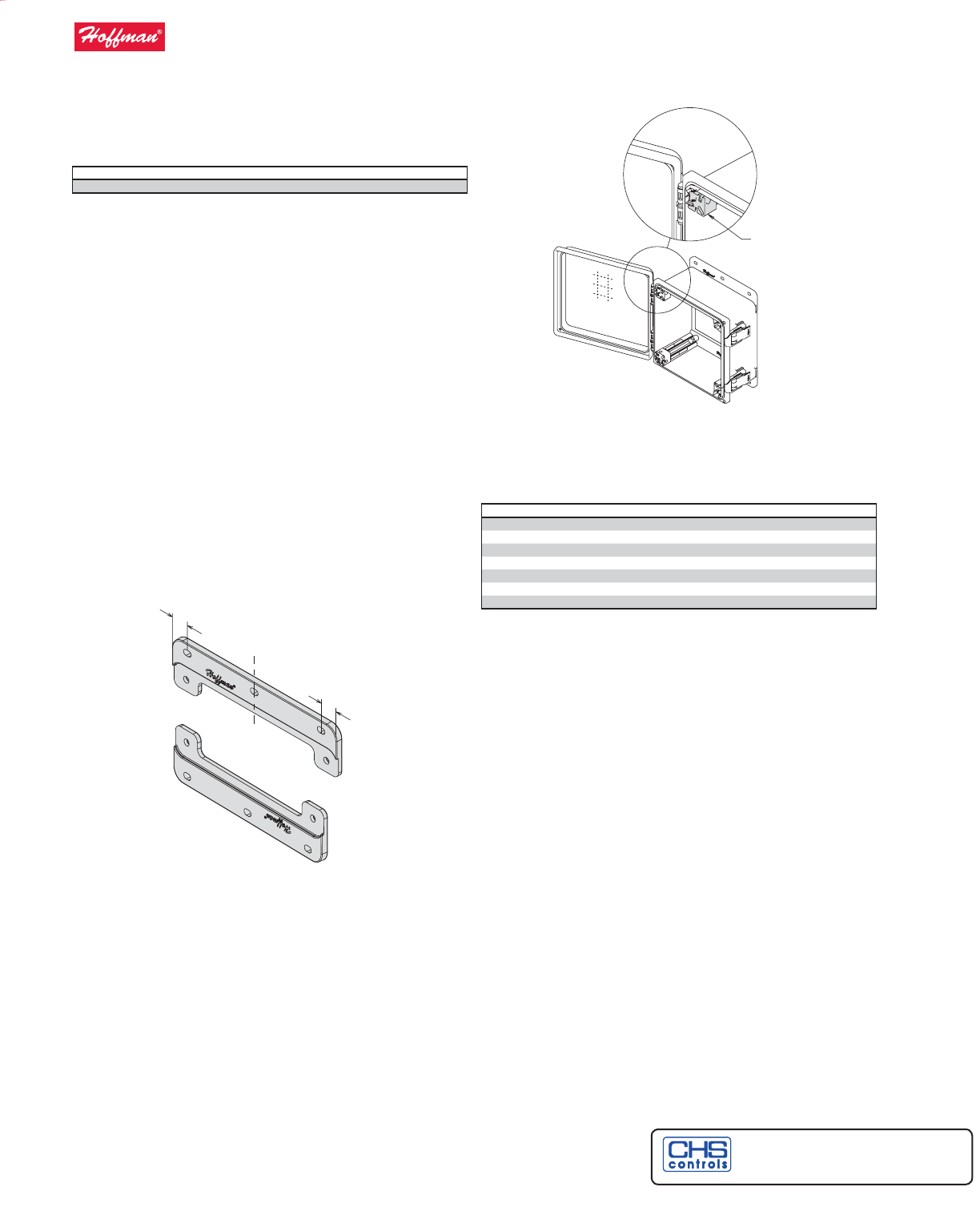

Polyester Mounting Bracket Kits
Replacement POLYPRO mounting brackets are sold in sets of two and
include hardware for mounting to enclosure.
Included with standard POLYPRO models.
Bulletin: PCRY
&
/

PP

PP

Catalog Number Description (in.) Qty.
APOLYFT4 4.00 2
APOLYFT6 6.00 2
APOLYFT8 8.00 2
APOLYFT10 10.00 2
APOLYFT12 12.00 2
APOLYFT14 14.00 2
APOLYFT16 16.00 2
CHS Controls AB
Tel +46 42 38 61 00, Fax +46 42 38 61 29
chs@chscontrols.se www.chscontrols.se
231
Non-Metallic: Polyester
POLYPRO®, Type 4X
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products

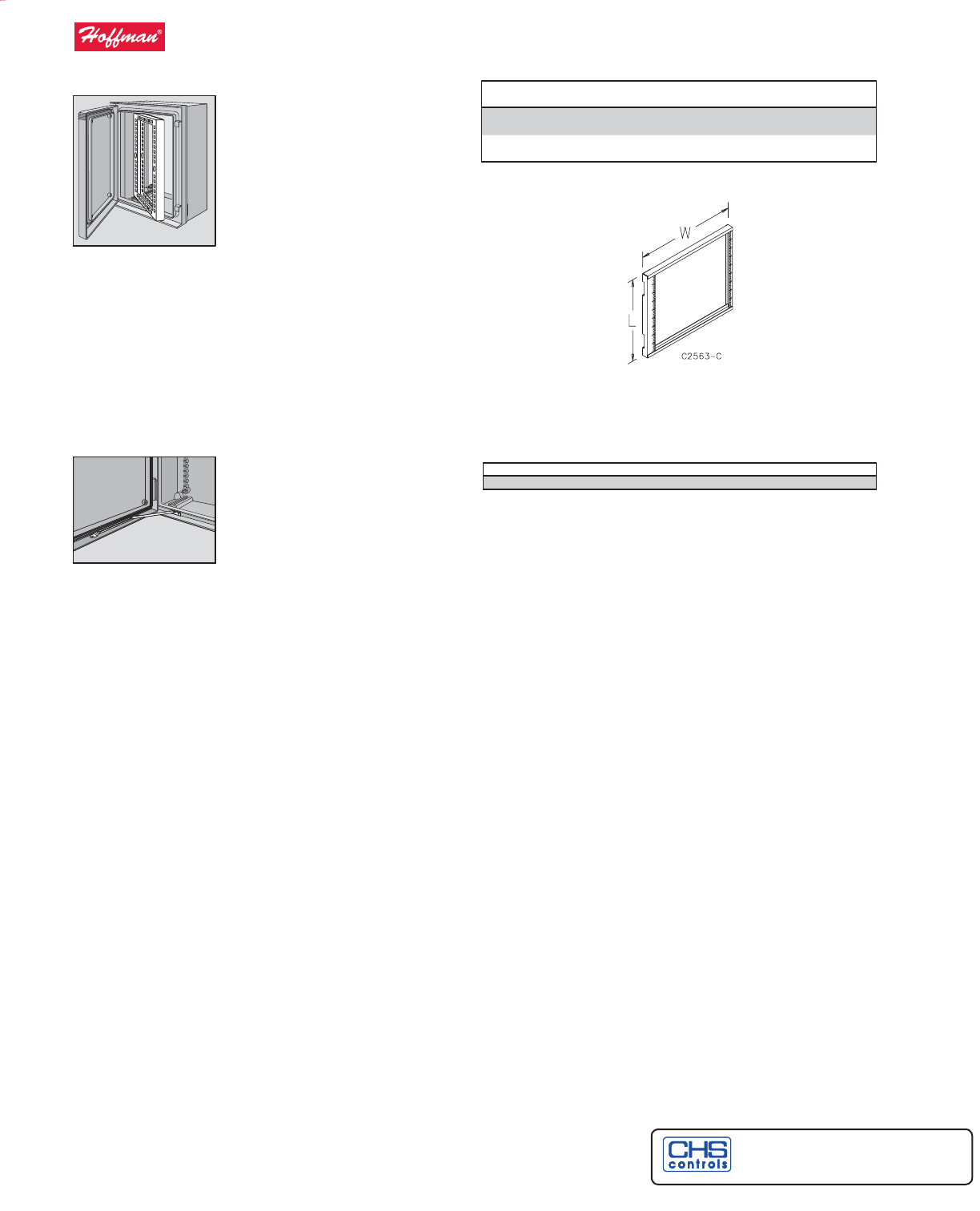

Aluminum Swing-Out Panels
Includes four POLYPRO Adjustable Panel Blocks. No enclosure
modication is required for installation.
Bulletin: PCRY
'
(

Catalog Number D x E (in.) D x E (mm)
A64PSWPNL 5.00 x 3.62 127 x 92
A66PSWPNL 5.00 x 5.62 127 x 143
A86PSWPNL 7.00 x 5.62 178 x 143
A88PSWPNL 7.00 x 7.62 178 x 194
A108PSWPNL 9.00 x 7.62 229 x 194
A1010PSWPNL 9.00 x 9.62 229 x 244
A1210PSWPNL 11.00 x 9.62 279 x 244
A1412PSWPNL 13.00 x 11.62 330 x 295
A1614PSWPNL 15.00 x 13.62 381 x 346
A1816PSWPNL 17.00 x 15.62 432 x 397
CHS Controls AB
Tel +46 42 38 61 00, Fax +46 42 38 61 29
chs@chscontrols.se www.chscontrols.se
232
Non-Metallic: Polyester
POLYPRO®, Type 4X
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products

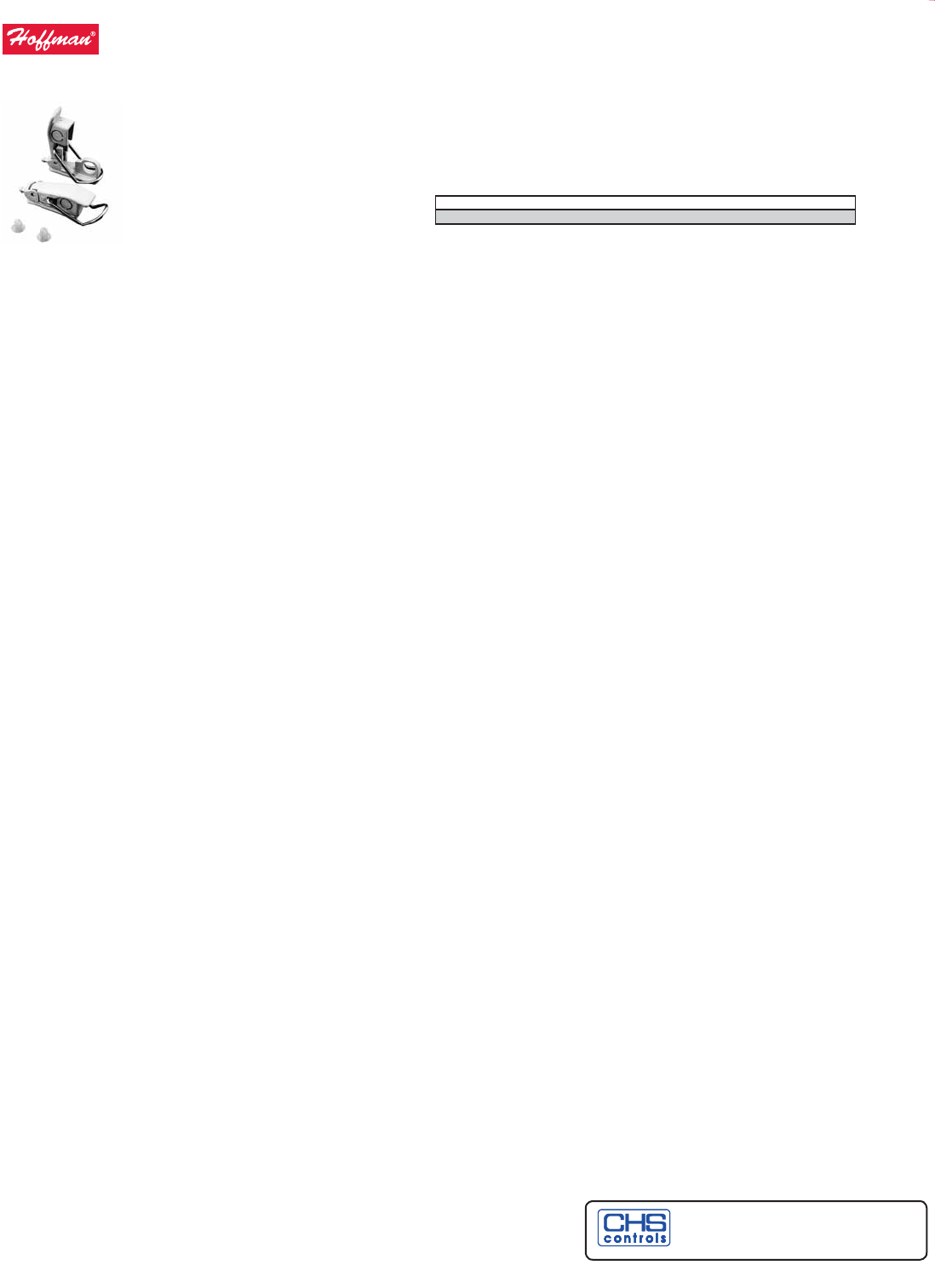

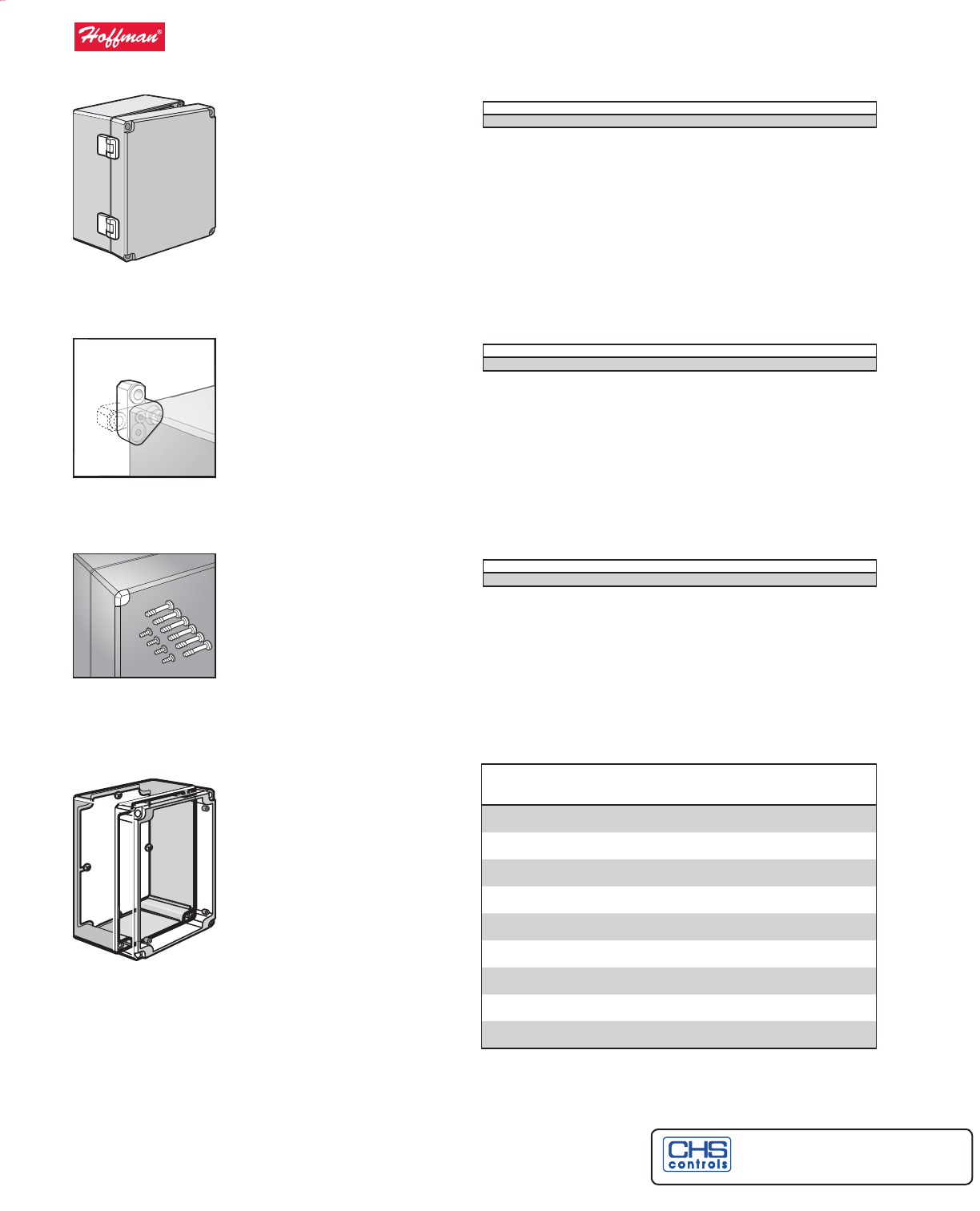

Stainless Steel Latches (Padlockable) Stainless Steel Latches can be retrotted on all POLYPRO models
with no modication or drilling required. Hinge/latch constructed of
corrosion-resistant polyester with a Type 316L stainless steel bail.
Included with standard POLYPRO models.
Bulletin: PCRY
Catalog Number Qty.
AQRLSS6 2
Hinge Retainers Hinge Retainers can be eld-installed without modication to
POLYPRO hinges for applications where easy cover removal is not
desired. Two retainers per enclosure is recommended. Kit includes
ten hinge retainers.
Bulletin: PCRY
Catalog Number Description Pkg. Qty.
AHGCLP POLYPRO Hinge Retainers 10
CHS Controls AB
Tel +46 42 38 61 00, Fax +46 42 38 61 29
chs@chscontrols.se www.chscontrols.se
233
Non-Metallic: Polyester
POLYPRO®, Type 4X
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
Notes
CHS Controls AB
Tel +46 42 38 61 00, Fax +46 42 38 61 29
chs@chscontrols.se www.chscontrols.se
234
Non-Metallic: Fiberglass
Continuous Hinge
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products

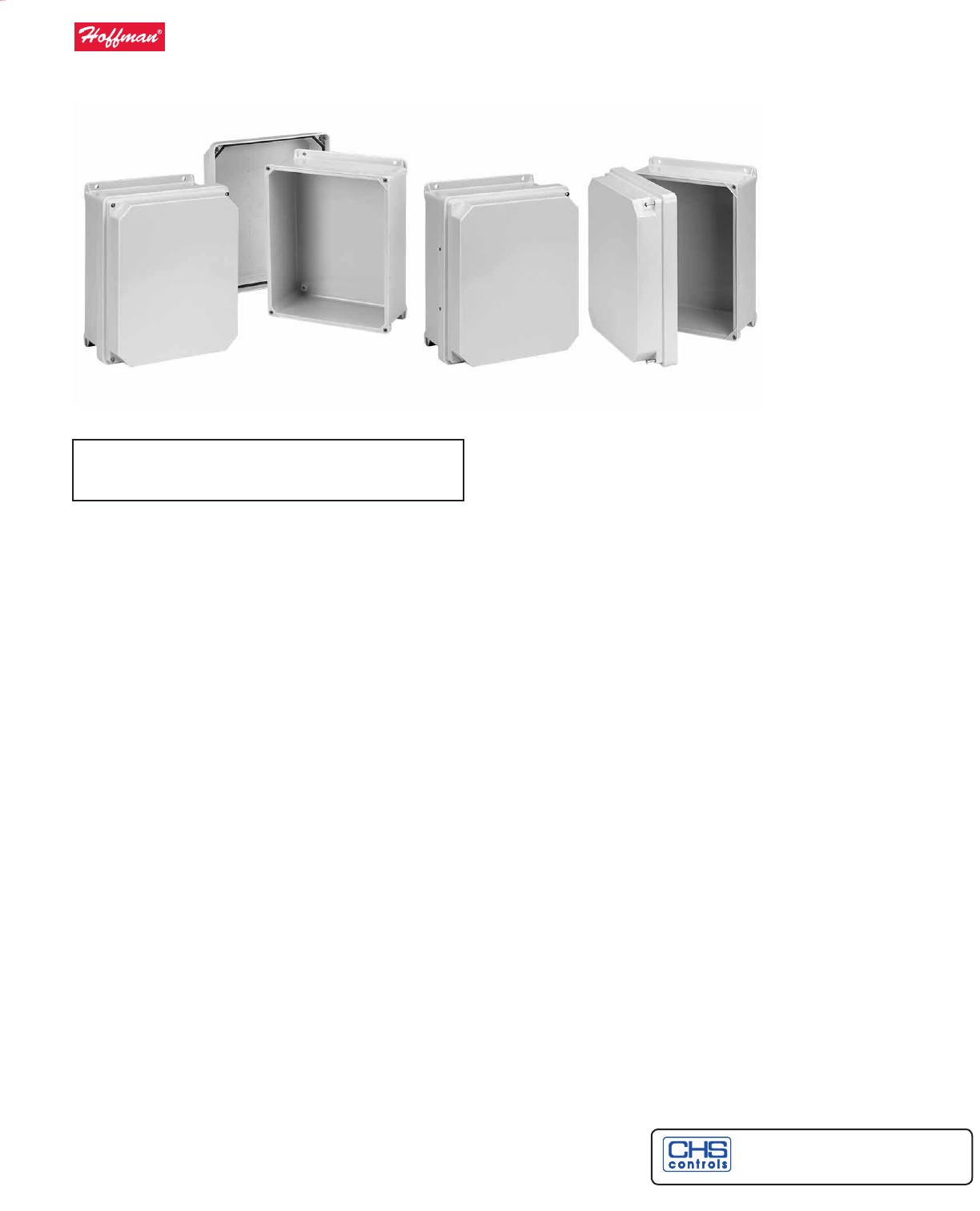

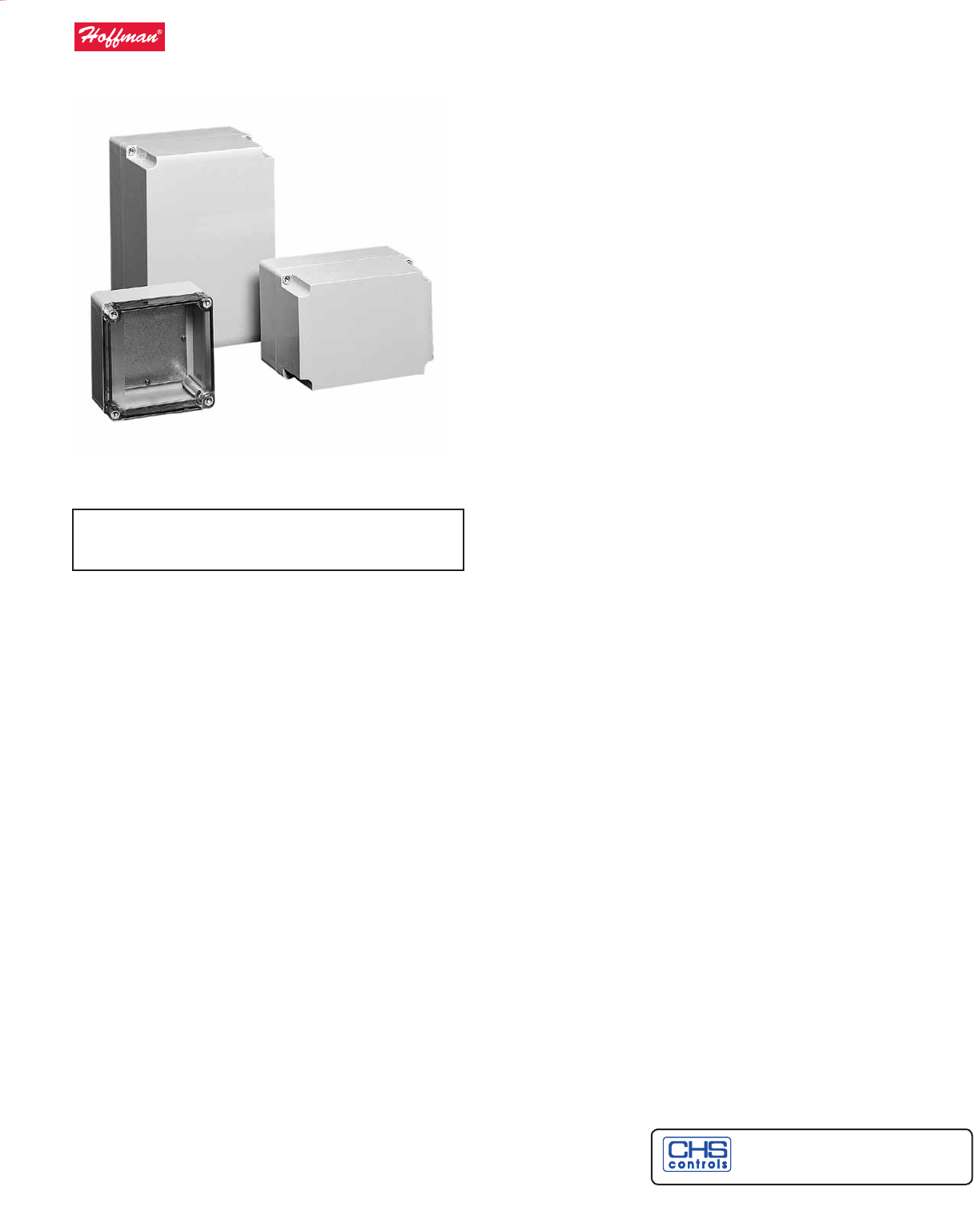

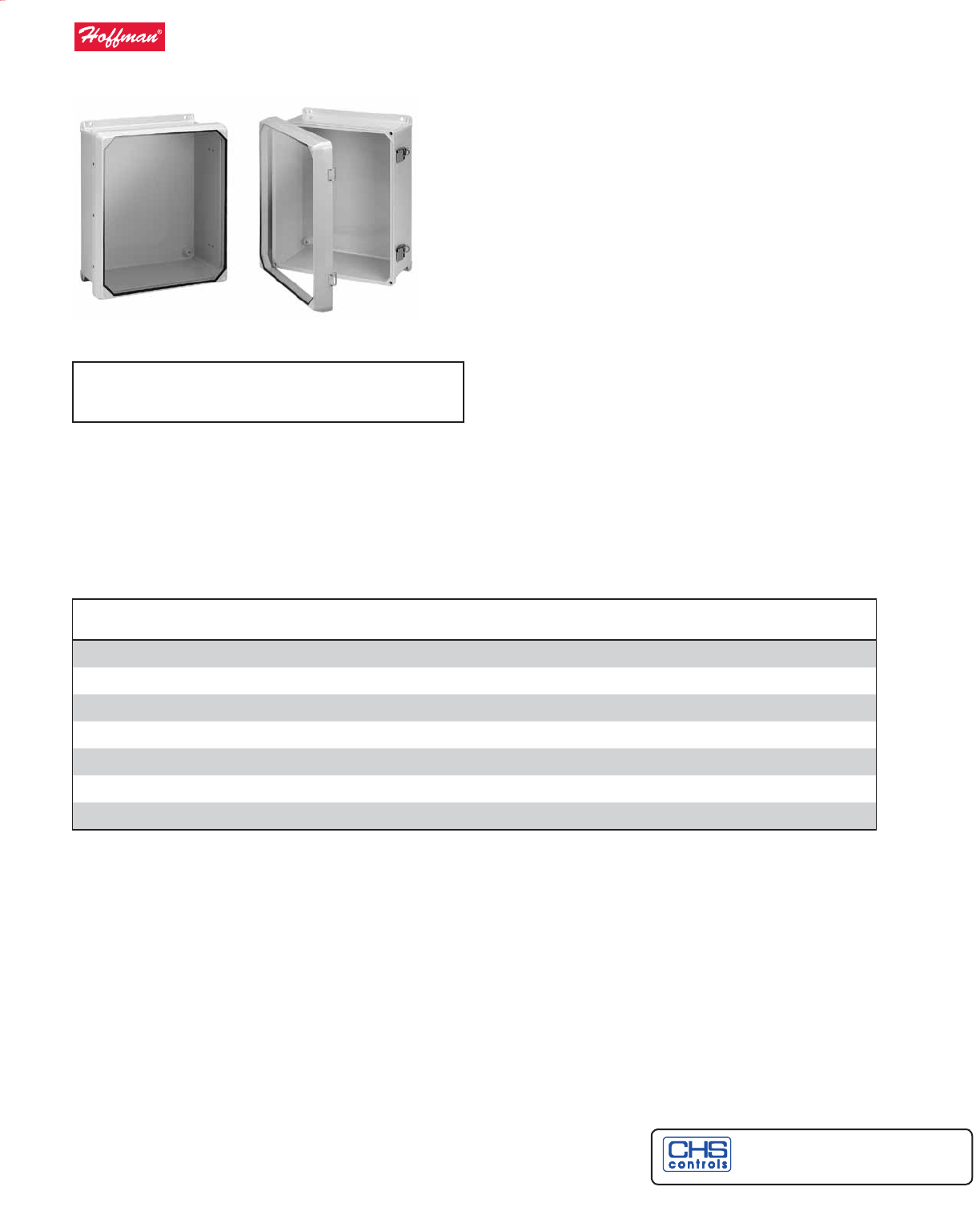

Fiberglass
Continuous Hi nge
Continuous Hinge, Type 4X
Industry Standards
Mounting brackets required to meet UL/CSA external mounting
requirements.
UL 508A Listed; Type 4, 4X, 12, 13; File No. E61997
cUL Listed per CSA C22.2 No 94; Type 4, 4X, 12, 13; File No.
E61997
Enclosure ammability evaluated per UL 508A
Window ammability evaluated per UL 508A
NEMA/EEMAC Type 4, 4X, 12, 13
CSA File No. 42186: Type 4, 4X, 12, 13
IEC 60529, IP66
Application
The ecient design and simple construction of these enclosures
make them durable in corrosive environments, yet aesthetically
pleasing. Corner latches provide unobstructed access. The
continuous hinge provides a secure seal, and double latching creates
added security.
Specications
• Compression-molded berglass has outstanding chemical-
and temperature-resistance qualities and exhibits excellent
weatherability and physical properties
• Fiberglass is easily punched, drilled, led or sawed
• Gasket assures water-tight and dust-tight seal
•
Polyester mounting brackets and stainless steel attachment screws
are provided with each enclosure
•
Scratch-resistant polycarbonate windows are permanently bonded
in place
•
Molded-in-place threaded brass inserts and plated steel screws are
provided for mounting optional panels and terminal block kits
• Removable hinged cover attached to body with Type 316 stainless
steel hinge pin
• Screw-cover enclosures are secured with two captivated Type 316
stainless steel slotted cover screws
• Enclosures with quick-release latches have corrosion-resistant
polyester latches located in corners that provide unobstructed
access to enclosure
• Hinge pin and bail are corrosion-resistant Type 316 stainless steel
• Padlock provisions included in each latch
Finish
Fiberglass material is light-gray inside and out. Optional steel panels
are painted white. Optional stainless steel, aluminum, conductive and
composite panels are unpainted.
Accessories
See also Accessories.
H2OMIT® Vent Drains, Type 4X
HOL-SEALERS™ Non-Metallic Hole Seals
Panels for Junction Boxes
Threaded Panel Extenders
Quick-Release Latch Kit
Swing-Out Panel Kit
Modication and Customization
Homan excels at modifying and customizing products to your
specications. Contact your local Homan sales oce or distributor
for complete information.
Bulletin: A48
CHS Controls AB
Tel +46 42 38 61 00, Fax +46 42 38 61 29
chs@chscontrols.se www.chscontrols.se
235
Non-Metallic: Fiberglass
Continuous Hinge
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products

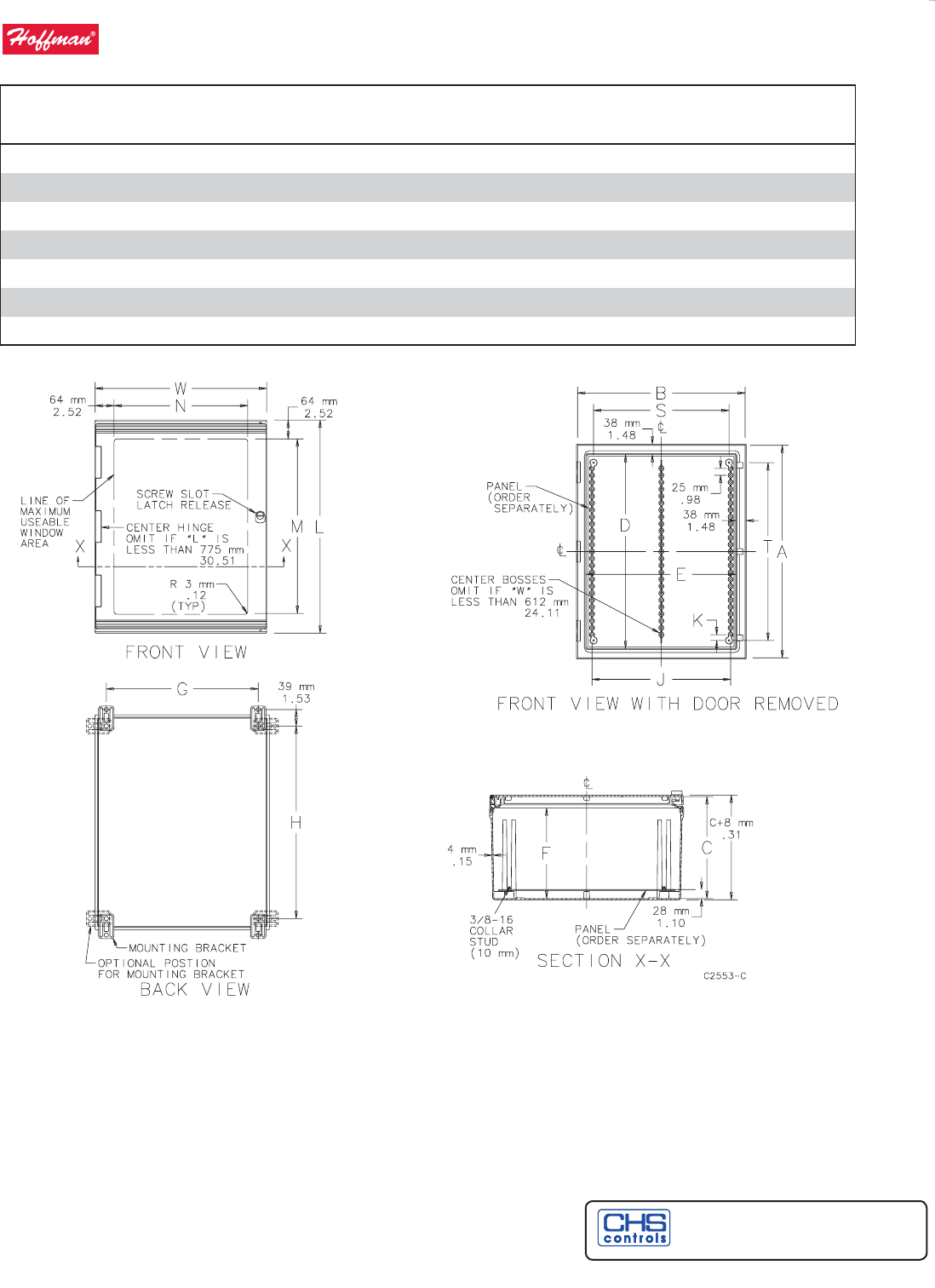

Standard Product Solid Cover
Catalog Number AxBxC in./mm Type
Steel
Panel
Alum.
Panel
Panel Size
D x E
in./mm
Mounting
G x H
in./mm
Overall
L x W
in./mm
F
in./mm
J
in./mm
K
in./mm
O
in./mm
P
in./mm
Q
in./mm
T
in./mm
U
in./mm
A664CHSCFG 6.00 x 6.00 x 4.00
152 x 152 x 102
Screw
Cover
A6P6 A6P6AL 4.88 x 4.88
124 x 124
6.94 x 4.00
176 x 102
6.50 x 6.50
165 x 165
3.45
88
3.25
83
1.00
25
4.25
108
4.25
108
5.64
143
0.12
3
5.64
143
A664CHQRFG 6.00 x 6.00 x 4.00
152 x 152 x 102
Quick
Release
A6P6 A6P6AL 4.88 x 4.88
124 x 124
6.94 x 4.00
176 x 102
6.50 x 6.50
165 x 165
3.45
88
3.25
83
1.00
25
4.25
108
4.25
108
5.64
143
0.12
3
5.64
143
A864CHSCFG 8.00 x 6.00 x 4.00
203 x 152 x 102
Screw
Cover
A8P6 A8P6AL 6.75 x 4.88
171 x 124
8.94 x 4.00
227 x 102
8.50 x 6.50
216 x 165
3.45
88
3.25
83
1.00
25
4.25
108
6.25
159
7.64
194
0.12
3
5.64
143
A864CHQRFG 8.00 x 6.00 x 4.00
203 x 152 x 102
Quick
Release
A8P6 A8P6AL 6.75 x 4.88
171 x 124
8.94 x 4.00
227 x 102
8.50 x 6.50
216 x 165
3.45
88
3.25
83
1.00
25
4.25
108
6.25
159
7.64
194
0.12
3
5.64
143
A1086CHSCFG 10.00 x 8.00 x 6.00
254 x 203 x 152
Screw
Cover
A10P8 A10P8AL 8.75 x 6.88
222 x 175
10.94 x 6.00
278 x 152
10.50 x 8.50
267 x 216
5.45
138
4.94
125
1.31
33
6.25
159
8.25
210
9.61
244
0.12
3
7.61
193
A1086CHQRFG 10.00 x 8.00 x 6.00
254 x 203 x 152
Quick
Release
A10P8 A10P8AL 8.75 x 6.88
222 x 175
10.94 x 6.00
278 x 152
10.50 x 8.50
267 x 216
5.45
138
4.94
125
1.31
33
6.25
159
8.25
210
9.61
244
0.12
3
7.61
193
A12106CHSCFG 12.00 x 10.00 x 6.00
305 x 254 x 152
Screw
Cover
A12P10 A12P10AL 10.75 x 8.88
273 x 226
12.94 x 8.00
329 x 203
12.50 x 10.50
318 x 267
5.45
138
4.69
119
1.56
40
8.25
210
10.25
260
11.58
294
0.12
3
9.58
243
A12106CHQRFG 12.00 x 10.00 x 6.00
305 x 254 x 152
Quick
Release
A12P10 A12P10AL 10.75 x 8.88
273 x 226
12.94 x 8.00
329 x 203
12.50 x 10.50
318 x 267
5.45
138
4.69
119
1.56
40
8.25
210
10.25
260
11.58
294
0.12
3
9.58
243
A14128CHSCFG 14.00 x 12.00 x 8.00
356 x 305 x 203
Screw
Cover
A14P12 A14P12AL 12.75 x 10.88
324 x 276
14.94 x 10.00
379 x 254
14.55 x 12.55
370 x 319
7.45
189
6.50
165
1.81
46
10.25
260
12.25
311
13.59
345
0.15
4
11.59
294
A14128CHQRFG 14.00 x 12.00 x 8.00
356 x 305 x 203
Quick
Release
A14P12 A14P12AL 12.75 x 10.88
324 x 276
14.94 x 10.00
379 x 254
14.55 x 12.55
370 x 319
7.45
189
6.50
165
1.81
46
10.25
260
12.25
311
13.59
345
0.15
4
11.59
294
A16148CHSCFG 16.00 x 14.00 x 8.00
406 x 356 x 203
Screw
Cover
A16P14 A16P14AL 14.75 x 12.88
375 x 327
16.94 x 12.00
430 x 305
16.55 x 14.55
420 x 370
7.45
189
6.23
158
2.08
53
12.25
311
14.25
362
15.56
395
0.15
4
13.56
344
A16148CHQRFG 16.00 x 14.00 x 8.00
406 x 356 x 203
Quick
Release
A16P14 A16P14AL 14.75 x 12.88
375 x 327
16.94 x 12.00
430 x 305
16.55 x 14.55
420 x 370
7.45
189
6.23
158
2.08
53
12.25
311
14.25
362
15.56
395
0.15
4
13.56
344
A181610CHSCFG 18.00 x 16.00 x 10.00
457 x 406 x 254
Screw
Cover
A18P16 A18P16AL 16.75 x 14.88
425 x 378
18.94 x 14.00
481 x 356
18.58 x 16.58
472 x 421
9.45
240
7.66
195
2.66
68
14.25
362
16.25
413
17.53
445
0.16
4
15.53
394
A181610CHQRFG 18.00 x 16.00 x 10.00
457 x 406 x 254
Quick
Release
A18P16 A18P16AL 16.75 x 14.88
425 x 378
18.94 x 14.00
481 x 356
18.58 x 16.58
472 x 421
9.45
240
7.66
195
2.66
68
14.25
362
16.25
413
17.53
445
0.16
4
15.53
394
Purchase panels separately. Optional stainless steel, aluminum, conductive and composite material panels available for most sizes.

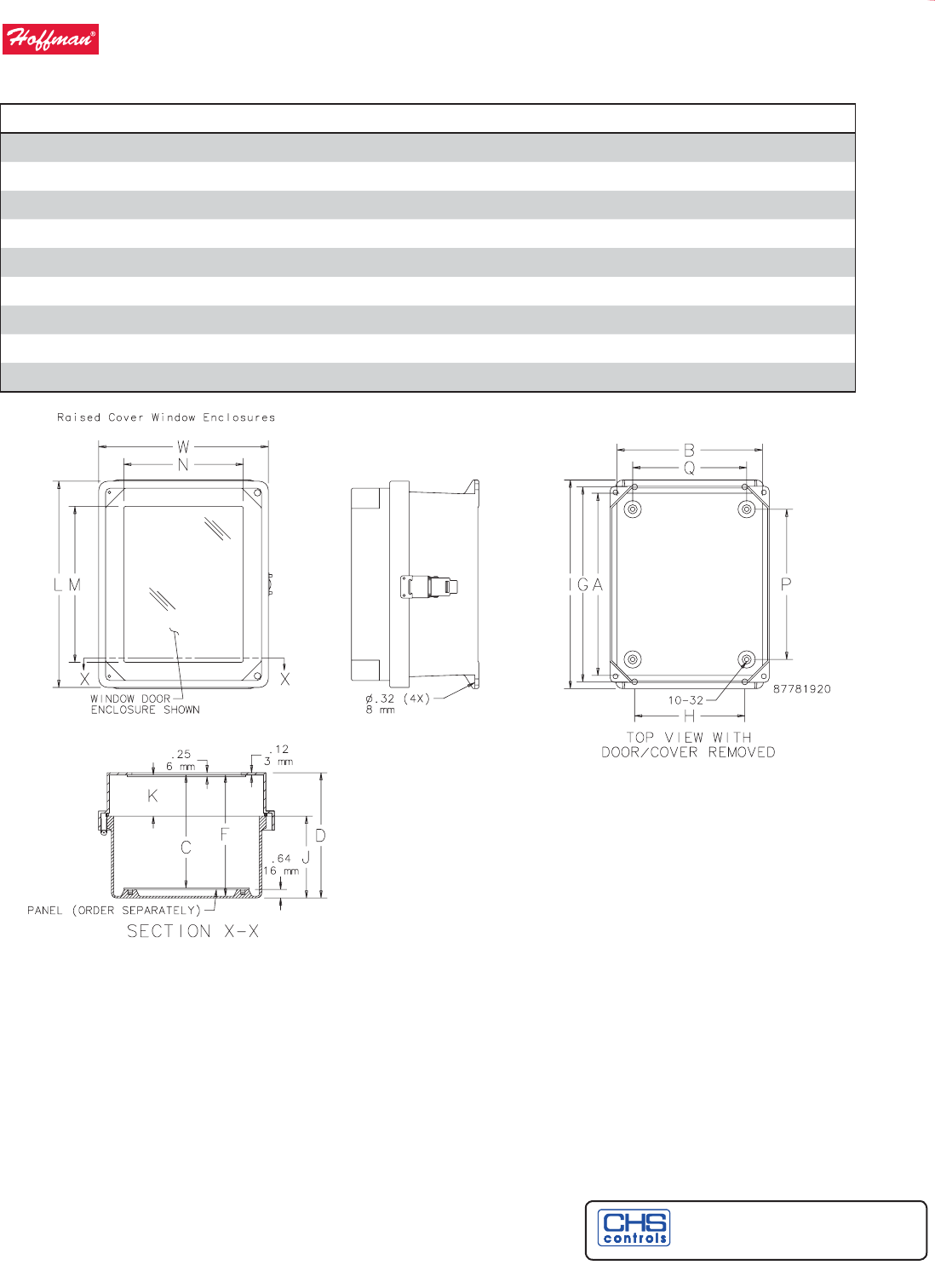

Standard Product Window Cover
Catalog Number AxBxC in./mm Type
Steel
Panel
Alum.
Panel
Panel Size
D x E
in./mm
Mounting
G x H
in./mm
Overall
L x W
in./mm
F
in./mm
J
in./mm
K
in./mm
M
in./mm
N
in./mm
O
in./mm
P
in./mm
Q
in./mm
T
in./mm
U
in./mm
A664CHSCFGW 6.00 x 6.00 x 4.00
152 x 152 x 102
Screw
Cover
A6P6 A6P6AL 4.88 x 4.88
124 x 124
6.94 x 4.00
176 x 102
6.50 x 6.50
165 x 165
3.45
88
3.25
83
1.00
25
4.25
108
4.25
108
4.25
108
4.25
108
5.64
143
0.12
3
5.64
143
A664CHQRFGW 6.00 x 6.00 x 4.00
152 x 152 x 102
Quick
Release
A6P6 A6P6AL 4.88 x 4.88
124 x 124
6.94 x 4.00
176 x 102
6.50 x 6.50
165 x 165
3.45
88
3.25
83
1.00
25
4.25
108
4.25
108
4.25
108
4.25
108
5.64
143
0.12
3
5.64
143
A864CHSCFGW 8.00 x 6.00 x 4.00
203 x 152 x 102
Screw
Cover
A8P6 A8P6AL 6.75 x 4.88
171 x 124
8.94 x 4.00
227 x 102
8.50 x 6.50
216 x 165
3.45
88
3.25
83
1.00
25
6.25
159
4.25
108
4.25
108
6.25
159
7.64
194
0.12
3
5.64
143
A864CHQRFGW 8.00 x 6.00 x 4.00
203 x 152 x 102
Quick
Release
A8P6 A8P6AL 6.75 x 4.88
171 x 124
8.94 x 4.00
227 x 102
8.50 x 6.50
216 x 165
3.45
88
3.25
83
1.00
25
6.25
159
4.25
108
4.25
108
6.25
159
7.64
194
0.12
3
5.64
143
A1086CHSCFGW 10.00 x 8.00 x 6.00
254 x 203 x 152
Screw
Cover
A10P8 A10P8AL 8.75 x 6.88
222 x 175
10.94 x 6.00
278 x 152
10.50 x 8.50
267 x 216
5.45
138
4.94
125
1.31
33
8.25
210
6.25
159
6.25
159
8.25
210
9.61
244
0.12
3
7.61
193
A1086CHQRFGW 10.00 x 8.00 x 6.00
254 x 203 x 152
Quick
Release
A10P8 A10P8AL 8.75 x 6.88
222 x 175
10.94 x 6.00
278 x 152
10.50 x 8.50
267 x 216
5.45
138
4.94
125
1.31
33
8.25
210
6.25
159
6.25
159
8.25
210
9.61
244
0.12
3
7.61
193
A12106CHSCFGW 12.00 x 10.00 x 6.00
305 x 254 x 152
Screw
Cover
A12P10 A12P10AL 10.75 x 8.88
273 x 226
12.94 x 8.00
329 x 203
12.50 x 10.50
318 x 267
5.45
138
4.69
119
1.56
40
10.25
260
8.25
210
8.25
210
10.25
260
11.58
294
0.12
3
9.58
243
A12106CHQRFGW 12.00 x 10.00 x 6.00
305 x 254 x 152
Quick
Release
A12P10 A12P10AL 10.75 x 8.88
273 x 226
12.94 x 8.00
329 x 203
12.50 x 10.50
318 x 267
5.45
138
4.69
119
1.56
40
10.25
260
8.25
210
8.25
210
10.25
260
11.58
294
0.12
3
9.58
243
A14128CHSCFGW 14.00 x 12.00 x 8.00
356 x 305 x 203
Screw
Cover
A14P12 A14P12AL 12.75 x 10.88
324 x 276
14.94 x 10.00
379 x 254
14.55 x 12.55
370 x 319
7.45
189
6.50
165
1.81
46
12.25
311
10.25
260
10.25
260
12.25
311
13.59
345
0.15
4
11.59
294
A14128CHQRFGW 14.00 x 12.00 x 8.00
356 x 305 x 203
Quick
Release
A14P12 A14P12AL 12.75 x 10.88
324 x 276
14.94 x 10.00
379 x 254
14.55 x 12.55
370 x 319
7.45
189
6.50
165
1.81
46
12.25
311
10.25
260
10.25
260
12.25
311
13.59
345
0.15
4
11.59
294
A16148CHSCFGW 16.00 x 14.00 x 8.00
406 x 356 x 203
Screw
Cover
A16P14 A16P14AL 14.75 x 12.88
375 x 327
16.94 x 12.00
430 x 305
16.55 x 14.55
420 x 370
7.45
189
6.23
158
2.08
53
14.25
362
12.25
311
12.25
311
14.25
362
15.56
395
0.15
4
13.56
344
A16148CHQRFGW 16.00 x 14.00 x 8.00
406 x 356 x 203
Quick
Release
A16P14 A16P14AL 14.75 x 12.88
375 x 327
16.94 x 12.00
430 x 305
16.55 x 14.55
420 x 370
7.45
189
6.23
158
2.08
53
14.25
362
12.25
311
12.25
311
14.25
362
15.56
395
0.15
4
13.56
344
A181610CHSCFGW 18.00 x 16.00 x 10.00
457 x 406 x 254
Screw
Cover
A18P16 A18P16AL 16.75 x 14.88
425 x 378
18.94 x 14.00
481 x 356
18.58 x 16.58
472 x 421
9.45
240
7.66
195
2.66
68
16.25
413
14.25
362
14.25
362
16.25
413
17.53
445
0.16
4
15.53
394
A181610CHQRFGW 18.00 x 16.00 x 10.00
457 x 406 x 254
Quick
Release
A18P16 A18P16AL 16.75 x 14.88
425 x 378
18.94 x 14.00
481 x 356
18.58 x 16.58
472 x 421
9.45
240
7.66
195
2.66
68
16.25
413
14.25
362
14.25
362
16.25
413
17.53
445
0.16
4
15.53
394
Purchase panels separately. Optional stainless steel, aluminum, conductive and composite material panels available for most sizes.
CHS Controls AB
Tel +46 42 38 61 00, Fax +46 42 38 61 29
chs@chscontrols.se www.chscontrols.se
236
Non-Metallic: Fiberglass
Continuous Hinge
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
CHS Controls AB
Tel +46 42 38 61 00, Fax +46 42 38 61 29
chs@chscontrols.se www.chscontrols.se
237
Non-Metallic: Fiberglass
Continuous Hinge
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products

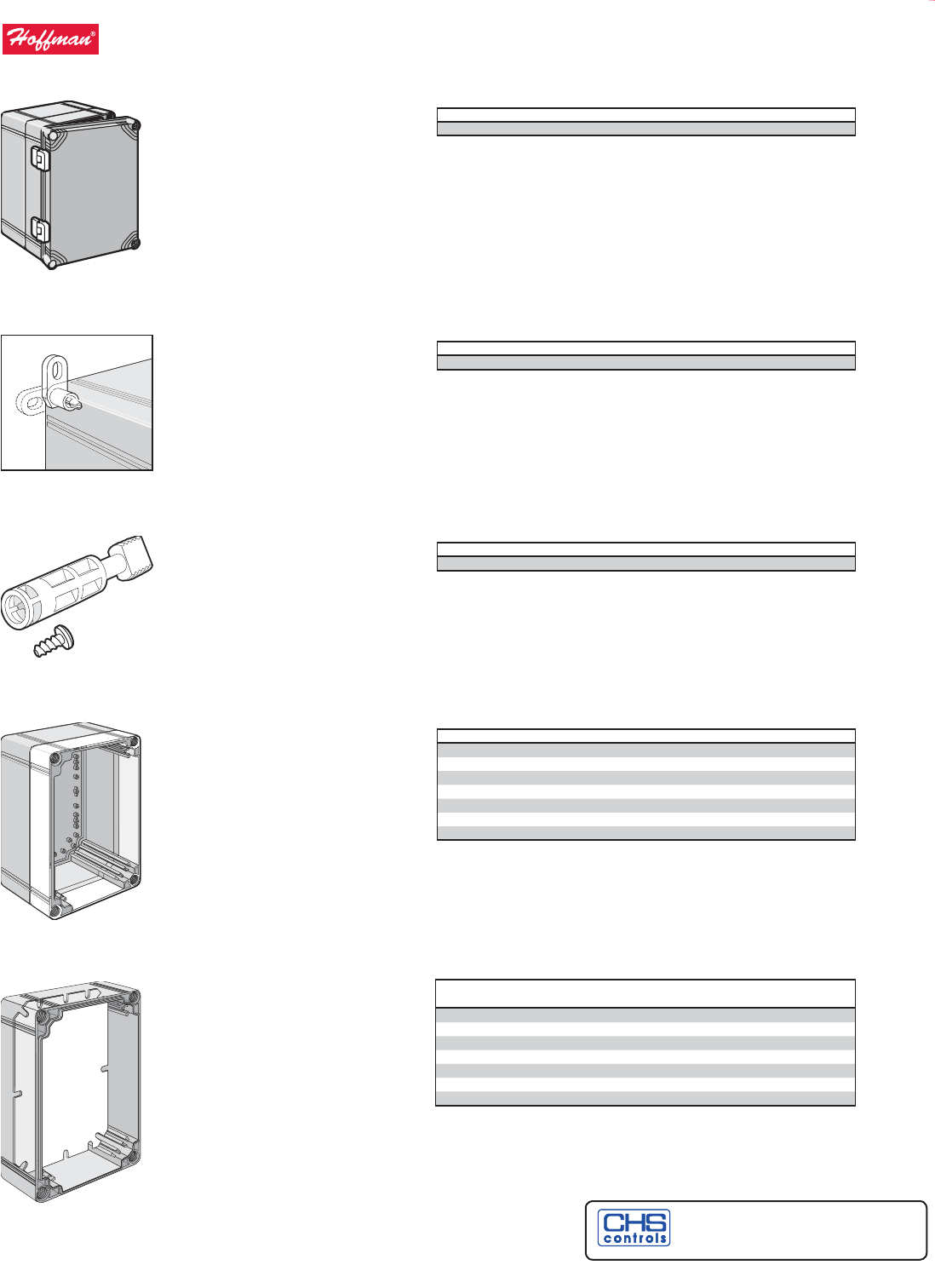

Quick-Release Latch Kit Two berglass-reinforced gray polyester latches with 316L stainless
steel bail and screw-hole plugs are included in each package.
Supplied with Continuous Hinge, Type 4X enclosures and available
for Fiberglass Hinged Cover WiFi Cabinet, Type 4X. Kit converts
screw-cover enclosures to quick-release without modication. No
tools needed to install. Padlocking provision is included.
Bulletin: A48Y
Catalog Number Description Kit Qty.
AL48 Quick-Release Latch Kit 2
CHS Controls AB
Tel +46 42 38 61 00, Fax +46 42 38 61 29
chs@chscontrols.se www.chscontrols.se
238
Non-Metallic: Fiberglass
Continuous Hinge
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products

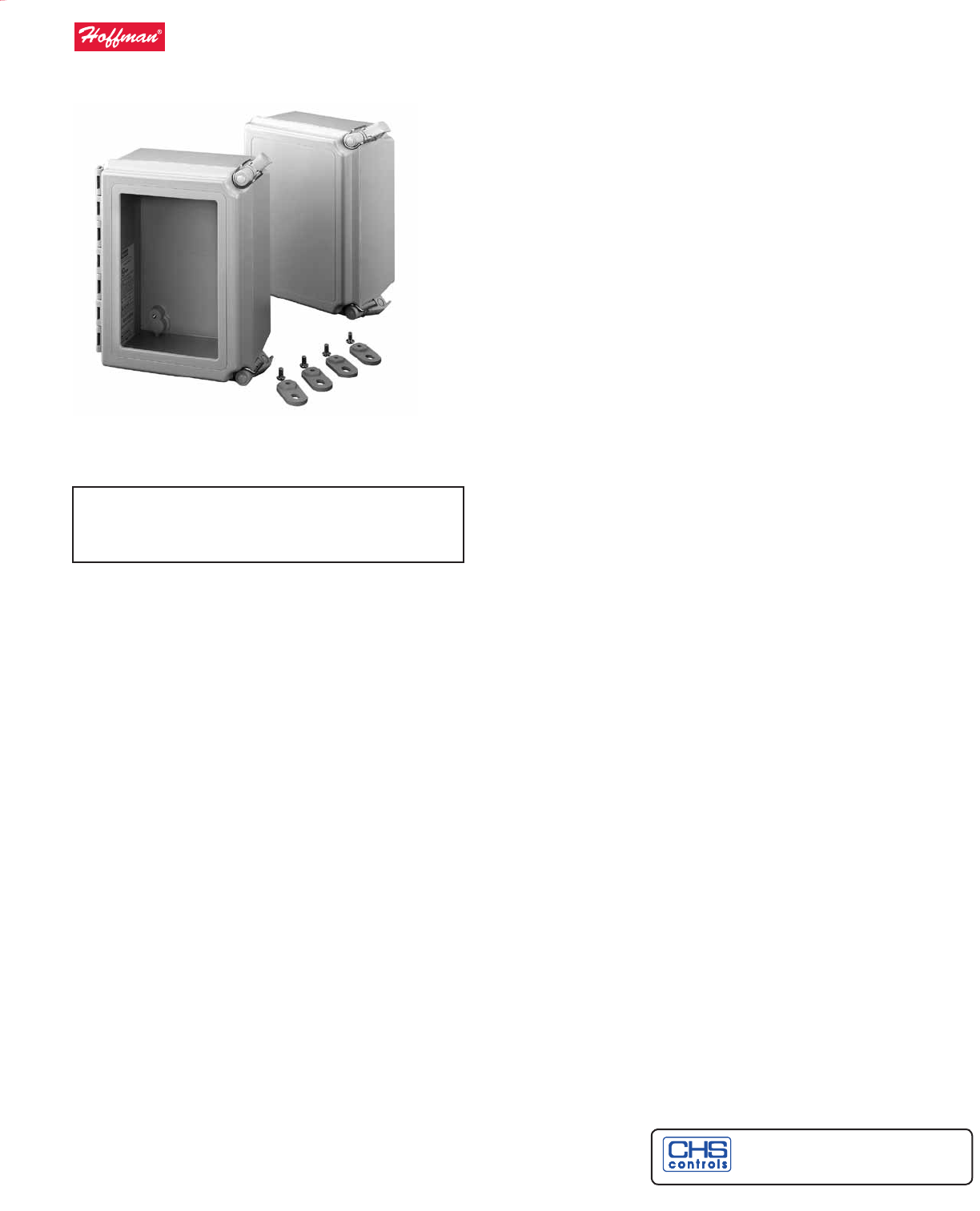

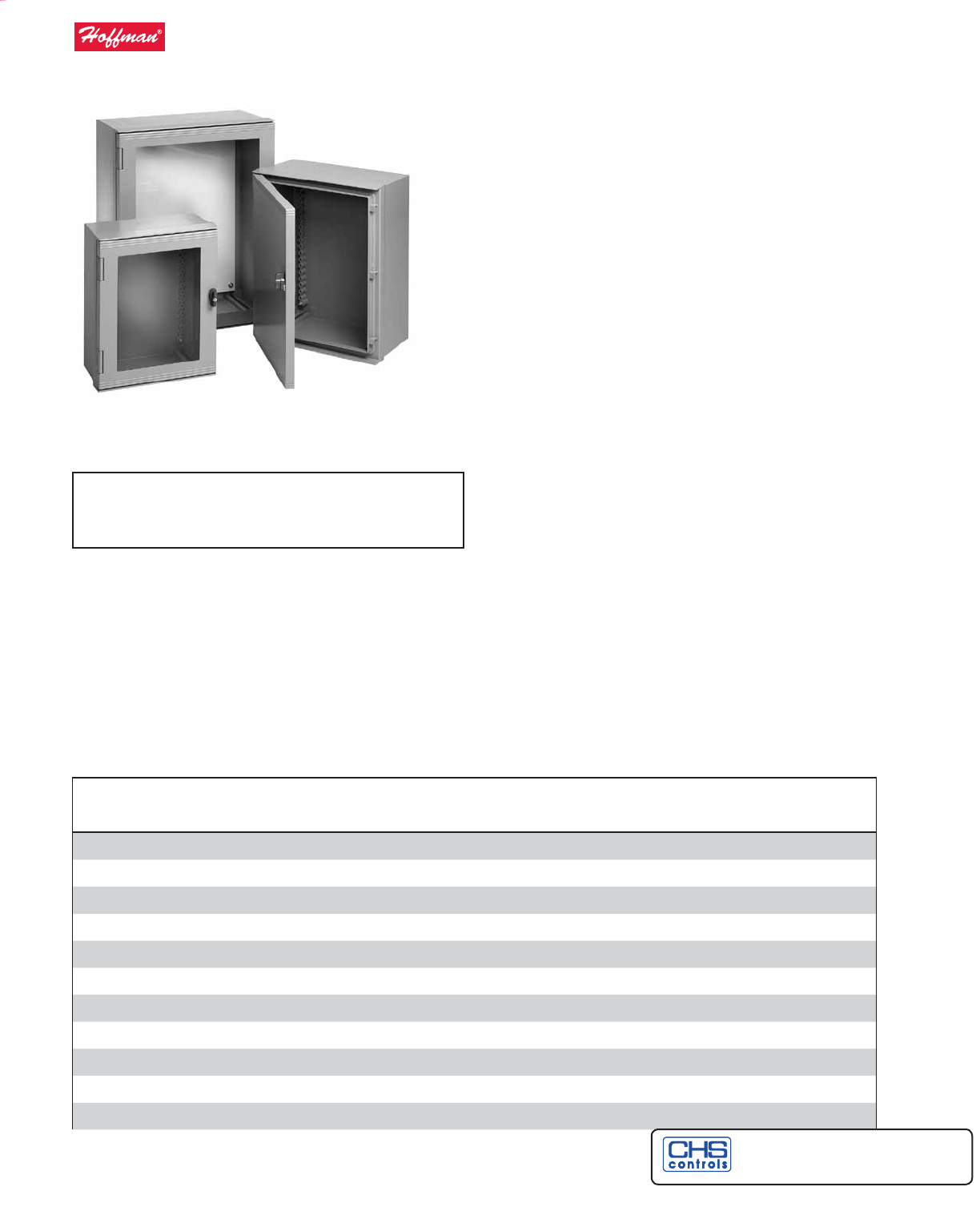

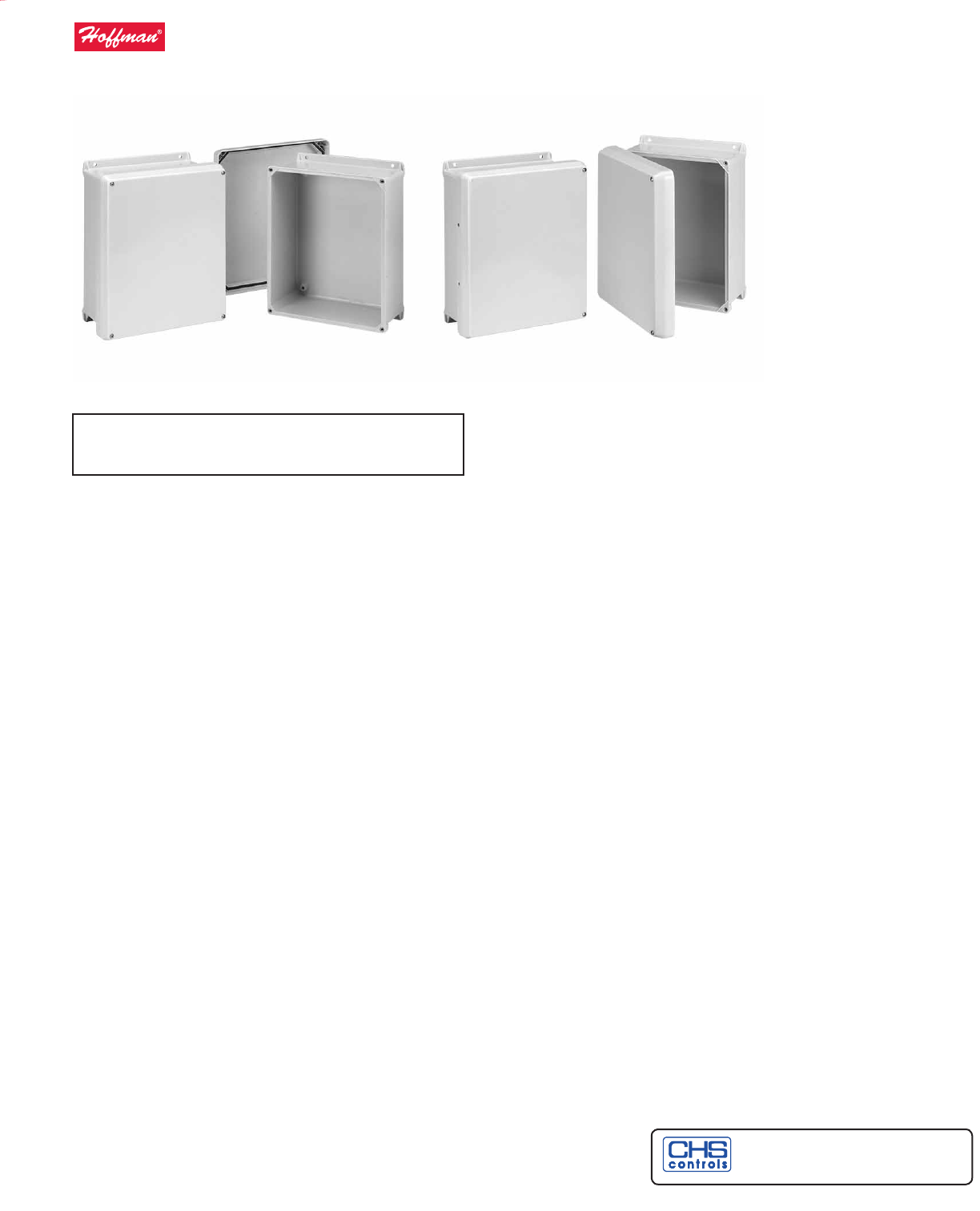

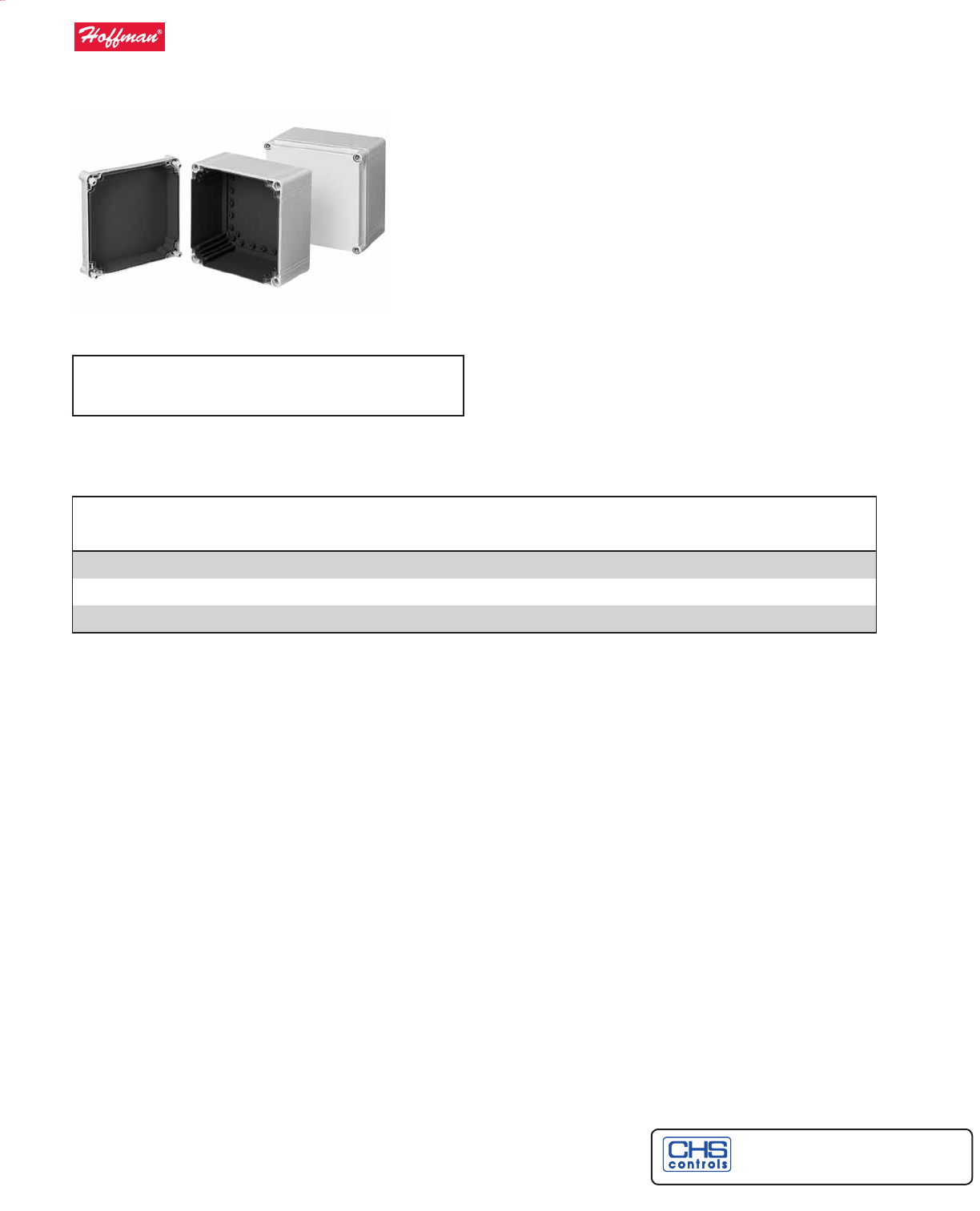

Screw- or Hing e-Cover wit h Quick-Rel ease Latch
Screw- or Hinge-Cover with Quick-Release Latch, Type 4X
Industry Standards
Mounting brackets required to meet UL/CSA external mounting
requirements.
UL 508A Listed; Type 3, 3R, 4, 4X, 12, 13; File No. E61997
cUL Listed per CSA C22.2 No 94; Type 3, 3R, 4, 4X, 12, 13;
File No. E61997
Enclosure ammability evaluated per UL 508A
Window ammability evaluated per UL 508A
NEMA/EEMAC Type 3, 3R, 4, 4X, 12, 13
CSA File No. 42186: Type 3R, 4, 4X, 12
IEC 60529, IP66
Meets NEMA Type 3RX requirements
Application
Able to withstand harsh environments, these small enclosures feature
a simple, traditional non-metallic design that is suitable for a broad
range of applications.
Specications
•
Compression-molded berglass material has excellent
temperature and chemical resistance qualities and exhibits
outstanding physical properties
•
Fiberglass material is easily punched, drilled, led or sawed
•
Seamless foam-in-place gasket assures water-tight and dust-tight
seal
•
Threaded internal bosses provided for mounting optional panels
and terminal block kits
• Scratch-resistant polycarbonate windows are permanently bonded
in place
• Screw-cover enclosures have easily removable covers attached to
body with internal plated steel hinges. Cover securely fastens to
the body with four captivated Type 316 stainless steel cover screws.
• Enclosures with quick-release latches have corrosion-resistant
polyester hinges and polyester latches with a Type 316L stainless
steel bail. Attached with Type 316 stainless steel screws. A Type
316L stainless steel padlock hasp is furnished with each enclosure.
• Sealing washers are furnished with enclosure
Finish
Fiberglass material is light-gray inside and out. Optional steel panels
are painted white. Optional stainless steel, aluminum and composite
panels are unpainted.
Accessories
See also Accessories.
H2OMIT® Vent Drains, Type 4X
HOL-SEALERS™ Non-Metallic Hole Seals

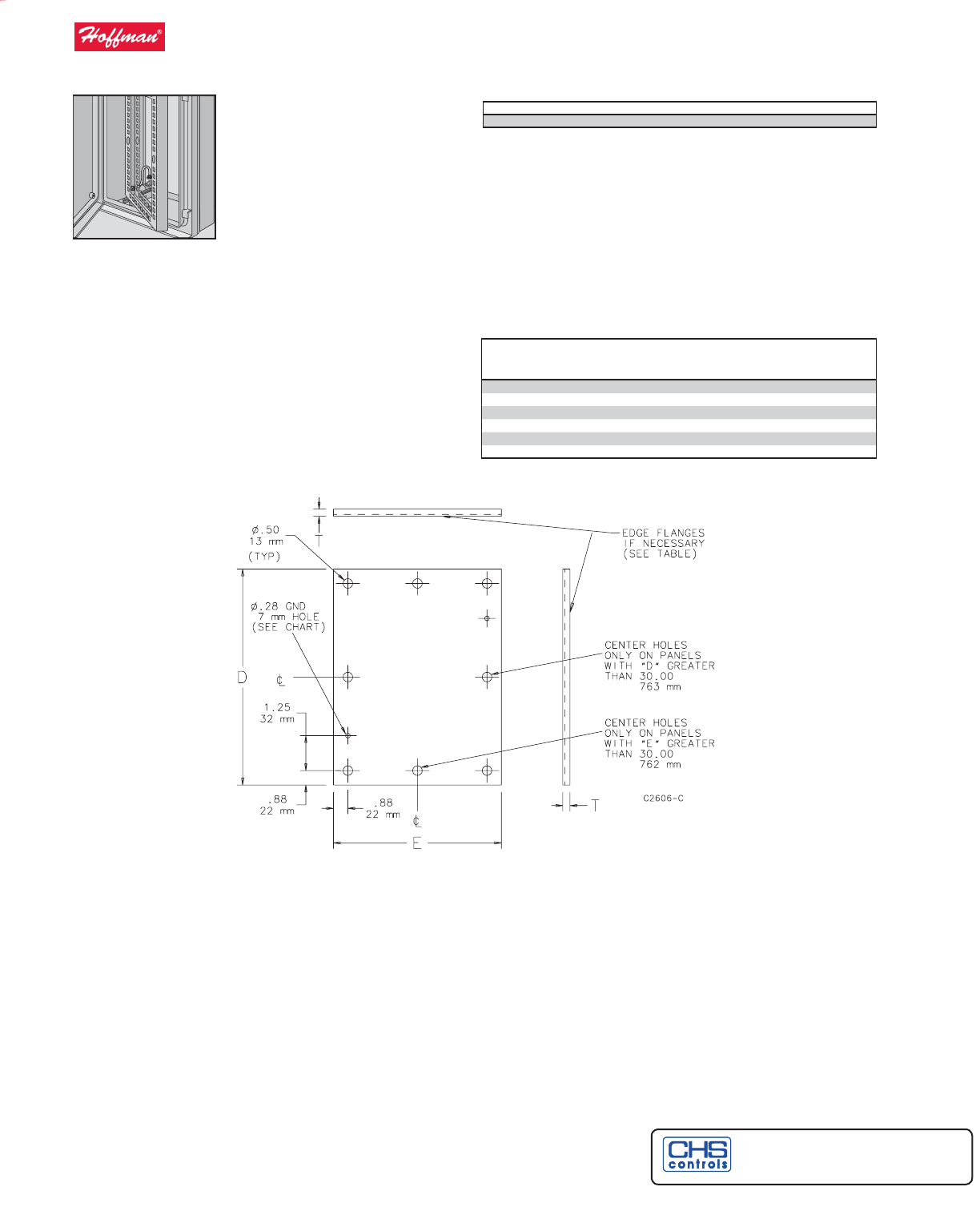

Panels for Junction Boxes
Modication and Customization
Homan excels at modifying and customizing products to your
specications. Contact your local Homan sales oce or distributor
for complete information.
Bulletin: A50
CHS Controls AB
Tel +46 42 38 61 00, Fax +46 42 38 61 29
chs@chscontrols.se www.chscontrols.se
239
Non-Metallic: Fiberglass
Continuous Hinge
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products

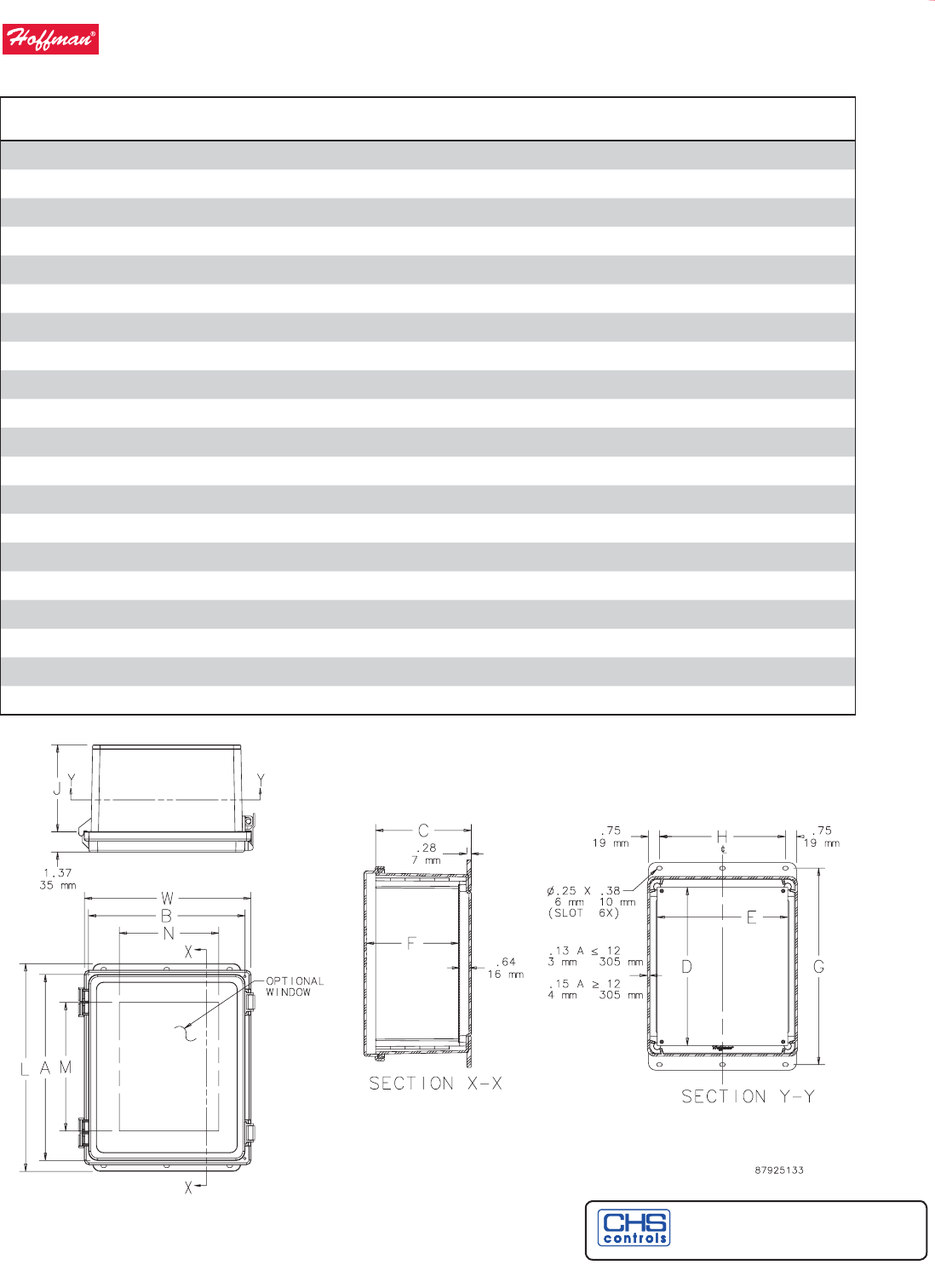

Standard Product Solid Cover with Screws
Catalog Number AxBxC in./mm
Inside Dimensions
A x B x C
in./mm
Steel
Panel
Aluminum
Panel
Panel Size
D x E
in./mm
Mounting
G x H
in./mm
Overall
L x W
in./mm
F
in./mm
J
in./mm
K
in./mm
V
in./mm
X
in./mm
Y
in./mm
A645JFGR 6.00 x 4.00 x 5.00
152 x 102 x 127
5.50 x 4.00 x 4.94
140 x 102 x 125
No Panel No Panel No Panel
No Panel
4.75 x 2.00
121 x 51
6.00 x 4.50
152 x 114
4.41
112
4.13
105
1.00
25
--
--
4.22
107
3.59
91
A845JFGR 8.00 x 4.00 x 5.00
203 x 102 x 127
7.50 x 4.00 x 4.94
191 x 102 x 125
A6P4 A6P4AL 4.88 x 2.88
124 x 73
6.75 x 2.00
171 x 51
8.00 x 4.50
203 x 114
4.41
112
4.13
105
1.00
25
0.31
8
6.22
158
3.59
91
A865JFGR 8.00 x 6.00 x 5.00
203 x 152 x 127
7.50 x 6.00 x 5.19
191 x 152 x 132
A6P6 A6P6AL 4.88 x 4.88
124 x 124
6.75 x 4.00
171 x 102
8.00 x 6.50
203 x 165
4.66
118
4.38
111
1.00
25
0.31
8
6.22
158
5.59
142
A1066JFGR 10.00 x 6.00 x 6.00
254 x 152 x 152
9.50 x 6.00 x 5.69
241 x 152 x 145
A8P6 A8P6AL 6.75 x 4.88
171 x 124
8.75 x 4.00
222 x 102
10.00 x 6.50
254 x 165
5.16
131
4.63
118
1.25
32
0.25
6
8.12
206
5.50
140
A1287JFGR 12.00 x 8.00 x 7.00
305 x 203 x 178
11.50 x 8.00 x 6.69
292 x 203 x 170
A10P8 A10P8AL 8.75 x 6.88
222 x 175
10.75 x 6.00
273 x 152
12.00 x 8.50
305 x 216
6.16
156
5.13
130
1.75
44
0.25
6
9.97
253
7.34
186
A14107JFGR 14.00 x 10.00 x 7.00
356 x 254 x 178
13.50 x 10.00 x 7.19
343 x 254 x 183
A12P10 A12P10AL 10.75 x 8.88
273 x 226
12.75 x 8.00
324 x 203
14.00 x 10.50
356 x 267
6.66
169
5.63
143
1.75
44
0.25
6
11.97
304
9.34
237
A16128JFGR 16.00 x 12.00 x 8.00
406 x 305 x 203
15.50 x 12.00 x 8.19
394 x 305 x 208
A14P12 A14P12AL 12.75 x 10.88
324 x 276
14.75 x 10.00
375 x 254
16.00 x 12.50
406 x 318
7.66
195
6.13
156
2.25
57
0.25
6
13.78
350
11.16
283
A18149JFGR 18.00 x 14.00 x 9.00
457 x 356 x 229
17.50 x 14.00 x 8.69
445 x 356 x 221
A16P14 A16P14AL 14.75 x 12.88
375 x 327
16.75 x 12.00
425 x 305
18.00 x 14.50
457 x 368
8.16
207
6.63
168
2.25
57
0.25
6
15.78
401
13.16
334
Purchase panels separately. Optional stainless steel, aluminum and composite material panels available for most sizes.
Standard Product Solid Cover with Quick-Release Latches
Catalog Number AxBxC in./mm
Inside Dimensions
A x B x C
in./mm
Steel
Panel
Aluminum
Panel
Panel Size
D x E
in./mm
Mounting
G x H
in./mm
Overall
L x W
in./mm
F
in./mm
J
in./mm
K
in./mm
V
in./mm
X
in./mm
Y
in./mm Number of Latches
A645JFGQRR 6.00 x 4.00 x 5.00
152 x 102 x 127
5.50 x 4.00 x 5.02
140 x 102 x 128
No Panel No Panel No Panel
No Panel
4.75 x 2.00
121 x 51
6.00 x 5.39
152 x 137
4.50
114
4.13
105
1.00
25
--
--
4.22
107
3.59
91
1
A845JFGQRR 8.00 x 4.00 x 5.00
203 x 102 x 127
7.50 x 4.00 x 5.02
191 x 102 x 128
A6P4 A6P4AL 4.88 x 2.88
124 x 73
6.75 x 2.00
171 x 51
8.00 x 5.39
203 x 137
4.50
114
4.13
105
1.00
25
0.31
8
6.22
158
3.59
91
1
A865JFGQRR 8.00 x 6.00 x 5.00
203 x 152 x 127
7.50 x 6.00 x 5.28
191 x 152 x 134
A6P6 A6P6AL 4.88 x 4.88
124 x 124
6.75 x 4.00
171 x 102
8.00 x 7.39
203 x 188
4.75
121
4.38
111
1.00
25
0.31
8
6.22
158
5.59
142
2
A1066JFGQRR 10.00 x 6.00 x 6.00
254 x 152 x 152
9.50 x 6.00 x 5.78
241 x 152 x 147
A8P6 A8P6AL 6.75 x 4.88
171 x 124
8.75 x 4.00
222 x 102
10.00 x 7.39
254 x 188
5.25
133
4.63
118
1.25
32
0.25
6
8.12
206
5.50
140
2
A1287JFGQRR 12.00 x 8.00 x 7.00
305 x 203 x 178
11.50 x 8.00 x 6.78
292 x 203 x 172
A10P8 A10P8AL 8.75 x 6.88
222 x 175
10.75 x 6.00
273 x 152
12.00 x 9.39
305 x 239
6.25
159
5.13
130
1.75
44
0.25
6
9.97
253
7.34
186
2
A14107JFGQRR 14.00 x 10.00 x 7.00
356 x 254 x 178
13.50 x 10.00 x 7.28
343 x 254 x 185
A12P10 A12P10AL 10.75 x 8.88
273 x 226
12.75 x 8.00
324 x 203
14.00 x 11.39
256 x 289
6.75
171
5.63
143
1.75
44
0.25
6
11.97
304
9.34
237
2
A16128JFGQRR 16.00 x 12.00 x 8.00
406 x 305 x 203
15.50 x 12.00 x 8.28
394 x 305 x 210
A14P12 A14P12AL 12.75 x 10.88
324 x 276
14.75 x 10.00
375 x 254
16.00 x 13.39
406 x 340
7.75
197
6.13
156
2.25
57
0.25
6
13.78
350
11.16
283
2
A18149JFGQRR 18.00 x 14.00 x 9.00
457 x 356 x 229
17.50 x 14.00 x 8.78
445 x 356 x 223
A16P14 A16P14AL 14.75 x 12.88
375 x 327
16.75 x 12.00
425 x 305
18.00 x 15.39
457 x 391
8.25
210
6.63
168
2.25
57
0.25
6
15.78
401
13.16
334
2
Purchase panels separately. Optional stainless steel, aluminum and composite material panels available for most sizes.
Standard Product Window Cover with Quick-Release Latches
Catalog Number AxBxC in./mm
Inside Dimensions
A x B x C
in./mm
Steel
Panel
Aluminum
Panel
Panel Size
D x E
in./mm
Mounting
G x H
in./mm
Overall
L x W
in./mm
Window Size
M x N
in./mm
F
in./mm
J
in./mm
K
in./mm
V
in./mm Number of Latches
A865JFGQRPWR 8.00 x 6.00 x 5.00
203 x 152 x 127
7.50 x 6.00 x 5.03
191 x 152 x 128
A6P6 A6P6AL 4.88 x 4.88
124 x 124
6.75 x 4.00
171 x 102
8.00 x 7.39
203 x 188
4.55 x 4.00
116 x 102
4.52
115
4.38
111
1.00
25
0.31
8
1
A1066JFGQRPWR 10.00 x 6.00 x 6.00
254 x 152 x 152
9.50 x 6.00 x 5.53
241 x 152 x 140
A8P6 A8P6AL 6.75 x 4.88
171 x 124
8.75 x 4.00
222 x 102
10.00 x 7.39
254 x 188
6.55 x 4.00
166 x 102
5.00
127
4.63
118
1.25
32
0.25
6
2
A1287JFGQRPWR 12.00 x 8.00 x 7.00
305 x 203 x 178
11.50 x 8.00 x 6.53
292 x 203 x 166
A10P8 A10P8AL 8.75 x 6.88
222 x 175
10.75 x 6.00
273 x 152
12.00 x 9.39
305 x 239
8.25 x 5.84
210 x 148
6.00
152
5.13
130
1.75
44
0.25
6
2
A14107JFGQRPWR 14.00 x 10.00 x 7.00
356 x 254 x 178
13.50 x 10.00 x 7.03
343 x 254 x 179
A12P10 A12P10AL 10.75 x 8.88
273 x 226
12.75 x 8.00
324 x 203
14.00 x 11.39
253 x 289
10.28 x 6.84
261 x 174
6.52
166
5.63
143
1.75
44
0.25
6
2
A16128JFGQRPWR 16.00 x 12.00 x 8.00
406 x 305 x 203
15.50 x 12.00 x 8.03
394 x 305 x 204
A14P12 A14P12AL 12.75 x 10.88
324 x 276
14.75 x 10.00
375 x 254
16.00 x 13.39
406 x 340
12.34 x 9.10
313 x 231
7.52
191
6.13
156
2.25
57
0.25
6
2
A18149JFGQRPWR 18.00 x 14.00 x 9.00
457 x 356 x 229
17.50 x 14.00 x 8.53
445 x 356 x 217
A16P14 A16P14AL 14.75 x 12.88
375 x 327
16.75 x 12.00
425 x 305
18.00 x 15.39
457 x 391
14.45 x 11.06
367 x 281
8.00
203
6.63
168
2.25
57
0.25
6
2
Purchase panels separately. Optional stainless steel, aluminum and composite material panels available for most sizes.
CHS Controls AB
Tel +46 42 38 61 00, Fax +46 42 38 61 29
chs@chscontrols.se www.chscontrols.se
240
Non-Metallic: Fiberglass
Continuous Hinge
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
CHS Controls AB
Tel +46 42 38 61 00, Fax +46 42 38 61 29
chs@chscontrols.se www.chscontrols.se
241
Non-Metallic: Fiberglass
Continuous Hinge
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
Fiberglass Mounting Bracket Kit Bracket is molded from berglass reinforced polyester. Kit includes
four brackets, hardware and installation instructions. Mounting hole
dimensions with mounting brackets installed are:
[G + 2.50 (64 mm)] x [H + .50 (13 mm)]
See Screw- or Hinged-Cover with Quick-Release Latch, Type 4X tables for
G and H dimensions.
Bulletin: A50Y
Catalog Number
A50MFKR
CHS Controls AB
Tel +46 42 38 61 00, Fax +46 42 38 61 29
chs@chscontrols.se www.chscontrols.se
242
Non-Metallic: Fiberglass
Overlapping Cover
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
Overlapping Co ver
Raised Cover with Screws, Type 4X
Industry Standards
UL 508A Listed; Type 3, 3R, 4, 4X, 12, 13; File No. E54315
cUL Listed per CSA C22.2 No 94; Type 3, 3R, 4, 4X, 12, 13; File No.
E54315
Enclosure ammability per UL 508A
NEMA/EEMAC Type 3, 3R, 4, 4X, 12, 13
CSA File No. 217184: Type 3, 3R, 4, 4X, 12, 13
IEC 60529, IP66
Meets NEMA Type 3RX requirements
Application
Enclosures feature a raised, overlapping-cover design that ensures a
more-secure seal and oers increased internal space for mounting
components. Available with removable and hinged covers for
application exibility.
Specications
• Compression-molded berglass construction
• Overlapping solid raised-cover
• Cover fastens with screws
• Type 304 stainless steel piano hinges on hinged models
• Integral mounting brackets
• Enclosures protect equipment and operators from indirect
electrical contact
Finish
Fiberglass material is RAL 7035 light-gray inside and out. Optional
steel panels are painted white. Optional stainless steel, aluminum,
conductive and composite panels are unpainted.
Accessories
See also Accessories.
H2OMIT® Vent Drains, Type 4X
HOL-SEALERS™ Non-Metallic Hole Seals
Panels for Junction Boxes
Swing-Out Panel Kit
Terminal Block Kit Assembly for Junction Boxes Overview
Modication and Customization
Homan excels at modifying and customizing products to your
specications. Contact your local Homan sales oce or distributor
for complete information.
Bulletin: HJ
CHS Controls AB
Tel +46 42 38 61 00, Fax +46 42 38 61 29
chs@chscontrols.se www.chscontrols.se
243
Non-Metallic: Fiberglass
Overlapping Cover
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
Standard Product
Catalog Number AxBxC in./mm
Door
Fasteners
D
in./mm
F
in./mm
G
in./mm
H
in./mm
I
in./mm
J
in./mm
K
in./mm
L
in./mm
O
in./mm
P
in./mm
Q
in./mm
W
in./mm
Steel
Panel
Alum
Panel
Panel
Size
in./mm
RHJ1008HWLG 10.00 x 8.00 x 6.19
254 x 203 x 157
Hinged,
2 screws
6.93
176
6.61
168
10.75
273
6.02
153
11.52
293
4.54
115
2.27
58
11.31
287
3.15
80
8.25
210
6.24
158
9.31
276
A10P8 A10P8AL 8.75 x 6.88
222 x 102
RHJ1008WLG 10.00 x 8.00 x 6.19
254 x 203 x 157
4 screws 6.93
176
6.61
168
10.75
273
6.02
153
11.52
293
4.54
115
2.27
58
11.31
287
3.15
80
8.25
210
6.24
158
9.31
276
A10P8 A10P8AL 8.75 x 6.88
222 x 102
RHJ1210HWLG 12.00 x 10.00 x 6.37
305 x 254 x 162
Hinged,
2 screws
7.10
180
6.77
172
12.75
324
8.01
203
13.51
343
4.71
120
2.27
58
13.30
338
3.25
80
10.25
260
8.25
210
11.29
211
A12P10 A12P10AL 10.75 x 8.88
273 x 226
RHJ1210WLG 12.00 x 10.00 x 6.37
305 x 254 x 162
4 screws 7.10
180
6.77
172
12.75
324
8.01
203
13.51
343
4.71
120
2.27
58
13.30
338
3.15
80
10.25
260
8.25
210
11.29
211
A12P10 A12P10AL 10.75 x 8.88
273 x 226
RHJ1412HWLG 14.00 x 12.00 x 7.37
356 x 305 x 187
Hinged,
2 screws
8.19
208
7.87
200
14.75
375
10.00
254
15.50
394
5.68
144
2.39
61
15.21
389
3.27
83
12.25
311
10.24
260
13.30
338
A14P12 A14P12AL 12.75 x 10.88
324 x 276
RHJ1412WLG 14.00 x 12.00 x 7.37
356 x 305 x 187
4 screws 8.17
208
7.87
200
14.75
375
10.00
254
15.50
394
5.68
144
2.39
61
15.32
389
3.27
83
12.25
311
10.24
260
13.30
338
A14P12 A14P12AL 12.75 x 10.88
324 x 276
RHJ1614HWLG 16.00 x 14.00 x 7.37
406 x 356 x 187
Hinged,
2 screws
8.19
208
7.87
200
16.73
425
12.00
305
17.52
445
5.68
144
2.39
61
17.31
440
3.27
83
14.25
362
12.24
311
15.30
289
A16P14 A16P14AL 14.75 x 12.88
375 x 327
RHJ1614WLG 16.00 x 14.00 x 7.37
406 x 356 x 187
4 screws 8.19
208
7.87
200
16.73
425
12.00
305
17.52
445
5.68
144
2.39
61
17.31
440
3.27
83
14.25
362
12.24
311
15.30
289
A16P14 A16P14AL 14.75 x 12.88
375 x 327
RHJ1816HWLG 18.00 x 16.00 x 10.25
457 x 406 x 260
Hinged,
2 screws
11.07
281
10.83
275
18.74
476
12.00
305
19.50
495
8.56
217
2.39
61
19.32
491
3.27
83
16.25
413
14.25
362
17.31
440
A18P16 A18P16AL 16.75 x 14.88
425 x 378
RHJ1816WLG 18.00 x 16.00 x 10.25
457 x 406 x 260
4 screws 11.07
281
10.83
275
18.74
476
12.00
305
19.50
495
8.56
217
2.39
61
19.32
491
3.27
83
16.25
413
14.25
362
17.31
440
A18P16 A18P16AL 16.75 x 14.88
425 x 378
A x B x C are internal dimensions.
Purchase panels separately. Optional stainless steel, composite and aluminum panels are available for most sizes.
CHS Controls AB
Tel +46 42 38 61 00, Fax +46 42 38 61 29
chs@chscontrols.se www.chscontrols.se
244
Non-Metallic: Fiberglass
Overlapping Cover
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
Raised Cover with Latches, Type 4X
Industry Standards
UL 508A Listed; Type 3, 3R, 4, 4X, 12, 13; File No. E54315
cUL Listed per CSA C22.2 No 94; Type 3, 3R, 4, 4X, 12, 13; File No.
E54315
Enclosure ammability per UL 508A
NEMA/EEMAC Type 3, 3R, 4, 4X, 12, 13
CSA File No. 217184: Type 3, 3R, 4, 4X, 12, 13
IEC 60529, IP66
Meets NEMA Type 3RX requirements
Application
Enclosures feature a raised, hinged, overlapping cover design that
ensures a more-secure seal and oers increased internal space for
mounting components. Available with solid and window covers.
Latches provide easy access and security.
Specications
• Compression-molded berglass construction
• Overlapping raised solid- and window-covers
• Windows are clear polycarbonate
• Cover fastens with padlockable Type 316 stainless steel latches
• Type 304 stainless steel piano hinges
• Integral mounting brackets
• Enclosures protect equipment and operators from indirect
electrical contact
Finish
Fiberglass material is RAL 7035 light-gray inside and out. Optional
steel panels are painted white. Optional stainless steel, aluminum,
conductive and composite panels are unpainted.
Accessories
See also Accessories.
H2OMIT® Vent Drains, Type 4X
HOL-SEALERS™ Non-Metallic Hole Seals
Panels for Junction Boxes
Swing-Out Panel Kit
Terminal Block Kit Assembly for Junction Boxes Overview
Modication and Customization
Homan excels at modifying and customizing products to your
specications. Contact your local Homan sales oce or distributor
for complete information.
Bulletin: HJ
Standard Product
Catalog Number AxBxC in./mm
No. of
Latches
Window
Size
M x N
in./mm
D
in./mm
F
in./mm
G
in./mm
H
in./mm
I
in./mm
J
in./mm
K
in./mm
L
in./mm
O
in./mm
P
in./mm
Q
in./mm
W
in./mm
RHJB1008HWPL1LG 10.00 x 8.00 x 6.19
254 x 203 x 157
1 8.00 x 6.00
203 x 152
6.93
176
6.61
168
10.75
273
6.02
153
11.52
293
4.54
115
2.27
58
11.31
287
3.15
80
8.25
210
6.24
158
9.31
276
RHJB1210HWPL2LG 12.00 x 10.00 x 6.37
305 x 254 x 162
2 10.00 x 8.00
254 x 203
7.10
180
6.77
172
12.75
324
8.01
203
13.51
343
4.71
120
2.27
58
13.30
338
3.15
80
10.25
260
8.25
210
11.29
211
RHJB1412HWPL2LG 14.00 x 12.00 x 7.37
356 x 305 x 187
2 12.00 x 10.00
305 x 254
8.19
208
7.87
200
14.75
375
10.00
254
15.50
394
5.68
144
2.39
61
15.32
389
3.27
83
12.25
311
10.24
260
13.30
338
RHJB1614HWPL2LG 16.00 x 14.00 x 7.37
406 x 356 x 187
2 14.00 x 12.00
356 x 305
8.19
208
7.87
200
16.73
425
12.00
305
17.52
445
5.68
144
2.39
61
17.31
440
3.27
83
14.25
362
12.24
311
15.30
289
RHJ1008HWPL1LG 10.00 x 8.00 x 6.19
254 x 203 x 157
1 ---
---
6.93
176
6.61
168
10.75
273
6.02
153
11.52
296
4.54
115
2.27
58
11.31
287
3.15
80
8.25
210
6.24
158
9.31
276
RHJ1210HWPL2LG 12.00 x 10.00 x 6.37
305 x 254 x 162
2 ---
---
7.10
180
6.77
172
12.75
324
8.01
203
13.51
343
4.71
120
2.27
58
13.30
338
3.15
80
10.58
260
8.25
210
11.29
211
RHJ1412HWPL2LG 14.00 x 12.00 x 7.37
356 x 305 x 187
2 ---
---
8.19
208
7.87
200
14.75
375
10.00
254
15.50
394
5.68
144
2.39
61
15.32
389
3.27
83
12.25
311
10.24
260
13.30
338
RHJ1614HWPL2LG 16.00 x 14.00 x 7.37
406 x 356 x 187
2 ---
---
8.19
208
7.87
200
16.73
425
12.00
305
17.52
445
5.68
144
2.39
61
17.31
440
3.27
83
14.25
362
12.24
311
15.30
289
RHJ1816HWPL2LG 18.00 x 16.00 x 10.25
457 x 406 x 260
2 ---
---
11.07
281
10.83
275
18.74
476
12.00
305
19.50
495
8.56
217
2.39
61
19.32
491
3.27
83
16.25
413
14.25
362
17.31
440
A x B x C are internal dimensions.
Purchase panels separately. Optional stainless steel, composite and aluminum panels are available for most sizes.
CHS Controls AB
Tel +46 42 38 61 00, Fax +46 42 38 61 29
chs@chscontrols.se www.chscontrols.se
245
Non-Metallic: Fiberglass
Overlapping Cover
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
Panels
Enclosure Catalog Number Steel Panel Aluminum Panel
Panel Size
in./mm
RHJB1008HWPL1LG A10P8 A10P8AL 8.75 x 6.88
222 x 102
RHJB1210HWPL2LG A12P10 A12P10AL 10.75 x 8.88
273 x 226
RHJB1412HWPL2LG A14P12 A14P12AL 12.75 x 10.88
324 x 276
RHJB1614HWPL2LG A16P14 A16P14AL 14.75 x 12.88
375 x 327
RHJ1008HWPL1LG A10P8 A10P8AL 8.75 x 6.88
222 x 102
RHJ1210HWPL2LG A12P10 A12P10AL 10.75 x 8.88
273 x 226
RHJ1412HWPL2LG A14P12 A14P12AL 12.75 x 10.88
324 x 276
RHJ1614HWPL2LG A16P14 A16P14AL 14.75 x 12.88
375 x 327
RHJ1816HWPL2LG A18P16 A18P16AL 16.75 x 14.88
425 x 378
CHS Controls AB
Tel +46 42 38 61 00, Fax +46 42 38 61 29
chs@chscontrols.se www.chscontrols.se
246
Non-Metallic: Fiberglass
Overlapping Cover
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
Flat Cover with Screws, Type 4X
Industry Standards
UL 508A Listed; Type 3, 3R, 4, 4X, 12, 13; File No. E54315
cUL Listed per CSA C22.2 No 94; Type 3, 3R, 4, 4X, 12, 13; File No.
E54315
Enclosure ammability per UL 508A
NEMA/EEMAC Type 3, 3R, 4, 4X, 12, 13
CSA File No. 217184: Type 3, 3R, 4, 4X, 12, 13
IEC 60529, IP66
Meets NEMA Type 3RX requirements
Application
Enclosures feature a at, overlapping cover design that ensures a
more-secure seal. Available with removable and hinged covers for
application exibility.
Specications
• Compression-molded berglass construction
• Overlapping at, solid-covers
• Cover fastens with screws
• Type 304 stainless steel piano hinges on hinged models
• Integral mounting brackets
• Enclosures protect equipment and operators from indirect
electrical contact
Finish
Fiberglass material is RAL 7035 light-gray inside and out. Optional
steel panels are painted white. Optional stainless steel, aluminum,
conductive and composite panels are unpainted.
Accessories
See also Accessories.
H2OMIT® Vent Drains, Type 4X
HOL-SEALERS™ Non-Metallic Hole Seals
Panels for Junction Boxes
Swing-Out Panel Kit
Terminal Block Kit Assembly for Junction Boxes Overview
Bulletin: HJ
CHS Controls AB
Tel +46 42 38 61 00, Fax +46 42 38 61 29
chs@chscontrols.se www.chscontrols.se
247
Non-Metallic: Fiberglass
Overlapping Cover
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
Standard Product
Catalog Number AxBxC in./mm
Door
Fasteners
D
in./mm
F
in./mm
G
in./mm
H
in./mm
I
in./mm
J
in./mm
K
in./mm
L
in./mm
O
in./mm
P
in./mm
Q
in./mm
W
in./mm
Steel
Panel
Aluminum
Panel
Panel
Size
in./mm
HJ606HWLG 6.00 x 6.00 x 4.10
152 x 152 x 104
Hinged,
2 screws
4.96
126
4.64
118
6.77
172
4.01
102
7.52
191
4.34
110
0.50
13
7.31
186
1.38
35
4.26
108
4.25
108
7.31
186
A6P6 A6P6AL 4.88 x 4.88
124 x 124
HJ606WLG 6.00 x 6.00 x 4.10
152 x 152 x 104
4 screws 4.96
126
4.64
118
6.77
172
4.01
102
7.52
191
4.34
110
0.50
13
7.31
186
1.38
35
4.26
108
4.25
108
7.31
186
A6P6 A6P6AL 4.88 x 4.88
124 x 124
HJ806HWLG 8.00 x 6.00 x 4.10
203 x 152 x 104
Hinged,
2 screws
4.96
126
4.64
118
8.74
222
4.01
102
9.50
241
3.19
81
1.65
42
9.30
236
1.77
45
6.25
159
4.25
108
7.31
186
A8P6 A8P6AL 6.75 x 4.88
171 x 124
HJ806WLG 8.00 x 6.00 x 4.10
203 x 152 x 104
4 screws 4.96
126
4.64
118
8.74
222
4.01
102
9.50
241
3.19
81
1.65
42
9.30
236
1.77
45
6.26
159
4.25
108
7.31
186
A8P6 A8P6AL 6.75 x 4.88
171 x 124
HJ1008HWLG 10.00 x 8.00 x 4.59
254 x 203 x 117
Hinged,
2 screws
5.43
138
5.12
130
10.75
273
6.02
153
11.52
293
3.55
93
1.65
42
11.31
287
1.77
45
8.25
210
3.24
158
9.31
236
A10P8 A10P8AL 8.75 x 6.88
222 x 102
HJ1008WLG 10.00 x 8.00 x 4.59
254 x 203 x 117
4 screws 5.43
138
5.12
130
10.75
273
6.02
153
11.52
293
3.88
93
1.65
42
11.31
287
1.77
45
8.25
210
6.24
158
9.31
236
A10P8 A10P8AL 8.75 x 6.88
222 x 102
HJ1210HWLG 12.00 x 10.00 x 4.74
305 x 254 x 120
Hinged,
2 screws
5.58
142
5.24
133
12.75
324
8.01
203
13.51
343
3.81
97
1.65
42
13.30
338
1.77
45
10.25
160
8.25
210
11.29
287
A12P10 A12P10AL 10.75 x 8.88
273 x 226
HJ1210WLG 12.00 x 10.00 x 4.74
305 x 254 x 120
4 screws 5.58
142
5.24
133
12.75
324
8.01
203
13.51
343
3.81
97
1.65
42
13.30
338
1.77
45
10.25
160
8.25
210
11.29
287
A12P10 A12P10AL 10.75 x 8.88
2.73 x 226
HJ1412HWLG 14.00 x 12.00 x 5.74
356 x 305 x 146
Hinged,
2 screws
6.70
170
6.38
162
14.75
375
10.00
254
15.50
394
4.93
125
1.65
42
15.32
389
1.77
45
12.25
311
10.24
260
13.30
338
A14P12 A14P12AL 12.75 x 10.88
324 x 276
HJ1412WLG 14.00 x 12.00 x 5.74
356 x 305 x 146
4 screws 6.70
170
6.38
162
14.75
375
10.00
254
15.50
394
4.93
125
1.65
42
15.32
389
1.77
45
12.25
311
10.24
260
13.30
338
A14P12 A14P12AL 12.75 x 10.88
324 x 276
HJ1614HWLG 16.00 x 14.00 x 5.74
406 x 356 x 146
Hinged,
2 screws
6.70
170
6.38
162
16.75
425
12.00
305
14.52
445
4.93
125
1.65
42
17.31
440
1.77
45
14.25
362
12.24
311
15.30
389
A16P14 A16P14AL 14.75 x 12.88
3.75 x 327
HJ1614WLG 16.00 x 14.00 x 5.74
406 x 356 x 146
4 screws 6.70
170
6.38
162
16.73
425
12.00
305
17.52
445
4.93
125
1.65
42
17.31
440
1.77
45
14.25
362
12.24
311
15.30
389
A16P14 A16P14AL 14.75 x 12.88
375 x 327
HJ1816HWLG 18.00 x 16.00 x 8.62
457 x 406 x 219
Hinged,
2 screws
9.58
243
9.25
235
18.74
476
12.00
305
19.50
495
7.81
198
1.65
42
19.31
490
1.77
45
16.25
413
14.25
362
17.31
440
A18P16 A18P16AL 16.75 x 14.88
425 x 378
HJ1816WLG 18.00 x 16.00 x 8.62
457 x 406 x 219
4 screws 9.58
243
9.25
235
18.47
476
12.00
305
19.50
495
7.81
198
1.65
42
19.31
490
1.77
45
16.25
413
14.25
362
17.31
440
A18P16 A18P16AL 16.75 x 14.88
375 x 378
A x B x C are internal dimensions.
Purchase panels separately. Optional stainless steel, composite and aluminum panels are available for most sizes.
CHS Controls AB
Tel +46 42 38 61 00, Fax +46 42 38 61 29
chs@chscontrols.se www.chscontrols.se
248
Non-Metallic: Fiberglass
Overlapping Cover
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
Flat Cover with Latches, Type 4X
Industry Standards
UL 508A Listed; Type 3, 3R, 4, 4X, 12, 13; File No. E54315
cUL Listed per CSA C22.2 No 94; Type 3, 3R, 4, 4X, 12, 13; File No.
E54315
Enclosure ammability per UL 508A
NEMA/EEMAC Type 3, 3R, 4, 4X, 12, 13
CSA File No. 217184: Type 3, 3R, 4, 4X, 12, 13
IEC 60529, IP66
Meets NEMA Type 3RX requirements
Application
Enclosures feature a at, overlapping cover design that ensures a
more-secure seal. Available with solid and window covers. Latches
provide easy access and security.
Specications
• Compression-molded berglass construction
• Overlapping solid- and window-cover models are available
• Windows are clear polycarbonate
• Cover fastens with padlockable Type 316 stainless steel latches
• Type 304 stainless steel piano hinges
• Integral mounting brackets
• Enclosures protect equipment and operators from indirect
electrical contact
Finish
Fiberglass material is RAL 7035 light-gray inside and out. Optional
steel panels are painted white. Optional stainless steel, aluminum,
conductive and composite panels are unpainted.
Accessories
See also Accessories.
H2OMIT® Vent Drains, Type 4X
HOL-SEALERS™ Non-Metallic Hole Seals
Panels for Junction Boxes
Swing-Out Panel Kit
Terminal Block Kit Assembly for Junction Boxes Overview
Modication and Customization
Homan excels at modifying and customizing products to your
specications. Contact your local Homan sales oce or distributor
for complete information.
Bulletin: HJ
CHS Controls AB
Tel +46 42 38 61 00, Fax +46 42 38 61 29
chs@chscontrols.se www.chscontrols.se
249
Non-Metallic: Fiberglass
Overlapping Cover
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
Standard Product
Catalog Number AxBxC in./mm
No. of
Latches
Window Size
M x N
in./mm
D
in./mm
F
in./mm
G
in./mm
H
in./mm
I
in./mm
J
in./mm
K
in./mm
L
in./mm
P
in./mm
Q
in./mm
W
in./mm
Steel
Panel
Aluminum
Panel
Panel Size
in./mm
HJ606HWPL1LG 6.00 x 6.00 x 4.10
152 x 152 x 104
1 —
—
4.96
126
4.64
118
6.77
172
4.01
102
7.52
191
4.34
110
0.50
13
7.31
186
4.26
108
4.25
105
7.31
186
A6P6 A6P6AL 4.88 x 4.88
124 x 124
HJ806HWPL1LG 8.00 x 6.00 x 4.10
203 x 152 x 104
1 —
—
4.96
126
4.64
118
8.74
222
4.01
102
9.50
241
3.19
81
1.65
42
9.30
276
6.26
159
4.25
108
7.31
186
A8P6 A8P6AL 6.75 x 4.88
171 x 124
HJ1008HWPL1LG 10.00 x 8.00 x 4.59
254 x 203 x 117
1 —
—
5.43
138
5.12
130
10.75
276
6.02
153
11.52
293
3.66
93
1.65
42
11.31
287
8.25
210
6.24
158
9.31
236
A10P8 A10P8AL 8.75 x 6.88
222 x 102
HJ1210HWPL2LG 12.00 x 10.00 x 4.74
305 x 254 x 120
2 —
—
5.58
142
5.25
133
12.75
324
8.01
203
13.51
343
3.81
97
1.65
42
13.30
338
10.25
260
8.25
210
11.29
287
A12P10 A12P10AL 10.75 x 8.88
273 x 226
HJ1412HWPL2LG 14.00 x 12.00 x 5.74
356 x 305 x 146
2 —
—
6.70
170
6.38
162
14.75
375
10.00
254
15.50
394
4.93
125
1.65
42
15.32
389
12.25
311
10.24
260
13.30
338
A14P12 A14P12AL 12.75 x 10.88
324 x 276
HJ1614HWPL2LG 16.00 x 14.00 x 5.74
406 x 356 x 146
2 —
—
6.70
170
6.38
162
16.73
425
12.00
305
17.52
445
4.93
125
1.65
42
17.31
440
14.25
362
12.24
311
15.30
389
A16P14 A16P14AL 14.75 x 12.88
375 x 327
HJ1816HWPL2LG 18.00 x 16.00 x 8.62
457 x 406 x 219
2 —
—
9.58
243
9.25
235
18.74
476
12.00
305
19.50
495
7.81
198
1.65
42
19.31
490
16.25
413
14.25
362
17.31
440
A18P16 A18P16AL 16.75 x 14.88
425 x 378
HJB606HWPL1LG 6.00 x 6.00 x 4.10
152 x 152 x 104
1 4.00 x 4.00
102 x 102
4.96
126
4.64
118
6.77
172
4.01
102
7.52
191
4.34
110
0.50
13
7.31
186
4.25
108
4.25
108
7.31
186
A6P6 A6P6AL 4.88 x 4.88
124 x 124
HJB806HWPL1LG 8.00 x 6.00 x 4.10
203 x 152 x 104
1 6.00 x 4.00
152 x 102
4.96
126
4.64
118
8.74
222
4.01
102
9.50
241
3.19
81
1.65
42
9.30
276
6.26
159
4.25
108
7.31
186
A8P6 A8P6AL 6.75 x 1.88
171 x 124
HJB1008HWPL1LG 10.00 x 8.00 x 4.59
254 x 203 x 117
1 8.00 x 6.00
203 x 152
5.43
138
5.12
130
10.75
273
6.02
153
11.52
293
3.66
93
1.65
42
11.31
287
8.25
210
6.24
158
9.31
236
A10P8 A10P8AL 8.75 x 6.88
222 x 102
HJB1210HWPL2LG 12.00 x 10.00 x 4.74
305 x 254 x 120
2 10.00 x 8.00
254 x 203
5.58
142
5.24
133
12.75
324
8.01
203
13.52
343
3.81
97
1.65
42
13.30
338
10.25
324
8.25
210
11.29
287
A12P10 A12P10AL 10.78 x 8.88
273 x 226
HJB1412HWPL2LG 14.00 x 12.00 x 5.74
356 x 305 x 146
2 12.00 x 10.00
305 x 254
6.70
170
6.38
162
14.75
375
10.00
254
15.50
394
4.93
125
1.65
42
15.32
389
12.25
311
10.24
260
13.30
229
A14P12 A14P12AL 12.75 x 10.88
324 x 276
HJB1614HWPL2LG 16.00 x 14.00 x 5.74
406 x 356 x 146
2 14.00 x 12.00
356 x 305
6.70
170
6.38
162
16.73
425
12.00
305
17.52
445
4.93
125
1.65
42
17.31
440
14.25
362
12.24
311
15.30
389
A16P14 A16P14AL 14.75 x 12.88
375 x 327
HJB1816HWPL2LG 18.00 x 16.00 x 8.62
457 x 406 x 219
2 16.00 x 14.00
406 x 356
9.58
243
9.25
235
18.74
476
12.00
305
19.50
495
7.81
198
1.65
42
19.31
490
16.25
413
14.25
362
17.31
440
A18P16 A18P16AL 16.75 x 14.88
425 x 378
A x B x C are internal dimensions.
Purchase panels separately. Optional stainless steel, composite and aluminum panels are available for most sizes.
CHS Controls AB
Tel +46 42 38 61 00, Fax +46 42 38 61 29
chs@chscontrols.se www.chscontrols.se
250
Non-Metallic: Fiberglass
Overlapping Cover
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
Flat Clear Cover with Latches, Type 4X
Industry Standards
UL 508A Listed; Type 3, 3R, 4, 4X, 12, 13; File No. E54315
cUL Listed per CSA C22.2 No 94; Type 3, 3R, 4, 4X, 12, 13; File No.
E54315
Enclosure ammability per UL 508A
NEMA/EEMAC Type 3, 3R, 4, 4X, 12, 13
CSA File No. 217184: Type 3, 3R, 4, 4X, 12, 13
IEC 60529, IP66
Meets NEMA Type 3RX requirements
Application
Enclosures feature a at, overlapping clear cover design that ensures
a more-secure seal and provides a larger viewing area than a
traditional window. Latches provide easy access and security.
Specications
• Compression-molded berglass construction
• Clear polycarbonate viewing area
• Cover fastens with padlockable Type 316 stainless steel latches
• Type 304 stainless steel piano hinges
• Integral mounting brackets
• Enclosures protect equipment and operators from indirect
electrical contact
Finish
Fiberglass material is RAL 7035 light-gray inside and out. Optional
steel panels are painted white. Optional stainless steel, aluminum,
conductive and composite panels are unpainted
Accessories
See also Accessories.
H2OMIT® Vent Drains, Type 4X
HOL-SEALERS™ Non-Metallic Hole Seals
Panels for Junction Boxes
Swing-Out Panel Kit
Terminal Block Kit Assembly for Junction Boxes Overview
Modication and Customization
Homan excels at modifying and customizing products to your
specications. Contact your local Homan sales oce or distributor
for complete information.
Bulletin: HJ

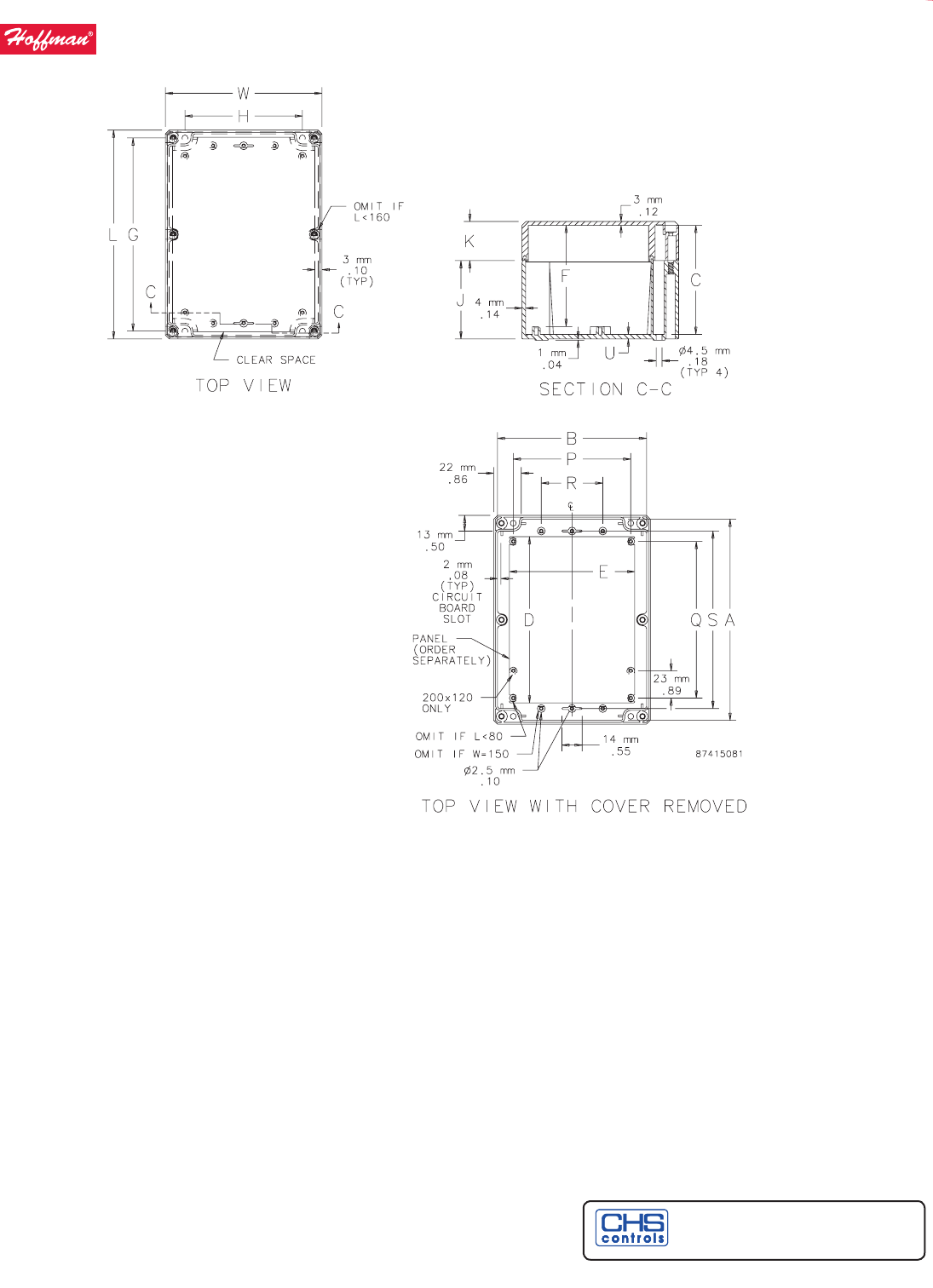

Standard Product
Catalog Number AxBxC in./mm
No. of
Latches
Window Size
N x M
in./mm
D
in./mm
F
in./mm
G
in./mm
H
in./mm
I
in./mm
J
in./mm
K
in./mm
L
in./mm
P
in./mm
Q
in./mm
W
in./mm
Steel
Panel
Aluminum
Panel
Panel Size
in./mm
CHJ606HWPL1LG 6.00 x 6.00 x 4.10
152 x 152 x 104
1 6.00 x 6.00
152 x 152
4.96
126
4.64
118
6.77
172
4.01
102
7.52
191
4.34
110
0.50
13
7.31
186
4.26
108
4.25
108
7.31
186
A6P6 A6P6AL 4.88 x 4.88
124 x 124
CHJ806HWPL1LG 8.00 x 6.00 x 4.10
203 x 152 x 104
1 8.00 x 6.00
203 x 152
4.96
126
4.64
118
8.74
222
4.01
102
9.50
241
4.34
110
1.65
42
9.30
276
6.26
159
4.25
108
7.31
186
A8P6 A8P6AL 6.75 x 4.88
171 x 124
CHJ1008HWPL1LG 10.00 x 8.00 x 4.59
254 x 203 x 117
1 10.00 x 8.00
254 x 203
5.43
138
5.12
130
10.75
273
6.02
153
11.52
293
3.66
93
1.65
42
11.31
287
8.25
210
6.24
158
9.31
236
A10P8 A10P8AL 8.75 x 6.88
222 x 102
CHJ1210HWPL2LG 12.00 x 10.00 x 4.74
305 x 254 x 120
2 12.00 x 10.00
305 x 254
5.58
142
5.24
133
12.75
324
8.01
203
13.51
343
3.81
97
1.65
42
13.30
338
10.25
260
8.25
210
11.29
287
A12P10 A12P10AL 10.75 x 8.88
273 x 226
CHJ1412HWPL2LG 14.00 x 12.00 x 5.74
356 x 305 x 146
2 14.00 x 12.00
356 x 305
6.70
170
6.38
162
14.75
375
10.00
254
15.50
394
4.93
125
1.65
42
15.32
389
12.25
311
10.24
260
13.30
338
A14P12 A14P12AL 12.75 x 10.88
324 x 276
CHJ1614HWPL2LG 16.00 x 14.00 x 5.74
406 x 356 x 146
2 16.00 x 14.00
406 x 356
6.70
170
6.38
162
16.73
425
12.00
305
17.52
445
4.93
125
1.65
42
17.31
440
14.25
362
12.24
311
15.30
389
A16P14 A16P14AL 14.75 x 12.88
375 x 327
CHJ1816HWPL2LG 18.00 x 16.00 x 8.62
457 x 406 x 219
2 18.00 x 16.00
457 x 406
9.58
243
9.25
235
18.74
476
12.00
305
19.50
495
7.81
198
1.65
42
19.31
490
16.25
413
14.25
362
17.31
440
A18P16 A18P16AL 16.75 x 14.88
425 x 378
A x B x C are internal dimensions.
Purchase panels separately. Optional stainless steel, composite and aluminum panels are available for most sizes.
CHS Controls AB
Tel +46 42 38 61 00, Fax +46 42 38 61 29
chs@chscontrols.se www.chscontrols.se
251
Non-Metallic: Fiberglass
Overlapping Cover
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
CHS Controls AB
Tel +46 42 38 61 00, Fax +46 42 38 61 29
chs@chscontrols.se www.chscontrols.se
252
Non-Metallic: Fiberglass
ULTRX®
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
ULTRX®
ULTRX®, Type 4X
Industry Standards
Mounting brackets required to meet UL/CSA external mounting
requirements.
UL 508A Listed; Type 3, 3R, 4, 4X, 12, 13; File No. E61997
cUL Listed per CSA C22.2 No 94; Type 3, 3R, 4, 4X, 12, 13; File No.
E619977
Enclosure ammability evaluated per UL 508A
Window ammability evaluated per UL 508A
NEMA/EEMAC Type 3, 3R, 4, 4X, 12, 13
CSA File No. 42186: Type 3, 3R, 4, 4X, 12, 13
IEC 60529, IP66
Meets NEMA Type 3RX requirements
Application
Providing outstanding protection against corrosion and the
elements, the clean lines and molded, embossed design of ULTRX
®
berglass enclosures make them the most stylish and aesthetically
pleasing of their class. These enclosures feature hidden hinges, a
padlocking capability for security, and exible internal mounting
options.
Specications
• Compression-molded berglass material has excellent
temperature and chemical resistance qualities and exhibits
outstanding physical properties, including high-impact resistance
• Fiberglass is easily punched, drilled, led or sawed
• Seamless foam-in-place gasket assures water-tight and dust-tight
seal
• Enclosure may be rotated 180 degrees for left and right hinging
• Molded-in drip shields are standard with each enclosure
• Impact-resistant polycarbonate window is permanently bonded in
place
• Fiberglass mounting brackets and stainless steel attachment
screws are provided with each enclosure
• Unique hinge design allows for standard 180 degree door opening
with a maximum opening of 270 degrees
• Door hinges are replaceable
• Type 316 stainless steel quarter-turn latch. Optional keylocking or
padlocking handle available.
• Molded-in DIN bosses
• Molded bosses on door provide additional mounting provisions
• Integral mounting rails provide innite panel adjustment front to
back
• Optional data pocket is high-impact thermoplastic
Finish
Exterior surface painted light-gray acrylic enamel for enhanced
UV protection. Optional steel panels are painted white. Optional
stainless steel, aluminum, conductive and composite panels are
unpainted.
Accessories
See also Accessories.
H2OMIT® Vent Drains, Type 4X
H2OMIT® Thermoelectric Dehumidier
HOL-SEALERS™ Non-Metallic Hole Seals
Panels for Type 3R, 4, 4X, 12 and 13 Enclosures
Rack Angles (Type RA)
Modication and Customization
Homan excels at modifying and customizing products to your
specications. Contact your local Homan sales oce or distributor
for complete information.
Bulletin: UX1
Standard Product
Catalog Number
Door
Style
External
Dimensions
L x W
mm/in.
Internal
Dimensions
A x B x C
mm/in. Panel
Conductive
Panel
Panel Size
D x E
mm/in.
Mounting
G x H
mm/in.
Window Size
M x N
mm/in.
F
mm/in.
J
mm/in.
K
mm/in.
S
mm/in.
T
mm/in.
UU504020 Solid 513 x 413
20.20 x 16.26
496 x 396 x 220
19.53 x 15.59 x 8.66
A20P16 A20P16G 432 x 330
17.00 x 12.99
359 x 459
14.13 x 18.07
—
—
186
7.32
297
11.69
19
0.75
286
11.26
387
15.24
UU504020W Window 513 x 413
20.20 x 16.26
496 x 396 x 220
19.53 x 15.59 x 8.66
A20P16 A20P16G 439 x 330
17.00 x 12.99
359 x 459
14.13 x 18.07
386 x 286
15.20 x 11.26
186
7.32
297
11.69
19
0.75
286
11.26
387
15.24
UU606020 Solid 625 x 612
24.61 x 24.09
608 x 595 x 220
23.94 x 23.43 x 8.66
A24P24 A24P24G 533 x 533
20.98 x 20.98
559 x 572
22.01 x 22.52
—
—
186
7.32
500
19.68
21
0.83
489
19.25
489
19.25
UU606020W Window 625 x 612
24.61 x 24.09
608 x 595 x 220
23.94 x 23.43 x 8.66
A24P24 A24P24G 533 x 533
20.98 x 20.98
559 x 572
22.01 x 22.52
498 x 486
19.61 x 19.13
186
7.32
500
19.68
21
0.83
489
19.25
489
19.25
UU605025 Solid 625 x 513
24.61 x 20.20
608 x 496 x 270
23.94 x 19.53 x 10.63
A24P20 A24P20G 533 x 432
20.98 x 17.00
457 x 570
17.99 x 22.44
—
—
239
9.41
400
15.75
21
0.83
387
15.24
489
19.25
UU605025W Window 625 x 513
24.61 x 20.20
608 x 496 x 270
23.94 x 19.53 x 10.63
A24P20 A24P20G 533 x 432
20.98 x 17.00
457 x 570
17.99 x 22.44
498 x 386
19.61 x 15.20
239
9.41
400
15.75
21
0.83
387
15.24
489
19.25
UU504030 Solid 513 x 412
20.20 x 16.22
496 x 395 x 321
19.53 x 15.55 x 12.64
A20P16 A20P16G 432 x 330
17.00 x 12.99
355 x 455
13.98 x 17.91
—
—
287
11.30
300
11.81
19
0.75
286
11.26
387
15.24
UU504030W Window 513 x 412
20.20 x 16.22
496 x 395 x 321
19.53 x 15.55 x 12.64
A20P16 A20P16G 432 x 330
17.00 x 12.99
355 x 455
13.98 x 17.91
386 x 286
15.20 x 11.26
287
11.30
300
11.81
19
0.75
286
11.26
387
15.24
UU606030 Solid 625 x 612
24.61 x 24.09
608 x 595 x 321
23.94 x 23.43 x 12.64
A24P24 A24P24G 533 x 533
20.98 x 20.98
555 x 568
21.85 x 22.36
—
—
287
11.30
500
19.68
21
0.83
489
19.25
489
19.25
UU606030W Window 625 x 612
24.61 x 24.09
608 x 595 x 321
23.94 x 23.43 x 12.64
A24P24 A24P24G 533 x 533
20.98 x 20.98
555 x 568
21.85 x 22.36
498 x 486
19.61 x 19.13
287
11.30
500
19.68
21
0.83
489
19.25
489
19.25
UU756030 Solid 775 x 612
30.51 x 24.09
758 x 595 x 321
29.84 x 23.43 x 12.64
A30P24 A30P24G 686 x 533
27.01 x 20.98
555 x 718
21.85 x 28.27
—
—
287
11.30
500
19.68
21
0.83
489
19.25
641
25.24
CHS Controls AB
Tel +46 42 38 61 00, Fax +46 42 38 61 29
chs@chscontrols.se www.chscontrols.se
253
Non-Metallic: Fiberglass
ULTRX®
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
Catalog Number
Door
Style
External
Dimensions
L x W
mm/in.
Internal
Dimensions
A x B x C
mm/in. Panel
Conductive
Panel
Panel Size
D x E
mm/in.
Mounting
G x H
mm/in.
Window Size
M x N
mm/in.
F
mm/in.
J
mm/in.
K
mm/in.
S
mm/in.
T
mm/in.
UU756030W Window 775 x 612
30.51 x 24.09
758 x 595 x 321
29.84 x 23.43 x 12.64
A30P24 A30P24G 686 x 533
27.01 x 20.98
555 x 718
21.85 x 28.27
648 x 486
25.51 x 19.13
287
11.30
500
19.68
21
0.83
489
19.25
641
25.24
UU1008030 Solid 1025 x 825
40.35 x 32.48
1008 x 808 x 321
39.68 x 31.81 x 12.64
A40P30 A40P30G 940 x 737
37.01 x 29.02
768 x 968
30.24 x 38.11
—
—
287
11.30
700
27.56
23
0.91
692
27.24
895
35.24
UU1008030W Window 1025 x 825
40.35 x 32.48
1008 x 808 x 321
39.68 x 31.81 x 12.64
A40P30 A40P30G 940 x 737
37.01 x 29.02
768 x 968
30.24 x 38.11
898 x 698
35.35 x 27.48
287
11.30
700
27.56
23
0.91
692
27.24
895
35.24
UU606040 Solid 625 x 612
24.61 x 24.09
608 x 595 x 421
23.94 x 23.43 x 16.57
A24P24 A24P24G 533 x 533
20.98 x 20.98
555 x 568
21.85 x 22.36
—
—
387
15.24
500
19.68
21
0.83
489
19.25
489
19.25
UU606040W Window 625 x 612
24.61 x 24.09
608 x 595 x 421
23.94 x 23.43 x 16.57
A24P24 A24P24G 533 x 533
20.98 x 20.98
555 x 568
21.85 x 22.36
498 x 486
19.61 x 19.13
387
15.24
500
19.68
21
0.83
489
19.25
489
19.25
UU756040 Solid 775 x 612
30.51 x 24.09
758 x 595 x 421
29.84 x 23.43 x 16.57
A30P24 A30P24G 686 x 533
27.01 x 20.98
555 x 718
21.85 x 28.27
—
—
387
15.24
500
19.68
21
0.83
489
19.25
641
25.24
UU756040W Window 775 x 612
30.51 x 24.09
758 x 595 x 421
29.84 x 23.43 x 16.57
A30P24 A30P24G 686 x 533
27.01 x 20.98
555 x 718
21.85 x 28.27
648 x 486
25.51 x 19.13
387
15.24
500
19.68
21
0.83
489
19.25
641
25.24
Purchase panels separately.
CHS Controls AB
Tel +46 42 38 61 00, Fax +46 42 38 61 29
chs@chscontrols.se www.chscontrols.se
254
Non-Metallic: Fiberglass
ULTRX®
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
Grounding Device
Grounding Device provides a means
to attach a grounding conductor to
an ULTRX Swing-Out Panel or Swing-
Out Frame. Includes all installation
hardware and instructions.
Bulletin: UX1Y
Catalog Number Description
UUGK ULTRX Grounding Device
Panels for Type 3R, 4, 4X, 12 and 13 Enclosures
Steel panels are 12 gauge with a white nish. Panel mounting
hardware is furnished with all enclosures which accept these panels.
Bulletin: DWS12, PNLWM
Catalog Number
Panel
Gauge
Flange
Thickness
T (in.)
Flange
Thickness
T (mm)
Panel Size
D x E (in.)
Panel Size
D x E (mm)
Number
of Holes
Edge
Flanges
A20P16 12 — — 17.00 x 13.00 432 x 330 4 None
A24P20 — 0.75 19 21.00 x 17.00 533 x 432 4 2
A24P24 — 0.75 19 21.00 x 21.00 533 x 533 4 2
A24P24WD — 0.75 19 21.00 x 21.00 533 x 533 4 —
A30P24 — 0.75 19 27.00 x 21.00 686 x 533 4 2
A40P30 — 0.75 19 37.00 x 29.00 940 x 737 4 4
Catalog number with “WD” is wood.
CHS Controls AB
Tel +46 42 38 61 00, Fax +46 42 38 61 29
chs@chscontrols.se www.chscontrols.se
255
Non-Metallic: Fiberglass
ULTRX®
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
Rack Angles (Type RA)
Pairs of full-length rack-mounting angles are available for mounting
1- in. (483-mm) rack-mounted equipment. Type RA angles are 14
gauge steel with .281-in. (7-mm) diameter mounting holes, spaced
per EIA standard RS-310-D (universal spacing). Use Clip Nut Package
(AN1032) to provide tapped holes at desired locations. Angles and
mounting hardware are plated steel. Mounting hardware is furnished.
Bulletin: UX1Y
Catalog Number
Fits A x B
mm/in.
L
mm/in.
N
mm/in.
Rack
Units
Pkg.
Qty.
UURA6060 610 x 610
24.00 x 24.00
552
21.75
10
.38
12 2
UURA7560 762 x 610
30.00 x 24.00
705
27.75
19
.75
15 2
Use UURA6060 with DATACOM ULTRX Fiberglass Type 4X WiFi Cabinet.
Keylock Kit and Padlock Kit
Keylock Kit or pushbutton-style Padlock Kit is easily inserted in latch
hole to prevent unauthorized personnel from gaining access to
enclosure contents. Each kit is fully assembled for easy installation in
the eld. Type 316 stainless steel construction.
Bulletin: UX1Y
Catalog Number Description
UUHKL Keylock Kit
UUHPL Padlock Kit
UUHKL: Internal key components are not stainless steel.
UUHPL: Handles maintain UL 508A, Type 3, 4, 4X and 12 when properly installed on a Homan enclosure. Set
up for 1/4-in. or 3/8-in. padlock.
CHS Controls AB
Tel +46 42 38 61 00, Fax +46 42 38 61 29
chs@chscontrols.se www.chscontrols.se
256
Non-Metallic: Fiberglass
ULTRX®
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
Swing Frame
Swing Frame provides 19-in. rack-mounting capabilities with U-Style
(Type RA) mounting hole pattern. Quarter-turn latch has 100-degree
swing. Adjustable mounting provision. 14 gauge plated steel.
Includes mounting hardware. Swing frame maintains enclosure rating
if properly installed in a Homan enclosure.
Swing Frame will not slide all the way forward in 400-mm-deep
enclosures. Consult factory for more information.
Bulletin: UX1Y
Catalog Number
Fits A x B
mm/in.
L
mm/in.
W
mm/in.
Rack
Units
UU6060SF 610 x 610
24.00 x 24.00
540
21.25
535
21.08
11
UU7560SF 762 x 610
30.00 x 24.00
687
27.05
535
21.08
14
Use UU6060SF with DATACOM ULTRX Fiberglass Type 4X WiFi Cabinet.
Door Stop Kit
Door Stop Kit limits door to
120-degree opening. Field installable
on all sizes of ULTRX enclosures. Type
304 stainless steel construction.
Bulletin: UX1Y
Catalog Number Description
UUDS Door Stop Kit
CHS Controls AB
Tel +46 42 38 61 00, Fax +46 42 38 61 29
chs@chscontrols.se www.chscontrols.se
257
Non-Metallic: Fiberglass
ULTRX®
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
ULTRX® Key Insert
Inserts can be substituted for the
standard quarter-turn latch. Inserts
are Type 316 stainless steel.
Bulletin: UX1Y
Catalog Number Insert Type
UUL3DB Double-bit 3 mm
UULSC Screw driver slot
ULTRX® Mounting Bracket Kit
Kit is eld-installable. Corrosion-
resistant berglass material. Type 316
stainless steel mounting hardware
is included. Four mounting brackets
per kit.
Bulletin: UX1Y
Catalog Number Description Kit Qty.
UUMF Mounting Bracket Kit 4
CHS Controls AB
Tel +46 42 38 61 00, Fax +46 42 38 61 29
chs@chscontrols.se www.chscontrols.se
258
Non-Metallic: Fiberglass
Hinge-Cover with 3-Point Latch or Quick-Release Latches
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
Hinge-Cover w ith 3-Poi nt Latch or Qu ick-Relea se Latches
Hinge-Cover with 3-Point Latch or Quick-Release Latches, Type 4X
Industry Standards
UL 508A Listed; Type 3, 3R, 4, 4X, 12, 13; File No. E61997
cUL Listed per CSA C22.2 No 94; Type 3, 3R, 4, 4X, 12, 13; File No.
E61997
Enclosure ammability evaluated per UL 508A
NEMA/EEMAC Type 3, 3R, 4, 4X, 12, 13
IEC 60529, IP66
Meets NEMA Type 3RX requirements
Application
A full range of modication options are available for wall-mount
berglass enclosures, including variable depths to accommodate
larger controls. These enclosures feature stainless steel padlocking
hasps or Homan’s exclusive POWERGLIDE® Handle with 3-point
latching for ease of access with increased security.
Specications
• Fiberglass-reinforced material has excellent temperature and
chemical resistance qualities and exhibits outstanding physical
properties
• Type 316L stainless steel padlocking POWERGLIDE Handle on
3-point latch versions assures security and a water-tight seal while
still allowing convenient access
• Quick-release latch versions feature berglass-reinforced polyester
latches with integral Type 316L stainless steel padlocking hasp
• Seams are sealed; no holes or knockouts
• Seamless foam-in-place gasket assures water-tight and dust-tight
seal
• Fiberglass material is easily punched, drilled, led or sawed
• Data pocket is high-impact thermoplastic
•
Copper-ashed steel collar studs for mounting optional panels and
terminal block kits
Finish
Fiberglass enclosure is gray inside and out. Handle is Type 316L
stainless steel electropolished. Optional steel panels are painted
white. Optional stainless steel, aluminum and composite panels
available in select sizes.
Accessories
See also Accessories
H2OMIT® Thermoelectric Dehumidier
H2OMIT® Vent Drains, Type 4X
HOL-SEALERS™ Non-Metallic Hole Seals
Panels
Stainless Steel Window Kits
Terminal Block Kit Assembly
Thermal Accessories
Modication and Customization
Homan excels at modifying and customizing products to your
specications. Contact your local Homan sales oce or distributor
for complete information.
Bulletin: A17W3, A17WM
CHS Controls AB
Tel +46 42 38 61 00, Fax +46 42 38 61 29
chs@chscontrols.se www.chscontrols.se
259
Non-Metallic: Fiberglass
Hinge-Cover with 3-Point Latch or Quick-Release Latches
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products

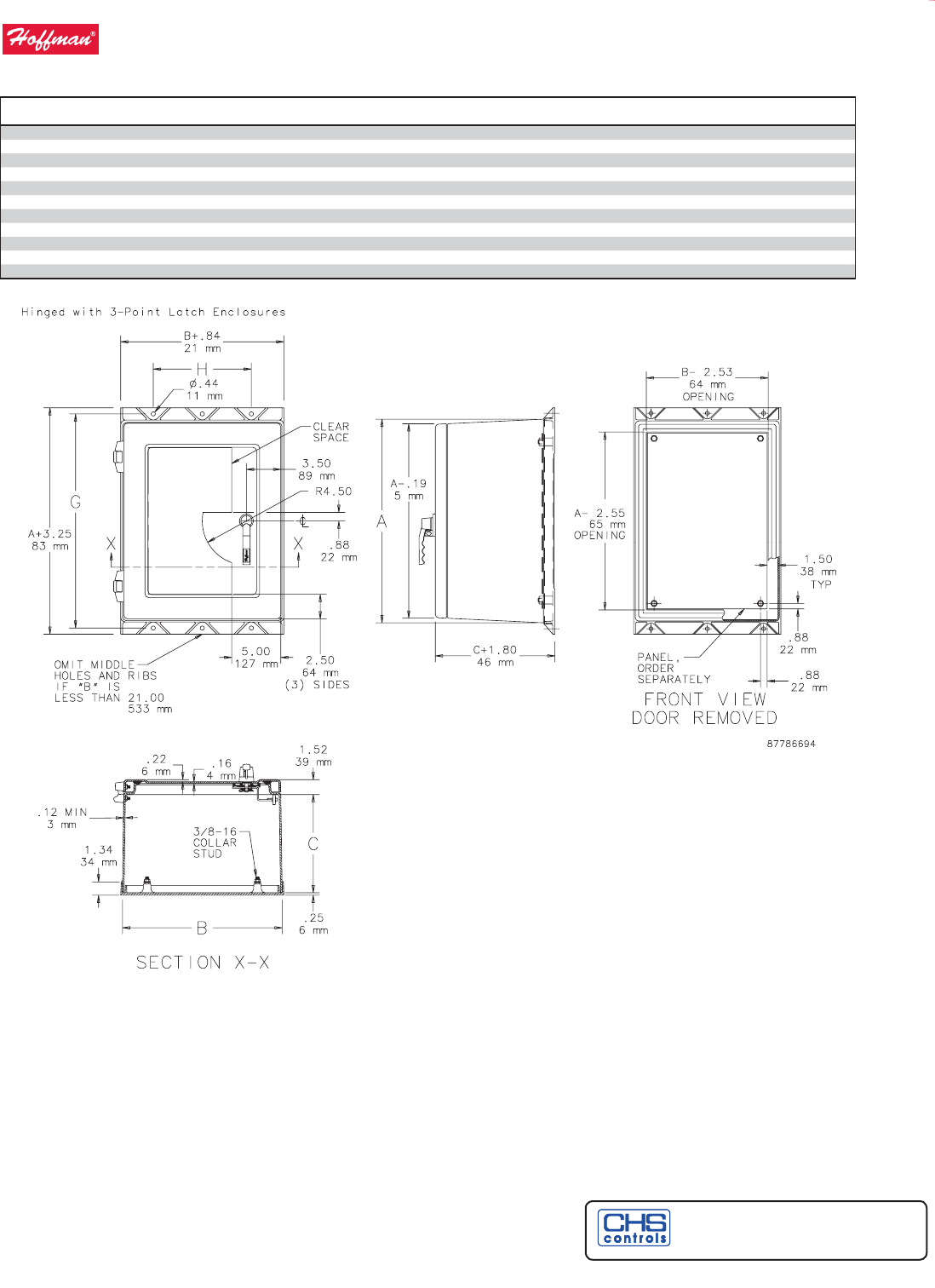

Standard Product 3-Point Latch
Catalog Number AxBxC in. AxBxC mm Panel
Conductive
Panel
Panel Size
Height (in.)
Panel Size
Height (mm)
G x H
(in.)
G x H
(mm)
A24H2006GQRLP3PT 24.25 x 20.25 x 6.00 616 x 514 x 203 A24P20 A24P20G 21.00 x 17.00 533 x 432 25.86 x 14.00 657 x 356
A20H2008GQRLP3PT 20.19 x 20.25 x 8.00 513 x 514 x 203 A20P20 A20P20G 17.00 x 17.00 432 x 432 21.81 x 14.00 554 x 356
A24H2008GQRLP3PT 24.25 x 20.25 x 8.00 616 x 514 x 203 A24P20 A24P20G 21.00 x 17.00 533 x 432 25.86 x 14.00 657 x 356
A24H2408GQRLP3PT 24.19 x 24.19 x 8.00 614 x 614 x 203 A24P24 A24P24 21.00 x 21.00 533 x 533 25.81 x 18.00 656 x 457
A30H2408GQRLP3PT 30.25 x 24.25 x 8.00 768 x 616 x 203 A30P24 A30P24G 27.00 x 21.00 686 x 533 31.95 x 18.00 812 x 457
A36H3008GQRLP3PT 36.25 x 30.25 x 8.00 921 x 768 x 203 A36P30 A36P30G 33.00 x 27.00 838 x 686 37.58 x 24.00 955 x 610
A24H2010GQRLP3PT 24.25 x 20.25 x 10.00 616 x 514 x 254 A24P20 A24P20G 21.00 x 17.00 533 x 432 25.86 x 14.00 657 x 356
A30H2410GQRLP3PT 30.25 x 24.25 x 10.00 768 x 616 x 254 A30P24 A30P24G 27.00 x 21.00 686 x 533 31.95 x 18.00 812 x 457
A24H2412GQRLP3PT 24.19 x 24.19 x 12.00 614 x 614 x 305 A24P24 A24P24G 21.00 x 21.00 533 x 533 25.81 x 18.00 656 x 457
A30H2412GQRLP3PT 30.25 x 24.25 x 12.00 768 x 616 x 305 A30P24 A30P24G 27.00 x 21.00 686 x 533 31.95 x 18.00 812 x 457
A36H3012GQRLP3PT 36.25 x 30.25 x 12.00 921 x 768 x 305 A36P30 A36P30G 33.00 x 27.00 838 x 686 37.58 x 24.00 955 x 610
Purchase panels separately. Optional stainless steel, composite and aluminum panels available for most sizes. See General Accessories.
CHS Controls AB
Tel +46 42 38 61 00, Fax +46 42 38 61 29
chs@chscontrols.se www.chscontrols.se
260
Non-Metallic: Fiberglass
Hinge-Cover with 3-Point Latch or Quick-Release Latches
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products

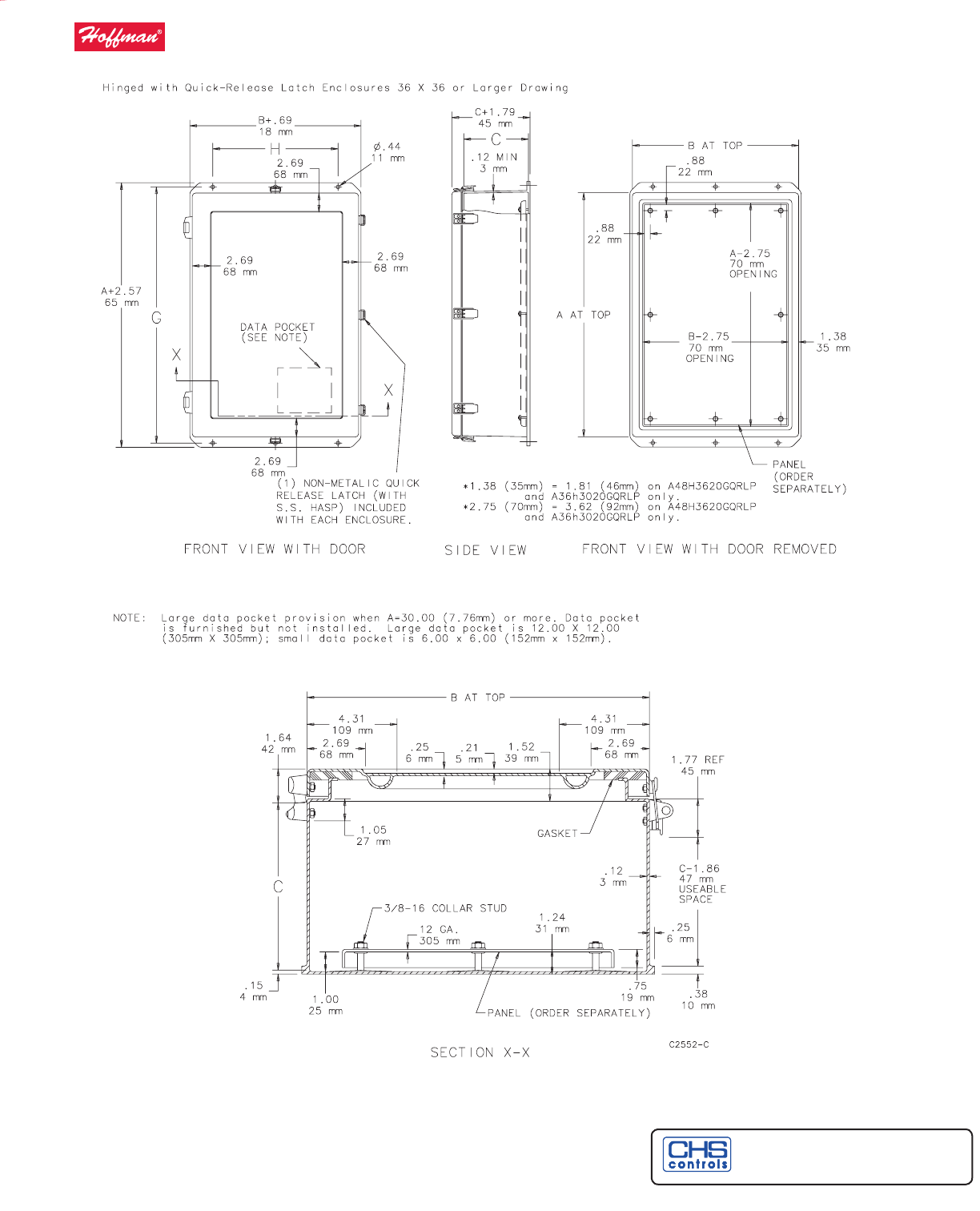

Standard Product Quick-Release Latch
Catalog Number AxBxC in. AxBxC mm Panel
Cond.
Panel
Panel
Size
(in.)
Panel
Size
(mm)
Mtg
G x H
(in.)
Mtg
G x H
(mm)
No.
of
Latches
Add’l
“C”
Dim’s
(in.)
Add’l
“C”
Dim’s
(mm)
Add’l
“C”
Dim’s
(in.)
Add’l
“C”
Dim’s
(mm)
Add’l
“C”
Dim’s
(in.)
Add’l
“C”
Dim’s
(mm)
A20H1606GQRLP 20.19 x 16.25 x 6.00 513 x 413 x 152 A20P16 A20P16G 17.00 x 13.00 432 x 330 21.81 x 10.00 554 x 254 4 — — — — — —
A20H2006GQRLP 20.19 x 20.25 x 6.00 513 x 514 x 152 A20P20 A20P20G 17.00 x 17.00 432 x 432 21.81 x 14.00 554 x 356 4 — — — — — —
A24H2006GQRLP 24.25 x 20.25 x 6.00 616 x 514 x 152 A24P20 A24P20G 21.00 x 17.00 533 x 432 25.86 x 14.00 657 x 356 4 — — — — — —
A30H2406GQRLP 30.25 x 24.25 x 6.00 768 x 616 x 152 A30P24 A30P24G 27.00 x 21.00 686 x 533 31.95 x 18.00 812 x 457 5 — — — — — —
A20H1608GQRLP 20.19 x 16.25 x 8.00 513 x 413 x 203 A20P16 A20P16G 17.00 x 13.00 432 x 330 21.81 x 10.00 554 x 254 4 — — — — — —
A20H2008GQRLP 20.19 x 20.25 x 8.00 513 x 514 x 203 A20P20 A20P20G 17.00 x 17.00 432 x 432 21.81 x 14.00 554 x 356 4 — — — — — —
A24H2008GQRLP 24.25 x 20.25 x 8.00 616 x 514 x 203 A24P20 A24P20G 21.00 x 17.00 533 x 432 25.86 x 14.00 657 x 356 4 — — — — — —
A24H2408GQRLP 24.19 x 24.19 x 8.00 614 x 614 x 203 A24P24 A24P24G 21.00 x 21.00 533 x 533 25.81 x 18.00 656 x 457 4 — — — — — —
A30H2408GQRLP 30.25 x 24.25 x 8.00 768 x 616 x 203 A30P24 A30P24G 27.00 x 21.00 686 x 533 31.95 x 18.00 812 x 457 5 — — — — — —
A36H3008GQRLP 36.25 x 30.25 x 8.00 921 x 768 x 203 A36P30 A36P30G 33.00 x 27.00 838 x 686 37.58 x 24.00 955 x 610 5 — — — — — —
A20H1610GQRLP 20.19 x 16.25 x 10.00 513 x 413 x 254 A20P16 A20P16G 17.00 x 13.00 432 x 330 21.81 x 10.00 554 x 254 4 — — — — — —
A20H2010GQRLP 20.19 x 20.25 x 10.00 513 x 514 x 254 A20P20 A20P20G 17.00 x 17.00 432 x 432 21.81 x 14.00 554 x 356 4 — — — — — —
A24H2010GQRLP 24.25 x 20.25 x 10.00 616 x 514 x 254 A24P20 A24P20G 21.00 x 17.00 533 x 432 25.86 x 14.00 657 x 356 4 — — — — — —
A30H2410GQRLP 30.25 x 24.25 x 10.00 768 x 616 x 254 A30P24 A30P24G 27.00 x 21.00 686 x 533 31.95 x 18.00 812 x 457 5 — — — — — —
A20H1612GQRLP 20.19 x 16.25 x 12.00 513 x 413 x 305 A20P16 A20P16G 17.00 x 13.00 432 x 330 21.81 x 10.00 554 x 254 4 — — — — — —
A20H2012GQRLP 20.19 x 20.25 x 12.00 513 x 514 x 305 A20P20 A20P20G 17.00 x 17.00 432 x 432 21.81 x 14.00 554 x 356 4 — — — — — —
A24H2012GQRLP 24.25 x 20.25 x 12.00 616 x 514 x 305 A24P20 A24P20G 21.00 x 17.00 533 x 432 25.86 x 14.00 657 x 356 4 11.00 279 — — — —
A24H2412GQRLP 24.19 x 24.19 x 12.00 614 x 614 x 305 A24P24 A24P24G 21.00 x 21.00 533 x 533 25.81 x 18.00 656 x 457 4 — — — — — —
A30H2412GQRLP 30.25 x 24.25 x 12.00 768 x 616 x 305 A30P24 A30P24G 27.00 x 21.00 686 x 533 31.95 x 18.00 812 x 457 5 — — — — — —
A36H3012GQRLP 36.25 x 30.25 x 12.00 921 x 768 x 305 A36P30 A36P30G 33.00 x 27.00 838 x 686 37.58 x 24.00 955 x 610 5 — — — — — —
A36H3612GQRLP 36.25 x 36.25 x 12.00 921 x 921 x 305 A36P36 A36P36G 33.00 x 33.00 838 x 838 37.58 x 30.00 955 x 762 7 — — — — — —
A48H3612GQRLP 48.25 x 36.25 x 12.00 1226 x 921 x 305 A48P36 A48P36G 45.00 x 33.00 1143 x 838 49.56 x 30.00 1259 x 762 8 — — — — — —
A60H3612GQRLP 60.25 x 36.25 x 12.00 1530 x 921 x 305 A60P36 A60P36G 57.00 x 33.00 1448 x 838 61.58 x 30.00 1564 x 762 8 — — — — — —
A24H2016GQRLP 24.25 x 20.25 x 16.00 616 x 514 x 406 A24P20 A24P20G 21.00 x 17.00 533 x 432 25.86 x 14.00 657 x 356 4 14.00 356 — — — —
A24H2416GQRLP 24.19 x 24.19 x 16.00 614 x 614 x 406 A24P24 A24P24G 21.00 x 21.00 533 x 533 25.81 x 18.00 656 x 457 4 6.00 152 10.00 254 14.00 356
A30H2416GQRLP 30.25 x 24.25 x 16.00 768 x 616 x 406 A30P24 A30P24G 27.00 x 21.00 686 x 533 31.95 x 18.00 812 x 457 5 — — — — — —
A48H3616GQRLP 48.25 x 36.25 x 16.00 1226 x 921 x 406 A48P36 A48P36G 45.00 x 33.00 1143 x 838 49.56 x 30.00 1259 x 762 8 — — — — — —
A60H3616GQRLP 60.25 x 36.25 x 16.00 1530 x 922 x 406 A60P36 A60P36G 57.00 x 33.00 1448 x 838 61.65 x 30.00 1566 x 762 8 — — — — — —
A20H1620GQRLP 20.19 x 16.25 x 20.00 513 x 413 x 508 A20P16 A20P16G 17.00 x 13.00 432 x 330 21.81 x 10.00 554 x 254 4 14.00 356 16.00 406 18.00 457
A20H2020GQRLP 20.19 x 20.25 x 20.00 513 x 514 x 508 A20P20 A20P20G 17.00 x 17.00 432 x 432 21.81 x 14.00 554 x 356 4 14.00 356 16.00 406 18.00 457
A24H2020GQRLP 24.25 x 20.25 x 20.00 616 x 514 x 508 A24P20 A24P20G 21.00 x 17.00 533 x 432 25.86 x 14.00 657 x 356 4 14.00 356 16.00 406 18.00 457
A24H2420GQRLP 24.19 x 24.19 x 20.00 614 x 614 x 508 A24P24 A24P24G 21.00 x 21.00 533 x 533 25.81 x 18.00 656 x 457 4 18.00 457 — — — —
A30H2420GQRLP 30.25 x 24.25 x 20.00 768 x 616 x 508 A30P24 A30P24G 27.00 x 21.00 686 x 533 31.95 x 18.00 812 x 457 5 14.00 356 16.00 406 18.00 457
A36H3020GQRLP 36.25 x 30.25 x 20.00 921 x 768 x 508 A36P30 A36P30G 33.00 x 27.00 838 x 686 37.72 x 24.00 958 x 610 5 — — — — — —
A48H3620GQRLP 48.25 x 36.25 x 20.00 1226 x 921 x 508 A48P36 A48P36G 45.00 x 33.00 1143 x 838 49.72 x 30.00 1263 x 762 8 — — — — — —
A24H2024GQRLP 24.25 x 20.25 x 24.00 616 x 514 x 610 A24P20 A24P20G 21.00 x 17.00 533 x 432 25.86 x 14.00 657 x 356 4 22.00 559 — — — —
A24H2424GQRLP 24.19 x 24.19 x 24.00 614 x 614 x 610 A24P24 A24P24G 21.00 x 21.00 533 x 533 25.81 x 18.00 656 x 457 4 22.00 559 — — — —
A30H2424GQRLP 30.25 x 24.25 x 24.00 768 x 616 x 610 A30P24 A30P24G 27.00 x 21.00 686 x 533 31.95 x 18.00 812 x 457 5 22.00 559 — — — —
Purchase panels separately. Optional stainless steel, composite and aluminum panels are available for most sizes.
CHS Controls AB
Tel +46 42 38 61 00, Fax +46 42 38 61 29
chs@chscontrols.se www.chscontrols.se
261
Non-Metallic: Fiberglass
Hinge-Cover with 3-Point Latch or Quick-Release Latches
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
CHS Controls AB
Tel +46 42 38 61 00, Fax +46 42 38 61 29
chs@chscontrols.se www.chscontrols.se
262
Non-Metallic: Fiberglass
Hinge-Cover with 3-Point Latch or Quick-Release Latches
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
CHS Controls AB
Tel +46 42 38 61 00, Fax +46 42 38 61 29
chs@chscontrols.se www.chscontrols.se
263
Non-Metallic: Fiberglass
Hinge-Cover with 3-Point Latch or Quick-Release Latches
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
Notes
CHS Controls AB
Tel +46 42 38 61 00, Fax +46 42 38 61 29
chs@chscontrols.se www.chscontrols.se
264
Non-Metallic: Fiberglass
Free-Stand
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
Free-Stand
Free-Stand, Type 4X
Industry Standards
UL 508A Listed; Type 3, 3R, 4, 4X, 12; File No. E61997
cUL Listed per CSA C22.2 No 94; Type 3, 3R, 4, 4X, 12; File No.
E61997
Enclosure ammability evaluated per UL 508A
NEMA Type 3, 3R, 4, 4X, 12, 13
E.I.A. RS-310-D
IEC 60529, IP66
Meets NEMA Type 3RX requirements
Application
An economical housing for corrosive environments, single-door, free-
stand enclosures provide a versatile solution for applications that
require exibility when mounting panels and racks. Benets include
easy access to equipment, larger capacity for control systems, steel
reinforcements for stability and strength, captivated door screws and
an optional POWERGLIDE® Handle for secure latching.
Specications
• Fiberglass-reinforced polyester material has excellent temperature
and chemical resistance and exhibits outstanding physical
properties
• Fiberglass material is easily punched, drilled, led or sawed
• Models have either a 3-point latching system with handle or
stainless steel captivated door screws
• Seamless foam-in-place gasket assures water-tight and dust-tight
seal
• Painted steel top, bottom and side internal reinforcements
standard; stainless steel corner reinforcements optional
• Heavy-duty Type 316 stainless steel lifting eyes
• Accessory mounting channels attached horizontally to interior
body sides at top, bottom and center. Painted mounting channels
standard; stainless steel optional.
•
Panels and rack-mounting angles can be mounted anywhere along
corner channels; panels can be mounted on sides or back
• Hinges are corrosion-resistant berglass with Type 316 stainless
steel hinge pins
• Large, high-impact thermoplastic data pocket (12.00 x 12.00 in. or
305 x 305 mm) is provided
• Molded-in angular sealing ange directs water away from gasket
area
• Type 316 stainless steel POWERGLIDE® Handle on handle versions
• Material is halogen free
Finish
Fiberglass enclosure is gray inside and out. Optional mild-steel panels
are painted white. Optional conductive panels are available.
Accessories
See also Accessories.
Accessory Selection for Free-Stand, Type 4X
Floor Stand Kit
H2OMIT® Vent Drains, Type 4X
H2OMIT® Thermoelectric Dehumidier
HOL-SEALERS™ Non-Metallic Hole Seals
Modication and Customization
Homan excels at modifying and customizing products to your
specications. Contact your local Homan sales oce or distributor
for complete information.
Bulletin: A17
Standard Product
Catalog Number AxBxC in./mm Description Estimated Ship Wt. (lb.) Estimated Ship Wt. (kg)
A722525FGFS 72.00 x 25.00 x 24.50
1829 x 635 x 622
Stainless steel captivated door screws 215 97.5
A722525FGFS3PT 72.00 x 25.00 x 24.50
1829 x 635 x 622
3-point latching system/Type 316 stainless steel handle 215 97.5
CHS Controls AB
Tel +46 42 38 61 00, Fax +46 42 38 61 29
chs@chscontrols.se www.chscontrols.se
265
Non-Metallic: Fiberglass
Free-Stand
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
CHS Controls AB
Tel +46 42 38 61 00, Fax +46 42 38 61 29
chs@chscontrols.se www.chscontrols.se
266
Non-Metallic: Fiberglass
Free-Stand
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
Accessory Selection for Free-Stand, Type 4X
For details, see Accessories chapter.
Bulletin: A17Y, A80, D10, PNL30, PNLFS
Panels
Catalog Number Description Size (in.) Size (mm)
A72P24F1 Full Panel, Steel 60.00 x 20.00 1524 x 508
A72P24F2 Half Panel, Steel 30.88 x 20.00 784 x 508
A72P24F1G Full Panel, Conductive 60.00 x 20.00 1524 x 508
A72P24F2G Half Panel, Conductive 30.88 x 20.00 784 x 508
Purchase panels and accessories separately.
Swing-Out Panels
Catalog Number Description Size (in.) Size (mm)
A72SP24F3 Full Swing-Out Panel 60.00 x 18.19 1524 x 462
A72SP24F4 Half Swing-Out Panel 30.88 x 18.19 784 x 462
Purchase panels and accessories separately.
Half Swing-Out Panel ts in top or bottom half of enclosure.
Side-Mounted Panels
Catalog Number Description Size (in.) Size (mm)
A72SMP14 14.00 inch (356mm)
Wide Panel, Steel
60.00 x 14.00 1524 x 356
A72SMP20 20.00 inch (508mm)
Wide Panel, Steel
60.00 x 20.00 1524 x 508
A72SMP14G 14.00 inch (356mm)
Wide Panel, Conductive
60.00 x 14.00 1524 x 356
A72SMP20G 20.00 inch (508mm)
Wide Panel, Conductive
60.00 x 20.00 1524 x 508
Purchase panels and accessories separately.
Clamping Nuts
Catalog Number Description Package Qty
APS1420CN 1/4-20 Clamping Nut 20
APS51618CN 5/16-18 Clamping Nut 20
Purchase panels and accessories separately.
Casters
Catalog Number Description Size (in.) Size (mm)
DMCKC Set of four casters 4.00 x 3.00 102 x 76
Requires Bottom Support
Purchase panels and accessories separately.
Inside Bottom Support
Catalog Number Description Size (in.) Size (mm)
A17SUPPORT1 Enclosure bottom support allows
installation of casters or oor-stand kits.
23.70 x 23.25 602 x 591
Purchase panels and accessories separately.
CHS Controls AB
Tel +46 42 38 61 00, Fax +46 42 38 61 29
chs@chscontrols.se www.chscontrols.se
267
Non-Metallic: Fiberglass
Free-Stand
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
Rack Mounting Accessory Selection for Free-
Stand, Type 4X
For details, see Accessories chapter.
Bulletin: A80, P20
Rack Mounting Angles
Catalog Number Description Length (in.) Length (mm) Units
A72RP24F5 Two Full-Length Angles (Type RP) 61.25 1556 35
A72RP24F6 Two Half-Length Angles (Type RP) 31.50 800 18
A60RA19TH Two Full-Length Angles (Type RA) 49.00 1245 28
A72RA19TH Two Full-Length Angles (Type RA 61.25 1556 35
Purchase accessories separately.
1 unit = 1.75 in. (44mm)
Clip Nut Package
Catalog Number Description Package Qty Size
AN1032 #10-32 Zinc-Plated 20 Fits U-Style (Type RA) Rack Mounting Angle
Purchase accessories separately.
Rack Panels
Catalog Number Description Size (in.) Size (mm) Units
P19RP1UA Aluminum 19.00 x 1.75 483 x 44 1
P19RP1UP Steel 19.00 x 1.75 483 x 44 1
P19RP2UA Aluminum 19.00 x 3.50 483 x 89 2
P19RP2UP Steel 19.00 x 3.50 483 x 89 2
P19RP3UA Aluminum 19.00 x 5.25 483 x 133 3
P19RP3UP Steel 19.00 x 5.25 483 x 133 3
P19RP4UA Aluminum 19.00 x 7.00 483 x 178 4
P19RP4UP Steel 19.00 x 7.00 483 x 178 4
P19RP5UA Aluminum 19.00 x 8.75 483 x 222 5
P19RP5UP Steel 19.00 x 8.75 483 x 222 5
P19RP6UA Aluminum 19.00 x 10.50 483 x 267 6
P19RP6UP Steel 19.00 x 10.50 483 x 267 6
P19RP7UA Aluminum 19.00 x 12.25 483 x 311 7
P19RP7UP Steel 19.00 x 12.25 483 x 311 7
P19RP8UA Aluminum 19.00 x 14.00 483 x 356 8
P19RP8UP Steel 19.00 x 14.00 483 x 356 8
P19RP9UP Steel 19.00 x 15.75 483 x 400 9
P19RP10UP Steel 19.00 x 17.50 483 x 445 10
P19RP11UA Aluminum 19.00 x 19.25 483 x 489 11
P19RP11UP Steel 19.00 x 19.25 483 x 489 11
P19RP12UA Aluminum 19.00 x 21.00 483 x 533 12
P19RP12UP Steel 19.00 x 21.00 483 x 533 12
P19RP16UP Steel 19.00 x 28.00 483 x 711 16
Purchase panels and accessories separately.
1 unit = 1.75 in. (44 mm)
Screw Package
Catalog Number Description Package Qty
AS1032 10-32 Truss Head Nickel-Plated 20
Purchase accessories separately.
Drawers
Catalog Number Description Depth (in.) Depth (mm) Units
A19DR2U Pull-Out Drawer 3.47 88 2
A19DR4U Pull-Out Drawer 6.97 177 4
Purchase accessories separately.
1 unit = 1.75 in. (44 mm)
Requires two sets of Type RA Rack Mounting Angles for installation.
Writing Surface for Drawers
Catalog Number Description Size
A19WSDR Hinged Surface Fits Drawer A19DR2U and A19DR4U
Purchase accessories separately.
Shelves
Catalog Number Description Units
A19SHP6 Pull-Out Shelf 2
A19SH5 Fixed Shelf 1
A19SH6 Fixed Shelf 1
Purchase accessories separately.
1 unit = 1.75 in. (44 mm)
Guides
Catalog Number Description Unit
AG1U6 Chassis Guide (set of two) 1
Purchase accessories separately.
1 unit = 1.75 in. (44 mm)
CHS Controls AB
Tel +46 42 38 61 00, Fax +46 42 38 61 29
chs@chscontrols.se www.chscontrols.se
268
Non-Metallic: Fiberglass
Two-Door Free-Stand
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
Two-Door Free-S tand
Two-Door Free-Stand, Type 4X
Industry Standards
UL 508A Listed; Type 3, 3R, 4, 4X, 12; File No. E61997
cUL Listed per CSA C22.2 No 94; Type 3, 3R, 4, 4X, 12; File No.
E61997
Enclosure ammability evaluated per UL 508A
NEMA Type 3, 3R, 4, 4X, 12, 13
IEC 60529, IP66
Meets NEMA Type 3RX requiremets
Application
An economical way to house electronics in corrosive environments,
two-door enclosures provide easy access to equipment, larger
capacity for control systems and steel reinforcements that ensure
stability and strength. These enclosures feature captivated door
screws and an optional POWERGLIDE® Handle for secure latching.
Specications
• Fiberglass-reinforced polyester material has excellent temperature
and chemical resistance and exhibits outstanding physical
properties
• Seams are sealed; no holes or knockouts
• Fiberglass material is easily punched, drilled, led or sawed
• Models have either a 3-point latching system with handle or
stainless steel captivated door screws
• Type 316 stainless steel POWERGLIDE Handle on handle versions
• Stainless steel captivated door screws on screw versions
• Seamless foam-in-place gasket assures a water-tight and dust-tight
seal
• Painted steel top, bottom and side internal reinforcements
standard; stainless steel corner reinforcements optional
• Solid centerpost (not removable) has heavy-gauge stiener
• Heavy-duty Type 316 stainless steel lifting eyes
• Hinges are corrosion-resistant berglass with Type 316 stainless
steel hinge pins
• Large data pocket (12.00 x 12.00 in. or 305 x 305 mm) is high-
impact thermoplastic
• Molded-in angular sealing ange directs water away from gasket
area
• Material is halogen free
Finish
Fiberglass enclosure is gray inside and out. White painted mild steel
panels are included. Optional conductive panels are available.
Accessories
See also Accessories.
Accessory Selection for Free-Stand, Type 4X
Bottom Support Kits
Floor Stand Kit
H2OMIT® Vent Drains, Type 4X
H2OMIT® Thermoelectric Dehumidier
HOL-SEALERS™ Non-Metallic Hole Seals
Modication and Customization
Homan excels at modifying and customizing products to your
specications. Contact your local Homan sales oce or distributor
for complete information.
Bulletin: A17
Standard Product
Catalog Number AxBxC in./mm Number of Panels
Panel Size
in./mm
A724925FG 72.00 x 49.00 x 24.50
1829 x 1245 x 622
2 56.00 x 22.00
1422 x 559
A724925FGFS3PT 72.00 x 49.00 x 24.50
1830 x 1245 x 622
2 56.00 x 22.00
1422 x 559
CHS Controls AB
Tel +46 42 38 61 00, Fax +46 42 38 61 29
chs@chscontrols.se www.chscontrols.se
269
Non-Metallic: Fiberglass
Two-Door Free-Stand
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
Bottom Support Kits
Bulletin: A17Y
Catalog Number Description
A17SUPPORT2 Inside Bottom Support -- Enclosure bottom support to allow option of installing casters or oor stand kits
A17UNISTRUT Bolt-On Unistrut Channel (8 channels) -- Painted steel unistrut for accessory mounting
A17SUPPORT2 required to install A17UNISTRUT in two-door enclosures
CHS Controls AB
Tel +46 42 38 61 00, Fax +46 42 38 61 29
chs@chscontrols.se www.chscontrols.se
270
Non-Metallic: Polycarbonate and ABS
QLINE® D
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
Polycarbona te and ABS
QLINE® D
QLINE® D Pushbutton, Type 4X
Industry Standards
UL 508A Listed; Type 4, 4X, 12, 13; No. E61997
cUL Listed per CSA C22.2 No 94; Type 4, 4X, 12, 13; No. E61997
Enclosure ammability evaluated per UL 508A
NEMA/EEMAC Type 4, 4X, 12
CSA File Number 42186: Type 4, 4X, 12
IEC 60529, IP67
Application
Used for insulating and housing 30.5-mm or 22.5-mm pushbuttons
in hostile environments, QLINE® D Enclosures have contoured bodies
with ush cover screws for an attractive, contemporary appearance.
Specications
• High-impact polycarbonate material is used for both body and
cover
• Polycarbonate material is easily punched, drilled, led or sawed
• Straight side walls permit ganging of multiple enclosures
• Cross-point captivated cover screws are stainless steel
• Mounting holes molded directly adjacent to cover screws
• Cover screws protected by removable caps that are both aesthetic
and provide tamper resistance
• Molded internal pads for mounting optional panels, rails or other
components
• Seamless foam-in-place gasket assures water-tight and dust-tight
seal
• Screws provided for mounting optional panel
• Mounting hardware furnished
• Material is halogen free
Finish
Polycarbonate enclosure material is RAL 7035 light-gray inside and
out. Optional panels are unpainted plated steel.
Accessories
See also Accessories.
Hardware Kit
Hinge Kit
Mounting Bracket Kit
Bulletin: Q41
Standard Product
Catalog Number AxBxC mm/in.
Hole
Size
mm/in.
External
Dimensions
L x W
mm/in. Panel
Panel Size
D x E
mm/in.
Mounting
G x H
mm/in.
F
mm/in.
J
mm/in.
P
mm/in.
Q
mm/in.
R
mm/in.
S
mm/in.
U
mm/in.
X
mm/in.
Y
mm/in.
Z
mm/in.
Q1PBPCD 75 x 73 x 79
2.95 x 2.87 x 3.11
30.5 82 x 80
3.23 x 3.15
Q88PD 68 x 55
2.68 x 2.17
70 x 50
2.76 x 1.97
72
2.83
70
2.76
58
2.28
44
1.73
—
—
58
2.28
3
0.12
40
1.57
41
1.61
—
—
Q1PBPCDM 75 x 73 x 79
2.95 x 2.87 x 3.11
22.5 82 x 80
3.23 x 3.15
Q88PD 68 x 55
2.68 x 2.17
70 x 50
2.76 x 1.97
72
2.83
70
2.76
58
2.28
44
1.73
—
—
58
2.28
3
0.12
40
1.57
41
1.61
—
—
Q2PBPCDM 113 x 73 x 79
4.45 x 2.87 x 3.11
22.5 120 x 80
4.72 x 3.15
Q128PD 91 x 65
3.58 x 2.56
108 x 50
4.25 x 1.97
72
2.83
70
2.76
58
2.28
82
3.22
—
—
96
3.78
3
0.12
40
1.57
36
1.42
48
1.89
Q2PBPCD 153 x 73 x 79
6.02 x 2.87 x 3.11
30.5 160 x 80
6.30 x 3.15
Q168PD 131 x 65
5.16 x 2.56
148 x 50
5.83 x 1.97
72
2.83
70
2.76
58
2.28
122
4.80
—
—
136
5.35
3
0.12
40
1.57
48
1.89
64
2.52
Q3PBPCDM 153 x 73 x 79
6.02 x 2.87 x 3.11
22.5 160 x 80
6.30 x 3.15
Q168PD 131 x 65
5.16 x 2.56
148 x 50
5.83 x 1.97
72
2.83
70
2.76
58
2.28
122
4.80
—
—
136
5.35
3
0.12
40
1.57
32
1.26
48
1.89
Q3PBPCD 193 x 113 x 79
7.60 x 4.45 x 3.11
30.5 200 x 120
7.87 x 4.72
Q2012PD 170 x 100
6.69 x 3.94
188 x 90
7.40 x 3.54
72
2.83
70
2.76
90
3.54
160
6.30
40
1.57
176
6.93
3
0.12
60
2.36
36
1.42
64
2.52
Q4PBPCD 193 x 113 x 79
7.60 x 4.45 x 3.11
30.5 200 x 120
7.87 x 4.72
Q2012PD 170 x 100
6.69 x 3.94
188 x 90
7.40 x 3.54
72
2.83
70
2.76
90
3.54
160
6.30
40
1.57
176
6.93
3
0.12
28
1.10
68
2.68
64
2.52
Q4PBPCDM 193 x 113 x 79
7.60 x 4.45 x 3.11
22.5 200 x 120
7.87 x 4.72
Q2012PD 170 x 100
6.69 x 3.94
188 x 90
7.40 x 3.54
72
2.83
70
2.76
90
3.54
160
6.30
40
1.57
176
6.93
3
0.12
60
2.36
28
1.10
48
1.89
Q6PBPCD 233 x 153 x 84
9.17 x 6.02 x 3.29
30.5 240 x 160
9.45 x 6.30
Q2416PD 211 x 148
8.31 x 5.83
228 x 130
8.98 x 5.12
78
3.07
75
2.95
138
5.43
202
7.95
75
2.95
215
8.46
4
0.16
48
1.89
56
2.20
64
2.52
A x B x C are internal dimensions.
Purchase panels separately.
CHS Controls AB
Tel +46 42 38 61 00, Fax +46 42 38 61 29
chs@chscontrols.se www.chscontrols.se
271
Non-Metallic: Polycarbonate and ABS
QLINE® D
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
CHS Controls AB
Tel +46 42 38 61 00, Fax +46 42 38 61 29
chs@chscontrols.se www.chscontrols.se
272
Non-Metallic: Polycarbonate and ABS
QLINE® D
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products

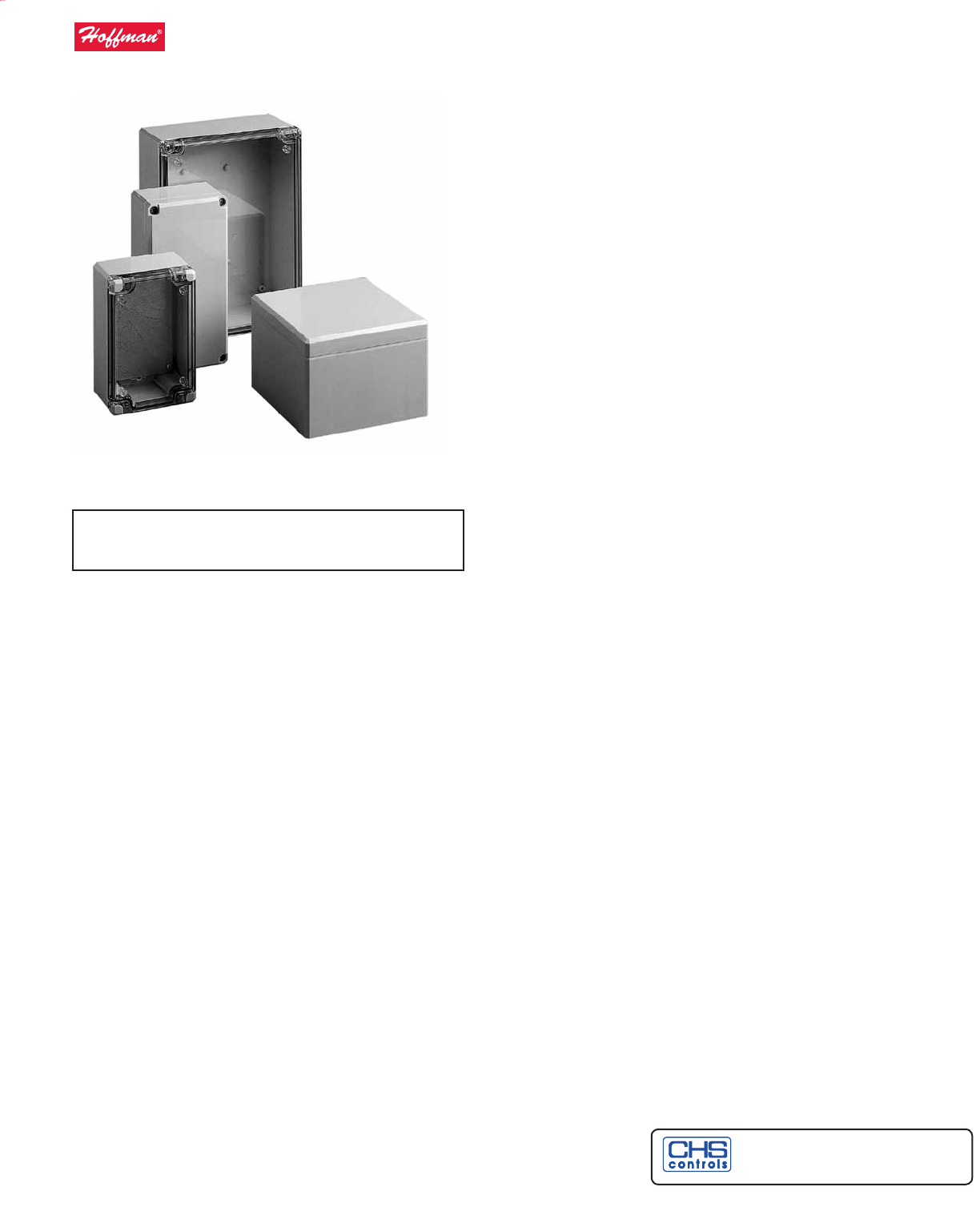

QLINE® D, Type 4X
Industry Standards
Polycarbonate Enclosure
UL 508A Listed; Type 4, 4X, 6, 12, 13; File No. E61997
cUL Listed per CSA C22.2 No 94; Type 4, 4X, 6, 12, 13; File No.
E61997
Enclosure ammability evaluated per UL 508A
NEMA/EEMAC Type 4, 4X, 6, 12, 13
CSA File No. 42186: Type 4, 4X, 6, 12, 13
IEC 60529, IP67
ABS Enclosure
NEMA/EEMAC Type 4, 4X, 6, 12, 13
IEC 60529, IP67
Application
QLINE® D polycarbonate and ABS enclosures have contoured bodies
with ush cover screws for an attractive, contemporary appearance.
Tough as well as stylish, they are functional in corrosive environments
and can withstand occasional submersion.
The ABS series shares the same features and similar physical
properties as the polycarbonate but is a more economical, non-UL
rated alternative.
Specications
• Body is impact-resistant polycarbonate for PCD series and ABS for
ABD series
• Opaque and clear covers are impact-resistant polycarbonate for
PCD series and ABS for ABD series
• Polycarbonate material is easily punched, drilled, led or sawed
• Straight side walls permit ganging of multiple enclosures
• Cross-point captivated cover screws are stainless steel
• Mounting holes molded directly adjacent to cover screws
• Cover screws protected by removable caps that are aesthetic and
provide tamper resistance
•
Molded internal pads for mounting optional panels, rails and other
components
• Panel mounting feature on both body and cover
• Seamless foam-in-place gasket assures water-tight and dust-tight
seal
• Screws provided for mounting optional panel
• Material is halogen free
Finish
Polycarbonate and ABS enclosures are light-gray (RAL 7035) inside
and out. Optional panels are plated steel.
Accessories
See also Accessories.
Hardware Kit
Hinge Kit
HOL-SEALERS™ Non-Metallic Hole Seals
Mounting Bracket Kit
Modication and Customization
Homan excels at modifying and customizing products to your
specications. Contact your local Homan sales oce or distributor
for complete information.
Bulletin: Q41
CHS Controls AB
Tel +46 42 38 61 00, Fax +46 42 38 61 29
chs@chscontrols.se www.chscontrols.se
273
Non-Metallic: Polycarbonate and ABS
QLINE® D
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
Standard Product Polycarbonate
Catalog Number AxBxC mm/in.
Cover
Style
External
Dimensions
L x W
mm/in. Panel
Panel Size
D x E
mm/in.
Mounting
G x H
mm/in.
F
mm/in.
J
mm/in.
K
mm/in.
P
mm/in.
Q
mm/in.
R
mm/in.
S
mm/in.
U
mm/in.
Q554PCD 50 x 48 x 31
1.97 x 1.89 x 1.22
Opaque 55 x 53
2.17 x 2.09
— —
—
43 x 41
1.69 x 1.61
28
1.10
25
0.98
10
0.39
16
0.63
—
—
—
—
—
—
2
0.08
Q554PCDCC 50 x 48 x 31
1.97 x 1.89 x 1.22
Clear 55 x 53
2.17 x 2.09
— —
—
43 x 41
1.69 x 1.61
28
1.10
25
0.98
10
0.39
16
0.63
—
—
—
—
—
—
2
0.08
Q886PCD 76 x 74 x 49
2.96 x 2.89 x 1.93
Opaque 82 x 80
3.23 x 3.15
Q88PD 68 x 55
2.68 x 2.17
70 x 50
2.76 x 1.97
42
1.65
40
1.57
15
0.59
58
2.28
44
1.73
—
—
58
2.28
3
0.12
Q886PCDCC 76 x 74 x 49
2.99 x 2.91 x 1.93
Clear 82 x 80
3.23 x 3.15
Q88PD 68 x 55
2.68 x 2.17
70 x 50
2.76 x 1.97
42
1.65
40
1.57
15
0.59
58
2.28
44
1.73
—
—
58
2.28
3
0.12
Q1286PCD 114 x 74 x 49
4.49 x 2.91 x 1.93
Opaque 120 x 80
4.72 x 3.15
Q128PD 91 x 65
3.58 x 2.56
108 x 50
4.25 x 1.97
42
1.65
40
1.57
15
0.59
58
2.28
82
3.23
—
—
96
3.78
3
0.12
Q1286PCDCC 114 x 74 x 49
4.49 x 2.91 x 1.93
Clear 120 x 80
4.72 x 3.15
Q128PD 91 x 65
3.58 x 2.56
108 x 50
4.25 x 1.97
42
1.65
40
1.57
15
0.59
58
2.28
82
3.23
—
—
96
3.78
3
0.12
Q1686PCD 154 x 74 x 49
6.06 x 2.91 x 1.93
Opaque 160 x 80
6.30 x 3.15
Q168PD 131 x 65
5.16 x 2.56
148 x 50
5.83 x 1.97
42
1.65
40
1.57
15
0.59
58
2.28
122
4.80
—
—
136
5.35
3
0.12
Q1686PCDCC 154 x 74 x 49
6.06 x 2.91 x 1.93
Clear 160 x 80
6.30 x 3.15
Q168PD 131 x 65
5.16 x 2.56
148 x 50
5.83 x 1.97
42
1.65
40
1.57
15
0.59
58
2.28
122
4.80
—
—
136
5.35
3
0.12
Q12126PCD 116 x 114 x 49
4.57 x 4.49 x 1.93
Opaque 122 x 120
4.80 x 4.72
Q1212PD 105 x 93
4.13 x 3.66
110 x 90
4.33 x 3.54
42
1.65
40
1.57
15
0.59
98
3.86
84
3.31
—
—
98
3.86
3
0.12
Q12126PCDCC 116 x 114 x 49
4.57 x 4.49 x 1.93
Clear 122 x 120
4.80 x 4.72
Q1212PD 105 x 93
4.13 x 3.66
110 x 90
4.33 x 3.54
42
1.65
40
1.57
15
0.59
98
3.86
84
3.31
—
—
98
3.86
3
0.12
Q20158PCD 193 x 143 x 69
7.60 x 5.63 x 2.72
Opaque 200 x 150
7.87 x 5.91
Q2015PD 170 x 128
6.69 x 5.04
188 x 120
7.40 x 4.72
62
2.44
60
2.36
15
0.59
118
4.65
160
6.30
118
4.65
176
6.93
3
0.12
Q20158PCDCC 193 x 143 x 69
7.60 x 5.63 x 2.72
Clear 200 x 150
7.87 x 5.91
Q2015PD 170 x 128
6.69 x 5.04
188 x 120
7.40 x 4.72
62
2.44
60
2.36
15
0.59
118
4.65
160
6.30
118
4.65
176
6.93
3
0.12
Q889PCD 76 x 74 x 79
2.99 x 2.91 x 3.11
Opaque 82 x 80
3.23 x 3.15
Q88PD 68 x 55
2.68 x 2.17
70 x 50
2.76 x 1.97
72
2.83
70
2.76
15
0.59
58
2.28
44
1.73
37
1.46
58
2.28
3
0.12
Q889PCDCC 76 x 74 x 79
2.99 x 2.91 x 3.11
Clear 82 x 80
3.23 x 3.15
Q88PD 68 x 55
2.68 x 2.17
70 x 50
2.76 x 1.97
72
2.83
70
2.76
15
0.59
58
2.28
44
1.73
37
1.46
58
2.28
3
0.12
Q1289PCD 113 x 73 x 79
4.45 x 2.87 x 3.11
Opaque 120 x 80
4.72 x 3.15
Q128PD 91 x 65
3.58 x 2.56
108 x 50
4.25 x 1.97
72
2.83
70
2.76
15
0.59
58
2.28
82
3.23
—
—
96
3.78
3
0.12
Q1289PCDCC 113 x 73 x 79
4.45 x 2.87 x 3.11
Clear 120 x 80
4.72 x 3.15
Q128PD 91 x 65
3.58 x 2.56
108 x 50
4.25 x 1.97
72
2.83
70
2.76
15
0.59
58
2.28
82
3.23
—
—
96
3.78
3
0.12
Q1689PCD 153 x 73 x 79
6.02 x 2.87 x 3.11
Opaque 160 x 80
6.30 x 3.15
Q168PD 131 x 65
5.16 x 2.56
148 x 50
5.83 x 1.97
72
2.83
70
2.76
15
0.59
58
2.28
122
4.80
—
—
136
5.35
3
0.12
Q1689PCDCC 153 x 73 x 79
6.02 x 2.87 x 3.11
Clear 160 x 80
6.30 x 3.15
Q168PD 131 x 65
5.16 x 2.56
148 x 50
5.83 x 1.97
72
2.83
70
2.76
15
0.59
58
2.28
122
4.80
—
—
136
5.35
3
0.12
Q12129PCD 116 x 114 x 79
4.57 x 4.49 x 3.11
Opaque 122 x 120
4.80 x 4.72
Q1212PD 105 x 93
4.13 x 3.66
110 x 90
4.33 x 3.54
72
2.83
70
2.76
15
0.59
98
3.86
84
3.31
97
3.82
98
3.86
3
0.12
Q12129PCDCC 116 x 114 x 79
4.57 x 4.49 x 3.11
Clear 122 x 120
4.80 x 4.72
Q1212PD 105 x 93
4.13 x 3.66
110 x 90
4.33 x 3.54
72
2.83
70
2.76
15
0.59
98
3.86
84
3.31
97
3.82
98
3.86
3
0.12
Q20129PCD 193 x 113 x 79
7.60 x 4.45 x 3.11
Opaque 200 x 120
7.87 x 4.72
Q2012PD 170 x 100
6.69 x 3.94
188 x 90
7.40 x 3.54
72
2.83
70
2.76
15
0.59
90
3.54
160
6.30
40
1.57
176
6.93
3
0.12
Q20129PCDCC 193 x 113 x 79
7.60 x 4.45 x 3.11
Clear 200 x 120
7.87 x 4.72
Q2012PD 170 x 100
6.69 x 3.94
188 x 90
7.40 x 3.54
72
2.83
70
2.76
15
0.59
90
3.54
160
6.30
40
1.57
176
6.93
3
0.12
Q30239PCD 293 x 223 x 79
11.54 x 8.78 x 3.11
Opaque 300 x 230
11.81 x 9.05
Q3023PD 265 x 210
10.43 x 8.27
288 x 200
11.34 x 7.87
73
2.87
55
2.17
30
1.18
198
7.80
255
10.04
160
6.30
275
10.83
4
0.16
Q30239PCDCC 293 x 223 x 79
11.54 x 8.78 x 3.11
Clear 300 x 230
11.81 x 9.05
Q3023PD 265 x 210
10.43 x 8.27
288 x 200
11.34 x 7.87
73
2.87
55
2.17
30
1.18
198
7.80
255
10.04
160
6.30
275
10.83
4
0.16
Q16129PCD 153 x 113 x 84
6.02 x 4.45 x 3.31
Opaque 160 x 120
6.30 x 4.72
Q1612PD 130 x 100
5.12 x 3.94
148 x 90
5.83 x 3.54
78
3.07
60
2.36
30
1.18
90
3.54
120
4.72
—
—
136
5.35
3
0.12
Q16129PCDCC 153 x 113 x 84
6.02 x 4.45 x 3.31
Clear 160 x 120
6.30 x 4.72
Q1612PD 130 x 100
5.12 x 3.94
148 x 90
5.83 x 3.54
78
3.07
60
2.36
30
1.18
90
3.54
120
4.72
—
—
136
5.35
3
0.12
Q24169PCD 233 x 153 x 84
9.17 x 6.02 x 3.31
Opaque 240 x 160
9.45 x 6.30
Q2416PD 211 x 148
8.31 x 5.83
228 x 130
8.98 x 5.12
78
3.07
75
2.95
15
0.59
138
5.43
202
7.95
75
2.95
215
8.46
4
0.16
Q24169PCDCC 233 x 153 x 84
9.17 x 6.02 x 3.31
Clear 240 x 160
9.45 x 6.30
Q2416PD 211 x 148
8.31 x 5.83
228 x 130
8.98 x 5.12
78
3.07
75
2.95
15
0.59
138
5.43
202
7.95
75
2.95
215
8.46
4
0.16
Q302311PCD 293 x 223 x 104
11.54 x 8.78 x 4.09
Opaque 300 x 230
11.81 x 9.06
Q3023PD 265 x 210
10.43 x 8.27
288 x 200
11.34 x 7.87
98
3.86
55
2.17
55
2.17
198
7.80
255
10.04
160
6.30
275
10.83
4
0.16
Q302311PCDCC 293 x 223 x 104
11.54 x 8.78 x 4.09
Clear 300 x 230
11.81 x 9.06
Q3023PD 265 x 210
10.43 x 8.27
288 x 200
11.34 x 7.87
98
3.86
55
2.17
55
2.17
198
7.80
255
10.04
160
6.30
275
10.83
4
0.16
Q241612PCD 233 x 153 x 114
9.17 x 6.02 x 4.49
Opaque 240 x 160
9.45 x 6.30
Q2416PD 211 x 148
8.31 x 5.83
228 x 130
8.98 x 5.12
108
4.25
75
2.95
45
1.77
75
2.95
202
7.95
75
2.95
215
8.46
4
0.16
Q241612PCDCC 233 x 153 x 114
9.17 x 6.02 x 4.49
Clear 240 x 160
9.45 x 6.30
Q2416PD 211 x 148
8.31 x 5.83
228 x 130
8.98 x 5.12
108
4.25
75
2.95
45
1.77
75
2.95
202
7.95
75
2.95
215
8.46
4
0.16
A x B x C are internal dimensions.
Purchase panels separately.
CHS Controls AB
Tel +46 42 38 61 00, Fax +46 42 38 61 29
chs@chscontrols.se www.chscontrols.se
274
Non-Metallic: Polycarbonate and ABS
QLINE® D
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
Standard Product ABS
Catalog Number AxBxC mm/in.
Cover
Style
External
Dimensions
L x W
mm/in. Panel
Panel Size
D x E
mm/in.
Mtg.
G x H
mm/in.
F
mm/in.
J
mm/in.
K
mm/in.
P
mm/in.
Q
mm/in.
R
mm/in.
S
mm/in.
U
mm/in.
Q554ABD 50 x 48 x 31
1.97 x 1.89 x 1.22
Opaque 55 x 53
2.17 x 2.09
— —
—
43 x 41
1.69 x 1.61
28
1.10
25
.98
10
.39
16
.63
—
—
—
—
—
—
2
.08
Q554ABDCC 50 x 48 x 31
1.97 x 1.89 x 1.22
Clear 55 x 53
2.17 x 2.09
— —
—
43 x 41
1.69 x 1.61
28
1.10
25
.98
10
.39
16
.63
—
—
—
—
—
—
2
.08
Q886ABD 76 x 74 x 49
2.99 x 2.91 x 1.93
Opaque 82 x 80
3.23 x 3.15
Q88PD 68 x 55
2.68 x 2.17
70 x 50
2.76 x 2.17
42
1.65
40
1.57
15
.59
58
2.28
44
1.73
—
—
58
2.28
3
.12
Q886ABDCC 76 x 74 x 49
2.99 x 2.91 x 1.93
Clear 82 x 80
3.23 x 3.15
Q88PD 68 x 55
2.68 x 2.17
70 x 50
2.76 x 2.17
42
1.65
40
1.57
15
.59
58
2.28
44
1.73
—
—
58
2.28
3
.12
Q1286ABD 114 x 74 x 49
4.49 x 2.91 x 1.93
Opaque 120 x 80
4.72 x 3.15
Q128PD 91 x 65
3.58 x 2.56
108 x 50
4.25 x 1.97
42
1.65
40
1.57
15
.59
58
2.28
82
3.23
—
—
96
3.78
3
.12
Q1286ABDCC 114 x 74 x 49
4.49 x 2.91 x 1.93
Clear 120 x 80
4.72 x 3.15
Q128PD 91 x 65
3.58 x 2.56
108 x 50
4.25 x 1.97
42
1.65
40
1.57
15
.59
58
2.28
82
3.23
—
—
96
3.78
3
.12
Q1686ABD 154 x 74 x 49
6.06 x 2.91 x 1.93
Opaque 160 x 80
6.30 x 3.15
Q168PD 131 x 65
5.16 x 2.56
148 x 50
5.83 x 1.97
42
1.65
40
1.57
15
.59
58
2.28
122
4.80
—
—
136
5.35
3
.12
Q1686ABDCC 154 x 74 x 49
6.06 x 2.91 x 1.93
Clear 160 x 80
6.30 x 3.15
Q168PD 131 x 65
5.16 x 2.56
148 x 50
5.83 x 1.97
42
1.65
40
1.57
15
.59
58
2.28
122
4.80
—
—
136
5.35
3
.12
Q12126ABD 116 x 114 x 49
4.57 x 4.49 x 1.93
Opaque 122 x 120
4.80 x 4.72
Q1212PD 105 x 93
4.13 x 3.66
110 x 90
4.33 x 3.54
42
1.65
40
1.57
15
.59
98
3.86
84
3.31
—
—
98
3.86
3
.12
Q12126ABDCC 116 x 114 x 49
4.57 x 4.49 x 1.93
Clear 122 x 120
4.80 x 4.72
Q1212PD 105 x 93
4.13 x 3.66
110 x 90
4.33 x 3.54
42
1.65
40
1.57
15
.59
98
3.86
84
3.31
—
—
98
3.86
3
.12
Q20158ABD 193 x 143 x 69
7.60 x 5.63 x 2.72
Opaque 200 x 150
7.87 x 5.91
Q2015PD 170 x 128
6.69 x 5.04
188 x 120
7.40 x 4.72
62
2.44
60
2.36
15
.59
118
4.65
160
6.30
118
4.65
176
6.93
3
.12
Q20158ABDCC 193 x 143 x 69
7.60 x 5.63 x 2.72
Clear 200 x 150
7.87 x 5.91
Q2015PD 170 x 128
6.69 x 5.04
188 x 120
7.40 x 4.72
62
2.44
60
2.36
15
.59
118
4.65
160
6.30
118
4.65
176
6.93
3
.12
Q889ABD 76 x 74 x 79
2.99 x 2.91 x 3.11
Opaque 82 x 80
3.23 x 3.15
Q88PD 68 x 55
2.68 x 2.17
70 x 50
2.76 x 1.97
72
2.83
70
2.76
15
.59
58
2.28
44
1.73
37
1.46
58
2.28
3
.12
Q889ABDCC 76 x 74 x 79
2.99 x 2.91 x 3.11
Clear 82 x 80
3.23 x 3.15
Q88PD 68 x 55
2.68 x 2.17
70 x 50
2.76 x 1.97
72
2.83
70
2.76
15
.59
58
2.28
44
1.73
37
1.46
58
2.28
3
.12
Q1289ABD 113 x 73 x 79
4.45 x 2.87 x 3.11
Opaque 120 x 80
4.72 x 3.15
Q128PD 91 x 65
3.58 x 2.56
108 x 50
4.25 x 1.97
72
2.83
70
2.76
15
.59
58
2.28
82
3.23
—
—
58
2.28
3
.12
Q1289ABDCC 113 x 73 x 79
4.45 x 2.87 x 3.11
Clear 120 x 80
4.72 x 3.15
Q128PD 91 x 65
3.58 x 2.56
108 x 50
4.25 x 1.97
72
2.83
70
2.76
15
.59
58
2.28
82
3.23
—
—
58
2.28
3
.12
Q1689ABD 153 x 73 x 79
6.02 x 2.87 x 3.11
Opaque 160 x 80
6.30 x 3.15
Q168PD 131 x 65
5.16 x 2.56
148 x 50
5.83 x 1.97
72
2.83
70
2.76
15
.59
58
2.28
122
4.80
—
—
136
5.35
3
.12
Q1689ABDCC 153 x 73 x 79
6.02 x 2.87 x 3.11
Clear 160 x 80
6.30 x 3.15
Q168PD 131 x 65
5.16 x 2.56
148 x 50
5.83 x 1.97
72
2.83
70
2.76
15
.59
58
2.28
122
4.80
—
—
136
5.35
3
.12
Q12129ABD 116 x 114 x 79
4.57 x 4.49 x 3.11
Opaque 122 x 120
4.80 x 4.72
Q1212PD 105 x 93
4.13 x 3.66
110 x 90
4.33 x 3.54
72
2.83
70
2.76
15
.59
98
3.86
84
3.31
97
3.82
98
3.86
3
.12
Q12129ABDCC 116 x 114 x 79
4.57 x 4.49 x 3.11
Clear 122 x 120
4.80 x 4.72
Q1212PD 105 x 93
4.13 x 3.66
110 x 90
4.33 x 3.54
72
2.83
70
2.76
15
.59
98
3.86
84
3.31
97
3.82
98
3.86
3
.12
Q20129ABD 193 x 113 x 79
7.60 x 4.45 x 3.11
Opaque 200 x 120
7.87 x 4.72
Q2012PD 170 x 100
6.69 x 3.94
188 x 90
7.40 x 3.54
72
2.83
70
2.76
15
.59
90
3.54
160
6.30
40
1.67
176
6.93
3
.12
Q20129ABDCC 193 x 113 x 79
7.60 x 4.45 x 3.11
Clear 200 x 120
7.87 x 4.72
Q2012PD 170 x 100
6.69 x 3.94
188 x 90
7.40 x 3.54
72
2.83
70
2.76
15
.59
90
3.54
160
6.30
40
1.67
176
6.93
3
.12
Q30239ABD 293 x 223 x 79
11.54 x 8.78 x 3.11
Opaque 300 x 230
11.81 x 9.05
Q3023PD 265 x 210
10.43 x 8.27
288 x 200
11.34 x 7.87
73
2.87
55
2.17
30
1.18
198
7.80
255
10.04
160
6.30
275
10.83
4
.16
Q30239ABDCC 293 x 223 x 79
11.54 x 8.78 x 3.11
Clear 300 x 230
11.81 x 9.05
Q3023PD 265 x 210
10.43 x 8.27
288 x 200
11.34 x 7.87
73
2.87
55
2.17
30
1.18
198
7.80
255
10.04
160
6.30
275
10.83
4
.16
Q16129ABD 153 x 113 x 84
6.02 x 4.45 x 3.31
Opaque 160 x 120
6.30 x 4.72
Q1612PD 130 x 100
5.12 x 3.94
148 x 90
5.83 x 3.54
78
3.07
60
2.36
30
1.18
90
3.54
120
4.72
—
—
136
5.35
3
.12
Q16129ABDCC 153 x 113 x 84
6.02 x 4.45 x 3.31
Clear 160 x 120
6.30 x 4.72
Q1612PD 130 x 100
5.12 x 3.94
148 x 90
5.83 x 3.54
78
3.07
60
2.36
30
1.18
90
3.54
120
4.72
—
—
136
5.35
3
.12
Q24169ABD 233 x 153 x 84
9.17 x 6.02 x 3.31
Opaque 240 x 160
9.45 x 6.30
Q2416PD 211 x 148
8.31 x 5.83
228 x 130
8.98 x 5.12
78
3.07
75
2.95
15
.59
138
5.43
202
7.95
75
2.95
215
8.46
4
.16
Q24169ABDCC 233 x 153 x 84
9.17 x 6.02 x 3.31
Clear 240 x 160
9.45 x 6.30
Q2416PD 211 x 148
8.31 x 5.83
228 x 130
8.98 x 5.12
78
3.07
75
2.95
15
.59
138
5.43
202
7.95
75
2.95
215
8.46
4
.16
Q302311ABD 293 x 223 x 104
11.54 x 8.78 x 4.09
Opaque 300 x 230
11.81 x 9.06
Q3023PD 265 x 210
10.43 x 8.27
288 x 200
11.34 x 7.87
98
3.86
55
2.17
55
2.17
198
7.80
255
10.04
160
6.30
275
10.83
4
.16
Q302311ABDCC 293 x 223 x 104
11.54 x 8.78 x 4.09
Clear 300 x 230
11.81 x 9.06
Q3023PD 265 x 210
10.43 x 8.27
288 x 200
11.34 x 7.87
98
3.86
55
2.17
55
2.17
198
7.80
255
10.04
160
6.30
275
10.83
4
.16
Q241612ABD 233 x 153 x 114
9.17 x 6.02 x 4.49
Opaque 240 x 160
9.45 x 6.30
Q2416PD 211 x 148
8.31 x 5.83
228 x 130
8.98 x 5.12
108
4.25
75
2.95
45
1.77
75
2.95
202
7.95
75
2.95
215
8.46
4
.16
Q241612ABDCC 223 x 153 x 114
9.17 x 6.02 x 4.49
Clear 240 x 160
9.45 x 6.30
Q2416PD 211 x 148
8.31 x 5.83
228 x 130
8.98 x 5.12
108
4.25
75
2.95
45
1.77
75
2.95
202
7.95
75
2.95
215
8.46
4
.16
CHS Controls AB
Tel +46 42 38 61 00, Fax +46 42 38 61 29
chs@chscontrols.se www.chscontrols.se
275
Non-Metallic: Polycarbonate and ABS
QLINE® D
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
CHS Controls AB
Tel +46 42 38 61 00, Fax +46 42 38 61 29
chs@chscontrols.se www.chscontrols.se
276
Non-Metallic: Polycarbonate and ABS
QLINE® D
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
Hinge Kit
Hinge Kit includes two polyamide
hinges, eight M4 self-tapping,
plated screws, eight at washers and
drilling templates. Use on all QLINE®
D enclosures. Hinge Kit meets Type 4
requirements.
Bulletin: Q41Y
Catalog Number
QDEHK
Mounting Bracket Kit
Mounting Bracket Kit has four
polycarbonate brackets and four
M4 self-tapping, plated screws. Kit is
eld-installable. Use on all QLINE® D
enclosures. Maintains listed ratings
for enclosure.
Bulletin: Q41Y
Catalog Number
QDMFK
Hardware Kit
Hardware Kit includes six self-
tapping, stainless steel cover screws,
four self-tapping plated panel screws
and six removable plastic caps that
t over the screws to provide tamper
resistance as well as a clean aesthetic
appearance. This kit is oered as a
replacement kit for lost or damaged
hardware originally furnished with
the enclosure.
Bulletin: Q41Y
Catalog Number
QDHK
Panels
Bulletin: Q41Y
Catalog Number
Panel Size
D x E
mm/in.
Mounting
G x H
mm/in.
Q88PD 68 x 55
2.68 x 2.17
70 x 50
2.76 x 1.97
Q128PD 91 x 65
3.58 x 2.56
108 x 50
4.25 x 1.97
Q168PD 131 x 65
5.16 x 2.56
148 x 50
5.83 x 1.97
Q1212PD 105 x 93
4.13 x 3.66
110 x 90
4.33 x 3.54
Q1612PD 130 x 100
5.12 x 3.94
148 x 90
5.83 x 3.54
Q2012PD 170 x 100
6.69 x 3.94
188 x 90
7.40 x 3.54
Q2015PD 170 x 128
6.69 x 5.04
188 x 120
7.40 x 4.72
Q2416PD 211 x 148
8.31 x 5.83
228 x 130
8.98 x 5.12
Q3023PD 265 x 210
10.43 x 8.27
288 x 200
11.34 x 7.87
CHS Controls AB
Tel +46 42 38 61 00, Fax +46 42 38 61 29
chs@chscontrols.se www.chscontrols.se
277
Non-Metallic: Polycarbonate and ABS
QLINE® D
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
Notes
CHS Controls AB
Tel +46 42 38 61 00, Fax +46 42 38 61 29
chs@chscontrols.se www.chscontrols.se
278
Non-Metallic: Polycarbonate and ABS
QLINE® D
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products

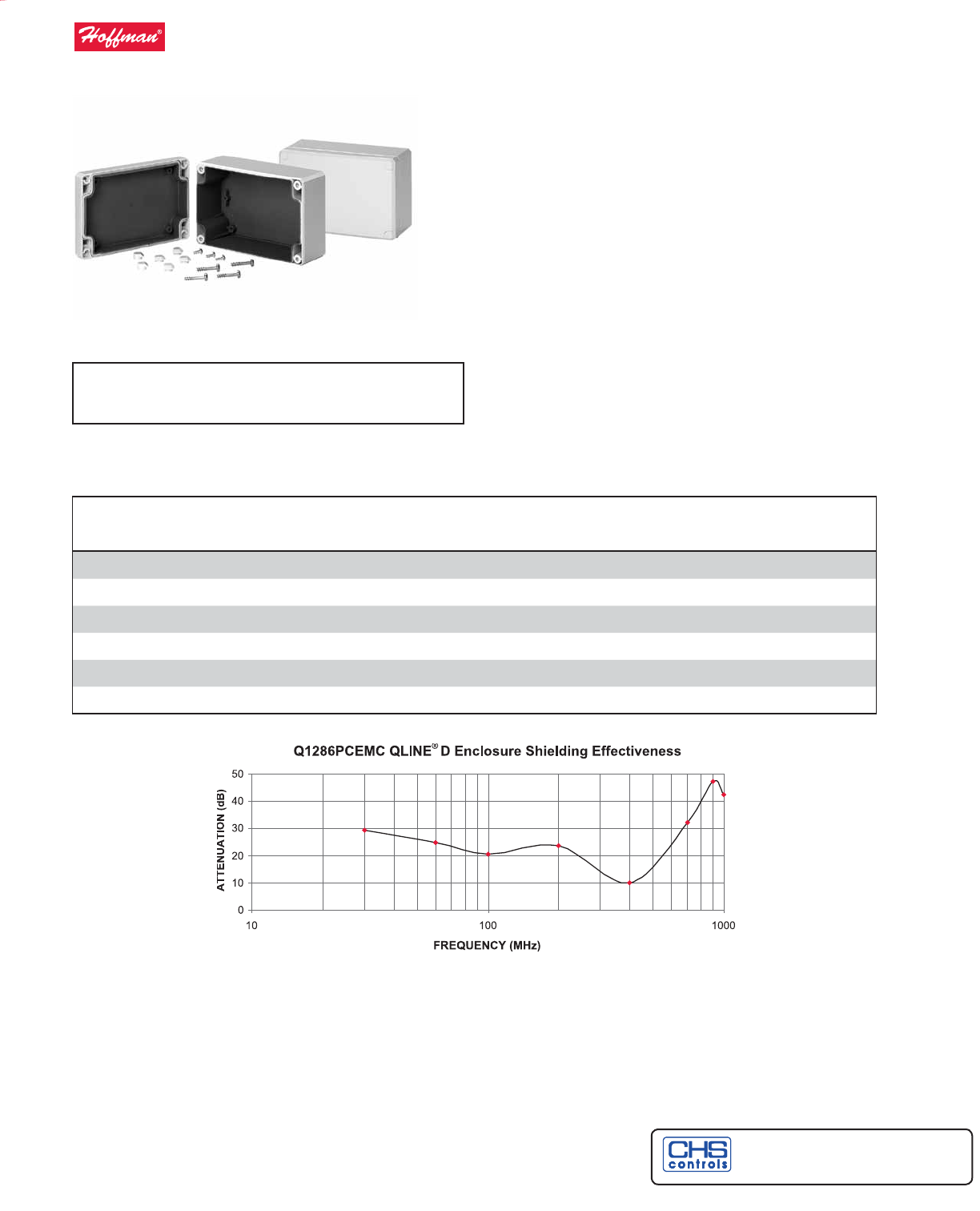

QLINE® D, EMC, Type 4X
Industry Standards
UL 508A Listed; Type 4, 4X, 12, 13
cUL Listed per CSA C22.2 No 94; Type 4, 4X, 12, 13; File No.
E61997
Enclosure ammability evaluated per UL 508A
NEMA/EEMAC Type 4, 4X, 12, 13
IEC 60529, IP66
Application
QLINE® D polycarbonate EMC enclosures have contoured bodies and
ush cover screws for an attractive, contemporary appearance while
also providing EMC protection in corrosive environments.
Specications
• Body is impact-resistant polycarbonate
• EMC conductive coating in base and cover
• Gasket of silver/silicone
• Mounting holes molded directly under cover screws
• Cross-point captivated cover screws are stainless steel
• Mounting tracks along body side walls and bosses on cover for PC
card installation
• Cover screws protected by removable caps that are both aesthetic
and provide tamper resistance
•
Molded internal pads for mounting optional panels, rails and other
components
• Screws provided for mounting optional panel
Finish
Enclosure material is RAL 7035 light-gray outside. Optional panels are
conductive steel.
Bulletin: Q41EM
Standard Product
Catalog Number AxBxC mm/in.
External
Dimensions
L x W
mm/in.
Internal
Dimensions
A x B x C
mm/in. Panel
Panel Size
D x E
mm/in.
Mounting
G x H
mm/in.
F
mm/in.
J
mm/in.
K
mm/in.
P
mm/in.
Q
mm/in.
R
mm/in.
S
mm/in.
U
mm/in.
Q1286PCEMC 120 x 80 x 55
4.70 x 3.10 x 2.20
120 x 80
4.72 x 3.15
114 x 74 x 49
4.47 x 2.89 x 1.93
Q128PD 91 x 65
3.58 x 2.56
108 x 50
4.25 x 1.97
42
1.65
40
1.57
15
0.59
58
2.28
82
3.21
—
—
96
3.78
3
0.12
Q1289PCEMC 120 x 80 x 85
4.70 x 3.10 x 3.30
120 x 80
4.72 x 3.15
113 x 73 x 79
4.45 x 2.87 x 3.11
Q128PD 91 x 65
3.58 x 2.56
108 x 50
4.25 x 1.97
72
2.83
70
2.76
15
0.59
58
2.28
82
3.21
—
—
96
3.78
3
0.12
Q16129PCEMC 160 x 120 x 90
6.30 x 4.70 x 3.50
160 x 120
6.30 x 4.72
153 x 113 x 84
6.02 x 4.45 x 3.29
Q1612PD 130 x 100
5.12 x 3.94
148 x 90
5.83 x 3.54
77.5
3.05
60
2.36
30
1.18
90
3.54
120
4.72
—
—
136
5.35
3
0.12
Q1689PCEMC 160 x 80 x 85
6.30 x 3.10 x 3.30
160 x 80
6.30 x 3.15
153 x 73 x 79
6.02 x 2.87 x 3.11
Q168PD 131 x 65
5.16 x 2.56
148 x 50
5.83 x 1.97
72
2.83
70
2.76
15
0.59
58
2.28
122
4.78
—
—
136
5.35
3
0.12
Q20129PCEMC 200 x 120 x 85
7.90 x 4.70 x 3.30
200 x 120
7.87 x 4.72
193 x 113 x 79
7.60 x 4.45 x 3.11
Q2012PD 170 x 100
6.69 x 3.94
188 x 90
7.40 x 3.54
72
2.83
70
2.76
15
0.59
90
3.54
160
6.30
40
1.57
176
6.93
3
0.12
Q24169PCEMC 240 x 160 x 90
9.40 x 6.30 x 3.50
240 x 160
9.45 x 6.30
233 x 153 x 84
9.17 x 6.02 x 3.29
Q2416PD 211 x 148
8.31 x 5.83
228 x 130
8.98 x 5.12
77.5
3.05
75
2.95
15
0.59
138
5.43
202
7.93
75
2.95
215
8.46
3.5
0.14
Purchase panels separately.
CHS Controls AB
Tel +46 42 38 61 00, Fax +46 42 38 61 29
chs@chscontrols.se www.chscontrols.se
279
Non-Metallic: Polycarbonate and ABS
QLINE® D
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
CHS Controls AB
Tel +46 42 38 61 00, Fax +46 42 38 61 29
chs@chscontrols.se www.chscontrols.se
280
Non-Metallic: Polycarbonate and ABS
QLINE® E
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
QLINE® E
QLINE® E, Type 4X
Industry Standards
Polycarbonate Enclosure
UL 508A Listed; Type 4, 4X, 6, 12, 13; File No. E61997
cUL Listed per CSA C22.2 No 94; Type 4, 4X, 6, 12, 13; File No.
E61997
Enclosure ammability evaluated per UL 508A
NEMA/EEMAC Type 4, 4X, 6, 12, 13
CSA File No. 42186: Type 4, 4X, 12, 13
IEC 60529, IP67
ABS Enclosure
NEMA/EEMAC Type 4, 4X, 6, 12, 13
IEC 60529, IP67
Application
QLINE® E Enclosures house larger controls, provide additional size-
range options and oer greater internal mounting exibility than
smaller QLINE products. Featuring contoured bodies with ush
cover screws, they are functional in corrosive environments and can
withstand occasional submersion.
The ABS series shares the same features and similar physical
properties as the polycarbonate but is a more economical, non-UL
rated alternative.
Specications
• Body is impact-resistant polycarbonate for PCE series andABS for
ABE series
• Opaque and clear covers are impact-resistant polycarbonate for
PCE, opaque covers areABS for ABE series
• Polycarbonate andABS material is easily punched, drilled, led or
sawed
• Cross-point ush cover screws are strong, durable polyamide
• Cover includes a molded-in wire lead hole
• Mounting tracks along body side walls for PC card installation
•
Molded internal pads for mounting optional panels, rails and other
components
• Seamless foam-in-place gasket assures water-tight and dust-tight
seal
• Material is halogen free
Finish
Polycarbonate and ABS enclosure material is RAL 7035 light-gray
inside and out. Optional panels are plated steel.
Accessories
See also Accessories.
Brass Inserts
Hardware Kit
Hinge Kit
HOL-SEALERS™ Non-Metallic Hole Seals
Mounting Bracket Kit
Modication and Customization
Homan excels at modifying and customizing products to your
specications. Contact your local Homan sales oce or distributor
for complete information.
Bulletin: Q41
CHS Controls AB
Tel +46 42 38 61 00, Fax +46 42 38 61 29
chs@chscontrols.se www.chscontrols.se
281
Non-Metallic: Polycarbonate and ABS
QLINE® E
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
Standard Product Polycarbonate
Catalog Number AxBxC mm/in.
Cover
Style
External
Dimensions
L x W
mm/in. Panel
Panel Size
D x E
mm/in.
Mounting
G x H
mm/in.
F
mm/in.
K
mm/in.
P
mm/in.
Q
mm/in.
S
mm/in.
Q1388PCE 119 x 69 x 67
4.69 x 2.72 x 2.64
Opaque 125 x 75
4.92 x 2.95
Q138PE 98 x 48
3.86 x 1.89
110 x 60
4.33 x 2.36
61
2.40
25
0.98
40
1.57
75
2.95
90
3.54
Q1388PCECC 119 x 69 x 67
4.69 x 2.72 x 2.64
Clear 125 x 75
4.92 x 2.95
Q138PE 98 x 48
3.86 x 1.89
110 x 60
4.33 x 2.36
61
2.40
25
0.98
40
1.57
75
2.95
90
3.54
Q13138PCE 119 x 119 x 67
4.69 x 4.69 x 2.64
Opaque 125 x 125
4.92 x 4.92
Q1313PE 98 x 98
3.86 x 3.86
110 x 110
4.33 x 4.33
61
2.40
25
0.98
90
3.54
75
2.95
90
3.54
Q13138PCECC 119 x 119 x 67
4.69 x 4.69 x 2.64
Clear 125 x 125
4.92 x 4.92
Q1313PE 98 x 98
3.86 x 3.86
110 x 110
4.33 x 4.33
61
2.40
25
0.98
90
3.54
75
2.95
90
3.54
Q18138PCE 169 x 119 x 67
6.65 x 4.69 x 2.64
Opaque 175 x 125
6.89 x 4.92
Q1813PE 148 x 98
5.83 x 3.86
160 x 110
6.30 x 4.33
61
2.40
25
0.98
90
3.54
100
3.94
140
5.51
Q18138PCECC 169 x 119 x 67
6.65 x 4.69 x 2.64
Clear 175 x 125
6.89 x 4.92
Q1813PE 148 x 98
5.83 x 3.86
160 x 110
6.30 x 4.33
61
2.40
25
0.98
90
3.54
100
3.94
140
5.51
Q18188PCE 169 x 169 x 67
6.65 x 6.65 x 2.64
Opaque 175 x 175
6.89 x 6.89
Q1818PE 148 x 148
5.83 x 5.83
160 x 160
6.30 x 6.30
61
2.40
25
0.98
140
5.51
125
4.92
140
5.51
Q18188PCECC 169 x 169 x 67
6.65 x 6.65 x 2.64
Clear 175 x 175
6.89 x 6.89
Q1818PE 148 x 148
5.83 x 5.83
160 x 160
6.30 x 6.30
61
2.40
25
0.98
140
5.51
125
4.92
140
5.51
Q25188PCE 244 x 169 x 67
9.61 x 6.65 x 2.64
Opaque 250 x 175
9.84 x 6.89
Q2518PE 223 x 148
8.78 x 5.83
235 x 160
9.25 x 6.30
61
2.40
25
0.98
139
5.47
202
7.95
215
8.46
Q25188PCECC 244 x 169 x 67
9.61 x 6.65 x 2.64
Clear 250 x 175
9.84 x 6.89
Q2518PE 223 x 148
8.78 x 5.83
235 x 160
9.25 x 6.30
61
2.40
25
0.98
139
5.47
202
7.95
215
8.46
Q13810PCE 119 x 69 x 92
4.69 x 2.72 x 3.62
Opaque 125 x 75
4.92 x 2.95
Q138PE 98 x 48
3.86 x 1.89
110 x 60
4.33 x 2.36
86
3.39
50
1.97
40
1.57
75
2.95
90
3.54
Q13810PCECC 119 x 69 x 92
4.69 x 2.72 x 3.62
Clear 125 x 75
4.92 x 2.95
Q138PE 98 x 48
3.86 x 1.89
110 x 60
4.33 x 2.36
86
3.39
50
1.97
40
1.57
75
2.95
90
3.54
Q131310PCE 119 x 119 x 92
4.69 x 4.69 x 3.62
Opaque 125 x 125
4.92 x 4.92
Q1313PE 98 x 98
3.86 x 3.86
110 x 110
4.33 x 4.33
86
3.39
50
1.97
90
3.54
75
2.95
90
3.54
Q131310PCECC 119 x 119 x 92
4.69 x 4.69 x 3.62
Clear 125 x 125
4.92 x 4.92
Q1313PE 98 x 98
3.86 x 3.86
110 x 110
4.33 x 4.33
86
3.39
50
1.97
90
3.54
75
2.95
90
3.54
Q181310PCE 169 x 119 x 92
6.65 x 4.69 x 3.62
Opaque 175 x 125
6.89 x 4.92
Q1813PE 148 x 98
5.83 x 3.86
160 x 110
6.30 x 4.33
86
3.39
50
1.97
90
3.54
100
3.94
140
5.51
Q181310PCECC 169 x 119 x 92
6.65 x 4.69 x 3.62
Clear 175 x 125
6.89 x 4.92
Q1813PE 148 x 98
5.83 x 3.86
160 x 110
6.30 x 4.33
86
3.39
50
1.97
90
3.54
100
3.94
140
5.51
Q181810PCE 169 x 169 x 92
6.65 x 6.65 x 3.62
Opaque 175 x 175
6.89 x 6.89
Q1818PE 148 x 148
5.83 x 5.83
160 x 160
6.30 x 6.30
86
3.39
50
1.97
140
5.51
125
4.92
140
5.51
Q181810PCECC 169 x 169 x 92
6.65 x 6.65 x 3.62
Clear 175 x 175
6.89 x 6.89
Q1818PE 148 x 148
5.83 x 5.83
160 x 160
6.30 x 6.30
86
3.39
50
1.97
140
5.51
125
4.92
140
5.51
Q251810PCE 244 x 169 x 92
9.61 x 6.65 x 3.62
Opaque 250 x 175
9.84 x 6.89
Q2518PE 223 x 148
8.78 x 5.83
235 x 160
9.25 x 6.30
86
3.39
50
1.97
139
5.47
202
7.95
215
8.46
Q251810PCECC 244 x 169 x 92
9.61 x 6.65 x 3.62
Clear 250 x 175
9.84 x 6.89
Q2518PE 223 x 148
8.78 x 5.83
235 x 160
9.25 x 6.30
86
3.39
50
1.97
139
5.47
202
7.95
215
8.46
Q13813PCE 119 x 69 x 117
4.69 x 2.72 x 4.61
Opaque 125 x 75
4.92 x 2.95
Q138PE 98 x 48
3.86 x 1.89
110 x 60
4.33 x 2.36
111
4.37
75
2.95
40
1.57
75
2.95
90
3.54
Q13813PCECC 119 x 69 x 117
4.69 x 2.72 x 4.61
Clear 125 x 75
4.92 x 2.95
Q138PE 98 x 48
3.86 x 1.89
110 x 60
4.33 x 2.36
111
4.37
75
2.95
40
1.57
75
2.95
90
3.54
Q131313PCE 119 x 119 x 117
4.69 x 4.69 x 4.61
Opaque 125 x 125
4.92 x 4.92
Q1313PE 98 x 98
3.86 x 3.86
110 x 110
4.33 x 4.33
111
4.37
75
2.95
90
3.54
75
2.95
90
3.54
Q131313PCECC 119 x 119 x 117
4.69 x 4.69 x 4.61
Clear 125 x 125
4.92 x 4.92
Q1313PE 98 x 98
3.86 x 3.86
110 x 110
4.33 x 4.33
111
4.37
75
2.95
90
3.54
75
2.95
90
3.54
Q181313PCE 169 x 119 x 117
6.65 x 4.69 x 4.61
Opaque 175 x 125
6.89 x 4.92
Q1813PE 148 x 98
5.83 x 3.86
160 x 110
6.30 x 4.33
111
4.37
75
2.95
90
3.54
100
3.94
140
5.51
Q181313PCECC 169 x 119 x 117
6.65 x 4.69 x 4.61
Clear 175 x 125
6.89 x 4.92
Q1813PE 148 x 98
5.83 x 3.86
160 x 110
6.30 x 4.33
111
4.37
75
2.95
90
3.54
100
3.94
140
5.51
Q181813PCE 169 x 169 x 117
6.65 x 6.65 x 4.61
Opaque 175 x 175
6.89 x 6.89
Q1818PE 148 x 148
5.83 x 5.83
160 x 160
6.30 x 6.30
111
4.37
75
2.95
140
5.51
125
4.92
140
5.51
Q181813PCECC 169 x 169 x 117
6.65 x 6.65 x 4.61
Clear 175 x 175
6.89 x 6.89
Q1818PE 148 x 148
5.83 x 5.83
160 x 160
6.30 x 6.30
111
4.37
75
2.95
140
5.51
125
4.92
140
5.51
Q181315PCE 169 x 119 x 142
6.65 x 4.69 x 5.59
Opaque 175 x 125
6.89 x 4.92
Q1813PE 148 x 98
5.83 x 3.86
160 x 110
6.30 x 4.33
136
5.35
100
3.94
90
3.54
100
3.94
140
5.51
Q181315PCECC 169 x 119 x 142
6.65 x 4.69 x 5.59
Clear 175 x 125
6.89 x 4.92
Q1813PE 148 x 98
5.83 x 3.86
160 x 110
6.30 x 4.33
136
5.35
100
3.94
90
3.54
100
3.94
140
5.51
Q181815PCE 169 x 169 x 142
6.65 x 6.65 x 5.59
Opaque 175 x 175
6.89 x 6.89
Q1818PE 148 x 148
5.83 x 5.83
160 x 160
6.30 x 6.30
136
5.35
100
3.94
140
5.51
125
4.92
140
5.51
Q181815PCECC 169 x 169 x 142
6.65 x 6.65 x 5.59
Clear 175 x 175
6.89 x 6.89
Q1818PE 148 x 148
5.83 x 5.83
160 x 160
6.30 x 6.30
136
5.35
100
3.94
140
5.51
125
4.92
140
5.51
Q251815PCE 244 x 169 x 142
9.61 x 6.65 x 5.59
Opaque 250 x 175
9.84 x 6.89
Q2518PE 223 x 148
8.78 x 5.83
235 x 160
9.25 x 6.30
136
5.35
100
3.94
139
5.47
202
7.95
215
8.46
Q251815PCECC 244 x 169 x 142
9.61 x 6.65 x 5.59
Clear 250 x 175
9.84 x 6.89
Q2518PE 223 x 148
8.78 x 5.83
235 x 160
9.25 x 6.30
136
5.35
100
3.94
139
5.47
202
7.95
215
8.46
A x B x C are internal dimensions.
Purchase panels separately.
CHS Controls AB
Tel +46 42 38 61 00, Fax +46 42 38 61 29
chs@chscontrols.se www.chscontrols.se
282
Non-Metallic: Polycarbonate and ABS
QLINE® E
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
Standard Product ABS
Catalog Number AxBxC mm/in.
Cover
Style
External
Dimensions
L x W
mm/in. Panel
Panel Size
D x E
mm/in.
Mounting
G x H
mm/in.
F
mm/in.
K
mm/in.
P
mm/in.
Q
mm/in.
S
mm/in.
Q1388ABE 119 x 69 x 67
4.69 x 2.72 x 2.64
Opaque 125 x 75
4.92 x 2.95
Q138PE 98 x 48
3.86 x 1.89
110 x 60
4.33 x 2.36
61
2.40
25
.98
40
1.57
75
2.95
90
3.54
Q1388ABECC 119 x 69 x 67
4.69 x 2.72 x 2.64
Clear 125 x 75
4.92 x 2.95
Q138PE 98 x 48
3.86 x 1.89
110 x 60
4.33 x 2.36
61
2.40
25
.98
40
1.57
75
2.95
90
3.54
Q13138ABE 119 x 119 x 67
4.69 x 4.69 x 2.64
Opaque 125 x 125
4.92 x 4.92
Q1313PE 98 x 98
3.86 x 3.86
110 x 110
4.33 x 4.33
61
2.40
25
.98
90
3.54
75
2.95
90
3.54
Q13138ABECC 119 x 119 x 67
4.69 x 4.69 x 2.64
Clear 125 x 125
4.92 x 4.92
Q1313PE 98 x 98
3.86 x 3.86
110 x 110
4.33 x 4.33
61
2.40
25
.98
90
3.54
75
2.95
90
3.54
Q18138ABE 169 x 119 x 67
6.65 x 4.69 x 2.64
Opaque 175 x 125
6.89 x 4.92
Q1813PE 148 x 98
5.83 x 3.86
160 x 110
6.30 x 4.33
61
2.40
25
.98
90
3.54
100
3.94
140
5.51
Q18138ABECC 169 x 119 x 67
6.65 x 4.69 x 2.64
Clear 175 x 125
6.89 x 4.92
Q1813PE 148 x 98
5.83 x 3.86
160 x 110
6.30 x 4.33
61
2.40
25
.98
90
3.54
100
3.94
140
5.51
Q18188ABE 169 x 169 x 67
6.65 x 6.65 x 2.64
Opaque 175 x 175
6.89 x 6.89
Q1818PE 148 x 148
5.83 x 5.83
160 x 160
6.30 x 6.30
61
2.40
25
.98
140
5.51
125
4.92
140
5.51
Q18188ABECC 169 x 169 x 67
6.65 x 6.65 x 2.64
Clear 175 x 175
6.89 x 6.89
Q1818PE 148 x 148
5.83 x 5.83
160 x 160
6.30 x 6.30
61
2.40
25
.98
140
5.51
125
4.92
140
5.51
Q25188ABE 244 x 169 x 67
9.61 x 6.65 x 2.64
Opaque 250 x 175
9.84 x 6.89
Q2518PE 223 x 148
8.78 x 5.83
235 x 160
9.25 x 6.30
61
2.40
25
.98
139
5.47
202
7.95
215
8.46
Q25188ABECC 244 x 169 x 67
9.61 x 6.65 x 2.64
Clear 250 x 175
9.84 x 6.89
Q2518PE 223 x 148
8.78 x 5.83
235 x 160
9.25 x 6.30
61
2.40
25
.98
139
5.47
202
7.95
215
8.46
Q13810ABE 119 x 69 x 92
4.69 x 2.72 x 3.62
Opaque 125 x 75
4.92 x 2.95
Q138PE 98 x 48
3.86 x 1.89
110 x 60
4.33 x 2.36
86
3.39
50
1.97
40
1.57
75
2.95
90
3.54
Q13810ABECC 119 x 69 x 92
4.69 x 2.72 x 3.62
Clear 125 x 75
4.92 x 2.95
Q138PE 98 x 48
3.86 x 1.89
110 x 60
4.33 x 2.36
86
3.39
50
1.97
40
1.57
75
2.95
90
3.54
Q131310ABE 119 x 119 x 92
4.69 x 4.69 x 3.62
Opaque 125 x 125
4.92 x 4.92
Q1313PE 98 x 98
3.86 x 3.86
110 x 110
4.33 x 4.33
86
3.39
50
1.97
90
3.54
75
2.95
90
3.54
Q131310ABECC 119 x 119 x 92
4.69 x 4.69 x 3.62
Clear 125 x 125
4.92 x 4.92
Q1313PE 98 x 98
3.86 x 3.86
110 x 110
4.33 x 4.33
86
3.39
50
1.97
90
3.54
75
2.95
90
3.54
Q181310ABE 169 x 119 x 92
6.65 x 4.69 x 3.62
Opaque 175 x 125
6.89 x 4.92
Q1813PE 148 x 98
5.83 x 3.86
160 x 110
6.30 x 4.33
86
3.39
50
1.97
90
3.54
100
3.94
140
5.51
Q181310ABECC 169 x 119 x 92
6.65 x 4.69 x 3.62
Clear 175 x 125
6.89 x 4.92
Q1813PE 148 x 98
5.83 x 3.86
160 x 110
6.30 x 4.33
86
3.39
50
1.97
90
3.54
100
3.94
140
5.51
Q181810ABE 169 x 169 x 92
6.65 x 6.65 x 3.62
Opaque 175 x 175
6.89 x 6.89
Q1818PE 148 x 148
5.83 x 5.83
5.83 x 5.83
6.30 x 6.30
86
3.39
50
1.97
140
5.51
125
4.92
140
5.51
Q181810ABECC 169 x 169 x 92
6.65 x 6.65 x 3.62
Clear 175 x 175
6.89 x 6.89
Q1818PE 148 x 148
5.83 x 5.83
5.83 x 5.83
6.30 x 6.30
86
3.39
50
1.97
140
5.51
125
4.92
140
5.51
Q251810ABE 244 x 169 x 92
9.61 x 6.65 x 3.62
Opaque 250 x 175
9.84 x 6.89
Q2518PE 223 x 148
8.78 x 5.83
235 x 160
9.25 x 6.30
86
3.39
50
1.97
139
5.47
202
7.95
215
8.46
Q251810ABECC 244 x 169 x 92
9.61 x 6.65 x 3.62
Clear 250 x 175
9.84 x 6.89
Q2518PE 223 x 148
8.78 x 5.83
235 x 160
9.25 x 6.30
86
3.39
50
1.97
139
5.47
202
7.95
215
8.46
Q13813ABE 119 x 69 x 117
4.69 x 2.72 x 4.61
Opaque 125 x 75
4.92 x 2.95
Q138PE 98 x 48
3.86 x 1.89
110 x 60
4.33 x 2.36
111
4.37
75
2.95
40
1.57
75
2.95
90
3.54
Q13813ABECC 119 x 69 x 117
4.69 x 2.72 x 4.61
Clear 125 x 75
4.92 x 2.95
Q138PE 98 x 48
3.86 x 1.89
110 x 60
4.33 x 2.36
111
4.37
75
2.95
40
1.57
75
2.95
90
3.54
Q131313ABE 119 x 119 x 117
4.69 x 4.69 x 4.61
Opaque 125 x 125
4.92 x 4.92
Q1313PE 98 x 98
3.86 x 3.86
110 x 110
4.33 x 4.33
111
4.37
75
2.95
90
3.54
75
2.95
90
3.54
Q131313ABECC 119 x 119 x 117
4.69 x 4.69 x 4.61
Clear 125 x 125
4.92 x 4.92
Q1313PE 98 x 98
3.86 x 3.86
110 x 110
4.33 x 4.33
111
4.37
75
2.95
90
3.54
75
2.95
90
3.54
Q181313ABE 169 x 119 x 117
6.65 x 4.69 x 4.61
Opaque 175 x 125
6.89 x 4.92
Q1813PE 148 x 98
5.83 x 3.86
160 x 110
6.30 x 4.33
111
4.37
75
2.95
90
3.54
100
3.94
140
5.51
Q181313ABECC 169 x 119 x 117
6.65 x 4.69 x 4.61
Clear 175 x 125
6.89 x 4.92
Q1813PE 148 x 98
5.83 x 3.86
160 x 110
6.30 x 4.33
111
4.37
75
2.95
90
3.54
100
3.94
140
5.51
Q181813ABE 169 x 169 x 117
6.65 x 6.65 x 4.61
Opaque 175 x 175
6.89 x 6.89
Q1818PE 148 x 148
5.83 x 5.83
160 x 160
6.30 x 6.30
111
4.37
75
2.95
140
5.51
125
4.92
140
5.51
Q181813ABECC 169 x 169 x 117
6.65 x 6.65 x 4.61
Clear 175 x 175
6.89 x 6.89
Q1818PE 148 x 148
5.83 x 5.83
160 x 160
6.30 x 6.30
111
4.37
75
2.95
140
5.51
125
4.92
140
5.51
Q181315ABE 169 x 119 x 142
6.65 x 4.69 x 5.59
Opaque 175 x 125
6.89 x 4.92
Q1813PE 148 x 98
5.83 x 3.86
160 x 110
6.30 x 4.33
136
5.35
100
3.94
90
3.54
100
3.94
140
5.51
Q181315ABECC 169 x 119 x 142
6.65 x 4.69 x 5.59
Clear 175 x 125
6.89 x 4.92
Q1813PE 148 x 98
5.83 x 3.86
160 x 110
6.30 x 4.33
136
5.35
100
3.94
90
3.54
100
3.94
140
5.51
Q181815ABE 169 x 169 x 142
6.65 x 6.65 x 5.59
Opaque 175 x 175
6.89 x 6.89
Q1818PE 148 x 148
5.83 x 5.83
160 x 160
6.30 x 6.30
136
5.35
100
3.94
140
5.51
125
4.92
140
5.51
Q181815ABECC 169 x 169 x 142
6.65 x 6.65 x 5.59
Clear 175 x 175
6.89 x 6.89
Q1818PE 148 x 148
5.83 x 5.83
160 x 160
6.30 x 6.30
136
5.35
100
3.94
140
5.51
125
4.92
140
5.51
Q251815ABE 244 x 169 x 142
9.61 x 6.65 x 5.59
Opaque 250 x 175
9.84 x 6.89
Q2518PE 223 x 148
8.78 x 5.83
235 x 160
9.25 x 6.30
136
5.35
100
3.94
139
5.47
202
7.95
215
8.46
Q251815ABECC 244 x 169 x 142
9.61 x 6.65 x 5.59
Clear 250 x 175
9.84 x 6.89
Q2518PE 223 x 148
8.78 x 5.83
235 x 160
9.25 x 6.30
136
5.35
100
3.94
139
5.47
202
7.95
215
8.46
CHS Controls AB
Tel +46 42 38 61 00, Fax +46 42 38 61 29
chs@chscontrols.se www.chscontrols.se
283
Non-Metallic: Polycarbonate and ABS
QLINE® E
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
CHS Controls AB
Tel +46 42 38 61 00, Fax +46 42 38 61 29
chs@chscontrols.se www.chscontrols.se
284
Non-Metallic: Polycarbonate and ABS
QLINE® E
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
Brass Inserts
Self-tapping Brass Inserts t into
molded pads in the bottom of the
enclosure. Inserts have an M2 internal
machine screw thread and M4 self-
tapping external thread.
Bulletin: Q41Y
Catalog Number Description Qty. Pkg.
QEBI M2 thread inserts 4
Hinge Kit
Includes two polyamid hinges,
eight M4 self-tapping zinc-plated
screws, eight at washers and
drilling template. Use on all QLINE® E
enclosures.
Kit might not meet Type 4 requirements
and should, therefore, be veried by
customer.
Bulletin: Q41Y
Catalog Number
QDEHK
Mounting Bracket Kit
Kit includes four polycarbonate
brackets and four M4 self-tapping,
plated screws. Use on all QLINE® E
enclosures. No modication to the
enclosure is required for installation.
Maintains listed ratings.
Bulletin: Q41Y
Catalog Number
QEMFK
Hardware Kit
Four cross-point polyamide cover
screws and four self-tapping plated
screws used to mount optional
panels, rails and other components.
This kit is oered as a replacement
kit for lost or damaged hardware
originally furnished with the
enclosure.
Bulletin: Q41Y
Catalog Number Description Fits QLINE Enclosure
QEHK35 35-mm screw when C = 67 mm, 117 mm or 142 mm
QEHK60 60-mm screw when C = 92 mm
Panels
Bulletin: Q41Y
Catalog Number
Panel Size D x E
mm/in.
Q138PE 98 x 48
3.86 x 1.89
Q1313PE 98 x 98
3.86 x 3.86
Q1813PE 148 x 98
5.83 x 3.86
Q1818PE 148 x 148
5.83 x 5.83
Q2518PE 223 x 148
8.78 x 5.83
CHS Controls AB
Tel +46 42 38 61 00, Fax +46 42 38 61 29
chs@chscontrols.se www.chscontrols.se
285
Non-Metallic: Polycarbonate and ABS
QLINE® E
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
Notes
CHS Controls AB
Tel +46 42 38 61 00, Fax +46 42 38 61 29
chs@chscontrols.se www.chscontrols.se
286
Non-Metallic: Polycarbonate and ABS
QLINE® E
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
QLINE® E, EMC, Type 4X
Industry Standards
UL 508A Listed; Type 4, 4X, 12, 13; File No. E61997
cUL Listed per CSA C22.2 No 94: Type 4, 4X, 12, 13; File No.
E61997
Enclosure ammability evaluated per UL 508A
NEMA/EEMAC Type 4, 4X, 12, 13
IEC 60529, IP66
Application
Medium-size QLINE® E polycarbonate EMC enclosures have
contoured bodies and ush cover screws for an attractive,
contemporary appearance while also providing EMC protection in
corrosive environments.
Specications
• Body is impact-resistant polycarbonate
• EMC conductive coating in base and cover
• Gasket of silver/silicone
• Mounting holes molded directly under cover screws
• Screws provided for mounting optional panel
• Polycarbonate material is easily punched, drilled, led or sawed
• Cross-point ush cover screws are strong, durable polyamide
• Mounting tracks along body side walls for PC card installation
•
Molded internal pads for mounting optional panels, rails and other
components
Finish
Enclosure material is RAL 7035 light-gray outside. Optional panels are
conductive steel.
Bulletin: Q41EM
Standard Product
Catalog Number AxBxC mm/in.
External
Dimensions
L x W
mm/in.
Internal
Dimensions
A x B x C
mm/in. Panel
Panel Size
D x E
mm/in.
Mounting
G x H
mm/in.
F
mm/in.
K
mm/in.
P
mm/in.
Q
mm/in.
S
mm/in.
T
mm/in.
W
mm/in.
X
mm/in.
Q1388PCEMC 125 x 75 x 74
4.90 x 3.00 x 2.90
125 x 75
4.92 x 2.95
119 x 69 x 67
4.67 x 2.70 x 2.65
Q138PE 98 x 48
3.86 x 1.89
110 x 60
4.33 x 2.36
61
2.38
25
0.98
40
1.57
75
2.95
90
3.54
—
—
—
—
—
—
Q13138PCEMC 125 x 125 x 74
4.90 x 4.90 x 2.90
125 x 125
4.92 x 4.92
119x 119 x 67
4.67 x 4.67 x 2.65
Q1313PE 98 x 98
3.86 x 3.86
110 x 110
4.33 x 4.33
61
2.38
25
0.98
90
3.54
75
2.95
90
3.54
—
—
23
0.89
—
—
Q131310PCEMC 125 x 125 x 99
4.90 x 4.90 x 3.90
125 x 125
4.92 x 4.92
119 x 119 x 92
4.67 x 4.67 x 3.64
Q1313PE 98 x 98
3.86 x 3.86
110 x 110
4.33 x 4.33
86
3.37
25
0.98
90
3.54
75
2.95
90
3.54
—
—
23
0.89
—
—
Q18138PCEMC 175 x 125 x 74
6.90 x 4.90 x 2.90
175 x 125
6.89 x 4.92
169 x 119 x 67
6.63 x 4.67 x 2.65
Q1813PE 148 x 98
5.83 x 3.86
160 x 110
6.30 x 4.33
61
2.38
25
0.98
90
3.54
100
3.94
140
5.51
15
0.59
23
0.89
—
—
Q181310PCEMC 175 x 125 x 99
6.90 x 4.90 x 3.90
175 x 125
6.89 x 4.92
169 x 119 x 92
6.63 x 4.67 x 3.64
Q1813PE 148 x 98
5.83 x 3.86
160 x 110
6.30 x 4.33
86
3.37
50
1.97
90
3.54
100
3.94
140
5.51
15
0.59
23
0.89
—
—
Q18188PCEMC 175 x 175 x 74
6.90 x 6.90 x 2.90
175 x 175
6.89 x 6.89
169 x 169 x 67
6.63 x 6.63 x 2.65
Q1818PE 148 x 148
5.83 x 5.83
160 x 160
6.30 x 6.30
61
2.38
25
0.98
140
5.51
125
4.92
140
5.51
—
—
15
0.59
35
1.38
Purchase panels separately.
CHS Controls AB
Tel +46 42 38 61 00, Fax +46 42 38 61 29
chs@chscontrols.se www.chscontrols.se
287
Non-Metallic: Polycarbonate and ABS
QLINE® E
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
CHS Controls AB
Tel +46 42 38 61 00, Fax +46 42 38 61 29
chs@chscontrols.se www.chscontrols.se
288
Non-Metallic: Polycarbonate and ABS
QLINE® I
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
QLINE® I
QLINE® I, Type 4X
Industry Standards
Polycarbonate Enclosure
UL 508A Listed; Type 4, 4X, 12, 13; File No. E61997
cUL Listed per CSA C22.2 No 94; Type 4, 4X, 12, 13; File No.
E61997
Enclosure ammability evaluated per UL 508A
NEMA/EEMAC Type 4, 4X, 12, 13
CSA File No. 42186: Type 4, 4X, 12, 13
IEC 60529, IP66
ABS Enclosure
NEMA/EEMAC Type 4, 4X, 12, 13
IEC 60529, IP66
Application
The largest-sized QLINE
® enclosure, QLINE I provides easy access and
protects larger controls from corrosive environments. Choose from
screw cover, hinge, internal mounting, variable depth and quick-
release latch options to meet your design and security requirements.
The ABS series shares the same features and similar physical
properties as the polycarbonate but is a more economical, non-UL
rated alternative.
Specications
• Body is impact-resistant polycarbonate for PCI series andABS for
ABI series
• Opaque and clear covers are impact-resistant polycarbonate for
PCI; opaque covers areABS for ABI series
• Polycarbonate andABS material is easily punched, drilled, led or
sawed
• Mounting holes molded directly under cover screws
•
Molded internal pads for mounting optional panels, rails and other
components
• Molded internal rails for mounting adjustable-depth panel kit
• Screws provided for mounting optional panel
• Optional extension rings are molded polycarbonate
• Cover includes a molded-in hole for wire lead
• Seamless foam-in-place gasket assures water-tight and dust-tight
seal
• Material is halogen free
Screw Cover Enclosures have easy-to-remove covers attached to
body with strong, durable polyamide cross-point cover screws.
Enclosures with Quick-Release Latches
have polycarbonate hinges
and polyester latches with a padlock provision.
Finish
Polycarbonate and ABS enclosure material is RAL 7035 light-gray
inside and out. Optional panels are plated steel.
Accessories
See also Accessories.
Brass Insert Kit
Cover Screw Kit
Extension Rings
Hardware Kit
H2OMIT® Vent Drains, Type 4X
Hinge Kit
HOL-SEALERS™ Non-Metallic Hole Seals
Mounting Bracket Kit
Panel Depth Fitting
Modication and Customization
Homan excels at modifying and customizing products to your
specications. Contact your local Homan sales oce or distributor
for complete information.
Bulletin: Q41
CHS Controls AB
Tel +46 42 38 61 00, Fax +46 42 38 61 29
chs@chscontrols.se www.chscontrols.se
289
Non-Metallic: Polycarbonate and ABS
QLINE® I
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products

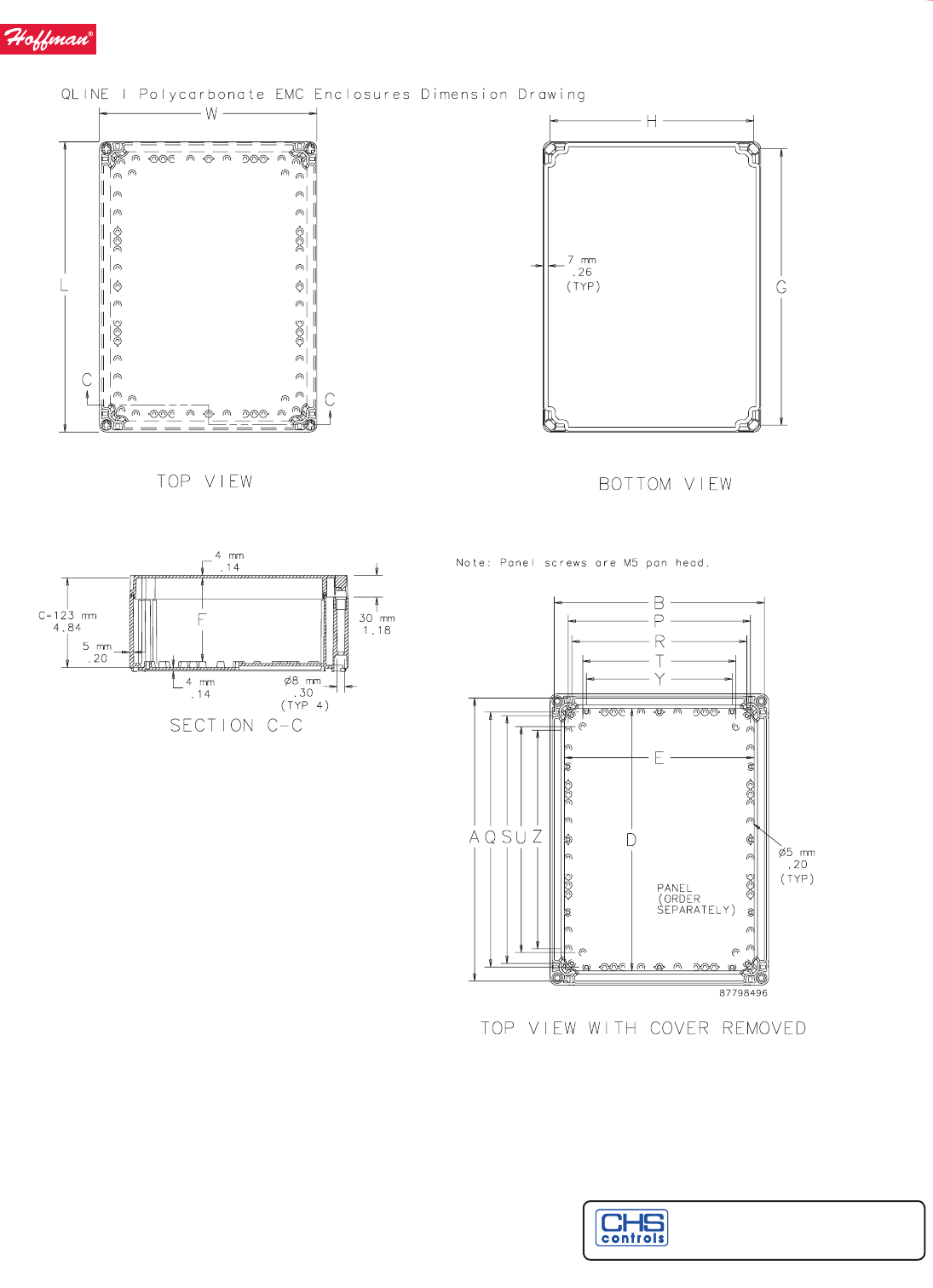

Standard Product Polycarbonate
Catalog Number AxBxC mm/in.
Cover
Style
Cover
Fastener
External
Dim’s
L x W
mm/in. Panel
Panel Size
D x E
mm/in.
Extension
Ring
Mounting
G x H
mm/in.
F
mm/in.
P
mm/in.
Q
mm/in.
R
mm/in.
S
mm/in.
T
mm/in.
U
mm/in.
Y
mm/in.
Z
mm/in.
Q202013PCI 188 x 188 x 123
7.40 x 7.40 x 4.84
Opaque Screw
Cover
200 x 200
7.87 x 7.87
Q2020PI 160 x 160
6.30 x 6.30
Q2020EXTI 180 x 180
7.09 x 7.09
115
4.53
150
5.91
150
5.91
140
5.51
140
5.51
120
4.72
110
4.33
100
3.94
100
3.94
Q202013PCICC 188 x 188 x 123
7.40 x 7.40 x 4.84
Clear Screw
Cover
200 x 200
7.87 x 7.87
Q2020PI 160 x 160
6.30 x 6.30
Q2020EXTI 180 x 180
7.09 x 7.09
115
4.53
150
5.91
150
5.91
140
5.51
140
5.51
120
4.72
120
4.33
100
3.94
100
3.94
Q302013PCI 288 x 188 x 123
11.34 x 7.40 x 4.84
Opaque Screw
Cover
300 x 200
11.81 x 7.87
Q3020PI 260 x 160
10.24 x 6.30
Q3020EXTI 280 x 180
11.02 x 7.09
115
4.53
150
5.91
250
9.84
140
5.51
240
9.45
120
4.72
210
8.27
100
3.94
200
7.87
Q302013PCICC 288 x 188 x 123
11.34 x 7.40 x 4.84
Clear Screw
Cover
300 x 200
11.81 x 7.87
Q3020PI 260 x 160
10.24 x 6.30
Q3020EXTI 280 x 180
11.02 x 7.09
115
4.53
150
5.91
250
9.84
140
5.51
240
9.45
120
4.72
210
8.27
100
3.94
200
7.87
Q402013PCI 388 x 188 x 123
15.28 x 7.40 x 4.84
Opaque Screw
Cover
400 x 200
15.75 x 7.87
Q4020PI 360 x 160
14.17 x 6.30
Q4020EXTI 380 x 180
14.96 x 7.09
115
4.53
150
5.91
350
13.78
140
5.51
340
13.39
120
4.72
310
12.20
100
3.94
300
11.81
Q402013PCICC 388 x 188 x 123
15.28 x 7.40 x 4.84
Clear Screw
Cover
400 x 200
15.75 x 7.87
Q4020PI 360 x 160
14.17 x 6.30
Q4020EXTI 380 x 180
14.96 x 7.09
115
4.53
150
5.91
350
13.78
140
5.51
340
13.39
120
4.72
310
12.20
100
3.94
300
11.81
Q303013PCI 288 x 288 x 123
11.34 x 11.34 x 4.84
Opaque Screw
Cover
300 x 300
11.81 x 11.81
Q3030PI 260 x 260
10.24 x 10.24
Q3030EXTI 280 x 280
11.02 x 11.02
115
4.53
250
9.84
250
9.84
240
9.45
240
9.45
220
8.66
210
8.27
200
7.87
200
7.87
Q303013PCICC 288 x 288 x 123
11.34 x 11.34 x 4.84
Clear Screw
Cover
300 x 300
11.81 x 11.81
Q3030PI 260 x 260
10.24 x 10.24
Q3030EXTI 280 x 280
11.02 x 11.02
115
4.53
250
9.84
250
9.84
240
9.45
240
9.45
220
8.66
210
8.27
200
7.87
200
7.87
Q403013PCI 388 x 288 x 123
15.28 x 11.34 x 4.84
Opaque Screw
Cover
400 x 300
15.75 x 11.81
Q4030PI 360 x 260
14.17 x 10.24
Q4030EXTI 380 x 280
14.96 x 11.02
115
4.53
250
9.84
350
13.78
240
9.45
340
13.39
220
8.66
310
12.20
200
7.87
300
11.81
Q403013PCICC 388 x 288 x 123
15.28 x 11.34 x 4.84
Clear Screw
Cover
400 x 300
15.75 x 11.81
Q4030PI 360 x 260
14.17 x 10.24
Q4030EXTI 380 x 280
14.96 x 11.02
115
4.53
250
9.84
350
13.78
240
9.45
340
13.39
220
8.66
310
12.20
200
7.87
300
11.81
Q603013PCI 588 x 288 x 123
23.15 x 11.34 x 4.84
Opaque Screw
Cover
600 x 300
23.62 x 11.81
Q6030PI 560 x 260
22.05 x 10.24
Q6030EXTI 580 x 280
22.83 x 11.02
115
4.53
250
9.84
550
21.65
240
9.45
540
21.26
220
8.66
510
20.08
200
7.87
500
19.69
Q603013PCICC 588 x 288 x 123
23.15 x 11.34 x 4.84
Clear Screw
Cover
600 x 300
23.62 x 11.81
Q6030PI 560 x 260
22.05 x 10.24
Q6030EXTI 580 x 280
22.83 x 11.02
115
4.53
250
9.84
550
21.65
240
9.45
540
21.26
220
8.66
510
20.08
200
7.87
500
19.69
Q604013PCI 588 x 388 x 123
23.15 x 15.28 x 4.84
Opaque Screw
Cover
600 x 400
23.62 x 15.75
Q6040PI 560 x 360
22.05 x 14.17
Q6040EXTI 580 x 380
22.83 x 14.96
115
4.53
350
13.78
550
21.65
340
13.39
540
21.26
320
12.60
510
20.08
300
11.81
500
19.69
Q604013PCICC 588 x 388 x 123
23.15 x 15.28 x 4.84
Clear Screw
Cover
600 x 400
23.62 x 15.75
Q6040PI 560 x 360
22.05 x 14.17
Q6040EXTI 580 x 380
22.83 x 14.96
115
4.53
350
13.78
550
21.65
340
13.39
540
21.26
320
12.60
510
20.08
300
11.81
500
19.69
Q202018PCI 188 x 188 x 173
7.40 x 7.40 x 6.81
Opaque Screw
Cover
200 x 200
7.87 x 7.87
Q2020PI 160 x 160
6.30 x 6.30
Q2020EXTI 180 x 180
7.09 x 7.09
165
6.50
150
5.91
150
5.91
140
5.51
140
5.51
120
4.72
110
4.33
100
3.94
100
3.94
Q202018PCICC 188 x 188 x 173
7.40 x 7.40 x 6.81
Clear Screw
Cover
200 x 200
7.87 x 7.87
Q2020PI 160 x 160
6.30 x 6.30
Q2020EXTI 180 x 180
7.09 x 7.09
165
6.50
150
5.91
150
5.91
140
5.51
140
5.51
120
4.72
110
4.33
100
3.94
100
3.94
Q302018PCI 288 x 188 x 173
11.34 x 7.40 x 6.81
Opaque Screw
Cover
300 x 200
11.81 x 7.87
Q3020PI 260 x 160
10.24 x 6.30
Q3020EXTI 280 x 180
11.02 x 7.09
165
6.50
150
5.91
250
9.84
140
5.51
240
9.45
120
4.72
110
4.33
100
3.94
200
7.87
Q302018PCICC 288 x 188 x 173
11.34 x 7.40 x 6.81
Clear Screw
Cover
300 x 200
11.81 x 7.87
Q3020PI 260 x 160
10.24 x 6.30
Q3020EXTI 280 x 180
11.02 x 7.09
165
6.50
150
5.91
250
9.84
140
5.51
240
9.45
120
4.72
110
4.33
100
3.94
200
7.87
Q402018PCI 388 x 188 x 173
15.28 x 7.40 x 6.81
Opaque Screw
Cover
400 x 200
15.75 x 7.87
Q4020PI 360 x 160
14.17 x 6.30
Q4020EXTI 380 x 180
14.96 x 7.09
165
6.50
150
5.91
350
13.78
140
5.51
340
13.39
120
4.72
310
12.20
100
3.94
300
11.81
Q402018PCICC 388 x 188 x 173
15.28 x 7.40 x 6.81
Clear Screw
Cover
400 x 200
15.75 x 7.87
Q4020PI 360 x 160
14.17 x 6.30
Q4020EXTI 380 x 180
14.96 x 7.09
165
6.50
150
5.91
350
13.78
140
5.51
340
13.39
120
4.72
310
12.20
100
3.94
300
11.81
Q303018PCI 288 x 288 x 173
11.34 x 11.34 x 6.81
Opaque Screw
Cover
300 x 300
11.81 x 11.81
Q3030PI 260 x 260
10.24 x 10.24
Q3030EXTI 280 x 280
11.02 x 11.02
165
6.50
250
9.84
250
9.84
240
9.45
240
9.45
220
8.66
210
8.27
200
7.87
200
7.87
Q303018PCICC 288 x 288 x 173
11.34 x 11.34 x 6.81
Clear Screw
Cover
300 x 300
11.81 x 11.81
Q3030PI 260 x 260
10.24 x 10.24
Q3030EXTI 280 x 280
11.02 x 11.02
165
6.50
250
9.84
250
9.84
240
9.45
240
9.45
220
8.66
210
8.27
200
7.87
200
7.87
Q403018PCI 388 x 288 x 173
15.28 x 11.34 x 6.81
Opaque Screw
Cover
400 x 300
15.75 x 11.81
Q4030PI 360 x 260
14.17 x 10.24
Q4030EXTI 380 x 280
14.96 x 11.02
165
6.50
250
9.84
350
13.78
240
9.45
340
13.39
220
8.66
310
12.20
200
7.87
300
11.81
Q403018PCICC 388 x 288 x 173
15.28 x 11.34 x 6.81
Clear Screw
Cover
400 x 300
15.75 x 11.81
Q4030PI 360 x 260
14.17 x 10.24
Q4030EXTI 380 x 280
14.96 x 11.02
165
6.50
250
9.84
350
13.78
240
9.45
340
13.39
220
8.66
310
12.20
200
7.87
300
11.81
Q603018PCI 588 x 288 x 173
23.15 x 11.34 x 6.81
Opaque Screw
Cover
600 x 300
23.62 x 11.81
Q6030PI 560 x 260
22.05 x 10.24
Q6030EXTI 580 x 280
22.83 x 11.02
165
6.50
250
9.84
550
21.65
240
9.45
540
21.26
220
8.66
510
20.08
200
7.87
500
19.69
Q603018PCICC 588 x 288 x 173
23.15 x 11.34 x 6.81
Clear Screw
Cover
600 x 300
23.62 x 11.81
Q6030PI 560 x 260
22.05 x 10.24
Q6030EXTI 580 x 280
22.83 x 11.02
165
6.50
250
9.84
550
21.65
240
9.45
540
21.26
220
8.66
510
20.08
200
7.87
500
19.69
Q604018PCI 588 x 388 x 173
23.15 x 15.28 x 6.81
Opaque Screw
Cover
600 x 400
23.62 x 15.75
Q6040PI 560 x 360
22.05 x 14.17
Q6040EXTI 580 x 380
22.83 x 14.96
165
6.50
350
13.78
550
21.65
340
13.39
540
21.26
320
12.60
510
20.08
300
11.81
500
19.69
Q604018PCICC 588 x 388 x 173
23.15 x 15.28 x 6.81
Clear Screw
Cover
600 x 400
23.62 x 15.75
Q6040PI 560 x 360
22.05 x 14.17
Q6040EXTI 580 x 380
22.83 x 14.96
165
6.50
350
13.78
550
21.65
340
13.39
540
21.26
320
12.60
510
20.08
300
11.81
500
19.69
Q202013PCIQRR 188 x 188 x 123
7.40 x 7.40 x 4.84
Opaque QR
Latch
200 x 200
7.87 x 7.87
Q2020PI 160 x 160
6.30 x 6.30
— 180 x 180
7.09 x 7.09
115
4.53
150
5.91
150
5.91
140
5.51
140
5.51
120
4.72
110
4.33
100
3.94
100
3.94
Q202013PCIQRCCR 188 x 188 x 123
7.40 x 7.40 x 4.84
Clear QR
Latch
200 x 200
7.87 x 7.87
Q2020PI 160 x 160
6.30 x 6.30
— 180 x 180
7.09 x 7.09
115
4.53
150
5.91
150
5.91
140
5.51
140
5.51
120
4.72
110
4.33
100
3.94
100
3.94
Q302013PCIQRR 288 x 188 x 123
11.34 x 7.40 x 4.84
Opaque QR
Latch
300 x 200
11.81 x 7.87
Q3020PI 260 x 160
10.24 x 6.30
— 280 x 180
11.02 x 7.09
115
4.53
150
5.91
250
9.84
140
5.51
240
9.45
120
4.72
210
8.27
100
3.94
200
7.87
Q302013PCIQRCCR 288 x 188 x 123
11.34 x 7.40 x 4.84
Clear QR
Latch
300 x 200
11.81 x 7.87
Q3020PI 260 x 160
10.24 x 6.30
— 280 x 180
11.02 x 7.09
115
4.53
150
5.91
250
9.84
140
5.51
240
9.45
120
4.72
210
8.27
100
3.94
200
7.87
Q402013PCIQRR 388 x 188 x 123
15.28 x 7.40 x 4.84
Opaque QR
Latch
400 x 200
15.75 x 7.87
Q4020PI 360 x 160
14.17 x 6.30
— 380 x 180
14.96 x 7.09
115
4.53
150
5.91
350
13.78
140
5.51
340
13.39
120
4.72
310
12.20
100
3.94
300
11.81
Q402013PCIQRCCR 388 x 188 x 123
15.28 x 7.40 x 4.84
Clear QR
Latch
400 x 200
15.75 x 7.87
Q4020PI 360 x 160
14.17 x 6.30
— 380 x 180
14.96 x 7.09
115
4.53
150
5.91
350
13.78
140
5.51
340
13.39
120
4.72
310
12.20
100
3.94
300
11.81
Q303013PCIQRR 288 x 288 x 123
11.34 x 11.34 x 4.84
Opaque QR
Latch
300 x 300
11.81 x 11.81
Q3030PI 260 x 260
10.24 x 10.24
— 280 x 280
11.02 x 11.02
115
4.53
250
9.84
250
9.84
240
9.45
240
9.45
220
8.66
210
8.27
200
7.87
200
7.87
Q303013PCIQRCCR 288 x 288 x 123
11.34 x 11.34 x 4.84
Clear QR
Latch
300 x 300
11.81 x 11.81
Q3030PI 260 x 260
10.24 x 10.24
— 280 x 280
11.02 x 11.02
115
4.53
250
9.84
250
9.84
240
9.45
240
9.45
220
8.66
210
8.27
200
7.87
200
7.87
Q403013PCIQRR 388 x 288 x 123
15.28 x 11.34 x 4.84
Opaque QR
Latch
400 x 300
15.75 x 11.81
Q4030PI 360 x 260
14.17 x 10.24
— 380 x 280
14.96 x 11.02
115
4.53
250
9.84
350
13.78
240
9.45
340
13.39
220
8.66
310
12.20
200
7.87
300
11.81
CHS Controls AB
Tel +46 42 38 61 00, Fax +46 42 38 61 29
chs@chscontrols.se www.chscontrols.se
290
Non-Metallic: Polycarbonate and ABS
QLINE® I
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
Catalog Number AxBxC mm/in.
Cover
Style
Cover
Fastener
External
Dim’s
L x W
mm/in. Panel
Panel Size
D x E
mm/in.
Extension
Ring
Mounting
G x H
mm/in.
F
mm/in.
P
mm/in.
Q
mm/in.
R
mm/in.
S
mm/in.
T
mm/in.
U
mm/in.
Y
mm/in.
Z
mm/in.
Q403013PCIQRCCR 388 x 288 x 123
15.28 x 11.34 x 4.84
Clear QR
Latch
400 x 300
15.75 x 11.81
Q4030PI 360 x 260
14.17 x 10.24
— 380 x 280
14.96 x 11.02
115
4.53
250
9.84
350
13.78
240
9.45
340
13.39
220
8.66
310
12.20
200
7.87
300
11.81
Q603013PCIQRR 588 x 288 x 123
23.15 x 11.34 x 4.84
Opaque QR
Latch
600 x 300
23.62 x 11.81
Q6030PI 560 x 260
22.05 x 10.24
— 580 x 280
22.83 x 11.02
115
4.53
250
9.84
550
21.65
240
9.45
540
21.26
220
8.66
510
20.08
200
7.87
500
19.69
Q603013PCIQRCCR 588 x 288 x 123
23.15 x 11.34 x 4.84
Clear QR
Latch
600 x 300
23.62 x 11.81
Q6030PI 560 x 260
22.05 x 10.24
— 580 x 280
22.83 x 11.02
115
4.53
250
9.84
550
21.65
240
9.45
540
21.26
220
8.66
510
20.08
200
7.87
500
19.69
Q604013PCIQRR 588 x 388 x 123
23.15 x 15.28 x 4.84
Opaque QR
Latch
600 x 400
23.62 x 15.75
Q6040PI 560 x 360
22.05 x 14.17
— 580 x 380
22.83 x 14.96
115
4.53
350
13.78
550
21.65
340
13.39
540
21.26
320
12.60
510
20.08
300
11.81
500
19.69
Q604013PCIQRCCR 588 x 388 x 123
23.15 x 15.28 x 4.84
Clear QR
Latch
600 x 400
23.62 x 15.75
Q6040PI 560 x 360
22.05 x 14.17
— 580 x 380
22.83 x 14.96
115
4.53
350
13.78
550
21.65
340
13.39
540
21.26
320
12.60
510
20.08
300
11.81
500
19.69
Q202018PCIQRR 188 x 188 x 173
7.40 x 7.40 x 6.81
Opaque QR
Latch
200 x 200
7.87 x 7.87
Q2020PI 160 x 160
6.30 x 6.30
— 180 x 180
7.09 x 7.09
115
6.50
150
5.91
150
5.91
140
5.51
140
5.51
120
4.72
110
4.33
100
3.94
100
3.94
Q202018PCIQRCCR 188 x 188 x 173
7.40 x 7.40 x 6.81
Clear QR
Latch
200 x 200
7.87 x 7.87
Q2020PI 160 x 160
6.30 x 6.30
— 180 x 180
7.09 x 7.09
165
6.50
150
5.91
150
5.91
140
5.51
140
5.51
120
4.72
110
4.33
100
3.94
100
3.94
Q302018PCIQRR 288 x 188 x 173
11.34 x 7.40 x 6.81
Opaque QR
Latch
300 x 200
11.81 x 7.87
Q3020PI 260 x 160
10.24 x 6.30
— 280 x 180
11.02 x 7.09
165
6.50
150
5.91
250
9.84
140
5.51
240
9.45
120
4.72
110
4.33
100
3.94
200
7.87
Q302018PCIQRCCR 288 x 188 x 173
11.34 x 7.40 x 6.81
Clear QR
Latch
300 x 200
11.81 x 7.87
Q3020PI 260 x 160
10.24 x 6.30
— 280 x 180
11.02 x 7.09
165
6.50
150
5.91
250
9.84
140
5.51
240
9.45
120
4.72
110
4.33
100
3.94
200
7.87
Q402018PCIQRR 388 x 188 x 173
15.28 x 7.40 x 6.81
Opaque QR
Latch
400 x 200
15.75 x 7.87
Q4020PI 360 x 160
14.17 x 6.30
— 380 x 180
14.96 x 7.09
165
6.50
150
5.91
350
13.78
140
5.51
340
13.39
120
4.72
310
12.20
100
3.94
300
11.81
Q402018PCIQRCCR 388 x 188 x 173
15.28 x 7.40 x 6.81
Clear QR
Latch
400 x 200
15.75 x 7.87
Q4020PI 360 x 160
14.17 x 6.30
— 380 x 180
14.96 x 7.09
165
6.50
150
5.91
350
13.78
140
5.51
340
13.39
120
4.72
310
12.20
100
3.94
300
11.81
Q303018PCIQRR 288 x 288 x 173
11.34 x 11.34 x 6.81
Opaque QR
Latch
300 x 300
11.81 x 11.81
Q3030PI 260 x 260
10.24 x 10.24
— 280 x 280
11.02 x 11.02
165
6.50
250
9.84
250
9.84
240
9.45
240
9.45
220
8.66
210
8.27
200
7.87
200
7.87
Q303018PCIQRCCR 288 x 288 x 173
11.34 x 11.34 x 6.81
Clear QR
Latch
300 x 300
11.81 x 11.81
Q3030PI 260 x 260
10.24 x 10.24
— 280 x 280
11.02 x 11.02
165
6.50
250
9.84
250
9.84
240
9.45
240
9.45
220
8.66
210
8.27
200
7.87
200
7.87
Q403018PCIQRR 388 x 288 x 173
15.28 x 11.34 x 6.81
Opaque QR
Latch
400 x 300
15.75 x 11.81
Q4030PI 360 x 260
14.17 x 10.24
— 380 x 280
14.96 x 11.02
165
6.50
250
9.84
350
13.78
240
9.45
340
13.39
220
8.66
310
12.20
200
7.87
300
11.81
Q403018PCIQRCCR 388 x 288 x 173
15.28 x 11.34 x 6.81
Clear QR
Latch
400 x 300
15.75 x 11.81
Q4030PI 360 x 260
14.17 x 10.24
— 380 x 280
14.96 x 11.02
165
6.50
250
9.84
350
13.78
240
9.45
340
13.39
220
8.66
310
12.20
200
7.87
300
11.81
Q603018PCIQRR 588 x 288 x 173
23.15 x 11.34 x 6.81
Opaque QR
Latch
600 x 300
23.62 x 11.81
Q6030PI 560 x 260
22.05 x 10.24
— 580 x 280
22.83 x 11.02
165
6.50
250
9.84
550
21.65
240
9.45
540
21.25
220
8.66
510
20.08
200
7.87
500
19.69
Q603018PCIQRCCR 588 x 288 x 173
23.15 x 11.37 x 6.81
Clear QR
Latch
600 x 300
23.62 x 11.81
Q6030PI 560 x 260
22.05 x 10.24
— 580 x 280
22.83 x 11.02
165
6.50
250
9.84
550
21.65
240
9.45
540
21.26
220
8.66
510
20.08
200
7.87
500
19.69
Q604018PCIQRR 588 x 388 x 173
23.15 x 15.28 x 6.81
Opaque QR
Latch
600 x 400
23.62 x 15.75
Q6040PI 560 x 360
22.05 x 14.17
— 580 x 380
22.83 x 14.96
165
6.50
350
13.78
550
21.65
340
13.39
540
21.28
320
12.60
510
20.08
300
11.81
500
19.69
Q604018PCIQRCCR 588 x 388 x 173
23.15 x 15.28 x 6.81
Clear QR
Latch
600 x 400
23.62 x 15.75
Q6040PI 560 x 360
22.05 x 14.17
— 580 x 380
22.83 x 14.96
165
6.50
350
13.78
550
21.65
340
13.39
540
21.26
320
12.60
510
20.08
300
11.81
500
19.69
A x B x C are internal dimensions.
Purchase panels and extension rings separately.
CHS Controls AB
Tel +46 42 38 61 00, Fax +46 42 38 61 29
chs@chscontrols.se www.chscontrols.se
291
Non-Metallic: Polycarbonate and ABS
QLINE® I
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
Standard Product ABS, Screw Cover
Catalog Number AxBxC mm/in.
Cover
Style
External
Dim’s
L x W
mm/in. Panel
Panel Size
D x E
mm/in.
Extension
Ring
Mounting
G x H
mm/in.
F
mm/in.
P
mm/in.
Q
mm/in.
R
mm/in.
S
mm/in.
T
mm/in.
U
mm/in.
Y
mm/in.
Z
mm/in.
Q202013ABI 188 x 188 x 123
7.40 x 7.40 x 4.84
Opaque 200 x 200
7.87 x 7.87
Q2020PI 160 x 160
6.30 x 6.30
Q2020EXTI 180 x 180
7.09 x 7.09
115
4.53
150
5.91
150
5.91
140
5.51
140
5.51
120
4.72
110
4.33
100
3.94
100
3.94
Q202013ABICC 188 x 188 x 123
7.40 x 7.40 x 4.84
Clear 200 x 200
7.87 x 7.87
Q2020PI 160 x 160
6.30 x 6.30
Q2020EXTI 180 x 180
7.09 x 7.09
115
4.53
150
5.91
150
5.91
140
5.51
140
5.51
120
4.72
110
4.33
100
3.94
100
3.94
Q302013ABI 288 x 188 x 123
11.34 x 7.40 x 4.84
Opaque 300 x 200
11.81 x 7.87
Q3020PI 260 x 160
10.24 x 6.30
Q3020EXTI 280 x 180
11.02 x 7.09
115
4.53
150
5.91
250
9.84
140
5.51
240
9.45
120
4.72
210
8.27
100
3.94
200
7.87
Q302013ABICC 288 x 188 x 123
11.34 x 7.40 x 4.84
Clear 300 x 200
11.81 x 7.87
Q3020PI 260 x 160
10.24 x 6.30
Q3020EXTI 280 x 180
11.02 x 7.09
115
4.53
150
5.91
250
9.84
140
5.51
240
9.45
120
4.72
210
8.27
100
3.94
200
7.87
Q402013ABI 388 x 188 x 123
15.28 x 7.40 x 4.84
Opaque 400 x 200
15.75 x 7.87
Q4020PI 360 x 160
14.17 x 6.30
Q4020EXTI 380 x 180
14.96 x 7.09
115
4.53
150
5.91
350
13.78
140
5.51
340
13.39
120
4.72
310
12.20
100
3.94
300
11.81
Q402013ABICC 388 x 188 x 123
15.28 x 7.40 x 4.84
Clear 400 x 200
15.75 x 7.87
Q4020PI 360 x 160
14.17 x 6.30
Q4020EXTI 380 x 180
14.96 x 7.09
115
4.53
150
5.91
350
13.78
140
5.51
340
13.39
120
4.72
310
12.20
100
3.94
300
11.81
Q303013ABI 288 x 288 x 123
11.34 x 11.34 x 4.84
Opaque 300 x 300
11.81 x 11.81
Q3030PI 260 x 260
10.24 x 10.24
Q3030EXTI 280 x 280
11.02 x 11.02
115
4.53
250
9.84
250
9.84
240
9.45
240
9.45
220
8.66
210
8.27
200
7.87
200
7.87
Q303013ABICC 288 x 288 x 123
11.34 x 11.34 x 4.84
Clear 300 x 300
11.81 x 11.81
Q3030PI 260 x 260
10.24 x 10.24
Q3030EXTI 280 x 280
11.02 x 11.02
115
4.53
250
9.84
250
9.84
240
9.45
240
9.45
220
8.66
210
8.27
200
7.87
200
7.87
Q403013ABI 388 x 288 x 123
15.28 x 11.34 x 4.84
Opaque 400 x 300
15.75 x 11.81
Q4030PI 360 x 260
14.17 x 10.24
Q4030EXTI 380 x 280
14.96 x 11.02
115
4.53
250
9.84
350
13.78
240
9.45
240
13.39
220
8.66
310
12.20
200
7.87
300
11.81
Q403013ABICC 388 x 288 x 123
15.28 x 11.34 x 4.84
Clear 400 x 300
15.75 x 11.81
Q4030PI 360 x 260
14.17 x 10.24
Q4030EXTI 380 x 280
14.96 x 11.02
115
4.53
250
9.84
350
13.78
240
9.45
240
13.39
220
8.66
310
12.20
200
7.87
300
11.81
Q603013ABI 588 x 288 x 123
23.15 x 11.34 x 4.84
Opaque 600 x 300
23.62 x 11.81
Q6030PI 560 x 260
22.05 x 10.24
Q6030EXTI 580 x 280
22.83 x 11.02
115
4.53
250
9.84
550
21.65
240
9.45
540
21.26
220
8.66
510
20.08
200
7.87
300
11.81
Q603013ABICC 588 x 288 x 123
23.15 x 11.34 x 4.84
Clear 600 x 300
23.62 x 11.81
Q6030PI 560 x 260
22.05 x 10.24
Q6030EXTI 580 x 280
22.83 x 11.02
115
4.53
250
9.84
550
21.65
240
9.45
540
21.26
220
8.66
510
20.08
200
7.87
300
11.81
Q604013ABI 588 x 388 x 123
23.15 x 15.28 x 4.84
Opaque 600 x 400
23.62 x 15.75
Q6040PI 560 x 360
22.05 x 14.17
Q6040EXTI 580 x 380
22.83 x 14.96
115
4.53
350
13.78
550
21.65
340
13.39
540
21.26
320
12.60
510
20.08
300
11.81
500
19.69
Q604013ABICC 588 x 388 x 123
23.15 x 15.28 x 4.84
Clear 600 x 400
23.62 x 15.75
Q6040PI 560 x 360
22.05 x 14.17
Q6040EXTI 580 x 380
22.83 x 14.96
115
4.53
350
13.78
550
21.65
340
13.39
540
21.26
320
12.60
510
20.08
300
11.81
500
19.69
Q202018ABI 188 x 188 x 173
7.40 x 7.40 x 6.81
Opaque 200 x 200
7.87 x 7.87
Q2020PI 160 x 160
6.30 x 6.30
Q2020EXTI 180 x 180
7.09 x 7.09
165
6.50
150
5.91
150
5.91
140
5.51
140
5.51
120
4.72
110
4.33
100
3.94
100
3.94
Q202018ABICC 188 x 188 x 173
7.40 x 7.40 x 6.81
Clear 200 x 200
7.87 x 7.87
Q2020PI 160 x 160
6.30 x 6.30
Q2020EXTI 180 x 180
7.09 x 7.09
165
6.50
150
5.91
150
5.91
140
5.51
140
5.51
120
4.72
110
4.33
100
3.94
100
3.94
Q302018ABI 288 x 188 x 173
11.34 x 7.40 x 6.81
Opaque 300 x 200
11.81 x 7.87
Q3020PI 260 x 160
10.24 x 6.30
Q3020EXTI 280 x 180
11.02 x 7.09
165
6.50
150
5.91
250
9.84
140
5.51
240
9.45
120
4.72
110
4.33
100
3.94
200
7.87
Q302018ABICC 288 x 188 x 173
11.34 x 7.40 x 6.81
Clear 300 x 200
11.81 x 7.87
Q3020PI 260 x 160
10.24 x 6.30
Q3020EXTI 280 x 180
11.02 x 7.09
165
6.50
150
5.91
250
9.84
140
5.51
240
9.45
120
4.72
110
4.33
100
3.94
200
7.87
Q402018ABI 388 x 188 x 173
15.28 x 7.40 x 6.81
Opaque 400 x 200
15.75 x 7.87
Q4020PI 360 x 160
14.17 x 6.30
Q4020EXTI 380 x 180
14.96 x 7.09
165
6.50
150
5.91
350
13.78
140
5.51
340
13.39
120
4.72
310
12.20
100
3.94
300
11.81
Q402018ABICC 388 x 188 x 173
15.28 x 7.40 x 6.81
Clear 400 x 200
15.75 x 7.87
Q4020PI 360 x 160
14.17 x 6.30
Q4020EXTI 380 x 180
14.96 x 7.09
165
6.50
150
5.91
350
13.78
140
5.51
340
13.39
120
4.72
310
12.20
100
3.94
300
11.81
Q303018ABI 288 x 288 x 173
11.34 x 11.34 x 6.81
Opaque 300 x 300
11.81 x 11.81
Q3030PI 260 x 260
10.24 x 10.24
Q3030EXTI 280 x 280
11.02 x 11.02
165
6.50
250
9.84
250
9.84
240
9.45
240
9.45
220
8.66
210
8.27
200
7.87
200
7.87
Q303018ABICC 288 x 288 x 173
11.34 x 11.34 x 6.81
Clear 300 x 300
11.81 x 11.81
Q3030PI 260 x 260
10.24 x 10.24
Q3030EXTI 280 x 280
11.02 x 11.02
165
6.50
250
9.84
250
9.84
240
9.45
240
9.45
220
8.66
210
8.27
200
7.87
200
7.87
Q403018ABI 388 x 288 x 173
15.28 x 11.34 x 6.81
Opaque 400 x 300
15.75 x 11.81
Q4030PI 360 x 260
14.17 x 10.24
Q4030EXTI 380 x 280
14.96 x 11.02
165
6.50
250
9.84
350
13.78
240
9.45
340
13.39
220
8.66
310
12.20
200
7.87
300
11.81
Q403018ABICC 388 x 288 x 173
15.28 x 11.34 x 6.81
Clear 400 x 300
15.75 x 11.81
Q4030PI 360 x 260
14.17 x 10.24
Q4030EXTI 380 x 280
14.96 x 11.02
165
6.50
250
9.84
350
13.78
240
9.45
340
13.39
220
8.66
310
12.20
200
7.87
300
11.81
Q603018ABI 588 x 288 x 173
23.15 x 11.34 x 6.81
Opaque 600 x 300
23.62 x 11.81
Q6030PI 560 x 260
22.05 x 10.24
Q6030EXTI 580 x 280
22.83 x 11.02
165
6.50
250
9.84
550
21.65
240
9.45
540
21.26
220
8.66
510
20.08
200
7.87
500
19.69
Q603018ABICC 588 x 288 x 173
23.15 x 11.34 x 6.81
Clear 600 x 300
23.62 x 11.81
Q6030PI 560 x 260
22.05 x 10.24
Q6030EXTI 580 x 280
22.83 x 11.02
165
6.50
250
9.84
550
21.65
240
9.45
540
21.26
220
8.66
510
20.08
200
7.87
500
19.69
Q604018ABI 588 x 388 x 173
23.15 x 15.28 x 6.81
Opaque 600 x 400
23.62 x 15.75
Q6040PI 560 x 360
22.05 x 14.17
Q6040EXTI 580 x 380
22.83 x 14.96
165
6.50
350
13.78
550
21.65
340
13.39
540
21.26
320
12.60
510
20.08
300
11.81
500
19.69
Q604018ABICC 588 x 388 x 173
23.15 x 15.28 x 6.81
Clear 600 x 400
23.62 x 15.75
Q6040PI 560 x 360
22.05 x 14.17
Q6040EXTI 580 x 380
22.83 x 14.96
165
6.50
350
13.78
550
21.65
340
13.39
540
21.26
320
12.60
510
20.08
300
11.81
500
19.69
CHS Controls AB
Tel +46 42 38 61 00, Fax +46 42 38 61 29
chs@chscontrols.se www.chscontrols.se
292
Non-Metallic: Polycarbonate and ABS
QLINE® I
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
CHS Controls AB
Tel +46 42 38 61 00, Fax +46 42 38 61 29
chs@chscontrols.se www.chscontrols.se
293
Non-Metallic: Polycarbonate and ABS
QLINE® I
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
CHS Controls AB
Tel +46 42 38 61 00, Fax +46 42 38 61 29
chs@chscontrols.se www.chscontrols.se
294
Non-Metallic: Polycarbonate and ABS
QLINE® I
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
Cover Screw Kit
Screws are polyamide. Wing-head-
style screws provide rapid access to
enclosure interior without requiring
special tools to open. Kit includes
four polyamide cover screws and
four self-tapping, plated panel
screws. Tamper-resistant screws
have molded 3-mm double-bit drive;
kit includes four cover screws, one
key and four self-tapping, plated
panel screws. Use on all QLINE® I
enclosures.
Bulletin: Q41Y
Catalog Number Description
QIWHSK wing-head screw
QITSK 3-mm tamper-resistant double-bit
Brass Insert Kit
Four M5 self-tapping brass inserts
screw into molded pads in bottom of
enclosure. Inserts have M3 internal
thread.
Bulletin: Q41Y
Catalog Number
QBIK
Panel Depth Fitting
Panel Depth Fitting attaches to
corner molded rails of enclosure to
facilitate full-range front-to-back
panel adjustment. Package includes
four polyamide ttings and plated
screws. Use on all QLINE I enclosures.
Bulletin: Q41Y
Catalog Number
QIPDF
Swing Panel
Adjustable-depth aluminum
swing panels, for use in QLINE® I
polycarbonate enclosures, provide
a convenient way to install controls
and instruments near enclosure
body opening while providing access
and security. Suitable applications
include water, pulp and paper,
petroleum and chemical processing,
food, packaging and pharmaceutical
applications.
Bulletin: Q41Y
Catalog Number
Panel Size
D x E
mm/in.
Fits Enclosure
Size A x B
mm/in.
Hinged Side
of Enclosure
QIHFP22A 186 x 180
7.32 x 7.09
200 x 200
7.87 x 7.87
200
QIHFP23A 186 x 280
7.32 x 11.02
300 x 200
11.81 x 7.87
200
QIHFP32A 286 x 180
11.26 x 7.09
300 x 200
11.81 x 7.87
300
QIHFP42A 386 x 180
15.20 x 7.09
400 x 200
15.75 x 7.87
400
QIHFP33A 286 x 280
11.26 x 11.02
300 x 300
11.81 x 11.81
300
QIHFP43A 386 x 280
15.20 x 11.02
400 x 300
15.75 x 11.81
400
QIHFP63A 586 x 280
23.07 x 11.02
600 x 300
23.62 x 11.81
600
QIHFP64A 586 x 380
23.07 x 14.96
600 x 400
23.62 x 15.75
600
CHS Controls AB
Tel +46 42 38 61 00, Fax +46 42 38 61 29
chs@chscontrols.se www.chscontrols.se
295
Non-Metallic: Polycarbonate and ABS
QLINE® I
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
Hinge Kit
Hinge Kit includes two polyamide
hinges, eight M4 self-tapping plated
screws, eight at washers and
drilling template. Use on all QLINE® I
enclosures.
Hinge Kit meets Type 4 requirements.
Three hinges required for 600-mm
sides.
Bulletin: Q41Y
Catalog Number
QIHK
Mounting Bracket Kit
Mounting Bracket Kit has four
polycarbonate brackets and four
M3 self-tapping, plated screws. Kit is
eld-installable. Use on all QLINE® I
Enclosures. Maintains listed ratings
for enclosure.
Bulletin: Q41Y
Catalog Number
QIMFK
Hardware Kit
Hardware Kit includes four
polyamide cover screws and four self-
tapping, plated panel screws. This
kit is oered as a replacement kit for
lost or damaged hardware originally
furnished with the enclosure.
Bulletin: Q41Y
Catalog Number Description
QIHK424 42-mm screws
Extension Rings
Extension rings can be added to
QLINE® I enclosures to provide
additional 50-mm to enclosure
depth. Extension rings are
polycarbonate and cannot be used
with quick-release latches.
Bulletin: Q41Y
Catalog Number
Q2020EXTI
Q3020EXTI
Q3030EXTI
Q4020EXTI
Q4030EXTI
Q6030EXTI
Q6040EXTI
Panels Bulletin: Q41Y
Catalog Number
Panel Size
D x E (mm)
Panel Size
D x E (in.)
Q2020PI 160 x 160 6.30 x 6.30
Q3020PI 260 x 160 10.24 x 6.30
Q3030PI 260 x 260 10.24 x 10.24
Q4020PI 360 x 160 14.17 x 6.30
Q4030PI 360 x 260 14.17 x 10.24
Q6030PI 560 x 360 22.05 x 10.24
Q6040PI 260 x 260 22.05 x 14.17
CHS Controls AB
Tel +46 42 38 61 00, Fax +46 42 38 61 29
chs@chscontrols.se www.chscontrols.se
296
Non-Metallic: Polycarbonate and ABS
QLINE® I
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
QLINE® I, EMC, Type 4X
Industry Standards
UL 508A Listed; Type 4, 4X, 12, 13; File No. E61997
cUL Listed per CSA C22.2 No 94; Type 4, 4X, 12, 13; File No.
E61997
Enclosure ammability evaluated per UL 508A
NEMA/EEMAC Type 4, 4X, 12, 13
IEC 60529, IP66
Application
The largest-size enclosures in the QLINE® EMC series, the screw-cover
QLINE I protects larger controls from electromagnetic interference in
corrosive environments.
Specications
• Body is impact-resistant polycarbonate
• Polycarbonate material is easily punched, drilled, led or sawed
• EMC coating in base and cover
• Gasket of silver/silicone
• Mounting holes molded directly under cover screws
•
Molded internal pads for mounting optional panels, rails and other
components
• Molded internal rails for mounting adjustable depth panel kit
• Screws provided for mounting optional panel
• Easily removable covers attached to body with strong, durable
polyamide cross-point cover screws
Finish
Enclosure material is RAL 7035 light gray outside. Optional panels are
conductive steel.
Bulletin: Q41EM
Standard Product
Catalog Number AxBxC mm/in.
External
Dimensions
L x W
mm/in.
Internal
Dimensions
A x B x C
mm/in. Panel
Panel Size
D x E
mm/in.
Mounting
G x H
mm/in.
F
mm/in.
P
mm/in.
Q
mm/in.
R
mm/in.
S
mm/in.
T
mm/in.
U
mm/in.
Y
mm/in.
Z
mm/in.
Q202013PCEMC 200 x 200 x 123
7.90 x 7.90 x 4.80
200 x 200
7.87 x 7.87
188 x 188
7.40 x 7.40
Q2020PI 160 x 160
6.30 x 6.30
180 x 180
7.09 x 7.09
115
4.53
150
5.91
150
5.91
140
5.51
140
5.51
120
4.72
110
4.33
100
3.94
100
3.94
Q302013PCEMC 300 x 200 x 123
11.80 x 7.90 x 4.80
300 x 200
11.81 x 7.87
288 x 188
11.34 x 7.40
Q3020PI 260 x 160
10.24 x 6.30
280 x 180
11.02 x 7.09
115
4.53
150
5.91
250
9.84
140
5.51
240
9.45
120
4.72
210
8.27
100
3.94
200
7.87
Q402013PCEMC 400 x 200 x 123
15.70 x 7.90 x 4.80
400 x 200
15.75 x 7.87
388 x 188
15.28 x 7.40
Q4020PI 360 x 160
14.17 x 6.30
380 x 180
14.96 x 7.09
115
4.53
150
5.91
350
13.78
140
5.51
340
13.39
120
4.72
310
12.20
100
3.94
300
11.81
Purchase panels separately.
CHS Controls AB
Tel +46 42 38 61 00, Fax +46 42 38 61 29
chs@chscontrols.se www.chscontrols.se
297
Non-Metallic: Polycarbonate and ABS
QLINE® I
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
CHS Controls AB
Tel +46 42 38 61 00, Fax +46 42 38 61 29
chs@chscontrols.se www.chscontrols.se

Navigation menu
