Datasheet
©2012 Pro-face. All rights reserved. Specications may change without notice.

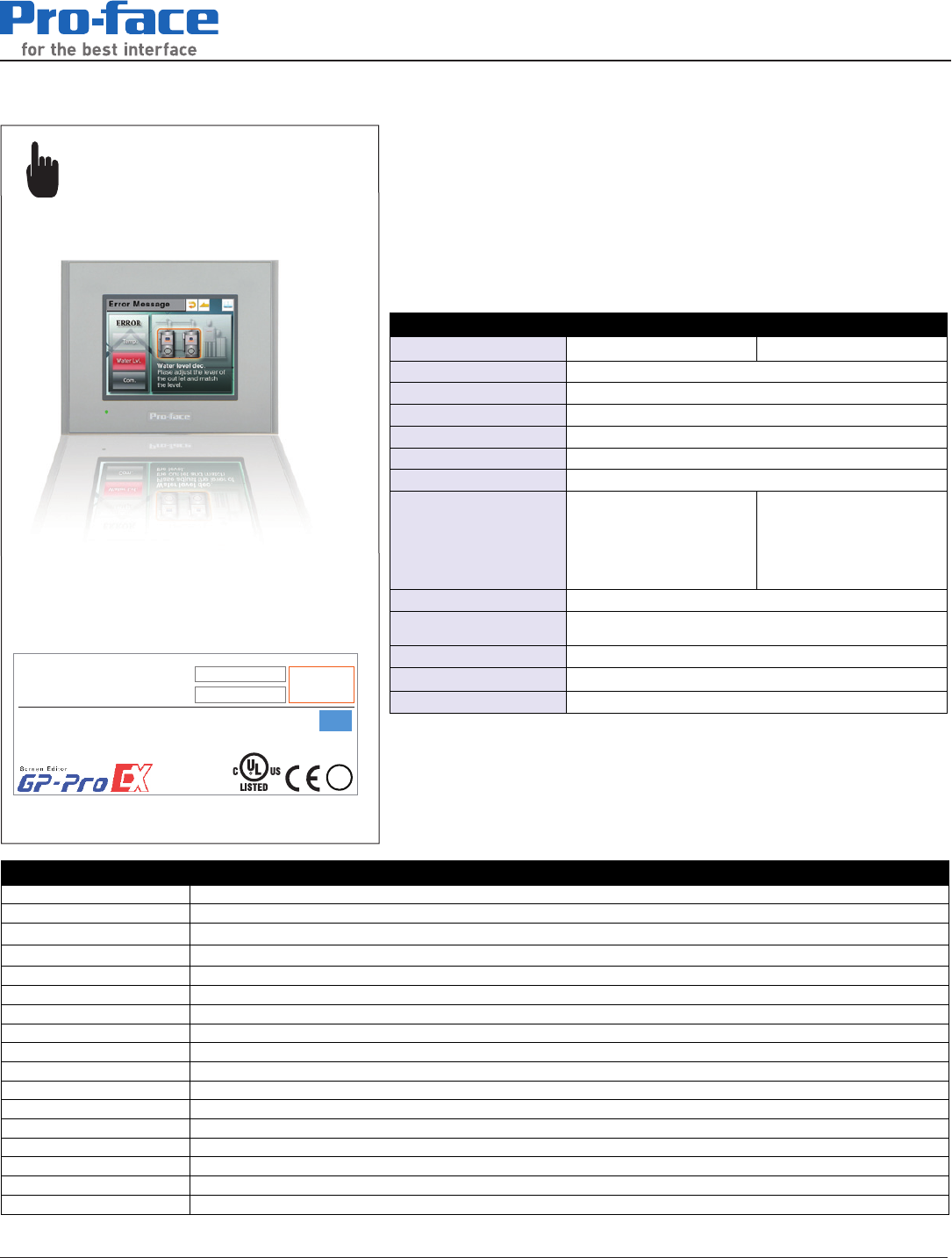

3.5" Touch Screen Operator Interface
TouchPanel
Operation
Features:
• 65,536 Colors, Clear, Bright, High-Resolution TFT
Display
• Energy Effecient LED Display
• No Grid Analog Touch Panel for Improved Visibility
and Precise Part Placement
• Supports Up to Four Protocol Drivers
Simultaneously
• High Speed Application Transfer, 10 Times Faster
than Conventional Operator Interfaces
• 10/100 Base-T Ethernet, USB, and Serial
Communication Interfaces
• High-Denition Part Images and Multi-Language
Support
Specications
Model PFXGP4201TAD PFXGP4203TAD
Graphics Display Resolution 320 x 240 pixels (QVGA)
Display Type and Size TFT Color LCD (3.5 inch)
Display Colors 65,536 Colors (No blink)/16,384 Colors (Blink)
Display Area W70.56 x H52.92 mm [W2.78 x H2.08 in.]
Touch Screen Resistive lm analog 1024 x 1024 resolution
USB USB Type-A (2.0) x 1 , USB mini-B (2.0) x1
Serial RS-232C/422/485 Asynchronous Transmis-
sion, Data Length: 7 or 8 bit, Parity: None,
Even or Odd, Stop Bit: 1 or 2 bit, Data Trans-
mission Speed: 2,400 bps to 115.2 kbps,
187.5 kbps(MPI), Connector: D-Sub9 (plug)
RS-485 (isolation) Asynchronous Transmis-
sion, Data Length: 7 or 8 bit, Parity: None,
Even or Odd, Stop Bit: 1 or 2 bit, Data
Transmission Speed: 2,400 bps to 115.2
kbps, 187.5 kbps (MPI), Connector: D-Sub9
(socket)
Ethernet Ethernet IEEE802.3i/IEEE802.3u, 10BASE-T/100BASE-TX
Backlight White LED (User nonreplaceable parts. When replacement is required, contact your local
distributor.
Brightness and Contrast Controls 16 levels of adjustment available via touch panel (or the software)
Programming Memory 16MB FEPROM (GP-Pro EX V3.0 or later)
Backup Memory 512kb SRAM with battery backup
3.5-inch TFT Color
Touch Screen Operator Interface
GP-420xT
Model: PFXGP4201TAD, PFXGP4203TAD
General Specications
Model PFXGP4201TAD, PFXGP4203TAD
Input Voltage Rated DC24V (Limits DC19.2 to 28.8V)
Power Consumption 9.6 W or less
Ambient Operating Temp. 0°C (32°F) to 50°C (122°F)
Storage Temperature -20 to 60 °C [-4 to 140 °F]
Altitude Endurance 800hPa to 1114hPA (2000 meters or lower)
Certications CE, UL Listed Cl 1 Div 2, RoHS, ABS (American Bureau of Shipping), DNV (Norway – Marine)
Humidity - Ambient/Storage 10 to 90 % RH (Wet bulb temperature: 39 °C [102.2 °F] or less - no condensation.)
Noise Immunity
Noise Voltage: 1,000 Vp-p, Pulse Duration: 1 µs, Rise Time: 1 ns (via noise simulator)
Cooling Method
Natural air circulation
Electrostatic Discharge Immunity Contact Discharge Method: 6 kV (IEC/EN61000-4-2 Level 3)
Vibration Resistance IEC/EN61131-2 compliant, 5 to 9 Hz Single amplitude 3.5 mm [0.14 in.], 9 to 150 Hz Fixed acceleration: 9.8 m/s², X, Y, Z directions for 10 cycles (approx. 100 min)
Shock during operation IEC/EN 61131-2 compliant 147 m/s2, X, Y, Z directions for 3 times
Rating Equivalent to IP65f, Nema #250 Type 4x/13 (Equivalent to NEMA 12 with the addition of “Oil or Spraying and Splashing”) when properly installed in an enclosure
Weight 0.4 kg [0.9 lb] or less (display unit only)
External Dimensions W132 x H106 x D42 mm [W5.2 x H4.17 x D1.65 in.]
Warranty Two-year standard (maximum 4 years)
Ethernet
DC 24V
QVGA 3.5-inch
Ro
Powered by
Datasheet
©2012 Pro-face. All rights reserved. Specications may change without notice.
Customer Service Hotline: 800.289.9266
ACCESS www.profaceamerica.com
For more information
Ordering Information
Part Number Description
PFXGP4201TAD GP4201T: 3.5" TFT Color Touchscreen (Analog), QVGA, 1x
Serial, Ethernet, 2x USB, 24VDC, UL/CE
PFXGP4203TAD GP4203T: 3.5" TFT Color Touchscreen (Analog), QVGA, 1x
Serial (MPI), Ethernet, 2x USB, 24VDC, UL/CE

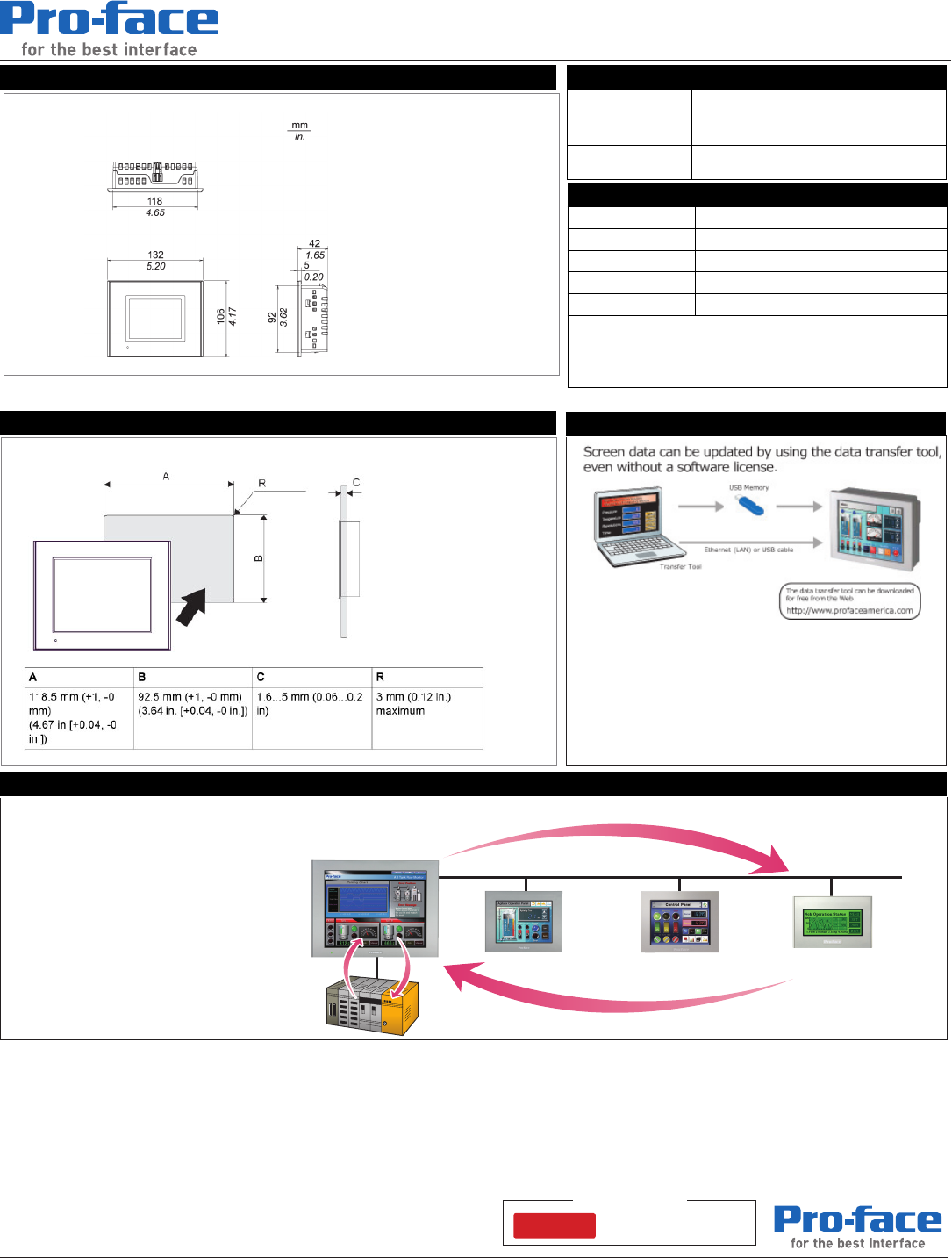

GP-4201T - External Dimensions
GP-4201T - Cut-Out Dimensions
Pro-face America
Phone: 734.477.0600
Fax: 734.864.7347
www.profaceamerica.com
DS-GP420xT(B)
Easily Transfer Data
Connectivity
(WKHUQHW
&RQWUROGHYLFH
6ODYH
0DVWHU
6ODYH 6ODYH
(WKHUQHW0XOWL/LQNIXQFWLRQ
7KH(WKHUQHW0XOWL/LQNIXQFWLRQ
DOORZV\RXWRHDVLO\DGGD*3DV
DVXEGLVSOD\WRWKHIDFLOLW\
ZLWKRXWFKDQJLQJDQ\VHWWLQJVRI
WKHFRQWUROGHYLFH
Optional Items
Part Number Product Name
PFXZCBWG41 Replacement Gasket for 3.5" GP4000 (Qty 1)
CA6-DFS4-01 3.5-inch Screen Protection Sheet
GP-Pro EX (EX-ED-Vx) Screen and Logic Development Software (ver 3.0 or newer)
PLC Cables & Accessories See AGP3000 Connectivity Document
Caution: Before operating any of these products, please be sure to read all related manuals
thoroughly.
- All product names used in this document are trademarks or registered trademarks of their
respective companies.
- All information contained in this document is subject to change without notice.
Unit: mm [in.]
Unit: mm [in.]
