Host CPUSDKProgrammer's Guide

For Brooklyn IIFirmware v3.10.x | Ultimo Application

Software v3.10.x | Host CPUSDKv2.0.x

Document version: 1.0

Document name: AUD-MAN-Host_CPU_SDK_Programmers_Guide-v1.0.pdf

Published: 6th July 2016

Please see Audinate OEM Home for change history.

Feedback: if you would like to suggest improvements to this information, please feel free to email

us at documentation@audinate.com.

Host CPUSDKProgrammer's Guide

Audinate®, the Audinate logo and Dante are trademarks of Audinate Pty Ltd.

All other trademarks are the property of their respective owners.

Audinate products are protected by one or more of US Patents 7747725, 8005939, 7978696, 8171152, and

other patents pending or issued. See www.audinate.com/patents.

Legal Notice and Disclaimer

Audinate retains ownership of all intellectual property in this document.

The information and materials presented in this document are provided as an information source only.

While effort has been made to ensure the accuracy and completeness of the information, no guarantee is

given nor responsibility taken by Audinate for errors or omissions in the data.

Audinate is not liable for any loss or damage that may be suffered or incurred in any way as a result of

acting on information in this document. The information is provided solely on the basis that readers will be

responsible for making their own assessment, and are advised to verify all relevant representation,

statements and information with their own professional advisers.

Software Licensing Notice

Audinate distributes products which are covered by Audinate license agreements and third-party license

agreements.

For further information and to access copies of each of these licenses, please visit our website:

www.audinate.com/software-licensing-notice

Host CPUSDKProgrammer's Guide

Contacts

AudinatePtyLtd

Level 1, 458 Wattle Street

Ultimo NSW 2007

Australia

Tel. +61 2 8090 1000

Postal address

Audinate Pty Ltd

PO Box 855

Broadway NSW 2007

Australia

AudinateInc

1732 NW Quimby Street

Suite 215

Portland, OR 97209

USA

Tel: +1.503.224.2998

Fax. +1.503.360.1155

info@audinate.com

www.audinate.com

EuropeanOffice

Audinate Ltd

Suite 303

Brighton Media Centre

Friese-Greene House

15-17 Middle St

Brighton, BN1 1AL

United Kingdom

Tel. +44 (0) 1273 921695

AsiaPacificOffice

Audinate Limited

Suite 1106-08, 11/F Tai Yau Building

No 181 Johnston Road

Wanchai, Hong Kong

澳迪耐特有限公司

香港灣仔莊士敦道181號

大有大廈11樓1106-8室

Tel. +(852)-3588 0030

+(852)-3588 0031

Fax. +(852)-2975 8042

Host CPUSDKProgrammer's Guide

Contents

EuropeanOffice 2

AsiaPacificOffice 2

About Audinate 8

About Dante 8

Introduction 9

Hardware Requirements of a Host CPU 10

Communicating with a Brooklyn II 10

SPI 10

UART 11

Communicating with an Ultimo 11

SPI 12

UART 13

Host CPU Architecture 15

Key Features and Specifications 15

Host CPU and Brooklyn II 15

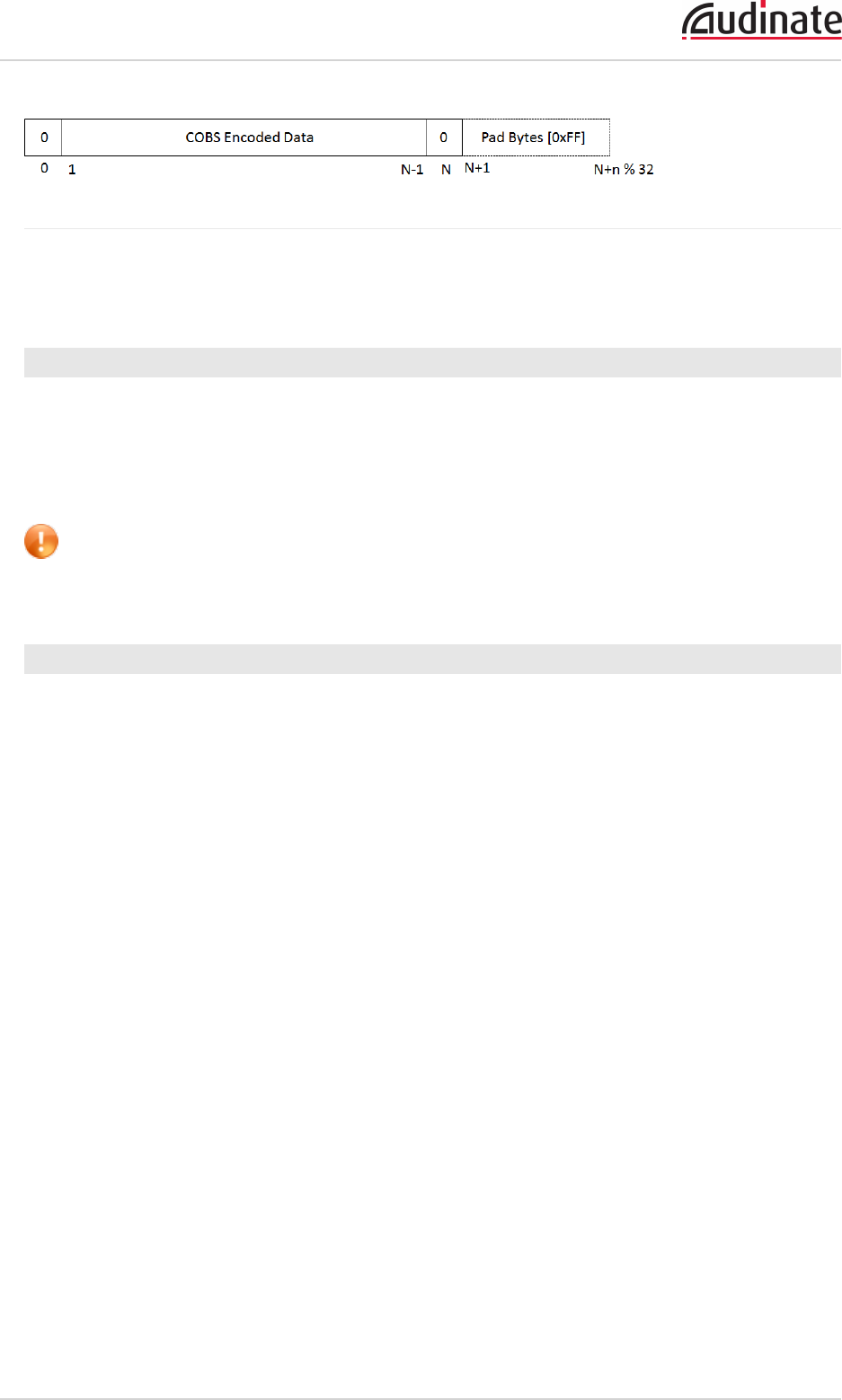

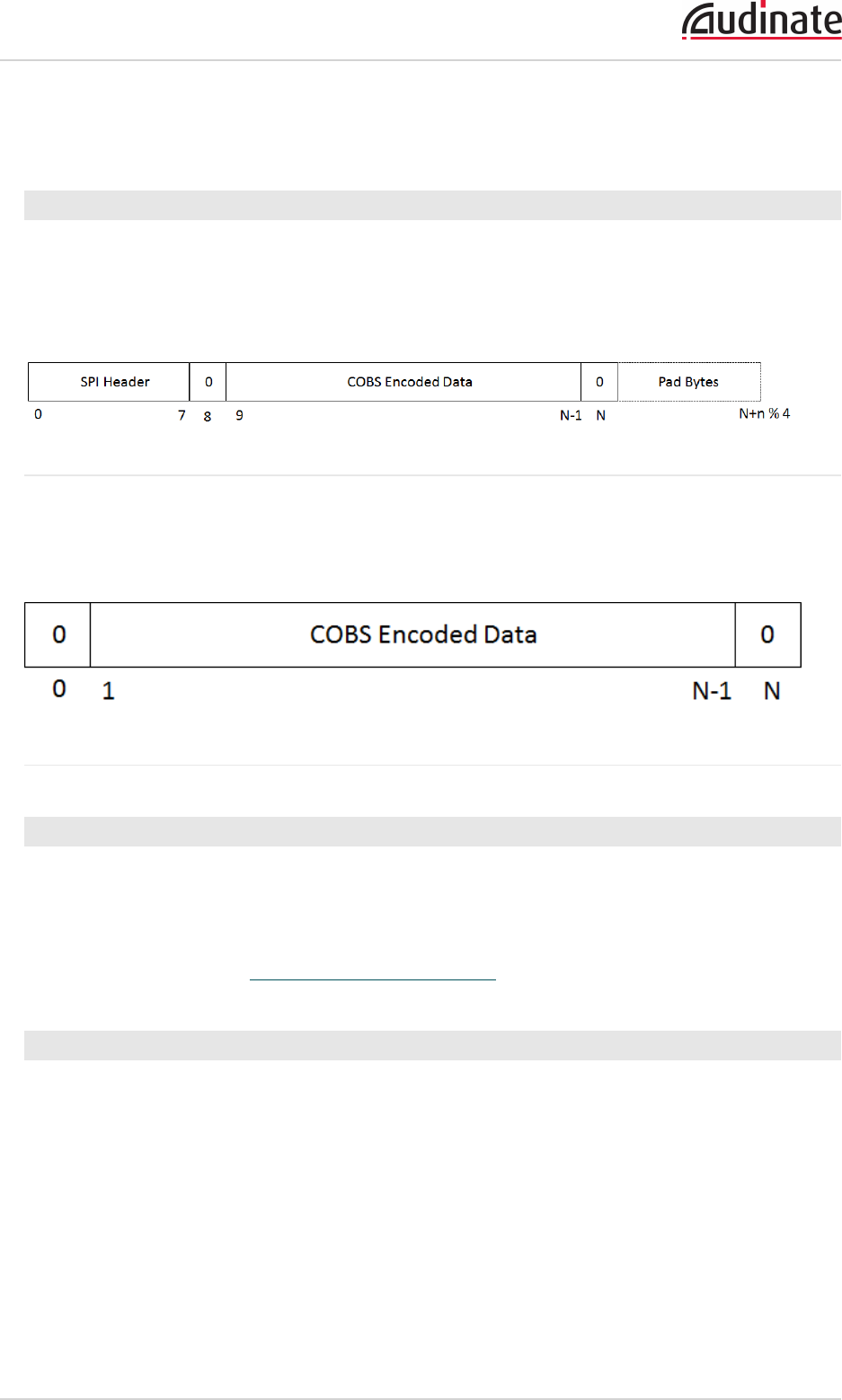

Framing and Padding Mechanisms 16

Flow Control Mechanisms 16

Interaction Diagrams 16

Resynchronization Mechanisms 17

Host CPU and Ultimo 17

Framing and Padding Mechanisms 17

Flow Control Mechanisms 18

Interaction Diagrams 18

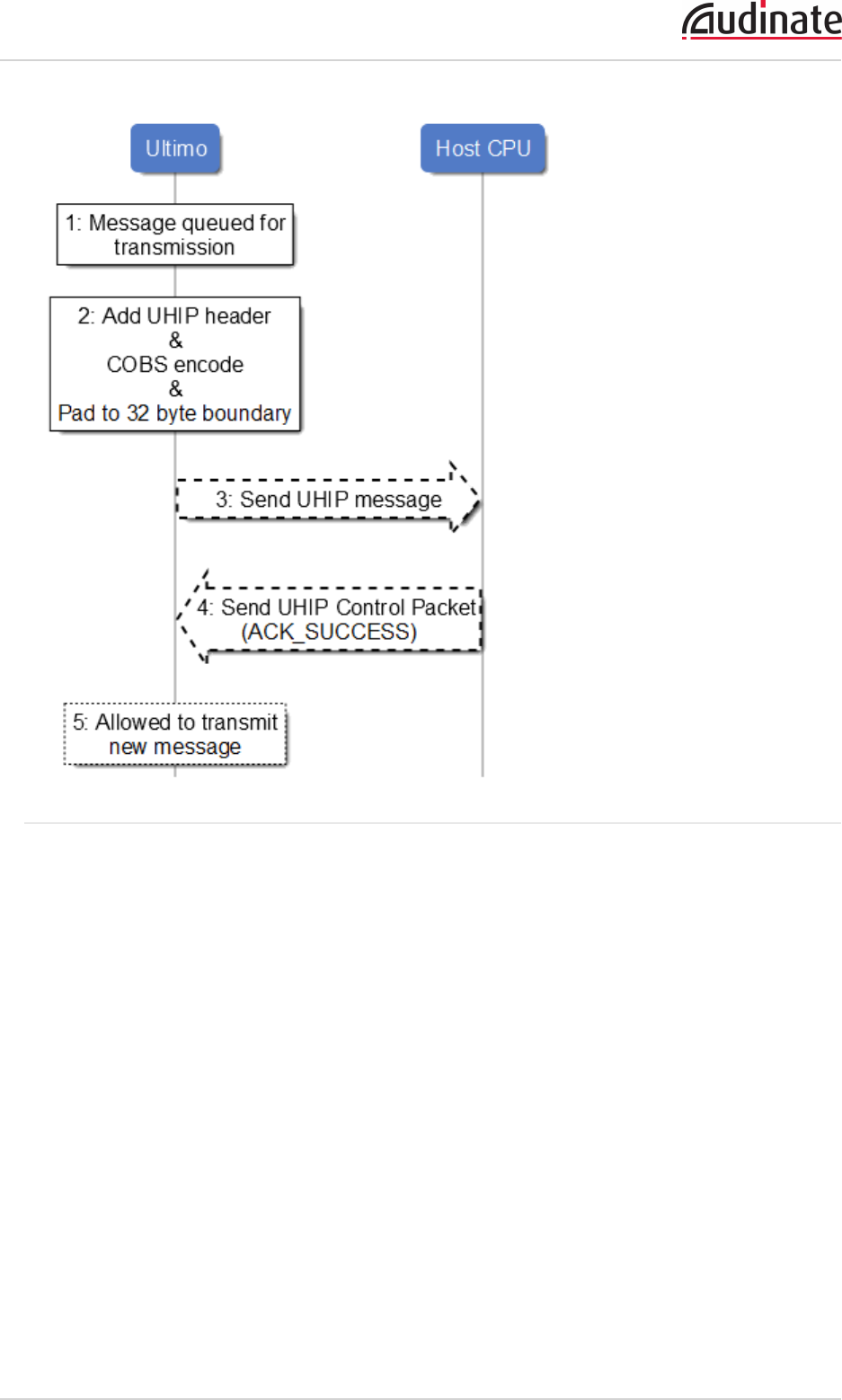

Normal Acknowledgement 18

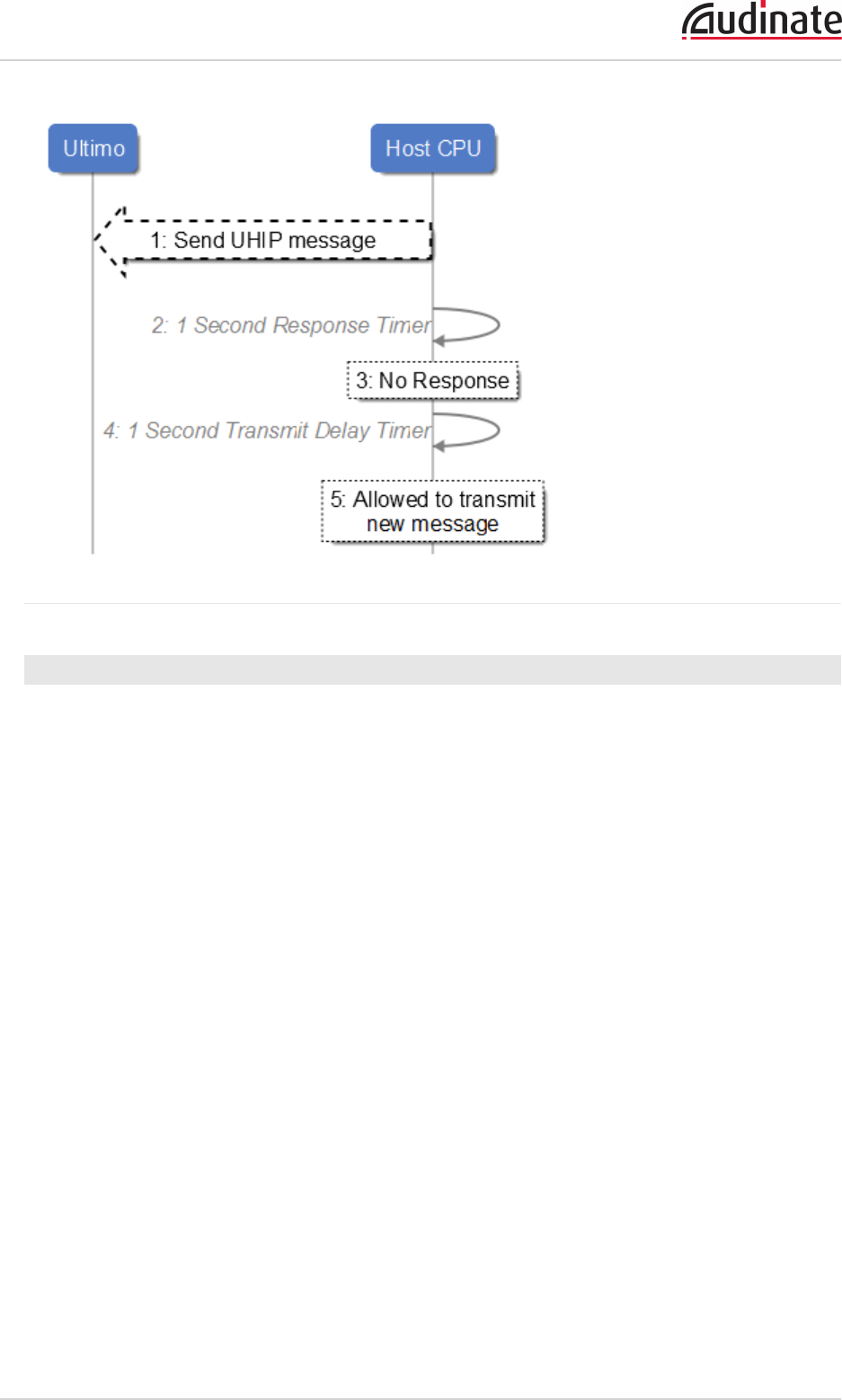

Error Timeout (No Response from Host CPU) 19

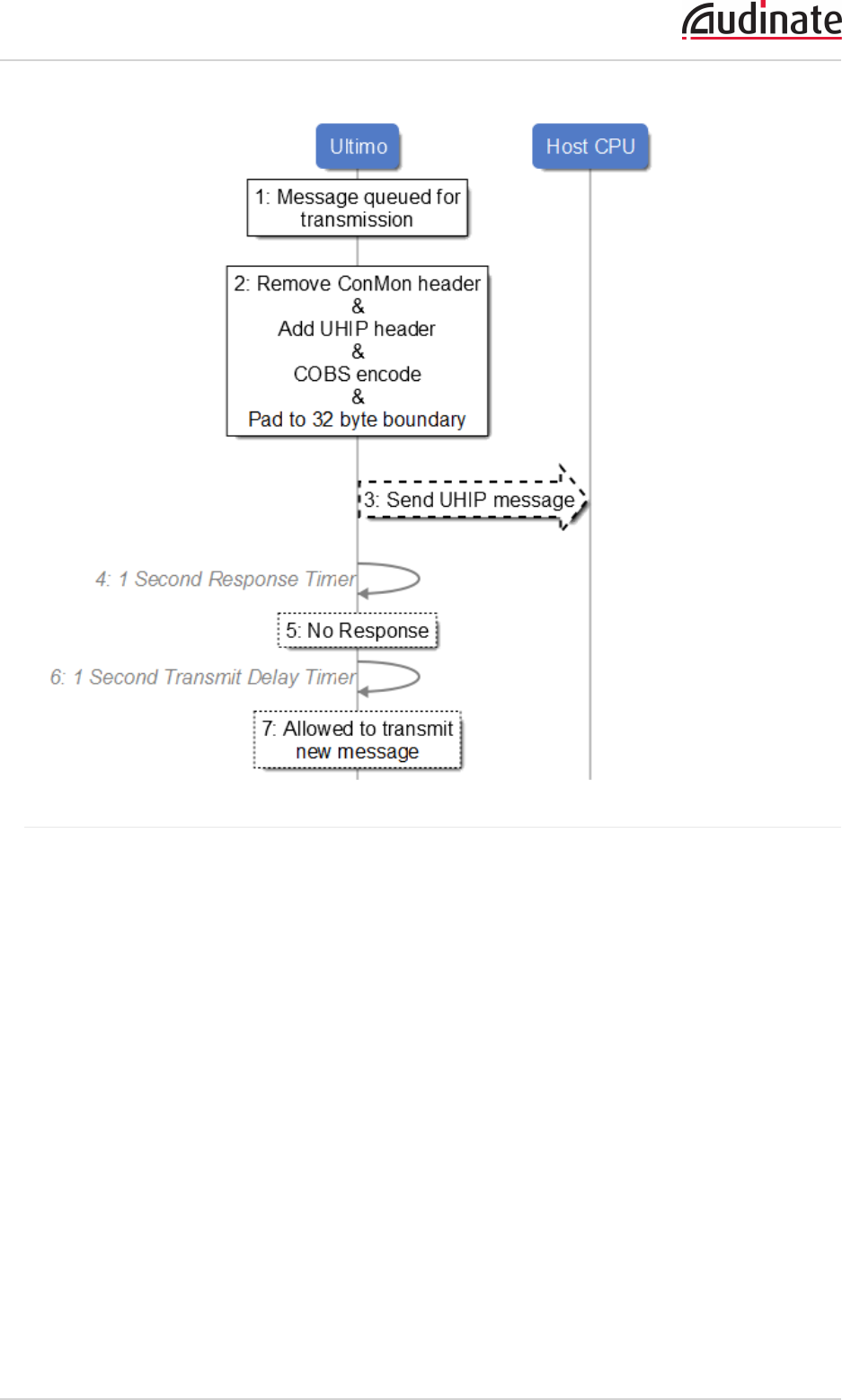

Error Timeout (No Response from Ultimo) 20

Timing and Resynchronization Mechanisms 21

Packet Bridge 22

Key Features and Specifications 22

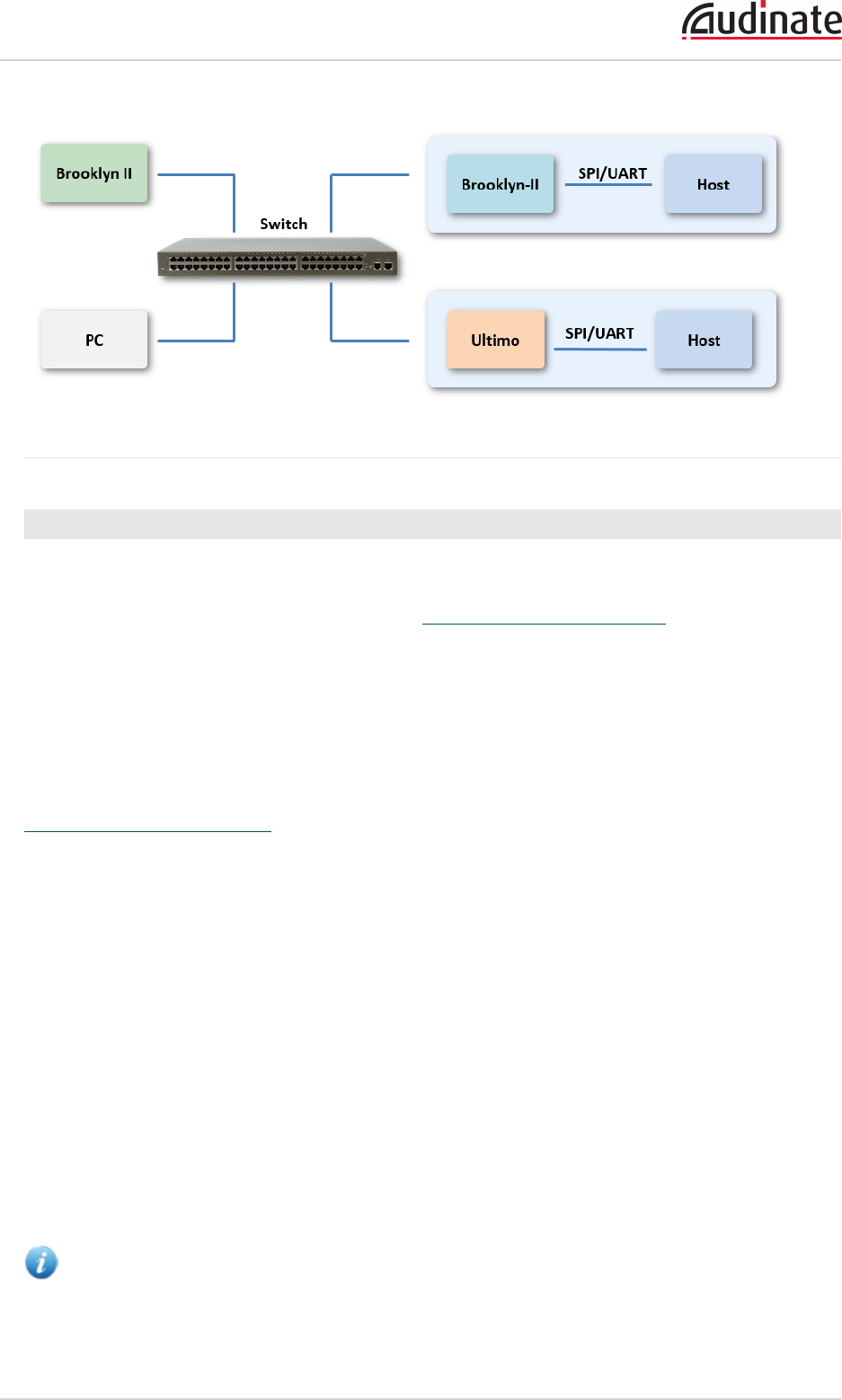

Overall Architecture 22

ConMon Packet Bridge 23

UDP Sockets Packet Bridge 24

Comparison of ConMon and UDP Sockets Packet Bridge 24

Communication with a Dante Device Packet Bridge Endpoint from PC / Brooklyn II

Devices 24

Message Format 24

ConMon Mode 24

Host CPUSDKProgrammer's Guide

UDP Mode 25

Discovering Packet Bridge Endpoints 25

ConMon Mode 25

UDP Mode 25

ConMon Control Channel Usage 26

ConMon Status Channel Usage 26

ConMon Vendor Broadcast Channel Usage 26

Example Use Cases and Recommended ConMon Configurations 27

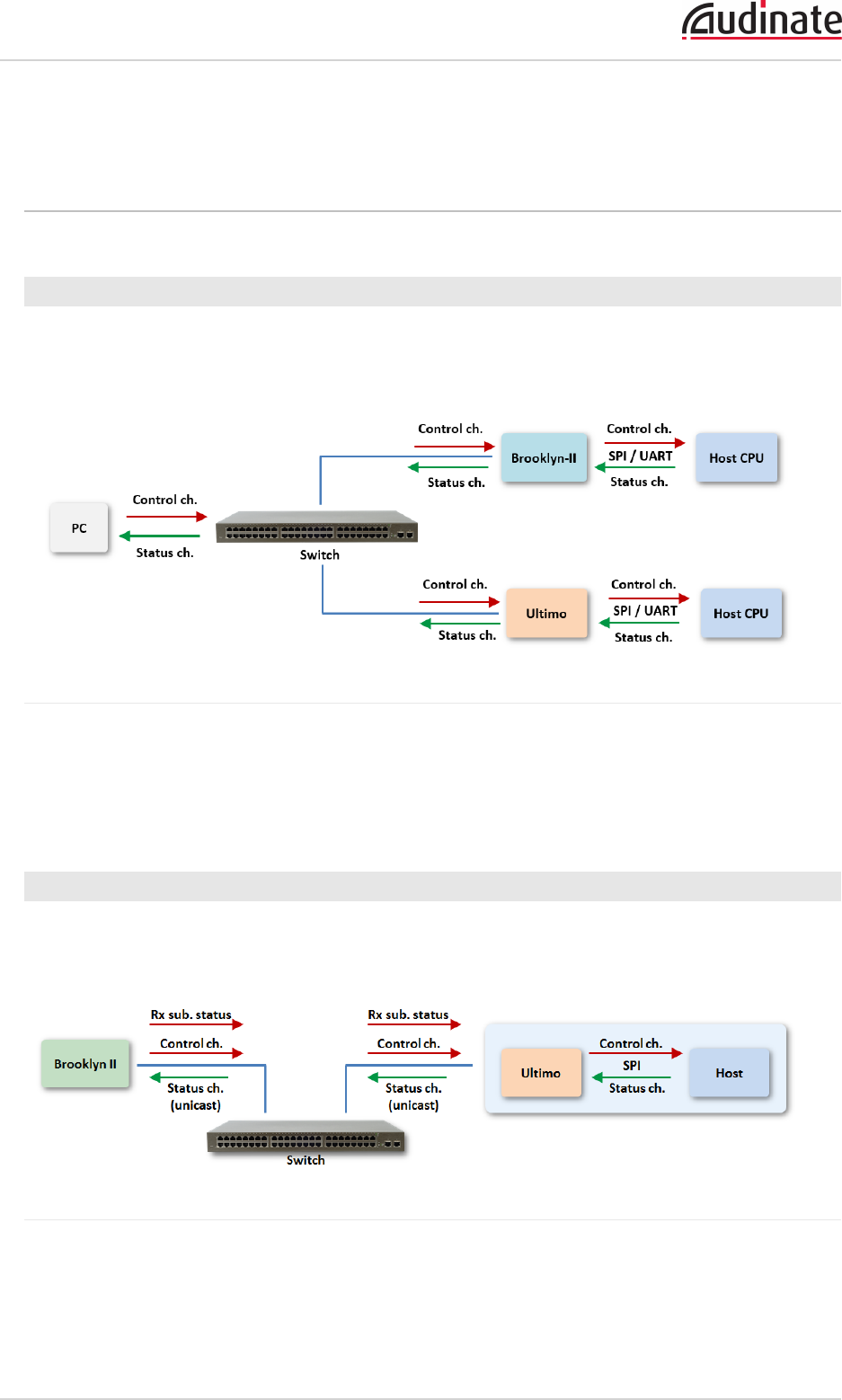

Host CPU Firmware Update by a PC Controller 27

Control of Host CPU by a Brooklyn II Based Controller 27

Status Reporting by Host CPU to PC Controllers 28

Host CPU to Host CPU Communications 28

Recommendations for OEM Protocol Design 29

Managing Device State 29

Self-Description 29

Bulk State Summary 29

Small State Changes 29

Groups of Changes 29

Stateless Protocol Design 30

Avoiding Synchronization 30

Byte Ordering 30

Byte Alignment 30

Detecting Message Loss 30

Power-On Events 31

Interaction Diagrams 31

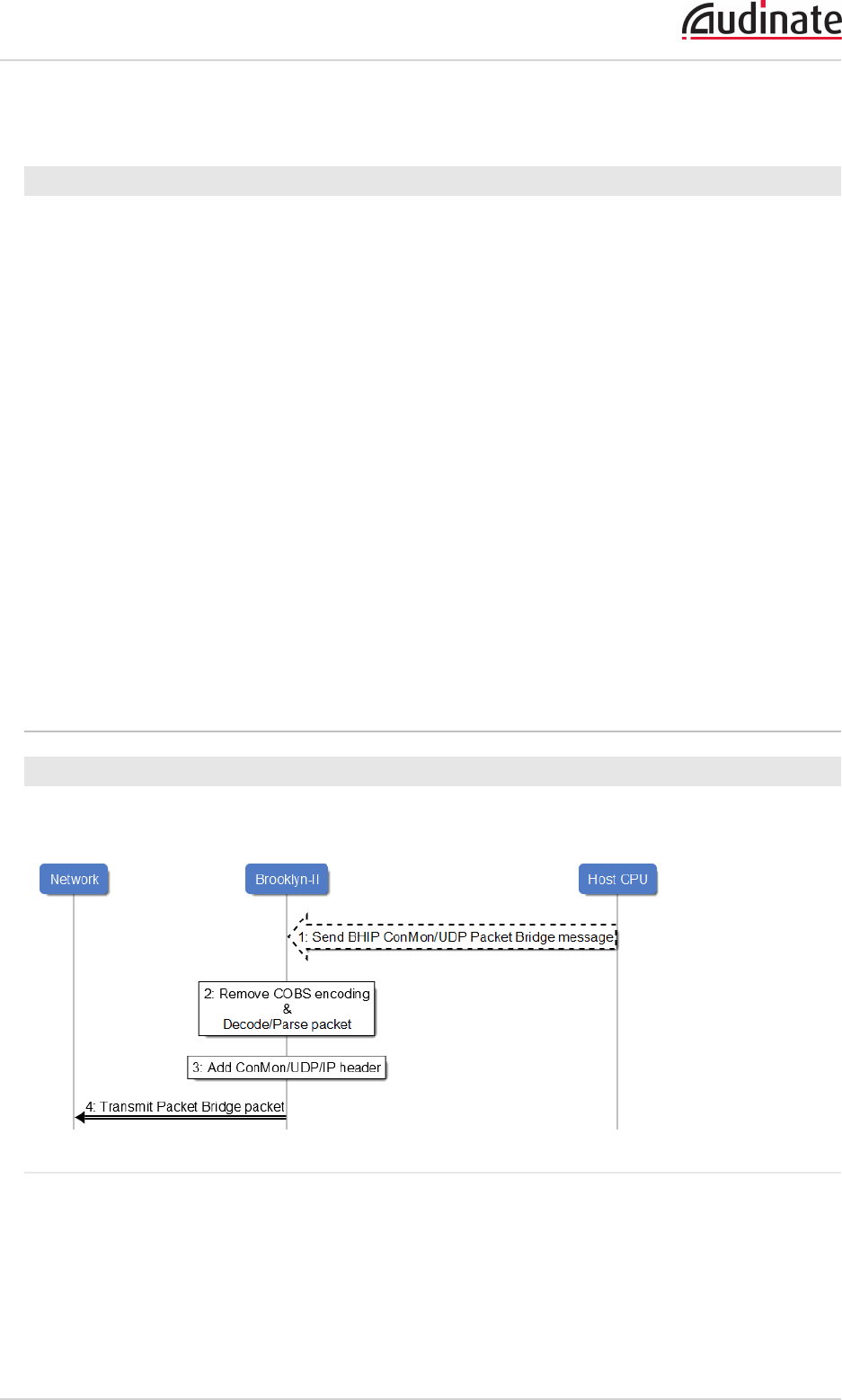

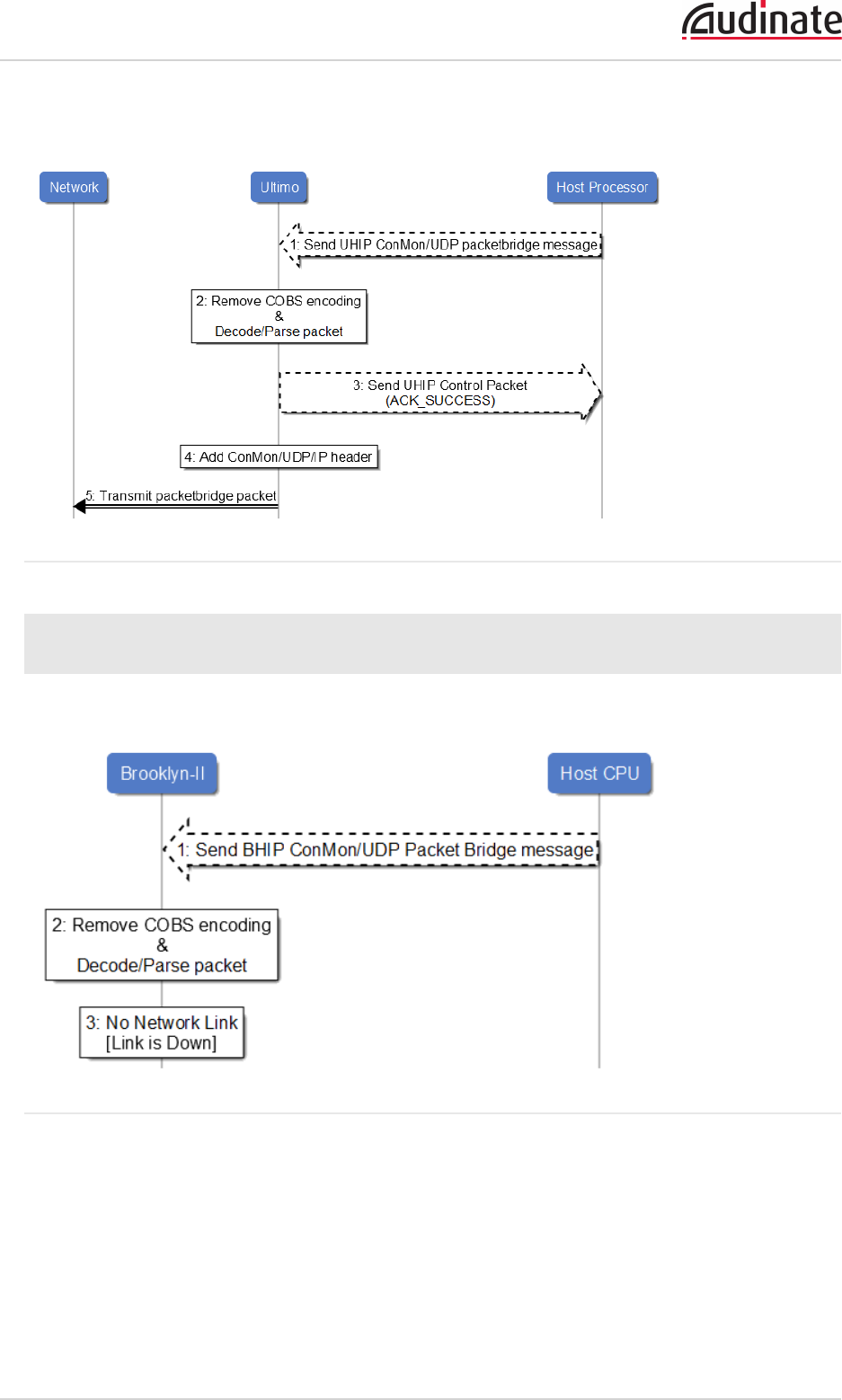

Transmit a Packet from a Host CPU to the Network [Successful] 31

Brooklyn II 31

Ultimo 32

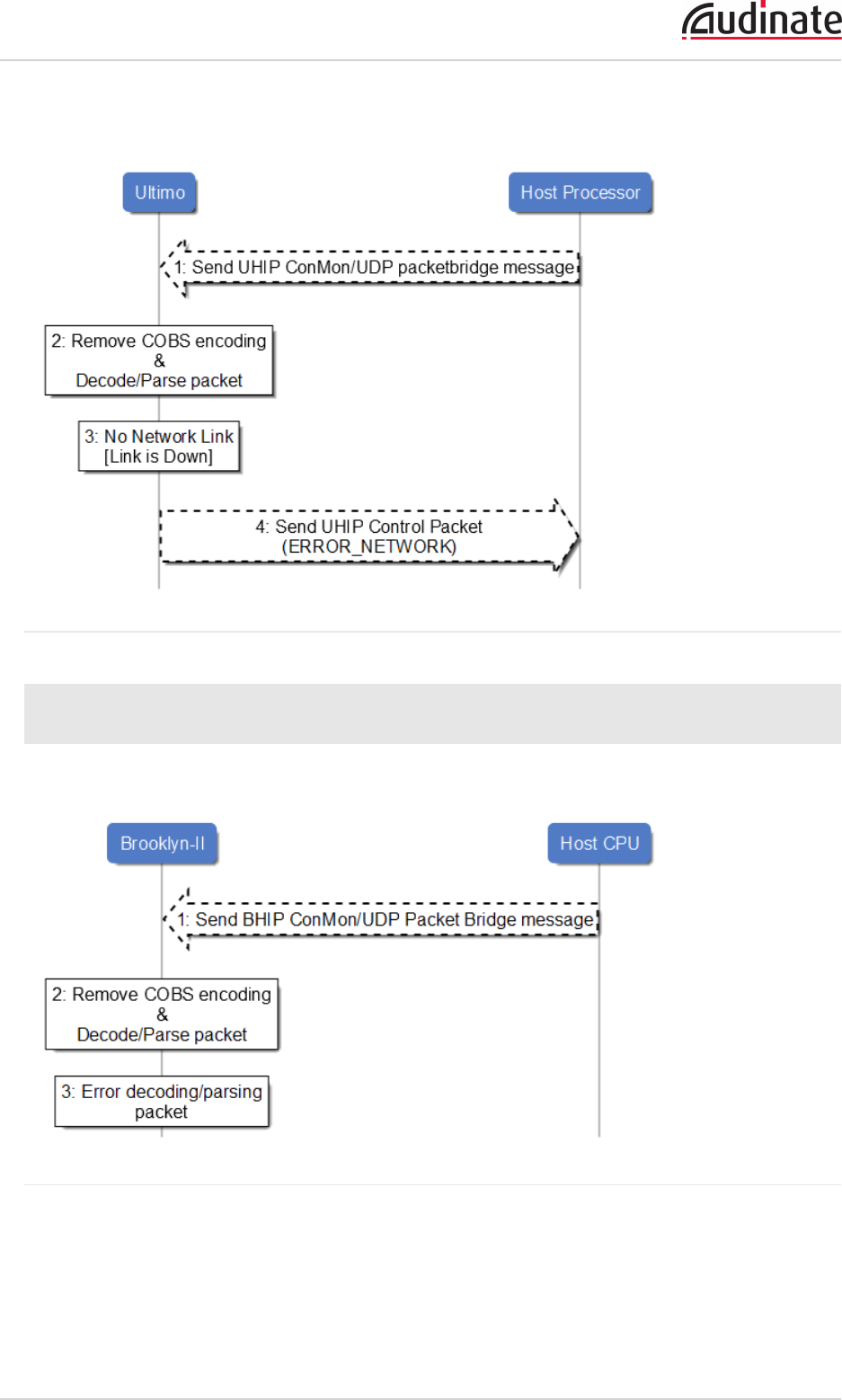

Transmit a Packet from a Host CPU to the Network [Failure – No Network Connection] 32

Brooklyn II 32

Ultimo 33

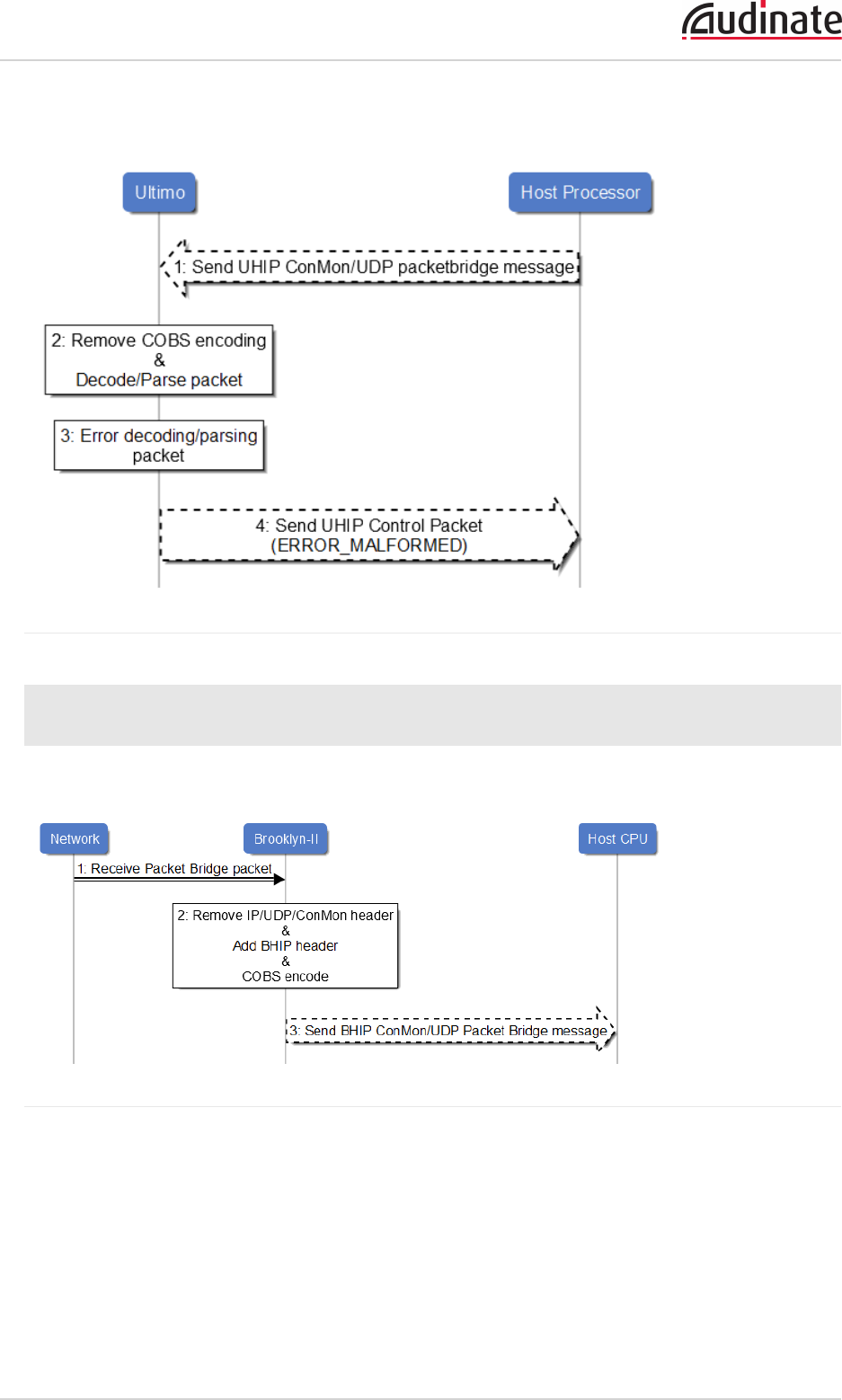

Transmit a Packet from a Host CPU to the Network [Failure – Message Malformed] 33

Brooklyn II 33

Ultimo 34

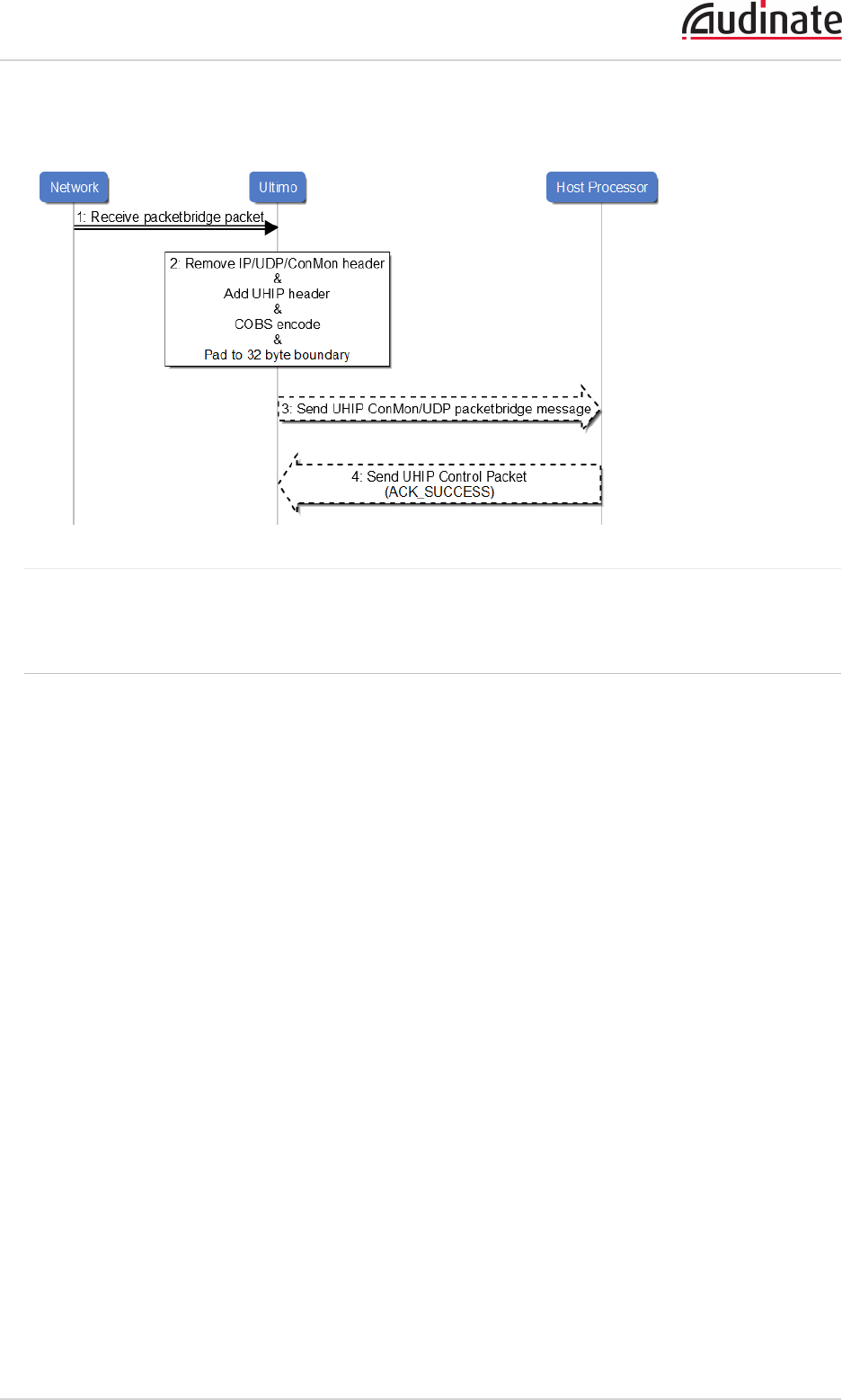

Receive a Packet from the Network and Forward to Host CPU [Successful] 34

Brooklyn II 34

Ultimo 35

Dante Device Configuration 35

Dante Events 36

Interaction Diagrams 36

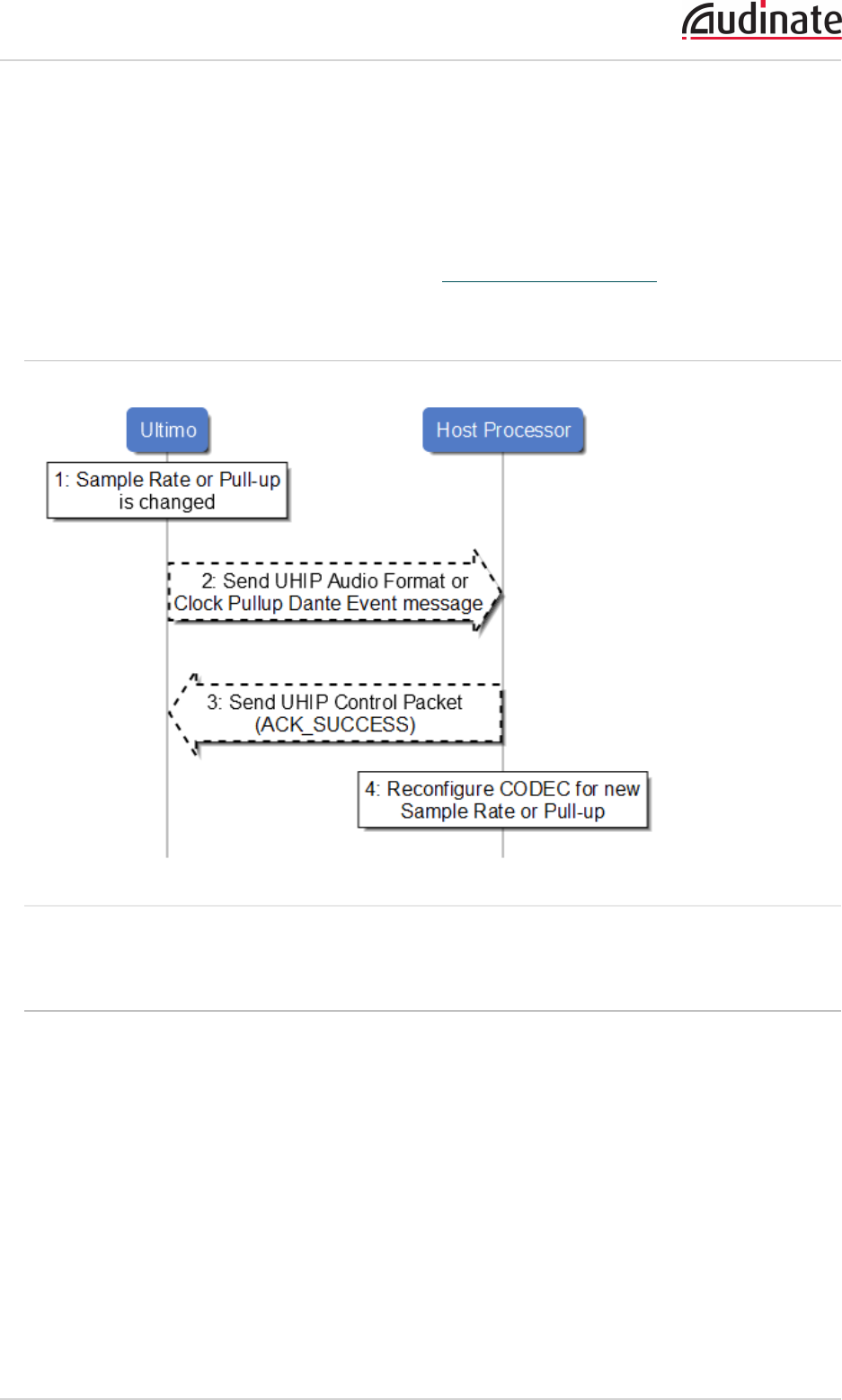

Ultimo Configuration 36

Host CPUSDKProgrammer's Guide

Dante Device Protocol 37

Message Classes 37

Protocol Functionality 37

Basic Information 37

Manufacturer Information 37

Upgrade 38

Erase Configuration 38

Device Reboot 38

Identity 38

Device Lock Information 38

AES67 (Brooklyn II Only) 39

VLANs 39

Metering (Brooklyn II Only) 39

UART Configuration (Brooklyn II Only) 39

Network 39

Clocking / PTP 40

Audio 40

Routing 40

Interaction Diagrams 41

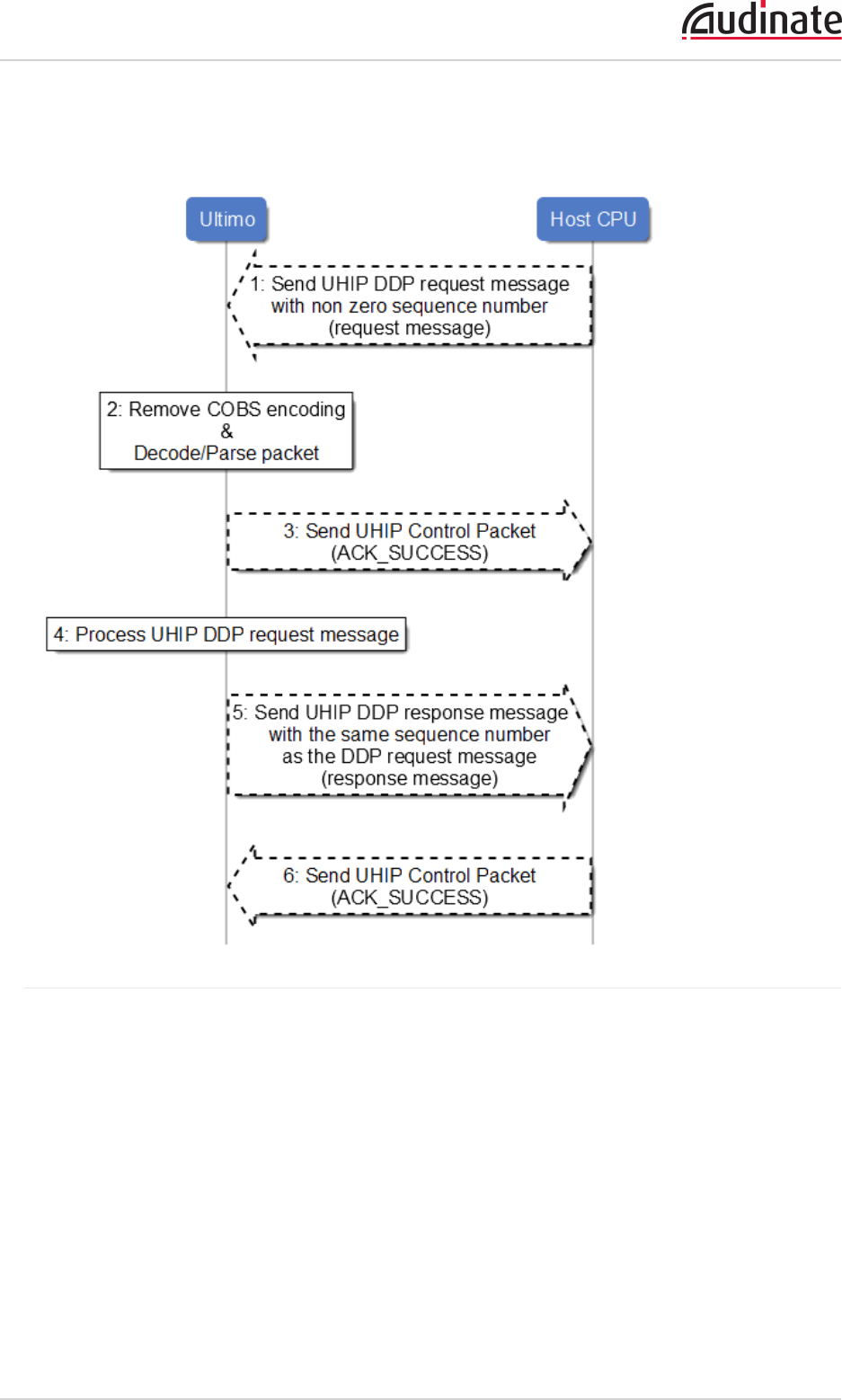

Sending a DDP Command/Query Message and Receiving a DDP Response Message 41

Brooklyn II 42

Ultimo 43

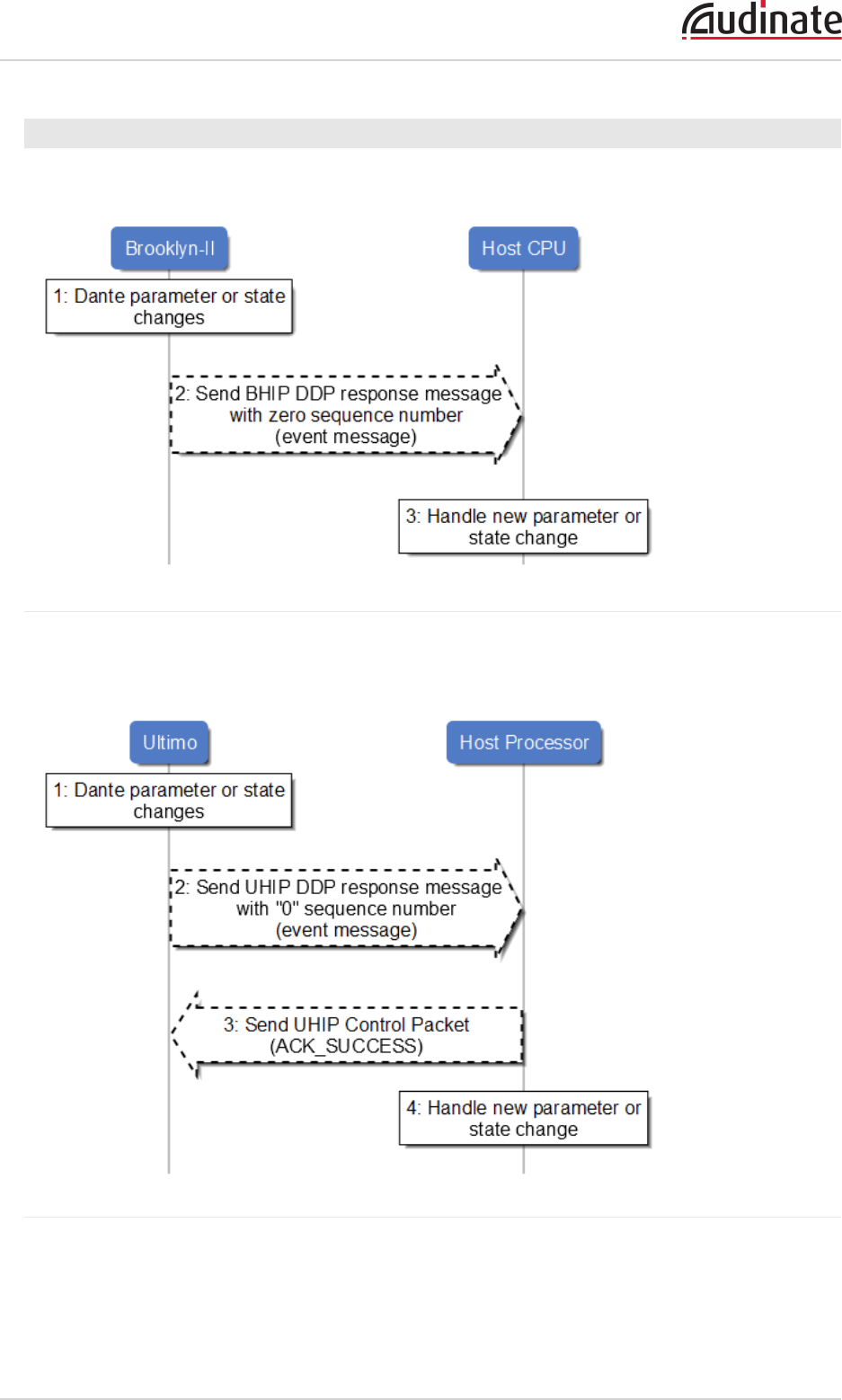

Receiving a DDP Event Message 44

Brooklyn II 44

Ultimo 44

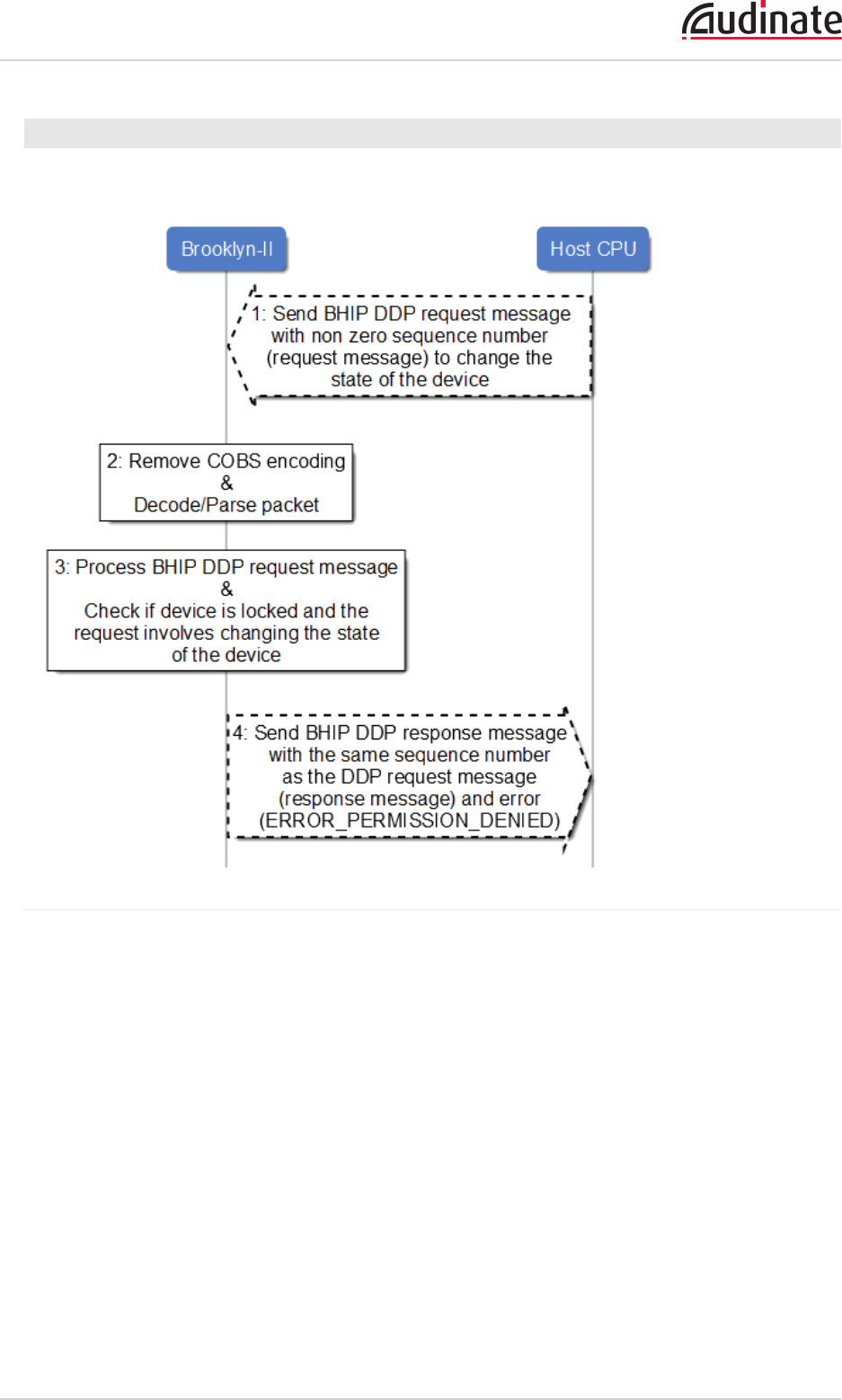

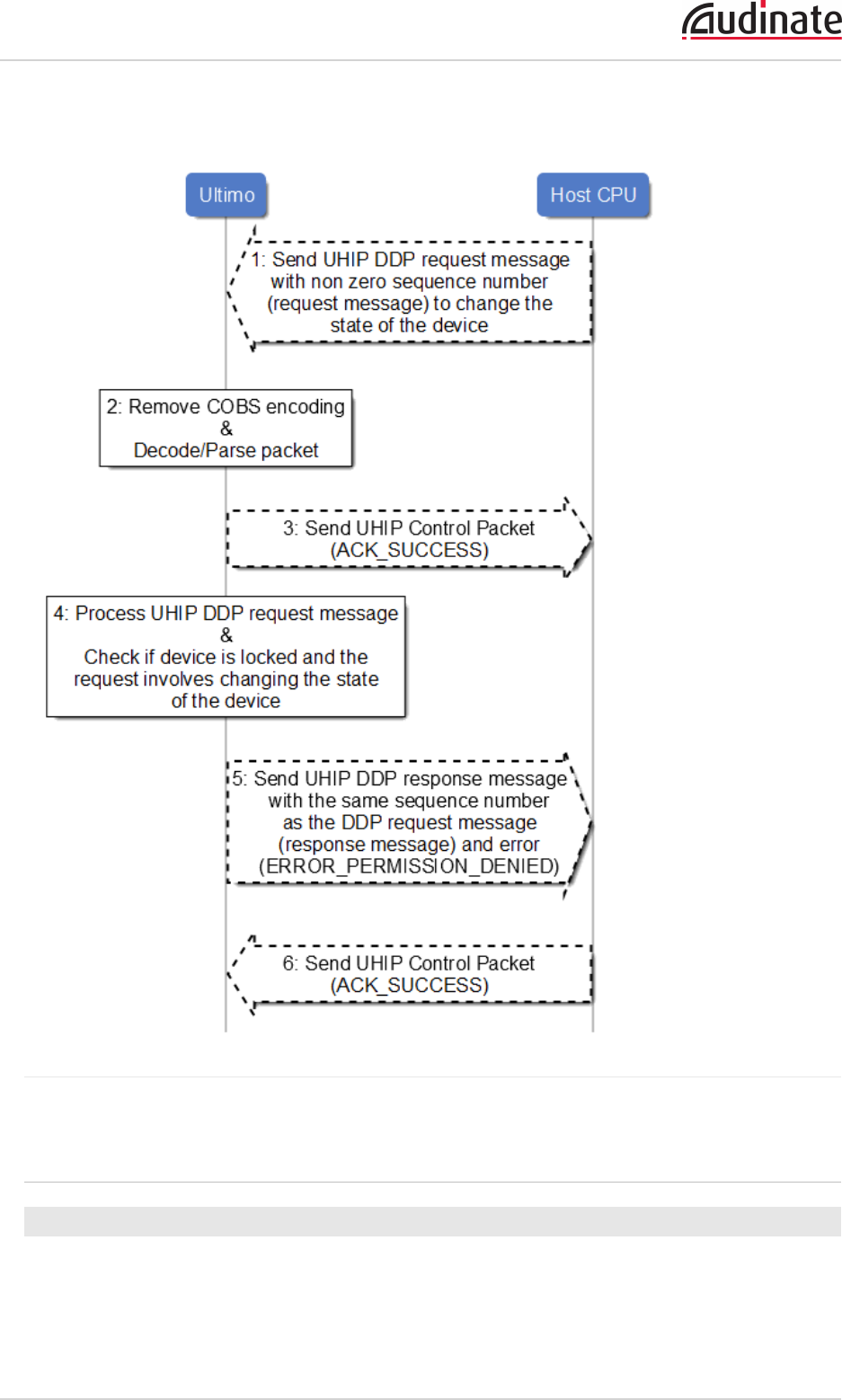

Sending a Command to a Locked Dante Device 45

Brooklyn II 45

Ultimo 46

Protocol Messages 46

Device Basic Information 46

Device Manufacturer Information 47

Device Upgrade 47

Device Erase Configuration 47

Device Reboot 48

Device Identity 48

Device Identify 48

Device GPIO 49

Device Switch LED 49

Device Lock/Unlock 49

Device Switch Redundancy 49

Device UART Configuration 50

Host CPUSDKProgrammer's Guide

Device AES67 50

Device VLAN Configuration 50

Device Meter Configuration 51

Network Basic 51

Network Configuration 51

Clock Basic Legacy 52

Clock Basic 2 52

Clock Configuration 52

Clock Pull-up 53

Audio Basic 53

Audio Sample Rate Configuration 53

Audio Encoding Configuration 54

Audio Interface 54

Audio Signal Presence Configuration 54

Audio Signal Presence Data 55

Routing Basic 55

Routing Ready 55

Routing Performance Configuration 56

Routing Rx Channel Configuration State 56

Routing Tx Channel Configuration State 56

Routing Rx Channel Status 57

Routing Rx Flow Configuration State 57

Routing Tx Flow Configuration State 57

Routing Rx Flow Status 58

Routing Rx Channel Label Set 58

Routing Tx Channel Label Set 59

Routing RX Subscribe 59

Routing RX Unsubscribe 59

Routing Multicast TX Flow Configuration 59

Routing Flow Delete 60

Host CPU SDK Package 61

Data Types 61

Provided Functionality 61

Porting the Host CPU SDK Package 63

Project Setup 63

Implement the RX Timer interface 63

Implement the TX Timer interface 64

Implement the Host CPU Transport Interface 64

BHIP Host CPU SPI Interface 64

UHIP Host CPU SPI Interface 64

Add required RX message handling 64

Host CPUSDKProgrammer's Guide

Add required TX message handling 64

Modify aud_platform.h 65

Modify or Implement a Main Loop 65

Host CPU SDK Library API Functions 65

UHIP ConMon Packet Bridge Functions 65

BHIP ConMon Packet Bridge Functions 65

UHIP UDP Packet Bridge Functions 65

BHIP UDP Packet Bridge Functions 65

Dante Events Functions 66

Dante Device Protocol (DDP) Functions 66

Getting Started 72

Index 74

Host CPUSDKProgrammer's Guide

About Audinate

Founded in 2006, Audinate revolutionizes how AV systems are connected so customers can thrive in a

networked world. Audinate's Dante audio networking technology has been adopted by the professional

audio industry's leading manufacturers. Dante is used extensively for live performance events,

commercial installations, broadcast, recording and production, and communications systems. Audinate

offices are located in US, United Kingdom, Hong Kong and Australia.

About Dante

Dante audio networking utilizes standard IP networks to transmit high-quality, uncompressed audio with

near-zero latency. It's the most economical, versatile, and easy-to-use audio networking solution, and is

scalable from simple installations to large-capacity networks running thousands of audio channels. Dante

can replace multiple analog or multicore cables with a single affordable Ethernet cable to transmit high-

quality multi-channel audio safely and reliably. With Dante software, the network can be easily expanded

and reconfigured with just a few mouse clicks. Dante is the audio networking choice of nearly all

professional audio manufacturers, with hundreds of Dante-enabled audio products now available.

For more information, please visit the Audinate website at www.audinate.com.

Host CPUSDKProgrammer's Guide

Introduction

This document is intended for OEMs that wish to interface an external processor to a Dante device module

via a serial peripheral. The external processor can configure and monitor Dante over the serial interface as

well as utilise the network interface of the Dante module to bridge network traffic to the external processor.

The supported Dante devices are the Brooklyn II and Ultimo, and the supported serial interfaces are SPI

and UART. This document refers only to the built in functionality that can be enabled on the modules via

the capability file - on the Brooklyn II it is also possible to communicate with a host CPU by implementing a

custom OEM application running from the user partition.

The external processor which communicates with a Dante device over a serial link is referred to as the

Host CPU throughout this document.

High level physical information about interfacing a Dante device to a Host CPU is provided in Hardware

Requirements of a Host CPU. Additional information about physical I/O interfaces on the Dante device

should be obtained from the Brooklyn II Technical Datasheet and Ultimo Technical Datasheet. An overall

description about the software features of the Brooklyn II is available in the Brooklyn II Programmer’s

Guide, and the software features of the Ultimo are available in the Ultimo Programmer’s Guide.

The Host CPU SDK package provides a messaging API for communication between the Dante device and

the Host CPU. The SDK implements functionality to process and prepare messages that are received or

sent from the Dante device. Information on the Host CPU SDK package is described in Host CPU SDK

Package.

The Brooklyn II Host Interface Protocol (BHIP) is used to carry the following types of messages:

nPacket Bridge (PB) messages

nDante Device Protocol (DDP) messages

The Ultimo Host Interface Protocol (UHIP) is used to carry the following types of messages:

nPacket Bridge (PB) messages

nDante Device Protocol (DDP) messages

nDante Event messages

The Packet Bridge, Dante Event and DDP protocols are described in Packet Bridge,Dante Events and

Dante Device Protocol.

Host CPUSDKProgrammer's Guide

Hardware Requirements of a Host CPU

This section describes the hardware requirements of a host CPU that communicates with a Brooklyn II or

Ultimo Dante device.

Communicating with a Brooklyn II

Regardless of the communication method, 3.3V I/O signalling levels must be used. For in-depth

information about the Brooklyn II I/O pins, signal timing, signal characteristics and pin muxes please refer

to the relevant sections of the Brooklyn II Technical Datasheet.

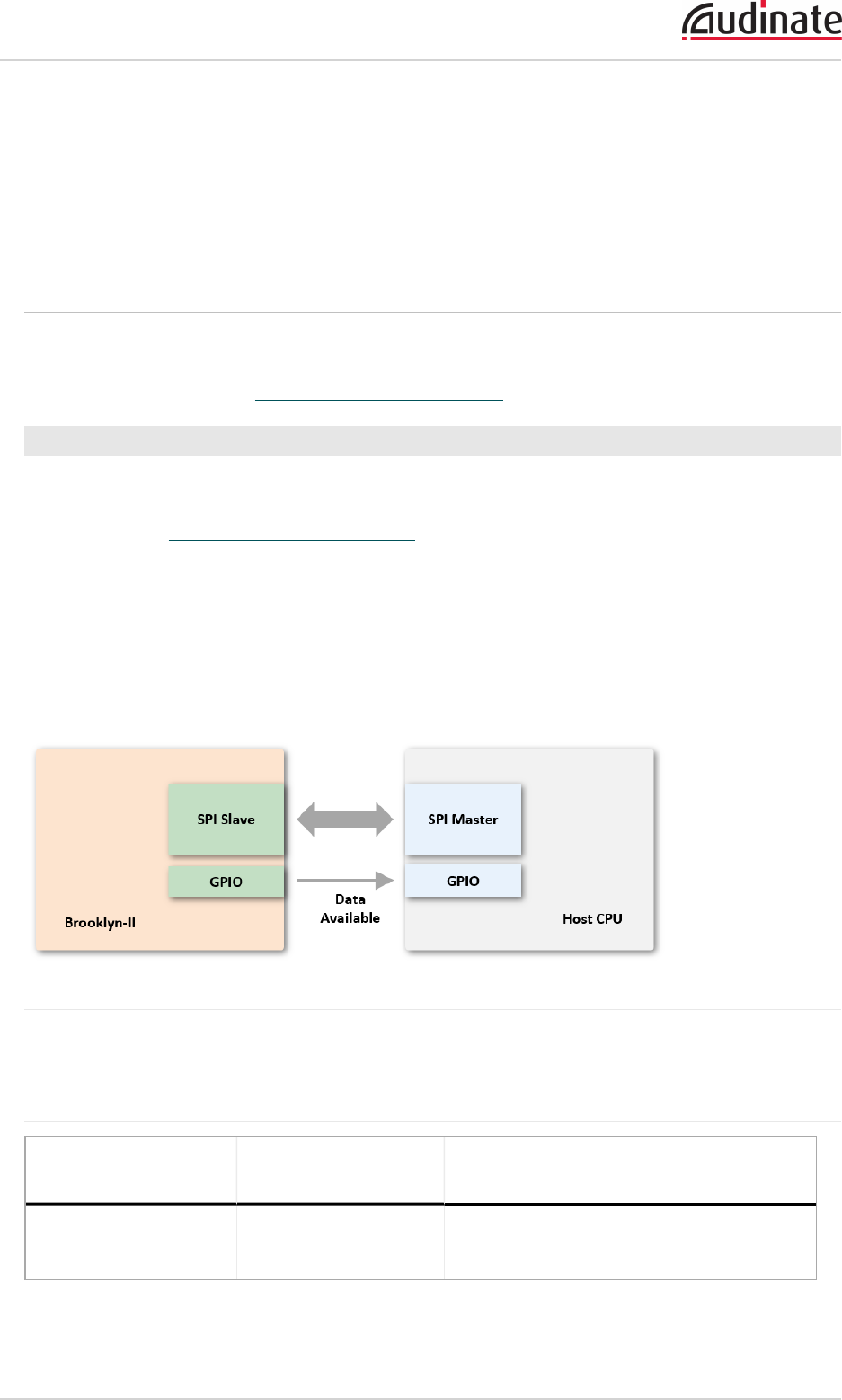

SPI

Communication using SPI requires one SPI master peripheral on the Host CPU. This SPI peripheral will

connect to the SPI slave on the Brooklyn II SPI slave interface. Data over SPI is transferred as full duplex.

Please refer to the Brooklyn II Programmer’s Guidefor more information about the SPI slave protocol.

Figure 1 shows the hardware connection to realize communication over SPI between the Brooklyn II and

the Host CPU. There is a pin called DATA_AVAILABLE on the Brooklyn II which the SPI slave module

uses to signal the availability of data to be transmitted to an external SPI master. A Host CPU must utilise

the DATA_AVAILABLE line to as an interrupt source or poll it on a periodic basis.

The Host CPU must have 3x 1508 bytes of RAM to send one maximum sized frame and receive up to two

maximum sized frames.

Figure 1 - Host CPU and Brooklyn II SPI communication

Table 1 shows the pin mapping between the Brooklyn II SPI slave and Host CPU SPI master.

Table 1 - Brooklyn II SPI slave and host CPU SPI master pins

Brooklyn II Pin (SPI

Slave)

Host CPU Pin (SPI

Master)

Usage

SPI_CLK_A /

SPI_CLK_B

SPI CLK SPI Clock

Host CPUSDKProgrammer's Guide

Brooklyn II Pin (SPI

Slave)

Host CPU Pin (SPI

Master)

Usage

SPI_MOSI_A / SPI_

MOSI_B

SPI MOSI SPI Master Out / Slave In

SPI_MISO_A / SPI_

MISO_B

SPI MISO SPI Master In / Slave Out

DATA_AVAILABLE

(GPIO)

GPIO Data is available to be read from Brooklyn

II SPI slave

UART

A single UART peripheral is required to communicate with the Brooklyn II over a UART serial link. Data

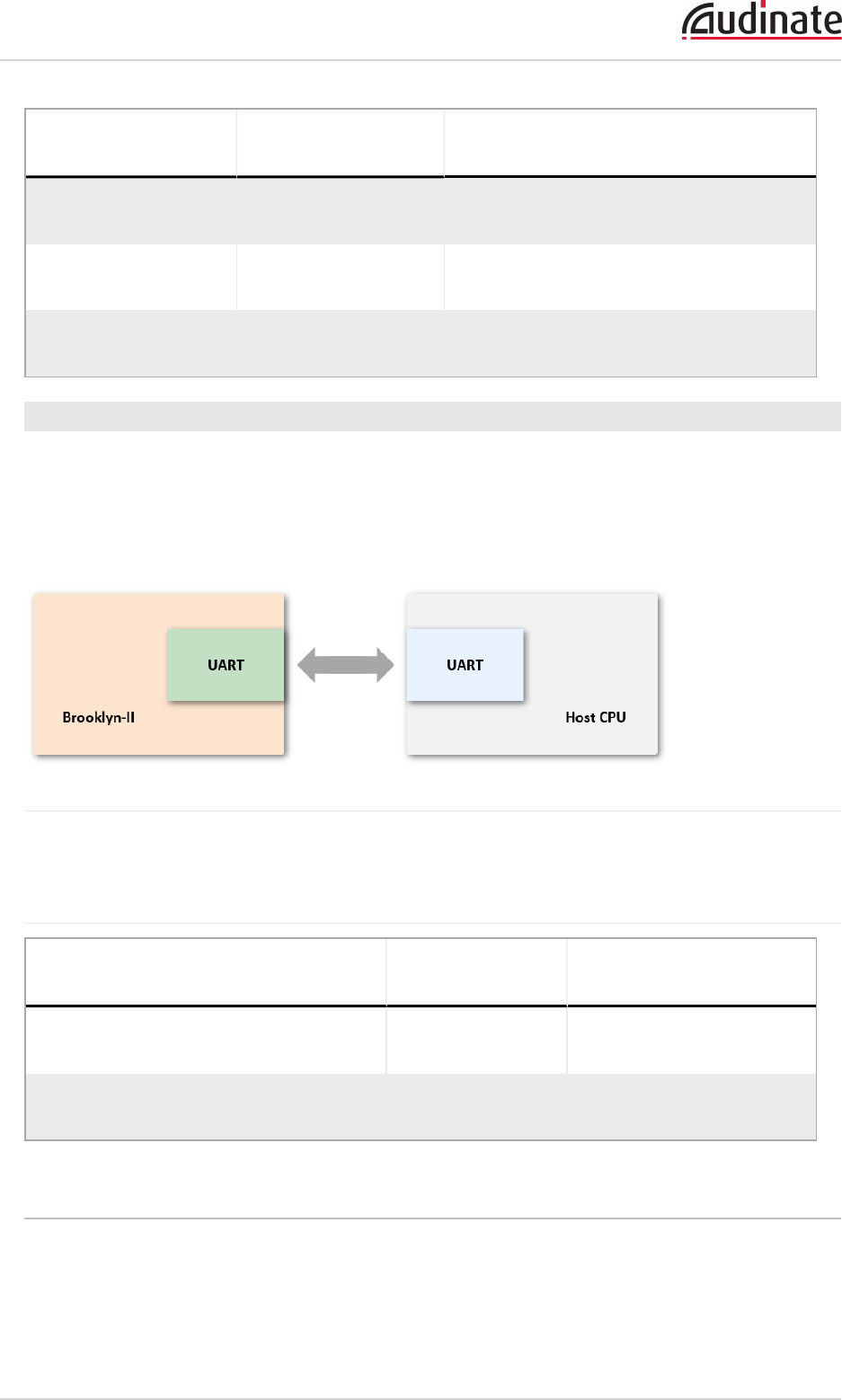

transferred over UART is full duplex. Figure 2 illustrates the hardware connections required to support

communication over UART between the Brooklyn II and the host CPU.

The Host CPU must have 2x 1500 bytes of RAM to send and receive one max sized frame.

Figure 2 - Host CPU and Brooklyn II UART communication

Table 2 shows the pin mapping between the Brooklyn II UART and Host CPU UART.

Table 2 - Brooklyn II and host CPU UART pins

Brooklyn II Pin (UART) Host CPU Pin

(UART)

Usage

CMOS_RS_232_RX_A / CMOS_RS_

232_RX_B

UART TX Brooklyn-II receive, host

transmit

CMOS_RS_232_TX_A / CMOS_RS_

232_TX_B

UART RX Brooklyn-II transmit, host

receive

Communicating with an Ultimo

Regardless of the serial peripheral used for the communication the following requirements should be

satisfied:

Host CPUSDKProgrammer's Guide

n3.3V I/O signalling levels

n2x 576 bytes RAM to send and receive a max sized packet over the serial link

SPI

Communication using SPI requires two SPI peripherals. One peripheral is a SPI master and the other

peripheral is the SPI slave.

The SPI master on Ultimo must be connected to the SPI slave port on the host CPU. This unidirectional /

simplex interface is used to send UHIP packets to / from the host CPU. The SPI slave on Ultimo must be

connected to the SPI master port on the Host CPU. This unidirectional / simplex interface is used to send

UHIP packets to / from the host CPU.

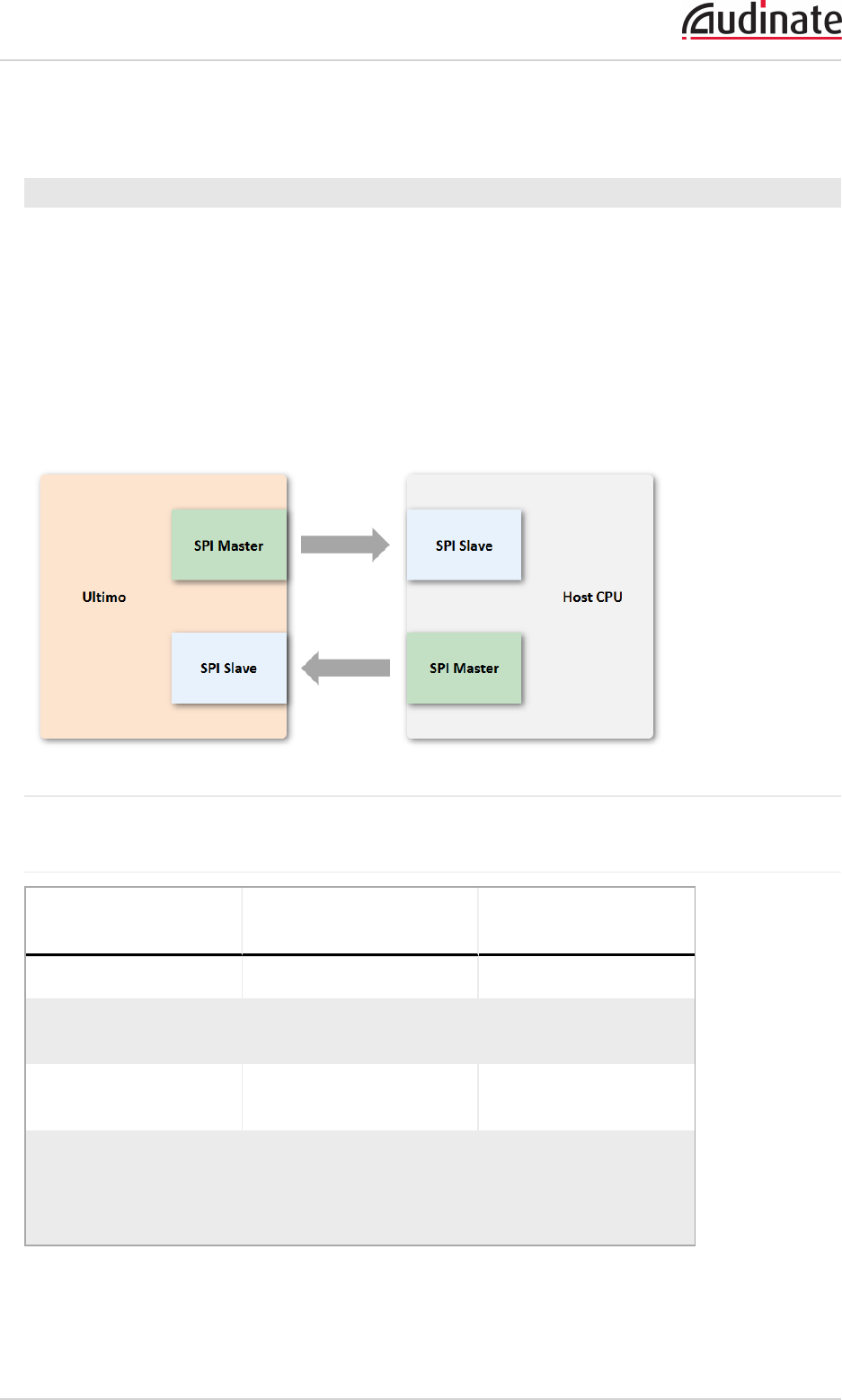

Figure 3 illustrates the hardware connections needed to support the SPI interface between Ultimo and a

host CPU.

Figure 3 - Host CPU and Ultimo SPI communication

Table 3 - Ultimo SPI master and host CPU SPI slave pins

Ultimo Pin (SPI

Master)

Host CPU Pin (SPI

Slave)

Usage

SPI_CLK_A SPI CLK SPI Clock

SPI_MOSI_A SPI MOSI SPI Master Out /

Slave In

SPI_MISO_A SPI MISO SPI Master In / Slave

Out

nSPI_SEL0_A or

nSPI_SEL1_A or

nSPI_SEL2_A or

nSPI_SEL3_A

SPI SELECT SPI chip select

Host CPUSDKProgrammer's Guide

Table 4 - Ultimo SPI slave and host CPU SPI master pins

Ultimo Pin (SPI

Slave)

Host CPU Pin (SPI

Master)

Usage

SPI_CLK_B SPI CLK SPI Clock

SPI_MOSI_B SPI MOSI SPI Master Out /

Slave In

SPI_MISO_B SPI MISO SPI Master In / Slave

Out

nSPI_SEL_B SPI SELECT SPI chip select

For more details about the I/O pins, I/O characteristics, SPI master timing characteristics, SPI slave

timing characteristics and supported SPI modes, please see the relevant sections of the Ultimo Technical

Datasheet.

UART

Serial communication between an Ultimo and the host CPU requires one UART port.

The UART on Ultimo is a bi-directional full duplex interface used for sending UHIP datagrams to / from the

host CPU.

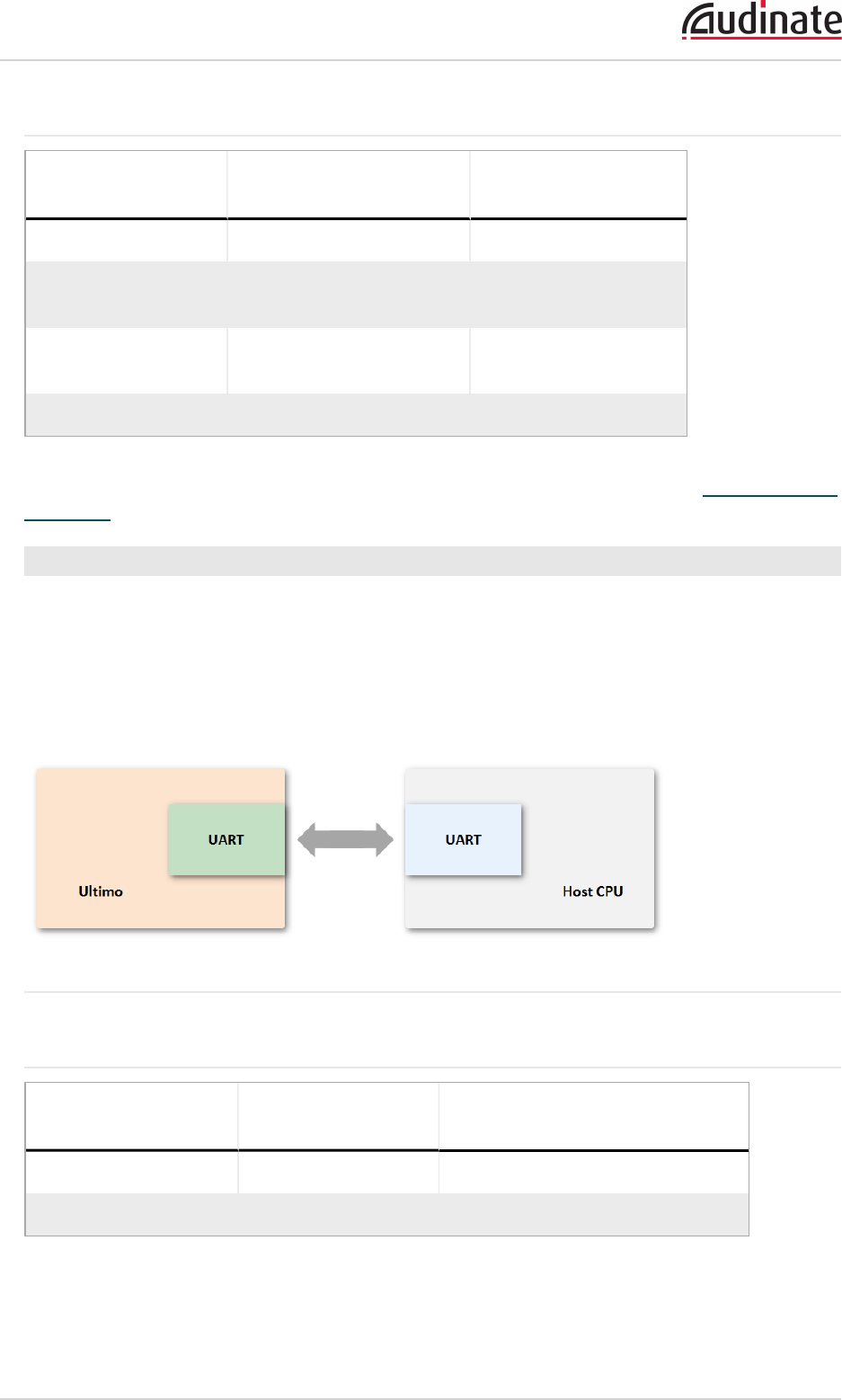

Figure 4 illustrates the hardware connections needed to support the UART interface between Ultimo and

the host CPU.

Figure 4 - Host CPU and Ultimo UART communication

Table 5 - Ultimo and host CPU UART pins

Ultimo Pin (UART) Host CPU Pin

(UART)

Usage

UART_RX_B UART TX Ultimo receive, host transmit

UART_TX_B UART RX Ultimo transmit, host receive

Host CPUSDKProgrammer's Guide

Ultimo Pin (UART) Host CPU Pin

(UART)

Usage

UART_CTS_B

[optional]

UART RTS Ultimo input / host output

H = disable transmission from

Ultimo

L = enable transmission from

Ultimo

UART_RTS_B

[optional]

UART CTS Ultimo output / host input

H = disable transmission on host

L = enable transmission on host

Host CPUSDKProgrammer's Guide

Host CPU Architecture

This section describes the architecture of the Host CPU and Dante device communication using a serial

peripheral.

All functionality described in this section is fully implemented in the provided Host CPU SDK. The

information contained in this section is for informational purposes only, and does not need to be

implemented by the OEM.

The data transferred over the serial link is encoded using Consistent Overhead Byte stuffing (COBS)

which provides packet framing. Framing ensures reliable resynchronisation after transmission or reception

errors.

For more details about COBS see

Cheshire, S; Baker, M, Sept 1997, “Consistent Overhead Byte Stuffing”,

ACM

All multi-byte values used for the protocols between the Host CPU and Brooklyn II or Ultimo are

represented in network byte order. For example a 32-bit integer containing the value 305,419,896 (decimal)

or 0x12345678 (hex) is sent as [0x12] followed by [0x34] followed by [0x56] followed by [0x78].

Key Features and Specifications

A very high level overview of the key features and specifications for serial communication between a Host

CPU and a Brooklyn II or Ultimo is provided in Table 6. The protocols mentioned in Table 6 are discussed

in the remaining sections of this document.

Table 6 - Host CPU to Dante device communication key features and specifications

Feature Brooklyn II Ultimo

Supported serial peripherals SPI slave, UART SPI master + SPI

slave, UART

Supported high level

protocols

DDP, Packet Bridge DDP, Dante Events,

Packet Bridge

Transport protocol BHIP UHIP

Maximum serial frame size 1508 bytes (SPI), 1500 bytes

(UART)

576 bytes

Maximum transport protocol

payload size

1484 bytes (for DDP), 1448 (for

Packet Bridge)

500 bytes

Host CPU and Brooklyn II

Brooklyn II Host Interface Protocol (BHIP) is the protocol used to transport Dante Device Protocol (DDP)

and Packet Bridge. The BHIP protocol does not have acknowledgements. Therefore, it will be up to clients

of the DDP and/or Packet Bridge on the Host CPU retry if a response message was not received.

Host CPUSDKProgrammer's Guide

In typical deployments both DDP and Packet bridge will operate over the same serial peripheral. However

it is also possible to configure the Brooklyn II to use one peripheral (e.g. SPI) for DDP and the other

peripheral (e.g. UART) for the packet bridge. The intended use case for this is to connect two Host CPUs.

Framing and Padding Mechanisms

The framing of data differs when using SPI or UART. Figure 5 shows a single frame transferred on a SPI

serial link and Figure 6 shows a single frame transferred on a UART serial link. The pipe number in the SPI

header used for BHIP data is 0. Pipes 0-7 are reserved for Audinate use. If you wish to multiplex non-BHIP

data over the SPI interface at the same time you may use any of pipes 8-15.

Figure 5 - Serial frame transferred between a host CPU and Brooklyn II over SPI

The frame transferred over a UART serial link does not use any padding so a Host CPU must not make

any assumptions on the size of the frame.

Figure 6 - Serial frame transferred between a host CPU and Brooklyn II over UART

Flow Control Mechanisms

Flow control is not provided by the BHIP protocol. However, the SPI slave on the Brooklyn II can be

configured to provide flow control at the hardware level. The SPI slave on the Brooklyn II provides a flow

control GPIO pin. This GPIO pin can be enabled via the module configuration tool. The flow control pin is

asserted when the SPI slave buffer reaches the high water mark. For more information about the flow

control pin please refer to the Brooklyn II Programmer’s Guide. For UART mode there is no hardware level

flow control from the Brooklyn II device.

Interaction Diagrams

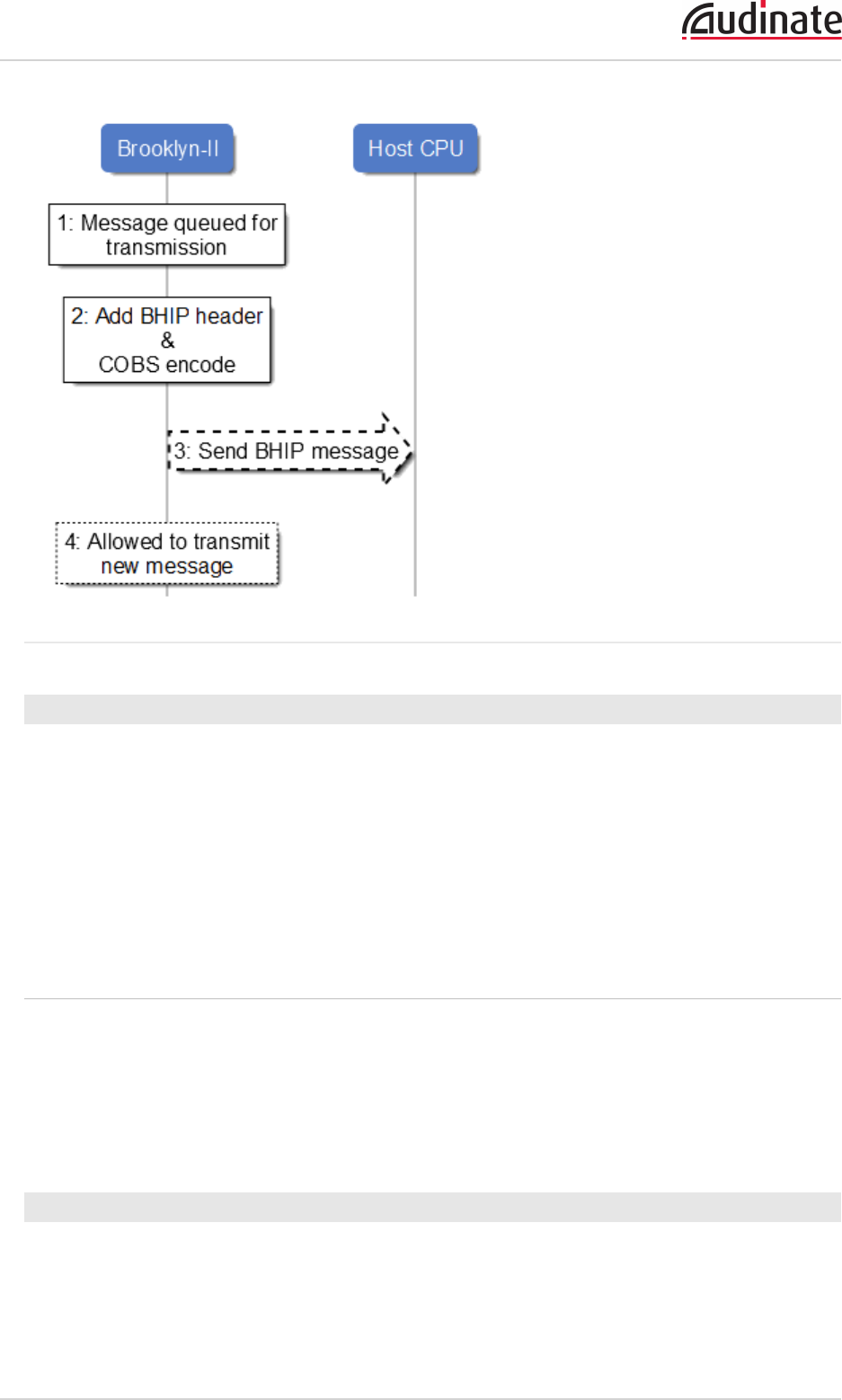

Figure 7 shows a normal flow for BHIP regardless of the protocol that is being transported and the serial

peripheral used for the communication. This interaction also applies when the Host CPU transmits a BHIP

packet to the Brooklyn II.

Host CPUSDKProgrammer's Guide

Figure 7 - Normal flow behaviour for BHIP

Resynchronization Mechanisms

In rare situations where synchronization is lost on the receive path, the method to regain synchronization is

based on the serial peripheral used for communication.

In SPI mode, data is transferred in data blocks which are a multiple of 4 bytes (minimum is 4 bytes). In

addition, the SPI slave protocol has 4 sentinel bytes which always occur at the start of a 4 byte data block.

Therefore, these sentinel bytes are used to re-acquire synchronisation.

If UART is used as the serial peripheral, data reception does not assume a data block size. Therefore, the

COBS delimiters [0x00] are sufficient to regain synchronization.

Host CPU and Ultimo

Ultimo Host Interface Protocol (UHIP) is the protocol that is used to transport Dante Device Protocol

(DDP), Dante Events and Packet Bridge packets. Each UHIP packet is encoded using Consistent

Overhead Byte Stuffing (COBS). The UHIP protocol uses acknowledgements for flow control.

When the Ultimo is configured to communicate with a Host CPU all protocols transported by UHIP can

only be transferred over a single serial peripheral. The Ultimo does not have the capability to transfer

different UHIP protocols over different serial peripherals.

Framing and Padding Mechanisms

COBS is used to frame packets transferred over a serial link. A single frame sent over the serial link is

shown in Figure 8.

Host CPUSDKProgrammer's Guide

Figure 8 - Serial frame transferred between a host CPU and an Ultimo over SPI or UART

All packets transferred over the serial link are padded with [0xFF] bytes so that the packet size is a

multiple of 32 bytes. This simplifies DMA driver implementations on the Ultimo and the host CPUs.

Flow Control Mechanisms

UHIP utilises a Stop-and-Wait mechanism for flow control on a per message basis. After a message has

been sent, the sender must wait until either of the following occurs before sending another message:

1. A PROTOCOL_CONTROL acknowledgment has been received

2. No response is received for 1 second

Important: Due to limited RAM on the Ultimo, if a host CPU does not process UHIP messages

quickly enough, UHIP messages will be dropped. As such it is important that received UHIP

messages are processed in a timely manner.

Interaction Diagrams

Normal Acknowledgement

The interaction diagram shown in Figure 9 depicts a normal flow control behaviour when packets are

acknowledged.

Host CPUSDKProgrammer's Guide

Figure 9 - UHIP normal acknowledgement

Error Timeout (No Response from Host CPU)

The interaction diagram shown in Figure 10 depicts what occurs if a packet is transmitted from the Ultimo

to the host CPU, but no acknowledgment is received.

Host CPUSDKProgrammer's Guide

Figure 10 - UHIP timeout error due to no response from host CPU

Error Timeout (No Response from Ultimo)

The interaction diagram shown in Figure 11 depicts what occurs if a packet is transmitted from the host

CPU to the Ultimo, but no acknowledgment is received.

Host CPUSDKProgrammer's Guide

Figure 11 - UHIP timeout error due to no response from the Ultimo

Timing and Resynchronization Mechanisms

UHIP uses the following strategies to regain synchronisation after communication errors.

nReceive Path for COBS encoded, 32 byte padded packets:

1. Start/reset a 1 second timer every time a 32 byte chunk is received

2. If a full COBS encoded message is received, stop the timer

3. If the timer expires (1 second without receiving the end of a COBS packet), reset the receive buffer

and/or DMA controller

nTransmit Path for COBS encoded, 32 byte padded packets:

1. When transmitting a UHIP message to the Host CPU.

2. Start a 1 second timer when the message is transmitted.

3. If the timer expires without a response (i.e. PROTOCOL_CONTROL) packet being received.

4. Wait another 1 second before sending another UHIP message to the Host CPU.

Host CPUSDKProgrammer's Guide

Packet Bridge

The Packet Bridge protocol allows a Host CPU to send and receive UDP/ IP network datagrams via the IP

stack on a Brooklyn II or Ultimo device. This functionality will allow OEMs to quickly and easily implement

custom network control, status and monitoring functionality on their Brooklyn II or Ultimo reference design

product and PC software. The Packet Bridge should only be used for applications that have a low

throughput and packet rate.

Key Features and Specifications

Table 7 summarizes the main features related to Packet Bridge for the Brooklyn II and the Ultimo.

Table 7 - Packet Bridge key features for Brooklyn II and Ultimo

Feature Brooklyn II Ultimo

Supported

modes

Dante Control and Monitoring

(ConMon: control and status) or

standard UDP sockets

Dante Control and Monitoring (ConMon:

control, status, and vendor broadcast)

or standard UDP sockets

Maximum

message

payload

1448 bytes 500 bytes

ConMon

Unicast

subscriptions

limit

16 5

Overall Architecture

The Packet Bridge uses UDP/IP messages to communicate across the network. The Packet Bridge can

be configured in one of two modes – ConMon or UDP sockets; and can be enabled on the Dante device

using the module configuration tool.

Host CPUSDKProgrammer's Guide

Figure 12 - Packet Bridge architecture applicable for a Brooklyn II or an Ultimo

ConMon Packet Bridge

When the Packet Bridge is configured in ConMon mode, packets are forwarded to devices as vendor

specific ConMon messages. ConMon includes infrastructure that enables discovery of Brooklyn II or

Ultimo Packet Bridge endpoints. Please refer to the Dante API Programmer’s Guide for further details on

ConMon.

The Packet Bridge endpoint forwards received messages to the Host CPU. Responses from the Host

CPU forward back to the sending device. The Ultimo or Brooklyn II running the Packet Bridge cannot

initiate messages. The Ultimo supports a limited method for transmitting message from the Packet Bridge

endpoint using multicast.

Equivalent functionality is not implemented Brooklyn II, however it is possible to build a custom user

application that is able to communicate using unicast messages with up to 16 devices. Please refer to the

Brooklyn II Programmer’s Guide on information how to build a custom user application.

The ConMon vendor ID in the ConMon header is the manufacturer-specific ID assigned to each OEM by

Audinate. The ConMon packet bridge filters incoming packets based on this vendor ID to ensure that only

the messages tagged with the specific vendor ID are sent over the packet bridge. If more precise filtering is

required it is the responsibility of the vendor to implement this on the host processor.

The Brooklyn II Packet Bridge supports the control channel and status channel. The Ultimo Packet Bridge

supports the control channel, status channel and vendor broadcast channel.

nControl Channel – unicast receive channel. This channel is used to send control or query packets

from a PC or Brooklyn-II based controller to a Brooklyn II or Ultimo packet bridge endpoint.

nStatus Channel – multicast and unicast transmit channel. This channel is used to send status mes-

sages or query responses from a Brooklyn II or Ultimo packet bridge endpoint to PC or Brooklyn II

based controllers. Remote devices subscribed to the Ultimo may receive messages via unicast. The

maximum number of active unicast subscriptions supported by Brooklyn II is 16 whereas Ultimo is 5.

nVendor Broadcast Channel – multicast transmit channel from the Ultimo, optional multicast receive

channel from a remote device. This channel is typically used for Ultimo-to-Ultimo communication in

small networks that don’t have a larger “controller” device such as a Brooklyn-II or PC.

Note: Unicast Ultimo to Ultimo ConMon Packet Bridge messages are not supported.

Host CPUSDKProgrammer's Guide

UDP Sockets Packet Bridge

When the Packet Bridge is configured in UDP mode, the Dante device allows for UDP datagrams to be

sent/received by the Host CPU via the Packet Bridge.

Note: If the Brooklyn II is configured in redundant mode, Packet Bridge in UDP sockets mode only

operates over the primary interface.

The following types of channels are supported in UDP socket Packet Bridge mode:

nUnicast Channel – unicast receive and transmit channel. This channel is typically used to send con-

trol or query packets from a PC or Brooklyn-II based controller to Brooklyn II or Ultimo Packet Bridge

endpoints. It is also used to send status messages or query responses from a Brooklyn II or Ultimo

packet bridge endpoint to PC or Brooklyn-II based controllers.

nMulticast Channel - multicast transmit channel from the Brooklyn II or Ultimo Packet Bridge endpoint

and optional multicast receive channel from a remote device. This channel should only be used in

small networks. It is preferable to use a Brooklyn II or PC running a custom application as a con-

troller.

Comparison of ConMon and UDP Sockets Packet Bridge

Table 8 - Comparing Features of ConMon and UDP Sockets Packet Bridge Modes

Feature ConMon Packet Bridge UDP Sockets Packet

Bridge

Device Discovery Automatic Manual (OEM

implemented)

Handling IP address

change

Automatic Manual (OEM

implemented)

Packet Filtering Automatic Manual (OEM

implemented)

Unicast Subscriptions Yes (up to 16 for Brooklyn II and up to 5 for

Ultimo)

Manual (OEM

implemented)

Redundancy (Brooklyn II

only)

Yes No

Communication with a Dante Device Packet Bridge

Endpoint from PC / Brooklyn II Devices

Message Format

ConMon Mode

All the messages to and from the Brooklyn II or Ultimo Packet Bridge endpoint are encapsulated in a

ConMon message header. The ConMon vendor ID will be set to the manufacturer specific vendor ID

Host CPUSDKProgrammer's Guide

assigned by Audinate. The Dante device Packet Bridge endpoint compares this ID to the manufacturer ID

set in the capability and forwards the packets over the packet bridge if they match.

UDP Mode

When configured in UDP Packet Bridge mode, it is the responsibility of the OEM to add any necessary

OEM message headers to the UDP payload. In UDP mode, the Brooklyn II or Ultimo Packet Bridge

endpoint forwards the received UDP payload over the serial interface to the Host CPU. Messages

received from the Host CPU are sent onto the network as UDP packets.

Discovering Packet Bridge Endpoints

ConMon Mode

A ConMon “controller” application on a Brooklyn II or PC can use the ConMon Manufacturer Versions

message to identify devices matching a particular vendor ID. The Dante browsing API provides the

following additional device information:

nVendor ID - vid, allows the controlling application to select a device matching a particular vendor

nVendor broadcast address – vba, The multicast address used by the device for the Vendor Broadcast

Channel. The vendor broadcast address is only applicable for Ultimo Packet Bridge endpoints

Any ConMon messages with a matching Vendor ID will be forwarded over the Brooklyn II or Ultimo Packet

Bridge. Audinate Vendor ID tagged messages will be handled by Dante application threads inside Brooklyn

II or Ultimo as usual.

UDP Mode

When the Packet Bridge is configured in UDP mode, mDNS is used to discover the UDP Packet Bridge

endpoints. The Brooklyn II and Ultimo provides configurable SRV, TXT and PTR mDNS records for use by

the OEM and it is configurable via the module configuration tool.

A mDNS advert consists of a PTR, SRV, and TXT record. It allows for a “named service” on a particular

port to be advertised and discovered. It consists of:

nPTR or Pointer Record - to enables the discovery of the “named” service on a particular device

nSRV or Service Record - to provide information about the “host” and “port” for the service

nTXT or Text Record - to provide additional information about the service

In the module configuration tool the OEM can set the “service name” and “port” as well as multiple keys in

the Text Record.

nThe “service name” is the OEM assigned name for the UDP packet bridge service

nThe “port” is the OEM assigned listening UDP port for the unicast channel

nThe “text keys” are extra information that the OEM wants to provide about the UDP packet bridge ser-

vice on the Ultimo. For example it may be useful to provide protocol versions, multicast IP

addresses or multicast port information in the Text Record

For example:

nUDP Packet Bridge service is called “oem-pb”

nThe Unicast receive socket is bound to port “39030”

nThe Multicast receive socket is bound to 239.254.50.123 / port 9000

nThe protocol version is 1.2.3.4

nAn Ultimo device is used and it is called Ultimo-0712b3

This will result in the following mDNS records:

Host CPUSDKProgrammer's Guide

nUltimo-0712b3._oempb._udp.local. 120 IN SRV 0 0 39030 Ultimo-0712b3.-

local.

n_oempb._udp.local. 4500 IN PTR Ultimo-0712b3._oempb._udp.local.

nUltimo-0712b3._oembp._udp.local. 4500 IN TXT ver=1.2.3.4 mc_

ip=239.254.50.123 mc_port=9000

Please refer to Dante API Programmer’s Guide – DNS Service Discovery API section for information on

how to discover the packet bridge endpoint via mDNS.

For further information about mDNS please refer to http://www.multicastdns.org/

For an Apple implementation of mDNS that is commonly used on both OS X and Windows please refer to

http://www.apple.com/au/support/bonjour/

ConMon Control Channel Usage

The Control Channel carries control and query messages inbound to the Host CPU . The controller

application on a PC or Brooklyn- II can use this channel to send control or query messages to the host

CPU via the Packet Bridge. The Brooklyn II or Ultimo packet bridge endpoint cannot send messages using

this channel.

ConMon Status Channel Usage

The Status Channel is designed for one-to-many communication. This channel type is always a multicast

channel, with support for unicast transmission to a limited list of subscribed devices. Any message

received from the Packet Bridge tagged as a ConMon status message is multicast on the Status Channel.

A PC can use a ‘global’ subscription to receive multicast status messages. A Brooklyn II controller can

use unicast to subscribe to up to 32 devices. A Brooklyn II packet bridge endpoint can support up to 16

remote “controllers” subscribed via unicast. An Ultimo endpoint can support 5 remote subscribers.

ConMon Vendor Broadcast Channel Usage

The Vendor Broadcast channel is typically used for Ultimo-to-Ultimo communication. It is designed for

one-to-many communication. This channel type is enabled/configured locally on each device that

transmits or receives on this channel.

The ConMon advertisement can be used to discover devices with a specified vendor ID and Vendor

Broadcast Channel multicast address. This channel can be used to both transmit and receive messages.

Care must be taken by the vendor to select multicast IP addresses that are not currently assigned. The

range recommended by Audinate is 239.254.0.0/16.

For more information about multicast IP address assignment see RFC5771 & RFC2365.

Important: When opening a multicast receive channel on an Ultimo, all packets sent by other

devices will be received and must be processed by both the Ultimo and the host processor. Care

must be taken in designing the transmission side of the vendor protocol (specifically the number of

devices and how often they transmit) not to overwhelm or overburden the Ultimo and host processor

with receive packets!

Note: Because multicast is a one-to-many communication medium, it is the responsibility of the

vendor to add information identifying the sender to the transmitted packets. A MAC address or other

unique device identifier may be appropriate.

Host CPUSDKProgrammer's Guide

Example Use Cases and Recommended ConMon

Configurations

This section describes Packet Bridge use cases and appropriate ConMon channel type selection.

Host CPU Firmware Update by a PC Controller

Figure 13 shows a PC controller being used to update the firmware on the host processor via the Packet

Bridge.

Figure 13 - Host CPU firmware upgrade by a PC controller

In this example, the PC controller sends vendor defined firmware update packets via the unicast ConMon

Control Channel to the Brooklyn II or Ultimo which are forwarded to the host CPU according to the packet

bridge configuration. The host CPU (via the Brooklyn II or Ultimo) then sends back status update and

response messages via the multicast ConMon Status Channel to the PC.

Control of Host CPU by a Brooklyn II Based Controller

Figure 14 shows a Brooklyn II based controller sending commands and/or queries to the host processor via

Packet Bridge.

Figure 14 - Host CPU controlled by Brooklyn II controller

In this example, the Brooklyn II based controller sends control packets via the unicast Control Channel to

the Ultimo, which is configured as a Packet Bridge to the host CPU. The Brooklyn II based controller also

Host CPUSDKProgrammer's Guide

opens a remote subscription to the Status Channel on the Ultimo, which causes Ultimo to transmit unicast

ConMon Status Channel messages from the host CPU to the Brooklyn II controller. The host CPU sends

status messages and responses to the Brooklyn II controller via the Ultimo Packet Bridge and the unicast

subscription to the Status Channel.

Status Reporting by Host CPU to PC Controllers

Figure 15 shows multiple host CPUs reporting status information to one or more PC controllers via Packet

Bridge.

Figure 15 - Host CPU status reporting to PC controllers

In this example, all Ultimo and host CPUs transmit status information packets via the multicast Status

Channel to one or more PC based controller applications. The host CPU on each Ultimo device sends

periodic and/or event driven status messages via Packet Bridge to the multicast ConMon Status Channel.

The PC controller listens to these status messages using the multicast ConMon Status Channel.

Host CPU to Host CPU Communications

Note: This use case can only be realized with Ultimo packet bridge endpoints.

Figure 16 shows inter-device communication between host processors connected via Packet Bridge.

Figure 16 - Host CPU to host CPU communications

In this example, each Ultimo has been configured with the same Vendor Broadcast Channel using the

same multicast IP address, which is used to transmit messages from the host CPU to the network.

Each Ultimo has also been configured to receive messages for the Packet Bridge from the Vendor

Broadcast Channel. This allows the Vendor Broadcast Channel to be bridged from the network to the host

CPU.

Hosts CPUs can transmit messages to other host CPUs via the Ultimo Packet Bridge and the multicast

ConMon Vendor Broadcast Channel. Ultimo devices configured with the same vendor allocated multicast

address will receive messages.

Host CPUSDKProgrammer's Guide

Important: When opening a multicast receive channel on an Ultimo, all packets sent by other

devices will be received and must be processed by both the Ultimo and the host CPU. Care must be

taken in designing the transmission side of the vendor protocol (specifically the number of devices

and how often they transmit) not to overwhelm or overburden the Ultimo and host CPU with receive

packets!

Important: Because multicast is a one-to-many communication medium, it is the responsibility of

the vendor to add information identifying the sender to the transmitted packets. A MAC address or

other unique device identifier may be appropriate.

Recommendations for OEM Protocol Design

Managing Device State

A device designed to control other devices typically needs to track the state of the devices it manages. To

track device state, a controller subscribes to Status Channels and receives messages as parameters

change or events occur. There may also be multiple controllers for a given device.

How should device state and control messages be structured? The paragraphs below discuss various

possibilities open to the designer.

Self-Description

Devices that can describe their own features and capabilities can greatly simplify the task of writing

general-purpose control software. The simplest approach is to define a single message type supported by

all devices that describes the capabilities of the device. Controllers can use this information to determine

which behaviours and features are applicable for the device.

For example, the ConMon VERSIONS_STATUS message provides a range of information about the types

of ConMon messages available for a given Dante device.

Bulk State Summary

When a controller starts up, it does not know the state of the devices it is controlling. In combination with a

control channel message to trigger it, a bulk state summary message provides an efficient means of

bootstrapping the controller. When sent on the Status Channel, all other controllers will receive this

message.

The bulk state summary may also be used as a control message for restoring a device to a particular

configuration.

Small State Changes

Generally, a human can adjust one or only a small number of parameters at once. Therefore, support for

small, single parameter state change messages appears sensible.

Groups of Changes

Metering information is a classic example of status information that ought to be collected together for

transmission. Meter values change periodically and grouping several meter values together will result in

more efficient network transmission.

Host CPUSDKProgrammer's Guide

If several configuration or status parameters always change together, they should be transmitted together.

If parameters are transmitted in different messages, there is the chance that one of the messages will not

be successfully received. Grouping parameters together results in a set of parameter changes to be

received or lost as a group.

Stateless Protocol Design

In general, control or monitoring messages should be understandable on their own. If message can be

interpreted properly without additional state, there is no burden on the receiver to track any extra state.

As an example, a control or status message that indicates:

PhantomPower = On or PreampGain = -17.1dB

Is better than a message like:

PhantomPower = Toggle or PreampGain += 5.6dB

If the second style of message is retransmitted, or received more than once because of redundancy, there

is potential confusion about the final device state, which can only be resolved by accurately tracking every

change.

Stateless messages have a well-defined meaning or result. With care, a stateless protocol design can be

robust against retransmission and loss without requiring complex state tracking.

Avoiding Synchronization

A network containing devices that periodically send messages can self-synchronise, resulting in large

periodic bursts of network traffic. Consider randomly jittering the time at which periodic messages are sent

using the techniques described in Sally Floyd, Van Jacobson, “The synchronization of periodic routing

messages in Computer Networks”, 1994, IEEE/ACM Transactions on Networking.

Byte Ordering

Processors can arrange bytes in memory in different ways and this must be considered when copying data

(e.g. a 32 bit integer) into a buffer for transmission. A control protocol should clearly define the transmission

order of bytes to avoid confusion. It is strongly recommended that you use “network byte order” or “big

endian” transmission, as it is commonly used for protocols.

Byte Alignment

Processing misaligned data is inefficient on some processors and not supported on others. Ensuring that

all 16 and 32 bit message fields are correctly aligned with the start of the message makes it easier to

process a message once it has been copied into application memory.

Detecting Message Loss

Incrementing sequence numbers on status and metering messages allow the receiver to tell if it has

missed a message. In the case of metering, missing the odd message may be unimportant. For Status

Channels, recovery may involve provoking the transmission of a full or partial state summary.

A periodic, low rate, keepalive status message can be used to bound the time taken to detect that an

infrequent status messages is missing. A keepalive may also be useful if a controller is required to detect

device disappearance in a timely manner - however, but note that the regular transmission of keepalives

consumes network bandwidth.

Host CPUSDKProgrammer's Guide

Control messages may be acknowledged using a status message. Again, stateless protocol design pays

off, as an acknowledgement may be lost even when the original message has been successfully received.

Power-On Events

Protocol designers must carefully consider the behaviour of many devices powering on at the same (or

nearly the same) time. If several control devices start up at the same time and all want to acquire the

current state for the devices on the network, this can result in a flood of network traffic.

To mitigate the effects of power-on events, consider the following strategies. Note: It is assumed there are

vendor defined control messages describing the “device state summary” and for triggering its transmission

on the Status Channel.

Status channel receiver behaviour:

1. Subscribe to Status Channel for the device.

2. Randomly wait (e.g. uniformly distributed between 0 and 3 seconds) whilst receiving Status Channel

messages.

If a full “device state summary” is received before timeout, another device requested the same information,

and there is no need to request it again.

If a full “device state summary” is not received before timeout, send a control message to trigger the

“device state summary” transmission on the Status Channel.

Status channel sender behaviour:

nRate limit “status summary” messages. Is sending more than one per second worthwhile?

Interaction Diagrams

Transmit a Packet from a Host CPU to the Network [Successful]

Brooklyn II

Figure 17 - BHIP ConMon/UDP packet bridge transmit success

Host CPUSDKProgrammer's Guide

Ultimo

Figure 18 - UHIP ConMon/UDP packet bridge transmit success

Transmit a Packet from a Host CPU to the Network [Failure – No

Network Connection]

Brooklyn II

Figure 19 - BHIP ConMon/UDP packet bridge transmit failure due to no network connection

Host CPUSDKProgrammer's Guide

Ultimo

Figure 20 - UHIP ConMon/UDP packet bridge no network connection transmit failure

Transmit a Packet from a Host CPU to the Network [Failure –

Message Malformed]

Brooklyn II

Figure 21 - BHIP ConMon/UDP packet bridge transmit failure due to malformed message

Host CPUSDKProgrammer's Guide

Ultimo

Figure 22 - UHIP ConMon/UDP packet bridge transmit failure due to malformed message

Receive a Packet from the Network and Forward to Host CPU

[Successful]

Brooklyn II

Figure 23 - BHIP ConMon/UDP packet bridge receive success

Host CPUSDKProgrammer's Guide

Ultimo

Figure 24 - UHIP ConMon/UDP packet bridge receive success

Dante Device Configuration

SPI and UART port parameters including baud rates, clock polarity, etc. for Brooklyn II and Ultimo are

configured using the module configuration tool. Configuration and selection of the ConMon channels used

with Packet Bridge or UDP sockets is also specified using the module configuration tool.

Host CPUSDKProgrammer's Guide

Dante Events

The Dante Event messages are sent by the Ultimo processor when the sample rate or pull up is changed.

The Brooklyn II does not support Dante Events. These events are used to inform the Host CPU that the

codec(s) need to be reconfigured for the new sample rate / pull-up. For more information see Sample Rate

Changes and Pull-Up / Down Changes sections in the Ultimo Programmer’s Guide.

Interaction Diagrams

Figure 25 - Dante Events sent as a result of sample rate or pullup changes

Ultimo Configuration

To enable Dante Events on the Ultimo the following options should be configured in module config web

Host CPU section:

1. Host CPU checkbox should be ticked

2. Mode should be selected as either set to SPI or UART. Based on the selection the serial peripheral

should be configured as appropriate

Host CPUSDKProgrammer's Guide

Dante Device Protocol

The Dante Device Protocol (DDP) allows a Host CPU to control and monitor the Dante functionality on a

Dante device. This functionality will allow OEMs to provide Dante status information or control the Dante

device via a user interface locally on the device.

Message Classes

There are several classes of messages used by the Dante Device Protocol:

1. Request messages - Request messages are sent to a Dante device and are used to either query for

information from a device or to control or change parameters on a device. Every request message has:

nA message opcode

nA sequence number used to identify the request. This must be a non-zero value. The reply to this

request will always use the sequence number from the request. This allows for a request/response

pair to be linked.

2. Response messages - Response messages are sent from a Dante device in response to a request.

Every response message has:

nAn opcode that is the same as the corresponding request opcode

nA non-zero sequence number matching the request sequence number

nA status that indicates whether the request was successful or an error occurred

3. Event messages - Event messages are pushed or sent gratuitously from a Dante device when there is a

change in status. Event messages are identical in format and opcode to a response event with the

following key differences:

nA zero sequence number

Protocol Functionality

This section provides a summary of the functionality provided by Dante Device Protocol.

Basic Information

Mechanisms: Query/Response & Asynchronous Notification (on power on)

nModel ID

nModel ID string

nSoftware Version & Build

nFirmware Version & Build

nBootloader Version & Build

nConfiguration & Memory Error flags (capability partition error / user partition error / configuration store

error)

Manufacturer Information

Mechanisms: Query/Response & Asynchronous Notification (on power on)

Host CPUSDKProgrammer's Guide

nManufacturer ID

nManufacturer Name

nModel ID

nModel Name

nModel Version

nSoftware Version & Build

nFirmware Version & Build

nBootloader Version & Build

nConfiguration & Memory Error flags (capability partition error / user partition error / configuration store

error)

Upgrade

Mechanisms: Command/Response & Asynchronous Notification (after an upgrade)

nStart an upgrade via TFTP

nStart an upgrade via XMODEM via SPI/UART (Ultimo only)

nReceive progress notifications after the upgrade has completed

Erase Configuration

Mechanisms: Command/Response & Asynchronous Notification (during an erase)

nErase to factory defaults

nErase to factory defaults but keep static IP information

nReceive a notification when a erase is externally triggered

Device Reboot

Mechanisms: Command/Response & Asynchronous Notification (before reboot)

nTrigger a software reset

nReceive a notification when a reboot is externally triggered

Identity

Mechanisms: Command/Query/Response & Asynchronous Notification (on name changes)

nDevice ID & Process ID (uniquely identify a device)

nDefault name

nFriendly name

nAdvertised name

nChange the friendly name of the device

nReceive a notification on a name change

Device Lock Information

Mechanisms: Query/Response & Asynchronous Notification (on lock/unlock state changes)

Host CPUSDKProgrammer's Guide

nDevice lock/unlock state

nReceive a notification on lock/unlock state change

AES67 (Brooklyn II Only)

Mechanisms: Command/Query/Response & Asynchronous Notification (on AES67 enable/disable

changes)

nCurrent AES67 enable/disable state

nEnable/disable AES67

nReceive a notification on enable/disable changes

VLANs

Mechanisms: Command/Query/Response & Asynchronous Notification (on VLAN configuration selection

changes)

nSimple mode: Change between switched and redundant modes (Brooklyn II Only)

nCustom VLANs: Change between different custom VLAN configurations set in the device capability

nReceive a notification on selecting a different VLAN configuration

Metering (Brooklyn II Only)

Mechanisms: Command/Query/Response & Asynchronous Notification (on metering update rate

changes)

nCurrent metering update rate

nSet the metering update rate to 10Hz or 30Hz

nReceive a notification on changes to the metering rate

UART Configuration (Brooklyn II Only)

Mechanisms: Command/Query/Response & Asynchronous Notification (on changes to configuration

changes to a UART port)

nCurrent configuration parameters of a UART port: number of bits, stop bits, parity, baud rate, mode

of the port, and whether the port can be configured

nConfigure parameters (number of bits, stop bits, parity, and baud rate) of a UART port only if the port

is marked as configurable in the capability

nReceive a notification on configuration changes to a UART port

Network

Mechanisms: Command/Query/Response & Asynchronous Notification (on network changes)

nMAC address

nCurrent Interface state (Link up or down)

nCurrent Link Speed

nCurrent IP Address / Netmask / Gateway

nSet Static IP Address / Netmask / Gateway

nReceive a notification if the network state changes

Host CPUSDKProgrammer's Guide

Clocking / PTP

Mechanisms: Command/Query/Response & Asynchronous Notification (on clock changes)

nCurrent clock state (master / slave / etc)

nCurrent mute state

nCurrent preferred state

nCurrent frequency offset

nPTP logging state

nCurrent pullup

nCurrent subdomain

nSet preferred state

nEnable / disable PTP logging

nSet clock pullup mode & subdomain

nEnable / disable unicast delay requests for PTP v1 and/or v2 protocols

nEnable / disable multicast

nEnable / disable slave only

nEnable / disable PTP ports

nEnable / disable PTP v1 and v2 protocols

nReceive a notification on any clock state changes

Audio

Mechanisms: Command/Query/Response & Asynchronous Notification (on audio changes)

nDefault sample rate

nCurrent & Reboot sample rate

nSupported sample rates

nDefault encoding

nCurrent & Reboot encoding

nSupported encodings

nNumber of RX channels

nNumber of TX channels

nChange audio sample rate

nChange audio encoding

nTDM interface information (Brooklyn II only)

nReceive a notification on any audio sample rate change

nReceive a notification on any audio encoding change

nReceive signal presence over DDP (Ultimo only)

Routing

Mechanisms: Command/Query/Response & Asynchronous Notification (on changes)

Host CPUSDKProgrammer's Guide

nRouting ready state

nMax Rx & Tx flows

nMax Rx & Tx slots per flow

nMin & max latency

nMin & max FPP

nRx port range

nChannel Labels

nSet latency & FPP

nRX & TX Flow state and status

nRX & TX Channel state and status

nRX & TX channel labels

nSubscribe & unsubscribe RX channels

nCreate and delete multicast TX flows

nSet channel labels

nReceive a notification on any flow state or status change

nReceive a notification on any channel state or status change

nReceive a notification on any channel label change

Interaction Diagrams

Sending a DDP Command/Query Message and Receiving a DDP

Response Message

Interaction diagrams shown in Figure 26 and Figure 27 depict a Host CPU sending a DDP control message

either to change (i.e. control) parameters on the Brooklyn II and Ultimo or to send a query for the current

state of the Brooklyn II and Ultimo respectively.

Host CPUSDKProgrammer's Guide

Brooklyn II

Figure 26 - BHIP DDP command/query response

Host CPUSDKProgrammer's Guide

Ultimo

Figure 27 - UHIP DDP command/query response message

Host CPUSDKProgrammer's Guide

Receiving a DDP Event Message

Brooklyn II

Figure 28 - BHIP DDP event message

Ultimo

Figure 29 - UHIP DDP event message

Host CPUSDKProgrammer's Guide

Sending a Command to a Locked Dante Device

Brooklyn II

Figure 30 - BHIP DDP command send to a locked Brooklyn II

Host CPUSDKProgrammer's Guide

Ultimo

Figure 31 - UHIP DDP command send to a locked Ultimo

Protocol Messages

Device Basic Information

Summary: Provides basic device information such as model, software version and device errors.

Mechanisms: Query → Response; Asynchronous Notification (on power on)

Host CPUSDKProgrammer's Guide

Message OPCODE / Type: DDP_DEVICE_GENERAL

API Functions: Device General

Provided Functionality / Information:

nModel ID

nModel ID string

nSoftware Version & Build

nFirmware Version & Build

nBootloader Version & Build

nConfiguration & Memory Error flags (capability partition error / user partition error / configuration store

error)

Device Manufacturer Information

Summary: Provides manufacturer specified device information such as name, model, model versions, etc.

Mechanisms: Query → Response; Asynchronous Notification (on power on)

Message OPCODE / Type: DDP_DEVICE_MANUFACTURER

API Functions: Device Manufacturer

Provided Functionality / Information:

nManufacturer ID

nManufacturer Name

nModel ID & Model ID string

nModel Name

nModel Version

nSoftware Version & Build

nFirmware Version & Build

nModel Version & Model Version string

Device Upgrade

Summary: Start a TFTP or XMODEM upgrade, and receive notifications when an upgrade is externally

started

Note: XMODEM via SPI/UART is only supported by the Ultimo

Mechanisms: Query/Command → Response; Asynchronous Notification (after an upgrade)

Message OPCODE / Type: DDP_DEVICE_UPRGADE

API Functions: Device Upgrade

Provided Functionality / Information:

nStart an upgrade via TFTP or XMODEM via SPI/UART

nReceive progress notifications after the upgrade has started

Device Erase Configuration

Summary: Erase all Dante configuration data from the device; receive a notification if an erase occurs

Host CPUSDKProgrammer's Guide

Mechanisms: Command → Response; Asynchronous Notification (during an erase)

Message OPCODE / Type: DDP_DEVICE_ERASE_CONFIG

API Functions: Device Erase Configuration

Provided Functionality / Information:

nErase to factory defaults

nErase to factory defaults but keep static IP information

nReceive a notification when a erase is externally triggered

Device Reboot

Summary: Reboot the device; receive a notification if a reboot is triggered

Mechanisms: Command → Response; Asynchronous Notification (before reboot)

Message OPCODE / Type: DDP_DEVICE_REBOOT

API Functions: Device Reboot

Provided Functionality / Information:

nTrigger a software reset

nReceive a notification when a reboot is externally triggered before the reboot occurs

Device Identity

Summary: Provide friendly / default name and unique ID information; notify on name changes

Mechanisms: Query/Command → Response; Asynchronous Notification (on name changes)

Message OPCODE / Type: DDP_DEVICE_IDENTITY

API Functions: Device Identity

Provided Functionality / Information:

nDevice ID & Process ID (uniquely identify a device)

nDefault name

nFriendly name

nAdvertised name

nChange the friendly name of the device

nReceive a notification on a name change

Device Identify

Summary: Notify when a ConMon identify message is received

Mechanisms: Asynchronous Notification (on ConMon identify messages)

Message OPCODE / Type: DDP_DEVICE_IDENTIFY

API Functions: Device Identify

Provided Functionality / Information:

nReceive a notification when the device receives a valid ConMon identify message

Host CPUSDKProgrammer's Guide

Device GPIO

Note: This message is only supported on Ultimo

Summary: Control and Query for GPIO state; notify on GPIO state changes

Mechanisms: Query/Command → Response; Asynchronous Notification (on GPIO state changes)

Message OPCODE / Type: DDP_DEVICE_GPIO

API Functions: Device GPIO

Provided Functionality / Information:

nControl GPIO output state

nQuery for current GPIO input or output state

nReceive a notification when the GPIO input or output value changes

Device Switch LED

Note: This message is only supported on Ultimo

Summary: Control the external RJ45 LEDs on a switch

Mechanisms: Command → Response

Message OPCODE / Type: DDP_DEVICE_SWITCH_LED

API Functions: Device Switch LED

Provided Functionality / Information:

nControl LEDs on the switch

Device Lock/Unlock

Summary: Provide the current lock/unlock state of the device; notify on device lock state changes

Mechanisms: Query → Response; Asynchronous Notification (on device lock state changes)

Message OPCODE / Type: DDP_DEVICE_TYPE_LOCK_UNLOCK

API Functions: Device Lock/Unlock

Provided Functionality / Information:

nQuery current lock/unlock state

nReceive a notification when the lock/unlock state changes

Device Switch Redundancy

Note: This message is only supported on Brooklyn II

Summary: Change the device VLAN configuration between switched and redundant; notify on switch

redundancy changes

Mechanisms: Query/Command → Response; Asynchronous Notification (on switch redundancy changes)

Message OPCODE / Type: DDP_DEVICE_TYPE_SWITCH_REDUNDANCY

API Functions: Device Switch Redundancy

Host CPUSDKProgrammer's Guide

Provided Functionality / Information:

nChange between switched and redundant VLAN configurations

nReceive a notification when the current VLAN configuration has been changed to a different state

Device UART Configuration

Note: This message is only supported on Brooklyn II

Summary: Change UART port parameters for UART ports designated as being configurable in the

capability

Mechanisms: Query/Command → Response; Asynchronous Notification (on UART port parameter

changes)

Message OPCODE / Type: DDP_DEVICE_TYPE_UART_CONFIG

API Functions: Device UART Configuration

Provided Functionality / Information:

nChange the number of bits, stop bits, baud rate, parity of a UART which can be configured

nReceive a notification when the configuration of a configurable UART port changes

Device AES67

Note: This message is only supported on Brooklyn II

Summary: Enable / disable AES67

Mechanisms: Query/Command → Response; Asynchronous Notification (on AES67 enable/disable state

changes)

Message OPCODE / Type: DDP_DEVICE_TYPE_AES67

API Functions: Device AES67

Provided Functionality / Information:

nChange the AES67 enable/disable state

nReceive a notification when the AES67 enable/disable state changes

Device VLAN Configuration

Summary: Change between one of the custom VLAN configurations set in the capability

Mechanisms: Query/Command → Response; Asynchronous Notification (on changing to a different VLAN

configuration)

Message OPCODE / Type: DDP_DEVICE_TYPE_VLAN_CONFIG

API Functions: Device VLAN Configuration

Provided Functionality / Information:

nSwitch between up to four different custom VLAN configurations set in the capability

nReceive a notification when changing to a different VLAN configuration

Host CPUSDKProgrammer's Guide

Device Meter Configuration

Note: This message is only supported on Brooklyn II

Summary: Change the metering update rate

Mechanisms: Query/Command → Response; Asynchronous Notification (on metering update rate

changes)

Message OPCODE / Type: DDP_DEVICE_TYPE_METER_CONFIG

API Functions: Device Meter Configuration

Provided Functionality / Information:

nChange the metering update rate between 10Hz and 30Hz

nReceive a notification when the meter update rate has changed

Network Basic

Summary: Provides basic network information such as MAC address, IP address, link state, etc. Notify on

network state changes

Mechanisms: Query → Response; Asynchronous Notification (on network state changes)

Message OPCODE / Type: DDP_DEVICE_NETWORK_BASIC

API Functions: Network Basic

Provided Functionality / Information:

nMAC address

nCurrent Interface state (Link up or down)

nCurrent Link Speed

nCurrent IP Address / Netmask / Gateway

nReceive a notification if the network state changes

Network Configuration

Summary: Change between DHCP+LinkLocal and static IP address configurations. Notify on network

configuration changes

Mechanisms: Command/Query → Response; Asynchronous Notification (on network configuration

changes)

Message OPCODE / Type: DDP_DEVICE_NETWORK_CONFIG

API Functions: Network Configuration

Provided Functionality / Information:

nChange between static IP address and DHCP / LinkLocal network configurations

nSet a static IP Address / Netmask / Gateway address configuration

nReceive a notification if the network configuration changes

Host CPUSDKProgrammer's Guide

Clock Basic Legacy

Note: This message was formerly known as Clock Basic and it is now deprecated. It is only

supported on Ultimo. Please migrate to Clock Basic 2.

Summary: Provides legacy basic clock information; notify on clock state changes

Mechanisms: Query → Response; Asynchronous Notification (on clock changes)

Message OPCODE / Type: DDP_CLOCK_BASIC

API Functions: Clock Basic Legacy

Provided Functionality / Information:

nCurrent clock state (master / slave / etc)

nCurrent mute state

nCurrent preferred state

nCurrent frequency offset

nReceive a notification on any clock state changes

Clock Basic 2

Summary: Provides basic clock information; notify on clock state changes

Mechanisms: Query → Response; Asynchronous Notification (on clocking related changes)

Message OPCODE / Type: DDP_CLOCK_TYPE_BASIC2

API Functions: Clock Basic 2

Provided Functionality / Information:

nCurrent clock source

nCurrent clock state (master / slave / etc)

nCurrent mute state

nCurrent preferred state

nCurrent frequency offset

nCurrent external word clock state

nCurrent clock stratum

nCurrent UUID, master UUID, and grand master UUID

nPTP port parameters such as ID, protocol supported, state, unicast/multicast, interface index

nReceive a notification on any clock state changes

Clock Configuration

Summary: Change clock configuration parameters; notify on clock configuration changes

Mechanisms: Command/Query → Response; Asynchronous Notification (on clock configuration changes)

Message OPCODE / Type: DDP_CLOCK_CONFIG

API Functions: Clock Configuration

Provided Functionality / Information:

Host CPUSDKProgrammer's Guide

nPTP logging state

nSet preferred state

nEnable / disable PTP logging

nEnable / disable unicast delay requests for PTP v1 and/or v2 protocols

nEnable / disable multicast

nEnable / disable slave only

nEnable / disable PTP V1 and V2 protocols

nEnable / disable PTP ports

nReceive a notification on any clock configuration changes

Clock Pull-up

Summary: Change clock pull-up or clock subdomain configurations; notify on clock pull-up or subdomain

changes

Mechanisms: Command/Query → Response; Asynchronous Notification (on clock pullup changes)

Message OPCODE / Type: DDP_CLOCK_PULLUP

API Functions: Clock Pullup

Provided Functionality / Information:

nCurrent pullup

nCurrent subdomain

nList of supported pullups

nSet clock pullup mode & subdomain

nReceive a notification on any clock pullup / subdomain changes

Audio Basic

Summary: Provides basic audio information such as number of RX and TX channels, default sample rate

and default encoding

Mechanisms: Query → Response; Asynchronous Notification (on Rx and Tx channel count changes due

to setting a sample rate which causes this condition)

Message OPCODE / Type: DDP_AUDIO_BASIC

API Functions: Audio Basic

Provided Functionality / Information:

nDefault sample rate

nDefault encoding

nNumber of RX channels

nNumber of TX channels

Audio Sample Rate Configuration

Summary: Change audio sample rate configuration and query for supported sample rates. Notify on audio

sample rate changes.

Mechanisms: Command/Query → Response; Asynchronous Notification (on audio sample rate changes)

Message OPCODE / Type: DDP_SRATE_CONFIG

Host CPUSDKProgrammer's Guide

API Functions: Audio Sample Rate Configuration

Provided Functionality / Information:

nCurrent & Reboot sample rate

nSupported sample rates

nChange audio sample rate

nReceive a notification on any audio sample rate change

Audio Encoding Configuration

Summary: Change audio encoding configuration and query for supported encodings. Notify on audio

encoding changes.

Mechanisms: Command/Query → Response; Asynchronous Notification (on audio encoding changes)

Message OPCODE / Type: DDP_AUDIO_ENC_CONFIG

API Functions: Audio Encoding Configuration

Provided Functionality / Information:

nCurrent & Reboot encoding

nSupported encoding

nChange audio encoding

nReceive a notification on any audio encoding change

Audio Interface

Note: This message is only supported on Brooklyn II

Summary: Provides information about the audio TDM interface of the Dante device

Mechanisms: Query → Response; Asynchronous Notification (on boot up)

Message OPCODE / Type: DDP_AUDIO_TYPE_INTERFACE

API Functions: Audio Interface

Provided Functionality / Information:

nAudio channels per TDM interface

nTDM clock framing type

nTDM sample alignment type

nAlignment of first channel on a TDM line with respect to the LRCLK

nA notification is sent during boot up of the Dante device

Audio Signal Presence Configuration

Note: This message is only supported on Ultimo

Summary: Enable/disable the Ultimo from pushing signal presence data over DDP periodically

Mechanisms: Command → Response

Message OPCODE / Type: DDP_AUDIO_TYPE_SIGNAL_PRESENCE_CONFIG

API Functions: Audio Signal Presence Configuration

Host CPUSDKProgrammer's Guide

Provided Functionality / Information:

nEnable/disable the Ultimo from sending signal presence over DDP

Audio Signal Presence Data

Note: This message is only supported on Ultimo

Summary: Signal presence information both Rx and Tx channels

Mechanisms: Asynchronous Notification (on availability of new signal presence data)

Message OPCODE / Type: DDP_AUDIO_TYPE_SIGNAL_PRESENCE_DATA

API Functions: Audio Signal Presence Data

Provided Functionality / Information:

nNumber of Rx and Tx channels that have signal presence information

nThe signal presence which indicates audio clip, audio signal, and no audio signal

Routing Basic

Summary: Provides basic routing information

Mechanisms: Query → Response

Message OPCODE / Type: DDP_ROUTING_BASIC

API Functions: Routing Basic

Provided Functionality / Information:

nMax Rx & Tx flows

nMax Rx & Tx slots per flow

nMin & max latency

nMin & max FPP

nRx port range

nNumber of Rx/Tx channels contained in a single Rx/Tx channel config state DDP message

nNumber of Rx/Tx flows contained in a single Rx/Tx flow config state DDP message

nNumber of Rx channels/flows contained in a single Rx channel/flow status DDP message

Routing Ready

Summary: Provides status information on whether the Dante device is ready to support routing

commands.

Mechanisms: Query → Response; Asynchronous Notification (on routing ready state changes)

Message OPCODE / Type: DDP_ROUTING_READY_STATE

API Functions: Routing Ready State

Provided Functionality / Information:

nRouting ready state

nReceive a notification when the routing ready state changes

Host CPUSDKProgrammer's Guide

Routing Performance Configuration

Summary: Provides current latency/FPP configuration, change current latency/FPP settings, notification

on latency/FPP changes.

Mechanisms: Command/Query → Response; Asynchronous Notification (on changes)

Message OPCODE / Type: DDP_ROUTING_PERFORMANCE_CONFIG

API Functions: Routing Performance Config

Provided Functionality / Information:

nSet latency & FPP

nReceive a notification on routing performance configuration changes

Routing Rx Channel Configuration State

Summary: Provides RX channel configuration information such as labels, encodings, current

subscriptions; Notification on RX channel configuration changes.

Note: The number of Rx channels contained in a single message is limited, and this number can be

obtained from the Routing Basic DDP message

Mechanisms: Query → Response; Asynchronous Notification (on changes)

Message OPCODE / Type: DDP_ROUTING_RX_CHAN_CONFIG_STATE

API Functions: Routing RX Channel Configuration State

Provided Functionality / Information:

nDefault Channel Label

nCurrent Channel Label

nChannel Encoding

nChannel Sample Rate

nChannel Supported PCM encodings

nChannel Supported custom encodings

nSubscriptions (subscribed device channel) and Subscription status

nReceive a notification on any channel state change

nReceive a notification on any channel label change

Routing Tx Channel Configuration State

Summary: Provides TX channel configuration information such as labels, encodings, etc; Notification on

TX channel configuration changes.

Note: The number of Tx channels contained in a single message is limited, and this number can be

obtained from the Routing Basic DDP message

Mechanisms: Query → Response; Asynchronous Notification (on changes)

Message OPCODE / Type: DDP_ROUTING_TX_CHAN_CONFIG_STATE

API Functions: Routing TX Channel Configuration State

Host CPUSDKProgrammer's Guide

Provided Functionality / Information:

nDefault Channel Label

nCurrent Channel Label

nChannel Encoding

nChannel Sample Rate

nChannel Supported PCM encodings

nChannel Supported custom encodings

nReceive a notification on any channel state change

nReceive a notification on any channel label change

Routing Rx Channel Status

Summary: Provides a query mechanism for the current RX channel status (i.e. unresolved / dynamic)

Note: The number of Rx channels contained in a single message is limited, and this number can be

obtained from the Routing Basic DDP message

Mechanisms: Query → Response

Message OPCODE / Type: DDP_ROUTING_RX_CHAN_STATUS

API Functions: Routing RX Channel Status

Provided Functionality / Information:

nChannel Status – this is the audio subscription status of this channel, for example DDP_RX_CHAN_

STATUS_UNRESOLVED or DDP_RX_CHAN_STATUS_DYNAMIC

Routing Rx Flow Configuration State

Summary: Provides RX flow configuration information such as status, slots, channels, etc; Notification on

RX flow configuration changes.

Note: The number of Rx flows contained in a single message is limited, and this number can be

obtained from the Routing Basic DDP message

Mechanisms: Query → Response; Asynchronous Notification (on changes)

Message OPCODE / Type: DDP_ROUTING_RX_FLOW_CONFIG_STATE

API Functions: Routing RX Flow Configuration State

Provided Functionality / Information:

nFlow status – for example FLOW_STATUS_ACTIVE or FLOW_STATUS_BAD_ADDRESS

nFlow configuration – e.g. number of slots, flow IP address and port, RX channels, encoding, sample

rate, latency, FPP

nReceive a notification on any flow configuration change (except flow status changes for flow status

changes the “Rx Flow Status” notification will occur)

Routing Tx Flow Configuration State

Summary: Provides TX flow configuration information such as status, slots, channels, etc; Notification on

TX flow configuration changes.

Host CPUSDKProgrammer's Guide

Note: The number of Tx flows contained in a single message is limited, and this number can be

obtained from the Routing Basic DDP message

Mechanisms: Query → Response; Asynchronous Notification (on changes)

Message OPCODE / Type: DDP_ROUTING_TX_FLOW_CONFIG_STATE

API Functions: Routing TX Flow Configuration State

Provided Functionality / Information:

nFlow status – for example FLOW_STATUS_ACTIVE or FLOW_STATUS_BAD_ADDRESS

nFlow configuration – e.g. number of slots, flow IP address and port, TX channels, encoding, sample

rate, latency, FPP

nReceive a notification on any flow configuration change

Routing Rx Flow Status

Summary: Provides a query mechanism for the current RX flow status (i.e. active)

Note: The number of Rx flows contained in a single message is limited, and this number can be

obtained from the Routing Basic DDP message

Mechanisms: Query → Response

Message OPCODE / Type: DDP_ROUTING_RX_FLOW_STATUS

API Functions: Routing RX Flow Status

Provided Functionality / Information:

nFlow available – whether the flow is available on any interface

nFlow active – whether the flow is actively receiving audio

nReceive a notification on any flow status change

Routing Rx Channel Label Set

Summary: Set / change an RX channel label

Note: The number of Rx channels that can have their labels updated by a single message is limited,

and this number can be obtained from the Rx channel config state per DDP message field in the

Routing Basic DDP message

Mechanisms: Command → Response

Message OPCODE / Type: DDP_ROUTING_RX_CHAN_LABEL_SET

API Functions: Routing RX Channel Label Set

Provided Functionality / Information:

nChange / Set the RX Channel Label on 1 or more channels

nNote: The response to a RX Channel Label Set message contains the same payload as a Rx Rout-

ing Channel Configuration State message

Host CPUSDKProgrammer's Guide

Routing Tx Channel Label Set

Summary: Set / change a TX channel label

Note: The number of Tx channels that can have their labels updated by a single message is limited,

and this number can be obtained from the Tx channel config state per DDP message field in the

Routing Basic DDP message

Mechanisms: Command → Response;

Message OPCODE / Type: DDP_ROUTING_TX_CHAN_LABEL_SET

API Functions: Routing TX Channel Label Set

Provided Functionality / Information:

nChange / Set the TX Channel Label on 1 or more channels

nNote: The response to a TX Channel Label Set message contains the same payload as a Tx Routing

Channel Configuration State message

Routing RX Subscribe

Summary: Create a label based RX subscription on the Dante device

Note: The number of Rx channels subscribed using a single message is limited, and this number can

be obtained from the Rx channel config state per DDP message field in the Routing Basic DDP

message

Mechanisms: Command → Response;

Message OPCODE / Type: DDP_ROUTING_RX_SUBSCRIBE_SET

API Functions: Routing RX Subscribe

Provided Functionality / Information:

nCreate RX subscriptions

nNote: The response to a RX Subscribe Set message contains the same payload as a RX Channel

Configuration State message

Routing RX Unsubscribe

Summary: Remove RX subscriptions on the Dante device

Mechanisms: Command → Response;

Message OPCODE / Type: DDP_ROUTING_RX_UNSUB_CHAN

API Functions: Routing RX Unsubscribe

Provided Functionality / Information:

nDelete RX subscriptions

Routing Multicast TX Flow Configuration

Summary: Create a multicast TX flow

Mechanisms: Command → Response;

Message OPCODE / Type: DDP_ROUTING_MCAST_TX_FLOW_CONFIG_SET

Host CPUSDKProgrammer's Guide

API Functions: Routing TX Multicast Flow Configuration

Provided Functionality / Information:

nCreate Multicast TX flows

Routing Flow Delete

Summary: Remove flows on the Ultimo

Mechanisms: Command → Response;

Message OPCODE / Type: DDP_ROUTING_FLOW_DELETE

API Functions: Routing Flow Delete

Provided Functionality / Information:

nDelete an existing flow, this command can be used to delete a Tx multicast flow

Host CPUSDKProgrammer's Guide

Host CPU SDK Package

The Host CPU SDK package can be integrated into an existing software project which enables

communication between a Host CPU and a Dante device. It provides the core functionality required to

implement the software for a Host CPU to communicate with a Brooklyn II or Ultimo. The core

functionality is exposed via an API.

The package also includes an example application for Windows that uses the UART and SPI transport.

The SPI transport in example Windows application uses the API from Total Phase Inc. and will work with

their Aardvark Host Adapters. The implementer should add platform-specific code as required to port the

functionality to their platform of choice.

Data Types

The data types used throughout the Host CPU SDK is specified in Table 9. These data type definitions are

specified in the stdint.h C header file.

Table 9 - Host CPU SDK data types

Data

Type

Description

uint8_t Unsigned 8-bit integer

int8_t Signed 8-bit integer

uint16_t Unsigned 16-bit short

integer

int16_t Signed 16-bit short

integer

uint32_t Unsigned 32-bit long

integer

int32_t Signed 32-bit long integer

Provided Functionality

The Host CPU SDK package contains the following (organised by folder):

ndocs - Doxygen documentation for the core functionality API. Open the docs.html to access the

Doxygen documentation

nsrc/common - Dante types & helpers

nsrc/libs - Host CPU core functionality library

osrc/libs/lib_cobs – COBS encoding / decoding library used for BHIP and UHIP packet

framing

Host CPUSDKProgrammer's Guide

osrc/libs/lib_bhip – Brooklyn II Host Interface Protocol packet read / write library to cre-

ate and parse BHIP messages

osrc/libs/lib_uhip – Ultimo Host Interface Protocol packet read / write library to create

and parse UHIP messages

osrc/libs/lib_ddp – Dante Device Protocol packet read /write library to create and parse

DDP messages

osrc/libs/interface – Interface to UHIP API library

nsrc/libs/interface/uhip_hostcpu_rx_timer.h – UHIP RX timer interface

nsrc/libs/interface/uhip_hostcpu_tx_timer.h – UHIP TX timer interface

nsrc/libs/interface/hostcpu_transport.h – Raw data (SPI / UART) trans-

port layer interface

osrc/libs/lib_serial – Utility functions to prepare and extract COBS encoded serial

frames for Brooklyn II and Ultimo

nsrc/app – Example implementation of a Host CPU to Brooklyn II or Ultimo interface application

osrc/app/example_bhip:

nsrc/app/example_bhip/example_bhip_main.[c|h] – “Core” state machine

implementing BHIP protocol

nsrc/app/example_bhip/example_bhip_common.[c|h] – Common func-

tionality used across the BHIP HostCPU examples

nsrc/app/example_bhip/example_rx_bhip_[spi|uart].[c|h] – BHIP

Receive functionality specific to a serial peripheral

nsrc/app/example_bhip/example_tx_bhip.[c|h] – Examples to handle trans-

mitting BHIP packets

nsrc/app/example_bhip/example_tx_bhip_pb.[c|h] – Examples to create

and send ConMon and UDP mode BHIP packet bridge packets

osrc/app/example_uhip:

nsrc/app/example_uhip/example_uhip_main.[c|h] – “Core” state machine

implementing UHIP protocol

nsrc/app/example_uhip/example_uhip_common.[c|h] – Common func-

tionality used across the UHIP HostCPU examples

nsrc/app/example_uhip/example_rx_uhip.[c|h] – UHIP Receive func-

tionality

nsrc/app/example_uhip/example_tx_uhip.[c|h] – Examples to handle trans-

mitting UHIP packets

nsrc/app/example_uhip/example_tx_pb.[c|h] – Examples to create and

send ConMon and UDP mode UHIP packet bridge packets

osrc/app/example_ddp:

nsrc/app/example_ddp/example_rx_ddp.[c|h] – Examples to handle

received DDP and Dante Event messages

nsrc/app/example_ddp/example_tx_ddp.[c|h] – Examples to create and

send DDP messages

nsrc/app/win – A sample Windows implementation of the interface in src/libs/lib_inter-

face

osrc/app/win/bhip/aud_platform.h – Global header file for BHIP Host CPU API

osrc/app/win/uhip/aud_platform.h – Global header file for UHIP Host CPU API

Host CPUSDKProgrammer's Guide

osrc/app/win/uhip/rx_timer.c, src/app/win/uhip/tx_timer.c, src/ap-

p/win/uhip/timer_common.c – Implementation of timers conforming to timer interface for

UHIP

osrc/app/win/bhip_uart_transport.c – Implementation of UART transport conforming

to transport interface for BHIP communication. In this file the user must specify the COM port

number by changing the PC_COM_PORT manifest constant. The UART baud rate used for the

communication is 115200.

osrc/app/win/bhip_spi_transport.c – Implementation of SPI transport conforming to

transport interface for BHIP communication. The SPI clock speed used for the communication

is 4MHz.

osrc/app/win/uhip_spi_transport.c – Implementation of SPI transport conforming to

transport interface for UHIP communication. In this file the user must specify the TotalPhase

Inc. Aardvark SPI host adapter SPI master and SPI slave serial numbers by changing the

AARDVARK_SPI_MASTER_SERIAL and AARDVARK_SPI_SLAVE_SERIAL manifest con-

stants. The SPI clock speed used for the communication is 4MHz.

osrc/app/win/uart_transport.c – Implementation of UART transport conforming to trans-

port interface for UHIP communication. In this file the user must specify the COM port number

by changing PC_COM_PORT manifest constant. The UART baud rate used for the com-

munication is 115200.

nvs_project – Windows Visual Studio project files for each serial peripheral for BHIP and UHIP and

a solution file which groups the project files. Minimum supported version of Visual Studio is 2013.

Porting the Host CPU SDK Package

This section details how to port the Host CPU SDK package to your host CPU. Doing a trial build and run

on the existing example platforms before starting implementation is strongly recommended.

Project Setup

The package will compile as-is as a Windows application. The first step in porting to a different platform

will be to execute the create_ultimo_hostcpu.bat or create_brooklyn-ii_hostcpu.bat to

get the source files to communicate with a specific Dante device. The next step is to create platform

specific build files (i.e. Makefiles) or add the source code to an existing build project.

The implementer will also need to add folders for platform-specific code similar to src/win

The following header search paths should be included for the C compiler:

n(lib includes)

nPlatform specific header file location

Implement the RX Timer interface

The RX timer interface specified in uhip_hostcpu_rx_timer.h needs to be implemented and this is

only required for host CPUs interfacing with an Ultimo. This is a polled one-shot timer that is used for the

UHIP protocol RX timeouts.

The implementation requirements are:

nA timer with a resolution and accuracy of approximately 100ms

Host CPUSDKProgrammer's Guide

Implement the TX Timer interface

The TX timer interface specified in uhip_hostcpu_tx_timer.h needs to be implemented and this is

only required for host CPUs interfacing with an Ultimo. This is a polled one-shot timer that is used for the

UHIP protocol TX timeouts.

The implementation requirements are:

nA timer with a resolution and accuracy of approximately 100ms

Implement the Host CPU Transport Interface

The Host CPU Transport interface specified in hostcpu_transport.h needs to be implemented. This

is the platform specific SPI or UART driver for the Host CPU. This is used by the API to send / receive

data to the Brooklyn II or Ultimo. The following sub-sections specify the requirements for each interface for

each type of host CPU protocol.

BHIP Host CPU SPI Interface

nThe SPI master is used to send data and while sending data, the Host CPU SPI master must

receive data from the Brooklyn II SPI slave. The send data functionality should be implemented by

the hostcpu_transport_write() function

nReceiving data can be performed while sending data, but if there is no data to be sent the SPI master

should sent dummy data. The receive data functionality should be implemented by the hostcpu_

transport_read() function. The host CPU should make use of the DATA_AVAILABLE line from

the Brooklyn II which signals the availability of data to be read by the host CPU. See Communicating

with a Brooklyn II for information about the DATA_AVAILABLE line.

UHIP Host CPU SPI Interface

nA SPI master peripheral driver used for sending data only (any RX data from the SPI master should

be dropped). This should be implemented by the hostcpu_transport_write() function

nA SPI slave peripheral driver used for receiving data only (TX dummy bytes may need to be sent at

the peripheral driver layer). This should be implemented by the hostcpu_transport_read()

function. This implementation must use either DMA or interrupt driven I/O as the driver must be able

to buffer up to 576 bytes of received data

Implementation requirements for a UART Host CPU interface:

nA UART TX driver used for sending data only. This should be implemented by the hostcpu_trans-

port_write() function.

nA UART RX driver used for receiving data only. This should be implemented by the hostcpu_

transport_read() function. This implementation must use either DMA or interrupt driven I/O as

the driver must be able to buffer up to 576 bytes of received data.

Add required RX message handling

Some example stub functions for receiving different message types are implemented in the example_

rx_bhip.c/h, example_rx_uhip.c/h, example_rx_ddp.c/h files. The customer will need to

modify these stub functions and add additional receive functions as required for their application.

Add required TX message handling

Some example stub functions for building and transmitting different message types are implemented in the

example_tx_bhip.c/h, example_tx_uhip.c/h, example_tx_ddp.c/h files. The customer

Host CPUSDKProgrammer's Guide

will need to modify these stub functions and add additional transmit functions as required for their

application.

Modify aud_platform.h

uhip/aud_platform.h and bhip/aud_platform.h include platform specific defines and includes,

modify these to suit your platform.

Modify or Implement a Main Loop

example_uhip_main.c and example_bhip_main.c contain a simple implementation of a main loop

that does not assume any special platform functionality. It is assumed that the sending of Tx messages

from this application needs to be driven off a timer or via integration of an external trigger such as a push

button press. Alternatively a more sophisticated main loop using select() and callbacks may be used.

Host CPU SDK Library API Functions

UHIP ConMon Packet Bridge Functions

Message Type Build Function (for TX) Parse Function (for RX)

UHIP ConMon

Packet Bridge

uhip_packet_write_cmc_

packet_bridge()

uhip_packet_read_cmc_

packet_bridge()

BHIP ConMon Packet Bridge Functions

Message Type Build Function (for TX) Parse Function (for RX)

BHIP ConMon

Packet Bridge

bhip_packet_write_cmc_

packet_bridge()

bhip_packet_read_cmc_

packet_bridge()

UHIP UDP Packet Bridge Functions

Message Type Build Function (for TX) Parse Function (for RX)

UHIP UDP

Packet Bridge

uhip_packet_write_udp_

packet_bridge()

uhip_packet_read_udp_

packet_bridge()

BHIP UDP Packet Bridge Functions

Message

Type

Build Function (for TX) Parse Function (for RX)

BHIP UDP

Packet Bridge

bhip_packet_write_udp_

packet_bridge()

bhip_packet_read_udp_

packet_bridge()

Host CPUSDKProgrammer's Guide

Dante Events Functions

Message Type Build Function

(for TX)

Parse Function (for RX)

Audio Format Change (sample

rate)

N/A ddp_read_local_audio_

format()

Clock Pullup Change N/A ddp_read_local_clock_

pullup()

Dante Device Protocol (DDP) Functions

Message

Type

Build Function

(for TX query/command)

Parse Function

(for RX response/event)

Device

General

ddp_read_device_

general_request()

ddp_read_device_general_

response()

Device

Manufacturer

ddp_add_device_

manufacturer_

request()

ddp_read_device_manufacturer_

response()

Device

Upgrade

ddp_add_device_

upgrade_xmodem_

request()

ddp_add_device_

upgrade_tftp_

request()

ddp_read_device_upgrade_

response()

Device Erase

Configuration

ddp_add_device_

erase_request()

ddp_read_device_erase_response

()

Device

Reboot

ddp_add_device_

reboot_request()

ddp_read_device_reboot_response

()

Device

Identity

ddp_add_device_

identity_request()

ddp_read_device_identity_

response()

Device

Identify

ddp_read_device_identify_

response() [event only]

Device GPIO ddp_add_device_

gpio_request()

ddp_read_device_gpio_response()

Device

Switch LED

ddp_add_device_

switch_led_request

()

ddp_read_device_switch_led_

response()

Host CPUSDKProgrammer's Guide

Message

Type

Build Function

(for TX query/command)

Parse Function

(for RX response/event)

Device

Lock/Unlock

ddp_add_device_

lock_unlock_request

()

ddp_read_device_lock_unlock_

response()

Device

Switch

Redundancy

ddp_add_device_

switch_redundancy_

request()

ddp_read_device_switch_

redundancy_response()

Device

UART

Configuration

ddp_add_device_

uart_config_request

()

ddp_read_uart_config_response_

header()

ddp_read_uart_config_response_

uart_st_array()

Device

AES67

ddp_add_device_

aes67_request()

ddp_read_device_aes67_response

()

Device VLAN

Configuration

ddp_add_device_

vlan_config_request

()

ddp_read_device_vlan_config_

response_header()

ddp_read_device_vlan_config_

response_vlan_st_array()

ddp_read_device_vlan_config_

response_name_string()

Device Meter

Configuration

ddp_add_device_

meter_config_

request()

ddp_read_device_meter_config_

response()

Network

Basic

ddp_add_network_

basic_request()

ddp_read_network_basic_

response_header()

ddp_read_network_basic_

response_interface()

ddp_read_network_basic_

response_interface_address()

ddp_read_network_basic_

response_dns()

ddp_read_network_basic_

response_domain()

Network

Configuration

ddp_add_network_

config_request()

ddp_read_network_config_

response()

Clock Basic

Legacy

ddp_add_clock_

basic_legacy_

request()

ddp_read_clock_basic_legacy_

response()

Host CPUSDKProgrammer's Guide

Message

Type

Build Function

(for TX query/command)

Parse Function

(for RX response/event)

Clock

Configuration

ddp_add_clock_

config_request()

ddp_read_clock_config_response

()

ddp_read_clock_config_response_

port()

Clock Pullup ddp_add_clock_

pullup_request()

ddp_read_clock_pullup_response

()

Clock Basic

ddp_add_clock_

basic2_request()

ddp_read_clock_basic2_response_

header()

ddp_read_clock_basic2_response_

port()

Audio Basic ddp_add_audio_

basic_request()

ddp_read_audio_basic_response()

Audio

Sample Rate

Configuration

ddp_add_audio_

sample_rate_config_

request()

ddp_read_audio_sample_rate_

config_response()

ddp_read_audio_sample_rate_

config_supported_srate()

Audio

Encoding

Configuration

ddp_add_audio_

encoding_config_

request()

ddp_read_audio_encoding_config_

response()

ddp_read_audio_encoding_config_

supported_encoding()

Audio

Interface

ddp_add_audio_

interface_request()

ddp_read_audio_interface_

response()

Audio Signal

Presence

Configuration

ddp_add_audio_

signal_presence_

config_request()

ddp_read_audio_signal_presence_

config_response()

Audio Signal

Presence

Data

ddp_read_audio_signal_presence_

data_response()

ddp_read_audio_signal_presence_

data_tx_chan_value()

ddp_read_audio_signal_presence_

data_rx_chan_value()

Routing

Basic

ddp_add_routing_

basic_request()

ddp_read_routing_basic_response

()

Routing

Ready State

ddp_add_routing_

ready_state_request

()

ddp_read_routing_ready_state_

response()

Host CPUSDKProgrammer's Guide

Message

Type

Build Function

(for TX query/command)

Parse Function

(for RX response/event)

Routing

Performance

Configuration

ddp_add_routing_

performance_config_

request()

ddp_read_routing_performance_

config_response()

Routing RX

Channel

Configuration

State

ddp_add_routing_rx_

chan_config_state_

request()

ddp_read_routing_rx_chan_

config_state_response_header()

ddp_read_routing_rx_chan_

config_state_response_chan_

params()

ddp_read_routing_rx_chan_

config_state_response_custom_

encoding()

Routing TX

Channel

Configuration

State

ddp_add_routing_tx_

chan_config_state_

request()

ddp_read_routing_tx_chan_

config_state_response_header()

ddp_read_routing_tx_chan_

config_state_response_chan_

params()

ddp_read_routing_tx_chan_

config_state_response_custom_

encoding()

Routing RX

Flow

Configuration

State

ddp_add_routing_rx_

flow_config_state_

request()

ddp_read_routing_rx_flow_

config_state_response_header()

ddp_read_routing_rx_flow_

config_state_response_flow_

params()

ddp_read_routing_rx_flow_

config_state_response_flow_slot

()

ddp_read_routing_rx_flow_

config_state_response_flow_

slot_chans()

ddp_read_routing_rx_flow_

config_state_response_flow_

address_nw_ip()

Host CPUSDKProgrammer's Guide

Message

Type

Build Function

(for TX query/command)

Parse Function

(for RX response/event)

Routing TX

Flow

Configuration

State

ddp_add_routing_tx_

flow_config_state_

request()

ddp_read_routing_tx_flow_

config_state_response_header()

ddp_read_routing_tx_flow_

config_state_response_flow_

params()

ddp_read_routing_tx_flow_

config_state_response_flow_

slots()

ddp_read_routing_tx_flow_

config_state_response_flow_

address_nw_ip()

Routing RX

Channel

Status

ddp_add_routing_rx_

chan_status_request

()

ddp_read_routing_rx_chan_

status_response_header()

ddp_read_routing_rx_chan_

status_response_chan_params()

Routing RX

Flow Status

ddp_add_routing_rx_

flow_status_request

()

ddp_read_routing_rx_flow_

status_response_header()

ddp_read_routing_rx_flow_

status_response_flow_params()

Routing RX

ddp_add_routing_rx_

sub_set_request()

ddp_read_routing_rx_sub_set_

response_header()

ddp_read_routing_rx_sub_set_

response_chan_params()

ddp_read_routing_rx_sub_set_

response_custom_encoding()

Routing RX

Unsubscribe

ddp_add_routing_rx_

unsub_chan_request

()

ddp_read_routing_rx_unsub_chan_

response()

Routing RX

Channel

Label Set

ddp_add_routing_rx_

chan_label_set_

request()

ddp_read_routing_rx_chan_label_

set_response_header()

ddp_read_routing_rx_chan_label_

set_response_chan_params()

ddp_read_routing_rx_chan_label_

set_response_custom_encoding()

Host CPUSDKProgrammer's Guide

Message

Type

Build Function

(for TX query/command)

Parse Function

(for RX response/event)

Routing TX

Channel

Label Set

ddp_add_routing_tx_

chan_label_set_

request()

ddp_read_routing_tx_chan_label_

set_response_header()

ddp_read_routing_tx_chan_label_

set_response_chan_params()

ddp_read_routing_tx_chan_label_

set_response_custom_encoding()

Routing

Multicast TX

Flow

Configuration

ddp_add_routing_

multicast_tx_flow_

config_request()

ddp_read_routing_multicast_tx_

flow_config_response_header()

ddp_read_routing_multicast_tx_

flow_config_response_flow_

params()

ddp_read_routing_multicast_tx_

flow_config_response_flow_slots

()

ddp_read_routing_multicast_tx_

flow_config_state_response_

flow_address_nw_ip()

ddp_routing_multicast_tx_flow_

config_add_slot_params()

Routing Flow

Delete

ddp_add_routing_

flow_delete_request

()

ddp_read_routing_flow_delete_

response()

Host CPUSDKProgrammer's Guide

Getting Started

The purpose of this section is to provide information on how to get stared with the Host CPU SDK

package.

1. Configure the Dante device: The initial step should be to configure the Brooklyn II or the Ultimo for

communication with a host CPU. Refer to Packet Bridge,Dante Events (Ultimo only), and Dante

Device Protocol.

2. Connect the Dante device to the computer:

oIf a Brooklyn II PDK is available then connect a UART cable (e.g. FTDI serial to USB cable) to

the UART port configured for host CPU communication.

oIf an Ultimo PDK is available then connect a UART cable to UARTB. Alternatively, if

TotalPhase Inc. Aardvark host adapters are available then connect them as appropriate.

oUse Table 10 when connecting an Aardvark SPI master to a Brooklyn II SPI slave on port B.

Use Table 11 and Table 12 when connecting an Aardvark SPI slave and Aardvark SPI master

respectively to an Ultimo SPI master + SPI slave.

Table 10 - Brooklyn II PDK SPI slave to Aardvark SPI master pin mapping

SPI Function Aardvark SPI Master

Header

Brooklyn II PDK SPI Port B

Header

Clock SCK – Pin 7 CLK – Pin 3

Slave Select SS – Pin 9 SEL – Pin 1

Ground GND – Pin 2 GND – Pin 8

Master in Slave

out

MISO – Pin 5 MISO – Pin 7

Master out

Slave in

MOSI – Pin 8 MOSI – Pin 5

Data Available GPIO – Pin 1 Data Available – Pin 2

Table 11 - Ultimo PDK SPI master to Aardvark SPI slave pin mapping

SPI Function Aardvark SPI Slave

Header

Ultimo PDK SPI Master

Header

Clock SCK – Pin 7 CKA – Pin 3

Slave Select SS – Pin 9 S0A – Pin 1

Ground GND – Pin 2 GND – Pin 8

Master in Slave

out

MISO – Pin 5 DIA – Pin 7

Host CPUSDKProgrammer's Guide

SPI Function Aardvark SPI Slave

Header

Ultimo PDK SPI Master

Header

Master out

Slave in

MOSI – Pin 8 DOA – Pin 5

Table 12 - Ultimo PDK SPI slave to Aardvark SPI master pin mapping

SPI Function Aardvark SPI Master

Header

Ultimo PDK SPI Slave

Header

Clock SCK – Pin 7 CKB – Pin 18

Slave Select SS – Pin 9 SLB – Pin 20

Ground GND – Pin 2 GND – Pin 13

Master in Slave

out

MISO – Pin 5 DOB – Pin 14

Master out

Slave in

MOSI – Pin 8 DIB – Pin 16

3. Open the Visual solution file: Use Microsoft Visual Studio (currently 2015 known as Visual Studio

Community, it can be obtained from Microsoft’s website - minimum supported version is 2013) to

open the vs_project/hostcpu_api.sln solution file. Build the example project of interest

which is based on the transport protocol (BHIP or UHIP) and the serial peripheral.

4. Run the examples: Open a command line window and simply execute the executable built by

Visual Studio. There are no command line options. Alternatively, the example can be run by Visual

Studio.

5. Test receiving DDP events: If the Brooklyn II or Ultimo is configured for DDP, the reboot the Dante

device to view boot up events. Otherwise, use Dante Controller, to change sample rate, encoding,

etc. and view the corresponding DDP event.

6. Test sending DDP messages: Uncomment one of the hostcpu_bhip_set_tx_flag() func-

tion calls of interest in src/app/example/example_bhip/example_bhip_main.c, or host-

cpu_uhip_set_tx_flag() in src/app/example/example_bhip/example_uhip_

main.c, re-build the Visual Studio project and run the executable. After running the executable the

DDP response can be viewed.

7. Port the examples projects to a target platform: The steps involved in porting the example code

and library code contained in the Host CPU SDK package are discussed in detail in Porting the Host

CPU SDK Package. To get started execute the create_brooklyn-ii_hostcpu.bat for a host

CPU targeting communication with a Brooklyn II or execute create_ultimo_hostcpu.bat for a

host CPU targeting communication with an Ultimo. These batch files will group the relevant source

files without Visual Studio project files into a separate directory.

8. Read the API documentation: Doxygen-styled documentation is provided for low level func-

tionality to process and build packets for the various serial protocols covered in this document.

These docs can be accessed by opening the docs/docs.html file.

Host CPUSDKProgrammer's Guide

Index

AES67 39, 50

API Functions 65

Architecture 22

Audio 40

Audio Basic 53

Audio Encoding Configuration 54

Audio Interface 54

Audio Sample Rate Configuration 53

Audio Signal Presence Configuration 54

Audio Signal Presence Data 55

Basic Information 37, 46

BHIP 15

BHIP ConMon Packet Bridge Functions 65

BHIP Host CPU SPI Interface 64

BHIP UDP Packet Bridge Functions 65

Brooklyn II Host Interface Protocol 15

Bulk State Summary 29

Byte Alignment 30

Byte Ordering 30

Clock 52

Clock Basic 2 52

Clock Basic Legacy 52

Clock Configuration 52

Clock Pull-up 53

Clocking / PTP 40

Communicating with a Brooklyn II 10

Communicating with an Ultimo 11

Communication with a Dante Device Packet

Bridge Endpoint 24

Comparison of ConMon and UDP Sockets

Packet Bridge 24

ConMon Configurations 27

ConMon Control Channel Usage 26

ConMon Mode 25

ConMon Packet Bridge 23

ConMon Status Channel Usage 26

ConMon Vendor Broadcast Channel

Usage 26

Control Channel 23, 26

Control of Host CPU 27

Dante Device Configuration 35

Dante Device Protocol 37

Dante Device Protocol (DDP) Functions 66

Dante Events 36

Dante Events Functions 66

Data Types 61

Device Basic Information 46

Device Discovery 24

Device Erase Configuration 47

Device Identify 48

Device Identity 48

Device Lock Information 38

Device Manufacturer Information 47

Device Reboot 38, 48

Device State 29

Device Upgrade 47

Discovering Packet Bridge Endpoints 25

Encoding 54

Erase Configuration 38, 47

Error Timeout 19-20

Event messages 37

Example Use Cases 27

Firmware Update 27

Flow Control 16, 18

Flow Delete 60

Framing and Padding Mechanisms 16-17

Functionality 61

GPIO 49

Groups of Changes 29

Host CPUSDKProgrammer's Guide

Handling IP address change 24

Hardware Requirements 10

Host CPU and Brooklyn II 15

Host CPU and Ultimo 17

Host CPU Architecture 15

Host CPU Firmware Update 27

Host CPU SDK Package 61

Host CPU to Host CPU Communications 28

Host CPU Transport Interface 64

I/O signalling levels 10

Identify 48

Identity 38, 48

Interface 54

Key Features 15, 22

LED 49

Lock/Unlock 49

Main Loop 65

Manufacturer Information 37, 47

Message Classes 37

Message Format 24

Message Loss 30

Meter Configuration 51

Metering 39

Multicast 59

Multicast TX Flow Configuration 59

Network 39

Network Basic 51

Network Configuration 51

Normal Acknowledgement 18

Packet Bridge 22-23

Packet Filtering 24

Porting 63

Porting the Host CPU SDK Package 63

Power-On Events 31

Project Setup 63

Protocol Design 29

Protocol Functionality 37

Protocol Messages 46

Pull-up 53

Reboot 48

Receive a Packet from the Network and

Forward 34

Receiving a DDP Event Message 44

Redundancy 24, 49

Request messages 37

Response messages 37

Resynchronization 17, 21

Routing 40, 55

Routing Performance 56

Routing Ready 55

Routing Rx Channel Configuration State 56

Routing Tx Channel Configuration State 56

Rx Channel Configuration State 56

Rx Channel Label Set 58

Rx Channel Status 57

Rx Flow Configuration State 57

Rx Flow Status 58

RX message handling 64

RX Subscribe 59

RX Timer interface 63

RX Unsubscribe 59

Sample Rate 53

Self-Description 29

Sending a Command to a Locked Dante

Device 45

Sending a DDP Command/Query

Message 41

Signal Presence 54-55

Host CPUSDKProgrammer's Guide

Small State Changes 29

Specifications 15, 22

SPI 10, 12, 35

Stateless Protocol Design 30

Status Channel 23, 26

Status Reporting 28

Subscribe 59

Switch LED 49

Synchronization 30

Timing 21

Transmit a Packet from a Host CPU 31-33

Tx Channel Configuration State 56

Tx Channel Label Set 59

Tx Flow Configuration State 57

TX message handling 64

TX Timer interface 64

UART 11, 13, 35

UART Configuration 39, 50

UDP Mode 25

UDP Sockets Packet Bridge 24

UHIP 17

UHIP ConMon Packet Bridge Functions 65

UHIP Host CPU SPI Interface 64

UHIP UDP Packet Bridge Functions 65

Ultimo Configuration 36

Ultimo Host Interface Protocol 17

Unicast Subscriptions 24

Unsubscribe 59

Upgrade 38, 47

Vendor Broadcast channel 26

Vendor Broadcast Channel 23

VLAN Configuration 50

VLANs 39

Host CPU SDK Programmer's Guide AUD MAN Programmers V1.0

AUD-MAN-Host_CPU_SDK_Programmers_Guide-v1.0

Navigation menu

Versions of this User Manual:

Views

Navigation
