AVPro Video

for Android, iOS, tvOS, macOS, WebGL

Windows Desktop, Windows Phone and UWP

Unity plugin for fast and flexible video playback

Version 1.6.0

Released 29 March 2017

Contents

1. Introduction

1. Features

2. Trial Version

3. Media Credits

2. System Requirements

1. Platforms not supported

3. Installation

1. Trial Version & Watermark Notes

2. Installing Multiple Platform Packages

4. Usage Notes

1. Platform Notes

2. Video File Locations

3. Streaming Notes

4. Augmented / Virtual Reality Notes

5. Hap Codec Notes

6. Transparency Notes

7. Hardware Decoding

8. Multi-GPU SLI / CrossFire Notes

9. Subtitle Notes

10. DRM Notes

5. Quick Start Examples

1. Quick Start Fastest Start for Unity Experts

2. Quick Start Fullscreen Video Player using Prefabs

3. Quick Start 3D Mesh Video Player Example using Components

6. Usage

1. Getting Started

2. Unsupported Platform Fallback

3. Components

4. Scripting

7. Asset Files

1. Demos

2. Prefabs

3. Scripts

8. Scripting Reference

9. Supported Media Formats

1. Android

2. iOS, tvOS and OS X

3. Windows

4. Windows Phone / UWP

5. WebGL

10. Support

11. About RenderHeads Ltd

Appendix A - FAQ

Appendix B - Version History

Appendix C - Roadmap

2 / 77

1. Introduction

AVPro Video is the newest video playback plugin from RenderHeads. We previously

developed the AVPro QuickTime and AVPro Windows Media plugins for Unity. In this next

generation of plugins we aim to create an easy to use, cross-platform video playback system

that uses the native features of each platform.

1.1 Features

● Versions for iOS, tvOS, OS X, Android, WebGL, Windows, Windows Phone and

UWP

● One API for video playback on all supported platforms

● 8K video support (on supported hardware)

● VR support (mono, stereo, equirectangular and cubemap)

● Transparency support (native and packed)

● Fast flexible video playback

● Unity Pro 4.6.x and above supported

● Unity Personal 5.x and above supported

● Free watermarked trial version available (download here)

● Fast native Direct3D, OpenGL and Metal texture updates

● Linear and Gamma colour spaces supported

● Graceful fallback in editor

● Components for IMGUI, uGUI and NGUI

● Desktop support for Hap, Hap Alpha, Hap Q and Hap Q Alpha

● Easy to use, drag and drop components

● Streaming video from URL (when supported by platform)

1.2 Trial Version

We offer an unlimited trial version of AVPro Video for download from our website at

http://renderheads.com/product/avpro-video/. The trial version has no missing features or

time restrictions but it does apply a watermark to the rendered output. The watermarking

does have a small performance impact which is only really noticeable on very high resolution

videos.

1.3 Media Credits

www.bigbuckbunny.org

3 / 77

SampleSphere.mp4 - (c) copyright Daniel Arnett, https://vimeo.com/97887646

2. System Requirements

● Unity 5.x Personal Edition, or Unity Pro 4.6 and above

● iOS 8.1 and above

● tvOS 9.0 (Apple TV 4th Gen) and above

● OS X 10.7 and above, 64-bit only

● Android 4.0.4 (Ice Cream Sandwich, API level 15) and above (ARM7, ARM8 and

x86)

● Windows XP (SP 3) and above (32-bit and 64-bit)

● Windows 8.0 and above (32-bit and 64-bit)

● Windows Phone UWP 8.1 (32-bit and ARM)

● Windows Desktop UWP 8.1 (32-bit, 64-bit and ARM)

● Universal Windows Platform 10 (32-bit, 64-bit and ARM)

● WebGL compatible browser

2.1 VR Headsets Supported

● Microsoft Hololens

● HTC Vive

● Oculus Gear VR

● Oculus Rift

● Google Cardboard

● Google Daydream

2.2 Platforms not Supported

● WebPlayer

● Linux desktop

● Tizen

● Samsung TV

● Game Consoles (XBox*, PS4 etc)

* XBox One may be supported using UWP build option. We have not tested this though.

4 / 77

3. Installation

1. Open up a fresh Unity session (to clear any locked plugin files)

2. Import the unitypackage file into your Unity project. If prompted to upgrade some

scripts click Yes.

3.1 Trial Version & Watermark Notes

3.1.1 Watermark

If you are using a trial version of the plugin then you will see a watermark displayed over the

video. The watermark is in the form of a “RenderHeads” logo that animates around the

screen, or a thick horizontal bar that move around the screen. In Windows if the GPU

decoding path is used when the watermark isn’t displayed - instead every few seconds the

video size will scale down.

The full version of AVPro Video has no watermarks for any platforms. If you use one of the

platform specific packages (eg AVPro Video for iOS, or AVPro Video for Windows) then you

will not see the watermark on the platform you purchased for, but you will see the watermark

on the other platforms. For example if you purchased AVPro Video for iOS then you will still

see the watermark in the Unity editor as this is running on Windows/OS X, but the videos

played back when you deploy to your iOS device will be watermark-free.

3.1.2 Updating from Trial Version

If you are upgrading from the trial version, make sure you delete the old /Assets/Plugins

folder as this contains the trial plugin and could conflict. You may need to close Unity first,

delete the files manually and then restart Unity and re-import the package (because Unity

locks native plugin files once they are loaded).

You can check which version you have installed by adding an MediaPlayer component to

your scene and clicking on the ‘about’ button in the Inspector for that component. The

version number is displayed in this box.

3.2 Installing Multiple Platform Packages

If you are not using the full all-in-one AVPro Video package and instead have opted to

purchase multiple individual platform packages then the installation must be done carefully,

5 / 77

especially when upgrading to a new version.

If you have installed the iOS package then it will also contain plugins for all of the other

platforms but with the watermark enabled. This means that if you then try to install another

AVPro Video package it may not override the plugins correctly. Here is how to resolve this

using the iOS and Android package as examples:

1. Open a fresh Unity instance (this is important as otherwise Unity may have locked

the plugin files which prevents them from being upgraded)

2. Import the iOS package

3. Import the Android package, but make sure that you have the iOS native plugin file

unticked (so that it is not overwritten)

A similar process can be applied for other package combinations.

List of native plugin files:

● Android

○ Plugins/Android/AVProVideo.jar

○ Plugins/Android/libs/armeabi-v7a/libAVProLocal.so

○ Plugins/Android/libs/arm64-v8a/libAVProLocal.so

○ Plugins/Android/libs/x86/libAVProLocal.so

● macOS

○ Plugins/AVProVideo.bundle

● iOS

○ Plugins/iOS/libAVProVideoiOS.a

● tvOS

○ Plugins/tvOS/libAVProVideotvOS.a

● WebGL

○ Plugins/WebGL/AVProVideo.jslib

● Windows

○ Plugins/WSA/PhoneSDK81/ARM/AVProVideo.dll

○ Plugins/WSA/PhoneSDK81/x86/AVProVideo.dll

○ Plugins/WSA/SDK81/ARM/AVProVideo.dll

○ Plugins/WSA/SDK81/x86/AVProVideo.dll

○ Plugins/WSA/SDK81/x86_64/AVProVideo.dll

○ Plugins/WSA/UWP/ARM/AVProVideo.dll

○ Plugins/WSA/UWP/x86/AVProVideo.dll

○ Plugins/WSA/UWP/x86_64/AVProVideo.dll

○ Plugins/x86/AVProVideo.dll

○ Plugins/x86_64/AVProVideo.dll

6 / 77

4. Usage Notes

4.1 Platform Notes

Most graphics APIs are supported:

D3D9

D3D1

OpenGL

GLES2.0

GLES3.0

Metal

Vulcan

Android

N/A

Yes

N/A

iOS / tvOS

N/A

Yes

macOS

N/A

Yes

N/A

Yes

Windows

Yes

N/A

UWP

N/A

Yes

N/A

N/A = not applicable

4.1.1 Android

● This plugin requires an API level minimum of 15

● Under the hood we’re using the Android MediaPlayer API

● If you want to support streaming don’t forget to set the “Internet Access” option in

Player Settings to “require”

● For rendering we supports OpenGL ES 2.0 and OpenGL ES 3.0

● Multi-threaded rendering is supported

4.1.2 iOS / tvOS

● iOS and tvOS support requires Unity 5.4 or above (due to a breaking change in the

Unity API). If you require Unity 5.3 or below support for iOS then please contact us.

Otherwise you will have to upgrade to 5.4 or above.

● Under the hood we’re using the AVFoundation API

● If you want to support streaming you need to enable HTTP downloads explicitly. For

iOS this is an option in newer versions of Unity, but for Mac OS X and older versions

of Unity you have to do this explicitly by editing the plist file. There are notes below

on how to do this.

● For rendering we support OpenGL ES 2.0, OpenGL ES 3.0 and Metal

● Multi-threaded rendering is supported

4.1.3 Mac OS X

7 / 77

● Only 64-bit (x86_64) builds are supported (Apple dropped 32-bit support back in

2012 when launching OS X 10.8).

● Under the hood we’re using the AVFoundation API

● If you want to support streaming you need to enable HTTP downloads explicitly. For

iOS this is an option in newer versions of Unity, but for Mac OS X and older versions

of Unity you have to do this explicitly by editing the plist file. There are notes below

on how to do this.

● For rendering on Mac OS X we support OpenGL Legacy and OpenGL Core and

Metal.

● Multi-threaded rendering is supported

4.1.4 Windows

● Under the hood we’re using the Media Foundation and DirectShow API’s. Media

Foundation is used for Windows 8 and above while DirectShow is used as a fallback

for Windows 7 and below.

● For rendering we support Direct3D 9, Direct3D 11 and OpenGL Legacy.

● Multi-threaded rendering is supported.

4.1.5 Windows Store / UWP / Hololens

● For streaming video don’t forget to enable to “InternetClient” capability option in

Unity’s Player Settings.

4.1.6 WebGL

● The supported formats and features is dependant on the web browser capabilities.

● We have tested successfully with the following browsers

○ macOS

■ Safari 9.1

○ Windows

■ Microsoft Edge 38.14393.0.0

■ Mozilla Firefox 51.0

■ Google Chrome 56.0

● The following browsers are not supported:

○ Internet Explorer 11 (any version), instead use the Microsoft Edge browser

4.2 Video File Location

Video files can be played in almost any location, however we recommend placing video files

in the /Assets/StreamingAssets/ folder in your Unity project as this is the easiest folder to

8 / 77

get started with. StreamingAssets is a special folder that Unity copies to the build without

processing. Files copied elsewhere will require manual copying to the build location.

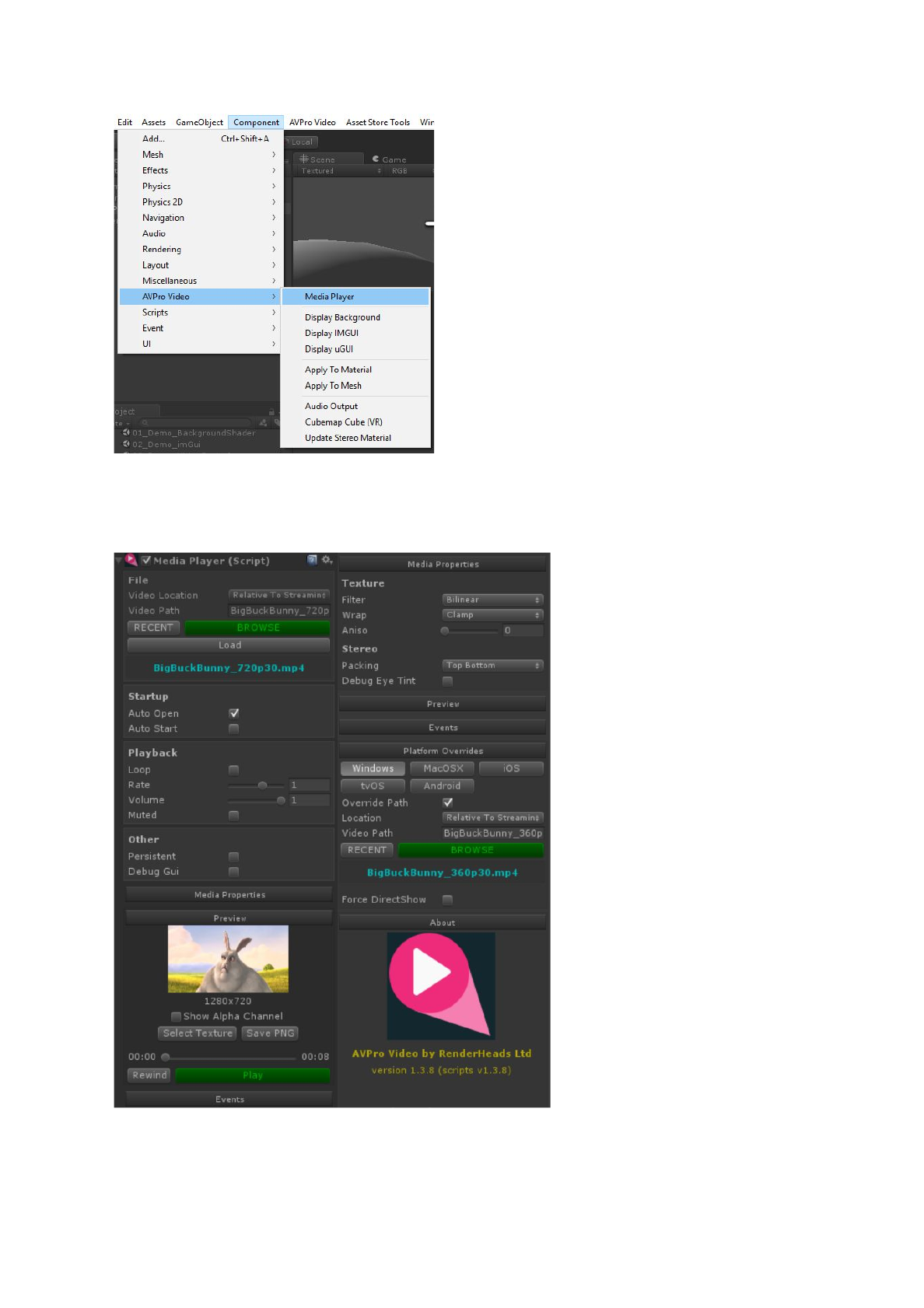

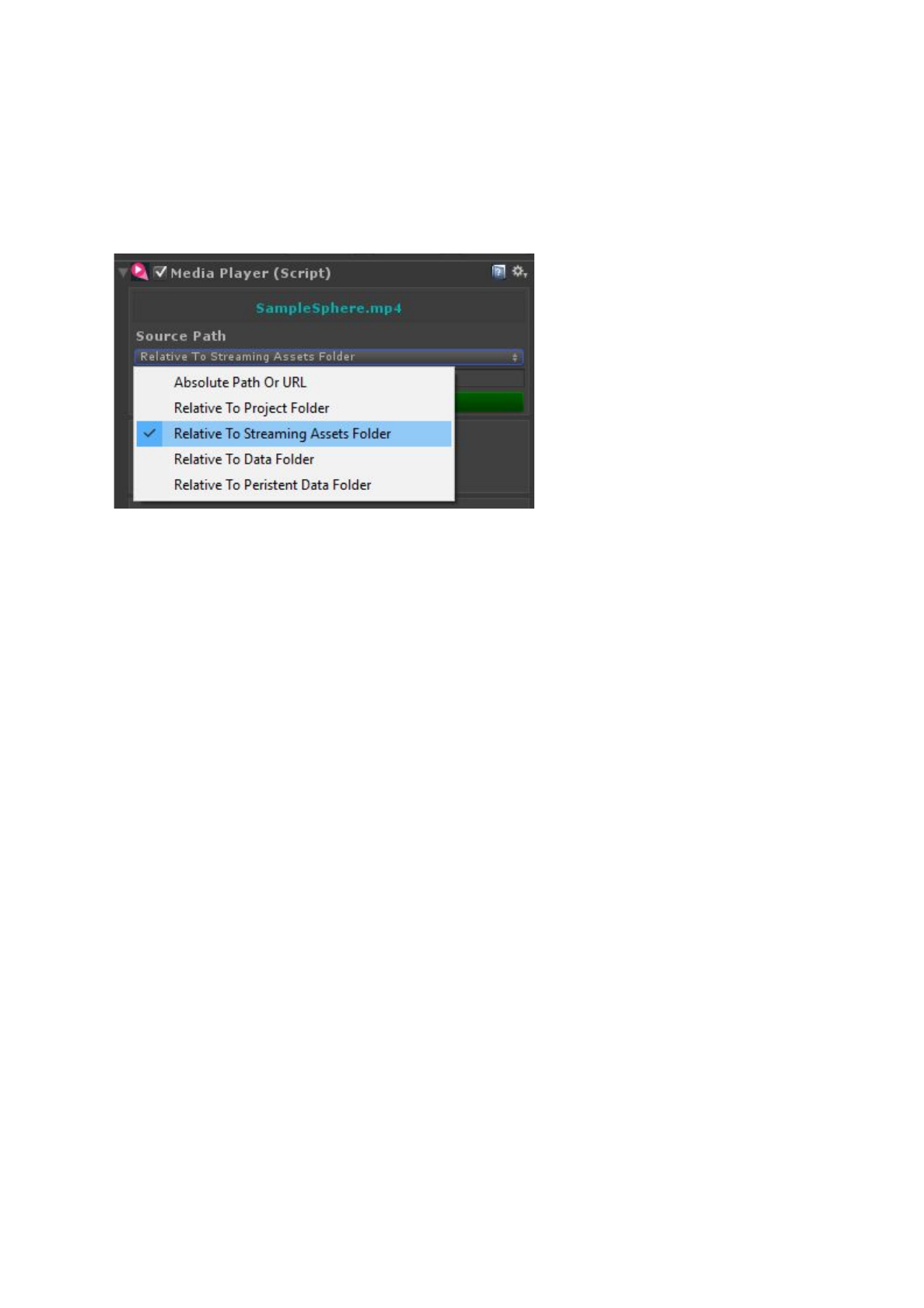

The MediaPlayer component allows you to browse for video files and specify them relative to

a parent folder:

The Video Location field specifies the master location of the video file while the Video Path

field specifies where to locate the file relative to the Location.

For example if your file is stored in “Assets/StreamingAssets/video.mp4” you would set the

Location to “Relative To Streaming Assets Folder” and set the Video Path to “video.mp4”.

Sub-folders are also supported so a video located at

“Assets/StreamingAssets/myfolder/video.mp4” would have it’s Video Path set to

“myfolder/video.mp4”.

You can also specify absolute paths, URLs or paths relative to other locations:

4.2.1 Relative To StreamingAssets Folder

This is the best and most common location for video files. This folder is located at

“Assets/StreamingAssets/” and you must create it if it doesn’t exist. Files copied to this

folder will not be imported or processed by Unity but they will be copied with the build

automatically.

4.2.2 Absolute Path or URL

Here you can specify a full URL or absolute path to the video file. A URL could be in the

form “http://myserver.com/myvideo.mp4” or “rtsp://myserver.com:8080/mystream.rtsp”

depending on the platform support and streaming service used.

An absolute path would look like:

● C:/MyFolder/AnotherFolder/MyVideo.mp4 (Windows)

9 / 77

● /Users/Mike/downloads/MyVideo.mp4 (Mac/Linux)

● /Storage/SD/Videos/MyVideo.mp4 (Android external SDCARD)

●/Storage/emulated/0/MyFolder/MyVideo.mp4 (Android local file system)

Using absolute paths can be useful for testing but isn’t useful when deploying to other

machines that don’t necessarily have the same file structure.

4.2.3 Relative To Project Folder

The project folder is the folder of your Unity project, so the folder containing the Assets,

Library and Project Settings sub-folders. Specifying files relative to the project folder can be

useful when you don’t want to include the video files in your Unity Assets folder but want to

keep them within the project folder structure. Often making a sub-folder called “Videos” is

useful. One possible problem of using this location is that when making a build your video

files will not be copied automatically to the build destination so they require manual copying.

For builds this folder should be located:

● Windows - at the same level as your EXE

● Mac - at the same level as the Contents folder in your app bundle

● iOS - at the same level as the AppName.app/Data folder

● Android - not accessible due to APK packaging unless you build the APK manually.

4.2.4 Relative To Data Folder

The data folder is specified by Unity here:

http://docs.unity3d.com/ScriptReference/Application-dataPath.html

It isn’t that useful to put video files into this folder directly as they would then be processed

by Unity into MovieTexture’s and will bloat your project size. If you want to stop Unity

processing the video files simply rename the extension to something Unity doesn’t

understand, so “myvideo.mp4” could be renamed to “myvideo.mp4.bin”. Files within the

data folder (Assets folder in the editor) are not copied automatically to builds so you would

have to manually copy them.

4.2.5 Relative to Persistent Data Folder

The persistent data folder is specified by Unity here:

http://docs.unity3d.com/ScriptReference/Application-persistentDataPath.html

For UWP platforms this would resolve to “ms-appdata:///local/”

10 / 77

11 / 77

4.3 Streaming Notes

AVPro Video supports several streaming protocol depending on the platform:

HTTP

Progressive

Streaming

HLS

MPEG-Dash

RTSP

Windows

Desktop

Yes

(Windows 10

only)

Yes

(Windows 10

only)

Only with ASF

stream, or with

DirectShow

using suitable

filter

UWP

Yes

(UWP 10 only)

Yes

(UWP 10 only)

Mac OS X

Yes

iOS

Yes

tvOS

Yes

Android

Yes

Yes, but better

on newer

versions

Yes

WebGL

Yes

Browser

specific

Browser

specific

HTTP Progressive Streaming

When encoding MP4 videos for streaming make sure they are encoded with the video

header data at the beginning of the file. You normally do this by selecting “Fast Start” in

QuickTime encoder, or use the “-movflags faststart” in FFMPEG, Other encoders will have a

similar option. To prepare an MP4 for streaming using FFMPEG you can use the following

command:

ffmpeg -i %1 -acodec copy -vcodec copy -movflags faststart %1-streaming.mp4

12 / 77

Vimeo Note:

If you are streaming videos from VIMEO as MP4 then you should note that you can replace

the “.mp4” part in the URL with “.m3u8” to instead make it an HLS stream. This may be

particularly useful if you are developing apps for the Apple’s App Store as you would need to

use HLS streaming to pass certification (as for April 2016).

4.3.1 OS X, iOS and tvOS Streaming

This platform supports streaming of HLS streams which typically end with the m3u or m3u8

extension.

If you have an HTTPS URL it should work fine because Apple trusts the secure connection.

If you can only use HTTP then you app has to have a special flag set to let it use HTTP

connections (this is a security issue for Apple).

This setting is exposed in the Unity Player Settings here for iOS and tvOS:

The setting is also exposed in the scripting API here:

http://docs.unity3d.com/ScriptReference/PlayerSettings.iOS-allowHTTPDownload.html

If for some reason your version of Unity doesn’t expose this then you will have to add it

manually. In the Unity editor you need to edit "Unity.app/Contents/Info.plist" and in your built

application you would need to edit "your.app/Contents/Info.plist". These files need to have

these keys added:

<key>NSAppTransportSecurity</key>

<dict>

<key>NSAllowsArbitraryLoads</key>

<true/>

</dict>

You can find more information about this here:

http://ste.vn/2015/06/10/configuring-app-transport-security-ios-9-osx-10-11/

We’ve also included a post process build script called “PostProcessBuild.cs” in the project

which edits the plist and adds this attribute. Currently it’s only set for iOS but you can edit

the #define at the top to allow Mac OS X too.

4.3.2 Android Streaming

13 / 77

Android streaming requires the Internet Access setting (in Player Settings) to be set to

“Require”:

4.3.3 UWP / Windows Phone / Hololens Streaming

Make sure to tick the “InternetClient” capabilities option in Player Settings.

4.3.4 Test Streams

We found these streams handy for testing (no guarantee that they’re still working):

● Streaming MP4

○HTTP

http://downloads.renderheads.com/2016/BigBuckBunny_360p30_Streaming.

mp4

○HTTPS

https://drive.google.com/uc?export=download&id=0B0JMGMGgxp9WMEdWb

1hyQUhlOWs

● HLS

○ Apple Test streams (from https://developer.apple.com/streaming/examples/)

■Basic complexity

https://devimages.apple.com.edgekey.net/streaming/examples/bipbop

_4x3/bipbop_4x3_variant.m3u8

■Medium complexity

https://devimages.apple.com.edgekey.net/streaming/examples/bipbop

_16x9/bipbop_16x9_variant.m3u8

■Advanced TS

https://tungsten.aaplimg.com/VOD/bipbop_adv_example_v2/master.m

3u8

■Advanced fMP4

https://tungsten.aaplimg.com/VOD/bipbop_adv_fmp4_example/master

.m3u8

○ http://qthttp.apple.com.edgesuite.net/1010qwoeiuryfg/sl.m3u8

○ http://184.72.239.149/vod/mp4:BigBuckBunny_115k.mov/playlist.m3u8

● MPEG-Dash

○ http://www-itec.uni-klu.ac.at/ftp/datasets/DASHDataset2014/RedBullPlayStre

14 / 77

ets/10sec/RedBull_10_simple_2014_05_09.mpd

● RTSP

○ rtsp://rtmp.infomaniak.ch/livecast/latele

● RTMP

○ RTMP is not supported on any platform yet (unless 3rd party support is used)

4.4 Augmented / Virtual Reality Notes

So far we have tested AVPro Video with:

● Gear VR

● Google Cardboard

● Google Daydream (currently in beta, we’ve seen some performance issues)

● Oculus Rift

● HTC Vive

● Microsoft Hololens

VR is still very new and you should always check for the latest recommended installation

steps when creating your project. We found a lot of out of date setup instructions on the

net.

AVPro Video supports 4K MP4 playback for creating 360 degree experiences. Stereo 4K

videos in both top-bottom and side-by-side formats are also supported. If you’re using

Windows 10 and have an Nvidia Geforce 1000 series (eg 1070) you can display 8K H.265

videos!

See the FAQ for tips to achieve high resolution video playback for VR.

For software decoders reducing the complexity of the encoded video will give the decoding

engine a much easier time and could result in higher frames rates and lower CPU/GPU

usage. Possible encoding tweaks include:

● Use the lowest profile level possible

● Don’t use too many reference frames

● Don’t use too many b-frames

● Disable CABAC

● Use the slices option (eg -slices 4)

4.4.1 Stereo VR

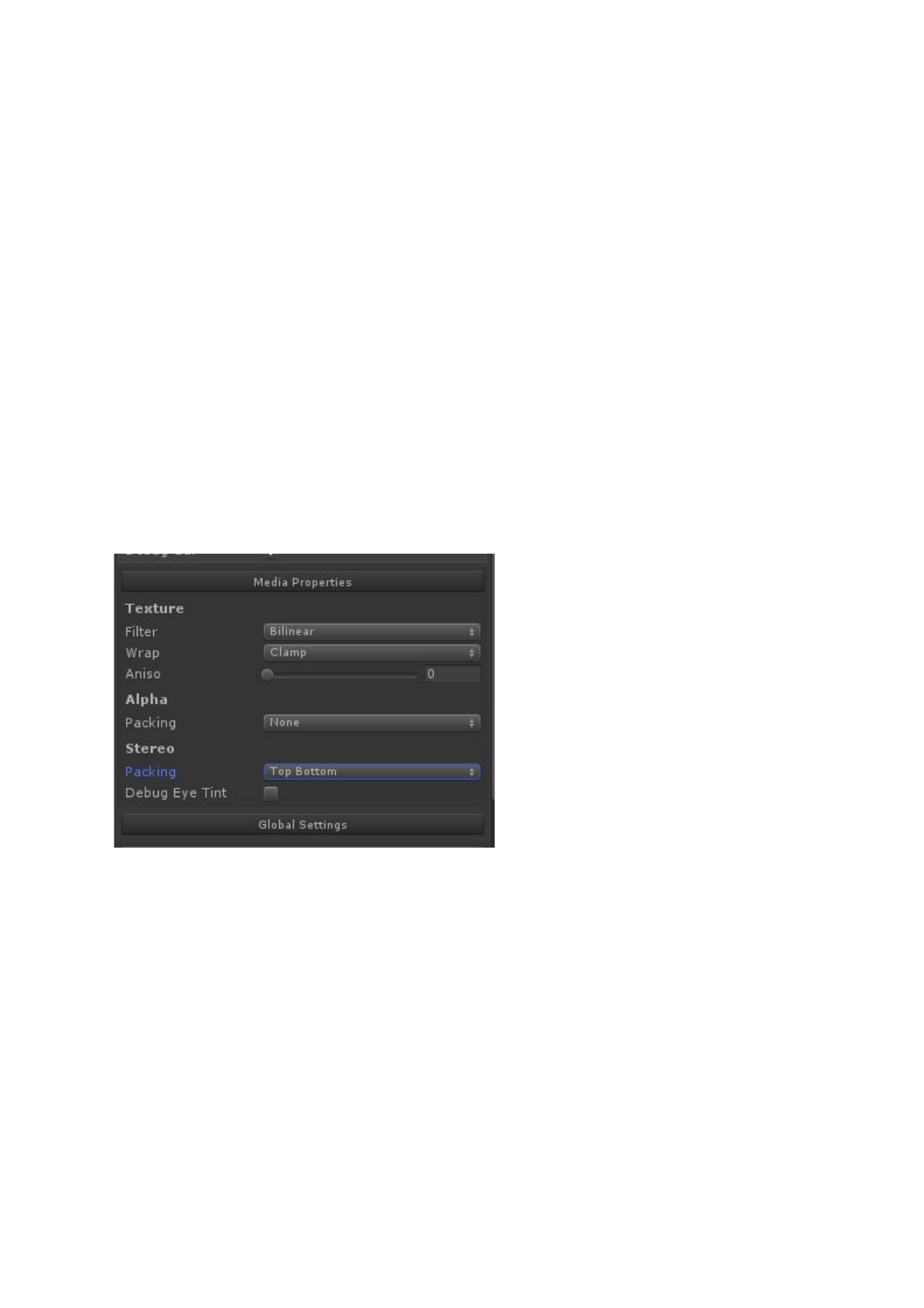

AVPro Video supports stereoscopic videos in the top-bottom and left-right formats. You can

set the stereo packing format of your video in the Media Properties panel:

15 / 77

Now when using the InsideSphere shader on a mesh it will automatically map the right part

of the video to each eye. See the “Demo_360SphereVideo” scene for an example of how

this works.

Optionally you can manually set the material properties. The included shader

“InsideSphere.shader” allows you to easily set what format your video is in via a drop-down

in the material:

Select “Stereo Debug Tinting” to colour the left and right eyes different colours so you can be

sure the stereo is working.

NOTE: Be sure to add the "UpdateStereoMaterial” component script to your scene when

using this material and a stereo video. Often stereo VR requires 2 cameras, each set to a

different layer mask and 2 spheres also set to a different mask. AVPro Video doesn’t require

this and just uses your normal single camera and single sphere.

4.4.2 VR Audio

16 / 77

Currently only the Windows plugin has support for audio manipulation in VR.

There are two main audio issues with VR in Unity:

1. Audio redirection

Some VR systems such as the Oculus Rift and HTC Vive have their own audio

output device and one needs to redirect audio to these devices instead of the system

default audio device. Unity does this automatically for its internal audio, but AVPro

Video renders to the system default audio device.

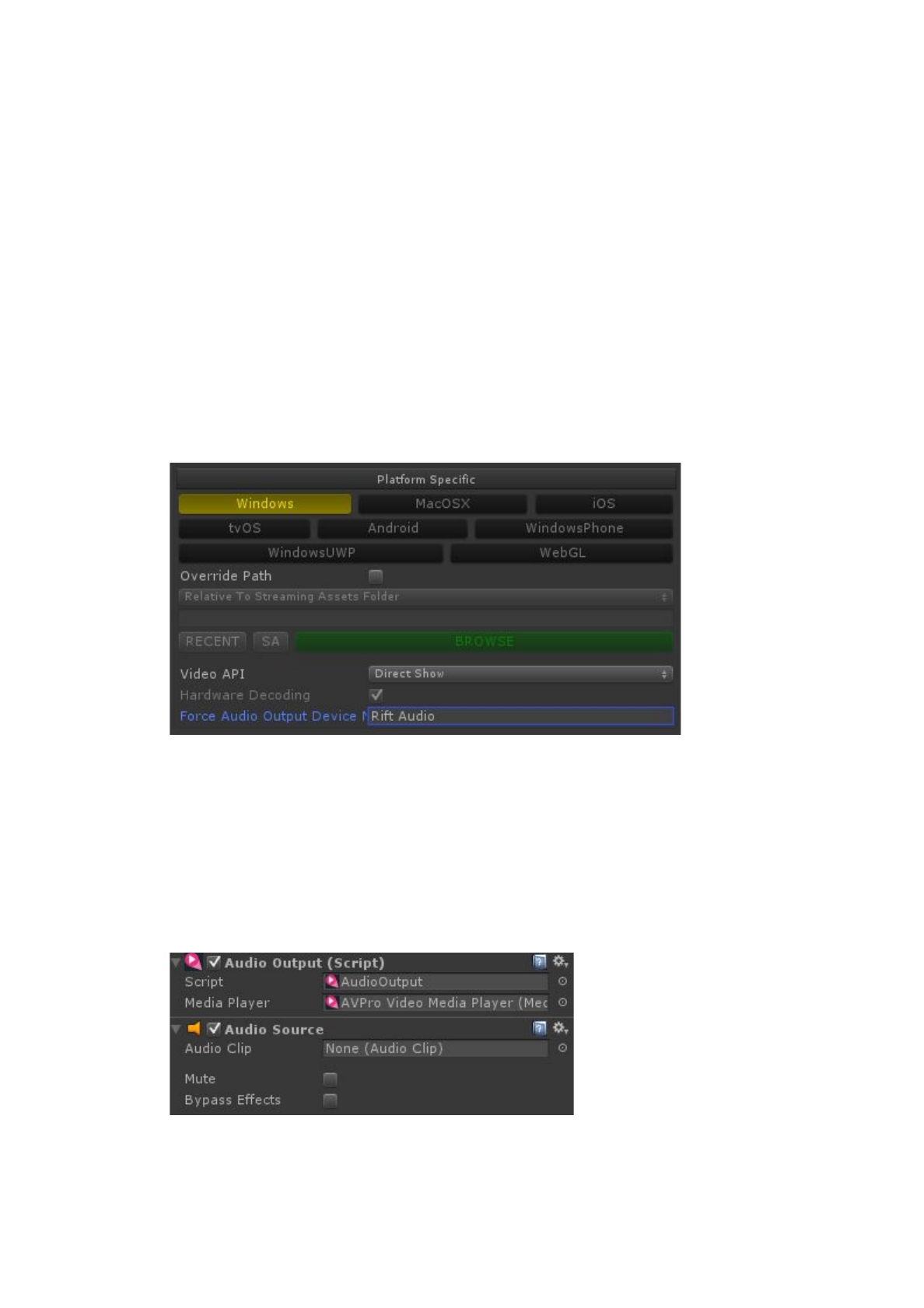

This issue can be solved by either using the AudioOutput component (see below).

This component redirects the audio to be rendered by Unity and so it goes to the

correct device. AudioOutput requires that the Media Foundation video API be used,

so if you need to use the DirectShow API you can specify the name of the output

device manually in the field “Force Audio Output Device”:

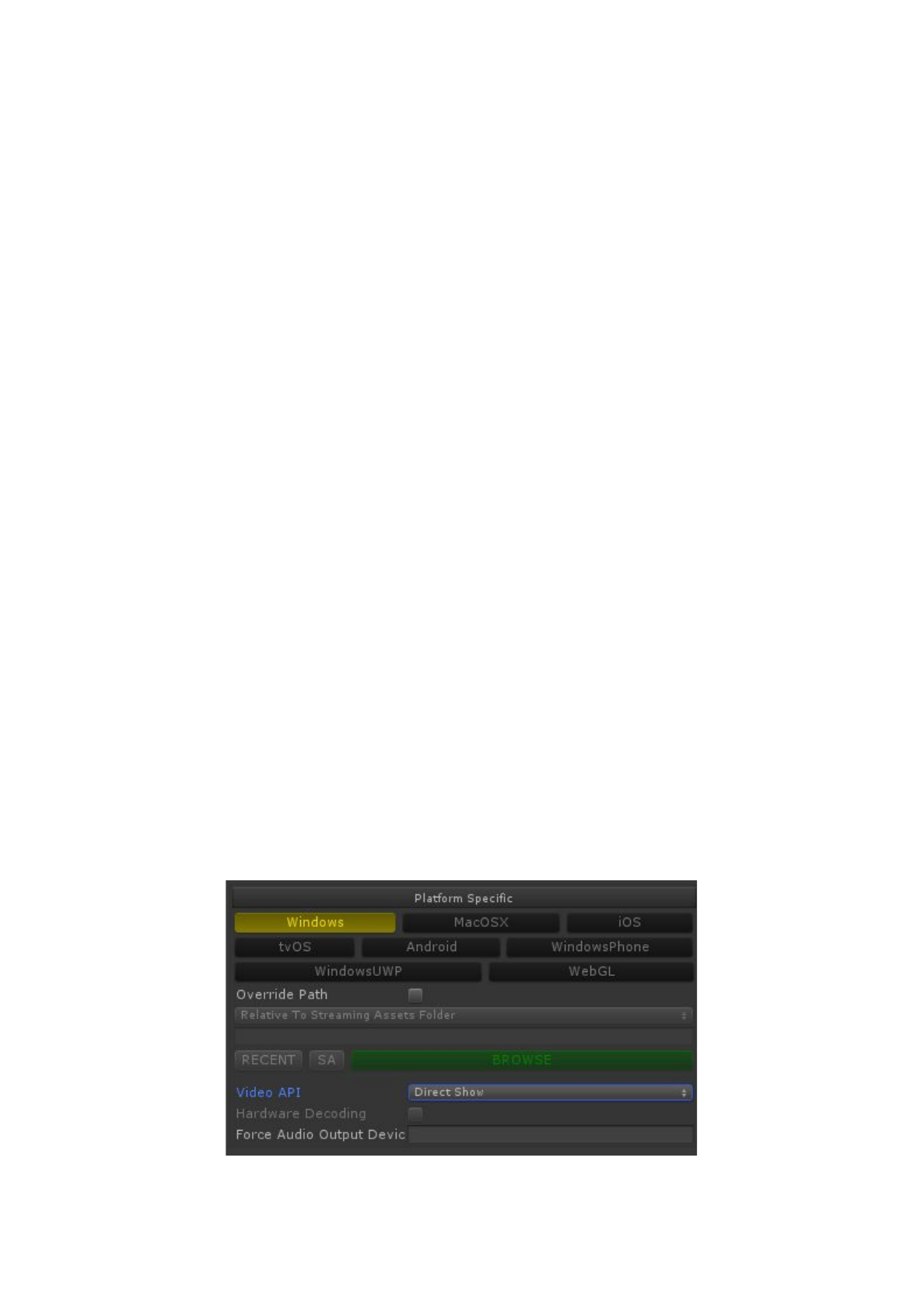

The device name to use can be retrieved from the VR API or hard coded. For

Oculus Rift the name is usually “Rift Audio” and for HTC Vive it is “HTC VIVE USB

Audio”.

2. Audio spatialisation

Audio needs to rotate as the user moves their head in the virtual world. This can be

achieve by using the AudioOutput component which redirects the audio from the

video into Unity (via Unity’s AudioListener).

This component should be stacked above its required AudioSource component.

AudioOutput requires that the video API is set to Media Foundation and that the “Use

17 / 77

Unity Audio” tickbox is selected.

For proper 3D audio placement you will also need to add a spatialiser plugin to the

Unity Audio Settings screen (in Unity 5.4 and above) and tick the “spatialize” tickbox

on the Audio Source.

4.4.3 Android OES playback path

For Android there is a special playback option called “Use Fast OES Path”. This option

caters especially for VR where users are trying to get the highest possible frame rate and

resolution out of the device (without it overheating at the same time). The option is

available in the Platform Specific section of the MediaPlayer component:

The OES path is not enabled by default because it requires some special care to be taken

and can be tricky for beginners. When this option is enabled the Android GPU returns

special OES textures (see EGL extension OES_EGL_image_external) that are hardware

specific. Unfortunately Unity isn’t able to use these textures directly, so you can’t just map

them to a material or UI. To use the texture a GLSL shader must be used. Unfortunately

Unity’s GLSL support isn’t as good as its CG shader support so again this makes things

more tricky. The GLSL compiler only happens on the device (not inside Unity) so errors in

18 / 77

the shader can be difficult to debug.

We have included a version of the VR sphere shader that supports stereo videos as an

example. Hopefully in the future we can improve the integration of these shaders so they

aren’t such special cases. This playback path is much faster though, so is definitely worth

exploring.

For the sphere demo scene, simply change the shader on the sphere mesh material to be

one of the “VR” “OES” ones and tick the “Use Fast OES Path” on the MediaPlayer

component.

4.5 Hap Codec Notes

The Hap video codec is natively supported by AVPro Video on certain platforms and has the

following benefits:

● Very low CPU usage

● GPU decompression

● Low memory usage

● Supports very high resolutions

● Supports alpha channel transparency

The main down side is:

● Very large files

AVI and MOV containers can both be used however we recommend the MOV container.

Hap is only supported on Windows and Mac OS X platforms.

4.5.1 Windows Support

Hap, Hap Alpha, HapQ and HapQ Alpha are supported. Hap currently requires the

“DirectShow” video API to be selected:

19 / 77

4.5.2 Mac OS X Support

Hap, Hap Alpha, HapQ and HapQ Alpha are supported.

4.5.3 Encoding

You can download the QuickTime codec for Windows and macOS here:

https://github.com/Vidvox/hap-qt-codec/releases

This codec can be used with QuickTime Pro or any other software that supports QuickTime

codecs such as Adobe After Effects and Adobe Premiere.

Alternatively you can use a recent build of FFMPEG with the following command-lines:

● ffmpeg -i input.mov -vcodec hap -format hap output-hap.mov

● ffmpeg -i input.mov -vcodec hap -format hap_alpha output-hap.mov

● ffmpeg -i input.mov -vcodec hap -format hap_q output-hap.mov

Notes:

● Width and height must be multiple of a 4.

● Hap Alpha requires straight not pre-multipled alpha.

● The default ffmpeg doesn’t include the Snappy library (due to licensing we assume)

that Hap uses for compression - thus ffmpeg generated Hap files are often quite

large. You would need to build ffmpeg yourself with Snappy enabled, or use the

QuickTime encoder.

● You can also add the “-chunks 4” option which will encode each frame into 4 chunks

so the decoding work can be split across multiple threads, resulting in faster

decoding as long as the disk can keep up.

● Sadly ffmpeg doesn’t yet support the HapQ Alpha format.

4.6 Transparency Notes

Not many video codecs have native support for transparency / alpha channels. Formats

supported by some platforms of AVPro Video are:

● Hap Alpha

○ Great support on Windows and Mac OS X. Fast and low overhead format,

though file size can get large depending on the content. Currently this is the

format we recommend for transparent video.

● Hap Q Alpha

○ Great support on Windows and Mac OS X. Slightly higher quality and file size

compared to Hap Alpha.

● Uncompressed RGBA

20 / 77

● Uncompressed YUVA

○ Uncompressed isn’t ideal for file size or disk bandwidth but can still be used

as a fallback

● ProRes 4444

○ Best support is on Mac OS X. Files are huge.

● VP6

○ Legacy format. We support it only via 3rd party DirectShow plugins for

Windows (eg LAV Filters)

4.6.1 Alpha Packing

Alternatively you can encode your videos in video formats that don’t support an alpha

channel by packing the alpha channel into the same frame. You can double the width for a

left-right packing layout, or double the height for a top-bottom packing layout. This packing

could be created in software such as AfterEffects, or the command-line ffmpeg tool can be

used. The packing format is set in the “Media Properties” panel of the AVPro Video

MediaPlayer component:

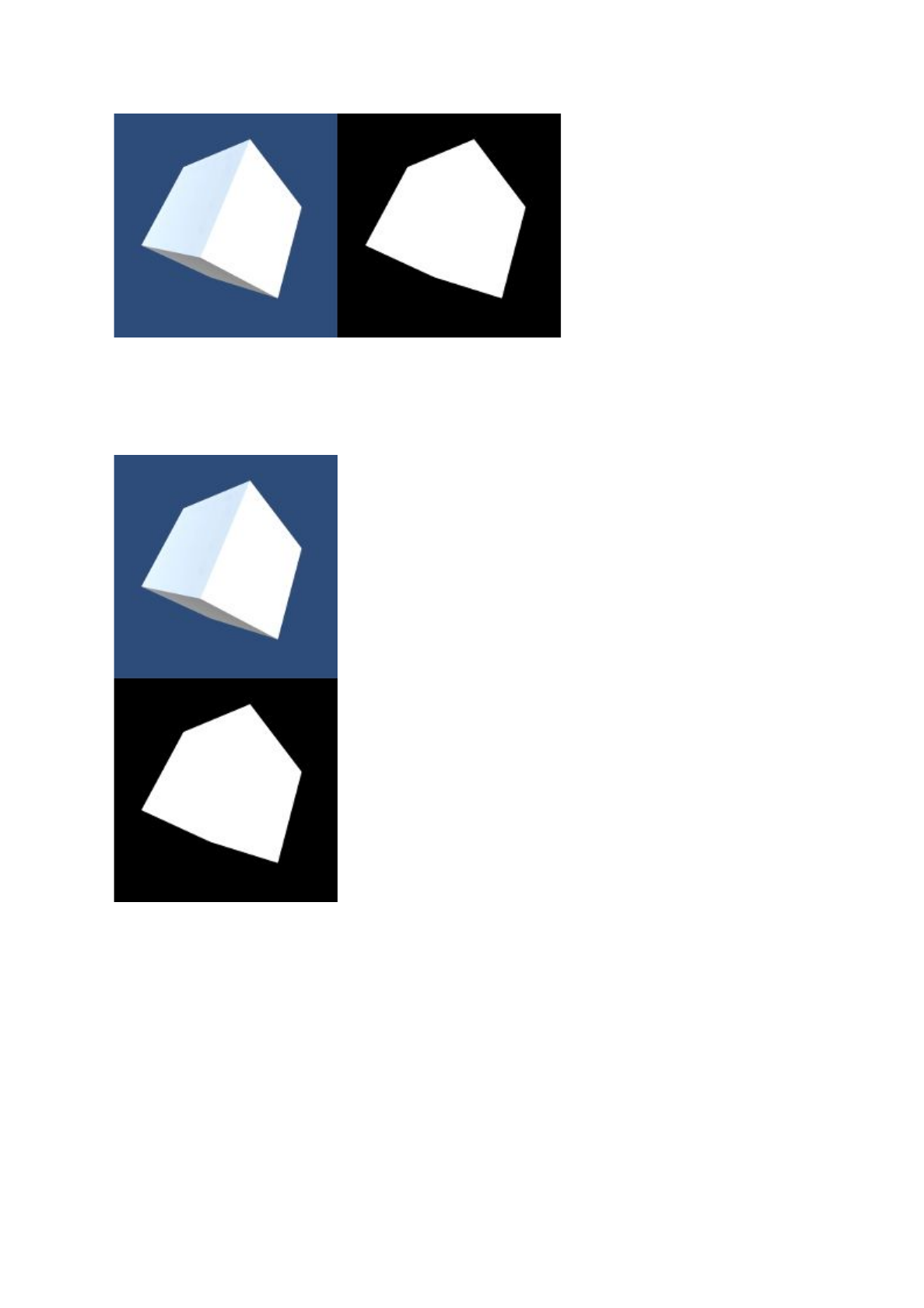

Here we show two examples using ffmpeg to convert to an alpha packed format:

Left-right alpha packing:

ffmpeg -i %1 -vf "split [a], pad=iw*2:ih [b], [a] alphaextract, [b] overlay=w" -y %1.mp4

21 / 77

Top-bottom alpha packing:

ffmpeg -i %1 -vf "split [a], pad=iw:ih*2 [b], [a] alphaextract, [b] overlay=0:h" -y %1-tb.mp4

22 / 77

4.7 Hardware Decoding

AVPro Video supports hardware decoding on most platforms for optimal performance.

WebGL, Windows 8.1, Windows 10, macOS, tvOS, iOS and Android all default to hardware

decoding when possible. When playing back multiple videos simultaneously one must be

careful not to exceed the number of videos that the hardware can play back smoothly. We

have tried to collect information about the limits of specific hardware.

4.7.1 NVidia

NVidia GPU’s use a technology called “Purevideo” or “NVDec” to off-load decoding from the

CPU. More information can be found here:

https://en.wikipedia.org/wiki/Nvidia_PureVideo#Nvidia_VDPAU_Feature_Sets

Some NVidia Purevideo capabilities:

KEPLER (GK107,

GK104)

MAXWELL 1

(GM107, GM204,

GM200)

MAXWELL 2

(GM206)

PASCAL (GP100)

MPEG-2, MPEG-4,

H.264

MPEG-2, MPEG-4,

H.264, HEVC with

CUDA acceleration

MPEG-2, MPEG-4,

H.264 HEVC/H.265

fully in hardware

MPEG-2, MPEG-4,

H.264 HEVC/H.265

fully in hardware

H.264: ~200 fps at

1080p; 1 stream of

4K@30

H.264: ~540 fps at

1080p 4 streams of

4K@30

H.264: ~540 fps at

1080p 4 streams of

4K@30

H.265: Not

supported

H.265: Not

supported

H.265: ~500 fps at

1080p 4 streams of

4K@30

(table adapted from presentation “HIGH PERFORMANCE VIDEO ENCODING WITH NVIDIA GPUS”)

GPU

Architect

ure

MPEG-2

VC-1

H.264/

AVCHD

H.265/

HEVC

VP8

VP9

Fermi

(GF1xx)

Maximum

Resolution:

4080x4080

Maximum

Resolution:

2048x1024

1024x2048

Maximum

Resolution:

4096x4096

Profile:

Baseline,

Main, High

profile up to

Level 4.1

Unsupported

Kepler

Maximum

Unsupported

23 / 77

(GK1xx)

Resolution:

4080x4080

Resolution:

2048x1024

1024x2048

Resolution:

4096x4096

Profile: Main,

High profile up

to Level 4.1

Maxwell Gen

1 (GM10x)

Maximum

Resolution:

4080x4080

Maximum

Resolution:

2048x1024

1024x2048

Maximum

Resolution:

4096x4096

Profile:

Baseline,

Main, High

profile up to

Level 5.1

Unsupported

Maxwell Gen

2 (GM20x)

Maximum

Resolution:

4080x4080

Maximum

Resolution:

2048x1024

1024x2048

Max bitrate:

60Mbps

Maximum

Resolution:

4096x4096

Profile:

Baseline,

Main, High

profile up to

Level 5.1

Unsupported

Maximum

Resolution:

4096x4096

Unsupported

Maxwell Gen

2 (GM206)

Maximum

Resolution:

4080x4080

Maximum

Resolution:

2048x1024

1024x2048

Interlaced

Maximum

Resolution:

4096x4096

Profile:

Baseline,

Main, High

profile up to

Level 5.1

Maximum

Resolution:

4096x2304

Profile: Main

profile up to

Level 5.1

Maximum

Resolution:

4096x4096

Maximum

Resolution:

4096x2304

Profile: Profile

Pascal

(GP100)

Maximum

Resolution:

4080x4080

Maximum

Resolution:

2048x1024

1024x2048

Maximum

Resolution:

4096x4096

Profile:

Baseline,

Main, High

profile up to

Level 5.1

Maximum

Resolution:

4096x4096

Profile: Main

profile up to

Level 5.1

Maximum

Resolution:

4096x4096

Maximum

Resolution:

4096x4096

Profile: Profile

Pascal

(GP10x)

Maximum

Resolution:

4080x4080

Maximum

Resolution:

2048x1024

1024x2048

Maximum

Resolution:

4096x4096

Profile:

Baseline,

Main, High

profile up to

Level 5.1

Maximum

Resolution:

8192x8192

Profile: Main

profile up to

Level 5.1

Supported2

Maximum

Resolution:

4096x4096

Maximum

Resolution:

8192x8192

Profile: Profile

(Table adapted from Nvidia Video Decoder Interface documentation:

https://developer.nvidia.com/nvdec-programming-guide)

4.7.2 AMD

AMD UVD

https://en.wikipedia.org/wiki/Unified_Video_Decoder

24 / 77

4.7.3 Intel

Intel’s Quick Sync technology is a dedicated video decoder hardware built into the CPU.

Intel Kaby Lake supports H.265 10-bit decoding!

4.8 Multi-GPU SLI / CrossFire Notes

Multiple GPU’s are often used to accelerate high-end rendering but it brings with it some

subtle challenges for video playback. Here we write some notes about our experience using

Nvidia SLI on Windows (specifically Windows 8.1 with dual Nvidia M6000 cards).

Using Alternate Frame Rendering SLI (AFR SLI) can cause stuttering when using the Media

Foundation hardware decoding because only one GPU is doing the decoding and then it

must pass the frames back to the other GPU which is a slow operation and defeats the

purpose of SLI. One option here is to disable GPU decoding in AVPro Video, which is fine

for lower resolution videos, but often the CPU just isn’t fast enough for very high resolution

content. AFR can also suffer from so called “micro stutters” caused by each GPU handling

the flip presentation independently which isn’t ideal for video playback on large video walls.

Another option is to use the cards in “SLI VR” mode … To be continued..

4.9 Subtitle Notes

AVPro Video supports external subtitles in the SRT format. Subtitles internal to media files

are not yet supported. See the subtitle demo scene to see how to use subtitles.

4.10 DRM Notes

DRM support is currently not a key feature of AVPro Video, but we aim to improve support in

the future. DRM that we know works with the plugin includes:

● Android

○ HLS with AES-128 (make sure your TS segments are 188 bytes aligned for

maximum Android compatibility)

25 / 77

5. Quick Start Examples

5.1 Quick Start: Fastest Start for Unity Experts

1. Put video files in the StreamingAssets folder

2. Use the MediaPlayer script to play your video (set Video Path to the file name of your

video file).

3. Use one of the display scripts to display your video (eg DisplayIMGUI, DisplayUGUI,

ApplytoMaterial)

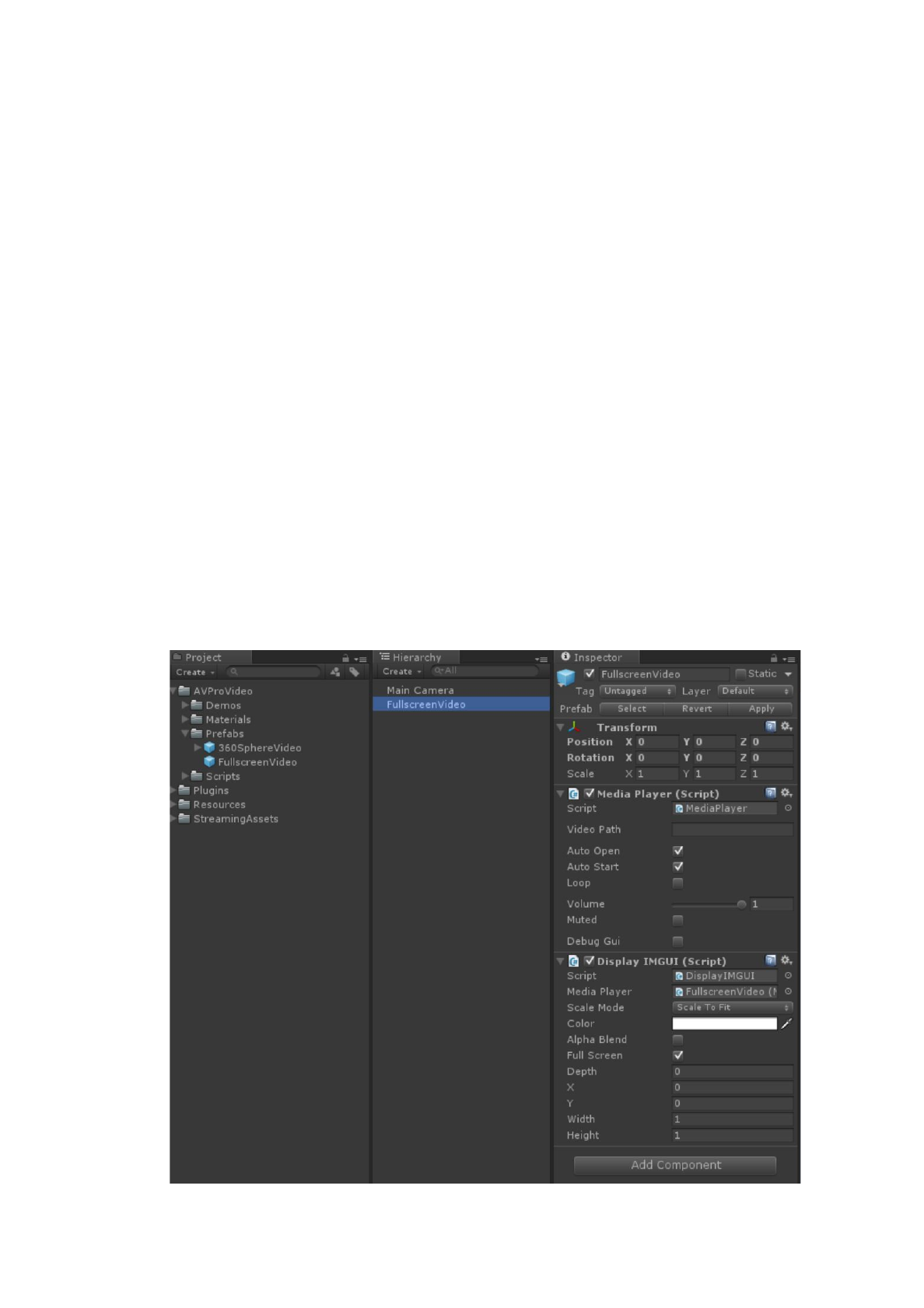

5.2 Quick Start: Fullscreen Video Player using Prefabs

AVPro Video includes a number of example prefabs you can use to easily add video

playback to your project. The following steps will create an application that plays back a

fullscreen video:

1. Create a new Unity project

2. Import the AVProVideo package

3. From the AVPro/Prefabs folder in the Project window, drag the FullscreenVideo

prefab to your Hierarchy window

26 / 77

4. Create a folder called StreamingAssets in your Project window and copy your video

file (say MP4 file) into that folder

5. Enter the file name (including extension) into the Video Path field in the MediaPlayer

component (eg myvideo.mp4)

6. Build and deploy your application, the video will be displayed fullscreen

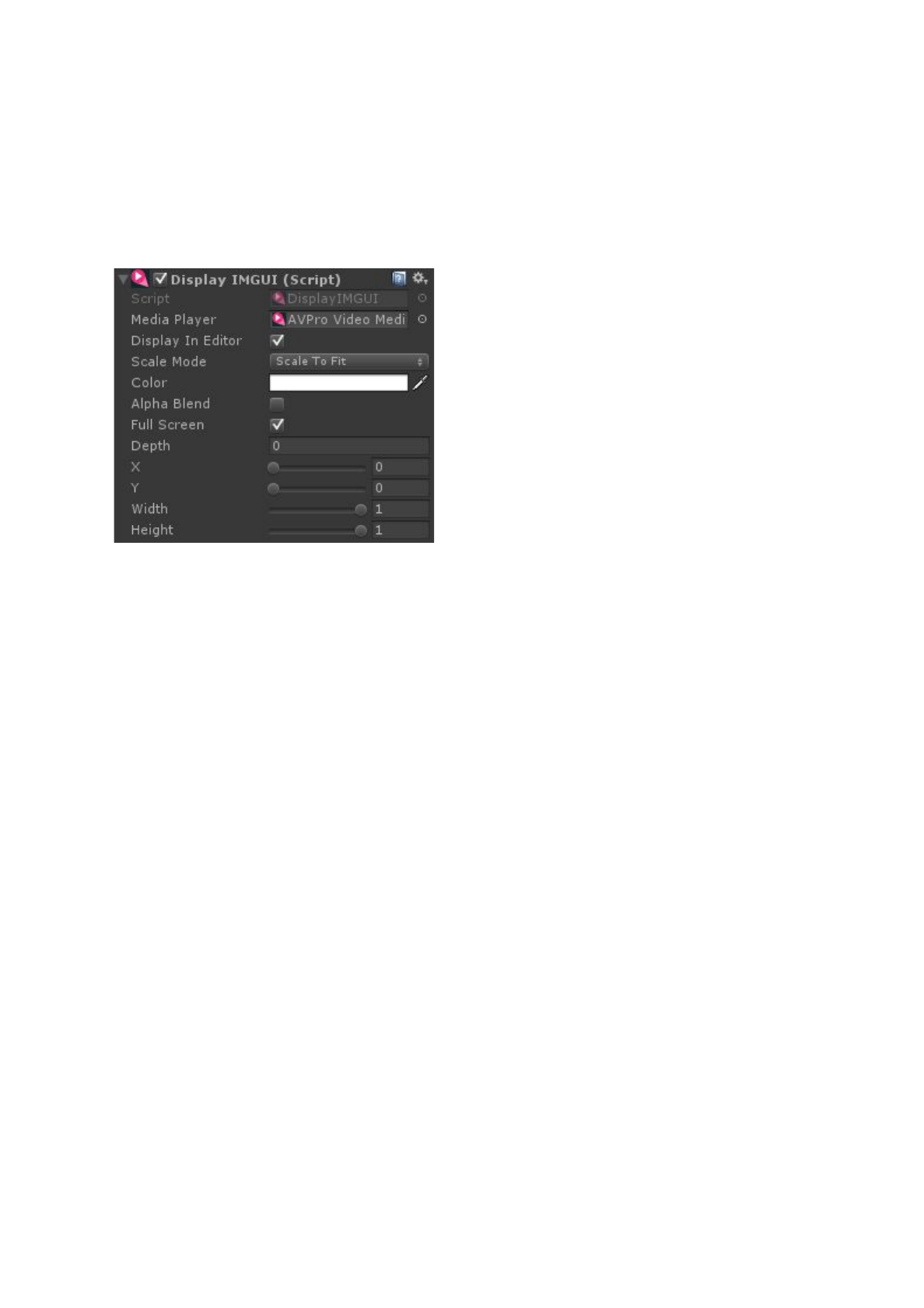

The DisplayIMGUI component script is just one of the components for displaying video. It

uses the legacy Unity IMGUI system which always renders on top of everything else. Try

using the DisplayBackground or DisplayUGUI components for more control if you don’t want

your video to be on top.

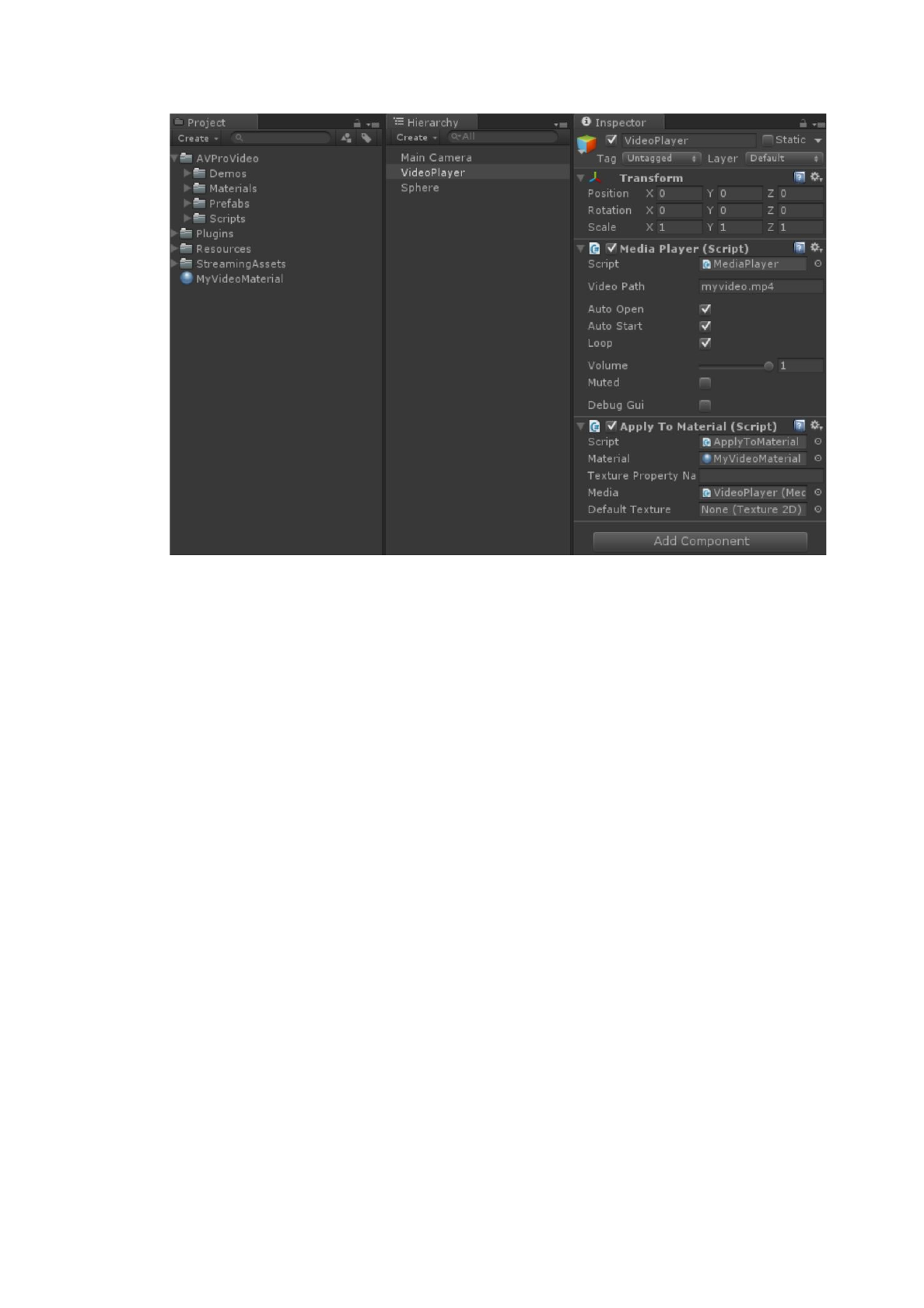

5.3 Quick Start: 3D Mesh Video Player using Components

AVPro Video includes a number of easy to use script components you can add to your

scene. In this example we show how to use the components to play a video onto a material

which is applied to a 3D model in the scene.

1. Create a new Unity project

2. Import the AVProVideo package

3. Create a new GameObject from the “GameObject > AVPro Video > Media Player”

menu command

4. Click the “Add Component” button and add “AVPro Video > Apply To Mesh”

5. Drag the Media Player script to the “Media” field in the Apply To Mesh script, this tells

the Apply to Mesh script which media player to use

6. Create a sphere via the “GameObject > 3D Object > Sphere” menu command

7. Drag the Mesh Renderer component to the “Mesh” field in the Apply To Mesh script,

this tells the Apply to Mesh script which mesh to use

27 / 77

8. Create a folder called StreamingAssets in your Project window and copy your video

file (say MP4 file) into that folder

9. Enter the file name (including extension) into the Video Path field in the MediaPlayer

component (eg myvideo.mp4)

10. Build and deploy your application, the video will be displayed on your 3D sphere

28 / 77

6. Usage

6.1 Getting Started

The easiest way to get started is to look at the included demos and see what script

components have been used. For video playback you need 3 things in your scene:

1. The video file to play:

Create a “StreamingAssets” folder in your Project window

Copy your video file (usually MP4 file, but consult the list of supported formats for

your platform below) to the StreamingAssets folder

2. A MediaPlayer script to load and play the video:

Create a GameObject and add the MediaPlayer script to it

Set the Video Path field to the name of your video file (e.g. myvideo.mp4)

3. A script to display the video:

Decide how and where you want your video file to appear. There are a number of

different display component scripts included for different usage scenarios. If you

want to display the video on top of everything in your scene just add the

DisplayIMGUI script to a GameObject in your scene and set the Media Player field

your MediaPlayer component. Other display components work similarly.

6.2 Unsupported Platform Fallback

AVPro Video is designed to still function even on platforms that aren’t natively supported.

Instead of displaying the actual video though, a dummy 10 second long “AVPro” visual is

shown. All of the video controls should still work. For example if you are running your editor

in Linux the dummy video player will appear in the editor and the real video will appear when

you deploy to supported platforms. If you deploy to an unsupported platform such as

Samsung TV you will also see the dummy video player. The code is easily extendable to

add custom video players for any unsupported platform.

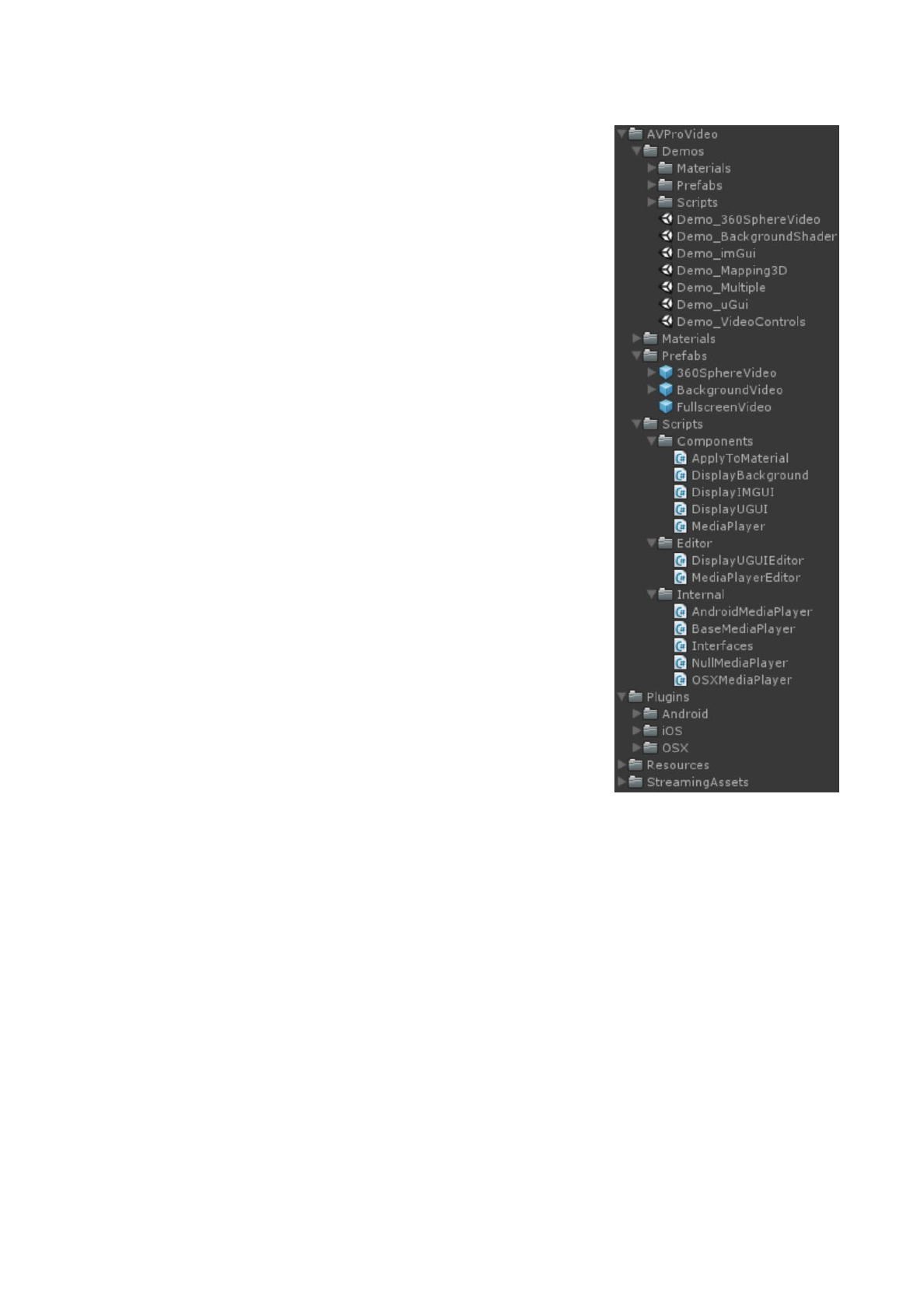

6.3. Components

Included are a number of components to make this asset easy to use. The components are

located in the AVProVideo/Scripts/Components folder or you can add them from the

Components menu:

29 / 77

6.3.1 Media Player Component

This is the core component for playing media. This component only handles the loading and

playback of media and doesn’t handle how it is displayed. Use the display script

30 / 77

components to control how and where the video is displayed. Fields are:

● Video Location

○ Where to look for the file specified in the Video Path below. This can be an

absolute path/URL, or relative to one of the Unity folders. The

StreamingAssets folder is the easiest to use. Options are:

■ Absolute or URL

● This is an absolute path on your device, or an http URL

■ Relative to Project Folder

● The root folder is the folder above your Assets folder

■ Relative to Streaming Assets Folder

● The root folder is /Assets/StreamingAssets

■ Relative to Data Folder

● The root folder is /Assets

● Unity manual has more information:

http://docs.unity3d.com/ScriptReference/Application-dataPath.

html

■ Relative to Persistent Data Folder

● Unity manual has more information:

http://docs.unity3d.com/ScriptReference/Application-persistent

DataPath.html

● Video Path

○ The file path to the video in the StreamingAssets folder (e.g. myvideo.mp4 or

AndroidVideos/myvideo.mp4 if you want to use a subfolder)

● Auto Open

○ Whether to open the file when this component is enabled/starts

● Auto Start

○ Whether to play the video once a video is opened

● Loop

○ Whether to loop the video

● Playback Rate

○ Sets a multiplier that affects video playback speed

○ Not supported on Android

● Volume

○ 0..1 range for audio volume

● Muted

○ Whether the audio is muted

● Persistent

○ Applies DontDestroyOnLoad to the object so that it survives scene/level loads

● Debug Gui

○ Whether to display an overlay with statistics on the video playback - useful for

debugging

● Events

○ This event can be hooked up to scripting functions which will get called when

a non-looping video completes playback. See the Events section below for

more details and a scripting example

31 / 77

● Platform overrides

○ These allow you to set a different file per platform.

6.3.2 Display IMGUI Component

This is the most basic component for displaying the video. It uses the legacy Unity IMGUI

system to display the video to the screen. IMGUI is always rendered on top of everything

else in the scene, so if you require your video to be rendered in 3D space or as part of the

uGUI system it’s better to use the other components. Fields are:

● Media Player

○ The media player to display

● Display in Editor

○ Whether to display the rectangle in the editor - useful for debugging

● Scale Mode

○ How to fit the video to the screen

● Color

○ The color to tint the video, including alpha transparency

● Alpha Blend

○ Whether the video texture controls transparency. Leaving this off for opaque

videos is a minor optimisation

● Depth

○ The IMGUI depth to display at. Use this to change the order of rendering with

other IMGUI scripts

● Full Screen

○ Whether to ignore the X, Y, Width, Height values and just use the whole

screen

● X

○ The normalised (0..1) x position

● Y

○ The normalised (0..1) y position

32 / 77

● Width

○ The normalised (0..1) width

● Height

○ The normalised (0..1) height

6.3.3 Display uGUI Component

This component is used to display a video using Unity’s uGUI system. Field are:

● Media Player

○ The media player to display

● Default Texture (optional)

○ A texture to display while the video isn’t playing (while it is buffering for

example).

● No Default Display

○ Will not show anything until there are frames available

● Color

○ The color to tint, including alpha transparency

● Material

○ Standard uGUI field, change this to one of the included materials when using

packed alpha or stereo videos

● UV Rect

○ Standard uGUI field

● Set Native Size

○ When the video loads will resize the RectTransform to the pixel dimensions of

the video

● Keep Aspect Ratio

○ Whether to keep the correct aspect ratio or stretch to fill

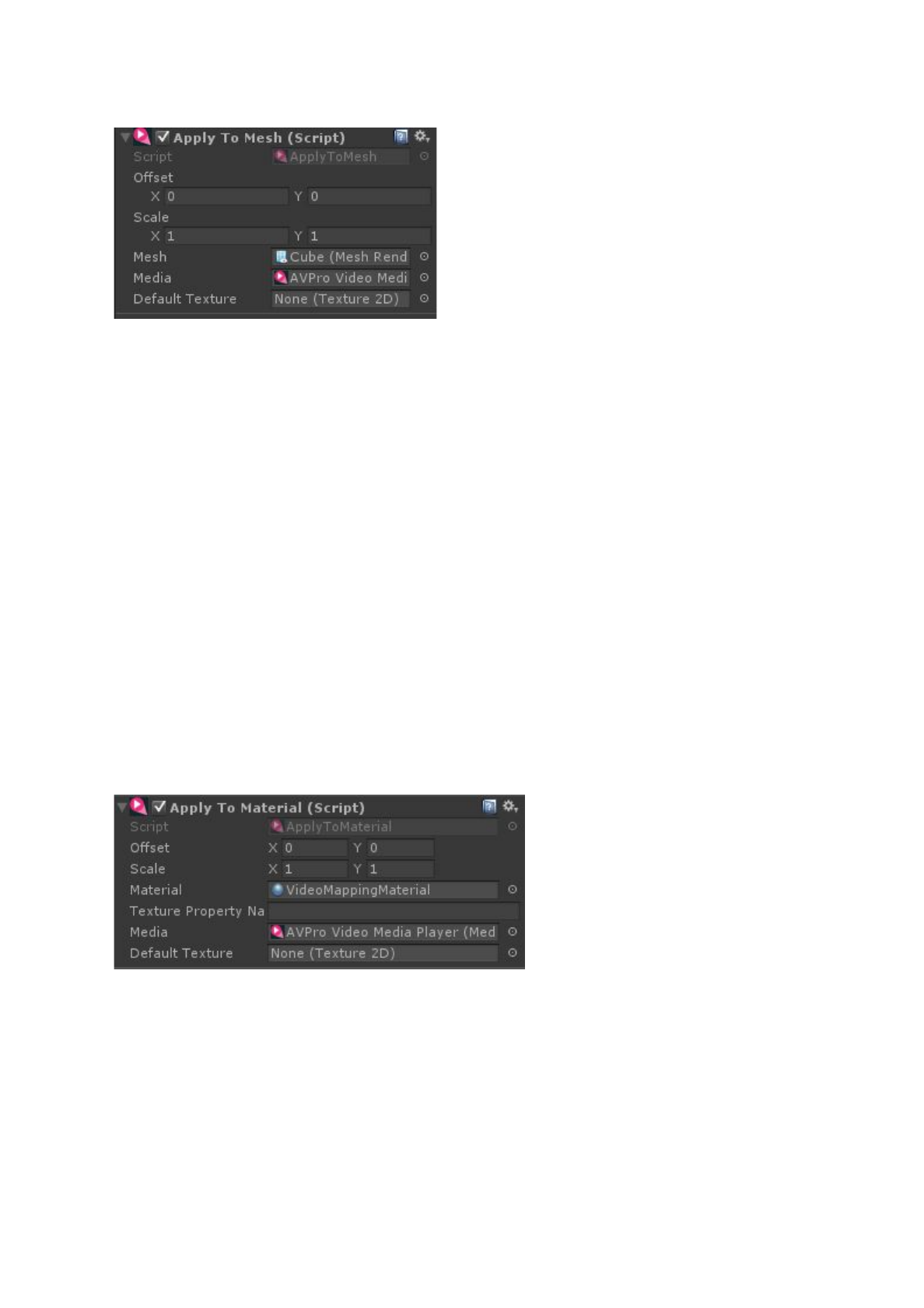

6.3.4 Apply To Mesh Component

33 / 77

This component takes the texture generated by the Media Player component and assigs it to

the texture slot of the material on a 3D Mesh. This is useful for playing videos on 3D

meshes. Field are:

● Offset

○ The XY translation to apply to the texture

● Scale

○ The XY scale to apply to the texture

● Mesh

○ The mesh (renderer) to apply the texture to

● Media

○ The media player

● Default Texture (optional)

○ A texture to display while the video isn’t playing (while it is buffering for

example).

6.3.5 Apply To Material Component

This component takes the texture generated by the Media Player component and assigns it

to a texture slot in a Material. This is useful for playing videos on 3D meshes. Fields are:

● Offset

○ The XY translation to apply to the texture

● Scale

○ The XY scale to apply to the texture

● Material

34 / 77

○ The material to apply the video texture to

● Texture Property Name (optional)

○ By default this script assigns to the main texture (_MainTex) but if you want to

assign to another slot you can put the name in here

● Media

○ The media player

● Default Texture (optional)

○ A texture to display while the video isn’t playing (while it is buffering for

example).

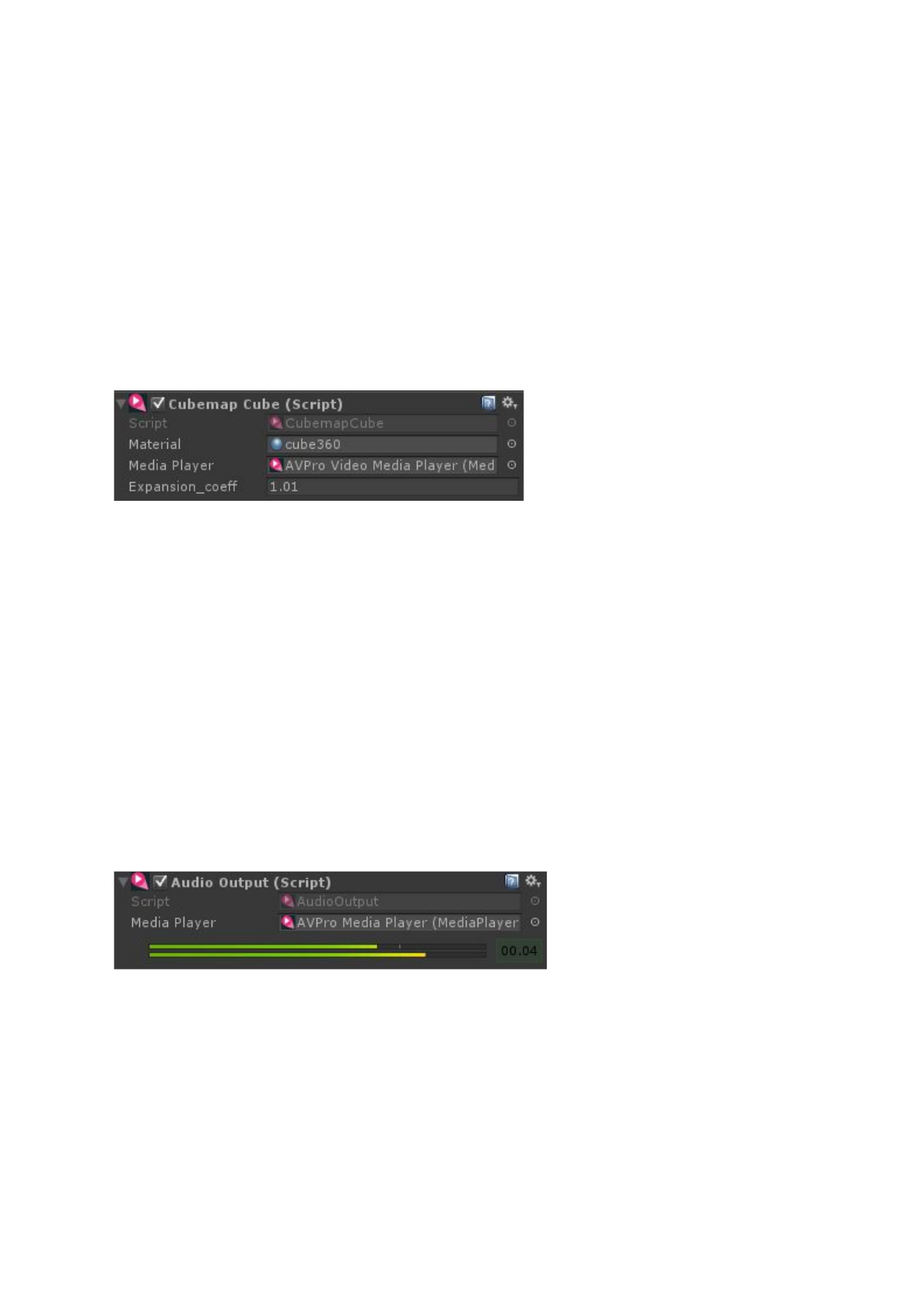

6.3.6 Cubemap Cube Component

This component generates a cube mesh that is suitable for 3:2 cubemap 360 VR videos.

Fields are:

● Material

○ The material to apply to the cube. This is usually just a standard unlit

material.

● Media Player

○ The media player that will have its video texture displayed on the cube

● Expansion_coeff

○ The value used during enabling to pad the edges to the video to prevent

bilinear bleed artifacts. Default is 1.01.

6.3.7 Audio Output Component

This component currently only supports the Windows platforms (Windows 8 and above) and

is used to pass Audio from the Media Player to Unity. This allows audio effects,3D

placement and 360 VR spatialisers to be used. Fields are:

● Media Player

○ The media player that will have its audio outputted via Unity

35 / 77

6.4 Scripting

6.4.1 Namespace

All scripts use the namespace RenderHeads.Media.AVProVideo so be sure to add “using

RenderHeads.Media.AVProVideo” to the top of your source files.

6.4.2 Media Player Scripting

Most scripting is likely to center around the MediaPlayer.cs script. This script handles the

loading, playback and updating of videos. The script exposes a number of interfaces related

to different use cases and can be found in Interfaces.cs

MediaPlayer exposes 3 main interfaces:

● Info Interface

○ The IMediaInfo interface is exposed by the Info property

○ This interface is used to access information about the media, eg:

MediaPlayer mp;

mp.Info.GetVideoWidth();

● Control Interface

○ The IMediaControl interface is exposed by the Control property

○ This interface is used to control playback, eg:

MediaPlayer mp;

mp.Control.Pause();

● TextureProducer interface

○ The IMediaProducer interface is exposed by the TextureProducer property

○ This interface is used to get information about how to display the current

texture and is used by the Display components, eg:

MediaPlayer mp;

Texture videoTexture = mp.TextureProducer.GetTexture();

The MediaPlayer script also has a number of methods for controlling loading of media:

● OpenVideoFromFile()

○ Loads the video specified. Useful if you need manual control over when the

video is loaded

● CloseVideo()

○ Closes the video, freeing memory

36 / 77

6.4.3 Events

MediaPlayer currently has these events:

● MetaDataReady - Called when the width, height, duration etc data is available

● ReadyToPlay - Called when the video is loaded and ready to play

● Started - Called when the playback starts

● FirstFrameReady - Called when the first frame has been rendered

● FinishedPlaying - Called when a non-looping video has finished playing

● Closing - Called when the the media is closing

● Error - Called when an error occurred, usually during loading

● SubtitleChanged - Called when the subtitles change

● Stalled - Called when media is stalled (eg. when lost connection to media stream)

● Unstalled - Called when media is resumed form a stalled state (eg. when lost

connection is re-established)

Scripting example:

// Add the event listener (can also do this via the editor GUI)

MediaPlayer mp;

mp.Events.AddListener(OnVideoEvent);

// Callback function to handle events

public void OnVideoEvent(MediaPlayer mp, MediaPlayerEvent.EventType et,

ErrorCode errorCode)

{

switch (et)

{

case MediaPlayerEvent.EventType.ReadyToPlay:

mp.Control.Play();

break;

case MediaPlayerEvent.EventType.FirstFrameReady:

Debug.Log("First frame ready");

break;

case MediaPlayerEvent.EventType.FinishedPlaying:

mp.Control.Rewind();

break;

}

Debug.Log("Event: " + et.ToString());

}

37 / 77

7. Asset Files

7.1 Demos

● Demo_360SphereVideo.unity

○ Demo contains a video player that plays a 360

degree video using equirectangular(lat-long)

mapping.

○ The video is applied to a sphere, inside of which

is the main camera.

○ If the target device has a gyroscope then moving

the device around with rotate the camera to view

the video from different angles. For platforms

without gyroscope the mouse/touch can be used

to look around.

○ A special shader and script are used to allow a

single camera to render in stereo on a VR

headset. Click on the material to set whether it

should display the video as monoscopic, stereo

top-bottom or stereo left-right.

● Demo_360CubeVideo.unity

○ Same as the sphere demo above, but using a

cubemap 3x2 layout source video.

● Demo_BackgroundShader.unity

○ Basic demo that plays a video using the

background material which allows the video to

appear behind all content.

● Demo_FrameExtract.unity

○ Shows go to read frames out of the video for

saving to disk (jpg/png) or accessing pixel data.

● Demo_imGui.unity

○ Basic demo that plays a video and uses the legacy IMGUI display component

to draw the video to the screen.

○ Also has an audio clip to show audio-only media playback.

○ Also has 3 different streaming URLs to demonstrate streaming.

○ IMGUI is drawn on top of all other visual components.

● Demo_Mapping3D.unity

○ Demo containing a video player and a 3D scene

○ Some of the 3D models have the video mapped to them via the

ApplyToMaterial script

● Demo_Multiple.unity

○ This demo allows you to programmatically multiple load videos and test

multiple videos playing at once. Display is via the AVPro Video uGUI

component

● Demo_uGUI.unity

○ This demo shows how to display videos within the uGUI system. It uses the

38 / 77

DisplayUGUI component in the canvas hierarchy.

○ It also uses a custom shader to overlay text with a video texture.

● Demo_VideoControl.unity

○ This demo shows how to query the video state and control playback

7.2 Prefabs

● 360SphereVideo.prefab

○ Prefab containing a video player and mapping to a sphere. Useful for

playback of equirectangular 360 degree videos

● BackgroundVideo.prefab

○ Prefab containing a video player and a quad model with a special background

material applied. This material makes the quad get drawn before everything

else so it appears in the background.

● FullscreenVideo.prefab

○ Prefab controls a video player and the IMGUI display component for very

easy basic video playback creation

7.3 Scripts

● Components

○ ApplyToMaterial.cs

■ Applies the texture produced by the MediaPlayer component to a unity

material texture slot

○ ApplyToMesh.cs

■ Applies the texture produced by the MediaPlayer component to a

Untiy mesh (via MeshRenderer) by setting the mainTexture field of all

its materials

○ CubemapCube.cs

■ Generates a cube mesh that can be used for displaying a 3:2

cubemap packed video

○ DisplayBackground.cs

■ Displays the texture produced by the MediaPlayer component behind

all other content (not compatible with SkyBox)

○ DisplayIMGUI.cs

■ Displays the texture produced by the MediaPlayer component using

Unity’s legacy IMGUI system

○ DisplayUGUI.cs

■ Displays the texture produced by the MediaPlayer component using

Unity’s new uGUI system

○ MediaPlayer.cs

■ The main script for loading and controlling an instance of video

playback

○ UpdateStereoMaterial.cs

■ A helper script for VR stereo rendering to update the camera position

variable in a spherical material to help work out which eye to render

39 / 77

○ AudioOutput.cs

■ Used to play audio from the media vis Unity’s sound system (currently

Windows only)

○ ApplyToTextureWidgetNGUI.cs

■ Applies the texture produced by the MediaPlayer component to an

NGUI Texture widget texture slot

● Editor

○ DisplayUGUIEditor.cs

■ The editor script that controls how the DisplayUGUI component is

rendered in the Inspector

○ MediaPlayerEditor.cs

■ The editor script that controls of the MediaPlayer component is

rendered in the Inspector

● Internal

○ AndroidMediaPlayer.cs

■ Android specific media player

○ BaseMediaPlayer.cs

■ Common base class for all platform media players

○ Interfaces.cs

■ Interfaces and events

○ NullMediaPlayer.cs

■ The fallback dummy media player for unsupported platforms

○ OSXMediaPlayer.cs

■ iOS and OSX specific media player

○ WebGLMediaPlayer.cs

■ WebGL specific media player

○ WindowsMediaPlayer.cs

■ Windows specific media player

40 / 77

8. Scripting Reference

AVPro Video is designed to be used mainly with the supplied drag and drop component but

there are always times when a bit of scripting is needed. The asset includes sample scenes

which give some examples of how to use scripting to control video playback, apply video

textures to materials etc which are useful to learn from. The full class reference is available

online here:

http://downloads.renderheads.com/docs/AVProVideoClassReference/

In this document we have included a simplified version of the highlights.

MediaPlayer class

The MediaPlayer class is the main class for video playback and is where video files are

specified and controlled. This class is mainly controlled via the Unity Inspector UI and for

scripting through the interface properties it exposes.

Properties

● Events

○ returns the MediaPlayerEvent class

● Info

○ returns the IMediaInfo interface

● Control

○ returns the IMediaControl interface

● TextureProducer

○ returns the IMediaProducer interface

Methods

All of these methods use the interfaces exposed above and are just handy shortcuts

● void OpenVideoFromFile(FileLocation location, string path, bool autoPlay)

○ Opens the video specified

● void CloseVideo()

○ Closes the current video and frees up allocated memory

● void Play()

○ Starts playback of the video

● void Pause()

○ Pauses the video

● void Stop()

○ Pauses the video

● void Rewind(bool pause)

○ Rewinds the video with an option to pause it as well

● Texture2D ExtractFrame(Texture2D target, float timeSeconds, int timeoutMs)

41 / 77

○ Extracts a frame from the specified time of the current video as a readable

Texture2D. This can then be used to save out the pixel data. The texture

must be destroyed by the user. The texture can be passed in again via the

“target” parameter to reuse it.

IMediaInfo interface

This interface is used to query properties of the video

Methods

● float GetDurationMs();

○ Returns the duration of the video in milliseconds

● int GetVideoWidth();

○ Returns the width of the video in pixels

● int GetVideoHeight();

○ Returns the height of the video in pixels

● float GetVideoFrameRate();

○ Returns the frame rate of the video in frames per second

● float GetVideoDisplayRate();

○ Returns the actual frame rate achieved by the video decoder

● bool HasVideo();

○ Returns whether the media has visual tracks

● bool HasAudio();

○ Returns whether the media has audio tracks

● int GetAudioTrackCount();

○ Returns the number of audio tracks

● string GetPlayerDescription();

○ Returns a string describing the internal playback mechanism

IMediaControl interface

This interface is used to control loading and playback of the video

Methods

● bool OpenVideoFromFile(string path);

○ Starts loading the file from the specified path or URL. Returns false if any

error was encountered. This function is asynchronous so the video properties

will not be available immediately. This function shouldn’t be used, instead

use the MediaPlayer OpenVideoFromFile function.

● void CloseVideo();

○ Closes the video and any resources allocated

● void SetLooping(bool looping);

42 / 77

○ Sets whether the playback should loop or not. This can be changed while the

video is playing.

● bool CanPlay();

○ Returns whether the video is in a playback state. Sometimes videos can take

a few frames before they are ready to play.

● void Play();

○ Starts playback of the video

● void Pause();

○ Pause the video

● void Stop();

○ Stops the video (essentially the same as Pause)

● bool IsPlaying();

○ Returns whether the video is currently playing

● bool IsPaused();

○ Returns whether the video is currently paused

● bool IsFinished();

○ Returns whether the video has completed playback

● bool IsLooping();

○ Returns whether the video has been set to loop

● bool IsBuffering();

○ Returns whether a streaming video has stopped and is buffering. A buffering

video will resume after it has downloaded enough data.

● void Rewind();

○ Sets the current time to the beginning of the video

● void Seek(float timeMs);

○ Sets the current time to a specified value in milliseconds

● void SeekFast(float timeMs);

○ Sets the current time to a specified value in milliseconds but sacrifices

accuracy for speed. This is useful if you just want to jump forward/back in a

video but you don’t care about the accuracy.

● bool IsSeeking();

○ Returns whether the video is currently seeking. During seeking no new

frames are produced.

● float GetCurrentTimeMs();

○ Returns the current time (playback position) in milliseconds

● void SetPlaybackRate(float rate);

○ Sets the current playback rate. 1.0f is normal rate. Negative rates aren’t

supported on all platforms.

● float GetPlaybackRate()

○ Returns the current playback rate

● void MuteAudio(bool mute)

○ Sets the audio mute or not

● void SetVolume(float volume)

○ Sets the volume between 0.0 and 1.0

● float GetVolume()

○ Returns the volume level between 0.0 and 1.0

43 / 77

● int GetCurrentAudioTrack()

○ Returns the index of the currently enabled audio track

● void SetAudioTrack(int index)

○ Sets the index to select the audio track to enable exclusively

● float GetBufferingProgress()

○ Returns a value between 0.0 and 1.0 representing network buffering

● ErrorCode GetLastError()

○ Returns an error code is an error occurred this frame

IMediaProducer interface

Methods

● Texture GetTexture();

○ Returns a Unity Texture object if there is a texture available otherwise null is

returned.

● int GetTextureFrameCount();

○ Returns the number of times the texture has been updated by the plugin.

This can be useful to know when the texture was updated as the value will

increment each time.

● long GetTextureTimeStamp();

○ Returns the presentation time stamp of the current texture in 100-

nanosecond units. This is useful for accurate frame syncing.

● bool RequiresVerticalFlip();

○ Some textures are decoded up-side-down and need to be vertically flipped

when displayed. This method returns whether the texture needs to be flipped

during display.

44 / 77

9. Supported Media Formats

In general the most common format that is supported are MP4 files with H.264 encoding for

video and AAC encoding for audio. This format is supported across all platforms though not

necessarily all bit-rates and profiles.

Container support:

Windows

Desktop

Mac OS X

Desktop

iOS, tvOS

Android

MP4

Yes

MOV

Yes

AVI

Yes

MKV

Yes in Windows

Yes

Android

5.0+

Webm

Yes in Windows

Yes

ASF/WMV

Yes

MP3

Yes

WAV

Yes

Audio Codec support:

Windows

Desktop

Mac OS X

Desktop

iOS, tvOS

Android

AAC

Yes

MP3

Yes

Maybe****

Yes

FLAC

Yes in Windows

Yes

AC3

Yes

WMA

Yes

45 / 77

MIDI

Yes

Vorbis

Yes

Opus

Yes

ALAC (Apple Lossless)

Yes

µLAW

Yes

ADPCM

Yes

Linear PCM

Yes

Yss

Video Codec support:

Windows

Desktop

Mac OS X

Desktop

iOS, tvOS

Android

HEVC / H.265

Yes in Windows

Not yet**

Yes

H.264

Yes****

Yes

H.263

Yes

MJPEG

Yes

WMV

Yes

VP8

Yes*

Yes

VP9

Yes*

Yes

Hap

Yes***

Yes

Hap Alpha

Yes***

Yes

Hap Q

Yes***

Yes

Hap Q Alpha

Yes***

Yes

ProRes 422

Yes

ProRes 4444

Yes

Yes in

Yosemite

and above

46 / 77

Lagarith

Yes, with codec

Uncompressed RGBA

Yes

Uncompressed YUV

Yes

Uncompressed R10K

Yes in

Yosemite

and above

Uncompressed V210

Yes in

Yosemite

and above

Uncompressed 2VUY

Yes in

Yosemite

and above

For Windows, other codecs can be played if the DirectShow mode is used and 3rd party

codecs are installed. We recommend LAV filters for this purpose as this adds support for

almost all codecs.

● * Yes, only in Windows 10 and only 4:2:0. If you use DirectShow and 3rd party filter

then 4:4:4 can be supported. Using Media Foundation no audio codecs (Vorbis or

Opus) are supported and will cause the video to fail to load if included.

● ** Apparently Apple will release support soon

● *** Requires option “Force DirectShow” to be ticked

● **** Older versions of Windows (Vista and XP) do not have support for H.264

decoding

● ***** iOS seems to often have trouble with MP3 audio tracks in a video file, so best to

use AAC instead

Cells with “?” are one’s we’re not sure about. We will do more testing and continue to

update this table. For more details on which codecs and what type of encoding is best, see

the per-platform details below.

9.1 Android

Android supports many media formats. For a complete list check the Android documentation

here: https://developer.android.com/guide/appendix/media-formats.html

HEVC (H.265) support was officially added in Android 5.0 (Lollipop) but only as a software

decoding implementation on older devices.

We have found that using GearVR on Samsung Galaxy S6 and S7 that H.265 codec works

best, with a resolution of 3840x1920 at 30fps, or 2048x2048 at 60fps.

47 / 77

A list of media-player related Android chipsets and which formats they support for hardware

decoding: http://kodi.wiki/view/Android_hardware

9.2 iOS, tvOS and OS X

9.2.1 iOS

Many media formats are supported on iOS including H.264. For a complete list check the

iOS documentation here:

https://developer.apple.com/library/ios/documentation/Miscellaneous/Conceptual/iPhoneOS

TechOverview/MediaLayer/MediaLayer.html

The iPhone5C is a low-powered mobile device and has a limitation that the videos must be

less than 2 megapixels in resolution.

iOS seems to often have trouble with MP3 audio tracks in a video file, so best to use AAC

instead.

iOS also seems to allocate a LOT of SYSTEM memory when loading videos. Unfortunately

we’re not able to control this which means you have to be very careful when trying to load

large or multiple videos, especially with the 1GB iOS devices. We recommend only using a

single MediaPlayer instance and reusing it for all video loads. The memory issue may be

helped by encoding your videos with less reference frames but we haven’t tested this for

sure.

9.2.2 macOS / OS X

Many media formats are supported on iOS including H.264.

In OS X, ProRes 422 and ProRes 4444 are also supported.

OS X Yosemite and above, supports the following additional formats:

● DV

● Uncompressed R10k

● Uncompressed v210

● Uncompressed 2vuy

9.3 Windows

A full list of supported formats can be found here:

https://msdn.microsoft.com/en-us/library/windows/desktop/dd757927(v=vs.85).aspx

https://msdn.microsoft.com/en-us/windows/uwp/audio-video-camera/supported-codecs

H.264 decoder supports up to profile L5.1, but Windows 10 supports above L5.1 profile:

https://msdn.microsoft.com/en-us/library/windows/desktop/dd797815(v=vs.85).aspx

48 / 77

H.265 decoder specs are here:

https://msdn.microsoft.com/en-us/library/windows/desktop/mt218785(v=vs.85).aspx

Windows 10 adds native support for the following formats:

● H.265 / HEVC

● MKV

● FLAC

● HLS Adaptive Streaming

● MPEG-Dash

9.4 Windows Phone / UWP

Details on media supported by this platform can be found is platform are here:

https://msdn.microsoft.com/library/windows/apps/ff462087(v=vs.105).aspx

https://msdn.microsoft.com/en-us/windows/uwp/audio-video-camera/supported-codecs

9.5 WebGL

Support for WebGL platform is still varied and depends on the platform and browser support.

Some formats such as AVI file container are not supported at all. As with all other platforms,

H.264 video in an MP4 container is the most widely supported format.

Adaptive streaming (such as HLS) is still not supported natively by most browsers, but we

have seen it working in the Microsoft Edge and Safari browsers.

Here are some resources about the supported formats:

https://developer.mozilla.org/en-US/docs/Web/HTML/Supported_media_formats

https://en.wikipedia.org/wiki/HTML5_video#Browser_support

http://www.encoding.com/html5/

49 / 77

10. Support

If you are in need of support or have any comments/suggestions regarding this product

please contact us.

Email: unitysupport@renderheads.com

Website: http://renderheads.com/product/avpro-video/

Unity Forum:

http://forum.unity3d.com/threads/released-avpro-video-complete-video-playback-solution.38

5611/

10.1 Bug Reporting

If you are reporting a bug, please include any relevant files and details so that we may

remedy the problem as fast as possible.

Essential details:

● Error message

○ The exact error message

○ The console/output log if possible

○ If it’s an Android build then an “adb logcat” capture

● Hardware

○ Phone / tablet / device type and OS version

● Development environment

○ Unity version

○ Development OS version

○ AVPro Video plugin version

● Video details:

○ Resolution

○ Codec

○ Frame rate

○ Better still, include a link to the video file

Better still, send us a full or reduced copy of your Unity project

50 / 77

11. About RenderHeads Ltd

RenderHeads Ltd is an award winning creative and technical company that has been

designing and building cutting edge technology solutions since its formation in 2006. We

specialise in creating interactive audio-visual software for installations at auto shows,

museums, shows and expos.

11.1 Services

● Unity plugin development

● Unity game / interaction / virtual and augmented reality development

● Unity consulting

11.2 Our Unity Plugins

Many of the apps and projects we develop require features that Unity doesn’t yet provide, so

we have created several tools and plugins to extend Unity which are now available on the

Unity Asset Store. They all include a free trial or demo version that you can download

directly from the website here:

http://renderheads.com/product-category/for-developers/

11.2.1 AVPro Video

Powerful cross-platform video playback solution for Unity, featuring support for

Windows, OS X, iOS, Android and tvOS. This is our newest plugin.

11.2.2 AVPro Movie Capture

Video capture to AVI files direct from the GPU and encoded to files using DirectShow

codecs. Features include 4K captures, lat-long (equirectangular) 360 degree captures,

off-line rendering and more. Windows only.

11.2.3 AVPro Live Camera

51 / 77

Exposes high-end webcams, tv cards and video capture boards to Unity via DirectShow.

Windows only.

11.2.4 AVPro DeckLink

Integrates DeckLink capture card functionality into Unity, allowing users to send and receive

high-definition uncompressed video data to and from these capture cards.

11.2.5 Screenshot Annotator Pro

Highly productive tool allowing in-game and in-editor annotation of screenshots which can

then be shared with your team via FTP, Email, Slack or Teamwork.com with the click of the

mouse. Cross-platform.

52 / 77

Appendix A - Frequently Asked Questions

1. Why won’t my high-resolution video file play on Windows?

The ability to play high resolution videos depends on the version of Windows

operating system and which video codecs you have installed.

By default AVPro Video will try to use the standard Microsoft codecs that come with

Windows. These have limitations, for example:

Decoder

Windows 7 and

below

Windows 8+

h.264

1080p

2160p (4K)

If you want to use 3rd party codecs you can install them to improve the range of

resolution and format options available. These come in the form of Media

Foundation or DirectShow codecs. The LAV Filters are a great example of

DirectShow codecs that will allow for higher resolution video decoding.

2. Does Time.timeScale affect video playback speed?

Yes we have BETA support for time.timeScale and time.captureFramerate. Simply

enable the option on the Media Player component in the panel labelled “Global

Settings”.

3. Does AVPro Video support playing YouTube videos or live streams?

Yes and no. If you enter a YouTube URL into AVPro Video it will not be able to play

it because this is the URL to the website and not the video. It is possible to gain

access to the underlying MP4 file or HLS stream URL which will work with AVPro

Video. This may be against the terms and conditions of YouTube though.

4. How can I get smoother video playback for my Windows VR app?

This is usually caused by the video decoding taking too much CPU time. Some

videos (especially highly compressed ones) require a lot of CPU time to decode each

frame.

Try enabling the hardware decoding option in “Platform Specific” panel. This will

enable your application to use GPU decoding which is much faster. This option is

only supported on Windows 8.1 and above and when D3D11 graphics API is used.

You could also try re-encoding your video using settings that are less demanding for

53 / 77

the decoder. Most H.264 encoders have a ‘fast decode’ preset, or you can manually

change settings such as disabling CABAC, reducing the number of reference frames,

reducing bitrate, disabling B-frames, disabling the loop (deblocking) filter etc.

You could also try switching to another video codec that allows for less CPU

intensive decoding. Codecs such as H.264 / H.265 are generally very heavy on the

CPU. Hap is an extremely fast codec but will result in large files.

5. Is GPU hardware decoding available?

Yes it is on most platforms. Android, iOS, tvOS and macOS mostly use GPU

decoding - but it depends on the codec. For Windows GPU decoding is enabled by

default but is only available for Windows 8.1 and above and when using D3D11

graphics API. You can toggle GPU decoding is enabled via the Platform Specific

panel:

6. Is multi-channel audio supported?

Audio with more than 2 channels should be supported on desktop platforms. On

Windows you will need to set your sound settings in the Control Panel for the number

of channels you want to output. If you leave your Windows sound settings as stereo

then the audio will get mixed to stereo.

7. Why isn’t seeking accurate / responsive?

The way seeking works depends on the platform. Some platforms support frame

accurate seeking but most will only seek to the nearest key-frame in the video. In

general to improve seek accuracy and responsiveness you can re-encode your

videos with more frequent key-frames (smaller GOP). The downside of this is that

the size of the video file will increase (more key-frames = larger file). We have two

seek functions: Seek() and SeekFast(). SeekFast can be used when accuracy isn’t

important but whether it’s faster or not depends on support from the platform and can

54 / 77

vary based on the video codec used.

8. Windows - Why isn’t my stereo top-bottom or left-right video displaying

correctly?

If your stereo video is only decoding one of the views then this is because there is

stereo metadata encoded within the video which causes our Media Foundation

decoder to interpret incorrectly. The only way to currently solve this is to remove the

metadata from the video. One way to do this is using FFMPEG:

ffmpeg -i %1 %1-video.nut

ffmpeg -i %1-video.nut -crf 20 %1-stripped.mp4

9. Windows - Why do videos take a long time (1-2 seconds) to open when using

DirectShow?

We have seen this happen when the Nvidia Geforce Experience is installed and the

Share option is enabled. Disabling the share option or uninstalling this software

resolves this issue.

10. Hap Codec - Why don’t my Hap encoded videos play?

If your platform is Windows desktop then this is usually because the DirectShow

video API has not been selected. See the notes above about how to use the Hap

codec.

11. macOS - Publishing for Mac App Store and get error “Invalid Signature”?

We’re not sure why this happens but we’ve had reports that simply deleting all of the

.meta files inside the AVProVideo.bundle will resolve this issue.

12. iOS - Why doesn’t my video file play properly?

Make sure that your video file doesn’t contain an MP3 audio track. In our experience

iOS doesn’t handle MP3 audio correctly and can often lead to the whole file not

loading/playing correctly. Use AAC for audio instead.

13. iOS - Can I playback a video from the Videos library?

55 / 77

Yes if the video is not content protected and you have it's URL. URL's for items in

the video library take the following form:

ipod-library://item/item.m4v?id=1234567890123456789

You can get the URL of an item by using the MPMediaQuery class from the

MediaPlayer framework.

14. iOS - Can I playback a video from the Photo Library?

Yes. You need to use the UIImagePickerController to select the video. This will

result in the video being processed into your app's temp folder where you can access

it via the URL returned from the controller.

15. iOS - How can I fix the error message: "Missing Push Notification Entitlement -

Your app includes an API for Apple's Push Notification service, but the

aps-environment entitlement is missing from the app's signature"



If you are not using Push notifications in your app, this Unity Asset does the job of

fixing this error: https://www.assetstore.unity3d.com/en/#!/content/59160. Just import

it, and build the xcode files again.

16. iOS - How can I fix the error message: "This app attempts to access

privacy-sensitive data without a usage description. The app's Info.plist must

contain an NSCameraUsageDescription key with a string value explaining to

the user how the app uses this data."



Open the Info.plist file in xcode, and manually add "NSCameraUsageDescription"

(Privacy - Camera Usage Description), with a value explaining the reason why you

are using the webcam. In our case, this was caused by using the Google Cardboard

code and that needs the webcam to read the Cardboard device QR code, so we

added the following value "Requires camera for reading Cardboard QR code".

17. Android - Why doesn’t my huge video file play from StreamingAssets folder?

Files in the StreamingAssets folder for Android are packed into a JAR file and so

before we can play them we must extract them to the apps persistent data folder.

Huge files can take a long time to extract and copy and sometimes they could even

cause the device to run out of storage space or memory. For really large files we

recommend placing them the videos in other folders on the device and then

referencing the absolute path to that file. This also has the added benefit of not

having a copy huge files and wait ages when deploying builds to the Android device.

18. Android - Why does the adb logcat receive so many logs “getCurrentPosition”

from MediaPlayer-JNI?

56 / 77

Android’s MediaPlayer logs this to verbose channel, simply change your logging filter

to ignore verbose logs.

19. Android - Why doesn’t the video display when using Vuforia?

In our test Vuforia doesn’t play well with AVPro Video when multi-threaded rendering

is enabled. Simple disable this option in the Player Settings screen.

20. Android - Why does my build fail with a message about DEX and zip classes?

This can happen when there is a conflict in the Java code. We include a JAR called

zip_file.jar which contain classes for handling zip files. If you have another plugin in

your project that also contains these classes then Unity will fail the build. Read the

exact Unity error message and if it is related to zip classes then you can try deleting

zip_file.jar file.

Or you may need to upgrade from JDK 1.7.0 to 1.8.0

21. Cardboard/Google VR - Why is the image shaking?

We’ve had reports that this is caused by enabling the option “track position” in the

Gvr head.

22. iOS - Why do I get this message about privacy permission using camera?

Some users have reported getting this message:

“



This app attempts to access privacy-sensitive data without a usage

description. The app's Info.plist must contain an NSCameraUsageDescription

key with a string value explaining to the user how the app uses this data.”

This seems to be a bug in Unity 5.4.1 and has been resolved in Unity 5.4.2.

23. Will you support MPEG-Dash or another adaptive streaming system?

MPEG-Dash is currently supported on Windows 10 and Windows UWP 10 only. We

hope to improve support for these sorts of streaming systems eventually. It’s

currently not high on our list of priorities. The plugin already supports some basic

streaming protocols and for now we’re focusing on basic features before we look at

advanced features such as these. HLS adaptive streaming is supported on most

platforms.

24. Android - Why is my video playback freezing?

We have found that H.264 videos with GOP = 1 (all I-Frames / Key-frames) freeze on

57 / 77

Android. GOP interval of 2 seems to be fine.

25. Why can’t I stream HLS at 4K in Windows 10?

Windows 10 (before Anniversary update) seems to limit the stream resolution based

on your screen resolution and the monitor DPI scaling setting. To get 4K using HLS

you need a 4K monitor and your DPI scaling set to 100%. This issue now seems to

be resolved in the latest version of Windows 10.

26. Why does the video control react correctly in Windows 7, but not in Windows 8

or above?

If you try to call video control function (eg Seek, Mute, SetVolume etc) just after you

open the video file, this can cause problems. Video loading can be synchronous or

asynchronous, so you need to wait until the video has completed loading before

issuing any control commands. In Windows 7 and below the DirectShow API is used

by default. Currently the open function works synchronously, so control functions will

work immediately after loading. In Windows 8 and above the Media Foundation API

is used by default, and this is asynchronous. The best approach is to use the event

system to wait for the video to be ready (contain meta data), or to poll the

MediaPlayer (Control.HasMetaData()) before issuing control functions.

27. Why does my HLS / RTSP stream created with FFMPEG work so badly in

AVPro Video?

Some users have reported issues with creating a stream with FFMPEG where the

stream will take a long time to connect and will only send through frames

occasionally. We have found that you need to manually add the GOP size

parameters to be a multiple of your frame-rate. So for example if your frame-rate is

25 then you should add “-g 25” in your FFMPEG command-line.

28. Which DRM content protection schemes does the plugin support?

See the DRM section in this documentation.

29. Why doesn’t the plugin support Windows XP SP2 and below?

Modern Visual Studio compilers require XP SP3 as a minimum. One of the reasons

for this is builds reference the function GetLogicalProcessorInformation() in

Kernel32.dll which isn’t present in XP SP 2. The lack of this function causes our DLL

to fail to load. More information here:

https://connect.microsoft.com/VisualStudio/feedback/details/811379/

30. What’s the difference between your different Unity video playback plugins?

We previously had 3 video playback plugins for Unity:

58 / 77

a. AVPro Video

b. AVPro Windows Media (deprecated August 2016)

c. AVPro QuickTime (deprecated May 2016)

Here is a table giving a rough comparison of the plugin features:

AVPro Video

AVPro Windows Media

AVPro QuickTime

First Released

2016

2011

Windows XP-7

Yes**

Yes

Yes (with QT

installed)

Windows 8-10

Yes

Yes (with QT

installed)

Windows UWP

Yes

Windows Phone

Yes

OS X

Yes

Android

Yes

iOS

Yes

tvOS

Yes

WebGL

Yes

64-bit

Yes

2K H.264

Yes

Only with 3rd party

codec

Yes

4K H.264

Yes

Only with 3rd party

codec

Yes but very slow

Streaming URL

Yes

Not really

Yes a bit

Hap Codec

Yes

MP4 Container

Yes

Only with 3rd party

codec

Yes

Works with VR

Yes

Yes best with 3rd party

codecs

Not great

ASync Loads

Yes

Transparency

Yes

Speed

Fast

Medium, fast with 3rd

party codecs

Medium

59 / 77

** Currently only using DirectShow path, adding Media Foundation path soon.

Appendix B - Release History

● Version 1.6.0 - 29 March 2017

○iOS / tvOS

■Added support for linear color-space (available in Unity 5.5 and

above)

■Performance improvements, especially when reusing

MediaPlayer component to load videos

■iOS simulator support added

○macOS

■Added support for Hap Q Alpha format (HapM)

■Performance improvements, especially when reusing

MediaPlayer component to load videos

○Android

■Fixed OES rendering path support in Unity 5.6

■Improved linear colour-space support (available in Unity 5.5

and above)

■Performance improvement due to alternative way to get

around checking GetNativeTexturePtr() and instead checking

for when texture quality level changes

■Removed unused AndroidManifest.xml file

○Windows

■Performance improvement due to alternative way to get

around checking GetNativeTexturePtr() and instead checking

for when texture quality level changes

○General

■Fixed DisplayIMGUI component depth value not working

■Improved IMGUI linear color-space conversion function

● Version 1.5.28 - 24 March 2017

○Windows

■Added support for HapQ+Alpha format

■Fixed Unstalled event not firing

○macOS / iOS / tvOS

■Added support to ExtractFrames demo to handle videos

containing rotation

■Minor C# performance improvements

○WebGL

■Fixed support for Safari browser

■Added documentation about supported browsers

60 / 77

○General

■Added some DRM notes to the documentation

■Fixed PlayMaker example script

● Version 1.5.26 - 14 March 2017

○Android

■Added support for passing custom HTTP header fields

■Fixed minor bug when calling SetPlaybackRate too soon

■Android API 15 (4.0.4 Ice Cream Sandwich) is now supported,

previously API 16 (4.1 Jelly Bean) was required

■Added plugin files for the arm64-v8a platform (currently

disabled in the inspector, but simply enable it once Unity has

added support for this architecture)

○macOS / iOS / tvOS

■Added support for passing custom HTTP header fields

■Added support for videos containing orientation data. The

orientation transform is now retrievable and the uGUI display

component correctly displays the video

○WebGL

■Fixed bug in Internet Explorer and Firefox where video would

not display

■Added support for displaying multiple ranges of buffered time

○Windows / WSA / Hololens

■Fixed FinishedPlaying rarely not firing on Media Foundation

○General

■DisplayUGUI component no longer generates any garbage

when vertices are dirtied. Also some minor optimisations

■ApplyToMesh component no longer generates any per-frame

garbage

■ApplyToMesh component has improved interface

■Improved time display in the editor to be millisecond accurate,

and also fixed time rounding error bug

■Changed EnableSubtitles() to return true while it is loading in a

coroutine

■Added new example script VideoTrigger that shows how to

trigger videos when entering/exiting collider volumes, including

audio fading

■Added more streaming video URLs to documentation

● Version 1.5.25 - 20 February 2017

○Windows Desktop

■Patch fix for regression in 1.5.24 which caused DirectShow

videos to display in green

● Version 1.5.24 - 19 February 2017

○General

61 / 77

■Shaders improved to also work on older hardware that only

support shader model 2.0

○Windows Phone / WSA / UWP / Hololens

■Added support for audio to be played through Unity’s audio

system

■Fixed a serious bug which could cause video to not appear

and native plugin functions to return incorrect values

■Fixed the hardware decoding option not being passed through

to the plugin correctly

■Fixed support for older GPUs that only supported D3D11

feature set 9.x

■Trial version watermarking optimised for speed and memory

○Windows Desktop

■Fixed support for older GPUs that only supported D3D11

feature set 9.x

■Trial version watermarking optimised for speed and memory

○Known Issues

■Regression in this version causes Windows DirectShow

decoded videos to display green. Patch fixed in v1.5.25

● Version 1.5.22 - 14 February 2017

○General

■Improved performance of CubemapCube component. Due to

a typo it would previously regenerate the cube mesh each

frame.

■Improved the fix for Unity 5.4.2 and above where changing

texture quality during runtime would cause the video texture to

turn black. The expensive fix now doesn’t apply to Unity 5.4.1

and 5.4.0, and can be disabled in the global options

■Fixed bug in subtitles that would cause them to go blank for a

frame

○Workflow

■Android OES path now displays hint about using correct

shaders

■Error message display is more detailed

■Improved user feedback when selecting stereo packing to

warn about the need for the UpdateStereoMaterial component

■Improved UI for UpdateStereoMaterial component to give more

feedback about its setup

○Android

■Better reports error when a video fails to decode due to

insufficient resources

■Added option to not show the “poster” frame, leading to faster

start and less resource usage for loaded videos. A video that

is loaded but not played and not displaying the poster frame

will not engage the decoder hardware and use up resources

62 / 77

■Saved some memory in OES mode by no longer allocating

unnecessary render texture

■Improved playback rate timer

○WebGL

■Fixed issue where no video displays when using WebGL 2.0

(default in Unity 5.5.0 and above)

■Cached texture pointer for improved performance

■Fixed subtitle loading by changing to use a coroutine

○Windows

■Added new events for when a stream has stalled and resumed

- useful for detecting connection loss when live streaming

■Added new option to generate texture mipmap levels

automatically - this reduces aliasing when the texture is scaled

down

■Updated Snappy library (used in Hap codec) to latest 1.1.4

which has 20% decompression speedup

■Fixed bug in DirectShow where calls to SetMuted() or setting

very low audio volume would be ignored

○UWP / Windows Phone / Hololens

■Added new option to generate texture mipmap levels

automatically - this reduces aliasing when the texture is scaled

down

○Breaking Changes

■For Android if you previously loaded videos in a paused state

to see the initial “poster” frame now you’ll need to tick the new

“Show Poster Frame” option in the Platform Specific settings.

In previous versions this was enabled by default, but now it is

disabled by default as it has performance implications.

● Version 1.5.20 - 25 January 2017

○General

■Added more notes to the Hap codec documentation

■Added more notes to the Android OES documentation

○Android

■Fixed fast OES rendering path in Unity 5.4.x and 5.5.x

■Fixed various stereo rendering issues

■Fixed OES GLSL shaders failing to compile due to inline

keyword

■Fixed OES path displaying debug GUI panel

■Fixed OES shader compiling on Google Daydream platform

■Fixed Unity 5.6beta GearVR stereo rendering issue

■Disabled minor Daydream stereo eye shader optimisation as it

was causing too many problems with older versions of Unity

○Windows

■Fixed bug where changing playback rate when playback has

63 / 77

finished would result in an error

■Fixed the DirectShow audio volume level so it matches that of

Media Foundation

● Version 1.5.18 - 18 January 2017

○General

■Added support to UpdateStereoMaterial for DisplayUI

component so that uGUI can render stereo videos correctly

○WSA / UWP / Hololens

■Fixed a script compile error introduced in 1.5.16

● Version 1.5.16 - 16 January 2017

○General

■Optimised stereo left-right shader for Google VR support

■Improved shaders to use UnityObjectToClipPos() instead of

UNITY_MATRIX_MVP to give better support for Unity 5.6 and

above

■Fixed bug in stereo left-right shader introduced in 1.5.14

■Fixed various bugs in subtitle support

○Android

■Fixed subtitles not loading

○Known Issues

■Regression from 1.5.14

●WSA and UWP platforms will fail to compile due to new

Thread.Sleep() which isn’t defined on these platforms.

● Version 1.5.14 - 9 January 2017

○General

■Added subtitle support for external SRT files

■Added a new demo showing the new subtitle support

■Improved 03_Demo_VideoControls demo scene to use two

MediaPlayers for seamless playlisting

■Fixed issue where initial playback fields (volume, mute,

playback rate, looping) could be reset to incorrect values in

certain cases such as such AutoOpen option was disabled

■Shader improvements such as inlining for performance, sRGB

to Linear shader corrections and optimisations

○iOS

■Added documentation note about using AAC instead of MP3

for the audio tracks

○WSA / UWP / Hololens

■Fixed bug where video would often not appear, due to audio

track being loaded first and reporting metadata loaded. This

appears to be a bug/change in the new Anniversary UWP

Media Foundation version.

■Plugin DLL file sizes are smaller

64 / 77

○Windows Desktop

■Plugin DLL file sizes are smaller

○Known Issues

■Regression from 1.5.12

●Bug in stereo shader causing only left eye to render

■Subtitles

●New subtitle feature doesn’t load files from

StreamingAssets on Android and WebGL

●Bug in script don’t allow subtitles to be loaded via code

● Version 1.5.12 - 12 December 2016

○WSA / UWP / Hololens

■Fixed crash issue when using Unity 5.5

● Version 1.5.10 - 9 December 2016

○macOS

■Fixed issue where OpenVideoFromFile() called multiple times

quickly would cause a crash

■Removed PLIST modification from the PostProcess build script

○iOS

■Fixed issue where OpenVideoFromFile() called multiple times

quickly would cause a crash

■Fixed issue with Unity 5.5.x which caused XCode project not to

run due to missing Metal symbol (only affects watermarked

trial version)

○tvOS

■Fixed issue where OpenVideoFromFile() called multiple times

quickly would cause a crash

■Fixed issue with Unity 5.5.x which caused XCode project not to

run due to missing Metal symbol (only affects watermarked

trial version)

○Android

■Fixed issue with Unity 5.4.2 and above where changing the

TextureQuality level in the QualitySettings would cause the

texture to go black

○Windows

■Fixed issue with Unity 5.4.2 and above where changing the

TextureQuality level in the QualitySettings would cause the

texture to go black

○General

■Added support to uGUI shaders for RectMask2D

■ApplyToMesh component now works with other renderer

components (eg Skinned Mesh)

■Updated documentation and FAQs

● Version 1.5.8 - 23 November 2016

65 / 77

○macOS

■Fixed issue with OpenGLCore where texture wouldn’t update

due to GL state not being restored correctly when using a

uGUI mask

■Fixed issue where RelativeToProjectFolder was pointing to

inside the .app package instead of at the same level

○Android

■Streaming video no longer blocks while loading (but video

frame-rate may now not be available)

■Removed duplicate function call, minor performance win

■Fixed number of audio tracks reported for streams

■Fixed potential case issue with URL detection

○Windows

■Platform specific settings exposed better in the editor

○General

■Fixed some shader build errors for older versions of Unity

■Added some in-editor warnings for using unsupported file

extensions on various platforms

■Fixed broken scripting reference link in ‘About’

● Version 1.5.7 - 16 November 2016

○Android

■Minor optimisation for non-OES rendering path by eliminating

blending during blit

■Added frame timestamp support via

TextureProducer.GetTextureTimeStamp()

○macOS, iOS and tvOS

■Added support for OS X 10.8

■Added frame timestamp support via

TextureProducer.GetTextureTimeStamp()

■Fixed issue when Seek and Play were called before another

command had completed

■Fixed issue of events not firing

■Added support for custom URL schemes

■Improved support for device simulator

■Various small bug fixes

● Version 1.5.6 - 8 November 2016

○General

■Added “Scale and Crop” scaling mode to uGUI component

(replaces old “keep aspect ratio” option)

■Added helper function for seeking to a specific frame

■Improved MediaPlayer event handling code

■Fixed null exception when unloading scene from the event

callback

○Windows

66 / 77

■Fixed major issue using hardware decoding which caused

videos to crash or not load

■Improved DirectShow colour reproduction by using more

accurate linear colour-space and YUV conversion functions

■Added ability to get the presentation timestamp of the current

video frame - useful for more accurate frame syncing:

TextureProducer.GetTextureTimeStamp()

■Fixed issue with HLS streaming crashing when changing

stream quality and resizing texture

■Fixed AudioOutput issue where playing back multi-channel

videos would cause the video not to load

■Fixed AudioOutput issue where some videos would play back

at the wrong pitch

● Version 1.5.5 - 1 November 2016

○Windows

■Fixed issue on old Windows versions without D3D11 which

caused the plugin to not load

○WebGL

■Fixed width and height being zero when MetaDataReady event

fires

● Version 1.5.4b - 31 October 2016

○Fixed broken iOS, tvOS and macOS release from v1.5.4

○Fixed “null id” error in in multi-video demo in WebGL builds

● Version 1.5.4 - 28 October 2016

○General

■02_Demo_imGui demo scene updated to show network

streaming progress

■Improved how destroyed MediaPlayer components are shut

down

■Fixed alpha packing in background transparent shader

■Fixed some bugs in three of the sample scene scripts that

would cause a crash due to null values or invalid textures left

behind when destroying MediaPlayer

■Added documentation about hardware GPU decoding

○Android

■Fixed bug where IsPlaying would return false during playback

■Fixed a shader compiler error for newer Android phones with

Snapdragon chipset when using the OES shaders

■Optimised code to generate less garbage

■Some internal JNI caching for speed

■Added new unlit OES shader

○macOS

■Added support for Linear colour space

67 / 77

■Improved feedback when progressive and streamed movies

are buffering

■Added support for macOS 10.12 streaming auto wait

behaviour

○iOS and tvOS

■Fixed a case where some HLS streams wouldn’t play

■Improved feedback when progressive and streamed movies

are buffering

■Added support for iOS/tvOS 10 streaming auto wait behaviour

○Windows

■Added new AudioOutput component so that audio can be

played directly through a Unity AudioSource node. This allows

Unity audio effects to be used, spatial 3D movement with falloff

and doppler, and most importantly allows sound to move with

the head in VR!

■Fixed a visual glitch when using the hardware decoder path,

most noticeable at the end of videos

■Streaming can now return multiple buffered ranges using

method GetBufferedTimeRange()

■Windows watermark improved for GPU decoding path

■Potential fix for DirectShow seeking issue causing hanging on

some systems

○VR

■Support for 3D audio via the new AudioOutput component

(Windows only, supports Oculus Rift and HTC Vive)

■InsideSphere transparency shader now supports transparency

packing

● Version 1.5.2 - 11 October 2016

○General

■uGUI and IMGUI components now automatically displays

videos with stereo or alpha packing correctly without having to

assign material manually

■Fixed shader build errors in Unity 5.4.1

■Fixed shader build errors in Unity 4.x for D3D9 and OpenGL

■Added stereo support to more shaders including uGUI

○Workflow

■Improved component menu layout by grouping components

■Logging improved so some log messages can be clicked on to

highlight the logging MediaPlayer

○Windows

■Linear colour space now automatically rendered correctly

when using GPU decoder

■Fixed memory leak in GPU decoder introduced in v1.5.0

■Fixed old memory leak in Notify system

■Fixed HLS adaptive resolution changing when using GPU

68 / 77

decoder and improved texture switch to remove 1 frame glitch

○WebGL

■Cubemap script fixed to not show texture seam

■Texture filtering and wrapping modes applied correctly now

■Added crossOrigin=”anonymous” to video element

● Version 1.5.1 - 30 September 2016

○Windows

■Fixed crash bug when playing audio files in DirectShow path

■Fixed visual flicker bug in Unity editor in DirectShow path

● Version 1.5.0 - 29 September 2016

○General

■Added new shader for uGUI to support stereo videos

■Added global option to disable logging

■Added audio track selection to IMGUI demo

■Fixed editor bug where “\” character could be used in file path

■Updated documentation

○Android

■Added display of initial “poster” frame for videos set to not

auto-play

■Fixed bug that prevented files with escape characters from

■Fixed bug causing audio files to not play

■Fixed issue where GetCurrentTimeMs() could report values

greater than Duration

○macOS

■Fixed no error being returned for loading videos without correct

plist permissions set

○Windows

■Hardware decoding enabled by default

■Hardware (GPU) decoding no longer require command-line

parameter

■Better video API selection in editor

■Added support for multiple audio tracks to DirectShow

playback path via IAMStreamSelect.

■Added Media Foundation multiple audio track code back in

■Fixed some minor resources leaks

○Windows Phone / UWP

■Added option for hardware decoding (enabled by default)

○WebGL

■Added support for multiple audio tracks

■Fixed frame rate and count not displaying

■Fixed issue where multiple videos wouldn’t unload cleanly

■Cleaned up plugin code, removing unneeded code

69 / 77

● Version 1.4.8 - 12 September 2016

○General

■Less garbage generation

●Optimised ApplyToMesh component

●Optimised rendering coroutine of MediaPlayer

component

●Added global option to disable debug GUI

○Workflow

■Improved file path display and editing

■Added watermark description to trial version

○VR

■Cubemap script (for 3:2 cubemap VR)

●Fixed vertical flip issue

●Improved performance

■Added fog and transparency options to VR sphere shader

■Android OES optimisation (see below)

■Shaders support GLSL better

○Android

■New faster rendering path, less memory, faster, no

overheating - see OES playback path notes above

■Added ability to load file from within another file by specifying

an offset

●Which lets you hide video files from prying eyes

○macOS

■Fixed occasional memory leak when destroying player

■Fixed editor warning about absolute path

○iOS / tvOS

■Fixed occasional memory leak when destroying player

○Windows

■HLS streams now dynamically adjust texture size

●Resulting in support for higher quality streams

●Fixes issue where videos would become letterboxed

○WebGL

■Fixed broken build issue when using the “use pre-built” build

option

● Version 1.4.4 - 20 August 2016

○General

■Packed transparency support added

●Use top-bottom or left-right packed layout to encode

alpha channel

●Set the packing type in the “Media Properties panel”

●Supported by all display components automatically

●See “Transparency Notes” section of this document for

encoding tips

■“Platform Specific” section now highlights platforms with

70 / 77

modified settings

■Minor optimisations to the ApplyToMaterial and ApplyToMesh

components (used property ints instead of strings)

■Minor optimisation to DisplayIMGUI (disables layout pass)

■Fixed CubemapCube.cs to handle vertically flipped video

textures

■Changed many components to use UpdateLate() instead of

Update() to fix some crash issues

■Various minor improvements

○macOS

■Fixed compatibility issue with OS X 10.10 (Yosemite)

○Windows

■Huge performance improvements when using DirectShow

playback path due to usage of NV12 format (D3D11 only)

■Added support for Hap Q format (D3D11 only)

■Added performance warning message when using software

decoder instead of GPU decoder for large videos

■Fixed bug in DirectShow audio mute not restoring volume

○WebGL

■Fixed issue where IMGUI text became flipped

○Upgrade Notes

■Some shader files have moved (and been renamed) from

/Materials and /Demos/Materials to /Resources/Shaders, so

make sure to delete duplicates that results from merging

● Version 1.4.0 - 10 August 2016

○WebGL

■WebGL platform support added

○macOS

■Now with Metal rendering support

■The Hap codec is now supported on macOS

○iOS / tvOS

■Metal rendering path now supports multi-threaded rendering

■Various fixes to rendering and memory resources

○Android

■Ability to adjust the playback rate (Android 6.0 and above only)

○Windows

■Fixed audio device override not working in builds

■Fixed fast seeking function

○General

■Added support for video files containing multiple audio tracks

■Video frame rate is now available via

Info.GetVideoFrameRate()

■Fixed some issues with events firing at the wrong time

■Streaming videos can now query IsBuffering() and

GetBufferingProgress()

71 / 77

■Improved errors reporting

■Renamed Info.GetVideoPlaybackRate() to

GetVideoDisplayRate() to avoid confusion

■New “scriptlets” have been added to the /Demos/Scripts folder

which give mini examples of how to do simple scripting

○VR

■Fixed bug in stereo section of VR sphere shader which caused

eyes to flip on some platforms

■Fixed a bug in Windows where the audio override wasn’t being

passed through for VR headphone device name

○Workflow

■Added new “SA” button for shortcut to StreamingAssets folder

■Improved editor inspector performance

○Upgrade notes

■Demos scenes have been renamed so you should delete the

old .unity files in the /Demos folder otherwise you will have

duplicate files.

■The sample video files in StreamingAssets have been moved

into a subfolder within StreamingAssets/AVProVideoDemos/

so make sure to delete the old ones.

● Version 1.3.9 - 15 July 2016

○Android

■Fixed bug for Unity versions < 5.2.0 that caused videos not to

display

■Fixed bug for Android versions < 6 that caused video pausing

and other operations to break playback

■Removed zip classes from plugin package to fix conflicts with

other plugins using the same zip classes

○General

■Better error handling via new GetLastError() function and a

new Error event type

■NGUI support added via new component

■TimeScale support feature now disabled by default and

exposed in new Global Settings panel

■ApplyToMesh/Material script improved with new scale and

offset parameters

■Added platform overrides for Windows Phone and Windows

UWP

■Improved documentation

○Workflow

■Added new Android warning for loading absolute path without

external permission set in PlayerSettings

○VR

■Fixed VR audio output device not working

■New high quality option for sphere shader to improve quality at

72 / 77

the poles and general optimisations

■Fixed issue with left/right eyes becoming swapped sometimes

■Minor fixes to cube map script

● Version 1.3.8 - 30 June 2016

○Bug fixes

■Fixed stereo VR script broken in v1.3.6

■Fixed issues with UWP and Hololens support

■Fixed Windows DirectShow issue preventing Hap videos

playing when another source filter is installed

■Fixed Windows DirectShow bug in watermark for Hap videos

○Workflow

■Improved recent file list to be sorted by when the files were last

used

● Version 1.3.6 - 27 June 2016

○General

■Added (BETA) support for Universal Windows Platform 10 and

Windows Phone 8.1

■Added (BETA) support for Time.timeScale and

Time.captureFramerate allowing video playback to work

properly with video capture systems that alter Unity time

■Added ExtractFrame function to MediaPlayer

■Added Extract Frames demo scene

■Added SeekFast function which will try to seek to keyframes

only so it’s less accurate but faster. On unsupported platforms

it will just do a normal seek operation

■Added functions to change the playback rate. Note that the

behaviour of this varies between platforms and is not available

yet on Android

■General API improvements, platform overrides system

improved

■Fixed bug where disabled gameObject would cause rendering

to stop

■Fixed bug where destroying MediaPlayer while uGUI

component is using it could cause a crash

■Fixed rare bug where uGUI component would become offset or

hidden

■Fixed rare bug where m_events would be null

○VR

■Fixed VR sphere shader coordinates on some platforms,

especially cardboard

■Added “Media Properties” section to MediaPlayer where you

can define the stereo packing of a video. This then

automatically adjust the sphere shader to render the video

correctly per eye

73 / 77

■Fixed bug in InsideSphere shader where stereo rendering

would flip the eyes at some angles

■Added support for Unity 5.4 “Single-Pass Stereo Rendering” to

360 InsideSphere shader

■Added new VR sample with “cubemap 3x2” (facebook layout)

support

○Workflow

■Added button in preview panel to save frame to PNG

■Added persistent option to preserve the media player between

level loads

■Added multi-object MediaPlayer component editing support

■Texture properties (wrap mode, filtering) can be set via Media

Properties panel

■Debug GUI now shows preview of video

○Android

■Fixed bug where no visuals would appear when old devices

■Switched from AAR to JAR/SO files to improve Unity 4

compatibility

■Added x86 support

■Fixed bug where Pausing a stopped video would lock it up

○OS X / iOS / tvOS

■Large performance boost on iOS and tvOS (removed texture

copy)

■Streaming video buffering stalls now recover and IsBuffering

function added

■Seek accuracy improved

■Looping handled better to reduce seam time

■Fixed texture memory leak in Metal rendering path

■Fixed mute not working with autoStart

○Windows

■DirectShow video playback smoother

■Fixed DirectShow support for showing images or videos with

zero duration

■Added platform-override option to force DirectShow player

■Added platform-override option to force audio output device.

This is useful for VR hardware that has its own audio device.

■Fixed poster frame not displaying

■Fixed videos not displaying due to empty RGB32 alpha

channel

■Fixed D3D9 lost device issue

■Fixed D3D9 issue of texture not being released

■Fixed DirectShow player time displaying NaN sometimes at the end of

video

■Fixed crash bug if you closed Unity with video was playing

■Fixed Windows N edition crash

74 / 77

● Version 1.3.0 - 20 April 2016

○Android

■Added multi-threaded rendering support

■Fixed various rare bugs

○Windows

■Exposed GPU video player path (when using command-line

argument “-force-d3d11-no-singlethreaded”), this requires

Win8.1 minimum and D3D11

■Windows XP, Windows Vista and Windows 7 support added by

adding DirectShow playback path

■Hap1 and Hap5 codec support added for Windows 7 and

below (via DirectShow playback path)

■Fixed audio only media not being seekable

○iOS

■Fixed iOS 8.2 compatibility issue

○Workflow

■Editor pause button now pauses/resumes playing videos

■Added new ‘about’ section with handy links

■Improvements to editor UI

■UI fixes for standard Unity editor ‘light’ skin

○Bugs

■Fixed IsFinishedPlaying event not firing on some platforms

■Fixed player freezing when component is disabled. It now

pauses OnDisable() and resumes OnEnable().

■Fixed crash in VCR demo related to uGUI component when

changing videos

■Fixed bug closing application with many videos open

■Fixed seeking bug for audio-only media

○Documentation

■Updated FAQ

■Added stereo virtual reality notes

● Version 1.2.0 - 1 April 2016

○General

■Improved support for audio-only media

■Improved streaming support

■Added HasVideo, HasAudio and HasMetaData functions

■Added MetaDataReady event

■First frame now displays without starting playback

■Added new ApplyToMesh component

■Removed troubled #AVPRO defines

○Android

■Fixed issue where Finished event wouldn’t fire

■Minimum API level bumped from 15 to 16

○Mac, iOS, tvOS

■improved performance of multiple video playback

75 / 77

○Windows

■Improved performance (duplicate frame handling)

■Added missing IsSeeking function

■Fixed IsFinished function always returning false

■Fixed URL parsing

■Fixed OpenGL texture cleanup

■Fixed minor D3D11 leak caused by views not being released

■Improved init/deinit

○Workflow

■Resulting file name is now displayed clearly and is copyable

■More file extensions in inspector file browser

■Components now have AVPro icon

■Added warnings for incorrect Player Settings for streaming videos

■Editor platform override tab is restored

○Debugging

■Improved logging

○VR

■Improved 360 Sphere demo support for GearVR

■InsideSphere shader has color tint option for stereo debugging

○Docs

■Added video streaming notes

■Added VR notes

■Improved notes on supported formats

● Version 1.1.0 - 11 March 2016

○Added Windows support

○Added lat-long stereo top-bottom and left-right video support for VR

○Added per-platform file path overrides

○Absolute and relative path loading support added

○Android loading from OBB support added

○Workflow improvements

■Added browse button

■Added recent file list

■Added relative folder support

■Improved MediaPlayer UI, including preview in editor

○Created a scripting class reference

○Improved documentation

○Fixed Linear colour space support in Windows

○Fixed shutdown and memory freeing

○Various bugs fixed

● Version 1.0.0 - 25 February 2016

○Initial release on the asset store

○Added new events

● Version 0.9.0 - 17 February 2016

○Initial beta release

76 / 77

Appendix C - Roadmap

●Version 1.7.0

○Glitch free multi video player with optional transitions

○Better PlayMaker support

●Version X.X.X

○Split out media definitions from player

○

○Loading from memory/resources

○Fallback to using MovieTexture on some platforms?

○10-bit HEVC support?

● Version X

○← Your suggestions here, let us know :)

77 / 77

AVPro Video User Manual

Navigation menu

Versions of this User Manual:

Views

Navigation
