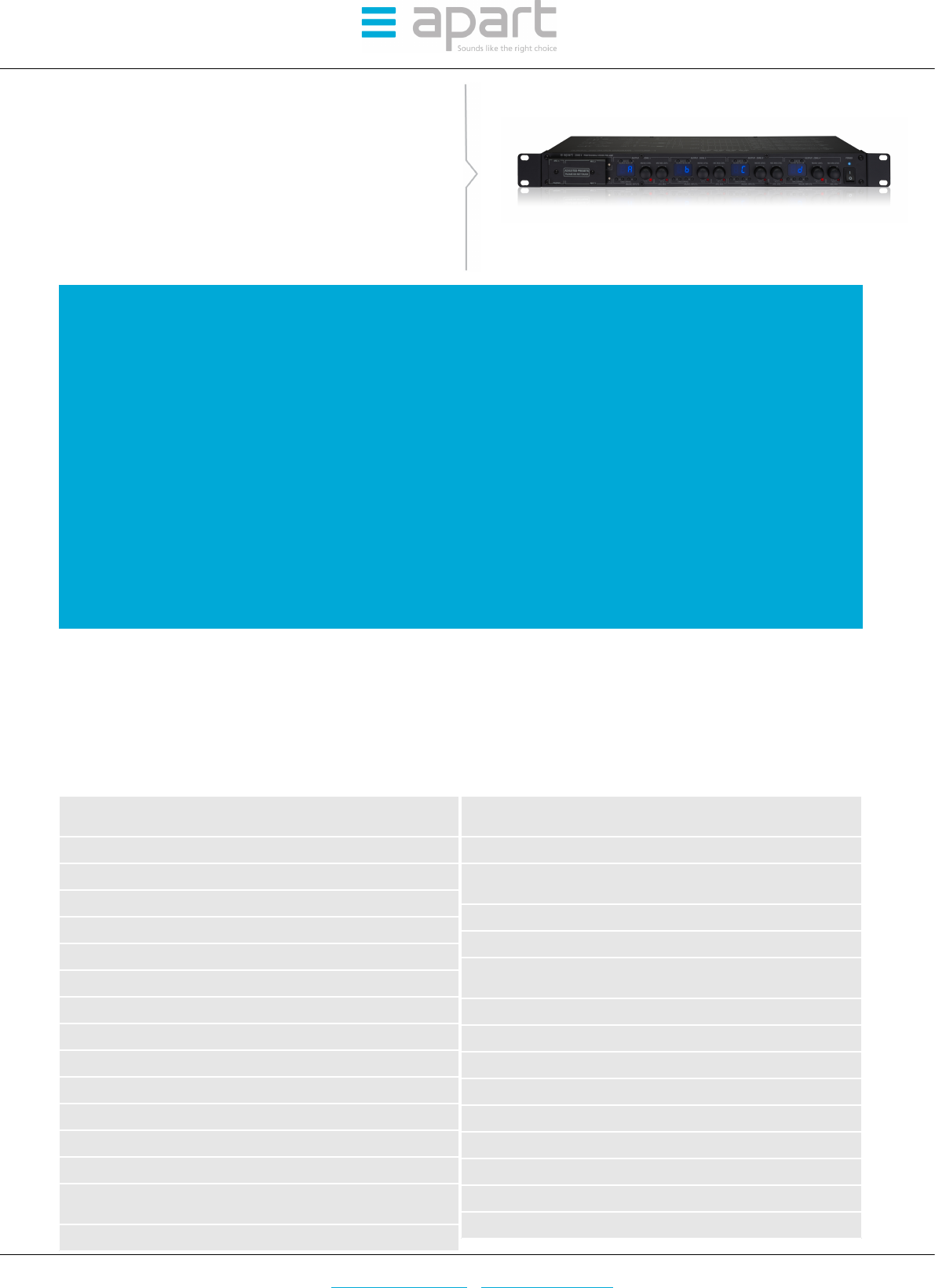

ZONE4
4-zone stereo pre-amplifier
TECHNICAL SPECIFICATIONS
19" (483 mm wide) rack
mounting
yes
depth (build in) in mm
196
power supply
115 - 230 VAC
zone outputs
4 stereo
output level unbalanced (dB)
0
signal to noise level SNR (dB)
>90
crosstalk (dB)
>75
MIC level control
yes
source selection per zone
yes
MIC inputs unbalanced
0
Phantom power voltage in volts
18
selectable input dynamics
no
line input balanced
0
S/PDIF input
no
RS232 (serial communication
port)
yes
priority input contact
yes
height- rack units (1U=44 mm)
in U
1
depth (incl front) in mm
205
power consumption (max) in
watts
25
output level balanced (dB)
0
S/PDIF output
no
total harmonic distortion TBH
(%)
<0.02
music level control
yes
VCA level control
no
MIC inputs balanced
3
inputs with Phantom power
2
noise gate on MIC
no
selectable output dynamics
no
line input unbalanced
4 stereo
tone control
yes
wall panel controls
yes
The sophisticated pre-amplifier ZONE4 allows you to
control four stereo zones with just one affordable unit. In
any of the 4 zones you can play music that comes from
one of the 4 music sources you can connect.
There is also the possibility to assign 3 microphones to
each zone where MIC1 can be a dynamic priority mic (via
contact closure) or a 4-zone selective paging microphone
(MICPAT-4). Each signal is assignable to any of the four
output zones through dipswitches on the front and the
back of the unit. Phantom power supply on MIC 1 & 2 can
be activated via a dip switch.
The ZONE4 can be controlled from the front panel (with
digital display), via the RS232-connector or via the IR
serial.
On top of that you can control the unit via the ZONE4R
remote control panels. Thes control panels have a clear LED
status display and buttons for music level, MIC/MIX level,
source select and mute controls. Because the remote is
wired with a normal CAT5 cable, it is very easy to install.
On the output side, there is a line input selector and music
level control per zone. A clear digital display makes it easier
to monitor the functioning of the unit. Further, there are
independent MIC-MIX level control and bass-treble control
per zone.
The unit is 19” format and comes standard with removable
brackets. The removable metal cover (included) protects
your MIC-settings.
www.apart-audio.com | info@apart-audio.com
chime
no
priority output contact
no
frequency response (in Hz)
20 - 30 k
applicable low impedance
yes
maximum qty paging Mics
4
emergency input
yes
priority levels
2
applicable in 100V
yes
Net weight product (kg)
2.75
www.apart-audio.com | info@apart-audio.com

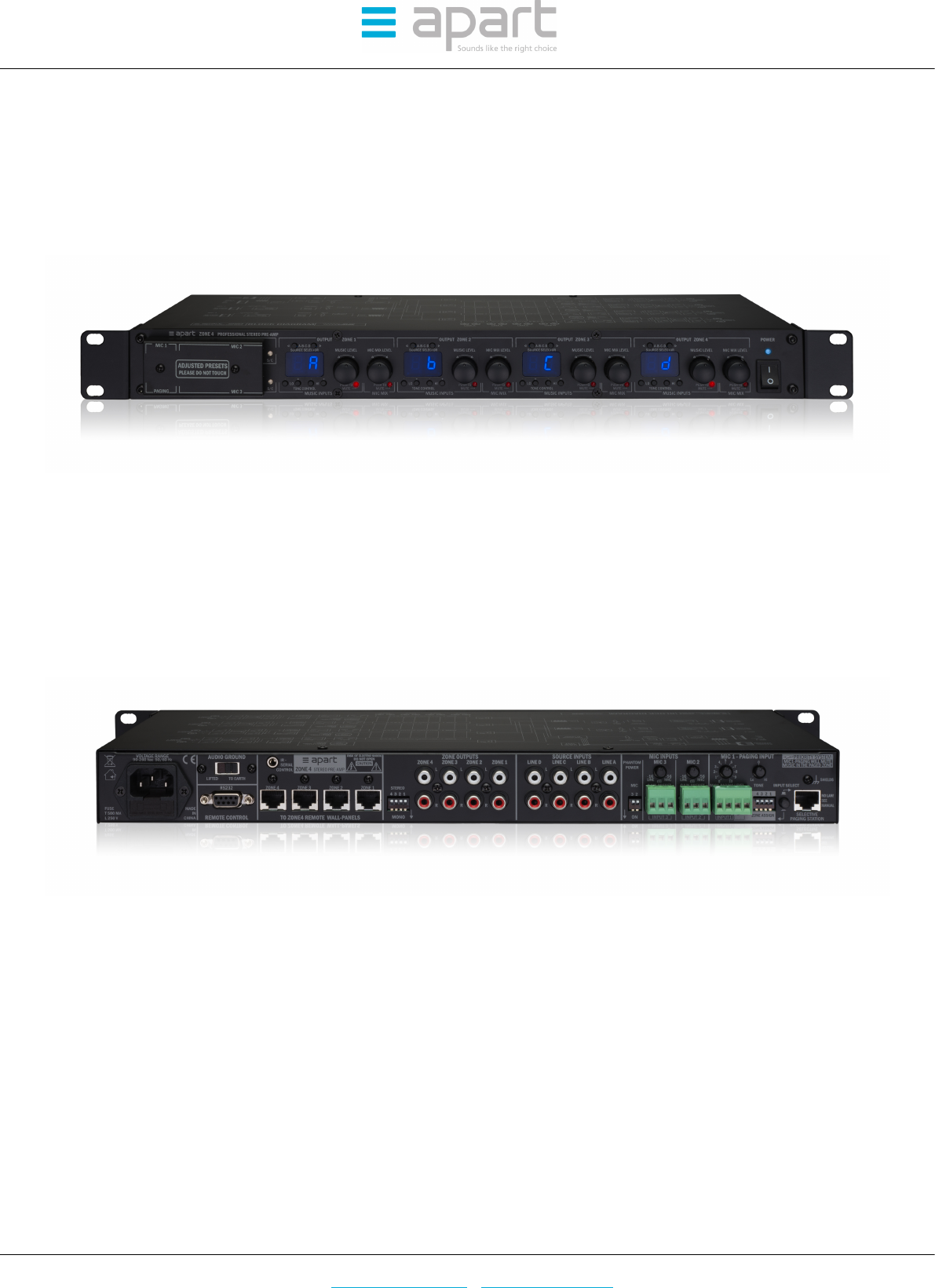

MORE PICTURES
www.apart-audio.com | info@apart-audio.com
ACCESSORIES

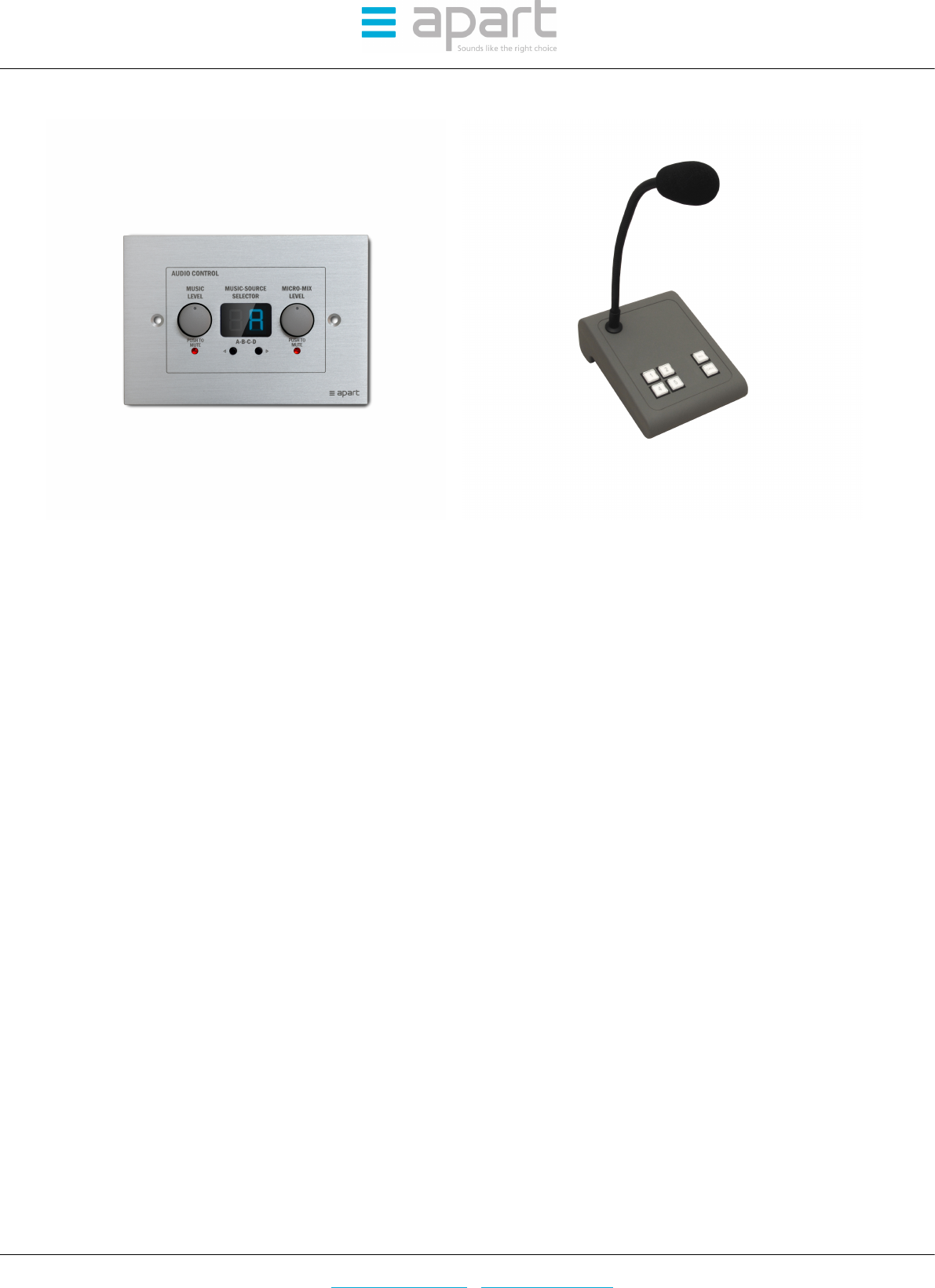

MICPAT-4
