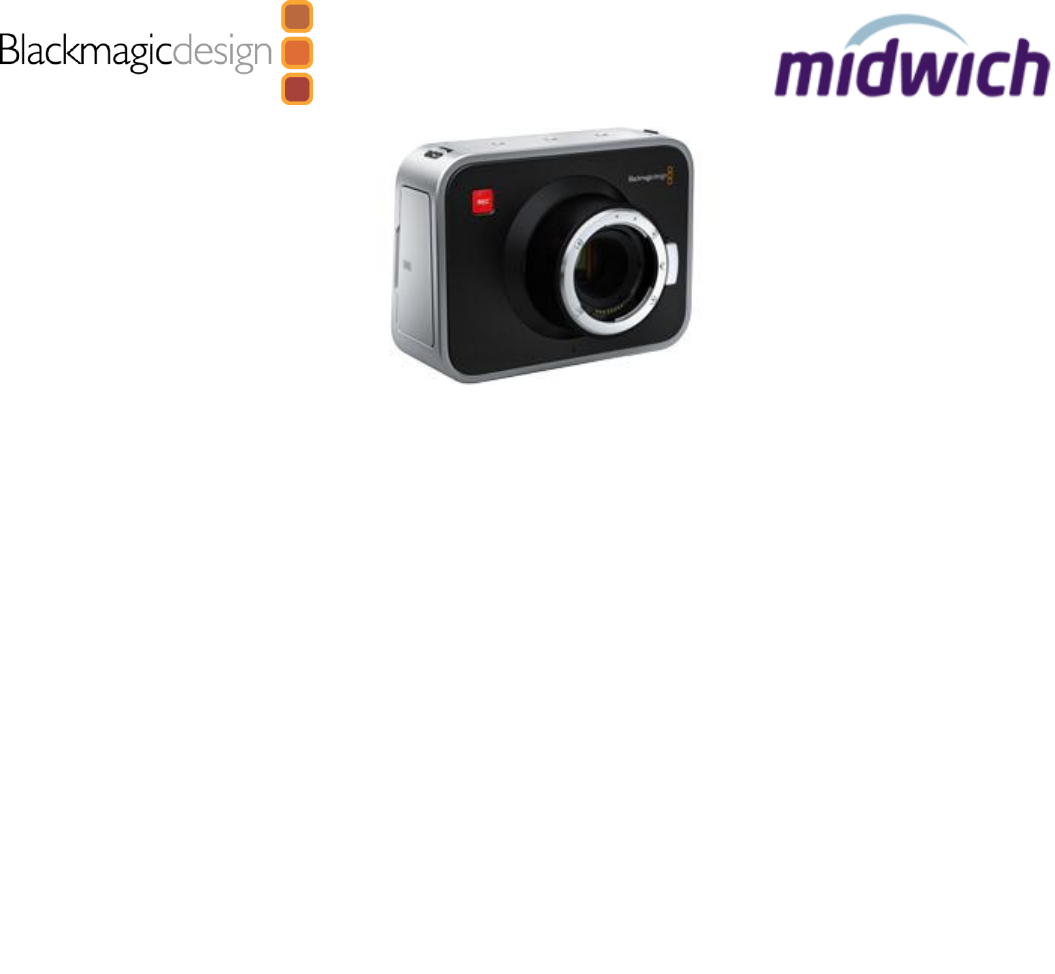

Black Magic Camera EF BMD-CINECAM26KEF

Mfr.Part# BMD-CINECAM26KEF Our Part# BMDCINECAM26KE

Add the timeless beauty of feature film quality to your

production work

Elegant, sophisticated and jam packed with the latest digital cinema technology,

Blackmagic Cinema Camera gives your work that timeless feature film look!

Blackmagic Cinema Camera features an amazing 2.5K image sensor with a wide 13

stops of dynamic range for a true digital film camera. You get a built-in SSD

recorder, popular open standard uncompressed RAW and compressed file formats,

compatibility with quality EF or Passive Micro Four Thirds lenses, LCD touchscreen

monitoring plus metadata entry, all packed into an exciting hand held design! There

are two exciting models to choose from depending on the lens mount you prefer!

Move to Digital Film

Blackmagic Cinema Camera features a high resolution sensor with wide dynamic

range so it’s perfect for independent film, television commercials and episodic

television production. DaVinci Resolve software for Mac™ and Windows™ is

included so you can work at the highest quality and get the best results. Blackmagic

Cinema Camera is both affordable and a complete solution because it includes a

built-in recorder and monitoring, so it’s perfect for displacing video-only cameras for

work such as sporting events, weddings, music videos and more!

Premium Quality

Building one of the finest cameras in the world requires attention to every detail.

Blackmagic Cinema Camera’s premium quality design features a machined

aluminum chassis, interchangeable optics, high resolution 2.5K sensor, 13 stops of

dynamic range and 12-bit RAW uncompressed and compressed file formats! Every

aspect of the image path has been totally optimized for quality, so this means you

always get the quality you need for the most demanding work.

Built-in SSD Recorder

Blackmagic Cinema Camera features a built-in SSD recorder that allows 2.5K

uncompressed CinemaDNG RAW 12-bit capture as well as Apple ProRes and Avid

DNxHD compressed video formats. All file formats are open standard and used by

NLE software so you get the only camera designed from the ground up to be part of

a whole post production workflow! When you’ve finished shooting, simply connect

the SSD to your computer and edit or color your shots straight from the disk!

Specifications

Active Sensor Resolution

2432 x 1366

Raw Resolution

12-bit RAW files recorded at 2432 x 1366

Shooting Resolutions

2.5K RAW at 2432 x 1366.

ProRes and DNxHD at 1920 x 1080

Frame Rates

23.98p, 24p, 25p, 29.97p, 30p

Active Sensor Size

15.81mm x 8.88mm

Dynamic Range

13 stops

Focus

Focus button turns on peaking

Iris Control

Iris button automatically adjusts the lens iris settings so no

pixel is clipped

Lens Mount

EF and ZE mount compatible with electronic iris control

Screen Dimensions

5" and 800 x 480 resolution

Screen Type

Integrated LCD capacitive touchscreen

Metadata Support

Automatic camera data and user data such as shot number,

filenames and keywords

Controls

Onscreen touch menus and physical buttons for recording

and transport control

Microphone

Integrated mono microphone

Speaker

Integrated mono speaker

Mounting Options

3 x 1/4"-20 UNC thread mounting points on top of camera.

1 x 1/4"-20 UNC thread tripod mount with locator pin.

Power

Integrated Lithium-ion Polymer rechargeable battery.

12V-30V DC port for external battery power or use included

12V AC adapter.

Battery Life

Approximately 90 minutes

Battery Charge Time

Approximately 2 hours when not in use.

Camera Dimensions

166.2mm by 113.51mm x 126.49mm excluding detachable

sunshade and turret dust cap

Camera Weight

1.7 kg / 3.75 lb

Storage Type

Removable 2.5” SSD

Storage Format

Mac OS Extended format. SSDs can be formatted on any Mac

or use Mediafour MacDrive (not included) on a Windows PC.

Storage Rates

5 MB/frame in RAW 2.5K fits about 30 minutes of 24p video

on a 256 GB solid state disk. Compressed HD formats fit

more than 5 times the amount of RAW video.

Uncompressed Recording Formats

RAW 2.5K CinemaDNG

Compressed Recording Formats

Apple ProRes and Avid DNxHD. All compressed recording in

1920x1080 10-bit YUV with choice of Film or Video

Dynamic Range.

SDI Video Output

1 x 10-bit HD-SDI 4:2:2 with choice of Film or Video

Dynamic Range

Analog Audio Input

2 x 1/4” jacks for professional balanced analog audio,

switchable between mic and line levels.

Analog Audio Output

1 x 3.5mm stereo headphone output

SDI Audio Output

4 channels in HD-SDI

Remote Control

1 x 2.5mm LANC for Rec Start/Stop, Iris Control and Focus

Control

Computer Interface

Thunderbolt port for capture of RAW video and audio.

USB 2.0 mini B port for software updates and configuration.

External Power

12V-30V DC port for external battery power or use included

12V AC adapter.

SDI Compliance

SMPTE 292M.

SDI Audio Sampling

48 kHz and 24 bit.

Software Included

DaVinci Resolve grading software including Resolve USB

dongle for Mac OS X and Windows.

Media Express software for video capture from the camera’s

Thunderbolt port.

Blackmagic UltraScope software for waveform monitoring

from the camera’s Thunderbolt port.

Accessories

Detachable sun shield, camera strap, turret dust cap and

12V AC adapter.

Product Warranty

12 Month Limited Manufacturer's Warranty.
