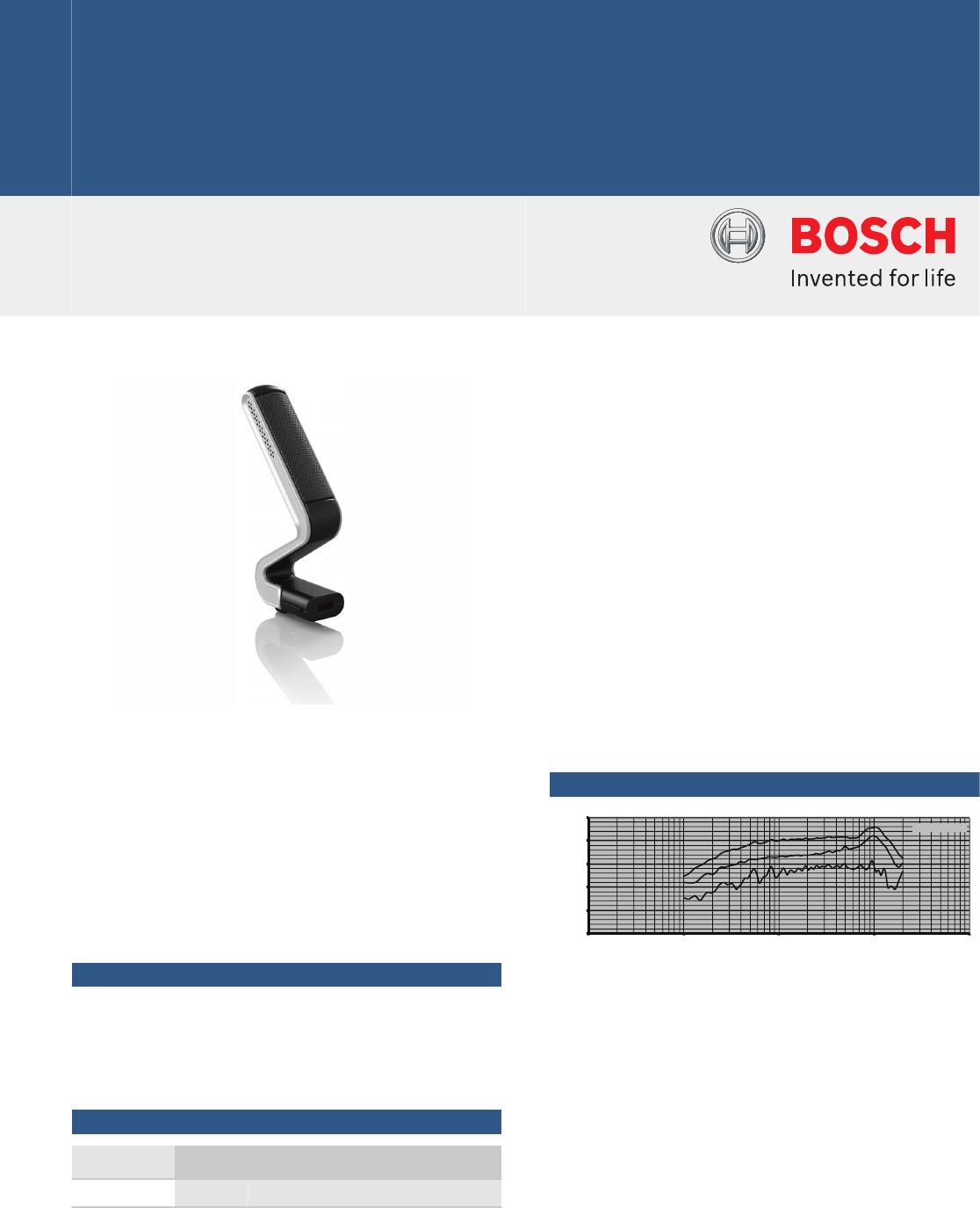

Communications Systems | DCN multimedia High Directive Microphone
DCN multimedia High Directive
Microphone
www.boschsecurity.com
uDiscrete microphone for user convenience
uHigh directive response
uLow susceptible for mobile phones
uUltra low noise
uFreedom of movement
The innovative, stylish and ergonomically designed
high directive microphone gives the user the
possibility to view the meeting room without
obstructions. The high directive microphone contains
two precisely positioned capsules giving it a high
directive response which makes it possible to have a
larger speaking distance then normal even in noisy
conditions. The microphone has low noise and low
susceptibility to interference from mobile phones.
Functions
Controls and Indicators
• Red or green illuminator. Red indicates microphone
active, green indicates request for speech accepted.
Interconnections
• Connector to plug and fasten the microphone.
Certifications and approvals
Region Certification
Europe CE
Installation/configuration notes
-40
-30
-20
-10
0
10
00000100001000100101
dB
Frequency
BOSCH
Frequency response (Opening angle: 0, 90 and 180
degrees)
010 20
30
40
50
60
70
80
90
100
110
120
130
140
150
160
170
180
190
200
210
220
230
240
250
260
270
280
290
300
310
320
330
340 350
1000 2000 4000 8000
pink noise octave
010 20
30
40
50
60
70
80
90
100
110
120
130
140
150
160
170
180
190
200
210
220
230
240
250
260
270
280
290
300
310
320
330
340 350
125 250 500 1000
pink noise octave

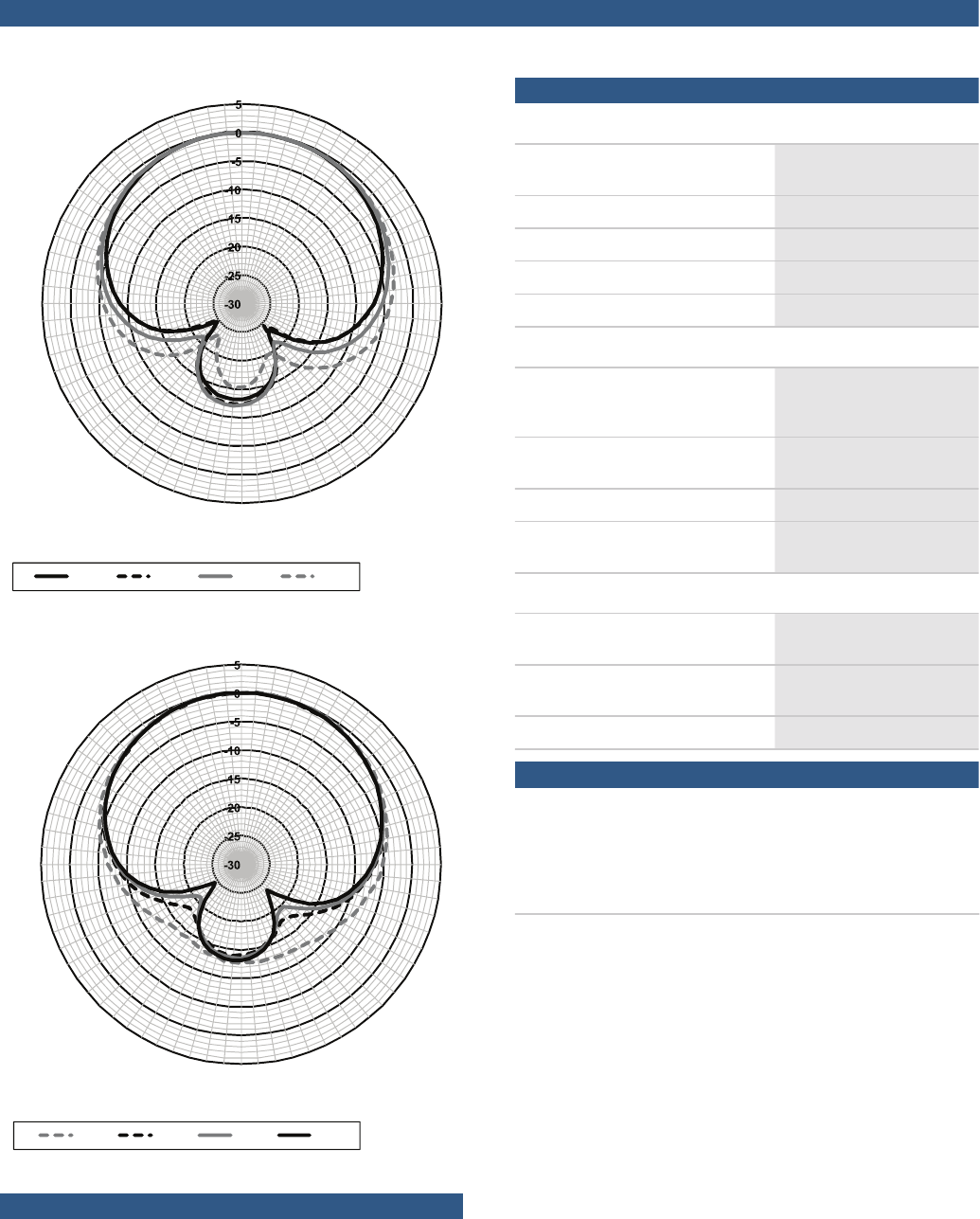

Polar diagram (measured with pink noise)
Parts included
Quantity Components
1DCNM‑HDMIC DCN multimedia High Directive
Microphone
Technical specifications
Electrical
Bandwith 100 Hz – 15 kHz according
IEC 60914
Dynamic range > 96 dB
Nominal input 80 dB SPL
Maximum input 110 dB SPL
Equivalent noise 12 dB SPL
Mechanical
Mounting Plug and fasten into DCN
multimedia devices and
DICENTIS wireless devices.
Dimensions (H x W x D) 108 x 21.5 x 60 mm
(4.25 X 0.85 x 2.36 in)
Weight 0.035 kg (0.077 lb)
Color Traffic black RAL 9017
Pearl light grey RAL 9022
Environmental
Operating temperature 0 ºC to +45 ºC
(32 ºF to +113 ºF)
Storage temperature -20 ºC to +70 ºC
(-4 ºF to +158 ºF)
Relative humidity < 95 %, > 5%
Ordering information
DCN multimedia High Directive Microphone
DCN multimedia High Directive Microphone for the
DICENTIS Wireless Devices and DCN multimedia
devices.
Order number DCNM-HDMIC
