Communications Systems | PAVIRO Controller

PAVIRO Controller

www.boschsecurity.com

uLow power consumption in standby mode

uExtreme flexibility

uExcellent sound quality >106 dB s/n ratio

uUp to 85 minutes internal digital message storage

The PVA-4CR12 controller is the central paging

manager for the PAVIRO system. Eight local audio

inputs can be switched to four audio outputs. A two

channel message manager is integrated. The controller

provides all the audio processing, supervision and

control functions for a complete PAVIRO system. A

single controller supports up to 16 call stations and

492 paging zones. The controller is equipped with 12

zones, 18 GPIs and 19 GPOs. One controller can

handle up to 2000 W loudspeaker load. Additional

zones and power can be added by using up to 20

external routers and 40 amplifiers with each 2 ✕

500 W. The zone indicator lights on the front indicate

the current status of every zone:

• Green: Zone in use for non emergency purpose

• Red: Zone in use for emergency purpose

• Yellow: Zone fault detected

• Off: Zone in idle condition

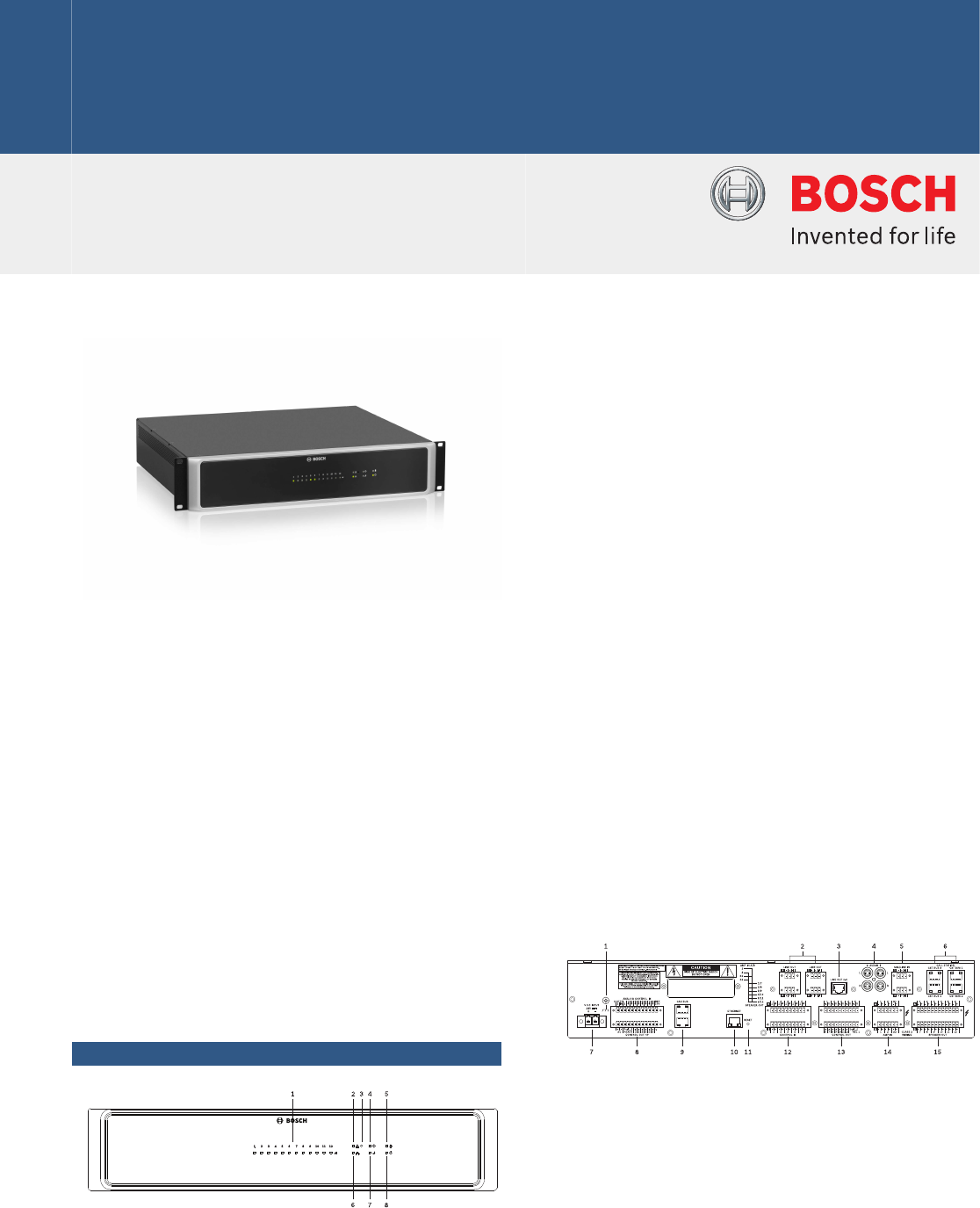

System overview

1 Zone status indicator light

2 General fault warning indicator light

3 Recessed button

4 System fault indicator light

5 Voice alarm indicator light

6 Network indicator light

7 Standby indicator light

8 Power indicator light

1 Grounding screw

2 LINE OUT 1-4 ports (Euroblock)

3 LINE OUT 1-4 port (RJ-45)

4 AUX IN 1/2 ports (RCA)

5 MIC/LINE IN 1/2 ports (Euroblock)

6 CST BUS 1-4 ports (RJ-45, for connection of call station)

7 DC power input

8 CONTROL IN/OUT port (including pins for DCF77 and slave

clock)

9 CAN BUS port

10 ETHERNET port

11 Reset button

12 CONTROL IN ports

13 CONTROL OUT ports

14 AMP IN ports

15 SPEAKER OUT ports

Certifications and approvals

• IEC 60065

• EN 61000-6-3

• EN 50130-4

• EN 60945

• EN 60950

Installation/configuration notes

!

Warning

Risk of explosion if

battery is not replaced

correctly. Must be

replaced only with the

same or equivalent

type of battery.

Parts included

Quant

ity

Component

1 PVA-4CR12

2 CAN terminating resistor (120 ohm)

1 Euroblock connector 2-pole (Phoenix, PC 5/2-STF-7,62,

1975697, F.01U.108.398)

6 Euroblock connector 3-pole (Phoenix, MC 1,5/3-STF-3,81,

Nr. 1827716, F.01U.104.680)

2 Euroblock connector 6-pole (Phoenix, MC 1,5/6-ST-3,81,

1827745, F.01U.104.179)

4 Euroblock connector 10-pole (Phoenix, MC 1,5/10-

STF-3,81, 1827787, F.01U.301.445)

2 Euroblock connector 12-pole (Phoenix, MC 1,5/12-

STF-3,81, 1827800, F.01U.108.397)

4 Foot stand (self-adhesive)

Quant

ity

Component

1 Operation manual

1 Important safety instructions

Technical specifications

PVA-4CR12 Controller PAVIRO controller including signal

processing, routing, system

control and supervision

Audio 8 audio inputs, 4 audio outputs

Safety/redundancy Internal supervision, system

monitoring, watchdog, fault

output

PC configuration and control

software

• Configuration Wizard:

Easy system

configuration.

• IRIS-Net: Integration of

controller, amplifiers, call

stations, routers and

peripheral control;

configuration, control,

and supervision for

complete audio systems;

programmable user

control panels and access

levels.

• Hot Swapper (included in

IRIS-Net package): Easy

updating of messages

during runtime.

Frequency response (ref. 1 kHz) 20 Hz to 20 kHz (-0.5 dB)

Signal-to-noise ratio (A-weighted) Line in to line out: 106 dB typical

THD+N < 0.05%

Crosstalk (line level) Line in to line out (0 dB gain): <

100 dB at 1 kHz

Sample rate 48 kHz

DSP processing resolution 24-bit linear A/D and D/A

conversion, 48-bit processing

Audio inputs (microphone/line

level)

MIC/LINE: 2 ✕ 3-pin port,

electronically symmetric

AUX: 2 ✕ Stereo RCA

• Input level (nominal) MIC/LINE: 15 dBu

AUX: 9 dBu

• Input level (max. before

clip)

MIC/LINE: 18 dBu

AUX: 12 dBu

• Input impedances MIC/LINE: 2.2 kΩ

AUX: 8 kΩ

• Common mode rejection MIC/LINE: > 50 dB

2 | PAVIRO Controller

• Phantom power,

switchable

MIC/LINE: 48 V DC

• A/D conversion 24 Bit, Sigma-Delta, 128 times

oversampling

Audio inputs (100 V) AMP IN: 2 ✕ 6-pin port

• Max. voltage 120 V

• Max. current 7.2 A

• Max. power 500 W

Audio outputs (line level) LINE OUT: 1 x RJ-45, 4 x 3-pin

port

• Output level (nominal) 6 dBu

• Output level (max. before

clip)

9 dBu

• Output impedance <50 Ω

• Min. load impedance 400 Ω

• D/A conversion 24 Bit, Sigma-Delta, 128 times

oversampling

Audio outputs (100 V) SPEAKER OUT: 2 ✕ 12-pin port

• Max. voltage 120 Veff

• Max. current 7.2 A

• Max. power 500 W

• Crosstalk (100 V) AMP IN to SPEAKER OUT: <

100 dB at 1 kHz with 1 kΩ load

Call station bus (CST) 4 ✕ integrated power+CAN

+audio interface, RJ-45

• Power +24 V DC, electronic fuse

• CAN 10, 20 or 62.5 kbit/s

• Audio electronically symmetric

• Max. length 1000 m

ANALOG CONTROL IN 1 ✕ 12-pin port

• Control inputs • 8 (analog 0-10 V/logic

control; low: U ≤ 5 V DC;

high: U ≥ 10 V DC; Umax =

32 V DC)

• Reference outputs • +10 V, 100 mA

• GND

• Time sync input 1 (DCF-77 receiver)

CONTROL OUT HP 1 ✕ 12-pin port

• Control outputs • 6 High Power outputs

(open collector, Umax =

32 V, Imax = 1 A)

• Reference output V • +24 V, Imax = 200 mA

• Ready/fault output 1 (NO/NC relay contacts, Umax =

32 V, Imax= 1 A)

• Slave clock output 1 (24 V DC, max. 1 A)

CONTROL IN 2 ✕ 10-pin port

• Control inputs • 5 supervised inputs (0–

24 V, Umax = 32 V)

• 5 isolated inputs (low: U ≤

5 V DC; high: U ≥ 10 V DC;

Umax = 32 V)

CONTROL OUT 2 ✕ 10-pin port

• Control outputs 12 Low Power outputs (open

collector, Umax = 32 V, Imax = 40

mA)

• Control relay 1 (NO/NC relay contacts, Umax =

32 V, Imax= 1 A)

Interfaces

• Ethernet 1 ✕ RJ-45, 10/100 MB (for PC

connection)

• CAN BUS port 2 ✕ RJ-45, 10 to 500 kbit/s (for

amplifier, router connection)

DC power input 21–32 V DC

Power consumption 10 to 250 W

Operating temperature -5 °C to +45 °C

Electromagnetic environment E1, E2, E3

Product dimensions (Width ✕

Height ✕ Depth)

19”, 2 HU, 483 ✕ 88.2 ✕ 391

mm

Net weight 8.0 kg

Shipping weight 9.5 kg

Ordering information

PAVIRO Controller

Order number PVA-4CR12

3 | PAVIRO Controller
