Communications Systems | PAVIRO Router

PAVIRO Router

www.boschsecurity.com

uRouting up to 24 zones from 2–500 Watt

uLow power consumption in standby mode

uExtreme flexibility

uExcellent sound quality > 103 dB s/n ratio

The PVA-4R24 24 Zone Router is a zone extension for

the PAVIRO system. The PVA-4R24 adds 24 zones, 20

GPIs, 24 GPOs and 2 control relays to the system and

is controlled and supervised via the CAN bus by the

PVA-4CR12 (Controller). Up to 20 external routers can

be connected to one controller. One router can handle

up to 4000 W speaker load. The maximum load of one

zone is 500 W.

The zone indicator lights on the front indicate the

current status of every zone:

• Green: Zone in use for non emergency purpose

• Red: Zone in use for emergency purpose

• Yellow: Zone fault detected

• Off: Zone in idle condition

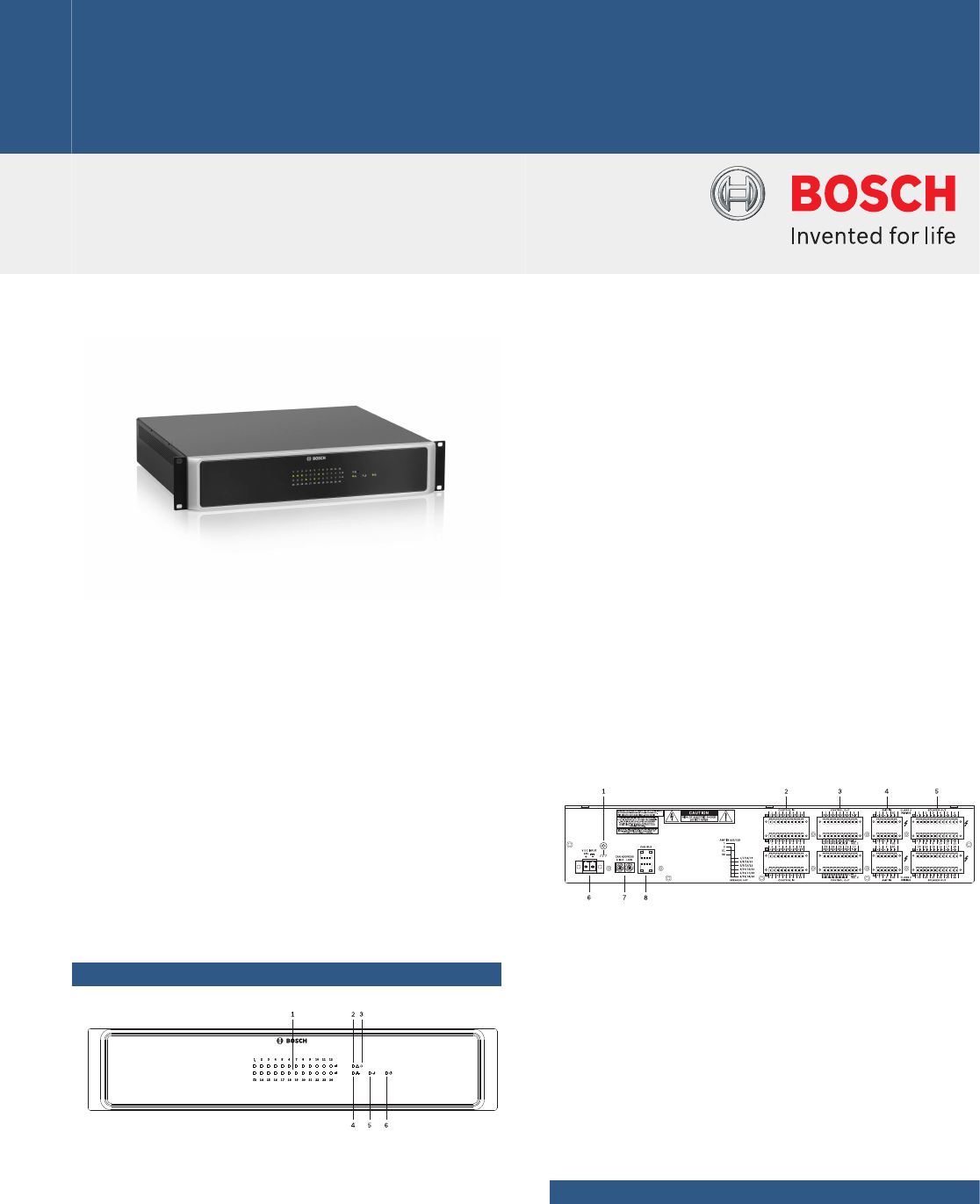

System overview

1 Zone status indicator light

2 General fault warning indicator light

3 Recessed button

4 Network indicator light

5 Standby indicator light

6 Power indicator light

1 Grounding screw

2 CONTROL IN ports

3 CONTROL OUT ports

4 AMP IN ports

5 SPEAKER OUT ports

6 DC power input

7 CAN ADDRESS selector switch

8 CAN BUS port

Certifications and approvals

• EN 50130-4

• EN 50581

• IEC 60065

• EN 60945

• EN 60950

• EN 61000-6-3

Parts included

Quantit

y

Component

1 PVA-4R24

1 Euroblock connector 2-pole (Phoenix, PC 5/2-STF-7,62,

1975697, F.01U.108.398) for 24 V DC

4 Euroblock connector 6-pole (Phoenix, MC 1,5/6-ST-3,81,

1827745, F.01U.104.179) for audio inputs

8 Euroblock connector 10-pole (Phoenix, MC 1,5/10-

STF-3,81, 1827787, F.01U.301.445) for control inputs or

outputs

4 Euroblock connector 12-pole (Phoenix, MC 1,5/12-

STF-3,81, 1827800, F.01U.108.397) for audio outputs

4 Foot stand (self-adhesive)

1 Operation manual

1 Important safety instructions

Technical specifications

PVA-4R24 24 Zone Router PAVIRO Router including routing

and supervision

Audio inputs (100 V) AMP IN: 4 ✕ 6-pin port

• Max. voltage 120 Veff

• Max. current 7.2 A

• Max. power 500 W

Audio outputs (100 V) SPEAKER OUT: 4 ✕ 12-pin port

• Max. voltage 120 Veff

• Max. current 7.2 A

• Max. power 500 W

CONTROL IN 4 ✕ 10-pin port

• Control inputs • 10 supervised inputs (0–

24 V, Umax = 32 V)

• 10 isolated inputs(Low:

U ≤ 5 V DC; High: U ≥ 10 V

DC, Umax = 32 V)

CONTROL OUT 4 ✕ 10-pin port

• Control outputs 24 Low Power outputs (open

collector, Umax = 32 V, Imax = 40

mA)

• Control relay 2 (NO/NC relay contacts, Umax =

32 V, Imax= 1 A)

Interfaces

• CAN BUS port 2 ✕ RJ-45, 10 to 500 kbit/s (for

controller, router, amplifier

connection)

DC power input 21–32 V DC

Power consumption 5–60W

Maximum supply current • Standby < 250 mA

• Idle/Announcment/Alert <

800 mA

Operating temperature -5 °C to 45 °C

Electromagnetic environment E1, E2, E3

Product dimensions (Width ✕

Height ✕ Depth)

19”, 2 HU, 483 ✕ 88.2 ✕ 391

mm

Net weight 8.2 kg

Shipping weight 9.7 kg

Ordering information

PAVIRO Router

Order number PVA-4R24

2 | PAVIRO Router

3 | PAVIRO Router
