CAM-M8

u-blox M8 Concurrent GNSS Antenna Modules

Hardware Integration Manual

Abstract

This document describes the hardware features and specifications of

the CAM‑M8 chip antenna modules, which feature the u-blox M8

concurrent GNSS engine with reception of GPS, GLONASS, BeiDou,

Galileo and QZSS signals.

www.u-blox.com

UBX-15030063 - R03

CAM-M8 - Hardware Integration Manual

UBX-15030063 - R03 Production Information Contents

Page 2 of 29

Document Information

Title

CAM-M8

Subtitle

u-blox M8 Concurrent GNSS Antenna Modules

Document type

Hardware Integration Manual

Document number

UBX-15030063

Revision and Date

R03

20-Nov-2017

Document status

Production Information

Document status explanation

Objective Specification

Document contains target values. Revised and supplementary data will be published later.

Advance Information

Document contains data based on early testing. Revised and supplementary data will be published later.

Early Production Information

Document contains data from product verification. Revised and supplementary data may be published later.

Production Information

Document contains the final product specification.

European Union regulatory compliance

CAM-M8C and CAM-M8Q comply with all relevant requirements for RED 2014/53/EU. The CAM-M8 C/Q Declaration of Conformity (DoC) is

available at www.u-blox.com within Support > Product resources > Conformity Declaration.

This document applies to the following products:

Product name

Type number

ROM/FLASH version

PCN reference

CAM-M8C

CAM-M8C-0-10

ROM SPG 3.01

UBX-16016365

CAM-M8Q

CAM-M8Q-0-10

ROM SPG 3.01

UBX-16016365

u-blox reserves all rights to this document and the information contained herein. Products, names, logos and designs described herein

may in whole or in part be subject to intellectual property rights. Reproduction, use, modification or disclosure to third parties of this

document or any part thereof without the express permission of u-blox is strictly prohibited.

The information contained herein is provided “as is” and u-blox assumes no liability for the use of the information. No warranty, either

express or implied, is given, including but not limited, with respect to the accuracy, correctness, reliability and fitness for a particular

purpose of the information. This document may be revised by u-blox at any time. For most recent documents, visit www.u-blox.com.

u-blox is a registered trademark of u-blox Holding AG in the EU and other countries.

CAM-M8 - Hardware Integration Manual

UBX-15030063 - R03 Production Information Contents

Page 3 of 29

Contents

Contents .............................................................................................................................. 3

1 Hardware description .................................................................................................. 4

1.1 Overview ................................................................................................................................................................................. 4

1.2 Configuration .......................................................................................................................................................................... 4

1.3 Connecting power ................................................................................................................................................................... 4

1.4 Interfaces ................................................................................................................................................................................. 5

1.4.1 UART .................................................................................................................................................................................. 5

1.4.2 Display Data Channel (DDC) ................................................................................................................................................. 5

1.4.3 TX_READY ........................................................................................................................................................................... 5

1.5 I/O pins .................................................................................................................................................................................... 6

1.5.1 RESET_N: Reset .................................................................................................................................................................... 6

1.5.2 EXTINT: External interrupt .................................................................................................................................................... 6

1.5.3 TIMEPULSE .......................................................................................................................................................................... 6

1.5.4 SAFEBOOT_N ...................................................................................................................................................................... 6

1.5.5 D_SEL: Interface select ......................................................................................................................................................... 6

1.5.6 LNA_EN: LNA enable............................................................................................................................................................ 6

1.6 Electromagnetic interference on I/O lines ................................................................................................................................... 7

2 Design ........................................................................................................................... 8

2.1 Pin description ......................................................................................................................................................................... 8

2.1.1 Pin name changes ................................................................................................................................................................ 9

2.2 Minimal design ........................................................................................................................................................................ 9

2.3 Suggested pad layout ............................................................................................................................................................. 10

2.4 Antenna ................................................................................................................................................................................ 10

2.5 Embedded antenna operation................................................................................................................................................. 12

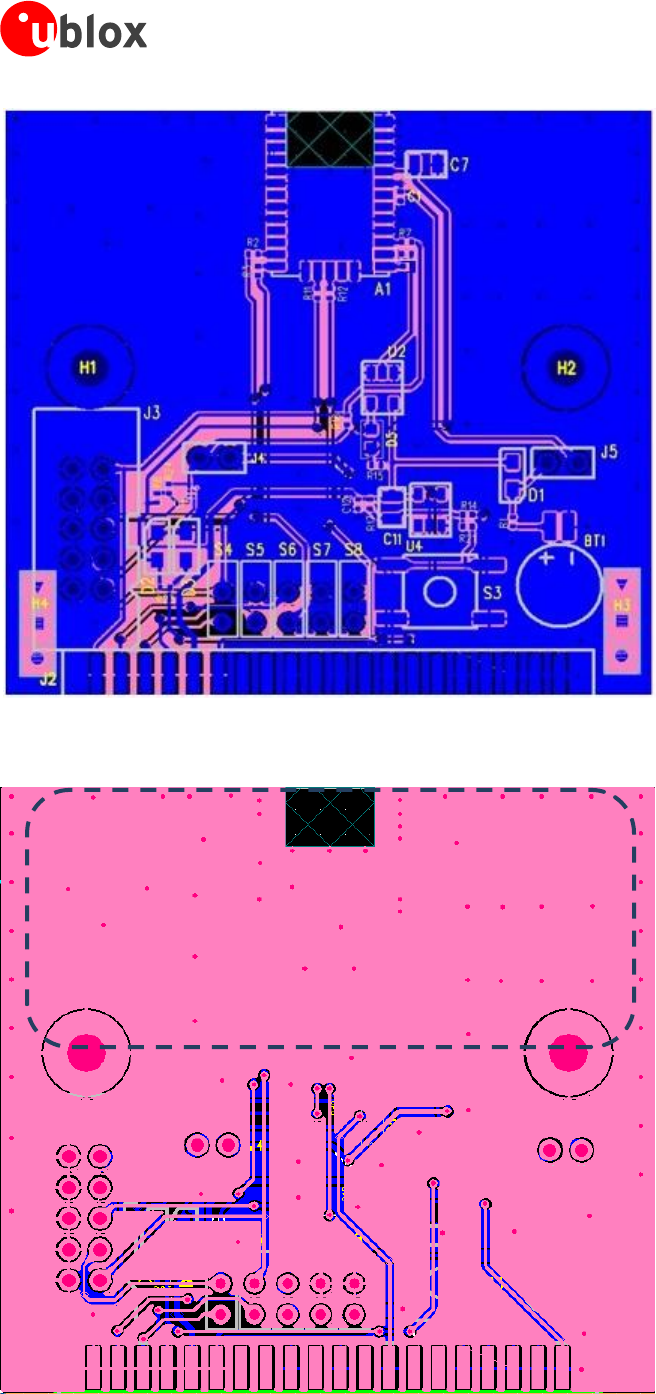

2.6 PCB layout suggestion ............................................................................................................................................................ 13

3 Migration: UC530(M) designs to CAM-M8 ................................................................ 17

4 Product handling ........................................................................................................ 18

4.1 Packaging, shipping, storage and moisture preconditioning ..................................................................................................... 18

4.2 Soldering ............................................................................................................................................................................... 18

4.3 EOS/ESD/EMI precautions ....................................................................................................................................................... 21

4.3.1 Electromagnetic interference (EMI) ..................................................................................................................................... 23

4.4 Applications with cellular modules .......................................................................................................................................... 24

Appendix .......................................................................................................................... 26

A Glossary ...................................................................................................................... 26

B Recommended parts .................................................................................................. 27

Related documents........................................................................................................... 28

Revision history ................................................................................................................ 28

Contact .............................................................................................................................. 29

CAM-M8 - Hardware Integration Manual

UBX-15030063 - R03 Production Information Hardware description

Page 4 of 29

1 Hardware description

1.1 Overview

The CAM‑M8 modules are concurrent GNSS chipantenna modules featuring the high performance u-blox M8

concurrent GNSS engine with reception of GPS, GLONASS, BeiDou, Galileo and QZSS signals. Available in an

industry standard form factor in leadless chip carrier (LCC) packages, it is easy to integrate and combines

exceptional positioning performance with highly flexible power, design, and connectivity options. SMT pads

allow fully automated assembly with standard pick & place and reflow-soldering equipment for cost-efficient,

high-volume production enabling short time-to-market.

For product features, see the CAM-M8 Data Sheet [1].

To determine which u-blox product best meets your needs, see the product selector tables on the u-blox

website (www.u-blox.com).

1.2 Configuration

The configuration settings can be modified using UBX protocol configuration messages; see the u-blox 8 / u-blox

M8 Receiver Description Including Protocol Specification [2]. The modified settings remain effective until power-

down or reset. If these settings have been stored in BBR (Battery Backed RAM), then the modified configuration

will be retained, as long as the backup battery supply is not interrupted.

1.3 Connecting power

CAM‑M8 antenna modules have three power supply pins: VCC, V_BCKP, VCC_IO.

VCC: Main supply voltage

The VCC pin provides the main supply voltage. During operation, the current drawn by the module can vary by

some orders of magnitude, especially if enabling low-power operation modes. For this reason, it is important

that the supply circuitry be able to support the peak power for a short time (see the CAM-M8 Data Sheet [1] for

specification).

When switching from backup mode to normal operation or at start-up, CAM‑M8 antenna modules must

charge their internal capacitors in the core domain. In certain situations, this can result in a significant

current draw. For low power applications using Power Save and backup modes, it is important that the

power supply or low ESR capacitors at the module input can deliver this current/charge.

Use a proper GND concept. Do not use any resistors or coils in the power line.

V_BCKP: Backup supply voltage

In case of a power failure on the module supply, V_BCKP supplies the real-time clock (RTC) and battery backed

RAM (BBR). Use of valid time and the GNSS orbit data at start-up will improve the GNSS performance, i.e. hot

starts and warm starts. If no backup battery is connected, the module performs a cold start at power-up.

Avoid high resistance on the V_BCKP line: During the switch from main supply to backup supply, a short

current adjustment peak can cause high voltage drop on the pin with possible malfunctions.

If no backup supply voltage is available, connect the V_BCKP pin to VCC.

As long as VCC supplies the CAM‑M8 antenna module, the backup battery is disconnected from the RTC

and the BBR to avoid unnecessary battery drain (see Figure 1). In this case, VCC supplies power to the RTC

and BBR.

CAM-M8 - Hardware Integration Manual

UBX-15030063 - R03 Production Information Hardware description

Page 5 of 29

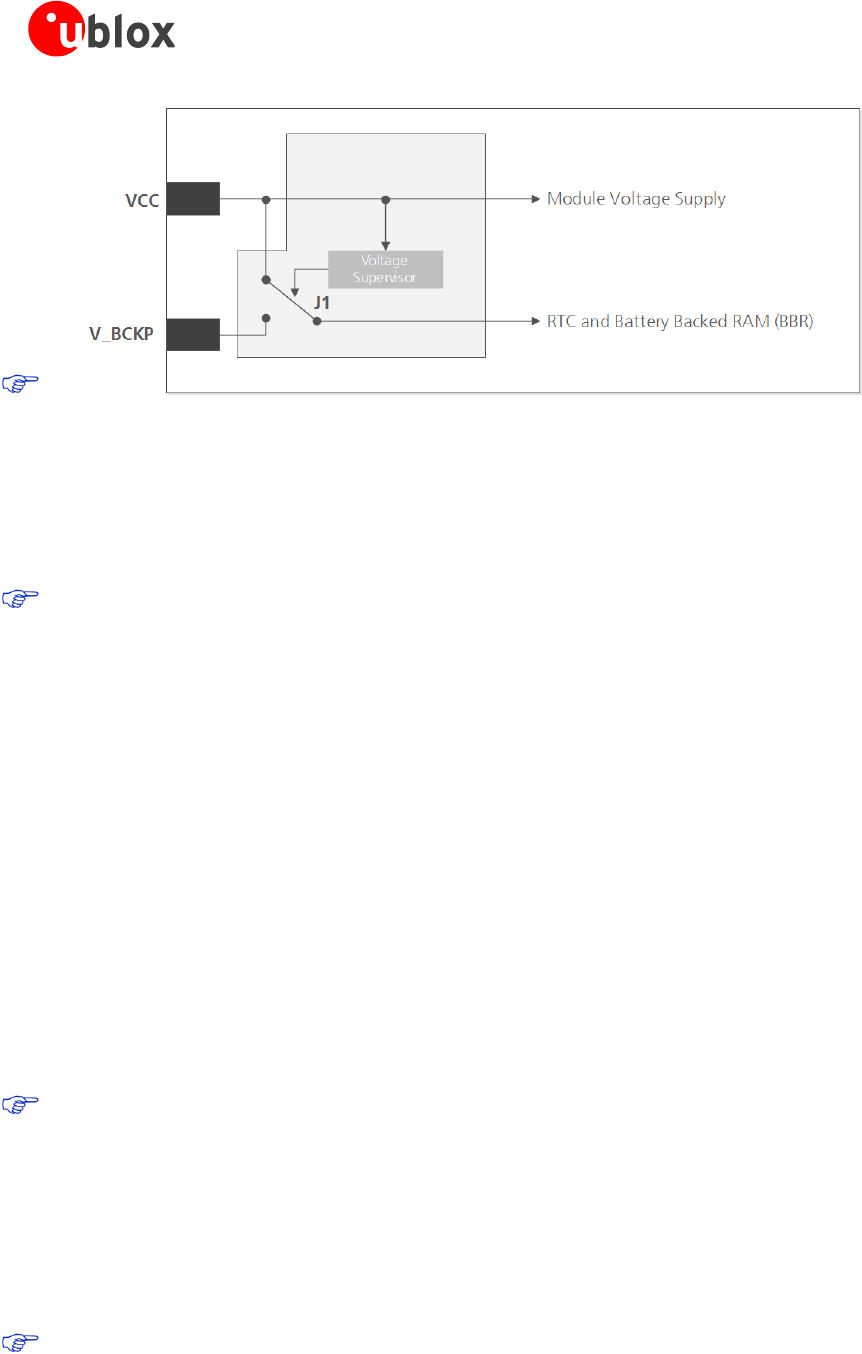

Figure 1: Backup battery and voltage

VCC_IO: IO supply voltage

VCC_IO from the host system supplies the digital I/Os. The wide range of VCC_IO allows seamless interfacing to

standard logic voltage levels independent of the VCC voltage level. In many applications, VCC_IO is simply

connected to the main supply voltage.

Without a VCC_IO supply, the system will remain in reset state.

1.4 Interfaces

1.4.1 UART

CAM‑M8 antenna modules include a Universal Asynchronous Receiver Transmitter (UART) serial interface,

RXD/TXD, which supports configurable baud rates, as specified in the CAM-M8 Data Sheet [1]. The signal

output and input level is 0 V to VCC. An interface based on RS232 standard levels (+/- 12 V) can be

implemented using level shifters, such as Maxim MAX3232. Hardware handshake signals and synchronous

operation are not supported.

1.4.2 Display Data Channel (DDC)

An I2C compatible Display Data Channel (DDC) interface is available with CAM‑M8 antenna modules for serial

communication with an external host CPU. The interface only supports operation in slave mode (master mode is

not supported). The DDC protocol and electrical interface are fully compatible with the Fast-Mode of the I2C

industry standard. DDC pins SDA and SCL have internal pull-up resistors.

For more information about the DDC implementation, see the u-blox 8 / u-blox M8 Receiver Description

Including Protocol Specification [2]. For bandwidth information, see the CAM-M8 Data Sheet [1]. For timing

parameters, consult the I2C-bus specification [6].

The CAM-M8 DDC interface supports serial communication with u-blox cellular modules. See the

specification of the applicable cellular module to confirm compatibility.

1.4.3 TX_READY

The TX_READY function is used to indicate when the receiver has data to transmit. A listener can wait on the

TX_READY signal instead of polling the DDC or SPI interfaces. The UBX-CFG-PRT message lets you configure the

polarity and the number of bytes in the buffer before the TX READY signal goes active. The TX_READY function

can be mapped to TXD (PIO 06). The TX_READY function is disabled by default.

The TX_READY functionality can be enabled and configured by AT commands sent to the u-blox cellular

module supporting the feature. For more information, see the GPS Implementation and Aiding Features in

u-blox wireless modules [7].

CAM-M8 - Hardware Integration Manual

UBX-15030063 - R03 Production Information Hardware description

Page 6 of 29

1.5 I/O pins

1.5.1 RESET_N: Reset

Driving RESET_N low activates a hardware reset of the system. Use this pin only to reset the module. Do not use

RESET_N to turn the module on and off, since the reset state increases power consumption. The CAM-M8

RESET_N pin is for input only.

The RTC time is also reset (but not BBR).

1.5.2 EXTINT: External interrupt

EXTINT is an external interrupt pin with fixed input voltage thresholds with respect to VCC (see the CAM-M8

Data Sheet [1] for more information). It can be used for wake-up functions in Power Save Mode on and for

aiding. Leave open if unused, the function is disabled by default.

Power Control

The power control feature allows overriding the automatic active/inactive cycle of Power Save Mode. The state of

the receiver can be controlled through the EXTINT pin. The receiver can also be forced OFF using EXTINT when

Power Save Mode is not active.

Frequency aiding

The EXTINT pin can be used to supply time or frequency aiding data to the receiver.

For time aiding, hardware time synchronization can be achieved by connecting an accurate time pulse to the

EXTINT pin.

Frequency aiding can be implemented by connecting a periodic rectangular signal with a frequency up to

500 kHz and arbitrary duty cycle (low/high phase duration must not be shorter than 50 ns) to the EXTINT pin.

Provide the applied frequency value to the receiver using UBX messages.

1.5.3 TIMEPULSE

A configurable time pulse signal is available with CAM‑M8 antenna modules. By default, the time pulse signal is

configured to one pulse per second. For more information, see the u-blox 8 / u-blox M8 Receiver Description

Including Protocol Specification [2].

1.5.4 SAFEBOOT_N

The SAFEBOOT_N pin is for future service, updates and reconfiguration.

Do not pull low during reset

1.5.5 D_SEL: Interface select

The D_SEL pin selects the available interfaces. SPI cannot be used simultaneously with UART/DDC. If open, UART

and DDC are available. If pulled low, the SPI interface is available, see the CAM-M8 FW3 Data Sheet [1] for more

information.

1.5.6 LNA_EN: LNA enable

On CAM‑M8, in Power Save Mode, the system can turn on/off an optional external LNA using the LNA_EN

signal in order to optimize power consumption.

Signals: "high" = Turn ON LNA, "low" = Turn OFF LNA

CAM-M8 - Hardware Integration Manual

UBX-15030063 - R03 Production Information Hardware description

Page 7 of 29

1.6 Electromagnetic interference on I/O lines

Any I/O signal line with a length greater than approximately 3 mm can act as an antenna and may pick up

arbitrary RF signals transferring them as noise into the GNSS receiver. This specifically applies to unshielded lines,

in which the corresponding GND layer is remote or missing entirely, and lines close to the edges of the printed

circuit board.

If, for example, a cellular signal radiates into an unshielded high-impedance line, it is possible to generate noise

in the order of volts and not only distort receiver operation but also damage it permanently.

On the other hand, noise generated at the I/O pins will emit from unshielded I/O lines. Receiver performance

may be degraded when this noise is coupled into the GNSS antenna (see Figure 17).

To avoid interference by improperly shielded lines, it is recommended to use resistors (e.g. R>20 ), ferrite beads

(e.g. BLM15HD102SN1) or inductors (e.g. LQG15HS47NJ02) on the I/O lines in series. These components should

be chosen with care because they will affect also the signal rise times.

Figure 2 shows an example of EMI protection measures on the RXD/TXD line using a ferrite bead. More

information can be found in section 4.3.

Figure 2: EMI Precautions

CAM-M8 - Hardware Integration Manual

UBX-15030063 - R03 Production Information Design

Page 8 of 29

2 Design

2.1 Pin description

Function

I/O

Description

Remarks

Power

VCC

Supply Voltage

Provide clean and stable supply.

GND

4, 5, 10,

11, 12, 13,

14, 15, 18,

19, 21, 22,

27, 31

Ground

Assure a good GND connection to all GND pins of the module

VCC_IO

IO supply voltage. Input must be always supplied. Usually connect to

VCC Pin 9

V_BCKP

Backup Supply

Voltage

It is recommended to connect a backup supply voltage to V_BCKP

in order to enable warm and hot Start features on the positioning

module. Otherwise, connect to VCC.

Antenna

RF_IN

GNSS signal

input from

antenna

Antenna Signal Input (50 ) Use a controlled impedance

transmission line of 50  to connect to RF_IN.

RF_OUT

Embedded Antenna Output (50 ), shall be connected externally to

RF_IN

LNA_EN

External LNA control pin in power save mode.

LNA_EN pin voltage level is VCC_IO

UART

TXD /

SPI MISO

Serial Port

Serial Port if D_SEL =1(or open), SPI MISO if D_SEL = 0

Communication interface can be programmed as TX Ready for DDC

interface. Leave open if not used.

RXD /

SPI MOSI

Serial Port

Serial Port if D_SEL =1(or open) SPI MOSI if D_SEL = 0

Serial port input with internal pull-up resistor to VCC. Leave open if

not used. Do not use external pull up resistor.

System

RESET_N

Hardware Reset

(Active Low)

Leave open if not used. Do not drive high.

TIMEPULSE

Timepulse

Signal

Configurable Timepulse signal (one pulse per second by default).

Leave open if not used.

EXTINT

Ext. Interrupt

Ext. Interrupt Pin. Int. pull-up resistor to VCC. Leave open if unused.

SDA /

SPI CS_N

I/O

DDC Pins

DDC Data if D_SEL =1 (or open) SPI Chip Select if D_SEL = 0

Leave open if not used.

SCL /

SPI CLK

DDC Pins

DDC Clock if D_SEL =1(or open) SPI Clock if D_SEL = 0.

Leave open if not used.

D_SEL

selects the

interface

Allow selecting UART/DDC or SPI

open-> UART/DDC; low->SPI

SAFEBOOT_N

Leave open

Reserved

2, 28

Reserved

Leave open

Table 1: CAM-M8 Pinout

CAM-M8 - Hardware Integration Manual

UBX-15030063 - R03 Production Information Design

Page 9 of 29

2.1.1 Pin name changes

Selected pin names have been updated to agree with a common naming convention across u-blox modules. The

pins have not changed their operation and are the same physical hardware but with updated names. The table

below lists the pins that have changed name along with their old and new names.

Previous Name

New name

SDA

SPI CS_N

SDA /

SPI CS_N

SCL

SPI CLK

SCL /

SPI CLK

ANT

RF_OUT

DSEL

D_SEL

TXD

SPI MISO

TXD /

SPI MISO

RXD

SPI MOSI

RXD /

SPI MOSI

ANT_ON

LNA_EN

Table 2: Pin name changes

2.2 Minimal design

This is a minimal setup for a GNSS receiver with CAM-M8 modules:

Figure 3: CAM-M8 embedded antenna design

In order to reduce risk for EMI leakage, which can reduce GNSS performance, add 220  series resistors to

TXD and RXD. Also add 220  external series resistors at each digital I/O signal, if being used. See section

4.3 Electromagnetic interference (EMI).

CAM-M8 - Hardware Integration Manual

UBX-15030063 - R03 Production Information Design

Page 10 of 29

2.3 Suggested pad layout

The suggested paste mask openings are the same as the pad layout. Note the keep-out (void area) 4.8 x 7.2 mm

for copper & trace & components for all layers under the embedded chip antenna.

Be sure to comply with special PCB layout design rules to ensure proper embedded antenna operation

when the customer PCB is used as part of antenna. This requires solid ground plane around the module;

see section 2.6 for layout suggestions.

Figure 4: Suggested pad layout and occupied area, top view

2.4 Antenna

CAM-M8 concurrent GNSS modules are designed with an integrated GNSS chip antenna. Optionally, the

CAM-M8 can be connected to an external active GNSS antenna.

Antenna input

The module has an embedded GNSS chip antenna and a SAW band-pass filter before LNA, which provides

excellent protection against out-of-band GNSS blocking caused by possible near-by wireless transmitters. The

signal is further amplified by the internal Low Noise Amplifier (LNA), which is available at RF_OUT output.

The antenna signal, RF_OUT, shall be connected externally to the RF_IN antenna input signal via a short trace

between pads. The RF_OUT signal and the RF_IN are internally AC-coupled.

Be sure to comply with special PCB layout design rules to ensure proper embedded antenna operation

when the customer PCB is used as part of antenna. This requires solid ground plane around the module;

see section 2.6 for layout suggestions.

External GNSS antenna connectivity

CAM-M8 modules can also use an external active antenna signal as an optional addition to the embedded chip

antenna. An active antenna requires an external antenna switch in order to select the path between RF_IN input

and the external GNSS antenna signal. When the switch detects the external active antenna presence, e.g. by

using the active antenna bias current detection, it switches the antenna signal path to external antenna. When

the module is in Standby or Backup state, the antenna switch and bias can be switched off externally by using

LNA_EN signal output.

Use 100 k (typ.) external pull down resistor at LNA_EN signal whenever the signal is used externally.

A second option is to use a suitable RF-connector with built-in switching operation. The customer may use an

external active GNSS antenna connected with a RF-connector (e.g. MCX) + Switch combo (e.g. Aliner 36-

CAM-M8 - Hardware Integration Manual

UBX-15030063 - R03 Production Information Design

Page 11 of 29

301AA). It is suggested that the active antenna has a net gain including cable loss in the range of +10 dB to

+30 dB. Specified sensitivity is measured with an external low noise (NF<1dB, G>15dB) amplifier. The antenna

shall provide simultaneous reception of GPS, GLONASS, BeiDou and QZSS signals.

Figure 5: External GNSS antenna

External active antenna

The LNA_EN pin can be used to turn on and off an external LNA. This reduces power consumption in Power

Save Mode (Backup mode).

Figure 6: External active antenna

CAM-M8 - Hardware Integration Manual

UBX-15030063 - R03 Production Information Design

Page 12 of 29

2.5 Embedded antenna operation

The embedded GNSS antenna provides optimal radiation efficiency of 80% (typ.) with an 80 x 40 mm ground

plane. The antenna provides linear polarization with a peak gain of 1.1 dBi and a radiation pattern optimized for

portable devices. The antenna is insensitive to surroundings and has high tolerance against frequency shifts.

However, on small ground plane widths, the antenna gain and radiation efficiency is reduced. For example, a

45 mm wide application board reduces signal levels by at least 6 dB as compared to full 80 x 40 mm ground

plane dimensions. Figure 7 shows the typical free space radiation patterns at 1575 GHz. The radiation pattern of

the embedded GNSS antenna is shown in Figure 7 (on an 80 x 40 mm ground plane).

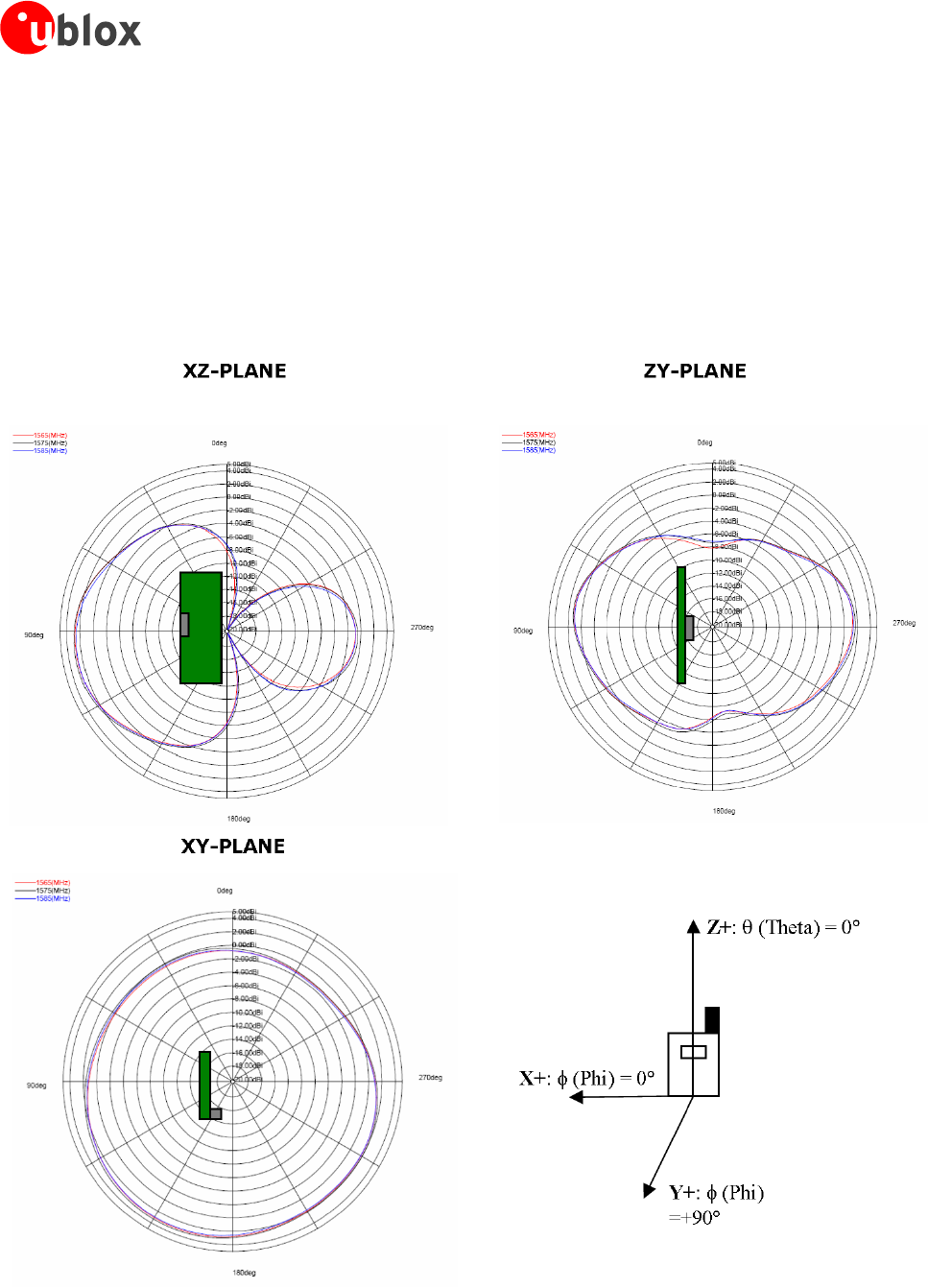

Figure 7: 1.575 GHz typical free space radiation patterns

CAM-M8 - Hardware Integration Manual

UBX-15030063 - R03 Production Information Design

Page 13 of 29

Avoid placement of the module at a corner of the motherboard. This will reduce radiation efficiency and cause

frequency shifts. Optimal placement is at center of top edge; keep at least 10 mm distance to nearest ground

plane corner.

Tall nearby components (h > 3 mm) should be placed at least d = 6 mm away from the embedded antenna. In

addition, any adjacent conductive metal plane should have a distance d = 6 mm to the top edge of the module.

An enclosure or plastic cover should have a minimum distance d = 1.5 mm to the antenna.

Placement near a human body (or any biological tissue) is accepted by keeping a minimum distance d = 10 mm

between motherboard and the body. With smaller distances to the body, the radiation efficiency of the antenna

will start to reduce due to signal losses in biological tissue. E.g. d = 5 mm to biological tissue will reduce GPS

signal levels by about 6 dB. Note that the body will also act as a reflector, and thus the radiation pattern will

point perpendicular to the body.

Figure 8: Placement of CAM-M8 relative to surroundings

2.6 PCB layout suggestion

The suggested 4-layer PCB build-up is presented in the following table.

Layer

Description

Components + ground plane (opening under CAM-M8 antenna)

Signals and RF trace (opening under CAM-M8 antenna)

Ground and power planes, signals (opening under CAM-M8 antenna)

Ground plane, also short traces allowed (opening under CAM-M8 antenna)

Table 3: Suggested PCB build-up

CAM‑M8 antenna modules are intended to be placed at the top edge of the motherboard. The embedded

antenna operation relies on the ground plane on the motherboard. The optimum size is 80 x 40 mm, but a

larger or smaller ground plane can be used. The suggested minimum ground plane size is 45 x 20 mm for

rectangular and r = 60 mm for circular ground plane. Optimum placement is at the center of the top edge, but

offset placement is allowed by keeping at least 10 mm distance to the nearest ground plane edge. Although a

ground plane width of 45 mm is the suggested minimum, to maximize performance it is recommended to

CAM-M8

antenna

>6mm

Metal plane

Mother board

Tall

component

Human body

>10mm

Mother board

Metal plane

>1.5mm

Enclosure

CAM-M8 - Hardware Integration Manual

UBX-15030063 - R03 Production Information Design

Page 14 of 29

extend the width as far as possible. Conversely, increasing the height of the ground plane beyond 20 mm has

little to no effect on antenna performance.

Figure 9: Motherboard ground plane and CAM-M8 placement

Keep out 4.8 x 7.2 mm under the embedded antenna. Follow also GND via hole suggested locations.

Figure 10: Suggested minimum size is r = 60 mm for circular ground plane.

CAM-M8 - Hardware Integration Manual

UBX-15030063 - R03 Production Information Design

Page 15 of 29

Routing signals directly under the module should be avoided. This area should be dedicated as keep-out to both

traces and assigned to ground plane (copper plane), except for via holes, which can be placed close to the pad

under the module. If possible, the number of via holes underneath the module should be minimized.

Note that the embedded GNSS antenna requires a small ground plane clearance and void area (keep out

4.8 x 7.2 mm) for copper plane & trace for all layers under the antenna. Placement of other components is not

allowed under the keep-out on opposite side.

For a multi-layer PCB, the inner layers below the CAM‑M8 antenna modules are suggested to be dedicated

signal traces and copper plane for the rest of the area. It is always better to route very long signal traces in the

inner layers of the PCB. In this way, the trace can be easily shielded with ground areas from above and below.

The serial resistors at the I/O should be placed as close to the CAM‑M8 antenna modules as possible in order to

minimize the risk for the EMI leakage. For the same reason, by-pass supply capacitors should be connected very

close to the module with short traces to IO contacts and to the ground plane. Place a GND via hole as close as

possible to the capacitor. Other components on the motherboard can be added close to the module but a solid

ground plane requirement must be maintained in internal and/or on opposite side of the PCB.

Connect the GND soldering pads of the CAM‑M8 antenna modules to the ground plane with short traces

(thermals) to via holes, which are connected to the ground plane. Preferably, use one via hole for each GND pad.

It is suggested to route an RF signal clearly away from other signals, between two ground planes as a Stripline

Transmission Line; this minimizes the possibility of interference and coupling. The proper width for the 50 

transmission line impedance depends on the dielectric material of the substrate, width of the signal trace and

the height (separation) of the two ground planes. With FR-4 material, the width of the trace shall be about 30%

of the ground plane height. E.g., 0.4 mm ground plane height results to 0.15 mm trace width with FR-4

substrate.

Figure 11: Stripline transmission line

Any board space free of signal traces should be covered with copper areas connected to ground net; in this way,

a solid RF ground plane is achieved throughout the circuit board. Several via holes should be used to connect the

ground areas between different layers.

Additionally, it is important that the PCB build-up is symmetrical on both sides of the PCB core. This can be

achieved by choosing identical copper content on each layers, and adding copper areas to route-free areas. If the

circuit board is heavily asymmetric, the board may bend (wrap) during the PCB manufacturing or reflow

soldering. Bending and wrapping may cause soldering failures and reduce end product reliability.

A reference board layout described in next chapter can be also used as layout reference implementation.

In addition, a 2-layer PCB motherboard design is possible in order to reduce PCB cost, but the layout design

must be made carefully to fulfill ground plane minimum size requirements. The following pictures show

suggested 2-layer GND plane and signal trace routing.

Notes on a 2-layer PCB motherboard design:

 Keep Bottom side ground plane as solid as possible; at least the minimum recommended 45 x 20 mm

 Route signal traces away from the module on Top layer

 When necessary, allow signal swap from top to bottom layer clearly away from module > 20 mm

 Use copper pour ground planes on top and bottom layers; use multiple GND net via holes to tie

separate ground plane areas tightly together

height

width

CAM-M8 - Hardware Integration Manual

UBX-15030063 - R03 Production Information Design

Page 16 of 29

Figure 12: Example of 2-layer PCB, top layer

Figure 13: Example of 2-layer PCB, bottom layer

KEEPOUT FOR GND PLANE OPENING

45X20 MM MIN.

CAM-M8 - Hardware Integration Manual

UBX-15030063 - R03 Production Information Migration: UC530(M) designs to CAM-M8

Page 17 of 29

3 Migration: UC530(M) designs to CAM-M8

There are small differences that need to be taken into account when migrating from UC530(M) designs to

CAM-M8 concurrent GNSS receiver modules.

 Different supply level(s)

 FORCE_ON not supported in CAM-M8

It is highly advisable that customers consider a design review with the u-blox support team to ensure the

compatibility of key functionalities. The Table 4 summarizes the pin-out and design differences.

UC530(M)

CAM-M8C/Q

Remarks for replace

Pin Name

Typical Assignment

Pin Name

Typical Assignment

32K/DR_INT

Not Supported (leave signal

floating)

VCC_IO

Needs to be connected to same as

VCC (2.7-3.6 V)

UI_FIX

Valid Fix indicator output

Reserved

OK as is

TX1

Serial Port

SDA /

SPI CS_N

DDC Data

GND

Ground

GND

Ground

No difference

GND

Ground

GND

Ground

No difference

RX1

Serial Port

SCL /

SPI CLK

DDC Data

EINT1

Not supported feature (leave

signal floating)

EXTINT

Normal u-blox M8 EXTINT support

OK as is

VDD_B

Backup supply pin (2.0-4.3 V)

V_BCKP

Backup supply pin (1.4-3.6 V)

VDD

Supply (3.0-4.3 V)

VCC

Supply (2.7-3.6 V)

GND

Ground

GND

Ground

No difference

GND

Ground

GND

Ground

No difference

GND

Ground

GND

Ground

No difference

GND

Ground

GND

Ground

No difference

GND

Ground

GND

Ground

No difference

GND

Ground

GND

Ground

No difference

ANT

Embedded Antenna Output

(50 )

RF_OUT

Embedded Antenna Output

(50 )

No difference

RF_IN

Antenna Signal Input

RF_IN

Antenna signal input

No difference

GND

Ground

GND

Ground

No difference

GND

Ground

GND

Ground

No difference

GPIO9

Not supported feature (leave

signal floating)

D_SEL

Open: UART/I2C, PD: SPI

OK as is

GND

Ground

GND

Ground

No difference

GND

Ground

GND

Ground

No difference

RESET_N

External reset input

RESET_N

External reset input

No difference

GPIO10

Reserved for future usage, leave

floating.

SAFEBOOT_

Reserved for future usage, leave open.

No difference

TX0

Serial Port

TXD /

SPI MISO

Serial Port if D_SEL =1 (or open)

OK as is

RX0

Serial Port

RXD /

SPI MOSI

Serial Port if D_SEL =1 (or open)

OK as is

GND

Ground

GND

Ground

No difference

FORCE_ON

(UC530M)

TIMER

(UC530)

Wake up from low power

modes, to GND if not used

Power control output to

control external VDD switch,

to GND if not used

Reserved

OK as is

PPS

PPS Time Mark output signal

(default)

TIMEPULSE

Time pulse (1 PPS)

No difference

WAKEUP

Control external LNA

LNA_EN

External LNA control pin in power save

mode.

OK as is

GND

Ground

GND

Ground

No difference

Table 4: Pin-out comparison UC530(M) vs. CAM-M8C/Q

For more information about Software migration of CAM-M8 modules from FW2 to FW3, see the GNSS FW3.01

Release Notes [3] and the u-blox M8 FW SPG3.01 Migration Guide [8].

CAM-M8 - Hardware Integration Manual

UBX-15030063 - R03 Production Information Product handling

Page 18 of 29

4 Product handling

4.1 Packaging, shipping, storage and moisture preconditioning

For information pertaining to reels and tapes, Moisture Sensitivity levels (MSL), shipment and storage

information, as well as drying for preconditioning see the CAM-M8 Data Sheet [1].

Population of Modules

When populating the modules, make sure that the pick and place machine is aligned to the copper pins

of the module and not to the module edge.

4.2 Soldering

Soldering paste

Use of "No Clean" soldering paste is strongly recommended, as it does not require cleaning after the soldering

process has taken place. The paste listed in the example below meets these criteria.

Soldering Paste: OM338 SAC405 / Nr.143714 (Cookson Electronics)

Alloy specification: Sn 95.5/ Ag 4/ Cu 0.5 (95.5% Tin/ 4% Silver/ 0.5% Copper)

Melting Temperature: 217 °C

Stencil Thickness: 150 um

The final choice of the soldering paste depends on the approved manufacturing procedures.

The paste-mask geometry for applying soldering paste should meet the recommendations.

The quality of the solder joints on the connectors (“half vias”) should meet the appropriate IPC

specification.

Reflow soldering

A convection type soldering oven is highly recommended over the infrared type radiation oven.

Convection heated ovens allow precise control of the temperature, and all parts will heat up evenly, regardless

of material properties, thickness of components and surface color.

As a reference, see the "IPC-7530 Guidelines for temperature profiling for mass soldering (reflow and wave)

processes”, published in 2001.

Preheat phase

During the initial heating of component leads and balls, residual humidity will be dried out. Note that this

preheat phase will not replace prior baking procedures.

 Temperature rise rate: max. 3 °C/s. If the temperature rise is too rapid in the preheat phase it may cause

excessive slumping.

 Time: 60 - 120 s. If the preheat is insufficient, rather large solder balls tend to be generated. Conversely, if

performed excessively, fine balls and large balls will be generated in clusters.

 End Temperature: 150 - 200 °C. If the temperature is too low, non-melting tends to be caused in areas

containing large heat capacity.

Heating/ Reflow phase

The temperature rises above the liquidus temperature of 217°C. Avoid a sudden rise in temperature as the slump

of the paste could become worse.

 Limit time above 217 °C liquidus temperature: 40 - 60 s

 Peak reflow temperature: 245 °C

CAM-M8 - Hardware Integration Manual

UBX-15030063 - R03 Production Information Product handling

Page 19 of 29

Cooling phase

A controlled cooling avoids negative metallurgical effects of the solder (becoming more brittle) and possible

mechanical tensions in the products. Controlled cooling helps to achieve bright solder fillets with a good shape

and low contact angle.

 Temperature fall rate: max 4 °C/s

To avoid falling off, the CAM‑M8 antenna module should be placed on the topside of the motherboard

during soldering.

The final soldering temperature chosen at the factory depends on additional external factors like choice of

soldering paste, size, thickness and properties of the baseboard, etc. Exceeding the maximum soldering

temperature in the recommended soldering profile may permanently damage the module.

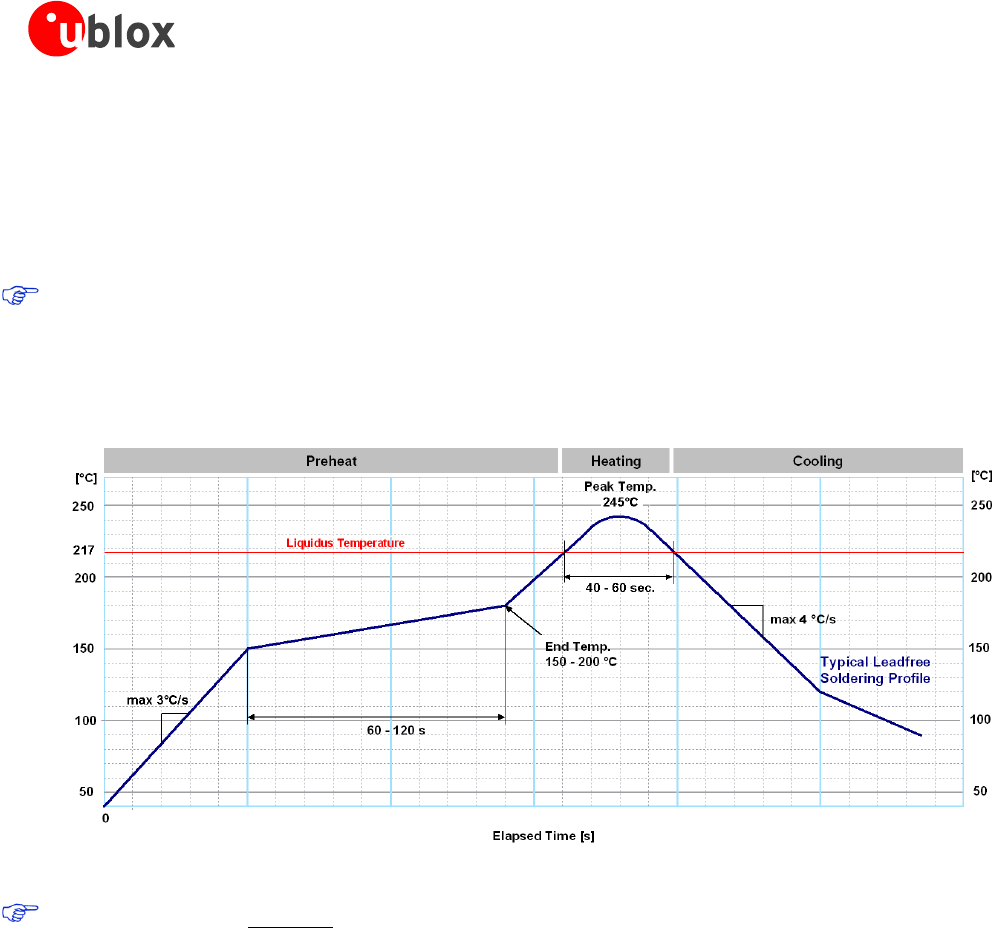

Figure 14: Recommended soldering profile

CAM-M8 modules must not be soldered with a damp heat process.

Optical inspection

After soldering the CAM‑M8 antenna module, consider an optical inspection step to check whether:

 The module is properly aligned and centered over the pads

 All pads are properly soldered

 No excess solder has created contacts to neighboring pads, or possibly to pad stacks and vias nearby

Cleaning

In general, cleaning the populated modules is strongly discouraged. Residues underneath the modules cannot be

easily removed with a washing process.

 Cleaning with water will lead to capillary effects where water is absorbed in the gap between the baseboard

and the module. The combination of residues of soldering flux and encapsulated water leads to short circuits

or resistor-like interconnections between neighboring pads.

 Cleaning with alcohol or other organic solvents can result in soldering flux residues flooding into the two

housings, areas that are not accessible for post-wash inspections. The solvent will also damage the sticker

and the ink-jet printed text.

 Ultrasonic cleaning will permanently damage the module, in particular the quartz oscillators.

The best approach is to use a "no clean" soldering paste and eliminate the cleaning step after the soldering.

CAM-M8 - Hardware Integration Manual

UBX-15030063 - R03 Production Information Product handling

Page 20 of 29

Repeated reflow soldering

Only single reflow soldering processes are recommended for boards populated with CAM‑M8 antenna modules.

The CAM‑M8 antenna modules should not be submitted to two reflow cycles on a board populated with

components on both sides in order to avoid upside down orientation during the second reflow cycle. In this case,

the modules should always be placed on the side of the board that is submitted into the last reflow cycle. The

reason for this (besides others) is the risk of the module falling off due to the significantly higher weight in

relation to other components.

Two reflow cycles can be considered by excluding the above described upside down scenario and taking into

account the rework conditions described in the section 4 Product handling.

Repeated reflow soldering processes and soldering the module upside down are not recommended.

Wave soldering

Baseboards with combined through-hole technology (THT) components and surface-mount technology (SMT)

devices require wave soldering to solder the THT components. Only a single wave soldering process is

encouraged for boards populated with CAM‑M8 antenna modules.

Hand soldering

Hand soldering is allowed. Use a soldering iron temperature setting equivalent to 350 °C. Place the module

precisely on the pads. Start with a cross-diagonal fixture soldering (e.g. pins 1 and 15), and then continue from

left to right.

Rework

The CAM-M8 modules can be unsoldered from the baseboard using a hot air gun. When using a hot air gun for

unsoldering the module, a maximum of one reflow cycle is allowed. In general, we do not recommend using a

hot air gun because this is an uncontrolled process and might damage the module.

Attention: use of a hot air gun can lead to overheating and severely damage the module.

Always avoid overheating the module.

After the module is removed, clean the pads before placing and hand soldering a new module.

Never attempt a rework on the module itself, e.g. replacing individual components. Such

actions immediately terminate the warranty.

In addition to the two reflow cycles, manual rework on particular pins by using a soldering iron is allowed.

Manual rework steps on the module can be done several times.

Conformal coating

Certain applications employ a conformal coating of the PCB using HumiSeal® or other related coating products.

These materials affect the HF properties of the GNSS module and it is important to prevent them from flowing

into the module. The RF shields do not provide 100% protection for the module from coating liquids with low

viscosity; therefore, care is required in applying the coating.

Conformal Coating of the module will void the warranty.

Casting

If casting is required, use viscose or another type of silicon pottant. The OEM is strongly advised to qualify such

processes in combination with the CAM‑M8 antenna modules before implementing this in the production.

Casting will void the warranty.

CAM-M8 - Hardware Integration Manual

UBX-15030063 - R03 Production Information Product handling

Page 21 of 29

Grounding metal covers

Attempts to improve grounding by soldering ground cables, wick or other forms of metal strips directly onto the

EMI covers is done at the customer's own risk. The numerous ground pins should be sufficient to provide

optimum immunity to interferences and noise.

u-blox makes no warranty for damages to the CAM‑M8 antenna modules caused by soldering metal

cables or any other forms of metal strips directly onto the EMI covers.

Use of ultrasonic processes

Some components on the CAM-M8 modules are sensitive to ultrasonic waves. Use of any ultrasonic processes

(cleaning, welding etc.) may cause damage to the GNSS Receiver.

u-blox offers no warranty against damages to the CAM‑M8 antenna modules caused by any ultrasonic

processes.

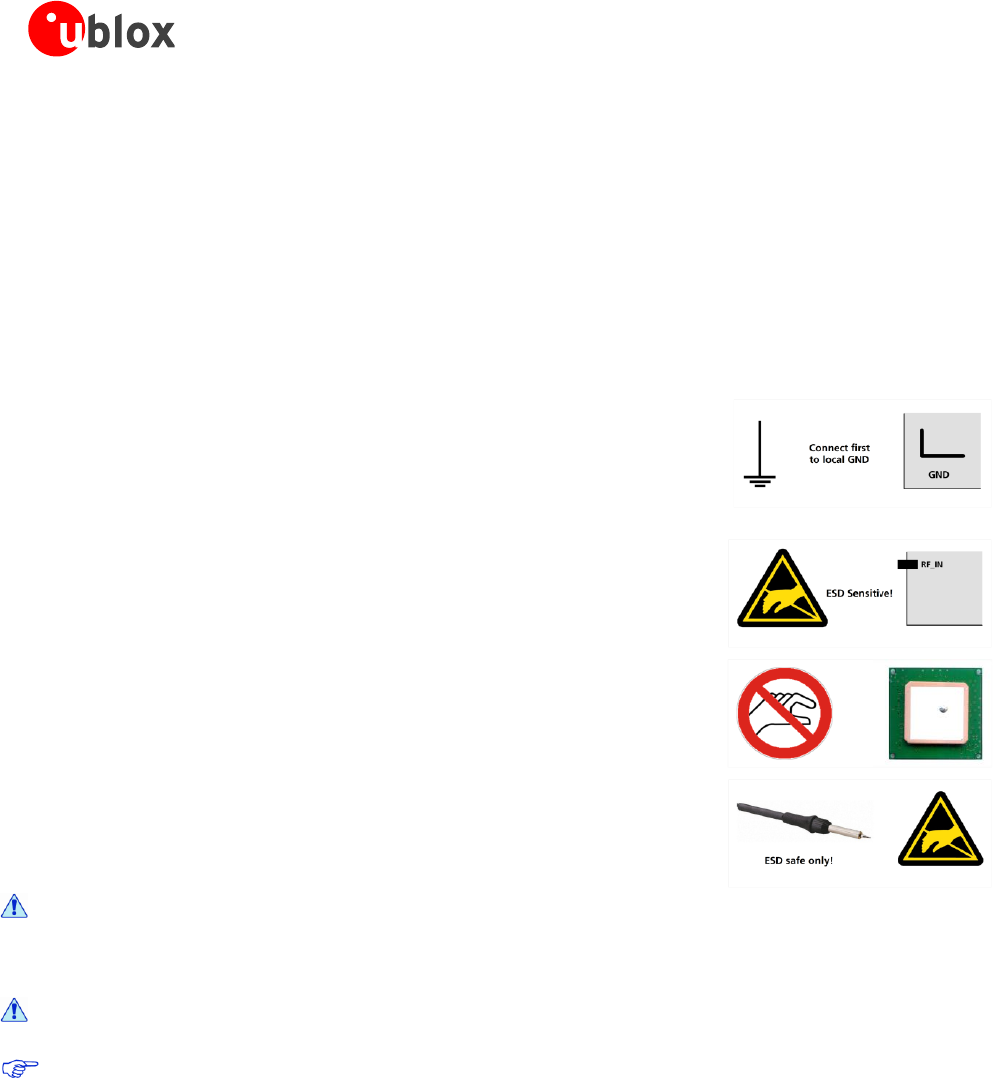

4.3 EOS/ESD/EMI precautions

When integrating GNSS positioning modules into wireless systems, careful consideration must be given to

electromagnetic and voltage susceptibility issues. Wireless systems include components that can produce

Electrical Overstress (EOS) and Electro-Magnetic Interference (EMI). CMOS devices are more sensitive to such

influences because their failure mechanism is defined by the applied voltage, whereas bipolar semiconductors

are more susceptible to thermal overstress. The following design guidelines are provided to help in designing

robust yet cost effective solutions.

To avoid overstress damage during production or in the field it is essential to observe strict

EOS/ESD/EMI handling and protection measures.

To prevent overstress damage at the RF_IN of your receiver, never exceed the maximum input

power (see the CAM-M8 Data Sheet [1]).

Electrostatic discharge (ESD)

Electrostatic discharge (ESD) is the sudden and momentary electric current that flows between

two objects at different electrical potentials caused by direct contact or induced by an

electrostatic field. The term is usually used in the electronics and other industries to describe

momentary unwanted currents that may cause damage to electronic equipment.

CAM-M8 - Hardware Integration Manual

UBX-15030063 - R03 Production Information Product handling

Page 22 of 29

ESD handling precautions

ESD prevention is based on establishing an Electrostatic Protective Area (EPA). The EPA can be a small working

station or a large manufacturing area. The main principle of an EPA is that there are no highly charging materials

near ESD sensitive electronics, all conductive materials are grounded, workers are grounded, and charge build-up

on ESD sensitive electronics is prevented. International standards are used to define typical EPA and can be

obtained for example from International Electrotechnical Commission (IEC) or American National Standards

Institute (ANSI).

GNSS positioning modules are sensitive to ESD and require special precautions when handling. Particular care

must be exercised when handling patch antennas, due to the risk of electrostatic charges. In addition to

standard ESD safety practices, the following measures should be taken into account whenever handling the

receiver.

 Unless there is a galvanic coupling between the local GND (i.e. the

work table) and the PCB GND, then the first point of contact when

handling the PCB must always be between the local GND and PCB

GND.

 Before mounting an antenna patch, connect ground of the device

 When handling the RF pin, do not come into contact with any

charged capacitors and be careful when contacting materials that

can develop charges (e.g. patch antenna ~10 pF, coax cable ~50 -

80 pF/m, soldering iron, …)

 To prevent electrostatic discharge through the RF input, do not

touch any exposed antenna area. If there is any risk that such

exposed antenna area is touched in non ESD protected work area,

implement proper ESD protection measures in the design.

 When soldering RF connectors and patch antennas to the receiver’s

RF pin, make sure to use an ESD safe soldering iron (tip).

Failure to observe these precautions can result in severe damage to the GNSS module!

ESD protection measures

GNSS positioning modules are sensitive to Electrostatic Discharge (ESD). Special precautions

are required when handling.

For more robust designs, employ additional ESD protection measures. Using an active antenna with

appropriate ESD rating can provide increases ESD protection.

Most defects caused by ESD can be prevented by following strict ESD protection rules for production and

handling.

Electrical overstress (EOS)

Electrical overstress (EOS) usually describes situations when the maximum input power exceeds the maximum

specified ratings. EOS failure can happen if RF emitters are close to a GNSS receiver or its antenna. EOS causes

damage to the chip structures. If the RF_IN is damaged by EOS, it is hard to determine whether the chip

structures have been damaged by ESD or EOS.

EOS protection measures

CAM-M8 - Hardware Integration Manual

UBX-15030063 - R03 Production Information Product handling

Page 23 of 29

For designs with GNSS positioning modules and wireless (e.g. GSM/GPRS) transceivers in close proximity,

ensure sufficient isolation between the wireless and GNSS antennas. If wireless power output causes the

specified maximum power input at the GNSS RF_IN to be exceeded, employ EOS protection measures to

prevent overstress damage.

For robustness, the EOS protection measures shown in Figure 15 are recommended for designs combining

wireless communication transceivers (e.g. GSM, GPRS) and GNSS in the same design or in close proximity.

Active antennas (without internal filter which need the

module antenna supervisor circuits)

Figure 15: EOS and ESD Precautions

4.3.1 Electromagnetic interference (EMI)

Electromagnetic interference (EMI) is the addition or coupling of energy originating from any RF emitting device.

This can cause a spontaneous reset of the GNSS receiver or result in unstable performance. Any unshielded line

or segment (>3 mm) connected to the GNSS receiver can effectively act as antenna and lead to EMI disturbances

or damage.

The following elements are critical regarding EMI:

 Unshielded connectors (e.g. pin rows etc.)

 Weakly shielded lines on PCB (e.g. on top or bottom layer and especially at the border of a PCB)

 Weak GND concept (e.g. small and/or long ground line connections)

EMI protection measures are recommended when RF emitting devices are near the GNSS receiver. To minimize

the effect of EMI a robust grounding concept is essential. To achieve electromagnetic robustness follow the

standard EMI suppression techniques.

http://www.murata.com/products/emc/knowhow/index.html

http://www.murata.com/products/emc/knowhow/pdf/4to5e.pdf

Improved EMI protection can be achieved by inserting a resistor (e.g. R > 20 ), or better yet a ferrite bead

(BLM15HD102SN1) or an inductor (LQG15HS47NJ02), into any unshielded PCB lines connected to the GNSS

receiver. Place the resistor as close as possible to the GNSS receiver pin.

Alternatively, feed-thru capacitors with good GND connection can be used to protect e.g. the VCC supply pin

against EMI. A selection of feed-thru capacitors are listed in Table 6.

Intended use

In order to mitigate any performance degradation of a radio equipment under EMC disturbance, system

integration shall adopt appropriate EMC design practice and not contain cables over three meters on signal and

supply ports.

CAM-M8 - Hardware Integration Manual

UBX-15030063 - R03 Production Information Product handling

Page 24 of 29

4.4 Applications with cellular modules

GSM terminals transmit power levels up to 2 W (+33 dBm) peak, 3G and LTE up to 250 mW continuous. Consult

the corresponding product data sheet in Related documents for the absolute maximum power input at the GNSS

receiver.

See the GPS Implementation and Aiding Features in u-blox wireless modules [7].

Isolation between GNSS and cellular antenna

In a handheld type design, an isolation of approximately 20 dB can be reached with careful placement of the

antennas. If such isolation cannot be achieved, e.g. in the case of an integrated cellular /GNSS antenna, an

additional input filter is needed on the GNSS side to block the high energy emitted by the cellular transmitter.

Examples of these kinds of filters would be the SAW Filters from Epcos (B9444 or B7839) or Murata.

Increasing interference immunity

Interference signals come from in-band and out-band frequency sources.

In-band interference

With in-band interference, the signal frequency is very close to the GNSS constellation frequency used, e.g. GPS

frequency of 1575 MHz (see Figure 16). Such interference signals are typically caused by harmonics from

displays, micro-controller, bus systems, etc.

1525 1550 1625

GPS input filter

characteristics

1575 1600

-110

Jammin

g signal

1525 1550 1625

Frequency [MHz]

Power [dBm]

GPS input filter

characteristics

1575 1600

Jamming

signal

GPS

signals

GPS Carrier

1575.4 MHz

Figure 16: In-band interference signals

Figure 17: In-band interference sources

CAM-M8 - Hardware Integration Manual

UBX-15030063 - R03 Production Information Product handling

Page 25 of 29

Measures against in-band interference include:

 Maintaining a good grounding concept in the design

 Shielding

 Layout optimization

 Filtering

 Placement of the GNSS antenna

 Adding a CDMA, cellular, WCDMA band pass filter before handset antenna

Out-band interference

Out-band interference is caused by signal frequencies that are different from the GNSS carrier (see Figure 18).

The main sources are wireless communication systems such as cellular, CDMA, WCDMA, Wi-Fi, BT, etc.

Figure 18: Out-band interference signals

Measures against out-band interference include maintaining a good grounding concept in the design and

adding a SAW or band pass ceramic filter (as recommend in section 3) into the antenna input line to the GNSS

receiver (see Figure 19).

Figure 19: Measures against out-band interference

See the GPS Implementation and Aiding Features in u-blox wireless modules [7]

CAM-M8 - Hardware Integration Manual

UBX-15030063 - R03 Production Information Appendix

Page 26 of 29

Appendix

A Glossary

Abbreviation

Definition

ANSI

American National Standards Institute

BeiDou

Chinese navigation satellite system

CDMA

Code Division Multiple Access

EMC

Electromagnetic compatibility

EMI

Electromagnetic interference

EOS

Electrical Overstress

EPA

Electrostatic Protective Area

ESD

Electrostatic discharge

Galileo

European navigation system

GLONASS

Russian satellite system

GND

Ground

GNSS

Global Navigation Satellite System

GPS

Global Positioning System

GSM

Global System for Mobile Communications

IEC

International Electrotechnical Commission

PCB

Printed circuit board

QZSS

Quasi-Zenith Satellite System

Table 5: Explanation of abbreviations used

CAM-M8 - Hardware Integration Manual

UBX-15030063 - R03 Production Information Appendix

Page 27 of 29

B Recommended parts

Recommended parts are selected on data sheet basis only. Other components may also be used.

Manufacturer

Part ID

Remarks

Parameters to consider

Diode ON

Semiconductor

ESD9R3.3ST5G

Standoff Voltage>3.3 V

Low Capacitance < 0.5 pF

ESD9L3.3ST5G

Standoff Voltage>3.3 V

Standoff Voltage > Voltage for active antenna

ESD9L5.0ST5G

Standoff Voltage>5 V

Low Inductance

SAW

TDK/ EPCOS

B8401: B39162-B8401-

P810

GPS+GLONASS

High attenuation

TDK/ EPCOS

B3913: B39162B3913U410

GPS+GLONASS+BeiDou

For automotive application

TDK/ EPCOS

B4310: B39162B4310P810

GPS+GLONASS

Compliant to the AEC-Q200 standard

ReyConns

NDF9169

GPS+BeiDou

Low insertion loss, Only for mobile application

muRata

SAFFB1G56KB0F0A

GPS+GLONASS+BeiDou

Low insertion loss, Only for mobile application

muRata

SAFEA1G58KB0F00

GPS+GLONASS

Low insertion loss, only for mobile application

muRata

SAFEA1G58KA0F00

GPS+GLONASS

High attenuation, only for mobile application

muRata

SAFFB1G58KA0F0A

GPS+GLONASS

High attenuation, only for mobile application

muRata

SAFFB1G58KB0F0A

GPS+GLONASS

Low insertion loss, Only for mobile application

TAI-SAW

TA1573A

GPS+GLONASS

Low insertion loss

TAI-SAW

TA1343A

GPS+GLONASS+BeiDou

Low insertion loss

TAI-SAW

TA0638A

GPS+GLONASS+BeiDou

Low insertion loss

LNA

JRC

NJG1143UA2

LNA

Low noise figure, up to 15 dBm RF input

power

Inductor

Murata

LQG15HS27NJ02

L, 27 nH

Impedance @ freq GPS > 500 

Capacitor

Murata

GRM1555C1E470JZ01

C, 47 pF

DC-block

Ferrite Bead

Murata

BLM15HD102SN1

High IZI @ fGSM

Feed thru

Capacitor

for Signal

Murata

NFL18SP157X1A3

Monolithic Type

For data signals, 34 pF load capacitance

NFA18SL307V1A45

Array Type

For data signals, 4 circuits in 1 package

Feed thru

Capacitor

Murata

NFM18PC ….

NFM21P….

0603 2A

0805 4A

Rs < 0.5 

Resistor

10   10%, min 0.250 W

Rbias

560   5%

100 k  5%

R3, R4

Table 6: Recommended parts

Recommended antennas

Manufacturer

Order No.

Comments

Hirschmann (www.hirschmann-car.com)

GLONASS 9 M

GPS+GLONASS active

Taoglas (www.taoglas.com )

AA.160.301111

36*36*4 mm, 3-5V 30mA active

Taoglas (www.taoglas.com )

AA.161.301111

36*36*3 mm, 1.8 to 5.5V / 10mA at 3V active

INPAQ (www.inpaq.com.tw)

B3G02G-S3-01-A

2.7 to 3.9 V / 10 mA active

Amotech (www.amotech.co.kr)

B35-3556920-2J2

35x35x3 mm GPS+GLONASS passive

Amotech (www.amotech.co.kr)

A25-4102920-2J3

25x25x4 mm GPS+GLONASS passive

Amotech (www.amotech.co.kr)

A18-4135920-AMT04

18x18x4 mm GPS+GLONASS passive

Amotech (www.amotech.co.kr)

Amotech AGA363913-S0-A1

GPS+GLONASS+ BeiDou active

INPAQ (www.inpaq.com.tw)

ACM4-5036-A1-CC-S

5.2 x 3.7 x 0.7 mm GPS+GLONASS passive

Additional antenna Manufacturer: Allis Communications, Tallysman Wireless

Table 7: Recommend antenna

CAM-M8 - Hardware Integration Manual

UBX-15030063 - R03 Production Information Appendix

Page 28 of 29

CAM M8 M8Q Hardware Integration Manual

Navigation menu

Versions of this User Manual:

Views

Navigation
