GIGABIT CABLE MODEM
Intel® Puma™ 6-MG 24x8
DOCSIS 3.0 24x8
Full capture bandwidth
Supports IPv4 and IPv6
ALWAYSON, HIGHPERFORMANCE INTERNET CONNECTION
The CDA3 is the perfect choice for cable operators who want to oer high-speed broadband access to their customer base
economically. It delivers speeds of up to 960Mbps (24x8) with twenty-four bonded downstream channels over its DOCSIS
interface. The CDA3 allows MSOs to oer their customers various broadband applications such as telecommuting, HD and
UHD video on demand over IP connectivity to small oce/home oce (SOHO), high-speed residential Internet access,
interactive multimedia services, etc. The CDA3 is an intelligent device that enhances its basic data transmission features with
IPv6 support. This makes it especially suitable for the transmission of data based on this protocol.
RAPID, SIMPLE DEPLOYMENT, MONITORING AND MANAGEMENT
Installation of the CDA3 is quick, straight-forward, and can even be carried out by the end-user. Once connected, the built-in
TFTP client automatically gets the IP address and conguration data from the network server without human intervention. A
browser-based utility allows convenient viewing of key network statistics, and SNMP support provides total remote control
over the device.
KEY FEATURES
• DOCSIS 3.0 compliant
• 24x8 channel bonding
• Full-featured, high bandwidth, cable
modem
• Extensive operator control via
conguration le and SNMP
• Well-dened LEDs clearly display device
and network status
CDA3
Headquarters - www.hitrontech.com
No. 1-8, Lihsin 1st Rd., Hsinchu Science Park,
Hsinchu, Taiwan
Tel: +886 3 5786658 Fax: +886 3 5778856
USA - www.hitron-americas.com
304 Inverness Way South, Suite 480
Englewood, Colorado 80112
Tel: +1 303 792 3380 Fax: +1 303 799 6185
Europe - www.hitron-europe.com
Kingsfordweg 151 1043 GR
Amsterdam, The Netherlands
Tel: +31 20 491 9995 Fax: +31 20 491 9090

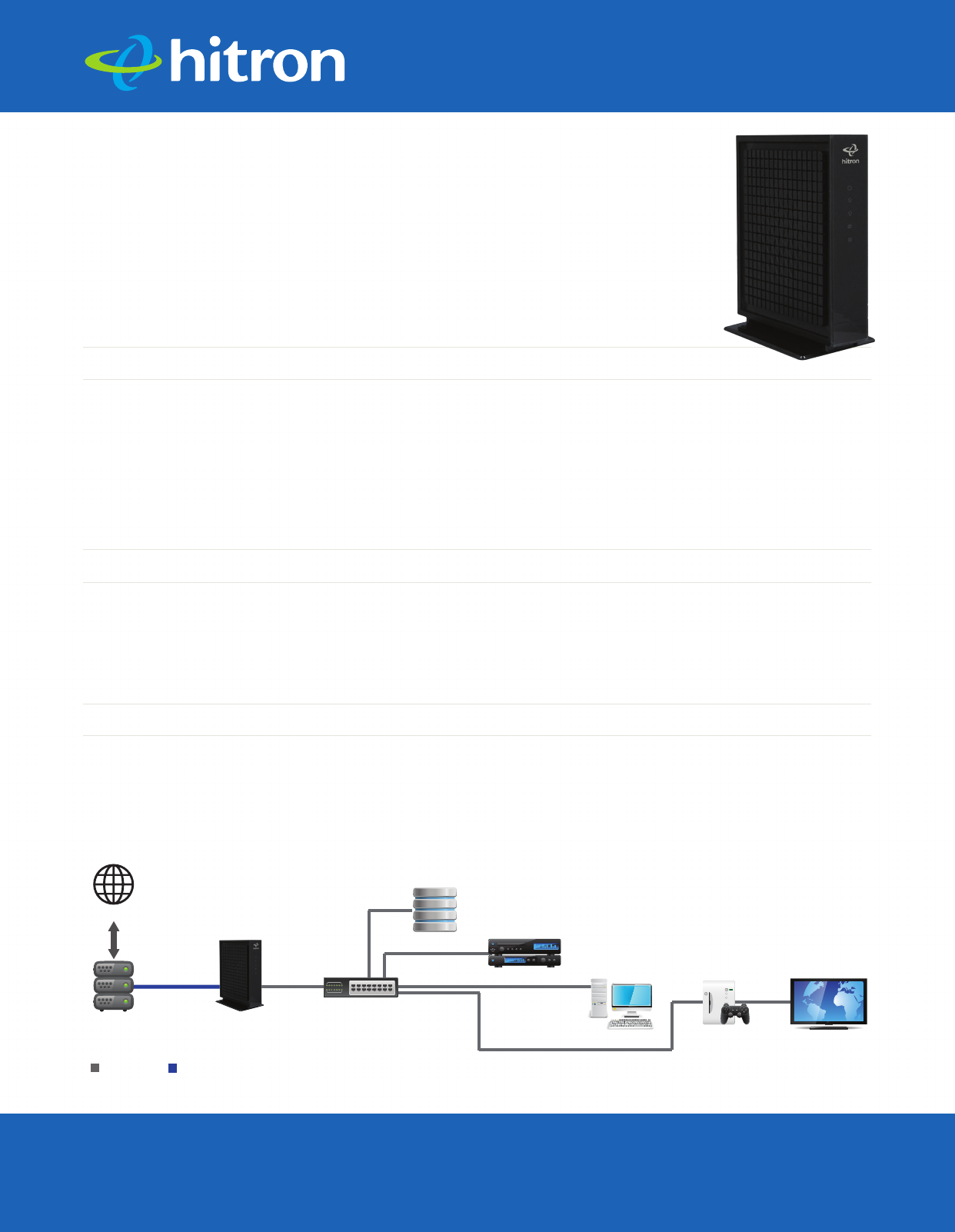

CDA3
INTERNET
CABLE PLANT
MEDIA CENTER
NAS
PC GAMING
CONSOLE
TV
ETHERNET COAX
HIGH-PERFORMANCE INTERNET ACCESS
Protocol Support
• DOCSIS 1.1/2.0/3.0
• SNMP v1, v2C, v3
• DHCP, TFTP and ToD clients (IPv4/IPv6)
Connectivity
• RF F-type female 75Ω connector
• RJ-45 Ethernet port 10/100/1000 Mbps
(Auto-MDI/MDIX)
Management
• Web-based GUI control conguration and management
• Dual-color LEDs clearly display network status and activity
• Power on self diagnostic
• MIB II/MCNS MIB
• Hitron proprietary MIBs for extended support
Reception-Demodulation
• Demodulation: 64QAM, 256QAM
• Data Rate: Up to 960 Mbps with 24 bonded downstream
channels
• Frequency (edge-to-edge): 108 ~ 1002 MHz
• Channel Bandwidth: 6 MHz
• Signal Level: -15 dBmV to 15 dBmV
• Input return loss: >6dB
Transmitter-Modulation
• Modulation: QPSK, 8QAM, 16QAM, 32QAM, 64QAM, and
128QAM (SCDMA only)
• Data rate up to 320 Mbps with 8 upstream channel
bonding
• Frequency: 5 ~ 85 MHz
• Output return loss: >6dB
Mechanical
• 5 status LEDs (Power, DS, US, Status, LAN)
• Factory default reset button
• Dimensions: 177mm (W) x 204mm (H) x 45mm (D)
/ Stand included: 177mm (W) x 213.8mm (H) x 95.4mm (D)
• Weight: 500g ± 10g
Environmental
• Power Input DC: DC 12V / 1.5A
• Power Consumption: 12W (typical)
• Operating Temperature: 32°F (0°C) to 104°F (40°C)
• Operating Humidity: 10% ~ 90% (Non- condensing)
• Storage Temperature: -40°F (-40°C) to 176°F (80°C)
• Surge Protection:
RF input sustains at least 4KV
Ethernet RJ-45 sustains at least 4KV
Compliance Certicates
• RoHS Compliant
• FCC, UL
CDA3
P/N: CDA3- 2014_1A - Issued Mar. 2014- Specications subject to change without further notice
