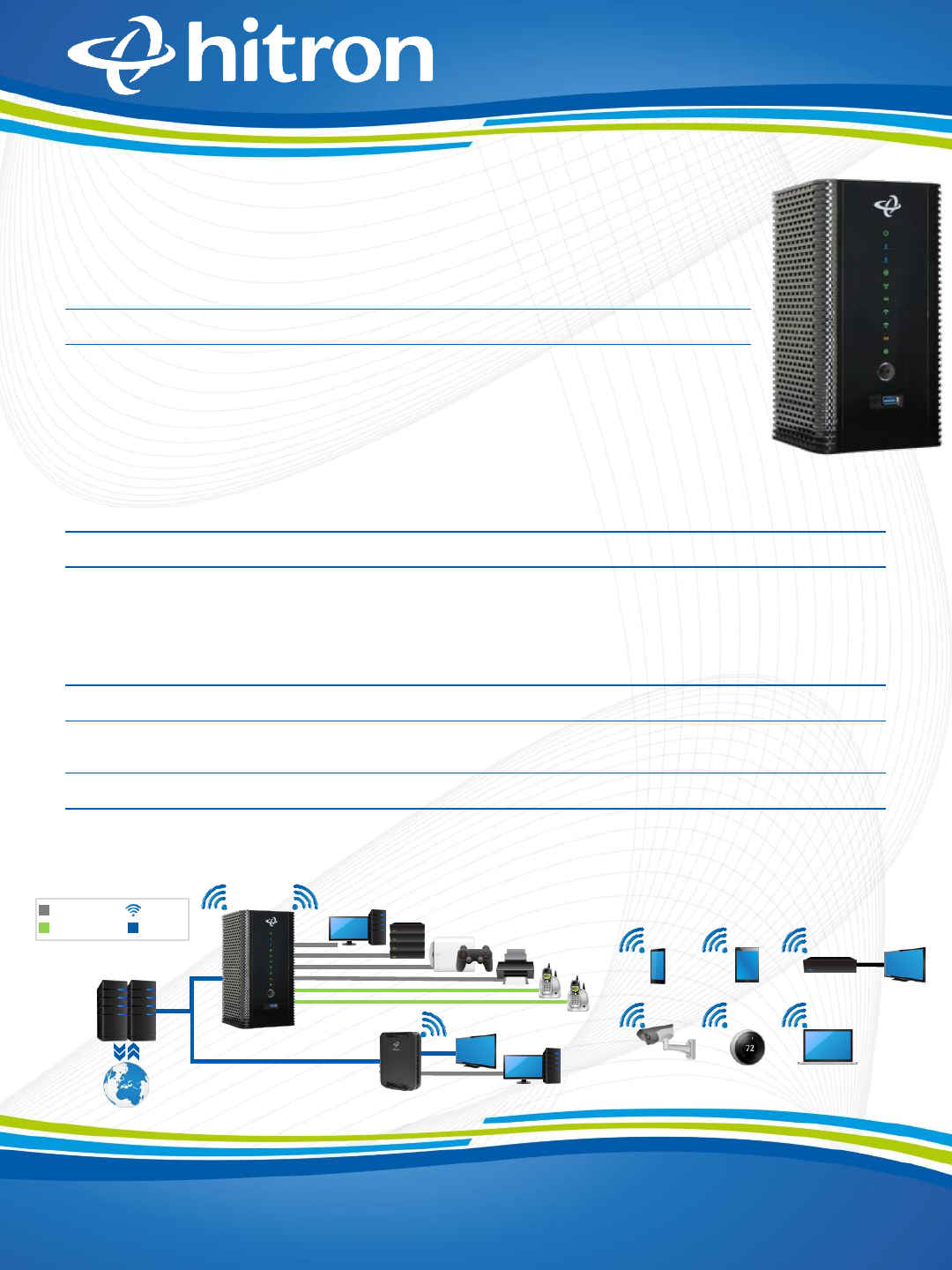

The CGNVM-3589 has the capacity to receive 1.2Gbps (32x8) over its DOCSIS interface with thirty-two bonded

channels. The integrated Wi-Fi 3x3 2.4 GHz 802.11n and 4x4 5 GHz 802.11ac Wave 2 dual band MIMO Access

Point significantly improves customer experience extending range and coverage with blazing speeds. For wired

clients, the four Gigabit Ethernet ports offer ultra-fast connections. MoCA 2.0 provides another extension option.

CGNVM-3589

•Certified DOCSIS 3.0 32x8 channel bonding

•Wi-Fi 4x4 5GHz 802.11ac Wave 2 MIMO and 3x3

2.4GHz 802.11n dual band concurrent internal

antennas

•32 SSIDs (16 SSIDs per radio)

•Individual configuration for each SSID (security,

bridging, routing, firewall and Wi-Fi parameters)

•2x FXS for telephony using SIP or MGCP

•MoCA Channel bonding for highest performance

•Battery Backup (BBU)

•Two USB 2.0 host, supporting Network

Attached Storage (NAS) functionality

•Integrated DLNA Media Server with

support for video, audio and image serving

•Extensive operator control via configuration file and SNMP

•TR-069 and HNAP for easy setup and remote management

DOCSIS 3.0 4X4 5GHz EMTA GATEWAY w/ MoCA

Intel® Puma™ 6 DOCSIS 3.0 32x8 w/ 4x4 5GHz Wave2 MIMO and 3x3 2.4GHz

dual band Wi-Fi, MoCA 2.0 channel bonding, GigE, Voice, USB and BBU

UNLEASH YOUR WI

-FI WITH FAST WAN AND LAN CONNECTION

The CGNVM-3589 supports pre-configured and pre-enabled Wi-Fi security via Wi-Fi Protected Setup (WPS),

allowing the end-user to rapidly set up a secure wireless network without manual configuration. Hitron's

AutoSync software provides secure automated setup of extenders in the customer's home or business.

EASY SECURE WIRELESS NETWORKING

KEY FEATURES

The CGNVM-3589 supports full IPv4 routing features, as well as, full support for IPv6 routing and firewall. The

CGNVM-3589 supports both DSLite as well as 6RD for different IPv6 deployment and transition strategies.

IPV4/IPV6 DUAL STACK SUPPORT

Printer

NAS

CGNVM-3589

Cable Plant

Internet

PC

Laptop

TV

Streamer

Smartphone Tablet

Thermostat

TV

MoCA Wi-Fi

Extender

PC

Home Security

Gaming

Console

Phones

Coax

Wi-FiEthernet

Analog

Specifications subject to change without further notice

Trademarks owned by Hitron Technologies Inc. 2016 © Hitron Technologies Inc. –All rights reserved

Connectivity

•RF F-Type 75Ωfemale connector

•4x RJ-45 Ethernet port 10/100/1000Mbps

•USB 3.0 type A connector with host interface

•2x FXS RJ-11 telephony ports

Management

•Protocol support: TR-069, HNAP & SNMP v1, v2C, v3

•Web-based GUI control configuration and management

•Hitron proprietary MIBs for extended support on DOCSIS,

router management, Wi-Fi management and MoCA

management

Reception-Demodulation

•DOCSIS 3.0/2.0/1.1

•DOCSIS 3.0 demodulation: 64QAM, 256QAM

•DOCSIS 3.0 data rate: Up to 1.2Gbps with 32 bonded

downstream channels

•Frequency (edge-to-edge): 108-1002MHz

•Channel Bandwidth: 6MHz

•Signal level: -15dBmV to 15dBmV

Transmitter-Modulation

•DOCSIS 3.0/2.0/1.1

•DOCSIS 3.0 modulation: QPSK, 8QAM, 16QAM, 32QAM,

64QAM, and 128QAM (SCDMA only)

•DOCSIS 3.0 data rate: Up to 320Mbps with 8 bonded upstream

channels

•Frequency: 5-85MHz

MoCA 2.0 Reception / Transmitter-Modulation

•Demodulation/ Modulation: BPSK, QPSK, 8QAM, 16QAM,

32QAM, 64QAM, 128QAM, 256QAM, 512QAM, 1024QAM

•PHY data rate: 700Mbps (baseline mode) / 1400Mbps (bonding

channel)

•Throughput: 400+Mbps (baseline mode) / 500+Mbps (turbo

mode, point to point) / 800Mbps (bonding channel)

•Frequency (center frequencies): 1025-1625MHz

•Channel bandwidth: 100MHz (baseline mode) / 225MHz

(bonding channel)

Voice

•Protocol support: SIP & MGCP

•2x 8kHz each voice

Environmental

•Operating temperature: 0°C (32°F) - 40°C (104°F)

•Operating humidity: 10% - 90% (non-condensing)

•Storage temperature: -40°C (-40°F) - 70°C (158°F)

Compliance Certificates

•FCC, IC, UL, Wi-Fi Alliance

•RoHS compliant

•CableLabs

Routing Support

•Protocol support: IGMP v3 for IPTV service capability

•MAC address filtering (IPv4/IPv6)

•IP source/destination address filtering (IPv4/IPv6)

•DHCP, TFTP and ToD clients (IPv4/IPv6)

•DHCP server supports RFC 1541 (IPv4)

•DHCPv6 obtains prefix from DHCPv6 server through prefix delegation

•Firewall with stateful inspection (IPv4/IPv6)

•Hacker intrusion prevention and detection

•Application content filtering (IPv4/IPv6)

•VPN termination and pass through (IPv4/IPv6)

•Complete NAT software implemented as per RFC 1631 with port and

address mapping (IPv4)

•DSLite support for IPv4 in-home support with IPv6 MSO backbone

•6RD support for quick IPv6 deployment over IPv4 backbone

•RIPv2 for static IP support

Wireless

•802.11a/b/g/n/ac

•4T4R 5GHz (5180MHz-5240MHz) 802.11ac Wave 2 MU-MIMO +

3T3R 2.4GHz (2412MHz-2462MHz) 802.11n dual band concurrent

with 450Mbps+1733Mbps PHY data rate

•20/40/80/160MHz channel bandwidth

•Up to 16 SSIDs for each frequency

•Security: WEP-64/WEP-128, WPA-PSK/WPA2-PSK (TKIP/AES), WAPI

•QoS: WMM/WMM-PS

•WPS (Wi-Fi Protected Setup) PBC, PIN

•Fast roaming: 802.11r/k/v and Band Steering (BS)

•Wi-Fi output power range (FCC):

•2.4G (EIRP) 29.07 / 20.07dBm

•5G Uni 1 (EIRP) 26.64 / 22.64dBm

•5G Uni 2 (EIRP) 26.64 / 22.64 dBm

•5G Uni 3 (EIRP) 27.62 / 23.62 dBm

•5G Uni 4 (EIRP) 31.12 / 29.12 dBm

Mechanical

•10 status LEDs (Power, DS, US, Status, Wi-Fi 2.4G,Wi-Fi 5G, Line 1/2,

Battery, MoCA)

•WPS button

•Factory reset button

•Dimensions: 120mm (W) x 120mm (H) x 225mm (D)

•Weight: 1040g ± 10g

•Battery back up with lithium battery cells

Electrical

•Power: 100-240VAC, 50/60Hz

•Power consumption: 5W (power save mode), 18W (typical), 36W

(maximum)

•Surge protection: RF input sustains at least 4KV,

Ethernet RJ-45 sustains at least 4KV

Voice sustains at least 1.5KV

CGNVM-3589_2016_2A - Issued Nov 2016

SPECIFICATIONS

CGNVM-3589
