CODA-4502 is a powerful solution for delivering high powered broadband services for residential and business
customers delivering speeds up to 2.8Gbps based on 2 GigE ports with two bonded downstream channels over
its DOCSIS 3.1 interface and MoCA backhaul. This is the device for MSOs wanting to market the most robust
broadband services in support of high demand residential or small commercial environments where
requirements for telecommuting, interactive multimedia services with HD and UHD video on demand over IP
connectivity are required. The two Gigabit Ethernet ports offer ultra-fast connections. MoCA 2.0 bonding
provides a near-Gigabit wired backbone for Wi-Fi extension. A completely self installable solution that, when
paired with Hitron’s MoCA-to-WiFi extenders, offer WiFi coverage to every corner and WiFi client device in the
home. The MyHitron app works seamlessly truly offering a demarcation to the finger tips. The CODA-4502 is an
intelligent device that enhances its basic data transmission features with IPv6 support, which makes it especially
suitable for the transmission of data based on this protocol.

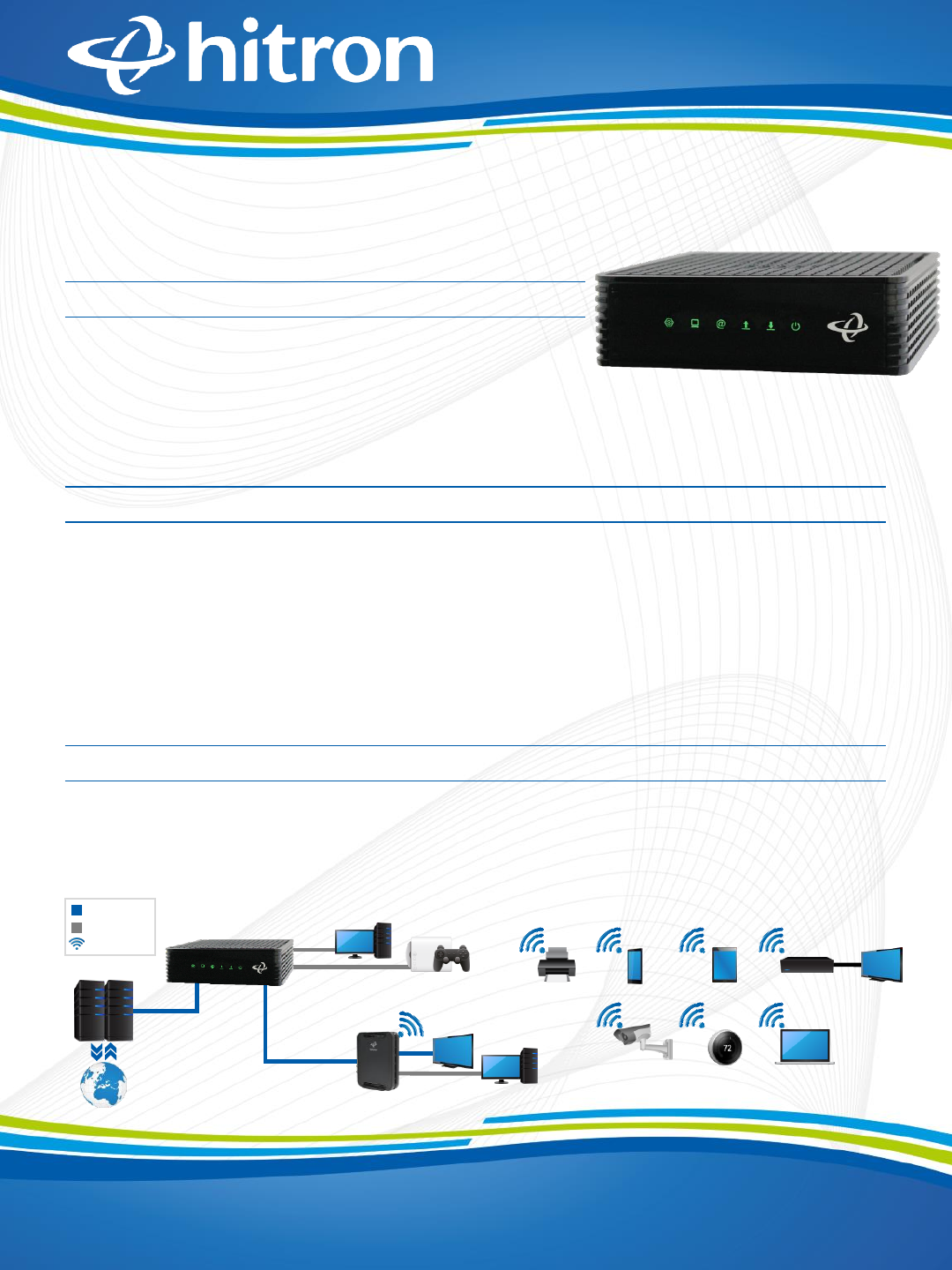

CODA-4502
•DOCSIS 3.1 certified
•DOCSIS 3.1 2x2 multi-carrier OFDM
•DOCSIS 3.0 32x8 channel bonding
•Fixed 5-85MHz upstream
•Supports Business Services over DOCSIS
•Extensive operator control via configuration file
and SNMP
MULTI-GIGABIT DOCSIS 3.1 CABLE MODEM with MoCA
Intel® Puma™ 7 2x2 OFDM /w fixed 5-85MHz US, MoCA 2.0
channel bonding, GigE, distributed Wi-Fi capability
HIGH
-PERFORMANCE MODEM THAT CAN BE USED AS WI-FI DISTRIBUTED GATEWAY
CODA-4502
Cable Plant
Internet
PC
Laptop
TV
Streamer
Smartphone Tablet
Thermostat
TV
Wi-Fi
Extender
PC
Home Security
Gaming
Console
Coax
Wi-Fi
Ethernet
•MoCA Channel bonding for highest performance
•Optional Wi-Fi extension via MoCA-to-Wi-Fi Extender
•Built in MoCA® immunity filter
•Full-featured, high bandwidth cable modem
Installation of the CODA-4502 is quick, straight-forward, and can be carried out by the end-user. With it self-
install capability, the built-in TFTP client automatically gets the IP address and configuration data from the
network server once connected. A browser-based utility allows convenient viewing of key network statistics and
provide access to the AutoSync feature in case a Hitron’s Wi-Fi Extenders is added to customer’s network. SNMP
support provides total remote control over the device.
FAST, SIMPLE DEPLOYMENT, MONITORING AND MANAGEMENT
Printer
KEY FEATURES
Specifications subject to change without further notice
Trademarks owned by Hitron Technologies Inc. 2016 © Hitron Technologies Inc. –All rights reserved

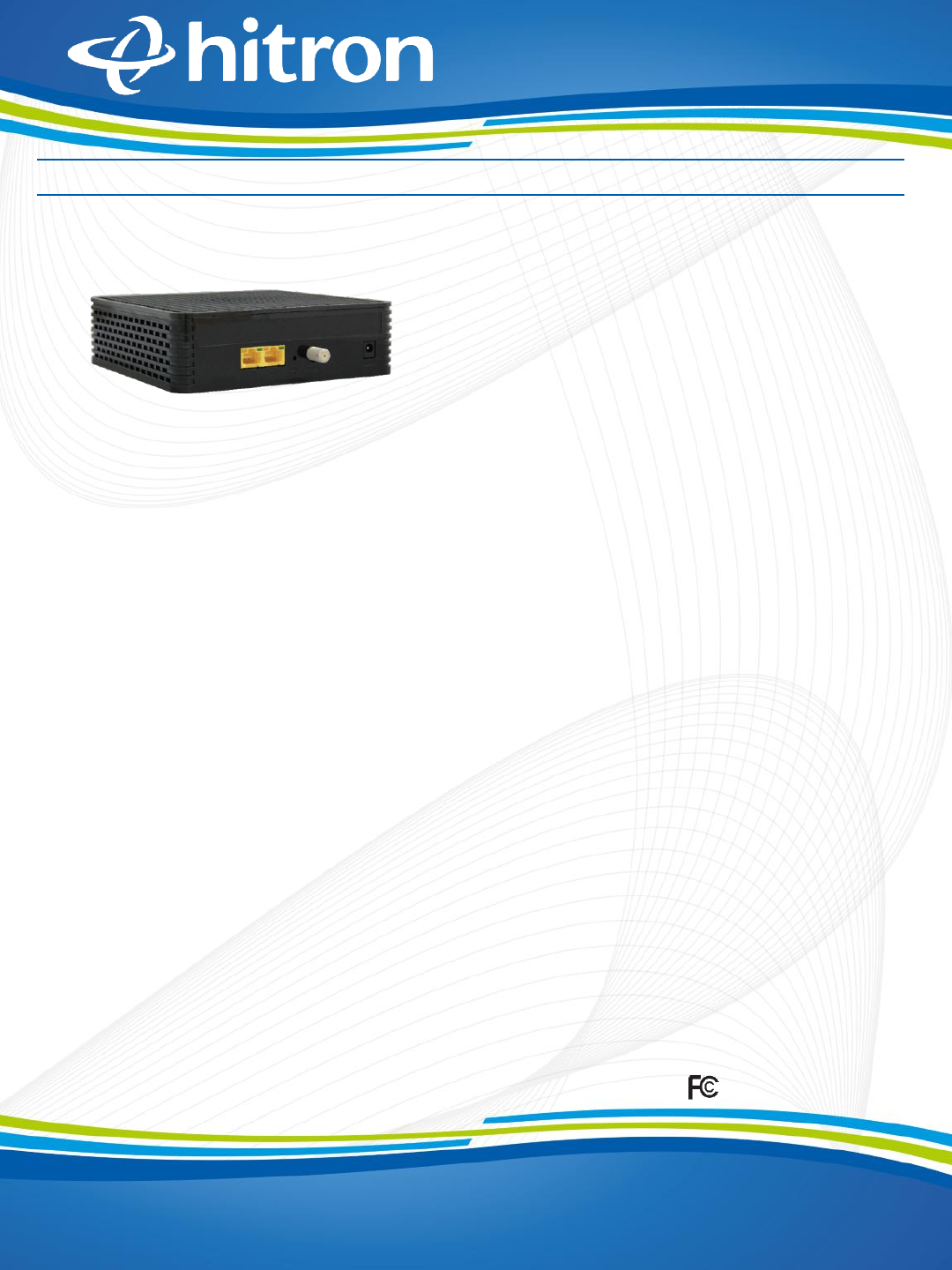

CODA-4502
Connectivity
•RF F-type 75Ωfemale connector
•2x RJ-45 Ethernet port 10/100/1000 Mbps (Auto-
MDI/MDIX)
Management
•Protocol support: SNMP v1, v2C, v3
•Web-based GUI control configuration and management
•LEDs clearly display network status and activity
•Power on self diagnostic
•MIB II/MCNS MIB
•Hitron proprietary MIBs for extended support
Reception-Demodulation
•DOCSIS 3.1/3.0/2.0
•Protocol support: BSoD
•DOCSIS 3.1 demodulation: Multi-carrier OFDM 16 to
4096QAM
•DOCSIS 3.1 data rate: Up to 1.97Gbps with 2 OFDM
192MHz downstream channels + 32 6MHz QAM
channels
•DOCSIS 3.0 demodulation: 64QAM, 256QAM
•DOCSIS 3.0 data rate: Up to 1.2Gbps with 32 bonded
downstream channels
•Frequency (edge-to-edge): 108-1218MHz
•Channel bandwidth: 6MHz
•Signal level: -15dBmV to 15dBmV
•Input return loss: >6dB
Transmitter-Modulation
•DOCSIS 3.1/3.0/2.0
•DOCSIS 3.1 modulation: Multi-carrier OFDMA BPSK to
4096QAM
•DOCSIS 3.1 data rate: Up to 700Mbps with OFDMA
96MHz upstream channels
•DOCSIS 3.0 modulation: QPSK, 8QAM, 16QAM, 32QAM,
64QAM, and 128QAM (SCDMA only)
•DOCSIS 3.0 data rate: Up to 320Mbps with 8 upstream
channels bonding
•Frequency: Fixed 5-85MHz
•Upstream transmit signal level: +11 to 65dBmV
•Output return loss: >6dB
MoCA 2.0 Reception / Transmitter-Modulation
•Demodulation/ Modulation: BPSK, QPSK, 8QAM, 16QAM,
32QAM, 64QAM, 128QAM, 256QAM, 512QAM, 1024QAM
•PHY data rate: 700Mbps (baseline Mode) / 1400Mbps
(bonding channel)
•Throughput: 400+Mbps (baseline mode) / 500+Mbps (turbo
mode, point to point) / 800Mbps (bonding channel)
•Frequency range: 1125-1675MHz
•Channel bandwidth: 100MHz (baseline mode) / 225MHz
(bonding channel)
Routing Support
•Protocol support: IGMP v3 for IPTV service capability
•MAC address filtering (IPv4/IPv6)
•IP source/destination address filtering (IPv4/IPv6)
•DHCP, TFTP and ToD clients (IPv4/IPv6)
•DHCP server supports RFC 1541 (IPv4)
•DHCPv6 obtains prefix from DHCPv6 server through prefix
delegation
•Firewall with stateful inspection (IPv4/IPv6)
•Hacker intrusion prevention and detection
•Application content filtering (IPv4/IPv6)
•Complete NAT software implemented as per RFC 1631 with
port and address mapping (IPv4)
•DSLite support for IPv4 in-home support with IPv6 MSO
backbone
•6RD support for quick IPv6 deployment over IPv4 backbone
•RIPv2 for Static IP support
Mechanical
•6 status LEDs (Power, DS, US, Status, LAN, MoCA)
•Factory default reset button
•Dimensions: 144.5mm (W) x 166mm (D) x 51mm (H)
•Weight: 470g ± 10g
Electrical
•Input Power: DC12V, 2A
•Power adaptor: 100-240VAC (50/60Hz) to DC12V/2A
•Power consumption: 15W (typical)
•Surge protection:
•RF input sustains at least 4KV
•Ethernet RJ-45 sustains at least 4KV
Environmental
•Operating temperature: 32°F (0°C) to 104°F (40°C)
•Operating humidity: 10%-90% (non-condensing)
•Storage temperature: -40°F (-40°C) to 140°F (60°C)
Compliance Certificates
•RoHS compliant
•FCC, IC
CODA-4502- 2017_1A - Issued June 2017
SPECIFICATIONS
