Global Certification Corp. Date of Issue: Mar. 03, 2009
Report No.: E922504
Page1/41
CE TEST REPORT
FOR
3.5” SATA HDD Single Bay Giga LAN
Model : PD-LN2U2SS, IB-NAS4210-B
Issued to
Macpower & Tytech Technology Co., Ltd.
8F, No. 52, MinQuan Road Hsintien City, Taipei 231, Taiwan R.O.C.
Issue by
Global Certification Corp.
EMI
Test Site Sansia Lab No. 34-3, Zihhe Rd., Sansia Township, Taipei
County 237, Taiwan (R.O.C.)
EMS
Test Site
Sijhih Office
and Lab
No. 112-3, Sec. 2, Siangjhang Rd. Sijhih City, Taipei
County 221, Taiwan (R.O.C.)
Note: This test refers exclusively to the test presented test model and sample. This report shall not be reproduced except in full, without
the written approval of Global Certification Corporation. This document may be altered or revised by Global Certification Corporation.
Personnel only, and shall be noted in the revision section of the document.
Global Certification Corp. Date of Issue: Mar. 03, 2009
Report No.: E922504
Page2/41
TABLE OF CONTENTS-------------------------------------------------------------------------------------------------------- 2
1. GENERAL INFORMATION-------------------------------------------------------------------------------------------------- 4
1.1 DESCRIPTION OF THE TESTED SAMPLES ----------------------------------------------------------------------------------------- 4
1.2 I/O PORT OF THE EUT ------------------------------------------------------------------------------------------------------------ 6
1.3 TEST METHODOLOGY ------------------------------------------------------------------------------------------------------------- 6
1.4 DESCRIPTION OF THE SUPPORT EQUIPMENTS ----------------------------------------------------------------------- 7
1.5 FEATURES OF EUT------------------------------------------------------------------------------------------------------------- 8
2. INSTRUMENT AND CALIBRATION -------------------------------------------------------------------------------------- 9
2.1 MEASURING INSTRUMENT CALIBRATION ---------------------------------------------------------------------------------- 9
2.2 TEST AND MEASUREMENT EQUIPMENT ------------------------------------------------------------------------------------ 9
2.3 TEST PERFORMED -----------------------------------------------------------------------------------------------------------11
2.4 APPENDIX --------------------------------------------------------------------------------------------------------------------12
3. CONDUCTED EMISSION MEASUREMENT ---------------------------------------------------------------------------14
3.1 TEST SET-UP----------------------------------------------------------------------------------------------------------------14
3.2 LIMIT -------------------------------------------------------------------------------------------------------------------------14
3.3 TEST PROCEDURE -----------------------------------------------------------------------------------------------------------14
3.4 TEST SPECIFICATION--------------------------------------------------------------------------------------------------------15
3.5 RESULT-----------------------------------------------------------------------------------------------------------------------15
3.6 TEST DATA ------------------------------------------------------------------------------------------------------------------15
3.7 LIMIT OF CONDUCTED COMMON MODE DISTURBANCE AT TELECOMMUNICATION PORTS --16
3.8 RESULT OF CONDUCTED COMMON MODE DISTURBANCE AT TELECOMMUNICATION PORTS 17
4. RADIATED EMISSION MEASUREMENT ------------------------------------------------------------------------------18
4.1 TEST SETUP ------------------------------------------------------------------------------------------------------------------18
4.2 LIMIT -------------------------------------------------------------------------------------------------------------------------19
4.3 TEST PROCEDURE -----------------------------------------------------------------------------------------------------------19
4.4 TEST SPECIFICATION--------------------------------------------------------------------------------------------------------19
4.5 RESULT-----------------------------------------------------------------------------------------------------------------------19
4.6 TEST DATA ------------------------------------------------------------------------------------------------------------------19
5. POWER HARMONIC MEASUREMENT---------------------------------------------------------------------------------20
5.1 TEST SETUP ------------------------------------------------------------------------------------------------------------------20
5.2 LIMIT OF HARMONIC CURRENT--------------------------------------------------------------------------------------------20
5.3 TEST PROCEDURE -----------------------------------------------------------------------------------------------------------20
5.4 TEST SPECIFICATION--------------------------------------------------------------------------------------------------------20
5.5 RESULT-----------------------------------------------------------------------------------------------------------------------20
5.6 TEST DATA ------------------------------------------------------------------------------------------------------------------20
6. VOLTAGE FLUCTUATIONS -----------------------------------------------------------------------------------------------23
6.1 TEST SETUP ------------------------------------------------------------------------------------------------------------------23
6.2 VOLTAGE FLUCTUATIONS TEST -------------------------------------------------------------------------------------------23
6.3 TEST PROCEDURE -----------------------------------------------------------------------------------------------------------23
6.4 TEST SPECIFICATION--------------------------------------------------------------------------------------------------------23
6.5 RESULT-----------------------------------------------------------------------------------------------------------------------23
6.6 TEST DATA ------------------------------------------------------------------------------------------------------------------23
7. ELECTROSTATIC DISCHARGE IMMUNITY TEST (ESD) --------------------------------------------------------25
7.1 TEST PROCEDURE-------------------------------------------------------------------------------------------------------25
7.2 TEST SETUP ---------------------------------------------------------------------------------------------------------------25
7.3 TEST LEVEL------------------------------------------------------------------------------------------------------------------25
7.4 TEST RESULT -------------------------------------------------------------------------------------------------------------26
Global Certification Corp. Date of Issue: Mar. 03, 2009
Report No.: E922504
Page3/41
8. RADIATED EMISSION MEASUREMENT(RS)-------------------------------------------------------------------------27
8.1 TEST SETUP ------------------------------------------------------------------------------------------------------------------27
8.2 TEST PROCEDURE-------------------------------------------------------------------------------------------------------27
8.3 TEST LEVEL------------------------------------------------------------------------------------------------------------------27
8.4 TEST PROCEDURE -----------------------------------------------------------------------------------------------------------28
8.5 TEST RESULT -------------------------------------------------------------------------------------------------------------28
9. ELECTRICAL FAST TRANSIENT/BURST (EFT) ---------------------------------------------------------------------29
9.1 TEST SETUP ------------------------------------------------------------------------------------------------------------------29
9.2 TEST PROCEDURE-------------------------------------------------------------------------------------------------------29
9.3 TEST PROCEDURE -----------------------------------------------------------------------------------------------------------29
9.4 TEST LEVEL------------------------------------------------------------------------------------------------------------------30
9.5 TEST RESULT -------------------------------------------------------------------------------------------------------------30
10. SURGE -------------------------------------------------------------------------------------------------------------------------31
10.1 TEST SETUP ------------------------------------------------------------------------------------------------------------------31
10.2 TEST PROCEDURE-------------------------------------------------------------------------------------------------------31
10.3 TEST LEVEL------------------------------------------------------------------------------------------------------------------31
10.4 TEST PROCEDURE -----------------------------------------------------------------------------------------------------------32
10.5 TEST RESULT -------------------------------------------------------------------------------------------------------------32
11. IMMUNITY TEST TO CS CONDUCTED DISTURBANCE (CS)------------------------------------------------33
11.1 TEST SETUP ------------------------------------------------------------------------------------------------------------------33
11.2 TEST PROCEDURE-------------------------------------------------------------------------------------------------------33
11.3 TEST LEVEL------------------------------------------------------------------------------------------------------------------33
11.4 TEST PROCEDURE -----------------------------------------------------------------------------------------------------------33
11.5 TEST RESULT -------------------------------------------------------------------------------------------------------------34
12. POWER FREQUENCY MAGNETIC FIELD (MAGNETIC)------------------------------------------------------35
12.1 TEST SETUP ------------------------------------------------------------------------------------------------------------------35
12.2 TEST STANDARD --------------------------------------------------------------------------------------------------------35
12.3 TEST LEVEL------------------------------------------------------------------------------------------------------------------35
12.4 TEST PROCEDURE -----------------------------------------------------------------------------------------------------------35
12.5 TEST RESULT -------------------------------------------------------------------------------------------------------------36
13. VOLTAGE DIPS AND INTERRUPTION MEASUREMENT -----------------------------------------------------37
13.1 TEST SETUP ------------------------------------------------------------------------------------------------------------------37
13.2 TEST PROCEDURE-------------------------------------------------------------------------------------------------------37
13.3 TEST LEVEL------------------------------------------------------------------------------------------------------------------38
13.4 TEST PROCEDURE -----------------------------------------------------------------------------------------------------------38
13.5 TEST RESULT -------------------------------------------------------------------------------------------------------------39
14. PERFORMANCE CRITERIA --------------------------------------------------------------------------------------------40
15. MODIFICATION LIST FOR EMC COMPLYING TEST----------------------------------------------------------41
APPENDIX 1
PHOTOS OF TEST CONFIGURATION
APPENDIX 2
TEST DATA
PHOTOS OF EUT
Global Certification Corp. Date of Issue: Mar. 03, 2009
Report No.: E922504
Page4/41
1. GENERAL INFORMATION
Applicant : Macpower & Tytech Technology Co., Ltd.
Address : 8F, No. 52, MinQuan Road Hsintien City, Taipei 231, Taiwan R.O.C.
Manufacturer : Macpower & Tytech Technology Co., Ltd.
Address : 8F, No. 52, MinQuan Road Hsintien City, Taipei 231, Taiwan R.O.C.
EUT : 3.5” SATA HDD Single Bay Giga LAN
Model Name : PD-LN2U2SS, IB-NAS4210-B
Model Differences : The difference between series of models PD-LN2U2SS and IB-NAS4210-B is
different software and market, but the PCB layout is same, the EMI characteristic
is same. The model PD-LN2U2SS is testing sample and the final test data were
shown in this test report.
Measurement procedure used:
EMI : EMS :
EN55022 CLASS B:2006 EN55024:1998+A1:2001+A2:2003
EN61000-3-2:2006 IEC 61000-4-2 : 2001
EN61000-3-3:1995+A1:2001+A2:2005 IEC 61000-4-3 : 2008
IEC 61000-4-4 : 2004
IEC 61000-4-5 : 2005
IEC 61000-4-6 : 2008
IEC 61000-4-8 : 2001
IEC 61000-4-11 : 2004
Deviation from Applicable Standard
According to applicants declaration this EUT is a class B product
The above equipment was tested by Global Certification Corp. for compliance with the requirements
set forth in the EUROPEAN COUNCIL Directive 2004/108/EC and the technical standards mentioned
above. The results of testing in this report apply only to the product/system, which was tested. Other
similar equipment will not necessarily produce the same results due to production tolerance.
This test report shall not be reproducing in part without written approval of Global Certification Corp.
Approved By:
Alex Chou / Manager Issued Date:03.03.2009
Global Certification Corp. Date of Issue: Mar. 03, 2009
Report No.: E922504
Page5/41
1.1 DESCRIPTION OF THE TESTED SAMPLES
EUT
EUT Type : Engineer Type
Condition when received : Good Damage :
EUT Name : 3.5” SATA HDD Single Bay Giga LAN
Applicant : Macpower & Tytech Technology Co., Ltd.
Manufacturer : Macpower & Tytech Technology Co., Ltd.
Model Number : PD-LN2U2SS, IB-NAS4210-B
Serial Number : N/A
FCC ID : N/A
Receipt Date : 02/25/2009
Used Power : AC POWER DC POWER
Power Supply Type : Switching Linear N/A
Power Cord (Input) : AC 230 V 50 Hz 2 Pin 0 m Un-Shielded N/A
Power Cord (Output) : DC 12 V 2 Pin 1.5 m Un-Shielded N/A
Power From N/A Inside Outside
N/A Adaptor BATTERY Power Supply DC Power Source
Support Unit PC AC Power Source
Test Power AC POWER DC POWER 230 V 50 Hz 2 Pin 0 m
The frequency of the EUT :
OSC/Clock Frequencies : 60MHz, 25MHz
Global Certification Corp. Date of Issue: Mar. 03, 2009
Report No.: E922504
Page6/41
1.2 I/O PORT OF THE EUT
I/O port type Q’ty Tested
with Connect type Note
1) LAN Port 1 1 Metal
2) USB Port 2 2 Metal
1.3 TEST METHODOLOGY
EUT SYSTEM OPERATION
1. The EUT was configured according to EN55022 Class B
2. All I/O ports were connected to the appropriate peripherals.
3. Photos of test configuration please refer to appendix 1 or 1.4 Setup Diagram.
4. Turn on all the power of EUT and peripheral.
5. EUT executes “winthrax.exe to active read-write function under windows.
6. During the test, the EUT was sending data to the PC connected via USB port.
7. Perform the EMI testing procedures, and measure the maximum emission noise.
All peripherals and cables are listed below (including internal device)
DECISION OF FINAL TEST MODE
1. The following test mode were scanned during the preliminary test:
Mode 1: USB
Mode 2: LAN
2. After the preliminary scan, the following test mode was found to produce
the highest emission level.
Conduction: Mode 1
Radiation: Mode 1
Then, the EUT configuration and cable configuration of the above highest
emission mode was chosen for all final test item
3. HARMONICS / FLICKER and EMS test mode is Mode 1
Global Certification Corp. Date of Issue: Mar. 03, 2009
Report No.: E922504
Page7/41
1.4 DESCRIPTION OF THE SUPPORT EQUIPMENTS

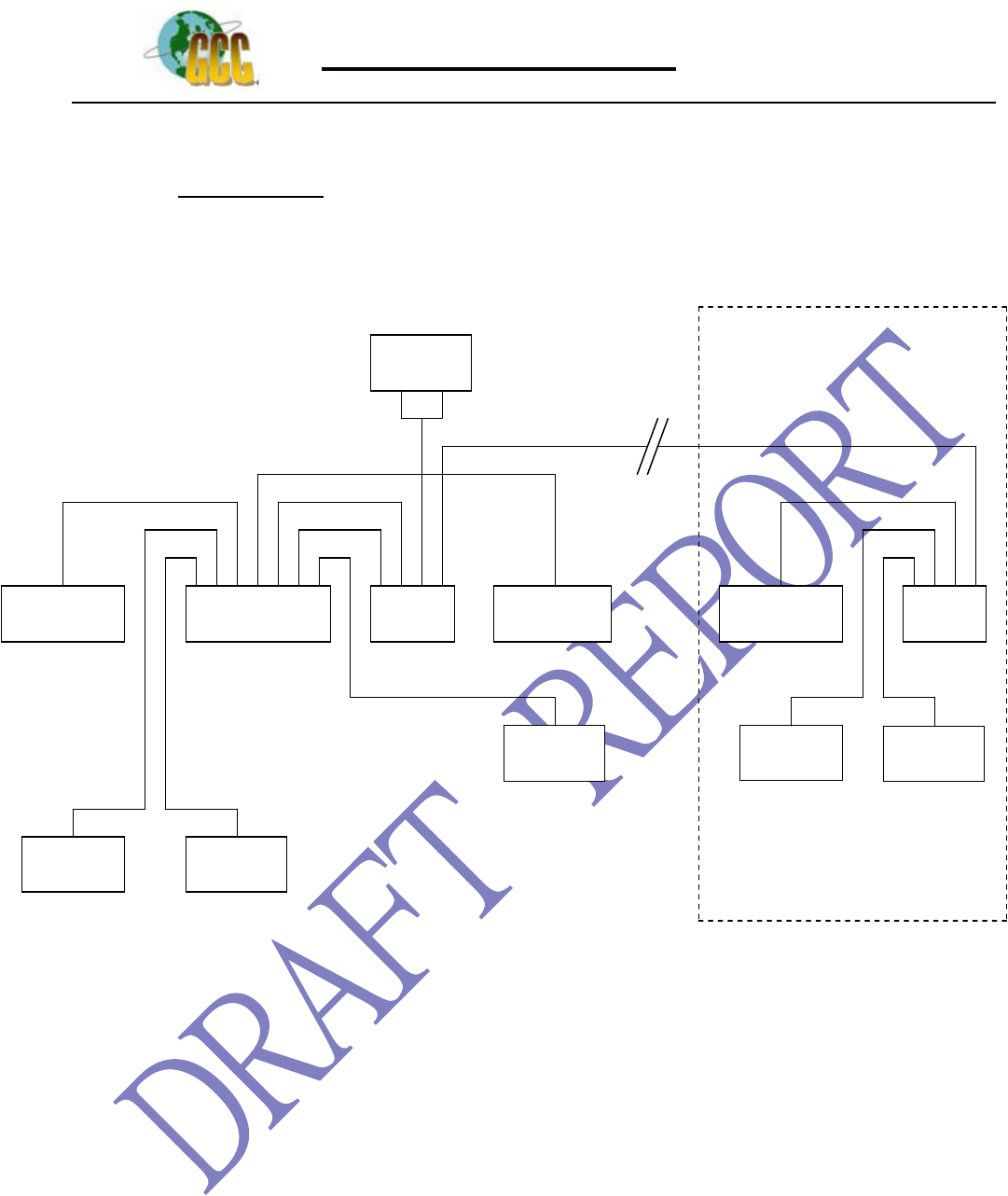

USetup Diagram
See test photographs attached in appendix 1 for the actual connections between EUT and
support equipment.
LISN
MONITOR
KEY
BOARD
MOUSE
PC EUT
MODEM
PRINTER
ADAPTER
MOUSE
KEY
BOARD
MONITOR PC
Global Certification Corp. Date of Issue: Mar. 03, 2009
Report No.: E922504
Page8/41
USupport Equipment
Peripherals Devices:
OUTSIDE SUPPORT EQUIPMENT
No. Equipment Model Serial No. FCC ID/ BSMI
ID Trade name Data Cable Power Cord
1. PC A13 L3AB112 R33B65 IBM
Shielded
10M
Unshielded
1.8m
2. PC C79 L3G5275 R33B65 IBM
Shielded
1m
Unshielded
1.8m
3. MONITOR TFT22W90P
SA E9377JA000166 R33037 AOC
Shielded
1.8M
Unshielded
1.8m
4. MONITOR V22ECBF 3M6U07702009 R31282 TATUNG Shielded
1.6M
Unshielded
1.8m
5. PRINTER PHOTO750 BDEK017629 /3872P011 EPSON Shielded
1.8M
Unshielded
1.8M
6. MODEM 2814 N/A IFAXDM1414 ACEEX
Shielded
RS232~1.2M
Unshielded
1.8M
7. MOUSE M-S34 HCA41700559
DEL211029/48
62A011 Logitech Shielded
1.8M~PS2 N/A
8. MOUSE MO28UOL 44Q3831 R41108 Lenovo Shielded
1.8M/USB N/A
9. KEY
BOARD RT7D00 TH-0332TR-
37171-16R-3087
AQ6-7D0080C
OB /3892C595 DELL Shielded
1.9M/PS2 N/A
10. KEY
BOARD
AS-KBAOO
O C0610230445 T3A002 ASUS Shielded
1.4M/PS2 N/A
11. USB storage TS2GJFV30 156511-6400 DOC/
D33193
TRANSCEN
D
Shielded
1M N/A
12. ADAPTER AG2412-B N/A N/A JENTEC N/A Unshielded
1.5M
INSIDE SUPPORT EQUIPMENT
No. Equipment Model Serial No. FCC ID/ BSMI
ID Trade name Data Cable Power Cord
1. MAIN
BOARD
MP-LN2U23
SL N/A N/A N/A
Unshielded
0.2M
Unshielded
0.2M
2. HDD 200G 4ND43KQD D33027 Seagate
Unshielded
0.2M
Unshielded
0.2M
Note: All the above equipment/cable were placed in worse case position to maximize emission signals during
emission test
Grounding: Grounding was in accordance with the manufacturer’s requirement and conditions
for the intended use.
1.5 FEATURES OF EUT: PLEASE REFER TO USER MANUAL OR PRODUCT
SPECIFICATION.
Global Certification Corp. Date of Issue: Mar. 03, 2009
Report No.: E922504
Page9/41
2. INSTRUMENT AND CALIBRATION
2.1 MEASURING INSTRUMENT CALIBRATION
The measuring equipment utilized to perform the tests documented in the report has
been calibrated once a year or in accordance with the manufacturer’s recommendations,
and is traceable to recognized national standards.
2.2 TEST AND MEASUREMENT EQUIPMENT
The following list contains measurement equipment used for testing. The equipment
conforms to the requirement of CISPR 16-1, ANSI C63.2 and. Other required standards.
Calibration of all test and measurement, including any accessories that may effect such
calibration, is checked frequently to ensure the accuracy. Adjustments are made and
correction factors are applied in accordance with the instructions contained in the respective.
TABLE 1 LIST OF TEST AND MEASUREMENT EQUIPMENT
Conducted Emission Measurement
Instrument Manufacturer Model No. Serial No. Calibration Due
Date Note
EMC Test
Receiver R&S ESCI 100438 Apr. 29. 2009
LISN SCHAFFNER NNB41 03/10015 Sep. 23. 2009 For EUT
LISN EMCO 3825/2 9001-1589 Sep. 23. 2009 For
Support Unit
RF Cable Huber+Suhner RG223/U 001 May. 29. 2009
50ohm Terminal N/A 50Ω QC-TM001
Sep. 24. 2011
Impedance
Stabilization Teseq GmbH ISN T8 23334 DEC. 20. 2009
Radiated Emission Measurement
Instrument Manufacturer Model No. Serial No. Calibration Due
Date Note
Test Receiver AFJ ER55R 55300508277 SEP. 21. 2009
Bilog Antenna SUNOL JB1 A052204 OCT. 19. 2009
Turn table EMCO 2080 9508-1805 N/A
Global Certification Corp. Date of Issue: Mar. 03, 2009
Report No.: E922504
Page10/41
Controller EMCO 2090 9804-1328 N/A
Preamplifier WIRELESS FPA6592G 60017 SEP. 24. 2009
Spectrum Analyzer NEX NS-265 5044006 AUG. 07. 2009
RF Cable Huber+Suhner RG214/U 15M+8M-002 SEP. 22. 2009
Thermo-Hygro
meter WISEWIND 4-INU-1 050100378
Apr. 08. 2009
Power Harmonic Measurement and Voltage Fluctuations
Instrument Manufacturer Model No. Serial No. Calibration Due Date Note
5KV AC Power
Source SCHAFFNER NSG1007 55869 DEC. 28. 2009
Signal
Conditioning SCHAFFNER CCN1000-1 72281 DEC. 28. 2009
EMS
Instrument Manufacturer Model No. Serial No. Calibration Due Date Note
IEC61000-4-2
Thermo-Hygro
meter WISEWIND N/A N/A NOV. 02. 2010
ESD Dimulator SCHAFFNER NSG435 N/A OCT. 30. 2009
IEC61000-4-3
Power Meter BOONTON 4231A 110602 NOV. 13. 2009
Signal Generator IFR 2023A 202305/561 SEP. 06. 2009
Electric Field
probe ETS-LINDGREN HI-6005 00029837 MAY. 29. 2009
Power Amplifier SCHAFFNER CBA9413B 4039 N/A
Power Amplifier SCHAFFNER CBA 3G-050 T43762 N/A
IEC61000-4-4/ IEC61000-4-5/ IEC61000-4-8/ IEC61000-4-11
System
Mainframe SCHAFFNER NSG2050 200339-277AR OCT. 22. 2009
Global Certification Corp. Date of Issue: Mar. 03, 2009
Report No.: E922504
Page11/41
Pulse Coupling
Network SCHAFFNER CDN131 34330 OCT. 22. 2009
Fast
Transient/Burst SCHAFFNER PNW2225 200404-515Lu OCT. 22. 2009
Dropout /
Variation SCHAFFNER PNW2003 200321-502Lu OCT. 22. 2009
Impulse NETW、
1,2/50-8/20
COMB.-WAVE
SCHAFFNER PNW2050.8. 200413-503LU OCT. 22. 2009
Coil SCHAFFNER INA702 403-388/0411 N/A
Clamp SCHAFFNER CDN8014 20607 N/A
TTIAXIAL ELF
Magnetic Field
Meter
SYPRIS 4090 4090070316 Apr. 08. 2009
IEC61000-4-6
RF-Generator SCHAFFNER NSG2070 NSG2070 OCT. 22. 2009
CDN SCHAFFNER CDN M216 19286 OCT. 24. 2009
CDN SCHAFFNER CDN M316 20653 OCT. 24. 2009
Clamp SCHAFFNER KEMZ801 19806
OCT. 24. 2009
※ Calibration interval of instruments listed above is one year
2.3 TEST PERFORMED
Conducted emissions were invested over the frequency range from 0.15MHz to 30MHz
using a receiver which resolution bandwidth is set at 9 KHz.
Radiated emissions were invested over the frequency range from 30MHz to 1000MHz
using a receiver which resolution bandwidth is set at 120KHz. Radiated measurement was
performed at distance that from an antenna to EUT is 10 meters.
Global Certification Corp. Date of Issue: Mar. 03, 2009
Report No.: E922504
Page12/41
2.4 APPENDIX
Appendix A: Measurement Procedure for Main Power Port Conducted Emissions
The measurements are performed in a Global lab’s room; The EUT was placed on
non-conductive 1.0m x 1.5m table, which is 0.8 meter above an earth-grounded.
Power to the EUT was provided through the LISN which has the Impedance
(50ohm/50uH) vs. Frequency Characteristic in accordance with the standard. Powers to the
LISNs were filtered to eliminate ambient signal interference and these filters were bonded to
the ground plane. Peripheral equipment required to provide a functional system (support
equipment) for EUT testing was powered from the second LISN through a ganged, metal
power outlet box which is bonded to the ground plane at the LISN.
If the EUT is supplied with a flexible power cord, the power cord length in excess of the
distance separating the EUT from the LISN shall be folded back and forth at the center of the
lead so as to form a bundle not exceeding 40cm in length. If the EUT is provided with a
permanently coiled power cord, bundling of the cord is not required. If the EUT is supplied
without a power cord, the EUT shall be connected to the LISN by a power cord of the type
specified by the manufacturer which shall not be longer than 1 meter. The excess power cord
shall be bundled as described above. If a non-flexible power cord is provided with the EUT, it
shall be cut to the length necessary to attach the EUT to the LISN and shall not be bundled.
The interconnecting cables were arranged and moved to get the maximum measurement.
Both the line of power cord, hot and neutral, was measured.
The highest emissions were analyzed in details by operating the spectrum analyzer in
fixed tuned mode to determine the nature of the emissions and to provide information which
could be useful in reducing their amplitude.
Appendix B: Test Procedure for Radiated Emissions

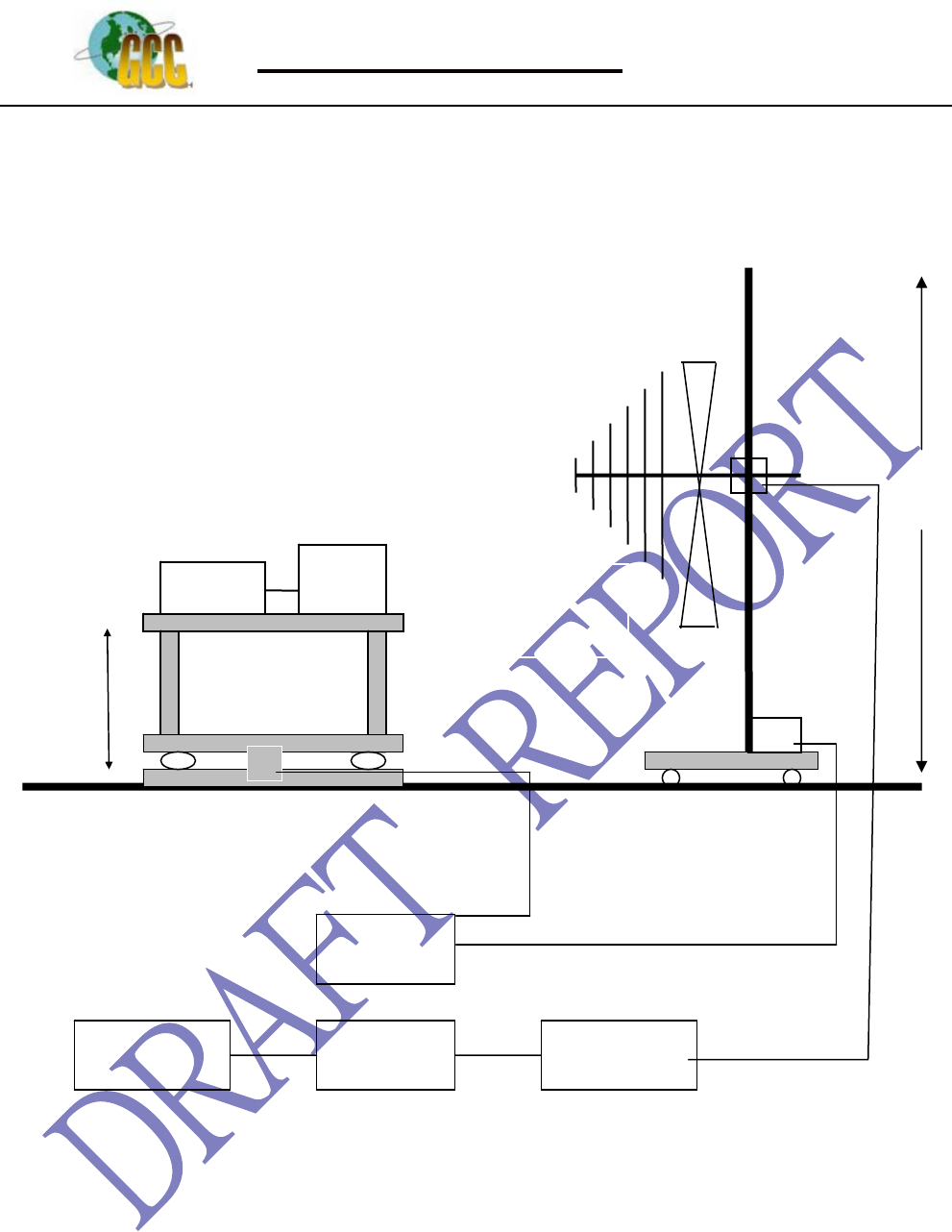

Preliminary Measurements in the Anechoic Chamber
The radiated emissions are initially measured in the anechoic chamber at a measurement
distance of 3 meters. Desktop EUT are placed on a wooden stand 0.8 meter in height. The
measurement antenna is 3 meters from the EUT. The test setup in anechoic chamber is the
same as open site. The turntable rotated 360. The antenna height is 1m. The primary
objective of the radiated measurements in the anechoic chamber is to identify the frequency
spectrum in the absence of the electromagnetic environment existing on the open test site. The
frequencies can then be pre-selected on the open test site to obtain the corresponding
amplitude. The initial scan is made with the spectrum analyzer in automatic sweep mode. The
spectrum peaks are then measured manually to determine the exact frequencies.
Global Certification Corp. Date of Issue: Mar. 03, 2009
Report No.: E922504
Page13/41
Measurements on the Open Site or Chamber
The radiated emissions test will then be repeated on the open site or chamber to measure
the amplitudes accurately and without the multiple reflections existing in the shielded room.
The EUT and support equipments are set up on the turntable. Desktop EUT are set up on a
wooden stand 0.8 meter above the ground.
For the initial measurements, the receiving antenna is varied from 1-4 meter height and is
changed in the vertical plane from vertical to horizontal polarization at each frequency. Both
reading are recorded with the quasi-peak detector with 120 KHz bandwidth. For frequency
between 30 MHz and 1000MHz, the reading is recorded with peak detector or quasi-peak
detector.
At the highest amplitudes observed, the EUT is rotated in the horizontal plane while
changing the antenna polarization in the vertical plane to maximize the reading. The
interconnecting cables were arranged and moved to get the maximum measurement. Once
the maximum reading is obtained, the antenna elevation and polarization will be varied
between specified limits to maximize the readings.
Global Certification Corp. Date of Issue: Mar. 03, 2009
Report No.: E922504
Page14/41
3. CONDUCTED EMISSION MEASUREMENT

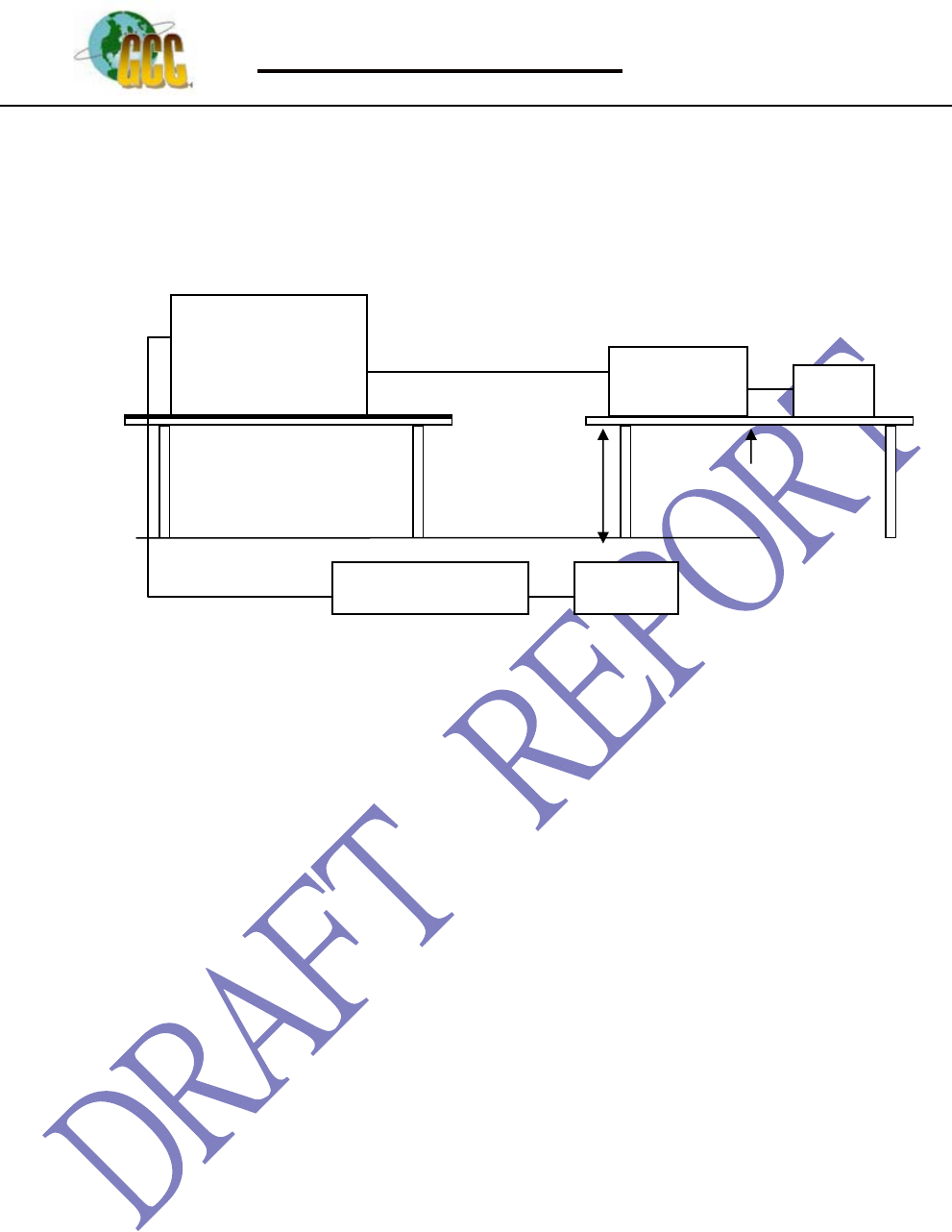

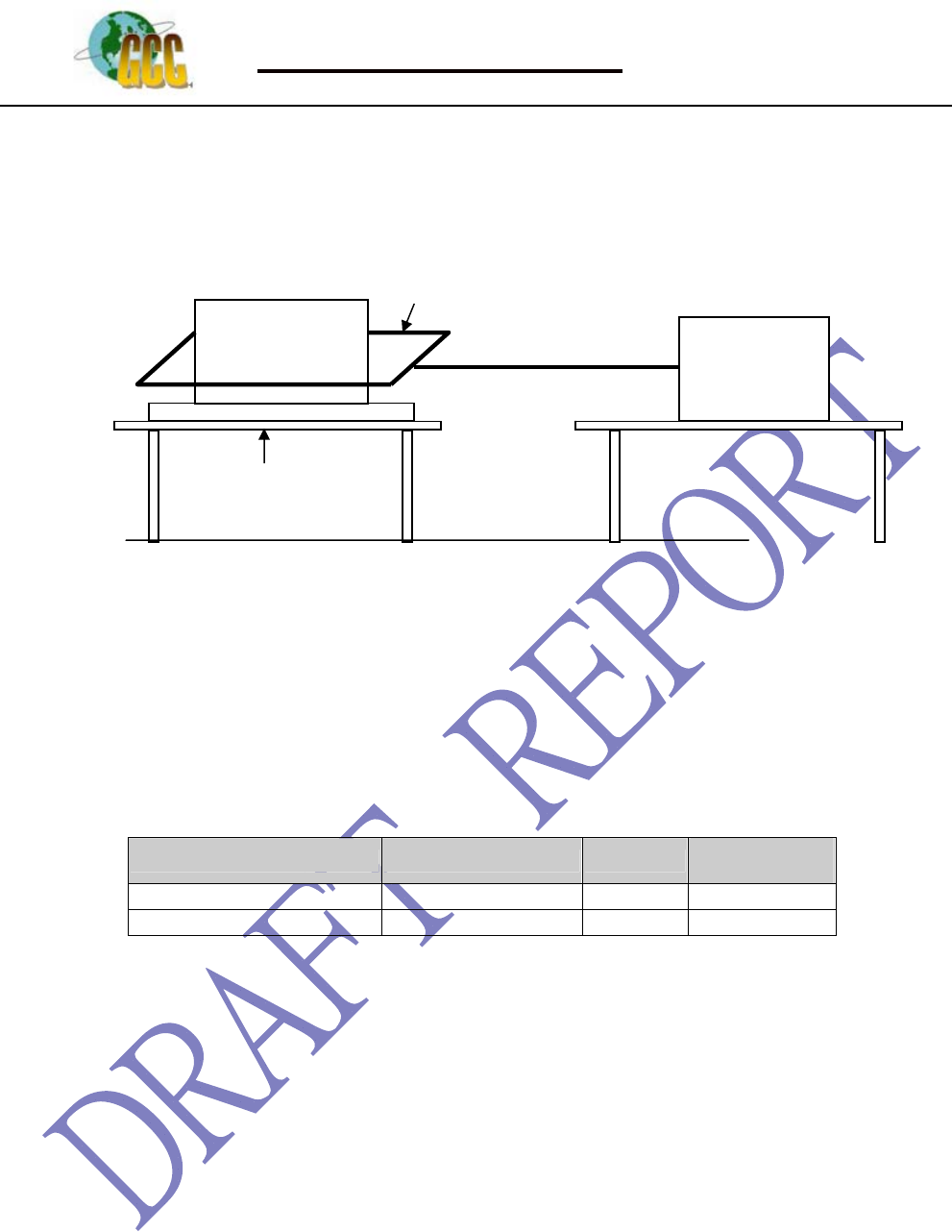

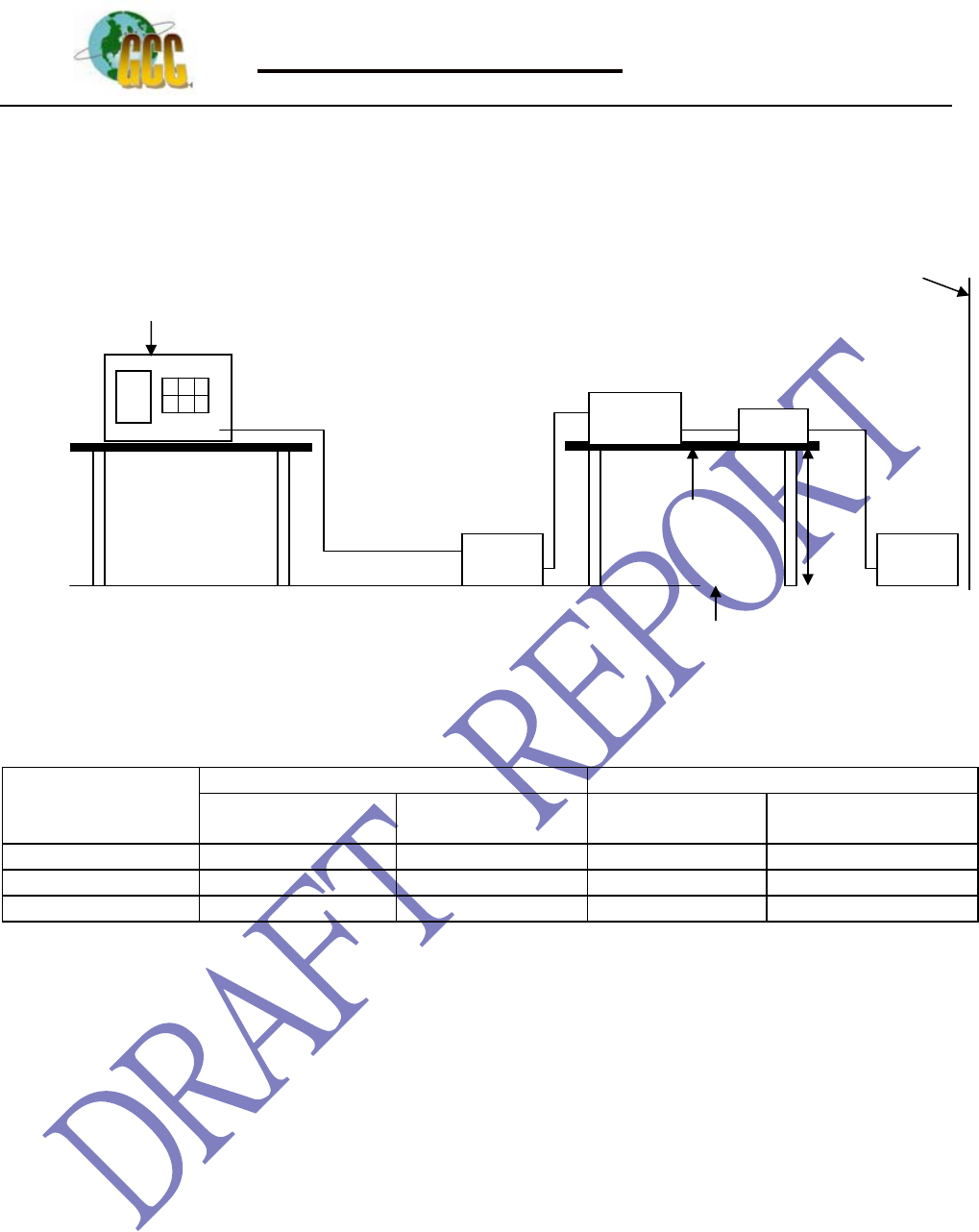

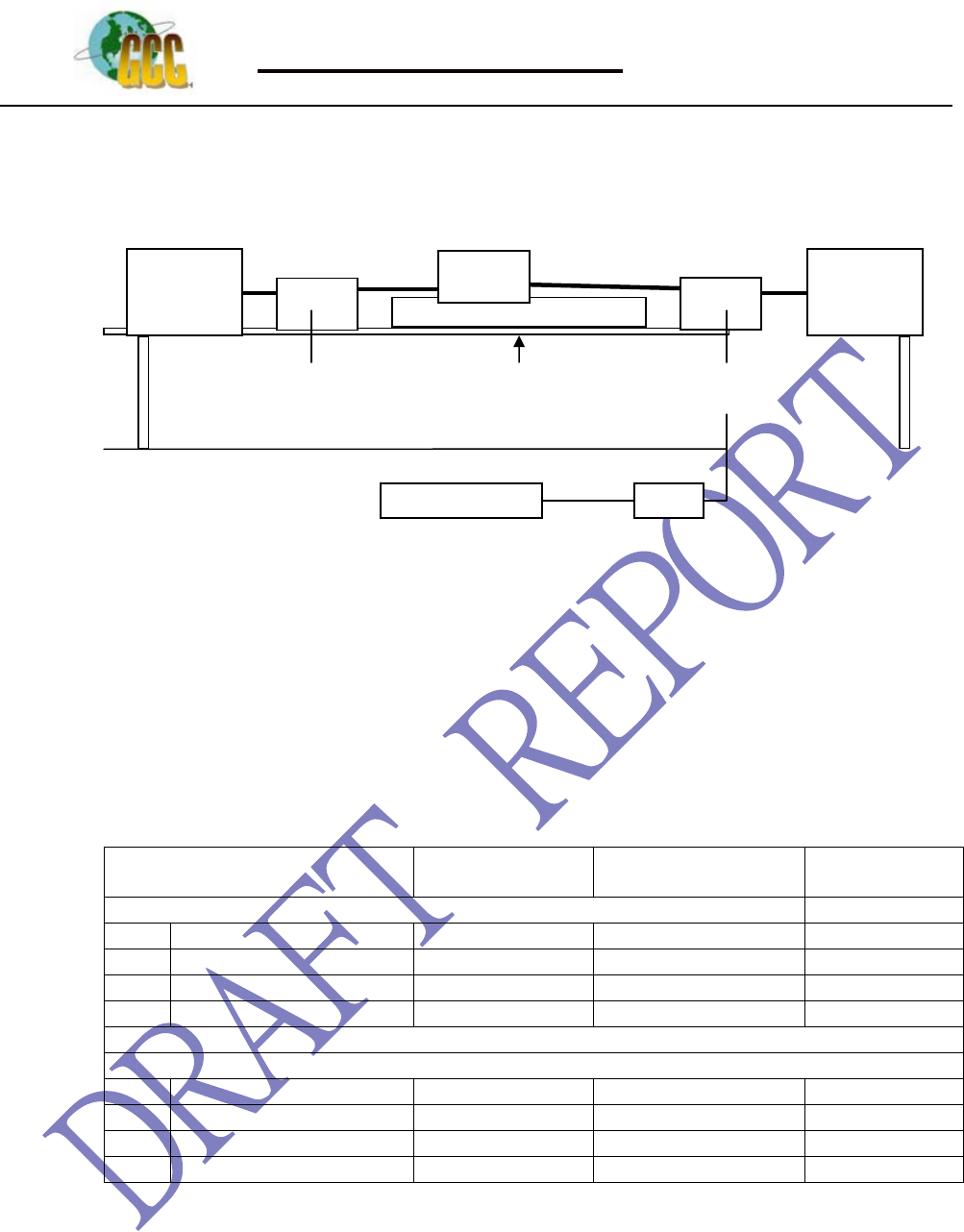

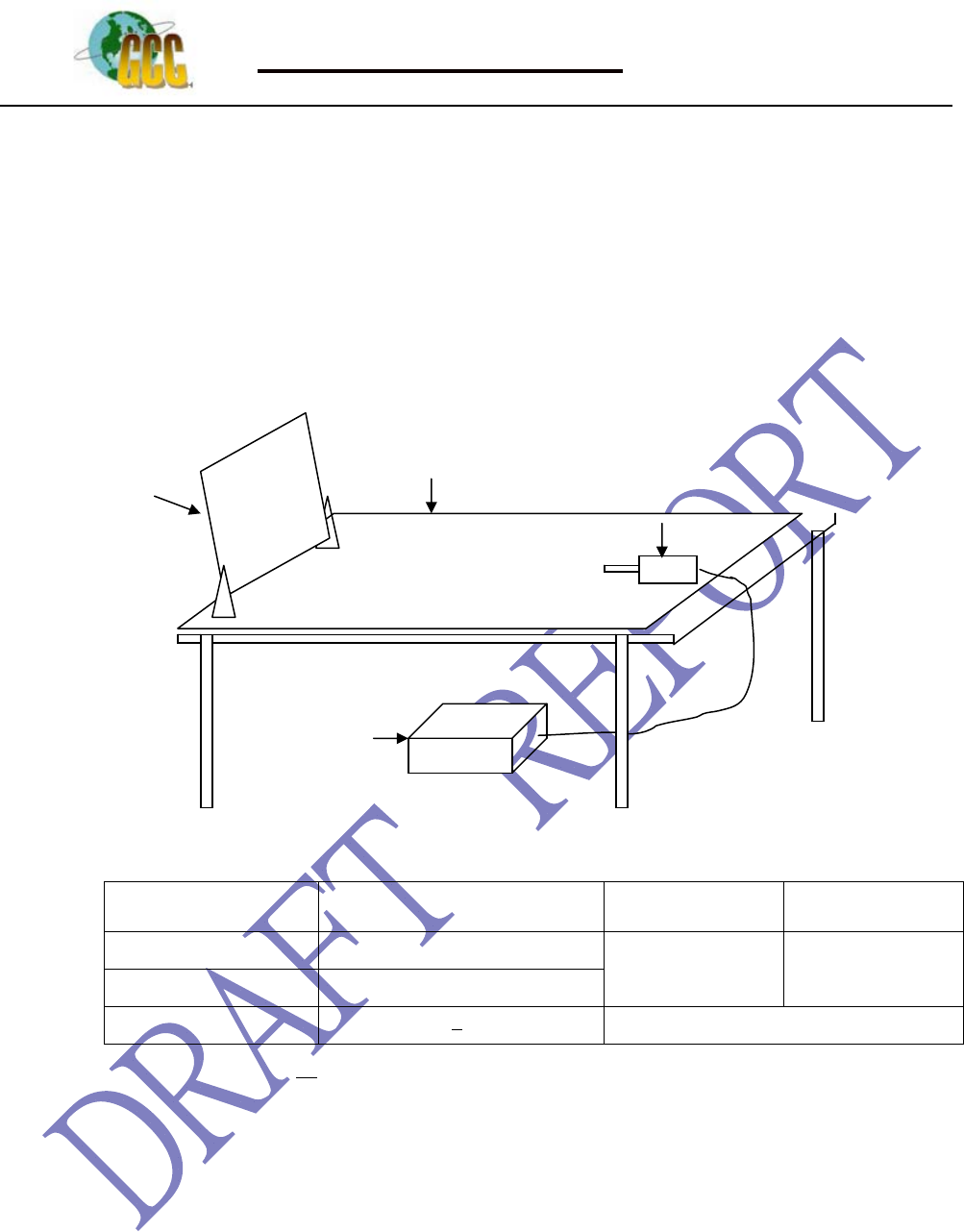

3.1 TEST SET-UP
3.2 LIMIT
CLASS A CLASS B
Frequency range
(MHz) QP
dB(uV)
Average
dB(uV)
QP
dB(uV)
Average
dB(uV)
0.15-0.5 79 dBuV 66 dBuV 66 - 56 dBuV 56 - 46 dBuV
0.5-5.0 73 dBuV 60 dBuV 56 dBuV 46 dBuV
5.0-30.0 73 dBuV 60 dBuV 60 dBuV 50 dBuV
Remark: In the above table, the tighter limit applies at the band edges.
3.3 TEST PROCEDURE
The EUT and simulators are connected to the main power through a line impedance
stabilization network (LISN). It provides a 50 ohm / 50 H coupling impedance for the
measuring equipment. The peripheral devices are also connected to the main power through a
LISN that provides a 50 ohm / 50 H coupling impedance with 50 ohm termination. (Please
refer to the block diagram of the test setup and photograph.)
Both sides of AC line are checked for the maximum conducted emission interference. In
order to find the maximum emissions, the relating positions of equipment and all of the
interference cables must be changed according to EN 55022/2006 regulation: The
measurement procedure on conducted emission interference.
The resolution bandwidth of the field strength meter is set at 9 KHz
LISN LISN
EUT Load
VCP
HCP
80c
m
N
on-Conduc
t
ive Table
Receive
Global Certification Corp. Date of Issue: Mar. 03, 2009
Report No.: E922504
Page15/41
3.4 TEST SPECIFICATION
According to EN 55022
(Please refers to Page 4 for dated references which are related to the standard as
mentioned above)
3.5 RESULT: PASSED
EMI Receiver/Spectrum Analyzer Configuration (for the frequencies tested)
Frequency Range: 150KHz--30MHz
Detector Function: Quasi-Peak / Average Mode
Resolution Bandwidth: 9KHz

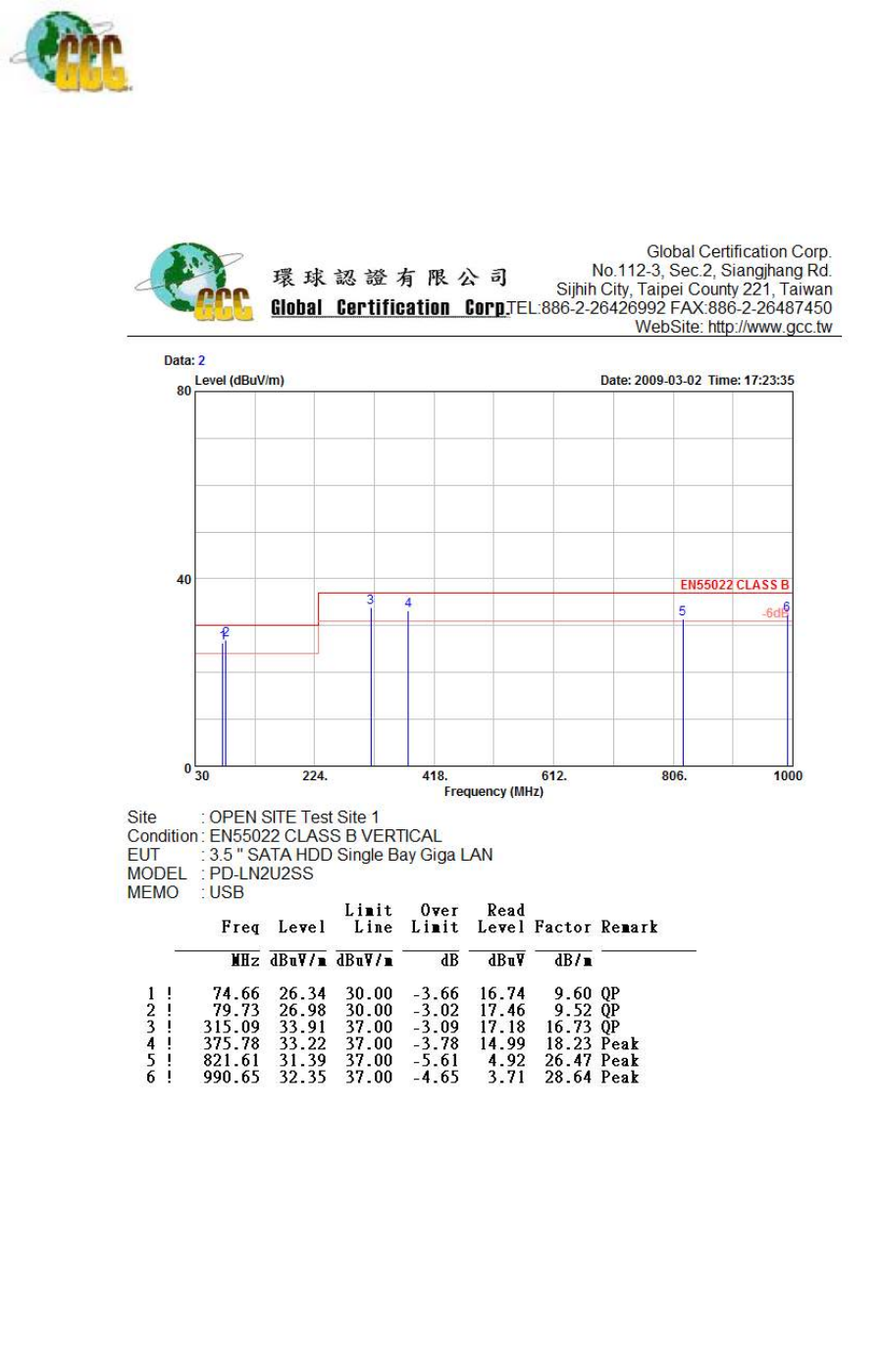

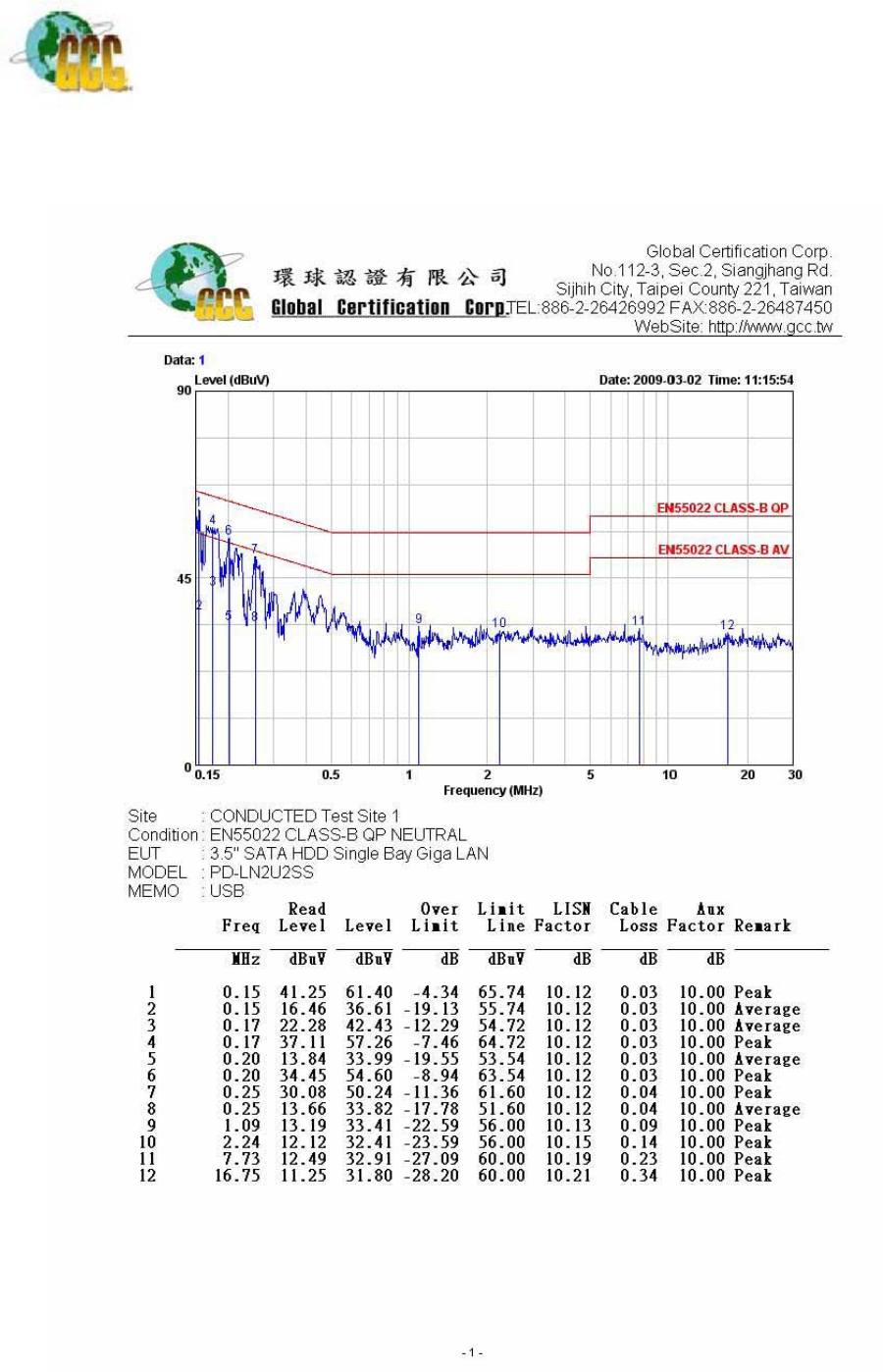

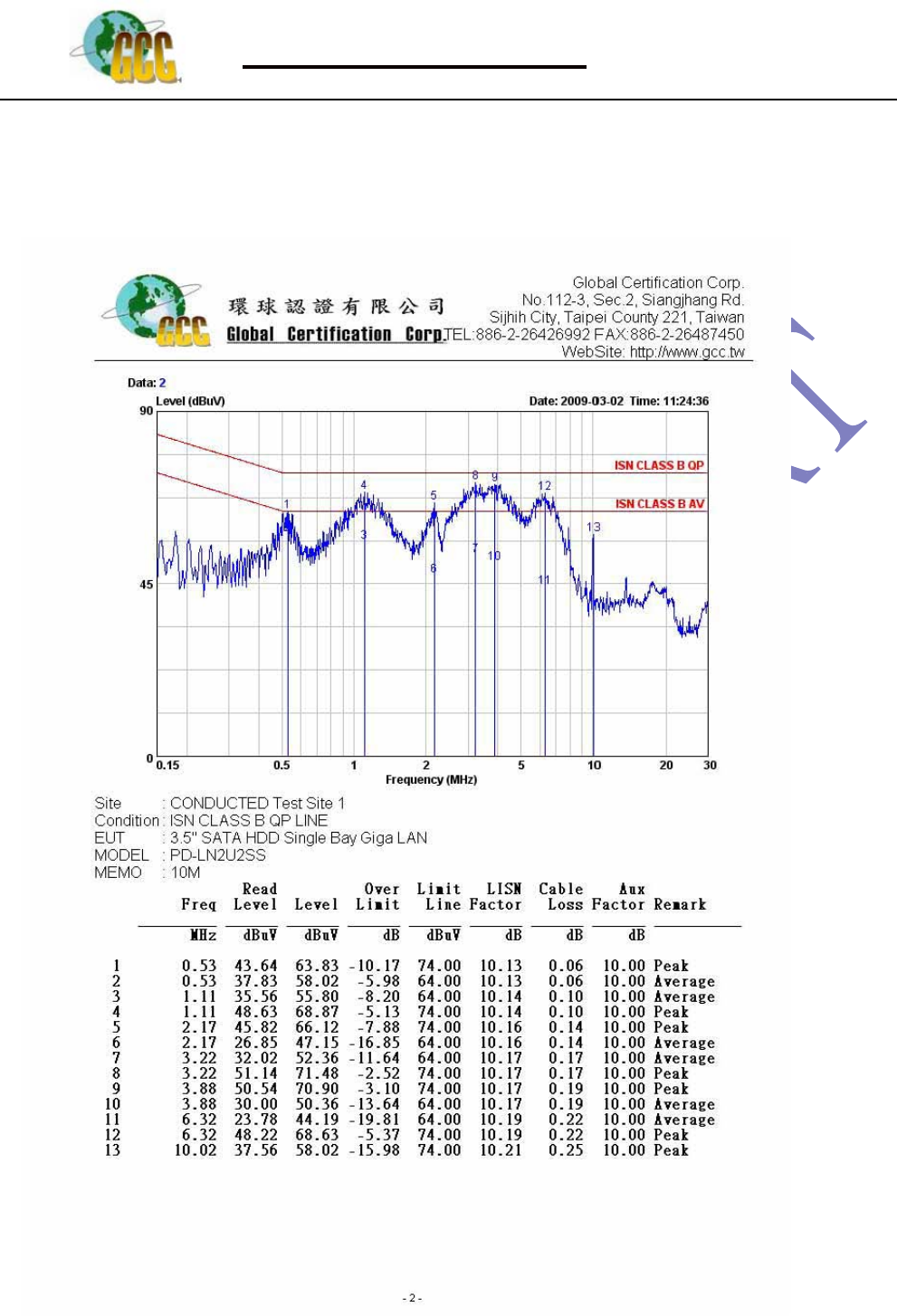

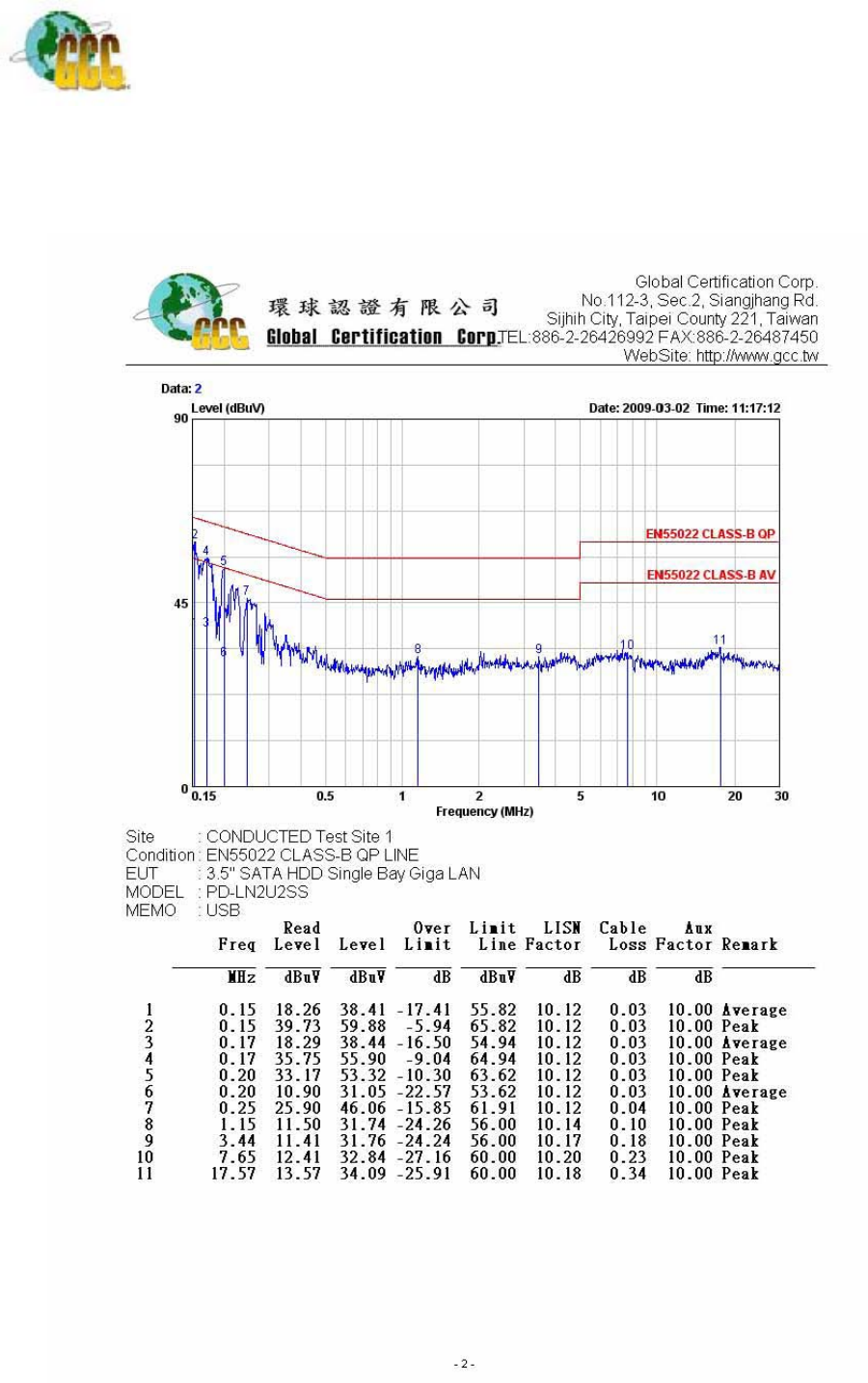

3.6 TEST DATA:
Please refer to appendix 2
Global Certification Corp. Date of Issue: Mar. 03, 2009
Report No.: E922504
Page16/41
3.7 LIMIT OF CONDUCTED COMMON MODE DISTURBANCE AT
TELECOMMUNICATION PORTS:
Frequency Range Quasi Peak (dBuV) Average
0.15 ~ 0.5 MHz 84 – 74 74 – 64
0.5 ~ 30 MHz 74 64
The limits decrease linearly with the logarithm of the frequency in the range 0.15 MHz to 0.5MHz for
Class B.
REMARK:
1. Model: PD-LN2U2SS, IB-NAS4210-B
2. Measuring mode: 1.1000Mbps, 2.10Mbps, 3.10Mbps
3. The Worst Mode: 3.10Mbps
4. Deviations from the test standards and rules: None.
5. “*”, means this data is peak measuring as peak value is under Q.P. Limit or Average
Limit 3dB margin.
6. Result : PASSED
Global Certification Corp. Date of Issue: Mar. 03, 2009
Report No.: E922504
Page17/41
3.8 RESULT OF CONDUCTED COMMON MODE DISTURBANCE AT
TELECOMMUNICATION PORTS
Global Certification Corp. Date of Issue: Mar. 03, 2009
Report No.: E922504
Page18/41

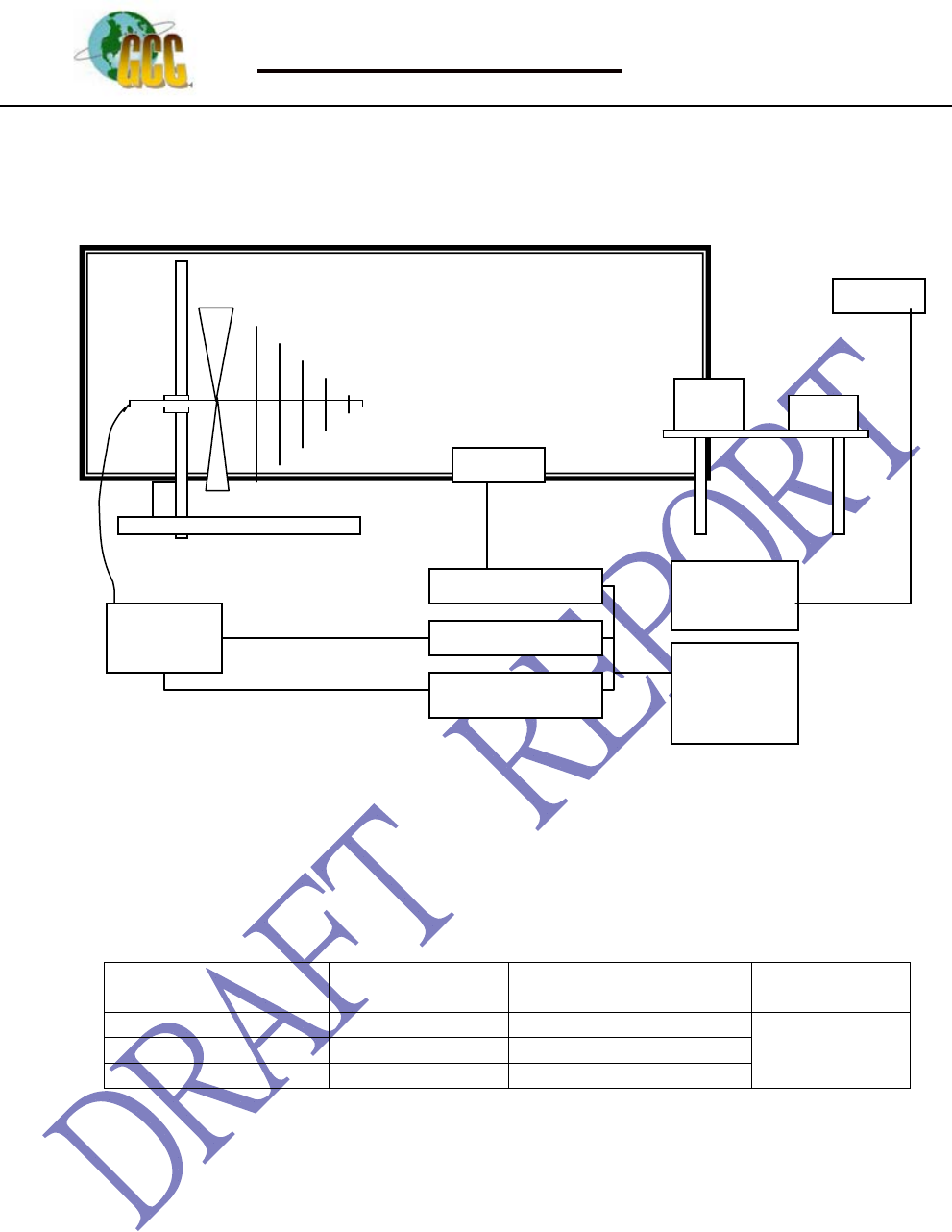

4. RADIATED EMISSION MEASUREMENT
4.1 TEST SETUP
Antenna and
turntable distance:
10m or 3 m.
Load
Active
EUT
Printer Spectrum /
EMI Receiver
Control PC
Remote
Controller
1-4M
Non-Conductive
Table
80 cm
Metal Full Soldered Ground Plane
Global Certification Corp. Date of Issue: Mar. 03, 2009
Report No.: E922504
Page19/41
4.2 LIMIT
Frequency Class A Class B
MHz Distance
(Meter)
Limit
dBV/m
Distance
(Meter)
Limit
dBV/m
30 ~ 230 10 40 10 30
230 ~ 1000 10 47 10 37
Remark: In the above table, the tighter limit applies at the band edges
4.3 TEST PROCEDURE
The EUT and its simulators are placed on turn table, non-conductive and wooden table,
which is 0.8 meter above ground. The turn table rotates 360 degrees to determine the position
of the maximum emission level. The EUT was positioned such that distance from antenna to
the EUT is 10 meters.
The antenna is moved up and down between 1 meter to 4 meters to receive the maximum
emission level.
Both horizontal and vertical polarizations of the antenna are set on measurement. In order
to find the maximum emission, all of the interference cables must be manipulated according
to EN 55022/1998 regulation: the test procedure of the radiated emission measurement.
The bandwidth set on the field strength is 120 KHz when the frequency range is below
1GHz
4.4 TEST SPECIFICATION
According to EN 55022
(Please refers to Page 4 for dated references which are related to the standard as
mentioned above)
4.5 RESULT: PASSED

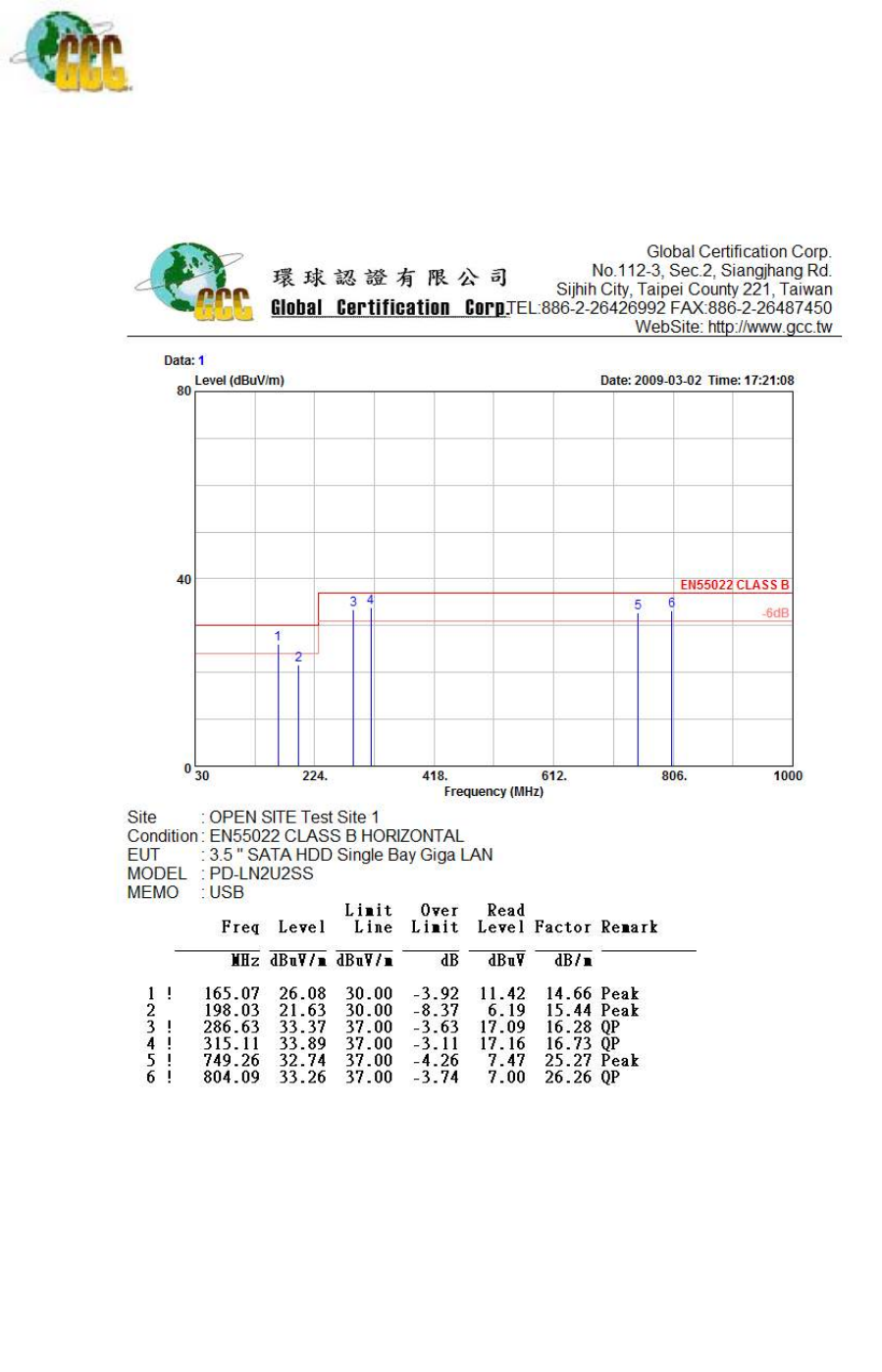

4.6 TEST DATA:
Please refer to appendix 2
Global Certification Corp. Date of Issue: Mar. 03, 2009
Report No.: E922504
Page20/41
5. POWER HARMONIC MEASUREMENT
5.1 TEST SETUP
5.2 LIMIT OF HARMONIC CURRENT
Limit of Harmonic Currents
Harmonic
Order
Maximum Permissible
Harmonic Current
(Ampere)
Harmonic
Order
Maximum Permissible
Harmonic Current (Ampere)
Odd Harmonic Even Harmonic
3 2.30 2 1.08
5 1.14 4 0.43
7 0.77 6 0.30
9 0.40
8 n 40 0.23 x 8/n
11 0.33
13 0.21
15 n ( 39) 0.15 x 15/n
5.3 TEST PROCEDURE
The EUT is supplied in series with power analyzer from a power source has the same
normal voltage and frequency as the rated supply voltage and the equipment under test.
The rated voltage at the supply voltage of EUT of 0.94 time and 1.06 times shall be
performed.
5.4 TEST SPECIFICATION
According to EN 61000-3-2
(Please refers to Page 4 for dated references which are related to the standard as
mentioned above)
5.5 RESULT: PASSED
5.6 TEST DATA:
EUT Load
Controller
Computer
Harmonic/Flicker
Equipment
Global Certification Corp. Date of Issue: Mar. 03, 2009
Report No.: E922504
Page21/41
Harmonics – Class-D per Ed. 3.0 (2005-11) (Run time)
EUT: 3.5” SATA HDD Single Bay Giga LAN Tested by: Anson
Test category: Class-D per Ed. 3.0 (2005-11) (European limits) Test Margin: 100
Test date: 2009/3/2
Comment: PD-LN2U2SS
Customer: 922504
Test Result: N/L Source qualification: Normal

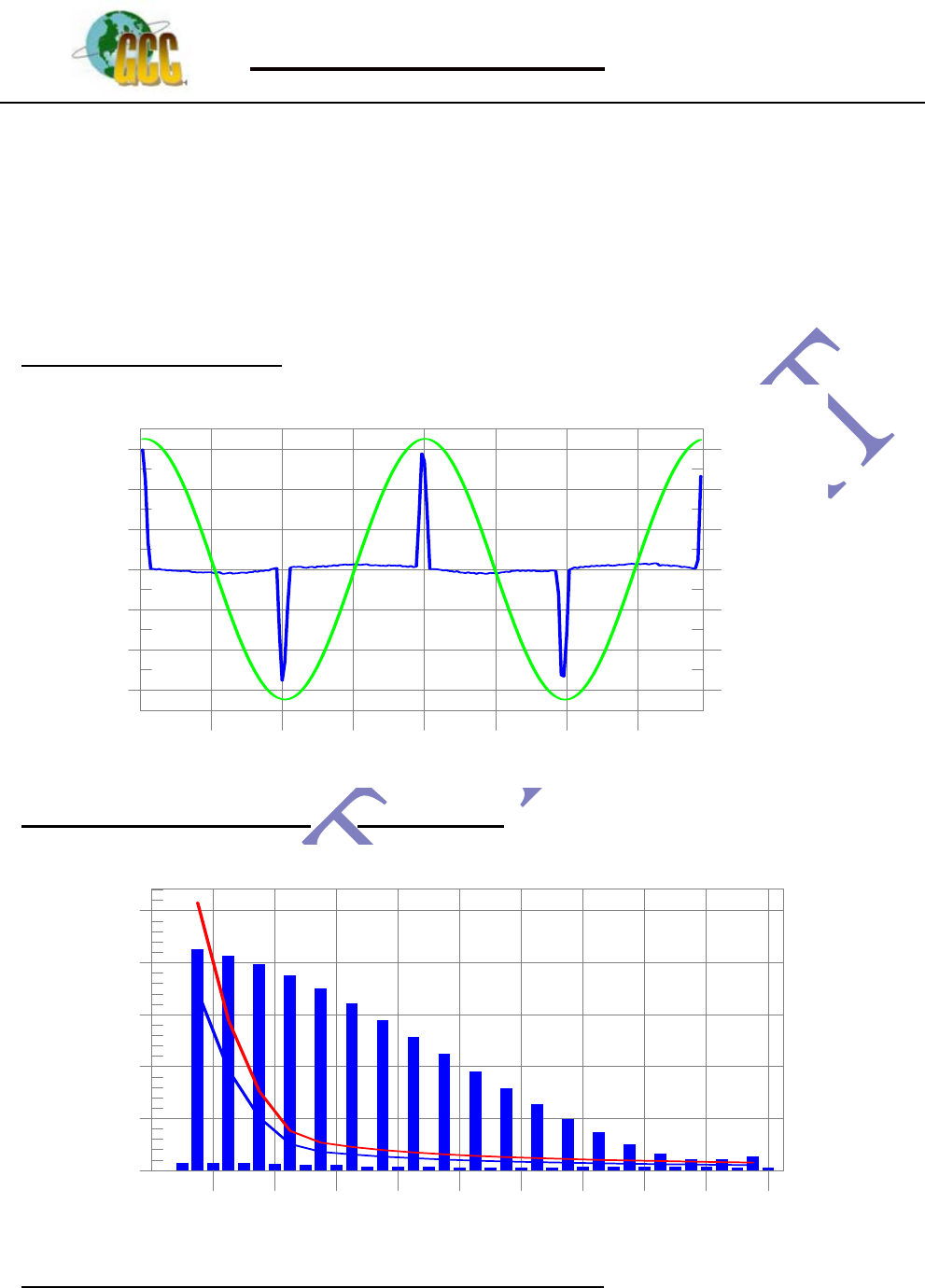

Current & voltage waveforms
-0.3
-0.2
-0.1
0.0
0.1
0.2
0.3
-300
-200
-100
0
100
200
300
Current (Amps)
Voltage (Volts)
Harmonics and Class D limit line European Limits
0.000
0.005
0.010
0.015
0.020
0.025
Current RMS(Amps)
Harmonic #
4 8 12 16 20 24 28 32 36 40
Test result: N/L Worst harmonic was #0 with 0.00% of the limit.
Global Certification Corp. Date of Issue: Mar. 03, 2009
Report No.: E922504
Page22/41
Current Test Result Summary (Run time)
EUT: 3.5” SATA HDD Single Bay Giga LAN Tested by: Anson
Test category: Class-D per Ed. 3.0 (2005-11) (European limits) Test Margin: 100
Test date: 2009/3/2
Comment: PD-LN2U2SS
Customer: 922504
Test Result: N/L Source qualification: Normal
THC(A): 0.00 I-THD(%): 0.00 POHC(A): 0.000 POHC Limit(A): 0.000
Highest parameter values during test:
V_RMS (Volts): 229.43 Frequency(Hz): 50.00
I_Peak (Amps): 0.306 I_RMS (Amps): 0.060
I_Fund (Amps): 0.023 Crest Factor: 5.232
Power (Watts): 5.1 Power Factor: 0.368
Harm# Harms(avg) 100%Limit %of Limit Harms(max) 150%Limit %of Limit Status
2 0.001
3 0.021 0.017 0.0 0.021 0.026 0.00 N/L
4 0.001
5 0.020 0.010 0.0 0.021 0.014 0.00 N/L
6 0.001
7 0.020 0.005 0.0 0.020 0.008 0.00 N/L
8 0.001
9 0.019 0.003 0.0 0.019 0.004 0.00 N/L
10 0.001
11 0.017 0.002 0.0 0.017 0.003 0.00 N/L
12 0.001
13 0.016 0.002 0.0 0.016 0.002 0.00 N/L
14 0.000
15 0.014 0.001 0.0 0.014 0.002 0.00 N/L
16 0.000
17 0.013 0.001 0.0 0.013 0.002 0.00 N/L
18 0.000
19 0.011 0.001 0.0 0.011 0.002 0.00 N/L
20 0.000
21 0.009 0.001 0.0 0.010 0.001 0.00 N/L
22 0.000
23 0.008 0.001 0.0 0.008 0.001 0.00 N/L
24 0.000
25 0.006 0.001 0.0 0.006 0.001 0.00 N/L
26 0.000
27 0.005 0.001 0.0 0.005 0.001 0.00 N/L
28 0.000
29 0.003 0.001 0.0 0.004 0.001 0.00 N/L
30 0.000
31 0.002 0.001 0.0 0.003 0.001 0.00 N/L
32 0.000
33 0.002 0.001 0.0 0.002 0.001 0.00 N/L
34 0.000
35 0.001 0.001 0.0 0.001 0.001 0.00 N/L
36 0.000
37 0.001 0.001 0.0 0.001 0.001 0.00 N/L
38 0.000
39 0.001 0.001 0.0 0.001 0.001 0.00 N/L
40 0.000
Note: The EUT power level is below 75.0 Watts and therefore has no defined limits
Global Certification Corp. Date of Issue: Mar. 03, 2009
Report No.: E922504
Page23/41
6. VOLTAGE FLUCTUATIONS

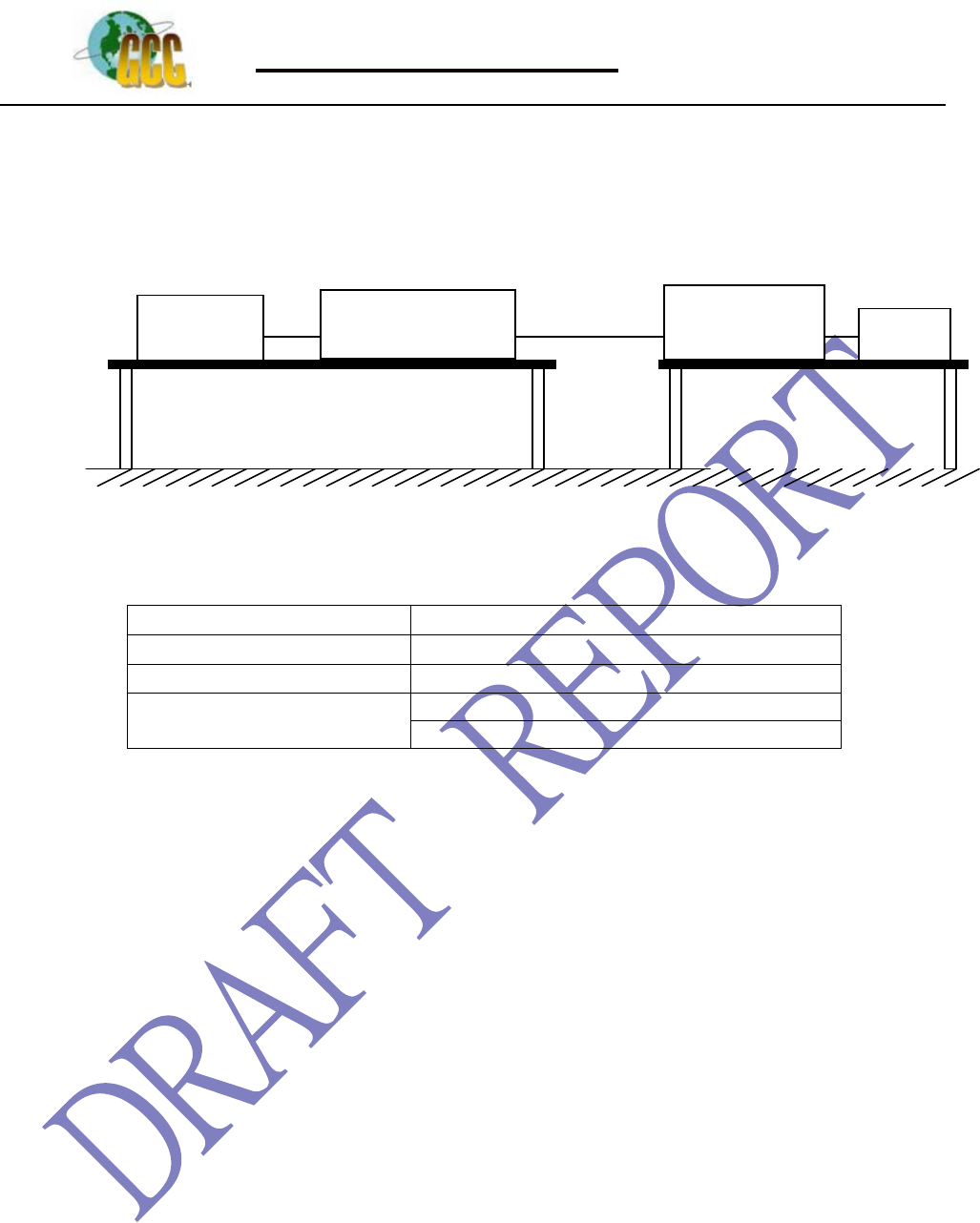

6.1 TEST SETUP
6.2 VOLTAGE FLUCTUATIONS TEST
Port: AC mains
Basic Standard: EN61000-3-3
Test Procedure Refer to Paragraph 6.3
For Pst 10min
Observation period: For Plt 2 hours
6.3 TEST PROCEDURE
The EUT is supplied in series with reference impedance from a power source with the
voltage and frequency as the nominal supply voltage and frequency of the EUT.
6.4 TEST SPECIFICATION
EN 61000-3-3
(Please refers to Page 4 for dated references which are related to the standard as
mentioned above)
6.5 RESULT: PASSED
6.6 TEST DATA
EUT Load
Controller
Computer
Harmonic/Flicker
Equipment
Global Certification Corp. Date of Issue: Mar. 03, 2009
Report No.: E922504
Page24/41
Flicker Test Summary per EN/IEC61000-3-3 (Run time)
EUT: 3.5” SATA HDD Single Bay Giga LAN Tested by: Anson
Test category: All parameters (European limits) Test Margin: 100
Test date: 2009/3/2
Comment: PD-LN2U2SS
Customer: 922504
Test Result: Pass Status: Test Completed
Psti and limit line European Limits
0.25
0.50
0.75
1.00
Pst
10:47:37
Plt and limit line
0.25
0.50
Plt
10:47:37
Parameter values recorded during the test:
Vrms at the end of test (Volt): 229.37
Highest dt (%): 0.00 Test limit (%): 3.30 Pass
Time(mS) > dt: 0.0 Test limit (mS): 500.0 Pass
Highest dc (%): 0.00 Test limit (%): 3.30 Pass
Highest dmax (%): 0.00 Test limit (%): 4.00 Pass
Highest Pst (10 min. period): 0.160 Test limit: 1.000 Pass
Highest Plt (2 hr. period): 0.070 Test limit: 0.650 Pass
Global Certification Corp. Date of Issue: Mar. 03, 2009
Report No.: E922504
Page25/41
7. ELECTROSTATIC DISCHARGE IMMUNITY TEST (ESD)
7.1 TEST PROCEDURE
According To IEC 61000-4-2
According To EN 55024
(Please refers to Page 4 for dated references which are related to the standard as mentioned above)

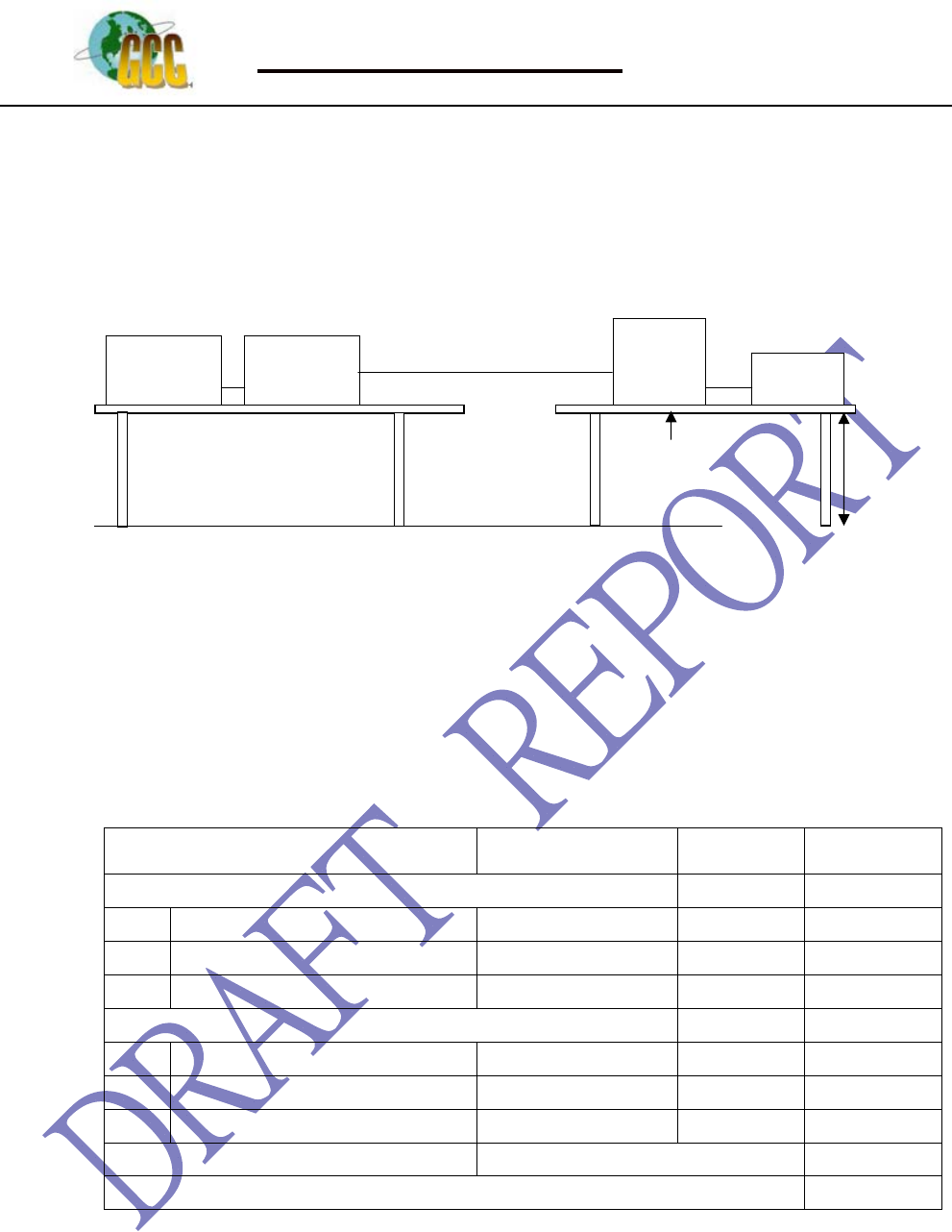

7.2 TEST SETUP
7.3 TEST LEVEL
Item Test Specification Unit
Performance
Criteria
Enclosure Room ±2, 4, 8 (Air Discharge)
Electrostatic Discharge ±2,4 (Contact Discharge)
KV
(Charge Voltage) B
Time between test 1 sec
Number of test: 10 Discharges / Test point / Polarity / Level
Particular requirements: at least 200 discharges, 100 each at negative and positive polarity, at a
minimum of four test points.
When the measurement was taken, The ESD discharger was performed in single
discharge. For the single discharge time between successive single discharges will keep
on one second. It was at least ten single discharges with positive and negative at the same
selected pointed. The selected pointed, which was performed with electrostatic
discharge, was marked on the red label on the EUT
Indirect applicant of discharge to the EUT
Vertical Coupling Plane (VCP)
ESD Generato
r
ESD Gun
VCP HCP
Global Certification Corp. Date of Issue: Mar. 03, 2009
Report No.: E922504
Page26/41
The coupling plane, of dimensions 0.5m x 0.5m, is placed parallel to, and positioned at a distance
0.1m from, the EUT, with the discharge electrode touching the coupling plane.
The four faces of the EUT will be performed with electrostatic discharge. It was at least ten singles
discharges with positive and negative at the same selected point.
Horizontal Coupling Plane (HCP)
The coupling plane is placed under the EUT. The generator shall be positioned vertically at a
distance of 0.1m from the EUT, with the discharge electrode touching the coupling.
The four faces of the EUT will be performed with electrostatic discharge. It was at least ten single
discharges with positive and negative at the same selected pointed.
7.4 TEST RESULT.
Model: PD-LN2U2SS
Mode: USB
Temperature: 20 ℃ , Humidity: 55 % RH
Test Point Air
Discharge
Contact
Discharge
Performance
Criteria
Result
HCP ---- ±2, 4KV B
PASSED
VCP ---- ±2, 4KV B
PASSED
CASE ±2, 4, 8KV ±2, 4KV B PASSED
I/O PORTS ±2, 4, 8KV ±2, 4KV B PASSED
LED ±2, 4, 8KV ±2, 4KV B PASSED
SCREWS ±2, 4, 8KV ±2, 4KV B PASSED
DC SOCKET ±2, 4, 8KV ±2, 4KV B PASSED
BUTTON ±2, 4, 8KV ±2, 4KV B PASSED
Final Result: PASSED
Remark: During the test, the data packages are stops to write and read. After the
test, EUT resume automatically.
Photos of test configuration please refer to appendix 1.
Global Certification Corp. Date of Issue: Mar. 03, 2009
Report No.: E922504
Page27/41
8. RADIATED EMISSION MEASUREMENT (RS)
8.1 TEST SETUP
8.2 TEST PROCEDURE
According To IEC 61000-4-3
According To EN 55024
(Please refers to Page 4 for dated references which are related to the standard as
mentioned above)
8.3 TEST LEVEL
Item Test Specification Unit Performance
Criteria
Radio –Frequency 80~1000 MHz
Electromagnetic Field 3 V/m (unmodulated, rms)
Amplitude Modulated 80 %AM (1KHz)
A
Power
Amplifier
Field Meter
Power Meter
Signal Generator
Computer
Controller
Camera
Monitor
Sensor
Camera
EUT Load
Global Certification Corp. Date of Issue: Mar. 03, 2009
Report No.: E922504
Page28/41
8.4 TEST PROCEDURE
The EUT and load, which are placed on a wooden table that the height is 0.8 meter
above ground, are placed with one coincident with the calibration plane such that the
distance from antenna to the EUT is 3 meters.
Both horizontal and vertical polarization of the antenna position and four sides of the
EUT are set on measurement. In order to judge the EUT performance, a CCD camera is used
to monitor the situation of EUT.
All the scanning conditions are as follows:
Condition of Test Remarks
1. Field Strength 3 V/M; Level 2
2. Radiated Signal AM 80% modulated with 1KHz
3. Scanning Frequencies 80MHz ~ 1000MHz
4. Dwell Time 3 seconds
5. Frequency step size 1%
6. The rate of swept of frequency 1.5 x 10⎯³ decades/s
7. Antenna Polarity HORIZONTAL & VERTICAL
8. The four sides of EUT are tested FRONT, REAR, RIGHT, LEFT
8.5 TEST RESULT
Model: PD-LN2U2SS
Mode: USB
Temperature: 20 ℃ , Humidity: 55 % RH
ANT
SIDE
3V
HORIZONTAL
3V
VERTICAL
RESULT
FRONT A A PASSED
REAR A A PASSED
RIGHT A A PASSED
LEFT A A PASSED
Final Result: PASSED
Remark:
Photos of test configuration please refer to appendix 1.
Global Certification Corp. Date of Issue: Mar. 03, 2009
Report No.: E922504
Page29/41
9. ELECTRICAL FAST TRANSIENT/BURST (EFT)

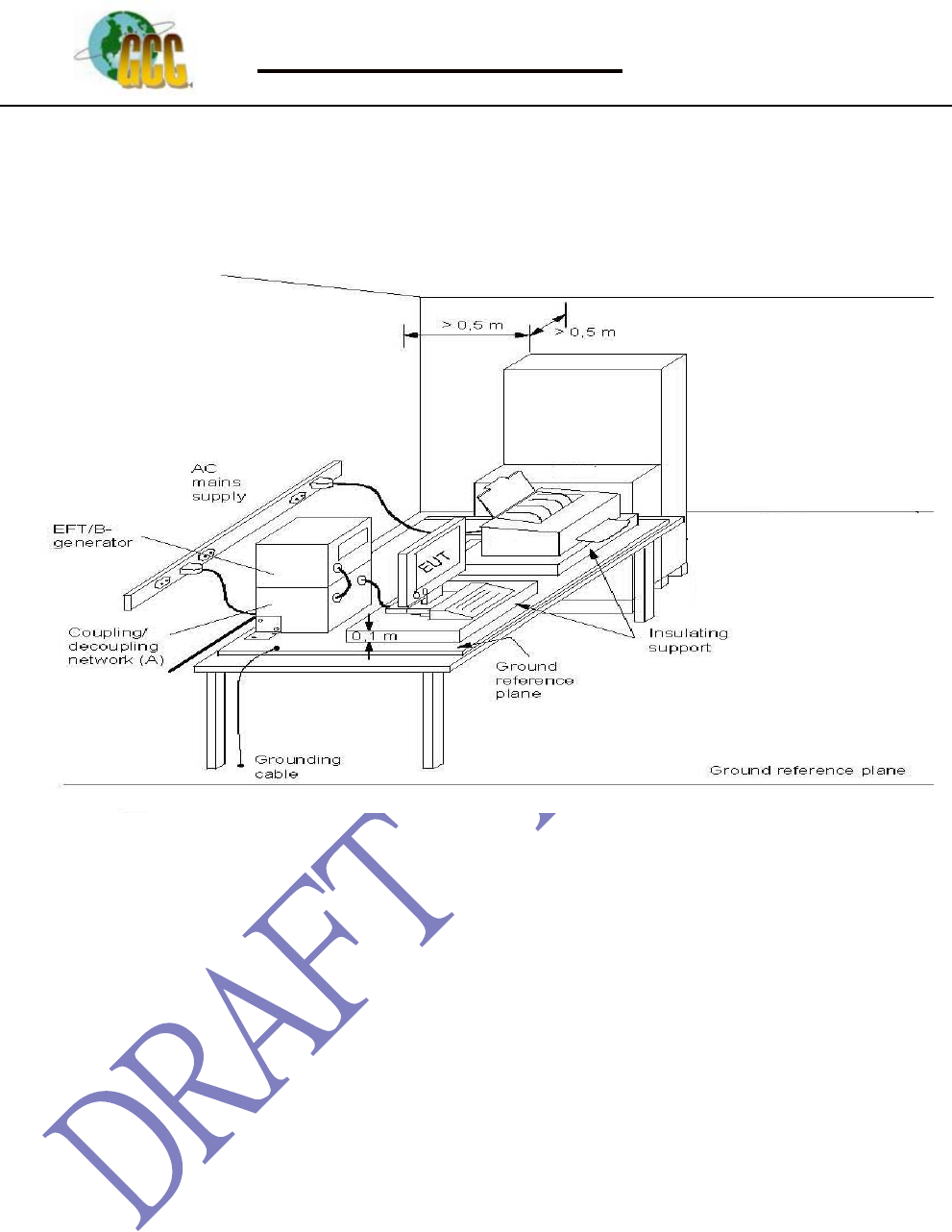

9.1 TEST SETUP
9.2 TEST PROCEDURE
According To IEC 61000-4-4
According To EN 55024
(Please refers to Page 4 for dated references which are related to the standard as
mentioned above)
9.3 TEST PROCEDURE
The EUT and load are placed on a ground reference plane and insulated from it by an insulating
support 0,1 m ± 0,01 m thick. The minimum area of the ground reference plane is 1 m × 1 m. It also
projected beyond the EUT by at lease 0.1meter on all sides.
For Input and Output AC power or DC Input and DC Output Power Ports:
The EUT is connected with the power mains through a coupling device that directly couples the
EFT interference signal.
Each of the line and nature conductors is impressed with burst noise for 1 minute.
For Protective Earth Port:
The EUT is connected to the power mains through a coupling device that directly couples the EFT
interference signal. The protective earth line (PE) is impressed with burst noise for 1 minute.
The length of power cord between the coupling device and the EUT shall be 0,5 m ± 0,05 m.
For signal Lines and Control Lines Test:
The EFT interference signal is through a coupling clamp device couples to the signal and control
lines of the EUT with burst noise for 1 minute.
Global Certification Corp. Date of Issue: Mar. 03, 2009
Report No.: E922504
Page30/41
9.4 TEST LEVEL
Item Test Specification Unit Performance
Criteria
Test Voltage ±0.5, ±1 KV (Peak) B
Pulse Rise time & Duration 5/50 Tr/Ts (ns)
Pulse Repetition 5 Rep. Frequency (KHz)
Coupling of power line L, N, PE, L+N, L+PE, N+PE, L+N+PE
9.5 TEST RESULT
Model: PD-LN2U2SS
Mode: USB
Temperature: 20 ℃ , Humidity: 55 % RH
Power Line
TEST VOLTAGE L N L+N
±0.5KV A A A
±1KV A A A
Signal Control Line
TEST VOLTAGE Performance Criteria
±0.25KV A
±0.5KV A
Final Result: PASSED
Remark:
Photos of test configuration please refer to appendix 1.
Global Certification Corp. Date of Issue: Mar. 03, 2009
Report No.: E922504
Page31/41
10. SURGE
10.1 TEST SETUP
10.2 TEST PROCEDURE
According To IEC 61000-4-5
According To EN 55024
(Please refers to Page 4 for dated references which are related to the standard as
mentioned above)
10.3 TEST LEVEL
Item Test Specification Unit
Performance
Criteria
DC Input and DC Output Power Ports
Surge 1.2/50(8/20) Tr/Ts (μs) B
Line to Ground ±0.5 KV
Line to Line ±0.5 KV
AC Input and AC Output Power Ports
Surge 1.2/50(8/20) Tr/Ts (µs) B
Line to Ground ±2 KV
Line to Line ±1 KV
Polarity POSITIVE / NEGATIVE
Phase shifting in a range between 0°to 360°
EUT LOAD
80c
m
Non-Conductive Table
Controller
Com
p
ute
r
Surge
Generator
Global Certification Corp. Date of Issue: Mar. 03, 2009
Report No.: E922504
Page32/41
10.4 TEST PROCEDURE
The EUT and its load are placed on a table which is 0.8 meter height. The length of power cord
between the coupling device and the EUT shall be 2 meters or less.
For Input and Output AC Power or DC Input and DC Output Power Ports:
The EUT is connected to the power mains through a coupling device that directly couples the Surge
interference signal.
The Surge noise shall be applied synchronized to the voltage phase at 0º, 90 º, 180 º, 270 º and the
peak value of the AC voltage wave. (5 Positive and 5 Negative)
Each of line-earth and line-line is impressed with a sequence of five surge voltages
with interval of 1 minute.
10.5 TEST RESULT
Model: PD-LN2U2SS
Mode: USB
Temperature: 20 ℃ , Humidity: 55 % RH
Environmental
Phenomena Test Specification Units Performance
Criteria
Line to Line ±1 KV (Charge Voltage) A
Final Result: PASSED
Remark:
Photos of test configuration please refer to appendix 1.
Global Certification Corp. Date of Issue: Mar. 03, 2009
Report No.: E922504
Page33/41
11. IMMUNITY TEST TO CS CONDUCTED DISTURBANCE (CS)
11.1 TEST SETUP
11.2 TEST PROCEDURE
According To IEC 61000-4-6
According To EN 55024
(Please refers to Page 4 for dated references which are related to the standard as mentioned above)
11.3 TEST LEVEL
Item Test Specification Unit
Performance
Criteria
Ports for Signal Lines
Radio-Frequency 0.15 ~ 80 MHz A
Common Mode 3 V (rms, Unmodulated)
Amplitude Modulated 80 %AM (1KHz)
150 Source Impedance
Ac Input and AC Output and DC Input and DC output Ports and Functional Earth Ports
Radio-Frequency 0.15 ~ 80 MHz
Common Mode 3 V (rms, Unmodulated) A
Amplitude Modulated 80 %AM (1KHz)
150 Source Impedance
11.4 TEST PROCEDURE
The EUT are placed on a table which is 0.8meter height and a ground reference plane on the table,
the EUT are placed upon table and use 10cm insulation between the EUT and ground reference
plane.
For AC Input and AC Output Power or DC Input and DC Output Power Ports
The EUT is connected to the power mains through a coupling and decoupling networks for
Power supply lines. It also directly couples the disturbance signal into EUT.
RF
-
Generator
PA
T2 T
N
on-Conduc
t
ive table
AUX
Equipment CDN
10cm Isolation
CDN
AUX
Equipment
EUT
Global Certification Corp. Date of Issue: Mar. 03, 2009
Report No.: E922504
Page34/41
Use CDN-M2 for two wires or CDN-M3 for three wires.
For Signal Lines and Control Lines Test:
The disturbance signal is through a coupling and decoupling networks (CDN) or EM-clamp which is
to couple the signal and control lines of the EUT.
All scanning frequencies conditions are as following:
Condition of Test Remarks
EN 61000-4-6/2007
1. Field Strength 3 V/M; Level 2
2. Radiated Signal AM 80% modulated with 1KHz
3. Scanning Frequencies 0.15MHz ~ 80MHz
4. Dwell Time 3 seconds
5. Frequency step size  1%
6. The rate of swept of frequency 1.5 x 10⎯³ decades/s
11.5 TEST RESULT
Model: PD-LN2U2SS
Mode: USB
Temperature: 20 ℃ , Humidity: 55 % RH
TEST Specification Unit Performance Criteria
0.15 - 80 MHz
3 V A
80 % AM (1KHz)
Final Result: PASSED
Remark:
Photos of test configuration please refer to appendix 1.
Global Certification Corp. Date of Issue: Mar. 03, 2009
Report No.: E922504
Page35/41
12. POWER FREQUENCY MAGNETIC FIELD (MAGNETIC)
12.1 TEST SETUP
12.2 TEST STANDARD
According To IEC 61000-4-8
According To EN 55024
(Please refers to Page 4 for dated references which are related to the standard as
mentioned above)
12.3 TEST LEVEL
Item Test Specification Unit Performance
Criteria
Power-Frequency 50 Hz A
Magnetic Field 1 A/M
12.4 TEST PROCEDURE
The EUT and its load are placed on a table that is 0.8 meter above the metal ground
plane dimension is at least 1 meter x 1 meter. The test magnetic field shall be placed at least
than 3 meter distance from the induction coil.
The test magnetic field shall be applied by the immersion method to the EUT. The
induction coil shall be rotated by 90 in order to expose the EUT to the test field with
different orientation (X, Y, Z orientation).
Test
Generator
EUT
10cm Isolation
Non-Conducted Table
Induction Coil
Global Certification Corp. Date of Issue: Mar. 03, 2009
Report No.: E922504
Page36/41
12.5 TEST RESULT
Model: PD-LN2U2SS
Mode: USB
Temperature: 20 ℃ , Humidity: 55 % RH
Environmental
Phenomena Test Specification Units Performance Criteria
Magnetic Field 1 A/m A
Final Result: PASSED
Remark:
Photos of test configuration please refer to appendix 1.
Global Certification Corp. Date of Issue: Mar. 03, 2009
Report No.: E922504
Page37/41
13. VOLTAGE DIPS AND INTERRUPTION MEASUREMENT
13.1 TEST SETUP
13.2 TEST PROCEDURE
According To IEC 61000-4-11
According To EN 55024
(Please refers to Page 4 for dated references which are related to the standard as
mentioned above)
Non-Conductive Table
80c
m
Voltage Dips/
Interruptions/
Variations
Simulator
EUT Load
Controller Computer Printer
AC Power Line to EUT
Global Certification Corp. Date of Issue: Mar. 03, 2009
Report No.: E922504
Page38/41
13.3 TEST LEVEL
Classa Test level and durations for voltage dips
Class 1 Case-by-case according to the equipment requirements
Class 2 0 % during
1/2 cycle
0 % during
1 cycle 70 % during 25/30c cycles
Class 3 0 % during
1/2 cycle
0 % during
1 cycle
40 % during
10/12c cycles
70 % during
25/30c cycles
80 % during
250/300c cycles
Class X b X X X X X
a: Classes as per IEC 61000-2-4.
b: To be defined by product committee. For equipment connected directly or indirectly
to the public network, the levels must not be less severe than Class 2.
c: “25/30 cycles” means “25 cycles for 50 Hz test” and “30 cycles for 60 Hz tet”.
Classa Test level and durations for short interruptions (ts) (50Hz / 60Hz)
Class 1 Case-by-case according to the equipment requirements
Class 2 0 % during 250/300c cycles
Class 3 0 % during 250/300c cycles
Class Xb X
a: Classes as per IEC 61000-2-4.
b: To be defined by product committee. For equipment connected directly or indirectly
to the public network, the levels must not be less severe than Class 2.
c: “250/300 cycles” means “250 cycles for 50 Hz test” and “300 cycles for 60 Hz test”.
13.4 TEST PROCEDURE
The EUT and its load are placed on a wooden table which is 0.8 meter above a metal
ground plane which dimension is 1 meter x 1 meter, the thickness is 0.65mm. It projected
beyond the EUT by at least 0.1 meter on all sides. The power cord shall be used the shortest
power cord as specified by the manufacturer.
For Voltage Dips / Interruption Test:
The EUT is connected to the power mains through a coupling device that directly
couples to the Voltage Dips and Interruption Generator.
The EUT shall be tested for 30% voltage dips of supplied voltage and duration time is
10ms, for 60% voltage dips of supplied voltage and duration time is 100ms with a sequence
of three voltage dips with intervals of 10 seconds, and for 95% voltage interruption of
supplied voltage and the duration time is 5000ms with a sequence of three voltage
interruptions with intervals of 10 seconds.
Voltage phase shifting are shall occur at 0º, 45 º, 90 º, 135 º, 180 º, 225 º, 270 º, 315 º of the
voltage.
Global Certification Corp. Date of Issue: Mar. 03, 2009
Report No.: E922504
Page39/41
13.5 TEST RESULT
Model: PD-LN2U2SS
Mode: USB
Temperature: 20 ℃ , Humidity: 55 % RH
Environmental
Phenomena Test Specification Units Performance
Criteria
0
1/2
% during
Cycle A
Voltage Dips 70
25
% during
Cycles C
Voltage Short
Interruptions
0
250
% during
Cycles C
Final Result: PASSED
Remark:
Photos of test configuration please refer to appendix 1.
Global Certification Corp. Date of Issue: Mar. 03, 2009
Report No.: E922504
Page40/41
14. PERFORMANCE CRITERIA
A. The apparatus shall continue to operate as intended during and after the test. No
degradation of performance or loss of function is allowed below a performance level
specified by the manufacturer, when the apparatus is used as intended.
B. The apparatus shall continue to operate as intended after the test. No degradation of
performance or loss of function is allowed below a performance level specified by the
manufacturer, when the apparatus is used as intended. The performance level may be
replaced by a permissible loss of performance. During the test, degradation of
performance is however allowed.
C. Temporary loss of function is allowed, provided the function is self-recoverable or can
be restored by the operation of the controls.
Global Certification Corp. Date of Issue: Mar. 03, 2009
Report No.: E922504
Page41/41
15. MODIFICATION LIST FOR EMC COMPLYING TEST
The modification is solely made by the applicant.
Appendix
Appendix A: Summary of Test Result
**** EMC Test Result: The EUT has been passed the all measurements. ****
The uncertainty is calculated in accordance with CISPR16-4-2, the total uncertainty for this test is as
follows:
Uncertainty of Conducted Emission Measurement
Contribution Probability Distribution 150KHz – 30MHz
Receiver reading Normal (k=2) ±0.3
Cable loss Normal (k=2) ±0.2
AMN insertion loss Rectangular ±0.3
RCV/SPA specification Rectangular ±0.1
combined standard uncertainty Ue(y) normal ±0.5
Measuring uncertainty for a level of confidence of 95%
U=2Ue(y) normal (k=2) ±1.0
Uncertainty of Radiated Emission Measurement
Contribution Probability Distribution 30MHz~1GHz
Receiver reading Normal (k=2) ±0.3
Cable loss calibration Normal (k=2) ±0.3
Antenna factor calibration Rectangular ±0.9
Pre Amplifier Gain calibration Rectangular ±0.3
RCV/SPA specification Rectangular ±0.2
combined standard uncertainty Ue(y) normal ±1.0
Measuring uncertainty for a level of confidence of 95%
U=2Ue(y) normal (k=2) ±2.0
Global Certification Corp.
Appendix 2
TEST DATA
Global Certification Corp. Report No. : E922504
Appendix 2 : 1 of 4
Test Data Of Conducted Emission Measurement (LINE)
Global Certification Corp. Report No. : E922504
Appendix 2 : 2 of 4
Test Data Of Conducted Emission Measurement (NATURAL)
Global Certification Corp. Report No. : E922504
Appendix 2 : 3 of 4
Test Data Of Radiated Emission Measurement (Horizontal)
Global Certification Corp. Report No. : E922504
Appendix 2 : 4 of 4
Test Data Of Radiated Emission Measurement (Vertical)

Navigation menu
