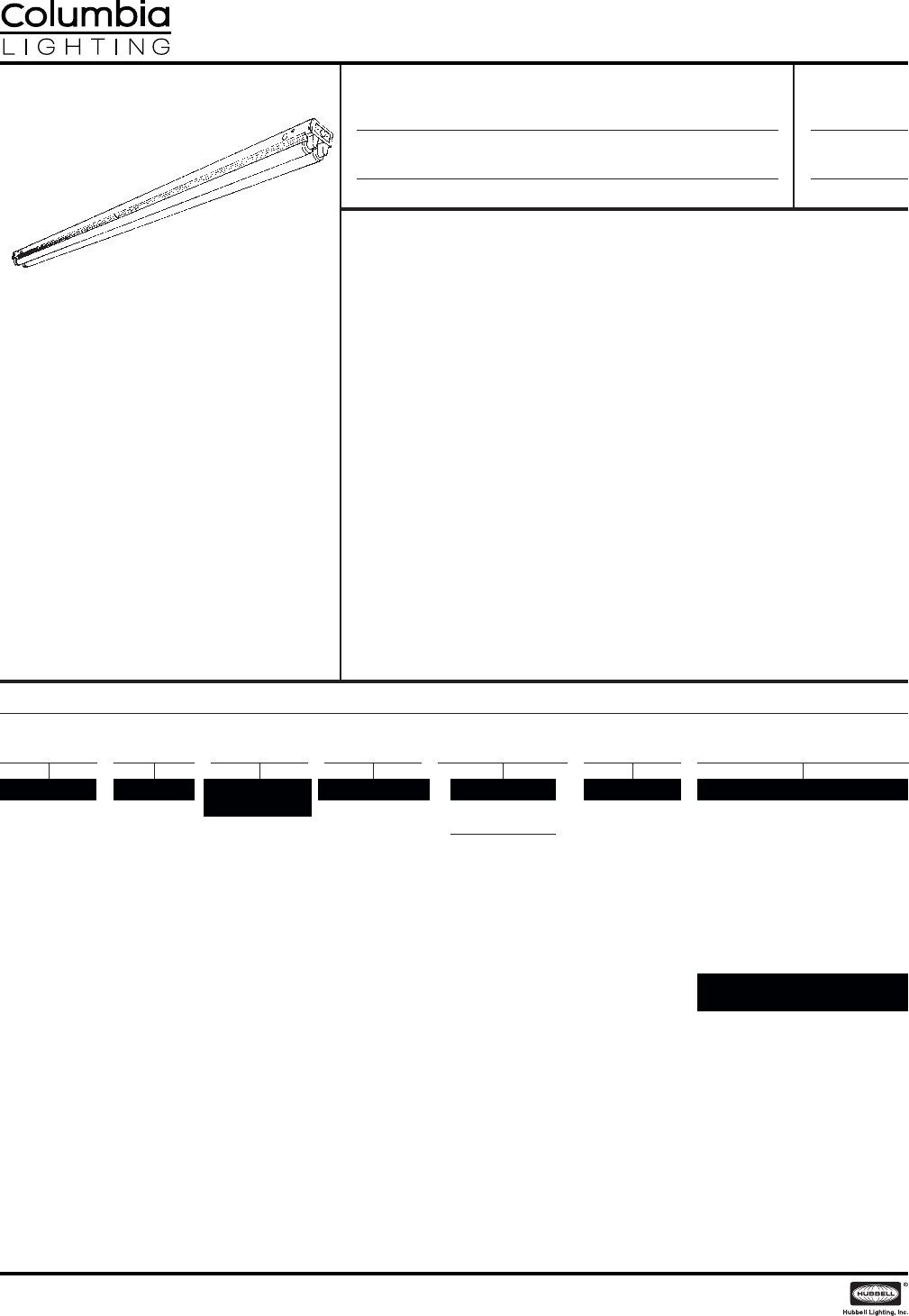

STRIPLIGHTS / CS SLIMLINE
CONSTRUCTION
Steel housing die formed with heat sink
embossments for cooler running ballasts. Socket
saddles are factory installed.
FINISH
White painted parts are treated with a ve stage
phosphate bonding process and nished with a high
reectance baked enamel.
ELECTRICAL
Standard class “P,” thermally protected, auto-
resetting HPF ballast, sound rated A. All ballast
leads extend a minimum of 6" through access
location. NEC/CEC-compliant ballast disconnect is
standard.
CERTIFICATION
All luminaires are built to UL 1598 standards and
bear appropriate UL and CUL or CSA labels. Damp
location labeling is standard. Emergency-equipped
xtures labeled UL 924.
EXAMPLE CS8-296-EU-EL-GLR
FEATURES
• Available 4', 6', and 8'
• Heavy die formed steel channel
• Telescopic spring loaded lampholders
• Channel ends double as joiners
• Individual or row mounting. Surface or suspended
• ¼ turn fasteners retain the ballast cover for quick and easy
installation
SIZE
44'
66'
88' (8' or
tandem 4'
lamps)
16 16'
(Tandem)
NO. OF LAMPS IN
CROSS SECTION
1One
2Two
LAMP TYPE
48 4', T12: 40
Watt Slimline
72 6', 72" T12:
Slimline
96T8 8', T8: 59 Watt
96 8', T12: 75
or 60 Watt
Slimline
BALLAST
EElectronic T8,
Instant Start
For a specific ballast
vendor, show as
option. Not all lamp-
ballast combinations
are available. Contact
factory for details.
ORDERING INFORMATION
OPTIONS
GLR Fast Blow Fuse
GMF Slow Blow Fuse
EL Emergency Battery Pack
BC Branch Circuit Plug-on Wiring System.
See options section for details.
PAF Paint After Fabrication
NYC NYC Compliant
E
ACCESSORIES
(ORDER SEPARATELY)
ITB4 Hanger for Close Mounting on a
T-Bar Ceiling
CSZT Zip Tee Hanger - 1½" Spacer on
T-Bar Ceiling
CSTH Slide Tong Hanger with ⁄" Hole
CSWG4 4' Wire Guard, 2 Required for 8'
Fixture
CSWG3 3' Wire Guard, 2 Required for 6'
Fixture
CSRA4 4' Asymmetric Reflector 1
CSR4 4' Symmetric Reflector 1
For complete list of options and accessories, see options and accessories section.
1 Center saddles are required if reflectors are to be mounted on 8 foot and 16 foot fixtures. See options and accessories section for proper saddle.
CS –– –
MODEL
CS Straight-Sided
Utility Channel
VOLTAGE
U120V-277V
347 347V
Page 1/2 Rev. 08/23/17
CS SLIMLINE
4', 6', 8', 16' Straight-Sided Utility Channel / 1 or 2-Lamp T8, T12 Slimline
© 2017 Columbia Lighting, a division of Hubbell Lighting, Inc. Because of continuing product improvement programs, Columbia Lighting reserves the right to change
specications without notice. 701 Millennium Blvd. Greenville, SC 29607 / Tel 864.678.1000 / Tech Support 864.678.1668 / Website www.columbialighting.com
Catalog No.
Project Name Type
Date
PROJECT INFORMATION

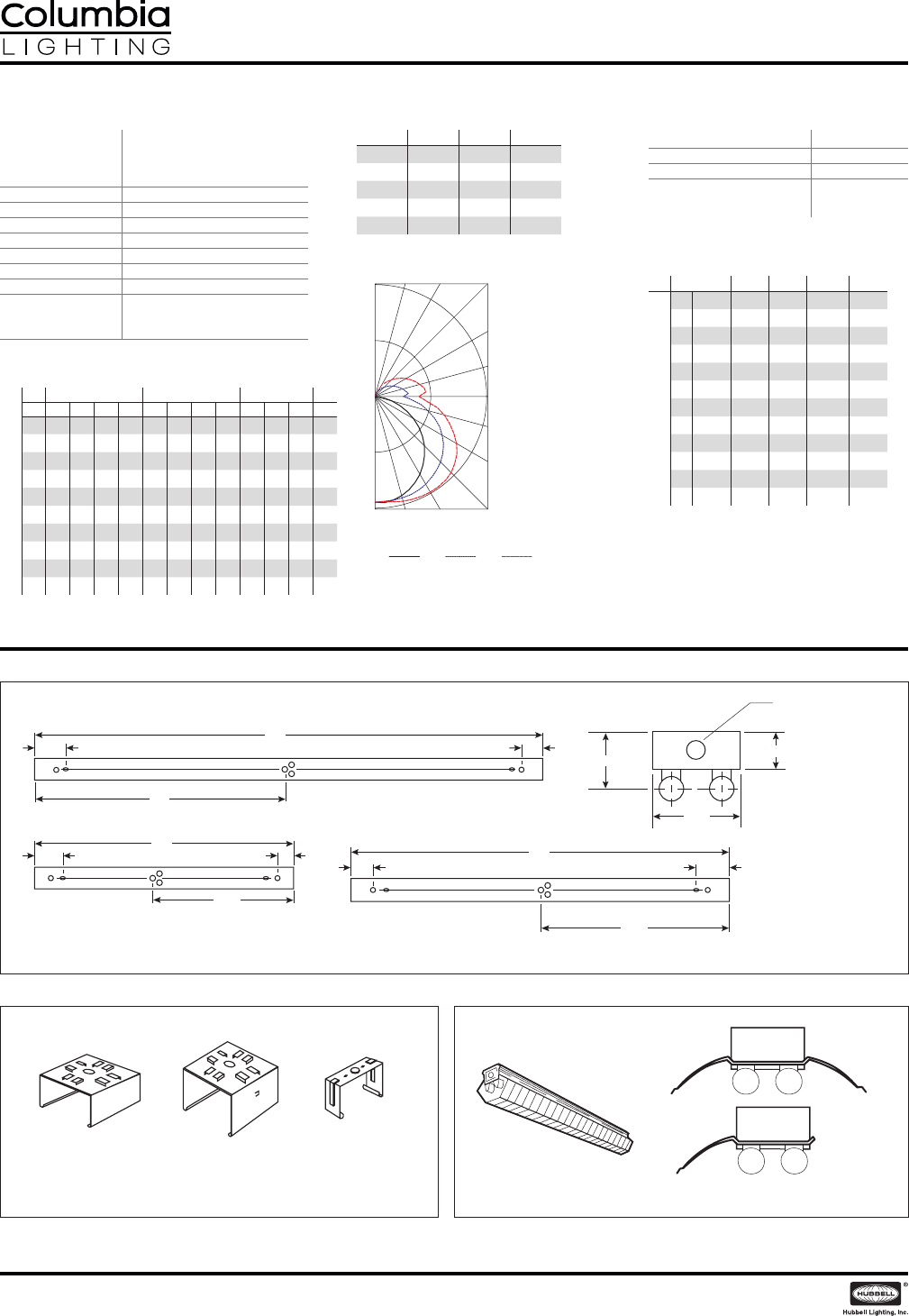

DIMENSIONAL DATA
Horiz 0-180
1100
2200
1100
2200
0 15 30 45
90
75
60
105
120
180 165 150 135
0.0 45.0 90.0
NOTE: All dimensions are in inches; dimensions and specications are subject to change without notice. Please consult factory or check sample for verication.
CSZTF
Flush Mount
CSZT
1½" Spacer
CSTH
Slide Clamp
Tong Hanger
(N/A with CSWG)
CSWG4 Wire Guards
CSWG3 Wire Guards
CSR4
Reector
CSRA4
Reector
AAA
B
A
BB
AAAA
A
BB
AA
A
B
B
AR
A
F
RA
B
AAA
B
B
A
A
RFR
A
72"
3" 4⁄"
39⁄"
AAA
B
A
BB
AAAA
A
BB
AA
A
B
B
96"
48"
3"
4⁄"
48"
3"4⁄"
24⁄"
2⁄"
4⁄"
1⁄"
⁄" DIA.
KNOCKOUT
A - ⁄" Diameter Knockout
B - ⁄" x ⁄" hole
Note 1: All Non-Shielded (strip) fixtures- Deduct ⁄" from overall dimension for continuous row mounting. Dimensions shown include end panel.
STRIPLIGHTS / CS SLIMLINE
ZONAL LUMEN SUMMARY
Zone Lumens Lamp Fixt.
0-30 1720 14.1 15.6
0-40 2930 24.0 26.6
0-60 5726 46.9 52.0
0-90 8805 72.2 80.0
0-180 11010 90.2 100.0
PHOTOMETRIC DATA
RC 80 70 50 0
RW 70 50 30 10 70 50 30 10 50 30 10 0
RCR
191 86 81 77 87 82 78 74 75 72 68 55
282 73 66 61 78 70 64 58 64 59 54 43
374 64 55 49 70 61 53 47 55 49 44 35
467 56 47 41 64 53 45 39 49 42 37 29
562 49 41 34 58 47 39 33 43 36 31 25
657 44 36 29 54 42 34 29 39 32 27 21
752 40 31 26 50 38 30 25 35 28 23 19
848 36 28 23 46 34 27 22 32 25 21 16
945 33 25 20 43 31 24 19 29 23 18 15
10 42 30 23 18 40 29 22 17 27 21 17 13
COEFFICIENTS OF UTILIZATION (%)
RCR = Room Cavity Ratio
RC = Effective Ceiling Cavity Reflectance RW = Wall Reflectance
INDOOR CANDELA PLOT
ENERGY DATA
Total Luminaire Eciency 90.2%
Luminaire Ecacy Rating (LER) 65
IESNA RP-1-1993 Compliance Noncompliant
Comparative Yearly Lighting
Energy Cost per 1000 Lumens
$3.69 based on
3000 hrs. and
$0.08 per KWH
LUMINAIRE DATA
AVG. LUMINANCE
Candela/Sq. M.
Test 11314 Test Date 1/8/03
0.0 22.5 45.0 67.5 90.0
Average Luminance Angle
08004 8004 8004 8004 8004
30 7848 8181 8851 9415 9637
40 7608 8280 9465 10463 10809
45 7492 8345 9916 11107 11515
50 7278 8498 10418 118 0 6 12254
55 7051 8639 11012 12661 13190
60 6727 8896 117 33 13616 14247
65 6340 9287 1274 4 14863 15573
70 5789 9835 13994 16590 17557
75 5065 10724 160 41 19695 21002
80 4184 12464 20323 25636 27408
85 2955 1786 4 31538 4119 8 44595
Luminaire CS8-296-LE
CS Striplight
8' Pendant mount striplight with
white enamel reector.
Ballast R-2E75-S
Ballast Factor 0.94
Lamp F96T12
Lumens per Lamp 6100
Watts 158
Shielding Angle N/A
Spacing Criterion 0º = 1.25 90º = 1.58
Luminous Opening
in Feet
Length: 8.00
Width: 0.35
Height: 0.00
MOUNTING DATA ACCESSORIES
Page 2/2 Rev. 08/23/17
CS SLIMLINE
4', 6', 8', 16' Straight-Sided Utility Channel / 1 or 2-Lamp T8, T12 Slimline
© 2017 Columbia Lighting, a division of Hubbell Lighting, Inc. Because of continuing product improvement programs, Columbia Lighting reserves the right to change
specications without notice. 701 Millennium Blvd. Greenville, SC 29607 / Tel 864.678.1000 / Tech Support 864.678.1668 / Website www.columbialighting.com
