Report No.：T110215301-D
Page 1 of 25
This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc.
FCC 47 CFR PART 15 SUBPART B AND ANSI C63.4:2003
IC ICES-003 Issue 4
TEST REPORT
For
IP CAM
Model : D7110
Trade Name : ZAVIO
Issued for
ZAVIO Inc.
2F, No.13, R&D Rd.II, Science Based Industrial Park,
Hsinchu, Taiwan
Issued by
Compliance Certification Services Inc.
Hsinchu Lab.
NO. 989-1 Wen Shan Rd., Shang Shan Village,
Qionglin Shiang Hsinchu County 30741, Taiwan, R.O.C
TEL: +886-3-5921698
FAX: +886-3-5921108
http://www.ccsrf.com
E-Mail : service@ccsrf.com
Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification
Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only,
and shall be noted in the revision section of the document. The client should not use it to claim product
endorsement by TAF or any government agencies. The test results of this report relate only to the tested sample
identified in this report.
Report No.：T110215301-D
Page 2 of 25
This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc.
Revision History
Rev. Issue Date Revisions Effect Page Revised By
00 03/03/2011 Initial Issue All Page 25 Kate Shi
Report No.：T110215301-D
Page 3 of 25
This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc.
TABLE OF CONTENTS
TITLE PAGE NO.
1. TEST REPORT CERTIFICATION................................................................................4
2. EUT DESCRIPTION .....................................................................................................5
2.1 DESCRIPTION OF EUT & POWER.......................................................................5
3. DESCRIPTION OF TEST MODES ...............................................................................5
4. TEST METHODOLOGY ...............................................................................................6
5. FACILITIES AND ACCREDITATION...........................................................................6
5.1 FACILITIES ............................................................................................................6
5.2 ACCREDITATIONS................................................................................................6
5.3 MEASUREMENT UNCERTAINTY.........................................................................7
6. SETUP OF EQUIPMENT UNDER TEST......................................................................8
7. EMISSION TEST..........................................................................................................9
7.1 RADIATED EMISSION...........................................................................................9-16

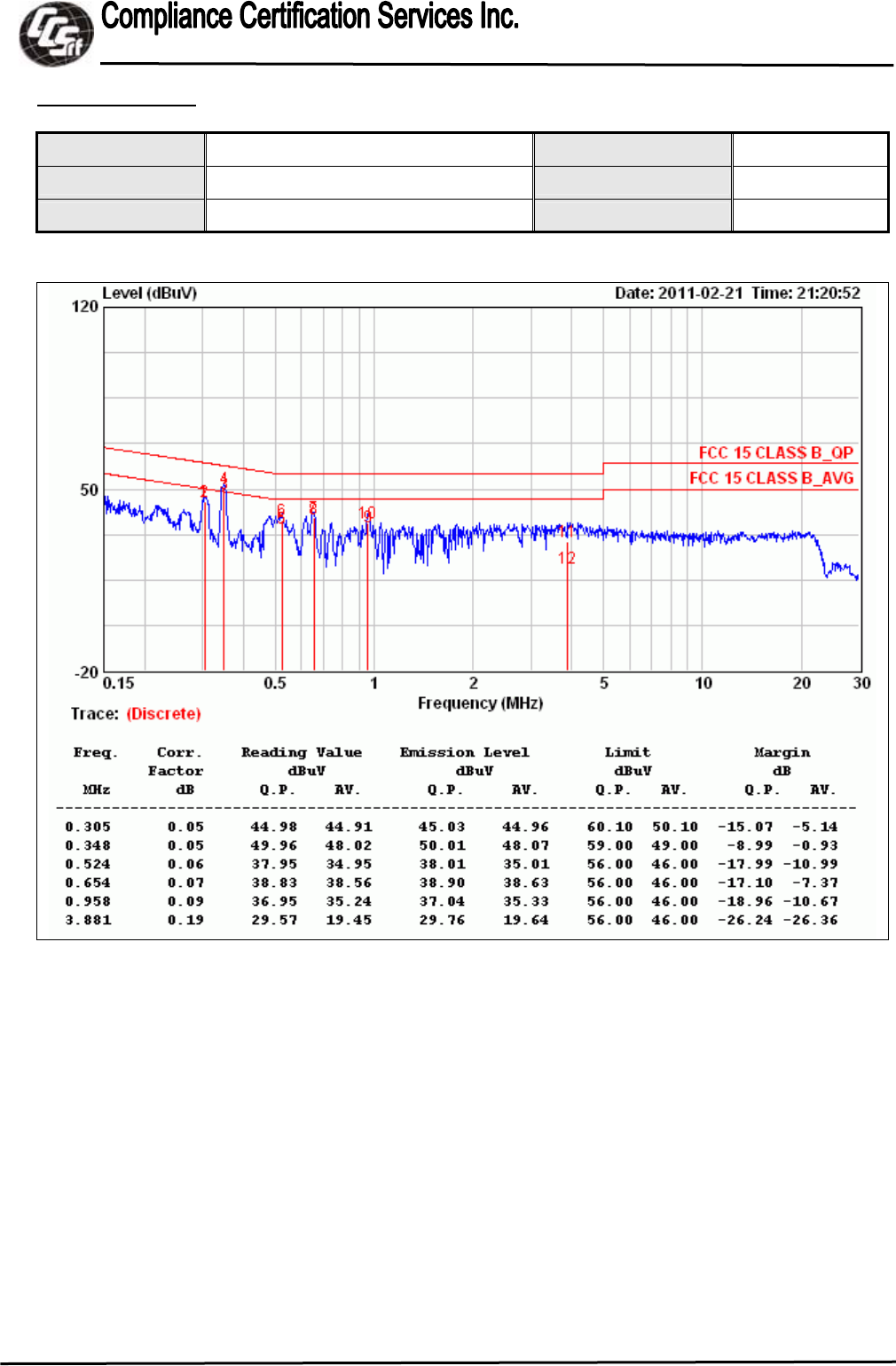

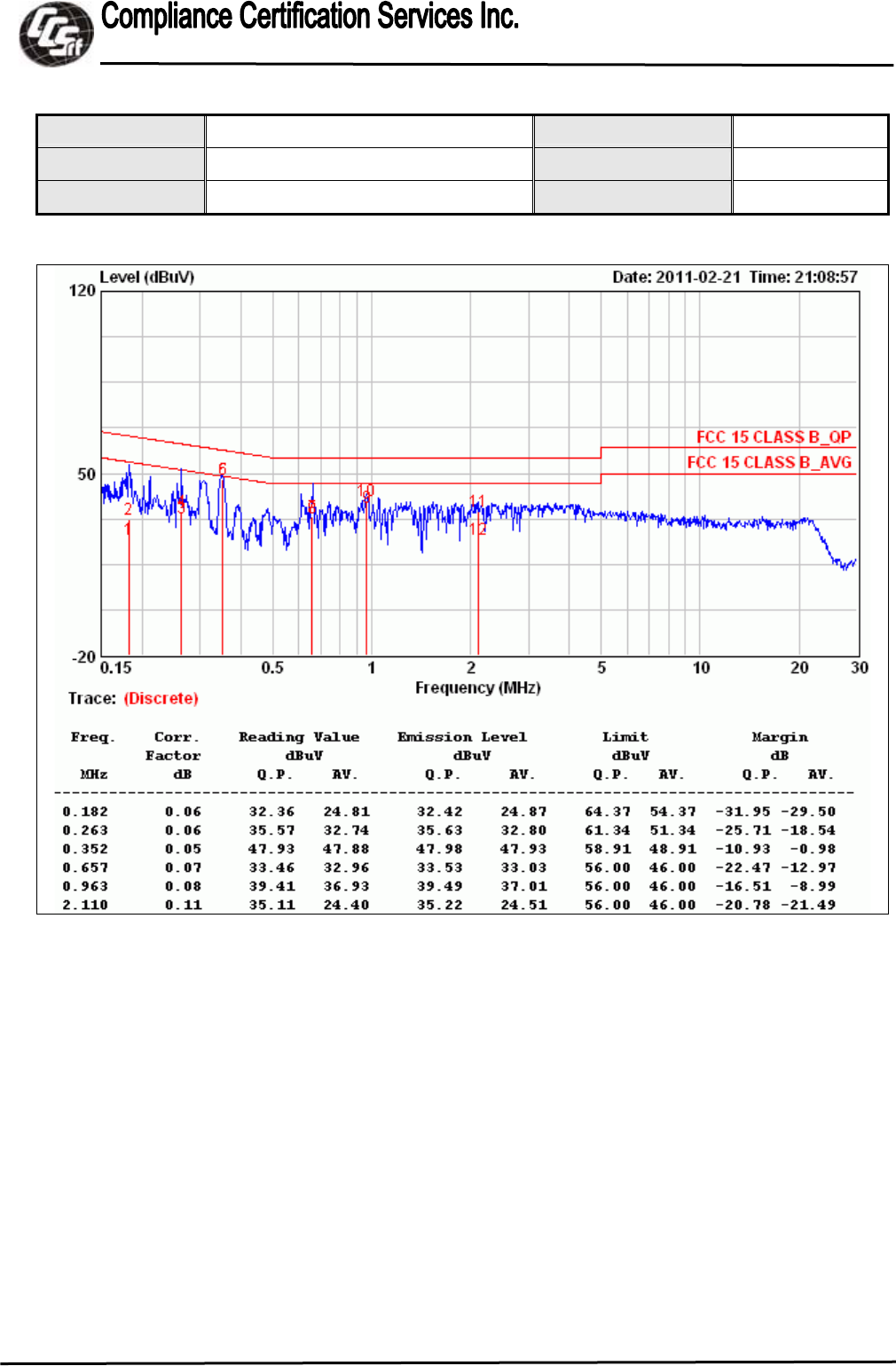

7.2 CONDUCTED EMISSION......................................................................................17-20

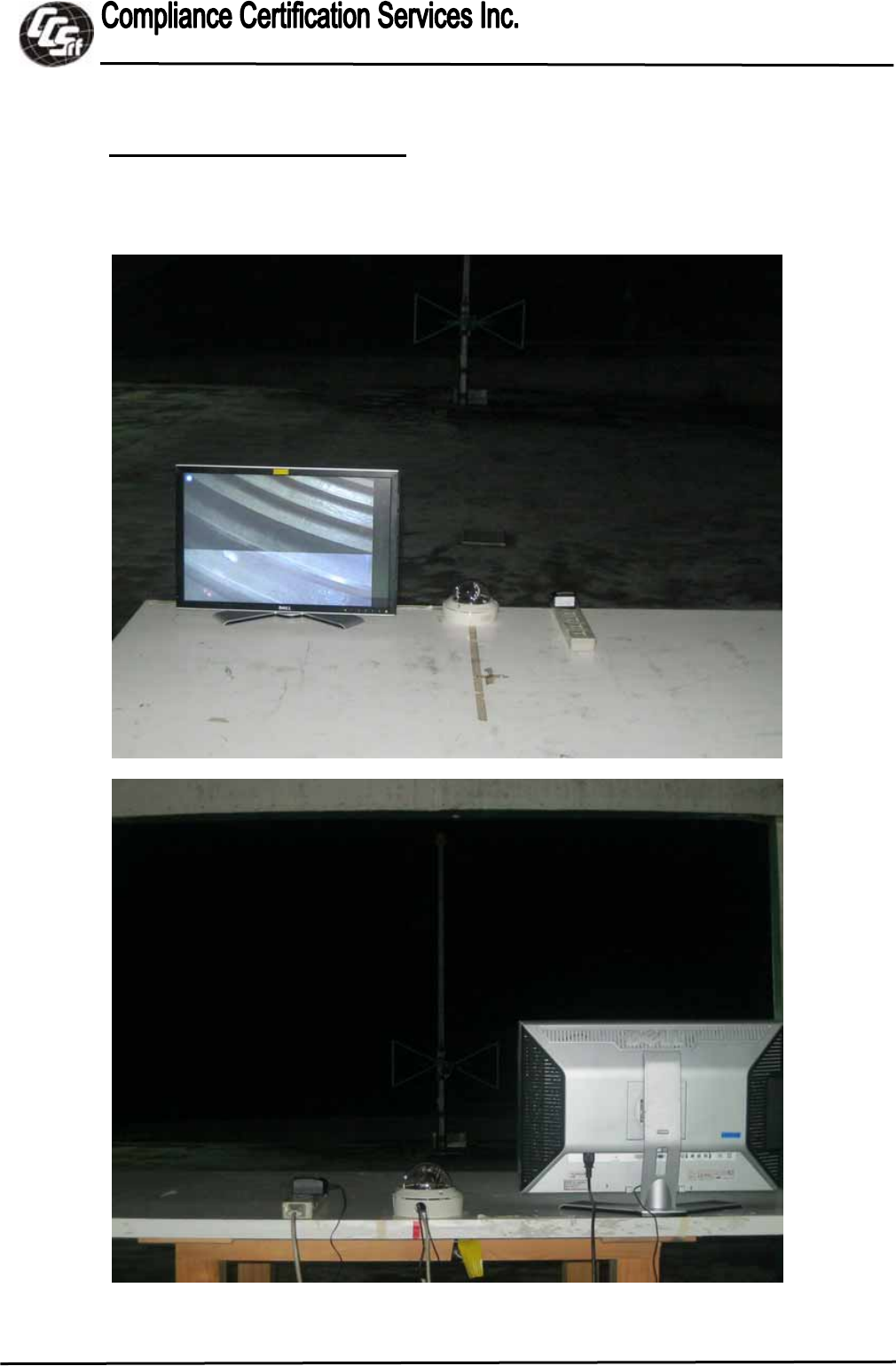

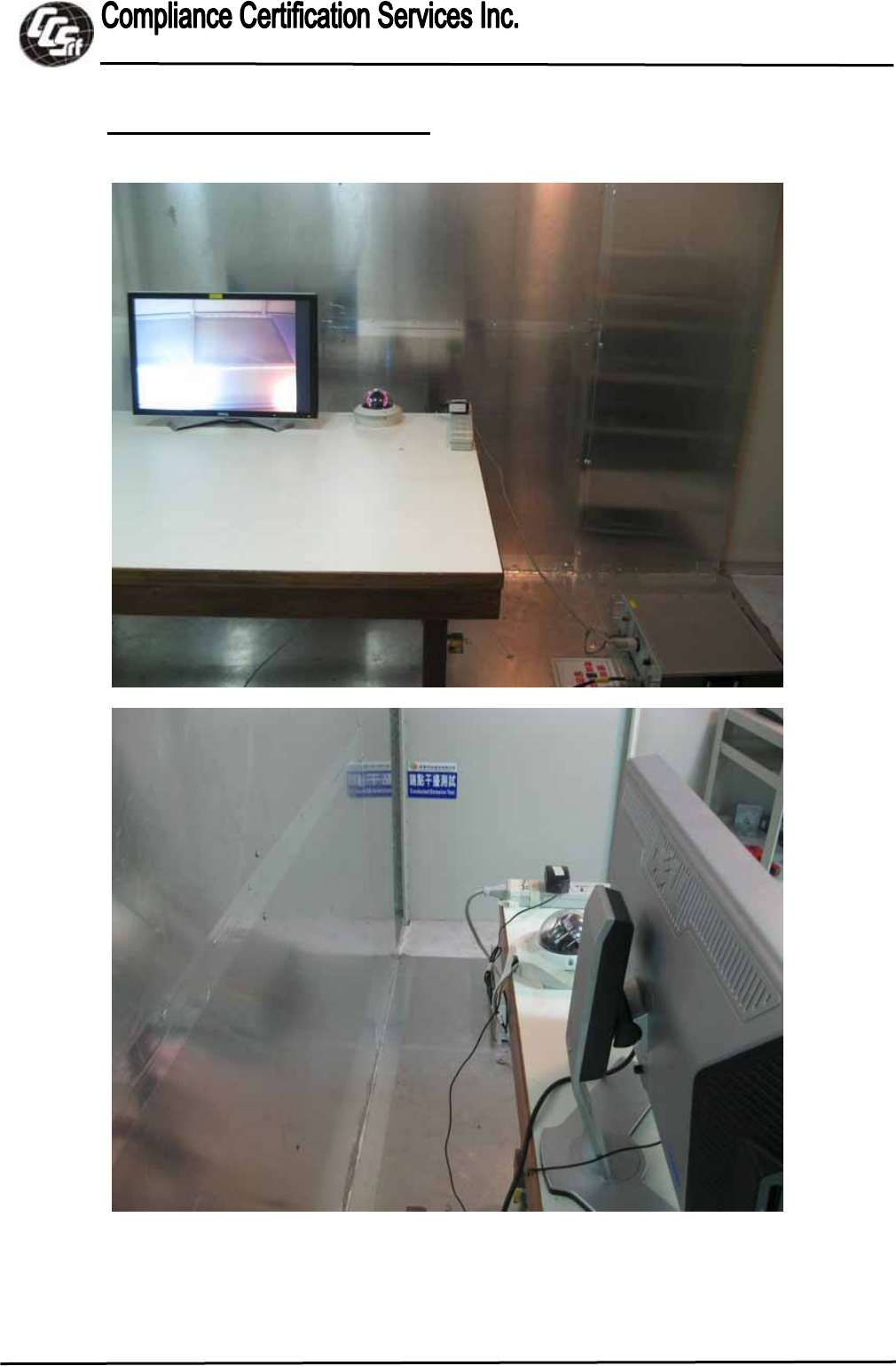

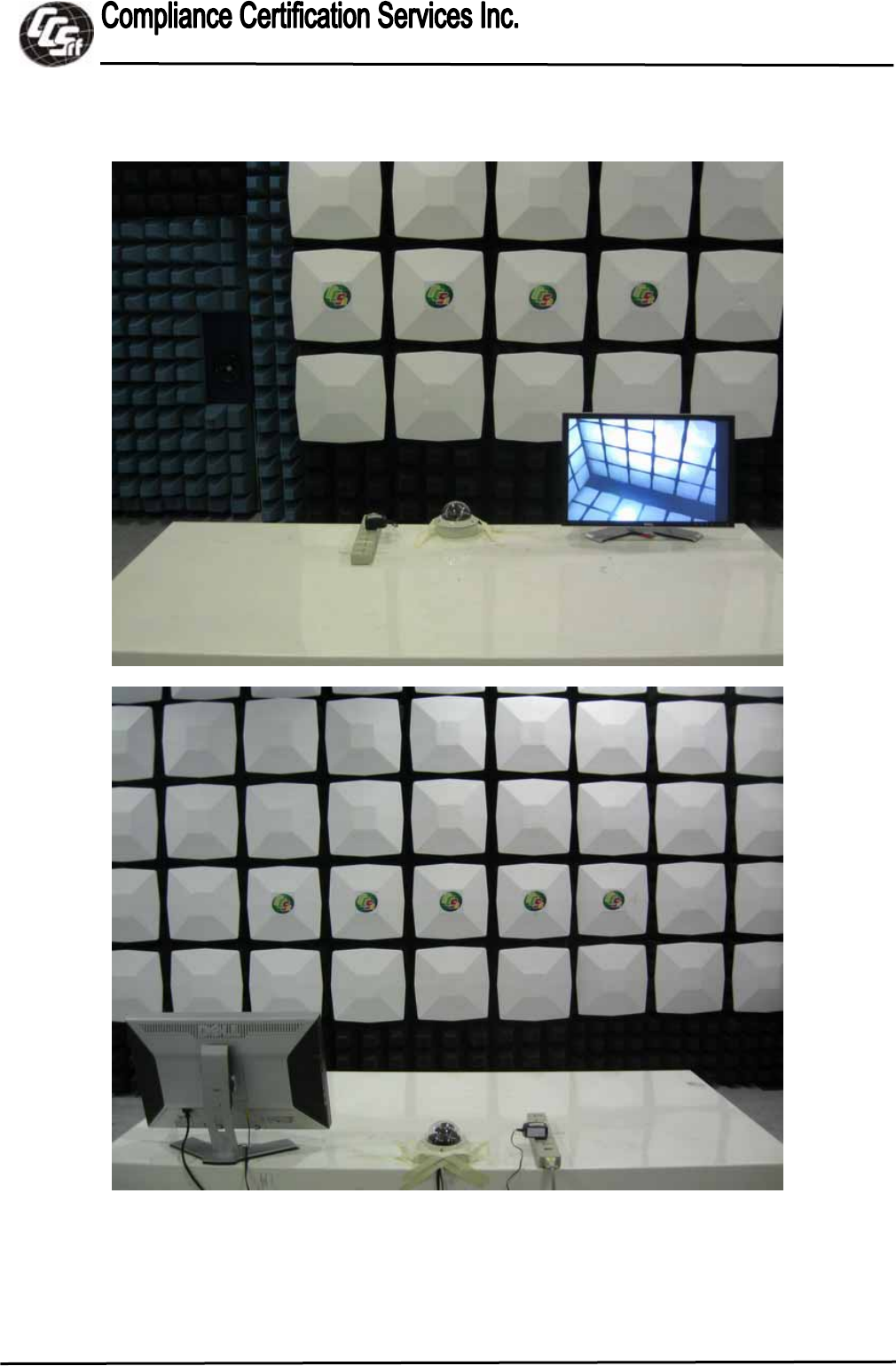

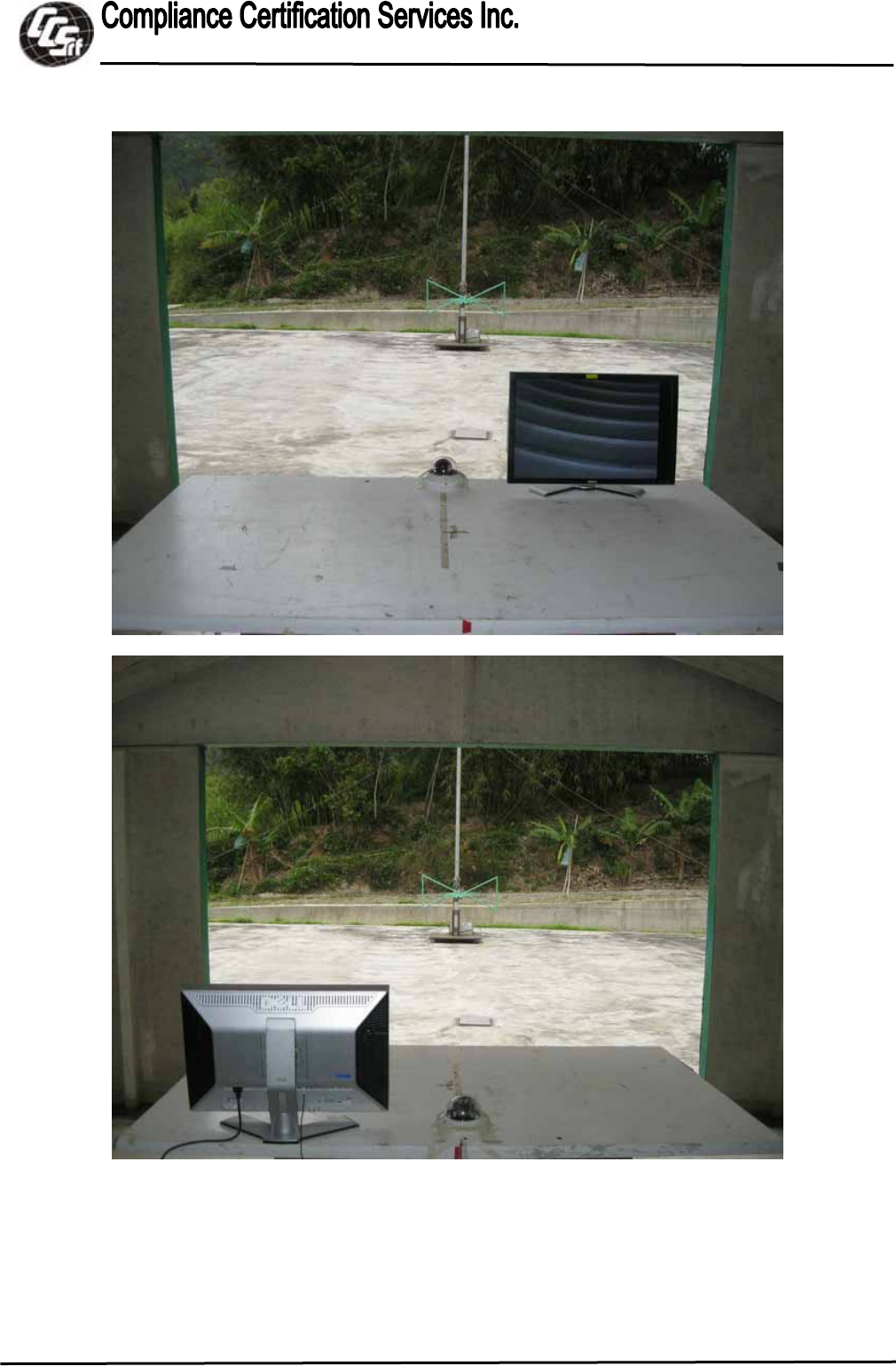

APPENDIX SETUP PHOTOS ..........................................................................................21-25
Report No.：T110215301-D
Page 4 of 25
This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc.
1. TEST REPORT CERTIFICATION
Applicant ： ZAVIO Inc.
Address ： 2F, No.13, R&D Rd.II, Science Based Industrial Park,
Hsinchu, Taiwan
Equipment Under Test： IP CAM
Model ： D7110
Trade Name ： ZAVIO
Tested Date ： February 15 ~ March 03, 2011
APPLICABLE STANDARD
Standard Item Test Result
Radiated Emission PASS
FCC Part 15 Subpart B, CLASS B
AND
ANSI C63.4:2003
IC ICES-003 Issue 4 Conducted Emission PASS
WE HEREBY CERTIFY THAT: The above equipment has been tested by Compliance
Certification Services Inc., and found compliance with the requirements set forth in the
technical standards mentioned above. The results of testing in this report apply only to the
product/system, which was tested. Other similar equipment will not necessarily produce the
same results due to production tolerance and measurement uncertainties.
Approved by: Reviewed by:
Sb. Lu Gundam Lin
Sr. Engineer Team Leader
Report No.：T110215301-D
Page 5 of 25
This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc.
2. EUT DESCRIPTION
2.1 DESCRIPTION OF EUT & POWER
Product Name IP CAM
Model Number D7110
Received Date January 31, 2011
Power Rating 12Vdc
Test Voltage 120Vac, 60Hz
DC Power Cord Type Unshielded cable, 1.5m (Non-detachable)
DC IN x 1, RJ-45 x 1, VIDEO OUT x 1, DI/DO x 1
I/O Port Micro SD card x 1
Power Adapter :
No. Manufacturer Model No. Power Input Power Output
1 DVE DSA-12CA-12
120100 100-240Vac, 0.3A,
50/60Hz 12Vdc, 1A
Remark : For more details, please refer to the User’s manual of the EUT.
3. DESCRIPTION OF TEST MODES
The following test modes were scanned during the preliminary test:
No. Pre-Test Mode
1 AC Mode
2 PoE Mode
2. After the preliminary scan, the following test mode was found to produce the highest
emission level.
Final Test Mode
AC Mode
Radiated Emission PoE Mode
Emission
Conducted Emission AC Mode
Remark : Then, the above highest emission mode of the configuration of the EUT and cable was
chosen for all final test items.
Report No.：T110215301-D
Page 6 of 25
This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc.
4. TEST METHODOLOGY
The tests documented in this report were performed in accordance with ANSI C63.4:2003
and FCC CFR 47 Part 15 Subpart B, IC ICES-003 Issue 4.
5. FACILITIES AND ACCREDITATION
5.1 FACILITIES
All measurement facilities used to collect the measurement data are located at
NO. 989-1 Wen Shan Rd., Shang Shan Village,
Qionglin Shiang Hsinchu County 30741, Taiwan, R.O.C
The sites are constructed in conformance with the requirements of ANSI C63.4:2003 and
CISPR 22. All receiving equipment conforms to CISPR 16-1-1, CISPR 16-1-2, CISPR
16-1-3, CISPR 16-1-4, CISPR 16-1-5.
5.2 ACCREDITATIONS
Our laboratories are accredited and approved by the following approval agencies
according to ISO/IEC 17025.
Taiwan TAF
The measuring facility of laboratories has been authorized or registered by the following
approval agencies.
Japan VCCI
Taiwan BSMI
USA FCC MRA
Copies of granted accreditation certificates are available for downloading from our web
site, http:///www.ccsrf.com
Report No.：T110215301-D
Page 7 of 25
This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc.
5.3 MEASUREMENT UNCERTAINTY
The following table is for the measurement uncertainty, which is calculated as per the
document CISPR 16-4-2.
PARAMETER UNCERTAINTY
Open Area Test Site (OATS No.3) /
Radiated Emission, 30 to 200 MHz +/- 3.6037
Open Area Test Site (OATS No.3) /
Radiated Emission, 200 to 1000 MHz +/- 3.5800
Semi Anechoic Chamber (966 Chamber) /
Radiated Emission, 30 to 200 MHz +/- 3.1747
Semi Anechoic Chamber (966 Chamber) /
Radiated Emission, 200 to 1000 MHz +/- 2.9091
Semi Anechoic Chamber (966 Chamber) /
Radiated Emission, 1 to 18GHz +/- 2.8272
Semi Anechoic Chamber (966 Chamber) /
Radiated Emission, 18 to 26 GHz +/- 2.8097
Semi Anechoic Chamber (966 Chamber) /
Radiated Emission, 26 to 40 GHz +/- 3.0510
Conducted Emission, 9kHz to 30MHz +/- 1.5384
This uncertainty represents an expanded uncertainty expressed at approximately the
95% confidence level using a coverage factor of k=2.
Consistent with industry standard (e.g. CISPR 22: 2006, clause 11, Measurement
Uncertainty) determining compliance with the limits shall be base on the results of the
compliance measurement. Consequently the measure emissions being less than the
maximum allowed emission result in this be a compliant test or passing test.
The acceptable measurement uncertainty value without requiring revision of the
compliance statement is base on conducted and radiated emissions being less than
UCISPR which is 3.6dB and 5.2dB respectively. CCS values (called ULab in CISPR 16-4-2)
is less than UCISPR as shown in the table above. Therefore, MU need not be considered
for compliance.
Report No.：T110215301-D
Page 8 of 25
This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc.
6. SETUP OF EQUIPMENT UNDER TEST
SUPPORT EQUIPMENT
No. Product Manufacturer Model No. Serial No. FCC ID
1 NB HP ProBook 4421s CNF03242PM -----
2 LCD MONITOR VIEWSONIC VS10563-1M ----- -----
3 8-poer fast
Ethernet PoE
Switch Air Live POE-FSH804 POEF80411700328 -----
4 Micro SD SanDisk 1GB ----- -----
No. Signal Cable Description
1 Unshielded RJ-45 cable, 12m × 1
2 Unshielded Video Out cable, 2m × 1

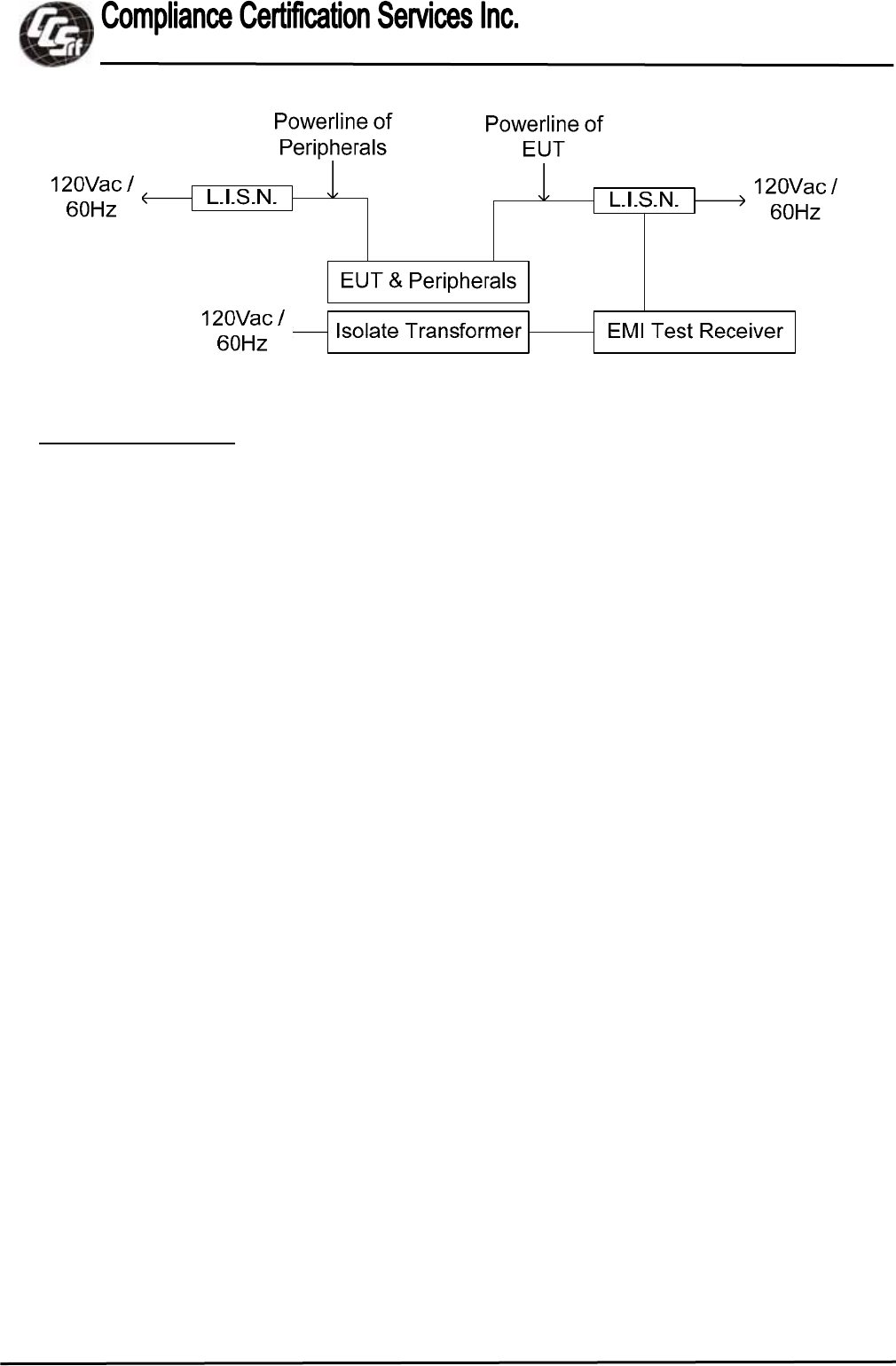

SETUP DIAGRAM FOR TESTS

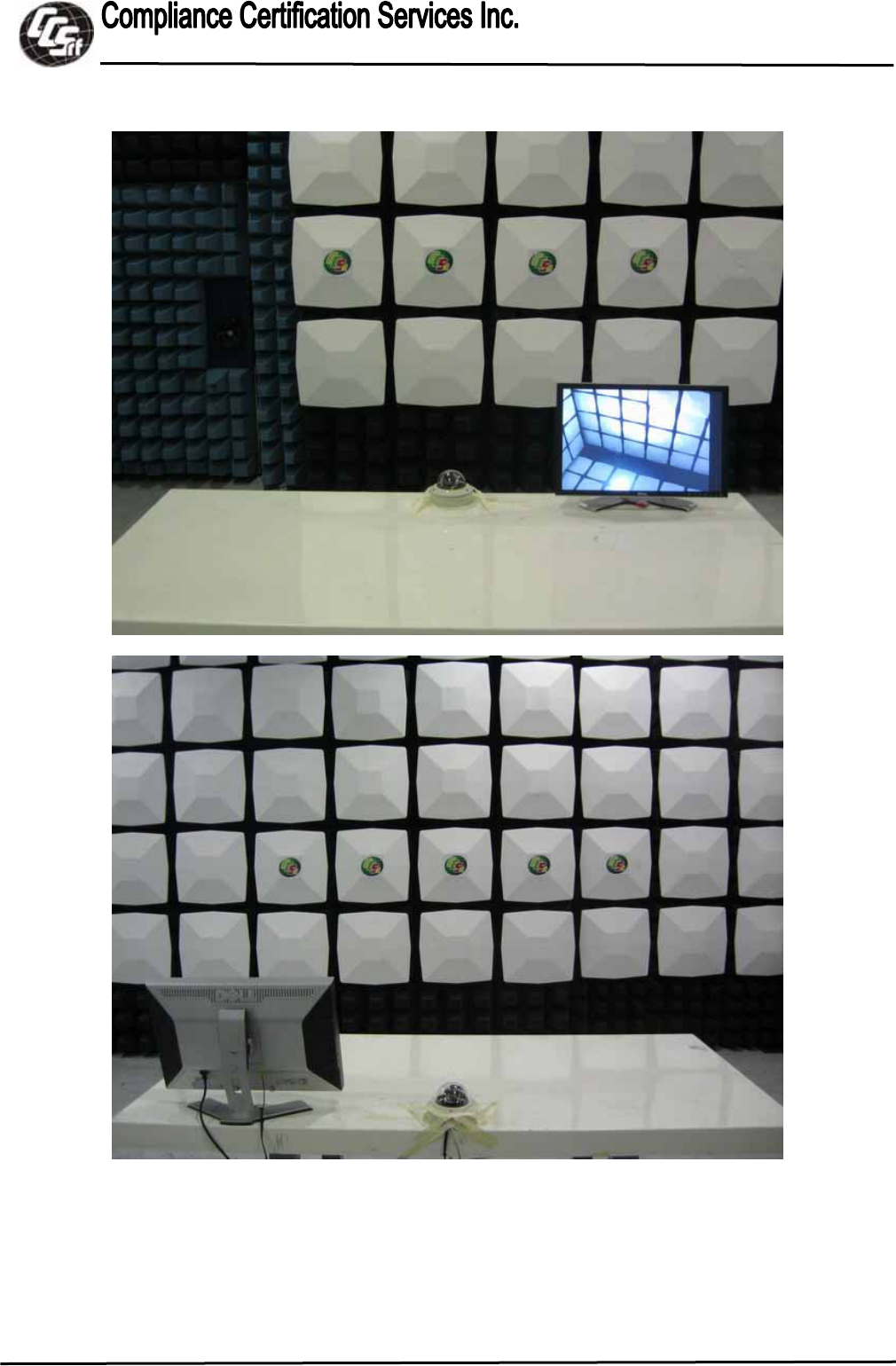

EUT & peripherals setup diagram is shown in appendix setup photos.
EUT OPERATING CONDITION
All the equipment/cables were placed in the worst-case configuration to maximize the
emission during the test. Grounding was established in accordance with the manufacturer’s
requirements and conditions for the intended use.
AC MODE
1. Setup whole system for test as shown on diagram
2. Notebook PC ping 192.168.1.121 to EUT
3. Video output to LCD monitor.
4. All of the functions are under run.
5. Start test.
POE MODE
1. Remove AC POWER ADAPTER from EUT.
2. RJ-45 cable linking to POE Ethernet Switch.
3. Notebook PC ping 192.168.1.121 to EUT with POE Ethernet Switch.
4. Video output to LCD monitor.
5. All of the functions are under run.
6. Start test.
Report No.：T110215301-D
Page 9 of 25
This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc.
7. EMISSION TEST
7.1 RADIATED EMISSION
LIMITS
(1) For Frequency Below 1GHz
47 CFR Part 15 Subpart B Section 15.109 (a) (b)
Class A Class B
Frequency
(MHz) Field
Strength
(µV/m)
Field
Strength
(dBµV/m)
Distance
(meters)
Field
Strength
(µV/m)
Field
Strength
(dBµV/m)
Distance
(meters)
30 - 88 90 39.1 10 100 40.0 3
88 - 216 150 43.5 10 150 43.5 3
216 - 960 210 46.4 10 200 46.0 3
Above 960 300 49.5 10 500 54.0 3
CISPR 22 (According to 47 CFR Part 15 Subpart B Section 15.109 (g))
Field Strengths (dBµV/m)
Frequency
(MHz) Class A Class B Distance
(meters)
30 - 230 40 30 10
230 - 1000 47 37 10
(2) For Frequency Above 1GHz (According to 47 CFR Part 15 Subpart B Section 15.109)
Field Strength (dBµV/m)
Class A Class B
Frequency
(GHz) Peak Average Peak Average
Distance
(meters)
Above 1GHz 80 60 74 54 3
(3) Frequency Range of Radiated Measurement (For unintentional radiators)
Highest frequency generated or Upper
frequency of measurement used in the device
or on which the device operates or tunes (MHz) Range (MHz)
Below 1.705 30
1.705 – 108 1000
108 – 500 2000
500 – 1000 5000
Above 1000 5th harmonic of the highest frequency
or 40GHz, whichever is lower
Report No.：T110215301-D
Page 10 of 25
This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc.
TEST EQUIPMENT
Radiated Emission below 1GHz / OATS3
Name of Equipment Manufacturer Model Serial Number Calibration
Due
Bi-log Antenna SCHAFFER CBL6112B 2696 10/07/2011
EMI Receiver ROHDE & SCHWARZ ESCS 30 835418/008 10/24/2011
N Type Coaxial Cable MIYAZAKIN 8D-FB 03 07/26/2011
Pre-Amplifier Agilent 8447D
2944A10052 07/26/2011
Remark: Each piece of equipment is scheduled for calibration once a year.
Radiated Emission above 1GHz / 966Chamber_B
Name of Equipment Manufacture Model Serial Number Calibration
Due
Spectrum Analyzer Agilent E4446A MY43360132 06/20/2011
EMI Receiver ROHDE & SCHWARZ ESCS 30 826547/004 11/15/2011
Broadband Hybrid
Bi-Log Antenna Sunol Sciences JB1 A100209-4 10/07/2011
Double-Ridged
Waveguide Horn ETS-LINDGREN 3117 00078732 07/05/2011
Pre-Amplifier Miteq AM-1652-3000 1490937 10/10/2011
Pre-Amplifier Agilent 8449B 3008A01916 09/21/2011
RF Coaxial Cable HUBER-SUHNER SUCOFLEX
104PEA 31346 10/07/2011
RF Coaxial Cable HUBER-SUHNER SUCOFLEX
104PEA 33957 10/07/2011
RF Coaxial Cable HUBER-SUHNER SUCOFLEX
104PEA 33958 10/07/2011
Notch Filters Band
Reject Micro-Tronics BRM05702-01 026 N.C.R
Remark: 1. Each piece of equipment is scheduled for calibration once a year.
2. N.C.R = No Calibration Request.
Report No.：T110215301-D
Page 11 of 25
This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc.

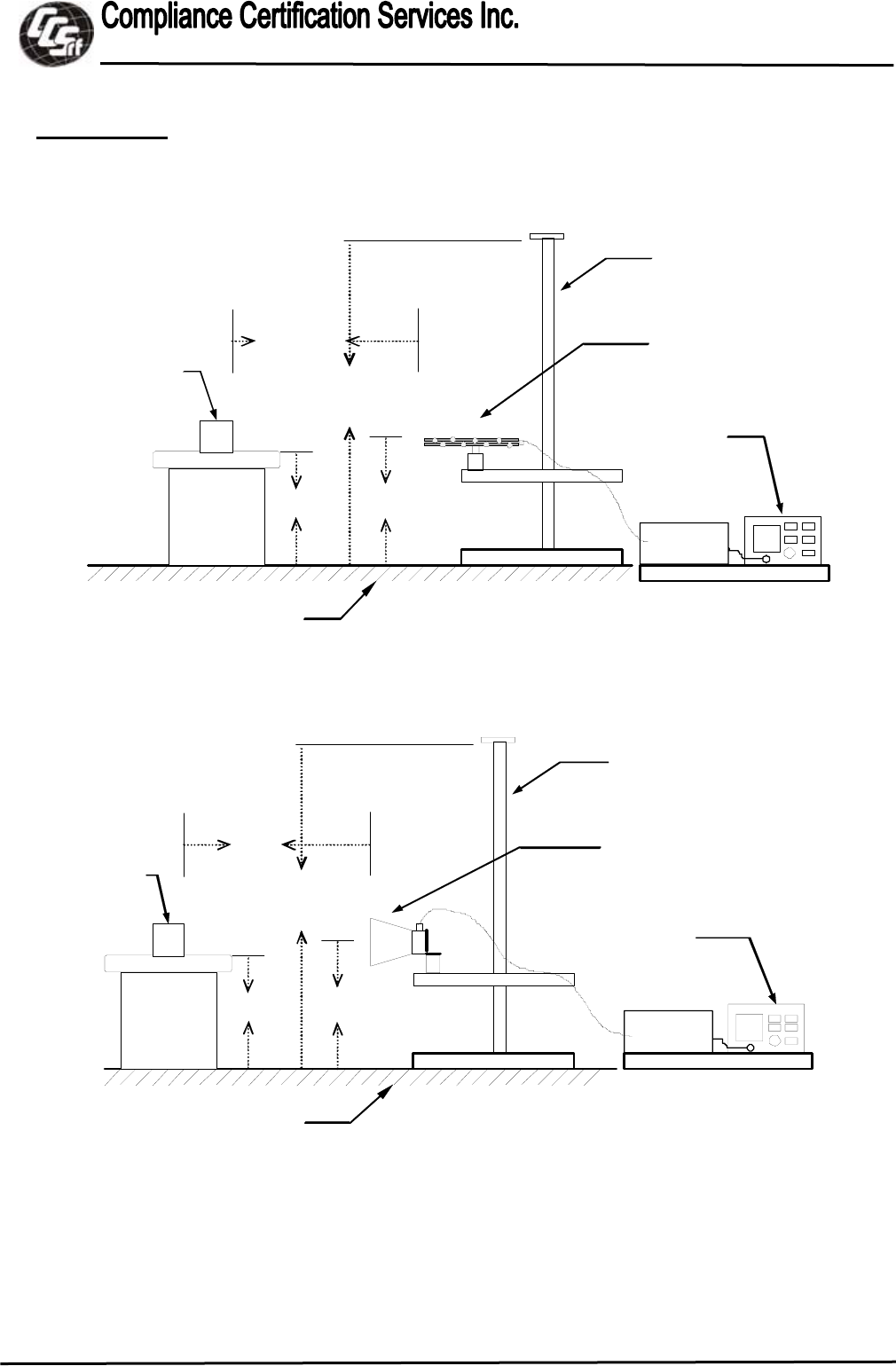

TEST SETUP
The diagram below shows the test setup that is utilized to make the measurements for
emission from below 1GHz.
EMI Test
Receiver
3m or 10m
1~4m
1m
Turntable
EUT
0.8m
Antenna
Tower
Reference ground plane
Bi-log
Antenna
Pre-amp
Coaxial Cable
The diagram below shows the test setup that is utilized to make the measurements for
emission above 1GHz.
Spectrum
Analyzer
Horn
Antenna
3m
1~4m
1m
Turntable
EUT
0.8m
Antenna
Tower
Pre-amp
Reference ground plane
Coaxial Cable
Report No.：T110215301-D
Page 12 of 25
This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc.
TEST PROCEDURE
The basic test procedure was in accordance with ANSI C63.4:2003.
The devices under test were placed on a rotatable table top 0.8 meter above ground. The
table was rotated 360 degrees to determine the position of the highest radiation. EUT is
set 3 or 10m meters from the interference receiving antenna which is mounted on the top
of a variable height mast. The antenna height is varied between one meter and four
meters above ground to find the maximum value of the field strength both horizontal
polarization and vertical polarization of the antenna are set to make the measurement.
Note：
1. The bandwidth setting on the E.M.I. meter (EMI TEST RECEIVER) is 120 KHz. The levels are
Quasi-Peak value readings. The frequency spectrum from 30MHz to 1000MHz was
investigated.
2. The resolution bandwidth and video bandwidth of test receiver/spectrum analyzer is 1 MHz for
Peak detection and frequency above 1GHz.
3. The resolution bandwidth of test receiver/spectrum analyzer is 1 MHz and the video bandwidth
is 10 Hz for Average detection (AV) at frequency above 1GHz.
Report No.：T110215301-D
Page 13 of 25
This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc.
TEST RESULTS
Below 1 GHz
Product Name IP CAM Test By Bell Huang
Model D7110 Test Date 2011/01/12
Test Mode AC Mode TEMP & Humidity 11°C, 63%
OATS3 at 10Meter / Horizontal
Frequency
(MHz)
Antenna
Factor
(dB/m)
Cable
Loss
(dB)
Meter
Reading
(dBµV)
Limits
(dBµV/m)
Emission
Level
(dBµV/m)
Margin
Limit
(dB)
Azimuth
(°) Height
(cm) Remark
135.00 11.40 1.98 12.30 30.00 25.68 -4.32 133 400 QP
162.00 9.92 2.22 10.40 30.00 22.54 -7.46 152 400 QP
250.00 12.73 3.10 19.50 37.00 35.33 -1.67 141 368 QP
377.99 15.16 4.20 8.00 37.00 27.36 -9.64 264 281 QP
431.99 16.27 4.62 10.30 37.00 31.19 -5.81 213 236 QP
500.00 17.48 5.10 6.60 37.00 29.18 -7.82 100 201 QP
OATS3 at 10Meter / Vertical
Frequency
(MHz)
Antenna
Factor
(dB/m)
Cable
Loss
(dB)
Meter
Reading
(dBµV)
Limits
(dBµV/m)
Emission
Level
(dBµV/m)
Margin
Limit
(dB)
Azimuth
(°) Height
(cm) Remark
135.00 11.40 1.98 9.80 30.00 23.18 -6.82 65 100 QP
162.00 9.92 2.22 11.30 30.00 23.44 -6.56 285 100 QP
216.00 10.30 2.69 12.30 30.00 25.29 -4.71 145 100 QP
250.00 12.73 3.10 19.10 37.00 34.93 -2.07 113 100 QP
432.00 16.27 4.62 8.60 37.00 29.49 -7.51 64 291 QP
647.99 18.79 6.04 4.10 37.00 28.93 -8.07 312 161 QP
675.00 18.86 6.23 7.40 37.00 32.48 -4.52 85 152 QP
Remark:
1. Quasi-peak test would be performed if the peak result were greater than the quasi-peak limit.
2. Data of measurement within this frequency range shown " --- " in the table above means the reading of
emissions are attenuated more than 20dB below the permissible limits or the field strength is too small
to be measured.
3. Emission Level = Antenna Factor (dB/m) + Cable Loss (dB) + Meter Reading (dBµV)
4. Margin (dB) = Emission Level (dBuV/m) - Quasi-peak limit (dBuV/m)
Report No.：T110215301-D
Page 14 of 25
This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc.
Product Name IP CAM Test By Bell Huang
Model D7110 Test Date 2011/01/12
Test Mode PoE Mode TEMP & Humidity 11°C, 63%
OATS3 at 10Meter / Horizontal
Frequency
(MHz)
Antenna
Factor
(dB/m)
Cable
Loss
(dB)
Meter
Reading
(dBµV)
Limits
(dBµV/m)
Emission
Level
(dBµV/m)
Margin
Limit
(dB)
Azimuth
(°) Height
(cm) Remark
135.00 11.40 1.98 9.10 30.00 22.48 -7.52 234 400 QP
162.00 9.92 2.22 9.70 30.00 21.84 -8.16 145 400 QP
250.00 12.73 3.10 17.40 37.00 33.23 -3.77 156 388 QP
377.99 15.16 4.20 6.80 37.00 26.16 -10.84 122 281 QP
431.99 16.27 4.62 9.50 37.00 30.39 -6.61 126 242 QP
500.00 17.48 5.10 5.70 37.00 28.28 -8.72 84 206 QP
675.00 18.86 6.23 3.60 37.00 28.68 -8.32 97 136 QP
OATS3 at 10Meter / Vertical
Frequency
(MHz)
Antenna
Factor
(dB/m)
Cable
Loss
(dB)
Meter
Reading
(dBµV)
Limits
(dBµV/m)
Emission
Level
(dBµV/m)
Margin
Limit
(dB)
Azimuth
(°) Height
(cm) Remark
43.77 12.77 1.00 14.10 30.00 27.87 -2.13 217 100 QP
54.15 7.30 1.14 18.30 30.00 26.74 -3.26 55 100 QP
64.80 6.12 1.25 15.80 30.00 23.17 -6.83 196 100 QP
75.68 6.75 1.36 18.80 30.00 26.91 -3.09 256 100 QP
85.91 8.31 1.52 15.10 30.00 24.93 -5.07 114 100 QP
135.00 11.40 1.98 11.60 30.00 24.98 -5.02 360 100 QP
160.78 9.98 2.21 16.50 30.00 28.69 -1.31 47 100 QP
190.00 9.09 2.45 12.50 30.00 24.04 -5.97 360 100 QP
216.00 10.30 2.69 11.50 30.00 24.49 -5.51 188 100 QP
250.00 12.73 3.10 18.60 37.00 34.43 -2.57 117 100 QP
432.00 16.27 4.62 7.10 37.00 27.99 -9.01 301 208 QP
647.99 18.79 6.04 3.90 37.00 28.73 -8.27 83 148 QP
675.00 18.86 6.23 6.80 37.00 31.88 -5.12 311 156 QP
Remark:
1. Quasi-peak test would be performed if the peak result were greater than the quasi-peak limit.
2. Data of measurement within this frequency range shown " --- " in the table above means the reading of
emissions are attenuated more than 20dB below the permissible limits or the field strength is too small
to be measured.
3. Emission Level = Antenna Factor (dB/m) + Cable Loss (dB) + Meter Reading (dBµV)
4. Margin (dB) = Emission Level (dBuV/m) - Quasi-peak limit (dBuV/m)
Report No.：T110215301-D
Page 15 of 25
This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc.
Above 1 GHz
Product Name IP CAM Test By Waternil Guan
Model D7110 Test Date 2011/02/16
Test Mode AC Mode TEMP & Humidity 24°C, 63%
966 Chamber_B at 3Meter / Horizontal
Frequency
(MHz)
Reading-
PK
(dBuV)
Reading-
AV
(dBuV)
Correction
Factor
(dB/m)
Result-PK
(dBuV/m)
Result-AV
(dBuV/m)
Limit-PK
(dBuV/m)
Limit-AV
(dBuV/m)
Margin
(dB)
Azimuth
(°)
Height
(cm) Remark
1032.50 49.99 --- -5.33 44.66 --- 74.00 54.00 -9.34 171.50 400.00 Peak
1285.00 50.42 --- -4.41 46.02 --- 74.00 54.00 -7.98 256.60 400.00 Peak
1607.50 57.68 36.61 -2.60 55.08 34.01 74.00 54.00 -19.99 79.50 300.00 AVG
2440.00 43.72 --- 2.16 45.88 --- 74.00 54.00 -8.12 54.50 400.00 Peak
3077.50 43.13 --- 4.58 47.71 --- 74.00 54.00 -6.29 240.50 400.00 Peak
3255.00 43.13 --- 4.50 47.63 --- 74.00 54.00 -6.37 338.80 100.00 Peak
966 Chamber_B at 3Meter / Vertical
Frequency
(MHz)
Reading-
PK
(dBuV)
Reading-
AV
(dBuV)
Correction
Factor
(dB/m)
Result-PK
(dBuV/m)
Result-AV
(dBuV/m)
Limit-PK
(dBuV/m)
Limit-AV
(dBuV/m)
Margin
(dB)
Azimuth
(°)
Height
(cm) Remark
1032.50 52.57 --- -5.33 47.24 --- 74.00 54.00 -6.76 257.40 100.00 Peak
1285.00 52.98 --- -4.41 48.58 --- 74.00 54.00 -5.42 353.80 100.00 Peak
1605.00 59.43 38.84 -2.62 56.81 36.22 74.00 54.00 -17.78 126.60 100.00 AVG
2675.00 44.30 --- 3.11 47.41 --- 74.00 54.00 -6.59 0.10 400.00 Peak
3122.50 43.53 --- 4.56 48.09 --- 74.00 54.00 -5.91 204.20 300.00 Peak
4760.00 41.22 --- 8.11 49.33 --- 74.00 54.00 -4.67 45.80 300.00 Peak
Remark:
1. Average test would be performed if the peak result were greater than the average limit.
2. Data of measurement within this frequency range shown “ --- ” in the table above means the reading of emissions
are attenuated more than 20dB below the permissible limits or the field strength is too small to be measured.
3. Measurements above show only up to 6 maximum emissions noted, or would be lesser, with “ N/A ” remark, if no
specific emissions from the EUT are recorded (ie: margin>20dB from the applicable limit) and considered that's
already beyond the background noise floor.
4. Result = Reading + Correction Factor
Margin = Result – Limit
Remark Peak = Result(PK) – Limit(AV)
Remark AVG = Result(AV) – Limit(AV)
Report No.：T110215301-D
Page 16 of 25
This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc.
Product Name IP CAM Test By Waternil Guan
Model D7110 Test Date 2011/02/16
Test Mode PoE Mode TEMP & Humidity 24°C, 63%
966 Chamber_B at 3Meter / Horizontal
Frequency
(MHz)
Reading-
PK
(dBuV)
Reading-
AV
(dBuV)
Correction
Factor
(dB/m)
Result-PK
(dBuV/m)
Result-AV
(dBuV/m)
Limit-PK
(dBuV/m)
Limit-AV
(dBuV/m)
Margin
(dB)
Azimuth
(°)
Height
(cm) Remark
1285.00 50.00 --- -4.41 45.59 --- 74.00 54.00 -8.41 227.10 200.00 Peak
1485.00 53.53 --- -3.67 49.85 --- 74.00 54.00 -4.15 215.50 200.00 Peak
1605.00 53.00 --- -2.62 50.38 --- 74.00 54.00 -3.62 245.50 200.00 Peak
2062.50 44.27 --- 1.28 45.55 --- 74.00 54.00 -8.45 178.90 200.00 Peak
2715.00 43.04 --- 3.29 46.33 --- 74.00 54.00 -7.67 314.20 400.00 Peak
3060.00 43.23 --- 4.58 47.81 --- 74.00 54.00 -6.19 298.10 100.00 Peak
966 Chamber_B at 3Meter / Vertical
Frequency
(MHz)
Reading-
PK
(dBuV)
Reading-
AV
(dBuV)
Correction
Factor
(dB/m)
Result-PK
(dBuV/m)
Result-AV
(dBuV/m)
Limit-PK
(dBuV/m)
Limit-AV
(dBuV/m)
Margin
(dB)
Azimuth
(°)
Height
(cm) Remark
1037.50 52.57 --- -5.31 47.26 --- 74.00 54.00 -6.74 250.00 100.00 Peak
1285.00 49.55 --- -4.41 45.15 --- 74.00 54.00 -8.85 326.10 400.00 Peak
1525.00 52.12 --- -3.38 48.74 --- 74.00 54.00 -5.26 284.60 100.00 Peak
1587.50 58.21 38.77 -2.79 55.42 35.98 74.00 54.00 -18.02 191.00 100.00 AVG
2577.50 43.44 --- 2.66 46.10 --- 74.00 54.00 -7.90 263.90 400.00 Peak
3135.00 43.25 --- 4.55 47.81 --- 74.00 54.00 -6.19 43.40 100.00 Peak
Remark:
1. Average test would be performed if the peak result were greater than the average limit.
2. Data of measurement within this frequency range shown “ --- ” in the table above means the reading of emissions
are attenuated more than 20dB below the permissible limits or the field strength is too small to be measured.
3. Measurements above show only up to 6 maximum emissions noted, or would be lesser, with “ N/A ” remark, if no
specific emissions from the EUT are recorded (ie: margin>20dB from the applicable limit) and considered that's
already beyond the background noise floor.
4. Result = Reading + Correction Factor
Margin = Result – Limit
Remark Peak = Result(PK) – Limit(AV)
Remark AVG = Result(AV) – Limit(AV)
Report No.：T110215301-D
Page 17 of 25
This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc.

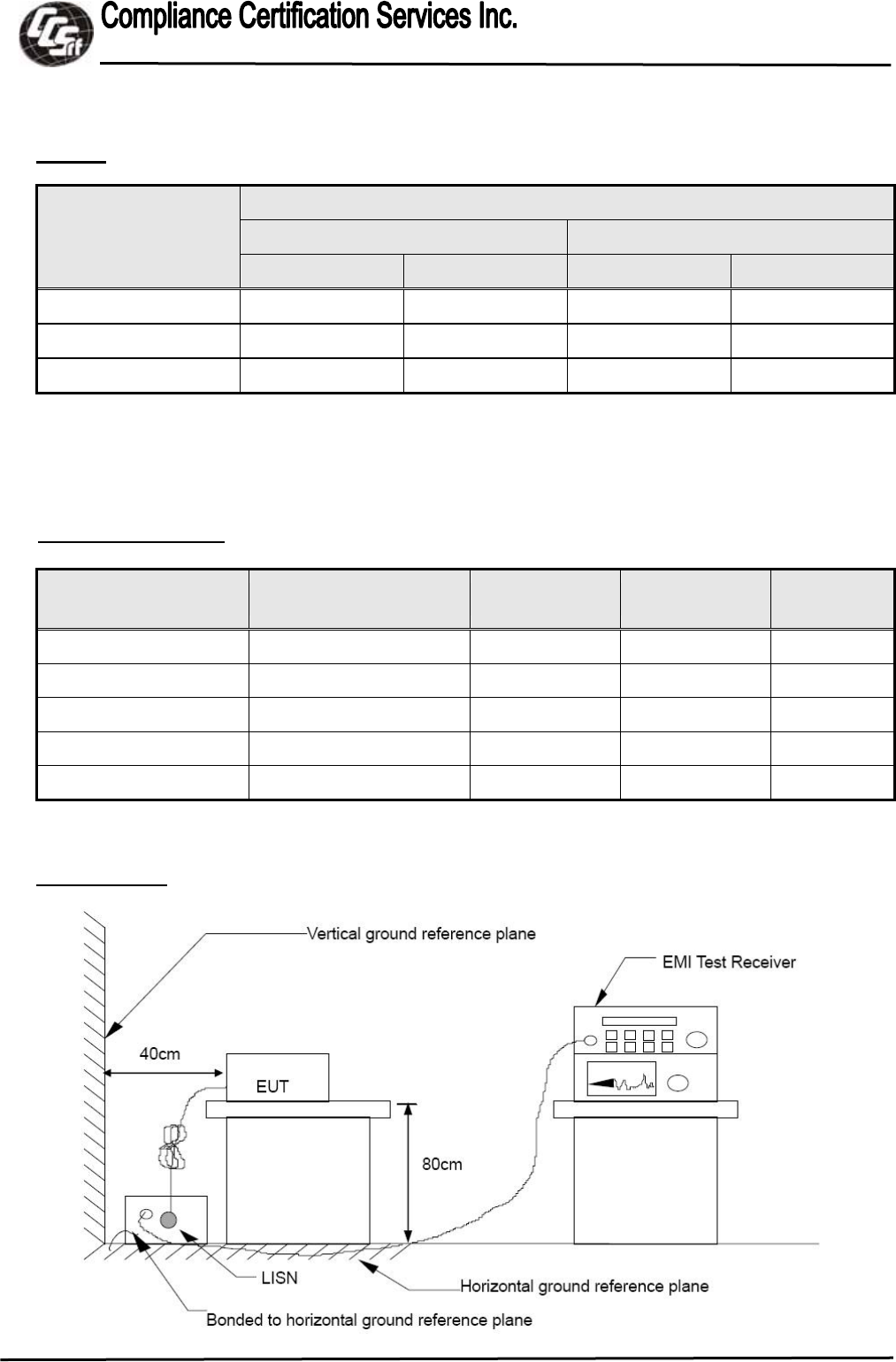

7.2 CONDUCTED EMISSION
LIMITS
Voltage Limits (dBµV)
Class A Class B
Frequency Range
(MHz) Quasi-peak Average Quasi-peak Average
0.15 - 0.50 79 66 66 - 56* 56 - 46*
0.50 - 5.00 73 60 56 46
5.00 - 30.0 73 60 60 50
Remark: (1) The limit decreases linearly with logarithm of the frequency in the range 0.15 MHz to
0.50 MHz.
(2) The lower limit shall apply at the transition frequency.
(3) * Decreasing linearly with the logarithm of the frequency.
TEST EQUIPMENT
Name of Equipment Manufacturer Model Serial Number Calibration
Due
L.I.S.N SCHWARZBECK
NSLK 8127 8127-465 08/08/2011
L.I.S.N SCHWARZBECK
NSLK 8127 8127-473 03/22/2011
EMI Receiver ROHDE & SCHWARZ ESCS 30 835418/008 10/24/2011
Pulse Limit ROHDE & SCHWARZ ESH3-Z2 100117 09/17/2011
N Type Coaxial Cable BELDEN 8268 M17/164 003 07/09/2011
Remark: Each piece of equipment is scheduled for calibration once a year.
TEST SETUP
Report No.：T110215301-D
Page 18 of 25
This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc.
TEST PROCEDURE
The basic test procedure was in accordance with ANSI C63.4:2003.
The test procedure is performed in a 4m × 3m × 2.4m (L×W×H) shielded room.
The EUT along with its peripherals were placed on a 1.0m (W) × 1.5m (L) and 0.8m in
height wooden table and the EUT was adjusted to maintain a 0.4 meter space from a
vertical reference plane.
The EUT was connected to power mains through a line impedance stabilization network
(LISN) which provides 50 ohm coupling impedance for measuring instrument and the
chassis ground was bounded to the horizontal ground plane of shielded room. All
peripherals were connected to the second LISN and the chassis ground also bounded to
the horizontal ground plane of shielded room.
The EUT was located so that the distance between the boundary of the EUT and the
closest surface of the LISN is 0.8 m. Where a mains flexible cord was provided by the
manufacturer shall be 1 m long, or if in excess of 1 m, the excess cable was folded back
and forth as far as possible so as to form a bundle not exceeding 0.4 m in length.
Report No.：T110215301-D
Page 19 of 25
This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc.
TEST RESULTS
Product Name IP CAM Test By Bell Huang
Model D7110 Test Date 2011/02/21
Test Mode AC Mode TEMP & Humidity 17°C, 57%
LINE
Remark:
1. Correction Factor = Insertion loss + Cable loss
2. Emission level = Reading Value + Correction factor
3. Margin value = Emission level – Limit value
Report No.：T110215301-D
Page 20 of 25
This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc.
Product Name IP CAM Test By Bell Huang
Model D7110 Test Date 2011/02/21
Test Mode AC Mode TEMP & Humidity 17°C, 57%
NEUTRAL
Remark:
1. Correction Factor = Insertion loss + Cable loss
2. Emission level = Reading Value + Correction factor
3. Margin value = Emission level – Limit value
Report No.：T110215301-D
Page 21 of 25
This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc.
APPENDIX SETUP PHOTOS
RADIATED EMISSION SETUP
Below 1 GHz
AC Mode
Report No.：T110215301-D
Page 22 of 25
This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc.
PoE Mode
Report No.：T110215301-D
Page 23 of 25
This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc.
Above 1 GHz
AC Mode
Report No.：T110215301-D
Page 24 of 25
This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc.
PoE Mode
Report No.：T110215301-D
Page 25 of 25
This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc.
CONDUCTED EMISSION SETUP
AC Mode

Navigation menu
