iBATIS.NET - DataMapper Application Framework
Table of Contents
Chapter 1. Introduction
Chapter 2. The Big Picture
Chapter 3. Working with Data Maps
Chapter 4. .NET Developer Guide
Appendix A. iBATIS.NET's SqlMapConfig.xsd
Appendix B. iBATIS.NET's SqlMap.xsd

DataMapper Developer Guide

Version 1.6.1

March 2007

Authors - Ted Husted, Gilles Bayon, Clinton Begin, Roberto Rabe

Copies of this document may be made for your own use and for distribution to others, provided that you do not

charge any fee for such copies and further provided that each copy contains this Copyright Notice, whether

distributed in print or electronically.

Table of Contents

1. Introduction ... 1

1.1. Overview ... 1

1.2. What's covered here ... 1

1.3. Release change log ... 1

1.4. License Information ... 2

1.5. Support ... 2

1.6. Disclaimer ... 2

2. The Big Picture ... 3

2.1. Introduction ... 3

2.2. What does it do? ... 3

2.3. How does it work? ... 3

2.4. Is iBATIS the best choice for my project? ... 5

3. Working with Data Maps ... 7

3.1. Introduction ... 7

3.2. What's in a Data Map definition file, anyway? ... 7

3.3. Mapped Statements ... 9

3.3.1. Statement Types ... 10

3.3.2. Stored Procedures ... 11

3.3.3. The SQL ... 12

3.3.4. Statement-type Element Attributes ... 15

3.4. Parameter Maps and Inline Parameters ... 20

3.4.1. <parameterMap> attributes ... 21

3.4.2. <parameter> Elements ... 22

3.4.3. Inline Parameter Maps ... 23

3.4.4. Standard Type Parameters ... 25

3.4.5. Map or IDictionary Type Parameters ... 25

3.5. Result Maps ... 26

3.5.1. Extending resultMaps ... 27

3.5.2. <resultMap> attributes ... 27

3.5.3. <constructor> element ... 27

3.5.4. <result> Elements ... 29

3.5.5. Custom Type Handlers ... 32

3.5.6. Inheritance Mapping ... 35

3.5.7. Implicit Result Maps ... 38

3.5.8. Primitive Results (i.e. String, Integer, Boolean) ... 39

3.5.9. Maps with ResultMaps ... 40

3.5.10. Complex Properties ... 40

3.5.11. Avoiding N+1 Selects (1:1) ... 41

3.5.12. Complex Collection Properties ... 43

3.5.13. Avoiding N+1 Select Lists (1:M and M:N) ... 43

3.5.14. Composite Keys or Multiple Complex Parameters Properties ... 45

3.6. Supported Types for Parameter Maps and Result Maps ... 46

3.7. Supported database types for Parameter Maps and Result Maps ... 48

3.8. Cache Models ... 49

3.8.1. Read-Only vs. Read/Write ... 49

3.8.2. Serializable Read/Write Caches ... 50

3.8.3. Cache Implementation ... 50

3.8.4. "MEMORY" ... 50

DataMapper Guide Version 1.6.1 ii

3.8.5. "LRU" ... 51

3.8.6. "FIFO" ... 52

3.9. Dynamic SQL ... 52

3.9.1. Binary Conditional Elements ... 54

3.9.2. Unary Conditional Elements ... 55

3.9.3. Parameter Present Elements ... 56

3.9.4. Iterate Element ... 57

3.9.5. Simple Dynamic SQL Elements ... 57

4. .NET Developer Guide ... 59

4.1. Introduction ... 59

4.2. Installing the DataMapper for .NET ... 59

4.2.1. Setup the Distribution ... 59

4.2.2. Add Assembly References ... 60

4.2.3. Add XML File Items ... 61

4.2.4. Visual Studio.NET Integration ... 61

4.3. Configuring the DataMapper for .NET ... 62

4.3.1. DataMapper clients ... 62

4.3.2. DataMapper Configuration File (SqlMap.config) ... 63

4.3.3. DataMapper Configuration Elements ... 63

4.4. Programming with iBATIS DataMapper: The .NET API ... 73

4.4.1. Building a SqlMapper Instance ... 73

4.4.2. Exploring the DataMapper API through the SqlMapper ... 78

4.4.3. Session ... 83

4.4.4. Connection ... 83

4.4.5. Automatic Session ... 83

4.4.6. Transaction ... 84

4.4.7. Distributed Transactions ... 85

4.4.8. Coding Examples [TODO: Expand in to a Cookbook of practical

examples] ... 86

4.5. Logging SqlMap Activity ... 87

4.5.1. Sample Logging Configurations ... 89

A. iBATIS.NET's SqlMapConfig.xsd ... 93

B. iBATIS.NET's SqlMap.xsd ... 95

iBATIS.NET - DataMapper Application Framework

DataMapper Guide Version 1.6.1 iii

Chapter 1. Introduction

1.1. Overview

The iBATIS DataMapper framework makes it easier to use a database with a Java or .NET

application. iBATIS DataMapper couples objects with stored procedures or SQL statements using a

XML descriptor. Simplicity is the biggest advantage of the iBATIS DataMapper over object

relational mapping tools. To use iBATIS DataMapper you rely on your own objects, XML, and

SQL. There is little to learn that you don't already know. With iBATIS DataMapper you have the

full power of both SQL and stored procedures at your fingertips.

1.2. What's covered here

This Guide covers the .NET implementations of iBATIS DataMapper. The Java implementation

offers the same services with some changes in the API.

Since iBATIS relies on an XML descriptor to create the mappings, much of the material applies to

both implementations.

For installation instructions, see the section called the .NET Developer Guide.

A Tutorial is also available. We recommend reviewing the Tutorial for your platform before reading

this Guide.

Tip

If you would like to get the latest development (unreleased) version of this Guide, please see the

iBATIS Wiki FAQ [http://opensource.atlassian.com/confluence/oss/display/IBATIS/]. The FAQ

entry explains how you can access our SVN source repository and generate CHM and PDF files of

the latest development documentation for the DataMapper.

1.3. Release change log

Version 1.6.0

• Resolution of N+1 select problem using groupBy attribute

• Added support of reuse SQL fragement via <include/> tag

• Added lazy load support for single class

• Added support for IDictionary<K, V> QueryForDictionary<K, V>(...)

• Marked QueryForPaginatedList as obsolete

• Allowed procedure statement without parameterMap

• Removed obsoletes methods on SqlMapper :

DataMapper Guide Version 1.6.1 1

Configure(XmlDocument document), Configure(),

Configure(string resource),

ConfigureAndWatch(ConfigureHandler configureDelegate),

ConfigureAndWatch(string resource, ConfigureHandler configureDelegate)

• Extended use of ISqlMapper in DataMapper + allowed use of a custom ISqlMapper.

• Allowed custom ISessionStore.

1.4. License Information

iBATIS.NET is licensed according to the terms of the Apache License, Version 2.0. The full text of

this license are available online at http://www.apache.org/licenses/LICENSE-2.0 (TXT

[http://www.apache.org/licenses/LICENSE-2.0.txt] or HTML

[http://www.apache.org/licenses/LICENSE-2.0.html]). You can also view the full text of any of

these licenses in the doc subdirectory of the iBATIS.NET distribution.

1.5. Support

Mailing lists and bug trackers are available (courtesy of Apache Software Foundation) at iBATIS’s

Apache project page. Just direct your browser to http://ibatis.apache.org/.

1.6. Disclaimer

iBATIS MAKES NO WARRANTIES, EXPRESS OR IMPLIED, AS TO THE

INFORMATION IN THIS DOCUMENT. The names of actual companies and products

mentioned herein may be the trademarks of their respective owners.

Introduction

DataMapper Guide Version 1.6.1 2

Chapter 2. The Big Picture

2.1. Introduction

iBATIS is a simple but complete framework that makes it easy for you to map your objects to your

SQL statements or stored procedures. The goal of the iBATIS framework is to obtain 80% of data

access functionality using only 20% of the code.

2.2. What does it do?

Developers often create maps between objects within an application. One definition of a Mapper is

an "object that sets up communication between two independent objects." A Data Mapper is a "layer

of mappers that moves data between objects and a database while keeping them independent of each

other and the mapper itself. " [Patterns of Enterprise Architecture, ISBN 0-321-12742-0].

You provide the database and the objects; iBATIS provides the mapping layer that goes between the

two.

2.3. How does it work?

Your programming platform already provides a capable library for accessing databases, whether

through SQL statements or stored procedures. But developers find several things are still hard to do

well when using "stock" ADO.NET, including:

• Separating SQL code from programming code

• Passing input parameters to the library classes and extracting the output

• Separating data access classes from business logic classes

• Caching often-used data until it changes

• Managing transactions and threading

iBATIS DataMapper solves these problems -- and many more -- by using XML documents to create

a mapping between a plain-old object and a SQL statement or a stored procedure. The "plain-old

object" can be a IDictionary or property object.

Tip

The object does not need to be part of a special object hierarchy or implement a special interface.

(Which is why we call them "plain-old" objects.) Whatever you are already using should work just

fine.

DataMapper Guide Version 1.6.1 3

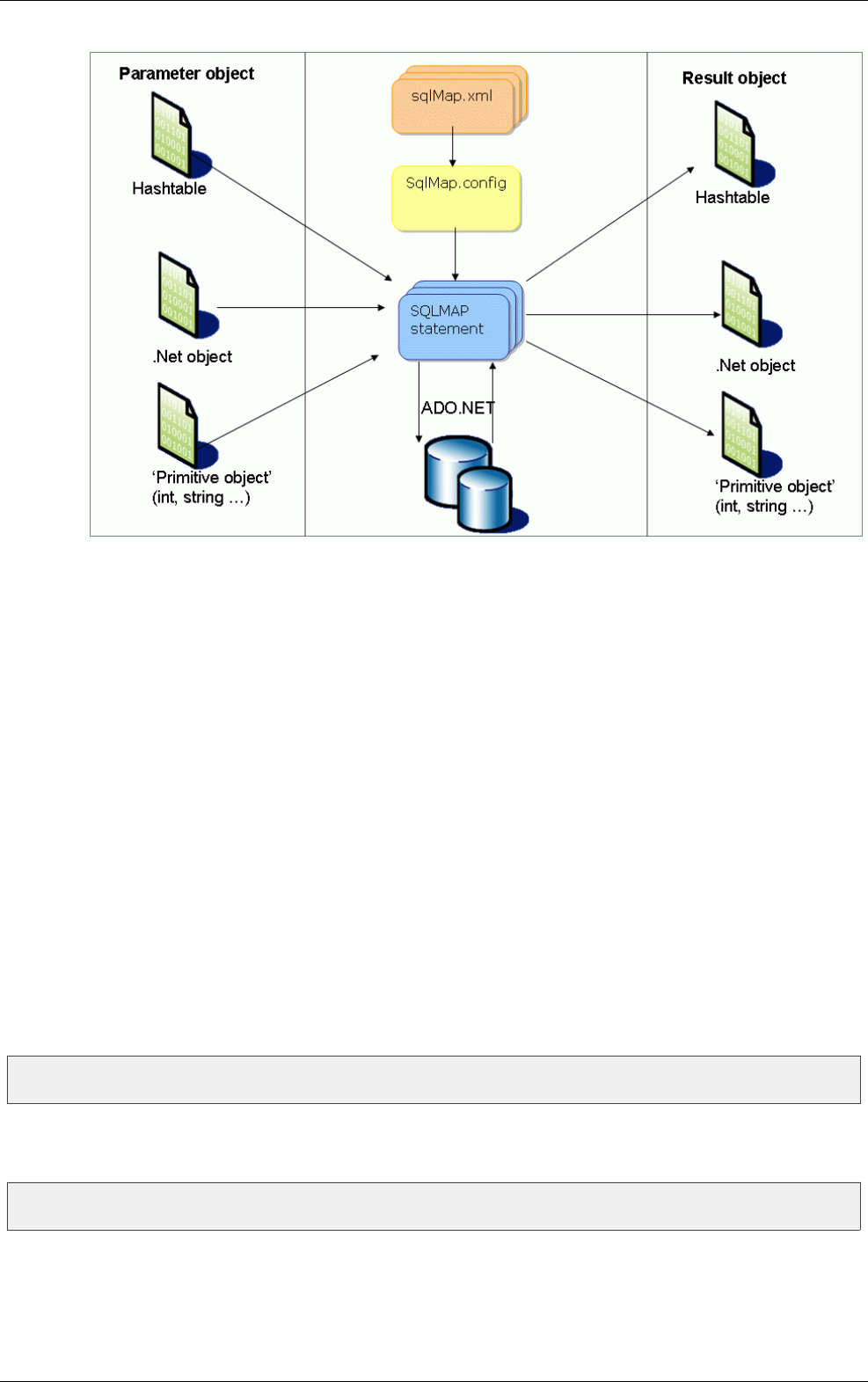

Figure 2.1. iBATIS DataMapper workflow

Here's a high level description of the workflow diagrammed by Figure 2.1:

1. Provide a parameter, either as an object or a native type. The parameter can be used to set

runtime values in your SQL statement or stored procedure. If a runtime value is not needed, the

parameter can be omitted.

2. Execute the mapping by passing the parameter and the name you gave the statement or

procedure in your XML descriptor. This step is where the magic happens. The framework will

prepare the SQL statement or stored procedure, set any runtime values using your parameter,

execute the procedure or statement, and return the result.

3. In the case of an update, the number of rows affected is returned. In the case of a query, a single

object, or a collection of objects is returned. Like the parameter, the result object, or collection

of objects, can be a plain-old object or a native type.

So, what does all this look like in your source code? Here's how you might code the insert of a

"lineItem" object into your database:

Mapper.Instance().Insert("InsertLineItem",lineItem);

If your database is generating the primary keys, the generated key can be returned from the same

method call, like this:

int myKey = Mapper.Instance().Insert("InsertLineItem",lineItem);

Example 2.1 shows an XML descriptor for "InsertLineItem".

The Big Picture

DataMapper Guide Version 1.6.1 4

Example 2.1. The "InsertLineItem" descriptor

INSERT INTO [LinesItem]

(Order_Id, LineItem_LineNum, Item_Id, LineItem_Quantity, LineItem_UnitPrice)

VALUES

(#Order.Id#, #LineNumber#, #Item.Id#, #Quantity#, #Item.ListPrice#)

select @@IDENTITY as value

</selectKey>

</insert>

The <selectKey> stanza returns an autogenerated key from a SQL Server database (for example).

If you need to select multiple rows, iBATIS can return a list of objects, each mapped to a row in the

result set:

IList productList = Mapper.Instance().QueryForList("selectProduct",categoryKey);

Or just one, if that's all you need:

Product product = Mapper.Instance().QueryForObject("SelectProduct",productKey) as Product;

Of course, there's more, but this is iBATIS from 10,000 meters. (For a longer, gentler introduction,

see the Tutorial.) Section 3 describes the Data Map definition files -- where the statement for

"InsertLineItem" would be defined. The Developers Guide for your platform (Section 4) describes

the "bootstrap" configuration file that exposes iBATIS to your application.

2.4. Is iBATIS the best choice for my project?

iBATIS is a Data Mapping tool. Its role is to map the columns of a database query (including a

stored procedure) to the properties of an object. If your application is based on business objects

(including Maps or IDictionary objects), then iBATIS can be a good choice. iBATIS is an even

better choice when your application is layered, so that that the business layer is distinct from the

user-interface layer.

Under these circumstances, another good choice would be an Object/Relational Mapping tool

(OR/M tool), like NHibernate. Other products in this category are Apache ObjectRelationalBridge

and Gentle.NET. An OR/M tool generates all or most of the SQL for you, either beforehand or at

runtime. These products are called OR/M tools because they try to map an object graph to a

relational schema.

iBATIS is not an OR/M tool. iBATIS helps you map objects to stored procedures or SQL

statements. The underlying schema is irrelevant. An OR/M tool is great if you can map your objects

to tables. But they are not so great if your objects are stored as a relational view rather than as a

table. If you can write a statement or procedure that exposes the columns for your object, regardless

of how they are stored, iBATIS can do the rest.

So, how do you decide whether to OR/M or to DataMap? As always, the best advice is to implement

a representative part of your project using either approach, and then decide. But, in general, OR/M is

The Big Picture

DataMapper Guide Version 1.6.1 5

a good thing when you

1. Have complete control over your database implementation

2. Do not have a Database Administrator or SQL guru on the team

3. Need to model the problem domain outside the database as an object graph.

Likewise, the best time to use a Data Mapper, like iBATIS, is when:

1. You do not have complete control over the database implementation, or want to continue to

access a legacy database as it is being refactored.

2. You have database administrators or SQL gurus on the team.

3. The database is being used to model the problem domain, and the application's primary role is

to help the client use the database model.

In the end, you have to decide what's best for your project. If a OR/M tool works better for you,

that's great! If your next project has different needs, then we hope you give iBATIS another look. If

iBATIS works for you now: Excellent! Join the iBATIS user mailing list if you have any questions.

The Big Picture

DataMapper Guide Version 1.6.1 6

Chapter 3. Working with Data Maps

3.1. Introduction

If you want to know how to configure and install iBATIS, see the Developer Guide section for your

platform. But if you want to know how iBATIS really works, continue from here.

The Data Map definition file is where the interesting stuff happens. Here, you define how your

application interacts with your database. As mentioned, the Data Map definition is an XML

descriptor file. By using a service routine provided by iBATIS, the XML descriptors are rendered

into a client object (or Mapper). To access your Data Maps, your application calls the client object

and passes in the name of the statement you need.

The real work of using iBATIS is not so much in the application code, but in the XML descriptors

that iBATIS renders. Instead of monkeying with application source code, you monkey with XML

descriptors instead. The benefit is that the XML descriptors are much better suited to the task of

mapping your object properties to database entities. At least, that's our own experience with our own

applications. Of course, your mileage may vary.

3.2. What's in a Data Map definition file, anyway?

If you read the Tutorial, you've already seen some simple Data Map examples, like the one shown in

Example 2.1.

Example 3.1. A simple Data Map (.NET)

<?xml version="1.0" encoding="UTF-8" ?>

<sqlMap namespace="LineItem"

xmlns="http://ibatis.apache.org/mapping"

xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" >

<alias>

</alias>

INSERT INTO [LinesItem]

(Order_Id, LineItem_LineNum, Item_Id, LineItem_Quantity, LineItem_UnitPrice)

VALUES

(#Order.Id#, #LineNumber#, #Item.Id#, #Quantity#, #Item.ListPrice#)

</insert>

</statements>

</sqlMap>

This map takes some properties from a LineItem instance and merges the values into the SQL

statement. The value-add is that our SQL in separated from our program code, and we can pass our

LineItem instance directly to a library method:

Mapper.Instance().Insert("InsertLineItem",lineItem);

DataMapper Guide Version 1.6.1 7

No fuss, no muss. Likewise, see Example 3.2 for a simple select statement.

In Example 3.1, we use SQL aliasing to map columns to our object properties and an iBATIS inline

parameter (see sidebar) to insert a runtime value. Easy as pie.

A Quick Glance at Inline Parameters

Say we have a mapped statement element that looks like this:

insert into Products (Product_Id, Product_Description)

values (#Id#, #Description#);

</statement>

The inline parameters here are #Id# and #Description#. Let's also say that we have an object with the

properties Id and Description. If we set the object properties to 5and "dog", respectively, and passed the

object to the mapped statement, we'd end up with a runtime query that looked like this:

insert into Products (Product_Id, Product_Description) values (5, ‘dog');

For more about inline parameters, see Section 3.4.

But, what if you wanted some ice cream with that pie? And maybe a cherry on top? What if we

wanted to cache the result of the select? Or, what if we didn't want to use SQL aliasing or named

parameters. (Say, because we were using pre-existing SQL that we didn't want to touch.) Example

3.2 shows a Data Map that specifies a cache, and uses a <parameterMap> and a <resultMap> to keep

our SQL pristine.

Example 3.2. A Data Map definition file with some bells and whistles

<?xml version="1.0" encoding="UTF-8" ?>

<sqlMap namespace="Product"

xmlns="http://ibatis.apache.org/mapping"

xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" >

<alias>

</alias>

</cacheModel>

</cacheModels>

</resultMap>

</resultMaps>

select * from Products where Product_Id = ?

</select>

</statements>

Working with Data Maps

DataMapper Guide Version 1.6.1 8

</parameterMap>

</sqlMap>

In Example 3.2, <parameterMap> maps the SQL "?" to the product Id property. The <resultMap>

maps the columns to our object properties. The <cacheModel> keeps the result of the last one

thousand of these queries in active memory for up to 24 hours.

Example 3.2 is longer and more complex than Example 3.1, but considering what you get in return,

it seems like a fair trade. (A bargain even.)

Many agile developers would start with something like Example 3.1 and add features like caching

later. If you changed the Data Map from Example 3.1 to Example 3.2, you would not have to touch

your application source code at all. You can start simple and add complexity only when it is needed.

A single Data Map definition file can contain as many Cache Models, Type Aliases, Result Maps,

Parameter Maps, and Mapped Statements (including stored procedures), as you like. Everything is

loaded into the same configuration, so you can define elements in one Data Map and then use them

in another. Use discretion and organize the statements and maps appropriately for your application

by finding some logical way to group them.

3.3. Mapped Statements

Mapped Statements can hold any SQL statement and can use Parameter Maps and Result Maps for

input and output. (A stored procedure is a specialized form of a statement. See section 3.3.1 and

3.3.2 for more information.)

If the case is simple, the Mapped Statement can reference the parameter and result classes directly.

Mapped Statements support caching through reference to a Cache Model element. The following

example shows the syntax for a statement element.

Example 3.3. Statement element syntax

<statement id="statement.name"

[parameterMap="parameterMap.name"]

[parameterClass="alias"]

[resultMap="resultMap.name"]

[resultClass="class.name|alias"]

[listClass="class.name|alias"]

[cacheModel="cache.name"]

[extends="statement.name"]

select * from Products where Product_Id = [?|#propertyName#]

order by [$simpleDynamic$]

</statement>

In Example 3.3, the [bracketed] parts are optional, and some options are mutually exclusive. It is

perfectly legal to have a Mapped Statement as simple as shown by Example 3.4.

Working with Data Maps

DataMapper Guide Version 1.6.1 9

Example 3.4. A simplistic Mapped Statement

insert into Products (Product_Id, Product_Description) values (1, "Shih Tzu")

</statement>

Example 3.4 is obviously unlikely, unless you are running a test. But it does shows that you can use

iBATIS to execute arbitrary SQL statements. More likely, you will use the object mapping features

with Parameter Maps (Section 3.4) and Result Maps (Section 3.5) since that's where the magic

happens.

3.3.1. Statement Types

The <statement> element is a general "catch all" element that can be used for any type of SQL

statement. Generally it is a good idea to use one of the more specific statement-type elements. The

more specific elements provided better error-checking and even more functionality. (For example,

the insert statement can return a database-generated key.) Table 3.1 summarizes the statement-type

elements and their supported attributes and features.

Table 3.1. The six statement-type elements

Statement Element Attributes Child Elements Methods

<statement> id

parameterClass

resultClass

listClass

parameterMap

resultMap

cacheModel

All dynamic elements Insert

Update

Delete

All query methods

<insert> id

parameterClass

parameterMap

All dynamic elements

Insert

Update

Delete

<update> id

parameterClass

parameterMap

extends

All dynamic elements

Insert

Update

Delete

<delete> id

parameterClass

parameterMap

extends

All dynamic elements

Insert

Update

Delete

<select> id

parameterClass

resultClass

listClass

parameterMap

resultMap

cacheModel

All dynamic elements

All query methods

Working with Data Maps

DataMapper Guide Version 1.6.1 10

Statement Element Attributes Child Elements Methods

extends

<procedure> id

parameterMap

resultClass

resultMap

cacheModel

All dynamic elements Insert

Update

Delete

All query methods

The various attributes used by statement-type elements are covered in Section 3.3.4.

3.3.2. Stored Procedures

iBATIS DataMapper treats stored procedures as yet another statement type. Example 3.5 shows a

simple Data Map hosting a stored procedure.

Example 3.5. A Data Map using a stored procedure

ps_swap_email_address

</procedure>

...

</parameterMap>

prc_InsertCategory

</procedure>

...

</parameterMap>

prc_InsertAccount

</statement>

...

</parameterMap>

The idea behind Example 3.5 is that calling the stored procedure SwapEmailAddresses would

exchange two email addresses between two columns in a database table and also in the parameter

object (a HashTable). The parameter object is only modified if the parameter mappings mode

attribute is set to InputOutput or Output. Otherwise they are left unchanged. Of course, immutable

parameter objects (e.g. String) cannot be modified.

Note

For .NET, the parameterMap attribute is required. The DBType, parameter direction, size, precision,

Working with Data Maps

DataMapper Guide Version 1.6.1 11

and scale are usually auto-discovered by the framework (via the CommandBuilder) depending on

your provider.

If your stored procedure have no parmeters, the parameterMap attribute on the procedure tag is

optionnal.

3.3.3. The SQL

If you are not using stored procedures, the most important part of a statement-type element is the

SQL. You can use any SQL statement that is valid for your database system. Since iBATIS passes

the SQL through to the standard libraries ( ADO.NET), you can use any statement with iBATIS that

you could use without iBATIS. You can use whatever functions your database system supports, and

even send multiple statements, so long as your driver or provider supports them.

If standard, static SQL isn't enough, iBATIS can help you build a dynamic SQL statement. See

Section 3.9 for more about Dynamic SQL.

3.3.3.1. Reusing SQL Fragments

When writing SqlMaps, you often encounter duplicate fragments of SQL, for example a

FROM-clause or constraint-statement. iBATIS offers a simple yet powerful tag to reuse them. For

the sake of simplicity, let's assume we want to get some items and we want to do a count on them.

Normally, you would write something like this :

Example 3.6. Reusing SQL Fragments (Before)

SELECT COUNT(*) AS total

FROM items

WHERE parentid = 6

</select>

SELECT id, name

FROM items

WHERE parentid = 6

</select>

To eliminate this duplication, we use the tags <sql> and <include>. The <sql> tag contains the

fragment to reuse, the <include> tag includes such a fragment in a statement. For example:

Example 3.7. Reusing SQL Fragments (After)

FROM items

WHERE parentid = 6

</sql>

SELECT COUNT(*) AS total

</select>

SELECT id, name

</select>

Working with Data Maps

DataMapper Guide Version 1.6.1 12

The <include> tag is namespace aware so you can refer to fragments even when they are located in

another map (however, due to the way iBATIS loads the SqlMaps, the included fragment should be

loaded before the including statement). The fragments are included and processed on

query-execution so parameters can be used too :

FROM items

WHERE parentid = #value#

</sql>

SELECT COUNT(*) AS total

</select>

SELECT id, name

</select>

Note

In many case, you can also use the extends attribute on statement tag to achieve the same goal.

3.3.3.2. Escaping XML symbols

Because you are combining SQL and XML in a single document, conflicts can occur. The most

common conflict is the greater-than and less-than symbols (><). SQL statements use these symbols

as operators, but they are reserved symbols in XML. A simple solution is to escape the SQL

statements that uses XML reserved symbols within a CDATA element. Example 3.6 demonstrates

this.

Example 3.8. Using CDATA to "escape" SQL code

<![CDATA[

SELECT * FROM PERSON WHERE AGE > #value#

]]>

</statement>

3.3.3.3. Auto-Generated Keys

Many database systems support auto-generation of primary key fields, as a vendor extension. Some

vendors pre-generate keys (e.g. Oracle), some vendors post-generate keys (e.g. MS-SQL Server and

MySQL). In either case, you can obtain a pre-generated key using a <selectKey> stanza within an

<insert> element. Example 3.7 shows an <insert> statement for either approach.

Example 3.9. <insert> statements using <selectKey> stanzas

<!—Oracle SEQUENCE Example using .NET 1.1 System.Data.OracleClient -->

SELECT STOCKIDSEQUENCE.NEXTVAL AS VALUE FROM DUAL

</selectKey>

insert into PRODUCT (PRD_ID,PRD_DESCRIPTION) values (#id#,#description#)

</insert>

<!— Microsoft SQL Server IDENTITY Column Example -->

insert into PRODUCT (PRD_DESCRIPTION)

Working with Data Maps

DataMapper Guide Version 1.6.1 13

values (#description#)

select @@IDENTITY as value

</selectKey>

</insert>

insert into PRODUCT (PRD_DESCRIPTION)

values (#description#)

select LAST_INSERT_ID() as value

</selectKey>

</insert>

3.3.3.4. <generate> tag

You can use iBATIS to execute any SQL statement your application requires. When the

requirements for a statement are simple and obvious, you may not even need to write a SQL

statement at all. The <generate> tag can be used to create simple SQL statements automatically,

based on a <parameterMap> element. The four CRUD statement types (insert, select, update, and

delete) are supported. For a select, you can select all or select by a key (or keys). Example 3.8 shows

an example of generating the usual array of CRUD statements.

Example 3.10. Creating the "usual suspects" with the <generate> tag

</parameterMap>

</parameterMap>

</parameterMap>

</parameterMap>

</parameterMaps>

</update>

</delete>

<select id="SelectByPKCategoryGenerate" resultClass="Category" parameterClass="Category"

parameterMap="select-generate-params">

</select>

<select id="SelectAllCategoryGenerate" resultClass="Category"

parameterMap="select-generate-params">

</select>

Working with Data Maps

DataMapper Guide Version 1.6.1 14

select @@IDENTITY as value

</selectKey>

</insert>

</statements>

Note

The SQL is generated when the DataMapper instance is built, so there is no performance impact at

execution time.

The tag generates ANSI SQL, which should work with any compliant database. Special types, such

as blobs, are not supported, and vendor-specific types are also not supported. But, the generate tag

does keep the simple things simple.

Important

The intended use of the <generate> tag is to save developers the trouble of coding mundane SQL

statements (and only mundane statements). It is not meant as a object-to-relational mapping tool.

There are many frameworks that provide extensive object-to-relational mapping features. The

<generate> tag is not a replacement for any of those. When the <generate> tag does not suit your

needs, use a conventional statement instead.

3.3.3.4.1. <generate> tag attributes

The generate tag supports two attributes :

Table 3.2. <generate> attributes

Attribute Description Required

table specifies the table name to use in

the SQL statement.

yes

by specifies the columns to use in a

WHERE clause

3.3.4. Statement-type Element Attributes

The six statement-type elements take various attributes. See Section 3.3.1 for a table itemizing which

attributes each element-type accepts. The individual attributes are described in the sections that

follow.

3.3.4.1. id

The required id attribute provides a name for this statement, which must be unique within this

<SqlMap>.

3.3.4.2. parameterMap

A Parameter Map defines an ordered list of values that match up with the "?" placeholders of a

Working with Data Maps

DataMapper Guide Version 1.6.1 15

standard, parameterized query statement. Example 3.9 shows a <parameterMap> and a

corresponding <statement>.

Example 3.11. A parameterMap and corresponding statement

</parameterMap>

insert into PRODUCT (PRD_ID, PRD_DESCRIPTION) values (?,?);

</statement>

In Example 3.9, the Parameter Map describes two parameters that will match, in order, two

placeholders in the SQL statement. The first "?" is replaced by the value of the id property. The

second is replaced with the description property.

iBATIS also supports named, inline parameters, which most developers seem to prefer. However,

Parameter Maps are useful when the SQL must be kept in a standard form or when extra information

needs to be provided. For more about Parameter Maps see Section 3.4.

3.3.4.3. parameterClass

If a parameterMap attribute is not specified, you may specify a parameterClass instead and use inline

parameters (see Section 3.4.3 ). The value of the parameterClass attribute can be a Type Alias or the

fully qualified name of a class. Example 3.10 shows a statement using a fully-qualified name versus

an alias.

Example 3.12. Ways to specify a parameterClass

insert into PRODUCT values (#id#, #description#, #price#)

</statement>

insert into PRODUCT values (#id#, #description#, #price#)

</statement>

3.3.4.4. resultMap

A Result Map lets you control how data is extracted from the result of a query, and how the columns

are mapped to object properties. Example 3.11 shows a <resultMap> element and a corresponding

<statement> element.

Example 3.13. A <resultMap> and corresponding <statement>

</resultMap>

Working with Data Maps

DataMapper Guide Version 1.6.1 16

select * from PRODUCT

</statement>

In Example 3.11, the result of the SQL query will be mapped to an instance of the Product class

using the "select-product-result" <resultMap>. The <resultMap> says to populate the id property

from the PRD_ID column, and to populate the description property from the

PRD_DESCRIPTION column.

Tip

In Example 3.11, note that using " select * " is supported. If you want all the columns, you don't

need to map them all individually. (Though many developers consider it a good practice to always

specify the columns expected.)

For more about Result Maps, see Section 3.5.

3.3.4.5. resultClass

If a resultMap is not specified, you may specify a resultClass instead. The value of the resultClass

attribute can be a Type Alias or the fully qualified name of a class. The class specified will be

automatically mapped to the columns in the result, based on the result metadata. The following

example shows a <statement> element with a resultClass attribute.

Example 3.14. A <statement >element with resultClass attribute

SELECT

PER_ID as Id,

PER_FIRST_NAME as FirstName,

PER_LAST_NAME as LastName,

PER_BIRTH_DATE as BirthDate,

PER_WEIGHT_KG as WeightInKilograms,

PER_HEIGHT_M as HeightInMeters

FROM PERSON

WHERE PER_ID = #value#

</statement>

In Example 3.12, the Person class has properties including: Id, FirstName, LastName, BirthDate,

WeightInKilograms, and HeightInMeters. Each of these corresponds with the column aliases

described by the SQL select statement using the "as" keyword –a standard SQL feature. When

executed, a Person object is instantiated and populated by matching the object property names to the

(aliased) column names from the query.

Using SQL aliases to map columns to properties saves defining a <resultMap> element, but there are

limitations. There is no way to specify the types of the output columns (if needed), there is no way to

automatically load related data such as complex properties, and there is a slight performance

consequence from accessing the result metadata. Architecturally, using aliases this way mixes

database logic with reporting logic, making the query harder to read and maintain. You can

overcome these limitations with an explicit Result Map (Section 3.5).

3.3.4.6. listClass

Working with Data Maps

DataMapper Guide Version 1.6.1 17

In addition to providing the ability to return an IList of objects, the DataMapper supports the use of a

strongly-typed custom collection: a class that implements the System.Collections.CollectionBase

abstract class. The following is an example of a CollectionBase class that can be used with the

DataMapper.

Example 3.15. A System.Collections.CollectionBase implementation

using System;

using System.Collections;

namespace WebShop.Domain

{

public class AccountCollection : CollectionBase

{

public AccountCollection() {}

public Account this[int index]

{

get { return (Account)List[index]; }

set { List[index] = value; }

}

public int Add(Account value)

{

return List.Add(value);

}

public void AddRange(Account[] value)

{

for (int i = 0; i < value.Length; i++)

{

Add(value[i]);

}

public void AddRange(AccountCollection value)

{

for (int i = 0; i < value.Count; i++)

{

Add(value[i]);

}

public bool Contains(Account value)

{

return List.Contains(value);

}

public void CopyTo(Account[] array, int index)

{

List.CopyTo(array, index);

}

public int IndexOf(Account value)

{

return List.IndexOf(value);

}

public void Insert(int index, Account value)

{

Account.Insert(index, value);

}

public void Remove(Account value)

{

Account.Remove(value);

}

Working with Data Maps

DataMapper Guide Version 1.6.1 18

A CollectionBase class can be specified for a select statement through the listClass attribute. The

value of the listClass attribute can be a Type Alias or the fully qualified name of a class. The

statement should also indicate the resultClass so that the DataMapper knows how to handle the type

of objects in the collection. The resultClass specified will be automatically mapped to the columns in

the result, based on the result metadata. The following example shows a <statement> element with a

listClass attribute.

Example 3.16. A <statement >element with listClass attribute

<statement id="GetAllAccounts"

listClass="AccountCollection"

resultClass="Account">

select

Account_ID as Id,

Account_FirstName as FirstName,

Account_LastName as LastName,

Account_Email as EmailAddress

from Accounts

order by Account_LastName, Account_FirstName

</statement>

3.3.4.7. cacheModel

If you want to cache the result of a query, you can specify a Cache Model as part of the <statement>

element. Example 3.15 shows a <cacheModel> element and a corresponding <statement>.

Example 3.17. A <cacheModel> element with its corresponding <statement>

</cacheModel>

select * from PRODUCT where PRD_CAT_ID = #value#

</statement>

In Example 3.15, a cache is defined for products that uses a LRU reference type and flushes every

24 hours or whenever associated update statements are executed. For more about Cache Models, see

Section 3.8.

3.3.4.8. extends

When writing Sql, you often encounter duplicate fragments of SQL. iBATIS offers a simple yet

powerful attribute to reuse them.

<select id="GetAllAccounts"

resultMap="indexed-account-result">

Working with Data Maps

DataMapper Guide Version 1.6.1 19

select

Account_ID,

Account_FirstName,

Account_LastName,

Account_Email

from Accounts

</select>

<select id="GetAllAccountsOrderByName"

extends="GetAllAccounts"

resultMap="indexed-account-result">

order by Account_FirstName

</select>

3.4. Parameter Maps and Inline Parameters

Most SQL statements are useful because we can pass them values at runtime. Someone wants a

database record with the ID 42, and we need to merge that ID number into a select statement. A list

of one or more parameters are passed at runtime, and each placeholder is replaced in turn. This is

simple but labor intensive, since developers spend a lot of time counting symbols to make sure

everything is in sync.

Note

Preceding sections briefly touched on inline parameters, which automatically map properties to

named parameters. Many iBATIS developers prefer this approach. But others prefer to stick to the

standard, anonymous approach to SQL parameters by using parameter maps. Sometimes people

need to retain the purity of the SQL statements; other times they need the detailed specification

offered by parameter maps due to database or provider-specific information that needs to be used.

A Parameter Map defines an ordered list of values that match up with the placeholders of a

parameterized query statement. While the attributes specified by the map still need to be in the

correct order, each parameter is named. You can populate the underlying class in any order, and the

Parameter Map ensures each value is passed in the correct order.

Note

Dynamic Mapped Statements (Section 3.9) can't use Parameter Maps. Being dynamic, the number of

parameters will change and defeat the purpose of a Parameter Map. Depending on your provider,

this may hinder your ability to use Dynamic Mapped Statements if your provider requires the use of

some of the attributes, such as size or scale, that a <parameter> provides.

Parameter Maps can be provided as an external element and inline. Example 3.16 shows an external

Parameter Map.

Example 3.18. An external Parameter Map

<parameterMap id="parameterMapIdentifier"

[class="fullyQualifiedClassName, assembly|typeAlias"]

[extends="[sqlMapNamespace.]parameterMapId"]>

<parameter

property ="propertyName"

[column="columnName"]

[direction="Input|Output|InputOutput"]

[dbType="databaseType"]

[type="propertyCLRType"]

[nullValue="nullValueReplacement"]

[size="columnSize"]

Working with Data Maps

DataMapper Guide Version 1.6.1 20

[precision="columnPrecision"]

[scale="columnScale"]

[typeHandler="fullyQualifiedClassName, assembly|typeAlias"]

</parameterMap>

In Example 3.16, the parts in [brackets] are optional. The parameterMap element only requires the

id attribute. The class attribute is optional but recommended. The class attribute helps to validate

the incoming parameter and optimizes performance. Example 3.17 shows a typical

<parameterMap>.

Example 3.19. A typical <parameterMap> element

</parameterMap>

insert into PRODUCT (PRD_DESCRIPTION,PRD_ID) values (?,?);

</statement>

Note

Parameter Map names are always local to the Data Map definition file where they are defined. You

can refer to a Parameter Map in another Data Map definition file by prefixing the id of the

Parameter Map with the namespace of the Data Map (set in the <sqlMap> root element). If the

Parameter Map in Example 3.17 were in a Data Map named "Product", it could be referenced from

another file using "Product.insert-product-param".

3.4.1. <parameterMap> attributes

The <parameterMap> element accepts three attributes: id (required), class (optional), and extends

(optional).

3.4.1.1. id

The required id attribute provides a unique identifier for the <parameterMap> within this Data Map.

3.4.1.2. class

The optional class attribute specifies an object class to use with this <parameterMap>. The full

classname and assembly or an alias must be specified. Any class can be used.

Note

The parameter class must be a property object or IDictionary instance.

3.4.1.3. extends

The optional extends attribute can be set to the name of another parameterMap upon which to base

this parameterMap. All properties of the super parameterMap will be included as part of this

Working with Data Maps

DataMapper Guide Version 1.6.1 21

parameterMap, and values from the super parameterMap are set before any values specified by this

parameterMap. The effect is similar to extending a class.

3.4.2. <parameter> Elements

The <parameterMap> element holds one or more parameter child elements that map object

properties to placeholders in a SQL statement. The sections that follow describe each of the

attributes.

3.4.2.1. property

The property attribute of <parameter> is the name of a field or property of the parameter object. It

may also be the name of an entry in a IDictionary object. The name can be used more than once

depending on the number of times it is needed in the statement. (In an update, you might set a

column that is also part of the where clause.)

3.4.2.2. column

The column attribute is used to define to the name of a parameter used by a stored procedure.

3.4.2.3. direction

The direction attribute may be used to indicate a stored procedure parameter's direction.

Table 3.3. Parameter direction attribute values

Value Description

Input input-only

Output output-only

InputOutput bidirectional

3.4.2.4. dbType

The dbType attribute is used to explicitly specify the database column type of the parameter to be set

by this property. For certain operations, some ADO.NET providers are not able to determine the

type of a column, and the type must be specified.

This attribute is normally only required if the column is nullable. Although, another reason to use the

dbType attribute is to explicitly specify date types. Whereas .NET only has one Date value type

(System.DateTime), most SQL databases have more than one. Usually, a database has at least three

different types (DATE, DATETIME, TIMESTAMP). In order for the value to map correctly, you

might need to specify the column's dbType,

Note

Most providers only need the dbType specified for nullable columns. In this case, you only need to

specify the type for the columns that are nullable.

The dbType attribute can be set to any string value that matches a constant in the specific data type

enum of the used provider such as System.Data.SqlDbType for Microsoft Sql Server. Section 3.6

Working with Data Maps

DataMapper Guide Version 1.6.1 22

describes the types that are supported by the framework.

3.4.2.5. type

The type attribute is used to specify the CLR type of the parameter's property. This attribute is

useful when passing InputOutput and Output parameters into stored procedures. The framework uses

the specified type to properly handle and set the parameter object's properties with the procedure's

output values after execution.

Normally, the type can be derived from a property through reflection, but certain mappings that use

objects such as a Map cannot provide the property type to the framework. If the attribute type is not

set and the framework cannot otherwise determine the type, the type is assumed to be an Object.

Section 6 details the CLR types and available aliases that have pre-built support in the framework.

3.4.2.6. nullValue

The nullValue attribute can be set to any valid value (based on property type). The nullValue

attribute is used to specify an outgoing null value replacement. What this means is that when the

value is detected in the object property, a NULL will be written to the database (the opposite

behavior of an inbound null value replacement). This allows you to use a magic null number in your

application for types that do not support null values (such as int,double,float). When these types

of properties contain a matching null value (–9999), a NULL will be written to the database instead

of the value.

3.4.2.7. size

The size attribute sets the maximum size of the data within the column.

3.4.2.8. precision

The precision attribute is used to set the maximum number of digits used to represent the property

value.

3.4.2.9. scale

The scale attribute sets the number of decimal places used to resolve the property value.

3.4.2.10. typeHandler

The typeHandler attribute allows the use of a Custom Type Handler (see the Custom Type Handler

section). This allows you to extend the DataMapper's capabilities in handling types that are specific

to your database provider, are not handled by your database provider, or just happen to be a part of

your application design. You can create custom type handlers to deal with storing and retrieving

booleans and Guids from your database for example.

3.4.3. Inline Parameter Maps

If you prefer to use inline parameters instead of parameter maps, you can add extra type information

inline too. The inline parameter map syntax lets you embed the property name, the property type, the

column type, and a null value replacement into a parametrized SQL statement. The next four

examples shows statements written with inline parameters.

Working with Data Maps

DataMapper Guide Version 1.6.1 23

Example 3.20. A <statement> using inline parameters

insert into PRODUCT (PRD_ID, PRD_DESCRIPTION)

values (#id#,#description#)

</statement>

The following example shows how dbTypes can be declared inline.

Example 3.21. A <statement> using an inline parameter map with a type

insert into PRODUCT (PRD_ID, PRD_DESCRIPTION)

values (#id:int#,#description:VarChar#)

</statement>

The next example shows how dbTypes and null value replacements can also be declared inline.

Example 3.22. A <statement> using an inline parameter map with a null value replacement

insert into PRODUCT (PRD_ID, PRD_DESCRIPTION)

values (#id:int:-999999#,#description:VarChar#)

</statement>

Like the DataMapper for Java, there is an alternate inline syntax that allows the specification of the

property, type, dbType, and null value replacement. The following example shows that syntax in

use.

Example 3.23. A <statement> using alternate inline syntax with property, type, dbType, and

null value replacement

update Accounts set

Account_FirstName = #FirstName#,

Account_LastName = #LastName#,

Account_Email = #EmailAddress,type=string,dbType=Varchar,nullValue=no_email@provided.com#

where

Account_ID = #Id#

</update>

Note

When using inline parameters, you cannot specify the null value replacement without also specifying

the dbType. You must specify both due to the parsing order.

For round-trip transparency of null values, you must also specify database columns null value

replacements in your Result Map (see Section 3.5).

Working with Data Maps

DataMapper Guide Version 1.6.1 24

Inline parameter maps are handy for small jobs, but when there are a lot of type descriptors and null

value replacements in a complex statement, an industrial-strength, external parameterMap can be

easer.

3.4.4. Standard Type Parameters

In practice, you will find that many statements take a single parameter, often an Integer or a

String. Rather than wrap a single value in another object, you can use the standard library object

(String,Integer, et cetera) as the parameter directly. Example 3.22 shows a statement using a

standard type parameter.

Example 3.24. A <statement> using standard type parameters

select * from PRODUCT where PRD_ID = #value#

</statement>

Assuming PRD_ID is a numeric type, when a call is made to this Mapped Statement, a standard

Integer object can be passed in. The #value# parameter will be replaced with the value of the Integer

instance. The name value is simply a placeholder, you can use another moniker of your choice.

Result Maps support primitive types as results as well.

For your convenience, primitive types are aliased by the framework. For example, int can be used

in place of System.Integer. For a complete list, see Section 3.6, "Supported Types for Parameter

Maps and Result Maps".

3.4.5. Map or IDictionary Type Parameters

You can also pass a IDictionary instance as a parameter object. This would usually be a

HashTable. Example 3.23 shows a <statement> using an IDictionary for a parameterClass.

Example 3.25. A <statement> using a Map or IDictionary for a parameterClass

select * from PRODUCT

where PRD_CAT_ID = #catId#

and PRD_CODE = #code#

</statement>

In Example 3.23, notice that the SQL in this Mapped Statement looks like any other. There is no

difference in how the inline parameters are used. If a HashTable instance is passed, it must contain

keys named catId and code. The values referenced by those keys must be of the appropriate type for

the column, just as they would be if passed from a properties object.

For your convenience, IDictionary types are aliased by the framework. So, map or HashTable can

be used in place of System.Collections.Hashtable. For a complete list of aliases, see Section 3.6,

"Supported Types for Parameter Maps and Result Maps".

Working with Data Maps

DataMapper Guide Version 1.6.1 25

3.5. Result Maps

Section 3.4 describes Parameter Maps and Inline parameters, which map object properties to

parameters in a database query. Result Maps finish the job by mapping the result of a database query

(a set of columns) to object properties. Next to Mapped Statements, the Result Map is probably one

of the most commonly used and most important features to understand.

A Result Map lets you control how data is extracted from the result of a query, and how the columns

are mapped to object properties. A Result Map can describe the column type, a null value

replacement, and complex property mappings including Collections. Example 3.24 shows the

structure of a <resultMap> element.

Example 3.26. The structure of a <resultMap> element.

<resultMap id="resultMapIdentifier"

[class="fullyQualifiedClassName, assembly|typeAlias"]

[extends="[sqlMapNamespace.]resultMapId"]>

<argument property="argumentName"

column="columnName"

[columnIndex="columnIndex"]

[dbType="databaseType"]

[type="propertyCLRType"]

[resultMapping="resultMapName"]

[nullValue="nullValueReplacement"]

[select="someOtherStatementName"]

[typeHandler="fullyQualifiedClassName, assembly|typeAlias"] />

</constructor >

<result property="propertyName"

column="columnName"

[columnIndex="columnIndex"]

[dbType="databaseType"]

[type="propertyCLRType"]

[resultMapping="resultMapName"]

[nullValue="nullValueReplacement"]

[select="someOtherStatementName"]

[lazyLoad="true|false"]

[typeHandler="fullyQualifiedClassName, assembly|typeAlias"]

// Inheritance support

<discriminator column="columnName"

[type|typeHandler="fullyQualifiedClassName, assembly|typeAlias"]

<subMap value="discriminatorValue"

resultMapping="resultMapName"

</resultMap>

In Example 3.24, the [brackets] indicate optional attributes. The id attribute is required and provides

a name for the statement to reference. The class attribute is also required, and specifies a Type Alias

or the fully qualified name of a class. This is the class that will be instantiated and populated based

on the result mappings it contains.

The resultMap can contain any number of property mappings that map object properties to the

columns of a result element. The property mappings are applied, and the columns are read, in the

order that they are defined. Mainting the element order ensures consistent results between different

drivers and providers.

Working with Data Maps

DataMapper Guide Version 1.6.1 26

Note

As with parameter classes, the result class must be a .NET object or IDictionary instance.

3.5.1. Extending resultMaps

The optional extends attribute can be set to the name of another resultMap upon which to base this

resultMap. All properties of the "super" resultMap will be included as part of this resultMap, and

values from the "super" resultMap are set before any values specified by this resultMap. The effect

is similar to extending a class.

Tip

The "super" resultMap must be defined in the file before the extending resultMap. The classes for

the super and sub resultMaps need not be the same, and do not need to be related in any way.

3.5.2. <resultMap> attributes

The <resultMap> element accepts three attributes: id (required), class (optional), and extends

(optional).

3.5.2.1. id

The required id attribute provides a unique identifier for the <resultMap> within this Data Map.

3.5.2.2. class

The optional class attribute specifies an object class to use with this <resultMap>. The full

classname or an alias must be specified. Any class can be used.

Note

As with parameter classes, the result classes must be a .NET object or IDictionary instance.

3.5.2.3. extends

The optional extends attribute allows the result map to inherit all of the properties of the "super"

resultMap that it extends.

3.5.2.4. groupBy

The optional groupBy attribute specifies a list of .NET property names of the result object build by

the resultMap. They are used to identify unique rows in the returned result set. Rows with equal

values for the specified properties will only generate one result object. Use groupBy in combination

with nested resultMaps to solve the N+1 query problem. Exemple : "Id" or "Desciption, Date".(see

paragraph 3.5.13).

3.5.3. <constructor> element

The <constructor> element must match the signature of one of the result class constructor. If specify,

this element is used by iBATIS to instanciate the result object.

The <constructor> element holds one or more <argument> child elements that map SQL resultsets to

Working with Data Maps

DataMapper Guide Version 1.6.1 27

object argument constructor.

Example 3.27. Constructor element example

</constructor>

</resultMap>

3.5.3.1. argumentName

The argumentName attribute is the name of a constructor argument of the result object that will be

returned by the Mapped Statement.

3.5.3.2. column

The column attribute value is the name of the column in the result set from which the value will be

used to populate the argument.

3.5.3.3. columnIndex

As an optional (minimal) performance enhancement, the columnIndex attribute value is the index of

the column in the ResultSet from which the value will be used to populate the object argument. This

is not likely needed in 99% of applications and sacrifices maintainability and readability for speed.

Some providers may not realize any performance benefit, while others will speed up dramatically.

3.5.3.4. dbType

The dbType attribute is used to explicitly specify the database column type of the ResultSet column

that will be used to populate the argument. Although Result Maps do not have the same difficulties

with null values, specifying the type can be useful for certain mapping types such as Date properties.

Because an application language has one Date value type and SQL databases may have many

(usually at least 3), specifying the date may become necessary in some cases to ensure that dates (or

other types) are set correctly. Similarly, String types may be populated by a VarChar, Char or

CLOB, so specifying the type might be needed in those cases too.

3.5.3.5. type

The type attribute is used to explicitly specify the CLR argument type. Normally this can be derived

from a argument through reflection, but certain mappings that use objects such as a Map cannot

provide the type to the framework. If the attribute type is not set and the framework cannot

otherwise determine the type, the type is assumed to be Object. Section 6 details the CLR types and

available aliases that are supported by the framework.

3.5.3.6. resultMapping

Working with Data Maps

DataMapper Guide Version 1.6.1 28

The resultMapping attribute can be set to the name of another resultMap used to fill the argument.

If the resultMap is in an other mapping file, you must specified the fully qualified name.

3.5.3.7. nullValue

The nullValue attribute can be set to any valid value (based on argument type). The result element's

nullValue attribute is used to specify an inbound null value replacement. What this means is that

when the value is detected in a query's result column, the corresponding object argument will be set

to the the nullValue attribute's value. This allows you to use a "magic" null number in your

application for types that do not support null values (such as int,double,float).

3.5.3.8. select

The select attribute is used to describe a relationship between objects and to automatically load

complex (i.e. user defined) property types. The value of the statement property must be the name of

another mapped statement. The value of the database column (the column attribute) that is defined in

the same property element as this statement attribute will be passed to the related mapped statement

as the parameter. More information about supported primitive types and complex property

mappings/relationships is discussed later in this document. The lazyLoad attribute can be specified

with the select

3.5.3.9. typeHandler

The typeHandler attribute allows the use of a Custom Type Handler (see the Custom Type Handler

section). This allows you to extend the DataMapper's capabilities in handling types that are specific

to your database provider, are not handled by your database provider, or just happen to be a part of

your application design. You can create custom type handlers to deal with storing and retrieving

booleans and Guids from your database for example.

3.5.4. <result> Elements

The <resultMap> element holds one or more <result> child elements that map SQL resultsets to

object properties.

3.5.4.1. property

The property attribute is the name of a field or a property of the result object that will be returned

by the Mapped Statement. The name can be used more than once depending on the number of times

it is needed to populate the results.

3.5.4.2. column

The column attribute value is the name of the column in the result set from which the value will be

used to populate the property.

3.5.4.3. columnIndex

As an optional (minimal) performance enhancement, the columnIndex attribute value is the index of

the column in the ResultSet from which the value will be used to populate the object property. This

is not likely needed in 99% of applications and sacrifices maintainability and readability for speed.

Some providers may not realize any performance benefit, while others will speed up dramatically.

Working with Data Maps

DataMapper Guide Version 1.6.1 29

3.5.4.4. dbType

The dbType attribute is used to explicitly specify the database column type of the ResultSet column

that will be used to populate the object property. Although Result Maps do not have the same

difficulties with null values, specifying the type can be useful for certain mapping types such as Date

properties. Because an application language has one Date value type and SQL databases may have

many (usually at least 3), specifying the date may become necessary in some cases to ensure that

dates (or other types) are set correctly. Similarly, String types may be populated by a VarChar, Char

or CLOB, so specifying the type might be needed in those cases too.

3.5.4.5. type

The type attribute is used to explicitly specify the CLR property type of the parameter to be set.

Normally this can be derived from a property through reflection, but certain mappings that use

objects such as a Map cannot provide the type to the framework. If the attribute type is not set and

the framework cannot otherwise determine the type, the type is assumed to be Object. Section 6

details the CLR types and available aliases that are supported by the framework.

3.5.4.6. resultMapping

The resultMapping attribute can be set to the name of another resultMap used to fill the property. If

the resultMap is in an other mapping file, you must specified the fully qualified name as :

resultMapping="[namespace.sqlMap.]resultMappingId"

resultMapping="Newspaper"

resultMapping="LineItem.LineItem"

3.5.4.7. nullValue

The nullValue attribute can be set to any valid value (based on property type). The result element's

nullValue attribute is used to specify an inbound null value replacement. What this means is that

when the value is detected in a query's result column, the corresponding object property will be set

to the the nullValue attribute's value. This allows you to use a "magic" null number in your

application for types that do not support null values (such as int,double,float).

If your database has a NULLABLE column, but you want your application to represent NULL with

a constant value, you can specify it in the Result Map as shown in Example 3.25.

Example 3.28. Specifying a nullvalue attribute in a Result Map

</resultMap>

In Example 3.25, if PRD_SUB_CODE is read as NULL, then the subCode property will be set to the

value of -9999. This allows you to use a primitive type in your .NET class to represent a

NULLABLE column in the database. Remember that if you want this to work for queries as well as

updates/inserts, you must also specify the nullValue in the Parameter Map (discussed earlier in this

Working with Data Maps

DataMapper Guide Version 1.6.1 30

document).

3.5.4.8. select

The select attribute is used to describe a relationship between objects and to automatically load

complex (i.e. user defined) property types. The value of the statement property must be the name of

another mapped statement. The value of the database column (the column attribute) that is defined in

the same property element as this statement attribute will be passed to the related mapped statement

as the parameter. More information about supported primitive types and complex property

mappings/relationships is discussed later in this document. The lazyLoad attribute can be specified

with the select

3.5.4.9. lazyLoad

Use the lazyLoad attribute with the select attribute to indicate whether or not the select statement's

results should be lazy loaded. This can provide a performance boost by delaying the loading of the

select statement's results until they are needed/accessed.

Lazy loading is supported transparently for IList and IList<T> implementation.

Lazy loading is supported on strongly typed collection via Castle.DynamicProxy component. In this

case you must set the listClass attribute and declare all methods/properties of the typed collection

that you want to proxy as virtual.

Lazy loading is supported on concrete class via Castle.DynamicProxy component. In this case, you

must declare all methods/properties of the class that you want to proxy as virtual.

Example 3.29. Sample of strongly typed collection used with proxy call

[C#]

[Serializable]

public class LineItemCollection : CollectionBase

{

public LineItemCollection() {}

public virtual LineItem this[int index]

{

get { return (LineItem)List[index]; }

set { List[index] = value; }

}

public virtual int Add(LineItem value)

{

return List.Add(value);

}

public virtual void AddRange(LineItem[] value)

{

for (int i = 0; i < value.Length; i++)

{

Add(value[i]);

}

public virtual void AddRange(LineItemCollection value)

{

for (int i = 0; i < value.Count; i++)

{

Add(value[i]);

}

Working with Data Maps

DataMapper Guide Version 1.6.1 31

}

public virtual bool Contains(LineItem value)

{

return List.Contains(value);

}

public virtual void CopyTo(LineItem[] array, int index)

{

List.CopyTo(array, index);

}

public virtual int IndexOf(LineItem value)

{

return List.IndexOf(value);

}

public virtual void Insert(int index, LineItem value)

{

List.Insert(index, value);

}

public virtual void Remove(LineItem value)

{

List.Remove(value);

}

public new virtual int Count

{

get {return this.List.Count;}

}

Example 3.30. Concrete class

[C#]

[Serializable]

public class Person

{

...

public virtual string Name

{

get {return _name;}

}

...

}

3.5.4.10. typeHandler

The typeHandler attribute allows the use of a Custom Type Handler (see the Custom Type Handler

section). This allows you to extend the DataMapper's capabilities in handling types that are specific

to your database provider, are not handled by your database provider, or just happen to be a part of

your application design. You can create custom type handlers to deal with storing and retrieving

booleans and Guids from your database for example.

3.5.5. Custom Type Handlers

A custom type handler allows you to extend the DataMapper's capabilities in handling types that are

specific to your database provider, not handled by your database provider, or just happen to be part

of your application design. The .NET DataMapper provides an interface,

Working with Data Maps

DataMapper Guide Version 1.6.1 32

IBatisNet.DataMappers.TypeHandlers.ITypeHandlerCallback, for you to use in implementing your

custom type handler.

Example 3.31. ITypeHandlerCallback interface

using System.Data;

using IBatisNet.DataMapper.Configuration.ParameterMapping;

namespace IBatisNet.DataMapper.TypeHandlers

{

public interface ITypeHandlerCallback

{

void SetParameter(IParameterSetter setter, object parameter);

object GetResult(IResultGetter getter);

object ValueOf(string s);

}

The SetParameter method allows you to process a <statement> parameter's value before it is added

as an IDbCommand parameter. This enables you to do any necessary type conversion and clean-up

before the DataMapper gets to work. If needed, you also have access to the underlying

IDataParameter through the setter.DataParameter property.

The GetResult method allows you to process a database result value right after it has been retrieved

by the DataMapper and before it is used in your resultClass, resultMap, or listClass. If needed, you

also have access to the underlying IDataReader through the getter.DataReader property.

The ValueOf method allows you to compare a string representation of a value with one that you are

expecting and can handle appropriately. Typically, this is useful for translating a null value, but if

your application or database will not support a null value, you can basically return the given string.

When presented with an unexpected value, you can throw an appropriate exception.

One scenario that is familiar to .NET developers is the handling of a Guid type/structure. Many

providers do not handle Guid class properties well, and developers may be faced with littering their

domain objects with an additional set of property accessors to translate Guid properties into strings

and strings into Guids.

public class BudgetObjectCode

{

private string _code;

private string _description;

private Guid _guidProperty;

...

public Guid GuidProperty {

get { return _guidProperty; }

set { _guidProperty = value; }

}

public string GuidPropertyString {

get { return _guidProperty.ToString(); }

set {

if (value == null) {

_guidProperty = Guid.Empty;

}

else {

_guidProperty = new Guid(value.ToString());

}

Working with Data Maps

DataMapper Guide Version 1.6.1 33

...

}

We can use a custom type handler to clean up this domain class. First, we define a string that will

represent a null Guid value (Guid.Empty). We can then use that constant in our ValueOf null value

comparison for the DataMapper to eventually use in setting our domain class' Guid properties.

Implementing the GetResult and SetParameter methods is straightforward since we had been

basically doing the same translation in our domain class' GuidPropertyString accessors.

Example 3.32. Guid String Type Handler

using System;

using IBatisNet.DataMapper.TypeHandlers;

namespace BigApp.Common.TypeHandlers

{

/// <summary>

/// GuidVarcharTypeHandlerCallback.

/// </summary>

public class GuidVarcharTypeHandlerCallback : ITypeHandlerCallback

{

private const string GUIDNULL = "00000000-0000-0000-0000-000000000000";

public object ValueOf(string nullValue)

{

if (GUIDNULL.Equals(nullValue))

{

return Guid.Empty;

}

else

{

throw new Exception(

"Unexpected value " + nullValue +

" found where "+GUIDNULL+" was expected to represent a null value.");

}

public object GetResult(IResultGetter getter)

{

try {

Guid result = new Guid(getter.Value.ToString());

return result;

}

catch

{

throw new Exception(

"Unexpected value " + getter.Value.ToString() +

" found where a valid GUID string value was expected.");

}

public void SetParameter(IParameterSetter setter, object parameter)

{

setter.Value = parameter.ToString();

}

With our custom type handler, we can clean up our domain class and use the handler in our

SqlMaps. To do that, we have two options in configuring our custom type handler to be used by the

DataMapper. We can simply add it as a <typeAlias> and use it when needed in a parameterMap or

resultMap.

Working with Data Maps

DataMapper Guide Version 1.6.1 34

Example 3.33. Aliased Custom Type Handler in a SqlMap.xml file

<alias>

<typeAlias alias="GuidVarchar"

type="BigApp.Common.TypeHandlers.GuidVarcharTypeHandlerCallback,

BigApp.Common"/>

</alias>

</resultMap>

</resultMaps>

Or we can specify it as a basic <typeHandler> for all Guid types mapped in our SqlMap files.

<typeHandler> in SqlMap.config

Example 3.34. <typeHandler> in SqlMap.config

[Our SqlMap.config]

<alias>

<typeAlias alias="GuidVarchar"

type="BigApp.Common.TypeHandlers.GuidVarcharTypeHandlerCallback,

BigApp.Common"/>

</alias>

</typeHandlers>

[One of our SqlMap.xml files]

</parameterMap>

</parameterMaps>

</resultMap>

</resultMaps>

3.5.6. Inheritance Mapping

The iBATIS DataMapper supports the implementation of object-oriented inheritance (subclassing)

in your object model. There are several developer options for mapping entity classes and subclasses

to database results:

• resultMap for each class

Working with Data Maps

DataMapper Guide Version 1.6.1 35

• resultMap with submaps for a class hierarchy

• resultMap with extended resultMaps for each subclass

You can use the most efficient mapping strategies from a SQL and query performance perspective

when using the inheritance mappings of the DataMapper. To implement an inheritance mapping, the

resultMap must define one or more columns in your query's resultset that will serve to identify

which resultMap should be used to map each result record to a specific subclass. In many cases, you

will use one column value for the DataMapper to use in identifying the proper resultMap and

subclass. This column is known as a discriminator.

For example, we have a table defined in a database that contains Document records. There are five

table columns used to store Document IDs, Titles, Types, PageNumbers, and Cities. Perhaps this

table belongs to a legacy database, and we need to create an application using this table with a

domain model that defines a class hierarchy of different types of Documents. Or perhaps we are

creating a new application and database and just want to persist the data found in a set of related

classes into one table. In either case, the DataMapper's inheritance mapping feature can help.

// Database table Document

CREATE TABLE [Documents] (

[Document_ID] [int] NOT NULL ,

[Document_Title] [varchar] (32) NULL ,

[Document_Type] [varchar] (32) NULL ,

[Document_PageNumber] [int] NULL ,

[Document_City] [varchar] (32) NULL

)

To illustrate this, let's take a look at a few example classes shown below that have a relationship

through inheritance and whose properties can be persisted into our Documents table. First, we have a

base Document class that has Id and Title properties. Next, we have a Book class that inherits from

Document and contains an additional property called PageNumber. Last, we have a Newspaper class

that also inherits from Document and contains a City property.

Example 3.35. Documents, Books, and Newspapers!

// C# class

public class Document

{

private int _id = -1;

private string _title = string.Empty;

public int Id

{

get { return _id; }

set { _id = value; }

}

public string Title

{

get { return _title; }

set { _title = value; }

}

public class Book : Document

{

private int _pageNumber = -1;

public int PageNumber

{

get { return _pageNumber; }

set { _pageNumber = value; }

}

Working with Data Maps

DataMapper Guide Version 1.6.1 36

public class Newspaper : Document

{

private string _city = string.Empty;

public string City

{

get { return _city; }

set { _city = value; }

}

Now that we have our classes and database table, we can start working on our mappings. We can

create one <select> statement that returns all columns in the table. To help the DataMapper

discriminate between the different Document records, we're going to indicate that the

Document_Type column holds values that will distinguish one record from another for mapping the

results into our class hierarchy.

// Document mapping file

select

Document_Id, Document_Title, Document_Type,

Document_PageNumber, Document_City

from Documents

order by Document_Type, Document_Id

</select>

</resultMap>

<property="PageNumber" column="Document_PageNumber"/>

</resultMap>

<property="City" column="Document_City"/>

</resultMap>

The DataMapper compares the data found in the discriminator column to the different <submap>

values using the column value's string equivalence. Based on this string value, iBATIS DataMapper

will use the resultMap named "Book" or "Newspaper" as defined in the <submap> elements or it

will use the "super" resultMap "Document" if neither of the submap values satisfy the comparison.

With these resultMaps, we can implement an object-oriented inheritance mapping to our database

table.

If you want to use custom logic, you can use the typeHandler attribute of the <discriminator>

element to specify a custom type handler for the discriminator column.

Example 3.36. Complex disciminator usage with Custom Type Handler

<alias>

<typeAlias alias="CustomInheritance"

type="IBatisNet.DataMapper.Test.Domain.CustomInheritance, IBatisNet.DataMapper.Test"/>

</alias>

Working with Data Maps

DataMapper Guide Version 1.6.1 37

</resultMap>

</resultMaps>

The value of the typeHandler attribute specifies which of our classes implements the

ITypeHandlerCallback interface. This interface furnishes a GetResult method for coding custom

logic to read the column result value and return a value for the DataMapper to use in its comparison

to the resultMap's defined <submap> values.

Example 3.37. Example ITypeHandlerCallback interface implementation

public class CustomInheritance : ITypeHandlerCallback

{

#region ITypeHandlerCallback members

public object ValueOf(string nullValue)

{

throw new NotImplementedException();

}

public object GetResult(IResultGetter getter)

{

string type = getter.Value.ToString();

if (type=="Monograph" || type=="Book")

{

return "Book";

}

else if (type=="Tabloid" || type=="Broadsheet" || type=="Newspaper")

{

return "Newspaper";

}

else

{

return "Document";

}

public void SetParameter(IParameterSetter setter, object parameter)

{

throw new NotImplementedException();

}

#endregion

}

3.5.7. Implicit Result Maps

If the columns returned by a SQL statement match the result object, you may not need an explicit

Result Map. If you have control over the relational schema, you might be able to name the columns

so they also work as property names. In Example 3.33, the column names and property names

already match, so a result map is not needed.

Example 3.38. A Mapped Statement that doesn't need a Result Map

select

id,

description

from PRODUCT

where id = #value#

Working with Data Maps

DataMapper Guide Version 1.6.1 38

</statement>

Another way to skip a result map is to use column aliasing to make the column names match the

properties names, as shown in Example 3.34.

Example 3.39. A Mapped Statement using column alaising instead of a Result Map

select

PRD_ID as id,

PRD_DESCRIPTION as description

from PRODUCT

where PRD_ID = #value#

</statement>

Of course, these techniques will not work if you need to specify a column type, a null value, or any

other property attributes.

Case sensitivity can also be an issue with implicit result maps. Conceivably, you could have an

object with a "FirstName" property and a "Firstname" property. When iBATIS tries to match

property and column, the heurstic is case-insensitive and we cannot guarantee which property would

match. (Of course, very few developers would have two property names that were so simiilar.)

A final issue is that there is some performance overhead when iBATIS has to map the column and

property names automatically. The difference can be dramatic if using a third-party NET database

provider with poor support for ResultSetMetaData.

3.5.8. Primitive Results (i.e. String, Integer, Boolean)

Many times, we don't need to return an object with multiple properties. We just need a String,

Integer, Boolean, and so forth. If you don't need to populate an object, iBATIS can return one of the

primitive types instead. If you just need the value, you can use a standard type as a result class, as

shown in Example 3.35.

Example 3.40. Selecting a standard type

select count(1)

from PRODUCT

</select>

If need be, you can refer to the standard type using a marker token, "value", as shown by Example

3.36.

Example 3.41. Loading a simple list of product descriptions

</resultMap>

Working with Data Maps

DataMapper Guide Version 1.6.1 39

3.5.9. Maps with ResultMaps

Instead of a rich object, sometimes all you might need is a simple key/value list of the data, where

each property is an entry on the list. If so, Result Maps can populate a IDictionary instance as easily

as property objects. The syntax for using a IDictionary is identical to the rich object syntax. As

shown in Example 3.37, only the result object changes.

Example 3.42. Result Maps can use generic "entry-type" objects

</resultMap>

In Example 3.37, an instance of HashTable would be created for each row in the result set and

populated with the Product data. The property name attributes, like id,code, and so forth, would be

the key of the entry, and the value of the mapped columns would be the value of the entry.

As shown in Example 3.38, you can also use an implicit Result Map with a IDictionary type.

Example 3.43. Implicit Result Maps can use "entry-type" objects too

select * from PRODUCT

</statement>

What set of entries is returned by Example xx depends on what columns are in the result set. If the

set of column changes (because columns are added or removed), the new set of entries would

automatically be returned.

Note

Certain providers may return column names in upper case or lower case format. When accessing

values with such a provider, you will have to pass the Hashtable or HashMap key name in the

expected case.

3.5.10. Complex Properties

In a relational database, one table will often refer to another. Likewise, some of your business

objects may include another object or list of objects. Types that nest other types are called "complex

types". You may not want a statement to return a simple type, but a fully-formed compex type.

In the database, a related column is usually represented via a 1:1 relationship, or a 1:M relationship

where the class that holds the complex property is from the "many side" of the relationship and the

property itself is from the "one side" of the relationship. The column returned from the database will

not be the property we want; it is a key to be used in another query.

From the framework's perspective, the problem is not so much loading a complex type, but loading

Working with Data Maps

DataMapper Guide Version 1.6.1 40

each "complex property". To solve this problem, you can specify in the Result Map a statement to

run to load a given property. In Example 3.39, the "category" property of the "select-product-result"

element is a complex property.

Example 3.44. A Result Map with a Complex Property

</resultMap>

</resultMap>

</resultMaps>

select * from PRODUCT where PRD_ID = #value#

</select>

select * from CATEGORY where CAT_ID = #value#

</select>

</statements>

In Example 3.39, the framework will use the "selectCategory" statement to populate the "category"

property. The value of each category is passed to the "selectCategory" statement, and the object

returned is set to the category property. When the process completes, each Product instance will

have the the appropriate category object instance set.

3.5.11. Avoiding N+1 Selects (1:1)

A problem with Example 3.39 may be that whenever you load a Product, two statements execute:

one for the Product and one for the Category. For a single Product, this issue may seem trivial. But if

you load 10 products, then 11 statements execute. For 100 Products, instead of one statement

product statement executing, a total of 101 statements execute. The number of statements executing

for Example 3.40 will always be N+1: 100+1=101.

Example 3.45. N+1 Selects (1:1)

</resultMap>

</resultMap>

</resultMaps>

Working with Data Maps

DataMapper Guide Version 1.6.1 41

select * from PRODUCT

</select>

select * from CATEGORY where CAT_ID = #value#

</select>

</statements>

One way to mitigate the problem is to cache the "selectCategory" statement . We might have a

hundred products, but there might only be five categories. Instead of running a SQL query or stored

procedure, the framework will return the category object from it cache. A 101 statements would still

run, but they would not be hitting the database. (See Section 3.8 for more about caches.)

Another solution is to use a standard SQL join to return the columns you need from the another

table. A join can bring all the columns we need over from the database in a single query. When you

have a nested object, you can reference nested properties using a dotted notation, like

"category.description".

Example 3.41 solves the same problem as Example 3.40, but uses a join instead of nested properties.

Example 3.46. Resolving complex properties with a join

</resultMap>

</resultMaps>

select *

from PRODUCT, CATEGORY

where PRD_CAT_ID=CAT_ID

and PRD_ID = #value#

</statement>

</statements>

Lazy Loading vs. Joins (1:1)

It's important to note that using a join is not always better. If you are in a situation where it is rare to

access the related object (e.g. the category property of the Product class) then it might actually be faster to

avoid the join and the unnecessary loading of all category properties. This is especially true for database

designs that involve outer joins or nullable and/or non-indexed columns. In these situations it might be

better to use the sub-select solution with lazy loading enabled. The general rule of thumb is: use the join

if you're more likely going to access the associated properties than not. Otherwise, only use it if lazy

loading is not an option.

If you're having trouble deciding which way to go, don't worry. No matter which way you go, you can

always change it without impacting your application source code. Example 3.40 and 3.41 result in exactly

the same object graph and are loaded using the exact same method call from the application. The only

consideration is that if you were to enable caching, then the using the separate select (not the join)

Working with Data Maps

DataMapper Guide Version 1.6.1 42

solution could result in a cached instance being returned. But more often than not, that won't cause a

problem (your application shouldn't be dependent on instance level equality i.e. "==").

3.5.12. Complex Collection Properties

It is also possible to load properties that represent lists of complex objects. In the database the data

would be represented by a M:M relationship, or a 1:M relationship where the class containing the list

is on the "one side" of the relationship and the objects in the list are on the "many side". To load an

IList of objects, there is no change to the statement (see example above). The only difference

required to cause the iBATIS DataMapper framework to load the property as an IList is that the

property on the business object must be of type System.Collections.IList. For example, if a Category

has a IList of Product instances, the mapping would look like this (assuming Category has a property

called "ProductList" of System.Collections.IList.):

Example 3.47. Mapping that creates a list of complex objects

</resultMap>

</resultMap>

select * from CATEGORY where CAT_ID = #value#

</statement>

select * from PRODUCT where PRD_CAT_ID = #value#

</statement>

</statements>

3.5.13. Avoiding N+1 Select Lists (1:M and M:N)

This is similar to the 1:1 situation above, but is of even greater concern due to the potentially large

amount of data involved. The problem with the solution above is that whenever you load a Category,

two SQL statements are actually being run (one for the Category and one for the list of associated

Products). This problem seems trivial when loading a single Category, but if you were to run a query

that loaded ten (10) Categories, a separate query would be run for each Category to load its

associated list of Products. This results in eleven (11) queries total: one for the list of Categories and

one for each Category returned to load each related list of Products (N+1 or in this case 10+1=11).

To make this situation worse, we're dealing with potentially large lists of data.

Example 3.48. N+1 Select Lists (1:M and M:N), example of problem

Working with Data Maps

DataMapper Guide Version 1.6.1 43

</resultMap>

</resultMap>

select * from CATEGORY where CAT_ID = #value#

</statement>

<!-- This statement executes N times (once for each category returned above)

and returns a list of Products (1:M) -->

select * from PRODUCT where PRD_CAT_ID = #value#

</statement>

</statements>

iBATIS fully solves the N+1 selects problem. Here is the same example solved :

Example 3.49. N+1 Select Lists (1:M and M:N) resolution

</resultMap>

</resultMap>

select C.CAT_ID, C.CAT_DESCRIPTION, P.PRD_ID, P.PRD_DESCRIPTION

from CATEGORY C

left outer join PRODUCT P

on C.CAT_ID = P.PRD_CAT_ID

where CAT_ID = #value#

</statement>

When you call...

IList myList = sqlMap.QueryForList("SelectCategory", 1002);

...the main query is executed, and the results are stored in the myList variable containing .NET type

Working with Data Maps

DataMapper Guide Version 1.6.1 44

"Category" element . Each object in that List will have a "ProductList" property that is also a List

populated from the same query, but using the "Product-result" result map to populate the element in

the child list. So, you end up with a list containing sub-lists, and only one database query is

executed.

The important items here are the...

groupBy="Id"

...attribute and the...

...property mapping in the "Category-result" result map. One other important detail is that the result

mapping for the ProductList property is namespace aware - had it been simply "Product-result" it

would not work. Using this approach, you can solve any N+1 problem of any depth or breadth.

Lazy Loading vs. Joins (1:M and M:N)

As with the 1:1 situation described previously, it's important to note that using a join is not always better.

This is even more true for collection properties than it was for individual value properties due to the

greater amount of data. If you are in a situation where it is rare to access the related object (e.g. the

ProductList property of the Category class) then it might actually be faster to avoid the join and the

unnecessary loading of the list of products. This is especially true for database designs that involve outer

joins or nullable and/or non-indexed columns. In these situations it might be better to use the sub-select

solution with the lazy loading. The general rule of thumb is: use the join if you're more likely going to

access the associated properties than not. Otherwise, only use it if lazy loading is not an option.

As mentioned earlier, if you're having trouble deciding which way to go, don't worry. No matter which

way you go, you can always change it without impacting your .NET code. The two examples above

would result in exactly the same object graph and are loaded using the exact same method call. The only

consideration is that if you were to enable caching, then the using the separate select (not the join)

solution could result in a cached instance being returned. But more often than not, that won't cause a

problem (your application should not be dependent on instance level equality i.e. "==").

3.5.14. Composite Keys or Multiple Complex Parameters Properties

You might have noticed that in the above examples there is only a single key being used as specified

in the resultMap by the column attribute. This would suggest that only a single column can be

associated to a related mapped statement. However, there is an alternate syntax that allows multiple

columns to be passed to the related mapped statement. This comes in handy for situations where a

composite key relationship exists, or even if you simply want to use a parameter of some name other

than #value#. The alternate syntax for the column attribute is simply param1=column1,

param2=column2, …, paramN=columnN. Consider the example below where the PAYMENT table

is keyed by both Customer ID and Order ID:

Example 3.50. Mapping a composite key

Working with Data Maps

DataMapper Guide Version 1.6.1 45

...

<result property="payments" column="itemId=ORD_ID, custId=ORD_CST_ID"

select="selectOrderPayments"/>

</resultMap>

select * from PAYMENT

where PAY_ORD_ID = #itemId#

and PAY_CST_ID = #custId#

</statement>

</statements>

Optionally you can just specify the column names as long as they're in the same order as the

parameters. For example:

ORD_ID, ORD_CST_ID

As usual, this is a slight performance gain with an impact on readability and maintainability.

Important! Currently the iBATIS DataMapper framework does not automatically resolve circular

relationships. Be aware of this when implementing parent/child relationships (trees). An easy

workaround is to simply define a second result map for one of the cases that does not load the parent

object (or vice versa), or use a join as described in the "N+1 avoidance" solutions.

Note

Result Map names are always local to the Data Map definition file that they are defined in. You can

refer to a Result Map in another Data Map definition file by prefixing the name of the Result Map

with the namespace of the SqlMap set in the <sqlMap> root element.

3.6. Supported Types for Parameter Maps and Result Maps

Table 3.4 shows the basic Supported Types for Parameter Maps and Result Maps for .NET. You can

extend the framework's support for additional types by using a Custom Type Handler.

Note

Nuallable type from .NET 2.0 are fully supported by iBATIS.NET.

Table 3.4. Supported Types for Parameter Maps and Result Maps (.NET)

CLR Type Object/Map Property

Mapping Result Class/Parameter

Class** Type Alias**

System.ArrayList Yes Yes list

System.Boolean Yes Yes Boolean, bool

System.Byte Yes Yes Byte, byte

System.Char Yes Yes Char, char

Working with Data Maps

DataMapper Guide Version 1.6.1 46

CLR Type Object/Map Property

Mapping Result Class/Parameter

Class** Type Alias**

System.DateTime Yes Yes dateTime, date

System.Decimal Yes Yes Decimal, decimal

System.Double Yes Yes Double, double

System.Guid Yes Yes guid

System.Hashtable Yes Yes map, hashmap, hashtable

System.Int16 Yes Yes Int16, short, Short

System.Int32 Yes Yes Int32, int, Int, integer,

Integer

System.Int64 Yes Yes Int64, long, Long

System.SByte Yes Yes SByte, sbyte

System.Single Yes Yes Float, float, Single, single

System.String Yes Yes String, string

System.TimeSpan Yes Yes N/A

System.UInt16 Yes Yes Short, short

System.UInt32 Yes Yes Uint, uint

System.UInt64 Yes Yes Ulong, ulong

Nullable<bool> Yes Yes bool?

Nullable<byte> Yes Yes byte?

Nullable<char> Yes Yes char?

Nullable<DateTime> Yes Yes DateTime?

Nullable<decimal> Yes Yes decimal?

Nullable<double> Yes Yes double?

Nullable<Int16> Yes Yes Int16?

Nullable<Int32> Yes Yes Int32?

Nullable<Int64> Yes Yes Int64?

Nullable<SByte> Yes Yes SByte?

Nullable<Single> Yes Yes Single?

Nullable<UInt16> Yes Yes UInt16?

Nullable<UInt32> Yes Yes UInt32?

Nullable<UInt64> Yes Yes UInt64?

Working with Data Maps

DataMapper Guide Version 1.6.1 47

3.7. Supported database types for Parameter Maps and Result

Maps

Table 3.5 shows the basic Supported DbTypes for Parameter Maps and Result Maps for .NET that

come with the System.Data and System.Data.OracleClient assemblies. See the .NET Developer

Guide section on configuring the DataMapper to work with your provider's DbTypes.

Note

Nuallable type from .NET 2.0 are fully supported by iBATIS.NET.

The .NET Framework data provider type of a Parameter object is inferred from the .NET Framework

type of the Value of the Parameter object, or from the DbType of the Parameter object. The

following table shows the inferred Parameter type based on the object passed as the Parameter value

or the specified DbType. You may specify the type of a Parameter in a generic fashion by setting the

DbType property of the Parameter object to a particular System.Data.DbType specific to your

database.

Table 3.5. Supported DbTypes for Parameter Maps and Result Maps (.NET)

CLR Type iBATIS

support SqlDbType OleDbType OdbcType OracleType

Byte[] Yes Binary, Image,

VarBinary

Binary,

VarBinary

Binary, Image,

VarBinary

Raw

Boolean, bool? Yes Bit Boolean Bit Byte

Byte, byte? Yes TinyInt - TinyInt Byte

DateTime,

DateTime?

Yes DateTime,

SmallDateTime

Date Date, DateTime,

SmallDateTime,

Time

DateTime

char, char? Yes Not supported Char Char Byte

Decimal,

decimal?

Yes Decimal,

Money,

SmallMoney

Decimal,

Currency,

Numeric

Decimal,

Numeric

Number

Double, double? Yes Float Double Double Double

Guid, Guid? Yes UniqueIdentifier Guid UniqueIdentifier Raw

Int16, Int16? Yes SmallInt SmallIInt SmallInt Int16

Int32, Int32? Yes Int Integer Int Int32

Int64, Int64? Yes BigInt BigInt BigInt Number

Single, Single? Yes Real Single Real Float

String Yes Char, Nchar,

NVarchar, Text,

VarChar

Char, VarChar Char, NChar,

NText,

NVarChar,

Text, VarChar

NVarChar,

VarChar

TimeSpan No Not supported DBTime Time DateTime

Working with Data Maps

DataMapper Guide Version 1.6.1 48

CLR Type iBATIS

support SqlDbType OleDbType OdbcType OracleType

UInt16, UInt16? yes Int - - UInt16

UInt32, UInt32? yes Decimal - - UInt32

UInt64, UInt64? yes Decimal - - Number

3.8. Cache Models

Some values in a database are know to change slower than others. To improve performance, many

developers like to cache often-used data to avoid making unnecessary trips back to the database.

iBATIS provides its own caching system, that you configure through a <cacheModel> element.

The results from a query Mapped Statement can be cached simply by specifying the cacheModel

parameter in the statement tag (seen above). A cache model is a configured cache that is defined

within your DataMapper configuration file. Cache models are configured using the cacheModel

element as follows:

Example 3.51. Configuation a cache using the Cache Model element

</cacheModel>

The cache model above will create an instance of a cache named "product-cache" that uses a Least

Recently Used (LRU) implementation. The value of the type attribute is either a fully qualified class

name, or an alias for one of the included implementations (see below). Based on the flush elements

specified within the cache model, this cache will be flushed every 24 hours. There can be only one

flush interval element and it can be set using hours, minutes, seconds or milliseconds. In addition the

cache will be flushed whenever the insertProduct, updateProduct, or deleteProduct mapped

statements are executed. There can be any number of "flush on execute" elements specified for a

cache. Some cache implementations may need additional properties, such as the ‘cache-size'

property demonstrated above. In the case of the LRU cache, the size determines the number of

entries to store in the cache. Once a cache model is configured, you can specify the cache model to

be used by a mapped statement, for example:

Example 3.52. Specifying a Cache Model from a Mapped Statement

select * from PRODUCT where PRD_CAT_ID = #value#

</statement>

3.8.1. Read-Only vs. Read/Write

Working with Data Maps

DataMapper Guide Version 1.6.1 49

The framework supports both read-only and read/write caches. Read-only caches are shared among

all users and therefore offer greater performance benefit. However, objects read from a read-only

cache should not be modified. Instead, a new object should be read from the database (or a

read/write cache) for updating. On the other hand, if there is an intention to use objects for retrieval

and modification, a read/write cache is recommended (i.e. required). To use a read-only cache, set

readOnly="true" on the cache model element. To use a read/write cache, set readOnly="false". The

default is read-only (true).

3.8.2. Serializable Read/Write Caches

As you may agree, caching per-session as described above may offer little benefit to global

application performance. Another type of read/write cache that can offer a performance benefit to

the entire application (i.e. not just per session) is a serializable read/write cache. This cache will

return different instances (copies) of the cached object to each session. Therefore each session can

safely modify the instance returned. Realize the difference in semantics here, usually you would

expect the same instance to be returned from a cache, but in this case you'll get a different one. Also

note that every object stored by a serializable cache must be serializable. This means that you will

have difficulty using both lazy loading features combined with a serializable cache, because lazy

proxies are not serializable. The best way to figure out what combination of caching, lazy loading

and table joining is simply to try it out. To use a serializable cache, set readOnly="false" and

serialize="true". By default cache models are read-only and non-serializable. Read-only caches will

not be serialized (there's no benefit).

3.8.3. Cache Implementation

The cache model uses a pluggable framework for supporting different types of caches. The choice of

cache is specified in the "implementation" attribute of the cacheModel element as discussed above.

The class name specified must be an implementation of the ICacheController interface, or one of the

three aliases discussed below. Further configuration parameters can be passed to the implementation

via the property elements contained within the body of the cacheModel. Currently there are 3

implementations included with the .NET distribution. These are as follows:

3.8.4. "MEMORY"

The MEMORY cache implementation uses reference types to manage the cache behavior. That is,

the garbage collector effectively determines what stays in the cache or otherwise. The MEMORY

cache is a good choice for applications that don't have an identifiable pattern of object reuse, or

applications where memory is scarce.

The MEMORY implementation is configured as follows:

Example 3.53. Configuring a memory-type cache

</cacheModel>

Only a single property is recognized by the MEMORY cache implementation. This property, named

Working with Data Maps

DataMapper Guide Version 1.6.1 50

'reference-type' must be set to a value of STRONG, SOFT, or WEAK.

The following table describes the different reference types that can be used for a MEMORY cache.

Table 3.6. Reference types that can be used for a MEMORY cache

Type Description

WEAK (default) This reference type is probably the best choice in

most cases and is the default if the reference-type is

not specified. It will increase performance for popular

results, but it will absolutely release the memory to be

used in allocating other objects, assuming that the

results are not currently in use.

SOFT (currently Java only) This reference type will reduce the likelihood of

running out of memory in case the results are not

currently in use and the memory is needed for other

objects. However, this is not the most aggressive

reference type in that regard and memory still might

be allocated and made unavailable for more important

objects.

STRONG This reference type will guarantee that the results stay

in memory until the cache is explicitly flushed (e.g.

by time interval or flush on execute). This is ideal for

results that are: 1) very small, 2) absolutely static, and

3) used very often. The advantage is that performance

will be very good for this particular query. The

disadvantage is that if the memory used by these

results is needed, then it will not be released to make

room for other objects (possibly more important

objects).

3.8.5. "LRU"

The LRU cache implementation uses an Least Recently Used algorithm to determines how objects

are automatically removed from the cache. When the cache becomes over full, the object that was

accessed least recently will be removed from the cache. This way, if there is a particular object that

is often referred to, it will stay in the cache with the least chance of being removed. The LRU cache

makes a good choice for applications that have patterns of usage where certain objects may be

popular to one or more users over a longer period of time (e.g. navigating back and forth between

paginated lists, popular search keys etc.).

The LRU implementation is configured as follows:

Example 3.54. Configuring a LRU type cache

Working with Data Maps

DataMapper Guide Version 1.6.1 51

</cacheModel>

Only a single property is recognized by the LRU cache implementation. This property, named

CacheSize must be set to an integer value representing the maximum number of objects to hold in

the cache at once. An important thing to remember here is that an object can be anything from a

single String instance to an ArrayList of object. So take care not to store too much in your cache and

risk running out of memory!

3.8.6. "FIFO"

The FIFO cache implementation uses an First In First Out algorithm to determines how objects are

automatically removed from the cache. When the cache becomes over full, the oldest object will be

removed from the cache. The FIFO cache is good for usage patterns where a particular query will be

referenced a few times in quick succession, but then possibly not for some time later.

The FIFO implementation is configured as follows:

Example 3.55. Configuring a FIFO type cache

</cacheModel>

Only a single property is recognized by the FIFO cache implementation. This property, named

CacheSize must be set to an integer value representing the maximum number of objects to hold in

the cache at once. An important thing to remember here is that an object can be anything from a

single String instance to an ArrayList of object. So take care not to store too much in your cache and

risk running out of memory

3.9. Dynamic SQL

A very common problem with working directly with ADO is dynamic SQL. It is normally very

difficult to work with SQL statements that change not only the values of parameters, but which

parameters and columns are included at all. The typical solution is usually a mess of conditional

if-else statements and horrid string concatenations. The desired result is often a query by example,

where a query can be built to find objects that are similar to the example object. The iBATIS

DataMapper API provides a relatively elegant solution that can be applied to any mapped statement

element. Here is a simple example:

Example 3.56. A simple dynamic select sttatement, with two possible outcomes

select * from ACCOUNT

where ACC_ID = #Id#

</isGreaterThan>

order by ACC_LAST_NAME

Working with Data Maps

DataMapper Guide Version 1.6.1 52

</select>

In the above example, there are two possible statements that could be created depending on the state

of the Id property of the parameter object. If the Id parameter is greater than 0, then the statement

will be created as follows:

select * from ACCOUNT where ACC_ID = ?

Or if the Id parameter is 0 or less, the statement will look as follows.

select * from ACCOUNT

The immediate usefulness of this might not become apparent until a more complex situation is

encountered. For example, the following is a somewhat more complex example.

Example 3.57. A complex dynamic select statement, with 16 possible outcomes

select * from ACCOUNT

( ACC_FIRST_NAME = #FirstName#

ACC_LAST_NAME = #LastName#

</isNotNull>

)

</isNotNull>

ACC_EMAIL like #EmailAddress#

</isNotNull>

ACC_ID = #Id#

</isGreaterThan>

</dynamic>

order by ACC_LAST_NAME

</select>

Depending on the situation, there could be as many as 16 different SQL queries generated from the

above dynamic statement. To code the if-else structures and string concatenations could get quite

messy and require hundreds of lines of code.

Using dynamic statements is as simple as inserting some conditional tags around the dynamic parts

of your SQL. For example:

Example 3.58. Creating a dynamic statement with conditional tags

select * from ACCOUNT

ACC_ID = #id#

</isGreaterThan>

Working with Data Maps

DataMapper Guide Version 1.6.1 53

ACC_LAST_NAME = #lastName#

</isNotNull>

</dynamic>

order by ACC_LAST_NAME

</statement>

In the above statement, the <dynamic> element demarcates a section of the SQL that is dynamic.

The dynamic element is optional and provides a way to manage a prepend in cases where the

prepend ("WHERE") should not be included unless the contained conditions append to the

statement. The statement section can contain any number of conditional elements (see below) that

will determine whether the contained SQL code will be included in the statement. All of the

conditional elements work based on the state of the parameter object passed into the query. Both the

dynamic element and the conditional elements have a "prepend" attribute. The prepend attribute is a

part of the code that is free to be overridden by the a parent element's prepend if necessary. In the

above example the "where" prepend will override the first true conditional prepend. This is

necessary to ensure that the SQL statement is built properly. For example, in the case of the first true

condition, there is no need for the AND, and in fact it would break the statement. The following

sections describe the various kinds of elements, including Binary Conditionals, Unary Conditionals,

and Iterate.

3.9.1. Binary Conditional Elements

Binary conditional elements compare a property value to a static value or another property value. If

the result is true, the body content is included in the SQL query.

3.9.1.1. Binary Conditional Attributes:

prepend – the overridable SQL part that will be prepended to the statement (optional)

property – the property to be compared (required)

compareProperty – the other property to be compared (required or compareValue)

compareValue – the value to be compared (required or compareProperty)

Table 3.7. Binary conditional attributes

Element Description

<isEqual> Checks the equality of a property and a value, or

another property. Example Usage:

<isEqual prepend="AND"

property="status"

compareValue="Y">

MARRIED = ‘TRUE'

</isEqual>

<isNotEqual> Checks the inequality of a property and a value, or

another property. Example Usage:

<isNotEqual prepend="AND"

property="status"

compareValue="N">

MARRIED = ‘FALSE'

</isNotEqual>

Working with Data Maps

DataMapper Guide Version 1.6.1 54

Element Description

<isGreaterThan> Checks if a property is greater than a value or another

property. Example Usage:

<isGreaterThan prepend="AND"

property="age"

compareValue="18">

ADOLESCENT = ‘FALSE'

</isGreaterThan>

<isGreaterEqual> Checks if a property is greater than or equal to a value

or another property. Example Usage:

<isGreaterEqual prepend="AND"

property="shoeSize"

compareValue="12">

BIGFOOT = ‘TRUE'

</isGreaterEqual>

<isLessEqual> Checks if a property is less than or equal to a value or

another property. Example Usage:

<isLessEqual prepend="AND"

property="age"

compareValue="18">

ADOLESCENT = ‘TRUE'

</isLessEqual>

3.9.2. Unary Conditional Elements

Unary conditional elements check the state of a property for a specific condition.

3.9.2.1. Unary Conditional Attributes:

prepend – the overridable SQL part that will be prepended to the statement (optional)

property – the property to be checked (required)

Table 3.8. Unary conditional attributes

Element Description

<isPropertyAvailable> Checks if a property is available (i.e is a property of

the parameter object). Example Usage:

ACCOUNT_ID=#id#

</isPropertyAvailable>

<isNotPropertyAvailable> Checks if a property is unavailable (i.e not a property

of the parameter object). Example Usage:

STATUS='New'

</isNotEmpty>

<isNull> Checks if a property is null. Example Usage:

Working with Data Maps

DataMapper Guide Version 1.6.1 55

Element Description

ACCOUNT.ACCOUNT_ID = ORDER.ACCOUNT_ID(+)

</isNotEmpty>

<isNotNull> Checks if a property is not null. Example Usage:

ORDER.ORDER_ID = #order.id#

</isNotEmpty>

<isEmpty> Checks to see if the value of a Collection, String

property is null or empty ("" or size() < 1). Example

Usage:

LIMIT 0, 20

</isNotEmpty>

<isNotEmpty> Checks to see if the value of a Collection, String

property is not null and not empty ("" or size() < 1).

Example Usage:

FIRST_NAME LIKE '%$FirstName$%'

</isNotEmpty>

3.9.3. Parameter Present Elements

These elements check for parameter object existence.

3.9.3.1. Parameter Present Attributes:

prepend – the overridable SQL part that will be prepended to the statement (optional)

Table 3.9. Testing to see if a parameter is present

Element Description

<isParameterPresent> Checks to see if the parameter object is present (not

null).

EMPLOYEE_TYPE = #empType#

</isParameterPresent>

<isNotParameterPresent> Checks to see if the parameter object is not present

(null). Example Usage:

EMPLOYEE_TYPE = ‘DEFAULT'

</isNotParameterPresent>

Working with Data Maps

DataMapper Guide Version 1.6.1 56

3.9.4. Iterate Element

This tag will iterate over a collection and repeat the body content for each item in a List

3.9.4.1. Iterate Attributes:

prepend – the overridable SQL part that will be prepended to the statement (optional)

property – a property of type IList that is to be iterated over (required)

open – the string with which to open the entire block of iterations, useful for brackets (optional)

close – the string with which to close the entire block of iterations, useful for brackets (optional)

conjunction – the string to be applied in between each iteration, useful for AND and OR (optional)

Table 3.10. Creating a list of conditional clauses

Element Description

<iterate> Iterates over a property that is of type IList Example

Usage:

<iterate prepend="AND" property="UserNameList"

open="(" close=")" conjunction="OR">

username=#UserNameList[]#

</iterate>

Note: It is very important to include the square

brackets[] at the end of the List property name when

using the Iterate element. These brackets distinguish

this object as an List to keep the parser from simply

outputting the List as a string.

3.9.5. Simple Dynamic SQL Elements

Despite the power of the full Dynamic Mapped Statement API discussed above, sometimes you just

need a simple, small piece of your SQL to be dynamic. For this, SQL statements and statements can

contain simple dynamic SQL elements to help implement dynamic order by clauses, dynamic select

columns or pretty much any part of the SQL statement. The concept works much like inline

parameter maps, but uses a slightly different syntax. Consider the following example:

Example 3.59. A dynamic element that changes the collating order

select * from PRODUCT order by $preferredOrder$

</statement>

In the above example the preferredOrder dynamic element will be replaced by the value of the

preferredOrder property of the parameter object (just like a parameter map). The difference is that

this is a fundamental change to the SQL statement itself, which is much more serious than simply

setting a parameter value. A mistake made in a Dynamic SQL Element can introduce security,

performance and stability risks. Take care to do a lot of redundant checks to ensure that the simple

Working with Data Maps

DataMapper Guide Version 1.6.1 57

dynamic SQL elements are being used appropriately. Also, be mindful of your design, as there is

potential for database specifics to encroach on your business object model. For example, you may

not want a column name intended for an order by clause to end up as a property in your business

object, or as a field value on your server page.

Simple dynamic elements can be included within <statements> and come in handy when there is a

need to modify the SQL statement itself. For example:

Example 3.60. A dynamic element that changes the comparison operator

SELECT * FROM PRODUCT

PRD_DESCRIPTION $operator$ #Description#

</isNotEmpty>

</dynamic>

</statement>

In the above example the operator property of the parameter object will be used to replace the

$operator$ token. So if the operator property was equal to LIKE and the description property was

equal to %dog%, then the SQL statement generated would be:

SELECT * FROM PRODUCT WHERE PRD_DESCRIPTION LIKE ‘%dog%'

Working with Data Maps

DataMapper Guide Version 1.6.1 58

Chapter 4. .NET Developer Guide

4.1. Introduction

This section explains how to install, configure, and use the iBATIS DataMapper with your .NET

application. It is assumed that you are using Microsoft Visual Studio .NET (VSN). If you are using

another IDE, please modify these instructions accordingly.

4.2. Installing the DataMapper for .NET

There are four steps to using iBATIS DataMapper with your application for the first time.

1. Setup the distribution

2. Add assembly references

3. Visual Studio.NET Integration

4. Add XML documents

4.2.1. Setup the Distribution

The official site for iBATIS DataMapper for .NET is our Apache site <http://ibatis.apache.org/>.

The DataMapper is availabe in 2 types of distributions: a binary distribution that includes the

required DataMapper assemblies and a source distribution that includes a VSN solution. To

download either of the distributions, follow the link to the Downloads area on our web site, and

select the either the binary or source distribution for the iBATIS .NET DataMapper release (if you

download the binary distribution, extract the files using a utility like WinZip or the extractor built

into newer versions of Windows and skip ahead to the Add Assembly References section).

The DataMapper source distribution includes a VSN solution and a number of C# projects. The

distribution is in the form of a ZIP archive. You can extract the distribution using a utility like

WinZip or the extractor built into newer versions of Windows. We suggest that you create an

ibatisnet folder in your VSN project directory and extract the distribution there.

Under the distribution's source folder are eight folders that make up the iBATIS.NET distribution,

as shown in Table 4.1.

Table 4.1. Folders found in the iBATIS.NET source distribution

Folder name Description

External-Bin Dependency assemblies provided for your

convenience.

IBatisNet.Common Assembly of classes shared by DataAccess and

DataMapper

IBatisNet.Common.Logging.Log4Net Log4Net factory adapter classes

IBatisNet.Common.Test Test project for IBatisNet.Common that can be used

DataMapper Guide Version 1.6.1 59

Folder name Description

with NUnit

IBatisNet.DataAccess The Data Access Objects framework (see separate

DAO Guide)

IBatisNet.DataAccess.Extensions Contains a C# project for extensions to the

DataAccess framework such as NHibernate support

IBatisNet.DataAccess.Test Test project for the DataAccess framework that can

be used with NUnit

iBatisNet.DataMapper The DataMapper framework

IBatisNet.DataMapper.Test Test project for the DataMapper that can be used with

NUnit

You can load the IBatisNet.sln solution file into VSN and build the solution to generate the

needed assemblies. There are seven projects in the solution, and all should succeed. The assemblies

we need will be created under \source\IBatisNet.DataMapper\bin\Debug. The created assemblies

are :

1. IBatisNet.Common.dll

2. iBatisNet.DataMapper.dll

The DataMapper has external dependencies on :

1. Castle.DynamicProxy.dll (creating proxies)

This dependencies can be found in the External-Bin folder and/or in the bin\Debug folder after

building the solution.

Tip

If you will not be using the DataAccess framework and NHibernate and you have a problem

building the solution due to the dependency on NHibernate, simply remove the

IBatisNet.DataAccess.Extensions and IBatisNet.DataAccess.Test projects from the solution before

building.

4.2.2. Add Assembly References

Switching to your own solution, open the project that will be using the iBATIS .NET DataMapper.

Depending on how you organize your solutions, this may or may not be the project for your

Windows or Web application. It may be a library project that your application project references.

You will need to add one or two references to your project:

1. IBatisNet.DataMapper.dll

2. IBatisNet.DataAccess.dll (optional)

3. IBatisNet.Common.dll (implied)

4. Castle.DynamicProxy.dll (implied)

.NET Developer Guide

DataMapper Guide Version 1.6.1 60

If you are using the Mapper singleton (see section 4.4.1), then the only reference you will need is to

the DataMapper assembly. The Common and Castle.DynamicProxy assemblies are needed at

runtime, but Visual Studio.NET will resolve the dependencies for you. If you are using the Data

Access Objects framework, then you will need a reference to the DataAccess assembly too. So, start

with the first, and add the others only if needed.

If you have built the IBatisNet solution as described in Section 4.2.1, the three assemblies

(IBatisNet.DataMapper.dll, IBatisNet.Common.dll, and Castle.DynamicProxy.dll) that you will need

should be in the bin/Debug folder of the IBatisNet.DataMapper project.

4.2.3. Add XML File Items

After adding the assembly references, you will need to add three types of XML files to your

Windows, Web application, or library project (and Test project if you have one). These files are:

• providers.config - A file used by the DataMapper to look up the definition of your selected

database provider.

• SqlMap.xml - A Data Map file that contains your SQL queries. Your project will contain one or

more of these files with names such as Account.xml or Product.xml.

• SqlMap.config - The DataMapper configuration file that is used to specify the locations of your

SqlMap.xml files and providers.config file. It is also used to define other DataMapper

configuration options such as caching. You will need to include one SqlMap.config file for each

data source that your project has.

As expected, the SqlMap.config and providers.config files must be placed where the DataMapper

can find them at runtime. Depending on the type of project you have, the default expected location

of these 2 files will be different, as shown in Table 4.2. However, your project is not limited to using

just these locations. The DataMapper provides other options for placing these files in locations that

are more suitable for your project instead of using the default locations. These options are covered

later in this guide.

Table 4.2. Default locations for the sqlMap.config and providers.config files

Windows, Library, or Test projects (using NUnit or

equivalent)

This would be the binary folder (such as /bin/debug)

with the assembly (.dll) files and the App.config file

Web projects In the application root, where the Web.config file is

located.

4.2.4. Visual Studio.NET Integration

Each configuration file (SqlMap.config, mappping file, providers.config) is associated to a schema.

The benefits of associating an XML document with a schema are to validate the document (which is

done at runtime) and to use editing features such as IntelliSense/content completion assistance.

To allow association of the schemas in VS.NET XML editor to yours configuration files, you should

add the schema files (SqlMap.xsd,SqlMapConfig.xsd,providers.xsd) to either your VS.NET

project or in your VS.NET installation directory. The VS.NET directory will be either

.NET Developer Guide

DataMapper Guide Version 1.6.1 61

C:\Program Files\Microsoft Visual Studio 8\Xml\Schemas for VS.NET 2005

C:\Program Files\Microsoft Visual Studio .NET 2003\Common7\Packages\schemas\xml for

VS.NET 2003

C:\Program Files\Microsoft Visual Studio .NET\Common7\Packages\schemas\xml for

VS.NET 2002

depending on your version of VS.NET. It is typically easier to place the file in the well known

location under the VS.NET installation directory than to copy the XSD file for each project you

create.

Once you have registered the schema with VS.NET you will be enough to get IntelliSense and

validation of the configuration file from within VS.NET.

Figure 4.1. IntelliSense example

4.3. Configuring the DataMapper for .NET

The iBATIS DataMapper is configured using a central XML descriptor file, usually named

SqlMap.config, which provides the details for your data source, data maps, and other features like

caching, transactions, and thread management. At runtime, your application code will call a class

method provided by the iBATIS library to read and parse your SqlMap.config file. After parsing the

configuration file, a DataMapper client will be returned by iBATIS for your application to use.

4.3.1. DataMapper clients

Currently, the DataMapper framework revolves around the SqlMapper class, which acts as a facade

to the DataMapper framework API. You can create a DataMapper client by instantiating an object of

the SqlMapper class. An instance of the SqlMapper class (your DataMapper client) is created by

reading a single configuration file. Each configuration file can specify one database or data source.

However, you can use multiple DataMapper clients in your application. Just create another

.NET Developer Guide

DataMapper Guide Version 1.6.1 62

configuration file and pass the name of that file when the DataMapper client is created. The

configuration files might use a different account with the same database, or reference different

databases on different servers. You can read from one client and write to another, if that's what you

need to do. See Section 4.4.1 for more details on building a SqlMapper instance, but first, let's take a

look at the DataMapper configuration file.

4.3.2. DataMapper Configuration File (SqlMap.config)

A sample configuration file for a .NET web application is shown in Example 4.1. Not all

configuration elements are required. The following sections describe the elements of this

SqlMap.config file in more detail.

Example 4.1. Sample SqlMap.Config for a .NET Web Application (placed in same directory as

web.config)

<?xml version="1.0" encoding="utf-8"?>

<sqlMapConfig xmlns="http://ibatis.apache.org/dataMapper"

xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" >

</settings>

<dataSource name="NPetshop"

connectionString="user id=${username};

password=${password};

data source=${datasource};

database=${database};"/>

</database>

<alias>

<typeAlias alias="YesNoBool"

type="IBatisNet.Test.Domain.YesNoBoolTypeHandlerCallback, IBatisNet.Test"/>

</alias>

</typeHandlers>

</sqlMaps>

</sqlMapConfig>

4.3.3. DataMapper Configuration Elements

4.3.3.1. The <properties> Element

Sometimes the values we use in an XML configuration file occur in more than one element. Often,

.NET Developer Guide

DataMapper Guide Version 1.6.1 63

there are values that change when we move the application from one server to another. To help you

manage configuration values, you can specify a standard properties file (with name=value entries) as

part of a DataMapper configuration. Each named value in the properties file becomes a shell variable

that can be used in the DataMapper configuration file and your Data Map definition files (see

Section 3). For example, if the "properties" file contains

<?xml version="1.0" encoding="utf-8" ?>

</settings>

then all elements in the DataMapper configuration can use the variable ${username} to insert the

value "albert". For example:

<dataSource connectionString="user id=${username};"

Properties are handy during building, testing, and deployment by making it easy to reconfigure your

application for multiple environments or use automated tools for configuration such as NAnt.

4.3.3.1.1. <properties> attributes

The <properties> element can accept one of the following attributes to specify the location of the

properties file.

Table 4.3. Attributes of the <properties> element

Attribute Description

resource Specify the properties file to be loaded from the root

directory of the application

resource="properties.config"

url Specify the properties file to be loaded through an

absolute path.

url="c:\Web\MyApp\Resources\properties.config"

-or-

url="file://c:\Web\MyApp\Resources\properties.config"

embedded Specify the properties file to be loaded as an

embedded resource in an assembly. Syntax for the

embedded attribute is

'[extendednamespace.]filename, the name of the

assembly which contains the embedded resource'

embedded="Resources.properties.config, MyApp.Data"

4.3.3.1.2. <property> element and attributes

You can also specify more than one properties file or add property keys and values directly into your

.NET Developer Guide

DataMapper Guide Version 1.6.1 64

SqlMap.config file by using <property> elements. For example:

</properties>

Table 4.4. Attributes of the <property> element

Attribute Description

resource Specify the properties file to be loaded from the root

directory of the application

resource="properties.config"

url Specify the properties file to be loaded through an

absolute path.

url="c:\Web\MyApp\Resources\properties.config"

-or-

url="file://c:\Web\MyApp\Resources\properties.config"

embedded Specify the properties file to be loaded as an

embedded resource in an assembly. Syntax for the

embedded attribute is

'[extendednamespace.]filename, the name of the

assembly which contains the embedded resource'

embedded="Resources.properties.config, MyApp.Data"

key Defines a property key (variable) name

key="username"

value Defines a value that will be used by the DataMapper

in place of the the specified property key/variable

value="mydbuser"

4.3.3.2. The <providers> Element

Under ADO.NET, a database system is accessed through a provider. A database system can use a

custom provider or a generic ODBC provider. The iBATIS .NET DataMapper uses a pluggable

approach to using providers. Each provider is represented by an XML descriptor element found in a

file called providers.config. The iBATIS .NET DataMapper distribution includes a standard

providers.config file with a set of thirteen prewritten provider elements:

• sqlServer1.0 - Microsoft SQL Server 7.0/2000 provider available with .NET Framework 1.0

.NET Developer Guide

DataMapper Guide Version 1.6.1 65

• sqlServer1.1 -Microsoft SQL Server 7.0/2000 provider available with .NET Framework 1.1

• OleDb1.1 - OleDb provider available with .NET Framework 1.1

• Odbc1.1 - Odbc provider available with .NET Framework 1.1

• sqlServer2.0 -Microsoft SQL Server 7.0/2000/2005 provider available with .NET Framework 2.0

• OleDb2.0 - OleDb provider available with .NET Framework 2.0

• Odbc2.0 - Odbc provider available with .NET Framework 2.0

• oracle9.2 - Oracle provider V9.2.0.401

• oracle10.1 - Oracle provider V10.1.0.301

• oracleClient1.0 - MS Oracle provider V1.0.5 available with .NET Framework 1.1

• ByteFx - ByteFx MySQL provider V0.7.6.15073

• MySql - MySQL provider V1.0.4.20163

• SQLite3 - SQLite.NET provider V0.21.1869.3794

• Firebird1.7 - Firebird SQL .NET provider V1.7.0.33200

• PostgreSql0.7 - Npgsql provider V0.7.0.0

• iDb2.10 - IBM DB2 iSeries provider V10.0.0.0

Note

If you use SQL Server 2005, you can configure the provider to allow Multiple Active Result Set

(allowMARS="true") and add MultipleActiveResultSets=true in your connection string.

The providers.config file can be found under \source\IBatisNet.DataMapper.Test\bin\Debug

in the iBATIS .NET source distribution or in the root folder of the .NET DataMapper binary

distribution.

A provider may require libraries that you do not have installed,. Therefore, the provider element has

an "enabled" attribute that allows you to disable unused providers. One provider can also be marked

as the "default" and will be used if another is not specified by your configuration.

The standard providers.config file has sqlServer1.1 set as the default and the sqlServer1.0

provider disabled. Aside from sqlServer1.1, OleDb1.1, and Odbc1.1, all other providers are disabled

by default. Remember to set the "enabled" attribute to "true" for the provider that you will be using.

Important

ByteFx is the recommended provider if you are using MySQL. You may download ByteFx from the

MySQLNet SourceForge site (http://sf.net/projects/mysqlnet/). If the ByteFx license is acceptable to

you, you may install it as a reference within your application and enable the ByteFx provider.

Tip

Be sure to review the providers.config file and confirm that the provider you intend to use is

enabled by setting the "enabled" attribute to "true".

.NET Developer Guide

DataMapper Guide Version 1.6.1 66

Table 4.5. Expected default locations of the providers.config file

Windows, Library, or Test projects (using NUnit or

equivalent)

With the assembly (.dll) files with the app.config

file

Web projects In the project base directory, with the web.config file

To use the file, you can copy it into your project at the expected default location, give a path to the

file relative to the project root directory, specify a url (absolute path) to its location, or make it an

embedded resource of your project. If you copy the file into the expected default location, the

<providers> element is not required in your sqlMap.config file.

4.3.3.2.1. <providers> attributes

The <providers> element can accept one of the following attributes to specify the location of the

providers.config file.

Table 4.6. Attributes of the <providers> element

Attribute Description

resource Specify the file to be loaded from a relative path from

the project root directory. Since the root directory is

different depending on the project type, it is best to

use a properties variable to indicate the relative path.

Having that variable defined in a properties file

makes it easy to change the path to all your Data

Mapper configuration resources in one location.

resource="${root}providers.config"

url Specify the providers.config to be loaded through an

absolute path.

url="c:\Web\MyApp\Resources\providers.config"

-or-

url="file://c:\Web\MyApp\Resources\providers.config"

embedded Specify the providers.config file to be loaded as an

embedded resource in an assembly. Syntax for the

embedded attribute is

'[extendednamespace.]filename, the name of the

assembly which contains the embedded resource'

embedded="Resources.providers.config, MyApp.Data"

4.3.3.3. The <settings> Element

There are three default settings used by the framework.. The settings appropriate for one application

may not be appropriate for another. The <settings> element lets you configure these options and

optimizations for the DataMapper instance that is created from the XML document. Each <settings>

.NET Developer Guide

DataMapper Guide Version 1.6.1 67

attribute has a default, and you can omit the <settings> element or any of its attributes. The

<settings> attributes and the behavior they control are described in the following table.

Table 4.7. Attributes of the <settings> element

Attribute Description

cacheModelsEnabled This setting globally enables or disables all cache

models for an DataMapper client. This can come in

handy for debugging.

Example: cacheModelsEnabled=”true”

Default: true (enabled)

useStatementNamespaces With this setting enabled, you must always refer to

mapped statements by their fully qualified name,

which is the combination of the sqlMap namesource

and the statement id. For example:

queryForObject(“Namespace.statement.Id”);

Example: useStatementNamespaces=”false”

Default: false (disabled)

validateSqlMap This setting globally enables or disables the

validation of mapping files against the

SqlMapConfig.xsd schema. This can come in handy

for debugging.

Example: validateSqlMap=”false”

Default: false (disabled)

useReflectionOptimizer This setting globally enables or disables the usage of

reflection to access property/filed value of C# object.

The reflection optimizer use will emit types for

retrieving, populating, instantiating parameter and

result objects.

Example: useReflectionOptimizer=”true”

Default: true (enabled)

4.3.3.4. The <typeAlias> Element

The <typeAlias> element lets you specify a shorter name in lieu of a fully-qualified classname. For

example:

You can then refer to LineItem where you would normally have to spell-out the fully qualified class

name.

.NET Developer Guide

DataMapper Guide Version 1.6.1 68

Note

In the .NET implementation, zero or more <typeAlias> elements can appear in the Data Map

definition file, within an enclosing <alias> element.

4.3.3.4.1. <typeAlias> attributes

The <typeAlias> element has two attributes:

Table 4.8. Attributes of the <typeAlias> element

Attribute Description

alias A unique identifier for this element

alias="Category"

type The fully-qualified classname, including namespace

reference

type=

"IBatisNet.Test.Domain.Category,

IBatisNet.Test"

4.3.3.4.1.1. type Attribute

When specifying a type attribute for the configuration, the type attribute value must be a fully

qualified type name in the following format:

type="[namespace.class], [assembly name],

Version=[version], Culture=[culture],

PublicKeyToken=[public token]"

For example:

type="MyProject.Domain.LineItem, MyProject.Domain,

Version=1.2.3300.0, Culture=neutral,

PublicKeyToken=b03f455f11d50a3a"

The strongly typed name is desired, although it is also legitimate to use the shorter style assembly

type name:

type="MyProject.Domain.LineItem, MyProject.Domain"

4.3.3.4.2. Predefined type aliases

The framework predefines some aliases that you can use in your DataMapper configuration and data

map files, as shown in Table 4.9.

Table 4.9. Predefined Aliases

CLR Type Alias

System.ArrayList list

System.Boolean Boolean, bool

.NET Developer Guide

DataMapper Guide Version 1.6.1 69

CLR Type Alias

System.Byte Byte, byte

System.Char Char, char

System.DateTime dateTime, date

System.Decimal Decimal, decimal

System.Double Double, double

System.Guid guid

System.Hashtable map, hashmap, hashtable

System.Int16 Int16, short, Short

System.Int32 Int32, int, Int, integer, Integer

System.Int64 Int64, long, Long

System.SByte SByte, sbyte

System.Single Float, float, Single, single

System.String String, string

System.TimeSpan N/A

System.UInt16 Short, short

System.UInt32 Uint, uint

System.UInt64 Ulong, ulong

4.3.3.5. The <typeHandler> Element

The <typeHandler> element allows for the configuration and use of a Custom Type Handler (see the

Custom Type Handler section). This extends the DataMapper's capabilities in handling types that are

specific to your database provider, are not handled by your database provider, or just happen to be a

part of your application design.

Note

The DataMapper for .NET allows for zero or more <typeAlias> elements to appear in the Data Map

definition file, within an enclosing <alias> element.

4.3.3.5.1. <typeHandler> attributes

The <typeHandler> element has three attributes:

Table 4.10. Attributes of the <typeAlias> element

Attribute Description

type Refers to the name of the type to handle

type="guid"

.NET Developer Guide

DataMapper Guide Version 1.6.1 70

Attribute Description

dbType Indicates the provider dbType to handle

dbType="Varchar2"

Note: Omit this attribute if you want the type handler

to replace the default iBATIS type handler.

callback The alias of the custom type handler class name

callback="GuidVarchar"

4.3.3.6. The <database> Element

The <database> element encloses elements that configure the database system for use by the

framework. These database configuration elements are the <provider> and <datasource> elements.

4.3.3.6.1. The <provider> Element

If the default provider is being used, the <provider> element is optional. Or, if several providers are

available, one may be selected using the provider element without modifying the providers.config

file.

4.3.3.6.2. The <datasource> element

The <datasource> element specifies the ADO.NET connection string. Example 4.2, shows sample

elements for SQL Server, Oracle, Access, MySql, and PostgreSQL.

Example 4.2. Sample <datasource> and <provider> elements (.NET)

<dataSource name="NPetstore" default="true"

connectionString="data source=(local)\NetSDK;database=${database};

user id=${username};password=${password};"/>

</database>

<dataSource name="iBatisNet"

connectionString="Data Source=${datasource};User Id=${userid};Password=${password}"/>

</database>

<dataSource name="NPetstore" default="true"

connectionString="Provider=Microsoft.Jet.OLEDB.4.0;Data Source=${database}"/>

</database>

.NET Developer Guide

DataMapper Guide Version 1.6.1 71

<dataSource name="NPetstore" default="true"

connectionString="Host=${host};Database=${database};

Password=${password};Username=${username}" />

</database>

<dataSource name="NPetstore" default="true"

connectionString="Server=${server};Port=5432;User Id=${userid};Password=${password};

Database=${database};" />

</database>

4.3.3.7. The <sqlMap> Element

On a daily basis, most of your work will be with the Data Maps, which are covered by Section 3.

The Data Maps define the actual SQL statements or stored procedures used by your application. The

parameter and result objects are also defined as part of the Data Map. As your application grows,

you may have several varieties of Data Map. To help you keep your Data Maps organized, you can

create any number of Data Map definition files and incorporate them by reference in the

DataMapper configuration. All of the definition files used by a DataMapper instance must be listed

in the configuration file.

Example 4.3 shows <sqlMap> elements for loading a set of Data Map definitions. Note that the

<sqlMap> elements are nested in a <sqlMaps> element. For more about Data Map definition files,

see Section 3.

Example 4.3. Specifying sqlMap locations

</sqlMaps>

</sqlMaps>

</sqlMaps>

Tip

Since the application root directory location differs by project type (Windows, Web, or library), it is

best to use a properties variable to indicate the relative path when using the <sqlMap> "resource"

attribute. Having a variable defined in a properties file makes it easy to change the path to all your

Data Mapper configuration resources in one location (note the ${projectdir} and ${root} variables in

the example above).

.NET Developer Guide

DataMapper Guide Version 1.6.1 72

4.4. Programming with iBATIS DataMapper: The .NET API

The IBATIS.NET DataMapper API provides four core functions:

1. build a SqlMapper instance from a configuration file

2. execute an update query (including insert and delete).

3. execute a select query for a single object

4. execute a select query for a list of objects

The API also provides support for retrieving paginated lists and managing transactions.

4.4.1. Building a SqlMapper Instance

Important

In prior versions of the DataMapper, the SqlMapper class was responsible for configuration. This has

been superceded by a new configuration API found within the DomSqlMapBuilder class. Old

configuration method signatures have remained the same, but there are new methods that have been

added for more flexibility. These methods support the loading of configuration information through

aStream,Uri,FileInfo,orXmlDocument instance.

An XML document is a wonderful tool for describing a database configuration (Section 4.3) or

defining a set of data mappings (Section 3), but you can't execute XML. In order to use the

iBATIS.NET configuration and definitions in your .NET application, you need a class you can call.

The framework provides service methods that you can call which read the configuration file (and

any of its definition files) and builds a SqlMapper object. The SqlMapper object provides access to

the rest of the framework. The SqlMapper is designed to be multi-threaded and long-lived, and so

makes for a good singleton. Example 76 shows a singleton Mapper that is bundled with the

framework.

Example 4.4. A Mapper singleton you can call from your own applications

[C#]

using IBatisNet.Common.Utilities;

using IBatisNet.DataMapper;

using IBatisNet.DataMapper.Configuration;

namespace IBatisNet.DataMapper

{

public class Mapper

{

private static volatile ISqlMapper _mapper = null;

protected static void Configure (object obj)

{

_mapper = null;

}

protected static void InitMapper()

{

ConfigureHandler handler = new ConfigureHandler(Configure);

DomSqlMapBuilder builder = new DomSqlMapBuilder();

_mapper = builder.ConfigureAndWatch(handler);

}

.NET Developer Guide

DataMapper Guide Version 1.6.1 73

public static ISqlMapper Instance()

{

if (_mapper == null)

{

lock (typeof (SqlMapper))

{

if (_mapper == null) // double-check

{

InitMapper();

}

return _mapper;

}

public static ISqlMapper Get()

{

return Instance();

}

To obtain the ISqlMapper instance, just call

[C#]

ISqlMapper mapper = Mapper.Instance();

anywhere in your application, and specify one of the SqlMapper methods (see Section 5.3.2) . Here's

an example:

[C#]

IList list = Mapper.Instance().QueryForList("PermitNoForYearList", values);

The first time Mapper.Instance() is called, the DomSqlMapBuilder object will look for the

SqlMap.config file in the default location for the type of project it is being used in and build a

SqlMapper instance from that configuration. On subsequent calls, the cached mapper instance will be

reused. The DomSqlMapBuilder.ConfigureAndWatch() method monitors changes to the

configuration files. If the configuration or definitions files change, the SqlMapper will be safely

reloaded. This is particularly useful in development, when you might make a change to a data map

definition and want to see it take effect without restarting a debugging session. Likewise, in

production, it can allow you to make changes to the definitions without reloading the rest of the

application.

Tip

If you are using NUnit to test your mappings, you can run a test suite, make changes to the XML

mapping document, and run the test again. NUnit will reload the configuration automatically.

Note

The ConfigureAndWatch method requires that your SqlMap.config file and data map files are

accessible through the application's file system to be able to track file changes.

If for some reason you do not want to monitor changes to the configuration, you can create your own

Mapper class, and use the Configure method instead:

[C#]

ISqlMapper mapper = builder.Configure();

.NET Developer Guide

DataMapper Guide Version 1.6.1 74

4.4.1.1. Multiple Databases

If you need access to more than one database from the same application, create a DataMapper

configuration file for that database and another Mapper class to go with it. In the new Mapper class,

change the call to ConfigureAndWatch to

[C#]

ISqlMapper mapper = builder.ConfigureAndWatch("anotherSqlMapConfig.config", handler);

and substitute the name of your configuration file. Each database then has their own singleton you

can call from your application:

[C#]

ISqlMapper sqlServer = SqlServerMapper.Get();

ISqlMapper access = AccessMapper.Get();

4.4.1.2. DomSqlMapBuilder Configuration Options

iBATIS offers you a plethora of other options for loading your SqlMap.config file such as loading it

through a Stream,Uri,FileInfo,orXmlDocument instance. All of these methods are available

through the DomSqlMapBuilder API for creating a SqlMapper instance.

As seen in the prior section, the basic DomSqlMapBuilder.Configure() call will look for a file

named SqlMap.config in your application's root directory. This directory's location differs by

project type but is normally the directory where you place your web.config or app.config file.

Example 4.5. Basic SqlMapper Configuration Call

ISqlMapper mapper = builder.Configure();

If you have named your configuration file something other than SqlMap.config or if you have

located your configuration file in a directory other than the application root directory, you can also

pass in a relative or absolute file path to the Configure method.

Example 4.6. SqlMapper Configuration through an absolute or relative file path

/* Configure a SqlMapper from a file path.

Uses a relative resource path from your application root

or an absolute file path such as "file:\\c:\dir\a.config" */

ISqlMapper mapper = builder.Configure(strPath);

Tip

Since the application root directory location differs by project type (Windows, Web, or library), you

can use an AppSettings key for defining a relative path to your SqlMap.config file. Having this key

defined makes it easy to change the path without having to recompile your code:

mapper = builder.Configure(

ConfigurationSettings.AppSettings["rootPath"]+"SqlMap.config");

.NET Developer Guide

DataMapper Guide Version 1.6.1 75

Aside from using a simple string filepath, you can also pass in a FileInfo or Uri instance for the

DomSqlMapBuilder to use in locating your SqlMap.config file.

Example 4.7. SqlMapper Configuration with a FileInfo or Uri instance

/* Configure a SqlMapper with FileInfo. */

FileInfo aFileInfo = someSupportClass.GetDynamicFileInfo();

ISqlMapper mapper = builder.Configure(aFileInfo);

/* Configure a SqlMapper through a Uri. */

Uri aUri = someSupportClass.GetDynamicUri();

ISqlMapper anotherMapper = builder.Configure(aUri);

If you find that you already have loaded your DataMapper configuration information as an

XmlDocument or Stream instance within your application, the DomSqlMapBuilder provides

Configure overloads for those types as well.

Example 4.8. SqlMapper Configuration with an XmlDocument or Stream

/* Configure a SqlMapper with an XmlDocument */

XmlDocument anXmlDoc = someSupportClass.GetDynamicXmlDocument();

ISqlMapper mapper = builder.Configure(anXmlDoc);

/* Configure a SqlMapper from a stream. */

Stream aStream = someSupportClass.GetDynamicStream();

ISqlMapper anotherMapper = builder.Configure(aStream);

The DomSqlMapBuilder API provides ConfigureAndWatch methods that can be used to monitor

changes to the configuration files. This is particularly useful when using a singleton such as the

Mapper class shown in the prior section. The example Mapper singleton allows a reconfigured

SqlMapper instance to be reloaded on the fly.

Example 4.9. Mapper ConfigureHandler delegate

...

protected static void Configure (object obj)

{

_mapper = null;

}

protected static void InitMapper()

{

ConfigureHandler handler = new ConfigureHandler(Configure);

DomSqlMapBuilder builder = new DomSqlMapBuilder();

_mapper = builder.ConfigureAndWatch(handler);

}

...

If you use a custom singleton, you will need to pass a ConfigureHandler (callback delegate) to the

DomSqlMapBuilder so that it knows the method for resetting your application's SqlMapper instance.

In the Mapper's case, its Configure method is used as the callback delegate.

Since the configuration files need to be watched for changes, your SqlMap.config file must be

accessible through the file system. This means that configuration is limited to the three methods

.NET Developer Guide

DataMapper Guide Version 1.6.1 76

shown below.

Example 4.10. DomSqlMapBuilder ConfigureAndWatch methods

/* Configure and monitor the configuration file for modifications

and automatically reconfigure the SqlMapper.

This basic ConfigureAndWatch method looks for a file with the

default name of SqlMap.config in the application root directory. */

public ISqlMapper ConfigureAndWatch(ConfigureHandler configureDelegate)

/* Configure and monitor the configuration file for modifications

and automatically reconfigure the SqlMapper.

Uses a relative path from your application root

or an absolute file path such as "file:\\c:\dir\a.config" */

public ISqlMapper ConfigureAndWatch( string resource, ConfigureHandler configureDelegate )

/* Configure and monitor the configuration file for modifications

and automatically reconfigure the SqlMapper.

Uses a FileInfo instance for your config file. */

public ISqlMapper ConfigureAndWatch( FileInfo resource, ConfigureHandler configureDelegate )

4.4.1.3. DomSqlMapBuilder : Advanced settings

Before launching the 'Configure' method to build the ISqlMapper instance, you can set those

porperties.

Table 4.11. Advanced settings

Propertie Description

Properties Allow to set properties before configuration. Those

properties will be added to the properties list defined

in the properties.config.

NameValueCollection properties = new NameValueCollection();

properties.Add("connectionString", "...");

builder.Properties = properties;

ISqlMapper mapper = builder.Configure("sqlMap.config");

GetAccessorFactory Allows to set a custom get accessor factory before

configuration, see IGetAccessorFactory interface

which defines the contract for the factory responsible

to build set accessor for a member object in iBATIS.

SetAccessorFactory Allows to set a custom set accessor factory before

configuration, see ISetAccessorFactory interface

which defines the contract for the factory responsible

to build get accessor for a member object in iBATIS.

ObjectFactory Allows to set a custom object factory before

configuration, see IObjectFactory interface which

defines the contract for the factory responsible for

object creation in iBATIS.

SqlMapper Allows to set a custom SqlMapper before

configuration, see ISqlMapper interface.

.NET Developer Guide

DataMapper Guide Version 1.6.1 77

Propertie Description

ValidateSqlMapConfig Enable whether or not the validation of configuration

document before configuration

4.4.2. Exploring the DataMapper API through the SqlMapper

The ISqlMapper instance acts as a facade to provide access the rest of the DataMapper framework.

The DataMapper API methods are shown in Example 4.11.

Example 4.11. The DataMapper API for .NET

[C#]

/* Query API */

public object Insert(string statementName, object parameterObject);

public int Update(string statementName, object parameterObject);

public int Delete(string statementName, object parameterObject);

public object QueryForObject(string statementName, object parameterObject);

public T QueryForObject<T>(string statementName, object parameterObject);

public object QueryForObject(string statementName, object parameterObject, object resultObject);

public T QueryForObject<T>(string statementName, object parameterObject, T resultObject);

public IList QueryForList(string statementName, object parameterObject);

public IList<T> QueryForList<T>(string statementName, object parameterObject);

public void QueryForList(string statementName, object parameterObject, IList resultObject);

public void QueryForList<T>(string statementName, object parameterObject, IList<T> resultObject);

public IList QueryForList(string statementName, object parameterObject,

int skipResults, int maxResults);

public IList<T> QueryForList<T>(string statementName, object parameterObject,

int skipResults, int maxResults);

public IList QueryWithRowDelegate(string statementName, object parameterObject,

RowDelegate rowDelegate);

public IList<T> QueryWithRowDelegate<T>(string statementName, object parameterObject,

SqlMapper.RowDelegate<T> rowDelegate);

[Obsolete]

public PaginatedList QueryForPaginatedList(String statementName, object parameterObject,

int pageSize);

public IDictionary QueryForDictionary(string statementName, object parameterObject,

string keyProperty)

IDictionary<K, V> QueryForDictionary<K, V>(string statementName, object parameterObject,

string keyProperty);

public IDictionary QueryForDictionary(string statementName, object parameterObject,

string keyProperty, string valueProperty)

public IDictionary<K, V> QueryForDictionary<K, V>(string statementName, object parameterObject,

string keyProperty, string valueProperty);

public IDictionary QueryForMap(string statementName, object parameterObject, string keyProperty)

public IDictionary QueryForMap(string statementName, object parameterObject,

string keyProperty, string valueProperty)

/* Connection API */

public void OpenConnection()

public void CloseConnection()

/* Transaction API */

public void BeginTransaction()

public void BeginTransaction(bool openConnection)

public void BeginTransaction(IsolationLevel isolationLevel)

public void BeginTransaction(bool openConnection, IsolationLevel isolationLevel)

public void CommitTransaction()

public void CommitTransaction(bool closeConnection)

public void RollBackTransaction()

public void RollBackTransaction(bool closeConnection)

.NET Developer Guide

DataMapper Guide Version 1.6.1 78

Note that each of the API methods accept the name of the Mapped Statement as the first parameter.

The statementName parameter corresponds to the id of the Mapped Statement in the Data Map

definition (see Section 3.3). In each case, a parameterObject also may be passed. If the Mapped

Statement expects no parameters, a null parameterObject may be passed. If a statement does expect

parameters, then a valid parameterObject is required. The following sections describe how the API

methods work.

Note

The DatatMapper component store his working ISqlMapSession on different session store.

On Web environnement, the session is stored Http.Request.Items.

On windows environnement on the current thread.

You can configure the session storage by specifing the property ISessionStore on ISqlMapper.

This will allow to set a custom session store like the HybridWebThreadSessionStore This is used for

scenarios where most of the you need per request session, but you also does some work outside a

request (in a thread pool thread, for instance).

Set it after the configuration and before use of the ISqlMapper.

Example 4.12. Custom ISessionStore

sqlMapper.SessionStore = new HybridWebThreadSessionStore( sqlMapper.Id );

...

sqlMapper.QueryOject(...)

4.4.2.1. Insert, Update, Delete

public object Insert(string statementName,

object parameterObject);

public int Update(string statementName,

object parameterObject);

public int Delete(string statementName,

object parameterObject);

If a Mapped Statement uses one of the <insert>, <update>, or <delete> statement-types, then it

should use the corresponding API method. The <insert> element supports a nested <selectKey>

element for generating primary keys (see Section 3.3.3). If the <selectKey> stanza is used, then

Insert returns the generated key; otherwise a null object is returned. Both the Update and Delete

methods return the number of rows affected by the statement.

4.4.2.2. QueryForObject

public object QueryForObject(string statementName,

object parameterObject);

public object QueryForObject(string statementName,

object parameterObject,

object resultObject);

.NET Developer Guide

DataMapper Guide Version 1.6.1 79

public T QueryForObject<T>(string statementName, object parameterObject);

public T QueryForObject<T>(string statementName, object parameterObject, T resultObject);

If a Mapped Statement is expected to select a single row, then call it using QueryForObject. Since

the Mapped Statement definition specifies the result class expected, the framework can both create

and populate the result class for you. Alternatively, if you need to manage the result object yourself,

say because it is being populated by more than one statement, you can use the alternate form and

pass your resultObject as the third parameter.

4.4.2.3. QueryForList

public IList QueryForList(string statementName,

object parameterObject);

public void QueryForList(string statementName,

object parameterObject,

IList resultObject);

public IList QueryForList(string statementName,

object parameterObject,

int skipResults,

int maxResults);

public IList<T> QueryForList<T>(string statementName, object parameterObject);

public void QueryForList<T>(string statementName,

object parameterObject,

IList<T> resultObject);

public IList<T> QueryForList<T>(string statementName,

object parameterObject,

int skipResults, int maxResults);

If a Mapped Statement is expected to select multiple rows, then call it using QueryForList . Each

entry in the list will be an result object populated from the corresponding row of the query result. If

you need to manage the resultObject yourself, then it can be passed as the third parameter.

If you need to obtain a partial result, the third form takes the number of records to skip (the starting

point) and the maximum number to return, as the skipResults and maxResults parameters. The

PaginatedList method provides the same functionality but in a more convenient wrapper.

The QueryWithRowDelegate method also works with multiple rows, but provides a post-processing

feature.

4.4.2.4. QueryWithRowDelegate

public delegate void RowDelegate(object obj,

IList list);

public IList QueryWithRowDelegate(string statementName,

object parameterObject,

RowDelegate rowDelegate);

public IList<T> QueryWithRowDelegate<T>(string statementName, object parameterObject,

SqlMapper.RowDelegate<T> rowDelegate);

No matter how well our database is designed or how cleverly we describe our maps, the result

objects we get back may not be ideal. You may need to perform some post-processing task on the

result objects. You might even want to omit an entry omitted from the list. Or, you might want to use

.NET Developer Guide

DataMapper Guide Version 1.6.1 80

the result object to create some other, more useful object. To save filtering the result objects from to

one list to another, you can pass a RowDelegate to the method to do the dirty work. The SqlMapper

will go through each of the result objects and give the delegate a chance to modify the object and

determine if the object should be added to the IList that will be returned.

Important

It is your responsibility to add the objects you want returned to the list. If an object is not added, it is

not returned.

4.4.2.5. QueryForMapWithRowDelegate

public delegate void DictionaryRowDelegate(object key,

object value,

object parameterObject,

IDictionary dictionary);

public IDictionary QueryForMapWithRowDelegate(string statementName,

object parameterObject,

string keyProperty,

string valueProperty,

DictionaryRowDelegate rowDelegate);

No matter how well our database is designed or how cleverly we describe our maps, the result

objects we get back may not be ideal. You may need to perform some post-processing task on the

result objects. You might even want to omit an entry omitted from the dictionary. Or, you might

want to use the result object to create some other, more useful object. To save filtering the result

objects from to one dictionary to another, you can pass a DictionaryRowDelegate to the method to

do the dirty work. The SqlMapper will go through each of the result objects and give the delegate a

chance to modify the object and determine if the object should be added to the IDictionary that

will be returned.

Important

It is your responsibility to add the objects you want returned to the dictionary. If an object is not

added, it is not returned.

4.4.2.6. QueryForPaginatedList

Note

The method PaginatedList has been made as obsolete and will not be supported in future version.

public PaginatedList QueryForPaginatedList(string statementName,

object parameterObject,

int pageSize);

We live in an age of information overflow. A database query often returns more hits than users want

to see at once, and our requirements may say that we need to offer a long list of results a "page" at a

time. If the query returns 1000 hits, we might need to present the hits to the user in sets of fifty, and

let them move back and forth between the sets. Since this is such a common requirement, the

framework provides a convenience method.

The PaginatedList interface includes methods for navigating through pages (nextPage(),

previousPage(),gotoPage()) and also checking the status of the page (isFirstPage(),

isMiddlePage(),isLastPage(),isNextPageAvailable(),isPreviousPageAvailable(),

.NET Developer Guide

DataMapper Guide Version 1.6.1 81

getPageIndex(),getPageSize()). Although the total number of records available is not accessible

from the PaginatedList interface, this should be easily accomplished by simply executing a second

statement that counts the expected results. Too much overhead would be associated with the

PaginatedList otherwise.

Tip

The PaginatedList method is convenient, but note that a larger set will first be returned by the

database provider and the smaller set extracted by the framework. The higher the page, the larger set

that will be returned and thrown away. For very large sets, you may want to use a stored procedure

or your own query that uses skipResults and maxResults as parameters. Unfortunately, the

semantics for the returning partial data sets is not standardized, so PaginatedList is the best we can

do within the scope of a framework.

4.4.2.7. QueryForDictionary, QueryForMap

public IDictionary QueryForDictionary(string statementName,

object parameterObject,

string keyProperty)

public IDictionary<K, V> QueryForDictionary<K, V>(string statementName,

object parameterObject,

string keyProperty);

public IDictionary QueryForDictionary(string statementName,

object parameterObject,

string keyProperty,

string valueProperty)

public IDictionary<K, V> QueryForDictionary<K, V>(string statementName,

object parameterObject,

string keyProperty,

string valueProperty);

public IDictionary QueryForMap(string statementName,

object parameterObject,

string keyProperty)

public IDictionary QueryForMap(string statementName,

object parameterObject,

string keyProperty,

string valueProperty)

The QueryForList methods return the result objects within a IList instance. Alternatively, the

QueryForDictionary returns a IDictionary instance. The value of each entry is one of the result

objects. The key to each entry is indicated by the keyProperty parameter. This is the name of the

one of the properties of the result object, the value of which is used as the key for each entry. For

example, If you needed a set of Employee objects, you might want them returned as a IDictionary

keyed by each object's EmployeeNumber property.

If you don't need the entire result object in your Dictionary, you can add the valueProperty

parameter to indicate which result object property should be the value of an entry. For example, you

might just want the EmployeeName keyed by EmployeeNumber.

Important

You do not need to use this method just to obtain an IDictionary result object. As explained in

Section 3.5, the result object for any query can be a property object or a IDictionary instance. This

method is used to generate a new IDictionary result object from a property object or (another)

IDictionary object. In this case, the key is a property you specify, and the value is the row from the

result set.

The QueryforMap methods provide the same functionality but under a different name, for the sake of

consistency with the Java implementation. (The .NET IDictionary interface is equivalent to the

Java Map interface.)

.NET Developer Guide

DataMapper Guide Version 1.6.1 82

4.4.3. Session

In the iBATIS DataMapper framework, a session is a container for an ADO connection and

transaction.

The DataMapper's IDalSession implements the IDisposable interface. So you can use it with the

using syntax.

Example 4.13. using instruction

[C#]

using ( IDalSession session = sqlMap.OpenConnection() )

{

Account account = sqlMap.QueryForObject("GetAccountViaColumnName", 1) as Account;

}

Note

Sessions cannot be nested. An exception will be thrown if you call

BeginTransaction/OpenConnection from the same thread more than once or call

CommitTransaction or RollbackTransaction first. In other words, each thread can have at most

one session open, per SqlMapper instance.

4.4.4. Connection

The DataMapper API includes methods to demarcate connection boundaries.

// Open a session : Open an ADO connection

public void OpenConnection()

// Close a session : Close the associated ADO connection

public void CloseConnection()

Example 4.14. Connection example

[C#]

sqlMap.OpenConnection()

Account account = sqlMap.QueryForObject("GetAccountViaColumnName", 1) as Account;

sqlMap.CloseConnection()

// Same thing with using instruction

using ( IDalSession session = sqlMap.OpenConnection() )

{

Account account = sqlMap.QueryForObject("GetAccountViaColumnName", 1) as Account;

}

4.4.5. Automatic Session

By default, calling any of the API methods (see Section 4.4.2) on a SqlMapper instance will

auto-open/close a connection. This means that each call to these methods will be a single unit of

work. For many cases, this simple approach may be sufficient. But it is not ideal if you have a

number of statements that must execute as a single unit of work, which is to say, succeed or fail as a

.NET Developer Guide

DataMapper Guide Version 1.6.1 83

group. For cases like these, you can use explicit transactions.

An example of using automatic session is shown as Example 4.14.

Example 4.15. Using automatic session

[C#]

Item item = (Item) sqlMap.executeQueryForObject ("GetItem", itemId);

item.Description = "test";

// No session demarcated, so open/close connection will be automatic (implied)

sqlMap.Update("UpdateItem", item);

item.Description = newDescription;

item.Description = "test2";

// No transaction demarcated, so open/close connection will be automatic (implied)

sqlMap.Update("UpdateItem", item);

Note

Be careful to consider sessions when framing your queries. Automatic sessions are convenient, but

you will run into trouble if your unit of work requires more than a single update to the database. In

Example 4.14, if the second call to "UpdateItem" fails, the item description will still be updated

with the first new description of “TX1”. Not what a user might expect.

4.4.6. Transaction

The DataMapper API includes methods to demarcate transactional boundaries. A transaction can be

started, committed and/or rolled back. You can call the transaction methods from the SqlMapper

instance.

// Begin a transactional session : Open a connection and begin an ADO transaction

public void BeginTransaction()

// Begin a transactional session : Open a connection is specified and begin an ADO transaction

public void BeginTransaction(bool openConnection)

// Begin a transactional session : Open a connection and begin an ADO transaction

// with the specified IsolationLevel

public void BeginTransaction(IsolationLevel isolationLevel)

// Begin a transactional session : Open a connection is specified and begin an ADO transaction

// with the specified IsolationLevel

public void BeginTransaction(bool openConnection, IsolationLevel isolationLevel)

// Commit a session : Commit the ADO transaction and close the connection

public void CommitTransaction()

// Commit a session : Commit the ADO transaction and close the connection if specified

public void CommitTransaction(bool closeConnection)

// RollBack a session : RollBack the ADO transaction and close the connection

public void RollBackTransaction()

// RollBack a session : RollBack the ADO transaction and close the connection if specified

public void RollBackTransaction(bool closeConnection)

An example of using transactions is shown as Example 4.15.

Example 4.16. Using transactions

[C#]

try

{

sqlMap.BeginTransaction();

Item item = (Item) sqlMap.QueryForObject("getItem", itemId);

.NET Developer Guide

DataMapper Guide Version 1.6.1 84

item.Description = newDescription;

sqlMap.Update("updateItem", item);

sqlMap.CommitTransaction();

}

catch {

sqlMap.RollBackTransaction();

}

// With "using" syntax

using ( IDalSession session = sqlMap.BeginTransaction() )

{

Item item = (Item) sqlMap.QueryForObject("getItem", itemId);

item.Description = newDescription;

sqlMap.Update("updateItem", item);

session.Complete(); // Commit

}

4.4.7. Distributed Transactions

Distributed transactions are transactions that can span multiple resource managers, such as SQL

Server and Oracle, and reconcile transactions among them.

iBATIS.NET introduces a new TransactionScope class mimicking the new TransactionScope

found in the System.Transactions namespace (.NET Framework 2.0). This class supports MSMQ,

ADO.NET, SqlServer, and DTC transaction models. This is a simple managed interface to COM+'s

SWC (Services Without Components) Transactions. It can be used only by developers using .NET

1.1 and Windows XP SP2 or Windows Server 2003 since it implements distributed transactional

support using the ServiceDomain class.

Usage is simple, as seen in the following example where a code block is made transactional à la

Indigo (moving to Indigo will be easier since it is the same API):

Example 4.17. Using distributed transactions

[C#]

using IBatisNet.Common.Transaction;

using (TransactionScope tx = new TransactionScope())

{

sqlMapSqlServer.OpenConnection();

// Transaction will be automatically associated

account = sqlMapSqlServer.QueryForObject("GetAccount", accountId) as Account;

account.FirstName = "Gilles";

sqlMapSqlServer.Update(account);

sqlMapSqlServer.CloseConnection();

sqlMapOracle.OpenConnection();

// Transaction will be automatically associated

product = sqlMapOracle.QueryForObject("GetProduct", productId) as Product;

product.Quantity = 1000;

sqlMapOracle.Update(product);

sqlMapOracle.CloseConnection();

tx.Complete(); // Commit

}

It is important to make sure that each instance of this class gets Close()'d. The easiest way to ensure

that each instance is closed is with the using statement in C#. When Dispose is called on the

.NET Developer Guide

DataMapper Guide Version 1.6.1 85

transaction scope at the end of the using code block, the ambient transaction will be commited only

if the Complete() method has been called.

Note

This TransactionScope class does not support a nested transaction scope with different transaction

options.

4.4.8. Coding Examples [TODO: Expand in to a Cookbook of practical

examples]

Example 4.18. Executing Update (insert, update, delete)

[C#]

Product product = new Product();

product.Id = 1;

product.Description = “Shih Tzu”;

int key = sqlMap.Insert (“insertProduct”, product);

Example 4.19. Executing Query for Object (select)

[C#]

int key = 1;

Product product = sqlMap.QueryForObject (“getProduct”, key) as Product;

Example 4.20. Executing Query for Object (select) With Preallocated Result Object

[C#]

Customer customer = new Customer();

sqlMap.BeginTransaction();

sqlMap.QueryForObject(“getCust”, parameterObject, customer);

sqlMap.QueryForObject(“getAddr”, parameterObject, customer);

sqlMap.CommitTransaction();

Example 4.21. Executing Query for List (select)

[C#]

IList list = sqlMap.QueryForList (“getProductList”, null);

Example 4.22. Auto-Open/Close

[C#]

// When OpenConnection is not called, the statements will auto-Open/Close.

int key = sqlMap.Insert (“insertProduct”, product);

.NET Developer Guide

DataMapper Guide Version 1.6.1 86

Example 4.23. Executing Query for List (select) With Result Boundaries

[C#]

List list = sqlMap.queryForList (“getProductList”, null, 0, 40);

Example 4.24. Executing Query with a RowHandler (select)

[C#]

public void RowHandler(object obj, IList list)

{

Product product = (Product) object;

product.Quantity = 10000;

}

SqlMapper.RowDelegate handler = new SqlMapper.RowDelegate(this.RowHandler);

IList list = sqlMap.QueryWithRowDelegate("getProductList", null, handler);

Example 4.25. Executing Query for Paginated List (select)

[C#]

PaginatedList list = sqlMap.QueryForPaginatedList (“getProductList”, null, 10);

list.NextPage();

list.PreviousPage();

Example 4.26. Executing Query for Map

[C#]

IDictionary map = sqlMap.QueryForMap (“getProductList”, null, “productCode”);

Product p = (Product) map[“EST-93”];

4.5. Logging SqlMap Activity

The iBATIS DataMapper framework records its interaction with the database through an internal

logging mechanism patterned after Apache Log4Net. The internal logging mechanism can use one

of the three built-in loggers (NoOpLogger, ConsoleOutLogger, TraceLogger) or external logging

packages such as Apache Log4Net. In order for iBATIS to generate log messages, the application's

config file (App.Config or Web.Config) must contain an appropriate configSection node:

Example 4.27. iBATIS Configuration Section Handler for logging

</sectionGroup>

</configSections>

.NET Developer Guide

DataMapper Guide Version 1.6.1 87

The application's config file must declare one logger implementation. See the examples below on

how to configure one of the three built-in loggers.

</logFactoryAdapter>

</logging>

</iBATIS>

</logging>

</iBATIS>

</logging>

</iBATIS>

To configure iBATIS to use another logger implementation, simple specify the appropriate

logFactoryAdapter type. To use Apache Log4Net with the iBATIS DataMapper framework, use the

following configuration setting:

</logFactoryAdapter>

</logging>

</iBATIS>

</logFactoryAdapter>

</logging>

</iBATIS>

The Log4NetLoggerFA supports the following values for the configTypes argument:

Table 4.12. Valid configType values

configType Description

inline log4net node will use the log4net node in the

App.Config/Web.Config file when it is configured

file (also requires configFile argument) - log4net will use

an external file for its configuration

.NET Developer Guide

DataMapper Guide Version 1.6.1 88

configType Description

file-watch (also requires configFile argument) - log4net will use

an external file for its configuration and will

re-configure itself if this file changes

external iBATIS will not attempt to configure log4net.

4.5.1. Sample Logging Configurations

The simplest logging configuration is to output log messages to Console.Out:

</sectionGroup>

</configSections>

</logging>

</iBATIS>

</configuration>

A common logging configuration is to use Apache Log4Net. To use Log4Net with your own

application, you need to provide your own Log4Net configuration. You can do this by adding a

configuration file for your assembly that includes a <log4Net> element. The configuration file is

named after your assembly but adds a .config extension, and is stored in the same folder as your

assembly. This is an example of a basic Log4Net configuration block

(IBatisNet.DataMapper.Test.dll.Config) that also creates a log4net.txt which contains debug

information from log4net. If log4net is not producing output, check the log4net.txt file.

</sectionGroup>

</configSections>

</appSettings>

<system.diagnostics>

<add name="textWriterTraceListener"

type="System.Diagnostics.TextWriterTraceListener"

initializeData="C:\\inetpub\\wwwroot\\log4net.txt" />

</listeners>

</trace>

</system.diagnostics>

</logFactoryAdapter>

</logging>

</iBATIS>

</appender>

.NET Developer Guide

DataMapper Guide Version 1.6.1 89

<root>

<appender-ref ref="FileAppender" />

</root>

</log4net>

</configuration>

Example 4.28. A complete Log4Net configuration block

(IBatisNet.DataMapper.Test.dll.Config)

</configSections>

</appSettings>

</layout>

</appender>

</layout>

</appender>

<root>

<appender-ref ref="RollingLogFileAppender" />

<appender-ref ref="ConsoleAppender" />

</root>

</logger>

</logger>

</logger>

</logger>

</logger>

</logger>

</logger>

.NET Developer Guide

DataMapper Guide Version 1.6.1 90

</logger>

</logger>

</log4net>

</configuration>

To log all Prepared SQL command text, enable the logger for

IBatisNet.DataMapper.Configuration.Statements.DefaultPreparedCommand. This will display

the statement, parameters, and parameter types used by the DataMapper.

Example 4.29. Sample DefaultPreparedCommand logger output

2005-06-08 01:39:33 [3872] DEBUG IBatisNet.DataMapper.Commands.DefaultPreparedCommand -

Statement Id: [User.Update] PreparedStatement : [UPDATE [User] SET [DateLastUpdated] = NOW() WHERE [UserId] = ?]

2005-06-08 01:39:43 [3872] DEBUG IBatisNet.DataMapper.Commands.DefaultPreparedCommand -

Statement Id: [User.Update] Parameters: [param0=[UserId,1]]

2005-06-08 01:39:53 [3872] DEBUG IBatisNet.DataMapper.Commands.DefaultPreparedCommand -

Statement Id: [User.Update] Types: [param0=[String, System.Int32]]

If your statements are named the same across all sqlMap files, its possible to filter log messages

when using Apache Log4Net. The example below only logs Insert, Update, and Delete statements

sent to the database. Select or GetMany statements are not logged:

Example 4.30. Sample Apache Log4Net appender node that will log Insert, Update, and Delete

statements to a file

</filter>

</appender>

If you would like to log cache usage in your application, enable the logger for

IBatisNet.DataMapper.Configuration.Cache.CacheModel.

Example 4.31. Sample CacheModel logger output

2005-06-08 01:38:34,403 [3648] DEBUG IBatisNet.DataMapper.Configuration.Cache.CacheModel -

Flush cacheModel named Account.account-cache for statement 'UpdateAccountViaParameterMap'

To keep track of DataMapper session information, enable the logger for

IBatisNet.DataMapper.SqlMapSession.

Example 4.32. Sample SqlMapSession logger output

2005-06-08 01:39:42,660 [3872] DEBUG IBatisNet.DataMapper.SqlMapSession [] -

Open Connection "3194"

.NET Developer Guide

DataMapper Guide Version 1.6.1 91

to "Microsoft SQL Server 7.0/2000, provider V1.0.5000.0 in framework .NET V1.1".

2005-06-08 01:39:42,660 [3872] DEBUG IBatisNet.DataMapper.Commands.DefaultPreparedCommand [] -

PreparedStatement : [select * from Orders where Order_ID = @param0 ]

2005-06-08 01:39:42,660 [3872] DEBUG IBatisNet.DataMapper.Commands.DefaultPreparedCommand [] -

Parameters: [@param0=[value,1]]

2005-06-08 01:39:42,660 [3872] DEBUG IBatisNet.DataMapper.Commands.DefaultPreparedCommand [] -

Types: [@param0=[Int32, System.Int32]]

2005-06-08 01:39:42,676 [3872] DEBUG IBatisNet.DataMapper.SqlMapSession [] -

Close Connection "3194" to

"Microsoft SQL Server 7.0/2000, provider V1.0.5000.0 in framework .NET V1.1".

To get information about lazyload usage by the DataMapper, enable the logger for

IBatisNet.DataMapper.LazyLoadList.

Example 4.33. Sample LazyLoadList logger output

2005-06-08 01:39:42,316 [3872] DEBUG IBatisNet.DataMapper.LazyLoadList [] -

Proxyfying call to get_Count

2005-06-08 01:39:42,316 [3872] DEBUG IBatisNet.DataMapper.LazyLoadList [] -

Proxyfying call, query statement GetLineItemsForOrder

2005-06-08 01:39:42,316 [3872] DEBUG IBatisNet.DataMapper.SqlMapSession [] -

Open Connection "3463" to

"Microsoft SQL Server 7.0/2000, provider V1.0.5000.0 in framework .NET V1.1".

2005-06-08 01:39:42,316 [3872] DEBUG IBatisNet.DataMapper.Commands.DefaultPreparedCommand [] -

PreparedStatement : [select LineItem_ID as Id, LineItem_Code as Code,

LineItem_Quantity as Quantity, LineItem_Price as Price

from LineItems where Order_ID = @param0 ]

2005-06-08 01:39:42,316 [3872] DEBUG IBatisNet.DataMapper.Commands.DefaultPreparedCommand [] -

Parameters: [@param0=[value,1]]

2005-06-08 01:39:42,316 [3872] DEBUG IBatisNet.DataMapper.Commands.DefaultPreparedCommand [] -

Types: [@param0=[Int32, System.Int32]]

2005-06-08 01:39:42,316 [3872] DEBUG IBatisNet.DataMapper.SqlMapSession [] -

Close Connection "3463" to

"Microsoft SQL Server 7.0/2000, provider V1.0.5000.0 in framework .NET V1.1".

2005-06-08 01:39:42,316 [3872] DEBUG IBatisNet.DataMapper.LazyLoadList [] -

End of proxyfied call to get_Count

.NET Developer Guide

DataMapper Guide Version 1.6.1 92

Appendix A. iBATIS.NET's

SqlMapConfig.xsd

<?xml version="1.0" encoding="UTF-8"?>

<xs:schema targetNamespace="http://ibatis.apache.org/dataMapper"

elementFormDefault="qualified"

xmlns:mstns="http://tempuri.org/XMLSchema.xsd"

xmlns:xs="http://www.w3.org/2001/XMLSchema"

xmlns="http://ibatis.apache.org/dataMapper"

xmlns:vs="http://schemas.microsoft.com/Visual-Studio-Intellisense"

vs:friendlyname="iBATIS.NET DataMapper Configuration Schema"

vs:ishtmlschema="false"

vs:iscasesensitive="true"

vs:requireattributequotes="true"

vs:defaultnamespacequalifier=""

vs:defaultnsprefix="">

<xs:annotation>

<xs:documentation>

DataMapper XML Schema Definition

</xs:documentation>

</xs:annotation>

<xs:element name="typeAlias">

<xs:complexType>

<xs:attribute name="alias" type="xs:string" use="required"/>

<xs:attribute name="type" type="xs:string" use="required"/>

</xs:complexType>

</xs:element>

<xs:element name="typeHandler">

<xs:complexType>

<xs:attribute name="type" type="xs:string"/>

<xs:attribute name="dbType" type="xs:string"/>

<xs:attribute name="callback" type="xs:string"/>

</xs:complexType>

</xs:element>

<xs:element name="typeHandlers">

<xs:complexType>

<xs:sequence>

<xs:element ref="typeHandler" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="alias">

<xs:complexType>

<xs:sequence>

<xs:element ref="typeAlias" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="dataSource">

<xs:complexType>

<xs:attribute name="name" type="xs:string" use="required"/>

<xs:attribute name="connectionString" type="xs:string" use="required"/>

</xs:complexType>

</xs:element>

<xs:element name="database">

<xs:complexType>

<xs:sequence>

<xs:element ref="provider"/>

<xs:element ref="dataSource"/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="properties">

<xs:complexType>

<xs:sequence>

<xs:element ref="property" minOccurs="0" maxOccurs="unbounded"/>

</xs:sequence>

<xs:attribute name="resource" type="xs:string"/>

<xs:attribute name="url" type="xs:string"/>

<xs:attribute name="embedded" type="xs:string"/>

</xs:complexType>

</xs:element>

DataMapper Guide Version 1.6.1 93

<xs:element name="property">

<xs:complexType>

<xs:attribute name="resource" type="xs:string"/>

<xs:attribute name="url" type="xs:string"/>

<xs:attribute name="embedded" type="xs:string"/>

<xs:attribute name="key" type="xs:string"/>

<xs:attribute name="value" type="xs:string"/>

</xs:complexType>

</xs:element>

<xs:element name="provider">

<xs:complexType>

<xs:attribute name="name" type="xs:string" use="required"/>

</xs:complexType>

</xs:element>

<xs:element name="setting">

<xs:complexType>

<xs:attribute name="useStatementNamespaces" type="xs:string" default="false"/>

<xs:attribute name="cacheModelsEnabled" type="xs:string"/>

<xs:attribute name="validateSqlMap" type="xs:string" default="false"/>

<xs:attribute name="useEmbedStatementParams" type="xs:boolean" default="false"/>

<xs:attribute name="useReflectionOptimizer" type="xs:boolean" default="true"/>

</xs:complexType>

</xs:element>

<xs:element name="settings">

<xs:complexType>

<xs:sequence>

<xs:element ref="setting" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="sqlMap">

<xs:complexType>

<xs:attribute name="resource" type="xs:string"/>

<xs:attribute name="url" type="xs:string"/>

<xs:attribute name="embedded" type="xs:string"/>

</xs:complexType>

</xs:element>

<xs:element name="providers">

<xs:complexType>

<xs:attribute name="resource" type="xs:string"/>

<xs:attribute name="url" type="xs:string"/>

<xs:attribute name="embedded" type="xs:string"/>

</xs:complexType>

</xs:element>

<xs:annotation>

<xs:documentation>

The document root.

</xs:documentation>

</xs:annotation>

<xs:element name="sqlMapConfig">

<xs:complexType mixed="true">

<xs:sequence>

<xs:element ref="properties" minOccurs="0"/>

<xs:element ref="settings" minOccurs="0"/>

<xs:element ref="providers" minOccurs="0"/>

<xs:element ref="database" minOccurs="0"/>

<xs:element ref="alias" minOccurs="0"/>

<xs:element ref="typeHandlers" minOccurs="0"/>

<xs:element ref="sqlMaps" minOccurs="0"/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="sqlMaps">

<xs:complexType>

<xs:sequence>

<xs:element ref="sqlMap" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>

</xs:element>

</xs:schema>

iBATIS.NET's SqlMapConfig.xsd

DataMapper Guide Version 1.6.1 94

Appendix B. iBATIS.NET's SqlMap.xsd

<?xml version="1.0" encoding="UTF-8"?>

<xs:schema

targetNamespace="http://ibatis.apache.org/mapping"

elementFormDefault="qualified"

xmlns:mstns="http://tempuri.org/XMLSchema.xsd"

xmlns:xs="http://www.w3.org/2001/XMLSchema"

xmlns="http://ibatis.apache.org/mapping"

xmlns:vs="http://schemas.microsoft.com/Visual-Studio-Intellisense"

vs:friendlyname="iBATIS.NET mapping file Configuration Schema"

vs:ishtmlschema="false"

vs:iscasesensitive="true"

vs:requireattributequotes="true"

vs:defaultnamespacequalifier=""

vs:defaultnsprefix="" >

<xs:annotation>

<xs:documentation>

Mapping XML Schema Definition

</xs:documentation>

</xs:annotation>

<xs:element name="alias">

<xs:complexType>

<xs:sequence>

<xs:element ref="typeAlias" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="discriminator">

<xs:complexType>

<xs:attribute name="column" type="xs:string"/>

<xs:attribute name="type" type="xs:string"/>

<xs:attribute name="typeHandler" type="xs:string"/>

</xs:complexType>

</xs:element>

<xs:element name="subMap">

<xs:complexType>

<xs:attribute name="value" use="required" type="xs:string"/>

<xs:attribute name="resultMapping" use="required" type="xs:string"/>

</xs:complexType>

</xs:element>

<xs:element name="cacheModel">

<xs:complexType>

<xs:sequence maxOccurs="unbounded">

<xs:element ref="flushInterval" minOccurs="0"/>

<xs:element ref="flushOnExecute" minOccurs="0" maxOccurs="unbounded"/>

<xs:element ref="property" minOccurs="0" maxOccurs="unbounded"/>

</xs:sequence>

<xs:attribute name="id" type="xs:string" use="required"/>

<xs:attribute name="serialize" type="xs:string" default="false"/>

<xs:attribute name="readOnly" type="xs:string" default="true"/>

<xs:attribute name="implementation" use="required">

<xs:simpleType>

<xs:restriction base="xs:NMTOKEN">

<xs:enumeration value="LRU"/>

<xs:enumeration value="MEMORY"/>

<xs:enumeration value="FIFO"/>

</xs:restriction>

</xs:simpleType>

</xs:attribute>

</xs:complexType>

</xs:element>

<xs:element name="cacheModels">

<xs:complexType>

<xs:sequence>

<xs:element ref="cacheModel" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="procedure">

<xs:complexType mixed="true">

DataMapper Guide Version 1.6.1 95

<xs:attribute name="id" type="xs:string" use="required"/>

<xs:attribute name="parameterMap" type="xs:string" />

<xs:attribute name="resultMap" type="xs:string"/>

<xs:attribute name="resultClass" type="xs:string"/>

<xs:attribute name="cacheModel" type="xs:string"/>

<xs:attribute name="listClass" type="xs:string"/>

</xs:complexType>

</xs:element>

<xs:element name="delete">

<xs:complexType mixed="true">

<xs:choice minOccurs="0" maxOccurs="unbounded">

<xs:element ref="include"/>

<xs:element ref="generate"/>

<xs:element ref="isEmpty"/>

<xs:element ref="isEqual"/>

<xs:element ref="isGreaterEqual"/>

<xs:element ref="isGreaterThan"/>

<xs:element ref="isLessThan"/>

<xs:element ref="isLessEqual"/>

<xs:element ref="isNotEmpty"/>

<xs:element ref="isNotEqual"/>

<xs:element ref="isNotNull"/>

<xs:element ref="isNotParameterPresent"/>

<xs:element ref="isNotPropertyAvailable"/>

<xs:element ref="isNull"/>

<xs:element ref="isParameterPresent"/>

<xs:element ref="isPropertyAvailable"/>

<xs:element ref="iterate"/>

</xs:choice>

<xs:attribute name="id" use="required"/>

<xs:attribute name="parameterMap" type="xs:string"/>

<xs:attribute name="parameterClass" type="xs:string"/>

<xs:attribute name="extends" type="xs:string"/>

<xs:attribute name="remapResults">

<xs:simpleType>

<xs:restriction base="xs:NMTOKEN">

<xs:enumeration value="false"/>

<xs:enumeration value="true"/>

</xs:restriction>

</xs:simpleType>

</xs:attribute>

</xs:complexType>

</xs:element>

<xs:element name="include">

<xs:complexType mixed="true">

<xs:attribute name="refid" type="xs:string"/>

</xs:complexType>

</xs:element>

<xs:element name="dynamic">

<xs:complexType mixed="true">

<xs:choice minOccurs="0" maxOccurs="unbounded">

<xs:element ref="isEmpty"/>

<xs:element ref="isEqual"/>

<xs:element ref="isGreaterEqual"/>

<xs:element ref="isGreaterThan"/>

<xs:element ref="isLessThan"/>

<xs:element ref="isLessEqual"/>

<xs:element ref="isNotEmpty"/>

<xs:element ref="isNotEqual"/>

<xs:element ref="isNotNull"/>

<xs:element ref="isNotParameterPresent"/>

<xs:element ref="isNotPropertyAvailable"/>

<xs:element ref="isNull"/>

<xs:element ref="isParameterPresent"/>

<xs:element ref="isPropertyAvailable"/>

<xs:element ref="iterate"/>

</xs:choice>

<xs:attribute name="prepend" type="xs:string"/>

</xs:complexType>

</xs:element>

<xs:element name="flushInterval">

<xs:complexType>

<xs:attribute name="milliseconds" type="xs:byte"/>

<xs:attribute name="seconds" type="xs:byte"/>

<xs:attribute name="minutes" type="xs:byte"/>

<xs:attribute name="hours" type="xs:byte"/>

</xs:complexType>

</xs:element>

iBATIS.NET's SqlMap.xsd

DataMapper Guide Version 1.6.1 96

<xs:element name="flushOnExecute">

<xs:complexType>

<xs:attribute name="statement" type="xs:string" use="required"/>

</xs:complexType>

</xs:element>

<xs:element name="generate">

<xs:complexType>

<xs:attribute name="table" type="xs:string" use="required"/>

<xs:attribute name="by" type="xs:string"/>

</xs:complexType>

</xs:element>

<xs:element name="insert">

<xs:complexType mixed="true">

<xs:choice minOccurs="0" maxOccurs="unbounded">

<xs:element ref="include"/>

<xs:element ref="selectKey"/>

<xs:element ref="generate"/>

<xs:element ref="dynamic"/>

<xs:element ref="isEmpty"/>

<xs:element ref="isEqual"/>

<xs:element ref="isGreaterEqual"/>

<xs:element ref="isGreaterThan"/>

<xs:element ref="isLessThan"/>

<xs:element ref="isLessEqual"/>

<xs:element ref="isNotEmpty"/>

<xs:element ref="isNotEqual"/>

<xs:element ref="isNotNull"/>

<xs:element ref="isNotParameterPresent"/>

<xs:element ref="isNotPropertyAvailable"/>

<xs:element ref="isNull"/>

<xs:element ref="isParameterPresent"/>

<xs:element ref="isPropertyAvailable"/>

<xs:element ref="iterate"/>

</xs:choice>

<xs:attribute name="id" type="xs:string" use="required"/>

<xs:attribute name="parameterClass" type="xs:string"/>

<xs:attribute name="parameterMap" type="xs:string"/>

<xs:attribute name="resultClass" type="xs:string"/>

<xs:attribute name="remapResults">

<xs:simpleType>

<xs:restriction base="xs:NMTOKEN">

<xs:enumeration value="false"/>

<xs:enumeration value="true"/>

</xs:restriction>

</xs:simpleType>

</xs:attribute>

</xs:complexType>

</xs:element>

<xs:element name="isNotParameterPresent">

<xs:complexType mixed="true">

<xs:choice minOccurs="0" maxOccurs="unbounded">

<xs:element ref="isEmpty"/>

<xs:element ref="isEqual"/>

<xs:element ref="isGreaterEqual"/>

<xs:element ref="isGreaterThan"/>

<xs:element ref="isLessThan"/>

<xs:element ref="isLessEqual"/>

<xs:element ref="isNotEmpty"/>

<xs:element ref="isNotEqual"/>

<xs:element ref="isNotNull"/>

<xs:element ref="isNotParameterPresent"/>

<xs:element ref="isNotPropertyAvailable"/>

<xs:element ref="isNull"/>

<xs:element ref="isParameterPresent"/>

<xs:element ref="isPropertyAvailable"/>

<xs:element ref="iterate"/>

</xs:choice>

<xs:attribute name="prepend" type="xs:string"/>

</xs:complexType>

</xs:element>

<xs:element name="isNotPropertyAvailable">

<xs:complexType mixed="true">

<xs:choice minOccurs="0" maxOccurs="unbounded">

<xs:element ref="isEmpty"/>

<xs:element ref="isEqual"/>

<xs:element ref="isGreaterEqual"/>

<xs:element ref="isGreaterThan"/>

<xs:element ref="isLessThan"/>

iBATIS.NET's SqlMap.xsd

DataMapper Guide Version 1.6.1 97

<xs:element ref="isLessEqual"/>

<xs:element ref="isNotEmpty"/>

<xs:element ref="isNotEqual"/>

<xs:element ref="isNotNull"/>

<xs:element ref="isNotParameterPresent"/>

<xs:element ref="isNotPropertyAvailable"/>

<xs:element ref="isNull"/>

<xs:element ref="isParameterPresent"/>

<xs:element ref="isPropertyAvailable"/>

<xs:element ref="iterate"/>

</xs:choice>

<xs:attribute name="prepend" type="xs:string"/>

<xs:attribute name="property" type="xs:string" use="required"/>

</xs:complexType>

</xs:element>

<xs:element name="isEmpty">

<xs:complexType mixed="true">

<xs:choice minOccurs="0" maxOccurs="unbounded">

<xs:element ref="isEmpty"/>

<xs:element ref="isEqual"/>

<xs:element ref="isGreaterEqual"/>

<xs:element ref="isGreaterThan"/>

<xs:element ref="isLessThan"/>

<xs:element ref="isLessEqual"/>

<xs:element ref="isNotEmpty"/>

<xs:element ref="isNotEqual"/>

<xs:element ref="isNotNull"/>

<xs:element ref="isNotParameterPresent"/>

<xs:element ref="isNotPropertyAvailable"/>

<xs:element ref="isNull"/>

<xs:element ref="isParameterPresent"/>

<xs:element ref="isPropertyAvailable"/>

<xs:element ref="iterate"/>

</xs:choice>

<xs:attribute name="prepend" type="xs:string"/>

<xs:attribute name="property" type="xs:string"/>

</xs:complexType>

</xs:element>

<xs:element name="isEqual">

<xs:complexType mixed="true">

<xs:choice minOccurs="0" maxOccurs="unbounded">

<xs:element ref="isEmpty"/>

<xs:element ref="isEqual"/>

<xs:element ref="isGreaterEqual"/>

<xs:element ref="isGreaterThan"/>

<xs:element ref="isLessThan"/>

<xs:element ref="isLessEqual"/>

<xs:element ref="isNotEmpty"/>

<xs:element ref="isNotEqual"/>

<xs:element ref="isNotNull"/>

<xs:element ref="isNotParameterPresent"/>

<xs:element ref="isNotPropertyAvailable"/>

<xs:element ref="isNull"/>

<xs:element ref="isParameterPresent"/>

<xs:element ref="isPropertyAvailable"/>

<xs:element ref="iterate"/>

</xs:choice>

<xs:attribute name="prepend" type="xs:string"/>

<xs:attribute name="property" type="xs:string"/>

<xs:attribute name="compareProperty" type="xs:string"/>

<xs:attribute name="compareValue" type="xs:string"/>

</xs:complexType>

</xs:element>

<xs:element name="isNull">

<xs:complexType mixed="true">

<xs:choice minOccurs="0" maxOccurs="unbounded">

<xs:element ref="isEmpty"/>

<xs:element ref="isEqual"/>

<xs:element ref="isGreaterEqual"/>

<xs:element ref="isGreaterThan"/>

<xs:element ref="isLessThan"/>

<xs:element ref="isLessEqual"/>

<xs:element ref="isNotEmpty"/>

<xs:element ref="isNotEqual"/>

<xs:element ref="isNotNull"/>

<xs:element ref="isNotParameterPresent"/>

<xs:element ref="isNotPropertyAvailable"/>

<xs:element ref="isNull"/>

iBATIS.NET's SqlMap.xsd

DataMapper Guide Version 1.6.1 98

<xs:element ref="isParameterPresent"/>

<xs:element ref="isPropertyAvailable"/>

<xs:element ref="iterate"/>

</xs:choice>

<xs:attribute name="prepend" type="xs:string"/>

<xs:attribute name="property" type="xs:string"/>

</xs:complexType>

</xs:element>

<xs:element name="isGreaterEqual">

<xs:complexType mixed="true">

<xs:choice minOccurs="0" maxOccurs="unbounded">

<xs:element ref="isEmpty"/>

<xs:element ref="isEqual"/>

<xs:element ref="isGreaterEqual"/>

<xs:element ref="isGreaterThan"/>

<xs:element ref="isLessThan"/>

<xs:element ref="isLessEqual"/>

<xs:element ref="isNotEmpty"/>

<xs:element ref="isNotEqual"/>

<xs:element ref="isNotNull"/>

<xs:element ref="isNotParameterPresent"/>

<xs:element ref="isNotPropertyAvailable"/>

<xs:element ref="isNull"/>

<xs:element ref="isParameterPresent"/>

<xs:element ref="isPropertyAvailable"/>

<xs:element ref="iterate"/>

</xs:choice>

<xs:attribute name="prepend" type="xs:string"/>

<xs:attribute name="property" type="xs:string"/>

<xs:attribute name="compareProperty" type="xs:string"/>

<xs:attribute name="compareValue" type="xs:string"/>

</xs:complexType>

</xs:element>

<xs:element name="isGreaterThan">

<xs:complexType mixed="true">

<xs:choice minOccurs="0" maxOccurs="unbounded">

<xs:element ref="isEmpty"/>

<xs:element ref="isEqual"/>

<xs:element ref="isGreaterEqual"/>

<xs:element ref="isGreaterThan"/>

<xs:element ref="isLessThan"/>

<xs:element ref="isLessEqual"/>

<xs:element ref="isNotEmpty"/>

<xs:element ref="isNotEqual"/>

<xs:element ref="isNotNull"/>

<xs:element ref="isNotParameterPresent"/>

<xs:element ref="isNotPropertyAvailable"/>

<xs:element ref="isNull"/>

<xs:element ref="isParameterPresent"/>

<xs:element ref="isPropertyAvailable"/>

<xs:element ref="iterate"/>

</xs:choice>

<xs:attribute name="prepend" type="xs:string"/>

<xs:attribute name="property" type="xs:string"/>

<xs:attribute name="compareProperty" type="xs:string"/>

<xs:attribute name="compareValue" type="xs:string"/>

</xs:complexType>

</xs:element>

<xs:element name="isLessEqual">

<xs:complexType mixed="true">

<xs:choice minOccurs="0" maxOccurs="unbounded">

<xs:element ref="isEmpty"/>

<xs:element ref="isEqual"/>

<xs:element ref="isGreaterEqual"/>

<xs:element ref="isGreaterThan"/>

<xs:element ref="isLessThan"/>

<xs:element ref="isLessEqual"/>

<xs:element ref="isNotEmpty"/>

<xs:element ref="isNotEqual"/>

<xs:element ref="isNotNull"/>

<xs:element ref="isNotParameterPresent"/>

<xs:element ref="isNotPropertyAvailable"/>

<xs:element ref="isNull"/>

<xs:element ref="isParameterPresent"/>

<xs:element ref="isPropertyAvailable"/>

<xs:element ref="iterate"/>

</xs:choice>

<xs:attribute name="prepend" type="xs:string"/>

iBATIS.NET's SqlMap.xsd

DataMapper Guide Version 1.6.1 99

<xs:attribute name="property" type="xs:string"/>

<xs:attribute name="compareProperty" type="xs:string"/>

<xs:attribute name="compareValue" type="xs:string"/>

</xs:complexType>

</xs:element>

<xs:element name="isLessThan">

<xs:complexType mixed="true">

<xs:choice minOccurs="0" maxOccurs="unbounded">

<xs:element ref="isEmpty"/>

<xs:element ref="isEqual"/>

<xs:element ref="isGreaterEqual"/>

<xs:element ref="isGreaterThan"/>

<xs:element ref="isLessThan"/>

<xs:element ref="isLessEqual"/>

<xs:element ref="isNotEmpty"/>

<xs:element ref="isNotEqual"/>

<xs:element ref="isNotNull"/>

<xs:element ref="isNotParameterPresent"/>

<xs:element ref="isNotPropertyAvailable"/>

<xs:element ref="isNull"/>

<xs:element ref="isParameterPresent"/>

<xs:element ref="isPropertyAvailable"/>

<xs:element ref="iterate"/>

</xs:choice>

<xs:attribute name="prepend" type="xs:string"/>

<xs:attribute name="property" type="xs:string"/>

<xs:attribute name="compareProperty" type="xs:string"/>

<xs:attribute name="compareValue" type="xs:string"/>

</xs:complexType>

</xs:element>

<xs:element name="isNotEmpty">

<xs:complexType mixed="true">

<xs:choice minOccurs="0" maxOccurs="unbounded">

<xs:element ref="isEmpty"/>

<xs:element ref="isEqual"/>

<xs:element ref="isGreaterEqual"/>

<xs:element ref="isGreaterThan"/>

<xs:element ref="isLessThan"/>

<xs:element ref="isLessEqual"/>

<xs:element ref="isNotEmpty"/>

<xs:element ref="isNotEqual"/>

<xs:element ref="isNotNull"/>

<xs:element ref="isNotParameterPresent"/>

<xs:element ref="isNotPropertyAvailable"/>

<xs:element ref="isNull"/>

<xs:element ref="isParameterPresent"/>

<xs:element ref="isPropertyAvailable"/>

<xs:element ref="iterate"/>

</xs:choice>

<xs:attribute name="prepend" type="xs:string"/>

<xs:attribute name="property" type="xs:string"/>

</xs:complexType>

</xs:element>

<xs:element name="isNotEqual">

<xs:complexType mixed="true">

<xs:choice minOccurs="0" maxOccurs="unbounded">

<xs:element ref="isEmpty"/>

<xs:element ref="isEqual"/>

<xs:element ref="isGreaterEqual"/>

<xs:element ref="isGreaterThan"/>

<xs:element ref="isLessThan"/>

<xs:element ref="isLessEqual"/>

<xs:element ref="isNotEmpty"/>

<xs:element ref="isNotEqual"/>

<xs:element ref="isNotNull"/>

<xs:element ref="isNotParameterPresent"/>

<xs:element ref="isNotPropertyAvailable"/>

<xs:element ref="isNull"/>

<xs:element ref="isParameterPresent"/>

<xs:element ref="isPropertyAvailable"/>

<xs:element ref="iterate"/>

</xs:choice>

<xs:attribute name="prepend" type="xs:string"/>

<xs:attribute name="property" type="xs:string"/>

<xs:attribute name="compareProperty" type="xs:string"/>

<xs:attribute name="compareValue" type="xs:string"/>

</xs:complexType>

</xs:element>

iBATIS.NET's SqlMap.xsd

DataMapper Guide Version 1.6.1 100

<xs:element name="isNotNull">

<xs:complexType mixed="true">

<xs:choice minOccurs="0" maxOccurs="unbounded">

<xs:element ref="isEmpty"/>

<xs:element ref="isEqual"/>

<xs:element ref="isGreaterEqual"/>

<xs:element ref="isGreaterThan"/>

<xs:element ref="isLessThan"/>

<xs:element ref="isLessEqual"/>

<xs:element ref="isNotEmpty"/>

<xs:element ref="isNotEqual"/>

<xs:element ref="isNotNull"/>

<xs:element ref="isNotParameterPresent"/>

<xs:element ref="isNotPropertyAvailable"/>

<xs:element ref="isNull"/>

<xs:element ref="isParameterPresent"/>

<xs:element ref="isPropertyAvailable"/>

<xs:element ref="iterate"/>

</xs:choice>

<xs:attribute name="prepend" type="xs:string"/>

<xs:attribute name="property" type="xs:string"/>

</xs:complexType>

</xs:element>

<xs:element name="isParameterPresent">

<xs:complexType mixed="true">

<xs:choice minOccurs="0" maxOccurs="unbounded">

<xs:element ref="isEmpty"/>

<xs:element ref="isEqual"/>

<xs:element ref="isGreaterEqual"/>

<xs:element ref="isGreaterThan"/>

<xs:element ref="isLessThan"/>

<xs:element ref="isLessEqual"/>

<xs:element ref="isNotEmpty"/>

<xs:element ref="isNotEqual"/>

<xs:element ref="isNotNull"/>

<xs:element ref="isNotParameterPresent"/>

<xs:element ref="isNotPropertyAvailable"/>

<xs:element ref="isNull"/>

<xs:element ref="isParameterPresent"/>

<xs:element ref="isPropertyAvailable"/>

<xs:element ref="iterate"/>

</xs:choice>

<xs:attribute name="prepend" type="xs:string"/>

</xs:complexType>

</xs:element>

<xs:element name="isPropertyAvailable">

<xs:complexType mixed="true">

<xs:choice minOccurs="0" maxOccurs="unbounded">

<xs:element ref="isEmpty"/>

<xs:element ref="isEqual"/>

<xs:element ref="isGreaterEqual"/>

<xs:element ref="isGreaterThan"/>

<xs:element ref="isLessThan"/>

<xs:element ref="isLessEqual"/>

<xs:element ref="isNotEmpty"/>

<xs:element ref="isNotEqual"/>

<xs:element ref="isNotNull"/>

<xs:element ref="isNotParameterPresent"/>

<xs:element ref="isNotPropertyAvailable"/>

<xs:element ref="isNull"/>

<xs:element ref="isParameterPresent"/>

<xs:element ref="isPropertyAvailable"/>

<xs:element ref="iterate"/>

</xs:choice>

<xs:attribute name="prepend" type="xs:string"/>

<xs:attribute name="property" type="xs:string" use="required"/>

</xs:complexType>

</xs:element>

<xs:element name="iterate">

<xs:complexType mixed="true">

<xs:choice minOccurs="0" maxOccurs="unbounded">

<xs:element ref="isEmpty"/>

<xs:element ref="isEqual"/>

<xs:element ref="isGreaterEqual"/>

<xs:element ref="isGreaterThan"/>

<xs:element ref="isLessThan"/>

<xs:element ref="isLessEqual"/>

<xs:element ref="isNotEmpty"/>

iBATIS.NET's SqlMap.xsd

DataMapper Guide Version 1.6.1 101

<xs:element ref="isNotEqual"/>

<xs:element ref="isNotNull"/>

<xs:element ref="isNotParameterPresent"/>

<xs:element ref="isNotPropertyAvailable"/>

<xs:element ref="isNull"/>

<xs:element ref="isParameterPresent"/>

<xs:element ref="isPropertyAvailable"/>

<xs:element ref="iterate"/>

</xs:choice>

<xs:attribute name="open" type="xs:string" use="required"/>

<xs:attribute name="close" type="xs:string" use="required"/>

<xs:attribute name="conjunction" type="xs:string" use="required"/>

<xs:attribute name="property" type="xs:string"/>

<xs:attribute name="prepend" type="xs:string"/>

</xs:complexType>

</xs:element>

<xs:element name="parameter">

<xs:complexType>

<xs:attribute name="property" type="xs:string" use="required"/>

<xs:attribute name="column" type="xs:string"/>

<xs:attribute name="nullValue" type="xs:string"/>

<xs:attribute name="type" type="xs:string"/>

<xs:attribute name="dbType" type="xs:string"/>

<xs:attribute name="size" type="xs:string"/>

<xs:attribute name="scale" type="xs:string"/>

<xs:attribute name="precision" type="xs:string"/>

<xs:attribute name="typeHandler" type="xs:string"/>

<xs:attribute name="direction">

<xs:simpleType>

<xs:restriction base="xs:NMTOKEN">

<xs:enumeration value="Input"/>

<xs:enumeration value="Output"/>

<xs:enumeration value="InputOutput"/>

</xs:restriction>

</xs:simpleType>

</xs:attribute>

</xs:complexType>

</xs:element>

<xs:element name="parameterMap">

<xs:complexType>

<xs:sequence>

<xs:element ref="parameter" minOccurs="0" maxOccurs="unbounded"/>

</xs:sequence>

<xs:attribute name="id" type="xs:string" use="required"/>

<xs:attribute name="class" type="xs:string" />

<xs:attribute name="extends" type="xs:string"/>

</xs:complexType>

</xs:element>

<xs:element name="parameterMaps">

<xs:complexType>

<xs:sequence>

<xs:element ref="parameterMap" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="property">

<xs:complexType>

<xs:attribute name="name" type="xs:string" use="required"/>

<xs:attribute name="value" type="xs:string" use="required"/>

</xs:complexType>

</xs:element>

<xs:element name="result">

<xs:complexType>

<xs:attribute name="property" type="xs:string" use="required"/>

<xs:attribute name="column" type="xs:string"/>

<xs:attribute name="lazyLoad">

<xs:simpleType>

<xs:restriction base="xs:NMTOKEN">

<xs:enumeration value="false"/>

<xs:enumeration value="true"/>

</xs:restriction>

</xs:simpleType>

</xs:attribute>

<xs:attribute name="select" type="xs:string"/>

<xs:attribute name="nullValue" type="xs:string"/>

<xs:attribute name="type" type="xs:string"/>

<xs:attribute name="dbType" type="xs:string"/>

<xs:attribute name="columnIndex" type="xs:string"/>

iBATIS.NET's SqlMap.xsd

DataMapper Guide Version 1.6.1 102

<xs:attribute name="resultMapping" type="xs:string"/>

<xs:attribute name="typeHandler" type="xs:string"/>

</xs:complexType>

</xs:element>

<xs:element name="argument">

<xs:complexType>

<xs:attribute name="argumentName" type="xs:string" use="required"/>

<xs:attribute name="column" type="xs:string"/>

<xs:attribute name="select" type="xs:string"/>

<xs:attribute name="nullValue" type="xs:string"/>

<xs:attribute name="type" type="xs:string"/>

<xs:attribute name="dbType" type="xs:string"/>

<xs:attribute name="columnIndex" type="xs:string"/>

<xs:attribute name="resultMapping" type="xs:string"/>

<xs:attribute name="typeHandler" type="xs:string"/>

</xs:complexType>

</xs:element>

<xs:element name="constructor">

<xs:complexType>

<xs:sequence>

<xs:element ref="argument" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="resultMap">

<xs:complexType>

<xs:sequence>

<xs:element ref="constructor" minOccurs="0" maxOccurs="1"/>

<xs:element ref="result" minOccurs="0" maxOccurs="unbounded"/>

<xs:element ref="discriminator" minOccurs="0" maxOccurs="1"/>

<xs:element ref="subMap" minOccurs="0" maxOccurs="unbounded"/>

</xs:sequence>

<xs:attribute name="id" type="xs:string" use="required"/>

<xs:attribute name="class" type="xs:string" use="required"/>

<xs:attribute name="extends" type="xs:string"/>

<xs:attribute name="groupBy" type="xs:string"/>

</xs:complexType>

</xs:element>

<xs:element name="resultMaps">

<xs:complexType>

<xs:sequence>

<xs:element ref="resultMap" minOccurs="0" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="select">

<xs:complexType mixed="true">

<xs:choice minOccurs="0" maxOccurs="unbounded">

<xs:element ref="include"/>

<xs:element ref="dynamic"/>

<xs:element ref="isEmpty"/>

<xs:element ref="isEqual"/>

<xs:element ref="isGreaterEqual"/>

<xs:element ref="isGreaterThan"/>

<xs:element ref="isLessThan"/>

<xs:element ref="isLessEqual"/>

<xs:element ref="isNotEmpty"/>

<xs:element ref="isNotEqual"/>

<xs:element ref="isNotNull"/>

<xs:element ref="isNotParameterPresent"/>

<xs:element ref="isNotPropertyAvailable"/>

<xs:element ref="isNull"/>

<xs:element ref="isParameterPresent"/>

<xs:element ref="isPropertyAvailable"/>

<xs:element ref="iterate"/>

<xs:element ref="generate"/>

</xs:choice>

<xs:attribute name="id" type="xs:string" use="required"/>

<xs:attribute name="parameterClass" type="xs:string"/>

<xs:attribute name="resultMap" type="xs:string"/>

<xs:attribute name="resultClass" type="xs:string"/>

<xs:attribute name="parameterMap" type="xs:string"/>

<xs:attribute name="cacheModel" type="xs:string"/>

<xs:attribute name="listClass" type="xs:string"/>

<xs:attribute name="extends" type="xs:string"/>

<xs:attribute name="remapResults">

<xs:simpleType>

<xs:restriction base="xs:NMTOKEN">

iBATIS.NET's SqlMap.xsd

DataMapper Guide Version 1.6.1 103

<xs:enumeration value="false"/>

<xs:enumeration value="true"/>

</xs:restriction>

</xs:simpleType>

</xs:attribute>

</xs:complexType>

</xs:element>

<xs:element name="selectKey">

<xs:complexType>

<xs:simpleContent>

<xs:extension base="xs:string">

<xs:attribute name="property" type="xs:string" use="required"/>

<xs:attribute name="type" use="required">

<xs:simpleType>

<xs:restriction base="xs:NMTOKEN">

<xs:enumeration value="post"/>

<xs:enumeration value="pre"/>

</xs:restriction>

</xs:simpleType>

</xs:attribute>

<xs:attribute name="resultClass" type="xs:string" use="required"/>

</xs:extension>

</xs:simpleContent>

</xs:complexType>

</xs:element>

<xs:element name="sqlMap">

<xs:complexType>

<xs:all>

<xs:element ref="alias" minOccurs="0"/>

<xs:element ref="cacheModels" minOccurs="0"/>

<xs:element ref="resultMaps" minOccurs="0"/>

<xs:element ref="statements" minOccurs="0" />

<xs:element ref="parameterMaps" minOccurs="0"/>

</xs:all>

<xs:attribute name="namespace" type="xs:string" use="required"/>

</xs:complexType>

</xs:element>

<xs:element name="sql">

<xs:complexType mixed="true">

<xs:choice minOccurs="0" maxOccurs="unbounded">

<xs:element ref="include"/>

<xs:element ref="dynamic"/>

<xs:element ref="isEmpty"/>

<xs:element ref="isEqual"/>

<xs:element ref="isGreaterEqual"/>

<xs:element ref="isGreaterThan"/>

<xs:element ref="isLessThan"/>

<xs:element ref="isLessEqual"/>

<xs:element ref="isNotEmpty"/>

<xs:element ref="isNotEqual"/>

<xs:element ref="isNotNull"/>

<xs:element ref="isNotParameterPresent"/>

<xs:element ref="isNotPropertyAvailable"/>

<xs:element ref="isNull"/>

<xs:element ref="isParameterPresent"/>

<xs:element ref="isPropertyAvailable"/>

<xs:element ref="iterate"/>

</xs:choice>

<xs:attribute name="id" type="xs:string" use="required"/>

</xs:complexType>

</xs:element>

<xs:element name="statement">

<xs:complexType mixed="true">

<xs:choice minOccurs="0" maxOccurs="unbounded">

<xs:element ref="include"/>

<xs:element ref="dynamic"/>

<xs:element ref="isEmpty"/>

<xs:element ref="isEqual"/>

<xs:element ref="isGreaterEqual"/>

<xs:element ref="isGreaterThan"/>

<xs:element ref="isLessThan"/>

<xs:element ref="isLessEqual"/>

<xs:element ref="isNotEmpty"/>

<xs:element ref="isNotEqual"/>

<xs:element ref="isNotNull"/>

<xs:element ref="isNotParameterPresent"/>

<xs:element ref="isNotPropertyAvailable"/>

<xs:element ref="isNull"/>

iBATIS.NET's SqlMap.xsd

DataMapper Guide Version 1.6.1 104

<xs:element ref="isParameterPresent"/>

<xs:element ref="isPropertyAvailable"/>

<xs:element ref="iterate"/>

</xs:choice>

<xs:attribute name="id" type="xs:string" use="required"/>

<xs:attribute name="parameterClass" type="xs:string"/>

<xs:attribute name="resultMap" type="xs:string"/>

<xs:attribute name="resultClass" type="xs:string"/>

<xs:attribute name="parameterMap" type="xs:string"/>

<xs:attribute name="listClass" type="xs:string"/>

<xs:attribute name="cacheModel" type="xs:string"/>

<xs:attribute name="remapResults">

<xs:simpleType>

<xs:restriction base="xs:NMTOKEN">

<xs:enumeration value="false"/>

<xs:enumeration value="true"/>

</xs:restriction>

</xs:simpleType>

</xs:attribute>

</xs:complexType>

</xs:element>

<xs:element name="statements">

<xs:complexType>

<xs:choice maxOccurs="unbounded">

<xs:element ref="sql"/>

<xs:element ref="statement"/>

<xs:element ref="insert"/>

<xs:element ref="update"/>

<xs:element ref="delete"/>

<xs:element ref="select"/>

<xs:element ref="procedure"/>

</xs:choice>

</xs:complexType>

</xs:element>

<xs:element name="typeAlias">

<xs:complexType>

<xs:attribute name="alias" type="xs:string" use="required"/>

<xs:attribute name="type" type="xs:string" use="required"/>

</xs:complexType>

</xs:element>

<xs:element name="update">

<xs:complexType mixed="true">

<xs:choice minOccurs="0" maxOccurs="unbounded">

<xs:element ref="include"/>

<xs:element ref="generate"/>

<xs:element ref="dynamic"/>

<xs:element ref="isEmpty"/>

<xs:element ref="isEqual"/>

<xs:element ref="isGreaterEqual"/>

<xs:element ref="isGreaterThan"/>

<xs:element ref="isLessThan"/>

<xs:element ref="isLessEqual"/>

<xs:element ref="isNotEmpty"/>

<xs:element ref="isNotEqual"/>

<xs:element ref="isNotNull"/>

<xs:element ref="isNotParameterPresent"/>

<xs:element ref="isNotPropertyAvailable"/>

<xs:element ref="isNull"/>

<xs:element ref="isParameterPresent"/>

<xs:element ref="isPropertyAvailable"/>

<xs:element ref="iterate"/>

</xs:choice>

<xs:attribute name="id" type="xs:string" use="required"/>

<xs:attribute name="parameterMap" type="xs:string"/>

<xs:attribute name="parameterClass" type="xs:string"/>

<xs:attribute name="extends" type="xs:string"/>

<xs:attribute name="remapResults">

<xs:simpleType>

<xs:restriction base="xs:NMTOKEN">

<xs:enumeration value="false"/>

<xs:enumeration value="true"/>

</xs:restriction>

</xs:simpleType>

</xs:attribute>

</xs:complexType>

</xs:element>

</xs:schema>

iBATIS.NET's SqlMap.xsd

DataMapper Guide Version 1.6.1 105

Data Mapper Guide 1.6.2

Navigation menu

Versions of this User Manual:

Views

Navigation
