Delft3D

3D/2D modelling suite for integral water solutions

User Manual

MATLAB

DRAFT

Delft3D-MATLAB

Interface to MATLAB for ﬂexibility in visualisation and

data analysis

User Manual

Hydro-Morphodynamics & Water Quality

Version: 2.15

SVN Revision: 52614

April 18, 2018

DRAFT

Delft3D-MATLAB, User Manual

Published and printed by:

Deltares

Boussinesqweg 1

2629 HV Delft

P.O. 177

2600 MH Delft

The Netherlands

telephone: +31 88 335 82 73

fax: +31 88 335 85 82

e-mail: info@deltares.nl

www: https://www.deltares.nl

For sales contact:

telephone: +31 88 335 81 88

fax: +31 88 335 81 11

e-mail: software@deltares.nl

www: https://www.deltares.nl/software

For support contact:

telephone: +31 88 335 81 00

fax: +31 88 335 81 11

e-mail: software.support@deltares.nl

www: https://www.deltares.nl/software

print, photo copy, microﬁlm or any other means, without written permission from the publisher:

Deltares.

DRAFT

Contents

List of Figures v

1 Introduction 1

1.1 Version information .............................. 1

1.2 Compatibility ................................. 1

1.3 List of major changes ............................. 1

2 Low level routines 3

2.1 Open NEFIS ﬁle: vs_use .......................... 3

2.2 Display information of groups and elements: vs_disp . . . . . . . . . . . . 4

2.3 Get data from a NEFIS ﬁle: vs_let/vs_get ................ 6

2.4 Determine the type of a NEFIS ﬁle: vs_type ................ 9

2.5 Find group to which element belongs: vs_find . . . . . . . . . . . . . . . 10

2.6 Find differences between two NEFIS ﬁles: vs_diff . . . . . . . . . . . . . 10

3 High level routines 13

3.1 Plot a grid: drawgrid ............................ 13

3.2 Plot thin dams: thindam ........................... 14

3.3 Read/write restart ﬁle: trirst . . . . . . . . . . . . . . . . . . . . . . . . 17

3.4 Read/write depth ﬁle: wldep ......................... 18

3.5 Read/write grid ﬁle: wlgrid ......................... 18

3.6 Read/plot velocity ﬁeld: xyveloc . . . . . . . . . . . . . . . . . . . . . . 19

3.7 Generic read data: qpread ......................... 20

3.8 Generic open ﬁle: qpfopen ......................... 22

3.9 Get ﬁle opened by QUICKPLOT: qpfile . . . . . . . . . . . . . . . . . . 23

4 Delft3D-QUICKPLOT functionality 25

References 29

Deltares iii

DRAFT

Delft3D-MATLAB, User Manual

iv Deltares

DRAFT

List of Figures

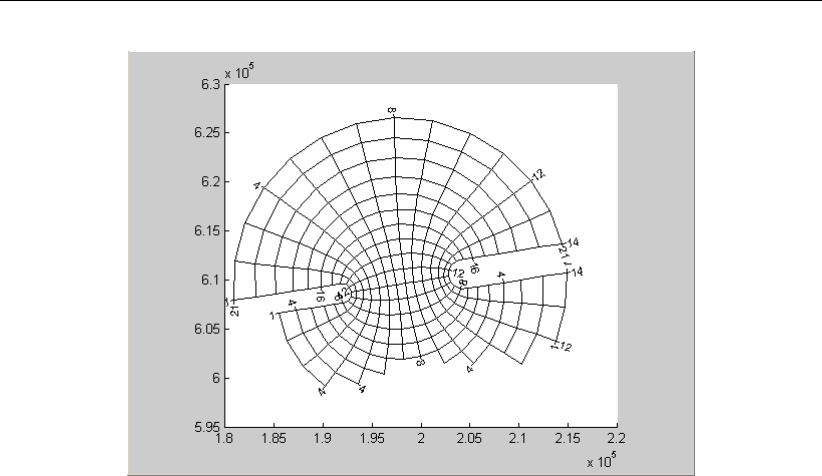

3.1 Grid layout from the Friesian Tidal Inlet model. . . . . . . . . . . . . . . . . 14

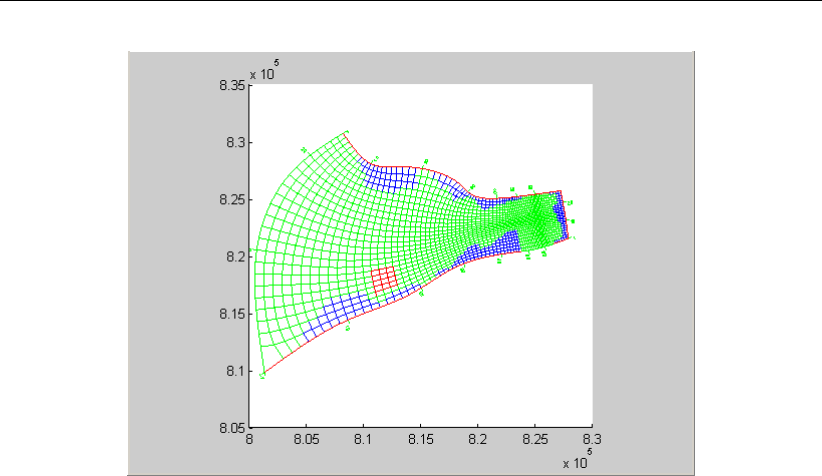

3.2 Example of grid and thin dams. . . . . . . . . . . . . . . . . . . . . . . . . 17

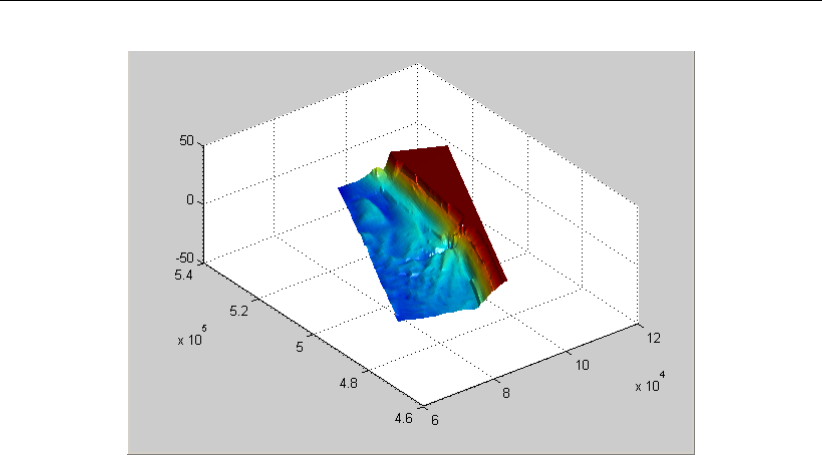

3.3 Example of 3D depth plot. ........................... 19

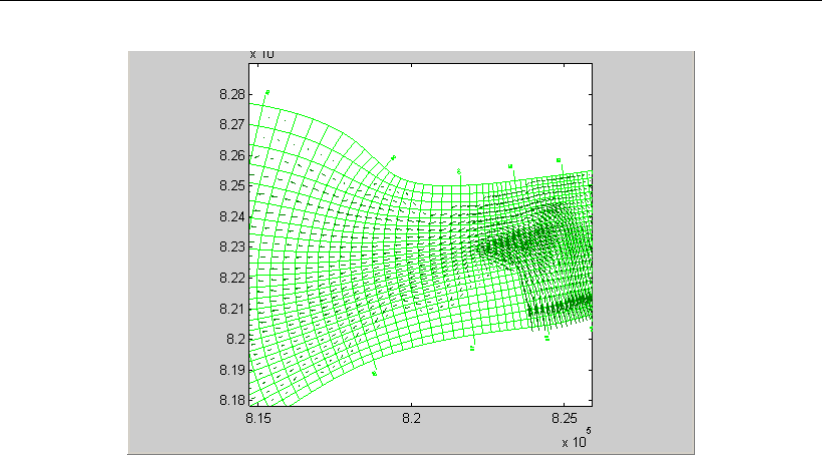

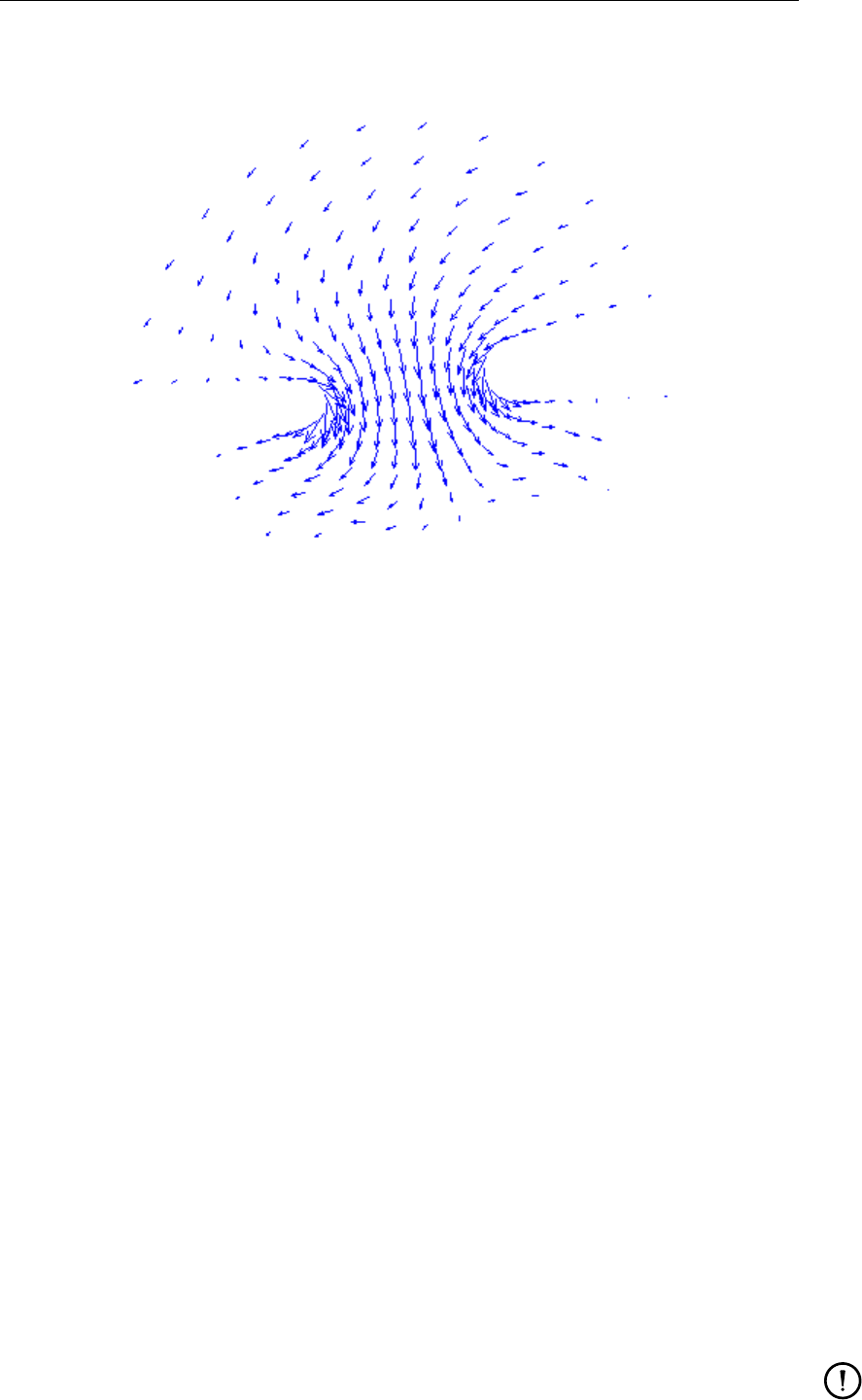

3.4 Example of vector velocity plot. . . . . . . . . . . . . . . . . . . . . . . . . 20

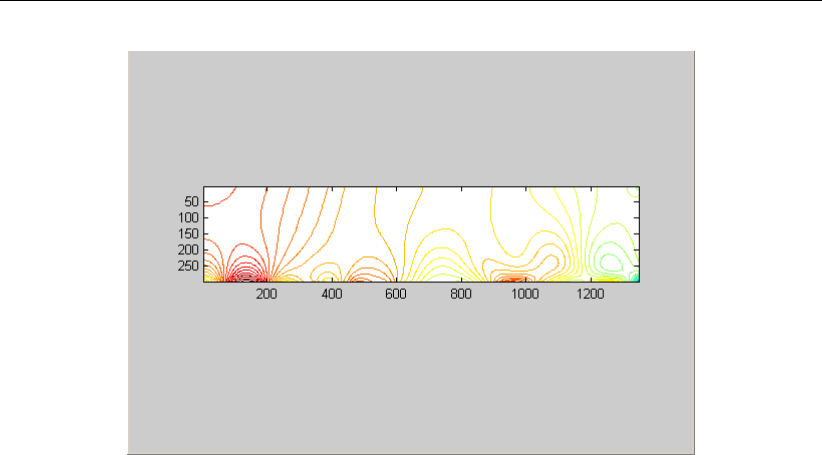

3.5 Example of contour plot. ........................... 23

4.1 Selection window of Delft3D-QUICKPLOT. . . . . . . . . . . . . . . . . . . 26

4.2 Display/export options for QUICKPLOT commands. . . . . . . . . . . . . . . 26

4.3 Example of Delft3D-QUICKPLOT ﬁgure. . . . . . . . . . . . . . . . . . . . 27

Deltares v

DRAFT

Delft3D-MATLAB, User Manual

vi Deltares

DRAFT

1 Introduction

The MATLAB interface for Delft3D has been developed to expand the ﬂexibility in the process-

ing of Delft3D data in general and of NEFIS data ﬁles in particular. The interface consists of

three parts:

First, low level routines to access data stored in NEFIS ﬁles. The routines are described

in the second chapter of this manual. A thorough knowledge of the Delft3D system is

required.

Second, high level routines to access the data. These functions support a pre-deﬁned (but

extensive) set of spatial data stored in the NEFIS ﬁles. Routines for reading and writing

ﬂow restart ﬁles, grid and depth ﬁles are also provided. These routines are described in

Chapter 3.

Third, a graphical user interface for basic plotting. The QUICKPLOT interface is described

in Chapter 4.

All functions are provided in source code. The routines described in chapters three and four

can be used as examples for development of other routines.

1.1 Version information

This manual describes the functionality of Delft3D-MATLAB interface version 2.14 and later

versions with minor revisions.

1.2 Compatibility

The routines have been tested for compatibility with MATLAB versions ranging from 6.5 (R13)

until 2009b. Recent MATLAB versions give some warnings because ‘v6’ compatibility argu-

ments are used in quiver and contourf calls; these warnings do not inﬂuence the results.

1.3 List of major changes

Version Description

2.15 Function to process Delft3D-FLOW mdf ﬁle

Suport for more Delft3D-FLOW attribute ﬁles

New function to convert cell centred data to cell corners

2.14 New functions for tidal analysis, horizontal slices and vertical averaging

MATLAB version before 6.5 no longer supported.

2.07 Update of QUICKPLOT interface to match standalone version 2.07 of

Delft3D-QUICKPLOT

2.05 Update of QUICKPLOT interface to match standalone version 2.05 of

Delft3D-QUICKPLOT

Deltares 1 of 32

DRAFT

Delft3D-MATLAB, User Manual

2 of 32 Deltares

DRAFT

2 Low level routines

A set of MATLAB ﬁles has been created to access NEFIS ﬁles from within MATLAB. The

following functions have been implemented:

vs_use open NEFIS ﬁle

vs_disp display information of groups and elements contained in a NEFIS ﬁle

vs_let/vs_get get data from a NEFIS ﬁle

vs_type determine type of a NEFIS ﬁle

vs_find ﬁnd group to which an element belongs

vs_diff ﬁnd differences between two NEFIS ﬁles

If no NEFIS ﬁle is speciﬁed when using the commands vs_disp,vs_let,vs_get,vs_type and

vs_find the last opened NEFIS is used. The commands are discussed below in more detail.

Remark:

Spatial data sets are stored in the NEFIS ﬁle with the M and N dimensions reversed.

2.1 Open NEFIS ﬁle: vs_use

Purpose

Open/scan NEFIS ﬁle

Syntax

Nfs = vs_use(FileName)

Description

Nfs = vs_use(FileName) opens a NEFIS ﬁle where the ﬁlename is the name of either

the deﬁnition or the data ﬁle, and returns a handle Nfs to the ﬁle, which must be used when

calling the other commands. When no ﬁlename is speciﬁed, the command will ask for one.

The vs_usecommand scans the structure of the deﬁnition and data ﬁles; this will take some

time. MATLAB can store the structure information in a ﬁle with the same name base (as

indicated by ﬁlename) and extension <∗.mat>, and read that information when the ﬁle is

re-opened a next time. This used to be the default behaviour but is now optional: use option

usemat. The old option nomat is still accepted and overrules usemat. If changes were made to

the <∗.def>and/or <∗.dat>ﬁles, you should add refresh as additional argument to prevent

reading the existing mat-ﬁle. The addition of the argument quiet as last argument reads the ﬁle

structure without showing the wait bar. When the option debug is used a ﬁle <vs_use.dbg>

is created in the default temporary directory, containing information on the reading of the data

structure from the NEFIS ﬁle.

The returned Nfs can be interpreted as a ﬁle handle as used in all programming environments

for ﬁle access. However, it is not an integer but a structure containing the internal structure of

the NEFIS ﬁle.

Example

>> Nfs=vs_use

Deltares 3 of 32

DRAFT

Delft3D-MATLAB , User Manual

Nfs =

FileName: ‘I:\OCTOPUS\sbod_gf3.66_tot\output\TS11520000\com-d16’

DatExt: ‘.dat’

DefExt: ‘.def’

Format: ‘b’

gNames: [21x368 char ]

gData: [21x27 double]

eNames: [89x112 char ]

eData: [89x11 double]

2.2 Display information of groups and elements: vs_disp

Purpose

Display NEFIS ﬁle contents.

Syntax

vs_disp(Nfs)

Output = vs_disp(Nfs)

vs_disp(Nfs, [])

Output = vs_disp(Nfs, [])

vs_disp(Nfs, GroupName)

Output = vs_disp(Nfs, GroupName)

Output = vs_disp(Nfs, GroupName, [])

Output = vs_disp(Nfs, GroupName, ElementName)

Description

vs_disp(Nfs) lists all group names, group elements, and all group and element prop-

erties like the disp stat command of the Viewer Selector. vs_disp(Nfs, []) lists

group names, group dimensions, and number of elements per group only. This can be used

as a short summary of the ﬁle contents. Output = vs_disp(Nfs) and Output =

vs_disp(Nfs, []) return a char matrix containing the names of the groups.

vs_disp(Nfs, GroupName) lists all group elements, and all element properties like the

disp GroupName command of Viewer Selector. Output = vs_disp(Nfs, GroupName)

returns a char matrix containing the names of the elements of the group.

Output = vs_disp(Nfs, GroupName, []) gives detailed data about the speciﬁed

group contained in the Nfs structure. The information includes group data name, cell name,

deﬁnition name, number of elements, dimensions, and the offsets within the NEFIS ﬁle at

which locations data of the group are stored. Output = vs_disp(Nfs, GroupName,

ElementName) gives detailed data about the speciﬁed element contained in the Nfs struc-

ture. The information includes element description, unit and size.

Examples

>> vs_disp(Nfs)

Groupname:BOTNT Dimensions:(1)

No attributes

NTBOT INTEGER *4 [ - ] ( 1 )

Number of bottom fields in group BOTTIM

Groupname:BOTTIM Dimensions:(24)

No attributes

4 of 32 Deltares

DRAFT

Low level routines

TIMBOT INTEGER *4 [ TSCALE] ( 1 )

Communication times bottom fields rel. to reference date/time

DP REAL *4 [ M ] ( 98 62 )

Bottom depth in bottom points, positive downwards

and so on ...

>> vs_disp(Nfs,[])

BOTNT (1) - No attributes, 1 element(s).

BOTTIM (24) No attributes, 2 element(s).

PARAMS (1) - No attributes, 8 element(s).

GRID (1) - No attributes, 16 element(s).

SPECPOINTS (1) - No attributes, 4 element(s).

BOUNDCNST (1) - No attributes, 8 element(s).

KENMCNST (1) - No attributes, 3 element(s).

INITBOT (1) - No attributes, 4 element(s).

ROUGHNESS (1) - No attributes, 3 element(s).

TEMPOUT (1) - No attributes, 4 element(s).

com-version (1) - No attributes, 3 element(s).

KENMNT (1) - No attributes, 1 element(s).

KENMTIM (1) - No attributes, 3 element(s).

CURNT (1) - No attributes, 1 element(s).

CURTIM (1) - No attributes, 7 element(s).

DWQTIM (1) - No attributes, 5 element(s).

TAUTIM (1) - No attributes, 1 element(s).

INITI (1) - No attributes, 1 element(s).

TRANNT (1) - No attributes, 2 element(s).

BOUNDMOR (1) - No attributes, 1 element(s).

TRANSTIM (1) - No attributes, 11 element(s).

>> Output=vs_disp(Nfs) %or Output=vs_disp(Nfs,[])

Output =

BOTNT

BOTTIM

PARAMS

GRID

SPECPOINTS

BOUNDCNST

KENMCNST

INITBOT

ROUGHNESS

TEMPOUT

com-version

KENMNT

KENMTIM

CURNT

CURTIM

DWQTIM

TAUTIM

INITI

TRANNT

BOUNDMOR

TRANSTIM

>> vs_disp(Nfs,‘BOTTIM’)

Groupname:BOTTIM Dimensions:(24)

No attributes

TIMBOT INTEGER *4 [ TSCALE] ( 1 )

Deltares 5 of 32

DRAFT

Delft3D-MATLAB , User Manual

Communication times bottom fields rel. to reference date/time

DP REAL *4 [ M ] ( 98 62 )

Bottom depth in bottom points, positive downwards

>> Output=vs_disp(Nfs,‘BOTTIM’)

Output =

TIMBOT

>> Output=vs_disp(Nfs,‘BOTTIM’,[]) % get group information

Output =

Name: ‘BOTTIM’

GroupDatOffset: 8560

DefName: ‘BOTTIM’

GroupDefOffset: 12728

CellName: ‘BOTTIM’

CellDefOffset: 12660

CellNByte: 24308

CellNElm: 2

NDim: 1

VarDim: 1

SizeDim: 24

OrderDim: 1

Attrib: [1x1 struct]

>> Output=vs_disp(Nfs,‘BOTTIM’,‘DP’) % get element information

Output =

GrpNname: ‘BOTTIM’

ElmName: ‘DP’

ElmQuantity: ‘’

ElmUnits: ‘[ M ]’

ElmDescription: ‘Bottom depth in bottom points, positive downwards’

ElmDefOffset: 12496

NDim: 2

SizeDim: [98 62]

TypeVal: 5

NByteVal: 4

NByte: 24304

2.3 Get data from a NEFIS ﬁle: vs_let/vs_get

Purpose

Read data from ﬁle (groups as columns or cells).

Syntax

[Data, Succes] = vs_let(Nfs, GroupName, GroupIndex, ElementName, ElementIndex)

[Data, Succes] = vs_get(Nfs, GroupName, GroupIndex, ElementName, ElementIndex)

Description

6 of 32 Deltares

DRAFT

Low level routines

Data = vs_let(Nfs, GroupName, GroupIndex, ElementName, ElementIndex)

Data = vs_get(Nfs, GroupName, GroupIndex, ElementName, ElementIndex)

These commands read the requested element from the speciﬁed group from the speciﬁed ﬁle.

The GroupIndex should be a 1xN cell array, where N equals the number of dimensions of

the group. Each element of the cell array should contain either 0 (zero) or the indices of the

cells that should be read. The 0 means that all cells should be read. The ElementIndex

should be a 1xM cell array, where M equals the number of dimensions of the element. Again,

each element of the cell array should contain either 0 (zero) or the indices of the elements

that should be read, where 0 means that the complete dimension should be read. When

the option debug is used a ﬁle <vs_let.dbg>is created in the default temporary directory,

containing information on the reading of the data from the NEFIS ﬁle.

The command vs_let reads all data in one big matrix, using the ﬁrst dimensions for the

groups and the last dimensions for the elements. The command vs_get returns a matrix

containing the data if data from only one group is read, and a cell array of matrices when data

from more than one group is read. An additional output option succes [Data,Succes] =

... indicates whether the data has been read successfully.

When the GroupIndex and/or ElementIndex are skipped all ﬁelds of the group/element

are selected. When no GroupName or ElementName is speciﬁed or when an error is

encountered while interpreting the input a graphical user interface is presented to enter the

selection. To help new users to get acquainted to the command line syntax of the vs_get and

vs_let routines, the command option line -cmdhelp is provided. When used, the routine

does not actually load the data, but it displays the command line equivalent of the selection

that you have made in the user interface.

Examples

For example: To read from the depth data the ﬁrst 10 rows (and of those rows all columns) of

the 1st, 3rd, 5th, 7th, and 9th time steps, you should type:

>> Data=vs_let(Nfs,‘BOTTIM’,{1:2:10},‘DP’,{1:10 0});

which returns a 5x10x62 matrix; or

>> Data=vs_get(Nfs,‘BOTTIM’,{1:2:10},‘DP’,{1:10 0})

Data =

[10x62 double]

Indicating that a 5 x 1 cell array is returned, each cell containing one bottom ﬁeld (10 x 62 data

points). Character strings are contained in cell arrays. The most common cases of reading

from are:

Data=vs_get(Nfs,‘BOTTIM’,{0},‘DP’,{0 0})

Read all bottom data completely. Group/Element indices containing only zeros don’t have to

be speciﬁed. So, the following is also accepted:

Deltares 7 of 32

DRAFT

Delft3D-MATLAB, User Manual

Data=vs_get(Nfs,‘BOTTIM’,‘DP’)

Data=vs_get(Nfs,‘BOTTIM’,{0},‘DP’,{n 0}), or

Data=vs_get(Nfs,‘BOTTIM’,‘DP’,{n 0})

Read cross-section n at all time steps

Data=vs_get(Nfs,‘BOTTIM’,{t},‘DP’,{0 0}), or

Data=vs_get(Nfs,‘BOTTIM’,{t},‘DP’)

Read the bottom at time step t. This will return a 10 x 62 matrix if vs_get is used, and a

1x10x62 matrix if vs_let is used.

Data=vs_get(Nfs,‘BOTTIM’,{0},‘DP’,{n m}), or

Data=vs_get(Nfs,‘BOTTIM’,‘DP’,{n m})

Read the variation of the bottom at indicated (n,m)-point. If this is followed by a Data =

[Data:]; command to convert the cell array containing single values into a vector; it can

be replaced by

Data=vs_let(Nfs,‘BOTTIM’,‘DP’,{m n})

which gives that result immediately and is faster.

When besides the Nfs no further arguments are used (or when no element name is speci-

ﬁed), an interface will appear asking for the other arguments. Adding the string quiet as last

input argument will suppress the wait bar during loading. When ‘*’is speciﬁed as element

name all elements of the group are returned; if an element index is speciﬁed it is ignored.

Example

Data=vs_let(Nfs,‘BOTTIM’,{1:2:10},‘*’)

returns

Data =

TIMBOT: [5x1 double]

DP: [5x10x62 double]

and

Data=vs_get(Nfs,‘BOTTIM’,{1:2:10},‘*’)

returns the data of ﬁve time steps

8 of 32 Deltares

DRAFT

Low level routines

Data =

5x1 struct array with fields:

TIMBOT

To assist the novice user with the syntax of the vs_let and vs_get commands a help

functionality has been added to these functions which allows the interactive generation of

command lines. This functionality is activated by supplying -cmdhelp as one of the input

arguments. For instance:

>> vs_let -cmdhelp

results after the following data has been entered in the user interface

in the following output string

Data=vs_let(NFStruct,‘BOTTIM’,{[ 1:2:9 ]},‘DP’,{[ 1:10 ],0});

You can copy this string into a text editor for use in a script. As indicated above, variations on

the syntax are allowed. The following line is also valid

Data=vs_let(‘BOTTIM’,{1:2:9},‘DP’,{1:10,1:73});

The result will be exactly the same provided that the variable NFStruct in the ﬁrst command

line contains the information of the last opened NEFIS ﬁle.

2.4 Determine the type of a NEFIS ﬁle: vs_type

Purpose

Show type of NEFIS ﬁle.

Syntax

Type=vs_type(Nfs)

Description

The function returns the type of the loaded NEFIS ﬁle. Currently the following NEFIS ﬁles are

detected: ‘Delft3D-com’, ‘Delft3D-trim’, ‘Delft3D-trih’, ‘Delft3D-trid’, ‘Delft3D-tram’, ‘Delft3D-

trah’, ‘Delft3D-botm’. Other NEFIS ﬁles will return ‘unknown’. For example:

Example

>> Type=vs_type(Nfs)

Type =

Delft3D-com

Deltares 9 of 32

DRAFT

Delft3D-MATLAB , User Manual

2.5 Find group to which element belongs: vs_find

Purpose

Find elements in a NEFIS ﬁle.

Syntax

Groups=vs_find(Nfs, ElementName)

Description

The function returns a list of group names containing the speciﬁed element. For example the

element ‘TIMCUR’ occurs in several groups of the com-ﬁle:

Example

>> Groups=vs_find(Nfs,‘TIMCUR’)

Groups =

KENMTIM

CURTIM

DWQTIM

2.6 Find differences between two NEFIS ﬁles: vs_diff

Purpose

Compare NEFIS ﬁle contents and ﬁnd differences in groups, elements and data.

Syntax

vs_diff(Nfs1,Nfs2)

Description

The function analyses the speciﬁed NEFIS ﬁles for differences. The analyses searches ﬁrst

for differences in the contained groups. If it ﬁnds differences it stops, if not it continues to

search for differences in the elements, element properties, and element data.

Example

The following comparison between two com-ﬁles, of which the ﬁrst was obtained by a restart

run from the second one, indicates

differences in the water and sediment transport data ﬁelds;

a difference in the group properties of the BOTTIM group (which is caused by one addi-

tional depth ﬁeld); and

differences in the ‘RUNTXT’ and ‘SIMDAT’ texts.

>> vs_diff(Nfs,Nfs2)

Comparing NEFIS files ...

File 1: I:\OCTOPUS\sbod_gf3.66_tot\output\TS11520000\com-d16

File 2: I:\OCTOPUS\sbod_gf3.66_tot\output\TS11160000\com-d16

10 of 32 Deltares

DRAFT

Low level routines

Data of element NTBOT of group BOTNT differ.

Group properties differ for: BOTTIM

Data of element QU of group CURTIM differ.

Data of element QV of group CURTIM differ.

Data of element S1 of group CURTIM differ.

Data of element TIMCUR of group CURTIM differ.

Data of element U1 of group CURTIM differ.

Data of element V1 of group CURTIM differ.

Data of element TIMCUR of group DWQTIM differ.

Data of element KFU of group KENMTIM differ.

Data of element KFV of group KENMTIM differ.

Data of element TIMCUR of group KENMTIM differ.

Data of element TAUMAX of group TAUTIM differ.

Data of element TSEDB of group TRANSTIM differ.

Data of element TSEDE of group TRANSTIM differ.

Data of element TTXA of group TRANSTIM differ.

Data of element TTYA of group TRANSTIM differ.

Data of element RUNTXT of group com-version differ.

Data of element SIMDAT of group com-version differ.

... comparison finished.

Deltares 11 of 32

DRAFT

Delft3D-MATLAB, User Manual

12 of 32 Deltares

DRAFT

3 High level routines

Although the low level routines provide access to all data in the NEFIS ﬁles, obtaining a useful,

consistent data set can be difﬁcult. For instance, to plot a 2D vector ﬁeld you have to combine

the information stored at about seven locations in the Delft3D communication ﬁle. Therefore,

a number of high level routines has been provided to simplify the plotting and data retrieval

operations. Routines are provided for plotting a grid (with grid number labels), plotting thin

dams and inactive velocity points, and retrieving data to plot velocity vectors. Functions are

also provided for reading and writing RGFGRID grid ﬁles (RGFGRID manual (RGFGRID UM,

2016)), QUICKIN depth ﬁles (QUICKIN manual (QUICKIN UM,2013), and Delft3D-FLOW

restart ﬁles (Delft3D-FLOW manual (Delft3D-FLOW UM,2013)).

3.1 Plot a grid: drawgrid

Purpose

Plot the morphological grid.

Syntax

drawgrid(NFStruct)

[X, Y] = drawgrid(NFStruct);

drawgrid(X, Y)

Description

drawgrid(NFStruct) where NFStruct is the structure obtained from the vs_usecommand.

The function adds the morphological grid (that is, the user-deﬁned grid) to the current axes.

<trim-∗>,<tram-∗>,<botm-∗>, and <com-∗>ﬁles are supported. The morphological

grid equals the grid speciﬁed in the input ﬁle; the bed level points are speciﬁed on the grid line

crossings.

[X, Y] = drawgrid(NFStruct) returns the X and Y co-ordinates, but it does not ac-

tually draw the morphological grid.

drawgrid(X, Y) draws the user speciﬁed grid in the current axes.

This function accepts a number of optional arguments, which consist of property - value pairs

similar to those use by the MATLAB set command: drawgrid(..., ‘optionname1’,

optionval1, ‘optionname2’, optionval2, ...). The supported options are

‘color’ The value can be an RGB-triplet, a colour character (‘r’, ‘g’, ‘b’, ‘c’,

‘m’, ‘y’, ‘k’, ‘w’), or the string ‘ortho’ for colouring based on the or-

thogonality of grid, ‘msmo’ for the M-smoothness of grid, ‘nsmo’ for

the N-smoothness of grid

‘m1n1’ [N M ]number of grid point(1,1). Useful when plotting only part of

the grid.

‘fontsize’ The size of the font used for grid numbering (default 4)

‘gridstep’ Label step used for grid numbering (default 10). For instance, 5 will

number every ﬁfth grid line. If grid step is [], grid lines are not labelled.

‘thicklength’ Length of ticks in axes co-ordinates or ‘auto’ (default)

‘parent’ The axes handle in which to plot grid (default the current axes, gca)

‘clipzero’ By default co-ordinate pairs of (0,0) are clipped. Set to ‘off’ to plot

co-ordinates at (0,0))

Deltares 13 of 32

DRAFT

Delft3D-MATLAB, User Manual

Figure 3.1: Grid layout from the Friesian Tidal Inlet model.

Example, Figure 3.1

>> G=wlgrid(’read’,’d:\f-disk\users\mooiman\delft3d\models\f34\f34\f34.grd’)

G =

X: [14x21 double]

Y: [14x21 double]

Enclosure: [19x2 double]

FileName: ’D:\delft3d\tutorial\flow\f34_demo\fti_02.grd’

CoordinateSystem: ’Cartesian’

MissingValue: 0

Type: ’RGF’

>> drawgrid(G.X,G.Y,‘fontsize’,8,‘gridstep’,4)

>> set(gca,‘dataaspectratio’,[1 1 1])

3.2 Plot thin dams: thindam

Purpose

Plot dams, weirs and vanes.

Syntax

thindam(NFStruct, T)

thindam(NFStruct, T, ‘3D’)

thindam(XCOR, YCOR, UDAM, VDAM)

thindam(‘xyw’, XDAM, YDAM, WDAM)

thindam(..., ‘PropertyName’, PropertyValue)

H = thindam(...)

[X, Y] = thindam(...)

[X, Y, M, N] = thindam(...)

[X, Y, Z] = thindam(...)

[X, Y, BOTTOM, TOP] = thindam(...)

[X, Y, BOTTOM, TOP, M, N] = thindam(...)

14 of 32 Deltares

DRAFT

High level routines

Description

thindam(NFStruct,T) plots the KFU/V (drying/ﬂooding) dams for time step T if T>0.

It plots the KCU/V thin dams if T==0 (default if T is not speciﬁed). The function supports

<trim-*>and <com-*>ﬁles.

thindam(NFStruct, T, ‘3D’) same as above but now the dams will be plotted as 3D

surfaces based on the bottom and water level information in the speciﬁed NEFIS ﬁle, <trim-*>

or <com-*>ﬁle.

thindam(XCOR, YCOR, UDAM, VDAM) plots the speciﬁed U and V dams on the spec-

iﬁed grid. The XCOR and YCOR represent the bottom points. Valid entries for UDAM and

VDAM are:

matrix of same size as XCOR/YCOR with a 1 representing a dam and a 0 indicating no

dam.

D x 2 matrix specifying the N, M co-ordinates of the dams

D x 4 matrix specifying the begin/end N, M co-ordinates of the dams like in the Delft3D

input ﬁles.

thindam(‘xyw’, XDAM, YDAM, WDAM, ...) plots dams with their centre at spec-

iﬁed (XDAM, YDAM) locations with speciﬁed width/length WDAM. This function is useful for

non-grid oriented dams.

A 3D effect can be added to these user-speciﬁed dams by specifying bottom and top levels

using thindam(..., ‘bottom’, <bottom_args>, ‘top’, <top_args>). It

plots the dams as 3D surfaces with speciﬁed top and bottom elevations. The elevation data

should be speciﬁed with positive direction up. Additional supported options are:

‘angle’, <angle_args> The dams/vanes are rotated to match the speciﬁed angle

in degrees with respect to the positive X-axis (positive angle in anti-clockwise direction).

‘color’, <color_args> The dams are coloured using the speciﬁed data.

‘thickness’, <thickness_args> The thickness of the dams is speciﬁed (default

0).

Valid entries for all options are:

a constant, uniform value for all dams

a matrix of same size as XCOR/YCOR containing data in the depth points.

a matrix of same size as XCOR/YCOR containing data in the water level points. To dis-

tinguish this entry from the former you need to add the string ‘H’ or ‘S’ as an extra argu-

ment after the matrix. For example thindam(..., ‘top’, ELEVMATRIX, ‘H’,

...) indicates that the top level of the dams are derived from the speciﬁed data in water

level points (the value will be used uniformly along each elementary dam).

two matrices of same size as XCOR/YCOR containing data in the U and V points.

two D x s arrays specifying the property of the individual dams. If the array is D x 1 the

value is constant along each elementary dam. If the array is D x 2 the ﬁrst value is taken

for the dam end with lowest (N,M) while the second elevation for the dam end with highest

(N,M). The ﬁrst array speciﬁes the elevation for dams in U direction the second array for

dams in the V direction. For example thindam(..., ‘top’, ELEVU, ELEVV,

...). This option cannot be used in combination with option 1 for the UDAM and VDAM

entries. The number of values should match the number of dam records/elementary dams.

If a colour data ﬁeld has been speciﬁed, there are a few more options available:

Deltares 15 of 32

DRAFT

Delft3D-MATLAB, User Manual

‘shape’,<type>

The dam shape: ‘dam’ (default) or ‘rhombus’.

‘drawdams’,<onoff>

Flag to draw dams. Can be set to ‘on’ (default) or ‘off’.

‘drawlabels’,<onoff>

Flag to draw the colour values as text labels. Can be set to ‘on’ or ‘off’ (default).

‘labelformat’,<format>

Deﬁnes the format for displaying the values (default ‘%g’)

‘fontsize’,<size>

Deﬁnes the size of the labels.

If the ‘xyw’ syntax is used, then valid entries for the options are

a constant (uniform value for all dams), and

a matrix of same size as XDAM/YDAM/WDAM.

H = thindam(...) returns the handle of the line/surface object used for plotting the

dams.

[X, Y] = thindam(...) returns the x,y-arrays normally used for plotting. The dams

are not plotted. This syntax is only valid if the input arguments indicate a 2D dam plot.

[X, Y, M, N] = thindam(...) returns four nx2 matrices containing per row a pair

of end points for an elementary dam (X and Y co-ordinates, M and N index). This syntax is

only valid if the input arguments indicate a 2D dam plot.

[X, Y, Z] = thindam(...) returns the x,y,z-arrays normally used for plotting. The

dams are not plotted. This syntax is only valid if the input arguments indicate a 3D dam plot.

[X, Y, BOTTOM, TOP] = thindam(...) returns four nx2 matrices containing per

row a pair of end points for an elementary dam: X co-ordinates, Y co-ordinates, bottom ele-

vation and top elevation. This syntax is only valid if the input arguments indicate a 3D dam

plot.

[X, Y, BOTTOM, TOP, M, N] = thindam(...) returns six nx2 matrices contain-

ing per row a pair of end points for an elementary dam: X co-ordinates, Y co-ordinates, bottom

elevation, top elevation, M index, N index. This syntax is only valid if the input arguments in-

dicate a 3D dam plot.

Example, Figure 3.2

>> vs_use D:\wl\delft3d\tutorial\wave\Siu-Lam\Com-siu

>> drawgrid(‘color’,‘g’)

>> set(gca,‘DataAspectRatio’,[1 1 1])

>> thindam(1)

>> l=thindam; set(l,‘color’,‘r’)

16 of 32 Deltares

DRAFT

High level routines

Figure 3.2: Example of grid and thin dams.

3.3 Read/write restart ﬁle: trirst

Purpose

Read/write Delft3D-FLOW restart ﬁle.

Syntax

[H, U, V, ...] = trirst(‘read’, FILENAME, SIZE)

[H, U, V, ...] = trirst(‘read’, FILENAME, GRID)

[H, U, V, ...] = trirst(‘read’, FILENAME, GRID, NLAYERS)

trirst(‘write’, FILENAME, H, U, V, ...)

trirst(‘write’, FILENAME, PLATFORM, H, U, V, ...)

Description

[H, U, V, ...] = trirst(‘read’, FILENAME, SIZE) and [H, U, V, ...]

= trirst(‘read’, FILENAME, GRID) where GRID was read in from the <∗.grd>

ﬁle by WLGRID read data from a Delft3D-FLOW restart ﬁle of a 2D simulation. The dimen-

sions of the underlying grid must be speciﬁed. This can be done either by manually specifying

the grid size as [M N], or by automatic derivation from a grid.

[H, U, V, ...] = trirst(‘read’, FILENAME, GRID, NLAYERS) reads data

from a Delft3D-FLOW restart ﬁle of a 3D simulation. The NLAYERS arrays indicate the num-

ber of layers used for the various variables. In the example syntax: NLAYERS = [NLAYERH,

NLAYERU, NLAYERV, ...].

trirst(‘write’, FILENAME, H, U, V, ...) writes the speciﬁed matrices to the

indicated restart ﬁle. Because the restart ﬁle is stored in a platform dependent manner, care

should be taken to write the appropriate type of restart ﬁle. By default the routine writes the

data in the format compatible with the computer on which MATLAB is running. A different

platform can be chosen by using the following syntax: trirst(‘write’, FILENAME,

PLATFORM, H, U, V, ...) where PLATFORM can be ‘pc’ or ‘unix’. Both Windows

and Linux versions of Delft3D use the byte order indicated by ‘pc’.

Deltares 17 of 32

DRAFT

Delft3D-MATLAB, User Manual

3.4 Read/write depth ﬁle: wldep

Purpose

Read/write Delft3D ﬁeld ﬁles (e.g. depth ﬁles).

Syntax

DEPTH = wldep(‘read’, FILENAME, SIZE)

DEPTH = wldep(‘read’, FILENAME, GRID)

STRUCT = wldep(..., ‘multiple’)

[FLD1, FLD2, ...] = wldep(..., ‘multiple’)

wldep(‘write’, FILENAME, MATRIX)

Description

wldep can be used to read and write Delft3D ﬁeld ﬁles used for specifying depth and rough-

ness data.

DEPTH = wldep(‘read’, FILENAME, SIZE) or DEPTH = wldep(‘read’, FILENAME,

GRID) where the dimensions [M N] of the data is either user-speciﬁed or derived from the

GRID data set that was obtained from wlgrid.STRUCT = wldep(..., ‘multiple’)

to read multiple ﬁelds from the ﬁle (e.g. in case of a roughness ﬁle). The function returns

a structure vector with one ﬁeld: Data. Use [FLD1, FLD2, ...] = wldep(...,

‘multiple’) to read multiple ﬁelds from the ﬁle and store the result in separate output

arguments.

Use wldep(‘write’, FILENAME, MATRIX) or wldep(‘write’, FILENAME, STRUCT)

to write data to a <∗.dep>ﬁle. Multiple data sets can be written by specifying a structure

vector STRUCT with one ﬁeld data.

Example, Figure 3.3

>> G=wlgrid(‘read’,‘D:\wl\delft3d\tutorial\mor\ymu\r1-nri.grd’);

Warning: Grid enclosure not found.

>> D=wldep(‘read’,‘D:\wl\delft3d\tutorial\mor\ymu\r1-nri.dep’,G);

>> surf(G.X,G.Y,-D(1:end-1,1:end-1));

>> shading flat

>> view(-60,30)

>> set(gca,‘da’,[1 1 1/300])

>> camlight

3.5 Read/write grid ﬁle: wlgrid

Purpose

Read/write a Delft3D-FLOW grid ﬁle.

Syntax

[X,Y,ENC] = wlgrid(‘read’, FILENAME)

GRID = wlgrid(‘read’, FILENAME)

OK = wlgrid(‘write’, FILENAME, X, Y, ENC)

18 of 32 Deltares

DRAFT

High level routines

Figure 3.3: Example of 3D depth plot.

Description

[X, Y, ENC] = wlgrid(‘read’, FILENAME) reads the grid and enclosure from

the Delft3D <∗.grd>and <∗.enc>ﬁles. X, Y, and enclosure are returned as separate output

arguments. GRID = wlgrid(‘read’, FILENAME) returns a structure with X, Y, and

Enclosure ﬁelds.

OK = wlgrid(‘write’, FILENAME, X, Y, ENC) writes the GRID to <∗.grd>and

<∗.enc>ﬁles that can be used by Delft3D. If the last argument (ENC) is not speciﬁed, the

enclosure ﬁle is not written.

3.6 Read/plot velocity ﬁeld: xyveloc

Purpose

Read velocity data from a <trim-*>or <com-*>ﬁle.

Syntax

[U, V] = xyveloc(NFStruct, TimeStep)

[U, V, W] = xyveloc(NFStruct, Index)

[X, Y, U, V] = xyveloc(NFStruct, TimeStep)

[X, Y, Z, U, V, W] = xyveloc(NFStruct, Index)

[...] = xyveloc(..., ‘option’)

Description

[U, V] = xyveloc(NFStruct, TimeStep) reads the velocity ﬁeld at the speciﬁed

time step from the speciﬁed NEFIS ﬁle. By default TimeStep is the last ﬁeld of the CURTIM

or map-series group. The default NEFIS ﬁle is the last opened NEFIS ﬁle.

[X, Y, U, V] = xyveloc(NFStruct, TimeStep) returns not only the velocities,

but also the co-ordinates of the grid points at which the velocities are given (water level points).

[U, V, W] = xyveloc(NFStruct, Index) reads a 3D velocity ﬁeld (x,y,z compo-

nents). [X, Y, Z, U, V, W] = xyveloc(NFStruct, Index) reads the 3D ve-

locity ﬁeld (x,y,z components) and returns the 3D co-ordinates of the velocity values.

Deltares 19 of 32

DRAFT

Delft3D-MATLAB , User Manual

Figure 3.4: Example of vector velocity plot.

[...] = XYVELOC(..., ‘option’) where the string ‘option’ equals

‘vort’: computes the z-component of the vorticity. Only one output argument is required in

this case.

‘total’, ‘ﬂuc’, ‘mean’: reads the total velocity, ﬂuctuation component, or mean velocity ﬁeld

in case of an HLES simulation (trim-ﬁle, 2D only). The default setting is ‘total’.

Example, Figure 3.4

>> vs_use D:\wl\delft3d\tutorial\wave\Siu-Lam\Com-siu

>> [x,y,u,v]=xyveloc;

>> quiver(x,y,u,v)

>> drawgrid(‘color’,‘g’)

>> set(gca,‘da’,[1 1 1])

>> hold on

>> quiver(x,y,u,v)

3.7 Generic read data: qpread

Purpose

Get information/data from a data ﬁle. Provides access to the functionality of the QUICKPLOT

interface.

Syntax

[DataFields, Dims, NVal] = qpread(FileInfo)

DataProps = qpread(FileInfo)

Size = qpread(FileInfo, DataProp, ‘size’)

Size = qpread(FileInfo, DataFld, ‘size’)

Times = qpread(FileInfo, DataProp, ‘times’)

Times = qpread(FileInfo, DataFld, ‘times’)

StNames = qpread(FileInfo, DataProp, ‘stations’)

StNames = qpread(FileInfo, DataFld, ‘stations’)

Data = qpread(FileInfo, DataProp, ‘data’, t, station, m, n, k)

20 of 32 Deltares

DRAFT

High level routines

Data = qpread(FileInfo, DataFld, ‘data’, t, station, m, n, k)

Data = qpread(FileInfo, DataProp, ‘griddata’, t, station, m, n, k)

Data = qpread(FileInfo, DataFld, ‘griddata’, t, station, m, n, k)

Description

The qpread function supports reading data from various data ﬁles. Which data sets can be

read from a speciﬁc data ﬁle can be obtained from the function by one of the following two

commands:

[DataFields, Dims, NVal] = qpread(FileInfo) returns the data ﬁelds avail-

able from the data ﬁle speciﬁed using the FileInfo structure. An acceptable FileInfo can be

obtained from any of the following three commands: qpfopen,qpfile,vs_use. If File-

Info is not speciﬁed the last opened NEFIS ﬁle is used (same condition applies to the other

calls to qpread). The variable DataFields is a cell array of strings containing the names of

the data sets in the ﬁle. The variable Dims indicates relevant dimensions for the data ﬁelds:

First column of Dims: Time step

Second column of Dims: Station name

Third column of Dims: M

Fourth column of Dims: N

Fifth column of Dims: K

NVal equals one for scalar data sets, 2 (or 3) for vector data sets.

DataProps = qpread(FileInfo) returns a structure containing ﬁelds with the above

mentioned data and some extra information for internal use by the qpread and d3d_qp

functions.

Based on the information returned by either one of these two qpread statements you may

select a data ﬁeld. This data ﬁeld can be identiﬁed using its name provided in the DataFields

cell array (DataFieldsi) or its record in the DataProps structure (DataProps(i)). For each data

ﬁeld you can obtain more information by subsequent calls to qpread.

Remark:

You should not request data for the separator ﬁelds with name ‘—–’.

Size = qpread(FileInfo, DataProp/DataFldName, ‘size’) returns a 1 x

5 array containing the maximum size of the ﬁve dimensions mentioned above. The second

parameter can be either a string (data ﬁeld name) or a record from the DataProps structure.

The latter is necessary if the data ﬁeld name is not unique.

Times = qpread(FileInfo, DataProp/DataFldName, ‘times’) returns an

array of the times for the speciﬁed data ﬁeld if relevant.

StNames = qpread(FileInfo, DataProp/DataFldName, ‘stations’) returns

an array of the station names for the speciﬁed data ﬁeld if relevant.

Data = qpread(FileInfo, DataProp/DataFld, ‘data’, t, station, m,

n, k) returns the data for the speciﬁed data ﬁeld at the indicated time steps, speciﬁed sta-

tion, and M, N, K co-ordinates. Only those parameters should be speciﬁed that have non-zero

dimension in Dims and Size. For a data ﬁeld at a station often only time and station. For

spatial data sets not the station but a selection of M, N and K. Following restrictions apply to

the retrieval of the data

Deltares 21 of 32

DRAFT

Delft3D-MATLAB, User Manual

station: index of the station in the StNames array (scalar).

0 (all points) or scalar value (m index).

0 (all points) or scalar value (n index).

0 (all points) or scalar value (k index).

Data = qpread(FileInfo, DataProp, ‘griddata’, t, station, m, n,

k) returns the data and grid for the speciﬁed data ﬁeld at the indicated time steps, speciﬁed

station, and M, N, K co-ordinates. In both cases the output argument Data is a structure con-

taining a Time ﬁeld. If the data is scalar, the data is returned in the Val ﬁeld. If the data is

vector data, it is returned as Xcomp and Ycomp ﬁelds.

Example, Figure 3.5

>> F=qpfopen(‘D:\wl\delft3d\tutorial\gpp\trim-edw.dat’);

>> I=qpread(F);

>> I(9)

ans =

Name: ‘water level’

DimFlag: [1 0 1 1 0]

DataInCell: 1

NVal: 1

VecType: ‘’

Loc: ‘z’

ReqLoc: ‘z’

Loc3D: ‘’

Group: ‘map-series’

Val1: ‘S1’

Val2: ‘’

SubFld: []

MNK: 0

>> S=qpread(F,I(9),‘griddata’)

S =

X: [87x227 double]

Y: [87x227 double]

Val: [87x227 double]

Time: 7.2942e+005

>> contour(S.X,S.Y,S.Val,50)

>> view(90,90)

>> set(gca,‘da’,[1 1 100])

3.8 Generic open ﬁle: qpfopen

Purpose

Opening a data ﬁle. Provides access to the functionality of the QUICKPLOT interface.

Syntax

FileInfo=qpfopen(‘Filename’)

FileInfo=qpfopen(‘DataFile’,‘GridFile’)

FileInfo=qpfopen

22 of 32 Deltares

DRAFT

High level routines

Figure 3.5: Example of contour plot.

Description

The qpfopen functions can be used to open all data ﬁles that QUICKPLOT can open (see

the appendix of the QUICKPLOT manual for an overview of all ﬁle formats).

FileInfo=qpfopen(‘Filename’) opens the speciﬁed output ﬁle and returns a struc-

ture containing data used by the qpread function.

For WAQ or PART <∗.map>ﬁles you should also specify an <∗.lga>grid ﬁle: FileInfo

= qpfopen(‘DataFile’, ‘GridFile’) If no grid ﬁle is speciﬁed then the map ﬁle is

treated as a history ﬁle with an observation point at each location.

FileInfo=qpfopen When no arguments are passed to the function, you are asked to

specify the ﬁle using a standard ﬁle selection dialog window. If you try to open a WAQ or

PART <∗.map>ﬁle, the function asks for the additional grid ﬁle.

3.9 Get ﬁle opened by QUICKPLOT: qpfile

Purpose

Get information about the currently selected ﬁle in QUICKPLOT. Provides access to the func-

tionality of the QUICKPLOT interface.

Syntax

FileInfo=qpfile

Description

To make switching between the user interface of QUICKPLOT and MATLAB’s command line

easier, the qpfile function provides easy access to the currently selected ﬁle in the QUICK-

PLOT interface.

FileInfo=qpfile returns the structure of the data ﬁle selected in the QUICKPLOT inter-

face.

Deltares 23 of 32

DRAFT

Delft3D-MATLAB, User Manual

24 of 32 Deltares

DRAFT

4 Delft3D-QUICKPLOT functionality

The Delft3D-QUICKPLOT interface can be started by typing d3d_qp at the MATLAB com-

mand prompt. This interface is intended to simplify the creation of plots with MATLAB. Tooltips

provide online help for the interface. The same interface is also available as a standalone pro-

gram. This chapter gives only a short introduction; for a detailed description of the interface,

you are referred to the Delft3D-QUICKPLOT manual (QUICKPLOT UM,2013).

The interface allows to open NEFIS ﬁles and select data ﬁelds. After making a selection of

time steps, stations and m, n, k indices, you can either load the data (Load Data button) or

plot the data (by clicking the Quick View or Quick Animate button).

The Load Data button in the lower left corner of the interface is not available in the standalone

version, so it is described here. When the data is loaded using the Load Data button, a

workspace variable called ‘data’ is created. If the variable ‘data’ was already deﬁned any data

contained in it will be overwritten without conﬁrmation. The variable ‘data’ contains:

a ﬁeld X with the x co-ordinates

a ﬁeld Y with the y co-ordinates

a ﬁeld Z with the z co-ordinates (for 3D data sets only)

a ﬁeld Val with the data is the data is scalar

ﬁelds XComp, YComp and ZComp when the data is a vector quantity.

The same functionality can be accessed from the command line using the command

X=d3d_qp(‘loaddata’)

In this case the data is assigned to the user-speciﬁed variable X. Many of the other function-

alities of Delft3D-QUICKPLOT can also be accessed from the command line. The general

syntax of these commands is:

d3d_qp(command_string,...command_parameters...)

The command_string identiﬁes the functionality that should be activated, e.g. ‘loaddata’,

‘openﬁle’ or ‘colourbar’. The command_parameters depend on the command chosen, e.g.

‘loaddata’ does not need any parameter, ‘openﬁle’ does not need any parameter either but if

a parameter is speciﬁed then it should be the name of the ﬁle to be opened, and ‘colourbar’

requires one parameter namely a 1 or 0 to indicate whether a colourbar should be drawn or

not. The details of all these commands is not described here. The best way to learn these

commands is by doing. Therefore, Delft3D-QUICKPLOT has several options to display or

export the equivalent commands that it is executing when you click on its buttons. These

display options can be accessed from the Macro menu of Delft3D-QUICKPLOT as shown in

Figure 4.2.

For exporting/displaying the MATLAB commands associated with the various functionalities of

Delft3D-QUICKPLOT, the following three options are available:

Record MATLAB Script. Records the commands directly to a MATLAB .m ﬁle.

Record to Message Window, MATLAB Script Commands. Records the commands in a

separate window of Delft3D-QUICKPLOT. The commands cannot be copied from this

window, but the recorded commands can be saved to a text ﬁle.

Deltares 25 of 32

DRAFT

Delft3D-MATLAB, User Manual

Figure 4.1: Selection window of Delft3D-QUICKPLOT.

Figure 4.2: Display/export options for QUICKPLOT commands.

26 of 32 Deltares

DRAFT

Delft3D-QUICKPLOT functionality

Figure 4.3: Example of Delft3D-QUICKPLOT ﬁgure.

Record to MATLAB Command Window (not available in the standalone version of Delft3D-

QUICKPLOT). Echoes the commands to the MATLAB Command Window from which they

can be easily copied. When using MATLAB’s diary option, the echoed commands will also

end up in the diary ﬁle.

Both Delft3D-QUICKPLOT log ﬁles and MATLAB script ﬁles containing Delft3D-QUICKPLOT

calls can be run using the Run Log File menu item of Delft3D-QUICKPLOT. The MATLAB

script ﬁles may also contain other single line MATLAB function calls (not supported in stan-

dalone mode). Scripts containing multi-line MATLAB constructs cannot be run from within the

Delft3D-QUICKPLOT interface.

When the data is plotted or animated a new ﬁgure is opened. Scaling of axes, vector length

and colours is automatic. This implies that during an animation colour scaling, vector length

scaling and plot extent may vary. The plot extent and colour scaling can be set using the

MATLAB commands axis,set,gca and colorbar. For example:

axis([xmin xmax ymin ymax]) % set the axes extent

and

set(gca,‘clim’,[cmin cmax]) % set the colour limits

colorbar % update the colourbar

In case of an animation, plotting can be stopped by either closing the ﬁgure or selecting the

Stop option from the Animation menu in the ﬁgure of the plot. When the data set contains

multiple time steps, a scroll bar will be plotted in the lower left corner of the plot ﬁgure. You

can use this to change the time step of the plot.

Remarks:

Deltares 27 of 32

DRAFT

Delft3D-MATLAB, User Manual

The ﬁgure ﬁles saved by the standalone version of Delft3D-QUICKPLOT are compatible

with MATLAB 6.5. It does not support ﬁles created with newer MATLAB versions.

Access to netCDF ﬁles and data on OPeNDAP enabled websites requires separate

installation of the ‘mexnc’ and ‘snctools’ toolboxes available from

http://mexcdf.sourceforge.net/

28 of 32 Deltares

DRAFT

References

Delft3D-FLOW UM, 2013. Delft3D-FLOW User Manual. Deltares, 3.14 ed.

QUICKIN UM, 2013. Delft3D-QUICKIN User Manual. Deltares, 4.00 ed.

QUICKPLOT UM, 2013. Delft3D-QUICKPLOT User Manual. Deltares, 2.14 ed.

RGFGRID UM, 2016. Delft3D-RGFGRID User Manual. Deltares, 5.00 ed.

Deltares 29 of 32

DRAFT

Delft3D-MATLAB, User Manual

30 of 32 Deltares

DRAFT

PO Box 177

2600 MH Del

Rotterdamseweg 185

2629 HD Del

The Netherlands

+31 (0)88 335 81 88

sales@deltaressystems.nl

www.deltaressystems.nl

DRAFT

Delft3D MATLAB User Manual MATLAB_User_Manual

Navigation menu

Versions of this User Manual:

Views

Navigation
