Developer’s Guide

Developer’s Guide

Version 3.0

The content in this guide is protected under copyright law even if it is not distributed with software that includes an end user license

agreement.

The content of this guide is furnished for informational use only, is subject to change without notice, and should not be construed as

a commitment by ICEsoft Technologies, Inc.

ICEsoft Technologies, Inc. assumes no responsibility or liability for any errors or inaccuracies that may appear in the informational

content contained in this guide.

ICEpdf is a registered trademark of ICEsoft Technologies, Inc.

Sun, Sun Microsystems, the Sun logo, Solaris and Java are trademarks or registered trademarks of Sun Microsystems, Inc. in the United

States and in other countries.

All other trademarks mentioned herein are the property of their respective owners.

ICEsoft Technologies, Inc.

Suite 200, 1717 10th Street NW

Calgary, Alberta, Canada

T2M 4S2

Toll Free: 1-877-263-3822 (USA and Canada)

Telephone: 1-403-663-3322

Fax:1-403-663-3320

For additional information, please visit the ICEpdf website: http://www.icepdf.org

ICEpdf Developer’s Guide v3.0

April 2009

iii

ICEpdf Developer’s Guide v3.0

Contents

Chapter 1 Introduction to ICEpdf . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Using this Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Product Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Render Core (core) . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Documentation (docs) . . . . . . . . . . . . . . . . . . . . . . . . .3

Examples (examples) . . . . . . . . . . . . . . . . . . . . . . . . . .3

Libraries (lib) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Viewer Reference Implementation (viewer) . . . . . . . . . .4

Supported Standards and Platforms . . . . . . . . . . . . . . . . . . .4

PDF Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Supported Platforms . . . . . . . . . . . . . . . . . . . . . . . . . .5

Chapter 2 Configuring ICEpdf . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Prerequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Java 2 Platform, Standard Edition . . . . . . . . . . . . . . . . .6

Ant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Building ICEpdf from Source . . . . . . . . . . . . . . . . . . . . . . . .7

Optional Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Acrobat Standard Security Support . . . . . . . . . . . . . . . .8

Optimized Font Substitution . . . . . . . . . . . . . . . . . . . . .8

Enabling Embedded Font Support . . . . . . . . . . . . . . . . .9

Batik Library for SVG Support . . . . . . . . . . . . . . . . . . . 10

System Properties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Chapter 3 Using ICEpdf . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Common Usage Scenarios . . . . . . . . . . . . . . . . . . . . . . . . . 15

Converting PDF Page Renderings . . . . . . . . . . . . . . . . 15

Extracting PDF Document Content . . . . . . . . . . . . . . . . 18

Using the PDF Viewer Component . . . . . . . . . . . . . . . . 21

Using the PDF Viewer Application . . . . . . . . . . . . . . . . 22

Advanced Topics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Customizing the SwingViewBuilder . . . . . . . . . . . . . . . 23

Implementing a SecurityCallback . . . . . . . . . . . . . . . . . 25

Implementing an AnnotationCallback . . . . . . . . . . . . . . 25

Contents (continued)

ICEpdf Developer’s Guide v3.0 iv

Printing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Font Management . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Memory Management and Caching . . . . . . . . . . . . . . . 27

Internationalization . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Chapter 4 Reference Implementations and Examples. . . . . . . . . 28

Reference Implementations . . . . . . . . . . . . . . . . . . . . . . . . 28

ICEpdf Viewer Application . . . . . . . . . . . . . . . . . . . . . . 28

Examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Annotation Example . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Applet Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Content Extraction Examples . . . . . . . . . . . . . . . . . . . 39

ICEfaces Example . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Page Capture Example . . . . . . . . . . . . . . . . . . . . . . . . 39

Print Services Example . . . . . . . . . . . . . . . . . . . . . . . . 40

Viewer Component Example . . . . . . . . . . . . . . . . . . . . 40

Appendix A Supported PDF Features . . . . . . . . . . . . . . . . . . . . . . . . . . .41

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

ICEpdf Developer’s Guide v3.0 1

Chapter 1 Introduction to ICEpdf

ICEpdf® is a pure Java PDF document rendering and viewing solution. ICEpdf can parse and render

documents based on the latest PDF standards (Portable Document Format v1.6/Adobe® Acrobat® 7)

with superior rendering accuracy and performance.

ICEpdf is designed to support PDF document viewing within Java applications in a manner not possible

with the native Acrobat Reader® application. Benefits include:

• Seamless integration with Java client applications, allowing complete control over the configuration,

exposed functionality and user interface.

• A lightweight static and dynamic memory footprint.

• Easy deployment to any Java platform without the hassles of Java-to-native integration issues.

ICEpdf supports:

•PDF Viewing: ICEpdf can easily be integrated into any Java client application to provide PDF

document viewing and navigation in a manner not possible with the Acrobat Reader application.

ICEpdf includes an embeddable PDF document viewer component for easy integration within Java

client applications. ICEpdf can also be used standalone as an industrial strength PDF Viewer

application.

•Multipage view support: continuous and side-by-side view types.

•PDF Content Conversion: Convert rendered PDF pages to other formats, such as images, SVG

documents, etc.

•PDF Content Extraction: Extract PDF document meta-data, text, and images.

•PDF Link Annotations: Developers can optionally configure ICEpdf to support interactive link

annotations via a mouse. An annotation callback gives developers flexibility in which types of link

annotation actions they wish to support.

Using this Guide

This guide has the following sections:

Chapter 1: Introduction to ICEpdf lists the ICEpdf features, PDF document standards, and

platforms on which ICEpdf is supported.

Chapter 2: Configuring ICEpdf provides information on how to configure ICEpdf to ensure

optimal performance in your application and deployment

environments.

Introduction to ICEpdf

ICEpdf Developer’s Guide v3.0 2

Chapter 3: Using ICEpdf describes how to use ICEpdf in the most common usage scenarios.

Chapter 4: Reference Implementations and Examples describes the reference

implementations and examples included with ICEpdf.

Appendix A: Supported PDF Features lists the PDF Document Specification features supported

by ICEpdf.

Product Contents

If you are reading this document, you may have already downloaded and installed ICEpdf. If you

haven’t, you can get the latest version of ICEpdf from:

http://www.icepdf.org

ICEpdf is available in both a binary and source-code distribution. With either distribution, begin by

unzipping ICEpdf to your preferred location.

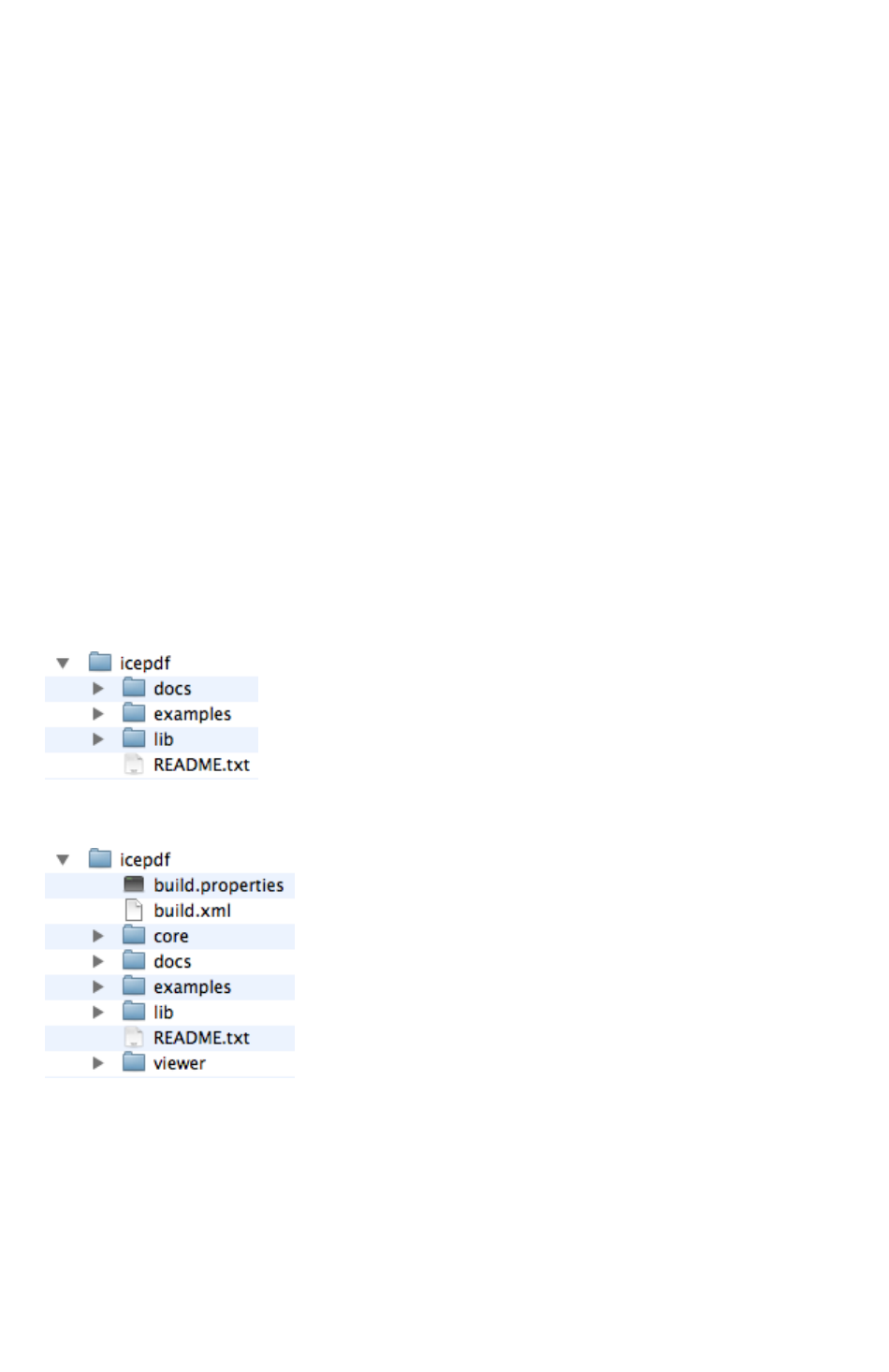

If you downloaded the binary distribution, the resulting directory structure should look similar to the

structure shown below:

If you downloaded the source distribution, these additional source-code directories will also be present:

Render Core (core)

This directory contains the ICEpdf rendering core source files and Ant build script to build the source.

Introduction to ICEpdf

ICEpdf Developer’s Guide v3.0 3

Documentation (docs)

This directory contains the documentation files, including the following:

•ReleaseNotes.html describes the new features in this release and known issues.

•DevelopersGuide.pdf describes how to use ICEpdf and all of its features.

•Licenses folder contains licenses associated with ICEpdf and dependent libraries.

•The api subdirectory contains the Java API documentation in HTML format. To launch the API

guide, open docs/api/index.html.

Examples (examples)

This directory contains examples of common usage scenarios. Further information on these examples

can be found in Common Usage Scenarios,

p. 15

Libraries (lib)

This directory contains the Java archive (JAR) files which are needed to compile and run ICEpdf.

ICEpdf compilation and runtime dependencies.

Version and license information is described in versions-licenses.html

Jar File Approximate

Size Description

icepdf-core.jar 405 KB Contains the core ICEpdf product classes.

icepdf-pro.jar*125 KB Professional font library that allows for the reading of embedded font

files in PDF documents

icepdf-pro-intl.jar* 2,949 KB Optional JAR file that contains character collection for predefined

CMaps for Chinese, Chinese (Simplified and Traditional), Japanese

and Korean. Must be added to the classpath to fully support these

languages.

icepdf-viewer.jar 241 KB This executable JAR file contains the standalone ICEpdf Viewer

reference implementation.

* Denotes JAR files that are only available in ICEpdf Pro.

Jar File Approximate

Size Description

batik-*.jar 1,100 KB Optional Batik SVG libraries used for saving PDF pages to

SVG format.

bcprov-jdk15.jar 1,540 KB Optional Bouncy Castle Java cryptography library uses for

opening Encrypted PDF documents.

Introduction to ICEpdf

ICEpdf Developer’s Guide v3.0 4

Viewer Reference Implementation (viewer)

This directory contains the source code for the reference implementation and an Ant build script to build

the source.

Supported Standards and Platforms

This section describes the PDF features and deployment platforms supported by ICEpdf:

•PDF features

• Supported platforms

PDF Features

ICEpdf supports the following PDF features:

• Font support: Embedded font support for Type 1 Fonts (Standard and Multiple Master), TrueType,

Font Subsets, Type3, CMaps (predefined and Embedded), Type 0 CID, Type 2 CID, Type 0,

Type 1 (CFF), OpenType (True Type Outlines) and OpenType (CFF Type outlines). Font substitution

is available for documents that do not use embedded fonts.

• Cross-Reference Table and Cross-Reference Stream support for accelerated document loading.

• Multiple page views: single page, facing page, single page column, and facing page columns.

• Rendering of AcroForm data, push buttons, check boxes, radio buttons, text fields and choice fields.

• Rendering of common Annotation types: markup and text markup; text, free text, and line; square;

circle polygon; and polyline types.

• Interactive Link annotation via the following actions types: go to actions, go to resource actions, go

to launch actions and URI actions.

• Converting rendered PDF pages to images, SVG documents, etc.

• Extracting PDF document meta-data, text, and images.

•PDF document viewing.

• Page navigation.

• Page magnification.

• Page rotation.

•Printing.

• Bookmarks (table of contents entries that represent the chapters and sections in a document).

• Search document text.

• Acrobat standard security (40-bit and 128-bit RC4 encryption) for opening password-controlled files

(for more information, see Acrobat Standard Security Support,

p. 8

• ICEbrowser PDF Pilot: Extend ICEbrowser® to support PDF document rendering using the included

ICEbrowser PDF Pilot (Plugin) component.

Introduction to ICEpdf

ICEpdf Developer’s Guide v3.0 5

ICEpdf supports a subset of the

PDF Reference, 5th Edition, Version 1.6

from Adobe Systems

Incorporated, available at:

http://www.adobe.com/devnet/pdf/pdf_reference.html

For a detailed list of supported PDF features, see Supported PDF Features,

p. 41

Supported Platforms

ICEpdf requires a compliant Java Virtual Machine (JVM) that supports Java 2D and JFC (Swing).

Typically, any J2SE platform, version 1.5.0 or greater, meets these requirements. The officially

supported platform and JVM combinations are:

Windows

• Sun JDK 5.0

• Sun JDK 6.0

• Sun JDK 7.0 EA

Linux

• Sun JDK 5.0

• Sun JDK 6.0

• Sun JDK 7.0 EA

Solaris

• Sun JDK 5.0

• Sun JDK 6.0

• Sun JDK 7.0 EA

Mac OS X

• Apple JDK 5.0

• Apple JDK 6.0

Visit http://www.icepdf.org for more information.

ICEpdf Developer’s Guide v3.0 6

Chapter 2 Configuring ICEpdf

This chapter contains instructions to help you get up and running quickly with ICEpdf. We start by

outlining the prerequisites for a standard configuration using a Java Platform, Standard Edition, and

Apache Ant to help you build the product from source.

Next we outline runtime configuration settings to best meet the needs of your application requirements

and deployment environments:

• Configuration of optional modules at runtime, such as support for the Acrobat Standard Security,

optimized font substitution, embedded font support, Java Advanced Imaging (JAI) library and SVG

support.

• Numerous configuration properties may be adjusted using pre-defined system properties to alter

the behavior of ICEpdf for your application, such as cache sizes and behaviors, render quality,

settings, etc.

If you would like more information on the reference implementation and example applications, refer to

Chapter 4, Reference Implementations and Examples,

p. 28

Prerequisites

ICEpdf is a standard Java 2 application, and as such, the only prerequisite to working with ICEpdf is

that you must be familiar with Java 2 development. For more information on the Java Platform,

Standard Edition (J2SE), refer to http://java.sun.com/javase/index.jsp.

To run the ICEpdf example and reference applications, you will need to download and install the

following:

• Java 2 Platform, Standard Edition

•Apache Ant

The following sections provide detailed instructions for downloading the software to set up an

environment where you can run the ICEpdf example and reference applications.

Java 2 Platform, Standard Edition

To run ICEpdf, ICEpdf reference implementations or examples, you will need to install a version of the

Java Platform JDK, Standard Edition, version 1.5 or higher.

Configuring ICEpdf

ICEpdf Developer’s Guide v3.0 7

If you already have Java installed on your system, verify your version by typing the following on the

command line:

Java -version

To upgrade or install the latest release of the J2SE, visit the Sun web site:

http://java.sun.com/javase/downloads/

Installers and instructions are provided for the various systems that Sun supports. The reference and

example application can run on a any version of Windows, Unix, Linux, and Mac OSX capable of running

J2SE version 1.5 or higher.

Ant

The ICEpdf core, reference applications and examples rely on Ant to build the source code. You will

need Ant version 1.6.3 or higher for the build files provided in this ICEpdf release.

If you already have a version of Ant installed, you can verify that you have a recommended version by

typing the following on the command line:

ant -version

To upgrade your current version or install a new version of Ant, visit the following location:

http://ant.apache.org/

If you are not familiar with Ant, detailed instructions for downloading and installing Ant for your

environment are available from this location:

http://ant.apache.org/manual/index.html

Building ICEpdf from Source

ICEpdf is bundled with a PDF viewer reference implementation. If you downloaded the binary

distribution of ICEpdf, the viewer application is available as prebuilt JAR file found in

[install_dir]/icepdf/lib/icepdf-viewer.jar.

If you have downloaded the source code distribution of ICEpdf, it is necessary to build the ICEpdf core

and viewer source code using the provided build scripts. The Ant help command can be used to see a

list of available build targets. To build the ICEpdf core and viewer JARs simply execute the command

ant in the [install_dir]/icepdf/ directory. This command will build and copy the icepdf-core.jar

and icepdf-viewer.jar to the [install_dir]/icepdf/lib/ directory.

Configuring ICEpdf

ICEpdf Developer’s Guide v3.0 8

Optional Components

This section includes details for the following optionally supported components:

• Acrobat Standard Security

• Optimized Font Substitution

• Enabling Embedded Font Support

• Java Advanced Imaging (JAI) Library for Enhanced Image Support

•Batik Library for SVG

Acrobat Standard Security Support

Acrobat standard security (40-bit and 128-bit RC4 encryption) includes password protection and setting

change and display permissions, such as printing and content extraction, for a PDF file.

ICEsoft recommends using the Bouncy Castle security provider, which is all ready included in the lib

folder of the bundle. The following jar must be on the class path:

• bcprov-jdk15.jar

If you use a different JCE 1.2.1-compliant security provider, you must set the system property

org.icepdf.core.security.jceProvider appropriately. See System Properties,

p. 10

for details.

Note: You must also code your application to respect the security settings. For example, you must

disable printing if a PDF file is set with “No Printing” permissions. The ICEpdf Viewer reference

implementation has been coded to respect security permissions, and you can use its source code

as a model for your own application.

Optimized Font Substitution

Some PDF documents do not embed the fonts required to render the document in the document itself.

For ICEpdf to display these documents accurately, it must substitute an available system font for any

non-embedded fonts used in the document. The following optional but recommended configurations

can be used to improve ICEpdf's ability to find and select a system font that best matches the non-

embedded font specified by the PDF document.

Supporting the 14 Standard Adobe Fonts

To enable the best possible font substitution for the 14 standard Adobe fonts, ICEsoft recommends that

you download and install the fonts provided by Ghostscript, which are freely available at:

http://prdownloads.sourceforge.net/gs-fonts/ghostscript-fonts-std-8.11.tar.gz

http://prdownloads.sourceforge.net/gs-fonts/ghostscript-fonts-other-6.0.tar.gz

The steps to install the fonts are platform-specific.

Configuring ICEpdf

ICEpdf Developer’s Guide v3.0 9

Windows

1. Unzip the download file and extract the .pfm files to a temporary directory.

2. Launch Fonts from the Control Panel.

3. Select File > Install New Font.

4. Navigate to the temporary directory, select the fonts, and click OK.

Other Platforms

For Linux, Solaris, or Mac OS X platforms, see your system documentation for information on installing

the fonts.

Enabling Embedded Font Support

ICEpdf Open Source

ICEpdf Open Source uses java.awt.Font when reading font files for substitution. ICEpdf Open Source

by default disables java.awt.Font for reading embedded font files because a malformed font file can

crash the JVM. The system property

org.icepdf.core.awtFontLoading=true

can be set to enable

java.awt.Font embedded font loading.

ICEpdf Pro

ICEpdf Pro allows for unprecedented font reproduction and rendering speed. ICEpdf Pro is a commercial

product and requires icepdf-pro.jar and icepdf-pro-intl.jar libraries are on the application class path.The

following embedded font types are supported:

If your application requires support for Asian languages such as Chinese (Simplified and Traditional),

Japanese, Korean, you should add the option JAR icepdf-pro-intl.jar to your application classpath to

ensure maximum rendering quality and accuracy of the respective language’s characters.

For more information on ICEpdf Pro, visit http://www.icepdf.org.

Java Advanced Imaging (JAI) Library for Enhanced Image Support

If you want to view CCITTFax Group 3 1-D and Group 3 2-D images in ICEpdf, you require the JAI library,

which is available at https://jai.dev.java.net/

JAI also provides more robust image handling of JPEG (DCTDecode) images, which the Java SDK library

cannot always decode correctly.

•Type 0 •Type 1

•Type 3 •Type3

•TrueType •OpenType

Configuring ICEpdf

ICEpdf Developer’s Guide v3.0 10

JAI is available for Windows, Linux, Mac OS X, and Solaris, and takes advantage of native acceleration

when available. However, you can use the JAI libraries on any platform if you add the following JAR files

to your classpath:

jai_codec.jar

jai_core.jar

Batik Library for SVG Support

If you want to export PDF files as SVG files in the ICEpdf Viewer, you need the Batik SVG library, which

is all ready included in the libs folder of the bundle. The following jars must be on the class path:

• batik-awt-util.jar

• batik-dom.jar

• batik-svg-dom.jar

• batik-svggen.jar

• batik-util.jar

•batik-xml.jar

System Properties

Many system properties are available for configuring ICEpdf. They can be set programmatically or on

the command line. Programmatically, the syntax is as follows:

System.getProperties().put("org.icepdf.core.minMemory", "3M");

On the command line, the syntax is as follows:

java -Dorg.icepdf.core.minMemory=3M ...

The Dynamic column indicates whether changing the value of the property at runtime has any effect.

The possible values are:

• No – has no effect at runtime

• Yes – always has effect at runtime

•new <

class

> – a new instance of the class must be created to see the effect at runtime

• N/A – not applicable

Configuring ICEpdf

ICEpdf Developer’s Guide v3.0 11

Property Type Description Dynamic

General

org.icepdf.core.security.

jceProvider

string Specifies the classname of the security

provider to use for encrypted documents.

The provider must be Sun Java JCE 1.2.1

compliant.

Default value is

org.bouncycastle.jce.provider.B

ouncyCastleProvider.

Memory Management

org.icepdf.core.minMemory string Sets the amount of Java heap memory to

reserve as a safety buffer to prevent

OutOfMemory Exceptions from occurring. If

the amount of used Java heap memory is

greater than (Max Memory -

org.icepdf.core.minMemory), the memory

manager will flush pages in the page cache

until the required amount of Java heap

memory is available.

The default is 5MB.

org.icepdf.core.maxSize integer Specifies the maximum number of pages

that should be cached at one time. The

default is 0, which results in as many pages

as will fit in the available memory being

cached. A value of 1 effectively disables the

page cache.

org.icepdf.core.purgeSize integer Sets the number of pages that are purged

from the page cache each time the memory

manager attempts to free memory.

Default value is 5 pages.

Caching

org.icepdf.core.imagecache.enabled boolean If true, images are cached to the hard drive.

The default value is true.

Rendering Quality

Note: For the following group of properties, target can be set for both print and screen. For dynamic changes to

these System Properties to take effect, you must call org.icepdf.core.util.GraphicsRenderingHints.reset().

org.icepdf.core.awtFontLoading boolean When enabled the java.awt.Font will be

used to try and load embedded font files.

Default value is false. Has no effect on

ICEpdf Pro.

org.icepdf.core.scaleImages boolean Scales images with a pixel width greater

than 1000 to improve memory usage and

image clarity. Default value is true.

Configuring ICEpdf

ICEpdf Developer’s Guide v3.0 12

org.icepdf.core.target.

alphaInterpolation

string Sets the JVM's alpha interpolation

rendering hint.

The default value for print is

VALUE_INTERPOLATION_QUALITY. The

default value for screen is

VALUE_INTERPOLATION_QUALITY.

The other supported value is

VALUE_ALPHA_INTERPOLATION_

DEFAULT

Yes

org.icepdf.core.target.

antiAliasing

string Sets the JVM’s antialiasing of all images

and text.

The default value for print and screen is

VALUE_ANTIALIAS_ON.

Other supported values are

VALUE_ANTIALIAS_DEFAULT and

VALUE_ANTIALIAS_OFF.

Yes

org.icepdf.core.target.background string Sets whether a Page will draw a

background fill color before drawing the

Page contents. According to the PDF

standard, a white background should be

drawn. When printing on white paper, for

some printers with poor drivers, it is best to

not draw a background at all. The default

value is

VALUE_DRAW_WHITE_BACKGROUND.

The other supported value is

VALUE_DRAW_NO_BACKGROUND.

Yes

org.icepdf.core.target.colorRender string Sets the JVM's color render rendering hint.

The default value for print and screen is

VALUE_COLOR_RENDER_QUALITY.

The other supported values are

VALUE_COLOR_RENDER_DEFAULT.

Yes

org.icepdf.core.target.dither string Sets the JVM's dither rendering hint.

The default value for print and screen is

VALUE_DITHER_ENABLE.

Other supported values are

VALUE_DITHER_DEFAULT and

VALUE_DITHER_DISABLE.

Yes

org.icepdf.core.target.

fractionalmetrics

string Sets the JVM's fractional metrics rendering

hint.

The default value for print and screen is

VALUE_FRACTIONALMETRICS_ON.

Other supported values are

VALUE_FRACTIONALMETRICS_DEFAULT

and VALUE_FRACTIONALMETRICS_OFF.

Yes

Property Type Description Dynamic

Configuring ICEpdf

ICEpdf Developer’s Guide v3.0 13

org.icepdf.core.target.

interpolation

string Sets the JVM's interpolation rendering hint.

The default value for print and screen is

VALUE_INTERPOLATION_BICUBIC.

The other supported values are

VALUE_INTERPOLATION_BILINEAR and

VALUE_INTERPOLATION_NEAREST_

NEIGHBOR.

Yes

org.icepdf.core.target.render string Sets the JVM's render rendering hint.

The default value for print and screen is

VALUE_RENDER_QUALITY.

The other supported values are

VALUE_RENDER_DEFAULT and

VALUE_RENDER_SPEED

Yes

org.icepdf.core.target.stroke string Sets the JVM's stroke rendering hint.

The default value for print and screen is

VALUE_STROKE_NORMALIZE.

The other supported values are

VALUE_STROKE_PURE and

VALUE_STROKE_DEFAULT.

Yes

org.icepdf.core.target.

textAntiAliasing

string Sets the Font rendering engine’s

antialiasing rendering hint.

The default value is true. The other

supported value is false.

Yes

org.icepdf.core.scaleImages boolean If true, large images are scaled dynamically

to a reduced resolution appropriate for

online display or printing. The dynamic

scaling does its best to preserve image

quality and minimize memory

requirements. The default value is true.

Page Views

org.icepdf.core.views.buffersize.

vertical

string Sets the vertical ratio that the current

viewport height will be multiplied by to

create a screen buffer. The default value is

1.0. Using a larger ratio will increase the

amount of memory needed by the page

view.

org.icepdf.core.views.buffersize.

horizontal

string Sets the horizontal ratio that the current

viewport width will be multiplied by to create

a screen buffer. The default value is 1.0.

Using a larger ratio will increase the

amount of memory needed by the page

view.

Property Type Description Dynamic

Configuring ICEpdf

ICEpdf Developer’s Guide v3.0 14

org.icepdf.core.views.

refreshfrequency

integer Specifies the interval between refreshes of

the view buffer when content is being

rendered. The default value is 250

milliseconds.

org.icepdf.core.annotations.

interactive.enabled

boolean If true, link annotation actions can be

activated using the system mouse. Default

value is true.

org.icepdf.core.views.page.paper.

color

String Default page paper color before PDF

content is painted. Default color value is

#FFFFFF.

org.icepdf.core.views.page.border.

color

String Default page border color. Default color

value is #000000.

org.icepdf.core.views.page.shadow.

color

String Default page shadow color. Default color

value is #333333.

org.icepdf.core.views.background.

color

String Default color value is #808080. No

Property Type Description Dynamic

ICEpdf Developer’s Guide v3.0 15

Chapter 3Using ICEpdf

ICEpdf is a powerful and flexible PDF rendering and viewing library which supports usage scenarios

related to the parsing, inspecting, rendering, and interactive viewing of PDF documents. This chapter

describes how to use ICEpdf for the most common usage scenarios. In addition, several advanced topics

that may be important to your use of ICEpdf are also explained.

Common Usage Scenarios

This section provides detailed instructions on how to use ICEpdf to support the following use-cases:

•PDF Content Conversion - Converting rendered pages from a PDF document to another format,

such as images (.jpg, .gif, .png, etc.) or an SVG (Scalable Vector Graphics) document.

•PDF Content Extraction - Extracting PDF document meta-data, text, and images.

•PDF Viewer Component - Integrating the fully-featured PDF document viewer component into

your Java Swing client application or applet to instantly provide seamless PDF document navigation

and viewing capabilities in your application.

•PDF Viewer Application - Using the ICEpdf Viewer reference-implementation (RI) as a stand-

alone application to provide robust PDF viewing support to Java platforms.

Converting PDF Page Renderings

The Document class provides functionality for rendering PDF content into other formats via a Java2D

graphics context. As a result, rendering PDF content to other formats is a relatively simple process with

very powerful results. ICEpdf also supports Java headless mode when rending PDF content, which can

be useful for server side solutions.

An example of how to extract PDF document content to SVG is available in the SVG class found in the

package org.icepdf.core.ri.util. The following is an example of how to save page captures in PNG

format.

Building a Page Capturing Class

Create a file called PDFPageCapture.java similar to the following:

Using ICEpdf

ICEpdf Developer’s Guide v3.0 16

import org.icepdf.core.exceptions.PDFException;

import org.icepdf.core.exceptions.PDFSecurityException;

import org.icepdf.core.pobjects.Document;

import org.icepdf.core.pobjects.Page;

import org.icepdf.core.util.GraphicsRenderingHints;

import javax.imageio.ImageIO;

import java.awt.image.BufferedImage;

import java.awt.image.RenderedImage;

import java.io.File;

import java.io.FileNotFoundException;

import java.io.IOException;

public class PDFPageCapture {

public static void main(String[] args) {

// Get a file from the command line to open

String filePath = args[0];

// open the file

Document document = new Document();

try {

document.setFile(filePath);

} catch (PDFException ex) {

System.out.println("Error parsing PDF document " + ex);

} catch (PDFSecurityException ex) {

System.out.println("Error encryption not supported " + ex);

} catch (FileNotFoundException ex) {

System.out.println("Error file not found " + ex);

} catch (IOException ex) {

System.out.println("Error IOException " + ex);

}

// save page captures to file.

float scale = 1.0f;

float rotation = 0f;

// Paint each pages content to an image and

// write the image to file

for (int i = 0; i < document.getNumberOfPages(); i++) {

BufferedImage image = (BufferedImage)

document.getPageImage(i,

GraphicsRenderingHints.PRINT,

Page.BOUNDARY_CROPBOX, rotation,

scale);

RenderedImage rendImage = image;

try {

System.out.println(" capturing page " + i);

File file = new File("imageCapture1_" + i + ".png");

ImageIO.write(rendImage, "png", file);

} catch (IOException e) {

e.printStackTrace();

}

image.flush();

}

// clean up resources

document.dispose();

}

Using ICEpdf

ICEpdf Developer’s Guide v3.0 17

}

The Import Statements

The org.icepdf.core.* packages are always required. The java.* packages are necessary for saving

the page captures to image.

The Static Main Method

The following lines create a new Document object and open a PDF document specified by a URL.

Document document = new Document();

try{

document.setFile(filePath);

} catch(PDFException ex) {

System.out.println("Error parsing PDF document " + ex);

} catch(PDFSecurityException ex) {

System.out.println("Error encryption not supported " + ex);

} catch(FileNotFoundException ex) {

System.out.println("Error file not found " + ex);

} catch (IOException ex) {

System.out.println("Error IOException " + ex);

}

This will take care of loading the PDF document and catch any errors that maybe thrown in the process.

Before page content can be captured, it is necessary to set the zoom and rotation used to render the

pages content. For this example, we are using a scale factor of 100% and will be using the default

rotation of zero degrees.

float scale = 1.0f;

float rotation = 0f;

Using ICEpdf

ICEpdf Developer’s Guide v3.0 18

The page content can now be saved to a file.

for (int i = 0; i < document.getNumberOfPages(); i++) {

BufferedImage image = (BufferedImage)

document.getPageImage(i,

GraphicsRenderingHints.PRINT,

Page.BOUNDARY_CROPBOX, rotation, scale);

RenderedImage rendImage = image;

try {

System.out.println(" capturing page " + i);

File file = new File("imageCapture1_" + i + ".png");

ImageIO.write(rendImage, "png", file);

} catch (IOException e) {

e.printStackTrace();

}

image.flush();

}

The code iterates through all the pages in the document and gets an image rendering of each page

which is then written to a file. The last step is to free up the resources used by the Document class

during the rendering process by calling the dispose method.

document.dispose();

You now have a simple class that can save PDF page captures to disk.

Extracting PDF Document Content

The Document class can allow alternate access to the content in a PDF document. It is possible to

extract document meta-data, text, and images.

Extracting Meta-Data

ICEpdf supports extracting document meta-data via the API that is available on the document hierarchy

classes in the org.icepdf.core.pobjects package. The main entry-point into the document meta-data

is the Document class.

See Content Extraction Examples,

p. 39

for an example that illustrates extracting meta-data from

a document. Also, see the API documentation for the org.icepdf.core.pobjects package for more

information on what types of data are available.

Using ICEpdf

ICEpdf Developer’s Guide v3.0 19

Extracting Text

Text extraction is possible for most PDF documents. There are, however, some limitations to how a

document text is encoded and the type of font used to render the text.

Note: If a document is encrypted, the document permissions should be checked to make sure that

content extraction is allowed.

The following code demonstrates how to extract text from the first page of a PDF document. The text

on the first page of the document is extracted into a vector of StringBuffer objects using the Document

getText(int pgNumber) method. The StringBuffer vector is then iterated and each entry is appended to

a single file that contains all of the text for the page.

// load the file

URL documentURL = new URL("your url");

Document document = new Document();

document.setUrl( documentURL);

try {

// create an output file

FileOutputStream fileOutputStream =

new FileOutputStream( "extracted.txt");

Enumeration pageText = document.getPageText(0).elements();

while(pageText.hasMoreElements()) {

StringBuffer text = (StringBuffer)pageText.nextElement();

fileOutputStream.write( text.toString().getBytes());

fileOutputStream.write(10); // line break

}

fileOutputStream.close();

} catch (IOException e) {

e.printStackTrace();

} finally {

// clean up the document resources

document.dispose();

}

Using ICEpdf

ICEpdf Developer’s Guide v3.0 20

Extracting Images

Image extraction is possible for all PDF documents.

Note: If a document is encrypted, the document permissions should be checked to make sure that

content extraction is allowed.

The following code demonstrates how to extract images from the first page of a PDF document. The

images on the first page of the document are extracted into a vector of Image objects using the

Document getImages(int pgNumber) method. The image vector is then iterated with each image entry

being saved to disk as a separate image file.

// load the file

URL documentURL = new URL("your url");

Document document = new Document();

document.setUrl( documentURL);

// Get the images for a single page

Enumeration tmpImages = document.getPageImages(0).elements();

// Save the images as JPEGs

int count = 0;

while ( tmpImages.hasMoreElements() ){

Image image = (Image)tmpImages.nextElement();

// create new buffered image to paint to.

BufferedImage bufferedImage =

new BufferedImage(image.getWidth(this),

image.getHeight(this),

BufferedImage.TYPE_INT_RGB);

Graphics2D g2d = bufferedImage.createGraphics();

g2d.drawImage(image, 0, 0, image.getWidth(this),

image.getHeight(this), this);

RenderedImage rendImage = bufferedImage;

try {

// Save as JPEG

File file = new File( "newimage_" + count + ".jpg");

ImageIO.write( rendImage, "jpg", file);

} catch (IOException e) {

e.printStackTrace();

}

g2d.dispose();

}

// Clean up document resources

document.dispose();

Using ICEpdf

ICEpdf Developer’s Guide v3.0 21

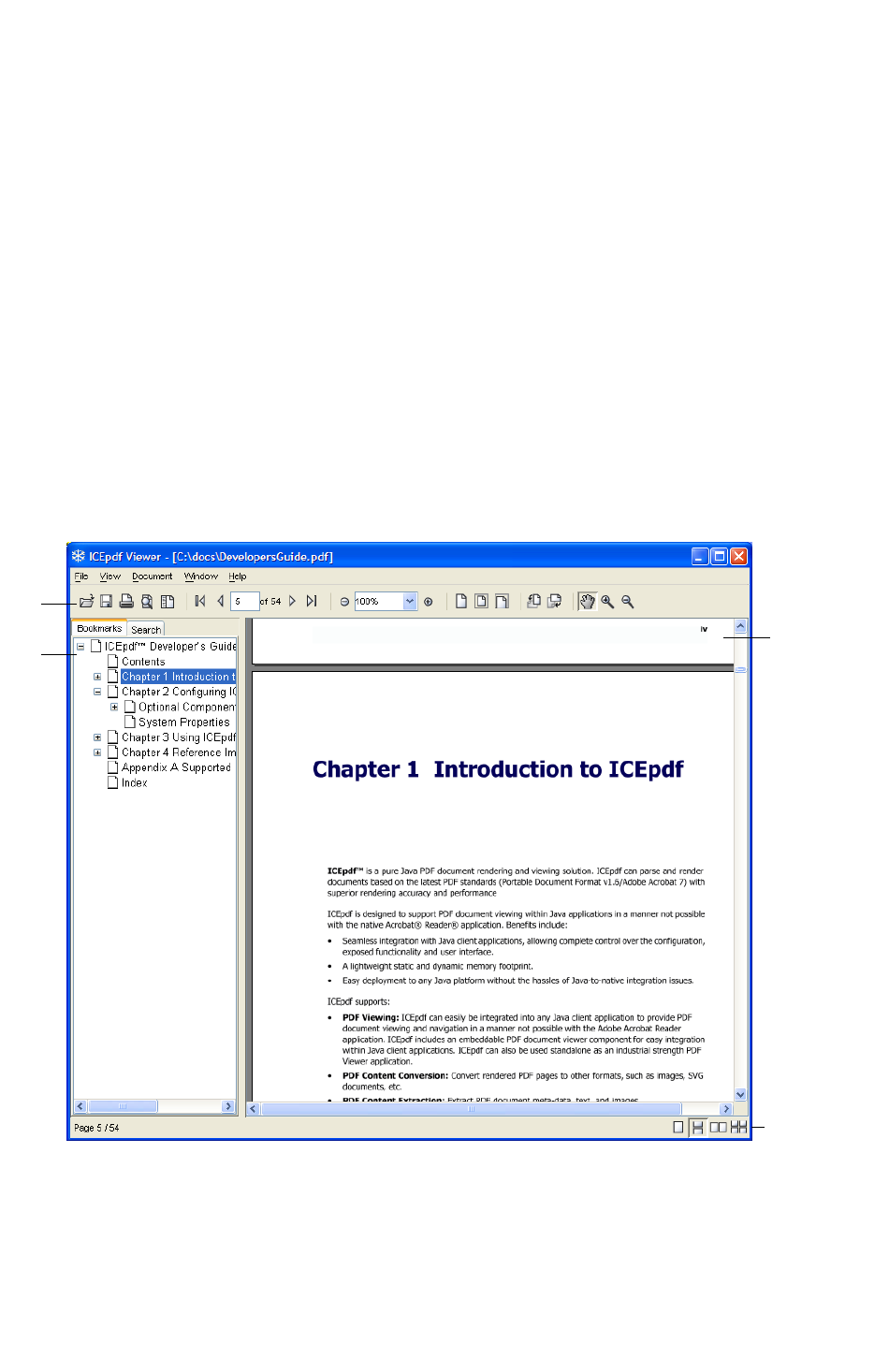

Using the PDF Viewer Component

In previous examples, the ICEpdf library has been used as a standalone renderer for capturing page

content and extracting document information. The ICEpdf library can also be used to create a full-

feature PDF Viewer component which can be inserted into any Java application. For more information

on the viewer component features, see Reference Implementations and Examples,

p. 28

The PDF Viewer application is a reference implementation (RI) application, meaning that all source code

used to implement the application is available to developers to modify as required.

The PDF Viewer RI uses the Model-View-Controller (MVC) design pattern for communication between

the user, the GUI and the PDF document data. The PDF Viewer's data model is implemented by the

ViewModel class. The view, which presents the user interface, is implemented using standard Java

Swing components and is constructed by the SwingViewBuilder class. The controller, which interacts

between the user, view and data model is represented by the SwingController class.

This relationship can be seen in Figure 1. The combination of the MVC design and the SwingViewBuilder

and SwingController classes provides a very powerful and easily adaptable approach to PDF Viewer GUI

development. Developers using ICEpdf can readily customize the Viewer user-interface with a very

shallow learning curve and minimal coding effort.

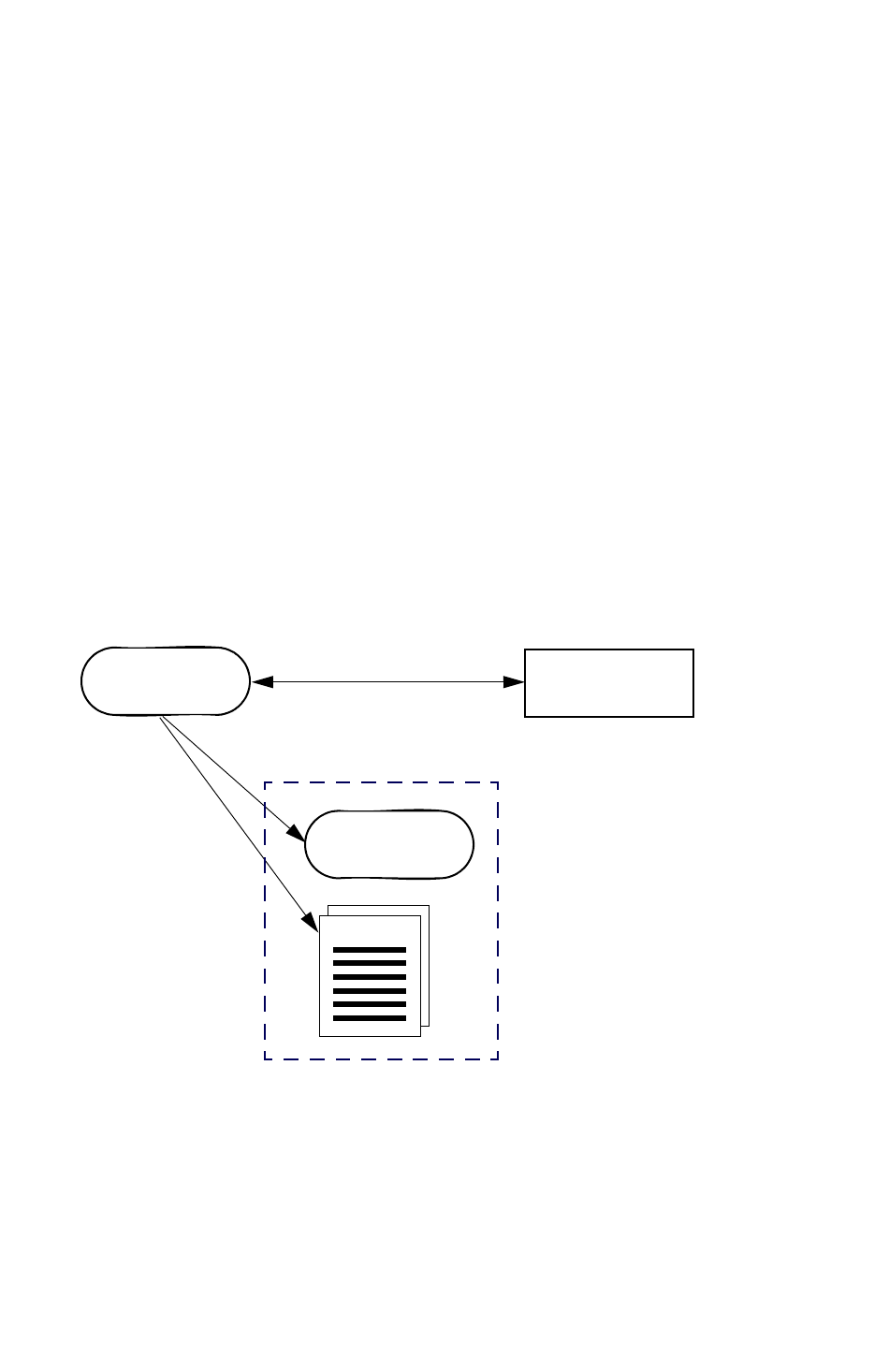

Figure 1 ICEpdf MVC Implementation

SwingController

ViewModel

SwingView Factory

Document

Using ICEpdf

ICEpdf Developer’s Guide v3.0 22

Creating a Viewer Component

The org.icepdf.core.ri.common.SwingController class provides convenience methods for the most

common UI actions, such as rotating the document, setting the zoom level, etc. The

org.icepdf.core.ri.common.SwingViewBuilder class is responsible for creating the PDF Viewer

component panel populated with Swing components configured to work with the SwingController. When

using the SwingViewBuilder and SwingController classes, it is usually not necessary to use the

Document object directly. The SwingController class does this for us.

The following code snippet illustrates how to build a PDF Viewer component:

String filePath = “somefilepath/myfile.pdf”;

// build a controller

SwingController controller = new SwingController();

// Build a SwingViewFactory configured with the controller

SwingViewBuilder factory = new SwingViewBuilder( controller);

// Use the factory to build a JPanel that is pre-configured

// with a complete, active Viewer UI.

JPanel viewerComponentPanel = factory.buildViewerPanel();

// Create a JFrame to display the panel in

JFrame window = new JFrame( "Using the Viewer Component");

window.getContentPane().add( viewerComponentPanel);

window.pack();

window.setVisible( true);

// Open a PDF document to view

controller.openDocument( filePath );

Note: The SwingViewBuilder class provides numerous methods that enable developers to quickly

create custom viewer user interfaces (UIs) by including only those UI controls that are required,

customizing existing UI controls, etc. Refer to

org.icepdf.core.ri.common.SwingViewBuilder in the JavaDoc API documentation and

Customizing the SwingViewBuilder,

p. 23

for more information.

See ICEpdf Viewer Application,

p. 28

for a complete example.

Using the PDF Viewer Application

ICEpdf includes a complete standalone PDF Viewer Application reference implementation (RI) that can

be used as a PDF document viewing solution on any compliant Java platform. While the ICEpdf Viewer

application provided represents a complete commercial-quality PDF document viewing solution, it is also

intended to be used as a learning aid on how to use various ICEpdf features, as well as a ‘head-start’

for developers whose requirements closely match the existing ICEpdf Viewer's capabilities and who

simply need to refine the application to meet their needs.

Using ICEpdf

ICEpdf Developer’s Guide v3.0 23

The Viewer application leverages the same MVC architecture, SwingViewBuilder and SwingController

classes as the embeddable viewer component. In addition, additional functionality has been

implemented to provide more complete PDF Viewer functionality, similar to Adobe Acrobat Reader. The

source code for this viewer application is available in the package org.icepdf.core.ri.viewer. The

application uses the following classes in addition to the PDF Viewer Component to implement a

standalone viewer application: WindowManager, FontPropertiesManager, and PropertiesManager. These

classes can be found in the org.icepdf.core.ri.viewer package.

Advanced Topics

This section describes the following advanced features for ICEpdf:

•Customizing the SwingViewBuilder

•Implementing a SecurityCallback

•Printing

•Font Management

•Memory Management and Caching

•Internationalization

Customizing the SwingViewBuilder

The org.icepdf.core.ri.common.SwingViewBuilder class constructs a set of GUI components

which are pre-configured to work with the org.icepdf.core.ri.common.SwingController class to

manipulate and reflect the status of view of a rendered PDF document.

The SwingViewBuilder methods, buildViewerFrame and buildViewerPanel, provide the high-level entry

points for the GUI construction process, with each constructing complete PDF Viewer user interfaces.

In addition, numerous other

build...

methods are available that construct specific components and

subcomponents. See the JavaDoc for the SwingViewBuilder class for an overview of the various

build..

methods.

For example, the buildCompleteMenubar() method will construct and return a complete application

menu bar, including File, View, Document, Window, and Help menus. The buildFileMenu() method will

construct and return the File menu, including menu items for Open, Close, Save As, Export, Print, etc.

You may use the SwingViewBuilder methods at any level that is appropriate for your application to

construct the various user interface components that you require.

If you prefer to customize the GUI components that the SwingViewBuilder creates, you will need to

adopt one of the following strategies:

1. Directly modify the SwingViewBuilder source code, or copy the SwingViewBuilder class into a new

class of your own and make required changes to the new class. Using this approach will ensure that

any changes or enhancements made to the default Viewer user interface in future versions of

Using ICEpdf

ICEpdf Developer’s Guide v3.0 24

ICEpdf will not impact your application. You will need to integrate any changes you wish to adopt

manually.

2. Subclass the SwingViewBuilder class and override the

build...

methods that you need to modify. The

advantage of this approach is that your application will automatically incorporate any changes or

additions to the Viewer user interface provided in subsequent releases of ICEpdf for those methods

that you haven't overridden. For example, if you are satisfied with the default Viewer Component

user interface, but need to modify the Help->About menu-item to display a custom About dialog

for your application, you would extend the SwingViewBuilder class and override the

buildAboutMenuItem() method to return a menu item that displays your custom About dialog. If a

future version of ICEpdf includes additional Tools, such as a Text Selection Tool, your user interface

will automatically adopt the new toolbar and menu changes to add support for the new Tool without

requiring any manual integration of the new code.

Window Management

Window events, such as closing a window, must be handled by your application, not the ICEpdf

framework. Your application needs to track windows and viewports from creation to destruction.

The package org.icepdf.core.ri.viewer contains reference code for creating window management.

Adding a Custom Utility Tool

The ICEpdf Viewer RI provides a tabbed utility pane component that is used to display a document

outline (bookmarks) when available and a document search capability. This utility pane can also be

configured to support additional custom utility tab components as required. The SwingViewBuilder

method JTabbedPane buildUtilityTabbedPane() is responsible for creating the tabbed utility pane

for the outline and search tools. This method can be easily modified to add your own custom utility tool.

The org.icepdf.core.ri.common.SearchPanel component provides a reference implementation that

demonstrates implementing a basic search tool for finding text within a PDF document.

Building a Custom Page View

By default, the ICEpdf Viewer application can display PDF documents in any of the predefined views

specified in the

PDF Reference

. The viewer application will first see if the document specifies which

document view to use. If not specified, then the viewer selects the view that was last used. The source

code for all of the view layout types can be found in the package org.icepdf.core.ri.common.views.

Each page is represented by a PageViewComponentImpl object which can be easily used to build

custom view types.

The page view implementation uses a secondary MVC to manage the multiple views efficiently. All

supporting classes can be found in the package org.icepdf.core.views. The support view types are

as follows:

• Single Page - Displays one page at a time.

• One Column - Displays the pages, continuously, in one column.

Using ICEpdf

ICEpdf Developer’s Guide v3.0 25

• Two Column Left - Displays the pages, continuously, in two columns, with odd numbered pages on

the left.

• Two Page Left - Displays the pages two at a time, with odd-numbered pages on the left.

Implementing a SecurityCallback

When the Document class encounters a PDF document that is encrypted with Acrobat standard security,

it first tries to open the PDF file with an empty password string. If the Document class fails to validate

the empty password, the application must have a mechanism to request the password. You can use the

org.icepdf.core.SecurityCallback interface to do this.

The interface has one method, which is called by the Document class to retrieve a document’s

password. You can implement the SecurityCallback interface in numerous ways to meet the needs of

your application. For example, the package org.icepdf.core.ri.common contains reference code for

the SecurityCallback in the class MyGUISecurityCallback.

The following is an example of the necessary code needed to register MyGUISecurityCallback with the

Document class:

Document document = new Document();

Document.setSecurityCallback(

New MyGUISecurityCallback(aJFrame,aResourceBundle));

Implementing an AnnotationCallback

ICEpdf can optionally be configured to support interacting with link annotations. The Viewer RI and

Pilot RI by default come configured with their own implementation of the

org.icepdf.core.AnnotationCallback. They differ only by how they handle external URI Actions. The

Viewer RI will load an external URI with the Operating Systems default web browser. The Pilot RI will

load external URI links in a new ICEbrowser viewport.

ICEpdf only supports annotation via the mouse pointer; there is no keyboard support at this time. When

the mouse is moved over a portion of a PDF document which is marked as an annotation, the mouse

cursor will change into a hand pointer. When a user clicks on the annotation, ICEpdf will draw any effect

specified by the selected annotation, but it will not execute the annotation action; it instead passes the

selected annotation to the AnnotationCallback. It is up to the AnnotationCallback implementation to

process the annotation’s actions. A default implementation of an AnnotationCallback can be found in at

org.icepdf.core.ri.common.MyAnnotationCallback.

Printing

Printing a PDF document with ICEpdf is a highly configurable task that allows users to print using a wide

range of Java technologies. To aid developers in printing, the package org.icepdf.core.ri.common

contains the PrintHelper class that implements Java 2 Printable and Pageable interfaces. The source

Using ICEpdf

ICEpdf Developer’s Guide v3.0 26

code for this class is available for users who want to gain a greater understanding of the printing process

or modify the printing behavior.

JDK 1.4 Printing

The PrinterHelper class can also be used with Java Printer Services available in JDK 1.4. The printing

API introduced in JDK 1.4 allows for far greater flexibility than previous JDKs in detecting printers and

their capabilities. The following code example demonstrates how a specific printer can be used with

Java Printer Services with no user interaction:

// Create a new attribute set and add a key for the printer

// we want to print to.

AttributeSet aset = new HashAttributeSet();

aset.add(new PrinterName("HP LaserJet 4050 Series PCL", null));

// Do a look up to try and find our LaserJet printer

services = PrintServiceLookup.lookupPrintServices(

DocFlavor.SERVICE_FORMATTED.PAGEABLE,

aset);

// If the LaserJet could not be found then try and find

// a default printer which can use the Pageable interface

if (services.length == 0)

services = PrintServiceLookup.lookupPrintServices(

DocFlavor.SERVICE_FORMATTED.PAGEABLE, null);

// Finally we can print using the first printer in the

// services list which will either be our specified LaserJet

// or the default printer on the user’s operating system.

if (services.length > 0){

printerJob.setPrintService(services[0]);

// print the document without any user interaction, no

// dialogs.

printHelper.print(viewModel.getPrinterJob(), 0,

document.getNumberOfPages() - 1,

1, // default number of copies.

true, // shrink to printable area

false, // show page setup

false, // show print dialog

pageFormat);

}

document.dispose();

Font Management

ICEpdf uses a font manager to manage fonts that exist on the host operating system. The FontManager

class can be found in the package org.icepdf.core.fonts. When the font manager’s

readSystemFonts() method is called, it tries to read all fonts on the host operating system and stores

the name, family and path information of the readable font. The reading of all font programs can be

time consuming and in most usage scenarios needs only to be done once as operating system fonts do

not change regularly. As a result, the manager can import and export the collected font information

Using ICEpdf

ICEpdf Developer’s Guide v3.0 27

using the getFontProperties() and setFontProperties() methods respectively. A basic

FontPropertiesManager class is available in the package org.icepdf.core.ri.util.

Adding Font Paths to the FontManager

If you want to specify additional font path to be ready by the by the FontManager class, it is possible

using the readSystemFonts() method. The following code demonstrates how to add more font paths to

the FontManager internal list of paths:

String[] extraFontPaths = new String[]{"f:\\windows\\fonts\\",

"f:\\winnt\\fonts\\"};

FontManager fontManager = FontManager.getInstance();

fontManager.readSystemFonts(extraFontPaths);

Memory Management and Caching

An Adobe PDF file consists of numerous compressed object streams. As a PDF file is opened and

additional pages are viewed, more objects streams are decompressed, and the memory required to

display the content grows significantly.

When memory gets low, the ICEpdf Memory Manager frees up memory by disposing the PDF objects

associated with previously viewed pages until the required amount of memory is recovered.

Note: Memory is considered low if the Runtime maxMemory value, minus the current amount of used

Java heap, is less than the specified org.icepdf.core.minMemory value.

When an image stream is encountered, it is first represented as a byte stream and then encoded into

a viewable image. This process can be time consuming and memory intensive. The image is stored in

memory until the Memory Manager disposes of its parent page resources, at which time the encoded

image is written to disk and the representation of the image in memory is flushed. The cached image

is from then on read from disk, which may be more efficient than re-decoding the byte stream and re-

encoding the image.

In some environments, file caching may not be desirable. If necessary, you can turn off caching

completely by setting the system property org.icepdf.core.imagecache.enabled to

false

. However,

you should not disable file caching if your PDF documents contain large images or several images unless

you have a large Java Heap available (512 MB or more).

For more information on the ICEpdf system properties, see System Properties,

p. 10

Internationalization

The ICEpdf Viewer RI provides support for internationalization so that it can easily be adapted

(localized) to various languages and regions. Internationalization is implemented using standard Java 2

Internationalization mechanisms. The ICEpdf Viewer RI stores language bundles in the package,

org.icepdf.core.ri.resources.

ICEpdf Developer’s Guide v3.0 28

Chapter 4 Reference

Implementations and

Examples

ICEpdf includes numerous examples and reference implementations in source code form to enable rapid

learning and successful use of the product. The reference implementations are commercial quality

implementations that can be deployed as-is, customized to meet specific requirements, or used as

learning aids on how to use various features. The examples are simplified applications that demonstrate

how to use a specific feature or capability.

Reference Implementations

ICEpdf Viewer Application

The ICEpdf Viewer is a reference implementation (RI) of a standalone PDF viewer application. You can

use it as is

or as a starting point for your own custom application.

The application uses the SwingViewBuilder object to create the GUI elements in the viewer application,

such as the toolbar and menu system. These GUI elements, including the page view, are controlled by

the SwingController object which produces a rich viewer application that can be used as is in most

implementations.

The source code for the ICEpdf Viewer Application is located in the [install_dir]/icepdf/viewer/

directory.

Starting the ICEpdf Viewer Application

1. Ensure that JDK 1.5.0 or higher has been installed.

2. Add the relevant JAR files to the classpath. You need at least the following:

•icepdf-core.jar

• icepdf-viewer.jar

To enable ICEpdf Pro and full PDF font support, install the following:

•icepdf-pro.jar

•icepdf-pro-intl.jar

Reference Implementations and Examples

ICEpdf Developer’s Guide v3.0 29

To enable exporting to SVG, you also require the following Batik JAR files:

• batik-awt-util.jar

• batik-dom.jar

• batik-svg-dom.jar

• batik-svggen.jar

• batik-util.jar

•batik-xml.jar

For more information, see Batik Library for SVG Support,

p. 10

To enable viewing of documents that are encrypted with Acrobat standard security, you also require

the following Bouncy Castle JAR file (or the JAR for another appropriate JCE 1.2.1 security provider

implementation):

bcprov-jdk{

version

}.jar (where

version

is the appropriate version of the JAR)

For more information, see Acrobat Standard Security Support,

p. 8

3. Run java org.icepdf.core.ri.viewer.Main [option <value>]

Starting as an Executable JAR

The ri_pdf.jar file is an executable JAR file, so you can also start the Viewer Application with JDK 1.5.0

or greater as follows:

java -jar icepdf-viewer.jar

Command Line Options

To start the ICEpdf Viewer without command line options or Batik support:

java -classpath icepdf-core.jar; icepdf-viewer.jar org.icepdf.core.ri.viewer.main

Settings Directory

The ICEpdf Viewer stores its settings in the directory:

<user_dir>/.icesoft/icepdf_viewer

where <user_dir> is the platform-specific directory specified by the user.home system property.

Option Description

-loadfile filename Starts the ICEpdf Viewer and displays the specified local PDF file. Use the following

syntax:

-loadfile c:/examplepath/file.pdf

-loadurl url Starts the ICEpdf Viewer and displays the PDF file at the specified URL. Use the

following syntax:

-loadurl http://www.examplesite.com/file.pdf

Reference Implementations and Examples

ICEpdf Developer’s Guide v3.0 30

Using the ICEpdf Viewer

This section describes how to use the ICEpdf Viewer application to do the following:

•Open PDF files

• Understand the ICEpdf Viewer work area

• Navigate and manipulate the view of a PDF document

• Export, save, and print the contents of a PDF document

• Exit a document and the application

Opening PDF Files

You can open a PDF file from the local file system or from a URL.

To open a local PDF file

1. Launch your ICEpdf application (if it is not already running).

2. Click File > Open > File.

3. In the Open dialog box, select a PDF file and click Open.

To open a PDF from a URL

1. Launch ICEpdf.

2. Select File > Open > URL.

3. In the Open URL dialog box, type the URL of a PDF file in the form

http://www.icepdf.org/resources/DevelopersGuide.pdf and click OK.

To open a PDF using Drag and Drop

You can open a PDF file by dragging it from your file system onto the Viewer application window. You

can also drag and drop multiple files at once.

Furthermore, some applications allow you to drag and drop URL text strings. If you drag a URL pointing

to a PDF file onto the Viewer application, that file is opened. The text string must contain an http://

prefix and a .pdf reference.

Note: If a file is password protected and security support has been configured, a password dialog is

displayed. You have three attempts to enter the correct password, after which an error message

is displayed. If the file has other security settings, such as “No Printing”, the ICEpdf Viewer

respects those settings.

Opening Multiple PDF Files

The ICEpdf Viewer implements a Single Document Interface (SDI) for viewing PDF files. Multiple PDF

files can be viewed at the same time, each in its own application window. Some MDI functionality has

Reference Implementations and Examples

ICEpdf Developer’s Guide v3.0 31

been included in the Window menu, which allows the user to switch between each open Viewer window,

minimize all Viewer windows, and bring all Viewer windows to the front.

An additional ICEpdf Viewer window is opened automatically when you open another PDF file.

About the ICEpdf Viewer Work Area

The ICEpdf Viewer consists of the following four distinct work areas:

•Main toolbar - provides controls and buttons to navigate and work with a PDF file.

•Document pane - displays a PDF file.

•Utility pane - has a

bookmark tab

which lets you browse a PDF file using a documents bookmarks

and a

search tab

which enables you to search for text in a file.

•View toolbar - allows you to change the way a document’s pages are displayed in the document

pane.

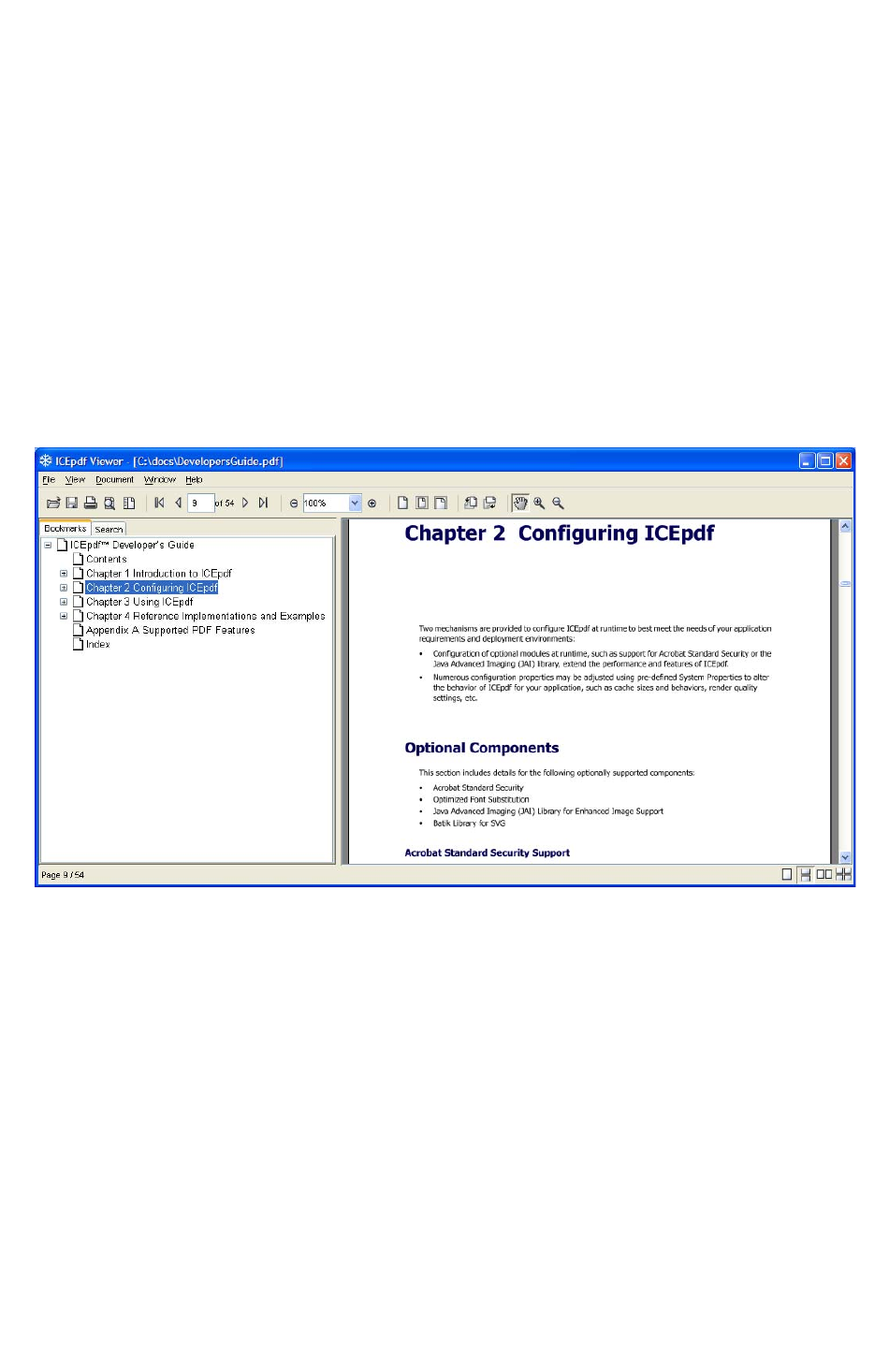

Figure 2 ICEpdf Viewer Work Area

A. Main Toolbar B. Utility pane C. Document pane D. View Toolbar

Reference Implementations and Examples

ICEpdf Developer’s Guide v3.0 32

About the ICEpdf Viewer Main Toolbar

The toolbar has shortcuts for many common functions, but you can hide it to have a larger display area.

To show or hide the toolbar, select View > Show Toolbar or View > Hide Toolbar.

The toolbar provides access to the view and navigation functionality.

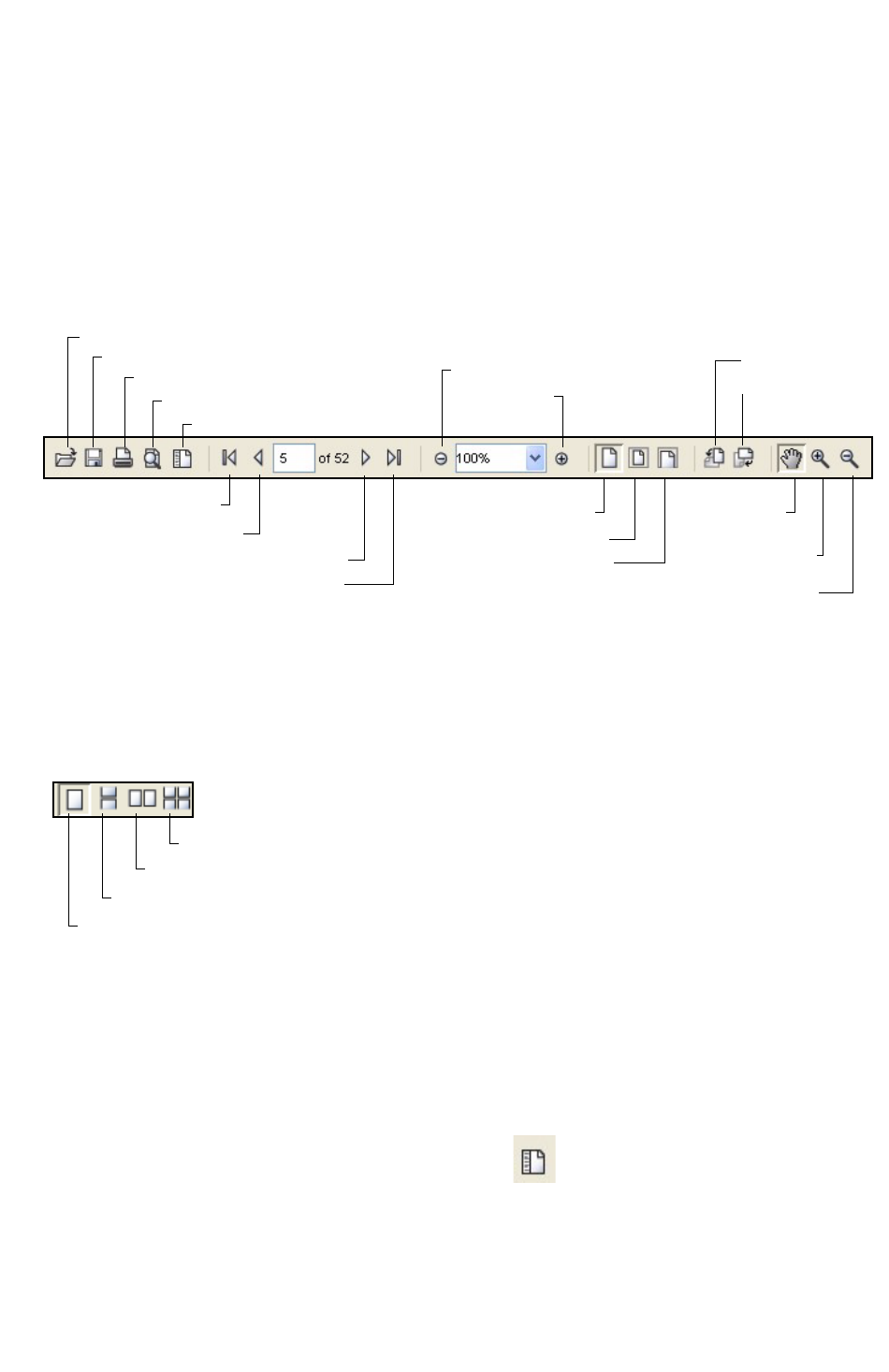

Figure 3 ICEpdf Toolbar

About the ICEpdf Viewer

View Toolbar

The view toolbar contains four buttons that allow you to change how a PDF document is displayed.

About the Utility/Bookmark Pane

You can show or hide the utility pane, which contains tabs for a document’s bookmarks and for the

search function. If the file does not have any bookmarks, the bookmarks tab is not displayed.

To show or hide the utility pane, select View > Show Utility Pane or View > Hide Utility Pane.

Alternatively, if the toolbar is displayed, you can click the Show/Hide Utility Pane button.

For information on using bookmarks, see Using Bookmarks,

p. 33

Print Document

First Page

Last Page

Zoom Out

Zoom In

Actual Size

Fit in Window

Rotate Left

Rotate Right

Zoom In Tool

Zoom Out Tool

Pan Tool

Open Document

Save a Copy...

Search Document

Show/Hide Utility Pane

Fit Width

Single Page View Non-continuous

Single Page View Continuous

Facing Page View Non-continuous

Facing Page View Continuous

Reference Implementations and Examples

ICEpdf Developer’s Guide v3.0 33

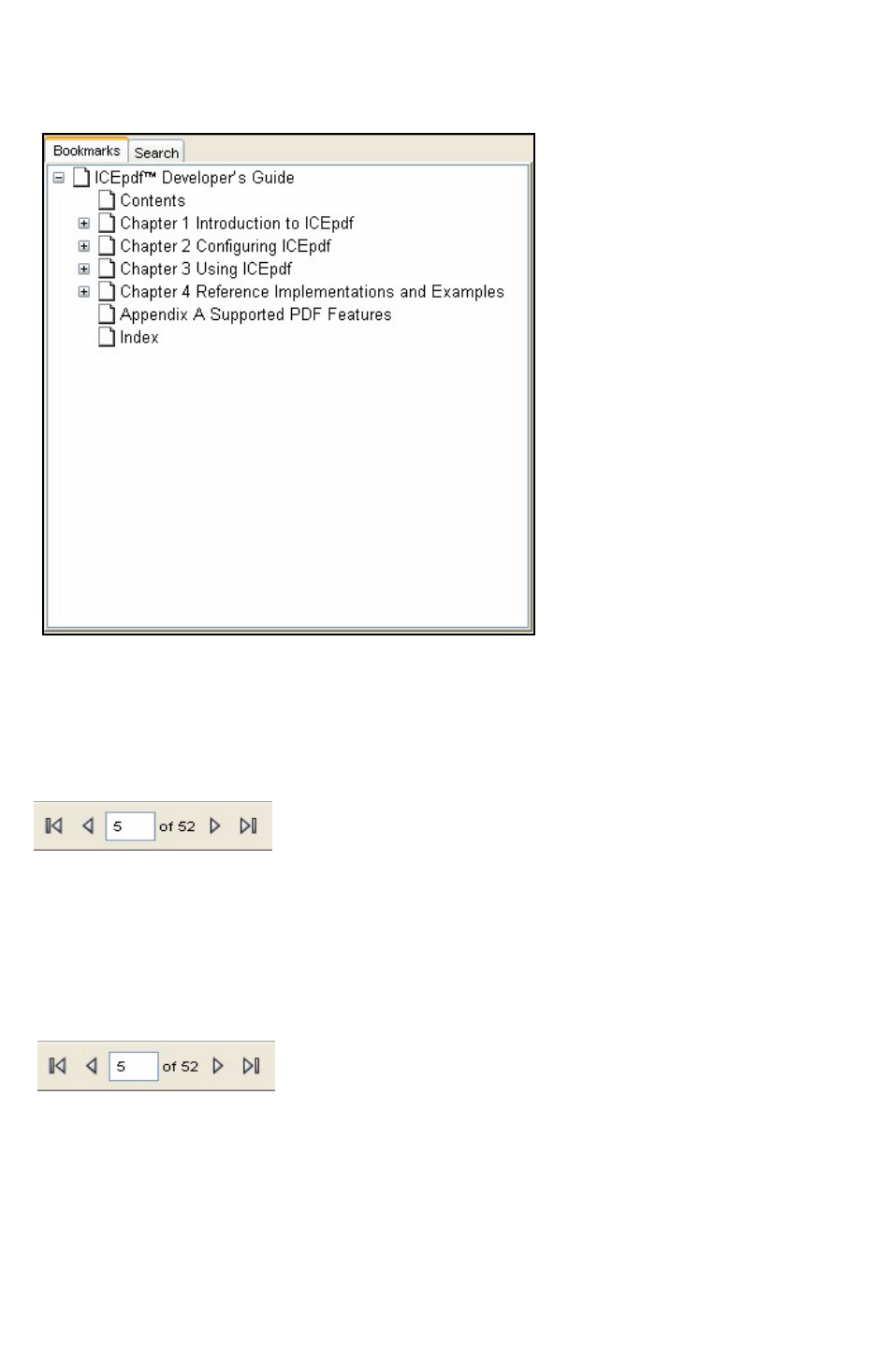

Navigating a PDF File

Using Bookmarks

If a PDF file has been created with bookmarks, you can use the bookmarks like a table of contents to

choose what you want to view.

Bookmarks are displayed on a tab in the utility pane on the left side of the Viewer. However, they are

not displayed if View > Hide Utility Pane has been selected.

Viewing a Bookmark Topic

To view a bookmark topic, click the bookmark topic name.

Viewing More Bookmark Topics

If a bookmark has a + symbol beside it, you can expand a parent bookmark topics to reveal its children.

Similarly, click the - symbol next to a bookmark to collapse a parent bookmark and hide its children.

Reference Implementations and Examples

ICEpdf Developer’s Guide v3.0 34

Viewing the Next or Previous Page

• To view the next page of a PDF file, select Document > Next Page.

• To view the previous page of a PDF file, select Document > Previous Page.

Using the toolbar, select the Next Page or Previous Page buttons to navigate.

Viewing the First or Last Page

• To view the first page of a PDF file, select Document > First Page.

• To view the previous page of a PDF file, select Document > Last Page.

Using the toolbar, select the First Page or Last Page buttons to navigate.

Viewing a Specific Page

To view a specific page of a PDF file:

1. Select Document > Go To Page.

Reference Implementations and Examples

ICEpdf Developer’s Guide v3.0 35

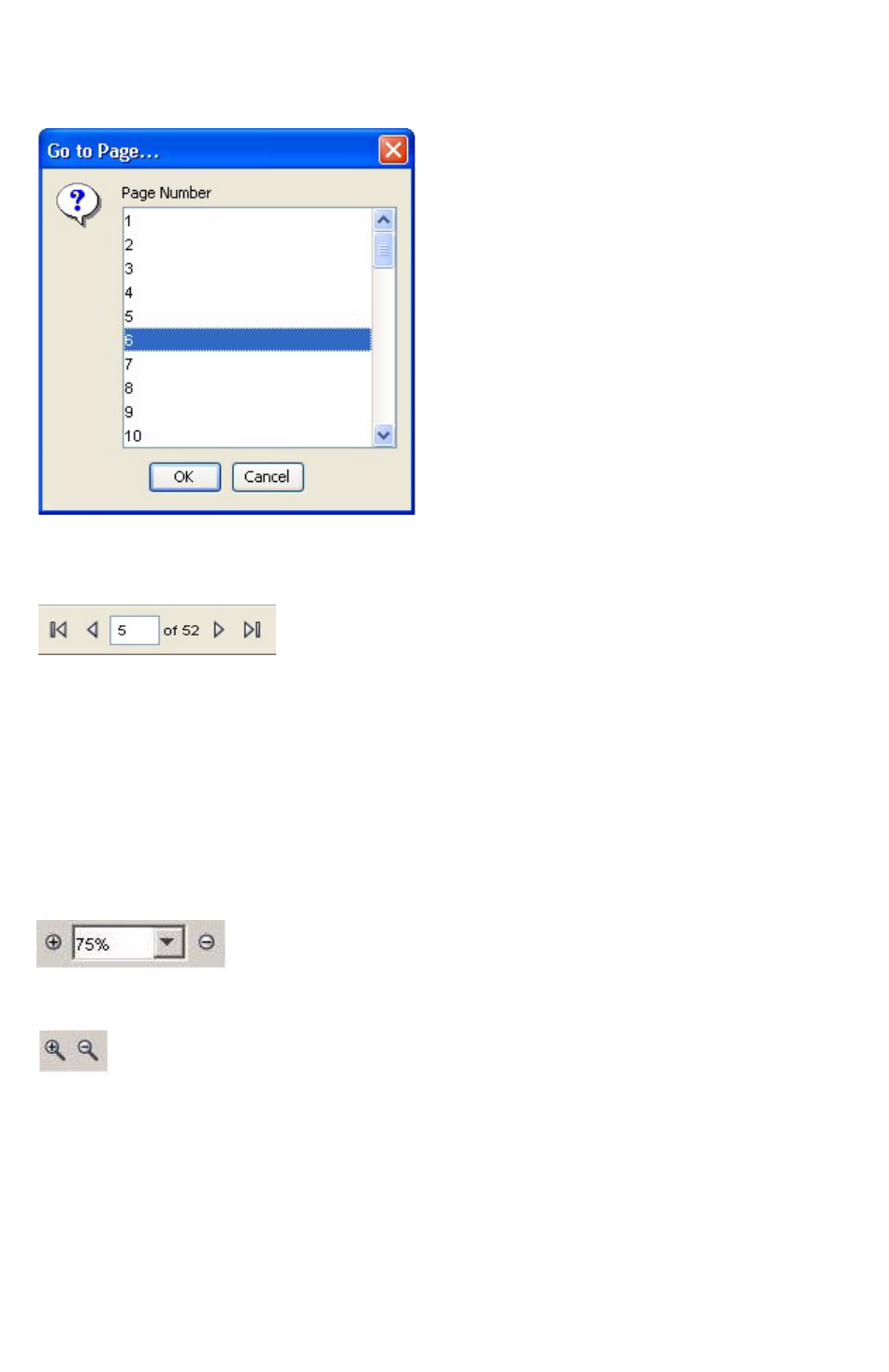

2. In the Go To Page dialog, select a page number and click OK.

Using the toolbar, type a page number in the page number field and press Enter.

Zooming In and Out

You can zoom in on a page to get a closer view, and you can zoom out for a smaller view.

• To zoom in on a page, select View > Zoom In. You can zoom in repeatedly to get a closer view.

• To zoom out from a page, select View > Zoom Out. You can zoom out repeatedly to get a smaller

view.

Using the toolbar, select the Zoom In or Zoom Out buttons. You can select a magnification percentage

from the Zoom drop-down selection box, or type a value in the Zoom box and press Enter.

Select the Zoom In Tool or Zoom Out Tool to simply click to zoom in or out on an area of the PDF file

Viewing a PDF File in its Original Size or to Fit the Window

• To view the PDF file in its actual size, select View > Actual Size. The actual size is the size of the

page as it was originally created.

• To view the PDF file so that the entire page is visible, select View > Fit in Window.

• To view the PDF file so that the width of the page fills the window size, select View > Fit Width.

Reference Implementations and Examples

ICEpdf Developer’s Guide v3.0 36

Using the toolbar, click the Actual Size, Fit in Window, and Fit Width buttons.

Rotating a PDF File

If the PDF file is displayed sideways, you can rotate it so that it is easier to view or read.

To rotate the PDF file, select View > Rotate Left or View > Rotate Right. The view is rotated 90

degrees clockwise or counter-clockwise each time you select it.

Using the toolbar, click the Rotate Left and Rotate Right buttons.

Searching for Text

If a PDF file contains text, you can search for text strings within it using the Search function.

The Search function is displayed on a tab in the utility pane on the left side of the Viewer. However, it

is not displayed if the Utility Pane is hidden. In this case, select Document > Search or click the

Search Document button to open the Search tab.

To search for a text string, type it in the Search Text field and click Search. The results are displayed

in the Results field, indicating how many hits were found on each page of the document. You can then

click on an entry in the Result field to go directly to that page.

Keyboard and Mouse Manipulation

While viewing a PDF, you can use the following keyboard and mouse actions:

Keyboard or Mouse Action Result

Page Up / Page Down Scrolls the current page up/down. If the top/bottom of the page is

reached, the view changes to the previous/next page in the

document.

Arrow keys Scrolls the display in the direction of the arrow key pressed. If the

top/bottom of the page is reached, the view changes to the

previous/next page in the document.

Mouse click If the Zoom In tool is selected, zooms in. If the Zoom Out tool is

selected, zooms out.

Mouse click and drag If the Pan Tool is selected (the default), pans the display in the

direction the mouse is dragged.

Reference Implementations and Examples

ICEpdf Developer’s Guide v3.0 37

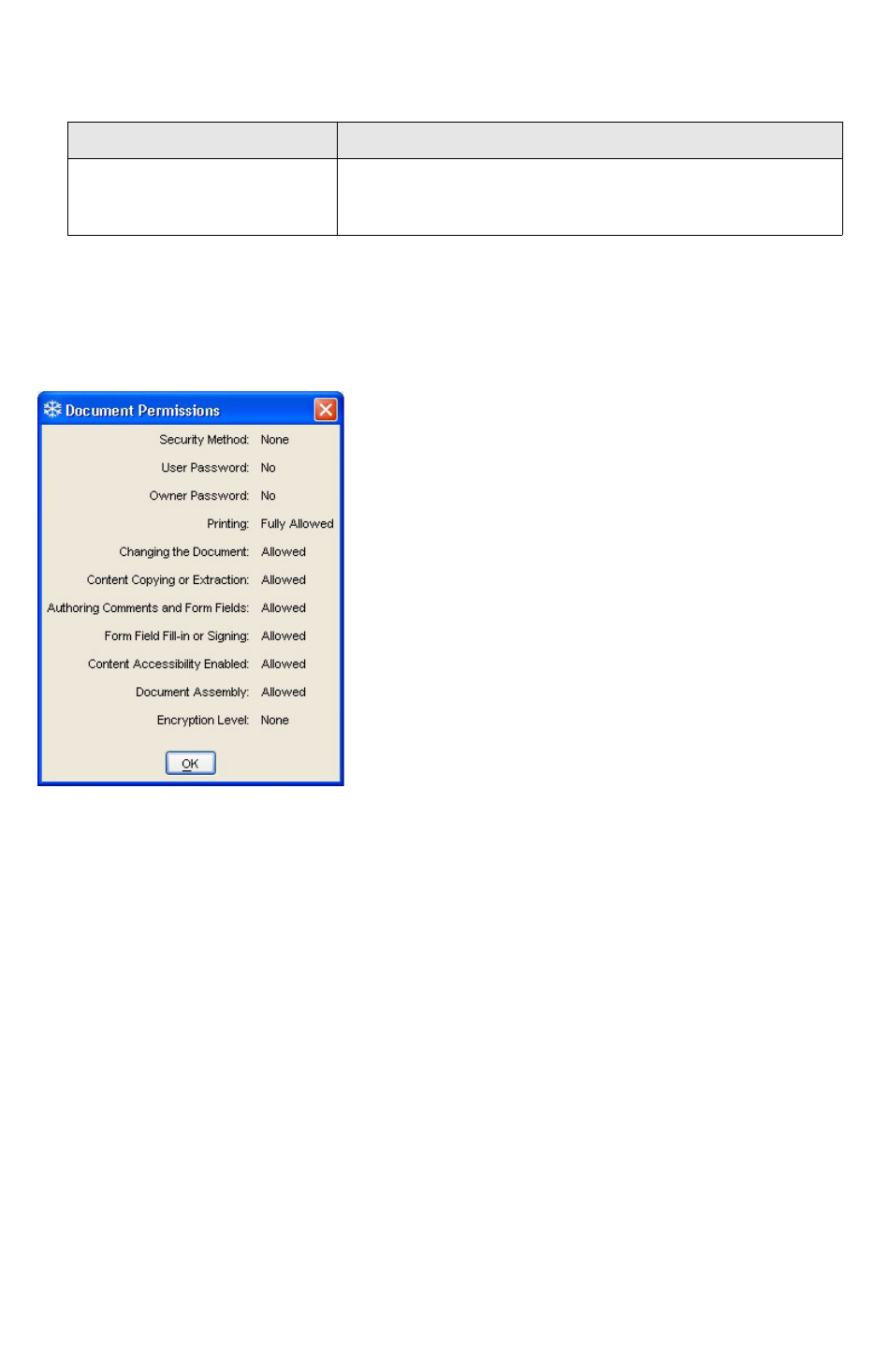

Displaying Document Permissions and Information

To display security information about an open PDF document, such as the security method and which

security features are enabled, select File > Document Permissions.

To display other information about an open PDF document, such as the creator and modification dates,

select File > Document Information.

Exporting a PDF File to SVG

SVG support is available if you have configured the optional Batik SVG library. For more information, see

Batik Library for SVG Support on page 10.

To export a PDF file as an SVG file

1. If Batik is configured, select File > Export SVG.

2. In the Export as SVG dialog, specify a location and filename and click OK.

Exporting a PDF File to Text

You can export the text in a PDF to a text file.

Mouse wheel If you are using JDK 1.4 or higher, pages can be scrolled using the

mouse scroll wheel. If the top/bottom of the page is reached, the

view changes to the previous/next page in the document.

Keyboard or Mouse Action Result

Reference Implementations and Examples

ICEpdf Developer’s Guide v3.0 38

To export a PDF file as a text file

1. Select File > Export Text.

2. In the Export Document Text dialog, specify a location and filename and click OK.

Printing a PDF File

To print a PDF file with a printer dialog, select File > Print.

Alternatively, from the toolbar, click the (Print button) to print a PDF file without displaying a print

dialog.

To set the paper, orientation and margin settings before printing the file, select File > Print Setup.

Saving a Copy of a PDF File

To save a copy of the PDF file you are viewing

1. Select File > Save a Copy.

2. In the Save Copy dialog box, navigate to a location for the file, type a filename and click OK.

Closing a PDF File

To close the PDF file you are viewing, leaving the application open, select File > Close.

Exiting ICEpdf

To exit from the ICEpdf Viewer and close any open files, select File > Exit.

Examples

Annotation Example

The Annotation example shows how the AnnotationCallback interface can be used to interpret how

annotation actions can be handled when activated in the user’s interfaces. The example also shows how

annotation border painting can be manipulated to show users which annotations they have already

clicked on.

The source code for the example is located in the [install_dir]/icepdf/examples/annotation/

directory.

Reference Implementations and Examples

ICEpdf Developer’s Guide v3.0 39

Applet Example

The Applet example demonstrates deployment of the ICEpdf Viewer as a Java Applet.

The source-code for the example is located in the [install_dir]/icepdf/examples/applet/

directory.

Content Extraction Examples

The Content Extraction examples demonstrate how to use the ICEpdf Document class to extract meta-

data, text, and images from within a PDF document.

There are three individual extraction examples:

• PageMetaDataExtraction.java - Extracts document meta-data.

• PageTextExtraction.java - Extracts the text from the first page of the document.

• PageImageExtraction.java - Extracts the images from the first page of the document.

The source-code for the example is located in the [install_dir]/icepdf/examples/extraction/

directory.

ICEfaces Example

ICEfaces PDF Viewer Application utilizes the ICEfaces framework and ICEpdf core to rendering PDF

documents in a Rich Web application. ICEfaces 1.8 or greater is needed to compile this example.

ICEfaces is available at http://www.icefaces.org/downloads/.

Update the Apache Ant build.properties variable common.build.file to point to the location of build-

common.xml located in the [install_dir]/icefaces/samples/etc/ directory. The common

ICEfaces build script is very flexible having build targets for most major Servlet containers.

The source code for the example is located in the [install_dir]/icepdf/examples/icefaces/

directory.

Page Capture Example

The Page Capture example demonstrates how to use the ICEpdf Document class to capture PDF page

renders as image files.

The source-code for the example is located in the [install_dir]/icepdf/examples/capture/

directory.

Reference Implementations and Examples

ICEpdf Developer’s Guide v3.0 40

Print Services Example

The Print Services example demonstrates how the PrintHelper class can be used to print PDF documents

using Java Print Services. The example also shows how it is possible to select and modify available

printers and their settings.

The source-code for this example is located in the

[install_dir]/icepdf/examples/printServices/ directory.

Viewer Component Example

The Viewer Component example demonstrates how to use the SwingController and SwingViewBuilder

classes to create a PDF viewer component.

The source-code for the example is located in the [install_dir]/icepdf/examples/component/

directory.

ICEpdf Developer’s Guide v3.0 41

Appendix A Supported PDF

Features

This table lists all the PDF features that ICEpdf supports. The list is based on the

PDF Reference

, 5th

Edition, Version 1.6, from Adobe Systems Incorporated. The section numbers in the table refer to the

sections in the

PDF Reference

. You can download the reference from:

http://www.adobe.com/devnet/pdf/pdf_reference.html

Supported Feature Section in

PDF

Reference

Introduced in PDF Version

1.0 1.1 1.2 1.3 1.4 1.5 1.6

Filters

ASCIIHexDecode 3.3.1 9

ASCII85Decode 3.3.2 9

LZWDecode 3.3.3 9

FlateDecode 3.3.3 9

RunLengthDecode 3.3.4 9

CCITTFaxDecode

Group 4 3.3.5 9

Group 3, 1-D 3.3.5 9

Group 3, 2-D 3.3.5 9

DCTDecode (No transformations) 3.3.7 9

File Structure

File Body 3.4.2 9

Cross-Reference Table 3.4.3 9

File Trailer 3.4.4 9

Incremental Updates 3.4.5 9

Object Streams 3.4.6 9

Cross-Reference Stream 3.4.7 9

Supported PDF Features

ICEpdf Developer’s Guide v3.0 42

Encryption

Standard Security Handler 3.5.2 9

Document Structure

Document Catalog 3.6.1 9

Page Layout 3.6.1

Singe Page View 3.6.1 9

One Column View 3.6.1 9

Two Column Left View 3.6.1 9

Two Column Right View 3.6.1 9

Two Page Left View 3.6.1 9

Two Page Right View 3.6.1 9

Page Tree 3.6.2 9

Page Objects 3.6.2 9

Inheritance of Page Attributes 3.6.2 9

Functions 3.9 9

Type0 (Sampled) Functions 3.9.1 9

Type2 (Exponential Interpolation) Functions 3.9.2 9

Type3 (Stitching) Functions 3.9.3 9

Supported Feature Section in

PDF

Reference

Introduced in PDF Version

1.0 1.1 1.2 1.3 1.4 1.5 1.6

Supported PDF Features

ICEpdf Developer’s Guide v3.0 43

Graphics

Graphics States

Device Independent

Line Width 4.3.2 9

Line Cap Style 4.3.2 9

Line Join Style 4.3.2 9

Miter Limit 4.3.2 9

Line Dash Pattern 4.3.2 9

Alpha Constant 4.3.2 9

Path Construction

Cubic Bézier Curves 4.4.1 9

Sub Paths 4.4.1 9

Lines 4.4.1 9

Rectangles 4.4.1 9

Path-Painting Operators

Stroking 4.4.2 9

Filling 4.4.2 9

Nonzero Winding Number Rule 4.4.2 9

Even-Odd Rule 4.4.2 9

Clipping Path Operators 4.4.3 9

Color Spaces

Device Color Spaces

Device Gray 4.5.3 9

Device RGB 4.5.3 9

Device CMYK 4.5.3 9

CIE-Based Color Spaces

ICCBased Color Spaces 4.5.4 9

Supported Feature Section in

PDF

Reference

Introduced in PDF Version

1.0 1.1 1.2 1.3 1.4 1.5 1.6

Supported PDF Features

ICEpdf Developer’s Guide v3.0 44

Special Color Spaces

Pattern Color Spaces 4.5.5 9

Indexed Color Spaces 4.5.5 9

Separation Color Spaces 4.5.5 9

DeviceN Color Spaces 4.5.5 9

Patterns 4.6

Shading 4.6.3 9

External Objects 4.7 9

Image XObjects 4.7 9

Form XObjects 4.7 9

Images

Decode Arrays 4.8.4 9

Image Interpolation 4.8.4 9

Masked Images

Stencil Masking 4.8.5 9

Explicit Masking 4.8.5 9

Color Key Masking 4.8.5 9

Inline Images 4.8.6 9

Form XObjects

Form Dictionaries 4.9.1 9

Supported Feature Section in

PDF

Reference

Introduced in PDF Version

1.0 1.1 1.2 1.3 1.4 1.5 1.6

Supported PDF Features

ICEpdf Developer’s Guide v3.0 45

Text

Text State Parameters

Character Spacing 5.2.1 9

Word Spacing 5.2.2 9

Horizontal Scaling 5.2.3 9

Leading 5.2.4 9

Text Rise 5.2.6 9

Simple Fonts*

Type 1 Fonts* 5.5.1

Standard Type 1 Fonts* 5.5.1 9

Multiple Master Fonts* 5.5.1 9

TrueType Fonts* 5.5.2 9

Font Subsets* 5.5.3 9

Type 3 Fonts* 5.5.4 9

Composite Fonts*

CIDFonts* 5.6.3

Cmaps* 5.6.4

Predefined Cmaps* 5.6.4 9

Embedded Cmap Files* 5.6.4 9

Type 0 CIDFonts* 5.8 9

Type 2 CIDFonts* 5.8 9

Font Descriptors 5.7 9

Other Font Programs*

Type 0 Fonts* 5.8

Type 1(CFF)* 5.8 9

OpenType (True Type outlines)* 5.8 9

OpenType (CFF Type outlines)*5.8 9

Supported Feature Section in

PDF

Reference

Introduced in PDF Version

1.0 1.1 1.2 1.3 1.4 1.5 1.6

Supported PDF Features

ICEpdf Developer’s Guide v3.0 46

Interactive Features

Viewer Preferences

Hide Tool bar 8.1 9

Hide Menu bar 8.1 9

Fit Window 8.1 9

Center Window 8.1 9

Display Document Title 3.1 9

Document Page Mode 8.1 9

Outlines 8.1 9

Optional content group 8.1 9

Print Scaling 8.1 9

Document-Level Navigation

Destinations 8.2.1 9

Document Outline 8.2.1 9

Link Annotation 8.4.5 9

Go To actions 8.5.3 9

Go to resource actions 8.5.3 9

Go to launch actions 8.5.3 9

URI actions 8.5.3 9

Annotations†8.4 9

Annotation Flags 8.4.2 999

Border Styles 8.4.3 9

Appearance Streams 8.4.4 9

Annotation Types 8.4.5

Markup Annotations 8.4.5 9

Annotation States 8.4.5 9

Text Annotations 8.4.5 9

Free Text Annotations 8.4.5 9

Supported Feature Section in

PDF

Reference

Introduced in PDF Version

1.0 1.1 1.2 1.3 1.4 1.5 1.6

Supported PDF Features

ICEpdf Developer’s Guide v3.0 47

Line Annotations 8.4.5 9

Square and Circle Annotations 8.4.5 9

Polygon and Polyline Annotations 8.4.5 9

Text Markup Annotations 8.4.5 9

Interactive Forms†8.6

Button Fields 8.6.3

Push Buttons 8.6.3 9

Check boxes 8.6.3 9

Radio Buttons 8.6.3 9

Text Fields 8.6.3 9

Choice Fields 8.6.3 9

* ICEpdf Pro version only.

† Static rendering only.

Supported Feature Section in

PDF

Reference

Introduced in PDF Version

1.0 1.1 1.2 1.3 1.4 1.5 1.6

ICEpdf Developer’s Guide v3.0 48

Index

Acrobat standard security 8

Adobe fonts 8

AnnotationCallback, implementing 25

API documentation 3

Applet example 39

Batik library 10

bookmarks 32

bookmarks, viewing 33

Bouncy Castle 8

caching properties 11, 27

closing a PDF file 38

content extraction examples 39

custom page view 24

custom utility tool, adding 24

document permissions and information 37

documentation directory 3

drag and drop, opening PDF files 30

encryption 8

enhanced image support 9

example

adding font paths 27

ICEpdf Viewer 28

exporting to SVG 37

extracting document meta-data 18

extracting images 20

extracting text 19

finding text 36

FontManager class 26

FontPropertiesManager class 27

fontsadding paths for 27

caching 26

management 26

substitution 8

Ghostscript fonts 8

ICEpdf Viewer

command line options 29

main toolbar 32

navigating files 33

settings directory 29

toolbar 32

using 30

view toolbar 32

work area 31

images

caching 27

JAI support 9

images, extracting 20

import statements 17

installation bundle 2

internationalization 27

Index

ICEpdf Developer’s Guide v3.0 49

JAI support 9

JAR files 3

Java Advanced Imaging library 9

JCE 8

keyboard actions 36

lib directory 3

managing fonts 26

memory management properties 11, 27

meta-data, extracting 18

migration guide 3

mouse actions 36

multiple PDF files, opening 30

MVC implementation 21

navigating pages 34

opening a PDF file 30

operating system

fontssupport for 26

support 5

page capture example 39

Page Capturing Class, building 15

page view 24

page views 13

pages

viewing 34

password support 8

PDF files

closing 38

saving 38

PDF page renderings, converting 15

PDF supported features 4

PDF Viewer Application, using 22

permissions, viewing 37

platform support 5

print services example 40

printing PDF files 38

properties, system 10

reference implementation 28

release notes 3

rendering quality properties 11

resizing 35

RI.

See

reference implementation.

rotating 36

saving a PDF 38

scenarios, common usage 15

search tab 32

searching for text 36

security 25

security support 8

SecurityCallback, implementing 25

source files 4

src directory 4

Static Main Method 17

substituting fonts 8

support for fonts 26

supported PDF features 41

supported platforms 5

SVG 37

SVG support 10

SwingViewBuilder, customizing 23

system properties 10

caching 11, 27

memory management 11, 27

rendering quality 11

setting 27

Index

ICEpdf Developer’s Guide v3.0 50

tabbed utility pane 32

text searching 36

text, extracting 19

toolbar 32

usage scenarios 15

utility pane 32

vewer component example 40

view, custom page 24

Viewer Component, creating 22

viewing

bookmarks 33

pages 34

PDF files 35

views, page 13

window management 24

zoom, setting 35

ICEpdf Developer’s Guide Version 2.0 Developers

DevelopersGuide

DevelopersGuide

DevelopersGuide

DevelopersGuide

DevelopersGuide

Navigation menu

Versions of this User Manual:

Views

Navigation
