EB46226cover.fh10 EB4 S2 TT6226

User Manual: Pdf EB4 S2 TT6226

Open the PDF directly: View PDF PDF.
Page Count: 16

Specification:
Wheel Base: Adjustable from 315mm to 320mm
Front Track Width: Adjustable from 295mm to 305mm
Rear Track Width: 300mm
Front Kick-Up: 5˚
Front Caster: adjustable from 18˚ to 25˚
Rear Anti-Dive: 2˚
Rear Toe-In: 1˚, 2˚, or 2.5˚
Weight: 3100g w/ engine, tuned pipe, servos
NO.6226-F
Glow Starters
No.2150 1.8AH Long Glow Starter w/110V 2P
No.2151 1.8AH Long Glow Starter w/230V 2P
No.2152 1.8AH Long Glow Starter w/230V 3P
Hex Driver Set
No.1103
ACCESSORIES RECOMMENDED
No.1116
5-Way Wrench
Super Torque
Digital Servo
No.8119 DS1013
No.8123 DS1211
PARTS CATALOG FOR
EB-4 S2 PRO SC CAR
NO.6226-F
No.9477
PRO-28BX-R
PD0552 RR SWAY BAR, 2.5MM LT PURPLE
PD0777 RR SWAY BAR, 2.7MM LT BLUE
PD0778 RR SWAY BAR, 3.0MM LT GREEN
PD1239 FRONT KNUCKLE BALL
W/CONE RETAINER SET (4)
PD0787 ERGAL DECOMPOSABLE
CENTER DIFF. MOUNT
PD0141 BALL BEARING, FLANGE 3x7x3MM
PD0143 BALL BEARING, 5x8x2.5MM
PD0756 BALL BEARING, FLANGE 5x8x2.5MM
PD0470 1/8 CLUTCH BALL, 15T
PD1242 1/8 CLUTCH BALL, 13T
PD0785 ERGAL FR
SHOCK TOWER
PD0762 ERGAL FR PLATE
FR TRANS
9708P AIR FILTER .21 PINK
9708W AIR FILTER .21 WHITE
9708Y AIR FILTER .21 YELLOW
PD1247 ERGAL LITE CHASSIS,
TYPE B
PD0763 ERGAL RR PLATE
FR TRANS PD0766 ERGAL FR PLATE
RR TRANS
PD0772 ERGAL SERVO SAVER
TOP PLATE
PD0767 ERGAL RR TOE-IN BLOCK, 2˚
PD0769 ERGAL RR TOE-IN BLOCK, 3˚
PD0770 CARBON SERVO TRAY PD0771 CARBON BATT PLATE
PD0786 ERGAL RR
SHOCK TOWER
PD0998 1/8 4-SHOE CLUTCH, TYPE A
PD1000 1/8 CLUTCH NUT, ONLY TYPE A
PD1218 1/8 4 CLUTCH SHOE & SPR,
ONLY TYPE A
PD0611 SELF COOLING
BRAKE DISK PD1203 CARBIDE LOWER
ARM PIN
PD0761
ERGAL
HEAT-SINK
ENGINE MOUNT
PD0615 1/8 FR SPRING, 1.5MM YELLOW
PD0753 1/8 FR SPRING, 1.4MM WHITE
PD0754 1/8 FR SPRING, 1.6MM BLUE
PD0614 1/8 RR SPRING, 1.5MM YELLOW
PD0751 1/8 RR SPRING, 1.4MM WHITE
PD0752 1/8 RR SPRING, 1.6MM BLUE
PD0583 FR SWAY BAR, 2.3MM LT AQUA
PD0776 FR SWAY BAR, 2.6MM PINK
PD0564 SHOCK PISTON(4),
1-HOLE PD0790 1/8 SHOCK BOOT,
SHORT
PD0610 STEERING SLIDER W/BB
PD0760 ERGAL BATTERY POST
PD0996 1/8 3-SHOE CLUTCH, TYPE A
PD1215 1/8 3 CLUTCH SHOE & SPR ONLY
, TYPE A
PD0784 TITANIUM TURNBUCKLE
5X90MM
PD0758 ERGAL FR UPPER
ARM MT
PD0612 SERVO SAVER
POSTS W/BB
1166P PISTON LOCK TOOL PD0757 ERGAL FR KNUCKLE1165P FUEL FILTER, 2CC.
JD0424
1) Rigid, narrow chassis with front and side kick-up
2) Flat chassis side guards
3) Short bumper
4) Small transmission case with bottom seal
5) Narrow, light weight suspension arms
6) Improved front upper arms
7) High performance rubber tire
8) Durable differentials
9) Sealed, large receiver box
10) Quick change receiver battery clip
11) 125cc, low CG fuel tank
12) Adjustable rear toe-in plates
13) Adjustable rear wing
14) Adjustable front/ rear camber
15) Adjustable front caster
16) Adjustable wheelbase
17) Front ball type universal drive shaft
18) Shaft driven 4WD drivetrain
19) Front and rear chassis stiffeners
Includes ventilated flywheel, 3 shoe clutch, and
14T bell (not pictured) all aluminum parts are
red anodized
No.2409
PD1981-W MULTI-SPOKE WHL, WHITE, 1/8
PD1981-Y MULTI-SPOKE WHL, YELLOW, 1/8
PD1981-P MULTI-SPOKE WHL, PINK, 1/8
PD1903-Y REAR WING, YELLOW, 1/8
PD1903-P REAR WING, PINK, 1/8
PD1903-W REAR WING, WHITE, 1/8
9797 3-CHAMBER TUNED PIPE(S), EFRA 2039
9797-1 3-CHAMBER TUNED PIPE(S),
W/ MANIFOLD EFRA 2039
Surface or distol style
for your choices
3 Sets of gear diff & Full ball bearings (18pcs)
Included
PD1946-Y 5-SPOKE WHL, 17mm YELLOW, 1/8
PD1946-B 5-SPOKE WHL, 17mm BLACK, 1/8
PD1946-G 5-SPOKE WHL, 17mm GREEN, 1/8
PD1946-P 5-SPOKE WHL, 17mm PINK, 1/8
PD1946-O 5-SPOKE WHL, 17mm ORANGE, 1/8
PD6602-Y VELOCITY WHL, YELLOW, I/8
PD6602-W VELOCITY WHL, WHITE, I/8
PD6602-B VELOCITY WHL, BLACK, I/8
PD6602-G VELOCITY WHL, GREEN, I/8
PD6602-P VELOCITY WHL, PINK, I/8
PD6602-O VELOCITY WHL, ORANGE, I/8
PD1230 BALL UNIVERSAL, FR
PD1231 BALL UNIVERSAL, RR
PD1228 CENTER BALL UNIVERSAL, FR
PD1229 CENTER BALL UNIVERSAL, RR
9796 3-CHAMBER TUNED PIPE(L), EFRA 2035
9796-1 3-CHAMBER TUNED PIPE(L),
W/ MANIFOLD EFRA 2035
Features:
100% Assembled
2-Channel Radio Installed
High Torque Steering Servo
Printed Body With Decals
Race-proven Suspension Geometry
Durable Gear Differential System
Double High-Density Annular Foams Air Filter
Strong Fiberglass Reinforced Composite Parts
Sturdy Alum. Chassis
Alum Front Shock Tower
Alum Rear Shock Tower
Alum Steering Slider
Alum Center Diff Top Plate
Thunder Tiger PRO-21BX-R Engine With Pull Start
High Performance Rubber Tire
Adjustable Alum. Large Volume, Competition Shocks
Front Ball Type Universal Drive Shaft
Ventilated Flywheel
High performance Tuned Pipe And Manifold
Adjustable Toe-In / Camber / Caster Angle
Specification:
Wheel Base: Adjustable from 315mm to 320mm
Front Track Width: Adjustable from 295mm to 305mm
Rear Track Width: 300mm
Front Kick-Up: 5˚
Front Caster: adjustable from 18˚ to 25˚
Rear Anti-Dive: 2˚
Rear Toe-In: 1˚, 2˚, or 2.5˚
Weight: 3100g w/ engine, tuned pipe, servos
NO.6226-F
Glow Starters
No.2150 1.8AH Long Glow Starter w/110V 2P
No.2151 1.8AH Long Glow Starter w/230V 2P
No.2152 1.8AH Long Glow Starter w/230V 3P
Hex Driver Set
No.1103
ACCESSORIES RECOMMENDED
No.1116
5-Way Wrench
Super Torque
Digital Servo
No.8119 DS1013
No.8123 DS1211
PARTS CATALOG FOR
EB-4 S2 PRO SC CAR
NO.6226-F
No.9477
PRO-28BX-R
PD0552 RR SWAY BAR, 2.5MM LT PURPLE
PD0777 RR SWAY BAR, 2.7MM LT BLUE
PD0778 RR SWAY BAR, 3.0MM LT GREEN
PD1239 FRONT KNUCKLE BALL
W/CONE RETAINER SET (4)
PD0787 ERGAL DECOMPOSABLE
CENTER DIFF. MOUNT
PD0141 BALL BEARING, FLANGE 3x7x3MM
PD0143 BALL BEARING, 5x8x2.5MM
PD0756 BALL BEARING, FLANGE 5x8x2.5MM
PD0470 1/8 CLUTCH BALL, 15T
PD1242 1/8 CLUTCH BALL, 13T
PD0785 ERGAL FR
SHOCK TOWER
PD0762 ERGAL FR PLATE
FR TRANS
9708P AIR FILTER .21 PINK
9708W AIR FILTER .21 WHITE
9708Y AIR FILTER .21 YELLOW
PD1247 ERGAL LITE CHASSIS,
TYPE B
PD0763 ERGAL RR PLATE
FR TRANS PD0766 ERGAL FR PLATE
RR TRANS
PD0772 ERGAL SERVO SAVER
TOP PLATE
PD0767 ERGAL RR TOE-IN BLOCK, 2˚
PD0769 ERGAL RR TOE-IN BLOCK, 3˚
PD0770 CARBON SERVO TRAY PD0771 CARBON BATT PLATE
PD0786 ERGAL RR
SHOCK TOWER
PD0998 1/8 4-SHOE CLUTCH, TYPE A
PD1000 1/8 CLUTCH NUT, ONLY TYPE A
PD1218 1/8 4 CLUTCH SHOE & SPR,
ONLY TYPE A
PD0611 SELF COOLING
BRAKE DISK PD1203 CARBIDE LOWER
ARM PIN
PD0761
ERGAL
HEAT-SINK
ENGINE MOUNT
PD0615 1/8 FR SPRING, 1.5MM YELLOW
PD0753 1/8 FR SPRING, 1.4MM WHITE
PD0754 1/8 FR SPRING, 1.6MM BLUE
PD0614 1/8 RR SPRING, 1.5MM YELLOW
PD0751 1/8 RR SPRING, 1.4MM WHITE
PD0752 1/8 RR SPRING, 1.6MM BLUE
PD0583 FR SWAY BAR, 2.3MM LT AQUA
PD0776 FR SWAY BAR, 2.6MM PINK
PD0564 SHOCK PISTON(4),
1-HOLE PD0790 1/8 SHOCK BOOT,
SHORT
PD0610 STEERING SLIDER W/BB
PD0760 ERGAL BATTERY POST
PD0996 1/8 3-SHOE CLUTCH, TYPE A
PD1215 1/8 3 CLUTCH SHOE & SPR ONLY
, TYPE A
PD0784 TITANIUM TURNBUCKLE
5X90MM
PD0758 ERGAL FR UPPER
ARM MT
PD0612 SERVO SAVER
POSTS W/BB
1166P PISTON LOCK TOOL PD0757 ERGAL FR KNUCKLE1165P FUEL FILTER, 2CC.
JD0424
PRO-21BX-R
SURFACE OR PISTOL STYLE
FOR CHOICES
1) Rigid, narrow chassis with front and side kick-up
2) Flat chassis side guards
3) Short bumper
4) Small transmission case with bottom seal
5) Narrow, light weight suspension arms
6) Improved front upper arms
7) High performance rubber tire
8) Durable differentials
9) Sealed, large receiver box
10) Quick change receiver battery clip
11) 125cc, low CG fuel tank
12) Adjustable rear toe-in plates
13) Adjustable rear wing
14) Adjustable front/ rear camber
15) Adjustable front caster
16) Adjustable wheelbase
17) Front ball type universal drive shaft
18) Shaft driven 4WD drivetrain
19) Front and rear chassis stiffeners
Includes ventilated flywheel, 3 shoe clutch, and
14T bell (not pictured) all aluminum parts are
red anodized
No.2409
PD1981-W MULTI-SPOKE WHL, WHITE, 1/8
PD1981-Y MULTI-SPOKE WHL, YELLOW, 1/8
PD1981-P MULTI-SPOKE WHL, PINK, 1/8
PD1903-Y REAR WING, YELLOW, 1/8
PD1903-P REAR WING, PINK, 1/8
PD1903-W REAR WING, WHITE, 1/8
9797 3-CHAMBER TUNED PIPE(S), EFRA 2039
9797-1 3-CHAMBER TUNED PIPE(S),
W/ MANIFOLD EFRA 2039
Surface or distol style
for your choices
3 Sets of gear diff & Full ball bearings (18pcs)
Included
PD1946-Y 5-SPOKE WHL, 17mm YELLOW, 1/8
PD1946-B 5-SPOKE WHL, 17mm BLACK, 1/8
PD1946-G 5-SPOKE WHL, 17mm GREEN, 1/8
PD1946-P 5-SPOKE WHL, 17mm PINK, 1/8
PD1946-O 5-SPOKE WHL, 17mm ORANGE, 1/8
PD6602-Y VELOCITY WHL, YELLOW, I/8
PD6602-W VELOCITY WHL, WHITE, I/8
PD6602-B VELOCITY WHL, BLACK, I/8
PD6602-G VELOCITY WHL, GREEN, I/8
PD6602-P VELOCITY WHL, PINK, I/8
PD6602-O VELOCITY WHL, ORANGE, I/8
PD1230 BALL UNIVERSAL, FR
PD1231 BALL UNIVERSAL, RR
PD1228 CENTER BALL UNIVERSAL, FR
PD1229 CENTER BALL UNIVERSAL, RR
9796 3-CHAMBER TUNED PIPE(L), EFRA 2035
9796-1 3-CHAMBER TUNED PIPE(L),
W/ MANIFOLD EFRA 2035
Features:
100% Assembled
2-Channel Radio Installed
High Torque Steering Servo
Printed Body With Decals
Race-proven Suspension Geometry
Durable Gear Differential System
Double High-Density Annular Foams Air Filter
Strong Fiberglass Reinforced Composite Parts
Sturdy Alum. Chassis
Alum Front Shock Tower
Alum Rear Shock Tower
Alum Steering Slider
Alum Center Diff Top Plate
Thunder Tiger PRO-21BX-R Engine With Pull Start
High Performance Rubber Tire
Adjustable Alum. Large Volume, Competition Shocks
Front Ball Type Universal Drive Shaft
Ventilated Flywheel
High performance Tuned Pipe And Manifold
Adjustable Toe-In / Camber / Caster Angle

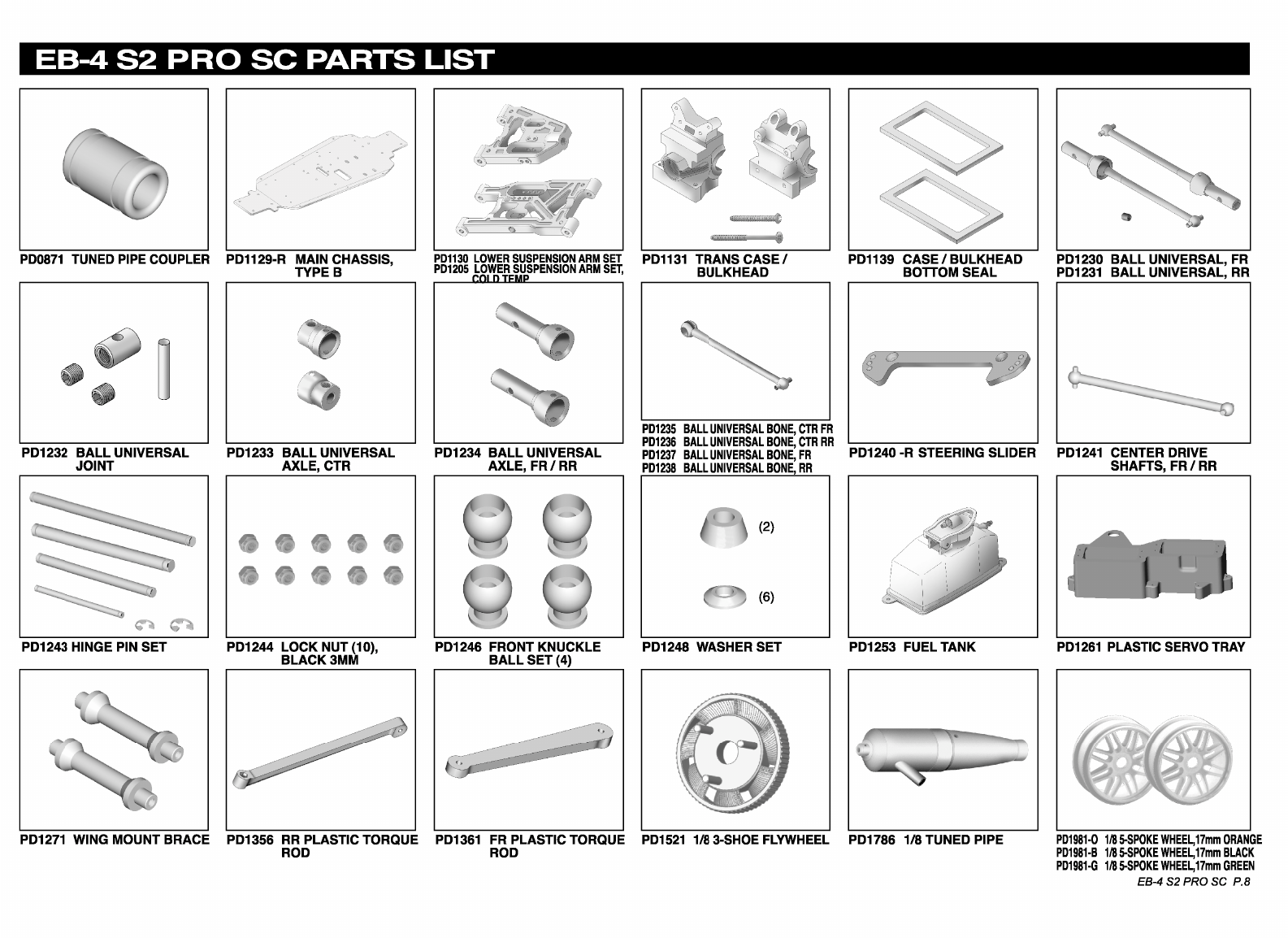

EB-4 S2 SE PARTS LIST
PD0749 CARBIDE RR HUB PIN
PD1256 CARBIDE SHOCK SHAFT, FR (2)
PD1257 CARBIDE SHOCK SHAFT, RR (2)
PD0780 TITANIUM TURNBUCKLE
5x57MM
PD0783 TITANIUM TURNBUCKLE 4x52mm
PD1245 TITANIUM TURNBUCKLE 4x36mm
PD0782 TITANIUM TURNBUCKLE
6x32MM
PD0781 TITANIUM TURNBUCKLE
4x45MM
PD0573 TORQUE ROD SET,
4x52mm 5x90mm
PD0582 ALUMINUM SERVO
TRAY POST
PART# DESCRIPTIONNOTEPART# DESCRIPTIONNOTEPART# DESCRIPTIONNOTE
PART# DESCRIPTIONNOTE
PART# DESCRIPTIONNOTE
PART# DESCRIPTIONNOTE
PD1020 M4x 12mm (1)
PD0779 FLAT HEAD SOCKET SCREW, 3X12MM
PD0895 FLAT HEAD SOCKET SCREW, 3X8MM
PD1195 FLAT HEAD SOCKET SCREW, 3X5MM
(4) (4)
(1) (1) PART# DESCRIPTION NOTE PART# DESCRIPTION NOTE PART# DESCRIPTION NOTE
PD6472 1/8 ENGINE MOUNT,
PULL START
PD0225 ANTENNA BAG
PD1235 BALL UNIVERSAL BONE, CTR FR
PD1236 BALL UNIVERSAL BONE, CTR RR
PD1237 BALL UNIVERSAL BONE, FR
PD1238 BALL UNIVERSAL BONE, RR
AD0300-R CENTER DIFF
TOP PLATE
AD0297-R SERVO SAVER
TOP PLATE
AD0287-R FRONT SHOCK
TOWER
AD0332-R REAR SHOCK
TOWER
AD2435 SERVO SAVER
BUSHING
AD0343 REAR DRIVE SHAFT
AD2413 PIVOT BALL(6), 4MM AD2445 1/8 CLUTCH SPR. (3)
PD0416 BALL BEARING (2),
5 X 10 X 4MM
AD2657 METAL MAIN GEAR,
46T
AR0080 SERVO MOUNT /
PLASTIC POST
AR0095 REAR HUB CARRIER
PD0423 BRAKE CAM / LEVER
AD2538 1/8 CLUTCH NUTAD2446 1/8 CLUTCH SHOE (3)
AR0097 BODY / WING MOUNT
PD0435 REAR AXLEPD0425 CTR RIGID AXLE
OUTDRIVE
PD0436 SCREW BAG PD0547 STANDOFF BALL (6),
LARGE 4MM
PD0546 STANDOFF BALL (10),
SMALL 4MM
PD0548 FR / RR
DIFFERENTIAL SET
PD0584 BRAKE PAD SET
PD0566 LOWER ARM REAR
HINGE PLATES
PD0570 TIE-END SETPD0569 RX BOX / BATT POST
PD0578 DIFF BEVEL /
DRIVE GEAR
PD0572 LOWER SHOCK PIN(4)
PD0581-R SERVO SAVER
METAL PARTS
PD0588-R FR SUSP PLATE
RR TRANS
PD0559-T ASSORTED E-CLIPS
PD0562 SHOCK PLASTIC PARTS
PD0549 DIFFERENTIAL CASE PD0551 THROTTLE / BRAKE
HARDWARE SET
PD0574 CTR DIFF. MOUNT
& SERVO SAVER
PD0593 STEEL BRAKE DISC(2)
PD0592 PRESSURE FITTING
PD0596 FR/RR DIFF OUTDRIVE
PD0608 TUNED PIPE WIRE
PD0601-R FR SUSP PLATE
FR TRANS
PD0607 ALUM NUT (4), 17MM
PD0609 DIFF INNER GEARS
& PARTS
PD0662 BALL BEARING (10),
SEALED 8x16x5MM
PD0633 DRIVE CUP (2)
PD0655 DIFF GASKET (10),
0.5MM
PD0654 CENTER
DIFFERENTIAL SET PD0659 WASHER (10),
3.6 X 12 X 0.2MM
PD0658 O-RINGS (10),
3.2 X 1.4MM
PD0656 DIFF GASKET (10),
0.2MM
PD0660 DIFF INNER SHAFTS
PD0619 1/8 CLUTCH BELL,
26MM 14T
PD0620 17MM HEX WHEEL
ADAPTER SET
PD0613 STANDOFF BALL (10),
MEDIUM 4MM
PD0617 FRONT KNUCKLE (2)
PD0657 DIFF GASKET (10),
0.8MM
(4)
(4)
(3)
PD0789 FLAT CHASSIS SIDE
GUARD
PD0775 FLAT HEAD SOCKET
SCREW(10), 5 X 10MM
PD1129-R MAIN CHASSIS,
TYPE B
PD1244 LOCK NUT (10),
BLACK 3MM
PD1243 HINGE PIN SET
PD1230 BALL UNIVERSAL, FR
PD1231 BALL UNIVERSAL, RR
PD1240 -R STEERING SLIDERPD1232 BALL UNIVERSAL
JOINT
PD1241 CENTER DRIVE
SHAFTS, FR / RR
PD1246 FRONT KNUCKLE
BALL SET (4)
PD1248 WASHER SET
PD1139 CASE / BULKHEAD
BOTTOM SEAL
PD1130 LOWER SUSPENSION ARM SET
PD1205 LOWER SUSPENSION ARM SET,
COLD TEMP
PD1131 TRANS CASE /
BULKHEAD
PD1234 BALL UNIVERSAL
AXLE, FR / RR
PD1356 RR PLASTIC TORQUE
ROD
PD1261 PLASTIC SERVO TRAY
PD1253 FUEL TANK
PD1361 FR PLASTIC TORQUE
ROD
PD0666 M3 X 6mm(20)
PD0667 M3 X 8mm(20)
PD0668 M3 X 10mm(20)
PD0669 M3 X 12mm(20)
PD0670 M3 X 14mm(20)
PD0671 M3 X 16mm(20)
PD0672 M3 X 18mm(20)
PD0673 M3 X 20mm(20)
PD0674 M3 X 22mm(20)
PD0675 M3 X 25mm(20)
PD0676 M3 X 6mm(20)
PD0677 M3 X 8mm(20)
PD0678 M3 X 10mm(20)
PD0679 M3 X 12mm(20)
PD0680 M3 X 14mm(20)
PD0681 M3 X 16mm(20)
PD0682 M3 X 18mm(20)
PD0683 M3 X 20mm(20)
PD0684 M3 X 25mm(20)
PD1249 TAP SCREW SET
M3 x 10mm (5)
HMO26 (5)
HMO3B (5)
HMO4 (5)
HMM3B (20)
M3 x 8mm (5)
M3 x 12mm (10)
M3 x 14mm (10)
M3 x 16mm (12)
M3 x 22mm (4)
M3 x 3mm (12)
M3 x 5mm (4)
M4 x 12mm (6)
M5 x 4mm (10)
M6 x 30mm (2)
PD1250 HARDWARE SET
PD1251 SET SCREW SET
M3 x 18mm (5)
M4 x 14mm (15)
M3 x 10mm (15)
M3 x 12mm (15)
M3 x 14mm (10)
M3 x 16mm (10)
M3 x 18mm (10)
M3 x 20mm (10)
M3 x 22mm (10)
M3 x 25mm (6)
M4 x 14mm (4)
M3 x 10mm (5)
M3 x 12mm (5)
M35 x 10mm (5)
M4 x 25mm (5)
M4 x 6mm (5)
M3 x 8mm (5)
M3 x 8mm (5)
M3 x 10mm (10)
M3 x 12mm (5)
M3 x 15mm (5)
M3 x 22mm (5)
M2.6 x 8mm (5)
M3 x 10mm (5)
M3 x 12mm (5)
PD1252 HEX SCREW SET PD1313 SCREW BAG PD1315 CROSS SCREW SET
(4) (3)
(4) (2)
M3x18mm (6)
M3.5x35mm (6)
M3.5x18mm (6)
M3.5x46mm (6)
PD0567 FR UPPER ARM/MT/END
PD1204 FR UPPER ARM/MT/END, COLD TEMP
PD1233 BALL UNIVERSAL
AXLE, CTR
CT MACHINE SCREWBT MACHINE SCREW
PD0968 M3x 10mm(20)
BTW PHILLIP TAP SCREW
SOCKET HEAD MACHINE SCREW
PD1138 M6x 30mm(2)
SET SCREW
PD0982 LARGE(20)
NYLON STRAP
(2)
(2)
PD0560-T REAR SHOCK SET PD0561 FRONT SHOCK SET
PD0591-T SHOCK STANDOFF (4)
PD0606-T SHOCK CAP (2)
PD0604-T FR SHOCK BODY (2)
PD0603 RR SHOCK SHAFT (2) PD0605-T RR SHOCK BODY (2)
PD0602 1/8 SHOCK
DIAPHRAGM (10)
PD0661 G-CLIPS (10), 7MM
PD0871 TUNED PIPE COUPLER
PD1271 WING MOUNT BRACE
PD1521 1/8 3-SHOE FLYWHEEL
PD1786 1/8 TUNED PIPE
PD1785 SET SCREW SET
M4 x 35Bmm (2)
M4 x 45Bmm (1)
M5 x 60mm (2)
M6 x 30mm (2)
M6 x 35mm (2)
PD0479 TURNBUCKLE (2),
5 X 60MM
PD0579 TURNBUCKLE (1),
4 x 45MM
PD0586 TURNBUCKLE (2),
6 x 32MM
PD0587 TURNBUCKLE (2),
4 x 36MM
AD2537 WING MOUNT BRACE
AJD1112 DECAL
PD0798 SHORT BUMPER
PD0590 1/8 TIRE W/FOAM,
CUBIC
PD1981-O 1/8 5-SPOKE WHEEL,17mm ORANGE
PD1981-B 1/8 5-SPOKE WHEEL,17mm BLACK
PD1981-G 1/8 5-SPOKE WHEEL,17mm GREEN
PD1903-O 1/8 REAR WING, ORANGE
PD1903-B 1/8 REAR WING, BLACK
PD1903-G 1/8 REAR WING, GREEN
PD0432 1/8 BODY CLIPS (10)
PD6837 1/8 PRINTED BODY, ORANGE S2
PD6795 1/8 PRINTED BODY, BLUE S2
PD6790 1/8 PRINTED BODY, SILVER S2
9708B AIR FILTER, 1/8 BLACK
9708O AIR FILTER, 1/8 ORANGE
9708G AIR FILTER, 1/8 GREEN
PD0748 CARBIDE FR UPPER
ARM PIN
EB-4 S2 PRO SC P.5
EB-4 S2 PRO SC P.6
EB-4 S2 PRO SC P.7
EB-4 S2 PRO SC P.8
EB-4 S2 PRO SC P.9 EB-4 S2 PRO SC P.10 EB-4 S2 PRO SC P.11
EB-4 S2 PRO SC P.12
PD0655DIFF GASKET, 0.5mm
PD0656DIFF GASKET, 0.2mm
PD0657DIFF GASKET, 0.8mm
PD0658O-RINGS, 3.2X1.4mm
PD0659WASHER, 3.6X12X0.2mm
PD0660DIFF INNER SHAFTS
PD0661G-CLIPS(10),7mm
PD0662BALL BEARING, SEALED 8X16X5mm
PD0666BT MACHINE SCREW, 3X6mm
PD0667BT MACHINE SCREW, 3X8mm
PD0668BT MACHINE SCREW, 3X10mm
PD0669BT MACHINE SCREW, 3X12mm
PD0670BT MACHINE SCREW, 3X14mm
PD0671BT MACHINE SCREW, 3X16mm
PD0672BT MACHINE SCREW, 3X18mm
PD0673BT MACHINE SCREW, 3X20mm
PD0674BT MACHINE SCREW, 3X22mm
PD0675BT MACHINE SCREW, 3X25mm
PD0676CT MACHINE SCREW, 3X6mm
PD0677CT MACHINE SCREW, 3X8mm
PD0678CT MACHINE SCREW, 3X10mm
PD0679CT MACHINE SCREW, 3X12mm
PD0680CT MACHINE SCREW, 3X14mm
PD0681CT MACHINE SCREW, 3X16mm
PD0682CT MACHINE SCREW, 3X18mm
PD0683CT MACHINE SCREW, 3X20mm
PD0684CT MACHINE SCREW, 3X25mm
PD0775FLAT HEAD SOCKET SCREW, 5X10mm
PD0789FLAT CHASSIS SIDE GUARDS
PD0798SHORT BUMPER
PD0800LEXAN BODY
PD0871TUNED PIPE COUPLER T
PD0968BTW PHILLIP TAP SCREW, 3X10mm
PD0982NYLON STRAP, LARGE
PD1020SOCKET HEAD MECHINE SCREW, 4X12mm
PD1129-RMAIN CHASSIS, TYPE B
PD1130LOWER SUSPENSION ARM SET
PD1131TRANS CASE / BULKHEAD
PD1138SET SCREW, 6X30mm
PD1139CASE / BULKHEAD BOTTOM SEAL
PD0436SCREW BAG
PD0546STANDOFF BALL, SMALL 4mm
PD0547STANDOFF BALL, LARGE 4mm
PD0548FR/RR DIFFERENTIAL SET
PD0549DIFFERENTIAL CASE
PD0551THROTTLE / BRAKE HARDWARE
PD0559ASSORTED E-CLIPS
PD0560-TREAR SHOCK SET
PD0561-TFRONT SHOCK SET
PD0562SHOCK PLASTIC PARTS
PD0566LOWER ARM REAR HINGE PLATES
PD0567FR UPPER ARM / MT / END
PD0569RX BOX /BATT POST
PD0570TIE-END SET
PD0572LOWER SHOCK PIN
PD0574CTR DIFF MOUNT & SERVO SAVER
PD0578DIFF BEVEL & DRIVE GEAR
PD0581-RSERVO SAVER METAL PARTS
PD0584BRAKE PAD SET
PD0588-RFR SUSP PLATE RR TRANS
PD05901/8 TIRE W/ FOAM, CUBIC
PD0591-TALUM SHOCK STANDOFF(4)
PD0592PRESSURE FITTING
PD0593STEEL BRAKE DISC
PD0596FR/RR DIFF OUTDRIVE
PD0601-RFR SUSP PLATE FR TRANS
PD0602SHOCK DIAPHRAGM(10)
PD0603REAR SHOCK SHAFT(2)
PD0604-TFROMT ALUM SHOCK BODY(2)
PD0605-TREAR ALUM SHOCK BODY(2)
PD0606-TSHOCK CAP(2)
PD0607ALUM NUT, 17mm
PD0608TUNED PIPE WIRE
PD0609DIFF INNER GEARS & PARTS
PD0613STANDOFF BALL, MEDIUM 4mm
PD0617FRONT KNUCKLE
PD06191/8 CLUTCH BELL, 26mm 14T
PD062017mm HEX WHEEL ADAPTER SET
PD0633DRIVE CUP
PD0654CTR DIFFERENTIAL SET
EB-4 S2 PRO SC SPARE PARTS LIST
PD1230BALL UNIVERSAL, FR
PD1231BALL UNIVERSAL, RR
PD1232BALL UNIVERSAL JOINT
PD1233BALL UNIVERSAL AXLE, CTR
PD1234BALL UNIVERSAL AXLE, FR/RR
PD1235BALL UNIVERSAL BONE, CTR FR
PD1236BALL UNIVERSAL BONE, CTR RR
PD1237BALL UNIVERSAL BONE, FR
PD1238BALL UNIVERSAL BONE, RR
PD1240-RSTEERING SLIDER
PD1241CENTER DRIVE SHAFTS, FR/RR
PD1243HINGE PIN SET
PD1244LOCK NUT, BLACK 3mm
PD1246FRONT KNUCKLE BALL SET
PD1248WASHER SET
PD1249TAP SCREW SET
PD1250HARDWARE SET
PD1251SET SCREW SET
PD1252HEX SCREW SET
PD1253FUEL TANK
PD1261PLASTIC SERVO TRAY
PD1271WING MOUNT BRACE,EK S2
PD1313SCREW SET, EB S2
PD1315CROSS SCREW SET, EB S2
PD1356RR PLASTIC TORQUE ROD
PD1361FR PLASTIC TORQUE ROD
PD15211/8 3-SHOE FLYWHEEL
PD1785SCREW SET
PD17861/8 TUNED PIPE
PD1903-O1/8 REAR WING, ORANGE
PD1903-B1/8 REAR WING, BLACK
PD1903-G1/8 REAR WING, GREEN
PD6472ENGINE MOUNT, PS
PD67901/8 PRINTED BODY, SILVER S2
PD67951/8 PRINTED BODY, BLUE S2
PD68371/8 PRINTED BODY, ORANGE S2
EB-4 S2 PRO SC OPTIONAL P ARTS LIST
PD1256CARBIDE SHOCK SHAFT, FR
PD1257CARBIDE SHOCK SHAFT, RR
PD1946-W5-SPOKE WHL,17mm 1/8(W)
PD1946-Y5-SPOKE WHL,17mm 1/8(Y)
PD1946-B5-SPOKE WHL,17mm 1/8(B)
PD1946-G5-SPOKE WHL,17mm 1/8(G)
PD1946-P5-SPOKE WHL,17mm 1/8(P)
PD1946-O5-SPOKE WHL,17mm 1/8(O)
PD1981W1/8 REAR WING, WHITE
PD1981P1/8 REAR WING, PINK
PD1981Y1/8 REAR WING, YELLOW
PD6602-YVELOCITY WHEEL (2), YELLOW, 1/8
PD6602-WVELOCITY WHEEL (2), WHITE, 1/8
PD6602-BVELOCITY WHEEL (2), BLACK, 1/8
PD6602-GVELOCITY WHEEL (2), GREEN, 1/8
PD6602-PVELOCITY WHEEL (2), PINK, 1/8
PD6602-OVELOCITY WHEEL (2), ORANGE, 1/8
PD0762ERGAL FR PLATE FR TRANS
PD0763ERGAL RR PLATE FR TRANS
PD0766ERGAL FR PLATE RR TRANS
PD0767ERGAL RR TOE-IN BLOCK, 2˚
PD0769ERGAL RR TOE-IN BLOCK, 3˚
PD0770CARBON SERVO TRAY
PD0771CARBON BATT PLATE
PD0772ERGAL SERVO SAVER TOP PLATE
PD0776FR SWAY BAR,2.6mm PINK
PD0777RR SWAY BAR,2.7mm LT BLUE
PD0778RR SWAY BAR,3.0mm LT GREEN
PD0779FLAT HEAD SOCKET SCREW 3X12mm
PD0780TITANIUM TURNBUCKLE 5X57mm
PD0781TITANIUM TURNBUCKLE 4X45mm
PD0782TITANIUM TURNBUCKLE 6X32mm
PD0783TITANIUM TURNBUCKLE 4X52mm
PD0784TITANIUM TURNBUCKLE 5X90mm
PD0785ERGAL FRONT SHOCK TOWER
PD0786ERGAL RR SHOCK TOWER
PD0787
ERGAL DECOMPOSABLE CENTER DIFF MOUNT
PD07901/8 SHOCK BOOT, SHORT
PD1903Y1/8 MULTI-SPOKE WHEEL, 17mm YELLOW
PD1903P1/8 MULTI-SPOKE WHEEL, 17mm PINK
PD1903W1/8 MULTI-SPOKE WHEEL, 17mm WHITE
PD0895FLAT HEAD SOCKET SCREW, 3X8mm
PD09961/8 3-SHOE CLUTCH, TYPE A
PD09981/8 4-SHOE CLUTCH, TYPE A
PD10001/8 CLUTCH NUT ONLY, TYPE A
PD1195FLAT HEAD SOCKET SCREW, 3X5mm
PD1203CARBIDE LOWER ARM PIN
PD12151/8 3 CLUTCH SHOE & SPRING ONLY, TYPE A
PD12181/8 4 CLUTCH SHOE & SPRING ONLY, TYPE A
PD1228BALL UNIVERSAL, CTR FR
PD1229BALL UNIVERSAL, CTR RR
PD1230BALL UNIVERSAL, FR
PD1231BALL UNIVERSAL, RR
PD1239FRONT KNUCKLE BALL W/CONE RETAINER
PD12421/8 CLUTCH BELL, 13T
PD1245TIANIUM TURNBUCKLE, 4X36mm
PD1247ERGAL LITE CHASSIS, TYPE B
1165PFUEL FILTER, 2cc
1166PPISTON LOCK TOOL
9708YAIR FILTER 21 YELLOW
9708PAIR FILTER 21 PINK
9708WAIR FILTER 21 WHITE
9796
3-CHAMBER TUNED PIPE(L), EFRA 2035
9796-1
3-CHAMBER TUNED PIPE(L), W/ MANIFOLD EFRA 2035
9797
3-CHAMBER TUNED PIPE(S), EFRA 2039
9797-1
3-CHAMBER TUNED PIPE(S), W/ MANIFOLD EFRA 2039
AD2537WING MOUNT BRACE
PD0141BALL BEARING(2), FLANGE 3X7X3mm
PD0143BALL BEARING(2), 5X8X2.5mm
PD04181/8 TUNED PIPE, C2A
PD04701/8 CLUTCH BELL, 15T
PD0479TURNBUCKLE (2), 5X60mm
PD0552RR SWAY BAR, 2.5mm LT PURPLE
PD0564SHOCK PISTON, 1-HOLE
PD0573TORQUE ROD SET, 4X52mm / 5X90mm
PD05761/8 REAR WING, YELLOW
PD0579TURNBUCKLE(1), 4X45mm
PD0582ALUM SERVO TRAY POST
PD0583FR SWAY BAR, 2.3mm LT AOUA
PD0586TURNBUCKLE(2), 6X32mm
PD0587TURNBUCKLE(2), 4X36mm
PD0610STEERING SLIDER W/BB
PD0611SELF COOLING BRAKE DISK
PD0612SERVO SAVER POSTS W/BB
PD06151/8 FR SPRING, 1.5mm YELLOW
PD06891/8 MULTI-SPOKE WHEEL, 17mm WHITE
PD0748CARBIDE FR UPPER ARM PIN
PD0749CARBIDE RR HUB PIN
PD07511/8 RR SPRING, 1.4mm WHITE
PD07521/8 RR SPRING, 1.6mm BLUE
PD07531/8 FR SPRING, 1.4mm WHITE
PD07541/8 FR SPRING, 1.6mm BLUE
PD0756BALL BEARING, FLANGE 5X8X2.5mm
PD0757ERGAL FR KNUCKLE
PD0758ERGAL FR UPPER ARM MT
PD0760ERGAL BATTERY POST
PD0761ERGAL HEAT-SINK ENGINE MOUNT
EB-4 S2 PRO SC SPARE PARTS LIST
9708O AIR FILTER, 21 ORANGE
9708B AIR FILTER, 21 BLACK
9708G AIR FILTER, 21 GREEN
AD0287-R FR SHOCK TOWER
AD0297-R SERVO SAVER TOP PLATE
AD0300-R CTR DIFF TOP PLATE
AD0332-R RR SHOCK TOWER
AD0343 RR DRIVE SHAFT
AD2413 PIVOT BALL, 4mm
AD2435 SERVO SAVER BUSHING
AD2445 1/8 CLUTCH SPRING (3)
AD2446 1/8 CLUTCH SHOE (3)
AD2538 1/8 CLUTCH NUT
AD2657 METAL MAIN GEAR, 46T
AJD1112 DECAL
AR0080 SERVO MOUNT / PLASTIC POST
AR0095 REAR HUB CARRIER
AR0097 BODY / WING MOUNT
PD0225 ANTENNA
PD0416 BALL BEARING(2), 5X10X4mm
PD0423 BRAKE CAM / LEVER
PD0425 CTR RIGID AXLE OUTDRIVE
PD0432 1/8 BODY CLIPS (10)
PD0435 REAR AXLE
EB-4 S2 PRO SC OPTIONAL PARTS LIST
PD0749 CARBIDE RR HUB PIN
PD1256 CARBIDE SHOCK SHAFT, FR (2)
PD1257 CARBIDE SHOCK SHAFT, RR (2)
PD0780 TITANIUM TURNBUCKLE
5x57MM
PD0783 TITANIUM TURNBUCKLE 4x52mm
PD1245 TITANIUM TURNBUCKLE 4x36mm
PD0782 TITANIUM TURNBUCKLE
6x32MM
PD0781 TITANIUM TURNBUCKLE
4x45MM
PD0573 TORQUE ROD SET,
4x52mm 5x90mm
PD0582 ALUMINUM SERVO
TRAY POST
PART# DESCRIPTION NOTE PART# DESCRIPTION NOTE PART# DESCRIPTION NOTE
PART# DESCRIPTION NOTE PART# DESCRIPTION NOTE PART# DESCRIPTION NOTE
PD1020 M4x 12mm (1)
PD0779 FLAT HEAD SOCKET SCREW, 3X12MM
PD0895 FLAT HEAD SOCKET SCREW, 3X8MM
PD1195 FLAT HEAD SOCKET SCREW, 3X5MM
PART# DESCRIPTION NOTE PART# DESCRIPTION NOTE PART# DESCRIPTION NOTE
PD6472 1/8 ENGINE MOUNT,
PULL START
PD0225 ANTENNA BAG
PD1235 BALL UNIVERSAL BONE, CTR FR
PD1236 BALL UNIVERSAL BONE, CTR RR
PD1237 BALL UNIVERSAL BONE, FR
PD1238 BALL UNIVERSAL BONE, RR
AD0300-R CENTER DIFF
TOP PLATE
AD0297-R SERVO SAVER
TOP PLATE
AD0287-R FRONT SHOCK
TOWER
AD0332-R REAR SHOCK
TOWER
AD2435 SERVO SAVER
BUSHING
AD0343 REAR DRIVE SHAFT
AD2413 PIVOT BALL(6), 4MM AD2445 1/8 CLUTCH SPR. (3)
PD0416 BALL BEARING (2),
5 X 10 X 4MM
AD2657 METAL MAIN GEAR,
46T
AR0080 SERVO MOUNT /
PLASTIC POST
AR0095 REAR HUB CARRIER
PD0423 BRAKE CAM / LEVER
AD2538 1/8 CLUTCH NUTAD2446 1/8 CLUTCH SHOE (3)
AR0097 BODY / WING MOUNT
PD0435 REAR AXLEPD0425 CTR RIGID AXLE
OUTDRIVE
PD0436 SCREW BAG PD0547 STANDOFF BALL (6),
LARGE 4MM
PD0546 STANDOFF BALL (10),
SMALL 4MM
PD0548 FR / RR
DIFFERENTIAL SET
PD0584 BRAKE PAD SET
PD0566 LOWER ARM REAR
HINGE PLATES
PD0570 TIE-END SETPD0569 RX BOX / BATT POST
PD0578 DIFF BEVEL /
DRIVE GEAR
PD0572 LOWER SHOCK PIN(4)
PD0581-R SERVO SAVER
METAL PARTS
PD0588-R FR SUSP PLATE
RR TRANS
PD0559-T ASSORTED E-CLIPS
PD0562 SHOCK PLASTIC PARTS
PD0549 DIFFERENTIAL CASE PD0551 THROTTLE / BRAKE
HARDWARE SET
PD0574 CTR DIFF. MOUNT
& SERVO SAVER
PD0593 STEEL BRAKE DISC(2)
PD0592 PRESSURE FITTING
PD0596 FR/RR DIFF OUTDRIVE
PD0608 TUNED PIPE WIRE
PD0601-R FR SUSP PLATE
FR TRANS
PD0607 ALUM NUT (4), 17MM
PD0609 DIFF INNER GEARS
& PARTS
PD0662 BALL BEARING (10),
SEALED 8x16x5MM
PD0633 DRIVE CUP (2)
PD0655 DIFF GASKET (10),
0.5MM
PD0654 CENTER
DIFFERENTIAL SET PD0659 WASHER (10),
3.6 X 12 X 0.2MM
PD0658 O-RINGS (10),
3.2 X 1.4MM
PD0656 DIFF GASKET (10),
0.2MM
PD0660 DIFF INNER SHAFTS
PD0619 1/8 CLUTCH BELL,
26MM 14T
PD0620 17MM HEX WHEEL
ADAPTER SET
PD0613 STANDOFF BALL (10),
MEDIUM 4MM
PD0617 FRONT KNUCKLE (2)
PD0657 DIFF GASKET (10),
0.8MM
(4)
(4)
(3)
PD0789 FLAT CHASSIS SIDE
GUARD
PD0775 FLAT HEAD SOCKET
SCREW(10), 5 X 10MM
PD1129-R MAIN CHASSIS,
TYPE B
PD1244 LOCK NUT (10),
BLACK 3MM
PD1243 HINGE PIN SET
PD1230 BALL UNIVERSAL, FR
PD1231 BALL UNIVERSAL, RR
PD1240 -R STEERING SLIDERPD1232 BALL UNIVERSAL
JOINT
PD1241 CENTER DRIVE
SHAFTS, FR / RR
PD1246 FRONT KNUCKLE
BALL SET (4)
PD1248 WASHER SET
PD1139 CASE / BULKHEAD
BOTTOM SEAL
PD1130 LOWER SUSPENSION ARM SET
PD1205 LOWER SUSPENSION ARM SET,
COLD TEMP
PD1131 TRANS CASE /
BULKHEAD
PD1234 BALL UNIVERSAL
AXLE, FR / RR
PD1356 RR PLASTIC TORQUE
ROD
PD1261 PLASTIC SERVO TRAY
PD1253 FUEL TANK
PD1361 FR PLASTIC TORQUE
ROD
PD0666 M3 X 6mm(20)
PD0667 M3 X 8mm(20)
PD0668 M3 X 10mm(20)
PD0669 M3 X 12mm(20)
PD0670 M3 X 14mm(20)
PD0671 M3 X 16mm(20)
PD0672 M3 X 18mm(20)
PD0673 M3 X 20mm(20)
PD0674 M3 X 22mm(20)
PD0675 M3 X 25mm(20)
PD0676 M3 X 6mm(20)
PD0677 M3 X 8mm(20)
PD0678 M3 X 10mm(20)
PD0679 M3 X 12mm(20)
PD0680 M3 X 14mm(20)
PD0681 M3 X 16mm(20)
PD0682 M3 X 18mm(20)
PD0683 M3 X 20mm(20)
PD0684 M3 X 25mm(20)
PD1249 TAP SCREW SET
M3 x 10mm (5)
HMO26 (5)
HMO3B (5)
HMO4 (5)
HMM3B (20)
M3 x 8mm (5)
M3 x 12mm (10)
M3 x 14mm (10)
M3 x 16mm (12)
M3 x 22mm (4)
M3 x 3mm (12)
M3 x 5mm (4)
M4 x 12mm (6)
M5 x 4mm (10)
M6 x 30mm (2)
PD1250 HARDWARE SET
PD1251 SET SCREW SET
M3 x 18mm (5)
M4 x 14mm (15)
M3 x 10mm (15)
M3 x 12mm (15)
M3 x 14mm (10)
M3 x 16mm (10)
M3 x 18mm (10)
M3 x 20mm (10)
M3 x 22mm (10)
M3 x 25mm (6)
M4 x 14mm (4)
M3 x 10mm (5)
M3 x 12mm (5)
M35 x 10mm (5)
M4 x 25mm (5)
M4 x 6mm (5)
M3 x 8mm (5)
M3 x 8mm (5)
M3 x 10mm (10)
M3 x 12mm (5)
M3 x 15mm (5)
M3 x 22mm (5)
M2.6 x 8mm (5)
M3 x 10mm (5)
M3 x 12mm (5)
PD1252 HEX SCREW SET PD1313 SCREW BAG PD1315 CROSS SCREW SET
(4) (3)
(4) (2)
M3x18mm (6)
M3.5x35mm (6)
M3.5x18mm (6)
M3.5x46mm (6)
PD0567 FR UPPER ARM/MT/END
PD1204 FR UPPER ARM/MT/END, COLD TEMP
PD1233 BALL UNIVERSAL
AXLE, CTR
CT MACHINE SCREWBT MACHINE SCREW
PD0968 M3x 10mm(20)
BTW PHILLIP TAP SCREW
SOCKET HEAD MACHINE SCREW
PD1138 M6x 30mm(2)
SET SCREW
PD0982 LARGE(20)
NYLON STRAP
(2)
(2)
PD0560-T REAR SHOCK SET PD0561 FRONT SHOCK SET
PD0591-T SHOCK STANDOFF (4)
PD0606-T SHOCK CAP (2)
PD0604-T FR SHOCK BODY (2)
PD0603 RR SHOCK SHAFT (2) PD0605-T RR SHOCK BODY (2)
PD0602 1/8 SHOCK
DIAPHRAGM (10)
PD0661 G-CLIPS (10), 7MM
PD0871 TUNED PIPE COUPLER
PD1271 WING MOUNT BRACE
PD1521 1/8 3-SHOE FLYWHEEL
PD1786 1/8 TUNED PIPE
PD1785 SET SCREW SET
M4 x 35Bmm (2)
M4 x 45Bmm (1)
M5 x 60mm (2)
M6 x 30mm (2)
M6 x 35mm (2)
PD0479 TURNBUCKLE (2),
5 X 60MM
PD0579 TURNBUCKLE (1),
4 x 45MM
PD0586 TURNBUCKLE (2),
6 x 32MM
PD0587 TURNBUCKLE (2),
4 x 36MM
AD2537 WING MOUNT BRACE
AJD1112 DECAL
PD0798 SHORT BUMPER
PD0590 1/8 TIRE W/FOAM,
CUBIC
PD1981-O 1/8 5-SPOKE WHEEL,17mm ORANGE
PD1981-B 1/8 5-SPOKE WHEEL,17mm BLACK
PD1981-G 1/8 5-SPOKE WHEEL,17mm GREEN
PD1903-O 1/8 REAR WING, ORANGE
PD1903-B 1/8 REAR WING, BLACK
PD1903-G 1/8 REAR WING, GREEN
PD0432 1/8 BODY CLIPS (10)
PD6837 1/8 PRINTED BODY, ORANGE S2
PD6795 1/8 PRINTED BODY, BLUE S2
PD6790 1/8 PRINTED BODY, SILVER S2
9708B AIR FILTER, 1/8 BLACK
9708O AIR FILTER, 1/8 ORANGE
9708G AIR FILTER, 1/8 GREEN
PD0748 CARBIDE FR UPPER
ARM PIN
EB-4 S2 PRO SC P.5
EB-4 S2 PRO SC P.6
EB-4 S2 PRO SC P.7
EB-4 S2 PRO SC P.8
EB-4 S2 PRO SC P.9 EB-4 S2 PRO SC P.10 EB-4 S2 PRO SC P.11
EB-4 S2 PRO SC P.12
PD0655 DIFF GASKET, 0.5mm
PD0656 DIFF GASKET, 0.2mm
PD0657 DIFF GASKET, 0.8mm
PD0658 O-RINGS, 3.2X1.4mm
PD0659 WASHER, 3.6X12X0.2mm
PD0660 DIFF INNER SHAFTS
PD0661 G-CLIPS(10),7mm
PD0662 BALL BEARING, SEALED 8X16X5mm
PD0666 BT MACHINE SCREW, 3X6mm
PD0667 BT MACHINE SCREW, 3X8mm
PD0668 BT MACHINE SCREW, 3X10mm
PD0669 BT MACHINE SCREW, 3X12mm
PD0670 BT MACHINE SCREW, 3X14mm
PD0671 BT MACHINE SCREW, 3X16mm
PD0672 BT MACHINE SCREW, 3X18mm
PD0673 BT MACHINE SCREW, 3X20mm
PD0674 BT MACHINE SCREW, 3X22mm
PD0675 BT MACHINE SCREW, 3X25mm
PD0676 CT MACHINE SCREW, 3X6mm
PD0677 CT MACHINE SCREW, 3X8mm
PD0678 CT MACHINE SCREW, 3X10mm
PD0679 CT MACHINE SCREW, 3X12mm
PD0680 CT MACHINE SCREW, 3X14mm
PD0681 CT MACHINE SCREW, 3X16mm
PD0682 CT MACHINE SCREW, 3X18mm
PD0683 CT MACHINE SCREW, 3X20mm
PD0684 CT MACHINE SCREW, 3X25mm
PD0775 FLAT HEAD SOCKET SCREW, 5X10mm
PD0789 FLAT CHASSIS SIDE GUARDS
PD0798 SHORT BUMPER
PD0800 LEXAN BODY
PD0871 TUNED PIPE COUPLER T
PD0968 BTW PHILLIP TAP SCREW, 3X10mm
PD0982 NYLON STRAP, LARGE
PD1020 SOCKET HEAD MECHINE SCREW, 4X12mm
PD1129-R MAIN CHASSIS, TYPE B
PD1130 LOWER SUSPENSION ARM SET
PD1131 TRANS CASE / BULKHEAD
PD1138 SET SCREW, 6X30mm
PD1139 CASE / BULKHEAD BOTTOM SEAL
PD0436 SCREW BAG
PD0546 STANDOFF BALL, SMALL 4mm
PD0547 STANDOFF BALL, LARGE 4mm
PD0548 FR/RR DIFFERENTIAL SET
PD0549 DIFFERENTIAL CASE
PD0551 THROTTLE / BRAKE HARDWARE
PD0559 ASSORTED E-CLIPS
PD0560-T REAR SHOCK SET
PD0561-T FRONT SHOCK SET
PD0562 SHOCK PLASTIC PARTS
PD0566 LOWER ARM REAR HINGE PLATES
PD0567 FR UPPER ARM / MT / END
PD0569 RX BOX /BATT POST
PD0570 TIE-END SET
PD0572 LOWER SHOCK PIN
PD0574 CTR DIFF MOUNT & SERVO SAVER
PD0578 DIFF BEVEL & DRIVE GEAR
PD0581-R SERVO SAVER METAL PARTS
PD0584 BRAKE PAD SET
PD0588-R FR SUSP PLATE RR TRANS
PD0590 1/8 TIRE W/ FOAM, CUBIC
PD0591-T ALUM SHOCK STANDOFF(4)
PD0592 PRESSURE FITTING
PD0593 STEEL BRAKE DISC
PD0596 FR/RR DIFF OUTDRIVE
PD0601-R FR SUSP PLATE FR TRANS
PD0602 SHOCK DIAPHRAGM(10)
PD0603 REAR SHOCK SHAFT(2)
PD0604-T FROMT ALUM SHOCK BODY(2)
PD0605-T REAR ALUM SHOCK BODY(2)
PD0606-T SHOCK CAP(2)
PD0607 ALUM NUT, 17mm
PD0608 TUNED PIPE WIRE
PD0609 DIFF INNER GEARS & PARTS
PD0613 STANDOFF BALL, MEDIUM 4mm
PD0617 FRONT KNUCKLE
PD0619 1/8 CLUTCH BELL, 26mm 14T
PD0620 17mm HEX WHEEL ADAPTER SET
PD0633 DRIVE CUP
PD0654 CTR DIFFERENTIAL SET
EB-4 S2 PRO SC SPARE PARTS LIST
PD1230 BALL UNIVERSAL, FR
PD1231 BALL UNIVERSAL, RR
PD1232 BALL UNIVERSAL JOINT
PD1233 BALL UNIVERSAL AXLE, CTR
PD1234 BALL UNIVERSAL AXLE, FR/RR
PD1235 BALL UNIVERSAL BONE, CTR FR
PD1236 BALL UNIVERSAL BONE, CTR RR
PD1237 BALL UNIVERSAL BONE, FR
PD1238 BALL UNIVERSAL BONE, RR
PD1240-R STEERING SLIDER
PD1241 CENTER DRIVE SHAFTS, FR/RR
PD1243 HINGE PIN SET
PD1244 LOCK NUT, BLACK 3mm
PD1246 FRONT KNUCKLE BALL SET
PD1248 WASHER SET
PD1249 TAP SCREW SET
PD1250 HARDWARE SET
PD1251 SET SCREW SET
PD1252 HEX SCREW SET
PD1253 FUEL TANK
PD1261 PLASTIC SERVO TRAY
PD1271 WING MOUNT BRACE,EK S2
PD1313 SCREW SET, EB S2
PD1315 CROSS SCREW SET, EB S2
PD1356 RR PLASTIC TORQUE ROD
PD1361 FR PLASTIC TORQUE ROD
PD1521 1/8 3-SHOE FLYWHEEL
PD1785 SCREW SET
PD1786 1/8 TUNED PIPE
PD1903-O 1/8 REAR WING, ORANGE
PD1903-B 1/8 REAR WING, BLACK
PD1903-G 1/8 REAR WING, GREEN
PD6472 ENGINE MOUNT, PS
PD6790 1/8 PRINTED BODY, SILVER S2
PD6795 1/8 PRINTED BODY, BLUE S2
PD6837 1/8 PRINTED BODY, ORANGE S2
EB-4 S2 PRO SC OPTIONAL PARTS LIST
PD1256 CARBIDE SHOCK SHAFT, FR
PD1257 CARBIDE SHOCK SHAFT, RR
PD1946-W 5-SPOKE WHL,17mm 1/8(W)
PD1946-Y 5-SPOKE WHL,17mm 1/8(Y)
PD1946-B 5-SPOKE WHL,17mm 1/8(B)
PD1946-G 5-SPOKE WHL,17mm 1/8(G)
PD1946-P 5-SPOKE WHL,17mm 1/8(P)
PD1946-O 5-SPOKE WHL,17mm 1/8(O)
PD1981W 1/8 REAR WING, WHITE
PD1981P 1/8 REAR WING, PINK
PD1981Y 1/8 REAR WING, YELLOW
PD6602-Y VELOCITY WHEEL (2), YELLOW, 1/8
PD6602-W VELOCITY WHEEL (2), WHITE, 1/8
PD6602-B VELOCITY WHEEL (2), BLACK, 1/8
PD6602-G VELOCITY WHEEL (2), GREEN, 1/8
PD6602-P VELOCITY WHEEL (2), PINK, 1/8
PD6602-O VELOCITY WHEEL (2), ORANGE, 1/8
PD0762 ERGAL FR PLATE FR TRANS
PD0763 ERGAL RR PLATE FR TRANS
PD0766 ERGAL FR PLATE RR TRANS
PD0767 ERGAL RR TOE-IN BLOCK, 2˚
PD0769 ERGAL RR TOE-IN BLOCK, 3˚
PD0770 CARBON SERVO TRAY
PD0771 CARBON BATT PLATE
PD0772 ERGAL SERVO SAVER TOP PLATE
PD0776 FR SWAY BAR,2.6mm PINK
PD0777 RR SWAY BAR,2.7mm LT BLUE
PD0778 RR SWAY BAR,3.0mm LT GREEN
PD0779 FLAT HEAD SOCKET SCREW 3X12mm
PD0780 TITANIUM TURNBUCKLE 5X57mm
PD0781 TITANIUM TURNBUCKLE 4X45mm
PD0782 TITANIUM TURNBUCKLE 6X32mm
PD0783 TITANIUM TURNBUCKLE 4X52mm
PD0784 TITANIUM TURNBUCKLE 5X90mm
PD0785 ERGAL FRONT SHOCK TOWER
PD0786 ERGAL RR SHOCK TOWER
PD0787
ERGAL DECOMPOSABLE CENTER DIFF MOUNT
PD0790 1/8 SHOCK BOOT, SHORT
PD1903Y 1/8 MULTI-SPOKE WHEEL, 17mm YELLOW
PD1903P 1/8 MULTI-SPOKE WHEEL, 17mm PINK
PD1903W 1/8 MULTI-SPOKE WHEEL, 17mm WHITE
PD0895 FLAT HEAD SOCKET SCREW, 3X8mm
PD0996 1/8 3-SHOE CLUTCH, TYPE A
PD0998 1/8 4-SHOE CLUTCH, TYPE A
PD1000 1/8 CLUTCH NUT ONLY, TYPE A
PD1195 FLAT HEAD SOCKET SCREW, 3X5mm
PD1203 CARBIDE LOWER ARM PIN
PD1215 1/8 3 CLUTCH SHOE & SPRING ONLY, TYPE A
PD1218 1/8 4 CLUTCH SHOE & SPRING ONLY, TYPE A
PD1228 BALL UNIVERSAL, CTR FR
PD1229 BALL UNIVERSAL, CTR RR
PD1230 BALL UNIVERSAL, FR
PD1231 BALL UNIVERSAL, RR
PD1239 FRONT KNUCKLE BALL W/CONE RETAINER
PD1242 1/8 CLUTCH BELL, 13T
PD1245 TIANIUM TURNBUCKLE, 4X36mm
PD1247 ERGAL LITE CHASSIS, TYPE B
1165P FUEL FILTER, 2cc
1166P PISTON LOCK TOOL
9708Y AIR FILTER 21 YELLOW
9708P AIR FILTER 21 PINK
9708W AIR FILTER 21 WHITE
9796
3-CHAMBER TUNED PIPE(L), EFRA 2035
9796-1
3-CHAMBER TUNED PIPE(L), W/ MANIFOLD EFRA 2035
9797
3-CHAMBER TUNED PIPE(S), EFRA 2039
9797-1
3-CHAMBER TUNED PIPE(S), W/ MANIFOLD EFRA 2039
AD2537 WING MOUNT BRACE
PD0141 BALL BEARING(2), FLANGE 3X7X3mm
PD0143 BALL BEARING(2), 5X8X2.5mm
PD0418 1/8 TUNED PIPE, C2A
PD0470 1/8 CLUTCH BELL, 15T
PD0479 TURNBUCKLE (2), 5X60mm
PD0552 RR SWAY BAR, 2.5mm LT PURPLE
PD0564 SHOCK PISTON, 1-HOLE
PD0573 TORQUE ROD SET, 4X52mm / 5X90mm
PD0576 1/8 REAR WING, YELLOW
PD0579 TURNBUCKLE(1), 4X45mm
PD0582 ALUM SERVO TRAY POST
PD0583 FR SWAY BAR, 2.3mm LT AOUA
PD0586 TURNBUCKLE(2), 6X32mm
PD0587 TURNBUCKLE(2), 4X36mm
PD0610 STEERING SLIDER W/BB
PD0611 SELF COOLING BRAKE DISK
PD0612 SERVO SAVER POSTS W/BB
PD0615 1/8 FR SPRING, 1.5mm YELLOW
PD0689 1/8 MULTI-SPOKE WHEEL, 17mm WHITE
PD0748 CARBIDE FR UPPER ARM PIN
PD0749 CARBIDE RR HUB PIN
PD0751 1/8 RR SPRING, 1.4mm WHITE
PD0752 1/8 RR SPRING, 1.6mm BLUE
PD0753 1/8 FR SPRING, 1.4mm WHITE
PD0754 1/8 FR SPRING, 1.6mm BLUE
PD0756 BALL BEARING, FLANGE 5X8X2.5mm
PD0757 ERGAL FR KNUCKLE
PD0758 ERGAL FR UPPER ARM MT
PD0760 ERGAL BATTERY POST
PD0761 ERGAL HEAT-SINK ENGINE MOUNT
EB-4 S2 PRO SC SPARE PARTS LIST
9708O AIR FILTER, 21 ORANGE
9708B AIR FILTER, 21 BLACK
9708G AIR FILTER, 21 GREEN
AD0287-R FR SHOCK TOWER
AD0297-R SERVO SAVER TOP PLATE
AD0300-R CTR DIFF TOP PLATE
AD0332-R RR SHOCK TOWER
AD0343 RR DRIVE SHAFT
AD2413 PIVOT BALL, 4mm
AD2435 SERVO SAVER BUSHING
AD2445 1/8 CLUTCH SPRING (3)
AD2446 1/8 CLUTCH SHOE (3)
AD2538 1/8 CLUTCH NUT
AD2657 METAL MAIN GEAR, 46T
AJD1112 DECAL
AR0080 SERVO MOUNT / PLASTIC POST
AR0095 REAR HUB CARRIER
AR0097 BODY / WING MOUNT
PD0225 ANTENNA
PD0416 BALL BEARING(2), 5X10X4mm
PD0423 BRAKE CAM / LEVER
PD0425 CTR RIGID AXLE OUTDRIVE
PD0432 1/8 BODY CLIPS (10)
PD0435 REAR AXLE
PD0749 CARBIDE RR HUB PIN
PD1256 CARBIDE SHOCK SHAFT, FR (2)
PD1257 CARBIDE SHOCK SHAFT, RR (2)
PD0780 TITANIUM TURNBUCKLE
5x57MM
PD0783 TITANIUM TURNBUCKLE 4x52mm
PD1245 TITANIUM TURNBUCKLE 4x36mm
PD0782 TITANIUM TURNBUCKLE
6x32MM
PD0781 TITANIUM TURNBUCKLE
4x45MM
PD0573 TORQUE ROD SET,
4x52mm 5x90mm
PD0582 ALUMINUM SERVO
TRAY POST
PART# DESCRIPTION NOTE
PART# DESCRIPTION NOTE PART# DESCRIPTION NOTE
PART# DESCRIPTION NOTE PART# DESCRIPTION NOTE PART# DESCRIPTION NOTE
PD1020 M4x 12mm (1)
PD0779 FLAT HEAD SOCKET SCREW, 3X12MM
PD0895 FLAT HEAD SOCKET SCREW, 3X8MM
PD1195 FLAT HEAD SOCKET SCREW, 3X5MM
PART# DESCRIPTION NOTE PART# DESCRIPTION NOTE PART# DESCRIPTION NOTE
PD6472 1/8 ENGINE MOUNT,
PULL START
PD0225 ANTENNA BAG
PD1235 BALL UNIVERSAL BONE, CTR FR
PD1236 BALL UNIVERSAL BONE, CTR RR
PD1237 BALL UNIVERSAL BONE, FR
PD1238 BALL UNIVERSAL BONE, RR
AD0300-R CENTER DIFF
TOP PLATE
AD0297-RSERVO SAVER
TOP PLATE
AD0287-RFRONT SHOCK
TOWER
AD0332-R REAR SHOCK
TOWER
AD2435 SERVO SAVER
BUSHING
AD0343 REAR DRIVE SHAFT
AD2413 PIVOT BALL(6), 4MMAD2445 1/8 CLUTCH SPR. (3)
PD0416 BALL BEARING (2),
5 X 10 X 4MM
AD2657 METAL MAIN GEAR,
46T
AR0080 SERVO MOUNT /
PLASTIC POST
AR0095 REAR HUB CARRIER
PD0423 BRAKE CAM / LEVER
AD2538 1/8 CLUTCH NUTAD2446 1/8 CLUTCH SHOE (3)
AR0097 BODY / WING MOUNT
PD0435 REAR AXLEPD0425CTR RIGID AXLE
OUTDRIVE
PD0436 SCREW BAG PD0547 STANDOFF BALL (6),
LARGE 4MM
PD0546 STANDOFF BALL (10),
SMALL 4MM
PD0548 FR / RR
DIFFERENTIAL SET
PD0584 BRAKE PAD SET
PD0566 LOWER ARM REAR
HINGE PLATES
PD0570 TIE-END SETPD0569 RX BOX / BATT POST
PD0578 DIFF BEVEL /
DRIVE GEAR
PD0572 LOWER SHOCK PIN(4)
PD0581-R SERVO SAVER
METAL PARTS
PD0588-R FR SUSP PLATE
RR TRANS
PD0559-T ASSORTED E-CLIPS
PD0562 SHOCK PLASTIC PARTS
PD0549 DIFFERENTIAL CASE PD0551 THROTTLE / BRAKE
HARDWARE SET
PD0574 CTR DIFF. MOUNT
& SERVO SAVER
PD0593 STEEL BRAKE DISC(2)
PD0592 PRESSURE FITTING
PD0596 FR/RR DIFF OUTDRIVE
PD0608 TUNED PIPE WIRE
PD0601-R FR SUSP PLATE
FR TRANS
PD0607 ALUM NUT (4), 17MM
PD0609 DIFF INNER GEARS
& PARTS
PD0662 BALL BEARING (10),
SEALED 8x16x5MM
PD0633 DRIVE CUP (2)
PD0655 DIFF GASKET (10),
0.5MM
PD0654 CENTER
DIFFERENTIAL SET PD0659 WASHER (10),
3.6 X 12 X 0.2MM
PD0658 O-RINGS (10),
3.2 X 1.4MM
PD0656 DIFF GASKET (10),
0.2MM
PD0660 DIFF INNER SHAFTS
PD0619 1/8 CLUTCH BELL,
26MM 14T
PD0620 17MM HEX WHEEL
ADAPTER SET
PD0613 STANDOFF BALL (10),
MEDIUM 4MM
PD0617 FRONT KNUCKLE (2)
PD0657 DIFF GASKET (10),
0.8MM
(4)
(4)
(3)
PD0789 FLAT CHASSIS SIDE
GUARD
PD0775 FLAT HEAD SOCKET
SCREW(10), 5 X 10MM
PD1129-R MAIN CHASSIS,
TYPE B
PD1244 LOCK NUT (10),
BLACK 3MM
PD1243 HINGE PIN SET
PD1230 BALL UNIVERSAL, FR
PD1231 BALL UNIVERSAL, RR
PD1240 -R STEERING SLIDERPD1232 BALL UNIVERSAL
JOINT
PD1241 CENTER DRIVE
SHAFTS, FR / RR
PD1246 FRONT KNUCKLE
BALL SET (4)
PD1248 WASHER SET
PD1139 CASE / BULKHEAD
BOTTOM SEAL
PD1130 LOWER SUSPENSION ARM SET
PD1205 LOWER SUSPENSION ARM SET,
COLD TEMP
PD1131 TRANS CASE /
BULKHEAD
PD1234 BALL UNIVERSAL
AXLE, FR / RR
PD1356 RR PLASTIC TORQUE
ROD
PD1261 PLASTIC SERVO TRAY
PD1253 FUEL TANK
PD1361 FR PLASTIC TORQUE
ROD
PD0666 M3 X 6mm(20)
PD0667 M3 X 8mm(20)
PD0668 M3 X 10mm(20)
PD0669 M3 X 12mm(20)
PD0670 M3 X 14mm(20)
PD0671 M3 X 16mm(20)
PD0672 M3 X 18mm(20)
PD0673 M3 X 20mm(20)
PD0674 M3 X 22mm(20)
PD0675 M3 X 25mm(20)
PD0676 M3 X 6mm(20)
PD0677 M3 X 8mm(20)
PD0678 M3 X 10mm(20)
PD0679 M3 X 12mm(20)
PD0680 M3 X 14mm(20)
PD0681 M3 X 16mm(20)
PD0682 M3 X 18mm(20)
PD0683 M3 X 20mm(20)
PD0684 M3 X 25mm(20)
PD1249 TAP SCREW SET
M3 x 10mm (5)
HMO26 (5)
HMO3B (5)
HMO4 (5)
HMM3B (20)
M3 x 8mm (5)
M3 x 12mm (10)
M3 x 14mm (10)
M3 x 16mm (12)
M3 x 22mm (4)
M3 x 3mm (12)
M3 x 5mm (4)
M4 x 12mm (6)
M5 x 4mm (10)
M6 x 30mm (2)
PD1250 HARDWARE SET
PD1251 SET SCREW SET
M3 x 18mm (5)
M4 x 14mm (15)
M3 x 10mm (15)
M3 x 12mm (15)
M3 x 14mm (10)
M3 x 16mm (10)
M3 x 18mm (10)
M3 x 20mm (10)
M3 x 22mm (10)
M3 x 25mm (6)
M4 x 14mm (4)
M3 x 10mm (5)
M3 x 12mm (5)
M35 x 10mm (5)
M4 x 25mm (5)
M4 x 6mm (5)
M3 x 8mm (5)
M3 x 8mm (5)
M3 x 10mm (10)
M3 x 12mm (5)
M3 x 15mm (5)
M3 x 22mm (5)
M2.6 x 8mm (5)
M3 x 10mm (5)
M3 x 12mm (5)
PD1252 HEX SCREW SET PD1313 SCREW BAG PD1315 CROSS SCREW SET
(4)(3)
(4)(2)
M3x18mm (6)
M3.5x35mm (6)
M3.5x18mm (6)
M3.5x46mm (6)
PD0567 FR UPPER ARM/MT/END
PD1204 FR UPPER ARM/MT/END, COLD TEMP
PD1233 BALL UNIVERSAL
AXLE, CTR
CT MACHINE SCREWBT MACHINE SCREW
PD0968 M3x 10mm(20)
BTW PHILLIP TAP SCREW
SOCKET HEAD MACHINE SCREW
PD1138 M6x 30mm(2)
SET SCREW
PD0982 LARGE(20)
NYLON STRAP
(2)
(2)
PD0560-T REAR SHOCK SET PD0561 FRONT SHOCK SET
PD0591-T SHOCK STANDOFF (4)
PD0606-T SHOCK CAP (2)
PD0604-T FR SHOCK BODY (2)
PD0603 RR SHOCK SHAFT (2) PD0605-T RR SHOCK BODY (2)
PD0602 1/8 SHOCK
DIAPHRAGM (10)
PD0661 G-CLIPS (10), 7MM
PD0871 TUNED PIPE COUPLER
PD1271 WING MOUNT BRACE
PD1521 1/8 3-SHOE FLYWHEEL
PD1786 1/8 TUNED PIPE
PD1785 SET SCREW SET
M4 x 35Bmm (2)
M4 x 45Bmm (1)
M5 x 60mm (2)
M6 x 30mm (2)
M6 x 35mm (2)
PD0479 TURNBUCKLE (2),
5 X 60MM
PD0579 TURNBUCKLE (1),
4 x 45MM
PD0586 TURNBUCKLE (2),
6 x 32MM
PD0587 TURNBUCKLE (2),
4 x 36MM
AD2537 WING MOUNT BRACE
AJD1112 DECAL
PD0798 SHORT BUMPER
PD0590 1/8 TIRE W/FOAM,
CUBIC
PD1981-O 1/8 5-SPOKE WHEEL,17mm ORANGE
PD1981-B 1/8 5-SPOKE WHEEL,17mm BLACK
PD1981-G 1/8 5-SPOKE WHEEL,17mm GREEN
PD1903-O 1/8 REAR WING, ORANGE
PD1903-B 1/8 REAR WING, BLACK
PD1903-G 1/8 REAR WING, GREEN
PD0432 1/8 BODY CLIPS (10)
PD6837 1/8 PRINTED BODY, ORANGE S2
PD6795 1/8 PRINTED BODY, BLUE S2
PD6790 1/8 PRINTED BODY, SILVER S2
9708BAIR FILTER, 1/8 BLACK
9708OAIR FILTER, 1/8 ORANGE
9708GAIR FILTER, 1/8 GREEN
PD0748 CARBIDE FR UPPER
ARM PIN
EB-4 S2 PRO SC P.5
EB-4 S2 PRO SC P.6
EB-4 S2 PRO SC P.7
EB-4 S2 PRO SC P.8
EB-4 S2 PRO SC P.9 EB-4 S2 PRO SC P.10 EB-4 S2 PRO SC P.11
EB-4 S2 PRO SC P.12
PD0655 DIFF GASKET, 0.5mm
PD0656 DIFF GASKET, 0.2mm
PD0657 DIFF GASKET, 0.8mm
PD0658 O-RINGS, 3.2X1.4mm
PD0659 WASHER, 3.6X12X0.2mm
PD0660 DIFF INNER SHAFTS
PD0661 G-CLIPS(10),7mm
PD0662 BALL BEARING, SEALED 8X16X5mm
PD0666 BT MACHINE SCREW, 3X6mm
PD0667 BT MACHINE SCREW, 3X8mm
PD0668 BT MACHINE SCREW, 3X10mm
PD0669 BT MACHINE SCREW, 3X12mm
PD0670 BT MACHINE SCREW, 3X14mm
PD0671 BT MACHINE SCREW, 3X16mm
PD0672 BT MACHINE SCREW, 3X18mm
PD0673 BT MACHINE SCREW, 3X20mm
PD0674 BT MACHINE SCREW, 3X22mm
PD0675 BT MACHINE SCREW, 3X25mm
PD0676 CT MACHINE SCREW, 3X6mm
PD0677 CT MACHINE SCREW, 3X8mm
PD0678 CT MACHINE SCREW, 3X10mm
PD0679 CT MACHINE SCREW, 3X12mm
PD0680 CT MACHINE SCREW, 3X14mm
PD0681 CT MACHINE SCREW, 3X16mm
PD0682 CT MACHINE SCREW, 3X18mm
PD0683 CT MACHINE SCREW, 3X20mm
PD0684 CT MACHINE SCREW, 3X25mm
PD0775 FLAT HEAD SOCKET SCREW, 5X10mm
PD0789 FLAT CHASSIS SIDE GUARDS
PD0798 SHORT BUMPER
PD0800 LEXAN BODY
PD0871 TUNED PIPE COUPLER T
PD0968 BTW PHILLIP TAP SCREW, 3X10mm
PD0982 NYLON STRAP, LARGE
PD1020 SOCKET HEAD MECHINE SCREW, 4X12mm
PD1129-R MAIN CHASSIS, TYPE B
PD1130 LOWER SUSPENSION ARM SET
PD1131 TRANS CASE / BULKHEAD
PD1138 SET SCREW, 6X30mm
PD1139 CASE / BULKHEAD BOTTOM SEAL
PD0436 SCREW BAG
PD0546 STANDOFF BALL, SMALL 4mm
PD0547 STANDOFF BALL, LARGE 4mm
PD0548 FR/RR DIFFERENTIAL SET
PD0549 DIFFERENTIAL CASE
PD0551 THROTTLE / BRAKE HARDWARE
PD0559 ASSORTED E-CLIPS
PD0560-T REAR SHOCK SET
PD0561-T FRONT SHOCK SET
PD0562 SHOCK PLASTIC PARTS
PD0566 LOWER ARM REAR HINGE PLATES
PD0567 FR UPPER ARM / MT / END
PD0569 RX BOX /BATT POST
PD0570 TIE-END SET
PD0572 LOWER SHOCK PIN
PD0574 CTR DIFF MOUNT & SERVO SAVER
PD0578 DIFF BEVEL & DRIVE GEAR
PD0581-R SERVO SAVER METAL PARTS
PD0584 BRAKE PAD SET
PD0588-R FR SUSP PLATE RR TRANS
PD0590 1/8 TIRE W/ FOAM, CUBIC
PD0591-T ALUM SHOCK STANDOFF(4)
PD0592 PRESSURE FITTING
PD0593 STEEL BRAKE DISC
PD0596 FR/RR DIFF OUTDRIVE
PD0601-R FR SUSP PLATE FR TRANS
PD0602 SHOCK DIAPHRAGM(10)
PD0603 REAR SHOCK SHAFT(2)
PD0604-T FROMT ALUM SHOCK BODY(2)
PD0605-T REAR ALUM SHOCK BODY(2)
PD0606-T SHOCK CAP(2)
PD0607 ALUM NUT, 17mm
PD0608 TUNED PIPE WIRE
PD0609 DIFF INNER GEARS & PARTS
PD0613 STANDOFF BALL, MEDIUM 4mm
PD0617 FRONT KNUCKLE
PD0619 1/8 CLUTCH BELL, 26mm 14T
PD0620 17mm HEX WHEEL ADAPTER SET
PD0633 DRIVE CUP
PD0654 CTR DIFFERENTIAL SET
EB-4 S2 PRO SC SPARE PARTS LIST
PD1230 BALL UNIVERSAL, FR
PD1231 BALL UNIVERSAL, RR
PD1232 BALL UNIVERSAL JOINT
PD1233 BALL UNIVERSAL AXLE, CTR
PD1234 BALL UNIVERSAL AXLE, FR/RR
PD1235 BALL UNIVERSAL BONE, CTR FR
PD1236 BALL UNIVERSAL BONE, CTR RR
PD1237 BALL UNIVERSAL BONE, FR
PD1238 BALL UNIVERSAL BONE, RR
PD1240-R STEERING SLIDER
PD1241 CENTER DRIVE SHAFTS, FR/RR
PD1243 HINGE PIN SET
PD1244 LOCK NUT, BLACK 3mm
PD1246 FRONT KNUCKLE BALL SET
PD1248 WASHER SET
PD1249 TAP SCREW SET
PD1250 HARDWARE SET
PD1251 SET SCREW SET
PD1252 HEX SCREW SET
PD1253 FUEL TANK
PD1261 PLASTIC SERVO TRAY
PD1271 WING MOUNT BRACE,EK S2
PD1313 SCREW SET, EB S2
PD1315 CROSS SCREW SET, EB S2
PD1356 RR PLASTIC TORQUE ROD
PD1361 FR PLASTIC TORQUE ROD
PD1521 1/8 3-SHOE FLYWHEEL
PD1785 SCREW SET
PD1786 1/8 TUNED PIPE
PD1903-O 1/8 REAR WING, ORANGE
PD1903-B 1/8 REAR WING, BLACK
PD1903-G 1/8 REAR WING, GREEN
PD6472 ENGINE MOUNT, PS
PD6790 1/8 PRINTED BODY, SILVER S2
PD6795 1/8 PRINTED BODY, BLUE S2
PD6837 1/8 PRINTED BODY, ORANGE S2
EB-4 S2 PRO SC OPTIONAL PARTS LIST
PD1256 CARBIDE SHOCK SHAFT, FR
PD1257 CARBIDE SHOCK SHAFT, RR
PD1946-W 5-SPOKE WHL,17mm 1/8(W)
PD1946-Y 5-SPOKE WHL,17mm 1/8(Y)
PD1946-B 5-SPOKE WHL,17mm 1/8(B)
PD1946-G 5-SPOKE WHL,17mm 1/8(G)
PD1946-P 5-SPOKE WHL,17mm 1/8(P)
PD1946-O 5-SPOKE WHL,17mm 1/8(O)
PD1981W 1/8 REAR WING, WHITE
PD1981P 1/8 REAR WING, PINK
PD1981Y 1/8 REAR WING, YELLOW
PD6602-Y VELOCITY WHEEL (2), YELLOW, 1/8
PD6602-W VELOCITY WHEEL (2), WHITE, 1/8
PD6602-B VELOCITY WHEEL (2), BLACK, 1/8
PD6602-G VELOCITY WHEEL (2), GREEN, 1/8
PD6602-P VELOCITY WHEEL (2), PINK, 1/8
PD6602-O VELOCITY WHEEL (2), ORANGE, 1/8
PD0762 ERGAL FR PLATE FR TRANS
PD0763 ERGAL RR PLATE FR TRANS
PD0766 ERGAL FR PLATE RR TRANS
PD0767 ERGAL RR TOE-IN BLOCK, 2˚
PD0769 ERGAL RR TOE-IN BLOCK, 3˚
PD0770 CARBON SERVO TRAY
PD0771 CARBON BATT PLATE
PD0772 ERGAL SERVO SAVER TOP PLATE
PD0776 FR SWAY BAR,2.6mm PINK
PD0777 RR SWAY BAR,2.7mm LT BLUE
PD0778 RR SWAY BAR,3.0mm LT GREEN
PD0779 FLAT HEAD SOCKET SCREW 3X12mm
PD0780 TITANIUM TURNBUCKLE 5X57mm
PD0781 TITANIUM TURNBUCKLE 4X45mm
PD0782 TITANIUM TURNBUCKLE 6X32mm
PD0783 TITANIUM TURNBUCKLE 4X52mm
PD0784 TITANIUM TURNBUCKLE 5X90mm
PD0785 ERGAL FRONT SHOCK TOWER
PD0786 ERGAL RR SHOCK TOWER
PD0787
ERGAL DECOMPOSABLE CENTER DIFF MOUNT
PD0790 1/8 SHOCK BOOT, SHORT
PD1903Y 1/8 MULTI-SPOKE WHEEL, 17mm YELLOW
PD1903P 1/8 MULTI-SPOKE WHEEL, 17mm PINK
PD1903W 1/8 MULTI-SPOKE WHEEL, 17mm WHITE
PD0895 FLAT HEAD SOCKET SCREW, 3X8mm
PD0996 1/8 3-SHOE CLUTCH, TYPE A
PD0998 1/8 4-SHOE CLUTCH, TYPE A
PD1000 1/8 CLUTCH NUT ONLY, TYPE A
PD1195 FLAT HEAD SOCKET SCREW, 3X5mm
PD1203 CARBIDE LOWER ARM PIN
PD1215 1/8 3 CLUTCH SHOE & SPRING ONLY, TYPE A
PD1218 1/8 4 CLUTCH SHOE & SPRING ONLY, TYPE A
PD1228 BALL UNIVERSAL, CTR FR
PD1229 BALL UNIVERSAL, CTR RR
PD1230 BALL UNIVERSAL, FR
PD1231 BALL UNIVERSAL, RR
PD1239 FRONT KNUCKLE BALL W/CONE RETAINER
PD1242 1/8 CLUTCH BELL, 13T
PD1245 TIANIUM TURNBUCKLE, 4X36mm
PD1247 ERGAL LITE CHASSIS, TYPE B
1165P FUEL FILTER, 2cc
1166P PISTON LOCK TOOL
9708Y AIR FILTER 21 YELLOW
9708P AIR FILTER 21 PINK
9708W AIR FILTER 21 WHITE
9796
3-CHAMBER TUNED PIPE(L), EFRA 2035
9796-1
3-CHAMBER TUNED PIPE(L), W/ MANIFOLD EFRA 2035
9797
3-CHAMBER TUNED PIPE(S), EFRA 2039
9797-1
3-CHAMBER TUNED PIPE(S), W/ MANIFOLD EFRA 2039
AD2537 WING MOUNT BRACE
PD0141 BALL BEARING(2), FLANGE 3X7X3mm
PD0143 BALL BEARING(2), 5X8X2.5mm
PD0418 1/8 TUNED PIPE, C2A
PD0470 1/8 CLUTCH BELL, 15T
PD0479 TURNBUCKLE (2), 5X60mm
PD0552 RR SWAY BAR, 2.5mm LT PURPLE
PD0564 SHOCK PISTON, 1-HOLE
PD0573 TORQUE ROD SET, 4X52mm / 5X90mm
PD0576 1/8 REAR WING, YELLOW
PD0579 TURNBUCKLE(1), 4X45mm
PD0582 ALUM SERVO TRAY POST
PD0583 FR SWAY BAR, 2.3mm LT AOUA
PD0586 TURNBUCKLE(2), 6X32mm
PD0587 TURNBUCKLE(2), 4X36mm
PD0610 STEERING SLIDER W/BB
PD0611 SELF COOLING BRAKE DISK
PD0612 SERVO SAVER POSTS W/BB
PD0615 1/8 FR SPRING, 1.5mm YELLOW
PD0689 1/8 MULTI-SPOKE WHEEL, 17mm WHITE
PD0748 CARBIDE FR UPPER ARM PIN
PD0749 CARBIDE RR HUB PIN
PD0751 1/8 RR SPRING, 1.4mm WHITE
PD0752 1/8 RR SPRING, 1.6mm BLUE
PD0753 1/8 FR SPRING, 1.4mm WHITE
PD0754 1/8 FR SPRING, 1.6mm BLUE
PD0756 BALL BEARING, FLANGE 5X8X2.5mm
PD0757 ERGAL FR KNUCKLE
PD0758 ERGAL FR UPPER ARM MT
PD0760 ERGAL BATTERY POST
PD0761 ERGAL HEAT-SINK ENGINE MOUNT
EB-4 S2 PRO SC SPARE PARTS LIST
9708O AIR FILTER, 21 ORANGE
9708B AIR FILTER, 21 BLACK
9708G AIR FILTER, 21 GREEN
AD0287-R FR SHOCK TOWER
AD0297-R SERVO SAVER TOP PLATE
AD0300-R CTR DIFF TOP PLATE
AD0332-R RR SHOCK TOWER
AD0343 RR DRIVE SHAFT
AD2413 PIVOT BALL, 4mm
AD2435 SERVO SAVER BUSHING
AD2445 1/8 CLUTCH SPRING (3)
AD2446 1/8 CLUTCH SHOE (3)
AD2538 1/8 CLUTCH NUT
AD2657 METAL MAIN GEAR, 46T
AJD1112 DECAL
AR0080 SERVO MOUNT / PLASTIC POST
AR0095 REAR HUB CARRIER
AR0097 BODY / WING MOUNT
PD0225 ANTENNA
PD0416 BALL BEARING(2), 5X10X4mm
PD0423 BRAKE CAM / LEVER
PD0425 CTR RIGID AXLE OUTDRIVE
PD0432 1/8 BODY CLIPS (10)
PD0435 REAR AXLE
PD0749 CARBIDE RR HUB PIN
PD1256 CARBIDE SHOCK SHAFT, FR (2)
PD1257 CARBIDE SHOCK SHAFT, RR (2)
PD0780 TITANIUM TURNBUCKLE
5x57MM
PD0783 TITANIUM TURNBUCKLE 4x52mm
PD1245 TITANIUM TURNBUCKLE 4x36mm
PD0782 TITANIUM TURNBUCKLE
6x32MM
PD0781 TITANIUM TURNBUCKLE
4x45MM
PD0573 TORQUE ROD SET,
4x52mm 5x90mm
PD0582 ALUMINUM SERVO
TRAY POST
PART# DESCRIPTION NOTE PART# DESCRIPTION NOTE PART# DESCRIPTION NOTE
PART# DESCRIPTION NOTE PART# DESCRIPTION NOTE PART# DESCRIPTION NOTE
PD1020 M4x 12mm (1)
PD0779 FLAT HEAD SOCKET SCREW, 3X12MM
PD0895 FLAT HEAD SOCKET SCREW, 3X8MM
PD1195 FLAT HEAD SOCKET SCREW, 3X5MM
PART# DESCRIPTION NOTE PART# DESCRIPTION NOTE PART# DESCRIPTION NOTE
PD6472 1/8 ENGINE MOUNT,
PULL START
PD0225ANTENNA BAG
PD1235 BALL UNIVERSAL BONE, CTR FR
PD1236 BALL UNIVERSAL BONE, CTR RR
PD1237 BALL UNIVERSAL BONE, FR
PD1238 BALL UNIVERSAL BONE, RR
AD0300-RCENTER DIFF
TOP PLATE
AD0297-RSERVO SAVER
TOP PLATE
AD0287-RFRONT SHOCK
TOWER
AD0332-RREAR SHOCK
TOWER
AD2435 SERVO SAVER
BUSHING
AD0343 REAR DRIVE SHAFT
AD2413 PIVOT BALL(6), 4MMAD2445 1/8 CLUTCH SPR. (3)
PD0416 BALL BEARING (2),
5 X 10 X 4MM
AD2657METAL MAIN GEAR,
46T
AR0080 SERVO MOUNT /
PLASTIC POST
AR0095 REAR HUB CARRIER
PD0423 BRAKE CAM / LEVER
AD2538 1/8 CLUTCH NUTAD2446 1/8 CLUTCH SHOE (3)
AR0097 BODY / WING MOUNT
PD0435 REAR AXLEPD0425CTR RIGID AXLE
OUTDRIVE
PD0436 SCREW BAG
PD0547STANDOFF BALL (6),
LARGE 4MM
PD0546STANDOFF BALL (10),
SMALL 4MM
PD0548FR / RR
DIFFERENTIAL SET
PD0584 BRAKE PAD SET
PD0566LOWER ARM REAR
HINGE PLATES
PD0570 TIE-END SETPD0569 RX BOX / BATT POST
PD0578 DIFF BEVEL /
DRIVE GEAR
PD0572 LOWER SHOCK PIN(4)
PD0581-RSERVO SAVER
METAL PARTS
PD0588-R FR SUSP PLATE
RR TRANS
PD0559-T ASSORTED E-CLIPS
PD0562 SHOCK PLASTIC PARTS
PD0549 DIFFERENTIAL CASEPD0551THROTTLE / BRAKE
HARDWARE SET
PD0574CTR DIFF. MOUNT
& SERVO SAVER
PD0593 STEEL BRAKE DISC(2)
PD0592PRESSURE FITTING
PD0596 FR/RR DIFF OUTDRIVE
PD0608 TUNED PIPE WIRE
PD0601-R FR SUSP PLATE
FR TRANS
PD0607 ALUM NUT (4), 17MM
PD0609 DIFF INNER GEARS
& PARTS
PD0662 BALL BEARING (10),
SEALED 8x16x5MM
PD0633 DRIVE CUP (2)
PD0655 DIFF GASKET (10),
0.5MM
PD0654 CENTER
DIFFERENTIAL SET PD0659 WASHER (10),
3.6 X 12 X 0.2MM
PD0658 O-RINGS (10),
3.2 X 1.4MM
PD0656 DIFF GASKET (10),
0.2MM
PD0660 DIFF INNER SHAFTS
PD0619 1/8 CLUTCH BELL,
26MM 14T
PD0620 17MM HEX WHEEL
ADAPTER SET
PD0613 STANDOFF BALL (10),
MEDIUM 4MM
PD0617 FRONT KNUCKLE (2)
PD0657 DIFF GASKET (10),
0.8MM
(4)
(4)
(3)
PD0789 FLAT CHASSIS SIDE
GUARD
PD0775 FLAT HEAD SOCKET
SCREW(10), 5 X 10MM
PD1129-R MAIN CHASSIS,
TYPE B
PD1244 LOCK NUT (10),
BLACK 3MM
PD1243 HINGE PIN SET
PD1230 BALL UNIVERSAL, FR
PD1231 BALL UNIVERSAL, RR
PD1240 -R STEERING SLIDERPD1232 BALL UNIVERSAL
JOINT
PD1241 CENTER DRIVE
SHAFTS, FR / RR
PD1246 FRONT KNUCKLE
BALL SET (4)
PD1248 WASHER SET
PD1139 CASE / BULKHEAD
BOTTOM SEAL
PD1130 LOWER SUSPENSION ARM SET
PD1205 LOWER SUSPENSION ARM SET,
COLD TEMP
PD1131 TRANS CASE /
BULKHEAD
PD1234 BALL UNIVERSAL
AXLE, FR / RR
PD1356 RR PLASTIC TORQUE
ROD
PD1261 PLASTIC SERVO TRAY
PD1253 FUEL TANK
PD1361 FR PLASTIC TORQUE
ROD
PD0666 M3 X 6mm(20)
PD0667 M3 X 8mm(20)
PD0668 M3 X 10mm(20)
PD0669 M3 X 12mm(20)
PD0670 M3 X 14mm(20)
PD0671 M3 X 16mm(20)
PD0672 M3 X 18mm(20)
PD0673 M3 X 20mm(20)
PD0674 M3 X 22mm(20)
PD0675 M3 X 25mm(20)
PD0676 M3 X 6mm(20)
PD0677 M3 X 8mm(20)
PD0678 M3 X 10mm(20)
PD0679 M3 X 12mm(20)
PD0680 M3 X 14mm(20)
PD0681 M3 X 16mm(20)
PD0682 M3 X 18mm(20)
PD0683 M3 X 20mm(20)
PD0684 M3 X 25mm(20)
PD1249 TAP SCREW SET
M3 x 10mm (5)
HMO26 (5)
HMO3B (5)
HMO4 (5)
HMM3B (20)
M3 x 8mm (5)
M3 x 12mm (10)
M3 x 14mm (10)
M3 x 16mm (12)
M3 x 22mm (4)
M3 x 3mm (12)
M3 x 5mm (4)
M4 x 12mm (6)
M5 x 4mm (10)
M6 x 30mm (2)
PD1250 HARDWARE SET
PD1251 SET SCREW SET
M3 x 18mm (5)
M4 x 14mm (15)
M3 x 10mm (15)
M3 x 12mm (15)
M3 x 14mm (10)
M3 x 16mm (10)
M3 x 18mm (10)
M3 x 20mm (10)
M3 x 22mm (10)
M3 x 25mm (6)
M4 x 14mm (4)
M3 x 10mm (5)
M3 x 12mm (5)
M35 x 10mm (5)
M4 x 25mm (5)
M4 x 6mm (5)
M3 x 8mm (5)
M3 x 8mm (5)
M3 x 10mm (10)
M3 x 12mm (5)
M3 x 15mm (5)
M3 x 22mm (5)
M2.6 x 8mm (5)
M3 x 10mm (5)
M3 x 12mm (5)
PD1252 HEX SCREW SET PD1313 SCREW BAG PD1315 CROSS SCREW SET
(4)(3)
(4)(2)
M3x18mm (6)
M3.5x35mm (6)
M3.5x18mm (6)
M3.5x46mm (6)
PD0567FR UPPER ARM/MT/END
PD1204FR UPPER ARM/MT/END, COLD TEMP
PD1233 BALL UNIVERSAL
AXLE, CTR
CT MACHINE SCREWBT MACHINE SCREW
PD0968 M3x 10mm(20)
BTW PHILLIP TAP SCREW
SOCKET HEAD MACHINE SCREW
PD1138 M6x 30mm(2)
SET SCREW
PD0982 LARGE(20)
NYLON STRAP
(2)
(2)
PD0560-T REAR SHOCK SET PD0561 FRONT SHOCK SET
PD0591-T SHOCK STANDOFF (4)
PD0606-T SHOCK CAP (2)
PD0604-T FR SHOCK BODY (2)
PD0603 RR SHOCK SHAFT (2) PD0605-T RR SHOCK BODY (2)
PD0602 1/8 SHOCK
DIAPHRAGM (10)
PD0661 G-CLIPS (10), 7MM
PD0871 TUNED PIPE COUPLER
PD1271 WING MOUNT BRACE
PD1521 1/8 3-SHOE FLYWHEEL
PD1786 1/8 TUNED PIPE
PD1785 SET SCREW SET
M4 x 35Bmm (2)
M4 x 45Bmm (1)
M5 x 60mm (2)
M6 x 30mm (2)
M6 x 35mm (2)
PD0479 TURNBUCKLE (2),
5 X 60MM
PD0579 TURNBUCKLE (1),
4 x 45MM
PD0586 TURNBUCKLE (2),
6 x 32MM
PD0587 TURNBUCKLE (2),
4 x 36MM
AD2537 WING MOUNT BRACE
AJD1112 DECAL
PD0798 SHORT BUMPER
PD0590 1/8 TIRE W/FOAM,
CUBIC
PD1981-O 1/8 5-SPOKE WHEEL,17mm ORANGE
PD1981-B 1/8 5-SPOKE WHEEL,17mm BLACK
PD1981-G 1/8 5-SPOKE WHEEL,17mm GREEN
PD1903-O 1/8 REAR WING, ORANGE
PD1903-B 1/8 REAR WING, BLACK
PD1903-G 1/8 REAR WING, GREEN
PD0432 1/8 BODY CLIPS (10)
PD6837 1/8 PRINTED BODY, ORANGE S2
PD6795 1/8 PRINTED BODY, BLUE S2
PD6790 1/8 PRINTED BODY, SILVER S2
9708BAIR FILTER, 1/8 BLACK
9708OAIR FILTER, 1/8 ORANGE
9708GAIR FILTER, 1/8 GREEN
PD0748 CARBIDE FR UPPER
ARM PIN
EB-4 S2 PRO SC P.5
EB-4 S2 PRO SC P.6
EB-4 S2 PRO SC P.7
EB-4 S2 PRO SC P.8
EB-4 S2 PRO SC P.9 EB-4 S2 PRO SC P.10 EB-4 S2 PRO SC P.11
EB-4 S2 PRO SC P.12
PD0655 DIFF GASKET, 0.5mm
PD0656 DIFF GASKET, 0.2mm
PD0657 DIFF GASKET, 0.8mm
PD0658 O-RINGS, 3.2X1.4mm
PD0659 WASHER, 3.6X12X0.2mm
PD0660 DIFF INNER SHAFTS
PD0661 G-CLIPS(10),7mm
PD0662 BALL BEARING, SEALED 8X16X5mm
PD0666 BT MACHINE SCREW, 3X6mm
PD0667 BT MACHINE SCREW, 3X8mm
PD0668 BT MACHINE SCREW, 3X10mm
PD0669 BT MACHINE SCREW, 3X12mm
PD0670 BT MACHINE SCREW, 3X14mm
PD0671 BT MACHINE SCREW, 3X16mm
PD0672 BT MACHINE SCREW, 3X18mm
PD0673 BT MACHINE SCREW, 3X20mm
PD0674 BT MACHINE SCREW, 3X22mm
PD0675 BT MACHINE SCREW, 3X25mm
PD0676 CT MACHINE SCREW, 3X6mm
PD0677 CT MACHINE SCREW, 3X8mm
PD0678 CT MACHINE SCREW, 3X10mm
PD0679 CT MACHINE SCREW, 3X12mm
PD0680 CT MACHINE SCREW, 3X14mm
PD0681 CT MACHINE SCREW, 3X16mm
PD0682 CT MACHINE SCREW, 3X18mm
PD0683 CT MACHINE SCREW, 3X20mm
PD0684 CT MACHINE SCREW, 3X25mm
PD0775 FLAT HEAD SOCKET SCREW, 5X10mm
PD0789 FLAT CHASSIS SIDE GUARDS
PD0798 SHORT BUMPER
PD0800 LEXAN BODY
PD0871 TUNED PIPE COUPLER T
PD0968 BTW PHILLIP TAP SCREW, 3X10mm
PD0982 NYLON STRAP, LARGE
PD1020 SOCKET HEAD MECHINE SCREW, 4X12mm
PD1129-R MAIN CHASSIS, TYPE B
PD1130 LOWER SUSPENSION ARM SET
PD1131 TRANS CASE / BULKHEAD
PD1138 SET SCREW, 6X30mm
PD1139 CASE / BULKHEAD BOTTOM SEAL
PD0436 SCREW BAG
PD0546 STANDOFF BALL, SMALL 4mm
PD0547 STANDOFF BALL, LARGE 4mm
PD0548 FR/RR DIFFERENTIAL SET
PD0549 DIFFERENTIAL CASE
PD0551 THROTTLE / BRAKE HARDWARE
PD0559 ASSORTED E-CLIPS
PD0560-T REAR SHOCK SET
PD0561-T FRONT SHOCK SET
PD0562 SHOCK PLASTIC PARTS
PD0566 LOWER ARM REAR HINGE PLATES
PD0567 FR UPPER ARM / MT / END
PD0569 RX BOX /BATT POST
PD0570 TIE-END SET
PD0572 LOWER SHOCK PIN
PD0574 CTR DIFF MOUNT & SERVO SAVER
PD0578 DIFF BEVEL & DRIVE GEAR
PD0581-R SERVO SAVER METAL PARTS
PD0584 BRAKE PAD SET
PD0588-R FR SUSP PLATE RR TRANS
PD0590 1/8 TIRE W/ FOAM, CUBIC
PD0591-T ALUM SHOCK STANDOFF(4)
PD0592 PRESSURE FITTING
PD0593 STEEL BRAKE DISC
PD0596 FR/RR DIFF OUTDRIVE
PD0601-R FR SUSP PLATE FR TRANS
PD0602 SHOCK DIAPHRAGM(10)
PD0603 REAR SHOCK SHAFT(2)
PD0604-T FROMT ALUM SHOCK BODY(2)
PD0605-T REAR ALUM SHOCK BODY(2)
PD0606-T SHOCK CAP(2)
PD0607 ALUM NUT, 17mm
PD0608 TUNED PIPE WIRE
PD0609 DIFF INNER GEARS & PARTS
PD0613 STANDOFF BALL, MEDIUM 4mm
PD0617 FRONT KNUCKLE
PD0619 1/8 CLUTCH BELL, 26mm 14T
PD0620 17mm HEX WHEEL ADAPTER SET
PD0633 DRIVE CUP
PD0654 CTR DIFFERENTIAL SET
EB-4 S2 PRO SC SPARE PARTS LIST
PD1230 BALL UNIVERSAL, FR
PD1231 BALL UNIVERSAL, RR
PD1232 BALL UNIVERSAL JOINT
PD1233 BALL UNIVERSAL AXLE, CTR
PD1234 BALL UNIVERSAL AXLE, FR/RR
PD1235 BALL UNIVERSAL BONE, CTR FR
PD1236 BALL UNIVERSAL BONE, CTR RR
PD1237 BALL UNIVERSAL BONE, FR
PD1238 BALL UNIVERSAL BONE, RR
PD1240-R STEERING SLIDER
PD1241 CENTER DRIVE SHAFTS, FR/RR
PD1243 HINGE PIN SET
PD1244 LOCK NUT, BLACK 3mm
PD1246 FRONT KNUCKLE BALL SET
PD1248 WASHER SET
PD1249 TAP SCREW SET
PD1250 HARDWARE SET
PD1251 SET SCREW SET
PD1252 HEX SCREW SET
PD1253 FUEL TANK
PD1261 PLASTIC SERVO TRAY
PD1271 WING MOUNT BRACE,EK S2
PD1313 SCREW SET, EB S2
PD1315 CROSS SCREW SET, EB S2
PD1356 RR PLASTIC TORQUE ROD
PD1361 FR PLASTIC TORQUE ROD
PD1521 1/8 3-SHOE FLYWHEEL
PD1785 SCREW SET
PD1786 1/8 TUNED PIPE
PD1903-O 1/8 REAR WING, ORANGE
PD1903-B 1/8 REAR WING, BLACK
PD1903-G 1/8 REAR WING, GREEN
PD6472 ENGINE MOUNT, PS
PD6790 1/8 PRINTED BODY, SILVER S2
PD6795 1/8 PRINTED BODY, BLUE S2
PD6837 1/8 PRINTED BODY, ORANGE S2
EB-4 S2 PRO SC OPTIONAL PARTS LIST
PD1256 CARBIDE SHOCK SHAFT, FR
PD1257 CARBIDE SHOCK SHAFT, RR
PD1946-W 5-SPOKE WHL,17mm 1/8(W)
PD1946-Y 5-SPOKE WHL,17mm 1/8(Y)
PD1946-B 5-SPOKE WHL,17mm 1/8(B)
PD1946-G 5-SPOKE WHL,17mm 1/8(G)
PD1946-P 5-SPOKE WHL,17mm 1/8(P)
PD1946-O 5-SPOKE WHL,17mm 1/8(O)
PD1981-W MULTI-SPOKE WHL, WHITE, 1/8
PD1981-P MULTI-SPOKE WHL, PINK, 1/8
PD1981-Y MULTI-SPOKE WHL, YELLOW, 1/8
PD6602-Y VELOCITY WHEEL (2), YELLOW, 1/8
PD6602-W VELOCITY WHEEL (2), WHITE, 1/8
PD6602-B VELOCITY WHEEL (2), BLACK, 1/8
PD6602-G VELOCITY WHEEL (2), GREEN, 1/8
PD6602-P VELOCITY WHEEL (2), PINK, 1/8
PD6602-O VELOCITY WHEEL (2), ORANGE, 1/8
PD0762 ERGAL FR PLATE FR TRANS
PD0763 ERGAL RR PLATE FR TRANS
PD0766 ERGAL FR PLATE RR TRANS
PD0767 ERGAL RR TOE-IN BLOCK, 2˚
PD0769 ERGAL RR TOE-IN BLOCK, 3˚
PD0770 CARBON SERVO TRAY
PD0771 CARBON BATT PLATE
PD0772 ERGAL SERVO SAVER TOP PLATE
PD0776 FR SWAY BAR,2.6mm PINK
PD0777 RR SWAY BAR,2.7mm LT BLUE
PD0778 RR SWAY BAR,3.0mm LT GREEN
PD0779 FLAT HEAD SOCKET SCREW 3X12mm
PD0780 TITANIUM TURNBUCKLE 5X57mm
PD0781 TITANIUM TURNBUCKLE 4X45mm
PD0782 TITANIUM TURNBUCKLE 6X32mm
PD0783 TITANIUM TURNBUCKLE 4X52mm
PD0784 TITANIUM TURNBUCKLE 5X90mm
PD0785 ERGAL FRONT SHOCK TOWER
PD0786 ERGAL RR SHOCK TOWER
PD0787
ERGAL DECOMPOSABLE CENTER DIFF MOUNT
PD0790 1/8 SHOCK BOOT, SHORT
PD1903-Y 1/8 REAR WING, YELLOW
PD1903-P 1/8 REAR WING, PINK
PD1903-W 1/8 REAR WING, WHITE
PD0895 FLAT HEAD SOCKET SCREW, 3X8mm
PD0996 1/8 3-SHOE CLUTCH, TYPE A
PD0998 1/8 4-SHOE CLUTCH, TYPE A
PD1000 1/8 CLUTCH NUT ONLY, TYPE A
PD1195 FLAT HEAD SOCKET SCREW, 3X5mm
PD1203 CARBIDE LOWER ARM PIN
PD1215 1/8 3 CLUTCH SHOE & SPRING ONLY, TYPE A
PD1218 1/8 4 CLUTCH SHOE & SPRING ONLY, TYPE A
PD1228 BALL UNIVERSAL, CTR FR
PD1229 BALL UNIVERSAL, CTR RR
PD1230 BALL UNIVERSAL, FR
PD1231 BALL UNIVERSAL, RR
PD1239 FRONT KNUCKLE BALL W/CONE RETAINER
PD1242 1/8 CLUTCH BELL, 13T
PD1245 TIANIUM TURNBUCKLE, 4X36mm
PD1247 ERGAL LITE CHASSIS, TYPE B
1165P FUEL FILTER, 2cc
1166P PISTON LOCK TOOL
9708Y AIR FILTER 21 YELLOW
9708P AIR FILTER 21 PINK
9708W AIR FILTER 21 WHITE
9796
3-CHAMBER TUNED PIPE(L), EFRA 2035
9796-1
3-CHAMBER TUNED PIPE(L), W/ MANIFOLD EFRA 2035
9797
3-CHAMBER TUNED PIPE(S), EFRA 2039
9797-1
3-CHAMBER TUNED PIPE(S), W/ MANIFOLD EFRA 2039
AD2537 WING MOUNT BRACE
PD0141 BALL BEARING(2), FLANGE 3X7X3mm
PD0143 BALL BEARING(2), 5X8X2.5mm
PD0418 1/8 TUNED PIPE, C2A
PD0470 1/8 CLUTCH BELL, 15T
PD0479 TURNBUCKLE (2), 5X60mm
PD0552 RR SWAY BAR, 2.5mm LT PURPLE
PD0564 SHOCK PISTON, 1-HOLE
PD0573 TORQUE ROD SET, 4X52mm / 5X90mm
PD0576 1/8 REAR WING, YELLOW
PD0579 TURNBUCKLE(1), 4X45mm
PD0582 ALUM SERVO TRAY POST
PD0583 FR SWAY BAR, 2.3mm LT AOUA
PD0586 TURNBUCKLE(2), 6X32mm
PD0587 TURNBUCKLE(2), 4X36mm
PD0610 STEERING SLIDER W/BB
PD0611 SELF COOLING BRAKE DISK
PD0612 SERVO SAVER POSTS W/BB
PD0615 1/8 FR SPRING, 1.5mm YELLOW
PD0689 1/8 MULTI-SPOKE WHEEL, 17mm WHITE
PD0748 CARBIDE FR UPPER ARM PIN
PD0749 CARBIDE RR HUB PIN
PD0751 1/8 RR SPRING, 1.4mm WHITE
PD0752 1/8 RR SPRING, 1.6mm BLUE
PD0753 1/8 FR SPRING, 1.4mm WHITE
PD0754 1/8 FR SPRING, 1.6mm BLUE
PD0756 BALL BEARING, FLANGE 5X8X2.5mm
PD0757 ERGAL FR KNUCKLE
PD0758 ERGAL FR UPPER ARM MT
PD0760 ERGAL BATTERY POST
PD0761 ERGAL HEAT-SINK ENGINE MOUNT
EB-4 S2 PRO SC SPARE PARTS LIST
9708O AIR FILTER, 21 ORANGE
9708B AIR FILTER, 21 BLACK
9708G AIR FILTER, 21 GREEN
AD0287-R FR SHOCK TOWER
AD0297-R SERVO SAVER TOP PLATE
AD0300-R CTR DIFF TOP PLATE
AD0332-R RR SHOCK TOWER
AD0343 RR DRIVE SHAFT
AD2413 PIVOT BALL, 4mm
AD2435 SERVO SAVER BUSHING
AD2445 1/8 CLUTCH SPRING (3)
AD2446 1/8 CLUTCH SHOE (3)
AD2538 1/8 CLUTCH NUT
AD2657 METAL MAIN GEAR, 46T
AJD1112 DECAL
AR0080 SERVO MOUNT / PLASTIC POST
AR0095 REAR HUB CARRIER
AR0097 BODY / WING MOUNT
PD0225 ANTENNA
PD0416 BALL BEARING(2), 5X10X4mm
PD0423 BRAKE CAM / LEVER
PD0425 CTR RIGID AXLE OUTDRIVE
PD0432 1/8 BODY CLIPS (10)
PD0435 REAR AXLE
Specification:
Wheel Base: Adjustable from 315mm to 320mm
Front Track Width: Adjustable from 295mm to 305mm
Rear Track Width: 300mm
Front Kick-Up: 5˚
Front Caster: adjustable from 18˚ to 25˚
Rear Anti-Dive: 2˚
Rear Toe-In: 1˚, 2˚, or 2.5˚
Weight: 3100g w/ engine, tuned pipe, servos
NO.6226-F
Glow Starters
No.2150 1.8AH Long Glow Starter w/110V 2P
No.2151 1.8AH Long Glow Starter w/230V 2P
No.2152 1.8AH Long Glow Starter w/230V 3P
Hex Driver Set
No.1103
ACCESSORIES RECOMMENDED
No.1116
5-Way Wrench
Super Torque
Digital Servo
No.8119 DS1013
No.8123 DS1211
PARTS CATALOG FOR
EB-4 S2 PRO SC CAR
NO.6226-F
No.9477
PRO-28BX-R
PD0552 RR SWAY BAR, 2.5MM LT PURPLE
PD0777 RR SWAY BAR, 2.7MM LT BLUE
PD0778 RR SWAY BAR, 3.0MM LT GREEN
PD1239 FRONT KNUCKLE BALL
W/CONE RETAINER SET (4)
PD0787 ERGAL DECOMPOSABLE
CENTER DIFF. MOUNT
EB-4 S2 PRO SC OPTIONAL PARTS LIST
PD0141 BALL BEARING, FLANGE 3x7x3MM
PD0143 BALL BEARING, 5x8x2.5MM
PD0756 BALL BEARING, FLANGE 5x8x2.5MM
PD0470 1/8 CLUTCH BALL, 15T
PD1242 1/8 CLUTCH BALL, 13T
PD0785 ERGAL FR
SHOCK TOWER
PD0762 ERGAL FR PLATE
FR TRANS
9708P AIR FILTER .21 PINK
9708W AIR FILTER .21 WHITE
9708Y AIR FILTER .21 YELLOW
PD1247 ERGAL LITE CHASSIS,
TYPE B
PD0763 ERGAL RR PLATE
FR TRANS PD0766 ERGAL FR PLATE
RR TRANS
PD0772 ERGAL SERVO SAVER
TOP PLATE
PD0767 ERGAL RR TOE-IN BLOCK, 2˚
PD0769 ERGAL RR TOE-IN BLOCK, 3˚
PD0770 CARBON SERVO TRAY PD0771 CARBON BATT PLATE
PD0786 ERGAL RR
SHOCK TOWER
PD0998 1/8 4-SHOE CLUTCH, TYPE A
PD1000 1/8 CLUTCH NUT, ONLY TYPE A
PD1218 1/8 4 CLUTCH SHOE & SPR,
ONLY TYPE A
PD0611 SELF COOLING
BRAKE DISK PD1203 CARBIDE LOWER
ARM PIN
PD0761
ERGAL
HEAT-SINK
ENGINE MOUNT
PD0615 1/8 FR SPRING, 1.5MM YELLOW
PD0753 1/8 FR SPRING, 1.4MM WHITE
PD0754 1/8 FR SPRING, 1.6MM BLUE
PD0614 1/8 RR SPRING, 1.5MM YELLOW
PD0751 1/8 RR SPRING, 1.4MM WHITE
PD0752 1/8 RR SPRING, 1.6MM BLUE
PD0583 FR SWAY BAR, 2.3MM LT AQUA
PD0776 FR SWAY BAR, 2.6MM PINK
PD0564 SHOCK PISTON(4),
1-HOLE PD0790 1/8 SHOCK BOOT,
SHORT
PD0610 STEERING SLIDER W/BB
PD0760 ERGAL BATTERY POST
PD0996 1/8 3-SHOE CLUTCH, TYPE A
PD1215 1/8 3 CLUTCH SHOE & SPR ONLY
, TYPE A
PD0784 TITANIUM TURNBUCKLE
5X90MM
PD0758 ERGAL FR UPPER
ARM MT
PD0612 SERVO SAVER
POSTS W/BB
1166P PISTON LOCK TOOL PD0757 ERGAL FR KNUCKLE1165P FUEL FILTER, 2CC.
JD0424
1) Rigid, narrow chassis with front and side kick-up
2) Flat chassis side guards
3) Short bumper
4) Small transmission case with bottom seal
5) Narrow, light weight suspension arms
6) Improved front upper arms
7) High performance rubber tire
8) Durable differentials
9) Sealed, large receiver box
10) Quick change receiver battery clip
11) 125cc, low CG fuel tank
12) Adjustable rear toe-in plates
13) Adjustable rear wing
14) Adjustable front/ rear camber
15) Adjustable front caster
16) Adjustable wheelbase
17) Front ball type universal drive shaft
18) Shaft driven 4WD drivetrain
19) Front and rear chassis stiffeners
Includes ventilated flywheel, 3 shoe clutch, and
14T bell (not pictured) all aluminum parts are
red anodized
No.2409
PD1981-W MULTI-SPOKE WHL, WHITE, 1/8
PD1981-Y MULTI-SPOKE WHL, YELLOW, 1/8
PD1981-P MULTI-SPOKE WHL, PINK, 1/8
PD1903-Y REAR WING, YELLOW, 1/8
PD1903-P REAR WING, PINK, 1/8
PD1903-W REAR WING, WHITE, 1/8
9797 3-CHAMBER TUNED PIPE(S), EFRA 2039
9797-1 3-CHAMBER TUNED PIPE(S),
W/ MANIFOLD EFRA 2039
Surface or distol style
for your choices
3 Sets of gear diff & Full ball bearings (18pcs)
Included
PD1946-Y 5-SPOKE WHL, 17mm YELLOW, 1/8
PD1946-B 5-SPOKE WHL, 17mm BLACK, 1/8
PD1946-G 5-SPOKE WHL, 17mm GREEN, 1/8
PD1946-P 5-SPOKE WHL, 17mm PINK, 1/8
PD1946-O 5-SPOKE WHL, 17mm ORANGE, 1/8
PD6602-Y VELOCITY WHL, YELLOW, I/8
PD6602-W VELOCITY WHL, WHITE, I/8
PD6602-B VELOCITY WHL, BLACK, I/8
PD6602-G VELOCITY WHL, GREEN, I/8
PD6602-P VELOCITY WHL, PINK, I/8
PD6602-O VELOCITY WHL, ORANGE, I/8
PD1230 BALL UNIVERSAL, FR
PD1231 BALL UNIVERSAL, RR
PD1228 CENTER BALL UNIVERSAL, FR
PD1229 CENTER BALL UNIVERSAL, RR
9796 3-CHAMBER TUNED PIPE(L), EFRA 2035
9796-1 3-CHAMBER TUNED PIPE(L),
W/ MANIFOLD EFRA 2035
Features:
100% Assembled
2-Channel Radio Installed
High Torque Steering Servo
Printed Body With Decals
Race-proven Suspension Geometry
Durable Gear Differential System
Double High-Density Annular Foams Air Filter
Strong Fiberglass Reinforced Composite Parts
Sturdy Alum. Chassis
Alum Front Shock Tower
Alum Rear Shock Tower
Alum Steering Slider
Alum Center Diff Top Plate
Thunder Tiger PRO-21BX-R Engine With Pull Start
High Performance Rubber Tire
Adjustable Alum. Large Volume, Competition Shocks
Front Ball Type Universal Drive Shaft
Ventilated Flywheel
High performance Tuned Pipe And Manifold
Adjustable Toe-In / Camber / Caster Angle
Specification:
Wheel Base: Adjustable from 315mm to 320mm
Front Track Width: Adjustable from 295mm to 305mm
Rear Track Width: 300mm
Front Kick-Up: 5˚
Front Caster: adjustable from 18˚ to 25˚
Rear Anti-Dive: 2˚
Rear Toe-In: 1˚, 2˚, or 2.5˚
Weight: 3100g w/ engine, tuned pipe, servos
NO.6226-F
Glow Starters
No.2150 1.8AH Long Glow Starter w/110V 2P
No.2151 1.8AH Long Glow Starter w/230V 2P
No.2152 1.8AH Long Glow Starter w/230V 3P
Hex Driver Set
No.1103
ACCESSORIES RECOMMENDED
No.1116
5-Way Wrench
Super Torque
Digital Servo
No.8119 DS1013
No.8123 DS1211
PARTS CATALOG FOR
EB-4 S2 PRO SC CAR
NO.6226-F
600cc Fuel Bottle
No.1261
300cc Fuel Bottle
No.1266
No.9477
PRO-28BX-R
PD0552 RR SWAY BAR, 2.5MM LT PURPLE
PD0777 RR SWAY BAR, 2.7MM LT BLUE
PD0778 RR SWAY BAR, 3.0MM LT GREEN
PD1239 FRONT KNUCKLE BALL
W/CONE RETAINER SET (4)
PD0787 ERGAL DECOMPOSABLE
CENTER DIFF. MOUNT
PD0141 BALL BEARING, FLANGE 3x7x3MM
PD0143 BALL BEARING, 5x8x2.5MM
PD0756 BALL BEARING, FLANGE 5x8x2.5MM
PD0470 1/8 CLUTCH BALL, 15T
PD1242 1/8 CLUTCH BALL, 13T
PD0785 ERGAL FR
SHOCK TOWER
PD0762 ERGAL FR PLATE
FR TRANS
9708P AIR FILTER .21 PINK
9708W AIR FILTER .21 WHITE
9708Y AIR FILTER .21 YELLOW
PD1247 ERGAL LITE CHASSIS,
TYPE B
PD0763 ERGAL RR PLATE
FR TRANS PD0766 ERGAL FR PLATE
RR TRANS
PD0772 ERGAL SERVO SAVER
TOP PLATE
PD0767 ERGAL RR TOE-IN BLOCK, 2˚
PD0769 ERGAL RR TOE-IN BLOCK, 3˚
PD0770 CARBON SERVO TRAY PD0771 CARBON BATT PLATE
PD0786 ERGAL RR
SHOCK TOWER
PD0998 1/8 4-SHOE CLUTCH, TYPE A
PD1000 1/8 CLUTCH NUT, ONLY TYPE A
PD1218 1/8 4 CLUTCH SHOE & SPR,
ONLY TYPE A
PD0611 SELF COOLING
BRAKE DISK PD1203 CARBIDE LOWER
ARM PIN
PD0761
ERGAL
HEAT-SINK
ENGINE MOUNT
PD0615 1/8 FR SPRING, 1.5MM YELLOW
PD0753 1/8 FR SPRING, 1.4MM WHITE
PD0754 1/8 FR SPRING, 1.6MM BLUE
PD0614 1/8 RR SPRING, 1.5MM YELLOW
PD0751 1/8 RR SPRING, 1.4MM WHITE
PD0752 1/8 RR SPRING, 1.6MM BLUE
PD0583 FR SWAY BAR, 2.3MM LT AQUA
PD0776 FR SWAY BAR, 2.6MM PINK
PD0564 SHOCK PISTON(4),
1-HOLE PD0790 1/8 SHOCK BOOT,
SHORT
PD0610 STEERING SLIDER W/BB
PD0760 ERGAL BATTERY POST
PD0996 1/8 3-SHOE CLUTCH, TYPE A
PD1215 1/8 3 CLUTCH SHOE & SPR ONLY
, TYPE A
PD0784 TITANIUM TURNBUCKLE
5X90MM
PD0758 ERGAL FR UPPER
ARM MT
PD0612 SERVO SAVER
POSTS W/BB
1166P PISTON LOCK TOOL PD0757 ERGAL FR KNUCKLE1165P FUEL FILTER, 2CC.
JD0424
PRO-21-BX-R
1) Rigid, narrow chassis with front and side kick-up
2) Flat chassis side guards
3) Short bumper
4) Small transmission case with bottom seal
5) Narrow, light weight suspension arms
6) Improved front upper arms
7) High performance rubber tire
8) Durable differentials
9) Sealed, large receiver box
10) Quick change receiver battery clip
11) 125cc, low CG fuel tank
12) Adjustable rear toe-in plates
13) Adjustable rear wing
14) Adjustable front/ rear camber
15) Adjustable front caster
16) Adjustable wheelbase
17) Front ball type universal drive shaft
18) Shaft driven 4WD drivetrain
19) Front and rear chassis stiffeners
Includes ventilated flywheel, 3 shoe clutch, and
14T bell (not pictured) all aluminum parts are
red anodized
3
1
11
12
2
4
5
6
7
8
9 10
13
14
15
14
17
1916 1918
No.2409
PD1981-W MULTI-SPOKE WHL, WHITE, 1/8
PD1981-Y MULTI-SPOKE WHL, YELLOW, 1/8
PD1981-P MULTI-SPOKE WHL, PINK, 1/8
PD1903-Y REAR WING, YELLOW, 1/8
PD1903-P REAR WING, PINK, 1/8
PD1903-W REAR WING, WHITE, 1/8
9797 3-CHAMBER TUNED PIPE(S), EFRA 2039
9797-1 3-CHAMBER TUNED PIPE(S),
W/ MANIFOLD EFRA 2039
Surface or distol style
for your choices
3 Sets of gear diff & Full ball bearings (18pcs)
Included
PD1946-Y 5-SPOKE WHL, 17mm YELLOW, 1/8
PD1946-B 5-SPOKE WHL, 17mm BLACK, 1/8
PD1946-G 5-SPOKE WHL, 17mm GREEN, 1/8
PD1946-P 5-SPOKE WHL, 17mm PINK, 1/8
PD1946-O 5-SPOKE WHL, 17mm ORANGE, 1/8
PD6602-Y VELOCITY WHL, YELLOW, I/8
PD6602-W VELOCITY WHL, WHITE, I/8
PD6602-B VELOCITY WHL, BLACK, I/8
PD6602-G VELOCITY WHL, GREEN, I/8
PD6602-P VELOCITY WHL, PINK, I/8
PD6602-O VELOCITY WHL, ORANGE, I/8
PD1230 BALL UNIVERSAL, FR
PD1231 BALL UNIVERSAL, RR
PD1228 CENTER BALL UNIVERSAL, FR
PD1229 CENTER BALL UNIVERSAL, RR
9796 3-CHAMBER TUNED PIPE(L), EFRA 2035
9796-1 3-CHAMBER TUNED PIPE(L),
W/ MANIFOLD EFRA 2035
Features:
100% Assembled
2-Channel Radio Installed
High Torque Steering Servo
Printed Body With Decals
Race-proven Suspension Geometry
Durable Gear Differential System
Double High-Density Annular Foams Air Filter
Strong Fiberglass Reinforced Composite Parts
Sturdy Alum. Chassis
Alum Front Shock Tower
Alum Rear Shock Tower
Alum Steering Slider
Alum Center Diff Top Plate
Thunder Tiger PRO-21BX-R Engine With Pull Start
High Performance Rubber Tire
Adjustable Alum. Large Volume, Competition Shocks
Front Ball Type Universal Drive Shaft
Ventilated Flywheel
High performance Tuned Pipe And Manifold
Adjustable Toe-In / Camber / Caster Angle

Navigation menu
