A Dell EMC Whitepaper
ECS with NGINX (OpenResty)
Deployment Reference Guide
August 2017
2 ECS with NGINX (OpenResty) | H16275 |1.0
Revisions
Date
Description
August 2017
Initial release
The information in this publication is provided “as is.” Dell Inc. makes no representations or warranties of any kind with respect to the information in this
publication, and specifically disclaims implied warranties of merchantability or fitness for a particular purpose.
Use, copying, and distribution of any software described in this publication requires an applicable software license.
Copyright © August 2017 Dell Inc. or its subsidiaries. All Rights Reserved. Dell, EMC, and other trademarks are trademarks of Dell Inc. or its
subsidiaries. Other trademarks may be the property of their respective owners. Published in the USA [7/27/2017] [Whitepaper] [H16275]
Dell believes the information in this document is accurate as of its publication date. The information is subject to change without notice.
3 ECS with NGINX (OpenResty) | H16275 |1.0
Table of Contents
Revisions............................................................................................................................................................................. 2
Executive Summary ............................................................................................................................................................ 5
1 Introduction ................................................................................................................................................................... 6
1.1 Audience ............................................................................................................................................................. 6
1.2 Scope .................................................................................................................................................................. 6
2 ECS Overview .............................................................................................................................................................. 7
3 NGINX Overview .......................................................................................................................................................... 9
3.1 NGINX Core ........................................................................................................................................................ 9
3.2 OpenResty .......................................................................................................................................................... 9
4 ECS with NGINX Deployments .................................................................................................................................. 11
4.1 Single ................................................................................................................................................................ 11
4.2 Highly Available (Redundancy) ........................................................................................................................ 12
4.3 Global Load Balancing ..................................................................................................................................... 12
5 Single Deployment Example ...................................................................................................................................... 14
5.1 Installation and Setup ....................................................................................................................................... 14
5.1.1 Server ............................................................................................................................................................... 14
5.1.2 OpenResty ........................................................................................................................................................ 15

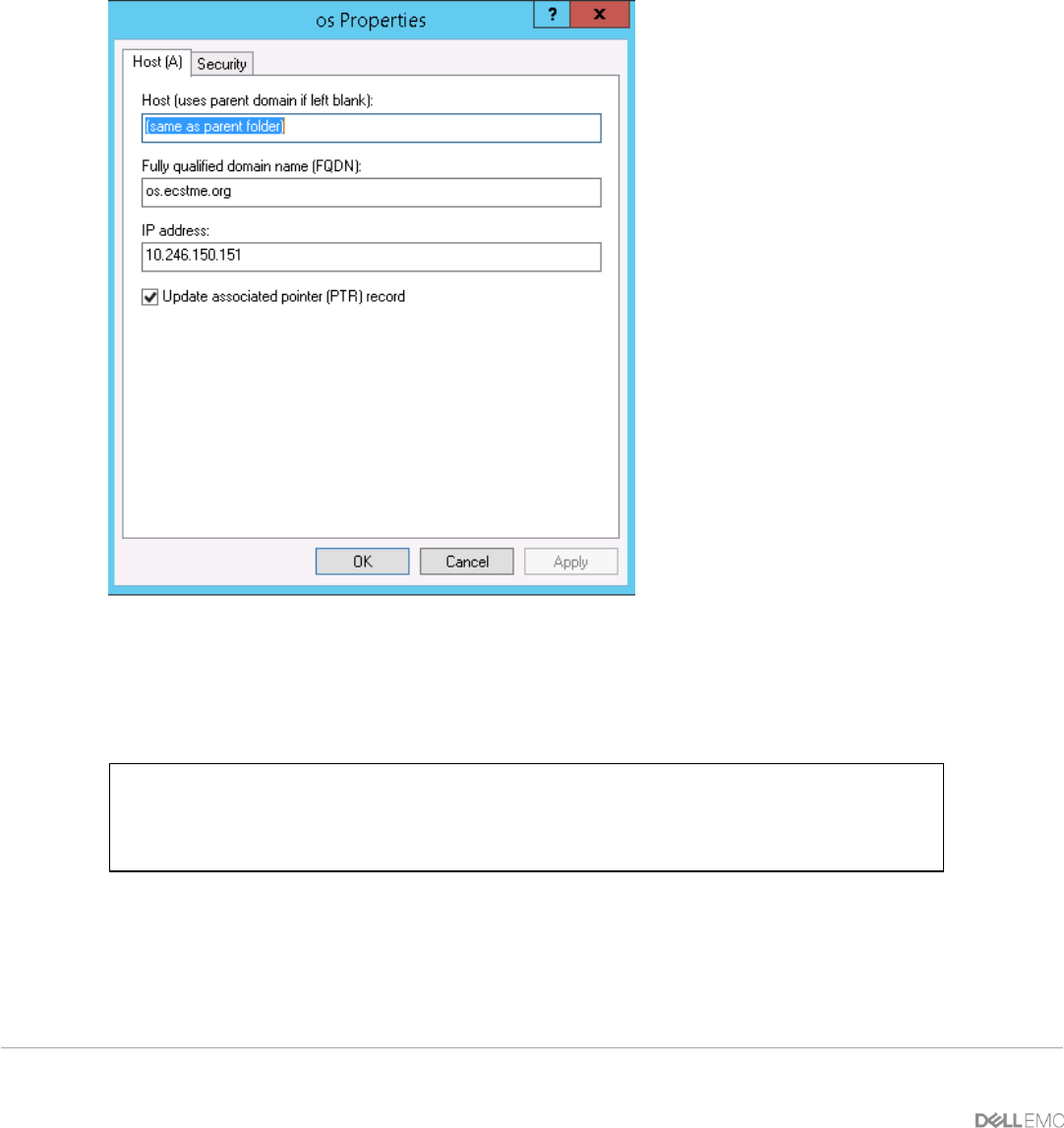

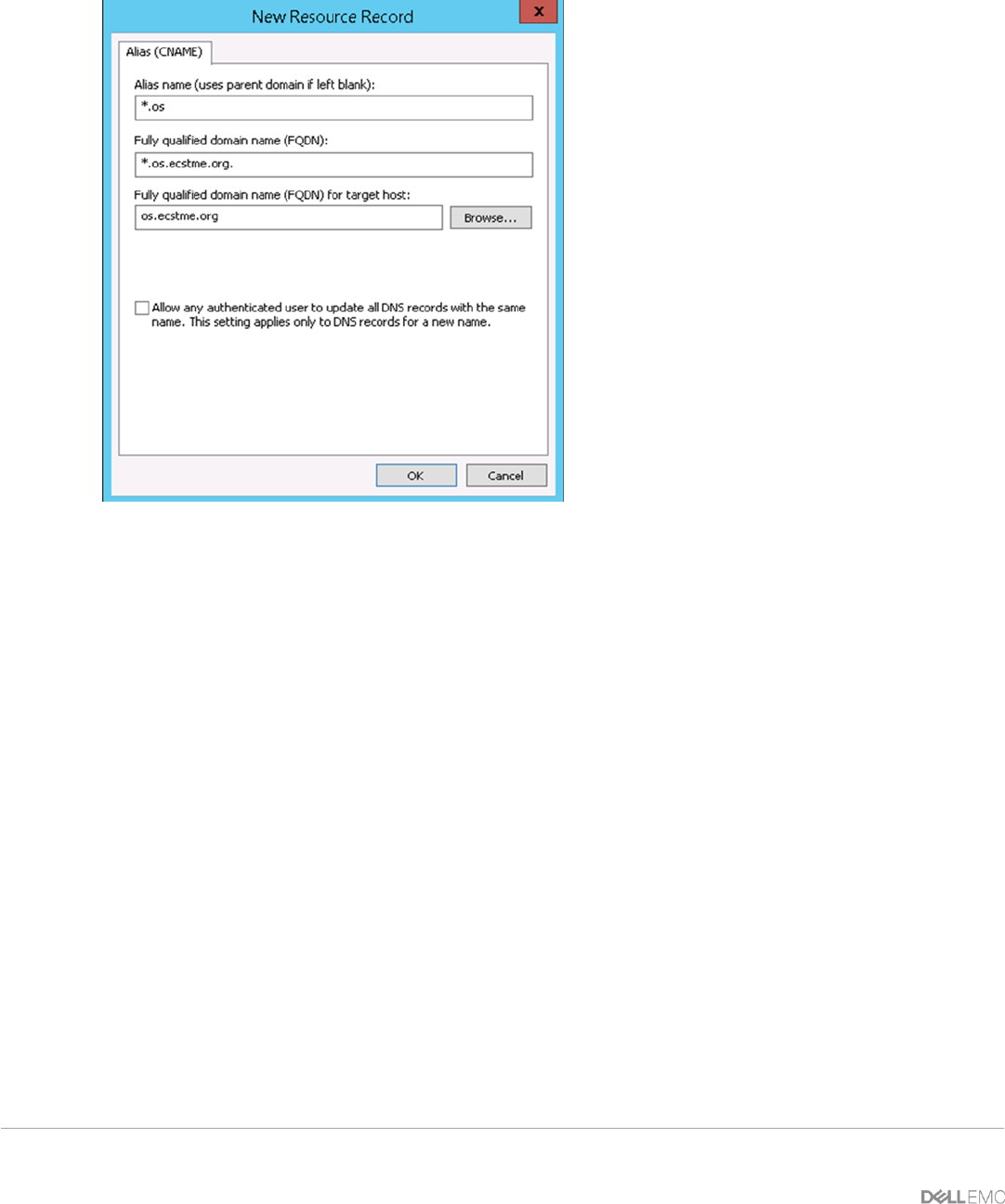

5.1.3 Domain Name System (DNS) ........................................................................................................................... 20
5.2 OpenResty Configuration ................................................................................................................................. 22
5.2.1 Global and Event Context ................................................................................................................................. 22
5.2.2 HTTP Context ................................................................................................................................................... 23
5.2.3 Stream Context ................................................................................................................................................. 39
5.2.4 Monitoring ......................................................................................................................................................... 43
6 Highly Available Example ........................................................................................................................................... 51
6.1 Virtual IP ........................................................................................................................................................... 51
6.2 Keepalived ........................................................................................................................................................ 52
6.3 Validation .......................................................................................................................................................... 55
7 Global Load Balancing Example ................................................................................................................................ 57
7.1 Setup ................................................................................................................................................................ 57
7.2 OpenResty Configuration Files ......................................................................................................................... 59
7.2.1 Geo-Pinning (gslb.lua) ...................................................................................................................................... 62
7.2.2 Monitoring ......................................................................................................................................................... 62
4 ECS with NGINX (OpenResty) | H16275 |1.0
7.3 Validation .......................................................................................................................................................... 66
8 Best Practices............................................................................................................................................................. 67
9 Conclusions ................................................................................................................................................................ 68
A Attachment – NGINX-SAMPLE.ZIP ........................................................................................................................... 69
Install ................................................................................................................................................................ 70 A.1
SLB ................................................................................................................................................................... 70 A.2
Keepalived ........................................................................................................................................................ 70 A.3
GSLB ................................................................................................................................................................ 70 A.4
B Troubleshooting .......................................................................................................................................................... 71
Build Issues ...................................................................................................................................................... 71 B.1
Logs .................................................................................................................................................................. 71 B.2
Firewall Issues .................................................................................................................................................. 71 B.3
C ECS Dedicated Cloud ................................................................................................................................................ 72
D Technical Support and Resources ............................................................................................................................. 73
Related resources............................................................................................................................................. 73 D.1
5 ECS with NGINX (OpenResty) | H16275 |1.0
Executive Summary
Elastic Cloud Storage (ECS) is the third generation object platform from Dell EMC. It is designed for
traditional and next-generation applications. It is known for its flexible deployment, resiliency and simplicity.
ECS does not have a specific requirement for a particular load balancer. However, in an optimal
configuration, a load balancer is recommended to distribute the load across the nodes within ECS and ECS
clusters in different geographic locations. NGINX (OpenResty) is a free and reliable open source web server
software solution that offers load balancing and other proxy features such as mail, HTTP, and TCP/UDP. It
provides a cost-effective solution for customers who are interested in utilizing a load balancer with ECS.
6 ECS with NGINX (OpenResty) | H16275 |1.0
1 Introduction
This white paper is a reference guide into deploying NGINX load balancer with Dell EMC Elastic Cloud
Storage (ECS). It provides example configurations and highlights best practices when utilizing the load
balancing feature of the NGINX (OpenResty) software solution with ECS.
1.1 Audience
This document is targeted for customers and Dell EMC personnel interested in a reference deployment of
ECS with NGINX (OpenResty) web platform.
1.2 Scope
This whitepaper is meant to be a reference deployment guide for customers who would like to use NGINX
with their ECS deployment. Its intent is to provide a “reference” or an example for customers to deploy ECS
with NGINX. Load balancing is optional and not part of ECS. A quick overview of ECS is covered in this
whitepaper. For a more in-depth overview of ECS Architecture and description of how ECS handles and
processes object and file access, refer to ECS Architecture and Overview whitepaper.
7 ECS with NGINX (OpenResty) | H16275 |1.0
2 ECS Overview
ECS is a consortium of software, hardware nodes with disks and switches working together seamlessly to
provide access to object storage data. ECS provides object and file storage. Object access via S3, Atmos,
and Swift on ECS storage platform is achieved via REST APIs. Objects are written, retrieved, updated and
deleted via HTTP or HTTPS calls of GET, POST, PUT, DELETE, and HEAD. For file access, ECS provides
NFS version 3 natively. Applications accessing ECS send requests to the ECS data head services that are
responsible for taking client requests, extracting required information, and passing it to the storage engine
and hardware for further processing (e.g. read, write, etc.) as shown in Figure 1.

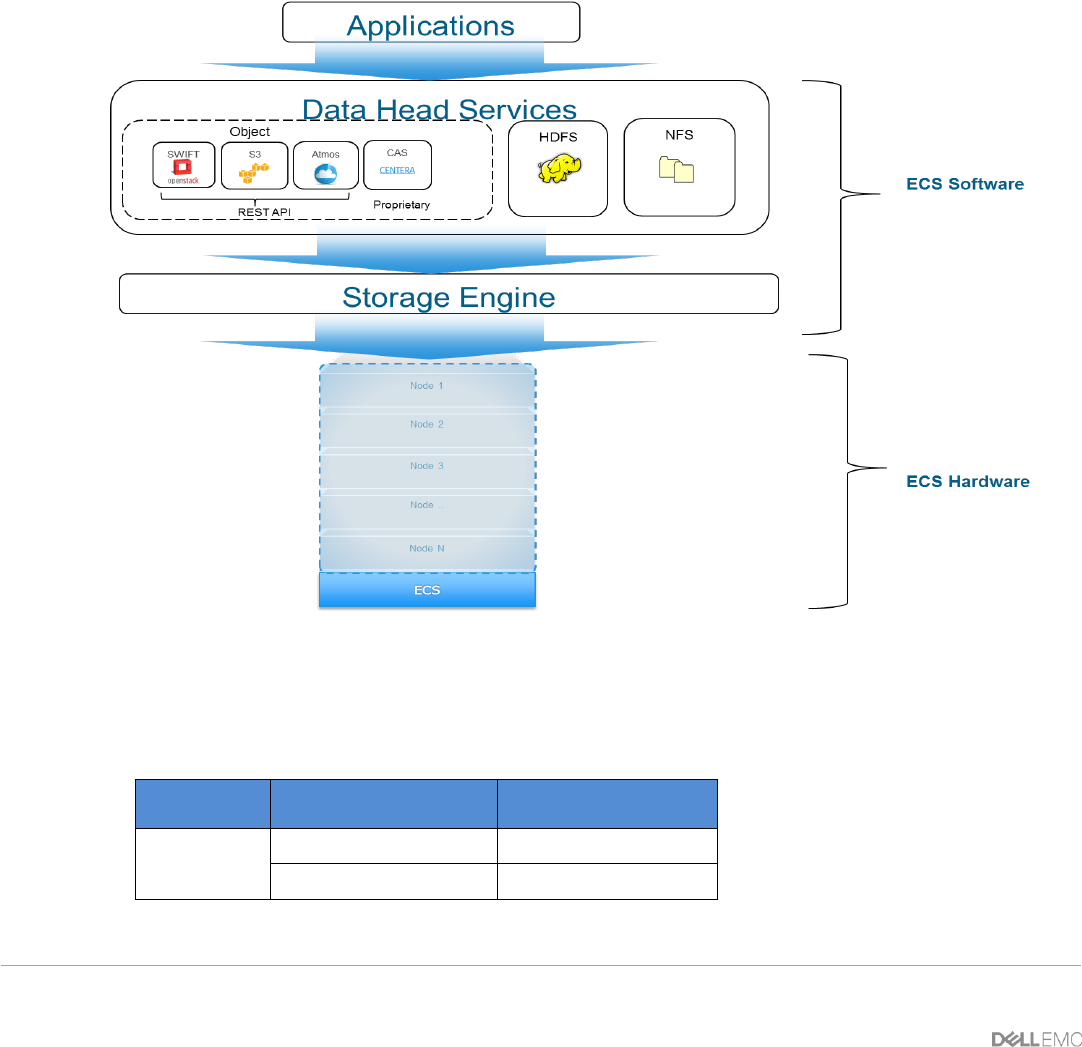

Figure 1 - ECS High Level View
Each of the supported protocols communicates to ECS via specified ports as highlighted in Table 1. ECS
also supports CAS protocol; however, a load balancer is not required since the Centera SDK has a built-in
load balancer.
Table 1 - Ports assignments per ECS protocol.
ECS
Protocol
Transport Protocol or
Daemon Service
Port
S3
HTTP
9020
HTTPS
9021
8 ECS with NGINX (OpenResty) | H16275 |1.0
Atmos
HTTP
9022
HTTPS
9023
Swift
HTTP
9024
HTTPS
9025
NFS
mountd,nfsd
2049
portmap
111
lockd
10000
These ports are important when configuring ECS with NGINX and need to be open in your firewall in order to
access objects using the above protocols. For more information on ECS ports refer to the ECS Security
Configuration Guide.
9 ECS with NGINX (OpenResty) | H16275 |1.0
3 NGINX Overview
NGINX is a free open source web server software solution having numerous features such as HTTP and
reverse proxy, mail proxy, TCP/UDP proxy and load balancing capabilities. It is well known for its scalability
and flexible configuration. Binaries and source can be downloaded from the NGINX site (https://nginx.org/).
NGINX has been tested on several platforms and operating systems such as Linux, Solaris, FreeBSD,
Windows and AIX.
With the growth of the NGINX developer community, numerous add-on modules have been created to give
NGINX additional functionality. One such open-source community that has branched out from NGINX core is
OpenResty® (https://openresty.org/). OpenResty is an open-source full web platform that is based on NGINX
with added support for Lua, extended modules and other libraries developed by the community. The example
deployments defined in this whitepaper utilizes the OpenResty variant of NGINX customized for use with
ECS.
3.1 NGINX Core
Utilizing NGINX load balancing features allows requests to be distributed to several ECS systems to enhance
performance, scalability and reliability. NGINX core has support for the following:
Load Balancing Modes
o Layer 7 (http) - evaluate the HTTP headers and forward to backend servers based on content
of user request.
o Layer 4 (tcp) - allows all data traffic to be forwarded directly to backend servers streamlining
user requests.
Load Balancing Algorithms – options available include:
o Round-Robin – default algorithm which selects servers in a rotating basis.
o Least Connected– selects servers based on the least number of connections
o IP-Hash – selects servers based on a hash of the source IP such as the user IP address to
ensure request goes to the same server until something changes in the hash (i.e. one
backend server goes down) .
Weighted load balancing – assigning weight values to particular servers such that requests are
distributed based on the weight assigned. For instance, a server with an assigned weight of 3
handles three times the requests than the other servers.
Sticky Sessions – enables persistence in order for applications to connect to same backend server to
process requests.
Health Check – simple checks to validate if a backend is available and if not, then it is automatically
removed from the rotation to process requests until it is restored or becomes healthy.

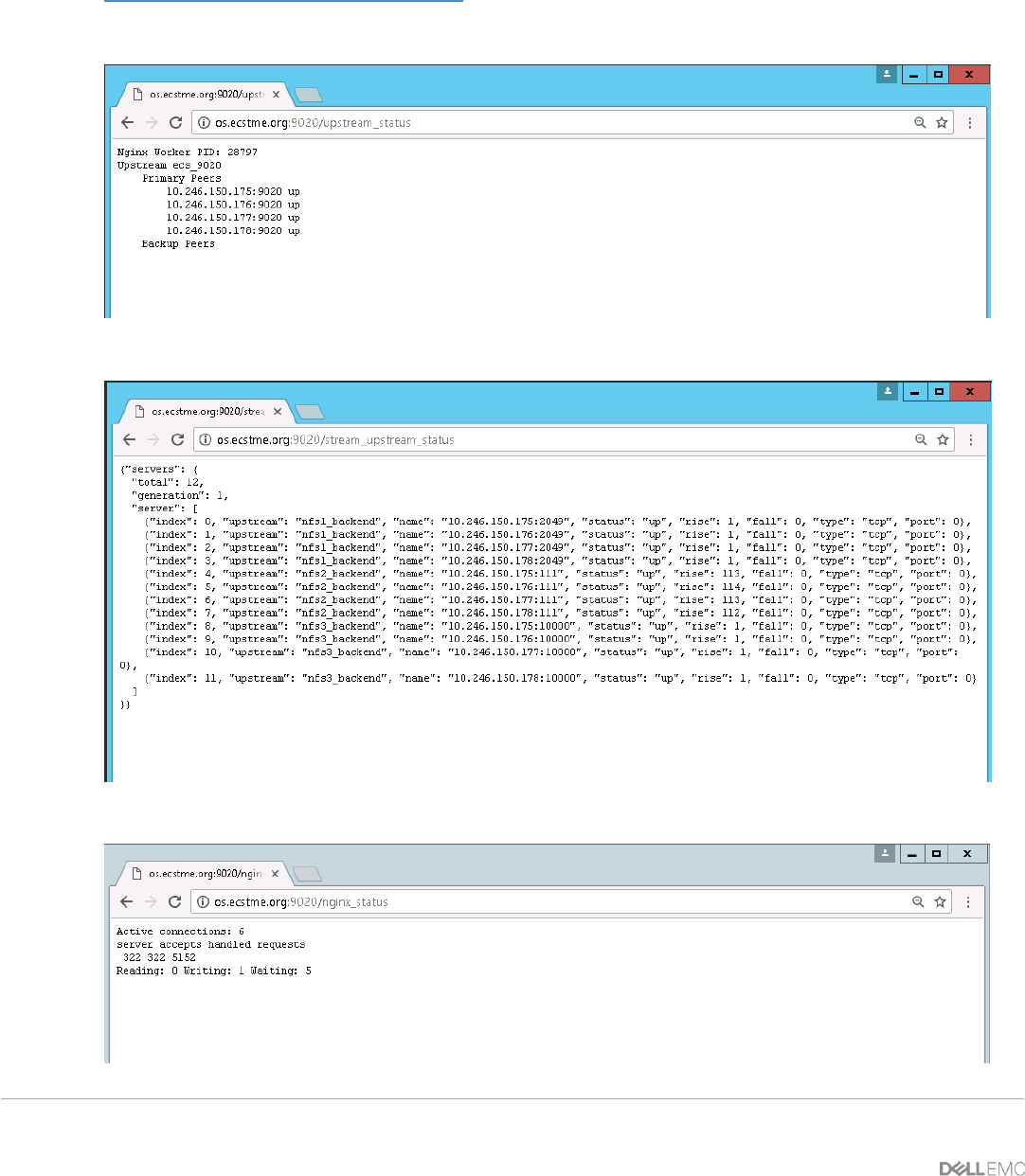

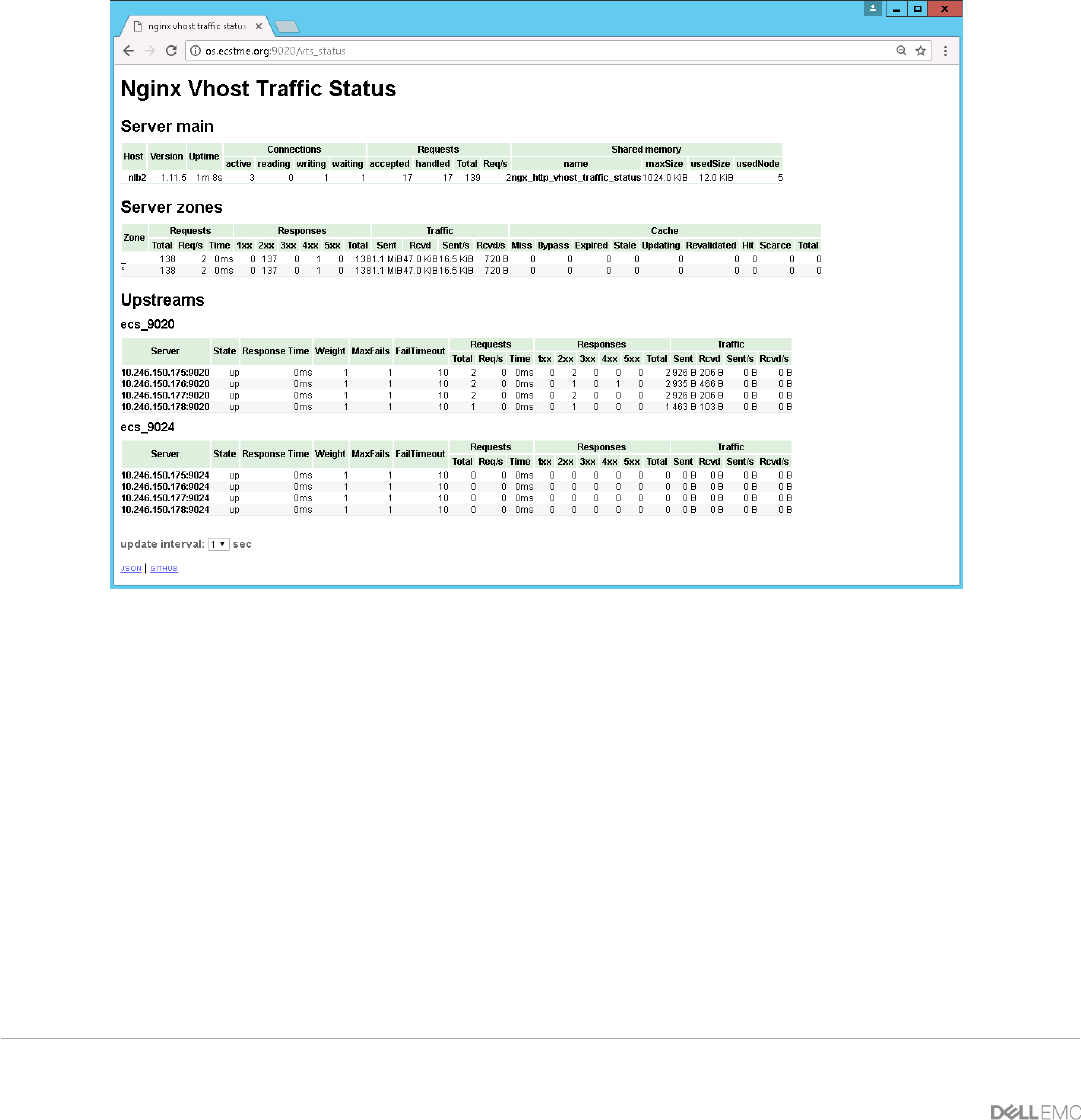

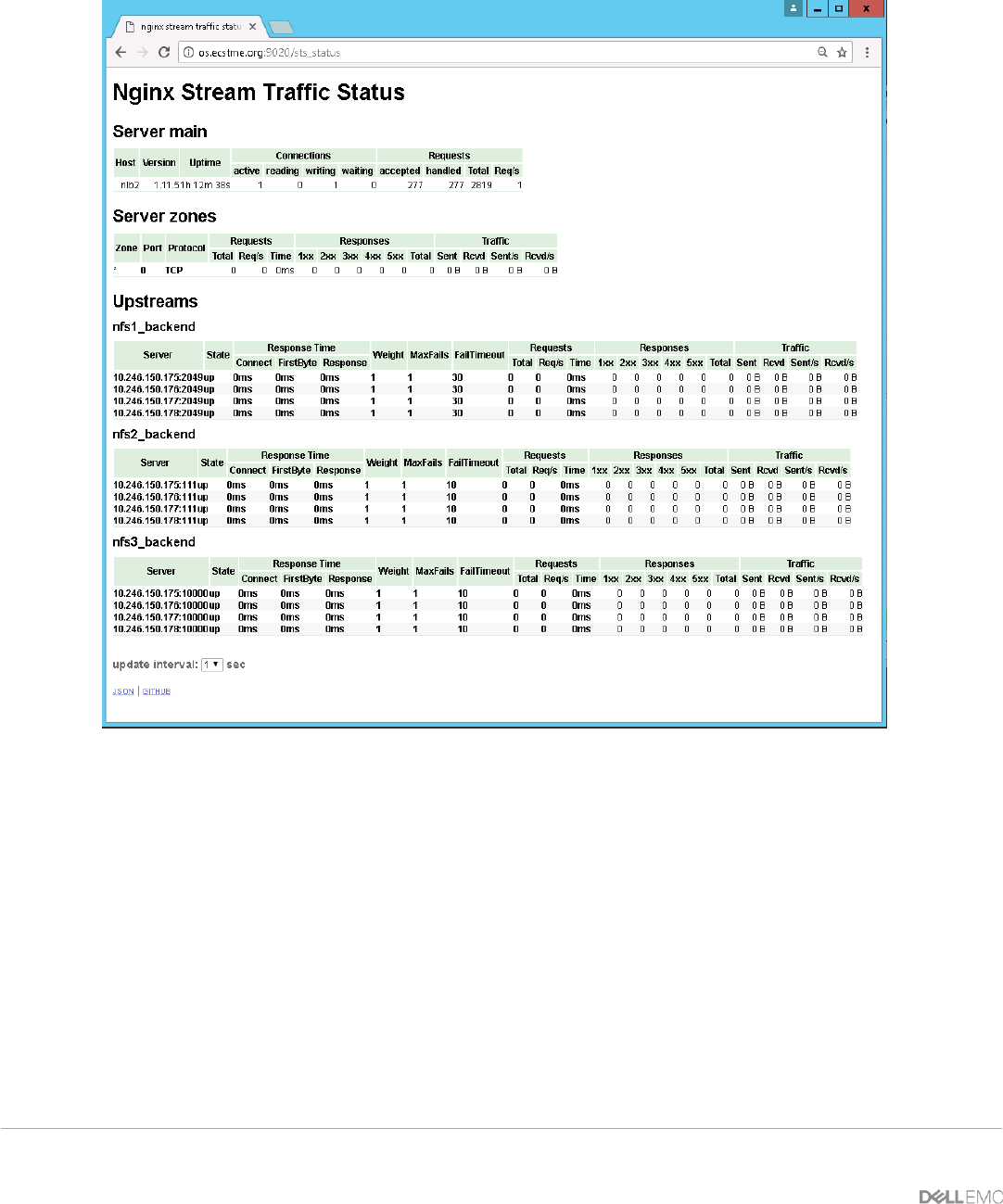

Monitoring –simple statistics relating to NGINX are available for monitoring purposes but are limited.
3.2 OpenResty
OpenResty (https://openresty.org) is an open source web platform which bundles together NGINX core,
LuaJIT (Just-In-Time Lua Compiler), Lua libraries, and other external libraries. It extends the core
functionality of NGINX core via the Lua (lightweight scripting language) modules and other third party NGINX
10 ECS with NGINX (OpenResty) | H16275 |1.0
modules to provide developers a mechanism to customize a web server. Some of these modules are static
such that a re-compile of NGINX is required in order to utilize them.
Included with OpenResty is a LuaJIT compiler and Lua libraries. Lua is a scripting programming language
mostly used for embedded systems and clients. The main designs goal of Lua is to provide a simple and
flexible mechanism to extend features and functionality. It runs on all types of operating systems (Unix and
Windows), platforms from mobile to mainframes, and embedded processors (ie. ARM, Rabbit). There are
samples in this whitepaper which exemplify the use of Lua scripts to optimize reads and writes for ECS in a
global environment, conduct health checks on ECS, and collect metrics.
11 ECS with NGINX (OpenResty) | H16275 |1.0
4 ECS with NGINX Deployments
NGINX can be deployed in a single, highly available or global fashion. In all deployments, NGINX main
configuration file, nginx.conf, contains the directives on where to forward the requests, health checks, and
how to distribute the requests across the servers. The configuration file is organized in a modular way in
which blocks of definitions or directives are encompassed in a set of braces { }. Definitions within these
braces are referred to as “contexts”. The configuration files can be simple in which a simple context or
multiple nested contexts are specified or embedded Lua scripts are used for more complex processing.
The main context contains details on how HTTP requests and TCP requests are handled and forwarded to a
pool of backend servers in addition to any health checking and monitoring. If the http context is defined, the
HTTP headers are analyzed and forwarded based on the content of request. If context is stream, requests
are forwarded directly to pool of backend servers for handling. Within the http or stream context is a server
context that defines the port NGINX is listening to, a load balancing algorithm to distribute requests among
the resources, as well as health checks or other directives on how to process requests. As previously
mentioned, NGINX provides round-robin, least connect and ip-hash balancing algorithms. Either a domain
name system (DNS) names or virtual IPs of NGINX web servers are presented to clients.
The example images of NGINX with ECS deployments in this section highlight object and file protocols
access. Objects are accessed via HTTP/HTTPS and NFS via TCP. For NFS, it is recommended that a load
balancer be used for high availability purposes only and not for balancing load across the ECS nodes. More
detailed information on how to employ NGINX with ECS when using NFS is described in a later section of this
whitepaper.
4.1 Single
In a single NGINX deployment, the http and stream contexts defines an upstream context that specifies the IP
address of the ECS nodes with specified ports of ECS protocol (e.g. 10.246.50.129:9020) and load balancing
algorithm. Figure 2 illustrates an example of a single deployment. This is the simplest of configurations;
however, the single load balancer is also a single point of failure and not recommended in production
environments.

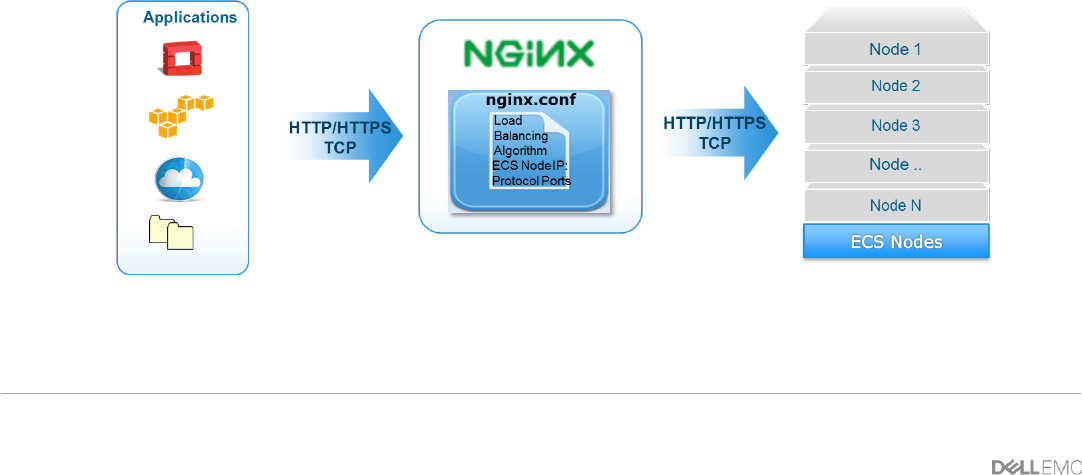

Figure 2 - Example of ECS with a Single NGINX
12 ECS with NGINX (OpenResty) | H16275 |1.0

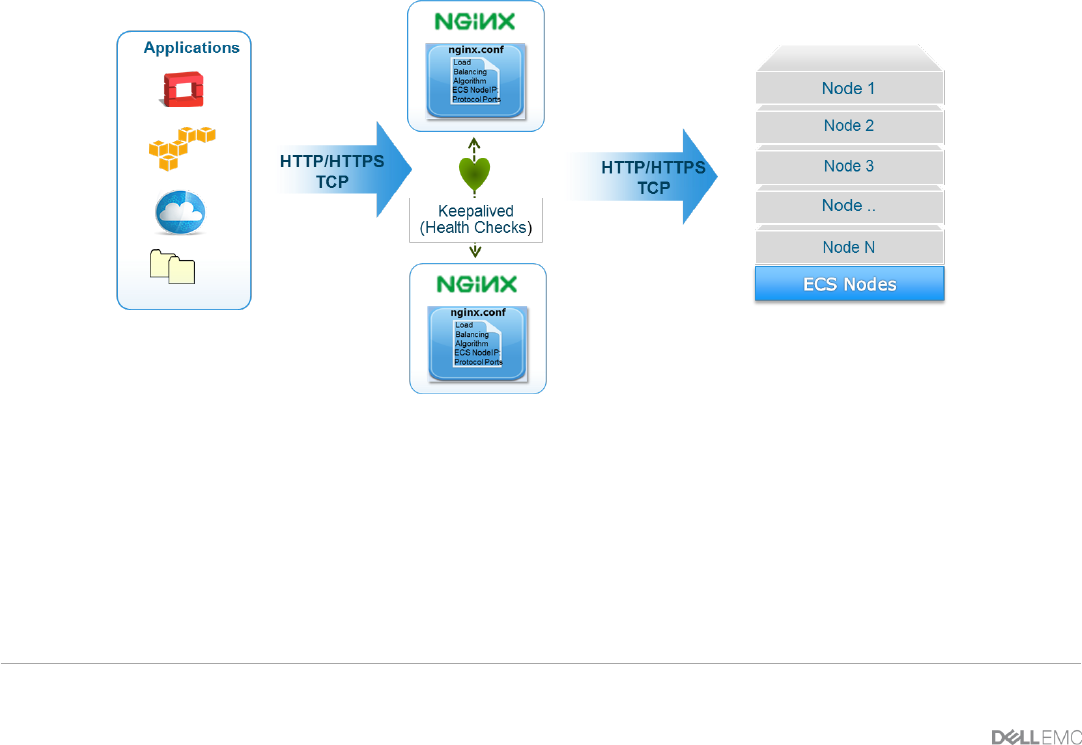

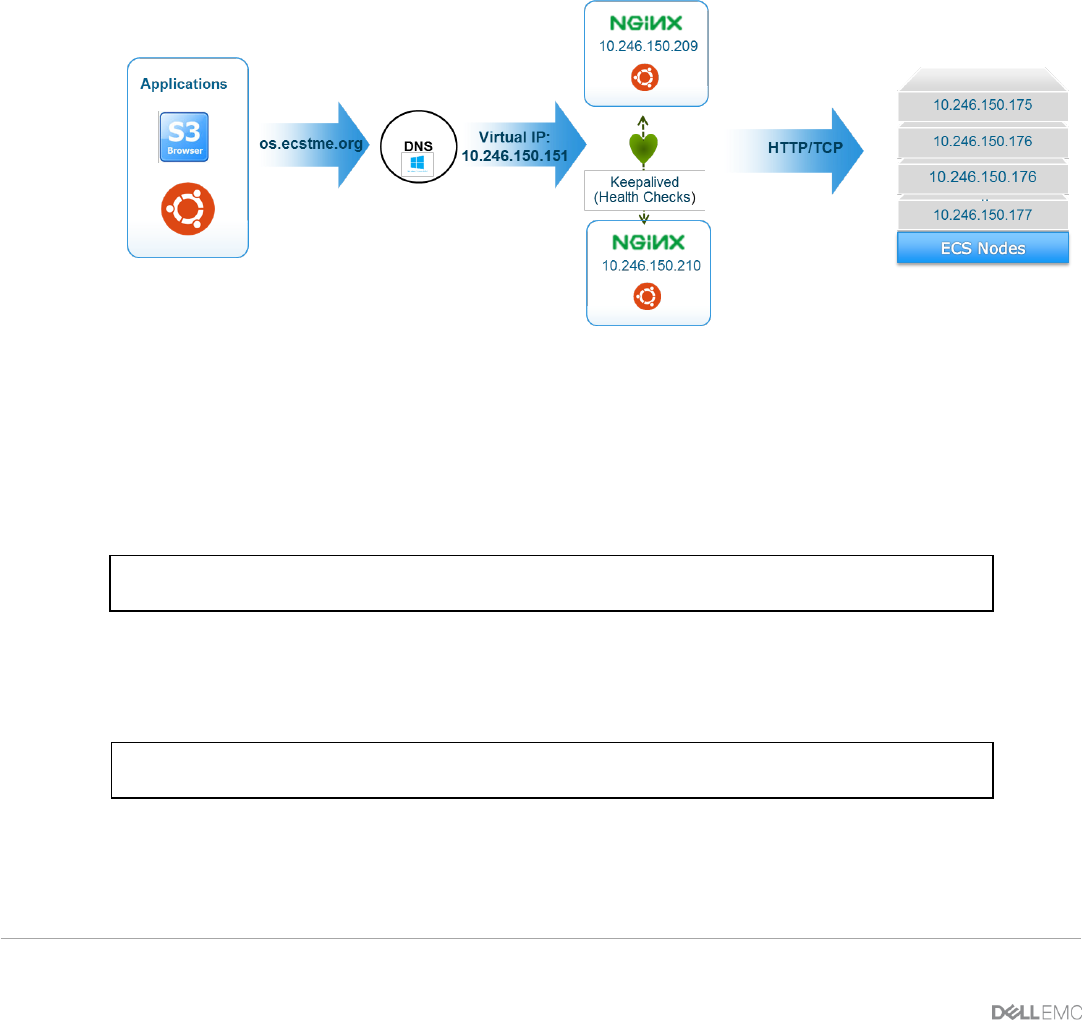

4.2 Highly Available (Redundancy)
In order to not have a single point of failure, it is best practice to setup NGINX in a “highly available”
configuration by setting up two NGINX web servers. This provides redundancy such that in case of failure
another load balancer is available to handle requests. A mechanism such as Linux’s “keepalived” utility can
do health checks between the load balancers to inform NGINX when one of the web servers is not available.
In a highly available setup, there are two ways to configure the redundant NGINX:
Active/Passive – one NGINX act as a primary and the other is only activated when the primary fails
or is unresponsive.
Active/Active – both NGINX are active and either one can process client requests.
There are advantages and disadvantages of each method that should be considered. Since both load
balancers are available for use in the active/active setup, the performance level is higher than in an
active/passive setup. However, in an active/passive, there is a consistent performance level when one fails
whereas in active/active when one fails, performance level can drop by as much as half as perceived by
clients. If certain “levels of service” are expected, then consistency is an important criterion to consider.
Upsizing the servers hosting the NGINX in an active/passive setup can improve performance; however, it may
not be as cost-effective. Understanding the tradeoffs and requirements is important in developing a
deployment best suited for your needs. Figure 3 provides an example of redundant NGINX web server in front
of a pool of ECS Nodes with a virtual IP presented to clients.
Figure 3 - Example of ECS with Redundant NGINX for High Availability
4.3 Global Load Balancing
When there are two or more geographically dispersed ECS sites within a replication group, a mechanism to
load balance across the nodes between sites is recommended. This is especially pertinent in three or more
sites where it becomes key for taking advantage of ECS storage efficiency achieved via ECS XOR feature.
Another advantage is when one site is unavailable; requests are automatically forwarded to the surviving
site(s), providing disaster recovery and high availability. Global load balancing can be achieved by either
13 ECS with NGINX (OpenResty) | H16275 |1.0
using DNS, network routing (i.e. OSPF: Open Shortest Path First, BGP: Border Gateway Protocol, etc), a
global server load balancer (GLSB) or combination of these techniques. Figure 4 provides an example of
client requests being sent to a Domain Name System (DNS) which have an entry for a global load balancing
mechanism or NGINX. The global load balancing techniques used forwards requests to a pool of NGINX web
servers which then forwards requests to a pool of ECS nodes within a replication group.

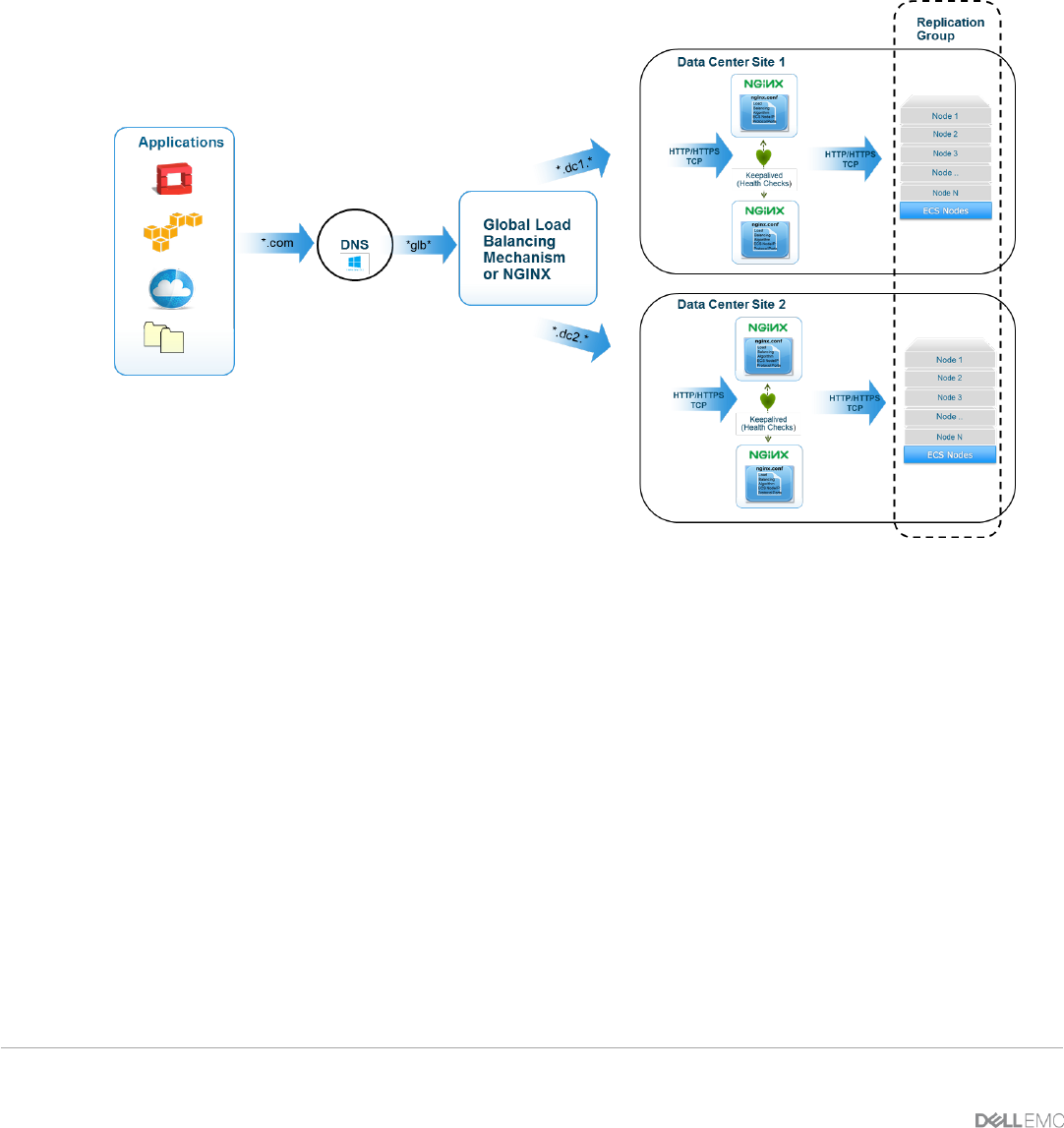

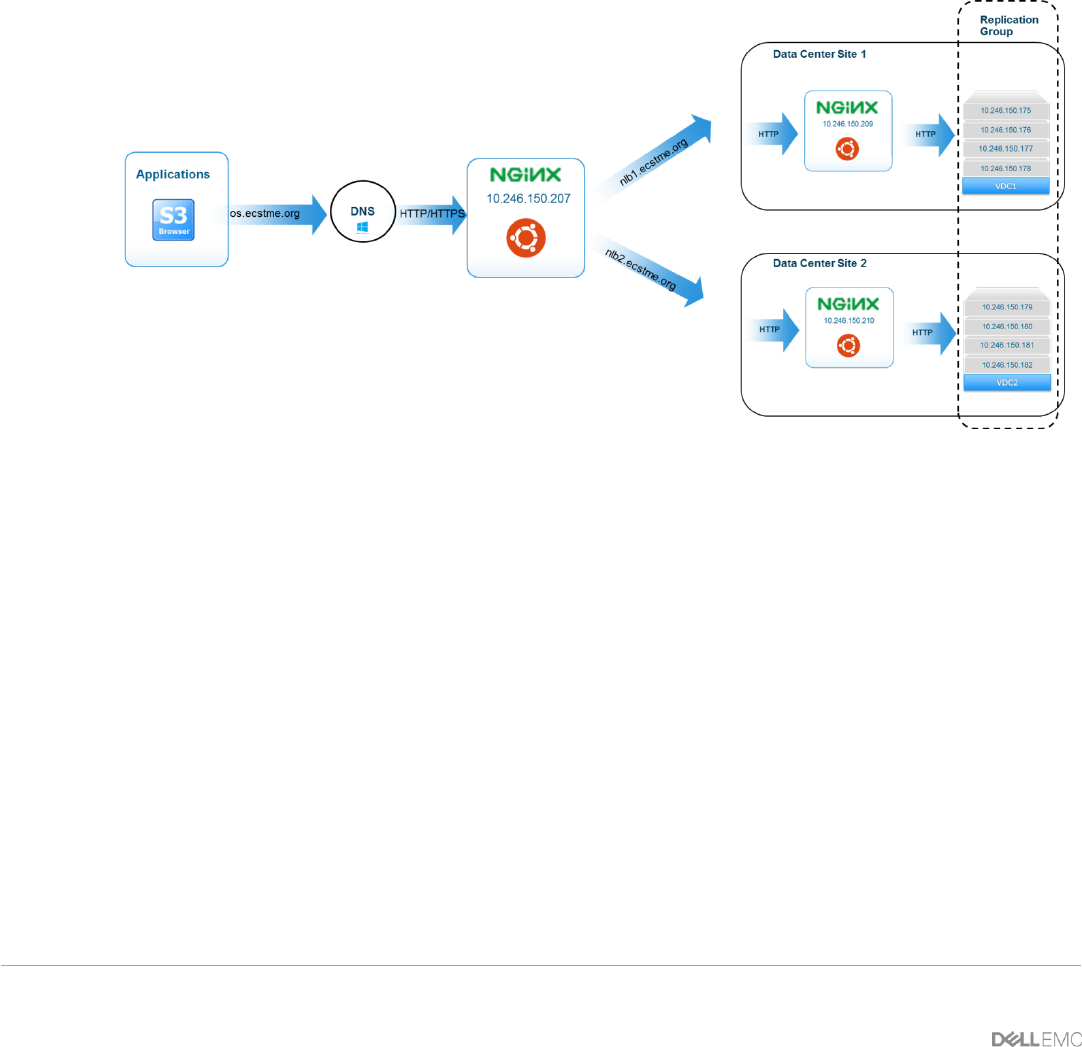

Figure 4 - Example of Global Load Balancing with NGINX in a Geo-Replicated ECS Deployment
When considering a global load balancing mechanism, it is important to understand that a read to ECS
involves checking with the owner of the object to validate if it has the latest copy locally. If data is not local or
in the site cache, it retrieves the data from the site that has the latest version. Thus when architecting a
global load balancing solution, it is advised to send or direct the read requests to the owning site if possible.
This may depend on the workflow and application.
14 ECS with NGINX (OpenResty) | H16275 |1.0
5 Single Deployment Example
An example of how to setup ECS with OpenResty is detailed in the following sections. It provides a base
setup in which the reader can enhance the deployment to implement further. In this example, information on
how to configure OpenResty for load balancing object (S3 and Swift) access and NFS access in a single
deployment are described. For object access, http context is used and for NFS stream context is used.
Virtual machines running Ubuntu 16.04, was used as the server to host OpenResty. DNS installed on a

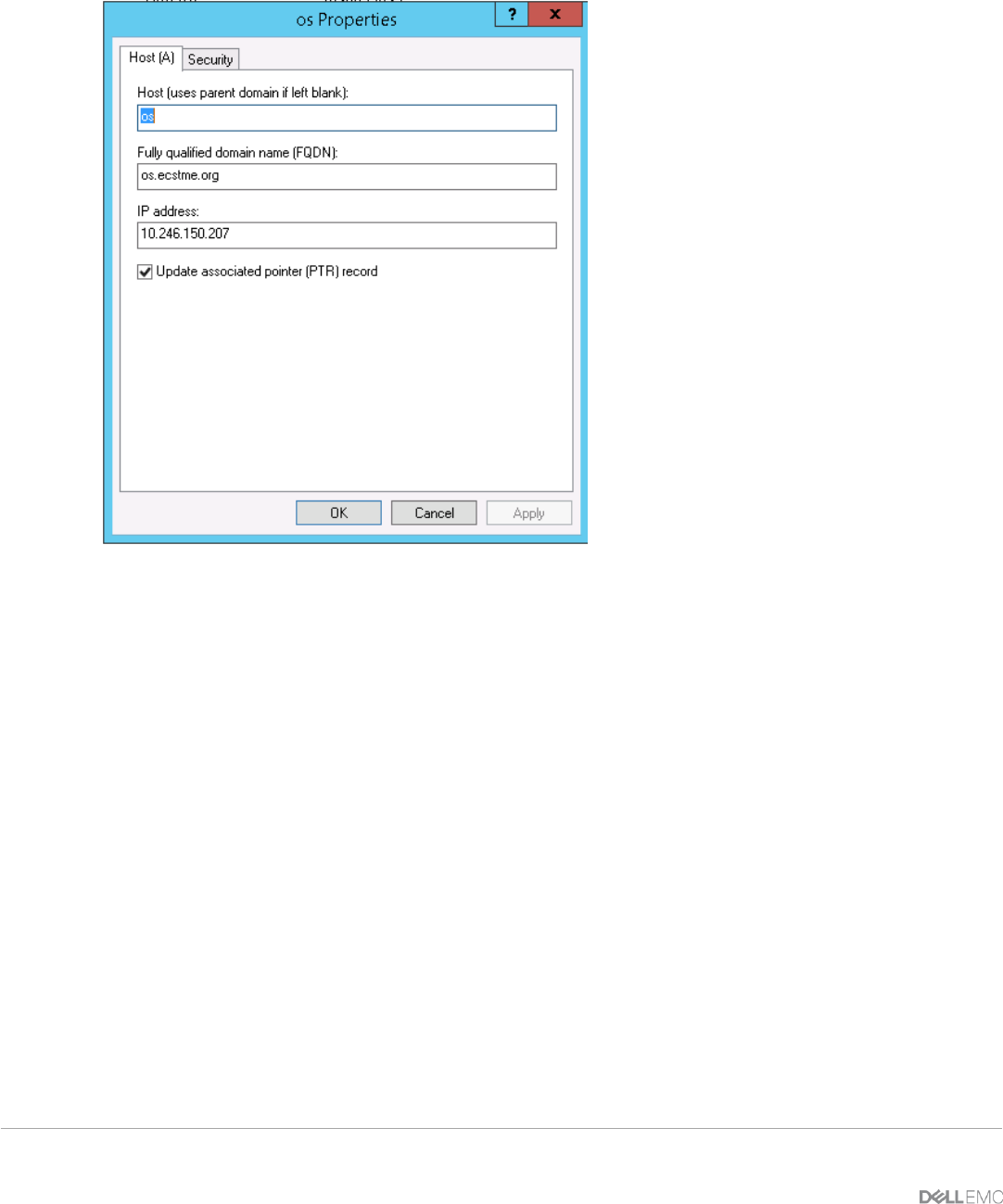

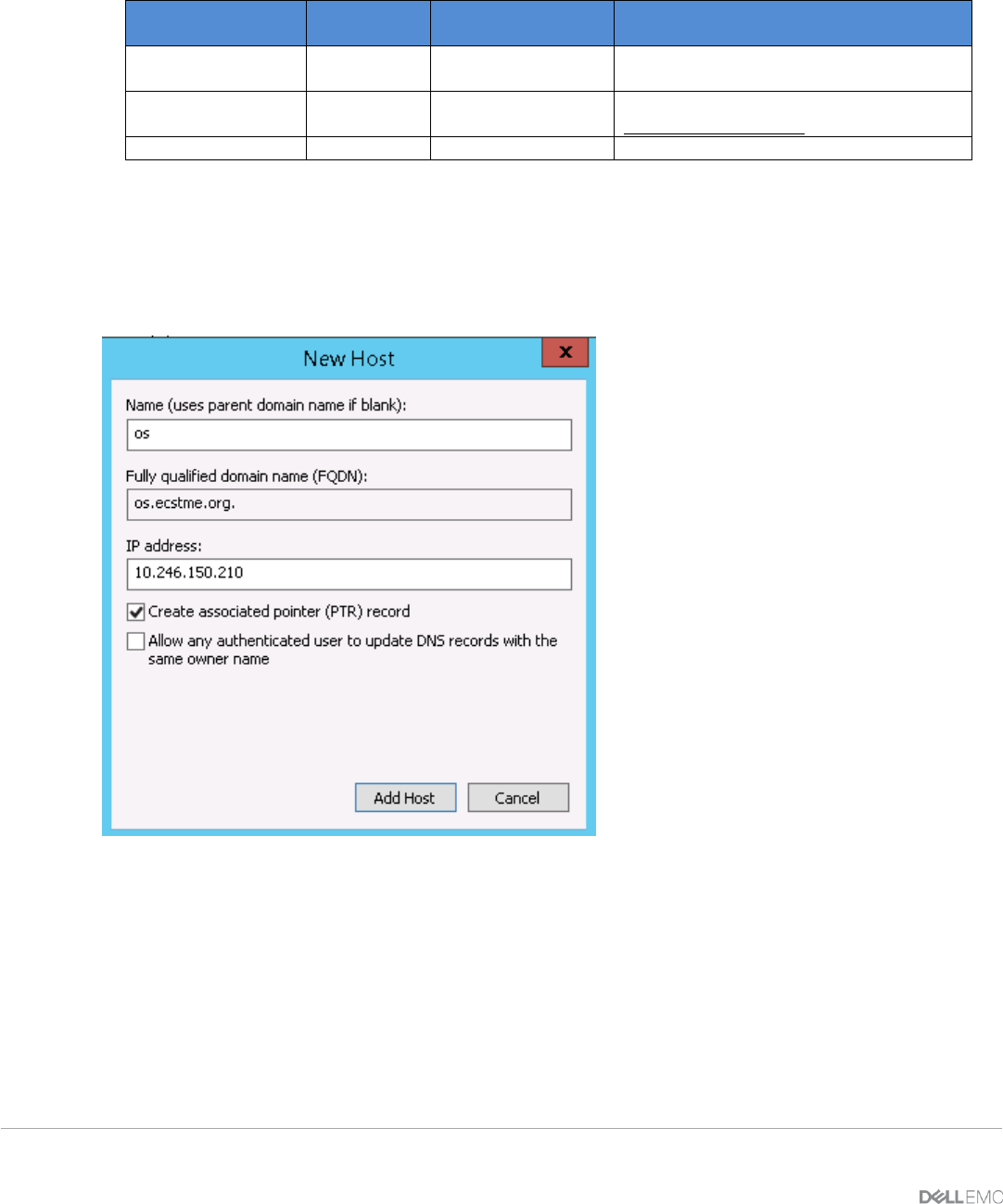

Windows Server 2012 was used to map the OpenResty IP addresses to various names.
To customize OpenResty for ECS deployment, sources for OpenResty are downloaded and compiled with
additional modules. Sample Lua scripts to conduct ECS health checks and provide ECS metrics are
described and utilized in this example. In the global deployment of OpenResty, a sample “geo-pinning” Lua
script has been developed and is described in the Global Load Balancing Example section.
5.1 Installation and Setup
Components configured in this example to employ ECS with OpenResty include a server to host OpenResty
running Ubuntu 16.04 LTS, OpenResty (source, NGINX core, libraries, LuaJIT,and additional modules),
Domain Name System (DNS) and an ECS U300 appliance with ECS 3.0HF1 installed. Ubuntu and Windows
client servers were used to validate OpenResty with ECS deployment for both object and file access. S3
Browser for Windows and Linux curl was used to validate the setup of OpenResty with ECS for object access
and a regular Linux mount command was used to test NFS. Figure 5 illustrates the components in this
example.
Figure 5 - Example of Single NGINX Deployment Setup with ECS
5.1.1 Server
A physical server (bare metal) or a virtual machine can be used for deployment of OpenResty. The server
should be sized (CPU, memory, network cards, etc.) based upon the following criteria:
Workload or amount of traffic expected
If using physical server or virtual machines
Deploying multiple instances of OpenResty in active/passive or active/active mode.
Expected service level agreements
15 ECS with NGINX (OpenResty) | H16275 |1.0
A UNIX or Windows operating system is also installed on the server or virtual machine. Refer to the specific
operating system website to get minimum server requirements. OpenResty can also be encapsulated using
container technology such as Docker for flexibility and automation in deployment.
5.1.2 OpenResty
As mentioned, OpenResty is an open-source web platform that bundles NGINX core, LuaJIT, and other
modules and libraries contributed by the developer community. For this example, certain versions of the
OpenResty components and a build (compilation) from the sources are required in order to utilize third-party
modules for ECS health checks, monitoring and metrics collection. Tables 2 provides the components,
versions and download locations of OpenResty, modules, and Linux libraries and tools used in this sample
deployment.
Table 2 - Versions and Download Locations of OpenResty Components, Third Party Modules, and Libraries
Components
Download Location
OpenResty 1.11.2.2
https://openresty.org/download/openresty-1.11.2.2.tar.gz
NGINX 1.11.5
http://nginx.org/download/nginx-1.11.5.tar.gz
LUARocks 2.3.0
http://luarocks.org/releases/luarocks-2.3.0.tar.gz
OpenSSL 1.0.2j
https://www.openssl.org/source/openssl-1.0.2j.targ.gz
PCRE 8.39
https://ftp.csx.cam.ac.uk/pub/software/programming/pcre/pcre-
8.39.tar.gz
nginx-module-sts
https://github.com/vozlt/nginx-module-sts/archive/master.zip
nginx-module-stream-sts
https://github.com/vozlt/nginx-module-stream-sts/archive/master.zip
nginx-module-vts
https://github.com/vozlt/nginx-module-vts/archive/master.zip
ngx_stream_upstream_check_modul
e
https://github.com/lusis/ngx_stream_upstream_check_module/archive
/master.zip
build-essential
ca-certificates
curl
libgd-dev
libgeoip-dev
libncurses5-dev
libperl-dev
libreadline-dev
libxslt1-dev
make
perl
unzip
zlib1g-dev
wget
apt-utils
Installed from Ubuntu Repositories (apt-get install)
16 ECS with NGINX (OpenResty) | H16275 |1.0
prometheus.lua
healthcheck.lua
config.lua
strutils.lua
s3/urllib.lua
Developed by Dell EMC DevOps team and attached to this
whitepaper (nginx-sample.zip)
The basic steps to install OpenResty include:
1. Install Ubuntu libraries and tools.
2. Download and unzip 3rd party modules
3. Download and unzip OpenResty and sources
4. Build OpenResty with the add-on third party modules.
5. Install OpenResty
Several libraries and tools are required to setup and build OpenResty. Figure 6 provides a sample command
to install these libraries and tools.
OpenResty has limited built in modules related to health checks, monitoring, and metric collection (read
latency, write latency, etc). Several modules from the Github repositories are available to provide this
additional functionality and include:
nginx-module-sts-master and nginx-module-stream-sts-master – provides stream server traffic
status information such as requests per second, responses, and total traffic received and sent. If
stream context is not defined, no information will be shown.
nginx-module-vts-master – provides HTTP server traffic status information.
ngx_stream_upstream_check_module – provides support for health checks in NGINX streams.
# apt-get install -y --no-install-recommends \
build-essential \
ca-certificates \
curl \
libgd-dev \
libgeoip-dev \
libncurses5-dev \
libperl-dev \
libreadline-dev \
libxslt1-dev \
make \
perl \
unzip \
zlib1g-dev \
iproute \
iptables \
wget \
apt-utils
Figure 6 - Install Ubuntu Libraries and Tools
17 ECS with NGINX (OpenResty) | H16275 |1.0
Figure 7 shows sample commands to download and unzip these modules. The normal directory location to
place these modules is in “/usr/local/src”.
To verify if you have downloaded correctly, Figure 8 has the sizes of the files after download. Depending on
versions or release downloaded, these sizes may differ.
Additional definitions are needed for the ngx_stream_upstream_check_module-master module so a patch is
executed to modify the modules with these new definitions. This patch is attached to this whitepaper. Figure
9 shows an example of how this patch is applied and output when applied.
# cd /usr/local/src
# wget -O nginx-module-sts-master.zip https://github.com/vozlt/nginx-module-
sts/archive/master.zip
# unzip nginx-module-sts-master.zip
# wget -O nginx-module-stream-sts-master.zip https://github.com/vozlt/nginx-module-stream-
sts/archive/master.zip
# unzip nginx-module-stream-sts-master.zip
# wget -O nginx-module-vts-master.zip https://github.com/vozlt/nginx-module-
vts/archive/master.zip
# unzip nginx-module-vts-master.zip
# wget -O ngx_stream_upstream_check_module.zip
https://github.com/lusis/ngx_stream_upstream_check_module/archive/master.zip
# unzip ngx_stream_upstream_check_module.zip
Figure 7- Step 2 Download and Unzip 3rd Party Add-on Modules
# ls -l *.zip
-rw-r--r-- 1 root root 30266 Jun 1 10:49 nginx-module-stream-sts-master.zip
-rw-r--r-- 1 root root 357012 Jun 1 10:51 nginx-module-sts-master.zip
-rw-r--r-- 1 root root 396273 Jun 1 10:29 nginx-module-vts-master.zip
-rw-r--r-- 1 root root 154616 Jun 1 10:29 ngx_stream_upstream_check_module.zip
Figure 8 - Sizes of Third Party Modules Downloaded.
18 ECS with NGINX (OpenResty) | H16275 |1.0
The OpenResty bundled sources in the main website does not include certain versions of NGINX, Lua, PCRE
(Perl Compatible Regular Expression), and OpenSSL components that are needed for some of the Lua
scripts and third party add-on modules. Figure 10 illustrates how to replace the bundled version of
OpenResty with the necessary versions needed for this sample deployment.
Check for failures or errors during download and when unpacking the tarballs of the OpenResty components.
To verify if you have downloaded correctly, Figure 11 has the sizes of the files after download. Depending on
versions or release downloaded, these sizes may differ.
# cd /tmp
# curl -kfSL https://www.openssl.org/source/openssl-1.0.2j.tar.gz -o openssl-1.0.2j.tar.gz
# tar xzf openssl-1.0.2j.tar.gz
# curl -kfSL https://ftp.csx.cam.ac.uk/pub/software/programming/pcre/pcre-8.39.tar.gz -o
pcre-8.39.tar.gz
# tar xzf pcre-8.39.tar.gz
# curl -kfSL https://openresty.org/download/openresty-1.11.2.2.tar.gz -o openresty-
1.11.2.2.tar.gz
# tar xzf openresty-1.11.2.2.tar.gz
# curl -kfSL http://nginx.org/download/nginx-1.11.5.tar.gz -o nginx-1.11.5.tar.gz
# tar xzf nginx-1.11.5.tar.gz
Figure 10 - Step 3 Download and unzip of OpenResty and Components
# cd ngx_stream_upstream_check_module-master
# patch -p1 < /tmp/stream_upstream_module.patch
patching file ngx_stream_upstream_check_module.c
patching file ngx_stream_upstream_check_module.h
# ls -l /tmp/*.tar.gz
-rw-r--r-- 1 root root 956517 Jun 1 10:34 nginx-1.11.5.tar.gz
-rw-r--r-- 1 root root 4244348 Jun 1 10:34 openresty-1.11.2.2.tar.gz
-rw-r--r-- 1 root root 5307912 Jun 1 10:34 openssl-1.0.2j.tar.gz
-rw-r--r-- 1 root root 2062258 Jun 1 10:34 pcre-8.39.tar.gz
Figure 9 - Patching of ngx_stream_upstream_check_module-master
Figure 11 - Sizes of Downloaded OpenResty Components.
19 ECS with NGINX (OpenResty) | H16275 |1.0
For the proper functioning of the ngx_stream_upstream_check_module, a patch needs to be applied to
NGINX. Also,the nginx-1.11.5 version needs to be copied over to the OpenResty bundled directory. Since
version 1.11.5 is utilized, NGINX 1.11.2 is removed from the bundle. Figure 12 provides the commands to do
this.
Afterwards, the bundle should now include the nginx-1.11.5 as highlighted in Figure 13.
# cd nginx-1.11.5/
# patch -p0 < /tmp/patch-1.11.x.patch
patching file src/stream/ngx_stream_upstream_hash_module.c
Hunk #3 succeeded at 558 (offset 3 lines).
patching file src/stream/ngx_stream_upstream_least_conn_module.c
Hunk #2 succeeded at 146 (offset -1 lines).
patching file src/stream/ngx_stream_upstream_round_robin.c
Hunk #2 succeeded at 102 with fuzz 1 (offset 1 line).
Hunk #3 succeeded at 462 with fuzz 1 (offset 11 lines).
Hunk #4 succeeded at 562 (offset 4 lines).
patching file src/stream/ngx_stream_upstream_round_robin.h
# cd /tmp
# mv nginx-1.11.5 /tmp/openresty-1.11.2.2/bundle/
# rm -rf /tmp/openresty-1.11.2.2/bundle/nginx-1.11.2
Figure 12 - Patch of NGINX 1.11.5 with Output and Added to OpenRestyBundle
Figure 13 - OpenResty Bundle with NGINX 1.11.5
# ls /tmp/openresty-1.11.2.2/bundle
array-var-nginx-module-0.05 lua-resty-limit-traffic-0.01 ngx_lua-0.10.7
drizzle-nginx-module-0.1.9 lua-resty-lock-0.04 ngx_lua_upstream-0.06
echo-nginx-module-0.60 lua-resty-lrucache-0.04 ngx_postgres-1.0rc7
encrypted-session-nginx-module-0.06 lua-resty-memcached-0.14 opm-0.0.2
form-input-nginx-module-0.12 lua-resty-mysql-0.17 pod
headers-more-nginx-module-0.32 lua-resty-redis-0.26 rds-csv-nginx-module-0.07
iconv-nginx-module-0.14 lua-resty-string-0.09 rds-json-nginx-module-0.14
install lua-resty-upload-0.10 redis2-nginx-module-0.13
lua-5.1.5 lua-resty-upstream-healthcheck-0.04 redis-nginx-module-0.3.7
lua-cjson-2.1.0.4 lua-resty-websocket-0.06 resty-cli-0.16
LuaJIT-2.1-20161104 memc-nginx-module-0.17 resty.index
lua-rds-parser-0.06 nginx-1.11.5 set-misc-nginx-module-0.31
lua-redis-parser-0.12 nginx-no_pool.patch srcache-nginx-module-0.31
lua-resty-core-0.1.9 ngx_coolkit-0.2rc3 xss-nginx-module-0.05
lua-resty-dns-0.18 ngx_devel_kit-0.3.0
root@nlb2:/tmp#
20 ECS with NGINX (OpenResty) | H16275 |1.0
With all the sources, add-on modules, patches, and libraries downloaded and setup, the last step is to build
and install the OpenResty binaries in their appropriate directories. Before a “make” is initiated to build
OpenResty, a “configure” is performed to set the flags and include all modules that are part of the
OpenResty binary. Figure 14 illustrates the configure command with the options, the build and install
commands. If an “Error” is encountered during configure, check that all libraries and other dependencies in
the previous steps have been installed in the correct directories. An appropriate error message is printed out
to indicate reason of error. A successful “configure” outputs the following when completed:
Type the following commands to build and install:
make
make install
The “make” and “make install” commands should also not produce an Error message and an error message
is in the output to provide some clue on the error. Pre-built packages are available and can be downloaded;
however, the third party modules used in this example are not included.
5.1.3 Domain Name System (DNS)
In this example a DNS is setup on a Windows 2012 server and accessible from the server hosting
OpenResty. Table 3 shows the DNS entries created. Adding DNS entries allows mapping of “names” to IP
addresses. In this example, DNS is used as a mechanism for translating the object protocol (S3 or Swift) the
client is using and allows OpenResty to direct request to the appropriate pool of ECS nodes based on
protocol name. The names associated with each object protocol are mapped to one IP address associated
with OpenResty and translate it to a pool of ECS nodes. An “A-record “ is created in DNS which maps a
name to the IP address of OpenResty server and CNAME provides an alias for each protocol.
# cd /tmp/openresty-1.11.2.2/
# ./configure -j1 --with-openssl=/tmp/openssl-1.0.2j --with-pcre=/tmp/pcre-8.39 --with-file-aio
--with-http_addition_module --with-http_auth_request_module --with-http_dav_module --with-
http_flv_module --with-http_geoip_module=dynamic --with-http_gunzip_module --with-
http_gzip_static_module --with-http_image_filter_module=dynamic --with-http_mp4_module --with-
http_random_index_module --with-http_realip_module --with-http_secure_link_module --with-
http_slice_module --with-http_ssl_module --with-http_stub_status_module --with-http_sub_module
--with-http_v2_module --with-http_xslt_module=dynamic --with-ipv6 --with-mail --with-
mail_ssl_module --with-md5-asm --with-pcre-jit --with-sha1-asm --with-stream --with-
stream_ssl_module --with-threads --add-module=/usr/local/src/nginx-module-sts-master --add-
module=/usr/local/src/nginx-module-stream-sts-master --add-module=/usr/local/src/nginx-module-
vts-master --add-module=/usr/local/src/ngx_stream_upstream_check_module-master
# make -j1
# make –j1 install
Figure 14 - Build and Install of OpenResty
21 ECS with NGINX (OpenResty) | H16275 |1.0
Table 3 - DNS Entries Example
DNS Record
Record Type
Record Data
Comments
os.ecstme.org
A
10.246.150.210
NGINX external IP Address and also used for
S3 protocol access (os=object store)
*.os.ecstme.org
CNAME
os.ecstme.org
Used for S3 virtually hosted buckets, i.e.
mybucket.os.ecstme.org
swift.ecstme.org
CNAME
os.ecstme.org
Endpoint for clients using the Swift protocol
From the Windows Server, start up the DNS Manager and add DNS entries of “New Host” for A-Record and
“New Alias” in your domain zone as described in above table. Sample screenshots of this are pictured in
Figures 15 and 16.
Figure 15 - DNS A-Record for "os".
22 ECS with NGINX (OpenResty) | H16275 |1.0
Figure 16 - DNS Alias Record for "*.os".
5.2 OpenResty Configuration
Configuration file(s) are used to define how OpenResty load balances requests to a pool of servers. The
NGINX configuration file, nginx.conf, is located in “/usr/local/openresty/nginx/conf” directory. The ngnix.conf
file is structured in blocks of directives surrounded by braces {}. The examples in this whitepaper
predominately define the following contexts or blocks:
global or main – any directives that are defined outside of the braces {} and affects all contexts
within file.
events – connection handler
http – defines how HTTP or HTTPS requests are processed
stream – defines how TCP or UDP requests are processed. Similar to http context, it contains global
variables and nested server and upstream contexts.
This section describes each context and the embedded Lua scripts in step-wise fashion and can be
culminated together to create an nginx.conf file. For reference, the nginx.conf file used in this example is also
attached to this whitepaper. Refer to Appendix (A) section.
5.2.1 Global and Event Context
The global context is the directives that applies to the entire web platform and applies to all contexts. It is
defined outside of the braces {}. One of the primary directives in the global context is worker_processes.
NGINX has a “master process” responsible for maintaining worker processes. The worker_processes
23 ECS with NGINX (OpenResty) | H16275 |1.0
directive in the configuration file defines how many worker processes the master spawns to handle requests.
This number is usually based on the number of CPU cores on the host running NGINX. In this simple
example, work_processes is set to 1. This value can be tuned and optimized based on your server and
workload requirements.
The event context block specifies the directives related to the connection processing. It can include the
following:
worker_connections - number of clients that can be served per worker process
epoll – an event notification mechanism to streamline I/O and improve scalability of NGINX for
processing requests.
multi-accept – if “on”, it accepts as many connections as possible
These values can also be tuned based on workload requirements. Figure 17 exemplifies these directives.
5.2.2 HTTP Context
The http context includes all the directives and nested blocks or contexts (i.e. server, location, etc) that define
how OpenResty processes HTTP client requests. Inside this context are the following:
general – definitions utilized within http context such as error and access logs, proxy buffers, proxy
buffering, error and access log files, paths, log format, etc.
server – handler for a specific type of HTTP client requests and contains listening ports, ssl
certificates, etc.
upstream – defines a named pool of backend servers that requests are sent to and the load
balancing algorithm
*lua* – embedded Lua scripts to handle healthchecks and metric collection.
5.2.2.1 General Directives
The definitions or directives defined within the http context that are not surrounded by braces, {}, apply to all
the nested contexts or blocks within the http context. As a best practice, if there are directives that are
applicable to one or more nested context it should be defined in the higher context or outside of the nested
context. In this example shown in Figure 18, directives declared outside of nested context are related to
worker_processes 1;
events {
worker_connections 2048;
use epoll;
multi_accept on;
}
Figure 17 - Global and Event Context Directives
24 ECS with NGINX (OpenResty) | H16275 |1.0
logging, performance optimizations, and connection time out values. Lua and third party modules directives
can also be specified at this level if it is needed prior to defining a context or block.
The first set of directives defined in this example is the log format for the access log and error log. The logs
are generally located relative to install directory of OpenResty (i.e. /usr/local/openresty/nginx/logs) or as
specified in the access_log and error_log directives.
OpenResty by default reads and writes to internal buffers. These buffers contain data received and sent to
and from clients and data received and sent to and from proxy servers. If these buffers are set too low, then
temporary files are used to store the data. The purpose of the buffering directives is to optimize performance.
The values of the buffering directives can be tuned based on the workload. There are several optimizations
that are utilized in this example. The buffers relating to client requests include the following:
client_max_body_size – maximum size of the body of client request. Set to 0 to disable checking of
body size.
client_body_buffer_size –the client buffer size (ie. a POST action)
client_header_buffer_size – maximum header size for a client request.
Another set of the optimizations relates to internal buffering of requests and responses from proxied servers.
In this example, proxy_request_buffering is disabled so that the request body is immediately sent to the
proxied servers. As for responses, they are buffered and the proxy_buffers specify the number of allocated
buffers and size for a request. Also, the proxy_buffer_size is defined to indicate the buffer size to store the
first part of the response from a proxied server. This is a separate buffer and can be smaller than the buffers
for the rest of the response.
Further optimizations can be implemented by using the tcp_nodelay, tcp_nopush and sendfile directives.
These directives work together to optimize how data is sent at the system (kernel) and TCP layer. The
directive tcp_nodelay sends data in the socket buffer immediately without delay. If not enabled, there can be
up to 0.2 seconds before data is sent. Historically the TCP stack set this delay to avoid network congestion
and to handle very small amount of data that did not fill up the packet. However, today, the packet is usually
full and enabling tcp_nodelay turns off this behavior. As for tcp_nopush, this ensures that packets are full or
at a certain optimal level before they are sent. The sendfile directive reduces the internal overhead when
transferring static files. It utilizes file descriptors and mmap to directly send data without extra context
switching and copying of data. As for the keepalive_timeout value, it specifies how long a client connection is
open on the server side.
25 ECS with NGINX (OpenResty) | H16275 |1.0
5.2.2.2 Upstream Context
The upstream context declares the pool of backend servers or ECS nodes that OpenResty sends HTTP
requests for handling. Based upon the load balancing algorithm specified would determine how the requests
are balanced across the servers. Supported load balancing algorithm include round –robin (default), least
connected and ip-hash. The upstream context is defined outside of the server context. The name of the
upstream context is referenced within the server or location blocks. In Figure 19, the name of the upstream
context is ecs_9020 and ecs_9024 and the IP addresses of each ECS node and protocol port are preceded
by a server directive. For S3 object requests, port 9020 is specified and for Swift, port 9024 is specified. The
other ECS protocols communicating over HTTP would be in their own named upstream block and have
similar definitions but different port numbers. If there are a lot of upstream servers, it is recommended to
create a separate file for the upstream directives for readability and better manageability. Then, within the http
context, add an “include” directive with name of file inside of nginx.conf. If no load balancing algorithm is
defined in the context, the default load balancing algorithm, round robin is used. The keepalive directive
indicates the number of idle keepalive connections to upstream server that remain open.
http {
log_format main '$remote_addr - $remote_user [$time_local] "$request" '
'$status $bytes_sent $body_bytes_sent "$http_referer" '
'"$http_user_agent" ua=$upstream_addr us=$upstream_status '
'rt=$request_time rl=$request_length
uct=$upstream_connect_time '
'uht=$upstream_header_time urt=$upstream_response_time';
access_log logs/access.log main buffer=32k flush=5s;
error_log logs/error.log warn;
client_max_body_size 0;
client_body_buffer_size 8M;
client_header_buffer_size 32K;
proxy_http_version 1.1;
proxy_request_buffering off;
proxy_buffering off;
proxy_buffer_size 2M;
proxy_buffers 100 2M;
sendfile on;
tcp_nopush on;
tcp_nodelay on;
keepalive_timeout 60;
...
...
...
}
Figure 18 - HTTP context General Directives
26 ECS with NGINX (OpenResty) | H16275 |1.0
5.2.2.3 Health Check Lua Script
The value of OpenResty is the inclusion of LuaJIT and other lua modules that allow developing of scripts to
customize the web platform. Dell EMC DevOps team has developed several sample Lua scripts. One of the
Lua scripts is the health checks of ECS nodes defined in the “init_worker_by_lua_block” context. In Figure
20, there are several http context directives defined prior to the Lua blocks which include:
lua_code_cache – indicates whether Lua code is cached or not.
lua_shared_dict – declares a named shared memory zone, healthcheck , of certain size, 1M, and is
shared by all NGINX worker processes.
lua_socket_log_errors – enables or disables error logging when a failure occurs for the TCP or UDP
cosockets.
These directives are used by several of the Lua scripts and thus declared outside of the Lua block(s).
The “init_worker_by_lua_block” implements the health checks for the ECS nodes and uses the built-in lua-resty-upstream-
check module. It runs on every NGINX worker process startup if master process is enabled or when the NGINX
lua_package_path "${prefix}/lua/?.lua;;";
lua_code_cache on;
lua_shared_dict healthcheck 1m;
lua_socket_log_errors off;
Figure 20 - General Directives for Lua Blocks
upstream ecs_9020 {
server 10.246.150.175:9020;
server 10.246.150.176:9020;
server 10.246.150.177:9020;
server 10.246.150.178:9020;
keepalive 32;
}
upstream ecs_9024 {
server 10.246.150.175:9024;
server 10.246.150.176:9024;
server 10.246.150.177:9024;
server 10.246.150.178:9024;
keepalive 32;
}
Figure 19 - Upstream Context within HTTP context
27 ECS with NGINX (OpenResty) | H16275 |1.0
configuration file is loaded if master process is disabled. It sends an HTTP “ping” request to validate the ECS nodes and
services are up and available to handle requests. The upstream context named ecs_9020 and ecs_9024 indicates the
pool of ECS nodes. As shown in the comments in Figure 21, this runs a check every 5 seconds and considers a node
down if the ping fails once. Errors in spawning this Lua script are logged in error.log file in the install directory of
OpenResty (i.e. /usr/local/openresty/nginx/logs).
init_worker_by_lua_block {
local hc = require "resty.upstream.healthcheck"
local ok, err = hc.spawn_checker {
shm = "healthcheck", -- defined by "lua_shared_dict"
upstream = "ecs_9020", -- defined by "upstream"
type = "http",
http_req = "GET /?ping HTTP/1.0\r\nHost: ecs_9020\r\n\r\n",
-- raw HTTP request for checking
interval = 5000, -- run the check cycle every 5 secs
timeout = 30000, -- 30 secs is the timeout for network operations
fall = 1, -- # of successive failures before turning a peer down
rise = 2, -- # of successive successes before turning a peer up
valid_statuses = {200, 302}, -- a list valid HTTP status code
concurrency = 2, -- concurrency level for test requests
}
if not ok then
ngx.log(ngx.ERR, "failed to spawn http health checker: ", err)
return
end
local ok, err = hc.spawn_checker {
shm = "healthcheck", -- defined by "lua_shared_dict"
upstream = "ecs_9024", -- defined by "upstream"
type = "http",
http_req = "GET /auth/v1.0 HTTP/1.0\r\nHost: ecs_9024\r\n\r\n",
-- raw HTTP request for checking
interval = 5000, -- run the check cycle every 5 secs
timeout = 60000, -- 30 secs is the timeout for network operations
fall = 3, -- # of successive failures before turning a peer down
rise = 1, -- # of successive successes before turning a peer up
valid_statuses = {401}, -- a list valid HTTP status code
concurrency = 2, -- concurrency level for test requests
}
if not ok then
ngx.log(ngx.ERR, "failed to spawn http health checker: ", err)
return
end
}
Figure 21 - ECS Health Check Lua Script within HTTP Context
28 ECS with NGINX (OpenResty) | H16275 |1.0
5.2.2.4 Server Context
The server context is defined within the HTTP context and includes the following directives:
listen – IP address and/or port combination that this context is listening to.
location – defines how certain requests that match a specified criteria (ie. header) are processed.
Multiple location contexts can be specified.
Figure 22, indicates that this server is listening on port 9020 and passes HTTP requests to the proxied
servers (ECS nodes) of upstream context name, name ecs_9020 for handling of S3 requests. Similarly, a
server context is defined for Swift on port 9024and passes to upstream context named ecs_9024. There can
be multiple server contexts defined with different listening ports and set of proxied servers. This allows for
handling of different types of client requests. The proxy_set_header adjusts the headers for Swift
connections. For some applications, for instance Cyberduck, the proxy_pass URL is being specified in the
response header and by setting the proxy_set_header, it is corrected.
After the nginx.conf has been modified, check the validity of the configuration file. If configuration file is valid,
then start OpenResty service to put in effect the directives in nginx.conf. Figure 23 exhibits how to check and
start OpenResty.
# /usr/local/openresty/bin/openresty -t –c /usr/local/openresty/nginx/conf/nginx.conf
nginx: the configuration file /usr/local/openresty/nginx/conf/nginx.conf syntax is ok
nginx: configuration file /usr/local/openresty/nginx/conf/nginx.conf test is successful
# /usr/local/openresty/bin/openresty
server {
listen 9020;
location / {
proxy_pass http://ecs_9020;
}
}
server {
listen 9024;
location / {
proxy_pass http://ecs_9024;
proxy_set_header Host $host:$server_port;
}
}
Figure 22 - Server Context within HTTP Context
Figure 23 - Example Command to Check nginx.conf and Start OpenResty
29 ECS with NGINX (OpenResty) | H16275 |1.0

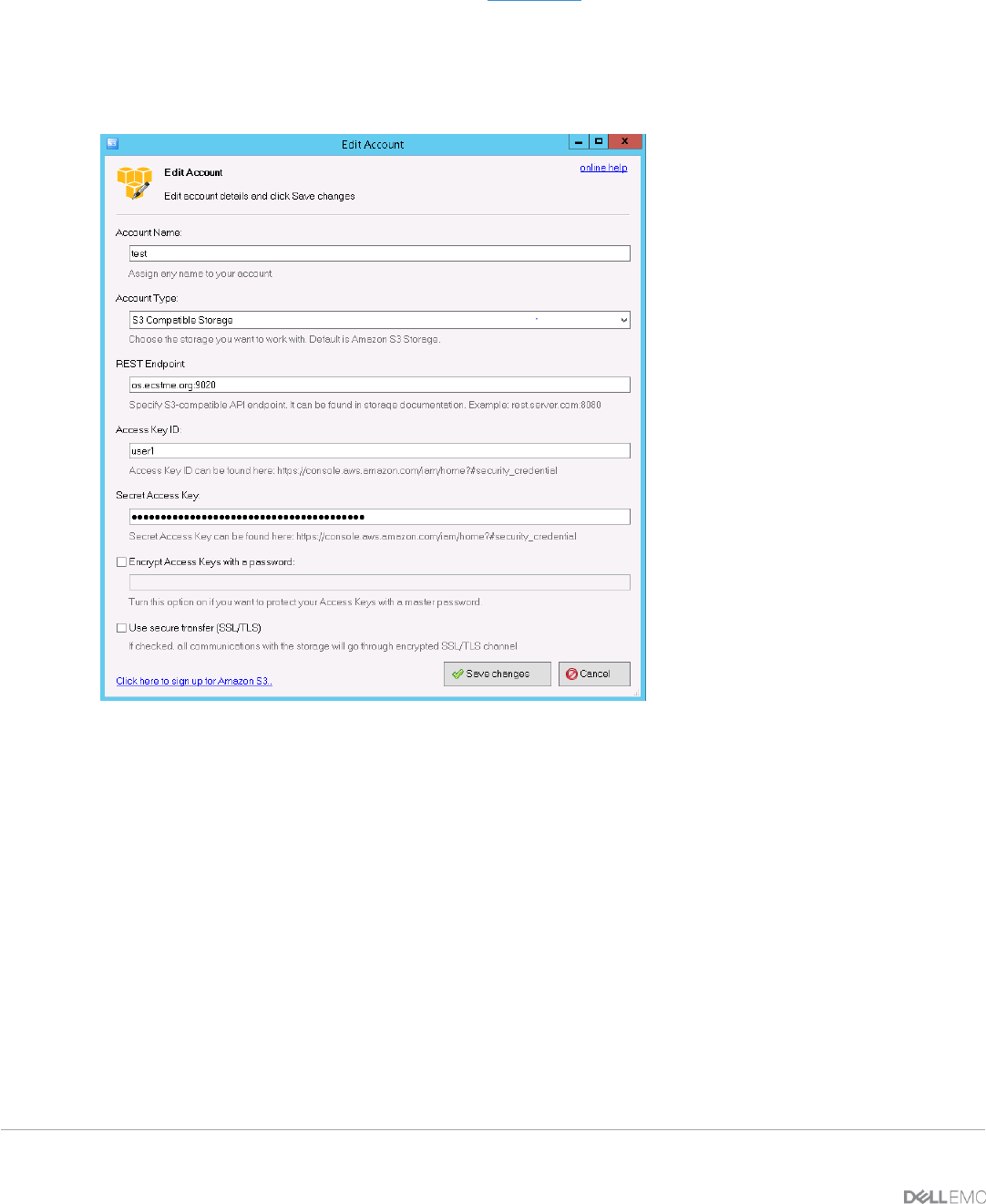

To validate the OpenResty configuration, install S3 Browser or curl and set the IP or name of host running
OpenResty. Figure 24 provides an example of the settings for S3 Browser. Since HTTP is being tested,
verify that the S3 Browser has the “Use secure transfer (SSL/TLS)” box unchecked. Also specify port 9020
on REST endpoint since, OpenResty is listening on this port for HTTP S3 requests.
Figure 24 - S3 Browser Settings Example Using OpenResty
The Linux curl command can also be utilized to test both S3 and Swift. In this example, a curl command is
utilized to test Swift. The DNS alias, “swift.ecstme.org” and port 9024 for the server settings and the Swift
credentials (e.g. user as suser1 and password for Swift user) as shown in Figure 25 are passed to curl
command. An HTTP response of 204 and ECS token are returned to indicate command succeeded.
30 ECS with NGINX (OpenResty) | H16275 |1.0
5.2.2.5 SSL Certificates
Developing trust between two entities is established via Secure Socket Layer (SSL) and SSL certificates. The
purpose of SSL and certificates is encryption and identification to ensure that communication exchange
between two parties is secure and trustworthy. For identification of who to trust, a certificate would need to be
generated and installed on OpenResty or ECS nodes. Certificates usually contain information about the
owner of the certificate (i.e. company, organization, city, state, email address of owner), duration of validity,
resource location (i.e. Fully Qualified Domain Name or common name), public key, and hash. The certificate
generated can be signed by either:
Certificate Authority (CA) – trusted organizations that can verify the identity and validity of the entity
requesting the certificate.
Self-signed - authenticated by the system where the certificate resides.
As a best practice, using a Certificate Authority to sign certificate is preferred over issuing self-signed
certificates. Almost all client systems come with a list of trusted root CA certificates that automatically
validates your CA-signed certificate. If you opt to use a self-signed certificate, that certificate will need to be
installed on all client systems as a “trusted” certificate. If your organization has an internal Certificate
Authority, you can use that CA to sign your certificates; just make sure that any client systems have your CA’s
# curl -i -H "X-Storage-User: suser1" -H "X-Storage-Pass: dangerous"
http://swift.ecstme.org:9024/auth/v1.0 -v
* About to connect() to swift.ecstme.org port 9024 (#0)
* Trying 10.246.150.210... connected
* Connected to swift.ecstme.org (10.246.150.210) port 9024 (#0)
> GET /auth/v1.0 HTTP/1.1
> User-Agent: curl/7.19.7 (x86_64-redhat-linux-gnu) libcurl/7.19.7 NSS/3.18 Basic ECC
zlib/1.2.3 libidn/1.18 libssh2/1.4.2
> Host: swift.ecstme.org:9024
> Accept: */*
> X-Storage-User: suser1
> X-Storage-Pass: dangerous
>
< HTTP/1.1 204 No Content
HTTP/1.1 204 No Content
< Server: nginx/1.11.5
Server: nginx/1.11.5
< Date: Mon, 12 Jun 2017 12:32:32 GMT
Date: Mon, 12 Jun 2017 12:32:32 GMT
< Connection: keep-alive
Connection: keep-alive
< X-Storage-Url: http://ecs_9024/v1/testns
X-Storage-Url: http://ecs_9024/v1/testns
< X-Auth-Token: ECS_05df3a250eba4685b43a66908e097914
X-Auth-Token: ECS_05df3a250eba4685b43a66908e097914
< x-emc-request-id: 0af696b5:15c59ff8277:e415:0
x-emc-request-id: 0af696b5:15c59ff8277:e415:0
<
* Connection #0 to host swift.ecstme.org left intact
* Closing connection #0
Figure 25- Curl Command with Swift Settings Example Using OpenResty
31 ECS with NGINX (OpenResty) | H16275 |1.0
root certificate installed. Also, utilizing OpenResty to offload and terminate SSL is a best practice in order to
not add extra load on ECS nodes to establish SSL sessions. Thus, the certificate generated in this example
is to be installed on host running OpenResty. Some organizations have security policies that specify that the
connection to ECS must be encrypted all the way to ECS. In those cases you need to terminate SSL on the
ECS appliance itself. If SSL termination is required on ECS nodes, then use Layer 4 (tcp) load balancing
mode to pass through the SSL traffic to ECS nodes for handling. In this scenario, the certificates would need
to be installed on ECS. For information on how to generate certificates for ECS Nodes, refer to ECS System
and Administration Guide.
Certificate Generation for OpenResty Example
OpenSSL is used in this example to generate the certificates. Note that you do not need to generate the
certificates on ECS; any system with suitable tools like OpenSSL can generate certificates. By default,
OpenSSL is installed on most Linux releases. General steps to create a certificate for OpenResty using
OpenSSL include:
1. Generate a private key.
2. Modify configuration file to add Subject Alternative Names (SANs).
3. Create a certificate request to submit to CA or generate a self-signed certificate.
4. Combine the private key and certificate and place in OpenResty directory.
When generating certificates, the hostname of where the certificate is used needs to be specified. For
compatibility with the S3 protocol, the Common Name (CN) on the certificate should point to the wildcard DNS
entry used by S3 because S3 utilizes virtually hosted-style URL buckets where the bucket name is in the
hostname. There can only be one wildcard entry on an SSL certificate and it must be under the CN. If
specifying IP addresses or other DNS entries for Atmos and Swift protocols, Subject Alternative Names
(SANs) should be registered on the certificate. Some organizations do not allow the use of wildcard
certificates. In this case, you need to make sure that all of your S3 applications use “path-style” access so
they can use the base hostname of S3 (e.g. os.ecstme.org) instead of the default method of adding the
bucket to the hostname (e.g. bucket.os.ecstme.org).
Step 1: Generate a Private Key
A private key is required for self-signed and CA requests certificates. This key is combined with the certificate
generated. An example of how to generate the private key is shown in Figure 26. Permissions are also
changed on the generated key to safeguard from accidental modification or deletion.
# openssl genrsa -des3 -out server.key 2048
Generating RSA private key, 2048 bit long modulus
............................................................+++
.......+++
e is 65537 (0x10001)
Enter pass phrase for server.key: <enter a password>
Verifying - Enter pass phrase for server.key: <enter a password>
# chmod 0400 server.key
Figure 26 - Example Command to Create Private Key Using OpenSSL
32 ECS with NGINX (OpenResty) | H16275 |1.0
Step 2: Modify the Configuration File with SANs
OpenSSL does not allow passing of SANs through the command line so a configuration file is created to
define them. A sample configuration file for openssl can be used as a reference and is located in
/usr/lib/ssl/openssl.cnf. Copy the openssl.cnf file to a temporary directory where certificates are generated
and placed as pictured in Figure 27.
Edit the request.conf file to include the SAN by adding the IP addresses or DNS entries mapping of the
OpenResty web-platform. Figure 28 is an example of the SAN setting for both DNS entries and IP addresses.
In the [ req ] section, add the following lines if not present in the configuration file as shown in Figure 29.
In the [ v3_ca ] section, add the following lines as shown in Figure 30. This indicates that there are alternate
names provided.
# cp /usr/lib/ssl/openssl.cnf request.conf
[ v3_ca ]
subjectAltName = @alternate_names
basicConstraints = CA:FALSE
keyUsage = nonRepudiation, digitalSignature, keyEncipherment
extendedKeyUsage = serverAuth
x509_extensions = v3_ca # The extentions to add to the self-signed cert
req_extensions = v3_ca # For cert signing req
Figure 27- Copying of Openssl Configuration File
[ alternate_names ]
DNS.1 = os.ecstme.org
DNS.2 = swift.ecstme.org
IP.1 = 10.246.150.210
Figure 28 – SANs Setting in Configuration File
Figure 29 - Indicate Parameter(s) for Extensions
Figure 30 - Specify [ v3_ca ] Parameters for SAN
33 ECS with NGINX (OpenResty) | H16275 |1.0
Also in [ v3_ca ] section, if creating a certificate signing request, comment out “authorityKeyIdentifier” as
illustrated in Figure 31. There is no need to comment this out for self-signed certificates.
Finally in section [ CA_default ], uncomment or add the copy_extension line as pictured in Figure 32.
Step 3a: Creation of a Certificate Signing Request for CA Submission
Figure 33 provides an example openssl command of how to create a certificate signing request. The
command requires the private key, “server.key” created in Step 1, and the modified configuration file,
request.conf containing the subject alternate names as described in Step 2. Several user inputs are expected
such as location and organization information, email address and Common Name. As previously mentioned,
the Common Name should be set to the wildcard DNS entry used by S3 which is “*.os.ecstme.org” in this
example.
# openssl req -new -key server.key -config request.conf -out server.csr
Enter pass phrase for server.key: <your passprhase from above>
You are about to be asked to enter information that will be incorporated into your
certificate request. What you are about to enter is what is called a Distinguished Name
or a DN. There are quite a few fields but you can leave some blank
For some fields there will be a default value,
If you enter '.', the field will be left blank.
-----
Country Name (2 letter code) [AU]: <Enter value>
State or Province Name (full name) [Some-State]: <Enter value>
Locality Name (eg, city) []: <Enter value>
Organization Name (eg, company) [Internet Widgits Pty Ltd]: <Enter value>
Organizational Unit Name (eg, section) []: <Enter value>
Common Name (e.g. server FQDN or YOUR name) []: *.os.ecstme.org
Email Address []: <admin email>
Please enter the following 'extra' attributes
to be sent with your certificate request
A challenge password []: <optional>
An optional company name []: <optional>
#authorityKeyIdentifier=keyid:always,issuer
copy_extension=copy
Figure 31 – Comment out authorityKeyIdentifier paramteter in [ v3_ca ] Section
Figure 32 - Parameter to Add at [ CA_default ] Section
Figure 33 - Example Command to Generate a Certificate Signing Request
34 ECS with NGINX (OpenResty) | H16275 |1.0
Step 3b: Creation of a Self-Signed Certificate
The command to create self-signed certificates is similar to certificate request except for the addition of “-
x509” option. Figure 34 provides an example command to generate the self-signed certificate. Also, the
Common Name is set to “*.os.ecstme.org” for the S3 wildcard DNS entry. The validity of this certificate by
default is one month, if more days are desired, specify command with “-days <# of days> (i.e.” –days 366”).
Step 3c: Validation of SANs in Certificate Request and Self Signed Certificate
In either certificate generation, user inputs and the Subject Alternate Names provided are included in the
certificate. An openssl command to output certificate in text format is highlighted in Figure 35 and Figure 36
for each type of certificates.
# openssl req -x509 -new -key server.key -config request.conf -out server.crt
Enter pass phrase for server.key: <your passprhase from above>
You are about to be asked to enter information that will be incorporated into your
certificate request. What you are about to enter is what is called a Distinguished Name
or a DN. There are quite a few fields but you can leave some blank
For some fields there will be a default value,
If you enter '.', the field will be left blank.
-----
Country Name (2 letter code) [AU]: <Enter value>
State or Province Name (full name) [Some-State]: <Enter value>
Locality Name (eg, city) []: <Enter value>
Organization Name (eg, company) [Internet Widgits Pty Ltd]: <Enter value>
Organizational Unit Name (eg, section) []: <Enter value>
Common Name (e.g. server FQDN or YOUR name) []: *.os.ecstme.org
Email Address []: <admin email>
Please enter the following 'extra' attributes
to be sent with your certificate request
A challenge password []: <optional>
An optional company name []: <optional>
Figure 34 - Example Command for Creation of Self-Signed Certificate
35 ECS with NGINX (OpenResty) | H16275 |1.0
# openssl req -in server.csr -text -noout
Certificate Request:
Data:
Version: 0 (0x0)
Subject: C=US, ST=CA, L=SJ, O=Dell, OU=TME,
CN=*.os.ecstme.org/emailAddress=example@dell.com
Subject Public Key Info:
Public Key Algorithm: rsaEncryption
Public-Key: (2048 bit)
Modulus:
00:ca:02:a9:4f:88:eb:9b:bf:07:b5:e7:a5:03:c7:
59:2d:e1:53:1e:df:fa:9d:6b:cd:4a:22:10:01:ed:
ca:92:66:28:f3:dc:b3:1c:8f:dd:1c:7c:b2:f0:4c:
18:63:ff:0e:47:00:35:6f:f8:ae:9b:19:88:2d:f3:
f7:de:ed:7b:bc:20:41:ff:d8:c2:28:00:65:a1:38:
71:66:10:f1:3f:39:23:f7:40:65:9d:f5:3f:85:33:
b0:d3:b3:6a:32:2f:cc:48:50:2e:57:ec:28:19:f2:
85:01:d1:32:9c:51:df:2d:5f:0c:93:97:ad:cd:48:
1d:fe:50:5d:cc:44:03:15:48:20:cb:cf:b6:77:a4:
8c:11:71:57:68:34:9c:b8:3b:30:2e:0e:17:3e:78:
34:f4:66:bc:1c:99:9c:bb:ae:50:7f:89:53:f4:1f:
b2:7b:21:9c:34:42:01:66:eb:42:47:9d:af:ab:91:
6e:16:49:3c:cc:d4:51:14:96:1e:98:cc:c0:08:d1:
a8:71:a4:ab:aa:c6:a5:c4:b7:91:74:20:de:bf:e2:
71:b8:65:23:3e:3f:f5:21:c7:10:c3:d5:21:0a:52:
c6:a6:89:c7:ec:6e:ee:0f:78:58:3f:28:1a:92:b0:
40:a9:a8:a2:84:74:e0:72:b4:3e:c4:19:0c:d4:31:
6d:37
Exponent: 65537 (0x10001)
Attributes:
Requested Extensions:
X509v3 Subject Alternative Name:
DNS:os.ecstme.org, DNS:swift.ecstme.org, IP Address:10.246.150.210
X509v3 Key Usage:
Digital Signature, Non Repudiation, Key Encipherment
X509v3 Extended Key Usage:
TLS Web Server Authentication
X509v3 Subject Key Identifier:
A6:60:1C:05:50:ED:09:7D:BB:6D:1A:87:1D:43:C0:A9:B2:D3:79:7B
X509v3 Basic Constraints:
CA:TRUE
Signature Algorithm: sha256WithRSAEncryption
a9:af:af:42:07:97:14:7b:06:be:0c:c0:65:eb:c0:ee:8d:c5:
5f:1c:70:fc:1a:1a:f4:83:fb:6b:63:1f:23:4f:0c:26:21:1f:
cd:6d:5d:94:63:dc:20:0c:89:0a:ff:8a:cc:db:e0:35:18:bf:
67:0e:2d:ab:10:51:27:6b:77:27:2e:88:6e:0a:a9:ec:25:e2:
25:d4:b6:bb:f0:17:a7:76:6c:bb:df:c4:59:56:07:9c:2b:68:
7a:ee:66:ba:32:9d:ea:04:3e:fc:bc:ac:d4:d0:80:10:b7:d7:
b1:19:de:fe:56:f9:5d:4e:ed:78:c5:ff:ff:cd:7a:d1:89:6f:
77:47:f4:6e:7b:2b:16:ba:01:28:54:e7:fa:31:dd:87:d0:2e:
2a:65:d8:ad:42:4d:5d:eb:d7:ab:54:ac:fe:3b:79:91:39:53:
26:e7:a4:4a:ce:9a:fa:60:0f:35:a1:3f:43:20:6f:6b:4c:29:
4e:dc:5a:74:d5:a4:55:f5:28:a8:07:e4:e2:7d:bb:ce:ef:ba:
1c:9a:3f:22:a8:d1:9a:43:e1:75:07:1e:27:61:4e:ac:58:85:
05:e2:97:7c:8f:9a:e2:5c:15:48:9d:4e:c4:f0:4c:2d:ad:70:
8e:25:d4:42:7c:a0:1f:85:f7:c3:ae:b3:2c:3f:fd:90:6e:48:
c0:f0:e0:28
Figure 35 - Example Text Output of Certificate Request
36 ECS with NGINX (OpenResty) | H16275 |1.0
# openssl x509 -in server.crt -noout -text
Certificate:
Data:
Version: 3 (0x2)
Serial Number: 12752130309296882435 (0xb0f8aaf3df220303)
Signature Algorithm: sha256WithRSAEncryption
Issuer: C=US, ST=CA, L=SJ, O=Dell, OU=TME,
CN=*.os.ecstme.org/emailAddress=example@dell.com
Validity
Not Before: Dec 22 00:37:35 2016 GMT
Not After : Jan 21 00:37:35 2017 GMT
Subject: C=US, ST=CA, L=SJ, O=Dell, OU=TME,
CN=*.os.ecstme.org/emailAddress=example@dell.com
Subject Public Key Info:
Public Key Algorithm: rsaEncryption
Public-Key: (2048 bit)
Modulus:
00:ca:02:a9:4f:88:eb:9b:bf:07:b5:e7:a5:03:c7:
59:2d:e1:53:1e:df:fa:9d:6b:cd:4a:22:10:01:ed:
ca:92:66:28:f3:dc:b3:1c:8f:dd:1c:7c:b2:f0:4c:
18:63:ff:0e:47:00:35:6f:f8:ae:9b:19:88:2d:f3:
f7:de:ed:7b:bc:20:41:ff:d8:c2:28:00:65:a1:38:
71:66:10:f1:3f:39:23:f7:40:65:9d:f5:3f:85:33:
b0:d3:b3:6a:32:2f:cc:48:50:2e:57:ec:28:19:f2:
.. .. .. .. .. .. .. .. .. .. .. .. .. .. ..
.. .. .. .. .. .. .. .. .. .. .. .. .. .. ..
.. .. .. .. .. .. .. .. .. .. .. .. .. .. ..
Exponent: 65537 (0x10001)
X509v3 extensions:
X509v3 Subject Alternative Name:
DNS:os.ecstme.org, DNS:swift.ecstme.org, IP Address:10.246.150.210
X509v3 Key Usage:
Digital Signature, Non Repudiation, Key Encipherment
X509v3 Extended Key Usage:
TLS Web Server Authentication
X509v3 Subject Key Identifier:
A6:60:1C:05:50:ED:09:7D:BB:6D:1A:87:1D:43:C0:A9:B2:D3:79:7B
X509v3 Authority Key Identifier:
keyid:A6:60:1C:05:50:ED:09:7D:BB:6D:1A:87:1D:43:C0:A9:B2:D3:79:7B
X509v3 Basic Constraints:
CA:TRUE
Signature Algorithm: sha256WithRSAEncryption
56:20:f9:7d:04:10:9e:b1:dd:47:fe:2a:6a:52:ee:af:5a:6c:
54:21:6c:4f:69:5c:00:b6:4d:ba:69:cf:00:30:5a:13:46:cf:
33:bd:c8:90:9e:2f:f9:6d:1d:b6:88:4b:12:16:69:95:a9:98:
f4:ed:2c:57:ec:57:20:b6:98:5b:a3:8f:68:c5:e0:73:8b:d9:
e3:a0:11:7b:26:a9:a3:03:0c:78:1e:87:15:a6:32:96:87:20:
.. .. .. .. .. .. .. .. .. .. .. .. .. .. ..
.. .. .. .. .. .. .. .. .. .. .. .. .. .. ..
.. .. .. .. .. .. .. .. .. .. .. .. .. .. ..
Figure 36 – Sample Self-Signed Certificate Output after Generation
37 ECS with NGINX (OpenResty) | H16275 |1.0
Step 4: Combining the Private Key with Certificate File
After the certificate files have been created, OpenResty requires the private key to be combined with the certificate file. If
your certificate was signed by a CA, the intermediate CA files and certificate chain file would need to also be appended to
the certificate signing request prior to combining it with the private key. Figure 25 illustrates how to extract the private key
by removing the password, concatentating it with a self-signed certificate file to generate a combined file and then placing
the combined file in OpenResty directory (i.e. /usr/local/openresty/nginx/ssl)
Once the certificate generation has been completed, the server context in OpenResty configuration file,
“nginx.conf”, is modified with the listening port for S3 HTTPS incoming requests and location of the
certificates, combined.pem and server.key. ECS S3 HTTPS port is 9021. Figure 38 provides an example of
server context for handling HTTPS requests. In this example the, SSL is terminated at the load balancer and
thus certificates are not needed on the ECS nodes. The same backend using the non-SSL ports of the ECS
nodes are used as previously defined for upstream context, ecs_9020. Similar definitions are specified for
Swift protocol using port 9025; and the proxy_set_header with port 9024 has been defined such that response
returned from ECS is set appropriately.
server {
listen 9020;
listen 9021 ssl;
ssl_certificate /usr/local/openresty/nginx/ssl/combined.pem;
ssl_certificate_key /usr/local/openresty/nginx/ssl/server.key;
location / {
proxy_pass http://ecs_9020;
}
}
server {
listen 9024;
listen 9025 ssl;
ssl_certificate /usr/local/openresty/nginx/ssl/combined.pem;
ssl_certificate_key /usr/local/openresty/nginx/ssl/server.key;
location / {
proxy_pass http://ecs_9024;
proxy_set_header Host $host:9024;
}
}
Figure 38 – Add Listening Port and SSL Certificates Directives
# openssl rsa -in server.key -out server_unsec.key
Enter pass phrase for server.key: <your passprhase from above>
# cat server.crt server_unsec.key > combined.pem
# rm server_unsec.key
# chown root:root combined.pem
# mkdir /usr/local/openresty/nginx/ssl
# cp combined.pem /usr/local/openresty/nginx/ssl
# cp server.key /usr/local/openresty/nginx/ssl
Figure 37 - Example Commands for Combining the Private Key with Certificate
38 ECS with NGINX (OpenResty) | H16275 |1.0
After the nginx.conf has been modified, check the validity of the configuration file. If configuration file is valid,
then stop and restart the OpenResty service to put the directives in nginx.conf into effect as shown in Figure
39. When restarting OpenResty, use the pass phrase of server.key (from Figure 33) when prompted for
password.
S3Browser can be used to validate that “https” traffic and SSL certificates are going thru OpenResty. For S3
Browser, edit the account and place a checkmark in “Use secure transfer (SSL/TLS) box as pictured in Figure
40. Also specify port 9021 in the REST endpoint since OpenResty is listening to S3 HTTPS request from
this port. If using curl to test, use the “-k” option in command and appropriate port, i.e. “curl -k -i -H "X-
Storage-User: suser1" -H "X-Storage-Pass: dangerous" https://swift.ecstme.org:9025/auth/v1.0 -v”.
#/usr/local/openresty/bin/openresty -t –c /usr/local/openresty/nginx/conf/nginx.conf
nginx: the configuration file /usr/local/openresty/nginx/conf/nginx.conf syntax is ok
nginx: configuration file /usr/local/openresty/nginx/conf/nginx.conf test is successful
# /usr/local/openresty/bin/openresty -s stop
Enter PEM pass phrase:
Enter PEM pass phrase:
# /usr/local/openresty/bin/openresty
Enter PEM pass phrase:
Enter PEM pass phrase:
Figure 39 - Sample Commands to Validate nginx.conf and Restart OpenResty
39 ECS with NGINX (OpenResty) | H16275 |1.0

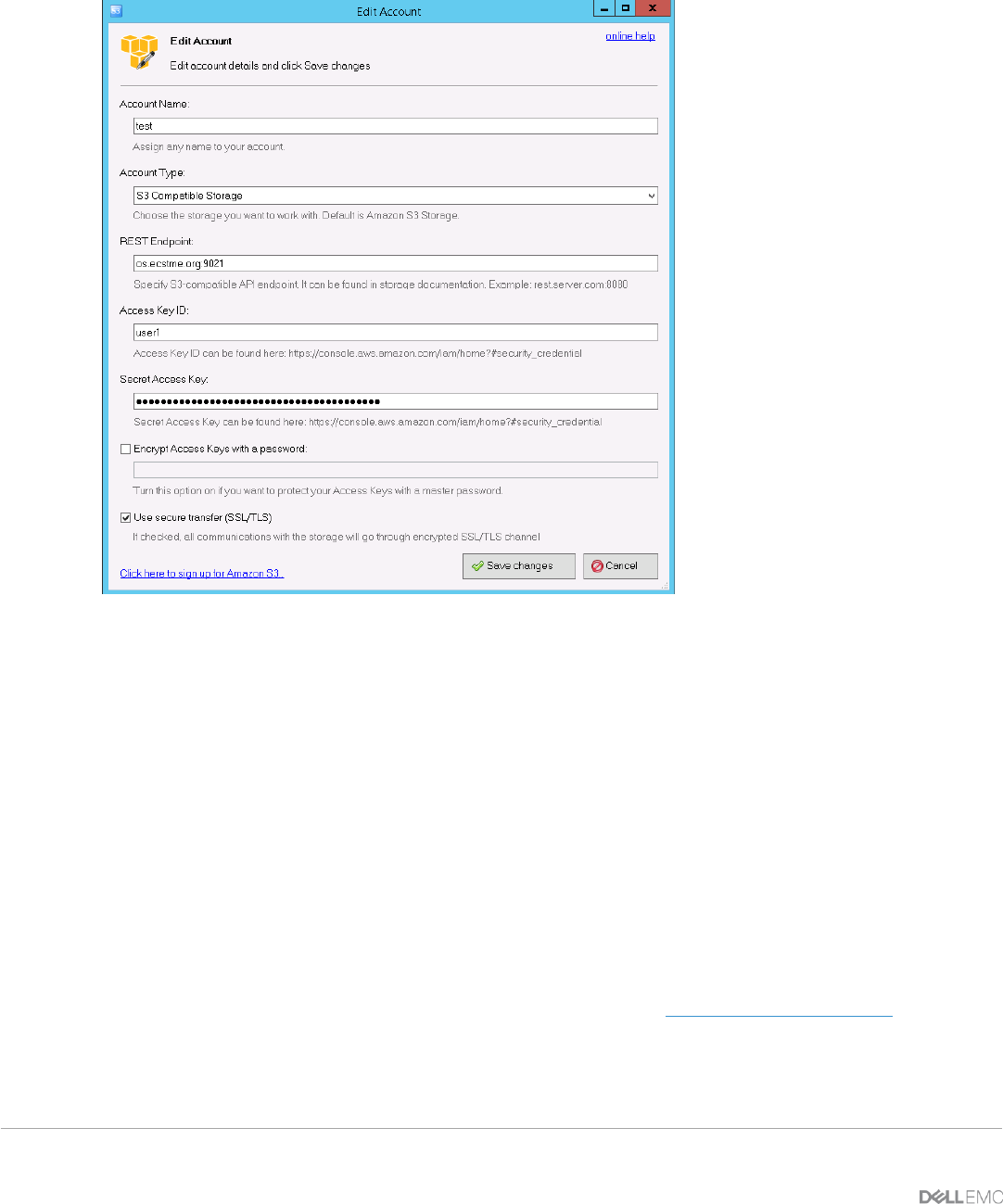

Figure 40 - S3 Browser Options to Enable HTTPS
5.2.3 Stream Context
ECS NFS implementation utilizes server-side metadata caching and the cache exists locally on each node.
Thus, it is important that NFS requests are handled by the same backend ECS node and a load balancer is
used predominately for high availability purposes for NFS. If one of the ECS nodes currently serving NFS
request fails, then OpenResty redirects requests to another ECS node.
The Linux server that is hosting OpenResty should not be running “rpcbind” otherwise there will be a conflict
when setting up OpenResty to forward NFS requests to ECS. If “rpcbind” is installed by default in the
operating system, disable or remove. In the OpenResty configuration file, a stream context is defined and
requests are directly passed thru to the ECS Nodes for handling. The server context listens for requests on
ports 2049, 111, and 10000 where NFS daemons such as nfsd, mountd, nlockmgr and portmapper are
listening to on the ECS nodes. As shown in the example directives in Figure 41, there is a stream context
and within it multiple upstream contexts. The upstream contexts specify the list of ECS nodes with protocol
ports and the load balance algorithm “hash”. The “hash algorithm” selects servers based on a hash of the
source IP such as the user IP address to ensure request goes to the same server until something changes in
the hash (ie. one backend server goes down). A third-party module, ngx_stream_check_module, is used to
provide health checks of stream context via the “check” directive. And server context listens to the NFS
protocol ports and proxies it to the named backend. Logging can also be defined in this section as well as tcp
and buffer optimizations such as tcp_nodelay and proxy_buffer size.
40 ECS with NGINX (OpenResty) | H16275 |1.0
stream {
log_format main '$remote_addr - [$time_local] $protocol '
'$status $bytes_sent $bytes_received '
'$session_time ua=$upstream_addr ubs=$upstream_bytes_sent '
'ubr=$upstream_bytes_received uct=$upstream_connect_time';
access_log logs/access.log main buffer=32k flush=5s;
tcp_nodelay on;
proxy_buffer_size 2M;
upstream nfs1_backend {
hash $remote_addr;
server 10.246.150.175:2049 fail_timeout=30s;
server 10.246.150.176:2049 fail_timeout=30s;
server 10.246.150.177:2049 fail_timeout=30s;
server 10.246.150.178:2049 fail_timeout=30s;
check interval=5000 rise=1 fall=1 timeout=30000 type=tcp;
}
upstream nfs2_backend {
hash $remote_addr;
server 10.246.150.175:111;
server 10.246.150.176:111;
server 10.246.150.177:111;
server 10.246.150.178:111;
check interval=5000 rise=1 fall=1 timeout=30000 type=tcp;
}
upstream nfs3_backend {
hash $remote_addr;
server 10.246.150.175:10000;
server 10.246.150.176:10000;
server 10.246.150.177:10000;
server 10.246.150.178:10000;
check interval=5000 rise=1 fall=1 timeout=30000 type=tcp;
}
server {
listen 2049;
proxy_pass nfs1_backend;
}
server {
listen 111;
proxy_pass nfs2_backend;
}
server {
listen 10000;
proxy_pass nfs3_backend;
}
}
Figure 41 – Example Frontend and Backend Definitions for NFS
41 ECS with NGINX (OpenResty) | H16275 |1.0
It is assumed that ECS has been configured to support file and the exports and user and group mappings
have been configured appropriately for NFS. The host IP or name running OpenResty should be added to
the exports host options in ECS as shown in Figure 42. The user mappings are configured prior to mount as
pictured in Figure 43.

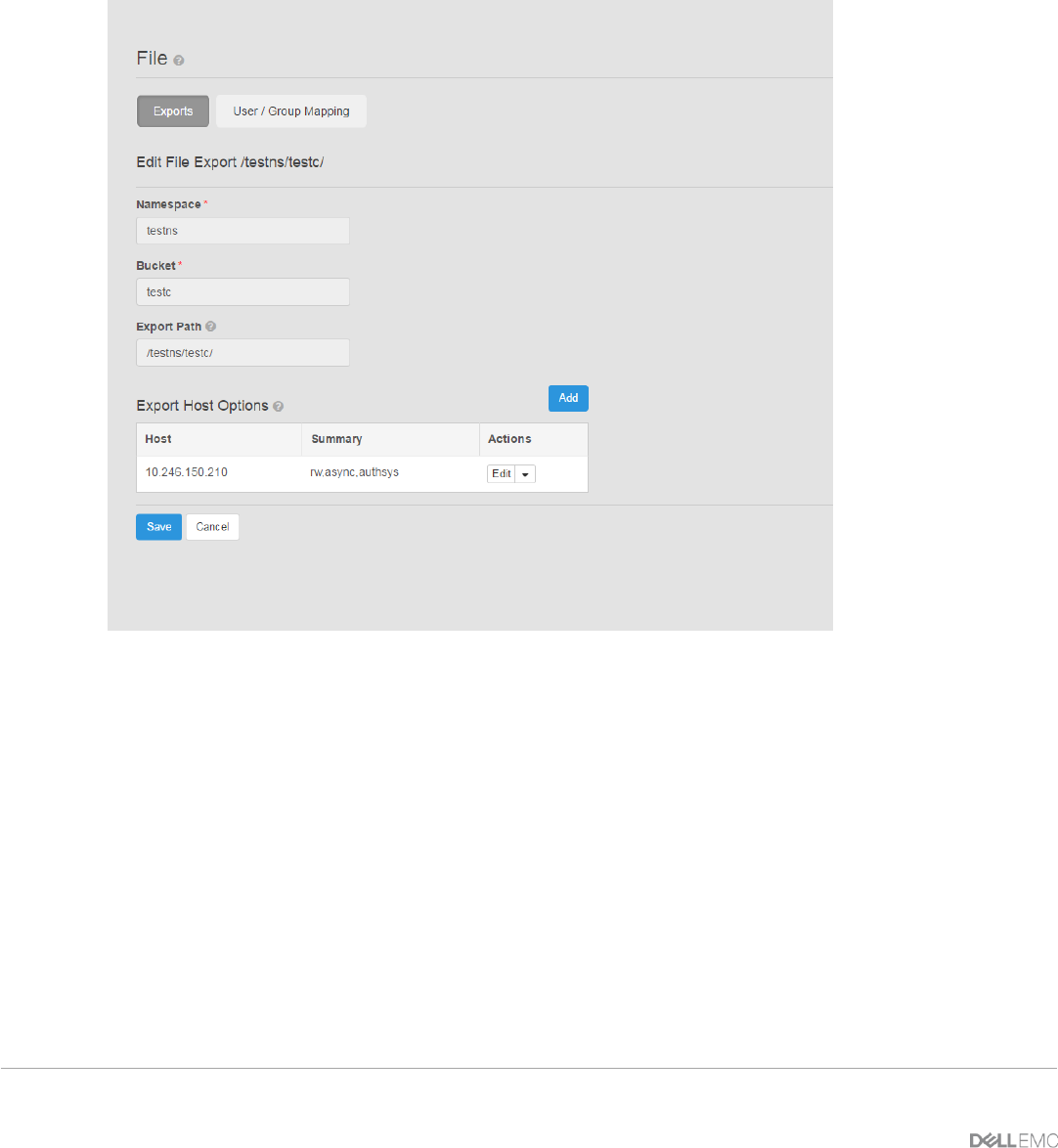

Figure 42 - Example of File Export Settings in ECS
42 ECS with NGINX (OpenResty) | H16275 |1.0

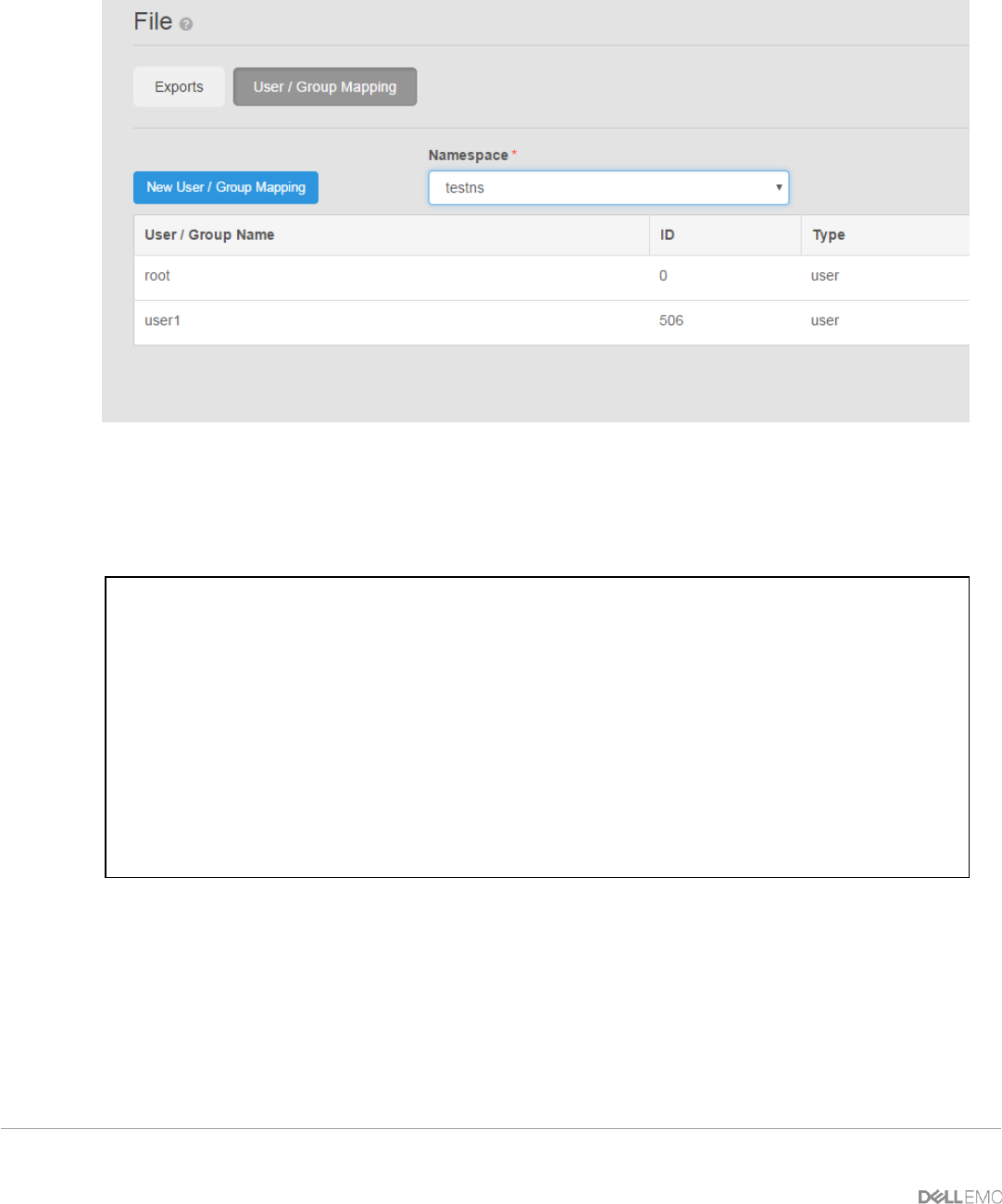

Figure 43 - Example of User Mapping Settings in ECS
After addition of the stream context directives, validate the nginx.conf file and restart OpenResty to pick up
the changes to the nginx.conf as shown in Figure 44.
Then from an NFS client, another server different from OpenResty server, issue a mount command specifying
the IP or name of OpenResty, port 2049 and NFS version 3. Figure 45 shows the example “mount” command
and output of “df” command to illustrate the success of the mount. There should be an equivalent user in the
Linux client with the same userid (506, in this example) specified as in ECS to access data as shown in
Figure 46.
#/usr/local/openresty/bin/openresty -t –c /usr/local/openresty/nginx/conf/nginx.conf
nginx: the configuration file /usr/local/openresty/nginx/conf/nginx.conf syntax is ok
nginx: configuration file /usr/local/openresty/nginx/conf/nginx.conf test is successful
# /usr/local/openresty/bin/openresty -s stop
Enter PEM pass phrase:
Enter PEM pass phrase:
# /usr/local/openresty/bin/openresty
Enter PEM pass phrase:
Enter PEM pass phrase:
Figure 44 - Validate nginx.conf File and Restart OpenResty
43 ECS with NGINX (OpenResty) | H16275 |1.0
5.2.4 Monitoring
Standard NGINX has limited monitoring capabilities; however, when integrated with OpenResty, Lua scripts
and additional add-on modules, monitoring is enhanced. Dell EMC DevOps team has developed Lua scripts
for monitoring of HTTP requests and connections, HTTP metrics, and health status of the upstream servers.
The scripts and modules are categorized as follows:
HTTP Metrics - tracks number and size of HTTP requests, connections, and latency
o init_by_lua_block – initializes and registers the metrics
o log_by_lua_block – logs the requests, bytes and latency
o prometheus.lua – modified by Dell EMC DevOps team and defines the code for the metrics:
counter, guage, and histogram implementation specific to HTTP requests, connections and
latency.
HTTP and Stream Monitoring via Web Page
o nginx-module-sts-master and nginx-module-stream-sts-master – provides stream server
traffic status information such as requests per second, responses, and total traffic received
and sent. If no stream context is defined, no information will be shown.
o nginx-module-vts-master – provides HTTP server traffic status information.
In this example, the “init_by_lua_block” and “log_by_lua_block” are responsible for keeping track of the HTTP
connections, requests, and latency by host. It utilizes the Prometheus metric library to keep track of the
metrics and viewable via a separate web page. As shown in Figure 47, this module is initialized by an “*.init”
call and returns a Prometheus object to register different metrics. The code related to the object return is
defined in the prometheus.lua file. The prometheus.lua file is attached to this whitepaper and comments
# mount -o user,vers=3,proto=tcp,port=2049 os.ecstme.org:/testns/testc /mnt
# df
Filesystem 1K-blocks Used Available Use% Mounted on
/dev/mapper/vg_vtest-lv_root
36645576 13556612 21220780 39% /
tmpfs 1962340 424 1961916 1% /dev/shm
/dev/sda1 487652 42509 419543 10% /boot
os.ecstme.org:/testns/testc
351063244800 290411520 350772833280 1% /mnt
[user1@vtest ~]$ id
uid=506(user1) gid=506(user1) groups=506(user1),10(wheel)
context=unconfined_u:unconfined_r:unconfined_t:s0-s0:c0.c1023
[user1@vtest ~]$ ls /mnt
foo fstab networks rc1.d
[user1@vtest ~]$
Figure 45 - Example "mount" and "df" Command
Figure 46 - Example Output of User ID on Linux Client and "ls"
44 ECS with NGINX (OpenResty) | H16275 |1.0
within the Lua file are self-explanatory. The reader is encouraged to review the file for more details on the
script. The metrics registered and implemented in the prometheus.lua file include gauge, counter and
histogram to collect total number of HTTP requests by host, the HTTP request latency by host, total size of
incoming requests in bytes and number of HTTP connections. The init_by_lua_block runs when the NGINX
configuration file is loaded (initialization phase) and the log_by_lua at the log request processing phase. The
following directives are defined prior to the Lua calls:
lua_package_path – path to where Lua scripts are located. In this example, it is in a created
directory within the OpenResty directory, /usr/local/openresty/nginx/lua.
lua_shared_dict – declares a named shared memory zone, healthcheck , of certain size, 10M, and
is shared by all NGINX worker processes.
These metrics are made viewable by adding a location context labeled “/metrics” within the server context.
Since the server context is listening on port 9020, access to web page requires the port in the URL (i.e.
http://os.ecstme.org:9020/metric) as shown in Figure 48.
http {
...
lua_package_path "${prefix}/lua/?.lua;;";
lua_shared_dict prometheus_metrics 10M;
init_by_lua_block {
prometheus = require("prometheus").init("prometheus_metrics")
metric_requests = prometheus:counter(
"nginx_http_requests_total", "Number of HTTP requests", {"host", "status"})
metric_latency = prometheus:histogram(
"nginx_http_request_duration_seconds", "HTTP request latency", {"host"})
metric_bytes = prometheus:counter(
"nginx_http_request_size_bytes", "Total size of incoming requests")
metric_connections = prometheus:gauge(
"nginx_http_connections", "Number of HTTP connections", {"state"})
}
log_by_lua_block {
metric_requests:inc(1, {ngx.var.host, ngx.var.status})
metric_bytes:inc(tonumber(ngx.var.request_length))
metric_latency:observe(ngx.now() - ngx.req.start_time(), {ngx.var.host})
}
...
server {
listen 9020;
...
location /metrics {
access_log off;
content_by_lua_block {
metric_connections:set(ngx.var.connections_reading, {"reading"})
metric_connections:set(ngx.var.connections_waiting, {"waiting"})
metric_connections:set(ngx.var.connections_writing, {"writing"})
prometheus:collect()
}
}
...
}
}
Figure 47 – HTTP Metrics Directives
45 ECS with NGINX (OpenResty) | H16275 |1.0

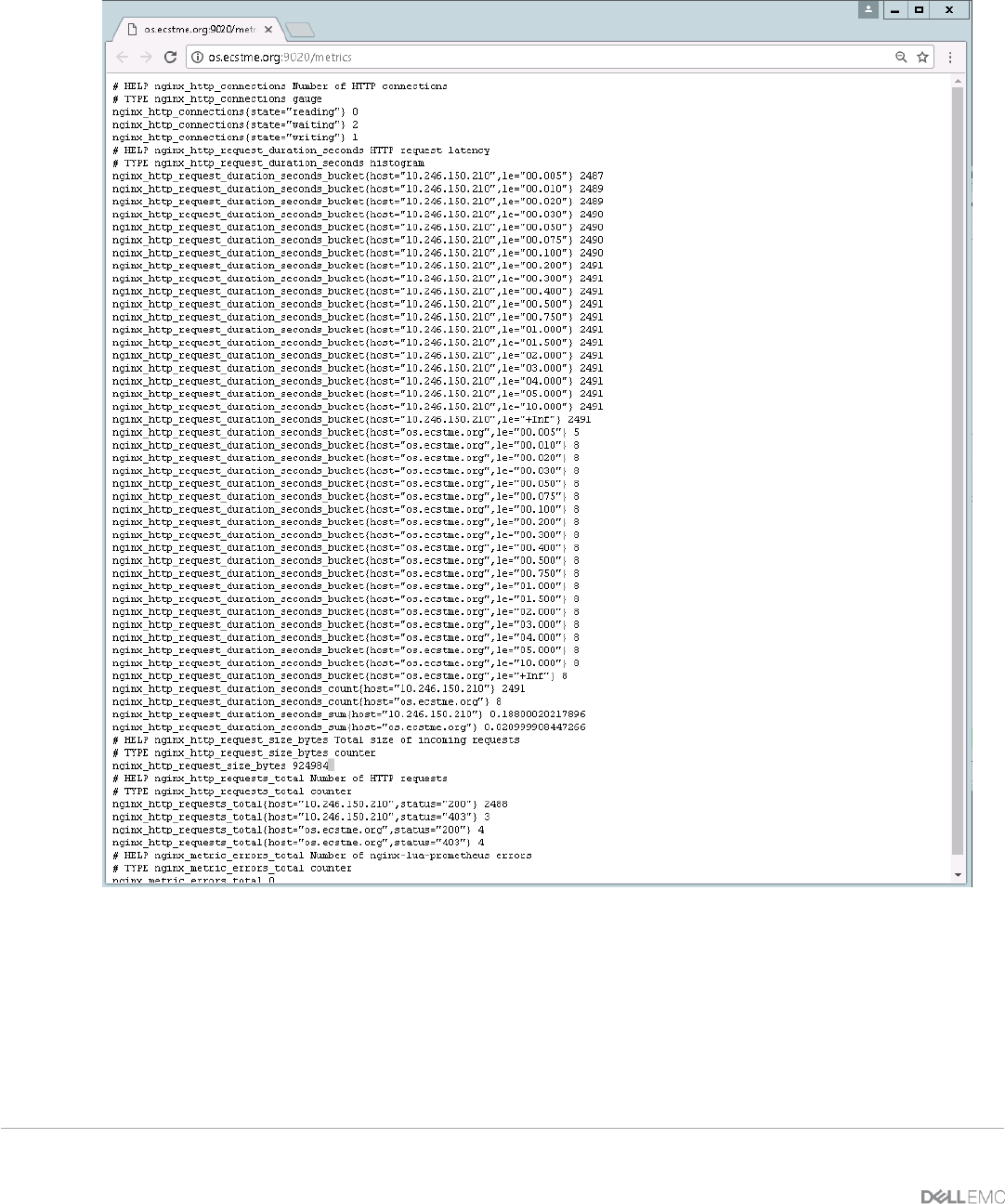

Figure 48 - Example View of HTTP Metric Output
46 ECS with NGINX (OpenResty) | H16275 |1.0
For HTTP traffic monitoring, the nginx-module-vts is used and vhost_traffic_status_zone is declared in the
http context. This module is referenced within the location context within the server context as vts_status.
Similarly for stream status, nginx-module-sts and nginx-module-stream-sts are utilized. The
stream_server_traffic_status_zone is defined within the http context and server_traffic_status_zone is defined
within stream context as illustrated in Figure 49.
http {
...
...
stream_server_traffic_status_zone;
vhost_traffic_status_zone;
server {
listen 9020
...
...
location /sts_status {
access_log off;
stream_server_traffic_status_display;
stream_server_traffic_status_display_format html;
}
location /vts_status {
access_log off;
vhost_traffic_status_display;
vhost_traffic_status_display_format html;
}
...
...
}
}
stream {
server_traffic_status_zone;
...
...
...
}
Figure 49 - HTTP and Stream Monitoring Directives
47 ECS with NGINX (OpenResty) | H16275 |1.0
Figure 50 provides a sample view of the web page output for HTTP. As can be seen from the webpage, the
number of connections and requests coming into the OpenResty web platform and the amount of shared
memory being used. It also highlights the state, response time, number and sizes of HTTP requests, and
response being sent to each of the proxied servers (ECS Nodes). Figure 51 shows a sample view of stream
(TCP) traffic, going to backend servers (ECS Nodes). Similar traffic information is provided for the TCP
traffic. In this example, the stream traffic is NFS traffic.
Figure 50 - Example View of HTTP Traffic Web Page
48 ECS with NGINX (OpenResty) | H16275 |1.0
Figure 51 - Example View of Stream Traffic Web Page
49 ECS with NGINX (OpenResty) | H16275 |1.0
Also available are directives for exhibiting the status of the upstream servers (i.e. ECS Nodes), stream (TCP)
health check status page, and NGINX. Figure 52 shows these directives which are also defined within the
server context listening on port 9020.
http {
...
...
stream_server_traffic_status_zone;
vhost_traffic_status_zone;
server {
listen 9020
...
...
# status page for upstream servers
location = /upstream_status {
access_log off;
default_type text/plain;
content_by_lua_block {
local hc = require "resty.upstream.healthcheck"
ngx.say("Nginx Worker PID: ", ngx.worker.pid())
ngx.print(hc.status_page())
}
}
# stream health check status page
location = /stream_upstream_status {
access_log off;
default_type text/plain;
stream_check_status json;
}
# status page for nginx
location = /nginx_status {
access_log off;
default_type text/plain;
stub_status on;
}
...
...
}
}
Figure 52 - Health Status Directives for ECS Nodes, Stream and NGINX process.
50 ECS with NGINX (OpenResty) | H16275 |1.0
Figures 53, 54, and 55 provide example views of each of the web page output showing the ECS Nodes,
stream, and NGINX status. Again, the status information is accessible via port 9020 and the “match” criteria
specified in the location context, is specified on the URL for instance,
http://os.ecstme.org:9020/upstream_status.
Figure 53 - Upstream Servers (ECS Nodes) Status
Figure 54 - Stream Status (In this Example, NFS)
Figure 55 - NGINX status
51 ECS with NGINX (OpenResty) | H16275 |1.0
6 Highly Available Example
The ECS with single OpenResty example in the previous section can be extended to add a second
OpenResty to create a redundant OpenResty setup. In this example, another virtual machine
(10.246.150.209) with Ubuntu 16.04 LTS operating system and OpenResty was configured the same way as
previous example. The “keepalived” utility was installed on both OpenResty servers to do health checks
between the two. The redundant OpenResty servers were configured in an active/passive mode. A virtual IP
initially maps to the primary OpenResty server and if the primary server fails, then the virtual IP redirects to
the IP of secondary OpenResty server until the primary comes up again. Figure 56 illustrates the setup for
the redundant OpenResty load balancers environment described in this example.
Figure 56 - ECS with Redundant NGINX Setup Example
6.1 Virtual IP
On each of the load balancer servers, modify the “net.ipv4.ip_nonlocal_bind” to 1 in the kernel file
/etc/sysctl.conf. This allows OpenResty to bind to a shared IP address which is 10.246.150.151 in this
example. With an editor, such as “vi”, add the line shown in Figure 57.
Run “sysctl –p” command to have this setting take effect without the need to reboot as shown in Figure 58.
net.ipv4.ip_nonlocal_bind=1
# sysctl -p
Figure 57 - Add to "/etc/sysctl.conf"
Figure 58 - Command to Enable the Setting Modified in /etc/sysctl.conf file.
52 ECS with NGINX (OpenResty) | H16275 |1.0
6.2 Keepalived
The keepalived utility is a routing software package available on Linux. It is written in C and its main purpose
is to provide health checks between systems. Install the keepalived utility on both load balancers. If Linux curl
package is not already installed on the system, install this as well. Figure 59 provides the commands to
install keepalived and curl.
In both load balancers, edit or create a keepalived.conf file in “/etc/keepalived” directory with entries as shown
in Figure 60 and Figure 61. The difference between the two files is the priority value and state, where 101
and MASTER represent the primary and 100 and BACKUP is secondary. Also note that ens160 is set to the
virtual IP. For more information on keepalived, refer to the keepalived website: http://www.keepalived.org/
# apt-get update
# apt-get install keepalived
# apt-get install curl
vrrp_script check_slb {
script "/usr/local/sbin/check_etm.sh" # sends HTTP request to check process and ECS
interval 2 # Does checks every two seconds
weight 2 # Add two points of prio if OK
fall 1
rise 1
timeout 30
}
vrrp_instance vi1 {
state MASTER
interface ens160
virtual_router_id 50
priority 101 # 101 is primary and 100 is secondary
advert_int 1
authentication { # Protects VRRP against attacks
auth_type PASS
auth_pass password # secret password shared between servers
}
virtual_ipaddress {
10.246.150.151 # Virtual IP
}
track_script {
check_slb
}
}
Figure 60 - Example keepalived.conf for Primary OpenResty
Figure 59 - Example Command to Install keepalived
53 ECS with NGINX (OpenResty) | H16275 |1.0
The check_etm.sh called in the keepalived.conf is illustrated in Figure 62. This script checks the health of the
OpenResty servers and ECS nodes by sending an HTTP ping to port 9020. Place this file in /usr/local/sbin
directory and do a “chmod 755” to make this script executable.
vrrp_script check_slb {
script "/usr/local/sbin/check_etm.sh" # sends HTTP request to check process and ECS
interval 2 # Does checks every two seconds
weight 2 # Add two points of prio if OK
fall 1
rise 1
timeout 30
}
vrrp_instance vi1 {
state BACKUP
interface ens160
virtual_router_id 50
priority 100 # 101 is primary and 100 is secondary
advert_int 1
authentication { # Protects VRRP against attacks
auth_type PASS
auth_pass password # secret password shared between servers
}
virtual_ipaddress {
10.246.150.151 # Virtual IP
}
track_script {
check_slb
}
}
Figure 61 - Example keepalived.conf for Secondary OpenResty
#!/bin/bash
alive=`curl http://localhost:9020/?ping 2>/dev/null | grep "Data Node is Available" | wc -l`
if [ $alive -ge 1 ]; then
exit 0
else
exit 1
fi
Figure 62 - Script to Check Health of OpenResty Servers and ECS Nodes
54 ECS with NGINX (OpenResty) | H16275 |1.0
On the redundant OpenResty server, copy the nginx.conf file, Lua scripts and the SSL certificate created on
the other OpenResty server described in the previous example and place them in the install directory. For the
SSL certificates, use DNS names in the SANs as opposed to IP addresses so the same certificate file can be
used on both systems. Then modify the DNS as pictured in Figure 63 to point the os.ecstme.org A-record to
the virtual IP defined in the keepalived.conf file, 10.246.150.151 in this example.
Figure 63 - DNS Record with Virtual IP
Afterwards, start the keepalived service and restart OpenResty service on each server as illustrated in Figure
64.
# service keepalived start
# /usr/local/openresty/bin/openresty -s stop
# /usr/local/openresty/bin/openresty
Figure 64 - Command to Start keepalived Example
55 ECS with NGINX (OpenResty) | H16275 |1.0
Then, check that the virtual IP is on the primary OpenResty server as highlighted in Figure 65.
6.3 Validation
Start the S3 Browser to validate the setup. Since the S3 browser is utilizing the DNS entry name,
“os.ecstme.org”, no additional modifications are needed. Then, validate the redundant setup by shutting down
the primary OpenResty service by issuing a “/usr/local/openresty/bin/openersty –s stop”. Once the secondary
server recognizes that the primary is down, the secondary picks up the Virtual IP as exemplified in Figure 66.
Access to the objects on ECS should still be available via S3 Browser since the secondary load balancer is
handling the requests. Similarly with the NFS client, the mount point should not be affected when the primary
load balancer goes down.
Syslog (/var/log/syslog) can also be viewed on each server. Figure 67 shows a sample log file listing the
different states on the primary OpenResty server during a failure and after it came back online. When
keepalived started, state was initially MASTER and then when check_slb failed, state transitioned to BACKUP
and once it started up again, it re-claimed MASTER state. Similar state transitions can be observed on the
secondary syslog file. The syslog file can also provide clues if an error occurred in startup of keepalived.
# ip addr show ens160
2: ens160: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP group default qlen 1000
link/ether 00:0c:29:e0:0d:a0 brd ff:ff:ff:ff:ff:ff
inet 10.246.150.210/24 brd 10.246.150.255 scope global dynamic ens160
valid_lft 467902sec preferred_lft 467902sec
inet 10.246.150.151/32 scope global ens160
valid_lft forever preferred_lft forever
inet6 fe80::56a3:6d72:957b:b10f/64 scope link
valid_lft forever preferred_lft forever
Figure 66 - Virtual IP on Secondary Load Balancer Server
# ip addr show ens160
2: ens160: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP group default qlen 1000
link/ether 00:0c:29:19:eb:d6 brd ff:ff:ff:ff:ff:ff
inet 10.246.150.209/24 brd 10.246.150.255 scope global dynamic ens160
valid_lft 438405sec preferred_lft 438405sec
inet 10.246.150.151/32 scope global ens160
valid_lft forever preferred_lft forever
inet6 fe80::5279:f4e8:a3ef:cc44/64 scope link
valid_lft forever preferred_lft forever
Figure 65 - Virtual IP on OpenResty Server
56 ECS with NGINX (OpenResty) | H16275 |1.0
# tail /var/log/syslog
Jun 8 12:56:33 nlb1 Keepalived_vrrp[535]: VRRP_Instance(vi1) Transition to MASTER STATE
Jun 8 12:56:34 nlb1 Keepalived_vrrp[535]: VRRP_Instance(vi1) Entering MASTER STATE
Jun 8 12:56:34 nlb1 avahi-daemon[962]: Registering new address record for 10.246.150.151 on
ens160.IPv4.
Jun 8 12:56:42 nlb1 Keepalived_vrrp[535]: VRRP_Script(check_slb) succeeded
Jun 8 12:57:10 nlb1 Keepalived_vrrp[535]: VRRP_Script(check_slb) failed
Jun 8 12:57:12 nlb1 Keepalived_vrrp[535]: VRRP_Instance(vi1) Received higher prio advert
Jun 8 12:57:12 nlb1 Keepalived_vrrp[535]: VRRP_Instance(vi1) Entering BACKUP STATE
Jun 8 12:57:12 nlb1 avahi-daemon[962]: Withdrawing address record for 10.246.150.151 on ens160.
Jun 8 12:58:24 nlb1 Keepalived_vrrp[535]: VRRP_Script(check_slb) succeeded
Jun 8 12:58:24 nlb1 Keepalived_vrrp[535]: VRRP_Instance(vi1) forcing a new MASTER election
Jun 8 12:58:24 nlb1 Keepalived_vrrp[535]: VRRP_Instance(vi1) forcing a new MASTER election
Jun 8 12:58:25 nlb1 Keepalived_vrrp[535]: VRRP_Instance(vi1) Transition to MASTER STATE
Jun 8 12:58:26 nlb1 Keepalived_vrrp[535]: VRRP_Instance(vi1) Entering MASTER STATE
Jun 8 12:58:26 nlb1 avahi-daemon[962]: Registering new address record for 10.246.150.151 on
ens160.IPv4.
Figure 67 - Sample Output of Syslog - Keepalived Transition States
57 ECS with NGINX (OpenResty) | H16275 |1.0
7 Global Load Balancing Example
When deploying ECS in a multi-site environment, global load balancing is recommended. This example
describes a sample utilization of OpenResty as a global load balancier. As a best practice, a highly redundant
environment is recommended for the global load balancer and on each site to prevent single point of failures.
However, in this example (Figure 68), for simplicity, a single OpenResty is deployed as the global load
balancer which points to two site load balancers. The site load balancers, forward requests to two different
ECS systems which are geo-federated and configured as a single replication group. This example only
provides details for handling S3 requests via the S3 Browser.
Figure 68 - Global Load Balancing Example
To optimize reads and writes for ECS in a geo-replicated environment, Dell EMC DevOps teams has
developed a geo-pinning Lua script. They also have developed some health check scripts to validate the
upstream servers. This section describes the scripts and configuration files to deploy OpenResty with two
ECS in a global environment.
7.1 Setup
The same two virtual machines (10.246.150.209 and 10.246.150.210) with Ubuntu 16.04 LTS and OpenResty
installed in previous examples are utilized in this example. Another 4-node ECS appliance was configured as
VDC 2. A replication group was created containing VDC1 and VDC2. Also, an additional virtual machine was
configured with IP 10.246.150.207 to act as a global load balancer. The virtual machine was installed with
Ubuntu 16.04 LTS, OpenResty, libraries, add-on modules, and dependencies similarly to the other virtual
machines. After setup of the global load balancer, install additional files (http.lua and http_headrs.lua)
needed for the health checks for the upstream servers as shown in Figure 69. These Lua scripts, provides
extra functions for protection against infinite loops as well as formatting headers, parsing, and other functions.
58 ECS with NGINX (OpenResty) | H16275 |1.0
Then, copy the SSL certificates from the other virtual machines and the prometheus.lua script into the install
directories. Commands in Figure 70 assumes that ssl scripts were remotely copied to the global OpenResty
server and placed in /tmp. Also download the attached nginx-sample.zip files and place into /tmp and copy
them to the install directory.
The files within the gslb directory of the zip file include the following:
nginx.conf – example configuration file for a global environment which calls the Lua scripts for geo-
pinning and healthchecking.
gslb.lua – geo-pinning script to optimize reads and writes for ECS and distributes load between sites.
healthcheck.lua – conducts health checks on ECS nodes
prometheus.lua – metric collection
strutils.lua – string utilities
s3/urllib.lua – support URL parsing and style functions for the gslb.lua and healthcheck.lua scripts.
Next modify the DNS entry for os.ecstme.org and assign the IP of the global OpenResty server as shown in
Figure71.
# cd /usr/local/openresty/lualib/resty
# wget https://raw.githubusercontent.com/pintsized/lua-resty-
http/master/lib/resty/http.lua
# wget https://raw.githubusercontent.com/pintsized/lua-resty-
http/master/lib/resty/http_headers.lua
# chmod 644 http.lua http_headers.lua
# mkdir /usr/local/openresty/nginx/lua
# cp /tmp/prometheus.lua /usr/local/openresty/nginx/lua
Figure 69 - Additional Lua Files
# mkdir /usr/local/openresty/nginx/ssl
# cp /tmp/ssl/combined.pem /usr/local/openresty/nginx/ssl
# cp /tmp/ssl/server.key /usr/local/openresty/nginx/ssl
# mkdir /usr/local/openresty/nginx/lua
# cp /tmp/prometheus.lua /usr/local/openresty/nginx/lua
# cd /tmp
# unzip nginx-sample.zip
# cp /tmp/nginx-sample/gslb/gslb.lua /usr/local/openresty/nginx
# cp /tmp/nginx-sample/gslb/lua/* /usr/local/openresty/nginx/lua
Figure 70 - Copy SSL Certificates and Lua Scripts to Global OpenResty Server
59 ECS with NGINX (OpenResty) | H16275 |1.0
Figure 71 - DNS Assignment for Global Load Balancing.
7.2 OpenResty Configuration Files
The nginx.conf file at each site has an upstream context defined with the IPs of ECS nodes at each site. For
this example, the upstream context named ecs_9020 in the nginx.conf for OpenResty servers at each site has
been modified as follows:
nlb1.ecstme.org - IPs of ECS nodes for VDC 1 (10.246.150.175-10.246.150.178)
nlb2.ecstme.org – IPs of ECS nodes for VDC2 (10.246.150.179-10.246.150.182)
As mentioned in previous the OpenResty single deployment example, a separate file can be created to
contain the upstream servers and an “include” directive in the nginx.conf file can be added within the http
context. Thus, for the global OpenResty server, an upstreams.conf file was created with the OpenResty DNS
names of each site and an “include upstreams.conf” directive is defined in the nginx.conf before it is
referenced in the server context as shown in Figure 72.
60 ECS with NGINX (OpenResty) | H16275 |1.0
The nginx.conf file for the global OpenResty server has similar directives found in the previous example
deployments such as events and http contexts, directives for optimizations, logging, and nested server and
location contexts for proxying request to backend servers, and Lua directives. Since most of these directives
were explained previously, only the directives that differ are highlighted in this section. The nginx.conf used in
this example is attached to this whitepaper and a snippet is shown in Figure 73.
For health checks of upstream servers, an init_by_lua_block utilizes the healthcheck.lua script to run health
checks on the upstream servers and ECS nodes. This init block is started when the nginx.conf file is loaded.
The healthcheck.lua in the attached nginx-sample.zip has comments that describe each of its functions and
variables. Sample functions inside healthcheck.lua script include:
is_maintenance - parses the response body to determine whether the upstream ECS node is in
MAINTENANCE_MODE
get_load_factor – parses the response body to enumerate the LOAD_FACTOR (effectively the
connection count) of the upstream ECS node.
check_server - makes a request against the'?ping' resource on the upstream data node to retrieve
the object service health by requesting its status including MAINTENANCE_MODE Status.
check_pool - service loop which check status of individual data nodes within an upstream pool, using
spawned threads
do_check – does a call to check_pool to check each of the upstream servers.
gen_peers_status_info – provides peer status for the pool of ECS nodes.
Reader is encouraged to read the healthcheck.lua script for additional details which contains self-explanatory
comments. Check the error.log file in /usr/local/openresty/nginx/logs for errors in the spawning of this health
check.
The server context listens on the 9020 (HTTP) and 9021 (HTTPS) ports for S3 requests. For HTTPS, SSL is
terminated at the global load balancing server and forwarded to the upstream server using HTTP. Since the
name of the global load balancer has been modified to be os.ecstme.org, certificates generated in previous
examples are copied to the global load balancer. A Lua script, gslb.lua, is embedded within the load
balancer configuration file to implement the geo-pinning algorithm. The geo-pinning script is explained in the
next section. SSL termination can also occur at the site level load balancer instead of at the global level, if
desired.
upstream vdc1 {
server nlb1.ecstme.org:9020;
keepalive 32;
}
upstream vdc2 {
server nlb2.ecstme.org:9020;
keepalive 32;
}
Figure 72 - Example of upstreams.conf File.
61 ECS with NGINX (OpenResty) | H16275 |1.0
worker_processes 1;
pid /var/run/nginx.pid;
events {
worker_connections 4096;
use epoll;
multi_accept on;
}
http {
lua_package_path "${prefix}/lua/?.lua;;";
lua_code_cache on;
lua_socket_log_errors off;
#lua_need_request_body off;
lua_shared_dict stats 32k;
include upstreams.conf;
init_worker_by_lua_block {
local hc = require "healthcheck"
local ok, err = hc.run_checker{
interval = 10,
timeout = 60,
max_fails = 1
}
if not ok then
ngx.log(ngx.ERR, "failed to spawn health checker: ", err)
return
end
}
server {
listen 9020;
location / {
set $root_host "ecstme.org"; # set the actual domain name here
rewrite_by_lua_file 'gslb.lua';
proxy_pass http://$proxyto;
}
}
server {
listen 9021 ssl;
ssl on;
ssl_certificate /usr/local/openresty/nginx/ssl/combined.pem;
ssl_certificate_key /usr/local/openresty/nginx/ssl/server.key;
ssl_protocols TLSv1 TLSv1.1 TLSv1.2;
ssl_ciphers HIGH:!aNULL:!MD5;
ssl_prefer_server_ciphers on;
ssl_session_cache shared:SSL:32m;
ssl_session_timeout 1d;
location / {
set $root_host "ecstme.org"; # set the actual domain name here
set $proxyto '';
rewrite_by_lua_file 'gslb.lua';
proxy_pass http://$proxyto;
}
}
}
Figure 73 - Example Snippet of nginx.conf for Global Deployment Example
62 ECS with NGINX (OpenResty) | H16275 |1.0
7.2.1 Geo-Pinning (gslb.lua)
The gslb.lua implements a hash algorithm (modulo to “n” sites) referred to as “geo-pinning” to distribute the
creation of objects across sites for storage efficiency and direct reads and updates to site owning object for
performance. In ECS architecture, the site that originated the creation of object is the site owner of object. In
order to maintain strong consistency a read request first checks with site owning the object for consistency of
data at requesting site. If a request comes to site that does not own the object, response times are prolonged
in order to check with owning site first and fetch data if data is not current in cache of remote site. With geo-
pinning, the read goes directly to site owner of object to process requests and thus improving read
performance. The geo-pinning logic is as follows:
1. Derive hash ID from the URI and headers of a request. If it is a bucket request, the bucket is the ID.
If it is an object request, the key is the ID.
2. Calculate the hash string from the hash ID using SHA1 algorithm.
3. Get first six HEX number of hash string and conduct a modulo operation based on the number of
VDCs
It has several dependent Lua scripts and modules that include:
ngx.upstream – NGINX upstream module included as part of OpenResty.
s3.urllib – URL libraries, part of nginx-samples.zip file attached.
resty.string – OpenResty string libaries
config – local configuration directives, included as part of the nginx-samples.zip file attached.
Reader is encouraged to read through the gslb.lua script and dependent scripts such as s3.urllib and config
attached to this whitepaper. The scripts contain self-explanatory comments.
7.2.2 Monitoring
For metric collection, as shown in Figure 74, the init_by_lua_block and log_by_lua are defined to register and
log the metrics collected using the Prometheus library as was previously explained in the previous section.
server {
listen 9020;
lua_shared_dict prometheus_metrics 10M;
init_by_lua_block {
prometheus = require("prometheus").init("prometheus_metrics")
metric_requests = prometheus:counter(
"nginx_http_requests_total", "Number of HTTP requests", {"host", "status"})
metric_latency = prometheus:histogram(
"nginx_http_request_duration_seconds", "HTTP request latency", {"host"})
metric_bytes = prometheus:counter(
"nginx_http_request_size_bytes", "Total size of incoming requests")
metric_connections = prometheus:gauge(
"nginx_http_connections", "Number of HTTP connections", {"state"})
}
log_by_lua_block {
metric_requests:inc(1, {host, ngx.var.status})
metric_bytes:inc(tonumber(ngx.var.request_length))
metric_latency:observe(ngx.now() - ngx.req.start_time(), {ngx.var.host})
}
}
Figure 74 - Metric Collection Directives.
63 ECS with NGINX (OpenResty) | H16275 |1.0
For exposing via a webpage, the location context contains the monitoring directives as illustrated in Figure 75.
The heatlhcheck.lua is also used for providing the status page for upstream servers.
server {
listen 9020;
# status page for upstream servers
location = /upstream_status {
access_log off;
default_type text/plain;
content_by_lua_block {
local hc = require "healthcheck"
ngx.say("Nginx Worker PID: ", ngx.worker.pid())
ngx.print(hc.status_page())
local upstream = require 'ngx.upstream'
local us = upstream.get_upstreams()
local stats = ngx.shared.stats
ngx.say()
ngx.say("Requests by upstream:")
for _, u in ipairs(us) do
ngx.say(" Upstream ", u, ":")
local sum = 0
local srvs = upstream.get_servers(u)
for _, srv in ipairs(srvs) do
local cnt = stats:get(srv.name)
if not cnt then
cnt = 0
end
ngx.say(" Peer ", srv.name, " : ", cnt)
sum = sum + cnt
end
ngx.say(" Total: ", sum)
ngx.say()
end
}
}
# status page for nginx
location = /nginx_status {
access_log off;
default_type text/plain;
stub_status on;
}
location /metrics {
access_log off;
content_by_lua_block {
metric_connections:set(ngx.var.connections_reading, {"reading"})
metric_connections:set(ngx.var.connections_waiting, {"waiting"})
metric_connections:set(ngx.var.connections_writing, {"writing"})
prometheus:collect()
}
}
}
Figure 75 - Monitoring Directives within Server Context
64 ECS with NGINX (OpenResty) | H16275 |1.0
Sample views of the kind of information provided by the monitoring directives are shown in Figures 76, 77,
and 78.
Figure 76 - Sample View of Upstream Servers Status
Figure 77 – Sample View of NGINX status
65 ECS with NGINX (OpenResty) | H16275 |1.0

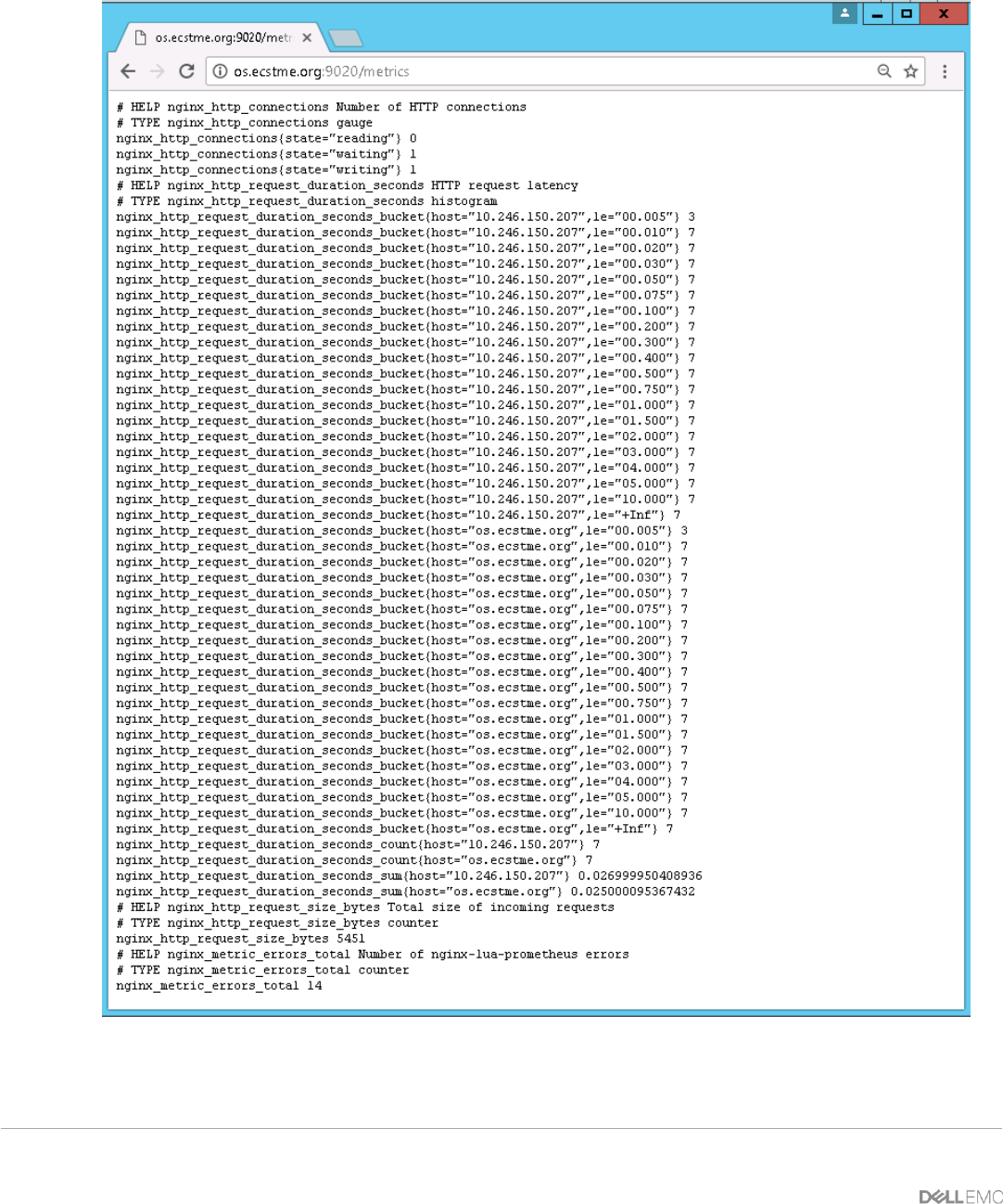

Figure 78 - Sample View of Metrics Collected
66 ECS with NGINX (OpenResty) | H16275 |1.0
7.3 Validation
As in previous examples, the S3 browser can also be used to validate this global load balancing example.
The settings in the previous examples should still apply since the DNS name of the global load balancer used
in this example has been modified to be os.ecstme.org. Also by viewing the status pages per the monitoring
directives on each of the site load balancers (nlb1 and nlb2), it can provide information that traffic is in fact
being distributed among sites. Figures 79 and 80 provide examples of the vts_status page for
nlb1.ecstme.org and nlb2.ecstme.org to validate distribution.

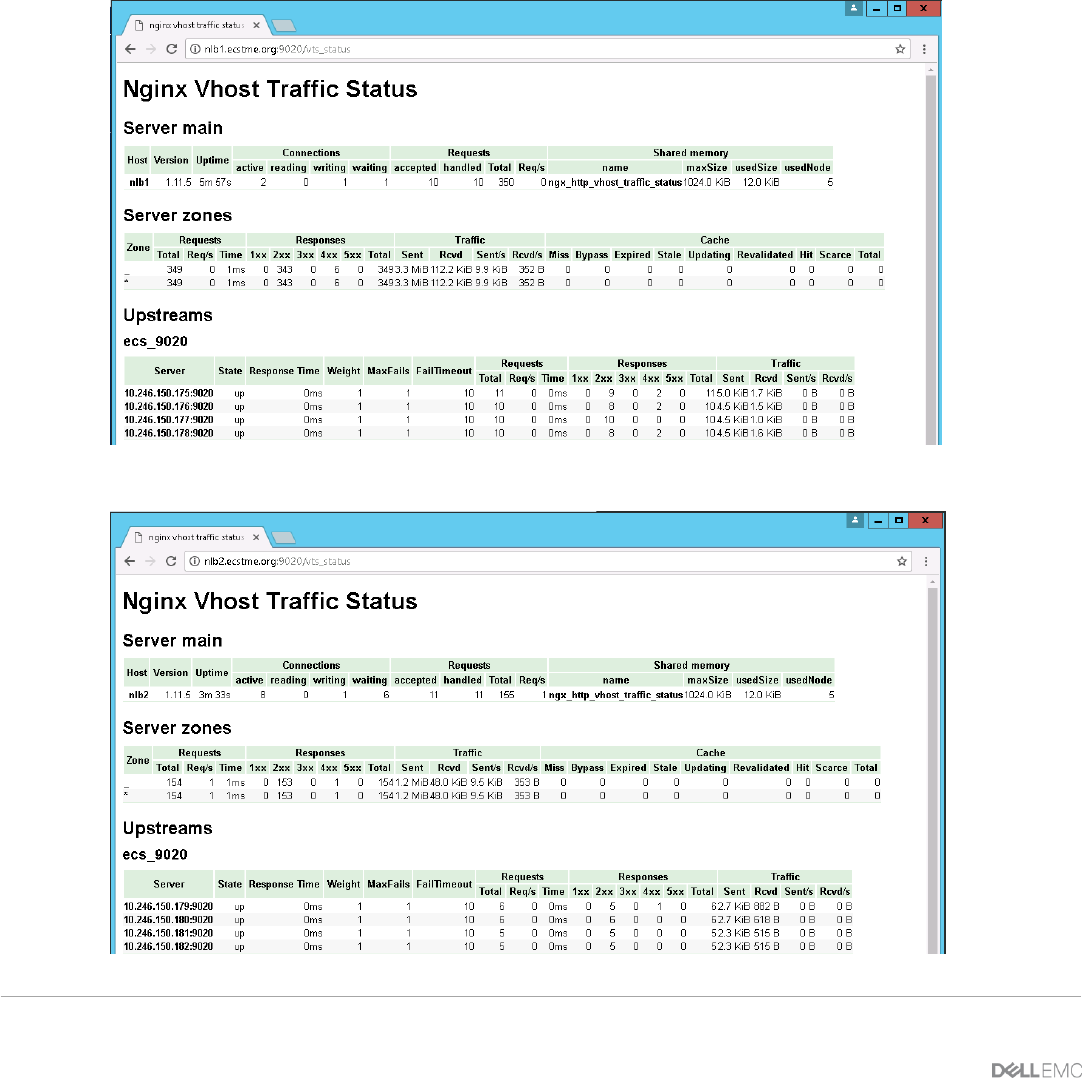

Figure 79 - HTTP S3 traffic for NLB1
Figure 80 - HTTP S3 traffic for NLB2
67 ECS with NGINX (OpenResty) | H16275 |1.0
8 Best Practices
Utilizing a load balancer with ECS is highly recommended. Highlights of some the best practices when
deploying with ECS include:
Do not use a load balancer for CAS traffic since the Centera SDK has a built-in load balancer in
software and cannot function without direct access to all nodes.
Use the load balancer to terminate SSL connections to reduce the load on the ECS Nodes
If SSL termination is required on ECS nodes itself, then use Layer 4 (tcp) to pass through the SSL
traffic to ECS nodes for handling. The certificates would need to be installed on the ECS nodes and
not on the load balancer.
Use redundant load balancers to prevent single point of failure.
For NFS, use only the high available functionality of the load balancer.
Enable web monitoring for OpenResty to monitor traffic as described in this whitepaper.
When deploying three or more ECS sites, employ a global load balancing mechanism such as the
gslb.lua described in the Global Deployment example to distribute load across sites and to take
advantage of the storage efficiency by ECS XOR. The gslb.lua script also optimizes the local object
read hit rate in a global deployment.
68 ECS with NGINX (OpenResty) | H16275 |1.0
9 Conclusions
OpenResty provides a low-cost option for customers desiring to utilize a load balancer with ECS. By using the
OpenResty version, the functionality of standard NGINX is enhanced and expanded. It integrates libraries
and add-on modules that allow for enhanced monitoring and customization of NGINX with ECS. Sample Lua
scripts were provided and the reader can modify and extend these samples based on specific requirements.
Examples and best practices were described in this whitepaper to provide guidance and a reference to
architects interested in deploying NGINX (OpenResty) with ECS.
69 ECS with NGINX (OpenResty) | H16275 |1.0
A Attachment – NGINX-SAMPLE.ZIP
The nginx-samples.zip contains all the sample configuration files and Lua scripts used in the examples
described in this whitepaper. In order to download the attachment, your PDF reader must have permissions to
be able to open a zip file. For instance, if using Adobe Acrobat Reader, please refer to this website on how to
modify reader permissions to allow opening of zip files attached to PDF files:
– https://www.adobe.com/devnet-docs/acrobatetk/tools/AppSec/attachments.html
The nginx-samples.zip (Figure 81) file contains the following:
1.
# unzip -l nginx-sample.zip
Archive: nginx-sample.zip
Length Date Time Name
--------- ---------- ----- ----
0 2017-06-12 10:30 nginx-sample/
0 2017-06-12 08:21 nginx-sample/gslb/
0 2017-06-12 08:21 nginx-sample/gslb/lua/
129 2017-06-12 08:21 nginx-sample/gslb/lua/config.lua
7172 2017-06-12 08:21 nginx-sample/gslb/lua/resty_healthchecker.diff
881 2017-06-12 08:21 nginx-sample/gslb/lua/strutils.lua
4372 2017-06-12 08:21 nginx-sample/gslb/lua/gslb.lua
0 2017-06-12 08:21 nginx-sample/gslb/lua/s3/
16151 2017-06-12 08:21 nginx-sample/gslb/lua/s3/urllib.lua
9601 2017-06-12 08:21 nginx-sample/gslb/lua/healthcheck.lua
16063 2017-06-12 08:21 nginx-sample/gslb/lua/prometheus.lua
4372 2017-06-12 08:21 nginx-sample/gslb/gslb.lua
0 2017-06-12 08:21 nginx-sample/gslb/conf/
140 2017-06-12 08:21 nginx-sample/gslb/conf/upstreams.conf
5756 2017-06-12 08:21 nginx-sample/gslb/conf/nginx.conf
0 2017-06-12 08:21 nginx-sample/slb/
0 2017-06-12 08:21 nginx-sample/slb/lua/
16063 2017-06-12 07:09 nginx-sample/slb/lua/prometheus.lua
0 2017-06-12 08:39 nginx-sample/slb/conf/
8224 2017-06-12 08:35 nginx-sample/slb/conf/nginx.conf
0 2017-06-12 10:30 nginx-sample/install/
3127 2017-06-12 09:43 nginx-sample/install/OpenRestyInstall.txt
0 2017-06-12 10:29 nginx-sample/install/patches/
27119 2017-06-12 10:29 nginx-sample/install/patches/stream_upstream_module.patch
4861 2017-06-12 10:29 nginx-sample/install/patches/patch-1.11.x.patch
0 2017-06-12 07:17 nginx-sample/keepalived/
792 2017-06-12 07:14 nginx-sample/keepalived/keepalived.conf.Master
159 2017-06-12 07:15 nginx-sample/keepalived/check_etm.sh
789 2017-06-12 07:17 nginx-sample/keepalived/keepalived.conf.Backup
--------- -------
125771 29 files
Figure 81 - Contents of nginx-samples.zip file
70 ECS with NGINX (OpenResty) | H16275 |1.0
Install A.1
All the commands to install OpenResty are described in install/install.txt file. It is best to perform these
commands one by one so that if there are errors, it can be corrected before moving to the next step. The
patches directory contains the two files needed to patch NGINX and ngx_stream_upstream_check_module-
master described in the examples.
SLB A.2
For nginx-samples/slb directory, steps to setup:
1. Place the nginx.conf in the OpenResty install directory for nginx (i.e. /usr/local/openresty/nginx/conf).
2. Modify the upstream ecs_9020 and ecs_9024 with the IPs of the ECS nodes for S3 and Swift
respectively.
3. For NFS, modify the IPs in the stream context with the IPs of the ECS nodes.
4. Create a “lua” directory in the OpenResty install directory for nginx (i.e. /usr/local/openresty/nginx/lua)
5. Place the prometheus.lua script in the lua directory created in step 4.
Keepalived A.3
If deploying a highly available OpenResty, there are two keepalived configuration files and check_etm.sh
script in nginx-samples/keepalived directory. The steps to install include:
1. After install of keepalived on both servers hosting OpenResty, place the keepalived.conf.Master in
/etc/keepalived directory on server that acts as master and rename it keepalived.conf. Place the
keepalived.conf.Backup in /etc/keepalived directory on server that acts as backup.
2. Copy check_etm.sh script in /usr/local/sbin directory on both servers.
GSLB A.4
If deploying a global environment setup, the nginx-samples/gslb directory contains the files needed. Setup
includes:
1. Place the nginx.conf and upstreams.conf files in the OpenResty install directory for nginx
configuration (i.e. /usr/local/openresty/nginx/conf).
2. Modify the upstreams.conf to include the IPs of the backend OpenResty servers.
3. Copy gslb.lua to the Openresty install directory for nginx (i.e. /usr/local/openresty/nginx).
4. Copy the lua directory or contents to the OpenResty install directory for nginx (i.e.
/usr/local/openresty/nginx/lua).
71 ECS with NGINX (OpenResty) | H16275 |1.0
B Troubleshooting
This section provides some common issues that can be encountered during build, install and deployment and
provide some tips and logs that can be referenced.
Build Issues B.1
Using “cut and paste” to imitate the examples in this whitepaper can cause some extra configure options to
not be included. So, although the build may succeed, some modules or options may not be included such
that compilation may fail with an error. Please re-run the configure command with correct options. Another
reason is if the libraries needed were not installed properly. Check that all the libraries such as
build_essentials and libncurses are installed with the latest versions. In most cases, the error message
produced during the build can provide clues on the cause.
Logs B.2
There are several logs available that provide additional clues on issues encountered. There are NGINX log
files available to review located in the install directory (i.e. /usr/local/openresty/nginx/logs). There are two logs
files available:
access.log – logs information relating to client requests
error.log – logs errors based on severity level. In the examples, a “warn” severity level is specified
which indicates messages from error to warn are logged.
The syslog file located /var/log also can provide error messages relating to what is occurring on the host
running Openresty.
Firewall Issues B.3
A firewall is one of the main issues that can cause error in connecting to ECS. Certain ports need to be open
in order to communicate to ECS. For instance, for Swift, ports 9024 and 9025 need to be opened. Check
firewall settings on the host running OpenResty to ensure the ports for ECS are open.
72 ECS with NGINX (OpenResty) | H16275 |1.0
C ECS Dedicated Cloud
The Dell EMC ECS DevOps team has developed the Lua scripts described in this document. It is meant
mostly for reference and up to reader to modify based on their requirements. If deploying these scripts in an
ECS Dedicated Cloud environment, there may be other directives defined to handle replication traffic in order
to also provide the capability to shape or re-route replication traffic at the load balancer level. In this scenario,
the replication endpoints on the ECS nodes point to the server load balancers. Refer to the ECS Dedicated
Cloud Technical Overview whitepaper and your ECS Dedicated Cloud account team for more information on
the ECS Dedicated Cloud.
73 ECS with NGINX (OpenResty) | H16275 |1.0
D Technical Support and Resources
Dell EMC support is focused on meeting customer needs with proven services and support.
Dell EMC Community is an online technical community where IT professionals have access to numerous
resources for Dell EMC software, hardware and services.
Storage Solutions Technical Documents on Dell TechCenter provide expertise that helps to ensure customer
success on Dell EMC Storage platforms.
Related resources D.1
OpenResty, NGINX, SSL
– OpenResty documentation
https://openresty.org/en/
– NGINX
https://nginx.org/
– OpenSSL documentation
https://www.openssl.org/docs/apps/openssl.html
ECS APIs and SDKs
– ECS Rest API
http://www.emc.com/techpubs/api/ecs/v3-0-0-0/index.htm
– Dell EMC Data Services – Atmos and S3 SDK
https://github.com/emcvipr/dataservices-sdk-java/releases
– Data Access Guide
https://support.emc.com/docu79368_ECS_3.0_Data_Access_Guide.pdf?language=en_US&language
=en_US
ECS Product Documentation
– ECS product documentation at support site or the community links:
https://support.emc.com/products/37254_ECS-Appliance-/Documentation/
https://community.emc.com/docs/DOC-53956
– ECS Architecture and Overview
http://www.emc.com/collateral/white-papers/h14071-ecs-architectural-guide-wp.pdf
– ECS Networking and Best Practices
http://www.emc.com/collateral/white-paper/h15718-ecs-networking-bp-wp.pdf
ECS Community
– Getting Started with ECS SDKs
https://community.emc.com/docs/DOC-27910
.

Navigation menu
