RFID Readers -TWN3 Family
125kHz or 13.56MHz Contactless Readers/Writers

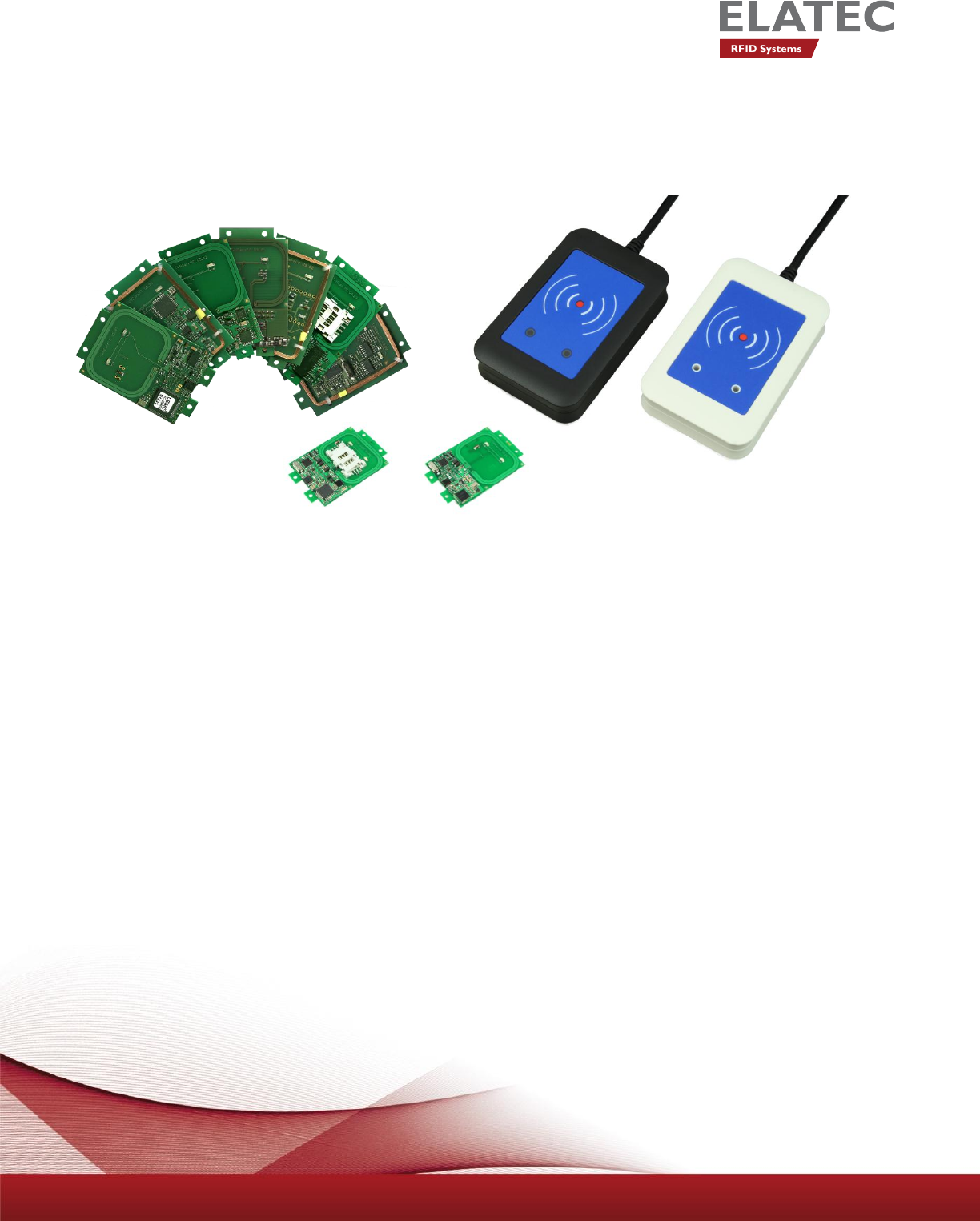

Seven TWN3 members
Two new TWN3 Members: Mifare NFC Legic NFC
The family of TWN3 RFID transponder readers is designed for easy integration into various applications.
It supports all major transponders from various suppliers like ATMEL, EM, ST, NXP, TI, HID, LEGIC, INSIDE etc.
and ISO standards like ISO14443A including ISO14443A-4 (T=CL), ISO14443B including ISO14443B-4 (T=CL),
ISO15693 and ISO18092 / ECMA-340 (NFC).
In order to achieve a maximum of flexibility, it is based on a modular design and combines a state-of-the-art reading
performance. The device supports either USB or RS232 communication just in dependence on the connection
cable. The family of TWN3 transponder readers is available in nine different versions: Each version as
ready-to-connect desktop reader in a slim line black or white housing or as a OEM board (PCB) without housing for
direct integration into embedded applications.
Secure Access Module (SAM) is supported to enhance the security and cryptography performance in some readers
to perform secure transactions, e.g. for paying terminals etc.
Readers can be programmed with a script language for autonomous execution of even complex commands like
login procedures, credit/debit functions and many more.
Worldwide certifications for worldwide sales:
WEEE, RoHS-II compliant, R&TTE, CE (Europe),
FCC (USA), IC (Canada), ACA (Australia / New Zealand), VCCI (Japan), SRRC (China)
Elatec reserves the right to change any information or data in this document without prior notice. The distribution and the update of this document is not controlled. Elatec declines all responsibility for
the use of product with any other specifications but the ones mentioned above. Any additional requirement for a specific customer application has to be validated by the customer himself at his own
responsibility. Where application information is given, it is only advisory and does not form part of the specification © 2012 Elatec GmbH – V2.9 – 11/2012
Elatec GmbH
Lilienthalstr. 3
82178 Puchheim
Germany
Phone: +49 89 5529961 0
Fax: +49 89 5529961 29
info-rfid@elatec.com
www.elatec-rfid.com
Technical Data
TWN3
HID Prox
TWN3
Multi125
TWN3
Inditag
TWN3
Mifare
TWN3
Mifare NFC
TWN3
Multi ISO
TWN3
HID iClass
TWN3
Legic
TWN3
Legic NFC
Frequency
125 kHz
13.56 MHz
Antenna
Aircoil
PCB Aircoil
Housing
Material ABS UL94-V0, colour black or white
Dimensions (L x
W x H )
Desktop Reader: 88mm x 56mm x 18mm / 3.5inch x 2.2inch x 0.7inch
OEM Board: 76mm x 49mm x 14mm / 3.0inch x 1.9inch x 0.6inch
Power Supply
5V ± 10% via communication cable (USB); serial version requires external power supply
Supply Current
50mA typ
140mA max
130mA typ
220mA max
160mA typ
220mA max
55mA typ
120mA max
65mA typ
120mA max
110mA typ
180mA max
220mA typ
250mA max
75mA typ
280mA max
140mA typ
200mA max
Temperature
Range
Storage: -45°C up to +85°C (-49°F up to 185°F)
Operating: -25°C up to +80°C (-13°F up to 176°F)1)
R/W Distance
up to 100mm / 4inch (depending on transponder)
Host Interface
USB or RS232, the OEM board supports both interfaces
OS Support
Windows Vista, XP, 7 (32-/64-bit) and Linux
Communication
Parameters
USB: Full speed (12 MBit)
RS232: 9.600 Baud, 8N1 (Default) – up to 57.600 Baud for Mifare NFC and Legic NFC
Modes of
Operation
USB keyboard emulation
USB virtual COM port (bi-directional communication)
Direct access to built-in RFID module (transparent mode)
Special Features
The TWN3 family of transponder readers supports standalone operation, which can be widely influenced by Elatec’s
versatile scripting language. Multi ISO and Mifare NFC include socket for SAM Module.
Supported
Transponders
HID Prox
EM4100
EM4102
EM4105
EM4200
EM4150
EM4350
EM4450
FDX-B
HITAG 1, 2
HITAG S
MIRO,Q5
T5557
T5567
T5577
TITAN
UNIQUE
ZOODIAC
Indala
Flexpass
ISO14443A
Mifare
-Classic 1k, 4k
- DESFire EV13)
- Mini
- Plus S2),X2)
- Pro X3)
- SmartMX3)
- Ultralight
- Ultralight C4)
Legic Advant3)
SLE44R35
SLE66Rxx
ISO14443A
Mifare
- Classic 1k, 4k, Mini
- DESFire EV1
- Mini
- Plus S, X
- Pro X
- SmartMX
- Ultralight
- Ultralight C
SLE44R35, my-d move
(SLE66Rxx), Legic Advant3)
PayPass3)
ISO14443B
Calypso6),CEPAS6),Moneo6)
Sony FeliCa2), PicoPass3),
HID iCLASS3)
SRI512, SRT512
SRI4K, SRIX4K
ISO18092/NFC
NFCIP-1: active+passive,
NFC Forum Tag Type 1-4)
ISO14443A
Mifare
- Mini, Classic 1k, 4k
- DESFire EV1
- Mini
- Plus S, X
- Pro X
- SmartMX
- Ultralight
- Ultralight C
SLE44R35, my-d move
(SLE66Rxx), Legic Advant3)
PayPass3)
ISO14443B
Calypso6),CEPAS6),Moneo6)
SRI512, SRT512
SRI4K, SRIX4K
ISO15693
EM4x33, EM4135, Tag-it,
my-d vicinity (SRF55Vxx),
ICODE SLI, M24LR16/645),
MB89R118/1195), HID
iCLASS3),Legic Advant3)
HID iClass
ISO14443A3)
ISO14443B3)
ISO156933)
Legic Advant
Legic Prime
ISO14443A3)
ISO156933)
Legic Advant
Legic Prime
ISO14443 A+B
compatible to part 4
Mifare DESFire EV1
Mifare Plus
Mifare SmartMX
my-d move
(SLE66Rxx)
PayPass3)
Mifare Classic3)
Mifare Ultralight
ISO15693
EM4035, Tag-it,my-d
vincinity(SRF55VxxP)
ICODE SLI
Sony FeliCa2)
NFC Forum Tag 2-4
PicoPass3)
HID iCLASS3)
Weight
Approx. 20g (without housing)
Order Code
OEM Board
Desktop reader
USB black
USB white
RS232 black
RS232 white
ART11048
ART11229
ART11230
ART12457
ART12458
ART11046
ART11241
ART11242
ART12455
ART12456
ART12154
ART12469
ART12161
ART12459
ART12460
ART11050
ART11223
ART11224
ART12461
ART12462
ART13791
ART13529
ART13607
ART13861
ART13862
ART12441
ART12442
ART12443
ART12463
ART12464
ART11047
ART11235
ART11236
ART12465
ART12466
ART11049
ART11247
ART11248
ART12467
ART12468
ART13790
ART13857
ART13858
ART13859
ART13860
1) Operating temperature TWN3 HID Prox and TWN3 HID iClass: -25°C up to +65°C (-13°F up to 150°F) 2) Support of security level 1 3) UID only 4) without crypto 5)V1.19
6) UID only read/write on request
Accessories
Order Code
ART13512
ART11493
ART12240
Snap-in holder for
TWN3/TWN4 desktop
2.0m USB Type A cable for
TWN3/TWN4 OEM PCB
2.0m RS232 DSUB 9 DC cable for
TWN3/TWN4 OEM PCB
Order Code
ART14712
ART14713
ART14714
ART14715
AC Wall Adapter
Europe
USA
AUSTRALIA
UK
Drawing/Pin Out
Pinning
Refer to document DS_TWN3 Reader Family Pinouts
