ES110113055F FCC Report

2016-04-05

: Pdf Es110113055F-Fcc Report ES110113055F-FCC_Report CertsReports 151061 ProductFiles

Open the PDF directly: View PDF PDF.
Page Count: 30

Königswinkel 10
32825 Blomberg
Germany
Phone +49 5235 9500-0
Fax +49 5235 9500-10
TEST REPORT
Test Report Reference: 11-110231
Equipment under Test: USB to HDMI Display Adapter
Model Number: U2-D09-V410-xx-xxxxx
Additional Model Number: /
Brand Name: /
Applicant: SUNRICH TECHNOLOGY (H.K.) LTD.
Manufacturer: SUNRICH TECHNOLOGY (H.K.) LTD.
Test Laboratory
(CAB)
accredited by DATech GmbH
in compliance with DIN EN ISO/IEC 17025
under the Reg. No. DGA-PL-105/99-22,
recognized by Bundesnetzagentur
under the Reg.-No. BNetzA-CAB-02/21-104,
CAB Designation Number DE0004,
listed by
FCC 31040/SIT1300F2
DGA-PL-105/99-22
TEST REPORT REFERENCE: 11-110231
Examiner: B. Selck Date of issue: 20 January 2011 Page 2 of 5
Contents: Page
1 IDENTIFICATION .....................................................................................................................................3
1.1 APPLICANT.....................................................................................................................................3
1.2 MANUFACTURER ..........................................................................................................................3
1.3 TEST LABORATORY......................................................................................................................4
1.4 RESERVATION...............................................................................................................................4
1.5 NORMATIVE REFERENCES .........................................................................................................4
1.6 TEST RESULTS..............................................................................................................................4
2 ANNEX .....................................................................................................................................................5
TEST REPORT REFERENCE: 11-110231
Examiner: B. Selck Date of issue: 20 January 2011 Page 3 of 5
1 IDENTIFICATION
1.1 APPLICANT
Name: SUNRICH TECHNOLOGY (H.K.) LTD.
Address: Room 1301, Eastern Centre, 1065 King`s Road, Quarry Bay
Hong Kong
Country: Hong Kong
Name for contact purposes: Ricky Yeung
Tel: +852 25561788
Fax: +852 25059637
e-mail address: Ricky@sunrichrd.com.hk
1.2 MANUFACTURER
Name: SUNRICH TECHNOLOGY (H.K.) LTD.
Address: Room 1301, Eastern Centre, 1065 King`s Road, Quarry Bay
Hong Kong
Country: Hong Kong
Name for contact purposes: Ricky Yeung
Tel: +852 25561788
Fax: +852 25059637
e-mail address: Ricky@sunrichrd.com.hk
TEST REPORT REFERENCE: 11-110231
Examiner: B. Selck Date of issue: 20 January 2011 Page 4 of 5
1.3 TEST LABORATORY
The Client required to perform the tests in the following Subcontracted Test Laboratory.
The tests were carried out at: Shenzhen EMTEK Co.,LTD.
Bldg 69, Majialong Industry Zone
Nanshan District, Shenzhen, Guangdong
China
Phone: (0755) 26954280
Fax: (0755) 26954282
Test report checked: B. Selck 20 January 2011
Name Signature Date
Stamp
1.4 RESERVATION
This test report is only valid in its original form.
Any reproduction of its contents without written permission of the accredited test laboratory
PHOENIX TESTLAB GmbH is prohibited.
The test results herein refer only to the tested sample. PHOENIX TESTLAB GmbH is not responsible for any
generalisations or conclusions drawn from these test results concerning further samples. Any modification of the
tested samples is prohibited and leads to the invalidity of this test report. Each page necessarily contains the
PHOENIX TESTLAB Logo and the TEST REPORT REFERENCE.
1.5 NORMATIVE REFERENCES
[1] ANSI C63.4:2003 American National Standard for Methods of Measuring of Radio-Noise Emissions from Low-
Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz.
[2] FCC 47 CFR Part 2 General Rules and Regulations
[3] FCC 47 CFR Part 15 Radio Frequency Devices (Subpart B)
1.6 TEST RESULTS
The requirements of this test document are fulfilled by the equipment under test. The complete test results are
presented in the following.
TEST REPORT REFERENCE: 11-110231
Examiner: B. Selck Date of issue: 20 January 2011 Page 5 of 5
2 ANNEX
The annex is consisting of the test report from the Test Laboratory
- Shenzhen EMTEK Co., LTD -
with the number ES110113055F (issue date 18 January 2011).
The test report consists of 25 pages in total.
SHENZHEN EMTEK CO., LTD. Report No.: ES110113055F
Page 1 of 25
TEST REPORT
For
SUNRICH TECHNOLOGY (H.K.) LTD.
USB to HDMI Display Adapter
Model No.: U2-D09-V410-xx-xxxxx
Report Number : ES110113055F
Date of Test : January 13, 2011 to January 17, 2011
Date of Report : January 18, 2011
Prepared for : SUNRICH TECHNOLOGY (H.K.) LTD.
Address : Room 1301, Eastern Centre, 1065 King’s Road, Quarry Bay,
Hong Kong
Prepared by : Shenzhen EMTEK Co., Ltd
Address : Bldg 69, Majialong Industry Zone,
Nanshan District, Shenzhen, Guangdong, China
Tel: (0755) 26954280
Fax: (0755) 26954282
SHENZHEN EMTEK CO., LTD. Report No.: ES110113055F
Page 2 of 25
TABLE OF CONTENT
Test Report Description Page
1. SUMMARY OF TEST RESULT ..................................................................................................... 4
2. GENERAL INFORMATION........................................................................................................... 5
2.1. Description of Device (EUT)....................................................................................................... 5
2.2. Description of Support Device..................................................................................................... 6
2.3. Description of Test Facility.......................................................................................................... 7
2.4. Measurement Uncertainty............................................................................................................ 7
3. MEASURING DEVICE AND TEST EQUIPMENT..................................................................... 8
3.1. For Power Line Conducted Emission ..........................................................................................8
3.2. For 3m Radiated Emission Measurement .................................................................................... 8
4. POWER LINE CONDUCTED EMISSION MEASUREMENT.................................................. 9
4.1. Block Diagram of Test Setup ....................................................................................................... 9
4.2. Measuring Standard ..................................................................................................................... 9
4.3. EUT Configuration on Measurement...........................................................................................9
4.4. Operating Condition of EUT...................................................................................................... 10
4.5. Test Procedure............................................................................................................................ 10
4.6. Measuring Results...................................................................................................................... 10
5. RADIATED EMISSION MEASUREMENT.................................................................................11
5.1. Block Diagram of Test ............................................................................................................... 11
5.2. Measuring Standard ................................................................................................................... 11
5.3. Radiated Emission Limits (class B)........................................................................................... 12
5.4. EUT Configuration on Test........................................................................................................ 12
5.5. Operating Condition of EUT...................................................................................................... 12
5.6. Test Procedure............................................................................................................................ 12

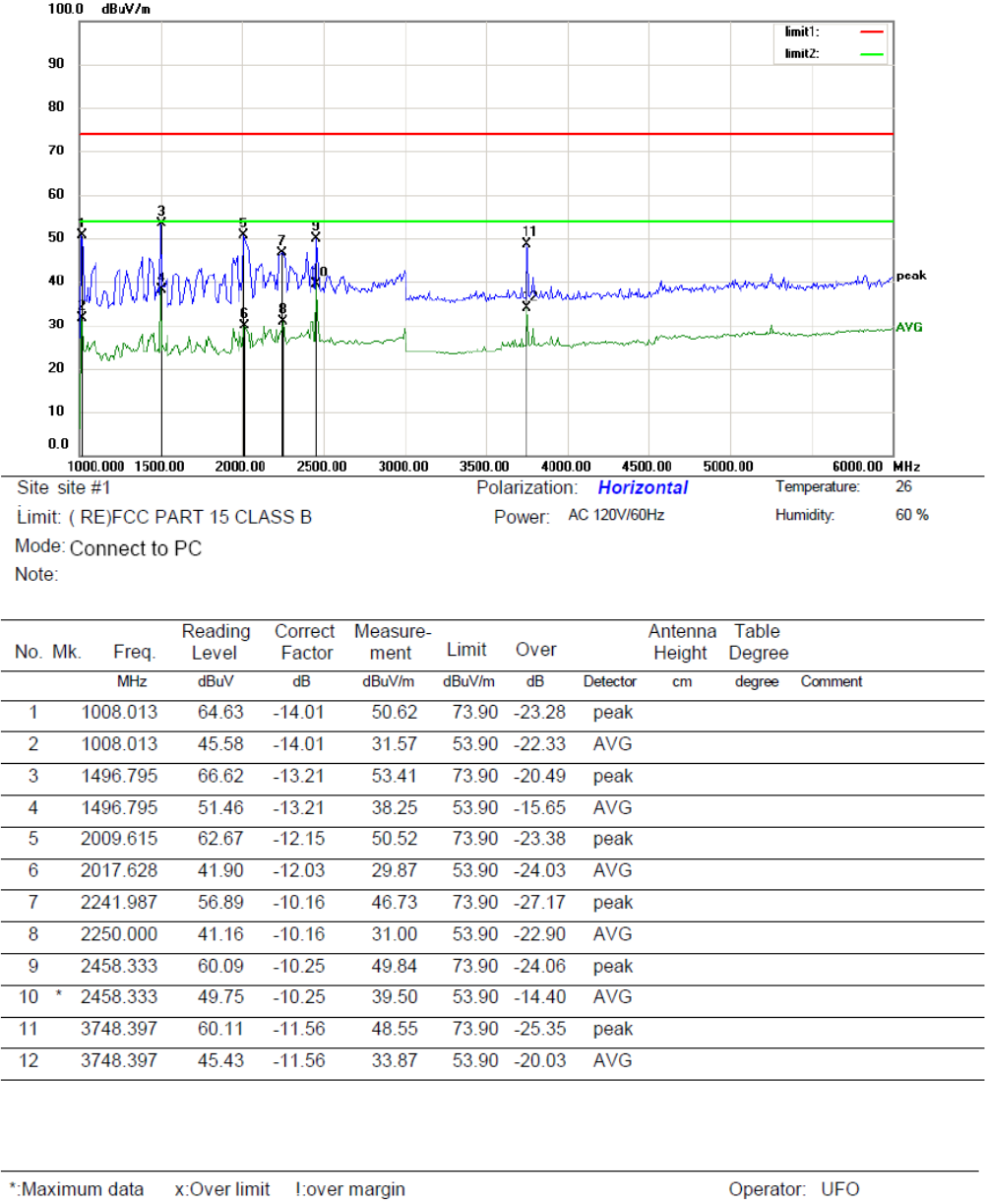

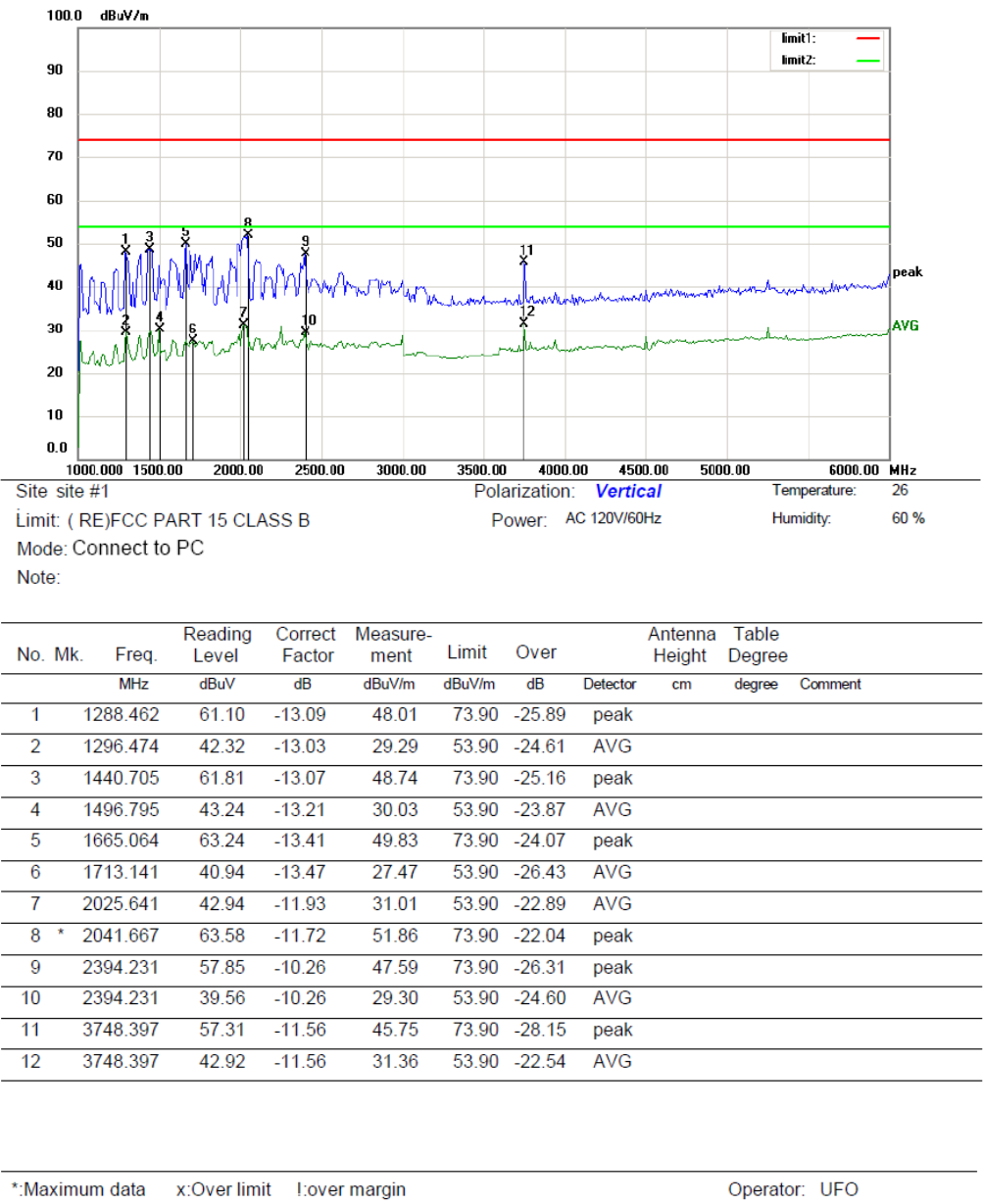

5.7. Measuring Results...................................................................................................................... 12
6. PHOTOGRAPH.............................................................................................................................. 13
6.1. Photo of Conducted Emission Measurement............................................................................. 13
6.2. Photo of Radiation Emission Measurement............................................................................... 14
APPENDIX I (2 Pages)
APPENDIX II (4 Pages)

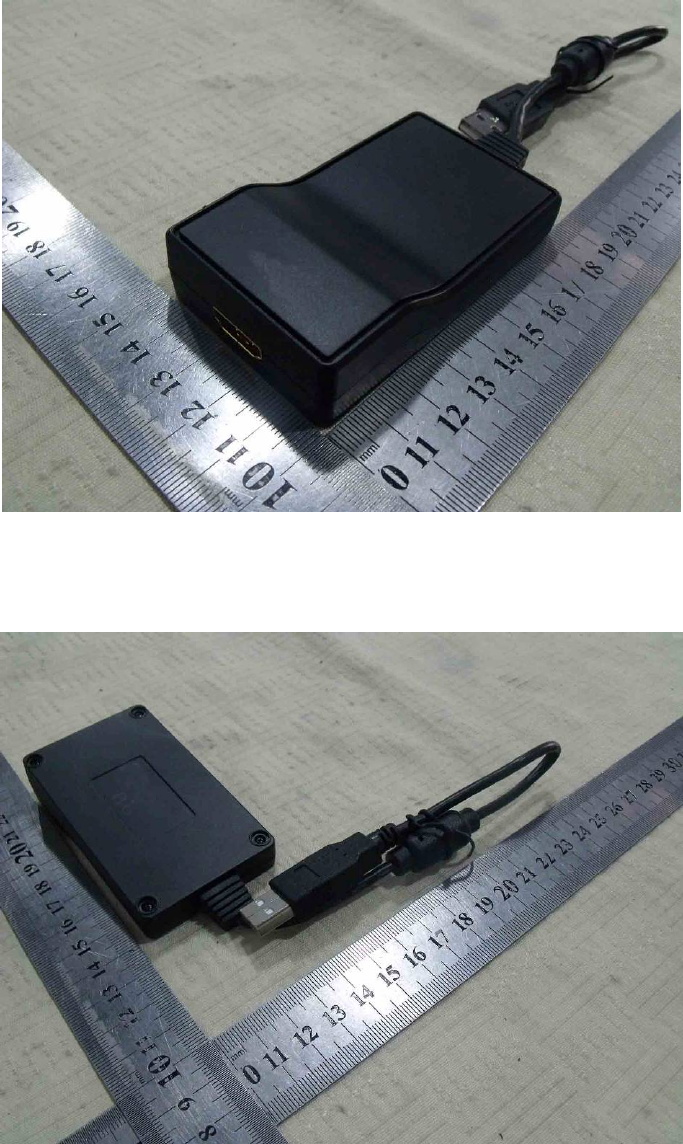

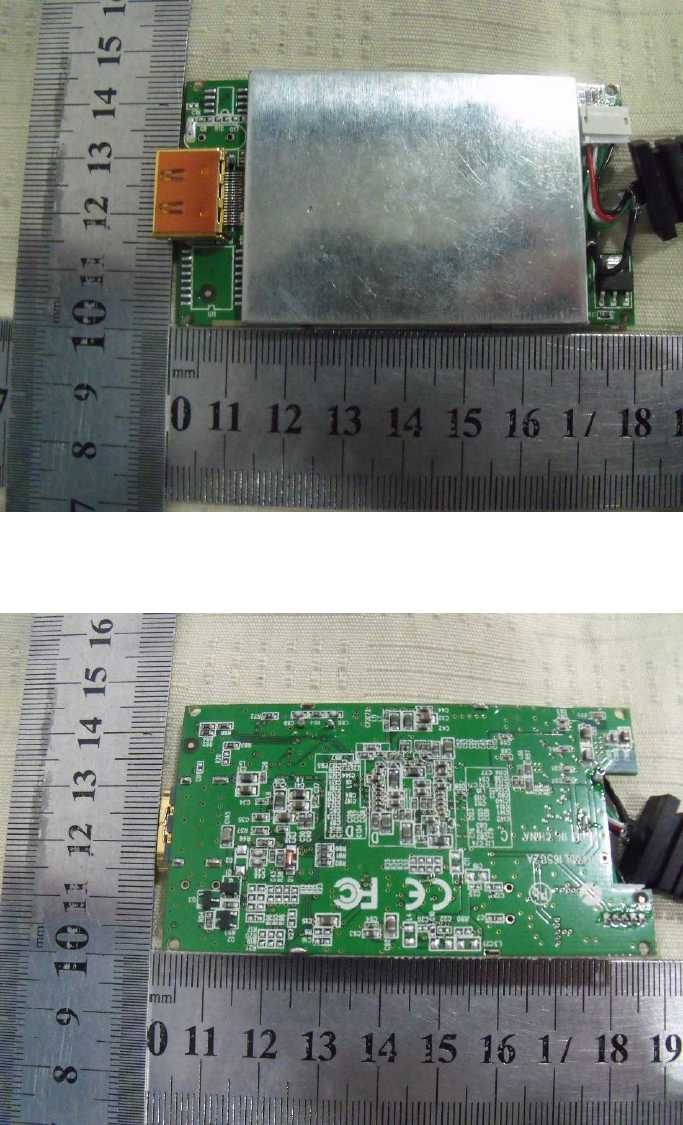

APPENDIX III (Photos of EUT) (2 Pages)
SHENZHEN EMTEK CO., LTD. Report No.: ES110113055F
Page 3 of 25
TEST REPORT DESCRIPTION
Applicant :
SUNRICH TECHNOLOGY (H.K.) LTD.
Manufacturer : SUNRICH TECHNOLOGY (H.K.) LTD.
EUT :
USB to HDMI Display Adapter
Model No. : U2-D09-V410-xx-xxxxx
Measurement Procedure Used:
FCC Rules and Regulations Part 15 Subpart B Class B 2009 & FCC / ANSI C63.4-2009
The device described above is tested by SHENZHEN EMTEK CO., LTD. to determine the
maximum emission levels emanating from the device and the severe levels of the device can
endure and its performance criterion. The measurement results are contained in this test
report and SHENZHEN EMTEK CO., LTD. is assumed full of responsibility for the
accuracy and completeness of these measurements. Also, this report shows that the EUT
(Equipment Under Test) is technically compliant with the FCC requirements.
This report applies to above tested sample only and shall not be reproduced in part without
written approval of SHENZHEN EMTEK CO., LTD.
Date of Test : January 13, 2011 to January 17, 2011
Prepared by :
(Engineer)
Reviewer :
(Quality Manager)
Approved & Authorized Signer :
(Manager)
SHENZHEN EMTEK CO., LTD. Report No.: ES110113055F
Page 4 of 25
1. SUMMARY OF TEST RESULT
Emission
Description of test item Standard & Limits Results
Conducted disturbance at mains
terminals
FCC Part15, Subpart B, Class B
ANSI C63.4: 2009 Pass
Radiated Disturbance FCC Part15, Subpart B, Class B
ANSI C63.4: 2009 Pass
Note: N/A is an abbreviation for Not Applicable.
SHENZHEN EMTEK CO., LTD. Report No.: ES110113055F
Page 5 of 25
2. GENERAL INFORMATION
2.1. Description of Device (EUT)
EUT : USB to HDMI Display Adapter
Model Number : U2-D09-V410-xx-xxxxx
Test Voltage : AC 120V/60Hz
Applicant : SUNRICH TECHNOLOGY (H.K.) LTD.
Address : Room 1301, Eastern Centre, 1065 King’s Road, Quarry Bay,
Hong Kong
Manufacturer : SUNRICH TECHNOLOGY (H.K.) LTD.
Address : Room 1301, Eastern Centre, 1065 King’s Road, Quarry Bay,
Hong Kong
Date of receiver : January 13, 2011
Date of Test : January 13, 2011 to January 17, 2011
SHENZHEN EMTEK CO., LTD. Report No.: ES110113055F
Page 6 of 25
2.2. Description of Support Device
PC (For EMI test) : Manufacturer: Lenovo
M/N: ThinkCentre 8701
S/N: 8701A53L3BC108
CE, FCC: DOC
PC(for EMS) : Manufacturer: HP
M/N: Vectra VL420 MT
S/N: CN15100363
CE, FCC: DOC
Mouse : Manufacturer: HP
M/N: M-S48a
S/N: LZE14823966AW
CE, FCC: DOC
Keyboard : Manufacturer: HP
M/N: SK-2502C
S/N: C0111141546
CE, FCC: DOC
TV : Manufacturer: JIAYU
M/N: TV-1903
S/N: N/A
CE , FCC: DOC
SHENZHEN EMTEK CO., LTD. Report No.: ES110113055F
Page 7 of 25
2.3. Description of Test Facility
Site Description
EMC Lab. : Accredited by CNAS, 2010.10.28.
The certificate is valid until 2013.10.29
The Laboratory has been assessed and proved to be in compliance
with CNAS-CL01:2006(identical to ISO/IEC17025:2005)
The Certificate Registration Number is L2291.
Accredited by TUV Rheinland Shenzhen 2010.5.25
The Laboratory has been assessed according to the requirements
ISO/IEC 17025.
Accredited by FCC, October 28, 2010
The Certificate Registration Number is 709623.
Accredited by Industry Canada, March 5, 2010
The Certificate Registration Number is 46405-4480.
Name of Firm : SHENZHEN EMTEK CO., LTD
Site Location : Bldg 69, Majialong Industry Zone,
Nanshan District, Shenzhen, Guangdong, China
2.4. Measurement Uncertainty
Item Uncertainty Remark
Conducted Emission Uncertainty :2.8dB --
Radiated Emission Uncertainty :3.3dB 3m Chamber
SHENZHEN EMTEK CO., LTD. Report No.: ES110113055F
Page 8 of 25
3. MEASURING DEVICE AND TEST EQUIPMENT
3.1. For Power Line Conducted Emission
Item Equipment Manufacturer Model No. Serial No. Last Cal. Cal. Interval
1. Test Receiver Rohde & Schwarz ESCS30 828985/018 May 29, 2010 1 Year
2. L.I.S.N Rohde & Schwarz ESH2-Z5 834549/005 May 29, 2010 1 Year
3. 50ΩCoaxial
Switch
Anritsu MP59B M20531 N/A N/A
4. Pulse Limiter Rohde & Schwarz ESH3-Z2 100006 May 29, 2010 1 Year
5. Voltage Probe Rohde & Schwarz TK9416 N/A May 29, 2010 1 Year
3.2. For 3m Radiated Emission Measurement
Item Equipment Manufacturer Model No. Serial No. Last Cal. Cal. Interval
1. EMI Test Receiver Rohde &
Schwarz
ESU 1302.6005.26 May 29, 2010 1 Year
2. Pre-Amplifier HP 8447D 2944A07999 May 29, 2010 1 Year
3. Bilog Antenna Schwarzbeck VULB9163 142 May 29, 2010 1 Year
4. Loop Antenna ARA PLA-1030/B 1029 May 29, 2010 1 Year
5. Horn Antenna Schwarzbeck BBHA 9170 BBHA91703
99
May 29, 2010 1 Year
6. Horn Antenna Schwarzbeck BBHA 9120 D143 May 29, 2010 1 Year
7. Cable Schwarzbeck AK9513 ACRX1 May 29, 2010 1 Year
8. Cable Rosenberger N/A FP2RX2 May 29, 2010 1 Year
9. Cable Schwarzbeck AK9513 CRPX1 May 29, 2010 1 Year
10. Cable Schwarzbeck AK9513 CRRX2 May 29, 2010 1 Year
SHENZHEN EMTEK CO., LTD. Report No.: ES110113055F
Page 9 of 25
4. POWER LINE CONDUCTED EMISSION MEASUREMENT
4.1. Block Diagram of Test Setup
(EUT: USB to HDMI Display Adapter)
4.2. Measuring Standard
FCC Part15, Subpart B, Class B ANSI C63.4: 2009
Power Line Conducted Emission Limits (Class B)
Limit (dBμV)
Frequency
(MHz) Quasi-peak Level Average Level
0.15 ~ 0.50 66.0 ~ 56.0 * 56.0 ~ 46.0 *
0.50 ~ 5.00 56.0 46.0
5.00 ~ 30.00 60.0 50.0
NOTE1-The lower limit shall apply at the transition frequencies.
NOTE2-The limit decreases linearly with the logarithm of the
frequency in the range 0.15MHz to 0.50MHz.
4.3. EUT Configuration on Measurement
The following equipments are installed on Conducted Emission Measurement to meet
FCC requirements and operating in a manner which tends to maximize its emission
characteristics in a normal application.
EUT : USB to HDMI Display Adapter
Model Number : U2-D09-V410-xx-xxxxx
Serial Number : N/A
AC Mains
Test Receiver
L.I.S.N
Mouse
Monitor
AC Mains
PC
Keyboard
TV
EUT
AC Mains
SHENZHEN EMTEK CO., LTD. Report No.: ES110113055F
Page 10 of 25
4.4. Operating Condition of EUT
4.4.1.Setup the EUT as shown on Section 4.1.
4.4.2.Turn on the power of all equipments.
4.4.3.Let the EUT work in measuring mode (Connect to PC) and measure it.
4.5. Test Procedure
The EUT is put on the plane 0.8m high above the ground by insulating support and
connected to the AC mains through Line Impedance Stability Network (L.I.S.N). This
provided a 50ohm coupling impedance for the tested equipments. Both sides of AC line
are investigated to find out the maximum conducted emission according to the FCC
regulations during conducted emission measurement.
The bandwidth of the field strength meter (R&S Test Receiver ESCS30) is set at 9KHz
in 150KHz~30MHz and 200Hz in 9KHz~150KHz.
The frequency range from 150kHz to 30MHz is investigated. All the modes have been
tested. The scanning curves are attached in Appendix II.
4.6. Measuring Results
PASS.
Please refer to Appendix I.
SHENZHEN EMTEK CO., LTD. Report No.: ES110113055F
Page 11 of 25
5. RADIATED EMISSION MEASUREMENT
5.1. Block Diagram of Test
5.1.1. Block diagram of connection between the EUT and simulators.
(EUT: USB to HDMI Display Adapter)
5.1.2.Block diagram of test setup (In chamber)
(EUT: USB to HDMI Display Adapter)
5.2. Measuring Standard
FCC Part15, Subpart B, Class B ANSI C63.4: 2009
1m to 4m
Test
Receiver
EUT
10/3m
0.8
m
Turntable
Coaxial Cable
Ground Plane
AC Mains
Mouse
Monitor
AC Mains
PC
Keyboard
TV
EUT
AC Mains
SHENZHEN EMTEK CO., LTD. Report No.: ES110113055F
Page 12 of 25
5.3. Radiated Emission Limits (class B)
Below 1GHz
FIELD STRENGTHS LIMIT FREQUENCY
MHz
DISTANCE
Meters μV/m dB(μV)/m
30 ~ 88 3 100 40.0
88 ~ 216 3 150 43.5
216 ~ 960 3 200 46.0
960 ~ 1000 3 500 54.0
Above 1GHz
FREQUENCY DISTANCE FIELD STRENGTHS LIMIT
(GHz) (Meters) Average
(dBμV/m)
Peak (dBμV/m)
1~6 3 53.9 73.9
Remark： (1) Emission level (dB)μV = 20 log Emission level μV/m
(2) The smaller limit shall apply at the cross point between two
frequency bands.
(3) Distance is the distance in meters between the measuring instrument,
antenna and the closest point of any part of the device or system.
5.4. EUT Configuration on Test
The FCC Class B regulations test method must be used to find the maximum emission
during radiated emission measurement.
5.5. Operating Condition of EUT
5.5.1.Turn on the power.
5.5.2.After that, let the EUT work in test mode (Connect to PC) and measure it.
5.6. Test Procedure
The EUT is placed on a turn table which is 0.8 meter high above the ground. The turn table
can rotate 360 degrees to determine the position of the maximum emission level. The EUT
is set 3 meters (above 1GHz) and 10 meters (below 1GHz) away from the receiving antenna
which is mounted on a antenna tower. The antenna can be moved up and down from 1 to 4
meters to find out the maximum emission level. Bilog antenna (calibrated by Dipole
Antenna) and horn antenna are used as a receiving antenna. Both horizontal and vertical
polarization of the antenna are set on test.
The bandwidth of the Receiver (ESU26) is set at 120kHz.
All the scanning curves are attached in Appendix II.
5.7. Measuring Results
PASS.
The frequency range from 30MHz to 1000MHz is investigated.
Please refer to Appendix II.
SHENZHEN EMTEK CO., LTD. Report No.: ES110113055F
Page 13 of 25
6. PHOTOGRAPH
6.1. Photo of Conducted Emission Measurement
SHENZHEN EMTEK CO., LTD. Report No.: ES110113055F
Page 14 of 25
6.2. Photo of Radiation Emission Measurement
SHENZHEN EMTEK CO., LTD. Report No.: ES110113055F
Page 15 of 25
APPENDIX I
SHENZHEN EMTEK CO., LTD. Report No.: ES110113055F
Page 16 of 25
SHENZHEN EMTEK CO., LTD. Report No.: ES110113055F
Page 17 of 25
SHENZHEN EMTEK CO., LTD. Report No.: ES110113055F
Page 18 of 25
APPENDIX II
SHENZHEN EMTEK CO., LTD. Report No.: ES110113055F
Page 19 of 25
SHENZHEN EMTEK CO., LTD. Report No.: ES110113055F
Page 20 of 25
SHENZHEN EMTEK CO., LTD. Report No.: ES110113055F
Page 21 of 25
SHENZHEN EMTEK CO., LTD. Report No.: ES110113055F
Page 22 of 25
SHENZHEN EMTEK CO., LTD. Report No.: ES110113055F
Page 23 of 25
APPENDIX III
(Photos of EUT)
SHENZHEN EMTEK CO., LTD. Report No.: ES110113055F
Page 24 of 25
SHENZHEN EMTEK CO., LTD. Report No.: ES110113055F
Page 25 of 25

Navigation menu
