Document PDSDD ver 1.1, page 1 of 2
Diplomat
®
VIDEO
4 : 3
WIDE
16 : 9
Bjurab Sweden AB
Kristinebergsvägen 22
SE-302 41 Halmstad
Sweden
Tel: +46 – 35 – 144290
Fax: +46 – 35 – 144291
Email: info@bjurab.se
Web: www.bjurab.se
The screen has 5 cm wide
black borders. The format of
the viewing area is 4:3.
Available Formats
SQUARE
1 : 1
The screen has 5 cm wide
black borders. The format of
the viewing area is 16:9.
The screen format is 1:1. No
black borders.
NORDIC
H>W
Nordic Format, height>width,
with extra height that gives
additional flexibility. No black
borders.
Diplomat is a high quality screen which, thanks to the robust construction and
flexible installation, is the preferred screen among our professional buyers. The
installation is very flexible with mounting brackets that can be adjusted sideways
to preferred positions. The screen can be mounted on the wall as well as in the
ceiling. It comes in a white painted aluminium case and is operated manually.

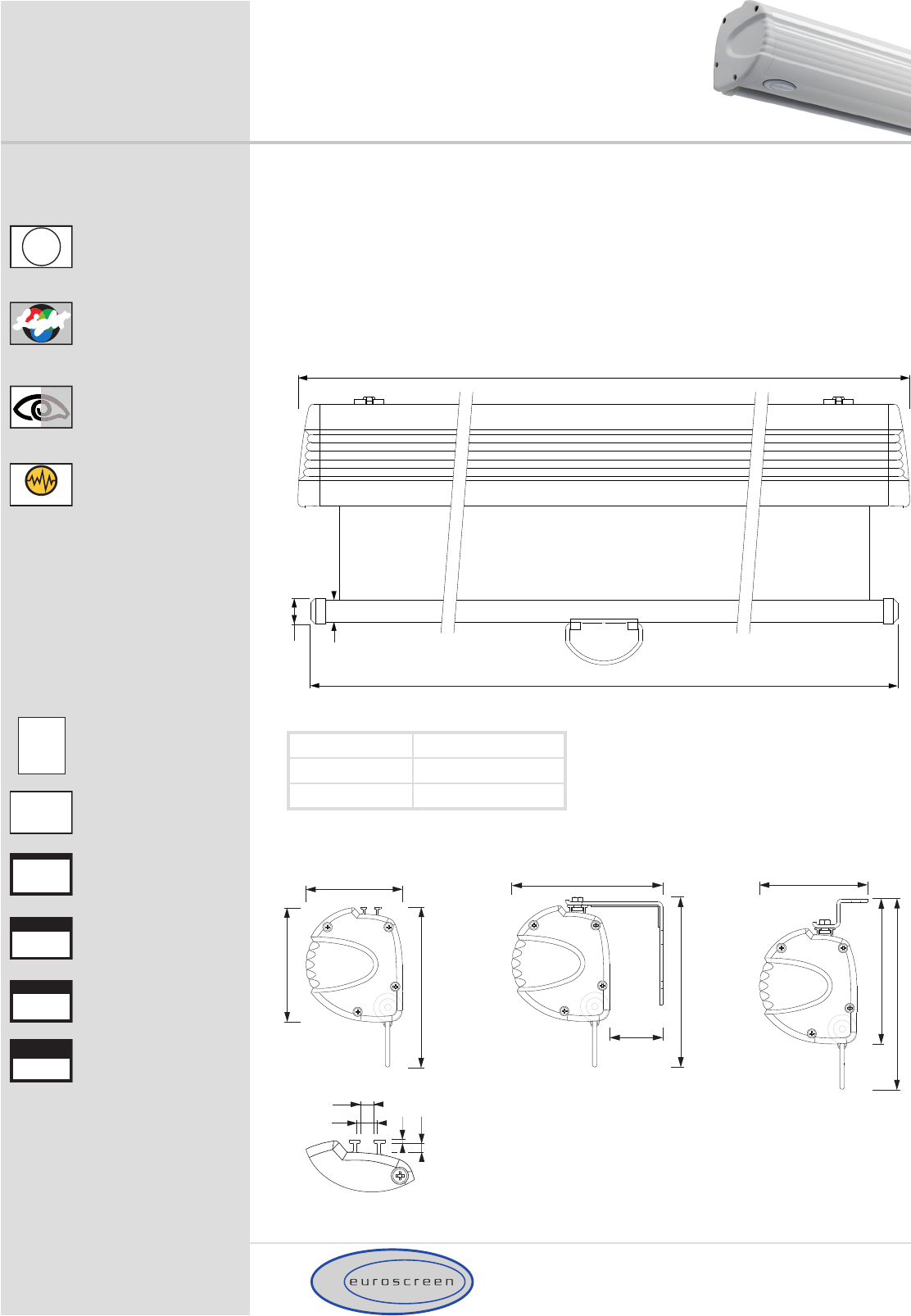

Screen Dimensions
Light
All dimensions in this document are in mm
3CREENWIDTH
4OTALWIDTHSEETABLE
Avalible Screen Materials
Screen width Total width
1250 - 2000 Screen width +86
2200 - 3000 Screen width +94
Example – Diplomat Dimensions
Model: DD1817-W
Screen width: 1800 mm
Total width: 1800 mm + 86 mm = 1886 mm
Bar width: 1800 mm + 66 mm = 1866 mm
Arctiq
The screen fabric has a matt
white surface.
GreyLight (gain 0.93)
The screen fabric has a high
contrast matt grey surface.
FlexRear
Grey rear projection diffusing
surface. Provides high resolu-
tion and excellent contrast.
Acoustic
White sound transparent ma-
terial which provides 180º
viewing angle.
ACOUSTIC
CINEMASCOPE
2.35 : 1
The screen has 5 cm wide
black borders. The format of
the viewing area is 2.35:1.
DATA
16 : 10
The screen has 5 cm wide
black borders. The format of
the viewing area is 16:10.
Nordic Format, H > W
Square Format, 1 : 1
Video Format, 4 : 3 Wide Format, 16 : 9
ART. NO
SCREEN SIZE
WIDTH x HEIGHT
WT.
KG
ART. NO
SCREEN SIZE
WIDTH x HEIGHT
WT.
KG
ART. NO
SCREEN SIZE
WIDTH x HEIGHT
VIEW. AREA
WIDTH x HEIGHT
WT.
KG
ART. NO
SCREEN SIZE
WIDTH x HEIGHT
VIEW. AREA
WIDTH x HEIGHT
WT.
KG
DD1420 1400 x 2000 6.4 DD125 1250 x 1250 5.6 DD1617-V 1600 x 1850 1500 x 1125 7.4 DD1617-W 1600 x 1850 1500 x 845 7.4
DD1520 1500 x 2000 6.7 DD150 1500 x 1500 6.5 DD1817-V 1800 x 1850 1700 x 1275 7.8 DD1817-W 1800 x 1850 1700 x 955 7.8
DD1620 1600 x 2000 7.0 DD180 1800 x 1800 7.8 DD2017-V 2000 x 1850 1900 x 1425 10.4 DD2017-W 2000 x 1850 1900 x 1070 10.4
DD1820 1800 x 2000 7.8 DD200 2000 x 2000 8.7 DD2217-V 2200 x 1800 2100 x 1575 11.8 DD2217-W 2200 x 1800 2100 x 1180 11.8
DD220 2200 x 2200 12.0 DD2420-V 2400 x 2050 2300 x 1725 13.2 DD2417-W 2400 x 1800 2300 x 1295 12.8
Other Formats DD240 2400 x 2400 13.1 DD2724-V 2700 x 2250 2600 x 1950 15.1 DD2724-W 2700 x 2050 2600 x 1460 15.0
DD2724 2700 x 2250 15.1 DD270 2700 x 2700 15.8 DD3024-V 3000 x 2350 2900 x 2175 17.0 DD3024-W 3000 x 2050 2900 x 1630 16.6
DD3024 3000 x 2250 16.8 DD300 3000 x 3000 17.8
ARTICLE NO ARTICLE NO ARTICLE NO
485030 30 cm brackets, pair 340000 Magnetic strip, 60 cm 400140 Drawstick, 140 cm
485050 50 cm brackets, pair 340004 Supermagnet with hook 400300 Screen Cleaning Spray, 250 ml
485075 75 cm brackets, pair 400100 Drawstick, 100 cm
Article Numbers for Diplomat
Accessories
®
Bjurab Sweden AB
Kristinebergsvägen 22
SE-302 41 Halmstad
Sweden
Tel: +46 – 35 – 144290
Fax: +46 – 35 – 144291
Email: info@bjurab.se
Web: www.bjurab.se
All dimensions in this document are in mm. Document PDSDD ver 1.1, page 2 of 2
,ENGTHSEETABLE
(EIGHT
7IDTH
Screen width Box length Box width Box height
1250 - 1600 1820 150 125
1800 2020 150 125
2000 2220 150 125
2200 2570 120 120
2400 2770 120 120
2700 3070 120 120
3000 3370 120 120

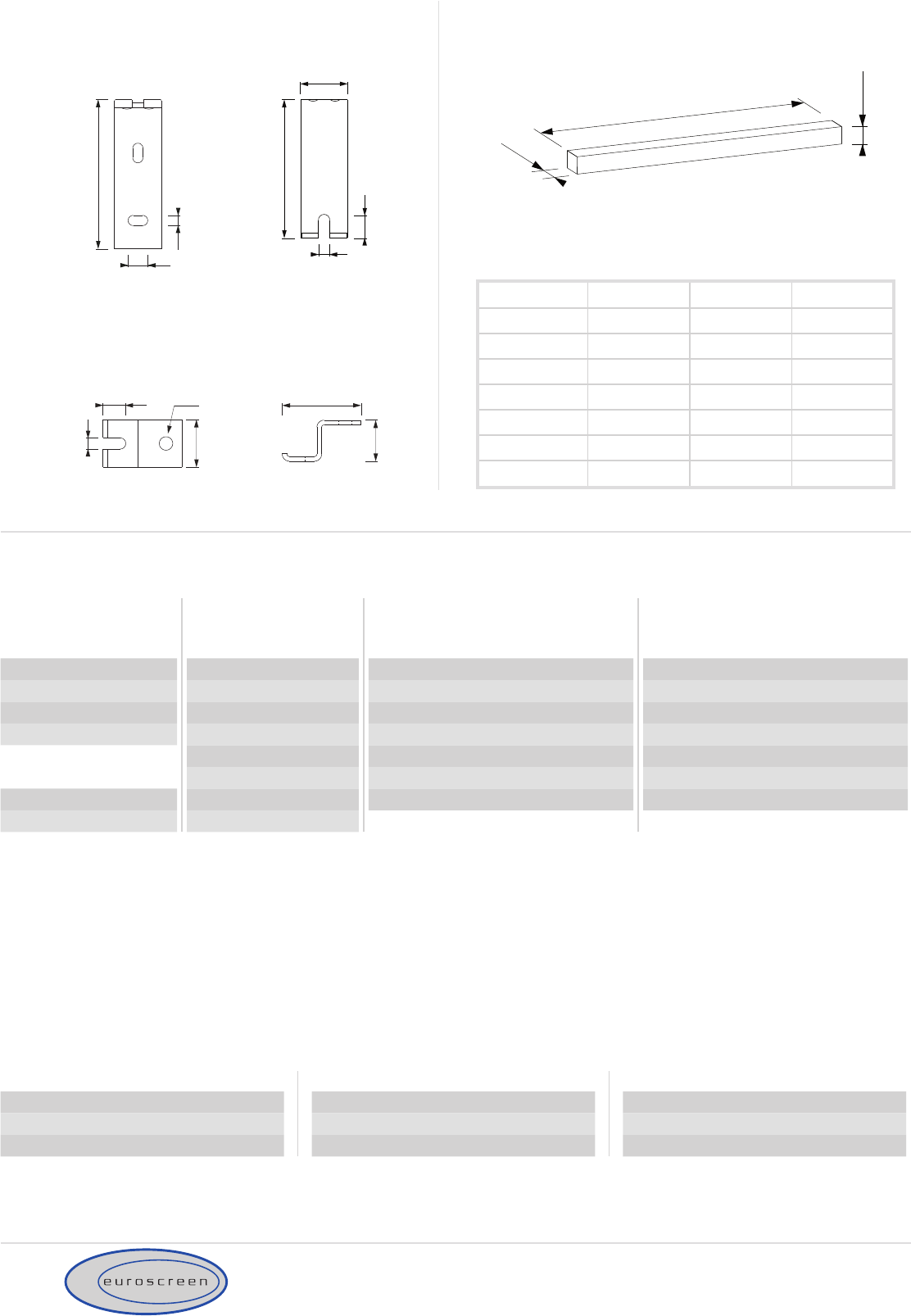

Bracket Dimensions
Brackets – Wall
Included in all Diplomat products
Brackets – Ceiling
Packaging Dimensions
All weights are gross (total weight including packaging, brackets etc.).
Standard screen material is white. Screens with Greylight, Greyline, ReAct, Rear Projection and Acoustic fabric are available in sizes with maximum height of 2400 mm.
For article numbers with Greylight replace DD by DG. Example: An 2217-W with Greylight fabric = DG2217-W
For article numbers with Greyline replace DD by DGL. Example: An 2217-W with Greyline fabric = DGL2217-W
For article numbers with ReAct replace DD by DS. Example: An 2217-W with ReAct fabric = DS2217-W
For article numbers with Rear Projection replace DD by DR. Example: An 200 with Rear Projection = DR200
For article numbers with Acoustic replace DD by DA. Example: An 2217-W with Acoustic fabric = DA2217-W
For article numbers with CinemaScope (2.35:1), please see our pricelist.
Included in all Diplomat products
Front view Top view
Top view Side view
