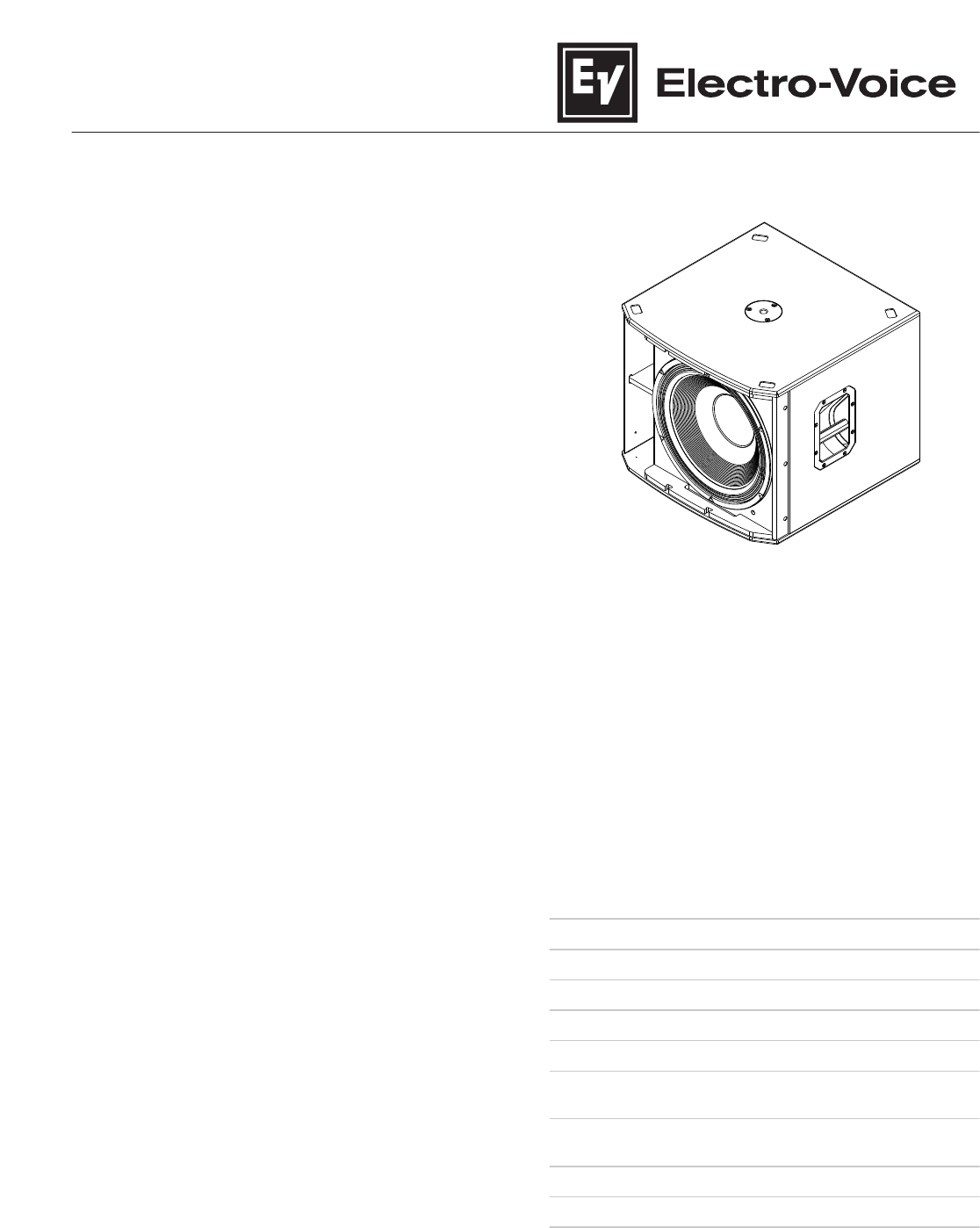

Electro-Voice | EKX-18SP

EKX-18SP

▪QuickSmartDSP features best-in-class processing,

EV’s signature single-knob user interface, and

intuitive menu navigation via LCD.

▪Cardioid Control Technology allows output to be

steered towards the audience with up to 35 dB

reduction on stage when multiple subs are

deployed.

▪High-efficiency 1300 W Class-D power amplifier

delivers up to 134 dB SPL utilizing high-sensitivity

transducers designed and engineered by EV.

▪Intelligent thermal management with a

variable-speed fan controlled by multiple onboard

sensors.

▪Two (2) XLR outputs for easy system expansion to

additional loudspeakers or subwoofers. Large slot

ports for low distortion and excellent bass

extension. Two (2) metal grille reinforcement bar.

M20 threaded pole mount plate.

EKX-18SP features high-efficiency Class-D power

amplifiers (up to 1300 W) with integrated

QuickSmartDSP, and delivers up to 134 dB SPL

utilizing high-sensitivity transducers designed and

engineered by EV (18-inch EVS-18C subwoofer).

The EKX amplifier incorporates intelligent thermal

management (with a variable-speed fan controlled by

multiple onboard sensors) which ensures superior

performance and reliability in demanding

environmental conditions.

Powered subwoofer models allow easy setup via three

(3) presets (Music, Live, Club), sub/top

system-match crossovers, five (5) user-programmable

presets (Store and Recall settings), visual monitoring

of limiter status, input level meters, and master

volume control to ensure optimal gain structure.

Adapted from our touring systems, EV’s exclusive

Cardioid Control Technology allows output to be

steered towards the audience with up to 35 dB

reduction on stage when multiple subs are deployed.

EKX powered models are ideal for portable and

installed applications, with lightweight and compact

15-mm wood enclosures with internal bracing, durable

EVCoat finish, aluminum pole-mounts, and all-metal

handles.

Technical specifications

Frequency Response (-3 dB): 40 Hz - 150 Hz1

Frequency Range (-10 dB): 35 Hz - 180 Hz1

Maximum SPL: 134 dB peak2

Power Rating: 1300 W

LF Transducer: EVS-18C 457 mm (18 in)

Low Pass Frequency: Adjustable: 80 Hz, 100 Hz, 120 Hz,

150 Hz

Connectors: (2) XLR/TRS combo jacks and (2)

XLR link outputs

Enclosure: 15 mm plywood with EVCoat

Grille: 18 AWG steel with powdercoat

Dimensions (H x W x D): 520 mm x 606 mm x 612 mm

(20 in x 24 in x 24 in)

Net Weight: 32.8 kg (72.4 lb)

Shipping Weight: 41.2 kg (90.9 lb)

Power Consumption: 1.8 A3

1. Half Space Measurement.

2. Maximum SPL is measured at 1 m using broadband

pink noise at maximum output.

3. Current rating is 1/8 power.

System overview

Frequency response:

Dimension drawing:

2 | EKX-18SP

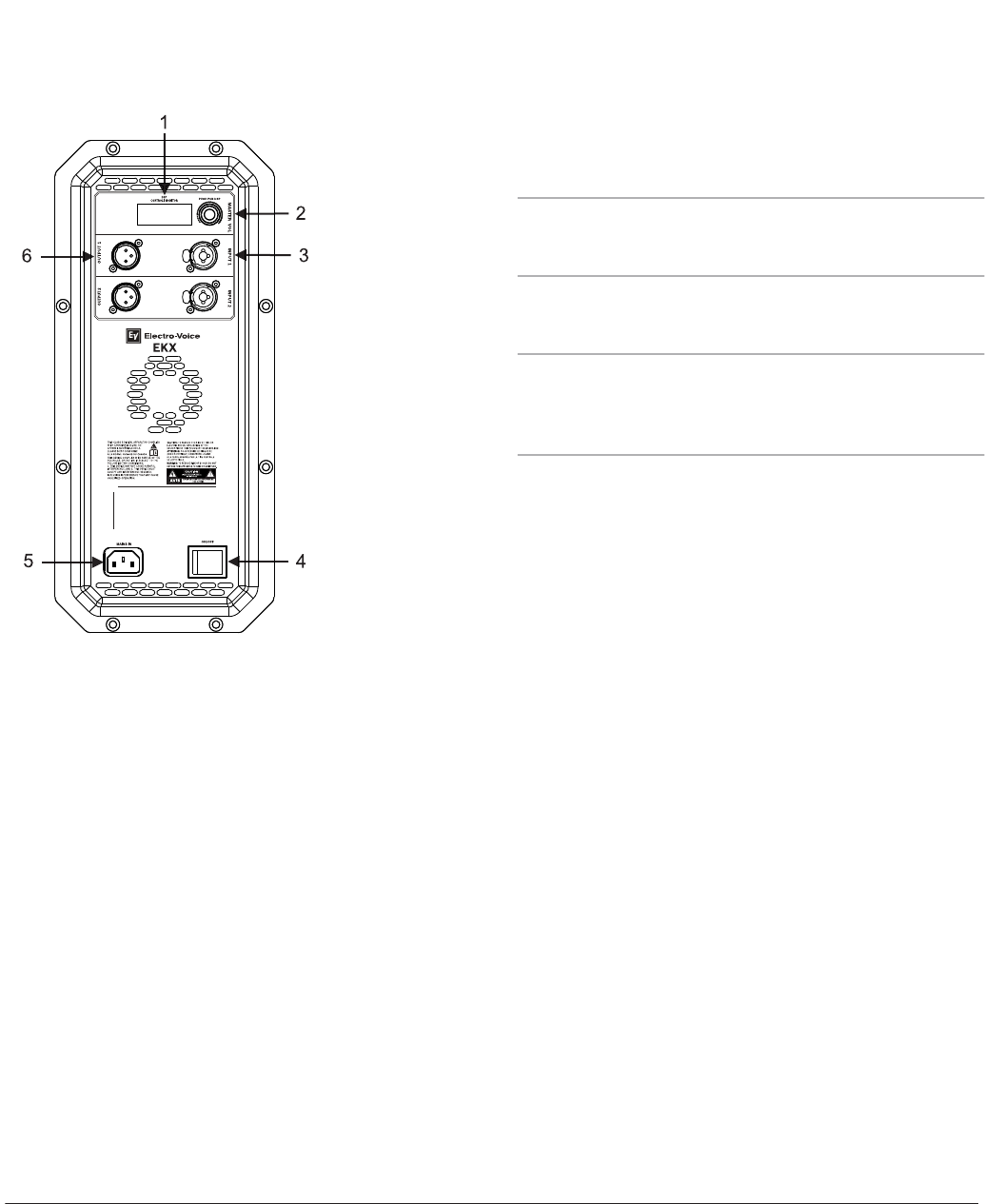

Subwoofer amplifier panel:

1. LCD – DSP control and monitoring interface.

2. MASTER VOL – Adjusts the sound level.

DSP – Scroll through the menu and select the

available choices. Push the MASTER VOL knob to

enter the DSP menu.

3. INPUT – Balanced input for the connection of signal

sources like mixing consoles, instruments, or

microphones. Connections can be established using

¼ inch TRS or XLR connectors.

4. POWER – AC switch for switching the power ON or

OFF. The LCD screen lights up when the power is

turned ON, after approximately 3 seconds.

5. MAINS IN – AC connection is established via an IEC-

connector.

6. OUTPUT – XLR output sends the input signal to

another loudspeaker or subwoofer. INPUT 1 is linked

to OUTPUT 1 and INPUT 2 is linked to OUTPUT 2. The

MASTER VOL or DSP control settings do not affect

OUTPUT.

For more information, see EKX Powered Loudspeakers

User Manual (F.01U.308.095).

Ordering information

EKX-18SP-US

Powered 18-inch subwoofer US cord, black

Order number EKX-18SP-US

EKX-18SP-EU

Powered 18-inch subwoofer EU cord, black

Order number EKX-18SP-EU

EKX-18SP-AP

Powered 18-inch subwoofer Asia-Pacific regions, black

Order number EKX-18SP-AP

Accessories

EKX-18S Cover

Padded cover for EKX-18S/18SP, EV logo, black

Order number EKX-18S-CVR

3 | EKX-18SP

Represented by:

Germany:

Bosch Sicherheitssysteme GmbH

Robert-Bosch-Ring 5

85630 Grasbrunn

Germany

Bosch Security Systems, Inc.

12000 Portland Avenue South

Burnsville MN 55337

USA

www.electrovoice.com

© Bosch Security Systems 2015 | Data subject to change without notice

Document Number F.01U.308.099 | Vs2 | 20. Feb 2015
