ExpressConnect Shipping

Integration Guide

Version 3.8

Revision History

Date

Version

Description

12/09/2016

3.0 RIH

New version of technical user guide for ExpressConnect Shipping after

major technical improvements

31/03/2017

3.1 RIH

Updated to include section on CData entry.

26/04/2017

3.2 RIH

Include additional error messages for cut off times.

26/07/2017

3.3 RIH

Correct MOD7 rules and field validation lengths

26/07/2017

3.4 RIH

Added additional information on “No Data Received at gateway from

Client”

18/08/2017

3.5 BL

Added php example

24/08/2017

3.6 RIH

Updates based on customer feedback

06/09/2017

3.7 RIH

Updates with additional based on customer feedback

27/11/2017

3.8 RIH

Improvements to example xml

Table of Contents

1. Introduction 6

1.1 Legend 7

1.2 Activities/functional features 8

1.3 Booking and Shipping failures 10

2. Registration 11

3. Making a request to the TNT server 12

4. Example XML Ship requestdocument 13

5. Input XML format 17

5.1 Header 18

5.2 Login 18

5.2.1 Interface / APPVERSION 19

5.3 Consignment Batch 20

5.4 Sender 21

5.4.1 The sender address and contact elements 22

5.4.2 The Collection element 23

5.4.2.1 The Collection address element 23

5.4.2.2 The Collection/Opening times details 24

5.5 Consignment 25

5.5.1 The ConRef element 25

5.5.2 The Receiver address element 26

5.5.3 The Delivery address element 26

5.6 The CONNUMBERelement 27

5.7 The CUSTOMERREF element 27

5.8 The CONTTYPE element 27

5.9 The PAYMENTIND element 28

5.10 The ITEMS element 29

5.11 The WEIGHT and VOLUME elements 29

5.12 The CURRENCYand GOODSVALUE elements 30

5.13 The INSURANCE CURRENCYand VALUE elements 30

5.14 The SERVICE element 30

5.15 The OPTIONelement 31

5.16 The DESCRIPTIONelement 31

5.17 The DELIVERYINST element 31

5.18 The Dangerous Goods elements 32

5.18.1 The PACKAGE element 33

5.18.1.1 The ARTICLE element 34

5.19 ACTIVITY Elements 35

5.19.1 Create Elements 35

5.19.2 Ship Elements 36

5.19.3 RATE Elements 36

5.19.4 BOOK Elements 37

5.19.5 PRINT Elements 38

5.19.6 SHOW_GROUPCODE Elements 39

6. Processing the XML Response 40

6.1 Processing the RESULT XML Response 41

6.1.1 CREATE response element 43

6.1.2 RATE response element 44

6.1.2.1 RATE response element – UK Domestic 44

6.1.2.1.1 generatedByName, generatedById, requestDateTime and quoteReference elements 46

6.1.2.1.2 TheavailableCollectionDate element 46

6.1.2.1.3 The collectionDepot, ratingDepot, accountName, divisionNumber, noteType,

enhancedLiabilityIndicator, options, bookingStatus and quoteComment elements 46

6.1.2.1.4 TheavailableDeliveries section 47

6.1.2.1.5 TheratedServices and ratedService sections 47

6.1.2.1.6 Thesurcharges sections 48

6.1.3 BOOK response element 49

6.1.4 SHIP response element 49

6.1.5 PRINT response element 50

7. Shipping Documentation responses 51

7.1 Development your own solution 52

7.2 Using the TNT stylesheets in an XML compliant browser 53

7.3 Producing HTML with a compliant XML / XSL parser 54

7.4 Documentation requirement rules 55

7.5 Consignment Note 56

7.6 Address labels 61

7.7 Detail Manifest 67

7.8 Summary Manifest 72

7.9 Commercial invoice 73

8. Errors 78

8.1 Application generated errors 78

8.1.1 Request errors 78

8.1.2 XML errors 78

8.1.3 Validation errors 79

8.2 Table of application generated error codes, messages and resolutions 80

9. Connecting to ExpressConnect Shipping 97

9.1 VB Script sample 99

9.2 VB.net CONNECTION CODE EXAMPLE 105

9.3 JAVASCRIPT CONNECTION CODE EXAMPLE 107

9.4 C# EXAMPLE 109

9.5 C# EXAMPLE 111

9.6 PHP Example 114

10. Appendix A: XML elements definition (input) 116

11. Appendix B: XSD Data Types 132

11.1 Custom Data Types 132

12. Appendix C MANDATORY FIELDS (INPUT XML) 134

13. Appendix D DATA RULES (INPUT XML) 136

14. Appendix E: ISO 3166-1 Alpha-2 Country Codes 138

15. Appendix E: VAT codes 146

16. Appendix F - Example Booking confirmation from backend systems 148

17. Appendix G - Advanced Shipping Notification 149

18. Appendix H – Returns Paperwork 150

19. Appendix I – Modulus 11 or 7 Check Digit 151

19.1 Modulus 11 Check Digit 151

19.2 Modulus 7 Check Digit 153

20. Appendix J – Group Codes 154

21. Appendix K – Security/connectivity requirements 156

22. Appendix L – First Time Trader Requirements 157

23. Appendix M – XML markup Language characters 158

24. Appendix N – Dangerous Goods processing 159

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Page 6 of 160

Express ICS, 2017

1.Introduction

ExpressConnect Shipping is part of the ExpressConnect family, providing B2B interfaces into TNT's operational

and financial systems. The ExpressConnect Shipping interface is used to arrange a collection, rate a consignment

and print the associated shipping documentation.

This manual provides a technical guide to the ExpressConnect Shipping interface. It is designed to help developers

understand the interface sufficiently to program an application to arrange a collection with TNT.With the use of

XML (extensible mark-up language) technology, this will provideshipping functionality for multiple consignment

submissions. The majority of examples in the document will be XML based as it is easier to understand the data

involved.

Return data from TNT will be formatted as XML, again in a predetermined structure. When this data is returned to a

client, they may parse it for storage or presentation, as they require.

An ExpressConnect Login Id will be arranged by your TNT representative. The customer must supply a list of valid

TNT accounts numbers to be used with the system. A secure connection is thus set up, using both authentication and

secure protocols, to submit requests and to receive processed CONSIGNMENT labels based on the published URL:

https://express.tnt.com/expressconnect/shipping/ship

Sample scripts are provided to show how a connection can be achieved together with example requests and

responses to illustrate the data required; see Connecting to ExpressConnect Shipping. Consideration is given below

to the networking and security requirements to ensure that this is successful.

This document is structured as follows:

• Registration

• Making a request to the TNT server

• Example XML Shipping Request Document

• Input XML Format - the structure and content of the request

• Processing the response - information about the data that will be returned

• Errors - possible error messages and the steps you can take to resolve them

• Connecting to ExpressConnect Shipping

• Appendices

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Page 7 of 160

Express ICS, 2017

1.1Legend

The following conventions have been used throughout this document.

Normal

The majority of text in this document is in this style. Section in this style are

part of the narrative of the document

Code

Sections or words in this text indicate a section of XML, XML element, or section of code.

[0..1]

Digits within square brackets indicate the number of times an element may

occur in an XML document. Examples include:

[1] The element must appear once in the document

[0..*]. The element may appear once, many times (unlimited) or not at all.

[0..1] The element is optional. If it appears, it must appear only once.

[1..5] The element may appear any number of times between 1 and 5 times

xsd:string

This indicates one of the schema types, in this case a string. More information

on defined schema data types can be found at

http://www.w3.org/TR/xmlschema-2/#built-in-datatypes

…

Means that the section has been omitted for the sake of clarity. This usually

means that the omitted elements are described elsewhere or that the section

where they appear is a repetition of a previous stanza.

For example:

<house>

<room>

</room>

</house>

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Page 8 of 160

Express ICS, 2017

1.2Activities/functional features

This web service offers collection booking and shipping functionality for single or multiple consignment

submissions available.

Consignments may be created on the system, and then the details later accessed, using the created consignment

numbers in order to carry out various activities, such as rating, booking, and printing. The XML format required for

these options is shown later.

Consignments can also be batched, according to their group code, and be booked together or printed as one

summary manifest.

The five possible activities are:

Create

This stores the consignment on the ExpressConnect Shipping database for a period of one week. Consignments can

then be referred to by consignment number in later processing. A Consignment Numbers will be returned for each

successful consignment creation.

Ship

This activity allows the customer to send their consignment information directly into TNT’s back end shipping

management systems without the need for a collection request. This is especially useful for customers who have a

regular collection arranged with TNT, and therefore do not need to raise a separate collection request each time they

submit data through Express Connect. The <SHIP> tag is only valid for the V2.2 and above versions of the

interface.

Rate

Using the same functionality as ExpressConnect Pricing, rates will be returned for the submitted consignments. A

rate is the projected cost of sending a consignment via TNT for a given service. You will usually have a number of

options with regards to the level of service you require for sending a consignment. Rating a consignment will return

a rate for all available services unless a specific service is specified. The RATE activity is used to provide an

estimated cost for the delivery of the consignment.

Book

Once the consignment details are complete, the consignments are sent up to the central booking system and a

success/fail message returned. If the customer name and account details are not recognized then a First Time Trader

flag will be returned, warning the customer to expect security checks (see appendix I for details). Consignments can

be batched for booking by including the group code for the group of consignments.

In order to test booking without sending data to the TNT backend systems and actually creating a real booking it is

possible to request a test id for your company in addition to the live userid.

Two different confirmations are available. ExpressConnect can be set up to provide an email to confirm it has

received and processed information; this is on a per userid basis. And the TNT booking system can send an email to

the sender/collection email address provided in the input XML to confirm the actual booking in the backend systems

together with the actual booking reference number.

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Page 9 of 160

Express ICS, 2017

When a customer requests a shipment using v2.2, they may also specify an additional attribute to the <BOOK> tag

called ShowBookingRef.

</BOOK>

Setting the ShowBookingRef attribute to ‘Y’ will, when a collection request is raised successfully in TNT’s

collection booking system, return the booking reference number within the <BOOKINGREF> tag.

<BOOK>

</CONSIGNMENT>

</BOOK>

There are four shipping documents available for the customer’s submitted consignments: Consignment Note (Con

note), (address) label, commercial invoice and manifest. These will be returned with a style sheet, viewable as a

document in your web browser. The manifest that is printed can take the form of a summary manifest if the group

code is used, as opposed to the individual consignment numbers or references. The XML data returned is the same

for the manifest and summary manifest, but with a different XSL style sheet specified in the processing instruction.

Your consignment data will be passed to TNT in a predetermined XML format. You will get the data to TNT by

opening an http socket level connection to a given URL and port (otherwise known as an HTTP connection), thus

connecting your own web server with that of TNT. The XML document sent in must be passed as a URL encoded

string.

Return data from TNT will be formatted as XML, again in a predetermined structure (in the case of printing, the

XML will be associated with a style sheet, allowing the document to be displayed in a browser and printed). When

the data is returned to you, you may parse it for storage or presentation, as required.

It is also possible for the printed documentation to be sent as HTML files to a given email address. This is useful

when arranging consignments to be collected from a different site to the ExpressConnect installation.

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Page 10 of 160

Express ICS, 2017

1.3Booking and Shipping failures

Occasionally, during peak times, you may experience a booking or a shipping failure, resulting in your bookings or

Shipping request not being completed. If this occurs, you will be notified in the returned XML by the

<SUCCESS>N</SUCCESS> indicator in the appropriate “ACTIVITY” element.

For example;

Your application should monitor for these failed responses and re-submit any failing request.

When resubmitting a failed booking request, you must ensure to only provide either the CONREF or the

CONNUMBER, not both.

If the order was “created” successfully, then there is no need to repeat this activity and the re-submission should

only include the failed activities.

If you include a create “ACTIVITY” element, with the re-submission, please be aware that if you are assigning

consignment numbers from your own, dedicated range then you will need to assign a new consignment number to

each re-submission in order for the booking to be created successfully. Re-submitting any failing requests with the

original consignment number will result in a duplicate consignment error.

Please note, it is always possible for any of the activities to fail and return a “<SUCCESS>N</SUCCESS>” and so

your application should be developed to handle these responses.

<BOOK>

</CONSIGNMENT>

</BOOK>

<SHIP>

</CONSIGNMENT>

</SHIP>

…

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Page 11 of 160

Express ICS, 2017

2.Registration

Each customer is set up with a username and password, required for all communications with the system. The same

username and password is used for ExpressConnect Shipping Pricing and Tracking.

Please contact your local TNT representative to complete a registration request.

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Page 12 of 160

Express ICS, 2017

3.Making a request to the TNT server

To make a Ship request, you must construct an XML file which conforms to the standard set out in this document.

The submission will be validated to check for any problems with the structure of the XML. This facility is provided

to allow you to self-diagnose problems with the XML.

Before sending an XML document over the internet to TNT, you should verify that you understand the XML format

by successfully using the ExpressWeb Services Shippingsite provided by TNT, contact your TNT representative for

further information. The audience for the website is intended to be developers who can use it as a tool to test their

XML and to analyse results, prior to and during the development of client applications. It includes a Test Harness

that allows the developer to submit sample XML to the service.

• ExpressConnect Shipping does NOT support non-ASCII characters.

• The demonstration site links to a production like environment so that it replicates exactlythe results that the

customer will achieve with their completed application.

Having made a successful submission of an XML document via the test page, you are ready to set up a socket

connection and make a programmatic submission using HTTP POST to the following URL:

https://express.tnt.com/expressconnect/shipping/ship

Please be aware that all submissions to the aforementioned URL will the require you to supply your user id and

password in the body of the XML request.

More detailed information on connecting to the ExpressConnect servers can be found in Connecting to

ExpressConnect Shipping.

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Page 13 of 160

Express ICS, 2017

4.Example XML Ship requestdocument

An example is provided below of a typical Ship request. The request specifies a single consignment, with the

standard activities.

There can be multiple <CONSIGNMENT>elements in a request, so each one must contain a unique <CONREF>

element to act as a key to uniquely identify it. This is then used in responses to identify which one each returned

price, error message, etc relates to.

Continued below

<?xml version="1.0" encoding="UTF-8"?><ESHIPPER>

<LOGIN>

<COMPANY>YOUR USERID</COMPANY>

<PASSWORD>YOUR PASSWORD</PASSWORD>

</LOGIN>

<COMPANYNAME>Sender Co 01-008</COMPANYNAME>

<STREETADDRESS1>TEST DO NOT COLLECT1</STREETADDRESS1>

<STREETADDRESS2>TEST DO NOT COLLECT2</STREETADDRESS2>

<STREETADDRESS3>TEST DO NOT COLLECT3</STREETADDRESS3>

<CITY>Atherstone</CITY>

<PROVINCE>Warwickshire</PROVINCE>

<VAT/>

<CONTACTNAME>Mr Contact</CONTACTNAME>

<CONTACTEMAIL>contact@tnt.com</CONTACTEMAIL>

<COMPANYNAME>Collection Name</COMPANYNAME>

<STREETADDRESS1>TEST DO NOT COLLECT4</STREETADDRESS1>

<STREETADDRESS2>TEST DO NOT COLLECT5</STREETADDRESS2>

<STREETADDRESS3>TEST DO NOT COLLECT6</STREETADDRESS3>

<CITY>Atherstone</CITY>

<PROVINCE>Warwickshire</PROVINCE>

<VAT/>

<CONTACTNAME>Mr Contact</CONTACTNAME>

<CONTACTEMAIL>contact@tnt.com</CONTACTEMAIL>

</COLLECTIONADDRESS>

</PREFCOLLECTTIME>

</ALTCOLLECTTIME>

</COLLECTION>

</SENDER>

<COMPANYNAME>Receiver Name</COMPANYNAME>

<STREETADDRESS1>TEST DO NOT COLLECT7</STREETADDRESS1>

<STREETADDRESS2>TEST DO NOT COLLECT8</STREETADDRESS2>

<STREETADDRESS3>TEST DO NOT COLLECT9</STREETADDRESS3>

<CITY>Amsterdam</CITY>

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Page 14 of 160

Express ICS, 2017

Continued below

</SENDER>

<COMPANYNAME>Receiver Name</COMPANYNAME>

<STREETADDRESS1>TEST DO NOT COLLECT7</STREETADDRESS1>

<STREETADDRESS2>TEST DO NOT COLLECT8</STREETADDRESS2>

<STREETADDRESS3>TEST DO NOT COLLECT9</STREETADDRESS3>

<CITY>Amsterdam</CITY>

<CONTACTEMAIL>email@tnt.com</CONTACTEMAIL>

</RECEIVER>

<COMPANYNAME>Delivery Name</COMPANYNAME>

<STREETADDRESS1>TEST DO NOT COLLECT10</STREETADDRESS1>

<STREETADDRESS2>TEST DO NOT COLLECT11</STREETADDRESS2>

<STREETADDRESS3>TEST DO NOT COLLECT12</STREETADDRESS3>

<CITY>Amsterdam</CITY>

<CONTACTNAME>Mr Frank</CONTACTNAME>

<CONTACTEMAIL>email@tnt.com</CONTACTEMAIL>

</DELIVERY>

<CUSTOMERREF>DISKS</CUSTOMERREF>

<DESCRIPTION>assorted office accessories</DESCRIPTION>

<DELIVERYINST>Delivery Instructions TEST</DELIVERYINST>

<DESCRIPTION>paperclips</DESCRIPTION>

<INVOICEDESC>metal paperclips</INVOICEDESC>

</ARTICLE>

</PACKAGE>

<DESCRIPTION>paperclips</DESCRIPTION>

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Page 15 of 160

Express ICS, 2017

Continued below

<DESCRIPTION>paperclips</DESCRIPTION>

<INVOICEDESC>metal paperclips</INVOICEDESC>

</ARTICLE>

</PACKAGE>

<DESCRIPTION>paperclips</DESCRIPTION>

<INVOICEDESC>metal paperclips</INVOICEDESC>

</ARTICLE>

</PACKAGE>

</DETAILS>

</CONSIGNMENT>

</CONSIGNMENTBATCH>

</CREATE>

<RATE>

</RATE>

<BOOK>

</BOOK>

<SHIP>

</SHIP>

<PRINT>

</CONNOTE>

<LABEL>

</LABEL>

</MANIFEST>

</INVOICE>

<EMAILTO>bob.hitchens@tnt.com</EMAILTO>

<EMAILFROM>bob.hitchens@tnt.com</EMAILFROM>

</PRINT>

<SHOW_GROUPCODE/>

</ACTIVITY>

</ESHIPPER>

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Page 16 of 160

Express ICS, 2017

N.B. XML is case sensitive. The element tags MUST all be upper case.

ExpressConnect encoding must be UTF-8, encoding="UTF-8".

</CREATE>

<RATE>

</RATE>

<BOOK>

</BOOK>

<SHIP>

</SHIP>

<PRINT>

</CONNOTE>

<LABEL>

</LABEL>

</MANIFEST>

</INVOICE>

<EMAILTO>bob.hitchens@tnt.com</EMAILTO>

<EMAILFROM>bob.hitchens@tnt.com</EMAILFROM>

</PRINT>

<SHOW_GROUPCODE/>

</ACTIVITY>

</ESHIPPER>

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Page 17 of 160

Express ICS, 2017

5.Input XML format

The input XML format for ExpressConnect Shipping is a list of consignment requests.

The structure for a Ship request is described below in detail. Alternatively, refer to Appendix A which contains a

summary of the points below.

The request has the following structure:

• Header – always required, this defines the XML document

• Login – always required, this provides the security details

• Consignment batch – always required, this contains the:

o Sender – always required, this defines the <SENDER>document

o Ship request– A list of <CONSIGNMENT>elements for which this sender is sending

consignments for. Normally there is just one.

• Activity – always required, this provides details on which functionality is required.

Note

It should be noted that XML defines a number of characters which are reserved. These include the greater-than

(>), less-than (<), ampersand (&), and percent (%) characters. Where these appear in the data which is being

submitted to ExpressConnect, the characters must be escaped or the content surrounded with a CDATA

section.

A common requirement is to submit an address which includes a company name such as: "Andrews &

Plummer". The ampersand must therefore be escaped as per the XML rules (&) or alternatively the whole

or part of the text must be wrapped in a CDATA section as follows:

…

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Page 18 of 160

Express ICS, 2017

5.1Header

The header section will begin every ExpressConnect Shipping request XML document submitted to TNT.

This contains the XML declaration, which contains the character encoding used for the document and the standalone

attribute, which should be set to “no”:

5.2Login

Each LOGIN element contains the following information:

All elements are mandatory. It contains a COMPANYelement which should contain your username as supplied by

your TNT Representative.

ThePASSWORDelement contains the associated password for this use.

Failure to provide correctinformationwill result in an invalid request.

The APPIDelementshould be defaulted to “IN”, unless it has been previously agreed with your TNT Representative

to use an alternative APPID. This elementis used by various source applications to highlight

where the request was made, it has no bearing on the functionality offered.

The <APPVERSION>element states the version of the interface that you are using. Your TNT Representative should

provide the version number that you should use when you start your engagement.

<LOGIN>

<COMPANY>YOUR USERID</COMPANY>

<PASSWORD>YOUR PASSWORD</PASSWORD>

</LOGIN>

<?xml version="1.0" encoding="UTF-8" standalone="no"?>

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Page 19 of 160

Express ICS, 2017

5.2.1Interface / APPVERSION

ExpressConnect Shipping supports various version of the XML interface. This document will refer to different

versions and the examples will often apply to the version the feature was introduced. You should use the latest

version of the interface where possible, unless indicated to do so by your TNT Representative.

The existing version are:

Version

Comments

2.0

When you use the BOOK activity this will automatically perform both a Booking and shipping activity.

The SHIP activity is not supported.

2,1

Improved validation, which in version 3.0 release has been made backwardly compatible to version 2.0.

2.2

Introduction of the SHIP activity to allow you to manage when you wish to create a collection request

separately from passing the shipping data to TNT. The SHIP activity allows you to send your

consignment information directly into TNT’s back end shipping management systems without the need

for a collection request.

When a customer requests a shipment using v2.2, they may also specify an additional attribute to the

<BOOK> tag called ShowBookingRef.

Setting the ShowBookingRef attribute to ‘Y’ will, when a collection request is raised successfully in

TNT’s collection booking system, return the booking reference number within the <BOOKINGREF>

tag.

3.0

Introduction of the Division element, which allows selection of services for a particular TNT divisions.

The support for supports Hazardous Goods has been increased. Please see Appendix N – Dangerous

Goods processing

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Page 20 of 160

Express ICS, 2017

5.3Consignment Batch

Each Consignment Batch element contains the following information:

A CONSIGNMENTBATCH contains a single SENDER element, which contains details about the sender and

collection.

A CONSIGNMENTBATCHcontains 1 or more CONSIGNMENTelements. This allows batching of Shipping requests.

Each CONSIGNMENTelement contains the set of information needed to perform the functionality requested in the

Activities element.

A CONSIGNMENTelement contains a keyattribute that identifies it uniquely within the request. The response will

associate Shipping data and validation errors with their ACTIVITY through this key. The value of this key must be

of type string and is supplied in CONREF element.

…

…

</SENDER>

…

</CONSIGNMENT>

…

</CONSIGNMENT>

</CONSIGNMENTBATCH>

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Page 21 of 160

Express ICS, 2017

5.4Sender

There is a single SENDER element per consignment Batch, and contains the following information:

The SENDERis made up of the following parts. Except where noted, every element is required once.

<COMPANYNAME>Sender Co 01-008</COMPANYNAME>

<STREETADDRESS1>TEST DO NOT COLLECT1</STREETADDRESS1>

<STREETADDRESS2>TEST DO NOT COLLECT2</STREETADDRESS2>

<STREETADDRESS3>TEST DO NOT COLLECT3</STREETADDRESS3>

<CITY>Atherstone</CITY>

<PROVINCE>Warwickshire</PROVINCE>

<VAT/>

<CONTACTNAME>Mr Contact</CONTACTNAME>

<CONTACTEMAIL>contact@tnt.com</CONTACTEMAIL>

<COMPANYNAME>Collection Name</COMPANYNAME>

<STREETADDRESS1>TEST DO NOT COLLECT4</STREETADDRESS1>

<STREETADDRESS2>TEST DO NOT COLLECT5</STREETADDRESS2>

<STREETADDRESS3>TEST DO NOT COLLECT6</STREETADDRESS3>

<CITY>Atherstone</CITY>

<PROVINCE>Warwickshire</PROVINCE>

<VAT/>

<CONTACTNAME>Mr Contact</CONTACTNAME>

<CONTACTEMAIL>contact@tnt.com</CONTACTEMAIL>

</COLLECTIONADDRESS>

</PREFCOLLECTTIME>

</ALTCOLLECTTIME>

</COLLECTION>

</SENDER>

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Page 22 of 160

Express ICS, 2017

5.4.1The sender address and contact elements

The sender element represents your company address and contact information. These sections contain the following

elements, all of type string:

• The name of company at the given premises

• addressLine1 is the first line of the address. This line usually contains a building name or number

• Address lines 2 and 3 are optional. They may contain additional information to help locate the address

• The city for the address

• The province is also known as the region or county.

• The postcode of the address

• The ISO 3166-1 Alpha-2 country code. More information can be found in Appendix F: ISO 3166-1 Alpha 2

country codes

• Your TNT account as supplied by your TNT representative, 9 digits for standard account and 10 digits for UK

domestic.The account number must be authorised to be used by the userid and password supplied in the LOGIN

element.

• Your VAT number.More information can be found in Appendix G: VAT codes

• The name of the contact

• The contacts telephone number made up of the area code and phone number.

• The contacts email address. The Advance shipper notification emails will be sent to the contacts email address

is supplied.

To ship with TNT, we must know the exact location that you are shipping to/from, in TNT terms. The full town

name must be supplied using TNT spelling. Please work with your TNT representative to ensure your town names

match TNT’s.If the town contains local characters, then it is recommended to use these. For example, Köln

…

<COMPANYNAME>Sender Co 01-008</COMPANYNAME>

<STREETADDRESS1>TEST DO NOT COLLECT1</STREETADDRESS1>

<STREETADDRESS2>TEST DO NOT COLLECT2</STREETADDRESS2>

<STREETADDRESS3>TEST DO NOT COLLECT3</STREETADDRESS3>

<CITY>Atherstone</CITY>

<PROVINCE>Warwickshire</PROVINCE>

<VAT/>

<CONTACTNAME>Mr Contact</CONTACTNAME>

<CONTACTEMAIL>contact@tnt.com</CONTACTEMAIL>

…

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Page 23 of 160

Express ICS, 2017

5.4.2The Collection element

The collection element contains the Collection address and booking details.

5.4.2.1The Collection address element

The collection address provides the address details from which consignment will be collected by our driver This

should only be supplied if it differs from the sender address. As the definition for the all address are identical, please

refer to The sender address and contact elements

<COMPANYNAME>Collection Name</COMPANYNAME>

<STREETADDRESS1>TEST DO NOT COLLECT4</STREETADDRESS1>

<STREETADDRESS2>TEST DO NOT COLLECT5</STREETADDRESS2>

<STREETADDRESS3>TEST DO NOT COLLECT6</STREETADDRESS3>

<CITY>Atherstone</CITY>

<PROVINCE>Warwickshire</PROVINCE>

<VAT/>

<CONTACTNAME>Mr Contact</CONTACTNAME>

<CONTACTEMAIL>contact@tnt.com</CONTACTEMAIL>

</COLLECTIONADDRESS>

…

</COLLECTION>

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Page 24 of 160

Express ICS, 2017

5.4.2.2The Collection/Opening times details

The order must be made before the cut-off time for arranging a collection for the shipping date (collection date).

The shipment date is the date which you wish the parcels to be collected, and it must be supplied in the format

DD/MM/CCYY. It is a mandatory field.

Collections is raised for every consignment (with exception of customers with scheduled collection).

The earliest time the goods may be collected (Goods ready time) should be supplied in the “PREFCOLLECTTIME”

/ “FROM” element, in the format HH:MM.

The latest time the goods can be collected must be supplied in the “PREFCOLLECTTIME” / “TO” element, in the

format HH:MM.

If your company has a lunchtime, them please supply the morning opening times in the PREFCOLLECTTIME”

element and the afternoon opening times in the “ALTCOLLECTTIME”.

These details are validated against the time the TNT truck will be within your area and these times must overlap.

Please supply any special instruction which need to be passed to the collection driver in the

<COLLINSTRUCTIONS> element.

</PREFCOLLECTTIME>

</ALTCOLLECTTIME>

</COLLECTION>

</SENDER>

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Page 25 of 160

Express ICS, 2017

5.5Consignment

There can be one to 50 CONSIGNMENT elements per consignment Batch but it is recommended that no more than

3 CONSIGNMENT elements are supplied, unless you have set a large timeout period. The element contains the

following information:

5.5.1The ConRef element

A CONSIGNMENT element contains a key attribute that identifies it uniquely within the request. The response will

associate Shipping data and validation errors with their ACTIVITY through this key. The value of this key must be

of type string and is supplied in CONREF element.

…

</RECEIVER>

…

</DELIVERY>

<CUSTOMERREF>DISKS</CUSTOMERREF>

<DESCRIPTION>assorted office accessories</DESCRIPTION>

<DELIVERYINST>Delivery Instructions TEST</DELIVERYINST>

…

</PACKAGE>

…

</PACKAGE>

</DETAILS>

</CONSIGNMENT>

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Page 26 of 160

Express ICS, 2017

5.5.2The Receiver address element

The receiver address provides the address details of the company receiver the consignment. As the definition for the

all address are identical, please refer to The sender address and contact elements

5.5.3The Delivery address element

The delivery address provides the address details for which consignment will be delivered by our driver This

should only be supplied if it differs from the receiver address. As the definition for the all address are identical,

please refer to The sender address and contact elements

<COMPANYNAME>Delivery Name</COMPANYNAME>

<STREETADDRESS1>TEST DO NOT COLLECT10</STREETADDRESS1>

<STREETADDRESS2>TEST DO NOT COLLECT11</STREETADDRESS2>

<STREETADDRESS3>TEST DO NOT COLLECT12</STREETADDRESS3>

<CITY>Amsterdam</CITY>

<CONTACTNAME>Mr Frank</CONTACTNAME>

<CONTACTEMAIL>email@tnt.com</CONTACTEMAIL>

</DELIVERY>

<COMPANYNAME>Receiver Name</COMPANYNAME>

<STREETADDRESS1>TEST DO NOT COLLECT7</STREETADDRESS1>

<STREETADDRESS2>TEST DO NOT COLLECT8</STREETADDRESS2>

<STREETADDRESS3>TEST DO NOT COLLECT9</STREETADDRESS3>

<CITY>Amsterdam</CITY>

<CONTACTEMAIL>email@tnt.com</CONTACTEMAIL>

</RECEIVER>

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Page 27 of 160

Express ICS, 2017

5.6The CONNUMBERelement

This element contains your consignment number, if your application generates its own TNT consignment number.

You userid must be configured to allow user generated consignment numbers and so contact your TNT

representative to arrange for this feature.

5.7The CUSTOMERREF element

This element contains your consignment reference. This will be printed on the shipping documentations and can be

used to track your consignment.

5.8The CONTTYPE element

This element identify whether you are shipping a “D” Document (paper/manuals/reports) or “N” Non-document

(packages).

Document services are not offered for a number of TNT domestic shipments. For domestic shipment within these

countries please use a CONTYPE of “N” for Non-document.

<CUSTOMERREF>DISKS</CUSTOMERREF>

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Page 28 of 160

Express ICS, 2017

5.9The PAYMENTIND element

This identifies whether this is an import (receiver pays) or export (sender pays) shipment.

Figure 18

A PAYMENTIND type of “S” represents a sender pays shipments, “R” represents a receiver. If this element is not

supplied, then the payment type is defaulted to sender.

Within ExpressConnect shipping there is limited support for ‘Receiver pays’ shipments. In order to create a receiver

pays shipment you must first register the following details with TNT:

1. The <ACCOUNT> and <ACCOUNTCOUNTRY> combinations that you would like activated for receiver

pays. This need to be added to our database and associated with your userid and password before receiver

pays is activate for these accounts. The TNT representative will arrange this.

Once the above details have been registered, simply amend the following in the INPUT XML to send a receiver

pays shipment:

i. Within the DETAILS parent element set the <PAYMENTIND> field to ‘R’:

ii. Within the SENDER parent element enter the sender’s account in the <ACCOUNT> field:

iii. Within the RECEIVER parent element add 2 additional tags for the receiver’s account and account country:

<COMPANYNAME>Receivers Co. Ltd.</COMPANYNAME>

<STREETADDRESS1>Head Office </STREETADDRESS1>

<STREETADDRESS2>Hoofddorp</STREETADDRESS2>

<CITY>Amsterdam</CITY>

<CONTACTNAME>Mr Frank</CONTACTNAME>

<CONTACTEMAIL>FrankA@rec.com</CONTACTEMAIL>

</RECEIVER>

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Page 29 of 160

Express ICS, 2017

5.10The ITEMS element

This element will contain the number of items within the shipment.

Figure 15

This is a mandatory element.

The ITEMS element should match the total number of items defined in the packages elements.

5.11The WEIGHT and VOLUME elements

These elements describe the total weight and volume of the consignment being shipped.

Figure 13

TheWEIGHTelement contains the total weight of the shipment in Kilograms and is a mandatory element.

The VOLUME element contains the total volume of the shipment in cubic metres and is a mandatory element for

Non-documents, CONTYPE = ‘N’.

These totals should match the sum of the weights and volume supplies in the packages elements. The totals from

the PACKAGE elements will be used if greater that the consignment supplied totals.

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Page 30 of 160

Express ICS, 2017

5.12The CURRENCYand GOODSVALUE elements

These elementidentifies the value of the goods being shipped and the associated currency.

The currency is represented by the 3 digit ISO 4217 Alpha-3 currency codes.

The value of goods must be supplied if you wish to insures the shipment.

5.13The INSURANCE CURRENCYand VALUE elements

These elements are for Enhanced Liability in countries where insurance is not available.

Insurance value MUST NOT be more than 110% of the goods value for non-documents or 500 Euros for documents.

The maximum insurance value is 25,000 Euros.

5.14The SERVICE element

The particular service that the shipment is being moved under.

The values in this section will be provided by your TNT representative.

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Page 31 of 160

Express ICS, 2017

5.15The OPTIONelement

Please specify any additional Service options that are required for this Shipment.

There can be up to 5 options supplied, if insurance has not be specified. The values in this section will be provided

by your TNT representative.

5.16The DESCRIPTIONelement

Please describe the consignment goods being shipped. This is not used for custom purposes.

For UK domestic shipments, the Carton Code is populated from the first 2 characters of the description. This must

be used to attract the correct rate when invoicing the consignment for Palletised goods.

5.17The DELIVERYINST element

Please supply any instructions that must be passed to the TNT delivery driver when delivering the consignment.

For UK dangerous domestic shipments, the UN Number must be supplied in the first 4 characters of the

DELIVERYINST.

<DELIVERYINST>Delivery Instructions TEST</DELIVERY

<DESCRIPTION>assorted office accessories</DESCRIPTION>

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Page 32 of 160

Express ICS, 2017

5.18The Dangerous Goods elements

If you have been authorised to ship dangerous / hazardous goods with TN, you can supply these details using the

elements below:

For UK dangerous domestic shipments, the UN Number must be supplied in the first 4 characters of the

DELIVERYINST, as well.

For International shipments please ensure the appropriate option code is also supplied.

Please refer to the TNT terms and conditions for further information on Dangerous/Hazard. If you are approved to

ship dangerous goods please supply an associated UN number. UN numbers are four-digit identifiers for

hazardous/dangerous substances, and articles (such as explosives, flammable liquids, toxic substances, etc.).

If you wish to obtain an estimate cost for the shipment please contact your TNT representative as Rating for

dangerous goods is not supported via ExpressConnect Shipping.

It is the shipper’s responsibility to identify, classify, package, mark, label, and complete documentation for

dangerous goods according to all national and international governmental regulations.

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Page 33 of 160

Express ICS, 2017

5.18.1The PACKAGE element

The PACKAGE element provides details on the package line. There must be at least one Package per

Consignment when entered in detail form. There may not be more than 50Packages per Consignment when

entered in detail form with no more than 99 items for a consignment..

At least one package MUST exist per consignment, UNLESS the consignment is internal to the EU

The PACKAGE element describes a group of parcels (package) with the same details and dimensions. All parcels

must be identical.

The ITEMS is the total number of parcels and each one will need to be label.

DESCRIPTION describes the package.

The LENGTH, HEIGHT and WIDTH are supplied in meters.

The WEIGHT is in Kilos.

As a standard the following maximums are applied

Max weight per package 70kg

Max length per package 2.4m

Max height per package 1.5m

Max width per package 1.2m

On request, these limits can be raised for each customer. If this is required, please contact your TNT representative

who will arrange this for you.

<DESCRIPTION>paperclips</DESCRIPTION>

<INVOICEDESC>metal paperclips</INVOICEDESC>

</ARTICLE>

</PACKAGE>

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Page 34 of 160

Express ICS, 2017

5.18.1.1The ARTICLE element

If the consignment is customs controlled, you should supply details on the article / goods being shipped.

Articles are not mandatory and there can be no more than 99Articles elements per Package. There can be up to

9999 items per article line.

The <COUNTRY> contains details on the country of original manufacture. This is an ISO 3166-1 Alpha-2 country

code. More information can be found in Appendix F: ISO 3166-1 Alpha 2 country codes.

For each article you need to capture the Tariff code.A tariff code is a product-specific code as documented in the

Harmonised System (HS) maintained by the World Customs Organisation (WCO). Tariff codes exist for almost

every product involved in global commerce.The Harmonized Item Description and Coding System (HS) is an

international standard maintained by the World Customs Organization (WCO) that classifies traded products. Items

are identified by a 6-digit harmonized number that is recognized by countries that have adopted the harmonized

system.

The Tariff code is supplied in the <HTS> element.

None of the values entered into the Items fields will be validated against the number of packages/articles submitted

with a consignment, the customer is responsible for making these values correspond if desired.

<DESCRIPTION>paperclips</DESCRIPTION>

<INVOICEDESC>metal paperclips</INVOICEDESC>

</ARTICLE>

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Page 35 of 160

Express ICS, 2017

5.19ACTIVITY Elements

This element allows you to state what you wish to do with the data you have passed in this call or passed previously

to TNT.

5.19.1Create Elements

This stores the consignment on the ExpressConnect Shipping database for a period of one week. A Consignment

Number will be returned for each successful consignment creation.

You may create up to 50 consignments in a single call but due to response times and timeouts it is recommended

that you process a maximum of 3 create per call.The same is true for all activities. You must state the unique key

<CONREF> supplied in the <CONSIGNMENT> element to identify which consignment you wish to create.

You must supply a <CREATE> for all consignmentsthat you require processing.

</CREATE>

</CREATE>

<RATE>

</RATE>

<BOOK>

</BOOK>

<SHIP>

</SHIP>

<PRINT>

</CONNOTE>

<LABEL>

</LABEL>

</MANIFEST>

</INVOICE>

<EMAILTO>bob.hitchens@tnt.com</EMAILTO>

<EMAILFROM>bob.hitchens@tnt.com</EMAILFROM>

</PRINT>

<SHOW_GROUPCODE/>

</ACTIVITY>

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Page 36 of 160

Express ICS, 2017

5.19.2Ship Elements

To use the SHIP activity, the order must have previously been successfully created, using the CREATE activity.

These activities can be performed in the same call. The SHIP activity allows you to send your consignment

information directly into TNT’s back end shipping management systems without the need for a collection request.

Please note that the <COLLECTION> elements are mandatory and so need to be supplied even if using just the

<SHIP> activity.

This is especially useful if you are on a regular collection and so not need to raise a separate collection request each

new consignment, submitted through Express Connect.

The <SHIP> tag is only valid for the V2.2 and above versions of the interface.

If you have created the consignment in a previous call or you use your own consignment number, you can ship using

a unique consignment number.

In order to test shipping without sending data to the TNT backend systems and actually creating a real consignment

it is possible to request a test id for your company in addition to the live userid.

5.19.3RATE Elements

Using the same functionality as ExpressConnect Pricing, you can request an indicative rate for your consignment. A

rate is the projected cost of sending a consignment via TNT for a given service. You will usually have a number of

options with regards to the level of service you require for sending a consignment.

Again, if you have created the consignment in a previous call or you use your own consignment number, you can

ship using a unique consignment number.

<RATE>

</RATE>

<RATE>

</RATE>

<SHIP>

</SHIP>

<SHIP>

</SHIP>

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Page 37 of 160

Express ICS, 2017

5.19.4BOOK Elements

This element allows you to arrange a collection for your parcels.

You can book a batch of consignments using the group code or Individual consignments using either the

<CONREF> or <CONNUMBER>.

For more information on the group code please refer to Appendix I – Group Codes.

Two different confirmations are available. ExpressConnect can be set up to provide an email to confirm it has

received and processed information; this is on a per userid basis. The TNT booking system can send an email to the

sender/collection email address provided in the input XML to confirm the actual booking in the backend systems

together with the actual booking reference number.

When a customer requests a shipment using v2.2, they may also specify an additional attribute to the <BOOK> tag

called ShowBookingRef.

Setting the ShowBookingRef attribute to ‘Y’ will, when a collection request is raised successfully in TNT’s

collection booking system, return the booking reference number within the <BOOKINGREF> tag.

The element EMAILREQD which holds a character either 'Y' or 'N' indicating that a booking confirmation email is

required or not.

The default value is “N”.

It normally takes approximately 1 hour before this email is generated by the appropriate TNT booking application.

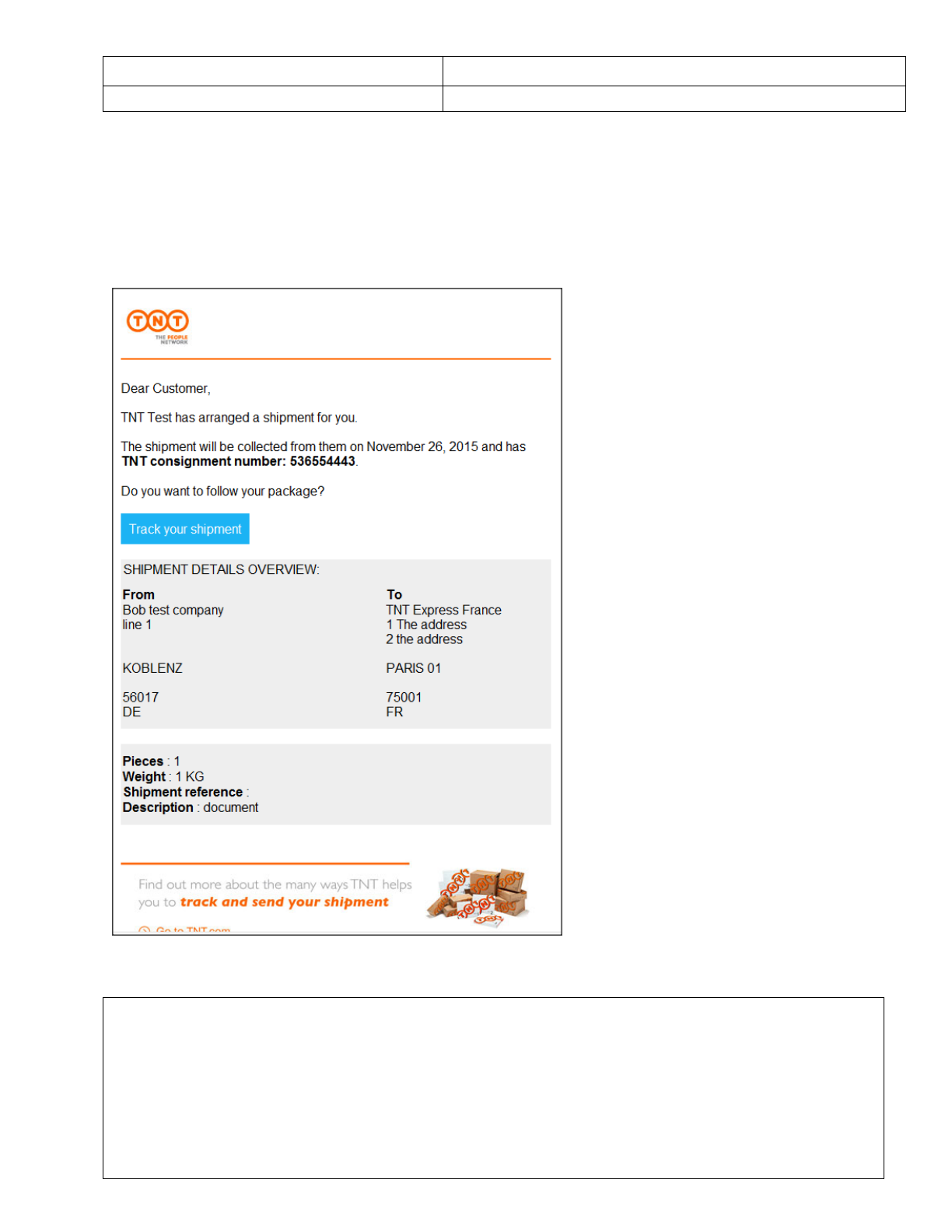

Please see Appendix F - Example Booking confirmation from backend systems

In order to test booking without sending data to the TNT backend systems and actually creating a real booking it is

possible to request a test id for your company in addition to the live userid.

</BOOK>

</BOOK>

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Page 38 of 160

Express ICS, 2017

5.19.5PRINT Elements

There are four shipping documents available for each submitted consignments: Consignment Note (Con note),

(address) label, commercial invoice and manifest. These will be returned with a style sheet, viewable as a document

in your web browser.

The manifest that is printed can take the form of a summary manifest if the group code is used, as opposed to the

individual consignment numbers or references. The XML data returned is the same for the manifest and summary

manifest, but with a different XSL style sheet specified in the processing instruction. For more information on the

group code please refer to Appendix I – Group Codes.

It is also possible for the printed documentation to be sent as HTML files to a given email address, using the email

from and to elements. This allows you specify the email sender to imply it is generated from your application. This

is useful when arranging consignments to be collected from a different site to the ExpressConnect installation.

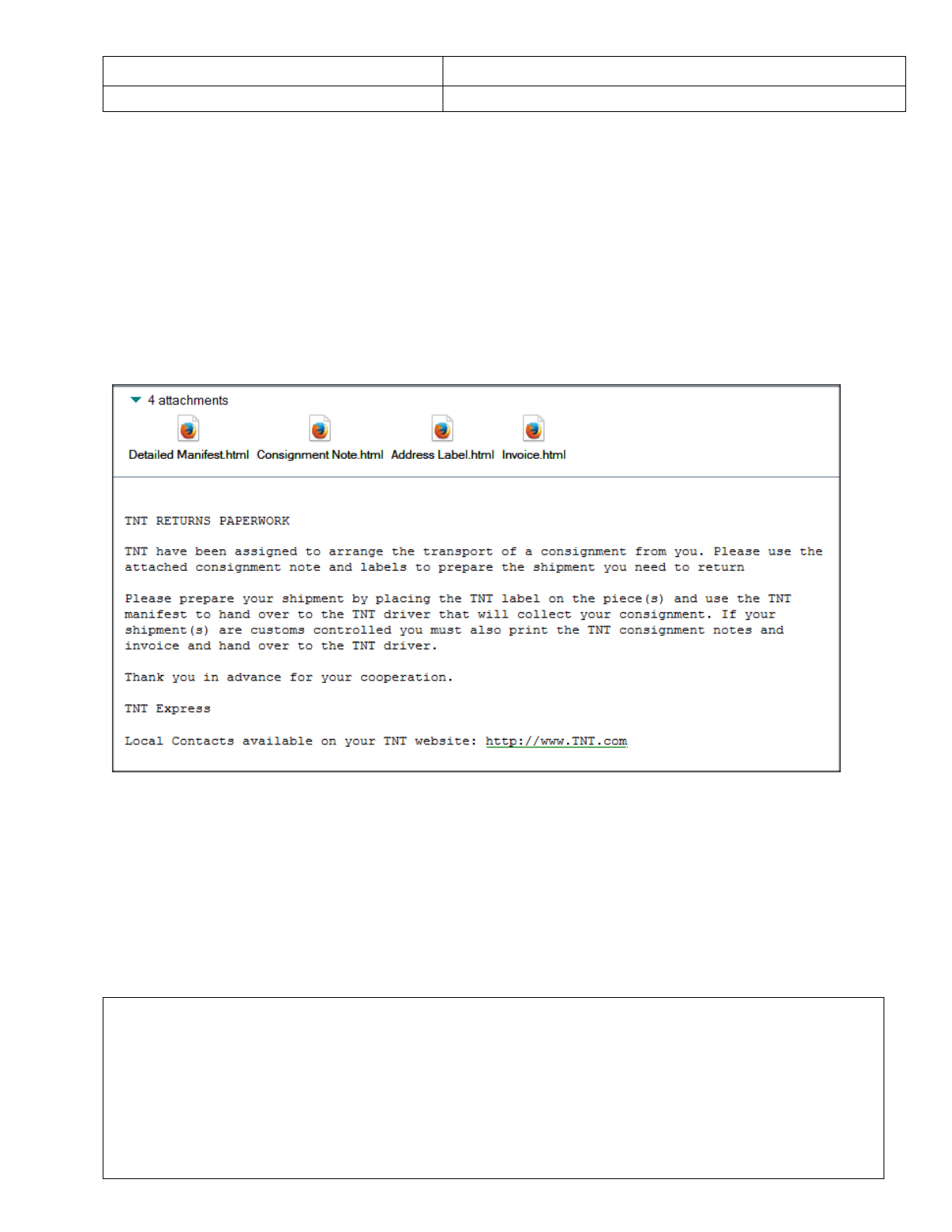

Please refer to Appendix H – Returns Paperwork

Again, if you have created the consignment in a previous call or you use your own consignment number, you can

print using a unique consignment number.

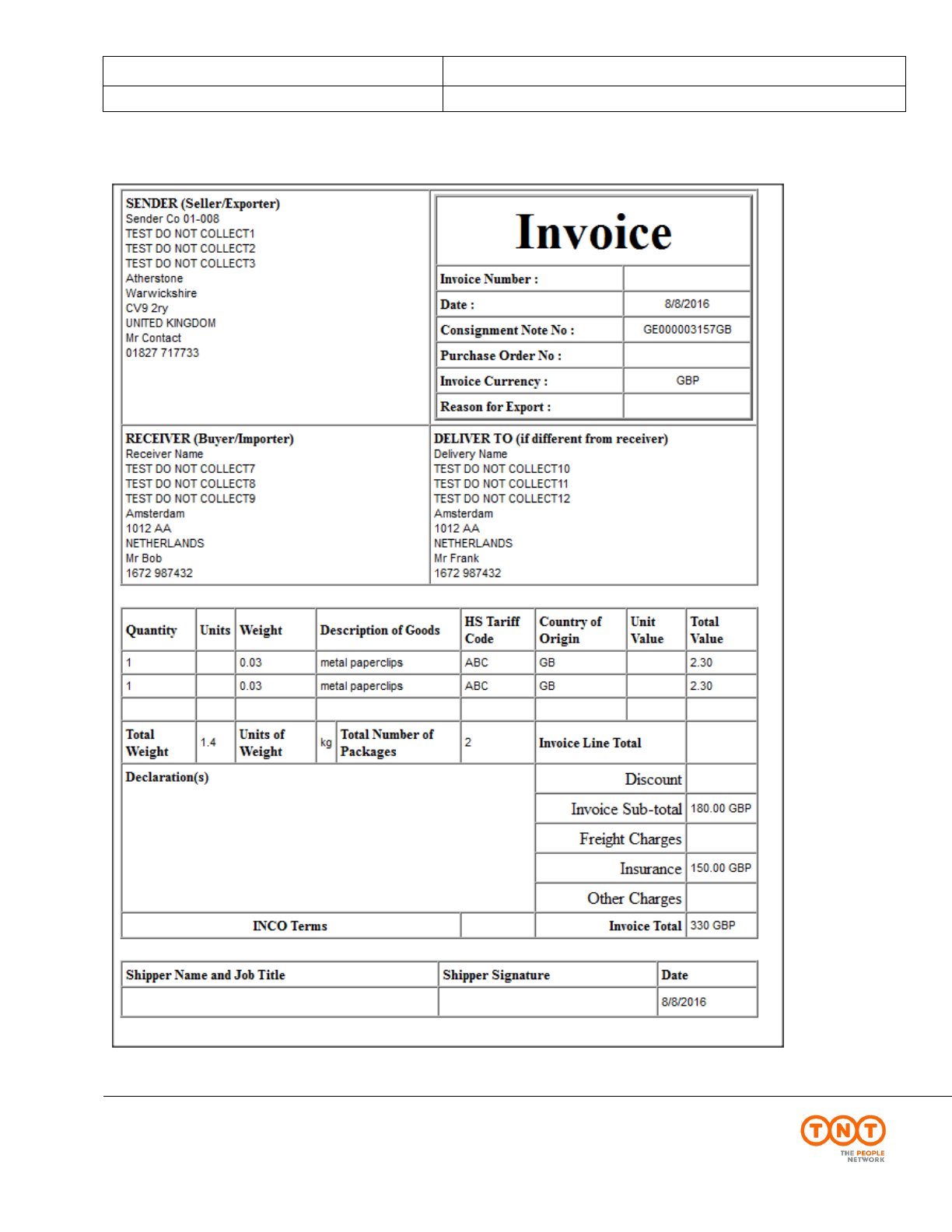

To generate all possible shipment documents please specify the <REQUIRED> element.

Please refer to Shipping Documentation responses for more information on the shipment documents.

<PRINT>

</REQUIRED>

</PRINT>

<PRINT>

</CONNOTE>

<LABEL>

</LABEL>

</MANIFEST>

</INVOICE>

<EMAILTO>bob.hitchens@tnt.com</EMAILTO>

<EMAILFROM>bob.hitchens@tnt.com</EMAILFROM>

</PRINT>

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Page 39 of 160

Express ICS, 2017

5.19.6SHOW_GROUPCODE Elements

To display the groupcode in the output XML (For further information on Group codes see Appendix I – Group Codes).

<SHOW_GROUPCODE />

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Page 40 of 160

Express ICS, 2017

6.Processing the XML Response

You will be returned an access code and your code needs to take this access code and send it back as part of a

character string into the TNT server - in exactly the same way that you sent the XML document. The character string

you send it in will depend upon which XML document you wish to retrieve. The options using the example access

key ‘12345’ are:

GET_RESULT:12345

GET_CONNOTE:12345

GET_LABEL:12345

GET_MANIFEST:12345

GET_INVOICE:12345

So, if you require the consignment note XML you will actually be sending through the socket the message:

“xml_in=GET_CONNOTE:12345”

The XML files are stored on the TNT ExpressConnect server for a period of 26 days, if later retrieval is necessary.

For the Create, Rate, Ship and Book activities, the return data will be contained within one XML document –

“RESULT”. This will also contain which and whether a shipping document has been successfully created.

The Print XM, to allow you to generate the shipping documentation will be contained without their own

XMLdocuments, retrieve as above. Please refer to Shipping Documentation responses on how to process the

shipping document XML returns.

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Page 41 of 160

Express ICS, 2017

6.1Processing the RESULT XML Response

The XML document contains whether an activity was successful or failed.

The <GROUPCODE> element is using is group code process, for more information on group codes please refer to

Appendix J – Group Codes.

<?xml version="1.0" encoding="utf-8" standalone="yes"?>

</CREATE>

<RATE>

<PRICE>

<SERVICEDESC>Express</SERVICEDESC>

<OPTIONDESC>Insurance</OPTIONDESC>

</PRICE>

</RATE>

<BOOK>

</CONSIGNMENT>

</BOOK>

<SHIP>

</CONSIGNMENT>

</SHIP>

<PRINT>

<CONNOTE>CREATED</CONNOTE>

<LABEL>CREATED</LABEL>

<MANIFEST>CREATED</MANIFEST>

<INVOICE>CREATED</INVOICE>

</PRINT>

</document>

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Page 42 of 160

Express ICS, 2017

You may also receive a run time error:

If the validation fails, the reason will be supplied:

Please refer to Errors for more information.

<?xml version="1.0" encoding="utf-8" standalone="yes"?>

<ERROR>

<DESCRIPTION>Receiver company name must be entered</DESCRIPTION>

<SOURCE>Consignment reference: ref01_008</SOURCE>

</ERROR>

</document>

<?xml version="1.0" encoding="utf-8" standalone="yes"?>

<runtime_error>

<error_reason>The request to ExpressConnect Shipping has failed. Please contact your local

service centre for further assistance</error_reason>

<error_srcText>For input string: "sion="1.0" encoding="UTF-8"

standalone="yes"?><runtime_error><error_reason>login details not

recognised</error_reason></runtime_error>"</error_srcText>

</runtime_error>

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Page 43 of 160

Express ICS, 2017

6.1.1CREATE response element

The create element must be success to allow any other activity to be performed.

The <CONREF> identifies which consignment was created and the response includes the unique consignment

number.

</CREATE>

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Page 44 of 160

Express ICS, 2017

6.1.2RATE response element

The RATE element returns the indicative price for the shipment..

The price list element will contain a result. The rate identified supplied by the customer is returned along with the service

and options codes/descriptions, rate (excluding V.A.T.) and a result code. If the result code is N then no rate was available

for that service.

6.1.2.1RATE response element – UK Domestic

UK Domestic RATE requests return additional information on the rate..

Continued below

<RATE>

<hazardousGoodsAllowed>false</hazardousGoodsAllowed>

<enhancedLiabilityIndicator>false</enhancedLiabilityIndicator>

<bookingStatus>QuoteViaWeb</bookingStatus>

<quoteComment>Generated via Web Request</quoteComment>

<description>EXPRESS</description>

<description>CF Surcharge</description>

<description>Residential Supplement - delivery</description>

<RATE>

<PRICE>

<SERVICEDESC>Express</SERVICEDESC>

<OPTIONDESC>Insurance</OPTIONDESC>

</PRICE>

</RATE>

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Page 45 of 160

Express ICS, 2017

<description>EXPRESS</description>

<description>CF Surcharge</description>

<description>Residential Supplement - delivery</description>

<description>Express Index</description>

<description>2012 CPI Supplement</description>

<description>2013 CPI Supplement</description>

<description>2014 CPI Supplement</description>

<description>2015 CPI Supplement</description>

</surcharges>

</ratedService>

<description>12:00 EXPRESS</description>

....

</surcharges>

<accepted>false</accepted>

</ratedService>

...

</ratedService>

</ratedServices>

</availableDeliveries>

</priceResponse>

</RATE>on>

<description>Residential Supplement - delivery</description>

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Page 46 of 160

Express ICS, 2017

6.1.2.1.1generatedByName, generatedById, requestDateTime and quoteReference elements

The generatedByName, generatedById, requestDateTime and quoteReference, are used to uniquely identify the rating

response.

6.1.2.1.2TheavailableCollectionDate element

The next available collection date after the supplied shipping date will be returned in the availableCollectionDate

element

The date format is CCYY-MM-DD.

6.1.2.1.3The collectionDepot, ratingDepot, accountName, divisionNumber, noteType, enhancedLiabilityIndicator,

options, bookingStatus and quoteComment elements

There are a number of elements that have been retained in the interface for backward compatibility or to be used

within TNT solutions using the same interface, they should not be coded into the user solution. These elements

provide information on the shipment based on the supplied input.

<accountName>Fredrick Bloggs Ltd.</accountName>

<enhancedLiabilityIndicator>false</enhancedLiabilityIndicator>

<bookingStatus>QuoteViaWeb</bookingStatus>

<quoteComment>Generated via Web Request</quoteComment>

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Page 47 of 160

Express ICS, 2017

6.1.2.1.4TheavailableDeliveries section

There is an availableDeliveries section for each delivery date based on the services determined that the user may

select to delivery the shipment based on the details supplied. Normally there will be one section returned for the

next working day. This section contains all the serviced that can be used to delivery on this date, these are detailed

in the ratedServices.

6.1.2.1.5TheratedServices and ratedService sections

The ratedServices section can contain up to 10 ratedService elements. Each service that can be rated and is feasibility

used to delivery the shipment described in the price check.

<description>EXPRESS</description>

…

</surcharges>

</ratedService>

…

</ratedService>

…

</ratedServices>

…

</ratedService>

…

</ratedServices>

</availableDeliveries>

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Page 48 of 160

Express ICS, 2017

The service code and description are returned in the code and description elements. The charge amount is in Pound

sterling, as is the discount that has been provided. The delivery date format is CCYY-MM-DD

6.1.2.1.6Thesurcharges sections

The surcharges section can contain up to 10 surcharges that applies to this shipment.

The surcharges category, associate description, charge code and where appropriate commodity code are returned for

each rated service. The charge amount is in Pound sterling.

<description>CFwd and Hazardous Supplement</description>

<description>Enhanced Liability with CF</description>

<description>Residential Supplement - delivery</description>

<description>Express Index</description>

</surcharges>

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Page 49 of 160

Express ICS, 2017

6.1.3BOOK response element

This element highlights whether the book activity was successful or failed.

By setting the ShowBookingRef attribute to ‘Y’ in the request, and if the collection request is raised successfully in

TNT’s collection booking system, the return the booking reference number will be returned within the

<BOOKINGREF> tag. This is not available for UK domestic bookings.

Please refer to Appendix L – First Time Trader Requirements for more information on the <FIRSTTIMETRADER>

element.

6.1.4SHIP response element

This element highlights whether the Ship activity was successful or failed.

<SHIP>

</CONSIGNMENT>

</SHIP>

<BOOK>

</CONSIGNMENT>

</BOOK>

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Page 50 of 160

Express ICS, 2017

6.1.5PRINT response element

This element highlights which shipping documents are available

<PRINT>

<CONNOTE>CREATED</CONNOTE>

<LABEL>CREATED</LABEL>

<MANIFEST>CREATED</MANIFEST>

<INVOICE>CREATED</INVOICE>

</PRINT>

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Page 51 of 160

Express ICS, 2017

7.Shipping Documentation responses

If a print request is successfully processed, XML documents will be created and should be retrieved by the customer

using the access key. This XML can be printed by either writing print software using the data inside the XML or by

simply parsing the XML documents with a suitable parser that conforms to the standards recommended by the W3C

(World Wide Web Consortium). The printed documentation is created using stylesheets. An XSL (Extensible

Stylesheet Language) stylesheet processor accepts a document or data in XML referencing an XSL stylesheet and

presents that XML source content as intended by the said stylesheet.

Three methods of producing the documentation are possible.

• Development your own solution

• Using the TNT stylesheets in an XML compliant browser

• Producing HTML with a compliant XML / XSL parser

The current TNT document stylesheets can be located at:

https://express.tnt.com/expresswebservices-website/stylesheets/HTMLConsignmentNoteRenderer.xsl

https://express.tnt.com/expresswebservices-website/stylesheets/HTMLAddressLabelRenderer.xsl

https://express.tnt.com/expresswebservices-website/stylesheets/HTMLManifestRenderer.xsl

https://express.tnt.com/expresswebservices-website/stylesheets/HTMLSummaryManifestRenderer.xsl

https://express.tnt.com/expresswebservices-website/stylesheets/HTMLCommercialInvoiceRenderer.xsl

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Page 52 of 160

Express ICS, 2017

7.1Development your own solution

By implementing the XML/XSL standards, TNT has divorced the data from the presentation, for enhanced

flexibility and platform neutrality. If you wish to produce the required documentation through your own software

solution, then please note that the formats must conform to the standards implemented by TNT. Your documentation

will need to be passed to your local TNT representative for approval by TNT operations.

It is possible to host certain elements, for example stylesheets, on the client server. This is not recommended as it

means that the locally held elements will need to be refreshed in the event of changes being made to the centrally

held item.

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Page 53 of 160

Express ICS, 2017

7.2Using the TNT stylesheets in an XML compliant browser

Producing the documentation using this option is by far the easiest to adopt, because TNT have already done the

work of creating the presentation.

Simply open the returned print XML, as an .xml file in the browser and the documentation will be automatically

rendered.

Each XML print document will contain a reference to an XSL stylesheet held on the TNT webservers e.g.

<?xml version="1.0" standalone="yes"?>

<?xml-stylesheet href="https://express.tnt.com/expresswebservices-website/stylesheets/HTMLCommercialInvoiceRenderer.xsl"

type="text/xsl"?>

The second line tells the XML browser that there is a stylesheet designed to process and format the XML for display

or print. The ‘href’ provides the address of the stylesheet and the ‘type’ tells the browser that the stylesheet is written

in XSL.

<!—If you wish to retrieve documentation using the older version 2.0 stylesheets, which do not support receiver

pays functionality, then please reference the following declaration -- >

<?xml-stylesheet href="https://express.tnt.com/expresswebservices-website/stylesheets/HTMLCommercialInvoiceRenderer.xsl"

type="text/xsl"?>

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Page 54 of 160

Express ICS, 2017

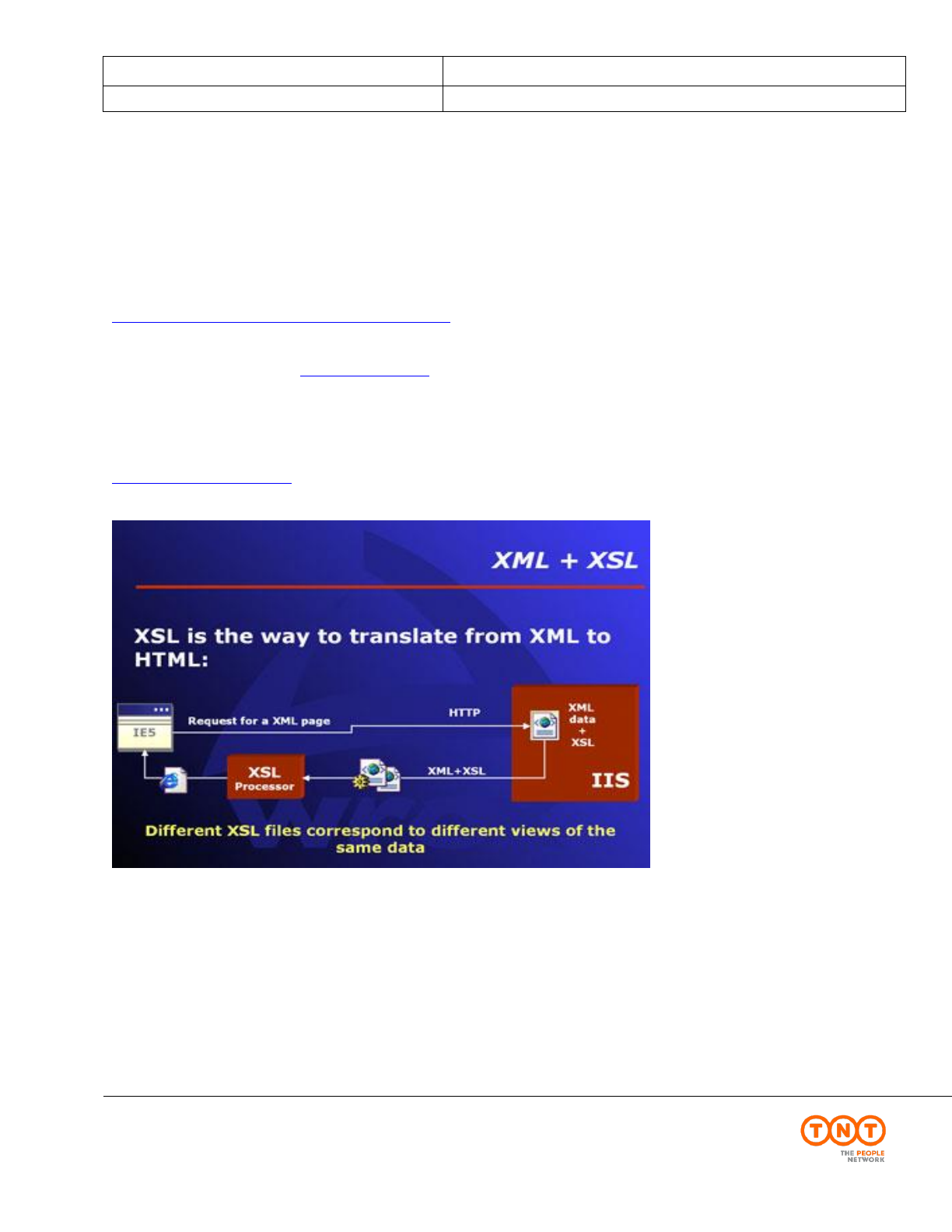

7.3Producing HTML with a compliant XML / XSL parser

If you use a browser other than IE or another XML supporting browser, then the XML can still be parsed with the

stylesheets to produce HTML. This can then be rendered in any version 3.0+ browser supporting JavaScript.

The most compatible method of producing the HTML is using the Microsoft MSXML parser. This is the internal

COM parser used within IE. It is however available in a free redistributable version, from the Microsoft web site,

additional information can be found at.

https://msdn.microsoft.com/en-us/data/bb190600.aspx

Other parsers are available from IBM and Datachannel, both supporting the W3C DOM.

IBM’s browser is available at http://www.ibm.com

XML4J – a platform independent parser written in Java

XML4C – another IBM parser written in C++

Datachannel, who originally wrote the Microsoft parser also produce an XML parser available for download at

http://www.datachannel.com

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Page 55 of 160

Express ICS, 2017

7.4Documentation requirement rules

There are four shipping documents that can be produced. These are described below with ‘rules’ for their

production – required information and suggested layout. If unsure as to which documents are required, the customer

has the option of passing in the conrefs/consignment numbers in the <PRINT><REQUIRED> element. This will

then return documents based on the rule table below:

Required Documents

ConsignmentType

Origin and destination

countries both within the

EU?

Documents to be printed

Document

N/A

Labels, connotes, manifest

Non-Doc

Labels, manifest

Non-Doc

Labels, connotes, manifest,

commercial invoice

The (commercial) invoice is the primary document required by the Customs officials dealing with international

transactions.It is used as a customs declaration provided by the person or corporation that is exporting an item across

international borders.

Most large export companies have their own invoice and it is recommended that they use theirs, but ExpressConnect

Shipping will provide one if required.

Please note that it is also hereby certified and agreed that, as TNT Express (including any other carrier involved in

the transportation of the goods) does not have any possibility to control the accuracy of the information displayed on

the commercial invoice, theshipper, consignee and buyer release TNT Express from all and any liability in

connection with said information (including but not limited the declared value of the shipped goods) and agree to

indemnify and hold TNTExpress harmless from any and all claims, actions and judgment incurred in connection

therewith.

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Page 56 of 160

Express ICS, 2017

7.5Consignment Note

A consignment note is a document that functions as a receipt for the goods to be shipped, and as evidence of the

contract of carriage by setting out the rights and obligations of the consignor and the carrier, as well as placing

limitations on the carrier’s liability for loss, damage or delay to the goods. It is not a document of title to the goods.

The xml response for the consignment note can be retrieve in Java script using

// Retrieve Consignment note

xml_in = 'GET_CONNOTE:'+AccessCode;

var ConNoteXML=SendXml(xml_in);

and has the following structure:

Continued below.

<?xml version="1.0" encoding="utf-8" standalone="yes"?>

<?xml-stylesheet href="https://express.tnt.com/expresswebservices-

website/stylesheets/HTMLConsignmentNoteRenderer.xsl"

type="text/xsl"?>

<BARCODEURL>/barbecue/barcode?type=code39&height=70&width=1&data=</BARCODEURL>

<HOST>https://express.tnt.com</HOST>

<IMAGESDIR>/expresswebservices-website/rendering/images</IMAGESDIR>

<![CDATA[Sender Co 01-008]]>

</COMPANYNAME>

<![CDATA[TEST DO NOT COLLECT1]]>

</STREETADDRESS1>

<![CDATA[TEST DO NOT COLLECT2]]>

</STREETADDRESS2>

<![CDATA[TEST DO NOT COLLECT3]]>

</STREETADDRESS3>

<CITY>

<![CDATA[Atherstone]]>

</CITY>

<![CDATA[Warwickshire]]>

</PROVINCE>

<COUNTRY>UNITED KINGDOM</COUNTRY>

<![CDATA[Mr Contact]]>

</CONTACTNAME>

<CONTACTEMAIL>contact@tnt.com</CONTACTEMAIL>

</SENDER>

<![CDATA[Collection Name]]>

</COMPANYNAME>

<![CDATA[TEST DO NOT COLLECT4]]>

</STREETADDRESS1>

<![CDATA[TEST DO NOT COLLECT5]]>

</STREETADDRESS2>

<![CDATA[TEST DO NOT COLLECT6]]>

</STREETADDRESS3>

<CITY>

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Page 57 of 160

Express ICS, 2017

Continued below.

</SENDER>

<![CDATA[Collection Name]]>

</COMPANYNAME>

<![CDATA[TEST DO NOT COLLECT4]]>

</STREETADDRESS1>

<![CDATA[TEST DO NOT COLLECT5]]>

</STREETADDRESS2>

<![CDATA[TEST DO NOT COLLECT6]]>

</STREETADDRESS3>

<CITY>

<![CDATA[Atherstone]]>

</CITY>

<![CDATA[Warwickshire]]>

</PROVINCE>

<COUNTRY>UNITED KINGDOM</COUNTRY>

<![CDATA[Mr Contact]]>

</CONTACTNAME>

<CONTACTEMAIL>contact@tnt.com</CONTACTEMAIL>

</COLLECTION>

</HEADER>

<![CDATA[Receiver Name]]>

</COMPANYNAME>

<![CDATA[TEST DO NOT COLLECT7]]>

</STREETADDRESS1>

<![CDATA[TEST DO NOT COLLECT8]]>

</STREETADDRESS2>

<![CDATA[TEST DO NOT COLLECT9]]>

</STREETADDRESS3>

<CITY>

<![CDATA[Amsterdam]]>

</CITY>

<COUNTRY>NETHERLANDS</COUNTRY>

<![CDATA[Mr Bob]]>

</CONTACTNAME>

<CONTACTEMAIL>email@tnt.com</CONTACTEMAIL>

</RECEIVER>

<![CDATA[Delivery Name]]>

</COMPANYNAME>

<![CDATA[TEST DO NOT COLLECT10]]>

</STREETADDRESS1>

<![CDATA[TEST DO NOT COLLECT11]]>

</STREETADDRESS2>

<![CDATA[TEST DO NOT COLLECT12]]>

</STREETADDRESS3>

<CITY>

<![CDATA[Amsterdam]]>

</CITY>

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Page 58 of 160

Express ICS, 2017

<![CDATA[Delivery Name]]>

</COMPANYNAME>

<![CDATA[TEST DO NOT COLLECT10]]>

</STREETADDRESS1>

<![CDATA[TEST DO NOT COLLECT11]]>

</STREETADDRESS2>

<![CDATA[TEST DO NOT COLLECT12]]>

</STREETADDRESS3>

<CITY>

<![CDATA[Amsterdam]]>

</CITY>

<COUNTRY>NETHERLANDS</COUNTRY>

<![CDATA[Mr Frank]]>

</CONTACTNAME>

<CONTACTEMAIL>email@tnt.com</CONTACTEMAIL>

</DELIVERY>

<![CDATA[DISKS]]>

</CUSTOMERREF>

<SERVICE>15N Express</SERVICE>

<![CDATA[assorted office accessories]]>

</GOODSDESC1>

<![CDATA[Delivery Instructions TEST]]>

</DELIVERYINST>

<OPTION1>PR Priority</OPTION1>

</CONSIGNMENT>

</CONSIGNMENTBATCH>

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Page 59 of 160

Express ICS, 2017

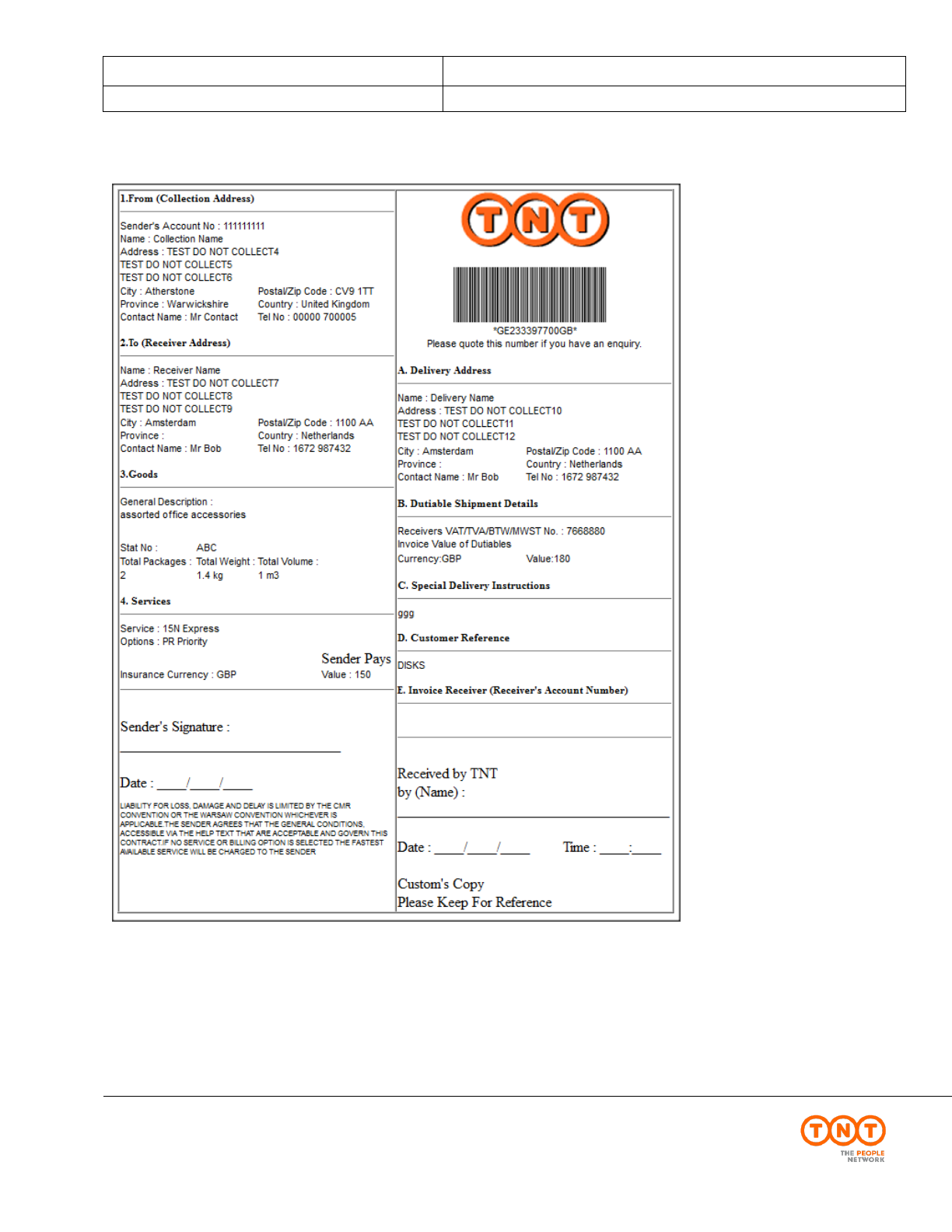

When the xml is “Viewed” in a browser they appear like this (International):

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Page 60 of 160

Express ICS, 2017

If producing your own, they must contain all the information shown on the templates above, both on the receiver

copy and on the customs copy.. If you create your own documentation it must be signed off by operations, your TNT

representative can arrange this for you.

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Page 61 of 160

Express ICS, 2017

7.6Address labels

To be attached to the package/s out for collection. Allows barcode scanning and tracking of consignments during

delivery movement.

It is recommended to use a routing label which can be produced using an alternative Webserver Expresslabel, access

and assistance this can be arranged by your TNT representative. Further details can be found at:

https://express.tnt.com/expresswebservices-website/app/routinglabelrequest.html

The xml response for the label can be retrieve in Java script using

// Retrieve label

xml_in = 'GET_LABEL:'+AccessCode;

var LabelXML=SendXml(xml_in);

and has the following structure:

Continued below.

<?xml version="1.0" encoding="utf-8" standalone="yes"?>

<?xml-stylesheet href="https://express.tnt.com/expresswebservices-website

/stylesheets/HTMLAddressLabelRenderer.xsl" type="text/xsl"?>

<BARCODEURL>/barbecue/barcode?type=code39&height=70&width=1&data=</BARCODEURL>

<HOST>http://gblabvl45.gb.tntpost.com:9082</HOST>

<IMAGESDIR>/expresswebservices-website/rendering/images</IMAGESDIR>

<![CDATA[Sender Co 01-008]]>

</COMPANYNAME>

<![CDATA[TEST DO NOT COLLECT1]]>

</STREETADDRESS1>

<![CDATA[TEST DO NOT COLLECT2]]>

</STREETADDRESS2>

<![CDATA[TEST DO NOT COLLECT3]]>

</STREETADDRESS3>

<CITY>

<![CDATA[Atherstone]]>

</CITY>

<![CDATA[Warwickshire]]>

</PROVINCE>

<COUNTRY>UNITED KINGDOM</COUNTRY>

<![CDATA[Mr Contact]]>

</CONTACTNAME>

<CONTACTEMAIL>contact@tnt.com</CONTACTEMAIL>

</SENDER>

<![CDATA[Collection Name]]>

</COMPANYNAME>

<![CDATA[TEST DO NOT COLLECT4]]>

</STREETADDRESS1>

<![CDATA[TEST DO NOT COLLECT5]]>

</STREETADDRESS2>

<![CDATA[TEST DO NOT COLLECT6]]>

</STREETADDRESS3>

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Page 62 of 160

Express ICS, 2017

Continued below.

<![CDATA[Collection Name]]>

</COMPANYNAME>

<![CDATA[TEST DO NOT COLLECT4]]>

</STREETADDRESS1>

<![CDATA[TEST DO NOT COLLECT5]]>

</STREETADDRESS2>

<![CDATA[TEST DO NOT COLLECT6]]>

</STREETADDRESS3>

<CITY>

<![CDATA[Atherstone]]>

</CITY>

<![CDATA[Warwickshire]]>

</PROVINCE>

<COUNTRY>UNITED KINGDOM</COUNTRY>

<![CDATA[Mr Contact]]>

</CONTACTNAME>

<CONTACTEMAIL>contact@tnt.com</CONTACTEMAIL>

</COLLECTION>

</HEADER>

<![CDATA[Receiver Name]]>

</COMPANYNAME>

<![CDATA[TEST DO NOT COLLECT7]]>

</STREETADDRESS1>

<![CDATA[TEST DO NOT COLLECT8]]>

</STREETADDRESS2>

<![CDATA[TEST DO NOT COLLECT9]]>

</STREETADDRESS3>

<CITY>

<![CDATA[Amsterdam]]>

</CITY>

<COUNTRY>NETHERLANDS</COUNTRY>

<![CDATA[Mr Bob]]>

</CONTACTNAME>

<CONTACTEMAIL>email@tnt.com</CONTACTEMAIL>

</RECEIVER>

<![CDATA[Delivery Name]]>

</COMPANYNAME>

<![CDATA[TEST DO NOT COLLECT10]]>

</STREETADDRESS1>

<![CDATA[TEST DO NOT COLLECT11]]>

</STREETADDRESS2>

<![CDATA[TEST DO NOT COLLECT12]]>

</STREETADDRESS3>

<CITY>

<![CDATA[Amsterdam]]>

</CITY>

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Page 63 of 160

Express ICS, 2017

Continued below.

<![CDATA[Delivery Name]]>

</COMPANYNAME>

<![CDATA[TEST DO NOT COLLECT10]]>

</STREETADDRESS1>

<![CDATA[TEST DO NOT COLLECT11]]>

</STREETADDRESS2>

<![CDATA[TEST DO NOT COLLECT12]]>

</STREETADDRESS3>

<CITY>

<![CDATA[Amsterdam]]>

</CITY>

<COUNTRY>NETHERLANDS</COUNTRY>

<![CDATA[Mr Frank]]>

</CONTACTNAME>

<CONTACTEMAIL>email@tnt.com</CONTACTEMAIL>

</DELIVERY>

<![CDATA[DISKS]]>

</CUSTOMERREF>

<SERVICE>15N Express</SERVICE>

<![CDATA[assorted office accessories]]>

</GOODSDESC1>

<![CDATA[Delivery Instructions TEST]]>

</DELIVERYINST>

<OPTION1>PR Priority</OPTION1>

<![CDATA[metal paperclips]]>

</INVOICEDESC>

<![CDATA[paperclips]]>

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Page 64 of 160

Express ICS, 2017

<![CDATA[metal paperclips]]>

</INVOICEDESC>

<![CDATA[paperclips]]>

</DESCRIPTION>

</ARTICLE>

</PACKAGE>

<![CDATA[metal paperclips]]>

</INVOICEDESC>

<![CDATA[paperclips]]>

</DESCRIPTION>

</ARTICLE>

</PACKAGE>

</CONSIGNMENT>

</CONSIGNMENTBATCH>

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Page 65 of 160

Express ICS, 2017

Viewed in the browser, the standard label appear like this:

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Page 66 of 160

Express ICS, 2017

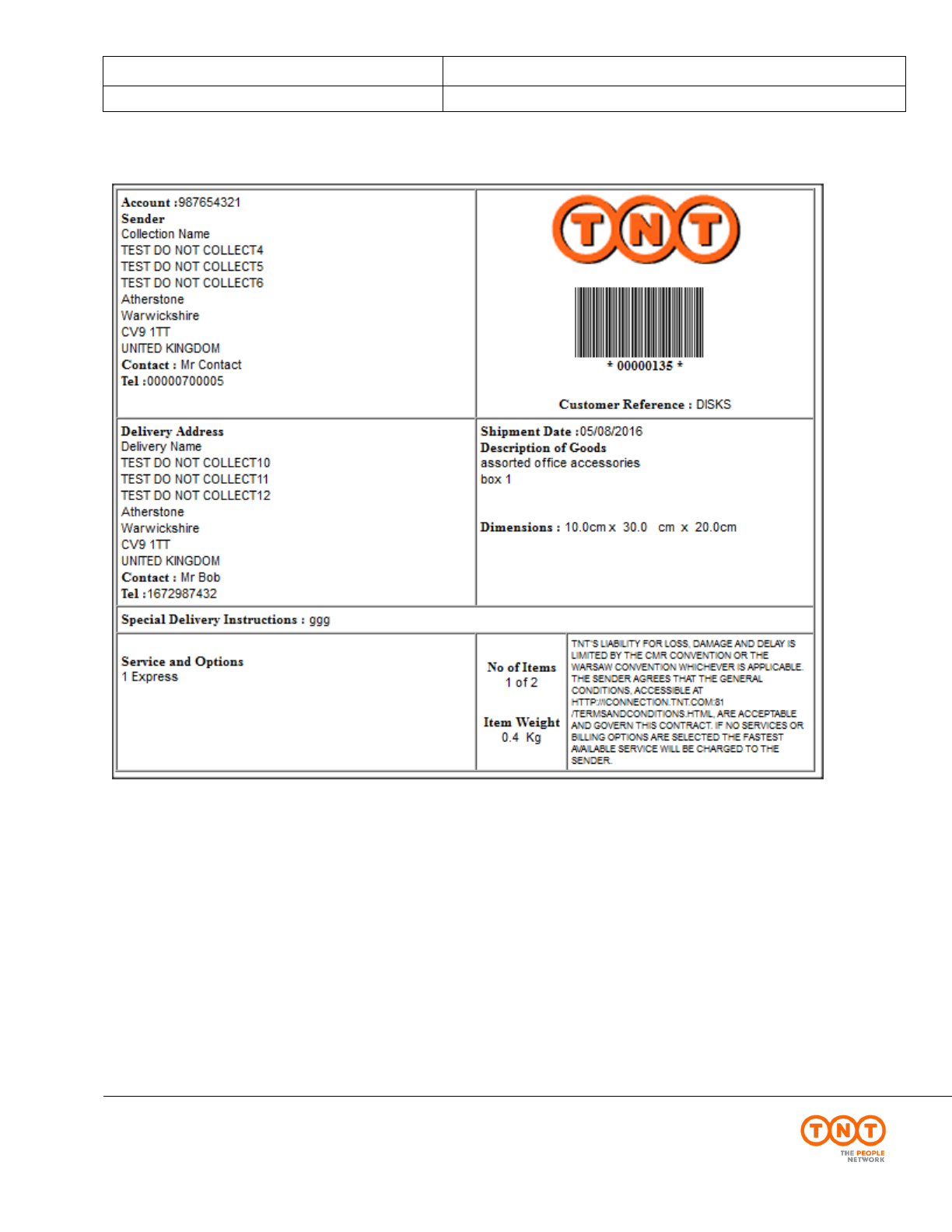

Below is an example of a UK domestic label:

If producing your own, they must contain all the information shown below. If you create your own it must be signed

off by operations, your TNT representative can arrange this for you.

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Page 67 of 160

Express ICS, 2017

7.7Detail Manifest

The manifest is the form that lists the consignments traveling on a particular mode of transport on a particular date.

The xml response for the detail manifest can be retrieve in Java script using

// Retrieve manifest

xml_in = 'GET_MANIFEST:'+AccessCode;

var ManifestXML=SendXml(xml_in);

and has the following structure:

Continued below.

<?xml version="1.0" encoding="utf-8" standalone="yes"?>

<?xml-stylesheet href="https://express.tnt.com/expresswebservices-

website/stylesheets/HTMLManifestRenderer.xsl" type="text/xsl"?>

<BARCODEURL>/barbecue/barcode?type=code39&height=70&width=1&data=</BARCODEURL>

<HOST>http://gblabvl45.gb.tntpost.com:9082</HOST>

<IMAGESDIR>/expresswebservices-website/rendering/images</IMAGESDIR>

<![CDATA[Sender Co 01-008]]>

</COMPANYNAME>

<![CDATA[TEST DO NOT COLLECT1]]>

</STREETADDRESS1>

<![CDATA[TEST DO NOT COLLECT2]]>

</STREETADDRESS2>

<![CDATA[TEST DO NOT COLLECT3]]>

</STREETADDRESS3>

<CITY>

<![CDATA[Atherstone]]>

</CITY>

<![CDATA[Warwickshire]]>

</PROVINCE>

<COUNTRY>UNITED KINGDOM</COUNTRY>

<![CDATA[Mr Contact]]>

</CONTACTNAME>

<CONTACTEMAIL>contact@tnt.com</CONTACTEMAIL>

</SENDER>

<![CDATA[Collection Name]]>

</COMPANYNAME>

<![CDATA[TEST DO NOT COLLECT4]]>

</STREETADDRESS1>

<![CDATA[TEST DO NOT COLLECT5]]>

</STREETADDRESS2>

<![CDATA[TEST DO NOT COLLECT6]]>

</STREETADDRESS3>

<CITY>

<![CDATA[Atherstone]]>

</CITY>

<![CDATA[Warwickshire]]>

</PROVINCE>

<COUNTRY>UNITED KINGDOM</COUNTRY>

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Page 68 of 160

Express ICS, 2017

Continued below.

<![CDATA[Collection Name]]>

</COMPANYNAME>

<![CDATA[TEST DO NOT COLLECT4]]>

</STREETADDRESS1>

<![CDATA[TEST DO NOT COLLECT5]]>

</STREETADDRESS2>

<![CDATA[TEST DO NOT COLLECT6]]>

</STREETADDRESS3>

<CITY>

<![CDATA[Atherstone]]>

</CITY>

<![CDATA[Warwickshire]]>

</PROVINCE>

<COUNTRY>UNITED KINGDOM</COUNTRY>

<![CDATA[Mr Contact]]>

</CONTACTNAME>

<CONTACTEMAIL>contact@tnt.com</CONTACTEMAIL>

</COLLECTION>

</HEADER>

<![CDATA[Receiver Name]]>

</COMPANYNAME>

<![CDATA[TEST DO NOT COLLECT7]]>

</STREETADDRESS1>

<![CDATA[TEST DO NOT COLLECT8]]>

</STREETADDRESS2>

<![CDATA[TEST DO NOT COLLECT9]]>

</STREETADDRESS3>

<CITY>

<![CDATA[Amsterdam]]>

</CITY>

<COUNTRY>NETHERLANDS</COUNTRY>

<![CDATA[Mr Bob]]>

</CONTACTNAME>

<CONTACTEMAIL>email@tnt.com</CONTACTEMAIL>

</RECEIVER>

<![CDATA[Delivery Name]]>

</COMPANYNAME>

<![CDATA[TEST DO NOT COLLECT10]]>

</STREETADDRESS1>

<![CDATA[TEST DO NOT COLLECT11]]>

</STREETADDRESS2>

<![CDATA[TEST DO NOT COLLECT12]]>

</STREETADDRESS3>

<CITY>

<![CDATA[Amsterdam]]>

</CITY>

<COUNTRY>NETHERLANDS</COUNTRY>

<![CDATA[Mr Frank]]>

</CONTACTNAME>

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Page 69 of 160

Express ICS, 2017

Continued below.

<![CDATA[Delivery Name]]>

</COMPANYNAME>

<![CDATA[TEST DO NOT COLLECT10]]>

</STREETADDRESS1>

<![CDATA[TEST DO NOT COLLECT11]]>

</STREETADDRESS2>

<![CDATA[TEST DO NOT COLLECT12]]>

</STREETADDRESS3>

<CITY>

<![CDATA[Amsterdam]]>

</CITY>

<COUNTRY>NETHERLANDS</COUNTRY>

<![CDATA[Mr Frank]]>

</CONTACTNAME>

<CONTACTEMAIL>email@tnt.com</CONTACTEMAIL>

</DELIVERY>

<![CDATA[DISKS]]>

</CUSTOMERREF>

<SERVICE>15N Express</SERVICE>

<![CDATA[assorted office accessories]]>

</GOODSDESC1>

<![CDATA[Delivery Instructions TEST]]>

</DELIVERYINST>

<OPTION1>PR Priority</OPTION1>

<![CDATA[metal paperclips]]>

</INVOICEDESC>

<![CDATA[paperclips]]>

</DESCRIPTION>

</ARTICLE>

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Page 70 of 160

Express ICS, 2017

<![CDATA[metal paperclips]]>

</INVOICEDESC>

<![CDATA[paperclips]]>

</DESCRIPTION>

</ARTICLE>

</PACKAGE>

<![CDATA[metal paperclips]]>

</INVOICEDESC>

<![CDATA[paperclips]]>

</DESCRIPTION>

</ARTICLE>

</PACKAGE>

</CONSIGNMENT>

</CONSIGNMENTBATCH>

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Page 71 of 160

Express ICS, 2017

Viewed in the browser it appears like this:

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Page 72 of 160

Express ICS, 2017

7.8Summary Manifest

The summary manifest lists all of the consignments traveling on a particular mode of transport on a particular date,

as a part of a batch.

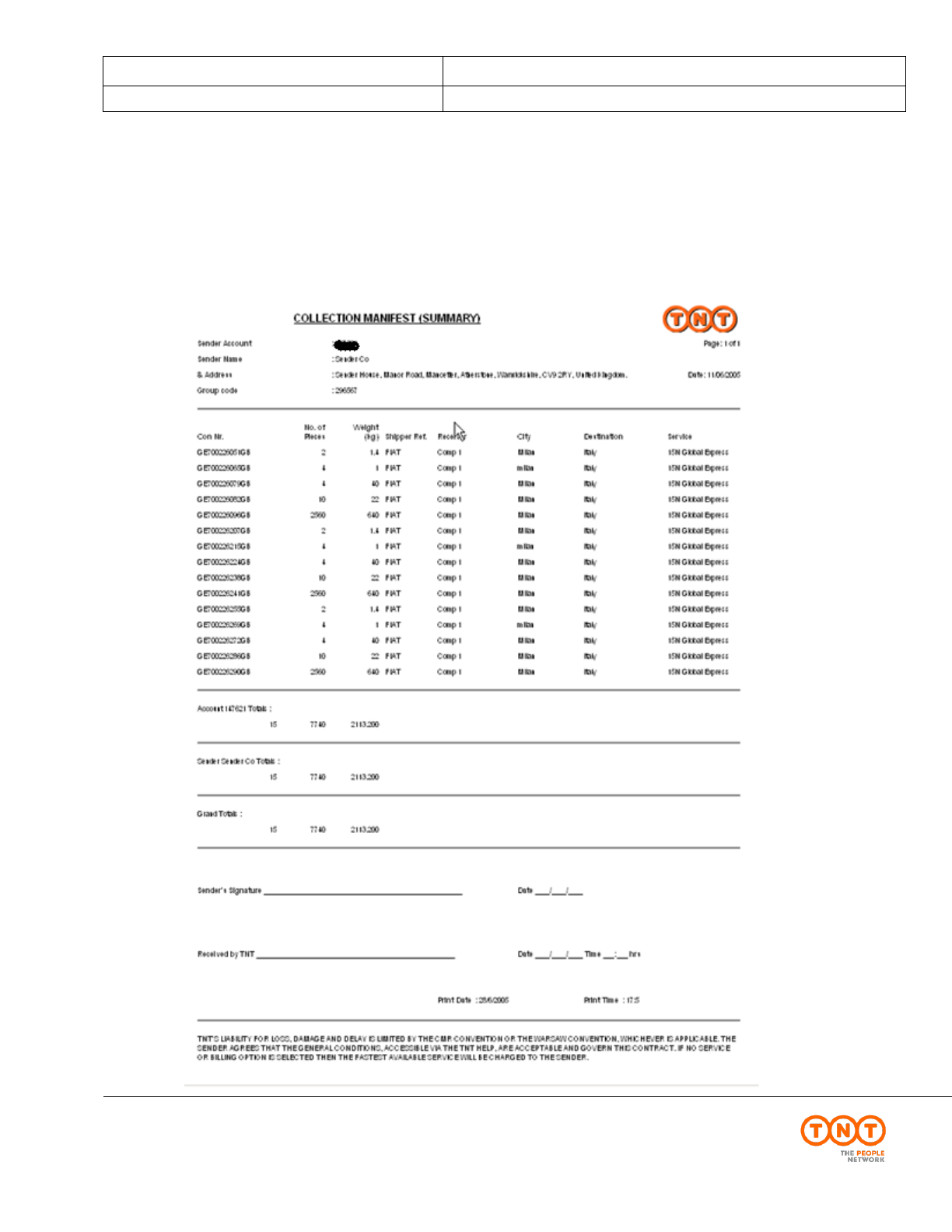

Viewed in the browser it appears like this:

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Page 73 of 160

Express ICS, 2017

7.9Commercial invoice

The seller issues a commercial invoice to the buyer stating the cost of the goods being supplied plus any other

charges that might be involved, e.g. insurance, freight. This type of invoice is raised when a commercial transaction

has taken place. One commercial invoice is produced per consignment.

The xml response for the Commercial Invoice can be retrieve in Java script using

// Retrieve Invoice

xml_in = 'GET_INVOICE:'+AccessCode;

var INVOICEXML=SendXml(xml_in);

and has the following structure:

Continued below.

<?xml version="1.0" encoding="utf-8" standalone="yes"?>

<?xml-stylesheet href="https://express.tnt.com/expresswebservices-

website/stylesheets/HTMLCommercialInvoiceRenderer.xsl" type="text/xsl"?>

<![CDATA[Sender Co 01-008]]>

</COMPANYNAME>

<![CDATA[TEST DO NOT COLLECT1]]>

</STREETADDRESS1>

<![CDATA[TEST DO NOT COLLECT2]]>

</STREETADDRESS2>

<![CDATA[TEST DO NOT COLLECT3]]>

</STREETADDRESS3>

<CITY>

<![CDATA[Atherstone]]>

</CITY>

<![CDATA[Warwickshire]]>

</PROVINCE>

<COUNTRY>UNITED KINGDOM</COUNTRY>

<![CDATA[Mr Contact]]>

</CONTACTNAME>

<CONTACTEMAIL>contact@tnt.com</CONTACTEMAIL>

</SENDER>

<![CDATA[Collection Name]]>

</COMPANYNAME>

<![CDATA[TEST DO NOT COLLECT4]]>

</STREETADDRESS1>

<![CDATA[TEST DO NOT COLLECT5]]>

</STREETADDRESS2>

<![CDATA[TEST DO NOT COLLECT6]]>

</STREETADDRESS3>

<CITY>

<![CDATA[Atherstone]]>

</CITY>

<![CDATA[Warwickshire]]>

</PROVINCE>

<COUNTRY>UNITED KINGDOM</COUNTRY>

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Page 74 of 160

Express ICS, 2017

Continued below.

<![CDATA[Collection Name]]>

</COMPANYNAME>

<![CDATA[TEST DO NOT COLLECT4]]>

</STREETADDRESS1>

<![CDATA[TEST DO NOT COLLECT5]]>

</STREETADDRESS2>

<![CDATA[TEST DO NOT COLLECT6]]>

</STREETADDRESS3>

<CITY>

<![CDATA[Atherstone]]>

</CITY>

<![CDATA[Warwickshire]]>

</PROVINCE>

<COUNTRY>UNITED KINGDOM</COUNTRY>

<![CDATA[Mr Contact]]>

</CONTACTNAME>

<CONTACTEMAIL>contact@tnt.com</CONTACTEMAIL>

</COLLECTION>

</HEADER>

<![CDATA[Receiver Name]]>

</COMPANYNAME>

<![CDATA[TEST DO NOT COLLECT7]]>

</STREETADDRESS1>

<![CDATA[TEST DO NOT COLLECT8]]>

</STREETADDRESS2>

<![CDATA[TEST DO NOT COLLECT9]]>

</STREETADDRESS3>

<CITY>

<![CDATA[Amsterdam]]>

</CITY>

<COUNTRY>NETHERLANDS</COUNTRY>

<![CDATA[Mr Bob]]>

</CONTACTNAME>

<CONTACTEMAIL>email@tnt.com</CONTACTEMAIL>

</RECEIVER>

<![CDATA[Delivery Name]]>

</COMPANYNAME>

<![CDATA[TEST DO NOT COLLECT10]]>

</STREETADDRESS1>

<![CDATA[TEST DO NOT COLLECT11]]>

</STREETADDRESS2>

<![CDATA[TEST DO NOT COLLECT12]]>

</STREETADDRESS3>

<CITY>

<![CDATA[Amsterdam]]>

</CITY>

<COUNTRY>NETHERLANDS</COUNTRY>

<![CDATA[Mr Frank]]>

</CONTACTNAME>

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Page 75 of 160

Express ICS, 2017

Continued below.

<![CDATA[Delivery Name]]>

</COMPANYNAME>

<![CDATA[TEST DO NOT COLLECT10]]>

</STREETADDRESS1>

<![CDATA[TEST DO NOT COLLECT11]]>

</STREETADDRESS2>

<![CDATA[TEST DO NOT COLLECT12]]>

</STREETADDRESS3>

<CITY>

<![CDATA[Amsterdam]]>

</CITY>

<COUNTRY>NETHERLANDS</COUNTRY>

<![CDATA[Mr Frank]]>

</CONTACTNAME>

<CONTACTEMAIL>email@tnt.com</CONTACTEMAIL>

</DELIVERY>

<![CDATA[DISKS]]>

</CUSTOMERREF>

<SERVICE>15N Express</SERVICE>

<![CDATA[assorted office accessories]]>

</GOODSDESC1>

<![CDATA[Delivery Instructions TEST]]>

</DELIVERYINST>

<OPTION1>PR Priority</OPTION1>

<![CDATA[metal paperclips]]>

</INVOICEDESC>

<![CDATA[paperclips]]>

</DESCRIPTION>

</ARTICLE>

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Page 76 of 160

Express ICS, 2017

<![CDATA[metal paperclips]]>

</INVOICEDESC>

<![CDATA[paperclips]]>

</DESCRIPTION>

</ARTICLE>

</PACKAGE>

<![CDATA[metal paperclips]]>

</INVOICEDESC>

<![CDATA[paperclips]]>

</DESCRIPTION>

</ARTICLE>

</PACKAGE>

</CONSIGNMENT>

</CONSIGNMENTBATCH>

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Page 77 of 160

Express ICS, 2017

Viewed in the browser it appears like this:

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Page 78 of 160

Express ICS, 2017

8.Errors

There are a number of different errors that may occur when using ExpressConnect Shipping. Many of these are

likely to be encountered in the initial development phase and are concerned with the format of the XML message

and the presence of data items.

The remaining messages are concerned with validation of the data items and the availability of the service. The error

messages are shown below:

It would be sensible to ensure that your code is capable of handling all of the potential error messages returned by

ExpressConnect Shipping.

8.1Application generated errors

The standard behaviour is for you will to receive a response and then for you to check the result (with

GET_RESULT) to see if there are errors returned.

In some cases, errors are returned directly in the response with an error.

8.1.1Request errors

These are displayed as errors in response, for example Key value not written correctly.

8.1.2XML errors

Theses error occur if the XML is badly formatted, contain a typo and are returned via GET_RESULT.

For example, if the Element <STREETADDRESS> contains a typo.

<?xml version="1.0" standalone="yes"?>

<parse_error>

<error_reason>Element content is invalid according to the DTD/Schema. Expecting: STREETADDRESS3,

CITY.</error_reason>

<error_line>13</error_line>

<error_linepos>26</error_linepos>

<error_srcText>

<![CDATA[ <ASTREETADDRESS3 />]]>

</error_srcText>

</parse_error>

<?xml version="1.0" encoding="UTF-8" standalone="yes"?>

<runtime_error>

<error_reason>No data received at gateway from client error</error_reason>

<error_srcText></error_srcText>

</runtime_error>

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Page 79 of 160

Express ICS, 2017

8.1.3Validation errors

Theses error occur if there is an issue with the data supplied in the XM and are returned via GET_RESULT.

For example, the XML contained the insurance element with a value, but the goods value element is missing

For possible validation or verification errors please see Table of application generated error codes, messages and

resolutions on the following pages.

<?xml version="1.0" encoding="utf-8" standalone="yes"?>

<ERROR>

<DESCRIPTION>Goods value must be entered if insurance value supplied</DESCRIPTION>

<SOURCE>Consignment reference: ref0204</SOURCE>

</ERROR>

</document>

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Page 80 of 160

Express ICS, 2017

8.2Table of application generated error codes, messages and resolutions

The Default Message column contains the English language message that is returned with each code. This value is

intended to be used by systems integrators. For content management you should use the error code.

An element is considered empty if it contains no value or only whitespace. Therefore all of the following elements

are empty:

For Shipping

Error

Code

Error Description

Resolution

No data received at gateway from client error

The request failed to receive a valid request – please resend or contact your local service

centre for further assistance

This error is returned when the http request is received by the ExpressConnect application

without an XML payload.

We have found that this can be caused by multiple reasons, including but not limited to:

• Temporary network issue. Solved by resending request

• Expired/Invalid certificate. Solved by installing the express.tnt.com certificate

• By remove the linefeed character from the TNT transaction ID

• Sending the xml payload as a form/url encoded parameter, but not setting the

request header. Solved by setting the content type header appropriately.

• Truncating the returned Requestid when requesting the result.

Please re-check the your connection codes to connect the TNT server. Review the sample

connection codes in this guide

The request to ExpressConnect Shipping has

failed. Please contact your local service centre

for further assistance

Please contact your local service centre for further assistance

The {invalidfield.name} specified must be

numeric

Please pass numeric data in the highlighted field

101

Error Reading Configuration file

Contact TNT Help Desk

102

Failure to load XML

Check that XML contains DTD in declaration

103

ConsignmentBatch Skipped - More Than 99

Packages

Maximum of 99 packages per consignment only

104

Length Exceeds maximum allowed - Skipped to

next consignment

Max length permitted for a package is 2.4m

105

Height Exceeds maximum allowed - Skipped to

next consignment

Max height permitted for a package is 1.5m

106

Width Exceeds Mamimum Allowed - Skipped to

next consignment

Max width permitted for a package is 1.2m

107

Weight Exceeds maximum allowed - Skipped

to next consignment

Max weight permitted for a package is 70 kg

108

Maximum Number Of Articles Exceeded -

Skipped to next Consignment

Maximum of 99 articles elements per package only

110

Maximum Number Of Consignments exceeded

Refer to customer documentation for maximum limits set *

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Page 81 of 160

Express ICS, 2017

Error

Code

Error Description

Resolution

113

Empty Consignment Reference found

ConRefs must be supplied

114

Duplicate Consignment Reference not allowed

ConRefs must be unique and are mandatory

115

Consignment Reference Not Recognized

Ensure that conrefs given in the Activity elements correspond to those in the Consignment

batches

116

Consignment Number Not Recognized

Ensure that connumbers given in the Activity elements correspond to those consignments

created less than 8 days ago.

118

Cannot Rate a receiver pays shipment

Unless you “own” the receiver account number it is not possible to see the estimated cost of

the shipment.

119

If the origin or destination of a consignment is

outside of the EU, the consignment must contain

at least one package

Add a package to the Input XML

120

Duplicate consignment references not allowed

for groupcode {groupcode}, conref {conref}

Maximum of 99 packages per consignment only

200

A user ID must be entered

Enter the Customer ID in the input XML

201

A company name must be entered

Enter company name in the input XML

202

The first line of the sender address must be

entered

The three lines of the origin address can not all be empty

203

A town for the sender address must be entered

Enter a sender town

204

A post code for the sender address must be

entered

Enter a sender post code

205

A country code for the sender address must be

entered

Enter a valid sender country code

206

Invalid country code for the sender address

entered

Enter a valid sender country code

207

Sender account must be numeric

Enter a valid sender account number

208

The sender address contact name must be

entered

Enter a Senders Contact Name

209

The sender address contact dial code must be

entered

Enter a sender contact dial code

210

The sender address contact dial code is too long

This field may only hold 7 digits

211

The sender address contact telephone number

must be entered

Enter a sender contact telephone number

212

The sender address contact telephone number is

too long

This field may only hold 9 digits

213

unable to determine the pick up depot from

sender address

Check sender address details are valid

214

Sender account number must be entered

Enter an account number associated with this customer

215

The collection address company name must be

entered

Enter collection company name

216

First line of the collection address must be

entered

The three lines of the collection address can not all be empty if these tags are used

217

A town for the collection address must be

entered

Enter a collection town

218

The collection address post code must be

entered

Enter a collection post code

219

The collection address country code must be

entered

Enter a valid collection country code

220

Invalid collection address country code entered

Enter a valid collection country code

221

The collection address contact name must be

entered

Enter a collection contact name

222

The collection address contact dial code must

be entered

Enter a collection contact dial code

223

The collection address contact dial code is too

long

This field may only hold 7 digits

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Page 82 of 160

Express ICS, 2017

Error

Code

Error Description

Resolution

224

The collection address contact telephone must

be entered

Enter a collection contact telephone number

225

The collection address contact telephone is too

long

This field may only hold 9 digits

226

unable to determine pick up depot from

collection address

Check collection address details are valid

227

The account number is invalid

The account number entered is not associated with this customer

228

Shipment date is invalid

Enter the shipment date in DD/MM/YYYY format

229

The shipment date cannot be in the past

Enter a shipment date that is not in the past

230

The shipment date cannot be more than

{max.days.ahead.booking.allowed} days in the

future

Enter a date not more than 14 days in the future

231

Collections can not be made on this date

The Country Cannot make a collection on the requested day

232

A preferred From collection-time must be

entered

Enter a valid time in HHMM format

233

The preferred From collection-time is invalid

The Prefered collection times must be completed in HHMM format

234

A preferred To collection-time must be entered

Enter a valid time in HHMM format

235

The preferred To collection -time is invalid

The Prefered collection times must be completed in HHMM format

236

Collection times must overlap with

{depot.opening.time} and {depot.closing.time}

Enter a preferred collection time between 09:00 and 16:00

237

The alternate From collection time must be

entered

Enter a valid time in HHMM format

238

The alternate From collection time is invalid

The alternate collection times must be completed in HHMM format

239

The alternate To collection time is invalid

Enter a valid time in HHMM format

240

The alternate To collection time is invalid

The alternate collection times must be completed in HHMM format

241

Alternate collection times must be between

09:00 and 16:00

Enter an alternate collection time between 09:00 and 16:00

242

The preffered and alternate collection times

must not overlap

Check your collection times do not overlap

243

Unable to allocate unique identifier - contact

administrator

There has been an internal error in ExpressConnect, please contact the administrator

244

Group Code {groupcode} does not exist

Check that the correct group code has been entered for an existing batch.

246

Error validating consignments for group code

{groupcode}

Check that there are cons defined for this group code.

247

Cutoff time today for submitting shipping

requests, {cutoff.date}, has passed

Please contact you TNT representative as the booking time has passed for the current day

and we are unable to take your booking via ExpressConnect.

248

The collection instruction is too long. Max

length 60 characters

The collection instruction can be a maximum of 24 characters in length.

300

Consignment reference must be entered

Enter a reference for the consignment

301

The receiver company name must be entered

Enter receiver company name in the input XML

302

The first line of the receiver address must be

entered

The three lines of the receiver address can not all be empty

303

Receiver town must be entered

Enter a receiver town

304

The receiver address post code must be entered

Enter a receiver post code

305

The receiver address country code must be

entered

Enter a valid receiver country code

306

An invalid receiver country code has been

entered

Enter a valid receiver country code

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Page 83 of 160

Express ICS, 2017

Error

Code

Error Description

Resolution

307

The receiver address contact name must be

entered

A recipient name must be entered

308

The receiver address dial code must be entered

Enter a receiver contact dial code

309

The receiver address dial code is too long

This field may only hold 7 digits

310

The receiver address contact telephone number

must be entered

Enter a receiver contact telephone number

311

The receiver address contact telephone number

is too long

This field may only hold 9 digits

312

Unable to determine the TNT delivery depot

from the receiver address

Check receiver address details are valid

313

The delivery address company name must be

entered

Enter delivery company name in the input XML

314

The first line of the delivery address must be

entered

The three lines of the delivery address can not all be empty

315

A delivery address town name must be entered

Enter a delivery town

316

A delivery address post code must be entered

Enter a delivery post code

317

A delivery address country code must be entered

Enter a valid delivery country code

318

The delivery address country code is invalid

Enter a valid delivery country code

319

A delivery address contact name must be

entered

A delivery name must be entered

320

A delivery address contact dial code must be

entered

Enter a delivery contact dial code

321

The delivery address contact dial code is too

long

This field may only hold 7 digits

322

A delivery address contact telephone number

must be entered

Enter a delivery contact telephone number

323

The delivery address contact telephone number

is too long

This field may only hold 9 digits

324

The delivery address company name must be

entered

Check delivery address details are valid

325

Domestic shipments are not allowed for this

country

The origin and destination countries must be different

326

The consignment type must be entered, N (non-

documents) or D (documents)

Enter a consignment type of ‘N’ (non-document) or ‘D’ (document)

327

Consignment type must be N (non-documents)

or D (documents)

Enter a consignment type of ‘N’ (non-document) or ‘D’ (document)

328

Payment indicator must be S (sender) or R

(receiver)

Terms of payments may only be (S)ender or (R)eceiver

329

The receivers account number is required for

receiver pays shipments

If Terms of payment is ‘R’ then the receivers account must be entered

330

Receivers pays shipments not allowed for this

account number

Receiver pays shipments are not allowed for this account

331

Total items must be entered

A Numeric value must be inserted into the item field

332

Total items must be numeric

A Numeric value must be inserted into the item field

333

Total items must be greater than zero

A Numeric value greater than zero must be inserted into the item field

334

The total weight must be entered

A Numeric value must be inserted into the weight field

335

The total weight must be numeric

A Numeric value must be inserted into the weight field

336

The total weight must be greater than zero

A Numeric value greater than zero must be inserted into the weight field

337

The total volume must be entered for non-

document shipments

If con type is Non Doc, then enter a volume

338

The total volume must be numeric

A Numeric value must be inserted into the volume field

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Page 84 of 160

Express ICS, 2017

Error

Code

Error Description

Resolution

339

The total volume must be greater than zero

A Numeric value greater than zero must be inserted into the volume field

340

The goods value must be numeric

A Numeric value must be inserted into the goods value field

341

The goods value must be greater than zero

A Numeric value greater than zero must be inserted into the goods value field

342

The goods value currency must be entered

If Goods Value is entered a valid currency must be entered also

343

The goods value currency is invalid

Enter a Valid Currency Code

344

The goods value must be entered if the currency

is given

If a Currency is entered, then a value must be entered also

345

The insurance value must be numeric

A Numeric value must be inserted into the insurance value field

346

The insurance value must be greater than zero

A Numeric value greater than zero must be inserted into the insurance value field

347

The insurance value currency must be entered

Enter an insurance currency along with the insurance value

348

An invalid insurance currency has been entered

Enter a valid Currency Code

349

The insurance value must be entered if currency

given

Enter an insurance value to go with the insurance currency

350

The insurance value must not exceed 110% of

goods value

Enter an insurance value which is not greater than 110% of the goods value

351

The goods value must be entered if insurance

value has been supplied

Enter an goods value if insurance value is supplied

352

An invalid service has been entered

Enter a valid service code

353

An invalid option code has been entered for this

shipping service

Enter valid options

354

Duplicate option codes have been entered

Remove the duplicated option code

355

The receivers account number must be numeric

The account number must be numeric

356

The receivers account number is invalid

The account number is not assoicated with the userid

357

The receiver account country code is invalid

This is an internal TNT error and so please contact your TNT representative

358

The receiver account country code must be

entered

The country code assiocate with the receiver is invalid

359

The receiver account country code must be

entered

For receiver pays shipments a valid receiver account is required

360

User not allowed to enter own consignment

numbers

The customer is not registered to allow them to use this functionality. Contact your TNT

representative to arrange this if required.

361

User entered an invalid consignment number

The last digit (check digit) on the consignment number is invalid. Enter a valid consignment

number

362

Duplicate consignment numbers entered

Enter a different consignment number

363

A UN Number must be provided if shipment is

hazardous

Provide a UN Number for the hazardous shipment(UK Domestic shipments only)

364

User are not authorised to ship hazardous goods

Contact your local CIT Representative to seek authorisation to ship Hazardous goods. (UK

Domestic Shipments Only)

365

Preferred Collection times must be between

09:00 and 23:59

Your perfered collection windows must match TNT availability

366

Alternate Collection times must be between

09:00 and 23:59 and not overlap with Preferred

collection times

Your Alternative (afternoon) collection windows must match TNT availability

367

An invalid delivery address country code

entered

The country code assiocate with the delivery is invalid

368

The UN Number is too long

The UN number must be 4 characters in length

369

An insurance value must be entered

The insurance value must be supplied.

400

The package items must be entered

Enter a numeric value in the items field of the package

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Page 85 of 160

Express ICS, 2017

Error

Code

Error Description

Resolution

401

The package items must be numeric

A Numeric value must be inserted into the package field

402

The package items must be greater than zero

A Numeric value greater than zero must be inserted into the package field

403

The package description must be entered

Enter some descriptiove text in the package description field

404

The package length must be entered

A length for the package must be entered

405

The package length must be numeric

A Numeric value must be inserted into the package length field

406

The package length must be greater than zero

A Numeric value greater than zero must be inserted into the package length field

407

The package width must be entered

A Width for the package must be entered

408

The package width must be numeric

A Numeric value must be inserted into the package width field

409

The package width must be greater than zero

A Numeric value greater than zero must be inserted into the package width field

410

The package height must be entered

A height for the package must be entered

411

The package height must be numeric

A Numeric value must be inserted into the package height field

412

The package Height must be greater than zero

A Numeric value greater than zero must be inserted into the package height field

413

The package weight must be entered

A weight for the package must be entered

414

The package weight must be numeric

A Numeric value must be inserted into the package weight field

415

The package weight must be greater than zero

A Numeric value greater than zero must be inserted into the package weight field

500

Article Items must be entered

The number of items for the article must be entered

501

Article items must be numeric

A Numeric value must be inserted into the article items field

502

Article Items must be greater than zero

A Numeric value greater than zero must be inserted into the article items field

503

Article description must be entered

The description for the article must be entered

504

Article weight must be entered

The weight for the article must be entered

505

Article weight must be numeric

A Numeric value must be inserted into the article weight field

506

Article weight must be greater than zero

A Numeric value greater than zero must be inserted into the article weight field

507

Article invoice value must be entered

The invoice value for the article must be entered

508

Article invoice value must be numeric

A Numeric value must be inserted into the article invoice field

509

Article invoice value must be greater than zero

A Numeric value greater than zero must be inserted into the article invoice field

510

Article invoice description must be entered

The invoice description for the article must be entered

511

Article origin country must be entered

The origin country of the article must be entered

512

An invalid article origin country code entered

Enter a valid origin country of the article

521

Invalid sender postcode format. Required:

{postcode.masks}

Please correct the postocde to the match the required format

522

Invalid collection postcode format. Required:

{postcode.masks}

Please correct the postocde to the match the required format

524

Invalid receiver postcode format. Required:

{postcode.masks}

Please correct the postocde to the match the required format

525

Invalid delivery postcode format. Required:

{postcode.masks}

Please correct the postocde to the match the required format

526

The collection address town and postcode has

not been supplied

Please supply the address details

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Page 86 of 160

Express ICS, 2017

Error

Code

Error Description

Resolution

527

The collection address town could not be found

Please supplied town (& postcode combination) in the required TNT spelling - please

contact you TNT Representative for more assistance.

528

The collection address town is not unique

Please supplied town (& postcode combination) is not unique - please contact you TNT

Representative for more assistance.

529

The collection address province length is too

long

The province can be a maximum of 30 characters in length

530

The collection address postcode is not allowed

for the selected country

The postcode is not required

531

The collection address province could not be

found

The supplied province could not be found - please contact you TNT Representative for

more assistance.

532

The collection address postcode is invalid

The supplied postcode is classed as invalid - please contact you TNT Representative for

more assistance.

533

The collection address postcode is not unique

The supplied postcode is not unique - please contact you TNT Representative for more

assistance.

534

The collection address town postcode

combination is invalid

The supplied Town & Postcode combination is classed as invalid - please contact you TNT

Representative for more assistance.

535

The collection address postcode is not in within

a valid range

We are unable to find this postcode for your supplied town

536

The collection address postcode could not be

found

We are unable to find this postcode

537

The collection address country code is not valid

The country code must be a valid ISO country code.

538

The collection address is not unique

The supplied address details are not unique - please contact you TNT Representative for

more assistance.

539

The collection postcode is below the minimum

length

The Postcode length does not match the required Postcode length

540

The sender address town and postcode has not

been supplied

Please supply the address details

541

The sender address town could not be found

Please supplied town (& postcode combination) in the required TNT spelling - please

contact you TNT Representative for more assistance.

542

The sender address town is not unique

Please supplied town (& postcode combination) is not unique - please contact you TNT

Representative for more assistance.

543

The sender address province length is too long

The province can be a maximum of 30 characters in length

544

The sender address postcode is not allowed for

the selected country

The postcode is not required

545

The sender address province could not be found

The supplied province could not be found - please contact you TNT Representative for

more assistance.

546

The sender address postcode is invalid

The supplied postcode is classed as invalid - please contact you TNT Representative for

more assistance.

547

The sender address postcode is not unique

The supplied postcode is not unique - please contact you TNT Representative for more

assistance.

548

The sender address town postcode combination

is invalid

The supplied Town & Postcode combination is classed as invalid - please contact you TNT

Representative for more assistance.

549

The sender address postcode is not in within a

valid range

We are unable to find this postcode for your supplied town

550

The sender address postcode could not be found

We are unable to find this postcode

551

The sender address country code is not valid

The country code must be a valid ISO country code.

552

The sender address is not unique

The supplied address details are not unique - please contact you TNT Representative for

more assistance.

553

The sender address postcode does not have the

minimum length

The Postcode length does not match the required Postcode length

554

The receiver address town and postcode has not

been supplied

Please supply the address details

555

The receiver address town could not be found

Please supplied town (& postcode combination) in the required TNT spelling - please

contact you TNT Representative for more assistance.

556

The receiver address town is not unique

Please supplied town (& postcode combination) is not unique - please contact you TNT

Representative for more assistance.

557

The receiver address province length is too long

The province can be a maximum of 30 characters in length

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Page 87 of 160

Express ICS, 2017

Error

Code

Error Description

Resolution

558

The receiver address postcode is not allowed for

the selected country

The postcode is not required

559

The receiver address province could not be

found

The supplied province could not be found - please contact you TNT Representative for

more assistance.

560

The receiver address postcode is invalid

The supplied postcode is classed as invalid - please contact you TNT Representative for

more assistance.

561

The receiver address postcode is not unique

The supplied postcode is not unique - please contact you TNT Representative for more

assistance.

562

The receiver address town postcode combination

is invalid

The supplied Town & Postcode combination is classed as invalid - please contact you TNT

Representative for more assistance.

563

The receiver address postcode is not in within a

valid range

We are unable to find this postcode for your supplied town

564

The receiver address postcode could not be

found

We are unable to find this postcode

565

The receiver address country code is not valid

The country code must be a valid ISO country code.

566

The receiver address is not unique

The supplied address details are not unique - please contact you TNT Representative for

more assistance.

567

The receiver address postcode does not have the

minimum length

The Postcode length does not match the required Postcode length

568

The delivery address town and postcode has not

been supplied

Please supply the address details

569

The delivery address town could not be found

Please supplied town (& postcode combination) in the required TNT spelling - please

contact you TNT Representative for more assistance.

570

The delivery address town is not unique

Please supplied town (& postcode combination) is not unique - please contact you TNT

Representative for more assistance.

571

The delivery address province length is too long

The province can be a maximum of 30 characters in length

572

the delivery address postcode not allowed for

the selected country

The postcode is not required

573

The delivery address province was not found

The supplied province could not be found - please contact you TNT Representative for

more assistance.

574

The delivery address postcode is invalid

The supplied postcode is classed as invalid - please contact you TNT Representative for

more assistance.

575

The delivery address postcode is not unique

The supplied postcode is not unique - please contact you TNT Representative for more

assistance.

576

The delivery address town and postcode

combination is invalid

The supplied Town & Postcode combination is classed as invalid - please contact you TNT

Representative for more assistance.

577

The delivery address postcode not within a valid

range

We are unable to find this postcode for your supplied town

578

The delivery address postcode could not be

found

We are unable to find this postcode

579

The delivery address country code is not valid

The country code must be a valid ISO country code.

580

The delivery address is not unique

The supplied address details are not unique - please contact you TNT Representative for

more assistance.

581

The delivery address postcode does not have the

minimum length

The Postcode length does not match the required Postcode length

582

Delivery in depot not valid

This is an internal TNT error and so please contact your TNT representative

583

The self collection TNT depot is not valid

This is an internal TNT error and so please contact your TNT representative

584

Unable to calculate transit time

This is an internal TNT error and so please contact your TNT representative

600

The sender address contact email is too long,

maximum length is 50

Please correct the field as requested.

601

The collection address contact email is too long,

maximum length is 50

Please correct the field as requested.

602

The receiver address contact email is too long,

maximum length is 50

Please correct the field as requested.

603

The delivery contact email is too long,

maximum length is 50

Please correct the field as requested.

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Page 88 of 160

Express ICS, 2017

Error

Code

Error Description

Resolution

604

The sender address account number is too long,

maximum length is 10

Please correct the field as requested.

605

receiver address account number is too long,

maximum length is 10

Please correct the field as requested.

606

One or more of the option codes are too long,

maximum length is 3

Please correct the field as requested.

607

The application id is too long, maximum length

is 2

Please correct the field as requested.

608

The application version is too long, maximum

length is 5

Please correct the field as requested.

609

The package quantity is too long, maximum

length is 5

Please correct the field as requested.

610

The article quantity is too long, maximum length

is 3

Please correct the field as requested.

611

The currency code is too long, maximum length

is 3

Please correct the field as requested.

612

The article country code is too long, maximum

length is 3

Please correct the field as requested.

613

The article invoice description is too long,

maximum length is 78

Please correct the field as requested.

614

The sender address vat number is too long,

maximum length is 20

Please correct the field as requested.

615

The receiver address vat number is too long,

maximum length is 20

Please correct the field as requested.

616

The collection address vat number is too long,

maximum length is 20

Please correct the field as requested.

617

The delivery vat number is too long, maximum

length is 20

Please correct the field as requested.

618

The sender address, address line 1 is too long,

maximum length is 30

Please correct the field as requested.

619

The sender address, address line 2 is too long,

maximum length is 30

Please correct the field as requested.

620

The sender address, address line 3 is too long,

maximum length is 30

Please correct the field as requested.

621

The sender address postcode is too long,

maximum length is 9

Please correct the field as requested.

622

The sender address country code is too long,

maximum length is 3

Please correct the field as requested.

623

The sender address town is too long, maximum

length is 30

Please correct the field as requested.

624

The sender address province is too long,

maximum length is 30

Please correct the field as requested.

625

The sender address company name is too long,

maximum length is 50

Please correct the field as requested.

626

The sender address contact name is too long,

maximum length is 22

Please correct the field as requested.

627

The receiver address, address line 1 is too long,

maximum length is 30

Please correct the field as requested.

628

The receiver address, address line 2 is too long,

maximum length is 30

Please correct the field as requested.

629

The receiver address, address line 3 is too long,

maximum length is 30

Please correct the field as requested.

630

The receiver address postcode is too long,

maximum length is 9

Please correct the field as requested.

631

The receiver address country code is too long,

maximum length is 3

Please correct the field as requested.

632

The receiver address town is too long, maximum

length is 30

Please correct the field as requested.

633

The receiver address province is too long,

maximum length is 30

Please correct the field as requested.

634

The receiver address company name is too long,

Please correct the field as requested.

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Page 89 of 160

Express ICS, 2017

Error

Code

Error Description

Resolution

maximum length is 50

635

The receiver address contact name is too long,

maximum length is 22

Please correct the field as requested.

636

The collection address address line 1 is too long,

maximum length is 30

Please correct the field as requested.

637

The collection address address line 2 is too long,

maximum length is 30

Please correct the field as requested.

638

The collection address address line 3 is too long,

maximum length is 30

Please correct the field as requested.

639

The collection address postcode is too long,

maximum length is 9

Please correct the field as requested.

640

The collection address country code is too long,

maximum length is 3

Please correct the field as requested.

641

The collection address town is too long,

maximum length is 30

Please correct the field as requested.

642

The collection address province is too long,

maximum length is 30

Please correct the field as requested.

643

The collection address company name is too

long, maximum length is 50

Please correct the field as requested.

644

The collection address contact name is too long,

maximum length is 22

Please correct the field as requested.

645

The delivery address, address line 1 is too long,

maximum length is 30

Please correct the field as requested.

646

The delivery address, address line 2 is too long,

maximum length is 30

Please correct the field as requested.

647

The delivery address, address line 3 is too long,

maximum length is 30

Please correct the field as requested.

648

The delivery address postcode code is too long,

maximum length is 9

Please correct the field as requested.

649

The delivery address country code is too long,

maximum length is 3

Please correct the field as requested.

650

The delivery address town is too long, maximum

length is 30

Please correct the field as requested.

651

The delivery address province is too long,

maximum length is 30

Please correct the field as requested.

652

The delivery address company name is too long,

maximum length is 50

Please correct the field as requested.

653

The delivery address contact name is too long,

maximum length is 22

Please correct the field as requested.

654

The package width is too long, maximum length

is 7

Please correct the field as requested.

655

The package length is too long, maximum length

is 7

Please correct the field as requested.

656

The package height is too long, maximum length

is 7

Please correct the field as requested.

657

The package weight is too long, maximum

length is 9

Please correct the field as requested.

658

The package description is too long, maximum

length is 60

Please correct the field as requested.

659

The article weight is too long, maximum length

is 9

Please correct the field as requested.

660

The article description is too long, maximum

length is 60

Please correct the field as requested.

661

The consignment delivery instructions are too

long, maximum length is 60

Please correct the field as requested.

662

The consignment total weight is too long,

maximum length is 8

Please correct the field as requested.

663

The consignment total volume is too long,

maximum length is 8

Please correct the field as requested.

664

The consignment user reference is too long,

maximum length is 24

Please correct the field as requested.

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Page 90 of 160

Express ICS, 2017

Error

Code

Error Description

Resolution

665

The consignment service is too long, maximum

length is 4

Please correct the field as requested.

666

The application version value must be 2.2 or

greater

667

The consignment description is too long,

maximum length is 90

Please correct the field as requested.

668

The ExpressConnect application version must be

entered

669

Sender address postcode masks/format not

found for the selected country

This is an internal TNT error and so please contact your TNT representative

670

Collection address postcode masks/format not

found for the selected country

This is an internal TNT error and so please contact your TNT representative

671

Receiver address postcode masks/format not

found for the selected country

This is an internal TNT error and so please contact your TNT representative

672

Delivery address postcode masks/format not

found for the selected country

This is an internal TNT error and so please contact your TNT representative

673

The sender address province is not allowed for

the selected country

TNT does not require province for selected country

674

The collection address province is not allowed

for the selected country

TNT does not require province for selected country

675

The receiver address province is not allowed for

the selected country

TNT does not require province for selected country

676

The delivery address province is not allowed for

the selected country

TNT does not require province for selected country

677

Sender town location is too short

This is an internal TNT error and so please contact your TNT representative

678

Collection town location is too short

This is an internal TNT error and so please contact your TNT representative

679

Receiver town location is too short

This is an internal TNT error and so please contact your TNT representative

680

Delivery town location is too short

This is an internal TNT error and so please contact your TNT representative

681

Packaging group must be provided if shipment

is hazardous

The UN number and packaging group should be supplied for Dangerous Goods

682

ConsignmentBatch Skipped - More Than 3

Packages

No longer used

683

ConsignmentBatch Skipped - More Than 20

Packages

Please supply upto 20 package lines

689

Consignment Skipped - More Than 99 Items in

Packages

Please supply a maximum of 99 packages.

690

There must be one hour difference between

preferred collection times.

Please correct the collection times supplied.

691

There must be one hour difference between

alternate collection times.

Please correct the collection times supplied.

692

If the collection date is today, preferred

collection end time must be greater than now + 1

hour

Please correct the collection times supplied.

693

If the collection date is today, alternate

collection end time must be greater than now + 1

hour

Please correct the collection times s

997

Shipping request XML unmarshall failed with

parsing error.

Pleae correct the supplied XML

998

Shipping request XML unmarshall failed with

unknown error.

Pleae correct the supplied XML

999

Your userid and password do not match the details stored for your user.

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Developer Notes

Page 91 of 160

Express ICS, 2017

The following errors maybe returned if your select the Rating activity.

Error

Code

Error Description

Default Message

Resolution

The XML in the request is not

formatted correctly.

Failure to format incoming XML

string

Ensure the XML in the request is of the correct structure. Refer to the

XSD and available documentation to rectify.

The services returned in the response

may not all be valid due to a failure to

validate the possible services.

Failure to specify available

Services: those returned might not

all apply

Resubmit the request for all services.

The options returned in the response

may not all be valid due to a failure to

validate the possible options.

Failure to specify available

Options: those returned might not

all apply

Resubmit the request for all options.

Failure to retrieve details of the service

or options.

Failure to retrieve Service/Option

details

Resubmit the request. If the problem persists, contact the TNT helpdesk.

A timeout occurred when making a

call to the database.

Price Check Failure: Time out on

database.

Resubmit the request. If the problem persists contact the TNT helpdesk.

An error occurred on the TNT server.

Price Check Failure: Error in

server

Resubmit the request. If the problem persists contact the TNT helpdesk.

No rates available for the request

Price Check Failure: No Rates

Returned.

Source and destination addresses need to be serviceable by TNT.

Mandatory fields missing or invalid in

the request XML.

FIELD/S MISSING OR

INVALID. MANDATORY

FIELDS ARE

ORIGINCOUNTRY,

DESTCOUNTRY,

CONTYPE,ITEMS,WEIGHT

AND VOLUME(IF NONDOC).

Ensure the XML in the request is of the correct structure and contains all

mandatory fields. Refer to the XSD and available documentation to

rectify.

No price requests found in the XML

No Price Requests Found

Refer to the XSD and available documentation to rectify.

The account number entered is not

Invalid Account Number

Enter a valid account number.

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Developer Notes

Page 92 of 160

Express ICS, 2017

Error

Code

Error Description

Default Message

Resolution

associated with this customer

The country code in the request XML

is invalid.

Invalid Country Code

Ensure the country code matches one of those in the TNT dataset.

The town group specified in the

request XML is invalid.

Invalid Town Group

TownGroup code must match a code in the TNT Towngroup dataset.

The rates returned are standard rates

and do not include any account

specific prices.

Standard Rates

If account specific rates are required then account details should be

populated in the request XML.

Domestic price requests are not

supported in the country specified.

Invalid Domestic Consignment

Domestic shipments should be within supported TNT countries.

The value of the Insurance element

should be a number.

Insurance value must be numeric

Ensure the value of the Insurance element is a number.

Options have been specified in the

request XML without an associated

service code.

Service required with options

Ensure a service code is specified for the requested options.

The system was unable to retrieve the

service and option for the request.

Unable to retrieve service/option

Refer to the XSD and available documentation to rectify.

The service specified in the request is

invalid.

Service is invalid

Ensure the service in the request matches a code in the TNT dataset.

The system was unable to parse the

request XML.

Pricing request failed with parsing

error.

Ensure the XML is of a valid structure. Refer to the XSD and available

documentation to rectify.

The request XML was not recognised

as a Express Connect request.

XML supplied is not recognised as

an ExpressConnect request.

Refer to the XSD and available documentation to rectify.

No data was received from the client.

No data received at gateway from

client error

Resubmit the request.

The maximum number of options per

service has been exceeded.

Exceeded maximum number of

allowed options

A maximum of 5 options per service are allowed.

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Developer Notes

Page 93 of 160

Express ICS, 2017

Error

Code

Error Description

Default Message

Resolution

101

Origin address town not supplied

Supply origin address town

102

Origin address town and postcode not

supplied

Origin address town and postcode

not supplied

Supply origin address town and postcode.

103

Origin address town has not been

recognized.

Origin address town not found

Ensure that the specified origin town is a valid town.

104

Origin address town results in more

than one match

Origin address town not unique

Ensure the origin town is entered correctly. Do not use partial town

names.

105

The origin address province maximum

length has been exceeded.

Origin address province length

exceeded

Maximum 30 characters.

106

Origin address postcode has been

entered for a country that does not

accept postcodes as part of the address.

Origin address postcode not

allowed for selected country

Remove the origin postcode element from the request.

107

Origin address province not found

Ensure origin province is entered correctly or remove the origin province

element.

108

The origin postcode is invalid in the

request.

Origin address postcode invalid

Ensure the origin postcode element is entered correctly.

109

Origin address postcode has an invalid

format. For example CV9 XTT is

incorrect for a UK postcode.

Origin address postcode invalid

format

Ensure the origin postcode element is entered correctly and is no longer

than 9 characters.

110

Origin address postcode matches more

than one town. This may occur if a

partial postcode is entered.

Origin address postcode not unique

Ensure the origin postcode is entered correctly.

111

Origin address has an invalid town /

postcode combination. For example if

you entered a London postcode for

Birmingham.

Origin address town/postcode

combination invalid

Ensure origin postcode and/or town are entered correctly.

112

Origin address postcode is not within

Origin address postcode not in

Ensure origin postcode and/or town are entered correctly.

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Developer Notes

Page 94 of 160

Express ICS, 2017

Error

Code

Error Description

Default Message

Resolution

the valid range of postcodes for the

town.

valid range

113

Origin postcode is missing from the

request XML.

Origin address postcode not found

Ensure origin postcode is entered correctly

114

Origin country not found in the XML

Origin address country not

supplied

Country is mandatory in the request.

115

Origin address country is not valid

ISO 3166-1 ALPHA-2. (2 character

alpha).

Origin address country not valid

ISO.

Ensure origin country is entered correctly.

116

Origin address town results in more

than one match.

Origin address not unique

Ensure origin town and/or postcode are entered correctly. Do not use

partial town or postcodes.

117

Origin address postcode is below

minimum length for selected country

Origin address postcode is below

minimum length for selected

country

Ensure origin town and/or postcode are entered correctly. Do not use

partial town or postcodes.

201

Destination address town not supplied

Destination address town not

supplied

Supply destination address town

202

Destination address town and postcode

not supplied

Destination address town and

postcode not supplied

Supply destination address town and postcode.

203

Destination address town has not been

recognized.

Destination address town not found

Ensure that the specified destination town is a valid town.

204

Destination address town results in

more than one match

Destination address town not

unique

Ensure the destination town is entered correctly. Do not use partial town

names.

205

The Destination address province

maximum length has been exceeded.

Destination address province

length exceeded

Maximum 30 characters.

206

Destination address postcode has been

entered for a country that does not

accept postcodes as part of the address.

Destination address postcode not

allowed for selected country

Remove the destination postcode element from the request.

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Developer Notes

Page 95 of 160

Express ICS, 2017

Error

Code

Error Description

Default Message

Resolution

207

Destination address province not

found

Destination address province not

found

Ensure destination province is entered correctly or remove the destination

province element.

208

The Destination postcode is invalid in

the request.

Destination address postcode

invalid

Ensure the destination postcode element is entered correctly.

209

Destination address postcode has an

invalid format. For example CV9 XTT

is incorrect for a UK postcode.

Destination address postcode

invalid format

Ensure the destination postcode element is entered correctly and is no

longer than 9 characters.

210

Destination address postcode matches

more than one town. This may occur if

a partial postcode is entered.

Destination address postcode not

unique

Ensure the destination postcode is entered correctly.

211

Destination address has an invalid

town / postcode combination. For

example if

you entered a London postcode for

Birmingham.

Destination address town/postcode

combination invalid

Ensure destination postcode and/or town are entered correctly.

212

Destination address postcode is not

within the valid range of postcodes for

the town.

Destination address postcode not in

valid range

Ensure destination postcode and/or town are entered correctly.

213

Destination postcode is missing from

the request XML.

Destination address postcode not

found

Ensure destination postcode is entered correctly

214

Destination country not found in the

XML

Destination address country not

supplied

Country is mandatory in the request.

215

Destination address country is not

valid ISO 3166-1 ALPHA-2. (2

character alpha).

Destination address country not

valid ISO.

Ensure destination country is entered correctly.

216

Destination address town results in

more than one match.

Destination address not unique

Ensure destination town and/or postcode are entered correctly. Do not use

partial town or postcodes.

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Developer Notes

Page 96 of 160

Express ICS, 2017

Error

Code

Error Description

Default Message

Resolution

217

Destination address postcode is below

the minimum length for selected

country

Destination address postcode is

below minimum length for selected

country

Ensure destination town and/or postcode are entered correctly. Do not use

partial town or postcodes.

301

The depot ID for the origin depot is

not valid.

Delivery in depot id is not valid

Depot ID should be one of the valid TNT towngroup codes contained

within the towngroup dataset.

302

The depot ID for the self collect

delivery address is not valid.

Self collect depot id is not valid

Depot ID should be one of the valid TNT towngroup codes contained

within the towngroup dataset.

401

The TNT backend system was unable

to determine the route between the

source and destination addresses.

Unable to determine traffic lane for

route

Contact TNT helpdesk.

999

The user name and password specified

in the request have not been

recognised.

Enter the correct username and password combination. Contact the TNT

helpdesk if the problem persists.

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Developer Notes

Page 97 of 160

Express ICS, 2017

9.Connecting to ExpressConnect Shipping

ExpressConnect Shipping is a HTTP web service, which defines an XML interface for data transfer. The XSD for

the service can be found in the Shipping section of the website. Before sending an XML document through a

straight socket connection, you must verify that you can access TNT’s ExpressConnect applications by successfully

viewing the test/demonstration web site provided by TNT. This is located at

https://express.tnt.com/expresswebservices-website/app/landing.html

The demonstration site does NOT support foreign (non-ASCII) characters.

The demonstration site simulates a simple customer interface to the back-end ExpressConnect server. It is useful for

developers to use as a tool to test their XML and analyse their return XML results, prior to and during the

development of their front-end application.

When testing ExpressConnect Shipping, the results come back in five separate packages. The XML results

document holds the information pertaining to consignments created, rated or booked. The other four hold

information required for consignment documentation: consignment notes, labels, manifest, and invoice. These four

XML documents include a reference to an XSL style sheet

in the XML heading. If they are opened as XML files in

IE6.0 or above, they will be automatically formatted and displayed as TNT shipping documents.

Having made a successful submission of an XML document via the test page, you are ready to set up a socket

connection and make a real XML submission using the code similar to

Open a socket connection to the following address and port number.

Domain Name https://express.tnt.com/expressconnect/shipping/ship express.tnt.com

IP Address 164.39.122.33

Port 81

Send the following lines, data between quotes. N.B. 1 blank line should be sent after Content-length line.

"POST Shipping/ship HTTP/1.0"

"Accept: */*"

"User-Agent: Ship_socket/1.0";

"Content-type: application/x-www-form-urlencoded";

"Content-length: X"; (replace X with the length of data plus 7 for “xml_in=”)

"xml_in=XML document" (this is the content of message)

XML document isthe XML corresponding to the specified format (see later section).

The manifest document will refer to a different style sheet if it is a summary manifest.

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Developer Notes

Page 98 of 160

Express ICS, 2017

Once the above data has been sent, read from the socket until no more data is available. The data returned will

consist of some header information followed by a blank line, and then the shipping return code. This unique code is

your key with which you can retrieve the various XML documents that your shipping request has produced.

The return string will look like this: COMPLETED:nnnnnnnnnn

where nnnnnnnnnn is a unique number.

You will then send this number back in to the TNT server for each XML document – results XML, consignment

XML, label XML, manifest XML or invoice XML – that you need.

A code example of how this may be performed and the correct format of the requests are included below.

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Developer Notes

Page 99 of 160

Express ICS, 2017

9.1VB Script sample

ExpressConnect can be called from within a VB script. The sample script performs the following operations:

• Access the request XML from a folder on the local ‘C:’ drive

• Parse the basic XML to encode all non ASCII characters to their Hex equivalent. This is required to

correctly handle special characters such as “ß©@¼Ùäá”.

• Send the encoded XML to ExpressConnect and retrieve the access code. The access code is a unique

number that identifies the data for this submission. This is used in subsequent calls to retrieve the

document, and summary information XML in subsequent calls.

• Make five separate calls to ExpressConnect to retrieve the summary result information and the four

consignment documents, consignment notes, labels, commercial invoice and manifest.

The following characters have special meaning in XML strings and these need to be encoded by your own

application before being included in the request XML submitted: &<> “ ‘

To include these characters replace the character in your XML with the following literal string:

& &

< <

> >

“ "

‘ '

For example to pass the literal ‘Jack & Jill’ you need to pass in the XML: ‘Jack & Jill’

The example can be run from your own server to show a successful connection and the format of the response XML.

Customers are free to utilize this code within their own application if they wish but please note that we cannot offer

support for this.

'FILE: Sample_HTTP_shipping_request.vbs

'AUTH: Paul Horsley

' Folders required C:\expressconnect

' Folders required C:\expressconnect\original // Put your request XML message here with

file name "TEST.xml"

' Ensure the <SHIPDATE> tag has a date of today or in the future, in the format

"DD/MM/YYYY"

Const TristateTrue = -1

Const TristateFalse = 0

xml_out = ""

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Developer Notes

Page 100 of 160

Express ICS, 2017

'note ----- The shipping request XML document

dim objText

dim objfilesys

dim objSite

Dim iAccessCodeLen

Dim sfolder

Dim sfilename

Dim sUrl

Dim xml_in

Dim AccessCode

iAccessCodeLen = 7

sUrl = "https://express.tnt.com/expressconnect/shipping/ship"

sfolder = "C:\expressconnect\"

Wscript.Echo WScript.Scriptname &" : Calling TNT Express Connect Shipping @ " & sUrl

sFileName = "TEST.xml"

set objfilesys = wscript.createobject("scripting.filesystemobject")

‘ For input files with ANSI encoding

‘ Set the format argument to “TristateTrue” (-1) for Unicode files, or “TristateFalse”

(0) for ASCII files

set objText = objfilesys.opentextfile(objfilesys.BuildPath(sfolder , "original\" &

sfilename ), 1 ,False ,TristateFalse)

' Read in the request XML to xml_in variable

xml_in = objText.ReadAll

objText.close

' Encode the request XML

xml_in = HEXThisStream(xml_in)

' Send the encoded XML and place the result in AccessCode variable

AccessCode = Sendxml (xml_in ,"Shipping Connection response")

' Store the result in the "C:\expressconnect\" folder

PersistXmlTestResults sfolder , "AccessCode=" & AccessCode, "AccessCode"

' Extract just the numeric access code from the response

AccessCode = Right( AccessCode,iAccessCodeLen)

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Developer Notes

Page 101 of 160

Express ICS, 2017

' Display the returned AccessCode. The access code is a unique number that identifies the

data for this submission.

' This is used in subsequent calls to retrieve the document, and summary information XML

in subsequent calls.

MsgBox "AccessCode - " & AccessCode

' Retrieve the consignment document XML

' The document XML will only be available if the appropriate tag has been included in the

<PRINT> node

' of the original request XML. For all four documents to be available the following XML

would need to be included

' with the appropriate reference or consignment number. "ref12" in the example below:

' <PRINT>

' <CONNOTE>

' <CONREF>ref12</CONREF>

' </CONNOTE>

' <LABEL>

' <CONREF>ref12</CONREF>

' </LABEL>

' <MANIFEST>

' <CONREF>ref12</CONREF>

' </MANIFEST>

' <INVOICE>

' <CONREF>ref12</CONREF>

' </INVOICE>

' </PRINT>

' Retrieve the consignment note XML if the <CONNOTE> tag has been included

' in the <PRINT> node

Xml_In="GET_CONNOTE:" & AccessCode

SendXml Xml_In, "Get_Connote"

' Retrieve the commercial invoice XML if the <INVOICE> tag has been included

' in the <PRINT> node

Xml_In="GET_INVOICE:" & AccessCode

SendXml Xml_In, "Get_Invoice"

' Retrieve the manifest XML if the <MANIFEST> tag has been included

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Developer Notes

Page 102 of 160

Express ICS, 2017

' in the <PRINT> node

Xml_In="GET_MANIFEST:" & AccessCode

SendXml Xml_In, "Get_Manifest"

' Retrieve the label XML if the <LABEL> tag has been included

' in the <PRINT> node

Xml_In="GET_LABEL:" & AccessCode

SendXml Xml_In, "Get_Label"

'Retrieve the result summary information XML

Xml_In="GET_RESULT:" & AccessCode

SendXml Xml_In , "Get_Result_"

' Process finished

MsgBox "Done all"

' Encode the request XML before submitting to ExpressConnect

Function HEXThisStream ( sInput )

Dim i, k ' Numeric variables

Dim s, staticChars, t ' String variable

'Create a string of safe / status characters taht do not need encoding

staticChars =

"abcdefghijklmnopqrstuvwxyzABCDEFGHIJKLMNOPQRSTUVWXYZ0123456789"

'Test if the input string is NULL then exit, return a blank string

if IsNull(sInput) then

HEXThisStream = ""

exit function

end if

' Copy sInput string into local var s

s = sInput

' Iterate the s var content 1 character at a time

For i = 1 To Len ( s )

' Get the numeric ascii value for the current character

k = Asc ( Mid ( s , i , 1 ) )

' Test If the current character is one of the staticChars

If InStr( 1 , staticChars , Chr ( k ) , 1 ) > 0 Then

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Developer Notes

Page 103 of 160

Express ICS, 2017

' If Test = true

' Add current character to temp string

t = t & Chr(k)

Else

' If test = False

' Test if the current character is a space

If k = 32 Then ' ASCII representation of Space char

' If True

' add "+" character to the temp string

t = t & "+"

Else

' If False

' add a fixed "%" character + the HEXidecimal value fixed to a lenght of

2 characters

' ( additional 0 included as a pad character / used when HEX returns a

single byte

' and encoding needs a double byte ("0D","0A" etc etc)

t = t & "%" & Right ( "0" & ( Hex ( k ) ) , 2 )

End If

'Copy the temp string output to the function handle

HEXThisStream = t

End Function

' Send the encoded XML to ExpressConnect

Function SendXML(xmlin , sxmlType)

Dim xmlout

'note ----- create a socket connection object

dim httpOb

set httpOb = WScript.CreateObject("Microsoft.XMLHTTP")

'note ----- open socket connection to given IP address and entry file

httpOb.Open "POST", sUrl , false, "", ""

'note -----display error message if socket opening fails

if Err Then

Wscript.Echo "Error connecting: "&Err.Number&" "& Err.Description

else

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Developer Notes

Page 104 of 160

Express ICS, 2017

'note ----- if opening socket works send XML

httpOb.setRequestHeader "Content-Type","application/x-www-form-urlencoded"

xmlin = "xml_in=" & xmlin

' Send the XML to ExpressConnect

httpOb.Send xmlin

'note ----- store returned XML result

xmlout = httpOb.responseText

PersistXmlTestResults sFolder , xmlout , sxmlType

end if

'note ------- release socket object

set httpObj = Nothing

SendXML = xmlout

End Function

' Write the retrieved XML to the "C:\expressconnect\" folder

Function PersistXmlTestResults(sFldr , Xml , xmlType)

Dim fs

Dim oFile

Dim ioFile

Set fs=CreateObject("Scripting.FileSystemObject")

ioFile = fs.BuildPath(sFldr , xmlType & ".xml")

set oFile=fs.CreateTextFile(ioFile, True , True)

oFile.write xml

oFile.close

set fs = nothing

End Function

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Developer Notes

Page 105 of 160

Express ICS, 2017

9.2VB.net CONNECTION CODE EXAMPLE

Function RemoteConnection_TNT_ECSHIPPING(ByVal sXMLUNICODE As String, ByVal strid As

String) As String

Dim sResponse As String

' Create a request using a URL that can receive a post.

Dim request As WebRequest = WebRequest.Create(getECUrl)

' Set the Method property of the request to POST.

request.Method = "POST"

' Create POST data and convert it to a byte array, *** USE UTF-8 ***

Dim byteArray As Byte() = Encoding.UTF8.GetBytes(sXMLUNICODE)

'SET CONNECTIVOTY TIME OUT

request.Timeout = 100000

'SET AUTHENTICATIOON TYPE

'request.AuthenticationLevel = System.Net.Security.AuthenticationLevel.MutualAuthRequested

' Set the ContentType property of the WebRequest.

request.ContentType = "application/x-www-form-urlencoded"

' Set the ContentLength property of the WebRequest.

request.ContentLength = byteArray.Length

Dim dataStream As Stream

Try

dataStream = request.GetRequestStream()

Catch ex As Exception

Return "Failure to process Shipping request, Please see results tab for more details."

End Try

' Get the request stream.

' Write the data to the request stream.

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Developer Notes

Page 106 of 160

Express ICS, 2017

dataStream.Write(byteArray, 0, byteArray.Length)

' Close the Stream object.

dataStream.Close()

' Call into TNT and get the response.

Dim response As WebResponse

Try

response = request.GetResponse()

Catch ex As Exception

Return "Failure to process Shipping request, " & ex.Message

End Try

' Get the stream containing content returned by the server.

dataStream = response.GetResponseStream()

' Open the stream using a StreamReader for easy access.

Dim reader As New StreamReader(dataStream, Encoding.UTF8)

' Read the content.

Dim responseFromServer As String = reader.ReadToEnd()

' Display the content.

sResponse = responseFromServer

' Clean up the streams.

reader.Close()

'CLOSE DATA STREAM AS PART OF CLEANUP

dataStream.Close()

'CLOSE RESPONSE OBJECT AS PART OF CLEANUP

response.Close()

Return sResponse

End Function

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Developer Notes

Page 107 of 160

Express ICS, 2017

9.3JAVASCRIPT CONNECTION CODE EXAMPLE

JavaScript that performs the full five-call ‘conversation’ with the TNT server, sending in the returned access code to

retrieve the separate XML documents.

<%@ Language=JScript %>

function SendXml(xml_in) {

// Send XML to TNT gateway

httpOb.Open("POST", "https://express.tnt.com/expressconnect/shipping/ship", false);

httpOb.setRequestHeader("Content-Type","application/x-www-form-urlencoded");

httpOb.Send("xml_in="+escape(xml_in));

// Retrieve response from TNT Gateway

var HttpResult = httpOb.responseText;

return(HttpResult);

}

var xml_in = Request.Form("xml_in")

// Create instance of Microsoft XML Http Protocol object

var httpOb = Server.CreateObject("Microsoft.XMLHTTP");

// Retrieve access code from TNT Gateway

var AccessCode=SendXml(xml_in);

AccessCode=AccessCode.substring(9);

// Retrieve result file from TNT Gateway to show full results from transactions

xml_in = 'GET_RESULT:'+AccessCode;

var ResultXML=SendXml(xml_in);

// Retrieve Consignment note

xml_in = 'GET_CONNOTE:'+AccessCode;

var ConNoteXML=SendXml(xml_in);

// Retrieve Label

xml_in = 'GET_LABEL:'+AccessCode;

var LabelXML=SendXml(xml_in);

// Retrieve Manifest

xml_in = 'GET_MANIFEST:'+AccessCode;

var ManifestXML=SendXml(xml_in);

// Retrieve Invoice

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Developer Notes

Page 108 of 160

Express ICS, 2017

xml_in = 'GET_INVOICE:'+AccessCode;

var InvoiceXML=SendXml(xml_in);

// Write all the results to files on our server

var FSO=Server.CreateObject("Scripting.FileSystemObject");

xFileName="ShippingResultFiles/xmlresults"+AccessCode+".xml";

xConNoteName="ShippingResultFiles/xmlconnote"+AccessCode+".xml";

xInvoiceName="ShippingResultFiles/xmlInvoice"+AccessCode+".xml";

xLabelName="ShippingResultFiles/xmlLabel"+AccessCode+".xml";

xManifestName="ShippingResultFiles/xmlManifest"+AccessCode+".xml";

var xmlresultfile = FSO.CreateTextFile(Server.MapPath(xFileName),false);

xmlresultfile.Write (ResultXML);

xmlresultfile.Close();

var xmlconfile = FSO.CreateTextFile(Server.MapPath(xConNoteName),false);

xmlconfile.Write (ConNoteXML);

xmlconfile.Close();

var xmlresultfile = FSO.CreateTextFile(Server.MapPath(xInvoiceName),false);

xmlresultfile.Write (InvoiceXML);

xmlresultfile.Close();

var xmlresultfile = FSO.CreateTextFile(Server.MapPath(xLabelName),false);

xmlresultfile.Write (LabelXML);

xmlresultfile.Close();

var xmlresultfile = FSO.CreateTextFile(Server.MapPath(xManifestName),false);

xmlresultfile.Write (ManifestXML);

xmlresultfile.Close();

//Choose what we want to see

//var DisplayObject = ResultXML;

//Response.Write(DisplayObject);

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Developer Notes

Page 109 of 160

Express ICS, 2017

9.4C# EXAMPLE

The following example code uses superagent to wrap http calls http://visionmedia.github.io/superagent/

but you can use instead the//default http node.js module, this has been tested with node.js v6.5.0

#!/usr/bin/env node

'use strict';

//this example uses superagent to wrap http calls http://visionmedia.github.io/superagent/ you can use instead the

//default http node.js module

//tested with node.js v6.5.0

var fs = require('fs');

var request = require('superagent'); // require superagent module

//variables

var url = 'https://express.tnt.com/expressconnect/shipping/ship';

var accessCode;

//get xml

var xmlRequest = "[inputXMLString]" //fs.readFileSync('./example.xml').toString();

//initial call to server with callback

console.log('-- INITIAL CALL --');

sendRequest(xmlRequest, function (err, response) {

if (err) { return console.log(err) }; //log error in console if there is one.

console.log(response.text); //log server response

//stripe out the request id number

var responseSplit = response.text.split(':'); // split the answer string to be able to fill below properties

accessCode = responseSplit[1];

//call the service again to get the result

console.log('-- GET_RESULT --');

var resultRequest = "GET_RESULT:" + accessCode;

sendRequest(resultRequest, function (err, response) {

if (err) { return console.log(err) }; //log error in console if there is one.

console.log(response.text); //log server response

});

//generic function to call service

function sendRequest(body, callback) {

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Developer Notes

Page 110 of 160

Express ICS, 2017

var serviceResponse = new Object();

request

.post(url)

.send('xml_in=' + body)

.set('Content-Type', 'application/x-www-form-urlencoded')

.end(function (err, res) {

if (err) { return callback(err); } // check if error occured if so return callback with error object

if (!res.ok) { return callback(res.error); } // check if status was not ok if so return callback with response error

serviceResponse.rawResponse = res; //store full server response

serviceResponse.text = res.text; //store server body reply

callback(null, serviceResponse);

});

};

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Developer Notes

Page 111 of 160

Express ICS, 2017

9.5C# EXAMPLE

The following example code performs a shipping request and receive the result in c#.

//example in dotnetcore 1.0

//should run as well in other .Net framework versions

using System;

using System.IO;

using System.Net.Http;

using System.Collections.Generic;

namespace ConsoleApplication

{

public class Program

{

public static void Main(string[] args)

{

//define variables

string accessCodeReply;

string accessCode;

string resultReply;

string connoteReply;

try

{

//Load XML into variable

Console.WriteLine("-- INITIAL CALL --");

string xml_in = "[inputXMLstring]"; //File.ReadAllText(@"./example.xml"); //utf-8 only

accessCodeReply = CallWebservice(xml_in);

Console.WriteLine(string.Format("REPLY_FROM_SERVER: {0}", accessCodeReply));

//validate reply

if (accessCodeReply.StartsWith("COMPLETE:"))

{

accessCode = accessCodeReply.Substring(9);

}

else

{

throw new ArgumentException(string.Format("Webservice call ended in an error: {0}", accessCodeReply));

}

//call get result

Console.WriteLine("-- GET_RESULT --");

resultReply = CallWebservice(string.Format("GET_RESULT:{0}", accessCode));

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Developer Notes

Page 112 of 160

Express ICS, 2017

Console.WriteLine(resultReply);

//call get connote

Console.WriteLine("-- GET_CONNOTE --");

connoteReply = CallWebservice(string.Format("GET_CONNOTE:{0}", accessCode));

Console.WriteLine(connoteReply);

}

catch (System.Exception ex)

{

//write exception message to console

Console.WriteLine(ex.Message.ToString());

if (ex.InnerException.Message != string.Empty)

{

Console.WriteLine(ex.InnerException.Message.ToString());

}

///function to call the webservice

private static string CallWebservice(string body)

{

//string serverUrl = "https://express.tnt.com/expressconnect/shipping/ship";

string serverUrl = "https://iconnection.tnt.com/shippergate2.asp";

try

{

//Call Express Connect

using (var client = new HttpClient())

{

//define dictionary to send body "xml_in=<..."

var values = new Dictionary<string, string>

{

{"xml_in", body}

};

//urlencode content

var content = new FormUrlEncodedContent(values);

//call webservice

var result = client.PostAsync(serverUrl, content).Result;

return result.Content.ReadAsStringAsync().Result;

}

catch (System.Exception)

{

throw;

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Developer Notes

Page 113 of 160

Express ICS, 2017

}

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Developer Notes

Page 114 of 160

Express ICS, 2017

9.6PHP Example

The following example code performs a shipping request and gets the returned result. Then it requests

the documents and renders these into html using the stylesheet in the returned xml.

// Function to connect to ExpressConnect post the XML and return the result.

function connectToEC3($xml_input) {

$url = "https://express.tnt.com/expressconnect/shipping/ship";

$ch = curl_init();

curl_setopt($ch, CURLOPT_URL, $url);

curl_setopt($ch, CURLOPT_POST, true);

curl_setopt($ch, CURLOPT_HTTPHEADER, array('Content-Type: application/x-www-form-

urlencoded'));

curl_setopt($ch, CURLOPT_RETURNTRANSFER, true);

curl_setopt($ch, CURLOPT_POSTFIELDS, "xml_in=" . urlencode($xml_input));

$result = curl_exec($ch);

curl_close($ch);

return $result;

}

// Then a function to visualize the returned xml in html page

function showXMLasHTML($xml_received){

//get stylesheet location from xml

$dom = new DOMDocument();

$dom->loadXml($xml_received);

$xpath = new DOMXpath($dom);

$styleLocation = $xpath->evaluate('string(//processing-instruction()[name() = "xml-stylesheet"])');

$last = explode("\"", $styleLocation, 3);

$xslLocation = $last[1];

$xslt = new xsltProcessor;

$xslt->importStyleSheet(DomDocument::load($xslLocation));

$html = $xslt->transformToXML(DomDocument::loadXML($xml_received));

return $html;

}

// The initiall posting of $xml_in to EC server (contains xml request)

$resultTab = connectToEC3($xml_in);

// Get the result details after posting the XML(only use the numbers from the initial response)

$resultTab2 = connectToEC3("GET_RESULT:" . preg_replace("/[^0-9]/", "", $resultTab));

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Developer Notes

Page 115 of 160

Express ICS, 2017

// Get documentation (connote, label, manifest and invoice)

$connoteTab = connectToEC3("GET_CONNOTE:" . preg_replace("/[^0-9]/", "", $resultTab));

$labelTab = connectToEC3("GET_LABEL:" . preg_replace("/[^0-9]/", "", $resultTab));

$manifestTab = connectToEC3("GET_MANIFEST:" . preg_replace("/[^0-9]/", "", $resultTab));

$invoiceTab = connectToEC3("GET_INVOICE:" . preg_replace("/[^0-9]/", "", $resultTab));

// Show documentation

echo "Connote:<br>";

print showXMLasHTML($connoteTab);

echo "Label:<br>";

print showXMLasHTML($labelTab);

echo "Manifest:<br>";

print showXMLasHTML($manifestTab);

echo "Invoice:<br>";

print showXMLasHTML($invoiceTab);

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Developer Notes

Page 116 of 160

Express ICS, 2017

10.Appendix A: XML elements definition (input)

These tables contain all of the possible Input XML nodes and some information about their use. All elements are

mandatory and must contain just one instance unless stated in the table below. If the data is optional then the

element does not need to be provided.

XML elements which do not contain a value but are merely a container for other elements are noted as Container

element, the elements contained therein are described in the rows immediately below. Please remember that field

values should be escaped using the ![CDATA[]] notation. At a minimum, all address fields should be escaped.

Failure to escape these areas could result in unexpected problems if the value in an element contains an Ampersand

(&).

For all data types described with a type prefix of 'xsd:' see XSD Data Types.

For all data types in the form ‘stringMinLengthXMaxLengthY’, ‘stringMaxLengthY’, ‘integerMin0Max9’,

doubleMaxExclusiveX or longMaxLengthX see Section Error! Reference source not found. Custom Data Types.

XML Element /attribute

Data

require

Description

Constraints

Max

Length

Parent Element

ESHIPPER

Top level element

None

Holds login elements

ESHIPPER

COMPANY

Company Id

As allocated by

TNT

PASSWORD

Company Password

As allocated by

TNT

APPID

Application Id

The APPID

element should

be defaulted to

“IN”, unless it

has been

previously

agreed with your

TNT

Representative to

use an alternative

APPID. This

element is used

by various

source

applications to

highlight

where the

request was

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Developer Notes

Page 117 of 160

Express ICS, 2017

XML Element /attribute

Data

require

Description

Constraints

Max

Length

Parent Element

made, it has no

bearing on the

functionality

offered.

APPVERSION

Application Version

Please use 3.0

unless specified

to use an

alternative

interface version.

CONSIGNMENTBATCH

Holds one collection

ESHIPPER

GROUPCODE (optional)

Groupcode to use for the

subsequent consignments,

so that they can be treated

as a batch. (For further

information on Group

codes see appendix XII).

Returned via an

earlier request.

CONSIGNMEN

TBATCH

SENDER

Holds details of the

sender and information

relating to the collection.

CONSIGNMEN

TBATCH

COMPANYNAME

Full company name

This must match

up with the name

registered

against your

TNT account.

This will ensure

your

consignment

passes our Name

& Address

validation on the

mainframe

systems.

SENDER

STREETADDRESS1

First line of address

SENDER

STREETADDRESS2

Second line of address

SENDER

STREETADDRESS3

Third line of address

SENDER

CITY

Town name

Town MUST be

submitted.

SENDER

PROVINCE

Province name

SENDER

POSTCODE

Postcode

Postcode MUST

be submitted

unless country is

SENDER

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Developer Notes

Page 118 of 160

Express ICS, 2017

XML Element /attribute

Data

require

Description

Constraints

Max

Length

Parent Element

a non-postcode

country.

COUNTRY

Country

Must be TNT

country code

SENDER

ACCOUNT

Company account upon

which collection is to be

booked/rated

Must be numeric

and be registered

against the

customer’s logon

details on the

ExpressConnect

database

SENDER

VAT

Company VAT number

SENDER

CONTACTNAME

Name of person to be

contacted if needed

SENDER

CONTACTDIALCODE

This person’s dial code

SENDER

CONTACTTELEPHONE

This person’s telephone

number

SENDER

CONTACTEMAIL

This person’s email

address.

SENDER

COLLECTION

Holds collection related

elements

SENDER

COLLECTIONADDRESS

Holds Collection Address

elements – can only be

used if details, not

consignment numbers,

being passed in

consignmentbatch

COLLECTION

COMPANYNAME

Full company name

COLLECTION

ADDRESS

STREETADDRESS1

First line of address

COLLECTION

ADDRESS

STREETADDRESS2

Second line of address

COLLECTION

ADDRESS

STREETADDRESS3

Third line of address

COLLECTION

ADDRESS

CITY

Town name

Town MUST be

submitted.

COLLECTION

ADDRESS

PROVINCE

Province name

COLLECTION

ADDRESS

POSTCODE

Postcode

Postcode MUST

be submitted

unless country is

COLLECTION

ADDRESS

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Developer Notes

Page 119 of 160

Express ICS, 2017

XML Element /attribute

Data

require

Description

Constraints

Max

Length

Parent Element

a non-postcode

country.

COUNTRY

Country

Must be TNT

country code

COLLECTION

ADDRESS

VAT

Company VAT number

COLLECTION

ADDRESS

CONTACTNAME

Name of person to be

contacted if needed

COLLECTION

ADDRESS

CONTACTDIALCODE

This person’s dial code

COLLECTION

ADDRESS

CONTACTTELEPHONE

This person’s telephone

number

COLLECTION

ADDRESS

CONTACTEMAIL

This person’s email

address

COLLECTION

ADDRESS

SHIPDATE

Date on which collection

is to be shipped

Must be

formatted

dd/mm/yyyy.

Cannot be in the

past.

COLLECTION

PREFCOLLECTTIME

Preferred period of time

for collection – holds

from and to elements

COLLECTION

ALTCOLLECTTIME (Optional)

Alternative collection –

holds from and to

elements

COLLECTION

COLLINSTRUCTIONS

Collection Instructions

COLLECTION

CONFIRMATIONEMAILADDRESS

(Optional)

An email address that will

be used should the

EMAILREQD attribute of

the BOOK element be set

to ‘Y’

Must be a valid

email address if

specified

COLLECTION

FROM

Start of time period

Must be entered

as hhmm in 24-

hour clock

format. Times

must be between

0900 and 1600.

If one time is

specified, the

other must also

be entered.

PREFCOLLEC

TTIME

End of time period

As above

PREFCOLLEC

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Developer Notes

Page 120 of 160

Express ICS, 2017

XML Element /attribute

Data

require

Description

Constraints

Max

Length

Parent Element

TTIME

FROM

Start of time period

As above

ALTCOLLECT

TIME

End of time period

As above

ALTCOLLECT

TIME

CONSIGNMENT (may be multiple)

Holds conref element and

EITHER detail element or

consignment number

element

Can be omitted

ONLY if the

<GROUPCODE

> element is

included in the

<BOOK>

activity. (For

further

information on

Group codes see

appendix XII).

CONSIGNMEN

TBATCH

CONREF

Customer’s reference for

a consignment, used for

identifying data returned

by ExpressConnect

Shipping only – not

stored.

Must be unique

within a

document i.e.

each con

submitted must

have its own

conref

CONSIGNMEN

DETAILS

Holds consignment detail

elements

Either Details or

Connumber

element MUST

be present

(Details if

Sender element

is present within

this

consignmentbatc

CONSIGNMEN

RECEIVER

Holds receiver details

elements

DETAILS

COMPANYNAME

Full company name

If receiver pays

then this must

match up with

the name

registered

against the

receiver TNT

RECEIVER

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Developer Notes

Page 121 of 160

Express ICS, 2017

XML Element /attribute

Data

require

Description

Constraints

Max

Length

Parent Element

account.

STREETADDRESS1

First line of address

RECEIVER

STREETADDRESS2

Second line of address

RECEIVER

STREETADDRESS3

Third line of address

RECEIVER

CITY

Town name

Town MUST be

submitted.

RECEIVER

PROVINCE

Province name

RECEIVER

POSTCODE

Postcode

Postcode MUST

be submitted

unless country is

a non-postcode

country.

RECEIVER

COUNTRY

Country

Must be TNT

country code

RECEIVER

VAT

Company VAT number

RECEIVER

CONTACTNAME

Name of person to be

contacted if needed

RECEIVER

CONTACTDIALCODE

This person’s dial code

RECEIVER

CONTACTTELEPHONE

This person’s telephone

number

RECEIVER

CONTACTEMAIL

This person’s email

address. (See Appendix

VIII for more

information).

RECEIVER

ACCOUNT (Optional)

Receiver’s account to be

billed

Only include for

Receiver pays

RECEIVER

ACCOUNTCOUNTRY (Optional)

Country of account

As above

RECEIVER

DELIVERY

Holds Delivery Address

elements – can only be

used if details, not

consignment numbers,

being passed in

consignmentbatch

DETAILS

COMPANYNAME

Full company name

DELIVERY

STREETADDRESS1

First line of address

DELIVERY

STREETADDRESS2

Second line of address

DELIVERY

STREETADDRESS3

Third line of address

DELIVERY

CITY

Town name

Town MUST be

submitted.

DELIVERY

PROVINCE

Province name

DELIVERY

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Developer Notes

Page 122 of 160

Express ICS, 2017

XML Element /attribute

Data

require

Description

Constraints

Max

Length

Parent Element

POSTCODE

Postcode

Postcode MUST

be submitted

unless country is

a non-postcode

country.

DELIVERY

COUNTRY

Country

Must be TNT

country code

DELIVERY

VAT

Company VAT number

DELIVERY

CONTACTNAME

Name of person to be

contacted if needed

DELIVERY

CONTACTDIALCODE

This person’s dial code

DELIVERY

CONTACTTELEPHONE

This person’s telephone

number

DELIVERY

CONTACTEMAIL

This person’s email

address

DELIVERY

CONNUMBER (optional for registered

customers only)

Customers own

consignment number

The number can

be entered with

or without the

UPU (Universal

Postal Union)

characters. If

entered without

these characters

Express Connect

will generate

them based on

sender and

receiver country.

(See Appendix I

– Modulus 11 or

7 Check Digit

for info on check

digit).

DETAILS

CUSTOMERREF

Customer reference

DETAILS

CONTYPE

Consignment Type

MUST be ‘N’

(Non-Doc) or

‘D’ (Doc)

DETAILS

PAYMENTIND

Payment Indicator

MUST be ‘S’

(sender pays) or

‘R’ (receiver

pays)

DETAILS

ITEMS

Total number of packages

Must be an

DETAILS

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Developer Notes

Page 123 of 160

Express ICS, 2017

XML Element /attribute

Data

require

Description

Constraints

Max

Length

Parent Element

in consignment

integer

TOTALWEIGHT

Total weight of all

packages

Must be numeric

and in kilograms

4.3

DETAILS

TOTALVOLUME

Total Volume of all

packages

Must be in

meters.

TotalVolume is

mandatory.

For a DOC

shipment a

volume of 0.0

must be entered

3.3

DETAILS

CURRENCY

Currency to be used

If either the

goodsvalue

element,

insurancevalue

or both contain

data, then

currency must

contain a valid

TNT currency

code

DETAILS

GOODSVALUE

Value of consignment in

specified currency

As above

12.2

DETAILS

INSURANCEVALUE

N.B. The insurance does not currently

impact the rates returned, but has been

included for future development

purposes

Insurance value of

consignment in specified

currency

As above.

Insurance value

MUST NOT be

more than 110%

of the goods

value for non-

documents or

500 Euros for

documents.

12.2

DETAILS

INSURANCECURRENCY

Insurance currency

If an insurance

value is included

but no insurance

currency is

entered, the

currency from

the CURRENCY

field will be

used.

DETAILS

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Developer Notes

Page 124 of 160

Express ICS, 2017

XML Element /attribute

Data

require

Description

Constraints

Max

Length

Parent Element

DIVISION

The TNT division that the

service belongs. If this is

not supplied

ExpressConnect will

calculate the appropriate

division code. This is

used for special divisions

such as “S”

Must be valid

TNT division

code.

DETAILS

SERVICE

The TNT service required

Must be valid

TNT service

code. Only

International and

UK domestic

services are

available as a

default. Other

domestic

services can be

activated at a

country level on

request through

your TNT

representative.

DETAILS

OPTION (may be up to 5 Option

elements)

Options required on this

service, only the first 5

will be processed.

Must be valid

TNT option

code. Note

specific rules

apply to ITLL

option (IT) see

Appendix IV

DETAILS

DESCRIPTION

Description of

Consignment

DETAILS

DELIVERYINST

Delivery Instructions

DETAILS

CUSTOMCONTROLIN

Customs Controlled

Indicator

DETAILS

HAZARDOUS

Indicates if the shipment

contains dangerous goods.

(Available for UK

domestic only)

‘Y’ or ‘N’

DETAILS

UNNUMBER

The UN classification for

the dangerous goods

being carried

4 digit numeric

DETAILS

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Developer Notes

Page 125 of 160

Express ICS, 2017

XML Element /attribute

Data

require

Description

Constraints

Max

Length

Parent Element

Please see Appendix N –

Dangerous Goods

processing

PACKINGGROUP

The PACKING GROUP

classification for the

dangerous goods being

carried

Please see Appendix N –

Dangerous Goods

processing

4 characters

DETAILS

PACKAGE (multiple package elements

allowed)

Holds elements related to

the package

At least one

package MUST

exist per

consignment,

UNLESS the

consignment is

internal to the

DETAILS

ITEMS

Number of Packages of

package type

Must be an

integer

PACKAGE

DESCRIPTION

Package description

PACKAGE

LENGTH

Length of package

Must be in

meters. Max

length = 2.4m

1.2

PACKAGE

HEIGHT

Height of package

Must be in

meters. Max

height = 1.5m

1.2

PACKAGE

WIDTH

Width of package

Must be in

meters. Max

width = 1.2m

1.2

PACKAGE

WEIGHT

Weight of package

Must be in

kilograms. Max

weight = 70kg

2.3

PACKAGE

ARTICLE (Optional – multiple

allowed)

Holds article related

elements

PACKAGE

ITEMS

Number of items in article

ARTICLE

DESCRIPTION

Article description

ARTICLE

WEIGHT

Weight of article

Must be in

kilograms

2.3

ARTICLE

INVOICEVALUE

Invoice Value of article

Must be in the

12.2

ARTICLE

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Developer Notes

Page 126 of 160

Express ICS, 2017

XML Element /attribute

Data

require

Description

Constraints

Max

Length

Parent Element

currency stated

previously

INVOICEDESC

Invoice Description of

article

ARTICLE

HTS

HTS number

ARTICLE

COUNTRY

Country of article’s origin

Must be valid

TNT country

code

ARTICLE

EMRN

Export Management

Reference Number

ARTICLE

ACTIVITY

Holds different activity

elements

ESHIPPER

CREATE (optional)

Holds the conref elements

indicating which

consignments are to be

created

ACTIVITY

CONREF (optional – multiple allowed)

The consignment ref

corresponding to

consignments in the

document which are to be

created

CREATE

RATE (optional)

Holds the conref and

connumber elements

indicating which

consignments are to be

rated

ACTIVITY

CONREF (optional – multiple allowed)

The consignment ref

corresponding to

consignments in the

document which are to be

rated

RATE

CONNUMBER (optional – multiple

allowed)

Consignment number

corresponding to

previously created

consignments in the

document which are to be

rated. (See Appendix XI

for info on check digit).

RATE

BOOK (optional)

Holds the conref elements

indicating which

consignments are to be

ACTIVITY

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Developer Notes

Page 127 of 160

Express ICS, 2017

XML Element /attribute

Data

require

Description

Constraints

Max

Length

Parent Element

booked, or a

GROUPCODE element to

book a batch of

consignments. (For

further information on

Group codes see appendix

XII).

ShowBookingRef (attribute)

Indicates that express

connect should return the

collection booking service

reference number for 2.2

shipments

‘Y’ or ‘N’

ACTIVITY

EMAILREQD attribute

The element

CONFIRMATIONEMAI

LADDRESS specify the

field which comes under

the parent element

COLLECTION and used

for providing the email

address where you need

the booking confirmation.

The element

EMAILREQD which

holds a character either

'Y' or 'N' indicating that a

booking confirmation

email is required or not.

The default value is “N”

N/A

CONREF (optional – multiple allowed)

The consignment ref

corresponding to

consignments in the

document which are to be

booked

BOOK

CONNUMBER (optional – multiple

allowed)

Consignment number

corresponding to

previously created

consignments in the

document which are to be

booked. (See Appendix

XI for info on check

BOOK

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Developer Notes

Page 128 of 160

Express ICS, 2017

XML Element /attribute

Data

require

Description

Constraints

Max

Length

Parent Element

digit).

GROUPCODE (optional)

Group code for batch of

consignments to book.

(For further information

on Group codes see

appendix XII).

Exclusive,

cannot be used

with CONREF

CONNUMBER

BOOK

SHIP (optional)

Holds the conref elements

indicating which

consignments are to be

shipped

For further information

please see Ship Elements

ACTIVITY

CONREF (optional – multiple allowed)

The consignment ref

corresponding to

consignments in the

document which are to be

shipped

SHIP

CONNUMBER (optional – multiple

allowed)

Consignment number

corresponding to

previously created

consignments in the

document which are to be

shipped. (See Appendix

XI for info on check

digit).

SHIP

PRINT (optional)

Holds the print type

elements

ACTIVITY

REQUIRED (optional)

CONREF (optional – multiple allowed)

The consignment ref

corresponding to

consignments in the

document which are to

have all required

documents

Printed (see rules in

printing section)

REQUIRED

CONNUMBER (optional – multiple

allowed)

Consignment number

corresponding to

previously created

consignments in the

document which are to

REQUIRED

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Developer Notes

Page 129 of 160

Express ICS, 2017

XML Element /attribute

Data

require

Description

Constraints

Max

Length

Parent Element

have all required

documents

Printed (see rules in

printing section). (See

Appendix XI for info on

check digit).

CONNOTE (optional)

CONREF (optional – multiple allowed)

The consignment ref

corresponding to

consignments in the

document which are to

have consignment notes

printed

CONNOTE

CONNUMBER (optional – multiple

allowed)

Consignment number

corresponding to

previously created

consignments in the

document which are to

have consignment notes

printed. (See Appendix XI

for info on check digit).

CONNOTE

LABEL (optional)

CONREF (optional – multiple allowed)

The consignment ref

corresponding to

consignments in the

document which are to

have labels printed

LABEL

CONNUMBER (optional – multiple

allowed)

Consignment number

corresponding to

previously created

consignments in the

document which are to

have labels printed. (See

Appendix XI for info on

check digit).

LABEL

MANIFEST (optional)

CONREF (optional – multiple allowed)

The consignment ref

corresponding to

consignments in the

document which are to

appear on a manifest

MANIFEST

CONNUMBER (optional – multiple

Consignment number

MANIFEST

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Developer Notes

Page 130 of 160

Express ICS, 2017

XML Element /attribute

Data

require

Description

Constraints

Max

Length

Parent Element

allowed)

corresponding to

previously created

consignments in the

document which are to

appear on a manifest. (See

Appendix XI for info on

check digit).

GROUPCODE (optional)

Group code for batch of

consignments to print as a

summary manifest. (For

further information on

Group codes see appendix

XII).

Exclusive,

cannot be used

with CONREF

CONNUMBER

MANIFEST

INVOICE (optional)

CONREF (optional – multiple allowed)

The consignment ref

corresponding to

consignments in the

document which are to

appear on an invoice

INVOICE

CONNUMBER (optional – multiple

allowed)

Consignment number

corresponding to

previously created

consignments in the

document which are to

appear on an invoice. (See

Appendix XI for info on

check digit).

INVOICE

EMAILTO (optional)

Email address to send

documentation to. (For

more information see

appendix IX).

Valid email

address, must

have requested

some

documentation to

be produced

Type attribute

Define the type of email

to be sent if multiple

types are defined,

otherwise send default

Email types

defined and

submitted for

addition to

system via local

CIT coordinator

EMAILTO

EMAILFROM (optional)

Email address that the

returns email will have set

Valid email

address, must

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Developer Notes

Page 131 of 160

Express ICS, 2017

XML Element /attribute

Data

require

Description

Constraints

Max

Length

Parent Element

as the reply address. This

is in case customers try to

reply to the email.

have requested

some

documentation to

be produced

SHOW_GROUPCODE

Element to indicate that

the group code should be

included in the returned

XML. (For further

information on Group

codes see appendix XII).

ACTIVITY

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Developer Notes

Page 132 of 160

Express ICS, 2017

11.Appendix B: XSD Data Types

XSD DATA TYPE

DESCRIPTION

dateTime

Data expected in the format CCYY-MM-DD'T'hh:mm:ss where CC indicates century, YY

year, MM month in 2 digit format, DD day of the month, hh hour of the day, mm

minutes and ss seconds.

For example 5:30 p.m. on 30th December 2008 would be 2008-12-30T17:30:00. This

data type describes instances identified by the combination of a date and a time. It is

described in Chapter 5.4 of ISO 8601 and the W3C XML Schema Recommendation.

Its lexical space is the extended format: [-]CCYY-MM-DDThh:mm:ss[Z|(+|-)hh:mm]

double

Numeric data with decimal places in the range -

9007199254740991..9007199254740991.

int

Numeric data without decimal places in the range -2147483648..2147483647

long

Numeric data without decimal places in the range -

9223372036854775808..9223372036854775807

string

XML compatible alphanumeric data.

boolean

1 – true, 0 - false

11.1Custom Data Types

CUSTOM DATA TYPE

DESCRIPTION

stringMinLengthXMaxLengthY

Data type of type xsd:string with a minimum length of X and a maximum length of Y.

If ‘MinLength’ is not specified in the data type name (e.g. stringMaxLength4) there is

no minimum length.

integerMin0Max9

Data type of type xsd:int with a minimum value of 0 and a maximum value of 9.

doubleMaxExclusiveX

Data type of type xsd:double with a value that must be less than X.

E.g. For ‘doubleMaxExclusive100’ the value cannot exceed 99.99.

longMaxLengthX

Data type of type xsd:long with a maximum length of X.

E.g. For ‘longMaxLength10’ the maximum value is 9999999999 (ten 9’s).

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Developer Notes

Page 133 of 160

Express ICS, 2017

Notes

Max weight

As a standard the following are limited to:

Max weight per package 70kg

Max length per package 2.4m

Max height per package 1.5m

Max width per package 1.2m

On request, these limits can be raised for each customer. If this is required please contact your TNT representative

who will arrange this for you.

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Developer Notes

Page 134 of 160

Express ICS, 2017

12.Appendix C MANDATORY FIELDS (INPUT XML)

• Company

• Password

• Appid

• Appversion

• (Sender) CompanyName

• (Sender) StreetAddress1

• (Sender) City

• (Sender) Postcode (unless the country is a non-postcode country)

• (Sender) Country

• (Sender) Account

• (Sender) Contact name

• (Sender) ContactDialCode

• (Sender) ContactTelephone

If CollectionAddress element is used

• (Collection) CompanyName

• (Collection) StreetAddress1

• (Collection) City

• (Collection) Postcode (unless the country is a non-postcode country)

• (Collection) Country

• (Collection) Account

• (Collection) Contact name

• (Collection) ContactDialCode

• (Collection) ContactTelephone

• Ship Date

• Conref

• Connumber

• (Receiver) CompanyName

• (Receiver) StreetAddress1

• (Receiver) City

• (Receiver) Postcode (unless the country is a non-postcode country)

• (Receiver) Country

• (Receiver) Account

• (Receiver) Contact name

• (Receiver) ContactDialCode

• (Receiver) ContactTelephone

If Delivery element is used

• (Delivery) CompanyName

• (Delivery) StreetAddress1

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Developer Notes

Page 135 of 160

Express ICS, 2017

• (Delivery) City

• (Delivery) Postcode (unless the country is a non-postcode country)

• (Delivery) Country

• (Delivery) Account

• (Delivery) Contact name

• (Delivery) ContactDialCode

• (Delivery) ContactTelephone

• ConType (Consignment type)

• TotalWeight

• TotalVolume

• Consignment Items

• Service

• Package (unless the origin and destination countries are both within the EU). If included the following fields are

mandatory

• (Package) Items

• (Package) Description

• (Package) Length

• (Package) Height

• (Package) Weight

• (Package) Width

• (Package) ArticleCount

• Articles are not mandatory, but if included the following fields are mandatory

• (Article) Items

• (Article) Description

• (Article) Weight

• (Article) Invoicevalue

• (Article) InvoiceDesc

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Developer Notes

Page 136 of 160

Express ICS, 2017

13.Appendix D DATA RULES (INPUT XML)

A summary/reminder of the data input rules are listed below:

• Sender Account is mandatory

• ConRef must be unique – suggest generating unique values for each submission of consignments and must

not contain special characters i.e. &, <>, “.

• ConType (Consignment type)must be either ‘N’ (NonDoc) or ‘D’ (Doc).

• All measurements must be in meters(m) and kilograms(kg), input as figures only

• e.g. 301 grams input as ‘0.301’.

• Dates must be entered in DD/MM/YYYY format.

• ShipmentDate cannot be more than two weeks in advance

• CollectionTimes must be entered in 24 hour clock format as HHMM

• e.g. 3:21 p.m. input as 1521.

• CollectionTimes are only mandatory for booking. However, if one of the pair is entered, the other must

also be. If the alternative times are entered, but the preferred are not, the alternative times are used. If they

are found to hold no values when the collection is being booked, the default of 0900 – 1600 is assumed.

• PaymentInd is not a mandatory element. However, if included, this must contain the value ‘S’ (Sender

pays) or ‘R’ (Receiver pays).

• If Contype is ‘N’ then the Volume is mandatory.

• If the GoodsValue field contains a value, the Currency field must contain a value.

• If the InsuranceValue field contains a value, the Currency field must contain a value.

• The InsuranceValue may not be more than 110% of the GoodsValue for non document consignments and

not more than 500 Euros for document consignments

• The insurance does not currently impact the rates returned, but has been included for future development

purposes

• There may be 0–5 Option elements included, each of which must contain a value.

• ITLL is available as an option. There are specific rules regarding its availability (see relevant section)

• There must be at least one Package per Consignment when entered in detail form.

• There may not be more than 3 Packages per Consignment when entered in detail form with no more than

99 items.

• Each Package weight is limited to a maximum of 70kg. (Unless a prior arranged limit has been agreed –

this can be coordinated through your TNT representative)

• Articles are not mandatory.

• There may not be more than 99 Articles elements per Package.

• None of the values entered into the Items fields will be validated against the number of packages/articles

submitted with a consignment, the customer is responsible for making these values correspond if desired.

• For valid country/currency/towns/service/option codes and postcode masks see Appendix III, for retrieval

of TNT datasets.

• Non UK Domestic services are not available as default (UK Domestic services are available as default).

Domestic services can be activated at a country level through a request to your TNT representative. The

TNT representative will need to supply a list of domestic services / options available for the specified

country.

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Developer Notes

Page 137 of 160

Express ICS, 2017

• There may be up to 50 Consignment elements.

• Customers can enter their own consignment numbers if they have been registered to do so.ExpressConnect

will check the number for a valid check digit, a modulus 7 or 11 check digit should be used (see appendix

XI for further details). The consignment number can be added with or without the UPU (Universal Postal

Union) characters at the beginning and end of the number. If UPU characters are not added ExpressConnect

will generate them based on the origin and destination country. The TNT representative will coordinate

registration for this functionality if required.

• Special characters may be used i.e. &, ‘, “, <, >. Details of encoding can be found in the Appendices.

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Developer Notes

Page 138 of 160

Express ICS, 2017

14.Appendix E: ISO 3166-1 Alpha-2 Country Codes

Country names

ISO 3166-1-alpha-2 code

AFGHANISTAN

ÅLANDISLANDS

ALBANIA

ALGERIA

AMERICAN SAMOA

ANDORRA

ANGOLA

ANGUILLA

ANTARCTICA

ANTIGUA AND BARBUDA

ARGENTINA

ARMENIA

ARUBA

AUSTRALIA

AUSTRIA

AZERBAIJAN

BAHAMAS

BAHRAIN

BANGLADESH

BARBADOS

BELARUS

BELGIUM

BELIZE

BENIN

BERMUDA

BHUTAN

BOLIVIA

BOSNIA AND HERZEGOVINA

BOTSWANA

BOUVET ISLAND

BRAZIL

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Developer Notes

Page 139 of 160

Express ICS, 2017

BRITISH INDIAN OCEAN

TERRITORY

BRUNEI DARUSSALAM

BULGARIA

BURKINA FASO

BURUNDI

CAMBODIA

CAMEROON

CANADA

CAPE VERDE

CAYMANISLANDS

CENTRALAFRICANREPUBLIC

CHAD

CHILE

CHINA

CHRISTMAS ISLAND

COCOS (KEELING) ISLANDS

COLOMBIA

COMOROS

CONGO

CONGO, THE DEMOCRATIC

REPUBLIC OF THE

COOKISLANDS

COSTA RICA

CÔTE D'IVOIRE

CROATIA

CUBA

CYPRUS

CZECH REPUBLIC

DENMARK

DJIBOUTI

DOMINICA

DOMINICAN REPUBLIC

ECUADOR

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Developer Notes

Page 140 of 160

Express ICS, 2017

EGYPT

EL SALVADOR

EQUATORIAL GUINEA

ERITREA

ESTONIA

ETHIOPIA

FALKLAND ISLANDS (MALVINAS)

FAROE ISLANDS

FIJI

FINLAND

FRANCE

FRENCH GUIANA

FRENCH POLYNESIA

FRENCH SOUTHERN TERRITORIES

GABON

GAMBIA

GEORGIA

GERMANY

GHANA

GIBRALTAR

GREECE

GREENLAND

GRENADA

GUADELOUPE

GUAM

GUATEMALA

GUERNSEY

GUINEA

GUINEA-BISSAU

GUYANA

HAITI

HEARD ISLAND AND

MCDONALDISLANDS

HOLY SEE (VATICAN CITYSTATE)

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Developer Notes

Page 141 of 160

Express ICS, 2017

HONDURAS

HONG KONG

HUNGARY

ICELAND

INDIA

INDONESIA

IRAN, ISLAMIC REPUBLIC OF

IRAQ

IRELAND

ISLE OF MAN

ISRAEL

ITALY

JAMAICA

JAPAN

JERSEY

JORDAN

KAZAKHSTAN

KENYA

KIRIBATI

KOREA, DEMOCRATIC PEOPLE'S

REPUBLIC OF

KOREA, REPUBLIC OF

KUWAIT

KYRGYZSTAN

LAO PEOPLE'S DEMOCRATIC

REPUBLIC

LATVIA

LEBANON

LESOTHO

LIBERIA

LIBYAN ARAB JAMAHIRIYA

LIECHTENSTEIN

LITHUANIA

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Developer Notes

Page 142 of 160

Express ICS, 2017

LUXEMBOURG

MACAO

MACEDONIA, THE

FORMERYUGOSLAVREPUBLIC OF

MADAGASCAR

MALAWI

MALAYSIA

MALDIVES

MALI

MALTA

MARSHALL ISLANDS

MARTINIQUE

MAURITANIA

MAURITIUS

MAYOTTE

MEXICO

MICRONESIA, FEDERATED STATES

MOLDOVA

MONACO

MONGOLIA

MONTENEGRO

MONTSERRAT

MOROCCO

MOZAMBIQUE

MYANMAR

NAMIBIA

NAURU

NEPAL

NETHERLANDS

NETHERLANDS ANTILLES

NEW CALEDONIA

NEW ZEALAND

NICARAGUA

NIGER

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Developer Notes

Page 143 of 160

Express ICS, 2017

NIGERIA

NIUE

NORFOLK ISLAND

NORTHERN MARIANA ISLANDS

NORWAY

OMAN

PAKISTAN

PALAU

PALESTINIANTERRITORY,

OCCUPIED

PANAMA

PAPUA NEW GUINEA

PARAGUAY

PERU

PHILIPPINES

PITCAIRN

POLAND

PORTUGAL

PUERTO RICO

QATAR

RÉUNION

ROMANIA

RUSSIAN FEDERATION

RWANDA

SAINT BARTHÉLEMY

SAINT HELENA

SAINT KITTS AND NEVIS

SAINT LUCIA

SAINT MARTIN

SAINT PIERRE AND MIQUELON

SAINT VINCENT AND THE

GRENADINES

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Developer Notes

Page 144 of 160

Express ICS, 2017

SAMOA

SAN MARINO

SAO TOME AND PRINCIPE

SAUDI ARABIA

SENEGAL

SERBIA

SEYCHELLES

SIERRA LEONE

SINGAPORE

SLOVAKIA

SLOVENIA

SOLOMON ISLANDS

SOMALIA

SOUTH AFRICA

SOUTH GEORGIA AND THE SOUTH

SANDWICH ISLANDS

SPAIN

SRI LANKA

SUDAN

SURINAME

SVALBARD AND JAN MAYEN

SWAZILAND

SWEDEN

SWITZERLAND

SYRIANARABREPUBLIC

TAIWAN, PROVINCE OF CHINA

TAJIKISTAN

TANZANIA, UNITED REPUBLIC OF

THAILAND

TIMOR-LESTE

TOGO

TOKELAU

TONGA

TRINIDAD AND TOBAGO

TUNISIA

TURKEY

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Developer Notes

Page 145 of 160

Express ICS, 2017

TURKMENISTAN

TURKS AND CAICOS ISLANDS

TUVALU

UGANDA

UKRAINE

UNITED ARAB EMIRATES

UNITED KINGDOM

UNITED STATES

UNITED STATES MINOR OUTLYING

ISLANDS

URUGUAY

UZBEKISTAN

VANUATU

VATICAN CITYSTATE

see HOLY SEE

VENEZUELA

VIET NAM

VIRGINISLANDS, BRITISH

VIRGIN ISLANDS, U.S.

WALLIS AND FUTUNA

WESTERN SAHARA

YEMEN

ZAMBIA

ZIMBABWE

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Developer Notes

Page 146 of 160

Express ICS, 2017

15.Appendix E: VAT codes

Country (including

code)

VAT number format

VAT in local

languages

Austria (AT)

U12345678 (9 characters. The first character

is always ‘U’)

USt

Belgium (BE)

1234567890 (10 characters. Prefix with zero

‘0’ if the customer provides a 9 digit VAT

number)

BTW, TVA,

NWSt

Bulgaria (BG)

123456789, 1234567890 (9 or 10 characters)

ДДС

Croatia (HR)

12345678901 (11 characters)

PDV

Republic of Cyprus

(CY)

12345678X (9 characters. The last character

must always be a letter)

ΦΠΑ

Czech Republic (CZ)

12345678, 123456789, 1234567890, (8, 9 or

10 characters. If more than 10 characters are

provided delete the first 3 as these are a tax

code)

DPH

Denmark, except the

Faroe Islands and

Greenland (DK)

12345678 (8 characters)

moms

Estonia (EE)

123456789 (9 characters)

Finland, but excluding

the Åland Islands (FI)

12345678 (8 characters)

ALV, Moms

France, including

Monaco but excluding

Guadeloupe,

Martinique, Réunion,

St. Pierre and

Miquelon, and French

Guiana (FR)

12345678901, X1234567890, 1X123456789,

XX123456789, (11 characters. May include

alphabetical characters (any except O or I) as

first or second or first and second characters.)

TVA

Germany, except

Büsingen and the Isle

of Heligoland (DE)

123456789 (9 characters)

MwSt., Ust.

Greece (EL)

123456789 (9 characters)

ΦΠΑ

Hungary (HU)

12345678 (8 characters)

ÁFA

Ireland (IE)

1234567X, 1X23456X, 1234567XX, (8 or 9

characters. Includes one or two alphabetical

characters (last, or second and last, or last 2))

CBL, VAT

Italy, except the

communes of Livigno

and Campione d’Italia

and the Italian waters

12345678901 (11 characters)

IVA

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Developer Notes

Page 147 of 160

Express ICS, 2017

Country (including

code)

VAT number format

VAT in local

languages

of Lake Lugano (IT)

Latvia (LV)

12345678901 (11 characters)

PVN

Lithuania (LT)

123456789, 123456789012, (9 or 12

characters)

PVM

Luxembourg (LU)

12345678 (8 characters)

TVA

Malta (MT)

12345678 (8 characters)

VAT

Netherlands (NL)

123456789B01 (12 characters. The tenth

character is always B)

BTW

Poland (PL)

1234567890 (10 characters)

PTU, VAT

Portugal, including the

Azores and Madeira

(PT)

123456789 (9 characters)

IVA

Romania (RO)

12, 123, 1234, 12345, 123456, 1234567,

12345678, 123456789, 1234567890, (from 2

to 10 characters)

TVA

Slovak Republic (SK)

1234567890 (10 characters)

DPH

Slovenia (SI)

12345678 (8 characters)

DDV

Spain, including the

Balearic Islands but

excluding Ceuta,

Melilla and the Canary

Islands (ES)

X12345678, 12345678X, X1234567X, (9

characters. Includes one or two alphabetical

characters (first or last or first and last.))

IVA

Sweden (SE)

123456789012 (12 characters)

Moms

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Developer Notes

Page 148 of 160

Express ICS, 2017

16.Appendix F - Example Booking confirmation from backend systems

Please note, this is not available for UK Domestic shipments.

Email sent automatically if the EMAILREQD attribute is set on the BOOK element (see Activities/functional

features )

Email sent from: collection.request@tnt.com

Dear Customer,

Thank you for choosing to work with TNT.

We would like to confirm the collection request details that

have been raised with the following details

Company Name: COLLECTION NAME

Address: TEST DO NOT COLLECT4

TEST DO NOT COLLECT5

TEST DO NOT COLLECT6

Town: ATHERSTONE

WARWICKSHIRE

Contact Name: Mr Contact

Collection Date: 25.07.2016

Open and Close time collection address: 09.00 10.00

Your collection request number is: CVT 818154

For more information please visit http://www.TNT.com or call (+44) 1827 711711

For more information on our shipping terms please visit our website.

Note: This e-mail was sent from a notification-only e-mail address

that cannot accept incoming e-mail. Please do not reply to

this message.

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Developer Notes

Page 149 of 160

Express ICS, 2017

17.Appendix G - Advanced Shipping Notification

If a receiver’s email <CONTACTEMAIL> is entered within the <RECEIVER> element of the shipping input XML

an automatic Advanced Shipping Notification email is sent to the specified email address. The format of the email is

as follows:

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Developer Notes

Page 150 of 160

Express ICS, 2017

18.Appendix H – Returns Paperwork

If the <EMAILTO>and <EMAILFROM>elements in the print activity of the shipping input XML is filled with a

valid email address an email is sent to the specified email address with the documentation files as HTML

attachments. The format of the email is shown below. It is possible to arrange for alternative email formats to be

used. This can be arranged via your local TNT representative.

From: <EMAILFROM> value

Subject : Returns paperwork for your consignment

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Developer Notes

Page 151 of 160

Express ICS, 2017

19.Appendix I – Modulus 11 or 7 Check Digit

To validate a consignment number, a modulus 11 or 7 check digit is used.

This method creates a digit which will be appended to the end of a consignment number. The digit is created from

each of the other digits in the consignment.

19.1 Modulus 11 Check Digit

Steps taken:

• Assign weights to the digits. In the case of Express Connect, the weights are 8, 6, 4, 2, 3, 5, 9 and 7

• Multiply each digit in the consignment by it’s assigned weight.

• Add together the results.

• Divide the result by 11

• Subtract the remainder from 11 – leaving behind the check digit.

Example for modulus 11:

Con: 40392321

4*8 = 32

0*6 = 0

3*4 = 12

9*2 = 18

2*3 = 6

3*5= 15

2*9 = 18

1*7 = 7

32+0+12+18+6+15+18+7= 108

108/ 11 = 9.81818182

0.81818182 * 11 = 9

11-9 = 2

Check digit = 2

NOTE: if the remainder is 0 or 1, the subtraction will result in either 10 or 11 (two digit check digits are not

allowed). To resolve this, if the check digit is 11, then it is changed to 5. If the check digit is 10, then it is changed to

(Continued)

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Developer Notes

Page 152 of 160

Express ICS, 2017

Modulus 11

Con Id

Weight

Derived values ( Digit *

Weight )

108

Sum

Sum MOD 11 : ( Remainder )

Modulus Eleven Check Digit ( 11 - Remainder )

when 11 substitute 5, when 10 substitute 0 ...

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Developer Notes

Page 153 of 160

Express ICS, 2017

19.2 Modulus 7 Check Digit

Steps taken:

• Divide the consignment number by 7

• Multiple the integer by 7

• Subtract this value from the consignment Number – leaving behind the check digit.

A = (Interger(consignment number / 7)*7)

Chech digit = consignment number - A

Modulus 7

40392321

Con Id

5770331

Con Id / 7 : ( Weighted Con )

40392317

Weighted Con * 7 : ( Mod7 Con )

Modulus Seven Check Digit ( Con Id - Mod7 Con )

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Developer Notes

Page 154 of 160

Express ICS, 2017

20.Appendix J – Group Codes

GroupCode is a TNT assigned ID to start batch/Grouping activities. Including the tag <SHOW_GROUPCODE/>

will return a group code.

Example: The first order of the day is sent to TNT and TAG <SHOW_GROUPCODE/> is present.

Successful results from TNT would show:

The users system should store this returned GROUPCODE and insert it into all following orders that should be

grouped under this TNT generated / assigned code.

After a GROUPCODE has been created, it can then be included in all relevant requests to group the cons.

For batch booking, the CONSIGNMENT elements can be omitted, i.e.,

<LOGIN>

<COMPANY>YOUR USERID</COMPANY>

<PASSWORD>YOUR PASSWORD</PASSWORD>

</LOGIN>

<COMPANYNAME>BT Europe AB</COMPANYNAME>

<?xml version="1.0" standalone="yes"?><document>

</CREATE>

<PRINT>

* Returns confirm of requested printables….

</PRINT>

</document>

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Developer Notes

Page 155 of 160

Express ICS, 2017

<LOGIN>

<!— mandatory -->

<COMPANY>YOUR USERID</COMPANY>

<PASSWORD>YOUR PASSWORD</PASSWORD>

</LOGIN>

…

</SENDER>

</BOOK>

<SHIP>

</SHIP>

<PRINT>

<- - Print summary manifest for the batch with the groupcode 12345678 - -

</MANIFEST>

</PRINT>

</ACTIVITY>

</ESHIPPER>

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Developer Notes

Page 156 of 160

Express ICS, 2017

21.Appendix K – Security/connectivity requirements

The SSL site certificate for https://express.tnt.com will be renewed each year and this is the certificate used by

Express Connect. Currently our root certificate and certificate are supplied byVerisign/Symantec. This 2048-bit

RSA public root certificate is something that the operating system providers, such as Microsoft or Apple, provide as

part of their operating system software. The certificates are updated with the regular specific browser updates and

operating system service pack updates.

Your CIT representative will contact you prior to the certificate being renewed and it is vital that you know whether

your application environment will automatically renew the certificate or whether you need to manually add the

certificate to the trust store. This can be undertaken by the update mechanism used within your environment.

Normally the Trusted Root Certification Authorities list would be updated by routine patching of the client OS or

browser upgrades.

TNT if required can provide the certificates or urls to Symantec to download the root certificate.

As part of the software installation please ensure you have fully documented the steps required to install a new

certificate to your application environment.

The error “"No Data Received at gateway from Client" is returned when no XML payload has been

received by the ExpressConnect application. This can occur if the certificate is not valid or expired.

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Developer Notes

Page 157 of 160

Express ICS, 2017

22.Appendix L – First Time Trader Requirements

The first time trade flag is used to highlight TNT’s “RIGHT OF INSPECTION”.

If are shipping with TNT, you must agree that we or any governmental authority including customs may open and

inspect your shipment at any time.

By default we inspect all “1st time shippers” initial parcels.

Important information for 1st time TNT Shipping Users

1. Please leave the package open for inspection by the driver. This is standard policy with all first time customers

and is an important part of our security procedure. Unfortunately we cannot accept packages, which have not

been inspected by our driver.

2. If your package is not a document and is traveling outside the European Union, you will need to prepare a

Commercial Invoice to accompany it. Please give the Commercial Invoice to the driver when your package is

collected.

3. As this is the first time you have dealt with us, we will be happy to call you when your package has been

delivered.

Thank you.

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Developer Notes

Page 158 of 160

Express ICS, 2017

23.Appendix M – XML markup Language characters

XML has 5 "special" characters that are markup characters and must be escaped <>'&" The old version of

ExpressConnect use to handle these characters without the need for them to be escaped. This is not good

practice and so this feature has been removed.

There are two ways to do this, escape each one in turn < (<), & (&), > (>), " ("), and

' (').

For example

<COMPANYNAME>Test & Test again</COMPANYNAME>

For a company name of “Test & Test again”.

The other simpler approach is to escape the full string using CDATA. CDATA is a section of element

content that is marked for the parser to interpret as only character data, not markup.

For example

For a company name of “Test & Test again”.

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Developer Notes

Page 159 of 160

Express ICS, 2017

24.Appendix N – Dangerous Goods processing

Dangerous Goods are articles or substances which are capable of posing a significant risk to health, safety, property

or the environment. The consequences of not being aware of what we are transporting can be far reaching and can

affect everyone to the possible extent of loss of life. It is therefore necessary that all regulations and instructions are

followed carefully.

Transport of Dangerous Goods on the TNT Express Networks is strictly prohibited except to and from the

Dangerous Goods Approved Countries by Dangerous Goods Approved Customers. These Dangerous Goods

shipments must be in compliance with all applicable regulations and any TNT Express specific requirements.

If you have been approved by TNT to ship Dangerous Goods, then we now support 3 additional fields within

ExpressConnect:

Lithium batteries are considered as hazardous goods due to the fact that they can overheat and ignite under certain

conditions. Customers must declare any shipments of Lithium Batteries or electronic devices containing Lithium

Batteries, by using the LB option code.

Certain types of Lithium Batteries are classed as “Excepted” and the normal Dangerous Goods policy does not apply

in these circumstances.

• Dangerous Goods Customer Approval is not required.

• Dangerous Goods Country Approval is not required.

• Accepted on the TNT Express Fixed Networks (Road & Air).

• Accepted for transport on the Commercial Linehauls.

For Excepted Lithium Batteries, the Dangerous Goods flag should be set to Yes and HZ should not be applied. An

LB option should be applied.

The Proper shipping name must be supplied in the Special Instructions element. For example for UN 3481 “Lithium

Ion Batteries in compliance with Section II of PI 966”

Additional details can be located at https://www.tnt.com/express/en_gb/site/home/how-to-ship-parcel/dangerous-

goods/lithium-batteries.html.

You must use you own stylesheets for the Consignment clearly highlighting that the goods being shipped are

dangerous.

ExpressConnect Shipping Integration Guide

Version: 1.0

Date: 05/08/2016

Developer Notes

Page 160 of 160

Express ICS, 2017

You must use the ExpressLabel web service for your labelling solution and not the supplied label in ExpressConnect.

Please work with your CIT representative if you are shipping dangerous goods or Lithium batteries.

It’s the shipper’s responsibility to ensure dangerous goods

are correctly declared, packed and labelled with the right

documentation for the countries of origin, transit and

destination.

ExpressConnect Pricing Integration Guide Express Connect Shipping V3.8

Navigation menu

Versions of this User Manual:

Views

Navigation
