Copyright, 2008-20092011, FIX Protocol, Limited
FINANCIAL INFORMATION
EXCHANGE PROTOCOL
(FIX)
Version 5.0 Service Pack 2 - Errata
VOLUME 1 – INTRODUCTION TO THE FIX PROTOCOL
April 2009August 18, 2011
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 2 of 158
DISCLAIMER
THE INFORMATION CONTAINED HEREIN AND THE FINANCIAL INFORMATION EXCHANGE
PROTOCOL (COLLECTIVELY, THE "FIX PROTOCOL") ARE PROVIDED "AS IS" AND NO PERSON OR
ENTITY ASSOCIATED WITH THE FIX PROTOCOL MAKES ANY REPRESENTATION OR WARRANTY,
EXPRESS OR IMPLIED, AS TO THE FIX PROTOCOL (OR THE RESULTS TO BE OBTAINED BY THE USE
THEREOF) OR ANY OTHER MATTER AND EACH SUCH PERSON AND ENTITY SPECIFICALLY
DISCLAIMS ANY WARRANTY OF ORIGINALITY, ACCURACY, COMPLETENESS, MERCHANTABILITY
OR FITNESS FOR A PARTICULAR PURPOSE. SUCH PERSONS AND ENTITIES DO NOT WARRANT
THAT THE FIX PROTOCOL WILL CONFORM TO ANY DESCRIPTION THEREOF OR BE FREE OF
ERRORS. THE ENTIRE RISK OF ANY USE OF THE FIX PROTOCOL IS ASSUMED BY THE USER.
NO PERSON OR ENTITY ASSOCIATED WITH THE FIX PROTOCOL SHALL HAVE ANY LIABILITY FOR
DAMAGES OF ANY KIND ARISING IN ANY MANNER OUT OF OR IN CONNECTION WITH ANY USER'S
USE OF (OR ANY INABILITY TO USE) THE FIX PROTOCOL, WHETHER DIRECT, INDIRECT,
INCIDENTAL, SPECIAL OR CONSEQUENTIAL (INCLUDING, WITHOUT LIMITATION, LOSS OF DATA,
LOSS OF USE, CLAIMS OF THIRD PARTIES OR LOST PROFITS OR REVENUES OR OTHER ECONOMIC
LOSS), WHETHER IN TORT (INCLUDING NEGLIGENCE AND STRICT LIABILITY), CONTRACT OR
OTHERWISE, WHETHER OR NOT ANY SUCH PERSON OR ENTITY HAS BEEN ADVISED OF, OR
OTHERWISE MIGHT HAVE ANTICIPATED THE POSSIBILITY OF, SUCH DAMAGES.
No proprietary or ownership interest of any kind is granted with respect to the FIX Protocol (or any rights therein),
except as expressly set out in FIX Protocol Limited's Copyright and Acceptable Use Policy..
© Copyright 2003-20092011 FIX Protocol Limited, all rights reserved
REPRODUCTION
FIX Protocol Limited grants permission to print in hard copy form or reproduce the FIX Protocol specification in its
entirety provided that the duplicated pages retain the “Copyright FIX Protocol Limited” statement at the bottom of
the page.
Portions of the FIX Protocol specification may be extracted or cited in other documents (such as a document which
describes one’s implementation of the FIX Protocol) provided that one reference the origin of the FIX Protocol
specification (http://www.fixprotocol.org) and that the specification itself is “Copyright FIX Protocol Limited”.
FIX Protocol Limited claims no intellectual property over one’s implementation (programming code) of an
application which implements the behavior and details from the FIX Protocol specification.
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 3 of 158
PREFACE
The Financial Information eXchange (FIX) effort was initiated in 1992 by a group of institutions and brokers
interested in streamlining their trading processes. These firms felt that they, and the industry as a whole, could
benefit from efficiencies derived through the electronic communication of indications, orders and executions. The
result is FIX, an open message standard controlled by no single entity, that can be structured to match the business
requirements of each firm. The benefits are:
• From the business flow perspective, FIX provides institutions, brokers, and other market participants a means of
reducing the clutter of unnecessary telephone calls and scraps of paper, and facilitates targeting high quality
information to specific individuals.
• For technologists, FIX provides an open standard that leverages the development effort so that they can
efficiently create links with a wide range of counter-parties.
• For vendors, FIX provides ready access to the industry, with the incumbent reduction in marketing effort and
increase in potential client base.
Openness has been the key to FIX's success. For that reason, while encouraging vendors to participate with the
standard, FIX has remained vendor neutral. Similarly, FIX avoids over-standardization. It does not demand a
single type of carrier (e.g., it will work with leased lines, frame relay, Internet, etc.), nor a single security protocol. It
leaves many of these decisions to the individual firms that are using it. We do expect that, over time, the rules of
engagement in these non-standardized areas will converge as technologies mature.
FIX is now used by a variety of firms and vendors. It has clearly emerged as the inter-firm messaging protocol of
choice. FIX has grown from its original buyside-to-sellside equity trading roots. It is now used by markets
(exchanges, “ECNs”, etc) and other market participants. In addition to equities, FIX currently supports four other
products: Collective Investment Vehicles (CIVs), Derivatives, Fixed Income, and Foreign Exchange. The process
for modifications to the specification is very open with input and feedback encouraged from the community. Those
interested in providing input to the protocol are encouraged use the FIX website Discussion section or contact the
FIX Global Technical Committee Chairpersons, Kevin Houstoun, HSBCRapid Addition, Ltd., or Hanno Klein,
Deutsche Boerse Matt Simpson, Chicago Mercantile Exchange. The FIX website at http://www.fixprotocol.org
is the main source of information, discussion, and notification of FIX-related events.
We look forward to your participation.
FIX Protocol Ltd March 2009August 2011
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 4 of 158
About FIX Protocol Limited
FIX Protocol Limited (FPL) (http://www.fixprotocol.org) oversees and manages the development of the FIX
Protocol specification and encourages its use throughout the industry. FPL is open to due paying members
representing business and technology professionals interested in guiding the growth and adoption of the FIX
Protocol that work for: Buy-side Firms, Sell-side Firms, Exchanges, ECNs/ATSs, Utilities, Vendors, and Other
Associations. For more information about membership please visit http://www.fixprotocol.org/join/ .
FIX Protocol Limited is represented by the following high-level organization structure:
• Global Steering Committee comprised of the FPL Committee Chairs
• Global Technical and Global Education & Marketing comprised of Product/Region Committee
Representatives
For a current list of FPL Member firms, visit:
http://www.fixprotocol.org/members/
For a current list of active FPL Working Groups, visit:
http://www.fixprotocol.org/working_groups/
Links to Product and Regional Committees' web pages are at:
http://www.fixprotocol.org/committees/
EMEA
Region
Asia/Pac
Region Japan
Region
Global Technical
Global Education & Marketing
Americas
Region Global
Fixed
Income
Global Steering Committee (GSC)
Global
Foreign
Exchange
Global
Derivatives
Global
Exchange
& Markets
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 5 of 158
VOLUME INDEX
VOLUME 1 - INTRODUCTION
VOLUME INDEX
INTRODUCTION
DOCUMENT NAVIGATION
FIX PROTOCOL SYNTAX
COMMON COMPONENTS OF APPLICATION MESSAGES
COMMON APPLICATION MESSAGES
GLOSSARY
VOLUME 2 - TRANSPORT PROTOCOLS
INTRODUCTION
TRANSPORT INDEPENDENCE (TI) FRAMEWORK
TRANSPORT PROTOCOLS
VOLUME 3 -FIX APPLICATION MESSAGES: PRE-TRADE
CATEGORY: INDICATION
CATEGORY: EVENT COMMUNICATION
CATEGORY: QUOTATION / NEGOTIATION
CATEGORY: MARKET DATA
CATEGORY: MARKET STRUCTURE REFERENCE DATA
CATEGORY: SECURITIES REFERENCE DATA
CATEGORY: PARTIES REFERENCE DATA
VOLUME 4 -FIX APPLICATION MESSAGES: ORDERS AND EXECUTIONS (TRADE)
CATEGORY: SINGLE/GENERAL ORDER HANDLING
CATEGORY: ORDER MASS HANDLING
CATEGORY: CROSS ORDERS
CATEGORY: MULTILEG ORDERS (SWAPS, OPTION STRATEGIES, ETC)
CATEGORY: LIST/PROGRAM/BASKET TRADING
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 6 of 158
VOLUME 5 - FIX APPLICATION MESSAGES: POST-TRADE
CATEGORY: ALLOCATION AND READY-TO-BOOK
CATEGORY: CONFIRMATION
CATEGORY: SETTLEMENT INSTRUCTIONS
CATEGORY: TRADE CAPTURE ("STREETSIDE") REPORTING
CATEGORY: REGISTRATION INSTRUCTIONS
CATEGORY: POSITIONS MAINTENANCE
CATEGORY: COLLATERAL MANAGEMENT
VOLUME 6 - FIX DATA DICTIONARY
FIELD DEFINITIONS
APPENDIX 6-A - VALID CURRENCY CODES
APPENDIX 6-B - FIX FIELDS BASED UPON OTHER STANDARDS
APPENDIX 6-C - EXCHANGE CODES - ISO 10383 MARKET IDENTIFIER CODE (MIC)
APPENDIX 6-D - CFICODE USAGE - ISO 10962 CLASSIFICATION OF FINANCIAL
INSTRUMENTS (CFI CODE)
APPENDIX 6-E - DEPRECATED (PHASED-OUT) FEATURES AND SUPPORTED APPROACH
APPENDIX 6-F - REPLACED FEATURES AND SUPPORTED APPROACH
APPENDIX 6-G - USE OF <PARTIES> COMPONENT BLOCK
APPENDIX 6-H - USE OF <SETTLINSTRUCTIONS> COMPONENT BLOCK
VOLUME 7 - FIX USAGE NOTES
PRODUCT: COLLECTIVE INVESTMENT VEHICLES (CIV)
PRODUCT: LISTED DERIVATIVES (FUTURES & OPTIONS)
PRODUCT: EQUITIES
PRODUCT: FIXED INCOME
PRODUCT: FOREIGN EXCHANGE
USER GROUP: EXCHANGES AND MARKETS
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 7 of 158
Contents – Volume 1
DISCLAIMER ............................................................................................................................................................. 2
REPRODUCTION ...................................................................................................................................................... 2
PREFACE .................................................................................................................................................................... 3
ABOUT FIX PROTOCOL LIMITED ....................................................................................................................... 4
VOLUME INDEX ....................................................................................................................................................... 5
INTRODUCTION ..................................................................................................................................................... 10
ORGANIZATION OF SPECIFICATION ............................................................................................................... 10
Message and Component Blocks Definitions ....................................................................................................... 10
DOCUMENT NAVIGATION ................................................................................................................................. 11
OVERVIEW OF MAJOR CHANGES IN FIX 5.0 ................................................................................................. 11
TRANSPORT INDEPENDENCE (TI) FRAMEWORK ........................................................................................................ 11
APPLICATION VERSIONING........................................................................................................................................ 12
SERVICE PACK MANGEMENT .................................................................................................................................... 13
EXTENSION PACK MANGEMENT ............................................................................................................................... 13
FLEXIBILITY PROVIDED BY FIX 5.0 .......................................................................................................................... 13
FIX PROTOCOL SYNTAX ..................................................................................................................................... 15
COMMON FIX SYNTAX RULES ......................................................................................................................... 15
Data Types: ......................................................................................................................................................... 15
Required Fields: .................................................................................................................................................. 18
FIX “Tag=Value” SYNTAX ................................................................................................................................ 20
Message Format ................................................................................................................................................................. 20
Field Delimiter: ................................................................................................................................................................. 20
Repeating Groups: ............................................................................................................................................................. 21
User Defined Fields: .......................................................................................................................................................... 22
Example Usage of Encoded Fields For non-ASCII Language Support .............................................................. 24
FIXML SYNTAX .................................................................................................................................................. 25
FIXML Highlights ............................................................................................................................................................. 25
Background.......................................................................................................................................................... 25
FIX and FIXML Version and Comparison using New Order Single Message .................................................................. 25
FIXML Transition to Schema ............................................................................................................................................ 27
FIXML 4.4 Schema Version Design Objectives ............................................................................................................... 28
FIXML Design Rules ........................................................................................................................................... 29
FIXML Schema Root Element .......................................................................................................................................... 29

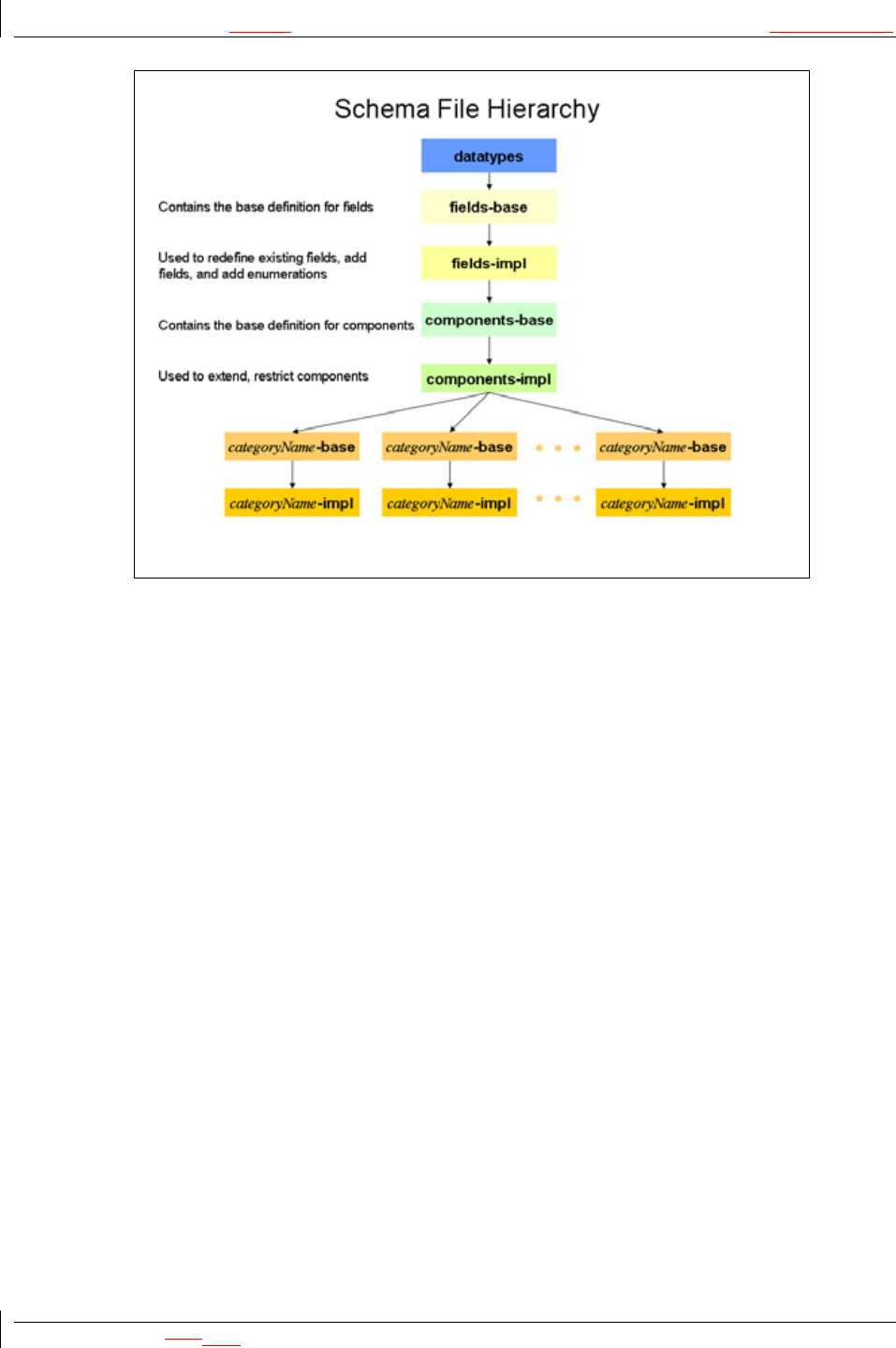

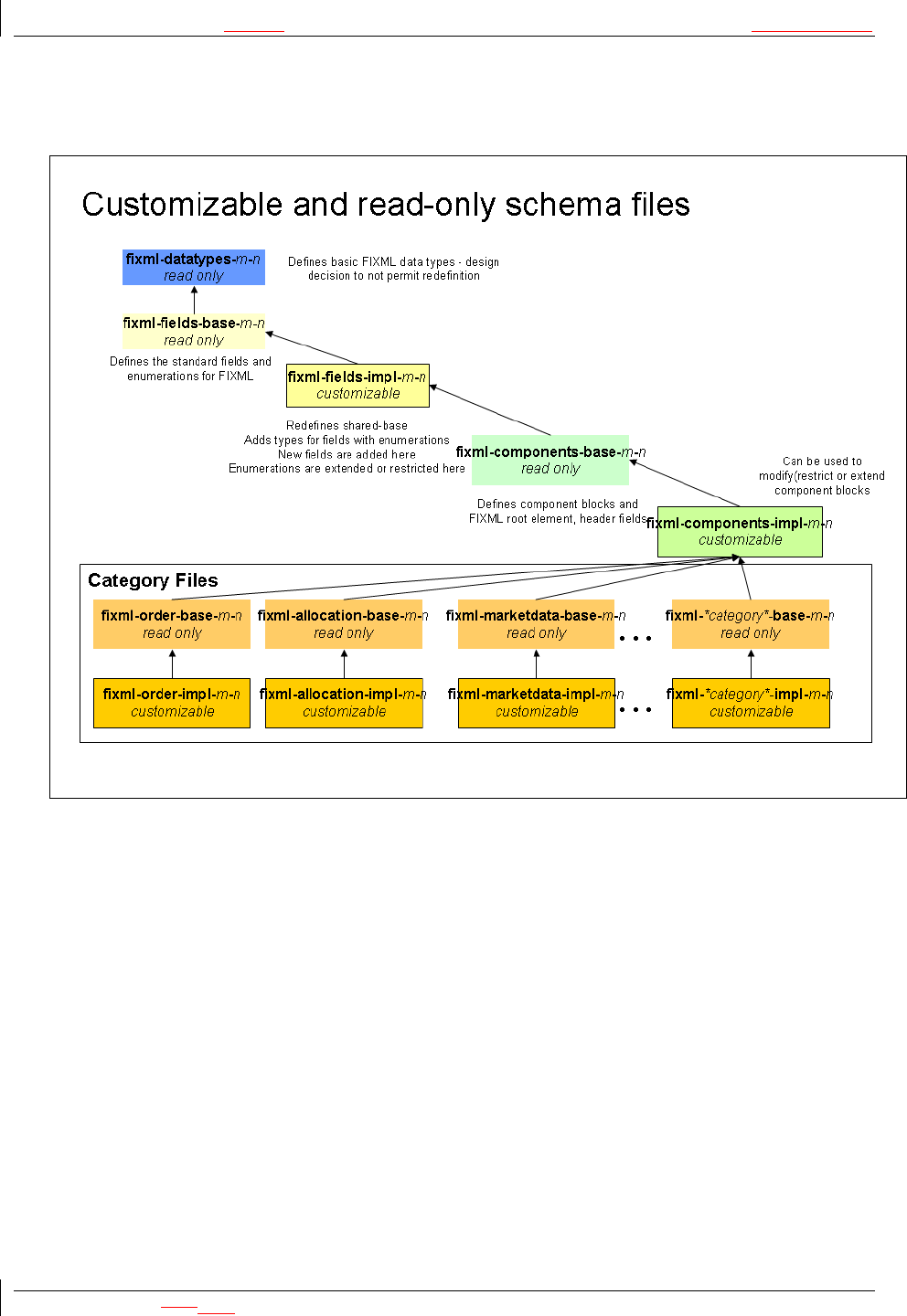

FIXML Schema File Structure .......................................................................................................................................... 33

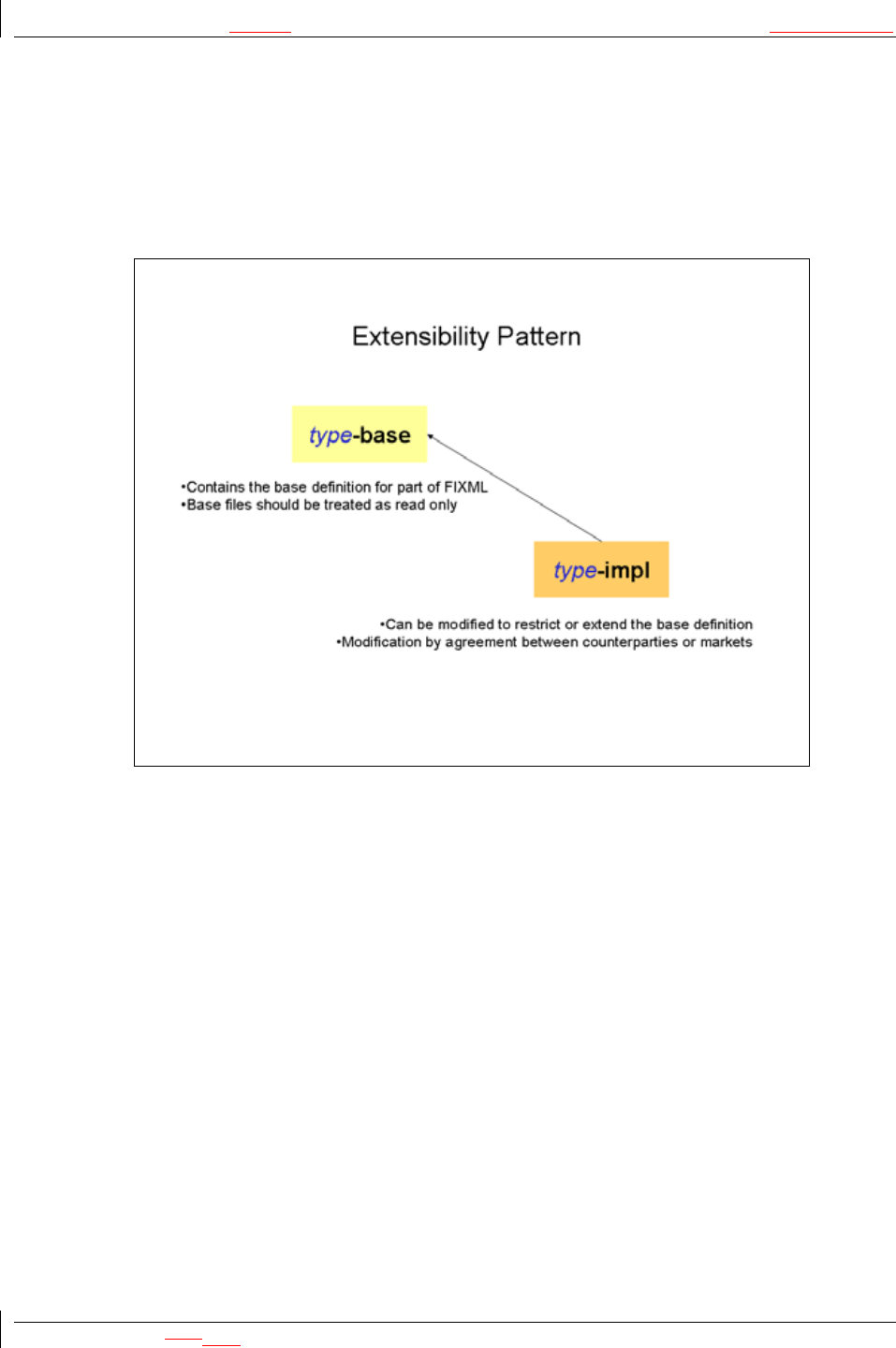

Customization .................................................................................................................................................................... 44
FIXML Schema Version Datatypes ................................................................................................................................... 46
FIXML Schema File Summary .......................................................................................................................................... 49
COMMON COMPONENTS OF APPLICATION MESSAGES - COMPONENT BLOCKS (INCLUDED IN
PRE-TRADE, TRADE, AND POST-TRADE MESSAGES) ................................................................................. 56
INSTRUMENT (SYMBOLOGY) COMPONENT BLOCK ..................................................................................................... 56
Examples using Alternative Security IDs ............................................................................................................. 61
Specifying an FpML product specification from within the FIX Instrument Block ............................................. 61
UNDERLYINGINSTRUMENT (UNDERLYING INSTRUMENT) COMPONENT BLOCK .......................................................... 63
INSTRUMENTLEG (SYMBOLOGY) COMPONENT BLOCK .............................................................................................. 67
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 8 of 158
INSTRUMENTEXTENSION COMPONENT BLOCK .......................................................................................................... 70
ORDERQTYDATA COMPONENT BLOCK ..................................................................................................................... 71
COMMISSIONDATA COMPONENT BLOCK ................................................................................................................... 72
PARTIES COMPONENT BLOCK .................................................................................................................................... 73
NESTEDPARTIES COMPONENT BLOCK ....................................................................................................................... 74
NESTEDPARTIES2 (SECOND INSTANCE OF NESTING) COMPONENT BLOCK.................................................................. 75
NESTEDPARTIES3 (THIRD INSTANCE OF NESTING) COMPONENT BLOCK ..................................................................... 76
NESTEDPARTIES4 (FOUTH INSTANCE OF NESTING) COMPONENT BLOCK .................................................................... 77
SPREADORBENCHMARKCURVEDATA COMPONENT BLOCK ...................................................................................... 78
STIPULATIONS COMPONENT BLOCK ........................................................................................................................... 79
UNDERLYINGSTIPULATIONS COMPONENT BLOCK ..................................................................................................... 80
LEGSTIPULATIONS COMPONENT BLOCK .................................................................................................................... 81
YIELDDATA COMPONENT BLOCK .............................................................................................................................. 82
TRDREGTIMESTAMPS COMPONENT BLOCK ............................................................................................................... 83
FINANCINGDETAILS COMPONENT BLOCK .................................................................................................................. 84
FINANCINGDETAILS COMPONENT BLOCK .................................................................................................................. 84
INSTRUMENTPARTIES COMPONENT BLOCK ............................................................................................................... 86
INSTRUMENTPARTIES COMPONENT BLOCK ............................................................................................................... 86
DISPLAYINSTRUCTION COMPONENT BLOCK .............................................................................................................. 87
DISPLAYINSTRUCTION COMPONENT BLOCK .............................................................................................................. 87
ROOTPARTIES COMPONENT BLOCK ........................................................................................................................... 88
ROOTPARTIES COMPONENT BLOCK ........................................................................................................................... 88
UNDLYINSTRUMENTPARTIES COMPONENT BLOCK ................................................................................................... 89
APPLICATIONSEQUENCECONTROL COMPONENT BLOCK ............................................................................................ 90
SECURITYXML COMPONENT BLOCK ........................................................................................................................ 91
RATESOURCE COMPONENT BLOCK ........................................................................................................................... 91
TARGETPARTIES COMPONENT BLOCK ....................................................................................................................... 92
INSTRMTGRP COMPONENT BLOCK ............................................................................................................................ 92
INSTRMTLEGGRP COMPONENT BLOCK ..................................................................................................................... 93
UNDINSTRMTGRP COMPONENT BLOCK ..................................................................................................................... 93
SECALTIDGRP COMPONENT BLOCK ......................................................................................................................... 93
LEGSECALTIDGRP COMPONENT BLOCK ................................................................................................................... 94
UNDSECALTIDGRP COMPONENT BLOCK .................................................................................................................. 94
EVNTGRP COMPONENT BLOCK ................................................................................................................................. 95
INSTRUMENTPTYSSUBGRP COMPONENT BLOCK ....................................................................................................... 95
UNDLYINSTRUMENTPTYSSUBGRP COMPONENT BLOCK ........................................................................................... 96
PTYSSUBGRP COMPONENT BLOCK ........................................................................................................................... 96
NSTDPTYSSUBGRP COMPONENT BLOCK ................................................................................................................... 97
NSTDPTYS2SUBGRP COMPONENT BLOCK ................................................................................................................. 97
NSTDPTYS3SUBGRP COMPONENT BLOCK ................................................................................................................. 98
NSTDPTYS4SUBGRP COMPONENT BLOCK ................................................................................................................. 98
ROOTSUBPARTIES COMPONENT BLOCK .................................................................................................................... 99
ATTRBGRP COMPONENT BLOCK ............................................................................................................................... 99
CONTAMTGRP COMPONENT BLOCK........................................................................................................................ 100
MISCFEESGRP COMPONENT BLOCK ........................................................................................................................ 100
TRDGSESGRP COMPONENT BLOCK ......................................................................................................................... 101
COMPLEXEVENTS COMPONENT BLOCK ................................................................................................................... 102
COMPLEXEVENTDATES COMPONENT BLOCK .......................................................................................................... 103
COMPLEXEVENTTIMES COMPONENT BLOCK .......................................................................................................... 103
COMMON INFRASTRUCTURE MESSAGES (APPLY TO PRE-TRADE, TRADE, AND POST-TRADE)
................................................................................................................................................................................... 104
BUSINESS MESSAGE REJECT ................................................................................................................................... 104
NETWORK STATUS MESSAGES ................................................................................................................................ 110
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 9 of 158
Network Status Component Blocks .................................................................................................................... 110
CompIDReqGrp component block .................................................................................................................................. 110
CompIDStatGrp component block .................................................................................................................................. 110
Network (Counterparty System) Status Request Message.................................................................................. 111
Network (Counterparty System) Status Response Message ............................................................................... 112
USER ADMINISTRATION MESSAGES ........................................................................................................................ 113
User Management Component Blocks ............................................................................................................... 113
UsernameGrp component block ...................................................................................................................................... 113
User Request Message ....................................................................................................................................... 113
User Response Message .................................................................................................................................... 115
User Notification ............................................................................................................................................... 115
APPLICATION SEQUENCING MESSAGES ................................................................................................................... 117
Introduction ....................................................................................................................................................... 117
Background........................................................................................................................................................ 117
Extends control over resent data ...................................................................................................................................... 117
Support for secondary data distribution ........................................................................................................................... 117
Transaction usage is not recommended............................................................................................................. 118
Using Application Sequencing and Session Sequencing for Gap Detection ..................................................... 118
Applicaton Sequencing Component Blocks ....................................................................................................... 119
ApplIDRequestGrp component block.............................................................................................................................. 119
ApplIDRequestAckGrp component block ....................................................................................................................... 119
ApplIDReportGrp component block ............................................................................................................................... 120
Application Message Request ............................................................................................................................ 121
Application Message Request Ack ..................................................................................................................... 122
Application Message Report .............................................................................................................................. 123
Using Application Message Report to reset ApplSeqNum .............................................................................................. 123
Using Application Message Report to indicate last message sent ................................................................................... 123
Using Application Message Report as keep-alive mechanism ......................................................................................... 123
Using Application Message Report to indicate completion of resent messages .............................................................. 123
Application Sequencing Message flows ............................................................................................................. 125
Application recovery over a FIX session ......................................................................................................................... 125
Application recovery independent of FIX session ........................................................................................................... 126
GLOSSARY ............................................................................................................................................................. 128
APPENDIX 1-A: ABBREVIATIONS USED WITHIN FIXML ........................................................................ 155
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 10 of 158
FINANCIAL INFORMATION EXCHANGE PROTOCOL
INTRODUCTION
The Financial Information Exchange (FIX) Protocol is a message standard developed to facilitate the electronic
exchange of information related to securities transactions. It is intended for use between trading partners wishing to
automate communications.
The message protocol, as defined, will support a variety of business functions. FIX was originally defined for use in
supporting US domestic equity trading with message traffic flowing directly between principals. As the protocol
evolved, a number of fields were added to support cross-border trading, derivatives, fixed income, and other
products. Similarly, the protocol was expanded to allow third parties to participate in the delivery of messages
between trading partners. As subsequent versions of FIX are released, it is expected that functionality will continue
to expand.
The protocol is defined at two levels: session and application. The session level is concerned with the delivery of
data while the application level defines business related data content. This document is divided into volumes and
organized to reflect the distinction.
ORGANIZATION OF SPECIFICATION
The FIX Protocol Specification is organized into 7 Volumes, with each volume covering specific topics areas:
Volume 1: Introduction (this volume)
Volume 2: Transport Protocols
Volume 3: FIX Application Messages for Pre-trade
Volume 4: FIX Application Messages for Orders and Executions (Trade)
Volume 5: FIX Application Messages for Post-trade
Volume 6: FIX Data Dictionary
Volume 7: FIX Usage Notes
Message and Component Blocks Definitions
Volumes 1, 3, 4, and 5 contains definitions of FIX component blocks and application message types. Component
blocks are sets of related data fields grouped together and are referenced by the component block name in
messages that they are used in. FIX component blocks are organized as follows:
• Common Components - are components commonly used by many messages defined across all the
volumes in the FIX. specification These are the most commonly used components. Their definitions are
found in Volume 1.
• volume or section specific components - these are component blocks commonly used only by the FIX
messages found in that volume or section (e.g. pre-trade, trade, post-trade sections). Their definitions are
found in a section at the beginning of the respective volume.
• message category specific components - these are component blocks that are used only by the FIX
messages in a specific message category in a given volume (e.g. Securities Reference Data message
category). Their definitions are found in a section at the beginning of their respective message category.
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 11 of 158
DOCUMENT NAVIGATION
One useful tip when navigating within a volume is to take advantage of the fact that each document contains
“bookmarks” to its main sections. You can use the word processor’s “Goto” function (i.e. Ctrl-G) to quickly
navigate from one key section or appendix to another.
Third parties or volunteers have historically built useful utilities “generated” using the specification document as
their basis which provide cross-reference and lookup capabilities. Such free utilities are available via the FIX
website.
OVERVIEW OF MAJOR CHANGES IN FIX 5.0
With the release of FIX 5.0 in October 2006, the FPL Global Technical Committee (GTC) introduced a new
framework, the transport independence (TI) framework, which separated the FIX Session Protocol from the FIX
Application Protocol. Under the TI framework the application protocol messages can be sent over any suitable
session transport technology (e.g. WS-RX, MQ, publish/subscribe message bus), where the FIX Session Protocol is
one of the available options as a session transport for FIX application messages. From this release forward the FIX
Application layer and the FIX Session layer will have their own versioning moniker. The FIX Application layer will
retain the traditional version moniker of "FIX x.y" while the FIX Session layer will utilize a new version moniker of
"FIXT x.y" (note that the version numbers will be independent of each other). The diagram below illustrates how
previously the FIX Session layer was tighly coupled to the Application layer. With the advent of Application
Versioning and Transport Independence, the FIX Session and Application layers have been decoupled and are now
independent.
Transport Independence (TI) Framework
The transport independence (TI) framework separates the previously coupled FIX Session layer from the FIX
Application layer. Under this framework the FIX Application Protocol can use any transport technology in addition
to the FIX Session Protocol. The diagram below illustrates how various transport mechanisms, including the FIX
Session layer, can be used to carry the full suite of FIX Application versions.
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 12 of 158
To support this framework a key new field has been added called ApplVerID (application version ID, tag 1128).
Depending on the use case ApplVerID may be optional or required. Additionally, the FIX field BeginString will no
longer identify the FIX application version, but identifies the FIX Session Protocol version. The sections below
discusses the four main uses cases supported by the TI framework.
Application Versioning
Application Versioning allows extensions to the current base application version to be applied using a formal release
process. Extension Packs represent the individual gap analysis proposals submitted to the GTC for review and
approval. Extension Packs are grouped into Service Packs and are applied to the base application version, usually
the most current FIX application version. A new application version is formed when a new Service Pack is applied
to a base version. In the diagram below, FIX 4.4 has been extended via Service Pack 0, forming a new application
version called FIX 5.0. As new Extension Packs are approved they will be grouped into Service Pack 1 which is
then released to form the next application version identified as FIX 5.0 SP1. These application versions are
expressed using the new tag ApplVerID.
Base Release
FIX 5.0
Service Pack Release
Process
FIX 4.4
Service
Pack0
Extension
Pack
Extension
Pack
Extension
Pack
Extension
Pack
FIX 5.0 SP1
Service
Pack1
Extension
Pack
Extension
Pack
Extension
Pack
Extension
Pack
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 13 of 158
Service Pack Mangement
ApplVerID is an enumerated field. These enumerations are used to express prior versions of FIX inclusive of FIX
4.0, 4.1, 4.2, 4.3 and 4.4 as well as the most recent version, FIX 5.0. Going forward, service packs will be applied to
the base version, in this case FIX 5.0, and will be identified as FIX Version + Service Pack . This means that FIX 5.0
will be represented as an enumeration (7) rather than as an actual value in the ApplVerID field. Service Pack
identifiers will consist of the base FIX version, the service pack number for that version, and the date the service
pack was released. For example, the assigned value for service pack 1 may be “FIX 5.0 SP1 June 30, 2007”.
Extension Pack Mangement
Extension Packs are the building blocks of a Service Pack and represent specific functional proposals that have been
presented to the GTC. Prior to the release of a Service Pack, Extension Packs are applied to the most recent version
of the repository so that they can be used at the point they become available. Extension Packs are applied to the
repository in a cumulative manner and will at some point culminate in a Service Pack release. Extension Packs
management will be conducted as follows:
1. Extension Packs will be assigned a unique, sequential number at the point they are approved by the GTC
2. Extension Packs are applied to the most recent version of the repository and may be inclusive of prior
Extension Packs
3. At the pont an Extension Pack has been applied, the updated repository, schema, and message tables will be
available
4. When implementing a specific Extension Pack, the field ApplExtID (1156) will be used to specify the
Extension Pack Identifier
5. User’s of an Extension Pack need not implement other Extension Packs present in the repository. Rules of
engagement need to be bilaterally agreed on.
Flexibility Provided by FIX 5.0
This is the ‘GTC approved’ approach which separates the FIX session layer from the application layer, provides
support for application versioning, and creates a platform for transport independence. This approach will treat the
FIX session like ‘any other’ transport and allow the unambiguous use of any application version via the ApplVerID
field. A value of FIXT.1.1 in the BeginString of the FIX Session will indicate that application versioning is in effect
and the version should be determined either through the Logon's NoMsgType repeating group or the AppVerID field.
Future extensions to the session layer or application layer will be supported independent of each other as point
releases to BeginString and ApplVerID, respectively. Major Tags describing the session and application versions are:
BeginString=FIXT.1.1 (or later versions) and ApplVerID=FIX.5.01 (or later versions). A BeginString=FIX.5.0 (or
later versions) will not be valid.
The diagram below illustrates how the new FIXT.1.1 Session layer can be used to transport makes use of the
ApplVerID in the Application layer in order to support a broad set of application versions. 2
1 The value FIX.5.0 will be represented using enumeration 7
2 FIX.4.0, FIX.4.1, FIX.4.2, FIX.4.3, FIX.4.4, FIX.5.0 are represented using enumerations
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 14 of 158
FIX Session Layer
BeginString =
FIXT.1.1
ApplVerID = FIX.4.0 FIX.4.0
New Order
Single
ApplVerID = FIX.4.1 FIX.4.1
Quote
ApplVerID = FIX.4.4
FIX.4.4
Allocation
Instruction
ApplVerID = FIX.5.0 FIX.5.0
TradeCapture
Report
FIX Application Layer
FIX Application Layer
FIX Session Layer
BeginString =
FIXT.1.1
ApplVerID = FIX.4.2 FIX.4.2
Market Data
Buy Side Sell Side
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 15 of 158
FIX PROTOCOL SYNTAX
The FIX Protocol currently exists in two syntaxes:
1. “Tag=Value” syntax
2. FIXML syntax
The same business message flow applies to either syntax. A specific syntax is simply a slightly different way to
represent the same thing in much the same way that “3” and “three” represent the same thing.
COMMON FIX SYNTAX RULES
The following section summarizes general specifications for constructing FIX messages which are applicable to
both “Tag=Value” and FIXML syntaxes.
Data Types:
Data types (with the exception of those of type "data") are mapped to ASCII strings as follows:
int Sequence of digits without commas or decimals and optional sign character (ASCII characters "-" and
"0" - "9" ). The sign character utilizes one byte (i.e. positive int is "99999" while negative int is "-
99999"). Note that int values may contain leading zeros (e.g. "00023" = "23").
Examples:
723 in field 21 would be mapped int as |21=723|.
-723 in field 12 would be mapped int as |12=-723|
Length
int field representing the length in bytes. Value must be positive.
TagNum int field representing a field's tag number when using FIX "Tag=Value"
syntax. Value must be positive and may not contain leading zeros.
SeqNum
int field representing a message sequence number. Value must be positive.
NumInGroup int field representing the number of entries in a repeating group. Value must
be positive.
DayOfMonth
int field representing a day during a particular monthy (values 1 to 31).
float Sequence of digits with optional decimal point and sign character (ASCII characters "-", "0" - "9" and
"."); the absence of the decimal point within the string will be interpreted as the float representation of
an integer value. All float fields must accommodate up to fifteen significant digits. The number of
decimal places used should be a factor of business/market needs and mutual a
counterparties. Note that float values may contain leading zeros (e.g. "00023.23" = "23.23") and may
contain or omit trailing zeros after the decimal point (e.g. "23.0" = "23.0000" = "23" = "23.").
Note that fields which are derived from float may contain negative values unless explicitly specified
Qty float field capable of storing either a whole number (no decimal places) of
"shares" (securities denominated in whole units) or a dec
imal value
containing decimal places for non-
share quantity asset classes (securities
denominated in fractional units).
Price
float field representing a price. Note the number of decimal places may vary.
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 16 of 158
For certain asset classes prices may be negative values. For example, prices
for options strategies can be negative under certain market conditions. Refer
to Volume 7: FIX Usage by Product for asset classes that support negative
price values.
PriceOffset float field representing a price offset, which can be mathematically added to a
"Price". Note the number of decimal places may vary and some fields such as
LastForwardPoints may be negative.
Amt
float field typically representing a Price times a Qty
Percentage float field representing a percentage (
e.g. 0.05 represents 5% and 0.9525
represents 95.25%). Note the number of decimal places may vary.
char Single character value, can include any alphanumeric character or punctuation except the delimiter. All
char fields are case sensitive (i.e. m != M).
Boolean char field containing one of two values:
'Y' = True/Yes
'N' = False/No
String Alpha-
MultipleCharValue
string field containing one or more space delimited single character values
(e.g. |18=2 A F| ).
MultipleStringValue string field containing one or more space delimited multiple character values
(e.g. |277=AV AN A| ).
Country string field representing a country using ISO 3166 Country code (2 character)
values (see Appendix 6-B).
Currency
string field representing a currency type using ISO 4217 Currency code (3
character) values (see Appendix 6-A).
Exchange string field representing a market or exchange using ISO 10383 Market
Identifier Code (MIC) values (see"Appendix 6-C).
MonthYear string field representing month of a year. An optional day of the month can be
appended or an optional week code.
Valid formats:
YYYYMM
YYYYMMDD
YYYYMMWW
Valid values:
YYYY = 0000-9999; MM = 01-12; DD = 01-31; WW = w1, w2, w3, w4, w5.
UTCTimestamp
string field representing Time/date combination represented in UTC
(Universal Time Coordinated, also known as
"GMT") in either
YYYYMMDD-HH:MM:SS (whole seconds) or YYYYMMDD-
HH:MM:SS.sss (milliseconds) format, colons, dash, and period required.
Valid values:
* YYYY = 0000-9999, MM = 01-12, DD = 01-31, HH = 00-23, MM =
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 17 of 158
00-59, SS = 00-60 (60 only if UTC leap second) (without milliseconds).
* YYYY = 0000-9999, MM = 01-12, DD = 01-31, HH = 00-23, MM =
00-59, SS = 00-60 (60 only if UTC leap second), sss=000-999 (indicating
milliseconds).
Leap Seconds: Note that UTC includes corrections for leap seconds, which
are inserted to account for slowing of the rotation of the earth. Leap second
insertion is declared by the International Earth Rotation Service (IERS) and
has, since 1972, only occurred on the night of Dec. 31 or Jun 30. The IERS
considers March 31 and September 30 as secondary dates for leap second
insertion, but has never utilized these dates. During a leap second insertion, a
UTCTimestamp field may read "19981231-23:59:59", "19981231-23:59:60",
"19990101-00:00:00". (see http://tycho.usno.navy.mil/leapsec.html)
UTCTimeOnly string field representing Time-
only represented in UTC (Universal Time
Coordinated, also known as "GMT") in either HH:MM:SS (whole seconds) or
HH:MM:SS.sss (milliseconds) format, colons, and period required. This
special-purpose field is pair
ed with UTCDateOnly to form a proper
UTCTimestamp for bandwidth-sensitive messages.
Valid values:
HH = 00-23, MM = 00-60 (60 only if UTC leap second), SS = 00-59.
(without milliseconds)
HH = 00-23, MM = 00-59, SS = 00-
60 (60 only if UTC leap second),
sss=000-999 (indicating milliseconds).
UTCDateOnly
string field representing Date represented in UTC (Universal Time
Coordinated, also known as "GMT") in YYYYMMDD format. This special-
purpose field is paired with UTCTimeOnly to form a proper UTCTimestamp
for bandwidth-sensitive messages.
Valid values:
YYYY = 0000-9999, MM = 01-12, DD = 01-31.
LocalMktDate
string field represening a Date of Local Market (as oppose to UTC) in
YYYYMMDD format. This is the "normal" date field used by the FIX
Protocol.
Valid values:
YYYY = 0000-9999, MM = 01-12, DD = 01-31.
TZTimeOnly string field representing the time represented based on ISO 8601. This is the
time with a UTC offset to allow identification of local time and timezone of
that time.
Format is HH:MM[:SS][Z | [ + | - hh[:mm]]] where HH = 00-23 hours, MM =
00-59 minutes, SS = 00-59 seconds, hh = 01-12 offset hours, mm = 00-59
offset minutes.
Example: 07:39Z is 07:39 UTC
Example: 02:39-05 is five hours behind UTC, thus Eastern Time
Example: 15:39+08 is eight hours ahead of UTC, Hong Kong/Singapore time
Example: 13:09+05:30 is 5.5 hours ahead of UTC, India time
TZTimestamp string field representing a time/date combination representing local time with
an offset to UTC to allow identification of local time and timezone offset of
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 18 of 158
that time. The representation is based on ISO 8601.
Format is YYYYMMDD-HH:MM:SS[Z | [ + | - hh[:mm]]] where YYYY =
0000 to 9999, MM = 01-12, DD = 01-31 HH = 00-23 hours, MM = 00-59
minutes, SS = 00-59 seconds, hh = 01-12 offset hours, mm = 00-59 offset
minutes
Example: 20060901-07:39Z is 07:39 UTC on 1st of September 2006
Example: 20060901-02:39-05 is five hours behind UTC, thus Eastern Time
on 1st of September 2006
Example: 20060901-
15:39+08 is eight hours ahead of UTC, Hong
Kong/Singapore time on 1st of September 2006
Example: 20060901-
13:09+05:30 is 5.5 hours ahead of UTC, India time on
1st of September 2006
data string field containing raw data with no format or content restrictions. Data
fields are always immediately preceded by a length field. The length field
should specify the number of bytes of the value of the data field (up to but not
including the terminating SOH).
Caution: the value of one of these fields may contain the delimiter (SOH)
character. Note that the value specified for this field should be followed by
the delimiter (SOH) character as all fields are terminated with an "SOH".
XMLData Contains an XML document raw data with no format or content restrictions.
XMLData fields are always immediately preceded by a length field. The
length field should specify the number of bytes of the value of the data field
(up to but not including the terminating SOH).
Language
Identifier for a national language - uses ISO 639-1 standard
Pattern Used to build on and provide some restrictions on what is allowed as valid values in fields that uses a
base FIX data type and a pattern data type. The universe of allowable valid values for the field would
Tenor
used to allow the expression of FX standard tenors in addition to the base
valid enumerations defined for the field that uses this pattern data type. This
pattern data type is defined as follows:
Dx = tenor expression for "days", e.g. "D5", where "x" is any integer > 0
Mx = tenor expression for "months", e.g. "M3", where "x" is any integer > 0
Wx = tenor expression for "weeks", e.g. "W13", where "x" is any integer > 0
Yx = tenor expression for "years", e.g. "Y1", where "x" is any integer > 0
Reserved100Plus Values "100" and above are reserved for bilaterally agreed upon user defined
enumerations.
Reserved1000Plus
Values "1000" and above are reserved for bilaterally agreed upon user
defined enumerations.
Reserved4000Plus Values "4000" and above are
reserved for bilaterally agreed upon user
defined enumerations.
Required Fields:
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 19 of 158
Each message within the protocol is comprised of required, optional and conditionally required (fields which
are required based on the presence or value of other fields) fields. Systems should be designed to operate when
only the required and conditionally required fields are present.
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 20 of 158
FIX “Tag=Value” SYNTAX
The following section summarizes general specifications for constructing FIX messages in “Tag=Value” syntax.
Message Format
The general format of a FIX message is a standard header followed by the message body fields and terminated
with a standard trailer.
Each message is constructed of a stream of <tag>=<value> fields with a field delimiter between fields in the
stream. Tags are of data type TagNum. All tags must have a value specified. Optional fields without values
should simply not be specified in the FIX message. A Reject message is the appropriate response to a tag
with no value.
Except where noted, fields within a message can be defined in any sequence (Relative position of a field
within a message is inconsequential.) The exceptions to this rule are:
1. General message format is composed of the standard header followed by the body followed by the
standard trailer.
2. The first three fields in the standard header are BeginString (tag #8) followed by BodyLength (tag
#9) followed by MsgType (tag #35).
3. The last field in the standard trailer is the CheckSum (tag #10).
4. Fields within repeating data groups must be specified in the order that the fields are specified in the
message definition within the FIX specification document. The NoXXX field where XXX is the field
being counted specifies the number of repeating group instances that must immediately precede the
repeating group contents.
5. A tag number (field) should only appear in a message once. If it appears more than once in the
message it should be considered an error with the specification document. The error should be
pointed out to the FIX Global Technical Committee.
In addition, certain fields of the data type MultipleCharValue can contain multiple individual values separated
by a space within the "value" portion of that field followed by a single "SOH" character (e.g. "18=2 9 C<SOH>"
represents 3 individual values: '2', '9', and 'C'). Fields of the data type MultipleStringValue can contain multiple
values that consists of string values separated by a space within the "value" portion of that field followed by a
single "SOH" character (e.g. "277=AA I AJ<SOH>" represents 3 values: 'AA', 'I', 'AJ').
It is also possible for a field to be contained in both the clear text portion and the encrypted data sections of the
same message. This is normally used for validation and verification. For example, sending the SenderCompID
in the encrypted data section can be used as a rudimentary validation technique. In the cases where the clear text
data differs from the encrypted data, the encrypted data should be considered more reliable. (A security warning
should be generated).
Field Delimiter:
All fields (including those of data type data e.g. SecureData, RawData, SignatureData, XmlData, etc.) in a FIX
message are terminated by a delimiter character. The non-printing, ASCII "SOH" (#001, hex: 0x01, referred to
in this document as <SOH>), is used for field termination. Messages are delimited by the “SOH” character
following the CheckSum field. All messages begin with the “8=FIX.x.y<SOH>” string and terminate with
“10=nnn<SOH>“.
There shall be no embedded delimiter characters within fields except for data type data.
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 21 of 158
Repeating Groups:
It is permissible for fields to be repeated within a repeating group (e.g.
"384=2<SOH>372=6<SOH>385=R<SOH>372=7<SOH>385=R<SOH>" represents a repeating group with two
repeating instances “delimited” by tag 372 (first field in the repeating group.)).
• If the repeating group is used, the first field of the repeating group is required. This allows
implementations of the protocol to use the first field as a "delimiter" indicating a new repeating group
entry. The first field listed after the NoXXX, then becomes conditionally required if the NoXXX field
is greater than zero.
• The NoXXX field (for example: NoTradingSessions, NoAllocs) which specifies the number of
repeating group instances occurs once for a repeating group and must immediately precede the
repeating group contents.
• The NoXXX field is required if one of the fields in the repeating group is required. If all members of a
repeating group are optional, then the NoXXX field should also be optional.
• If a repeating group field is listed as required, then it must appear in every repeated instance of that
repeating group.
• For optional repeating group, there is no requirement to specify NoXXX=0 (e.g. NoPartyIDs=0) when
there is no data to send. The absence of the repeating group means the same thing.
• Sending NoXXX=0 (e.g. NoPartyIDs=0) for optional repeating group is valid but not recommended.
• Recipients should be able to accept NoXXX=0, but Recipients should not require this.
• Senders should never send NoXXX=0.
• For repeating groups that are marked as required, sending NoXXX=0 is not FIX compliant.
• Repeating groups are designated within the message definition via indentation and the
à
symbol.
• The ordering of repeating group instances must be preserved and processed in the order provided by
the message sender.
Some repeating groups are nested within another repeating group (potentially more than one level of nesting).
• Nested repeating groups are designated within the message definition via indentation and the
à
symbol
followed by another
à
symbol.
• If a nested repeating group is used, then the outer repeating group must be specified
Example of a repeating group:
Part of message
215 NoRoutingIDs N Required if any RoutingType and RoutingIDs are
specified. Indicates the number within repeating
group.
à
216 RoutingType N
Indicates type of RoutingID. Required if
NoRoutingIDs is > 0.
à
217 RoutingID N
Identifies routing destination. Required if
NoRoutingIDs is > 0.
Rest of the message not shown
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 22 of 158
Example of nested repeating group
Portion of New Order -
List message showing a nested repeating group for allocations for each order.
Note the NoAllocs repeating group is nested within the NoOrders repeating group and as such each
instance of the orders repeating group may contain a repeating group of allocations.
73 NoOrders Y Number of orders in this message (number of
repeating groups to follow)
à
11
ClOrdID
Y
Must be the first field in the repeating group.
à
526
SecondaryClOrdID
N
à
67
ListSeqNo
Y
Order number within the list
à
583
ClOrdLinkID
N
à
160
SettlInstMode
N
à
component block <Parties> N Insert here the set of "Parties" (firm identification)
fields defined in "COMMON COMPONENTS OF
APPLICATION MESSAGES"
à
229
TradeOriginationDate
N
à
1
Account
N
à
581
AccountType
N
à
589
DayBookingInst
N
à
590
BookingUnit
N
à
591
PreallocMethod
N
à
78 NoAllocs N Indicates number of pre-trade allocation
accounts to follow
à
à
79 AllocAccount N Required if NoAllocs > 0. Must be the first field
in the repeating group.
à
à
467
IndividualAllocID
N
à
à
component block
<NestedParties> N Insert here the set of "Nested Parties" (firm
identification "nested" within additional
repeating group) fields defined in "COMMON
COMPONENTS OF APPLICATION
MESSAGES"
à
à
80
AllocQty
N
à
63
SettlmntTyp
N
à
64 FutSettDate N
Takes precedence over SettlmntTyp value and
conditionally required/omitted for specific
SettlmntTyp values.
Rest of the message not shown
User Defined Fields:
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 23 of 158
In order to provide maximum flexibility for its users, the FIX protocol accommodates User Defined Fields.
These fields are intended to be implemented between consenting trading partners and should be used with
caution to avoid conflicts, which will arise as multiple parties begin implementation of the protocol. It is
suggested that if trading partners find that particular User Defined Fields add value, they should be
recommended to the FIX Global Technical Committee for inclusion in a future FIX version.
The tag numbers 5000 to 9999 have been reserved for use with user defined fields, which are used as part of
inter-firm communcation. These tags can be registered/reserved via the FIX website.
The tag numbers greater than or equal to 10000 have been reserved for internal use (within a single firm) and do
not need to be registered/reserved via the FIX website.
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 24 of 158
Example Usage of Encoded Fields For non-ASCII Language Support
The examples below illustrates how the MessageEncoding (347) field is used in conjunction with the various
available encoded fields in FIX.
Example 1 - Specify the ASCII/English value as Issuer plus Japanese character set as EncodedIssuer
Tag
Field Name
Value
…Other Standard Header fields
347
MessageEncoding
Shift_JIS
…Other Standard Header fields
…Other Message Body fields
106
Issuer
HITACHI
348
EncodedIssuerLen
10
349 EncodedIssuer
…Other Message Body fields
Example 2 - Specify the ASCII/English value as Issuer plus Japanese character set as EncodedIssuer. Specify
the ASCII/English value as Text plus Japanese character set as EncodedText.
Tag
Field Name
Value
…Other Standard Header fields
347
MessageEncoding
Shift_JIS
…Other Standard Header fields
…Other Message Body fields
106
Issuer
HITACHI
348
EncodedIssuerLen
10
349
EncodedIssuer
…Other Message Body fields
58
Text
This is a test
356
EncodedTextLen
17
357
EncodedText
…Other Message Body fields
Precautions when using UNICODE
There is the possibility that an SOH may be included in the character data when using UNICODE encoding. To
avoid parsing problems, a FIX engine should use the EncodedLen value to extract the proper number of bytes.
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 25 of 158
FIXML SYNTAX
FIXML Highlights
• FIXML is the XML vocabulary for creating FIX messages.
• Uses the same FIX data dictionary and business logic.
• Focuses primarily on the FIX Application Messages and does not provide a session layer.
• Can be encapsulated within the FIX Session Protocol or within another protocol like, MQ Series, TIBCO,
SOAP, etc.
Background
The FPL FIXML Working Group began investigating the XML format in 1998 and published a White Paper
supporting an evolutionary approach to migrating the FIX Protocol to an XML format. The working group released
an intial version of the FIXML DTDs on January 15th, 1999. There are currently DTDs based on FIX Protocol
versions 4.1, 4.2 and 4.3. A FIXML Schema based version of FIXML was released following the release of FIX 4.4.
The FIXML language is in a state of transition. It has been four years since the initial release of FIXML. XML
technology has advanced considerably in those four years. FPL committed to deliver an XML Schema representation
for FIXML starting with FIX 4.3. Issues confronting FIXML users in the derivatives post trade area preempted
release of the FIXML Schema for FIX 4.3. Instead the effort shifted to attempts to exploit the capabilities available
in XML Schema to define a version of FIXML that was optimized to reduce message size. This version of FIXML
was referred to as Transport Optimized FIXML during its development. The Global Technical Committee chose to
release the transport optimizations in two phases.
The FIX 4.4 DTD Version was released with FIX 4.4 Eintroduced standardized abbreviations for field names and
removal of container elements used to represent repeating groups and component blocks. This version has been
replaced by the FIX 4.4 Schema Version and should no longer be used.
The FIX 4.4 Schema Version was released as part of FIX 4.4 Errata release. The FIX 4.4 Schema Version exploits
the enhanced capabilities of XML Schema to further optimize FIXML message size by introducing the use of
attributes to represent fields.
FIXML for FIX 5.0 is defined by an XML Schema based upon the work done for FIX 4.4.
FIX and FIXML Version and Comparison using New Order Single Message
The following section compares the implementation of the same FIX new order single message in FIX 4.2 tag=value
format, FIXML 4.2 DTD version, and FIXML Schema Version.
FIX tag=value Version
The following is a FIX 4.2 New Order Single message in classic tag-value pair format:
8=FIX.4.2^9=251^35=D^49=AFUNDMGR^56=ABROKER^34=2^52=20030615-
01:14:49^11=12345^1=111111^63=0^64=20030621^21=3^110=1000^111=50000^55=IBM^48=4592001
01^22=1^54=1^60=2003061501:14:49 38=5000^40=1^44=15.75^15=USD^59=0^10=127
NOTE: ^ represents the SOH separator.
The message is 195 bytes in length.
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 26 of 158
FIXML 4.2 Version
The following is a roughly equivalent FIXML 4.2 DTD-based message:
<FIXML>
<FIXMLMessage>
<Header>
<PossDupFlag Value="N" />
<PossResend Value="N" />
<SendingTime>20020103-12:00:01</SendingTime>
<Sender>
<CompID>AFUNDMGR</CompID>
</Sender>
<Target>
<CompID>ABROKER</CompID>
</Target>
</Header>
<ApplicationMessage>
<Order>
<ClOrdID>1968</ClOrdID>
<Account>4130287</Account>
<HandlInst Value="1" />
<ExDestination Value="L" />
<Instrument>
<Symbol>IBM</Symbol>
<SecurityID>459200101</SecurityID>
<SecurityIDSource Value="1" />
</Instrument>
<Side Value="2" />
<TransactTime>20021120-12:13:12</TransactTime>
<OrderQtyData>
<OrderQty>1000</OrderQty>
</OrderQtyData>
<OrdType Value="2" />
<Price>93.25</Price>
<Currency Value="USD" />
</Order>
</ApplicationMessage>
</FIXMLMessage>
</FIXML>
This message is 684 bytes; over three times the message size of the raw FIX tav=value message. In practice,
FIXML messages could be 3-5 times their FIX tag=value equivalents.
FIXML 4.4 Schema Version
The following is a New Order Single message based on the FIXML 4.4 Schema.
<FIXML>
<Order ClOrdID="123456"
Side="2"
TransactTm="2001-09-11T09:30:47-05:00"
OrdTyp="2"
Px="93.25"
Acct="26522154">
<Hdr Snt="2001-09-11T09:30:47-05:00"
PosDup="N"
PosRsnd="N"
SeqNum="521">
<Sndr ID="AFUNDMGR"/>
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 27 of 158
<Tgt ID="ABROKER"/>
</Hdr>
<Instrmt Sym="IBM"
ID="459200101"
IDSrc="1"/>
<OrdQty Qty="1000"/>
</Order>
</FIXML>
NOTE: The XML attributes in the message have been placed on separate lines to aid readability
This message is 348 bytes in length; approximately 70% larger than the raw FIX tag=value message, but roughly
half the size of the previous FIXML format without significant loss in readability.
Sample Message Content
The following table is included to help clarify the message content shown above
Tag/Attribute
Meaning
<FIXML>
Root element
<Order
ClOrdID="123456"
Side="2"
TransactTm="2001-09-11T09:30:47-05:00"
OrdTyp="2"
Px="93.25"
Acct="26522154">
New order
Client’s order ID
Sell order
Transaction time
Limit order
Limit price
Customer’s account
<Instrmt Sym="IBM"
ID="459200101"
IDSrc="1"/>
Stock symbol
Stock CUSIP
(ID source=CUSIP)
<OrdQty Qty="1000"/>
Order quantity
</Order>
Close of order
</FIXML>
Close root element
FIXML Transition to Schema
FIXML was initiated at a time when the only mechanism available to define and validate an XML syntax was the
Document Type Definition (DTD) originally created as part of the Standardized General Markup Language
(SGML). The DTD provided only minimal ability to define XML syntax.
TSince then, the World Wide Web Consortium (Hhttp://www.w3c.orgH) adopted XML Schema as a way of
representing the format of XML messages using XML syntax. Document Type Definitions (DTDs), which were
originally part of XML, have limited syntax and capabilities for defining XML syntax. XML Schema was designed
to address many of the deficiencies of DTDs. The FPL Global Technical Committee has received numerous requests
from FIX users for an XML Schema representation of the FIX Protocol and believes that a version of FIXML
defined using XML Schema will provide a more robust, optimized message format and provide a better environment
for users implementinTg FIXML applications.
The following limitations of DTDs determined much of the FIXML implementation;
Meta data could not be included in the DTD - so attributes were used for meta-data.
Attributes could not be "typed" so this restricted datatyping to elements. Many XML syntax's then relied heavily on
elements for data, attributes for meta-data. This is the approach taken for FIXML up through the FIX 4.4 Errata
20030618 release.
Since the initial release of FIXML in 1999, XML technology has advanced. The primary advancement has been in
the area of standards that are used to define XML based languages. First among these is XML Schema - which has
been adopted as a standard by the W3C. XML Schema addresses many of the limitations in DTDs, including:
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 28 of 158
Advanced datatyping, including datatyping for attributes.
Ability to include user defined meta-data in addition to standardized annotation and documentation.
XML Schema is written in XML, permitting manipulation by XML tools, such as XSLT, Xpath, etc.
FIXML 4.4 Schema Version Enhancements
The Schema version introduces the following enhancements
• Incorporated further transport optimizations
• Adoption of attributes
• Contextual Abbreviations – further reducing field names
• Addressed component blocks built around limitations of FIX tag=value by using consistent field names
across component blocks
• InstrumentLeg, NestedParties, Nested2Parties,UnderlyingInstrument
• Develop XML Schema Design Approach
• Leverage work already done by ISO/XML and FpML
• Design to support extensibility (customization) capabilities provided by FIX tag=value syntax
FIXML 4.4 Schema Version Design Objectives
Design objectives for FIXML messages (instance documents)
These design objectives refer to the FIXML instance documents. Instance documents are the actual FIXML
messages.
• FIXML implementation shall adhere to XML technology standards as specified by the W3C.
• FIXML implementation shall be suitable implementation for use in high volume transaction scenarios.
Target applications:
• Order Routing
• Trade Reporting and Post Trade Processing
• Distribution of product (instrument) information
• Market making for lower volume applications
• FIXML implementation shall minimize bandwidth consumption (reduced message size). The goal is to
have FIXML messages be less than 1.5 X the size of an equivalent FIX tag=value message.
• FIXML implementation shall maintain human readability of FIXML message, while still adhering to
performance goals.
• FIXML implementation shall support integration of FpML product specifications within the FIXML
message in an equivalent manner to FIX 4.4 tag=value. This integration should use commonly agreed
upon, de facto standard XML design patterns.
• FIXML implementation shall support a ready translation to and from FIX tag=value messages.
• FIXML implementation shall provide a cross-reference to ISO 15022 repository for each message,
element, and component.
• FIXML implementation shall maintain the extensibility and customization available via the FIX
tag=value message format, including:
• Ability to add custom messages,
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 29 of 158
• Ability to add custom fields to messages, component blocks, and repeating groups.
• FIXML Implementation shall provide full transport level independence.
• FIXML Implementation shall support version identification.
Design Objectives for the Schema Document
• FIXML Schema shall be implemented using the current de facto industry best practices for XML
Schema usage.
• FIXML Schema shall be implemented in such a way as to fully support the FIXML 4.4 "Schema
Version" Instance Requirements defined above.
• FIXML Schema shall support version identification.
• FIXML Schema shall provide meta-data sufficient to identify the FIX field name, component type, tag
number, ISO 15022 repository cross-reference.
• FIXML Schema shall be interoperable and compatible with the FpML schema.
• The FIXML Schema shall be based upon and be compatible with the current version of XML
schema: http://www.w3.org/2001/XMLSchema
FIXML Design Rules
The following design guidelines were created to meet the design objectives for the FIXML Schema and the
FIXML instance documents defined above.
1. Use meaningful abbreviations for element and attribute names wherever possible. Use standard
abbreviations for common words (e.g., Price = Px, Currency = Ccy, etc.).
2. FIX Messages shall be implemented as XML Elements.
3. Individual, non-repeating fields shall be implemented as attributes of FIX Message elements.
4. FIX Component Blocks shall be implemented as an XML element.
5. Component blocks that were duplicated within FIX to circumvent tag=value requirements for uniqueness
across fields and tag numbers, such as the Parties, NestedParties, NestedParties2 component blocks, shall
use common naming in FIXML. The datatypes for each of the ComponentTypes will provide the mapping
back to FIX tag=value format.
6. Non-repeating fields belonging to a FIX component block shall be implemented as attributes.
7. Repeating groups shall be implemented as XML elements.
8. Non-repeating fields belonging to a repeating group shall be implemented as attributes.
9. Identical repeating groups that occur across FIX messages will be identified as implicit components and
reused across messages.
10. Field name prefixes that were used in FIX tag=value format for uniqueness shall be removed – thus creating
a contextual abbreviation.
11. FIX datatypes will be mapped to the closest XML Schema datatype whenever possible, thus making
FIXML more compatible with standard XML toolsets.
FIXML Schema Root Element
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 30 of 158
The FIXML Schema root element has been expanded to include the ability to include a batch of FIXML
application messages. Batch capability was provided to deliver groups of messages, such as post trade confirms
or position reports at the end of a trading session. Single message capability is still supported. Note that the
headres are optional.
An Example FIXML Single Message
The following is a New Order Single FIXML Schema message sent individually.
<FIXML v="4.4" r="20030618" s="20040109">
<Order ClOrdID="123456" Side="2" TransactTm="2001-09-11T09:30:47-05:00"
OrdTyp="2" Px="93.25" Acct="26522154">
<Instrmt Sym="IBM" ID="459200101" IDSrc="1"/>
<OrdQty Qty="1000"/>
</Order>
</FIXML>
Message
(
MessageType
abstract)
FIXML Element
Batch
(
HeaderType
)
0..1
0..1
Batch Header
0..n
0..1
Hdr
(Header)
0..1
<FIXML>
<Batch>
<
Hdr
/>
<
Order>
<
Hdr
/>
</
Order>
<
Order>
<
Hdr
/>
</
Order>
</Batch>
</FIXML>
<FIXML>
<
Order>
<
Hdr
/>
</
Order>
</FIXML>
Single Message Usage
Batch Message
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 31 of 158
An Example FIXML Batch Message
The following example shows a batch of position reports.
Note that the header is provided for the entire batch of messages.
<FIXML v="4.4" r="20030618" s="20031030">
<Batch>
<Hdr Snt="2001-12-17T09:30:47-05:00">
<Sndr ID="OCC"/>
<Tgt ID="Firm"/>
</Hdr>
<PosRpt RptID="541386431" Rslt="0" BizDt="2003-09-10T00:00:00" Acct="1"
AcctTyp="1" SetPx="0.00" SetPxTyp="1" PriSetPx="0.00" ReqTyp="0" Ccy="USD">
<Pty ID="OCC" Role="21"/>
<Pty ID="99999" Role="4"/>
<Pty ID="C" Role="38">
<PtySub SubID="ZZZ" SubIDTyp="2"/>
</Pty>
<Qty Typ="SOD" Long="35" Short="0"/>
<Qty Typ="FIN" Long="20" Short="10"/>
<Qty Typ="IAS" Long="10"/>
<Amt Typ="FMTM" Amt="0.00"/>
<Instrmt Sym="AOL" ID="KW" IDSrc="J" CFI="OCASPS" MMY="20031122"
Mat="2003-11-22T00:00:00" Strk="47.50" StrkCcy="USD" Mult="100"/>
</PosRpt>
<PosRpt RptID="541386536" Rslt="0" BizDt="2003-09-10T00:00:00" Acct="1"
AcctTyp="1" SetPx="0.00" SetPxTyp="1" PriSetPx="0.00" ReqTyp="0" Ccy="USD">
<Pty ID="OCC" Role="21"/>
<Pty ID="99999" Role="4"/>
<Pty ID="C" Role="38">
<PtySub SubID="ZZZ" SubIDTyp="2"/>
</Pty>
<Qty Typ="SOD" Long="35" Short="0"/>
<Qty Typ="FIN" Long="20" Short="10"/>
<Qty Typ="IAS" Long="10"/>
<Amt Typ="FMTM" Amt="0.00"/>
<Instrmt Sym="AOL" ID="KW" IDSrc="J" CFI="OCASPS" MMY="20031122"
Mat="2003-11-22T00:00:00" Strk="47.50" StrkCcy="USD" Mult="100"/>
</PosRpt>
<PosRpt RptID="541386678" Rslt="0" BizDt="2003-09-10T00:00:00" Acct="1"
AcctTyp="1" SetPx="0.00" SetPxTyp="1" PriSetPx="0.00" ReqTyp="0" Ccy="USD">
<Pty ID="OCC" Role="21"/>
<Pty ID="99999" Role="4"/>
<Pty ID="C" Role="38">
<PtySub SubID="ZZZ" SubIDTyp="2"/>
</Pty>
<Qty Typ="SOD" Long="35" Short="0"/>
<Qty Typ="FIN" Long="20" Short="10"/>
<Qty Typ="IAS" Long="10"/>
<Amt Typ="FMTM" Amt="0.00"/>
<Instrmt Sym="AOL" ID="KW" IDSrc="J" CFI="OCASPS" MMY="20031122"
Mat="2003-11-22T00:00:00" Strk="47.50" StrkCcy="USD" Mult="100"/>
</PosRpt>
</Batch>
</FIXML>
Version Identification
FIXML versions are identified explicitly in the schema file names and also with constant attribute values defined
in the fixml-component-base schema file.
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 32 of 158
FIXML Schema File Versioning
FIXML Schema employed the file naming convention developed for FpML. The major and minor version
numbers of the FIX version represented by the schema are appended to all FIXML schema file names. This
approach was taken to explicitly force users to recognize when counterparties have changed their version of the
schema.
FIXML Message Versioning
The FIXML root element <FIXML> contains three attributes that define the version of the message. The
FIXML root element is defined in the fixml-components-base schema file.
Attribute
Description
Format
Example
v
FIX Version N.N 4.4
r FIX Version release date (used to
designate errata releases between
FIX versions)
YYYYMMDD 20030618
s Schema Release (used to
designate schema releases
between errata releases)
YYYYMMDD 20031030
xv
FIX Extension Pack number EPN EP79
xc Custom functionality, support of
which required billateral
agreement.
Example:
<FIXML v=”5.0” r=”20061024” s=”20061026”> </FIXML>
For FIX 5.0 changes have been made for versioning in order to be compatible with changes to support transport
independence.
Version FIXML Field Abbreviation FIX
Tag
FIX Field Name Discussion
FIX.4.4
Version
v
8
BeginString
Version of FIX
FIX.4.4
Release
r
Release date of FIX
FIX.4.4
SchemaRelease
s
Release date of the Schema
FIX.4.4
Extension Version
xv
Extension version
FIX.4.4
Extension Release
xr
Extension release date
New fields in the standard header
FIXT.1.1 v 1128 ApplVerID
Indicates application version
using a service pack identifier.
The ApplVerID applies to a
specific message
FIXT.1.1 r deprecated
can be used to provide the
version release date
FIXT.1.1 xv 1156 ApplExtID Indicates
the Extension Pack
number being applied.
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 33 of 158
FIXT.1.1 xc 1129 CstmApplVerID
Used to support bilaterally
agreed custom functionality
FIXT.1.1 xr deprecated
can be used to provide a
release date for the extended
version
FIXML Schema File Structure
Organization of files was driven largely by the requirement to support customization of the FIXML Schema per
the requirements set forth by the FIXML Schema Working Group.
The basic organization of the schema has the datatypes used by the fields maintained in a separate file. FIX
fields are defined in the shared file. Components and the FIXML root element are defined in the component
files. FIXML messages are defined within separate category files.
Extensibility Design Pattern
Much of the design work that went into the FIXML Schema was done to permit counterparties to further refine
the FIXML language either by restriction or extension.
A possible scenario for restriction would be a market place that only supports a subset of the enumerations
available for OrdType (tag=39). The exchange can override the OrdType_t FIXML datatype in the fixml-
shared-impl-M-N.xsd file to restrict the set of possible values to only those supported by the market place.
An example ofextension would be counterparties that require an additional custom field to be added to a new
message.
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 34 of 158
In order to provide a uniform method in defining customizations that could be readily absorbed by
counterparties an extensibility design pattern was developed that defines how the FIXML definition was
partitioned and organized within separate schema files.
Each level of schema file (with the exception of datatypes) provides a base definition file that defines the
standard (default) FIXML language. Redefining this base file an implementation file (“impl”) is provided that by
default simply references the base definition.
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 35 of 158
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 36 of 158
Subsequent levels of the schema reference the impl from the previous level – thus providing a customization
entry point at the field level, component level, and message level.
FIXML Schema file naming conventions
FIXML file naming conventions are shown in the followin illustration.
All filenames begin with lowercase “fixml-“
“-“ is used to separate portions of the filename
The type of the schema file is identified in the second component of the file name. The datatypes file contains
the basic datatypes used within FIXML. The shared files contain the definitions for FIX fields. The components
file contains definitions for FIXML components (as defined in Volume 1 of the specification, additional
components identified while defining the FIXML schema, and the outer elements for FIX.
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 37 of 158
Files are either a base file or an implementation (impl). Base files define the standard FIXML language. Impl
files are used to extend or restrict the base FIXML language.
Refer to the FIXML Schema File Summary section for a complete list of schema files used in FIXML as of FIX
release 4.4.
Datatypes schema file
A decision was made to use native XML Schema datatypes wherever possible. Many of the XML Schema
standards are based upon ISO standard datatypes. This means that the FIX representation of UTCTimestamp is
different from the FIXML representation. The FIXML Schema working group felt it more important to be
compatible with XML and as a result XML toolsets. The requirement for conversion between FIX tag=value
datatypes and XML is left to implementors.
The fixml-datatypes schema file contains definitions for the FIXML datatypes.
FIX 5.0 introduces pattern datatypes that are used to appropriately support customization of enumerations and
also to support types that require both enumerations and specific patterns, such as the SettlementType field. The
<xs:union> element is used to combine an enumerated type with a pattern type in the fixml-fields-impl-M-N.xsd
file..
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 38 of 158
The following patterns have been created to support validation of user defined enumeration values and extended
patterns.
Tenor Pattern <xs:simpleType
name="Tenor"><xs:restriction
base="xs:string"> <xs:pattern
value="[DMWY](\d)+"/> </xs:restriction>
</xs:simpleType>
Currently used to support the
SettlementType which can be
either an enumeration or a tenor
pattern, such as M6 (six month).
Reserved100Plus Pattern <xs:simpleType
name="Reserved100Plus"><xs:restriction
base="xs:integer"> <xs:minInclusive
value="100"/> </xs:restriction>
</xs:simpleType>
Used for enumerated fields that
permit user defined values of
100 and greater.
Reserved1000Plus Pattern <xs:simpleType
name="Reserved1000Plus"><xs:restriction
base="xs:integer"> <xs:minInclusive
value="1000"/> </xs:restriction>
</xs:simpleType>
Used for enumerated fields that
permit user defined values of
1000 and greater.
Reserved4000Plus Pattern <xs:simpleType
name="Reserved4000Plus"><xs:restriction
base="xs:integer"> <xs:minInclusive
value="4000"/> </xs:restriction>
</xs:simpleType>
Used for enumerated fields that
permit user defined values of
4000 and great.
Example union types from fixml-fields-impl-M-N.xsd:
<xs:simpleType name="SettlType_t">
<xs:union memberTypes="SettlType_enum_t Tenor"/>
</xs:simpleType>
The Settlement type is a union of the settlement
type enumerations and the Tenor type described
above
<xs:simpleType name="OrdRejReason_t">
<xs:union memberTypes="OrdRejReason_enum_t
Reserved100Plus"/>
</xs:simpleType>
The OrderRejectReason field is a union of the
OrderReject Reason enumerations and can also be
extended with user defined values of 100 or
greater.
Fields schema files
• Fields schema file (fixml-fields-*-M-N.xsd)
• Fields base file (fixml-fields-base-M-N.xsd)
The fixml-fields-base file contains simple type definitions for all FIX application level fields and session level
fields that are used as part of the FIXML header. All fields are defined as simple types. The simple type name is
derived from the full FIX field name appended with a “_t”. All fields with enumerations are defined as simple
types. The enumeration simple type name is derived from the full FIX field name appended with a “enum_t”.
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 39 of 158
Field definition examples
An example of a field definition for the AvgPx (tag=6) field:
<xs:simpleType name="AvgPx_t">
<xs:annotation>
<xs:documentation xml:lang="en">Calculated average price of all fills
on this order For Fixed Income trades AvgPx is always expressed as
percent of par regardless of the PriceType 423 of LastPx 3 I e
AvgPx will contain an average of percent of par values see LastParPx 669
for issues traded in Yield Spread or Discount
</xs:documentation>
<xs:appinfo xmlns:x="http://www.fixprotocol.org/fixml/metadata.xsd">
<xs:Xref Protocol="FIX" name="AvgPx" tag="6" datatype="Price"
ComponentType="Field"/>
<xs:Xref Protocol="ISO_15022_XML"/>
</xs:appinfo>
</xs:annotation>
<xs:restriction base="Price"/>
</xs:simpleType>
An example of an enumerated field:
<xs:simpleType name="CommType_enum_t">
<xs:annotation>
<xs:documentation xml:lang="en">Commission type Valid values: = per
unit implying shares par currency etc 2 = percentage 3 = absolute
total monetary amount 4 = for CIV buy orders percentage waived cash
discount 5 = for CIV buy orders percentage waived enhanced units 6 =
points per bond or or contract Supply ContractMultiplier 23 in the
Instrument component block if the object security is denominated in a size
other than the industry default 000 par for bonds
</xs:documentation>
<xs:appinfo xmlns:x="http://www.fixprotocol.org/fixml/metadata.xsd">
<xs:Xref Protocol="FIX" name="CommType" tag="13" datatype="char"
ComponentType="Field"/>
<xs:Xref Protocol="ISO_15022_XML"/>
</xs:appinfo>
<xs:appinfo xmlns:x="http://www.fixprotocol.org/fixml/metadata.xsd">
<x:EnumDoc value="1" desc="PerShare"/>
<x:EnumDoc value="2" desc="Percent"/>
<x:EnumDoc value="3" desc="Absolute"/>
<x:EnumDoc value="4" desc="PctWaivedCshDisc"/>
<x:EnumDoc value="5" desc="PctWaivedEnUnits"/>
<x:EnumDoc value="6" desc="PerBond"/>
</xs:appinfo>
</xs:annotation>
<xs:restriction base="xs:string">
<xs:enumeration value="1"/>
<xs:enumeration value="2"/>
<xs:enumeration value="3"/>
<xs:enumeration value="4"/>
<xs:enumeration value="5"/>
<xs:enumeration value="6"/>
</xs:restriction>
</xs:simpleType>
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 40 of 158
Fields implementation file (fixml-fields-impl-M-N.xsd)
One of the more convoluted constructs used was the need to place the field level definitions for enumerated
types in the fixml-fields-impl file. As shown above, the fixml-fields-base file defines each enumerated field as a
simple type named fieldname_enum_t. This enumerated type is then used to define a corresponding field type
in the fixml-fields-impl schema file named fieldname_t. It is this fieldname_t type that is referenced in
subsequent schema files (fixml-components and the message category schema files). This construct was required
to provide a mechanism to extend enumerations. The fieldname_t can be modified in the fixml-fields-impl file
to include additional enumerations. The fieldname_t can be restricted by redefining the fieldname_enum_t
simple type within the fixed-shared-impl file.
Components (fixml-components-*-M-N.xsd)
Component files are used to define the reusable components that are used across FIX messages. The FIXML
root element and headers are defined in the components file, as well.
Components base file (fixml-components-base-M-N.xsd
The fixml-components-base file contains the definitions for all FIX component blocks defined in volume 1 of
the FIX specification. The FIXML root element, FIXML headers, the batch element, and the abstract message
type are also defined within this file.
Components (and messages) are defined using element groups and attribute groups. The advantage of these
groups is that you can redefine the groups (using either restriction or extension) to change the overall structure
of the component (or message).
These groups are defined for each component and message.
componentOrMessageNameElements Contai
ns a list of elements contained in the
component.
componentOrMessageNameAttributes
Contains a list of Attributes contained in the
component.
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 41 of 158
The Parties Component block is shown below. Notice the overall definition pattern. This pattern is followed for
all component blocks and message definitions.
<xs:group name="PartiesElementsRequired">
<xs:sequence/>
</xs:group>
<xs:group name="PartiesElementsOptional">
<xs:sequence>
<xs:element name="PtySub" type="PtysSubGrp_Block_t" minOccurs="0"
maxOccurs="unbounded"/>
</xs:sequence>
</xs:group>
<xs:group name="PartiesElementsCustom">
<xs:sequence/>
</xs:group>
<xs:attributeGroup name="PartiesAttributesRequired">
</xs:attributeGroup>
<xs:attributeGroup name="PartiesAttributesOptional">
<xs:attribute name="ID" type="PartyID_t" use="optional"/>
<xs:attribute name="IDSrc" type="PartyIDSource_t" use="optional"/>
<xs:attribute name="Role" type="PartyRole_t" use="optional"/>
</xs:attributeGroup>
<xs:attributeGroup name="PartiesAttributesCustom"/>
<xs:complexType name="Parties_Block_t" final="#all">
<xs:annotation>
<xs:documentation xml:lang="en">**Desc**
</xs:documentation>
<xs:appinfo>
<fm:Xref Protocol="FIX" name="Parties"
ComponentType="BlockRepeating"/>
<xs:Xref Protocol="ISO_15022_XML"/>
</xs:appinfo>
</xs:annotation>
<xs:sequence>
<xs:group ref="PartiesElementsRequired"/>
<xs:group ref="PartiesElementsOptional"/>
<xs:group ref="PartiesElementsCustom"/>
</xs:sequence>
<xs:attributeGroup ref="PartiesAttributesRequired"/>
<xs:attributeGroup ref="PartiesAttributesOptional"/>
<xs:attributeGroup ref="PartiesAttributesCustom"/>
</xs:complexType>
Components implementation file (fixml-components-impl-M-N.xsd)
The default version fixml-components-impl file simply redefines the components-base file. This is the file
where modifications (restrictions or extensions) would be made to component blocks used in the FIX protocol.
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 42 of 158
Categories (fixml-categoryName-base-M-N.xsd)
Each message category defined within the FIX specification has its own schema file. This provides a granular
level of usage for applications only requiring access to one message categoryThe message category schema files
contain the component and message definitions that belong to a specific message category defined within the
FIX Protocol. Examples of message categories include: Indications, Market Data, Positions, Allocation. . A
complete list of the category files for FIXML is provided in the FIXML Schema File Summary section.
Category messages and components are defined following the same pattern defined above for components. The
following defines the New Order Single message from the fixml-categoryOrder-5-0.xsd:
<xs:group name="NewOrderSingleElementsRequired">
<xs:sequence>
<xs:element name="Instrmt" type="Instrument_Block_t" minOccurs="1"
maxOccurs="1"/>
<xs:element name="OrdQty" type="OrderQtyData_Block_t" minOccurs="1"
maxOccurs="1"/>
</xs:sequence>
</xs:group>
<xs:group name="NewOrderSingleElementsOptional">
<xs:sequence>
<xs:element name="Pty" type="Parties_Block_t" minOccurs="0"
maxOccurs="unbounded"/>
<xs:element name="Stip" type="Stipulations_Block_t" minOccurs="0"
maxOccurs="unbounded"/>
<xs:element name="FinDetls" type="FinancingDetails_Block_t" minOccurs="0"
maxOccurs="1"/>
<xs:element name="SprdBnchmkCurve"
type="SpreadOrBenchmarkCurveData_Block_t" minOccurs="0" maxOccurs="1"/>
<xs:element name="Yield" type="YieldData_Block_t" minOccurs="0"
maxOccurs="1"/>
<xs:element name="Comm" type="CommissionData_Block_t" minOccurs="0"
maxOccurs="1"/>
<xs:element name="PegInstr" type="PegInstructions_Block_t" minOccurs="0"
maxOccurs="1"/>
<xs:element name="DiscInstr" type="DiscretionInstructions_Block_t"
minOccurs="0" maxOccurs="1"/>
<xs:element name="PreAll" type="PreAllocGrp_Block_t" minOccurs="0"
maxOccurs="unbounded"/>
<xs:element name="TrdSes" type="TrdgSesGrp_Block_t" minOccurs="0"
maxOccurs="unbounded"/>
<xs:element name="Undl" type="UndInstrmtGrp_Block_t" minOccurs="0"
maxOccurs="unbounded"/>
</xs:sequence>
</xs:group>
<xs:group name="NewOrderSingleElementsCustom">
<xs:sequence/>
</xs:group>
<xs:attributeGroup name="NewOrderSingleAttributesRequired">
<xs:attribute name="ClOrdID" type="ClOrdID_t" use="required"/>
<xs:attribute name="Side" type="Side_t" use="required"/>
<xs:attribute name="TransactTm" type="TransactTime_t" use="required"/>
<xs:attribute name="OrdTyp" type="OrdType_t" use="required"/>
</xs:attributeGroup>
<xs:attributeGroup name="NewOrderSingleAttributesOptional">
<xs:attribute name="ScndClOrdID" type="SecondaryClOrdID_t" use="optional"/>
<xs:attribute name="ClOrdLinkID" type="ClOrdLinkID_t" use="optional"/>
<xs:attribute name="TrdOrigntnDt" type="TradeOriginationDate_t"
use="optional"/>
<xs:attribute name="TrdDt" type="TradeDate_t" use="optional"/>
<xs:attribute name="Acct" type="Account_t" use="optional"/>
<xs:attribute name="AcctIDSrc" type="AcctIDSource_t" use="optional"/>
<xs:attribute name="AcctTyp" type="AccountType_t" use="optional"/>
<xs:attribute name="DayBkngInst" type="DayBookingInst_t" use="optional"/>
<xs:attribute name="BkngUnit" type="BookingUnit_t" use="optional"/>
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 43 of 158
<xs:attribute name="PreallocMethod" type="PreallocMethod_t"
use="optional"/>
<xs:attribute name="AllocID" type="AllocID_t" use="optional"/>
<xs:attribute name="SettlTyp" type="SettlType_t" use="optional"/>
<xs:attribute name="SettlDt" type="SettlDate_t" use="optional"/>
<xs:attribute name="CshMgn" type="CashMargin_t" use="optional"/>
<xs:attribute name="ClrngFeeInd" type="ClearingFeeIndicator_t"
use="optional"/>
<xs:attribute name="HandlInst" type="HandlInst_t" use="optional"/>
<xs:attribute name="ExecInst" type="ExecInst_t" use="optional"/>
<xs:attribute name="MinQty" type="MinQty_t" use="optional"/>
<xs:attribute name="MaxFloor" type="MaxFloor_t" use="optional"/>
<xs:attribute name="ExDest" type="ExDestination_t" use="optional"/>
<xs:attribute name="ProcCode" type="ProcessCode_t" use="optional"/>
<xs:attribute name="PrevClsPx" type="PrevClosePx_t" use="optional"/>
<xs:attribute name="LocReqd" type="LocateReqd_t" use="optional"/>
<xs:attribute name="QtyTyp" type="QtyType_t" use="optional"/>
<xs:attribute name="PxTyp" type="PriceType_t" use="optional"/>
<xs:attribute name="Px" type="Price_t" use="optional"/>
<xs:attribute name="StopPx" type="StopPx_t" use="optional"/>
<xs:attribute name="Ccy" type="Currency_t" use="optional"/>
<xs:attribute name="ComplianceID" type="ComplianceID_t" use="optional"/>
<xs:attribute name="SolFlag" type="SolicitedFlag_t" use="optional"/>
<xs:attribute name="IOIID" type="IOIID_t" use="optional"/>
<xs:attribute name="QID" type="QuoteID_t" use="optional"/>
<xs:attribute name="TmInForce" type="TimeInForce_t" use="optional"/>
<xs:attribute name="EfctvTm" type="EffectiveTime_t" use="optional"/>
<xs:attribute name="ExpireDt" type="ExpireDate_t" use="optional"/>
<xs:attribute name="ExpireTm" type="ExpireTime_t" use="optional"/>
<xs:attribute name="GTBkngInst" type="GTBookingInst_t" use="optional"/>
<xs:attribute name="Cpcty" type="OrderCapacity_t" use="optional"/>
<xs:attribute name="Rstctions" type="OrderRestrictions_t" use="optional"/>
<xs:attribute name="CustOrdCpcty" type="CustOrderCapacity_t"
use="optional"/>
<xs:attribute name="ForexReq" type="ForexReq_t" use="optional"/>
<xs:attribute name="SettlCcy" type="SettlCurrency_t" use="optional"/>
<xs:attribute name="BkngTyp" type="BookingType_t" use="optional"/>
<xs:attribute name="Txt" type="Text_t" use="optional"/>
<xs:attribute name="EncTxtLen" type="EncodedTextLen_t" use="optional"/>
<xs:attribute name="EncTxt" type="EncodedText_t" use="optional"/>
<xs:attribute name="SettlDt2" type="SettlDate2_t" use="optional"/>
<xs:attribute name="Qty2" type="OrderQty2_t" use="optional"/>
<xs:attribute name="Px2" type="Price2_t" use="optional"/>
<xs:attribute name="PosEfct" type="PositionEffect_t" use="optional"/>
<xs:attribute name="CoveredOrUncovered" type="CoveredOrUncovered_t"
use="optional"/>
<xs:attribute name="MaxShow" type="MaxShow_t" use="optional"/>
<xs:attribute name="TgtStrategy" type="TargetStrategy_t" use="optional"/>
<xs:attribute name="TgtStrategyParameters"
type="TargetStrategyParameters_t" use="optional"/>
<xs:attribute name="ParticipationRt" type="ParticipationRate_t"
use="optional"/>
<xs:attribute name="CxllationRights" type="CancellationRights_t"
use="optional"/>
<xs:attribute name="MnyLaunderingStat" type="MoneyLaunderingStatus_t"
use="optional"/>
<xs:attribute name="RegistID" type="RegistID_t" use="optional"/>
<xs:attribute name="Designation" type="Designation_t" use="optional"/>
</xs:attributeGroup>
<xs:attributeGroup name="NewOrderSingleAttributesCustom"/>
<xs:complexType name="NewOrderSingle_message_t" final="#all">
<xs:complexContent>
<xs:extension base="Abstract_message_t">
<xs:sequence>
<xs:group ref="NewOrderSingleElementsRequired"/>
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 44 of 158
<xs:group ref="NewOrderSingleElementsOptional"/>
<xs:group ref="NewOrderSingleElementsCustom"/>
</xs:sequence>
<xs:attributeGroup ref="NewOrderSingleAttributesRequired"/>
<xs:attributeGroup ref="NewOrderSingleAttributesOptional"/>
<xs:attributeGroup ref="NewOrderSingleAttributesCustom"/>
</xs:extension>
</xs:complexContent>
</xs:complexType>
<xs:element name="NewOrdSingle" type="NewOrderSingle_message_t"
substitutionGroup="Message" final="#all"/>
Categories (fixml-categoryName-impl-M-N.xsd)
Each message category defined within the FIX specification has its own schema file. This provides a granular
level of usage for applications only requiring access to one message category. A complete list of the category
files for FIXML is provided below in the FIXML File Summary table.
Trading Life Cycle files
Convenience files are provided with the FIXML schema version that includes the message categories for each of
the trade life cycles (pre-trade, trade, post-trade) used by FIX. These files are provided to make it easier for
applications that require access to multiple message categories within one of the trading life cycles.
Pretrade file (fixml-pretrade-M-N.xsd)
Includes the pre-trade message category implementation files.
Trade file (fixml-trade-M-N.xsd)
Includes the trade message category implementation files.
Post trade file (fixml-trade-M-N.xsd)
Includes the post trade message category implementation files.
Main (fixml-main-M-N.xsd)
A main schema file is included that pulls in the pretrade, trade, and post trade schema files. This is provided for
applications that require access to the full suite of FIX messages.
Customization
The FIXML Schema files have been organized to permit extensibility. Implementation versions of each schema
file (with the exception of the datatypes file) are provided to permit users to redefine the base FIXML Schema
version, as defined in the base files. This section provides guidelines for customizing the FIXML syntax. Even
though a considerable amount of work has gone into making FIXML extensible, users are strongly encouraged
to minimize modifications, in order to promote more consistent usage of the FIXML syntax within the industry.
Obviously, the less customization, the easier it is to connect to counterparties. If customization is required, you
are encouraged to communicate your requirements that are not being met by FIX to the FPL Global Technical
Committee. There you may find out that there is a technique to meet your business requirement. Or, you may
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 45 of 158
find that the Technical Committee has already addressed the issue for a planned future release. At a minimum
you will receive coaching and assistance in how to extend FIXML in such a way as to make the new feature a
part of a future version of FIX.
Defining a custom field
New fields are defined as an XML SimpleType in the fixml-shared-impl-N-N.xsd file. You are recommended to
add the file to the end of the schema document. You also are strongly encouraged to include XML comments to
define the reason for the field.
The field should then be added to the component or message where it will be used, once the field is defined in
the fixml-shared-impl schema file.
If the field will be added to a component contained in fixml-components-base-N-N.xsd, you must now redefine
that component in the fixml-components-impl-N-N.xsd file.
Adding a field to a component or message contained in one of the message categories is done in the same way
you modify the components schema file. You need to redefine the portion of the message in the implementation
version of the file.
You are encouraged to follow the same procedure for procuring new custom field names as is done for the FIX
tag=value version of FIX. The FIX website provides a web page of custom fields and a form to submit requests
for additional custom fields.
Restricting enumeration values for a FIX field
Restricting enumeration values is done by modifying the type definition in the fixml-shared-impl schema file.
Extending enumeration values for a FIX field
Extending enumeration values is done by creating a union of the original enumeration type definition with new
enumeration values.
Making an optional field required
Making an optional field required is done by redefining the optional attribute group, modifying the usage of the
field from “optional” to “required”. This redefinition is done within the implementation file for either the
components or a particular message category.
Making a required field optional
It is not possible to make a required field optional without modifying the original required element or attribute
group. Making required fields optional does go against the standard base definition of FIX and should be
avoided.
Adding a custom message
Custom messages are added by creating a message structure within the category to which the custom message
belongs. Required and optional element and attribute groups should be created for the custom message.
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 46 of 158
FIXML Schema Version Datatypes
Type BaseTy
pe
FIXML Implementation Example
int
Use builtin type: xs:integer
Length int <xs:simpleType name="Length">
<xs:restriction base="Use builtin type:
xs:nonNegativeInteger"> </xs:restriction>
</xs:simpleType>
TagNum
int
NOT REQUIRED IN FIXML
SeqNum int <xs:simpleType name="SeqNum">
<xs:restriction base="Use builtin type:
xs:positiveInteger"> </xs:restriction>
</xs:simpleType>
NumInGroup
int
NOT REQUIRED IN FIXML
DayOfMonth
int
NOT REQUIRED IN FIXML
float
Use builtin type: xs:decimal
Qty float <xs:simpleType name="Qty">
<xs:restriction base="xs:decimal">
</xs:restriction> </xs:simpleType>Use
builtin type: xs:decimal
Price float <xs:simpleType name="Price">
<xs:restriction base="xs:decimal">
</xs:restriction> </xs:simpleType>Use
builtin type: xs:decimal
Strk="47.50"
PriceOffset float <xs:simpleType name="PriceOffset">
<xs:restriction base="xs:decimal">
</xs:restriction> </xs:simpleType>Use
builtin type: xs:decimal
Amt float <xs:simpleType name="Amt">
<xs:restriction base="xs:decimal">
</xs:restriction> </xs:simpleType>Use
builtin type: xs:decimal
Amt="6847.00"
Percentage float <xs:simpleType name="Percentage">
<xs:restriction base="xs:decimal">
</xs:restriction> </xs:simpleType>Use
builtin type: xs:decimal
char <xs:simpleType name="xs:string">
<xs:restriction base=""> <xs:pattern
value=".{1}"/> </xs:restriction>
</xs:simpleType>Use builtin type:
xs:string
Boolean char <xs:simpleType name="Boolean">
<xs:restriction base="xs:string">
<xs:pattern value="[YN]{1}"/>
</xs:restriction> </xs:simpleType>Use
builtin type: xs:string
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 47 of 158
Type BaseTy
pe
FIXML Implementation Example
String
Use builtin type: xs:string
MultipleCharValue String <xs:simpleType
name="MultipleCharValue">
<xs:restriction base="xs:string">
<xs:pattern value="[A-Za-z0-9](\s[A-Za-
z0-9])*"/> </xs:restriction>
</xs:simpleType>Use builtin type:
xs:string
MultipleStringValue String <xs:simpleType
name="MultipleStringValue">
<xs:restriction base="xs:string">
<xs:pattern value=".+(\s.+)*"/>
</xs:restriction> </xs:simpleType>Use
builtin type: xs:string
Country String <xs:simpleType name="Country">
<xs:restriction base="xs:string">
<xs:pattern value=".{2}"/>
</xs:restriction> </xs:simpleType>Use
builtin type: xs:string
Currency String <xs:simpleType name="Currency">
<xs:restriction base="xs:string">
<xs:pattern value=".{3}"/>
</xs:restriction> </xs:simpleType>Use
builtin type: xs:string
StrkCcy="USD"
Exchange String <xs:simpleType name="Exchange">
<xs:restriction base="xs:string">
<xs:pattern value=".*"/> </xs:restriction>
</xs:simpleType>Use builtin type:
xs:string
MonthYear String <xs:simpleType name="MonthYear">
<xs:restriction base="xs:string">
<xs:pattern value="\d{4}(0|1)\d([0-
3wW]\d)?"/> </xs:restriction>
</xs:simpleType>Use builtin type:
xs:string
MonthYear="200303",
MonthYear="20030320",
MonthYear="200303w2"
UTCTimestamp String <xs:simpleType
name="UTCTimestamp"> <xs:restriction
base="xs:dateTime"> </xs:restriction>
</xs:simpleType>Use builtin type:
xs:dateTime
TransactTm="2001-12-
17T09:30:47-05:00"
UTCTimeOnly String <xs:simpleType name="UTCTimeOnly">
<xs:restriction base="xs:time">
</xs:restriction> </xs:simpleType>Use
builtin type: xs:time
MDEntryTime="13:20:00.000-
05:00"
UTCDateOnly String <xs:simpleType name="UTCDateOnly">
<xs:restriction base="xs:date">
MDEntryDate="2003-09-10"
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 48 of 158
Type BaseTy
pe
FIXML Implementation Example
</xs:restriction> </xs:simpleType>Use
builtin type: xs:date
LocalMktDate String <xs:simpleType name="LocalMktDate">
<xs:restriction base="xs:date">
</xs:restriction> </xs:simpleType>Use
builtin type: xs:date
BizDate="2003-09-10"
TZTimeOnly String <xs:simpleType name="TZTimeOnly">
<xs:restriction base="xs:time">
</xs:restriction> </xs:simpleType>Use
builtin type: xs:time
TZTimestamp String <xs:simpleType name="TZTimestamp">
<xs:restriction base="xs:dateTime">
</xs:restriction> </xs:simpleType>Use
builtin type: xs:dateTime
data String <xs:simpleType name="data">
<xs:restriction base="xs:string">
</xs:restriction> </xs:simpleType>Use
builtin type: xs:string
XMLData String <xs:simpleType name="XMLData">
<xs:restriction base="xs:string">
</xs:restriction> </xs:simpleType>Use
builtin type: xs:string
Language String <xs:simpleType name="Language">
<xs:restriction base="xs:language">
</xs:restriction> </xs:simpleType>Use
builtin type: xs:language
en (English), es (spanish), etc.
Pattern
NOT REQUIRED IN FIXML
Tenor Pattern <xs:simpleType name="Tenor">
<xs:restriction base="xs:string">
<xs:pattern value="[DMWY](\d)+"/>
</xs:restriction> </xs:simpleType>Use
builtin type: xs:string
Reserved100Plus Pattern <xs:simpleType
name="Reserved100Plus"> <xs:restriction
base="xs:integer"> <xs:minInclusive
value="100"/> </xs:restriction>
</xs:simpleType>Use builtin type:
xs:integer
Reserved1000Plus Pattern <xs:simpleType
name="Reserved1000Plus">
<xs:restriction base="xs:integer">
<xs:minInclusive value="1000"/>
</xs:restriction> </xs:simpleType>Use
builtin type: xs:integer
Reserved4000Plus Pattern <xs:simpleType
name="Reserved4000Plus">
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 49 of 158
Type BaseTy
pe
FIXML Implementation Example
<xs:restriction base="xs:integer">
<xs:minInclusive value="4000"/>
</xs:restriction> </xs:simpleType>Use
builtin type: xs:integer
FIXML Schema File Summary
File Name
Description
Fixml-datatypes-5-0-SP2.xsd
Defines the base data types that are to be used in other fixml schema files.
These fixml base data types are based on simple types built into XML
Schema.
Fixml-session-base-5-0-SP2.xsd
Includes Fixml--base-5-0-SP2.xsd. Defines Session messages:
Heartbeat
Logon
Logout
Reject
ResendRequest
SequenceReset
TestRequest
XML_non_FIXXMLnonFIX
Fixml-indications-base-5-0-SP2.xsd
Includes Fixml-components-base-5-0-
SP2.xsd. Defines Indication
messages:
Advertisement
IOI
Fixml-indications-impl-5-0-SP2.xsd
Includes FIX50-components-impl-5-0-SP2.xsd.
Used to customise the Indication message category.
Fixml-order-base-5-0-SP2.xsd
Includes Fixml-components-base-5-0-
SP2.xsd. Defines
SingleGeneralOrderHandling messages:
DontKnowTradeDK
DontKnowTrade
ExecutionAcknowledgement
ExecutionReport
NewOrderSingle
OrderCancelReject
OrderCancelReplaceRequest
OrderCancelRequest
OrderStatusRequest
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 50 of 158
Fixml-order-impl-5-0-SP2.xsd
Includes FIX50-components-impl-5-0-SP2.xsd.
Used to customise the SingleGeneralOrderHandling message category.
Fixml-newsevents-base-5-0-SP2.xsd
Includes Fixml-components-base-5-0-
SP2.xsd. Defines
EventCommunication messages:
Email
News
Fixml-newsevents-impl-5-0-SP2.xsd
Includes FIX50-components-impl-5-0-SP2.xsd.
Used to customise the EventCommunication message category.
Fixml-listorders-base-5-0-SP2.xsd
Includes Fixml-components-base-5-0-
SP2.xsd. Defines ProgramTrading
messages:
BidRequest
BidResponse
ListCancelRequest
ListExecute
ListStatus
ListStatusRequest
ListStrikePrice
NewOrderList
Fixml-listorders-impl-5-0-SP2.xsd
Includes FIX50-components-impl-5-0-SP2.xsd.
Used to customise the ProgramTrading message category.
Fixml-ordermasshandling-base-5-0-SP2.xsd
Includes Fixml-components-base-5-0-
SP2.xsd. Defines
OrderMassHandling messages:
OrderMassActionReport
OrderMassActionRequest
OrderMassCancelReport
OrderMassCancelRequest
OrderMassStatusRequest
Fixml-ordermasshandling-impl-5-0-SP2.xsd
Includes FIX50-components-impl-5-0-SP2.xsd.
Used to customise the OrderMassHandling message category.
Fixml-allocation-base-5-0-SP2.xsd
Includes Fixml-components-base-5-0-
SP2.xsd. Defines Allocation
messages:
AllocationInstruction
AllocationInstructionAck
AllocationInstructionAlert
AllocationReport
AllocationReportAck
Fixml-allocation-impl-5-0-SP2.xsd
Includes FIX50-components-impl-5-0-SP2.xsd.
Used to customise the Allocation message category.
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 51 of 158
Fixml-quotation-base-5-0-SP2.xsd
Includes Fixml-components-base-5-0-
SP2.xsd. Defines
QuotationNegotiation messages:
MassQuote
MassQuoteAcknowledgement
Quote
QuoteCancel
QuoteRequest
QuoteRequestReject
QuoteResponse
QuoteStatusReport
QuoteStatusRequest
RFQRequest
Fixml-quotation-impl-5-0-SP2.xsd
Includes FIX50-components-impl-5-0-SP2.xsd.
Used to customise the QuotationNegotiation message category.
Fixml-settlement-base-5-0-SP2.xsd
Includes Fixml-components-base-5-0-
SP2.xsd. Defines
SettlementInstruction messages:
SettlementInstructionRequest
SettlementInstructions
SettlementObligationReport
Fixml-settlement-impl-5-0-SP2.xsd
Includes FIX50-components-impl-5-0-SP2.xsd.
Used to customise the SettlementInstruction message category.
Fixml-marketdata-base-5-0-SP2.xsd
Includes Fixml-components-base-5-0-
SP2.xsd. Defines MarketData
messages:
MarketDataIncrementalRefresh
MarketDataRequest
MarketDataRequestReject
MarketDataSnapshotFullRefresh
StreamAssignmentReport
StreamAssignmentReportACK
StreamAssignmentRequest
Fixml-marketdata-impl-5-0-SP2.xsd
Includes FIX50-components-impl-5-0-SP2.xsd.
Used to customise the MarketData message category.
Fixml-components-base-5-0-SP2.xsd
Includes Fixml-fields-base-5-0-SP2.xsd. Defines Common messages:
Fixml-components-impl-5-0-SP2.xsd
Includes FIX50-fields-impl-5-0-SP2.xsd.
Used to customise the Common message category.
Fixml-registration-base-5-0-SP2.xsd
Includes Fixml-components-base-5-0-
SP2.xsd. Defines
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 52 of 158
RegistrationInstruction messages:
RegistrationInstructions
RegistrationInstructionsResponse
Fixml-registration-impl-5-0-SP2.xsd
Includes FIX50-components-impl-5-0-SP2.xsd.
Used to customise the RegistrationInstruction message category.
Fixml-crossorders-base-5-0-SP2.xsd
Includes Fixml-components-base-5-0-
SP2.xsd. Defines CrossOrders
messages:
CrossOrderCancelReplaceRequest
CrossOrderCancelRequest
NewOrderCross
Fixml-crossorders-impl-5-0-SP2.xsd
Includes FIX50-components-impl-5-0-SP2.xsd.
Used to customise the CrossOrders message category.
Fixml-multilegorders-base-5-0-SP2.xsd
Includes Fixml-components-base-5-0-
SP2.xsd. Defines MultilegOrders
messages:
MultilegOrderCancelReplace
NewOrderMultileg
Fixml-multilegorders-impl-5-0-SP2.xsd
Includes FIX50-components-impl-5-0-SP2.xsd.
Used to customise the MultilegOrders message category.
Fixml-tradecapture-base-5-0-SP2.xsd
Includes Fixml-components-base-5-0-
SP2.xsd. Defines TradeCapture
messages:
TradeCaptureReport
TradeCaptureReportAck
TradeCaptureReportRequest
TradeCaptureReportRequestAck
Fixml-tradecapture-impl-5-0-SP2.xsd
Includes FIX50-components-impl-5-0-SP2.xsd.
Used to customise the TradeCapture message category.
Fixml-confirmation-base-5-0-SP2.xsd
Includes Fixml-components-base-5-0-
SP2.xsd. Defines Confirmation
messages:
Confirmation
Confirmation_Ack
ConfirmationAck
ConfirmationRequest
Fixml-confirmation-impl-5-0-SP2.xsd
Includes FIX50-components-impl-5-0-SP2.xsd.
Used to customise the Confirmation message category.
Fixml-positions-base-5-0-SP2.xsd
Includes Fixml-components-base-5-0-
SP2.xsd. Defines
PositionMaintenance messages:
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 53 of 158
AdjustedPositionReport
AssignmentReport
ContraryIntentionReport
PositionMaintenanceReport
PositionMaintenanceRequest
PositionReport
RequestForPositions
RequestForPositionsAck
Fixml-positions-impl-5-0-SP2.xsd
Includes FIX50-components-impl-5-0-SP2.xsd.
Used to customise the PositionMaintenance message category.
Fixml-collateral-base-5-0-SP2.xsd
Includes Fixml-components-base-5-0-
SP2.xsd. Defines
CollateralManagement messages:
CollateralAssignment
CollateralInquiry
CollateralInquiryAck
CollateralReport
CollateralRequest
CollateralResponse
Fixml-collateral-impl-5-0-SP2.xsd
Includes FIX50-components-impl-5-0-SP2.xsd.
Used to customise the CollateralManagement message category.
Fixml-application-base-5-0-SP2.xsd
Includes Fixml-components-base-5-0-
SP2.xsd. Defines Application
messages:
ApplicationMessageReport
ApplicationMessageRequest
ApplicationMessageRequestAck
Fixml-application-impl-5-0-SP2.xsd
Includes FIX50-components-impl-5-0-SP2.xsd.
Used to customise the Application message category.
Fixml-businessreject-base-5-0-SP2.xsd
Includes Fixml-components-base-5-0-
SP2.xsd. Defines BusinessReject
messages:
BusinessMessageReject
Fixml-businessreject-impl-5-0-SP2.xsd
Includes FIX50-components-impl-5-0-SP2.xsd.
Used to customise the BusinessReject message category.
Fixml-network-base-5-0-SP2.xsd
Includes Fixml-components-base-5-0-SP2.xsd. Defines Network messages:
NetworkCounterpartySystemStatusRequest
NetworkCounterpartySystemStatusResponse
Fixml-network-impl-5-0-SP2.xsd
Includes FIX50-components-impl-5-0-SP2.xsd.
Used to customise the Network message category.
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 54 of 158
Fixml-usermanagement-base-5-0-SP2.xsd
Includes Fixml-components-base-5-0-SP2.xsd. Defines UserManagement
messages:
UserNotification
UserRequest
UserResponse
Fixml-usermanagement-impl-5-0-SP2.xsd
Includes FIX50-components-impl-5-0-SP2.xsd.
Used to customise the UserManagement message category.
Fixml-fields-base-5-0-SP2.xsd
Includes Fixml--base-5-0-SP2.xsd. Defines Fields messages:
Fixml-fields-base-5-0-SP2.xsd
Includes Fixml--base-5-0-SP2.xsd. Defines Impl FieldsImplFields
messages:
Fixml-marketstructure-base-5-0-SP2.xsd
Includes Fixml-components-base-5-0-
SP2.xsd. Defines
MarketStructureReferenceData messages:
MarketDefinition
MarketDefinitionRequest
MarketDefinitionUpdateReport
TradingSessionList
TradingSessionListRequest
TradingSessionListUpdateReport
TradingSessionStatus
TradingSessionStatusRequest
Fixml-marketstructure-impl-5-0-SP2.xsd
Includes FIX50-components-impl-5-0-SP2.xsd.
Used to customise the MarketStructureReferenceData message category.
Fixml-securitiesreference-base-5-0-SP2.xsd
Includes Fixml-components-base-5-0-
SP2.xsd. Defines
SecuritiesReferenceData messages:
DerivativeSecurityList
DerivativeSecurityListRequest
DerivativeSecurityListUpdateReport
SecurityDefinition
SecurityDefinitionRequest
SecurityDefinitionUpdateReport
SecurityList
SecurityListRequest
SecurityListUpdateReport
SecurityStatus
SecurityStatusRequest
SecurityTypeRequest
SecurityTypes
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 55 of 158
Fixml-securitiesreference-impl-5-0-SP2.xsd
Includes FIX50-components-impl-5-0-SP2.xsd.
Used to customise the SecuritiesReferenceData message category.
Fixml-partiesreference-base-5-0-SP2.xsd
Includes Fixml-components-base-5-0-
SP2.xsd. Defines
PartiesReferenceData messages:
PartyDetailsListReport
PartyDetailsListRequest
Fixml-partiesreference-impl-5-0-SP2.xsd
Includes FIX50-components-impl-5-0-SP2.xsd.
Used to customise the PartiesReferenceData message category.
Fixml-session-base-5-0-SP2.xsd
Session level messages to establish and control a FIX session
Fixml-pretrade-base-5-0-SP2.xsd
Pre trade messages including reference data, market data, quoting, news
and email, indication of interest
Fixml-trade-base-5-0-SP2.xsd
Order handling and execution messages
Fixml-posttrade-base-5-0-SP2.xsd
Post trade messages including trade reporting, allocation, collateral,
confirmation, position mantemenance, registration instruction, and
settlement instructions
Fixml-infrastructure-base-5-0-SP2.xsd
Infrastructure messages for application sequencing, business reject,
network and user management
Fixml-main-5-0-SP2.xsd
Includes the session, pretrade, trade, posttrade and infrastructure schema
files
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 56 of 158
COMMON COMPONENTS OF APPLICATION MESSAGES - Component
Blocks (Included in pre-trade, trade, and post-trade messages)
Many of the FIX Application Messages are composed of common "building blocks" or sets of data fields. For
instance, almost every FIX Application Message has the set of symbology-related fields used to define the
"Instrument": Symbol, SymbolSfx, SecurityIDSource, SecurityID….. EncodedSecurityDesc. Rather than replicate a
common group of fields, the FIX specification specifies component blocks which are simply referenced by
component name within each Application Message which uses them. Thus when reviewing a specific message
definition, the appropriate group of fields should be expanded and used whenever a component block is identified.
Note that some component blocks may be part of repeating groups thus if the component block is denoted as part of
a repeating group, then the entire group of fields representing the component block are to be specified at the
component block's repeating group "level" in the message definition and follow repeating group rules concerning
field order. See "Repeating Groups" for more details.
The component blocks identified within this section of Volume 1 are referred to as "Common Components". They
are component blocks that are commonly used across the various messages defined in Volumes 3, 4 and 5.
Instrument (symbology) component block
The Instrument component block contains all the fields commonly used to describe a security or instrument.
Typically the data elements in this component block are considered the static data of a security, data that may be
commonly found in a security master database. The Instrument component block can be used to describe any asset
type supported by FIX.
Tag
FieldName
Req'd
Comments
55 Symbol N Common, "human understood"
representation of the
security. SecurityID value can be specified if no symbol
exists (e.g. non-
exchange traded Collective Investment
Vehicles)
Use "[N/A]" for products which do not have a symbol.
65 SymbolSfx N Used in Fixed Income with a value of "WI" to indicate
"When Issued" for a security to be reissued under an old
CUSIP or ISIN or with a value of "CD" to indicate a
EUCP with lump-sum interest rather than discount price.
48 SecurityID N
Takes precedence in identifying security to counterparty
over
SecurityAltID block. Requires SecurityIDSource if
specified.
22
SecurityIDSource
N
Required if SecurityID is specified.
component block <SecAltIDGrp>
N
Number of alternate Security Identifiers
460 Product N Indicates the type of product the security is associated
with (high-level category)
1227 ProductComplex N
Identifies an entire suite of products for a given market.
In Futures this may be "interest rates", "agricultural",
"equity indexes", etc
1151
SecurityGroup
N
An exchange specific name assigned to a group of related
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 57 of 158
securities which may be concurrently affected by market
events and actions.
461 CFICode N
Indicates the type of security using ISO 10962 standard,
Classification of Financial Instruments (CFI code) values.
It is recommended that CFICode be used instead of
SecurityType for non-Fixed Income instruments.
167 SecurityType N
It is recommended that CFICode be used instead of
SecurityType for non-Fixed Income instruments.
Required for Fixed Income. Refer to Volume 7 - Fixed
Income
Futures and Options should be specified using the
CFICode[461] field instead of SecurityType[167] (Refer
to Volume 7 -
Recommendations and Guidelines for
Futures and Options Markets.)
762 SecuritySubType N Sub-type qualification/identification of the SecurityType
(e.g. for SecurityType="MLEG"). If specified,
SecurityType is required.
200 MaturityMonthYear N
Specifies the month and year of maturity. Applicable for
standardized derivatives which are typically only
referenced by month and year (e.g. S&P futures). Note
MaturityDate (a full date) can also be specified.
541 MaturityDate N
Specifies date of maturity (a full date). Note that
standardized derivatives which are typically only
referenced by month and year (e.g. S&amp;P
futures).may use MaturityMonthYear and/or this field.
When using MaturityMonthYear, it is recommended that
markets and sell sides report the MaturityDate on all
outbound messages as a means of data enrichment.
For NDFs this represents the fixing date of the contract.
1079 MaturityTime N For NDFs this represents the fixing time of the contract. It
is optional to specify the fixing time.
966
SettleOnOpenFlag
N
Indicator to determine if Instrument is Settle on Open.
1049
InstrmtAssignmentMethod
N
965
SecurityStatus
N
Gives the current state of the instrument
224 CouponPaymentDate N Date interest is to be paid. Used in identifying Corporate
Bond issues.
1449
RestructuringType
N
1450
Seniority
N
1451 NotionalPercentageOutstandin
g
N
1452 OriginalNotionalPercentageOut
standing
N
1457
AttachmentPoint
N
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 58 of 158
1458
DetachmentPoint
N
225 IssueDate N
Date instrument was issued. For Fixed Income IOIs for
new issues, specifies the issue date.
239
RepoCollateralSecurityType
N
(Deprecated in FIX.4.4)
226
RepurchaseTerm
N
(Deprecated in FIX.4.4)
227
RepurchaseRate
N
(Deprecated in FIX.4.4)
228 Factor N
For Fixed Income: Amortization Factor for deriving
Current face from Original face for ABS or MBS
securities, note the fraction may be greater than, equal to
or less than 1. In TIPS securities this is the Inflation
index.
Qty * Factor * Price = Gross Trade Amount
For Derivatives: Contract Value Factor by which price
must be adjusted to determine the true nominal value of
one futures/options contract.
(Qty * Price) * Factor = Nominal Value
255
CreditRating
N
543 InstrRegistry N
The location at which records of ownership are
maintained for this instrument, and at which ownership
changes must be recorded. Can be used in conjunction
with ISIN to address ISIN uniqueness issues.
470 CountryOfIssue N ISO Country code of instrument issue (e.g. the country
portion typically used in ISIN). Can be used in
conjunction with non-
ISIN SecurityID (e.g. CUSIP for
Municipal Bonds without ISIN) to provide uniqueness.
471
StateOrProvinceOfIssue
N
A two-character state or province abbreviation.
472 LocaleOfIssue N The three-character IATA code for a locale (e.g. airport
code for Municipal Bonds).
240
RedemptionDate
N
(Deprecated in FIX.4.4)
202 StrikePrice N
Used for derivatives, such as options and covered
warrants
947
StrikeCurrency
N
Used for derivatives
967 StrikeMultiplier N Used for derivatives. Multiplier applied to the strike price
for the purpose of calculating the settlement value.
968 StrikeValue N Used for derivatives. The number of shares/units for the
financial instrument involved in the option trade.
1478 StrikePriceDeterminationMeth
od
N
1479
StrikePriceBoundaryMethod
N
1480
StrikePriceBoundaryPrecision
N
1481
UnderlyingPriceDetermination
N
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 59 of 158
Method
206 OptAttribute N
Used for derivatives, such as options and covered
warrants to indicate a versioning of the contract when
required due to corporate actions to the underlying.
Should not be used to indicate type of option - use the
CFICode[461] for this purpose.
231 ContractMultiplier N
For Fixed Income, Convertible Bonds, Derivatives, etc.
Note: If used, quantities should be expressed in the
"nominal" (e.g. contracts vs. shares) amount.
1435
ContractMultiplierUnit
N
1439
FlowScheduleType
N
969 MinPriceIncrement N Minimum price increment for the instrument. Could also
be used to represent tick value.
1146 MinPriceIncrementAmount N
Minimum price increment amount associated with the
MinPriceIncrement [969]. For listed derivatives, the value
can be calculated by multiplying MinPriceIncrement by
ContractValueFactor [231]
996
UnitOfMeasure
N
0
1147
UnitOfMeasureQty
N
1191
PriceUnitOfMeasure
N
1192
PriceUnitOfMeasureQty
N
1193 SettlMethod N Settlement method
for a contract. Can be used as an
alternative to CFI Code value
1194
ExerciseStyle
N
Type of exercise of a derivatives security
1482
OptPayoutType
N
1195 OptPayoutAmount N
Cash amount indicating the pay out associated with an
option. For binary options this is a fixed amount
1196
PriceQuoteMethod
N
Method for price quotation
1197
ValuationMethod
N
Indicates type of valuation method used.
1198 ListMethod N Indicates whether the instruments are pre-
listed only or
can also be defined via user request
1199
CapPrice
N
Used to express the ceiling price of a capped call
1200
FloorPrice
N
Used to express the floor price of a capped put
201
PutOrCall
N
Used to express option right
1244 FlexibleIndicator N Used to indicate if a security has been defined as flexible
according to "non-
standard" means. Analog to CFICode
Standard/Non-standard indicator
1242 FlexProductEligibilityIndicator N
Used to indicate if a product or group of product supports
the creation of flexible securities
997 TimeUnit N Used to
indicate a time unit for the contract (e.g., days,
weeks, months, etc.)
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 60 of 158
223
CouponRate
N
For Fixed Income.
207
SecurityExchange
N
Can be used to identify the security.
970
PositionLimit
N
Position Limit for the instrument.
971
NTPositionLimit
N
Near-term Position Limit for the instrument.
106
Issuer
N
348 EncodedIssuerLen N
Must be set if EncodedIssuer field is specified and must
immediately precede it.
349 EncodedIssuer N Encoded (non-
ASCII characters) representation of the
Issuer field in
the encoded format specified via the
MessageEncoding field.
107
SecurityDesc
N
350 EncodedSecurityDescLen N Must be set if EncodedSecurityDesc field is specified and
must immediately precede it.
351 EncodedSecurityDesc N Encoded (non-ASCII characters)
representation of the
SecurityDesc field in the encoded format specified via the
MessageEncoding field.
component block <SecurityXML>
N
Embedded XML document describing security.
691
Pool
N
Identifies MBS / ABS pool
667
ContractSettlMonth
N
Must be present for MBS/TBA
875
CPProgram
N
The program under which a commercial paper is issued
876
CPRegType
N
The registration type of a commercial paper issuance
component block <EvntGrp>
N
Number of repeating EventType group entries.
873
DatedDate
N
If different from IssueDate
874
InterestAccrualDate
N
If different from IssueDate and DatedDate
component block <InstrumentParties>
N
Used to identify the parties listing a specific instrument
component block <ComplexEvents>
N
*** = Required status should match "Req'd" setting for <Instrument> component block in the message definition
FIXML Definition for this Component Block– see http://www.fixprotocol.org for details
Refer to FIXML Element Instrmt
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 61 of 158
Examples using Alternative Security IDs
The SecurityAltID repeating group is used to carry additional security identifiers for the same security. Note that
this repeating group can only be used inconjunction with the information in SecurityID and SecurityIDSource fields.
In other words, it may not be used instead of the SecurityID and SecurityIDSource fields.
The first example is from an order for shares in Daimler Chrysler, which has an ISIN DE0007100000, a CUSIP
D1668R123, and a Sedol 5529027
Field (tag)
Value
Explanation
Symbol (55)
DCX
Symbol = DCX (Daimler Chrysler)
SecurityID (48)
DE0007100000
SecurityIDSource (22)
4
ID Type is ISIN
NoSecurityAltID (454)
2
Two additional security IDs specified
à SecurityAltID (455)
D1668R123
à SecurityAltIDSource (456)
1
SecurityID type is Cusip
à SecurityAltID (455)
5529027
à SecurityAltIDSource (456)
2
SecurityID type is Sedol
The second example is from an order for shares in IBM, which has an ISIN US4592001014, and a QUICK
(Japanese) code of 000006680
Field (tag)
Value
Explanation
Symbol (55) IBM
Symbol = IBM (International
Business Machines)
SecurityID (48)
US4592001014
SecurityIDSource (22)
4
ID Type is ISIN
NoSecurityAltID (454)
1
One additional security ID specified
à SecurityAltID (455)
000006680
à SecurityAltIDSource (456)
3
SecurityID type is Quick
Specifying an FpML product specification from within the FIX Instrument Block
There are two methods in which a FpML product specification or document can be referenced from the FIX
Instrument component block. The first method allows the full FpML product document to be embedded within
the Instrument component block's SecurityXML (1185) field, found in the SecurityXML component block. The
second method allows the FpML production document to be referenced as a URL in the Instrument component
block. The tables below illustrates these two methods.
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 62 of 158
Option 1 – Include the FpML product specification as an XML String within SecurityXML
Field (tag)
Value
Explanation
Symbol (55)
[N/A]
SecurityID (48) [FpML] Refer to EncodedSecurityDesc for the
FpML product decription,
SecurityIDSource (22)
I
ISDA/FpML Product Specification
SecurityXMLLen (1184) 1234 The length of the FpML product
specification contained within
EncodedSecurityDesc
SecurityXML (1185) <FpML>….</FpML> Contains the FpML product
specification as an XML string
SecuityXMLSchema fpml.org/... Contains the URI or URL for the
schema that is used to interpret the
XML payload in SecurityXML (1185)
Note that prior to FIX 5.0 SP1 the FpML product specification was recommended to be transmitted in the
EncodedSecurityDesc (351) field. By using the SecurityXML (1185) field to transmit the FpML product
specification the EncodedSecurityDesc (351) field can be used in its intended manner to provide security
descriptions using non-ASCII character encoding. This prior approach may still be used in FIX 5.0 and prior
versions.
Option 2 – Reference the FpML product specification from another source via a URL in SecurityID
Field (tag)
Value
Explanation
Symbol (55)
[N/A]
SecurityID (48) (a valid URL
reference) Specify a URL to reference a separate
or external location for the FpML
product description.
Example:
http://www.cme.com/product/ir
swap.jpg?id=122345
SecurityIDSource (22)
K
ISDA/FpML Product URL
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 63 of 158
UnderlyingInstrument (underlying instrument) component block
The UnderlyingInstrument component block, like the Instrument component block, contains all the fields
commonly used to describe a security or instrument. In the case of the UnderlyingInstrument component block
it describes an instrument which underlies the primary instrument Refer to the Instrument component block
comments as this component block mirrors Instrument, except for the noted fields.
Tag
FieldName
Req'd
Comments
311
UnderlyingSymbol
N
312
UnderlyingSymbolSfx
N
309
UnderlyingSecurityID
N
305
UnderlyingSecurityIDSource
N
component block <UndSecAltIDGrp>
N
462
UnderlyingProduct
N
463
UnderlyingCFICode
N
310
UnderlyingSecurityType
N
763
UnderlyingSecuritySubType
N
313
UnderlyingMaturityMonthYear
N
542
UnderlyingMaturityDate
N
1213
UnderlyingMaturityTime
N
241 UnderlyingCouponPaymentDat
e
N
1453
UnderlyingRestructuringType
N
1454
UnderlyingSeniority
N
1455 UnderlyingNotionalPercentage
Outstanding
N
1456 UnderlyingOriginalNotionalPer
centageOutstanding
N
1459
UnderlyingAttachmentPoint
N
1460
UnderlyingDetachmentPoint
N
242
UnderlyingIssueDate
N
243 UnderlyingRepoCollateralSecu
rityType
N (Deprecated in FIX.4.4)
244
UnderlyingRepurchaseTerm
N
(Deprecated in FIX.4.4)
245
UnderlyingRepurchaseRate
N
(Deprecated in FIX.4.4)
246
UnderlyingFactor
N
256
UnderlyingCreditRating
N
595
UnderlyingInstrRegistry
N
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 64 of 158
592
UnderlyingCountryOfIssue
N
593 UnderlyingStateOrProvinceOfI
ssue
N
594
UnderlyingLocaleOfIssue
N
247
UnderlyingRedemptionDate
N
(Deprecated in FIX.4.4)
316
UnderlyingStrikePrice
N
941
UnderlyingStrikeCurrency
N
317
UnderlyingOptAttribute
N
436
UnderlyingContractMultiplier
N
1437 UnderlyingContractMultiplier
Unit
N
1441
UnderlyingFlowScheduleType
N
998
UnderlyingUnitOfMeasure
N
1423
UnderlyingUnitOfMeasureQty
N
1424 UnderlyingPriceUnitOfMeasur
e
N
1425 UnderlyingPriceUnitOfMeasur
eQty
N
1000 UnderlyingTimeUnit N
Used to indicate a time unit for the contract (e.g., days,
weeks, months, etc.)
1419
UnderlyingExerciseStyle
N
435
UnderlyingCouponRate
N
308
UnderlyingSecurityExchange
N
306
UnderlyingIssuer
N
362
EncodedUnderlyingIssuerLen
N
363
EncodedUnderlyingIssuer
N
307
UnderlyingSecurityDesc
N
364 EncodedUnderlyingSecurityDe
scLen
N
365 EncodedUnderlyingSecurityDe
sc
N
877
UnderlyingCPProgram
N
878
UnderlyingCPRegType
N
972 UnderlyingAllocationPercent N
Specific to the < UnderlyingInstrument > Percent of the
Strike Price that this underlying represents. Necessary for
derivatives that deliver into more than one underlying
instrument.
318
UnderlyingCurrency
N
Specific to the <UnderlyingInstrument> (not in
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 65 of 158
<Instrument>)
879 UnderlyingQty N
Specific to the <UnderlyingInstrument> (not in
<Instrument>)
Unit amount of the underlying
security (par, shares,
currency, etc.)
975 UnderlyingSettlementType N
Specific to the < UnderlyingInstrument > Indicates order
settlement period for the underlying deliverable
component.
973 UnderlyingCashAmount N Specific to the < UnderlyingInstrument > Cash amount
associated with the underlying component. Necessary for
derivatives that deliver into more than one underlying
instrument and one of the underlying's is a fixed cash
value.
974 UnderlyingCashType N Specific to the < UnderlyingInstrument >
Used for
derivatives that deliver into cash underlying. Indicates
that the cash is either fixed or difference value (difference
between strike and current underlying price)
810 UnderlyingPx N
Specific to the <UnderlyingInstrument> (not in
<Instrument>)
In a financing deal clean price (percent-of-par or per unit)
of the underlying security or basket.
882 UnderlyingDirtyPrice N
Specific to the <UnderlyingInstrument> (not in
<Instrument>)
In a financing deal price (percent-of-
par or per unit) of
the
underlying security or basket. "Dirty" means it
includes accrued interest
883 UnderlyingEndPrice N
Specific to the <UnderlyingInstrument> (not in
<Instrument>)
In a financing deal price (percent-of-
par or per unit) of
the underlying security or basket at
the end of the
agreement.
884 UnderlyingStartValue N
Specific to the <UnderlyingInstrument> (not in
<Instrument>)
Currency value attributed to this collateral at the start of
the agreement
885 UnderlyingCurrentValue N Specific to the <
UnderlyingInstrument> (not in
<Instrument>)
Currency value currently attributed to this collateral
886 UnderlyingEndValue N
Specific to the <UnderlyingInstrument> (not in
<Instrument>)
Currency value attributed to this collateral at the end of
the agreement
component block
<UnderlyingStipulations>
N
Specific to the <UnderlyingInstrument> (not in
<Instrument>)
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 66 of 158
Insert here the contents of the <UnderlyingStipulations>
Component Block
1044 UnderlyingAdjustedQuantity N Specific to the <UnderlyingInstrument>
(not in
<Instrument>). For listed derivatives margin
management, this is the number of shares adjusted for
upcoming corporate action. Used only for securities
which are optionable and are between ex-
date and
settlement date (4 days).
1045 UnderlyingFXRate N
Specific to the <UnderlyingInstrument> (not in
<Instrument>). Foreign exchange rate used to compute
UnderlyingCurrentValue (885) (or market value) from
UnderlyingCurrency (318) to Currency (15).
1046 UnderlyingFXRateCalc N Specific to the <
UnderlyingInstrument> (not in
<Instrument>). Specified whether UnderlyingFxRate
(1045) should be multiplied or divided to derive
UnderlyingCurrentValue (885).
1038
UnderlyingCapValue
N
component block
<UndlyInstrumentParties>
N
1039
UnderlyingSettlMethod
N
315
UnderlyingPutOrCall
N
Used to express option right
*** = Required status should match "Req'd" setting for <UnderlyingInstrument> component block in the message
definition
FIXML Definition for this Component Block– see http://www.fixprotocol.org for details
Refer to FIXML element UndInstrmt
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 67 of 158
InstrumentLeg (symbology) component block
The InstrumentLeg component block, like the Instrument component block, contains all the fields commonly used to
describe a security or instrument. In the case of the InstrumentLeg component block it describes a security used in
multileg-oriented messages.
Refer to the Instrument component block comments as this component block mirrors Instrument, except for
the noted fields.
Several multileg-oriented messages specify an Instrument Leg component block. An instrument can have zero or
more instrument legs. The fundamental business rule that applies to the multileg instrument is that the multileg
instrument is defined as the combination of instrument legs. The multileg instrument must be able to be traded
atomically – that all instrument legs are traded or none are traded.
The LegRatioQty[623] is used to define the quantity of the leg that makes up a single unit of the multleg instrument.
An option butterfly strategy is made up of three option legs.
Tag
FieldName
Req'd
Comments
600
LegSymbol
N
601
LegSymbolSfx
N
602
LegSecurityID
N
603
LegSecurityIDSource
N
component block <LegSecAltIDGrp>
N
607
LegProduct
N
608
LegCFICode
N
609
LegSecurityType
N
764
LegSecuritySubType
N
610
LegMaturityMonthYear
N
611
LegMaturityDate
N
1212
LegMaturityTime
N
248
LegCouponPaymentDate
N
249
LegIssueDate
N
250 LegRepoCollateralSecurityTyp
e
N (Deprecated in FIX.4.4)
251
LegRepurchaseTerm
N
(Deprecated in FIX.4.4)
252
LegRepurchaseRate
N
(Deprecated in FIX.4.4)
253
LegFactor
N
257
LegCreditRating
N
599
LegInstrRegistry
N
596
LegCountryOfIssue
N
597
LegStateOrProvinceOfIssue
N
598
LegLocaleOfIssue
N
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 68 of 158
254
LegRedemptionDate
N
(Deprecated in FIX.4.4)
612
LegStrikePrice
N
942
LegStrikeCurrency
N
613
LegOptAttribute
N
614
LegContractMultiplier
N
1436
LegContractMultiplierUnit
N
1440
LegFlowScheduleType
N
999
LegUnitOfMeasure
N
1224
LegUnitOfMeasureQty
N
1421
LegPriceUnitOfMeasure
N
1422
LegPriceUnitOfMeasureQty
N
1001 LegTimeUnit N
Used to indicate a time unit for the contract (e.g., days,
weeks, months, etc.)
1420
LegExerciseStyle
N
615
LegCouponRate
N
616
LegSecurityExchange
N
617
LegIssuer
N
618
EncodedLegIssuerLen
N
619
EncodedLegIssuer
N
620
LegSecurityDesc
N
621
EncodedLegSecurityDescLen
N
622
EncodedLegSecurityDesc
N
623
LegRatioQty
N
Specific to the <InstrumentLeg> (not in <Instrument>)
624
LegSide
N
Specific to the <InstrumentLeg> (not in <Instrument>)
556
LegCurrency
N
Specific to the <InstrumentLeg> (not in <Instrument>)
740
LegPool
N
Identifies MBS / ABS pool
739
LegDatedDate
N
955
LegContractSettlMonth
N
956
LegInterestAccrualDate
N
1358
LegPutOrCall
N
Used to express option right
1017 LegOptionRatio N
LegOptionRatio is provided on covering leg to create a
delta neutral spread. In Listed Derivatives, the delta of the
leg is multiplied by LegOptionRatio
and OrderQty to
determine the covering quantity.
566 LegPrice N
Used to specify an anchor price for a leg as part of the
definition or creation of the strategy - not used for
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 69 of 158
execution price.
*** = Required status should match "Req'd" setting for <InstrumentLeg> component block in message definition
FIXML Definition for this Component Block– see http://www.fixprotocol.org for details
Refer to FIXML element InstrmtLeg
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 70 of 158
InstrumentExtension component block
The InstrumentExtension component block identifies additional security attributes that are more commonly found for
Fixed Income securities.
Tag
FieldName
Req'd
Comments
668
DeliveryForm
N
Identifies the form of delivery.
869
PctAtRisk
N
Percent at risk due to lowest possible call.
component block <AttrbGrp>
N
Number of repeating InstrAttrib group entries.
*** = Required status should match "Req'd" setting for <InstrumentExtension> component block in message
definition
FIXML Definition for this Component Block– see http://www.fixprotocol.org for details
Refer to FIXML element InstrmtExtension
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 71 of 158
OrderQtyData component block
The OrderQtyData component block contains the fields commonly used for indicating the amount or quantity of an
order. Note that when this component block is marked as "required" in a message either one of these three fields
must be used to identify the amount: OrderQty, CashOrderQty or OrderPercent (in the case of CIV).
Tag
FieldName
Req'd
Comments
38 OrderQty N
One of CashOrderQty, OrderQty, or (for CIV only)
OrderPercent is required. Note that unless otherwise
specified, only one of CashOrderQty, OrderQty, or
OrderPercent should be specified.
152 CashOrderQty N
One of CashOrderQty, OrderQty, or (for CIV only)
OrderPercent is required. Note that unless otherwise
specified, only one of CashOrderQty, OrderQty, or
OrderPercent should be specified. Specifies the
approximate "monetary quantity" for the order. Broker is
responsible for converting and calculating OrderQty in
tradeable units (e.g. shares) for subsequent messages.
516 OrderPercent N For CIV - Optional. One of CashOrderQty, OrderQty or
(for CIV only) OrderPercent is required. Note that unless
otherwise specified, only one of CashOrderQty,
OrderQty, or OrderPercent should be specified.
468
RoundingDirection
N
For CIV - Optional
469
RoundingModulus
N
For CIV - Optional
*** = Required status should match "Req'd" setting for <OrderQtyData> component block in message definition
FIXML Definition for this Component Block– see http://www.fixprotocol.org for details
Refer to FIXML element OrdQtyData
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 72 of 158
CommissionData component block
The CommissionDate component block is used to carry commission information such as the type of commission and
the rate.
Tag
FieldName
Req'd
Comments
12
Commission
N
13
CommType
N
479
CommCurrency
N
497
FundRenewWaiv
N
*** = Required status should match "Req'd" setting for <CommissionData> component block in message definition
FIXML Definition for this Component Block– see http://www.fixprotocol.org for details
Refer to FIXML Element CommData
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 73 of 158
Parties component block
The Parties component block is used to identify and convey information on the entities both central and peripheral to
the financial transaction represented by the FIX message containing the Parties Block. The Parties block allows
many different types of entites to be expressed through use of the PartyRole field and identifies the source of the
PartyID through the the PartyIDSource.
See “Volume 6 - APPENDIX 6-G - USE OF <PARTIES> COMPONENT BLOCK” for additional usage
information..
Tag
FieldName
Req'd
Comments
453 NoPartyIDs N
Repeating group below should contain unique
combinations of PartyID, PartyIDSource, and PartyRole
à
448 PartyID N
Used to identify source of PartyID. Required if
PartyIDSource is specified. Required if NoPartyIDs > 0.
à
447 PartyIDSource N Used to identify class source of PartyID value (e.g. BIC).
Required if PartyID is specified. Required if
NoPartyIDs > 0.
à
452 PartyRole N
Identifies the type of PartyID (e.g. Executing Broker).
Required if NoPartyIDs > 0.
à
component block
<PtysSubGrp>
N Repeating group of Party sub-identifiers.
*** = Required status should match "Req'd" setting for <Parties> component block in message definition
FIXML Definition for this Component Block– see http://www.fixprotocol.org for details
Refer to FIXML element Ptys
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 74 of 158
NestedParties component block
The NestedParties component block is identical to the Parties Block. It is used in other component blocks and
repeating groups when nesting will take place resulting in multiple occurrences of the Parties block within a single
FIX message.. Use of NestedParties under these conditions avoids multiple references to the Parties block within the
same message which is not allowed in FIX tag/value syntax.
Tag
FieldName
Req'd
Comments
539 NoNestedPartyIDs N
Repeating group below should contain unique
combinations of NestedPartyID, NestedPartyIDSource,
and NestedPartyRole
à
524 NestedPartyID N Used to identify source
of NestedPartyID. Required if
NestedPartyIDSource is specified. Required if
NoNestedPartyIDs > 0.
à
525 NestedPartyIDSource N Used to identify class source of NestedPartyID value (e.g.
BIC). Required if NestedPartyID is specified. Required if
NoNestedPartyIDs > 0.
à
538 NestedPartyRole N
Identifies the type of NestedPartyID (e.g. Executing
Broker). Required if NoNestedPartyIDs > 0.
à
component block
<NstdPtysSubGrp>
N Repeating group of NestedParty sub-identifiers.
*** = Required status should match "Req'd" setting for <NestedParties> component block in message definition
FIXML Definition for this Component Block– see http://www.fixprotocol.org for details
Refer to FIXML element NstPtys
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 75 of 158
NestedParties2 (second instance of nesting) component block
The NestedParties2 component block is identical to the Parties Block. It is used in other component blocks and
repeating groups when nesting will take place resulting in multiple occurrences of the Parties block within a single
FIX message.. Use of NestedParties2 under these conditions avoids multiple references to the Parties block within
the same message which is not allowed in FIX tag/value syntax.
Tag
FieldName
Req'd
Comments
756 NoNested2PartyIDs N
Repeating group below should contain unique
combinations of Nested2PartyID, Nested2PartyIDSource,
and Nested2PartyRole
à
757 Nested2PartyID N
Used to identify source of Nested2PartyID. Required if
Nested2PartyIDSource is specified.
Required if
NoNested2PartyIDs > 0.
à
758 Nested2PartyIDSource N
Used to identify class source of Nested2PartyID value
(e.g. BIC). Required if Nested2PartyID is specified.
Required if NoNested2PartyIDs > 0.
à
759 Nested2PartyRole N Identifies the type of
Nested2PartyID (e.g. Executing
Broker). Required if NoNested2PartyIDs > 0.
à
component block
<NstdPtys2SubGrp>
N Repeating group of Nested2Party sub-identifiers.
*** = Required status should match "Req'd" setting for <NestedParties2> component block in message definition
FIXML Definition for this Component Block– see http://www.fixprotocol.org for details
Refer to FIXML element NstPtys2
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 76 of 158
NestedParties3 (third instance of nesting) component block
The NestedParties3 component block is identical to the Parties Block. It is used in other component blocks and
repeating groups when nesting will take place resulting in multiple occurrences of the Parties block within a single
FIX message.. Use of NestedParties3 under these conditions avoids multiple references to the Parties block within
the same message which is not allowed in FIX tag/value syntax.
Tag
FieldName
Req'd
Comments
948 NoNested3PartyIDs N
Repeating group below should contain unique
combinations of Nested3PartyID, Nested3PartyIDSource,
and Nested3PartyRole
à
949 Nested3PartyID N
Used to identify source of Nested3PartyID. Required if
Nested3PartyIDSource is specified. Required if
NoNested3PartyIDs > 0.
à
950 Nested3PartyIDSource N
Used to identify class source of Nested3PartyID value
(e.g. BIC). Required if Nested3PartyID is specified.
Required if NoNested3PartyIDs > 0.
à
951 Nested3PartyRole N
Identifies the type of Nested3PartyID (e.g. Executing
Broker). Required if NoNested3PartyIDs > 0.
à
component block
<NstdPtys3SubGrp>
N Repeating group of Nested3Party sub-identifiers.
*** = Required status should match "Req'd" setting for <NestedParties3> component block in message definition
FIXML Definition for this Component Block– see http://www.fixprotocol.org for details
Refer to FIXML element NstPtys3
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 77 of 158
NestedParties4 (fouth instance of nesting) component block
The NestedParties4 component block is identical to the Parties Block. It is used in other component blocks and
repeating groups when nesting will take place resulting in multiple occurrences of the Parties block within a single
FIX message. Use of NestedParties4 under these conditions avoids multiple references to the Parties block within
the same message which is not allowed in FIX tag/value syntax.
Tag
FieldName
Req'd
Comments
1414 NoNested4PartyIDs N
Repeating group below should contain unique
combinations of Nested4PartyID, Nested4PartyIDSource,
and Nested4PartyRole.
à
1415 Nested4PartyID N
Used to identify source of Nested4PartyID. Required if
Nested4PartyIDSource is specified. Required if
NoNested4PartyIDs > 0.
à
1416 Nested4PartyIDSource N Used to
identify class source of Nested4PartyID value
(e.g. BIC). Required if Nested4PartyID is specified.
Required if NoNested4PartyIDs > 0.
à
1417 Nested4PartyRole N
Identifies the type of Nested4PartyID (e.g. Executing
Broker). Required if NoNested4PartyIDs > 0.
à
component block
<NstdPtys4SubGrp>
N
*** = Required status should match "Req'd" setting for <NestedParties3> component block in message definition
FIXML Definition for this Component Block– see http://www.fixprotocol.org for details
Refer to FIXML element NstPtys4
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 78 of 158
SpreadOrBenchmarkCurveData component block
The SpreadOrBenchmarkCurveData component block is primarily used for Fixed Income to convey spread to a
benchmark security or curve.
Tag
FieldName
Req'd
Comments
218
Spread
N
For Fixed Income
220
BenchmarkCurveCurrency
N
221
BenchmarkCurveName
N
222
BenchmarkCurvePoint
N
662
BenchmarkPrice
N
663
BenchmarkPriceType
N
Must be present if BenchmarkPrice is used.
699 BenchmarkSecurityID N
The identifier of the benchmark security, e.g. Treasury
against Corporate bond.
761 BenchmarkSecurityIDSource N
Source of BenchmarkSecurityID. If not specified, then ID
Source is understood to be the same as that in the
Instrument block.
*** = Required status should match "Req'd" setting for <SpreadOrBenchmarkCurveData> component block in
message definition
FIXML Definition for this Component Block– see http://www.fixprotocol.org for details
Refer to FIXML element SpreadOrBnchmkCrvData
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 79 of 158
Stipulations component block
The Stipulations component block is used in Fixed Income to provide additional information on a given security.
These additional information are usually not considered static data information.
Tag
FieldName
Req'd
Comments
232
NoStipulations
N
à
233
StipulationType
N
Required if NoStipulations >0
à
234
StipulationValue
N
*** = Required status should match "Req'd" setting for <Stipulations> component block in message definition
FIXML Definition for this Component Block– see http://www.fixprotocol.org for details
Refer to FIXML element Stips
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 80 of 158
UnderlyingStipulations component block
The UnderlyingStipulations component block has the same usage as the Stipulations component block, but for an
underlying security.
Tag
FieldName
Req'd
Comments
887
NoUnderlyingStips
N
à
888
UnderlyingStipType
N
Required if NoUnderlyingStips >0
à
889
UnderlyingStipValue
N
*** = Required status should match "Req'd" setting for <UnderlyingStipulations> component block in message
definition
FIXML Definition for this Component Block– see http://www.fixprotocol.org for details
Refer to FIXML element UndStips
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 81 of 158
LegStipulations component block
The LegStipulations component block has the same usage as the Stipulations component block, but for a leg
instrument in a multi-legged security.
Tag
FieldName
Req'd
Comments
683
NoLegStipulations
N
à
688
LegStipulationType
N
Required if NoLegStipulations >0
à
689
LegStipulationValue
N
*** = Required status should match "Req'd" setting for <LegStipulations> component block in message definition
FIXML Definition for this Component Block– see http://www.fixprotocol.org for details
Refer to FIXML element LegStips
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 82 of 158
YieldData component block
The YieldData component block conveys yield information for a given Fixed Income security.
Tag
FieldName
Req'd
Comments
235
YieldType
N
236
Yield
N
701
YieldCalcDate
N
696
YieldRedemptionDate
N
697
YieldRedemptionPrice
N
698
YieldRedemptionPriceType
N
*** = Required status should match "Req'd" setting for <YieldData> component block in message definition
FIXML Definition for this Component Block– see http://www.fixprotocol.org for details
Refer to FIXML element YldData
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 83 of 158
TrdRegTimestamps component block
The TrdRegTimestamps component block is used to express timestamps for an order or trade that are required by
regulatory agencies These timesteamps are used to identify the timeframes for when an order or trade is received on
the floor, received and executed by the broker, etc.
Tag
FieldName
Req'd
Comments
768
NoTrdRegTimestamps
N
à
769
TrdRegTimestamp
N
Required if NoTrdRegTimestamps > 1
à
770 TrdRegTimestampTyp
e
N Required if NoTrdRegTimestamps > 1
à
771 TrdRegTimestampOrig
in
N
à
1033
DeskType
N
Type of Trading desk
à
1034
DeskTypeSource
N
à
1035 DeskOrderHandlingIns
t
N
*** = Required status should match "Req'd" setting for <TrdRegTimestamps> component block in message
definition
FIXML Definition for this Component Block– see http://www.fixprotocol.org for details
Refer to FIXML element TrdRegTmstampsGrp
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 84 of 158
FinancingDetails component block
Component block is optionally used only for financing deals to identify the legal agreement under which the deal was
made and other unique characteristics of the transaction. The AgreementDesc field refers to base standard
documents such as MRA 1996 Repurchase Agreement, GMRA 2000 Bills Transaction (U.K.), MSLA 1993
Securities Loan – Amended 1998, for example.
Tag
FieldName
Req'd
Comments
913 AgreementDesc N
The full name of the base standard agreement, annexes
and amendments in place between the principals and
applicable to this deal
914 AgreementID N A common reference to the applicable standing
agreement between the principals
915 AgreementDate N
A reference to the date the underlying agreement was
executed.
918
AgreementCurrency
N
Currency of the underlying agreement.
788 TerminationType N For Repos the timing or method for
terminating the
agreement.
916
StartDate
N
Settlement date of the beginning of the deal
917
EndDate
N
Repayment / repurchase date
919 DeliveryType N
Delivery or custody arrangement for the underlying
securities
898 MarginRatio N Percentage of cash
value that underlying security
collateral must meet.
*** = Required status should match "Req'd" setting for <FinancingDetails> component block in message definition
FIXML Definition for this Component Block– see http://www.fixprotocol.org for details
Refer to the FIXML element FinancingDetails
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 85 of 158
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 86 of 158
InstrumentParties component block
The use of this component block is restricted to instrument definition only and is not permitted to contain
transactional information. Only a specified subset of party roles will be supported within the InstrumentParty block.
Possible uses of this block include identifying Listing Source information; Clearing Org information; Parent and
Capital Structure information for F/I and derivative instruments.
Tag
FieldName
Req'd
Comments
1018 NoInstrumentParties N
Repeating group below should contain unique
combinations of InstrumentPartyID,
InstrumentPartyIDSource, and InstrumentPartyRole
à
1019
InstrumentPartyID
N
Used to identify party id related to instrument
à
1050 InstrumentPartyIDSour
ce
N Used to identify source of instrument party id
à
1051
InstrumentPartyRole
N
Used to identify the role of instrument party id
à
component block
<InstrumentPtysSubGrp>
N Repeating group of InstrumentParty sub-identifiers.
*** = Required status should match "Req'd" setting for <InstrumentParties> component block in message definition
FIXML Definition for this Component Block– see http://www.fixprotocol.org for details
Refer to FIXML element InstrumentParties
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 87 of 158
DisplayInstruction component block
The DisplayInstruction component block is used to convey instructions on how a reserved order is to be handled in
terms of when and how much of the order quantity is to be displayed to the market.
Tag
FieldName
Req'd
Comments
1138
DisplayQty
N
1082
SecondaryDisplayQty
N
1083
DisplayWhen
N
1084
DisplayMethod
N
1085
DisplayLowQty
N
Required when DisplayMethod = 3
1086
DisplayHighQty
N
Required when DisplayMethod = 3
1087 DisplayMinIncr N
Can be used to specify larger increments than the
standard increment provided by the market. Optionally
used when DisplayMethod = 3
1088
RefreshQty
N
Required when DisplayMethod = 2
*** = Required status should match "Req'd" setting for <DisplayInstruction> component block in message definition
FIXML Definition for this Component Block– see http://www.fixprotocol.org for details
Refer to FIXML element DisplayInstruction Grp
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 88 of 158
RootParties component block
The RootParties component block is a version of the Parties component block used to provide root information
regarding the owning and entering parties of a transaction.
Tag
FieldName
Req'd
Comments
1116 NoRootPartyIDs N
Repeating group below should contain unique
combinations of RootPartyID, RootPartyIDSource, and
RootPartyRole
à
1117 RootPartyID N Used to identify
source of RootPartyID. Required if
RootPartyIDSource is specified. Required if
NoRootPartyIDs > 0.
à
1118 RootPartyIDSource N Used to identify class source of RootPartyID value (e.g.
BIC). Required if RootPartyID is specified. Required if
NoRootPartyIDs > 0.
à
1119 RootPartyRole N
Identifies the type of RootPartyID (e.g. Executing
Broker). Required if NoRootPartyIDs > 0.
à
component block
<RootSubParties>
N Repeating group of RootParty sub-identifiers.
*** = Required status should match "Req'd" setting for <RootParties> component block in message definition
FIXML Definition for this Component Block– see http://www.fixprotocol.org for details
Refer to FIXML element RootParties Grp
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 89 of 158
UndlyInstrumentParties component block
The use of this component block is restricted to instrument definition only and is not permitted to contain
transactional information. Only a specified subset of party roles will be supported within the InstrumentParty block.
Possible uses of this block include identifying Listing Source information; Clearing Org information; Parent and
Capital Structure information for F/Iixed Income and derivative instruments.
Tag
FieldName
Req'd
Comments
1058 NoUndlyInstrumentParties N
Repeating group below should contain unique
combinations of InstrumentPartyID,
InstrumentPartyIDSource, and InstrumentPartyRole
à
1059 UnderlyingInstrumentP
artyID
N Used to identify party id related to instrument
à
1060 UnderlyingInstrumentP
artyIDSource
N Used to identify source of instrument party id
à
1061 UnderlyingInstrumentP
artyRole
N Used to identify the role of instrument party id
à
component block
<UndlyInstrumentPtysSubGrp
>
N Repeating group of InstrumentParty sub-identifiers.
*** = Required status should match "Req'd" setting for <UndlyInstrumentParties> component block in message
definition
FIXML Definition for this Component Block– see http://www.fixprotocol.org for details
Refer to FIXML element UndlyInstrumentParties Grp
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 90 of 158
ApplicationSequenceControl component block
The ApplicationSequenceControl is used for application sequencing and recovery. Consisting of ApplSeqNum
(1181), ApplID (1180), ApplLastSeqNum (1350), and ApplResendFlag (1352), FIX application messages that
carries this component block will be able to use application level sequencing. ApplID, ApplSeqNum and
ApplLastSeqNum fields identify the application id, application sequence number and the previous application
sequence number (in case of intentional gaps) on each application message that carries this block.
The ApplResendFlag (1352) is used to indicate that messages are being retransmitted as a result of an Application
Message Request.
See Application Sequencing Message section for further details on usage and restrictions.
Tag
FieldName
Req'd
Comments
1180 ApplID N
Identifies the application with which a message is
associated. Used only if application
sequencing is in
effect.
1181 ApplSeqNum N
Application sequence number assigned to the message by
the application generating the message. Used only if
application sequencing is in effect. Conditionally required
if ApplID has been specified.
1350 ApplLastSeqNum N
The previous sequence number in the application
sequence stream. Permits an application to publish
messages with sequence gaps where it cannot be avoided.
Used only if application sequencing is in effect.
Conditionally required if ApplID has been specified
1352 ApplResendFlag N
Used to indicate that a message is being sent in response
to an Application Message Request. Used only if
application sequencing is in effect. It is possible for both
ApplResendFlag and PossDupFlag to be set on the same
message if the Sender's cache size is greater than zero and
the message is being resent due to a session level resend
request.
FIXML Definition for this Component Block– see http://www.fixprotocol.org for details
Refer to FIXML element ApplSeqGrp
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 91 of 158
SecurityXML component block
The SecurityXML component is used for carrying security description or definition in an XML format. See
"Specifying an FpML product specification from within the FIX Instrument Block" for more information on using
this component block with FpML as a guideline.
Tag
FieldName
Req'd
Comments
1184 SecurityXMLLen N Must be set
if SecurityXML field is specified and must
immediately precede it.
1185 SecurityXML N
XML payload or content describing the Security
information.
1186 SecurityXMLSchema N
XML Schema used to validate the XML used to describe
the Security.
FIXML Definition for this Component Block– see http://www.fixprotocol.org for details
Refer to FIXML element SecXML
RateSource component block
Tag
FieldName
Req'd
Comments
1445
NoRateSources
N
à
1446
RateSource
N
Required if NoRateSource(1445) > 0
à
1447
RateSourceType
N
Required if NoRateSources(1445) > 0
à
1448
ReferencePage
N
Required if RateSource(1446)=other
FIXML Definition for this Component Block– see http://www.fixprotocol.org for details
Refer to FIXML element RtSrc
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 92 of 158
TargetParties component block
Tag
FieldName
Req'd
Comments
1461 NoTargetPartyIDs N
Repeating group below should contain unique
combinations of TargetPartyID, TargetPartyIDSource,
and TargetPartyRole.
à
1462 TargetPartyID N Required if NoTargetPartyIDs > 0.
Used to identify PartyID targeted for the action specified
in the message.
à
1463
TargetPartyIDSource
N
Used to identify source of target party id.
à
1464
TargetPartyRole
N
Used to identify the role of target party id.
FIXML Definition for this Component Block– see http://www.fixprotocol.org for details
Refer to FIXML element TgtPty
InstrmtGrp component block
Tag
FieldName
Req'd
Comments
146 NoRelatedSym N Specifies the number of repeating symbols (instruments)
specified
à
component block
<Instrument> N
Insert here the set of "Instrument" (symbology) fields
defined in "Common Components of Application
Messages"
FIXML Definition for this Component Block– see http://www.fixprotocol.org for details
Refer to FIXML element Inst
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 93 of 158
InstrmtLegGrp component block
Tag
FieldName
Req'd
Comments
555
NoLegs
N
Number of legs
à
component block
<InstrumentLeg>
N Must be provided if Number of legs > 0
FIXML Definition for this Component Block– see http://www.fixprotocol.org for details
Refer to FIXML element Leg
UndInstrmtGrp component block
Tag
FieldName
Req'd
Comments
711
NoUnderlyings
N
Number of underlyings
à
component block
<UnderlyingInstrument>
N Must be provided if Number of underlyings > 0
FIXML Definition for this Component Block– see http://www.fixprotocol.org for details
Refer to FIXML element Undly
SecAltIDGrp component block
Tag
FieldName
Req'd
Comments
454
NoSecurityAltID
N
à
455
SecurityAltID
N
à
456
SecurityAltIDSource
N
FIXML Definition for this Component Block– see http://www.fixprotocol.org for details
Refer to FIXML element AID
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 94 of 158
LegSecAltIDGrp component block
Tag
FieldName
Req'd
Comments
604
NoLegSecurityAltID
N
à
605
LegSecurityAltID
N
à
606 LegSecurityAltIDSour
ce
N
FIXML Definition for this Component Block– see http://www.fixprotocol.org for details
Refer to FIXML element LegAID
UndSecAltIDGrp component block
Tag
FieldName
Req'd
Comments
457
NoUnderlyingSecurityAltID
N
à
458 UnderlyingSecurityAltI
D
N
à
459 UnderlyingSecurityAltI
DSource
N
FIXML Definition for this Component Block– see http://www.fixprotocol.org for details
Refer to FIXML element UndAID
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 95 of 158
EvntGrp component block
Tag
FieldName
Req'd
Comments
864
NoEvents
N
à
865
EventType
N
à
866
EventDate
N
à
1145 EventTime N Specific time of event. To be used in combination with
EventDate [866]
à
867
EventPx
N
à
868
EventText
N
FIXML Definition for this Component Block– see http://www.fixprotocol.org for details
Refer to FIXML element Evnt
InstrumentPtysSubGrp component block
Tag
FieldName
Req'd
Comments
1052
NoInstrumentPartySubIDs
N
à
1053
InstrumentPartySubID
N
à
1054 InstrumentPartySubID
Type
N
FIXML Definition for this Component Block– see http://www.fixprotocol.org for details
Refer to FIXML element Sub
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 96 of 158
UndlyInstrumentPtysSubGrp component block
Tag
FieldName
Req'd
Comments
1062 NoUndlyInstrumentPartySubI
Ds
N
à
1063 UnderlyingInstrumentP
artySubID
N
à
1064 UnderlyingInstrumentP
artySubIDType
N
FIXML Definition for this Component Block– see http://www.fixprotocol.org for details
Refer to FIXML element Sub
PtysSubGrp component block
Tag
FieldName
Req'd
Comments
802
NoPartySubIDs
N
à
523
PartySubID
N
à
803
PartySubIDType
N
FIXML Definition for this Component Block– see http://www.fixprotocol.org for details
Refer to FIXML element Sub
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 97 of 158
NstdPtysSubGrp component block
Tag
FieldName
Req'd
Comments
804
NoNestedPartySubIDs
N
à
545
NestedPartySubID
N
à
805 NestedPartySubIDTyp
e
N
FIXML Definition for this Component Block– see http://www.fixprotocol.org for details
Refer to FIXML element Sub
NstdPtys2SubGrp component block
Tag
FieldName
Req'd
Comments
806
NoNested2PartySubIDs
N
à
760
Nested2PartySubID
N
à
807 Nested2PartySubIDTy
pe
N
FIXML Definition for this Component Block– see http://www.fixprotocol.org for details
Refer to FIXML element Sub
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 98 of 158
NstdPtys3SubGrp component block
Tag
FieldName
Req'd
Comments
952
NoNested3PartySubIDs
N
à
953
Nested3PartySubID
N
à
954 Nested3PartySubIDTy
pe
N
FIXML Definition for this Component Block– see http://www.fixprotocol.org for details
Refer to FIXML element Sub
NstdPtys4SubGrp component block
Tag
FieldName
Req'd
Comments
1413
NoNested4PartySubIDs
N
à
1412
Nested4PartySubID
N
à
1411 Nested4PartySubIDTy
pe
N
FIXML Definition for this Component Block– see http://www.fixprotocol.org for details
Refer to FIXML element Sub
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 99 of 158
RootSubParties component block
Tag
FieldName
Req'd
Comments
1120
NoRootPartySubIDs
N
Repeating group of RootParty sub-identifiers.
à
1121 RootPartySubID N Sub-
identifier (e.g. Clearing Acct for PartyID=Clearing
Firm) if applicable. Required if
NoRootPartySubIDs > 0.
à
1122 RootPartySubIDType N Type of Sub-
identifier. Required if
NoRootPartySubIDs > 0.
FIXML Definition for this Component Block– see http://www.fixprotocol.org for details
Refer to FIXML element Sub
AttrbGrp component block
Tag
FieldName
Req'd
Comments
870
NoInstrAttrib
N
à
871
InstrAttribType
N
à
872
InstrAttribValue
N
FIXML Definition for this Component Block– see http://www.fixprotocol.org for details
Refer to FIXML element Attrb
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 100 of 158
ContAmtGrp component block
Tag
FieldName
Req'd
Comments
518 NoContAmts N
Number of contract details in this message (number of
repeating groups to follow)
à
519
ContAmtType
N
Must be first field in the repeating group.
à
520
ContAmtValue
N
à
521
ContAmtCurr
N
FIXML Definition for this Component Block– see http://www.fixprotocol.org for details
Refer to FIXML element ContAmt
MiscFeesGrp component block
Tag
FieldName
Req'd
Comments
136 NoMiscFees N Required if any miscellaneous fees are reported. Indicates
number of repeating entries.
à
137
MiscFeeAmt
N
Required if NoMiscFees > 0
à
138
MiscFeeCurr
N
à
139
MiscFeeType
N
Required if NoMiscFees > 0
à
891
MiscFeeBasis
N
FIXML Definition for this Component Block– see http://www.fixprotocol.org for details
Refer to FIXML element MiscFees
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 101 of 158
TrdgSesGrp component block
Tag
FieldName
Req'd
Comments
386
NoTradingSessions
N
Specifies the number of repeating TradingSessionIDs
à
336
TradingSessionID
N
Required if NoTradingSessions is > 0.
à
625
TradingSessionSubID
N
FIXML Definition for this Component Block– see http://www.fixprotocol.org for details
Refer to FIXML element TrdSes
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 102 of 158
ComplexEvents component block
The ComplexEvent Group is a repeating block which allows an unlimited number and types of events in the lifetime
of an option to be specified.
Tag
FieldName
Req'd
Comments
1483
NoComplexEvents
N
Number of complex events
à
1484 ComplexEventType N Identifies the type of complex event.
Required if NoComplexEvents > 0.
à
1485 ComplexOptPayoutAm
ount
N
à
1486
ComplexEventPrice
N
à
1487 ComplexEventPriceBo
undaryMethod
N
à
1488 ComplexEventPriceBo
undaryPrecision
N
à
1489 ComplexEventPriceTi
meType
N
à
1490 ComplexEventConditi
on N
ComplexEventCondition is conditionally required when
there are more than one ComplexEvent occurrences. A
chain of ComplexEvents must be linked together through
use of the ComplexEventCondition in which the
relationship between any two events is described. For any
two ComplexEvents the first occurrence will specify the
ComplexEventCondition which links it with
the second
event.
à
component block
<ComplexEventDates>
N
Used to specify the dates and time ranges when a
complex event is in effect.
FIXML Definition for this Component Block– see http://www.fixprotocol.org for details
Refer to FIXML element CmplxEvnt
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 103 of 158
ComplexEventDates component block
The ComplexEventDate and ComplexEventTime components are used to constrain a complex event to a specific
date range or time range. If specified the event is only effective on or within the specified dates and times.
Tag
FieldName
Req'd
Comments
1491 NoComplexEventDates N
Number of complex event date occurrences for a given
complex event.
à
1492 ComplexEventStartDat
e
N Required if NoComplexEventDates(1491) > 0.
à
1493 ComplexEventEndDat
e
N Required if NoComplexEventDates(1491) > 0.
à
component block
<ComplexEventTimes>
N
FIXML Definition for this Component Block– see http://www.fixprotocol.org for details
Refer to FIXML element EvntDts
ComplexEventTimes component block
The ComplexEventTime component is nested within the ComplexEventDate in order to further qualify any dates
placed on the event and is used to specify time ranges for which a complex event is effective. It is always provided
within the context of start and end dates. The time range is assumed to be in effect for the entirety of the date or date
range specified.
Tag
FieldName
Req'd
Comments
1494
NoComplexEventTimes
N
à
1495 ComplexEventStartTi
me
N Required if NoComplexEventTimes(1494) > 0.
à
1496 ComplexEventEndTim
e
N Required if NoComplexEventTimes(1494) > 0.
FIXML Definition for this Component Block– see http://www.fixprotocol.org for details
Refer to FIXML element EvntTms
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 104 of 158
COMMON INFRASTRUCTURE MESSAGES (Apply to pre-trade, trade,
and post-trade)
Business Message Reject
The Business Message Reject message can reject an application-level message which fulfills session-level rules
and cannot be rejected via any other means. Note if the message fails a session-level rule (e.g. body length is
incorrect), a session-level Reject message should be issued.
The only exception to this rule is when a transport other than the FIX session protocol is being used (transport
independence). An appropriate reject message of the given session protocol or the Business Message Reject
message should be used instead.
See the session-level Reject message
It should *NOT* be used in the following situations:
Situation
Appropriate Response
Session-level problem meeting the criteria of
the session-level Reject message Use the session-level Reject message (MsgType=3)
if the FIX session protocol is being used.
If the FIX session protocol is not being used, use an
appropriate reject message of the given session
protocol or the Business Message Reject message.
In response to:
• Quote Request
Use the Quote Request Reject message
In response to:
• Quote
• Quote Cancel
• Quote Status Request
• Quote Response
Use the Quote Status Report message
In response to:
•
Mass Quote
Use the Mass Quote Acknowledgment message
In response to:
•
Market Data Request
Use the Market Data Request Reject message
In response to:
• Stream Assignment Request
Use the Stream Assignment Report message
In respose to:
• Stream Assignment Report
Use the Stream Assignment Report Ack message
In response to:
• Security Definition Request
Use the Security Definition message
In response to:
• Security Type Request
Use the SecurityTypes message
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 105 of 158
In response to:
• Security List Request
Use the Security List message
In response to:
• Derivative Security List Request
Use the Derivative Security List message
In response to:
•
Security Status Request
Use the Security Status message
In response to:
• Trading Session Status Request
Use the Trading Session Status message
In response to:
• Trading Session List Requeset
Use the Trading Session List message
In response to:
• Party Details List Request
Use the Party Details List Report message
In response to
• New Order - Single
• Order Status Request
• Order Mass Status Request
• New Order – Cross
• New Order – Multileg
• New Order – List
• List Execute
Use the Execution Report message
In response to:
• Order Cancel Request
• Order Cancel/Replace Request
• Cross Order Cancel Request
• Cross Order Cancel/Replace Request
• Mulileg Order Cancel/Replace Request
• List Cancel Request
Use the Order Cancel Reject message
In response to:
•
Execution Report
Use the Don’t Know Trade (DK) message or the
Execution Report Acknowledgement message
In response to:
• Order Mass Cancel Request
Use the Order Mass Cancel Report message
In response to:
• Order Mass Action Request
Use the Order Mass Action Report message
In response to:
• List Status Request
Use the List Status message
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 106 of 158
In response to:
• Bid Request
Use the Bid Response message
In response to:
• Allocation Instruction
Use the Allocation Instruction Ack message
In response to:
•
Allocation Report
Use the Allocation Report Ack message
In response to:
• Confirmation
Use the Confirmation Ack message
In response to:
• Registration Instructions
Use the Registration Instructions Response message
In response to:
• Trade Capture Report Request
Use the Trade Capture Report message
In response to:
• Confirmation Request
Use the Confirmation message
In response to:
• Settlement Instruction Request
Use the Settlement Instructions message
In response to:
•
Position Maintenance Request
Use the Position Maintenance Report message
In response to:
• Request for Positions
Use the Request for Positions Ack message
In response to:
• Collateral Request
Use the Collateral Assignment message
In response to:
• Collateral Assignment
Use the Collateral Response message
In response to:
• Collateral Inquiry
Use the Collateral Inquiry Ack message
Note the only exceptions to this rule are:
1. in the event a business message is received, fulfills session-level rules, however, the message cannot be
communicated to the business-level processing system. In this situation a Business Message Reject with
BusinessRejectReason = “Application not available at this time” can be issued if the system is unable to
send the specific “reject” message listed above due to this condition.
2. in the event a valid business message is received, fulfills session-level rules, however, the message type
is not supported by the receipient. In this situation a Business Message Reject with
BusinessRejectReason = “Unsupported Message Type” can be issued if the system is unable to send the
specific “reject” message listed above because the receiving system cannot generate the related “reject”
message.
3. In the event a business message is received, fulfills session-level rules, but lacks a field conditionally
required by the FIX specification. In this situation a Business Message Reject with BusinessRejectReason
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 107 of 158
= “Conditionally Required Field Missing” can be issued if the system is unable to send the specific “reject”
message listed above. One example of this would be a stop order missing StopPx. However, a Business
Message Reject message MUST NOT be used to enforce proprietary rules more restrictive than those
explicit in the FIX specification, such as a broker requiring an order to contain an Account, which the FIX
specification considers an optional field.
Messages which can be referenced via the Business Message Reject message are:
(the “ID” field BusinessRejectRefID refers to noted in [ ])
• Indication of Interest (IOI) [IOIid]
• Advertisement [AdvId]
• News [Headline]
• Email [EmailThreadID]
• Market Data-Snapshot/Full Refresh [MDReqID]
• Market Data-Incremental Refresh [MDReqID]
• Market Data Request Reject [MDReqID]
• Market Definition [MarketReportID]
• Market Definition Request [MarketReqID]
• Market Definition Update Report [MarketReportID]
• Stream Assignment Ack [StramAsgnRptID]
• Security Definition [SecurityResponseID or SecurityReportID]
• Security Definition Update Report [SecurityResponseID or SecurityReportID]
• Security Status [SecurityStatusReqID]
• Security Types [SecurityResponseID]
• Security List [SecurityResponseID]
• Security List Update Report [SecurityResponseID or SecurityReportID]
• Derivative Security List [SecurityResponseID]
• Derivative Security List Update Report [SecurityRespondID]
• Trading Session Status [TradSesReqID]
• Trading Session List [TradSesReqID]
• Trading Session List Update Report [TradSesReqID]
• Party Details LIst Report [PartyDetailsListReportID]
• Mass Quote Acknowledgement [QuoteReqID or QuoteID]
• Quote Request Reject [QuoteReqID]
• RFQ Request [RFQReqID]
• Quote Status Report [QuoteStatusReqID or QuoteRespID or QuoteID or QuoteMsgID]
• Quote Status Report [QuoteID]
• Order Cancel Reject [ClOrdID]
• List Status [ListID]
• List Strike Price [ListID]
• Bid Response [BidID]
• Order Mass Cancel Report [OrderID]
• Order Mass Action Report [MassActionReportID]
• Order Mass Status Request [MassStatusReqID] [tbd]
• Don’t Know Trade (DK) –
may respond with Order Cancel Reject if attempting to cancel order
[ExecID]
• Execution Report Acknowledgement [ExecID]
• Allocation Instruction ACK [AllocID]
• Allocation Report ACK [AllocID]
• Allocation Alert [AllocID]
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 108 of 158
• Confirmation ACK [ConfirmID]
• Trade Capture Report [TradeReportID]
• Trade Capture Report Request Ack [TradeRequestID]
• Trade Capture Report Ack [TradeReportID]
• Position Maintenance Report [PosMaintRptID]
• Request for Positions Ack [PosMaintRptID]
• Adjusted Position Report [PosMaintRptID]
• Positions Report [PosMaintRptID]
• Assignment Report [AsgnRptID]
• Contrary Intention Report [ContIntRptID]
• Settlement Instructions [SettInstMsgID]
• Settlement Obligation Report [SettlObligMsgID]
• Registration Instructions Response [RegistID]
• Collateral Response [CollRespID]
• Collateral Inquiry Ack [CollInquiryID]
•
Collateral Report [CollRptID]
Scenarios for Business Message Reject:
BusinessRejectReason
0 = Other
1 = Unkown ID
2 = Unknown Security
3 = Unsupported Message Type (receive a valid, but unsupported
MsgType)
4 = Application not available
5 = Conditionally Required Field Missing
6 = Not Authorised
7 = DeliverTo firm not available at this time
18 = Invalid price increment
Whenever possible, it is strongly recommended that the cause of the failure be described in the Text field
(e.g. “UNKNOWN SYBMOL: XYZ”).
The business message reject format is as follows:
Business Message Reject
Tag
FieldName
Req'd
Comments
StandardHeader
Y
MsgType = j (lowercase)
45
RefSeqNum
N
MsgSeqNum of rejected message
372
RefMsgType
Y
The MsgType of the FIX message being referenced.
1130 RefApplVerID N
Recommended when rejecting an application message
that does not explicitly provide ApplVerID ( 1128) on the
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 109 of 158
message being rejected. In this case the value from the
DefaultApplVerID(1137) or the default value specified in
the NoMsgTypes repeating group on the logon message
should be provided.
1406 RefApplExtID N
Recommended when rejecting an application message
that does not explicitly provide ApplExtID(1156) on the
rejected message. In this case the value from the
DefaultApplExtID(1407) or the default value specified in
the NoMsgTypes repeating group on the logon message
should be provided.
1131 RefCstmApplVerID N
Recommended when rejecting an application message
that does not explicitly provide CstmApplVerID(1129) on
the message being rejected. In this case the value from the
DefaultCstmApplVerID(1408) or the default value
specified in the NoMsgTypes repeating group on the
logon message should be provided.
379 BusinessRejectRefID N The value of the business-level "ID" field on the message
being referenced. Required unless the corresponding ID
field (see list above) was not specified.
380 BusinessRejectReason Y
Code to identify reason for a Business Message Reject
message.
58
Text
N
Where possible, message to explain reason for rejection
354 EncodedTextLen N
Must be set if EncodedText field is specified and must
immediately precede it.
355 EncodedText N Encoded (non-
ASCII characters) representation of the
Text field in the encoded format specified via the
MessageEncoding field.
StandardTrailer
Y
FIXML Definition for this Message– see http://www.fixprotocol.org for details
Refer to the FIXML element BizMsgRej
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 110 of 158
Network Status Messages
It is envisaged these messages will be used in two scenarios:
Scenario A
Allow one counterparty using a “hub and spoke” FIX network to know whether another counterparty is currently
connected to the hub (i.e. whether the counterparty's session to the hub is up or not).
Scenario B
Allow a counterparty connecting to a global brokerage to know which regions within that brokerage are currently
available as order routing destinations.
Network Status Component Blocks
This section lists the component blocks used exclusively by the messages defined for Network Status.
CompIDReqGrp component block
Tag
FieldName
Req'd
Comments
936 NoCompIDs N
Used to restrict updates/request to a list of specific
CompID/SubID/LocationID/DeskID combinations.
If not present request applies to all applicable available
counterparties. EG Unless one sell side broker was a
customer of another you would not expect to see
information about other brokers, similarly one fund
manager etc.
à
930
RefCompID
N
Used to restrict updates/request to specific CompID
à
931
RefSubID
N
Used to restrict updates/request to specific SubID
à
283
LocationID
N
Used to restrict updates/request to specific LocationID
à
284
DeskID
N
Used to restrict updates/request to specific DeskID
FIXML Definition for this Message– see http://www.fixprotocol.org for details
Refer to the FIXML element CIDReq
CompIDStatGrp component block
Tag
FieldName
Req'd
Comments
936
NoCompIDs
Y
Specifies the number of repeating CompId's
à
930 RefCompID Y
CompID that status is being report for. Required if
NoCompIDs > 0,
à
931
RefSubID
N
SubID that status is being report for.
à
283
LocationID
N
LocationID that status is being report for.
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 111 of 158
à
284
DeskID
N
DeskID that status is being report for.
à
928
StatusValue
Y
à
929
StatusText
N
Additional Information, i.e. "National Holiday"
FIXML Definition for this Message– see http://www.fixprotocol.org for details
Refer to the FIXML element CIDStat
Network (Counterparty System) Status Request Message
This message is send either immediately after logging on to inform a network (counterparty system) of the type of
updates required or to at any other time in the FIX conversation to change the nature of the types of status updates
required. It can also be used with a NetworkRequestType of Snapshot to request a one-off report of the status of a
network (or counterparty) system. Finally this message can also be used to cancel a request to receive updates into
the status of the counterparties on a network by sending a NetworkRequestStatusMessage with a
NetworkRequestType of StopSubscribing.
Network (Counterparty System) Status Request
Tag
FieldName
Req'd
Comments
StandardHeader
Y
MsgType = "BC"
935
NetworkRequestType
Y
933
NetworkRequestID
Y
component block <CompIDReqGrp> N
Used to restrict updates/request to a list of specific
CompID/SubID/LocationID/DeskID combinations.
If not present request applies to all applicable available
counterparties.
EG Unless one sell side broker was a
customer of another you would not expect to see
information about other brokers, similarly one fund
manager etc.
StandardTrailer
Y
FIXML Definition for this Message– see http://www.fixprotocol.org for details
Refer to the FIXML element NtwkSysStatReq
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 112 of 158
Network (Counterparty System) Status Response Message
This message is sent in response to a Network (Counterparty System) Status Request Message.
If the network response payload is larger than the maximum permitted message size for that FIX conversation the
response would be several Network Status Response Messages the first with a status of full and then as many
messages, as updates to the first message, adding information as required.
Network (Counterparty System) Status Response
Tag
FieldName
Req'd
Comments
StandardHeader
Y
MsgType = "BD"
937
NetworkStatusResponseType
Y
933
NetworkRequestID
N
932
NetworkResponseID
Y
934
LastNetworkResponseID
N
Required when NetworkStatusResponseType=2
component block <CompIDStatGrp>
Y
Specifies the number of repeating CompId's
StandardTrailer
Y
FIXML Definition for this Message– see http://www.fixprotocol.org for details
Refer to the FIXML element NtwkSysStatRsp
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 113 of 158
User Administration Messages
These messages are provided in FIX to allow the passing of individual user information between two counterparties.
The messages allow for the following function
1 – Individual User Logon
2 – Individual User Status Enquiries
3 – Individual User Logout
4 – Individual User password change
NOTE: While it is not encouraged to transmit passwords in a FIX conversation unless you can guarantee the
end to end security of both the FIX conversation and any intermediate routing hubs that are involved in the
routing.
User Management Component Blocks
This section lists the component blocks used exclusively by the messages defined for Network Status.
UsernameGrp component block
Tag
FieldName
Req'd
Comments
809
NoUsernames
N
Number of usernames
à
553
Username
N
Recipient of the notification
FIXML Definition for this Message– see http://www.fixprotocol.org for details
Refer to the FIXML element UserGrp
User Request Message
This message is used to initiate a user action, logon, logout or password change. It can also be used to request a
report on a user’s status.
User Request
Tag
FieldName
Req'd
Comments
StandardHeader
Y
MsgType = "BE"
923
UserRequestID
Y
924
UserRequestType
Y
553
Username
Y
554
Password
N
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 114 of 158
925
NewPassword
N
1400
EncryptedPasswordMethod
N
1401
EncryptedPasswordLen
N
1402
EncryptedPassword
N
1403
EncryptedNewPasswordLen
N
1404
EncryptedNewPassword
N
95
RawDataLength
N
96
RawData
N
Can be used to hand structures etc to other API's etc
StandardTrailer
Y
FIXML Definition for this Message– see http://www.fixprotocol.org for details
Refer to the FIXML element UserReq
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 115 of 158
User Response Message
This message is used to respond to a user request message, it reports the status of the user after the completion of any
action requested in the user request message.
User Response
Tag
FieldName
Req'd
Comments
StandardHeader
Y
MsgType = "BF"
923
UserRequestID
Y
553
Username
Y
926
UserStatus
N
927
UserStatusText
N
Reason a request was not carried out
StandardTrailer
Y
FIXML Definition for this Message– see http://www.fixprotocol.org for details
Refer to the FIXML element UserRsp
User Notification
The User Notification message is used to notify one or more users of an event or information from the sender of the
message. This message is usually sent unsolicited from a marketplace (e.g. Exchange, ECN) to a market participant.
User Notification
Tag
FieldName
Req'd
Comments
StandardHeader
Y
MsgType = CB
component block <UsernameGrp>
N
List of users to which the notification is directed
926 UserStatus Y Reason for notification -
when possible provide an
explanation.
58
Text
N
Explanation for user notification.
354 EncodedTextLen N
Must be set if EncodedText field is specified and must
immediately precede it.
355 EncodedText N Encoded (non-
ASCII characters) representation of the
Text field in the encoded format specified via the
MessageEncoding field.
StandardTrailer
Y
FIXML Definition for this Message– see http://www.fixprotocol.org for details
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 116 of 158
Refer to the FIXML element UserNotification
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 117 of 158
Application Sequencing Messages
Introduction
FIX has a growing need to support application-level sequencing of messages in order to segregate the transmission of
data over a session. The ability to identify and retransmit a subset of data by application and application sequence
number range is an important feature in support of secondary distribution of data (see definition below). The current
retransmission capabilities of the FIX session require that all messages on that session between the specified starting
and ending message sequence number are resent rather than just those that have been produced by a specific
upstream business process or application. This can pose capacity and performance problems for systems that need
only a small set of messages related to an application. Secondary data distribution consists of a diverse set of data
sourced from different applications; drop copy data, credit limit information, metrics, etc. It is not recommended that
application sequencing is used over a conventional order routing or a transaction flow oriented connection. Standard
FIX session capabilities should be used in this case.
Application Sequencing greatly enhances the usefulness of FIX messages that are transmissted apart from the FIX
session layer by making it possible for the receiver to detect and request missed messages on a specified feed.
Market Data sent over a broadcast or multicast transport is often in need of sequencing and retransmission.
Application Sequencing provides a means by which to sequence each message that is part of a broadcast stream such
that the receiver can verify ordered delivery of the data. Application Resends can then be requested when gaps are
detected in the application sequence.
Background
The purpose of Application-level Sequencing is to allow messages being sent over a FIX session to be distinguished
by the sending application that is upstream from the FIX engine. In the case that a session-level resend would result
in an unnecessarily large number of messages being resent, Application Sequencing and Recovery makes provision
for the desired messages - and only the desired messages - to be seamlessly requested and resent while retaining the
standard behaviors of the session protocol. It also provides the receiver with the flexibility to put off recovery of
application level messages until a slow period or after the market has closed.
Extends control over resent data
The primary intent of Application Sequencing and Recovery is to allow receivers to avoid a retransmission of large
quantities of unusable data which may result in receivers needing to glean the retransmission for the data they
actually need - such as critical drop copy information that is used in risk management applications. Application
Sequencing allows the channeling of different types of data across a single FIX session. For example, Application
Sequencing can allow drop copy data to be sent over the same FIX session with order flow data. While this may not
be practical from a trading standpoint the flexibility that it introduces is compelling. This allows data which has a
higher importance and priority to be identified by application ID thereby allowing requests for retransmission to be
issued promptly and precisely.
Support for secondary data distribution
Another goal of the proposal is to provide support for “secondary data” distribution. Application Sequencing extends
the capabilities of FIX such that secondary data can be distributed using a single channel. This data may be less time
critical with less demanding latency requirements than order entry and market data, although this is not necessarily
the case as drop copies are used for time sensitive risk management tasks. Secondary data may consist of drop copy
fills, credit limit information, statistical data, trade confirmations, and best bids and offers for vendor consumption,
etc. These are just a few of the possibilities. Application Sequencing benefits data providers and their users by
providing a common protocol which can be used to perform secondary data distribution. New applications
transmitting data can be quickly introduced over an existing channel with minimal effort simply by introducing a new
ApplID (application ID).
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 118 of 158
Transaction usage is not recommended
Application Sequencing is not something that will be used in a normal order routing scenario. It has more relevance
in large volume one-way connections in which the receiver would like to have some ability to control the data that is
resent after a disconnect or data loss. There is no obvious advantage in using Application Sequencing with a regular
trading connection since all data transmitted between Sender and Receiver is of equal importance in maintaining a
viable trading session. Application Sequencing should not be used to track broker connections that are in place for
trading purposes. It should only be used for managing the flow of data when a FIX connection is used to deliver data
in bulk and where there is a stated need to create classes of data.
For additional usage guidance on using these messages, see Volume 7 – USER GROUP: EXCHANGES AND
MARKETS.
Using Application Sequencing and Session Sequencing for Gap Detection
The use of ApplResendFlag on the new Application Sequence Group Component is used to indicate that messages
are being retransmitted as a result of an Application Message Request. It is possible for both ApplResendFlag and
PossDupFlag to be set on the same message if the Sender’s cache size is greater than zero and the message is being
resent due to a session level resend request.
The Sender and Receiver may agree to use a limited cache in order to benefit from the convenience of session-level
retransmission. In this case, a message that is dropped in response to an Application Message Request may have both
fields present. This scenario depends on whether (1) the Sender is maintaining a cache and (2) the Sender and
Receiver have agreed to fill any gaps to the extent possible using the session-level.
In this scenario, a combination of Application and Session level sequencing will be used to recover missed messages.
A limited cache of session level messages may be retained by the Sender in order to recover messages that have been
dropped within an pre-stated window defined by time or number of messages. When a FIX session Resend Request
message is issued within this window the Sender’s session will resend the messages. Once the window has been
exceeded an Application Message Request must be issued in order to recover dropped messages. The application
level will not be aware that a gap has occurred until the session level has recovered what it available. Beyond this,
the application will detect the gap according to the logic as described and issue a resend request at the application
level using the Application Message Request.
Gap detection and recovery with respect to the Application Message Request message and response messages (e.g.
Application Message Request Ack and resent application messages using ApplicationSequenceGrp component
block) may also need to take place at the application level since session level recovery may have been suspended.
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 119 of 158
Applicaton Sequencing Component Blocks
This section lists the component blocks used exclusively by the messages defined for Application Sequencing.
ApplIDRequestGrp component block
Tag
FieldName
Req'd
Comments
1351
NoApplIDs
N
Specifies number of application id occurrences
à
1355
RefApplID
N
à
1433
RefApplReqID
N
à
1182 ApplBegSeqNum N
Message sequence number of first message in range to be
resent
à
1183 ApplEndSeqNum N
Message sequence number of last message in range to be
resent. If request is for a single message
ApplBeginSeqNo = ApplEndSeqNo. If request is for all
messages subsequent to a particular message,
ApplEndSeqNo = "0" (representing infinity).
à
component block
<NestedParties>
N
FIXML Definition for this Message– see http://www.fixprotocol.org for details
Refer to the FIXML element ApplIDReqGrp
ApplIDRequestAckGrp component block
Tag
FieldName
Req'd
Comments
1351
NoApplIDs
N
Number of applications
à
1355
RefApplID
N
à
1433
RefApplReqID
N
à
1182
ApplBegSeqNum
N
à
1183
ApplEndSeqNum
N
à
1357
RefApplLastSeqNum
N
à
1354
ApplResponseError
N
à
component block
<NestedParties>
N
FIXML Definition for this Message– see http://www.fixprotocol.org for details
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 120 of 158
Refer to the FIXML element ApplIDReqAckGrp
ApplIDReportGrp component block
Tag
FieldName
Req'd
Comments
1351
NoApplIDs
N
Number of applications
à
1355
RefApplID
N
à
1399
ApplNewSeqNum
N
à
1357
RefApplLastSeqNum
N
FIXML Definition for this Message– see http://www.fixprotocol.org for details
Refer to the FIXML element ApplIDRptGrp
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 121 of 158
Application Message Request
This message is used to request a retransmission of a set of one or more messages generated by the application
specified in RefApplID (1355). The message can be used for five types of transmission requests:
0 - retransmission of application messages for a specified application and sequence number range,
1 - subscription to an application in order receive, for example, drop copy services,
2 - request for the last application sequence number sent by an application,
3 - request the valid set of application identifiers for which a user is authorized,
4 - unsubscribe to one or more of applications
The Request message specifies the sequence number range using ApplBegSeqNum (1182) and ApplEndSeqNum
(1183) for a given RefApplID (1355) to request messages for retransmission.
Application Message Request
Tag
FieldName
Req'd
Comments
StandardHeader
Y
MsgType = BW
1346
ApplReqID
Y
Unique identifier for request
1347
ApplReqType
Y
Type of Application Message Request being made
component block
<ApplIDRequestGrp>
N
component block <Parties>
N
58
Text
N
Allows user to provide reason for request
354
EncodedTextLen
N
355
EncodedText
N
StandardTrailer
Y
FIXML Definition for this Message– see http://www.fixprotocol.org for details
Refer to the FIXML element ApplMsgReq
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 122 of 158
Application Message Request Ack
This message is used to acknowledge an Application Message Request providing a status on the request (i.e. whether
successful or not). This message does not provide the actual content of the messages to be resent.
Application Message Request Ack
Tag
FieldName
Req'd
Comments
StandardHeader
Y
MsgType = BX
1353
ApplResponseID
Y
Identifier for the Application Message Request Ack
1346 ApplReqID N
Identifier of the request associated with this ACK
message
1347
ApplReqType
N
1348
ApplResponseType
N
1349
ApplTotalMessageCount
N
Total number of messages included in transmission
component block
<ApplIDRequestAckGrp>
N
component block <Parties>
N
58
Text
N
354
EncodedTextLen
N
355
EncodedText
N
StandardTrailer
Y
FIXML Definition for this Message– see http://www.fixprotocol.org for details
Refer to the FIXML element ApplMsgReqAck
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 123 of 158
Application Message Report
This message is used for three different purposes: to reset the ApplSeqNum (1181) of a specified ApplID (1180). to
indicate that the last message has been sent for a particular ApplID, or as a keep-alive mechanism for ApplIDs with
infrequent message traffic. The purpose of the Application Message Report is indicated by ApplReportType (1426).
Using Application Message Report to reset ApplSeqNum
The Application Message Report (Reset) is sent by the ApplID sender to alert the receiver that the ApplSeqNum
is being reset, for one or more ApplID, to the specified value(s). The next application message received will
then conform to this value. In other words, ApplSeqNum in this message represents the next expected
application sequence number the receiver will receive from the sender for the corresponding ApplID. An
Application Message Report (Reset) has no affect on, and is independent of, the FIX session sequence number
in MsgSeqNum (34).
Using Application Message Report to indicate last message sent
The ApplID sender can use the Application Message Report to indicate that the last message has been sent for
one or more ApplIDs. Reception of this message mean the recipient can safely assume that no more message
will be sent for that/or those ApplIDs. RefApplLastSeqNum should be set to the last ApplSeqNum sent for this
ApplID.
Using Application Message Report as keep-alive mechanism
For recipients of ApplIDs with infrequent message traffic it is a problem to detect a gap in the message flow.
The gap cannot be detected until reception of the next message for that ApplID. To mitigate this problem the
Application Message Report message can be issued by the ApplID sender at regular intervals.
RefApplLastSeqNum should be set to the last ApplSeqNum sent for this ApplID.
Using Application Message Report to indicate completion of resent messages
As part of a recovery scenario, the receiver (or consumer) may request all of the message for one or more
ApplIDs. Because of the potentially lengthy re-send situation, the request can be acknowledged with an
ApplicationMessageRequestAck prior to beginning the re-send of messages. In this case, the receiver or
consumer will begin seeing re-sent messages until the re-send is complete. However, once the re-send is
complete, the receiver or consumer will only know that the re-send has completed when they receive a new
copied message from that ApplID that no longer has tag 1352 ApplResendFlag=Y. If the specified ApplID is
only “heartbeating” and there are no new messages to send, the consumer will still not know the Application
Message re-send has actually finished. It is in this case that an Application Message Report can be generated,
which signals that the Application Message re-send has completed by setting ApplReportType (1426) = 3
(application message re-send completed).
Application Message Report
Tag
FieldName
Req'd
Comments
StandardHeader
Y
MsgType = BY
1356
ApplReportID
Y
Identifier for the Application Message Report
1346 ApplReqID N
If the application message report is generated in response
to an
ApplicationMessageRequest(MsgType=BW), then
this tag contain the ApplReqID(1346) of that request.
1426
ApplReportType
Y
Type of report
component block <ApplIDReportGrp>
N
58
Text
N
354
EncodedTextLen
N
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 124 of 158
355
EncodedText
N
StandardTrailer
Y
FIXML Definition for this Message– see http://www.fixprotocol.org for details
Refer to the FIXML element ApplSeqReset
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 125 of 158
Application Sequencing Message flows
Application recovery over a FIX session
The message flow shows a use case in which the Receiver disconnects from the Sender and generates an Application
Message Request in order to fill the sequence gap. The workflow occurs as follows (see Figure 1):
1. The Sender and receiver establish a connection using a standard FIX session.
2. The Sender forwards messages to a receiver from Application 1 and Application 2 over the FIX session. The
Receiver is checking Application Sequence Numbers at the application level
3. The Receiver then experiences a disconnection.
4. While disconnected, the Sender continues to send messages for Application 1 and Application 2.
5. Upon reconnecting, the Receiver’s session sends a Resend Request to recover missed messages (due to Logon
with higher than expected MsgSeqNum).
6. The Sender responds with SequenceReset-GapFill in order to suppress the session level retransmission of
messages. This has been pre-arranged between parties based on the nature of the connection
7. A message for Application 1, ApplSeqNum is 11 is received causing the Receiver to detect an application level
gap
8. The Receiver sends an Application Message Request to specifically request any messages from Application 1
that may have been missed starting at the last application sequence number received.
9. Messages from Application 2 are not requested and are therefore not retransmitted.
10. The Sender retransmits the requested messages for Application 1
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 126 of 158
Figure 1: Application Sequencing Recovery over a FIX session
Receiver
Session Sender Sender
Application1
Application Sequencing Recovery Over a FIX Session
Appl Message Request – A1, 2-10
Appl Message Response – A1, 2-10
FIX Session
Application 1 Messages
ApplFeedID=A1, ApplSeqNum=1
ApplFeedID=A2, ApplSeqNum=1
ApplFeedID=A1, ApplSeqNum=2-10
Disconnect
ApplFeedID=A1, ApplSeqNum=2-10
Sender
Application2
Application 2 Messages
ApplFeedID=A2, ApplSeqNum=2-9999
Reconnect Sender responds
using GapFill for
ALL MESSAGES
Resend Request (35=4)
SequenceRest-GapFill
Next message for
App A1 is sent
FIX Session
Receiver
Application
Logon MsgSeqNum=10009
ApplFeedID=A2, ApplSeqNum=1
Receiving
Application checks
for App-level Gaps ApplFeedID=A1, ApplSeqNum=1
ApplFeedID=A1, ApplSeqNum=11
ApplFeedID=A1, ApplSeqNum=11
Receiving App
detects gap and
generates App
Resend Request
Messages for
App A1 are
Resent
Application 1 Messages
Application 2 Messages
Application 1 Messages
ApplFeedID=A1, ApplSeqNum=2-10
Application recovery independent of FIX session
The message flow shows a use case in which the Receiver is using Application Sequencing and Recovery to recover
data over that has been lost over a multicast-broadcast transport. In this scenario the following recovery takes place
(see Figure 23):
1. The Sender sequences the messages in Application 1 and 2 using ApplSeqNum so that the Receiver/s are
able to detect gaps and perform Application Message Requests based on the ApplSeqNum.
2. The Receiver disconnects from the feed while the Sender continues to generate new messages.
3. Once reconnected the Receiver detects the gap and generates an Application Message Request for
Application 1 in order to fill the sequence gap. The missed messages for Application 2 are not recovered.
4. The Request is sent over the back-channel which has been separately established in order to support the
Resend Request.
5. The Sender uses the back-channel to respond with an Application Resend Response and delivers the
requested messages with the original ApplSeqNum.
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 127 of 158
Figure 2: Application Sequencing Recovery outside of a FIX session
Receiver Sender Sender
Application1
Application Sequencing Recovery Outside of the FIX Session
Appl Message Request – A1, 2-10
Appl Message Response – A1, 2-10
Multicast
Application 1 Messages
ApplFeedID=A1, ApplSeqNum=1
ApplFeedID=A2, ApplSeqNum=1
ApplFeedID=A1, ApplSeqNum=2-10
Disconnect
ApplFeedID=A1, ApplSeqNum=2-10
Sender
Application2
Application 2 Messages
ApplFeedID=A2, ApplSeqNum=2-9999
Reconnect
Next message for
App A1 is sent
Multicast
Receiver
Application
One-way
comm
ApplFeedID=A2, ApplSeqNum=1
Receiving
Application checks
for App-level Gaps ApplFeedID=A1, ApplSeqNum=1
ApplFeedID=A1, ApplSeqNum=11
ApplFeedID=A1, ApplSeqNum=11
Receiving App
detects gap and
generates App
Resend Request
Messages for
App A1 are
Resent
Application 1 Messages
Application 2 Messages
Application 1 Messages
ApplFeedID=A1, ApplSeqNum=2-10
Back-channel
Back-channel Two-way
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 128 of 158
Glossary
Business Terms
The following glossary is an attempt to identify business terms used in this document or related to implementing FIX
globally. Requests for new terms and/or suggested definitions should be posted in the FIX Web Site’s Discussion
section.
Term Definition Field where
used
Acceptable Counterparty
A counterparty eligible for trading with the order or quote Initiatior.
[PartyRole]
Accrued Interest Rate T
he amount the buyer compensates the seller for the portion of the
next
coupon interest payment the seller has earned but will not
receive from the issuer because the issuer will send the next coupon
payment to the buyer. Accrued Interest Rate is the annualized
Accrued Interest amount divided by the purchase price of the bond.
ACPN Accrued Coupon (ACPN) is a pro-
rated amount from the prior
coupon date to the current business date which is collateralized by
the clearing house
[from EP83]
[PosAmtTyp]
After Tax Yield Municipals. The yield on the bond net of any tax consequences
from holding the bond. The discount on municipal securities can be
subject to both capital gains taxes and ordinary income taxes.
Calculated from dollar price.
[YieldType]
All or None A round-lot market or limit-price order that must be executed in its
entirety or not at all; unlike Fill or Kill orders, AON orders are not
treated as canceled if they are not executed as soon as represented
in the Trading Crowd.
[ExecInst]
Allowances Under an emissions cap and trade program, each allowance entitles
the holder to emit some amount of gas such as carbon. Sources that
emit less than their emissions cap can sell allowances to those
sources needing to purchase additional allowances to comply with
the cap. Emission sources can then decide whether to control
emissions through control technology or through allowance
surrender to meet compliance.
[from EP89]
[UnitOfMeasure
]
American style option An option that can be exercised at anytime before its expiration
date.
Source: www.investopedia.com and www.investorwords.com
[ExerciseStyle]
Annual Yield The annual interest or dividend income an investment earns,
expressed as a percentage of the investment’s total value.
[YieldType]
As defined
Sides of the legs are the same as defined in the multileg instrument.
[Side]
At Crossing An order that is valid only during crossing (auction) phases. The
order is valid during the day or up to and including a specified
trading
(sub) session. Also see Good Till Crossing (GTX), Good
Through Crossing,At the Opening and At the Close.
[TimeInForce]
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 129 of 158
Term Definition Field where
used
At the close Indicated price is to be around the closing price, however, not held
to the closing price.
[IOIQualifier]
At the Opening A market or limit-price order to be executed at the opening of the
stock or not at all; all or part of any order not executed at the
opening is treated as canceled.
[TimeInForce]
Auto-match
Specifies that the source matching mechanism for a trade is
automatic matching (of orders and / or quotes)
[MatchType]
Automated Floor Order
Routing
The use of electronic devices or systems to capture orders and route
the resulting trades to downstream system for matching and post-
trade activities.
[TradeHandling
Instr]
Average Price Guarantee A limit order instruction that order allows fills against worse prices
if this is compensated with higher prices so the volume weighted
average is at the limit price or better. Applies to each execution
round in automatic matching.
[DiscretionInst]
Average Price (Asian)
Option
The underlying price is an average of the daily settlement prices
over a specified period
[from EP92]
Average Strike
The strike price is an average of the daily settlement prices over a
specified period
[from EP92]
BANK
Total Banked Amount (BANK) represents the summation of all
banked amounts (ICPN+TVAR+IACPN+ICMTM+CPN+DLV)
[from EP83]
[PosAmtTyp]
Barrier Option The option becomes active (knock-in) or inactive (knock-out) based
on a predetermined price level
[from EP92]
Basis Price A price established by joint agreement of odd-lot dealers in 100-
share-unit stocks when:
- no round-lot has occurred during the trading session,
-
the spread between the closing bid and offer is two points or more,
and
- on odd-lot the dealer has been given a “basis-price” order.
[OrdType]
Bermuda style option A type of option that can only be exercised on predetermined dates,
usually every month.
Source: www.investopedia.com
[ExerciseStyle]
Binary All or None
Option Fixed pay out if the underlying settles on a predefined trigger price.
[from EP92]
Binary Barrier Option
A digital option which becomes active or inactive based on the
crossing of a barrier. Events are linked through “And” condition.
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 130 of 158
Term Definition Field where
used
[from EP92]
Binary One Touch Option
Immediate fixed pay out if the underlying reaches the predefined
trigger price at any point during the life of the instrument.
[from EP92]
Binary Option A binary option is a cash settled option that has a discontinuous
payoff. Binary options come in many forms, but the two most basic
are: cash-or-nothing and asset-or-nothing. Each can be European or
American style and can be structured as a put or call.
Also called a "digital option" or "all-or-nothing option".
Source: www.riskglossary.com
Binary Range Option
Fixed pay out if the underlying settles between an upper and lower
trigger price.
[from EP92]
Block Lot A lot size that is larger than the Round Lot and associated with
special block trading rules as bilaterally agreed between parties.
[LotType]
Block Trade A Block Trade is a privately negotiated futures transaction executed
apart from the public auction market, either on or off the exchange
trading floor.
[from EP84]
[TradeConditio
n]
Book Yield
The yield of a security calculated by using its book value instead of
the current market price. This term is typically used in the US
domestic market.
[YieldType]
Broker Execution According to US futures markets (CFTC):
Time at which a broker executed the order for another broker.
[TrdRegTimest
ampType]
Broker of Credit
Broker to receive trade credit.
[PartyRole]
Broker Receipt According to US futures markets (CFTC):
Time at which broker received the order.
[TrdRegTimest
ampType]
Buy Minus A round-
lot market order to buy “minus” is an order to buy a stated
amount of a stock provided that its price is:
-
not higher than the last sale if the last sale was a “minus” or “zero
minus” tick and
- not higher than the last sale minus the minimum fractional change
in the stock if the last sale was a “plus” or “zero plus” tick.
A limit price order to buy “minus” also states the highest price at
which it can be executed.
[Side]
Cabinet Trade An off-market transaction to close out a nearly worthless out-of-the-
money option contract.
Call Date The date on which the issuer of a security has the right but not the
obligation to repurchase the security at a predetermined price.
[EventType]
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 131 of 158
Term Definition Field where
used
Call First
Refer to client before trading.
[ExecInst]
Cancel if Not Best Indicates that an order should be cancelled if it is no longer the best
bid if buying, or the best offer if selling. If the order is cancelled
due to this instruction, the message cancelling
it must carry
ExecRestatementReason="Canceled, Not Best".
[ExecInst]
Cancel on System Failure If a system failure interrupts trading or order routing, attempt to
cancel this order. Note that depending on the type and severity of
the failure, this might not be possible.
[ExecInst]
Cancel on Trading Halt If trading in this instrument is halted, cancel this order and do not
reinstate it when/if trading resumes.
[ExecInst]
Capped Asian Option A capped option which pays out based on the average price of the
underlying.
[from EP92]
Capped Barrier Option
A capped option which becomes active or inactive based on the
crossing of a barrier.
[from EP92]
Capped Call Option
The option has a linear payout (like a vanilla) up to a capped
amount as specified by a cap price.
[from EP92]
Capped Payout Option
The payout amount is capped based on the difference between the
strike and a cap price for call options and a floor price for put
options.
[from EP92]
CEA Credit Event Adjustment quantity (CEA) is used to
represent the
position movement associated with a credit event on processing
date.
[from EP83]
[PosType]
Central Registration
Depository (CRD)
“The Central Registration Depository is a computerized database
that contains information about most brokers, their representatives,
and the firms they work for.”
From SEC website: www.sec.gov/investor/brokers.htm
[from EP79]
[PartyRole]
CIV ("Collective
Investment Vehicle") Collective investment vehicle ("CIV") are set up for the purposes of
collecting and pooling investor funds and issuing shares (or their
equivalent). "Open-
ended" CIVs entitle the holder to receive, on
demand, an amount in value which is proportionate to the whole net
asset value of the vehicle. Coversely "Closed-ended" CIVs do not
grant this right to investors.
CIVs are more commonly known as Mutual Funds, Unit Trusts,
OEICS (Open Ended Investment Companies), SICAVs etc.
A CIV may be legally constituted as a Limited Company with
[CFICode]
and
a “Product”
within Volume
7
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 132 of 158
Term Definition Field where
used
variable capital, a Trust or a Limited Partnership - depending on
local legislation & tax regimes.
CIVs typically invest in equities, bonds, derivatives etc. - as
described in their prospectus. Other CIVs are Umbrella Fund (made
up of sub-funds investing in equities, gilts etc), Fund Of Funds
(invests only in other funds), Master-
Feeder Fund (marketed to a
specific group for investment in a central master fund), Multi-
Manager Fund (whose asset management is divied between several
managers), Side By Side (onshore and offshore funds with the same
investment strategy)
Clearing Firm Firm that will clear the trade. Used if different from the executing
firm.
[PartyRole]
Clearing Organization Identifies the Clearing Organization
where the position is
maintained.
[PartyRole]
Client ID Firm identifier used in third party-transactions
or for investor
identification in intermediary transactions. (should not be a
substitute for OnBehalfOfCompID/DeliverToCompID).
[PartyRole]
Close An instruction to position keeping that the trade should bring the
position towards zero, i.e. close as much as possible of any existing
position and open an opposite position for any remainder.
[PositionEffect]
Close but Notify on Open An instruction to position keeping that the trade should close an
existing position. If the position is closed out and an opposite
position is opened a notification is sent out.
[PositionEffect]
Closing Yield
The yield of a bond based on the closing price.
[YieldType]
Clo
sing Yield Most
Recent Month
The yield of a bond based on the closing price as of the most recent
month's end.
[YieldType]
Closing Yield Most
Recent Quarter
The yield of a bond based on the closing price as of the most recent
quarter’s end.
[YieldType]
C
losing Yield Most
Recent Year
The yield of a bond based on the closing price as of the most recent
year’s end.
[YieldType]
CMTM Collateralized mark-to-
market (CMTM) is determined by marking
from coupon rate to settlement price. The resulting amount is
collateralized meaning the holder of the position must post
acceptable collateral to cover the obligation.
[from EP83]
[PosAmtTyp]
COLAT Total Collateralized Amount (COLAT) represents the summation of
all collateralized amounts (ACPN+CMTM).
[from EP83]
[PosAmtTyp]
Compound Yield
The yield of certain Japanese bonds based on its price. Certain
Japanese bonds have irregular first or last coupons, and the yield is
calculated compound for these irregular periods.
[YieldType]
Confirmed Trade Report
(reporting from
A trade that is completed (both sides are reported) and matched.
The receiver confirms the completed trade.
[MatchType]
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 133 of 158
Term Definition Field where
used
recognized markets)
Contra Firm
The broker or other firm which is the contra side of the trade.
[PartyRole]
Contra Clearing Firm Clearing firm of the broker or other firm which is the contra side of
the trade.
[PartyRole]
Contra Trader Individual usually identified by a trading badge number or initials
that takes the opposite side of a trade.
[PartyRole]
Contract For Difference
(CFD)
A single stock total return swap, combining financing and synthetic
equity exposure in one transaction.
[BookingType]
Contract Weighted
Average Price
Relevant for multileg orders (Energy Specific). The price of the
strategy is given as an average price of all legs in the multileg,
including adjustment for differences in contract sizes between the
legs.
[MultilegPrice
Method]
Correspondent Broker
Identifies a correspondent broker.
[PartyRole]
Correspondent Clearing
Firm
ClearingFirm that is going to carry the position on their books at
another clearing house (exchanges).
[PartyRole]
Correspondent Clearing
Organization
Identifies a correspondent clearing organization [PartyRole]
Counter-Order Selection A model where the user selects which order to hit by providing the
order ID in the order being submitted against it (also know as
Hit/Take orders).
[OrdType]
Specifies that the source matching mechanism for a trade is a Hit /
Take.
[MatchType]
Coupon Rate The rate of interest that, when multiplied by the principal, par value,
or face value of a bond, provides the currency amount of the
periodic interest payment. The coupon is always cited, along with
maturity, in any quotation of a bond's price.
CPN
Coupon (CPN) is the payment as determined by coupon rate paid on
coupon date.
[from EP83]
[PosAmtTyp]
CRES Cash Residual Amount (CRES) is used to represent a residual
amount associated with migrated trades and succession events
[from EP83]
[PosAmtTyp]
Cross Client sends Broker a buy or sell order. Broker wishes to take the
other side and cross with the client. Broker sends an order with
Side=Cross to an exchange.
[OrdType]
Crossed Generally indicates that the current offer price is better than the bid
one -
a situation where a trade normally should have occurred. The
rules for crossed book situations are bilaterally agreed between
counterparties.
[See Vol. 3 Market Data for usage notes]
[QuoteConditio
n]
Cross Auction
Crossing session, for example to open or close a market. Rules
[MatchType]
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 134 of 158
Term Definition Field where
used
governing this type of session usually differ from those effective
during continuous trading. For example, price determination could
be subject to the principle of most executable volume. Visibility of
the order book is typically restricted (e.g. top-of-
book only,
indicative crossing price) compared to continuous trading. The
session itself might be separated into different phases governed by
different rules, all
of which are defined by the marketplace offering
this type of matching mechanism.
Specifies that the source matching mechanism for a trade report is
Call Auction (a crossing session like the onnes often used to open or
close a market).
Cross Short Client wants to establish a short position, and so sends a Sell Short
to Broker. Broker wants to cross with the Client, so Broker sends a
Cross Short order to an exchange. Cross Short is crucial here
because many exchanges have tick rules needing to b
e enforced,
and the order getting converted from Sell Short to Cross (instead of
Cross Short) could result in an illegal short sell.
[OrdType]
Cross Short Exempt Client wants to establish a short position, and is exempt from the
uptick restriction. So Cli
ent sends Sell Short Exempt to Broker.
Broker wants to cross with the Client, so Broker needs a way to
send "Cross Short Exempt" to the exchange so that an audit trail
traces back indicating that the party selling short was exempt from
the uptick rule.
[OrdType]
Currency swap
"An agreement to exchange future cash flows. There are two
fundamental types: the cross-
currency swap and the interest rate
(single currency) swap."
Source: A Foreign Exchange Primer by Shani Shamah
Current Yield Annual interest on a bond divided by the market value. The actual
income rate of return as opposed to the coupon rate expressed as a
percentage.
[YieldType]
Customer Account
Identifies the customer account associated with the message.
[PartyRole]
Dated Date The effectiv
e date of a new securities issue determined by its
underwriters. Often but not always the same as the "Issue Date"
and the "Interest Accrual Date"
Day Order
A buy or sell order that, if not executed expires at the end of the
trading day on which it was entered.
[TimeInForce]
Default Position Effect An instruction to use the default position keeping rules assigned to
the account. For Options and Futures the default is normally "net"
position, while for Forwards the deafault is usally "open" position.
[PositionEffect]
Dealt currency
In a foreign exchange transaction, 'dealt currency' indicates which
currency was orginally specified. For example, An invesment
manager may 'buy 100M USD against EUR'. This has USD as the
'dealt currency' and EUR as the 'counter currency'. Note that when
viewed from the sell-side's (or broker's) perspective, this is a 'Sell
100M USD against EUR' the 'dealt currency' remains the same.
[Currency]
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 135 of 158
Term Definition Field where
used
Derivative Related
Transaction Exercise or expiration of options, forwards or futures contracts that
imply an exchange of securities or a trade that relates to a
derivatives trade and that forms an unconditional part of a
combination together with a derivative trade.
[TrdType]
Discount When a bond sells below its par value, it is said to be selling at a
discount. A price with a PriceType of "discount" is the difference
between 100 and the bond's percent-of-par price.
[PriceType]
DLV 1) Delivery Amount (DLV) represents the amount paid or collected
in association with a credit event.
[from EP83]
1)
[PosAmtTyp]
2) Delivery quantity (DLV) is used on the target CDS position to
represent the delivery of the underlying bonds.
[from EP83]
2) [PosType]
Do Not Increase (DNI) A limit order to buy, a stop order to sell, or a stop-limit order to sell
which is not to be increased in shares on the ex-dividend date as a
result of a stock dividend or distribution.
[ExecInst]
Do Not Reduce (DNR) A limit order to buy, a stop order to sell, or a stop-limit order to sell
that is not to be reduced in price by the amount of an ordinary cash
dividend on the ex-dividend date. A do-not-reduce order applies
only to ordinary cash dividends; it should be reduced for other
distributions - such as when a stock goes “ex” stock dividend or
“ex” rights.
[ExecInst]
Dollar Price
See "Percent of Par"
[PriceType]
Double Barrier Option
An option that has a combination of activation/inactivation
conditions. Specifies multiple price levels at which the option
becomes active (knock-in) or inactive (knock-out).
[from EP92]
Down and In Option
the option becomes active if the underlying price drops below the
specified barrier.
[from EP92]
Down and Out Option The option becomes inactive if the underlying price drops below the
specified barrier.
[from EP92]
Entering Firm
Broker who has recorded or reported an execution. This field is
particularly useful where the trade is entered into a trade recording
system by a broker who is not a party to the trade, as it allows any
inquiries or problem resolution to be d
irected to the appropriate
source.
[PartyRole]
Entering Trader Individual usually identified by a trading badge number or initials
that actually enters an order to a market (especially in open outcry
markets). Usually the Entering Trader is the same as the Executing
Trader. However, under some circumstances the Entering Trader
[PartyRole]
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 136 of 158
Term Definition Field where
used
will have the trade executed by another trader who is then identified
as the Executing Trader.
Entering Unit Individual unit within an Entering Firm, e.g. trading desk, branch
office or similar, that actually enters an order to a market. Usually
the Entering Unit is the same as the Executing Unit that is
responsible for the transction. The Executing Unit can delegate the
entry but not the responsibility to another unit who is then identified
as the Entering Unit.
[PartyRole]
European style option An option that can only be exercised at the end of its life or for a
short, specified period of time just prior to expiration (usually on a
single day).
Source: www.investopedia.com and www.investorwords.com
Even swap An FX Swap where the given amount to be bought and sold is the
same on the near and far legs. See "uneven swap".
Exchange
Exchange associated with the position.
[PartyRole]
Exchange for Physical
EFP trades involve a futures contract and a cash position. The
parties involved agree privately upon a price for a simultaneous
exchange or transfer "cash for futures" and then report the terms of
this agreement to the clearing house.
[from EP84]
[TradeConditio
n]
Exchange for Risk
EFR trades involve a futures contract and a spot commodity. The
parties involved agree privately upon a price for a simultaneous
exchange or transfer of "spot for futures" and then report the terms
of this agreement to the clearing house.
[from EP84]
[TradeConditio
n]
Exchange granted trade
A trade done according to an individual or general authorisation,
obtainedprior to
theconsumation ofthe trade, from the marketplace
for the specific case and/or kind of trade.
[TrdType]
Execute as delta neutral
using volatility provided
Indicates that the quantity of a strategy leg is to be (or was)
calculated as delta neutral using provided volatility parameters
[ExecInst]
Execute as duration
neutral
Indicates that the quantity of a strategy leg is to be (or was)
calculated as duration neutral
[ExecInst]
Execute as FX neutral Indicates that the quantity of a strategy FX leg is to
be (or was)
calculated as neutral with regards to the security traded for the other
legs of the strategy
[ExecInst]
Execution Time According to US futures markets (CFTC):
Non-qualified reporting time of order execution.
[TrdRegTimest
ampType]
Executing Firm Identifies executing / give-up broker.
[PartyRole]
Executing System
System Identifier where execution took place (some markets have
multiple execution location such as an electronic book or automatic
execution system).
[PartyRole]
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 137 of 158
Term Definition Field where
used
Executing Trader
Trader or broker id associated with Executing Firm who actually
executes the trade.
[PartyRole]
Executing Unit Identifies executing unit within an Executing Firm, e.g. trading
desk, branch office or similar.
[PartyRole}
Exhaust A reserve order refresh method where the displayed quantity is not
refreshed until exhausted (filled).
[DisplayWhen]
External Routing Allowed
Indicates that an order sent to one market may be routed by that
market to other external markets, especially in cases where the order
lock
s or crosses the market and it can be executed against another
market’s superior price. Note: The absence of this instruction does
not imply that an order should not be routed externally; rather, the
order receiver’s default will apply.
[ExecInst]
Extern
al Routing Not
Allowed
Indicates that an order sent to one market may never be routed by
that market to other external markets. Should the order lock or
cross the market but be unable to execute due to price protection
reasons, a market may have to take a
lternate action, which might
include rejecting the order, depending on the market’s rules. Note:
The absence of this instruction does not imply that an order should
be routed externally; rather, the order receiver’s default will apply.
[ExecInst]
Fill or Kill A market or limit-price order that is to be executed in its entirety as
soon as it is represented in the Trading Crowd; if not so executed,
the order is to be canceled. Not to be confused with Immediate or
Cancel.
[TimeInForce]
Final Inventory Due Date Specifies the last date on which purchase dates for a contract must
be provided to the service provider.
[EventType]
First Delivery Date
Specifies the first delivery date of the delivery period for a
physically delivered instrument.
[EventType]
First Intent Date Specifies the first date of the delivery period on which intents may
be submitted for a physically delivered instrument.
[EventType]
FIX Connection A FIX Connection
is comprised of three parts: logon, message
exchange, and logout.
FIX Session A FIX Session
is comprised of one or more FIX Connections,
meaning that a FIX Session spans multiple logins.
Fixed Payout Option The payout amount is specified at inception. Associated with Binary
options (Yes, it pays or No, it doesn’t pay).
[from EP92]
Fixed Price Cabinet Trade
Cabinet Trade executed at a price equal to the minimum tick size
(or smallest possible price) . See "Cabinet Trade".
[PriceType]
Fixed Tick Rule
A fixed cabinet trade price set to a minimum tick amount.
[TickRuleType]
Fixing Date
The date on which the rate is used for which the settlement amount
is calculated. Every NDF has a fixing date. The fixing date is the
day the comparison between the NDF rate and the prevailing spot
rate is made. Depending on the currencies dealt, there are
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 138 of 158
Term Definition Field where
used
variations. For some currencies the fixing date is one good business
day befor
e the settlement date and for other currencies the fixing
date is two good business days before the settlement date.
[from EP82]
Fixing Price Imputed price based on VWAP/TWAP algorithm. Used especially
to price FX futures.
[from EP84]
[MDEntryType]
Fixing Time The time on the fixing date on which the rate is used for which the
settlement amount is calculated for NDFs. See "Fixing Date".
Fixing time for NDFs typically follows market conventions and is
set by the central bank of the currency's country.
[from EP82]
Flat Default Curve
Price calculation method that uses a flat credit curve to establish
future probability of defaults for pricing a specific CDS contract.
[from EP83]
[Quote
Condition]
Flexible Instrument An exchange-listed instrument for which a set of pre-defined
attributes such as strike price, expiration date and underlying
instrument may be provided by the user at the time of creation
(creating a new instrument). Can be an option or future.
Floating Price Cabinet
Trade
Cabine
t Trade executed at a price that can be different than the
minimal price. See "Cabinet Trade".
[PriceType]
Floored Put Option
The option has a linear payout (like a vanilla) up to a capped
amount as specified by a floor price.
[from EP92]
Forex - Swap
A "Swap" order for Foreign Exchange (currency trading).
[OrdType]
Foreign exchange swap The transaction of exchanging two currencies at an agreed upon rate
at an agreed upon time. The transaction is reversed at a future rate
and time, with no payment streams between the points in time.
Source: A paraphrase of definition from
http://joxo.co.uk/SummaryGuideToFXForFinancialandITProfessio
nals.html
Full Default Curve
Price calculation method that uses a complete credit curve to
establish future probability
of defaults for pricing a specific CDS
contract.
[from EP83]
[Quote
Condition]
Funari
Japanese term for an order to buy or sell a stated amount of a
security at the specified limit price with any unexecuted (leftover)
quantity becoming a Market On Close order.
[OrdType]
Fund manager Client ID
For CIV:
[PartyRole]
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 139 of 158
Term Definition Field where
used
An identifier for an Investor or a broker or funds supermarket’s
nominee/custodian company which is recognized by the Fund
manager.
Giveup Clearing Firm Firm to which the trade is given up (carries the position that results
from a trade).
[PartyRole]
Good Till Canceled
An order to buy or sell that remains in effect until it is either
executed or canceled; sometimes called an “open order”.
[TimeInForce]
Good Till Crossing (GTX) An order to buy or sell that is canceled prior to the market entering
into an auction, or crossing phase. Typically, markets that support
continuous trading will have an auction phase at the beginning and
sometimes also at the end of trading to match up orders that have
been entered into the exchange's order book during the pre- or post-
trading phase (i.e. where no continuous trading was available). A
GTX order automatically expires immediately prior to the
commencement of a crossing session, i.e. the party originating the
order wants to make sure it gets filled during the current continuous
auction, and any remaining open quantity should be discarded at the
end of the current continuous auction period.
[TimeInForce]
Good Through Crossing An order that is valid up till and including a crossing phase. Also
see Good Till Crossing (GTX), At Crossing, At the Opening and
At the Close.
[TimeInForce]
Government Equivalent
Yield
Ask yield based on semi-
annual coupons compounding in all
periods and actual/actual calendar.
[YieldType]
Held The firm executing the order is held to best execution requirements,
and may not make discretionary decisions. Opposite of Not Held
[ExecInst]
IACPN Incremental Accrued Coupon (IACPN) represents the incremental
accrued coupon which is banked each day.
[from EP83]
[PosAmtTyp]
ICMTM
Incremental Accrued Coupon (IACPN) represents the incremental
accrued coupon which is banked each day.
[from EP83]
[PosAmtTyp]
ICPN Initial coupon (ICPN) is an amount paid to the buyer as a pro-rated
portion of the coupon from the prior coupon through trade date. The
buyer will be responsible for the full coupon on the next coupon
date.
[from EP83]
[PosAmtTyp]
Ignore Price Validity
Checks
Disables validity checking of price fields
for an order or change
request.
[ExecInst]
Imbalance Only
Indicates than order is an “Imbalance” order. Exchanges often use
this type of (often unpriced) order to allow certain trading
participants to remove imbalances in call auctions.
[ExecInst]
Immediate
A reserve order refresh method where the displayed quantity stays
the same until the remaining executable quantity of the order goes
[DisplayWhen]
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 140 of 158
Term Definition Field where
used
below.
Immediate or Cancel A market or limit-price order that is to be executed in whole or in
part as soon as it is represented in the Trading Crowd; any portion
not so executed is to be canceled. Not to be confused with Fill or
Kill.
[TimeInForce]
Individual Prices
The price of a multileg order strategy is given using individual
prices for the legs.
[MultilegPrice
Method]
Initial
A reserve order instruction to refresh using the initially displayed
quantity.
[DisplayMethod
]
Initial Inventory Due Date
Specifies the first date on which purchase dates for a contract must
be provided to the service provider.
[EventType]
Initiator
An “initiator” may be one of the following:
• an institutional client
• a financial planner
• a retail broker representing a retail customer
• a broker/dealer
• an inter-dealer broker (or broker’s broker)
• an issuer
Quoting and
other messages
Volume 7
Institutions Only
Broker is restricted to dealing with other buy side firms.
[ExecInst]
Instrument Denominator Specifies the price denominator of a fractionally quoted instrument
such as treasure note futures or corn futures. Values ar
e whole
numbers. Examples are Quarters (4), Eights (8), Sixteenths (16),
Thirty-seconds (32), etc.
[InstrAttribTyp
e]
Instrument Numerator Specifies the denominator for the fractional portion of a numerator
for a fractionally quoted price. For example, a price 5 3¼ / 32 has
an Instrument Numerator of 4. Values are whole numbers.
[InstrAttribTyp
e]
Instrument Price Precision
Specifies the number of decimal places that are provided in order to
correctly format a price. Generally, used for the formatting of
fractional prices. Values are whole numbers.
[InstrAttribTyp
e]
Instrument Strike Price
Precision
Specifies the number of decimal places that are provided in order to
correctly format a strike price. Generally, used for the formatting of
fractional prices. Values are whole numbers.
[InstrAttribTyp
e]
Interest Accrual Date
The start date used for calculating accrued interest on debt
instruments which are being sold between interest payment dates.
Often but not always the same as the "Issue Date" and the "Dated
Date".
Intermarket sweep
An order that is an intermarket sweep as defined by the SEC in
Regulation NMS. This value is used on Immediate or Cancel limit
orders (or other order type and time in force). It indicates that the
party sending the order has taken responsibility for price protection,
and the recipient of the order should execute it, if possible, without
regard to protection of other markets’ prices. While the term
“Intermarket sweep” is specific to the United States, the ExecInst
value that r
epresents it may be used in other markets, where
appropriate, to indicate an order that should be executed without
regard to price protection.
[ExecInst]
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 141 of 158
Term Definition Field where
used
Internalized Trade
A trade done internally at a marketplace member. Often restricted to
the inside of
the current spread. In cases where the trade must be
offered to the market for price improvement it is often called Cross
Trade.
[TradeConditio
n]
Introducing Firm
The broker or other intermediary with the closest association with
the investor.
[PartyRole]
Inverse Floater Bond
Yield
Inverse floater semi-annual bond equivalent rate. [YieldType]
Investor ID
For Equities:
Identifies beneficiary or broker acting on behalf of beneficiary. This
field is mandatory for various exchanges either pre or post trade.
Numerical entry containing no dashes.
[PartyRole]
For CIV:
An Investor identifier such as a taxpayer reference (NINO, NPN,
DSS, SSN number etc) for an individual investor or a registration
number (EIN, etc.) for a company.
May contain alphanumeric and dashes.
[PartyRole]
Issue Date The date on which a bond or stock offering is issued. It may or may
not be the same as the effective date ("Dated Date") or the date on
which interest begins to accrue ("Interest Accrual Date")
Issue Price Stabilization This indication must, according to certain regulation, be used when
a broker is contracted by the issuer to stabilize the price before an
issue of new stock of a security that is already traded (or a buy-
back/buy-out).
[OrderRestrictio
ns]
Issuer Holding C
ertain regulation requires this indicator to be attached when an
issuer is buying back its own stock (or units of other instruments). It
can also be used in cases when a new issue is auctioned out over the
exchange.
[OrderRestrictio
ns]
Issuing/Buy-back Auction A call auction with the purpose of issuing new or buying back
stock, bonds or other security.
[MatchType]
Last Delivery Date
Specifies the last delivery date of the delivery period for a
physically delivered instrument.
[EventType]
Last Intent Date Specifies the last date of the delivery period on which intents may
be submitted for a physically delivered instrument.
[EventType]
Last Peg A pegged order specifying that the order should be priced relative
to the last sale price.
[PegPriceType]
Limit An order to buy a security at or below a stated price, or to sell a
security at or above a stated price.
[OrdType]
Limit or Better Indicates an order to
- buy a security at the indicated limit price or lower, or to
- sell a security at the indicated limit price or higher.
[OrdType]
Limit With or Without
An order to be executed at a limit price, with or without round-lot
[OrdType]
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 142 of 158
Term Definition Field where
used
sales; valid only for odd lot orders.
Liquidity Provider Identifies the individual that provided liquidity, e.g. was the market
maker (specialist) involved in a trade. Used to identify the liquidity
provider involved in a block of EFP trade for listed futures markets.
[PartyRole]
Locate/Lending Firm
Identity of the firm which is loaning the security in a short sale.
[PartyRole]
Locked
Generally indicates that the current bid and offer prices are the
same, a situation where a trade normally should have occurred. The
rules for locked book situations are bilaterally agreed between
counterparties. Also see Crossed.
[QuoteConditio
n]
Look-back Option
The underlying price is set to the optimal value of the daily
settlement prices over a specified period.
[from EP92]
Marked To Market Yield An adjustment in the valuation of a securities portfolio to reflect the
current market values of the respective securities in the portfolio.
[YieldType]
Market Indicates an order to buy or sell a stated amount of a security at the
most advantageous price obtainable after the order is represented in
the Trading Crowd.
[OrdType]
Market If Touched
Indicates an order to buy or sell a stated amount of a security or
commodity as soon as a preset market price is reached, at which
point it becomes a Market order.
[OrdType]
Market On Close
Indicated price is held to the closing price ("firm" instruction).
[IOIQualifier]
Market operations Entered
Trade
Identifies an OTC (privately negotiated) trade is entered by a
marketplace official on behalf of the reporting party.
[TradeConditio
n]
Market Or Better Indicates an order to buy or sell a stated amount of a security at the
quoted market or better.
[OrdType]
Market Peg A pegged order specifying that the order should be priced relative
to the offer price if buying or bid price if selling.
[PegPriceType]
Market Segment A subdivision of a market or marketplace that is setup and operates
within that market. A market segment may be setup for a variety of
reasons including (examples):
- regulatory - e.g. separate derivatives trading from stock trading
- membership - e.g. requiring separate membership or trading
authorization
- geographical - e.g. separate segments for various countries
- separate venues - e.g. floor/pit trading vs. electronic
- trading rules -
e.g. different rules and behaviours that a market
needs to support for the entities it offers to trade
Market with Leftover as
Limit Indicates an order to buy or sell a stated amount of a security at the
prevailing market price with any unexecuted (leftover) quantity
becoming a Limit order at the last executed price.
[OrdType]
Median Price
One type of average, found by arranging the values in order and
[QuoteConditio
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 143 of 158
Term Definition Field where
used
then selecting the one in the middle. If the total number of values in
the sample is even, then the median is the mean of the two middle
numbers. The median is a useful number in cases where the
distribution has very large extreme values which would otherwise
skew the data. (Source: http://www.investorwords.com/).
n]
Mid Price
The average of a set of prices (not taking quantity into account).
Also see “Trading Session VWAP Price”
[QuoteConditio
n]
Mid-
Price Peg (Midprice
of inside quote)
A pegged order specifying that the order should be priced relative
to the mid-price of the inside quotes.
[PegPriceType]
Most Recent Closing
Yield
The last available yield stored in history, computed using price. [YieldType]
Multi asset class Multileg
Trade Identifies that the trade occurred due to an equity / derivatives (or
other multi asset class) combination, either in the legs or in a
multileg order book.
[TradeConditio
n]
Multileg-to-Multileg
Trade
Identifies that a multileg order has executed against another
multileg order in a multileg order book (i.e. the legs were not
involved).
[TradeConditio
n]
Net Price Relevant for multileg orders. The price is given as the sum of the
Price * Ratio for all legs.
• If buying the strategy, the price of a bought leg (which is a
buy-leg in the multileg definition) is added, and the price
of a sold leg is subtracted.
• If selling the strategy, the price of a bought leg (which is a
sell-
leg in the multileg definition) is subtracted, and the
price of a sold leg is added.
[MultilegPrice
Method]
New A reserve order instruction to refresh using a quantity defined
separately from the initial display quantity.
[DisplayMethod
]
Next Fund Valuation
Point For CIV orders - indicates that the Investor wishes the order to be
dealt at the unit price determined at the next Valuation Point, a.k.a.
a Forward price.
[OrdType]
Next Roll Date
Next roll date for a swap
[EventType]
No Cross The broker executing this trade is forbidden from taking the other
side of the trade. Opposite of OK to Cross.
[ExecInst]
Non-standard settlement A Trade that deviates from the standard settlement and delivery
period.
[TrdType]
Not Held
The firm executing the order is not held to best execution
requirements, and may be able to make some discretionary
decisions. Opposite of Held.
[ExecInst]
Odd Lot An amount of a security that is less than the normal unit of trading
for that particular security. For stocks, any transaction less than 100
shares is usually considered to be an odd lot. (Source: Investopedia)
[LotType]
Off Hours Trade A trade that occurs outside normal trading hours. Used to qualify
privately negotiated trades (subject to regulations)
[TrdSubType]
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 144 of 158
Term Definition Field where
used
OK to Cross
The broker executing this trade is allowed to take the other side of
the trade. Opposite of No Cross.
[ExecInst]
Omnibus Account An account where the positions for multiple entities (usually
customers) are maintained. The omnibus accounting is usually done
on a gross basis where long and short positions are not netted
together.
[PartyRole]
On Basis
An order to buy or sell at the basis price. The basis price is
established by joint agre
ement of odd lot dealers in 100 share unit
stocks when no round lot sale has occurred during the trading
session, the spread between the closing bid and offer is two points
or more, and an odd lot dealer has been given a basis price order.
[OrdType]
On Hours Trade A trade that occurs during normal trading hours. Used to qualify
privately negotiated trades (subject to regulations)
[TrdSubType]
One Cancels the Other
(OCO)
An OCO order is an order whose execution results in the immediate
cancellation of
another order linked to it. Cancellation of the
Contingent Order happens on a best efforts basis. In an OCO order,
both orders are live in the marketplace at the same time. The
execution of either order triggers an attempt to cancel the
unexecuted order. Partial executions will also trigger an attempt to
cancel the other order.
[ListExecInst]
One-
Party Report for
Matching
A trade report for one side of a privately negotiated trade. When
both sides are reported the receiver matches and confirms the trade.
[TradeHandling
Instr]
One-Party Report for Pass
Thru
A trade report for one side of a privately negotiated trade. The
receiver forwards a request to the counterparty who declines or
accepts the trade.
[TradeHandling
Instr]
One Triggers the Other
(OTO) An OTO orders involves two orders—
a primary order and a
secondary order. The primary order is a live marketplace order. The
secondary order, held in a separate order file, is not. If the primary
order executes in full, the secondary order is released to the
mar
ketplace and becomes live. An OTO order can be made up of
stock orders, option orders, or a combination of both.
[ListExecInst]
One Touch Option
One Touch further defines the terms, usually specific dates and
times, for when the option will pay out in the context of a trigger
price.
[from EP92]
One Updates the Other
(OUO) An OUO order is an order whose execution results in the immediate
reduction of quantity in another order linked to it. The quantity
reduction happens on a best effort basis. In an OUO
order both
orders are live in the marketplace at the same time. The execution
of either order triggers an attempt to reduce the remaining quantity
of the other order, partial executions included.
There are two sub-types of OUO orders:
1. In the Proportional Quantity Reduction model, the quantity of
the unfilled order is reduced proportionally to size of the order
that got filled. Example:
[ListExecInst]
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 145 of 158
Term Definition Field where
used
• Order A is for 100; Order B is for 50.
•
When order B is partially filled for 25 (50 %), order A is
restated to a quantity of 50 (50 %).
2. In the Absolute Quantity Reduction model, the quantity of the
unfilled order is reduced with the fill size of the order that got
filled. Example:
• Order A is for 100; Order B is for 50.
• When order B is partially filled for 25, order A is restated
to a quantity of 75.
Open An instruction to position keeping that the trade should open a new
position.
[PositionEffect]
Opening Peg A pegged order specifying that the order should be priced relative
to the opening price.
[PegPriceType]
Opposite Sides of the legs are the opposite of their definition in the multileg
instrument.
[Side]
Order imbalance, auction
is extended
Used when a call auction (e.g. opening or closing a market) is
extended due to an imbalance at the auction clearing price.
[SecurityTradin
gEvent]
Order Origination Firm
Buyside firm associated with Order Origination Firm which
originates/submits the order.
[PartyRole]
Order Origination Trader
Buyside trader id associated with Order Origination Firm which
originates/submits the order.
[PartyRole]
OTC Used to report into an exchange trades or prices that were agreed
directly, outside of the exchange rules, between the counterparties
("over the counter")
[TrdType]
OTC Privately Negotiated A privately negotiated trade in a non-regulated product.
[from EP84]
[TradeConditio
n]
OTC Quote A OTC trade that occurs as the result of a Quote Negotiation. Used
to qualify privately negotiated trades (subject to regulations)
[TrdSubType]
Outside Spread A trade done
outside the current spread of the book. Often allowed
due to special considerations only.
[TradeConditio
n]
Par Equal to the face value (nominal) of a security, e.g. A bond selling
at par is worth an equivalent to its original issue value, typically
$1000/bond.
[QuantityType]
Participate Don’t Initiate An order that may participate in a transaction initiated by another
party, but may not initiate a transaction. For example, on US ECNs
/ Exchanges, this may represent an order that will be quoted to the
marketplace and will trade if another party initiates a trade (i.e. hits
the posted quote), but cannot be routed to initiate a trade with
another market or market maker.
[ExecInst]
Peg to VWAP A pegged order specifying that the order should be priced relative
to the VWAP price.
[PegPriceType]
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 146 of 158
Term Definition Field where
used
Peg Refresh
An execution restatement reason indicating that the order is restated
only because the pegged price was refreshed.
[ExecRestateme
ntReason]
Pegged Order An order that acts like a limit order except that the limit price is set
relativeto another price, such as the last sale price, midpoint price,
opening price, bid, offer or VWAP (Volume Weighted Average
Price).
Per Unit
The currency price per unit, e.g. per equity share or per contract.
[PriceType]
Percent of Par
The ratio between the current price of a bond and its par value
adjusted for amortization or indexing and expressed as a percent.
For example if a EUR1,000 bond is trading at EUR1032.50 its price
is expressed as 103.25 or 103¼. In the US this is usually referred to
as the "dollar price" even in scholarly material and handbooks.
[PriceType]
Percent of Volume
The sender does not want to be all of the volume on the floor.
[ExecInst]
Portfolio Trade The reporting of the portfolio trade should be executed when the
final leg of the transaction is completed. Used for trading an index
vs. a cash basket. Certain market regulations require that
participants repot a portfolio trade when the final leg of the
transaction is completed.
[TrdType]
Position Account
Account for positions resulting from derivatives trades. Each
position account has a long and short quantity. Position quantities
stored in the long and short quantity fields can be kept net or gross.
Accounts that are kept gross are usually omnibus accounts.
[PartyRole]
Position Removal Date
Specifies the date the firm positions will be removed for a
financially (cash settled) delivered instrument.
[EventType]
Post-Close Trading status which denotes trading outside of normal hours for
the security.
[from EP84]
[SecurityTradin
g Status]
Pre-listed only
Instruments must be pre-listed
[ListMethod]
Predefined Multileg
Security
An order for a multileg security that is already defined at the
marketplace or with the receiver of the order.
[Note: see Vol. 4's Multileg Order section on predefined multileg
security models.]
[MultilegModel
]
Premium When a bond sells above its par value, it is said to be selling at a
premium. A price with a PriceType of "premium" is the difference
between the bond's percent-of-par price and 100.
[PriceType]
Previous Fund Valuation
Point For CIV orders - indicates that the Investor prefers that the order be
dealt at the unit price determined at the immediately preceding
Valuation Point, a.k.a. a Historic price. (This can be overridden by
the constitution of the fund or, in certain circumstances, by the Fund
Manager.)
[OrdType]
Price Band Range (from-to or high-low) within which a valid price needs to be
specified.
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 147 of 158
Term Definition Field where
used
Price Volatility
Interruption To ensure price
continuity, continuous trading is interrupted by a
volatility interruption whenever the potential execution price of an
order lies outside the dynamic and/or static price range around a
reference price. A volatility interruption triggers a change of trading
form: e.g. continuous trading is interrupted and an auction is
initiated.
[SecurityTradin
gEvent]
Primary Peg A pegged order specifying that the order should be priced relative
to the bid price if buying or offer price if selling.
[PegPriceType]
Open Average Yield
The average yield of the respective securities in the portfolio.
[YieldType]
Order Originator ID of the party entering the trade into the system (data entry, userid,
buy side trader, etc.).
[PartyRole]
Put Date The date on which the buyer of a security has the right but not the
obligation to sell the security back to the issuer at a predetermined
price.
[EventType]
Previous Close Yield
The yield of a bond based on the closing price 1 day ago.
[YieldType]
Previously indicated
An order sent in response to an Indication of Interest message.
[OrdType]
Previously quoted
An order sent in response to a Quote message.
[OrdType]
Proceeds Yield The CD equivalent yield when the remaining time to maturity is less
than two years.
[YieldType]
Random A r
eserve order instruction to refresh using a randomized display
quantity.
[DisplayMethod
]
Recovery Rate The recovery rate for the underlying bond on a CDS in the case of a
credit event.
[from EP83]
[MDEntryType]
Recovery Rate Long In the case of a credit event the recovery rate on a long position for
the bond underlying a CDS .
[from EP83]
[MDEntryType]
Recovery Rate Short
In the case of a credit event the recovery rate on a short position for
the underlying bond on a CDS.
[from EP83]
[MDEntryType]
Redeem For CIV:
A “sell” order for CIV units which must be forwarded to the fund
manager (or their transfer agent) rather than being matched /
crossed with a “buy” order, e.g. by an intermediary, funds
supermarket, broker/dealer etc. This would be used in markets
where the originator requires specific tax treatment and/or dealing
charges.
[Side]
Reinstate on System
Failure If a system failure interrupts trading or order routing, attempt to
reinstate this order, subject to time in force limitations. Note that
depending on the type and severity of the failure, this might not be
possible.
[ExecInst]
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 148 of 158
Term Definition Field where
used
Reinstate on Trading Halt If trading in this instrument is halted, reinstate this order when/if
trading resumes, subject to time in force limitations.
[ExecInst]
Repurchase Agreement
Used to report both the initial deal and the repurchase. Allows
regulators to connect the two.
Note that this "definition" is not for the standard business term.
See online resources below.
[TrdType]
Request to Intermediary Used in a
model where an intermediary, e.g. clearing house, is
involved in communicating allocation details and actions between
two parties
[AllocType]
Respondent A “respondent” may be one of the following:
• a broker/dealer
• an inter-dealer broker (or broker’s broker)
• an electronic service
• bid or offer prices provided by one or more market makers
• bid or offer prices provided by an inter-dealer broker
•
matching system with limit orders entered by customers
(dealers or institutions)
• an issuer
Quoting and
other messages
Volume 7
Reset Barrier Option After hitting the barrier the next specified barrier goes into effect.
The payoff depends on the maximum or minimum of the underlying
price over the look-back period. The option becomes active (knock-
in) or inactive (knock-out) based on a predetermined price level.
[from EP92]
Reversed Net Price Relevant for multileg orders. This pricing convention is often used
at commodities markets. The price is given as the sum of the Price *
Ratio for all legs.
• If buying the strategy, the price of a bought leg (which is a
buy-leg in the multileg definition) is subtracted, and the
price of a sold leg is added.
• If selling the stategy, the price of a bought leg (which is a
sell-leg in the multileg definition) is added, and the price
of a sold leg is subtracted.
[MultilegPrice
Method]
Riskless Principal "Riskless" principal transactions are generally described as trades in
which, after receiving an order to buy (or sell) from a customer, the
broker-dealer purchases (or sells) the sec
urity from (or to) another
person in a contemporaneous offsetting transaction.
Above from the SEC web-site http://www.sec.gov/rules/final/34-
44291.htm
See Exchange Act Rule 10b-10(a)(2)(ii)(A) [17 CFR 240. 10b-
10(a)(2)(ii)(A)]; Exchange Act Rel. No. 33743 (Mar. 9, 1994) at
n.11.
[OrderCapacity]
Rolling/Ratchet Barrier
Option The option is issued with a sequence of barriers either all below
(roll-down calls) or all above (roll-up puts) the current underlying
price. Upon reaching each barrier the options strike is lowered for
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 149 of 158
Term Definition Field where
used
calls or raised for puts. The option is knocked-out at the last barrier.
[from EP92]
Round Lot Also known as as "Board Lot" or "Trade Lot". A standardized
number of shares defined by a stock exchange as a trading unit. In
most cases, this means 100 shares.
Source: www.investopedia.com
[LotType]
SEA Succession Event Adjustment quantity
(SEA) is used to represent
the position transferred from the source CDS position to the target
CDS position due to a succession event on processing date.
[from EP83]
[PosType]
Sell Plus A round-lot market order to sell “plus” is an order to sell a stated
amount of a stock provided that its price is:
-
not lower than the last sale if the last sale was a “plus” or “zero
plus” tick and
-
not lower than the last sale minus the minimum fractional change
in the stock if the last sale was a “minus” or “zero minus” tick.
A limit-
price order to sell “plus” also states the lowest price at
which it can be executed.
[OrdType]
Sell Short An order to sell a security that the seller does not own; a sale
effected by delivering a security borrowed by, or for the account of,
the seller. Can only be executed on a “plus” or “zero plus” tick.
[OrdType]
Sell Short Exempt
Short sale exempt from short-sale rules.
[OrdType]
Semi-annual Yield The yield of a bond whose coupon payments are reinvested semi-
annually.
[YieldType]
Settlement currency Commonly referred to as "counter currency" in FX nomenclature.
For non-
NDF deals (FX swaps, spot and forward) the term
"settlement currency" can only mean one thing: the currency that is
on the opposite from the dealt currency (expressed in FIX using
Currency field (tag 15)). For example: Symbol is EUR/USD, and
the dealt is EUR then SettlCurrency is USD.
For NDF deals the term "settlement currency" could be either the
dealt currency or the "counter currency" or a third currency. For
ex
ample: In a USD/KRW NDF deal where the dealt currency is
KRW, the settlement currency is USD, if the dealt currency is USD
then the settlement currency can also be USD. In a GBP/KRW
NDF deal where the deal typically settles in a third currency, USD
in th
is case, then the settlement currency is USD. (NDFs will be
discussed in detail in Phase 2 gap analysis).
For FX OTC Spot Options, the settlement currency can refer to
either the counter currency or the currency of the option premium
(or premia). However, for the purposes of FIX usage, it will refer
to the currency of the option premium.
Settlement Location
Identifies Settlement Depository or, if local settlement, the ISO
[PartyRole]
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 150 of 158
Term Definition Field where
used
Country Code.
Simple Yield The yield of a bond assuming no reinves
tment of coupon payments.
(Act/360 day count)
[YieldType]
Sponsoring Firm A member of the exchange that is sponsoring an Entering Entity to
send orders to the exchange. The Sponsoring Member Firm permits
sponsorees (e.g. Entering Entities) to trade thereby allowing them to
enter orders directly to the exchange via automated means. (e.g.
NYSE allowing direct access via Anonymous DOT service).
[PartyRole]
Spread
A "spread" price is one of four things all denominated in basis
points:
1)
For an outright security trade, the "spread" price is the
difference in yield between the object security and its
benchmark - implied or explicit.
2)
For a swap (or switch) of two issued securities the "spread"
price is the difference in yield between the security being sold
and the one being bought.
3)
For a roll of a futures contract with a contract in the same
commodity but having a different contract settlement month the
"spread" price is the price difference between the contract
being sold and the one being bought.
4) For a floating-
rate Financing transaction the “spread” is the
difference in yield extended above or below the yield of the
stated benchmark.
All four types are expressed in basis points (the price or yield
difference times 100) and may be negative.
[PriceType]
Stop
A stop order to buy which becomes a market order when the
security trades at - or above -
the stop price after the order is
represented in the Trading Crowd. A stop order to sell which
becomes a market order when the security trades at - or below - the
stop price after the order is represented in the Trading Crowd.
[OrdType]
Stop Limit A stop order to buy which becomes a limit order at the limit price
when the security trades at - or above - the stop price after the order
is repre
sented in the Trading Crowd. A stop order to sell which
becomes a limit order at the limit price when the security trades at -
or below- the stop price after the order is represented in the Trading
Crowd.
[OrdType]
Stopped A trade is guaranteed for the o
rder, usually at a stated price or
better, but has not yet occurred. For example, a specialist on an
exchange may "stop" an order while searching for a better price.
[OrdStatus]
Streetside Trade Capture
Reporting
Reporting of completed trades for clearance and settlement or
compliance purposes. Reports may be originated by Exchanges or
by clearing firms and sent to clearing firms directly or via a clearing
corporation or central counterparty such as DTCC in the US.
A “Section” in
“Volume 5”
Strict Limit (No Price
Improvement)
A limit order that must be traded at the exact limit price specified
without any price improvement. Requires OrdType=Limit.
[ExecInst]
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 151 of 158
Term Definition Field where
used
Subscribe For CIV:
A “buy” order for CIV units which mu
st be forwarded to the fund
manager (or their transfer agent) rather than being matched /
crossed with a “sell” order, e.g. by an intermediary funds
supermarket, broker/dealer etc. This would be used in markets
where the originator requires specific tax treatment and/or dealing
charges.
[Side]
Submission to Clearing
The timestamp when the trade was officially acknowledged by the
Clearing House
[from EP77]
[SideTrdRegTi
mestampType]
Substitution of futures for
forwards An OTC deal where the participants have agreed that the OTC deal
will immediately be extinguished and replaced with a transaction in
a regulated future.
[from EP84]
[TradeConditio
n]
Succession Event An event in which one entity succeeds to the obligations of another
entity due to a corporate action (as a result of operation or law or
pursuant to any agreement), which may include events such as a
merger, consolidation, an amalgamation, a transfer of assets or
liabilities, a de-merger, a spin-off.
[CorporateActio
n]
Suspended The order is not eligible for trading. This usually happens as a result
of a verbal or otherwise out of band request to suspend the order, or
because the order was submitted, or modified via a Cancel/Replace
Request, with ExecInst=Suspended.
[OrdStatus]
Swap Start Date Starting date of an interest rate swap. Corresponds to the roll date
date.
[EventType]
Swap End Date
End date of an interest rate swap. Corresponds to the termination
date
[EventType]
Swap Next Start Date Next starting date of an interest rate swap subsequent to the roll
date
[EventType]
Swap Roll date Date on which a swap contract is rolled to the next period or start
date. Corresponds to the Fixing Date on which the floating rate of
the swap is set.
[EventType]
Swap Value Factor The daily change
in Net Present Value of a swap trade or position.
Used in calculating the mark-to-market amount.
[MDEntryType]
Tax Equivalent Yield
The after tax yield grossed up by the maximum federal tax rate of
39.6%. For comparison to taxable yields.
[YieldType]
TED Price
The price spread between the active 3 month treasury bill futures
contract and the 3 month Eurodollar futures contract. Used as an
indicator of investor confidence in the U.S. markets.
[PriceType]
TED Yield The difference in basis points between the yield-to-maturity of the
bond / note and the yield-to-maturity of a Hypothetical Euromarket
bond with identical coupon and maturity.
[PriceType]
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 152 of 158
Term Definition Field where
used
Time In According to US futures markets (CFTC):
Timestamp of when order was received on the trading floor (booth).
[TrdRegTimest
ampType]
Time Out According to US futures markets (CFTC):
Timestamp when the trade was received from the pit.
[TrdRegTimest
ampType]
Tradable Indicator Specifies whether an instrument can be traded or not. [InstrAttribTyp
e]
Trade Along
Clients who specify "Trade Along" give brokers permission to
handle and place their order in the market even if the broker
already has its own proprietary orders for the same security placed
in the market.
[ExecInst]
Trade Confirmation A trade report confirming that a trade has been made. [TradeHandling
Instr]
Trading Session VWAP
Price
The volume weighted average price for a trading session. [QuoteConditio
n]
Trailing Stop Peg
A pegged order representing a stop order with a stop price pegged
to trail a specified distance behind the last sale price. The price of a
trailing stop to buy can never increase, and the price of a trailing
stop to sell can never decrease.
[ExecInst]
Triggered or Activated by
System An execution instruction that indicates
that the sending system
activated or updated the order. The triggering or activation is
normally based on instructions provided in the original order – e.g.
Stop order instructions.
[ExecType]
True Gross Yield Yield calculated using the price including ac
crued interest, where
coupon dates are moved from holidays and weekends to the next
trading day.
[YieldType]
True Yield
The yield calculated with coupon dates moved from a weekend or
holiday to the next valid settlement date.
[YieldType]
Try to Stop Used in specialist-driven markets to direct the specialist to try and
stop the order.
[ExecInst]
Two-Party Report
A trade report requesting the receiver to register both sides of a
privately negotiated trade.
[TradeHandling
Instr]
Two-
Party Trade Report
(privately negotiated
trade)
Specifies that the source for a trade report is a privately negotiated
Two-Party Trade Report. [MatchType]
Unacceptable
Counterparty
A counterparty not eligible for trading with the order or quote
Initiatior.
[PartyRole]
Underlying Contra Firm The broker or other firm which is the contra side of the trade for the
underlying security.
[PartyRole]
Uneven swap An FX Swap where the given amount to be bought and sold is
different on the near and far legs.
Up and In Option
The option becomes active if the underlying price exceeds the
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 153 of 158
Term Definition Field where
used
specified barrier.
[from EP92]
Up and Out Option
the option becomes inactive if the underlying price exceeds the
specified barrier.
[from EP92]
URI (Uniform Resource
Identifier)
W3C standard defined as "the generic set of all names/addresses
that are short strings that refer to resources". Note that "URL"
(Uniform Resource Locator), commonly referred to by web
browsers, is a subset of the URI standard. The W3C standards body
con
siders URL an "informal term (no longer used in technical
specifications)".
See Appendix
6-B
User-
defined Multileg
Security An order for
a multileg security where the user defines the security
together with the order and that multileg security is made available
to other actors.
The lifetime of the multileg is bilaterally agreed
between parties.
[Note: see Vol. 4's Multileg Order section on predefined multileg
security models]
[MultilegModel
]
User-defined, Non-
Securitized, Multileg A multileg order that does not involve securitization. The multileg
is not made available to other parties and the order is represented
only as implied-out prices. The multileg expires with the order.
[Note: see Vol. 4's Multileg Order section on predefined multileg
security models]
[MultilegModel
]
User requested
Instruments can be user requested as well as pre-listed.
[ListMethod]
Value date
The delivery or settlement date of a foreign exchange trade
transaction.
Vanilla Payout Option The payout amount is determined by the difference between the
strike and the underlying.
[from EP92]
Variable Tick Rule A cabinet order can trade in even increments that can be
significantly different than a conventional tick increment.
[TickRuleType]
Volume Weighted
Average Price
Volume Weighted Average Price is used for trades in which the
price is set at a guaranteed VWAP.
[TrdType]
With or Without
An odd lot order filled on an effective round lot transaction, or on
an effective bid or offer, whichever occurs first after the specialist
receives the order. (e.g. NYSE order type)
[OrdType]
Yield At Issue
Municipals. The yield of the bond offered on the issue date.
[YieldType]
Yield Change Since Close
The change in the yield since the previous day's closing yield.
[YieldType]
Yield Difference The price of a strategy (multileg) order is given as a spread between
the two legs.
[MultilegPrice
Method]
Yield To Average
Maturity
The yield achieved by substituting a bond's average maturity for the
issue's final maturity date.
[YieldType]
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 154 of 158
Term Definition Field where
used
Yield To Next Call
The yield of a bond to the next possible call date.
[YieldType]
Yield To Longest Average
Life The yield assuming only mandatory sinks are taken. This results in
a lower paydown of debt; the yield is then calculated to the final
payment date.
[YieldType]
Yield To Maturity
The yield of a bond to its maturity date.
[YieldType]
Yield To Next Put The yield to the date at which the bond holder can next put the bond
to the issuer.
[YieldType]
Yield To Next Refund Sinking Fund Bonds. Yield assuming all bonds are redeemed at the
next refund date at the redemption price.
[YieldType]
Yield To Shortest
Average Life The yield assuming that all sinks (mandatory and voluntary) are
taken at par. This results in a faster paydown of debt; the yield is
then calculated to the final payment date.
[YieldType]
Yield To Tender Date
The yield on a Municipal bond to its mandatory tender date.
[YieldType]
Yield To Worst
The lowest yield to all possible redemption date scenarios.
[YieldType]
Yield Value of 1/32
The amount that the yield will change for a 1/32
nd
change in price.
[YieldType]
Yield with Inflation
Assumption
Based on price, the return an investor would require on a normal
bond that would make the real return equal to that of the inflation-
indexed bond, assuming a constant inflation rate.
[YieldType]
Other sources for definitions of financial terms include:
http://www.investinginbonds.com
http://www.investopedia.com
http://www.investorwords.com
http://www.riskglossary.com
http://www.888options.com
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 155 of 158
Appendix 1-A: Abbreviations used within FIXML
Acct Account
Acrl Accrual
Acrd Accrued
Ack Acknowledgement
Actn Action
Adj Adjust
Adjmt Adjustment
Adv Advertisement
Afctd Affected
Algo Algorithm
Alloc Allocation
AOS AllowableOneSidedness
Amt Amount
Appl Application
Asgn Assignment
Attch Attachment
Attrb Attribute
Base Base
Bhf Behalf
Bnchmk Benchmark
Bkng Booking
Brkr Broker
Brkrs Brokers
Biz Business
Calc Calculation
Cxl Cancel
Cpcty Capacity
Capt Capture
Csh Cash
Catgy Category
Cl Client
Cls Close
Cd Code
Coll Collateral
Comm Commission
Cmn Common
Comp Company
Cmplx Complex
Cond Condition
Cnfm Confirmation
Confirm Confirmation
Cntxt Context
Cntra Contra
Ctrl Control
Corp Corporate
Ctry Country
Cpn Coupon
Crss Cross
Cum Cumulative
Ccy Currency
Crv Curve
Data Data
Db Database
Dt Date
Def Definition
Del Delete
Dlvr Deliver
Deriv Derivative
Desc Description
Dest Destination
Detl Detail
Dtrmn Determination
Dev Device
Disc Discount
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 156 of 158
Dsctn Discretion
Dsctnry Discretionary
DK Don't Know
Dup Duplicate
Efctv Effective
Enc Encoded
Err Error
Evnt Event
Exch Exchange
EFP ExchangeForPhysical
Exct Execute
Exctn Execution
Exr Exercise
Fctr Factor
Feed Feed
Force Force
FX Foreign Currency
Fwd Forward
Fut Future
GTD Good Till Date
Grp Group
Hndl Handling
ID Identifier
Implct Implicit
Incr Increment
Ndx Index
IOI Indication of Interest
Ind Indicator
Info Information
Inpt Input
Inq Inquiry
Instn Institution
Inst Instruction
Instrmt Instrument
Int Interest
Iss Issue
Issr Issuer
Lang Language
Lvl Level
Lmt Limit
Lqdty Liquidity
List List
Loc Locate
Lctn Location
Lot Lot
Mnt Maintenance
Mgn Margin
Mkt Market
Mass Mass
Mtch Match
Mat Maturity
Max Maximum
Msg Message
Meth Method
Min Minimum
Misc Miscellaneous
Model Model
Mod Modification
Mny Money
Mo Month
Mleg Multileg
Mult Multiplier
Nme Name
Nst Nested
Ntwk Network
News News
Notifctn Notification
Notl Notional
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 157 of 158
Num Number
No Number
Oblig Obligation
Ofr Offer
Oper Operator
Opt Option
Ord Order
Orig Original
Oth Other
Out Outstanding
Prm Parameter
Pty Party
Pmt Payment
Pct Percent
Pctg Percentage
Pltfm Platform
Pnt Point
Pos Position
Psbl Possible
Prcsn Precision
Prlm Preliminary
Prev Previous
Px Price
Pri Priority
Prtztn Priotization
Prod Product
Pub Publish
Qual Qualifier
Qlty Quality
Qty Quantity
Quot Quote
Rng Range
Rt Rate
Rtng Rating
Rsn Reason
Red Redemption
Ref Reference
Rgst Registration
Rgstry Registry
Rej Reject
Reltd Related
Rltnshp Relationship
Rpt Report
Rpts Reports
Repo Repurchase
Req Request
Reset Reset
Rsp Response
Rstmt Restatement
Rstct Restrict
Rstctn Restriction
Rstctns Restrictions
Rstrct Restructuring
Rslt Result
Risk Risk
R Roles
Rnd Round
Rules Rules
Scope Scope
2 Secondary
Sec Security
Seg Segment
Snd Sender
Sndg Sending
Snrty Seniority
Seq Sequence
Svc Service
Ses Session
Version 5.0 Service Pack 2 - Errata − VOLUME 1 August 18, 2011
Copyright, 2008-20092011, FIX Protocol, Limited Page 158 of 158
Settl Settlement
Shrt Short
Sz Size
Src Source
Stand Standing
Start Start
St State
Stat Status
Stip Stipulation
Strt Strategy
Strm Stream
Strk Strike
Sub Subscription
Subsid Subsidiary
Sfx Suffix
Sym Symbol
Sys System
Tgt Target
Trm Term
Tick Tick
Tkt Ticket
Tm Time
TS Timestamp
Tot Total
Trkng Tracking
Trd Trade
Trdg Trading
TrdgSes TradingSession
Txn Transaction
Typ Type
Und Underlying
Upd Update
Val Valuation
Valu Value
Venu Venue
Vol Volume
Warn Warning
Yr Year
Yld Yield

Navigation menu
