2018-2019

Farm Equipment Product Guide

silvan.com.au

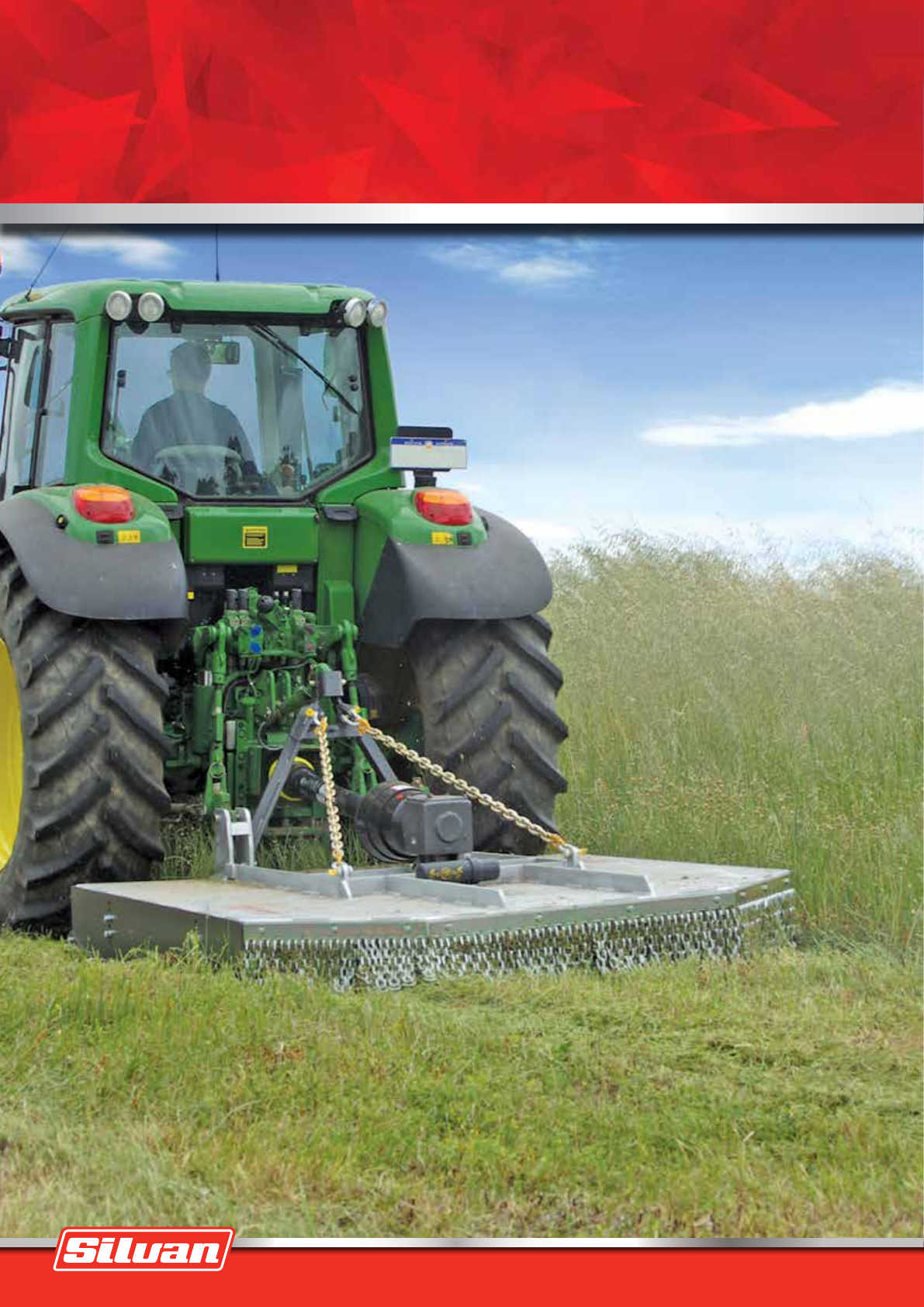

Silvan Slasher Features 29

102 Series GP Slasher 32

108 Series MD Slasher 33

131 Series Heavy Duty Slasher 34

145 Series Contracting & Shireboss Slashers 35

105 Series Vineyard Slasher 36

SM Finishing Mower 37

TLP Mulcher 11

BNE Mulcher 12

BKE Mulcher 13

BP Mulcher 14

BPR Mulcher 15

BNU Mulcher 16

RMII Mulcher 17

BNG Mulcher 18

BK Mulcher 19

RM Mulcher 20

RMS Mulcher 21

VKD Mulcher 22

BV PRO Mulcher 23

NF Mulcher 24

TBE Mulcher 25

Specialty Mulchers 26

B40F Rotary Hoe 41

B55F Rotary Hoe 42

B83 Rotary Hoe 43

B103 Rotary Hoe 44

B123 Rotary Hoe 45

B170 Rotary Hoe 46

B300DT Rotary Hoe 47

Doble Rotary Hoe 48

Maxi Doble Rotary Hoe 49

Bedformer, Stone Burier & Inter-row Tiller 50

528 38

Slashers

Mulchers Rotary

Hoes

1300 745 826 silvan.com.au2

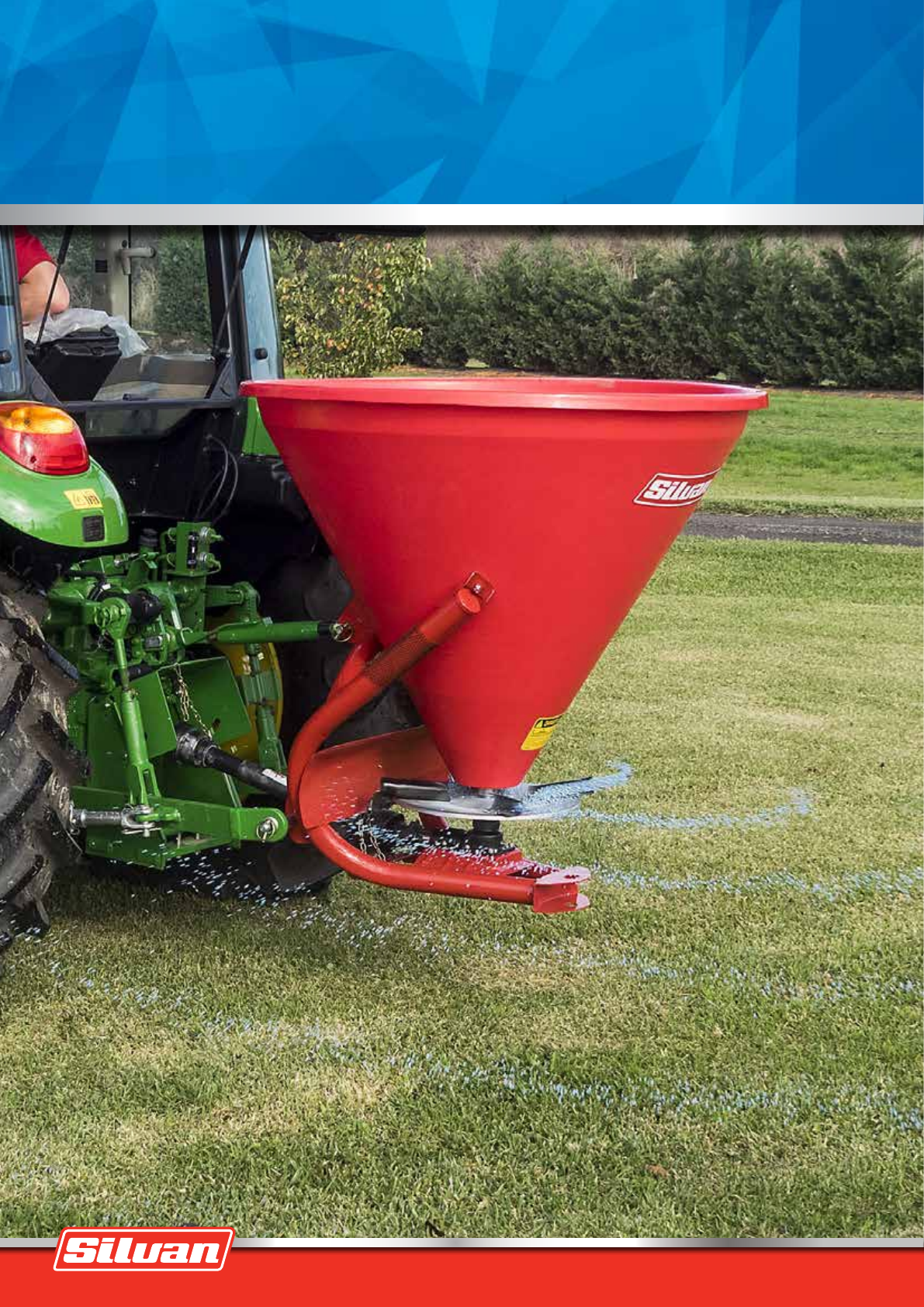

CA/W Spreader 59

CA Spreader 60

MD Spreader 62

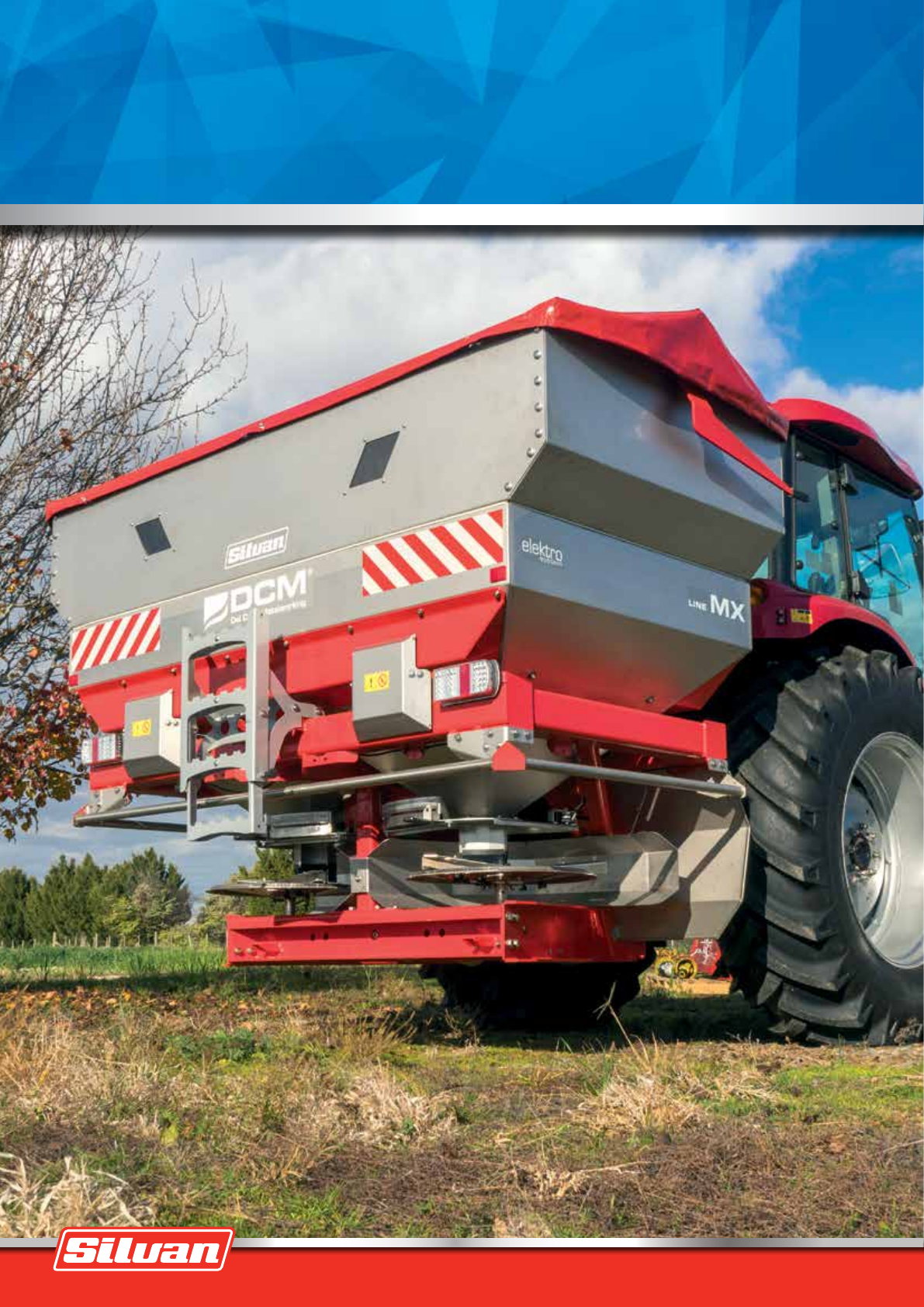

MX Spreader 63

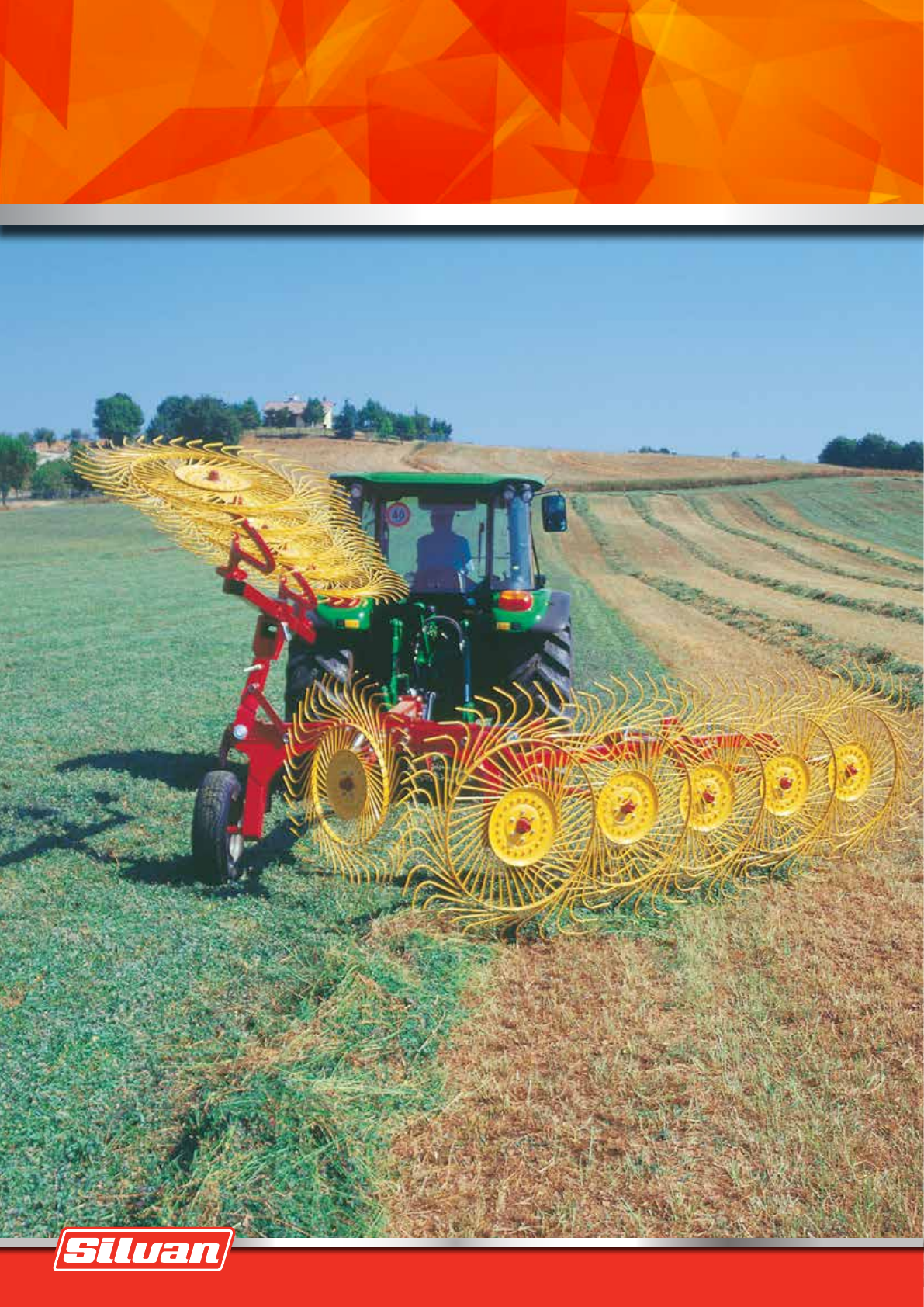

RP Linkage Hayrake 73

H90 Trailed Hayrake 74

TR Inline Trailed Hayrake 75

QR Trailed Hayrake 76

Hydraulic Trailed Explorer “V” Hayrake 77

Hydraulic Trailed Magnum “V” Hayrake 78

Terms & Conditions 79

MekFarmer 80/100 Power Harrow 54

MekFarmer 150 Power Harrow 55

MekFarmer 220 Power Harrow 56

MekFold 260/300/350 Power Harrow 57

Fertiliser

Spreaders

38 51 58 72

Power

Harrows

Hayrakes

Spreaders &

Implements

SP Spreader 65

TSP Spreader 66

Poly Hopper Spreader 67

SX Spreader 68

SQTF Oscillating Spreader 69

Volumex Granular Applicator 70

Carryall 71

Post Hole Digger & Augers 71

Brisbane

Perth

Hamilton NZ

Sydney

Melbourne

head ofﬁce

AUSTRALIA & NEW ZEALAND

DEALER NETWORK

5 Silvan distribution centres with a national dealer network

SILVAN

Silvan was founded in 1962 and is devoted to those connected to the

land. A pioneer in the development and manufacture of agricultural

machinery to meet the needs of Australasia’s producers. Silvan

combines strong innovative management with a comprehensive

understanding of today’s agribusiness.

Quality, Reliability and Innovation - These values determine the way

Silvan operates and a commitment to the success of customers, partners,

investors and employees. Silvan embraces change and growth, facing the

challenges and opportunities of modern agriculture. More than 50 years

later, Silvan are still leaders in the agricultural market with Silvan’s

“Big Red Tanks” a constant in the Australasian agricultural landscape.

SILVAN SPRAYERS

A leader in the design of high and low volume horticultural sprayers,

Silvan has evolved into the largest Australasian manufacturer of world-

class crop protection sprayers and related machinery. Specialised

equipment has been developed for crops including vegetables,

grapes, apples, pears, citrus, bananas, olives, sugar cane and turf.

FARM MACHINERY

Silvan Australia’s farm machinery range comprises a broad selection from

the world’s most prominent manufacturers including; Nobili mulchers,

Breviglieri tillage equipment, Sitrex hayrakes and fertiliser spreaders.

Silvan also manufactures high quality agricultural implements including

rotary slashers, carryalls & post hole diggers.

1300 745 826 silvan.com.au4

Nobili

Mulchers

Nobili has a well established reputation

for producing world class mulchers.

Nobili use cutting edge technology

and modern production techniques to

manufacture mulchers for a diverse range

of applications.

Nobili has developed their design and

manufacturing techniques since the company

first made agricultural equipment in 1945.

Today the company operates under the strict

quality guidelines of ISO 9001 certification.

Nobili mulchers are designed to get the best

performance in all agricultural applications

and to suit various tractor HP categories.

The theory behind mulchers is simple; they cut

grass, prunings and heavier organic material

repeatedly, instead of just once. Mulchers are

fitted with at least one cutting bar along with

special blades that act in unison to cut the

material finer. The material circulates inside the

mulcher as the blades cut it again and again.

A finer residue is then evenly distributed, which

decomposes quickly into humus, improving soil

quality. This allows non productive land to be

quickly returned to pasture in a single pass.

Mulching returns the nutrients in prunings

and grass to the soil. Mulch contains nitrogen,

phosphorus and potassium; a complete set of

nutrients. The decomposing mulched material

increases nitrogen levels and reduces fertiliser

requirements.

Mulchers can be applied to a wide range of

applications including; general clearing, weed

management, pasture topping, orchard and

vineyard use, parks and gardens management,

roadside maintenance and crop residue

management.

Over run clutch in gear box

for driveline protection

Chassis made from

high resistance steel

Knife and hammer blade options

to suit the application

Double skin or wear plate options

for increased working life

Precision balanced rotors for

vibration-free operation

Floating top link allows machine

to follow ground contours

1300 745 826 silvan.com.au6

Nobili Mulcher Range Choosing the Right Mulcher

1. WHAT IS THE APPLICATION?

Orchard, vineyard, pasture, etc.

(refer to Nobili Mulcher Range).

2. WHAT IS THE TRACTOR HORSE POWER?

Nobili has mulchers suited to tractors

from 40HP over 450HP. Working widths

from 95 to 820cm are available.

3. WILL PRUNINGS BE MULCHED?

Refer to Nobili Mulcher Range for the model

suited to the prunings size.

4. IS THE MATERIAL VERY BULKY?

Low body mulchers are suited to low volumes

of material but can mulch large prunings,

while high body mulchers are best suited to

high volumes of material (e.g. crop stubble)

and allow a higher ground speed to be

maintained.

5. HEIGHT CONTROL:

SKIDS, WHEELS OR ROLLER

Most machines are fitted with wear skids to

protect the mulcher body but working skids

are recommended on machines without

wheels or roller.

Rear roller or wheels are designed to

maintain a consistent working height.

Wheels often allow a higher ground speed

to be maintained while a rear roller is best

suited to uneven ground because it covers

the full machine width. Many Nobili mulcher

models allow the mulched material to pass

over the roller so that the ground speed is

not compromised.

6. WHAT OPTIONS ARE REQUIRED?

Replaceable wear plates should be

considered if heavy or foreign material could

pass through the machine.

Hydraulic side shift is suited to applications

where there are varying row widths or

mulching under tree canopies is necessary.

Components are fully painted

before assembly increasing

corrosion protection

Hydraulic and manual

side-shift options

Roller and wheel options

for accurate height control

Supporting skids

Quality belts for high

power transmission

Nobili Mulcher Range Choosing the Right Mulcher

ORCHARD/VINEYARD

GRASS/PASTURE

MULTI-PURPOSE

OFFSET/ROADSIDE

STUBBLE/CROP RESIDUE

1300 745 826 silvan.com.au8

FAMILY MODEL

TYPE OF

LINKAGE

APPLICATION

PRUNINGS/WOOD GRASS

FALLOW LAND

INTER-

MEDIATE

CROPS & CROP

RESIDUE

TRACTOR

POWER (HP)

RANGE

WORKING

WIDTHS (CM)

FRONT REAR VINE SHOOTS

< 5CM

CUT

WOOD

< 8CM

CUT

WOOD

< 10CM

INTER ROW

VINES/

ORCHARDS

UNDER-

GROWTH PASTURE PARKS

AND GARDENS

Orchard or vineyard mulcher with manual

offset and full width roller

3 3

35 - 70 95 /115/135/155

VKD

Versatile mulcher with full width roller and optional

hydraulic sideshift

3 3 3 3 3

50 - 100 155/170/190/210/230

BV PRO

Heavy duty orchard mulcher with full width roller

and optional hydraulic sideshift

3333 3

75 - 130 170/190/210

TRP

✚3

Mulcher suited to stony ground with pick up front

60 - 150 95/120/145/175

BNE

Economical mulcher suited to vineyards

3 3 3 3

40 - 95 120/150/180/210

TLP

Grass mulcher suited to low HP tractors

3 3

20 - 30 120/135/160

BKE

✚3

Grass and pasture topping mulcher with optional

reversible gearbox and hydraulic sideshift

3 3333

40 - 150 210/230/250

BP10

✚3

Versatile mulcher with optional reversible gearbox

and hydraulic sideshift

3 3 3 3

40 - 150 240/280/300

BNG

High body mulcher suited to pasture topping and

general clearing

3 3 3 3 3 3

70 - 125 230/270

VKM

Suited to general clearing or orchard use with

hydraulic side shift and double skin

3 3 3 3 3 3

70 - 150 210/240/280/305

RMII

General clearing or vineyard use

3333 3

50 - 130 150/180/210

BNU

General clearing or vineyard use

3 3 3 3 3

40 - 125 120/160/190

Heavy duty mulcher for pasture topping, general

clearing or stubble management

3 3 3 3 3 3

70 - 175 230/280/320

BPR

3 3

General clearing or orchard use

with full width roller

3 33333

70 - 175 240/280/305

Heavy duty mulcher for stubble management

3 3 3 3

90 - 280 240/280/320/400/450

NK7/

RM8

Suited to crop residue management

eg. pineapples, bananas

333 33

100 - 190 210/240

RMS

Heavy duty mulcher for stubble management

with dual drive

3 3 3 3

180 - 450 560/610/820

Offset mulcher for on-farm use

3 3

60 - 110 150/180/210

TBE

Heavy duty offset mulcher

for council and contractor use

3 33333

80 - 170 190/220/240

Nobili Mulcher Range

ORCHARD/VINEYARDGRASS/PASTUREMULTI-PURPOSECROP RESIDUE

The Right Tool for the Job

OFFSET/ROADSIDE

FAMILY MODEL

TYPE OF

LINKAGE

APPLICATION

PRUNINGS/WOOD GRASS

FALLOW LAND

INTER-

MEDIATE

CROPS & CROP

RESIDUE

TRACTOR

POWER (HP)

RANGE

WORKING

WIDTHS (CM)

FRONT REAR VINE SHOOTS

< 5CM

CUT

WOOD

< 8CM

CUT

WOOD

< 10CM

INTER ROW

VINES/

ORCHARDS

UNDER-

GROWTH PASTURE PARKS

AND GARDENS

Orchard or vineyard mulcher with manual

offset and full width roller

3 3

35 - 70 95 /115/135/155

VKD

Versatile mulcher with full width roller and optional

hydraulic sideshift

3 3 3 3 3

50 - 100 155/170/190/210/230

BV PRO

Heavy duty orchard mulcher with full width roller

and optional hydraulic sideshift

3333 3

75 - 130 170/190/210

TRP

✚3

Mulcher suited to stony ground with pick up front

60 - 150 95/120/145/175

BNE

Economical mulcher suited to vineyards

3 3 3 3

40 - 95 120/150/180/210

TLP

Grass mulcher suited to low HP tractors

3 3

20 - 30 120/135/160

BKE

✚3

Grass and pasture topping mulcher with optional

reversible gearbox and hydraulic sideshift

3 3333

40 - 150 210/230/250

BP10

✚3

Versatile mulcher with optional reversible gearbox

and hydraulic sideshift

3 3 3 3

40 - 150 240/280/300

BNG

High body mulcher suited to pasture topping and

general clearing

3 3 3 3 3 3

70 - 125 230/270

VKM

Suited to general clearing or orchard use with

hydraulic side shift and double skin

3 3 3 3 3 3

70 - 150 210/240/280/305

RMII

General clearing or vineyard use

3333 3

50 - 130 150/180/210

BNU

General clearing or vineyard use

3 3 3 3 3

40 - 125 120/160/190

Heavy duty mulcher for pasture topping, general

clearing or stubble management

3 3 3 3 3 3

70 - 175 230/280/320

BPR

3 3

General clearing or orchard use

with full width roller

3 33333

70 - 175 240/280/305

Heavy duty mulcher for stubble management

3 3 3 3

90 - 280 240/280/320/400/450

NK7/

RM8

Suited to crop residue management

eg. pineapples, bananas

333 33

100 - 190 210/240

RMS

Heavy duty mulcher for stubble management

with dual drive

3 3 3 3

180 - 450 560/610/820

Offset mulcher for on-farm use

3 3

60 - 110 150/180/210

TBE

Heavy duty offset mulcher

for council and contractor use

3 33333

80 - 170 190/220/240

Nobili Mulcher Range The Right Tool for the Job

1300 745 826 silvan.com.au10

Nobili Mulchers

NOTE: BLUE SHADED MODELS ARE AVAILABLE ON INDENT ORDER ONLY

www.nobili.com

MODEL

HP WORKING WIDTH (CM) BODY OFFSET

HYD

OFFSET

RPM

BLADE

FITTED

SKIDS WHEELS ROLLER USE

TLP 10-30 120, 135 and 160

Low

Fixed

Opt 540

08 Std -Std

Grass

BE 35-65 140, 160, 180 & 200 Low 2 position

fixed Opt 540/1000 06 Std -Std Grass & green

prunings to 50mm

BNE 40-95 124, 152, 181 & 210 Low 2 position

fixed Opt 540 O1 Std Opt Std Grass & green

prunings to 50mm

BKE 40-100 153, 180, 214, 229 & 249 Low 2 position

fixed -540 O1 Std Opt Opt Grass & green

prunings to 50mm

BP 80-150 237, 279, 303 Low Fixed or

hydraulic Opt 540/1000 O1 -Opt Std Grass & green

prunings to 60mm

BNU 40-125 122, 158 & 194 High 2 position

fixed

(excl. BNU125)

Opt

(excl. BNU125) 540 O1 Std Opt Opt Grass & green

prunings to 90mm

BNG 70-125 230 & 267 High 2 position

fixed

(BNG230 only)

Opt

(BNG230 only) 540 O1 Std Opt Opt

(BNG230

only)

Grass & green

prunings to 75mm

BK 70-175 230, 279, & 320 High 2 position

fixed

(excl. BK320)

Opt

(excl. BK320) 540/1000* O12 Std Opt* Opt Grass & green

prunings to 90mm

RM II 50-130 153, 180 & 207 High 2 position

fixed Opt 540 01 &

012 Std Opt Opt Grass & green

prunings to 100mm

RM 90-280 236, 280, 323 & 401 High 2 position

fixed

(RM240 only)

Opt

(RM240 only) 540/1000* O12 Std Std* Opt* Grass & green

prunings to 100mm

RMP 160-350 481 & 607 High - - 1000 01 Std Std Opt Grass & green

prunings to 75mm

RMS 180-450 562, 608 & 810 High - - 1000 O12 Std Std -Grass & green

prunings to 75mm

NK 100-190 214 High - - 1000 O12 Std Std -Grass & green

prunings to 125mm

RM8 100-190 236 High - - 1000 012 Std Std -Grass & green

prunings to 100mm

VK 35-70 96, 115, 134 & 153 Low Std -540 O6 Opt Opt Std Grass & green

prunings to 50mm

VKD 50-100 153, 172, 190, 209 & 228 Low Std Opt 540 O6 Opt Opt Std Grass & green

prunings to 80mm

BV PRO 75-130 168, 186 & 204 Low Std Opt 540 O6 Std Opt Std Grass & green

prunings to 100mm

VKM 70-150 208, 237, 280 & 303 Medium Std Std 540/1000* O6 Std Opt Std Grass & green

prunings to 80mm

100 - 150 200 High

- - 1000 06 Std - -

Grass & green

prunings to 200mm

TRP 60-150 95, 120, 145 & 175 High - - 540 O6 Opt Opt Opt Only green prunings

to 100mm

TRP PRO 90-150 120, 145 & 173 High - - 540 O6 -Opt Opt Only green prunings

to 120mm

BPR 10 90-150 279 & 303 Low Std Std 540/1000 O1 Std Opt Std Grass & green

prunings to 50mm

BPR 100 70-175 209, 237, 279 & 303 Medium Std Std 540/1000 O6 Std Opt Std Grass & green

prunings to 50mm

TB10 40-80 160 & 180 Low Std Std 540 O6 Std -Std Grass & green

prunings to 40mm

TBE 10 60-110 153, 179 & 214 Low Std Std 540 O6 Std -Std Grass & green

prunings to 40mm

TBP 70-110 172,190 & 209 Low Std Std 540 O6 Std -Std Grass & green

prunings to 80mm

TBE/

TBE-S 80-170 179, 214, 229 & 249 Low Std Std 540 O6 Std -Std Grass & green

prunings to 50mm

RSM 65-120 177 & 212 Low Offset only Std 540 O6 Std -Std Grass & green

prunings to 50mm

BP 8300 150-330 830 Medium Centre only -1000 O6 Std -Std Grass & green

prunings to 50mm

PRO 60-150 175 & 210 Medium Centre only -540/1000 O8 Std -Std Roadside

maintenance

N6202

Swing

arm 6620mm in between trees Low RHS only Opt Hydraulic

drive Blades - - - Mount on BNE/VKD/

BNU for grass

*DOES NOT APPLY TO ALL MODELS

Nobili TLP Mulchers

SUGGESTED USE: Grass mowing only.

CONSTRUCTION: Low profile body, no opening tailboard.

DRIVE LINE: PTO drive shaft with durable safety cover, heavy duty

oil bath gearbox with overrun clutch, taper locked

pulleys and electronically balanced rotor.

08 - Y 06 - Cast Hammer

Grass Grass

2 x N050 1 x N051

Suited to low horsepower tractors up to 30HP for grass with cutting height maintained by the rear roller.

CONTROL: Fixed headstock.

ATTACHMENT: Cat. I & II three point linkage.

HEIGHT CONTROL: Roller (standard fitment).

10-30 HP Grass,

Pasture

Pictured: TLP160/08

MODEL

WORKING

WIDTH OFFSET TRACTOR PTO ROTOR BLADE QTY / TYPE DIMENSIONS WEIGHT

MM MM MM HP RPM RPM 08 Y BLADES W X H X D KG

TLP120/08 1200 480 720 10 - 30 540 2207 32 1350 x 810 x 860 330

TLP135/08 1350 430 920 10 - 30 540 2207 40 1500 x 810 x 860 150

TLP160/08 1600 550 1050 20 - 30 540 2207 48 1750 x 810 x 860 180

NOTE: AN ADDITIONAL SURCHARGE OF $500.00 (EX GST) APPLIES FOR MACHINERY ASSEMBLY

Nobili TLP Mulchers

Y Blades

Standard

1300 745 826 silvan.com.au12

Nobili BNE Mulchers Nobili BKE Mulcher

SUGGESTED USE: Grass mowing and green prunings up to

50mm in diameter.

CONSTRUCTION: Low profile body, no opening tailboard.

DRIVE LINE: PTO drive shaft with durable safety cover, heavy duty

oil bath gearbox with overrun clutch, taper locked

pulleys and electronically balanced rotor.

01 - Y 06 - Cast Hammer

Wood, Grass Wood, light bushes,

grass

2 x N1781000 1 x N1891002

Best suited to medium horsepower tractors up to 95HP for grass and light prunings with cutting height maintained by the rear roller.

CONTROL: Two position fixed headstock (excl. BNE120/01-F).

ATTACHMENT: Cat. I three point linkage, floating top link.

HEIGHT CONTROL: Roller (standard fitment).

40-95 HP Vineyards Grass,

Pasture

Y Blades

Standard

Pictured: BNE180/01-F

MODEL

WORKING

WIDTH OFFSET TRACTOR PTO ROTOR BLADE QTY / TYPE DIMENSIONS WEIGHT

MM MM MM HP RPM RPM 01 Y BLADES W X H X D KG

BNE120/01-F 1240 620 620 40 - 95 540 2207 32 1430 x 750 x 420 350

BNE150/01-F 1520 760 760

390 1130 40 - 95 540 2207 40 1720 x 750 x 420 370

BNE180/01-F 1810 760 1060

390 1420 40 - 95 540 2207 48 2000 x 750 x 420 390

BNE210/01-F 2100 760 1340

390 1710 40 - 95 540 2207 56 2280 x 750 x 420 410

NOTE: AN ADDITIONAL SURCHARGE OF $500.00 (EX GST) APPLIES FOR MACHINERY ASSEMBLY

Nobili BNE Mulchers Nobili BKE Mulcher

SUGGESTED USE: Grass mowing and green prunings up to 50mm in diameter.

CONSTRUCTION: Low profile body, no opening tailboard.

DRIVE LINE: PTO drive shaft with durable safety cover, heavy duty oil

bath gearbox with over running clutch, taper locked pulleys

and electronically balanced rotor.

01 - Y 06 - Cast Hammer

Wood, Grass

Wood, grass, light

bushes

2 x N1891018

1 x N1891002

Parks &

Gardens

The Nobili rear mount BKE series of mulchers are a multi-purpose machine ideal for pasture topping with the option of side shift suited to tractors up to 100HP

with cutting height maintained by adjustable skids.

CONTROL: Two position fixed headstock.

ATTACHMENT: Cat. II three point linkage, floating top link.

HEIGHT CONTROL: Skids.

65-100 HP Grass,

Pasture

Y Blades

Standard

Pictured: BKE230/01-F

MODEL

WORKING

WIDTH OFFSET TRACTOR PTO ROTOR BLADE QTY / TYPE DIMENSIONS WEIGHT

MM MM MM HP RPM RPM 01 Y BLADES W X H X D KG

BKE210/01-F 2144 1072 1072

617 1527 65-100 540 2205 48 2360 x 1222 x 550 660

BKE230/01-F 2295 1147 1147

693 1603 70-100 540 2205 52 2511 x 1222 x 550 690

BKE250/01-F 2496 1248 1248

793 1703 75-100 540 2205 56 2712 x 1222 x 550 710

OPTION :

DESCRIPTION MODEL CODE

FULL WIDTH ROLLER

BKE210/01-F N401418

BKE230/01-F N401654

BKE250/01-F N401432

SEMI SWIVEL WHEELS ALL N401470

NOTE: AN ADDITIONAL SURCHARGE OF $500.00 (EX GST) APPLIES FOR MACHINERY ASSEMBLY

1300 745 826 silvan.com.au14

Nobili BP Mulcher Nobili BPR Mulcher

SUGGESTED USE: Grass mowing and green prunings up to 60mm in diameter.

CONSTRUCTION: Low profile body, no opening tailboard.

DRIVE LINE: PTO drive shaft with durable safety cover, heavy duty oil

bath gearbox with over running clutch, taper locked pulleys

and electronically balanced rotor.

01 - Y 06 - Cast Hammer

Wood, Grass

Wood, grass, light

bushes

2 x N1891018

1 x N1891002

The Nobili rear mount BP series mulchers are multi-purpose machines ideal for pasture topping with optional hydraulic side shift models.

Suited to tractors up to 150HP with cutting height maintained by rear roller.

CONTROL: Fixed headstock or optional hydraulic side shift models.

ATTACHMENT: Cat. II three point linkage, floating top link.

HEIGHT CONTROL: Roller (standard fitment).

Pictured: BP30/01-F

80-150 HP Grass,

Pasture

Y Blades

Standard Parks &

Gardens

MODEL

WORKING

WIDTH OFFSET TRACTOR PTO ROTOR BLADE QTY /

TYPE DIMENSIONS WEIGHT

MM MM MM HP RPM RPM 01 Y BLADES W X H X D KG

BP24/01-F

2374

1187 1187

80 - 150

540 / 1000 2203/2356

48 2548 x 550 x 1398 790

BP24/01-HSS 1187 1187

737 1637

BP28/01-F

2793

1396 1396

90 - 150 56 2959 x 550 x 1398 890

BP28/01-HSS 1396 1396

946 1846

BP30/01-F

3034

1517 1517

100 - 150 64 2959 x 550 x 1398 920

BP30/01-HSS 1517 1517

1067 1967

OPTION :

DESCRIPTION MODEL CODE

SEMI SWIVEL WHEELS ALL N402265

WEAR PLATE

BP24

BP28

BP30

N403896

N403907

N403908

NOTE: AN ADDITIONAL SURCHARGE OF $500.00 (EX GST) APPLIES FOR MACHINERY ASSEMBLY

Nobili BP Mulcher Nobili BPR Mulcher

SUGGESTED USE: Grass mowing and green prunings up to 75mm in diameter.

CONSTRUCTION: Low profile body, double skin, no opening tailboard.

DRIVE LINE: PTO drive shaft with durable safety cover, heavy duty oil

bath gearbox with over running clutch, taper locked pulleys

and electronically balanced rotor.

01 - Y 06 - Cast Hammer

Wood, Grass

Wood, grass, light

bushes

2 x N1891018

1 x N1891002

The Nobili rear mount BPR series mulchers are multi-purpose machines ideal for pasture topping with double hitch that fits to the front or rear of the

tractor and hydraulic side shift. Suited to tractors up to 175HP with cutting height maintained by rear roller.

CONTROL: Hydraulic side shift.

ATTACHMENT: Cat. II three point linkage, floating top link.

HEIGHT CONTROL: Roller (standard fitment).

Pictured: BPR280/06

70-175 HP Grass,

Pasture

Cast Hammers

Standard Parks &

Gardens

MODEL

WORKING

WIDTH OFFSET TRACTOR PTO ROTOR BLADE QTY /

TYPE DIMENSIONS WEIGHT

MM MM MM HP RPM RPM 06 HAMMERS W X H X D KG

BPR240/06 2374 1187 1187

607 1767 80 - 175

540 / 1000 1833/1960

24 2548 x 525 x 1290 950

BPR280/06 2793 1396 1396

816 1977 90 - 175 28 2998 x 525 x 1290 1020

BPR305/06 3034 1517 1517

937 2097 100 - 175 32 3343 x 525 x 1290 1050

SUGGESTED USE: Grass, stubble, pasture topping, vegetable topping,

regrowth and green prunings to 90mm diameter.

CONSTRUCTION: High profile body, opening tailboard and one

mulching bar.

CONTROL: Two position fixed headstock (excl BNU125/01).

The Nobili BNU series mulchers are true multi-purpose machine. Fitted with a hinged tailboard for ease of maintenance and a mulching bar to produce a fine

mulch. Height control is maintained by adjustable skids.

DRIVE LINE: PTO drive shaft with durable safety cover, heavy duty

oil bath gearbox with overrun clutch, taper locked

pulleys and electronically balanced rotor.

ATTACHMENT: Cat. I or II three point linkage, floating top link.

HEIGHT CONTROL: Skids.

01 - Y 012 - Y with Straight 06/K - Steel Hammer

Wood, Grass

Wood, grass, bushes,

fine cutting Flat finish grass

2 x N2555004 2 x N2555004

1 x N1551000

1 x N136378

40-125 HP Orchard/

Vineyards Pasture

Y Blades

Standard

Pictured: BNU195/01

MODEL

WORKING

WIDTH OFFSET TRACTOR PTO ROTOR BLADE QTY / TYPE DIMENSIONS WEIGHT

MM MM MM HP RPM RPM 01 Y BLADES W X H X D KG

BNU125/01 1220 610 610 40-125 540 2278 24 1450 x 990 x 560 475

BNU160/01 1580 790 790

390 1190 50-125 540 2278 32 1800 x 990 x 560 610

BNU195/01 1940 970 970

570 1370 60-125 540 2278 40 2190 x 990 x 560 710

OPTION :

DESCRIPTION MODEL CODE

FULL WIDTH ROLLER

BNU125/01 N4548102

BNU160/01 N4558187

BNU195/01 N4568145

SEMI SWIVEL WHEELS ALL N4558114

HYDRAULIC SIDE SHIFT BNU160/01

BNU195/01 N400239

WEAR PLATE BNU160/01

BNU195/01

N4558174

N4568138

NOTE: AN ADDITIONAL SURCHARGE OF $500.00 (EX GST) APPLIES FOR MACHINERY ASSEMBLY

1300 745 826 silvan.com.au16

Nobili BNU Mulcher Nobili RM II Mulcher

01 - Y 012 - Y with Straight 06/K - Steel Hammer

Wood, Grass

Wood, grass, bushes,

fine cutting Flat finish grass

2 x N2555004 2 x N2555004

1 x N1551000

1 x N136378

SUGGESTED USE: Grass, stubble, pasture topping, vegetable topping,

regrowth and green prunings to 100mm diameter.

CONSTRUCTION: High profile body, opening tailboard and one mulching bar.

CONTROL: Two position fixed headstock.

DRIVE LINE: PTO drive shaft with durable safety cover, heavy duty

oil bath gearbox with over running clutch, taper locked

pulleys and electronically balanced rotor.

ATTACHMENT: Category II three point linkage, manually adjustable offset

and floating top link.

HEIGHT CONTROL: Skids.

The Nobili RM II series mulchers are a robust and versatile machine with a helical blade pattern for a lower power requirement. The RM II is fitted with an

opening tailboard, life greased bearings and a mulching bar to produce a fine mulch. Height control is maintained by adjustable skids.

Pictured: RM180/012 with

optional rear roller

50-130 HP Vineyards Pasture

Y with Straight

Blades Std

(excl. RM 155)

MODEL WORKING

WIDTH OFFSET TRACTOR PTO ROTOR BLADE QTY /

TYPE DIMENSIONS WEIGHT

MM MM MM HP RPM RPM 012

Y BLADES W X H X D KG

RM155/01 1536 768 768

393 1143 50-100

540

2203 36 1780 x 1310 x 740 690

RM180/012 1808 904 904

504 1304 60-130 2079 40 / 20 2055 x 1325 x 800 730

RM211/012 2076 1038 1038

638 1438 70-130 2079 48 / 24 2320 x 1325 x 800 775

OPTION :

DESCRIPTION MODEL CODE

FULL WIDTH ROLLER

RM155/01 N400528

RM180/012 N400529

RM211/012 N400530

SEMI SWIVEL WHEELS ALL N400533

WEAR PLATE

RM155/01 N400524

RM180/012 N400525

RM211/012 N400526

NOTE: AN ADDITIONAL SURCHARGE OF $500.00 (EX GST) APPLIES FOR MACHINERY ASSEMBLY

1300 745 826 silvan.com.au18

Nobili BNG Mulcher

01 - Y 012 - Y with Straight 06K - Steel Hammer

Wood, Grass

Wood, grass, bushes,

fine cutting Flat finish grass

2 x N2555004 2 x N2555004

1 x N1551000

1 x N136378

The Nobili BNG series mulchers are a versatile machine ideal for a broad range of mulching applications. They are fitted with a tailboard that can be opened

for ease of maintenance and a mulching bar to produce a finer mulch. Height control is maintained by adjustable skids.

SUGGESTED USE: Grass, stubble, pasture topping, vegetable topping,

regrowth and green prunings to 75mm diameter.

CONSTRUCTION: High profile body, opening tailboard one mulching bar.

CONTROL: Two position fixed headstock (BNG230/01).

Fixed headstock (BNG270/01).

DRIVE LINE: PTO drive shaft with safety cover, heavy duty oil bath

gearbox, taper locked pulleys, and electronically

balanced rotor.

ATTACHMENT: Cat. I or II three point linkage, floating top link.

HEIGHT CONTROL: Skids.

Pictured: BNG270/01

70-125 HP Pasture

Y Blades

Standard General

Clearing

MODEL WORKING

WIDTH OFFSET TRACTOR PTO ROTOR BLADE QTY /

TYPE DIMENSIONS WEIGHT

MM MM MM HP RPM RPM 01 Y BLADES W X H X D KG

BNG230/01 2300 1150 1150

750 1550 70-125

540 2025

48 2540 x 990 x 560 890

BNG270/01 2670 1335 1335 80-125 56 2920 x 1080 x 710 1130

OPTION :

DESCRIPTION MODEL CODE

FULL WIDTH ROLLER BNG230/01 N4688150

BNG270/01 N4428063

SEMI SWIVEL WHEELS BNG230/01 N4558114

BNG270/01 N4428059

WEAR PLATE BNG230/01 N4688137

BNG270/01 N4428043

NOTE: AN ADDITIONAL SURCHARGE OF $500.00 (EX GST) APPLIES FOR MACHINERY ASSEMBLY

Nobili BK Mulcher

Nobili BNG Mulcher

SUGGESTED USE: Grass, stubble, pasture topping, vegetable topping,

regrowth and green prunings to 90mm diameter.

CONSTRUCTION: High profile body, opening tailboard and one

mulching bar.

CONTROL: Two position fixed headstock (excl BK320/012).

The Nobili BK series mulcher is a heavy duty multi-purpose machine, fitted with maintenance free bearings. The BK is fitted with an opening tailboard

and a mulching bar is fitted to produce a fine mulch.

DRIVE LINE: PTO drive shaft with durable safety cover, heavy duty

oil bath gearbox with over running clutch, taper locked

pulleys and electronically balanced rotor.

ATTACHMENT: Category II three point linkage, 2 position manual fixed

headstock (excluding BK320) with floating top link.

HEIGHT CONTROL: Skids (BK230, BK280), rear wheels (BK320).

Pictured: BK230/012 with

optional rear roller

70-175 HP Pasture

Y with Straight

Blades Std

General

Clearing

Nobili BK Mulcher

01 - Y 012 - Y with Straight 06/K - Steel Hammer

Wood, Grass

Wood, grass, bushes,

fine cutting Flat finish grass

2 x N2555004 2 x N2555004

1 x N1551000

1 x N136378

MODEL

WORKING

WIDTH OFFSET TRACTOR PTO ROTOR BLADE QTY /

TYPE DIMENSIONS WEIGHT

MM MM MM HP RPM RPM 012

Y BLADES W X H X D KG

BK230/012 2301 1150 1150

750 1551 70-125 540 2083 52 / 26 2502 x 1493 x 750 950

BK280/012 2792 1396 1396

816 1976 90-160 540/1000 1840/1954 64 / 32 2998 x 1505 x 784 1100

BK320/012 3205 1602 1602 110-175 1000 1758 72 / 36 3467 x 1560 x 827 1410

OPTION :

DESCRIPTION MODEL CODE

FULL WIDTH ROLLER

BK230/012 N401413

BK280/012 N401435

BK320/012 N4945003

SEMI SWIVEL WHEELS

BK230/012 N401508

BK280/012 N401402

BK320/012 STANDARD

WEAR PLATE

BK230/012 N401401

BK280/012 N401434

BK320/012 N401504

NOTE: AN ADDITIONAL SURCHARGE OF $500.00 (EX GST) APPLIES FOR MACHINERY ASSEMBLY

1300 745 826 silvan.com.au20

MODEL

WORKING

WIDTH OFFSET TRACTOR PTO ROTOR BLADE QTY /

TYPE DIMENSIONS WEIGHT

MM MM MM HP RPM RPM 012

Y BLADES W X H X D KG

RM240/012 2360 1180 1180

780 1580 90-150 540 / 1000 1833/1960 56/28 2550 x 1770 x 860 1195

RM280/012 2800 1400 1400 100-170 1000 1680 64/32 2998 x 1770 x 860 1400

RM320/012 3231 1615 1615 120-200 1000 1758 72/36 3477 x 1770 x 860 1820

RM400/012 4012 2006 2006 130-280 1000 1758 88/44 4350 x 1600 x 912 2130

Nobili RM Mulcher

SUGGESTED USE: Grass or stubble and green prunings up to 100 mm

for tractors up to 280HP.

CONSTRUCTION: High profile, adjustable tailboard, one mulching bar.

CONTROL: Fixed headstock (excluding RM240/012).

ATTACHMENT: Cat. II, three point linkage.

01 - Y 012 - Y with Straight 06/K - Steel Hammer

Wood, Grass

Wood, grass, bushes,

fine cutting Flat finish grass

2 x N2555004 2 x N2555004

1 x N1551000

1 x N136378

The Nobili RM series mulchers are heavy duty machine ideal for use in citrus groves, orchards and broadacre stubble. The RM has a hinged tailboard

and wear plate as standard. These machines have a helical blade pattern for a lower power requirement.

DRIVE LINE: PTO drive shaft with durable safety cover, heavy duty oil bath

gearbox with in-built over run clutch, taper locked pulleys.

RM320, RM400 and RM450 dual drive (drive from both ends)

and electronically balanced rotor.

HEIGHT CONTROL: Skids (RM240, RM280), rear wheels (RM320, RM400).

Stubble

90-280 HP Y with Straight

Blades Std

General

Clearing

Pictured: RM240/012

OPTION :

DESCRIPTION MODEL CODE

SEMI SWIVEL WHEELS

RM240/012

RM280/012 N4944901

RM320/012 STANDARD

RM400/012

FULL SWIVEL WHEEL KIT RM320/012 N402300

ROLLER

RM240/012 N4944803

RM280/012 N4944903

RM320/012 N4945003

END TOW KIT

RM280/012 N4944902

RM320/012 N400674

RM400/012 N402054

NOTE: AN ADDITIONAL SURCHARGE OF $500.00 (EX GST) APPLIES FOR MACHINERY ASSEMBLY

Nobili RMS MulcherNobili RM Mulcher

Stubble

180-450 HP Y with Straight

Blades Std

General

Clearing

SUGGESTED USE: Grass or stubble and grass prunings up to 100mm in

diameter for tractors up to 450HP

CONSTRUCTION: High profile, adjustable tailboard and two mulching bars.

CONTROL: Fixed headstock.

01 - Y 012 - Y with Straight 06/K - Steel Hammer

Wood, Grass

Wood, grass, bushes,

fine cutting Flat finish grass

2 x N2555004 2 x N2555004

1 x N1551000

1 x N136378

DRIVE LINE: PTO drive shaft with durable safety cover, heavy duty oil

bath gearbox with in-built over run clutch, taper locked

pulleys. Dual drive with 5 rows of blades in special

formation.

ATTACHMENT: Cat. III + IV quick hitch, three point linkage.

HEIGHT CONTROL: Four rear wheels.

The Nobili RMS series mulchers are a heavy duty, robust machine ideal for mulching on wide areas.

The RMS series is suitable for all broadacre stubble including rice, cotton, wheat and corn as well as pasture mulching applications.

MODEL

WORKING

WIDTH OFFSET TRACTOR PTO ROTOR BLADE QTY /

TYPE DIMENSIONS WEIGHT

MM MM MM HP RPM RPM 012

Y BLADES W X H X D KG

RMS560/012 5634 2817 2817 180-350 1000 1714 128/64 5990 x 846 x 1600 3400

RMS610/012 6076 3038 3038 200-350 1000 2040 144/72 6455 x 846 x 1600 3650

RMS820/012 8100 4050 4050 260-450 1000 1721 176/88 8766 x 946 x 2084 6600

NOTE: AN ADDITIONAL SURCHARGE OF $500.00 (EX GST) APPLIES FOR MACHINERY ASSEMBLY

Pictured: RMS560/012

1300 745 826 silvan.com.au22

Nobili VKD Mulcher

SUGGESTED USE: Grass and green prunings up to 80mm diameter.

CONSTRUCTION: Low profile body, adjustable tailboard, two mulching bars

and one restrictor bar.

CONTROL: Manual side shift with optional hydraulic side shift.

01 - Y 012 - Y with Straight 06 - Cast Hammer

Wood, Grass

Wood, grass, bushes,

fine cutting

Wood, grass, light

bushes

2 x N1891018 2 x N1891018

1 x N130733

1 x N1891002

DRIVE LINE: PTO drive shaft with durable safety cover, heavy duty

gearbox fitted with in-built over run clutch, taper locked

pulleys and electronically balanced rotor.

ATTACHMENT: Cat. I and II three point linkage, floating top link.

HEIGHT CONTROL: Roller (standard fitment).

The Nobili VKD series mulchers are a medium duty, multi-purpose machine ideal for vineyard and orchard mulching, and for road side muching by councils.

An adjustable tailboard is fitted for maintenance. A finer mulch is produced with two mulching bars, a restrictor bar and rakes. The VKD has side shift to the

right with optional hydraulic side shift and height control is by an adjustable full width roller.

50-100 HP Cast Hammers

Standard

Roadside

Maintenance

Orchards

Pictured: VKD170/06

MODEL

WORKING

WIDTH OFFSET TRACTOR PTO ROTOR BLADE QTY /

TYPE DIMENSIONS WEIGHT

MM MM MM HP RPM RPM 06 HAMMERS W X H X D KG

VKD155/06 1530 765 765

405 1125 50-100 540 2325 16 1660 x 1075 x 510 510

VKD170/06 1718 859 859

404 1314 60-100 540 2325 18 1852 x 1075 x 510 560

VKD190/06 1906 953 953

503 1403 65-100 540 2325 20 2040 x 1075 x 510 600

VKD210/06 2094 1047 1047

597 1497 70-100 540 2325 22 2228 x 1075 x 510 640

VKD230/06 2282 1141 1141

691 1591 75-100 540 2325 24 2418 x 1075 x 510 715

OPTION :

DESCRIPTION MODEL CODE

HYDRAULIC SIDE SHIFT

VKD155/06 N4930108

VKD170/06

VKD190/06

VKD210/06

VKD230/06

N4930310

NOTE: AN ADDITIONAL SURCHARGE OF $500.00 (EX GST) APPLIES FOR MACHINERY ASSEMBLY

Nobili BV PRO Mulcher

Nobili VKD Mulcher

06S - Cast Hammer

Wood, grass, light

bushes

1 x N1962001

SUGGESTED USE: Grass and green prunings up to 100mm diameter.

CONSTRUCTION: Low profile body, double skin, two mulching bars and

one restrictor bar.

CONTROL: Manual side shift with optional hydraulic side shift.

DRIVE LINE: PTO drive shaft with durable safety cover, heavy duty gearbox

fitted with in-built over run clutch, taper locked pulleys and

electronically balanced rotor.

ATTACHMENT: Cat. I and II three point linkage, floating top link.

HEIGHT CONTROL: Roller (standard fitment).

The Nobili BV PRO series mulchers are a heavy duty multi-purpose machine used for road side mulching by councils and ideal for orchard use. A double skin

improves durability and height control is adjustable with a full width roller with removable ends. Two mulching bars and a restrictor bar are fitted to produce

a finer mulch. The BV PRO has side shift to the right with a hydraulic side shift option.

Nobili BV PRO Mulcher

75-130 HP Cast Hammers

Standard

Roadside

Maintenance

Orchards

Pictured: BV210/06

MODEL

WORKING

WIDTH OFFSET TRACTOR PTO ROTOR BLADE QTY /

TYPE DIMENSIONS WEIGHT

MM MM MM HP RPM RPM 06 HAMMERS W X H X D KG

BV170/06 1680 840 840

390 1290 75-130 540 1974 20 1947 x 1280 x 537 760

BV190/06 1860 930 930

480 1380 80-130 540 1974 22 2127 x 1280 x 537 840

BV210/06 2040 1020 1020

570 1470 85-130 540 1974 24 2307 x 1280 x 537 920

OPTION :

DESCRIPTION MODEL CODE

HYDRAULIC SIDE SHIFT ALL N402686

NOTE: AN ADDITIONAL SURCHARGE OF $500.00 (EX GST) APPLIES FOR MACHINERY ASSEMBLY

1300 745 826 silvan.com.au24

Nobili NF Mulcher

SUGGESTED USE: Orchards, dense grass and green prunings to 200mm.

CONSTRUCTION: High profile, adjustable tailboard and one mulching bar.

CONTROL: Fixed headstock.

01 - Y 012 - Y with Straight 06/K - Steel Hammer

Wood, Grass

Wood, grass, bushes,

fine cutting Flat finish grass

2 x N2555004 2 x N2555004

1 x N1551000

1 x N136378

DRIVE LINE: PTO drive shaft with durable safety cover, heavy duty oil

bath gearbox with in-built over run clutch, taper locked

pulleys and electronically balanced rotor.

ATTACHMENT: Cat. II three point linkage.

HEIGHT CONTROL: Skids.

The Nobili NF mulcher is a heavy duty machine suitable for the most demanding orchard mulching tasks, along with general clearing.

This mulcher is fitted with a double hood and height control is maintained by skids.

Pictured: NF2000/06

MODEL

WORKING

WIDTH OFFSET TRACTOR PTO ROTOR BLADE QTY /

TYPE DIMENSIONS WEIGHT

MM MM MM HP RPM RPM 06 HAMMERS W X H X D KG

NF2000/06 2000 1000 1000 100-150 1000 2550 34 2220 x 1050 x 1225 1020

NOTE: AN ADDITIONAL SURCHARGE OF $500.00 (EX GST) APPLIES FOR MACHINERY ASSEMBLY

Orchards100-150 HP Swinging

Hammers

General

Clearing

Nobili TBE Mulcher

SUGGESTED USE: Grass and green prunings up to 50mm diameter.

CONSTRUCTION: Low profile body, double skin & no opening tailboard.

DRIVE LINE: PTO drive shaft with durable safety cover, heavy duty

oil bath gearbox, taper locked pulleys and electronically

balanced rotor.

01 - Y 012 - Y with Straight 06 - Cast Hammer

Wood, Grass

Wood, grass, bushes,

fine cutting

Wood, grass, light

bushes

2 x N1891018 2 x N1891018

1 x N130733

1 x N144370

The TBE Series mulchers are heavy duty offset machines with parallelogram arm ideal for council and contractor use in maintaining roadsides, parks and gardens.

The TBE has a double skin and rounded Hardox® steel skids for increased durability. Height control is maintained by a roller with removable ends for servicing.

CONTROL: Hydraulic swing arm offset with spring loaded break away.

Inclination adjustment: 65° below horizontal to 90° vertical.

ATTACHMENT: Cat. II three point linkage floating top link.

HEIGHT CONTROL: Roller (standard fitment).

80-170 HP Cast Hammers

Standard

Roadside

Maintenance

Pasture

*Available in left or right hand offset.

Pictured: TBE222/06

MODEL

WORKING

WIDTH TRACTOR PTO ROTOR BLADE QTY /

TYPE DIMENSIONS WEIGHT

MM HP RPM RPM 06 HAMMERS W X H X D KG

TBE192/06 1900 80-130 540 2205 20 1979 x 1222 x 768 925

TBE222/06* 2200 90-150 540 2205 24 2423 x 1222 x 768 980

TBE242/06 2400 100-170 540 2205 26 2572 x 1222 x 768 1030

NOTE: AN ADDITIONAL SURCHARGE OF $500.00 (EX GST) APPLIES FOR MACHINERY ASSEMBLY

1300 745 826 silvan.com.au26

Nobili Mulchers

Nobili NK7 and RM8 Mulchers

The Nobili NK and RM8 mulchers are heavy duty machines suitable for

the most demanding residue mulching task, including row crop stubble.

Height control is maintained by adjustable semi-swivel wheels and both

units are fitted with wear plates.

MODEL CODE WORKING WIDTH TRACTOR HP WEIGHT

NK7/012 2140 mm 100-190 HP 1580 kg

RM8/012 2360 mm 100-190 HP 1300 kg

Nobili Swing Arm Disc

The Nobili hydraulic swing arm disc attaches to the BNE, BNU and

VKD series mulchers allowing inter-row mulching close to the base

of the plant without damaging the vine or tree.

MODEL CODE WORKING

WIDTH TRACTOR HP WEIGHT

N6202 620 mm 30 HP 81 kg

Nobili TRP Mulchers

The tractor mounted Nobili TRP mulcher utilises a pick-up device that

picks up and shreds pruning residues within orchards or vineyards.

Available with optional hydraulic pickup.

MODEL CODE WORKING

WIDTH

TRACTOR

RANGE WEIGHT

TRP95 956 mm 60-120 HP 625 kg

TRP120 1200 mm 70-120 HP 790 kg

TRP145 1450 mm 80-120 HP 950 kg

TRP175 1730 mm 90-120 HP 1075 kg

Nobili BC Mulchers

The Nobili BC series mulchers are multi-purpose heavy duty machines

suited to stubble mulching and general clearing. They are fitted with rear

wheels for height control.

MODEL CODE WORKING

WIDTH

TRACTOR

RANGE WEIGHT

BC2400 2360 mm 90-170 HP 1300 kg

BC2800 2792 mm 100-200 HP 1430 kg

BC3200 3231 mm 120-300 HP 1590 kg

BC4000 4012 mm 140-350 HP 2400 kg

BC4500 4517 mm 150-350 HP 2770 kg

Nobili Mulchers Nobili Mulchers

Nobili TB10 Mulchers

The TB10 with parallelogram arm is designed for use with low

horsepower tractors and ideal for maintaining roadsides, parks

and gardens as well as shredding prunings up to 40mm. Rear roller

fitted as standard (Right hand offset).

MODEL CODE WORKING

WIDTH

TRACTOR

RANGE WEIGHT

TB14 1400mm 30-80 HP 440 kg

TB16 1600 mm 40-80 HP 480 kg

TB18 1800 mm 50-80 HP 520 kg

Nobili TBE10

The TBE 10 is a rugged, multi-purpose mulcher with parallelogram

arm ideal for maintaining roadsides, parks and gardens as well as

shredding prunings up to 40mm. Rear roller fitted as standard (Right

hand offset).

MODEL CODE WORKING

WIDTH

TRACTOR

RANGE WEIGHT

TBE16 1531 mm 60-90 HP 744 kg

TBE20 1792 mm 70-110 HP 774 kg

TBE22 2144 mm 80-110 HP 804 kg

Nobili RSM Mulchers

The RSM is an articulated mulcher designed for maintenance by

contactors for roadsides, parks and gardens, embankments and

shredding green prunings up to 50mm. Left or right hand offset models

available. Fitted with interchangable wear plate as standard.

MODEL CODE WORKING

WIDTH

TRACTOR

RANGE WEIGHT

RSM180 1773 mm 65-120 HP 710 kg

RSM210 2121 mm 75-120 HP 810 kg

Nobili VKM Mulchers

The VKM is a multi purpose machine suited to orchard or roadside use

and shredding green prunings up to 80cm. It is fitted with a double

hood, hydraulic side shift and full width roller as standard.

MODEL CODE WORKING

WIDTH

TRACTOR

RANGE WEIGHT

VKM240 2374mm 80-130 HP 910 kg

VKM280 2793mm 90-150 HP 960 kg

VKM305 3034mm 100-150 HP 990 kg

1300 745 826 silvan.com.au28

Silvan

Slashers

With over 50 years of experience in the agricultural

industry, Silvan produce a range of premium quality

slashing equipment with a wide range of features

and options to suit the application.

Heavy duty slashers have 6mm

top decks with reinforced bracing

for increased durability.

Collapsible floating hitch allows

slasher to follow ground contours.

High quality PTO shafts have AS

1121.1 approved PTO covers with

patented quick release for easy

maintenance and fitting.

CAT 1 or 2 TPL headstock with

offset and centre mount facility.

Front and rear stone

guards standard.

Rounded front section for

smooth tracking. Adjustable

skids from 50-90mm cutting

height. Shireboss skids include

bolt-on replaceable runners.

Optional galvanised chain stoneguards

for heavy duty slashers. Chains can be

individually replaced without the need

for welding.

Front & rear rubber stoneguards

fitted to all models (chains fitted to

Shireboss) prevents debris flying out

from under the slasher.

Optional heavy duty slasher height

control wheels with ratchet height

adjustment in single or dual wheel

configurations.

Galvanised steel top decks

on heavy duty slashers ensure a

corrosion free working life.

Silvan Slashers

Renowned for their reliable and robust construction,

Silvan slashers are one of the few remaining Australian

owned, manufactured and assembled slasher lines.

They are designed and manufactured to the highest

specifications, with the range and performance

capabilities to easily match acreage, tractor horsepower

or intensity of use. Silvan slasher components are laser

or high definition plasma cut to ensure

accuracy and exact fitting.

The range includes medium duty slashers ideal for general

farm use, cutting and clearing. Silvan’s heavy duty models are

suited to large scale farms & contractors for clearing tough

growth.

For further strength and reliability, slasher top decks

incorporate extra gusseting with half the Silvan slasher

range having at least a 6mm thick top deck. All blades are

made from tough boron steel, with the heavy duty blades

featuring a stepped design for maximum rotor protection.

Skids are positively mounted with bolts for set & forget height

adjustment. Numerous options are available that provide an

opportunity to customise a slasher for your specific needs.

These include height control wheels, front and rear chain

guards and gearbox upgrades.

Roller bearings for 40HP gearboxes.

Medium and heavy duty gearboxes

have tapered roller bearings for

increased thrust support.

Mechanical seals and triple lipped

spring loaded seals for maximum

bearing protection.

Alloy steel shafts for

increased strength and

durability.

Robust ductile iron housing

with precision cast iron caps.

Gears are submersed in an oil

bath with gear case porting for

oil flow to the lower bearings.

Primed in red oxide with

enamel hammer tone top coat.

75hp40hp 100hp 130hp

SLASHER ROTORS

AND BLADES

All rotors incorporate three leaf beams

for durability and strength.

The standard steel rotors are welded

together while the spring steel rotors are

bolted together for extra strength.

Blades come in two profiles: the

standard step down blade or the heavy

duty step down and twist blade.

Triple leaf

rotor bar

Splined rotor hub for

a secure driveline

connection

Boron step down blade

1300 745 826 silvan.com.au30

Silvan high performance drivelines are built to ISO standards,

ensuring robust and reliable operation. All components, from the

cast iron housing to bearings and gears are precision engineered.

Gearboxes start at 40 hp and are matched to Silvan’s medium

duty slashers. The 75 hp heavy duty series is the most popular,

while the gutsy 100 and 130 hp gearboxes are purpose built for

extra heavy duty slashing requirements.

With a 2 year warranty on drivelines, our slashers are amongst

the toughest and most reliable in the field.

Slasher

Drivelines

Step down twist blade

Silvan Slashers

FEATURES

102 SERIES

(25 TO 40HP)

108 SERIES

(60 TO 75HP)

131 SERIES

(75 TO 100HP)

145 SERIES

(100 TO 130HP)

105 VINEYARD SERIES

(50 TO 90HP)

Deck Thickness 3mm 5mm 6mm 6mm 5mm Formed steel deck

Deck Shape Square. Folded F/R

(Smooth deck) Square. Folded F/R

(Smooth deck) Square (External Bracing) Square (External Bracing)

Square (Welded side

supports)

Blade Bolt Access

Through Deck No No No Yes

Skid Thickness 10mm 10mm 12mm 16mm

12mm

Skid Height

Adjustment/

Cut Height 2 Hole - 50-90mm 3 Hole - 20-80mm 4 Hole - 50-150mm 6 Hole - 40-140mm

Skids/Height wheels

Replaceable Skid

Runners No No No Yes

Side Plate

Thickness 6mm 6mm 6mm 10mm

12mm

Deck Bracing

Thickness 10mm 10mm 12mm 16mm

N/A

Headstock Floating Floating Floating Floating

Fixed 100x75x6 RHS

Offset 150mm 200mm Optional No

Linkage Category Cat I Cat I/II Cat II Cat II

Cat II

HP Required 25 to 40 HP 60 to 75 HP 75 to 100 HP 100 to 130 HP

50 to 90 HP

Gearbox HP

Rating/PTO Speed 40 HP/540rpm 75 HP/540rpm 75 or 100 HP/540rpm 100 or 130 HP/540rpm

90 HP/ 540rpm

Gearbox Ratio 1:1.93 1:1.93 1:1.93 1:1.467 1:2.90

Blade Tip Speed 65.49 m/sec 98.24m/sec 98.24 m/sec 98.24 m/Sec

90.3m/sec

Rotor Construction Triple Laminated Steel Triple Laminated Steel Triple Laminated Steel Triple Laminated Spring Steel

Triple Laminated Steel

Blade Material Boron 75 x 8mm Stepped 80 x 12.7mm Twist Lift Boron 100 x 10mm Stepped HD Twist Blade

80 x 12.7mm Boron 100 x 10mm

Stepped Lift

Cutting Width 3'6"/4'/ 4'6”/5' 5'/6' 5'/6'/7' 6’ and 7'

6'/6'6"/7'/7'6"

PTO Shaft Series 4 with integral clutch Series 6 with integral clutch Series 7 with integral clutch Series 8 Series 6 with

integrated clutch

Clutch Adjustable Dual friction plate 8"Adjustable

Dual friction plate 8"Adjustable

Dual friction plate Blue torque 4 plate 150HP 8" Adjustable

Dual friction plate

Weight 151/181/211/258 kg 360/397 kg 374/469/572 kg 575 and 641 kg

590/635/685/740 kg

Guarding Rubber flap front & rear Chains front and rear Rubber flap front and rear Chains front and rear Rubber front flap

and rear chains

Option Height control wheel,

Over-run clutch Height control wheel

Height control wheel,

100HP gearbox, spring steel

rotor, offset mount, chain

stone guards

Height control wheel

Finish Powder Coat Galvanised Galvanised Galvanised

Galvanised

1300 745 826 silvan.com.au32

102 General Purpose Slasher

Ideally suited to clearing paddocks, fields and private roadsides where general cutting is required with a low HP tractor.

40 HP

CONSTRUCTION: 3mm top deck plate, downfolds front and rear,

steel understructure.

GEARBOX: 40HP, 540RPM, 1:1.93 ratio.

PTO SHAFT RATING: 40HP, series 4 with integral clutch.

HEADSTOCK: Collapsible floating hitch.

CLUTCH: Adjustable friction clutch with 2 x 150mm (6”)

clutch plates.

FINISH: Premium quality powder coating.

SKIDS: Adjustable from 50 - 90mm cutting height.

BLADES: 3 leaf rotor bar with hardened bushes and 2

Boron step down blades.

MOUNTING: Cat I TPL attachment with offset or centre mount.

INSTRUCTIONS: Operator’s manual and holder supplied.

SAFETY GUARDS: Front & rear rubber guards.

Pictured: 4' model

Medium

Duty

Enamel

Paint

2 Year

Driveline

Warranty

Australian

Made

BareCo

Gearbox & PTO

MODEL

WORKING

WIDTH

OVERALL

WIDTH OFFSET CUTTING HEIGHT PTO OVERALL HEIGHT WEIGHT

MM MM MM MM RPM MM KG

102RS36 3’6” (1070) 3’9” (1135)

150 50-90 540 960

151

102RS4 4’ (1200) 4’3” (1310) 181

102RS46 4’6” (1350) 4’8” (1420) 211

102RS5 5’ (1500) 5’3” (1590) 258

OPTION :

DESCRIPTION MODEL CODE

Height Control Wheel ALL 102RSHC2

Over-run Clutch ORC1

102 General Purpose Slasher

Ideally suited to clearing paddocks, fields and private roadsides where general cutting is required with a medium HP tractor.

75 HP

CONSTRUCTION: 5mm top deck plate, downfolds on each side,

steel understructure.

GEARBOX: 75HP, 540RPM, 1:1.93 ratio.

PTO SHAFT RATING: 75HP, series 6 with integral clutch.

HEADSTOCK: Collapsible floating hitch.

CLUTCH: 8” 2 plate friction clutch.

FINISH: Long lasting galvanised top deck.

SKIDS: Adjustable from 20 - 80mm cutting height.

BLADES: 3 leaf rotor bar with hardened bushes and

2 Boron twist lift blades.

MOUNTING: Cat I & II TPL attachment with offset or

centre mount.

INSTRUCTIONS: Operator’s manual and holder supplied.

SAFETY GUARDS: Front & rear chain guards.

Pictured: 6' model

Medium

Duty Galvanised

2 Year

Driveline

Warranty

Australian

Made

BareCo

Gearbox & PTO

MODEL

WORKING

WIDTH

OVERALL

WIDTH OFFSET CUTTING HEIGHT PTO OVERALL HEIGHT WEIGHT

MM MM MM MM RPM MM KG

108RS5 4’10” (1473) 5’3” (1600) 200 20-80 540 990 360

108RS6 5’10” (1778) 6’3” (1905) 397

OPTION :

DESCRIPTION CODE

Height Control Wheel 103WRSHC2

108 Medium Duty Slasher

1300 745 826 silvan.com.au34

131 Heavy Duty Slasher

CONSTRUCTION: Welded 6mm top deck plate, welded steel side plates

with adjustable skids.

GEARBOX: 75HP, 540RPM, 1:1.93 ratio. Optional 100HP.

PTO SHAFT RATING: 75HP, Series 6.

HEADSTOCK: Collapsible floating hitch.

MOUNTING: Cat. II TPL attachment. Offset or centre mount.

CLUTCH: 75HP: 8” 2 plate friction clutch,

100HP: 8” 4 plate friction clutch.

Heavy

Duty

75 HP or

100 HP

Galvanised

Finish

2 Year

Driveline

Warranty

Australian

Made

BareCo

Gearbox & PTO

FINISH: Long lasting galvanised top deck.

SKIDS: Adjustable from 50 -150mm cutting height.

BLADES: 3 leaf rotor bar with hardened bushes and

2 Boron step down blades.

INSTRUCTIONS: Operator’s manual and holder supplied.

STONE GUARDS: Front and rear rubber stone guards.

Suited to large acreage applications including clearance, firebreaks, private roadsides or where major cutting & clearing is required.

Pictured: 5' model

MODEL

WORKING

WIDTH

OVERALL

WIDTH OFFSET CUTTING HEIGHT PTO OVERALL HEIGHT WEIGHT

MM MM MM MM RPM MM KG

CENTRE MOUNT

50 - 150 540 1020

131RS5G 5’ (1500) 5’3” (1600)

CENTRAL

347

131RS6G 6’ (1800) 6’3” (1900) 469

131RS7G 7’ (2100) 7’3” (2200) 572

OFFSET MOUNT

132RS5G 5’ (1500) 5’3” (1600) 205 376

132RS6G 6’ (1800) 6’3” (1900) 250 471

132RS7G 7’ (2100) 7’3” (2200) 255 574

OPTION :

DESCRIPTION MODEL CODE

Spring Steel Rotor

ALL

131SS

100 HP Gearbox Upgrade GP100UPG

Height Control Wheel

(Two recommended for 7’ models) 103WRSHC2

Heavy Duty Height Control Wheel

(Two recommended for 7’ models) 131RSHC2

Front and Rear Chain Guards

(In lieu of rubber guards)

131 &132RS5G SC5

131 & 132RS6G SC6

131 & 132RS7G SC7

145 Contractor & Shireboss Slashers

131 Heavy Duty Slasher

Pictured: 6’ Shireboss

Galvanised

Finish

CONSTRUCTION: 6mm top deck plate, rear corners

tapered to improve manoeuverability.

GEARBOX: 100HP, 540RPM, 1:1.93 ratio.

130HP, 540RPM, 1:1.93 ratio.

PTO SHAFT RATING: Contractor: Series 8 integrated clutch.

Shireboss: Blue torque 4 plate clutch 150HP.

HEADSTOCK: Collapsible floating hitch.

With reinforced subframe and sides, Contracting and Shireboss slashers are used for clearing heavy scrub, creating firebreaks, roadsides,

council contract work and where all types of cutting and clearing is required.

2 Year

Driveline

Warranty

Australian

Made

BareCo

Gearbox & PTO

Extra

Heavy Duty

100 HP or

130 HP

FINISH: Long lasting galvanised top deck.

SKIDS: Adjustable from 40 - 140mm cutting height.

BLADES: 3 leaf (130mm) spring steel rotor bar with hardened

bushes and 2 heavy duty, twist profile blades.

MOUNTING: Cat. II TPL centre mount attachment.

INSTRUCTIONS: Operator’s manual and holder supplied.

SAFETY GUARDS: Replaceable front/rear quickfit chains.

145 Contractor & Shireboss Slashers

MODEL

WORKING

WIDTH

OVERALL

WIDTH OFFSET CUTTING

HEIGHT PTO OVERALL HEIGHT WEIGHT

MM MM MM MM RPM MM KG

CONTRACTOR WITH 100 HP GEARBOX

CENTRAL 40 - 140 540 1140

145CS6HBG100 6’ (1800) 6’6” (1970) 575

145CS7HBG100 7’ (2100) 7’6” (2270) 641

SHIREBOSS WITH 130 HP GEARBOX

145SB6HBG100 6’ (1800) 6’6” (1970) 648

145SB7HBG100 7’ (2100) 7’6” (2270) 790

OPTION :

DESCRIPTION MODEL CODE

Height Control Wheel

(Two recommended for 7’ models) ALL 145RSHC2

1300 745 826 silvan.com.au36

105 Vineyard Slasher

Twin rotor slasher specifically designed for applications requiring side throw displacement in applications such as vineyards, orchards and olive groves.

Provides a simultaneous, left & right side throw of cuttings to the base of canopies, providing nutrients, assisting weed control & helping to retain moisture.

Designed to cut grass, cover crops and light prunings.

CONSTRUCTION: 5mm formed steel top plate, welded side supports, 5mm

underdeck subframe.

GEARBOX: 75HP Triple gearbox driveline 1x Central, 2x Rotor, Final

ratio 1:1.93. Gearbox reversable for side or centre throw.

PTO SHAFT

RATING:

Series A6 driveshaft with removable camlock end cover, 2 x.

Bare-Co flexible disc gearbox drive couplings.

HEADSTOCK: Fully welded 100 x 75 x 6 RHS “A” frame hitch with deck

support frame.

CONTROL: Dual heavy duty height control wheels with ratchet height

adjustment.

Pictured: 6'6" Vineyard slasher with

dual height control wheels

CLUTCH: 8” 2 plate adjustable heavy duty friction clutch - 75HP.

FINISH: Long lasting galvanised top deck. Galvanised side deflector

plates and gearbox cover.

SKIDS &

SIDEPLATES:

Adjustable front skids, adjustable side throw plates with

side kick rails.

BLADES: 3 leaf spring steel rotor bars (2 rotor assemblies) with

hardened bushes and 2 Boron step down lift blades per rotor.

MOUNTING: Cat II TPL attachment.

Heavy

Duty 75 HP Galvanised

Finish

2 Year

Driveline

Warranty

Australian

Made

BareCo

Gearbox & PTO

MODEL

WORKING

WIDTH DECK WIDTH OVERALL

WIDTH CUTTING HEIGHT PTO WEIGHT

MM MM MM MM RPM KG

105VV6 6' (1875) 6’4” (1945) 7’5” (2275)

35 - 160 540

590

105VV66 6’6” (2060) 6’9” (2124) 8’ (2460) 635

105VV7 7' (2133) 7’2” (2208) 8’3” (2533) 685

105VV76 7’7” (2360) 7’9” (2430) 9' (2760) 740

SM Finishing Mower

CONSTRUCTION: Mower deck is constructed of pressed steel, reinforced at

wheel and three point linkage attachment.

CONTROL: Manual height adjustment on four castor wheels.

(Solid rubber castors standard, pheumatic tyres on request*).

DRIVE LINE: P.T.O drive shaft with durable safety cover, oil bath gearbox,

pulley and belt drive to three cutting blades.

ATTACHMENT: Cat. I three point linkage with floating top link.

Pictured: SM180P Pneumatic tyres shown.

Solid castor wheels standard.

Suited to golf courses, sports grounds and gardens where a clean cut and smooth finish is required with low horsepower tractors. These finishing mowers

are designed to cut grass between 25mm and 100mm in height, which can easily be adjusted via 4 sturdy castor wheels. The castor wheels provide a

constant and even cutting height.

MODEL DISCHARGE

TRACTOR WORKING

WIDTH NUMBER OF

BLADES

CUTTING

HEIGHT PTO WEIGHT

HP MM MM RPM KG

SM120P Rear 12 - 20 1200

325 - 100 540

180

SM120L Side

SM150P Rear 15 - 30 1500 200

SM150L Side

SM180P Rear 20 - 40 1800 230

SM180L Side

SM230P Rear 30 - 60 2300 310

*NOT STOCKED. MAY RESULT IN EXTENDED LEADTIME

1300 745 826 silvan.com.au38

Breviglieri

Rotary Hoes

A wide range of rotary hoes for tractors from

10 to 400HP and with models servicing a wide

spectrum of working widths. More features

and options allow farmers to match a Brevi

rotary hoe to their specific application.

Brevi Rotary Hoes

NOTE: GREEN SHADED MODELS ARE AVAILABLE ON INDENT ORDER ONLY

MODEL

HP WORKING WIDTH

(CM) SIDE SHIFT PTO

RPM

SIDE DRIVE

BLADES

FOR

FLANGE

BLADE

TYPE

ROTOR

CHAIN GEARS FLASH SPIKES BK

Rotary tillers with fixed frame or side shift

B25S 10 - 30 85 - 105 - 125 Mechanical 540 Std - 4 C - - -

B35S 15 - 35 105 - 125 - 145 Mechanical 540 Std - 4 C - - -

B45S 20 - 50 125 - 145 - 165 Mechanical 540 Std - 4 C - - -

B40F 15 - 40 82 - 102 - 122 - 142 - 162 540 Std - 4 C - - -

B55F 25 -60 125 - 145 - 165 - 185 -540 Std Opt 4 - 6 C - - -

B55S 25 - 60 145 - 165 - 185 Mechanical 540 Std Opt 4 - 6 C - - -

B60PS 30 - 70 125 - 145 - 165 - 185 - 205 -540 Std Opt 6 C - - -

B60PL 30 - 70 130 - 155 - 185 - 205 -540 Std Opt 6 C - - -

B60S 25 - 70 130 - 155 - 185 - 205 Hydraulic 540 -Std 6 C - - -

B60SA 25 - 70 130 - 155 - 185 - 205 Automatic 540 -Std 6 C - - -

B83 50 - 90 155 - 180 - 205 - 230 -540 -Std 6 C - - -

B103V 50 - 100 185 - 205 - 230 - 250 -540 /1000 -Std 6 L Opt Opt

(205-250) -

B123V 60 - 120 205 - 230 - 250 - 280 - 300 -540 /1000 -Std 6 L Opt Opt -

B170V 70 - 170 250 - 280 - 300 -1000 -Std 6 L Opt

(250,300) Opt Opt

B250V

100 - 250

250 - 280 - 300 -1000 -Std 6 L - Opt

(250,300) -

B300DT

150 - 300

360 - 400 - 460 -1000 -Std 6 L -

Opt

Rotary tillers with folding frame

DOBLE

150 - 300 360 - 400 - 460 - 500 -1000 -Std 6 L -

Opt Opt

MAXI

DOBLE

200 - 400 460 - 500 - 560 - 630 -1000 -Std 6 L -

Opt Opt

Reverse rotation stone buriers

SB35 12 - 25 85 - 105 - 125 Mechanical 540 Std Opt 4 C - - -

SB40 24 - 40 105 - 125 - 145 - 165 Mechanical 540 Std Opt 6 C - - -

SB60 35 - 50 145 - 165 - 185 -540 Std Opt 6 C - - -

SB80 40 - 65 155 - 180 - 205 -540 Std Opt 6 C - - -

Rotor with “C” helicoidal blades

Rotor with spike blades “SPIKES”

Rotor with straight curled blades “BK”

Rotor with straight blades “FLASH”

Flange reinforcement

Wheel track eradicator

Conveyor disc

Front depth wheel

Up to 65mm clearance between

the frame and blades allows

tilled soil to flow smoothly.

A range of rotors, blades

& roller options to match

soil conditions.

High quality oil seals in steel

& rubber prevent external

contamination from dust/water.

Breviglieri has a long history of innovation and development of top

quality tillage machinery. Since 1949, Brevi have pursued and achieved

continuous product innovation. The quality of their rotary hoes and

power harrows speaks for itself. Silvan Australia has been proudly

promoting the Breviglieri range since 2010.

The Brevi rotary hoe range is renowned for its high quality durable

construction plus a range of options including interchangeable rotors

to cage & packer style rollers. These can ensure that the right soil

structure and condition can be created in a one-pass operation.

Brevi rotary hoe’s & power harrows are engineered to suit tractors

from 10 to 400 HP. Silvan Australia stock Breviglieri rotary hoes

from 85cm to 6.3m folding machines. Power harrows from 1.5 to 7m

working widths are also offered.

All machines in the Brevi range are designed and engineered for

optimal results and efficiency.

TRANSMISSION

Gear drives are standard on 55-400 HP rotary hoes.

Smaller units from 25 to 40 HP come standard with

chain drives.

Top quality Italian gearboxes

built to ISO standards ensures

robust and reliable operation

and trouble free performance.

1300 745 826 silvan.com.au40

Brevi Rotary Hoes Brevi B40F Rotary Hoes

Heavy

Duty

2 Year

Warranty

40 HP

FEATURES INCLUDE:

• 40 HP single speed gearbox.

• 82 - 162cm working widths.

• Side chain drive with auto tensioner.

• 4 C blades per flange.

• Cat I or II three point linkage.

• 1 3/8" 6 spline PTO with slip clutch.

Pictured: B40F-145

Rigid box construction rotary hoes suitable for ground preparation on small farms and market gardens.

MODEL

TRACTOR WORKING

WIDTH

TOTAL

WIDTH PTO ROTOR WORKING

DEPTH BLADE QTY / TYPE

BLADES PER FLANGE

WEIGHT

HP MM MM RPM RPM MM C BLADES KG

B40F-85 15-40 820 990

540 239 50 - 150

155

B40F-105 15-40 1020 1140 20 175

B40F-125 20-40 1220 1390 24 200

B40F-145 25-40 1420 1620 28 220

B40F-165 30-40 1620 1820 32 245

NOTE: AN ADDITIONAL SURCHARGE OF $500.00 (EX GST) APPLIES FOR MACHINERY ASSEMBLY

Heavy

Duty

2 Year

Warranty

60 HP

1300 745 826 silvan.com.au42

Brevi B55F Rotary Hoes Brevi B83 Rotary Hoes

FEATURES INCLUDE:

• 60 HP single speed gearbox.

• 145 - 185cm working widths.

• Side gear drive.

• 6 C blades per flange.

• Cat I or II three point linkage.

• 1 3/8" 6 spline PTO with slip clutch.

Rigid box construction rotary hoes suitable for medium sized farms and market gardens, preparation of ground and working in stubble and crop residues.

Pictured: B55F-165

MODEL

TRACTOR WORKING

WIDTH

TOTAL

WIDTH PTO ROTOR WORKING

DEPTH BLADE QTY / TYPE

BLADES PER FLANGE

WEIGHT

HP MM MM RPM RPM MM C BLADES KG

B55F-145 30 - 60 1450 1620

540 230 50 - 150

265

B55F-165 35 - 60 1650 1820 32 290

B55F-185 45 - 60 1850 2020 36 325

NOTE: AN ADDITIONAL SURCHARGE OF $500.00 (EX GST) APPLIES FOR MACHINERY ASSEMBLY

Brevi B55F Rotary Hoes Brevi B83 Rotary Hoes

Heavy

Duty

2 Year

Warranty

90 HP

FEATURES INCLUDE:

• 90 HP single speed gearbox.

• 155 - 230cm working widths.

• Side gear drive.

• CE safety guards.

• 6 C Blades per flange.

• Cat I (155), CAT II (180 - 230) three point linkage.

• 1 3/8" 6 spline PTO with slip clutch.

Pictured: B83-205

MODEL

TRACTOR WORKING

WIDTH

TOTAL

WIDTH PTO ROTOR WORKING

DEPTH BLADE QTY / TYPE

BLADES PER FLANGE

WEIGHT

HP MM MM RPM RPM MM C BLADES KG

B83-155 50 - 90 1590 1740

540 200 100 - 200

470

B83-180 50 - 90 1890 2040 48 520

B83-205 60 - 90 2090 2240 54 550

B83-230 70 - 90 2310 2450 60 590

OPTION :

DESCRIPTION MODEL CODE

FRONT DEPTH WHEELS ALL B0040264

NOTE: AN ADDITIONAL SURCHARGE OF $500.00 (EX GST) APPLIES FOR MACHINERY ASSEMBLY

Heavy

Duty

2 Year

Warranty

100 HP

Spike blades for very dry

or stony soil

Straight blade Flash Rotor

for dry clay soils

or seedbed preparation

1300 745 826 silvan.com.au44

Brevi B103 Rotary Hoes

FEATURES INCLUDE:

• 100 HP multi speed gearbox (540 RPM).

• 155 - 250 cm working widths.

• 6 L blades per flange.

• Side gear drive.

• CE safety guards.

• Rear door with spring & pin adjustment.

• Floating front hitches.

• 1 3/8" 6 spline PTO with slip clutch.

Pictured: B103V-250

MODEL

TRACTOR WORKING

WIDTH

TOTAL

WIDTH PTO ROTOR RPM WORKING

DEPTH

BLADE

QTY /

TYPE BLADES PER FLANGE

WEIGHT

HP MM MM RPM MULTISPEED MM L BLADES KG

B103V-155 50 - 100 1570 1760

540 138 - 238 - 301 100 - 250

590

B103V-185 50 - 100 1880 2070 42 630

B103V-205 60 - 100 2080 2270 48 660

B103V-230 70 - 100 2340 2530 54 690

B103V-250 75 - 100 2540 2730 60 720

OPTION :

DESCRIPTION MODEL CODE

FRONT DEPTH WHEELS ALL BZ1400163

PAIR OF SIDE DISCS ALL B8201490

WHEEL TRACK ERADICATOR (EACH) ALL BZ1400155

NOTE: AN ADDITIONAL SURCHARGE OF $500.00 (EX GST) APPLIES FOR MACHINERY ASSEMBLY

Brevi B103 Rotary Hoes Brevi B123 Rotary Hoes

Heavy

Duty

2 Year

Warranty

120 HP

FEATURES INCLUDE:

• 120 HP multi speed gearbox with rear PTO (540 RPM).

• 205 - 300cm working widths.

• 6 L blades per flange.

• Side gear drive.

• CE safety guards.

• Floating front hitches.

• 1 3/8" 6 spline PTO with slip clutch.

Spike blades for very dry

or stony soil

Straight blade Flash Rotor

for dry clay soils

or seedbed preparation

Pictured: B123V-250

MODEL

TRACTOR WORKING

WIDTH

TOTAL

WIDTH PTO ROTOR RPM WORKING

DEPTH

BLADE

QTY /

TYPE BLADES PER FLANGE

WEIGHT

HP MM MM RPM MULTISPEED MM L BLADES KG

B123V-205 60 - 120 2080 2270

540 214 - 240 - 302 100 - 250

700

B123V-230 60 - 120 2340 2530 54 750

B123V-250 70 - 120 2540 2730 60 820

B123V-300 90 - 120 3040 3230 72 890

CAGE ROLLER 405MM

B123V-205CR 60 - 120 2080 2270 48 860

B123V-230CR 60 - 120 2340 2530 54 910

B123V-250CR 70 - 120 2540 2730 60 970

B123V-300CR 90 - 120 3040 3230 72 1080

OPTION :

DESCRIPTION MODEL CODE

FRONT DEPTH WHEELS ALL BZ1400163

PAIR OF SIDE DISCS ALL B8201490

WHEEL TRACK

ERADICATOR (EACH) ALL BZ1400155

NOTE: AN ADDITIONAL SURCHARGE OF $500.00 (EX GST) APPLIES FOR MACHINERY ASSEMBLY

1300 745 826 silvan.com.au46

Brevi B170 Rotary Hoes Brevi B300DT Rotary Hoes

FEATURES INCLUDE:

• 170 HP multispeed gearbox

with rear PTO (1000 RPM).

• 250 - 300cm working widths.

• 6 L blades per flange.

• Side gear drive.

• CE safety guards.

• Floating front hitches.

• Rear door with spring & pin adjustment.

• 1 3/8" 21 spline PTO with slip clutch.

Spike blades for very dry

or stony soil

Straight blade Flash Rotor

for dry clay soils

or seedbed preparation

Pictured: B170V-300PR

Heavy duty rotary hoes intended for large farms, specialised operations and contractors. They are designed to work in heavy

conditions with a wide choice of accessories. The versatility allows better tillage results on many ground types.

Heavy

Duty

2 Year

Warranty

170 HP

MODEL

TRACTOR WORKING

WIDTH

TOTAL

WIDTH PTO ROTOR RPM WORKING

DEPTH

BLADE

QTY /

TYPE BLADES PER FLANGE

WEIGHT

HP MM MM RPM MULTISPEED MM L BLADES KG

B170V-250 70 - 170 2540 2740

1000 223 - 278 - 310 100 - 200

990

B170V-280 90 - 170 2800 3000 66 1080

B170V-300 100 - 170 3040 3240 72 1160

CAGE ROLLER 450MM

B170V-250CR 70 - 170 2540 2740 60 1100

B170V-280CR 90 - 170 2800 3000 66 1200

B170V-300CR 100 - 170 3040 3240 72 1290

PACKER ROLLER 464MM

B170V-250PR 70 - 170 2540 2740 60 1280

B170V-280PR 90 - 170 2800 3000 66 1360

B170V-300PR 100 - 170 3040 3240 72 1450

OPTION :

DESCRIPTION MODEL CODE

FRONT DEPTH WHEELS ALL B5500298

PAIR OF SIDE DISCS ALL B8201366

WHEEL TRACK

ERADICATOR (EACH) ALL BE1600024

DOUBLE FLANGE (EACH) ALL B4000418

NOTE: AN ADDITIONAL SURCHARGE OF $500.00 (EX GST) APPLIES FOR MACHINERY ASSEMBLY

Brevi B170 Rotary Hoes Brevi B300DT Rotary Hoes

2 Year

Warranty

300 HP

Heavy

Duty

Pictured: B300DT-400CR

FEATURES INCLUDE:

• 300 HP single speed gearbox

with rear PTO (1000 RPM).

• 360 - 400cm working widths.

• 6 L blades per flange.

• Side gear drive. (Dual drive)

• 1 3/4" 20 spline PTO with cam clutch.

• CE safety guards.

• Floating front hitches.

• Rear door with spring & pin adjustment.

• Cat III (Suited to ASAE quick hitch).

• Wheel track eradicators

Dual drive fixed rotary hoes designed for large farms and contractors. The B300DT features DuoCone seals and Hardox® steel rotor flanges for durability.

MODEL

TRACTOR WORKING

WIDTH

TOTAL

WIDTH PTO ROTOR RPM WORKING

DEPTH

BLADE

QTY /

TYPE BLADES PER FLANGE

WEIGHT

HP MM MM RPM RPM MM L BLADES KG

B300DT-360 150 - 300 3570 3910

1000 259 100 - 200

1700

B300DT-400 180 - 300 3970 4310 96 1850

CAGE ROLLER 450MM

B300DT-360CR 150 - 300 3570 3910 84 1960

B300DT-400CR 180 - 300 3970 4310 96 2130

PACKER ROLLER 500MM

B300DT-360PR 150 - 300 3570 3910 84 2180

B300DT-400PR 180 - 300 3970 4310 96 2400

OPTION :

DESCRIPTION MODEL CODE

PAIR OF SIDE DISCS ALL B8201366

NOTE: AN ADDITIONAL SURCHARGE OF $500.00 (EX GST) APPLIES FOR MACHINERY ASSEMBLY

1300 745 826 silvan.com.au48

Brevi Doble Folding Rotary Hoes

FEATURES INCLUDE:

• 300HP single speed gearbox (1000 RPM).

• 360 - 400cm working widths.

• 6 L blades per flange with double flanges.

• Transport width 268cm.

• Side gear drives.

• 1 3/4" 20 spline PTO with cam clutch.

• Store folded.

• Side discs.

• Wheel track eradicators.

Brevi Maxi Doble Folding Rotary Hoes

The Doble rotary hoe is well suited to rugged conditions such as sugar cane, cotton, broadacre and large vegetable farms.

It’s purpose built with two robust side frames that hydraulically fold for transport and storage.

2 Year

Warranty

250 HP

Heavy

Duty

Pictured: DOBLE-360

MODEL

TRACTOR WORKING

WIDTH

FOLDED

WIDTH FOR

TRANSPORT

PTO ROTOR RPM WORKING

DEPTH

BLADE QTY

/ TYPE BLADES PER FLANGE

WEIGHT

HP MM MM RPM RPM MM L BLADES KG

DOBLE-360 150 - 300 3600

2680 1000 259 100 - 200

2070

DOBLE-400 180 - 300 4000 96 2180

CAGE ROLLER 450MM

DOBLE-360CR 150 - 300 3600 84 2370

DOBLE-400CR 180 - 300 4000 96 2540

PACKER ROLLER 500MM

DOBLE-360PR 150 - 300 3600 84 2580

DOBLE-400PR 180 - 300 4000 96 2800

NOTE: AN ADDITIONAL SURCHARGE OF $500.00 (EX GST) APPLIES FOR MACHINERY ASSEMBLY

Brevi Doble Folding Rotary Hoes Brevi Maxi Doble Folding Rotary Hoes

FEATURES INCLUDE:

• 350HP single speed gearbox (1000 RPM) on

Doble 460 - 560 (400HP on Doble 630).

• 460 - 630cm working widths.

• 6 L blades per flange with double flanges.

• Transport width 268cm.

• Side gear drives.

• 1 3/4" 20 spline PTO with cam clutch.

• Store folded.

• Side discs.

• Wheel track eradicators.

The Maxi Doble rotary hoe is well suited to rugged conditions such as sugar cane, cotton, broadacre and large vegetable farms. It can be hydraulically

folded for transport. storage and maintenance. The range features DuoCone seals and Hardox® rotor flanges.

2 Year

Warranty

400 HP

Heavy

Duty

Pictured: DOBLE-630

MODEL

TRACTOR WORKING

WIDTH

FOLDED

WIDTH FOR

TRANSPORT

PTO ROTOR WORKING

DEPTH

BLADE

QTY / TYPE BLADES PER FLANGE

WEIGHT

HP MM MM RPM RPM MM L BLADES KG

DOBLE-460 200 - 350 4600

2680 1000 239 100 - 200

108

2400

DOBLE-500 220 - 350 5000 120 2480

DOBLE-560 220 - 350 5600 132 2600

DOBLE-630 220 - 400 6320 156 2780

CAGE ROLLER 450MM

DOBLE-460CR 200 - 350 4600 108 2680

DOBLE-500CR 220 - 350 5000 120 2840

DOBLE-560CR 220 - 350 5600 132 3050

DOBLE-630CR 220 - 400 6320 156 3290

PACKER ROLLER 500MM

DOBLE-460PR 200 - 350 4600 108 2980

DOBLE-500PR 220 - 350 5000 120 3070

DOBLE-560PR 220 - 350 5600 132 3340

DOBLE-630PR 220 - 400 6320 156 3880

NOTE: AN ADDITIONAL SURCHARGE OF $500.00 (EX GST) APPLIES FOR MACHINERY ASSEMBLY

Silvan Bedformers create uniform, level, full width beds with consistent bed

compaction in one pass and are fitted to your choice of Italian made Brevi

rotary hoes or power harrows.

The bed former floats are manufactured out of 10mm plate and incorporate

an easy flow through design. For extra strength all units are seam welded

except for the skid plates, which are stitch welded for easy removal. Tailgates

are fully enclosed to minimise soil and water collection to avoid rust and

customised to match any seed bed profile.

• Bed formers are custom built in Melbourne on quality Breviglieri rotary hoes

and power harrows to suit most applications

• Floats fabricated from 10mm plate

• All fully seam welded for strength

• Skid plates stitch welded for easy replacement

• Tail gates fully enclosed to avoid trapping corrosion-causing moisture

• Optional: Bisalloy and HARDOX® steel skids

1300 745 826 silvan.com.au50

Brevi Inter-row Tiller

Brevi’s inter-row tillers shred, scarify and aerate the surface layers

of the soil, improving its fertility and reducing the need for herbicides

and pesticides.

MODEL CODE WORKING

WIDTHS

TRACTOR

RANGE

ELEMENT

WIDTHS

M21-2 165-440 cm 15-40 HP 30-50 cm

MBE3 165-440 cm 30-80 HP 25-70 cm

MG4 165-330 cm 40-80 HP 25-90 cm

Brevi Stone Burier

Ideal where stony soil is a problem, the stone burier uses over sized

parts making it very tough and dependable.

MODEL CODE WORKING

WIDTHS

TRACTOR

RANGE WEIGHT

SB35 85-125 cm 12-35 HP 245-295 kg

SB40 105-165 cm 25-40 HP 375-460 kg

SB60 145-185 cm 35-50 HP 485-550 kg

SB80 155-205 cm 40-65 HP 670-770 kg

Silvan Bedformers

Silvan Bedformers & Accessories

Silvan Bedformers & Accessories Brevi Power

Harrows

Brevi’s power harrow range offer features

that include phased rotors, robust

gearboxes and gear drives. Selected

models have a combination seeder option

for tillage and seeding in one pass.

1300 745 826 silvan.com.au52

MODEL HP WORKING WIDTH (CM) SUPERFAST BLADES ROTOR BEARINGS REAR PTO

Power harrows with fixed frame

MF80 30 - 80 110 - 130 - 150 - 170 - 190 -Ball -

MF100 60 - 100 200 - 230 - 250 - 300 -Ball Opt

MF120 90 - 120 250 - 300 Opt Ball Std

MF150 100 - 150 250 - 300 Opt Ball Std

MF170 100 - 170 300 - 350 - 400 Opt Ball Std

MF220 140 - 220 300 - 350 - 400 - 450 Opt Ball Std

Power harrows with folding frame

MekFold180 100 - 180 340 - 410 - 460 -Ball -

MekFold220 130 - 220 400 - 500 Opt Ball -

MekFold260 140 - 260 400 - 450 - 500 - 600 Opt Ball -

MekFold300 160 - 300 500 - 600 - 700 Opt Ball -

MekFold350 180 - 350 500 - 600 - 700 Opt Taper roller -

MODEL ROLLER ADJUSTMENT COMBI-SEED DRILL

PINS BOLTS HYDRAULIC LUCKYSEM

Power harrows with fixed frame

MF80 Std Opt - -

MF100 Std Opt Opt -

MF120 Std Opt Opt Opt

MF150 Std Opt Opt Opt

MF170 Std Opt Opt Opt

MF220 Std Opt Opt Opt

Power harrows with folding frame

MekFold180 -Std Opt -

MekFold220 -Std Opt -

MekFold260 -Std Opt -

MekFold300 - - Std -

MekFold350 - - Std -

NOTE: BURGUNDY SHADED MODELS AVAILABLE ON INDENT ORDER ONLY

OPTIONAL LUCKYSEM SEEDER ATTACHMENT LUCKYSEMV250 LUCKYSEMV300

Working width 2500 mm 3000 mm

Inter row spacing 125 mm 125 mm

Hopper capacity 420 litre 520 litre

Number of rows 20 24

SUPERFAST® - OPTIONAL QUICK REPLACEMENT BLADE SYSTEM LENGTH (MM) THICKNESS (MM)

Mekfarmer 80 - 100 270 12

Mekfarmer 120 - 220 300 15

Mekfold 180 270 12

Mekfold 220 - 350 300 15

1 32 4

Brevi Power Harrows

A pin or screw depth adjustment levelling

bar is fitted for better control of soil clod

crumbling, refining and even distribution.

Performance based gearboxes

built to ISO standards ensures

robust and reliable operation.

Oil seals in steel and

rubber prevent any external

contamination from dust or water.

Bolted gearcase allows simplified maintenance

access. Individual bearing caps for simple

bearing replacement. A durable box-section construction

with a square front bar, side bars and

the 3 point headstock with the gearbox

form a heavy-duty assembly.

Floating hitch system to better

follow ground contours.

Silvan’s Brevi range offers features to help you select a power harrow to suit your specific needs. These include phased rotors, Superfast

quick release blade options, adjustable hitches, hydraulic folding, robust gearboxes, and gear drives. Backed by a two year manufacturer’s

warranty, you can be confident your Brevi power harrow will last in the toughest conditions.

Brevi power harrows have phased rotors

assembled in a helical arrangement rather

than the traditional crisscross rotation.

This reduces absorption of power and fuel

consumption, eliminates machine vibrations

and enables better soil crumbling.

Brevi Power HarrowsBrevi Power Harrows

Heavy

Duty

2 Year

Warranty

80/100 HP

1300 745 826 silvan.com.au54

MekFarmer 80/100 Power Harrows

FEATURES INCLUDE:

• 80HP single speed gearbox (540 RPM) or 100HP two speed gearbox (540 RPM).

• Phased rotors - 200mm pitch.

• Headstock centre mounted.

• Leveling bar standard.

• Floating side shields.

• 1.5 - 2.3m working widths.

• 1 3/8" 6 spline PTO with slip clutch.

PHASED ROTOR BENEFITS:

• Reduces the absorbtion of power and fuel consumption.

• Eliminates vibrations.

• Better soil crumbling.

Pictured: MF80-170CR

MODEL

TRACTOR WORKING

WIDTH

TOTAL

WIDTH PTO ROTOR WORKING

DEPTH BLADE WEIGHT

HP MM MM RPM RPM MM QTY KG

CAGE ROLLER 370MM MF80 / 405MM MF100

540 80 - 270

MF80-150CR 50 - 80 1480 1530 324 14 405

MF80-170CR 60 - 80 1680 1730 16 440

MF100-200CR 60 - 100 2060 2150 310 / 276 - 2 Speed

540 rpm gearbox

20 700

MF100-250CR 70 - 100 2460 2550 24 770

PACKER ROLLER 406MM

MF80-150PR 50 - 80 1480 1530 324 14 485

MF80-170PR 60 - 80 1680 1730 16 530

MF100-200PR 60 - 100 2060 2150 310 / 276 - 2 Speed

540 rpm gearbox

20 780

MF100-250PR 70 - 100 2460 2550 24 880

OPTION :

DESCRIPTION MODEL CODE

STONE COLLAR PROTECTION (EACH) ALL B4000331

WHEEL TRACK ERADICATOR (EACH) ALL B1600024

NOTE: AN ADDITIONAL SURCHARGE OF $500.00 (EX GST) APPLIES FOR MACHINERY ASSEMBLY

MekFarmer 150 Power HarrowsMekFarmer 80/100 Power Harrows

Heavy

Duty

2 Year

Warranty

150 HP

FEATURES INCLUDE:

• 150HP single speed gearbox (540 RPM).

• Phased rotors.

• Stone protection system.

• Leveling bar standard

• Floating side shields.

• 2.5 - 3.0m working widths.

• 1 3/8" 6 spline PTO with slip clutch.

PHASED ROTOR BENEFITS:

• Reduces the absorbtion of power and fuel consumption.

• Eliminates vibrations.

• Better soil crumbling.

Pictured: MF150-250CR

MODEL

TRACTOR WORKING

WIDTH

TOTAL

WIDTH PTO ROTOR WORKING

DEPTH BLADE WEIGHT

HP MM MM RPM RPM MM QTY KG

CAGE ROLLER 405MM

540/1000 348 100 - 300

MF150-250CR 100 - 150 2460 2520 20 1010

MF150-300CR 110 - 150 2940 3000 24 1190

PACKER ROLLER 406MM

MF150-250PR 100 - 150 2460 2520 20 1100

MF150-300PR 110 - 150 2940 3000 24 1290

DESCRIPTION MODEL CODE

SUPER FAST BLADE SYSTEM ALL

WHEEL TRACK ERADICATOR (EACH) ALL B1600024

NOTE: AN ADDITIONAL SURCHARGE OF $500.00 (EX GST) APPLIES FOR MACHINERY ASSEMBLY

1300 745 826 silvan.com.au56

MekFarmer 220 Power Harrows MekFold 260/300/350 Power Harrows

FEATURES INCLUDE:

• 220 HP two speed gearbox (1000 RPM).

• Phased rotors.

• Stone protection system.

• Leveling bar standard.

• Floating side shields.

• 1 3/8" 21 spline PTO with slip clutch.

• 3 - 4.5m working widths.

PHASED ROTOR BENEFITS:

• Reduces the absorbtion of power.

• Eliminates vibrations.

• Better soil crumbling.

Pictured: MF220-400PR

Heavy

Duty

2 Year

Warranty

220 HP

MODEL

TRACTOR WORKING

WIDTH

TOTAL

WIDTH PTO ROTOR WORKING DEPTH BLADE WEIGHT

HP MM MM RPM RPM MM QTY KG

CAGE ROLLER 450 MM

1000 370 / 332 100 - 300

MF220-300CR 140-220 2940 3000 24 1280

MF220-350CR 150-220 3420 3500 28 1470

MF220-400CR 170-220 3900 4000 32 1610

MF220-450CR 180-220 4380 4440 36 1730

PACKER ROLLER 500 MM

MF220-300PR 140-220 2940 3000 24 1480

MF220-350PR 150-220 3420 3500 28 1630

MF220-400PR 170-220 3900 4000 32 1790

MF220-450PR 180-220 4380 4440 36 1960

CAGE ROLLER 450 MM WITH SUPERFAST BLADES

MF220-300SCR 140-220 2940 3000 24 1280

MF220-350SCR 150-220 3420 3500 28 1470

MF220-400SCR 170-220 3900 4000 32 1610

MF220-450SCR 180-220 4380 4440 36 1730

PACKER ROLLER 500 MM WITH SUPERFAST BLADES

MF220-300SPR 140-220 2940 3000 24 1480

MF220-350SPR 150-220 3420 3500 28 1630

MF220-400SPR 170-220 3900 4000 32 1790

MF220-450SPR 180-220 4380 4440 36 1960

DESCRIPTION MODEL CODE

WHEEL TRACK ERADICATOR (EACH) ALL B1600024

NOTE: AN ADDITIONAL SURCHARGE OF $500.00 (EX GST) APPLIES FOR MACHINERY ASSEMBLY

MekFarmer 220 Power Harrows MekFold 260/300/350 Power Harrows

Heavy

Duty

2 Year

Warranty

260/300

/350 HP

FEATURES INCLUDE:

• 260/300/350 HP single speed gearbox (1000 RPM).

• Phased rotors.

• Stone protection system.

• Leveling bar standard.

• Floating side shields.

• Folded width 250cm.

• 4 - 7m working widths.

• 450mm Cage roller standard.

• Konic - tapered roller bearings on MEKFOLD350.

• 1 3/4" 20 spline PTO with cam clutch.

Pictured: MEKFOLD260-500CR

MODEL

TRACTOR WORKING

WIDTH

FOLDED

WIDTH FOR

TRANSPORT

PTO ROTOR WORKING DEPTH BLADE WEIGHT

HP MM MM RPM RPM MM QTY KG

MEKFOLD 260 WITH 450 MM CAGE ROLLER

2500 1000 324 / 363 100 - 300

MEKFOLD260-400CR 140-260 4000 32 2250

MEKFOLD260-500CR 160-260 4960 40 2570

MEKFOLD260-600CR 180-260 5920 48 2880

MEKFOLD 300 WITH 450 MM CAGE ROLLER

MEKFOLD300-500CR 160-300 4960 40 2800

MEKFOLD300-600CR 180-300 5920 48 3140

MEKFOLD300-700CR 190-300 6880 56 3510

MEKFOLD 350 WITH 450 MM CAGE ROLLER

MEKFOLD350-500CR 180-350 4960 40 2870

MEKFOLD350-600CR 220-350 5920 48 3230

MEKFOLD350-700CR 250-350 6880 56 3610

NOTE: AN ADDITIONAL SURCHARGE OF $500.00 (EX GST) APPLIES FOR MACHINERY ASSEMBLY

1300 745 826 silvan.com.au58

Fertiliser

Spreaders

Dal Cero have a long history in the production

of fertiliser spreaders. In more recent

years there has been an increased focus on

innovation and new technology to further

develop their precision spreader range.

CA/W Twin Disc Spreader

APPLICATION: A narrow spreader suited to horticulture applications.

CONSTRUCTION: Stainless steel spreading components and hopper plus oil

bath transmission. Powder coated frame.

ATTACHMENT: Cat. I & II three point linkage.

DRIVE LINE: PTO Driven.

CONTROL: Left and right independent hydraulic controls

with double acting rams.

MODEL DESCRIPTION: CODE

600L CA SPREADER: STAINLESS STEEL HOPPER, HYDRAULIC CONTROLS DCM-CAW600X

OPTIONS: CODE

200L EXTENSION STAINLESS STEEL (200L CAPACITY) DCM-612210250AX

HOPPER COVER DCM-612240600

DOUBLE SIDED CONVEYOR (2-5M BANDING) DCM-612240001A

NOTE: AN ADDITIONAL SURCHARGE OF $500.00 (EX GST) APPLIES FOR MACHINERY ASSEMBLY

* Capacity will vary according to the type of fertiliser used. ** Variable according to speed and type of fertiliser.

FILTERS: Stainless steel filter screen to prevent fertiliser

lumps blocking the gates.

Pictured: DCM-CAW600X with optional

200L extension

Hopper Cover Two Sided Conveyor

Calibration app

Banding

DCM-612240600 DCM-612240001A

Download the free app from iTunes & Google Play Store

Banded spreading width up to 5m

DIMENSIONS: L (mm) W (mm) H (mm) kg (dry)

600L 1330 1100 980 187

800L 1330 1100 1180 202

Spread

10-18m**

Hopper

600 to 800L

Vineyards Orchards

1300 745 826 silvan.com.au60

CA Twin Disc Spreader

APPLICATION: A versatile spreader suited to pasture

and horticulture applications.

CONSTRUCTION: Stainless steel spreading components plus oil bath

transmission. Powder coated hopper and frame.

ATTACHMENT: Cat. I & II three point linkage.

DRIVE LINE: PTO Driven.

CONTROL: Left and right independent hydraulic controls

with double acting rams.

MODEL DESCRIPTION: CODE

900L CA SPREADER: PAINTED HOPPER, HYDRAULIC CONTROLS DCM-CA900

OPTIONS: CODE

300L EXTENSION (1200L CAPACITY) DCM-612210400

600L EXTENSION (1500L CAPACITY) DCM-612211500

1100L EXTENSION (2000L CAPACITY) DCM-612212000

HOPPER COVER (CA 900 & 1200L) DCM-612200900

HOPPER COVER (CA 1500 & 2000L) DCM-612201800A

DOUBLE SIDED CONVEYOR (2-5M BANDING) DCM-612240001A

NOTE: AN ADDITIONAL SURCHARGE OF $500.00 (EX GST) APPLIES FOR MACHINERY ASSEMBLY

* Capacity will vary according to the type of fertiliser used. ** Variable according to speed and type of fertiliser.

FILTERS: Stainless steel filter screen to prevent fertiliser

lumps blocking the gates.

Pictured: DCM-CA900

Hopper Cover Two Sided Conveyor

Calibration app

Banding

DCM-612200900 /DCM-612201800A DCM-612240001A

Download the free app from iTunes & Google Play Store

Banded spreading width up to 5m

DIMENSIONS: L (mm) W (mm) H (mm) kg (dry)

900L 1400 1800 990 192

1200L 1400 1800 1160 210

1500L 1400 2200 1230 230

2000L 1400 2200 1410 255

Spread

10-24m**

Hopper

900 to 2000L

Vineyards Pasture

CA Stainless Steel Twin Disc Spreader

APPLICATION: A versatile spreader suited to pasture

and horticulture applications.

CONSTRUCTION: Stainless steel spreading components and hopper plus oil

bath transmission. Powder coated frame.

ATTACHMENT: Cat. I & II three point linkage.

DRIVE LINE: PTO Driven.

CONTROL: Left and right independent hydraulic controls

with double acting rams.

MODEL DESCRIPTION: CODE

900L CA SPREADER: STAINLESS STEEL HOPPER, HYDRAULIC CONTROLS DCM-CA900X

OPTIONS: CODE

300L EXTENSION STAINLESS STEEL (1200L CAPACITY) DCM-612240400

600L STAINLESS STEEL EXTENSION (1500L CAPACITY) DCM-612240600

1100L STAINLESS STEEL EXTENSION (2000L CAPACITY) DCM-612242000

HOPPER COVER (CA 900 & 1200L) DCM-612200900

HOPPER COVER (CA 1500 & 2000L) DCM-612201800A

DOUBLE SIDED CONVEYOR (2-5M BANDING) DCM-612240001A

NOTE: AN ADDITIONAL SURCHARGE OF $500.00 (EX GST) APPLIES FOR MACHINERY ASSEMBLY

* Capacity will vary according to the type of fertiliser used. ** Variable according to speed and type of fertiliser.

FILTERS: Stainless steel filter screen to prevent fertiliser

lumps blocking the gates.

Pictured: DCM-CA900X with optional

600L extension and hopper cover

Hopper Cover Two Sided Conveyor

Calibration app

Banding

DCM-612200900 /DCM-612201800A DCM-612240001A

Download the free app from iTunes & Google Play Store

Banded spreading width up to 5m

DIMENSIONS: L (mm) W (mm) H (mm) kg (dry)

900L 1400 1800 990 192

1200L 1400 1800 1160 210

1500L 1400 2200 1230 230

2000L 1400 2200 1410 255

Spread

10-24m**

Hopper

900 to 2000L

Vineyards Pasture

CA Twin Disc Spreader

1300 745 826 silvan.com.au62

MD Twin Disc Spreader

APPLICATION: A versatile spreader suited to pasture

and broadacre applications.

CONSTRUCTION: Stainless steel spreading components and hopper plus oil

bath transmission. Powder coated frame.

ATTACHMENT: Cat. I & II three point linkage.

DRIVE LINE: PTO Driven or optional hydraulic drive.

CONTROL: Left and right independent hydraulic controls

with double acting rams.

MODEL DESCRIPTION: CODE

2000L MD SPREADER: PAINTED HOPPER, HYDRAULIC CONTROLS DCM-MD2000

3000L MD SPREADER: PAINTED HOPPER, HYDRAULIC CONTROLS DCM-MD3000

OPTIONS: CODE

HYDRAULIC DRIVE DCM-6126000005

NOTE: AN ADDITIONAL SURCHARGE OF $500.00 (EX GST) APPLIES FOR MACHINERY ASSEMBLY

* Capacity will vary according to the type of fertiliser used. ** Variable according to speed and type of fertiliser.

FILTERS: Stainless steel filter screen to prevent fertiliser

lumps blocking the gates.

COVER: Hopper cover standard.

Pictured: DCM-MD3000

Calibration app

Download the free app from iTunes & Google Play Store

DIMENSIONS: L (mm) W (mm) H (mm) kg (dry)

2000L 1360 2200 1610 540

3000L 1360 2200 1980 600

Spread

18-36m**

Hopper

2000 to 3000L

Broadacre Pasture

APPLICATION: A precision spreader suited to pasture and broadacre

applications

CONSTRUCTION: Stainless steel spreading components painted or stainless

steel hopper, powder coated frame. Oil bath gearboxes.

ATTACHMENT: Cat. I & II three point linkage.

DRIVE LINE: PTO Driven or optional hydraulic drive.

CONTROL: Independent left and right hydraulic controls

with double acting rams. Optional auto rate controllers with

electric actuators and four loadcells.

FILTERS: Stainless steel filter screen to prevent fertiliser

lumps blocking the gates.

COVER: Hopper cover standard.

Pictured: DCM-MX3000X

DIMENSIONS: L (mm) W (mm) H (mm) kg (dry)

3000L 1360 2480 1850 694

4200L 1360 2480 2250 758

Spread

18-36m**

Hopper

3000 to 4200L

Broadacre Pasture

MODEL DESCRIPTION: CODE

3000L STAINLESS STEEL NON LOAD CELL SPREADER DCM-MX3000X

3000L STAINLESS STEEL LOAD CELL SPREADER DCM-MX3000XE

4200L PAINTED NON LOAD CELL SPREADER DCM-MX4200

4200L PAINTED LOAD CELL SPREADER DCM-MX4200E

4200L STAINLESS STEEL NON LOAD CELL SPREADER DCM-MX4200X

4200L STAINLESS STEEL LOAD CELL SPREADER DCM-MX4200XE

OPTIONS: CODE

HYDRAULIC DRIVE DCM-6126000005

NOTE: AN ADDITIONAL SURCHARGE OF $500.00 (EX GST) APPLIES FOR MACHINERY ASSEMBLY

* Capacity will vary according to the type of fertiliser used. ** Variable according to speed and type of fertiliser.

MX Twin Disc Spreader

1300 745 826 silvan.com.au64

Spreaders &

Implements

SP 150 Spreader

APPLICATION: The SP150 trailed ATV spreader is ground driven and

designed for spreading fertiliser on sporting fields,

lawn and pasture. It is ideal for towing behind compact

tractors and ATV motorbikes.

CONSTRUCTION: The hopper is manufactured from a single piece of spun

seamless steel. The support frame is constructed of

pressed and tubular steel.

MODEL CODE SP150

Capacity* 144 litres

Width of throw** 2-6 m

Overall Dimensions

Length 1400 mm

Width 900 mm

Height 1350 mm

Weight 61 kg

* Capacity will vary according to the type of fertiliser used. ** Variable according to speed and type of fertiliser.

Spread

2-6m

Hopper

144L

DRIVELINE: Two piece cast aluminium gearbox with constant drive,

one driven wheel, one free wheel.

6.00 x 15” pneumatic tyres.

CONTROL: One single lever for rate control, with mechanical

spindle agitator.

ATTACHMENT: Adjustable draw bar with 5 height positions

and 15mm diameter tow pin.

Pictured: SP150

1300 745 826 silvan.com.au66

TSP Spreader

APPLICATION: The TSP Trailed Spreader is ground driven and designed for

spreading fertiliser and fine seed on sporting fields, lawns

and pastures. It is ideal for towing behind compact tractors

and some ATV motorbikes.

CONSTRUCTION: The hopper is made from corosion resistant UV stabilised

polyethelene.

MODEL CODE TSP-500

Capacity* 345 litres

Max. Load Capacity* 450 kg

Width of throw** 6-18 m

Overall Dimensions

Length 2000 mm

Width 1300 mm

Height 1190 mm

Weight 119 kg

* Capacity will vary according to the type of fertiliser used. ** Variable according to speed and type of fertiliser.

Pictured: TSP-500

DRIVE LINE: Differential type gearbox ground drive with

neutral position.

CONTROL: One manual control lever is calibrated for quantity of

application and a second control lever offers three settings

for spreading pattern, left, right and full.

Spread

6-18m

Hopper

345L

Poly Hopper Spreader

APPLICATION: Suitable for small to medium spreading applications and are

capable of spreading a wide variety of products including

fertiliser and seed.

CONSTRUCTION: The hopper is corrosion resistant UV stabilised polyethelene

with stainless steel metering & spreading discs.

ATTACHMENT: Cat. I three point linkage.

MODEL CODE PL-500

Capacity* 345 litres

Width of throw** 6-18 m

Overall Dimensions

Length 1100 mm

Width 1130 mm

Height 1000 mm

Weight 63 kg

ORDERED UNASSEMBLED IN LOTS OF 5 MODEL CODE

PL500BULK5

OPTIONAL ACCESSORIES CODE

One sided conveyor 620102

Two sided conveyor 620106

Agitator 619012

Hopper grid cover 642010

Hydraulic control 619010

Hopper cover 902003

* Capacity will vary according to the type of fertiliser used. ** Variable according to speed and type of fertiliser.

Spreading Throw One sided Conveyor Two sided conveyor Agitator Hopper grid cover Hydraulic control

Full or half width throw by

adjusting spreader gates

Code: 620102 Code: 620106 Code: 619012 Code: 642010 Code: 619010

DRIVE LINE: PTO drive shaft with safety cover - grease packed single

speed gearbox with cast aluminium housing, 1:1 ratio -

vertical output shaft to spinner and agitator.

CONTROL: One manual control lever is calibrated for quantity of

application and a second control lever offers three settings

for spreading pattern left, right and full.

Pictured: PL-500

Spread

6-18m

Hopper

345L

TSP Spreader

1300 745 826 silvan.com.au68

SQTF Oscillating SpreaderSX Spreader

APPLICATION: Suitable for small to medium spreading applications

and are capable of spreading a wide variety of products

including fertiliser and seed.

CONSTRUCTION: The galvanised hopper is manufactured from a single piece

of spun, seamless steel. The support frame is constructed

of pressed and tubular steel.

ATTACHMENT: Cat. I three point linkage.

MODEL CODE SX-500GALHOP

Capacity* 345 litres

Width of throw** 6-18m

Overall Dimensions

Length 1180 mm

Width 1190 mm

Height 1180 mm

Weight 67 kg

ORDERED UNASSEMBLED IN LOTS OF 5 MODEL CODE

SX-500GALBULK

OPTIONAL ACCESSORIES CODE

Side throw conveyor PAX26

Agitator PAX20

* Capacity will vary according to the type of fertiliser used. ** Variable according to speed and type of fertiliser.

Spreading Throw Side Throw Conveyor Agitator

Full or half width throw by

adjusting spreader gates

Code: PAX26 Code: PAX20

DRIVE LINE: PTO drive shaft with safety cover - grease packed single

speed gearbox with cast aluminium housing, 1:1 ratio -

vertical output shaft to spinner and agitator.

CONTROL: One manual control lever is calibrated for quantity of

application and a second control lever offers three

settings for spreading pattern, left, right and full.

Pictured: SX-500GALHOP

Spread

6-18m

Hopper

345L

Pictured: RON-SQTF400

APPLICATION: The oscillating spreader is designed for precise application

of fertiliser and seed at medium to low rates. The

oscillating spout will apply product accurately from 5 to 14

metres depending on material being spread as well as left

or right hand banding. Spreader is supplied with spouts for

banded spreading for either 3 metre or 7 metre wide rows.

(Note: Banded spreading will still allow some product to

spread in centre)

CONSTRUCTION: Heavy duty construction for long service life. The hopper

is manufactured from non-corrosive UV stabilised impact

resistant polyethylene. The frame is made of galvanised,

high strength tubular steel. Spout formed from fibreglass

reinforced nylon.

Twin band spreading Broadcast spreading Hydraulic control

Accurately distribute fertiliser

underneath the canopy,

providing nutrients to the

base of the plant.

Doubles as a broadcast

spreader being able to apply

full coverage for top dressing.

Code:

RON-993030

DRIVE LINE: Quality PTO driveshaft with approved safety cover.

Continuous stroke flywheel with spring loaded drive

coupling. Oscillating mechanism operates in oil bath for

long service life.

CONTROL: Single lever control for adjusting spreading volumes.

Two spouts supplied for banding. Long agitator supplied

as standard.

MODEL CAPACITY WIDTH OF THROW DIMENSIONS WEIGHT

LITRES L X W X H MM KG

RON-SQTF400 400

6 - 14 metres

1100 x 1100 x 930 104

RON-SQTF800 820 1510 x 1510 x 1090 154

RON-SQTF1000 1000 1510 x 1510 x 1190 156

OPTIONS: DESCRIPTION MODEL CODE

Hydraulic Control 800 & 1000 litres RON-993030

Hopper Cover 800 litres RON-9980014

1000 litres RON-991000150

* Capacity will vary according to the type of fertiliser used. ** Variable according to speed and type of fertiliser.

Spread

5-14m

Hopper

400 to 1000L

Orchards Pasture

SQTF Oscillating Spreader

1300 745 826 silvan.com.au70

Volumex

APPLICATION: The Silvan Volumex range uses a patented design to

accurately distribute granulated fertiliser, insecticides,

herbicides and seeds. The volumetric conveyor belt and

calibrated metering adjustments ensure that product is

applied at correct doses. Each Volumex distributor permits

fitment of two dropper hoses which direct the measured

product exactly where it is required.

CONSTRUCTION: The hopper is constructed from stainless steel and the

distributor from non-corrosive polypropylene.

DRIVE LINE: Optional 12V single speed or vari speed

motor - polypropylene gear drive to conveyor belt.

(NOT SUPPLIED WITH UNIT).

CONTROL: Precision calibrated manual adjustment dial - optional 12V

vari speed motor adjustable from tractor cab.

ATTACHMENT: Compact size allows easy attachment to many types of

equipment.

MODEL CAPACITY DIMENSIONS DISTRIBUTORS /

OUTLETS

LITRES L X W X H MM

MV12-1 12 190 x 395 x 380 1 / 2

SV100-1 100 730 x 370 x 580

SV100-2 2 / 4

SV180-1

180 735 x 510 x 710

1 / 2

SV180-2 2 / 4

SV180-3 3 / 6

NOTE: MOUNTING BRACKETS AND HOSES NOT SUPPLIED WITH VOLUMEX

12 VOLT DRIVE MOTOR IS NOT SUPPLIED WITH THE VOLUMEX APPLICATOR. IF REQUIRED, PLEASE SELECT FROM OPTION LIST BELOW

OPTIONS

CODE FOR USE WITH DESCRIPTION RPM / SPEED

MV-SS

MV12-1

MICRO VOLUMEX SINGLE SPEED

MV-VS MICRO VOLUMEX VARI-SPEED 3 - 20 RPM

MV-VS2 3 - 35 RPM

SV-VS SV100 & SV180 VOLUMEX VARI SPEED (SUITS UP TO 6 DISTRIBUTORS) 3 KM/H

SV-VS/12KM 12 KM/H

Pictured: SV180-1

GEARBOX RATIO 23.18:1 – clockwise rotation.

PTO 40 - 75HP: Series 4.

CLUTCH 2 x 150mm friction plates (40/50HP), 2 x 200mm friction plates (75HP).

MAIN FRAME 75 x 75 x 4mm RHS (158PHD30),100 x 100 x 5mm RHS.

MOUNTING Cat. I TPL with Cat. II bushes supplied.

EFFECTIVE DIGGING DEPTH 1m.

Double Cut Augers

Silvan offer a high quality range of augers which feature 6mm flighting and alloy plate boring heads with double cutting edges for greater drilling effectiveness.

CONSTRUCTION 50mm pipe with 6mm flighting and alloy

plate boring head.

FINISH Premium enamel top coat.

Ideally suited for a variety of farming purposes including digging post holes and tree planting on

lifestyle, medium acreage, broadacre, viticulture and horticultural farms.

Pictured: 40 HP Post Hole Digger

with optional auger. (158PHD30)

CONSTRUCTION 50mm x 50mm RHS back frame and

50mm x 50mm angle floor frame.

DECK Replaceable bolt-on checker plate floor.

FINISH Galvanised.

MOUNTING Cat. I TPL linkage.

Carryall

MODEL CODE 155SF1G 155SF2G

Size 4’ x 3’ 6' x 3'6"

Floor material Checker plate steel Checker plate steel

Weight 62 kg 90 kg

Capacity 400 kg 500 kg

All round farm use for carrying various items such as fertiliser,

fencing equipment, firewood, tools, spot sprayers etc. Pictured: 155SF1G

MODEL TRACTOR HP WEIGHT KG

158PHD30 40 95

159PHD40 102

160PHD50 50 107

161PHD75 75 126

Augers are not supplied with the post hole digger. If required, please select from option list below.

OPTIONS

CODE AUGER DIAMETER

( INCHES - MM )

NUMBER OF

FLIGHTS WEIGHT KG

DCA6 6 - 152 514

DCA8 8 - 203 416

DCA10 10 - 254 22

DCA12 12 - 305 323

DCA15 15 - 381 34

DCA18 18 - 381 236

DCA24 24 - 610 40

Other sizes available on request

2 Year

Warranty

Australian

Made

Post Hole Digger

Volumex

1300 745 826 silvan.com.au72

Sitrex

Hayrakes

Silvan distribute the Sitrex range of high

quality hayrakes for raking, turning

and spreading hay crops, grain crops,

stubble and sugar cane residue.

RP Linkage Hayrake

APPLICATION: Suitable for raking, turning and spreading hay crops, grain

crops, stubble and sugar cane debris.

CONSTRUCTION: Simple robust construction requiring minimal maintenance.

DRIVE LINE: Ground drive.

CONTROL: Tractor three point linkage and adjustment of individual

rake finger wheels.

ATTACHMENT: Cat. I three point linkage.

Pictured: HR-RP4

MODEL TYPE

NUMBER

OF RAKE

WHEELS

TYNES

PER

WHEEL

RAKE WHEEL

DIAMETER WORKING WIDTH TRANSPORT WIDTH WEIGHT

MM (METRES) (METRES) KG

HR-RP4 Right hand

linkage

mounted

40 1400

2.6 2.2 180

HR-RP5 53.5 2.3 200

HR-RP6 64.1 250

NOTE: HAYRAKES DELIVERED UNASSEMBLED

* Maximum working width and speeds depend greatly upon product raked, volume and general conditions.

1300 745 826 silvan.com.au74

H90 Trailed Hayrake

APPLICATION: Suitable for raking, turning and spreading hay crops and

grain crop stubble.

CONSTRUCTION: Simple robust construction requiring minimal maintenance.

DRIVE LINE: Ground drive.

CONTROL: Single set hydraulics via tractor remote.

ATTACHMENT: Trailing via tractor drawbar.

Pictured: H90-V10

MODEL TYPE

NUMBER

OF RAKE

WHEELS

LEFT /

RIGHT

TYNES

PER

WHEEL

RAKE WHEEL

DIAMETER WORKING WIDTH TRANSPORT WIDTH WEIGHT

MM METRES METRES KG

H90-V8 CARTED

“V” WITH

SPLITTER

WHEEL

4L / 4R

40 1400

6.1 3.6 545

H90-V10 5L / 5R 74.7 615

NOTE: HAYRAKES DELIVERED UNASSEMBLED

* Maximum working width and speeds depend greatly upon product raked, volume and general conditions.

H90 Trailed Hayrake TR Inline Trailed Hayrake

APPLICATION: Suitable for raking, turning and spreading hay crops and

grain crop stubble.

CONSTRUCTION: Simple robust construction requiring minimal

maintenance.

Pictured: HR-TR9

DRIVE LINE: Ground drive.

CONTROL: Single set hydraulics via tractor remote.

ATTACHMENT: Cat. II clevis to tractor drawbar.

MODEL TYPE

NUMBER

OF RAKE

WHEELS

TYNES

PER

WHEEL

RAKE WHEEL

DIAMETER WORKING WIDTH TRANSPORT WIDTH WEIGHT

MM METRES METRES KG

HR-TR9 INLINE

TRAILED

940 1400 5.5 3.7 640

HR-TR13 13 8.5 4.2 1050

NOTE: HAYRAKES DELIVERED UNASSEMBLED

* Maximum working width and speeds depend greatly upon product raked, volume and general conditions.

1300 745 826 silvan.com.au76

QR Trailed Hayrake

APPLICATION: Suitable for raking and turning spreading hay

crops, silage and grain crop stubble.

Used as a ‘V’ or Inline rake.

CONSTRUCTION: Simple robust construction requiring minimal

maintenance.

DRIVE LINE: Ground drive.

FOLD: Hydraulic fold.

SUSPENSION: Adjustable spring suspension.

CONTROL: Single set hydraulics via tractor remote.

ATTACHMENT: Cat. II clevis to tractor drawbar. Pictured: QR Hayrake with left arm

hydraulically folded

Pictured: Spring suspension

Pictured: HR-QR/10

MODEL TYPE

NUMBER

OF RAKE

WHEELS TYNES

PER

WHEEL

RAKE

WHEEL

DIAMETER

WORKING

WIDTH

WINDROW

WIDTH

TRANSPORT

WIDTH NUMBER OF GROUND WHEELS / SIZE WEIGHT

L / R -

KICKER MM METRES METRES METRES KG

HR-QR/8 CARTED

“V”

WITH

SPLITTER

WHEEL

4/4 + 1

40 1400

5.8

0.9 - 2.0 2.8 2 x 205-75/15

675

HR-QR/10 5/5 + 1 6.7 740

HR-QR/12 6/6 + 1 7.8 830

NOTE: HAYRAKES DELIVERED UNASSEMBLED

* Maximum working width and speeds depend greatly upon product raked, volume and general conditions.

OPTION: DESCRIPTION CODE MODEL

HYDRAULIC OPENING KIT HR-QR/HYD ALL

QR Trailed Hayrake Hydraulic Trailed Explorer “V” Hayrake

APPLICATION: Suitable for raking, turning and spreading hay

crops, silage and grain crop stubble.

CONSTRUCTION: Simple robust construction requiring minimal

maintenance.

DRIVE LINE: Ground drive.

CONTROL: Single set hydraulics via tractor remote.

ATTACHMENT: Cat. II clevis to tractor drawbar.

WINDROW WIDTH: 3 - 5’ / 0.9 - 1.5m.

Pictured: HR-MX/10

MODEL TYPE

NUMBER OF

RAKE WHEELS

LEFT / RIGHT +

SPLITTERS

TYNES

PER

WHEEL

RAKE

WHEEL

DIAMETER

WORKING

WIDTH

TRANSPORT

WIDTH NUMBER OF GROUND WHEELS / SIZE WEIGHT

MM METRES METRES KG

HR-MX/10 TRAILED “V”

WITH DUAL

HYDRAULIC

SPLITTER

WHEELS

STANDARD

5L/5R + 2

40 1400

6.2

2.5 4 x 195-65/15

1250

HR-MX/12 6L/6R + 2 7.1 1400

NOTE: HAYRAKES DELIVERED UNASSEMBLED

* Maximum working width and speeds depend greatly upon product raked, volume and general conditions.

1300 745 826 silvan.com.au78

APPLICATION: Suitable for raking, turning and spreading hay crops,

silage and grain crop stubble.

CONSTRUCTION: Simple robust construction requiring minimal maintenance.

DRIVE LINE: Ground drive.

CONTROL: Single set hydraulics via tractor remote.

ATTACHMENT: Cat. II clevis to tractor drawbar.

WINDOW WIDTH: 3' - 6' / 0.9 - 1.8m

Pictured: HR-MK16

Terms and Conditions

MODEL TYPE

NUMBER OF

RAKE WHEELS

LEFT / RIGHT +

SPLITTERS

TYNES

PER

WHEEL

RAKE

WHEEL

DIAMETER

WORKING

WIDTH

TRANSPORT

WIDTH NUMBER OF GROUND WHEELS / SIZE WEIGHT

MM METRES METRES KG

HR-MK/12 TRAILED “V”

WITH DUAL

HYDRAULIC

KICKER

WHEELS

STANDARD

6L/6R +2

40 1400

7.6

2.5

4 x 205-75/15 1600

HR-MK/14 7L/7R +2 8.7

6 x 205-75/15

2165

HR-MK/16 8L/8R +2 9.4 2285

HR-MK/18 9L/9R +2 10.2 2365

HR-MK/20 10L/10R +2 11 2515

NOTE: HAYRAKES DELIVERED UNASSEMBLED

* Maximum working width and speeds depend greatly upon product raked, volume and general conditions. NOTE: Rear steer versions available - indent order only.

Hydraulic Trailed Magnum “V” Hayrake

AVAILABILITY

Products in the Silvan Price List are available through authorised

Silvan dealers.

TERMS

The Silvan terms and conditions are set out in your individual trading terms

and at www.silvan.com.au/terms

PRICES

All prices are suggested list prices in Aus dollars. Prices are subject to change

without prior notice. For stocking incentive programmes refer to your individual

trading terms, or contact customer services staff on 1300 745 826.

GST

All prices are shown both inclusive of GST and exclusive of GST.

All invoices will include GST.

FREIGHT CHARGES

Prices are ex Silvan Distribution Centres in Melbourne, Brisbane, Perth, Sydney &

Adelaide (Sydney & Adelaide have limited stock lines). Check with Silvan Customer

Service for freight charges into your area. Freight and handling charges will be

added to the invoice amount.

TITLE AND RISK

Silvan retains title to all goods until paid for in full in clear funds. Risk in respect

of goods passes to you as soon as the goods leave the Silvan Distribution Centre.

PPSA

Silvan may register a security interest over the goods as security for any payment.

You will need to provide Silvan with all information, documents and consents as

Silvan requires to register and maintain this security interest.

MINIMUM ORDER VALUE

A $75 Minimum Order Value (Excl. GST) applies to all standard orders. Orders under

the required minimum value will attract a $23 handling charge (Excl. GST).

A $250 Minimum Order Value (Excl. GST) applies to hardware range orders

Urgent/breakdown orders don’t have a required Minimum Order Value,

and attract a $23 priority fee (Excl. GST).

WARRANTY

The only warranty provided by Silvan is set out on the forms accompanying the

goods (for a copy please contact the Silvan Customer Service Centre). No other

warranty or representation is made by Silvan. The terms of Silvan’s warranties are

subject to the operation of any law including the Australian Consumer Law.

CANCELLATIONS

1. Cancellations made on the day the order was placed:

a. If stock isn’t dispatched, no handling fee applies

b. If stock has been dispatched a restocking fee applies

2. Cancellations made after the day the order was placed,

a restocking fee will apply.

RETURNS POLICY

1. Before returning any product to Silvan, a Return Authorisation (RA) Number

and approval form must be obtained from Silvan Customer Service. Goods

WILL NOT be accepted without an RA number and form.

2. All returns must be requested within 14 days of the invoice date.

3. Goods will only be accepted for credit if they are

returned undamaged and in saleable condition.

4. Return freight will be paid by the Customer if the goods are returned at the

Customer’s volition, unless authorised by the Company in writing prior to

return of the goods.

5. Written claims must reference Silvan invoice numbers, and must be dated

and state the reason for the claim.

6. A restocking fee will be applied if the goods have been dispatched according

to the order.

7. Return of products valued under $50 (Excl.GST) won’t

be accepted if dispatched according to the order.

CLAIMS

Pricing & Freight Claims need to be made within 14 days of the invoice date.

Any claims after this for pricing discrepancies will not be accepted. Claims for

Freight Damage need to be made within 14 days of the invoice date by notifying

Silvan Customer Service. Claims received after this will not be accepted.

DISCOUNT CODES

Refer to individual Trading Terms for specific discounts.

FOR A FULL LIST OF TERMS & CONDITIONS, PLEASE VISIT WWW.SILVAN.COM.AU/TERMS

Terms and Conditions

Reference No: 070-SIL-PL-14

070-SILFARM-18

For more information call 1300 745 826 or visit www.silvan.com.au

All items in this catalogue have been included in good faith

on the basis that the goods described were available at the

time this book was published. Failure of suppliers to deliver

in accordance with samples, descriptions, or at all, or other

unintentional causes may result in some lines being unavailable.

Space may prevent some dealers from stocking all items. All

brand names and product names used in this publication are

trade names, registered trade marks, or pending trade marks

of their respective owners.

SILVAN AUSTRALIA PTY. LTD. ABN 48 099 851 144

Head Ofﬁce: 244-264 Greens Road, Dandenong South, Victoria, Australia 3175

QLD. Ofﬁce: Warehouse 2, 30 Gow Street, Moorooka, Queensland 4105

W.A. Ofﬁce: 12 Cressall Road, Balcatta, Western Australia 6021

Freecall: 1300 SILVAN | Fax: 1800 SILVAN

Email: info@silvanaust.com | Web: silvan.com.au

2018-2019

Farm Equipment Product Guide

Prices effective from 1st April 2018

Farming Equipment Product Guide 2018 No Prices LR

Navigation menu

Versions of this User Manual:

Views

Navigation
