599021A Dishdrawer 601 & 602 Version 1&2 Fisher Paykel Dish Drawer DD601, DD601I, DD601V2
2012-10-25
: Pdf Fisher & Paykel Dish Drawer Dd601, Dd601I, Dd601V2 Fisher & Paykel_Dish Drawer_DD601, DD601I, DD601V2 Fisher & Paykel
Open the PDF directly: View PDF .
Page Count: 27
![](asset-1.png)
DishDrawer
Models
DD601 DD601I DD601V2
DD601V2I DD602 DD602I
DS601 DS601I DS601V2
DS601V2I DS602 DS602I
599021A
![](asset-3.png)
MANUAL 599021A December 2004 Reprinted 10 December, 2004
Customer Care Centre
Fisher & Paykel
P.O. Box 58732
Greenmount, Auckland
Phone: 0800 FP CARE
(0800 37 2273)
Fax: +64-9-2730656
Email: Customer.Care@fp.co.nz
Customer Care Centre
Fisher & Paykel
P.O. Box 798
Cleveland, QLD 4163
Phone: 1 300 650 590
Fax: +61-7-3826 9298
Email: Customer.Care@fp.com.au
Fisher & Paykel Customer Services
27 Hubble
Irvine, California
CA 92618 USA
Tel: 1 888-936-7872
Fax: 1 949-790-8913
Email:
customer.care@fisherpaykel.com
COPYRIGHT FISHER & PAYKEL LTD 2004
- 3 -
PRODUCTS
Brand Fisher & Paykel
Voltage 220-240V 50Hz, 110-120V 50Hz*
Model Series Code
DD601 0 87225 87448
DD601I 0 87446
DD601V2 0 87508 87516 87543 87545 87546 87547
DD601V2I 0 87548
DD602 0 88244* 88245* 88246* 88252*
DD602I 0 88247*
DS601 0 87490 87494
DS601I 0 87498
DS601V2 0 87521 87523 87549 87551
DS601V2I 0 87550
DS602 0 88248* 88249* 88250*
DS602I 0 88251*
MANUAL 599021A
4
![](asset-5.png)
MANUAL 599021A
GUIDE TO USING THIS MANUAL
The model(s) and/or series covered by this manual are listed on the front cover.
The information detailed in this manual is subject to change without notice, the latest version is
indicated by the manual date and replaces any earlier editions.
The front cover picture shows the type of product and may not necessarily be an exact image of the
models covered by the manual.
Part References
Where a Model is shown, the part is exclusive to the Model(s) stated.
Kit Parts
The components shown in italics are those parts in the kit which are available also as separate items.
All details relating to Technical Bulletins or Notes are shown on a dedicated page.
Parts List Key
NOT USED As a part, indicates the diagram part reference is not used in this manual.
# Beside the part number, indicates the part is no longer available.
italics Kit components shown in italics are also available separately.
* Indicates a technical bulletin or note exists for the part or part reference.
NI As a part reference, indicates the part is not illustrated on the diagram.
- 5 -
CONTENTS
FRONT PANELS AND CONTROLS.......................................................................................................................................8
CABINET ................................................................................................................................................................................10
DRAWER LID AND AIR PUMP ...........................................................................................................................................14
TUB AND COMPONENTS....................................................................................................................................................16
BASKETS AND RACKS........................................................................................................................................................18
WIRING HARNESSES...........................................................................................................................................................20
INSTALLATION COMPONENTS.........................................................................................................................................22
NOTES.....................................................................................................................................................................................27
![](asset-6.png)
MANUAL 599021A
- 6

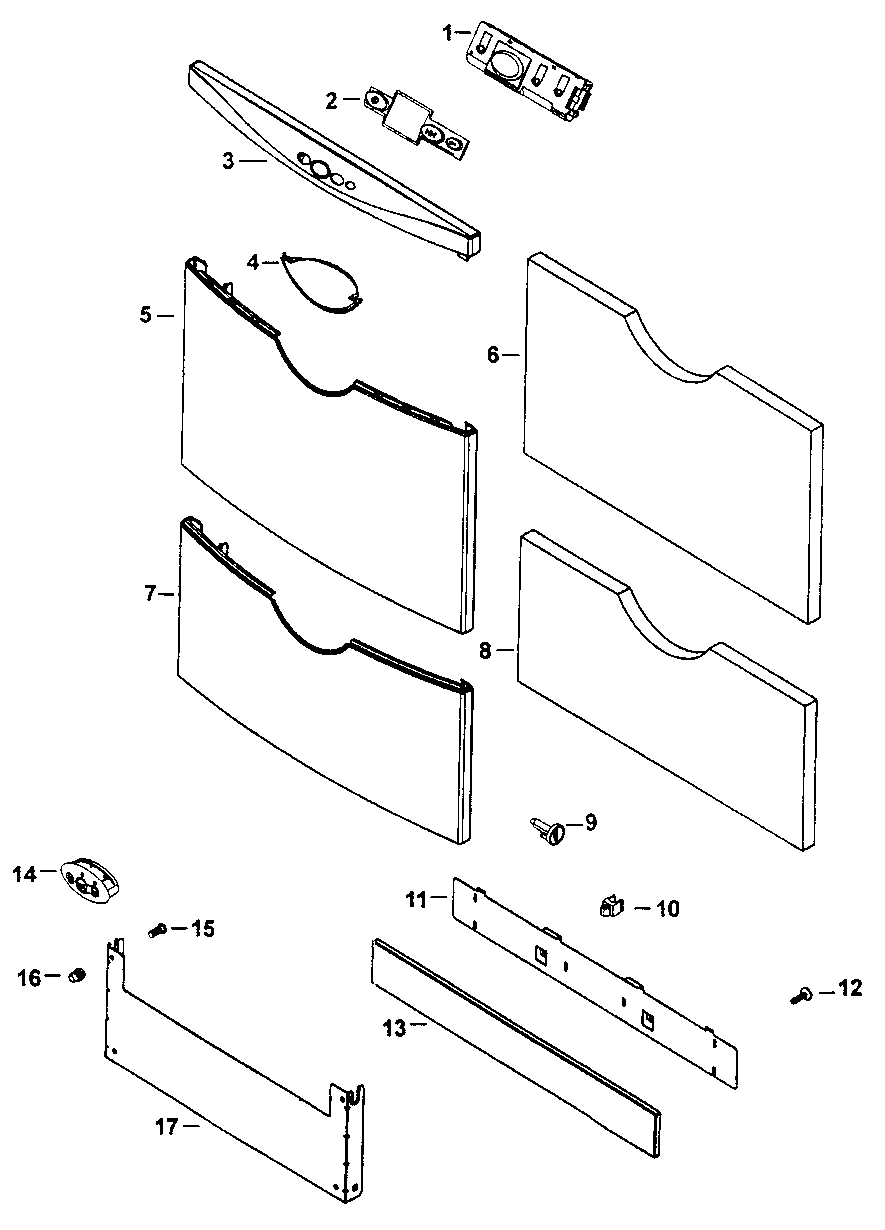

FRONT PANELS AND CONTROLS
MANUAL 599021A
- 7
FRONT PANELS AND CONTROLS
REF PART DESCRIPTION MODEL
1 525192P CONTROLLER LCD PCB ASSY
2 525196 KEYPAD WHITE
525727 KEYPAD BLACK
3 525712 HANDLE LCD PREFINISH WH PRN
525789 HANDLE LCD PREFINISH BK PRN
526160 HANDLE LCD PREFINISH SS PRN V2
526218 KIT HANDLE WH TUB GRAPHICS
526219 KIT HANDLE SS TUB GRAPHICS
526220 KIT HANDLE BK TUB GRAPHICS
4 525211 RECESS DOOR WHITE
525731 RECESS DOOR BLACK
525734 RECESS DOOR SS
5 525748 DOOR UPPER ASSY WHITE F&P
525858 DOOR UPPER ASSY STAINLESS F&P
525859 DOOR UPPER ASSY BLACK F&P
525748 DOOR UPPER ASSY WHITE FP PH2
525858 DOOR UPPER ASSY SS FP PH2
6 526190 INSUL DOOR UPPER
7 525749 DOOR LOWER ASSY WHITE
526027 DOOR LOWER ASSY WHITE PH2 US
525860 DOOR LOWER ASSY STAINLESS
526028 DOOR LOWER ASSY SS PH2 US
525861 DOOR LOWER ASSY BLACK
526029 DOOR LOWER ASSY BLACK PH2 US
8 526189 INSUL DOOR LOWER
9 525010 PIN DOOR
10 525290 CLIP PANEL KICKSTRIP
11 525285 PANEL KICKSTRIP
12 556091P SCREW ST M3X8PLASTITE PKT10
![](asset-8.png)
MANUAL 599021A
- 8
FRONT PANELS AND CONTROLS
MANUAL 599021A
- 9
FRONT PANELS AND CONTROLS
REF PART DESCRIPTION MODEL
13 525337 KICKSTRIP COSMETIC TOP WHITE
525722 KICKSTRIP COSMETIC TOP BLACK
14 * 525185P BADGE ASSY INTEGRATED CHROME
526691 BADGE ASSY BLACK
526033 BADGE ASSY SS (SP)
15 556098P SCREW MC M6X14 PAN PH MS PKT10
16 525464P NUT M6 TYPE E PKT10
17 525203 PANEL DOOR INTEGRATED
NI 525839 TRIM INTEGRATED GREY
![](asset-a.png)
MANUAL 599021A
- 10

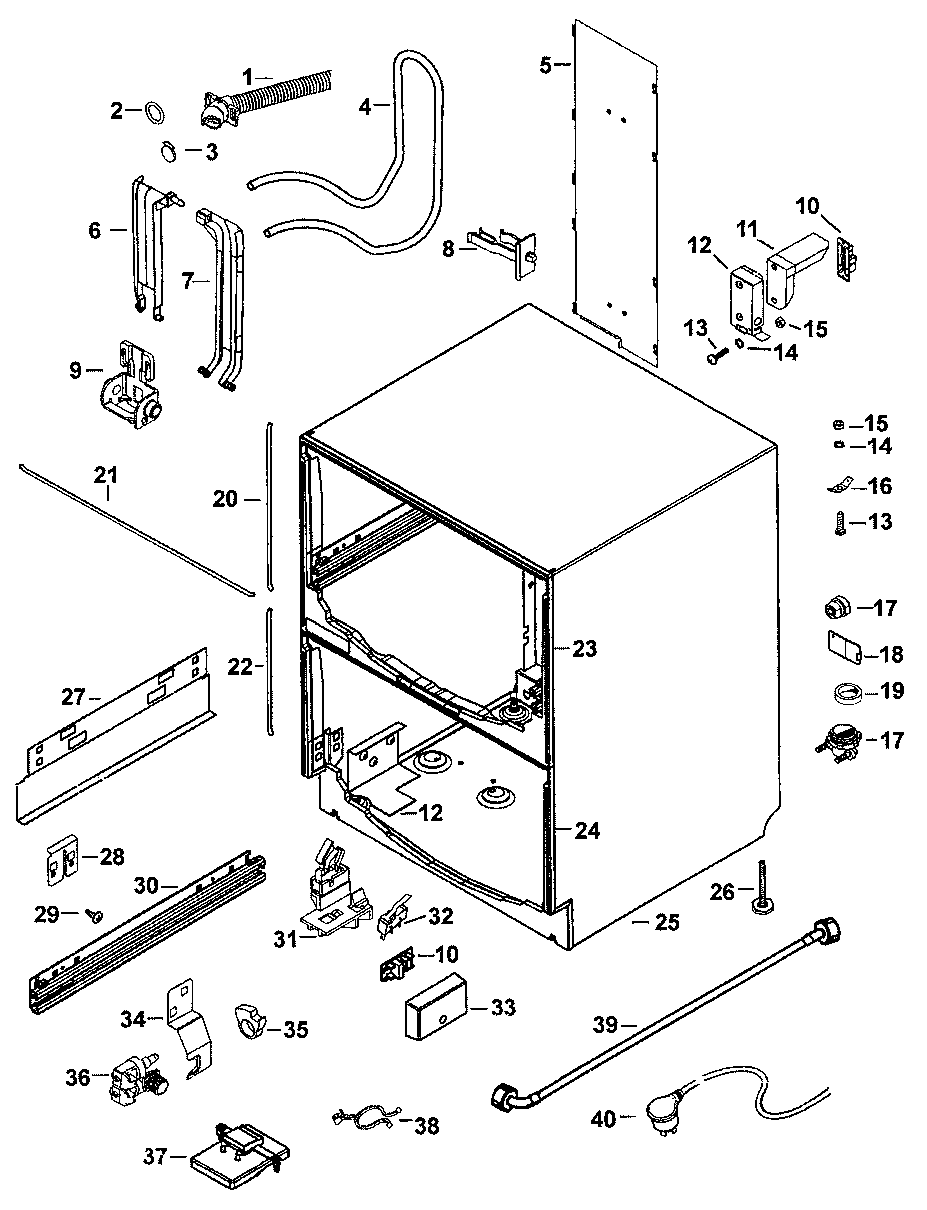

CABINET
MANUAL 599021A
- 11
CABINET
REF PART DESCRIPTION MODEL
1 527137 KIT DRAIN HOSE
2 525940P O RING CUFF SOCKET UL REC PKT4
3 525414P KIT VALVE FLAP (PKT 2)
4 526836 HOSE FILL UPPER WRC
526837 HOSE FILL LOWERWRC
5 525168 REAR PANEL COVER DOUBLE
525179 REAR PANEL COVER SINGLE
6 525060 LINK CHASSIS SIDE
7 525061 LINK TUB SIDE
8 525108 CLIP DRAIN HOSE (RED)
9 525166 LINK CHASSIS MOUNT
10 525908P PCB ASSY MAINS EMI FILTER 601V2
525934P MAINS FILTER 525 PH2 120V SGL 602
525304P MAINS FILTER 525 PH1 SINGLE 601
11 525887 INSULATOR EMI FILTER
12 525841 EMI MOUNT 601V2, 602
# 525784 BRACKET EMI 601
13 556022P SCREW MC M5X20 PAN PH MS NP PKT10
14 556513P WASHER LOCK 5/32 EXT SER PKT10
15 556105P NUT M5 HEX FS MS NIPL PKT10
16 525368 TERM EARTH POST QC 6.3 M H1166
17 525897 CLAMP CABLE NEER C500 3/8" 601V2, 602
388652 GROMMET CORD GRIP Q6543 601
18 526024 COVER HOSE EXTERNAL
19 525795 525 TOROID ZW-42507-TC 601
20 525397 SEAL SOUND SIDE LONG(350MM) GY
525717 SEAL SOUND SIDE LONG(350MM)BK
21 525396 SEAL SOUND TOP (554MM) GREY
525716 SEAL SOUND TOP (554MM) BLACK
22 525398 SEAL SOUND SIDE SHORT(264MM)GY
525719 SEAL SOUND SIDE SHORT(264MM)BK
23 * 528152 KIT CHASSIS TRIM PH2 TOP
TRIM CHASSIS BLACK
525716 SEAL SOUND TOP (554MM) BLACK
525717 SEAL SOUND SIDE LONG(350MM)BK x2
![](asset-c.png)
MANUAL 599021A
- 12
CABINET
MANUAL 599021A
- 13
CABINET
REF PART DESCRIPTION MODEL
24 * 528153 KIT CHASSIS TRIM PH2 BOTTOM
TRIM CHASSIS KICKSTRIP BLACK
525716 SEAL SOUND TOP (554MM) BLACK
525719 SEAL SOUND SIDE SHORT(264MM)BK x2
25 526662 CHASSIS REPLACE SGL ZW/INT/SS
526658 CHASSIS REPLACE DBL ZW/INT/SS
26 526332 FOOT
27 525737 BRACKET LID SUPPORT
28 525002 STIFFENER CHASSIS LH
525003 STIFFENER CHASSIS RH
29 556088P SCREW ST M6X13TAPTITE CSK PKT10
30 525131 SLIDE R H LONG
525132 SLIDE L H LONG
525763 SLIDE R H SHORT
525764 SLIDE L H SHORT
31 525791 BRACKET LATCH ASSY L H
525792 BRACKET LATCH ASSY R H
32 525893 MICROSWITCH TUB HOME 601V2, 602
33 525782 COVER EMI 601
34 525291 BRACKET INLET VALVE
35 525466 CLAMP HOSE HERBIE TYPE E
36 525113 VALVE INLET DOUBLE 4L
525842 VALVE INLET SINGLE 4L
37 525941 SWITCH FLOOD UL REC US
521539 SWITCH FLOOD FLOAT
38 572714 CLIP CABLE TWIST HOLDER ID24MM
39 521349 HOSE INLET ASSY WIRSBO COLD
525937 HOSE ASSY INLET USA
40 525983 FLEX ASSY MAINS US 602
525900 FLEX ASSY MAINS 10A 601V2
525109 FLEX ASSY MAINS 10A 601
NI 525802 DRAIN HOSE SLEEVE
NI 525938 WASHER WIRSBO US
NI 556118P NUT M8 HEX 13AF FS MS PKT10
NI 526023 FOOT LOCKNUT INSERT
![](asset-e.png)
MANUAL 599021A
- 14

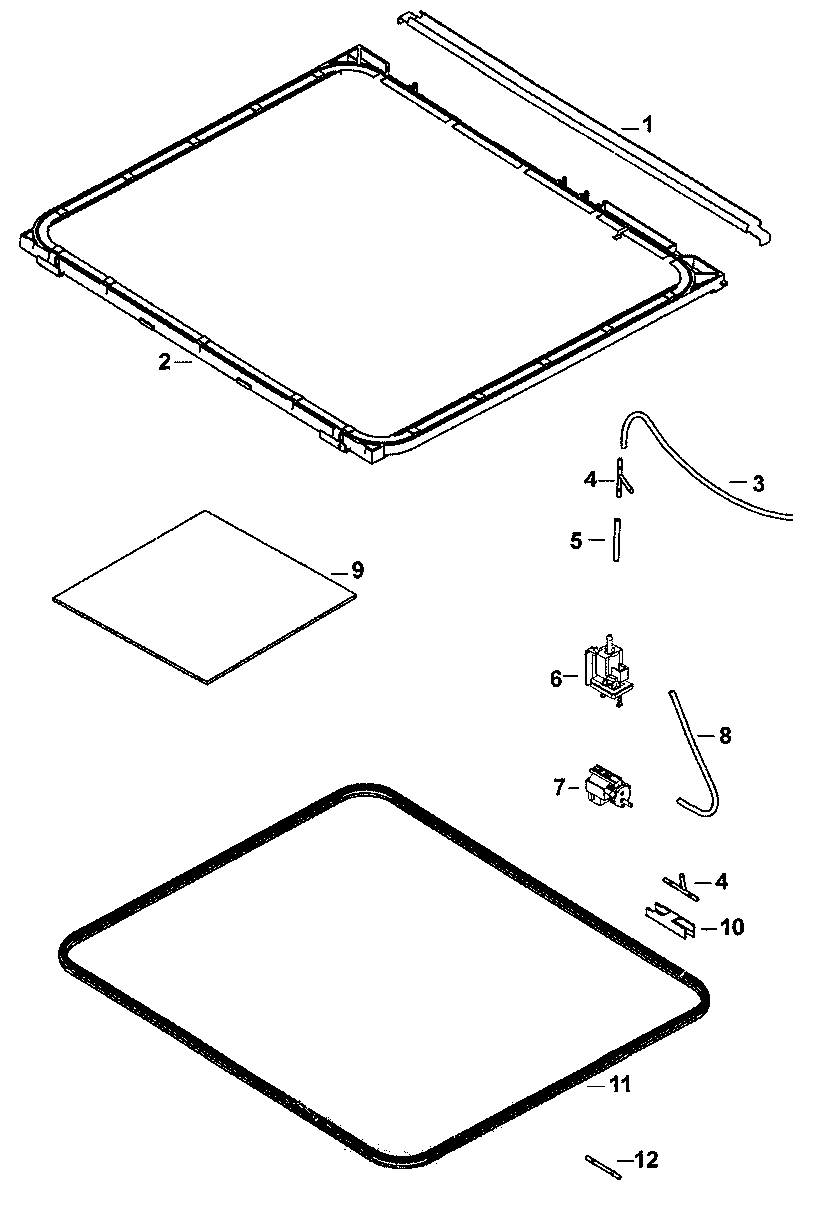

DRAWER LID AND AIR PUMP
MANUAL 599021A
- 15
DRAWER LID AND AIR PUMP
REF PART DESCRIPTION MODEL
1 525370 BRACE LID REAR
2 * 525876P KIT LID SERVICE
3 525427 AIR HOSE SEAL (BUTT)
4 525341 GASKET AIR Y CONNECTOR 601
5 525491 AIR HOSE EXHAUST VALVE
6 * 528148 KIT PH2 PUMP / EXHAUST VALVE
VALVE EXHAUST ASSY LID GASKET
AIR PUMP ASSY LID GASKET
555993 CONNECTOR RAST 7234-003-501-45 x2
7 * 528148 KIT PH2 PUMP / EXHAUST VALVE
VALVE EXHAUST ASSY LID GASKET
AIR PUMP ASSY LID GASKET
555993 CONNECTOR RAST 7234-003-501-45 x2
8 525450 AIR HOSE PUMP
9 526034 INSUL FELT TOP
10 * 525781 LID SEAL DEFLECTOR 601
11 525031 LID SEAL
* 525878 LID SEAL (SP) - OVERLAPPING
12 * 525873 STRAIGHT CONNECTOR (SP) 601V2, 602
![](asset-10.png)
MANUAL 599021A
- 16

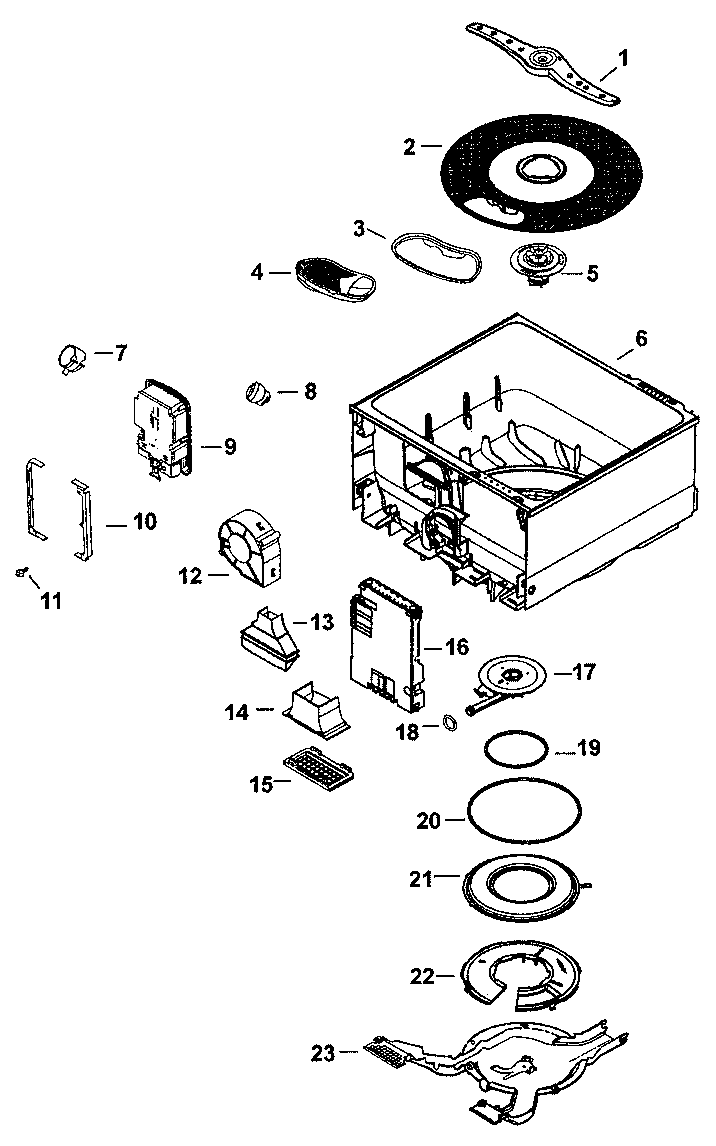

TUB AND COMPONENTS
MANUAL 599021A
- 17
TUB AND COMPONENTS
REF PART DESCRIPTION MODEL
1 527475 SPRAY ARM ASSY SLUICING 03 18H
2 * 525882 FILTER PLATE ASSY
525315 DRAIN FILTER TRIM
526069 LOCK NUT FILTER PLATE
3 525315 DRAIN FILTER TRIM
4 525452 DRAIN FILTER ASSY
5 525884P MOTOR ROTOR ASSY
6 525011 TUB ASSY
7 525743 CLAMP HOSE TYPE 12232-17-4
8 525610 DISPENSER RINSE AID BUNG ASSY
9 526860 KIT DISPENSER
DISPENSER DISHDRAWER 2004
BRACKET DISPENSER SHORT x2
10 525632 BRACKET DISPENSER
11 556090P SCREW ST M3X15PLASTIT PANTX (PKT10)
12 525219 FAN DRYING
13 525222 DUCT DRYING TOP ASSY
14 525223 DUCT DRYING BOTTOM
15 525218 GRILLE DRYING
16 525832P CONTROLLER MOTOR 601V2
525872P CONTROLLER 525 PH2 120V PACKED 602
525189P CONTROLLER MOTOR 601
525896 MICROSWITCH ARM ASSY (SP)
17 528041 KIT MOTOR ASSY PH2
MOTOR 6 POLE ASSY COMP PH2
525940P O RING CUFF SOCKET UL REC
525058 SEAL HEATER PLATE/TUB
525059 SEAL MOTOR HOUSING
18 525940P O RING CUFF SOCKET UL REC PKT4
19 525059 SEAL MOTOR HOUSING
20 525058 SEAL HEATER PLATE/TUB
21 525169 HEATER PLATE ASSY 230-240V
527700 KIT HEATER PLATE PH2 US
22 525162 LOCKING NUT
23 525903 COVER WIRING VO UL REC US
NI 525839 TRIM INTEGRATED GREY
![](asset-12.png)
MANUAL 599021A
- 18

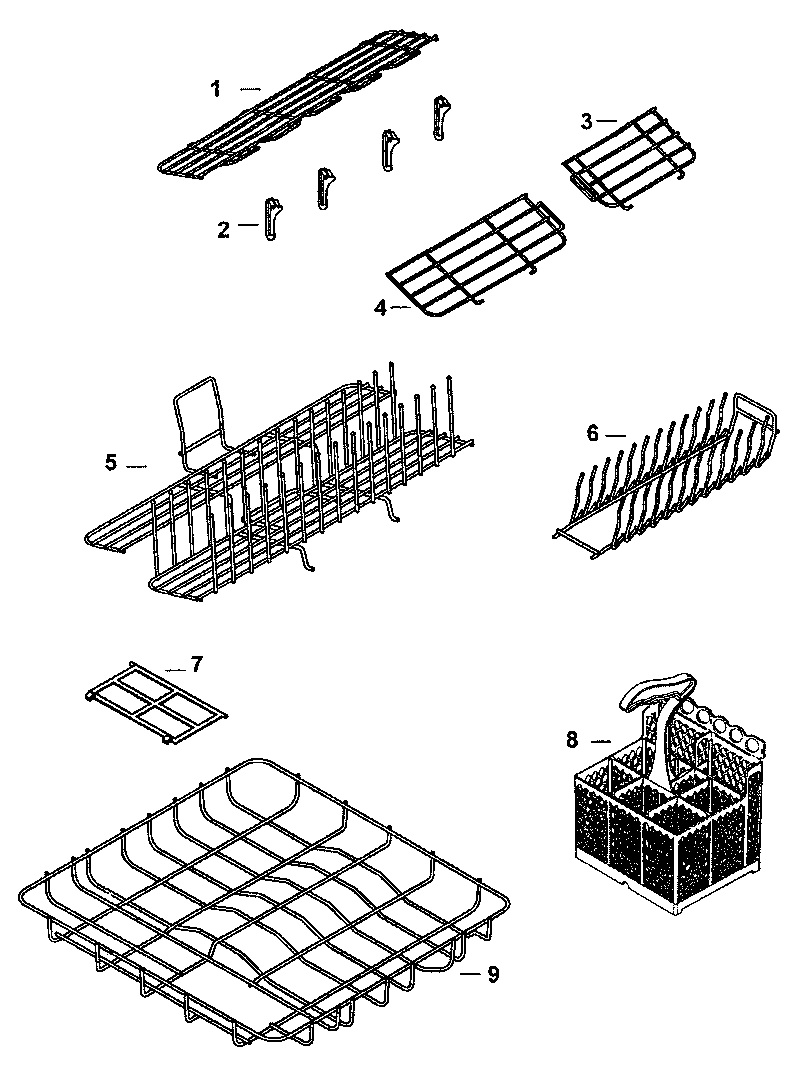

BASKETS AND RACKS
MANUAL 599021A
- 19
BASKETS AND RACKS
REF PART DESCRIPTION MODEL
1 525767 FOLD DOWN FULL LGTH ASY SILVER
2 525200 CUP RACK POST
3 525765 FOLD DOWN NARROW RH ASY SILVER
4 525766 FOLD DOWN WIDE RH ASSY SILVER
5 526346 UNI INSERT SILVER
6 525769 CROCKERY INSERT ASSY SILVER
7 526345 TRAP DOOR DRAIN FILTER ACCESS
8 525489 CUTLERY CONTAINER ASSY
9 526062 BASKET SILVER
NI * 525550 FOLD DOWN BACK LEFT (PLASTIC)
* 525551 FOLD DOWN FRONT LEFT (PLASTIC)
* 525552 FOLD DOWN FRONT RIGHT (PLASTIC)
* 525553 FOLD DOWN BACK RIGHT (PLASTIC)
![](asset-14.png)
MANUAL 599021A
- 20

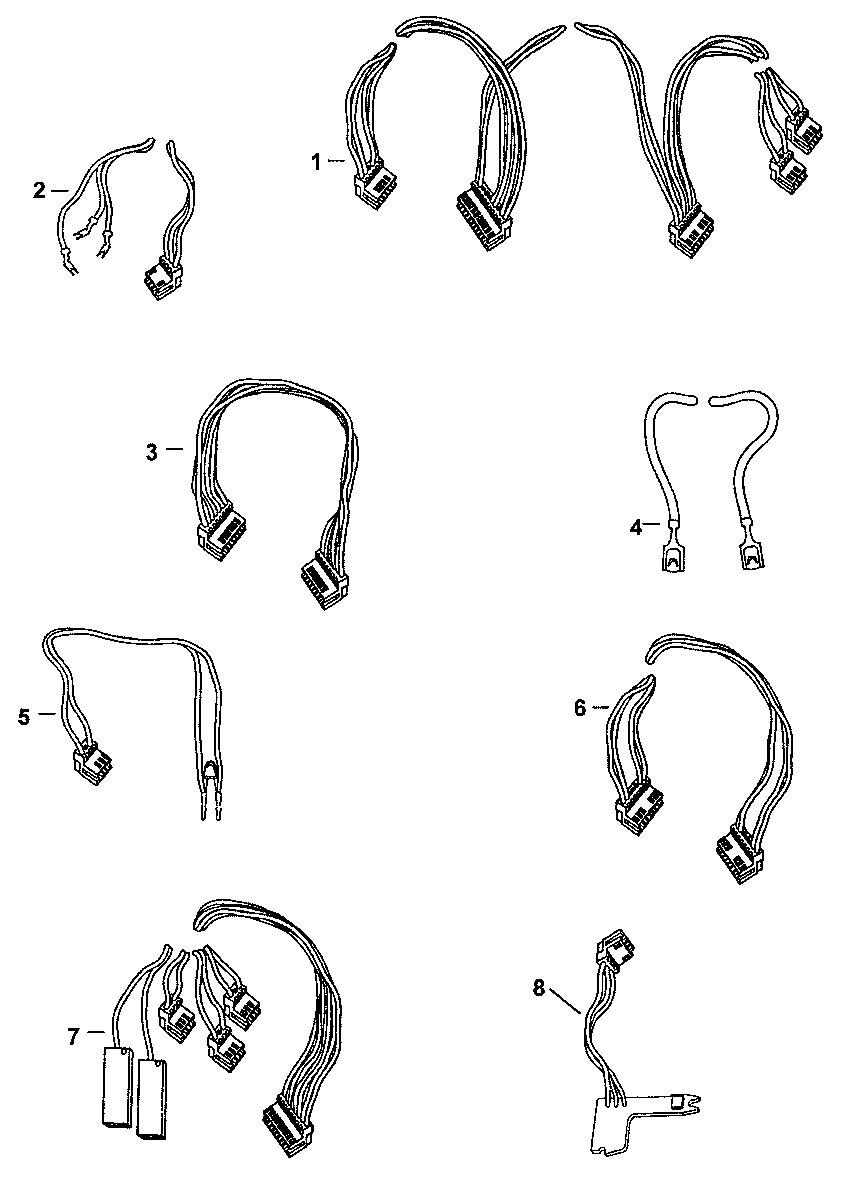

WIRING HARNESSES
MANUAL 599021A
- 21
WIRING HARNESSES
REF PART DESCRIPTION MODEL
1 525831 HARNESS PCB SIDE PH2 601V2, 602
525334 HARNESS PCB SIDE 601
2 525402 HARNESS MOTOR 601
3 525879 HARNESS LCD BOARD PH2
4 # 555517 WIRE ELEMENT EARTH 1400MM
# 555518 WIRE ELEMENT EARTH 1000MM
5 525330 HARNESS RINSE AID LED 601
6 525880 HARNESS MAINS UPPER PH2 601V2, 602
525881 HARNESS MAINS LOWER PH2 601V2, 602
525401 HARNESS MAINS LOWER (WHITE) 601
525409 HARNESS MAINS UPPER (BLUE) 601
7 525901 HARNESS CHASSIS LOWER PH2 601V2, 602
525902 HARNESS CHASSIS UPPER PH2 601V2, 602
525404 HARNESS CHASSIS LOWER (BLUE) 601
525410 HARNESS CHASSIS UPPER (RED) 601
8 525869P HALL SENSOR 525 SINGLE
![](asset-16.png)
MANUAL 599021A
- 22

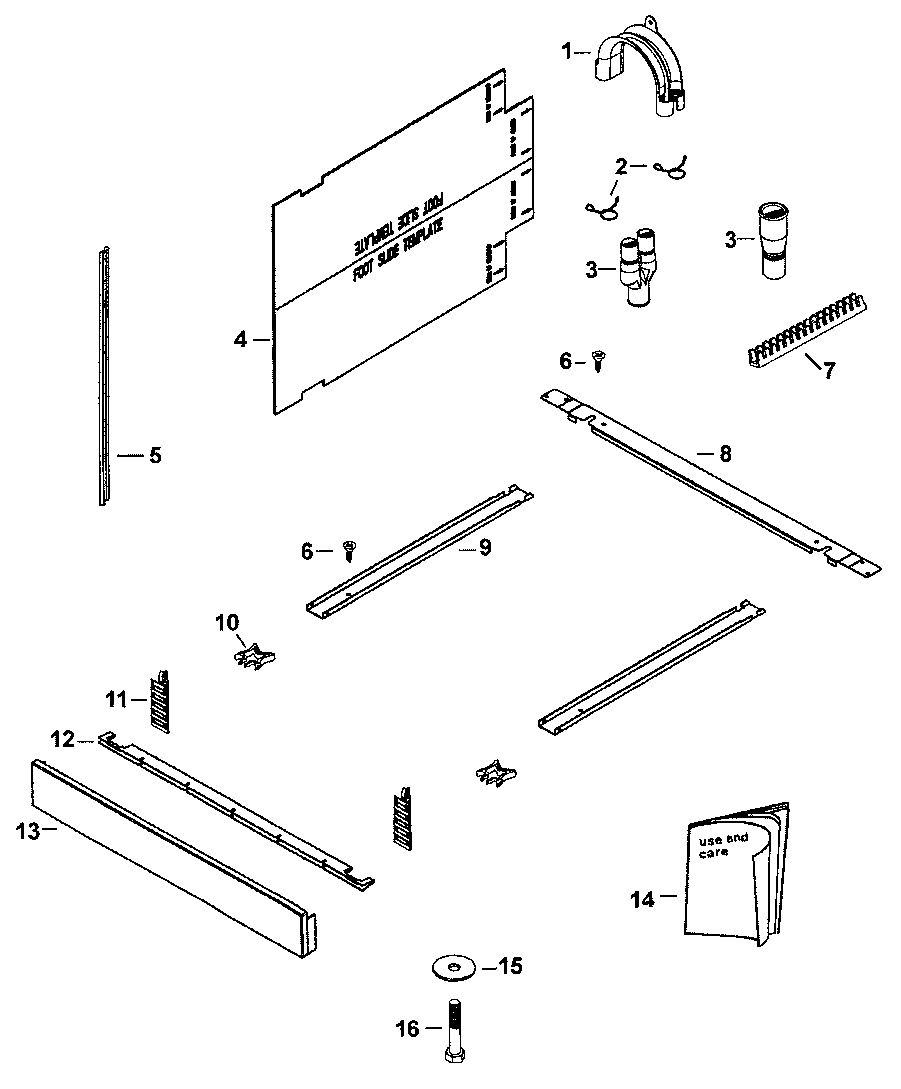

INSTALLATION COMPONENTS
MANUAL 599021A
- 23
INSTALLATION COMPONENTS
REF PART DESCRIPTION MODEL
1 525477F SUPPORT DRAIN HOSE
2 525482P CLIP WIRE DRAIN PKT2
3 525067 DRAIN SPIGOT CONNECTOR DOUBLE
525460 DRAIN SPIGOT CONNECTOR SINGLE
525925 DRAIN SPIGOT CONNECTOR DOUBLE USA
525926 DRAIN SPIGOT CONNECTOR SINGLE USA
4 525886 TEMPLATE SINGLE
526040 FOOT SLIDE FULL TEMPLATE
5 525920 TRIM CAVITY GREY USA
525921 TRIM CAVITY BLACK USA
6 556089P SCREW WS 8X5/8TWINFST PKT10
556092P SCREW ST 8X1TWINFAST TS PKT10
7 525935 TRIM EDGE PROTECTION USA
8 525088 CHANNEL TRANSVERSE
9 525049 CHANNEL LONGITUDINAL
10 525313 CLIP PEG
11 525724 KICKSTRIP PIN BLACK
12 525451 BRACE KICKSTRIP
13 525286 KICKSTRIP COSMETIC LOWER WHITE
525723 KICKSTRIP COSMETIC LOWER BLACK
14 525794 BOOK USE & CARE DD601 601
* 525838 BOOK USE & CARE DD601I 601I
* 525929 BOOK USE & CARE DD601V2 601V2
525930 BOOK USE & CARE DD601IV2 601V2I
* 525911 BOOK USE & CARE 602
* 525912 BOOK USE & CARE 602I
15 556525P WASHER 31.7 8.5 1.6 MS ZP PKT10
16 556093P SCREW MC M8X45 HEX FS MS PKT10
NI 526023 FOOT LOCKNUT INSERT
NI # 599065 CARD INSTAL INSTR DD DBL US 602
# 599066 CARD INSTAL INSTR DD SGL US 602
599068 CARD INSTAL INSTR SGL ANZ 601, 601V2
# 525779 CARD INSTAL INSTR DD601 ANZ 601
599067 CARD INSTAL INSTR DBL ANZ 601V2
![](asset-18.png)
MANUAL 599021A
- 24
INSTALLATION COMPONENTS
MANUAL 599021A
- 25
INSTALLATION COMPONENTS
REF PART DESCRIPTION MODEL
NI 525798 KIT DRAIN HOSE EXTENSION 3.6M
DRAIN HOSE EXTENSION X2
525482 CLIP WIRE DRAIN X4
525780 DRAIN HOSE JOINER X2
NI 526085 TRIM CAVITY TOP GREY US
526086 TRIM CAVITY TOP BLACK US
NI 526053 ENDPLATE ASSY BLACK
NI 526676 KIT INSTALL DOUBLE/SINGLE US
525477F SUPPORT DRAIN HOSE
525925 DRAIN SPIGOT CONNECTOR DBL US
525926 DRAIN SPIGOT CONNECTOR SGL US
525482 CLIP WIRE DRAIN x2
556089P SCREW WS 8X5/8TWINFST MTSPH ZP x7
525938 WASHER WIRSBO US
CLAMP HOSE DIA 32-14
525953 CLAMP HOSE DIA 32-20
525935 EDGE 160MM 22PKG020 UHMWPE US
TRIM CAVITY SIDE DBL CHARCL US x2
TRIM CAVITY SIDE SGL CHARCL US x2
TRIM CAVITY TOP CHARCOAL US
526797 TAB TOP x2
MANUAL 599021
26
![](asset-1b.png)
MANUAL 599021
27
NOTES
FRONT PANELS AND CONTROLS
Technical Bulletins
525185P DW007
CABINET
Technical Bulletins
528152, 528153 DW047
DRAWER LID AND AIR PUMP
Notes
525876P Introduction of new lid from S/N AID525941, along with the overlapping lid seal.
Technical Bulletins
525781 DW002
525873 DW002
525878 DW002
528148 DW047
TUB AND COMPONENTS
Technical Bulletins
525882 DW002
525736 DW003, DW005
BASKETS AND RACKS
Technical Bulletins
525550, 525551,
525552, 525553
DW016
INSTALLATION COMPONENTS
Notes
525838, 525929,
525911, 525912
Books only available from the Fisher & Paykel website
www.fisherpaykel.co.nz
