SMART DRIVE

ELECTRONIC WASHING MACHINE

MODELS

GWL03—US1 GWL08—US1

Fisher & Paykel Appliances Inc

27 Hubble, Irvine, California, CA92618, USA,

Ph: 949 790 8900, Fax: 949 790 8911

FB 200436

C O N T E N T S

SMART DRIVE ELECTRONIC WASHING MACHINE ...................................................... 1

CABINET TOP AND CONSOLE...................................................................................... 4

CABINET........................................................................................................................ 6

TUB AND COMPONENTS .............................................................................................. 8

BASKET AND COMPONENTS...................................................................................... 10

MOTOR........................................................................................................................ 12

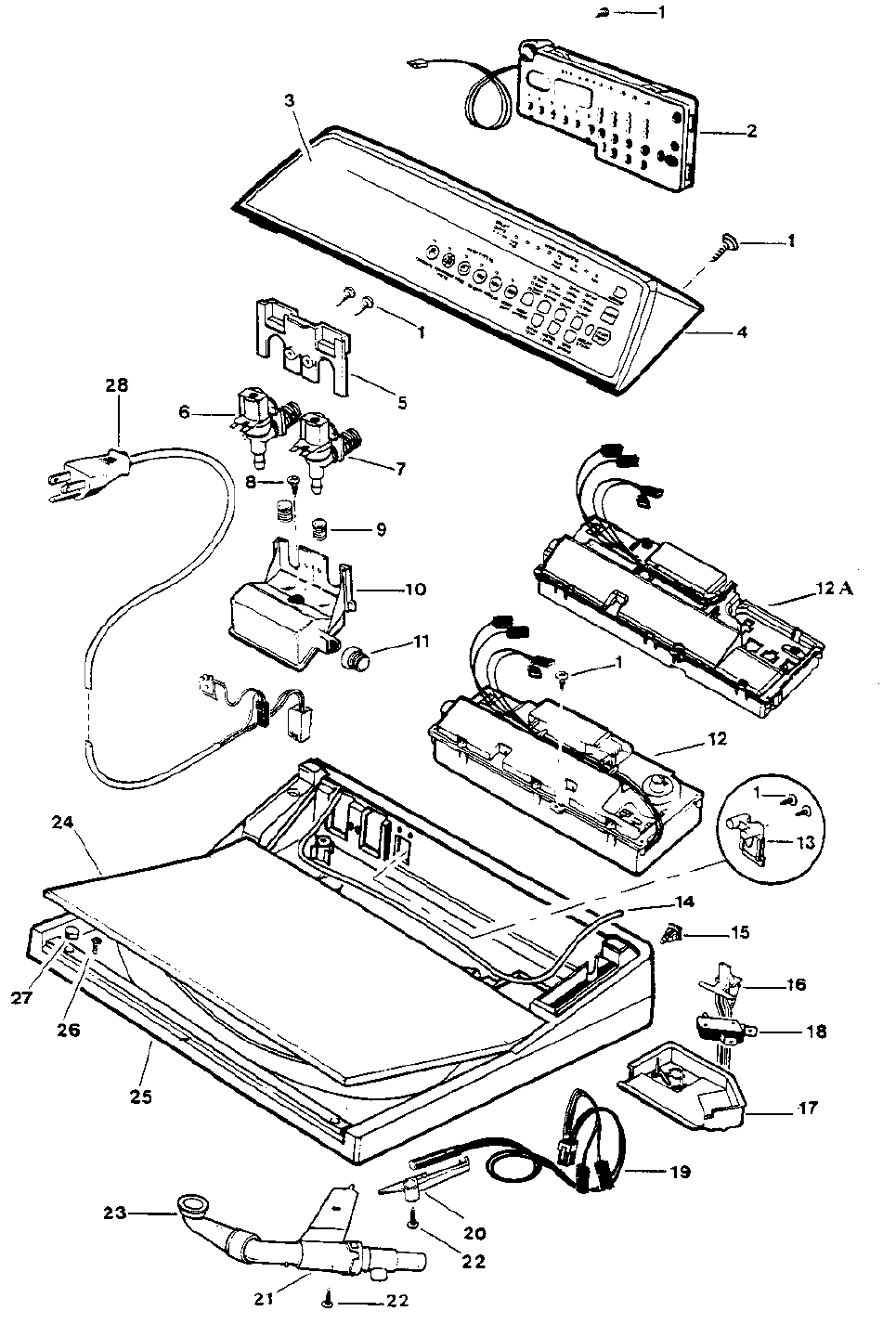

CABINET TOP AND CONSOLE

Cabinet Top and Console

Reference Part Description Notes

1 611933P Screw, controller console display bracket 8 x 5/8 tab

2 426086P Module, display 03 03

426206P Module, display 08 08

3 426254P Panel, touch 03 03

426266P Panel, touch 08 08

4 426055P Console

5 425339 Bracket, valve

6 426143 Valve, inlet proportional cold

7 426142 Valve, inlet hot

8 611986P Screw, inlet chamber 8 x 20MM

9 425251 Seal, inlet valve

10 425916 Chamber inlet

11 425337 Seal, inlet chamber/heat sink

12 425900P Controller, motor - 03 03

12A 426205CP Controller, motor - 08 08

13 426113 Clamp, cord set

14 426273 Gasket, console

15 422402P Nut, snap in

16 425686 Lever, out of balance

17 425772 Bracket, out of balance

18 426597 Switch, out of balance '/4" Terminal

19 426457 Harness reed switch, out of balance '/4” Terminal

20 425859 Clip, reed switch

21 425869 Nozzle, inlet 8 x'/2

22 611985P Screw, clip

23 425974 Elbow inlet

24 426712P Lid assembly

25 426546P Cover

26 611923P Screw, top deck 8 x 5/8 tab 2 required

27 425413 Buffer lid 2 required

28 425950 Cord set

NOT ILLUSTRATED

388491 Cap Blanking (to blank off the hot valve when connected to cold water

only)

502105 Tester, rotor position Service tool

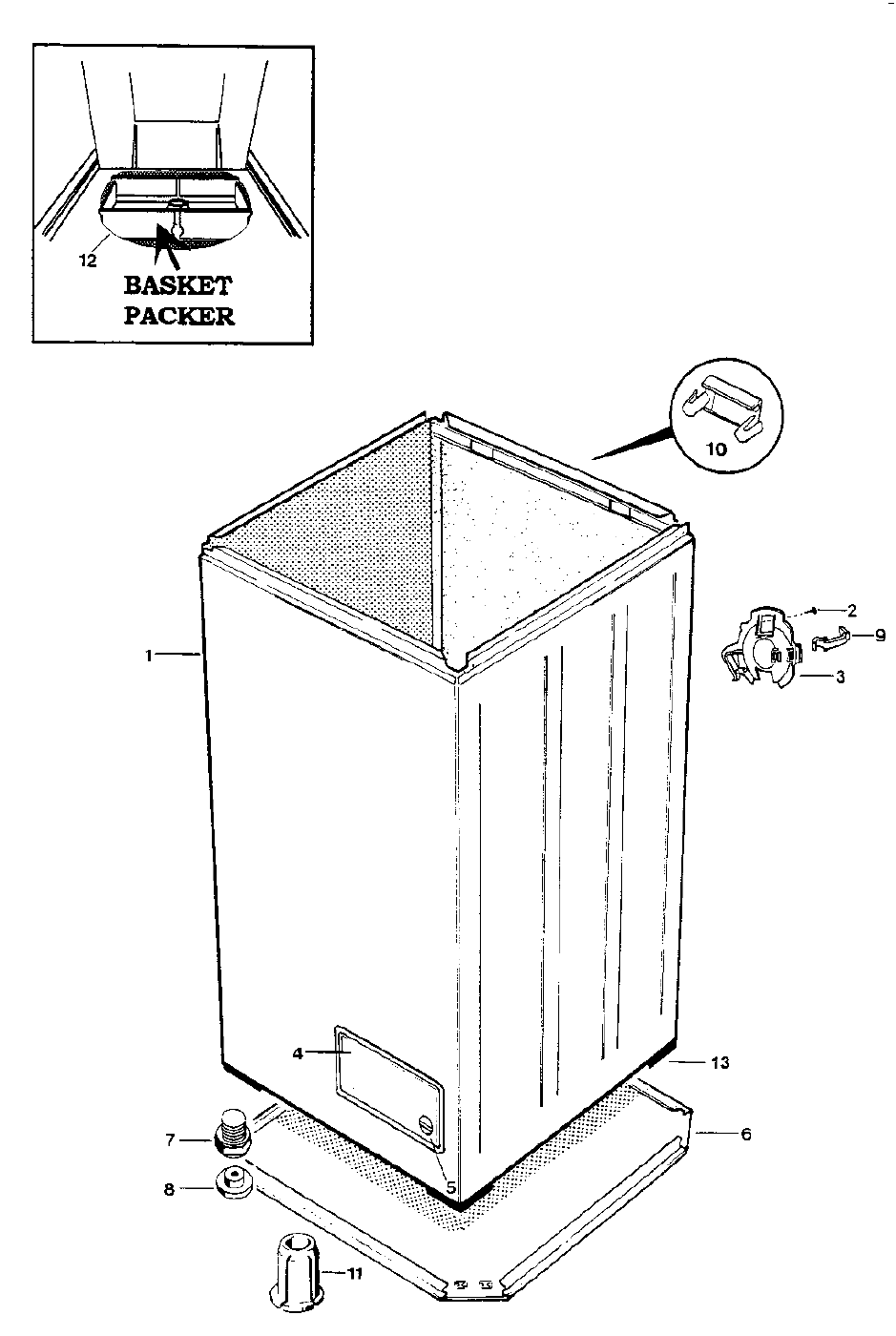

CABINET

Cabinet

Reference Part Description Notes

1 * 426663P Cabinet wrapper

2 611933P Screw, fixture 8 x 5/8

3 425152 Fixture drain hose

4 426140 Servicing hatch not used w/426663P

5 425154 Latch, servicing hatch not used w/426663P

6 425076 Base cabinet, old style Not used w/426663P

7* 426153 Foot, leveling 4 required

8 426154 Foot, insert 4 required

9 425487 Clip, fixture drain hose

10 426058 Cover, earth clip

11 425095 Restraint, transit

12 426283 Packer, basket

13* 426657 Corner, cabinet bottom

NOT ILLUSTRATED

426190 Installation Instructions

426342 Manual, Service mini 08 08

426344 Energy Guide Label

426884 Packer, bottom

426083 Bag, transit

*Included in 426663P

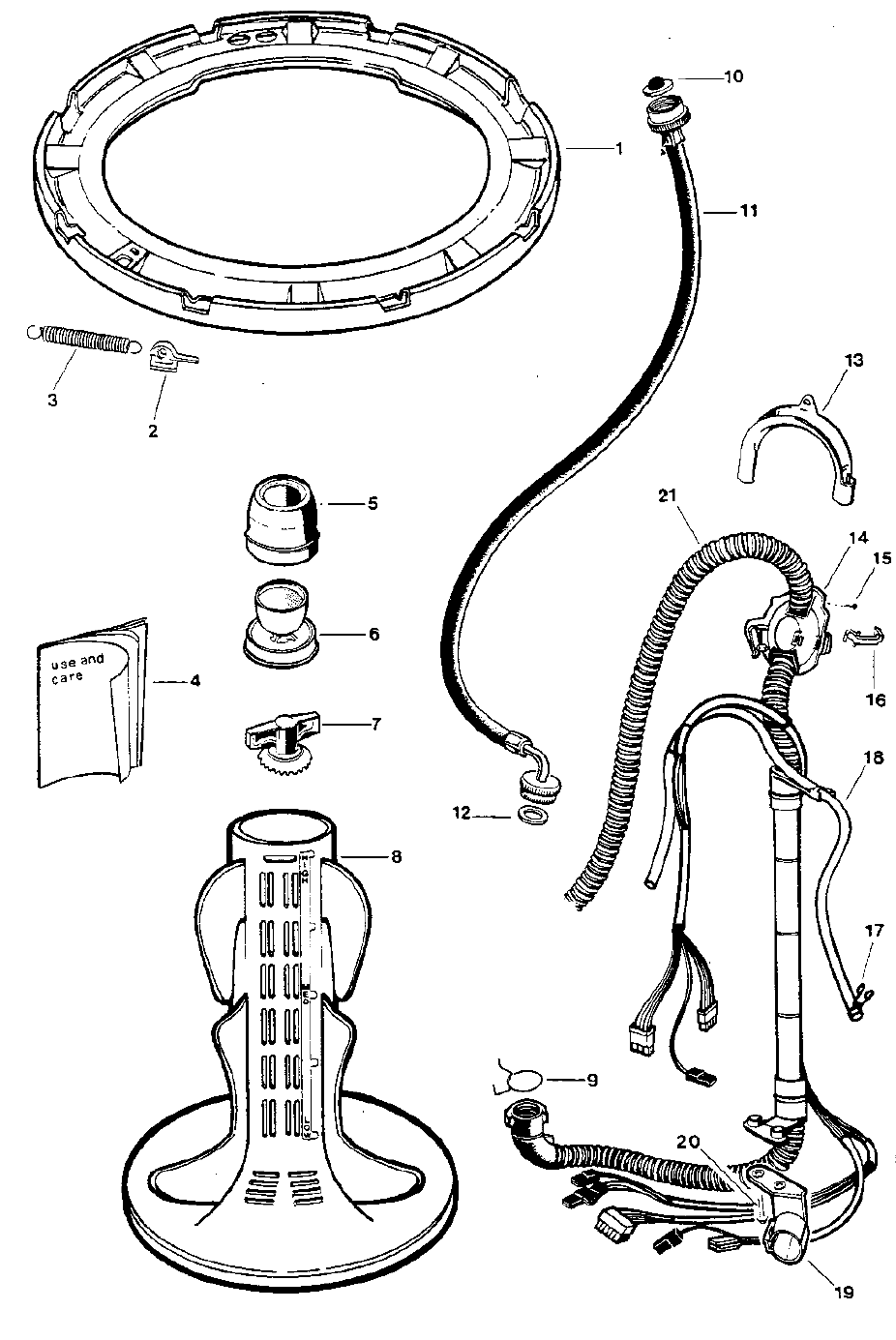

TUB AND COMPONENTS

Tub and Components

Reference Part Description Notes

1 426936 Neck ring assembly

2 425531 Clip, bias spring

3 425173 Spring, bias

4 426442 Guide, use & care - 08 08

426340 Registration card All products

426343 Video, use & care - 08 08

5 426893 Dispenser, top

6 426894 Dispenser, bottom

7 495059 Nut, agitator

8 425025 Agitator

9 422500 Clamp, hose

10 426150 Washer, with screen

11 425963 Hose inlet assembly

12 426149 Washer, flat

13 422808 Guide outlet hose

14 425152 Fixture drain hose

15 611933P Screw, fixture drain hose 8 x 5/8

16 425487 Clip, fixture drain hose

17 425610 Clamp, pressure tube

18 425299 Tube, pressure

20 425503 Bracket, drain hose

20 425150P Screw, 1/4 x 1 Plastite

21 426139 Hose drain and wire harness assembly

(also includes items 14, 16, 18)

NOT ILLUSTRATED

425627P Hose, drain extension (3 feet)

479186 Adapter, inlet hose (BSP x NPT) 2 required

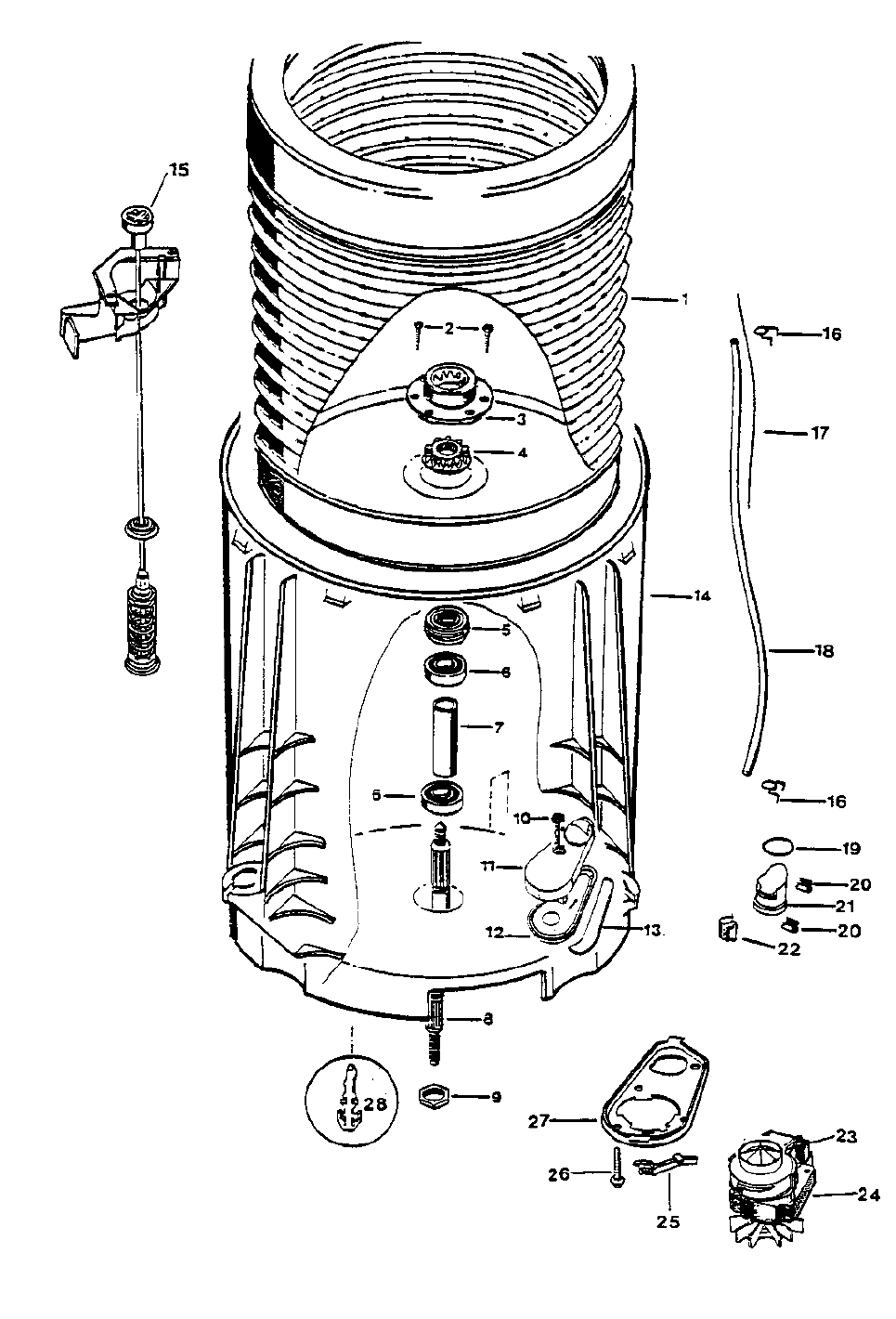

BASKET AND COMPONENTS

Basket and Components

Reference Part Description Notes

1 426099 Basket

2* 425131 P Screw, clutch Packet/10

3* 425080 Spline, driven

4* 425596 Spline, drive

5 425009P Lip seal

6 425006 Bearing

7 425007 Spacer, bearing

8 425013 Shaft

9 425171 Nut, bearing

10 425162P Screw, cover Packet/10

11 Hood, pump Use kit 479188P

12 Cap, pump Use kit 479188P

13 425115 Seal, pump cap Included in kit 479188P

14 425925 Tub assembly Order lip seal

15 426750 Suspension assembly 4 required

16 425610 Clamp, hose

17 425771 Insert, pressure tube

18 425299 Tube, pressure sensor

19 425249 Seal, pressure chamber

20 613710 Clip, edge

21 425097 Plug, pressure chamber

22 613709 Clip, pipe unit

23 Impeller pump Use kit 479188P

24 426375P Pump, drain complete

25 425128 Clip, pump retaining

26 425150P Screw, pump bracket Packet/10

27 425028 Bracket, pump

28 472867 Clip, wiring outer tub

NOT ILLUSTRATED

479188P Kit, pump (impeller, hood, cap & seal) Update kit

* Included in 426099

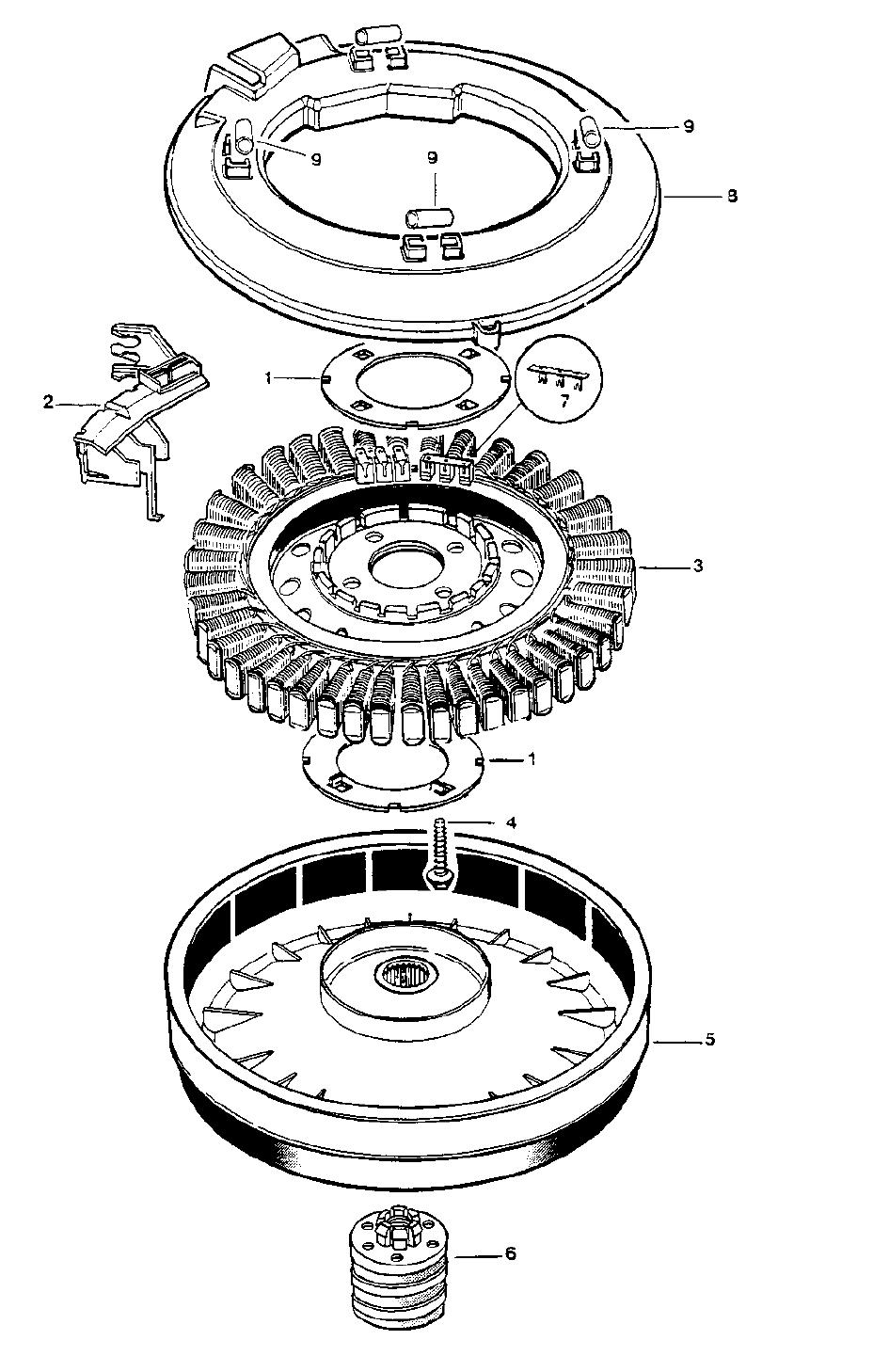

MOTOR

Motor

Reference Part Description Notes

1 426174 Clamp, late assembly

2 425221 P Sensor, rotor position

3 426181 P Stator, wound

4 426835 Screw, stator 4 required

5 425620 Roto

r

6 425016 Nut, roto

r

7 425104 Terminal, bridge

8 425961 Shield, motor

9 425145 Tube, buffer shield motor 4 required
